CSE 332: C++ Polymorphism

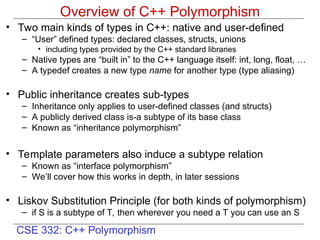

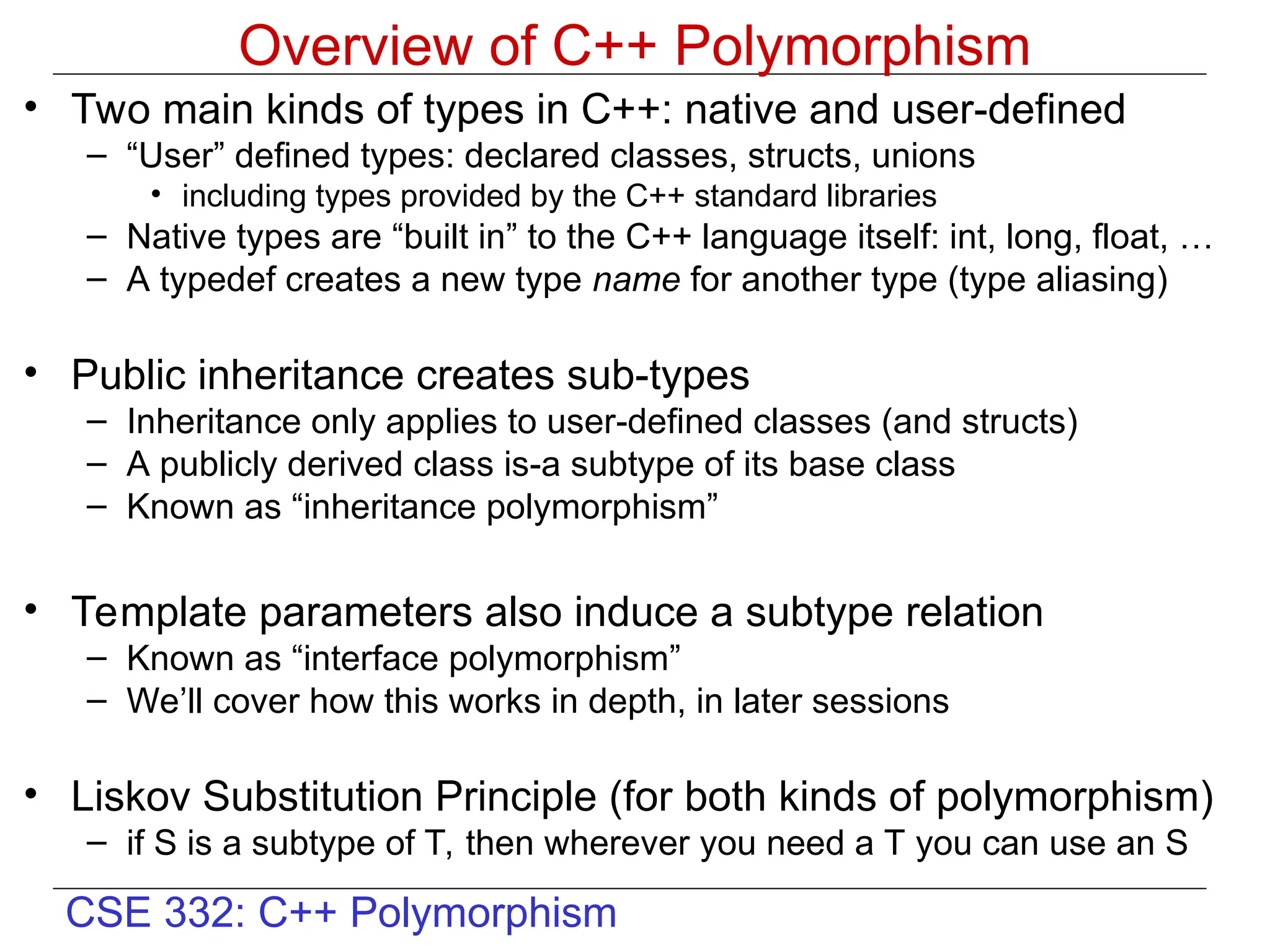

Overview of C++ Polymorphism
• Two main kinds of types in C++: native and user-defined
– “User” defined types: declared classes, structs, unions
• including types provided by the C++ standard libraries
– Native types are “built in” to the C++ language itself: int, long, float, …
– A typedef creates a new type name for another type (type aliasing)
• Public inheritance creates sub-types
– Inheritance only applies to user-defined classes (and structs)
– A publicly derived class is-a subtype of its base class
– Known as “inheritance polymorphism”
• Template parameters also induce a subtype relation
– Known as “interface polymorphism”
– We’ll cover how this works in depth, in later sessions
• Liskov Substitution Principle (for both kinds of polymorphism)
– if S is a subtype of T, then wherever you need a T you can use an S

• Inheritance polymorphism depends on public virtual
member functions in C++
– Base class declares a member function virtual
– Derived class overrides the base class’s definition of the function
• Private or protected inheritance creates a form of
encapsulation
– Does not create a substitutable sub-type
– A privately derived class wraps its base class
– The class form of the Adapter Pattern uses this technique

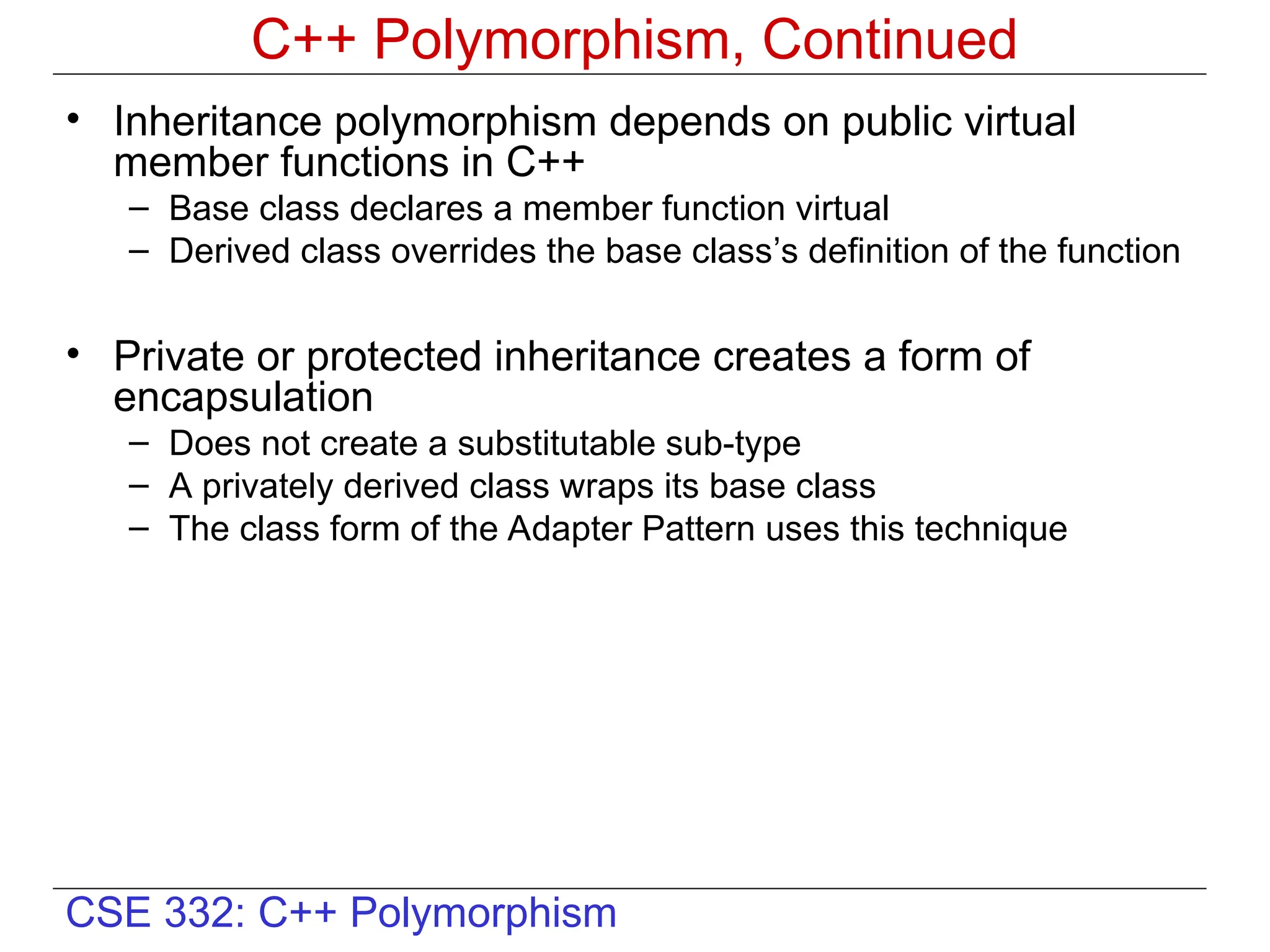

C++ Polymorphism, Continued

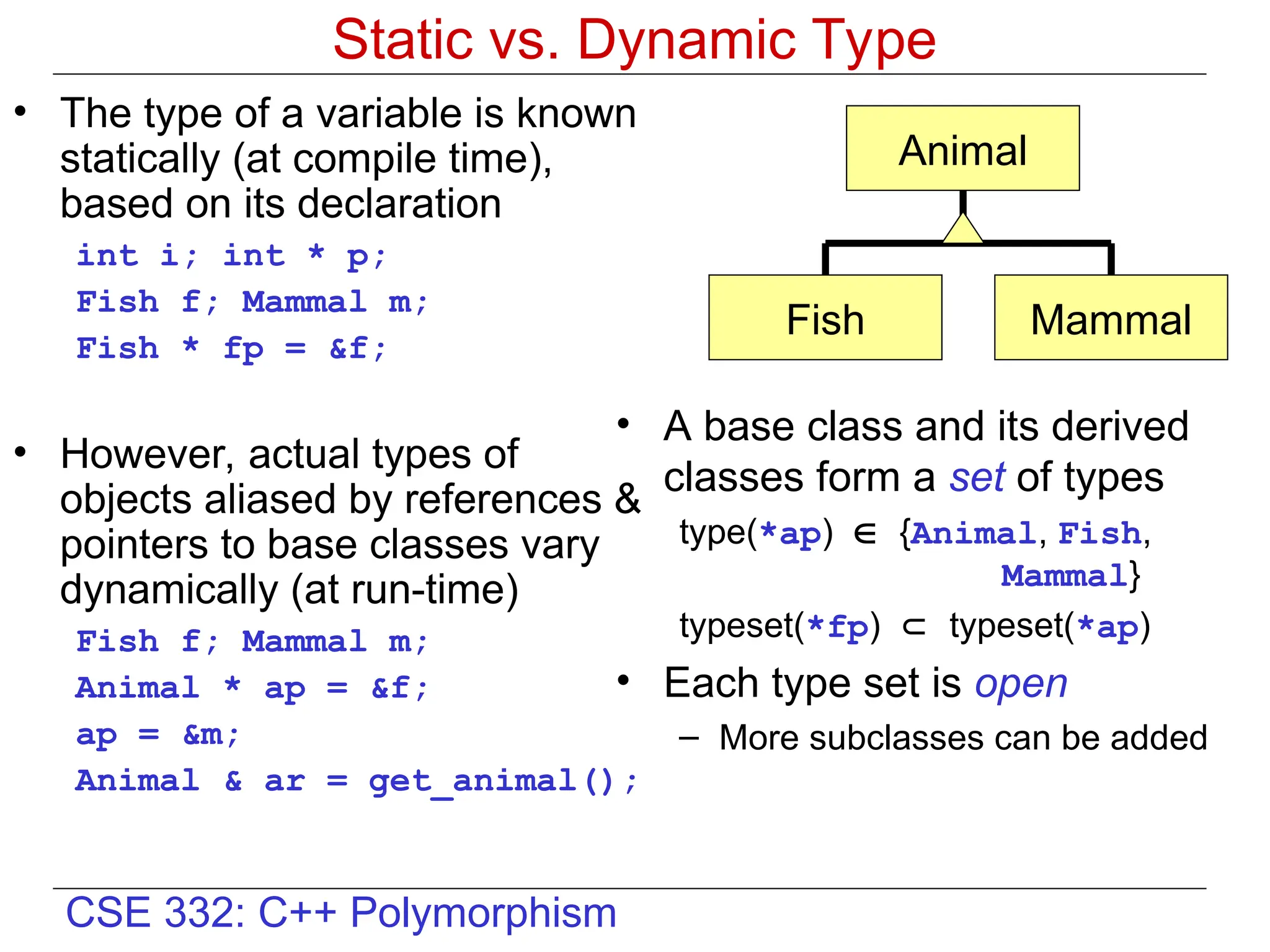

Static vs. Dynamic Type
• The type of a variable is known
statically (at compile time),
based on its declaration
int i; int * p;
Fish f; Mammal m;
Fish * fp = &f;
• However, actual types of
objects aliased by references &
pointers to base classes vary
dynamically (at run-time)
Fish f; Mammal m;
Animal * ap = &f;
ap = &m;
Animal & ar = get_animal();
Animal
Fish Mammal
• A base class and its derived
classes form a set of types
type(*ap)  {Animal, Fish,
Mammal}
typeset(*fp)  typeset(*ap)
• Each type set is open
– More subclasses can be added

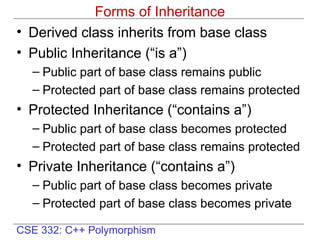

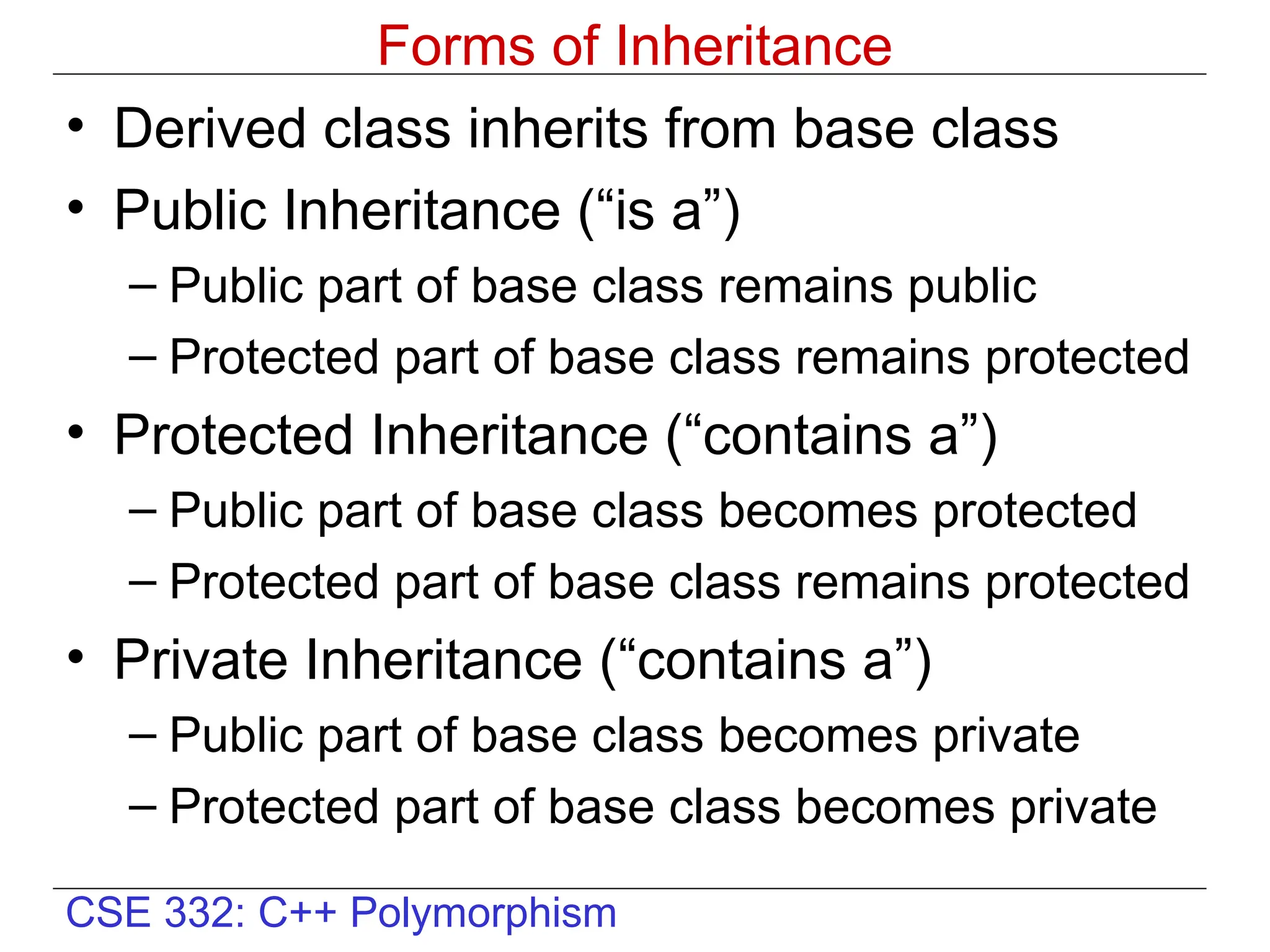

Forms of Inheritance
• Derived class inherits from base class
• Public Inheritance (“is a”)
– Public part of base class remains public
– Protected part of base class remains protected
• Protected Inheritance (“contains a”)
– Public part of base class becomes protected
– Protected part of base class remains protected
• Private Inheritance (“contains a”)
– Public part of base class becomes private
– Protected part of base class becomes private

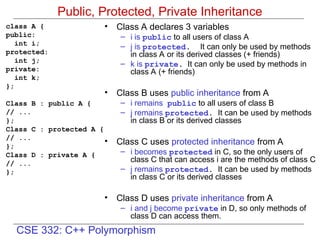

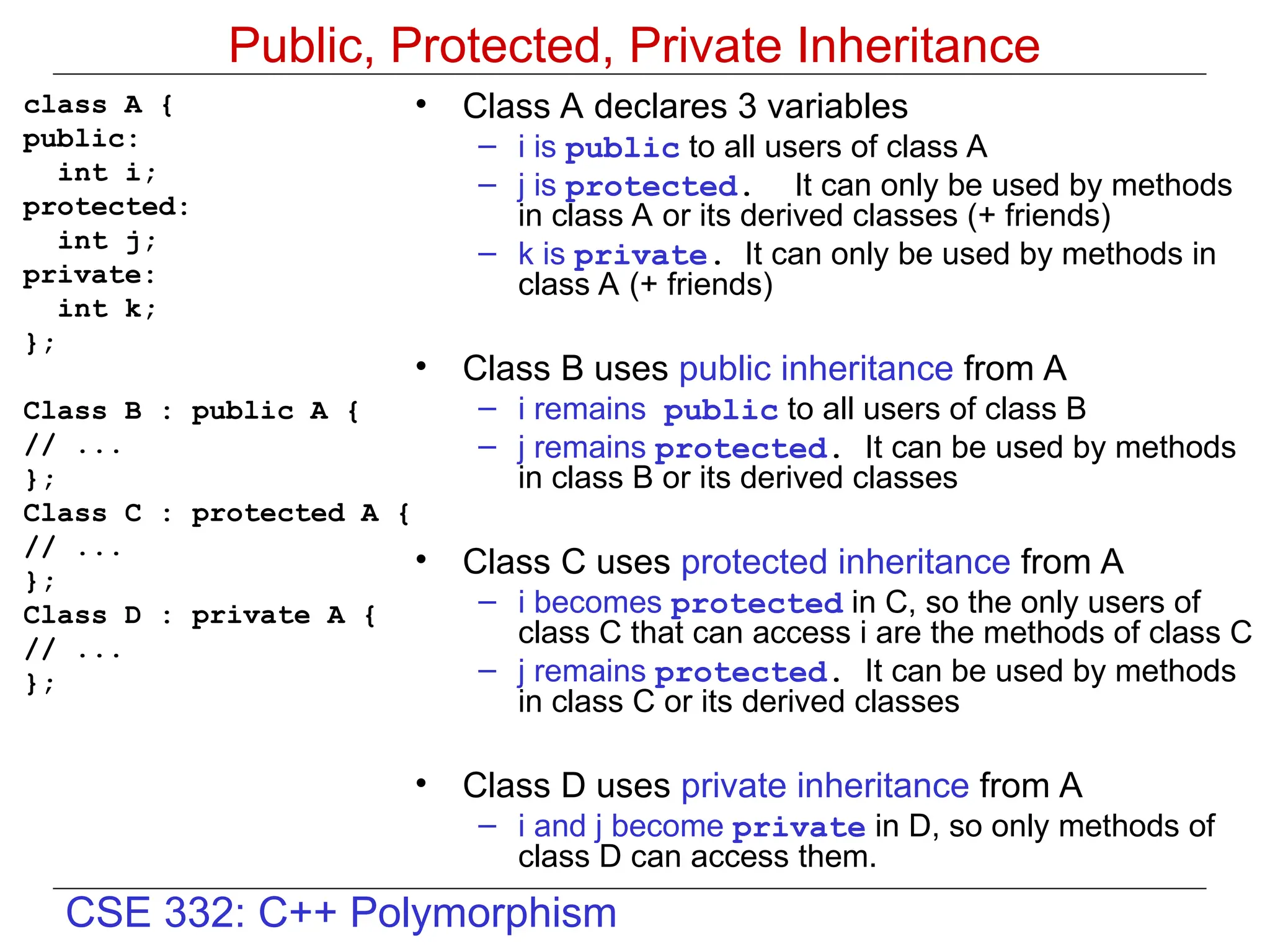

Public, Protected, Private Inheritance
class A {
public:
int i;
protected:
int j;
private:
int k;
};
Class B : public A {
// ...
};
Class C : protected A {
// ...
};
Class D : private A {
// ...
};
• Class A declares 3 variables
– i is public to all users of class A
– j is protected. It can only be used by methods
in class A or its derived classes (+ friends)
– k is private. It can only be used by methods in
class A (+ friends)
• Class B uses public inheritance from A
– i remains public to all users of class B
– j remains protected. It can be used by methods
in class B or its derived classes
• Class C uses protected inheritance from A
– i becomes protected in C, so the only users of
class C that can access i are the methods of class C
– j remains protected. It can be used by methods
in class C or its derived classes
• Class D uses private inheritance from A
– i and j become private in D, so only methods of
class D can access them.

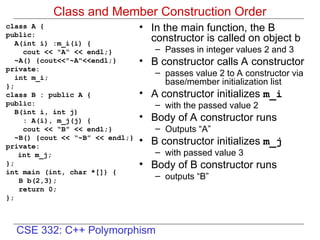

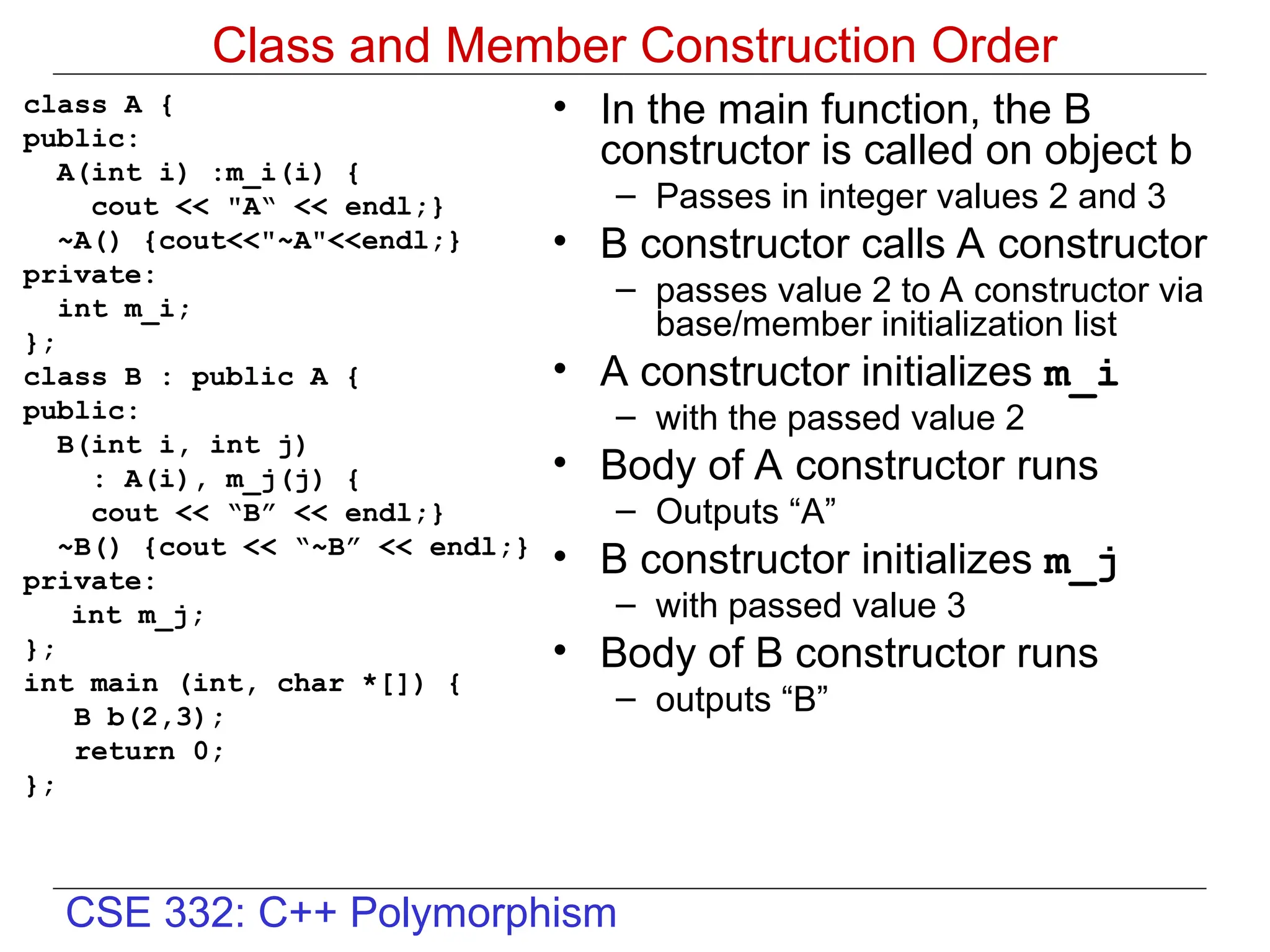

Class and Member Construction Order
class A {
public:
A(int i) :m_i(i) {
cout << "A“ << endl;}
~A() {cout<<"~A"<<endl;}
private:
int m_i;
};
class B : public A {
public:
B(int i, int j)
: A(i), m_j(j) {
cout << “B” << endl;}
~B() {cout << “~B” << endl;}
private:
int m_j;
};
int main (int, char *[]) {
B b(2,3);
return 0;
};
• In the main function, the B
constructor is called on object b
– Passes in integer values 2 and 3
• B constructor calls A constructor
– passes value 2 to A constructor via
base/member initialization list
• A constructor initializes m_i
– with the passed value 2
• Body of A constructor runs
– Outputs “A”
• B constructor initializes m_j
– with passed value 3
• Body of B constructor runs
– outputs “B”

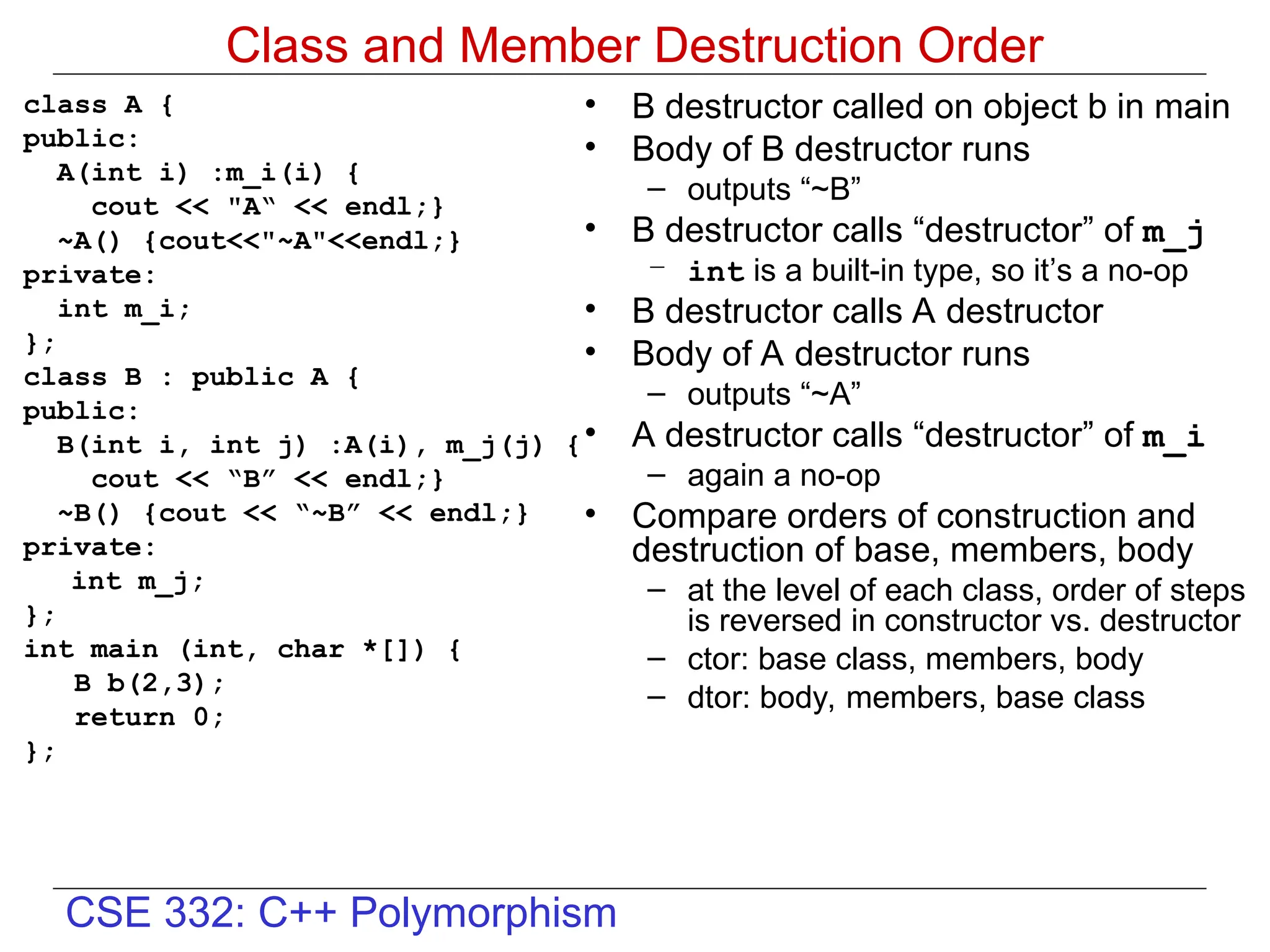

Class and Member Destruction Order
class A {
public:
A(int i) :m_i(i) {
cout << "A“ << endl;}
~A() {cout<<"~A"<<endl;}
private:
int m_i;
};
public:
B(int i, int j) :A(i), m_j(j) {
cout << “B” << endl;}
~B() {cout << “~B” << endl;}
private:
int m_j;
};
B b(2,3);
return 0;
};
• B destructor called on object b in main
• Body of B destructor runs
– outputs “~B”
• B destructor calls “destructor” of m_j
– int is a built-in type, so it’s a no-op
• B destructor calls A destructor
• Body of A destructor runs
– outputs “~A”
• A destructor calls “destructor” of m_i
– again a no-op
• Compare orders of construction and
destruction of base, members, body
– at the level of each class, order of steps
is reversed in constructor vs. destructor
– ctor: base class, members, body
– dtor: body, members, base class

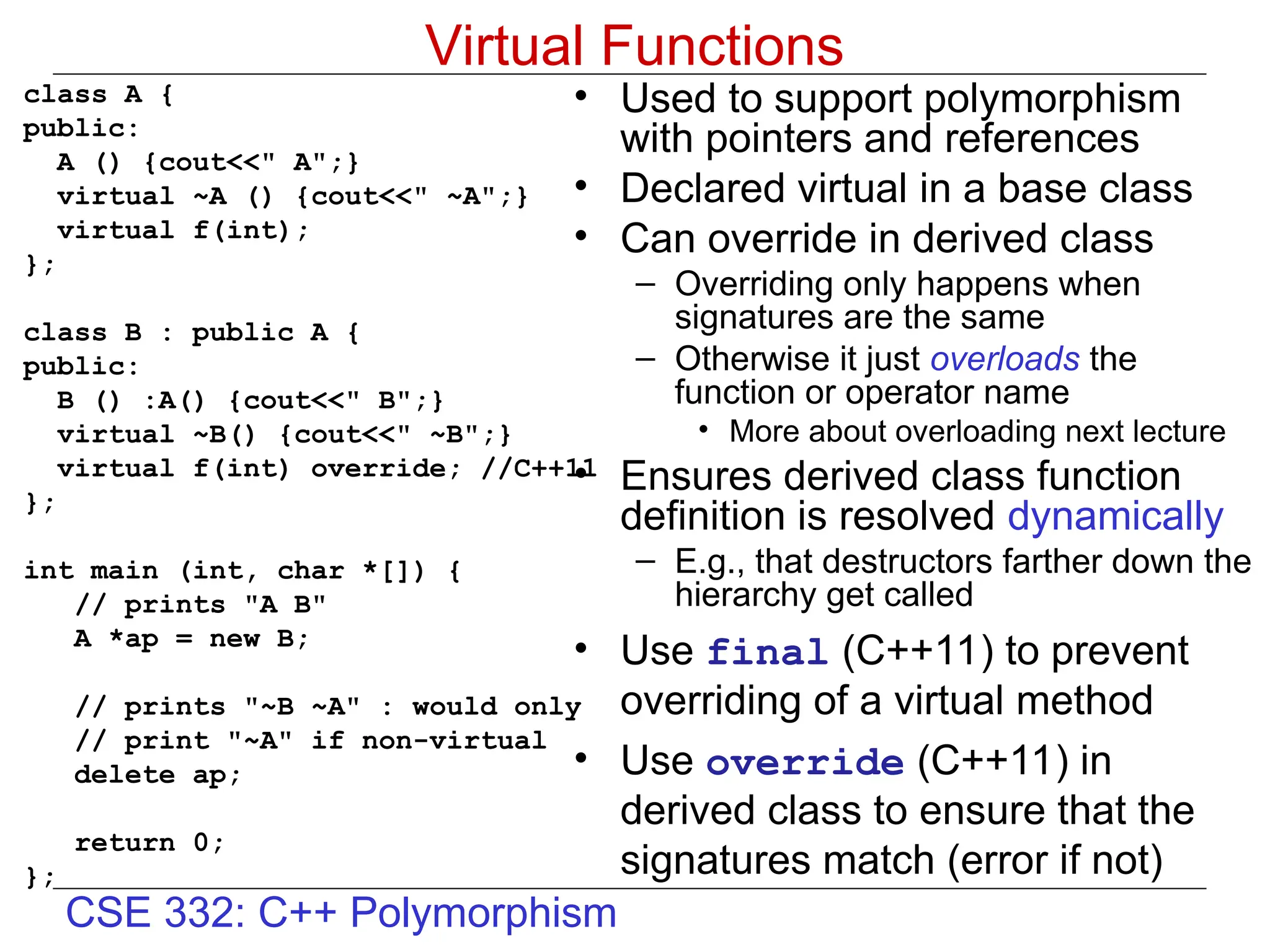

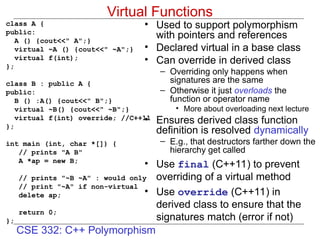

Virtual Functions
class A {
public:
A () {cout<<" A";}
virtual ~A () {cout<<" ~A";}
virtual f(int);
};
public:
B () :A() {cout<<" B";}
virtual ~B() {cout<<" ~B";}
virtual f(int) override; //C++11
};
// prints "A B"
A *ap = new B;
// prints "~B ~A" : would only
// print "~A" if non-virtual
delete ap;
return 0;
};
• Used to support polymorphism
with pointers and references
• Declared virtual in a base class
• Can override in derived class
– Overriding only happens when
signatures are the same
– Otherwise it just overloads the
function or operator name
• More about overloading next lecture
• Ensures derived class function
definition is resolved dynamically
– E.g., that destructors farther down the
hierarchy get called
• Use final (C++11) to prevent
overriding of a virtual method
• Use override (C++11) in
derived class to ensure that the
signatures match (error if not)

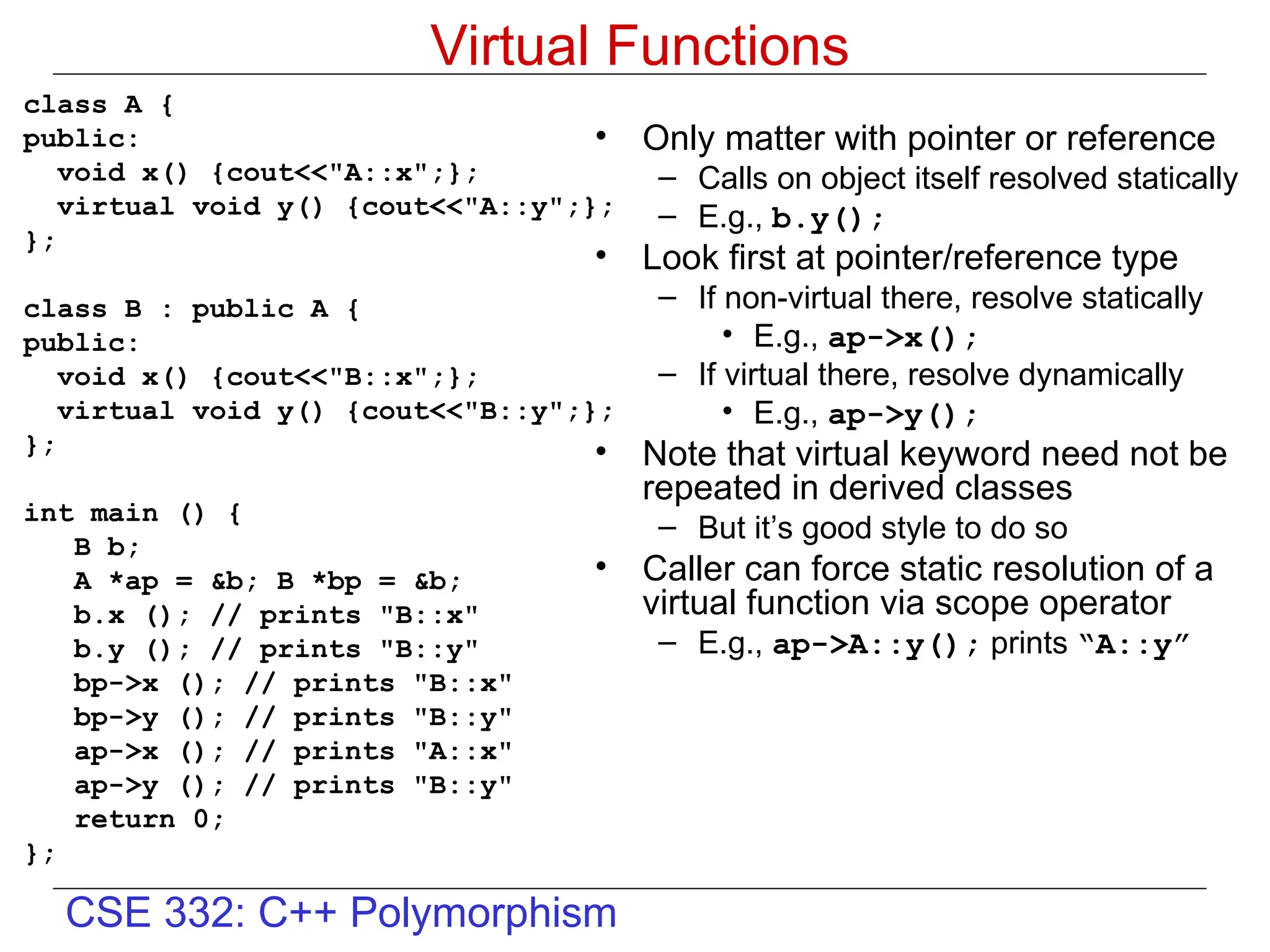

Virtual Functions
class A {
public:
void x() {cout<<"A::x";};
virtual void y() {cout<<"A::y";};
};
public:
void x() {cout<<"B::x";};
virtual void y() {cout<<"B::y";};
};
int main () {
B b;
A *ap = &b; B *bp = &b;
b.x (); // prints "B::x"
b.y (); // prints "B::y"
bp->x (); // prints "B::x"
bp->y (); // prints "B::y"
ap->x (); // prints "A::x"
ap->y (); // prints "B::y"
return 0;
};
• Only matter with pointer or reference
– Calls on object itself resolved statically
– E.g., b.y();
• Look first at pointer/reference type
– If non-virtual there, resolve statically
• E.g., ap->x();
– If virtual there, resolve dynamically
• E.g., ap->y();
• Note that virtual keyword need not be
repeated in derived classes
– But it’s good style to do so
• Caller can force static resolution of a
virtual function via scope operator
– E.g., ap->A::y(); prints “A::y”

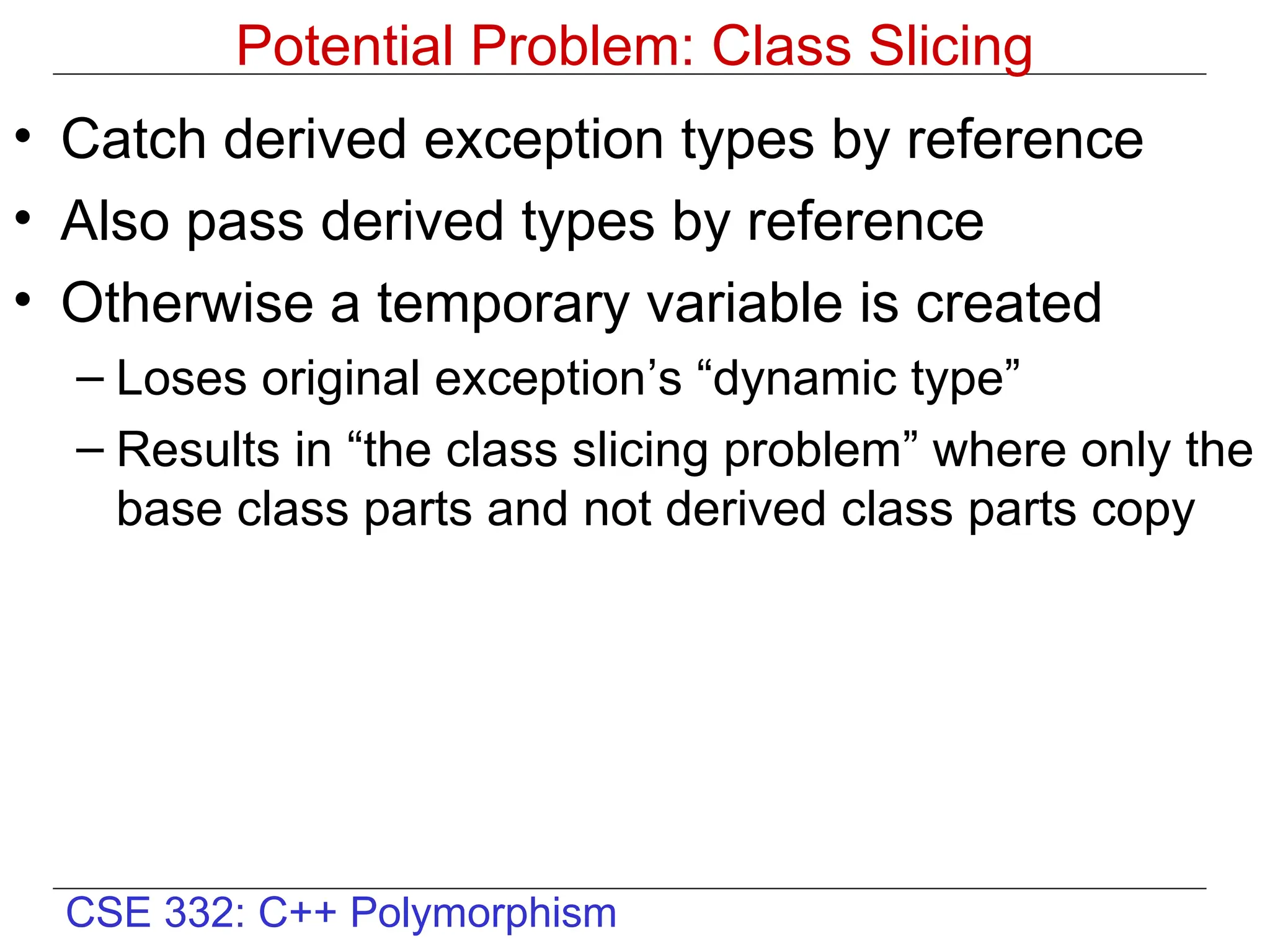

Potential Problem: Class Slicing
• Catch derived exception types by reference
• Also pass derived types by reference
• Otherwise a temporary variable is created
– Loses original exception’s “dynamic type”
– Results in “the class slicing problem” where only the
base class parts and not derived class parts copy

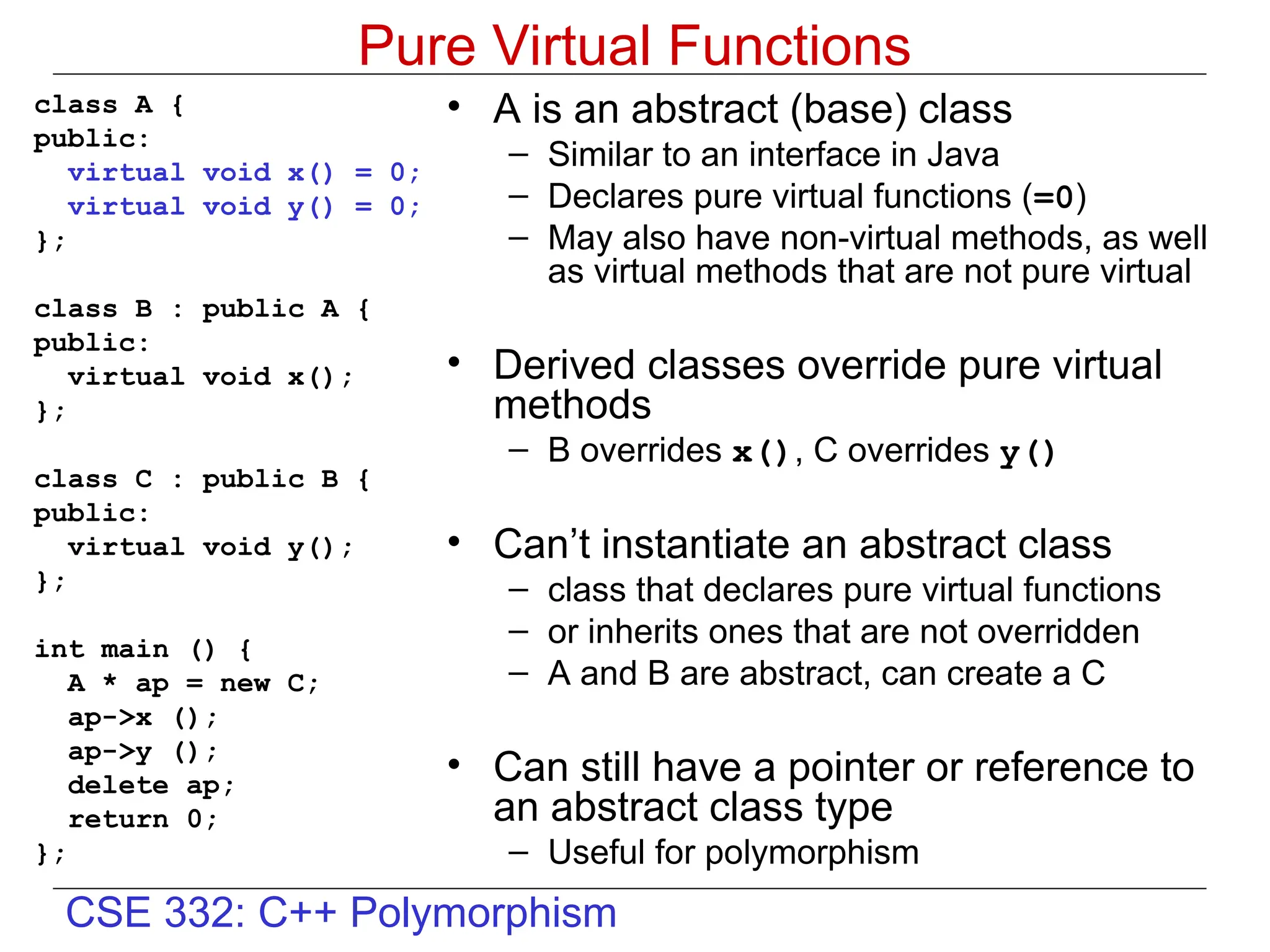

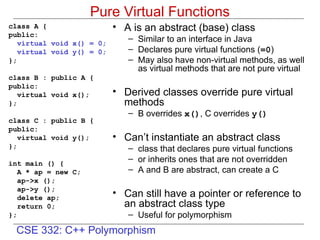

Pure Virtual Functions
class A {
public:
virtual void x() = 0;
virtual void y() = 0;
};
public:
virtual void x();
};
class C : public B {
public:
virtual void y();
};
int main () {
A * ap = new C;
ap->x ();
ap->y ();
delete ap;
return 0;
};
• A is an abstract (base) class
– Similar to an interface in Java
– Declares pure virtual functions (=0)
– May also have non-virtual methods, as well
as virtual methods that are not pure virtual
• Derived classes override pure virtual
methods
– B overrides x(), C overrides y()
• Can’t instantiate an abstract class
– class that declares pure virtual functions
– or inherits ones that are not overridden
– A and B are abstract, can create a C
• Can still have a pointer or reference to
an abstract class type
– Useful for polymorphism

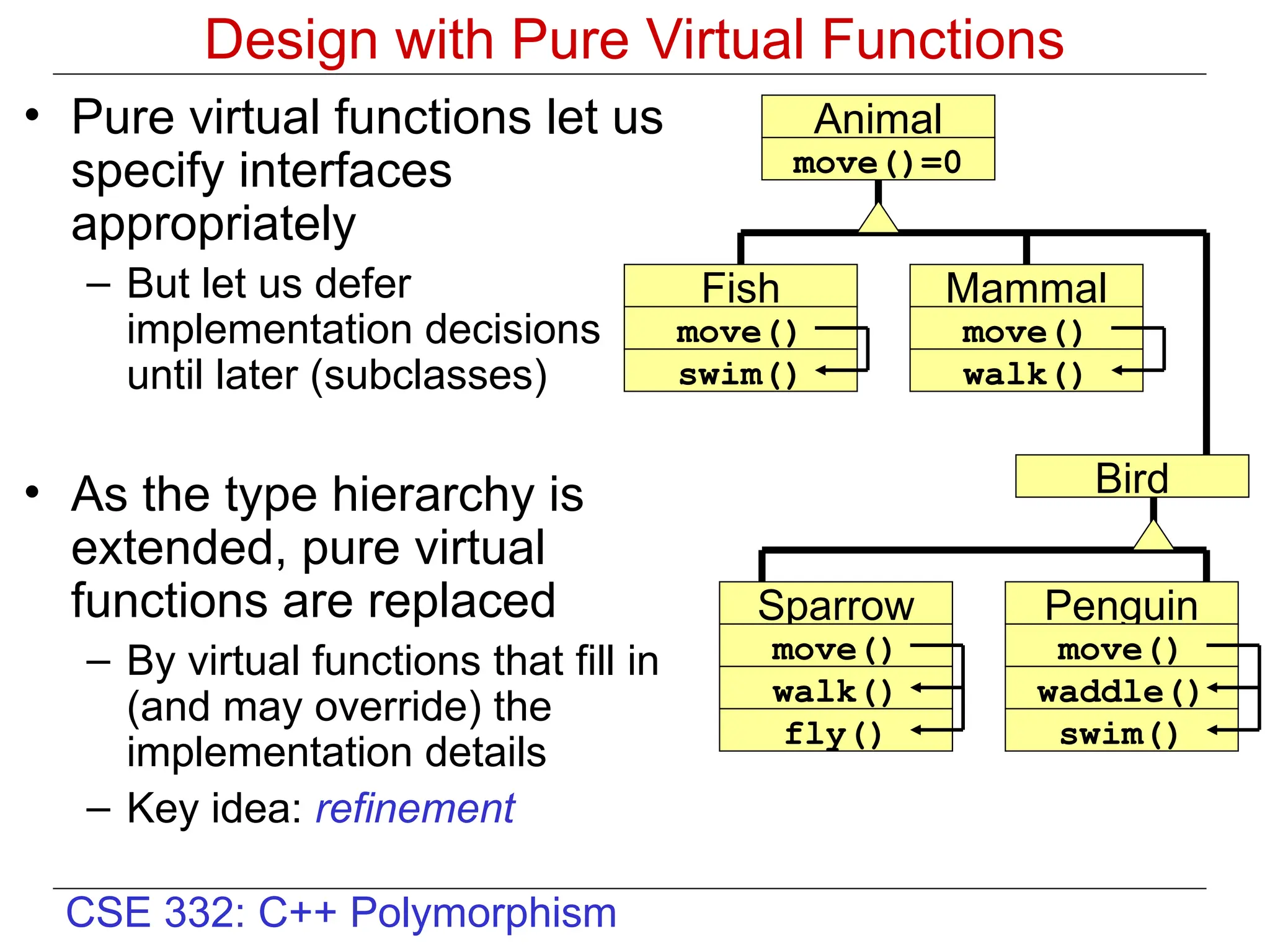

Design with Pure Virtual Functions
• Pure virtual functions let us
specify interfaces
appropriately
– But let us defer
implementation decisions
until later (subclasses)
• As the type hierarchy is
extended, pure virtual
functions are replaced
– By virtual functions that fill in
(and may override) the
implementation details
– Key idea: refinement
Animal
move()=0
Fish
swim()
Mammal
walk()
move()
move()
Bird
Penguin
waddle()
move()
swim()
Sparrow
walk()
move()
fly()

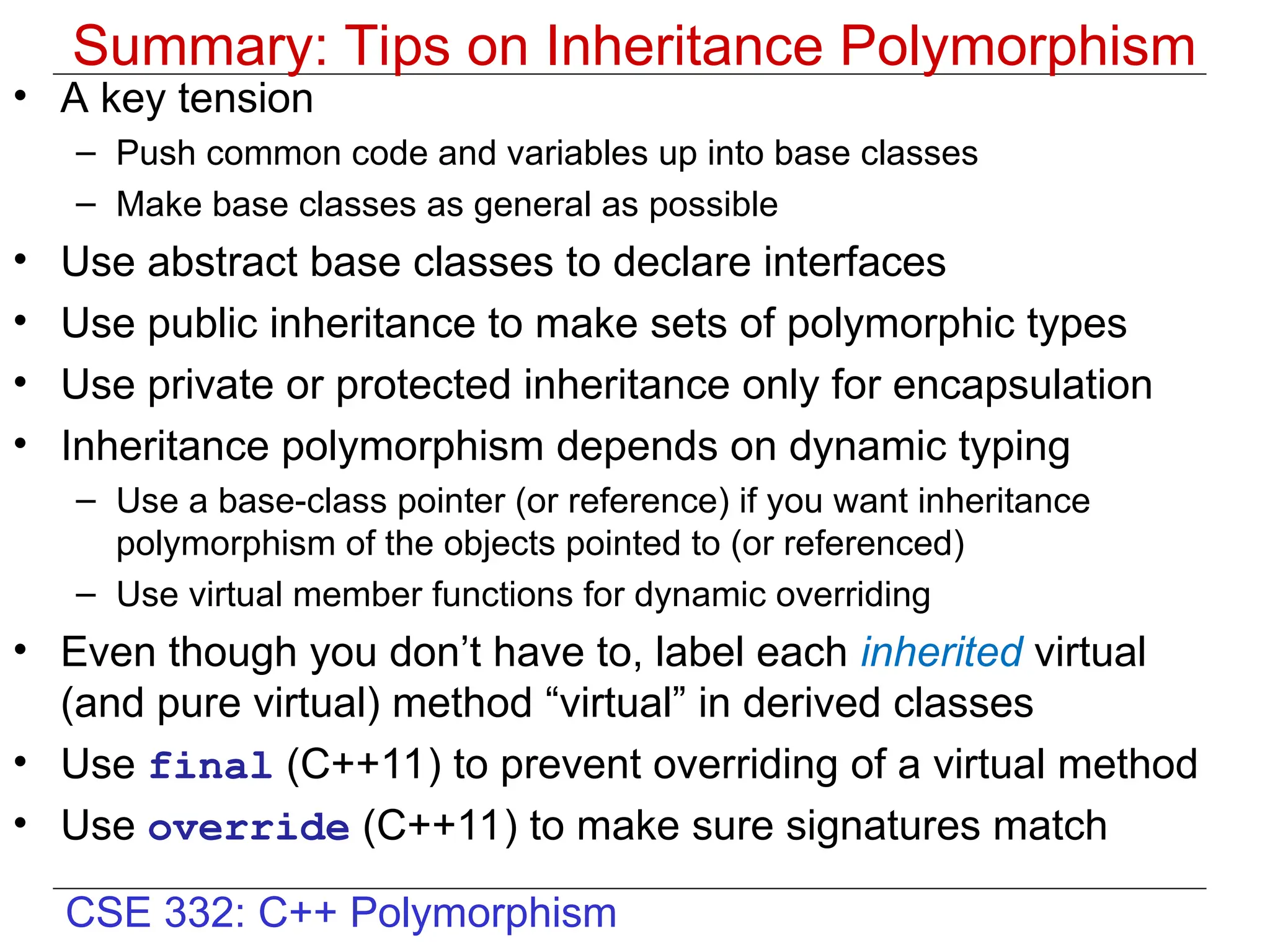

Summary: Tips on Inheritance Polymorphism
• A key tension
– Push common code and variables up into base classes
– Make base classes as general as possible
• Use abstract base classes to declare interfaces
• Use public inheritance to make sets of polymorphic types
• Use private or protected inheritance only for encapsulation
• Inheritance polymorphism depends on dynamic typing
– Use a base-class pointer (or reference) if you want inheritance
polymorphism of the objects pointed to (or referenced)
– Use virtual member functions for dynamic overriding
• Even though you don’t have to, label each inherited virtual
(and pure virtual) method “virtual” in derived classes
• Use final (C++11) to prevent overriding of a virtual method
• Use override (C++11) to make sure signatures match
