Ceph Introduction 2017
- 1.

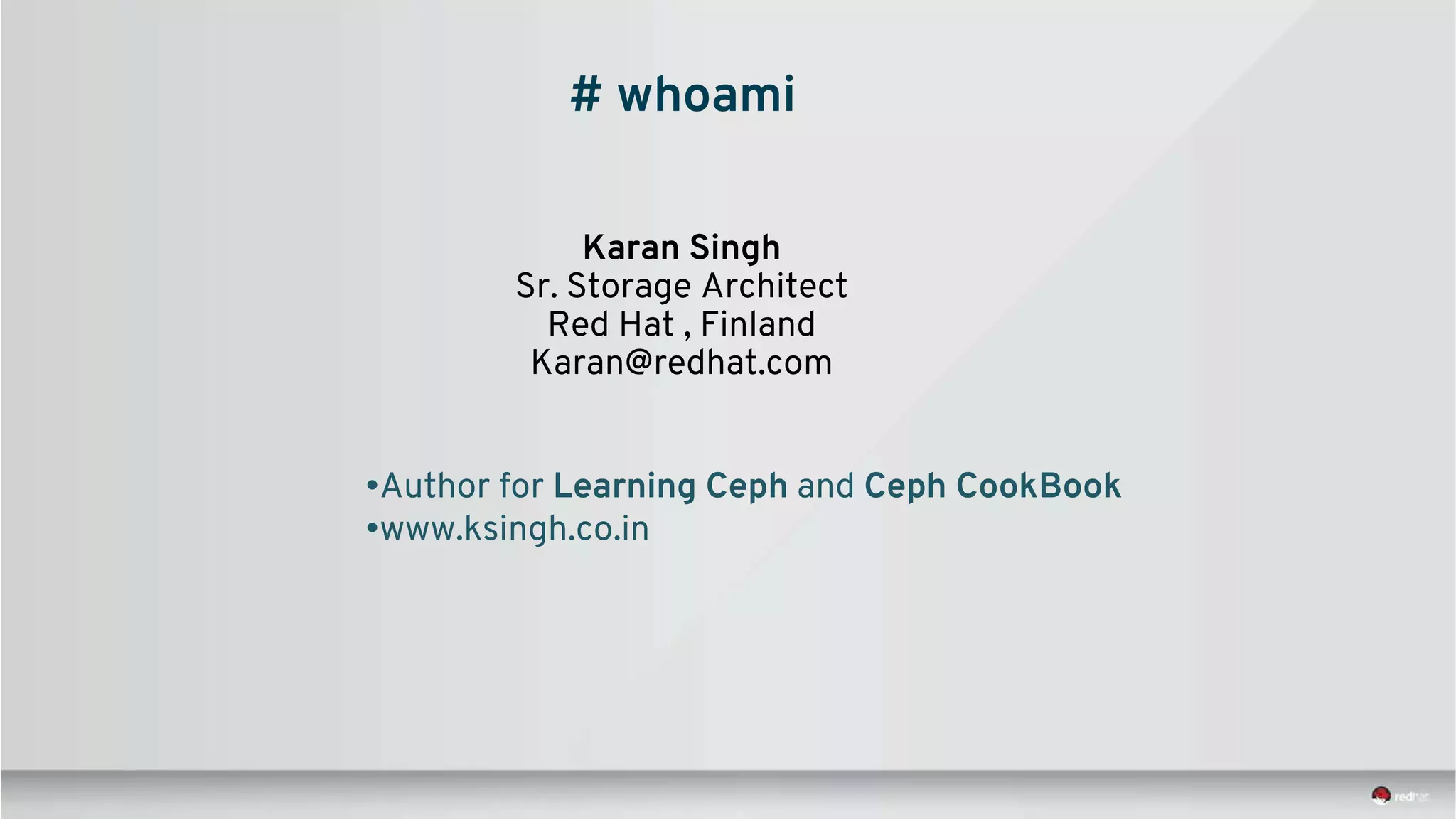

- 2. Karan Singh Sr. StorageArchitect Red Hat , Finland Karan@redhat.com •Author for Learning Ceph and Ceph CookBook •www.ksingh.co.in # whoami

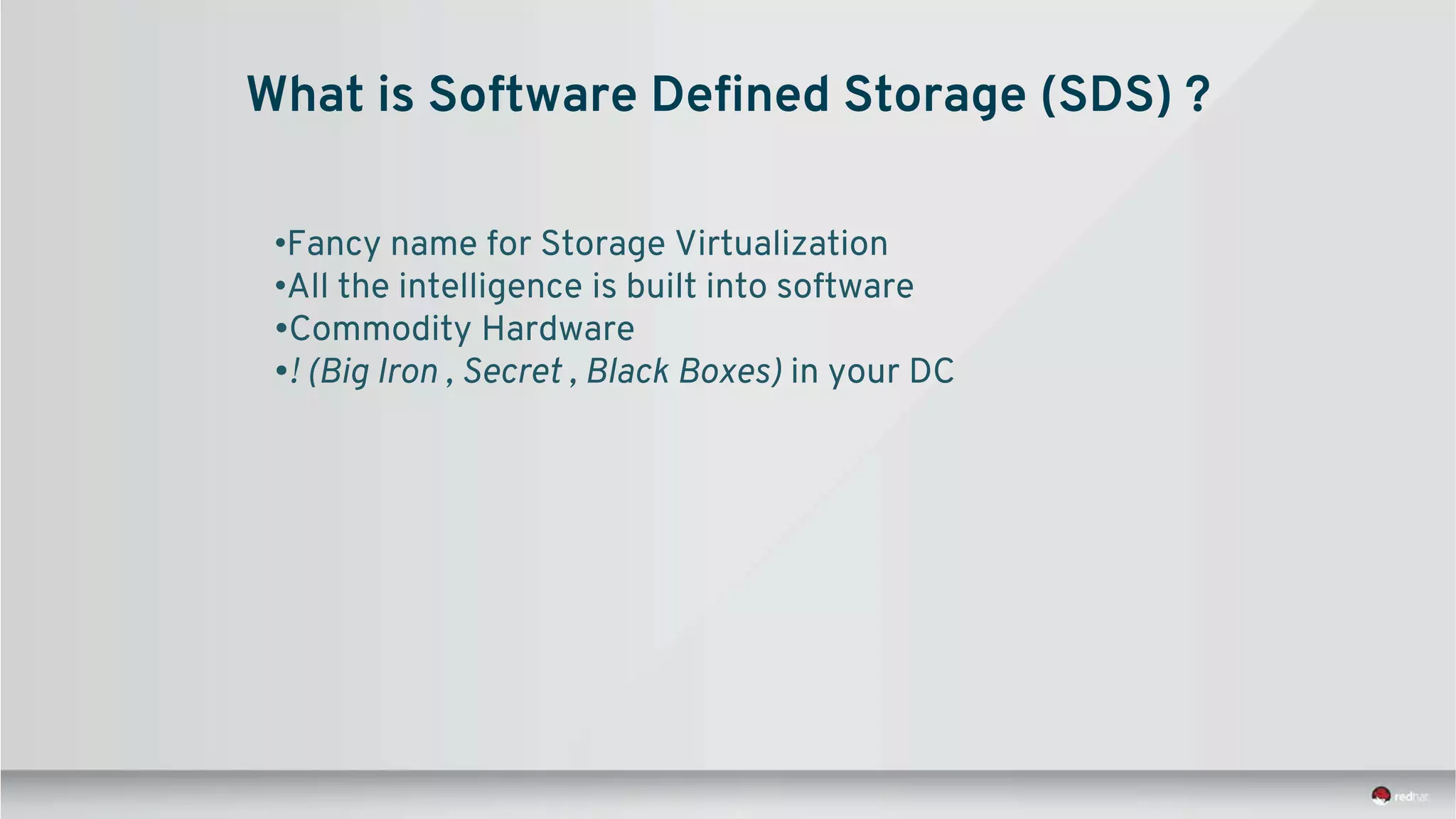

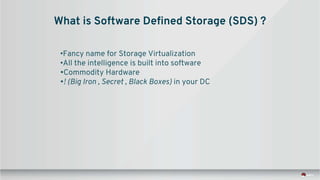

- 3. What is SoftwareDefined Storage (SDS) ? •Fancy name for Storage Virtualization •All the intelligence is built into software •Commodity Hardware •! (Big Iron , Secret , Black Boxes) in your DC

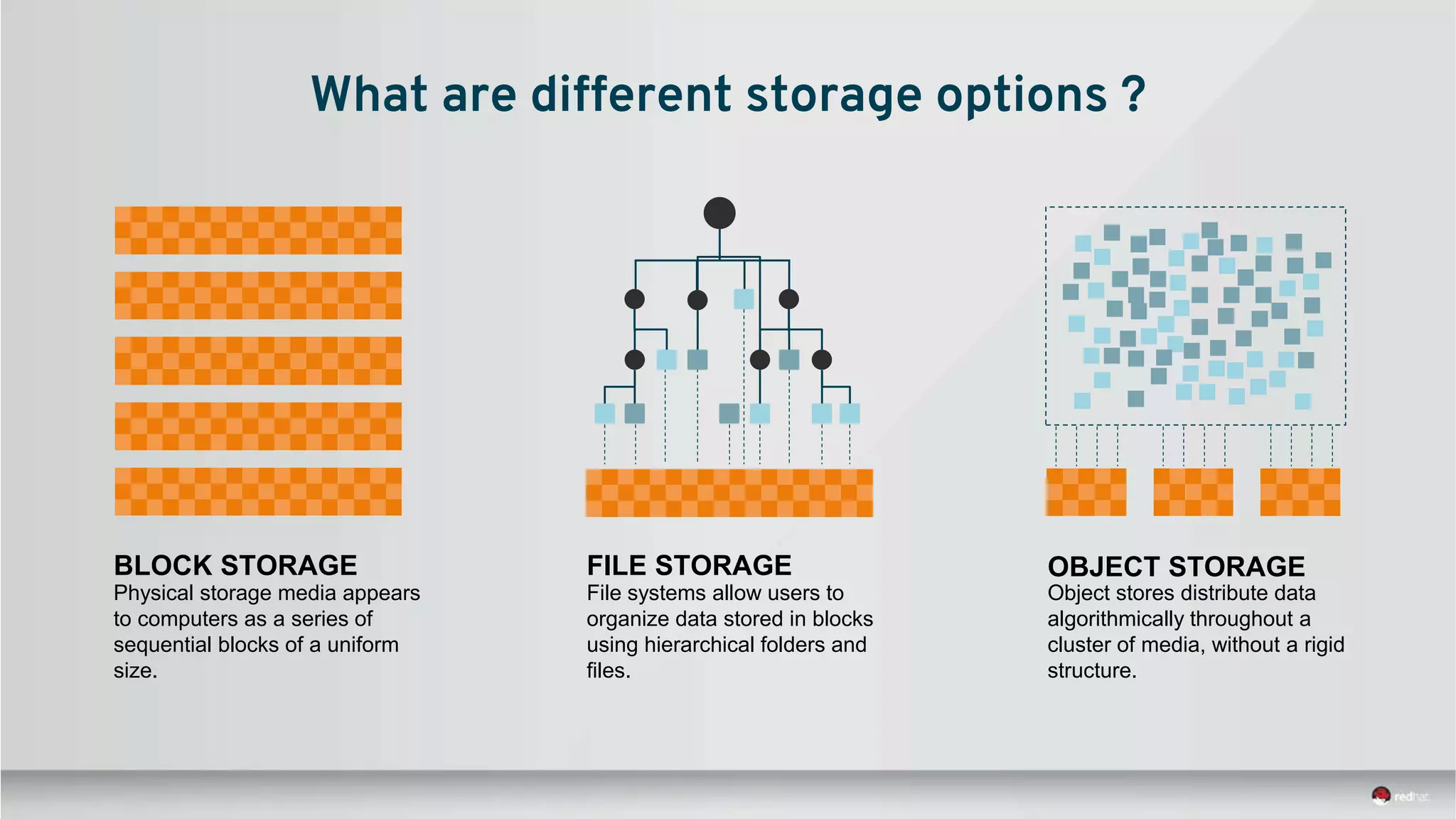

- 4. What are differentstorage options ? FILE STORAGE File systems allow users to organize data stored in blocks using hierarchical folders and files. OBJECT STORAGE Object stores distribute data algorithmically throughout a cluster of media, without a rigid structure. BLOCK STORAGE Physical storage media appears to computers as a series of sequential blocks of a uniform size.
- 5.

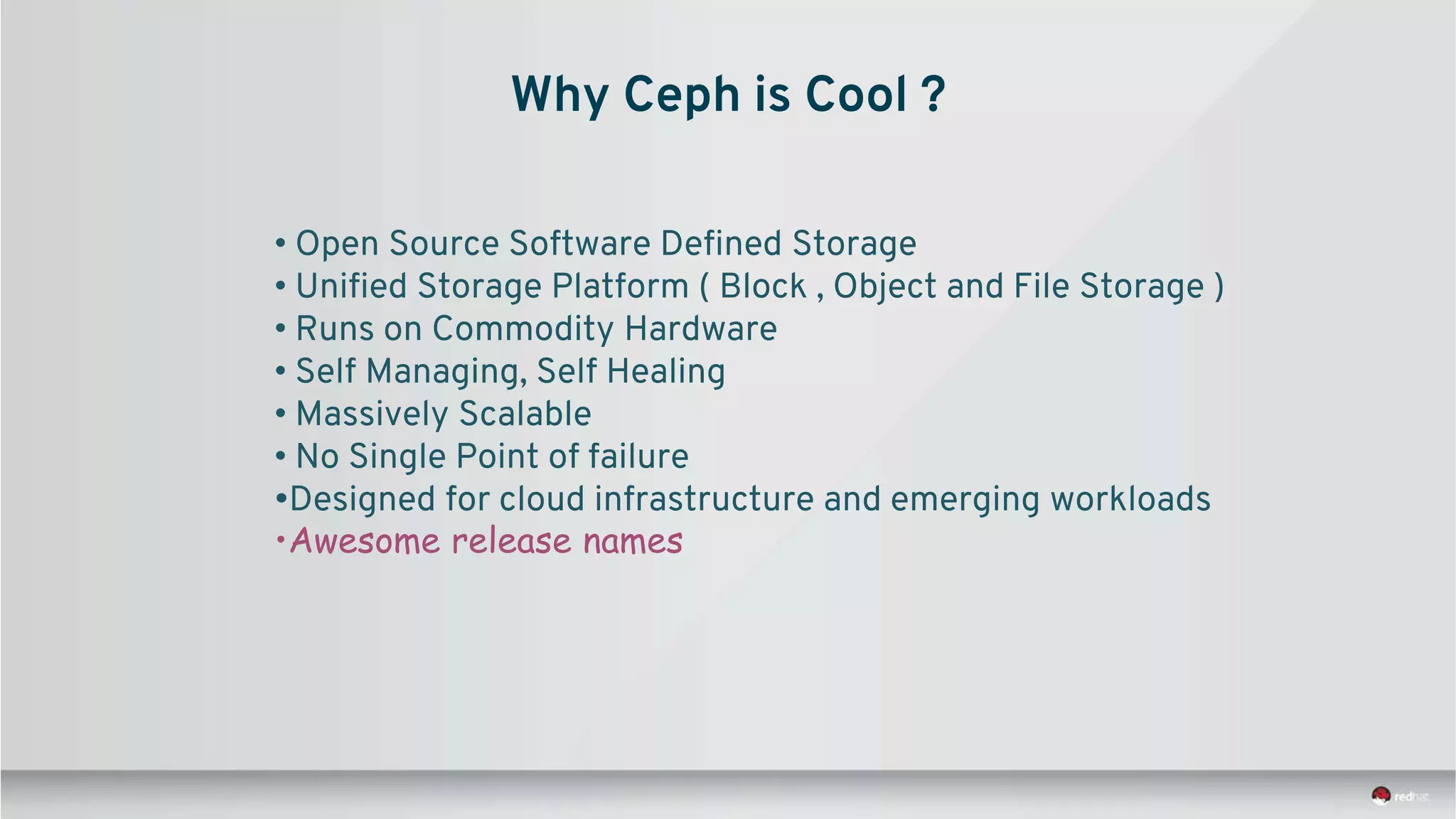

- 6. Why Ceph isCool ? • Open Source Software Defined Storage • Unified Storage Platform ( Block , Object and File Storage ) • Runs on Commodity Hardware • Self Managing, Self Healing • Massively Scalable • No Single Point of failure •Designed for cloud infrastructure and emerging workloads •Awesome release names

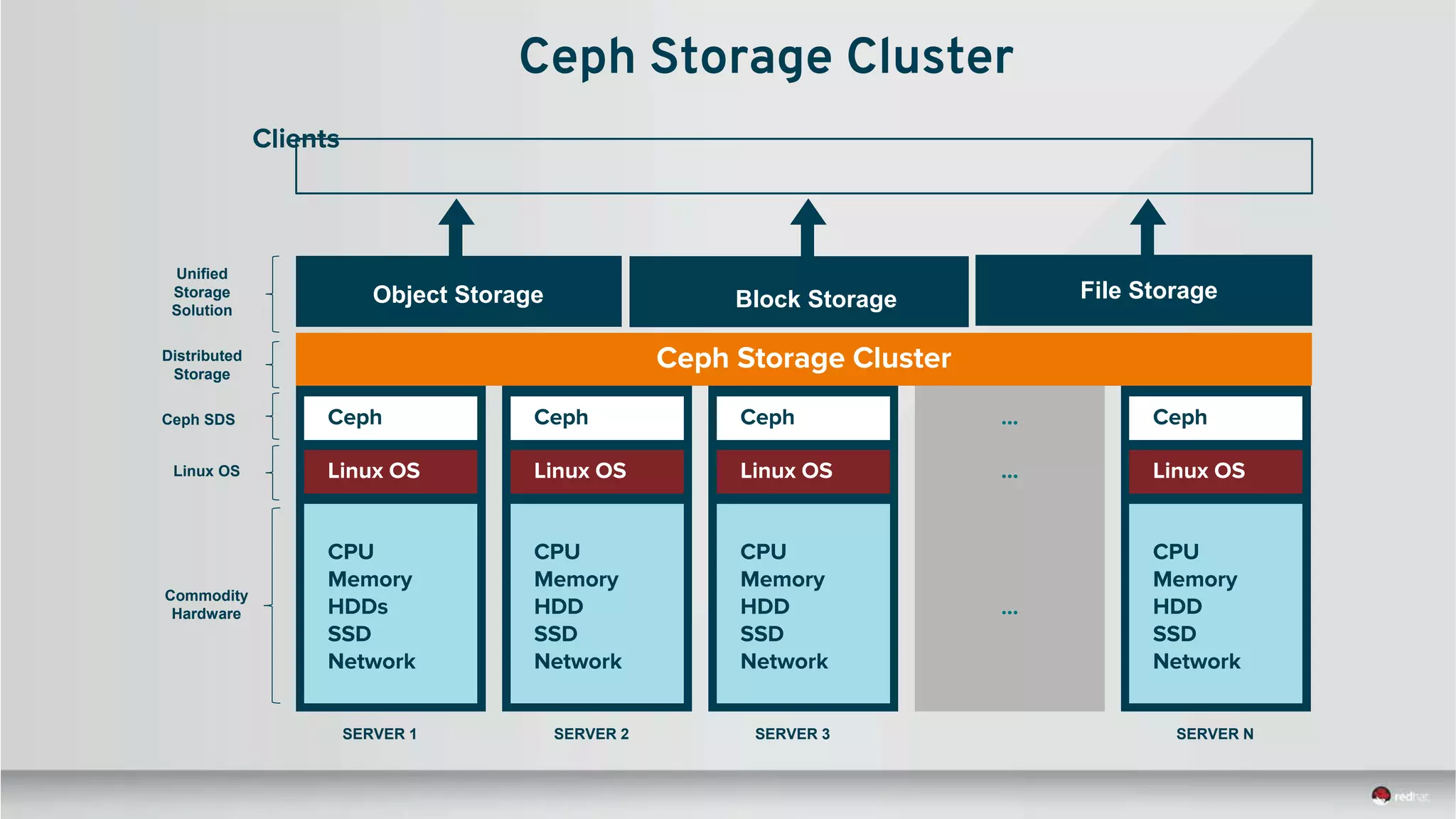

- 7. CPU Memory HDDs SSD Network Linux OS Ceph Ceph StorageCluster ... ... ... SERVER 1 SERVER 2 SERVER 3 SERVER N Block StorageObject Storage File Storage Clients CPU Memory HDD SSD Network Linux OS Ceph CPU Memory HDD SSD Network Linux OS Ceph CPU Memory HDD SSD Network Linux OS Ceph Commodity Hardware Linux OS Ceph SDS Distributed Storage Unified Storage Solution Ceph Storage Cluster

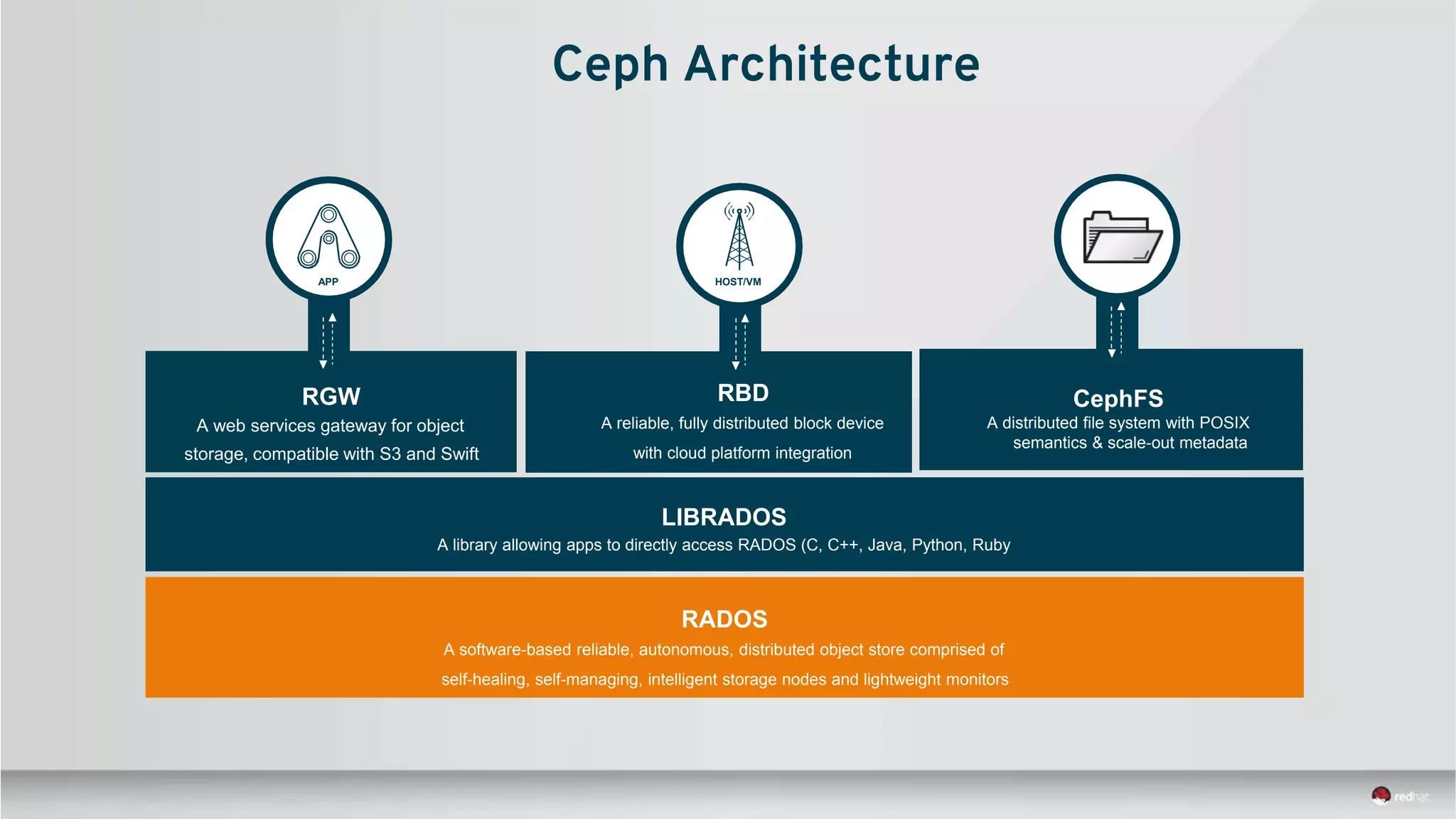

- 8. LIBRADOS A library allowingapps to directly access RADOS (C, C++, Java, Python, Ruby RADOS A software-based reliable, autonomous, distributed object store comprised of self-healing, self-managing, intelligent storage nodes and lightweight monitors RBD A reliable, fully distributed block device with cloud platform integration RGW A web services gateway for object storage, compatible with S3 and Swift APP HOST/VM CephFS A distributed file system with POSIX semantics & scale-out metadata Ceph Architecture

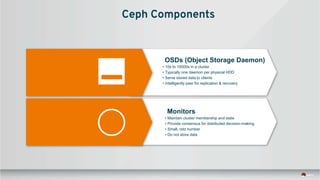

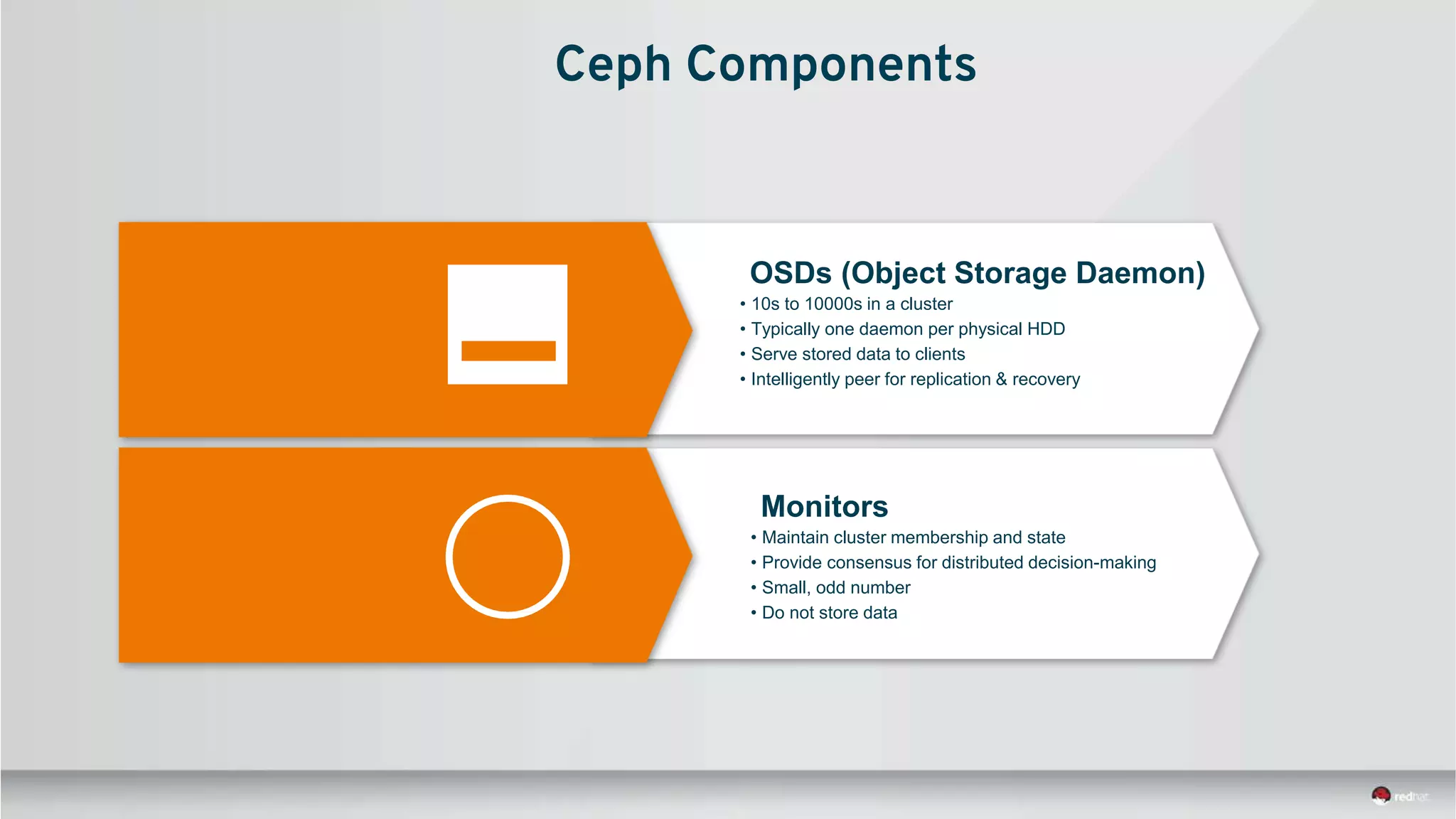

- 9. OSDs (Object StorageDaemon) • 10s to 10000s in a cluster • Typically one daemon per physical HDD • Serve stored data to clients • Intelligently peer for replication & recovery Monitors • Maintain cluster membership and state • Provide consensus for distributed decision-making • Small, odd number • Do not store data Ceph Components

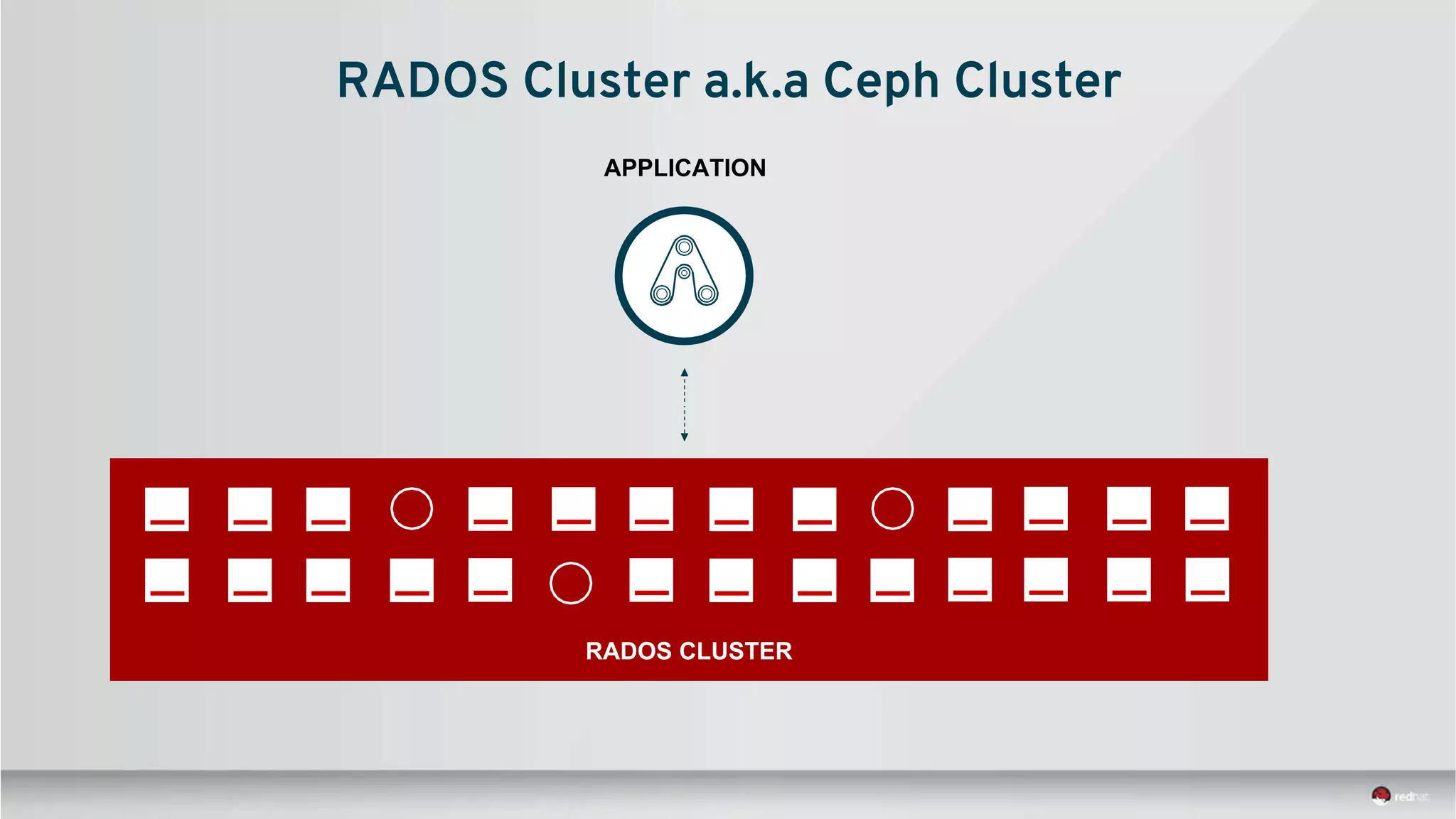

- 10. RADOS CLUSTER APPLICATION RADOS Clustera.k.a Ceph Cluster

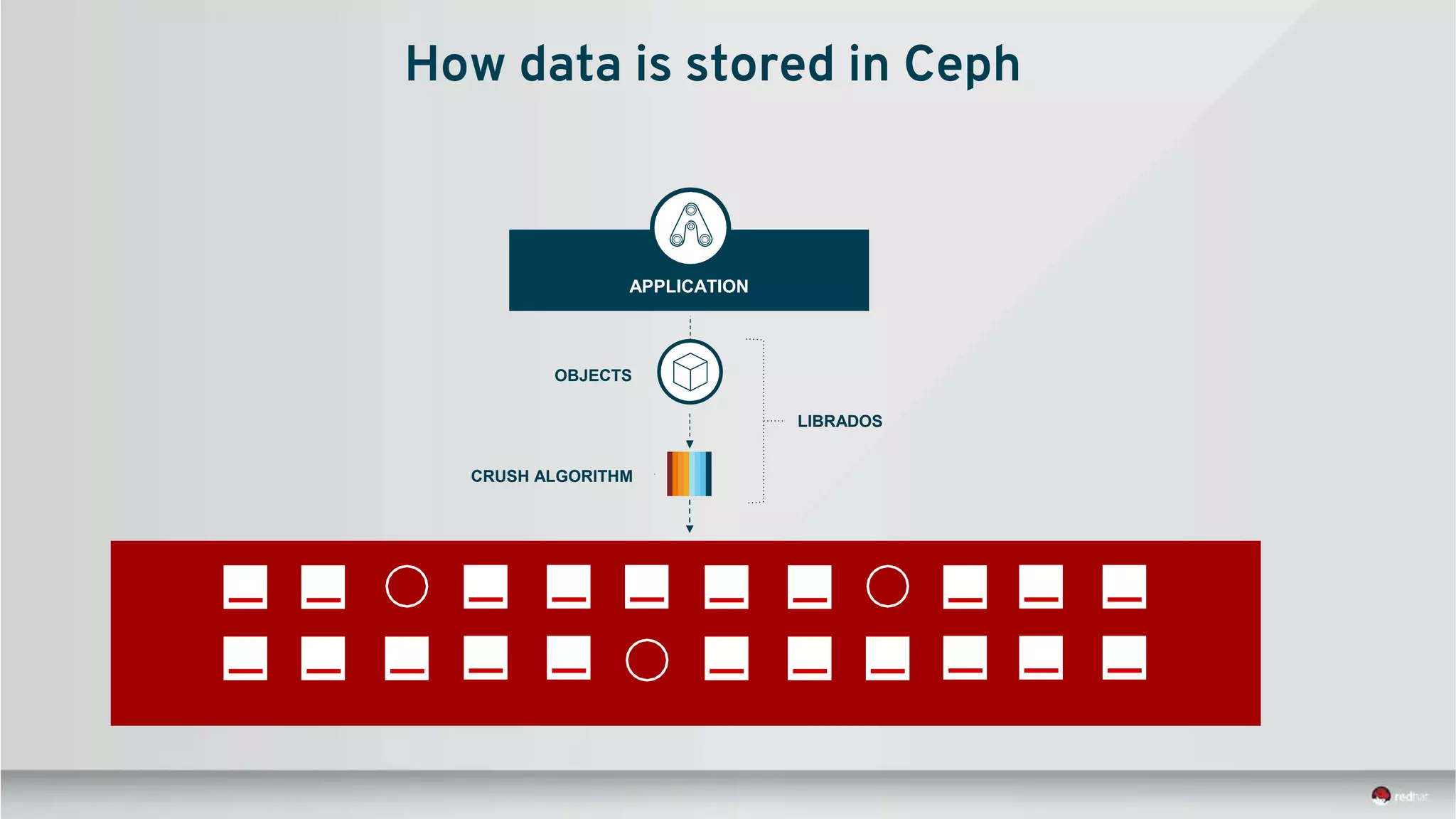

- 11. APPLICATION OBJECTS CRUSH ALGORITHM LIBRADOS How datais stored in Ceph
- 12.

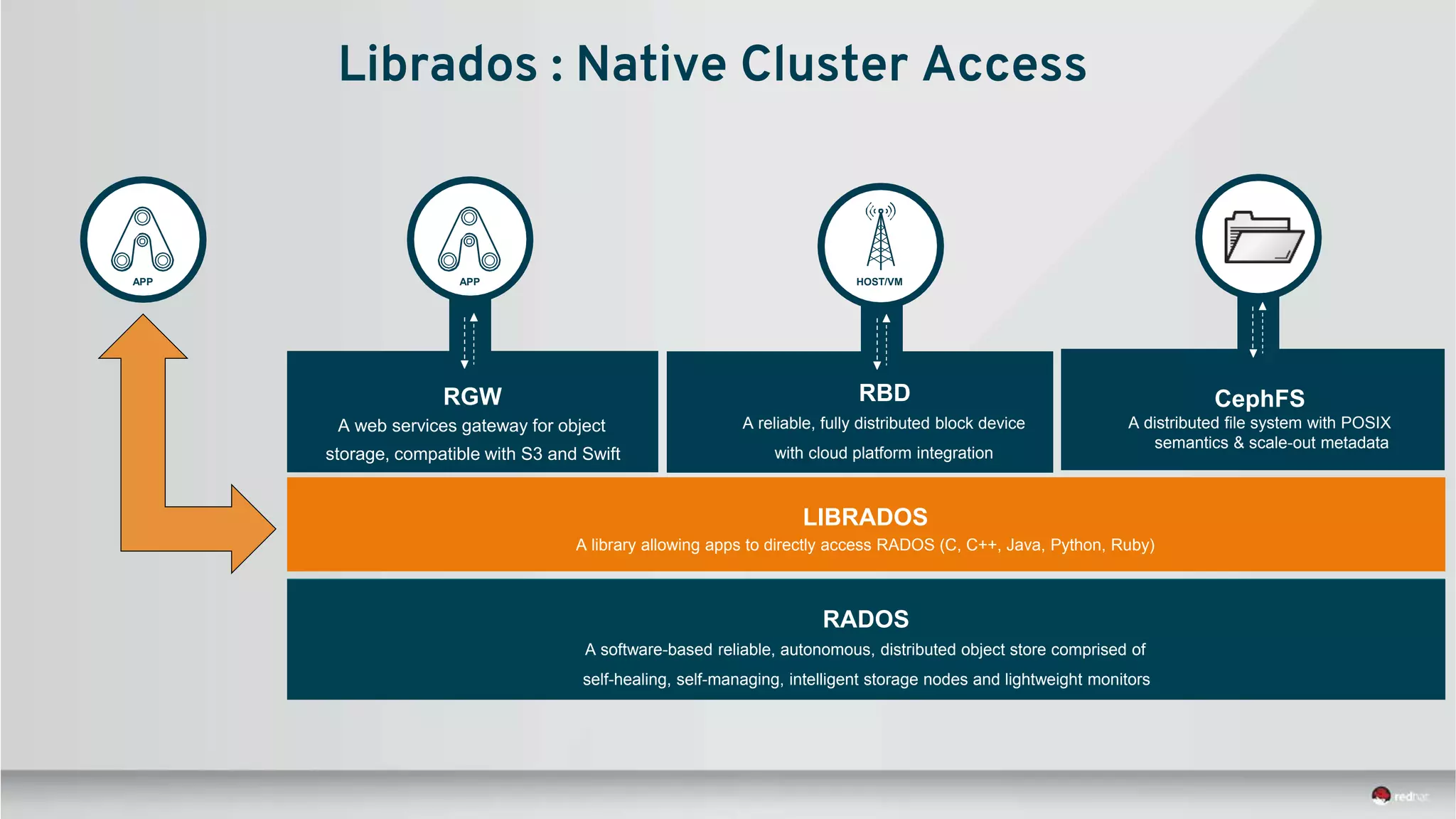

- 13. LIBRADOS A library allowingapps to directly access RADOS (C, C++, Java, Python, Ruby) RADOS A software-based reliable, autonomous, distributed object store comprised of self-healing, self-managing, intelligent storage nodes and lightweight monitors RBD A reliable, fully distributed block device with cloud platform integration RGW A web services gateway for object storage, compatible with S3 and Swift APP HOST/VM CephFS A distributed file system with POSIX semantics & scale-out metadata Librados : Native Cluster Access APP

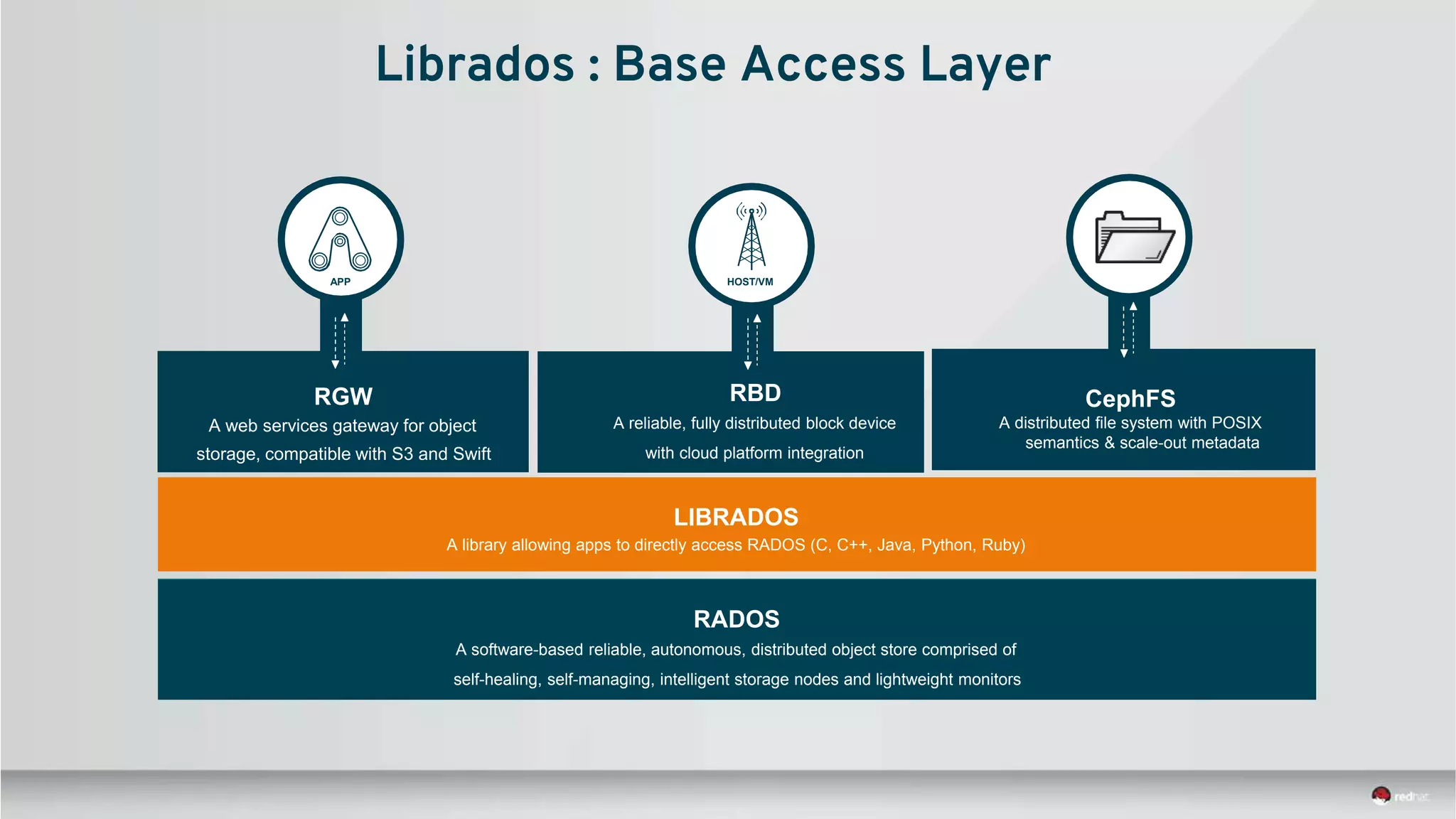

- 14. LIBRADOS A library allowingapps to directly access RADOS (C, C++, Java, Python, Ruby) RADOS A software-based reliable, autonomous, distributed object store comprised of self-healing, self-managing, intelligent storage nodes and lightweight monitors RBD A reliable, fully distributed block device with cloud platform integration RGW A web services gateway for object storage, compatible with S3 and Swift APP HOST/VM CephFS A distributed file system with POSIX semantics & scale-out metadata Librados : Base Access Layer

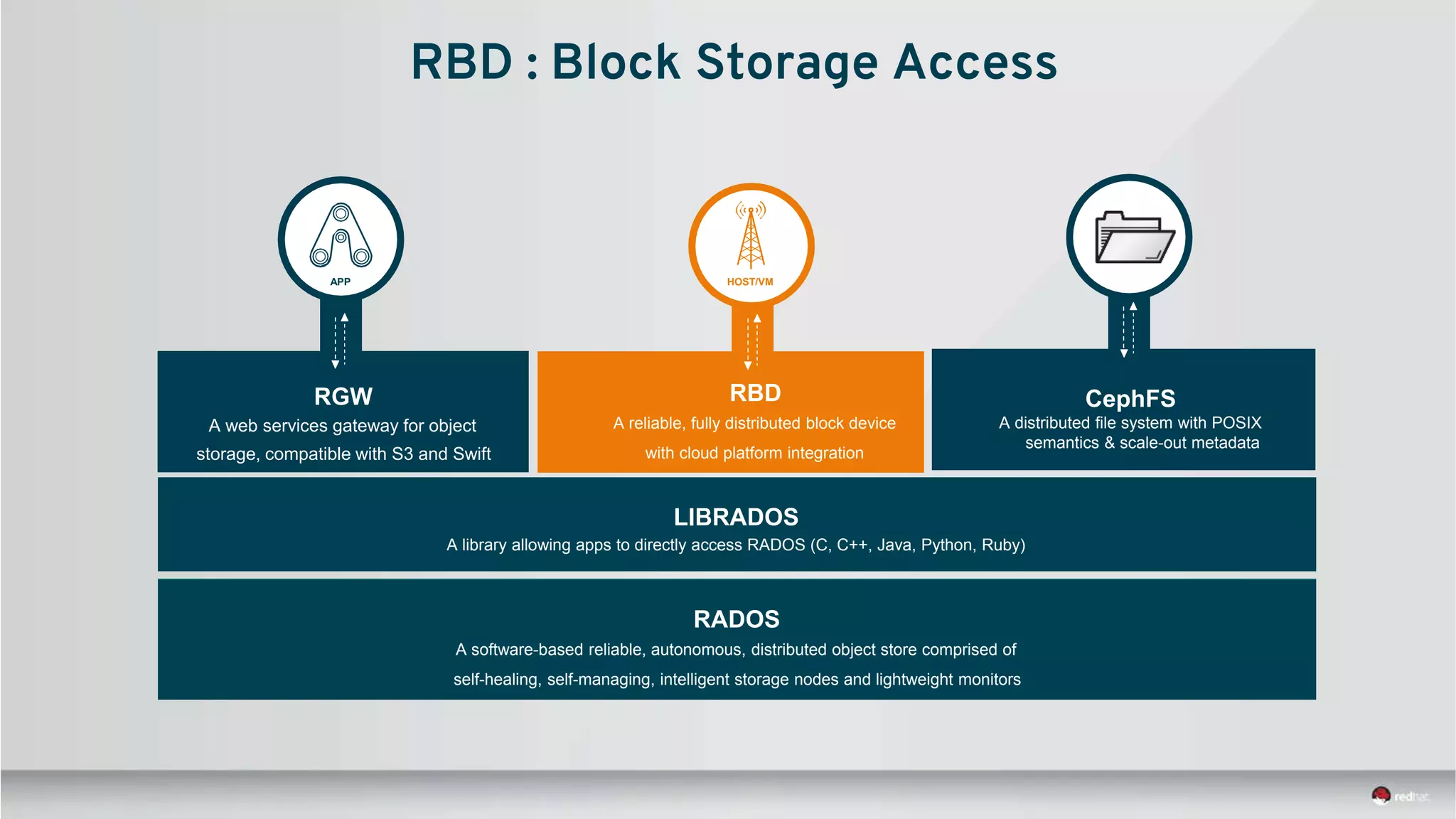

- 15. LIBRADOS A library allowingapps to directly access RADOS (C, C++, Java, Python, Ruby) RADOS A software-based reliable, autonomous, distributed object store comprised of self-healing, self-managing, intelligent storage nodes and lightweight monitors RBD A reliable, fully distributed block device with cloud platform integration RGW A web services gateway for object storage, compatible with S3 and Swift APP HOST/VM CephFS A distributed file system with POSIX semantics & scale-out metadata RBD : Block Storage Access

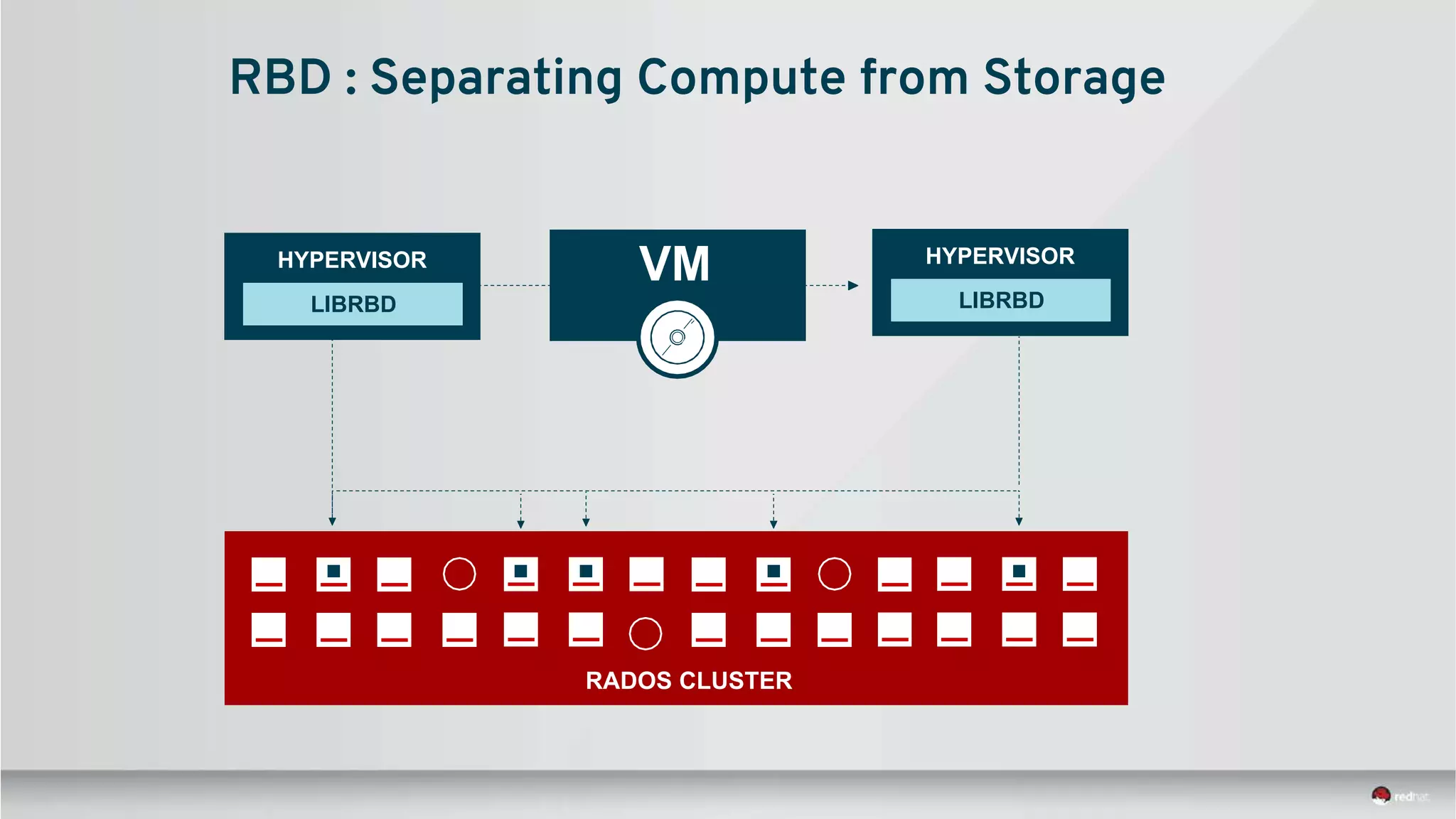

- 16. VMHYPERVISOR LIBRBD HYPERVISOR LIBRBD RADOS CLUSTER RBD :Separating Compute from Storage

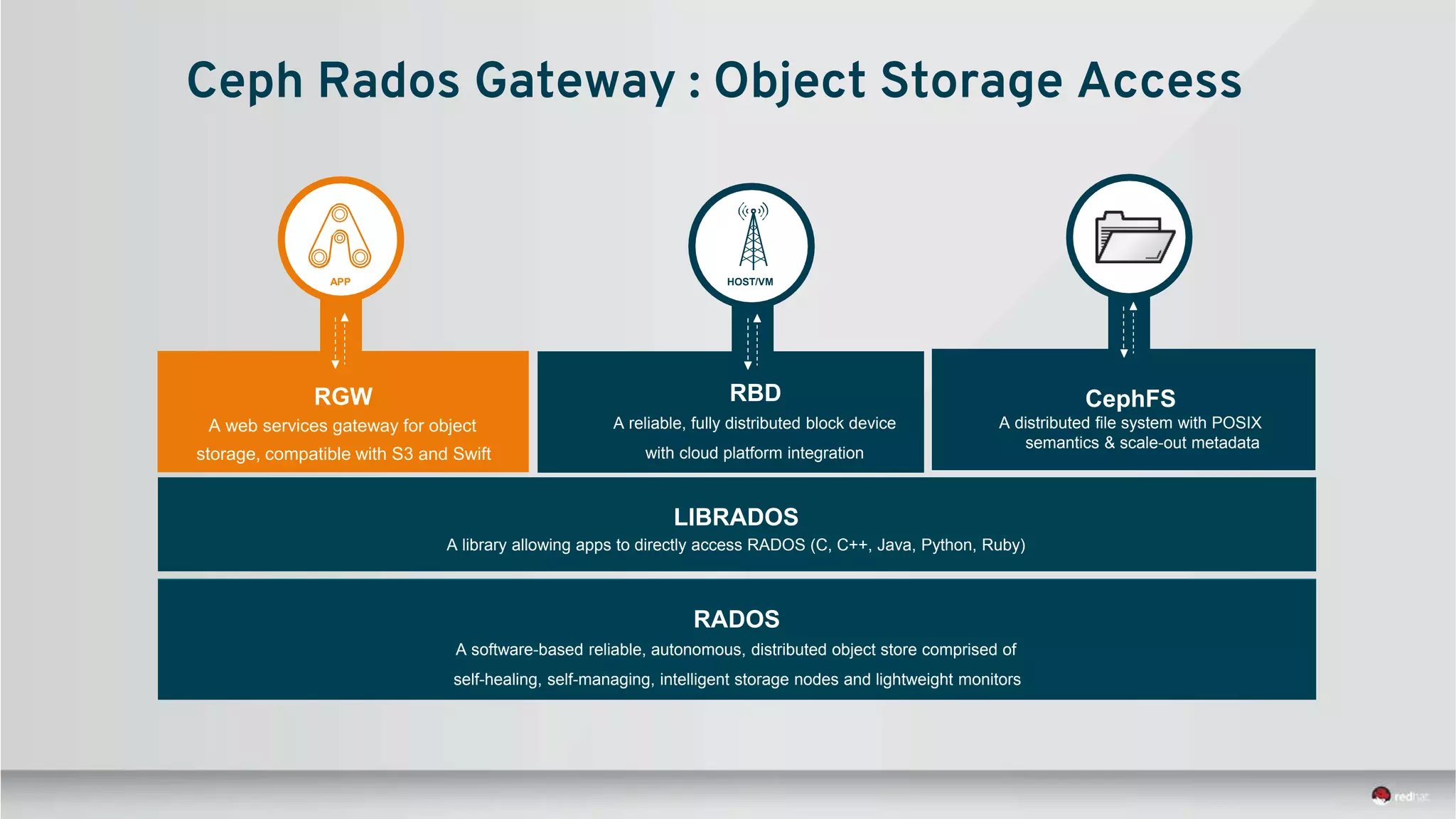

- 17. LIBRADOS A library allowingapps to directly access RADOS (C, C++, Java, Python, Ruby) RADOS A software-based reliable, autonomous, distributed object store comprised of self-healing, self-managing, intelligent storage nodes and lightweight monitors RBD A reliable, fully distributed block device with cloud platform integration RGW A web services gateway for object storage, compatible with S3 and Swift APP HOST/VM CephFS A distributed file system with POSIX semantics & scale-out metadata Ceph Rados Gateway : Object Storage Access
- 18. RADOSGWRADOSGW LIBRADOS REST Socket CEPH CLUSTER LIBRADOS Ceph RadosGateway : Object Storage Access

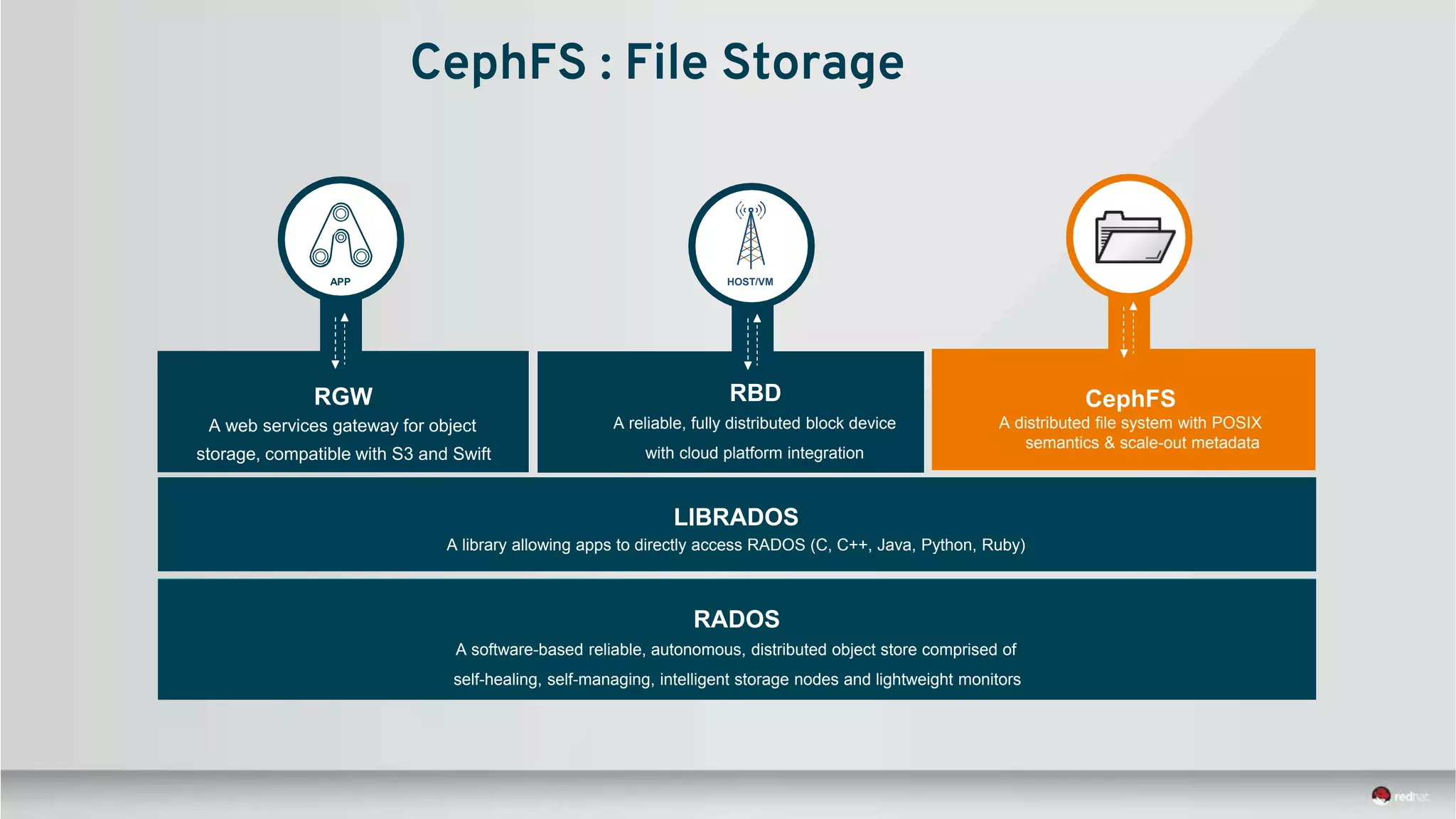

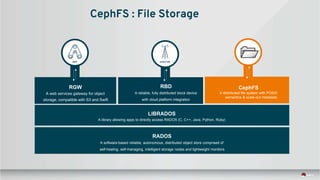

- 19. LIBRADOS A library allowingapps to directly access RADOS (C, C++, Java, Python, Ruby) RADOS A software-based reliable, autonomous, distributed object store comprised of self-healing, self-managing, intelligent storage nodes and lightweight monitors RBD A reliable, fully distributed block device with cloud platform integration RGW A web services gateway for object storage, compatible with S3 and Swift APP HOST/VM CephFS A distributed file system with POSIX semantics & scale-out metadata CephFS : File Storage

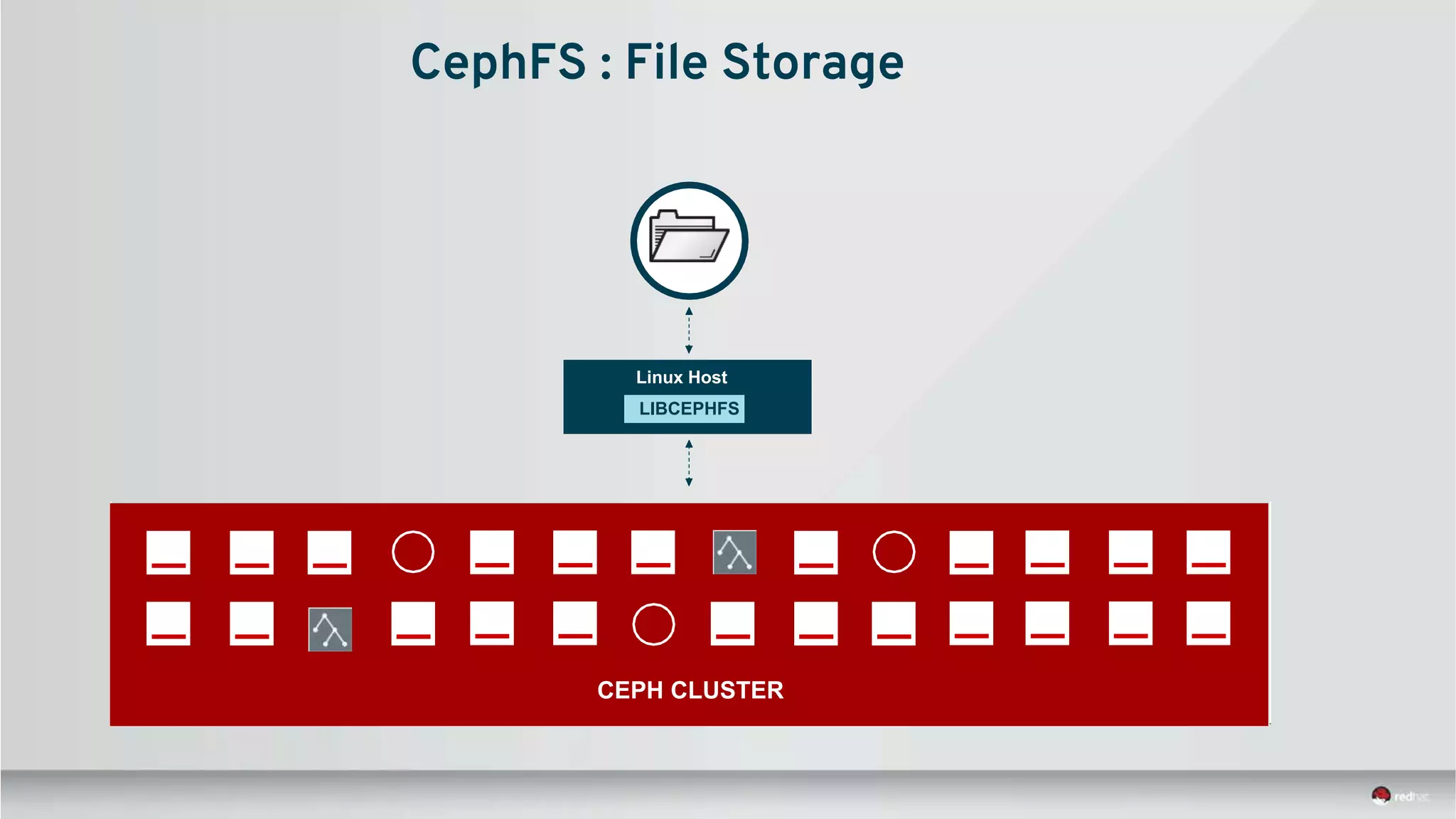

- 20. Linux Host LIBCEPHFS CEPH CLUSTER CephFS: File Storage
- 21.

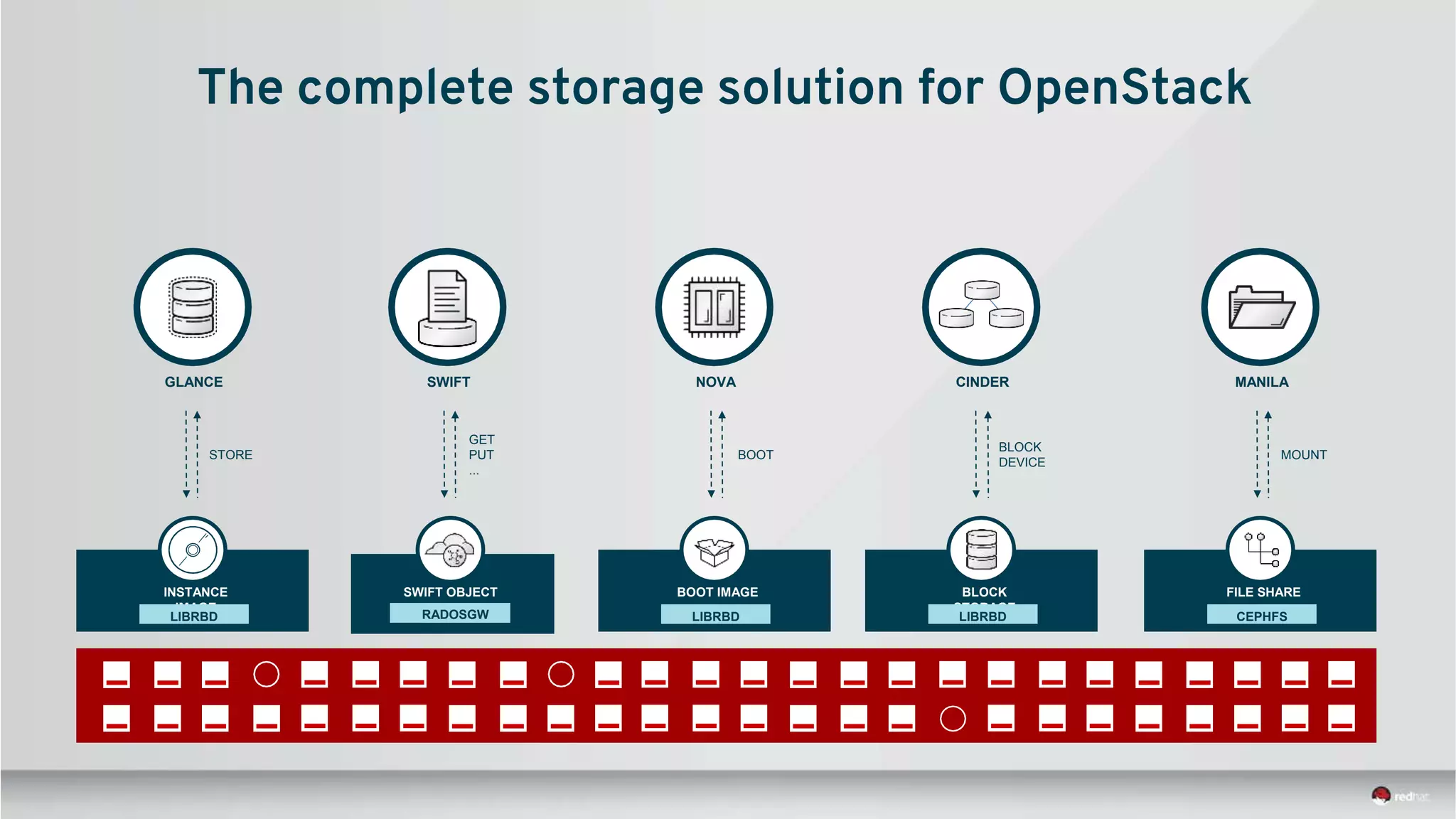

- 22. GLANCE SWIFT NOVACINDER MANILA RADOSGW INSTANCE IMAGE LIBRBD SWIFT OBJECT BOOT IMAGE LIBRBD BLOCK STORAGE LIBRBD FILE SHARE CEPHFS STORE GET PUT ... BOOT BLOCK DEVICE MOUNT The complete storage solution for OpenStack

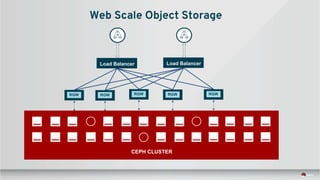

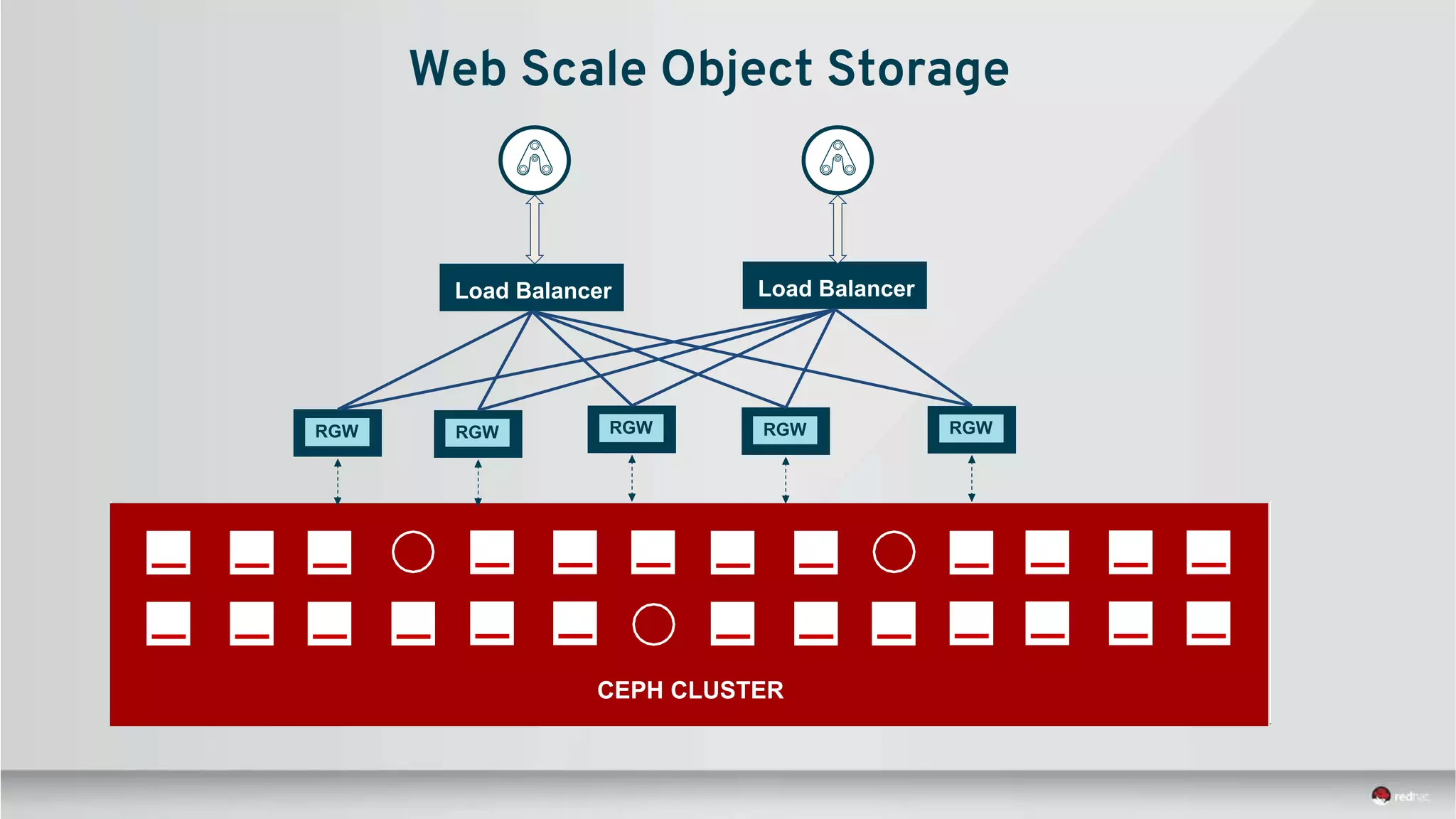

- 23. CEPH CLUSTER Web ScaleObject Storage RGW RGW RGW RGWRGW Load Balancer Load Balancer

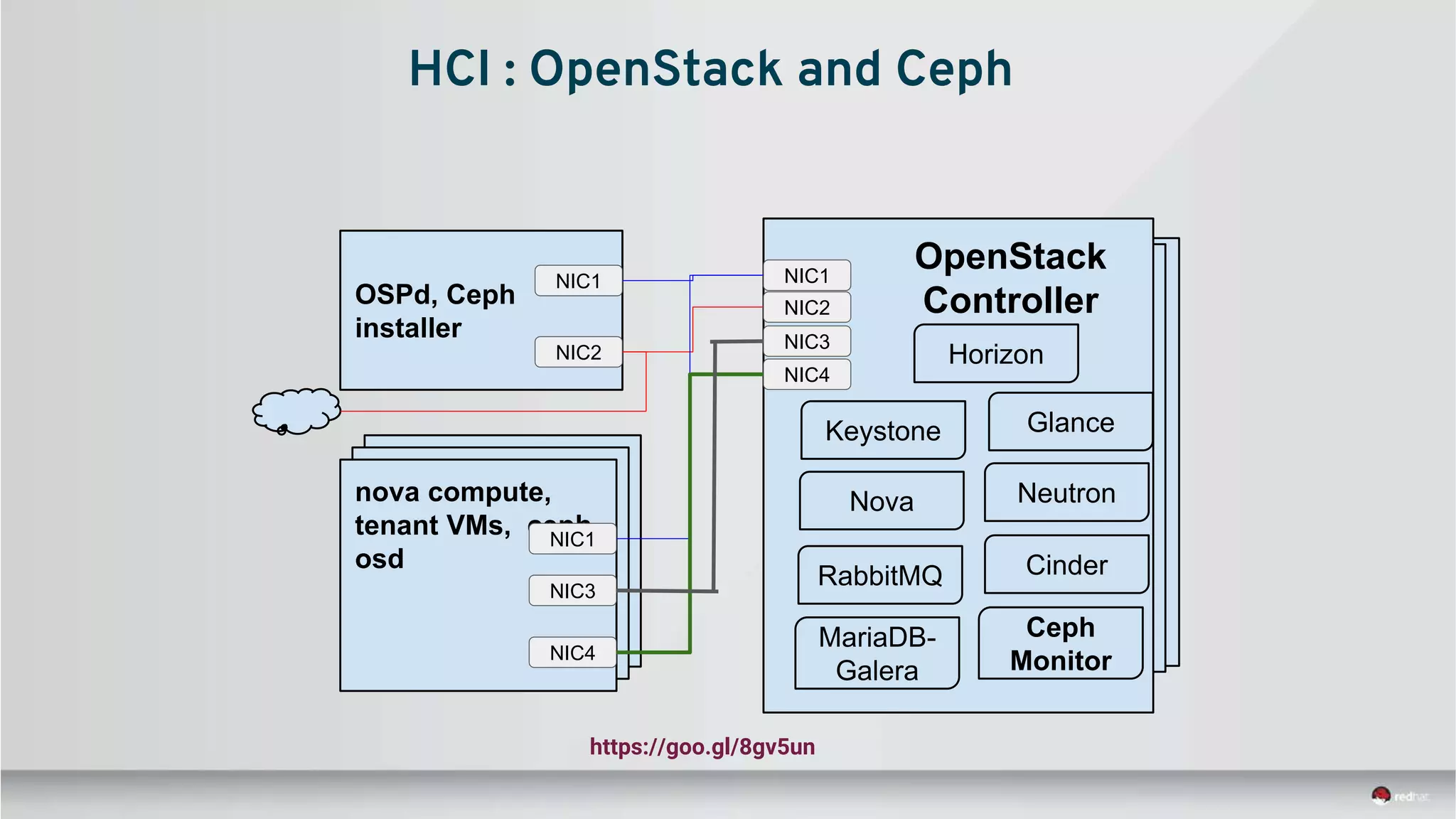

- 24. Keystone NeutronNova Cinder Horizon RabbitMQ OpenStack Controller Ceph Monitor Glance OSPd, Ceph installer nova compute, tenantVMs, ceph- osd MariaDB- Galera NIC3 NIC2 NIC1 NIC1 NIC1 NIC2 NIC4 NIC3 NIC4 HCI : OpenStack and Ceph https://goo.gl/8gv5un

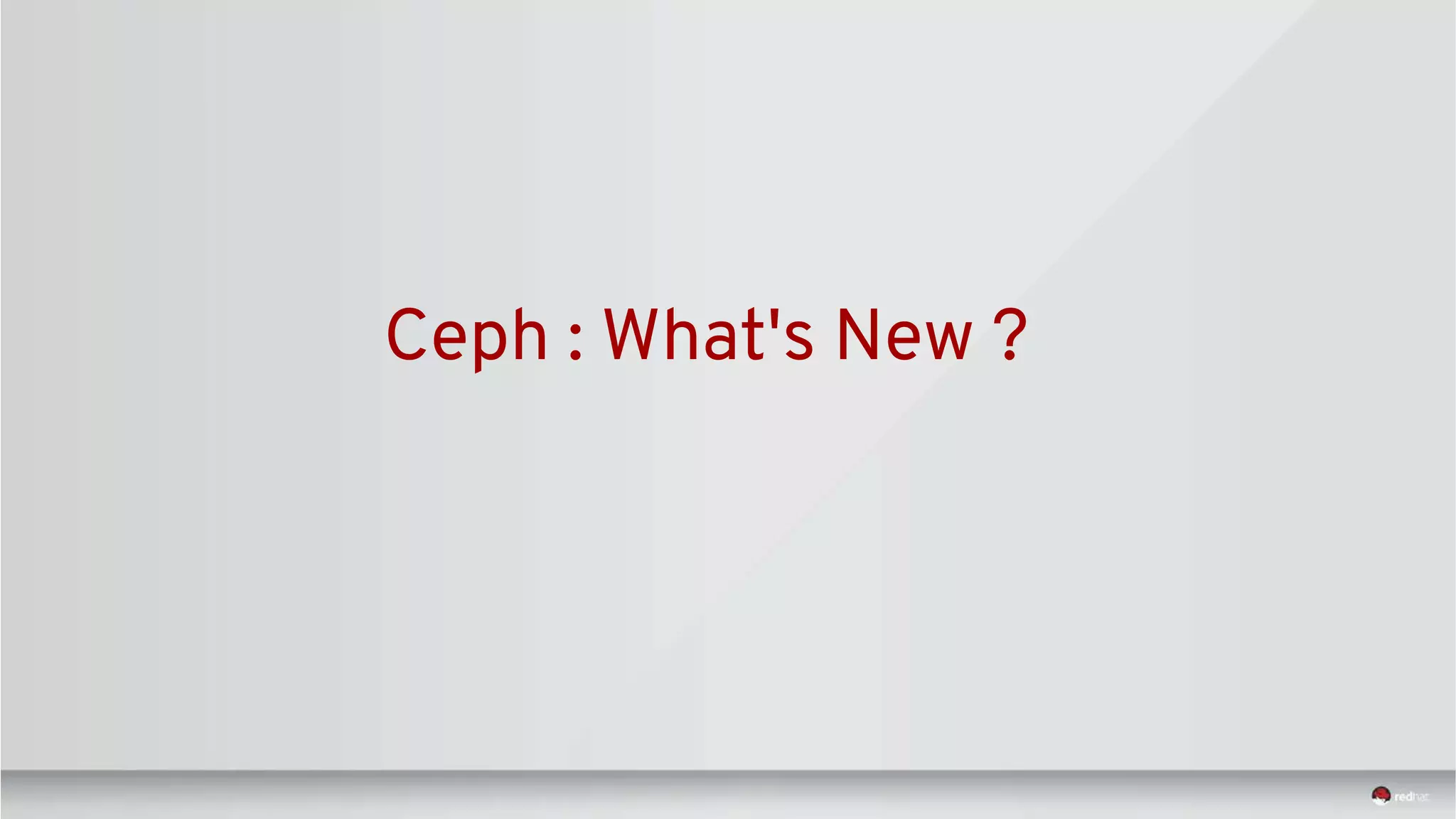

- 25. Ceph : What'sNew ?

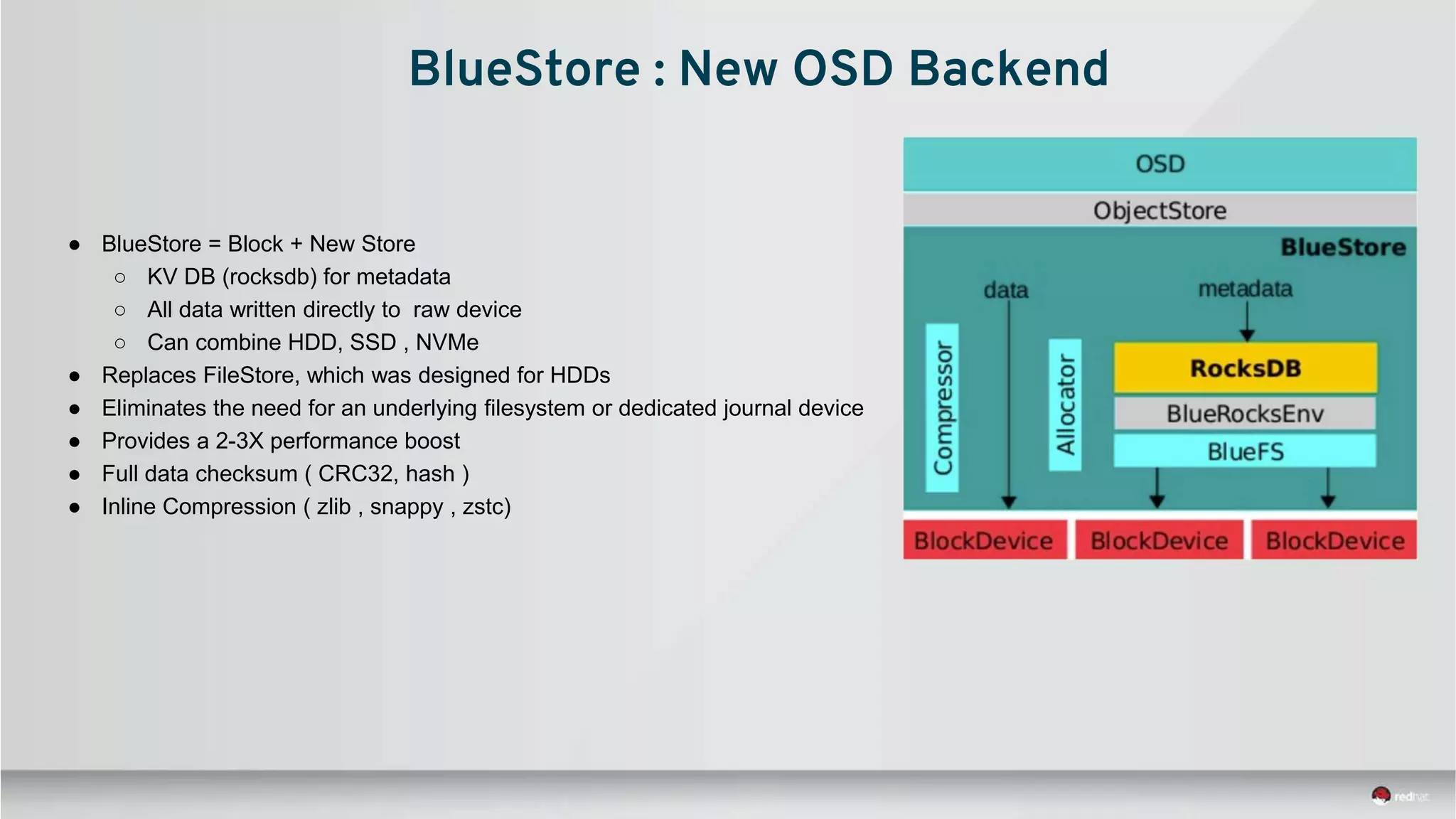

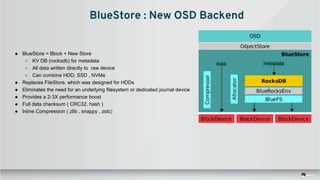

- 26. BlueStore : NewOSD Backend ● BlueStore = Block + New Store ○ KV DB (rocksdb) for metadata ○ All data written directly to raw device ○ Can combine HDD, SSD , NVMe ● Replaces FileStore, which was designed for HDDs ● Eliminates the need for an underlying filesystem or dedicated journal device ● Provides a 2-3X performance boost ● Full data checksum ( CRC32, hash ) ● Inline Compression ( zlib , snappy , zstc)

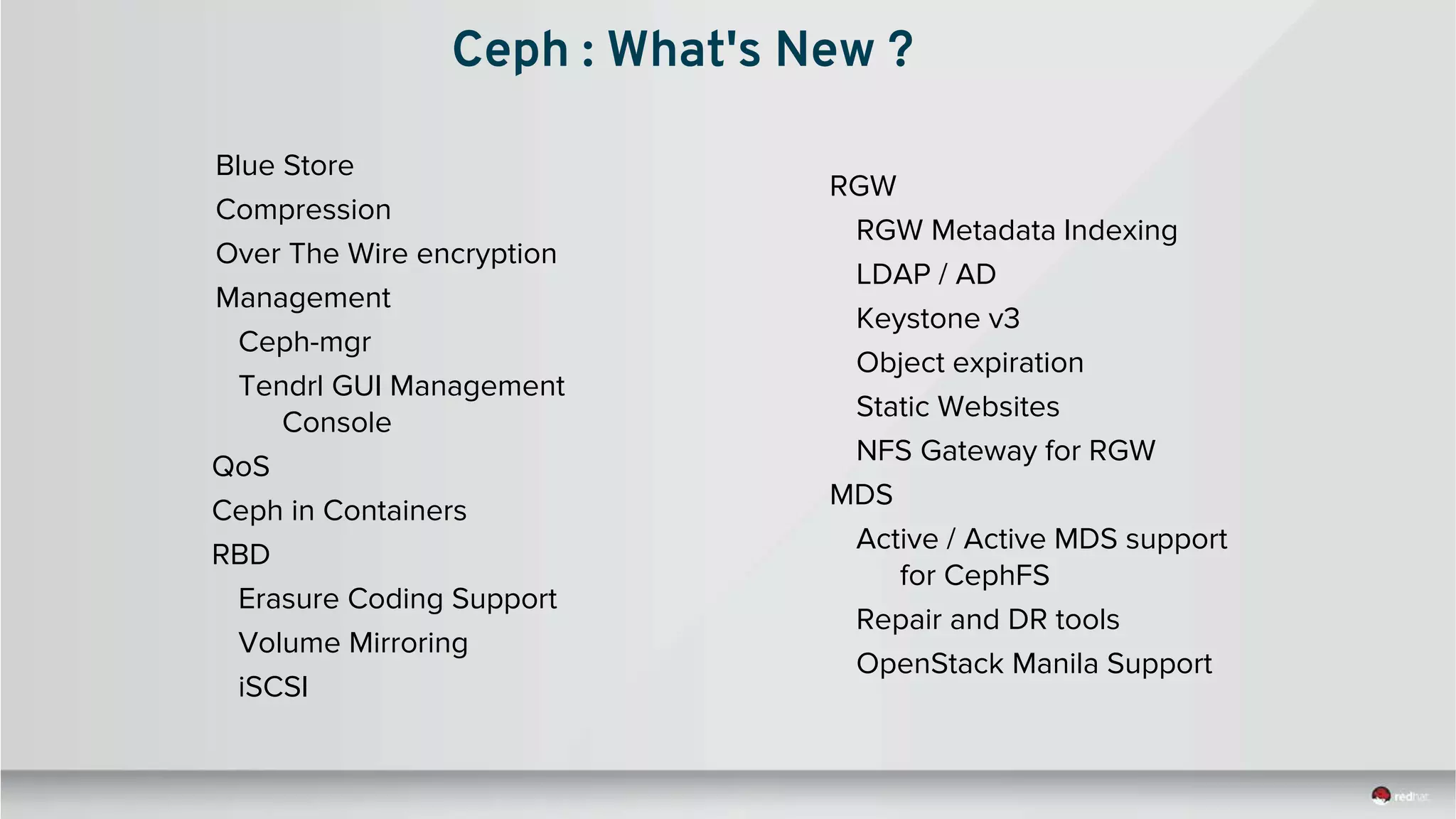

- 27. Blue Store Compression Over TheWire encryption Management Ceph-mgr Tendrl GUI Management Console QoS Ceph in Containers RBD Erasure Coding Support Volume Mirroring iSCSI Ceph : What's New ? RGW RGW Metadata Indexing LDAP / AD Keystone v3 Object expiration Static Websites NFS Gateway for RGW MDS Active / Active MDS support for CephFS Repair and DR tools OpenStack Manila Support
