Introduction to Redis

INTRODUCTION REDIS
Maarten Smeets
09-04-2018

INTRODUCTION REDIS
INTRODUCING REDIS DATATYPES PUBLISH SUBSCRIBE
PERSISTENCE TRANSACTIONS
REJSON AND REDISEARCH CLIENTS

1 2 3

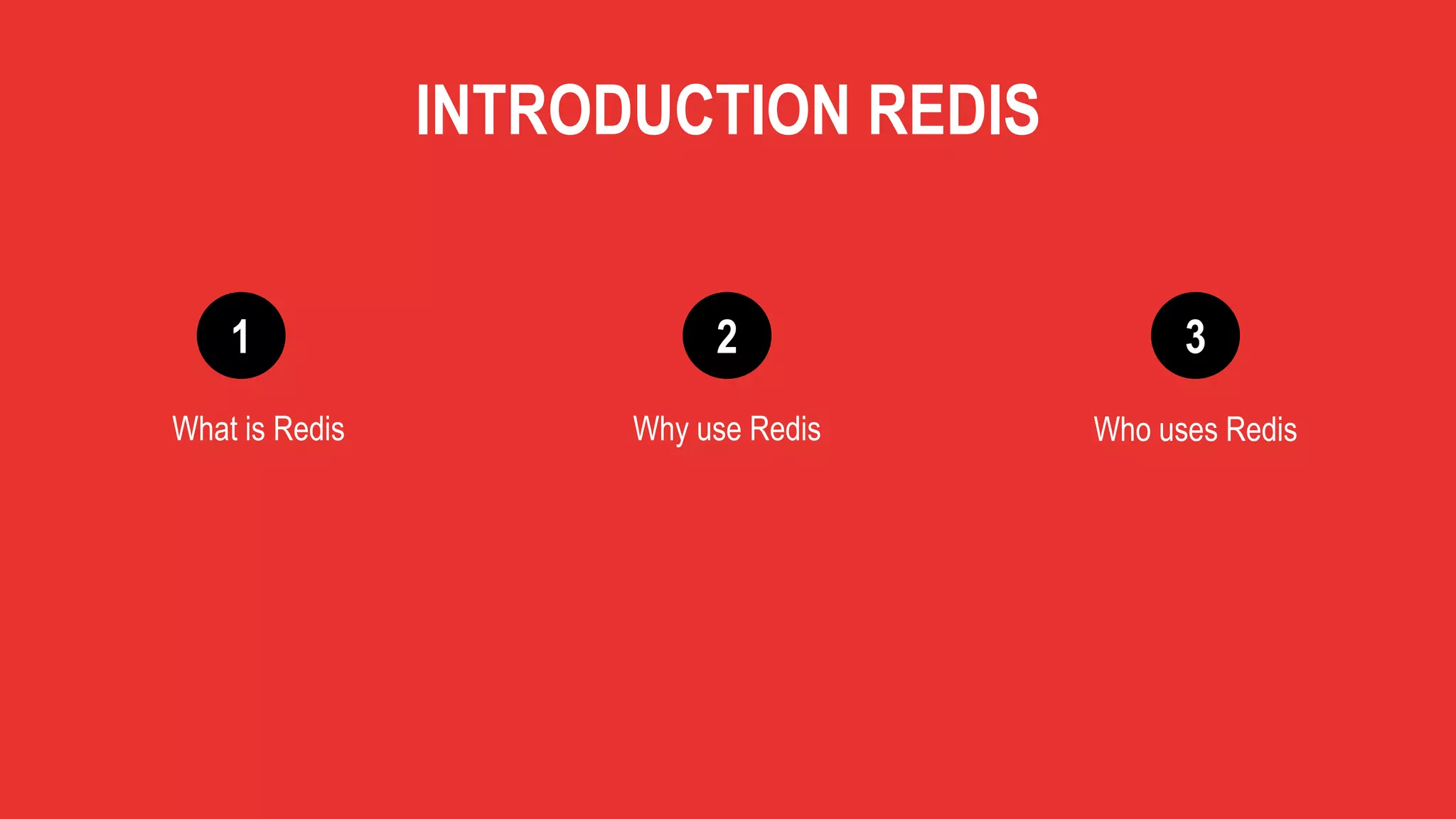

What is Redis Why use Redis Who uses Redis
INTRODUCTION REDIS

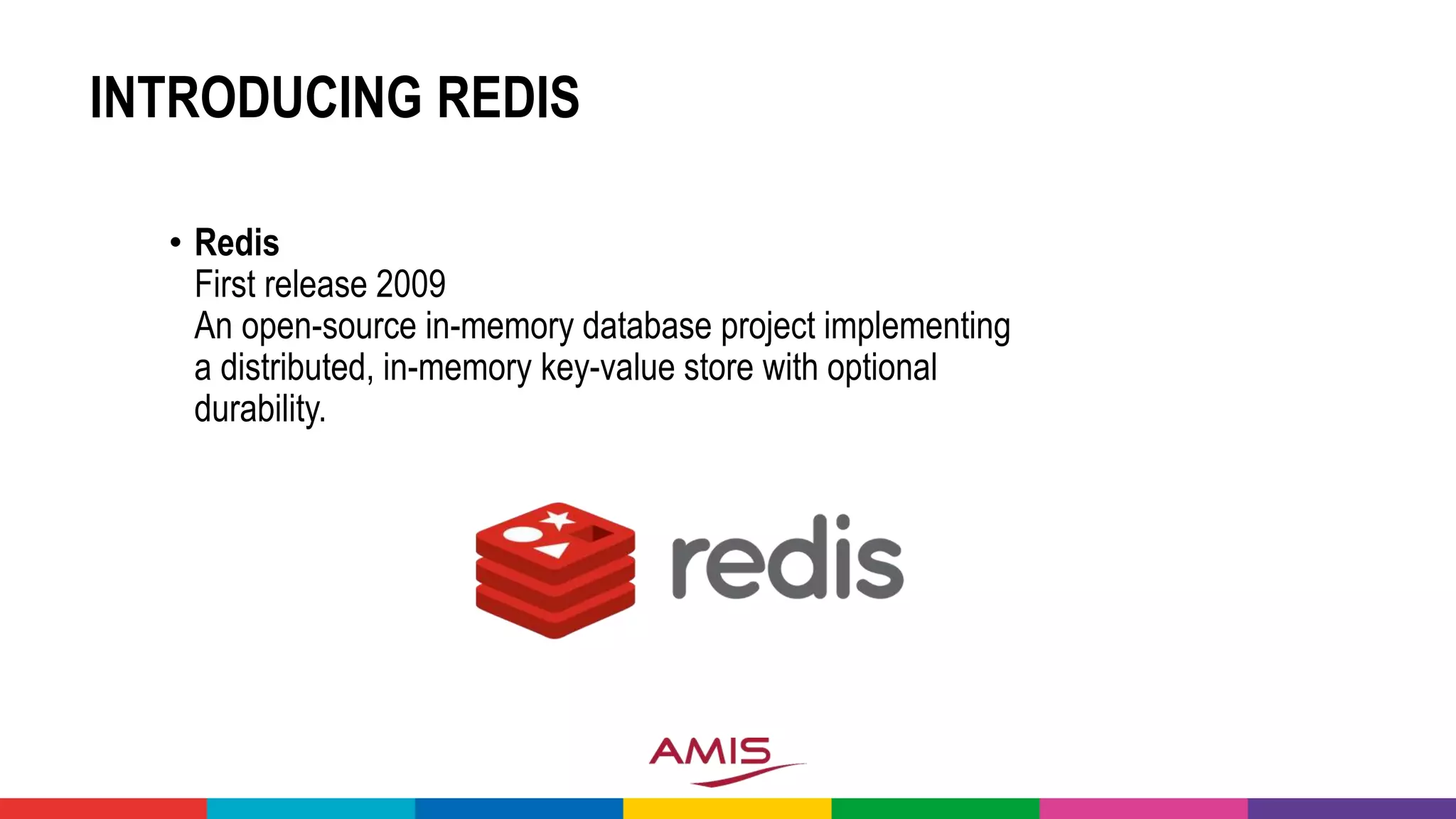

INTRODUCING REDIS
• Redis
First release 2009
An open-source in-memory database project implementing
a distributed, in-memory key-value store with optional
durability.

INTRODUCING REDIS
• Redis is an open source, in-memory data structure store
Can be used as Database, Cache, Message broker
• NoSQL Key/Value store
• Supports multiple data structures
• Features like
• Transactions
• Pub/Sub
• Scalability / availability options
• Time to live for entries Mostly single threaded!
Modules can be multi threaded

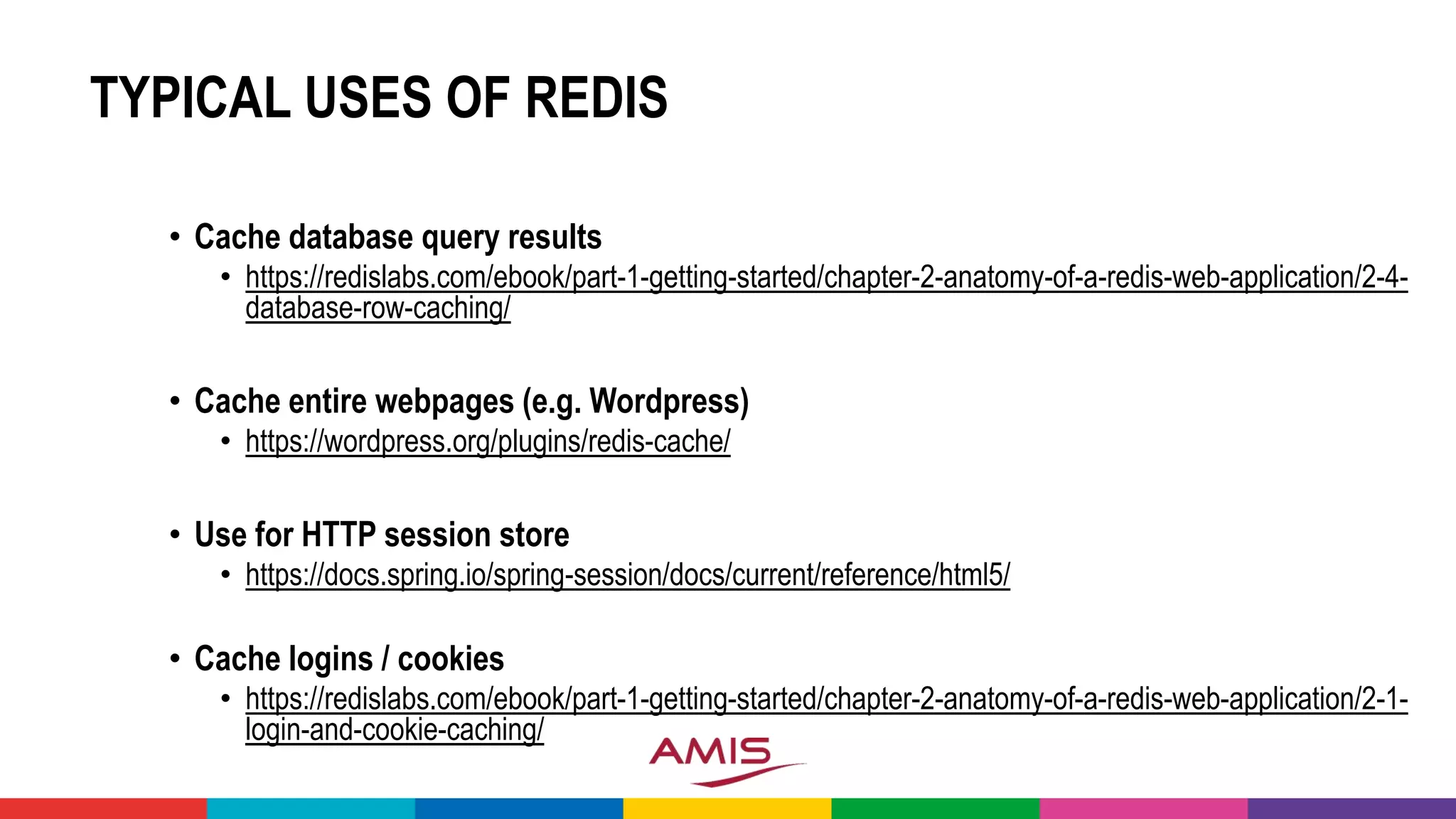

TYPICAL USES OF REDIS
• Cache database query results
• https://redislabs.com/ebook/part-1-getting-started/chapter-2-anatomy-of-a-redis-web-application/2-4-
database-row-caching/
• Cache entire webpages (e.g. Wordpress)
• https://wordpress.org/plugins/redis-cache/
• Use for HTTP session store
• https://docs.spring.io/spring-session/docs/current/reference/html5/
• Cache logins / cookies
• https://redislabs.com/ebook/part-1-getting-started/chapter-2-anatomy-of-a-redis-web-application/2-1-
login-and-cookie-caching/

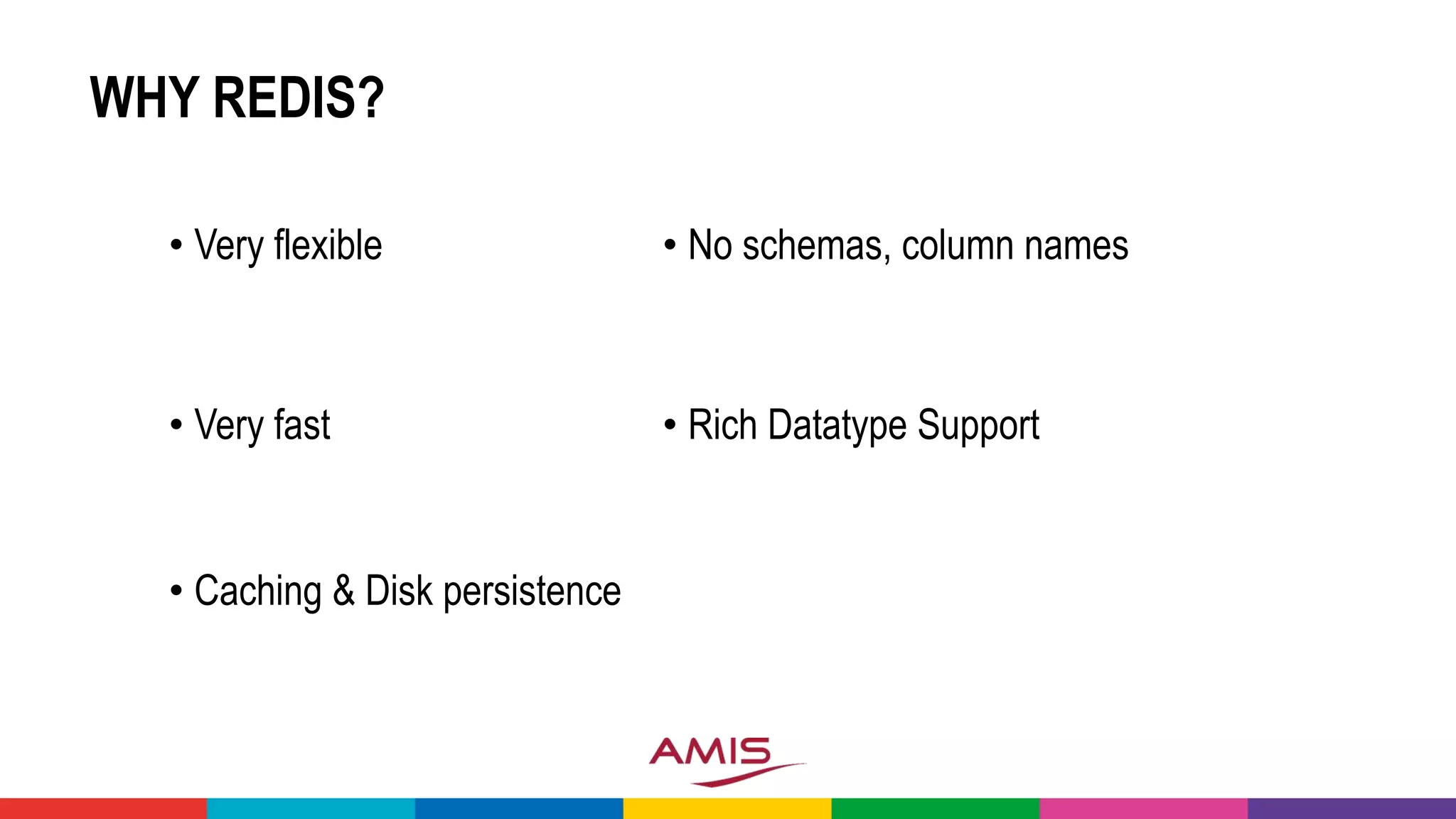

WHY REDIS?
• Very flexible
• Very fast
• Caching & Disk persistence
• No schemas, column names
• Rich Datatype Support

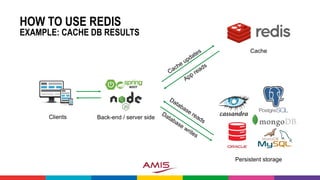

HOW TO USE REDIS
EXAMPLE: CACHE DB RESULTS
Clients Back-end / server side
Persistent storage
Cache

WHO USES REDIS
Azure Redis Cache

WHO USES REDIS
IN THE NETHERLANDS

1 2 3
Strings and expiry Lists, Sets, Hashes Sorted sets
DATATYPES

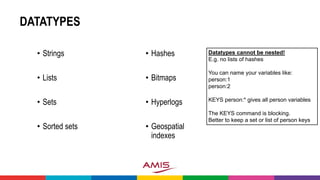

DATATYPES
• Strings
• Lists
• Sets
• Sorted sets
• Hashes
• Bitmaps
• Hyperlogs
• Geospatial
indexes
Datatypes cannot be nested!
E.g. no lists of hashes
You can name your variables like:
person:1
person:2
KEYS person:* gives all person variables
The KEYS command is blocking.
Better to keep a set or list of person keys

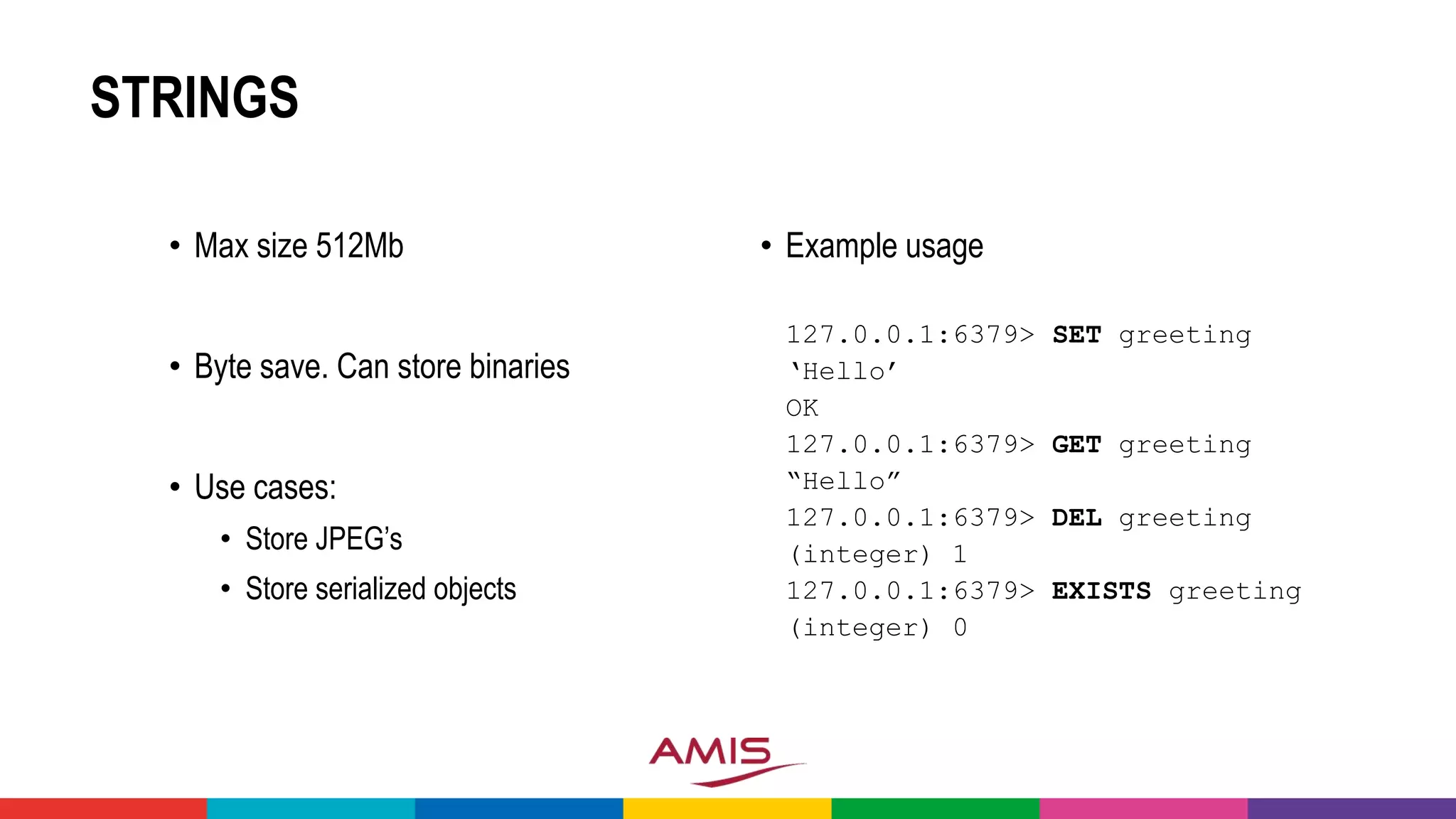

STRINGS
• Max size 512Mb
• Byte save. Can store binaries
• Use cases:
• Store JPEG’s
• Store serialized objects
• Example usage
127.0.0.1:6379> SET greeting
‘Hello’
OK
127.0.0.1:6379> GET greeting
“Hello”
127.0.0.1:6379> DEL greeting
(integer) 1
127.0.0.1:6379> EXISTS greeting
(integer) 0

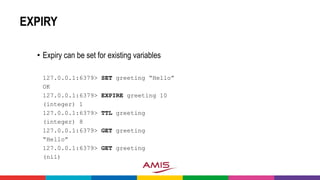

EXPIRY
• Expiry can be set for existing variables
127.0.0.1:6379> SET greeting “Hello”
OK
127.0.0.1:6379> EXPIRE greeting 10
(integer) 1
127.0.0.1:6379> TTL greeting
(integer) 8
127.0.0.1:6379> GET greeting
“Hello”
127.0.0.1:6379> GET greeting
(nil)

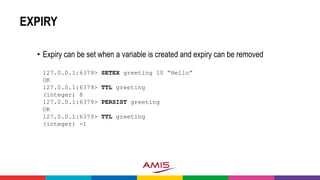

EXPIRY
• Expiry can be set when a variable is created and expiry can be removed
127.0.0.1:6379> SETEX greeting 10 “Hello”
OK
127.0.0.1:6379> TTL greeting
(integer) 8
127.0.0.1:6379> PERSIST greeting
OK
127.0.0.1:6379> TTL greeting
(integer) -1

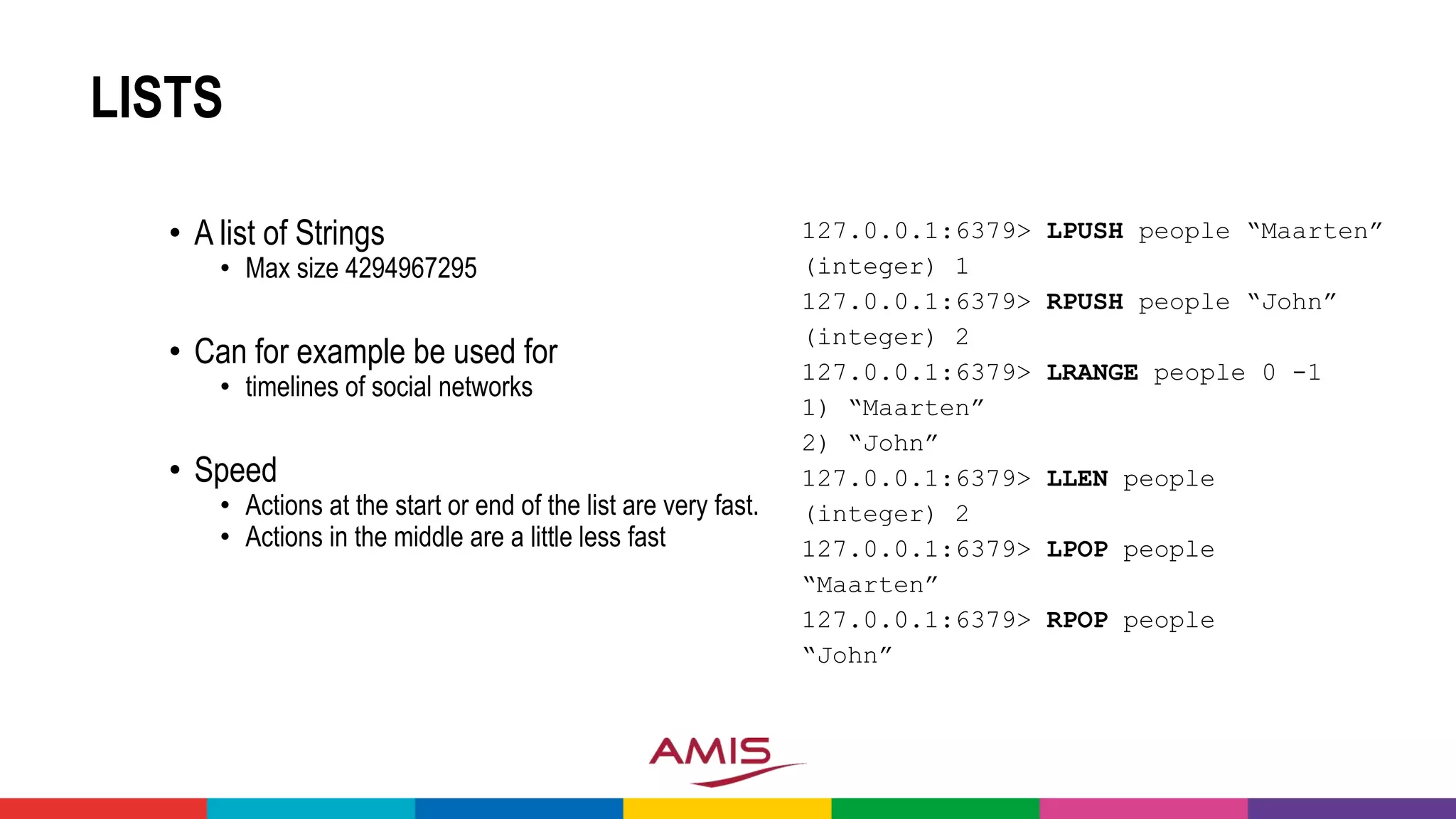

LISTS
• A list of Strings
• Max size 4294967295
• Can for example be used for
• timelines of social networks
• Speed
• Actions at the start or end of the list are very fast.
• Actions in the middle are a little less fast
127.0.0.1:6379> LPUSH people “Maarten”
(integer) 1
127.0.0.1:6379> RPUSH people “John”
(integer) 2
127.0.0.1:6379> LRANGE people 0 -1
1) “Maarten”
2) “John”
127.0.0.1:6379> LLEN people
(integer) 2
127.0.0.1:6379> LPOP people
“Maarten”
127.0.0.1:6379> RPOP people
“John”

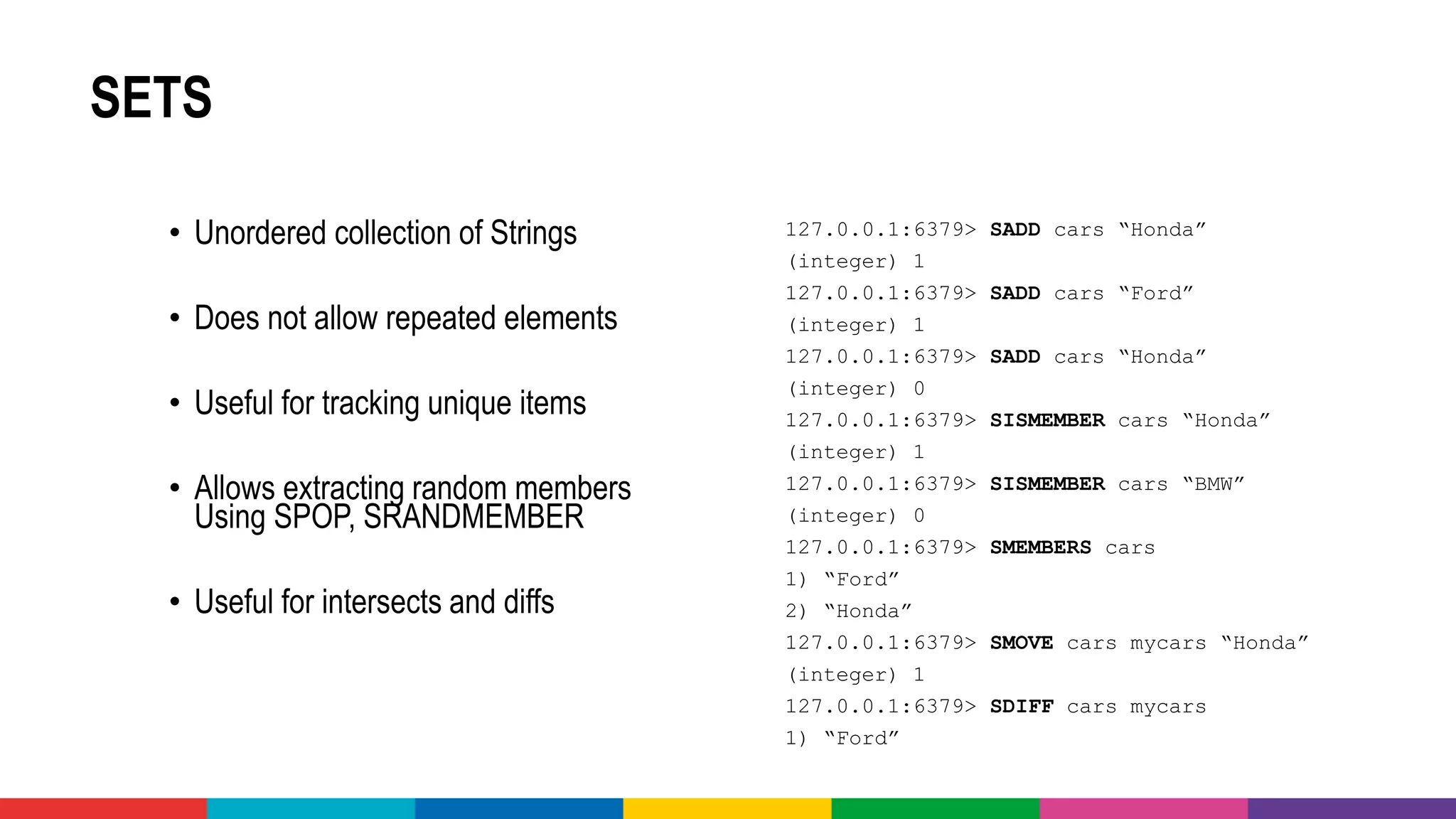

SETS
• Unordered collection of Strings
• Does not allow repeated elements
• Useful for tracking unique items
• Allows extracting random members
Using SPOP, SRANDMEMBER
• Useful for intersects and diffs
127.0.0.1:6379> SADD cars “Honda”
(integer) 1
127.0.0.1:6379> SADD cars “Ford”
(integer) 1
127.0.0.1:6379> SADD cars “Honda”
(integer) 0
127.0.0.1:6379> SISMEMBER cars “Honda”
(integer) 1
127.0.0.1:6379> SISMEMBER cars “BMW”
(integer) 0
127.0.0.1:6379> SMEMBERS cars
1) “Ford”
2) “Honda”
127.0.0.1:6379> SMOVE cars mycars “Honda”
(integer) 1
127.0.0.1:6379> SDIFF cars mycars
1) “Ford”

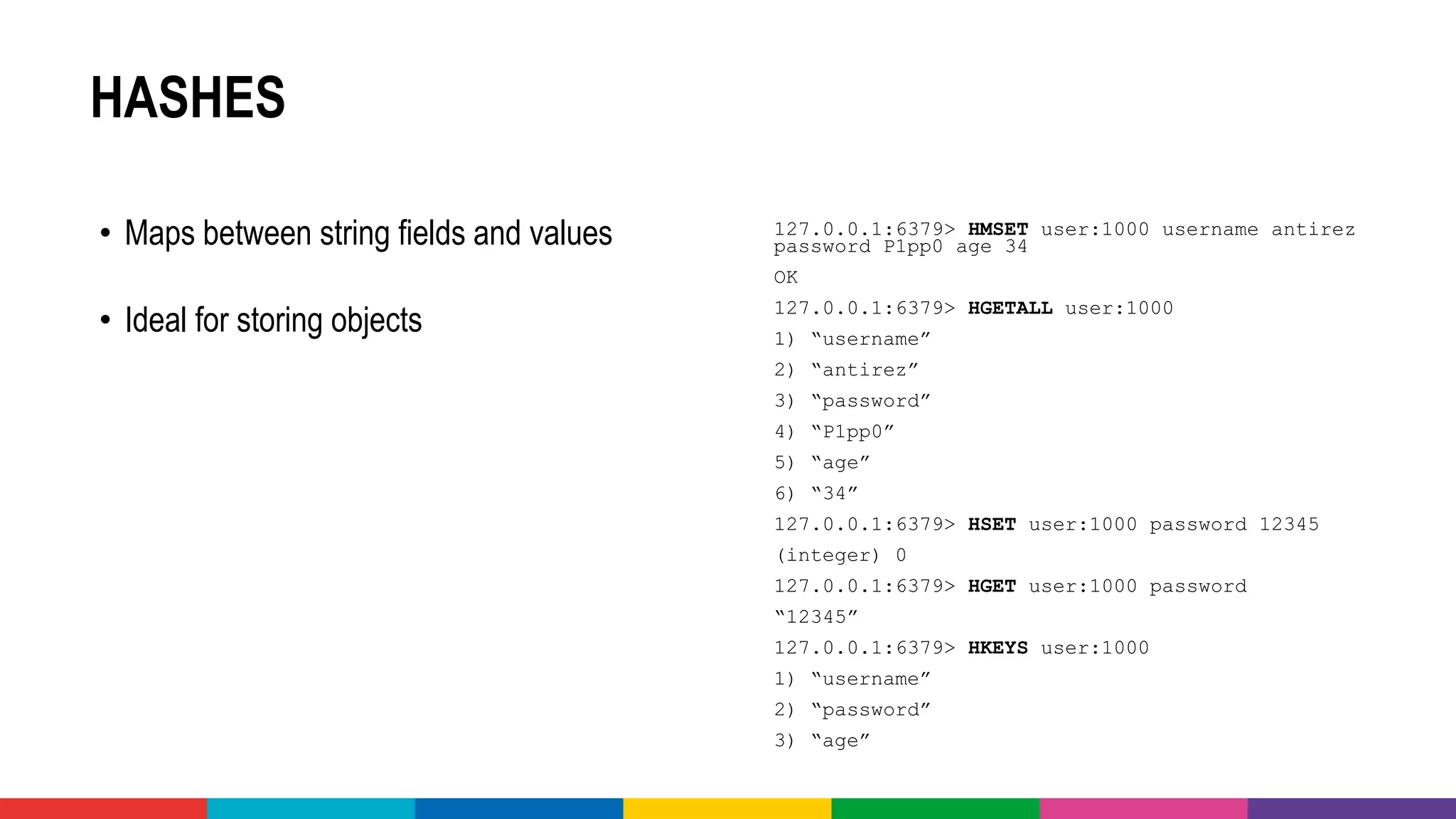

HASHES
• Maps between string fields and values
• Ideal for storing objects
127.0.0.1:6379> HMSET user:1000 username antirez
password P1pp0 age 34
OK
127.0.0.1:6379> HGETALL user:1000
1) “username”
2) “antirez”
3) “password”
4) “P1pp0”
5) “age”
6) “34”
127.0.0.1:6379> HSET user:1000 password 12345
(integer) 0
127.0.0.1:6379> HGET user:1000 password
“12345”
127.0.0.1:6379> HKEYS user:1000
1) “username”
2) “password”
3) “age”

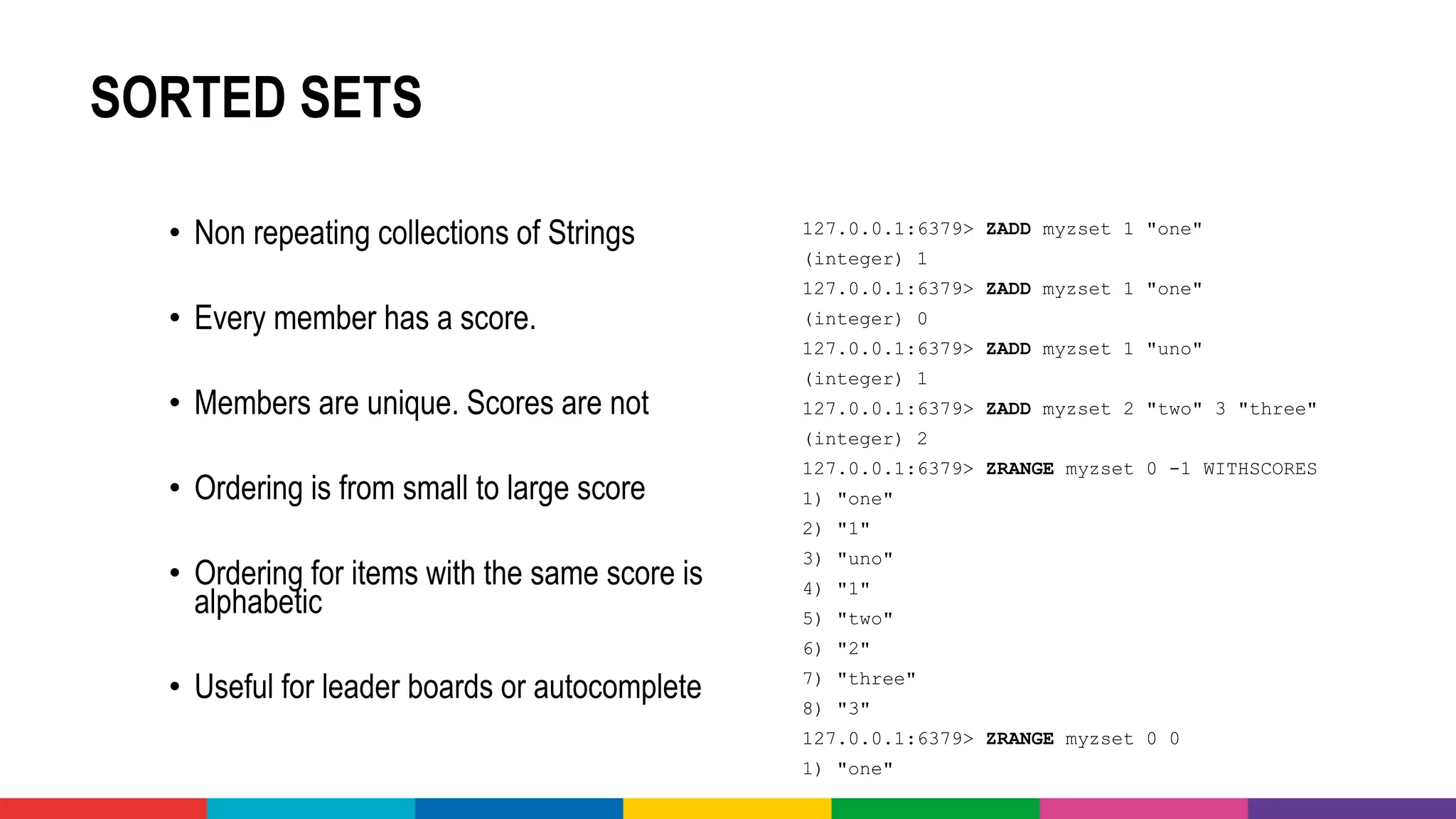

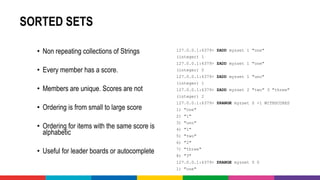

SORTED SETS
• Non repeating collections of Strings
• Every member has a score.
• Members are unique. Scores are not
• Ordering is from small to large score
• Ordering for items with the same score is
alphabetic
• Useful for leader boards or autocomplete
127.0.0.1:6379> ZADD myzset 1 "one"
(integer) 1
127.0.0.1:6379> ZADD myzset 1 "one"
(integer) 0
127.0.0.1:6379> ZADD myzset 1 "uno"
(integer) 1
127.0.0.1:6379> ZADD myzset 2 "two" 3 "three"
(integer) 2
127.0.0.1:6379> ZRANGE myzset 0 -1 WITHSCORES
1) "one"
2) "1"
3) "uno"
4) "1"
5) "two"
6) "2"
7) "three"
8) "3"
127.0.0.1:6379> ZRANGE myzset 0 0
1) "one"

1 2
PERSISTENCE
Redis Database File (RDB) Append Only File (OAF)

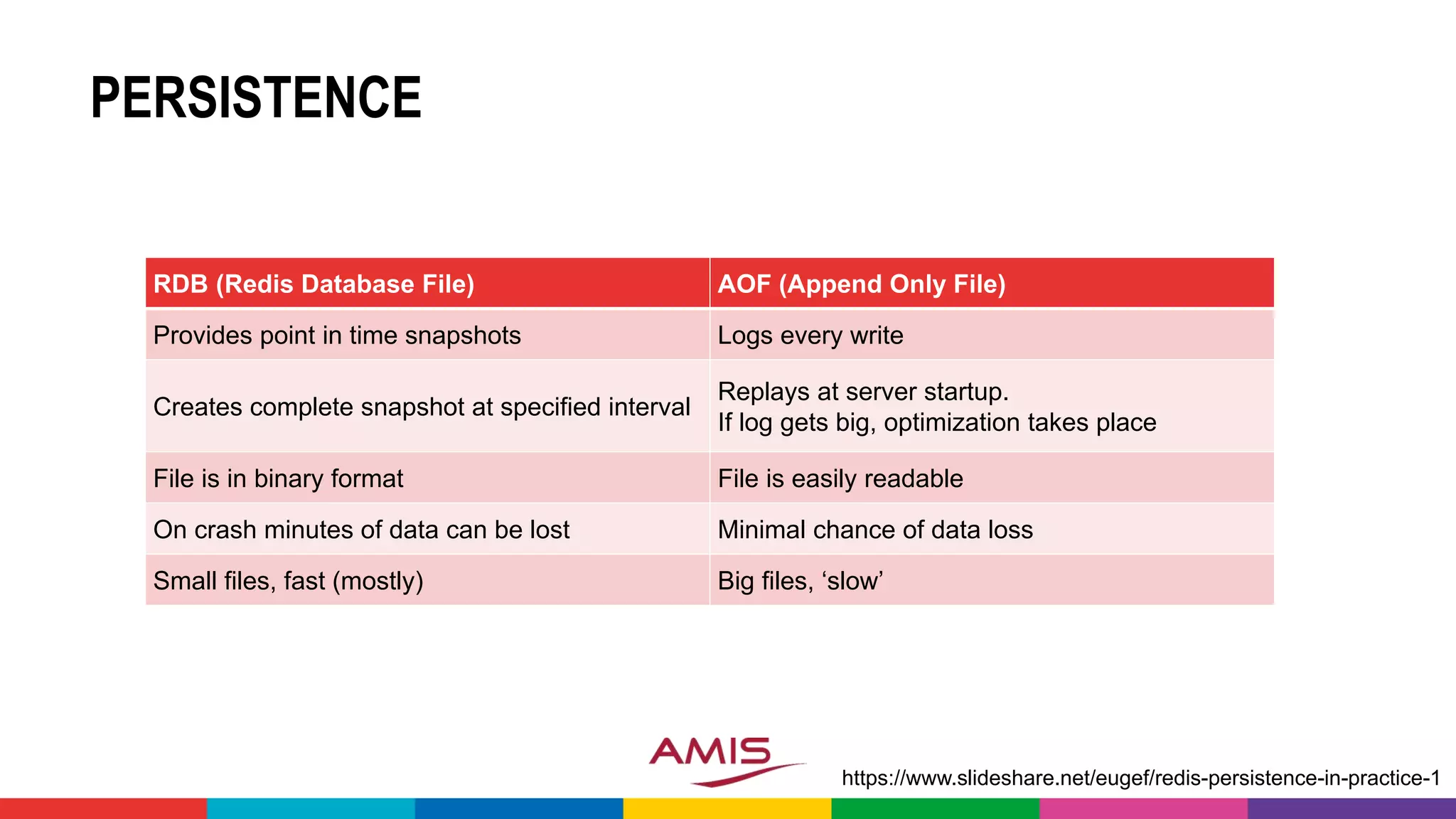

PERSISTENCE
RDB (Redis Database File) AOF (Append Only File)
Provides point in time snapshots Logs every write
Creates complete snapshot at specified interval
Replays at server startup.
If log gets big, optimization takes place
File is in binary format File is easily readable
On crash minutes of data can be lost Minimal chance of data loss
Small files, fast (mostly) Big files, ‘slow’
https://www.slideshare.net/eugef/redis-persistence-in-practice-1

1 2
PUBLISH SUBSCRIBE
How to use it Things to mind

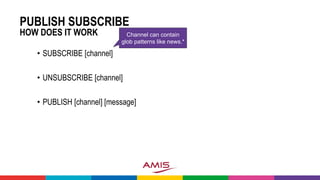

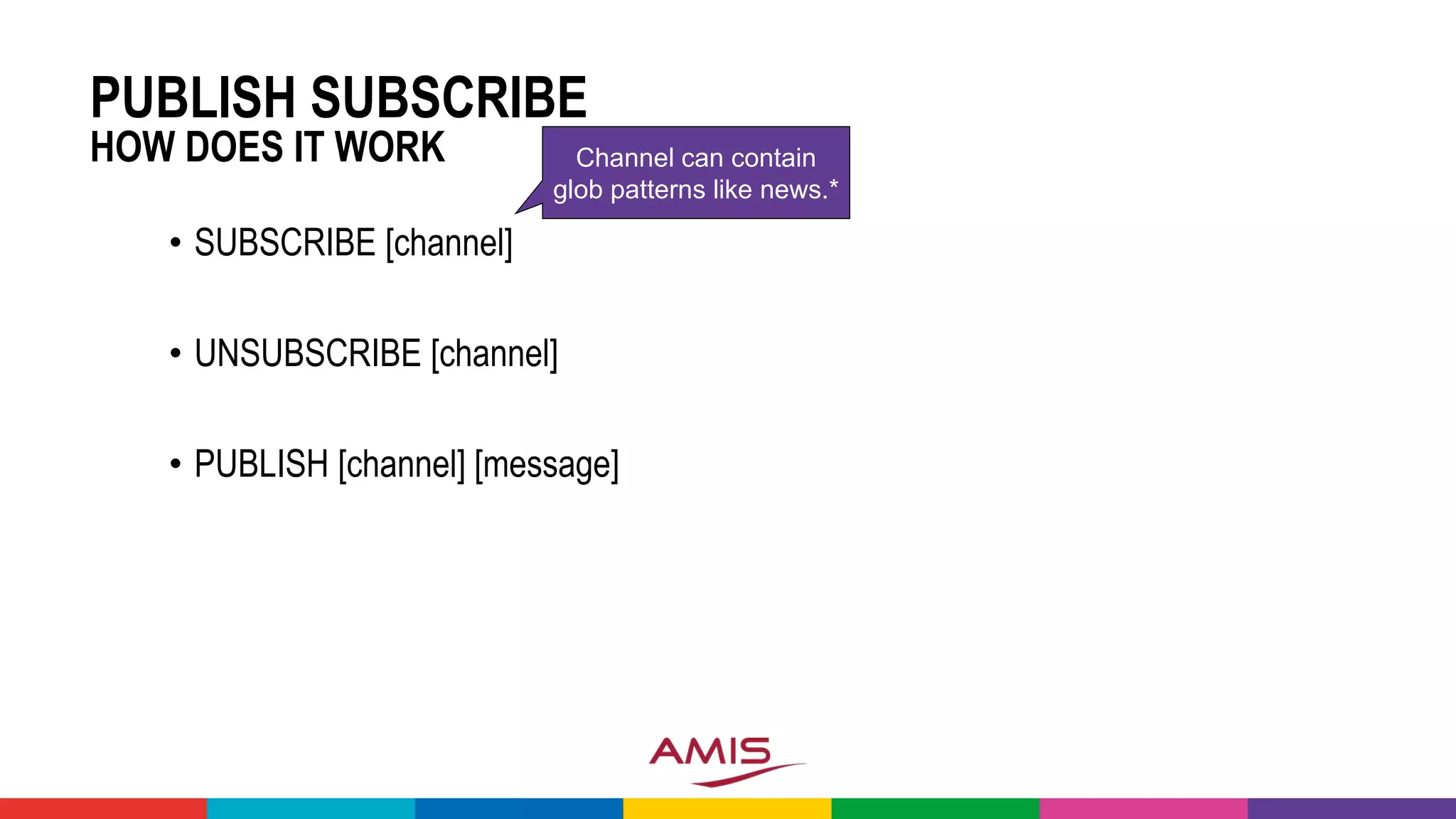

PUBLISH SUBSCRIBE
HOW DOES IT WORK
• SUBSCRIBE [channel]
• UNSUBSCRIBE [channel]
• PUBLISH [channel] [message]
Channel can contain
glob patterns like news.*

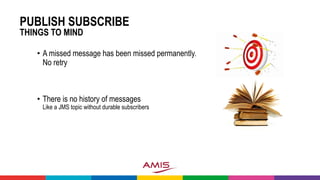

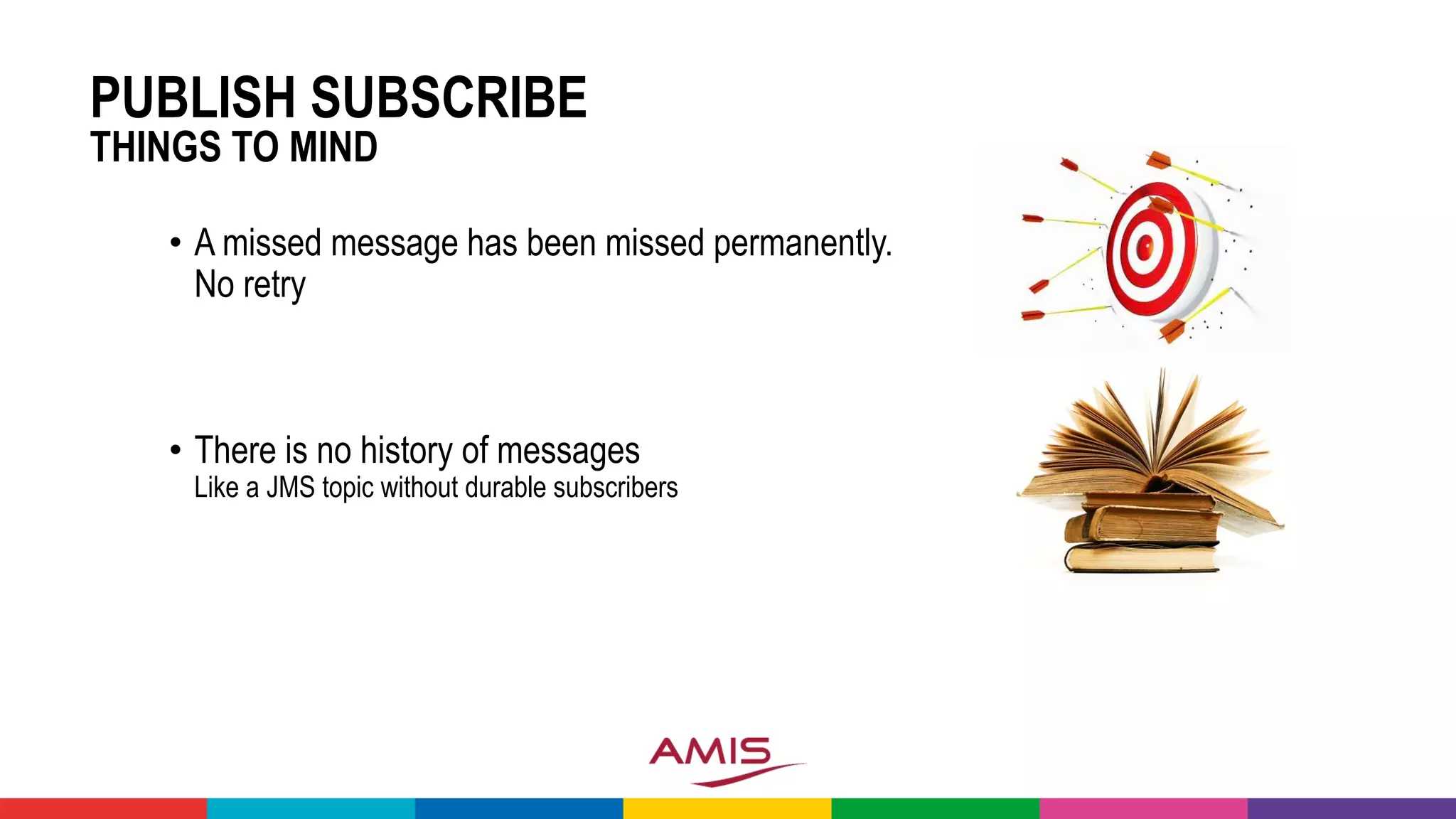

PUBLISH SUBSCRIBE
THINGS TO MIND
• A missed message has been missed permanently.
No retry
• There is no history of messages
Like a JMS topic without durable subscribers

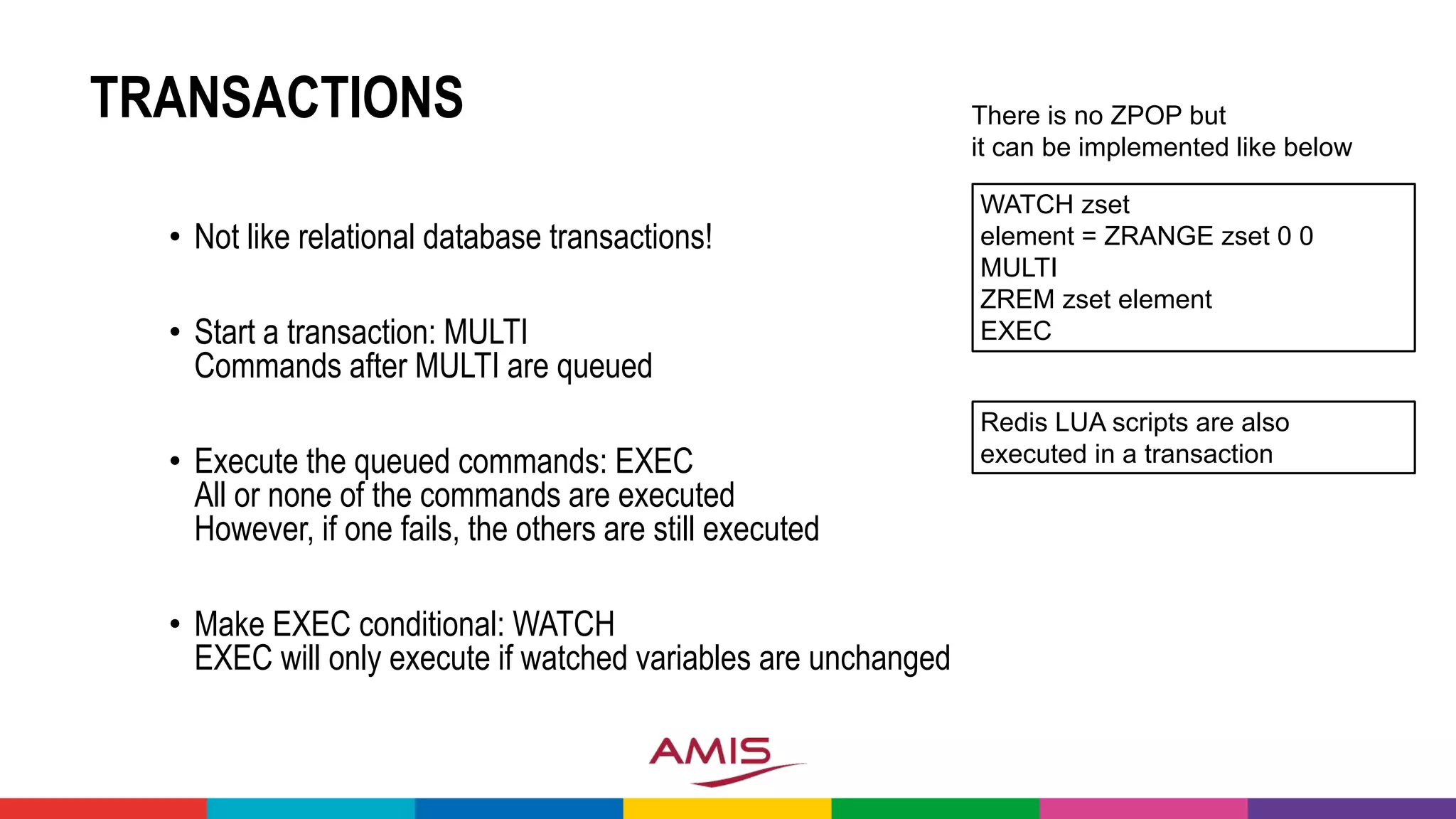

TRANSACTIONS
• Not like relational database transactions!
• Start a transaction: MULTI
Commands after MULTI are queued
• Execute the queued commands: EXEC
All or none of the commands are executed
However, if one fails, the others are still executed
• Make EXEC conditional: WATCH
EXEC will only execute if watched variables are unchanged
WATCH zset
element = ZRANGE zset 0 0
MULTI
ZREM zset element
EXEC
There is no ZPOP but
it can be implemented like below
Redis LUA scripts are also
executed in a transaction

1 2

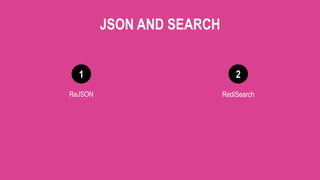

JSON AND SEARCH
ReJSON RediSearch

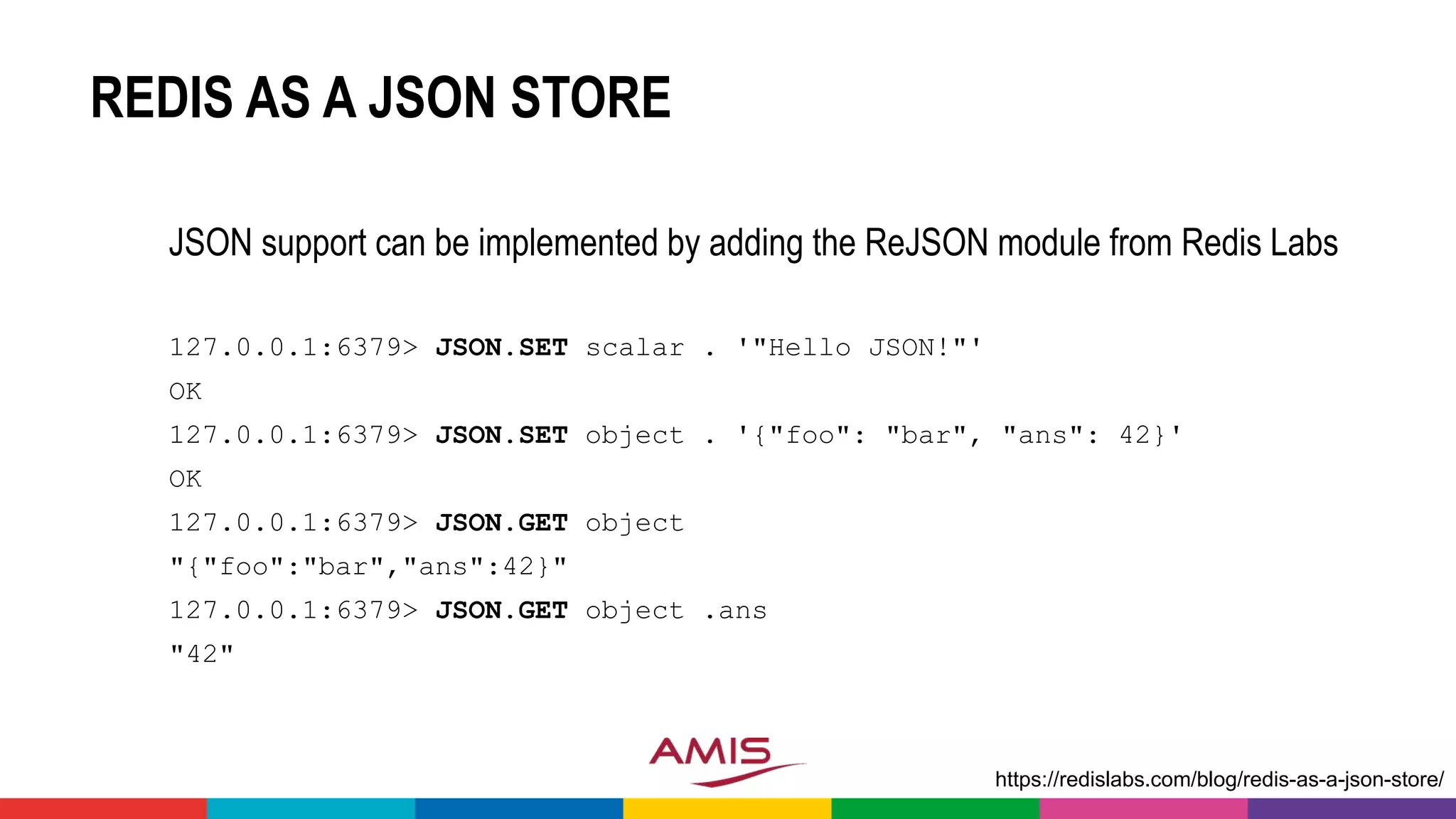

REDIS AS A JSON STORE
JSON support can be implemented by adding the ReJSON module from Redis Labs
127.0.0.1:6379> JSON.SET scalar . '"Hello JSON!"'
OK
127.0.0.1:6379> JSON.SET object . '{"foo": "bar", "ans": 42}'
OK
127.0.0.1:6379> JSON.GET object
"{"foo":"bar","ans":42}"
127.0.0.1:6379> JSON.GET object .ans
"42"
https://redislabs.com/blog/redis-as-a-json-store/

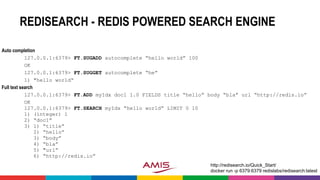

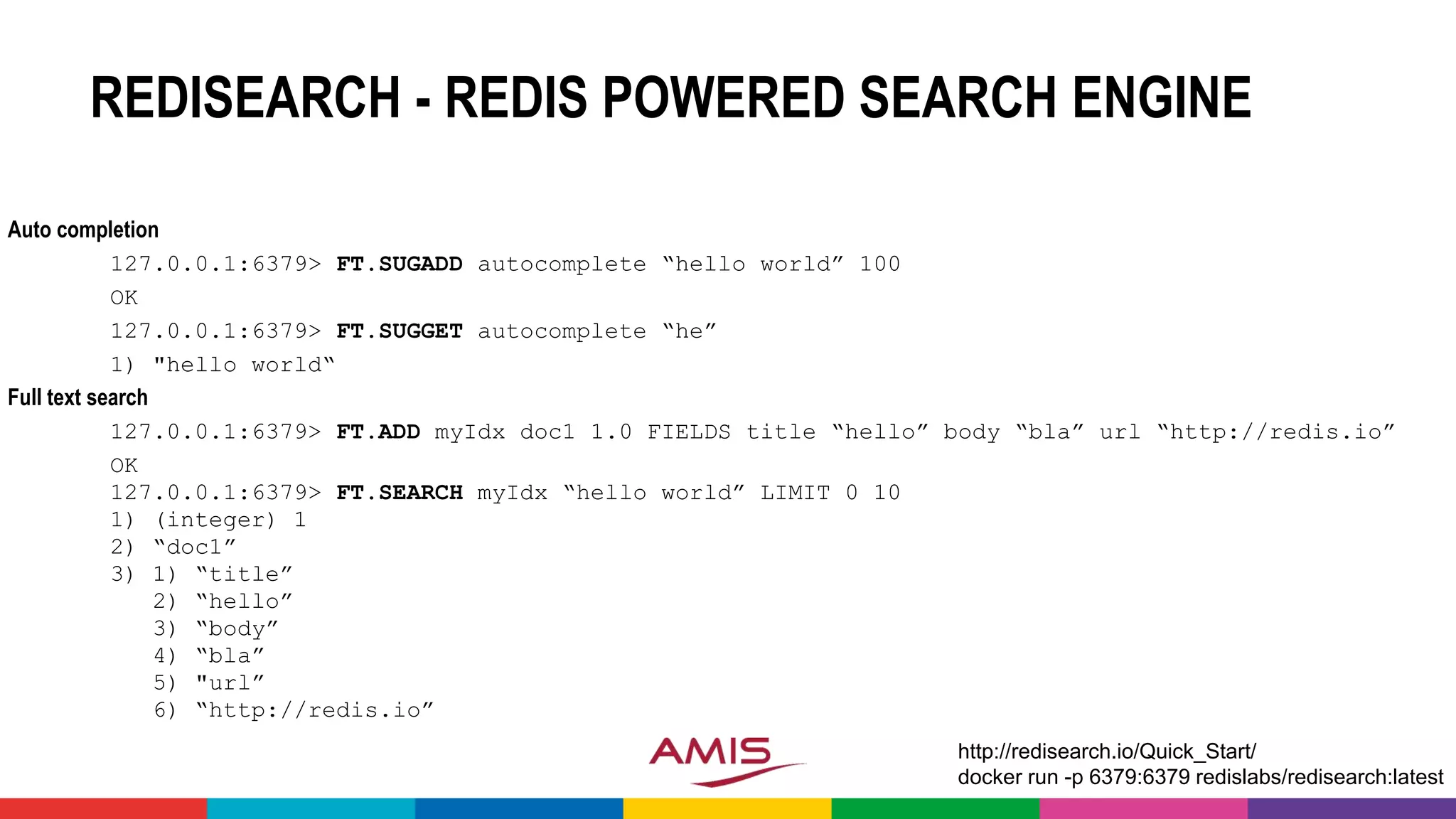

REDISEARCH - REDIS POWERED SEARCH ENGINE
Auto completion
127.0.0.1:6379> FT.SUGADD autocomplete “hello world” 100
OK
127.0.0.1:6379> FT.SUGGET autocomplete “he”
1) "hello world“
Full text search
127.0.0.1:6379> FT.ADD myIdx doc1 1.0 FIELDS title “hello” body “bla” url “http://redis.io”
OK
127.0.0.1:6379> FT.SEARCH myIdx “hello world” LIMIT 0 10
1) (integer) 1
2) “doc1”
3) 1) “title”
2) “hello”
3) “body”
4) “bla”
5) "url”
6) “http://redis.io”
http://redisearch.io/Quick_Start/
docker run -p 6379:6379 redislabs/redisearch:latest

1 2
CLIENTS
Node.js Spring Boot

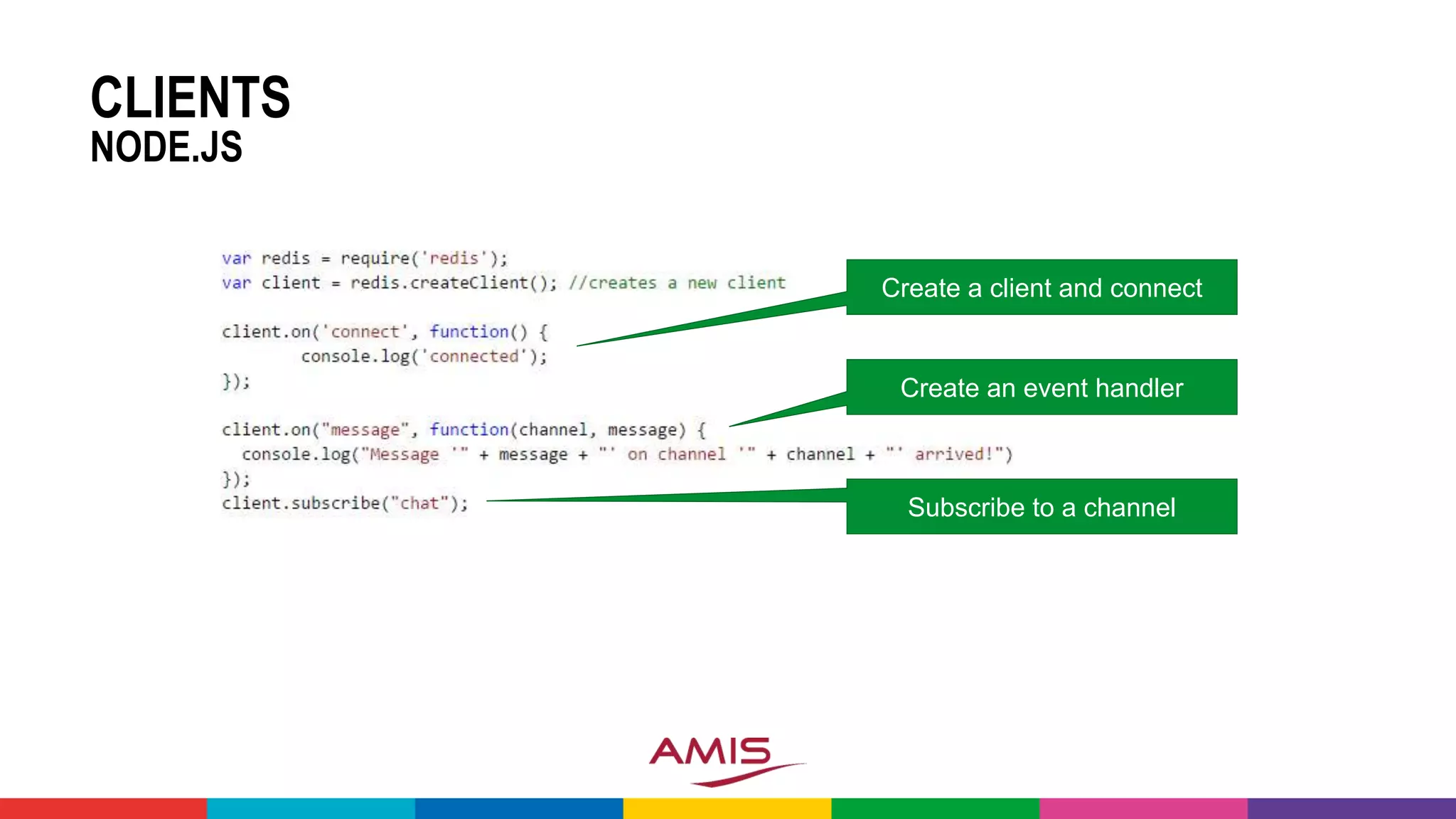

CLIENTS
NODE.JS
Create a client and connect
Create an event handler
Subscribe to a channel

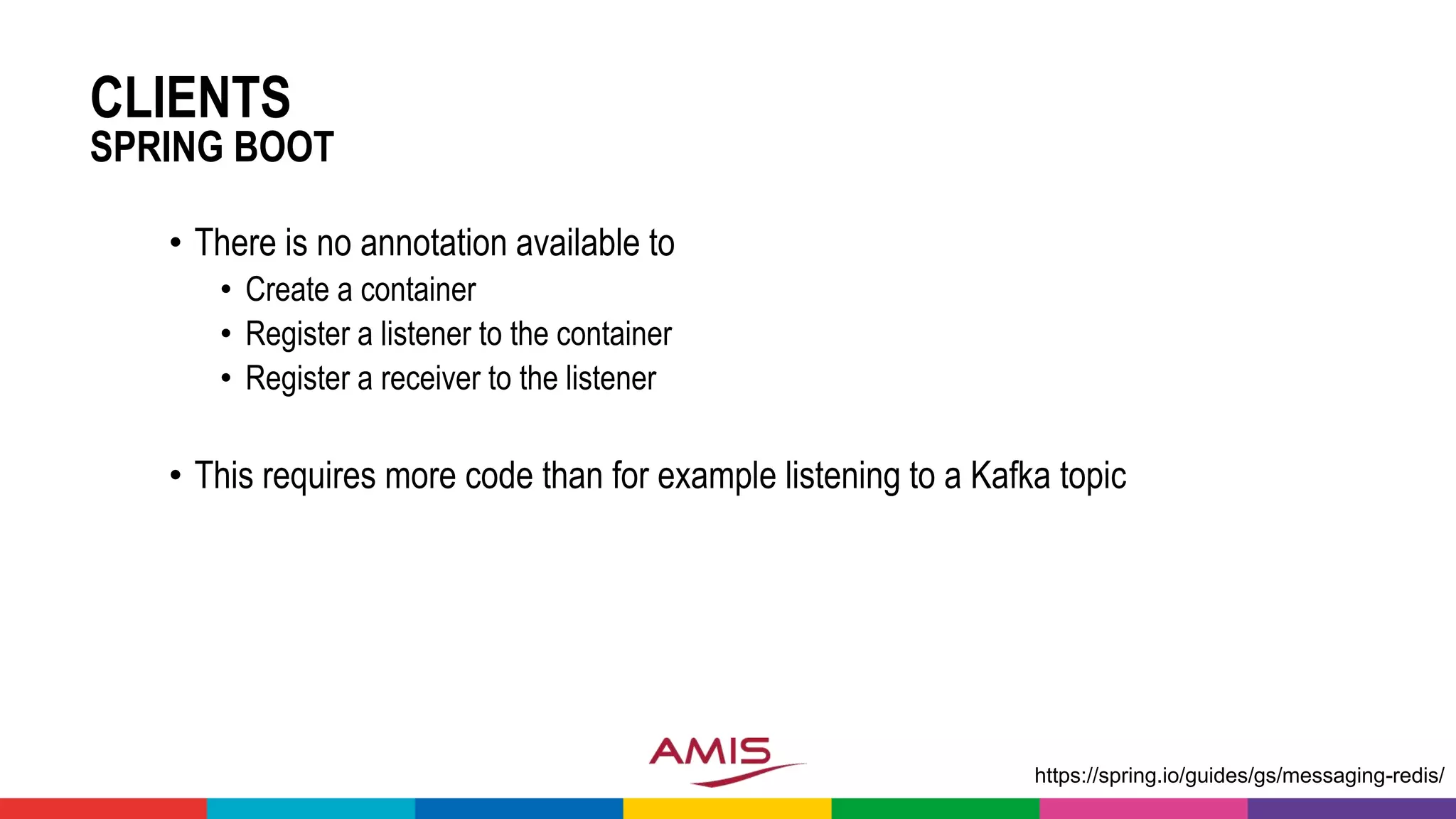

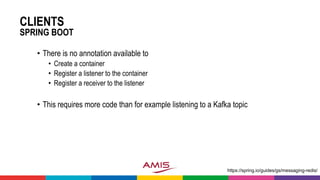

CLIENTS
SPRING BOOT
• There is no annotation available to
• Create a container
• Register a listener to the container
• Register a receiver to the listener
• This requires more code than for example listening to a Kafka topic
https://spring.io/guides/gs/messaging-redis/

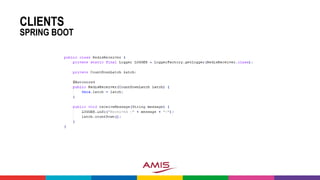

CLIENTS
SPRING BOOT
Wait for a single message

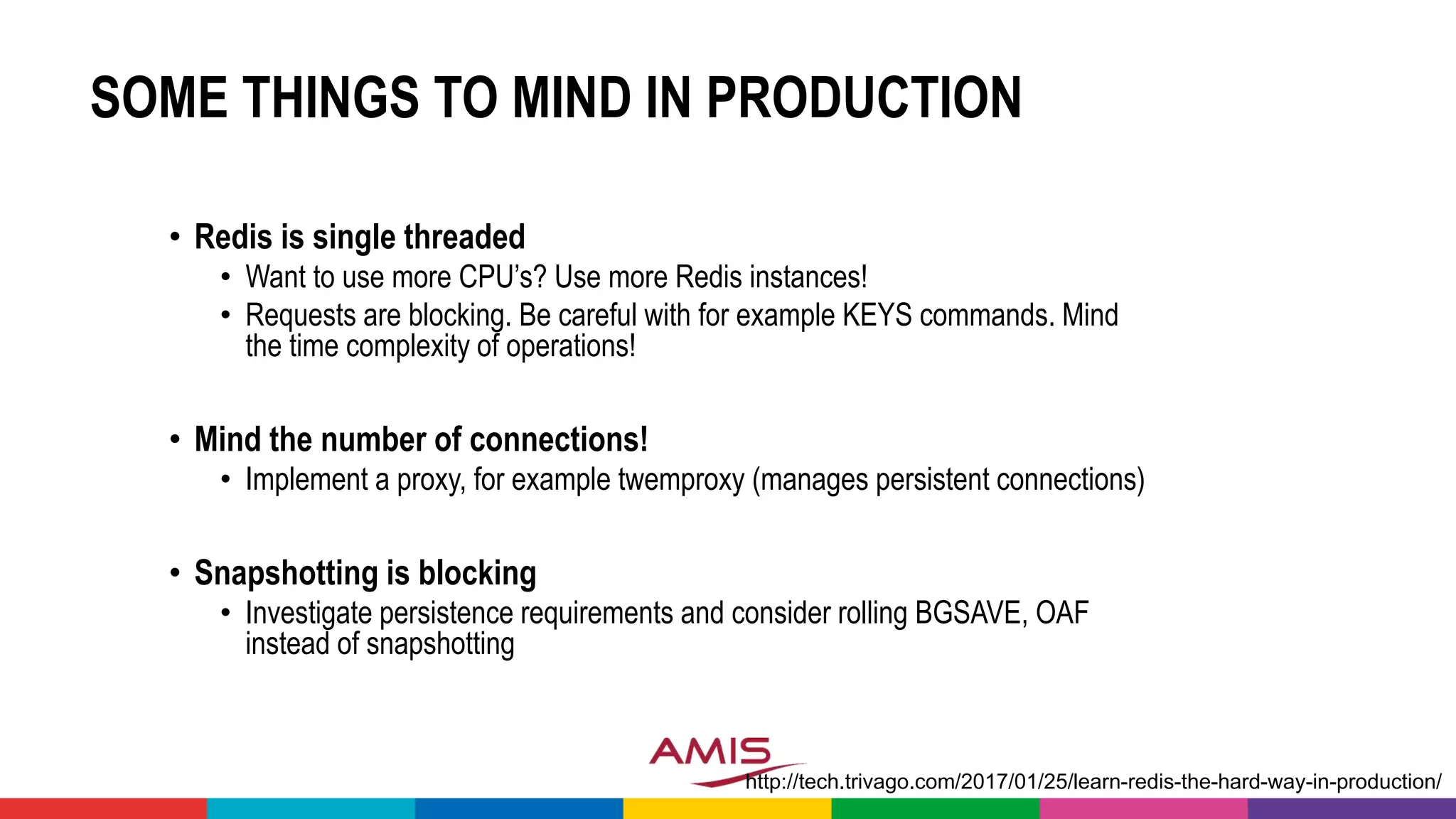

SOME THINGS TO MIND IN PRODUCTION
• Redis is single threaded
• Want to use more CPU’s? Use more Redis instances!
• Requests are blocking. Be careful with for example KEYS commands. Mind
the time complexity of operations!
• Mind the number of connections!
• Implement a proxy, for example twemproxy (manages persistent connections)
• Snapshotting is blocking
• Investigate persistence requirements and consider rolling BGSAVE, OAF
instead of snapshotting
http://tech.trivago.com/2017/01/25/learn-redis-the-hard-way-in-production/
