Module 2
Array and
Linked List

4
I. Definition and Operation

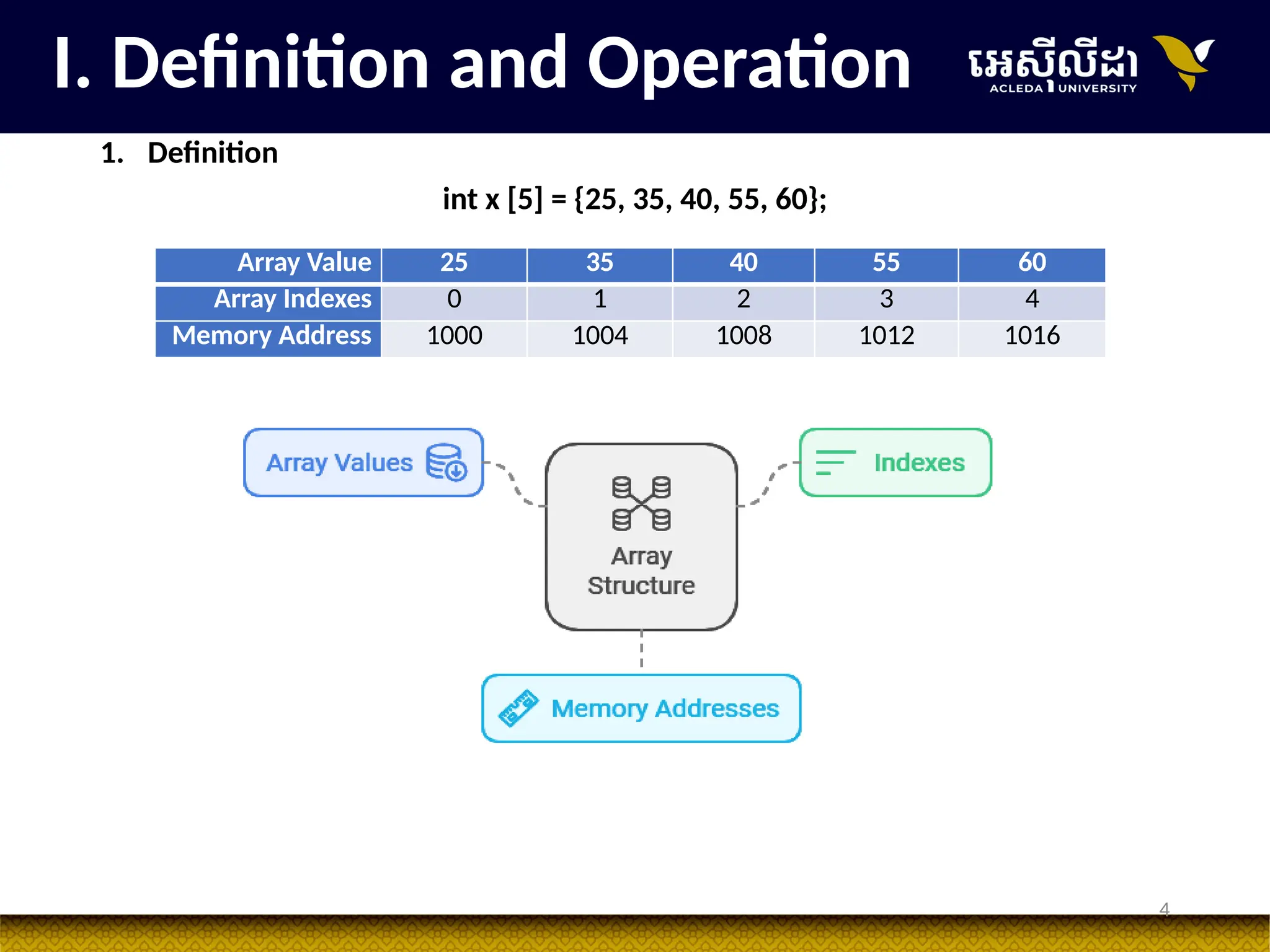

1. Definition
int x [5] = {25, 35, 40, 55, 60};
Array Value 25 35 40 55 60
Array Indexes 0 1 2 3 4
Memory Address 1000 1004 1008 1012 1016

5

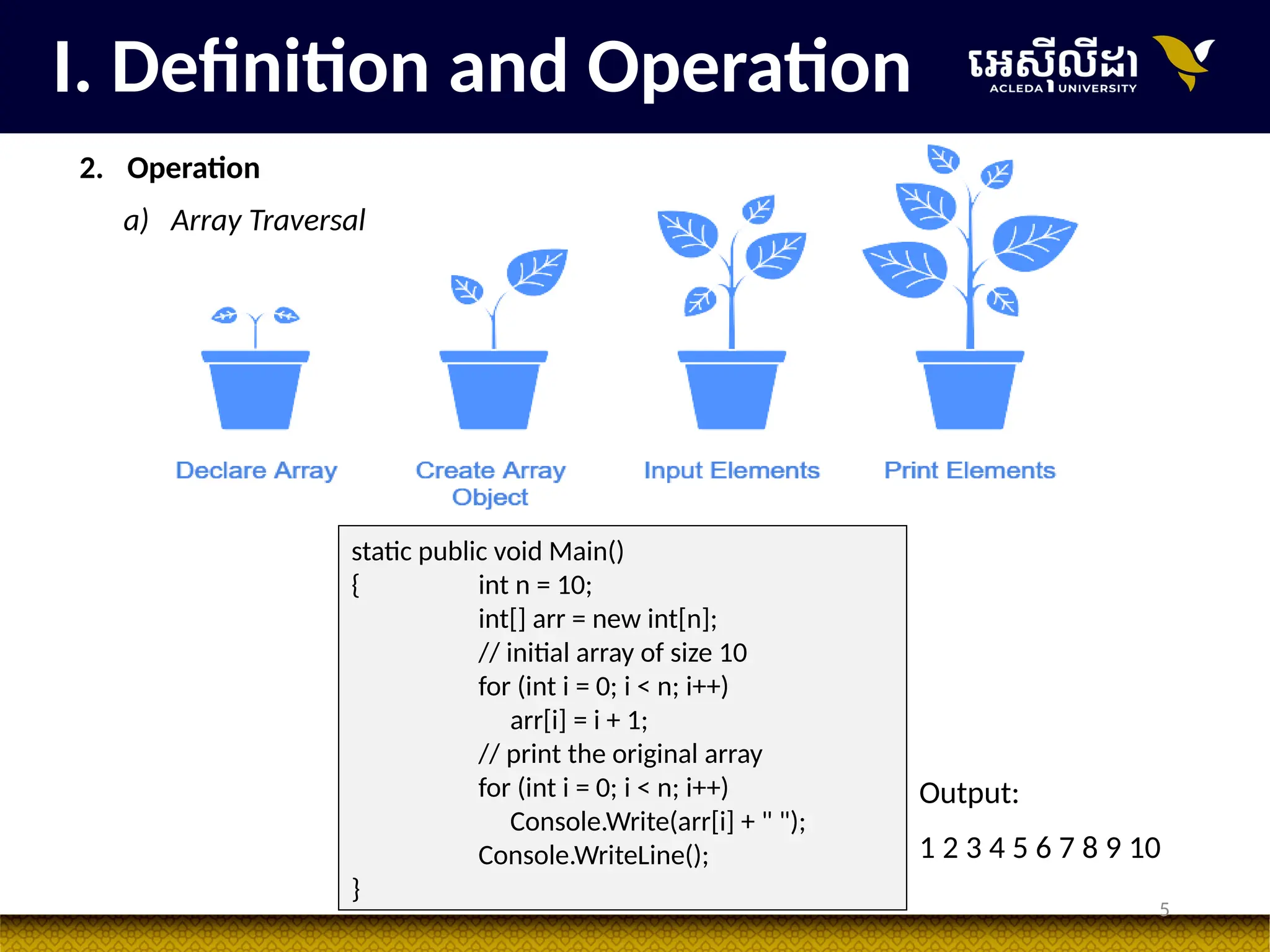

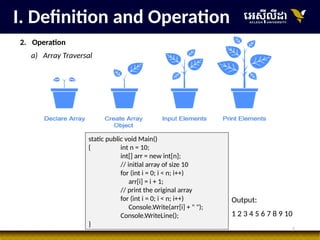

2. Operation
static public void Main()
{ int n = 10;
int[] arr = new int[n];
// initial array of size 10
for (int i = 0; i < n; i++)
arr[i] = i + 1;
// print the original array
for (int i = 0; i < n; i++)
Console.Write(arr[i] + " ");
Console.WriteLine();
}
Output:
1 2 3 4 5 6 7 8 9 10
a) Array Traversal

6

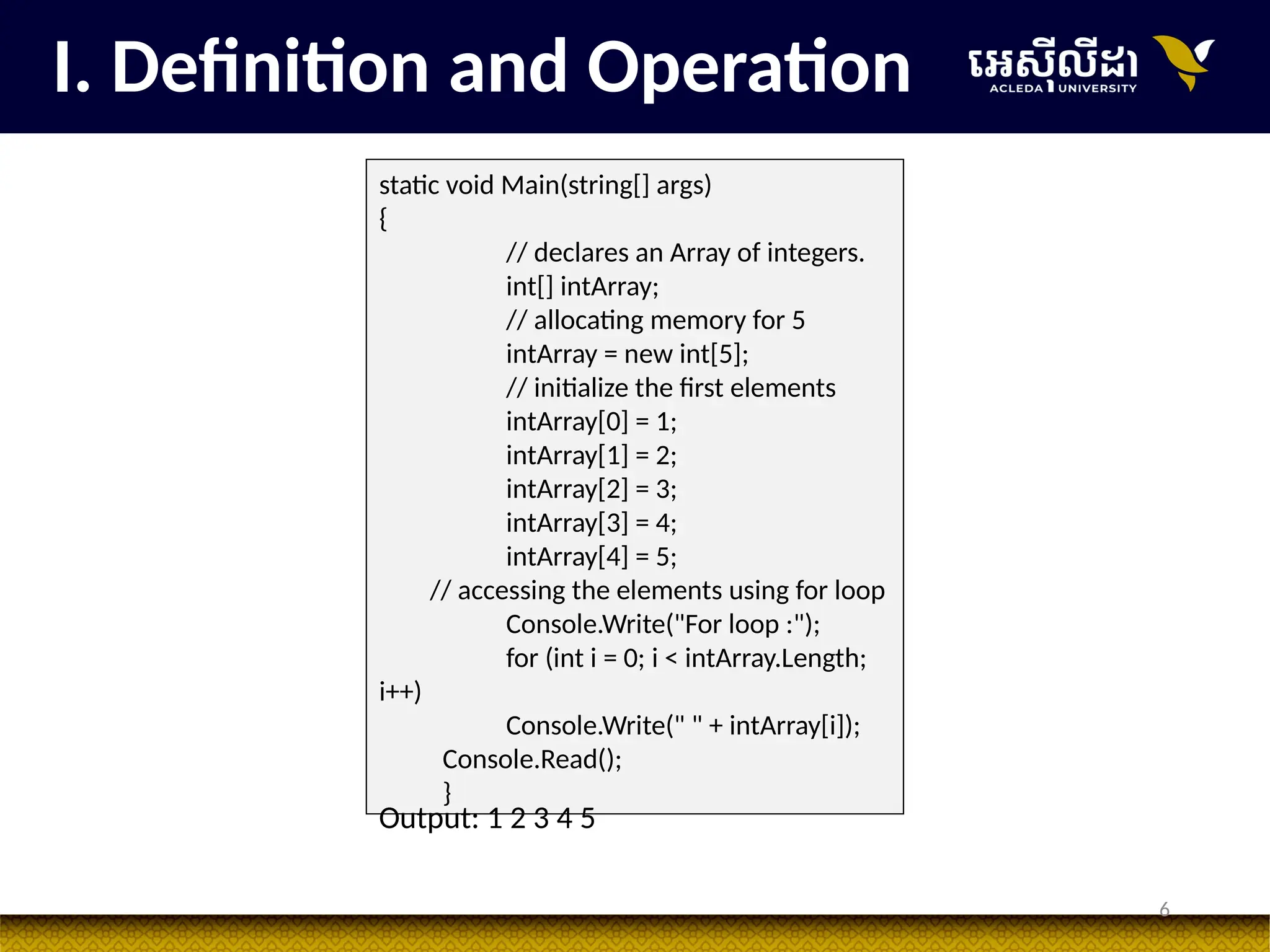

static void Main(string[] args)
{
// declares an Array of integers.
int[] intArray;
// allocating memory for 5
intArray = new int[5];
// initialize the first elements
intArray[0] = 1;
intArray[1] = 2;
intArray[2] = 3;
intArray[3] = 4;
intArray[4] = 5;
// accessing the elements using for loop
Console.Write("For loop :");
for (int i = 0; i < intArray.Length;
i++)
Console.Write(" " + intArray[i]);
Console.Read();
}
Output: 1 2 3 4 5

7
2. Operation

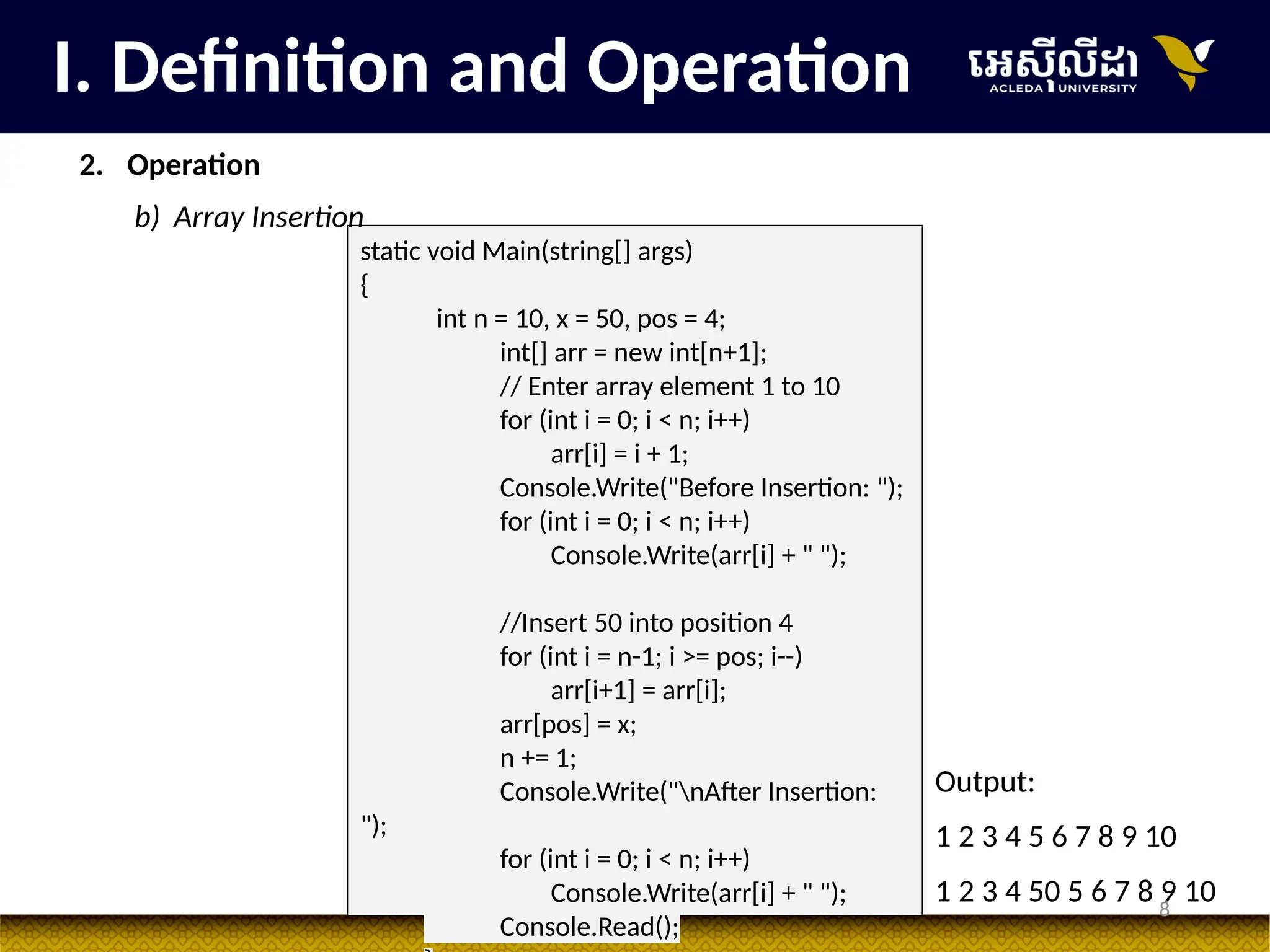

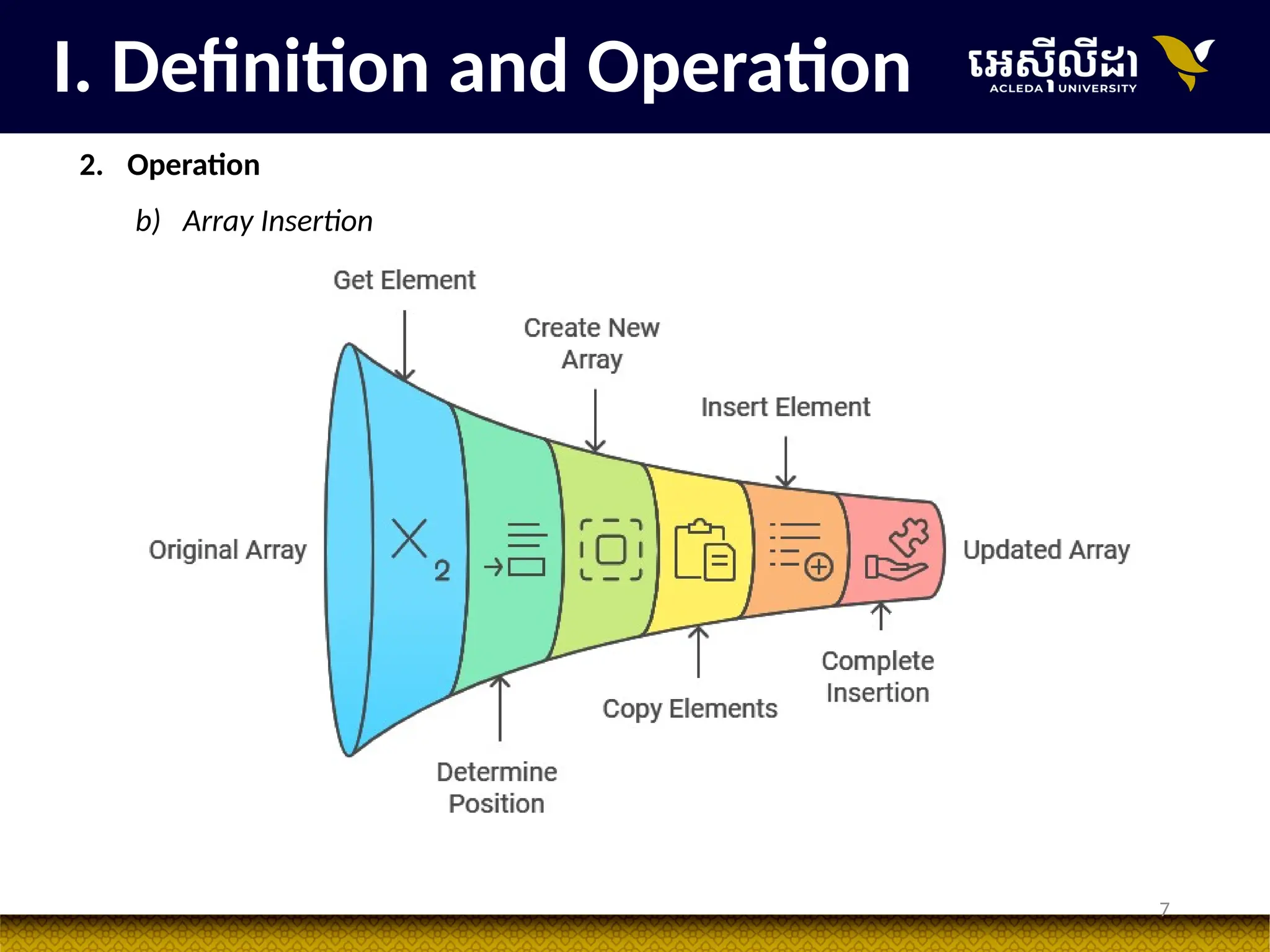

b) Array Insertion

8
{
int n = 10, x = 50, pos = 4;
int[] arr = new int[n+1];
// Enter array element 1 to 10
for (int i = 0; i < n; i++)
arr[i] = i + 1;
Console.Write("Before Insertion: ");
for (int i = 0; i < n; i++)
//Insert 50 into position 4
for (int i = n-1; i >= pos; i--)
arr[i+1] = arr[i];
arr[pos] = x;
n += 1;
Console.Write("nAfter Insertion:
");
for (int i = 0; i < n; i++)
Console.Read();
2. Operation
Output:
1 2 3 4 5 6 7 8 9 10
1 2 3 4 50 5 6 7 8 9 10
b) Array Insertion

9
2. Operation

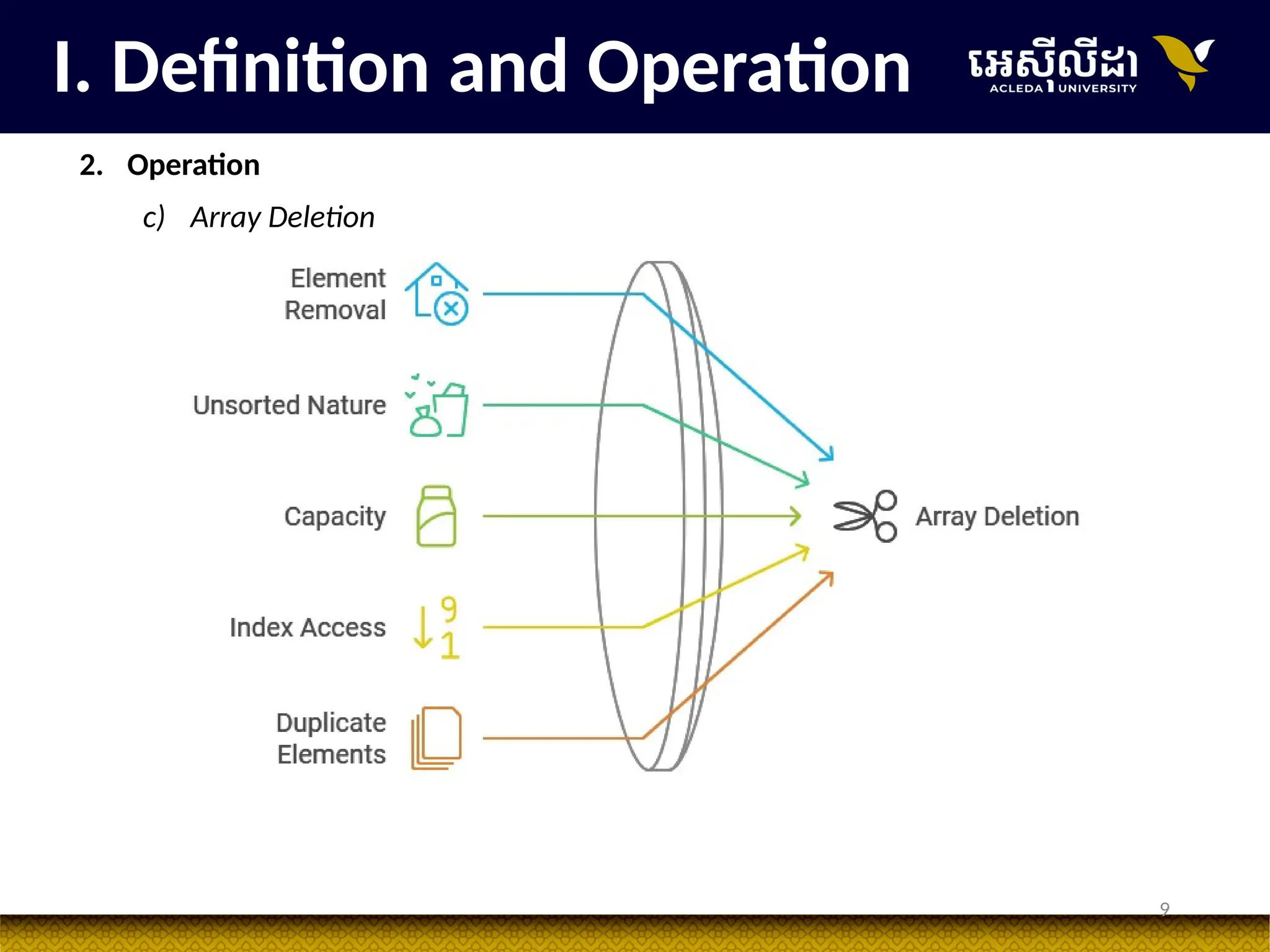

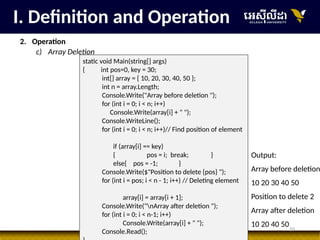

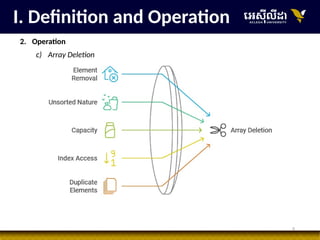

c) Array Deletion

10

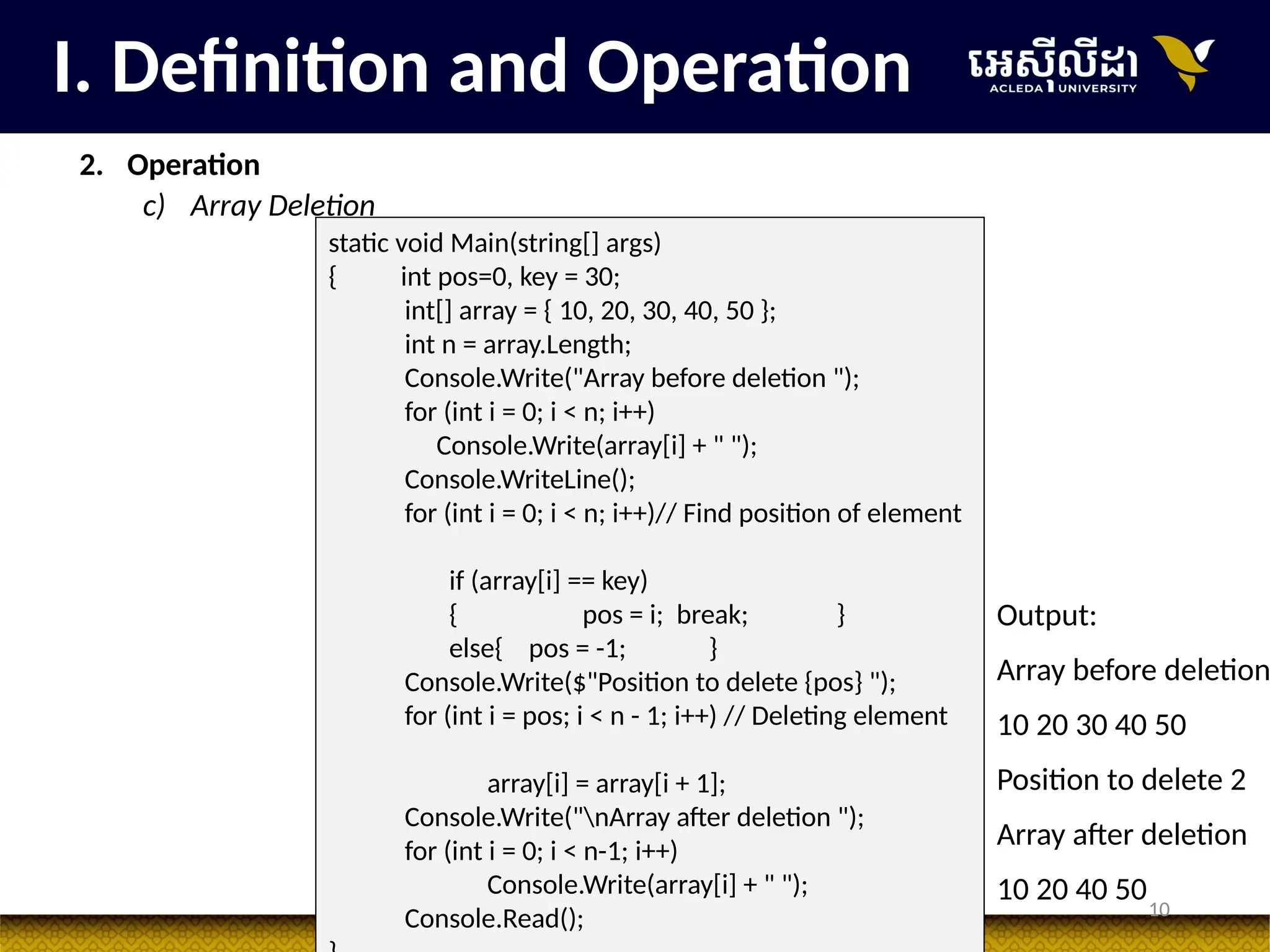

{ int pos=0, key = 30;
int[] array = { 10, 20, 30, 40, 50 };
int n = array.Length;
Console.Write("Array before deletion ");
for (int i = 0; i < n; i++)
Console.Write(array[i] + " ");
for (int i = 0; i < n; i++)// Find position of element
if (array[i] == key)
{ pos = i; break; }
else{ pos = -1; }
Console.Write($"Position to delete {pos} ");
for (int i = pos; i < n - 1; i++) // Deleting element
array[i] = array[i + 1];
Console.Write("nArray after deletion ");
for (int i = 0; i < n-1; i++)
Console.Write(array[i] + " ");
Console.Read();
2. Operation
c) Array Deletion
Output:
Array before deletion
10 20 30 40 50
Position to delete 2
Array after deletion
10 20 40 50

11

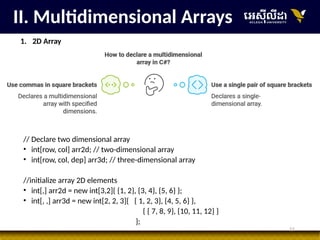

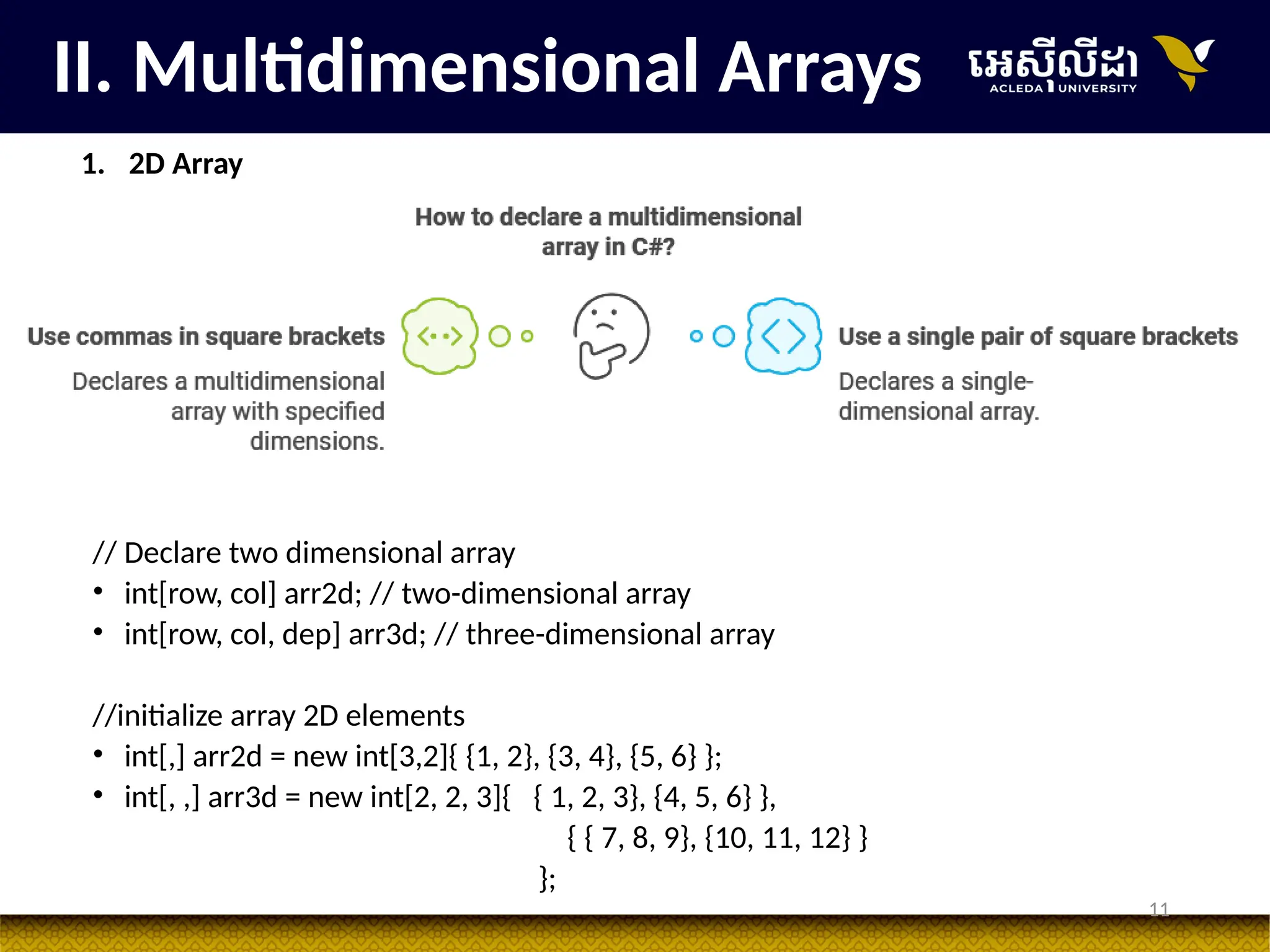

// Declare two dimensional array
• int[row, col] arr2d; // two-dimensional array
• int[row, col, dep] arr3d; // three-dimensional array
//initialize array 2D elements
• int[,] arr2d = new int[3,2]{ {1, 2}, {3, 4}, {5, 6} };
• int[, ,] arr3d = new int[2, 2, 3]{ { 1, 2, 3}, {4, 5, 6} },
{ { 7, 8, 9}, {10, 11, 12} }
};
II. Multidimensional Arrays
1. 2D Array

12

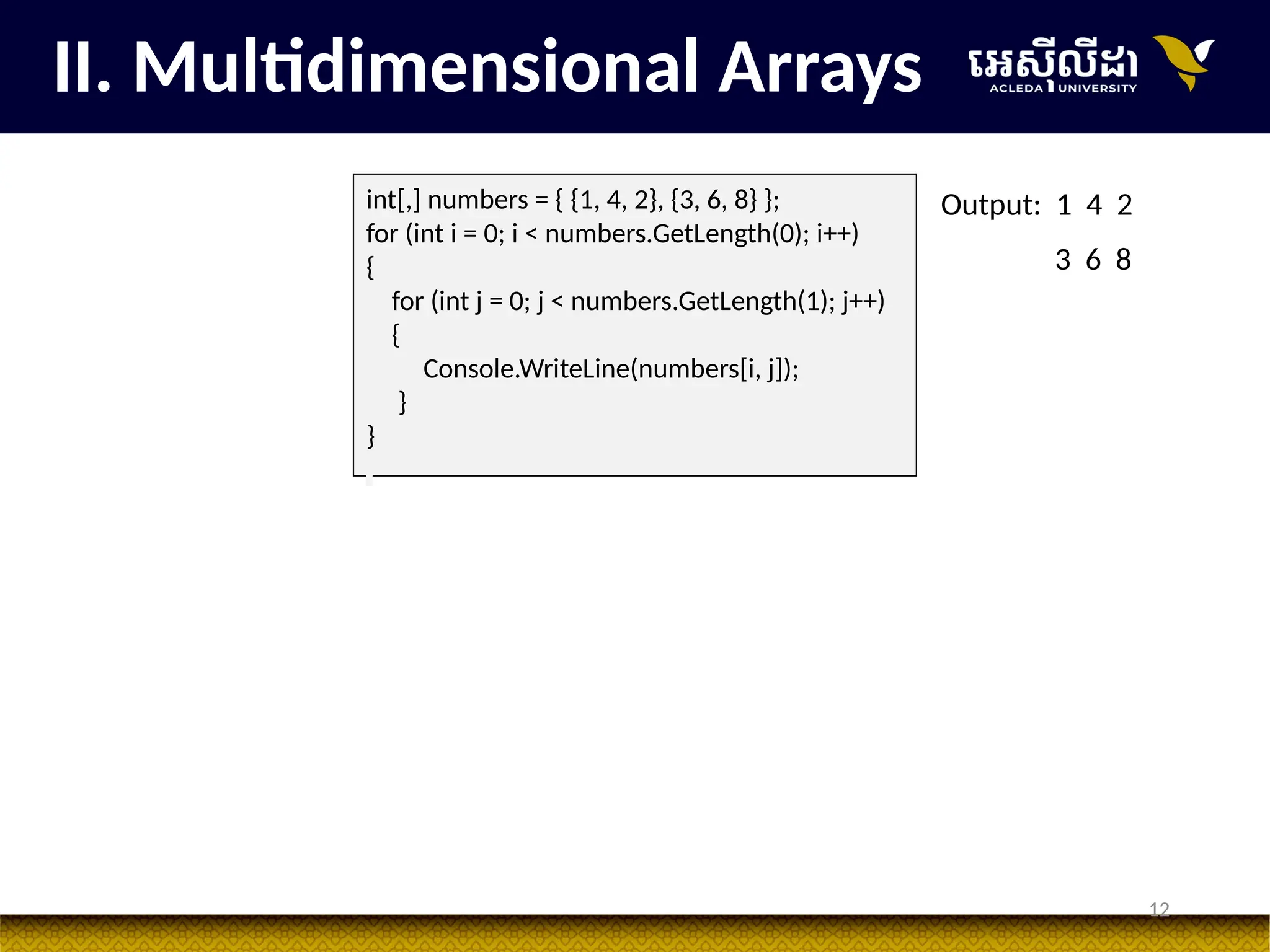

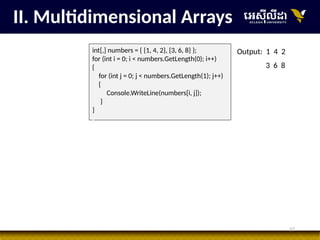

int[,] numbers = { {1, 4, 2}, {3, 6, 8} };
for (int i = 0; i < numbers.GetLength(0); i++)
{
for (int j = 0; j < numbers.GetLength(1); j++)
{
Console.WriteLine(numbers[i, j]);
}
}
Output: 1 4 2
3 6 8

13

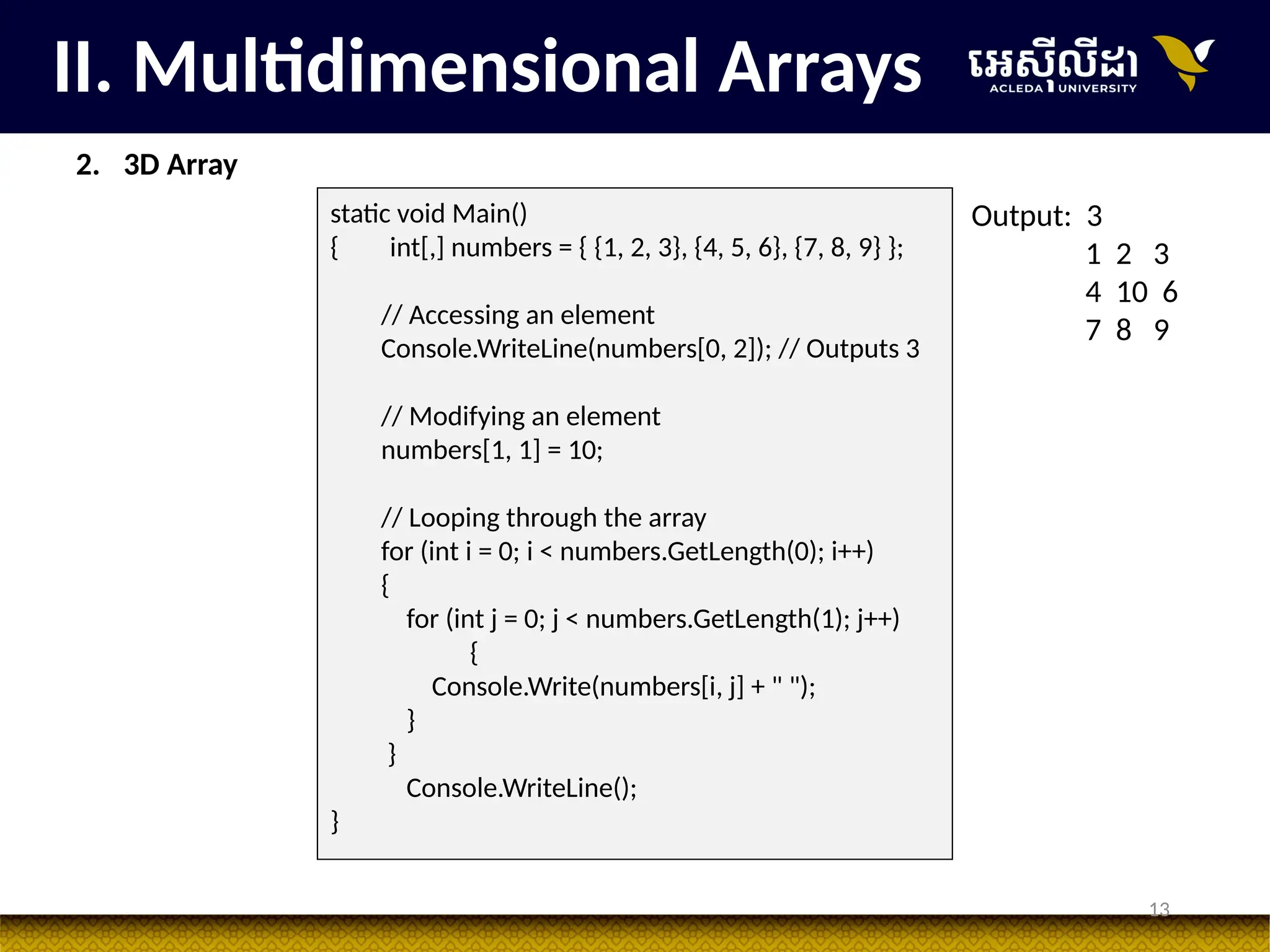

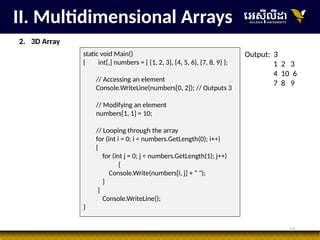

static void Main()
{ int[,] numbers = { {1, 2, 3}, {4, 5, 6}, {7, 8, 9} };
// Accessing an element
Console.WriteLine(numbers[0, 2]); // Outputs 3
// Modifying an element
numbers[1, 1] = 10;
// Looping through the array
for (int i = 0; i < numbers.GetLength(0); i++)
{
for (int j = 0; j < numbers.GetLength(1); j++)
{
Console.Write(numbers[i, j] + " ");
}
}
}
Output: 3
1 2 3
4 10 6
7 8 9
2. 3D Array

14
{

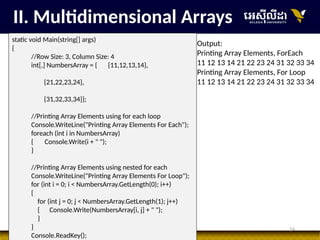

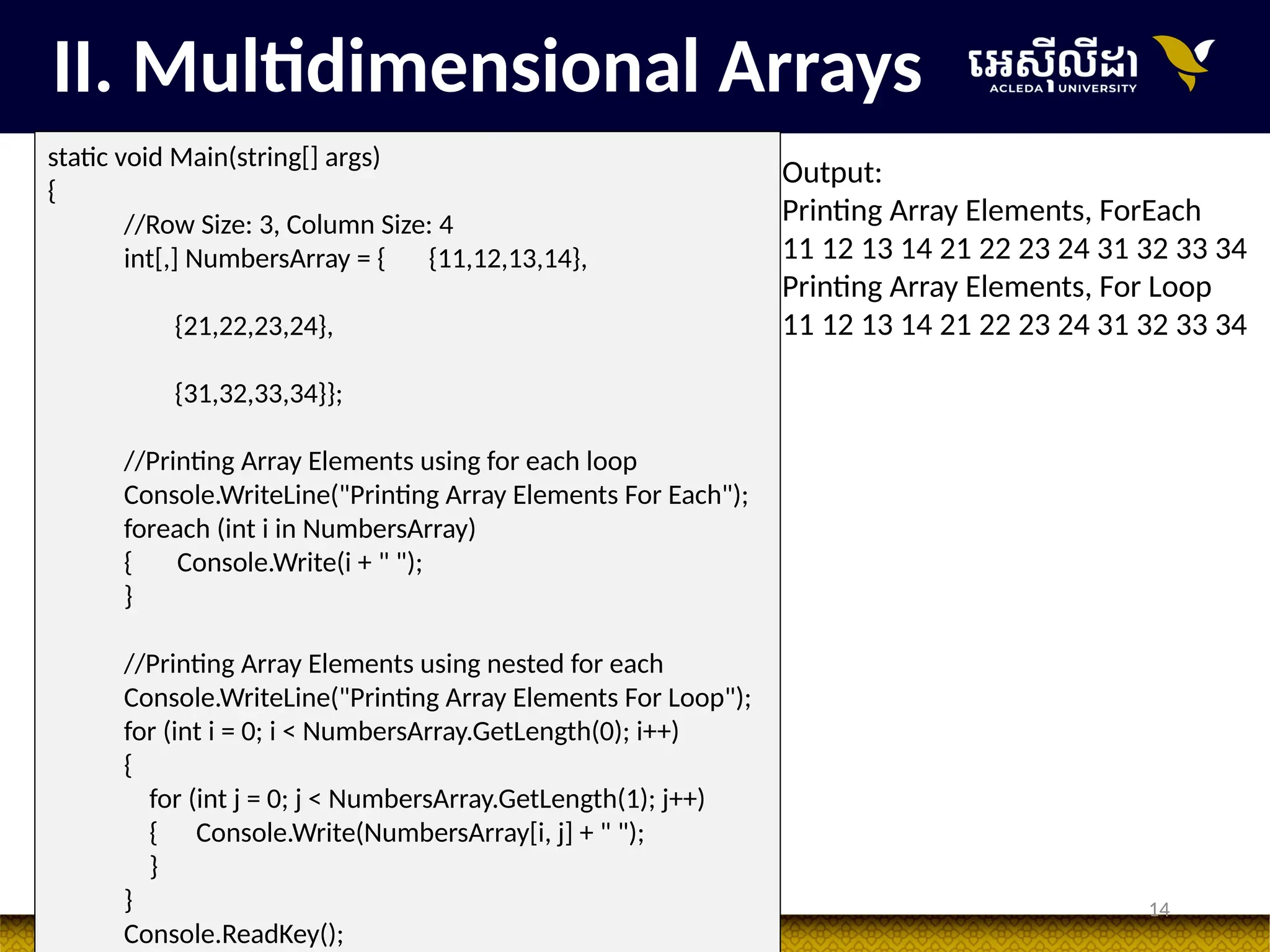

//Row Size: 3, Column Size: 4
int[,] NumbersArray = { {11,12,13,14},
{21,22,23,24},
{31,32,33,34}};
//Printing Array Elements using for each loop
Console.WriteLine("Printing Array Elements For Each");
foreach (int i in NumbersArray)
{ Console.Write(i + " ");
}
//Printing Array Elements using nested for each
Console.WriteLine("Printing Array Elements For Loop");
for (int i = 0; i < NumbersArray.GetLength(0); i++)
{
for (int j = 0; j < NumbersArray.GetLength(1); j++)
{ Console.Write(NumbersArray[i, j] + " ");
}
}
Console.ReadKey();
Output:
Printing Array Elements, ForEach
11 12 13 14 21 22 23 24 31 32 33 34
Printing Array Elements, For Loop
11 12 13 14 21 22 23 24 31 32 33 34

16

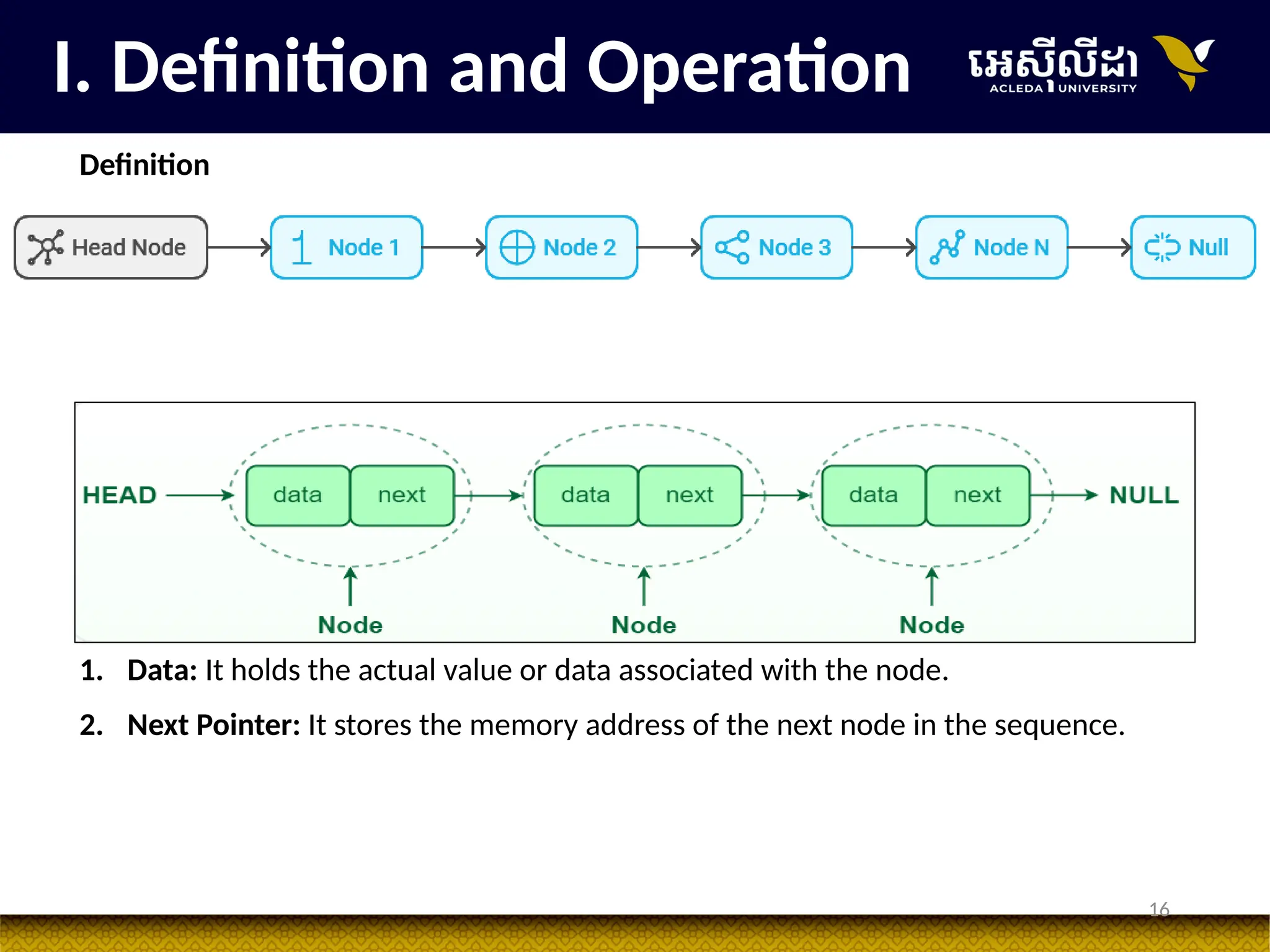

Definition
1. Data: It holds the actual value or data associated with the node.
2. Next Pointer: It stores the memory address of the next node in the sequence.

17

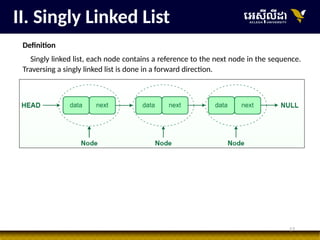

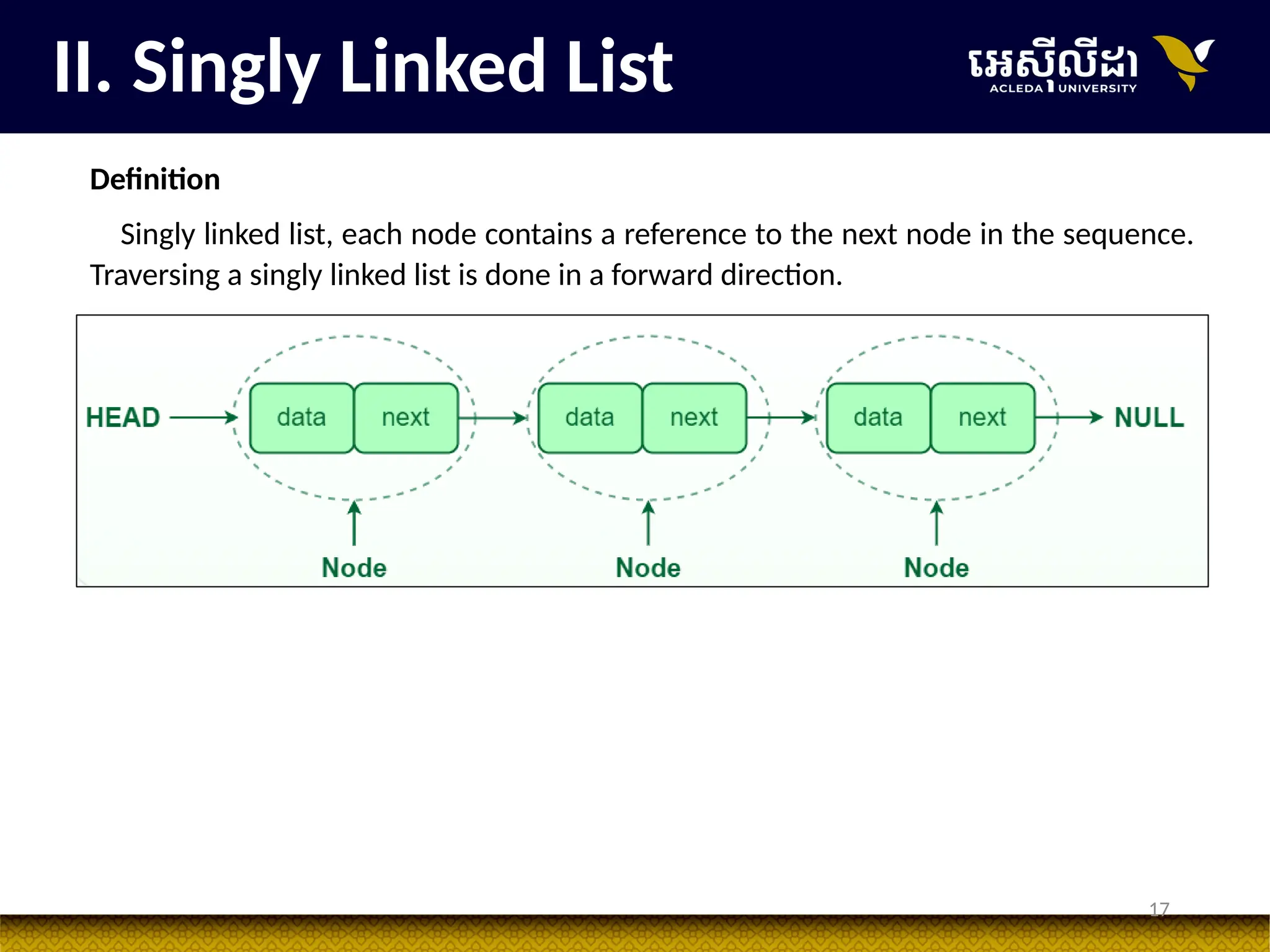

II. Singly Linked List
Definition
Singly linked list, each node contains a reference to the next node in the sequence.
Traversing a singly linked list is done in a forward direction.

18

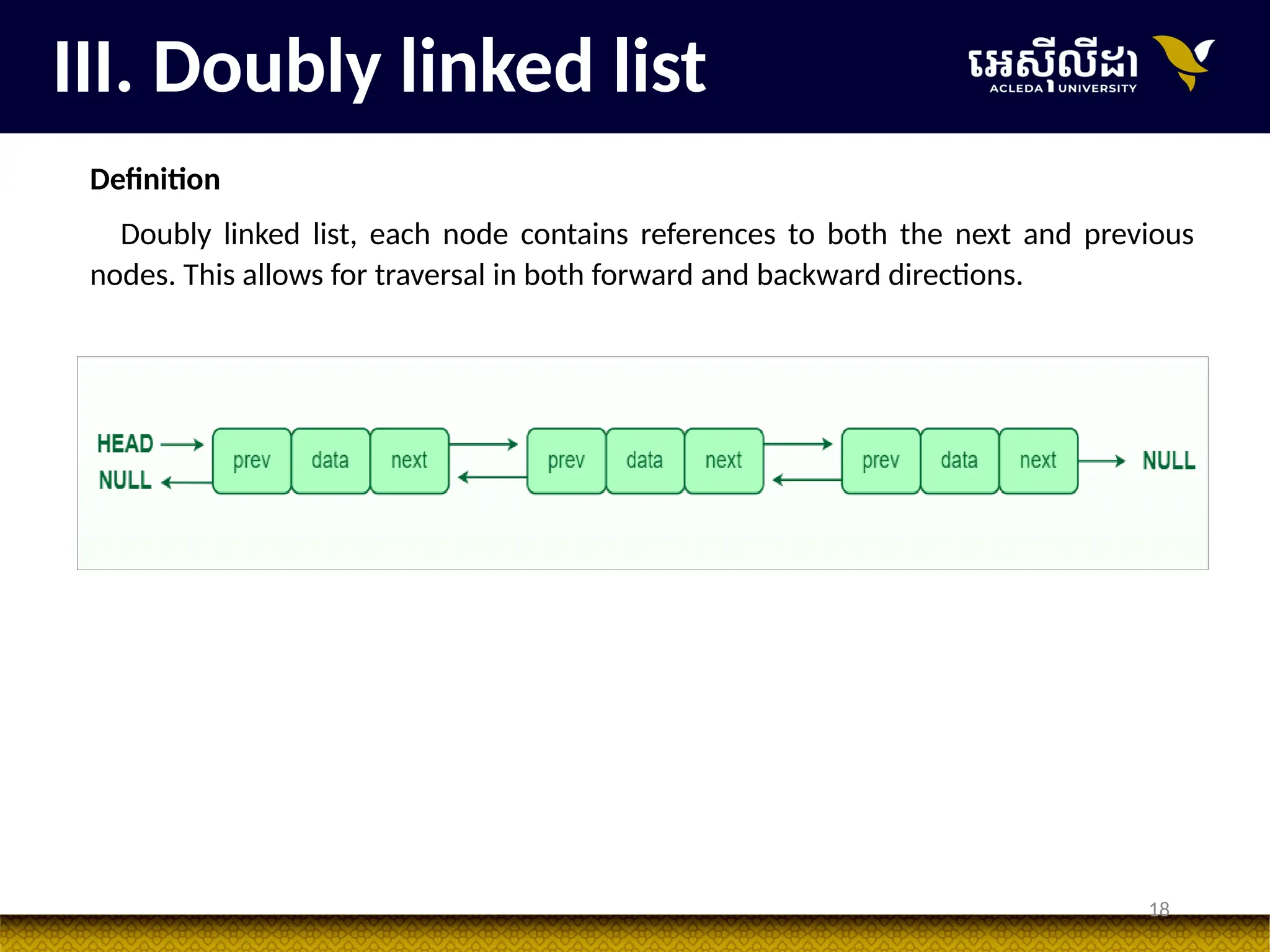

III. Doubly linked list
Definition
Doubly linked list, each node contains references to both the next and previous
nodes. This allows for traversal in both forward and backward directions.

19

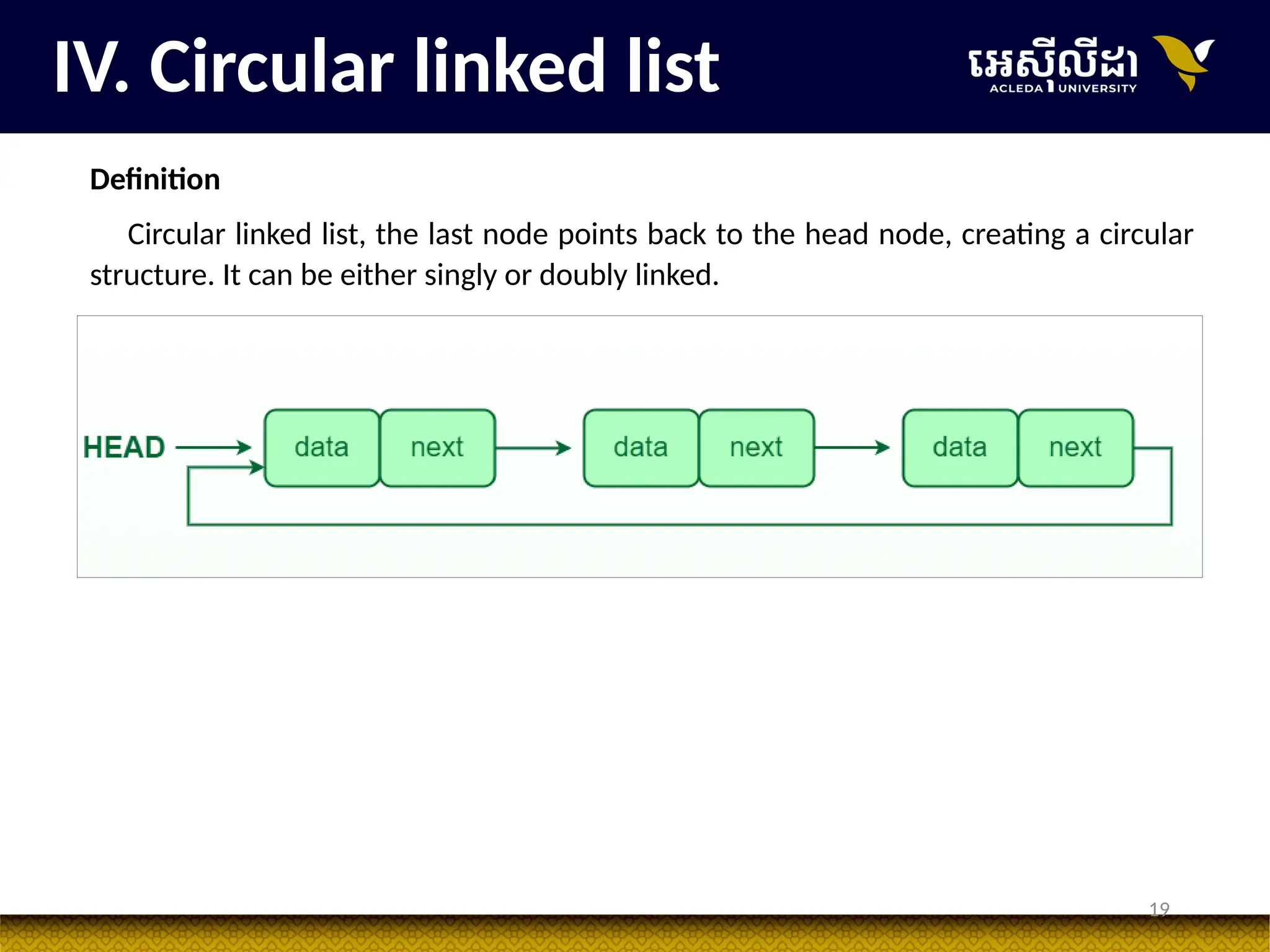

IV. Circular linked list
Definition
Circular linked list, the last node points back to the head node, creating a circular
structure. It can be either singly or doubly linked.

20

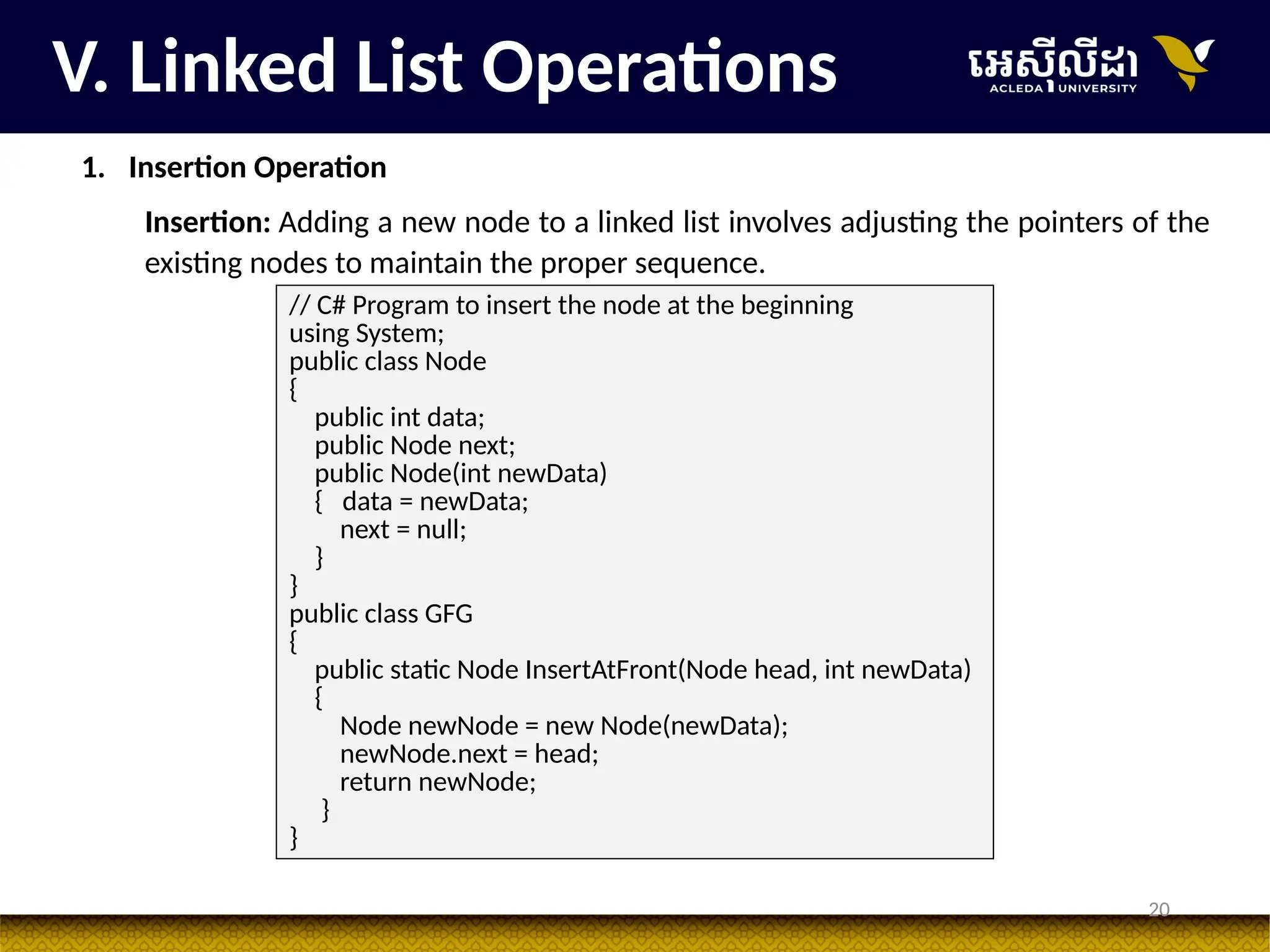

V. Linked List Operations
1. Insertion Operation
Insertion: Adding a new node to a linked list involves adjusting the pointers of the
existing nodes to maintain the proper sequence.
// C# Program to insert the node at the beginning
using System;
public class Node
{
public int data;
public Node next;
public Node(int newData)
{ data = newData;
next = null;
}
}
public class GFG
{
public static Node InsertAtFront(Node head, int newData)
{
Node newNode = new Node(newData);
newNode.next = head;
return newNode;
}
}

21

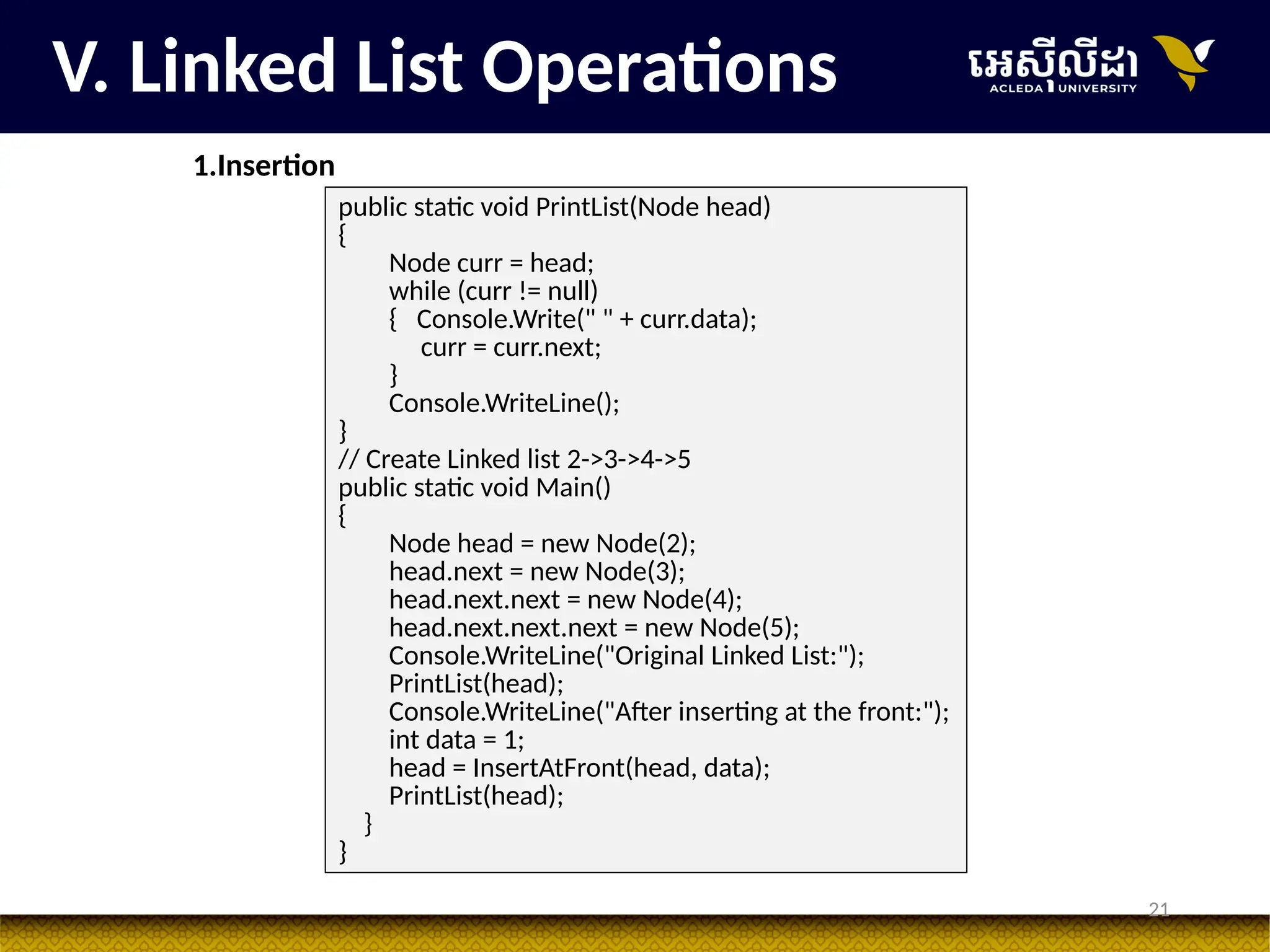

public static void PrintList(Node head)
{
Node curr = head;
while (curr != null)
{ Console.Write(" " + curr.data);
curr = curr.next;
}
}
// Create Linked list 2->3->4->5
public static void Main()
{
Node head = new Node(2);
head.next = new Node(3);
head.next.next = new Node(4);
head.next.next.next = new Node(5);
Console.WriteLine("Original Linked List:");
PrintList(head);
Console.WriteLine("After inserting at the front:");
int data = 1;
head = InsertAtFront(head, data);
PrintList(head);
}
}
1.Insertion

22

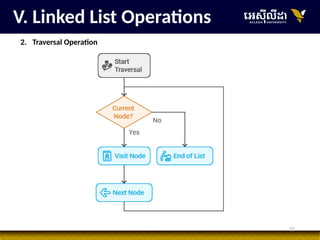

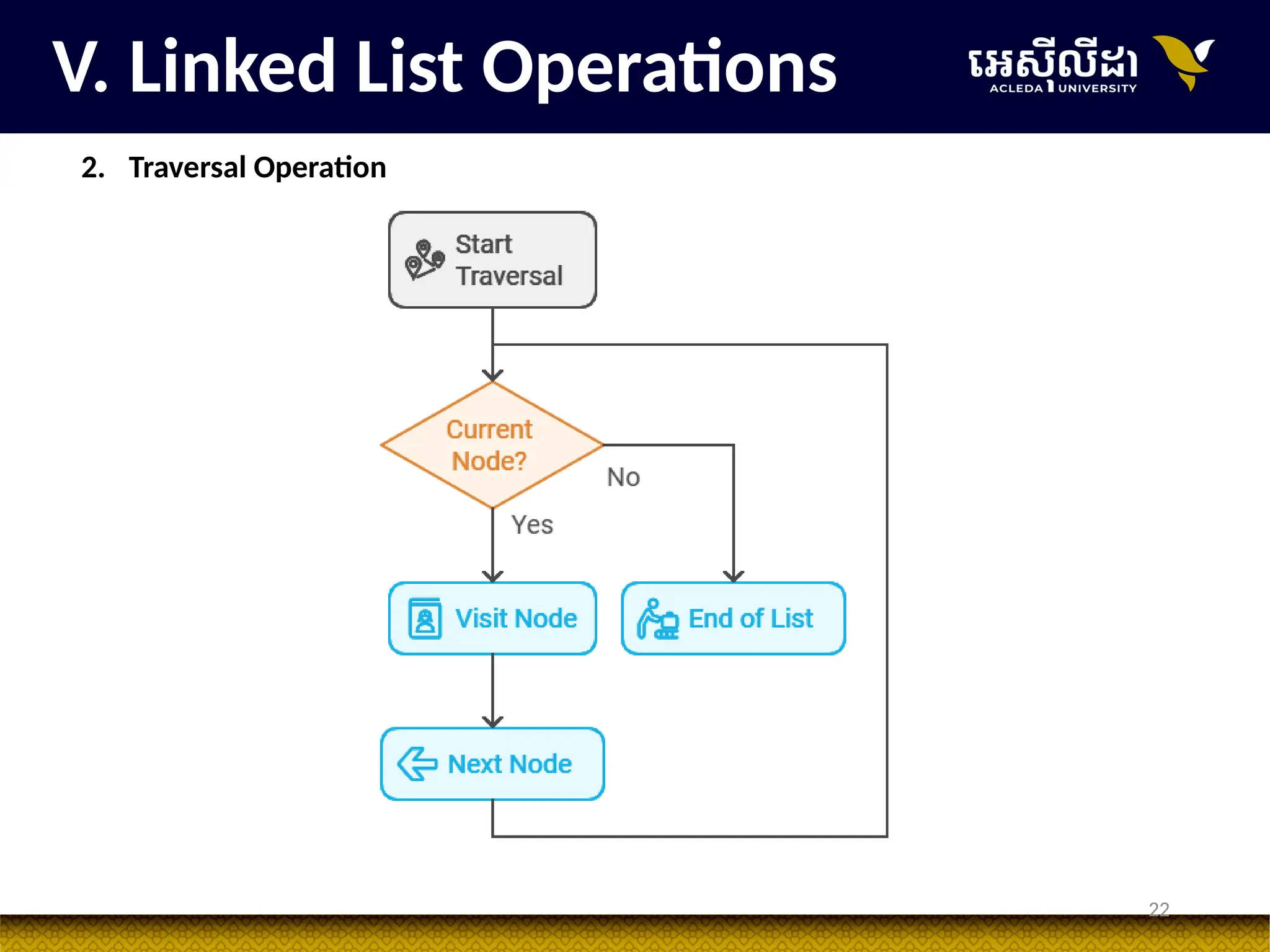

2. Traversal Operation

23

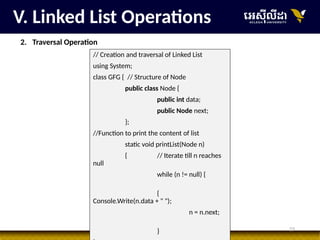

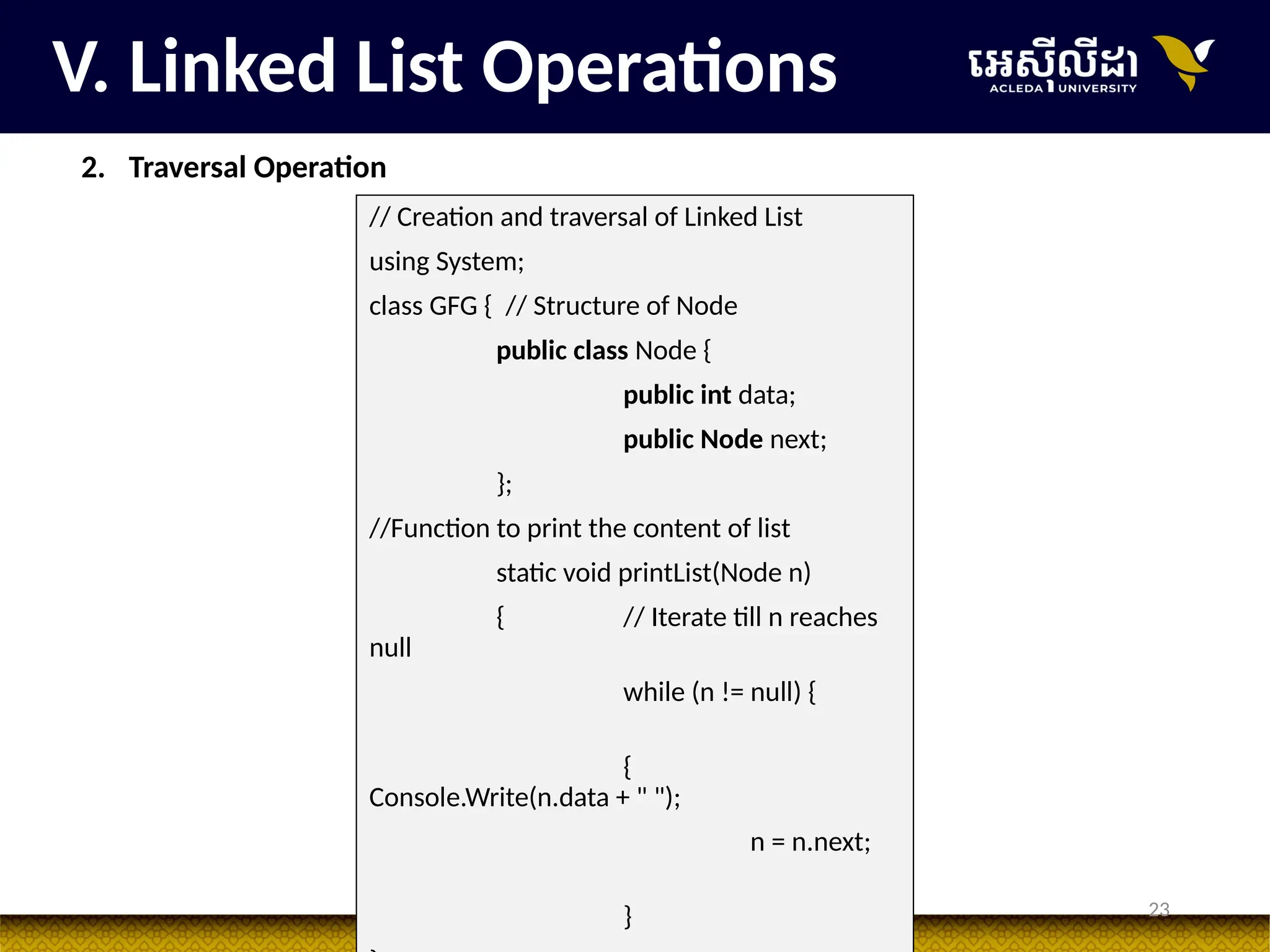

2. Traversal Operation
// Creation and traversal of Linked List
using System;
class GFG { // Structure of Node
public class Node {
public int data;
public Node next;
};
//Function to print the content of list
static void printList(Node n)
{ // Iterate till n reaches
null
while (n != null) {
{
Console.Write(n.data + " ");
n = n.next;
}

24

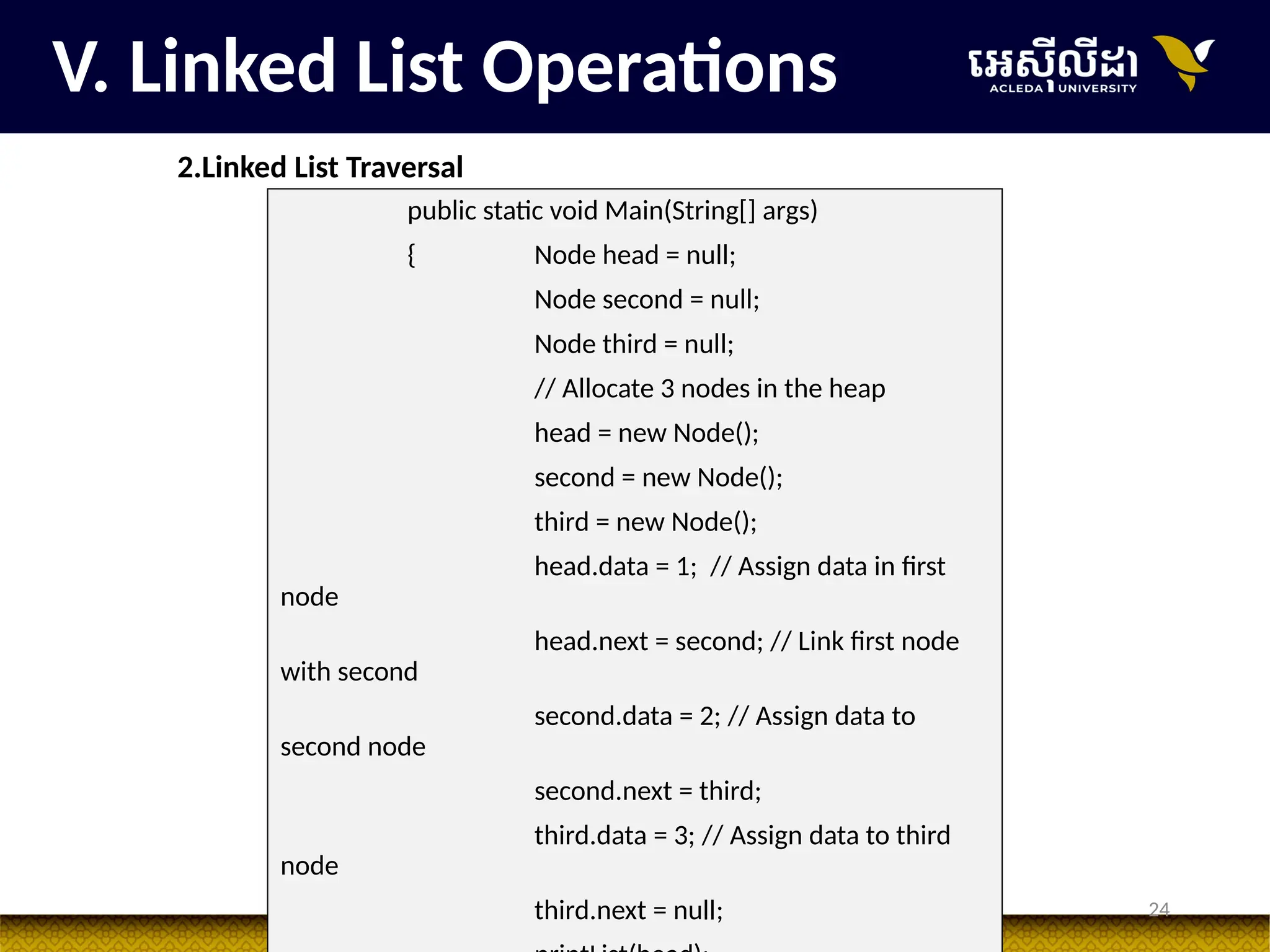

2.Linked List Traversal
public static void Main(String[] args)
{ Node head = null;
Node second = null;
Node third = null;
// Allocate 3 nodes in the heap
head = new Node();
second = new Node();
third = new Node();
head.data = 1; // Assign data in first
node
head.next = second; // Link first node
with second
second.data = 2; // Assign data to
second node
second.next = third;
third.data = 3; // Assign data to third
node
third.next = null;

25

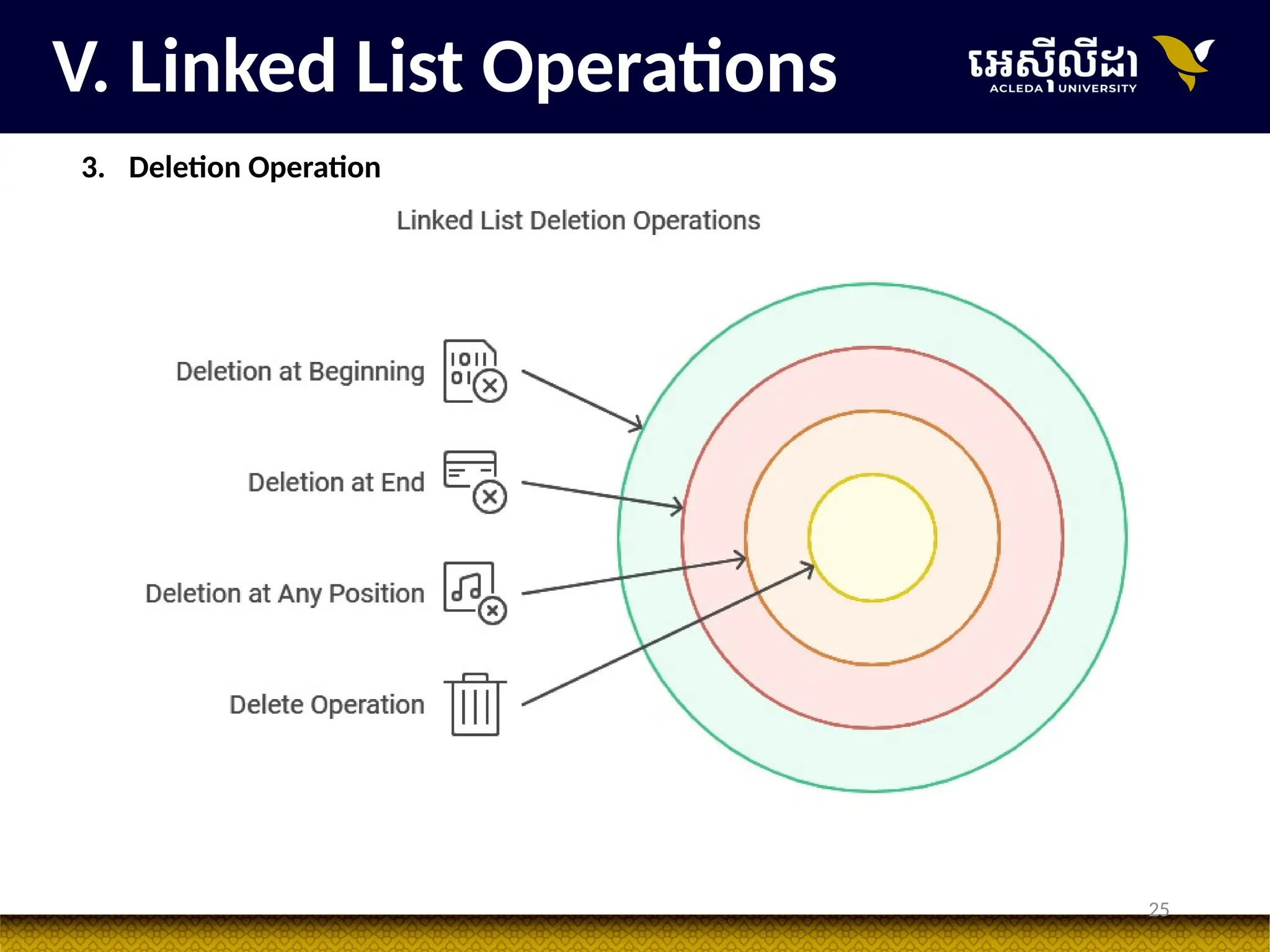

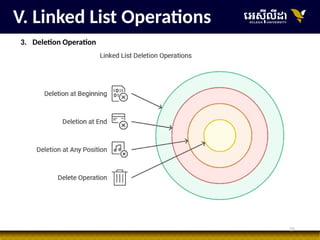

3. Deletion Operation

26

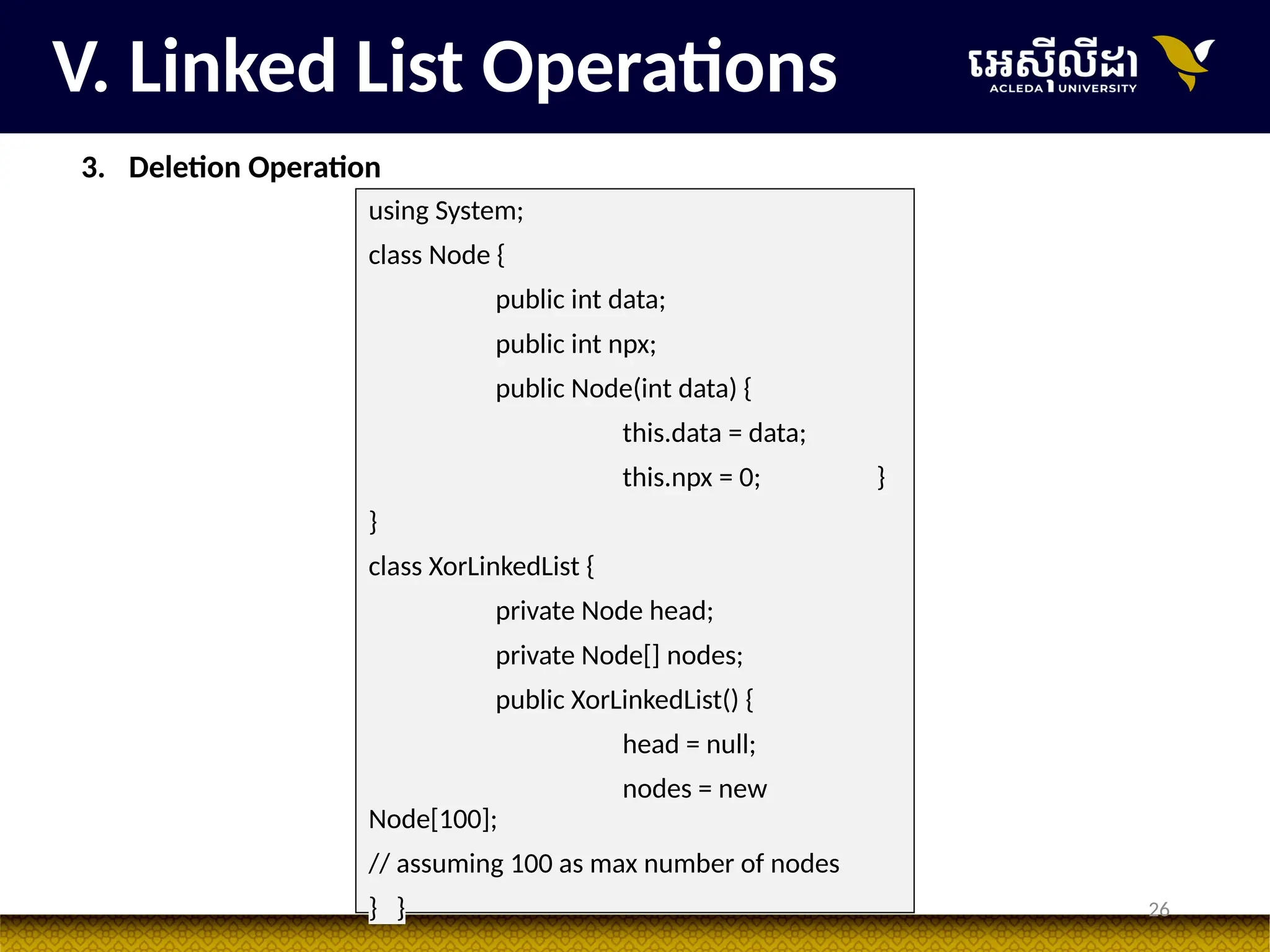

3. Deletion Operation
using System;
class Node {
public int data;
public int npx;
public Node(int data) {
this.data = data;
this.npx = 0; }
}
class XorLinkedList {
private Node head;
private Node[] nodes;
public XorLinkedList() {
head = null;
nodes = new
Node[100];
// assuming 100 as max number of nodes
} }

27

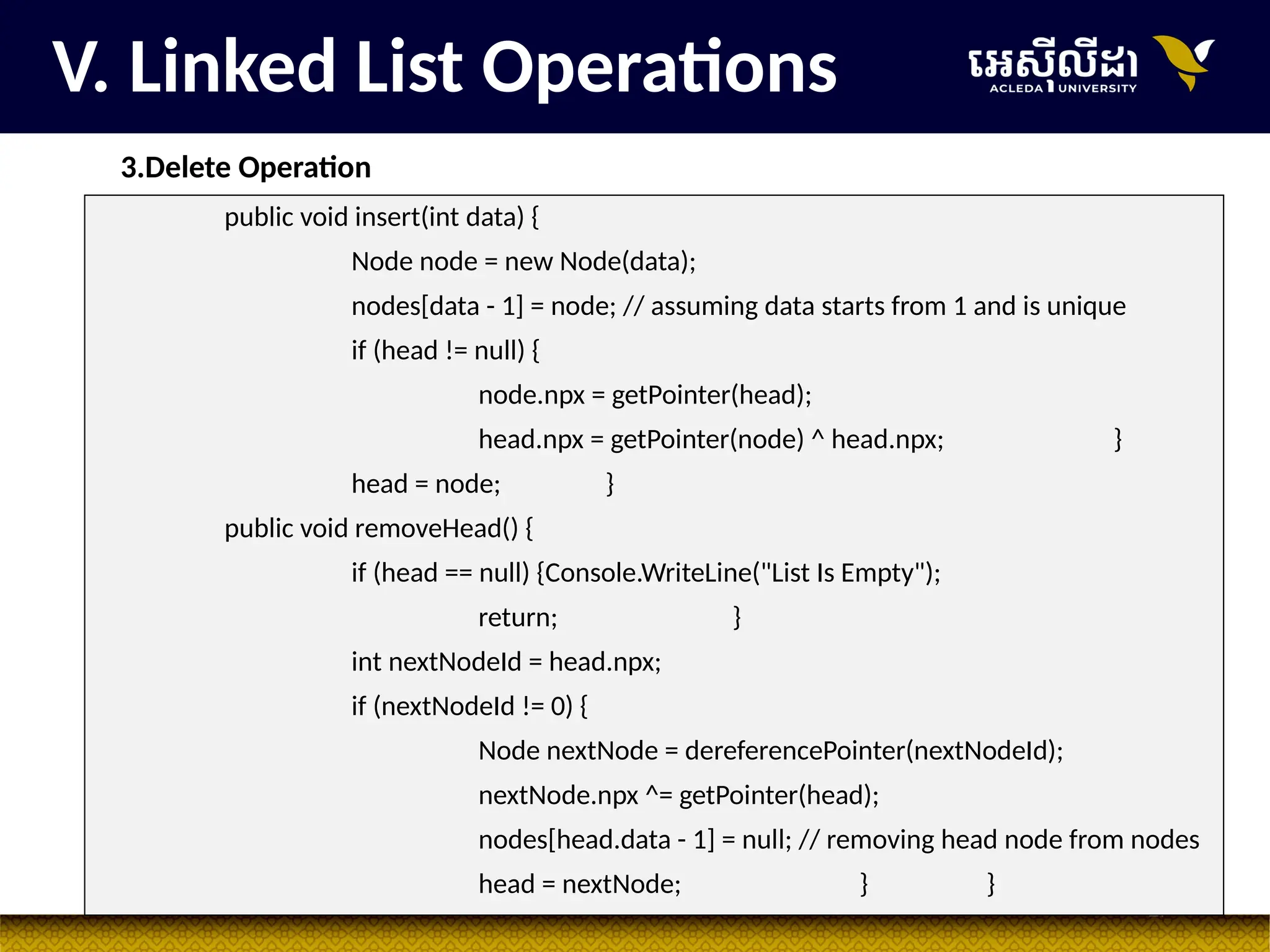

3.Delete Operation
public void insert(int data) {
Node node = new Node(data);
nodes[data - 1] = node; // assuming data starts from 1 and is unique
if (head != null) {
node.npx = getPointer(head);
head.npx = getPointer(node) ^ head.npx; }
head = node; }
public void removeHead() {
if (head == null) {Console.WriteLine("List Is Empty");
return; }
int nextNodeId = head.npx;
if (nextNodeId != 0) {
Node nextNode = dereferencePointer(nextNodeId);
nextNode.npx ^= getPointer(head);
nodes[head.data - 1] = null; // removing head node from nodes
head = nextNode; } }

28

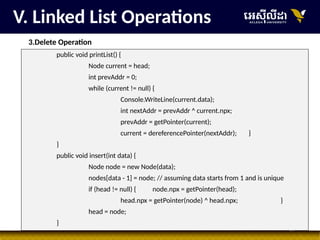

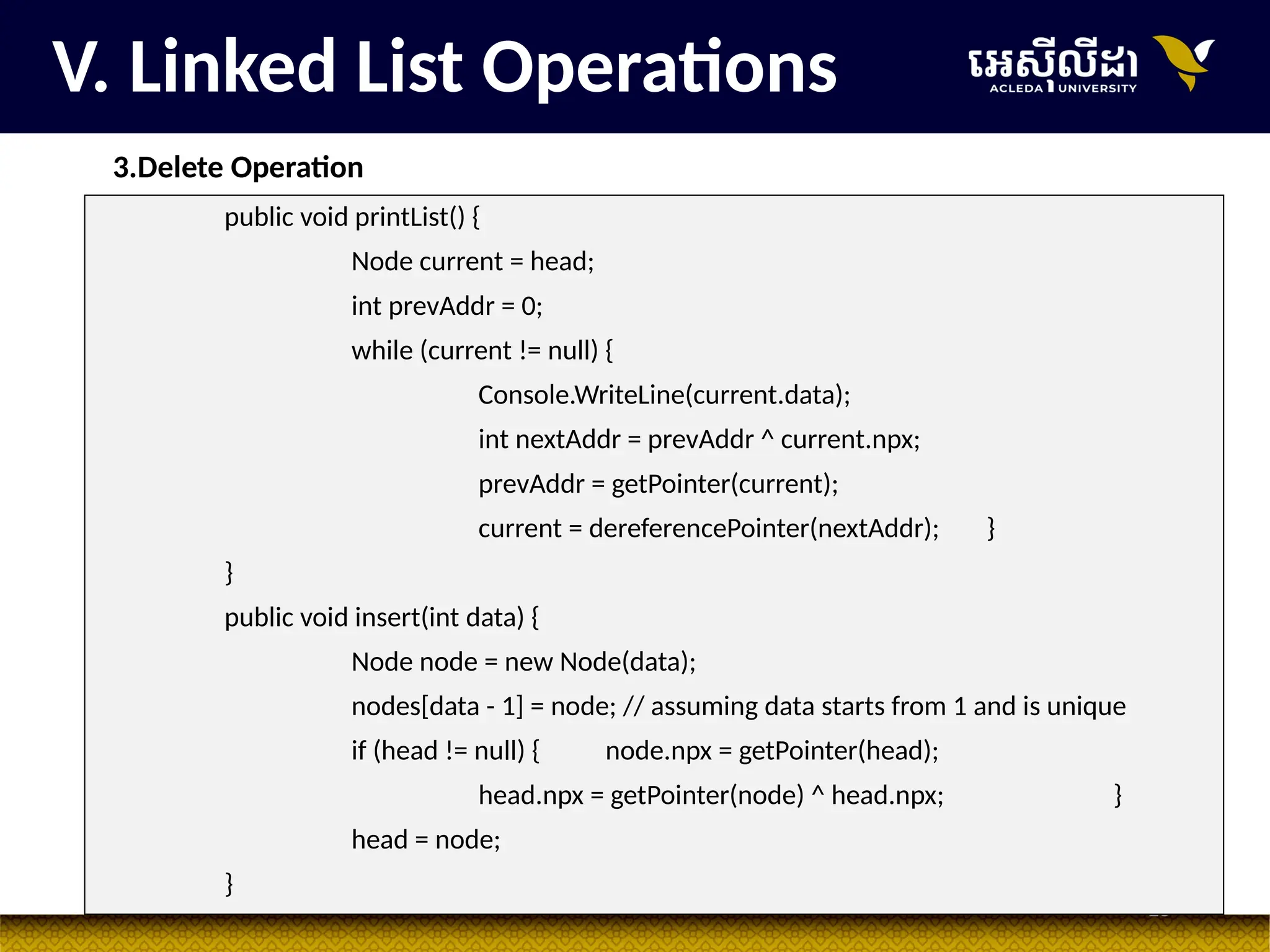

3.Delete Operation
public void printList() {
Node current = head;
int prevAddr = 0;
while (current != null) {
Console.WriteLine(current.data);
int nextAddr = prevAddr ^ current.npx;
prevAddr = getPointer(current);
current = dereferencePointer(nextAddr); }
}
public void insert(int data) {
Node node = new Node(data);
nodes[data - 1] = node; // assuming data starts from 1 and is unique
if (head != null) { node.npx = getPointer(head);
head.npx = getPointer(node) ^ head.npx; }
head = node;
}

29

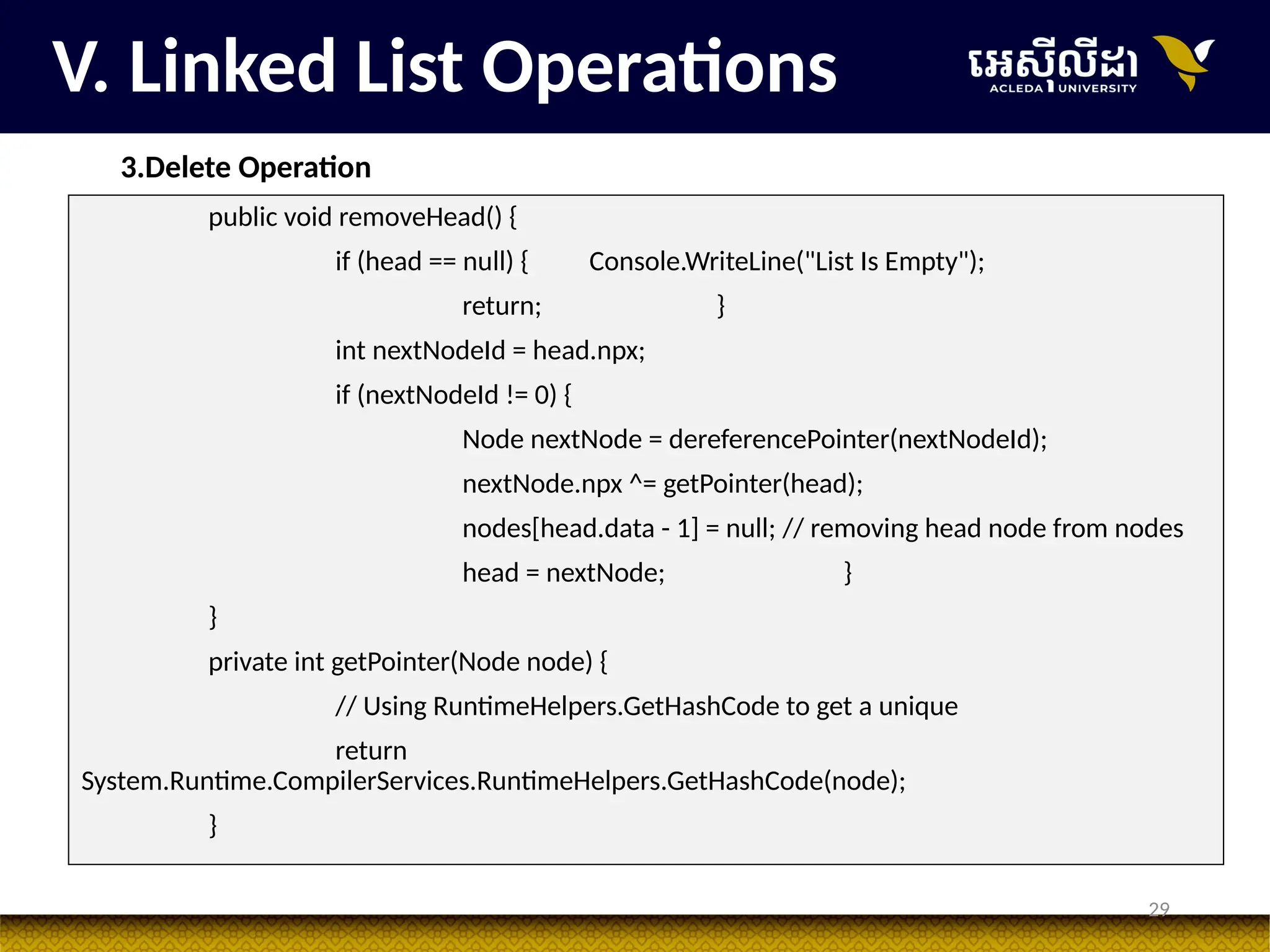

3.Delete Operation

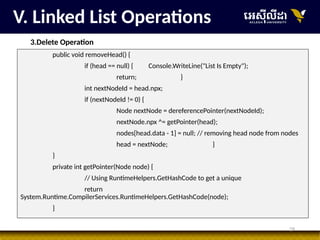

public void removeHead() {
if (head == null) { Console.WriteLine("List Is Empty");
return; }
int nextNodeId = head.npx;
if (nextNodeId != 0) {
Node nextNode = dereferencePointer(nextNodeId);
nextNode.npx ^= getPointer(head);
nodes[head.data - 1] = null; // removing head node from nodes
head = nextNode; }
}
private int getPointer(Node node) {
// Using RuntimeHelpers.GetHashCode to get a unique
return
System.Runtime.CompilerServices.RuntimeHelpers.GetHashCode(node);
}

30

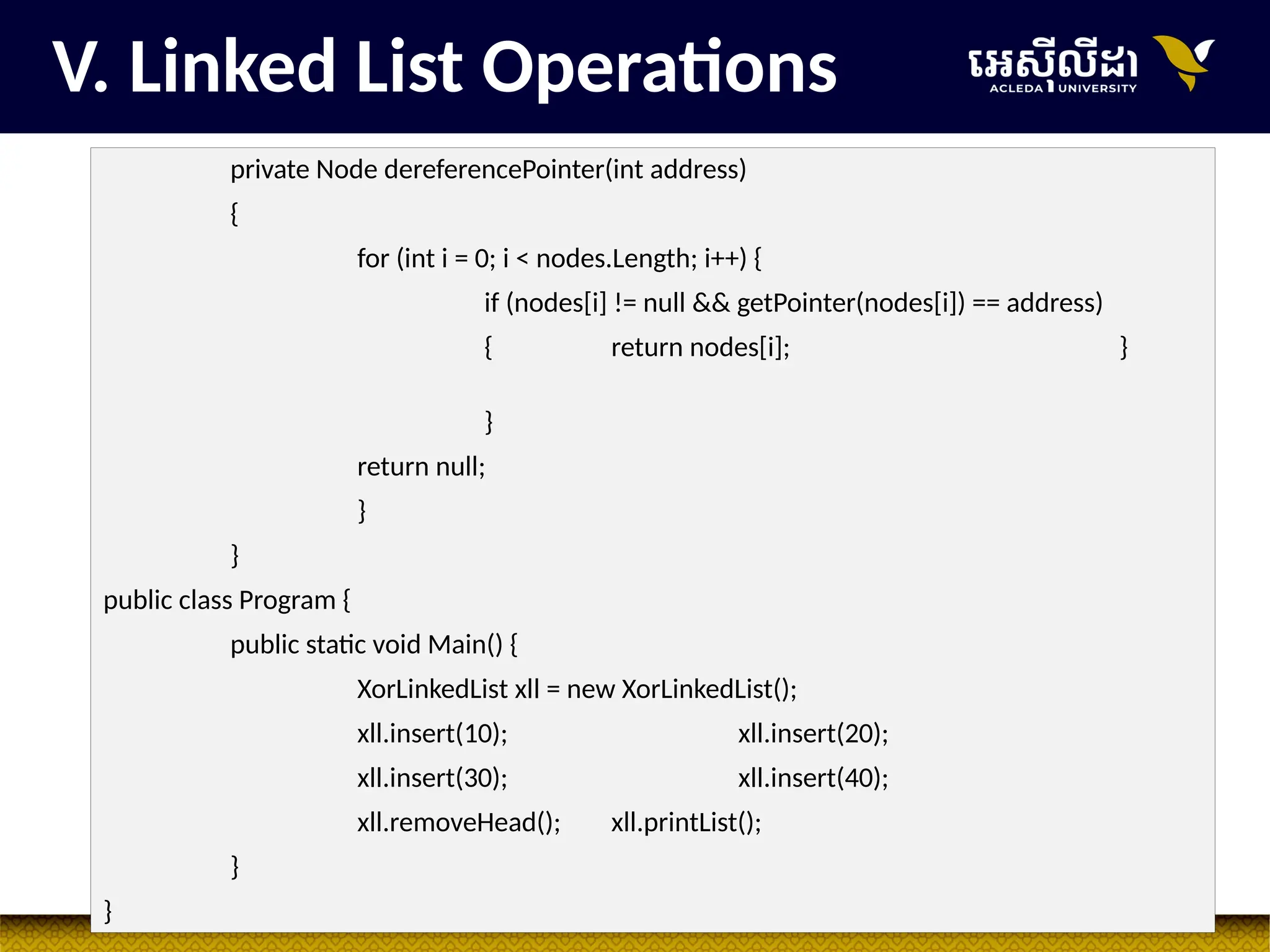

private Node dereferencePointer(int address)
{
for (int i = 0; i < nodes.Length; i++) {
if (nodes[i] != null && getPointer(nodes[i]) == address)
{ return nodes[i]; }
}
return null;
}
}
public class Program {
public static void Main() {
XorLinkedList xll = new XorLinkedList();
xll.insert(10); xll.insert(20);
xll.insert(30); xll.insert(40);
xll.removeHead(); xll.printList();
}
}

31

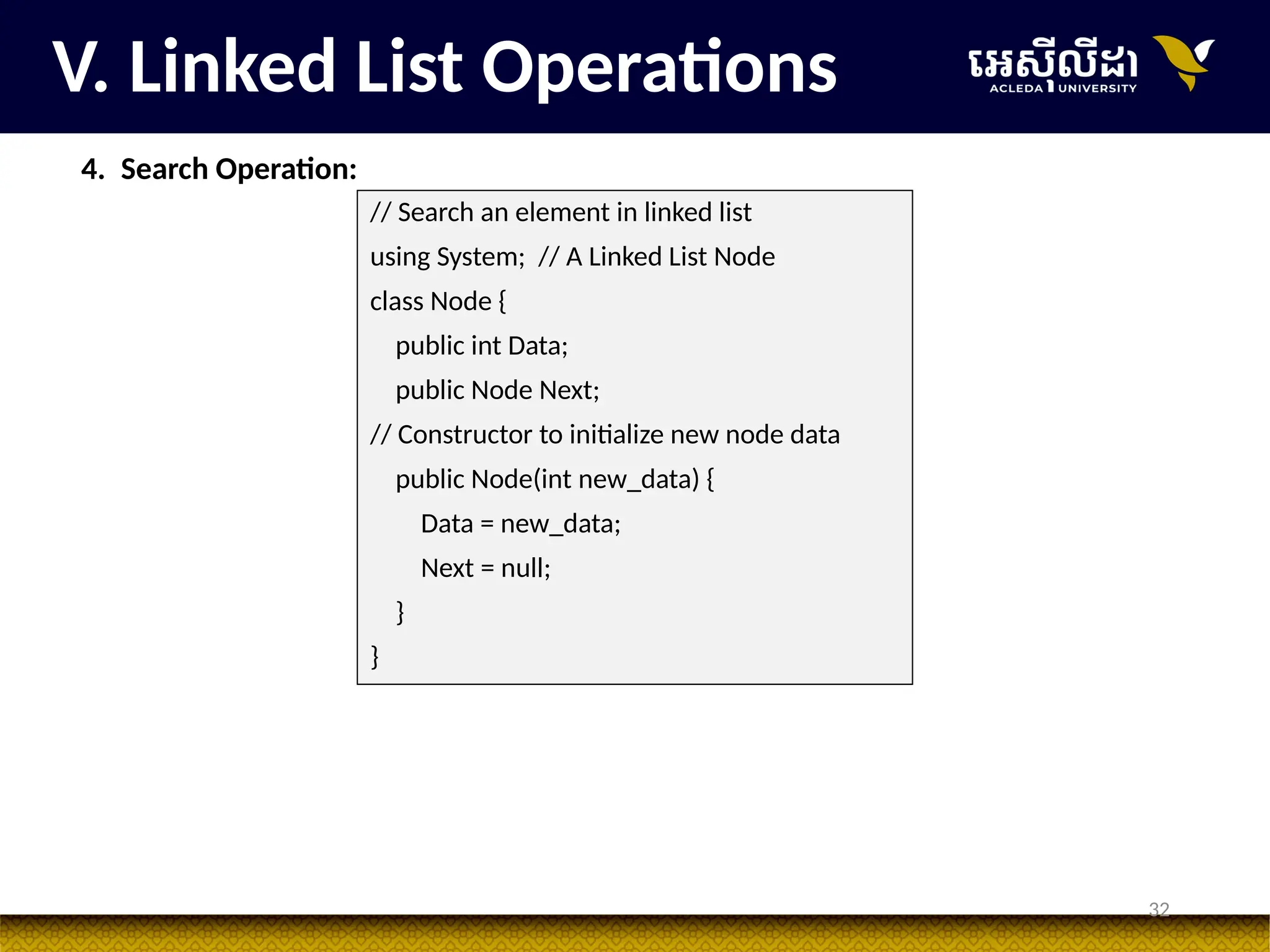

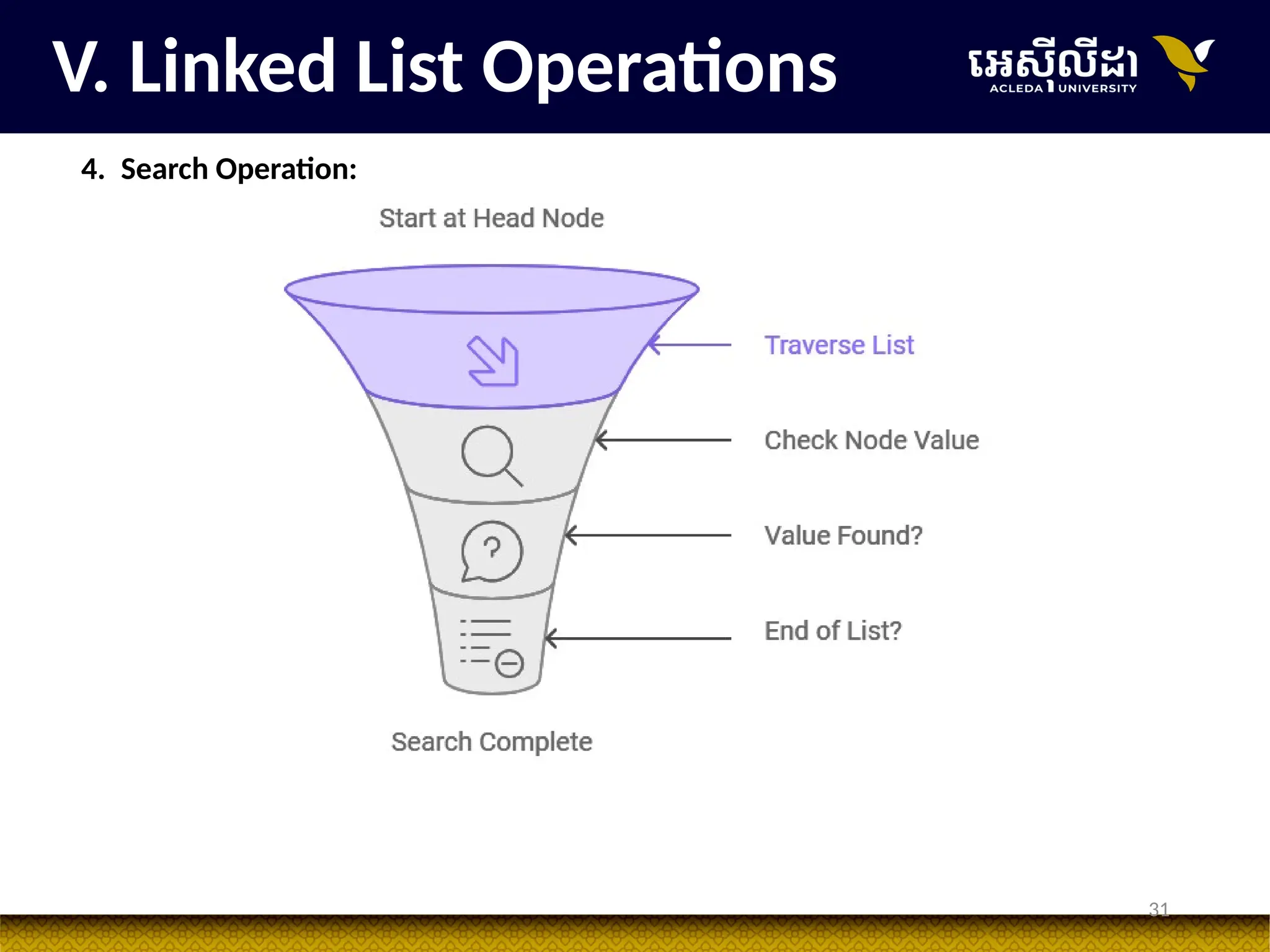

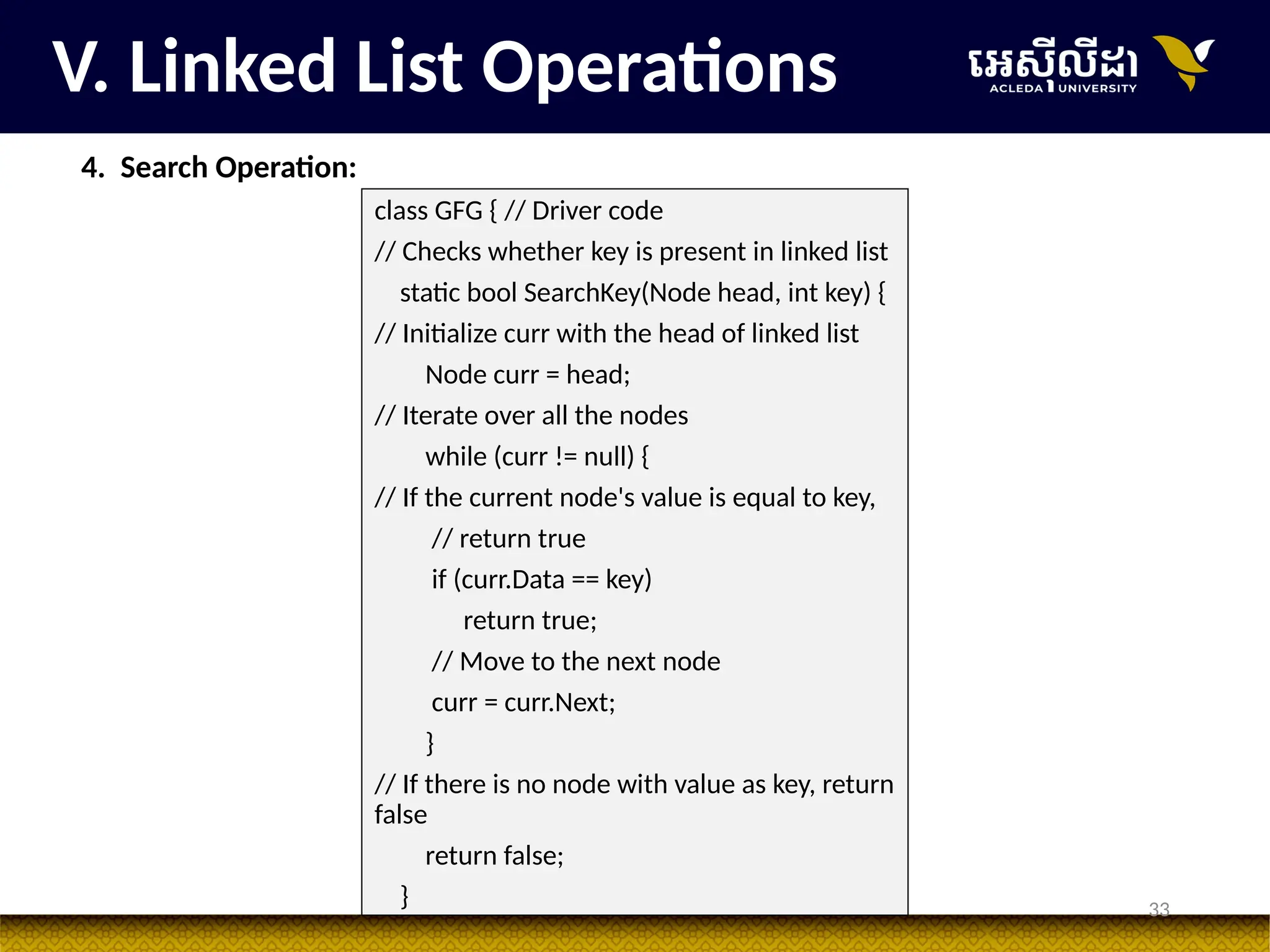

4. Search Operation:

32
// Search an element in linked list
using System; // A Linked List Node
class Node {
public int Data;
public Node Next;
// Constructor to initialize new node data
public Node(int new_data) {
Data = new_data;
Next = null;
}
}

33
class GFG { // Driver code
// Checks whether key is present in linked list
static bool SearchKey(Node head, int key) {
// Initialize curr with the head of linked list
Node curr = head;
// Iterate over all the nodes
while (curr != null) {
// If the current node's value is equal to key,
// return true
if (curr.Data == key)
return true;
// Move to the next node
curr = curr.Next;
}
// If there is no node with value as key, return
false
return false;
}

34

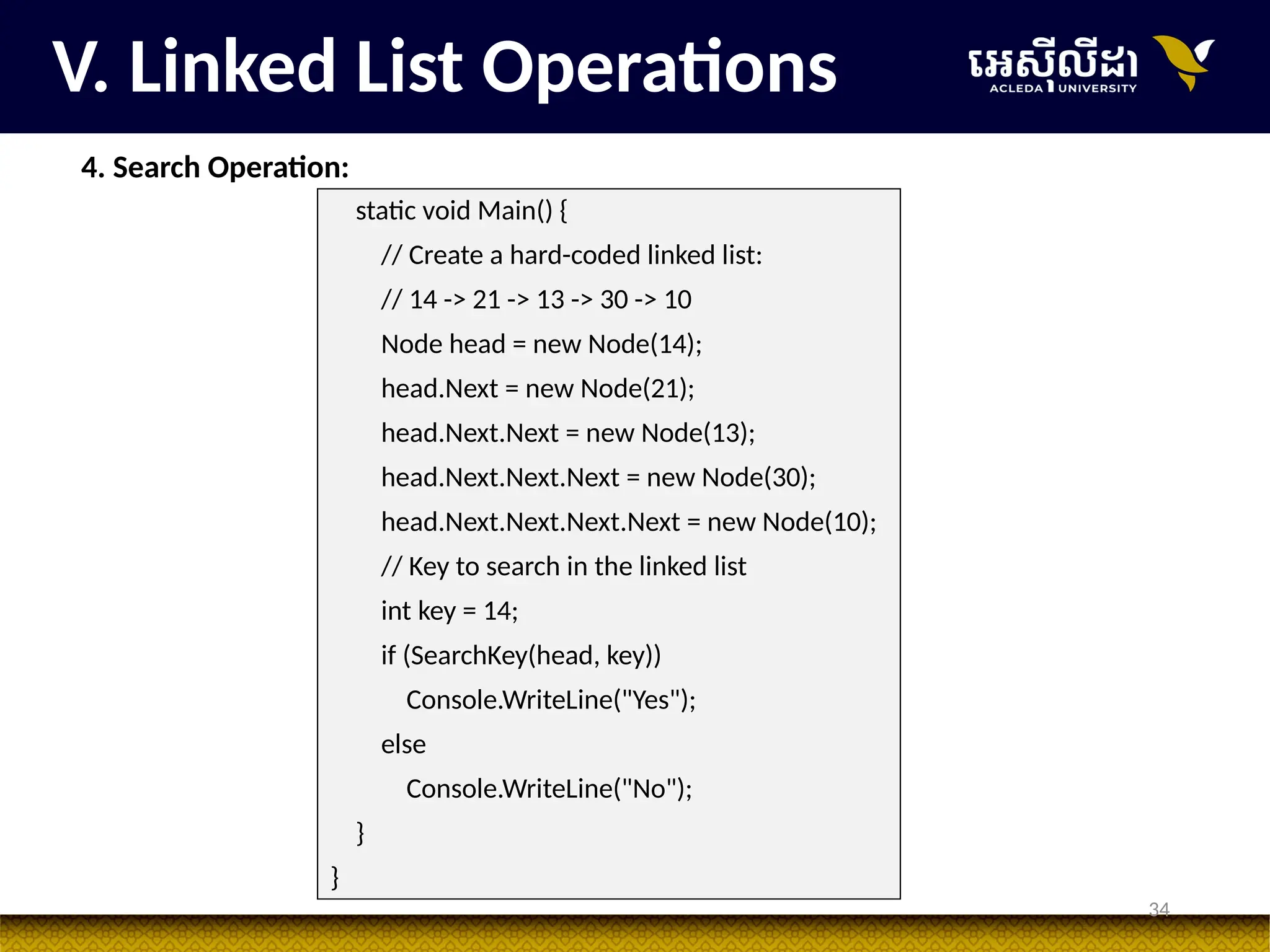

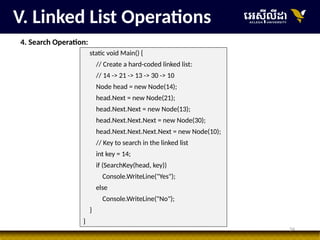

static void Main() {
// Create a hard-coded linked list:
// 14 -> 21 -> 13 -> 30 -> 10
Node head = new Node(14);
head.Next = new Node(21);
head.Next.Next = new Node(13);
head.Next.Next.Next = new Node(30);
head.Next.Next.Next.Next = new Node(10);
// Key to search in the linked list
int key = 14;
if (SearchKey(head, key))
Console.WriteLine("Yes");
else
Console.WriteLine("No");
}
}

35

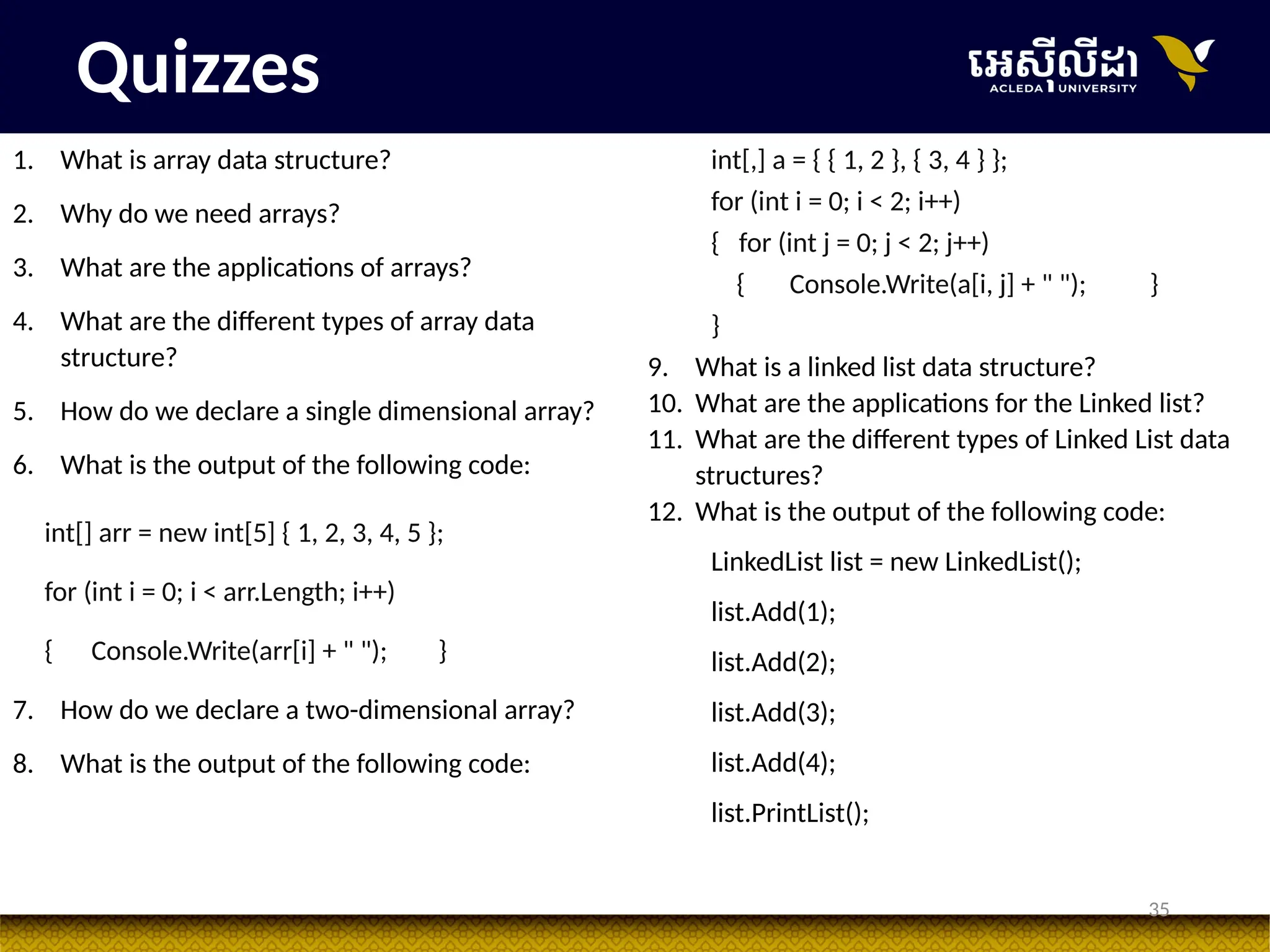

Quizzes
1. What is array data structure?
2. Why do we need arrays?
3. What are the applications of arrays?
4. What are the different types of array data
structure?
5. How do we declare a single dimensional array?
6. What is the output of the following code:
int[] arr = new int[5] { 1, 2, 3, 4, 5 };
for (int i = 0; i < arr.Length; i++)
{ Console.Write(arr[i] + " "); }
7. How do we declare a two-dimensional array?
int[,] a = { { 1, 2 }, { 3, 4 } };
for (int i = 0; i < 2; i++)
{ for (int j = 0; j < 2; j++)
{ Console.Write(a[i, j] + " "); }
}
9. What is a linked list data structure?
10. What are the applications for the Linked list?
11. What are the different types of Linked List data
structures?
LinkedList list = new LinkedList();
list.Add(1);
list.Add(2);
list.Add(3);
list.Add(4);
list.PrintList();

Ch2 - Array and Linked List.pptx uhhuuiyufyu

More Related Content

Similar to Ch2 - Array and Linked List.pptx uhhuuiyufyu

Recently uploaded

Ch2 - Array and Linked List.pptx uhhuuiyufyu
