Chapter 6 relational data model and relational

C H A P T E R 6 , 7
RELATIONAL DATA MODEL
AND RELATIONAL ALGEBRA
Relational Data Model and Relational Algebra
1
Sahaj Computer Solutions

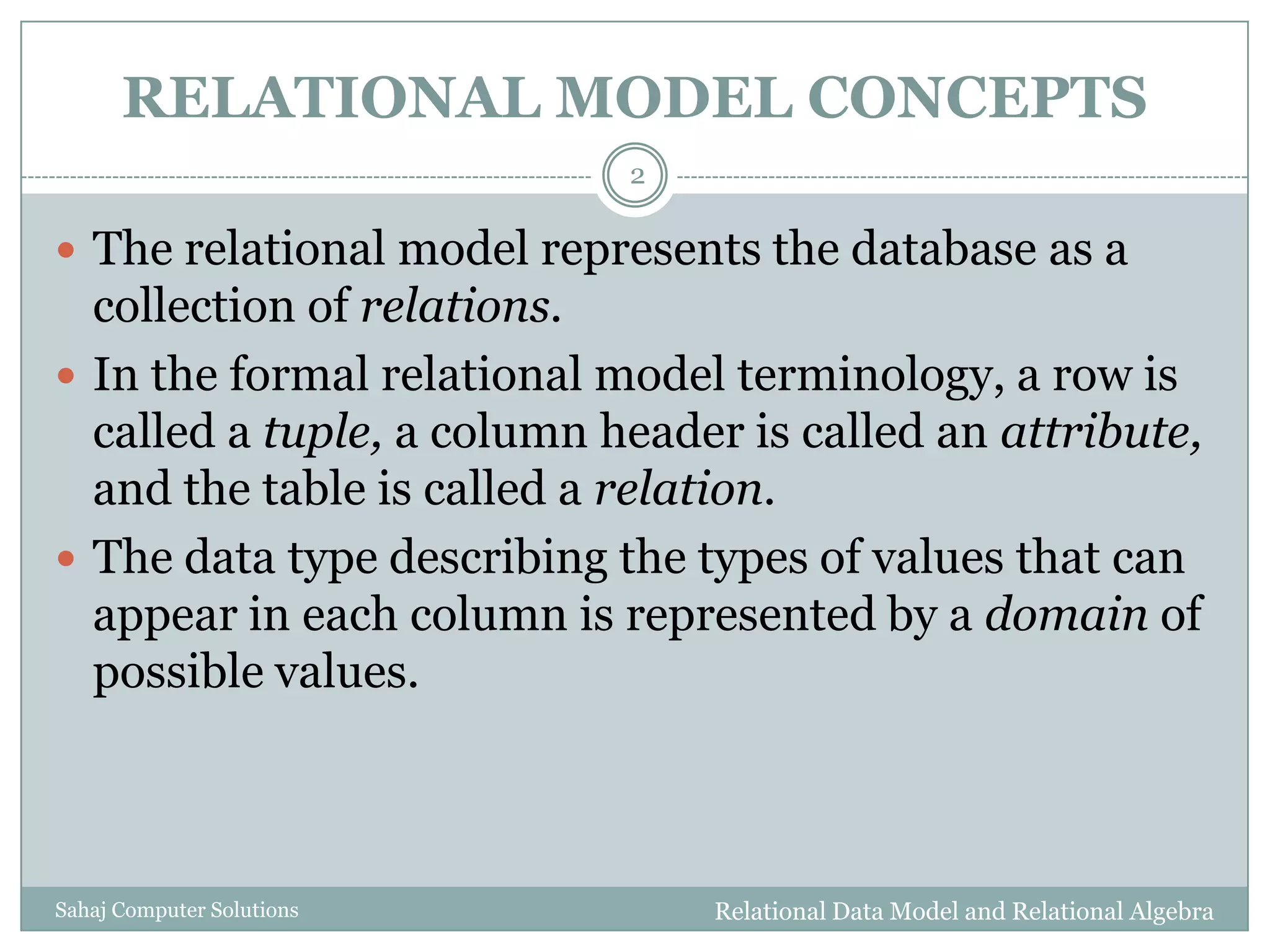

RELATIONAL MODEL CONCEPTS
 The relational model represents the database as a
collection of relations.
 In the formal relational model terminology, a row is
called a tuple, a column header is called an attribute,
and the table is called a relation.
 The data type describing the types of values that can
appear in each column is represented by a domain of
possible values.
2

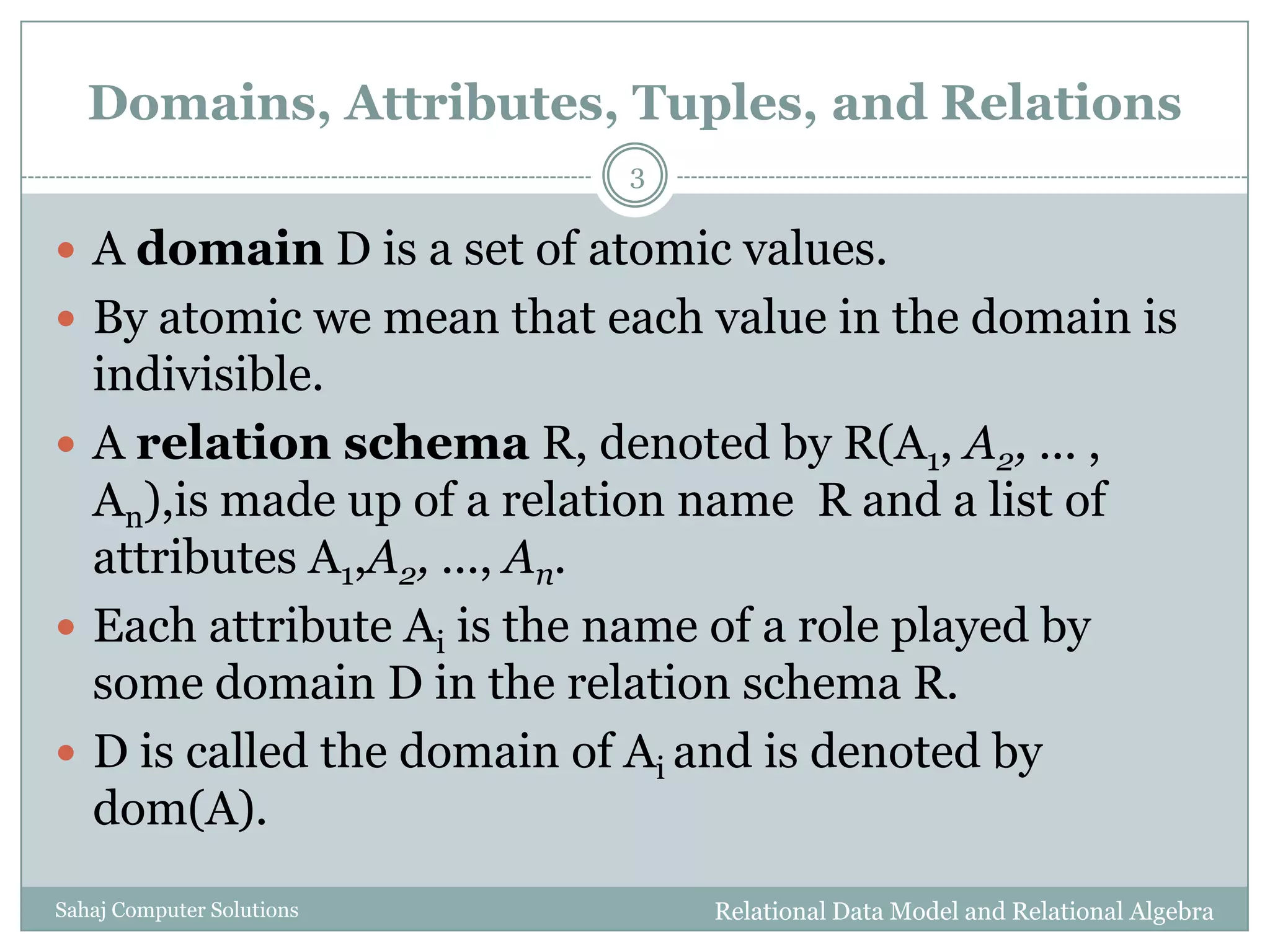

Domains, Attributes, Tuples, and Relations
 A domain D is a set of atomic values.
 By atomic we mean that each value in the domain is
indivisible.
 A relation schema R, denoted by R(A1, A2, ... ,
An),is made up of a relation name R and a list of
attributes A1,A2, ..., An.
 Each attribute Ai is the name of a role played by
some domain D in the relation schema R.
 D is called the domain of Ai and is denoted by
dom(A).
3

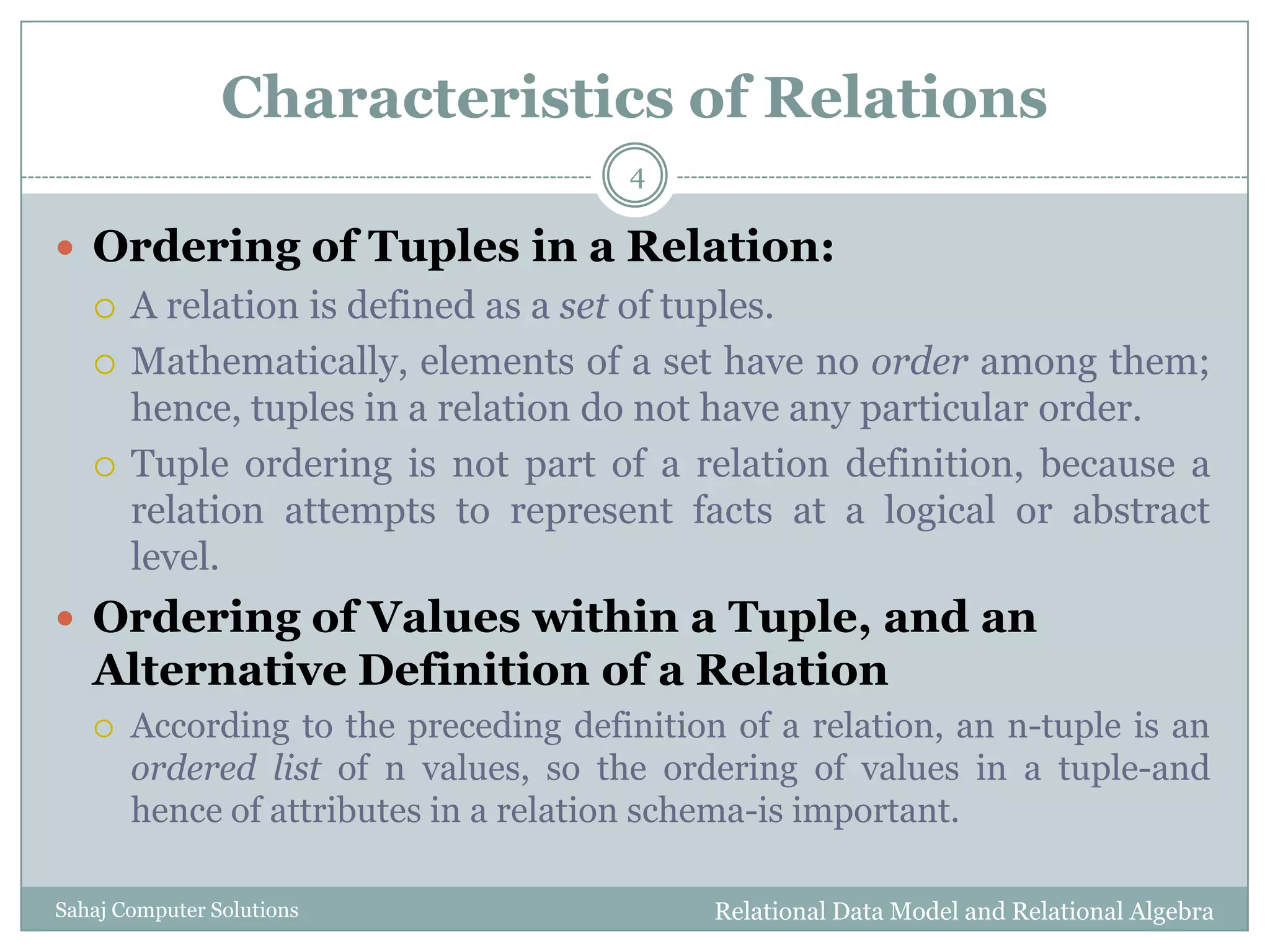

Characteristics of Relations
 Ordering of Tuples in a Relation:
 A relation is defined as a set of tuples.
 Mathematically, elements of a set have no order among them;
hence, tuples in a relation do not have any particular order.
 Tuple ordering is not part of a relation definition, because a
relation attempts to represent facts at a logical or abstract
level.
 Ordering of Values within a Tuple, and an
Alternative Definition of a Relation
 According to the preceding definition of a relation, an n-tuple is an
ordered list of n values, so the ordering of values in a tuple-and
hence of attributes in a relation schema-is important.
4

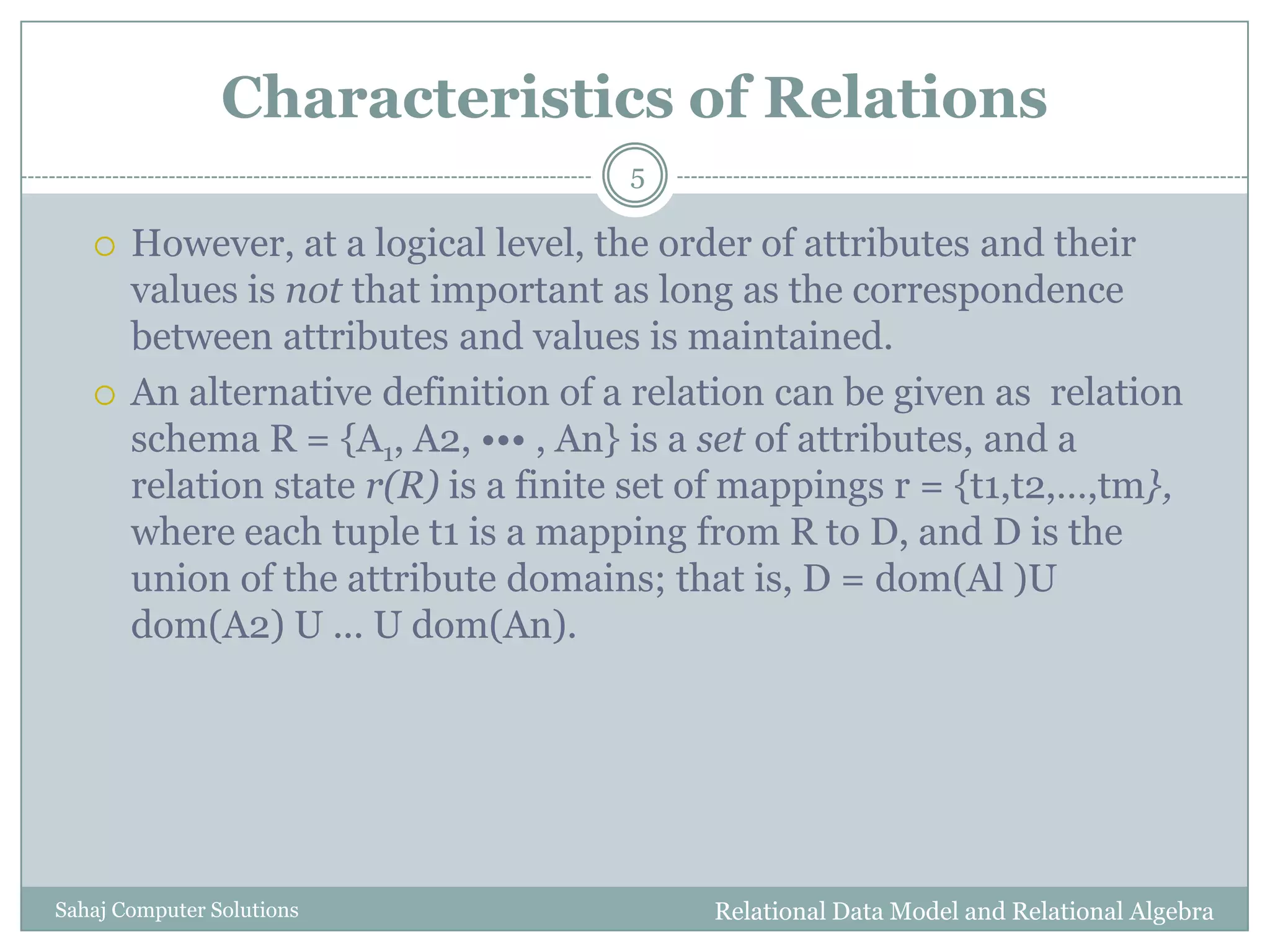

 However, at a logical level, the order of attributes and their
values is not that important as long as the correspondence
between attributes and values is maintained.
 An alternative definition of a relation can be given as relation
schema R = {A1, A2, ••• , An} is a set of attributes, and a
relation state r(R) is a finite set of mappings r = {t1,t2,…,tm},
where each tuple t1 is a mapping from R to D, and D is the
union of the attribute domains; that is, D = dom(Al )U
dom(A2) U ... U dom(An).
5

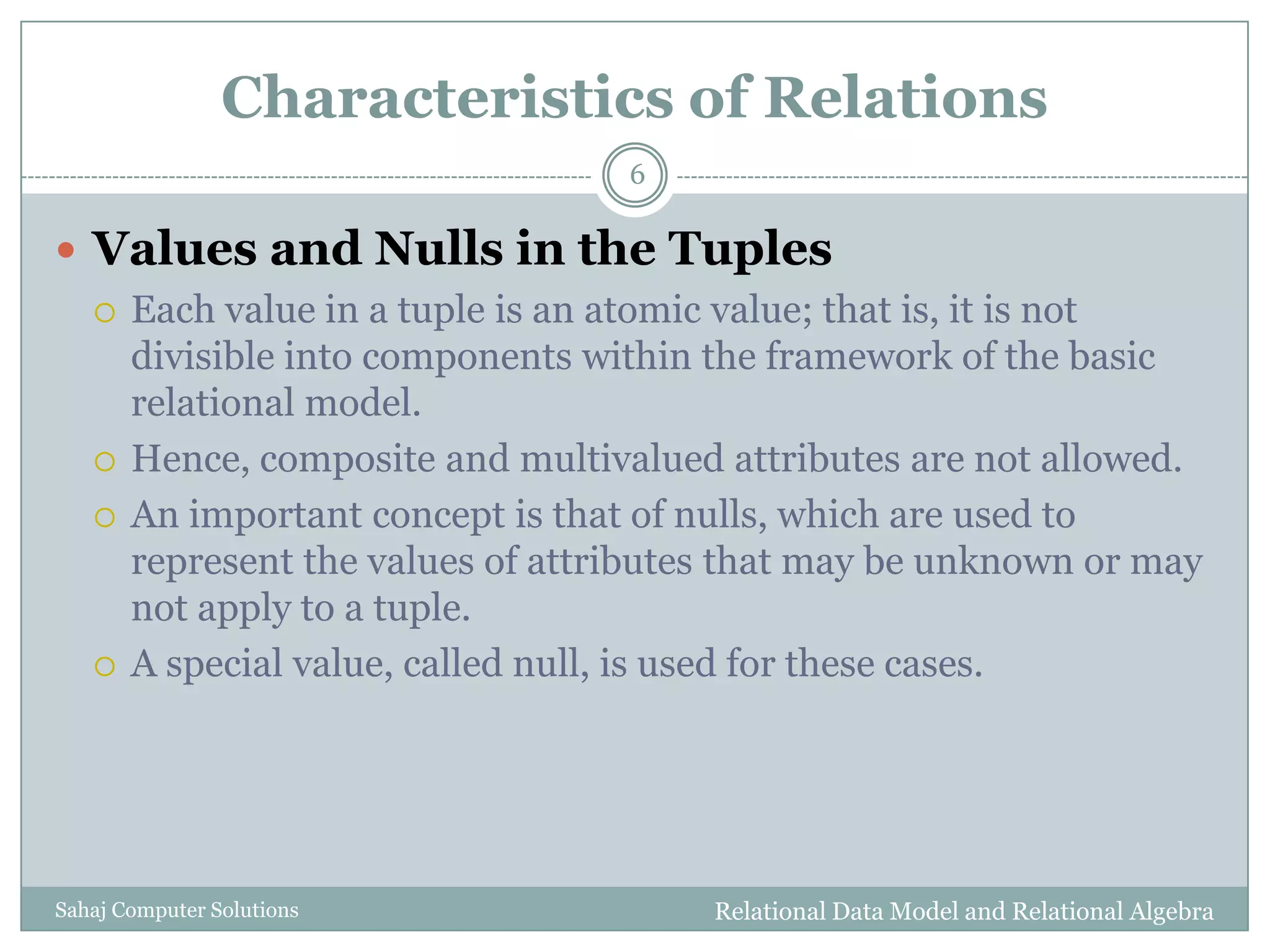

 Values and Nulls in the Tuples
 Each value in a tuple is an atomic value; that is, it is not
divisible into components within the framework of the basic
relational model.
 Hence, composite and multivalued attributes are not allowed.
 An important concept is that of nulls, which are used to
represent the values of attributes that may be unknown or may
not apply to a tuple.
 A special value, called null, is used for these cases.
6

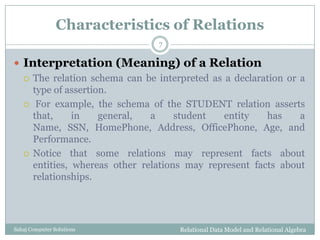

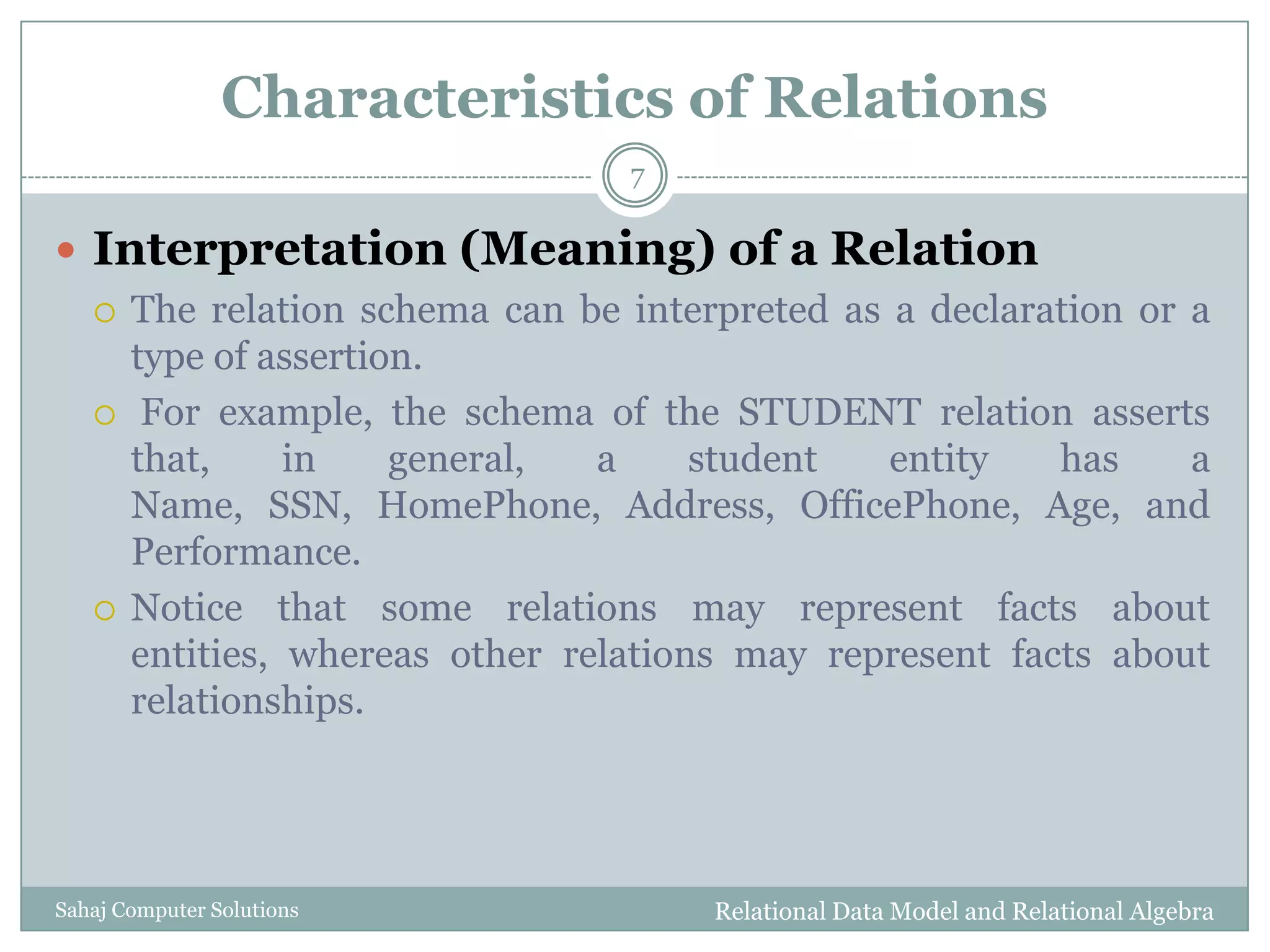

 Interpretation (Meaning) of a Relation
 The relation schema can be interpreted as a declaration or a
type of assertion.
 For example, the schema of the STUDENT relation asserts
that, in general, a student entity has a
Name, SSN, HomePhone, Address, OfficePhone, Age, and
Performance.
 Notice that some relations may represent facts about
entities, whereas other relations may represent facts about
relationships.
7

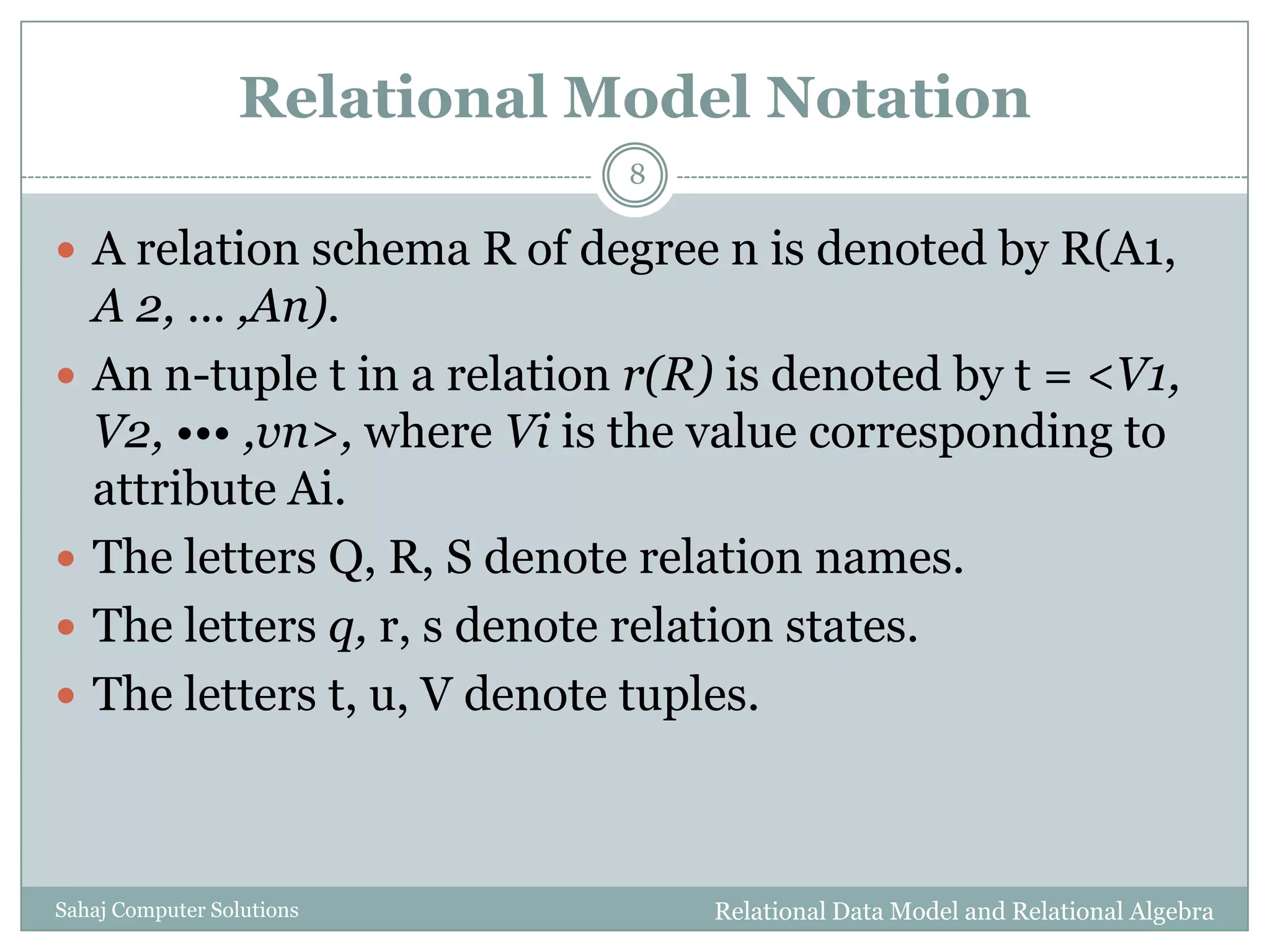

Relational Model Notation
 A relation schema R of degree n is denoted by R(A1,
A 2, ... ,An).
 An n-tuple t in a relation r(R) is denoted by t = <V1,
V2, ••• ,vn>, where Vi is the value corresponding to
attribute Ai.
 The letters Q, R, S denote relation names.
 The letters q, r, s denote relation states.
 The letters t, u, V denote tuples.
8

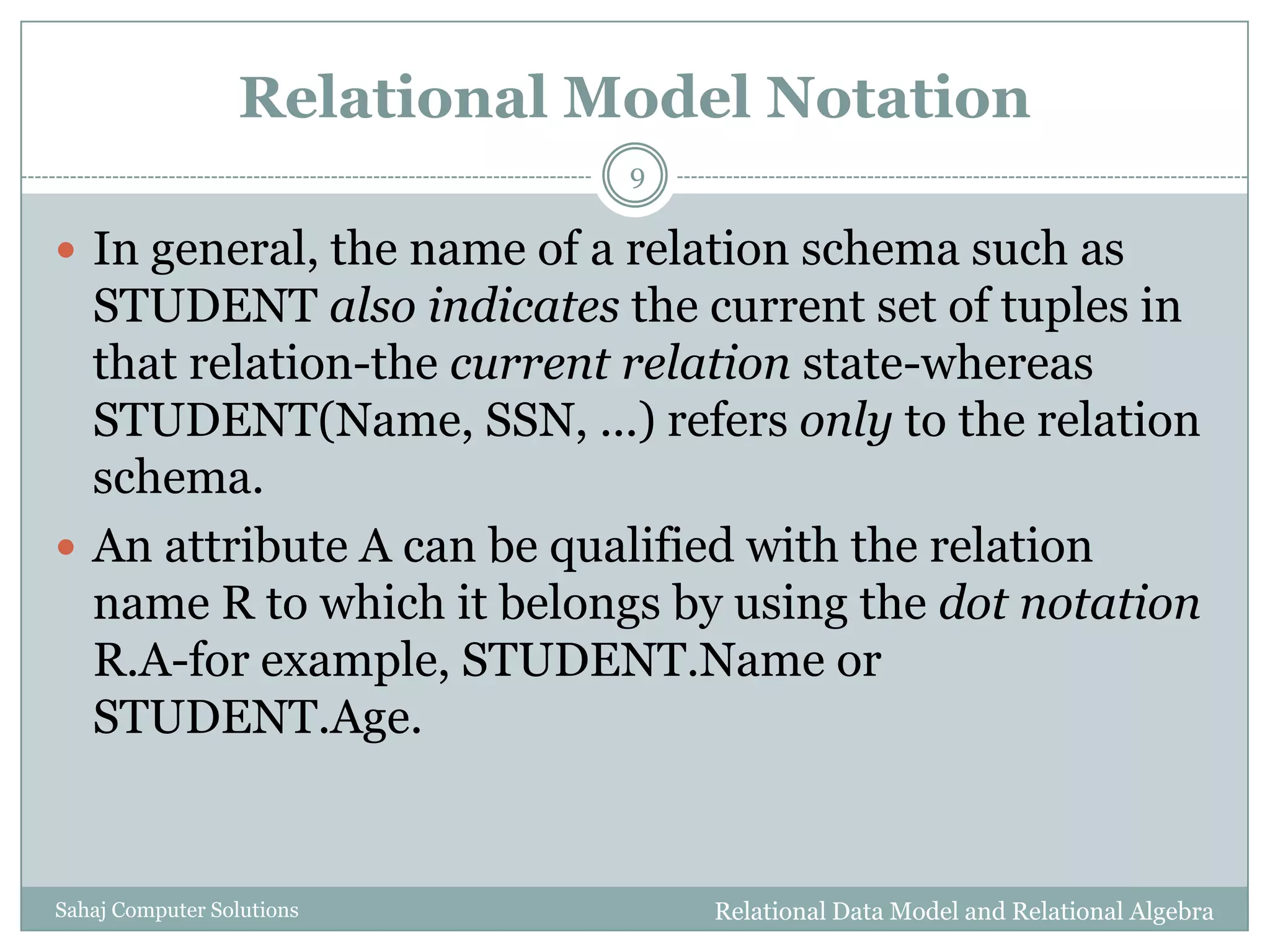

Relational Model Notation
 In general, the name of a relation schema such as
STUDENT also indicates the current set of tuples in
that relation-the current relation state-whereas
STUDENT(Name, SSN, ...) refers only to the relation
schema.
 An attribute A can be qualified with the relation
name R to which it belongs by using the dot notation
R.A-for example, STUDENT.Name or
STUDENT.Age.
9

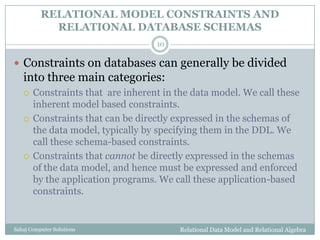

RELATIONAL MODEL CONSTRAINTS AND
RELATIONAL DATABASE SCHEMAS
Relational Data Model and Relational AlgebraSahaj Computer Solutions
10

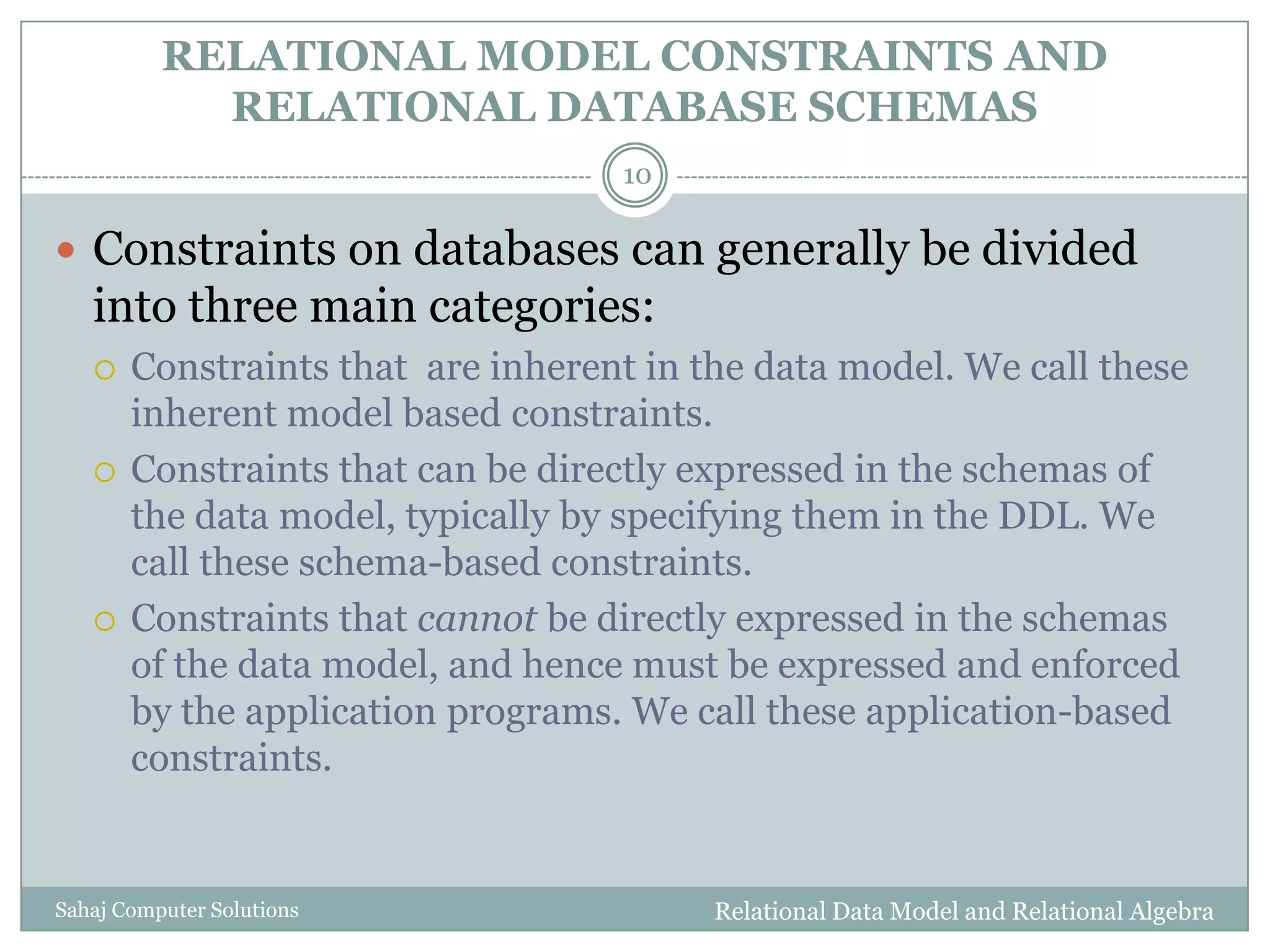

 Constraints on databases can generally be divided
into three main categories:
 Constraints that are inherent in the data model. We call these
inherent model based constraints.
 Constraints that can be directly expressed in the schemas of
the data model, typically by specifying them in the DDL. We
call these schema-based constraints.
 Constraints that cannot be directly expressed in the schemas
of the data model, and hence must be expressed and enforced
by the application programs. We call these application-based
constraints.

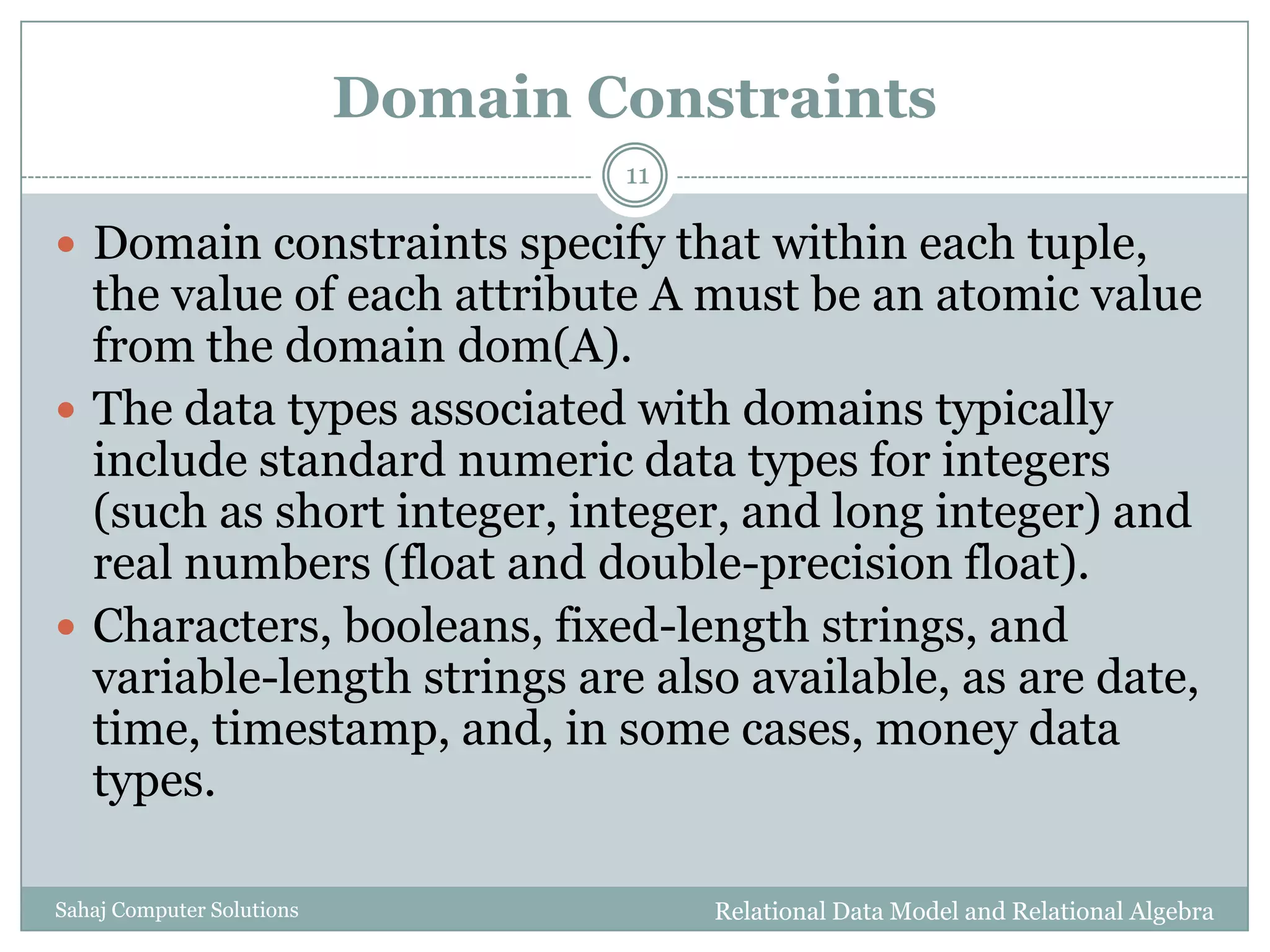

Domain Constraints
11
 Domain constraints specify that within each tuple,
the value of each attribute A must be an atomic value
from the domain dom(A).
 The data types associated with domains typically
include standard numeric data types for integers
(such as short integer, integer, and long integer) and
real numbers (float and double-precision float).
 Characters, booleans, fixed-length strings, and
variable-length strings are also available, as are date,
time, timestamp, and, in some cases, money data
types.

Key Constraints and Constraints on Null Values
12

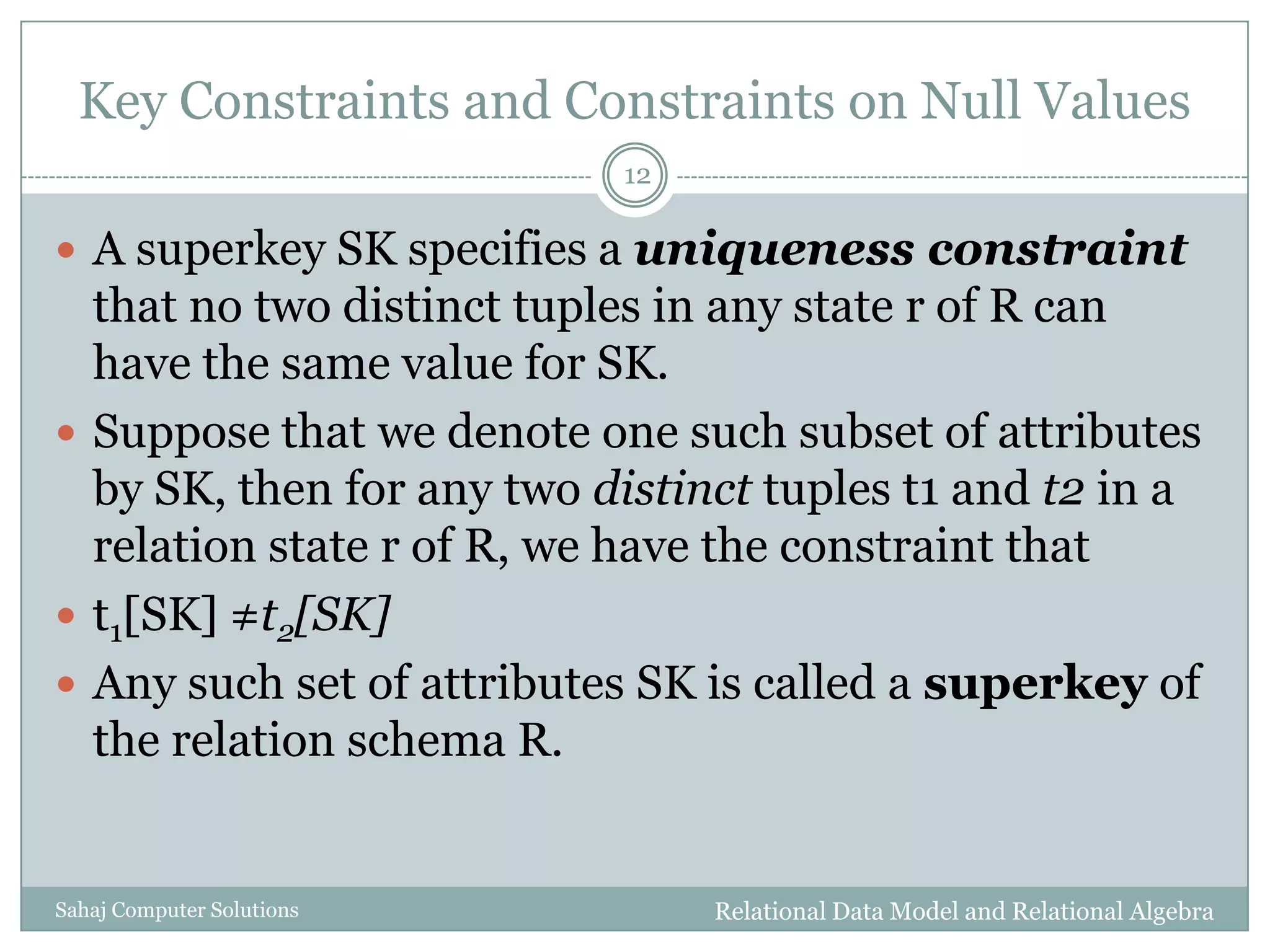

 A superkey SK specifies a uniqueness constraint
that no two distinct tuples in any state r of R can
have the same value for SK.
 Suppose that we denote one such subset of attributes
by SK, then for any two distinct tuples t1 and t2 in a
relation state r of R, we have the constraint that
 t1[SK] ≠t2[SK]
 Any such set of attributes SK is called a superkey of
the relation schema R.

13

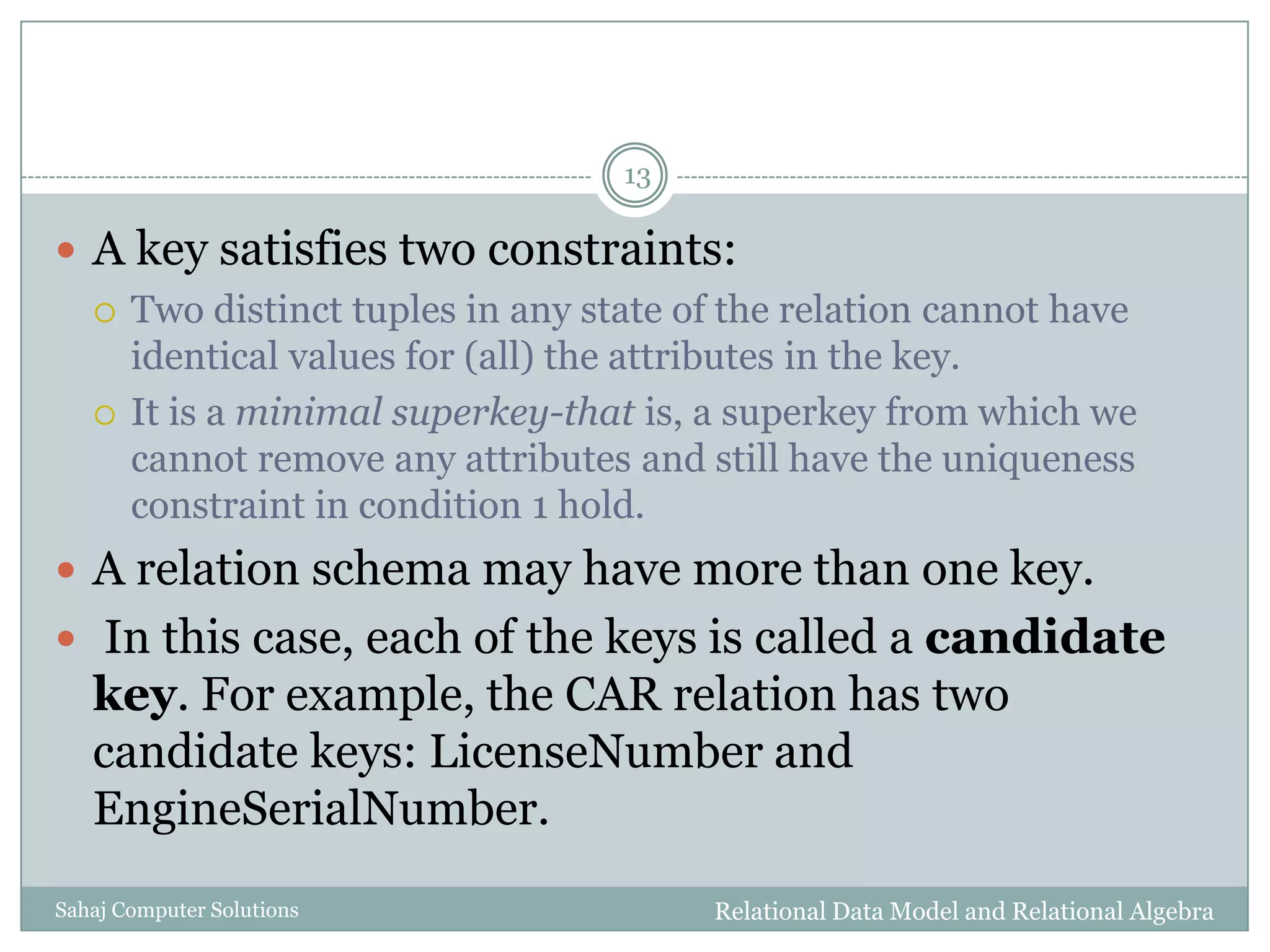

 A key satisfies two constraints:
 Two distinct tuples in any state of the relation cannot have
identical values for (all) the attributes in the key.
 It is a minimal superkey-that is, a superkey from which we
cannot remove any attributes and still have the uniqueness
constraint in condition 1 hold.
 A relation schema may have more than one key.
 In this case, each of the keys is called a candidate
key. For example, the CAR relation has two
candidate keys: LicenseNumber and
EngineSerialNumber.

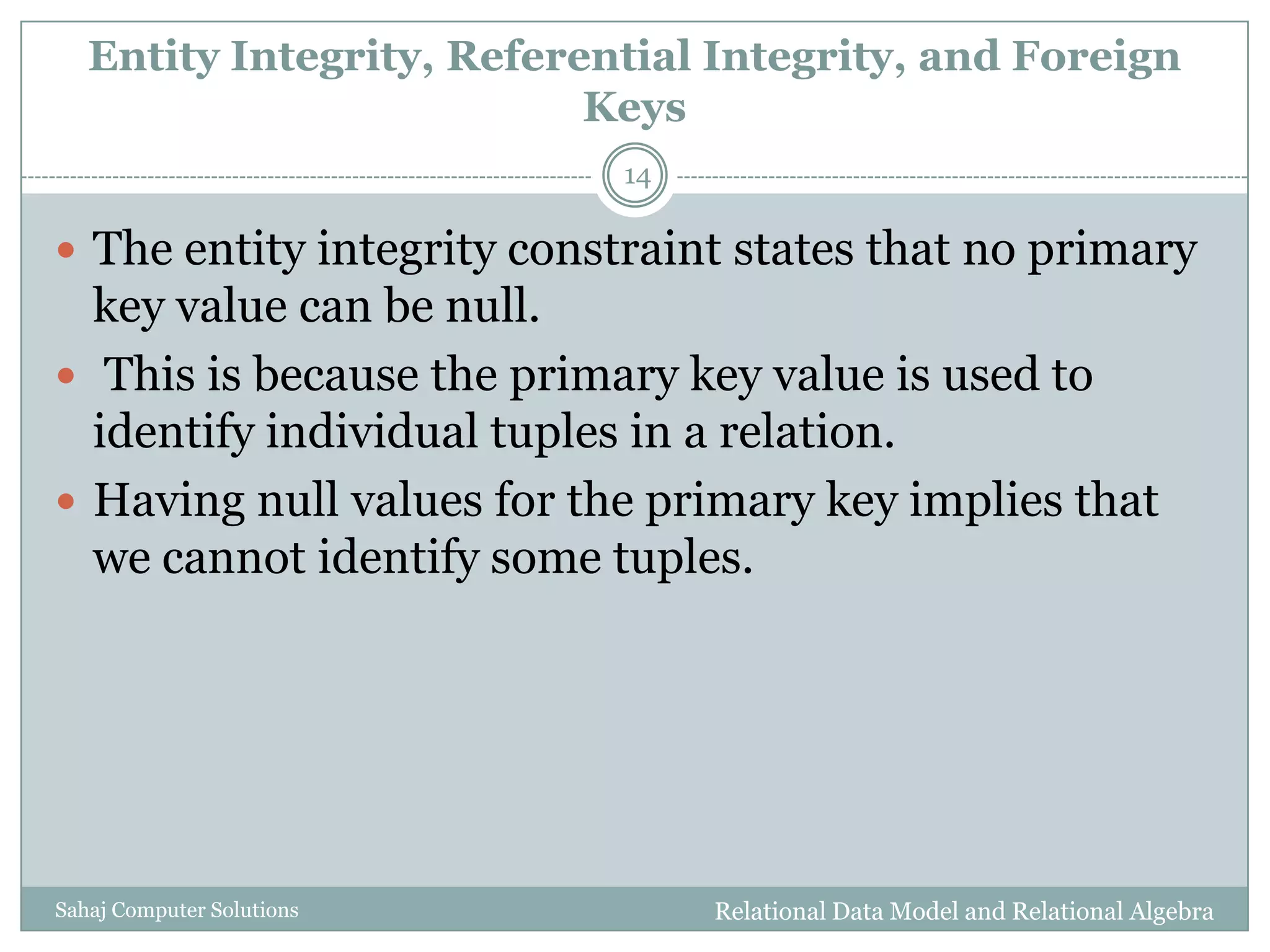

Entity Integrity, Referential Integrity, and Foreign
Keys
14
 The entity integrity constraint states that no primary
key value can be null.
 This is because the primary key value is used to
identify individual tuples in a relation.
 Having null values for the primary key implies that
we cannot identify some tuples.

Keys
15

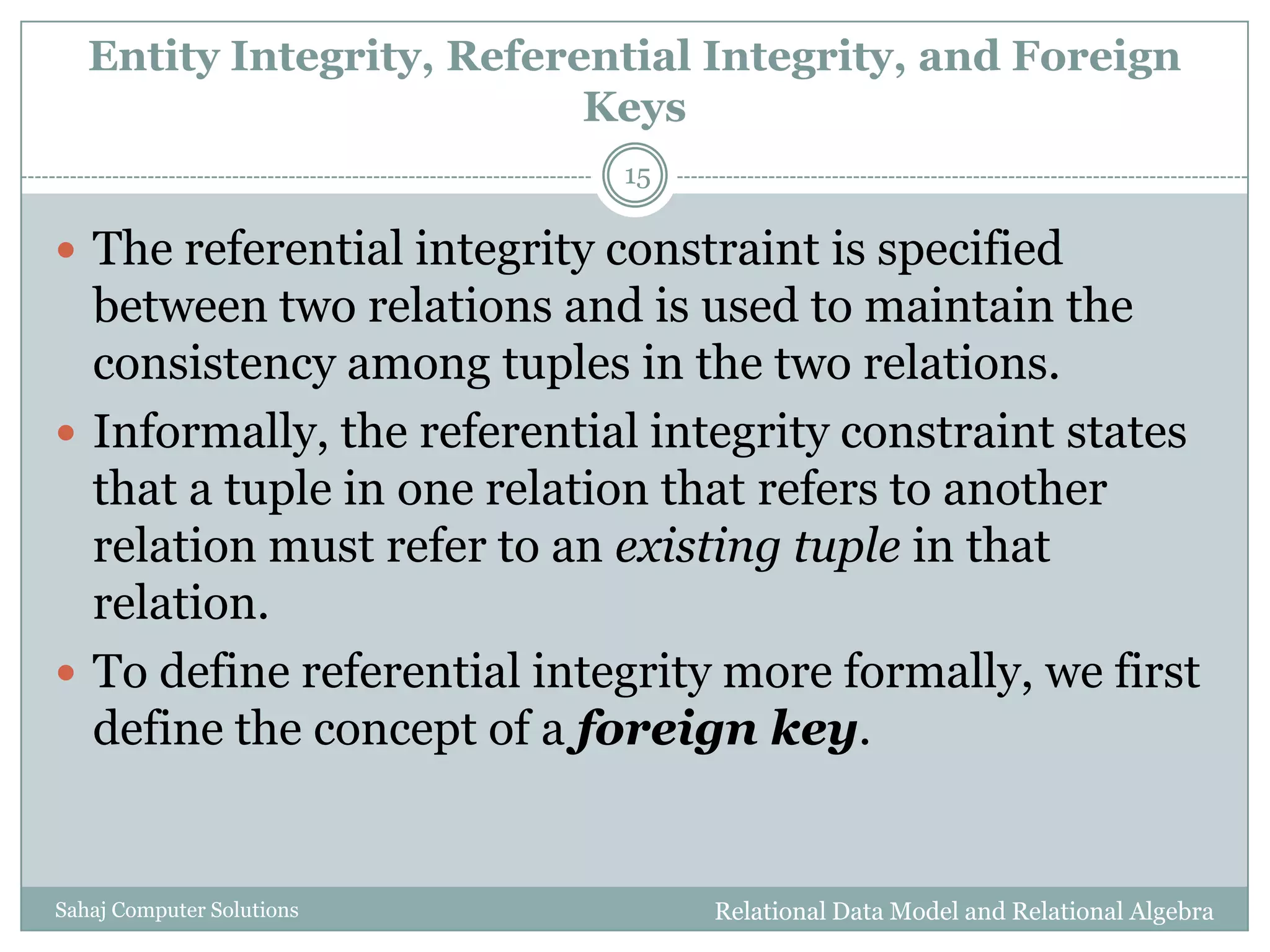

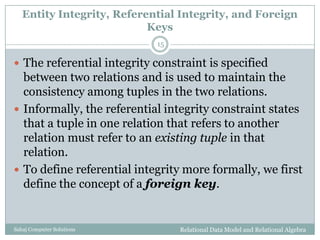

 The referential integrity constraint is specified
between two relations and is used to maintain the
consistency among tuples in the two relations.
 Informally, the referential integrity constraint states
that a tuple in one relation that refers to another
relation must refer to an existing tuple in that
relation.
 To define referential integrity more formally, we first
define the concept of a foreign key.

Keys
16

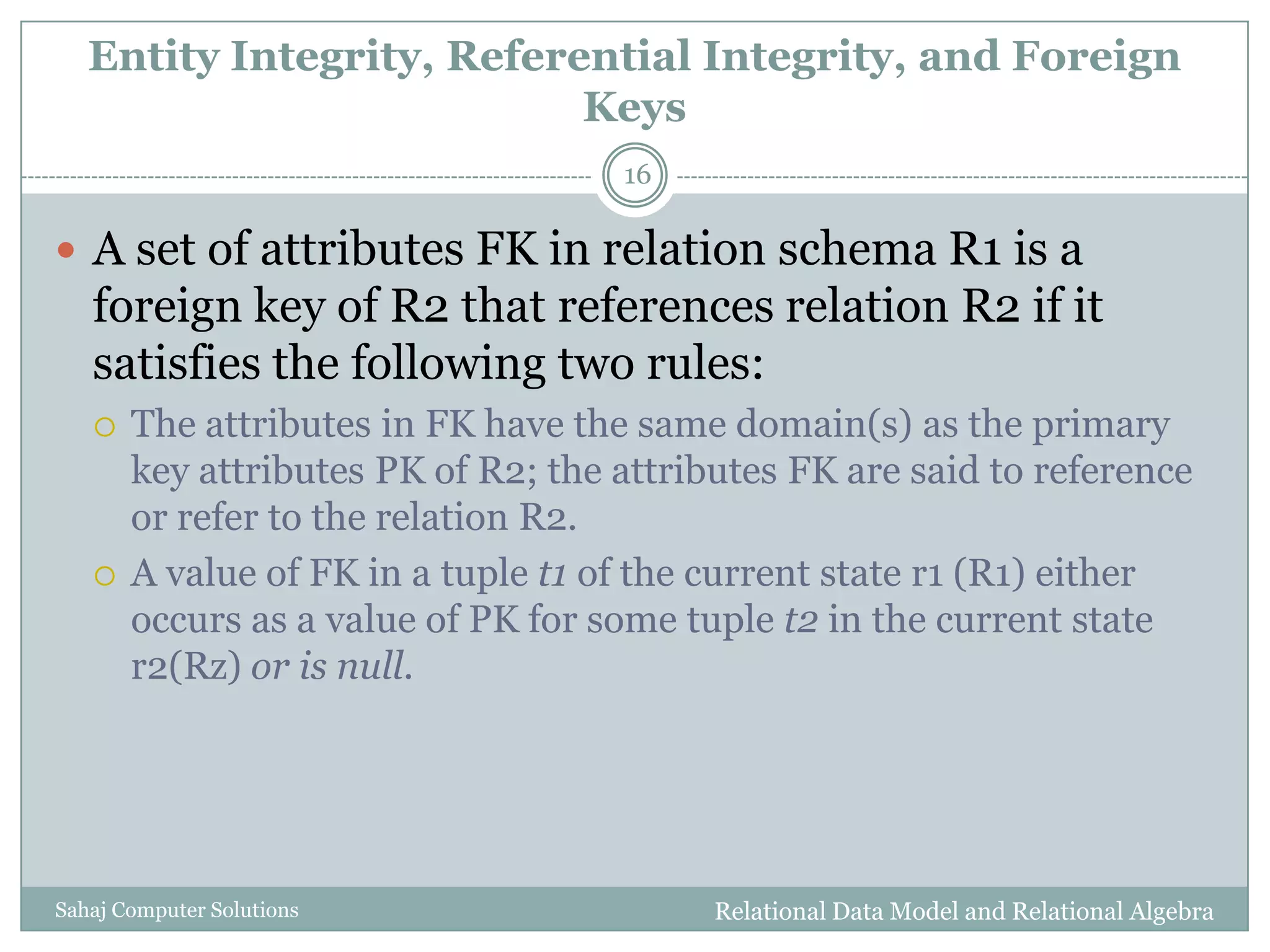

 A set of attributes FK in relation schema R1 is a
foreign key of R2 that references relation R2 if it
satisfies the following two rules:
 The attributes in FK have the same domain(s) as the primary
key attributes PK of R2; the attributes FK are said to reference
or refer to the relation R2.
 A value of FK in a tuple t1 of the current state r1 (R1) either
occurs as a value of PK for some tuple t2 in the current state
r2(Rz) or is null.

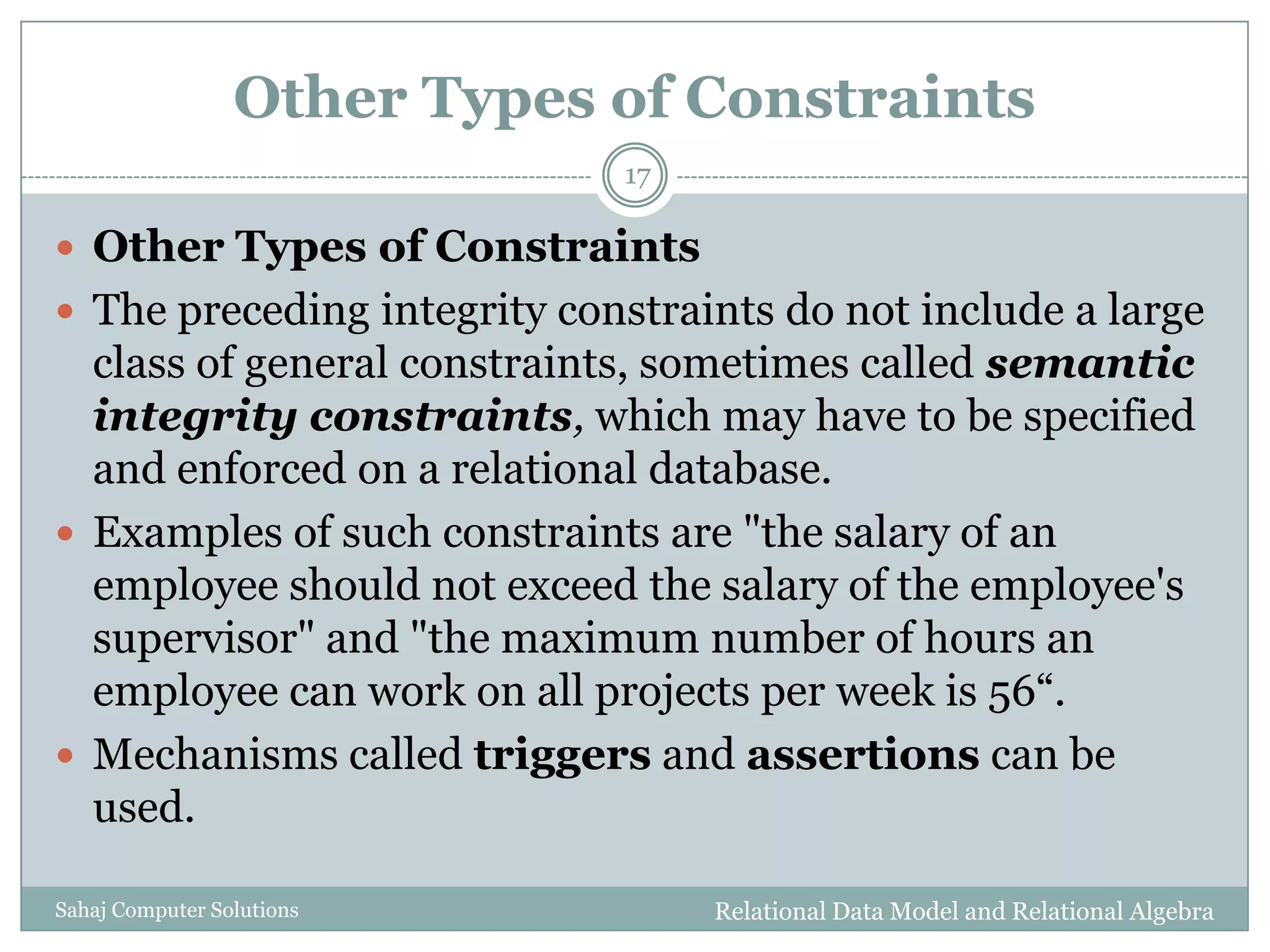

Other Types of Constraints
17
 Other Types of Constraints
 The preceding integrity constraints do not include a large
class of general constraints, sometimes called semantic
integrity constraints, which may have to be specified
and enforced on a relational database.
 Examples of such constraints are "the salary of an
employee should not exceed the salary of the employee's
supervisor" and "the maximum number of hours an
employee can work on all projects per week is 56“.
 Mechanisms called triggers and assertions can be
used.

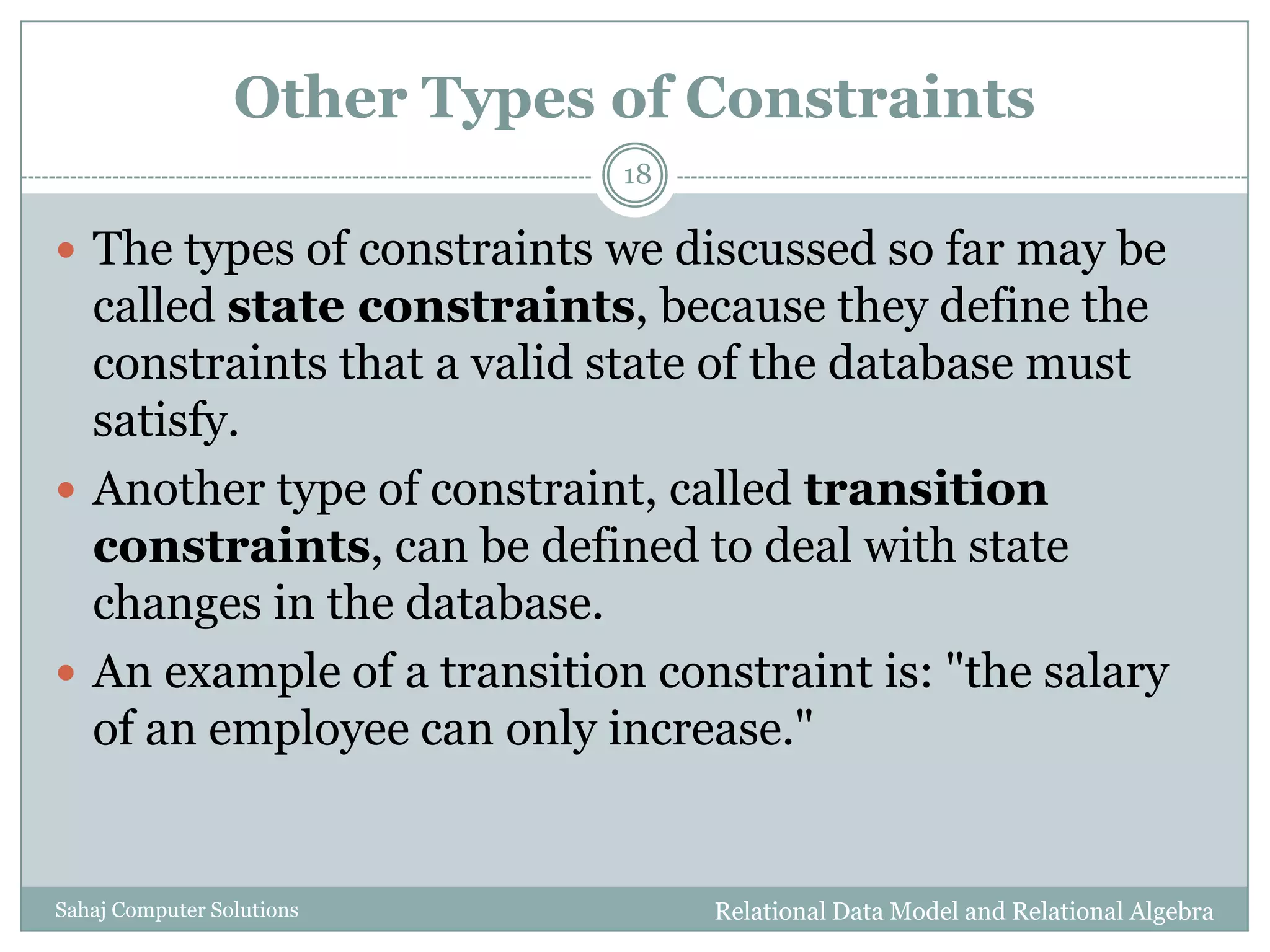

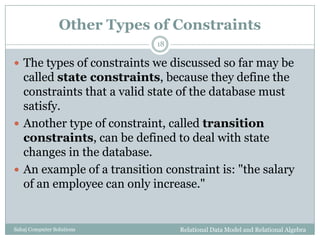

Other Types of Constraints
18
 The types of constraints we discussed so far may be
called state constraints, because they define the
constraints that a valid state of the database must
satisfy.
 Another type of constraint, called transition
constraints, can be defined to deal with state
changes in the database.
 An example of a transition constraint is: "the salary
of an employee can only increase."

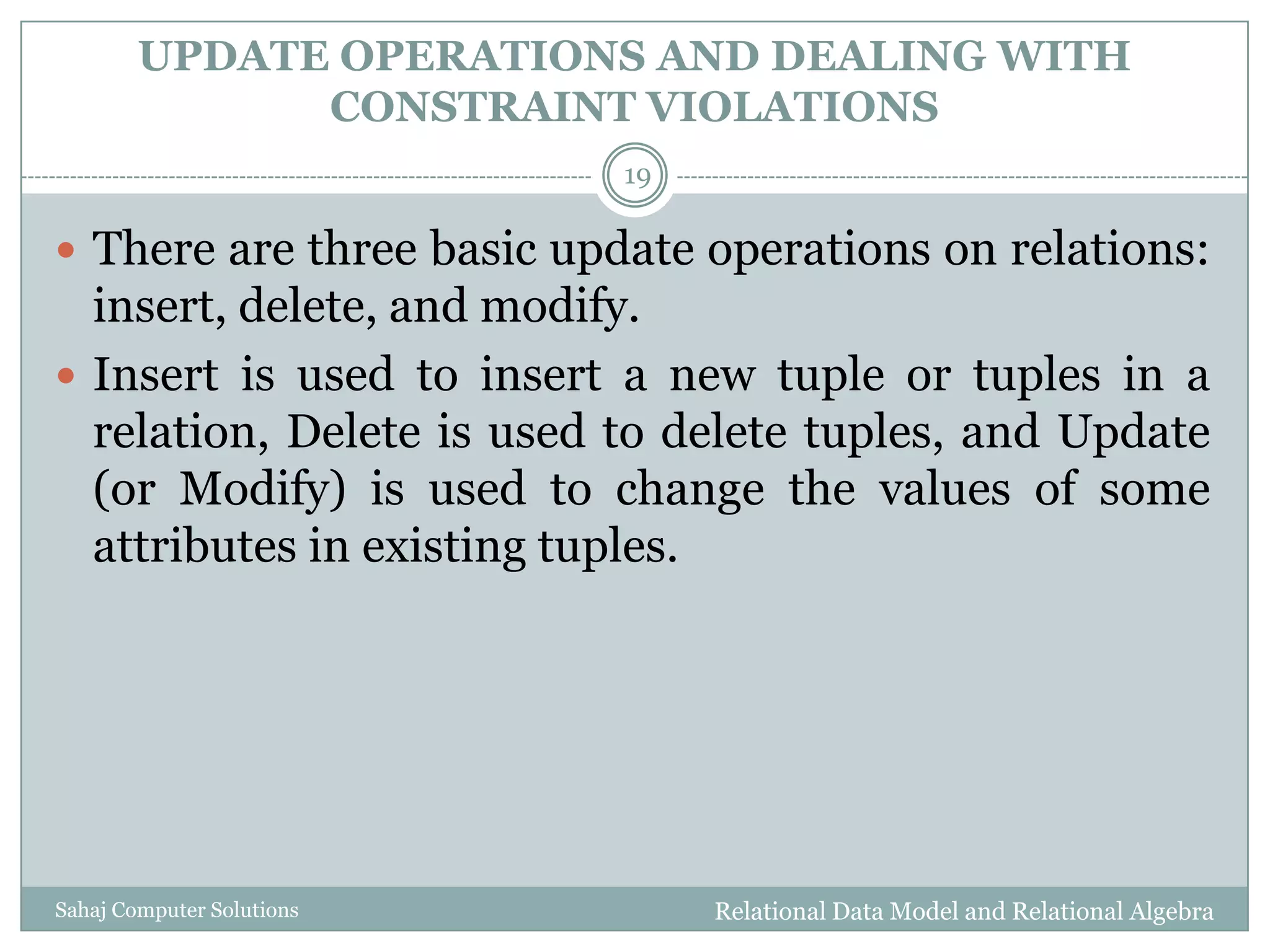

UPDATE OPERATIONS AND DEALING WITH
CONSTRAINT VIOLATIONS
19

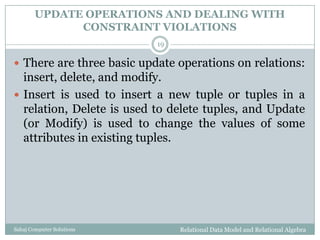

 There are three basic update operations on relations:
insert, delete, and modify.
 Insert is used to insert a new tuple or tuples in a
relation, Delete is used to delete tuples, and Update
(or Modify) is used to change the values of some
attributes in existing tuples.

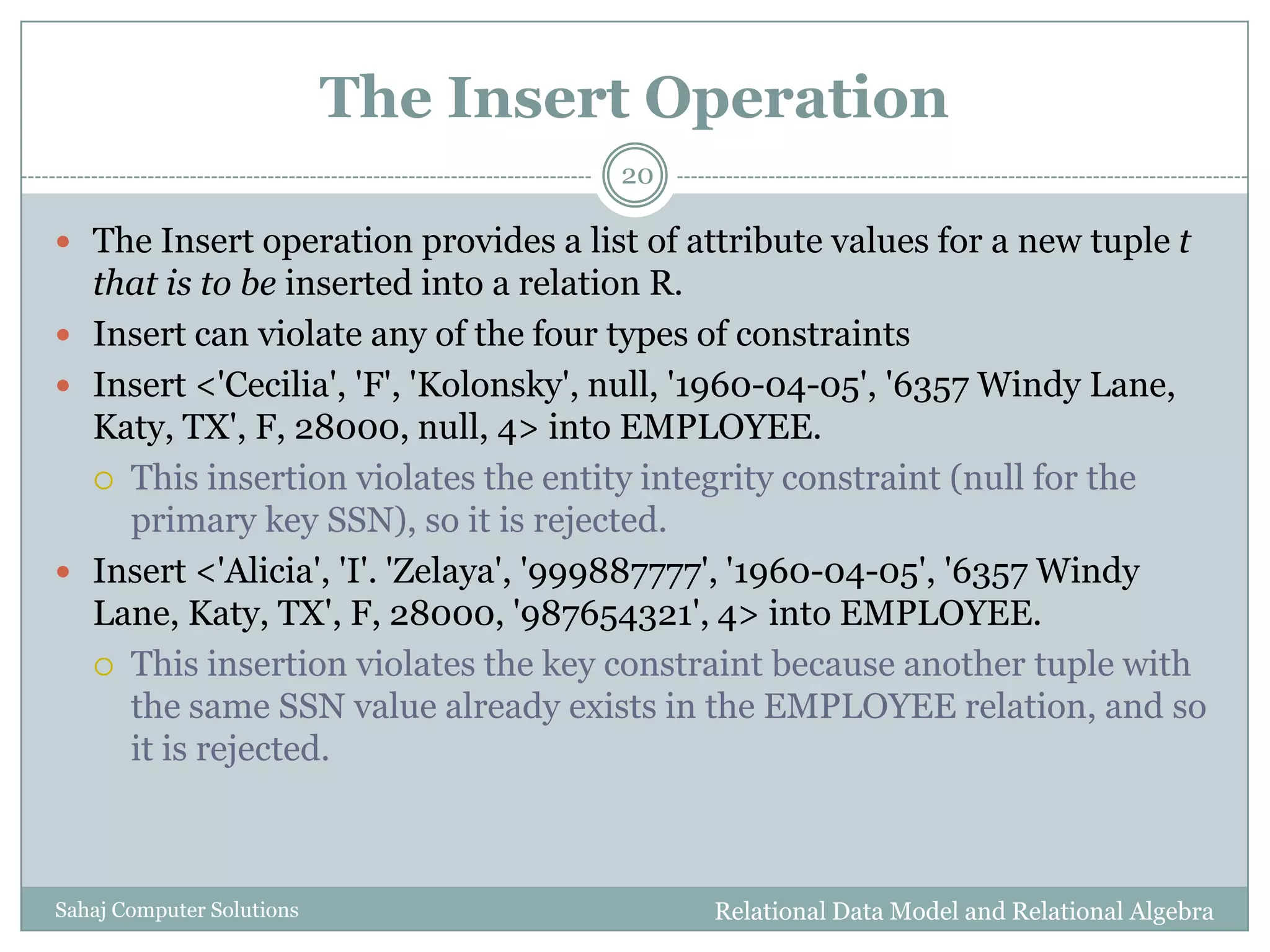

The Insert Operation
20
 The Insert operation provides a list of attribute values for a new tuple t
that is to be inserted into a relation R.
 Insert can violate any of the four types of constraints
 Insert <'Cecilia', 'F', 'Kolonsky', null, '1960-04-05', '6357 Windy Lane,
Katy, TX', F, 28000, null, 4> into EMPLOYEE.
 This insertion violates the entity integrity constraint (null for the
primary key SSN), so it is rejected.
 Insert <'Alicia', 'I'. 'Zelaya', '999887777', '1960-04-05', '6357 Windy
Lane, Katy, TX', F, 28000, '987654321', 4> into EMPLOYEE.
 This insertion violates the key constraint because another tuple with
the same SSN value already exists in the EMPLOYEE relation, and so
it is rejected.

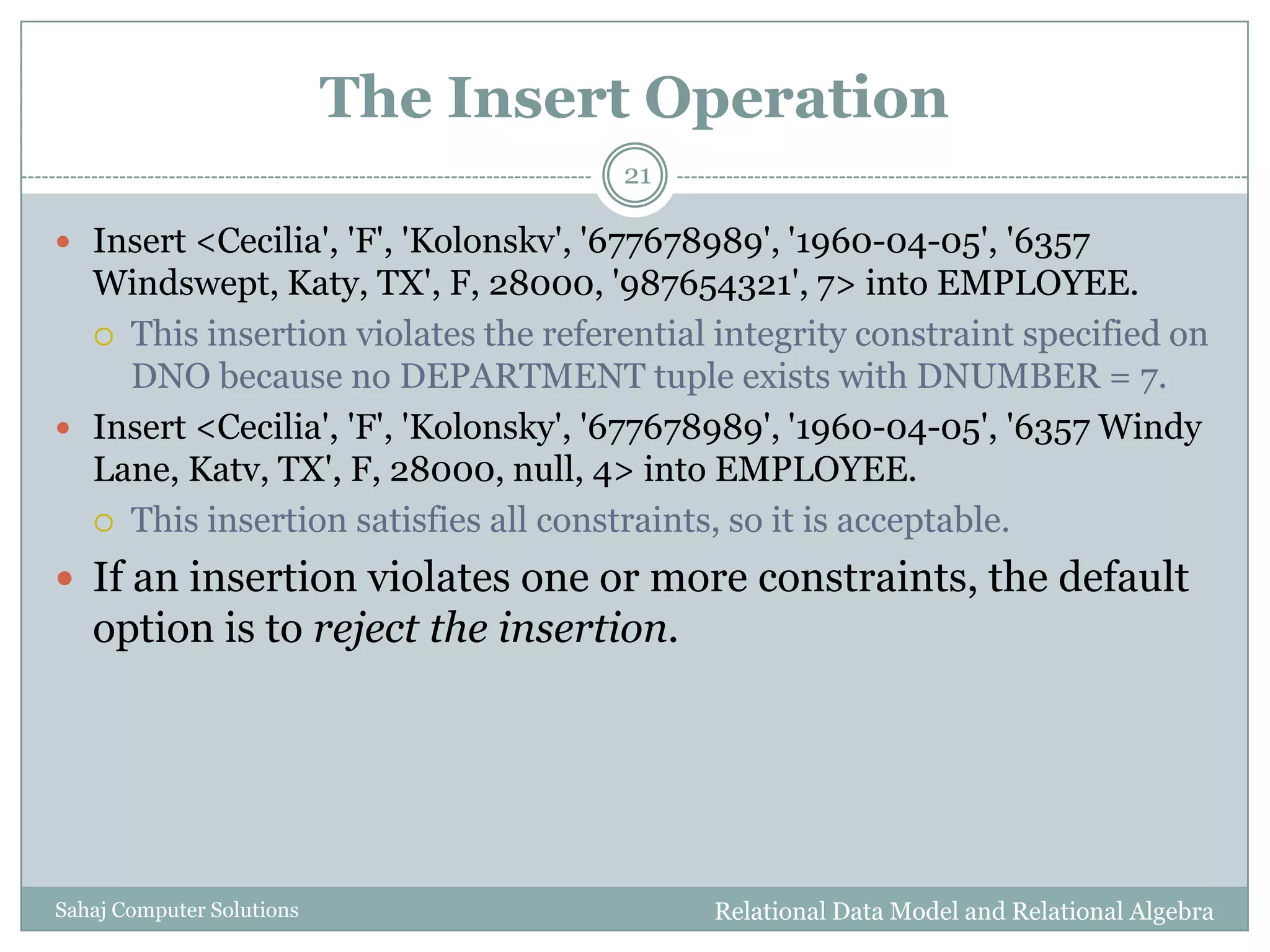

The Insert Operation
21
 Insert <Cecilia', 'F', 'Kolonskv', '677678989', '1960-04-05', '6357
Windswept, Katy, TX', F, 28000, '987654321', 7> into EMPLOYEE.
 This insertion violates the referential integrity constraint specified on
DNO because no DEPARTMENT tuple exists with DNUMBER = 7.
 Insert <Cecilia', 'F', 'Kolonsky', '677678989', '1960-04-05', '6357 Windy
Lane, Katv, TX', F, 28000, null, 4> into EMPLOYEE.
 This insertion satisfies all constraints, so it is acceptable.
 If an insertion violates one or more constraints, the default
option is to reject the insertion.

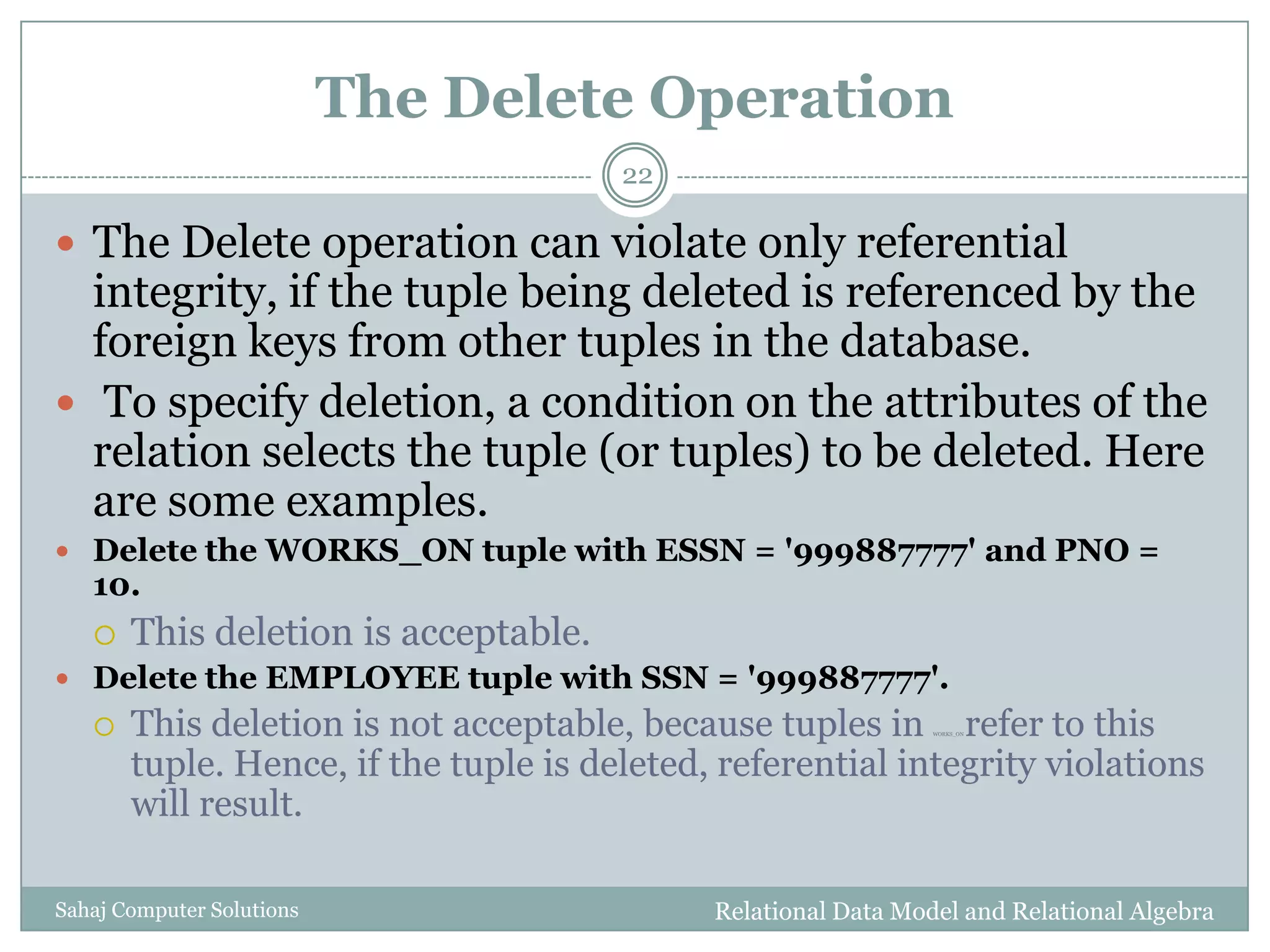

The Delete Operation
22
 The Delete operation can violate only referential
integrity, if the tuple being deleted is referenced by the
foreign keys from other tuples in the database.
 To specify deletion, a condition on the attributes of the
relation selects the tuple (or tuples) to be deleted. Here
are some examples.
 Delete the WORKS_ON tuple with ESSN = '999887777' and PNO =
10.
 This deletion is acceptable.
 Delete the EMPLOYEE tuple with SSN = '999887777'.
 This deletion is not acceptable, because tuples in WORKS_ON refer to this
tuple. Hence, if the tuple is deleted, referential integrity violations
will result.

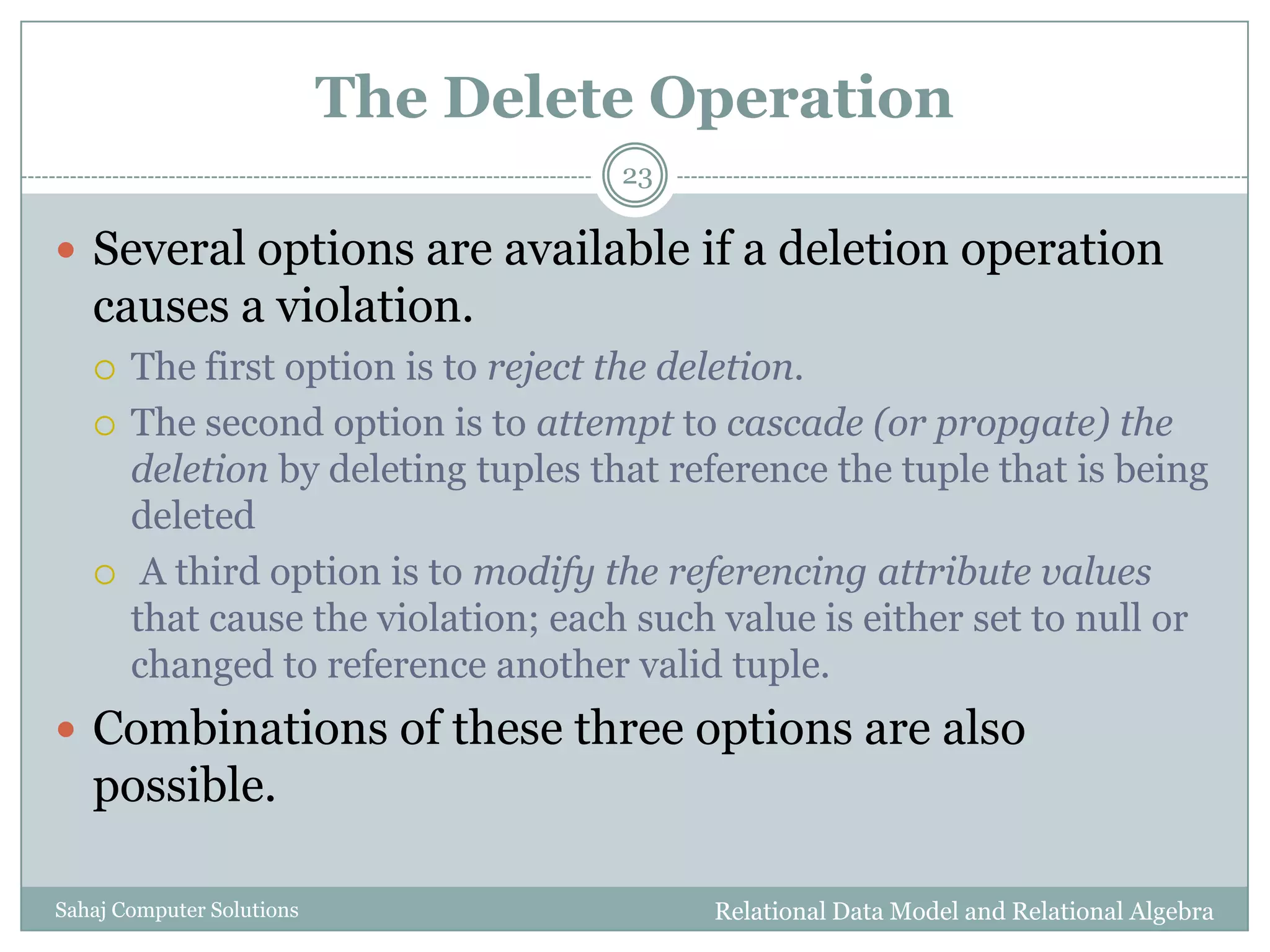

The Delete Operation
23
 Several options are available if a deletion operation
causes a violation.
 The first option is to reject the deletion.
 The second option is to attempt to cascade (or propgate) the
deletion by deleting tuples that reference the tuple that is being
deleted
 A third option is to modify the referencing attribute values
that cause the violation; each such value is either set to null or
changed to reference another valid tuple.
 Combinations of these three options are also
possible.

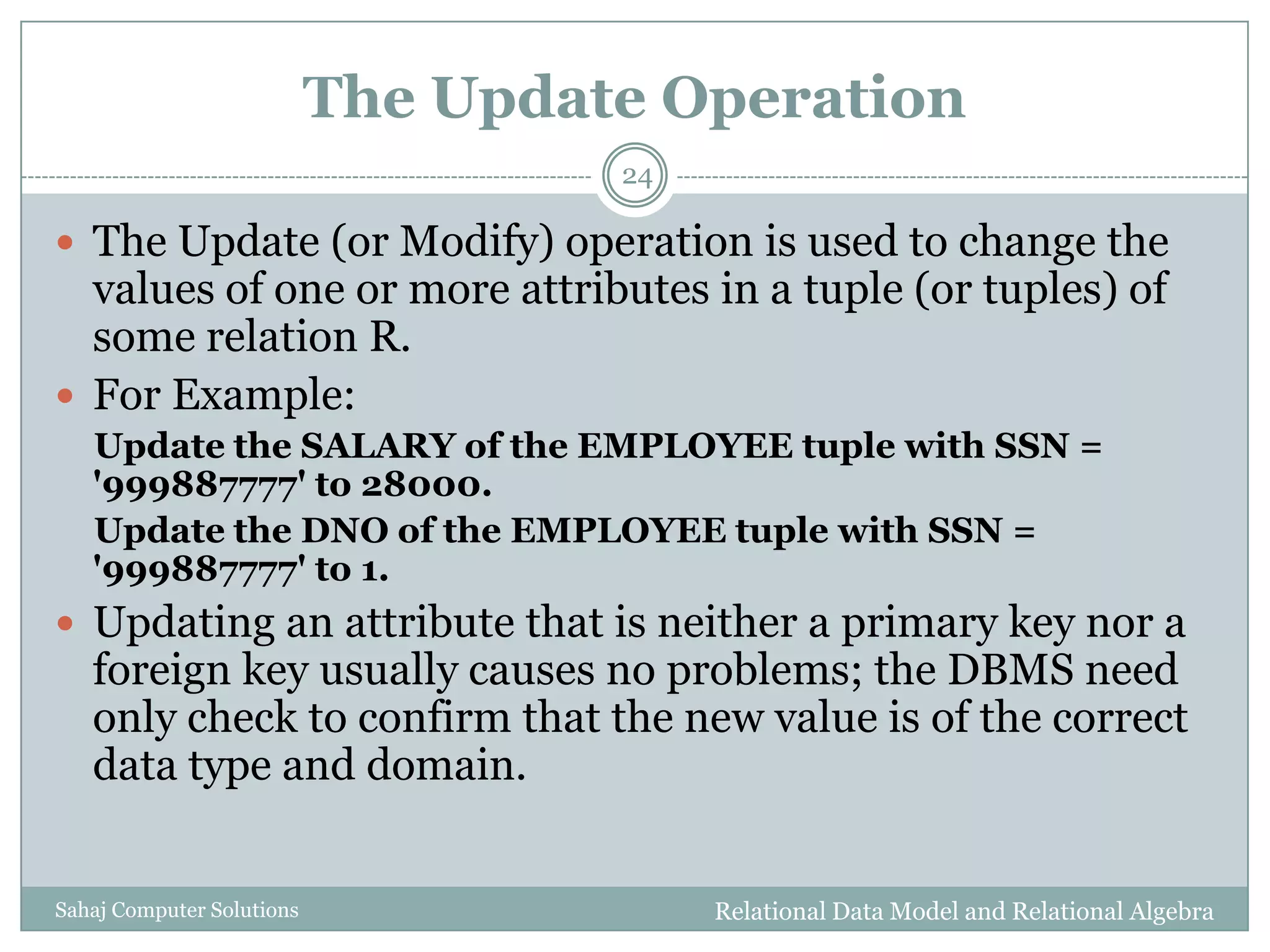

The Update Operation
24
 The Update (or Modify) operation is used to change the
values of one or more attributes in a tuple (or tuples) of
some relation R.
 For Example:
Update the SALARY of the EMPLOYEE tuple with SSN =
'999887777' to 28000.
Update the DNO of the EMPLOYEE tuple with SSN =
'999887777' to 1.
 Updating an attribute that is neither a primary key nor a
foreign key usually causes no problems; the DBMS need
only check to confirm that the new value is of the correct
data type and domain.

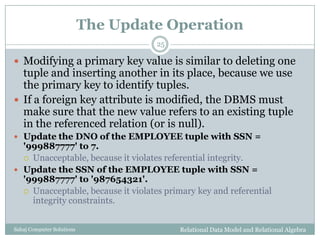

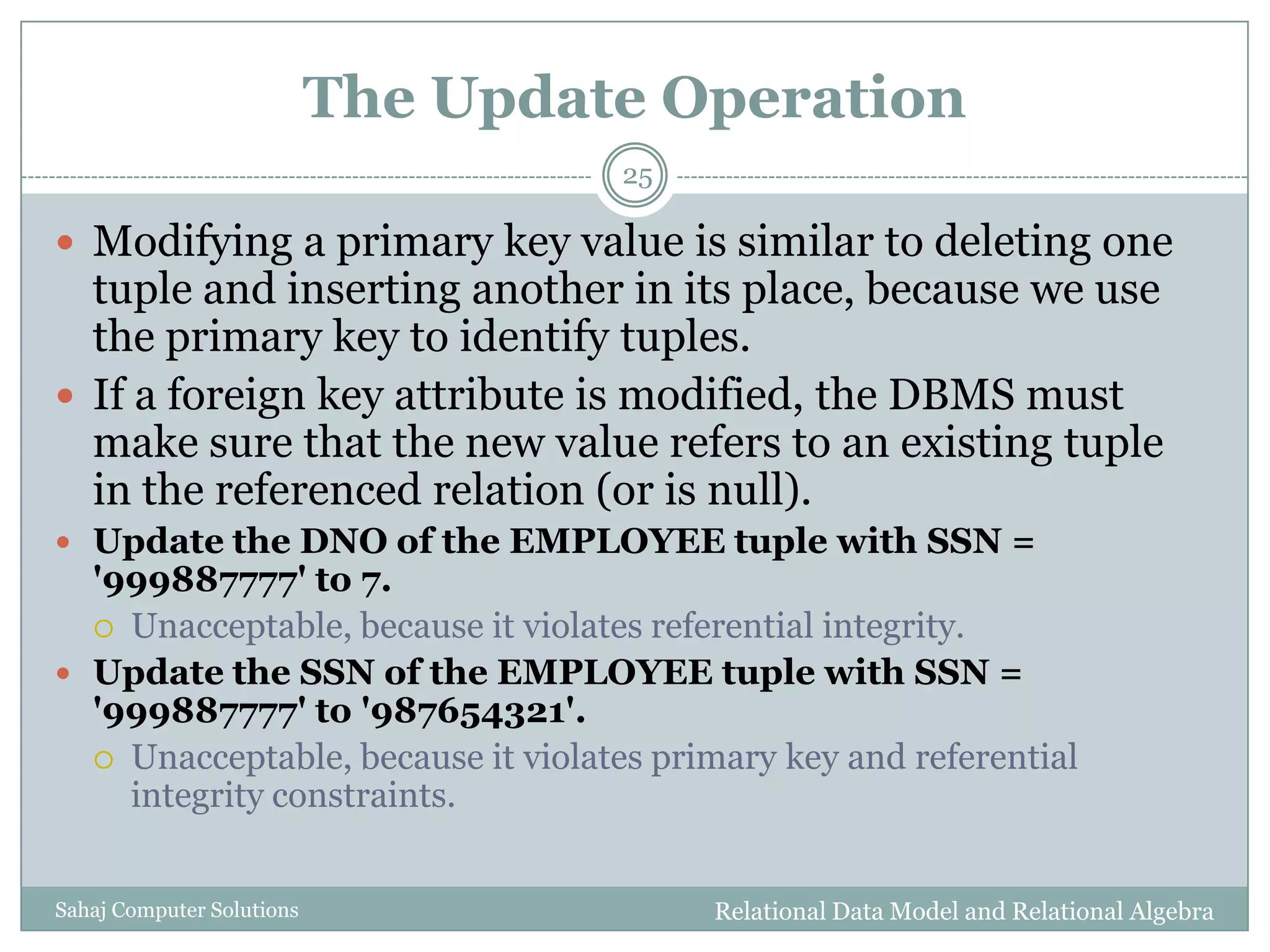

The Update Operation
25
 Modifying a primary key value is similar to deleting one
tuple and inserting another in its place, because we use
the primary key to identify tuples.
 If a foreign key attribute is modified, the DBMS must
make sure that the new value refers to an existing tuple
in the referenced relation (or is null).
 Update the DNO of the EMPLOYEE tuple with SSN =
'999887777' to 7.
 Unacceptable, because it violates referential integrity.
 Update the SSN of the EMPLOYEE tuple with SSN =
'999887777' to '987654321'.
 Unacceptable, because it violates primary key and referential
integrity constraints.

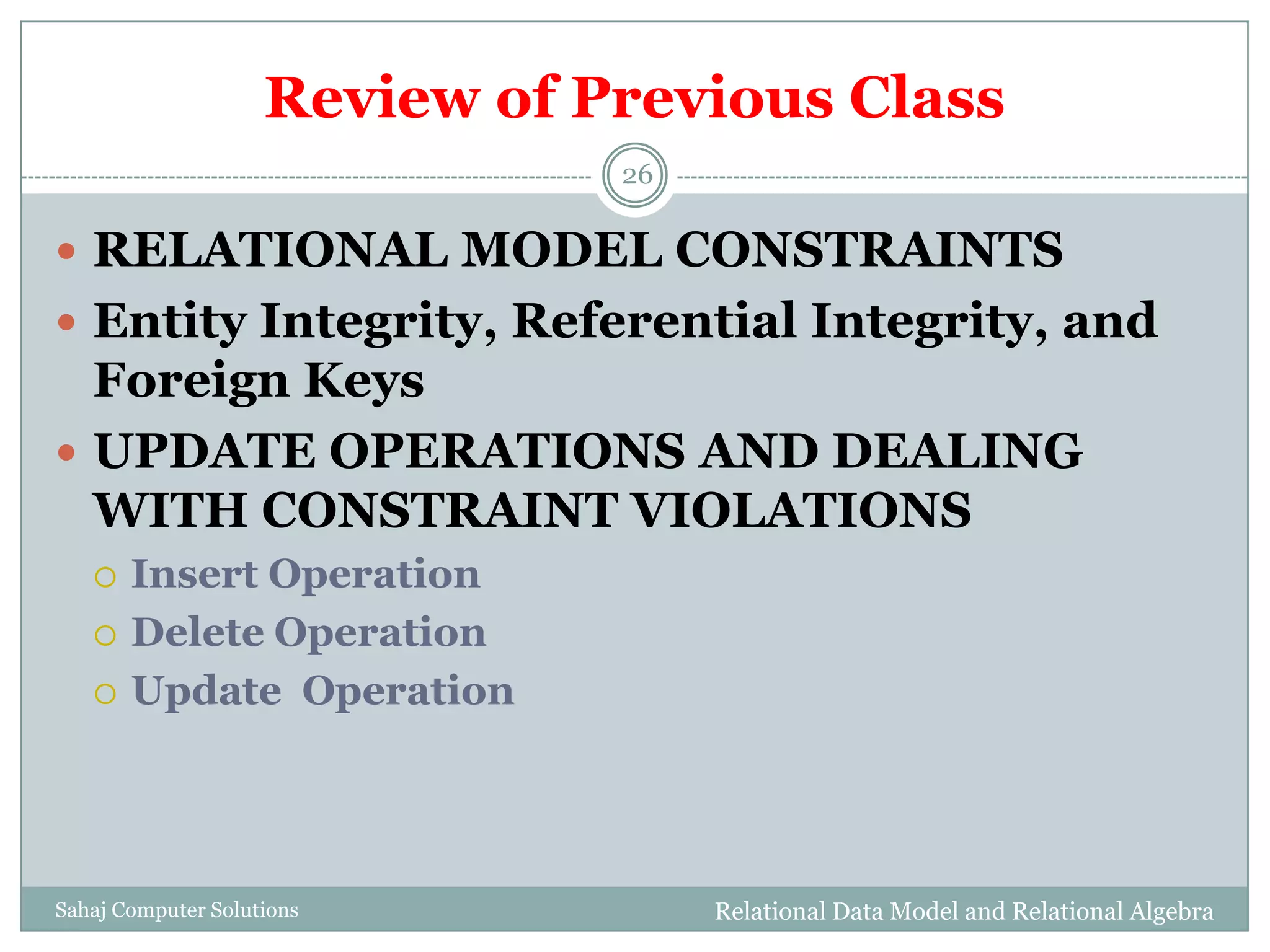

Review of Previous Class
26
 RELATIONAL MODEL CONSTRAINTS
 Entity Integrity, Referential Integrity, and
Foreign Keys
 UPDATE OPERATIONS AND DEALING
WITH CONSTRAINT VIOLATIONS
 Insert Operation
 Delete Operation
 Update Operation

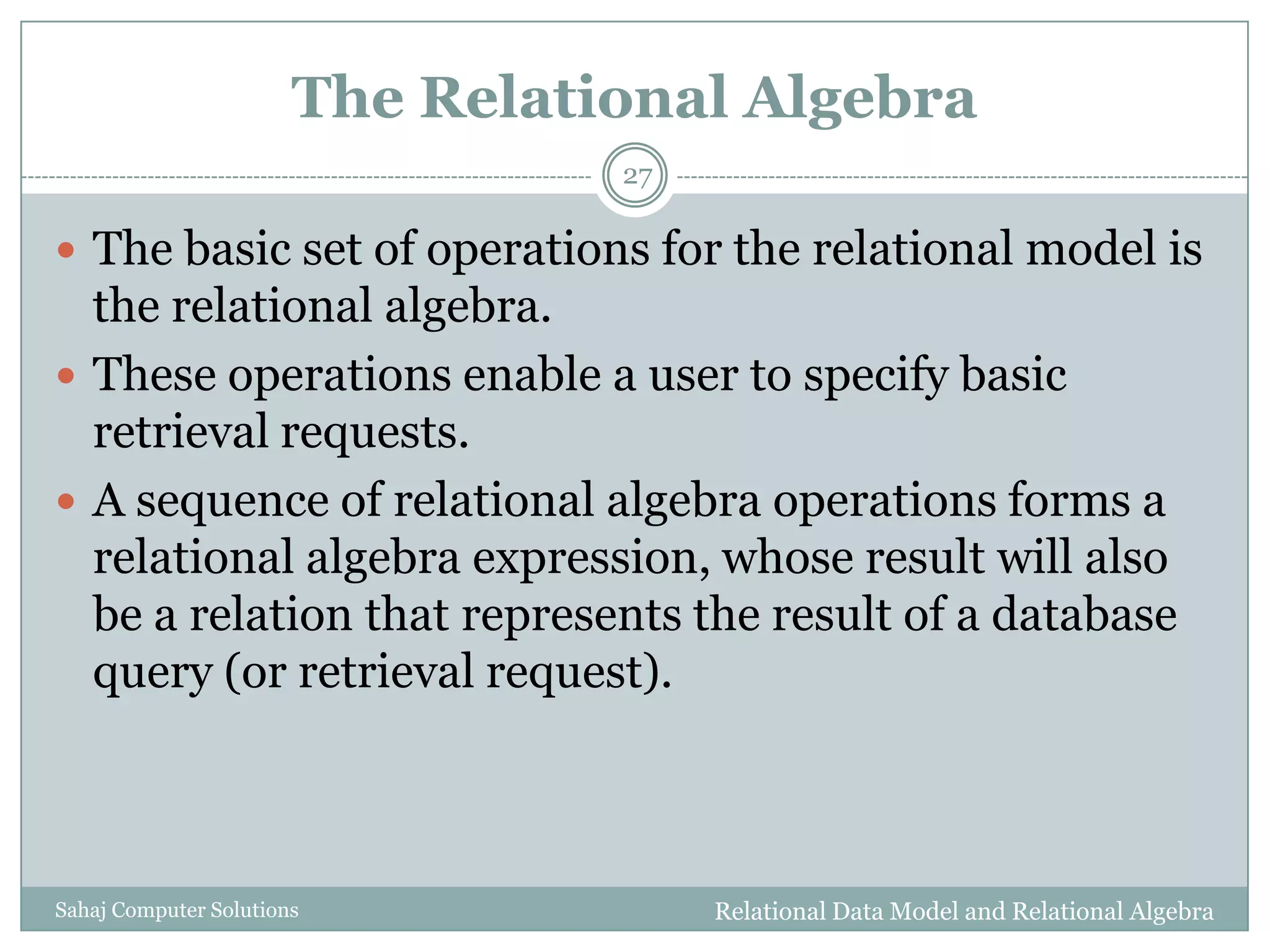

The Relational Algebra
27
 The basic set of operations for the relational model is
the relational algebra.
 These operations enable a user to specify basic
retrieval requests.
 A sequence of relational algebra operations forms a
relational algebra expression, whose result will also
be a relation that represents the result of a database
query (or retrieval request).

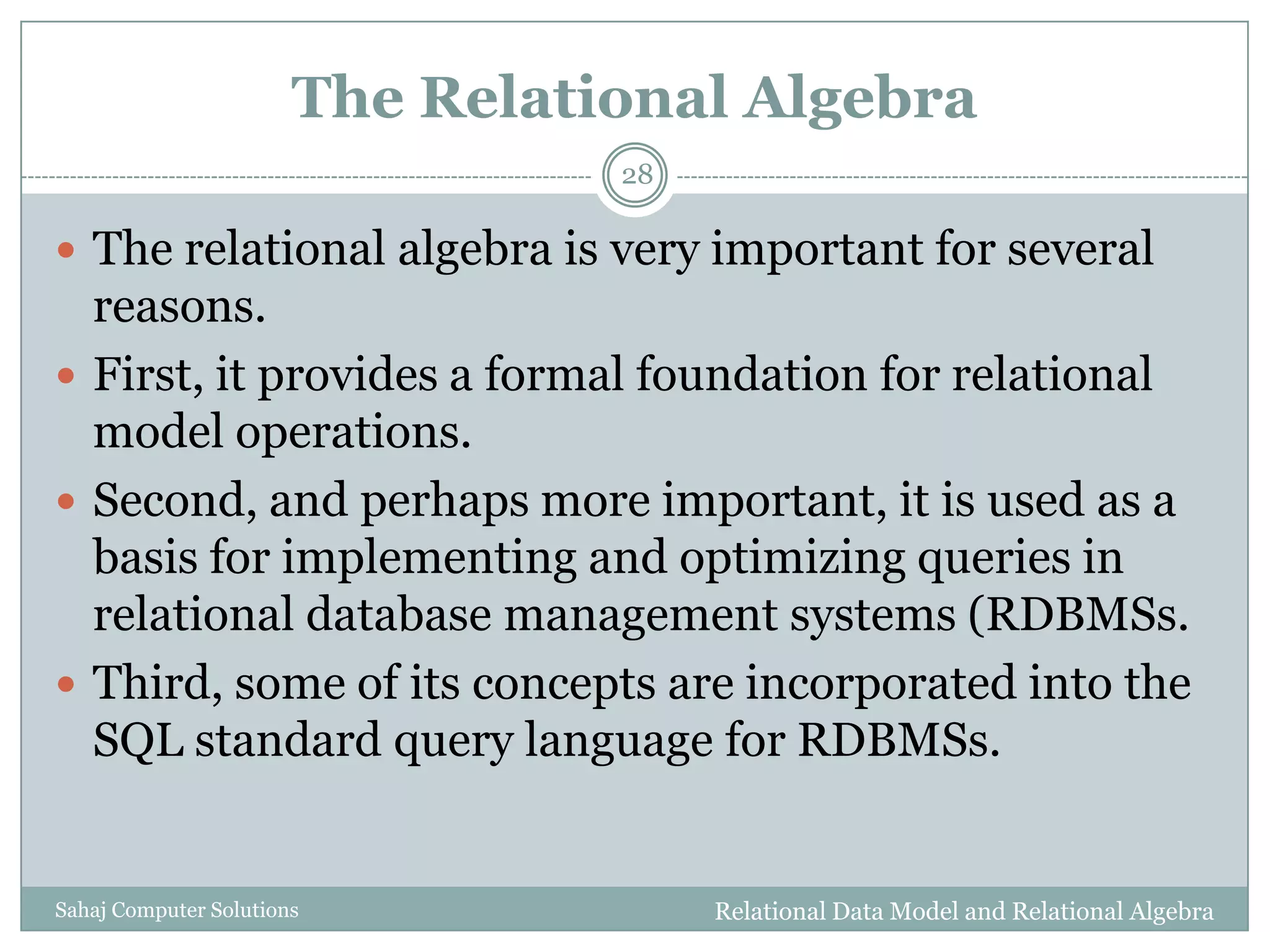

The Relational Algebra
28
 The relational algebra is very important for several
reasons.
 First, it provides a formal foundation for relational
model operations.
 Second, and perhaps more important, it is used as a
basis for implementing and optimizing queries in
relational database management systems (RDBMSs.
 Third, some of its concepts are incorporated into the
SQL standard query language for RDBMSs.

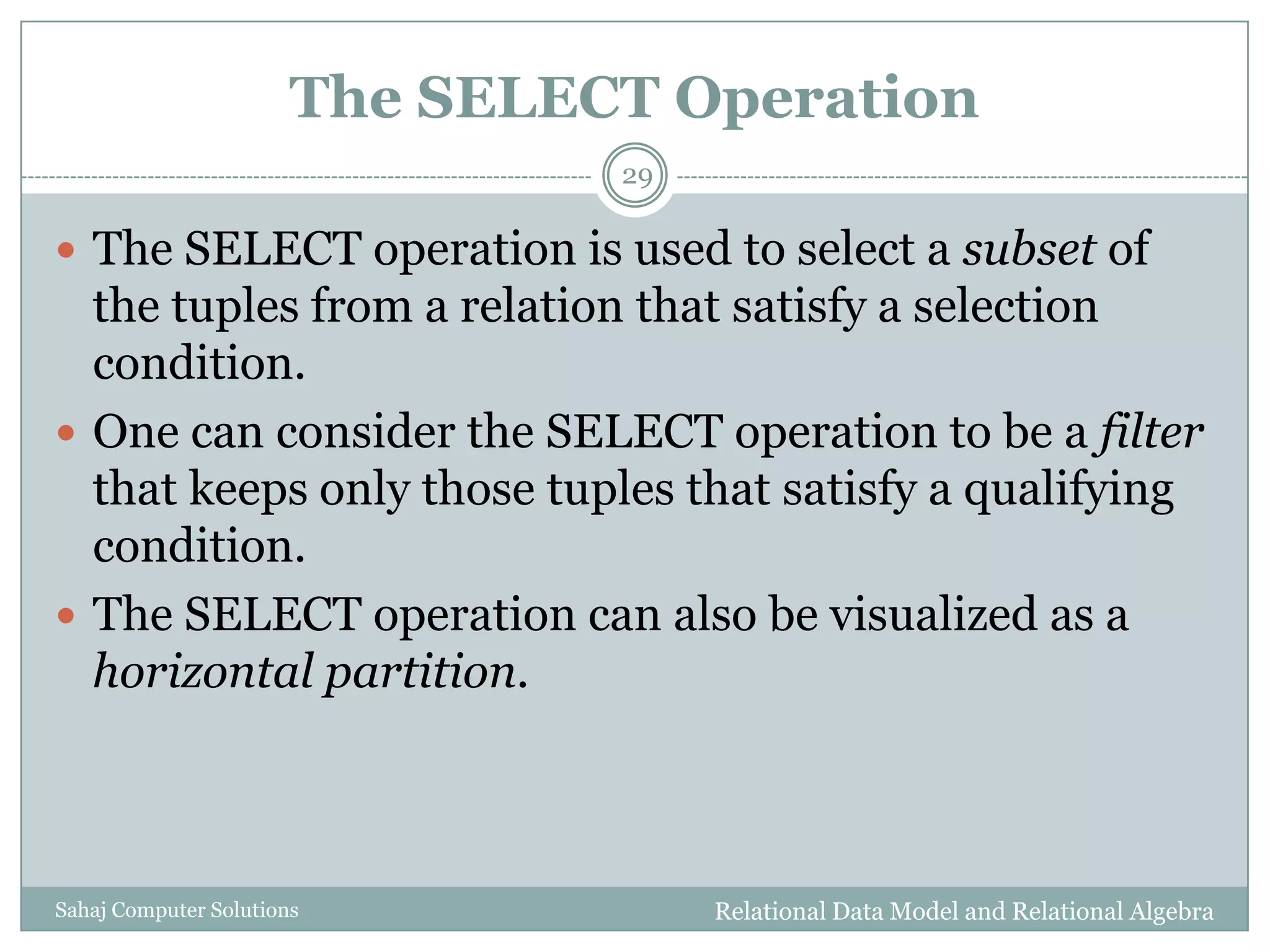

The SELECT Operation
29
 The SELECT operation is used to select a subset of
the tuples from a relation that satisfy a selection
condition.
 One can consider the SELECT operation to be a filter
that keeps only those tuples that satisfy a qualifying
condition.
 The SELECT operation can also be visualized as a
horizontal partition.

30

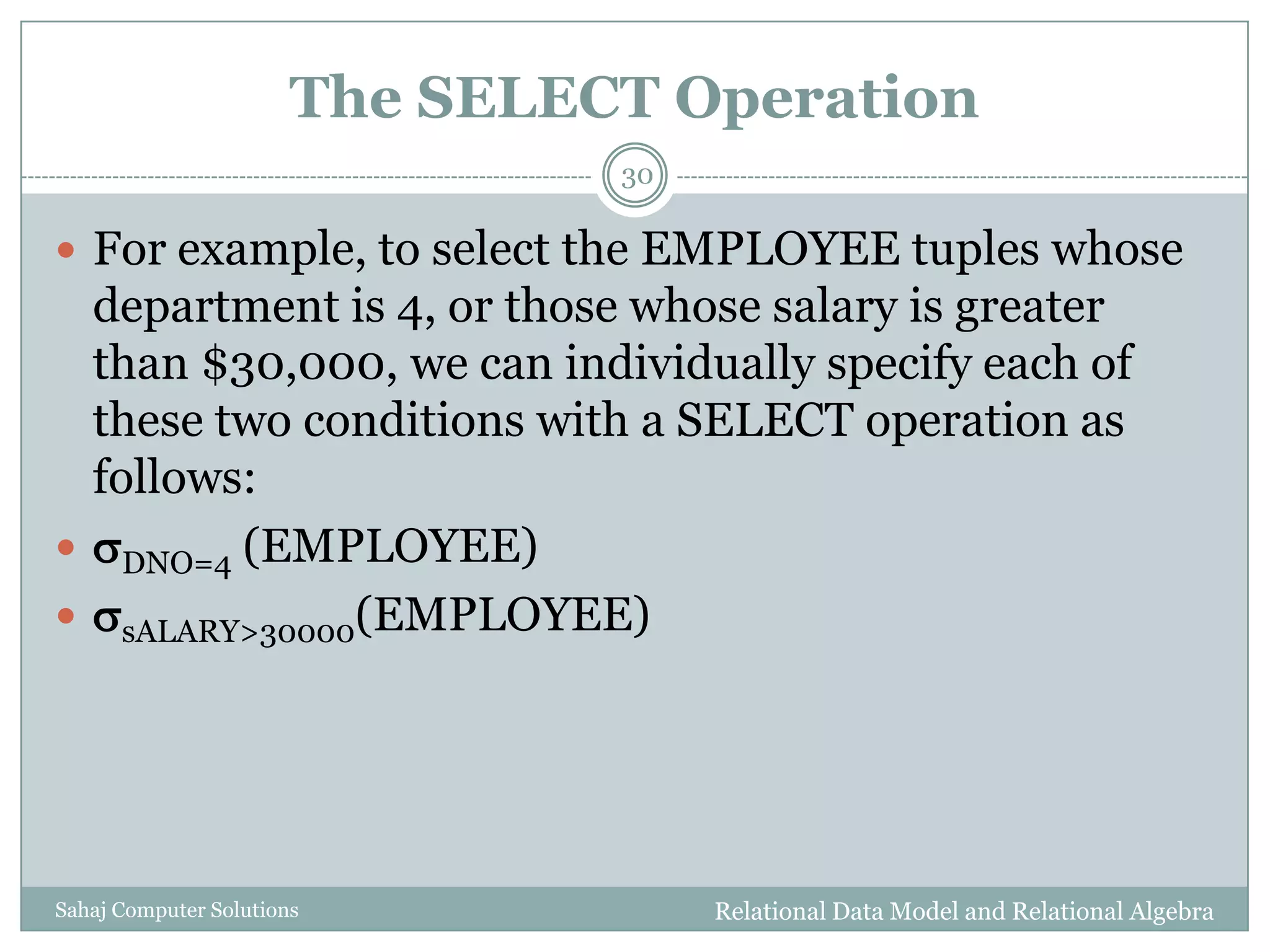

 For example, to select the EMPLOYEE tuples whose
department is 4, or those whose salary is greater
than $30,000, we can individually specify each of
these two conditions with a SELECT operation as
follows:
 DNO=4 (EMPLOYEE)
 sALARY>30000(EMPLOYEE)

31

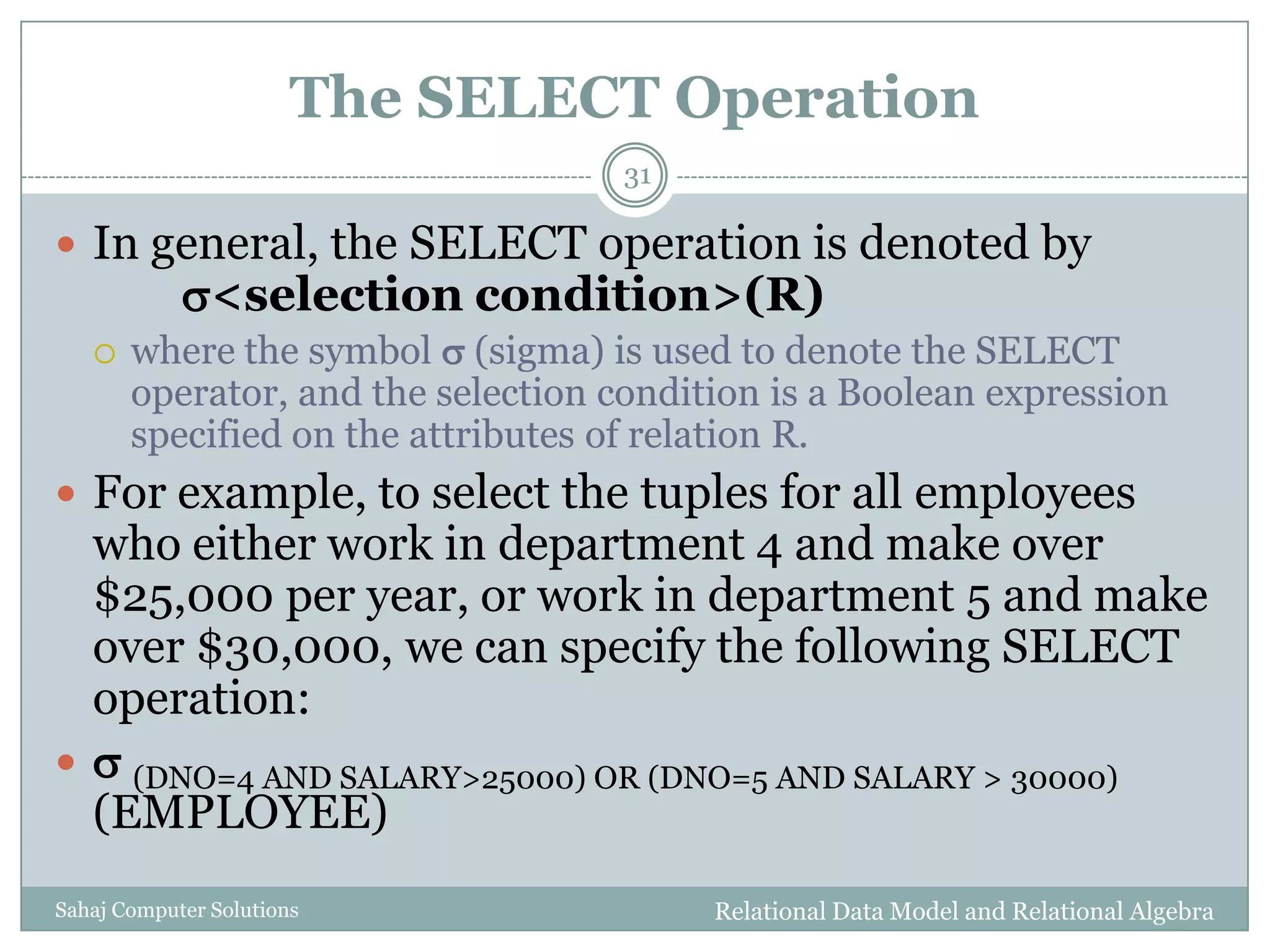

 In general, the SELECT operation is denoted by
<selection condition>(R)
 where the symbol  (sigma) is used to denote the SELECT
operator, and the selection condition is a Boolean expression
specified on the attributes of relation R.
 For example, to select the tuples for all employees
who either work in department 4 and make over
$25,000 per year, or work in department 5 and make
over $30,000, we can specify the following SELECT
operation:
  (DNO=4 AND SALARY>25000) OR (DNO=5 AND SALARY > 30000)
(EMPLOYEE)

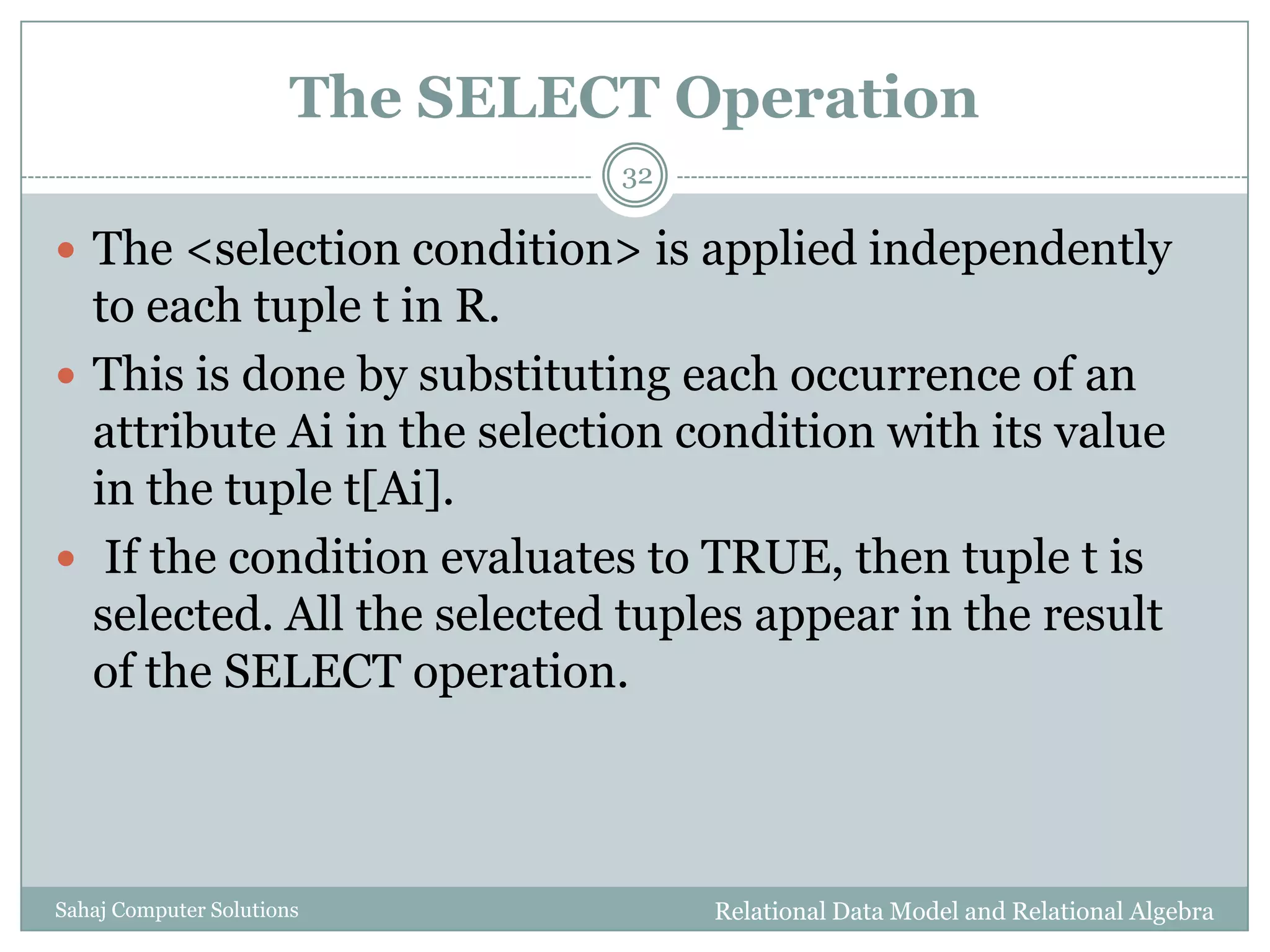

32
 The <selection condition> is applied independently
to each tuple t in R.
 This is done by substituting each occurrence of an
attribute Ai in the selection condition with its value
in the tuple t[Ai].
 If the condition evaluates to TRUE, then tuple t is
selected. All the selected tuples appear in the result
of the SELECT operation.

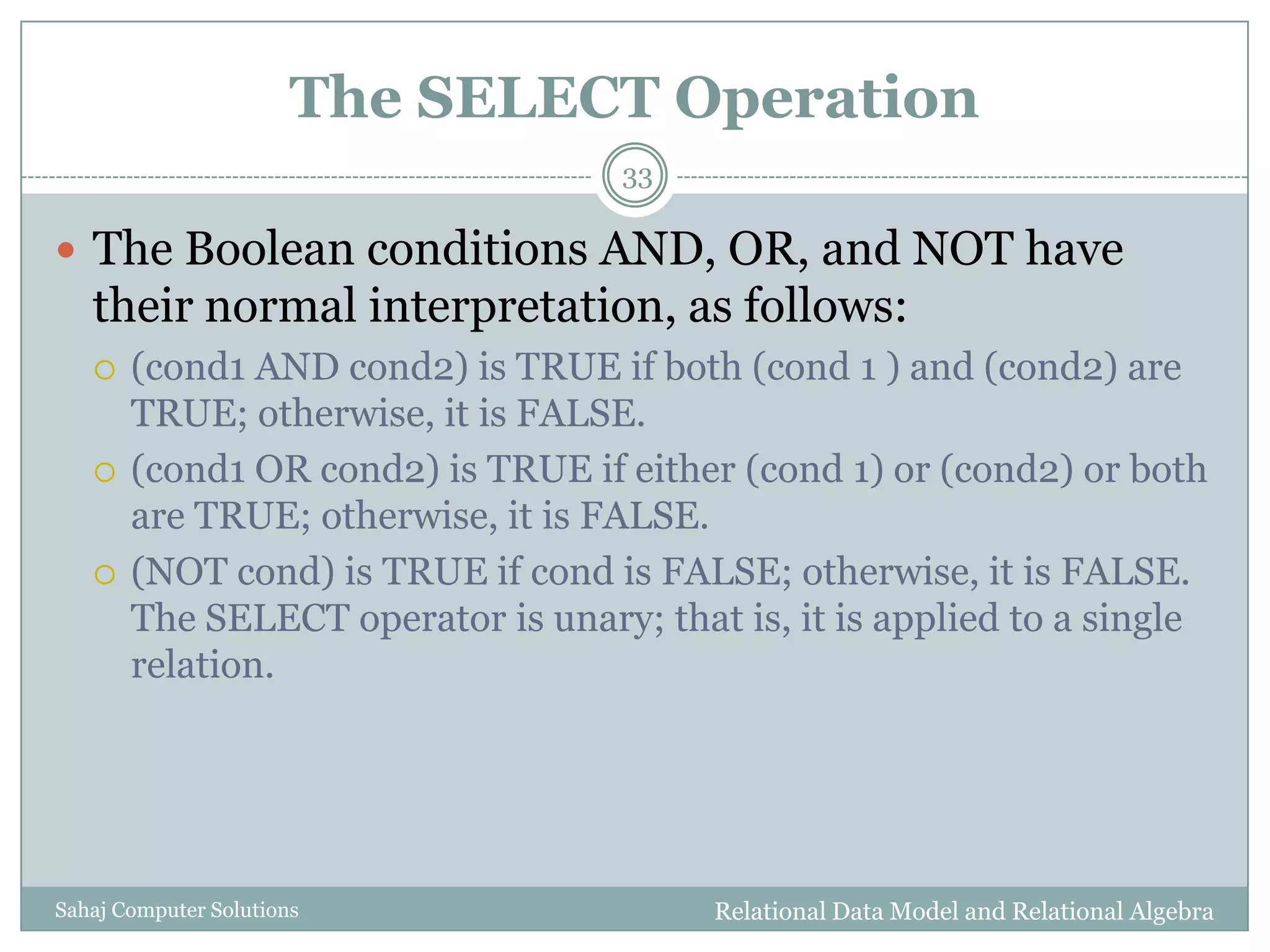

33
 The Boolean conditions AND, OR, and NOT have
their normal interpretation, as follows:
 (cond1 AND cond2) is TRUE if both (cond 1 ) and (cond2) are
TRUE; otherwise, it is FALSE.
 (cond1 OR cond2) is TRUE if either (cond 1) or (cond2) or both
are TRUE; otherwise, it is FALSE.
 (NOT cond) is TRUE if cond is FALSE; otherwise, it is FALSE.
The SELECT operator is unary; that is, it is applied to a single
relation.

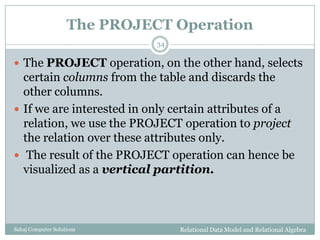

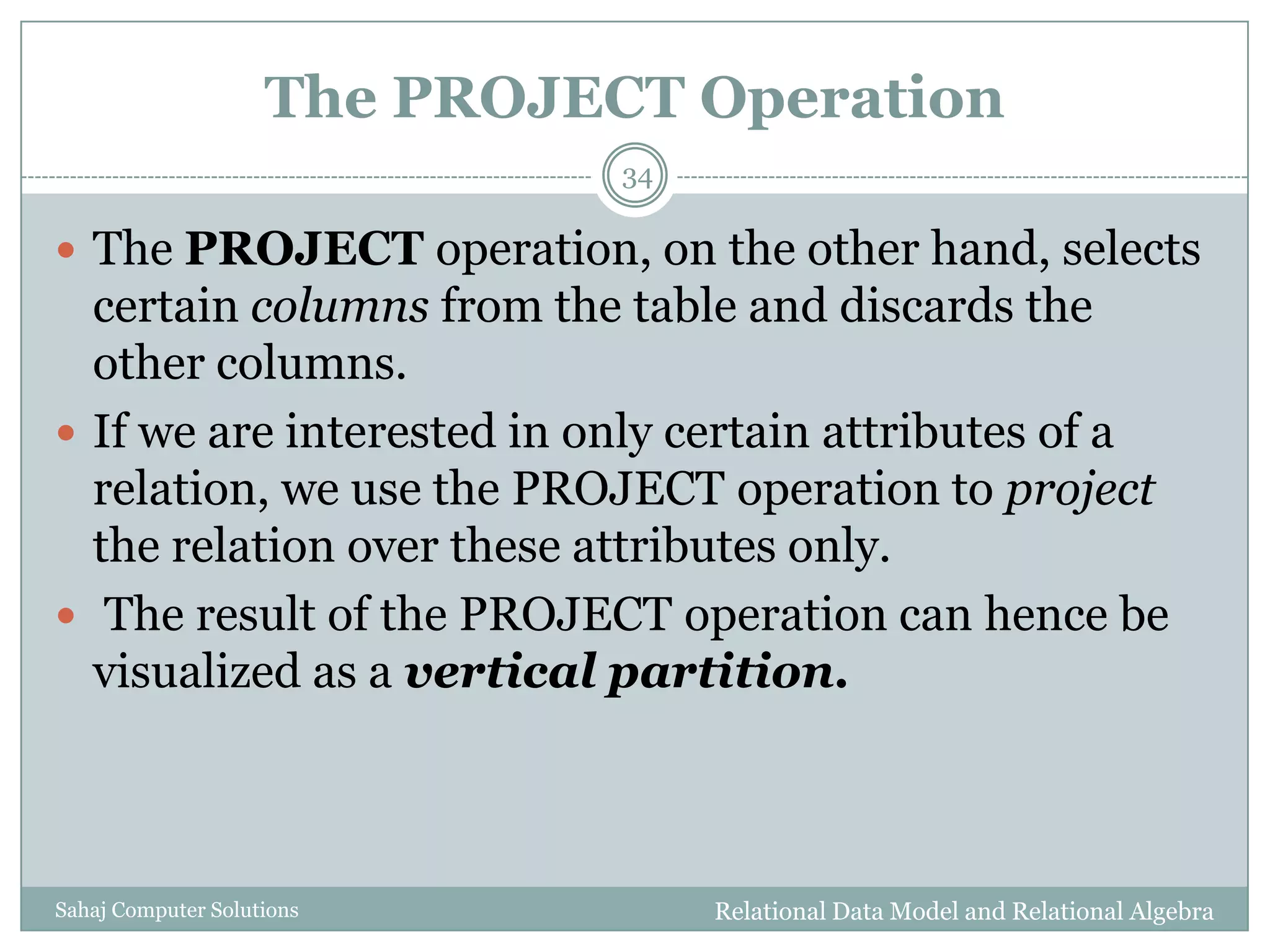

The PROJECT Operation
34
 The PROJECT operation, on the other hand, selects
certain columns from the table and discards the
other columns.
 If we are interested in only certain attributes of a
relation, we use the PROJECT operation to project
the relation over these attributes only.
 The result of the PROJECT operation can hence be
visualized as a vertical partition.

35

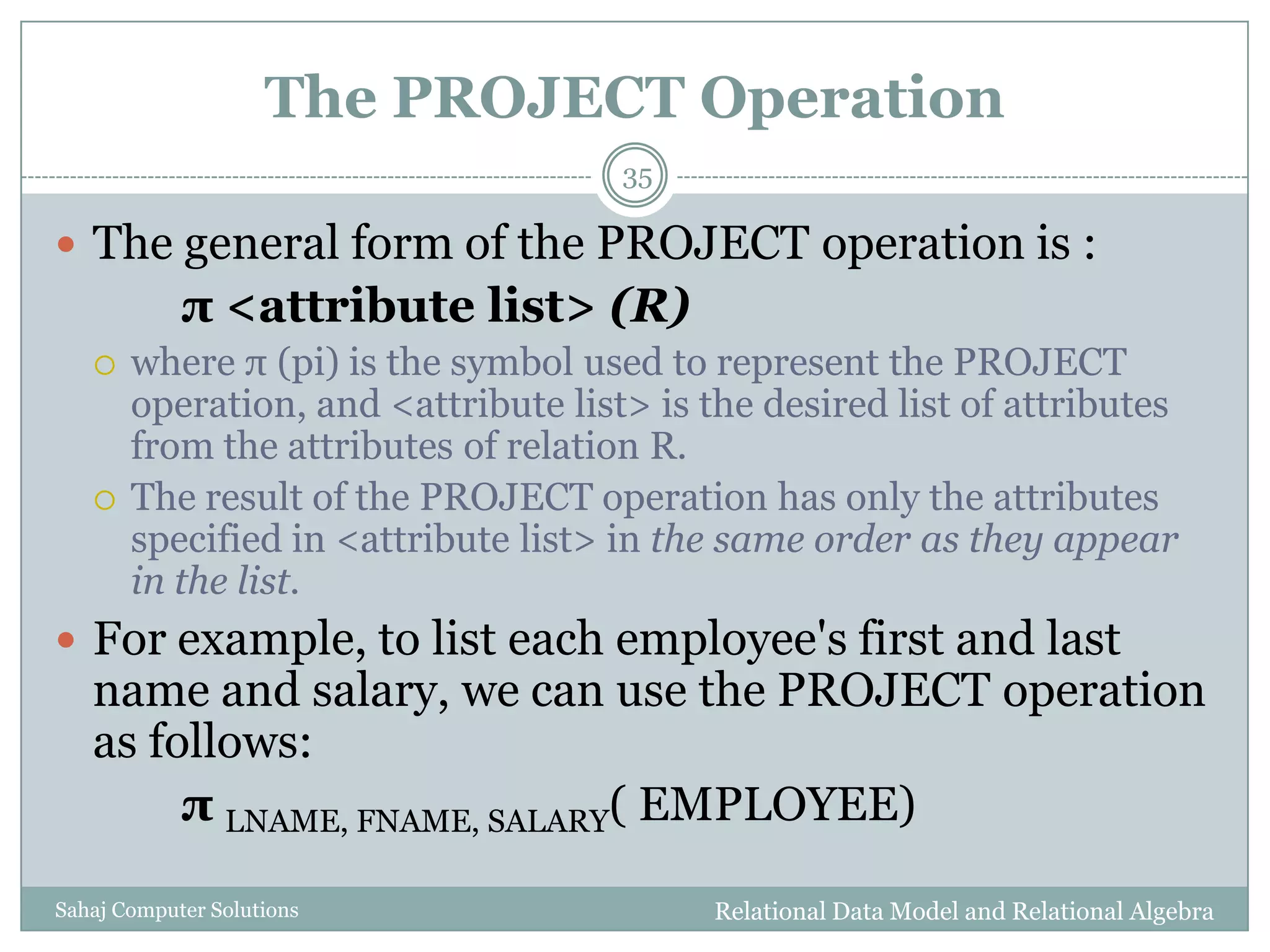

 The general form of the PROJECT operation is :
π <attribute list> (R)
 where π (pi) is the symbol used to represent the PROJECT
operation, and <attribute list> is the desired list of attributes
from the attributes of relation R.
 The result of the PROJECT operation has only the attributes
specified in <attribute list> in the same order as they appear
in the list.
 For example, to list each employee's first and last
name and salary, we can use the PROJECT operation
as follows:
π LNAME, FNAME, SALARY( EMPLOYEE)

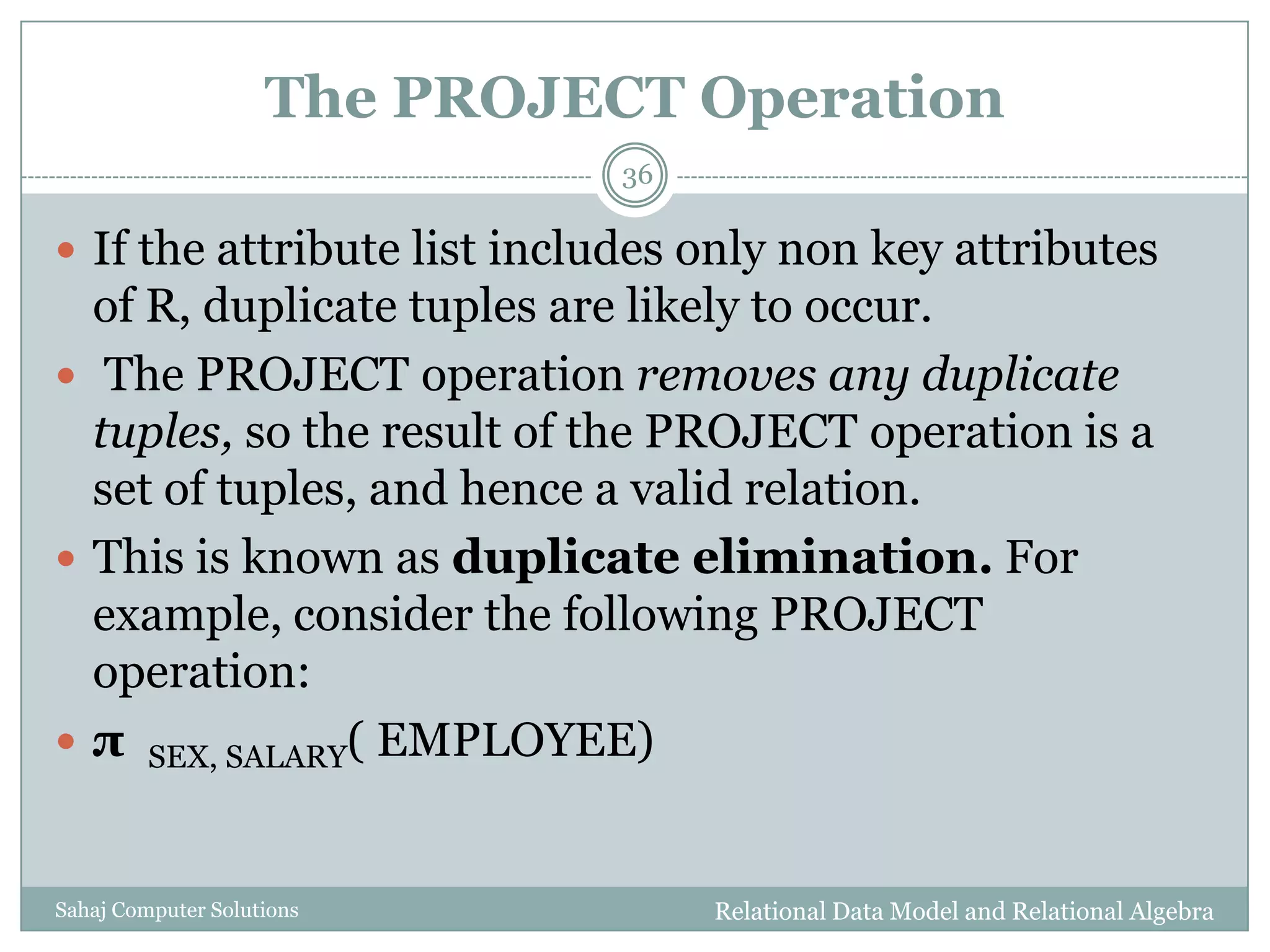

36
 If the attribute list includes only non key attributes
of R, duplicate tuples are likely to occur.
 The PROJECT operation removes any duplicate
tuples, so the result of the PROJECT operation is a
set of tuples, and hence a valid relation.
 This is known as duplicate elimination. For
example, consider the following PROJECT
operation:
 π SEX, SALARY( EMPLOYEE)

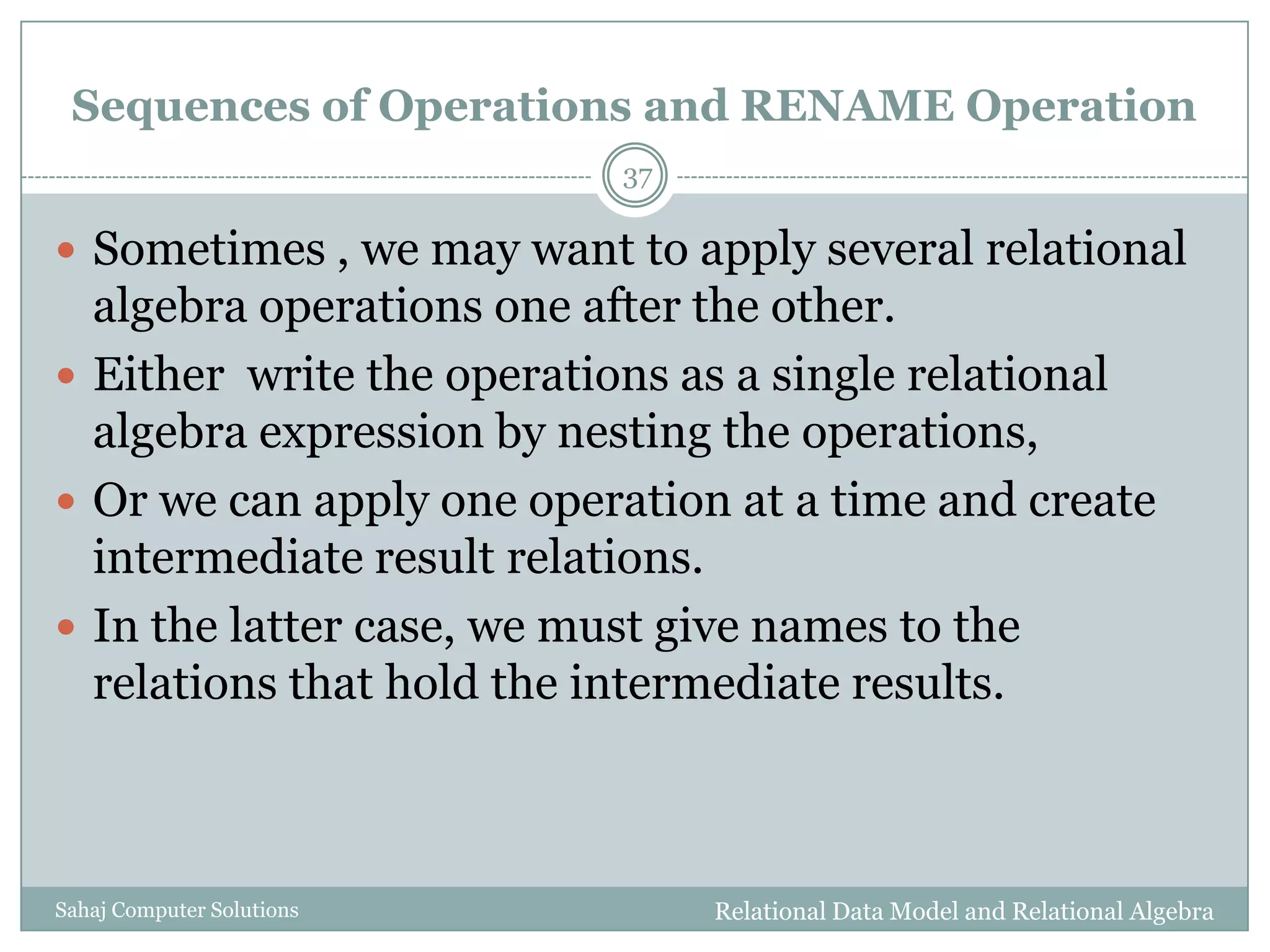

Sequences of Operations and RENAME Operation
37
 Sometimes , we may want to apply several relational
algebra operations one after the other.
 Either write the operations as a single relational
algebra expression by nesting the operations,
 Or we can apply one operation at a time and create
intermediate result relations.
 In the latter case, we must give names to the
relations that hold the intermediate results.

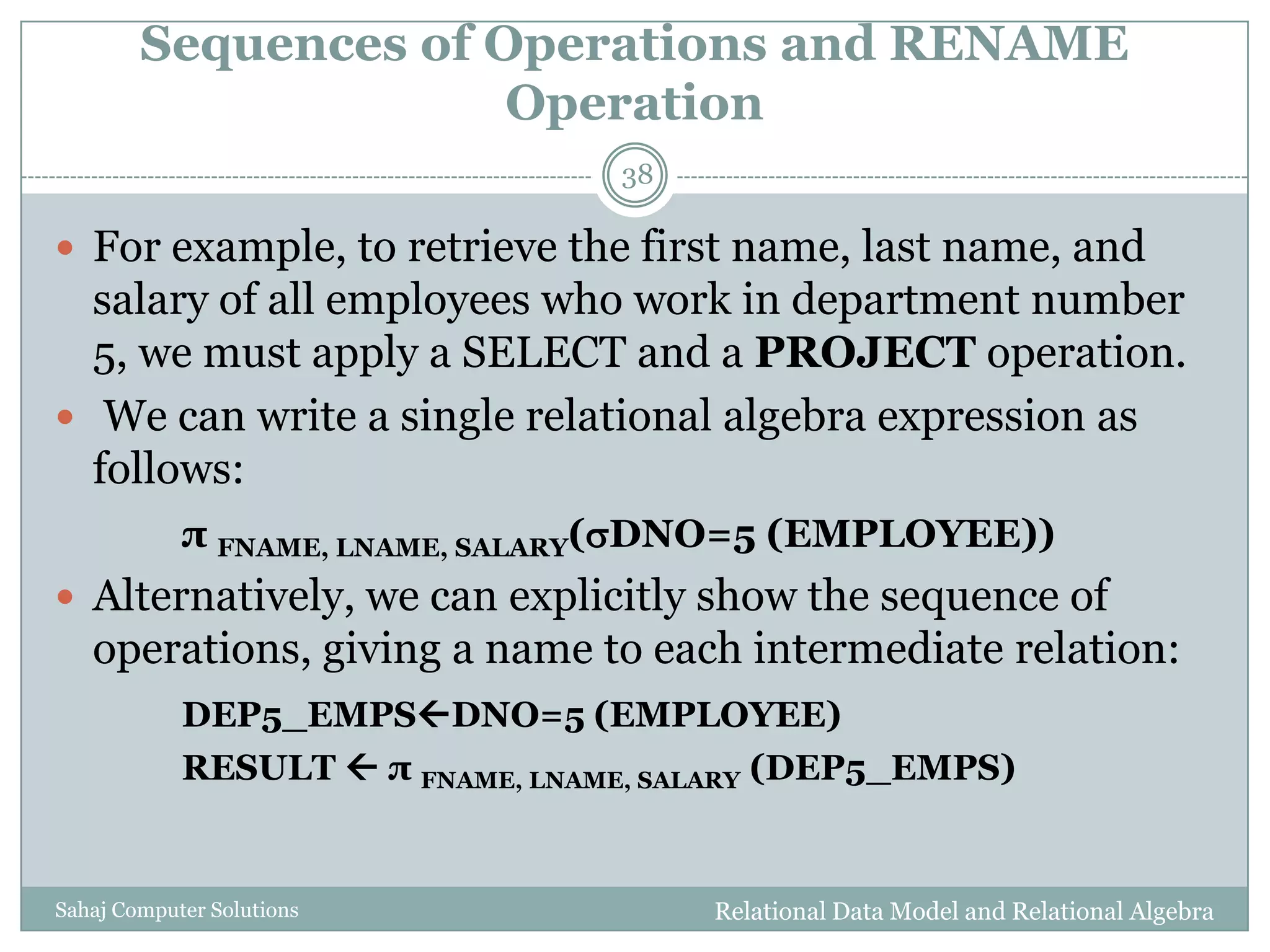

Sequences of Operations and RENAME
Operation
38
 For example, to retrieve the first name, last name, and
salary of all employees who work in department number
5, we must apply a SELECT and a PROJECT operation.
 We can write a single relational algebra expression as
follows:
π FNAME, LNAME, SALARY(DNO=5 (EMPLOYEE))
 Alternatively, we can explicitly show the sequence of
operations, giving a name to each intermediate relation:
DEP5_EMPSDNO=5 (EMPLOYEE)
RESULT  π FNAME, LNAME, SALARY (DEP5_EMPS)

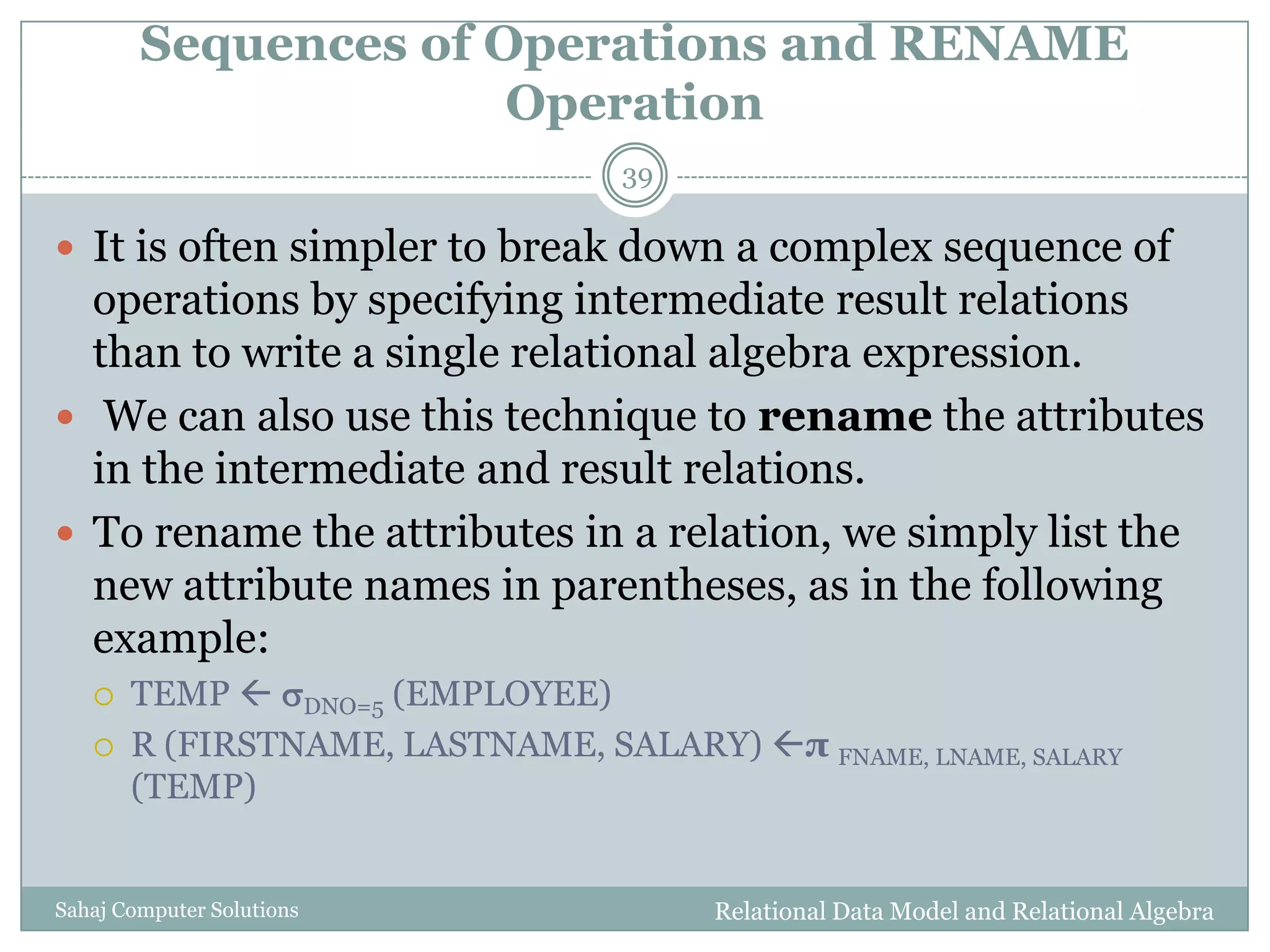

Operation
39
 It is often simpler to break down a complex sequence of
operations by specifying intermediate result relations
than to write a single relational algebra expression.
 We can also use this technique to rename the attributes
in the intermediate and result relations.
 To rename the attributes in a relation, we simply list the
new attribute names in parentheses, as in the following
example:
 TEMP  DNO=5 (EMPLOYEE)
 R (FIRSTNAME, LASTNAME, SALARY) π FNAME, LNAME, SALARY
(TEMP)

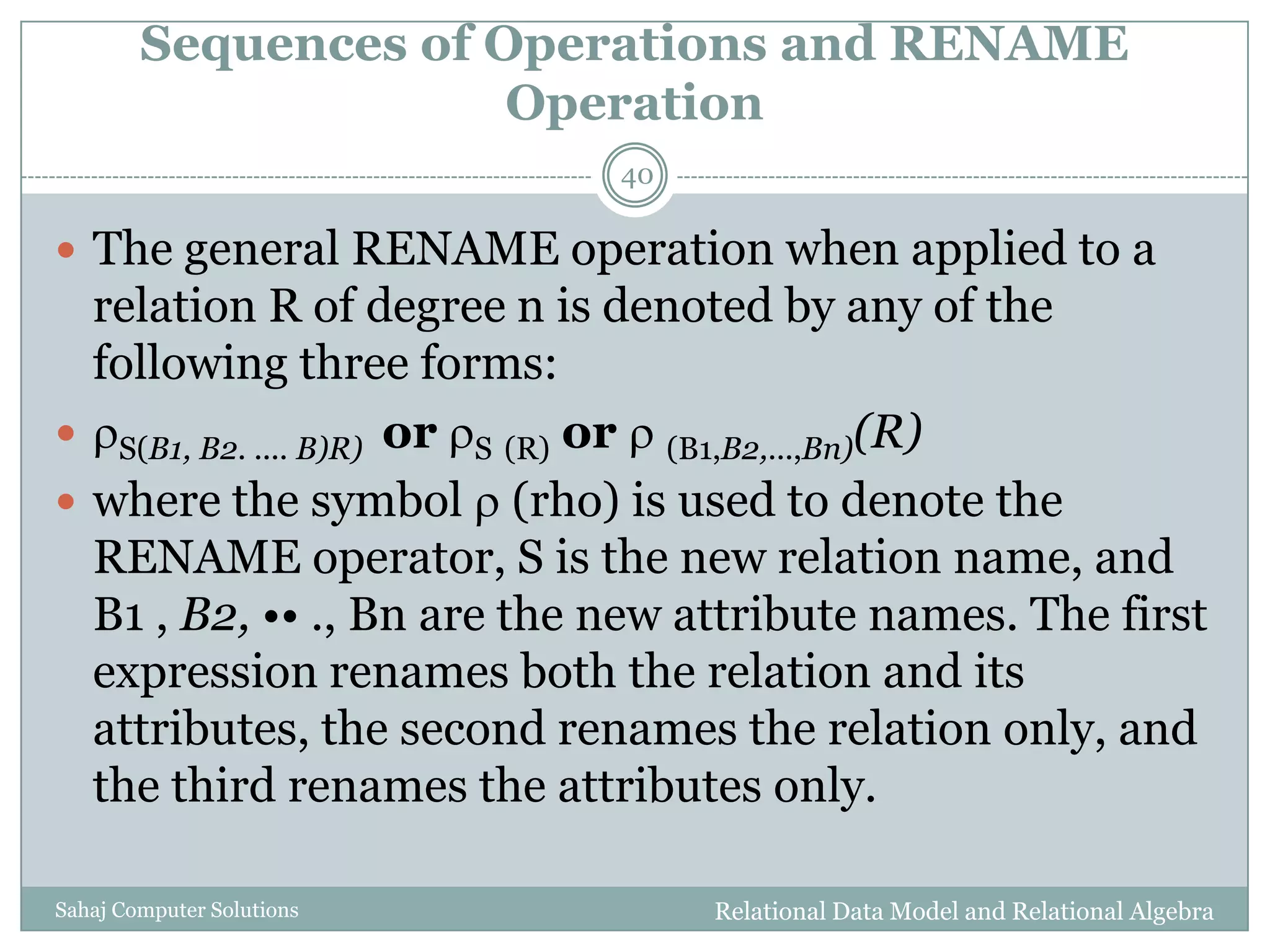

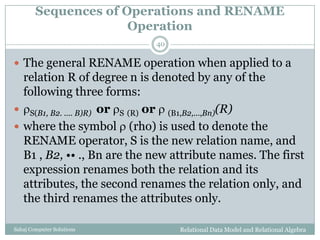

Operation
40
 The general RENAME operation when applied to a
relation R of degree n is denoted by any of the
following three forms:
 S(B1, B2. .... B)R) or S (R) or  (B1,B2,...,Bn)(R)
 where the symbol  (rho) is used to denote the
RENAME operator, S is the new relation name, and
B1 , B2, •• ., Bn are the new attribute names. The first
expression renames both the relation and its
attributes, the second renames the relation only, and
the third renames the attributes only.

RELATIONAL ALGEBRA OPERATIONS
FROM SET THEORY
41

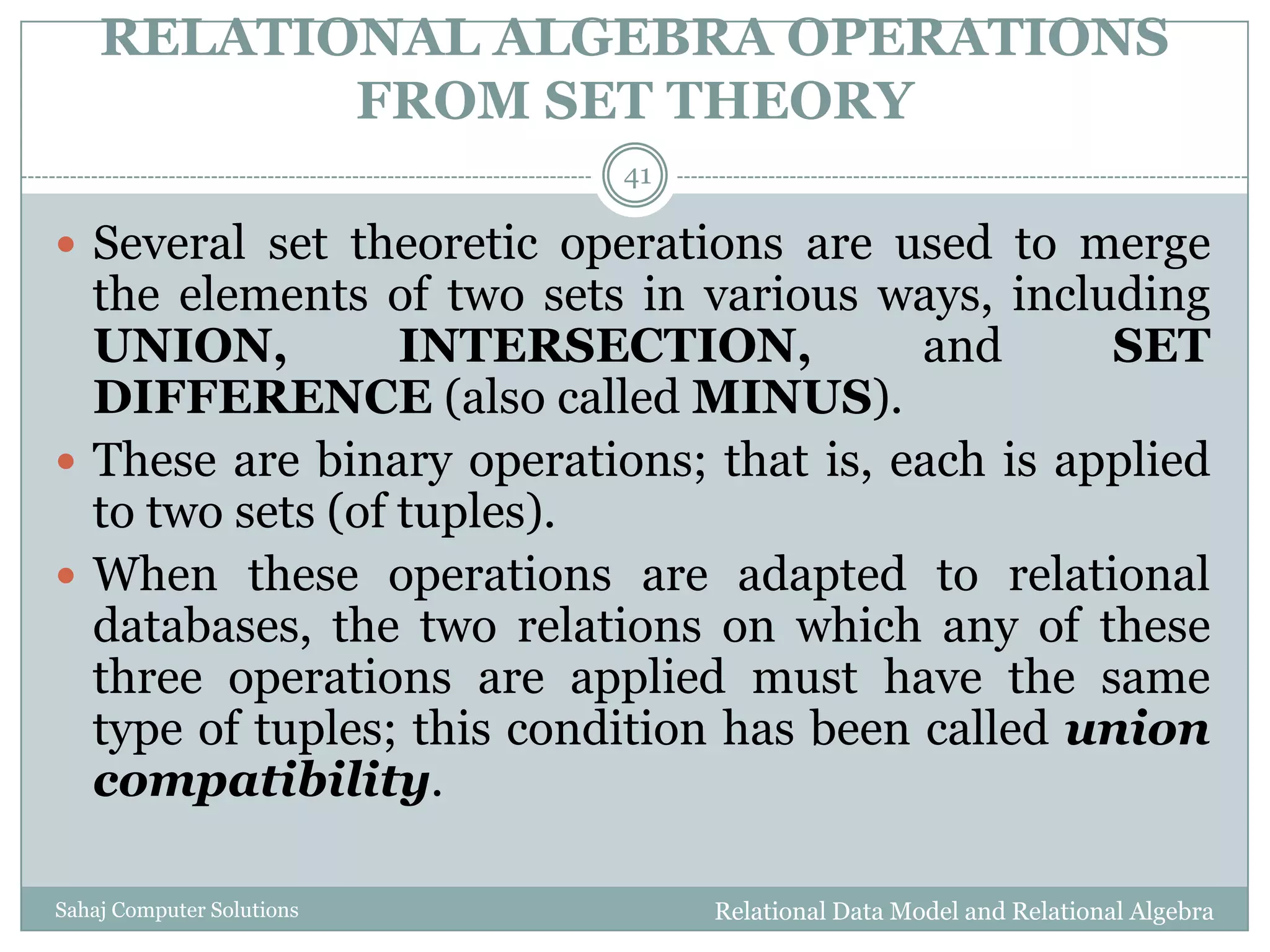

 Several set theoretic operations are used to merge
the elements of two sets in various ways, including
UNION, INTERSECTION, and SET
DIFFERENCE (also called MINUS).
 These are binary operations; that is, each is applied
to two sets (of tuples).
 When these operations are adapted to relational
databases, the two relations on which any of these
three operations are applied must have the same
type of tuples; this condition has been called union
compatibility.

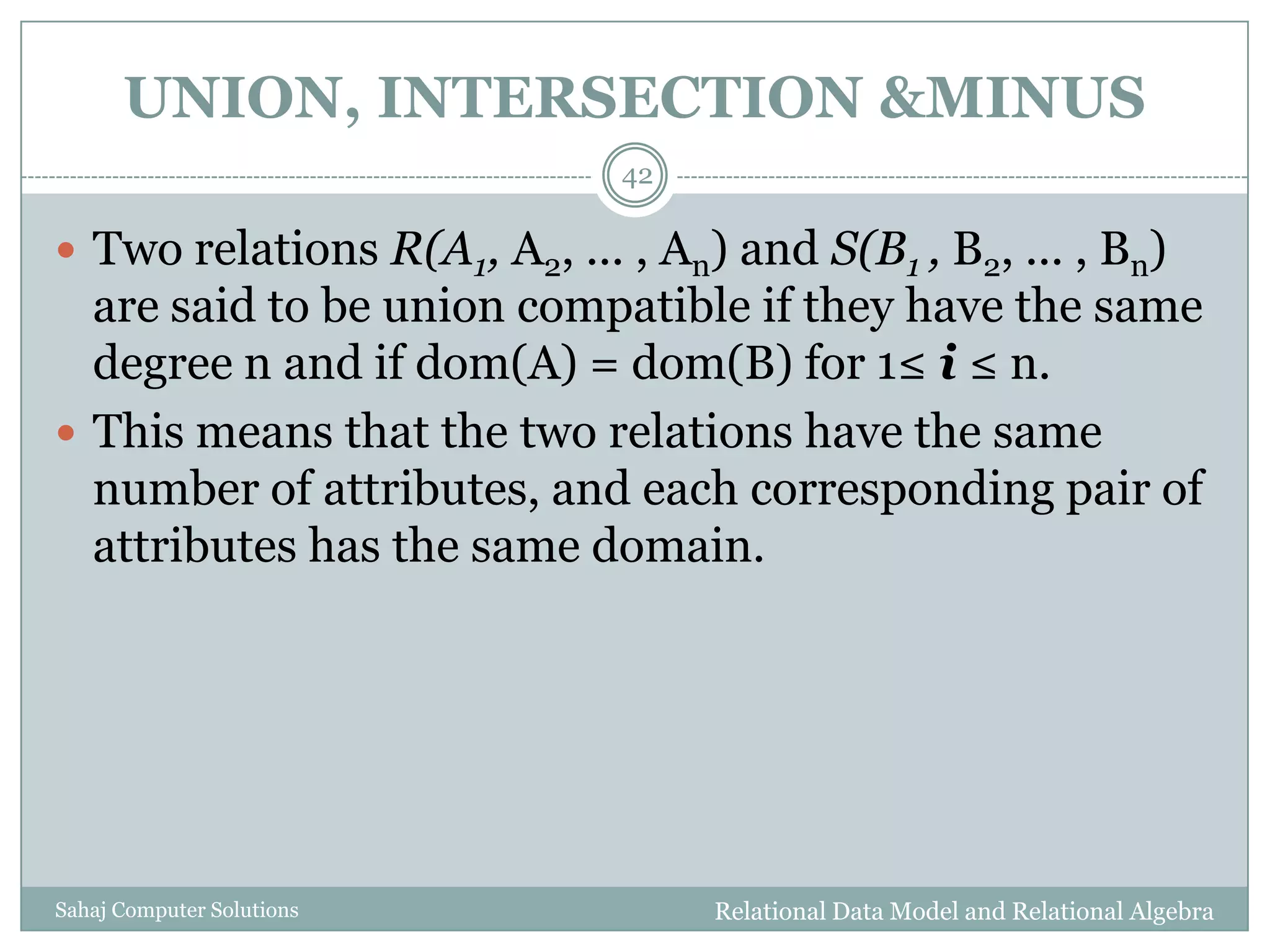

UNION, INTERSECTION &MINUS
42
 Two relations R(A1, A2, ... , An) and S(B1 , B2, ... , Bn)
are said to be union compatible if they have the same
degree n and if dom(A) = dom(B) for 1≤ i ≤ n.
 This means that the two relations have the same
number of attributes, and each corresponding pair of
attributes has the same domain.

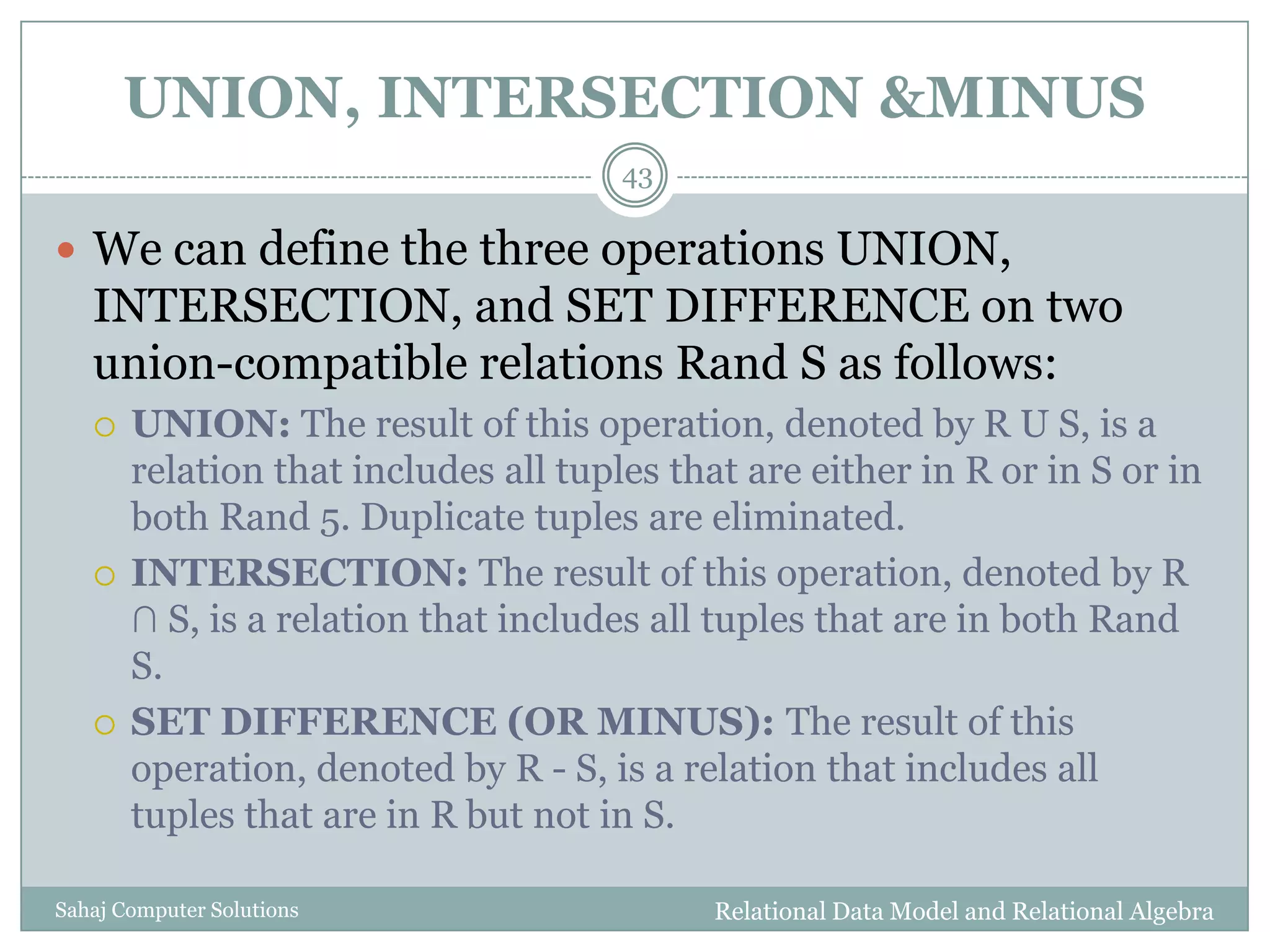

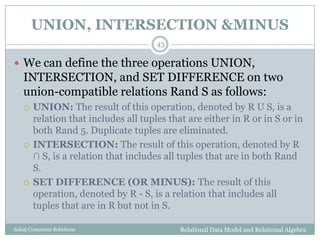

UNION, INTERSECTION &MINUS
43
 We can define the three operations UNION,
INTERSECTION, and SET DIFFERENCE on two
union-compatible relations Rand S as follows:
 UNION: The result of this operation, denoted by R U S, is a
relation that includes all tuples that are either in R or in S or in
both Rand 5. Duplicate tuples are eliminated.
 INTERSECTION: The result of this operation, denoted by R
∩ S, is a relation that includes all tuples that are in both Rand
S.
 SET DIFFERENCE (OR MINUS): The result of this
operation, denoted by R - S, is a relation that includes all
tuples that are in R but not in S.

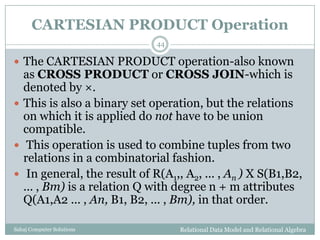

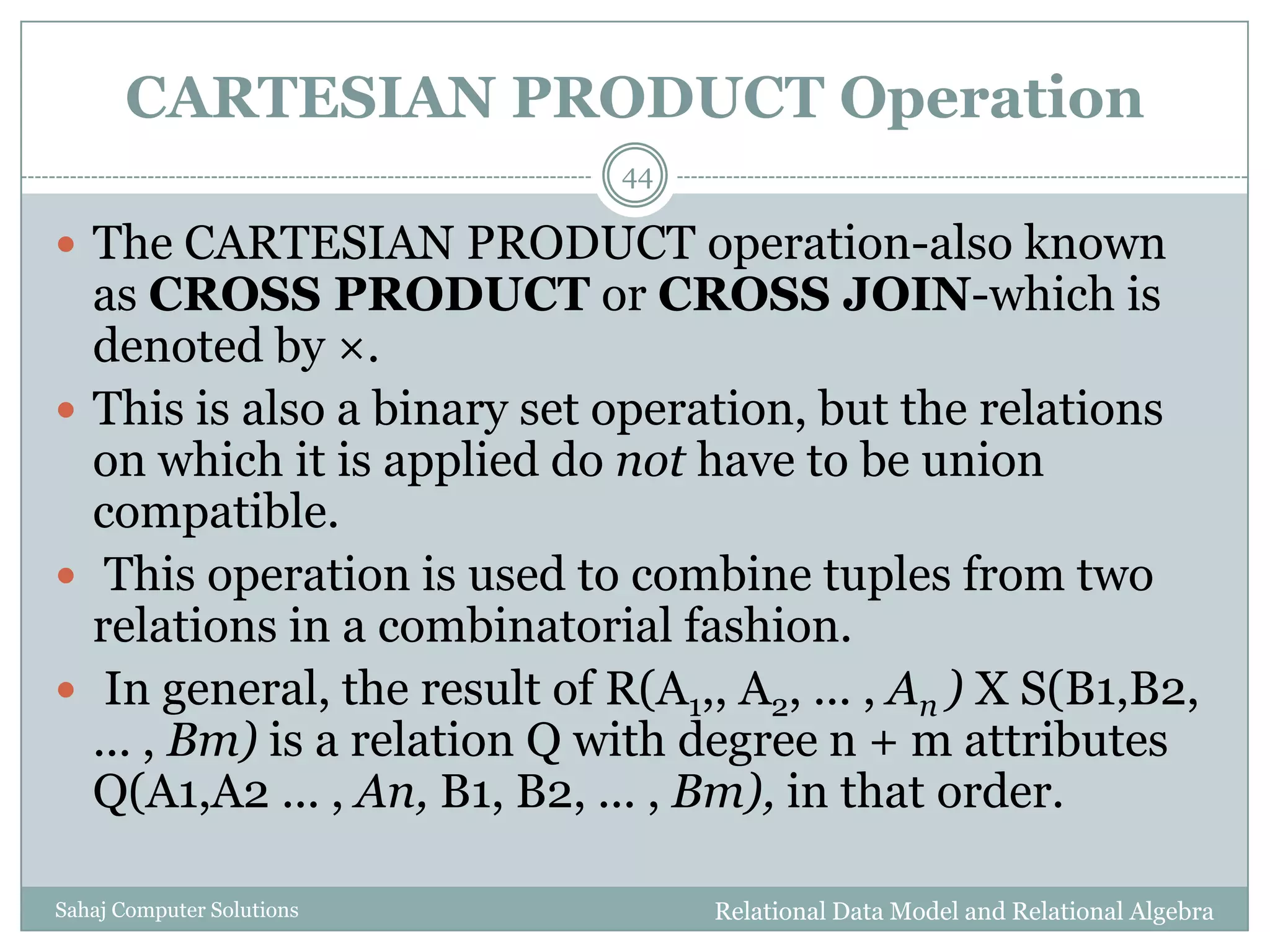

CARTESIAN PRODUCT Operation
44
 The CARTESIAN PRODUCT operation-also known
as CROSS PRODUCT or CROSS JOIN-which is
denoted by ×.
 This is also a binary set operation, but the relations
on which it is applied do not have to be union
compatible.
 This operation is used to combine tuples from two
relations in a combinatorial fashion.
 In general, the result of R(A1,, A2, ... , An ) X S(B1,B2,
... , Bm) is a relation Q with degree n + m attributes
Q(A1,A2 ... , An, B1, B2, ... , Bm), in that order.

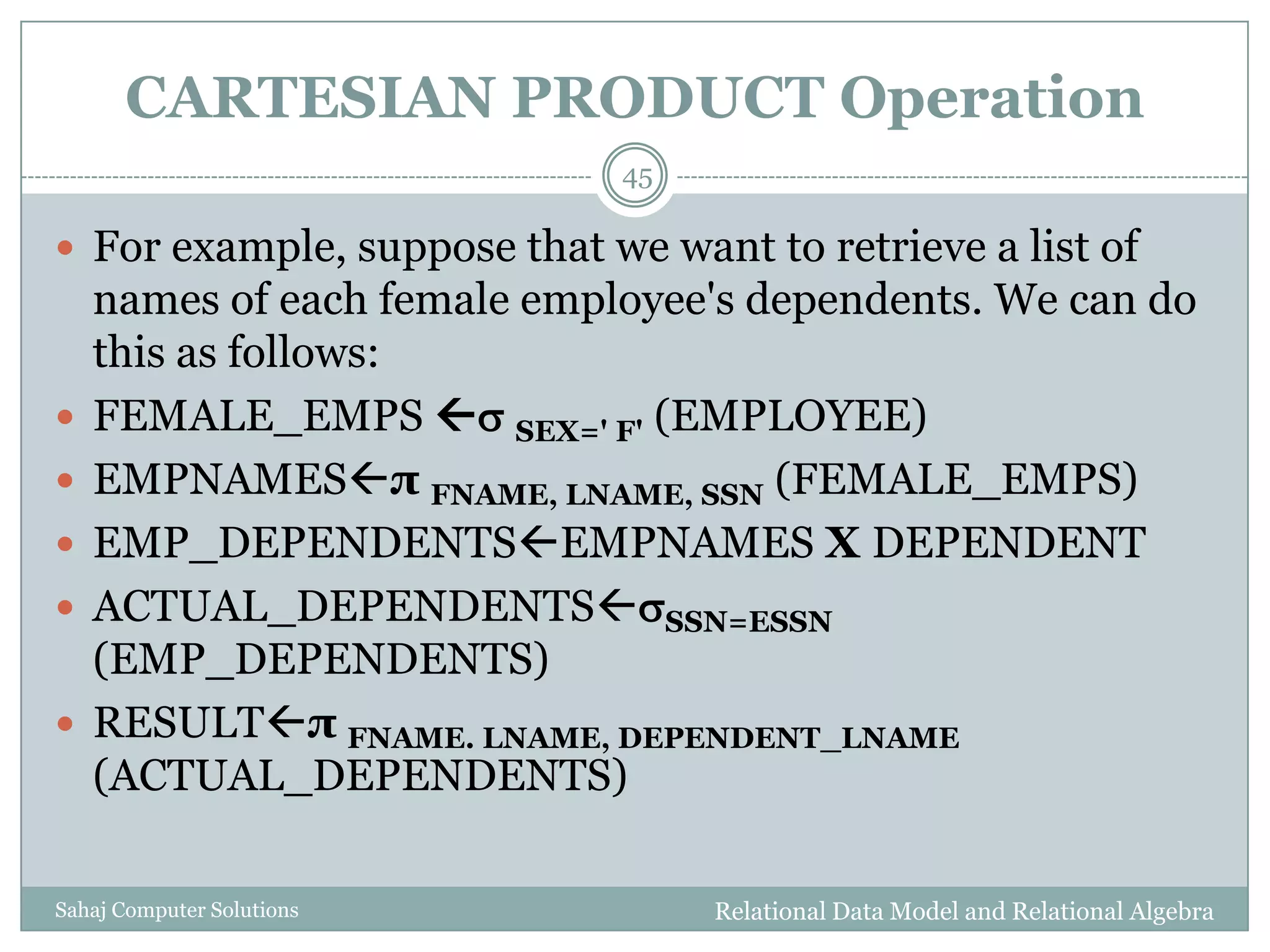

CARTESIAN PRODUCT Operation
45
 For example, suppose that we want to retrieve a list of
names of each female employee's dependents. We can do
this as follows:
 FEMALE_EMPS  SEX=' F' (EMPLOYEE)
 EMPNAMESπ FNAME, LNAME, SSN (FEMALE_EMPS)
 EMP_DEPENDENTSEMPNAMES X DEPENDENT
 ACTUAL_DEPENDENTSSSN=ESSN
(EMP_DEPENDENTS)
 RESULTπ FNAME. LNAME, DEPENDENT_LNAME
(ACTUAL_DEPENDENTS)

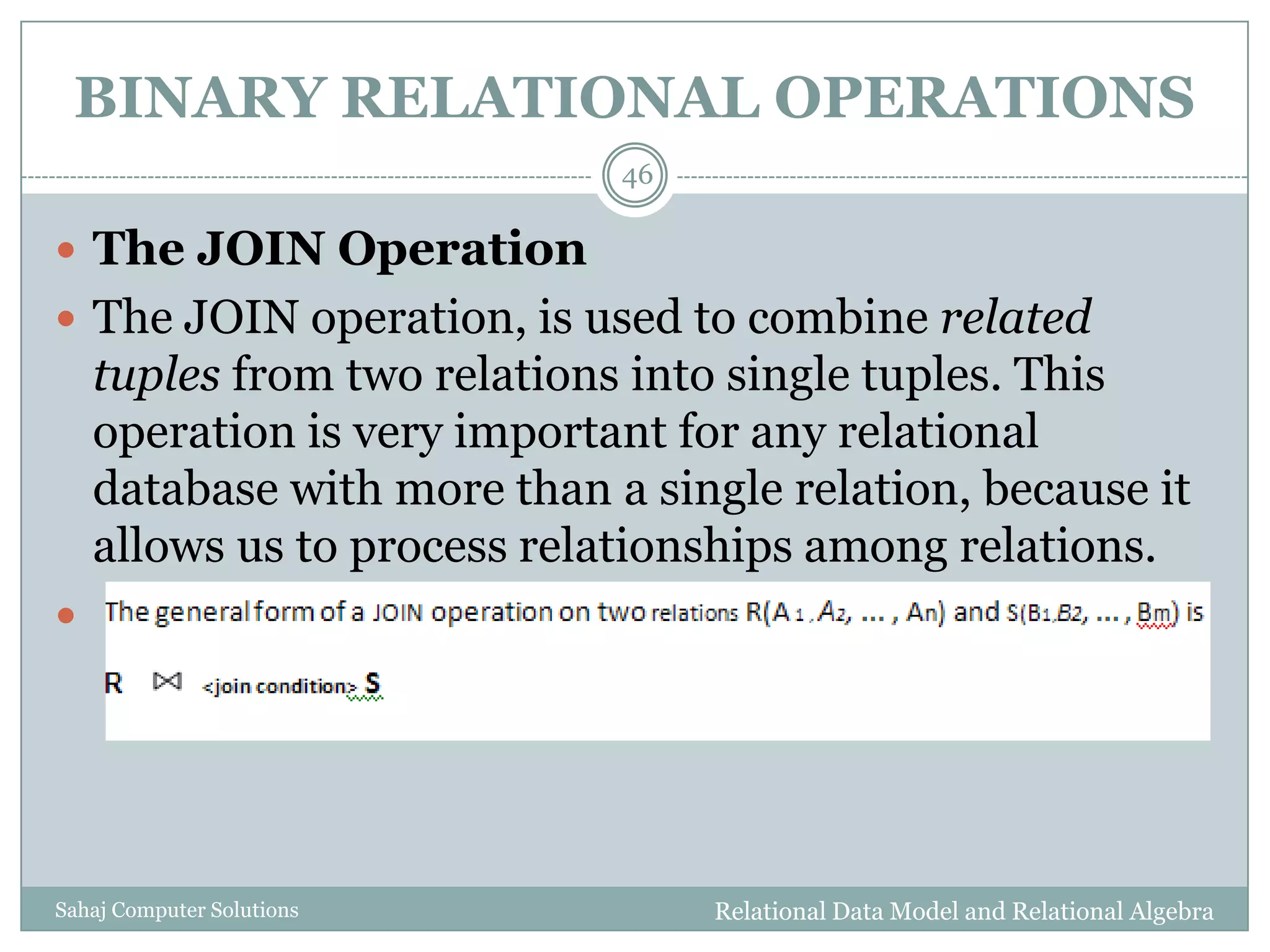

BINARY RELATIONAL OPERATIONS
46
 The JOIN Operation
 The JOIN operation, is used to combine related
tuples from two relations into single tuples. This
operation is very important for any relational
database with more than a single relation, because it
allows us to process relationships among relations.


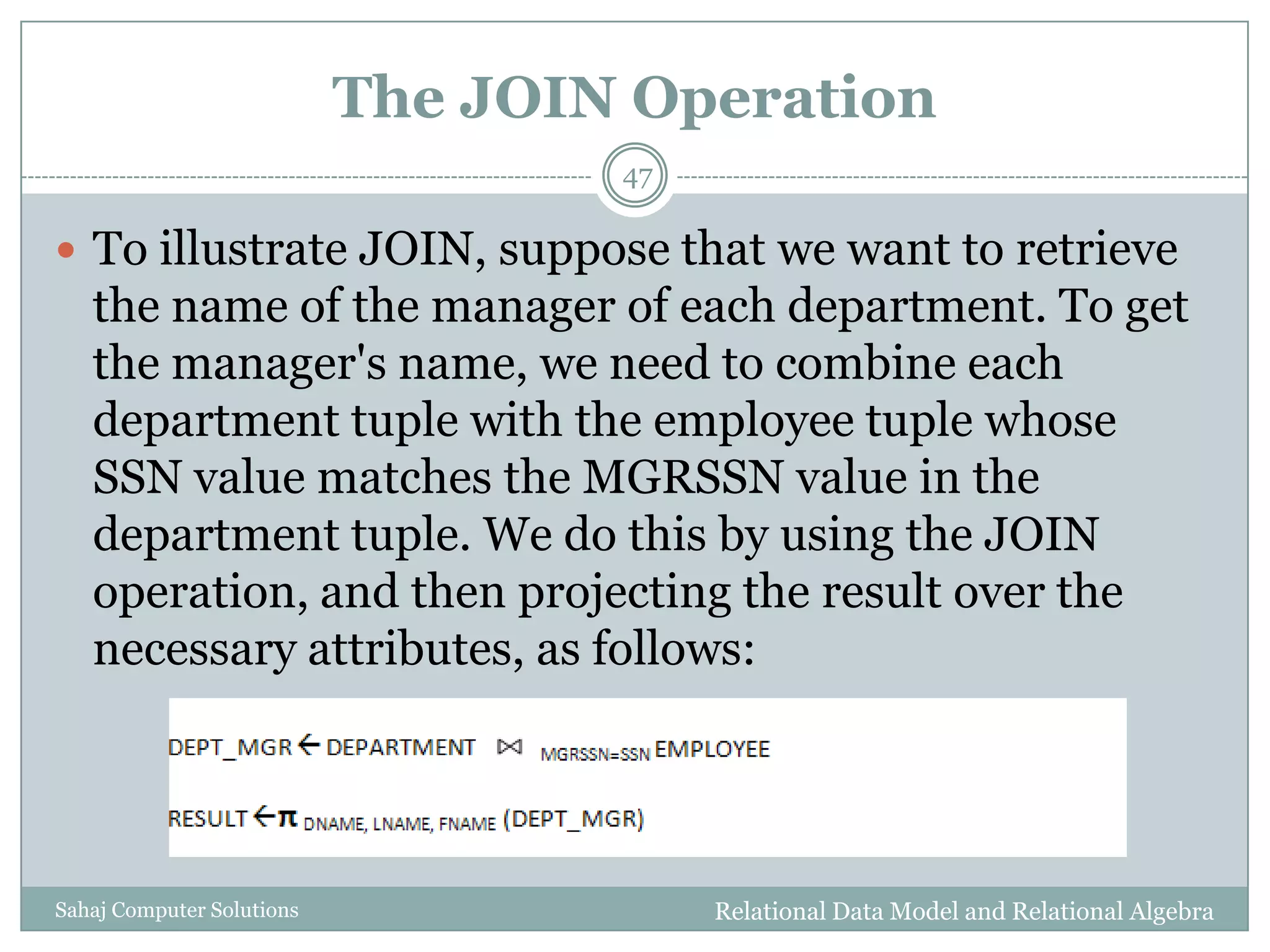

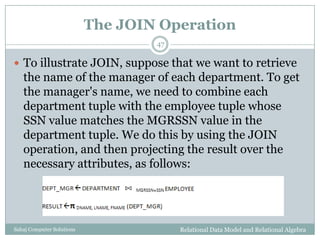

The JOIN Operation
47
 To illustrate JOIN, suppose that we want to retrieve
the name of the manager of each department. To get
the manager's name, we need to combine each
department tuple with the employee tuple whose
SSN value matches the MGRSSN value in the
department tuple. We do this by using the JOIN
operation, and then projecting the result over the
necessary attributes, as follows:

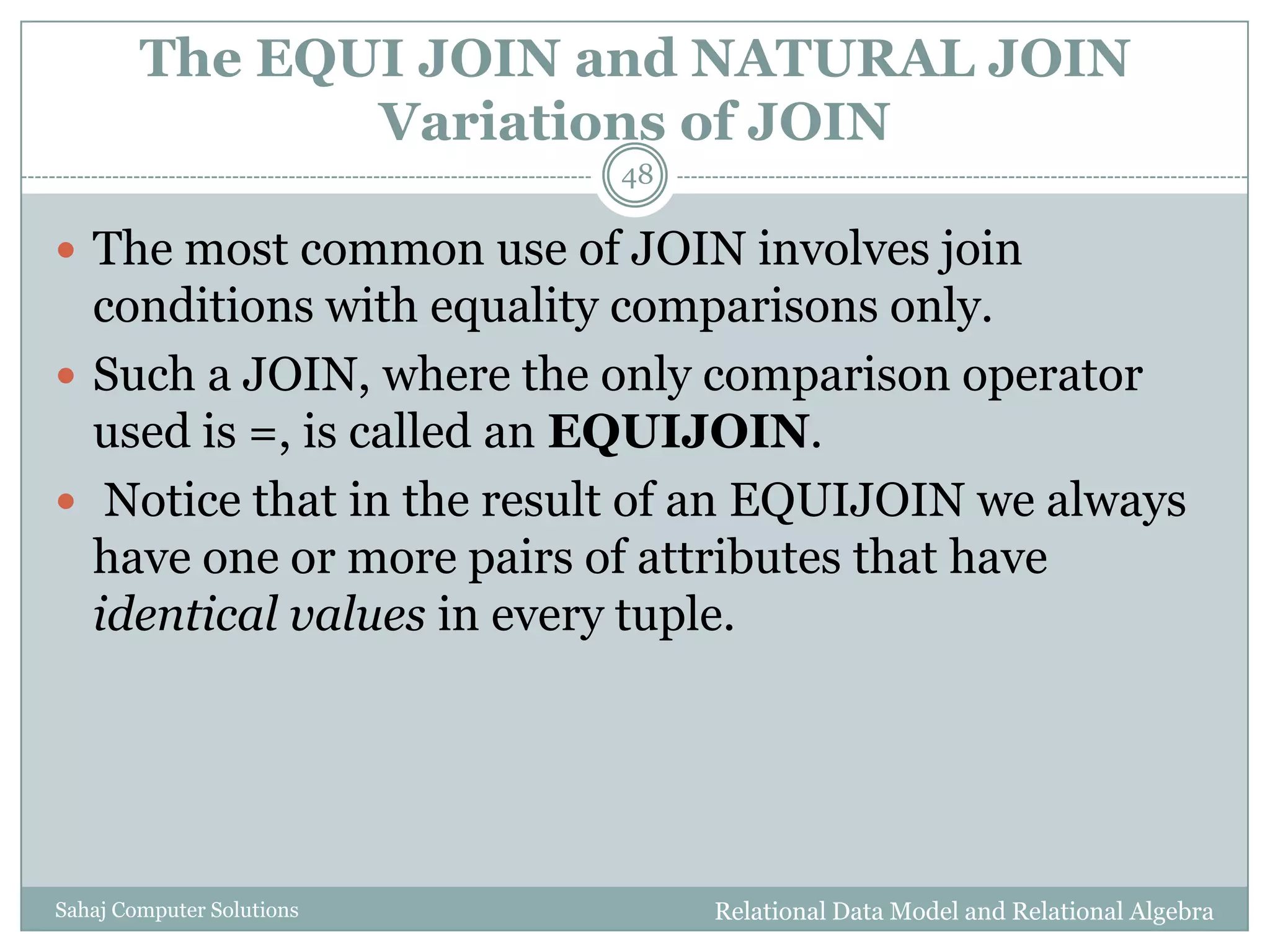

The EQUI JOIN and NATURAL JOIN
Variations of JOIN
48
 The most common use of JOIN involves join
conditions with equality comparisons only.
 Such a JOIN, where the only comparison operator
used is =, is called an EQUIJOIN.
 Notice that in the result of an EQUIJOIN we always
have one or more pairs of attributes that have
identical values in every tuple.

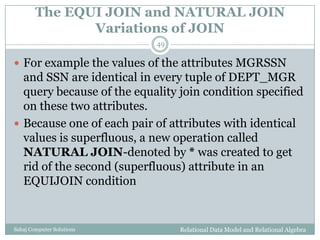

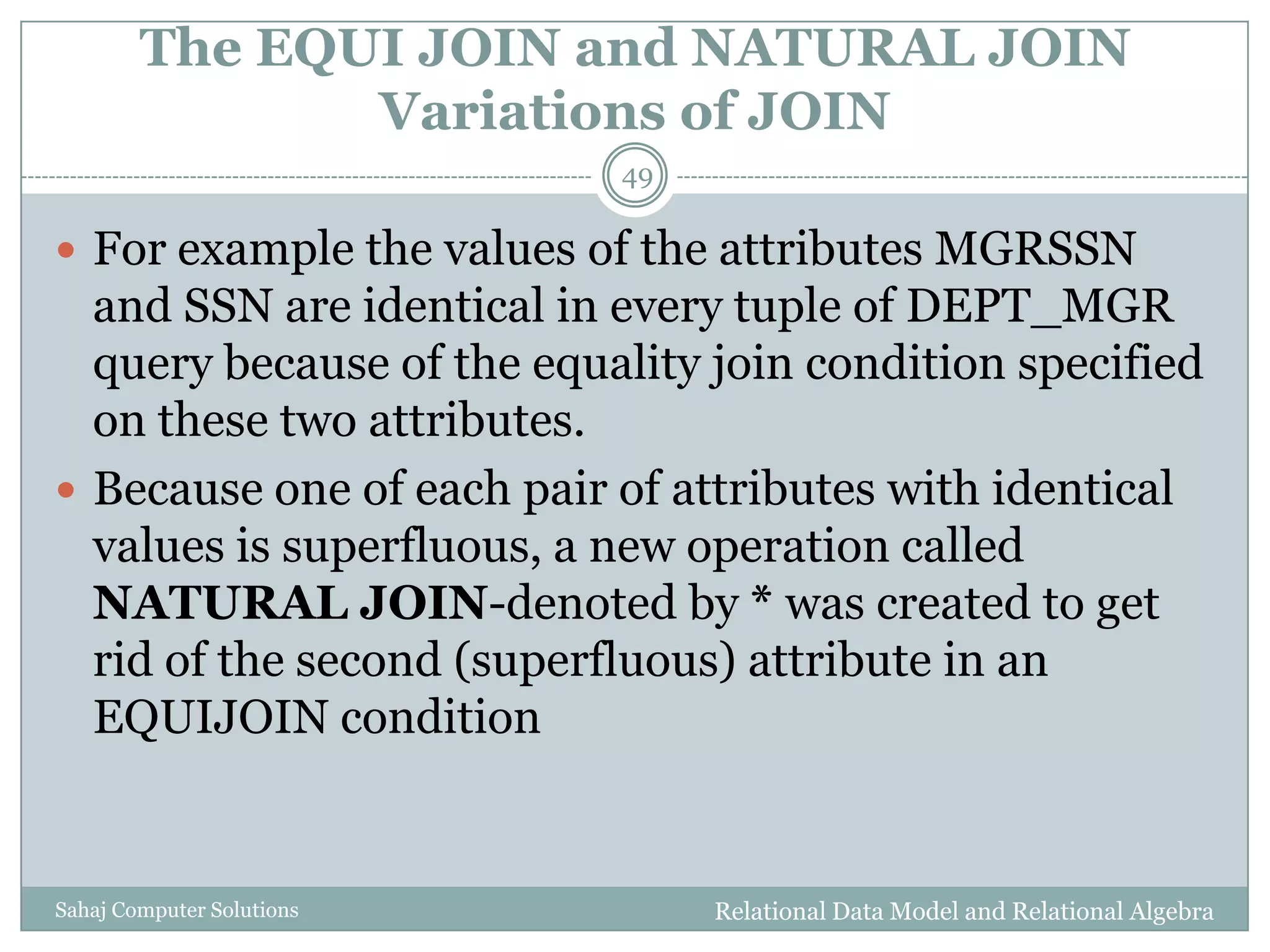

Variations of JOIN
49
 For example the values of the attributes MGRSSN
and SSN are identical in every tuple of DEPT_MGR
query because of the equality join condition specified
on these two attributes.
 Because one of each pair of attributes with identical
values is superfluous, a new operation called
NATURAL JOIN-denoted by * was created to get
rid of the second (superfluous) attribute in an
EQUIJOIN condition

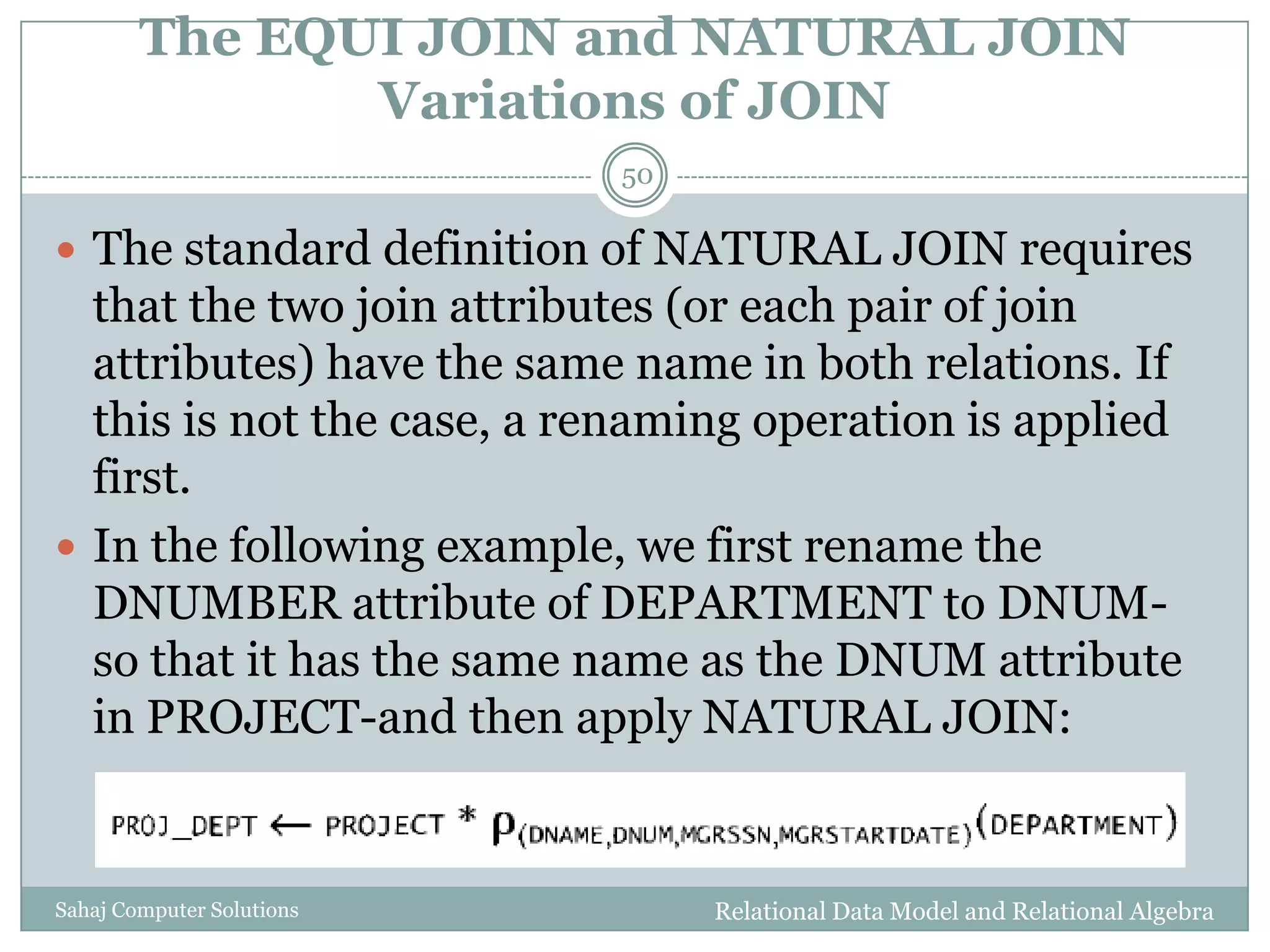

Variations of JOIN
50

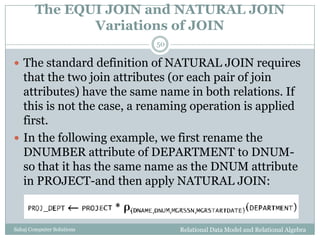

 The standard definition of NATURAL JOIN requires
that the two join attributes (or each pair of join
attributes) have the same name in both relations. If
this is not the case, a renaming operation is applied
first.
 In the following example, we first rename the
DNUMBER attribute of DEPARTMENT to DNUM-
so that it has the same name as the DNUM attribute
in PROJECT-and then apply NATURAL JOIN:

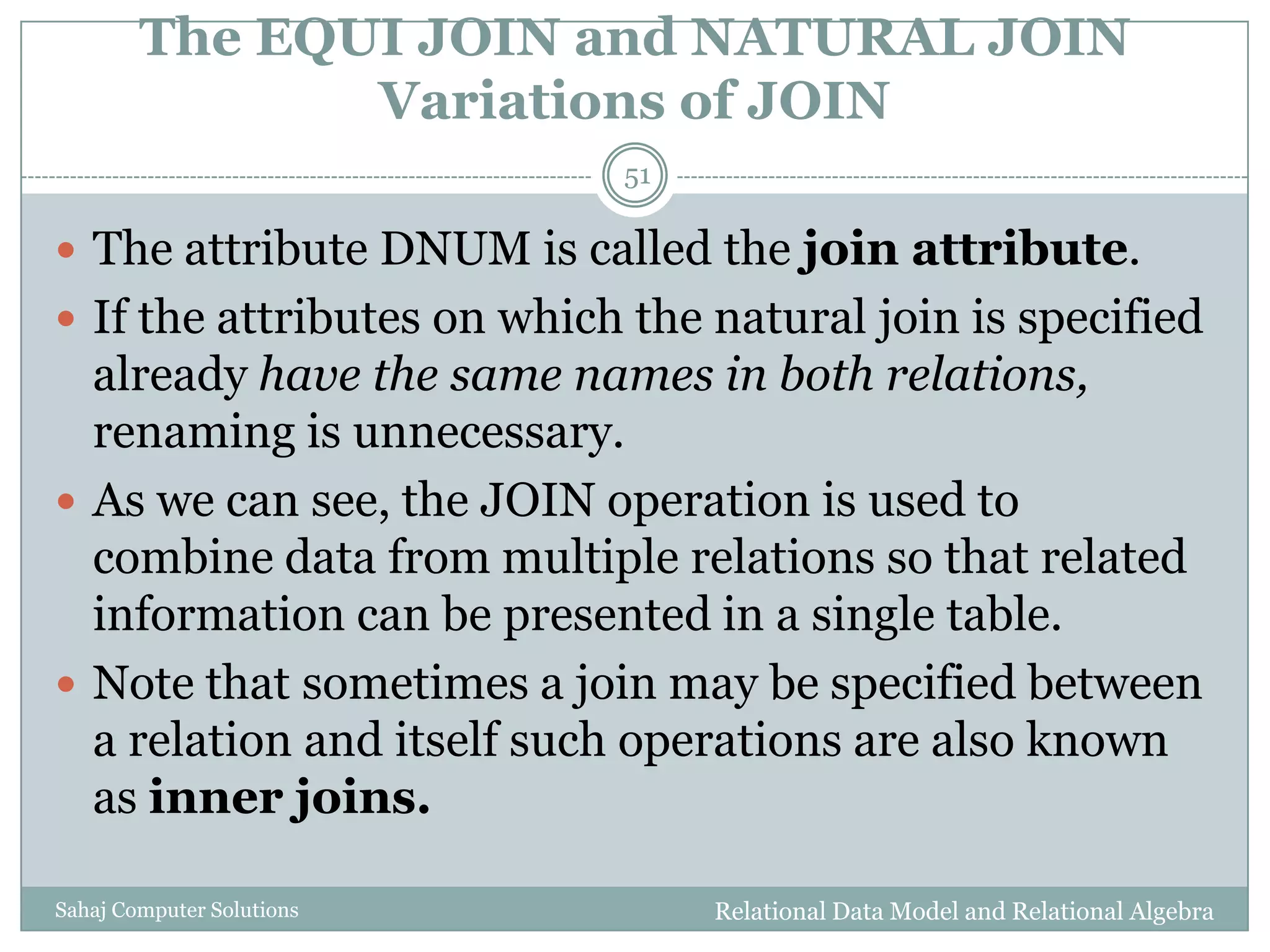

Variations of JOIN
51
 The attribute DNUM is called the join attribute.
 If the attributes on which the natural join is specified
already have the same names in both relations,
renaming is unnecessary.
 As we can see, the JOIN operation is used to
combine data from multiple relations so that related
information can be presented in a single table.
 Note that sometimes a join may be specified between
a relation and itself such operations are also known
as inner joins.

The Division Operator
52

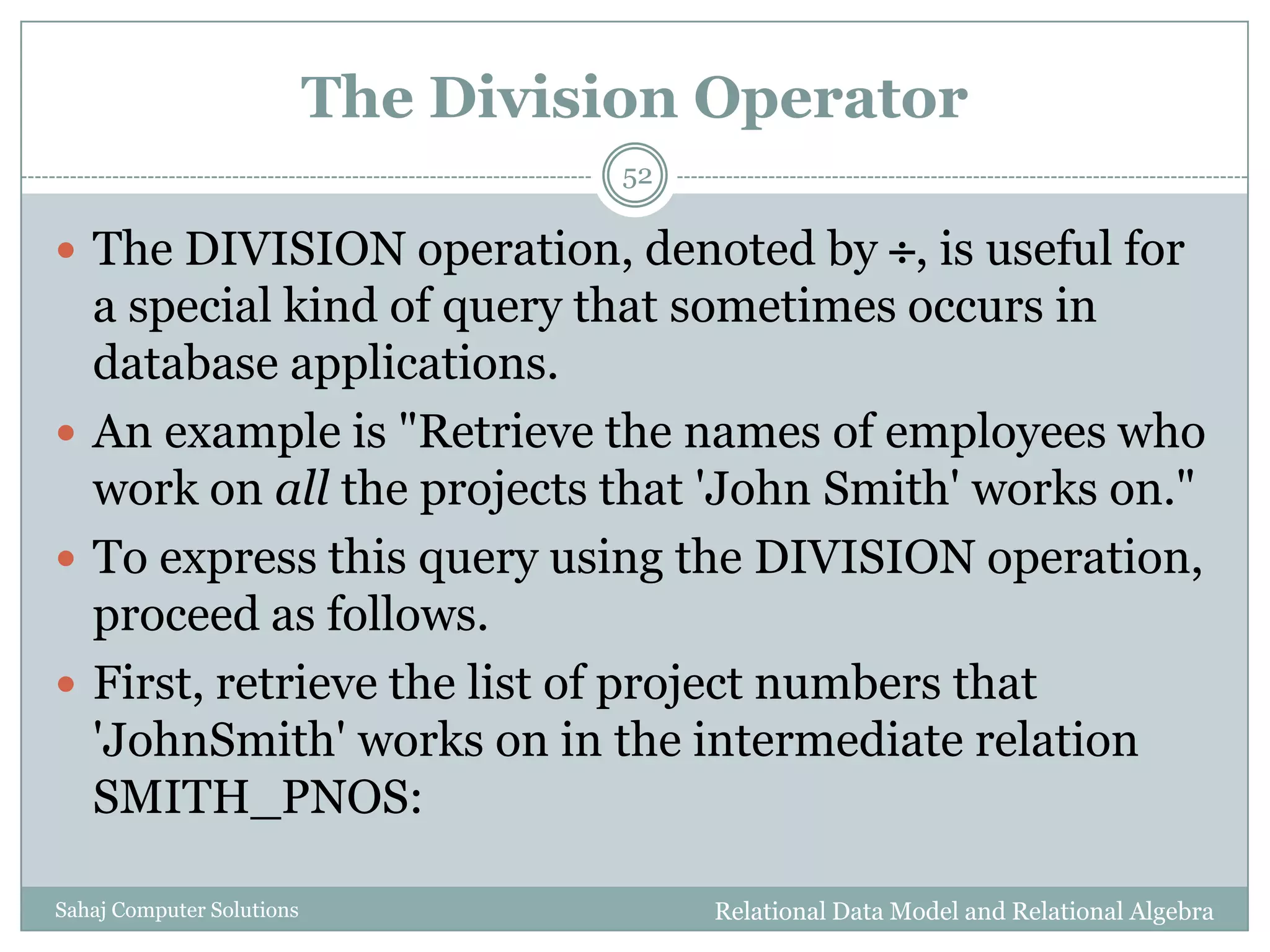

 The DIVISION operation, denoted by , is useful for
a special kind of query that sometimes occurs in
database applications.
 An example is "Retrieve the names of employees who
work on all the projects that 'John Smith' works on."
 To express this query using the DIVISION operation,
proceed as follows.
 First, retrieve the list of project numbers that
'JohnSmith' works on in the intermediate relation
SMITH_PNOS:

53

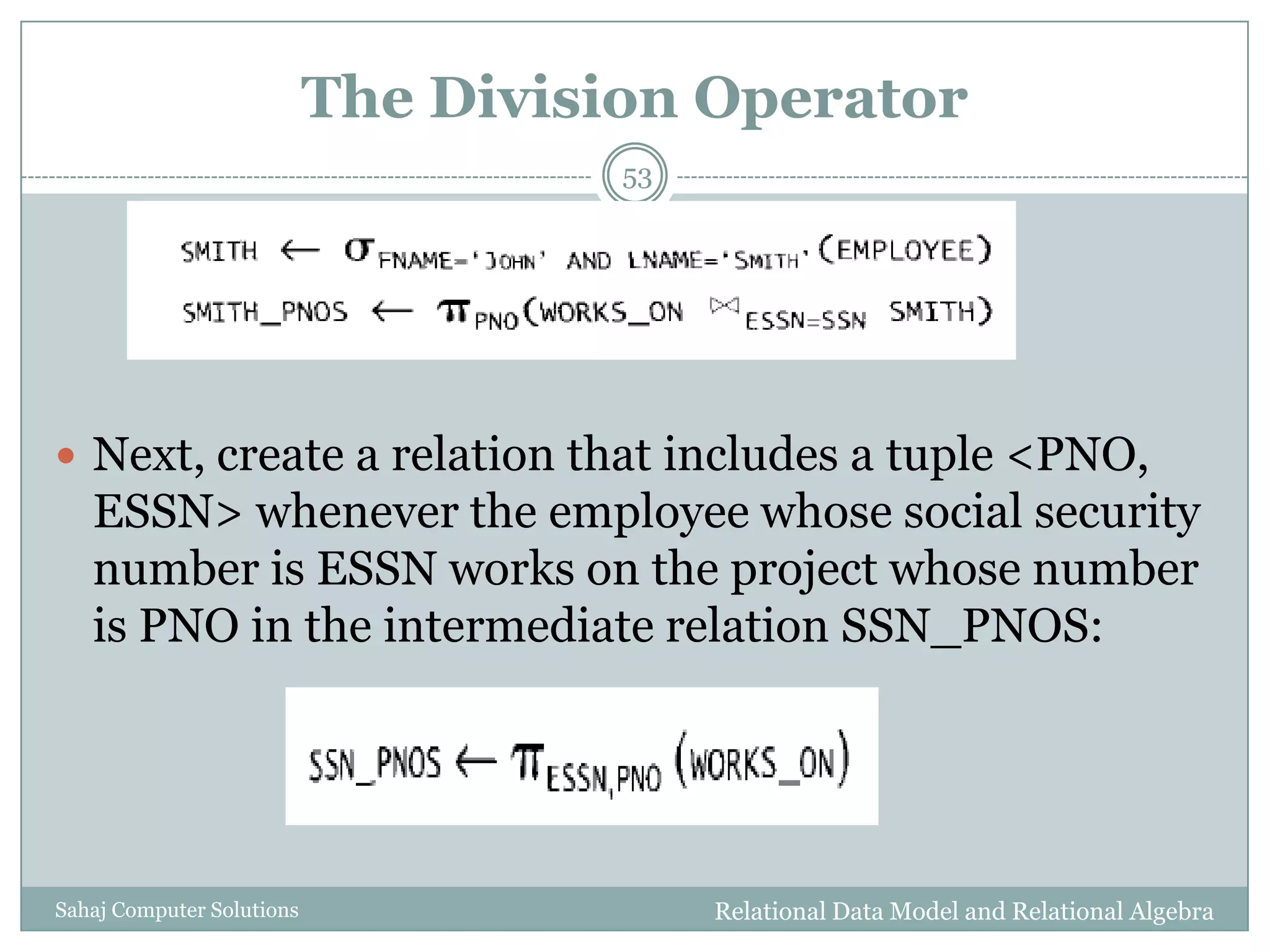

 Next, create a relation that includes a tuple <PNO,
ESSN> whenever the employee whose social security
number is ESSN works on the project whose number
is PNO in the intermediate relation SSN_PNOS:

54

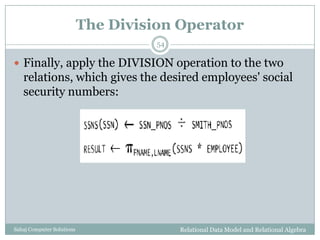

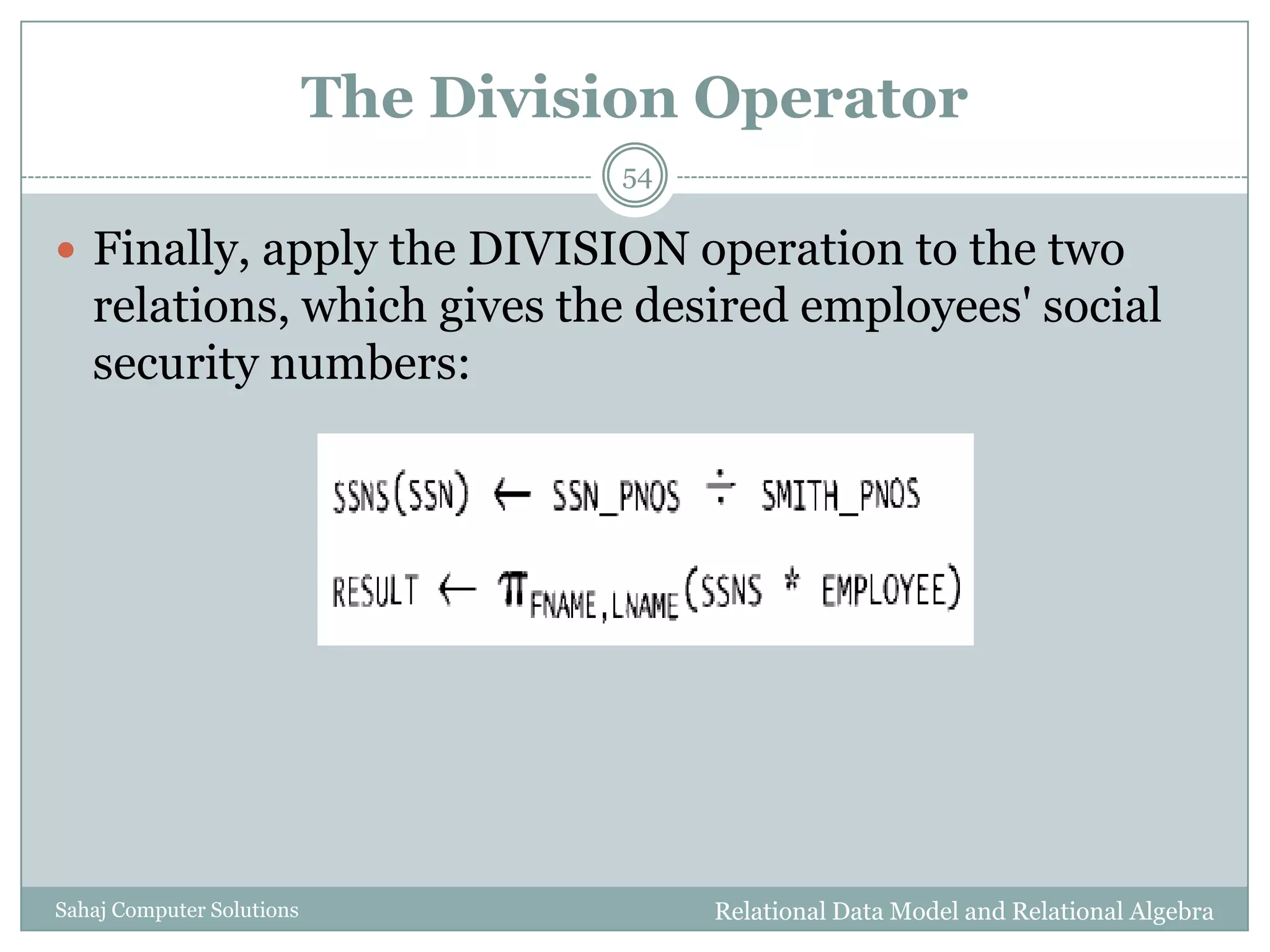

 Finally, apply the DIVISION operation to the two
relations, which gives the desired employees' social
security numbers:

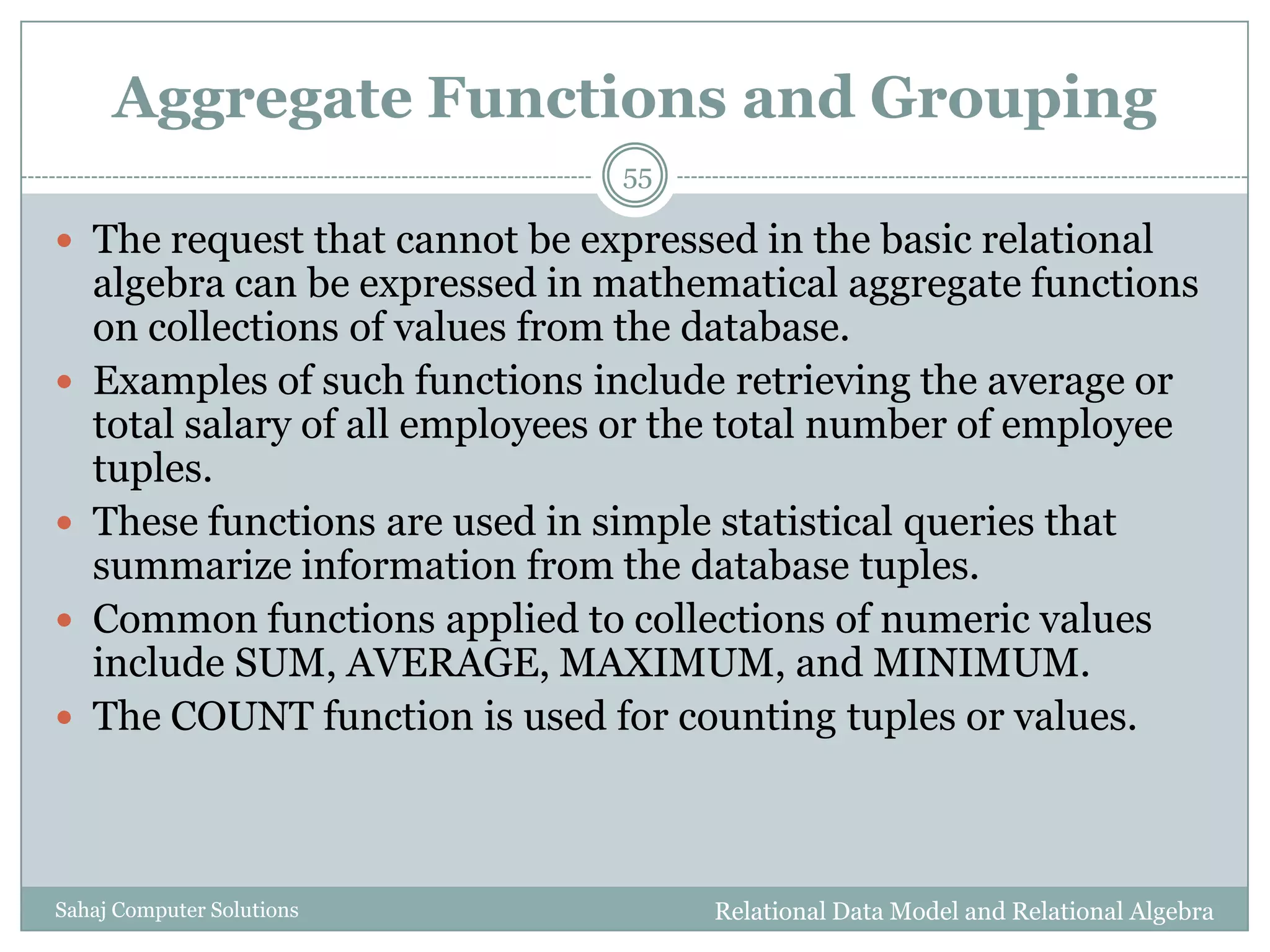

Aggregate Functions and Grouping
55
 The request that cannot be expressed in the basic relational
algebra can be expressed in mathematical aggregate functions
on collections of values from the database.
 Examples of such functions include retrieving the average or
total salary of all employees or the total number of employee
tuples.
 These functions are used in simple statistical queries that
summarize information from the database tuples.
 Common functions applied to collections of numeric values
include SUM, AVERAGE, MAXIMUM, and MINIMUM.
 The COUNT function is used for counting tuples or values.

Aggregate Functions and Grouping
56

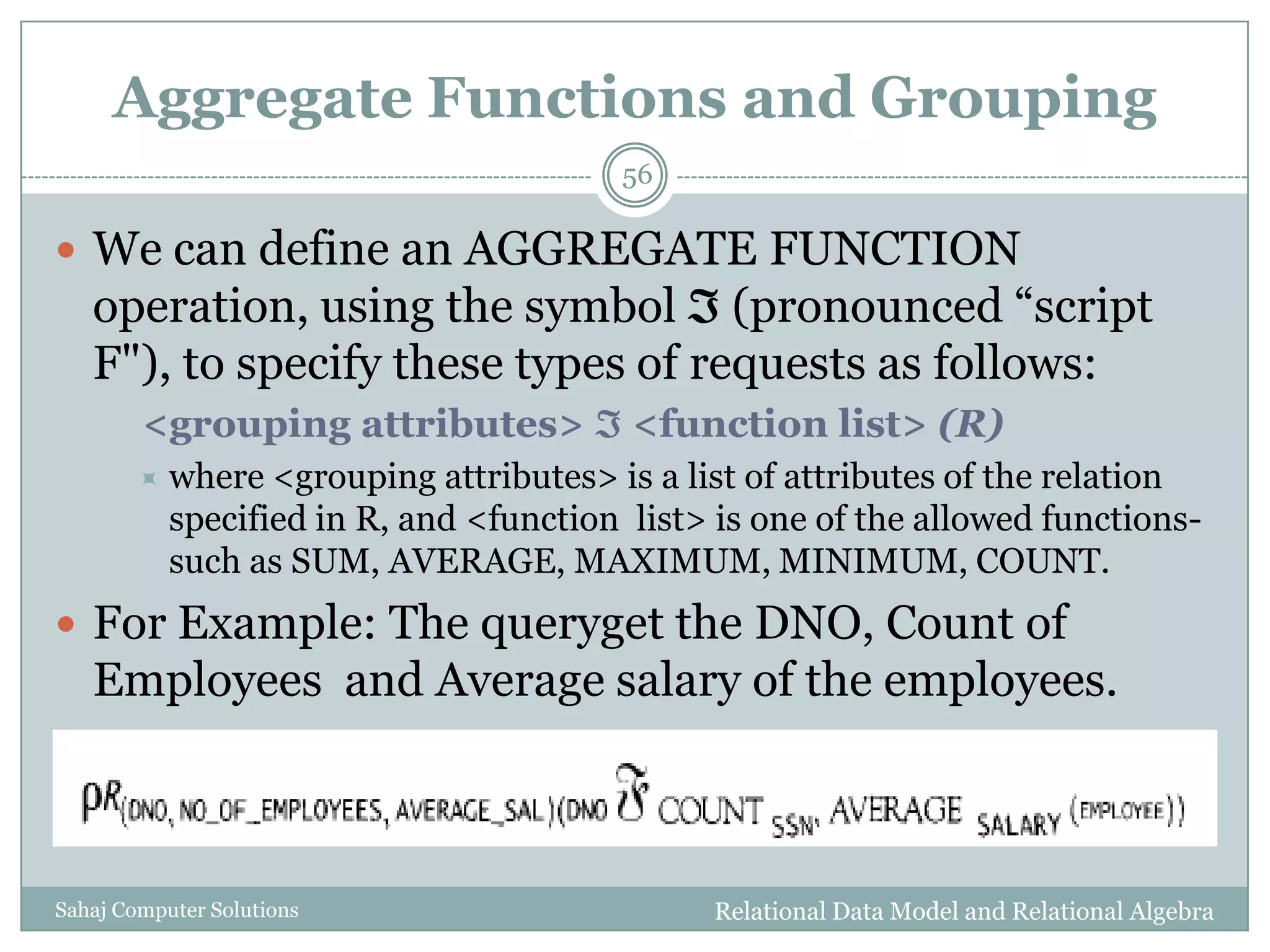

 We can define an AGGREGATE FUNCTION
operation, using the symbol  (pronounced “script
F"), to specify these types of requests as follows:
<grouping attributes>  <function list> (R)
 where <grouping attributes> is a list of attributes of the relation
specified in R, and <function list> is one of the allowed functions-
such as SUM, AVERAGE, MAXIMUM, MINIMUM, COUNT.
 For Example: The queryget the DNO, Count of
Employees and Average salary of the employees.

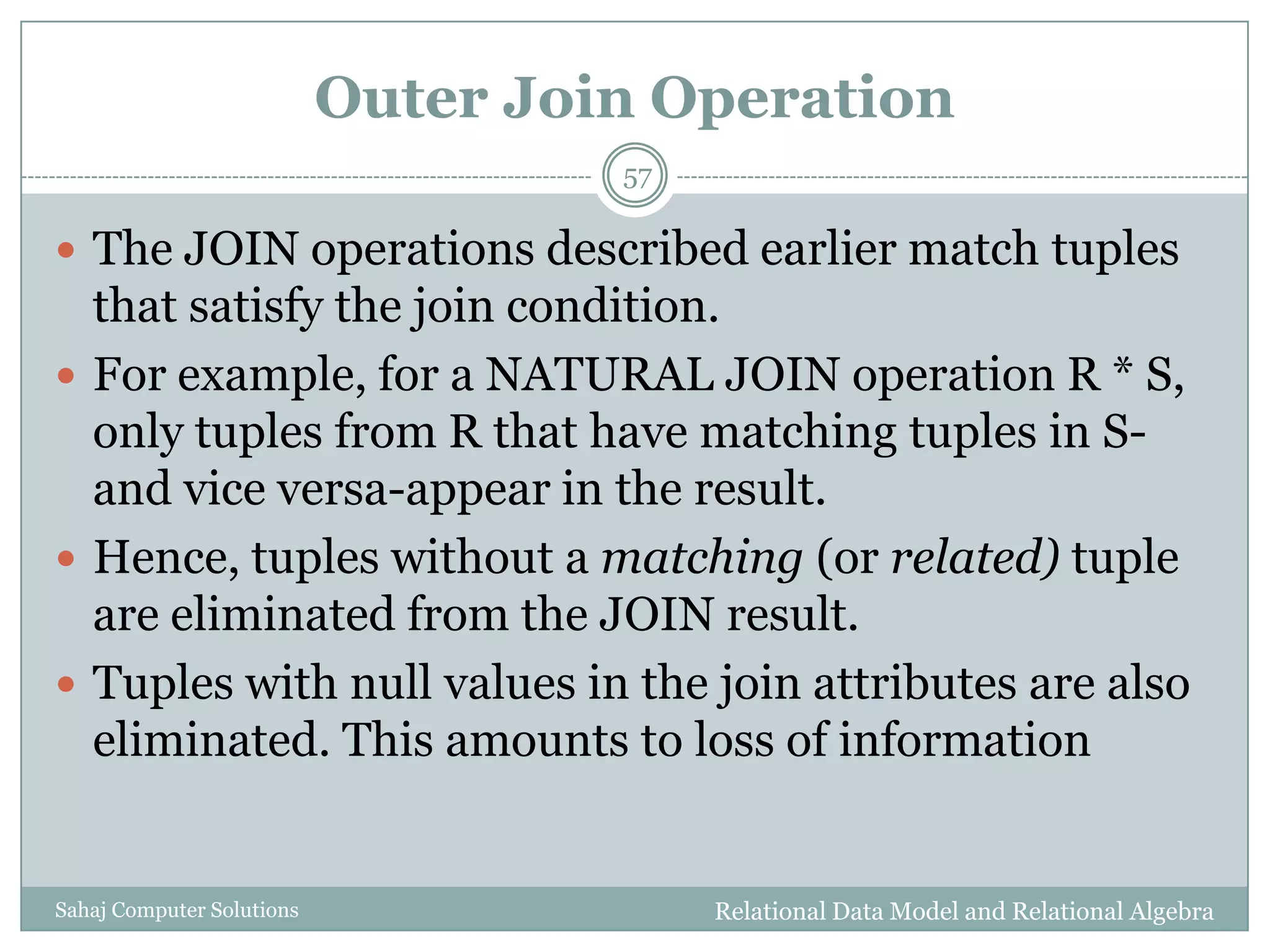

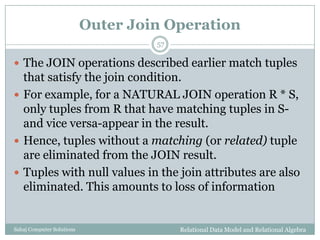

Outer Join Operation
57
 The JOIN operations described earlier match tuples
that satisfy the join condition.
 For example, for a NATURAL JOIN operation R * S,
only tuples from R that have matching tuples in S-
and vice versa-appear in the result.
 Hence, tuples without a matching (or related) tuple
are eliminated from the JOIN result.
 Tuples with null values in the join attributes are also
eliminated. This amounts to loss of information

58

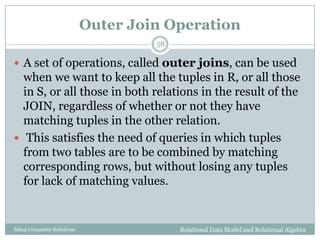

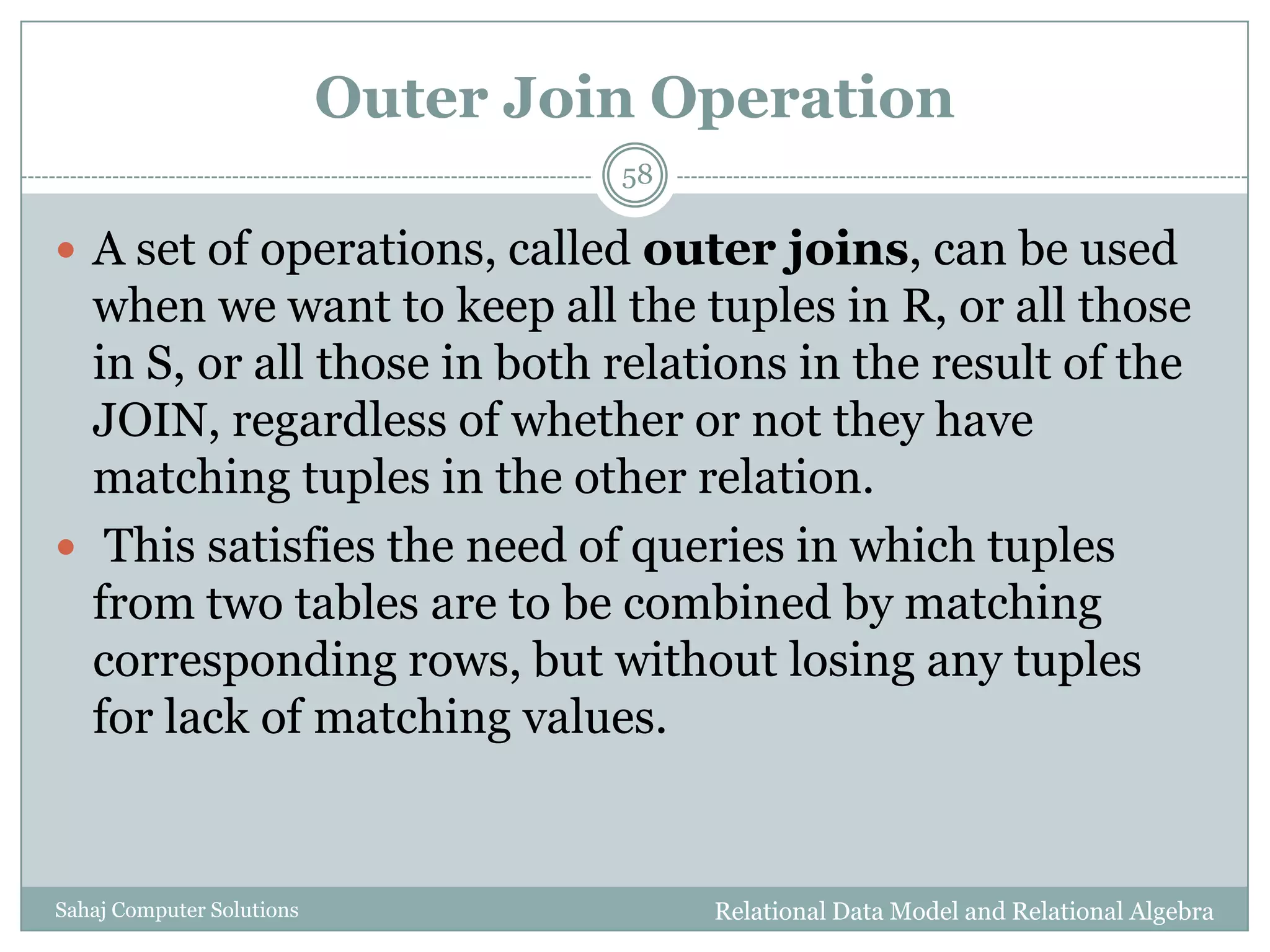

 A set of operations, called outer joins, can be used
when we want to keep all the tuples in R, or all those
in S, or all those in both relations in the result of the
JOIN, regardless of whether or not they have
matching tuples in the other relation.
 This satisfies the need of queries in which tuples
from two tables are to be combined by matching
corresponding rows, but without losing any tuples
for lack of matching values.

59

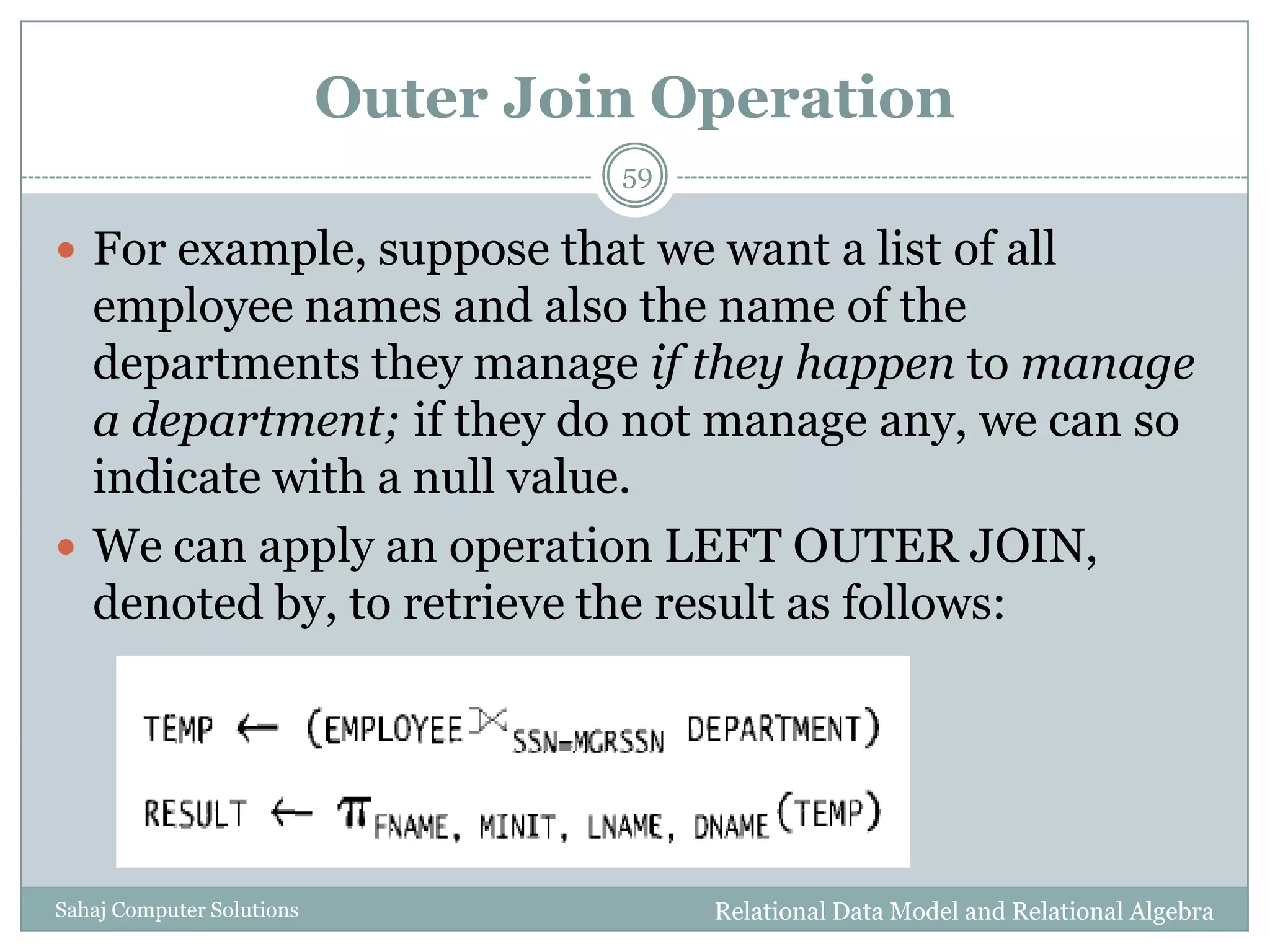

 For example, suppose that we want a list of all
employee names and also the name of the
departments they manage if they happen to manage
a department; if they do not manage any, we can so
indicate with a null value.
 We can apply an operation LEFT OUTER JOIN,
denoted by, to retrieve the result as follows:

60

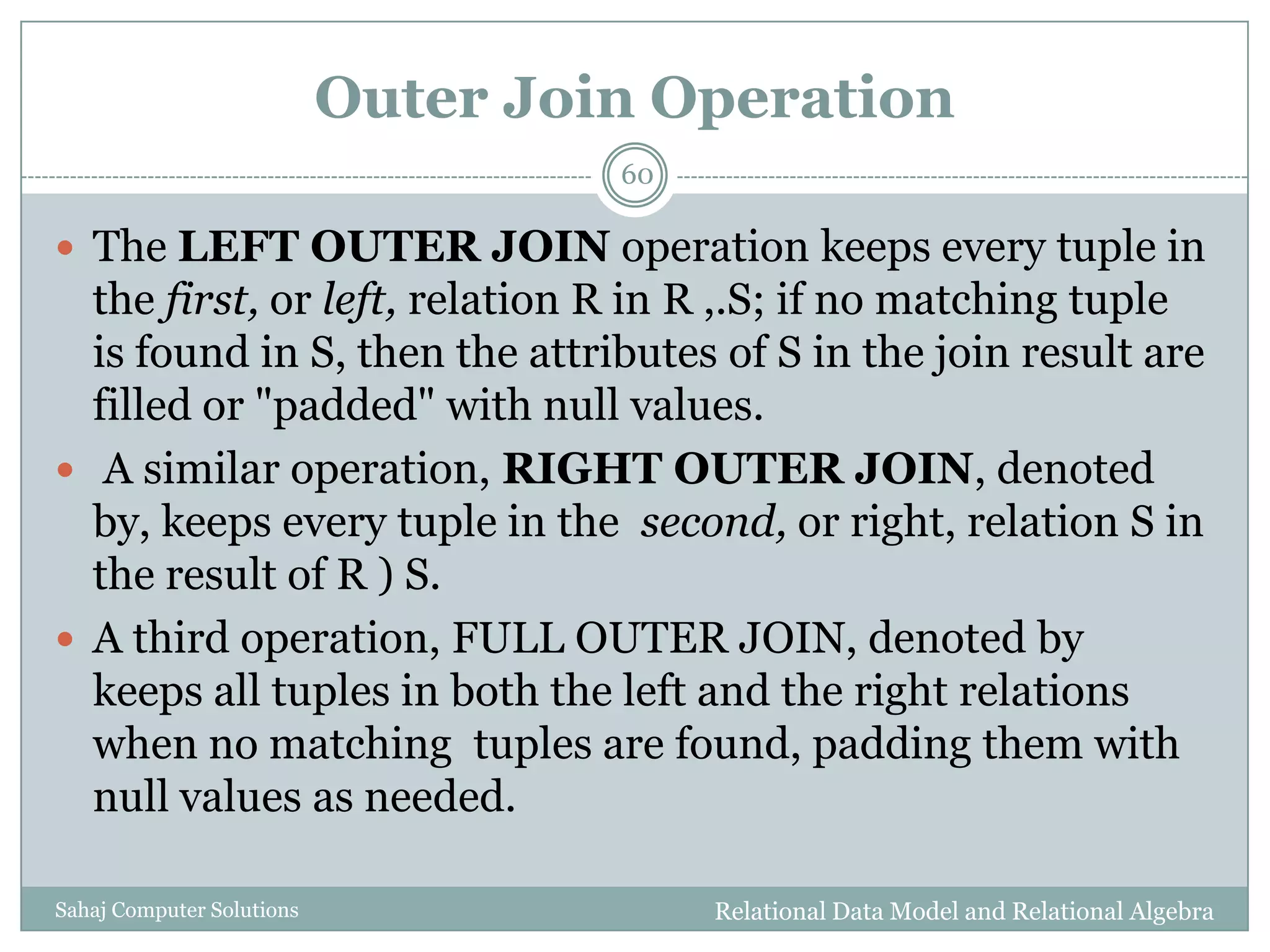

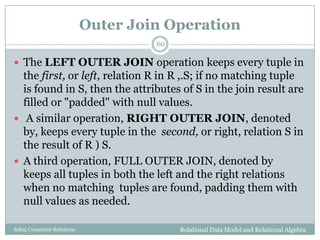

 The LEFT OUTER JOIN operation keeps every tuple in
the first, or left, relation R in R ,.S; if no matching tuple
is found in S, then the attributes of S in the join result are
filled or "padded" with null values.
 A similar operation, RIGHT OUTER JOIN, denoted
by, keeps every tuple in the second, or right, relation S in
the result of R ) S.
 A third operation, FULL OUTER JOIN, denoted by
keeps all tuples in both the left and the right relations
when no matching tuples are found, padding them with
null values as needed.

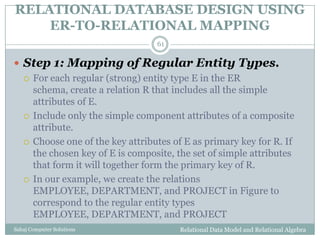

RELATIONAL DATABASE DESIGN USING
ER-TO-RELATIONAL MAPPING
61

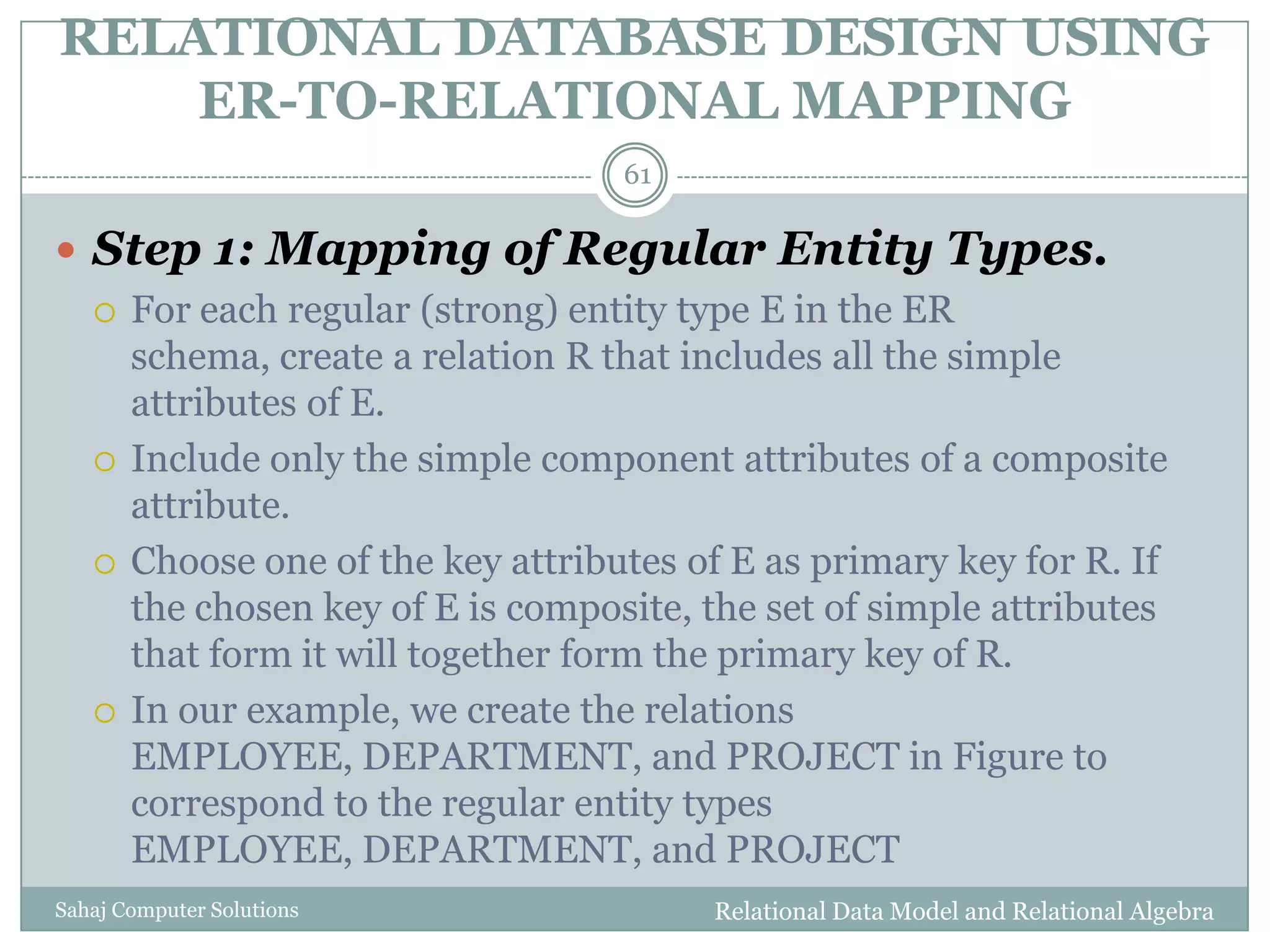

 Step 1: Mapping of Regular Entity Types.
 For each regular (strong) entity type E in the ER
schema, create a relation R that includes all the simple
attributes of E.
 Include only the simple component attributes of a composite
attribute.
 Choose one of the key attributes of E as primary key for R. If
the chosen key of E is composite, the set of simple attributes
that form it will together form the primary key of R.
 In our example, we create the relations
EMPLOYEE, DEPARTMENT, and PROJECT in Figure to
correspond to the regular entity types
EMPLOYEE, DEPARTMENT, and PROJECT

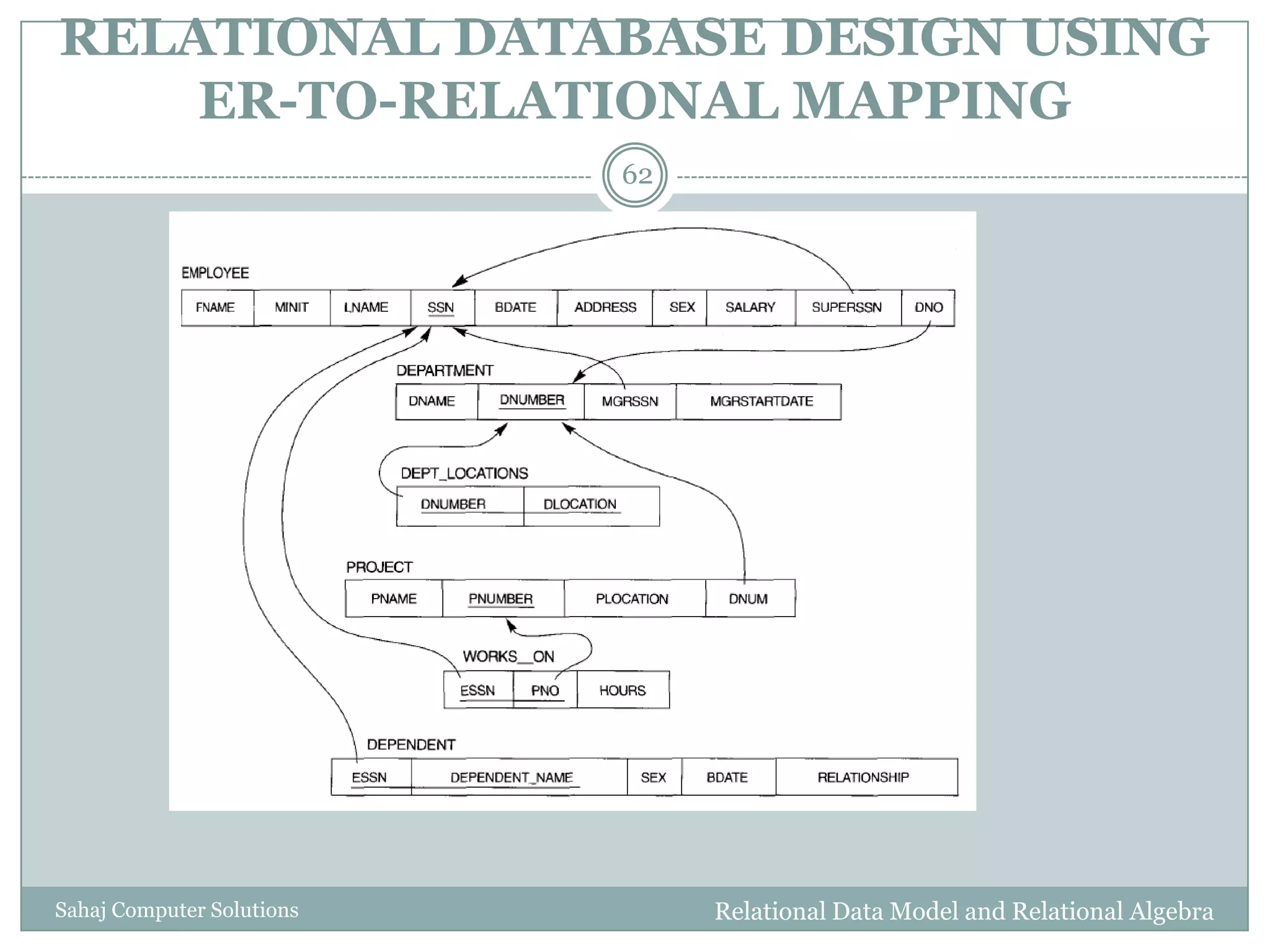

62

63

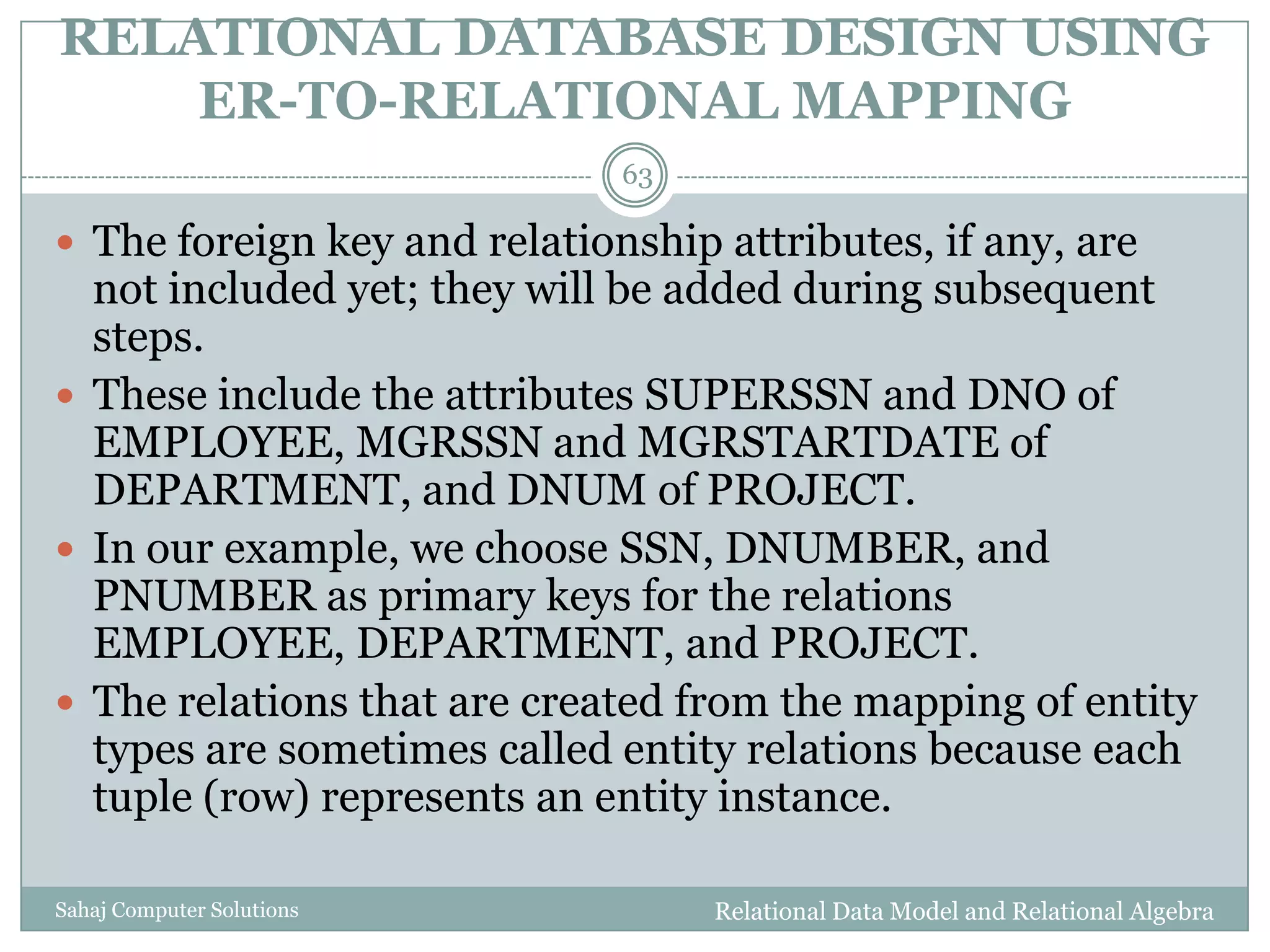

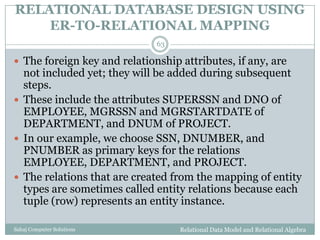

 The foreign key and relationship attributes, if any, are
not included yet; they will be added during subsequent
steps.
 These include the attributes SUPERSSN and DNO of
EMPLOYEE, MGRSSN and MGRSTARTDATE of
DEPARTMENT, and DNUM of PROJECT.
 In our example, we choose SSN, DNUMBER, and
PNUMBER as primary keys for the relations
EMPLOYEE, DEPARTMENT, and PROJECT.
 The relations that are created from the mapping of entity
types are sometimes called entity relations because each
tuple (row) represents an entity instance.

64

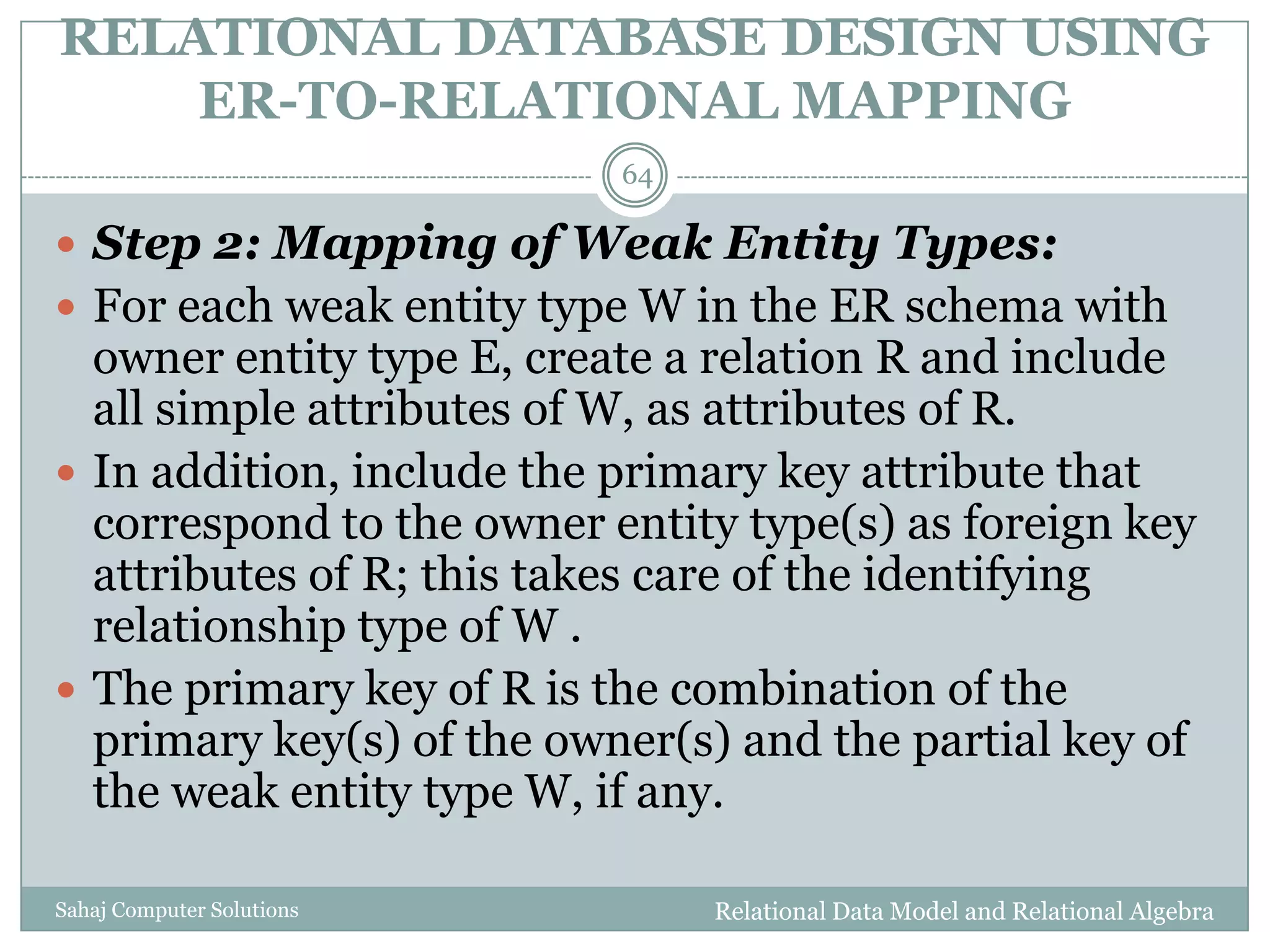

 Step 2: Mapping of Weak Entity Types:
 For each weak entity type W in the ER schema with
owner entity type E, create a relation R and include
all simple attributes of W, as attributes of R.
 In addition, include the primary key attribute that
correspond to the owner entity type(s) as foreign key
attributes of R; this takes care of the identifying
relationship type of W .
 The primary key of R is the combination of the
primary key(s) of the owner(s) and the partial key of
the weak entity type W, if any.

65

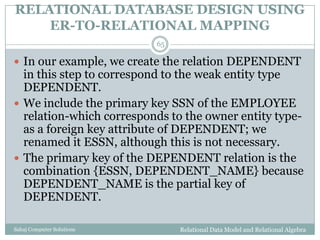

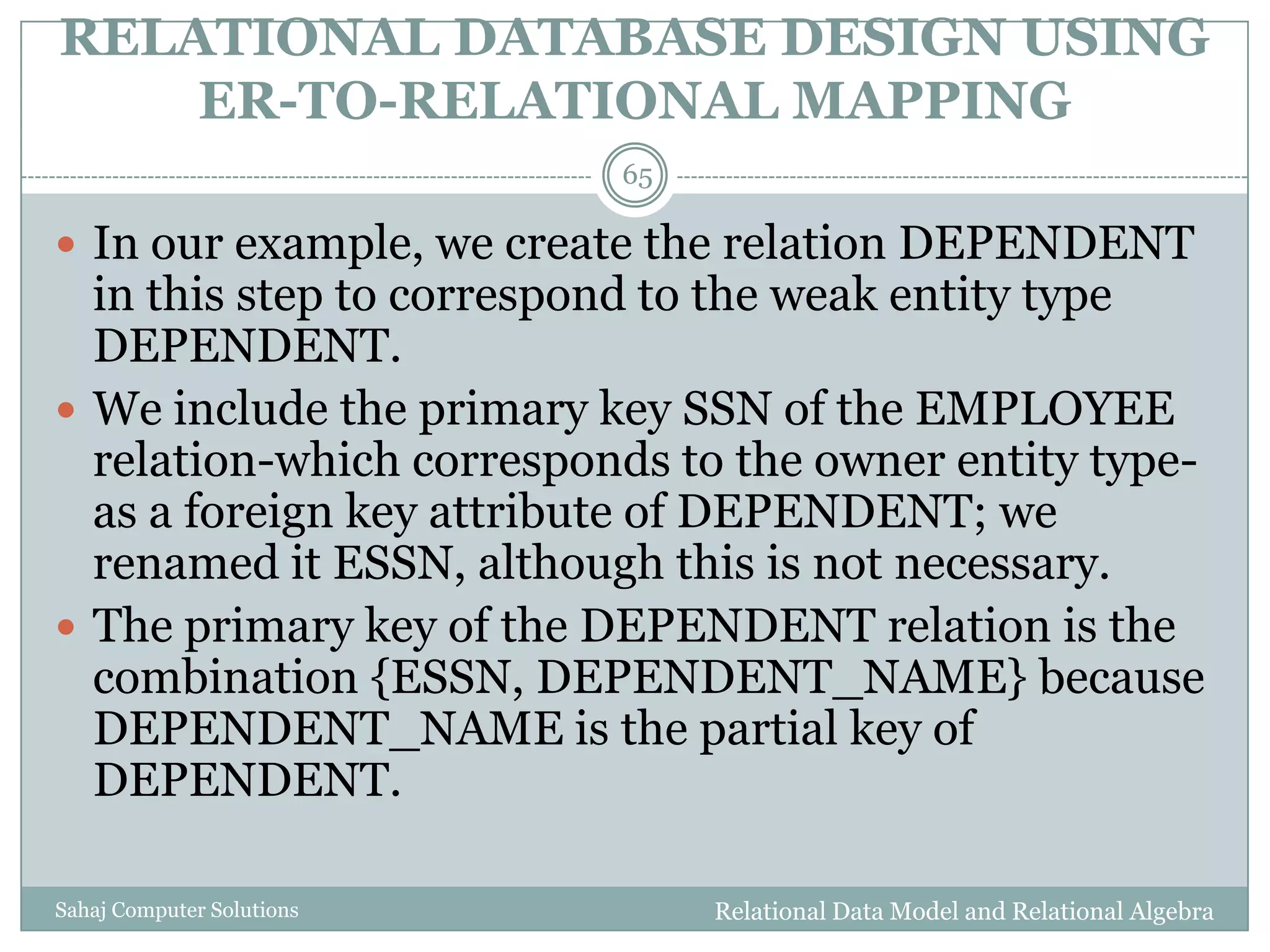

 In our example, we create the relation DEPENDENT
in this step to correspond to the weak entity type
DEPENDENT.
 We include the primary key SSN of the EMPLOYEE
relation-which corresponds to the owner entity type-
as a foreign key attribute of DEPENDENT; we
renamed it ESSN, although this is not necessary.
 The primary key of the DEPENDENT relation is the
combination {ESSN, DEPENDENT_NAME} because
DEPENDENT_NAME is the partial key of
DEPENDENT.

66

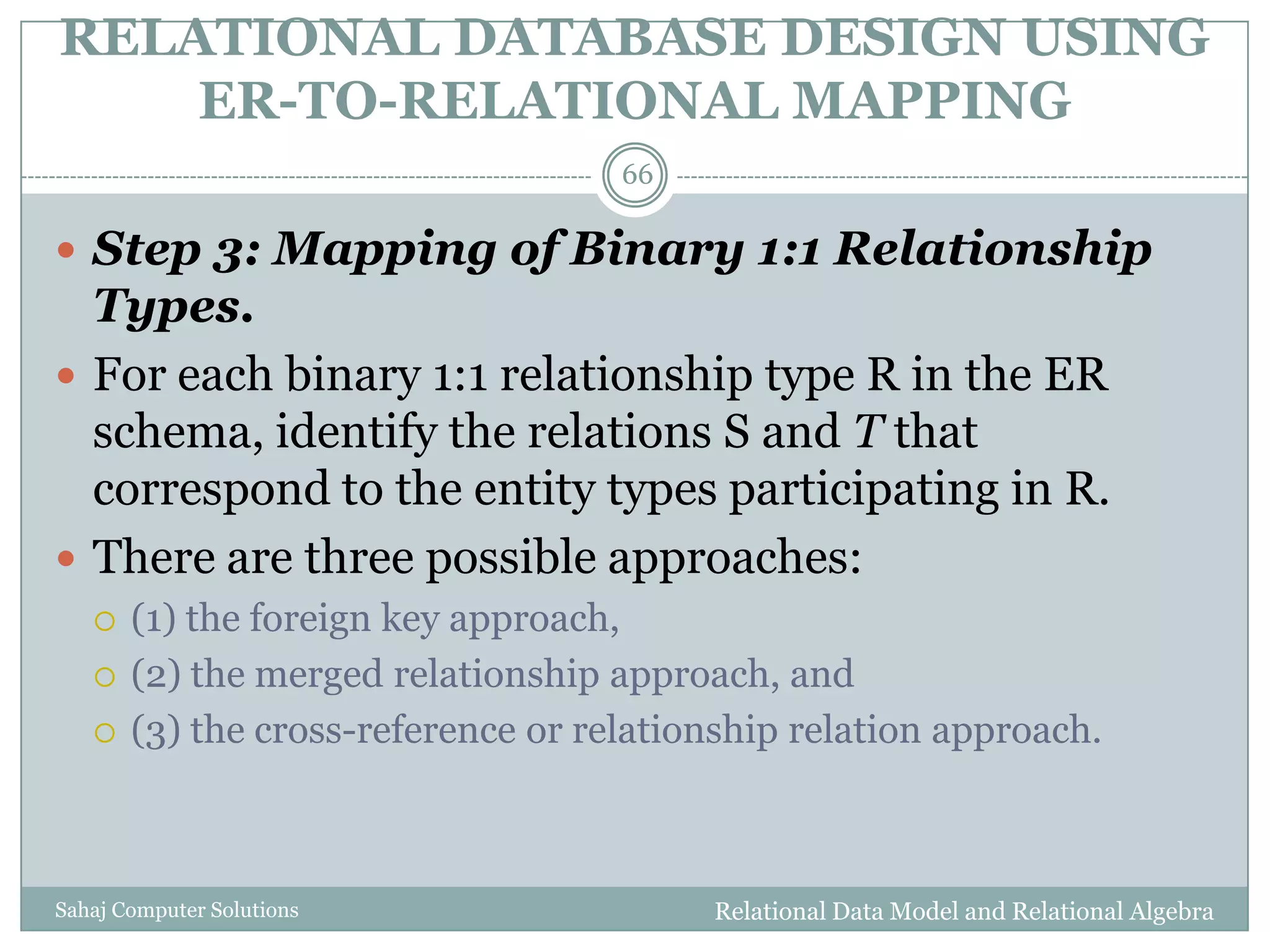

 Step 3: Mapping of Binary 1:1 Relationship
Types.
 For each binary 1:1 relationship type R in the ER
schema, identify the relations S and T that
correspond to the entity types participating in R.
 There are three possible approaches:
 (1) the foreign key approach,
 (2) the merged relationship approach, and
 (3) the cross-reference or relationship relation approach.

67

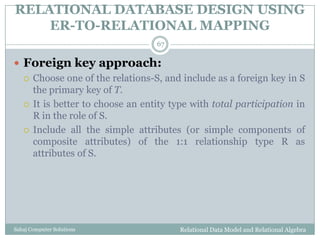

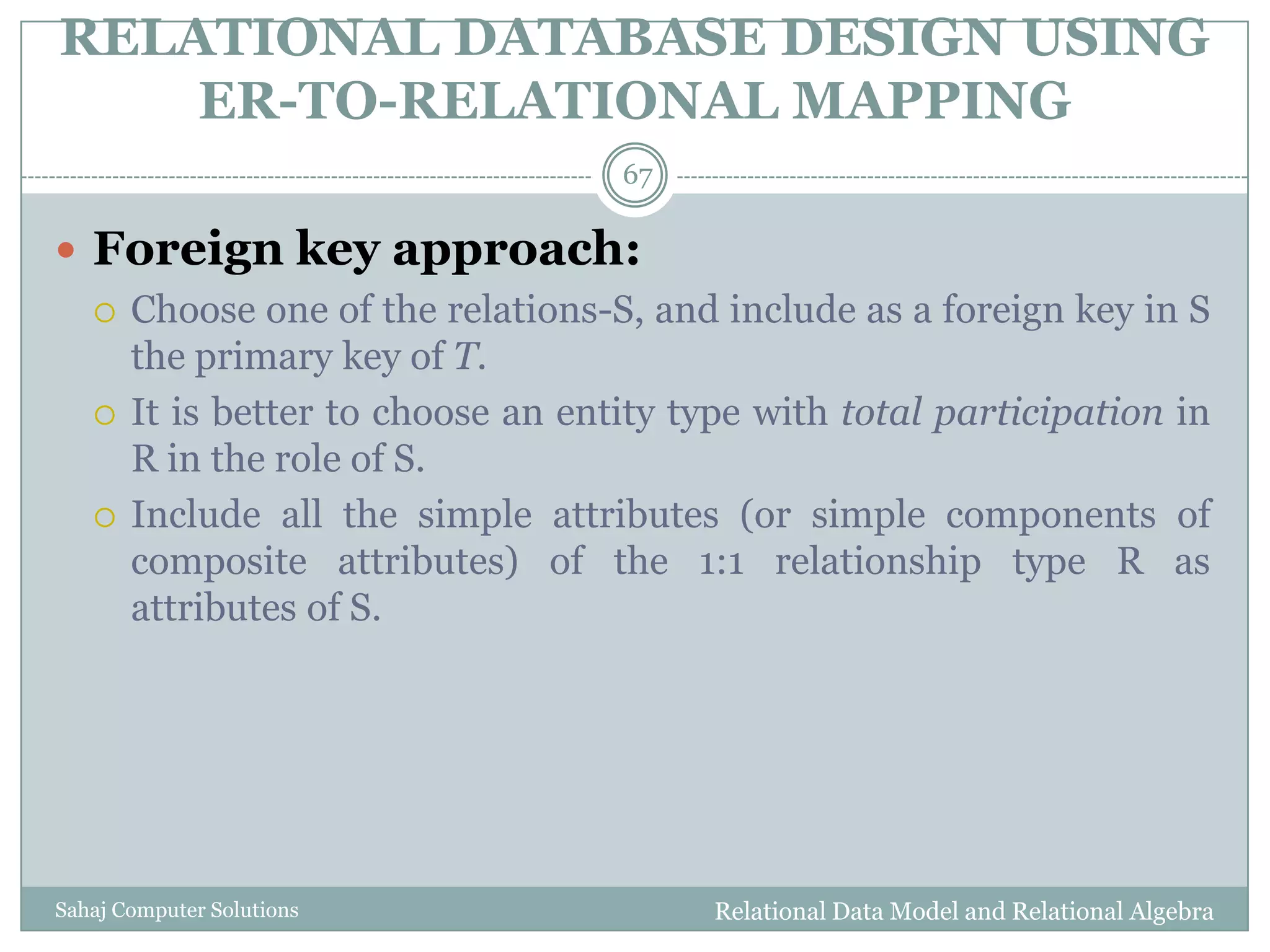

 Foreign key approach:
 Choose one of the relations-S, and include as a foreign key in S
the primary key of T.
 It is better to choose an entity type with total participation in
R in the role of S.
 Include all the simple attributes (or simple components of
composite attributes) of the 1:1 relationship type R as
attributes of S.

68

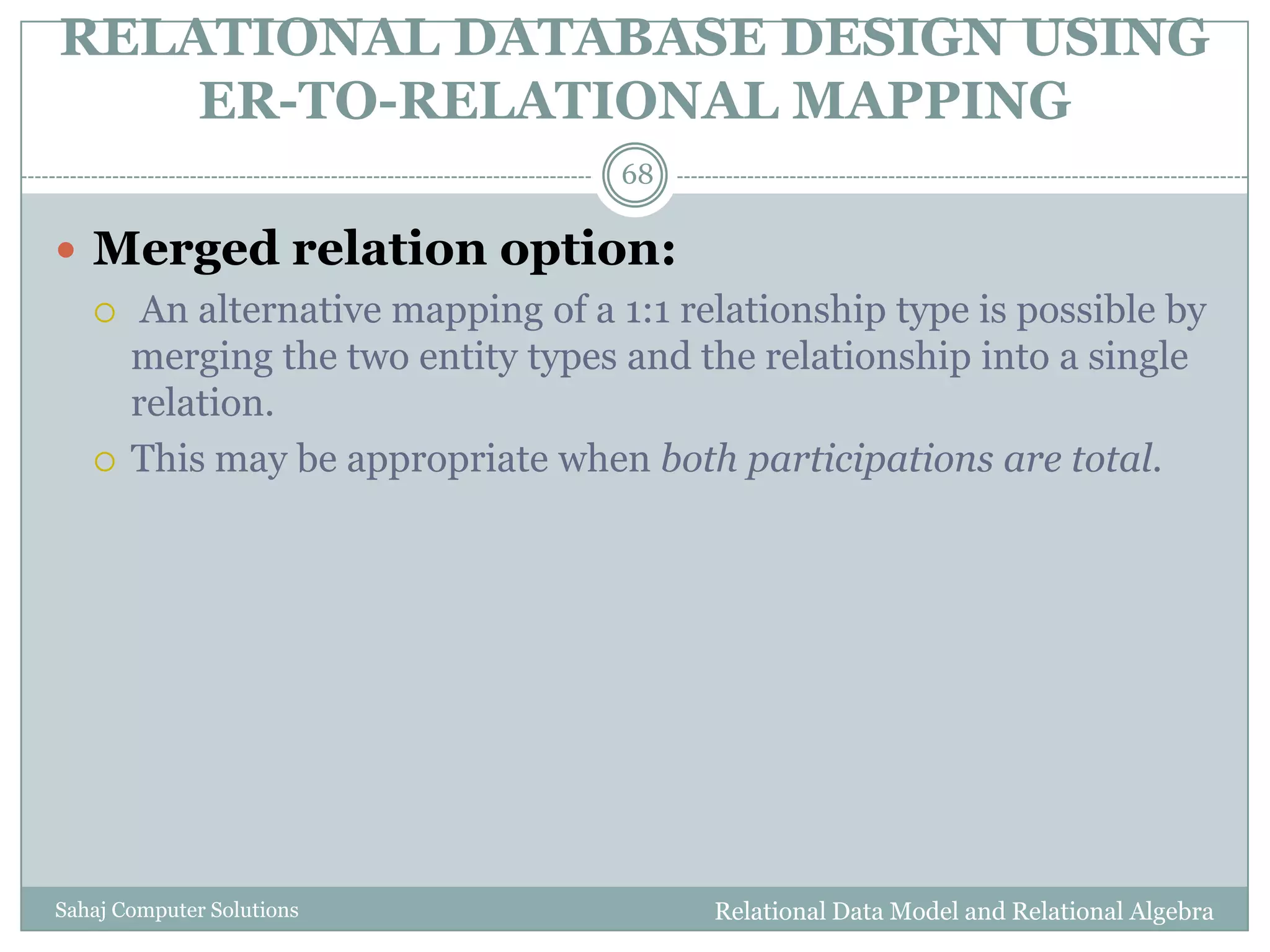

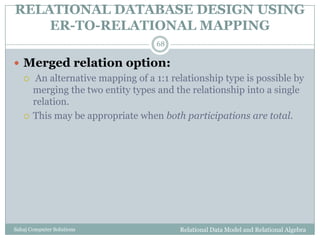

 Merged relation option:
 An alternative mapping of a 1:1 relationship type is possible by
merging the two entity types and the relationship into a single
relation.
 This may be appropriate when both participations are total.

69

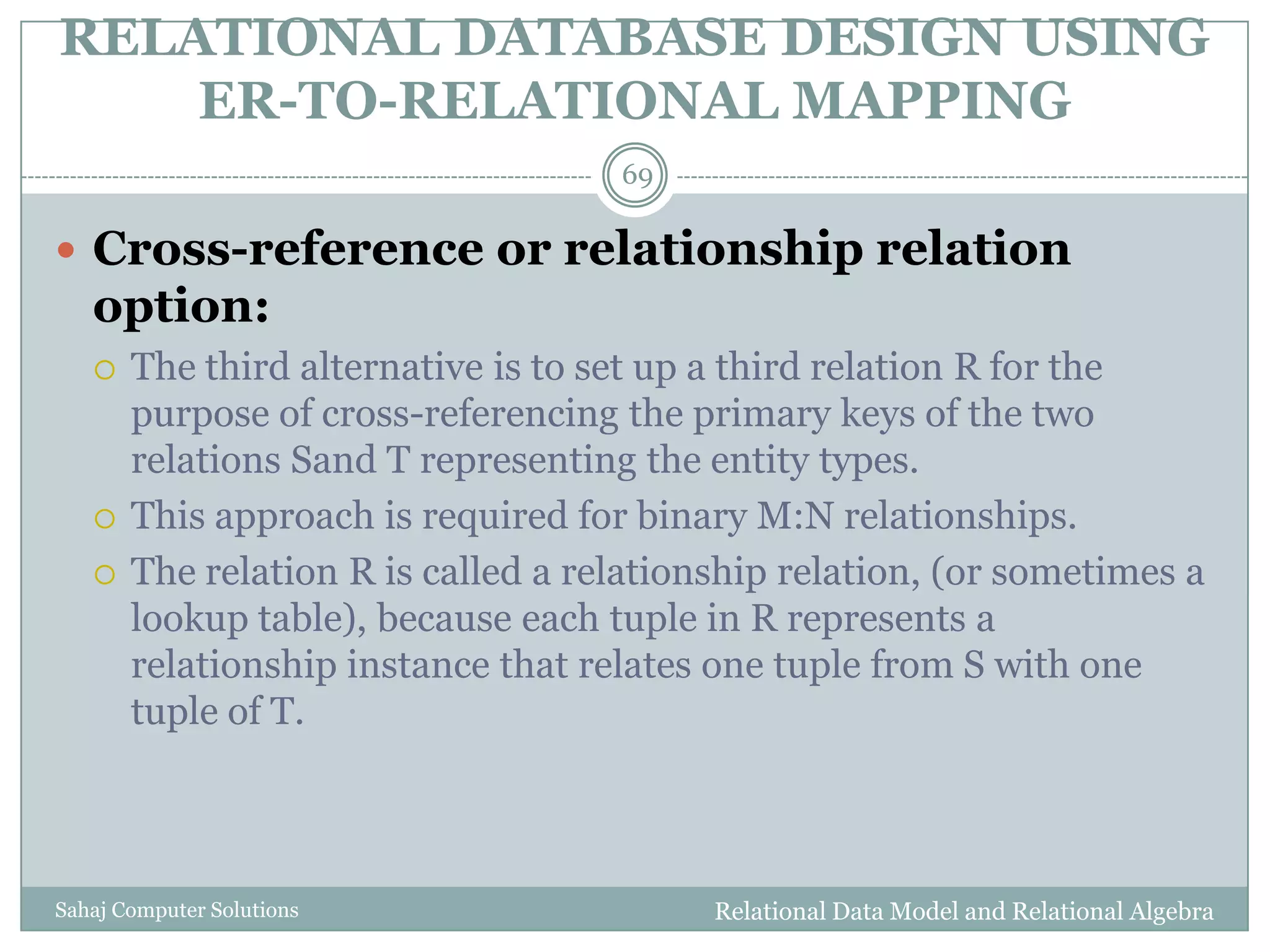

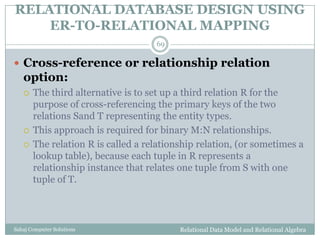

 Cross-reference or relationship relation
option:
 The third alternative is to set up a third relation R for the
purpose of cross-referencing the primary keys of the two
relations Sand T representing the entity types.
 This approach is required for binary M:N relationships.
 The relation R is called a relationship relation, (or sometimes a
lookup table), because each tuple in R represents a
relationship instance that relates one tuple from S with one
tuple of T.

70

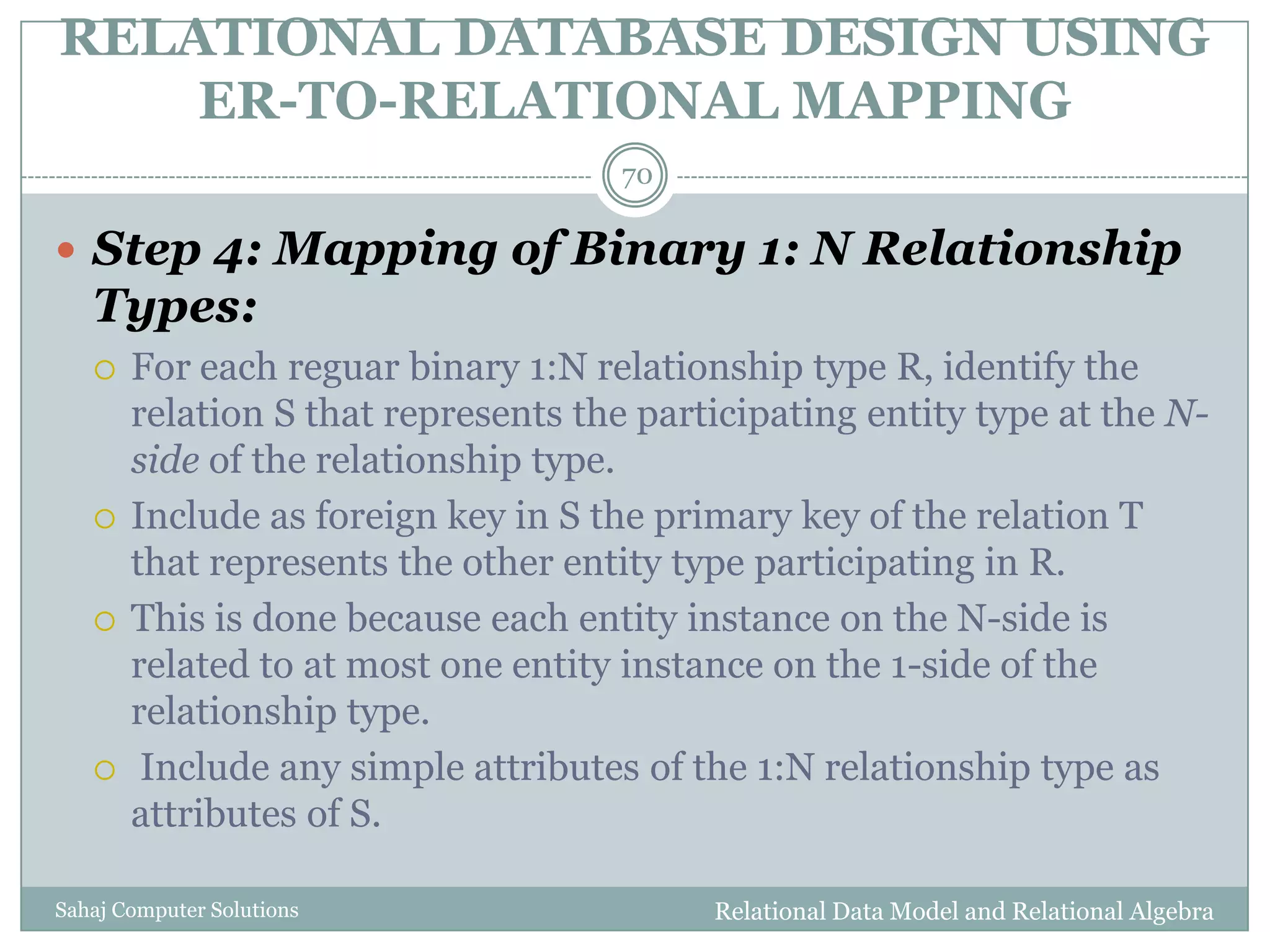

 Step 4: Mapping of Binary 1: N Relationship
Types:
 For each reguar binary 1:N relationship type R, identify the
relation S that represents the participating entity type at the N-
side of the relationship type.
 Include as foreign key in S the primary key of the relation T
that represents the other entity type participating in R.
 This is done because each entity instance on the N-side is
related to at most one entity instance on the 1-side of the
relationship type.
 Include any simple attributes of the 1:N relationship type as
attributes of S.

71

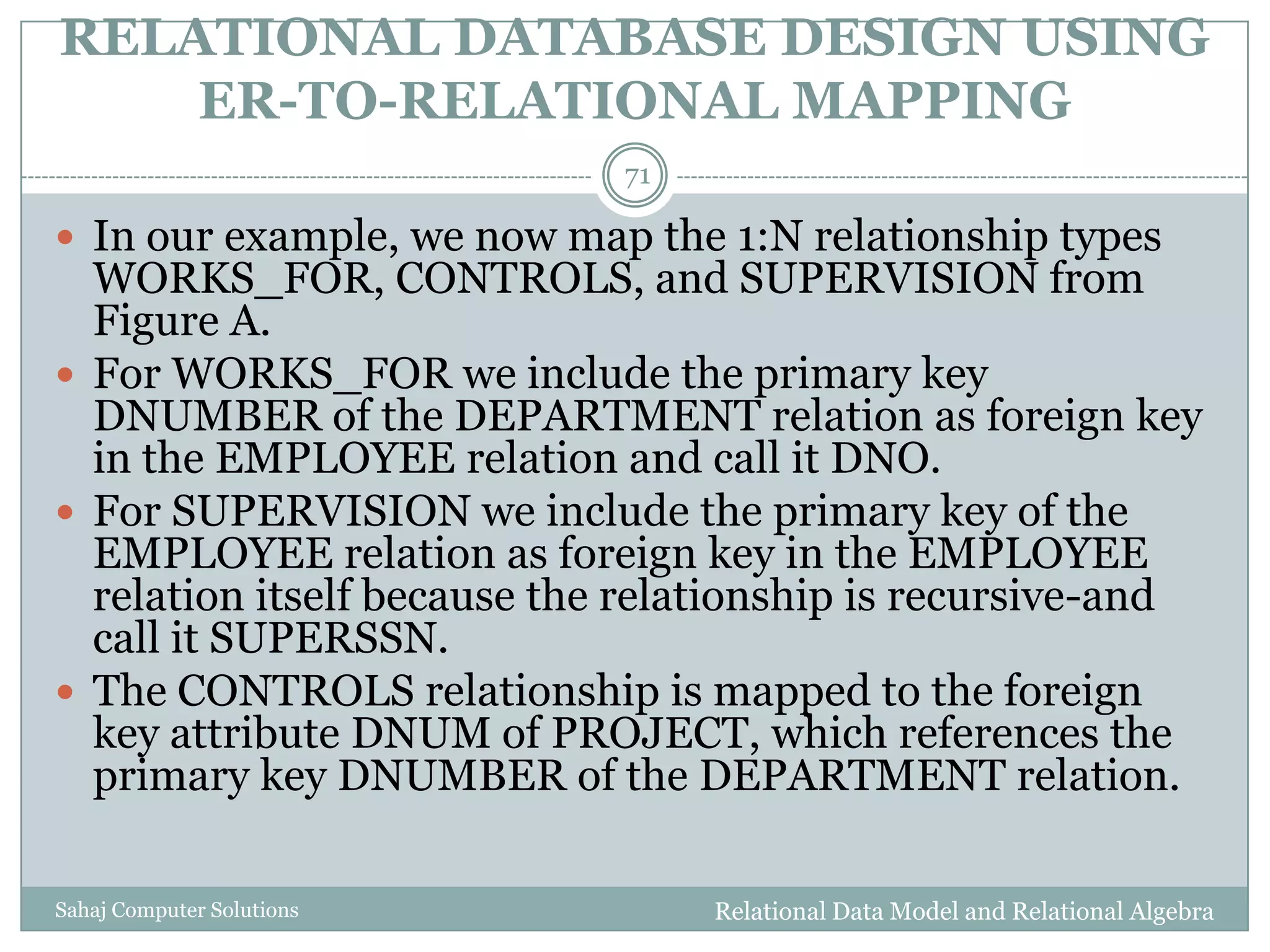

 In our example, we now map the 1:N relationship types
WORKS_FOR, CONTROLS, and SUPERVISION from
Figure A.
 For WORKS_FOR we include the primary key
DNUMBER of the DEPARTMENT relation as foreign key
in the EMPLOYEE relation and call it DNO.
 For SUPERVISION we include the primary key of the
EMPLOYEE relation as foreign key in the EMPLOYEE
relation itself because the relationship is recursive-and
call it SUPERSSN.
 The CONTROLS relationship is mapped to the foreign
key attribute DNUM of PROJECT, which references the
primary key DNUMBER of the DEPARTMENT relation.

72

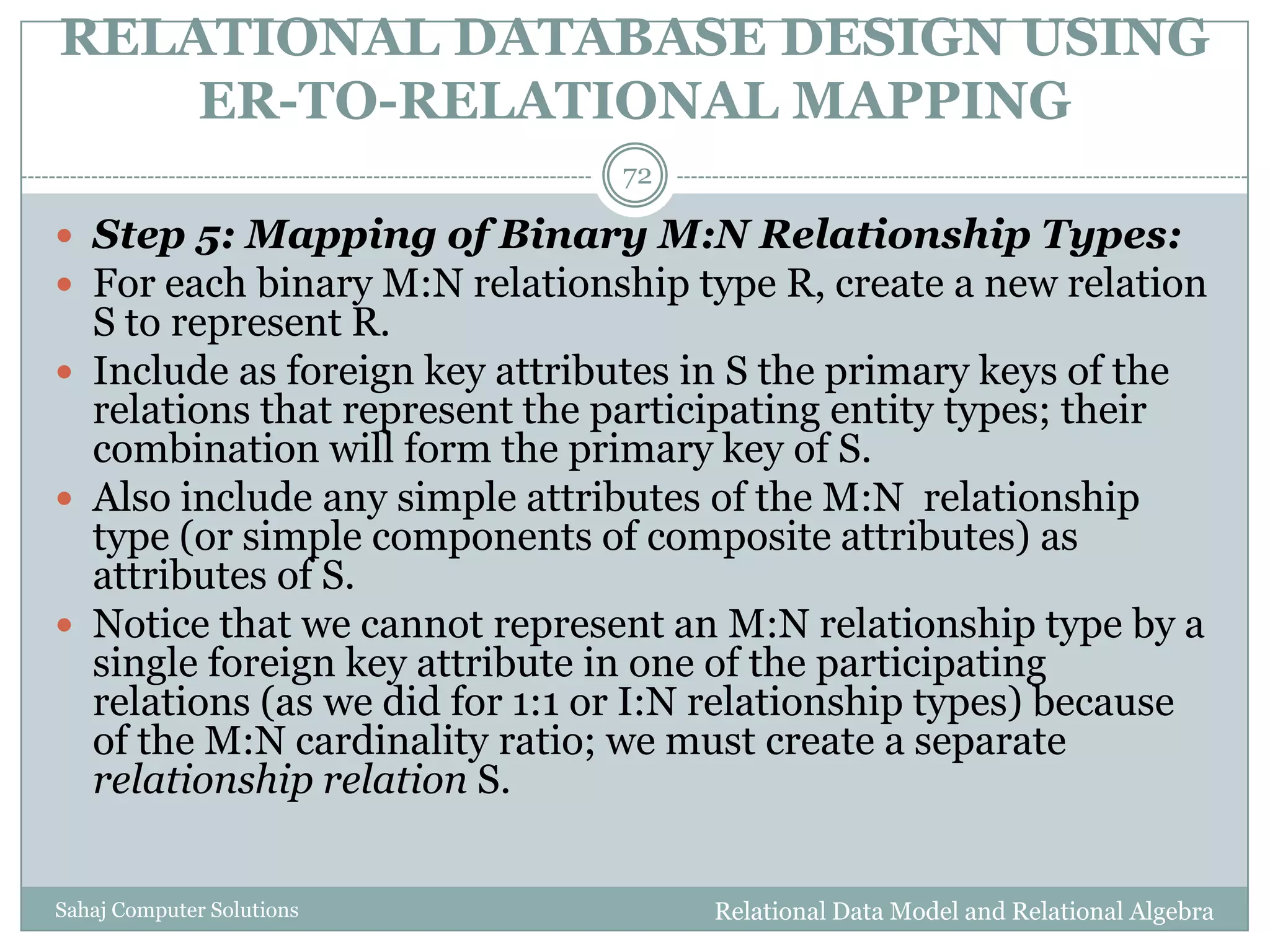

 Step 5: Mapping of Binary M:N Relationship Types:
 For each binary M:N relationship type R, create a new relation
S to represent R.
 Include as foreign key attributes in S the primary keys of the
relations that represent the participating entity types; their
combination will form the primary key of S.
 Also include any simple attributes of the M:N relationship
type (or simple components of composite attributes) as
attributes of S.
 Notice that we cannot represent an M:N relationship type by a
single foreign key attribute in one of the participating
relations (as we did for 1:1 or I:N relationship types) because
of the M:N cardinality ratio; we must create a separate
relationship relation S.

73

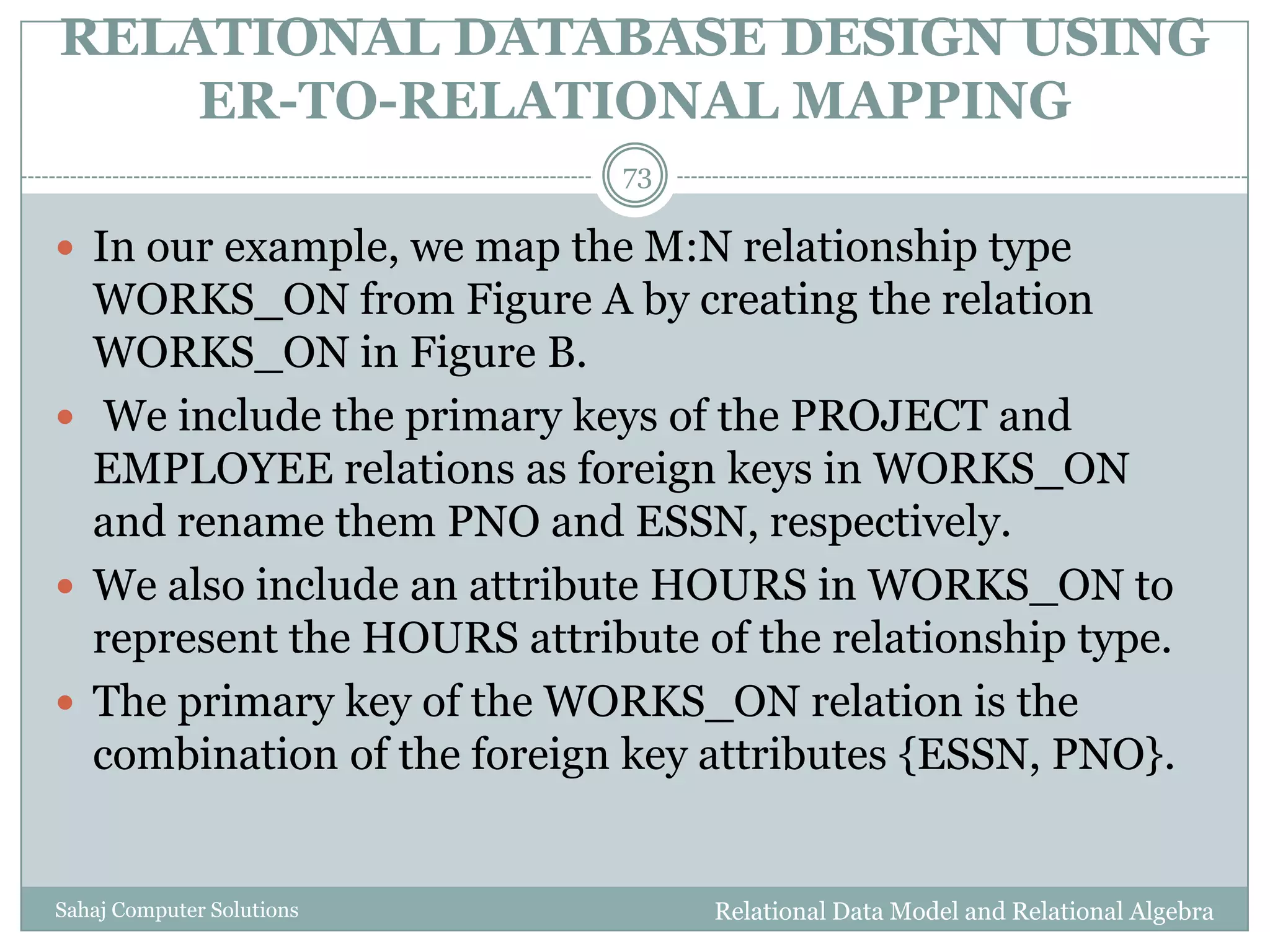

 In our example, we map the M:N relationship type
WORKS_ON from Figure A by creating the relation
WORKS_ON in Figure B.
 We include the primary keys of the PROJECT and
EMPLOYEE relations as foreign keys in WORKS_ON
and rename them PNO and ESSN, respectively.
 We also include an attribute HOURS in WORKS_ON to
represent the HOURS attribute of the relationship type.
 The primary key of the WORKS_ON relation is the
combination of the foreign key attributes {ESSN, PNO}.

74

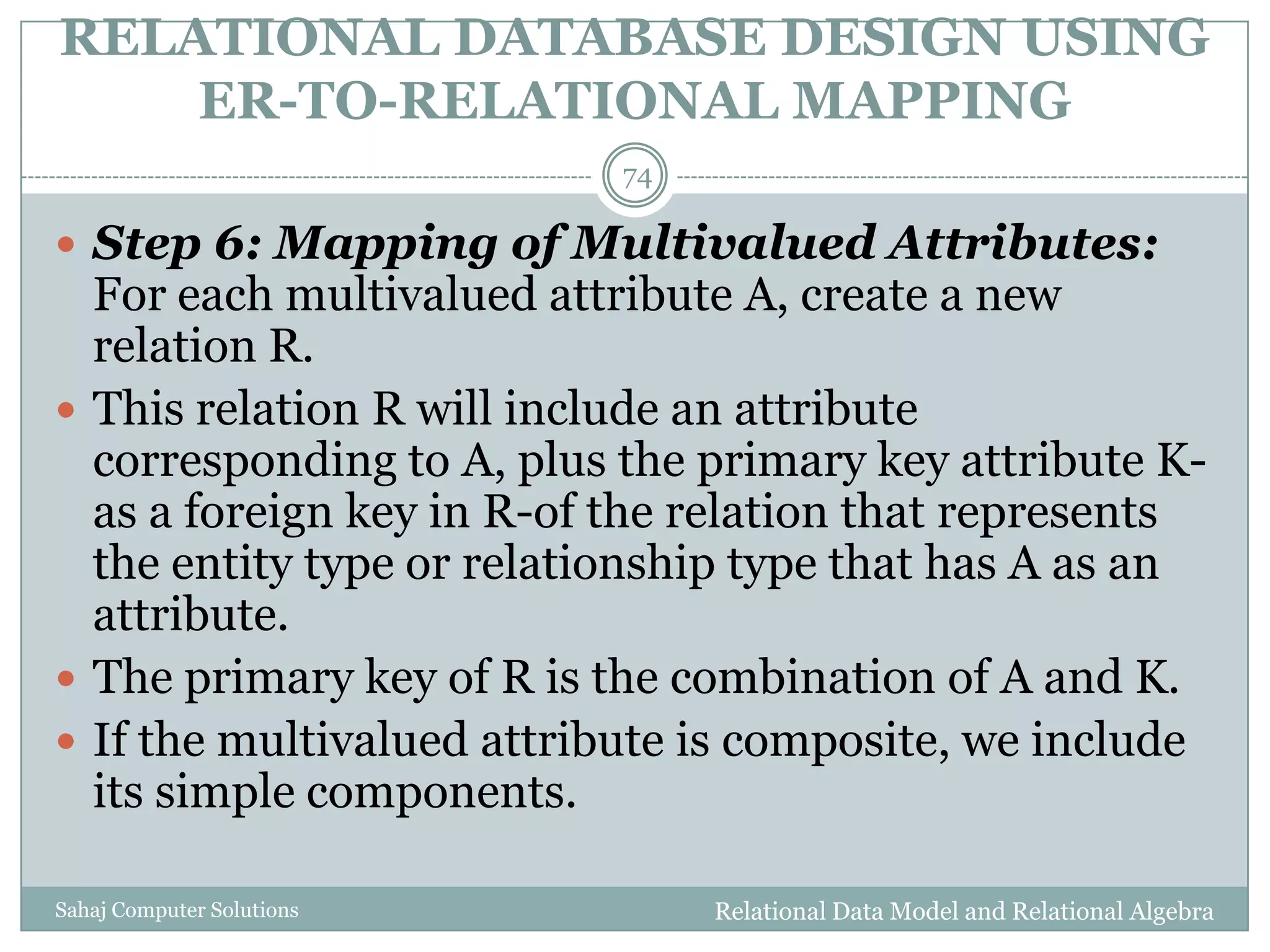

 Step 6: Mapping of Multivalued Attributes:
For each multivalued attribute A, create a new
relation R.
 This relation R will include an attribute
corresponding to A, plus the primary key attribute K-
as a foreign key in R-of the relation that represents
the entity type or relationship type that has A as an
attribute.
 The primary key of R is the combination of A and K.
 If the multivalued attribute is composite, we include
its simple components.

75

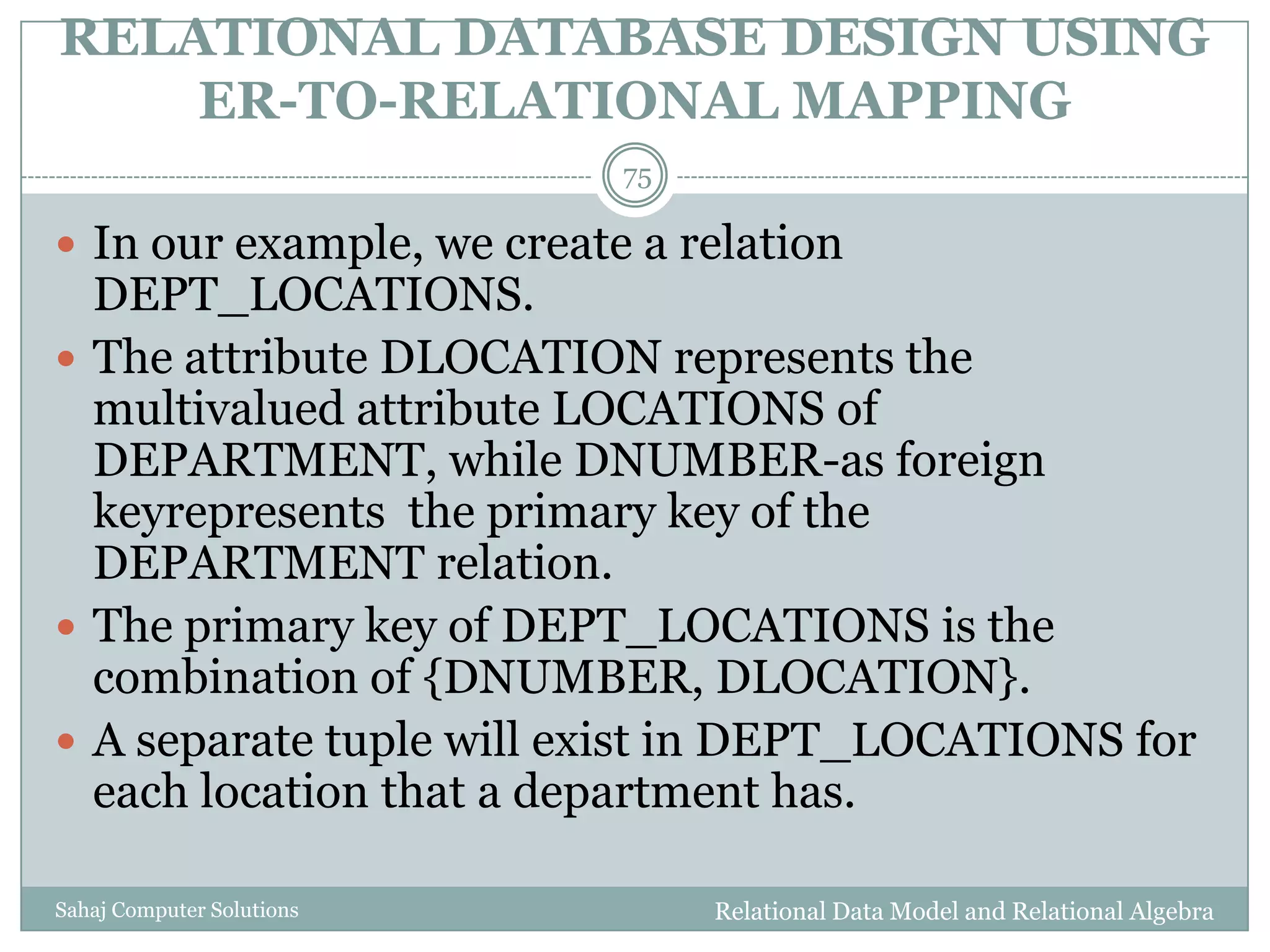

 In our example, we create a relation
DEPT_LOCATIONS.
 The attribute DLOCATION represents the
multivalued attribute LOCATIONS of
DEPARTMENT, while DNUMBER-as foreign
keyrepresents the primary key of the
DEPARTMENT relation.
 The primary key of DEPT_LOCATIONS is the
combination of {DNUMBER, DLOCATION}.
 A separate tuple will exist in DEPT_LOCATIONS for
each location that a department has.

Chapter 6 relational data model and relational

More Related Content

What's hot

Similar to Chapter 6 relational data model and relational

More from Jafar Nesargi

Recently uploaded

Chapter 6 relational data model and relational
