Clone detection in Python
- 1. DATE: May 13,2013Florence, Italy Clone Detection in Python Valerio Maggio (valerio.maggio@unina.it)

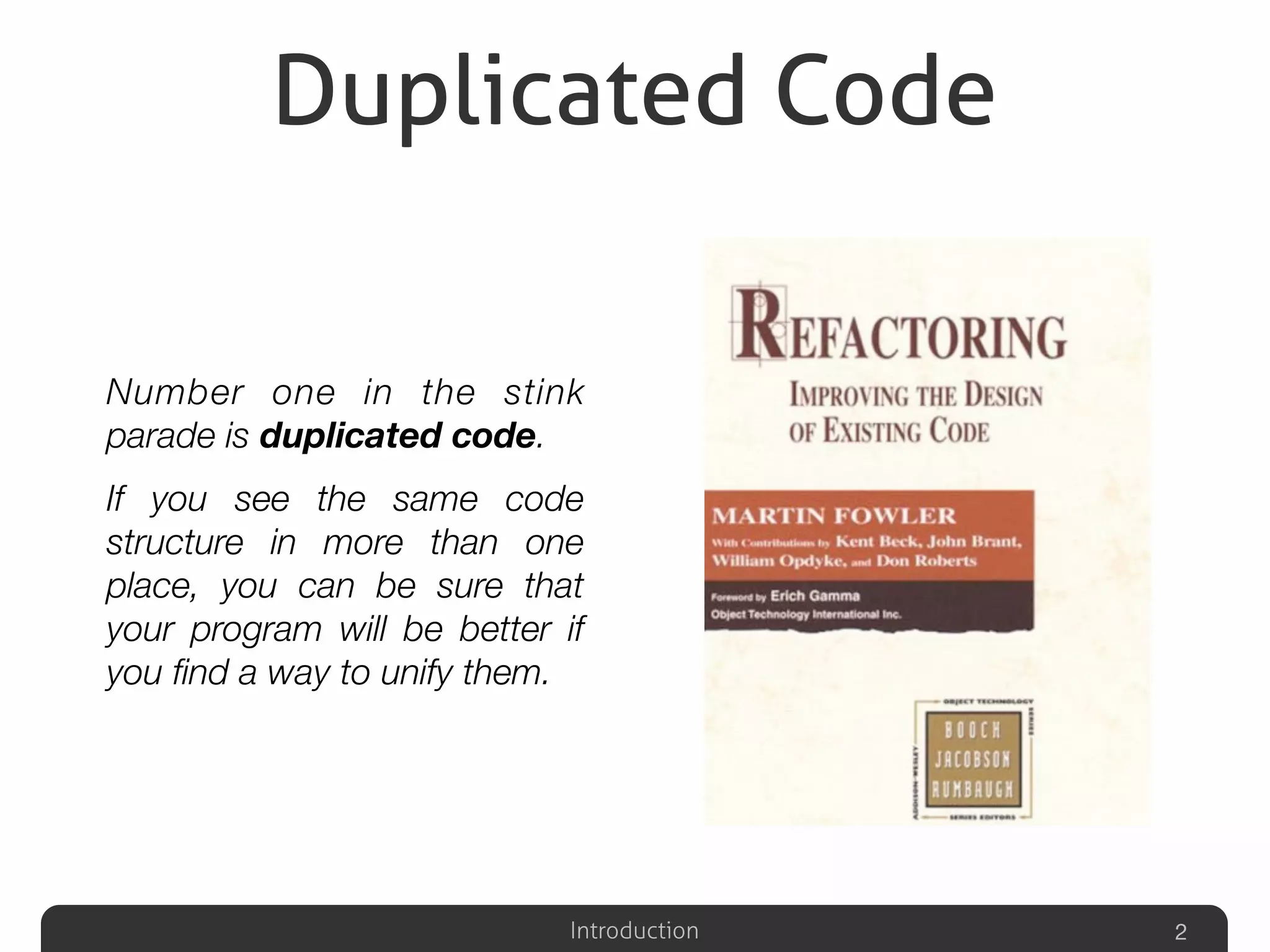

- 2. Introduction Duplicated Code Number onein the stink parade is duplicated code. If you see the same code structure in more than one place, you can be sure that your program will be better if you find a way to unify them. 2
- 3.
- 4.

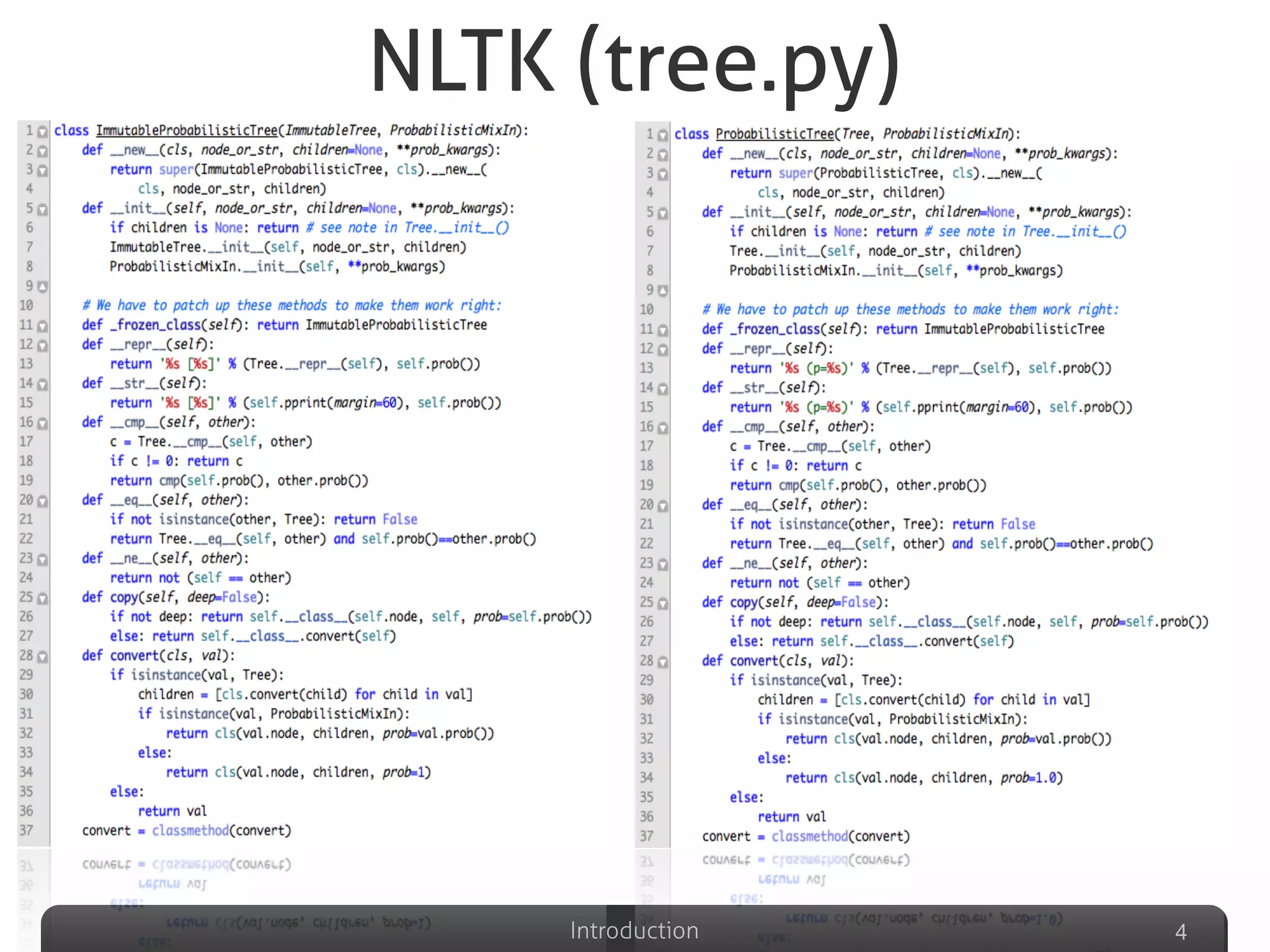

- 5.
- 6.
- 7.
- 8.
- 9.

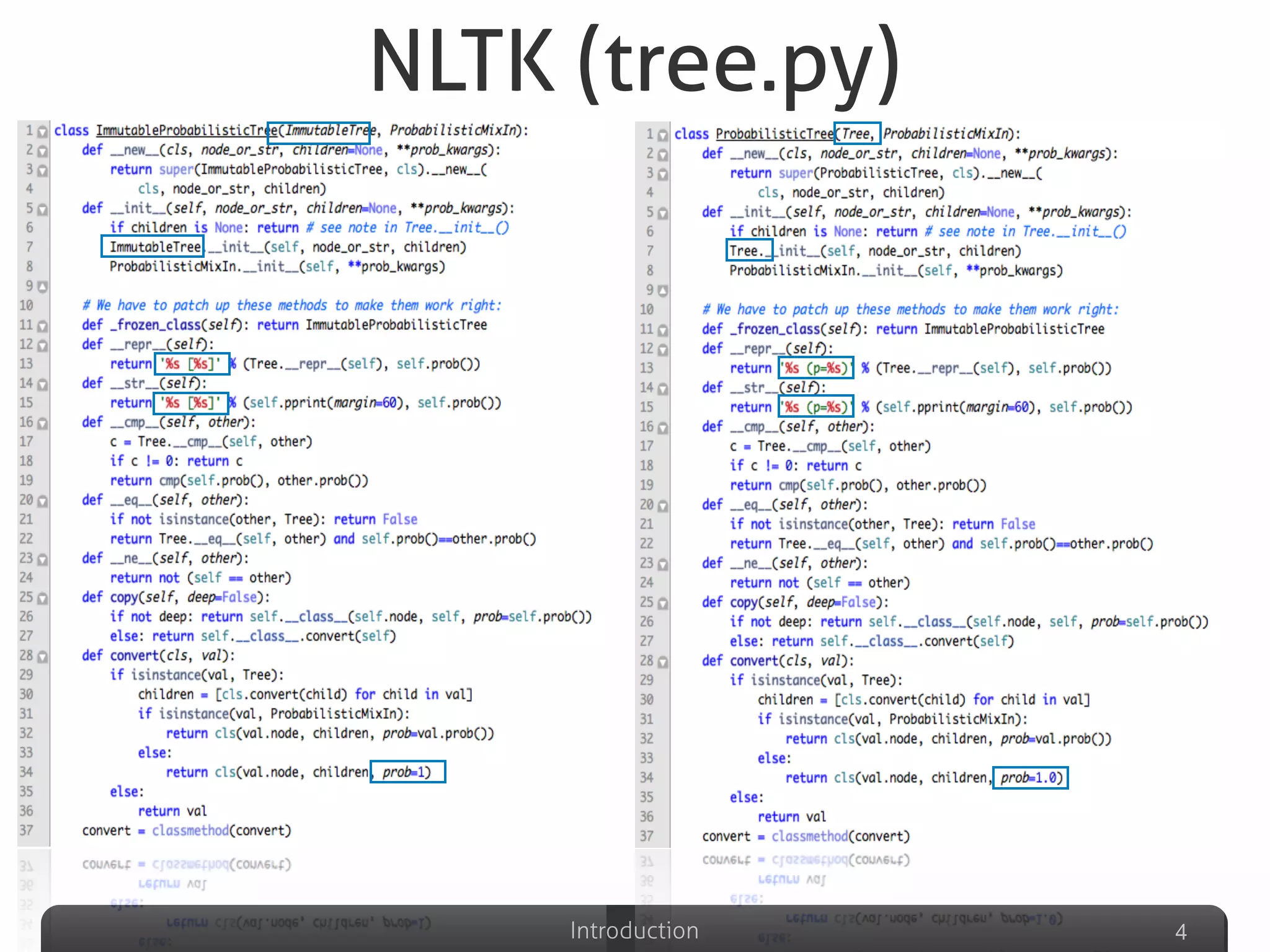

- 10.

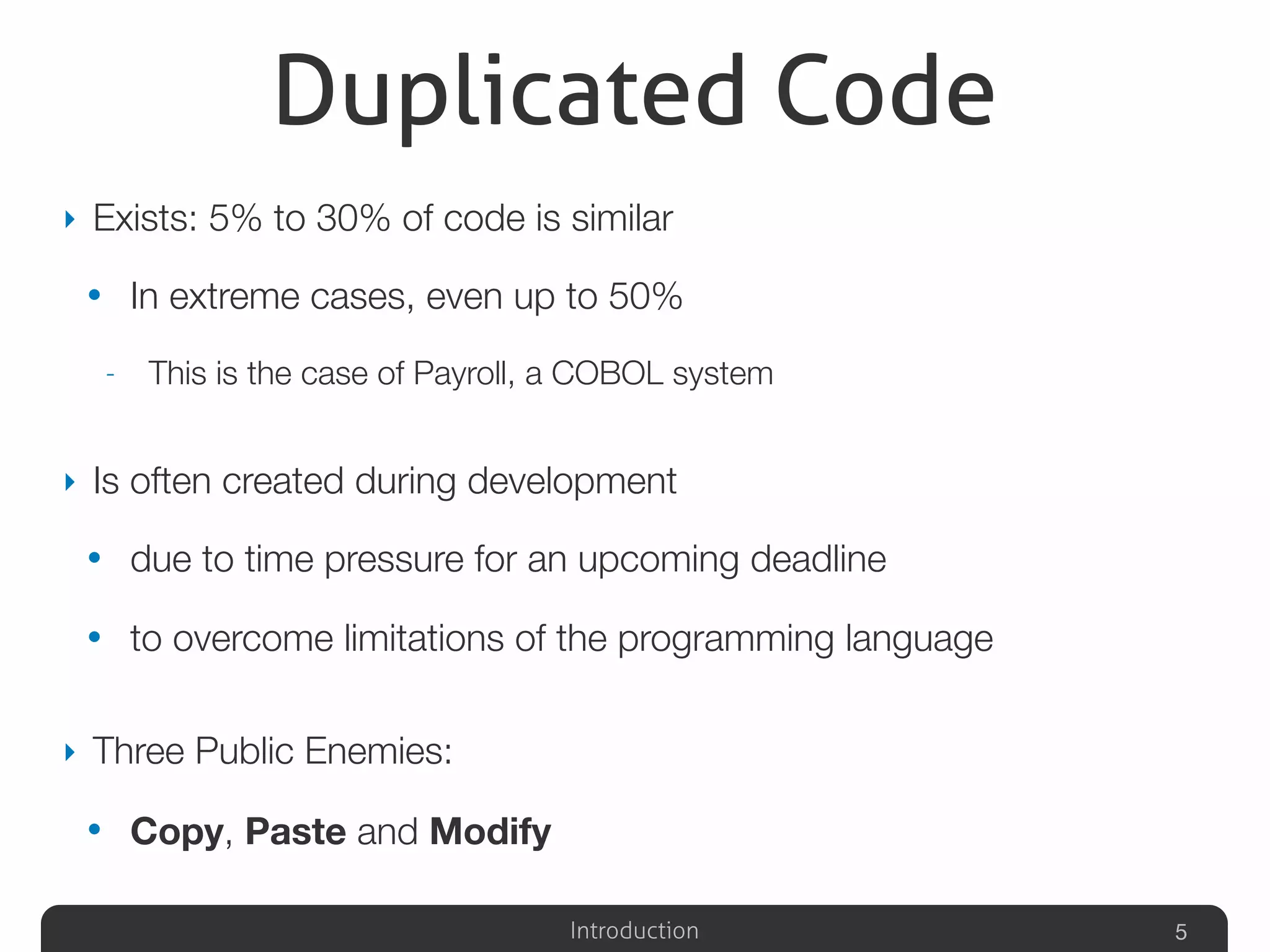

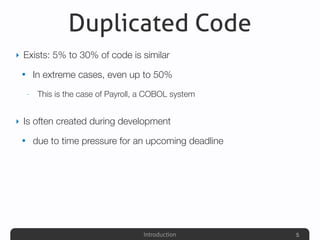

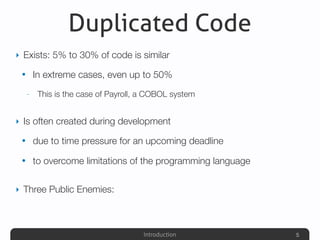

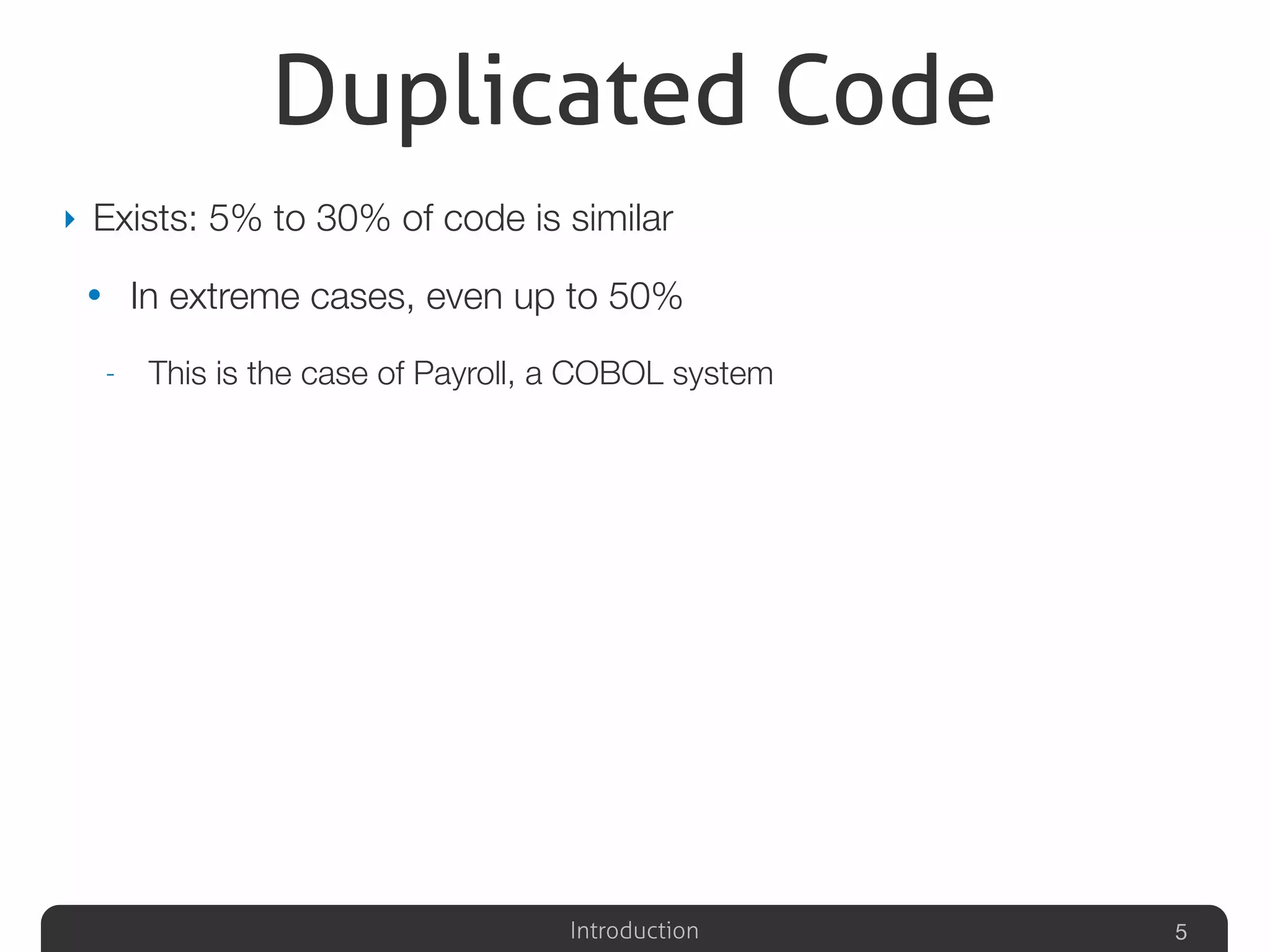

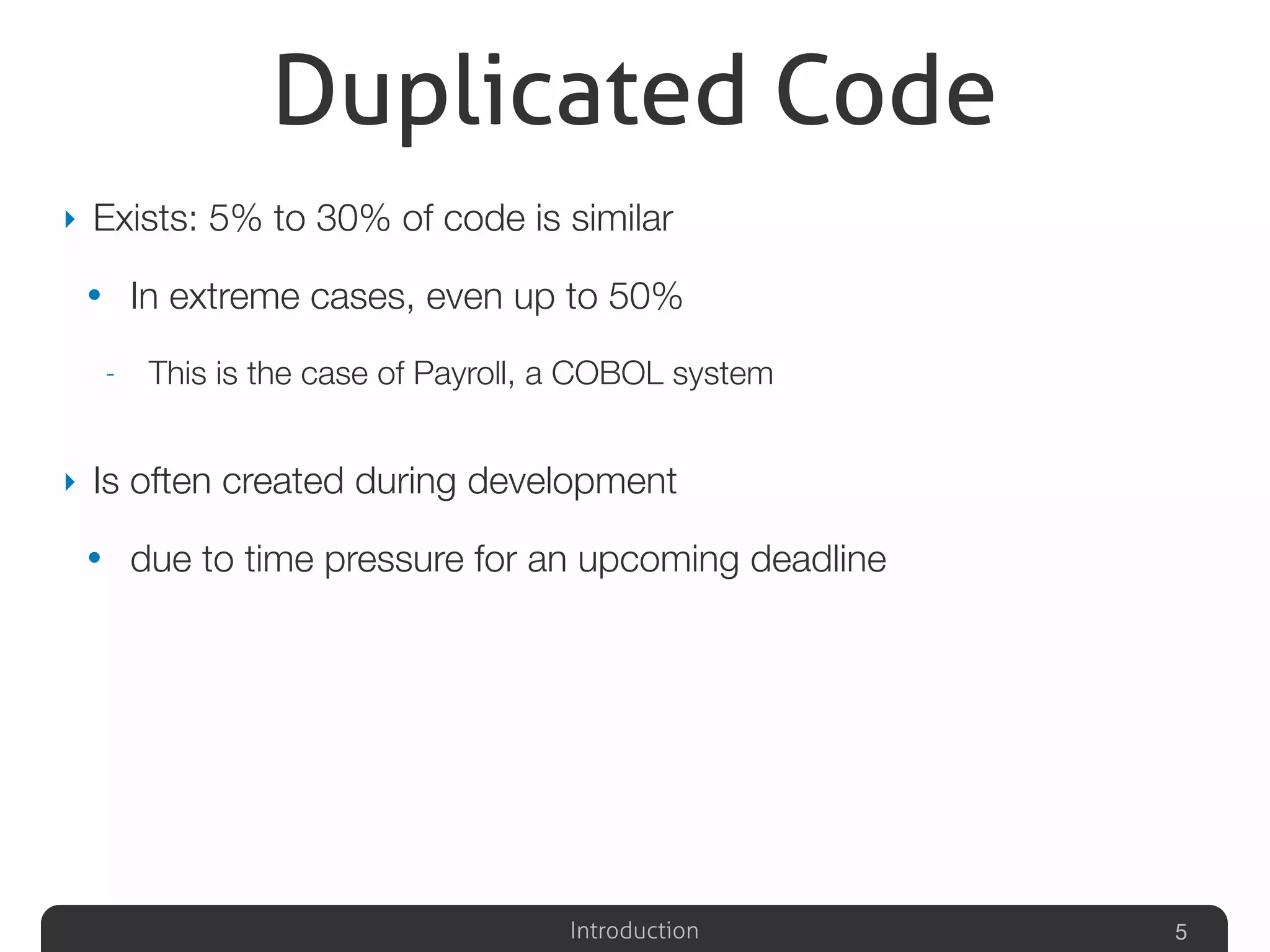

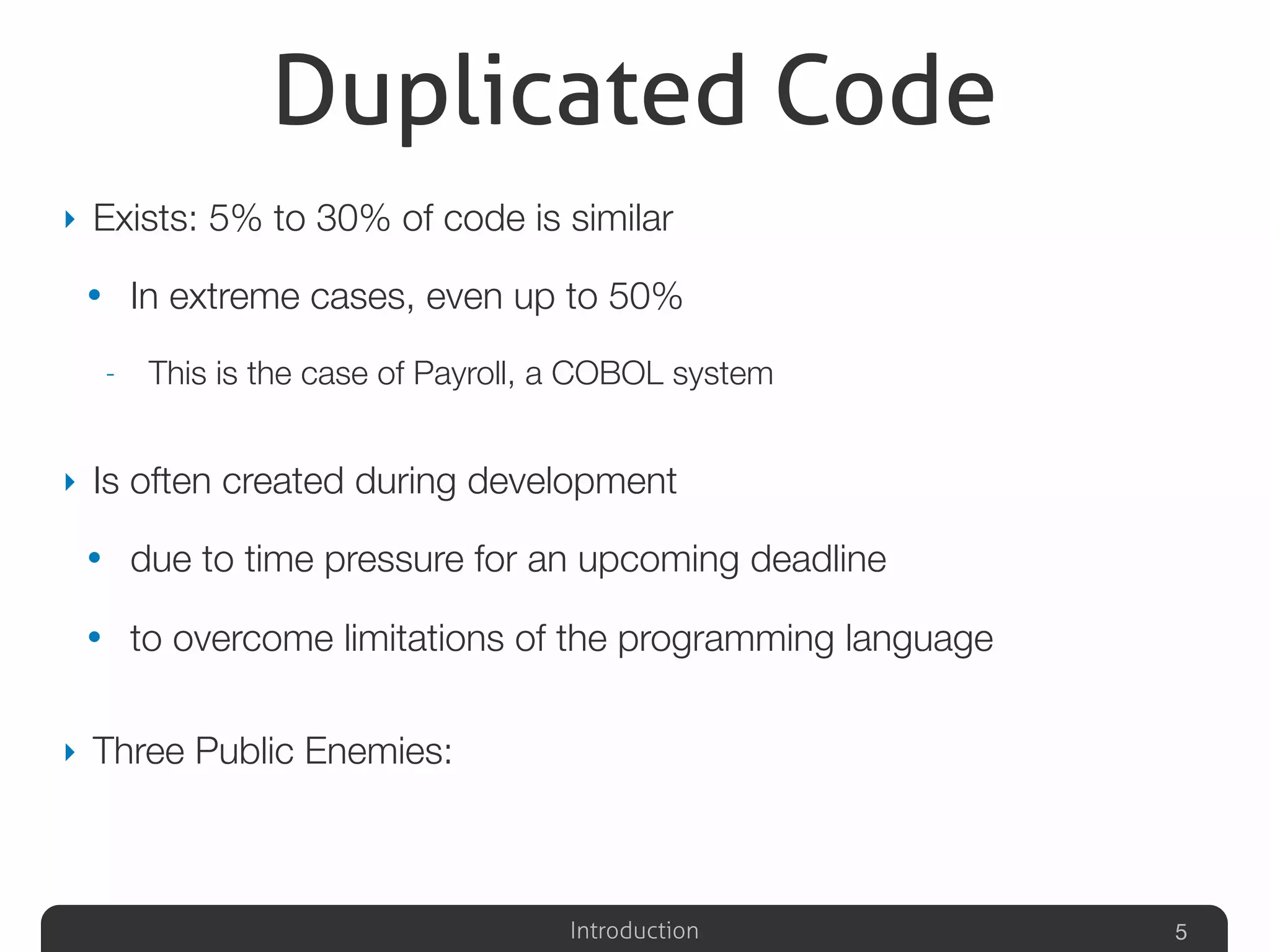

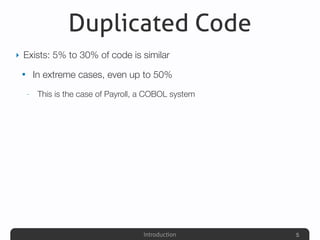

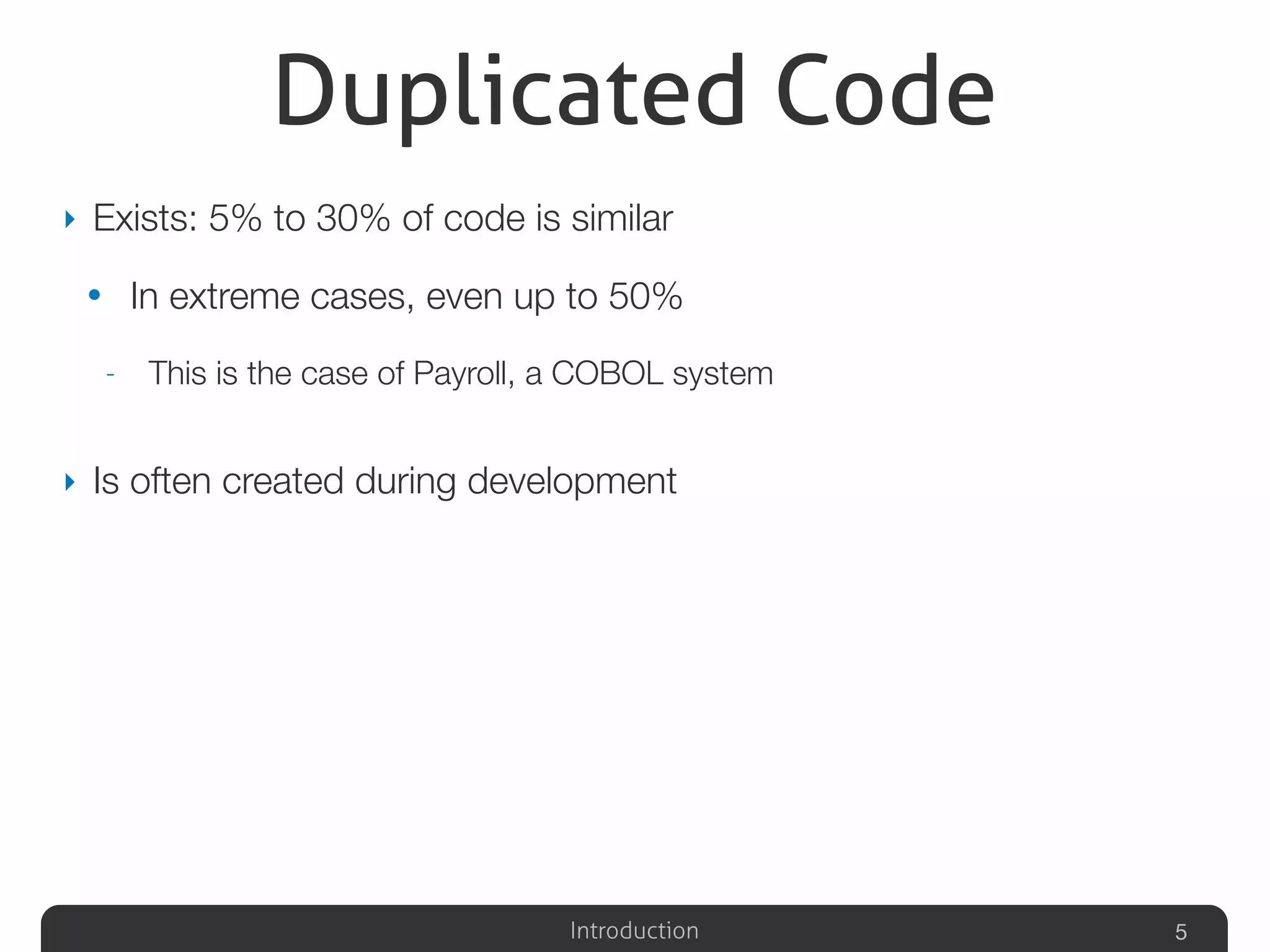

- 11. Introduction Duplicated Code ‣ Exists:5% to 30% of code is similar • In extreme cases, even up to 50% - This is the case of Payroll, a COBOL system 5

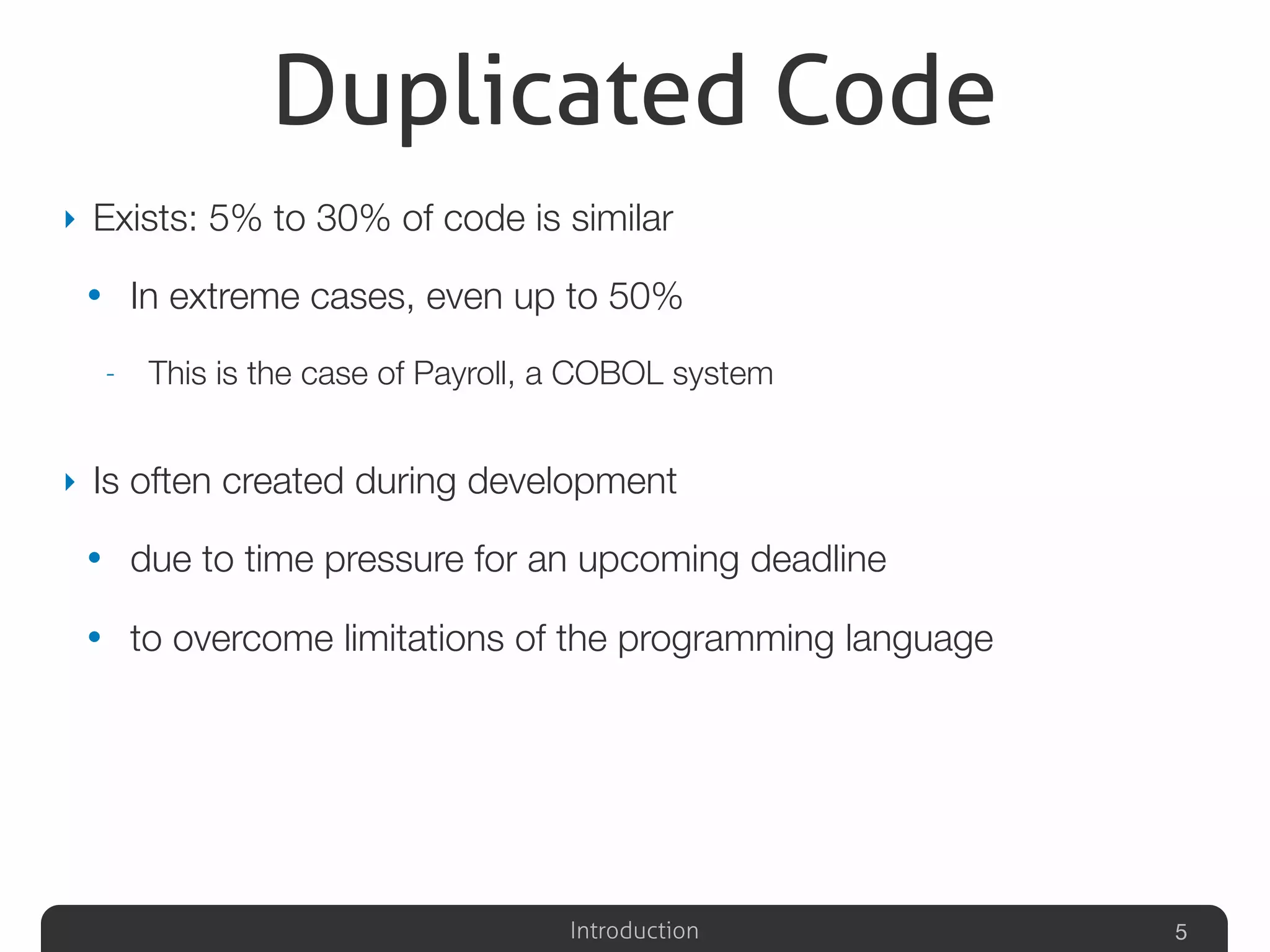

- 12. Introduction Duplicated Code ‣ Exists:5% to 30% of code is similar • In extreme cases, even up to 50% - This is the case of Payroll, a COBOL system ‣ Is often created during development 5
- 13. Introduction Duplicated Code ‣ Exists:5% to 30% of code is similar • In extreme cases, even up to 50% - This is the case of Payroll, a COBOL system ‣ Is often created during development • due to time pressure for an upcoming deadline 5
- 14. Introduction Duplicated Code ‣ Exists:5% to 30% of code is similar • In extreme cases, even up to 50% - This is the case of Payroll, a COBOL system ‣ Is often created during development • due to time pressure for an upcoming deadline • to overcome limitations of the programming language 5
- 15. Introduction Duplicated Code ‣ Exists:5% to 30% of code is similar • In extreme cases, even up to 50% - This is the case of Payroll, a COBOL system ‣ Is often created during development • due to time pressure for an upcoming deadline • to overcome limitations of the programming language ‣ Three Public Enemies: 5
- 16. Introduction Duplicated Code ‣ Exists:5% to 30% of code is similar • In extreme cases, even up to 50% - This is the case of Payroll, a COBOL system ‣ Is often created during development • due to time pressure for an upcoming deadline • to overcome limitations of the programming language ‣ Three Public Enemies: • Copy, Paste and Modify 5

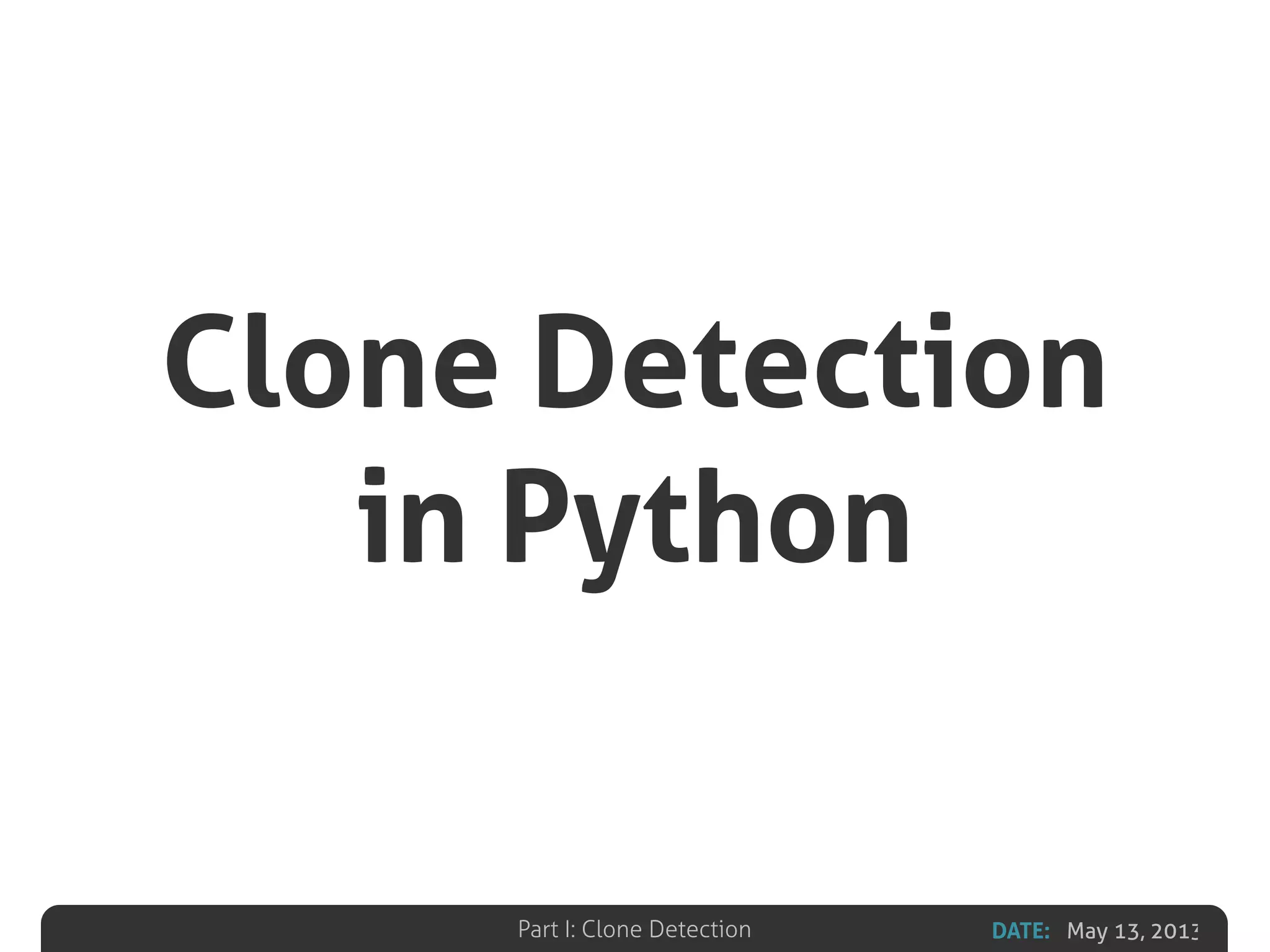

- 17. DATE: May 13,2013Part I: Clone Detection Clone Detection in Python

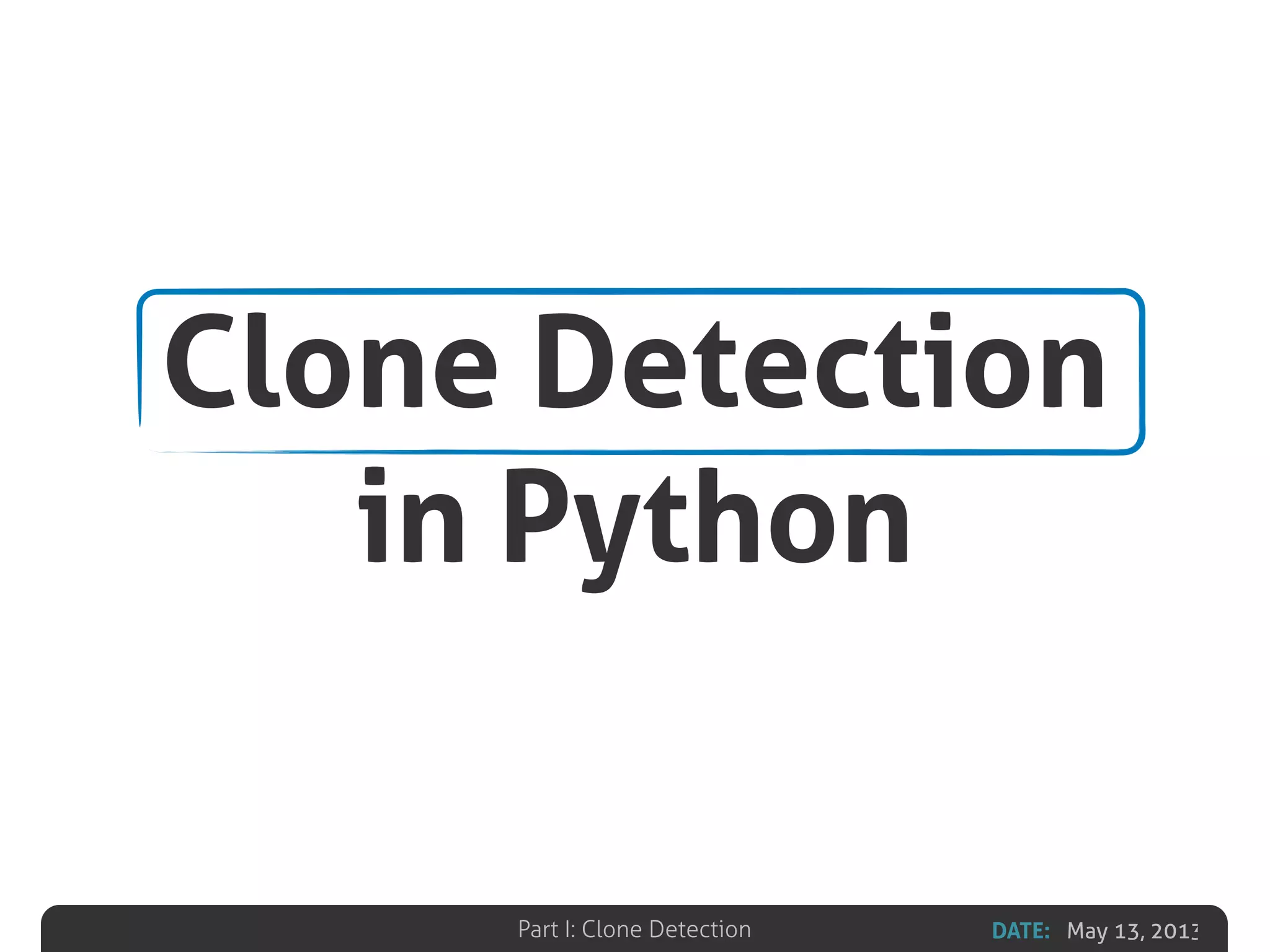

- 18. DATE: May 13,2013Part I: Clone Detection Clone Detection in Python

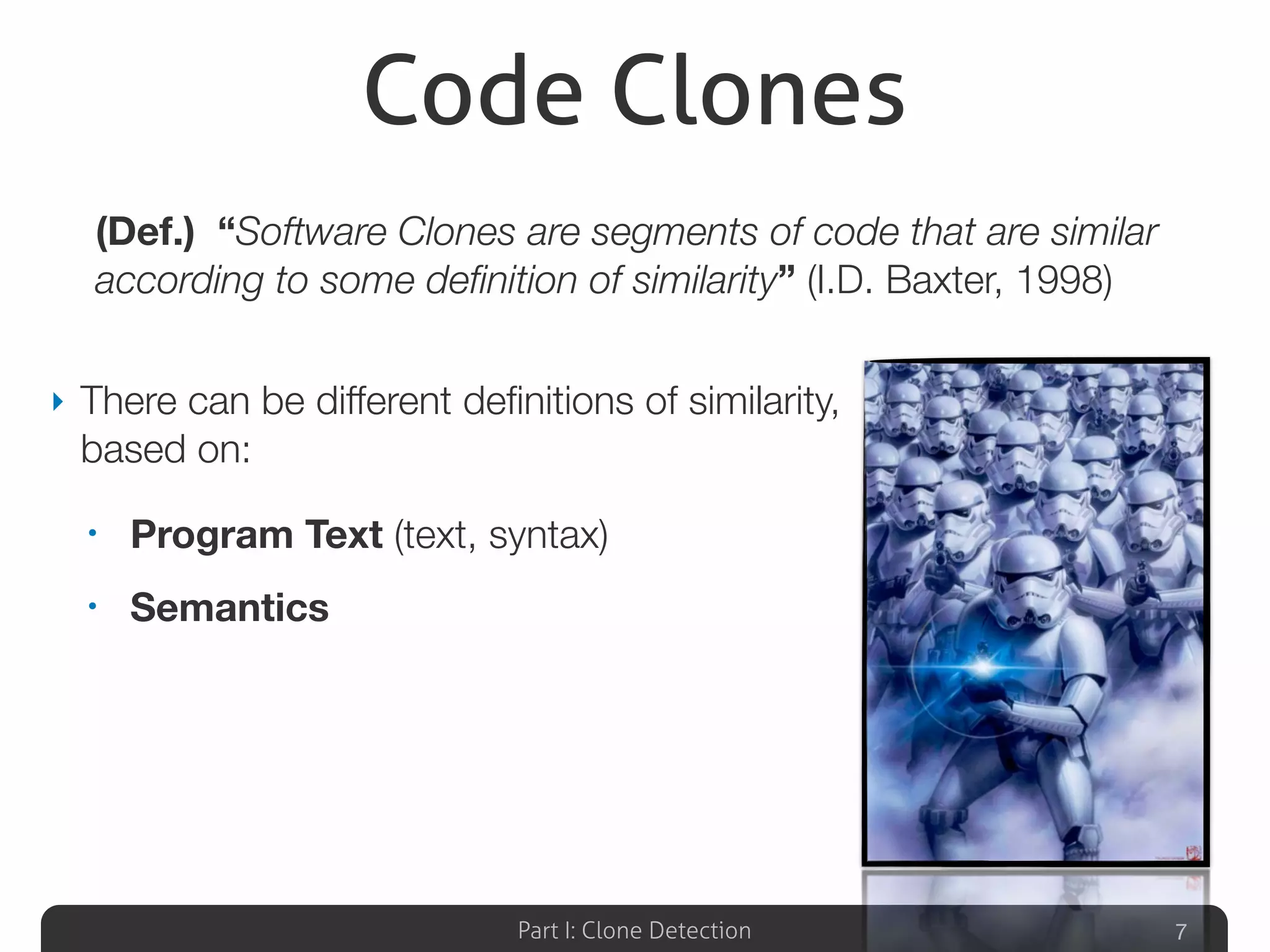

- 19. Part I: CloneDetection Code Clones ‣ There can be different definitions of similarity, based on: • Program Text (text, syntax) • Semantics 7 (Def.) “Software Clones are segments of code that are similar according to some definition of similarity” (I.D. Baxter, 1998)

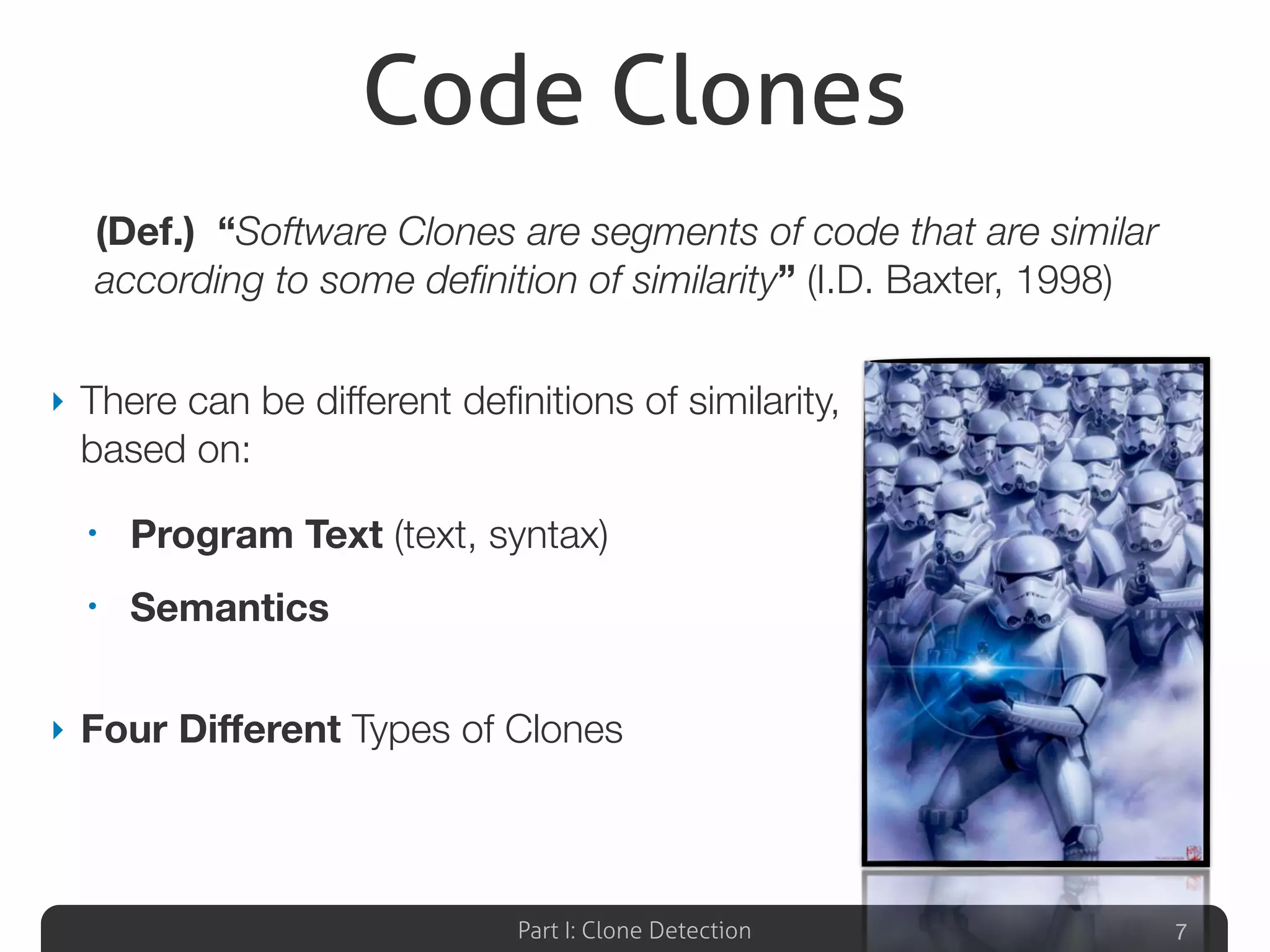

- 20. Part I: CloneDetection Code Clones ‣ There can be different definitions of similarity, based on: • Program Text (text, syntax) • Semantics ‣ Four Different Types of Clones 7 (Def.) “Software Clones are segments of code that are similar according to some definition of similarity” (I.D. Baxter, 1998)

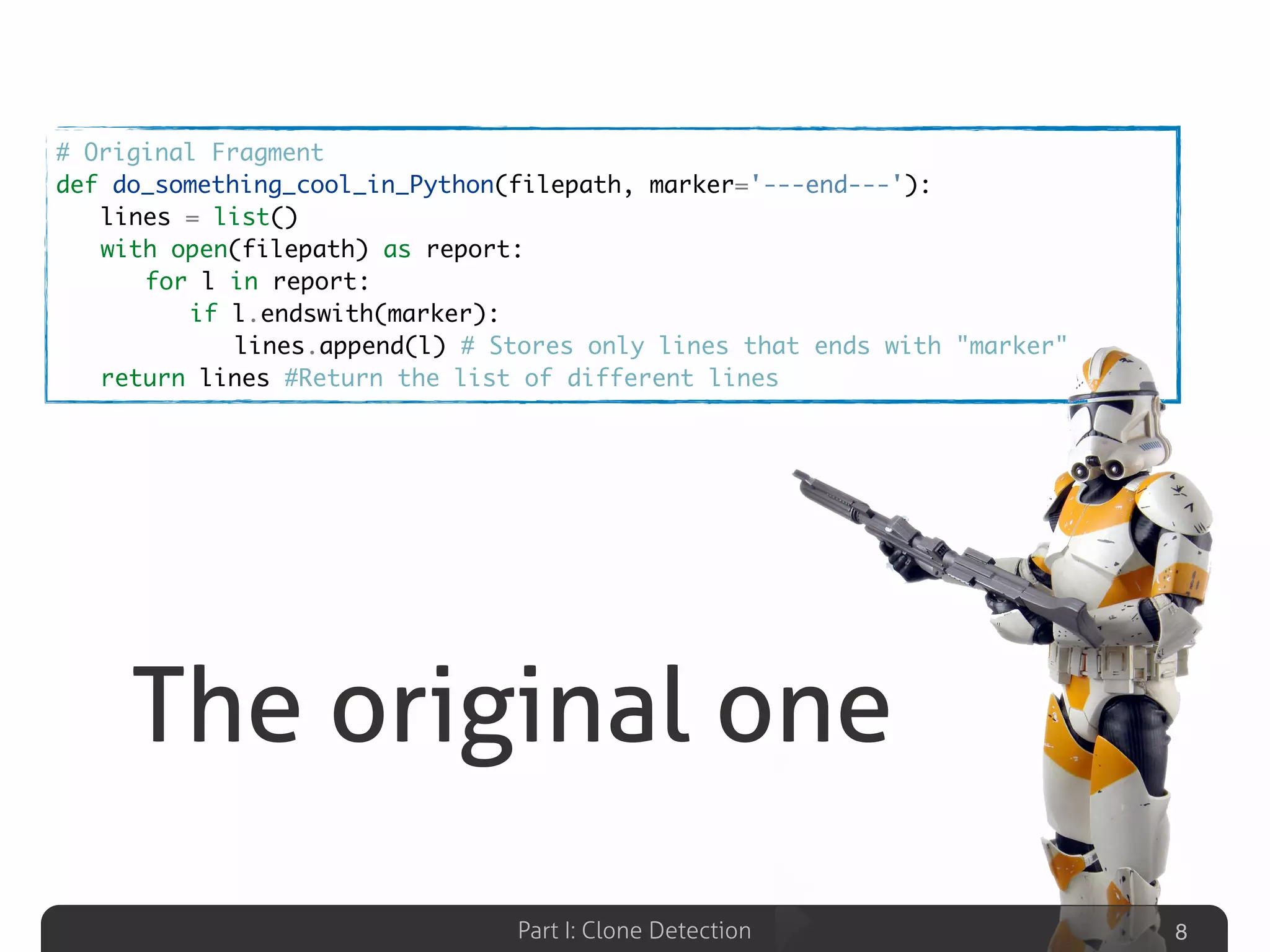

- 21. Part I: CloneDetection The original one 8 # Original Fragment def do_something_cool_in_Python(filepath, marker='---end---'): lines = list() with open(filepath) as report: for l in report: if l.endswith(marker): lines.append(l) # Stores only lines that ends with "marker" return lines #Return the list of different lines

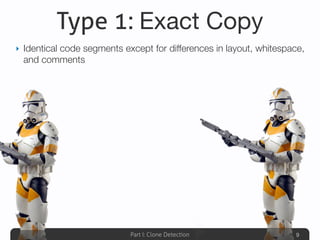

- 22. Part I: CloneDetection Type 1: Exact Copy ‣ Identical code segments except for differences in layout, whitespace, and comments 9

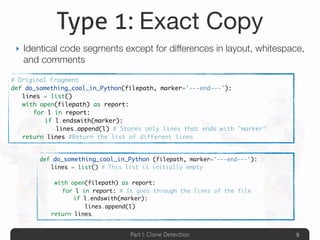

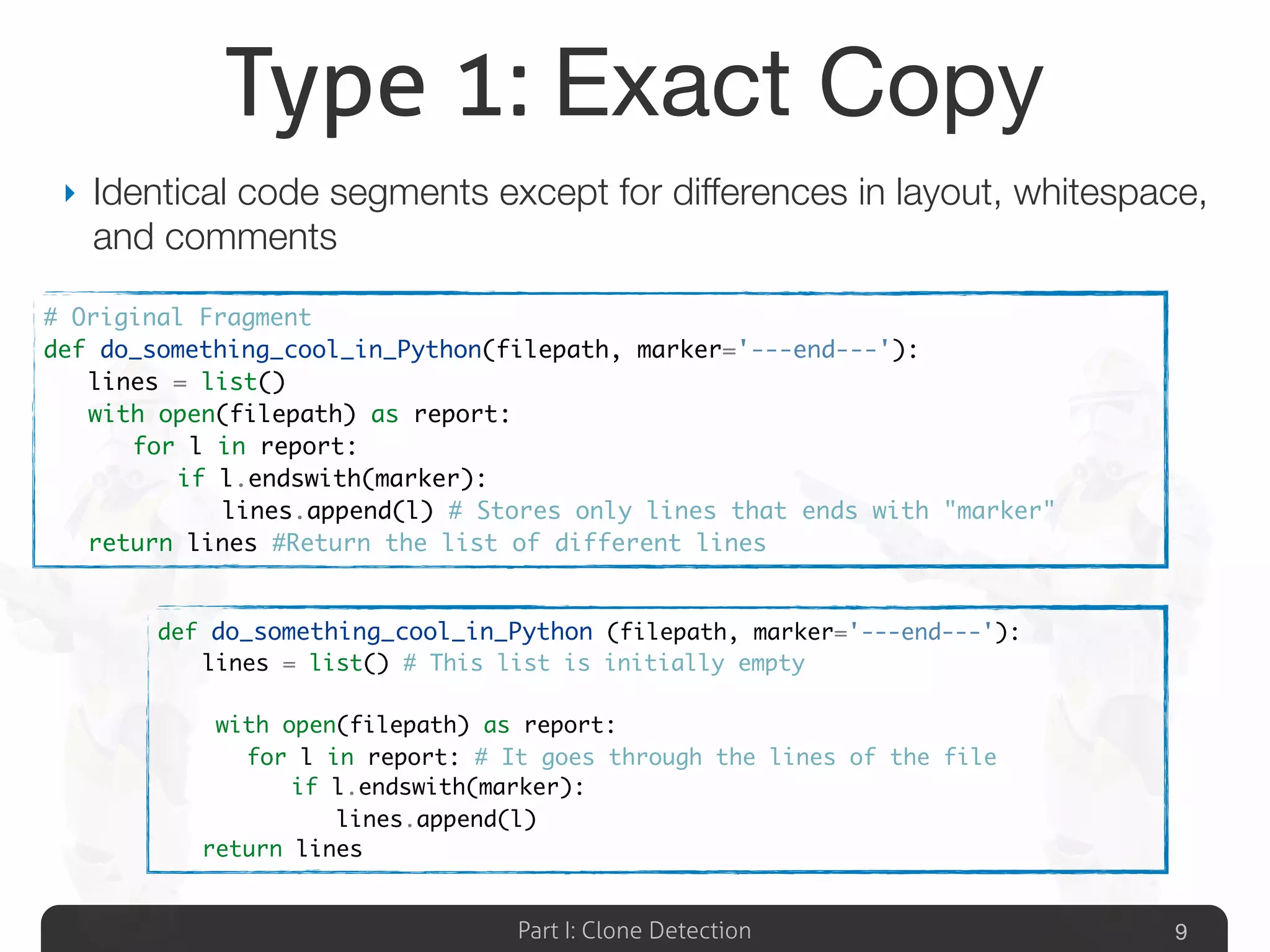

- 23. Part I: CloneDetection Type 1: Exact Copy ‣ Identical code segments except for differences in layout, whitespace, and comments 9 # Original Fragment def do_something_cool_in_Python(filepath, marker='---end---'): lines = list() with open(filepath) as report: for l in report: if l.endswith(marker): lines.append(l) # Stores only lines that ends with "marker" return lines #Return the list of different lines def do_something_cool_in_Python (filepath, marker='---end---'): lines = list() # This list is initially empty with open(filepath) as report: for l in report: # It goes through the lines of the file if l.endswith(marker): lines.append(l) return lines
- 24. Part I: CloneDetection Type 2: Parameter Substituted Clones ‣ Structurally identical segments except for differences in identifiers, literals, layout, whitespace, and comments 10

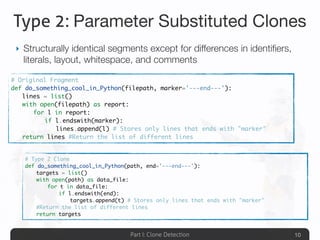

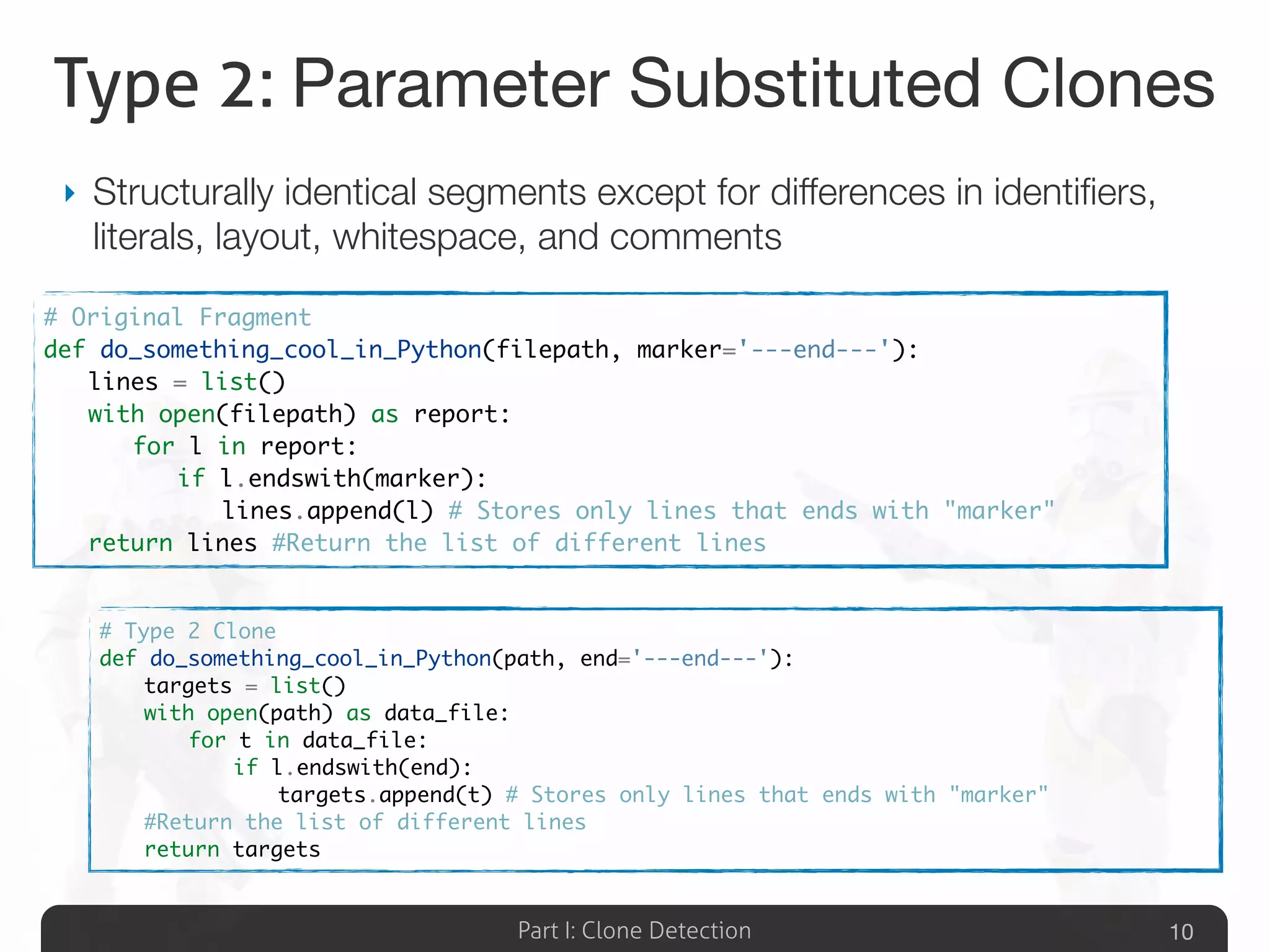

- 25. Part I: CloneDetection Type 2: Parameter Substituted Clones ‣ Structurally identical segments except for differences in identifiers, literals, layout, whitespace, and comments 10 # Type 2 Clone def do_something_cool_in_Python(path, end='---end---'): targets = list() with open(path) as data_file: for t in data_file: if l.endswith(end): targets.append(t) # Stores only lines that ends with "marker" #Return the list of different lines return targets # Original Fragment def do_something_cool_in_Python(filepath, marker='---end---'): lines = list() with open(filepath) as report: for l in report: if l.endswith(marker): lines.append(l) # Stores only lines that ends with "marker" return lines #Return the list of different lines

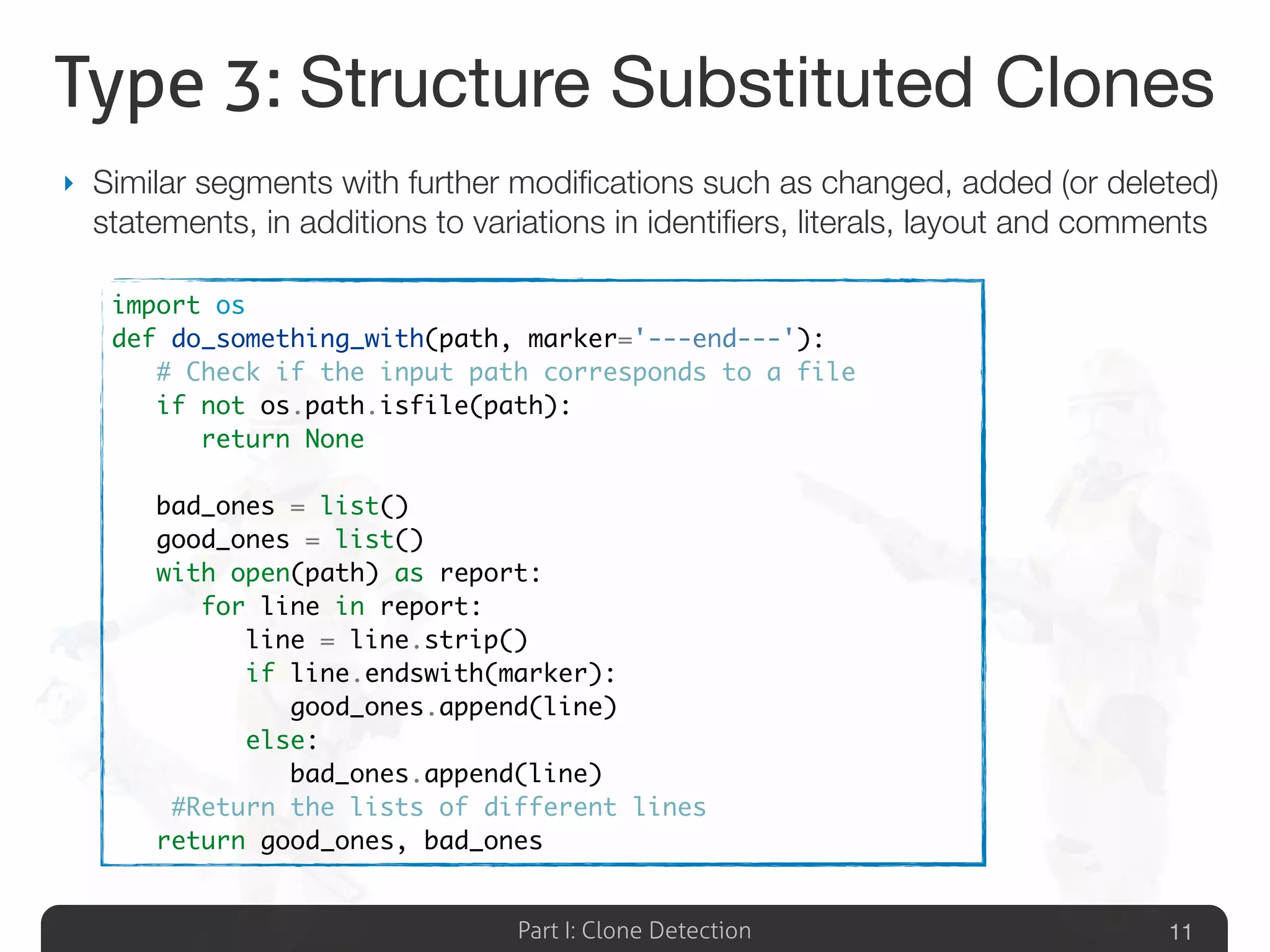

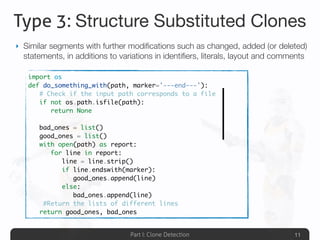

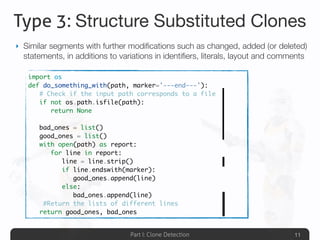

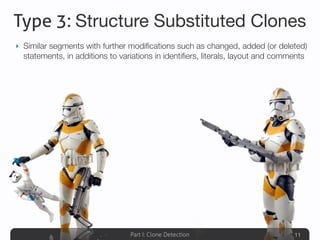

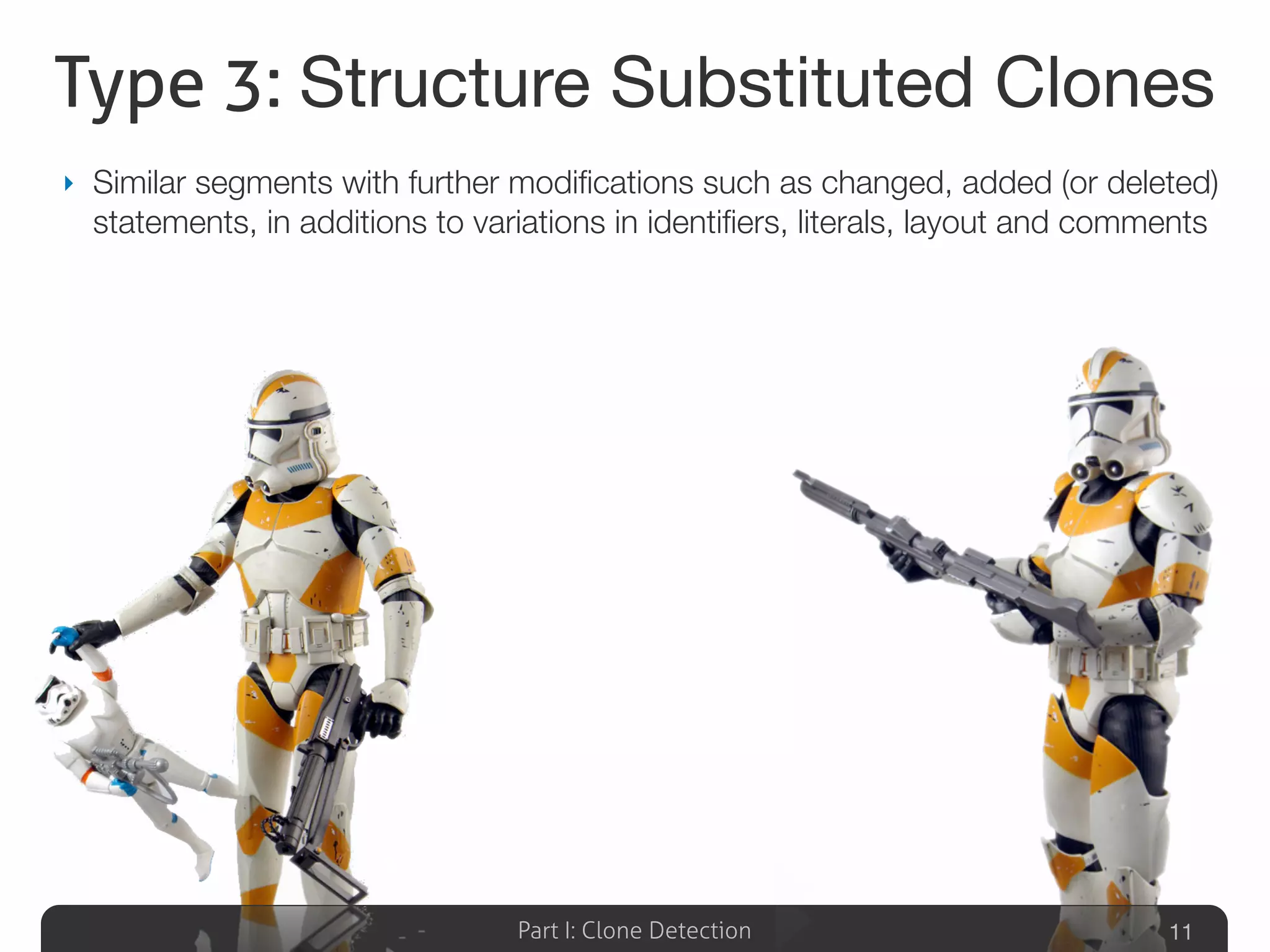

- 26. Part I: CloneDetection Type 3: Structure Substituted Clones ‣ Similar segments with further modifications such as changed, added (or deleted) statements, in additions to variations in identifiers, literals, layout and comments 11

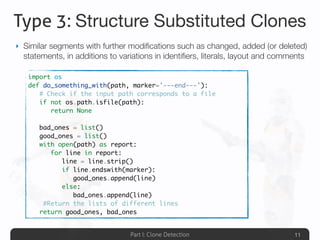

- 27. Part I: CloneDetection Type 3: Structure Substituted Clones ‣ Similar segments with further modifications such as changed, added (or deleted) statements, in additions to variations in identifiers, literals, layout and comments 11 import os def do_something_with(path, marker='---end---'): # Check if the input path corresponds to a file if not os.path.isfile(path): return None bad_ones = list() good_ones = list() with open(path) as report: for line in report: line = line.strip() if line.endswith(marker): good_ones.append(line) else: bad_ones.append(line) #Return the lists of different lines return good_ones, bad_ones
- 28. Part I: CloneDetection Type 3: Structure Substituted Clones ‣ Similar segments with further modifications such as changed, added (or deleted) statements, in additions to variations in identifiers, literals, layout and comments 11 import os def do_something_with(path, marker='---end---'): # Check if the input path corresponds to a file if not os.path.isfile(path): return None bad_ones = list() good_ones = list() with open(path) as report: for line in report: line = line.strip() if line.endswith(marker): good_ones.append(line) else: bad_ones.append(line) #Return the lists of different lines return good_ones, bad_ones
- 29. Part I: CloneDetection Type 3: Structure Substituted Clones ‣ Similar segments with further modifications such as changed, added (or deleted) statements, in additions to variations in identifiers, literals, layout and comments 11 import os def do_something_with(path, marker='---end---'): # Check if the input path corresponds to a file if not os.path.isfile(path): return None bad_ones = list() good_ones = list() with open(path) as report: for line in report: line = line.strip() if line.endswith(marker): good_ones.append(line) else: bad_ones.append(line) #Return the lists of different lines return good_ones, bad_ones
- 30. Part I: CloneDetection Type 3: Structure Substituted Clones ‣ Similar segments with further modifications such as changed, added (or deleted) statements, in additions to variations in identifiers, literals, layout and comments 11 import os def do_something_with(path, marker='---end---'): # Check if the input path corresponds to a file if not os.path.isfile(path): return None bad_ones = list() good_ones = list() with open(path) as report: for line in report: line = line.strip() if line.endswith(marker): good_ones.append(line) else: bad_ones.append(line) #Return the lists of different lines return good_ones, bad_ones

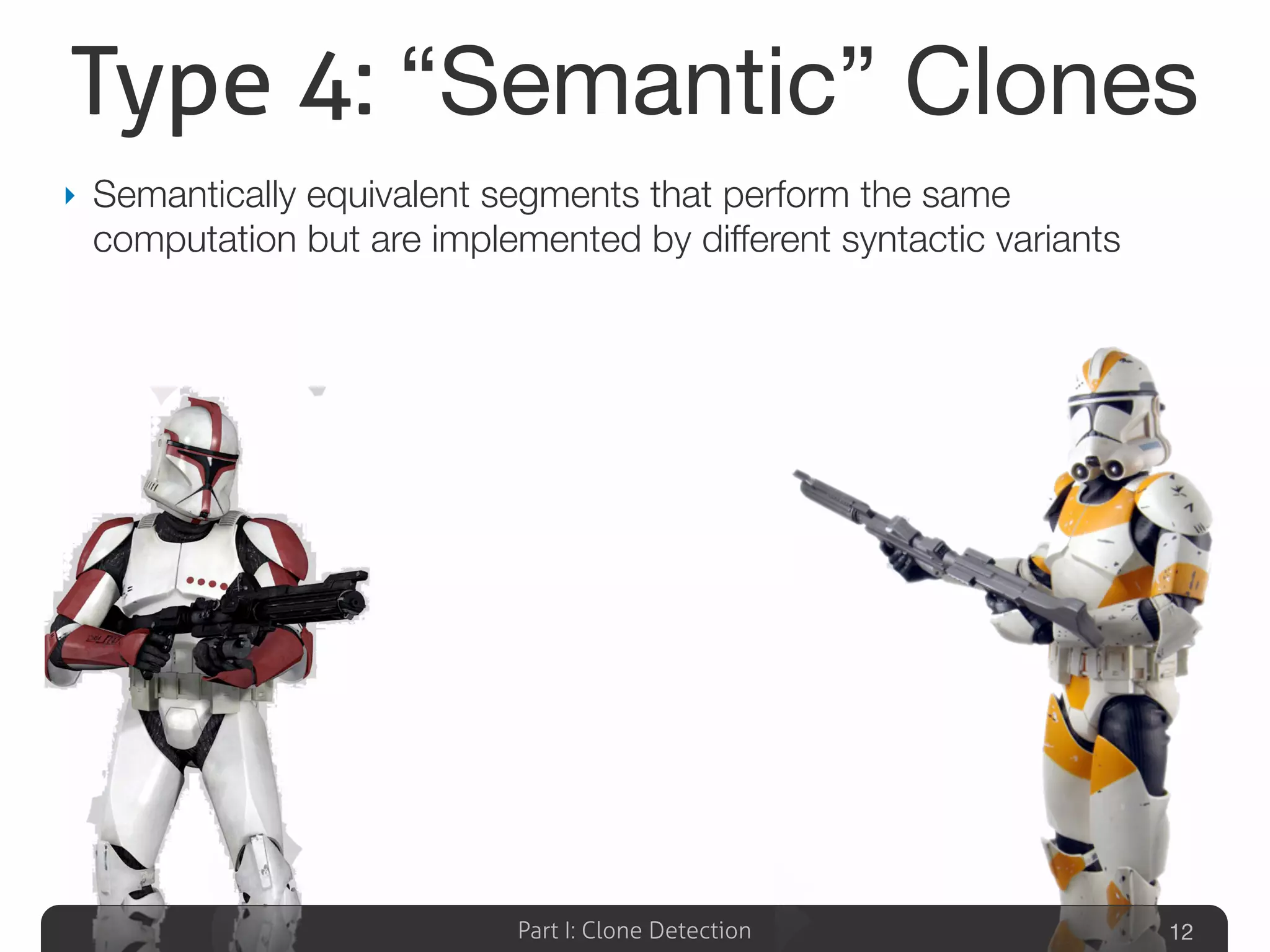

- 31. Part I: CloneDetection Type 4: “Semantic” Clones ‣ Semantically equivalent segments that perform the same computation but are implemented by different syntactic variants 12

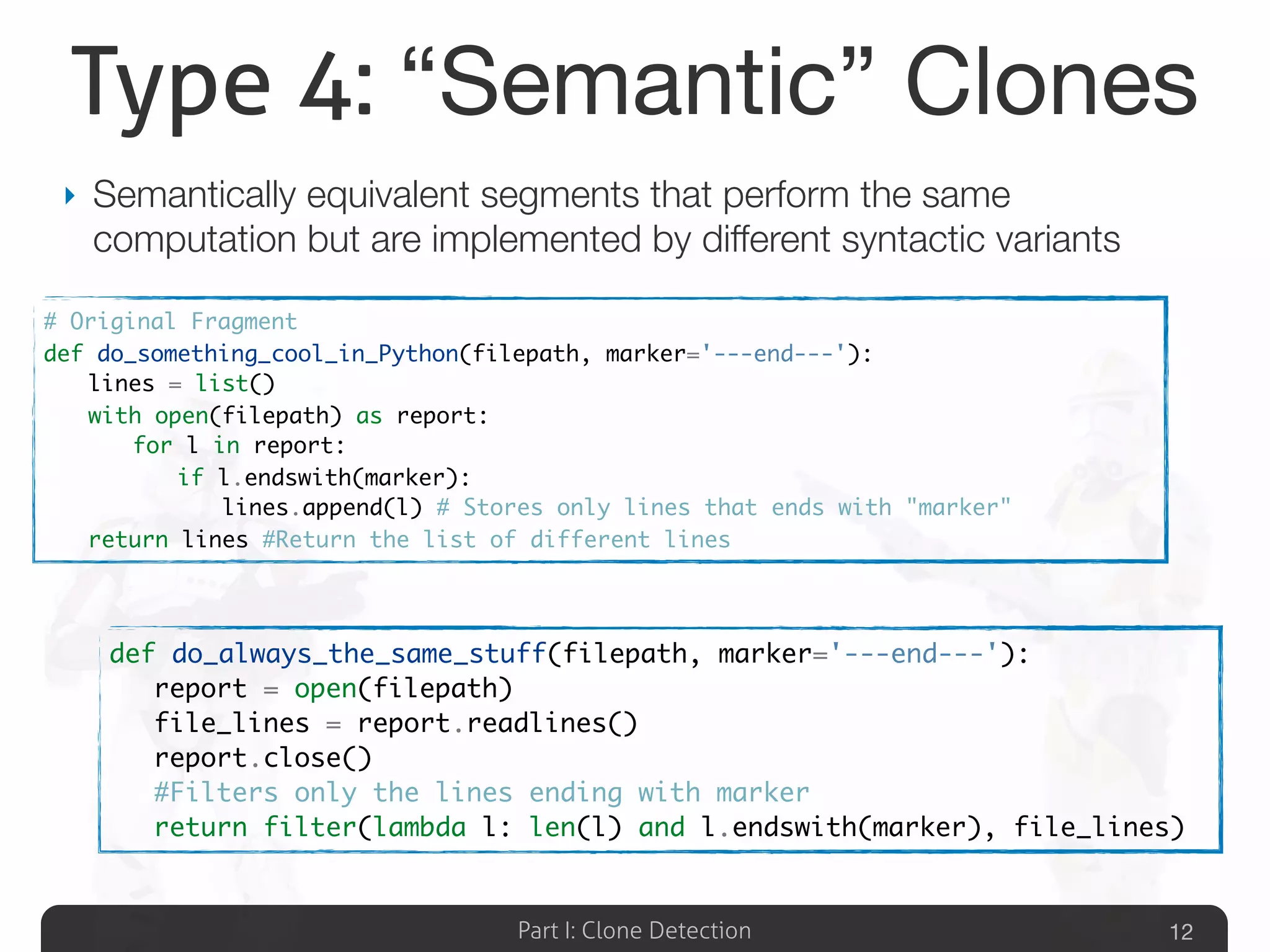

- 32. Part I: CloneDetection Type 4: “Semantic” Clones ‣ Semantically equivalent segments that perform the same computation but are implemented by different syntactic variants 12 # Original Fragment def do_something_cool_in_Python(filepath, marker='---end---'): lines = list() with open(filepath) as report: for l in report: if l.endswith(marker): lines.append(l) # Stores only lines that ends with "marker" return lines #Return the list of different lines def do_always_the_same_stuff(filepath, marker='---end---'): report = open(filepath) file_lines = report.readlines() report.close() #Filters only the lines ending with marker return filter(lambda l: len(l) and l.endswith(marker), file_lines)

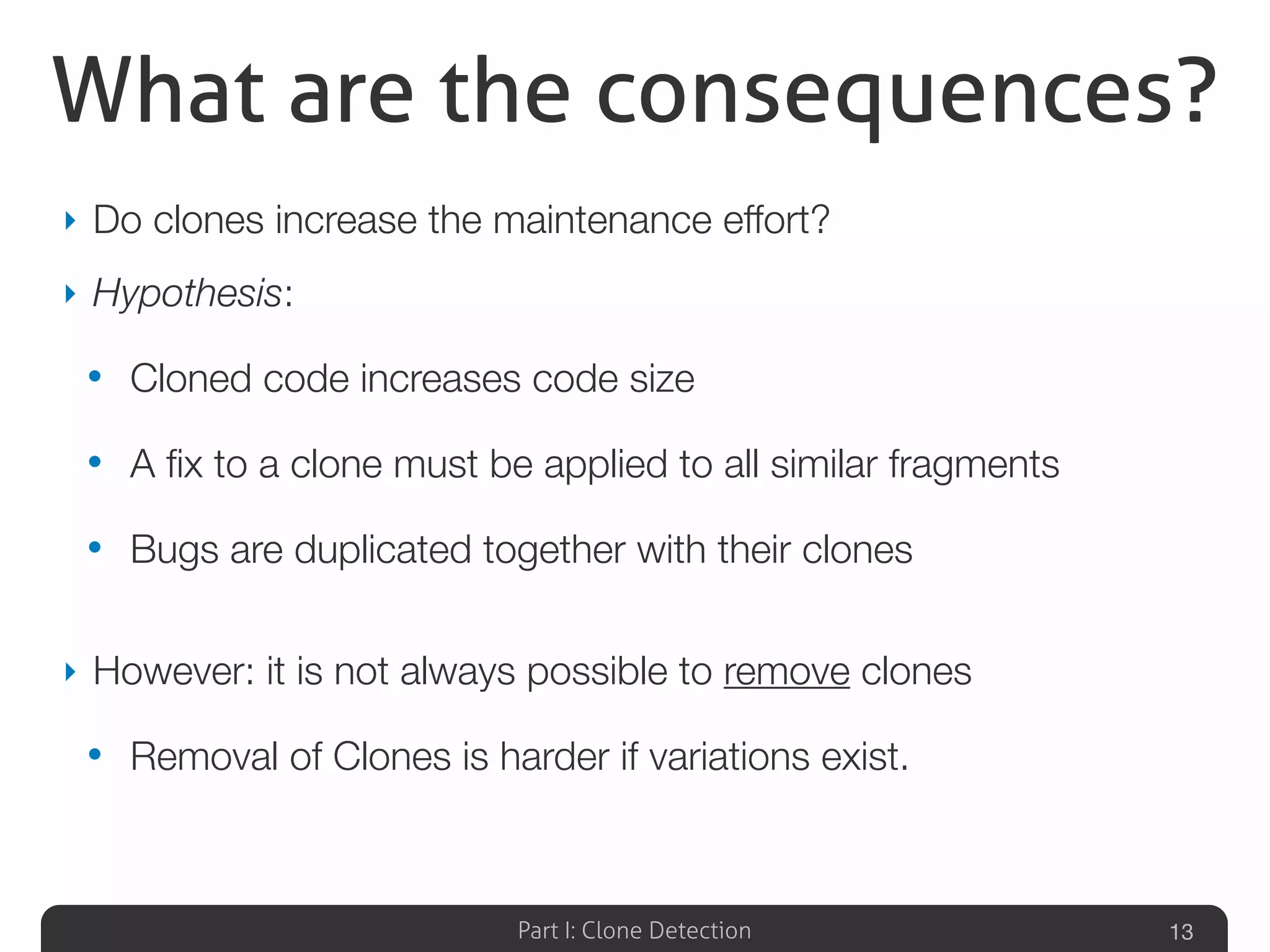

- 33. Part I: CloneDetection What are the consequences? ‣ Do clones increase the maintenance effort? ‣ Hypothesis: • Cloned code increases code size • A fix to a clone must be applied to all similar fragments • Bugs are duplicated together with their clones ‣ However: it is not always possible to remove clones • Removal of Clones is harder if variations exist. 13

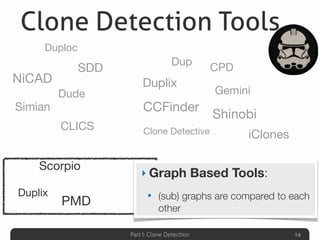

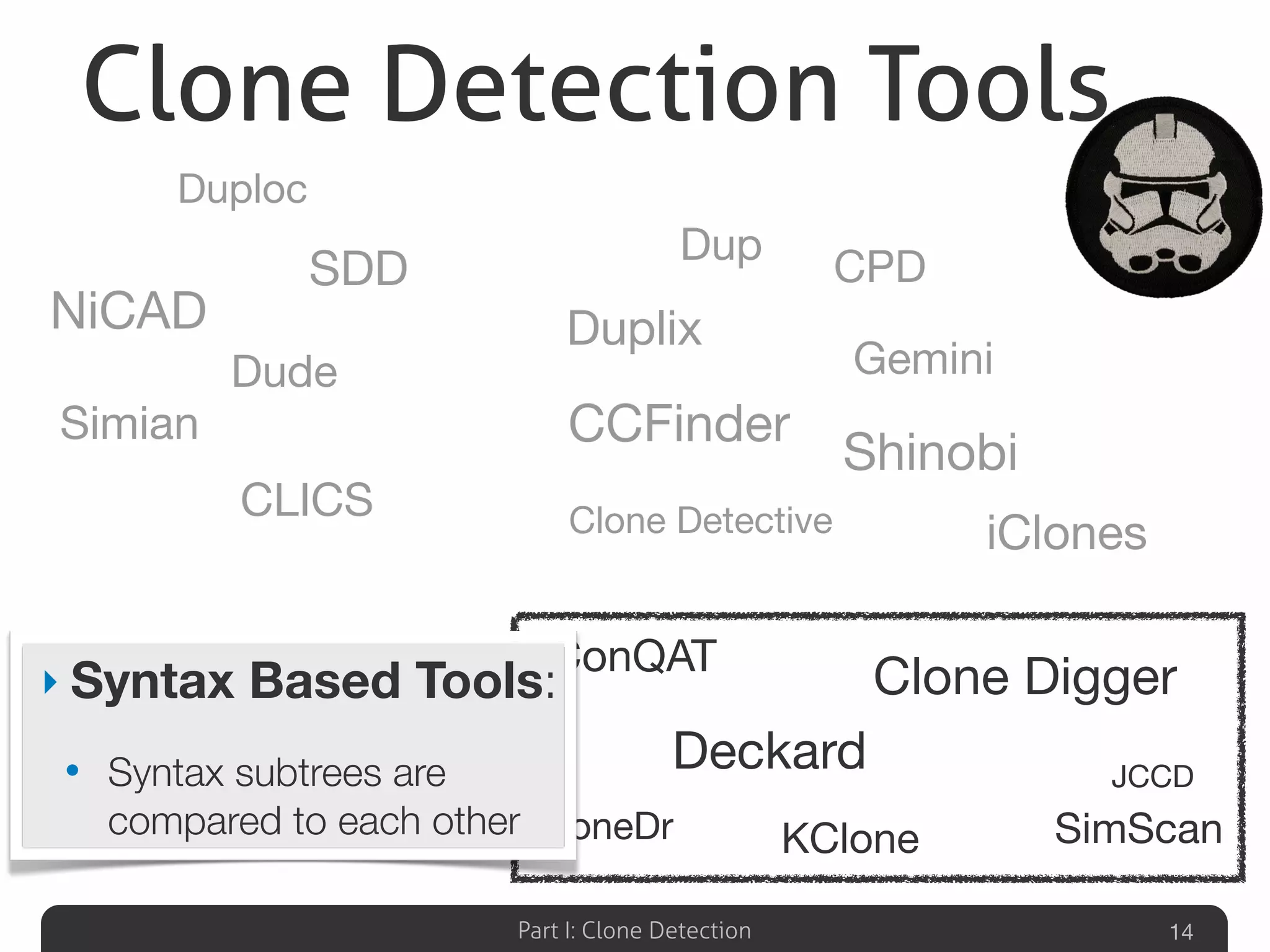

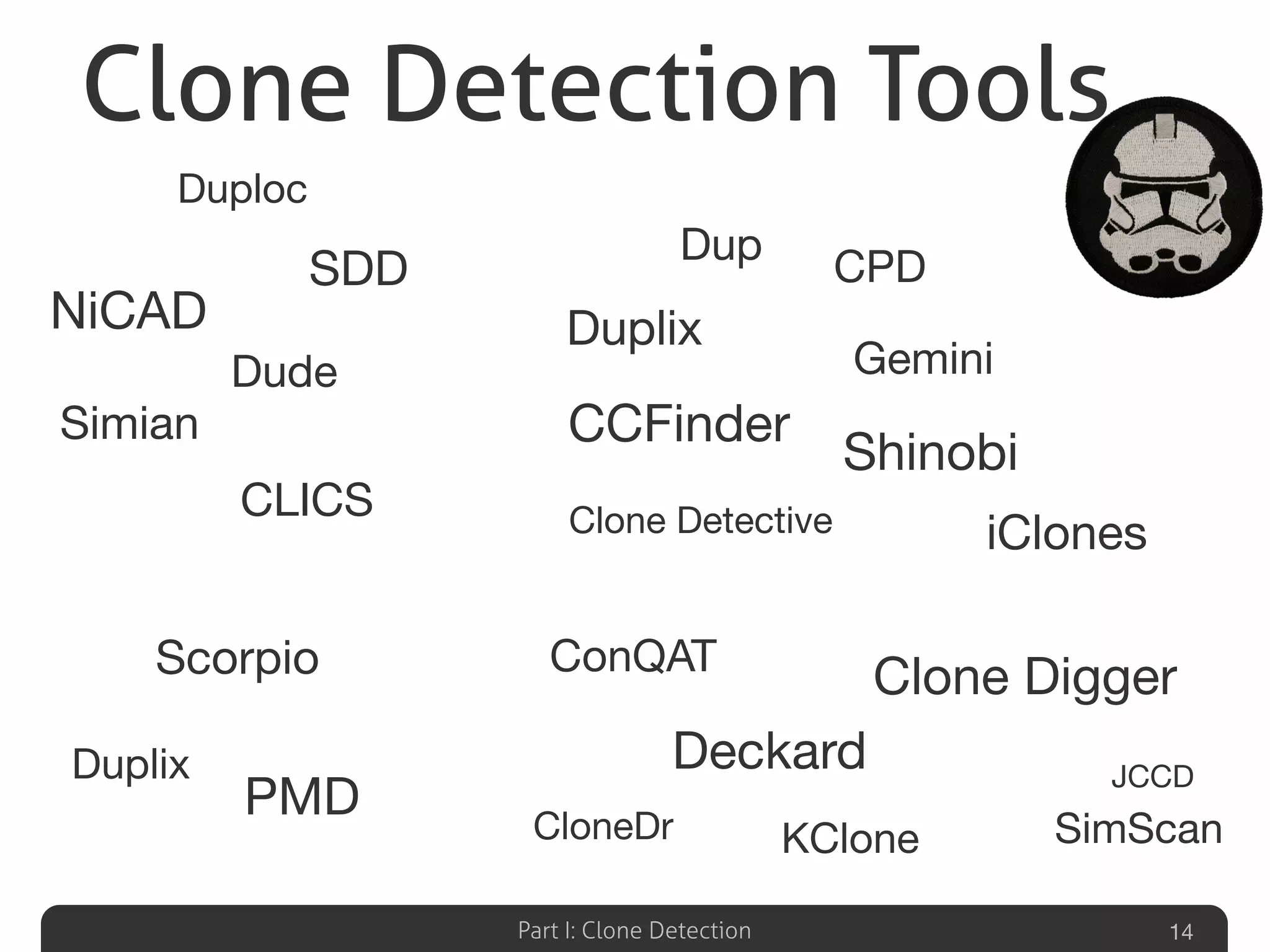

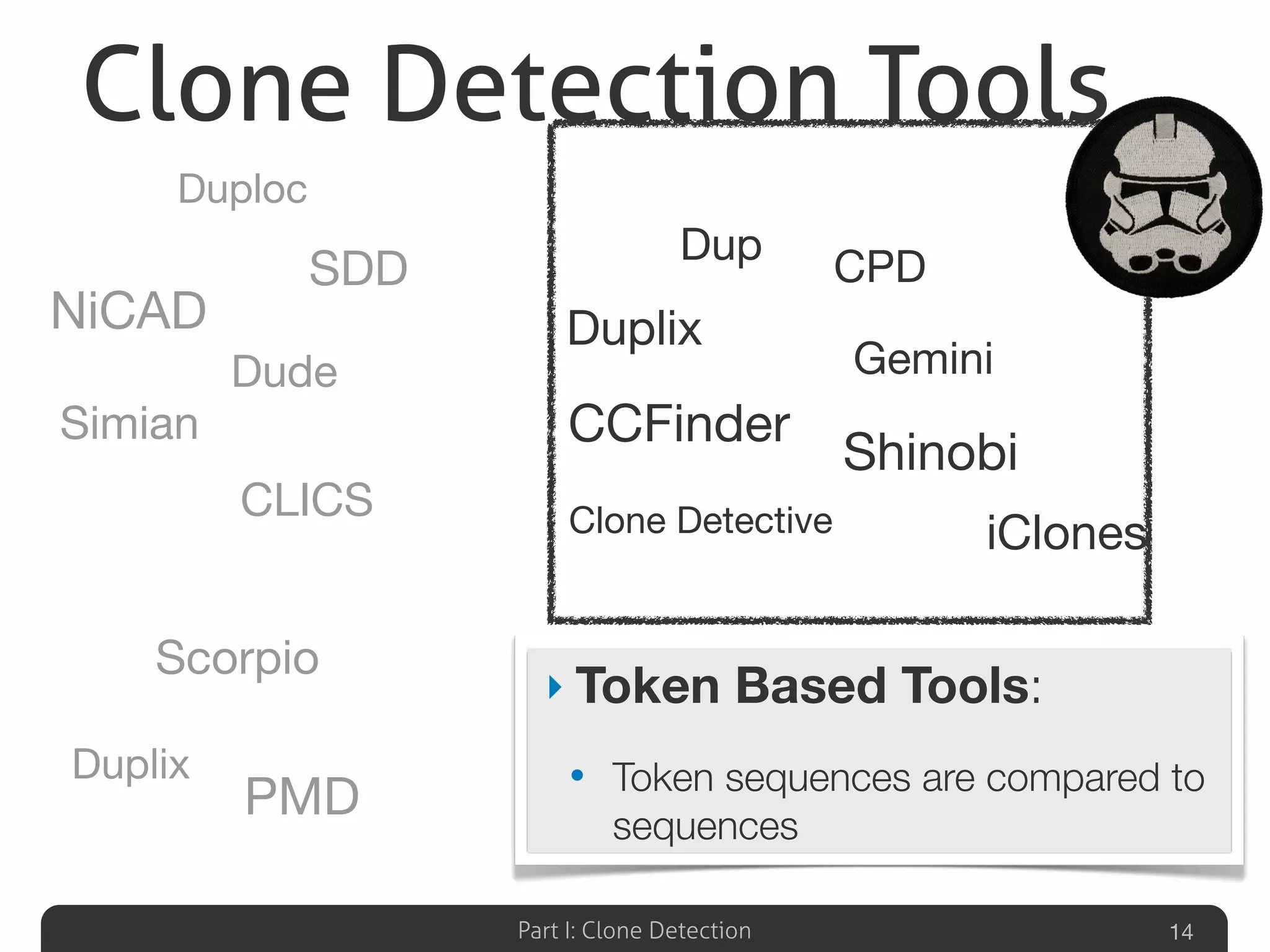

- 34. Part I: CloneDetection 14 Duplix Scorpio PMD CCFinder Dup CPD Duplix Shinobi Clone Detective Gemini iClones KClone ConQAT Deckard Clone Digger JCCD CloneDr SimScan CLICS NiCAD Simian Duploc Dude SDD Clone Detection Tools

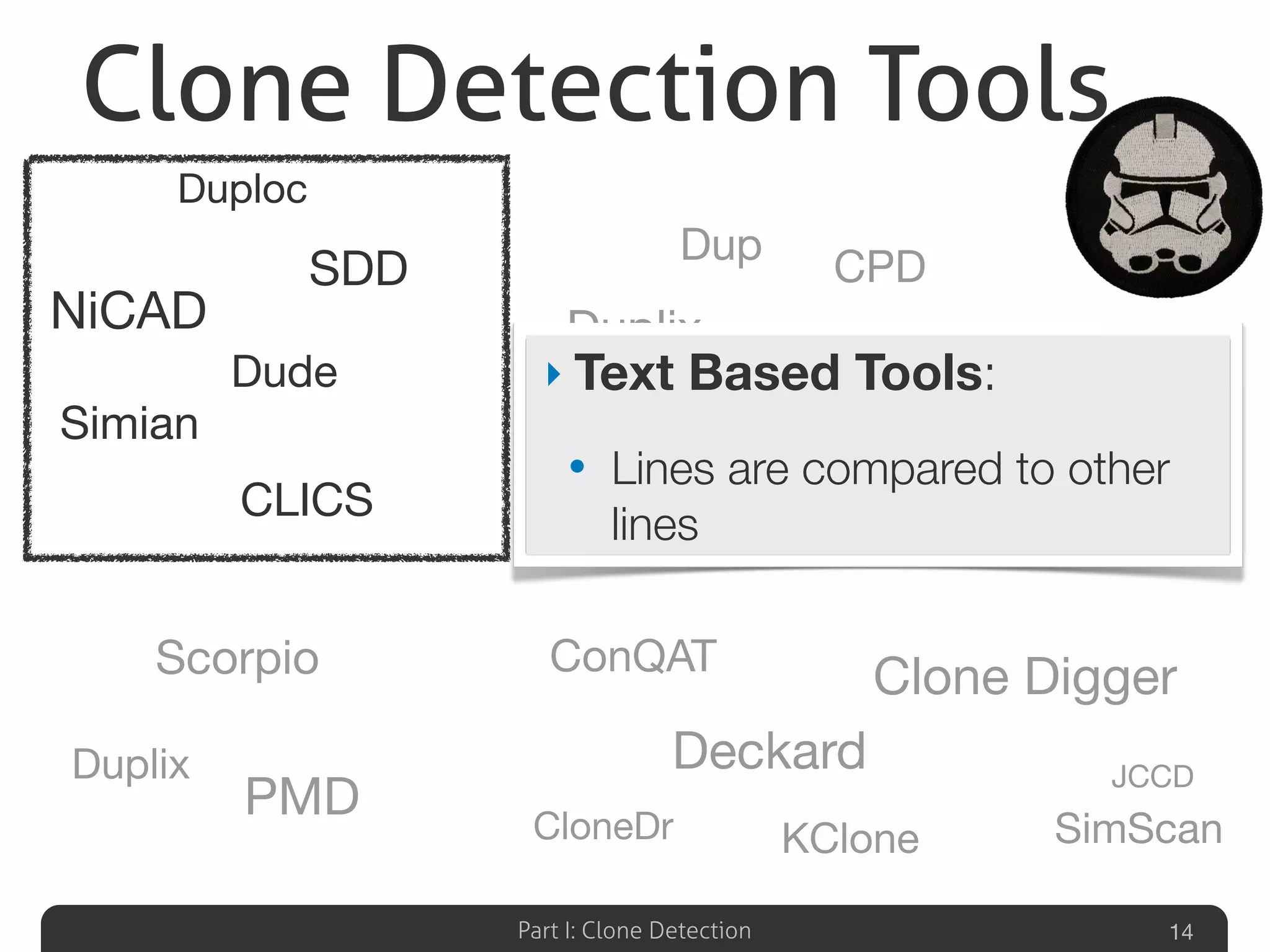

- 35. Part I: CloneDetection 14 Duplix Scorpio PMD CCFinder Dup CPD Duplix Shinobi Clone Detective Gemini iClones KClone ConQAT Deckard Clone Digger JCCD CloneDr SimScan CLICS NiCAD Simian Duploc Dude SDD ‣ Text Based Tools: • Lines are compared to other lines Clone Detection Tools
- 36. Part I: CloneDetection 14 Duplix Scorpio PMD CCFinder Dup CPD Duplix Shinobi Clone Detective Gemini iClones KClone ConQAT Deckard Clone Digger JCCD CloneDr SimScan CLICS NiCAD Simian Duploc Dude SDD ‣ Token Based Tools: • Token sequences are compared to sequences Clone Detection Tools
- 37. Part I: CloneDetection 14 Duplix Scorpio PMD CCFinder Dup CPD Duplix Shinobi Clone Detective Gemini iClones KClone ConQAT Deckard Clone Digger JCCD CloneDr SimScan CLICS NiCAD Simian Duploc Dude SDD ‣ Syntax Based Tools: • Syntax subtrees are compared to each other Clone Detection Tools

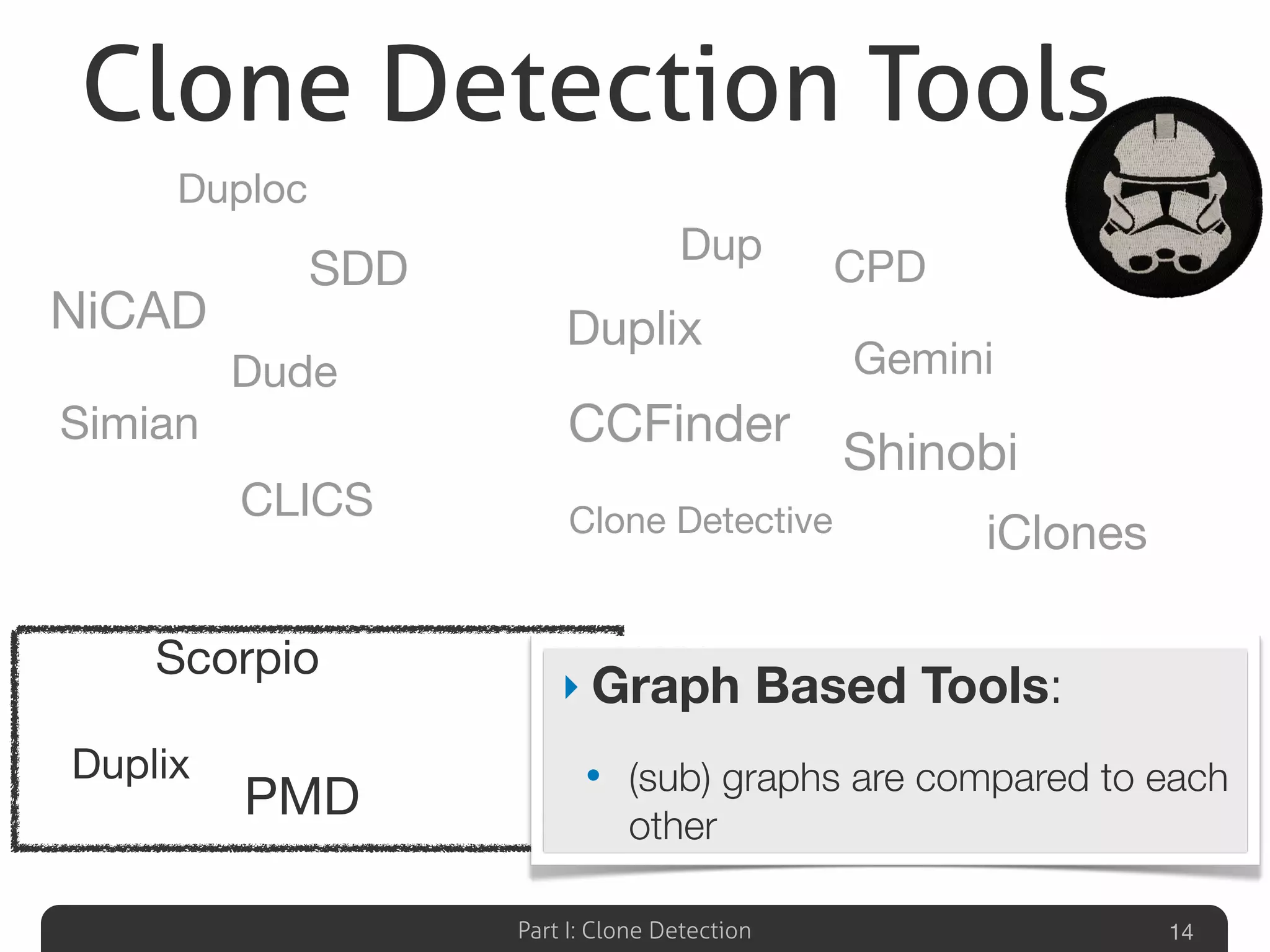

- 38. Part I: CloneDetection 14 Duplix Scorpio PMD CCFinder Dup CPD Duplix Shinobi Clone Detective Gemini iClones KClone ConQAT Deckard Clone Digger JCCD CloneDr SimScan CLICS NiCAD Simian Duploc Dude SDD ‣ Graph Based Tools: • (sub) graphs are compared to each other Clone Detection Tools

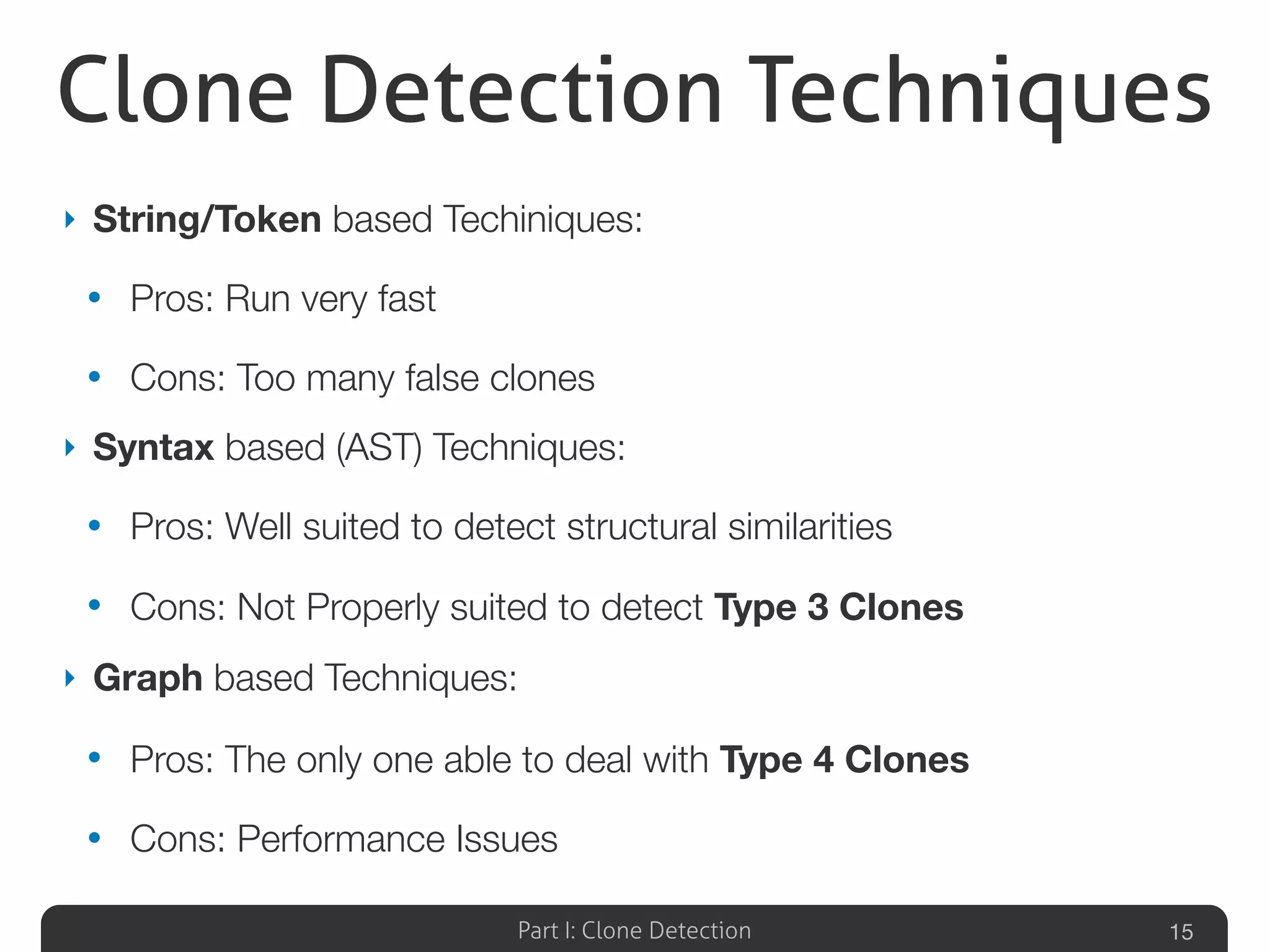

- 39. Part I: CloneDetection Clone Detection Techniques 15 ‣ String/Token based Techiniques: • Pros: Run very fast • Cons: Too many false clones ‣ Syntax based (AST) Techniques: • Pros: Well suited to detect structural similarities • Cons: Not Properly suited to detect Type 3 Clones ‣ Graph based Techniques: • Pros: The only one able to deal with Type 4 Clones • Cons: Performance Issues

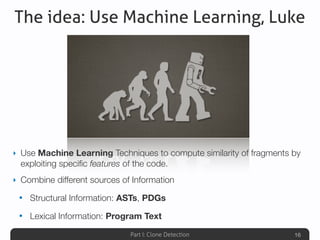

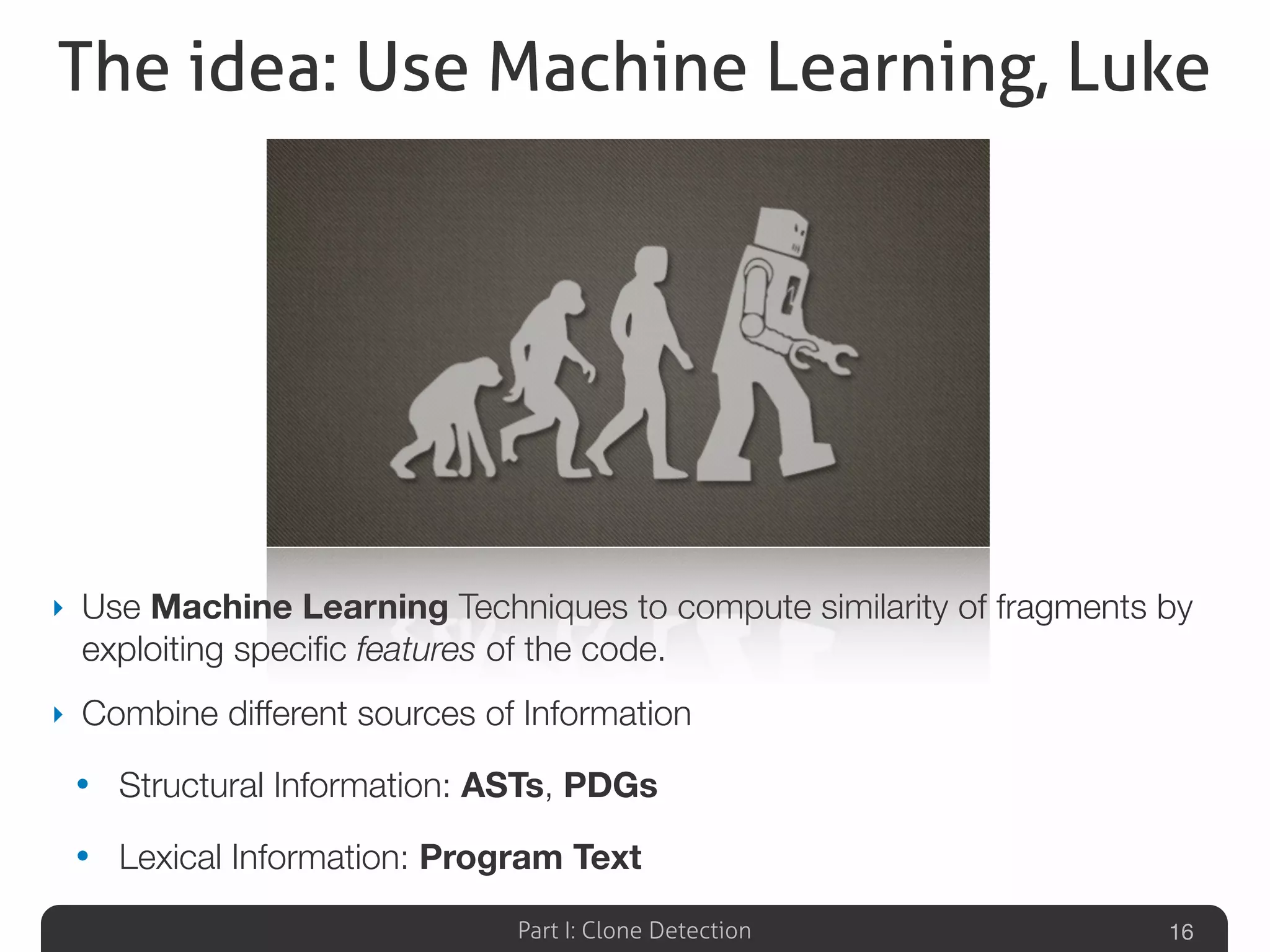

- 40. Part I: CloneDetection The idea: Use Machine Learning, Luke ‣ Use Machine Learning Techniques to compute similarity of fragments by exploiting specific features of the code. ‣ Combine different sources of Information • Structural Information: ASTs, PDGs • Lexical Information: Program Text 16

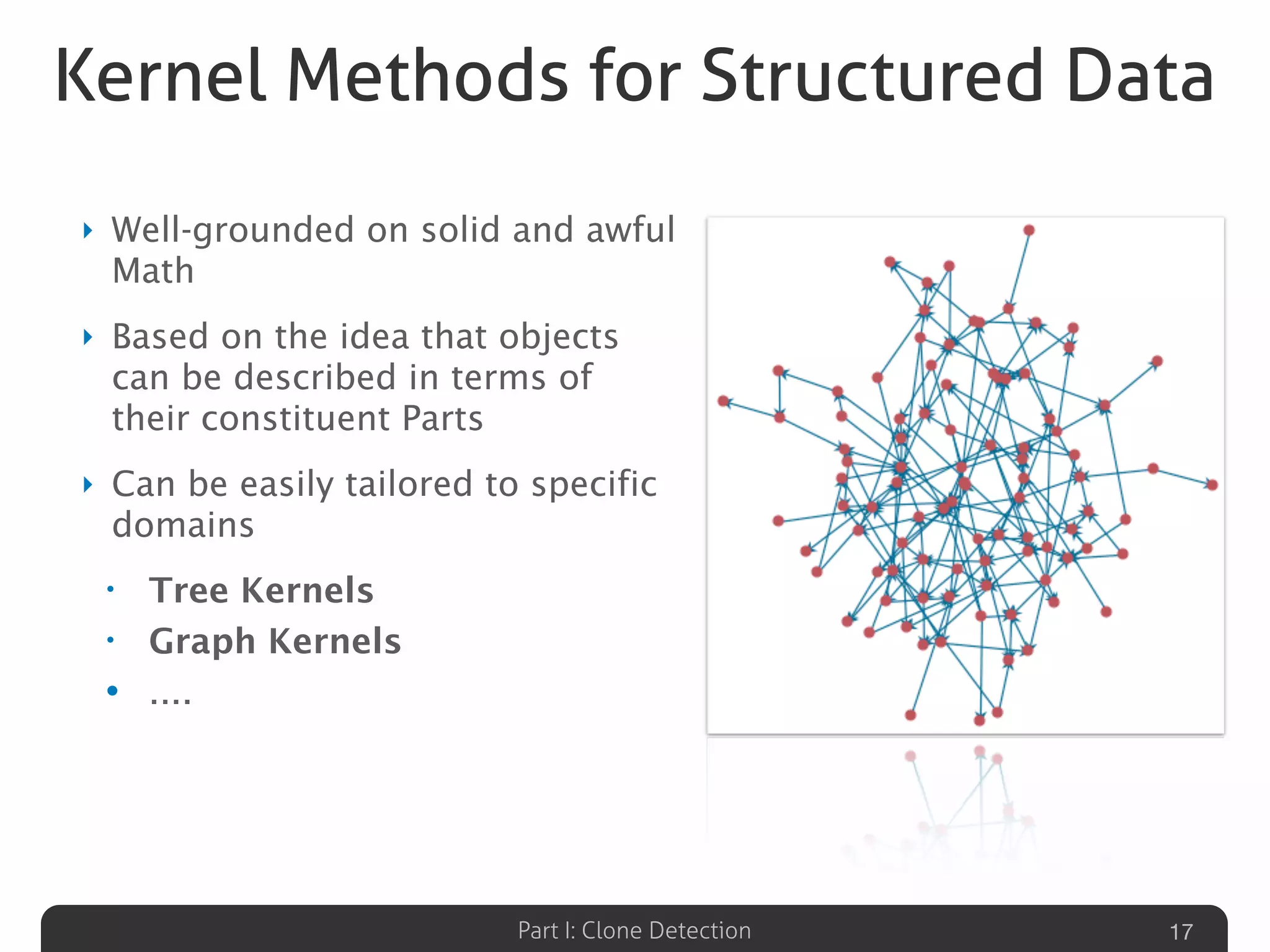

- 41. Part I: CloneDetection Kernel Methods for Structured Data ‣ Well-grounded on solid and awful Math ‣ Based on the idea that objects can be described in terms of their constituent Parts ‣ Can be easily tailored to specific domains • Tree Kernels • Graph Kernels • .... 17

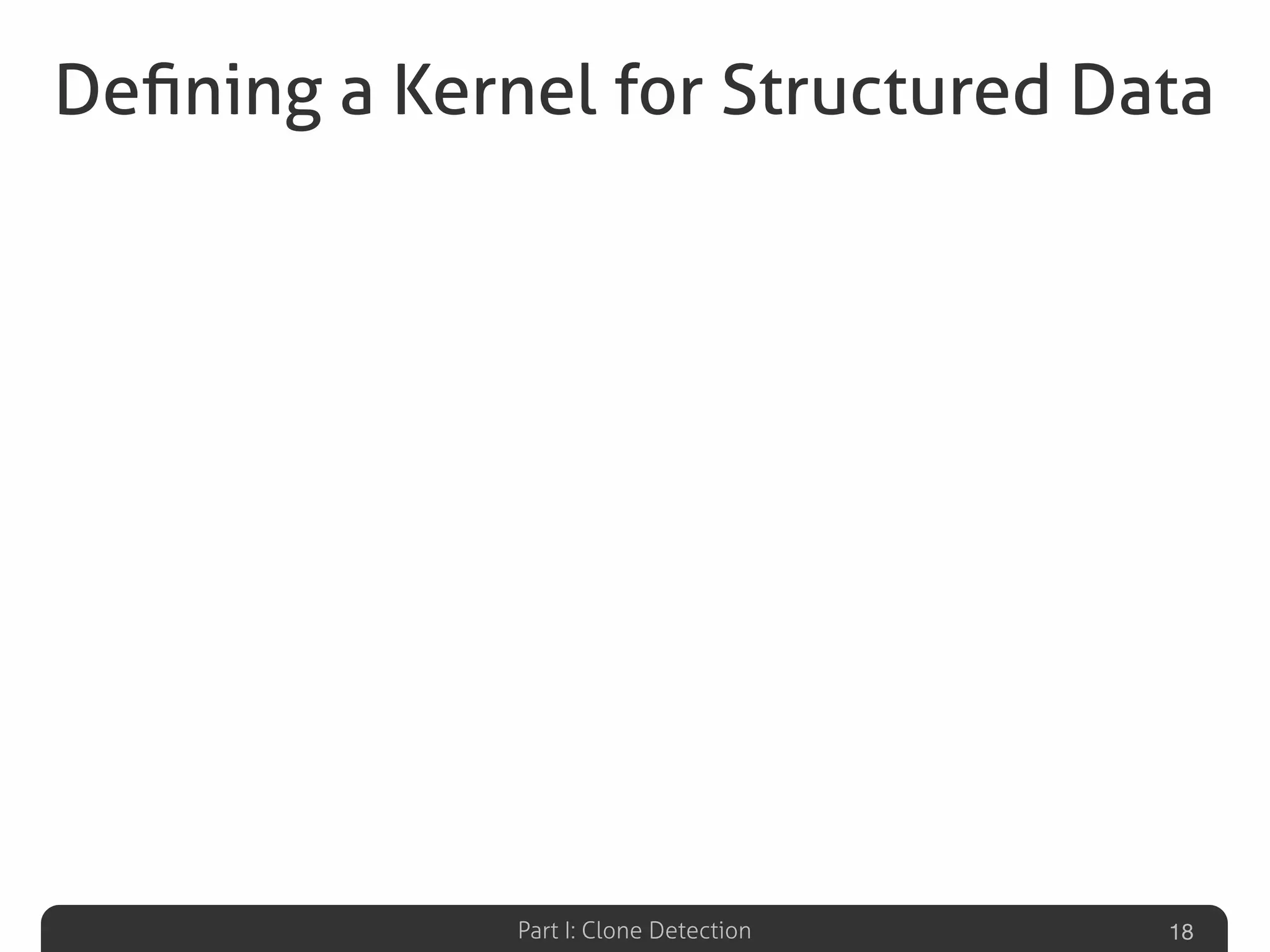

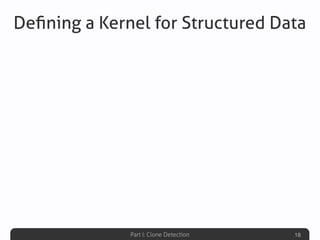

- 42. Part I: CloneDetection Defining a Kernel for Structured Data 18

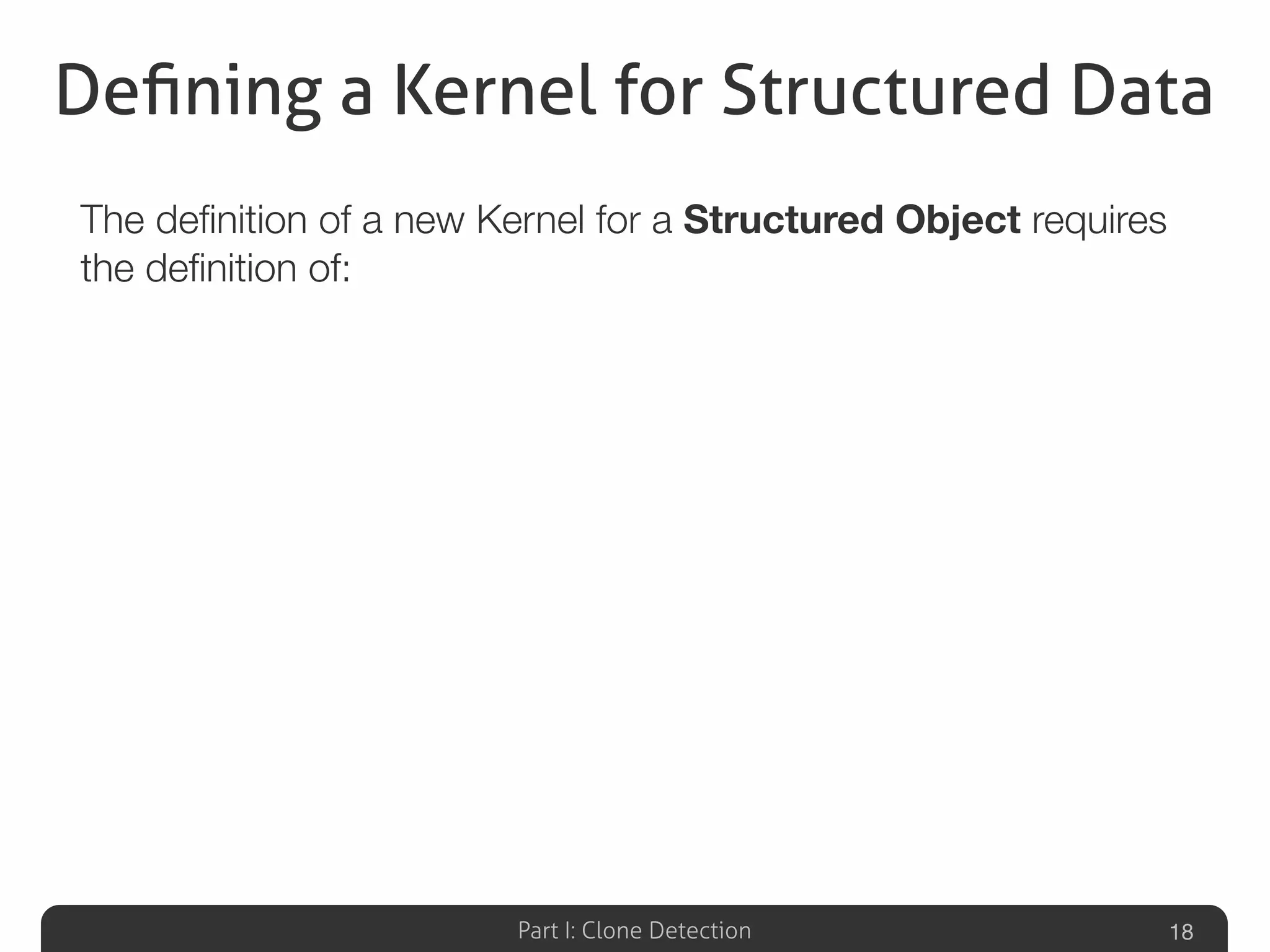

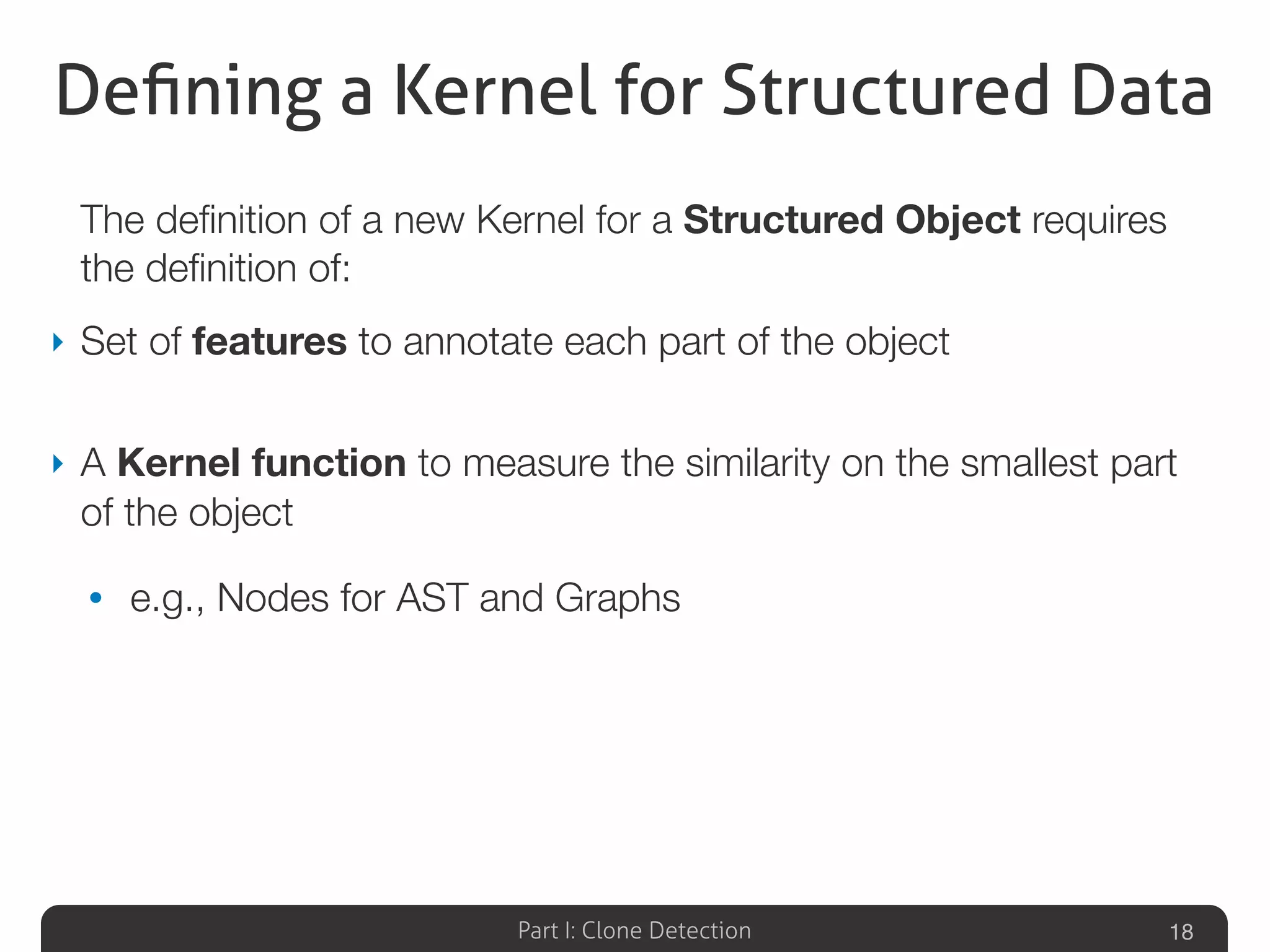

- 43. Part I: CloneDetection Defining a Kernel for Structured Data The definition of a new Kernel for a Structured Object requires the definition of: 18

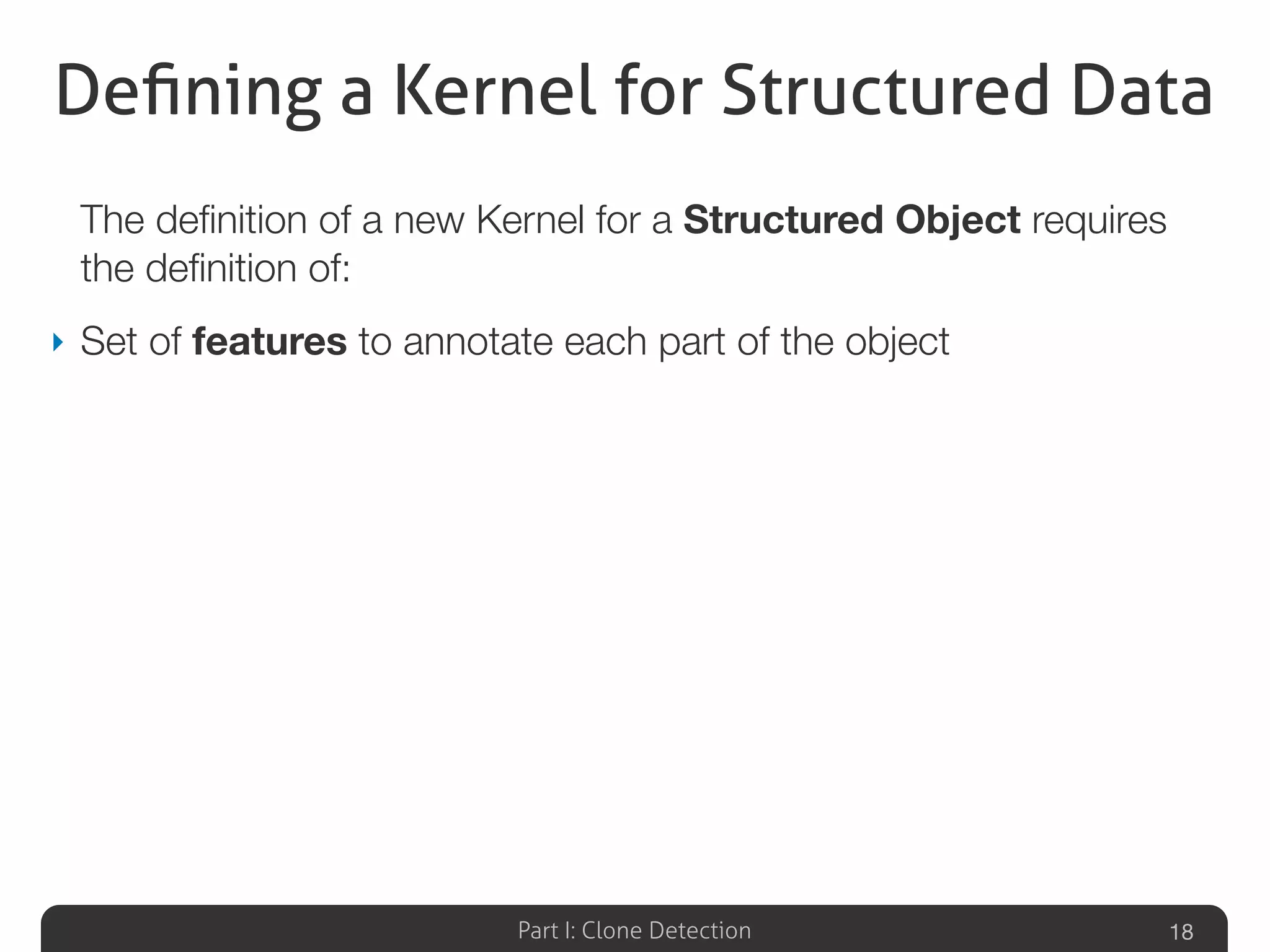

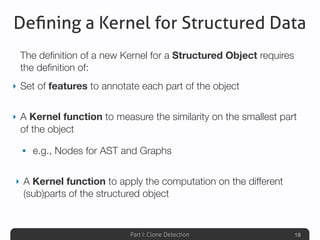

- 44. Part I: CloneDetection Defining a Kernel for Structured Data The definition of a new Kernel for a Structured Object requires the definition of: ‣ Set of features to annotate each part of the object 18

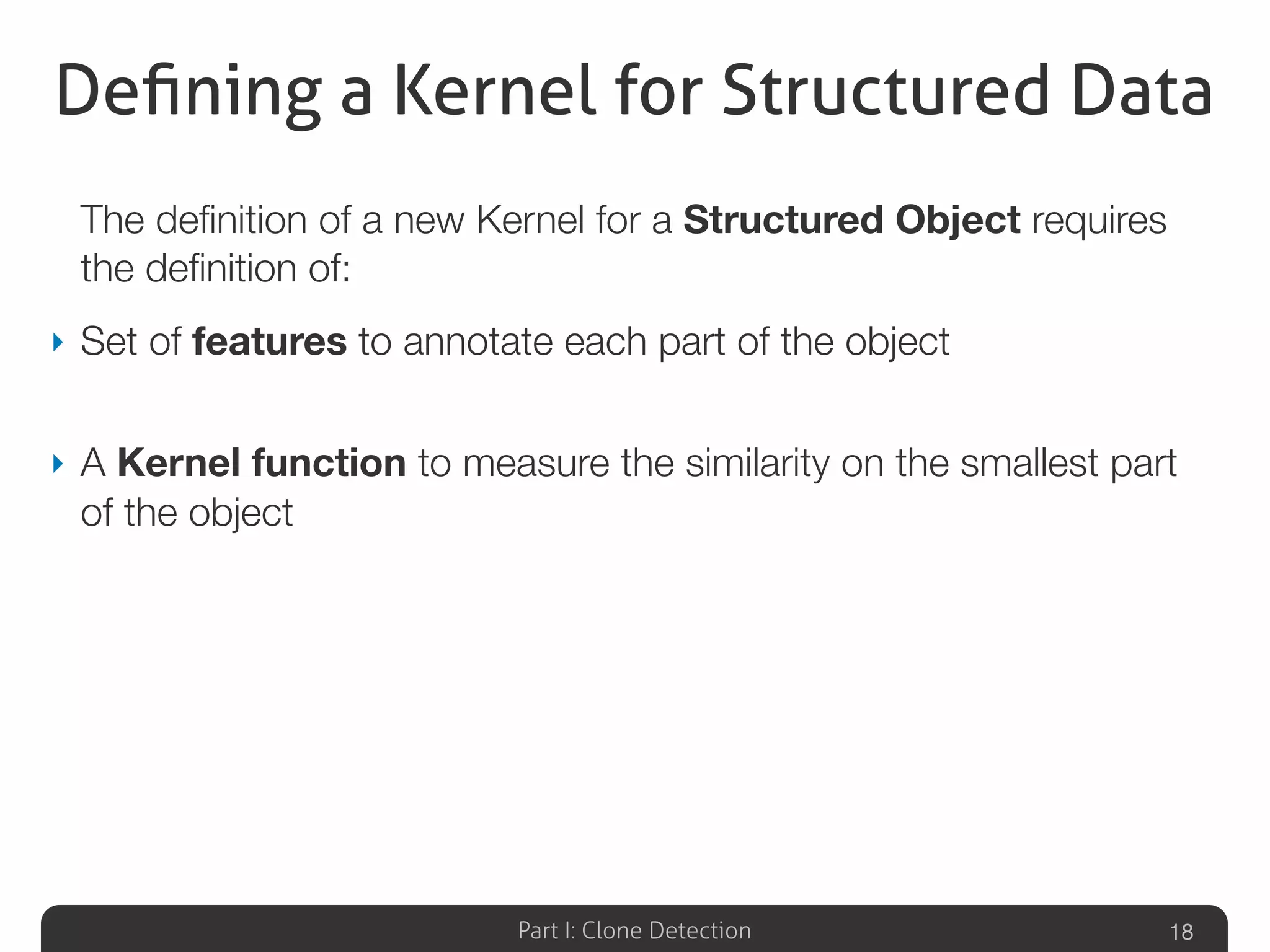

- 45. Part I: CloneDetection Defining a Kernel for Structured Data The definition of a new Kernel for a Structured Object requires the definition of: ‣ Set of features to annotate each part of the object ‣ A Kernel function to measure the similarity on the smallest part of the object 18

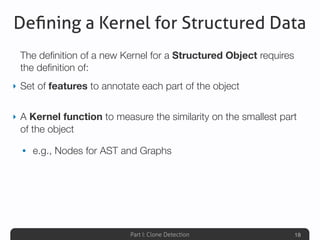

- 46. Part I: CloneDetection Defining a Kernel for Structured Data The definition of a new Kernel for a Structured Object requires the definition of: ‣ Set of features to annotate each part of the object ‣ A Kernel function to measure the similarity on the smallest part of the object • e.g., Nodes for AST and Graphs 18

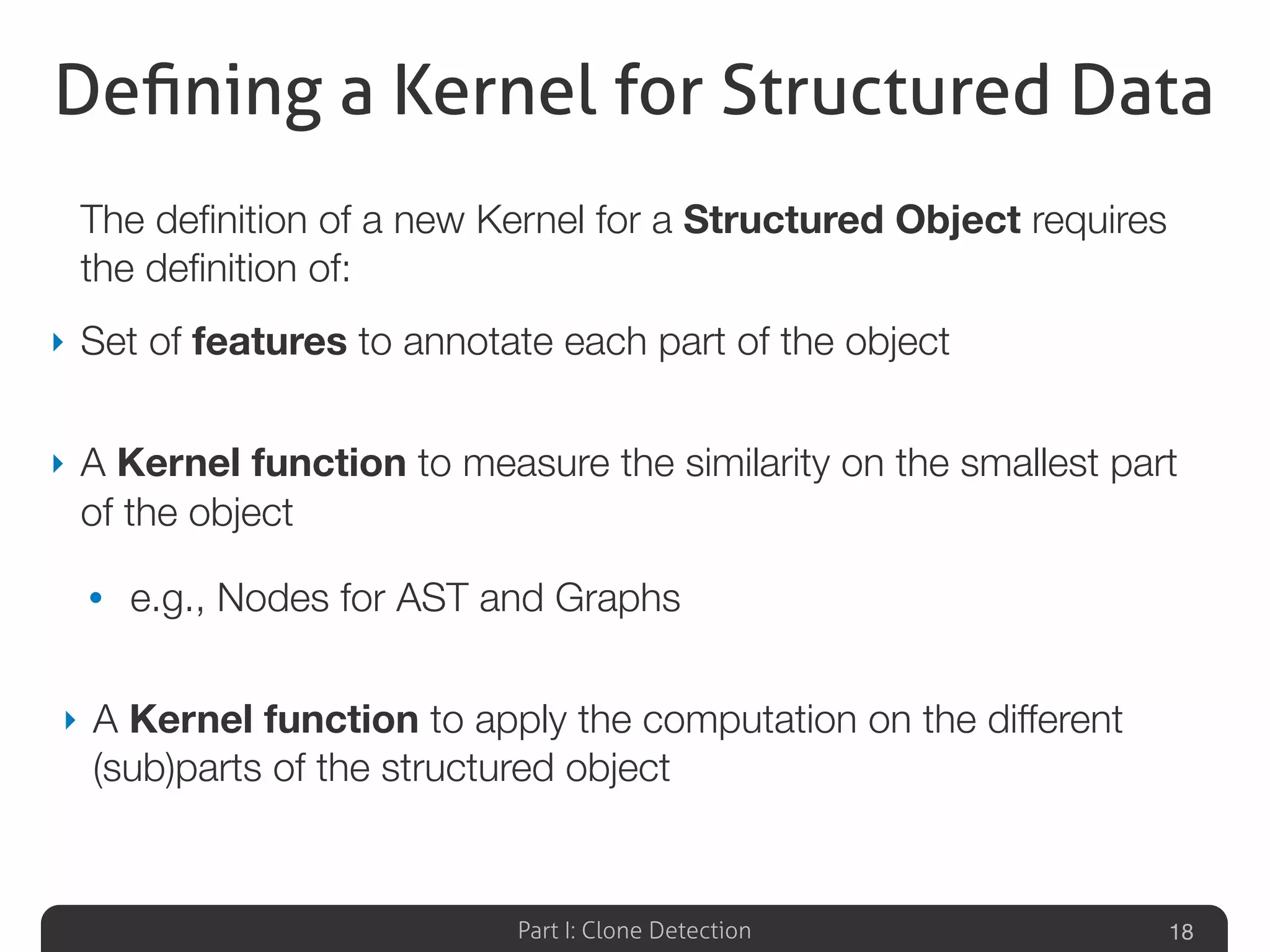

- 47. Part I: CloneDetection Defining a Kernel for Structured Data The definition of a new Kernel for a Structured Object requires the definition of: ‣ Set of features to annotate each part of the object ‣ A Kernel function to measure the similarity on the smallest part of the object • e.g., Nodes for AST and Graphs ‣ A Kernel function to apply the computation on the different (sub)parts of the structured object 18

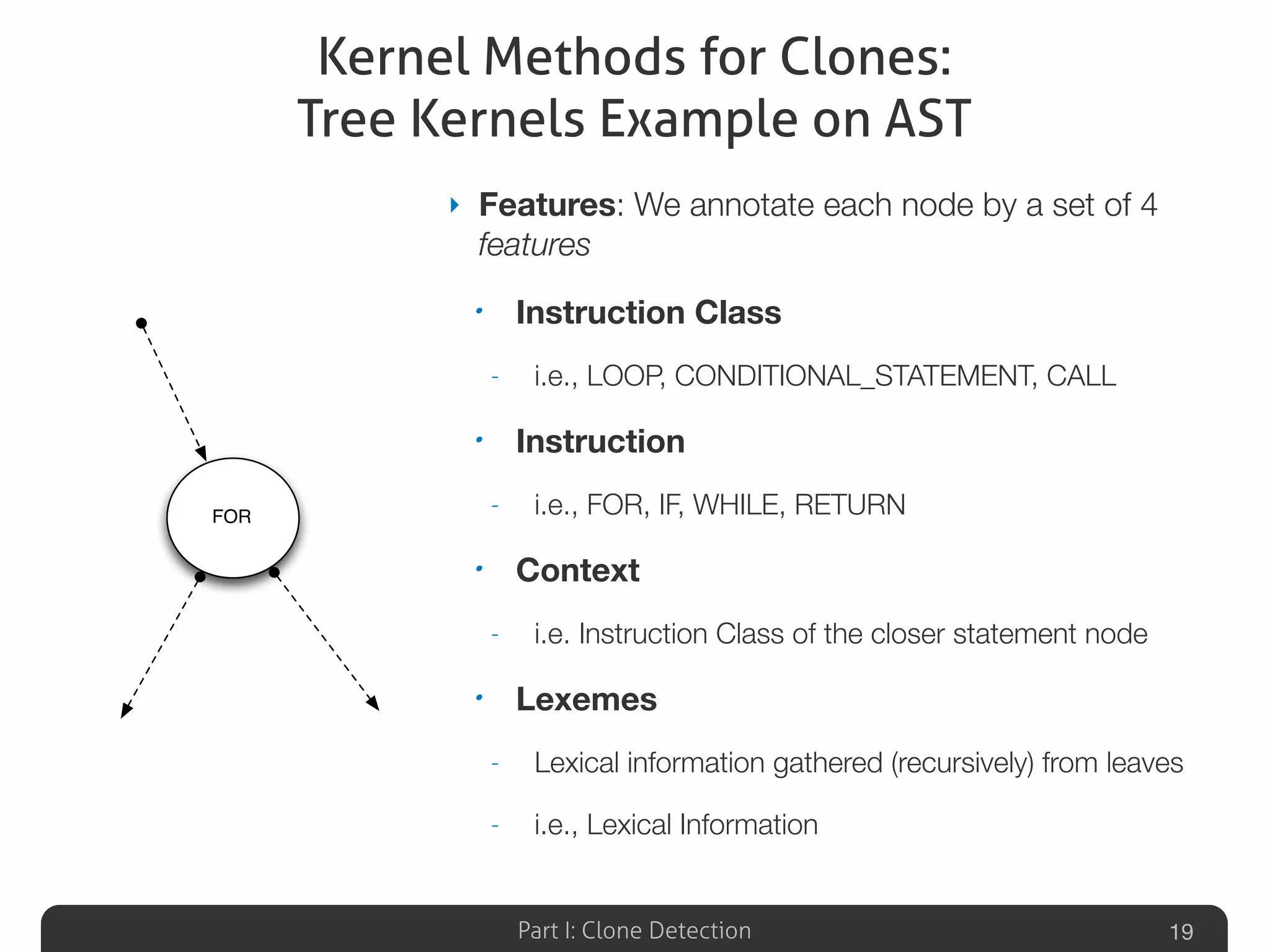

- 48. Part I: CloneDetection Kernel Methods for Clones: Tree Kernels Example on AST ‣ Features: We annotate each node by a set of 4 features • Instruction Class - i.e., LOOP, CONDITIONAL_STATEMENT, CALL • Instruction - i.e., FOR, IF, WHILE, RETURN • Context - i.e. Instruction Class of the closer statement node • Lexemes - Lexical information gathered (recursively) from leaves - i.e., Lexical Information 19 FOR

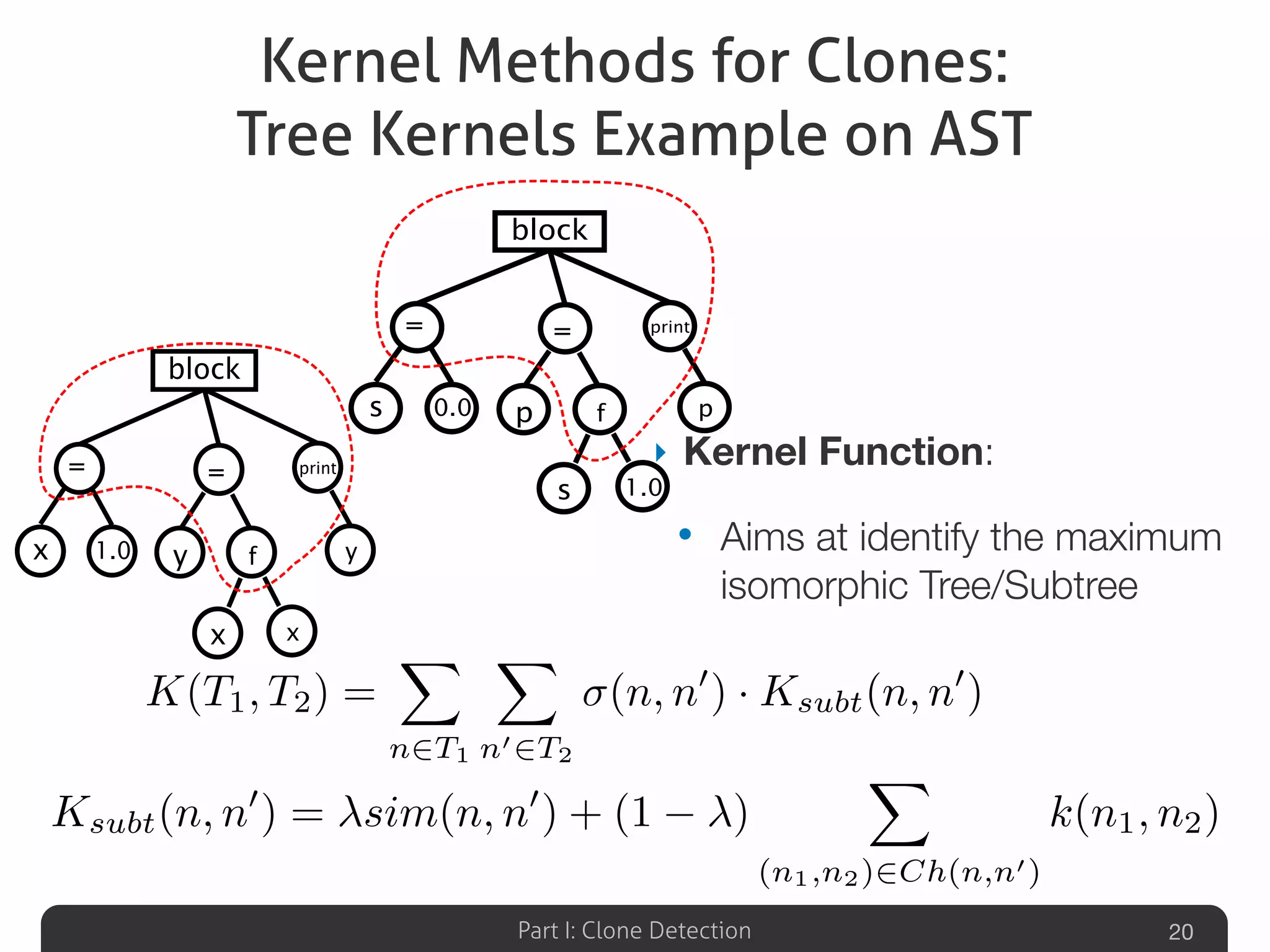

- 49. Part I: CloneDetection Kernel Methods for Clones: Tree Kernels Example on AST ‣ Kernel Function: • Aims at identify the maximum isomorphic Tree/Subtree 20 K(T1, T2) = X n2T1 X n02T2 (n, n0 ) · Ksubt(n, n0 ) block print p0.0s = 1.0 = p s f block print y1.0x = x = y x f Ksubt(n, n0 ) = sim(n, n0 ) + (1 ) X (n1,n2)2Ch(n,n0) k(n1, n2)

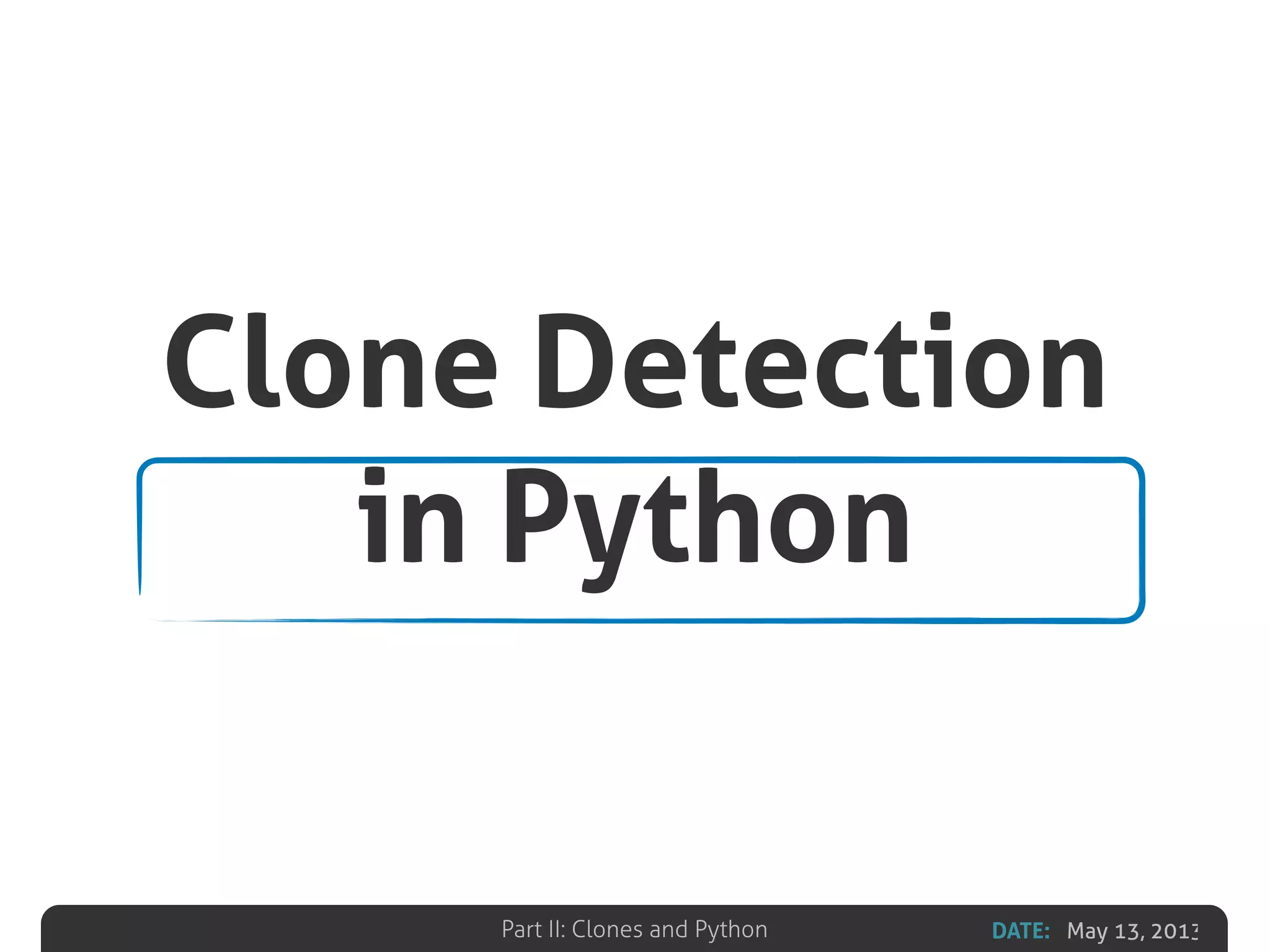

- 50. DATE: May 13,2013Part II: Clones and Python Clone Detection in Python
- 51. DATE: May 13,2013Part II: Clones and Python Clone Detection in Python

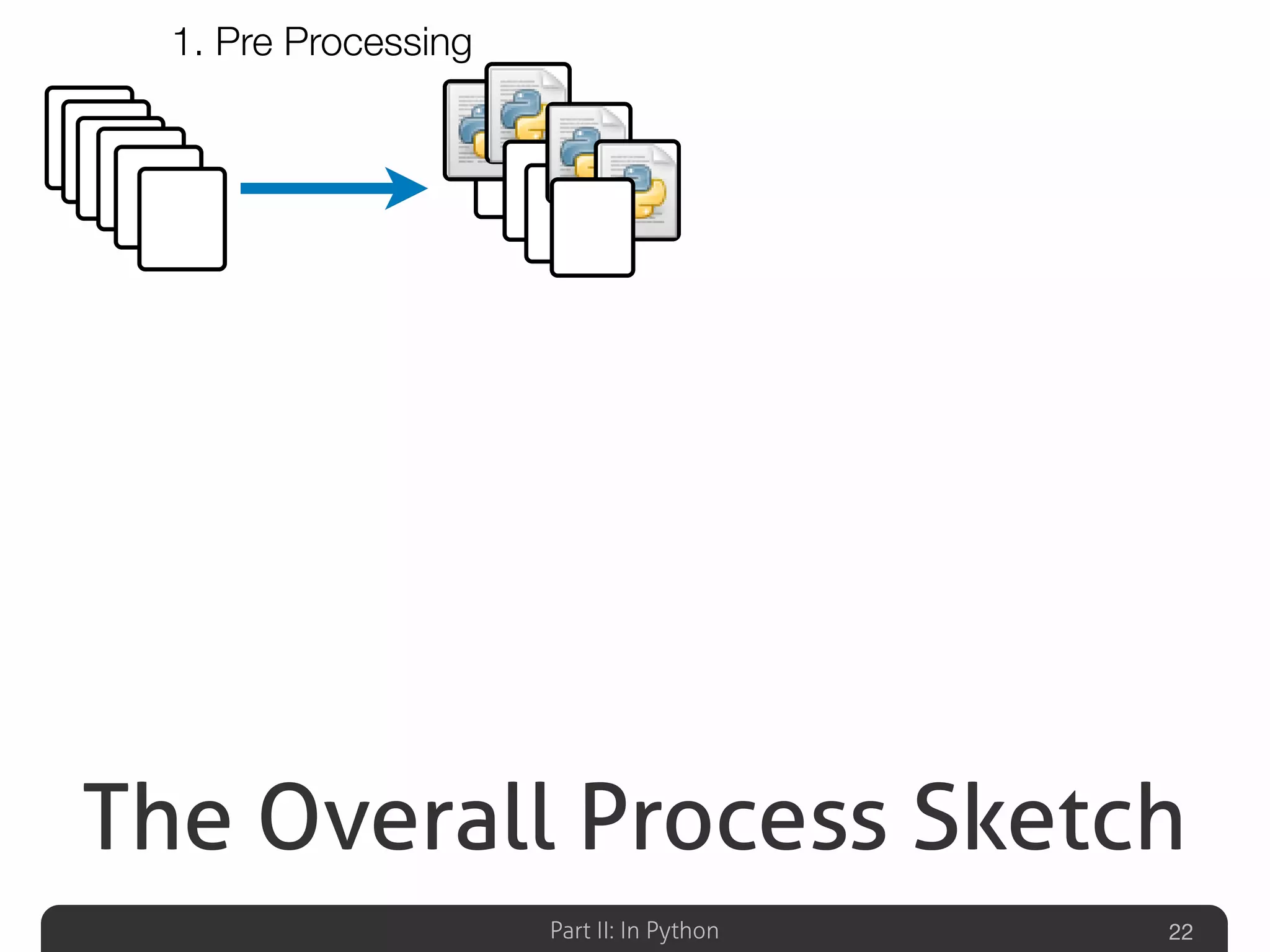

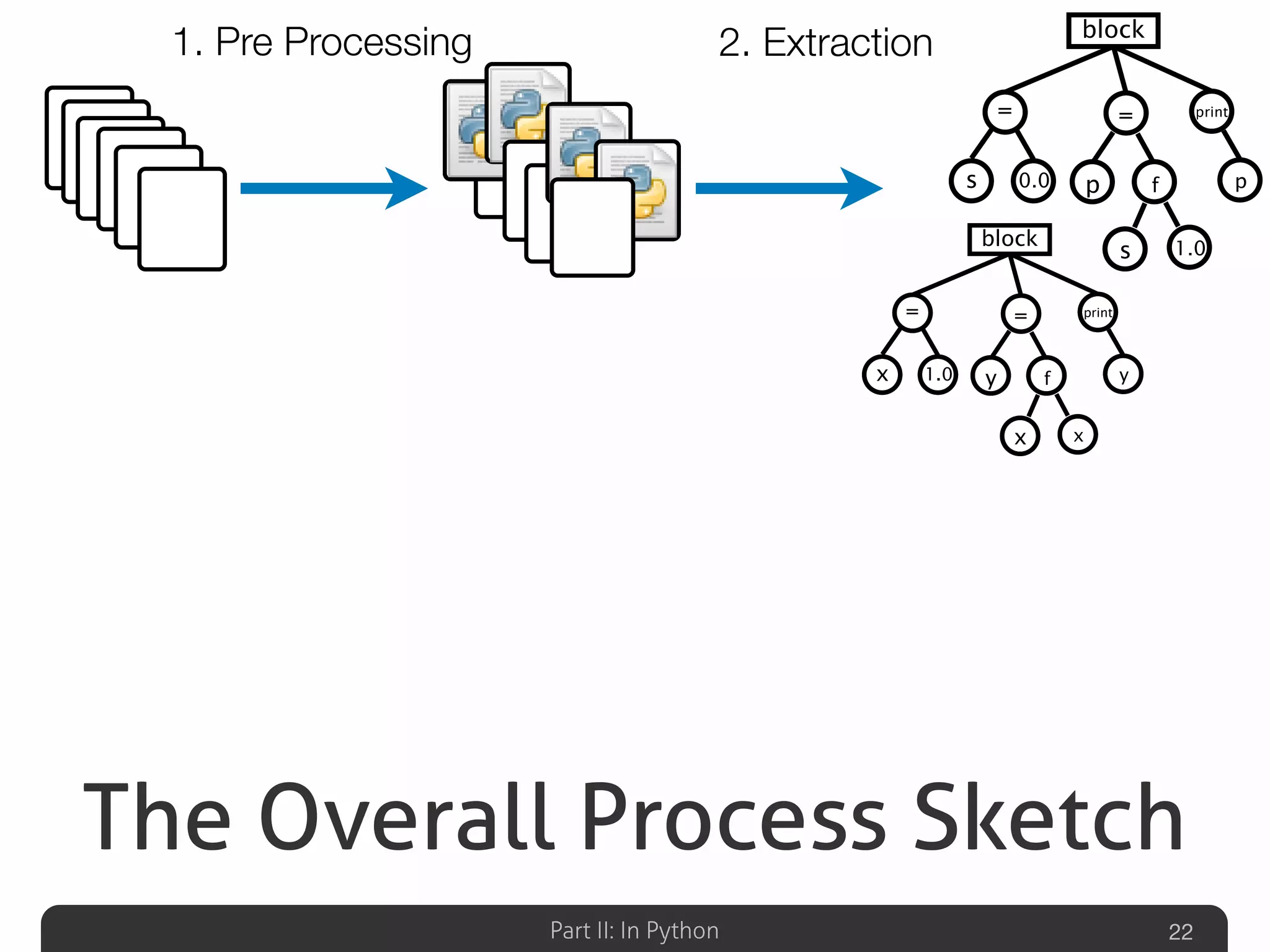

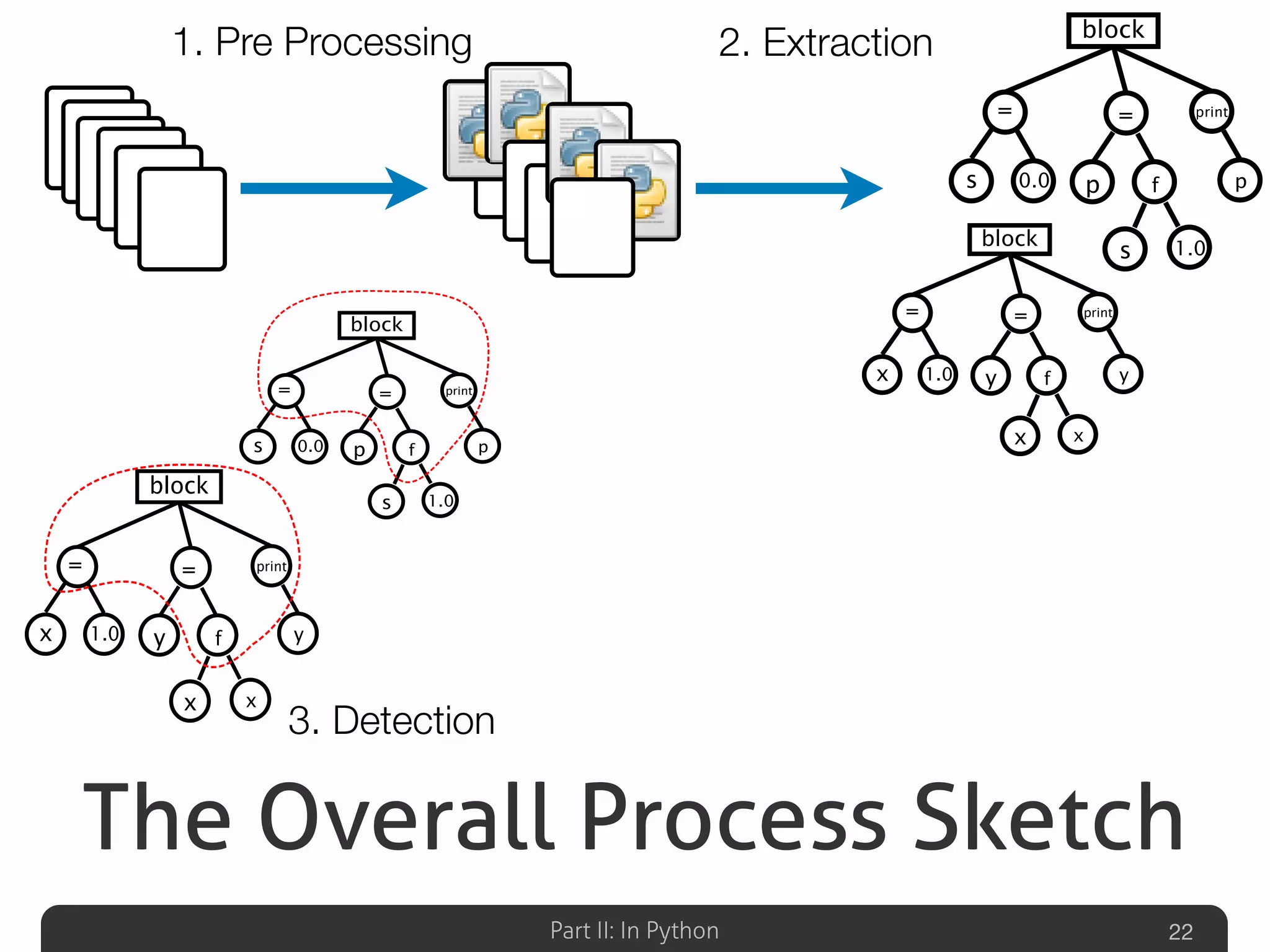

- 52. Part II: InPython The Overall Process Sketch 22 1. Pre Processing
- 53. Part II: InPython The Overall Process Sketch 22 block print p0.0s = 1.0 = p s f block print y1.0x = x = y x f 1. Pre Processing 2. Extraction
- 54. Part II: InPython The Overall Process Sketch 22 block print p0.0s = 1.0 = p s f block print y1.0x = x = y x f block print p0.0s = 1.0 = p s f block print y1.0x = x = y x f 1. Pre Processing 2. Extraction 3. Detection

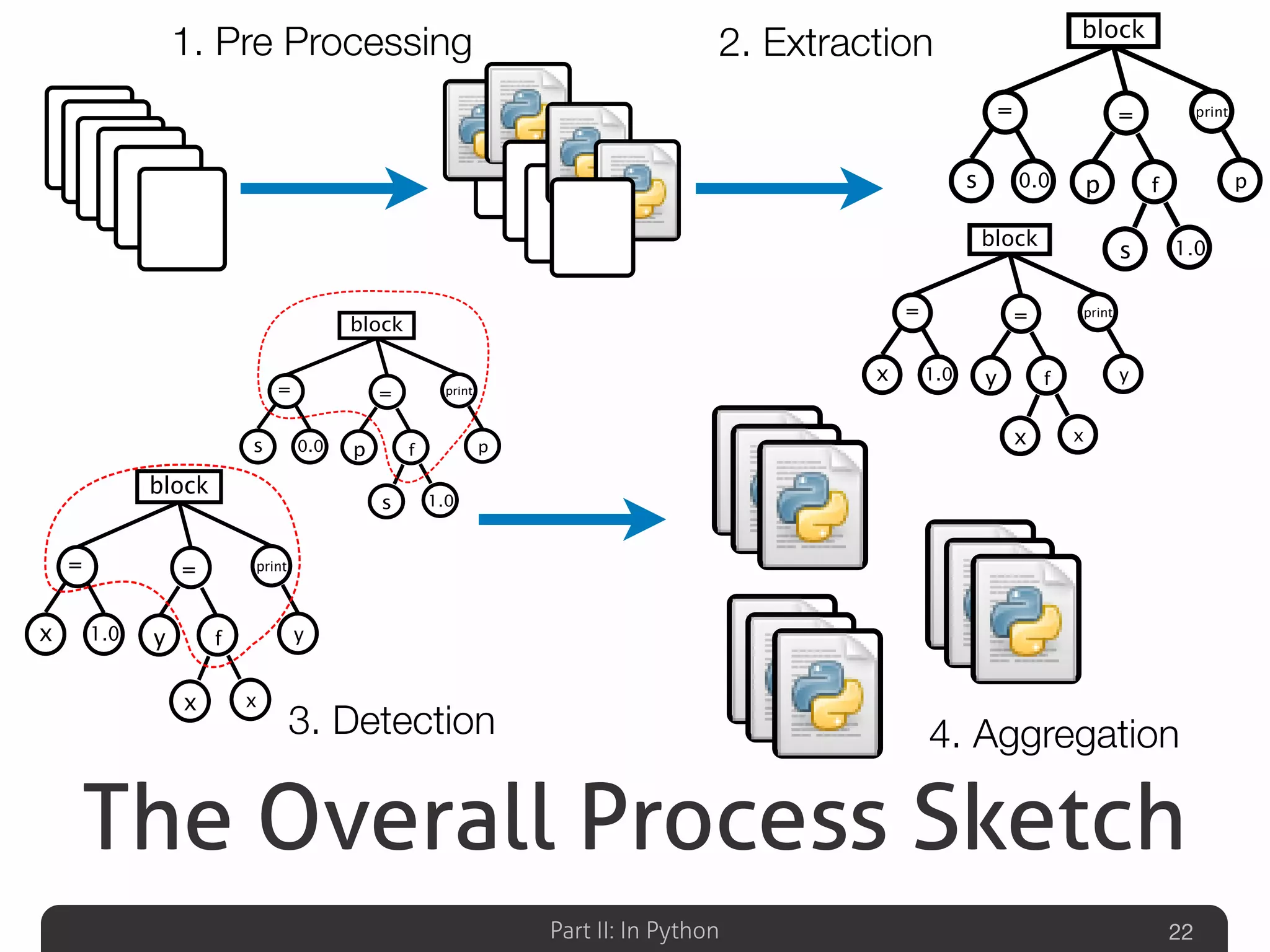

- 55. Part II: InPython The Overall Process Sketch 22 block print p0.0s = 1.0 = p s f block print y1.0x = x = y x f block print p0.0s = 1.0 = p s f block print y1.0x = x = y x f 1. Pre Processing 2. Extraction 3. Detection 4. Aggregation

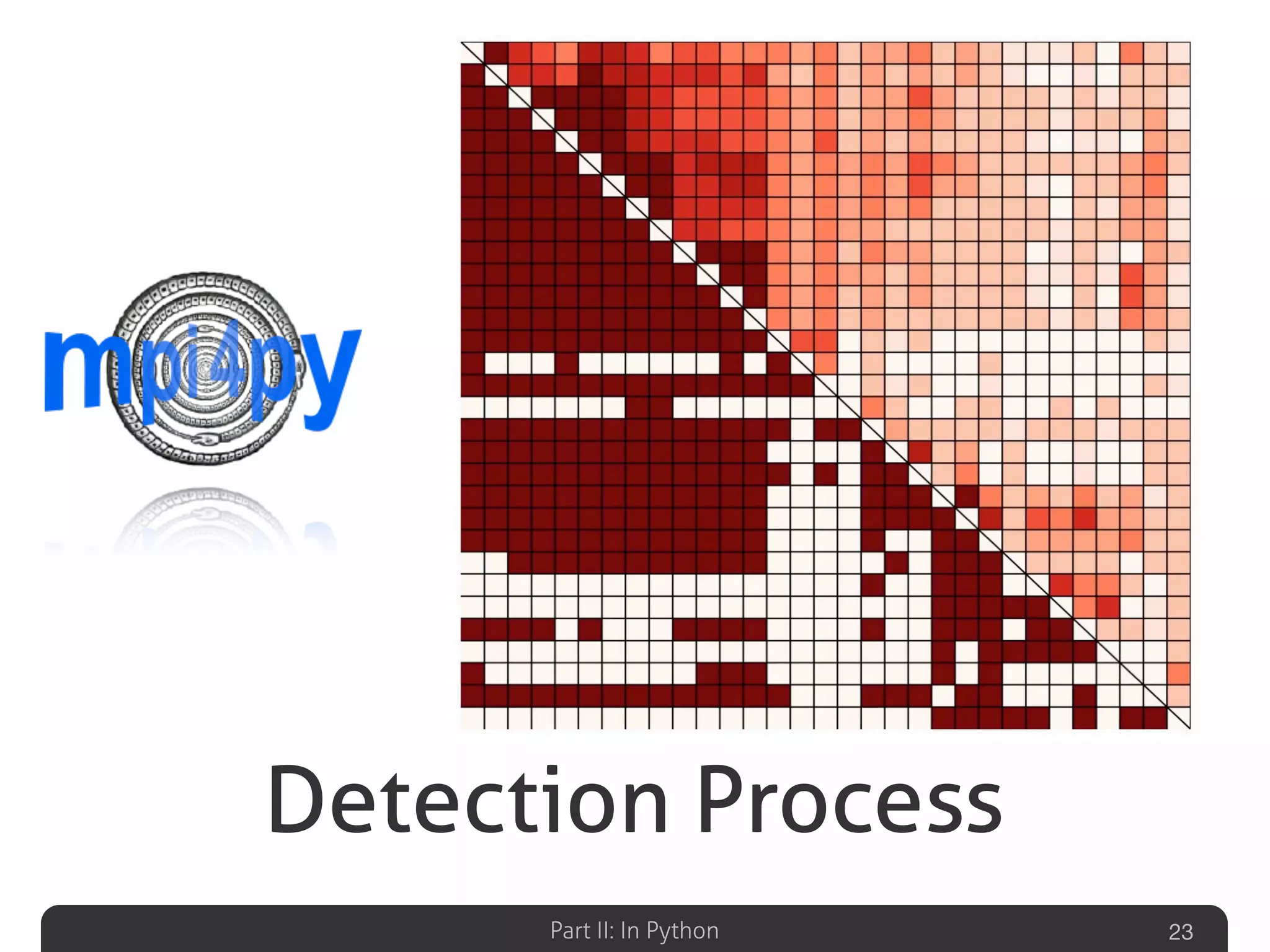

- 56. Part II: InPython Detection Process 23

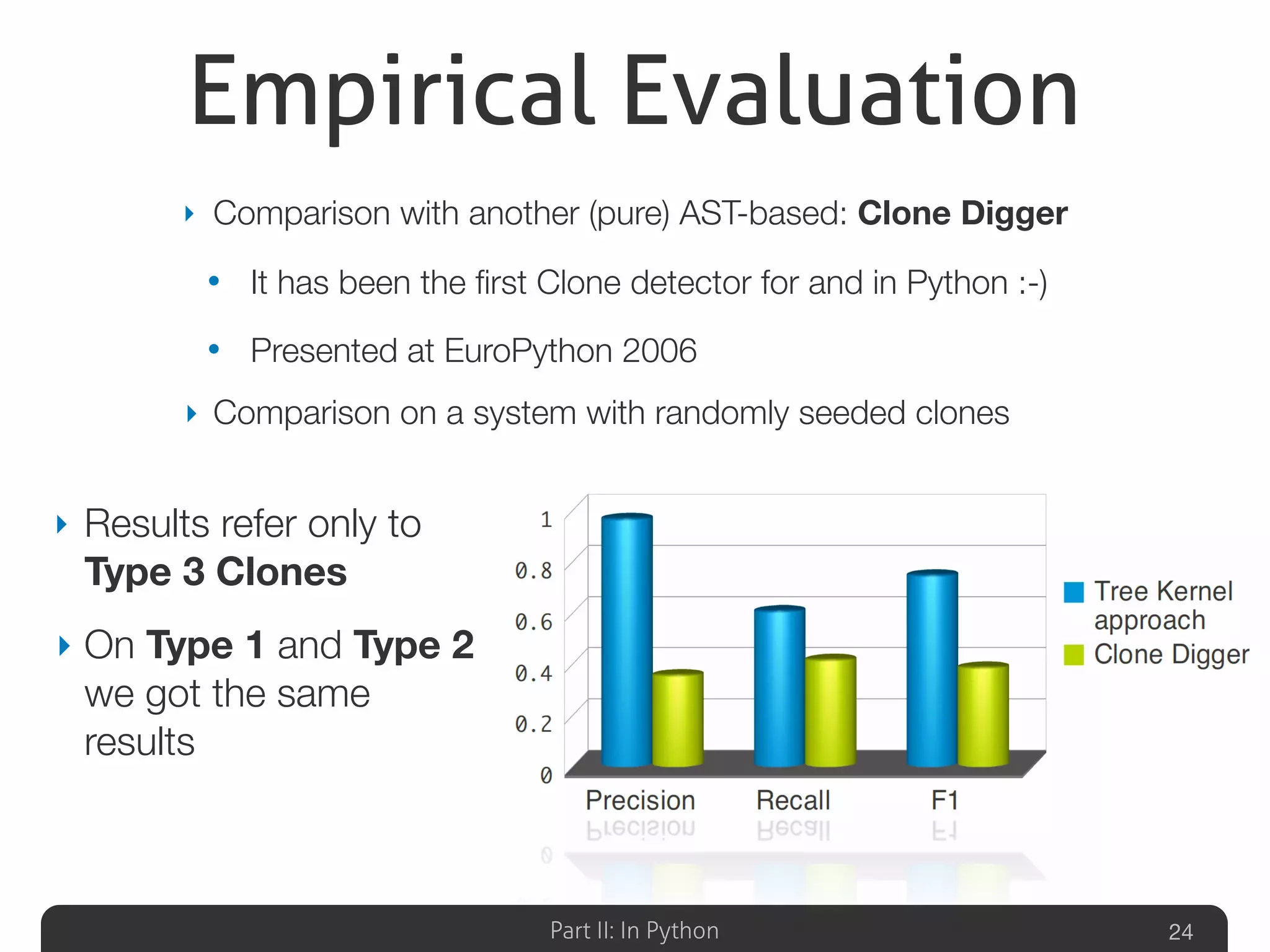

- 57. Part II: InPython Empirical Evaluation ‣ Comparison with another (pure) AST-based: Clone Digger • It has been the first Clone detector for and in Python :-) • Presented at EuroPython 2006 ‣ Comparison on a system with randomly seeded clones 24 ‣ Results refer only to Type 3 Clones ‣ On Type 1 and Type 2 we got the same results

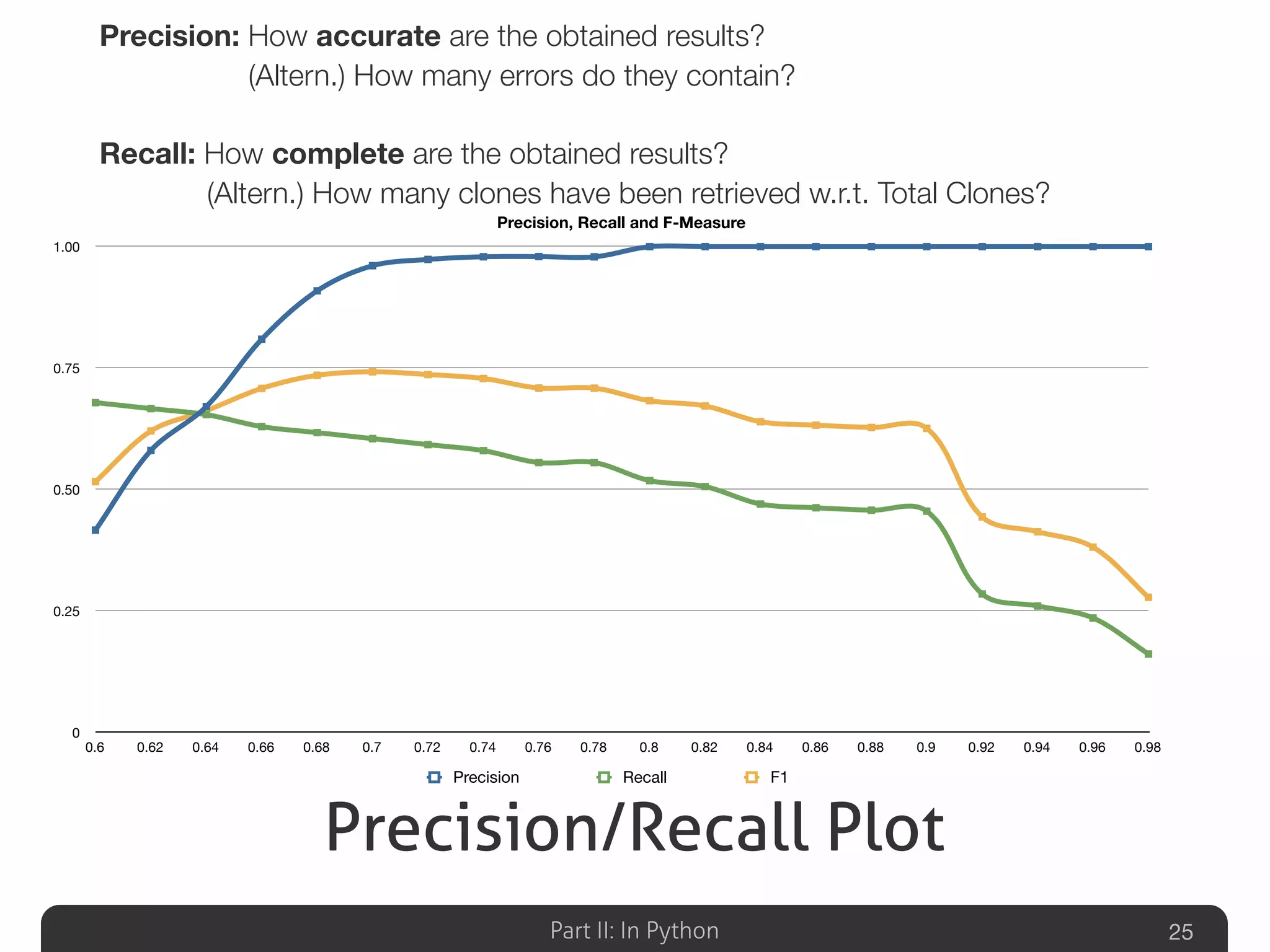

- 58. Part II: InPython Precision/Recall Plot 25 0 0.25 0.50 0.75 1.00 0.6 0.62 0.64 0.66 0.68 0.7 0.72 0.74 0.76 0.78 0.8 0.82 0.84 0.86 0.88 0.9 0.92 0.94 0.96 0.98 Precision, Recall and F-Measure Precision Recall F1 Precision: How accurate are the obtained results? (Altern.) How many errors do they contain? Recall: How complete are the obtained results? (Altern.) How many clones have been retrieved w.r.t. Total Clones?

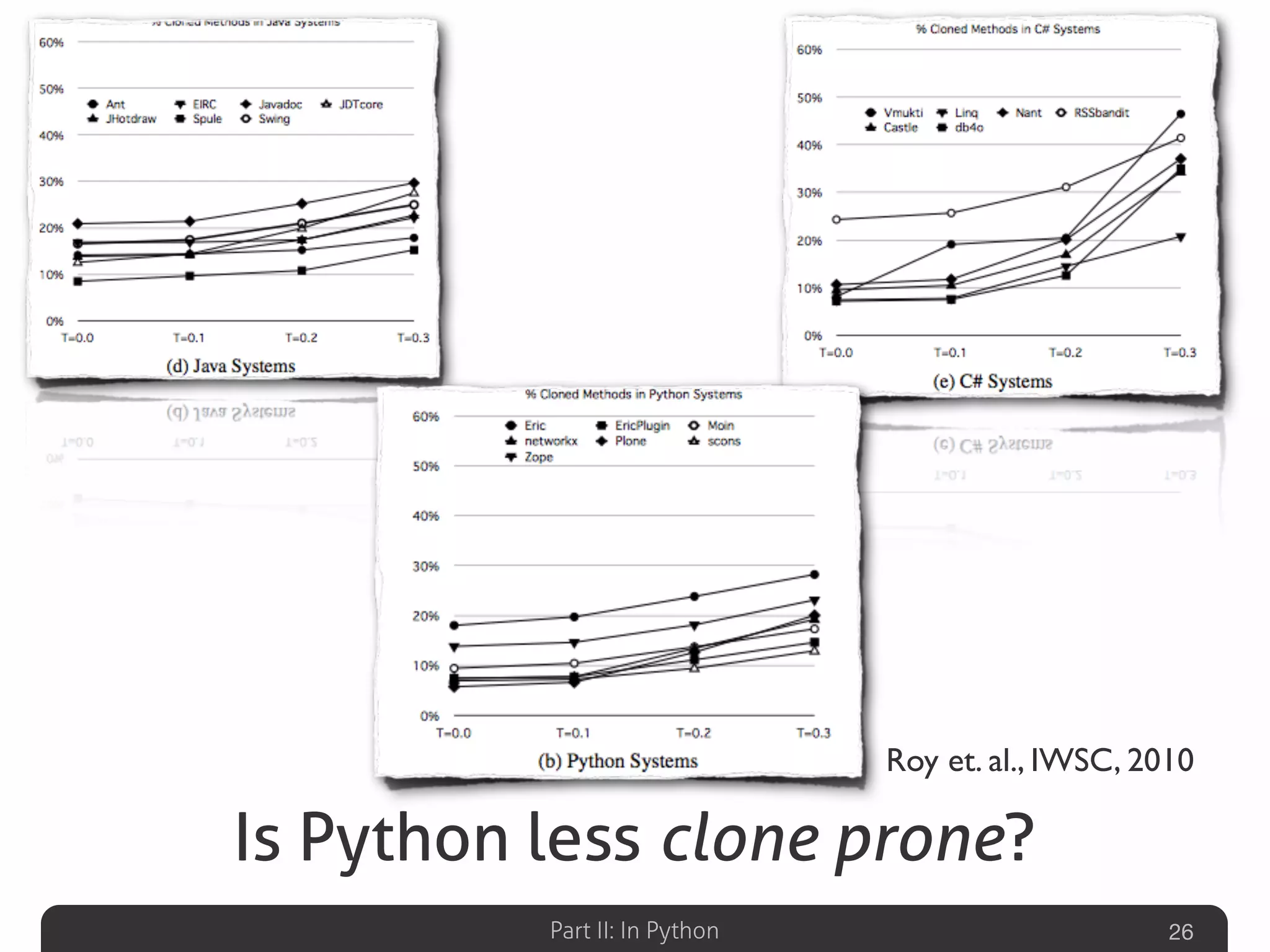

- 59. Part II: InPython Is Python less clone prone? 26 Roy et. al., IWSC, 2010

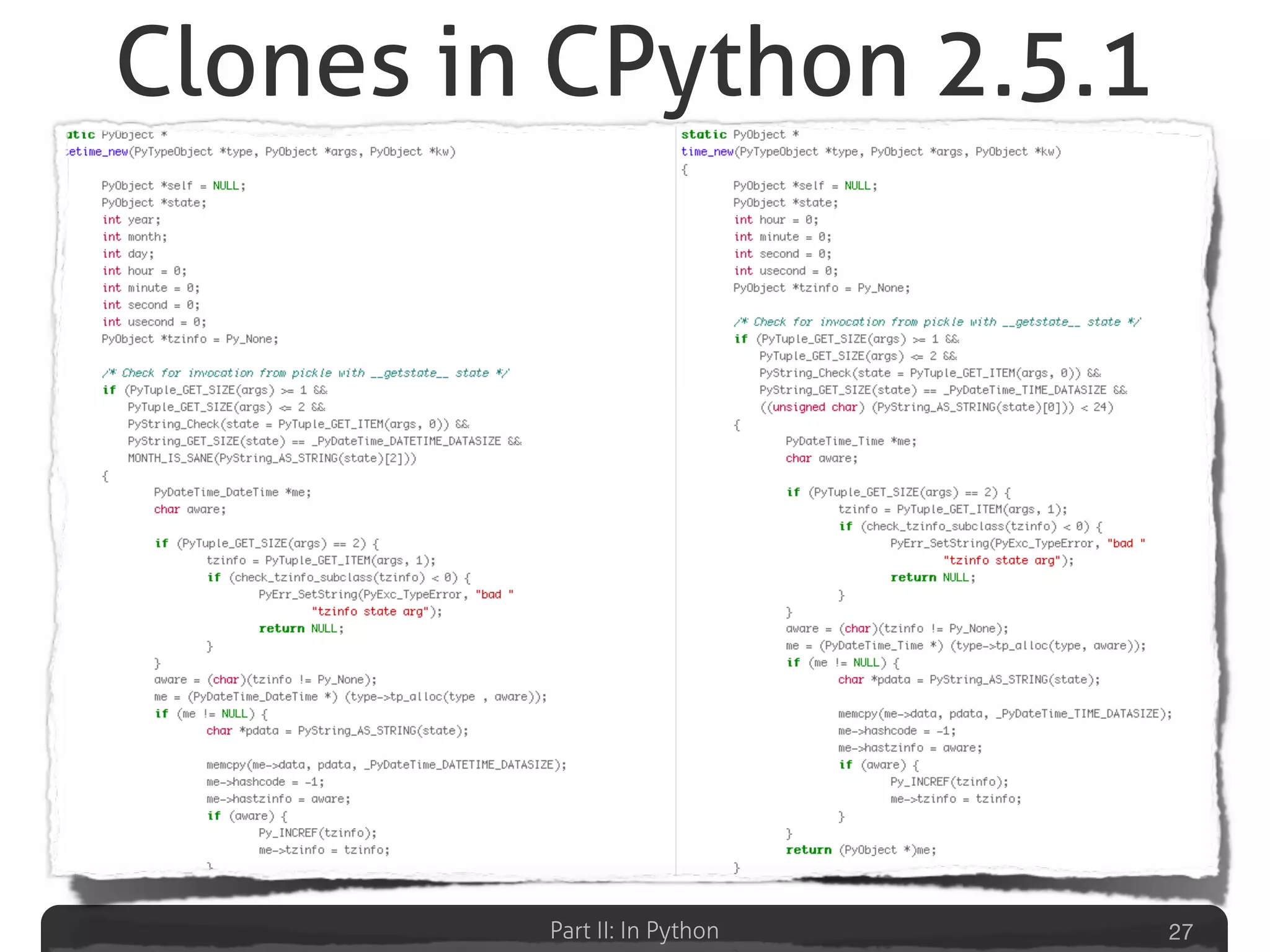

- 60. Part II: InPython Clones in CPython 2.5.1 27
