Curve and text clipping
- 1. CURVE & TEXTCLIPPING By: Arvind Kumar Assistant Professor Vidya College of Engineering

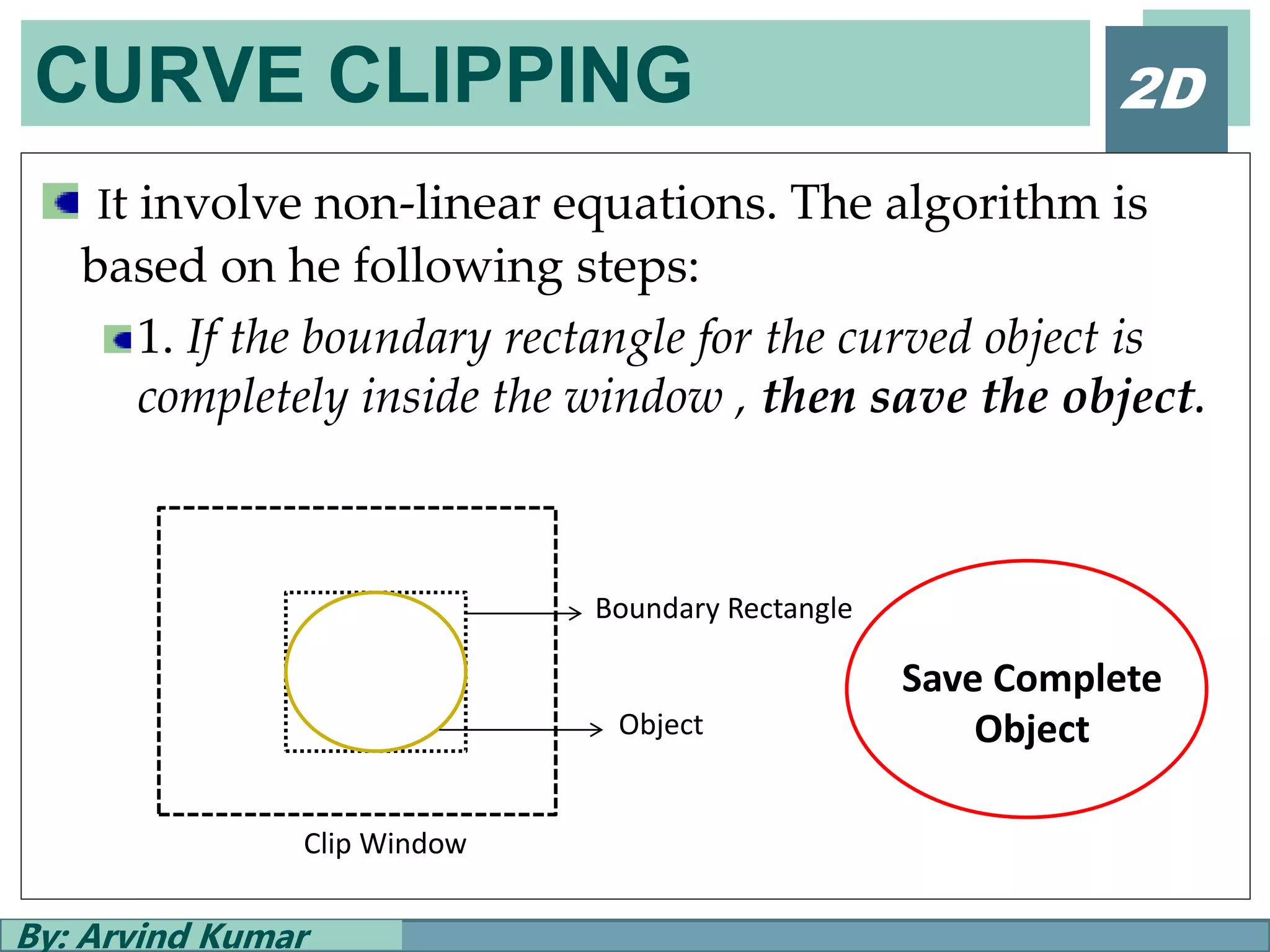

- 2. CURVE CLIPPING By: ArvindKumar 2D It involve non-linear equations. The algorithm is based on he following steps: 1. If the boundary rectangle for the curved object is completely inside the window , then save the object. Boundary Rectangle Clip Window Object Save Complete Object

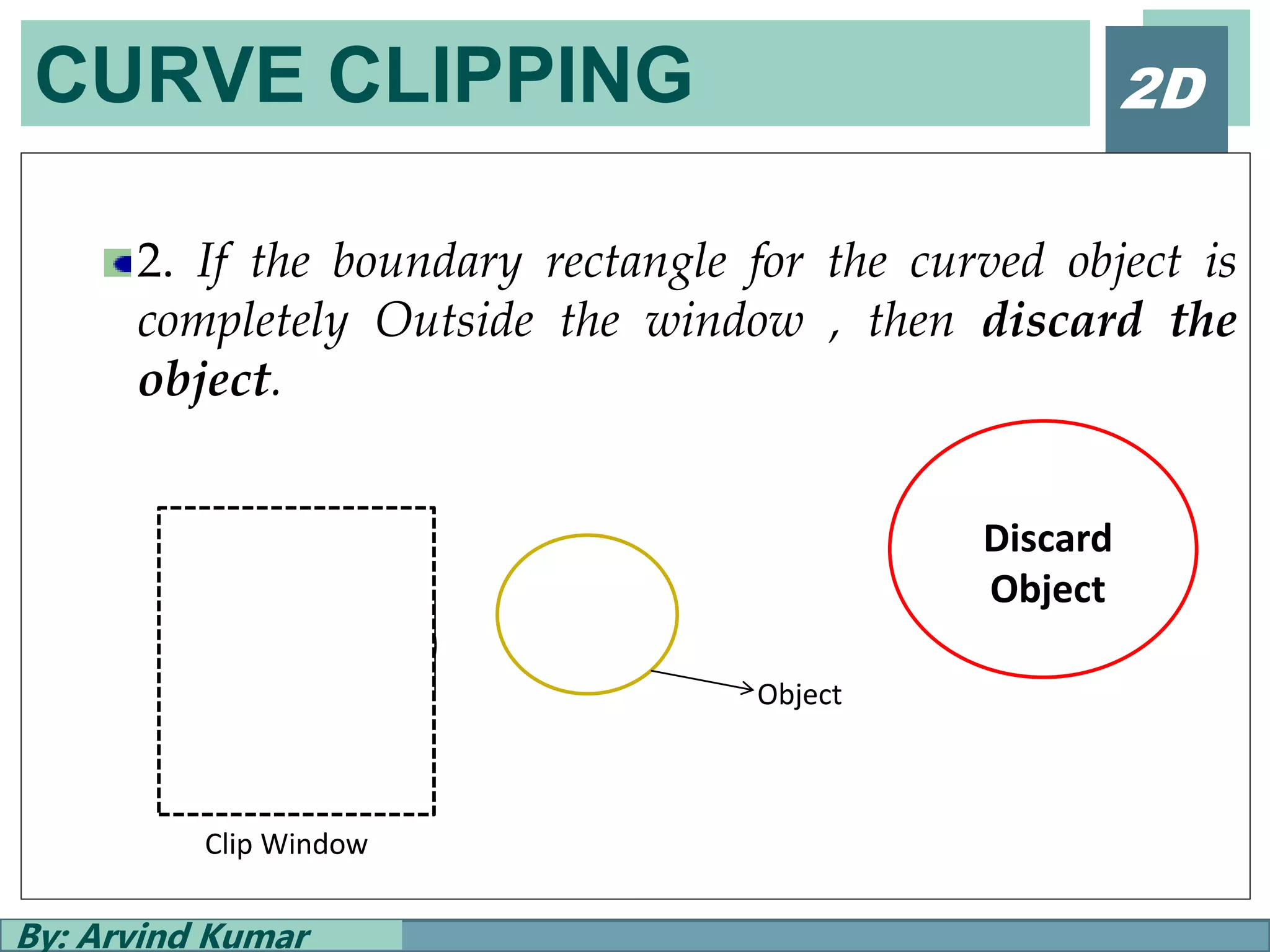

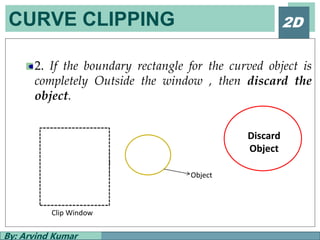

- 3. CURVE CLIPPING By: ArvindKumar 2D 2. If the boundary rectangle for the curved object is completely Outside the window , then discard the object. Clip Window Object Discard Object

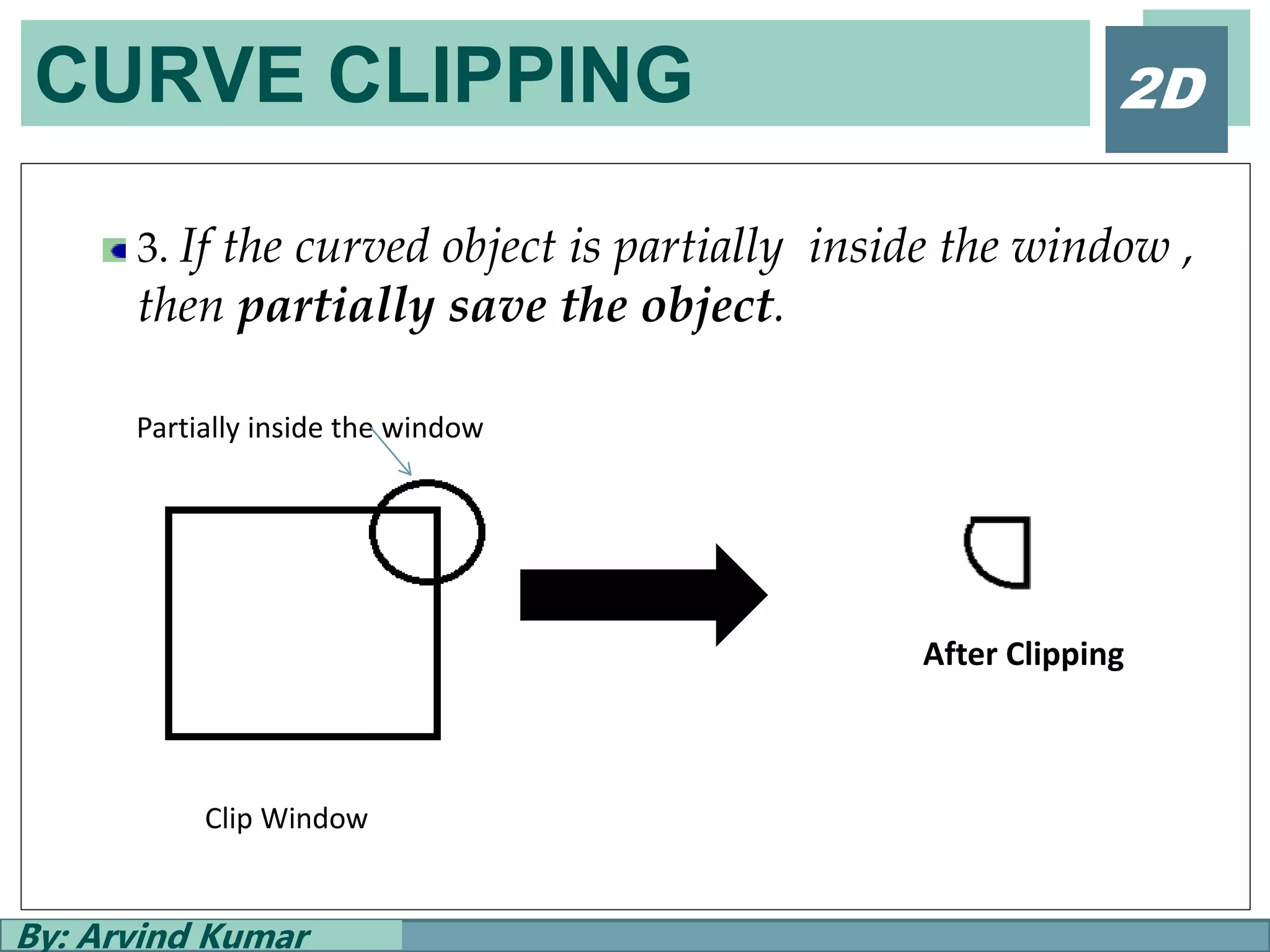

- 4. CURVE CLIPPING By: ArvindKumar 2D 3. If the curved object is partially inside the window , then partially save the object. Clip Window Partially inside the window After Clipping

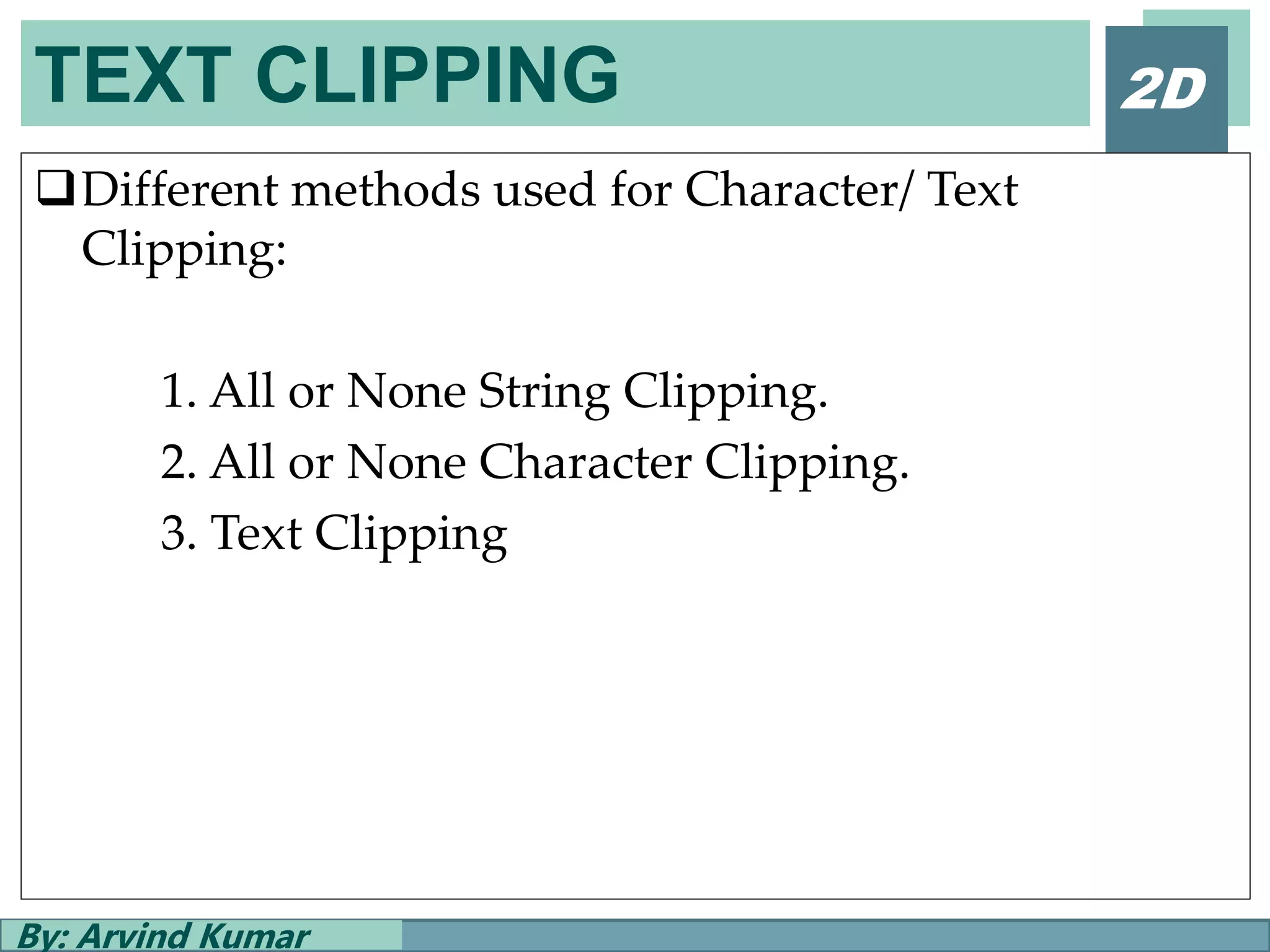

- 5. TEXT CLIPPING By: ArvindKumar 2D Different methods used for Character/ Text Clipping: 1. All or None String Clipping. 2. All or None Character Clipping. 3. Text Clipping

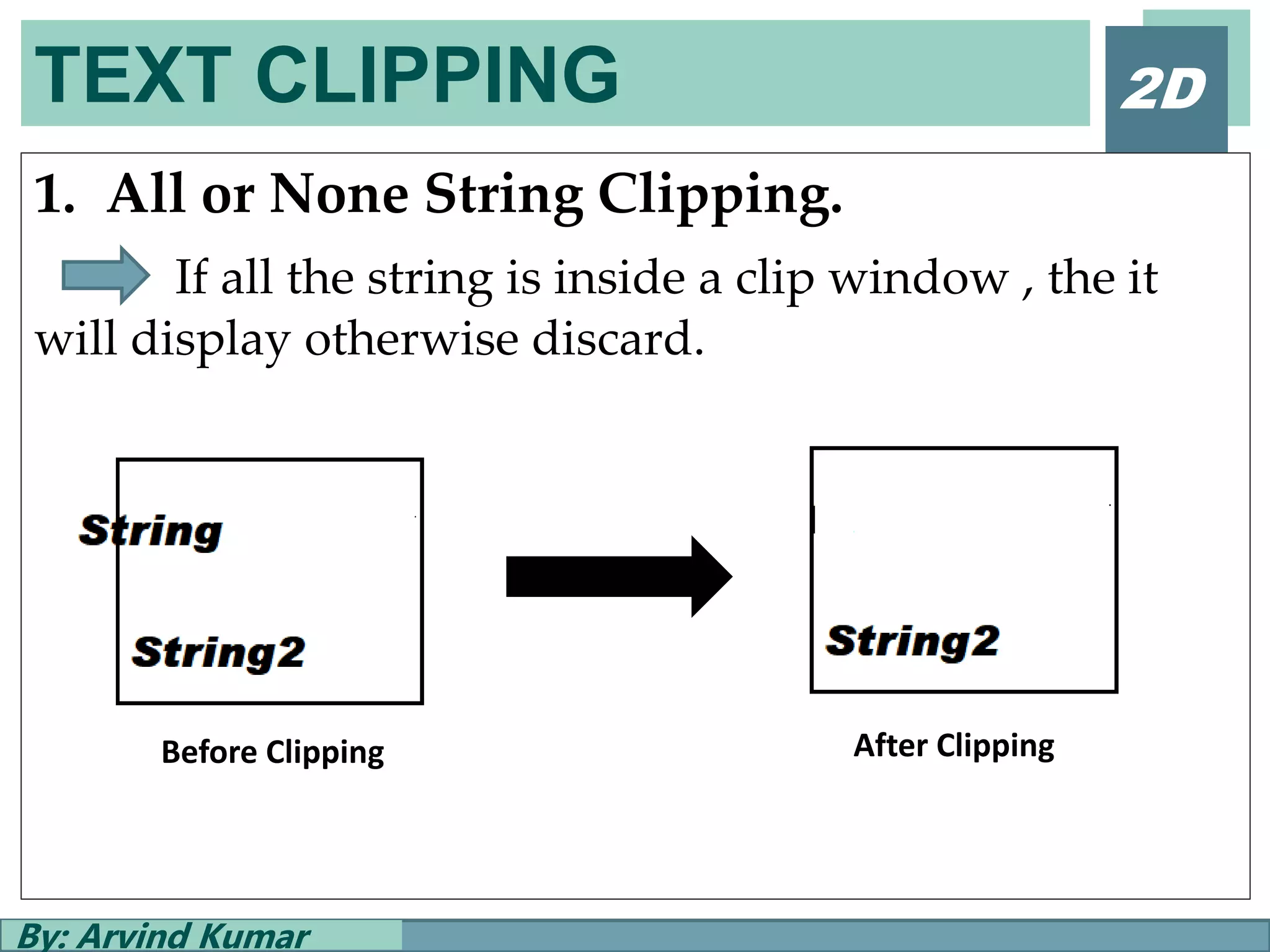

- 6. TEXT CLIPPING By: ArvindKumar 2D 1. All or None String Clipping. If all the string is inside a clip window , the it will display otherwise discard. Before Clipping After Clipping

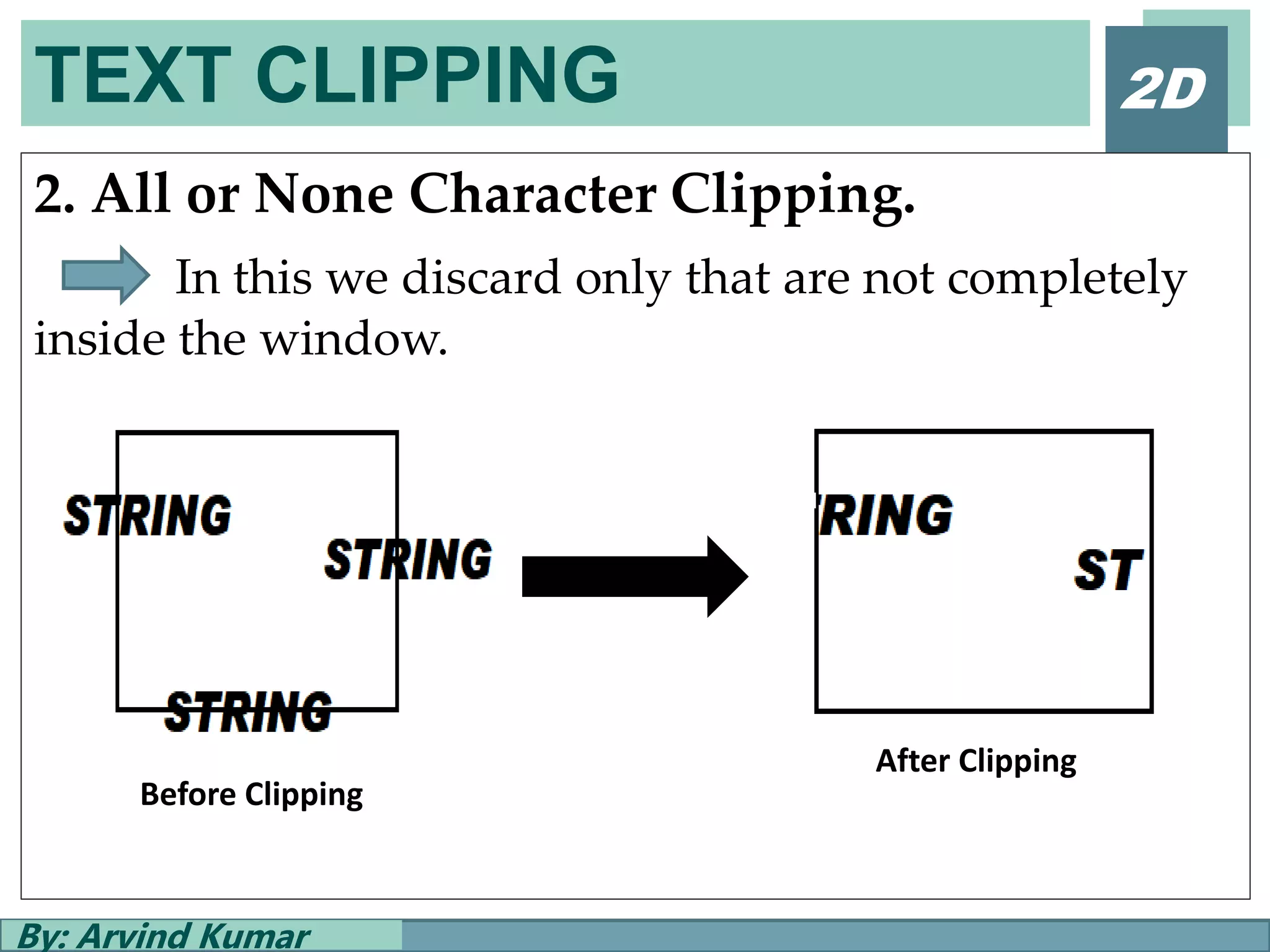

- 7. TEXT CLIPPING By: ArvindKumar 2D 2. All or None Character Clipping. In this we discard only that are not completely inside the window. Before Clipping After Clipping

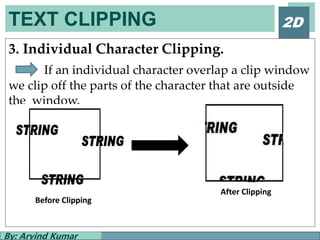

- 8. TEXT CLIPPING By: ArvindKumar 2D 3. Individual Character Clipping. If an individual character overlap a clip window we clip off the parts of the character that are outside the window. Before Clipping After Clipping
