Chapter 5
Pointers and Dynamic Memory

2

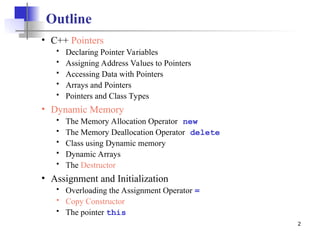

Outline
• C++ Pointers
 Declaring Pointer Variables
 Assigning Address Values to Pointers
 Accessing Data with Pointers
 Arrays and Pointers
 Pointers and Class Types
• Dynamic Memory
 The Memory Allocation Operator new
 The Memory Deallocation Operator delete
 Class using Dynamic memory
 Dynamic Arrays
 The Destructor
• Assignment and Initialization
 Overloading the Assignment Operator =
 Copy Constructor
 The pointer this

3

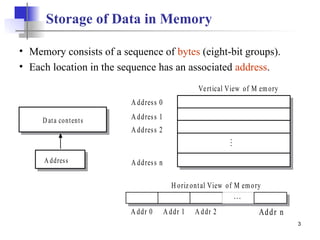

Storage of Data in Memory
A ddress
D ata contents
A ddress 0
A ddress n
A ddress 2
A ddress 1
A ddr 0 A ddr 1 A ddr 2 Addr n
Vertical View of M emory
H orizontal View of M emory
.
.
.
...
• Memory consists of a sequence of bytes (eight-bit groups).
• Each location in the sequence has an associated address.

4

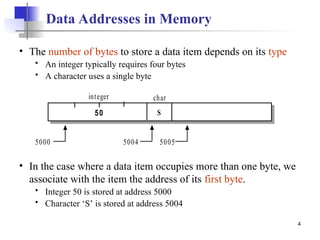

Data Addresses in Memory
50
integer char
5000
S
5004 5005
• The number of bytes to store a data item depends on its type
 An integer typically requires four bytes
 A character uses a single byte
• In the case where a data item occupies more than one byte, we
associate with the item the address of its first byte.
 Integer 50 is stored at address 5000
 Character ‘S’ is stored at address 5004

5
• The pointer ptr is a variable whose value is the address of a
data item of the designated type.

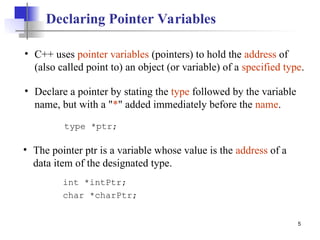

Declaring Pointer Variables
int *intPtr;
char *charPtr;
type *ptr;
• Declare a pointer by stating the type followed by the variable
name, but with a "*" added immediately before the name.
• C++ uses pointer variables (pointers) to hold the address of
(also called point to) an object (or variable) of a specified type.

6

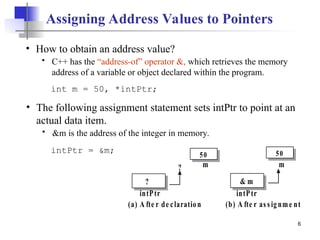

Assigning Address Values to Pointers
• The following assignment statement sets intPtr to point at an
actual data item.
 &m is the address of the integer in memory.
intPtr = &m;
int m = 50, *intPtr;
50
m
?
intPtr
?
50
m
& m
intPtr
(a) A fte r de claration (b) A fte r as s ignme nt
• How to obtain an address value?
 C++ has the “address-of” operator &, which retrieves the memory
address of a variable or object declared within the program.

7

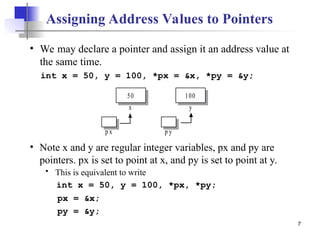

int x = 50, y = 100, *px = &x, *py = &y;
50
x
p x
100
y
p y
• We may declare a pointer and assign it an address value at
the same time.
• Note x and y are regular integer variables, px and py are
pointers. px is set to point at x, and py is set to point at y.
 This is equivalent to write
Assigning Address Values to Pointers
int x = 50, y = 100, *px, *py;
px = &x;
py = &y;

8

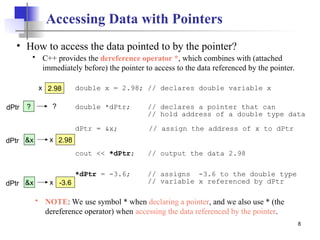

Accessing Data with Pointers
double x = 2.98; // declares double variable x
double *dPtr; // declares a pointer that can
// hold address of a double type data
dPtr = &x; // assign the address of x to dPtr
cout << *dPtr; // output the data 2.98
*dPtr = -3.6; // assigns -3.6 to the double type
// variable x referenced by dPtr
• How to access the data pointed to by the pointer?
 C++ provides the dereference operator *, which combines with (attached
immediately before) the pointer to access to the data referenced by the pointer.
 NOTE: We use symbol * when declaring a pointer, and we also use * (the
dereference operator) when accessing the data referenced by the pointer.
2.98
?
dPtr
x
?
&x
dPtr 2.98
x
&x
dPtr -3.6
x

9

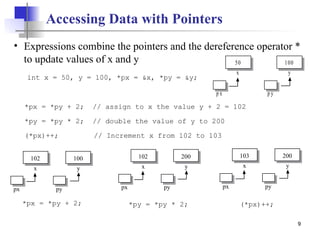

int x = 50, y = 100, *px = &x, *py = &y;
• Expressions combine the pointers and the dereference operator *
to update values of x and y
*px = *py + 2; // assign to x the value y + 2 = 102
*py = *py * 2; // double the value of y to 200
(*px)++; // Increment x from 102 to 103
50
x
p x
100
y
p y
*px = *py + 2; *py = *py * 2; (*px)++;
102
x
px
100
y
py
102
x
px
200
y
py
103
x
px
200
y
py

10

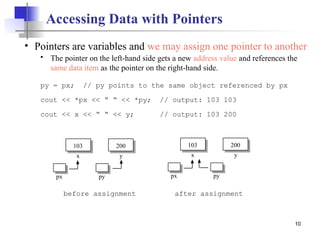

• Pointers are variables and we may assign one pointer to another
 The pointer on the left-hand side gets a new address value and references the
same data item as the pointer on the right-hand side.
py = px; // py points to the same object referenced by px
cout << *px << “ “ << *py; // output: 103 103
cout << x << “ “ << y; // output: 103 200
before assignment after assignment
103
x
px
200
y
py
103
x
px
200
y
py

11

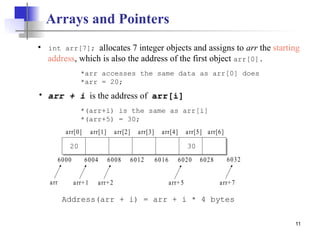

Arrays and Pointers
arr
arr[0] arr[6]
arr[5]
arr[4]
arr[3]
arr[2]
arr[1]
arr+7
arr+2
arr+1
6000 6028
6020
6016
6012
6008
6004 6032
arr+5
• allocates 7 integer objects and assigns to arr the starting
address, which is also the address of the first object arr[0].
int arr[7];
*arr accesses the same data as arr[0] does
*arr = 20;
• arr + i is the address of arr[i]
*(arr+i) is the same as arr[i]
*(arr+5) = 30;
Address(arr + i) = arr + i * 4 bytes
20 30

12

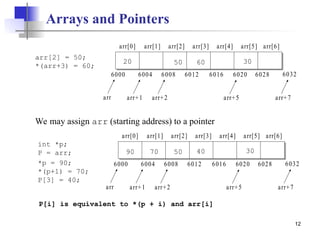

Arrays and Pointers
arr
arr[0] arr[6]
arr[5]
arr[4]
arr[3]
arr[2]
arr[1]
arr+7
arr+2
arr+1
6000 6028
6020
6016
6012
6008
6004 6032
arr+5
arr[2] = 50;
*(arr+3) = 60; 50 60
int *p;
P = arr;
*p = 90;
*(p+1) = 70;
P[3] = 40;
arr
arr[0] arr[6]
arr[5]
arr[4]
arr[3]
arr[2]
arr[1]
arr+7
arr+2
arr+1
6000 6028
6020
6016
6012
6008
6004 6032
arr+5
50 40
90 70
P[i] is equivalent to *(p + i) and arr[i]
We may assign arr (starting address) to a pointer
20 30
30

13

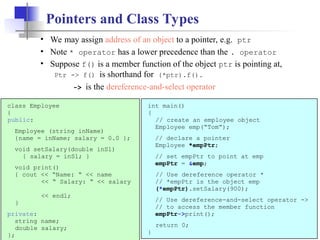

Pointers and Class Types
class Employee
{
public:
Employee (string inName)
{name = inName; salary = 0.0 };
void setSalary(double inSl)
{ salary = inSl; }
void print()
{ cout << “Name: “ << name
<< “ Salary: “ << salary
<< endl;
}
private:
string name;
double salary;
};
int main()
{
// create an employee object
Employee emp(“Tom”);
// declare a pointer
Employee *empPtr;
// set empPtr to point at emp
empPtr = &emp;
// Use dereference operator *
// *empPtr is the object emp
(*empPtr).setSalary(900);
// Use dereference-and-select operator ->
// to access the member function
empPtr->print();
return 0;
}
• We may assign address of an object to a pointer, e.g. ptr
• Note * operator has a lower precedence than the . operator
• Suppose f() is a member function of the object ptr is pointing at,
Ptr -> f() is shorthand for (*ptr).f().
-> is the dereference-and-select operator

14

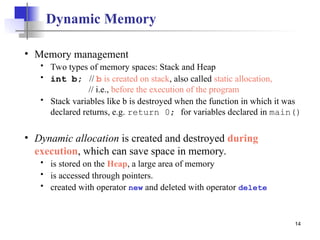

Dynamic Memory
• Memory management
 Two types of memory spaces: Stack and Heap
 int b; // b is created on stack, also called static allocation,
// i.e., before the execution of the program
 Stack variables like b is destroyed when the function in which it was
declared returns, e.g. return 0; for variables declared in main()
• Dynamic allocation is created and destroyed during
execution, which can save space in memory.
 is stored on the Heap, a large area of memory
 is accessed through pointers.
 created with operator new and deleted with operator delete

15

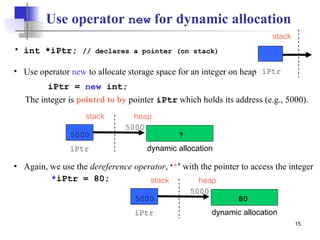

Use operator new for dynamic allocation
• int *iPtr; // declares a pointer (on stack)
iPtr
stack
iPtr
stack heap
dynamic allocation
5000
5000 ?
• Again, we use the dereference operator, ‘*’ with the pointer to access the integer
*iPtr = 80;
iPtr
stack heap
dynamic allocation
5000
5000 80
• Use operator new to allocate storage space for an integer on heap
iPtr = new int;
The integer is pointed to by pointer iPtr which holds its address (e.g., 5000).

16

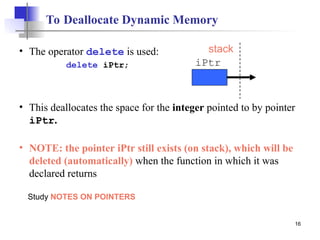

To Deallocate Dynamic Memory
• The operator delete is used:
delete iPtr;
• This deallocates the space for the integer pointed to by pointer
iPtr.
• NOTE: the pointer iPtr still exists (on stack), which will be
deleted (automatically) when the function in which it was
declared returns
iPtr
stack
Study NOTES ON POINTERS

17

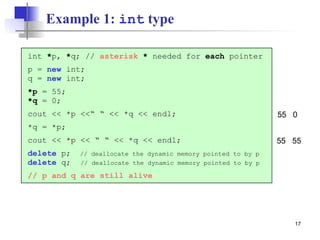

Example 1: int type
int *p, *q; // asterisk * needed for each pointer
p = new int;
q = new int;
*p = 55;
*q = 0;
cout << *p <<“ “ << *q << endl;
*q = *p;
cout << *p << “ “ << *q << endl;
delete p; // deallocate the dynamic memory pointed to by p
delete q; // deallocate the dynamic memory pointed to by p
// p and q are still alive
55 0
55 55

18

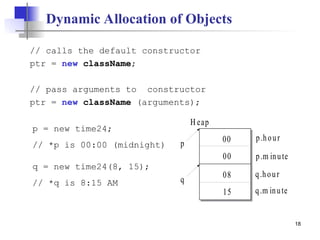

Dynamic Allocation of Objects
p = new time24;
// *p is 00:00 (midnight)
q = new time24(8, 15);
// *q is 8:15 AM
H eap
p.hour
q.m inute
q.hour
p.m inute
00
15
08
00
p
q
// calls the default constructor
ptr = new className;
// pass arguments to constructor
ptr = new className (arguments);

19

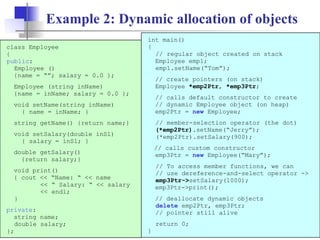

Example 2: Dynamic allocation of objects
class Employee
{
public:
Employee ()
{name = “”; salary = 0.0 };
Employee (string inName)
{name = inName; salary = 0.0 };
void setName(string inName)
{ name = inName; }
string getName() {return name;}
void setSalary(double inSl)
{ salary = inSl; }
double getSalary()
{return salary;}
void print()
{ cout << “Name: “ << name
<< “ Salary: “ << salary
<< endl;
}
private:
string name;
double salary;
};
int main()
{
// regular object created on stack
Employee emp1;
emp1.setName(“Tom”);
// create pointers (on stack)
Employee *emp2Ptr, *emp3Ptr;
// calls default constructor to create
// dynamic Employee object (on heap)
emp2Ptr = new Employee;
// member-selection operator (the dot)
(*emp2Ptr).setName(“Jerry”);
(*emp2Ptr).setSalary(900);
// calls custom constructor
emp3Ptr = new Employee(“Mary”);
// To access member functions, we can
// use dereference-and-select operator ->
emp3Ptr->setSalary(1000);
emp3Ptr->print();
// deallocate dynamic objects
delete emp2Ptr, emp3Ptr;
// pointer still alive
return 0;
}

20
Dynamic Arrays
• GO OVER NOTES ON ARRAYS
• int *dynArr;
dynArr can be a pointer to either a single integer
or to an array of integers.
• dynArr = new int [5];
allocates an array of 5 integers on heap and stores
in dynArr the address of the zero-th element in
this array.
dynArr

21

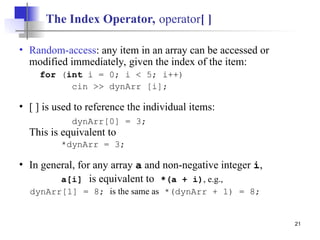

The Index Operator, operator[ ]
• Random-access: any item in an array can be accessed or
modified immediately, given the index of the item:
for (int i = 0; i < 5; i++)
cin >> dynArr [i];
• [ ] is used to reference the individual items:
dynArr[0] = 3;
This is equivalent to
*dynArr = 3;
• In general, for any array a and non-negative integer i,
a[i] is equivalent to *(a + i), e.g.,
dynArr[1] = 8; is the same as *(dynArr + 1) = 8;

22

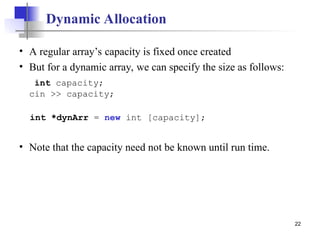

Dynamic Allocation
• A regular array’s capacity is fixed once created
• But for a dynamic array, we can specify the size as follows:
int capacity;
cin >> capacity;
int *dynArr = new int [capacity];
• Note that the capacity need not be known until run time.

23

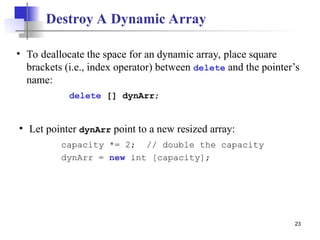

Destroy A Dynamic Array
• Let pointer dynArr point to a new resized array:
capacity *= 2; // double the capacity
dynArr = new int [capacity];
• To deallocate the space for an dynamic array, place square
brackets (i.e., index operator) between delete and the pointer’s
name:
delete [] dynArr;

24

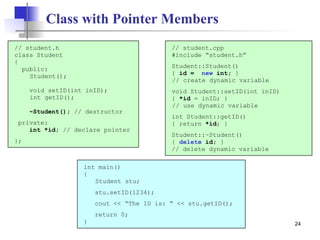

Class with Pointer Members
// student.h
class Student
{
public:
Student();
void setID(int inID);
int getID();
~Student(); // destructor
private:
int *id; // declare pointer
};
int main()
{
Student stu;
stu.setID(1234);
cout << “The ID is: “ << stu.getID();
return 0;
}
// student.cpp
#include “student.h”
Student::Student()
{ id = new int; }
// create dynamic variable
void Student::setID(int inID)
{ *id = inID; }
// use dynamic variable
int Student::getID()
{ return *id; }
Student::~Student()
{ delete id; }
// delete dynamic variable

Data structure and problem solving ch05.ppt

More Related Content

Similar to Data structure and problem solving ch05.ppt

More from Ping261512

Recently uploaded

Data structure and problem solving ch05.ppt
