Data structures and Algorithm analysis_Lecture4.pptx
- 1. Data structures and Algorithmanalysis Lecturer: Dr. Safa Abd El-aziz Ahmed Email: friendship_safa2004@yahoo.com Tel: 01002323306
- 2. Motivation • Accessing elementsin a linear linked list can be prohibitive especially for large amounts of input • Trees are simple data structures for which the running time of most operations is O(log N) on average • For example, if N = 1 million: • Searching an element in a linear linked list requires at most O(N) comparisons (i.e., 1 million comparisons) • Searching an element in a binary search tree (a kind of tree) requires O(log2 𝑁) comparisons ( 20 comparisons)

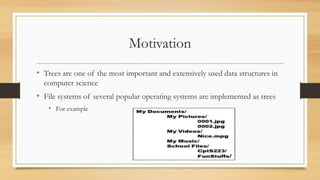

- 3. Motivation • Trees areone of the most important and extensively used data structures in computer science • File systems of several popular operating systems are implemented as trees • For example

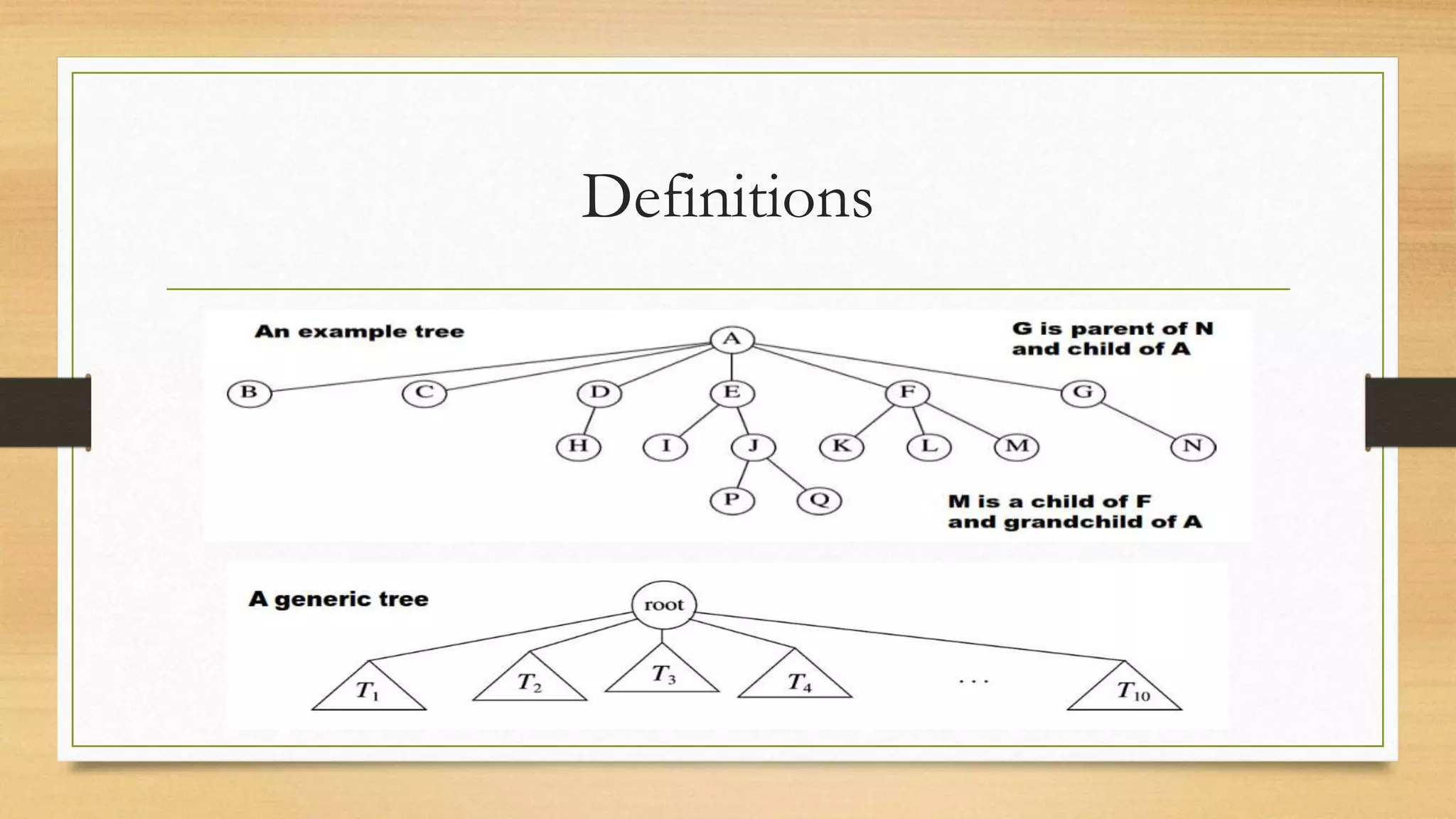

- 4.

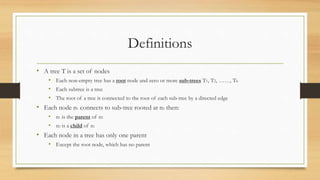

- 5. Definitions • A treeT is a set of nodes • Each non-empty tree has a root node and zero or more sub-trees T1, T2, ……, Tk • Each subtree is a tree • The root of a tree is connected to the root of each sub-tree by a directed edge • Each node n1 connects to sub-tree rooted at n2 then: • n1 is the parent of n2 • n2 is a child of n1 • Each node in a tree has only one parent • Except the root node, which has no parent

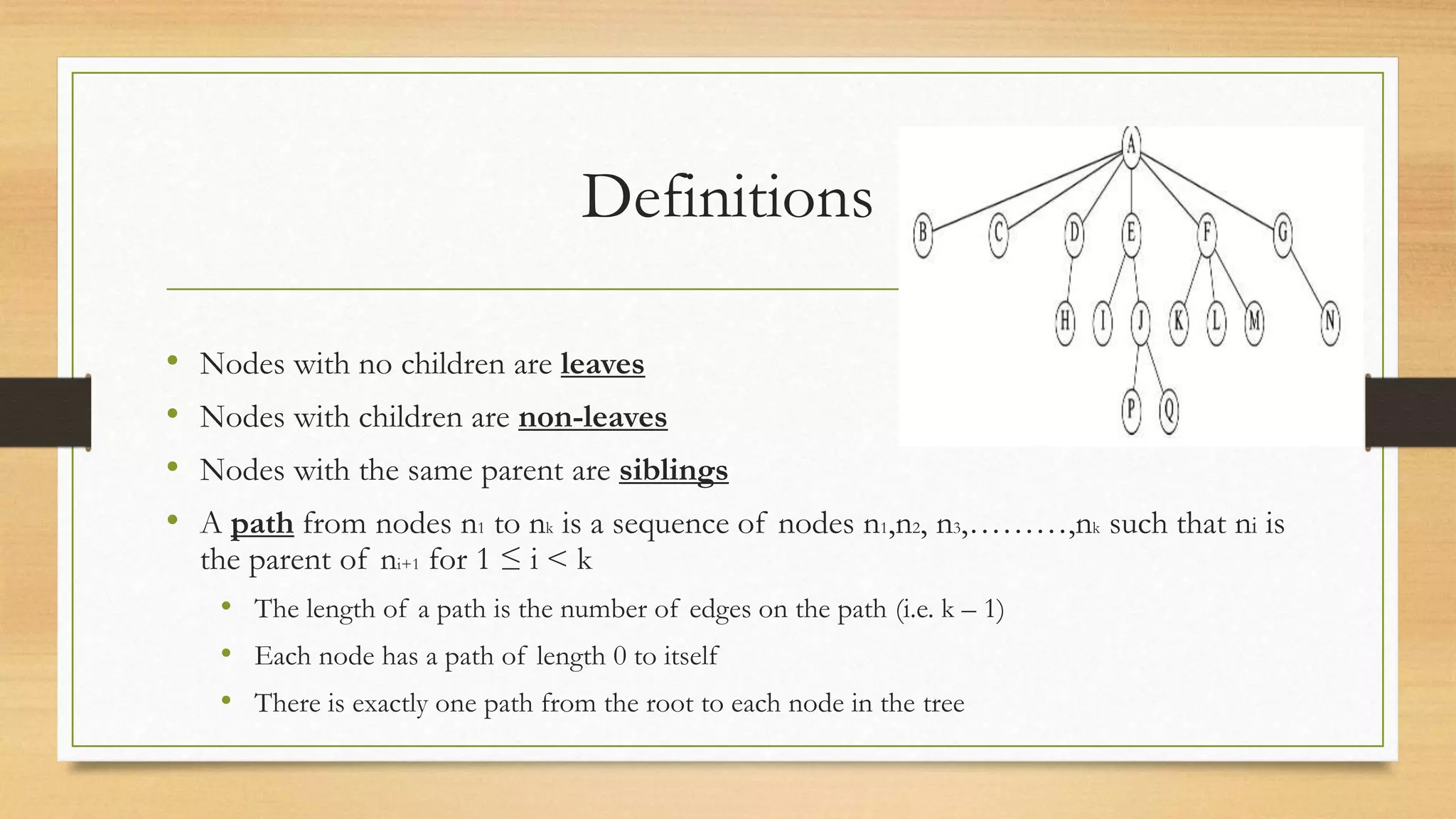

- 6. Definitions • Nodes withno children are leaves • Nodes with children are non-leaves • Nodes with the same parent are siblings • A path from nodes n1 to nk is a sequence of nodes n1,n2, n3,………,nk such that ni is the parent of ni+1 for 1 ≤ i < k • The length of a path is the number of edges on the path (i.e. k – 1) • Each node has a path of length 0 to itself • There is exactly one path from the root to each node in the tree

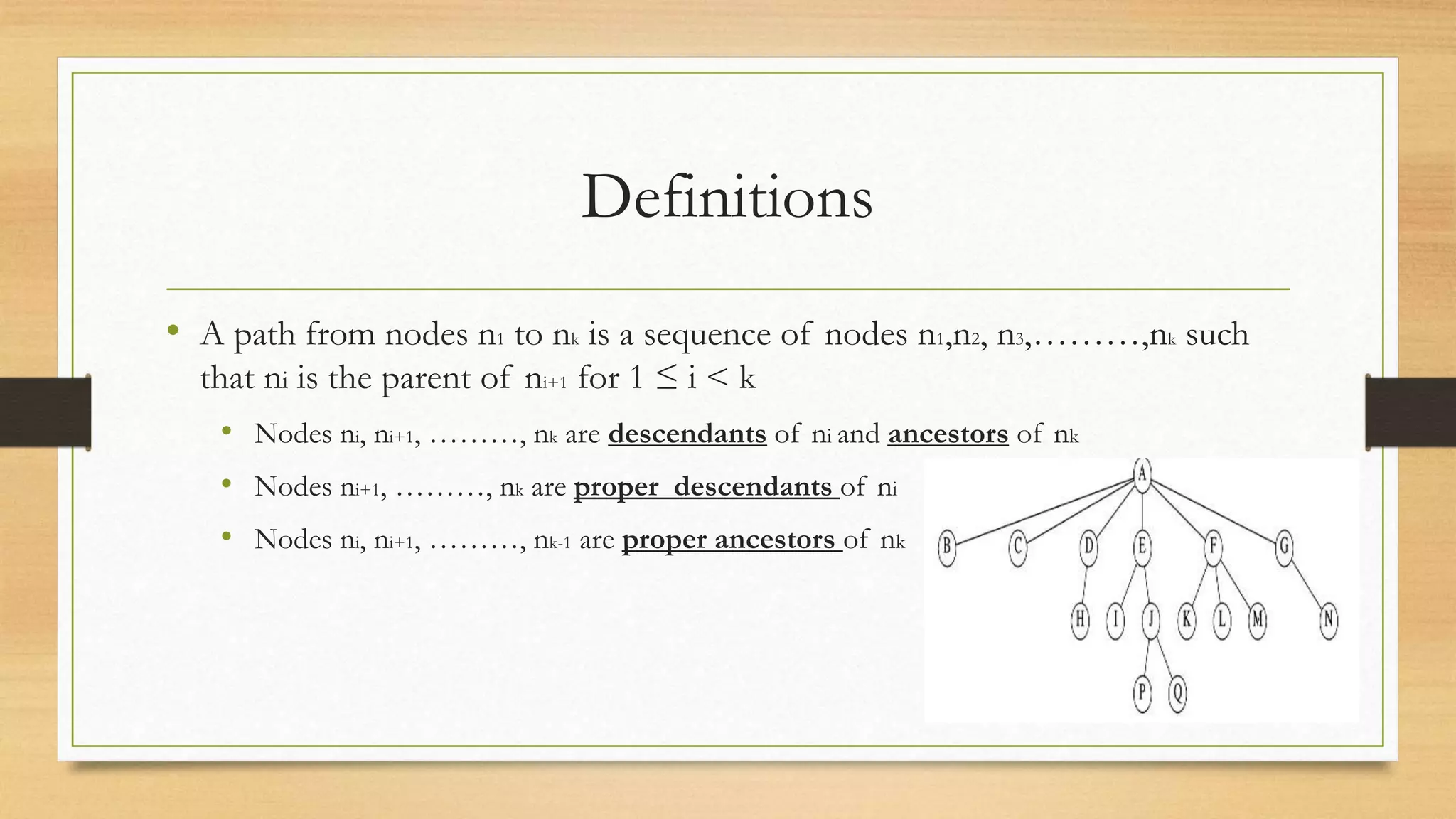

- 7. Definitions • A pathfrom nodes n1 to nk is a sequence of nodes n1,n2, n3,………,nk such that ni is the parent of ni+1 for 1 ≤ i < k • Nodes ni, ni+1, ………, nk are descendants of ni and ancestors of nk • Nodes ni+1, ………, nk are proper descendants of ni • Nodes ni, ni+1, ………, nk-1 are proper ancestors of nk

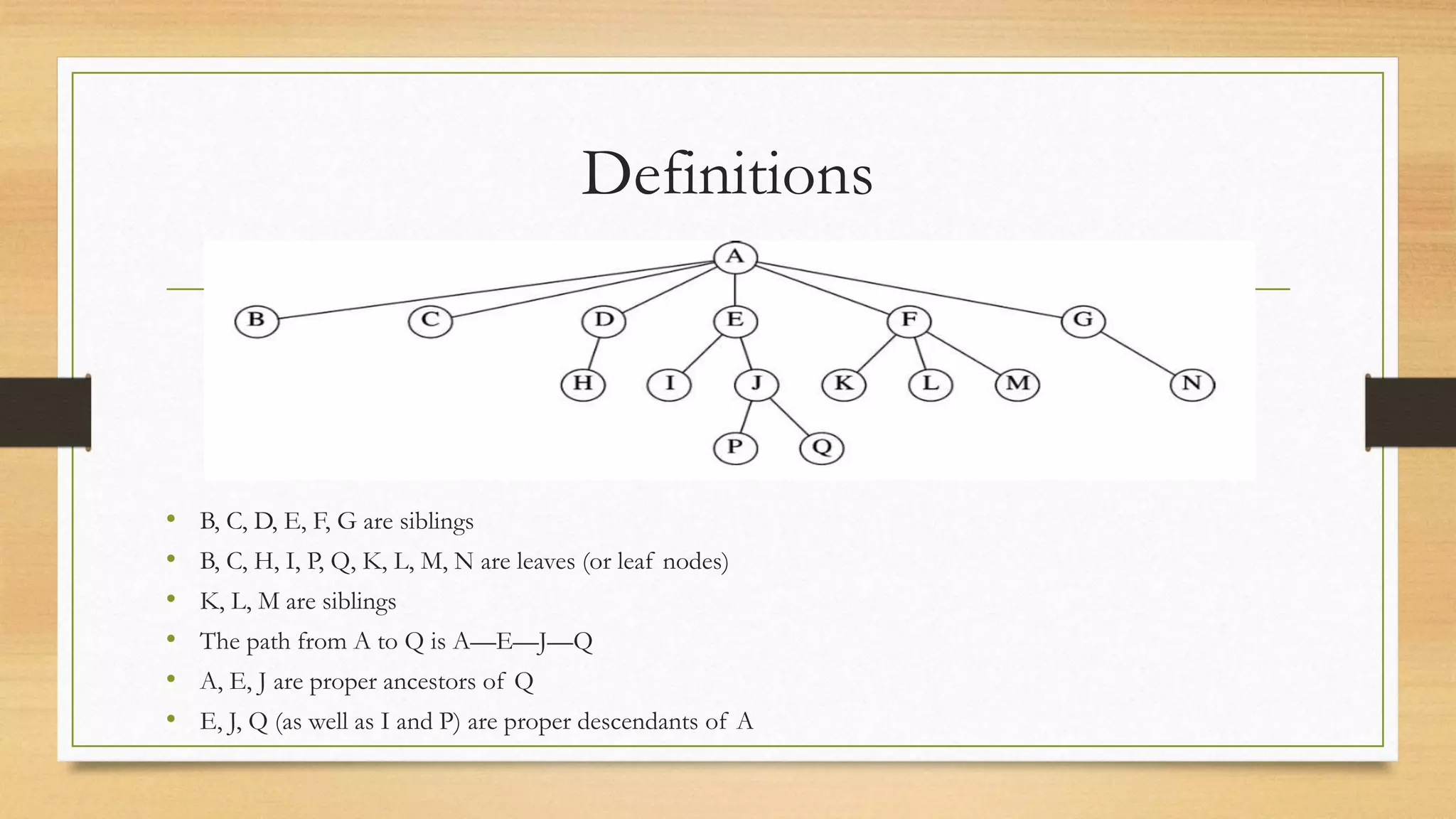

- 8. Definitions • B, C,D, E, F, G are siblings • B, C, H, I, P, Q, K, L, M, N are leaves (or leaf nodes) • K, L, M are siblings • The path from A to Q is A—E—J—Q • A, E, J are proper ancestors of Q • E, J, Q (as well as I and P) are proper descendants of A

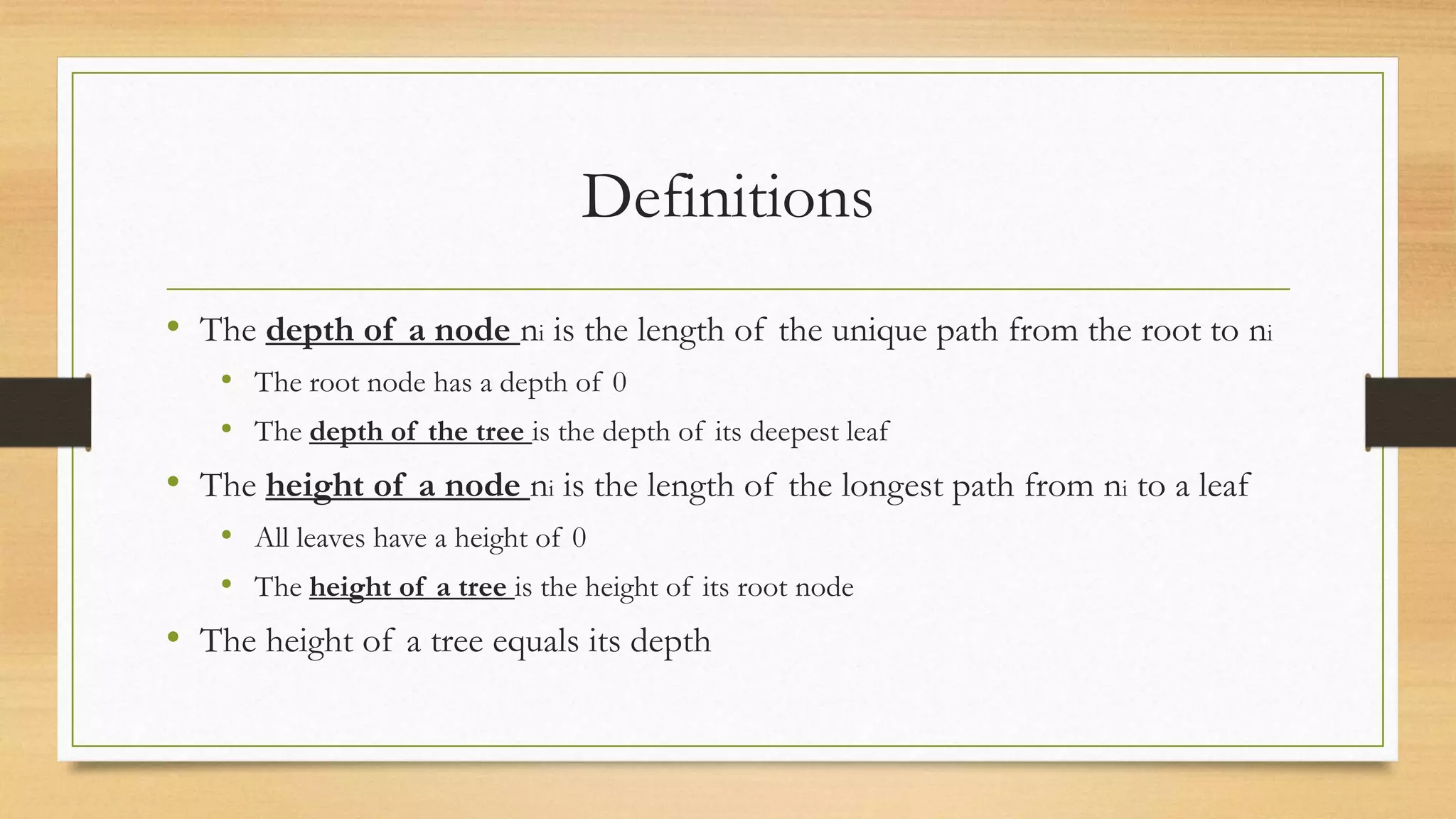

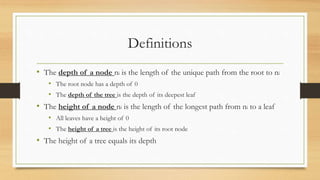

- 9. Definitions • The depthof a node ni is the length of the unique path from the root to ni • The root node has a depth of 0 • The depth of the tree is the depth of its deepest leaf • The height of a node ni is the length of the longest path from ni to a leaf • All leaves have a height of 0 • The height of a tree is the height of its root node • The height of a tree equals its depth

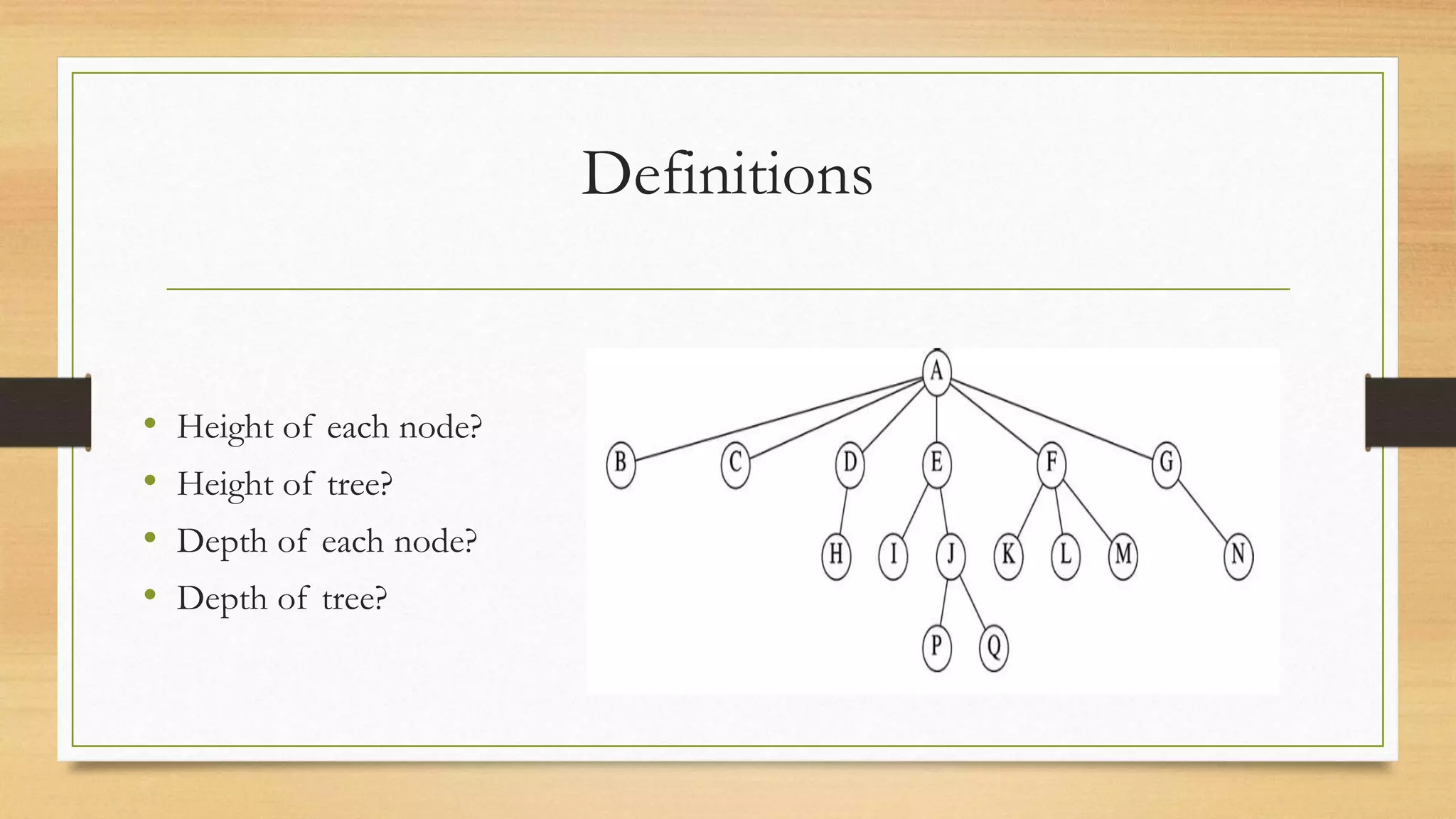

- 10. Definitions • Height ofeach node? • Height of tree? • Depth of each node? • Depth of tree?

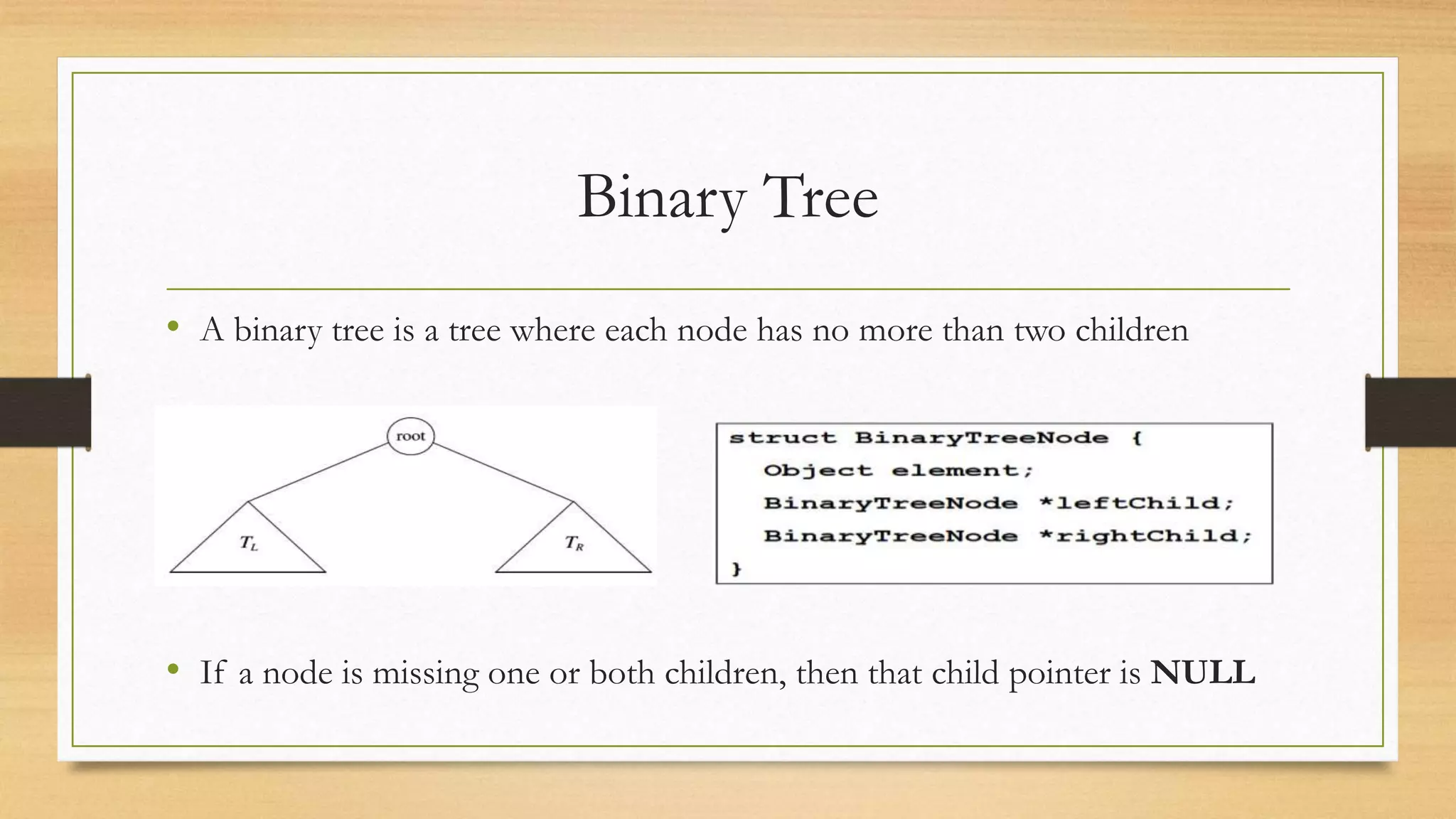

- 11. Binary Tree • Abinary tree is a tree where each node has no more than two children • If a node is missing one or both children, then that child pointer is NULL

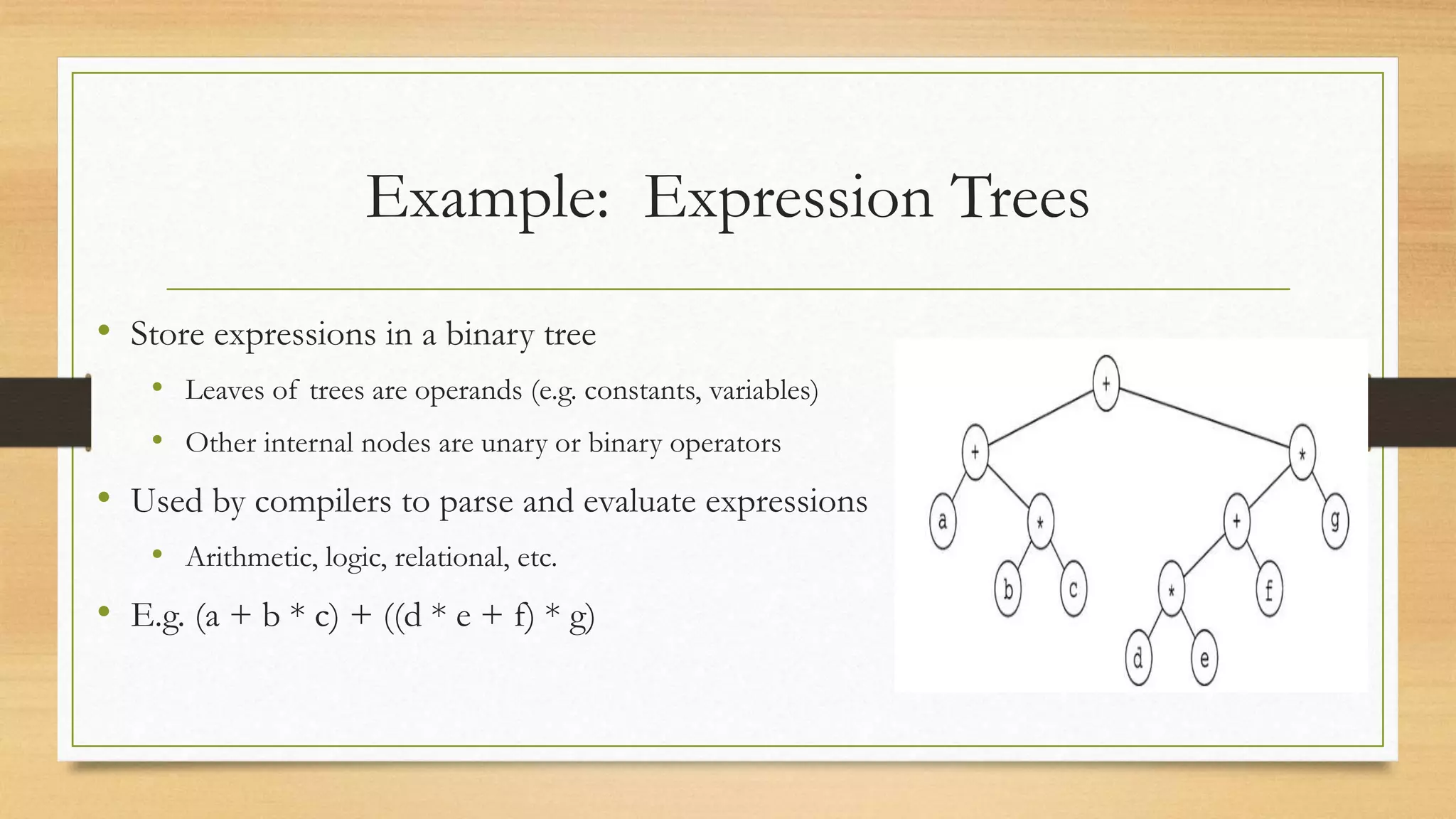

- 12. Example: Expression Trees •Store expressions in a binary tree • Leaves of trees are operands (e.g. constants, variables) • Other internal nodes are unary or binary operators • Used by compilers to parse and evaluate expressions • Arithmetic, logic, relational, etc. • E.g. (a + b * c) + ((d * e + f) * g)

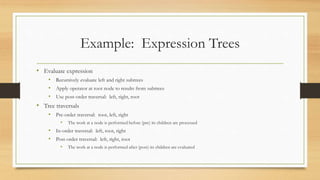

- 13. Example: Expression Trees •Evaluate expression • Recursively evaluate left and right subtrees • Apply operator at root node to results from subtrees • Use post-order traversal: left, right, root • Tree traversals • Pre-order traversal: root, left, right • The work at a node is performed before (pre) its children are processed • In-order traversal: left, root, right • Post-order traversal: left, right, root • The work at a node is performed after (post) its children are evaluated

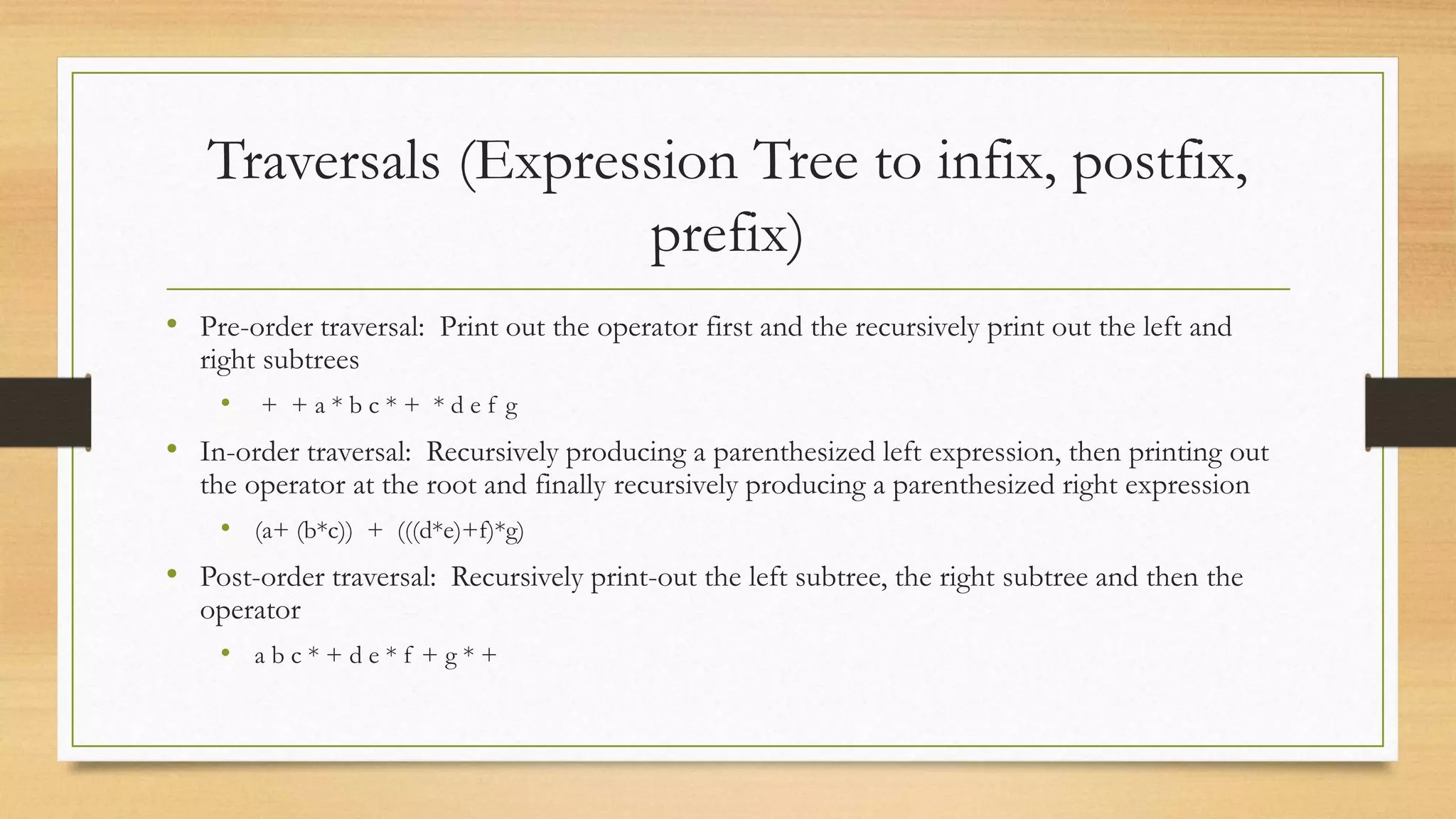

- 14. Traversals (Expression Treeto infix, postfix, prefix) • Pre-order traversal: Print out the operator first and the recursively print out the left and right subtrees • + + a * b c * + * d e f g • In-order traversal: Recursively producing a parenthesized left expression, then printing out the operator at the root and finally recursively producing a parenthesized right expression • (a+ (b*c)) + (((d*e)+f)*g) • Post-order traversal: Recursively print-out the left subtree, the right subtree and then the operator • a b c * + d e * f + g * +

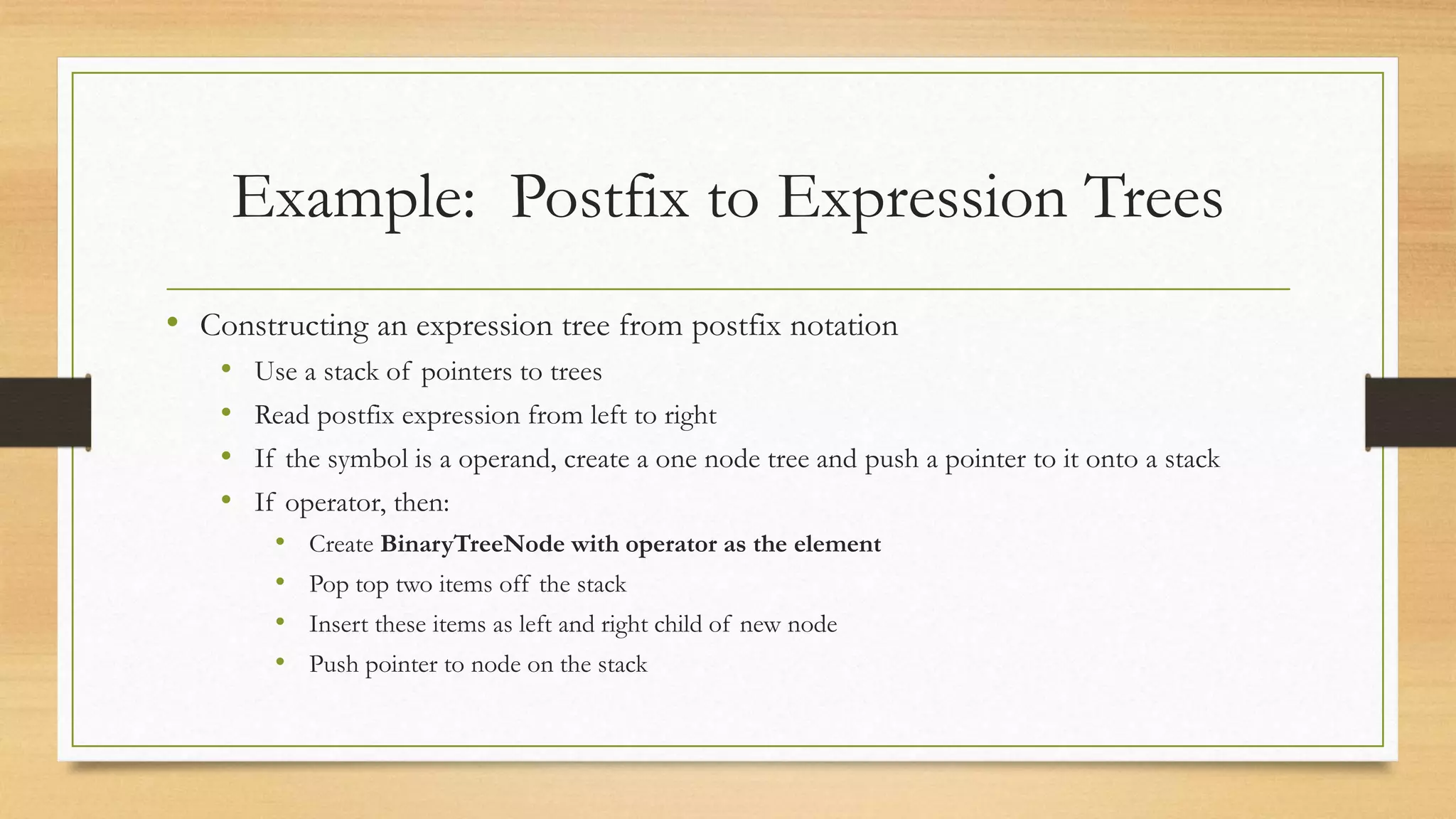

- 15. Example: Postfix toExpression Trees • Constructing an expression tree from postfix notation • Use a stack of pointers to trees • Read postfix expression from left to right • If the symbol is a operand, create a one node tree and push a pointer to it onto a stack • If operator, then: • Create BinaryTreeNode with operator as the element • Pop top two items off the stack • Insert these items as left and right child of new node • Push pointer to node on the stack

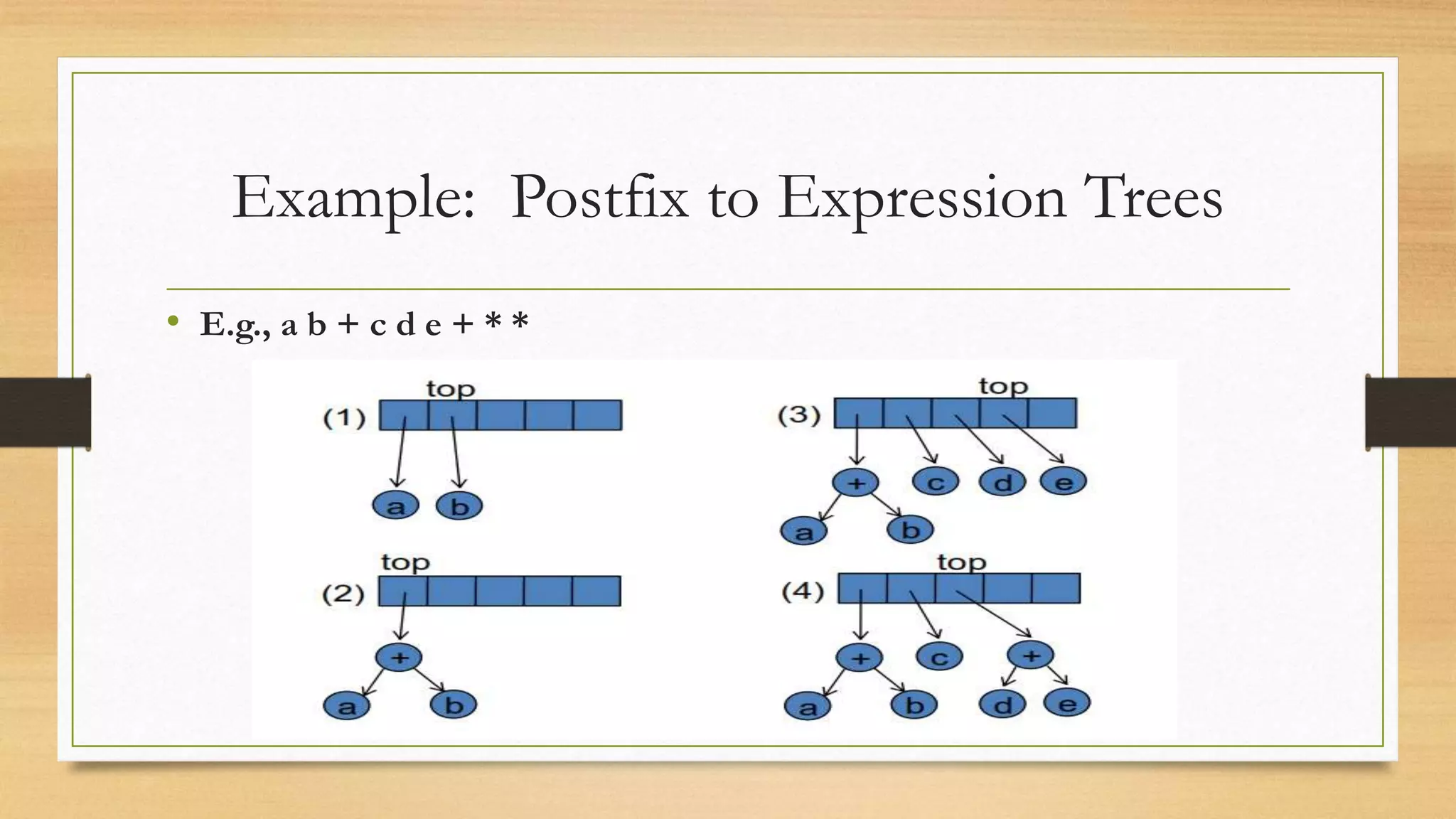

- 16. Example: Postfix toExpression Trees • E.g., a b + c d e + * *

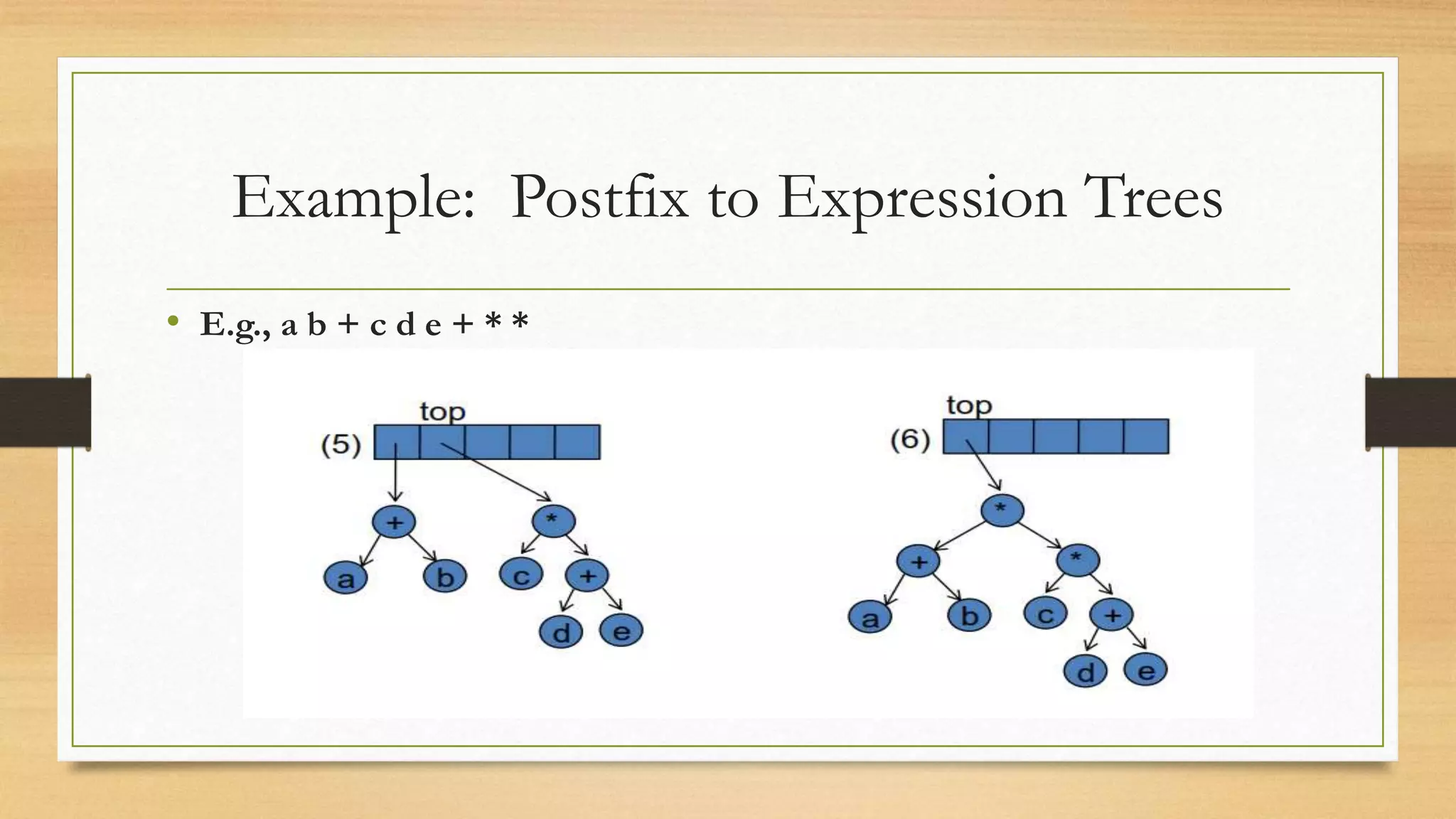

- 17. Example: Postfix toExpression Trees • E.g., a b + c d e + * *
- 18. Example: Infix toExpression Tree • E.g. (a + b * c) + ((d * e + f) * g) • Convert infix to postfix first, and • then apply postfix to expression tree evaluation algorithm

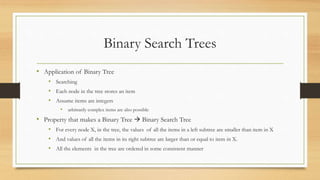

- 19. Binary Search Trees •Application of Binary Tree • Searching • Each node in the tree stores an item • Assume items are integers • arbitrarily complex items are also possible • Property that makes a Binary Tree Binary Search Tree • For every node X, in the tree, the values of all the items in a left subtree are smaller than item in X • And values of all the items in its right subtree are larger than or equal to item in X. • All the elements in the tree are ordered in some consistent manner

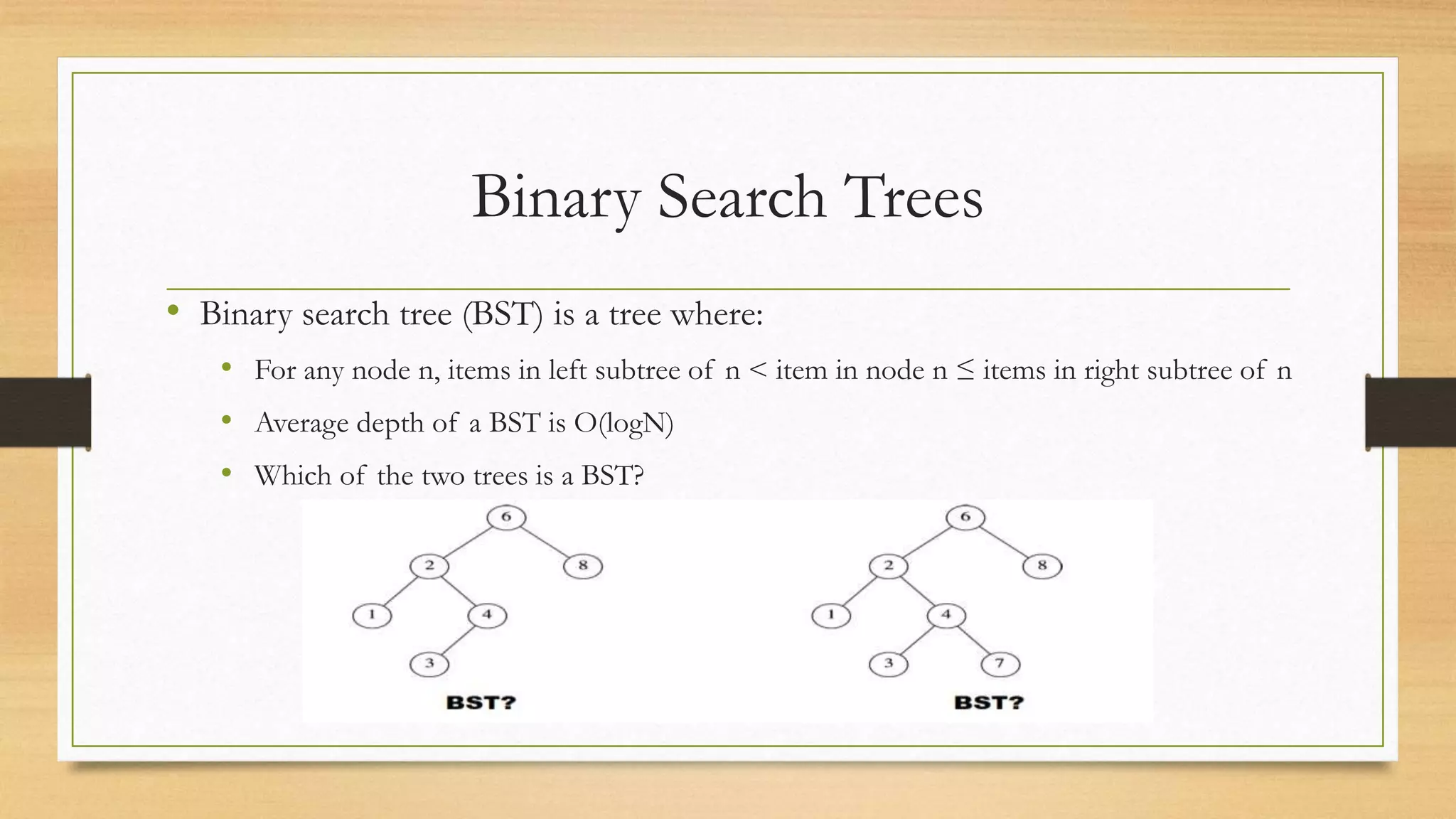

- 20. Binary Search Trees •Binary search tree (BST) is a tree where: • For any node n, items in left subtree of n < item in node n ≤ items in right subtree of n • Average depth of a BST is O(logN) • Which of the two trees is a BST?

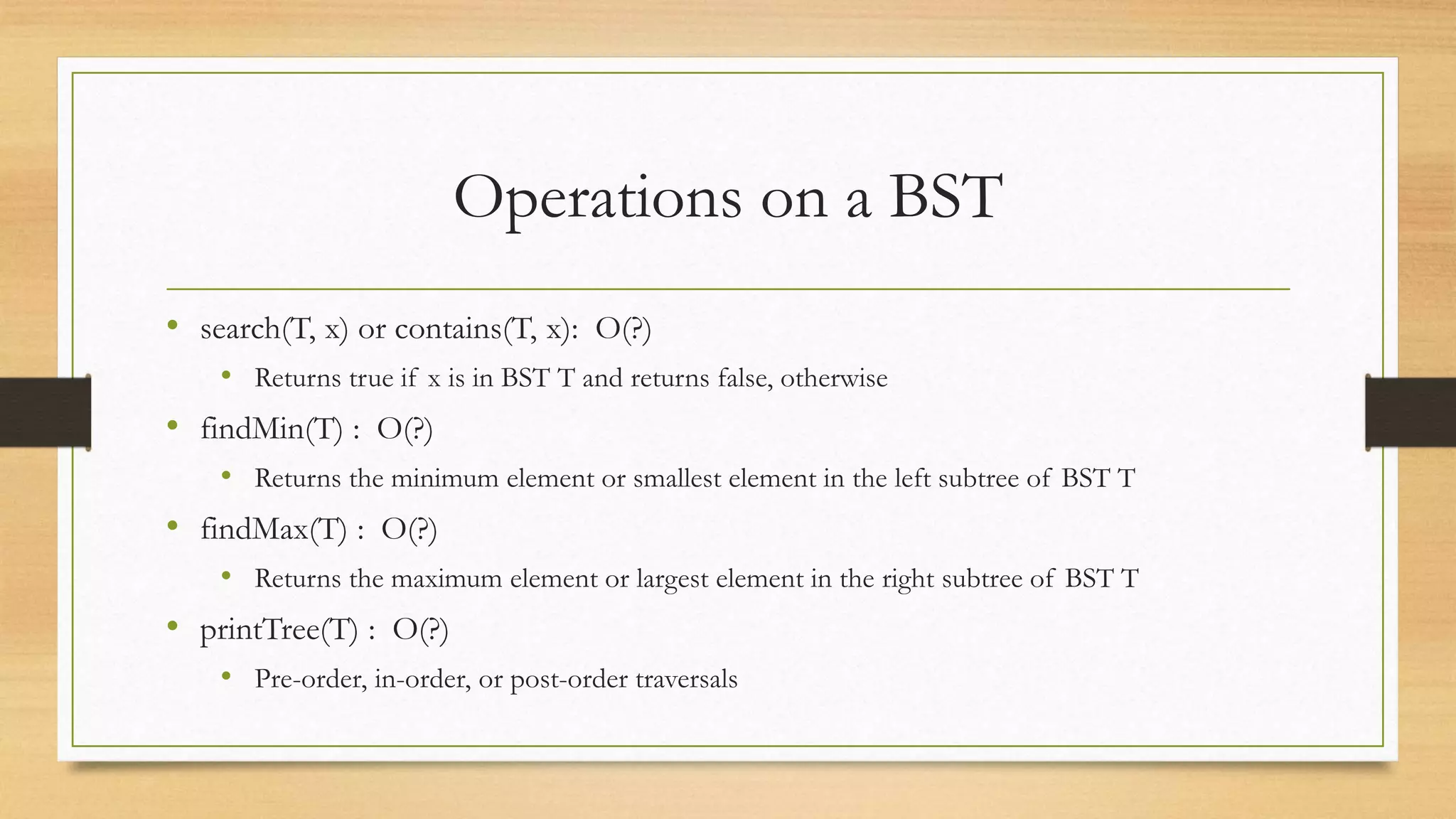

- 21. Operations on aBST • search(T, x) or contains(T, x): O(?) • Returns true if x is in BST T and returns false, otherwise • findMin(T) : O(?) • Returns the minimum element or smallest element in the left subtree of BST T • findMax(T) : O(?) • Returns the maximum element or largest element in the right subtree of BST T • printTree(T) : O(?) • Pre-order, in-order, or post-order traversals

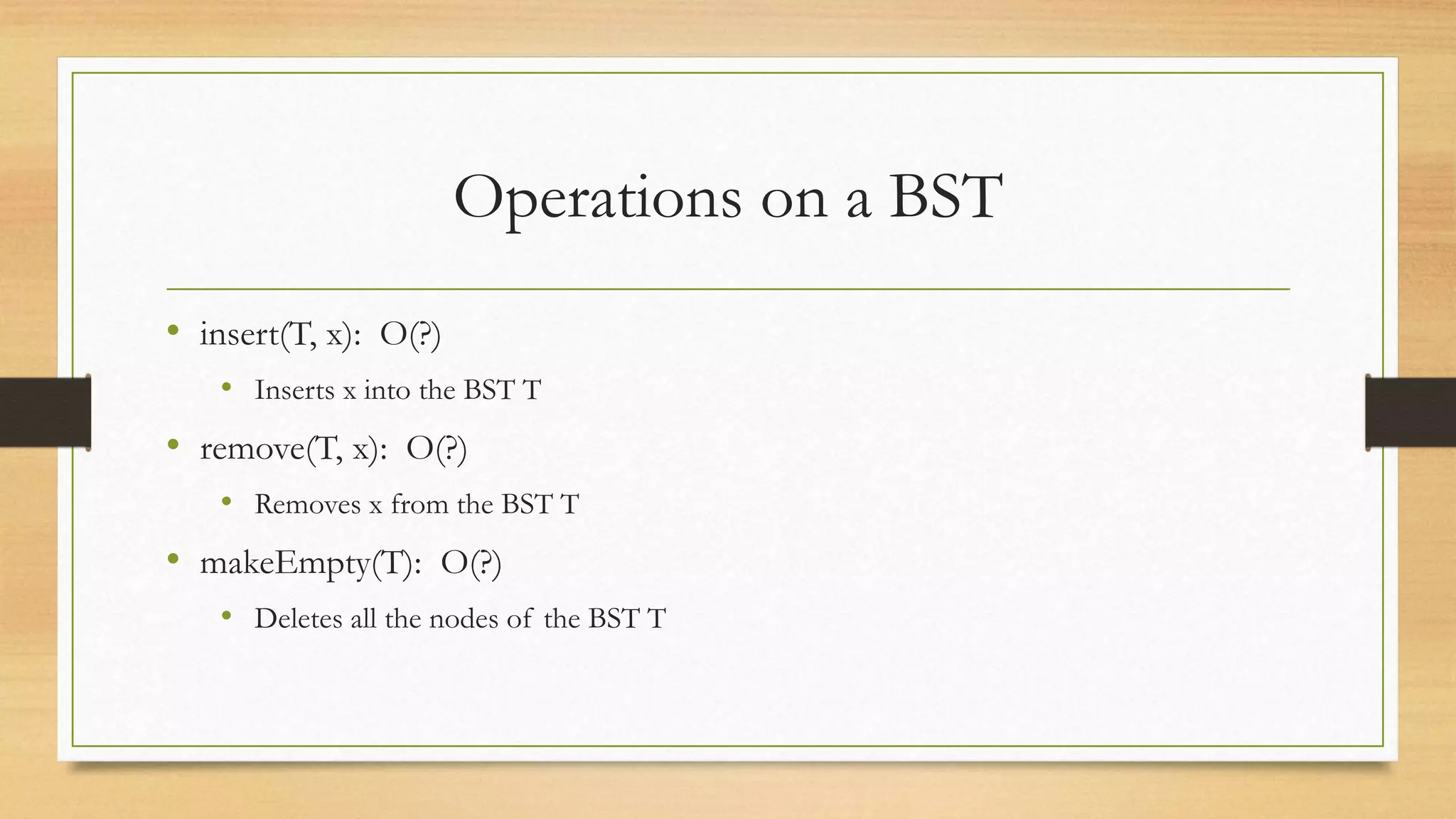

- 22. Operations on aBST • insert(T, x): O(?) • Inserts x into the BST T • remove(T, x): O(?) • Removes x from the BST T • makeEmpty(T): O(?) • Deletes all the nodes of the BST T
- 23. Operations on aBST • search(T, x) or contains(T, x) • T is a pointer to the root node of the BST • x is the element we want to search T

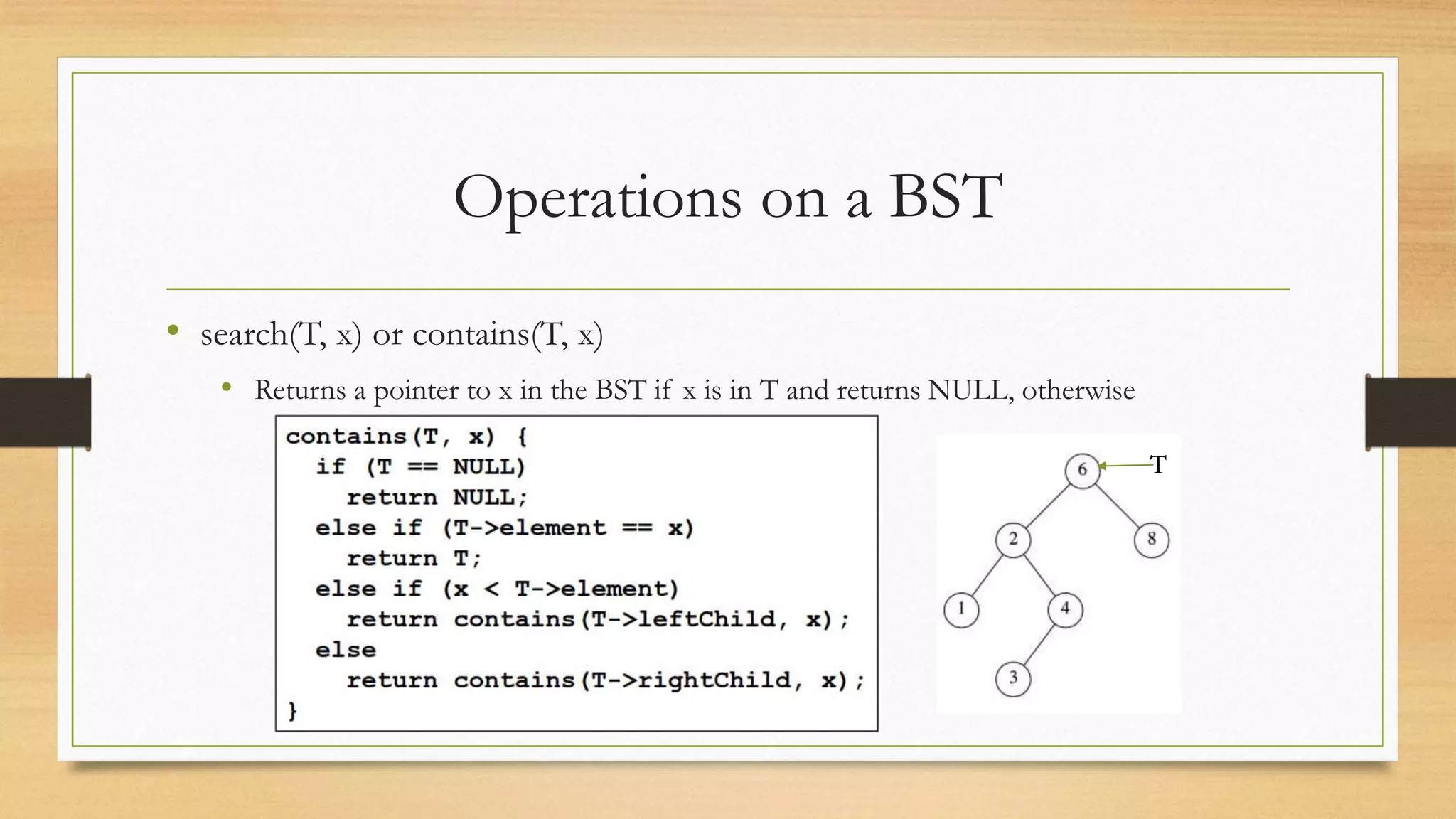

- 24. Operations on aBST • search(T, x) or contains(T, x) • Returns a pointer to x in the BST if x is in T and returns NULL, otherwise T

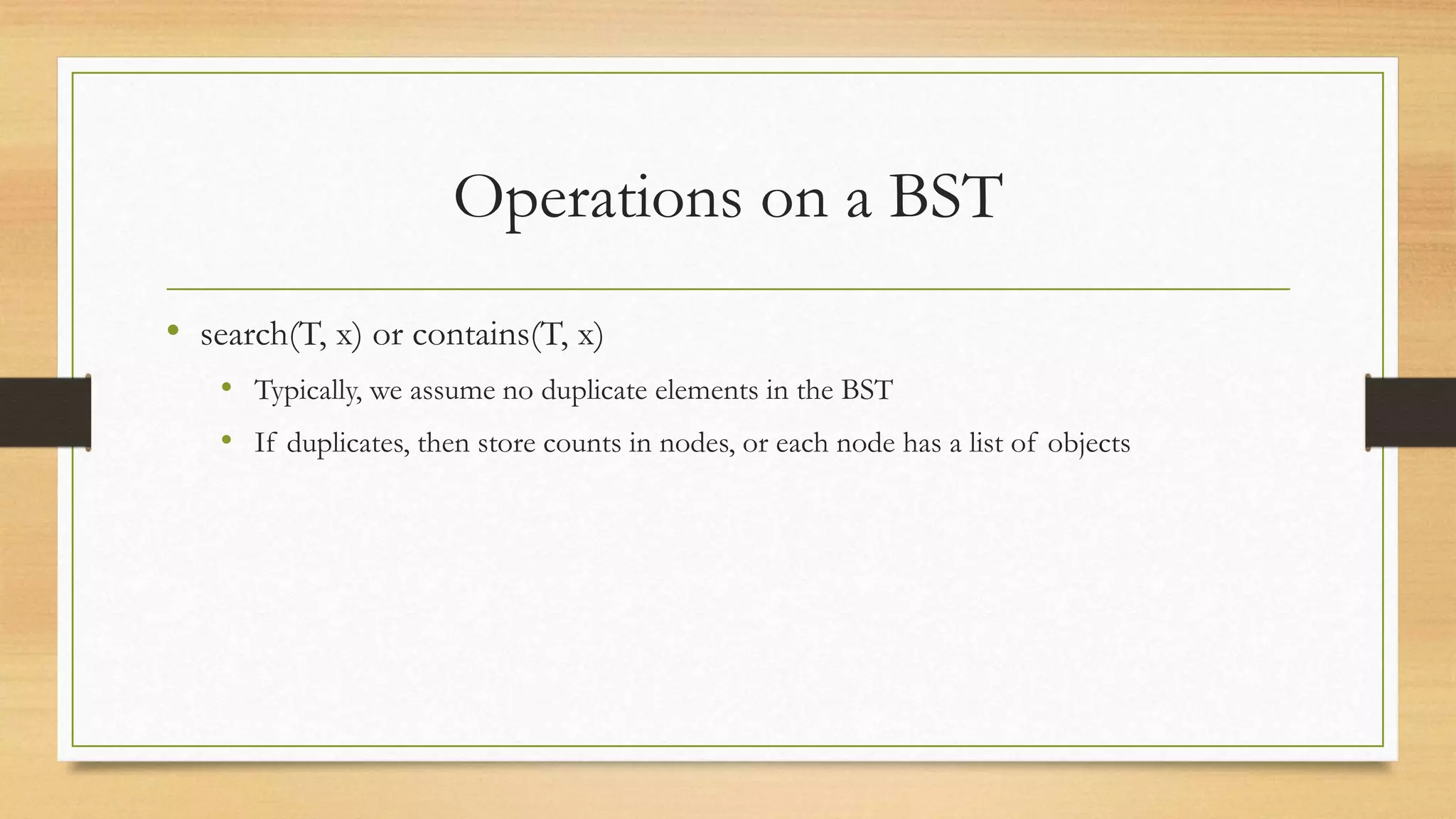

- 25. Operations on aBST • search(T, x) or contains(T, x) • Typically, we assume no duplicate elements in the BST • If duplicates, then store counts in nodes, or each node has a list of objects

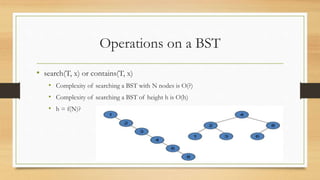

- 26. Operations on aBST • search(T, x) or contains(T, x) • Complexity of searching a BST with N nodes is O(?) • Complexity of searching a BST of height h is O(h) • h = f(N)?

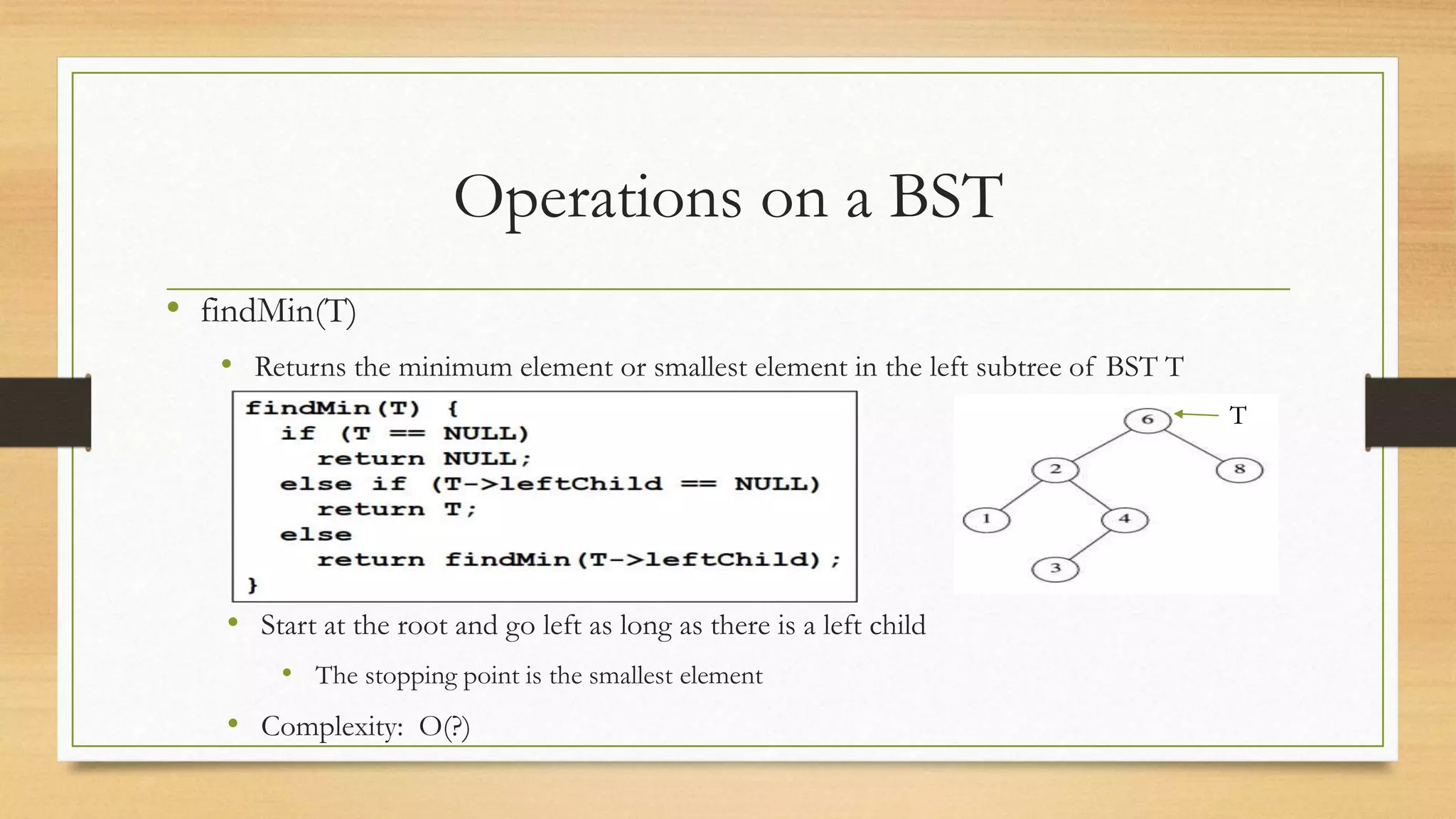

- 27. Operations on aBST • findMin(T) • Returns the minimum element or smallest element in the left subtree of BST T T • Start at the root and go left as long as there is a left child • The stopping point is the smallest element • Complexity: O(?)

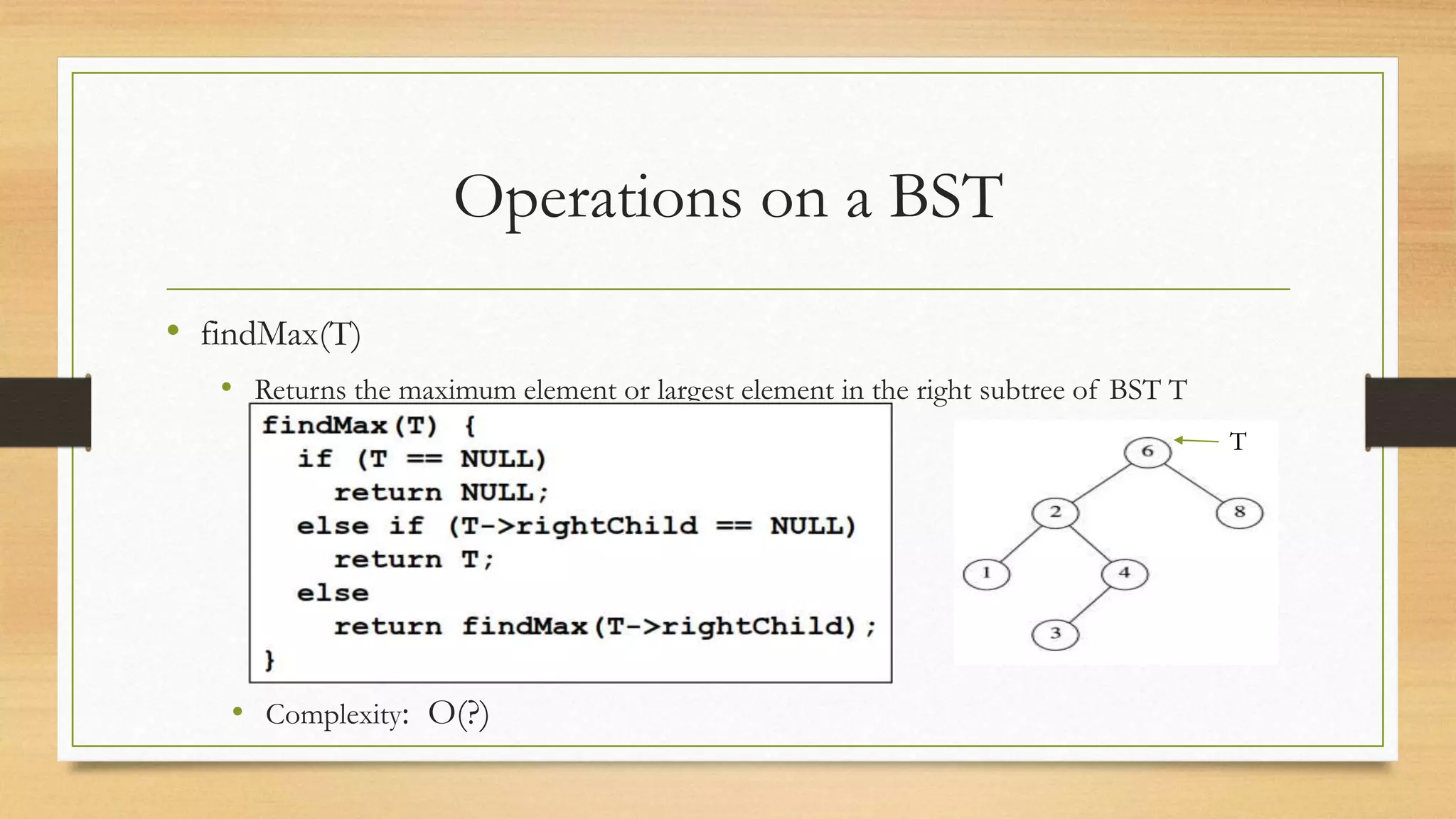

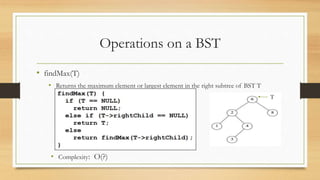

- 28. Operations on aBST • findMax(T) • Returns the maximum element or largest element in the right subtree of BST T • Complexity: O(?) T

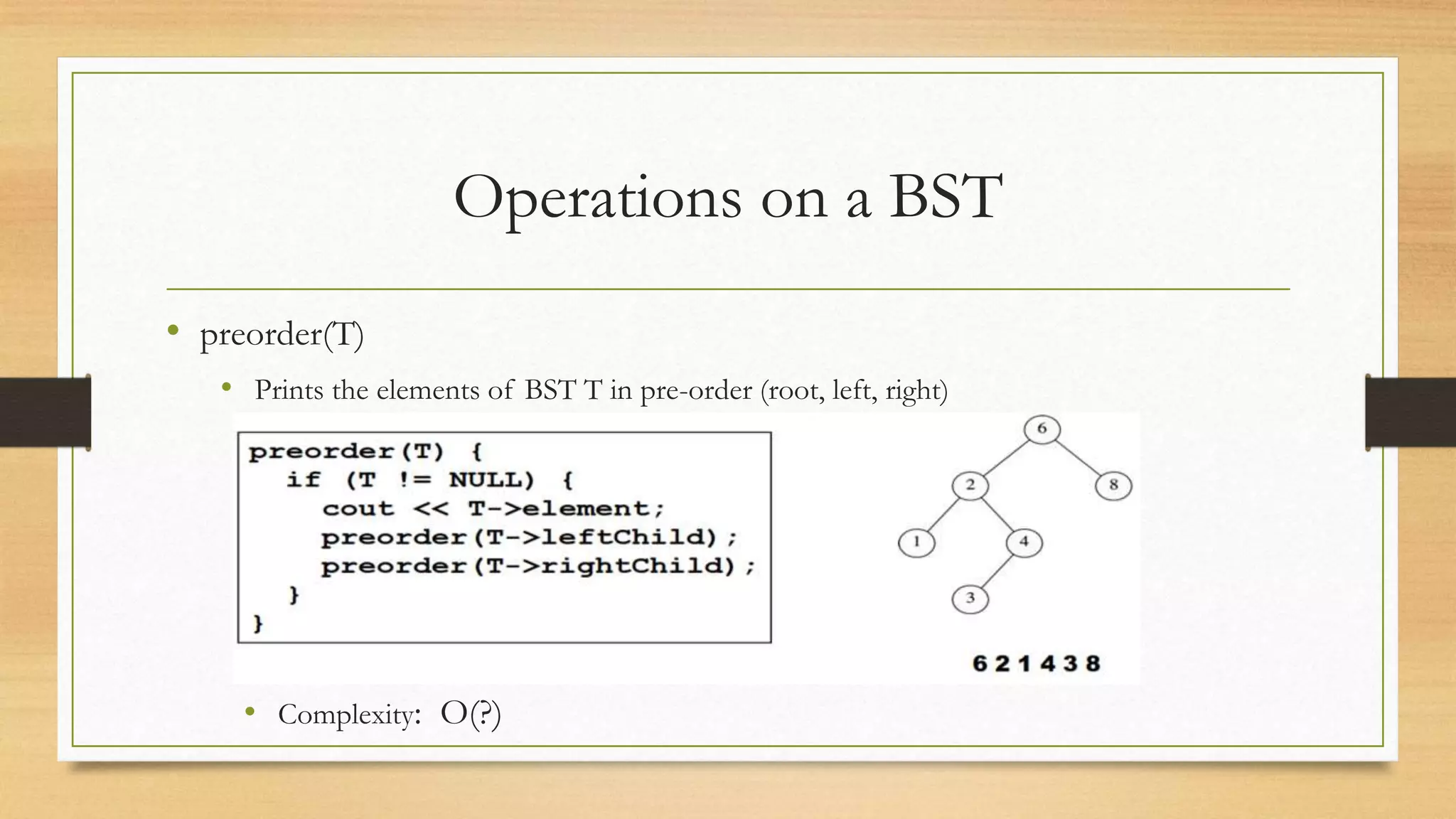

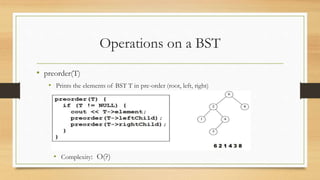

- 29. Operations on aBST • preorder(T) • Prints the elements of BST T in pre-order (root, left, right) • Complexity: O(?)

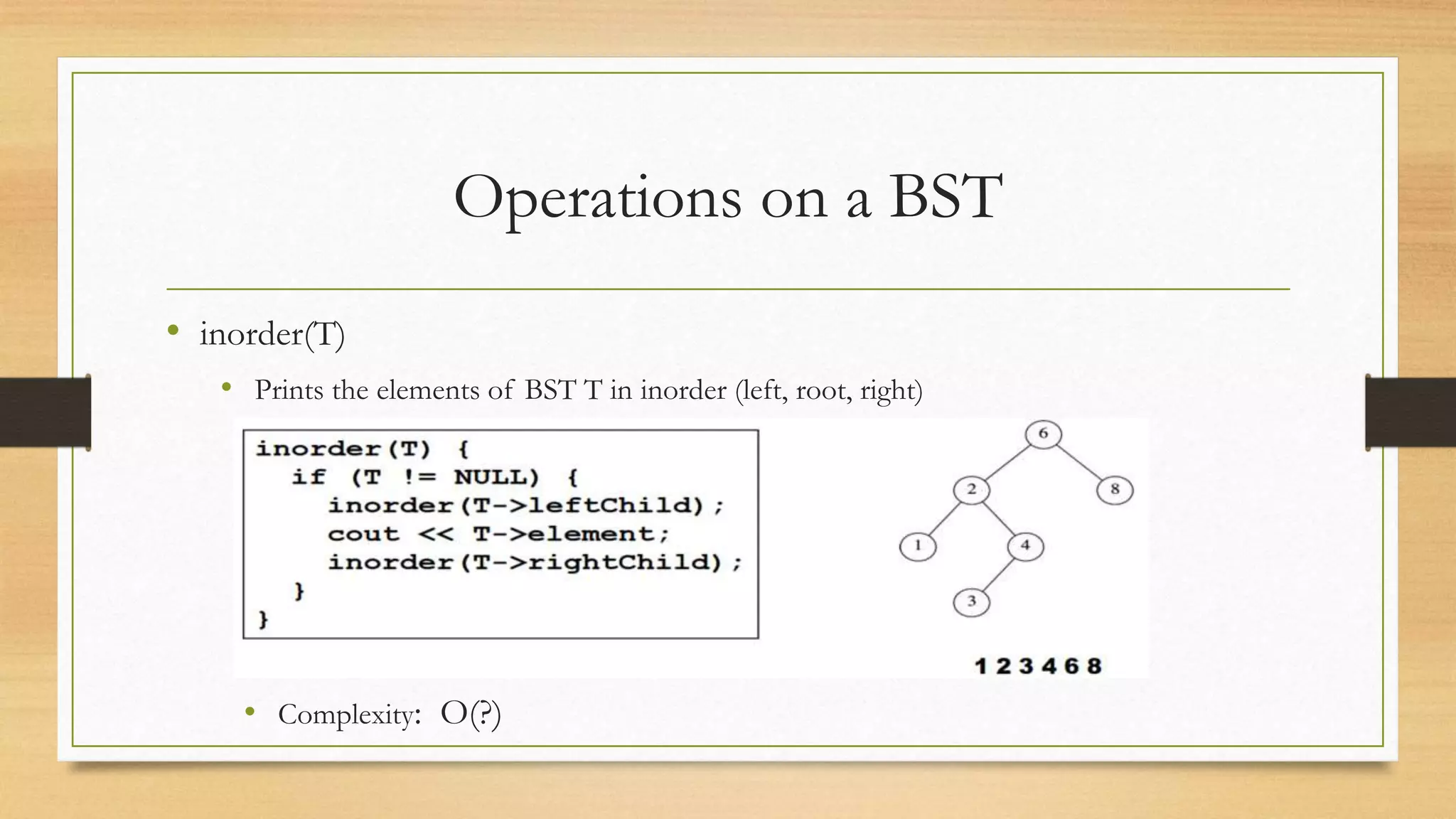

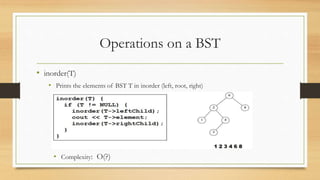

- 30. Operations on aBST • inorder(T) • Prints the elements of BST T in inorder (left, root, right) • Complexity: O(?)

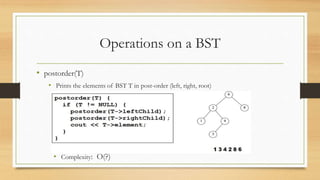

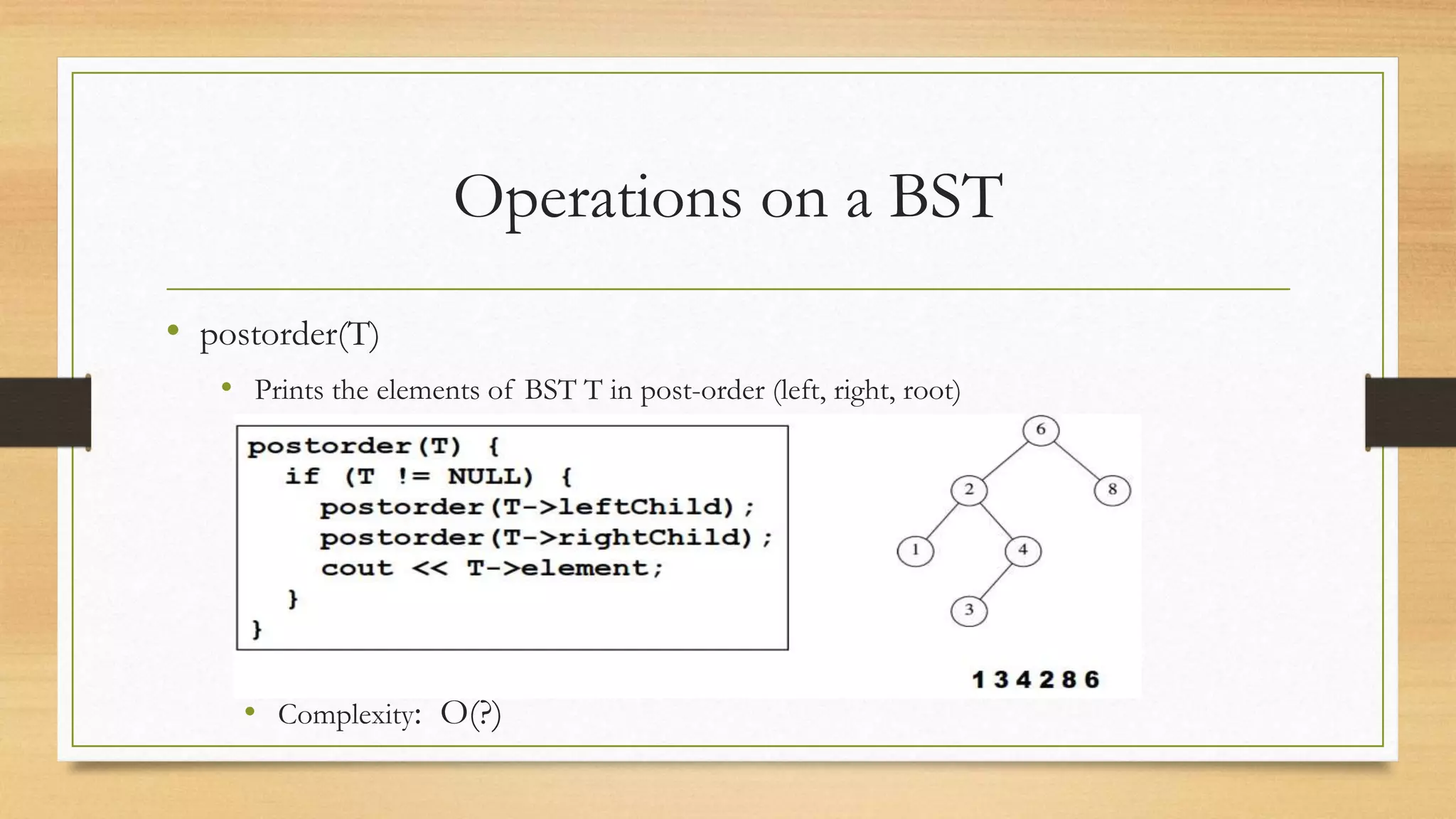

- 31. Operations on aBST • postorder(T) • Prints the elements of BST T in post-order (left, right, root) • Complexity: O(?)

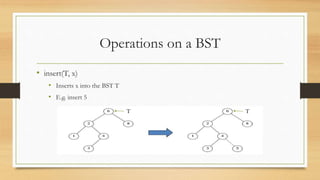

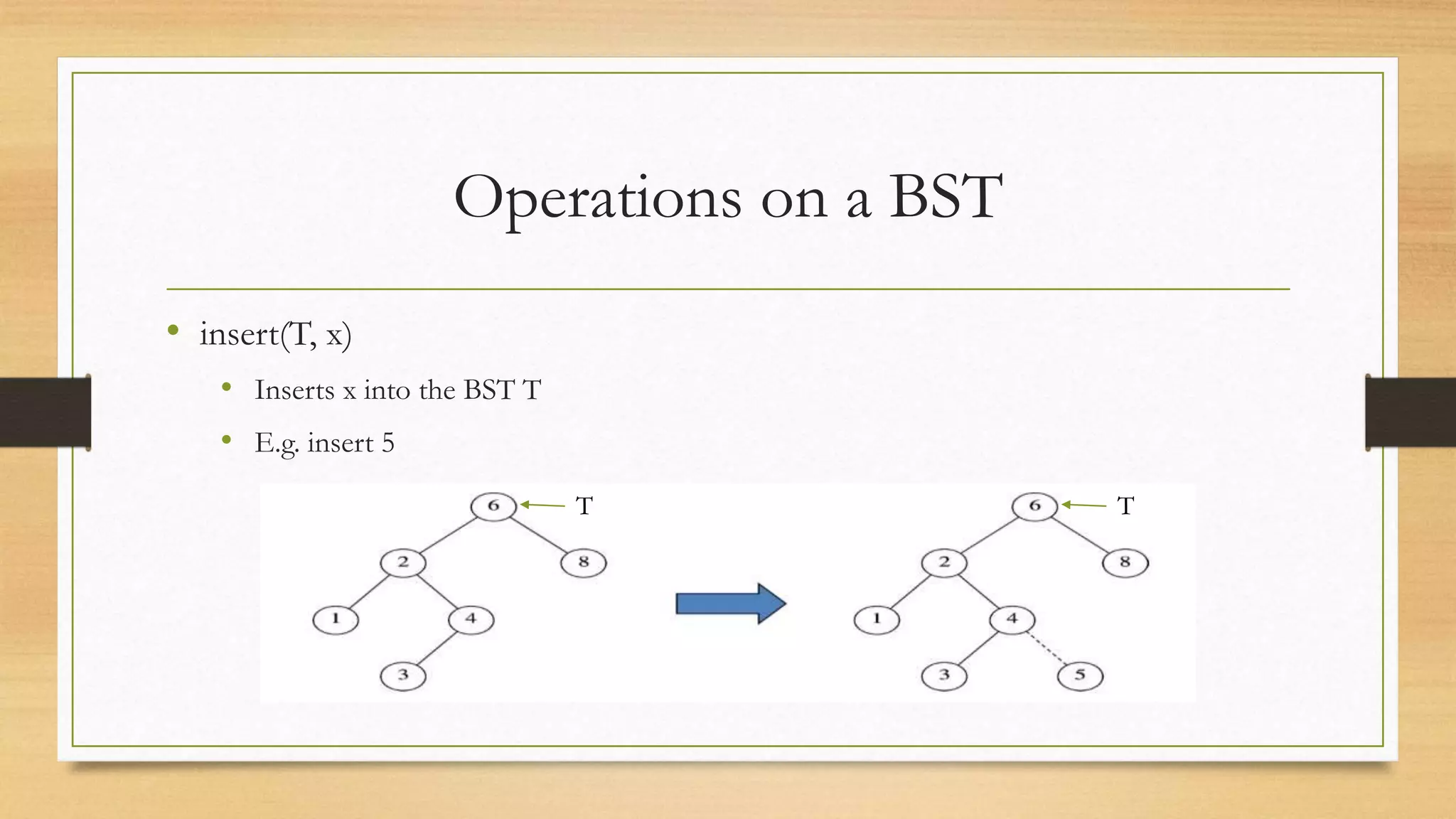

- 32. Operations on aBST • insert(T, x) • Inserts x into the BST T • E.g. insert 5 T T

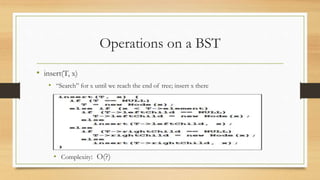

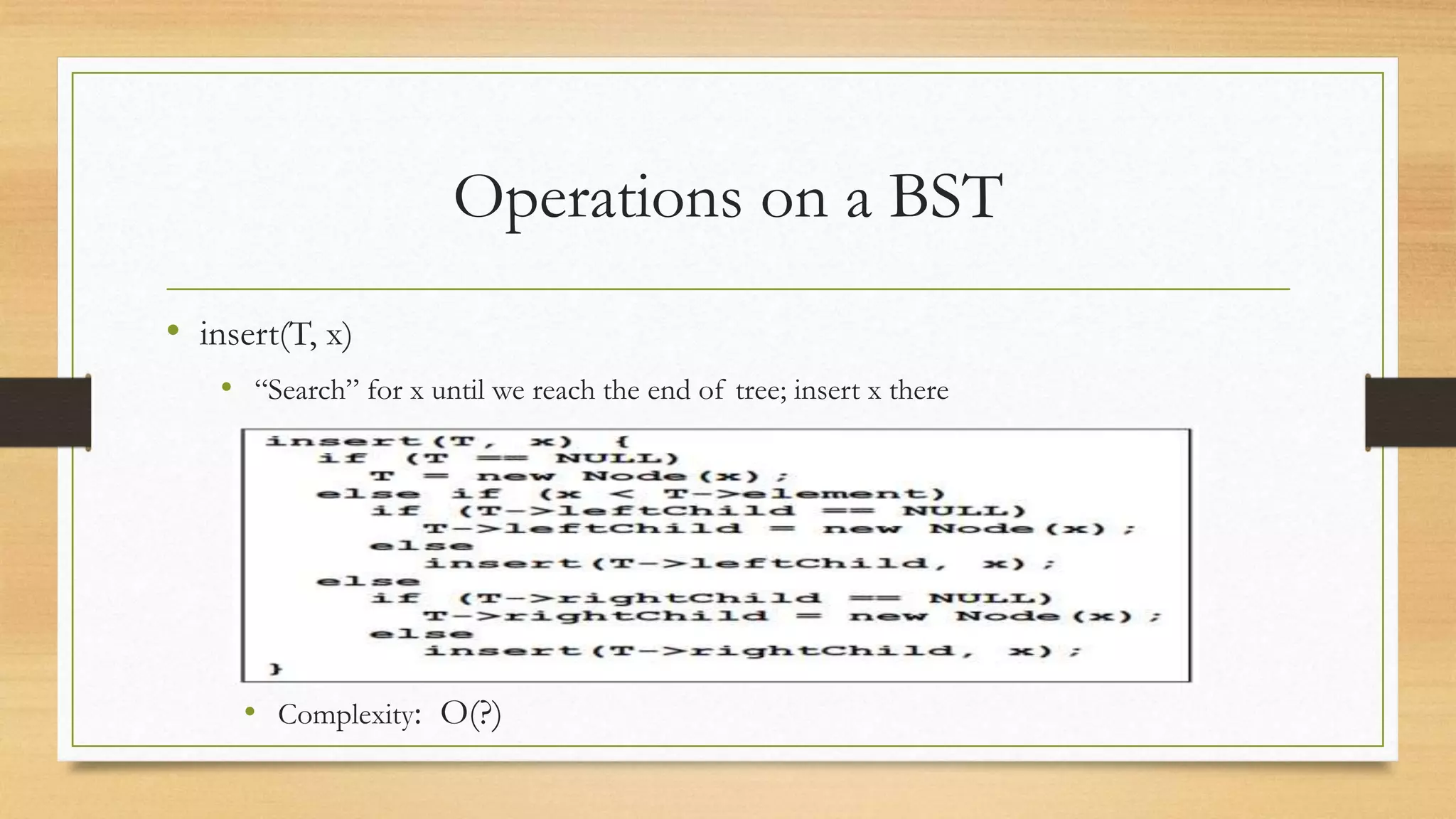

- 33. Operations on aBST • insert(T, x) • “Search” for x until we reach the end of tree; insert x there • Complexity: O(?)

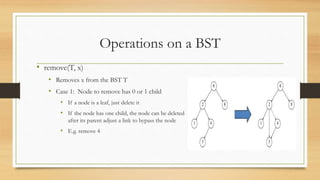

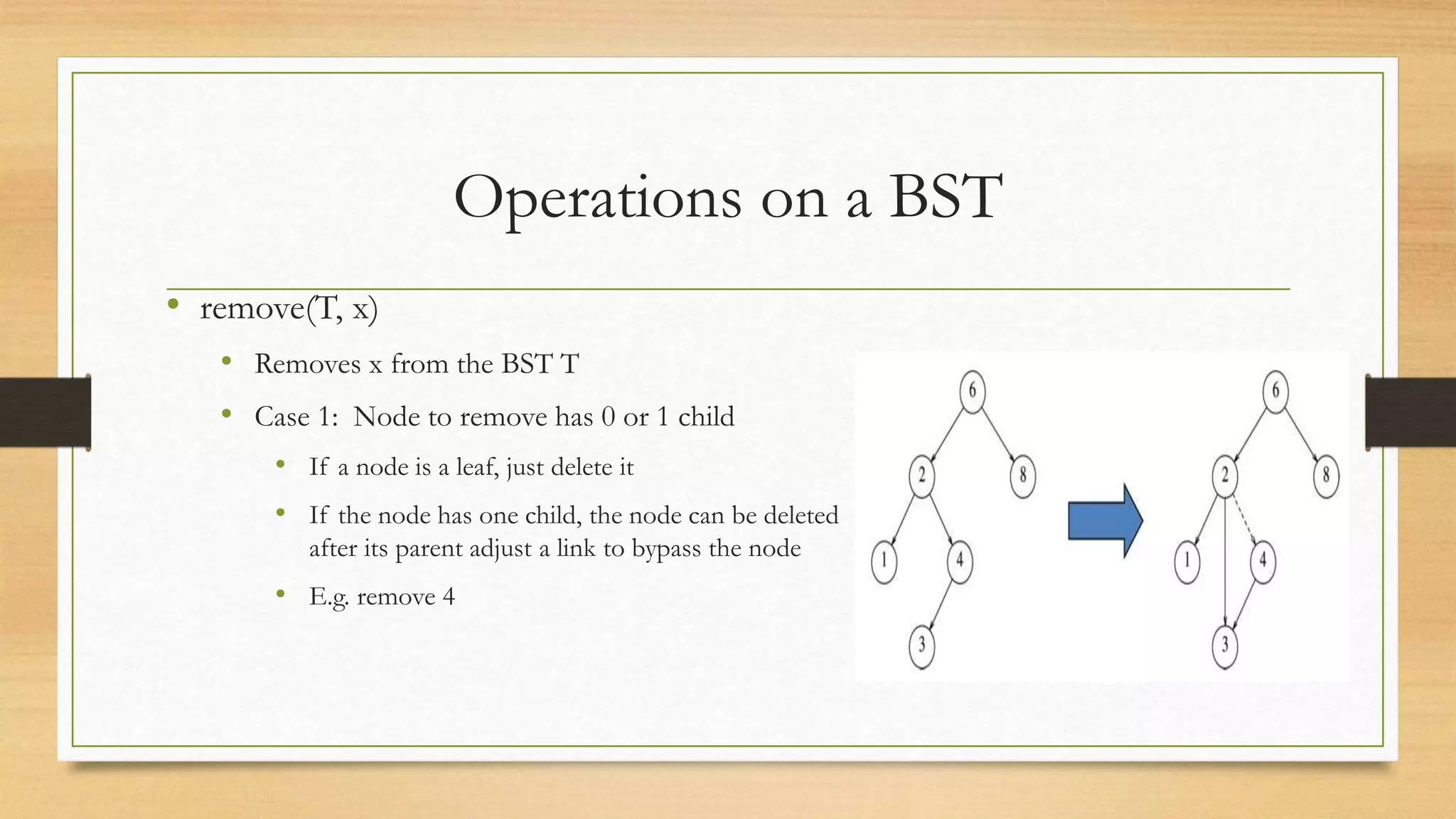

- 34. Operations on aBST • remove(T, x) • Removes x from the BST T • Case 1: Node to remove has 0 or 1 child • If a node is a leaf, just delete it • If the node has one child, the node can be deleted after its parent adjust a link to bypass the node • E.g. remove 4

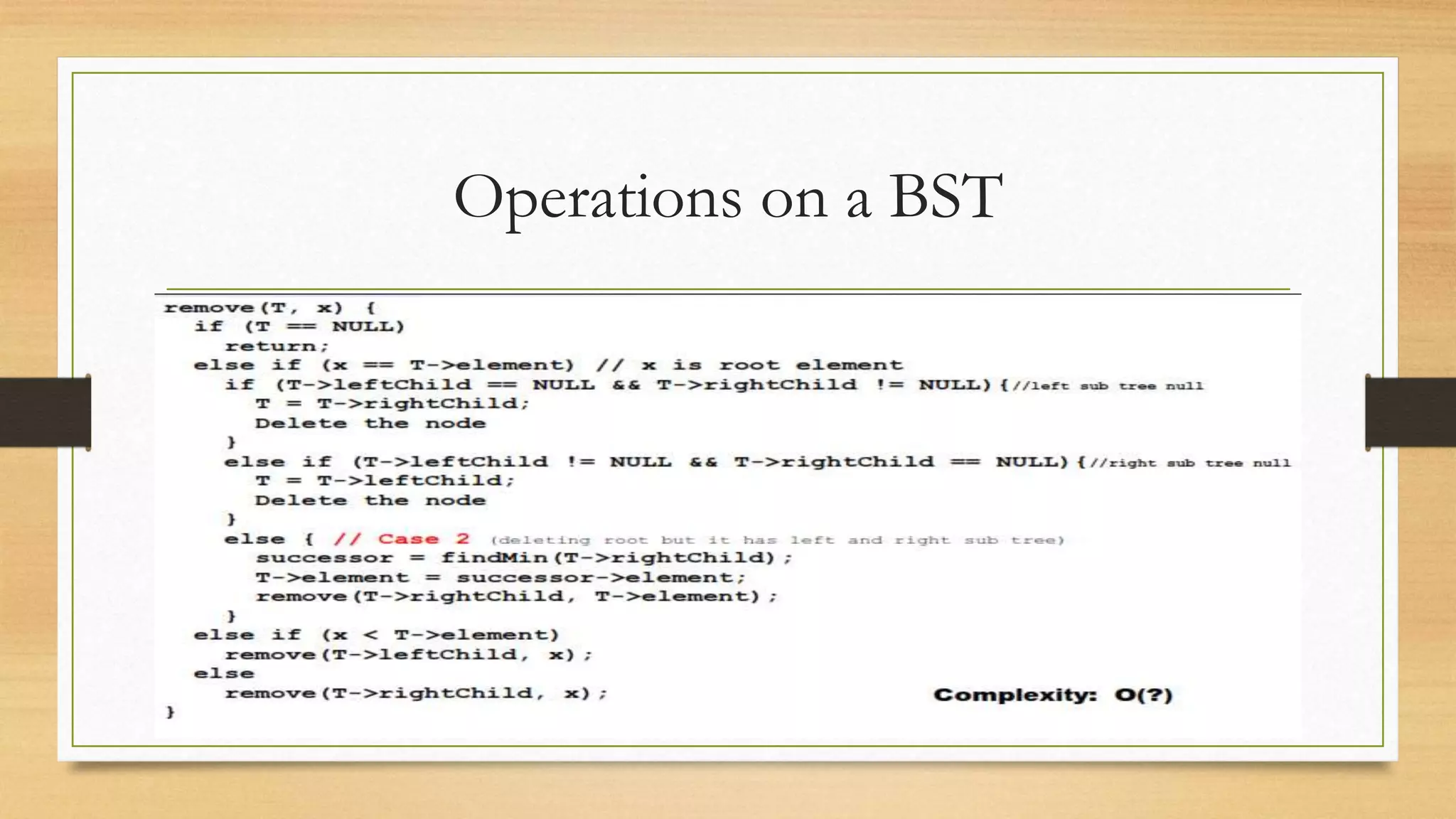

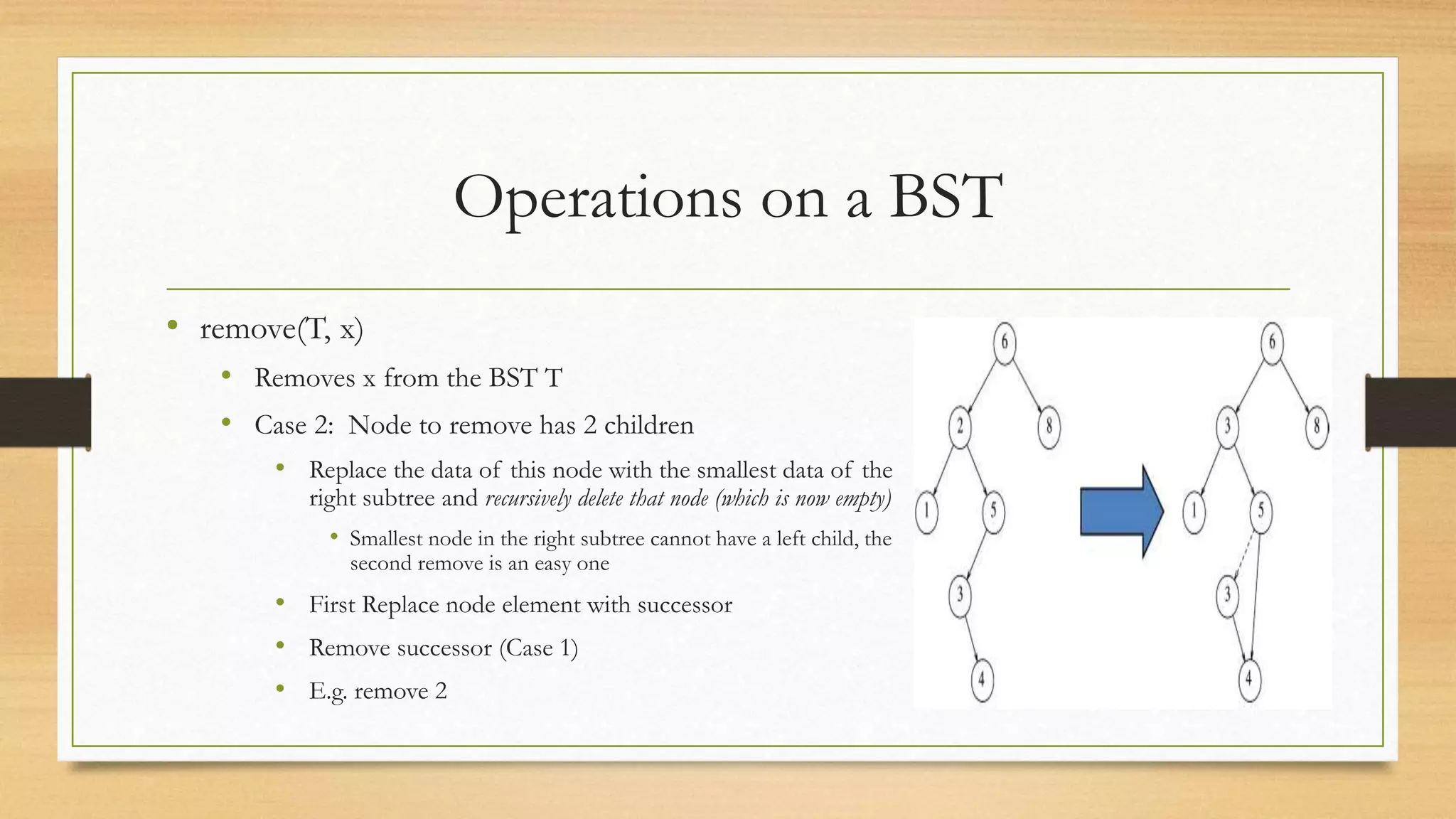

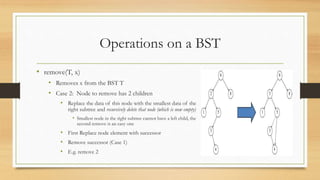

- 35. Operations on aBST • remove(T, x) • Removes x from the BST T • Case 2: Node to remove has 2 children • Replace the data of this node with the smallest data of the right subtree and recursively delete that node (which is now empty) • Smallest node in the right subtree cannot have a left child, the second remove is an easy one • First Replace node element with successor • Remove successor (Case 1) • E.g. remove 2
- 36.

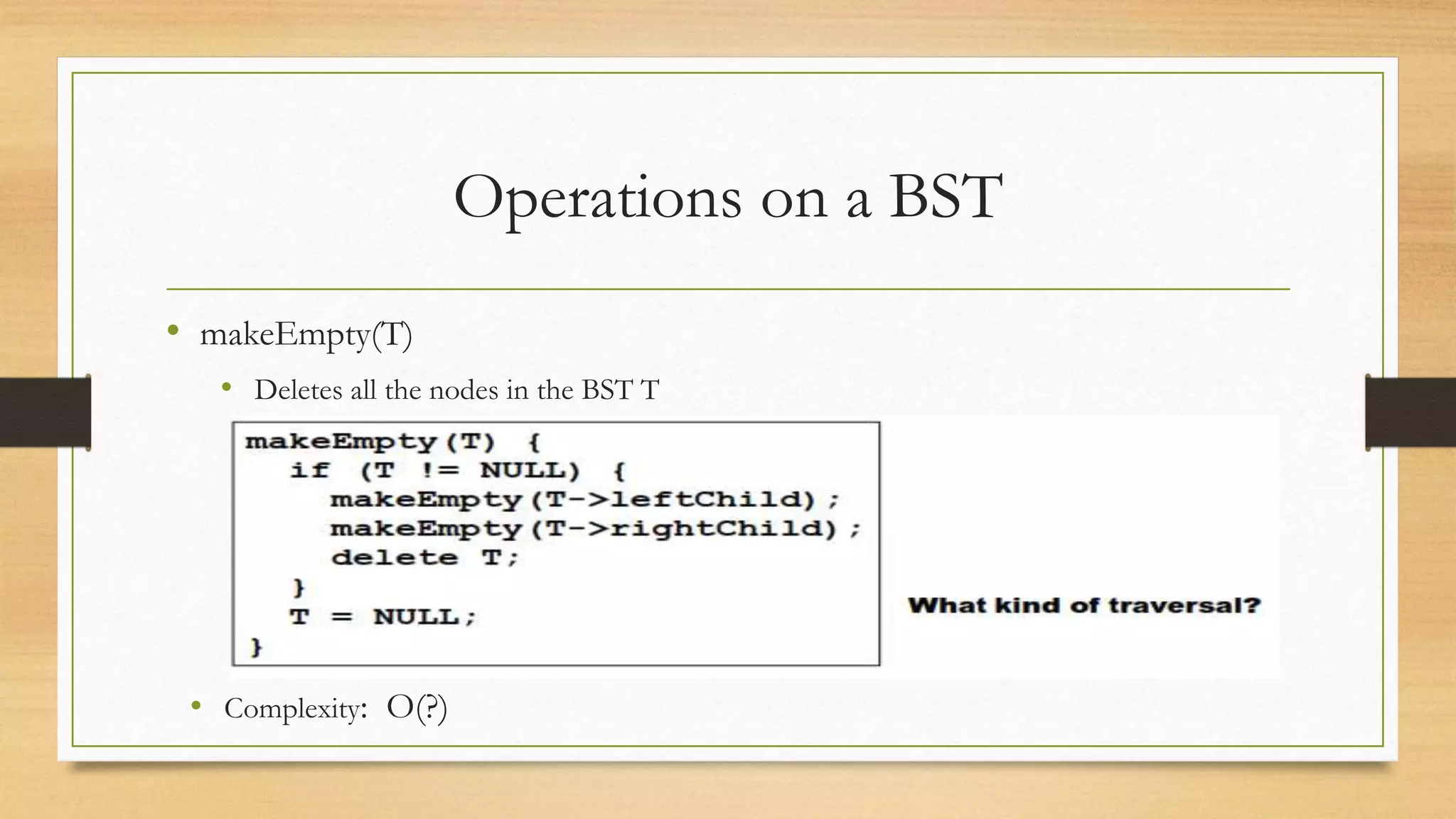

- 37. Operations on aBST • makeEmpty(T) • Deletes all the nodes in the BST T • Complexity: O(?)
