Data_Mining_Applications of various kinds .ppt
- 1. https://sites.google.com/site/radhasrvec DEPARTMENT OF COMPUTERSCIENCE & ENGINEERING UNIT V - CLUSTERING AND APPLICATIONS AND TRENDS IN DATA MINING Data Mining Applications

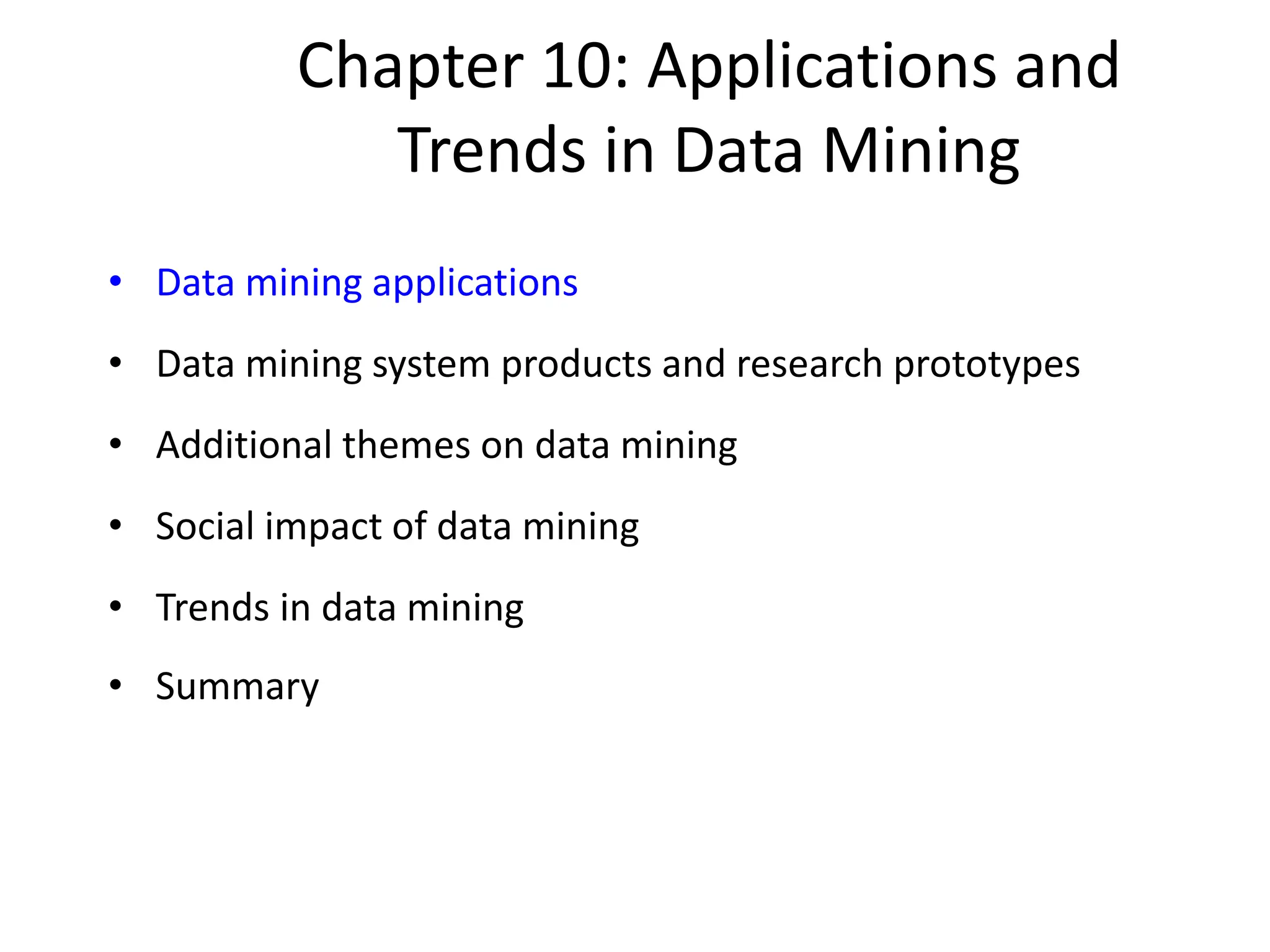

- 2. Chapter 10: Applicationsand Trends in Data Mining • Data mining applications • Data mining system products and research prototypes • Additional themes on data mining • Social impact of data mining • Trends in data mining • Summary

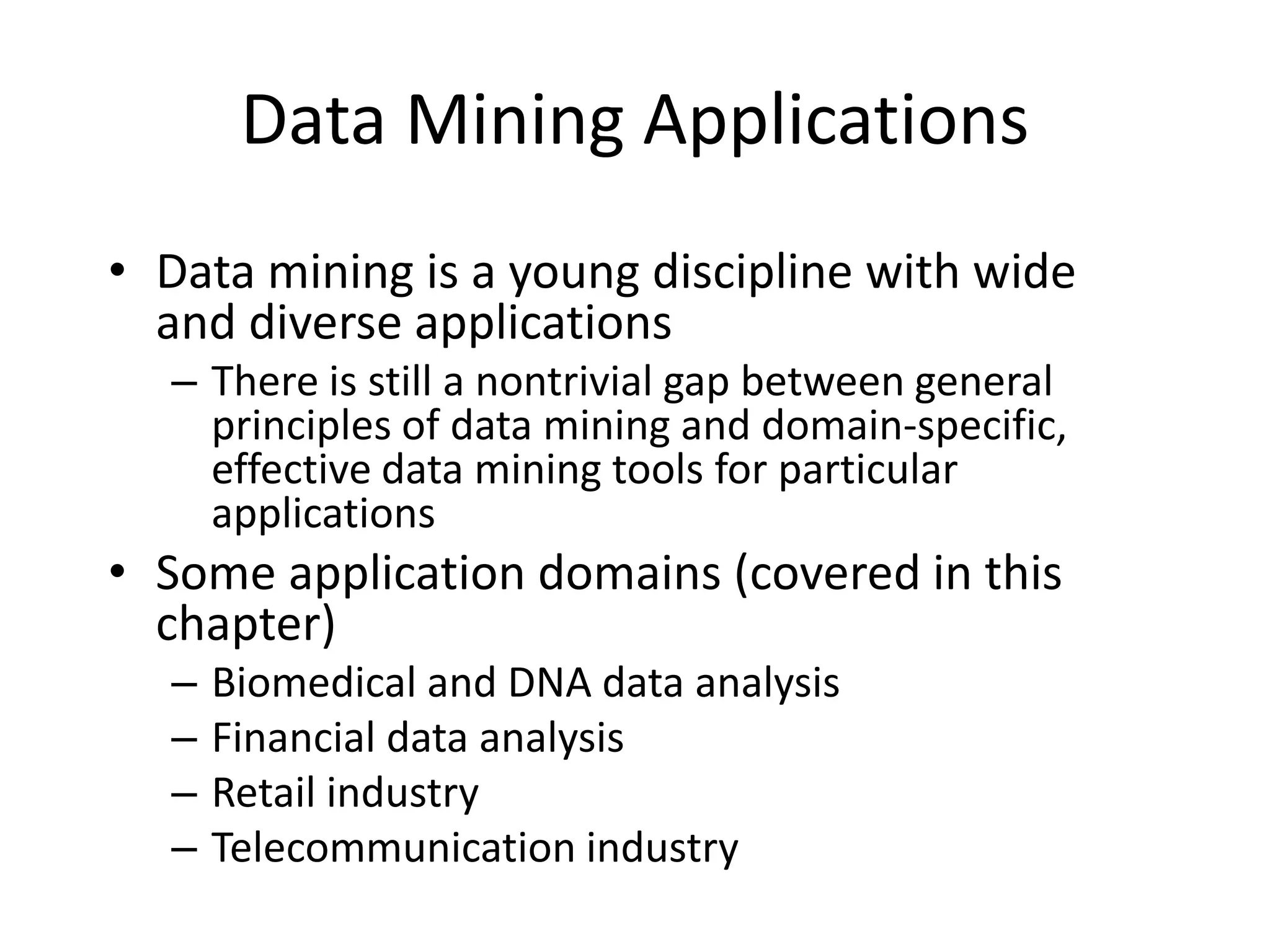

- 3. Data Mining Applications •Data mining is a young discipline with wide and diverse applications – There is still a nontrivial gap between general principles of data mining and domain-specific, effective data mining tools for particular applications • Some application domains (covered in this chapter) – Biomedical and DNA data analysis – Financial data analysis – Retail industry – Telecommunication industry

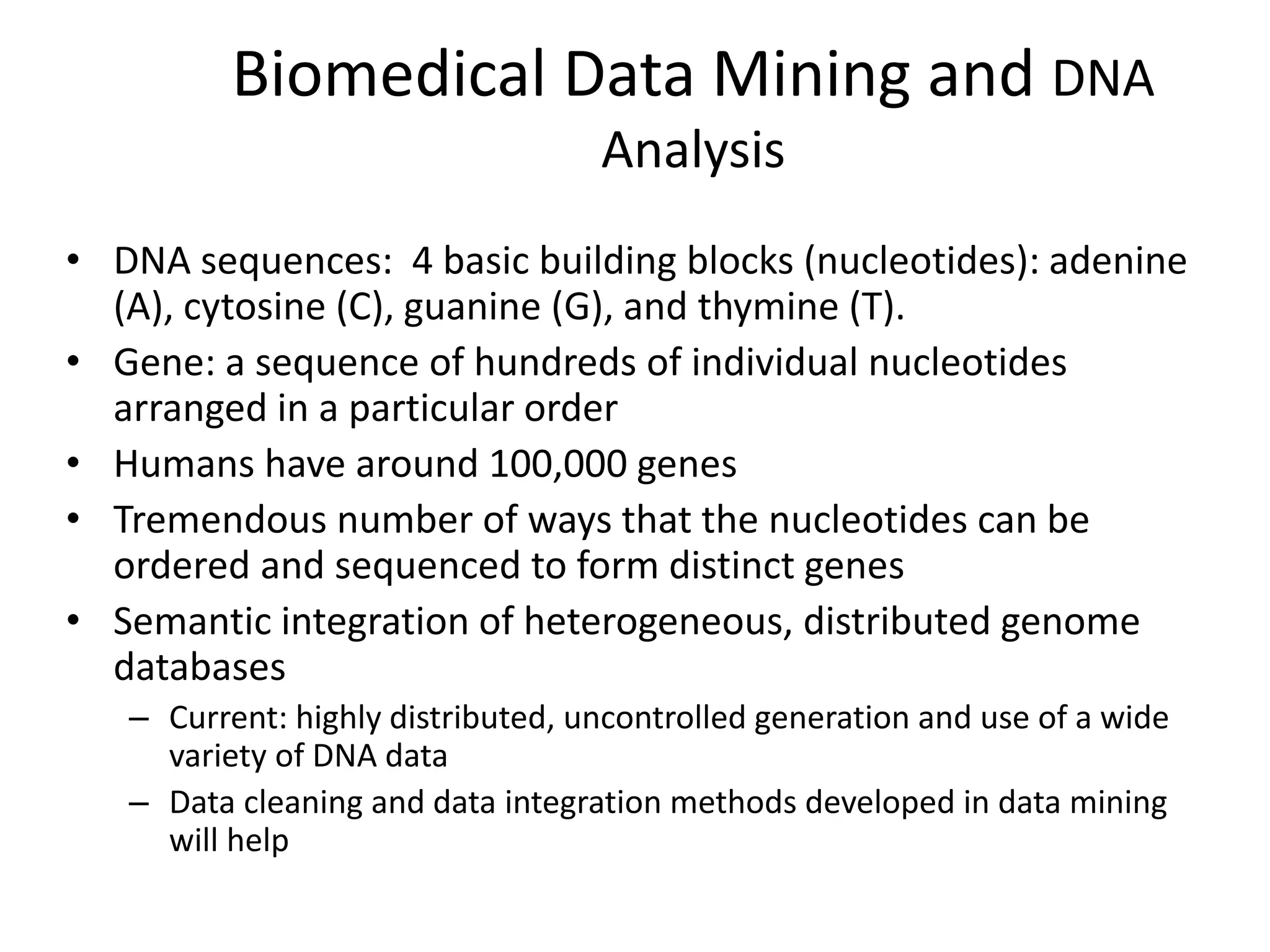

- 4. Biomedical Data Miningand DNA Analysis • DNA sequences: 4 basic building blocks (nucleotides): adenine (A), cytosine (C), guanine (G), and thymine (T). • Gene: a sequence of hundreds of individual nucleotides arranged in a particular order • Humans have around 100,000 genes • Tremendous number of ways that the nucleotides can be ordered and sequenced to form distinct genes • Semantic integration of heterogeneous, distributed genome databases – Current: highly distributed, uncontrolled generation and use of a wide variety of DNA data – Data cleaning and data integration methods developed in data mining will help

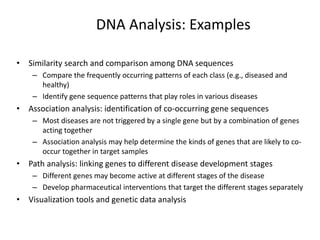

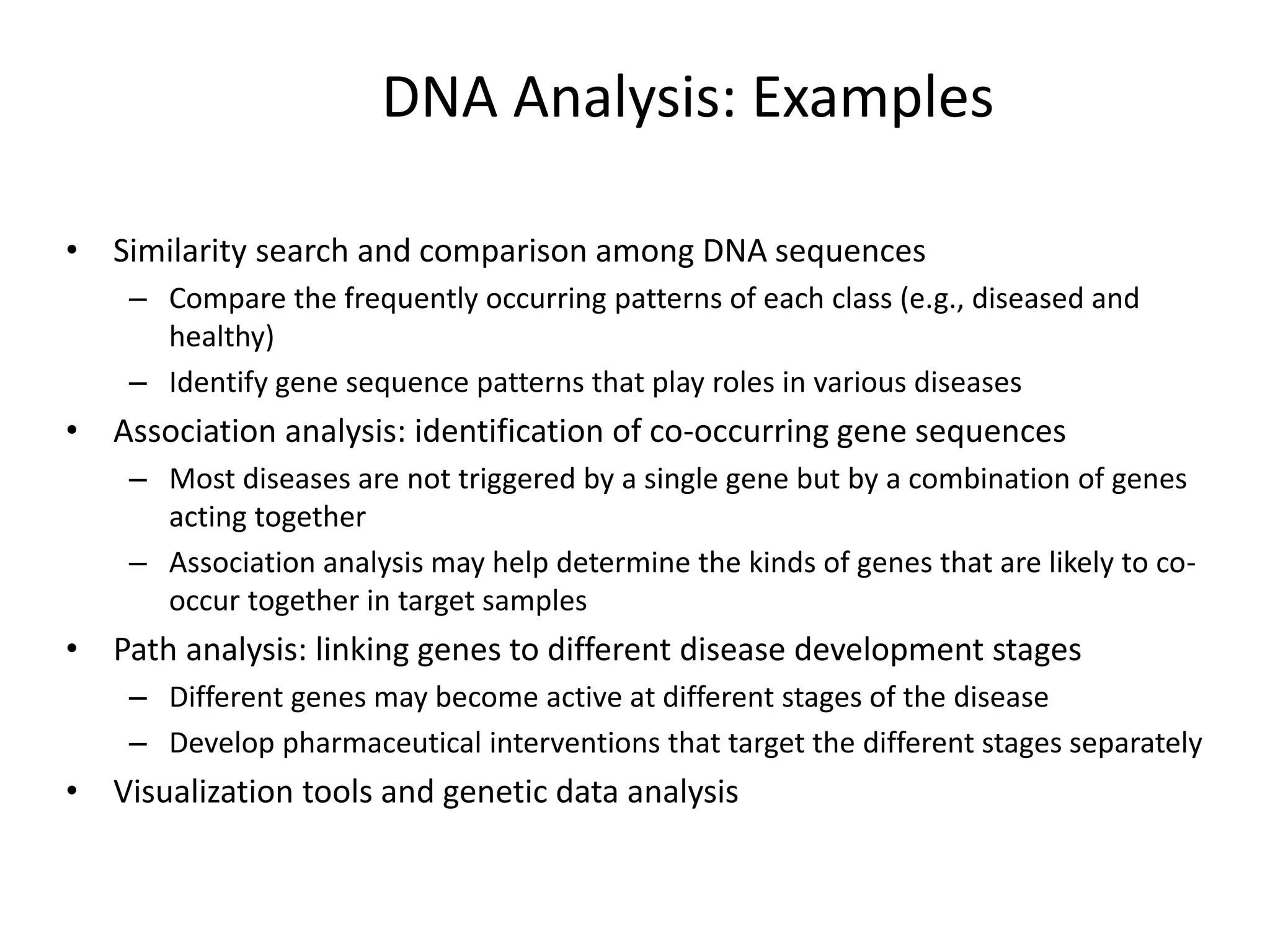

- 5. DNA Analysis: Examples •Similarity search and comparison among DNA sequences – Compare the frequently occurring patterns of each class (e.g., diseased and healthy) – Identify gene sequence patterns that play roles in various diseases • Association analysis: identification of co-occurring gene sequences – Most diseases are not triggered by a single gene but by a combination of genes acting together – Association analysis may help determine the kinds of genes that are likely to co- occur together in target samples • Path analysis: linking genes to different disease development stages – Different genes may become active at different stages of the disease – Develop pharmaceutical interventions that target the different stages separately • Visualization tools and genetic data analysis

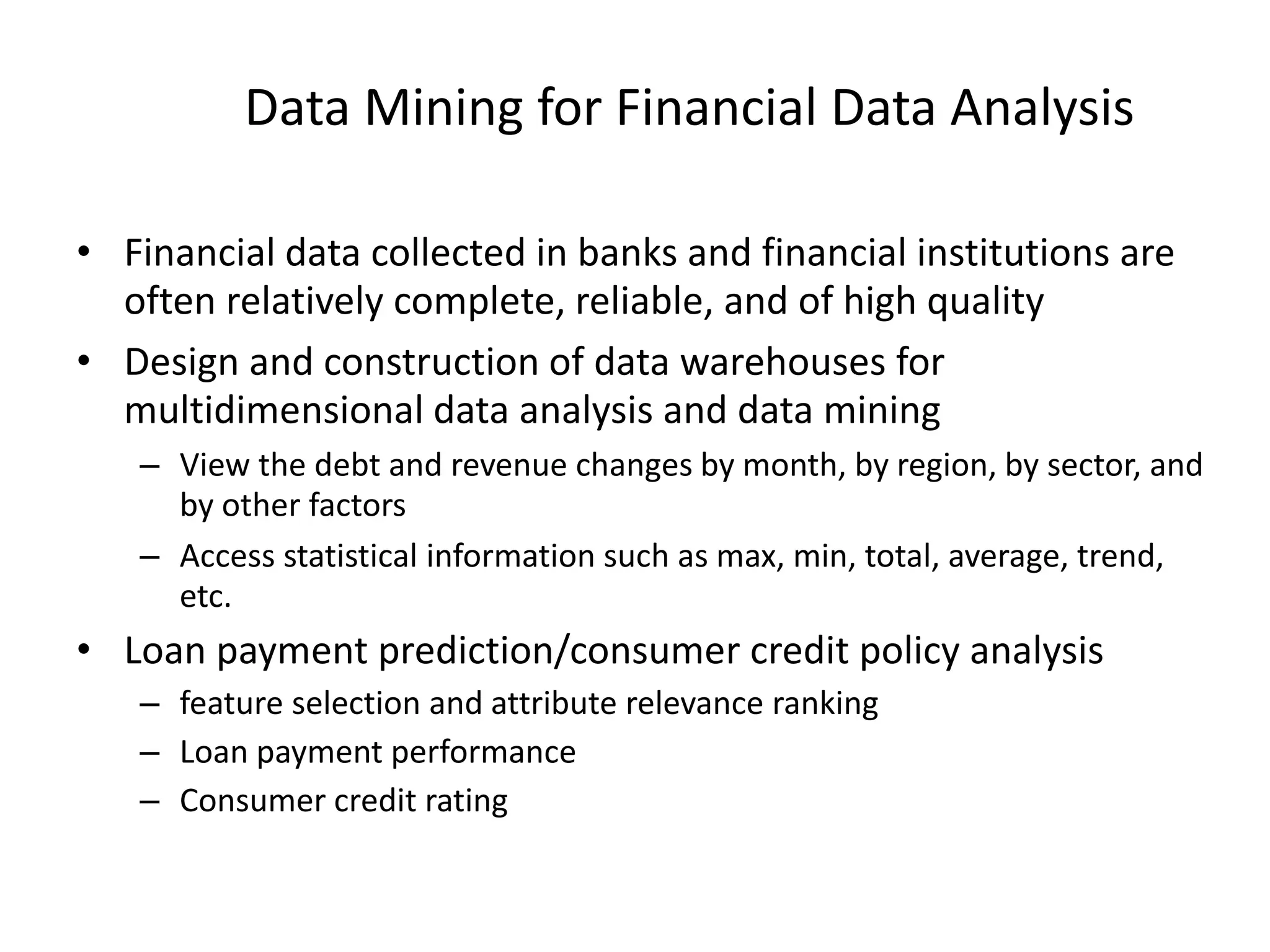

- 6. Data Mining forFinancial Data Analysis • Financial data collected in banks and financial institutions are often relatively complete, reliable, and of high quality • Design and construction of data warehouses for multidimensional data analysis and data mining – View the debt and revenue changes by month, by region, by sector, and by other factors – Access statistical information such as max, min, total, average, trend, etc. • Loan payment prediction/consumer credit policy analysis – feature selection and attribute relevance ranking – Loan payment performance – Consumer credit rating

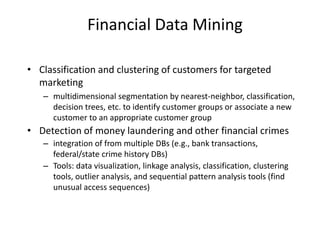

- 7. Financial Data Mining •Classification and clustering of customers for targeted marketing – multidimensional segmentation by nearest-neighbor, classification, decision trees, etc. to identify customer groups or associate a new customer to an appropriate customer group • Detection of money laundering and other financial crimes – integration of from multiple DBs (e.g., bank transactions, federal/state crime history DBs) – Tools: data visualization, linkage analysis, classification, clustering tools, outlier analysis, and sequential pattern analysis tools (find unusual access sequences)

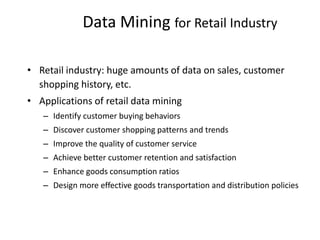

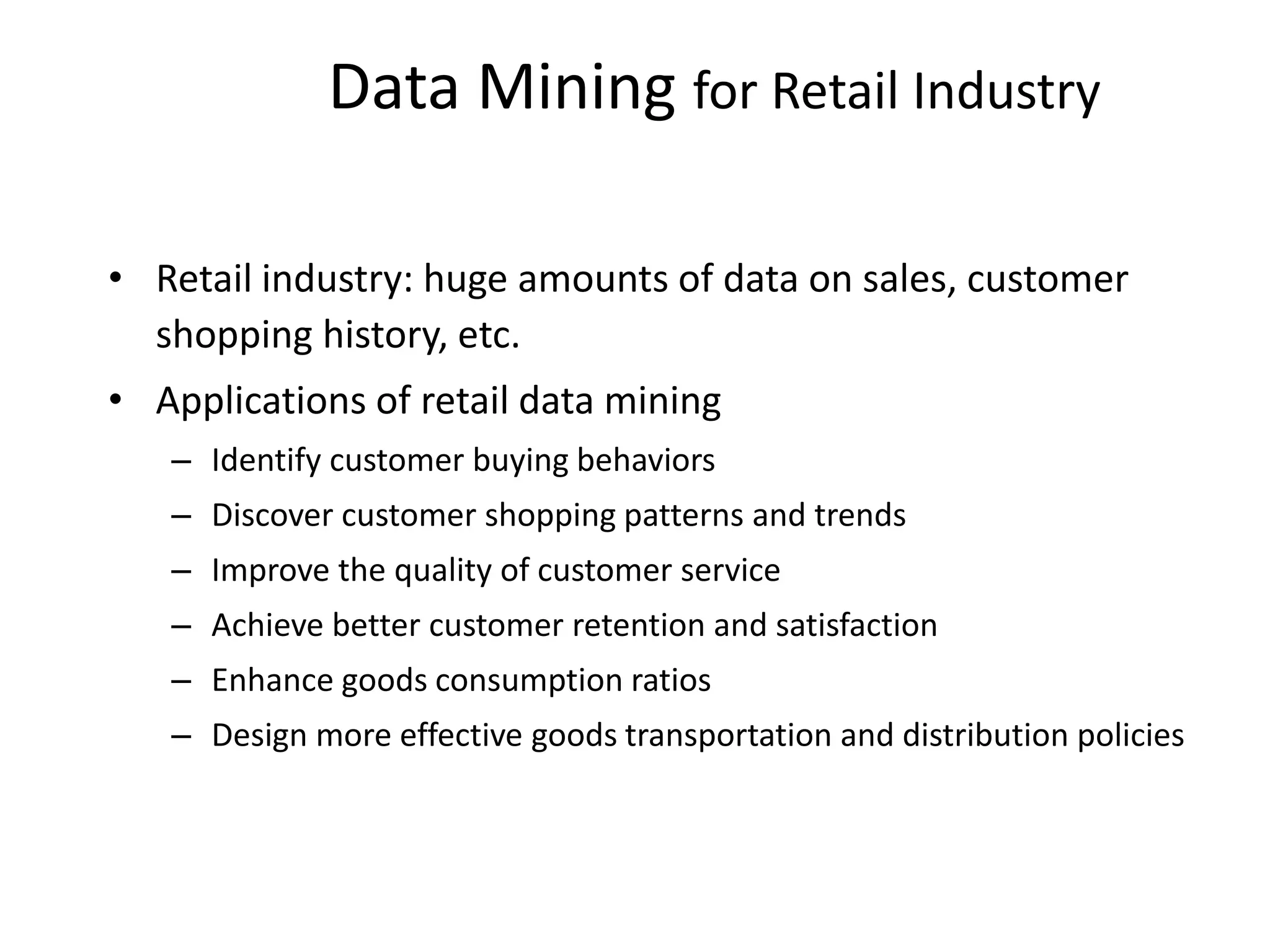

- 8. Data Mining forRetail Industry • Retail industry: huge amounts of data on sales, customer shopping history, etc. • Applications of retail data mining – Identify customer buying behaviors – Discover customer shopping patterns and trends – Improve the quality of customer service – Achieve better customer retention and satisfaction – Enhance goods consumption ratios – Design more effective goods transportation and distribution policies

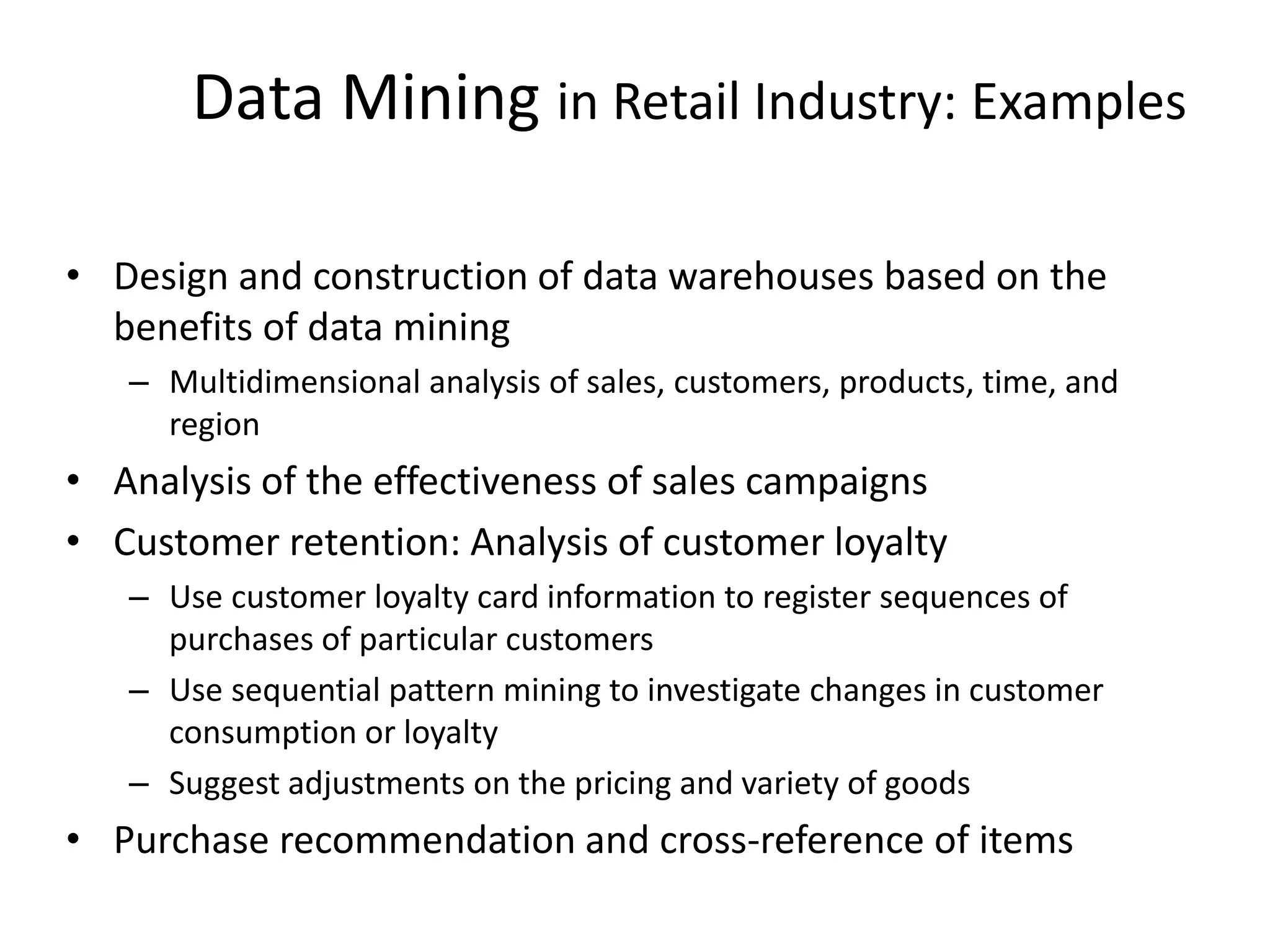

- 9. Data Mining inRetail Industry: Examples • Design and construction of data warehouses based on the benefits of data mining – Multidimensional analysis of sales, customers, products, time, and region • Analysis of the effectiveness of sales campaigns • Customer retention: Analysis of customer loyalty – Use customer loyalty card information to register sequences of purchases of particular customers – Use sequential pattern mining to investigate changes in customer consumption or loyalty – Suggest adjustments on the pricing and variety of goods • Purchase recommendation and cross-reference of items

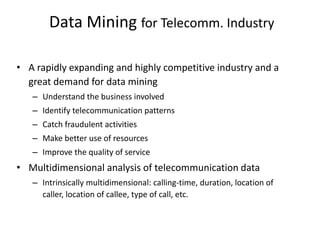

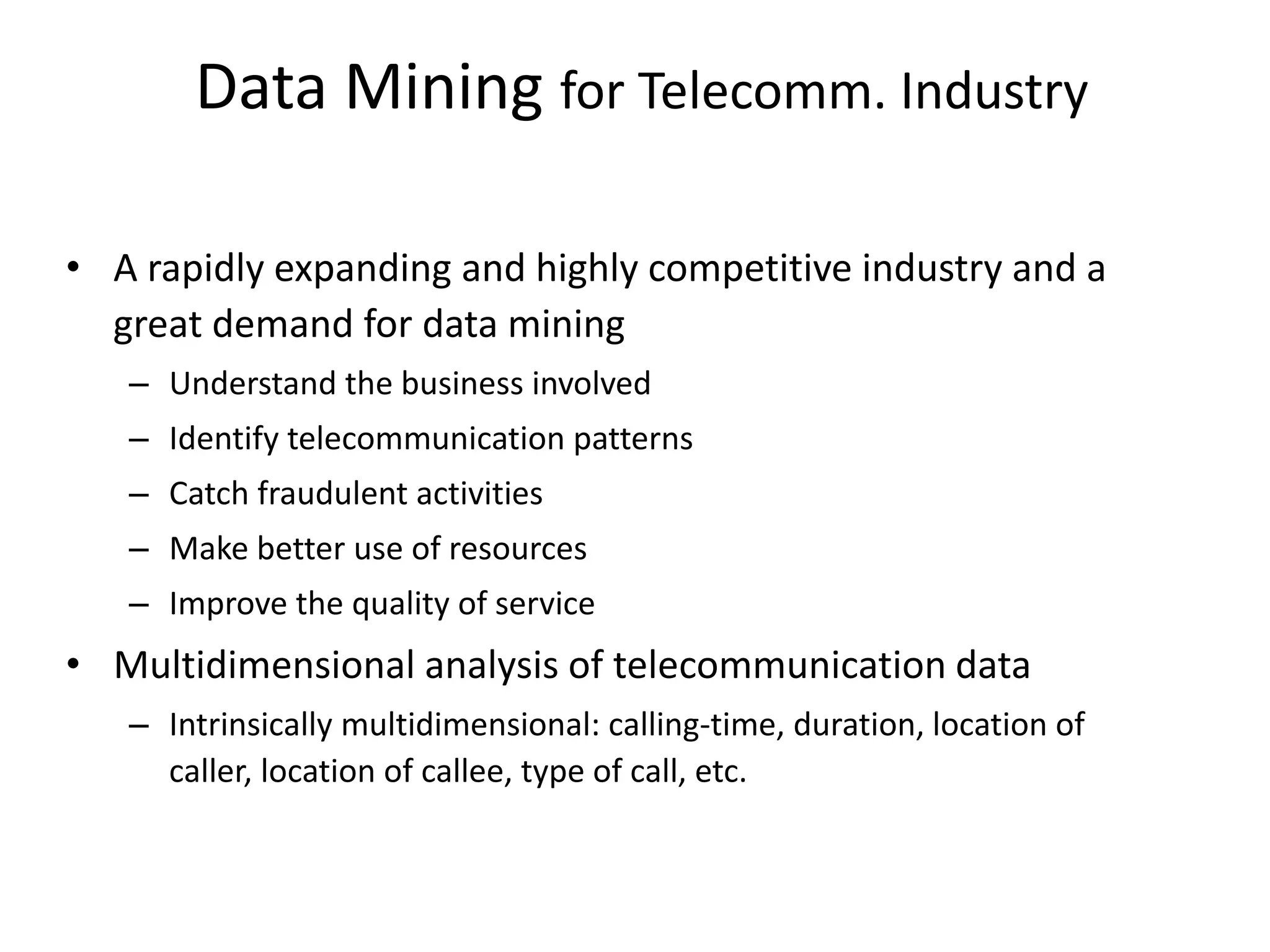

- 10. Data Mining forTelecomm. Industry • A rapidly expanding and highly competitive industry and a great demand for data mining – Understand the business involved – Identify telecommunication patterns – Catch fraudulent activities – Make better use of resources – Improve the quality of service • Multidimensional analysis of telecommunication data – Intrinsically multidimensional: calling-time, duration, location of caller, location of callee, type of call, etc.

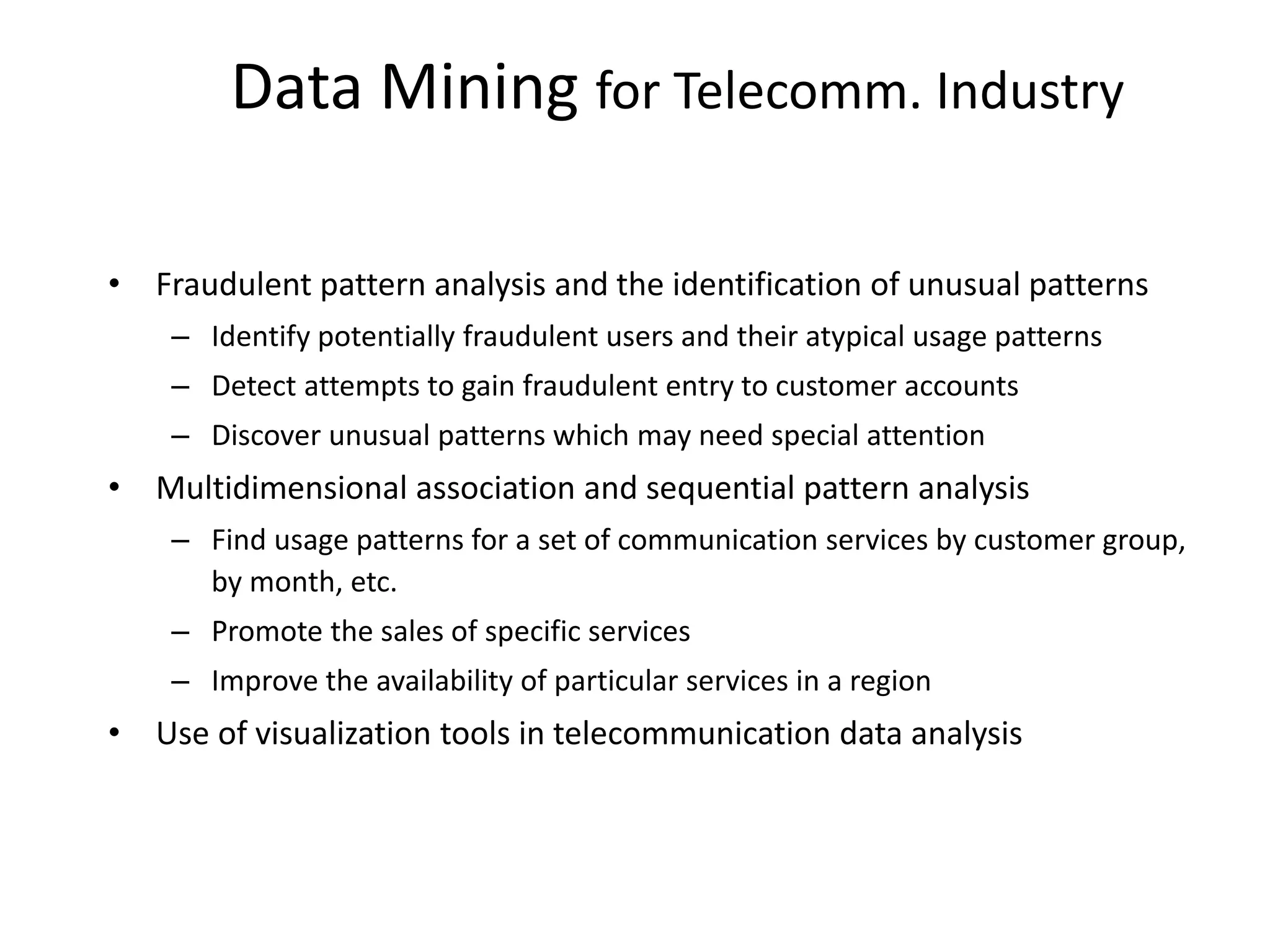

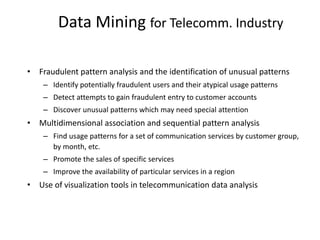

- 11. Data Mining forTelecomm. Industry • Fraudulent pattern analysis and the identification of unusual patterns – Identify potentially fraudulent users and their atypical usage patterns – Detect attempts to gain fraudulent entry to customer accounts – Discover unusual patterns which may need special attention • Multidimensional association and sequential pattern analysis – Find usage patterns for a set of communication services by customer group, by month, etc. – Promote the sales of specific services – Improve the availability of particular services in a region • Use of visualization tools in telecommunication data analysis

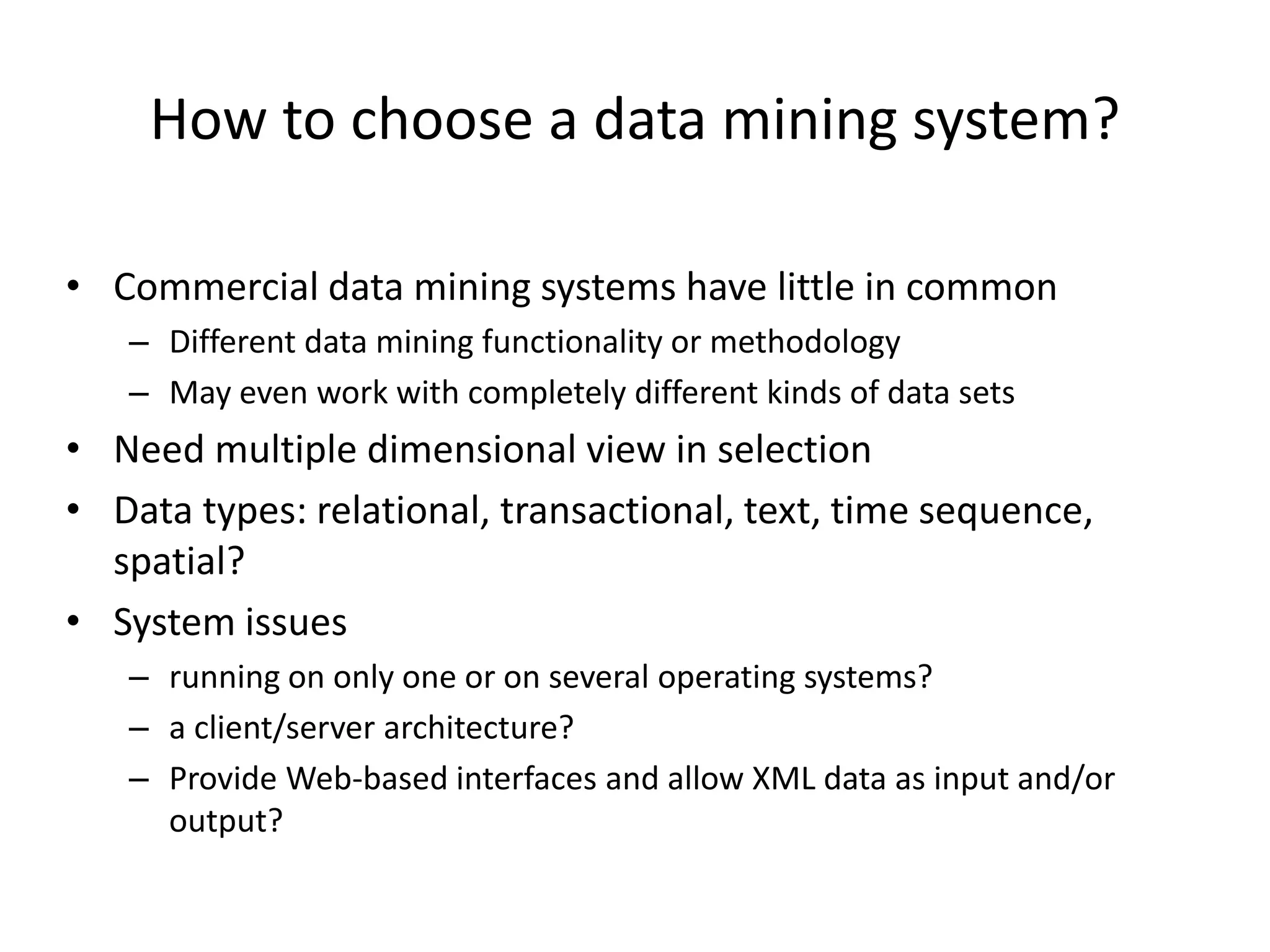

- 12. How to choosea data mining system? • Commercial data mining systems have little in common – Different data mining functionality or methodology – May even work with completely different kinds of data sets • Need multiple dimensional view in selection • Data types: relational, transactional, text, time sequence, spatial? • System issues – running on only one or on several operating systems? – a client/server architecture? – Provide Web-based interfaces and allow XML data as input and/or output?

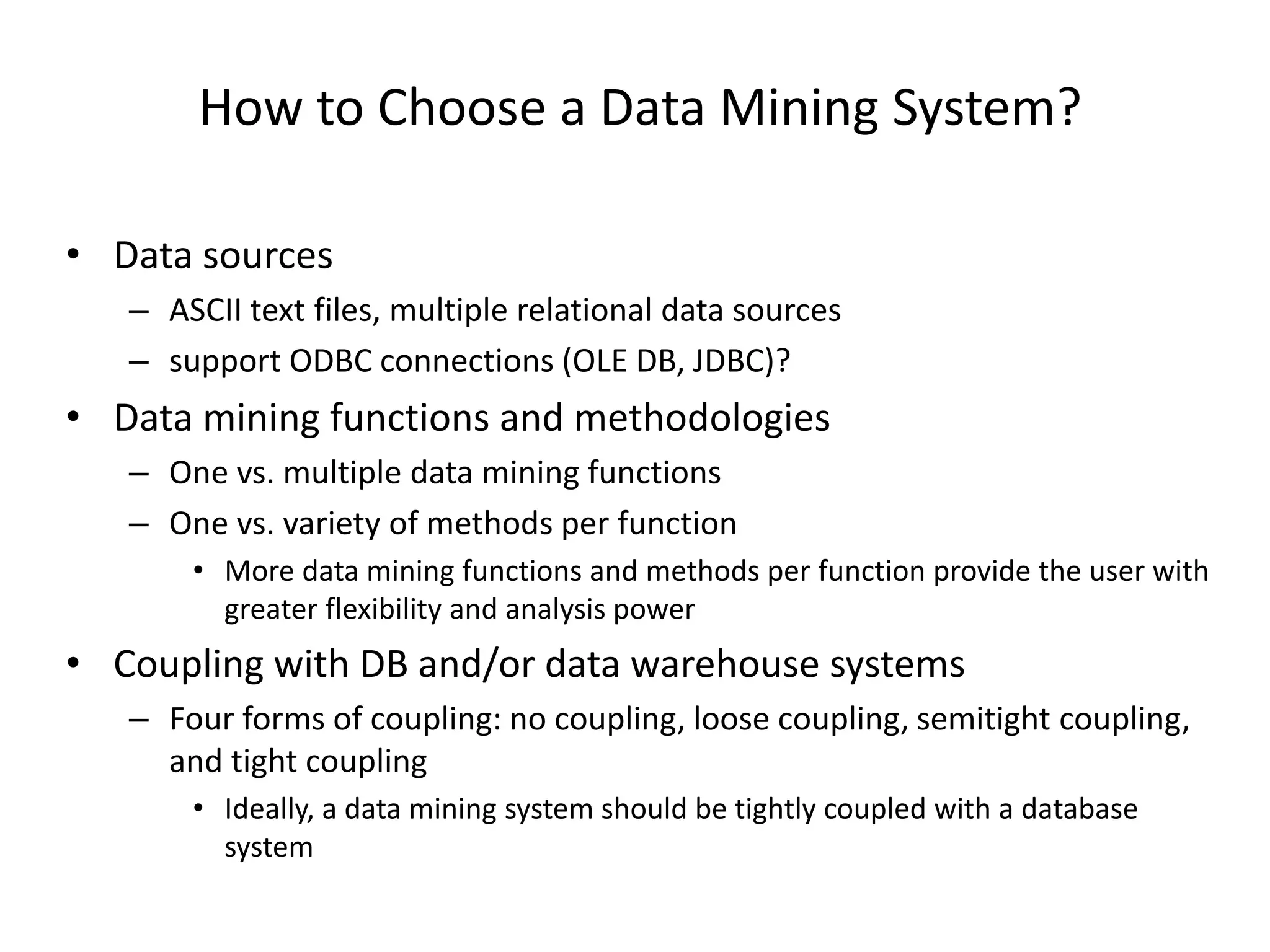

- 13. How to Choosea Data Mining System? • Data sources – ASCII text files, multiple relational data sources – support ODBC connections (OLE DB, JDBC)? • Data mining functions and methodologies – One vs. multiple data mining functions – One vs. variety of methods per function • More data mining functions and methods per function provide the user with greater flexibility and analysis power • Coupling with DB and/or data warehouse systems – Four forms of coupling: no coupling, loose coupling, semitight coupling, and tight coupling • Ideally, a data mining system should be tightly coupled with a database system

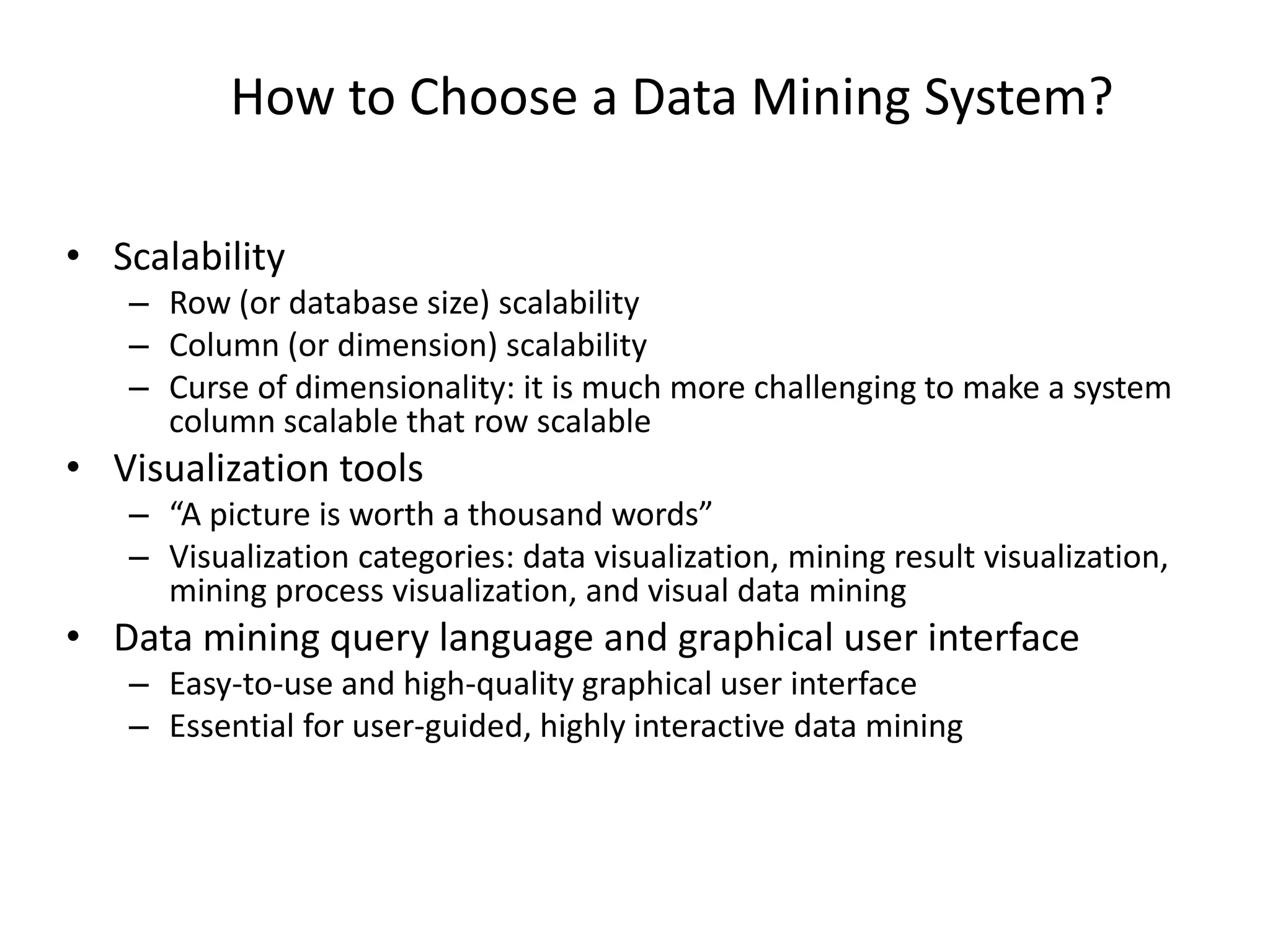

- 14. How to Choosea Data Mining System? • Scalability – Row (or database size) scalability – Column (or dimension) scalability – Curse of dimensionality: it is much more challenging to make a system column scalable that row scalable • Visualization tools – “A picture is worth a thousand words” – Visualization categories: data visualization, mining result visualization, mining process visualization, and visual data mining • Data mining query language and graphical user interface – Easy-to-use and high-quality graphical user interface – Essential for user-guided, highly interactive data mining

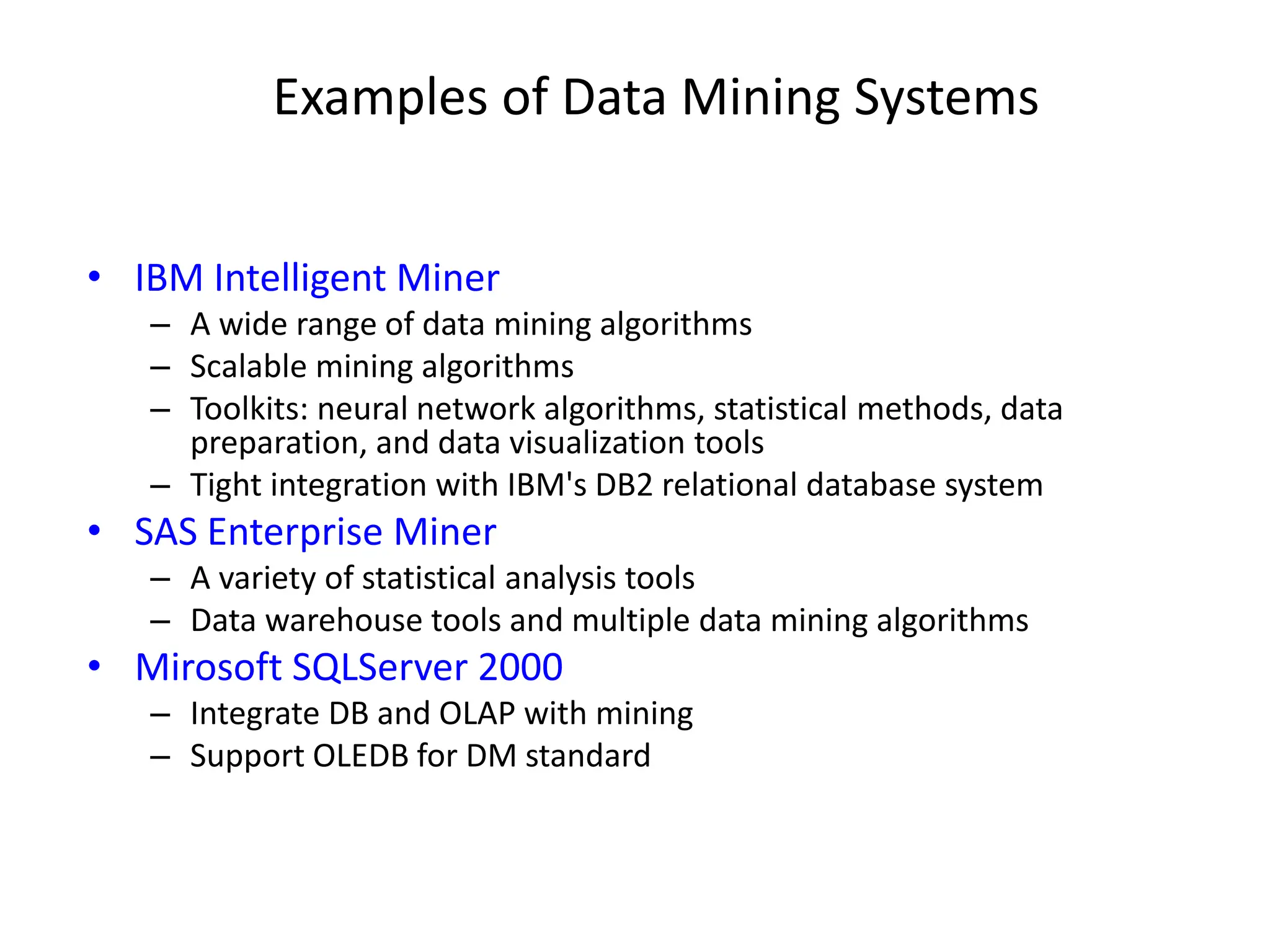

- 15. Examples of DataMining Systems • IBM Intelligent Miner – A wide range of data mining algorithms – Scalable mining algorithms – Toolkits: neural network algorithms, statistical methods, data preparation, and data visualization tools – Tight integration with IBM's DB2 relational database system • SAS Enterprise Miner – A variety of statistical analysis tools – Data warehouse tools and multiple data mining algorithms • Mirosoft SQLServer 2000 – Integrate DB and OLAP with mining – Support OLEDB for DM standard

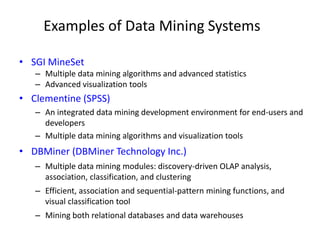

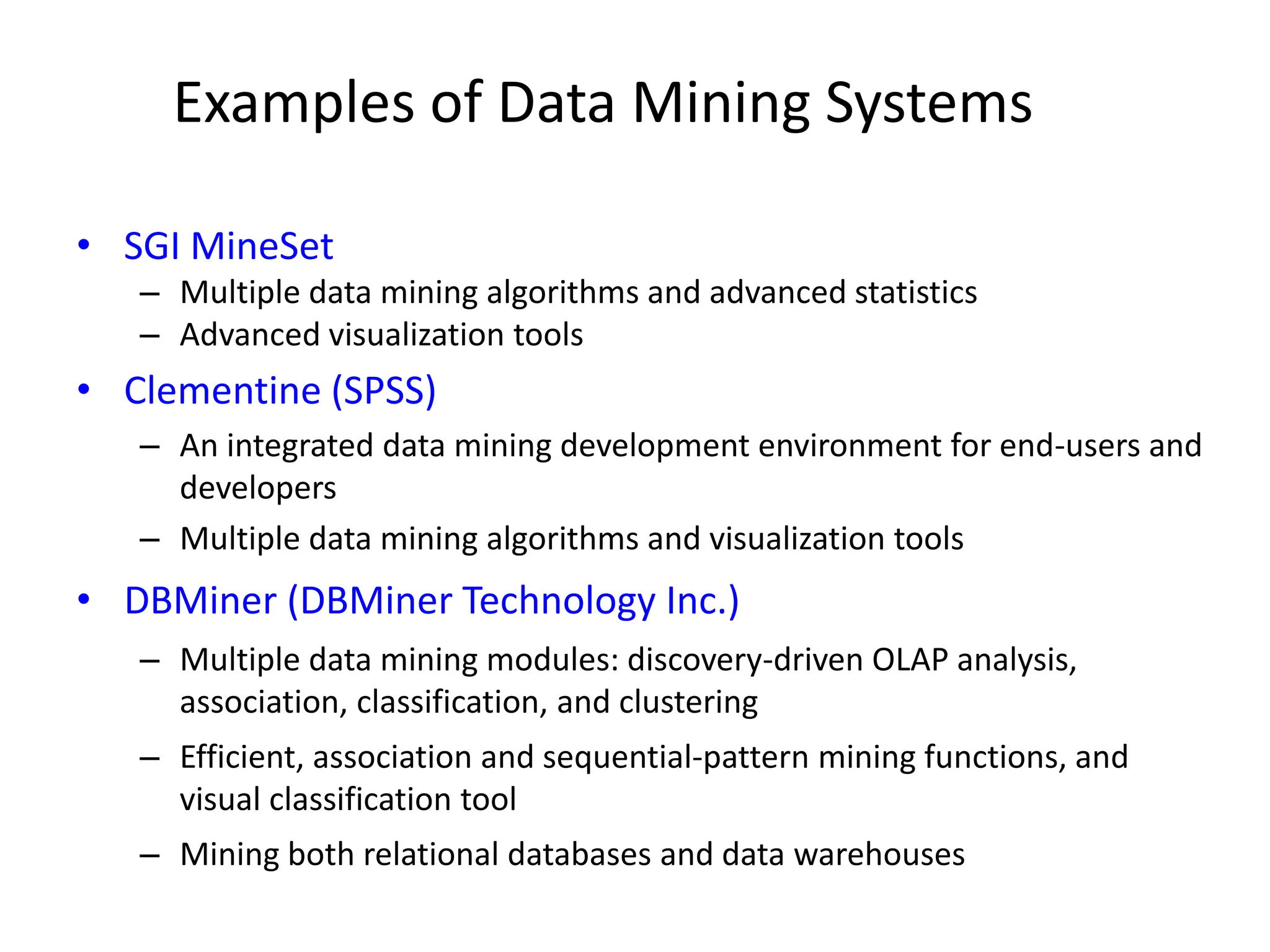

- 16. Examples of DataMining Systems • SGI MineSet – Multiple data mining algorithms and advanced statistics – Advanced visualization tools • Clementine (SPSS) – An integrated data mining development environment for end-users and developers – Multiple data mining algorithms and visualization tools • DBMiner (DBMiner Technology Inc.) – Multiple data mining modules: discovery-driven OLAP analysis, association, classification, and clustering – Efficient, association and sequential-pattern mining functions, and visual classification tool – Mining both relational databases and data warehouses

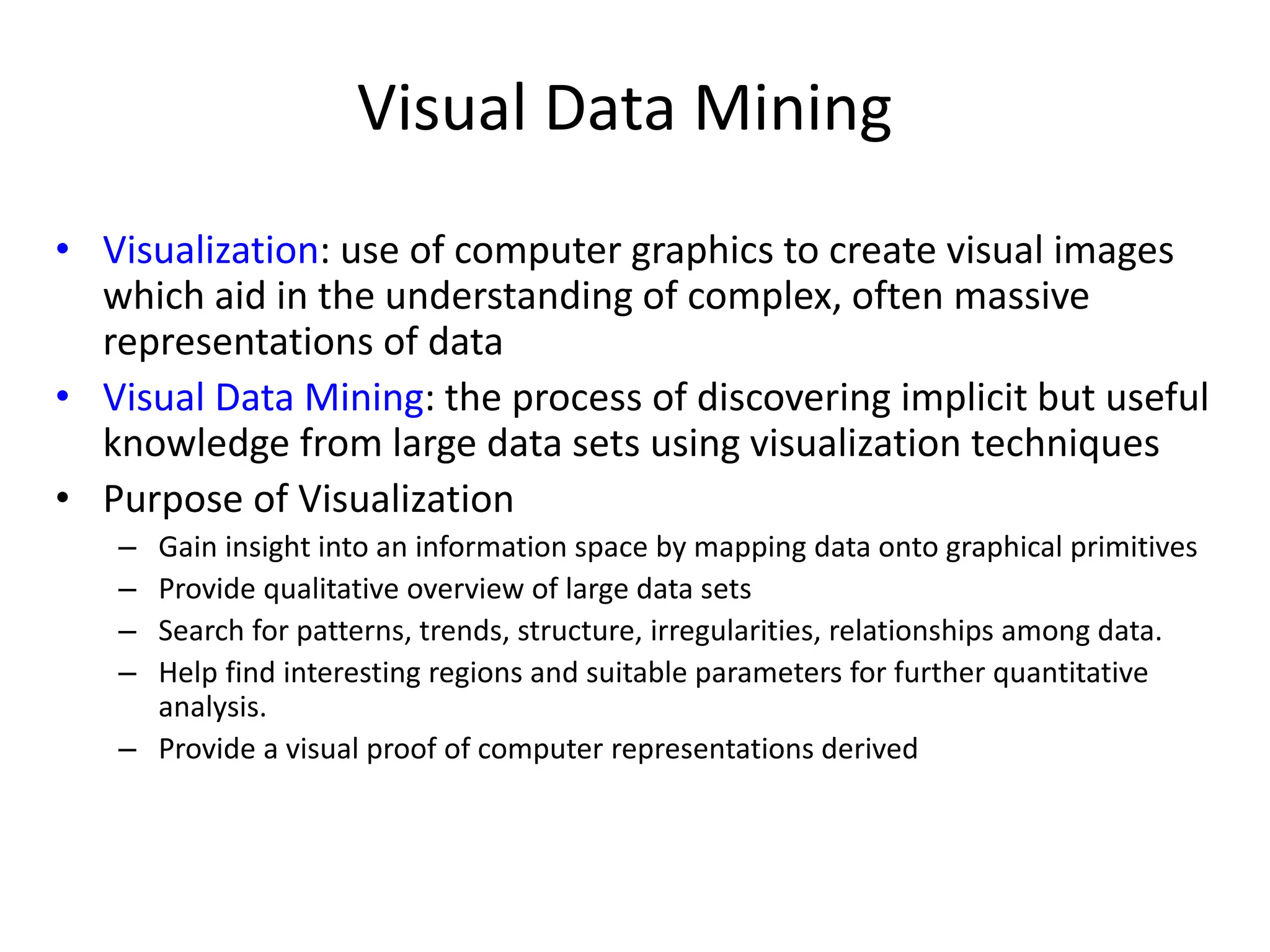

- 17. Visual Data Mining •Visualization: use of computer graphics to create visual images which aid in the understanding of complex, often massive representations of data • Visual Data Mining: the process of discovering implicit but useful knowledge from large data sets using visualization techniques • Purpose of Visualization – Gain insight into an information space by mapping data onto graphical primitives – Provide qualitative overview of large data sets – Search for patterns, trends, structure, irregularities, relationships among data. – Help find interesting regions and suitable parameters for further quantitative analysis. – Provide a visual proof of computer representations derived

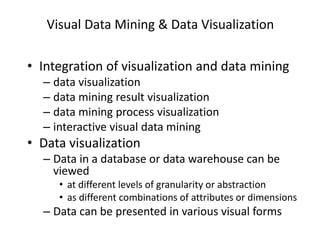

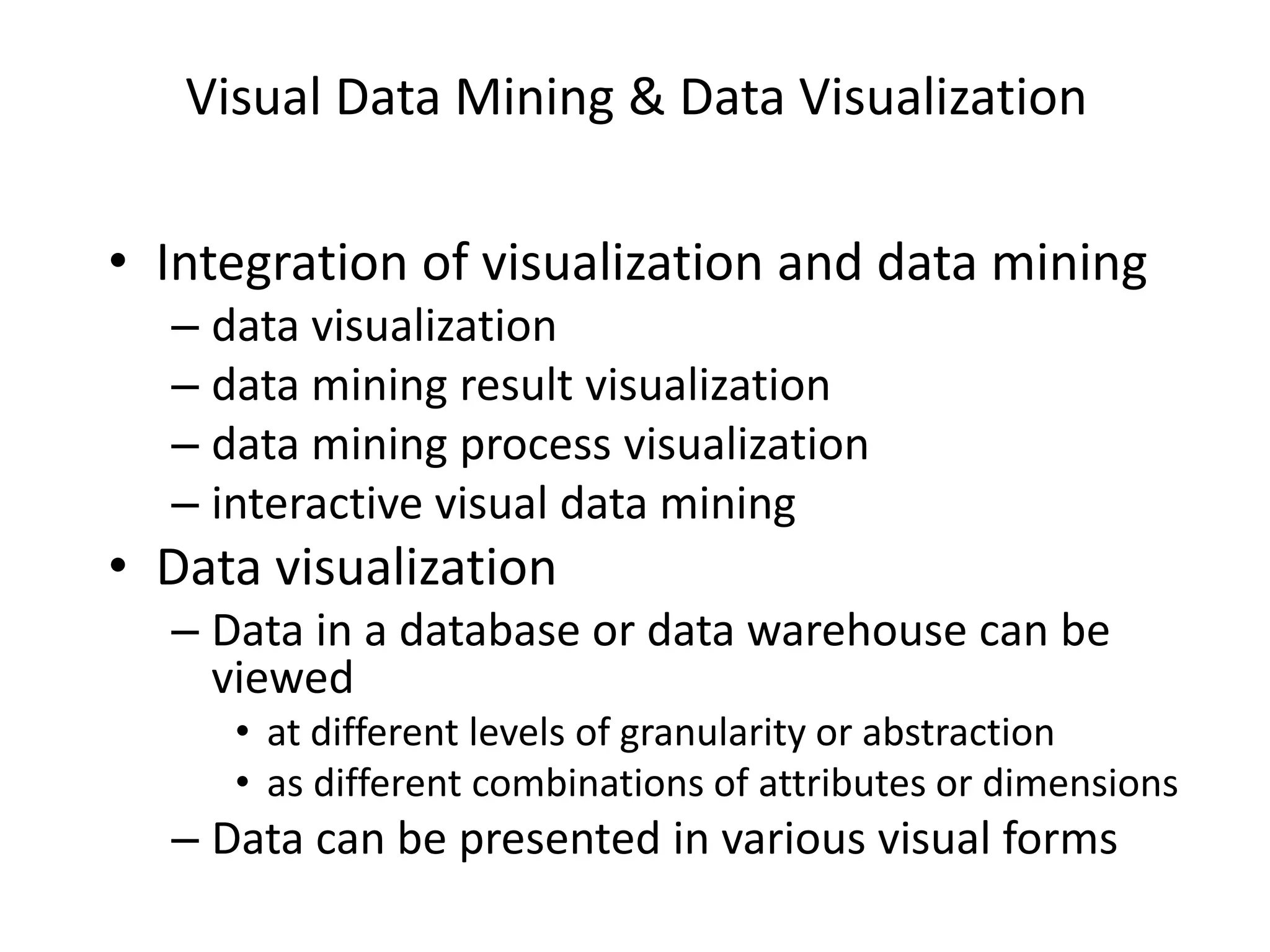

- 18. Visual Data Mining& Data Visualization • Integration of visualization and data mining – data visualization – data mining result visualization – data mining process visualization – interactive visual data mining • Data visualization – Data in a database or data warehouse can be viewed • at different levels of granularity or abstraction • as different combinations of attributes or dimensions – Data can be presented in various visual forms

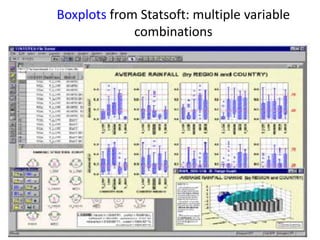

- 19. Boxplots from Statsoft:multiple variable combinations

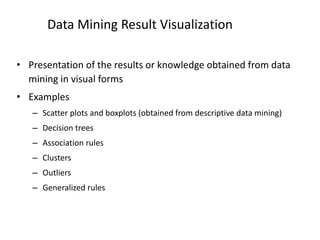

- 20. Data Mining ResultVisualization • Presentation of the results or knowledge obtained from data mining in visual forms • Examples – Scatter plots and boxplots (obtained from descriptive data mining) – Decision trees – Association rules – Clusters – Outliers – Generalized rules

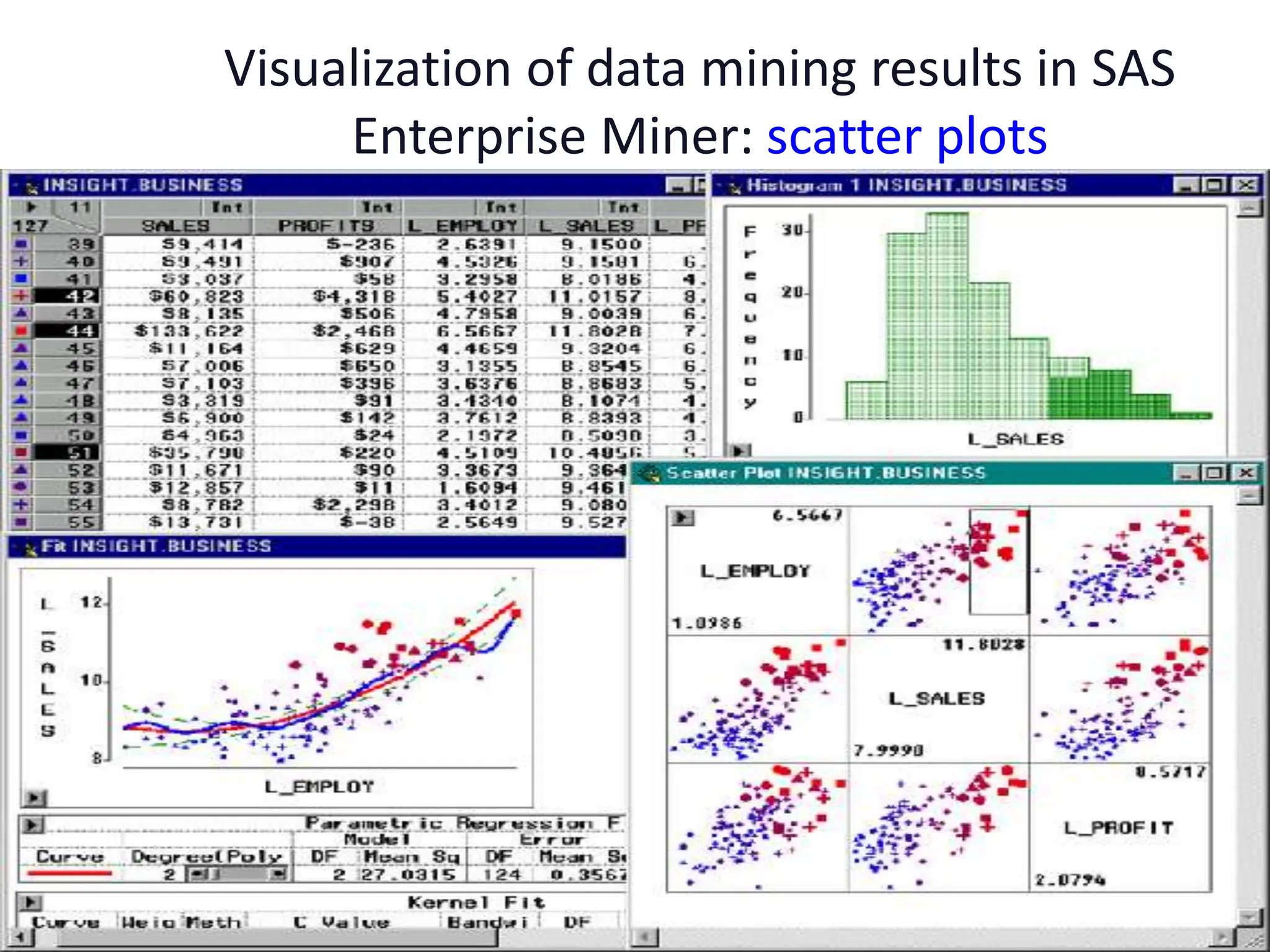

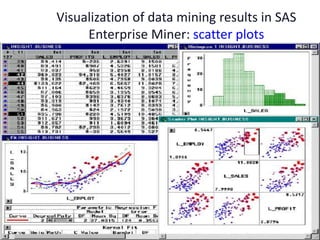

- 21. Visualization of datamining results in SAS Enterprise Miner: scatter plots

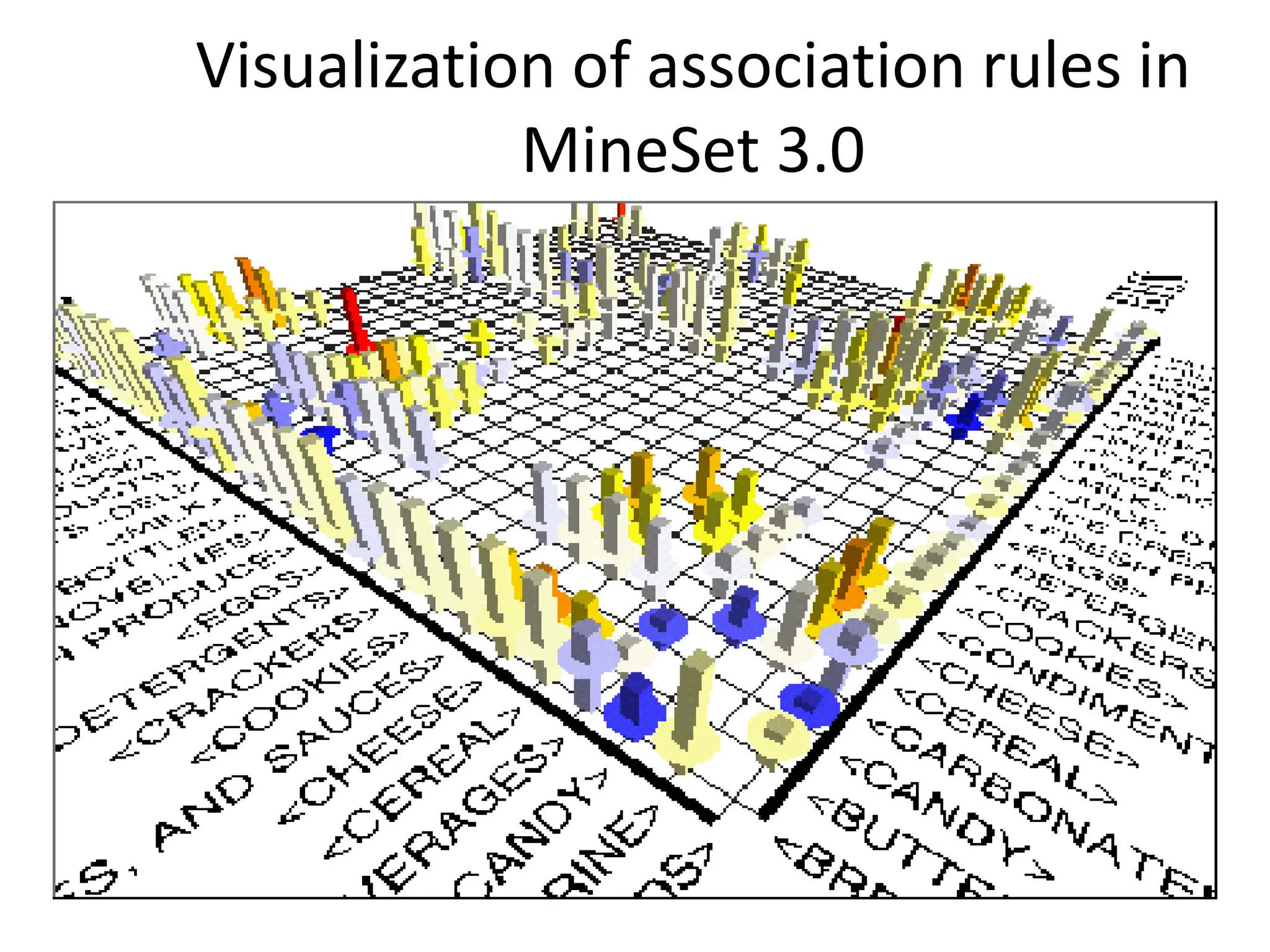

- 22. Visualization of associationrules in MineSet 3.0

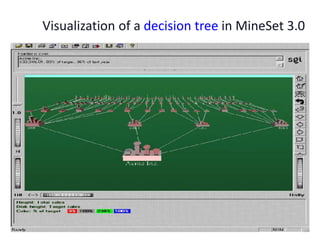

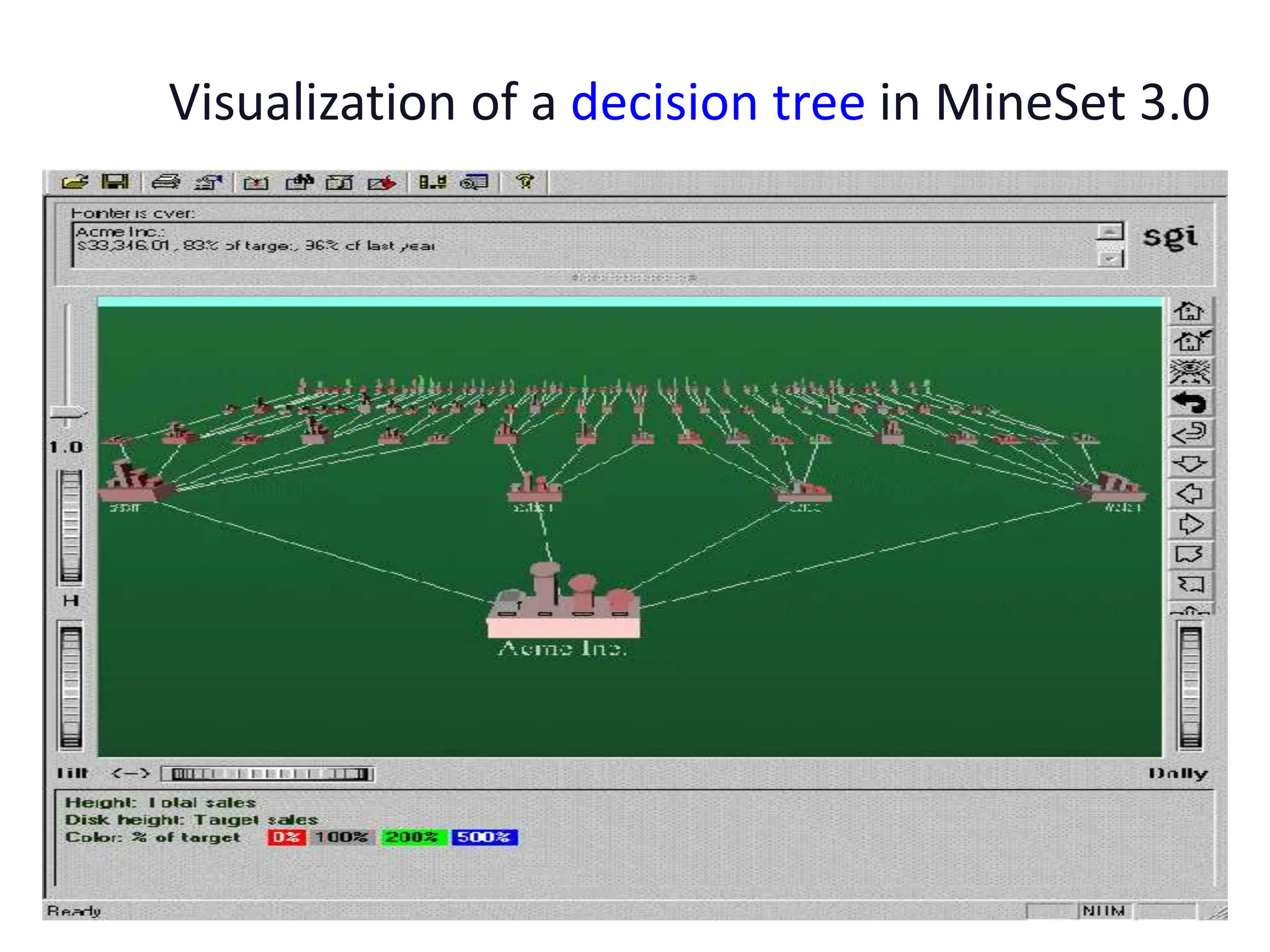

- 23. Visualization of adecision tree in MineSet 3.0

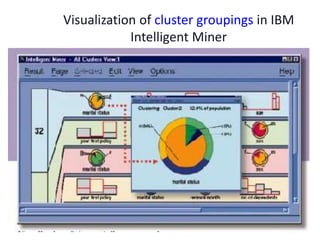

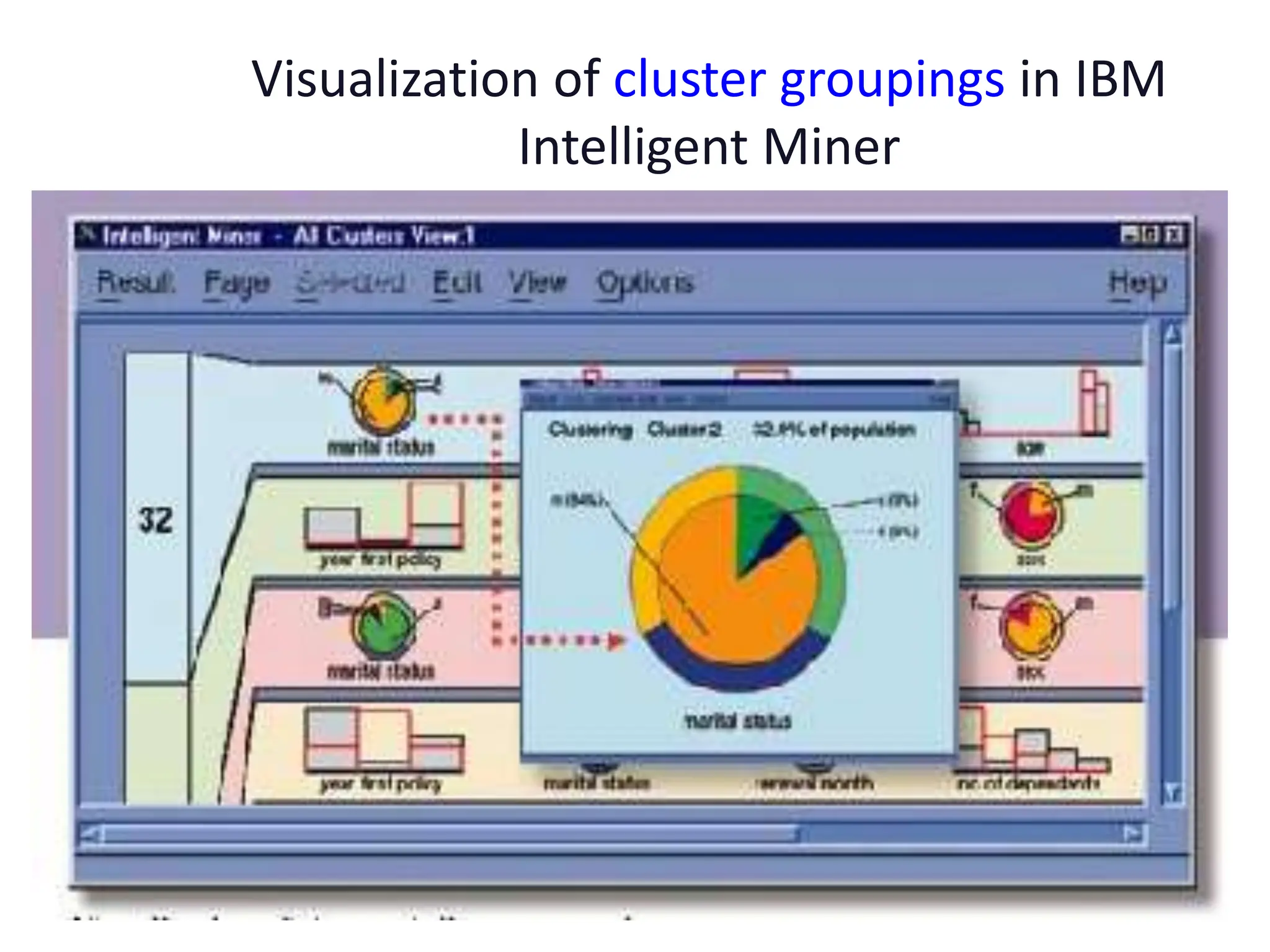

- 24. Visualization of clustergroupings in IBM Intelligent Miner

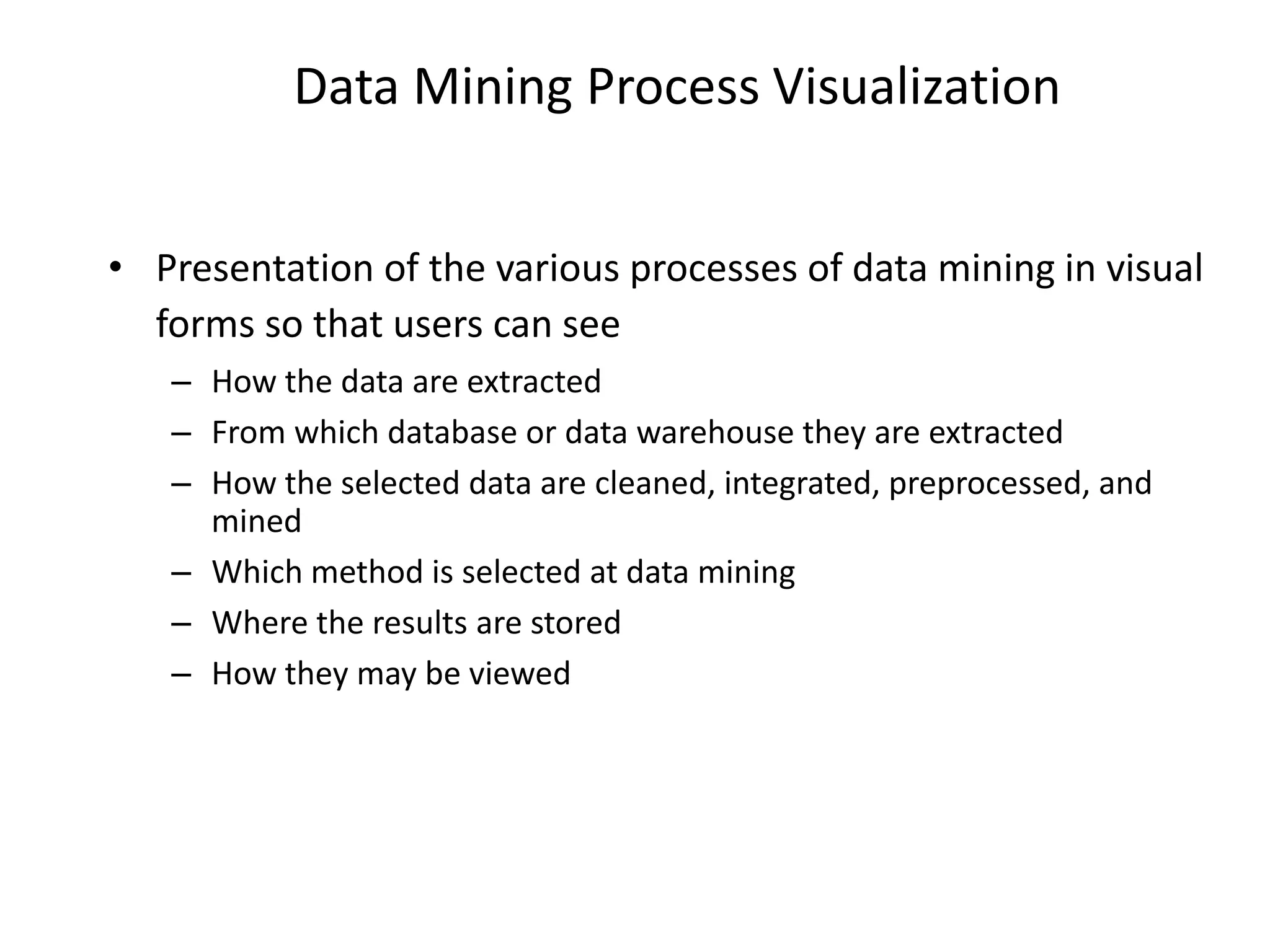

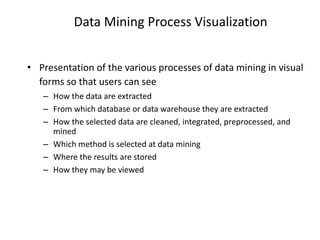

- 25. Data Mining ProcessVisualization • Presentation of the various processes of data mining in visual forms so that users can see – How the data are extracted – From which database or data warehouse they are extracted – How the selected data are cleaned, integrated, preprocessed, and mined – Which method is selected at data mining – Where the results are stored – How they may be viewed

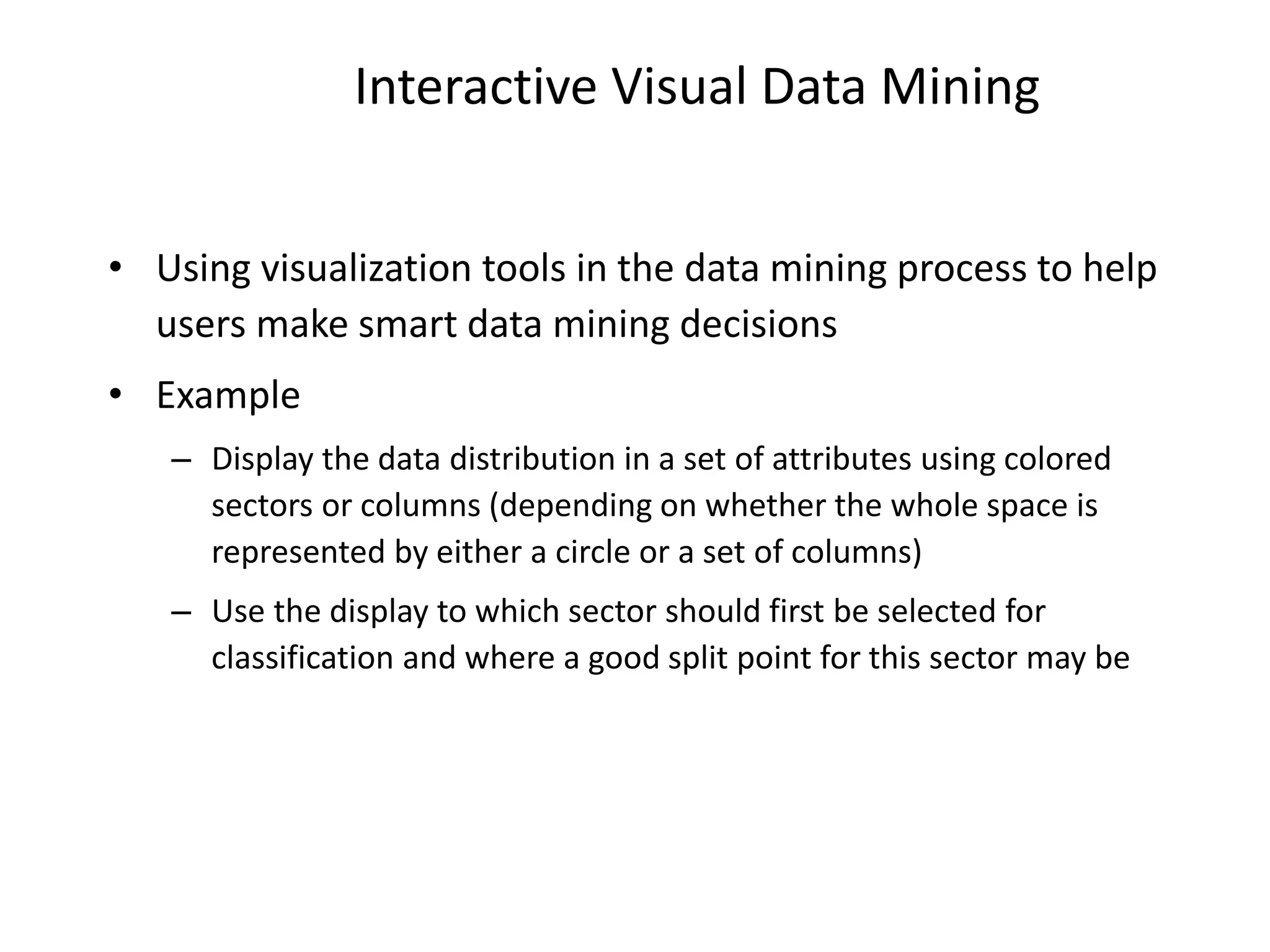

- 26. Interactive Visual DataMining • Using visualization tools in the data mining process to help users make smart data mining decisions • Example – Display the data distribution in a set of attributes using colored sectors or columns (depending on whether the whole space is represented by either a circle or a set of columns) – Use the display to which sector should first be selected for classification and where a good split point for this sector may be

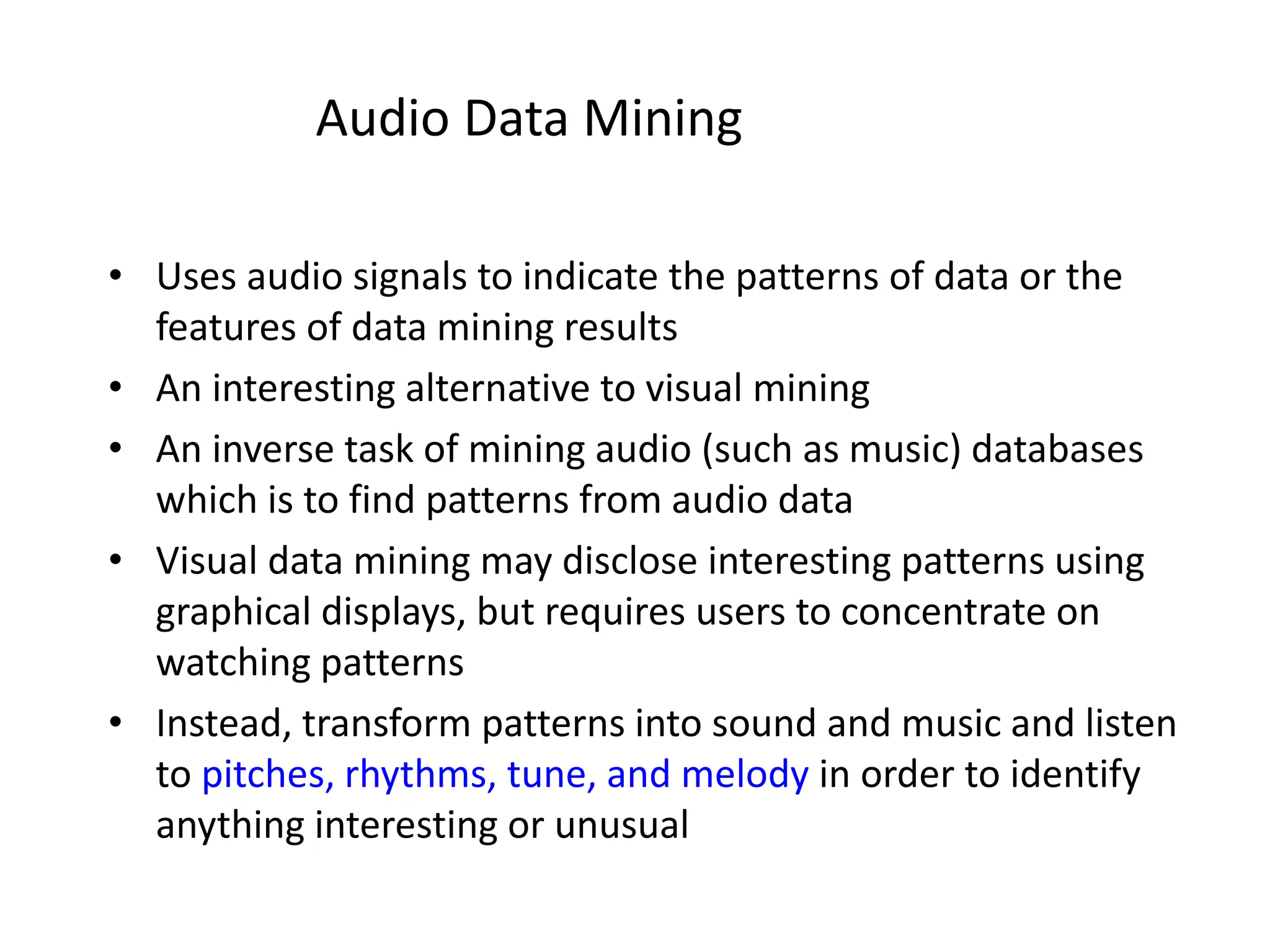

- 27. Audio Data Mining •Uses audio signals to indicate the patterns of data or the features of data mining results • An interesting alternative to visual mining • An inverse task of mining audio (such as music) databases which is to find patterns from audio data • Visual data mining may disclose interesting patterns using graphical displays, but requires users to concentrate on watching patterns • Instead, transform patterns into sound and music and listen to pitches, rhythms, tune, and melody in order to identify anything interesting or unusual

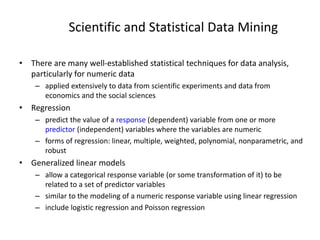

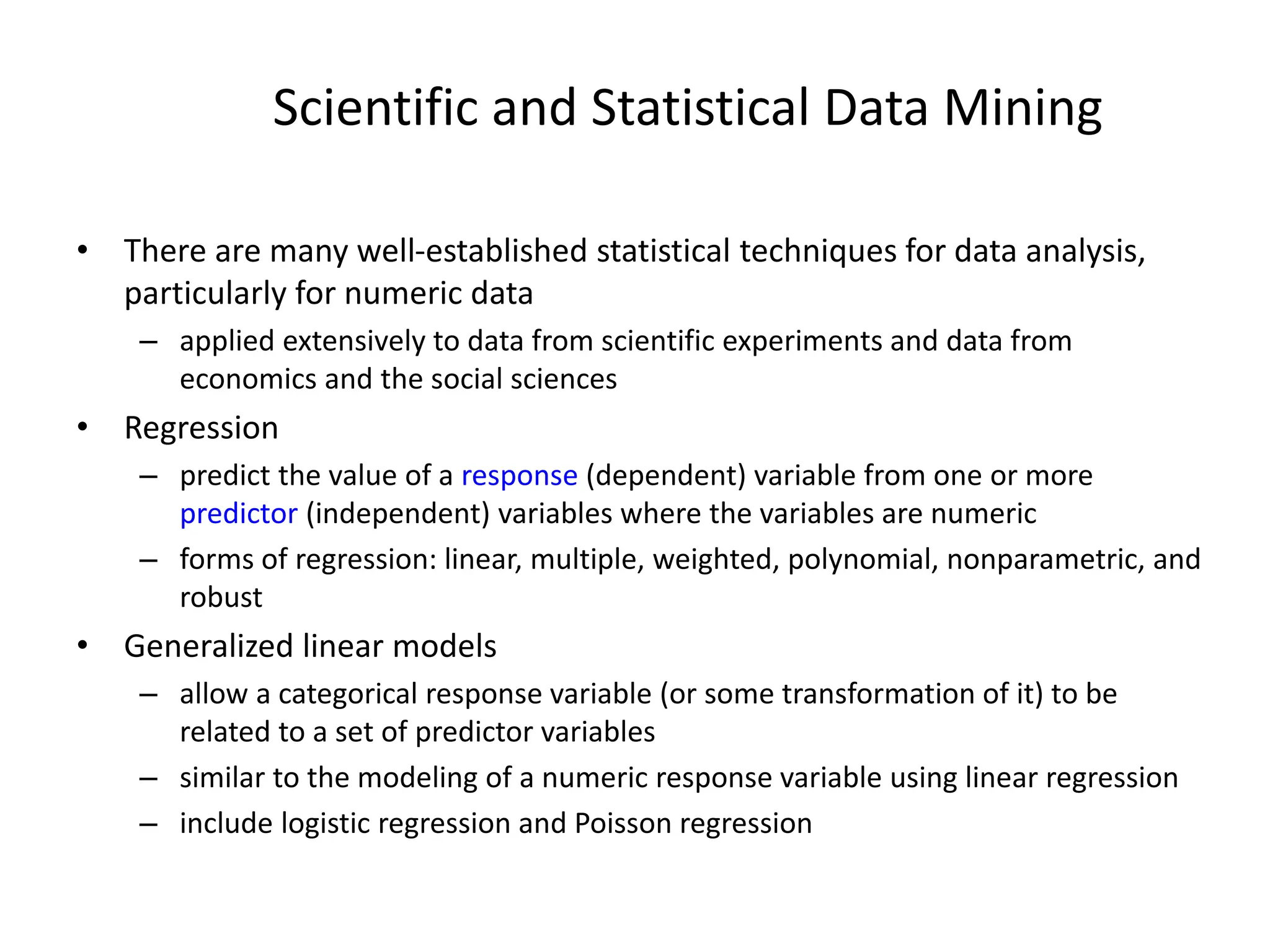

- 28. Scientific and StatisticalData Mining • There are many well-established statistical techniques for data analysis, particularly for numeric data – applied extensively to data from scientific experiments and data from economics and the social sciences • Regression – predict the value of a response (dependent) variable from one or more predictor (independent) variables where the variables are numeric – forms of regression: linear, multiple, weighted, polynomial, nonparametric, and robust • Generalized linear models – allow a categorical response variable (or some transformation of it) to be related to a set of predictor variables – similar to the modeling of a numeric response variable using linear regression – include logistic regression and Poisson regression

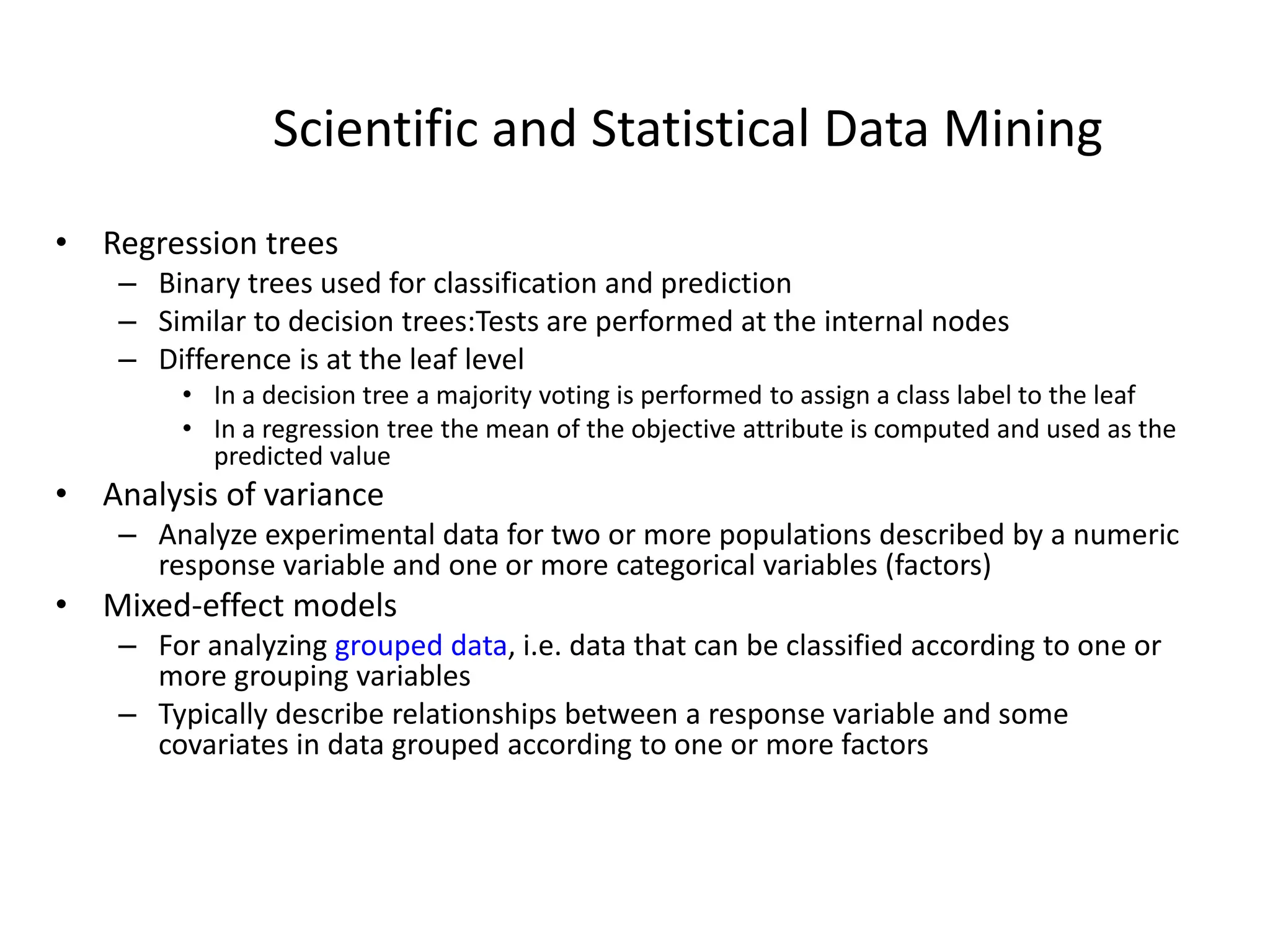

- 29. Scientific and StatisticalData Mining • Regression trees – Binary trees used for classification and prediction – Similar to decision trees:Tests are performed at the internal nodes – Difference is at the leaf level • In a decision tree a majority voting is performed to assign a class label to the leaf • In a regression tree the mean of the objective attribute is computed and used as the predicted value • Analysis of variance – Analyze experimental data for two or more populations described by a numeric response variable and one or more categorical variables (factors) • Mixed-effect models – For analyzing grouped data, i.e. data that can be classified according to one or more grouping variables – Typically describe relationships between a response variable and some covariates in data grouped according to one or more factors

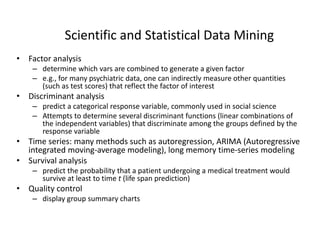

- 30. Scientific and StatisticalData Mining • Factor analysis – determine which vars are combined to generate a given factor – e.g., for many psychiatric data, one can indirectly measure other quantities (such as test scores) that reflect the factor of interest • Discriminant analysis – predict a categorical response variable, commonly used in social science – Attempts to determine several discriminant functions (linear combinations of the independent variables) that discriminate among the groups defined by the response variable • Time series: many methods such as autoregression, ARIMA (Autoregressive integrated moving-average modeling), long memory time-series modeling • Survival analysis – predict the probability that a patient undergoing a medical treatment would survive at least to time t (life span prediction) • Quality control – display group summary charts

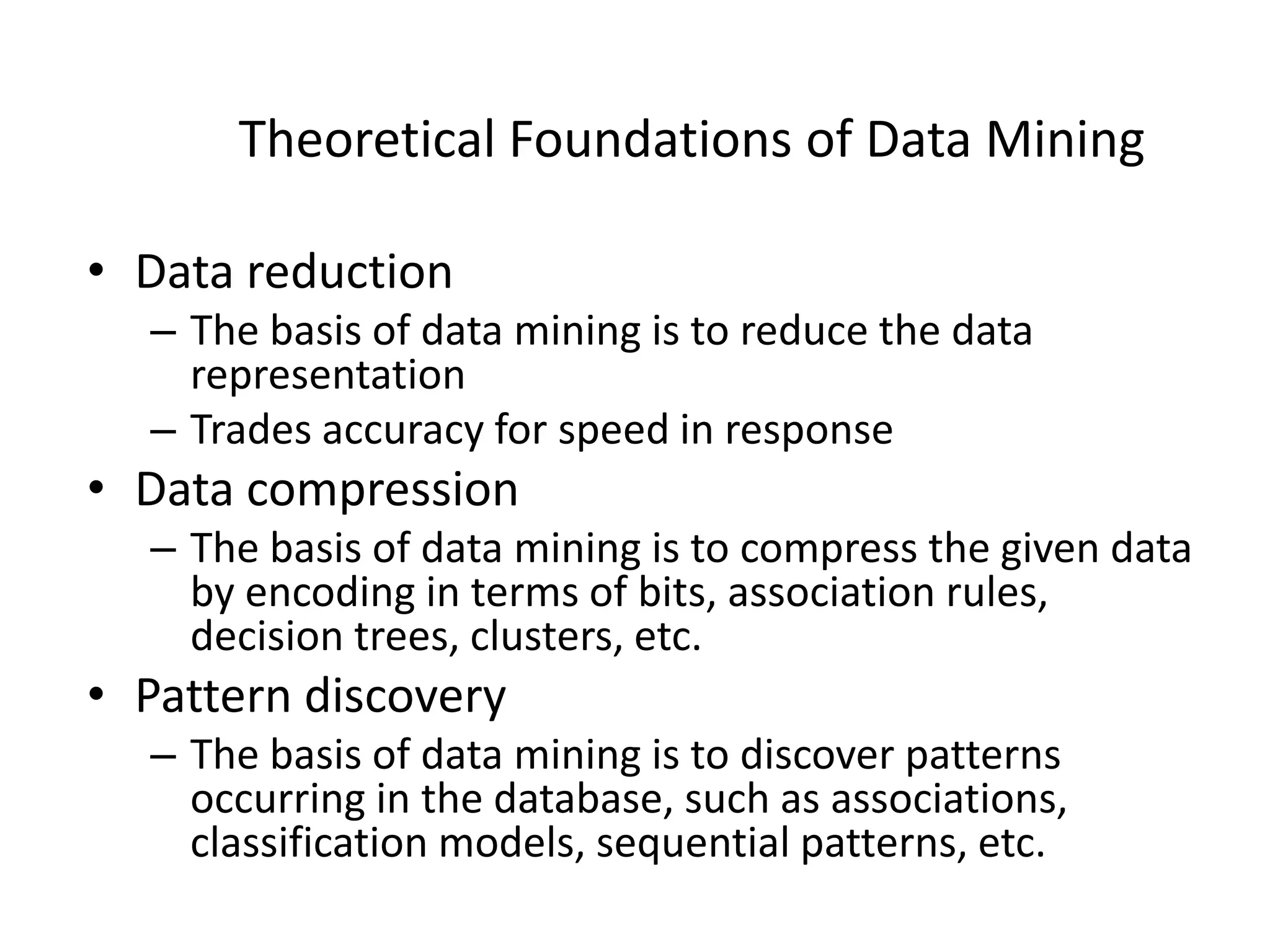

- 31. Theoretical Foundations ofData Mining • Data reduction – The basis of data mining is to reduce the data representation – Trades accuracy for speed in response • Data compression – The basis of data mining is to compress the given data by encoding in terms of bits, association rules, decision trees, clusters, etc. • Pattern discovery – The basis of data mining is to discover patterns occurring in the database, such as associations, classification models, sequential patterns, etc.

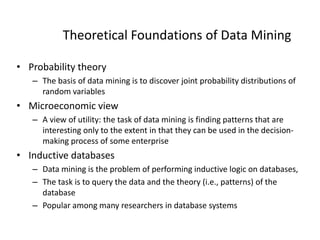

- 32. Theoretical Foundations ofData Mining • Probability theory – The basis of data mining is to discover joint probability distributions of random variables • Microeconomic view – A view of utility: the task of data mining is finding patterns that are interesting only to the extent in that they can be used in the decision- making process of some enterprise • Inductive databases – Data mining is the problem of performing inductive logic on databases, – The task is to query the data and the theory (i.e., patterns) of the database – Popular among many researchers in database systems

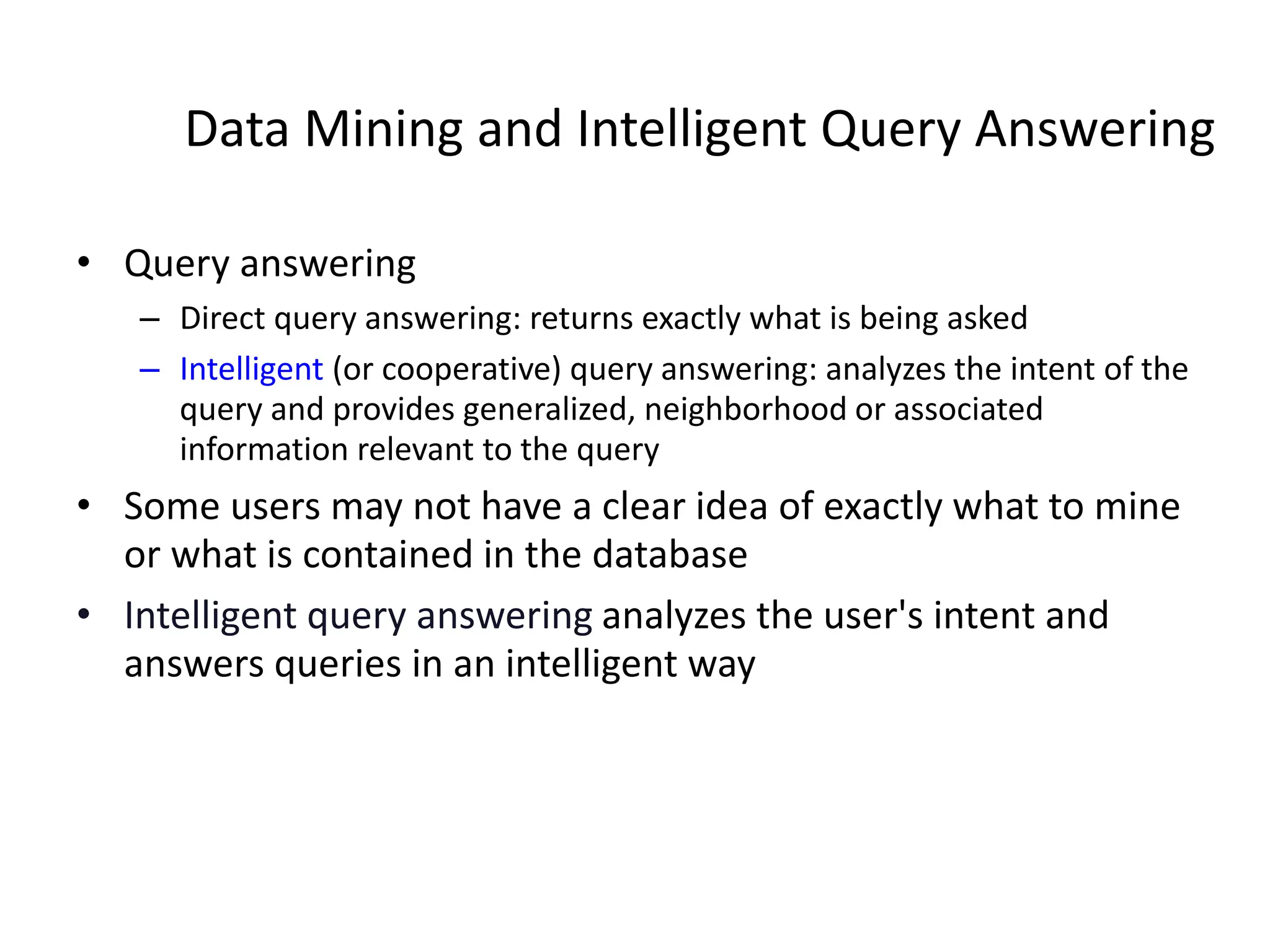

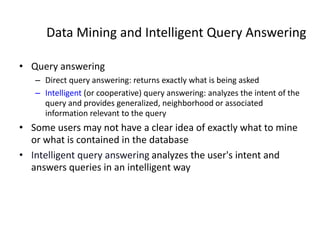

- 33. Data Mining andIntelligent Query Answering • Query answering – Direct query answering: returns exactly what is being asked – Intelligent (or cooperative) query answering: analyzes the intent of the query and provides generalized, neighborhood or associated information relevant to the query • Some users may not have a clear idea of exactly what to mine or what is contained in the database • Intelligent query answering analyzes the user's intent and answers queries in an intelligent way

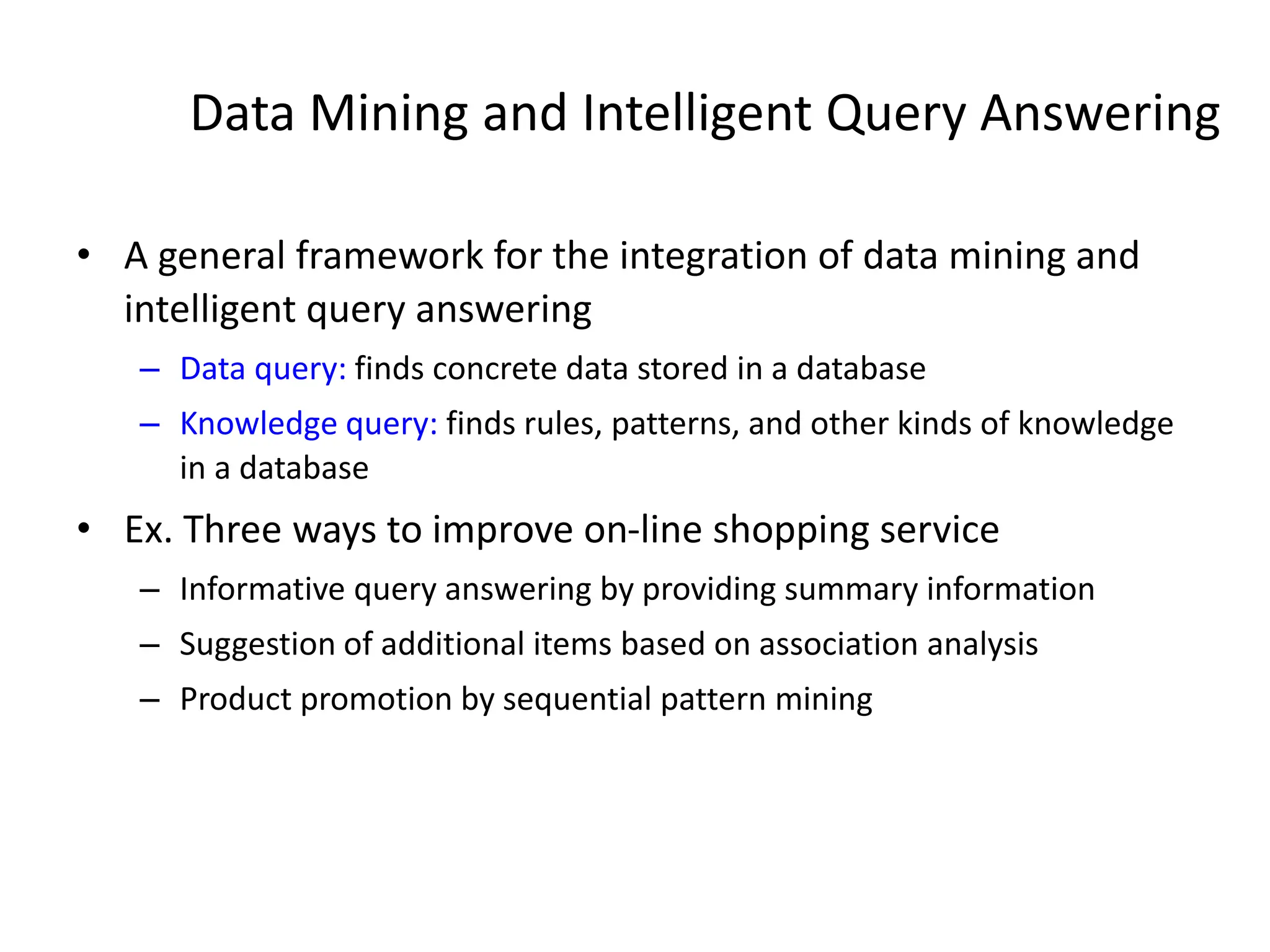

- 34. Data Mining andIntelligent Query Answering • A general framework for the integration of data mining and intelligent query answering – Data query: finds concrete data stored in a database – Knowledge query: finds rules, patterns, and other kinds of knowledge in a database • Ex. Three ways to improve on-line shopping service – Informative query answering by providing summary information – Suggestion of additional items based on association analysis – Product promotion by sequential pattern mining

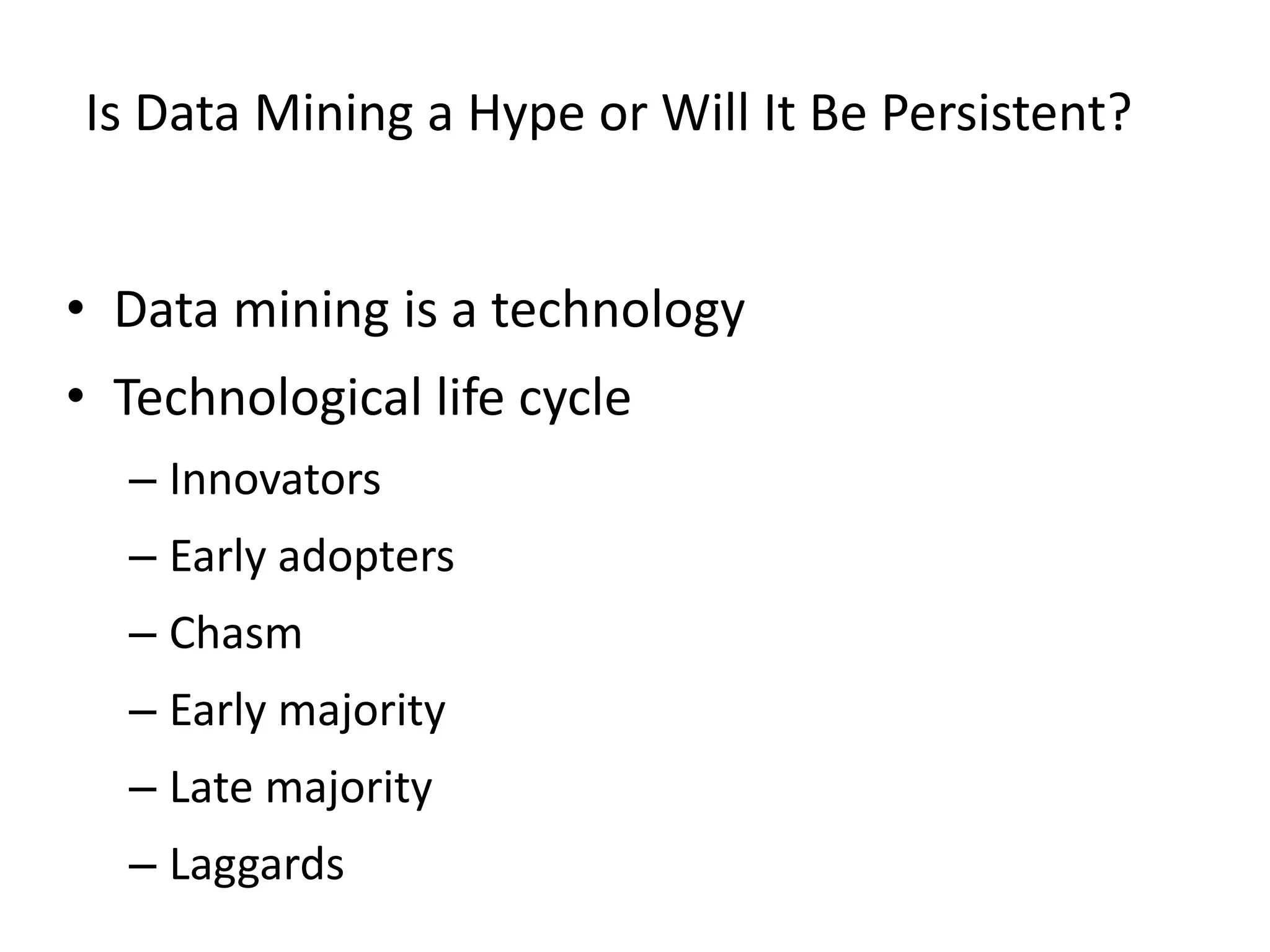

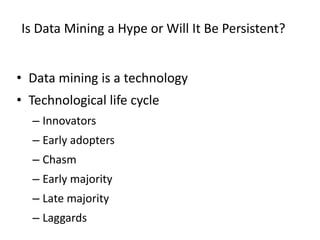

- 35. Is Data Mininga Hype or Will It Be Persistent? • Data mining is a technology • Technological life cycle – Innovators – Early adopters – Chasm – Early majority – Late majority – Laggards

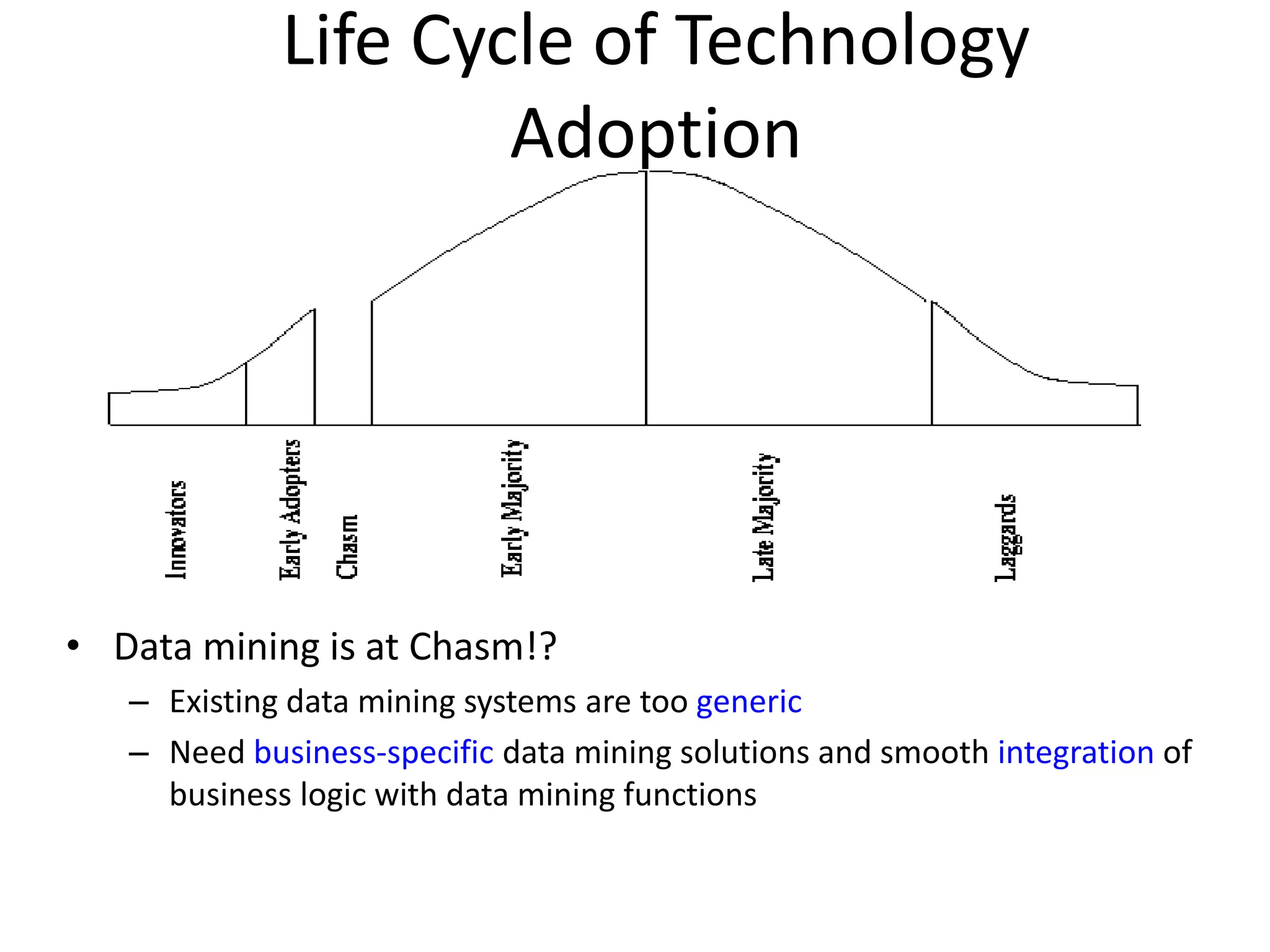

- 36. Life Cycle ofTechnology Adoption • Data mining is at Chasm!? – Existing data mining systems are too generic – Need business-specific data mining solutions and smooth integration of business logic with data mining functions

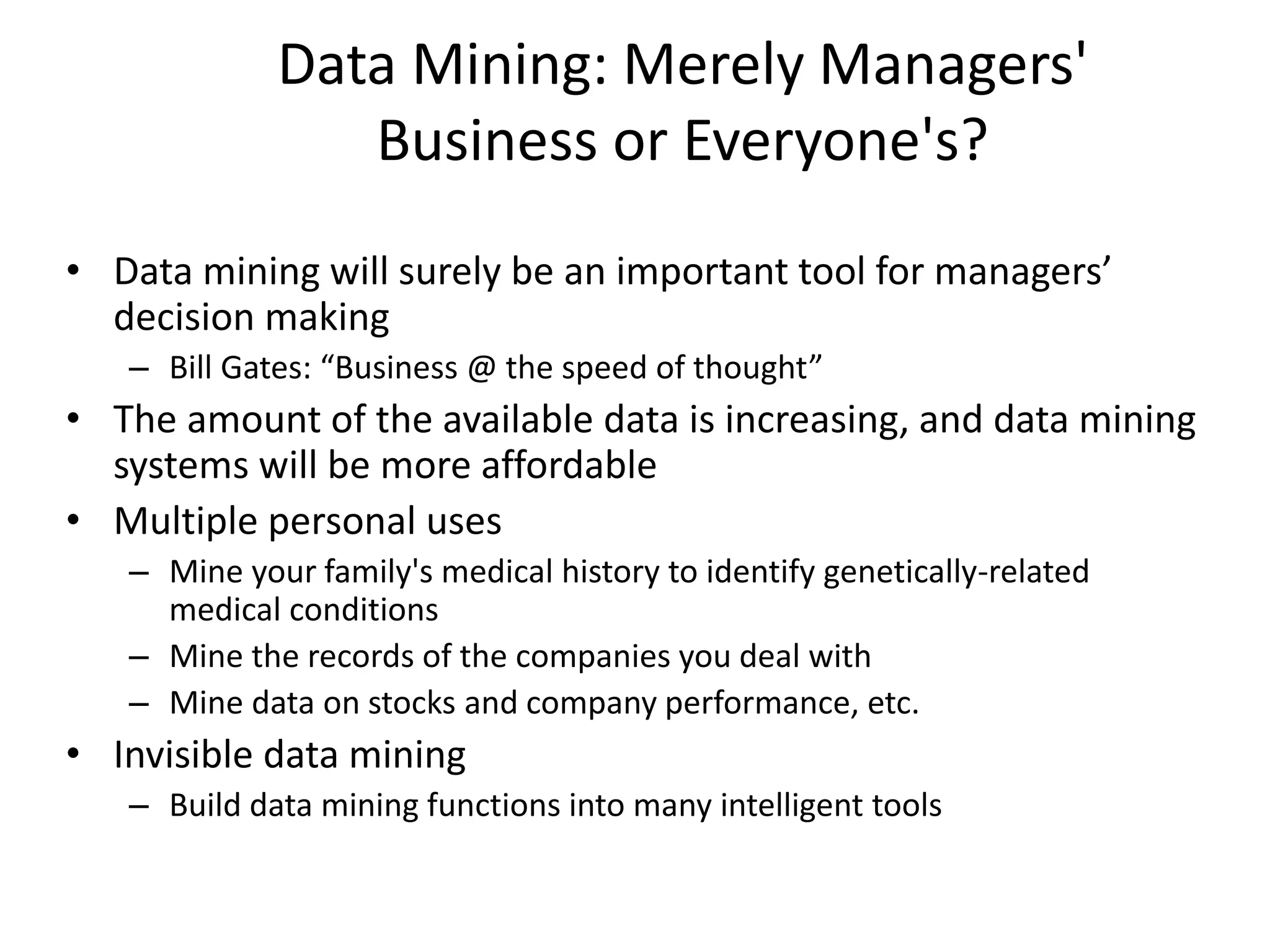

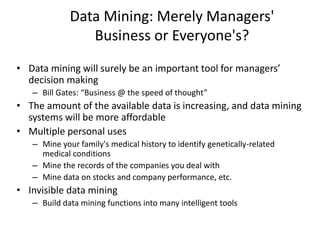

- 37. Data Mining: MerelyManagers' Business or Everyone's? • Data mining will surely be an important tool for managers’ decision making – Bill Gates: “Business @ the speed of thought” • The amount of the available data is increasing, and data mining systems will be more affordable • Multiple personal uses – Mine your family's medical history to identify genetically-related medical conditions – Mine the records of the companies you deal with – Mine data on stocks and company performance, etc. • Invisible data mining – Build data mining functions into many intelligent tools

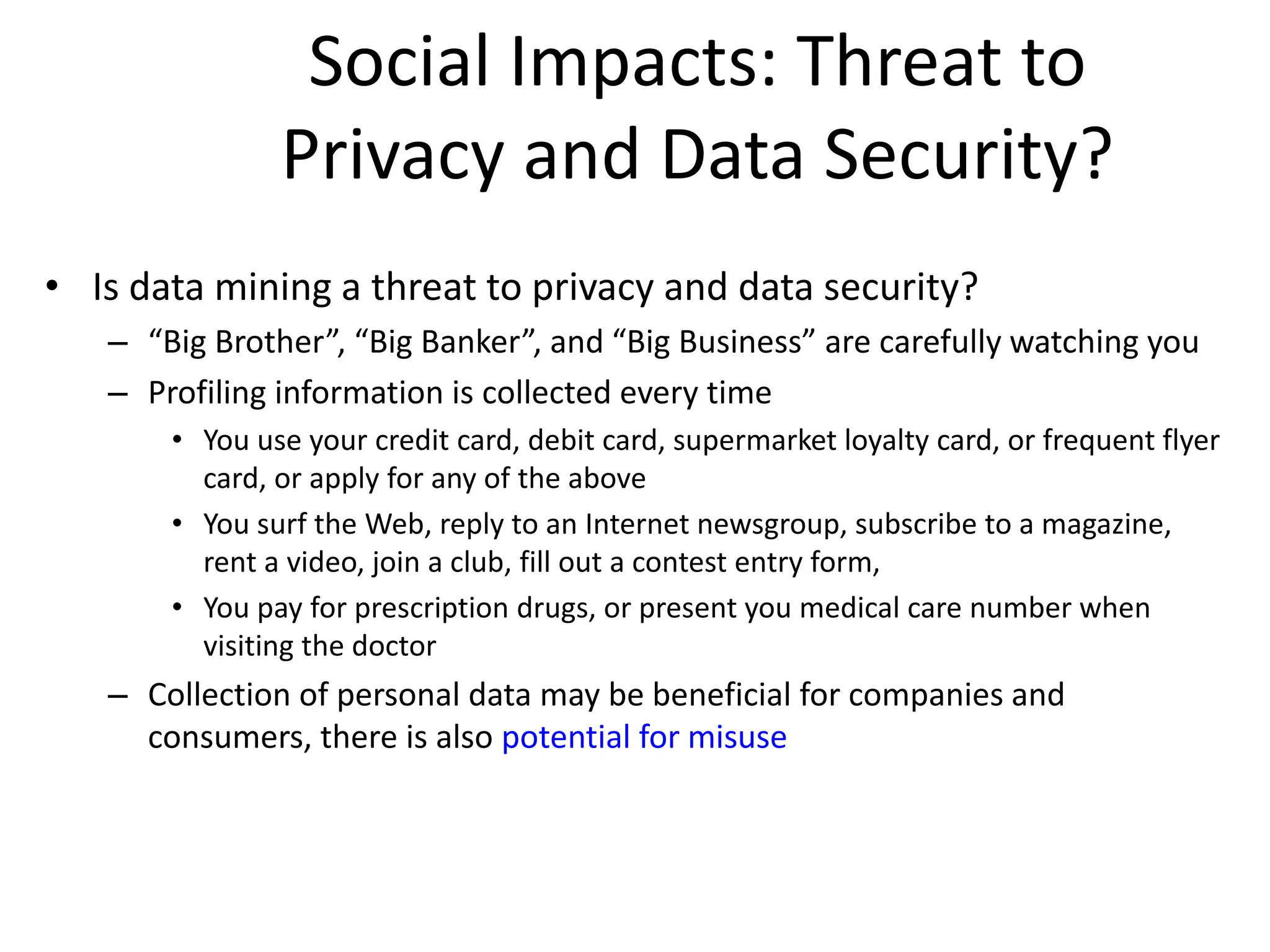

- 38. Social Impacts: Threatto Privacy and Data Security? • Is data mining a threat to privacy and data security? – “Big Brother”, “Big Banker”, and “Big Business” are carefully watching you – Profiling information is collected every time • You use your credit card, debit card, supermarket loyalty card, or frequent flyer card, or apply for any of the above • You surf the Web, reply to an Internet newsgroup, subscribe to a magazine, rent a video, join a club, fill out a contest entry form, • You pay for prescription drugs, or present you medical care number when visiting the doctor – Collection of personal data may be beneficial for companies and consumers, there is also potential for misuse

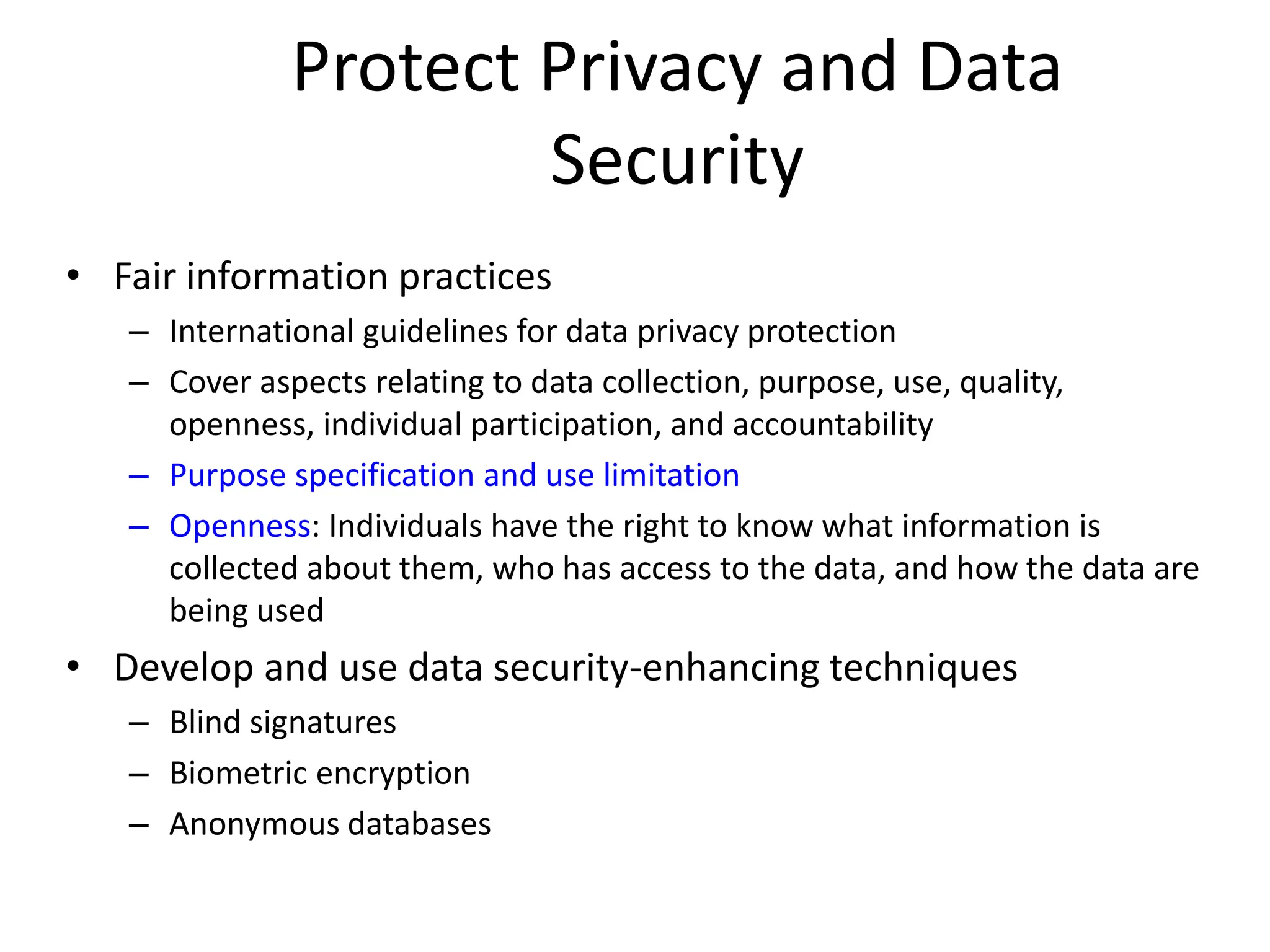

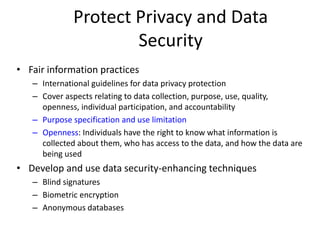

- 39. Protect Privacy andData Security • Fair information practices – International guidelines for data privacy protection – Cover aspects relating to data collection, purpose, use, quality, openness, individual participation, and accountability – Purpose specification and use limitation – Openness: Individuals have the right to know what information is collected about them, who has access to the data, and how the data are being used • Develop and use data security-enhancing techniques – Blind signatures – Biometric encryption – Anonymous databases

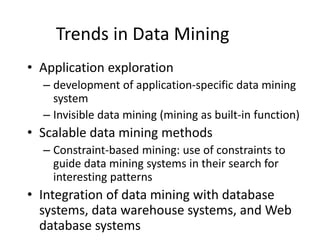

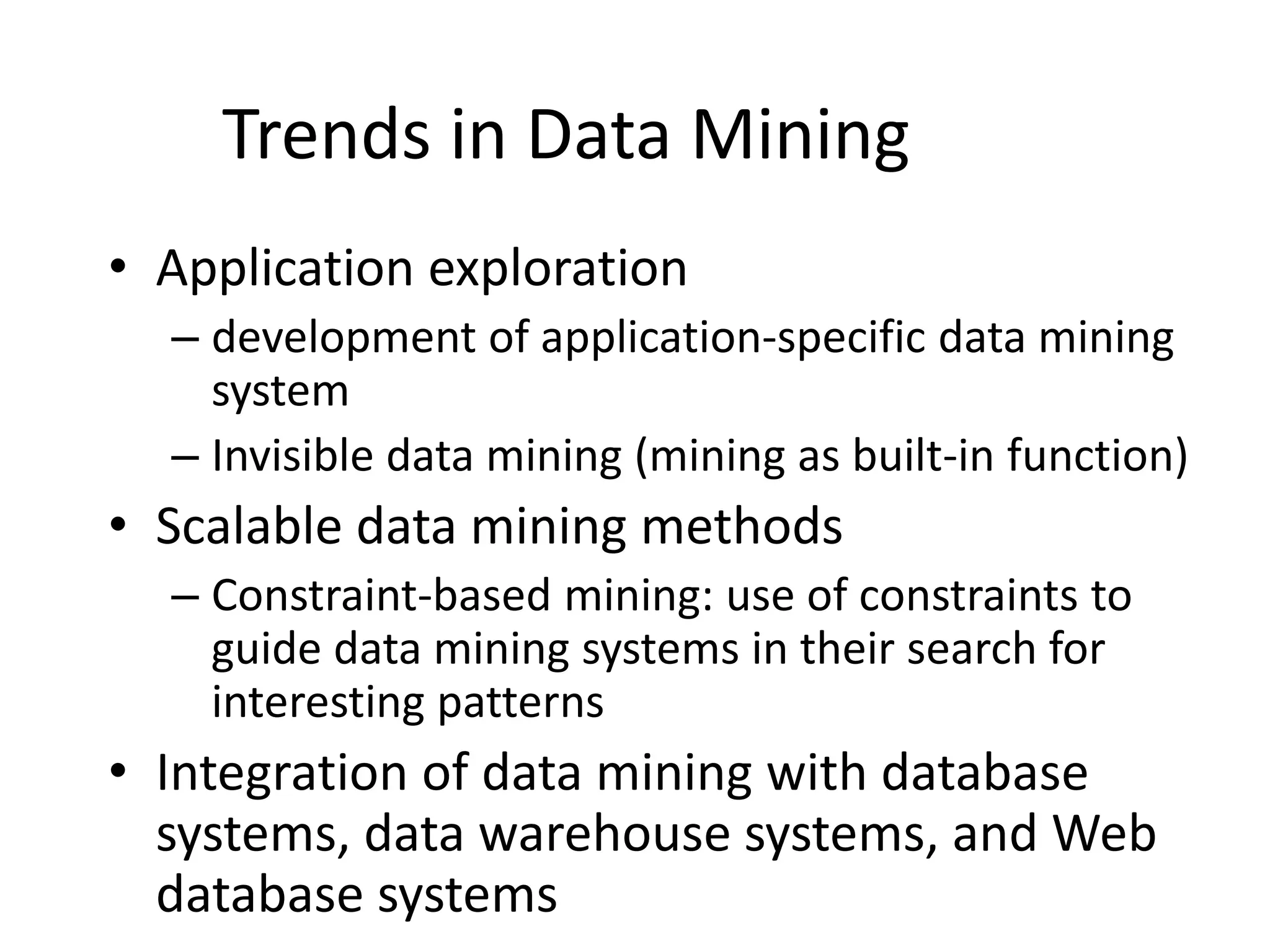

- 40. Trends in DataMining • Application exploration – development of application-specific data mining system – Invisible data mining (mining as built-in function) • Scalable data mining methods – Constraint-based mining: use of constraints to guide data mining systems in their search for interesting patterns • Integration of data mining with database systems, data warehouse systems, and Web database systems

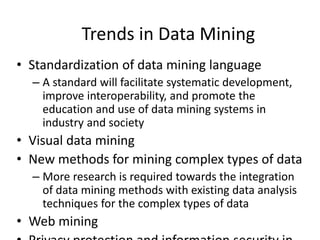

- 41. Trends in DataMining • Standardization of data mining language – A standard will facilitate systematic development, improve interoperability, and promote the education and use of data mining systems in industry and society • Visual data mining • New methods for mining complex types of data – More research is required towards the integration of data mining methods with existing data analysis techniques for the complex types of data • Web mining
