May 16, 2025 Data Mining: Concepts and Techniqu 1
Data Mining:
Concepts and
Techniques
— Slides for Textbook —
— Chapter 10 —
©Jiawei Han and Micheline Kamber
Intelligent Database Systems Research Lab
School of Computing Science
Simon Fraser University, Canada
http://www.cs.sfu.ca

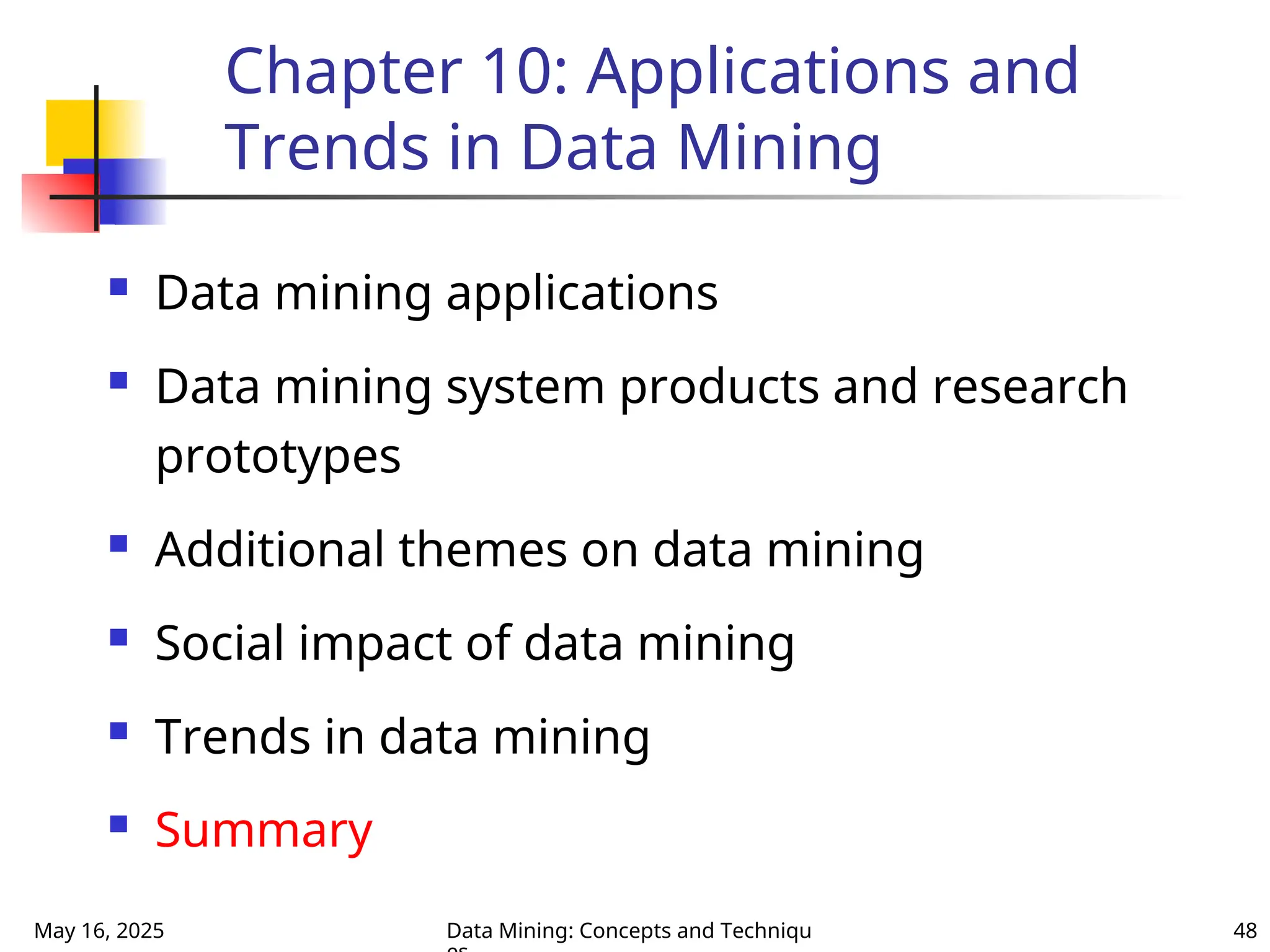

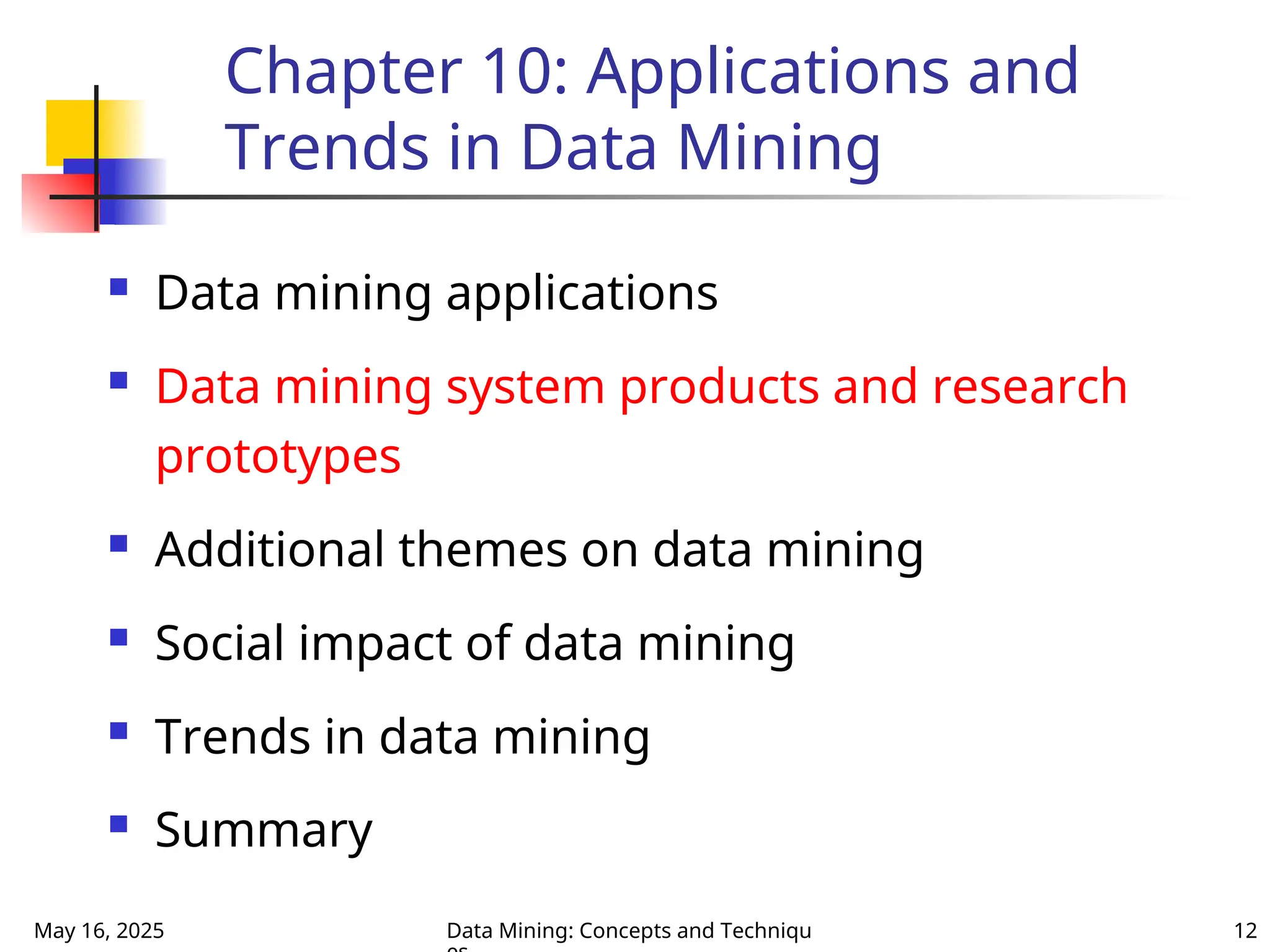

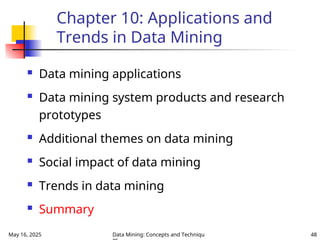

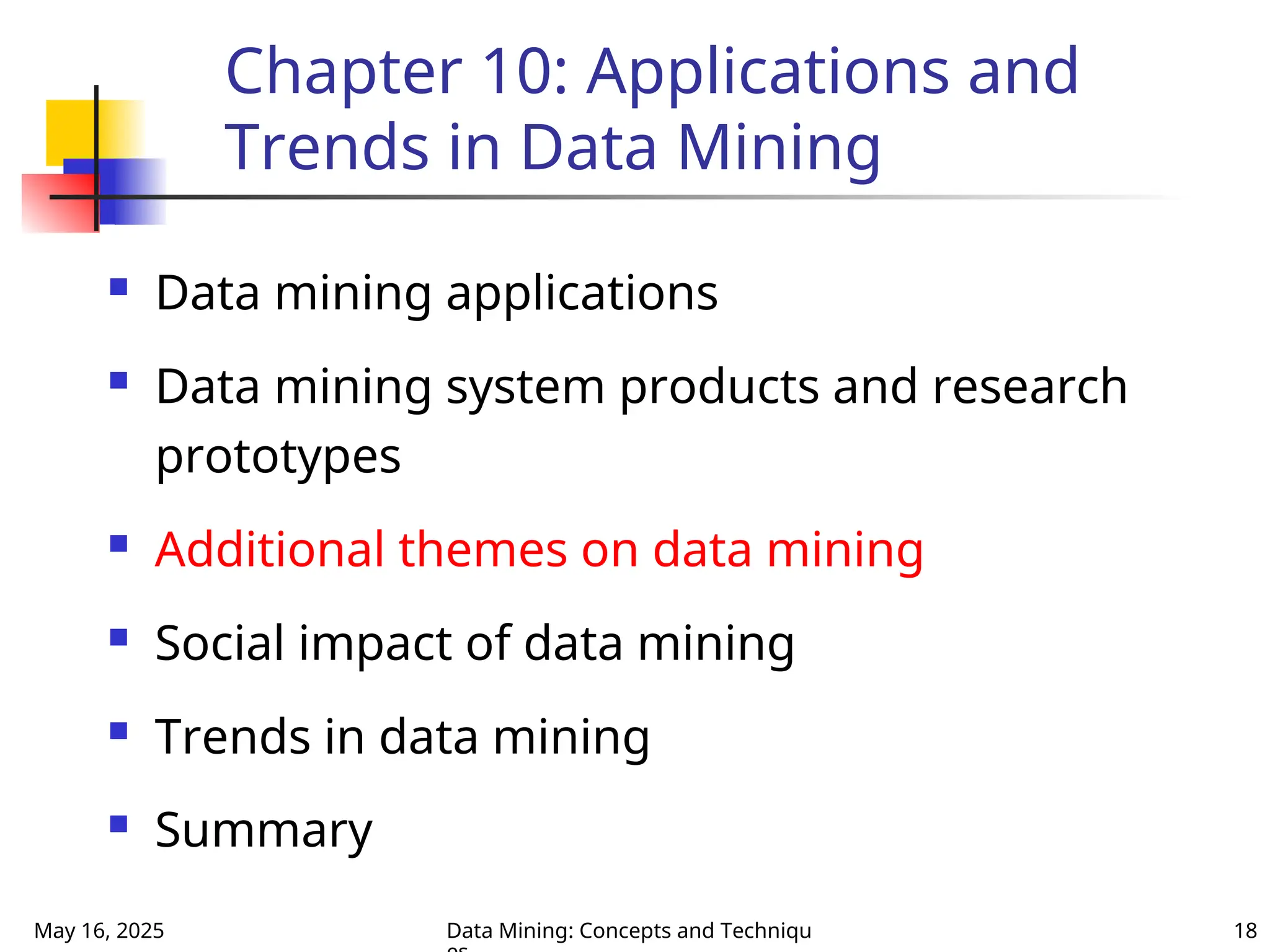

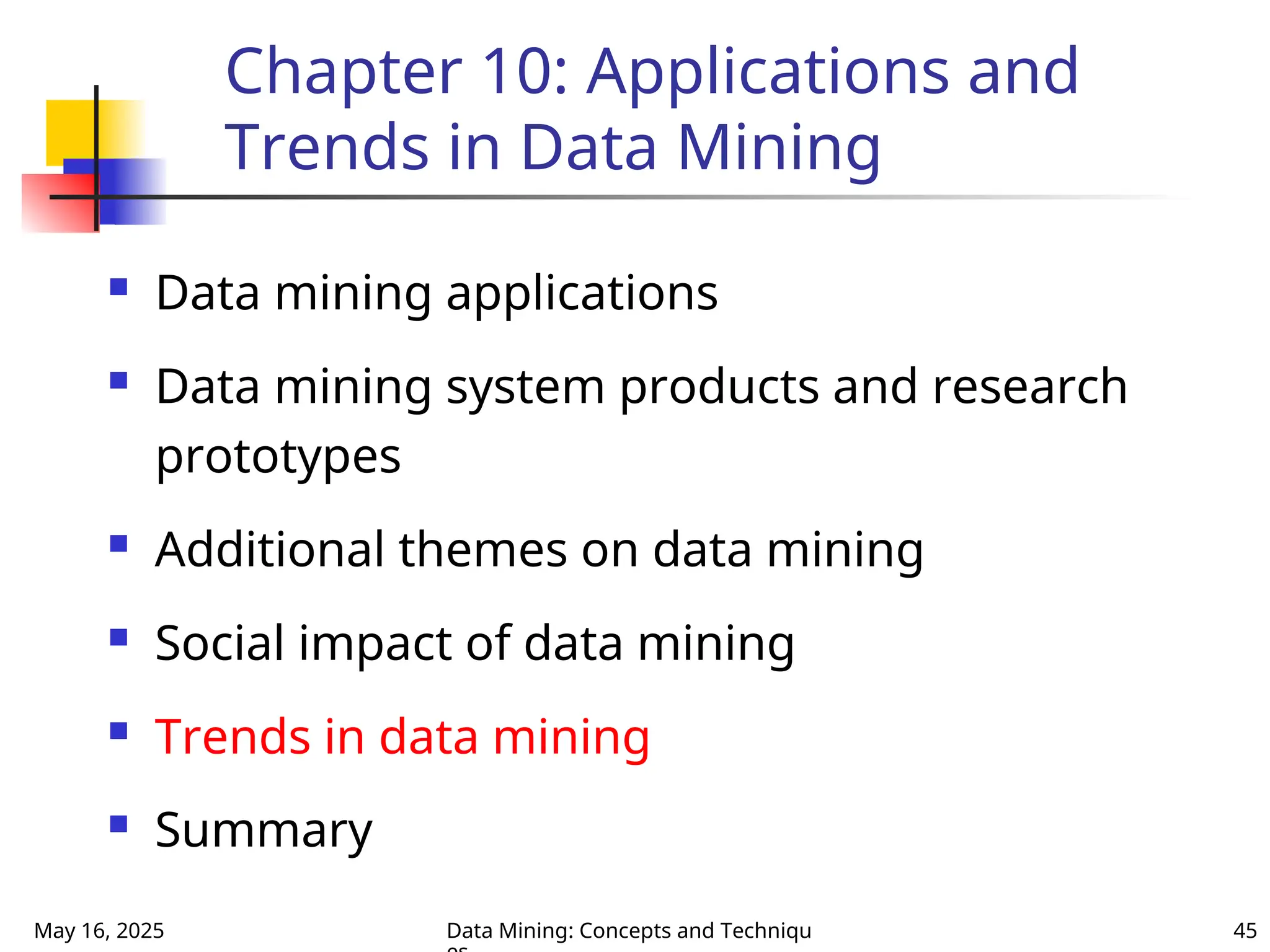

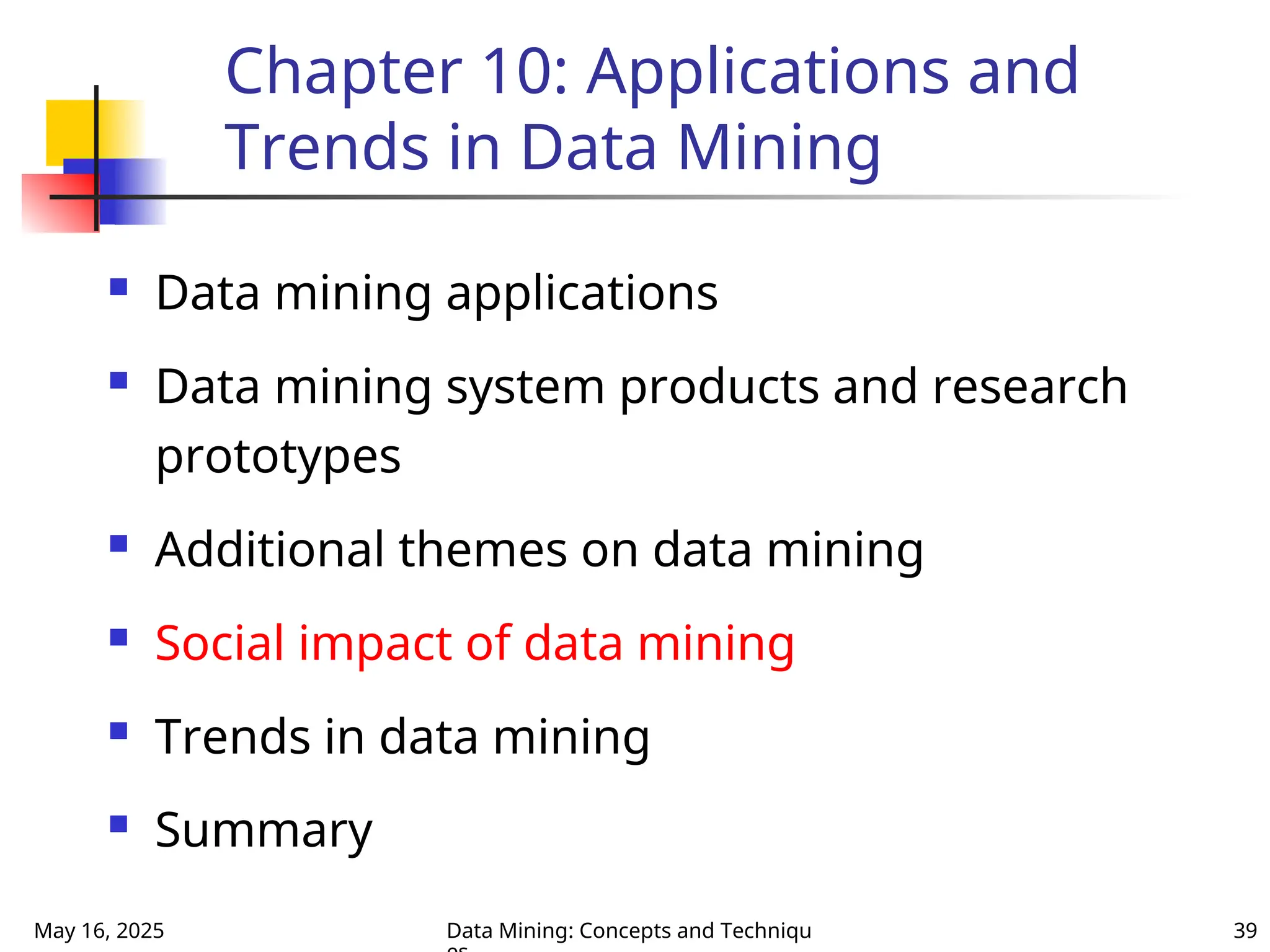

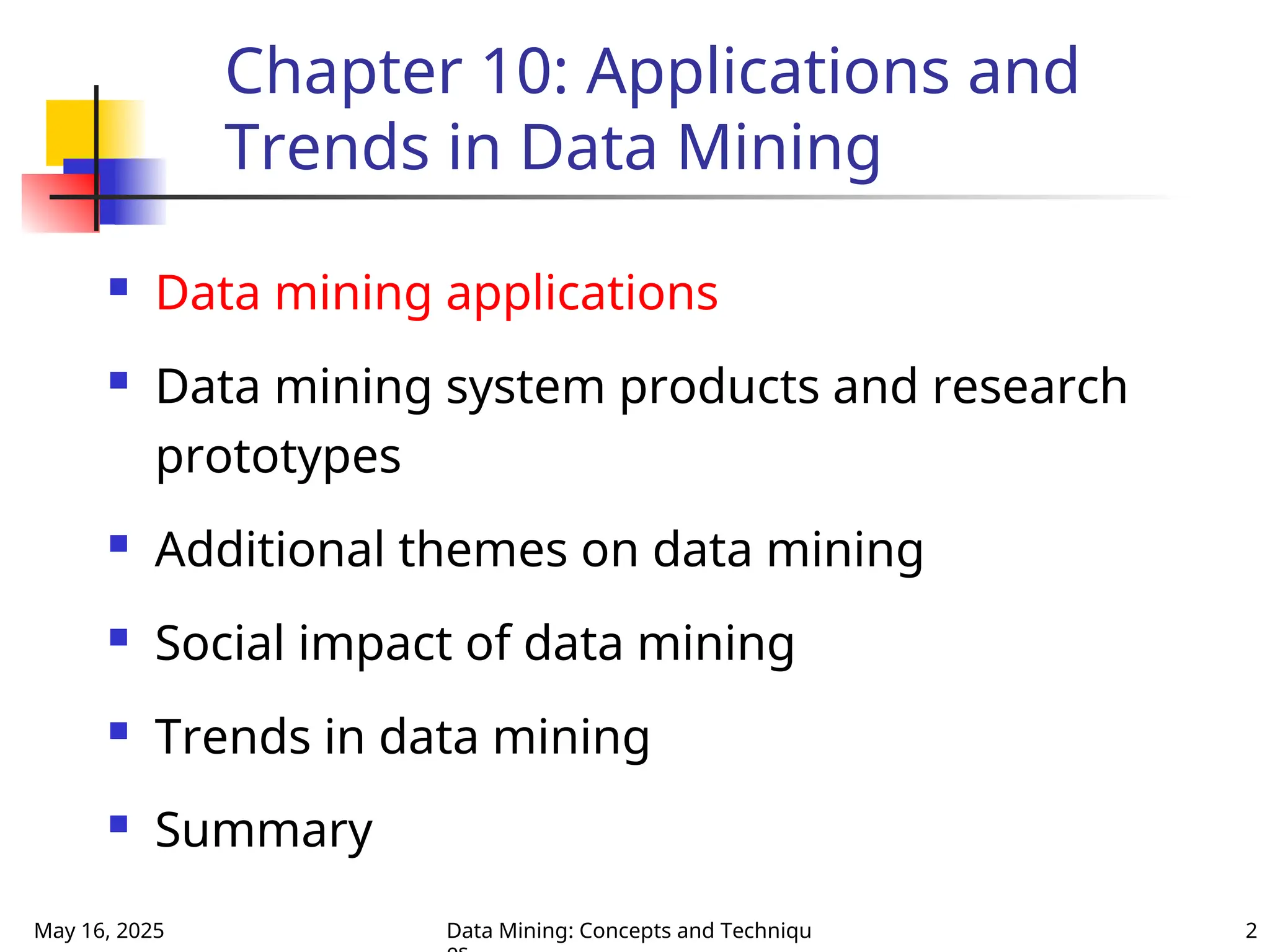

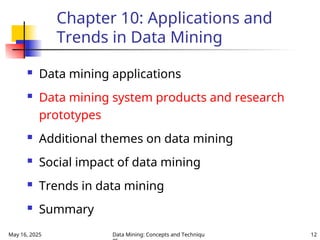

Chapter 10: Applications and
Trends in Data Mining
 Data mining applications
 Data mining system products and research
prototypes
 Additional themes on data mining
 Social impact of data mining
 Trends in data mining
 Summary

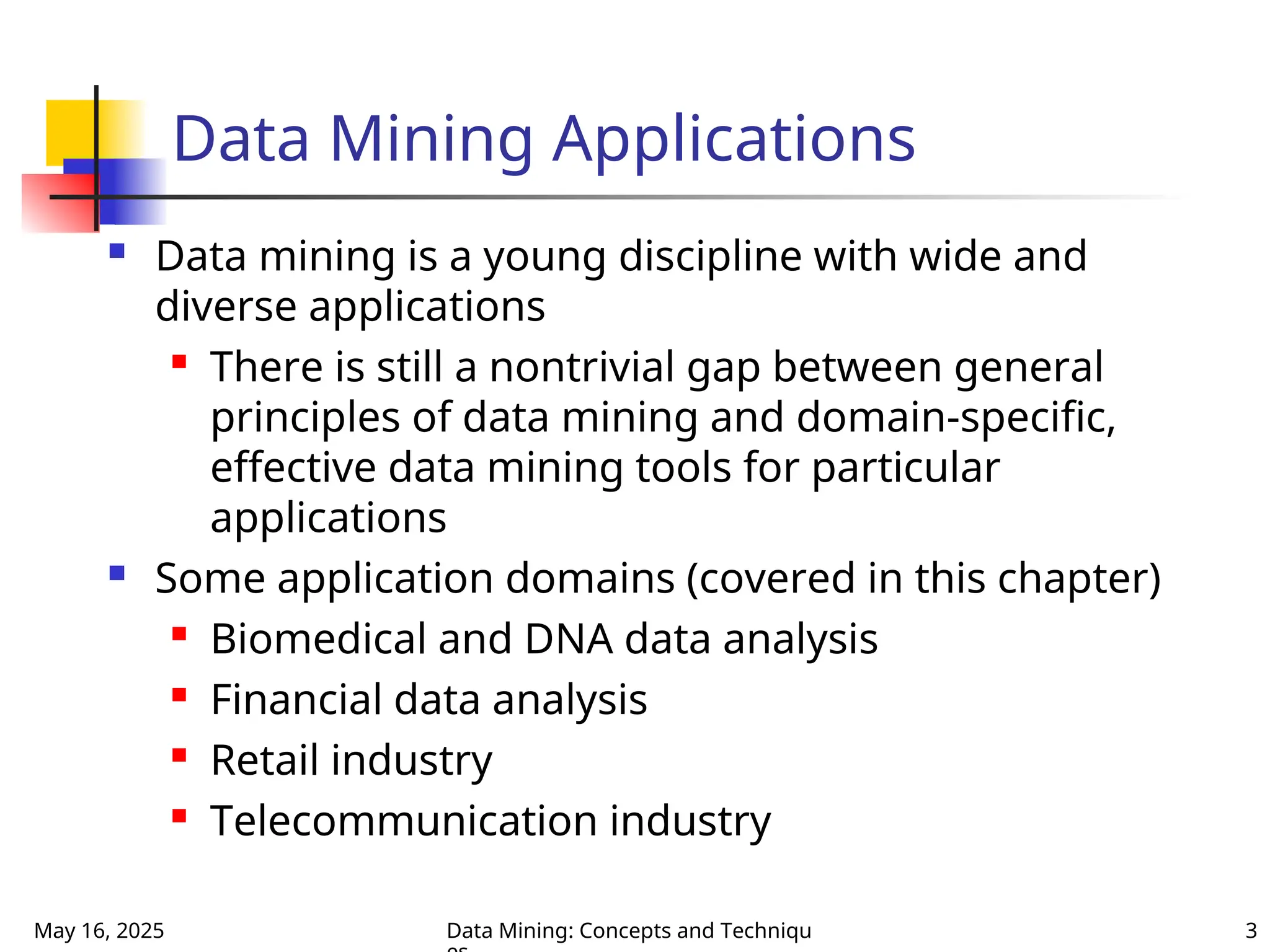

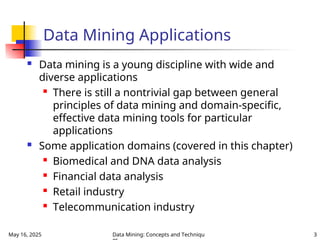

Data Mining Applications
 Data mining is a young discipline with wide and
diverse applications

There is still a nontrivial gap between general
principles of data mining and domain-specific,
effective data mining tools for particular
applications
 Some application domains (covered in this chapter)
 Biomedical and DNA data analysis
 Financial data analysis
 Retail industry
 Telecommunication industry

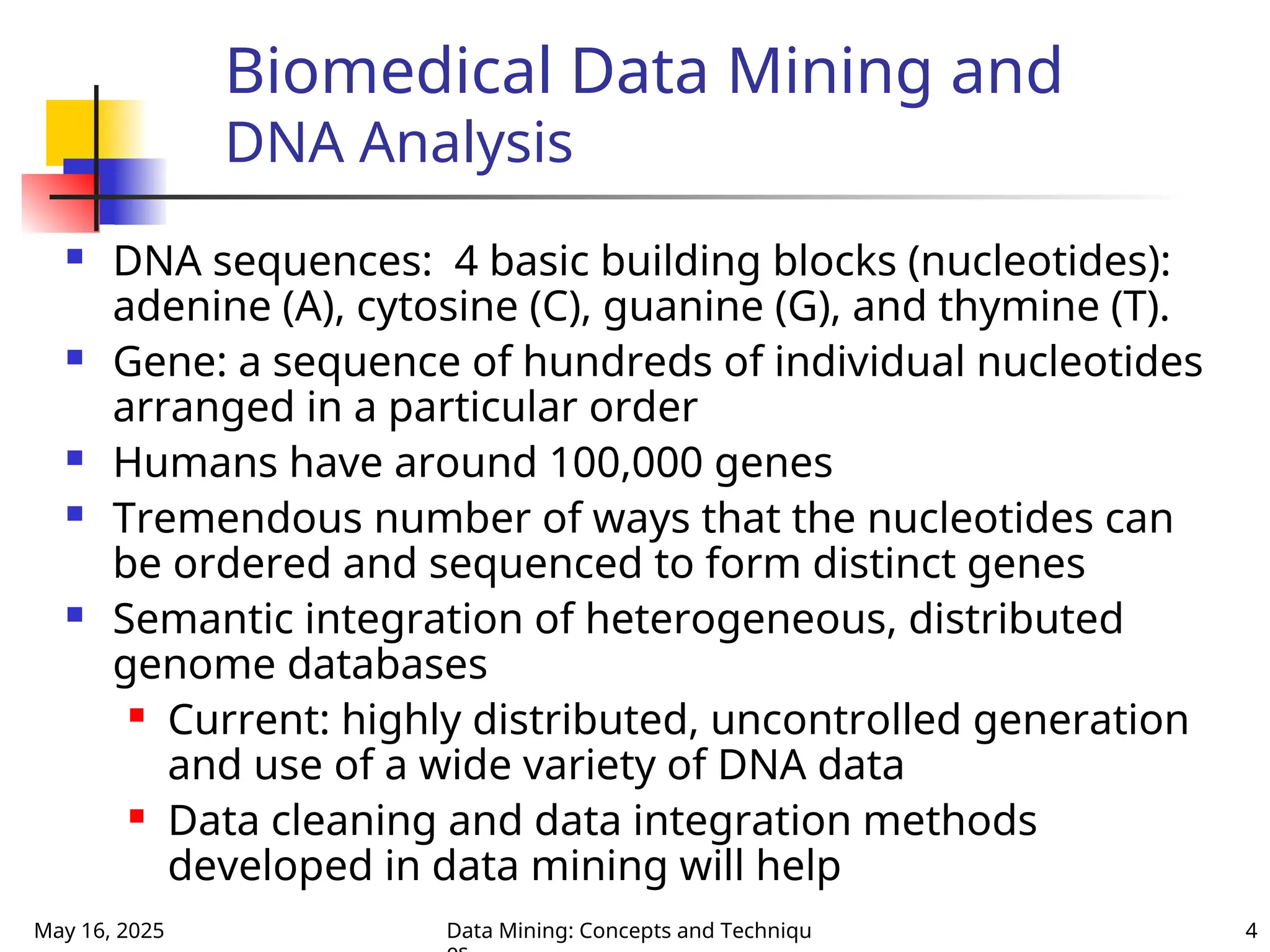

Biomedical Data Mining and
DNA Analysis
 DNA sequences: 4 basic building blocks (nucleotides):
adenine (A), cytosine (C), guanine (G), and thymine (T).
 Gene: a sequence of hundreds of individual nucleotides
arranged in a particular order
 Humans have around 100,000 genes
 Tremendous number of ways that the nucleotides can
be ordered and sequenced to form distinct genes
 Semantic integration of heterogeneous, distributed
genome databases
 Current: highly distributed, uncontrolled generation
and use of a wide variety of DNA data
 Data cleaning and data integration methods
developed in data mining will help

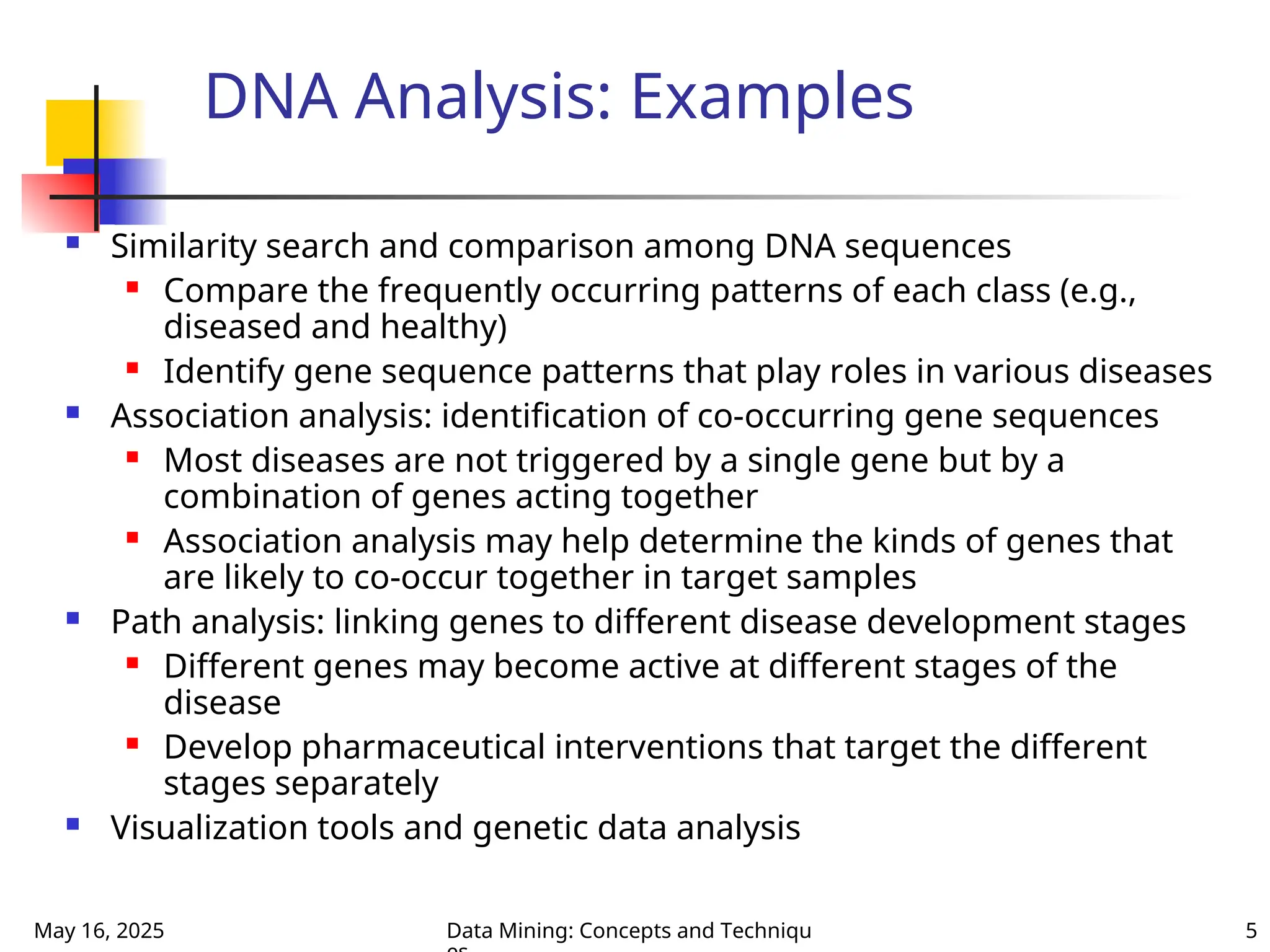

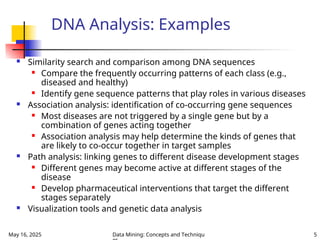

DNA Analysis: Examples
 Similarity search and comparison among DNA sequences
 Compare the frequently occurring patterns of each class (e.g.,
diseased and healthy)
 Identify gene sequence patterns that play roles in various diseases
 Association analysis: identification of co-occurring gene sequences
 Most diseases are not triggered by a single gene but by a
combination of genes acting together
 Association analysis may help determine the kinds of genes that
are likely to co-occur together in target samples
 Path analysis: linking genes to different disease development stages
 Different genes may become active at different stages of the
disease
 Develop pharmaceutical interventions that target the different
stages separately
 Visualization tools and genetic data analysis

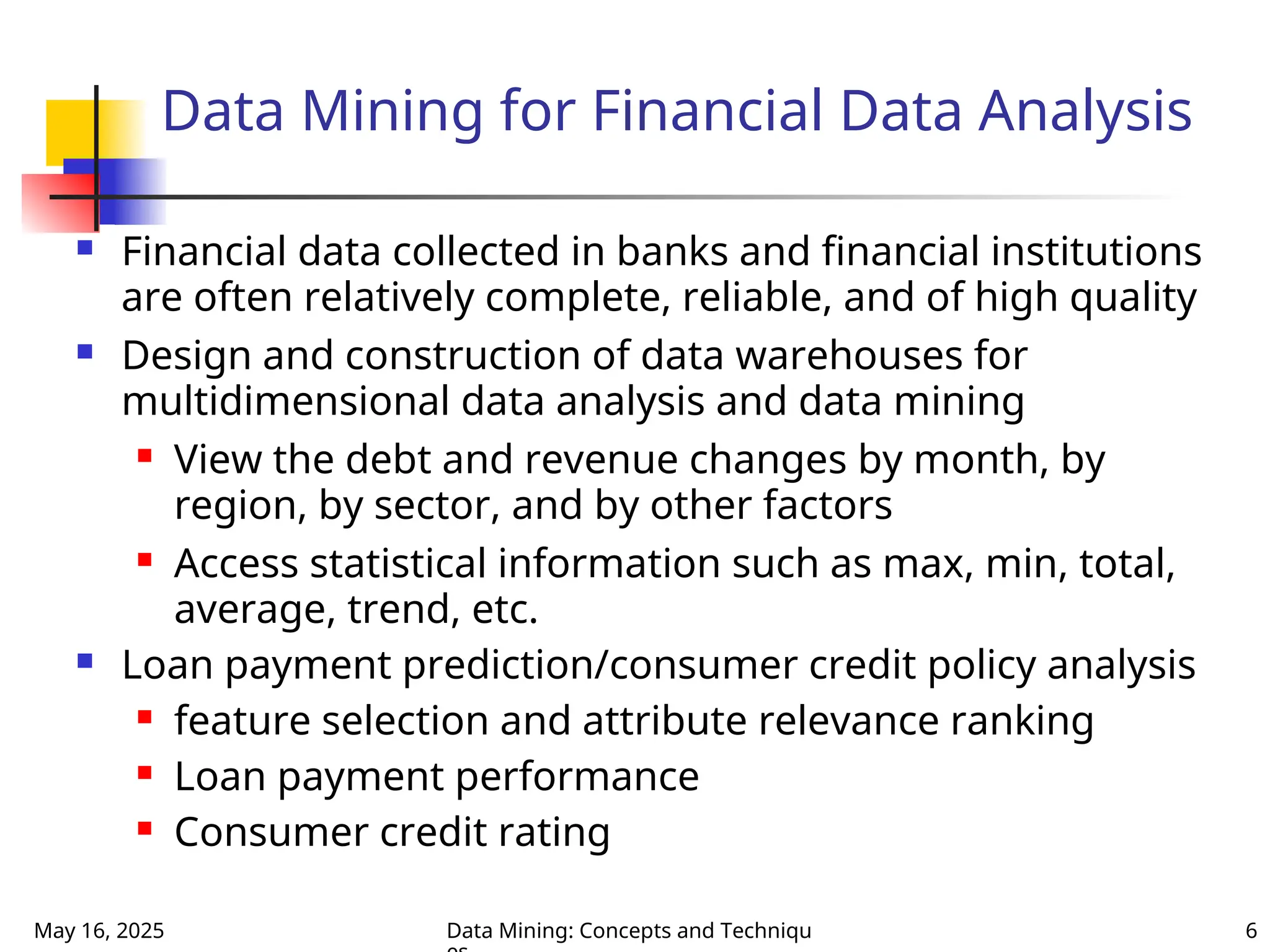

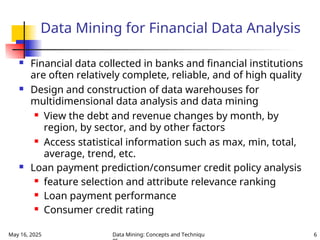

Data Mining for Financial Data Analysis
 Financial data collected in banks and financial institutions
are often relatively complete, reliable, and of high quality
 Design and construction of data warehouses for
multidimensional data analysis and data mining
 View the debt and revenue changes by month, by
region, by sector, and by other factors
 Access statistical information such as max, min, total,
average, trend, etc.
 Loan payment prediction/consumer credit policy analysis
 feature selection and attribute relevance ranking
 Loan payment performance
 Consumer credit rating

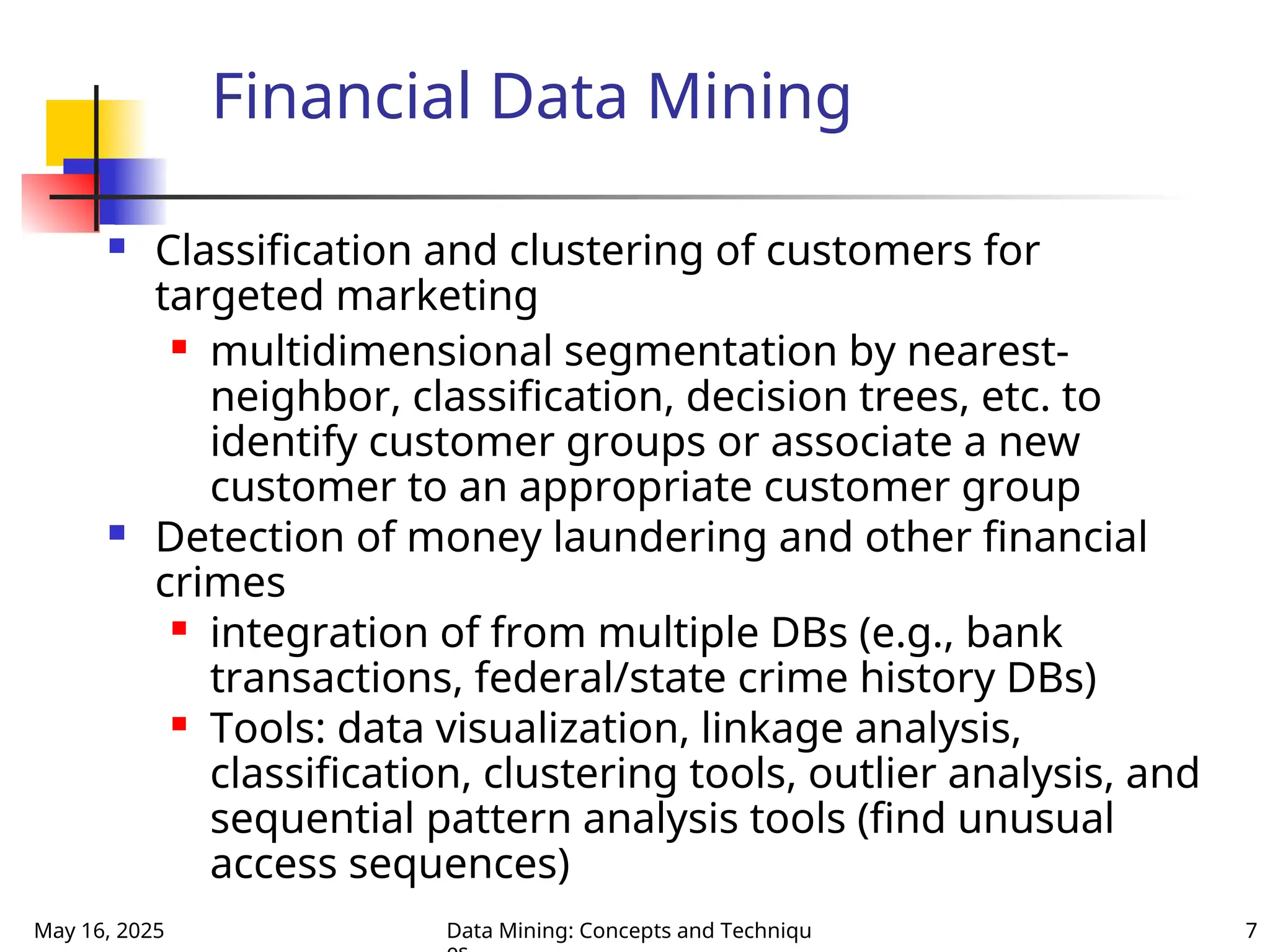

Financial Data Mining
 Classification and clustering of customers for
targeted marketing
 multidimensional segmentation by nearest-
neighbor, classification, decision trees, etc. to
identify customer groups or associate a new
customer to an appropriate customer group
 Detection of money laundering and other financial
crimes
 integration of from multiple DBs (e.g., bank
transactions, federal/state crime history DBs)
 Tools: data visualization, linkage analysis,
classification, clustering tools, outlier analysis, and
sequential pattern analysis tools (find unusual
access sequences)

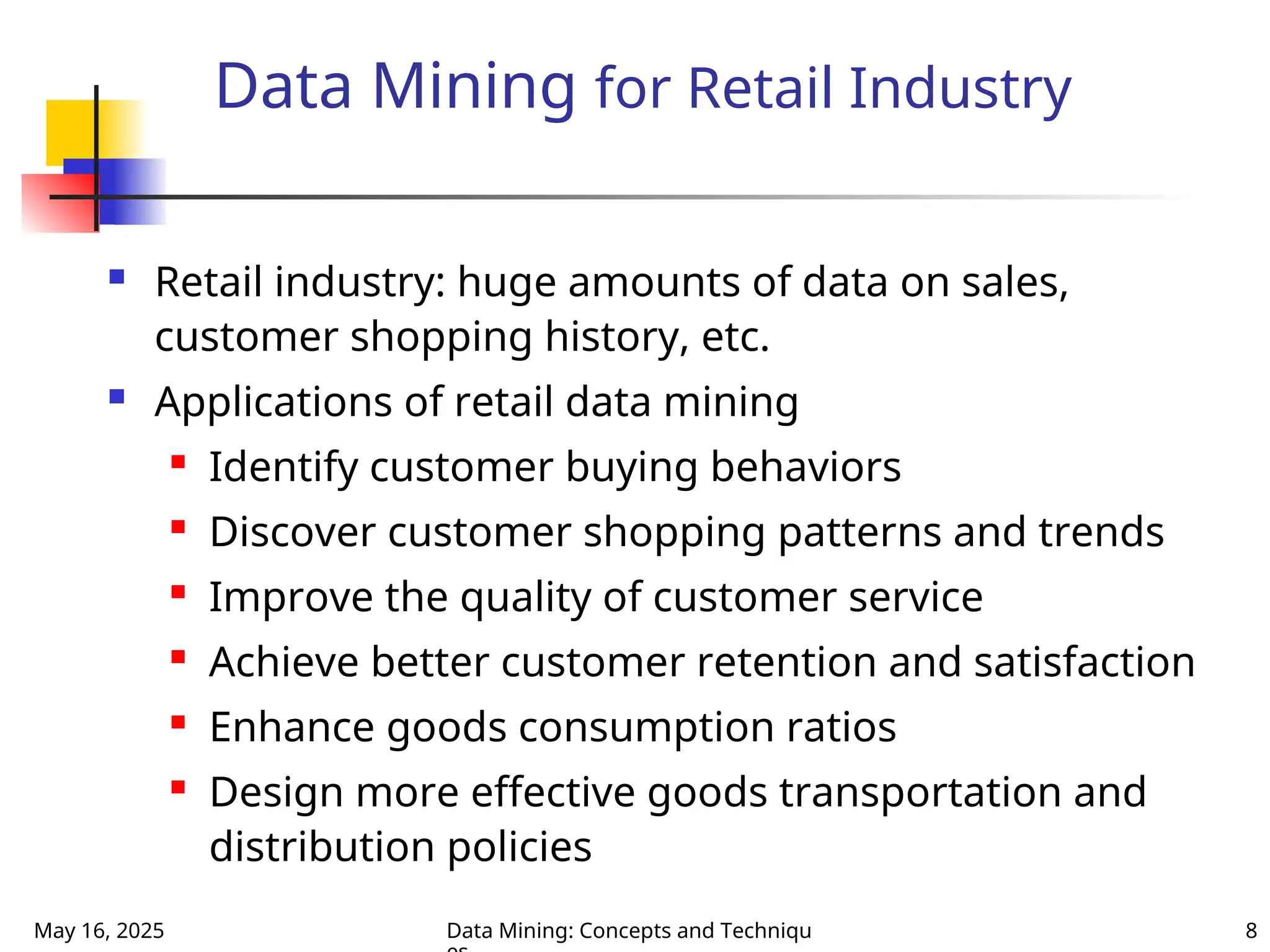

Data Mining for Retail Industry
 Retail industry: huge amounts of data on sales,
customer shopping history, etc.
 Applications of retail data mining

Identify customer buying behaviors

Discover customer shopping patterns and trends

Improve the quality of customer service

Achieve better customer retention and satisfaction

Enhance goods consumption ratios

Design more effective goods transportation and
distribution policies

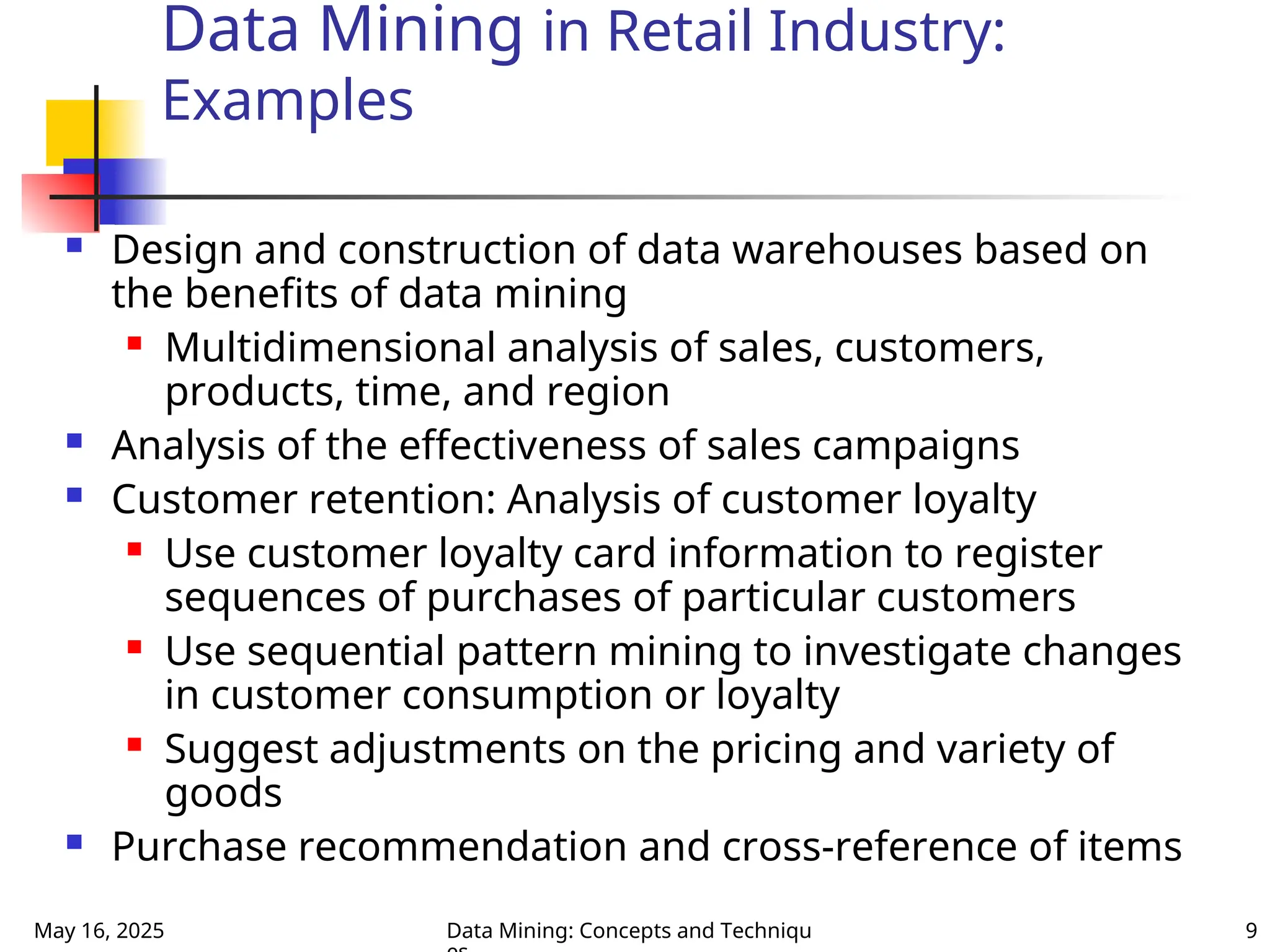

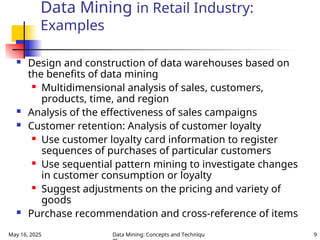

Data Mining in Retail Industry:
Examples
 Design and construction of data warehouses based on
the benefits of data mining
 Multidimensional analysis of sales, customers,
products, time, and region
 Analysis of the effectiveness of sales campaigns
 Customer retention: Analysis of customer loyalty
 Use customer loyalty card information to register
sequences of purchases of particular customers
 Use sequential pattern mining to investigate changes
in customer consumption or loyalty
 Suggest adjustments on the pricing and variety of
goods
 Purchase recommendation and cross-reference of items

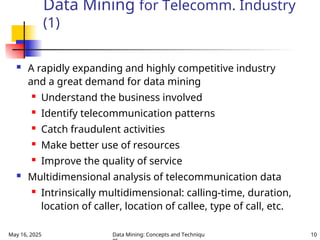

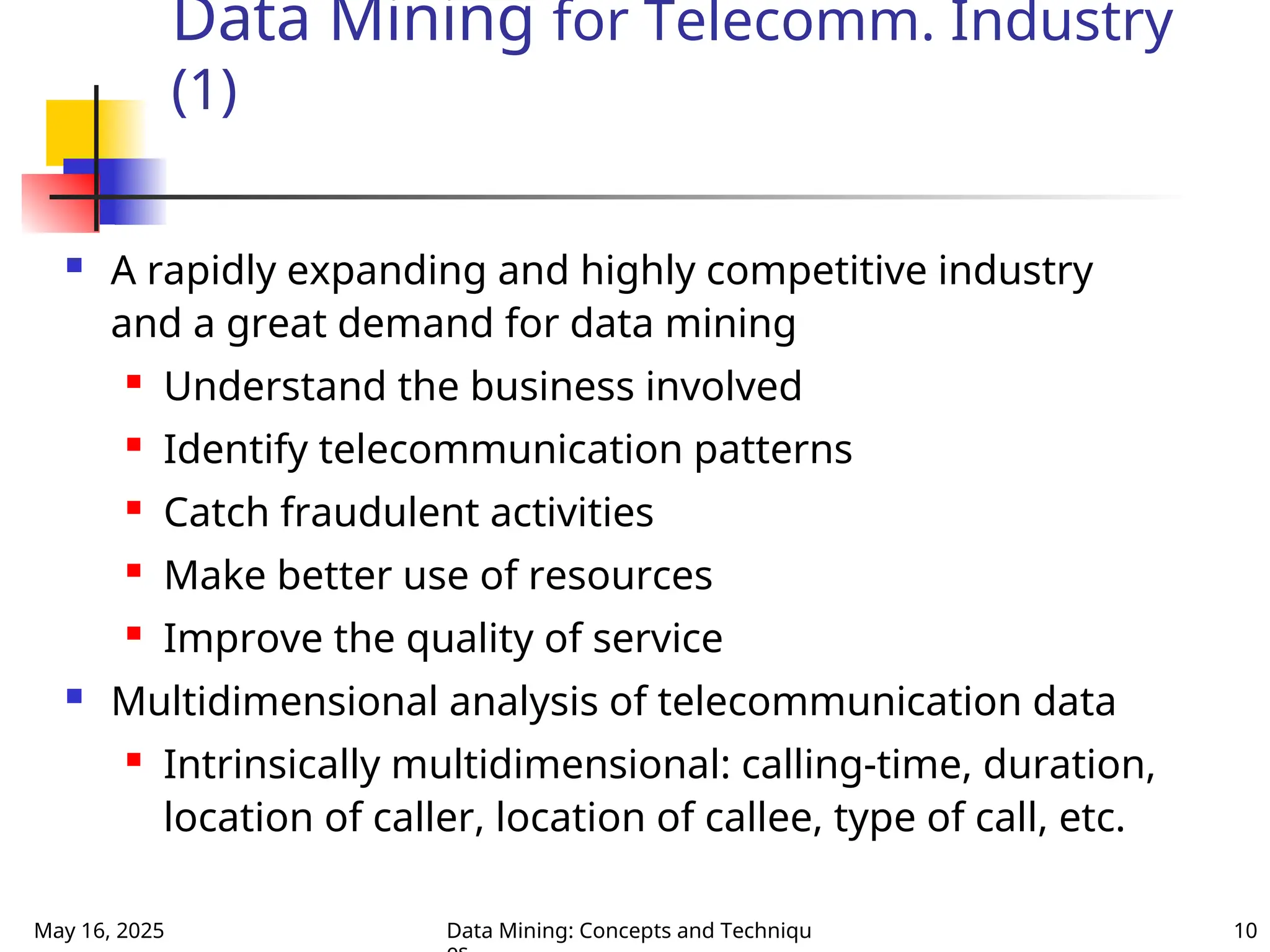

Data Mining for Telecomm. Industry
(1)
 A rapidly expanding and highly competitive industry
and a great demand for data mining
 Understand the business involved
 Identify telecommunication patterns
 Catch fraudulent activities
 Make better use of resources
 Improve the quality of service
 Multidimensional analysis of telecommunication data
 Intrinsically multidimensional: calling-time, duration,
location of caller, location of callee, type of call, etc.

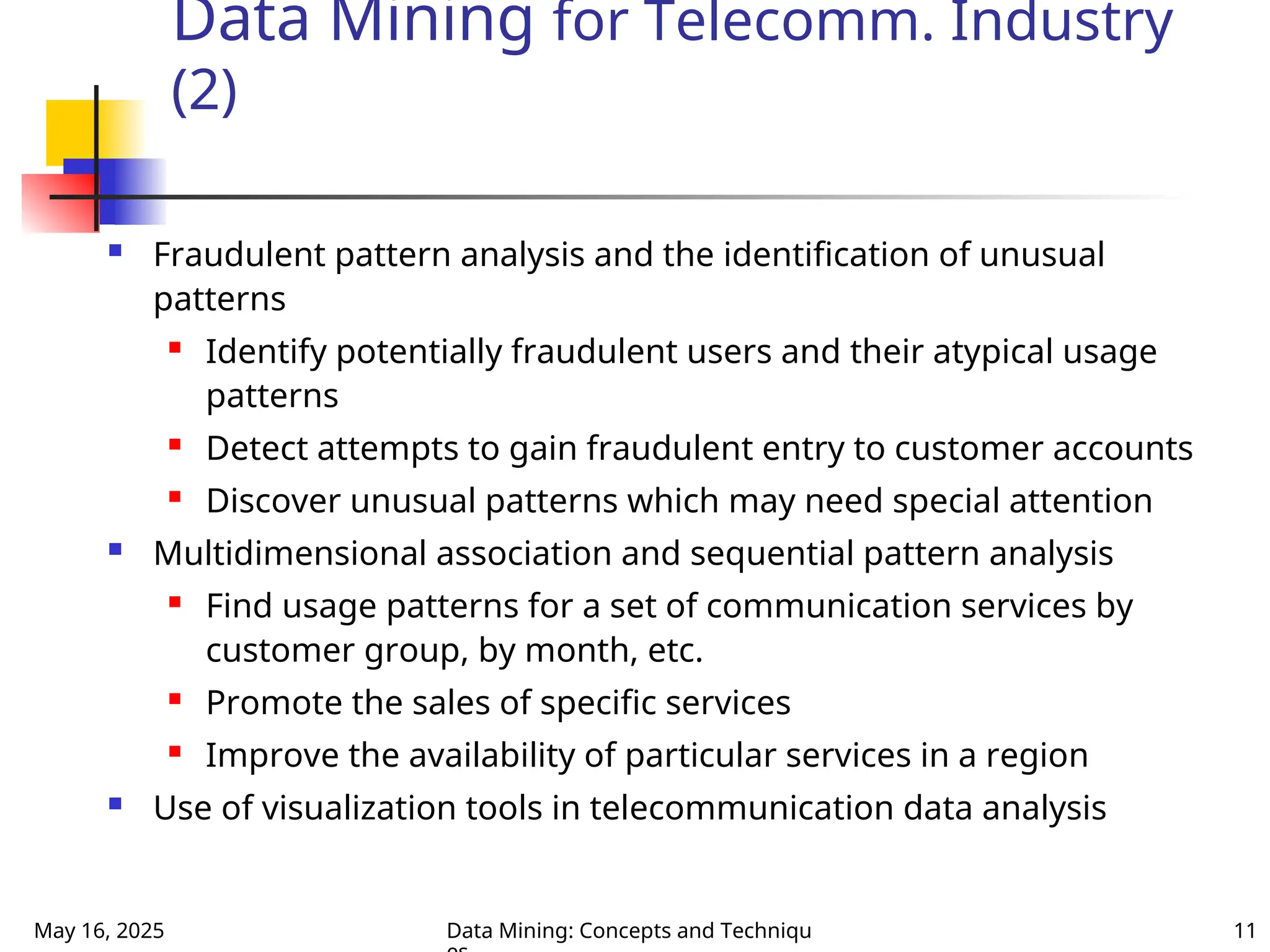

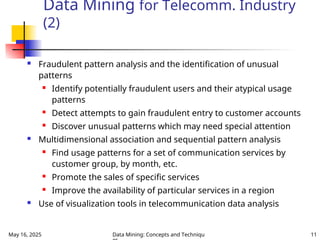

Data Mining for Telecomm. Industry
(2)
 Fraudulent pattern analysis and the identification of unusual
patterns

Identify potentially fraudulent users and their atypical usage
patterns
 Detect attempts to gain fraudulent entry to customer accounts

Discover unusual patterns which may need special attention
 Multidimensional association and sequential pattern analysis
 Find usage patterns for a set of communication services by
customer group, by month, etc.
 Promote the sales of specific services
 Improve the availability of particular services in a region
 Use of visualization tools in telecommunication data analysis

prototypes
 Summary

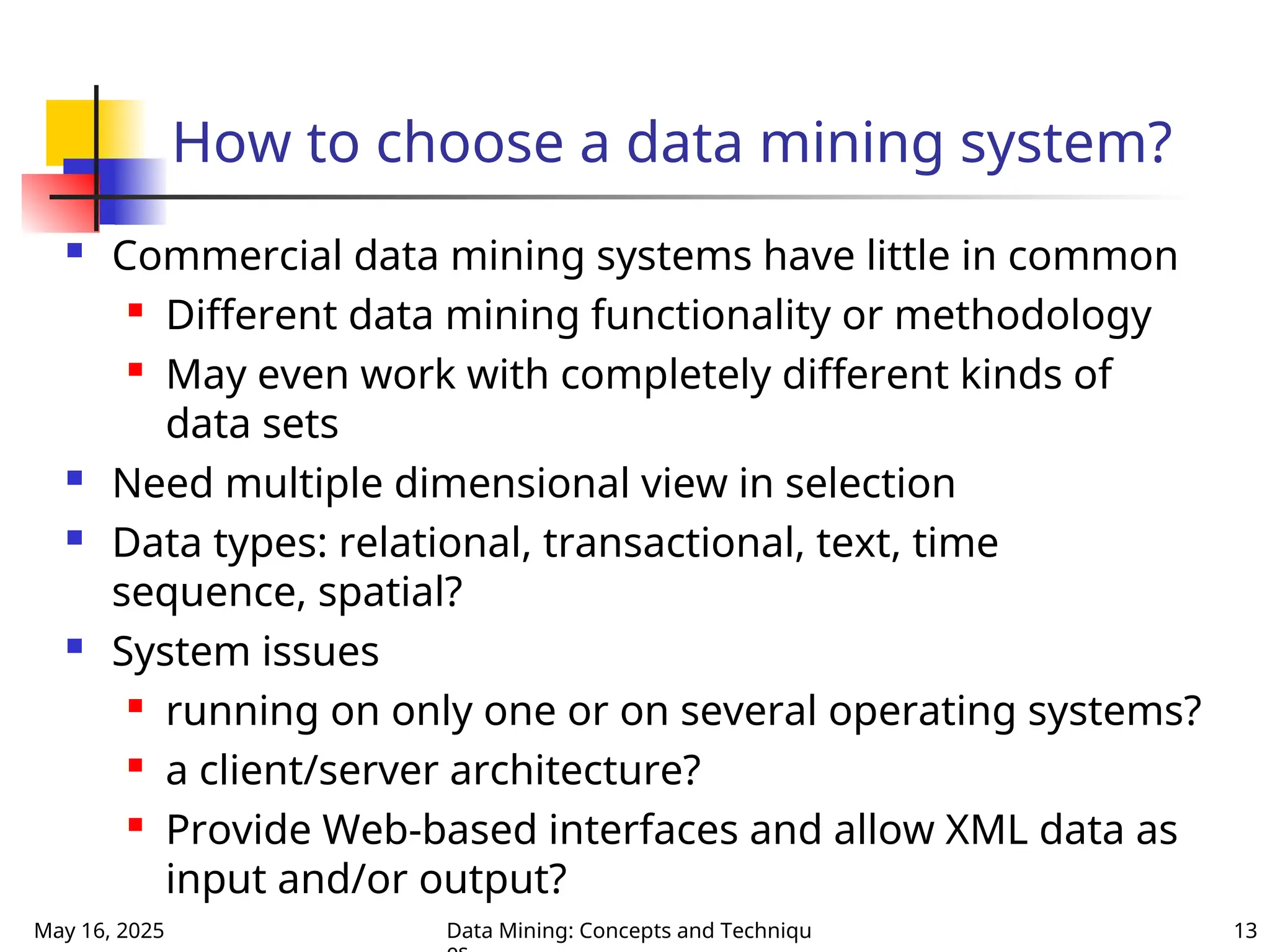

How to choose a data mining system?
 Commercial data mining systems have little in common

Different data mining functionality or methodology
 May even work with completely different kinds of
data sets
 Need multiple dimensional view in selection
 Data types: relational, transactional, text, time
sequence, spatial?
 System issues

running on only one or on several operating systems?
 a client/server architecture?

Provide Web-based interfaces and allow XML data as
input and/or output?

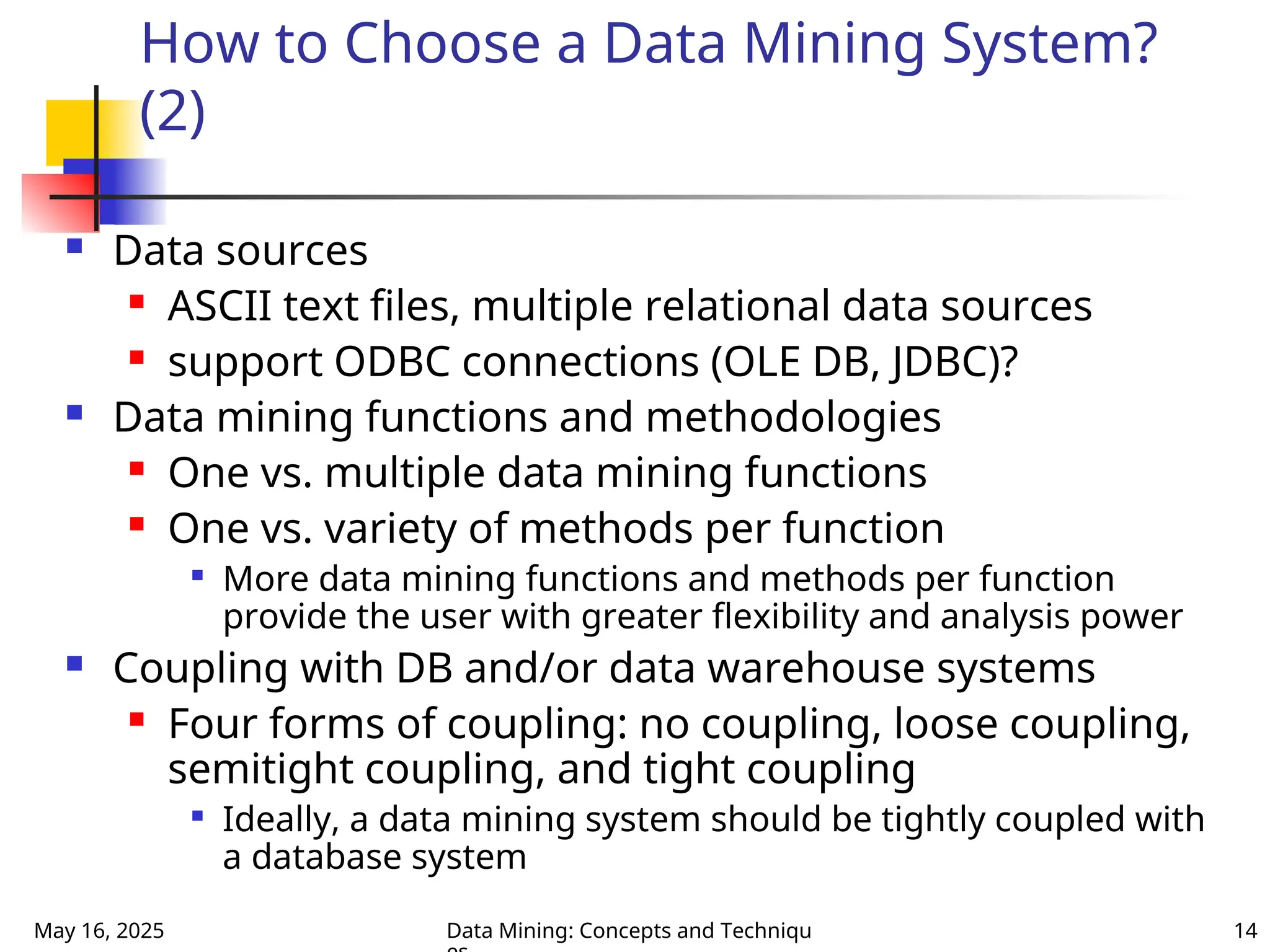

How to Choose a Data Mining System?
(2)
 Data sources
 ASCII text files, multiple relational data sources
 support ODBC connections (OLE DB, JDBC)?
 Data mining functions and methodologies
 One vs. multiple data mining functions
 One vs. variety of methods per function

More data mining functions and methods per function
provide the user with greater flexibility and analysis power
 Coupling with DB and/or data warehouse systems
 Four forms of coupling: no coupling, loose coupling,
semitight coupling, and tight coupling

Ideally, a data mining system should be tightly coupled with
a database system

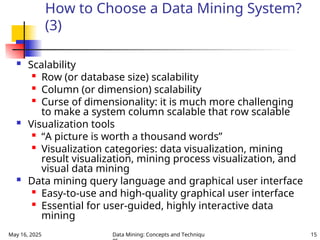

How to Choose a Data Mining System?
(3)
 Scalability

Row (or database size) scalability

Column (or dimension) scalability

Curse of dimensionality: it is much more challenging
to make a system column scalable that row scalable
 Visualization tools

“A picture is worth a thousand words”

Visualization categories: data visualization, mining
result visualization, mining process visualization, and
visual data mining
 Data mining query language and graphical user interface

Easy-to-use and high-quality graphical user interface

Essential for user-guided, highly interactive data
mining

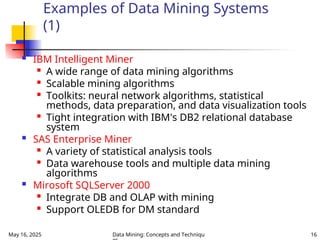

Examples of Data Mining Systems
(1)
 IBM Intelligent Miner

A wide range of data mining algorithms

Scalable mining algorithms

Toolkits: neural network algorithms, statistical
methods, data preparation, and data visualization tools

Tight integration with IBM's DB2 relational database
system
 SAS Enterprise Miner

A variety of statistical analysis tools

Data warehouse tools and multiple data mining
algorithms
 Mirosoft SQLServer 2000

Integrate DB and OLAP with mining

Support OLEDB for DM standard

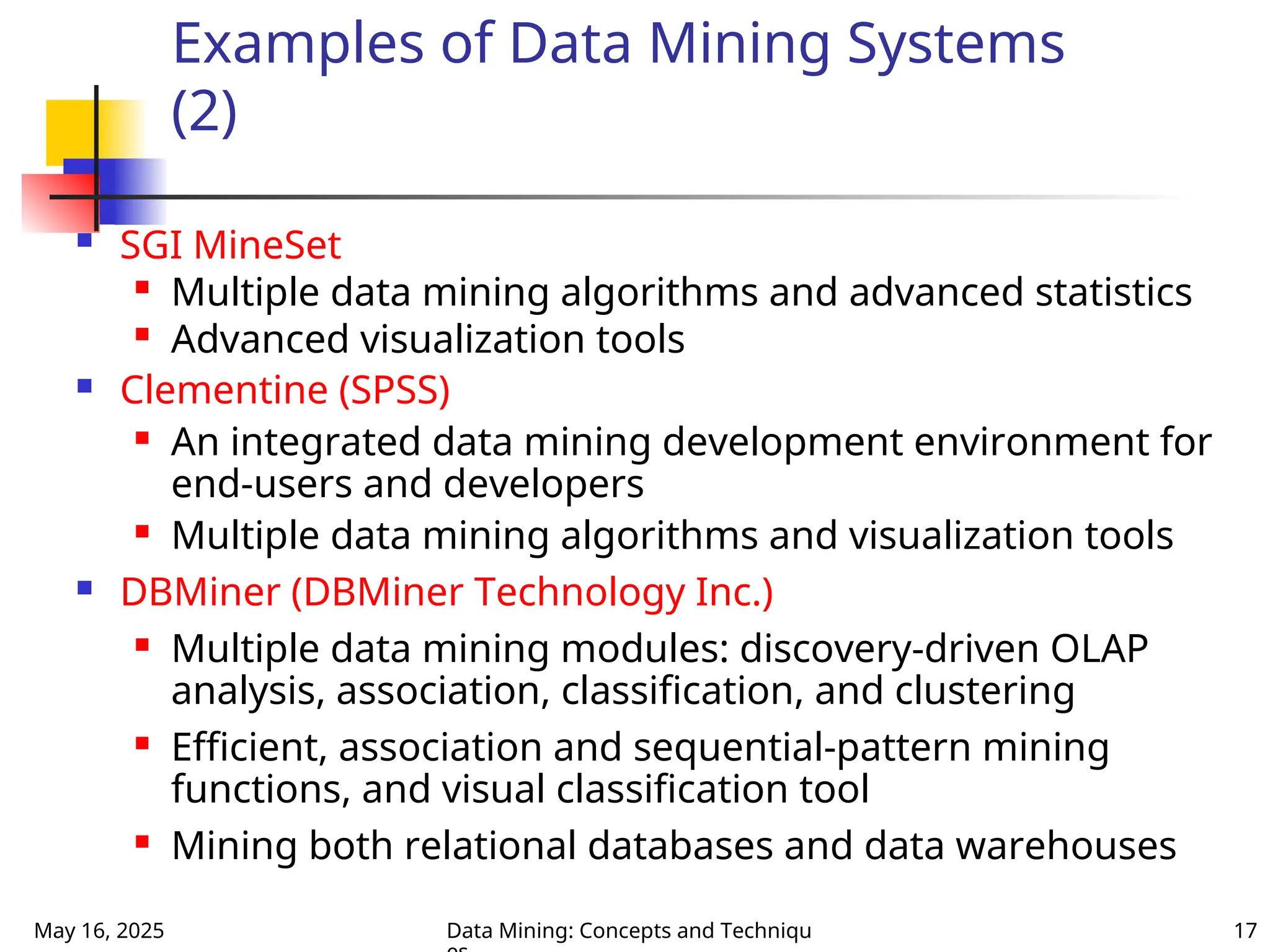

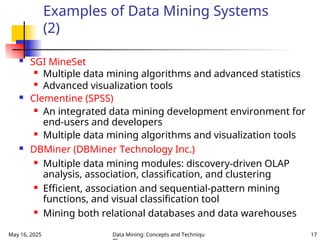

Examples of Data Mining Systems
(2)
 SGI MineSet

Multiple data mining algorithms and advanced statistics

Advanced visualization tools
 Clementine (SPSS)
 An integrated data mining development environment for
end-users and developers
 Multiple data mining algorithms and visualization tools
 DBMiner (DBMiner Technology Inc.)
 Multiple data mining modules: discovery-driven OLAP
analysis, association, classification, and clustering
 Efficient, association and sequential-pattern mining
functions, and visual classification tool
 Mining both relational databases and data warehouses

prototypes
 Summary

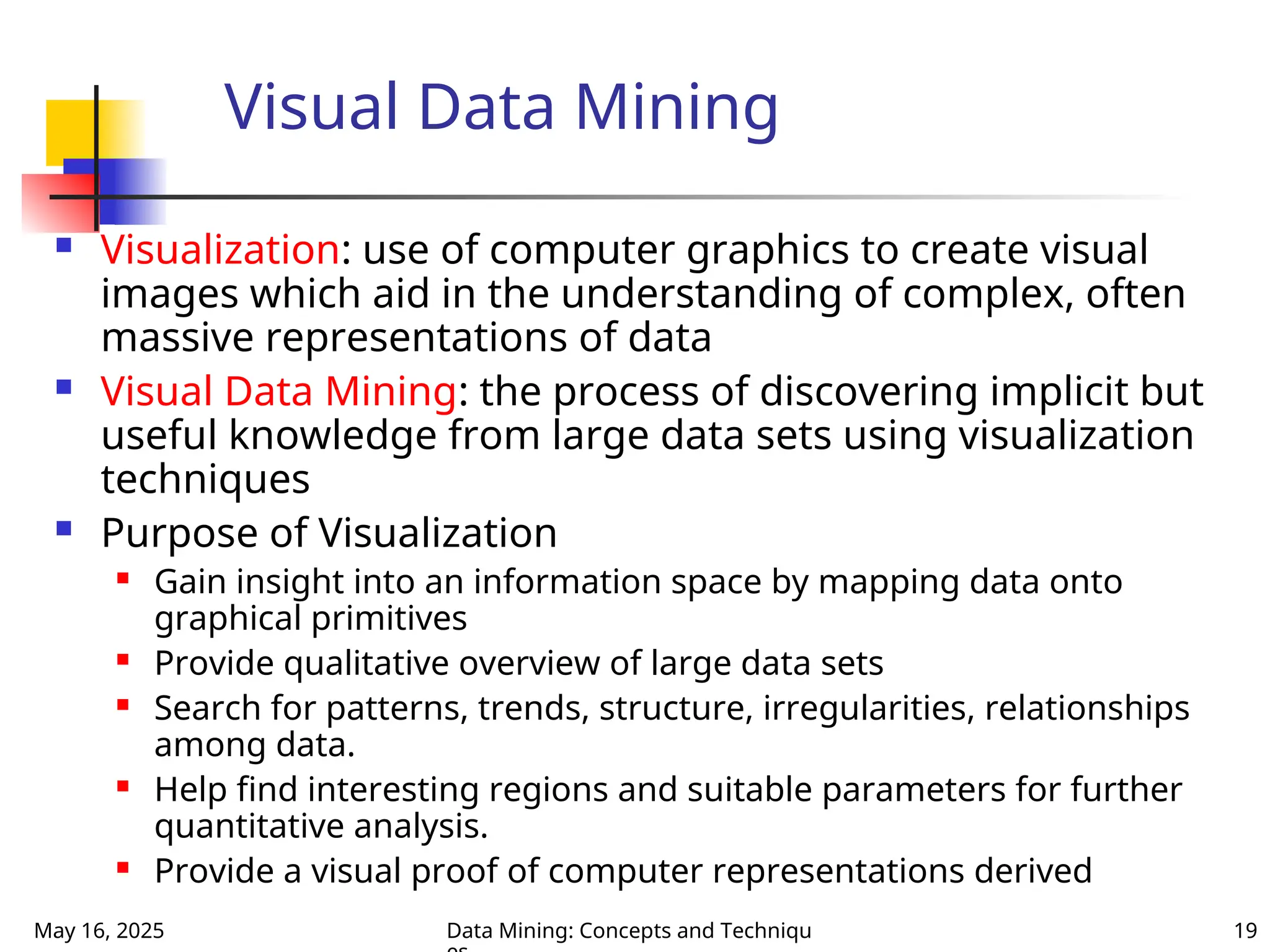

Visual Data Mining
 Visualization: use of computer graphics to create visual
images which aid in the understanding of complex, often
massive representations of data
 Visual Data Mining: the process of discovering implicit but
useful knowledge from large data sets using visualization
techniques
 Purpose of Visualization
 Gain insight into an information space by mapping data onto
graphical primitives
 Provide qualitative overview of large data sets
 Search for patterns, trends, structure, irregularities, relationships
among data.
 Help find interesting regions and suitable parameters for further
quantitative analysis.
 Provide a visual proof of computer representations derived

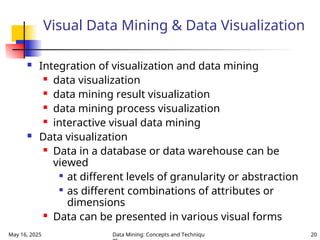

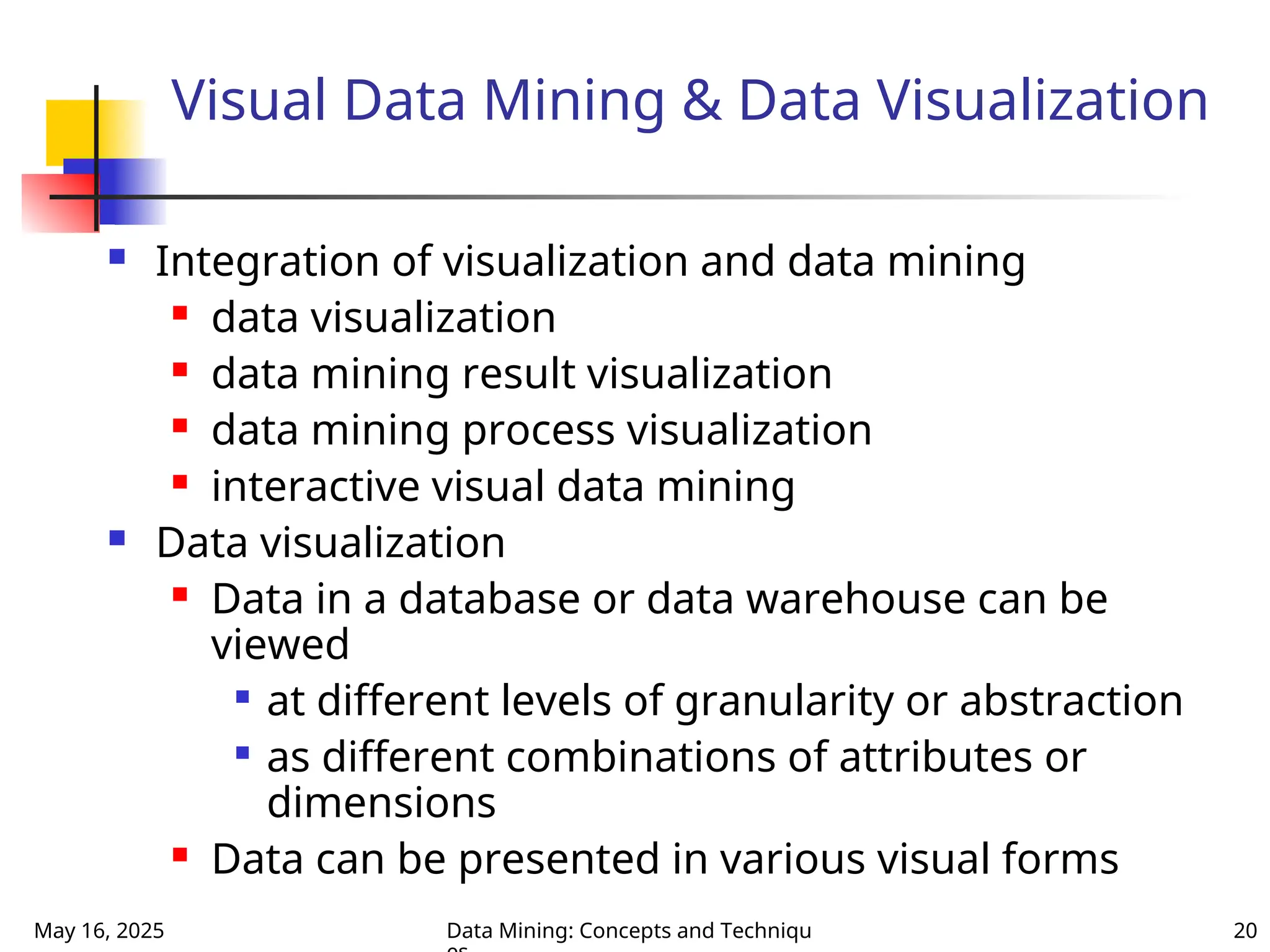

Visual Data Mining & Data Visualization
 Integration of visualization and data mining
 data visualization
 data mining result visualization
 data mining process visualization
 interactive visual data mining
 Data visualization
 Data in a database or data warehouse can be
viewed

at different levels of granularity or abstraction

as different combinations of attributes or
dimensions
 Data can be presented in various visual forms

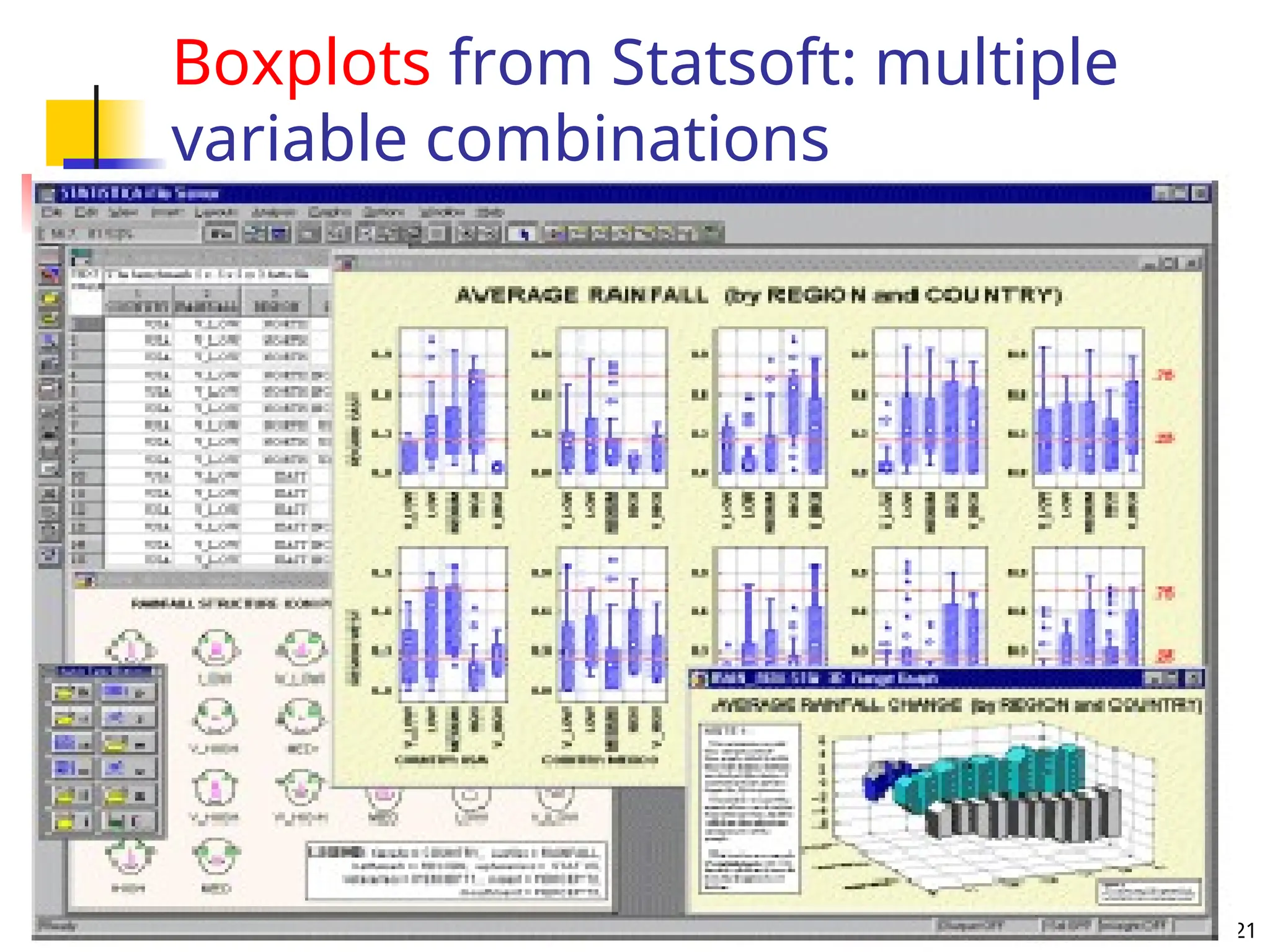

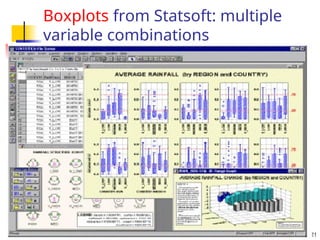

Boxplots from Statsoft: multiple
variable combinations

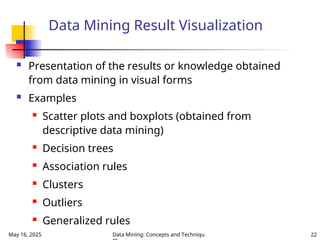

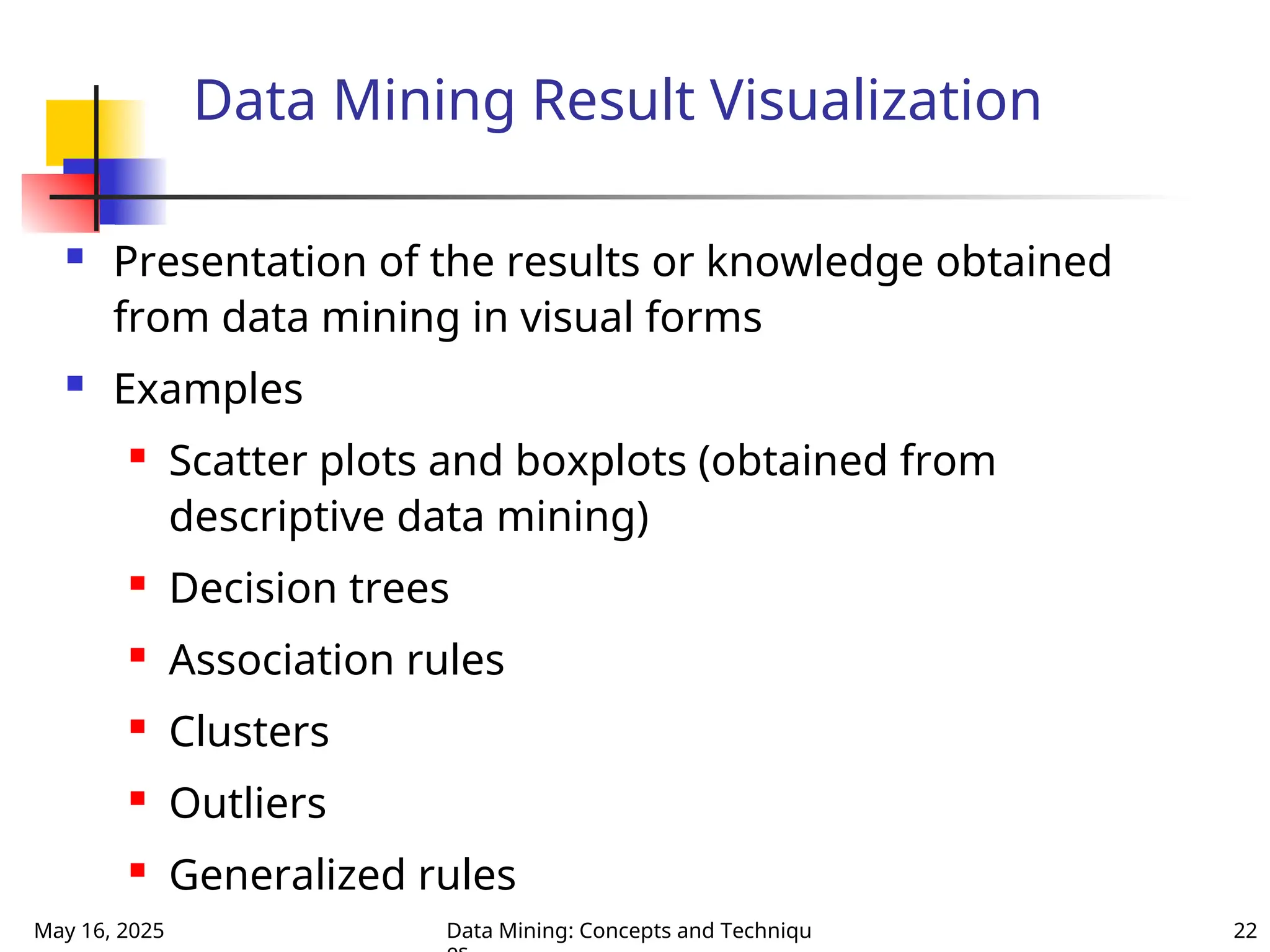

Data Mining Result Visualization
 Presentation of the results or knowledge obtained
from data mining in visual forms
 Examples
 Scatter plots and boxplots (obtained from
descriptive data mining)
 Decision trees
 Association rules
 Clusters
 Outliers
 Generalized rules

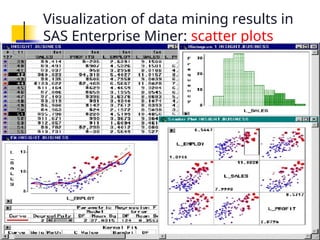

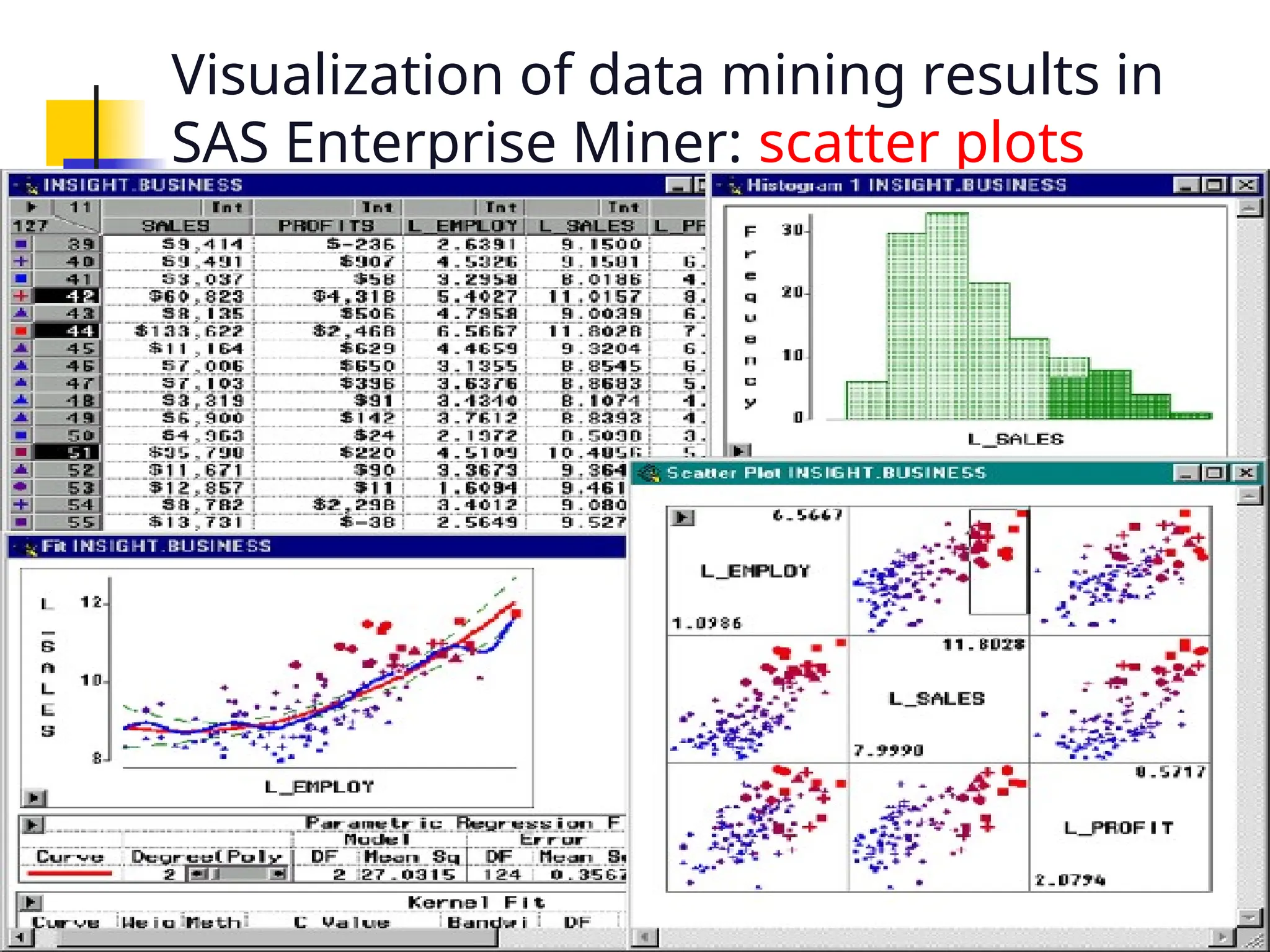

Visualization of data mining results in
SAS Enterprise Miner: scatter plots

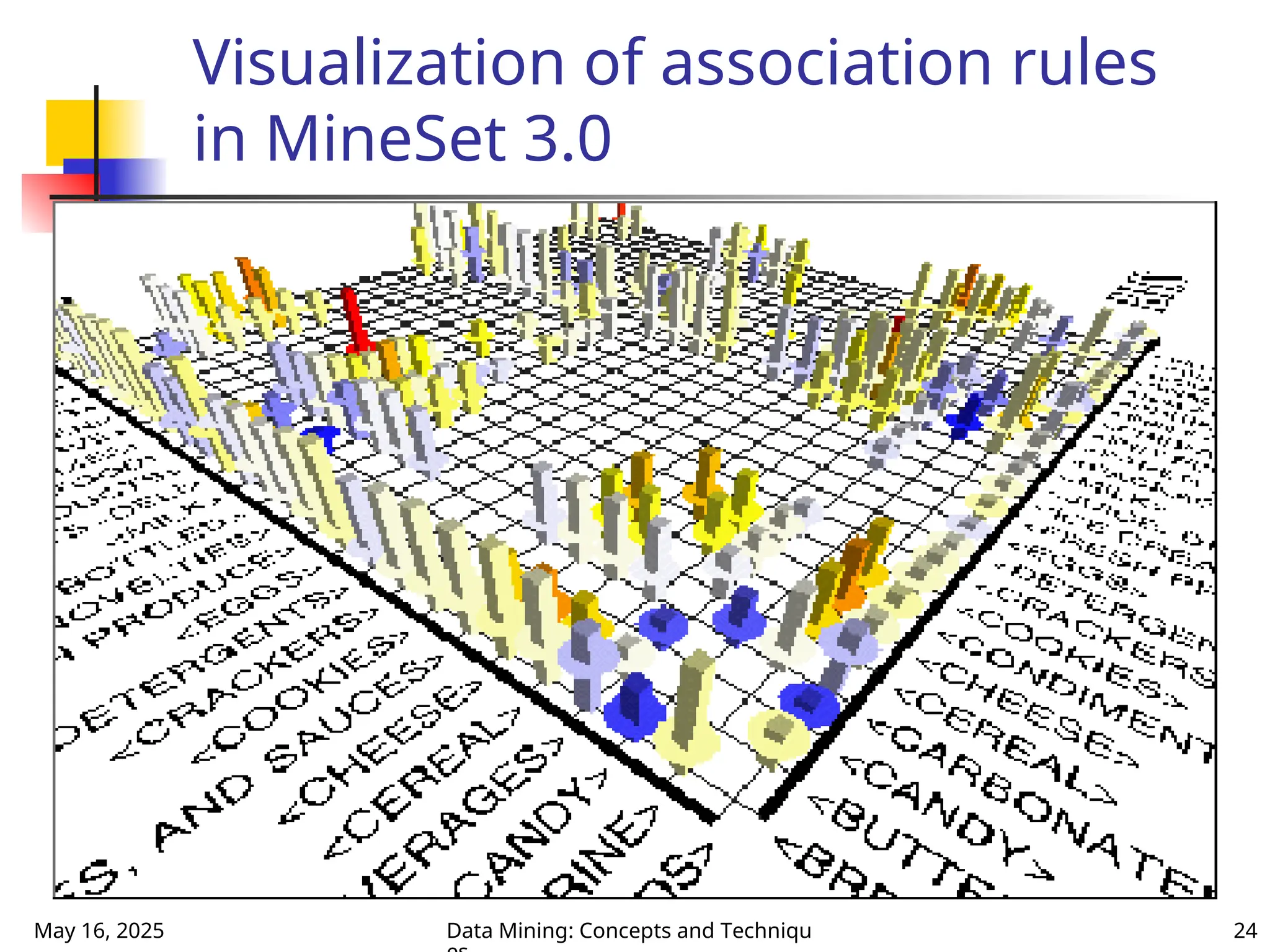

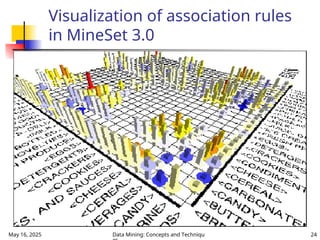

Visualization of association rules
in MineSet 3.0

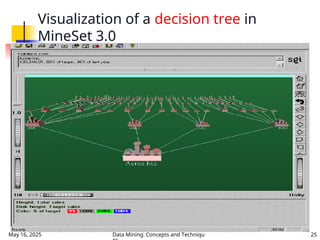

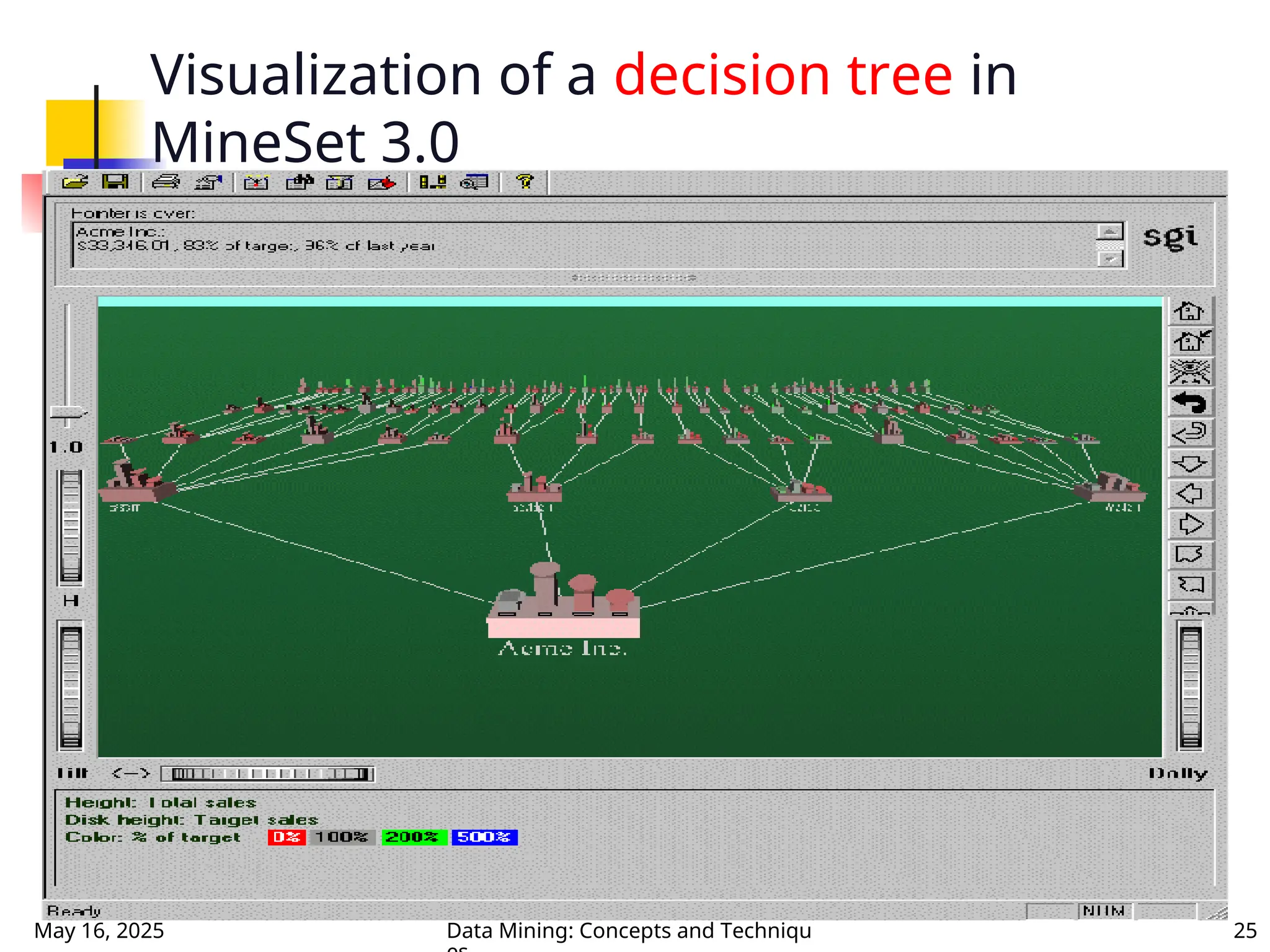

Visualization of a decision tree in
MineSet 3.0

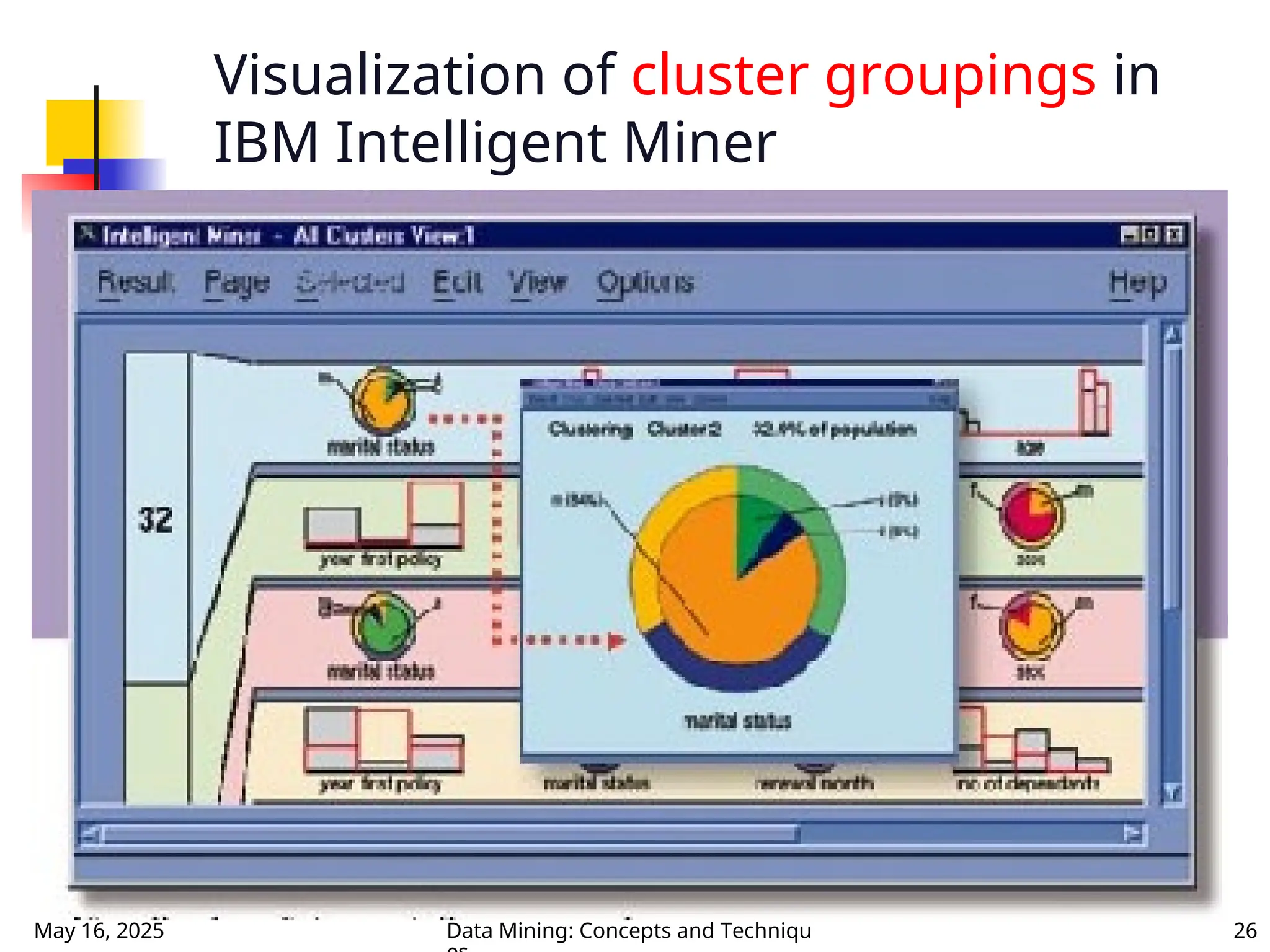

Visualization of cluster groupings in
IBM Intelligent Miner

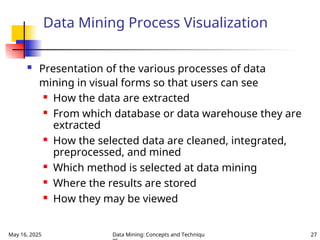

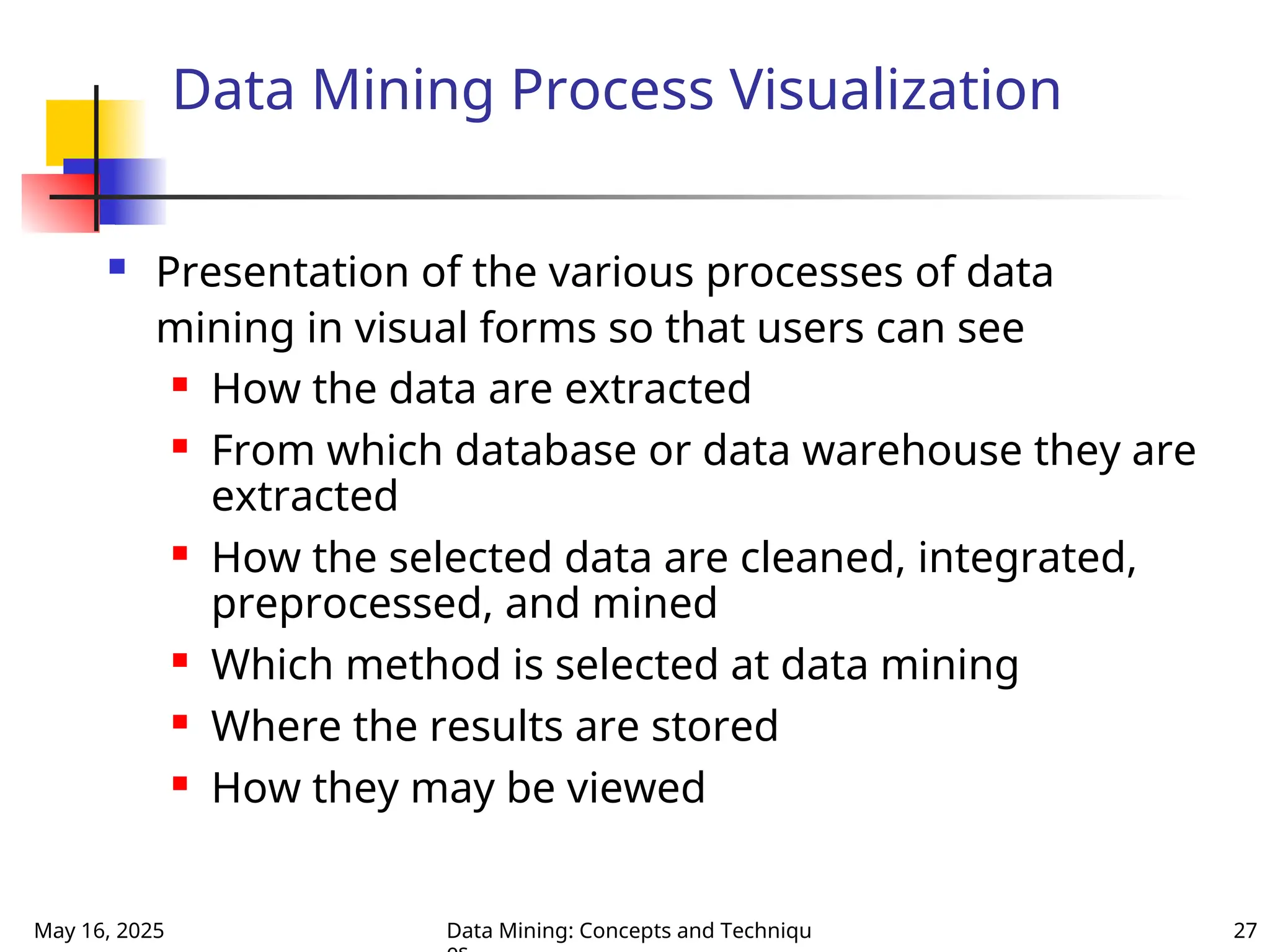

Data Mining Process Visualization
 Presentation of the various processes of data
mining in visual forms so that users can see
 How the data are extracted
 From which database or data warehouse they are
extracted
 How the selected data are cleaned, integrated,
preprocessed, and mined
 Which method is selected at data mining
 Where the results are stored
 How they may be viewed

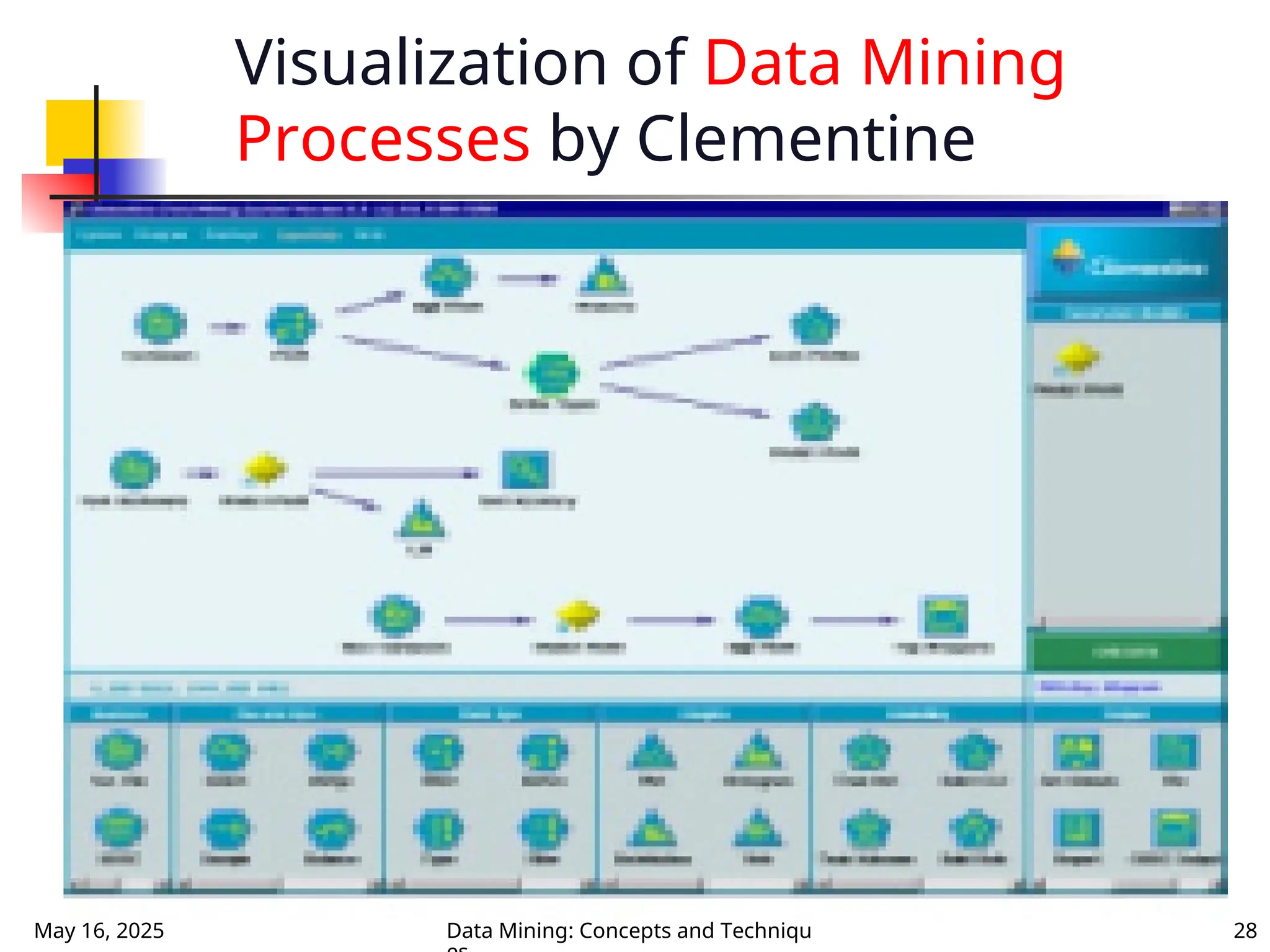

Visualization of Data Mining
Processes by Clementine

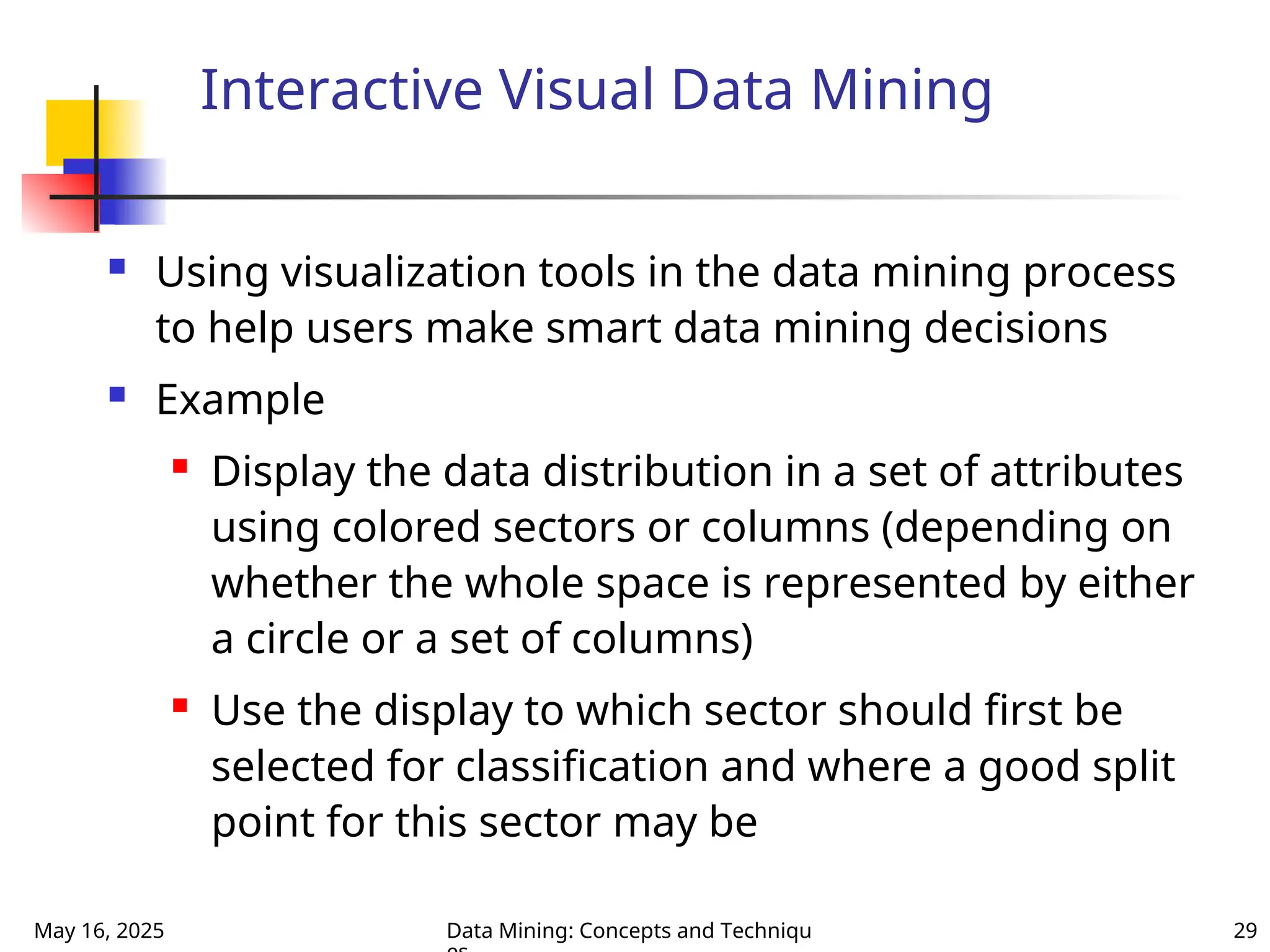

Interactive Visual Data Mining
 Using visualization tools in the data mining process
to help users make smart data mining decisions
 Example
 Display the data distribution in a set of attributes
using colored sectors or columns (depending on
whether the whole space is represented by either
a circle or a set of columns)
 Use the display to which sector should first be
selected for classification and where a good split
point for this sector may be

Interactive Visual Mining by
Perception-Based Classification
(PBC)

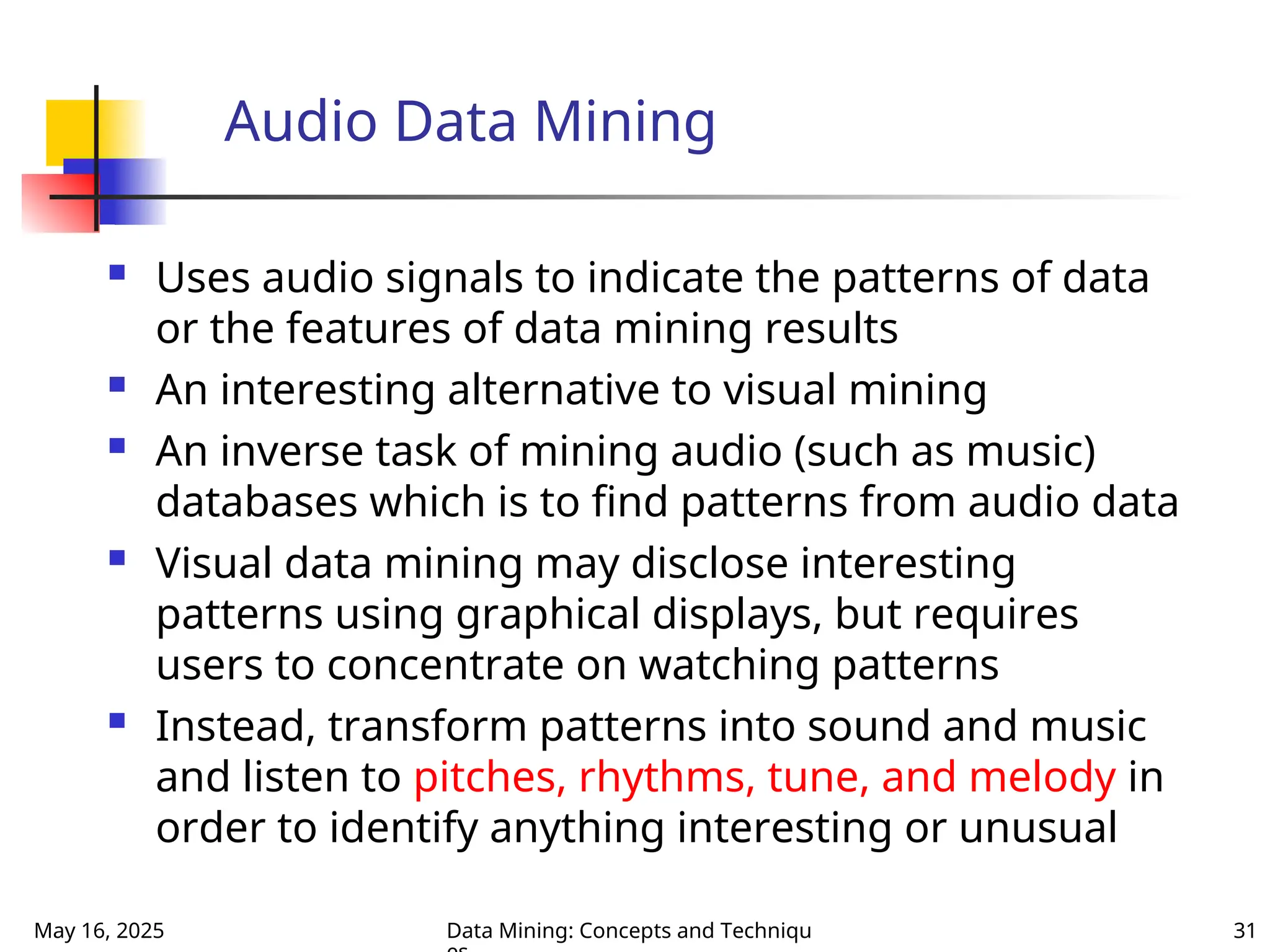

Audio Data Mining
 Uses audio signals to indicate the patterns of data
or the features of data mining results
 An interesting alternative to visual mining
 An inverse task of mining audio (such as music)
databases which is to find patterns from audio data
 Visual data mining may disclose interesting
patterns using graphical displays, but requires
users to concentrate on watching patterns
 Instead, transform patterns into sound and music
and listen to pitches, rhythms, tune, and melody in
order to identify anything interesting or unusual

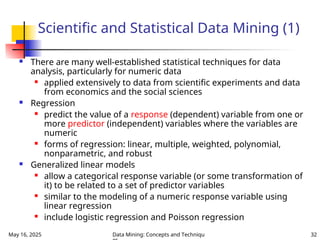

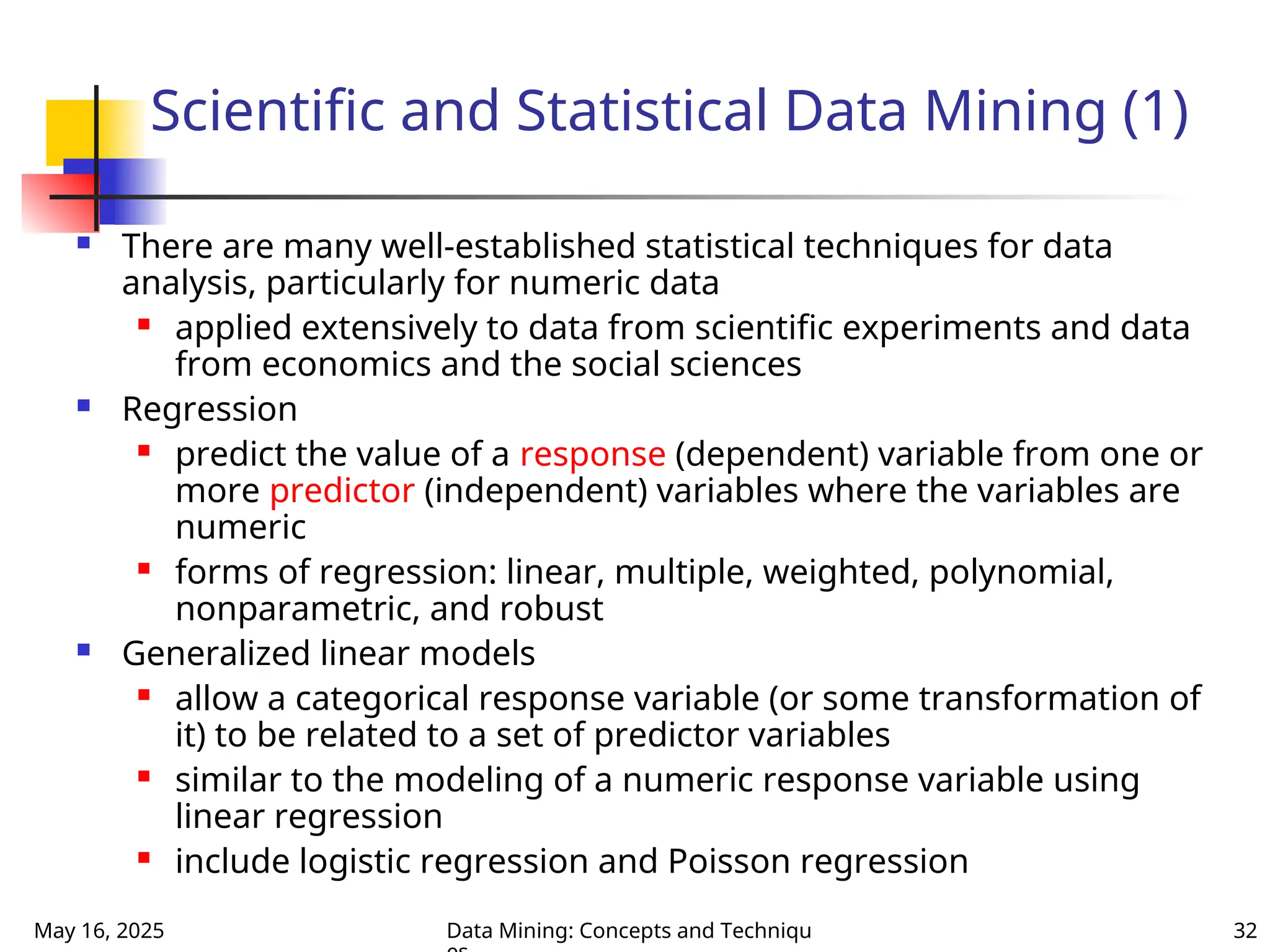

Scientific and Statistical Data Mining (1)
 There are many well-established statistical techniques for data
analysis, particularly for numeric data
 applied extensively to data from scientific experiments and data
from economics and the social sciences
 Regression
 predict the value of a response (dependent) variable from one or
more predictor (independent) variables where the variables are
numeric
 forms of regression: linear, multiple, weighted, polynomial,
nonparametric, and robust
 Generalized linear models
 allow a categorical response variable (or some transformation of
it) to be related to a set of predictor variables
 similar to the modeling of a numeric response variable using
linear regression
 include logistic regression and Poisson regression

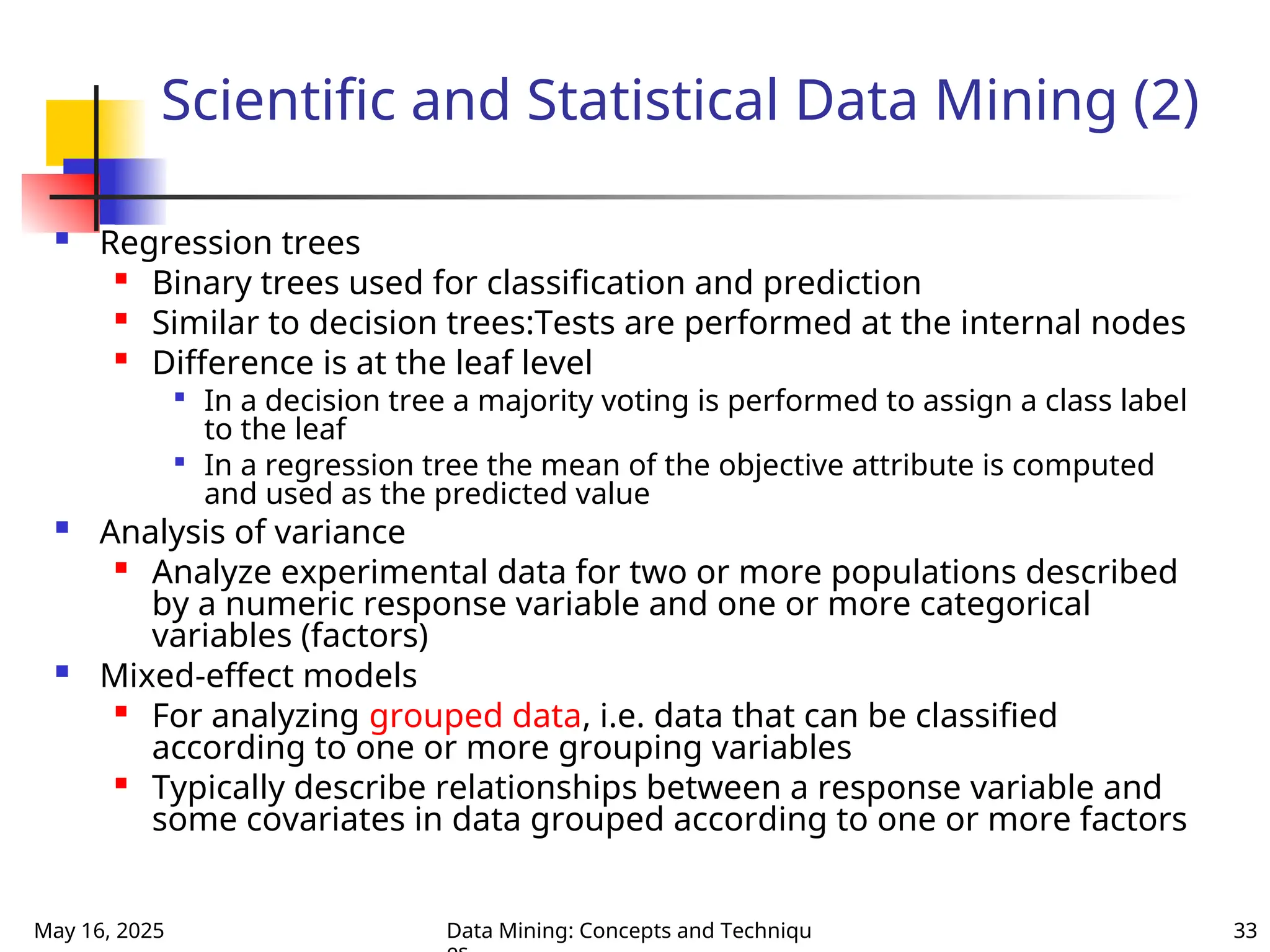

 Regression trees

Binary trees used for classification and prediction

Similar to decision trees:Tests are performed at the internal nodes

Difference is at the leaf level

In a decision tree a majority voting is performed to assign a class label
to the leaf

In a regression tree the mean of the objective attribute is computed
and used as the predicted value
 Analysis of variance

Analyze experimental data for two or more populations described
by a numeric response variable and one or more categorical
variables (factors)
 Mixed-effect models

For analyzing grouped data, i.e. data that can be classified
according to one or more grouping variables

Typically describe relationships between a response variable and
some covariates in data grouped according to one or more factors

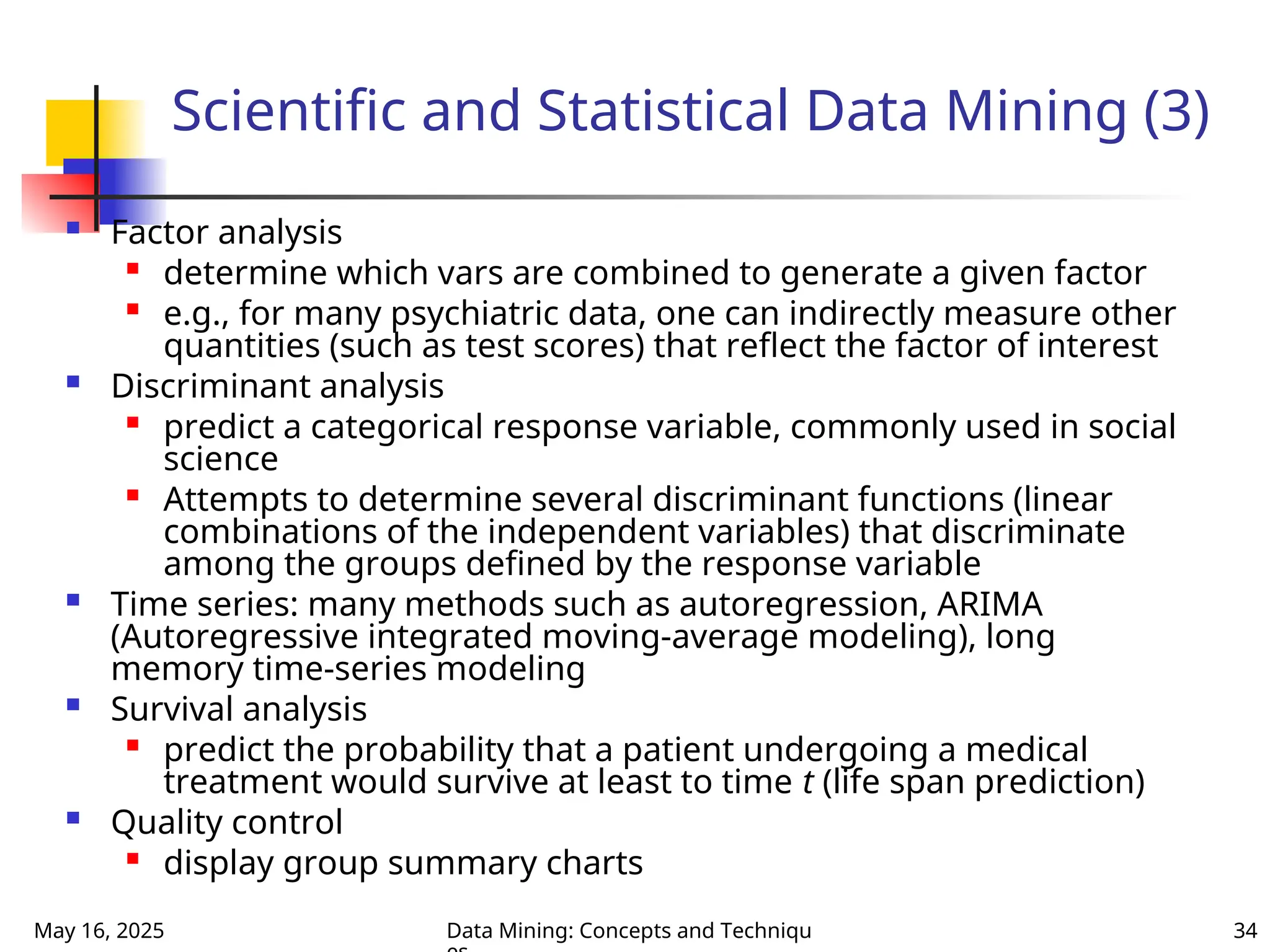

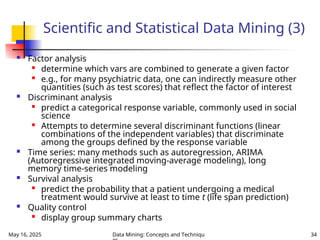

 Factor analysis

determine which vars are combined to generate a given factor

e.g., for many psychiatric data, one can indirectly measure other
quantities (such as test scores) that reflect the factor of interest
 Discriminant analysis

predict a categorical response variable, commonly used in social
science

Attempts to determine several discriminant functions (linear
combinations of the independent variables) that discriminate
among the groups defined by the response variable
 Time series: many methods such as autoregression, ARIMA
(Autoregressive integrated moving-average modeling), long
memory time-series modeling
 Survival analysis

predict the probability that a patient undergoing a medical
treatment would survive at least to time t (life span prediction)
 Quality control

display group summary charts

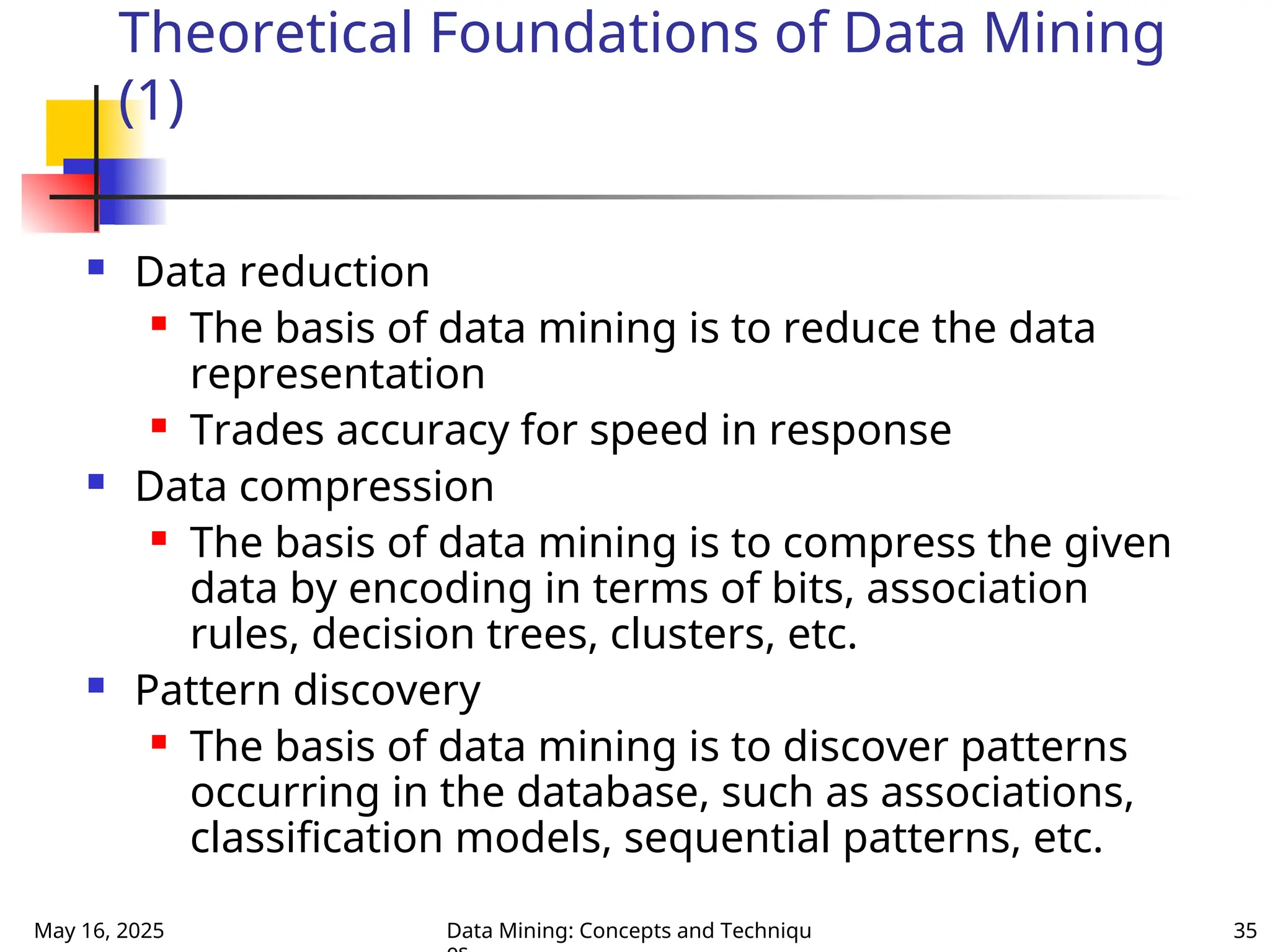

Theoretical Foundations of Data Mining
(1)
 Data reduction
 The basis of data mining is to reduce the data
representation
 Trades accuracy for speed in response
 Data compression
 The basis of data mining is to compress the given
data by encoding in terms of bits, association
rules, decision trees, clusters, etc.
 Pattern discovery
 The basis of data mining is to discover patterns
occurring in the database, such as associations,
classification models, sequential patterns, etc.

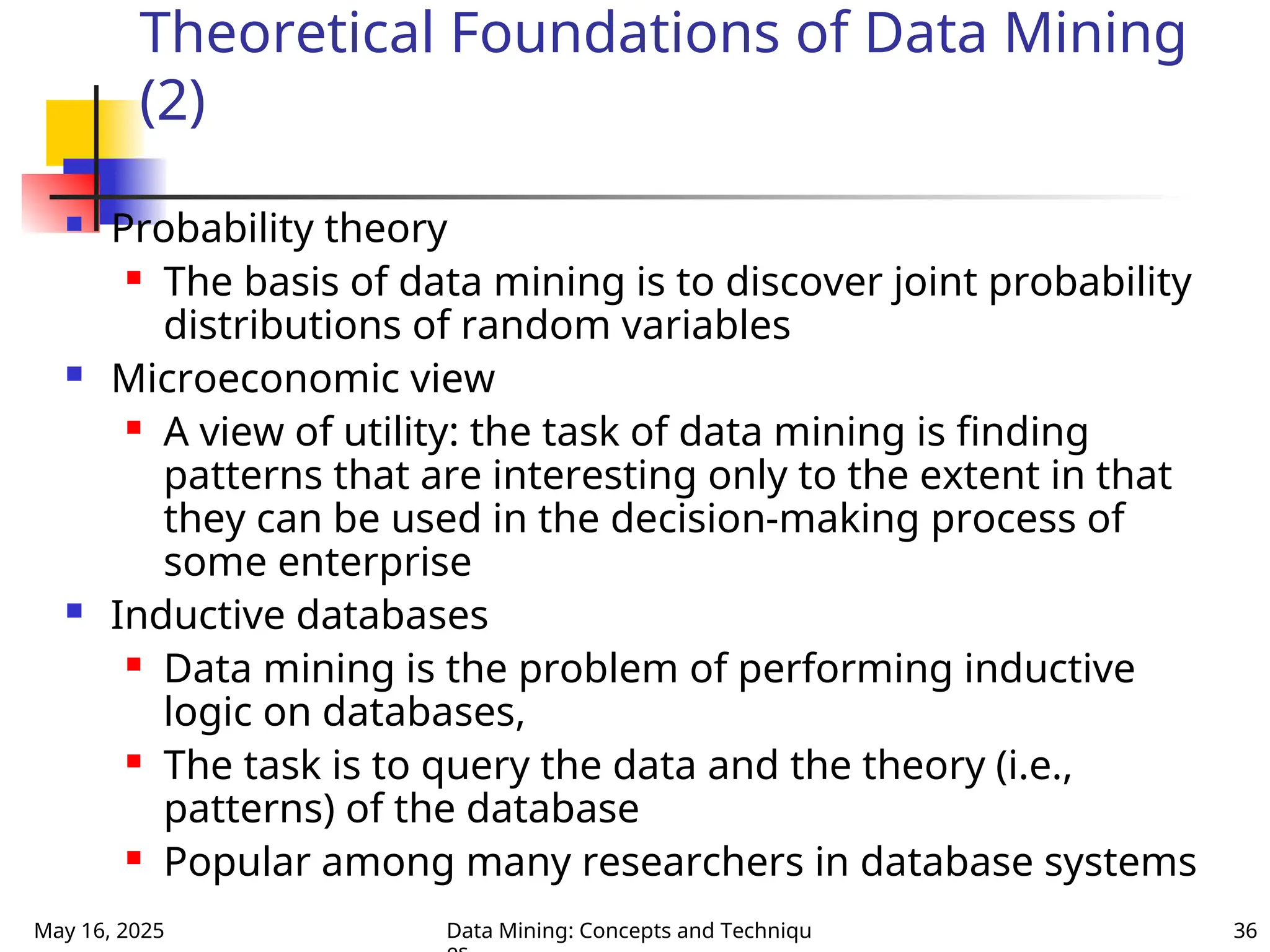

Theoretical Foundations of Data Mining
(2)
 Probability theory
 The basis of data mining is to discover joint probability
distributions of random variables
 Microeconomic view
 A view of utility: the task of data mining is finding
patterns that are interesting only to the extent in that
they can be used in the decision-making process of
some enterprise
 Inductive databases
 Data mining is the problem of performing inductive
logic on databases,
 The task is to query the data and the theory (i.e.,
patterns) of the database
 Popular among many researchers in database systems

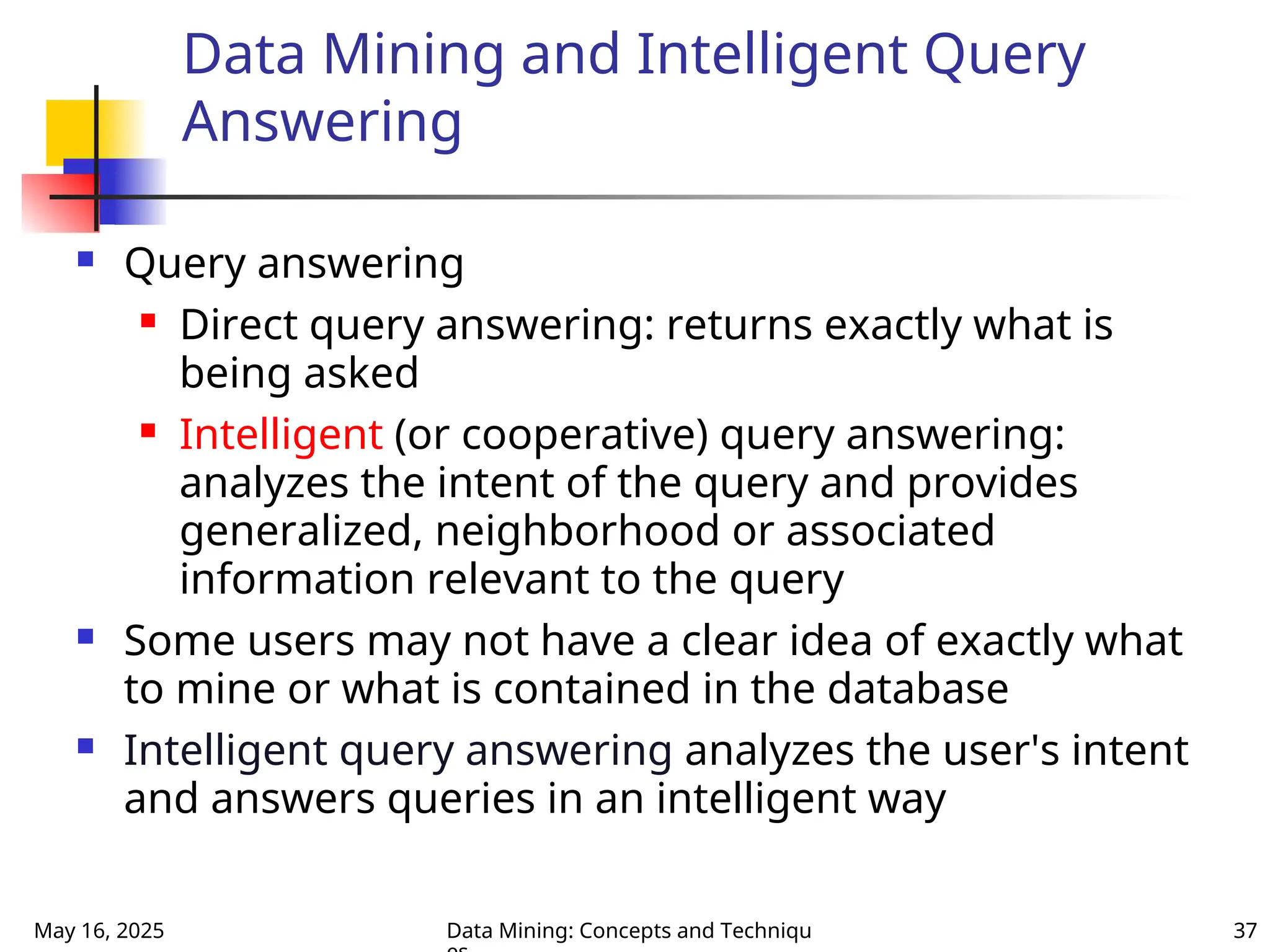

Data Mining and Intelligent Query
Answering
 Query answering
 Direct query answering: returns exactly what is
being asked
 Intelligent (or cooperative) query answering:
analyzes the intent of the query and provides
generalized, neighborhood or associated
information relevant to the query
 Some users may not have a clear idea of exactly what
to mine or what is contained in the database
 Intelligent query answering analyzes the user's intent
and answers queries in an intelligent way

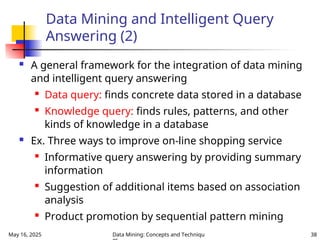

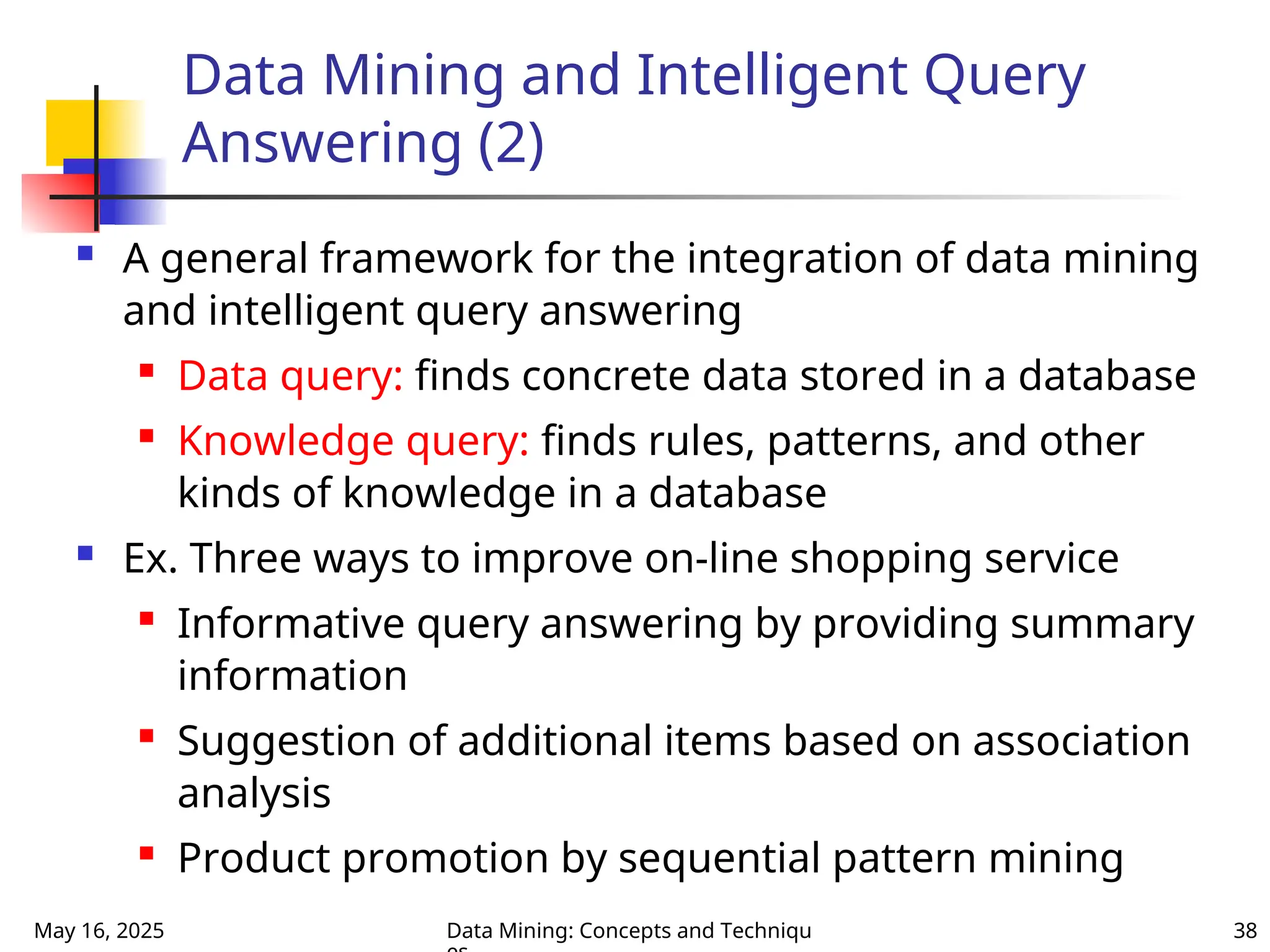

Data Mining and Intelligent Query
Answering (2)
 A general framework for the integration of data mining
and intelligent query answering

Data query: finds concrete data stored in a database

Knowledge query: finds rules, patterns, and other
kinds of knowledge in a database
 Ex. Three ways to improve on-line shopping service

Informative query answering by providing summary
information

Suggestion of additional items based on association
analysis

Product promotion by sequential pattern mining

prototypes
 Summary

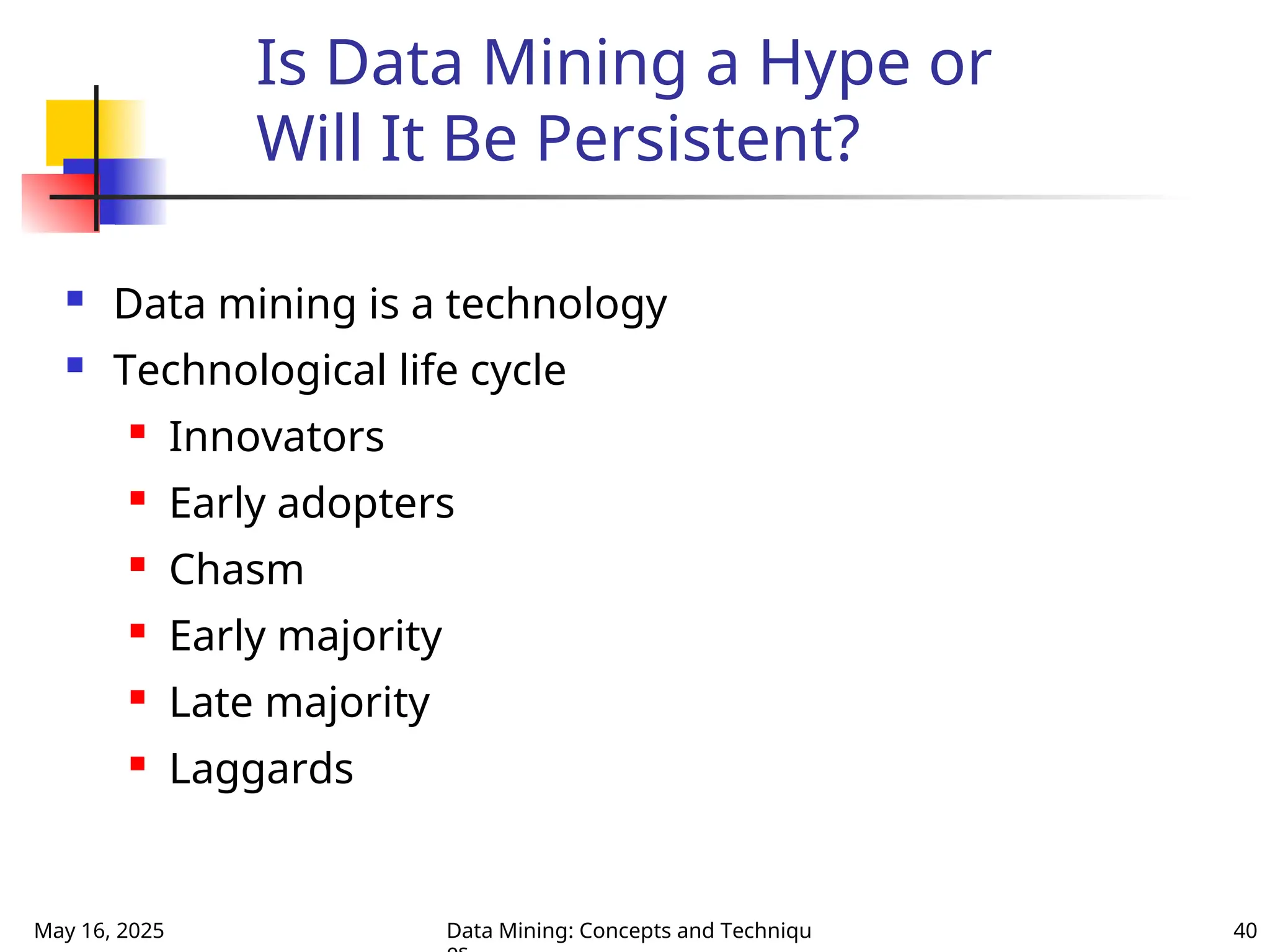

Is Data Mining a Hype or
Will It Be Persistent?
 Data mining is a technology
 Technological life cycle
 Innovators
 Early adopters
 Chasm
 Early majority
 Late majority
 Laggards

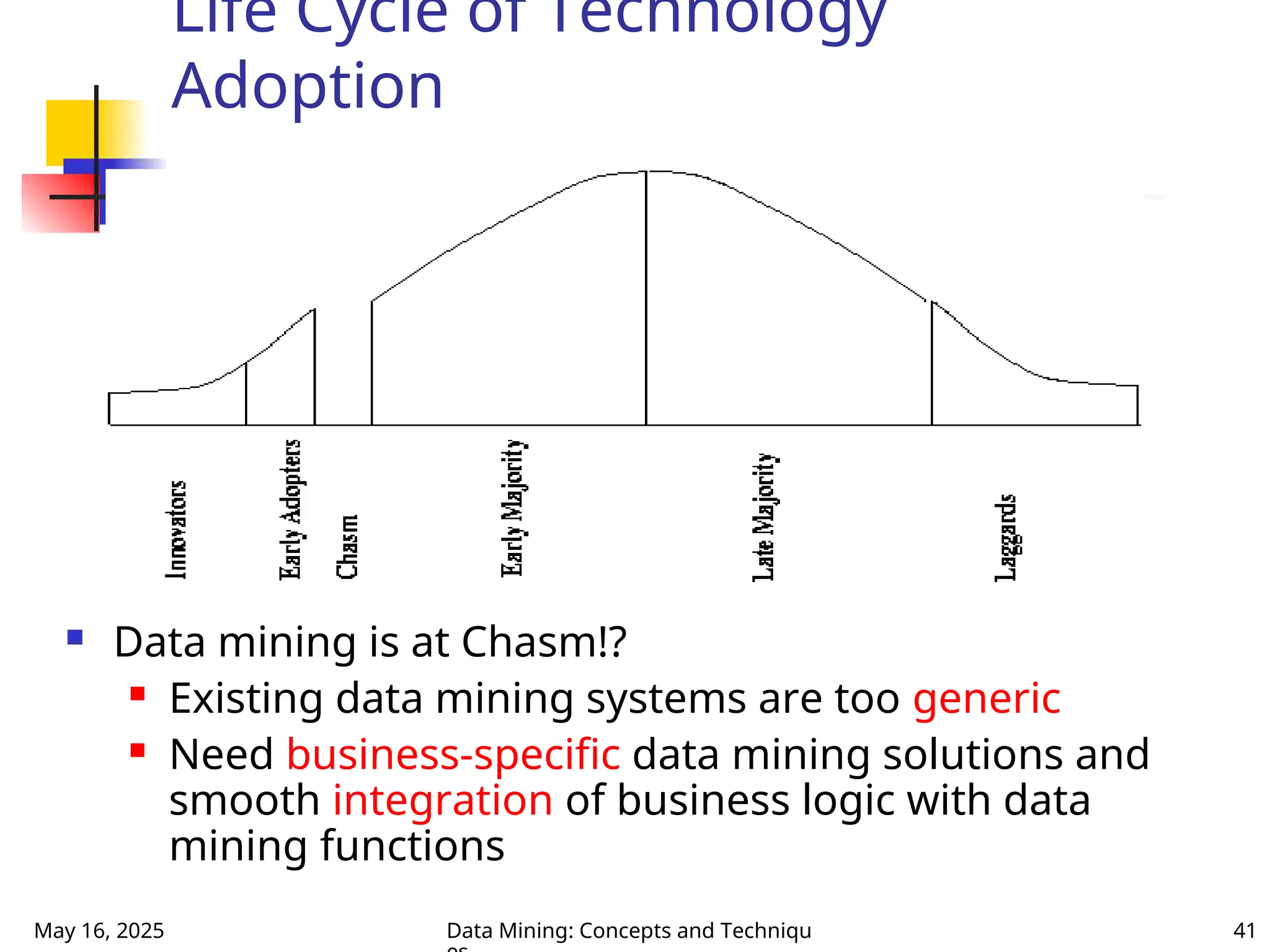

Life Cycle of Technology
Adoption
 Data mining is at Chasm!?
 Existing data mining systems are too generic
 Need business-specific data mining solutions and
smooth integration of business logic with data
mining functions

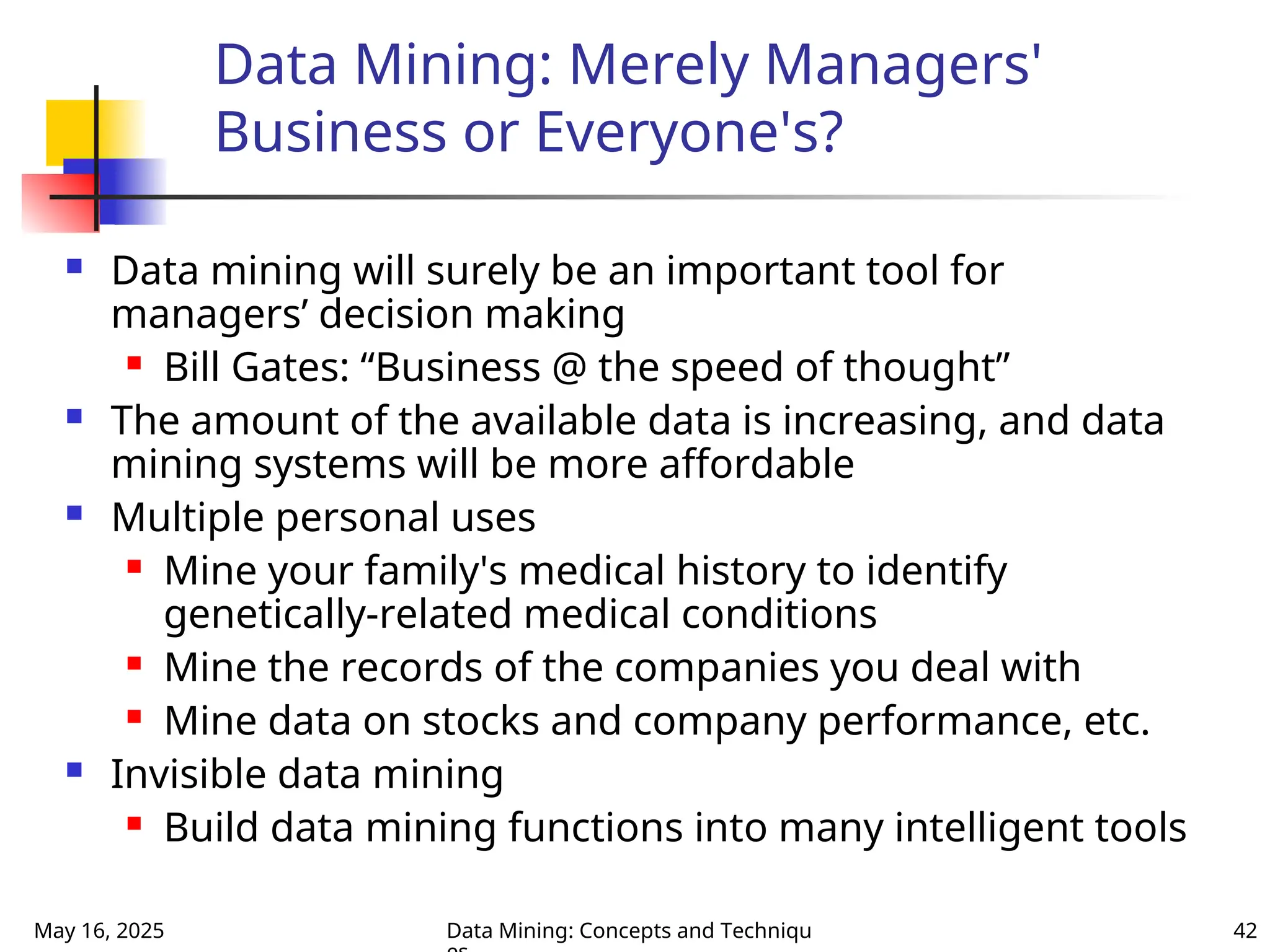

Data Mining: Merely Managers'
Business or Everyone's?
 Data mining will surely be an important tool for
managers’ decision making
 Bill Gates: “Business @ the speed of thought”
 The amount of the available data is increasing, and data
mining systems will be more affordable
 Multiple personal uses
 Mine your family's medical history to identify
genetically-related medical conditions
 Mine the records of the companies you deal with
 Mine data on stocks and company performance, etc.
 Invisible data mining
 Build data mining functions into many intelligent tools

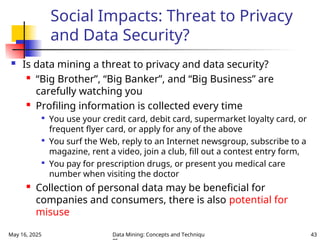

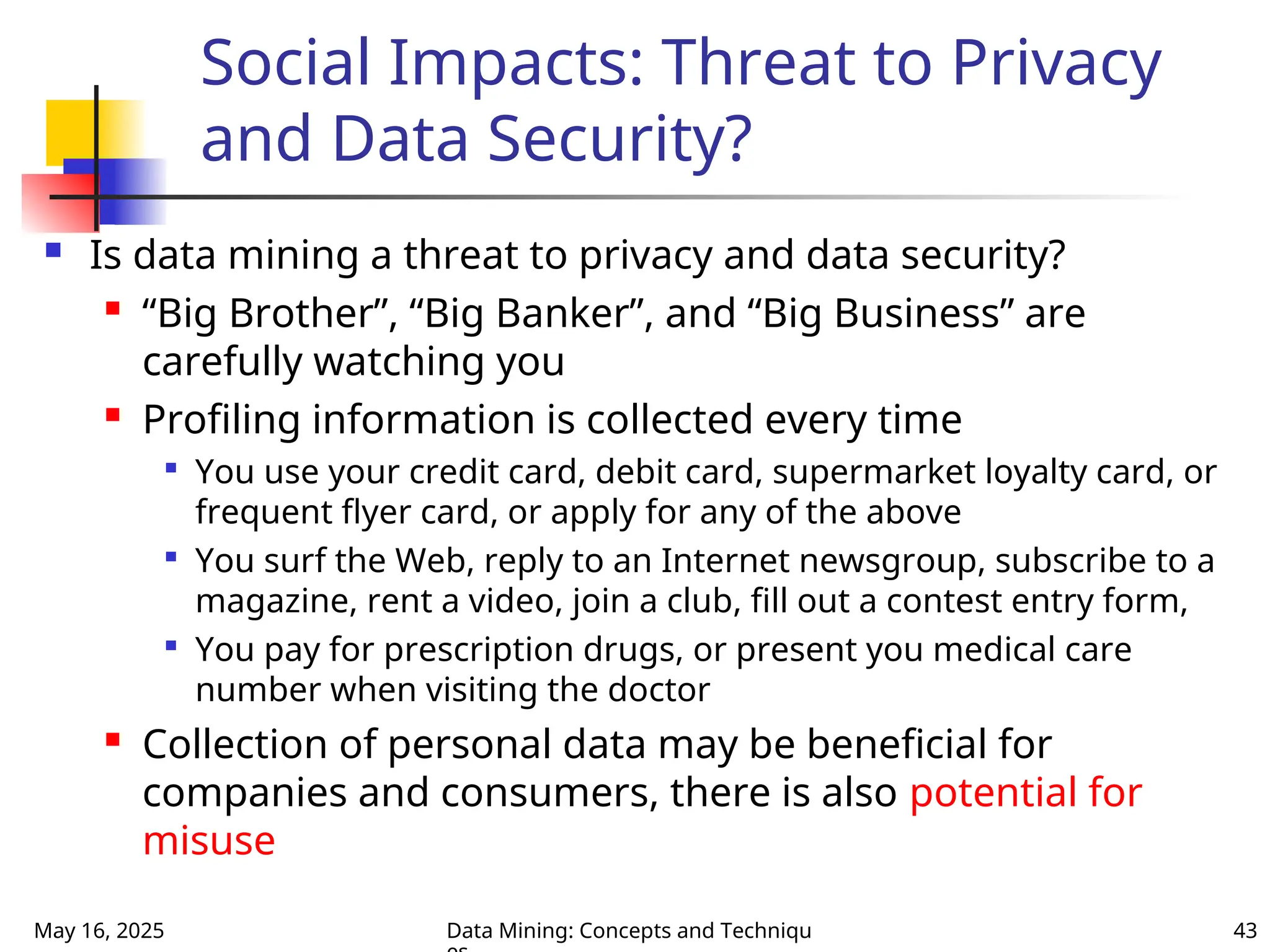

Social Impacts: Threat to Privacy
and Data Security?
 Is data mining a threat to privacy and data security?
 “Big Brother”, “Big Banker”, and “Big Business” are
carefully watching you
 Profiling information is collected every time

You use your credit card, debit card, supermarket loyalty card, or
frequent flyer card, or apply for any of the above

You surf the Web, reply to an Internet newsgroup, subscribe to a
magazine, rent a video, join a club, fill out a contest entry form,

You pay for prescription drugs, or present you medical care
number when visiting the doctor
 Collection of personal data may be beneficial for
companies and consumers, there is also potential for
misuse

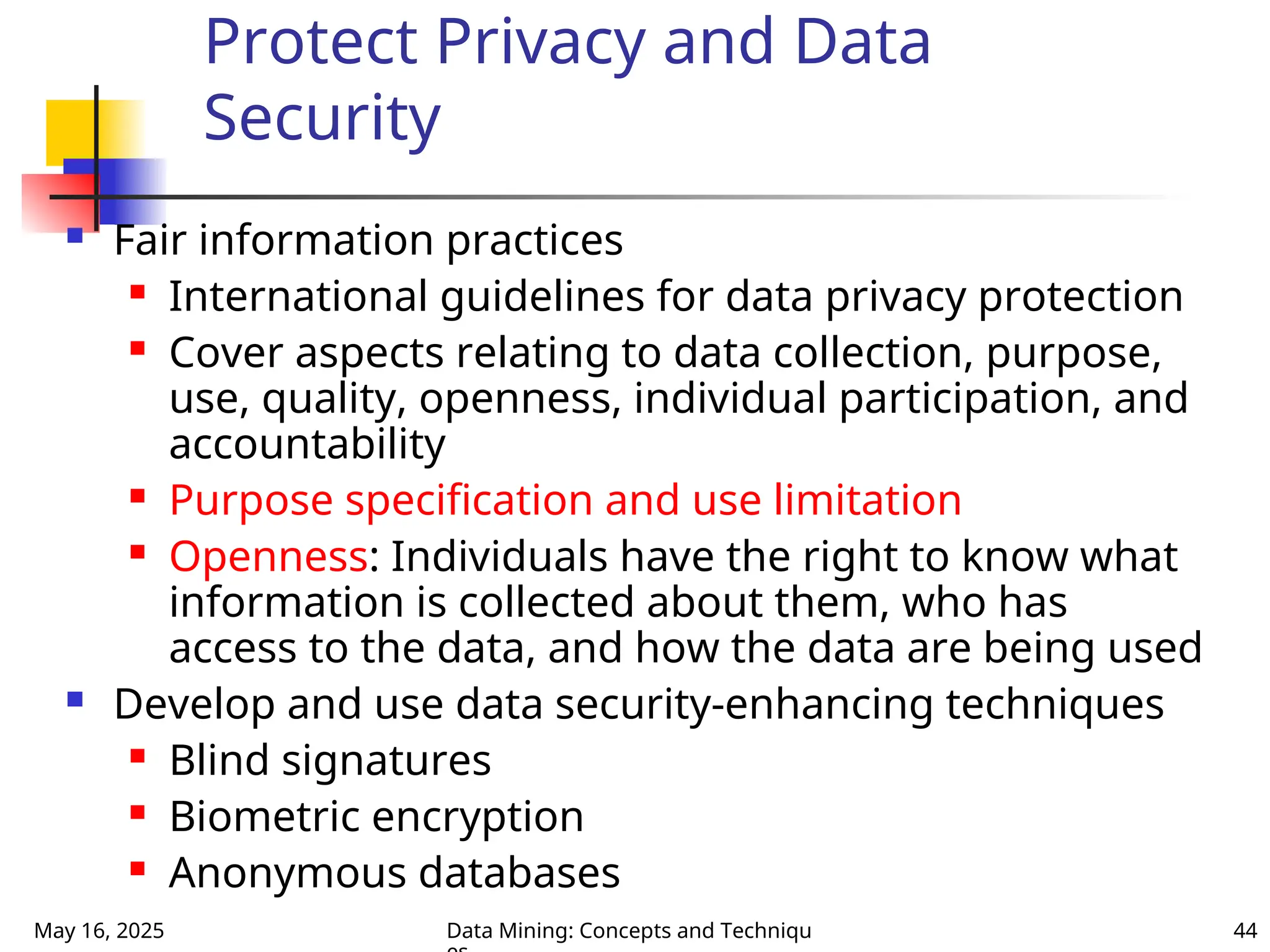

Protect Privacy and Data
Security
 Fair information practices
 International guidelines for data privacy protection
 Cover aspects relating to data collection, purpose,
use, quality, openness, individual participation, and
accountability
 Purpose specification and use limitation
 Openness: Individuals have the right to know what
information is collected about them, who has
access to the data, and how the data are being used
 Develop and use data security-enhancing techniques
 Blind signatures
 Biometric encryption
 Anonymous databases

prototypes
 Summary

(1)

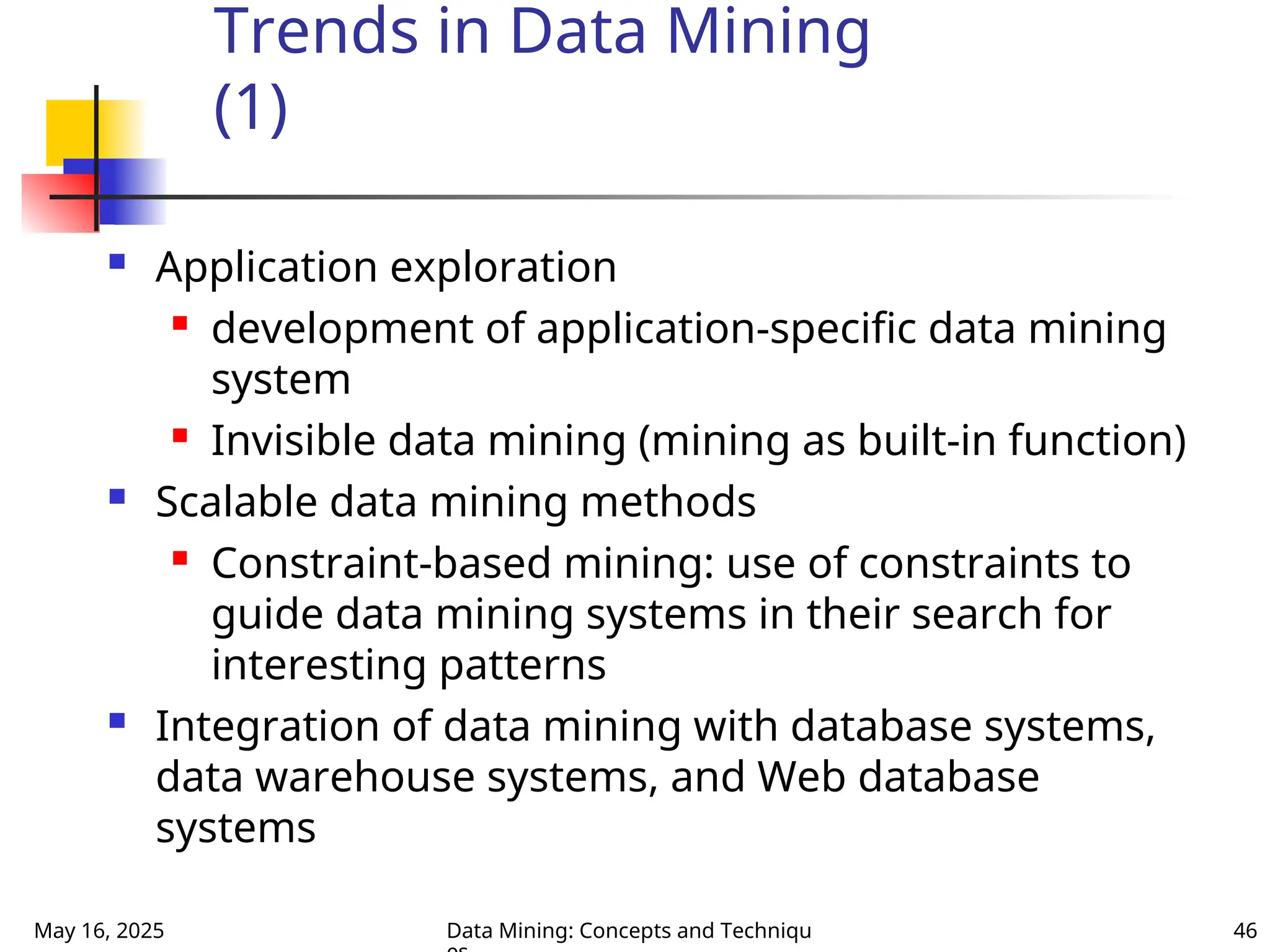

 Application exploration
 development of application-specific data mining
system
 Invisible data mining (mining as built-in function)
 Scalable data mining methods
 Constraint-based mining: use of constraints to
guide data mining systems in their search for
interesting patterns
 Integration of data mining with database systems,
data warehouse systems, and Web database
systems

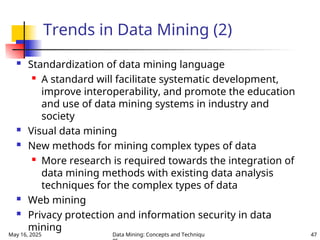

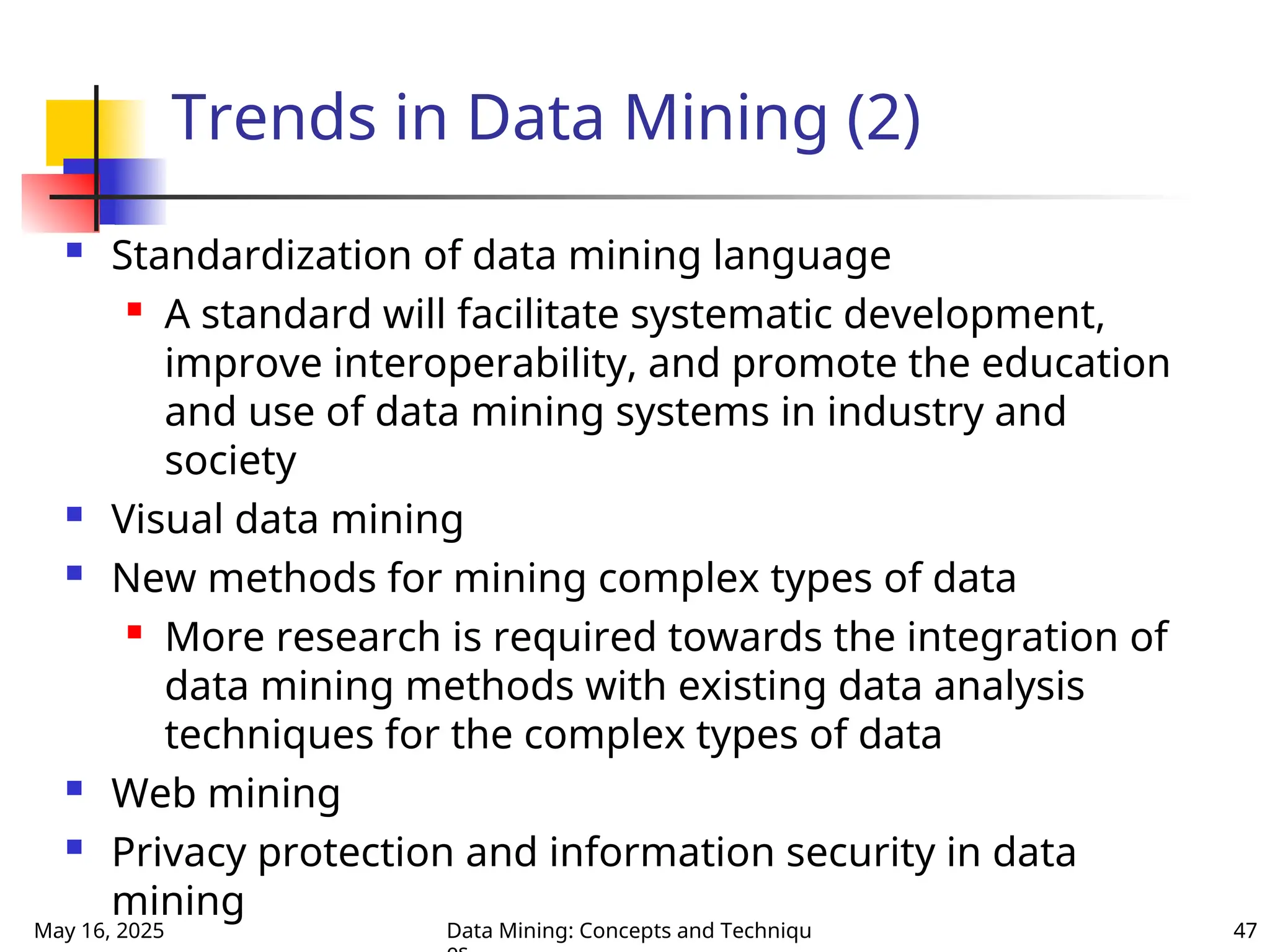

Trends in Data Mining (2)
 Standardization of data mining language

A standard will facilitate systematic development,
improve interoperability, and promote the education
and use of data mining systems in industry and
society
 Visual data mining
 New methods for mining complex types of data

More research is required towards the integration of
data mining methods with existing data analysis
techniques for the complex types of data
 Web mining
 Privacy protection and information security in data
mining

prototypes
 Summary

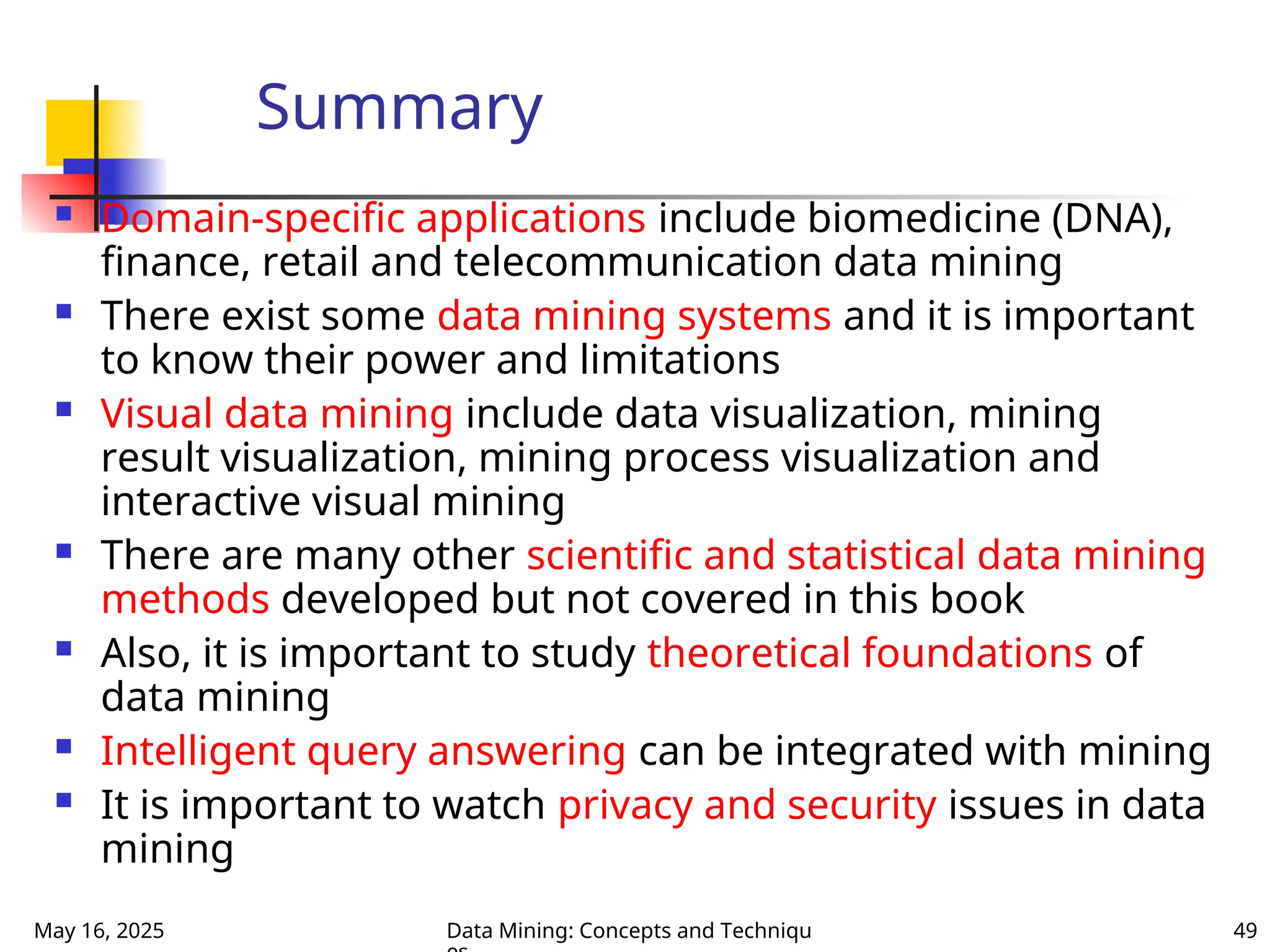

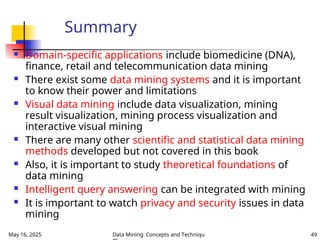

Summary
 Domain-specific applications include biomedicine (DNA),
finance, retail and telecommunication data mining
 There exist some data mining systems and it is important
to know their power and limitations
 Visual data mining include data visualization, mining
result visualization, mining process visualization and
interactive visual mining
 There are many other scientific and statistical data mining
methods developed but not covered in this book
 Also, it is important to study theoretical foundations of
data mining
 Intelligent query answering can be integrated with mining
 It is important to watch privacy and security issues in data
mining

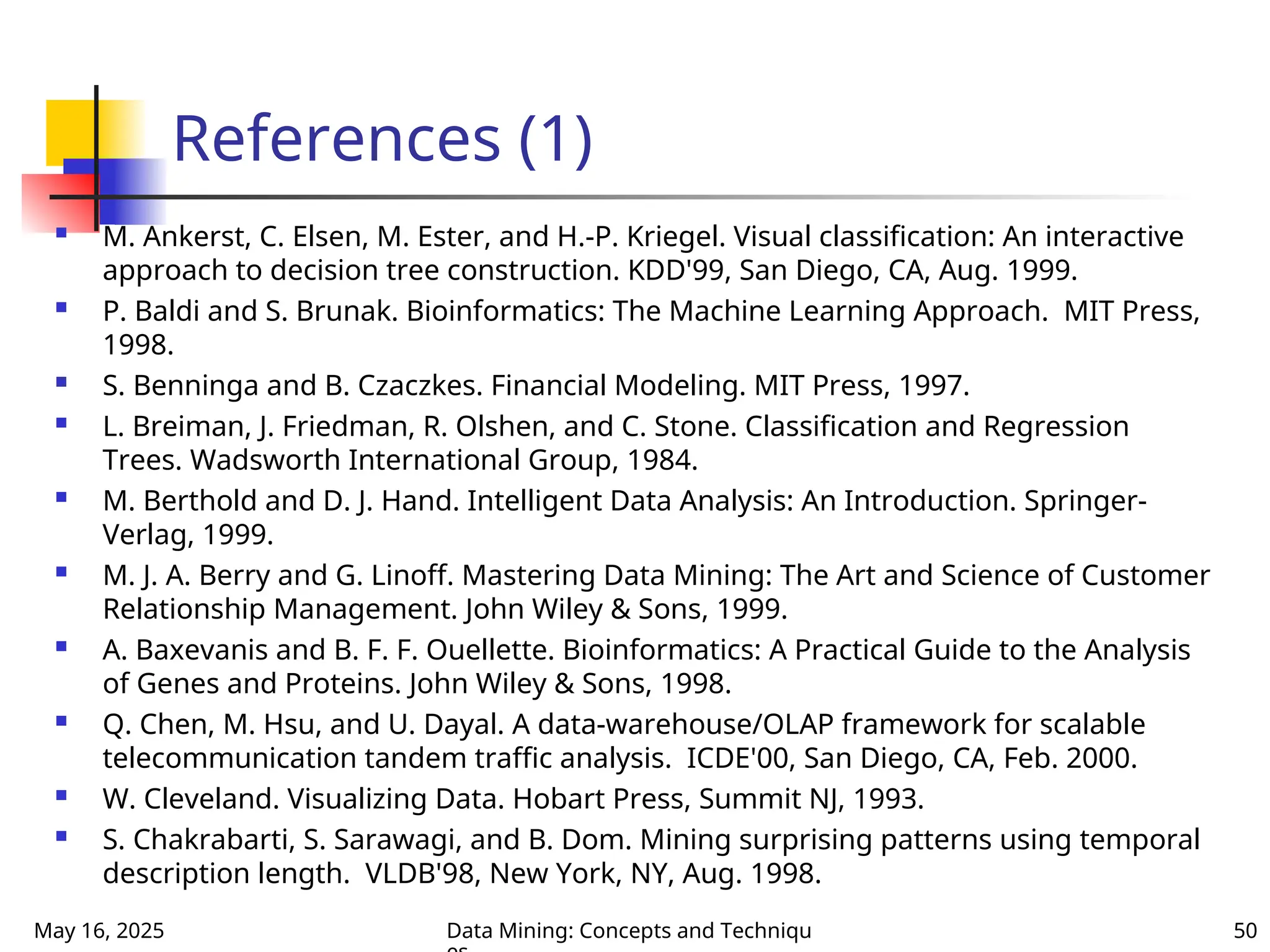

References (1)
 M. Ankerst, C. Elsen, M. Ester, and H.-P. Kriegel. Visual classification: An interactive
approach to decision tree construction. KDD'99, San Diego, CA, Aug. 1999.
 P. Baldi and S. Brunak. Bioinformatics: The Machine Learning Approach. MIT Press,
1998.
 S. Benninga and B. Czaczkes. Financial Modeling. MIT Press, 1997.
 L. Breiman, J. Friedman, R. Olshen, and C. Stone. Classification and Regression
Trees. Wadsworth International Group, 1984.
 M. Berthold and D. J. Hand. Intelligent Data Analysis: An Introduction. Springer-
Verlag, 1999.
 M. J. A. Berry and G. Linoff. Mastering Data Mining: The Art and Science of Customer
Relationship Management. John Wiley & Sons, 1999.
 A. Baxevanis and B. F. F. Ouellette. Bioinformatics: A Practical Guide to the Analysis
of Genes and Proteins. John Wiley & Sons, 1998.
 Q. Chen, M. Hsu, and U. Dayal. A data-warehouse/OLAP framework for scalable
telecommunication tandem traffic analysis. ICDE'00, San Diego, CA, Feb. 2000.
 W. Cleveland. Visualizing Data. Hobart Press, Summit NJ, 1993.
 S. Chakrabarti, S. Sarawagi, and B. Dom. Mining surprising patterns using temporal
description length. VLDB'98, New York, NY, Aug. 1998.

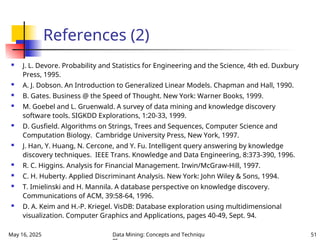

References (2)
 J. L. Devore. Probability and Statistics for Engineering and the Science, 4th ed. Duxbury
Press, 1995.
 A. J. Dobson. An Introduction to Generalized Linear Models. Chapman and Hall, 1990.
 B. Gates. Business @ the Speed of Thought. New York: Warner Books, 1999.
 M. Goebel and L. Gruenwald. A survey of data mining and knowledge discovery
software tools. SIGKDD Explorations, 1:20-33, 1999.
 D. Gusfield. Algorithms on Strings, Trees and Sequences, Computer Science and
Computation Biology. Cambridge University Press, New York, 1997.
 J. Han, Y. Huang, N. Cercone, and Y. Fu. Intelligent query answering by knowledge
discovery techniques. IEEE Trans. Knowledge and Data Engineering, 8:373-390, 1996.
 R. C. Higgins. Analysis for Financial Management. Irwin/McGraw-Hill, 1997.
 C. H. Huberty. Applied Discriminant Analysis. New York: John Wiley & Sons, 1994.
 T. Imielinski and H. Mannila. A database perspective on knowledge discovery.
Communications of ACM, 39:58-64, 1996.
 D. A. Keim and H.-P. Kriegel. VisDB: Database exploration using multidimensional
visualization. Computer Graphics and Applications, pages 40-49, Sept. 94.

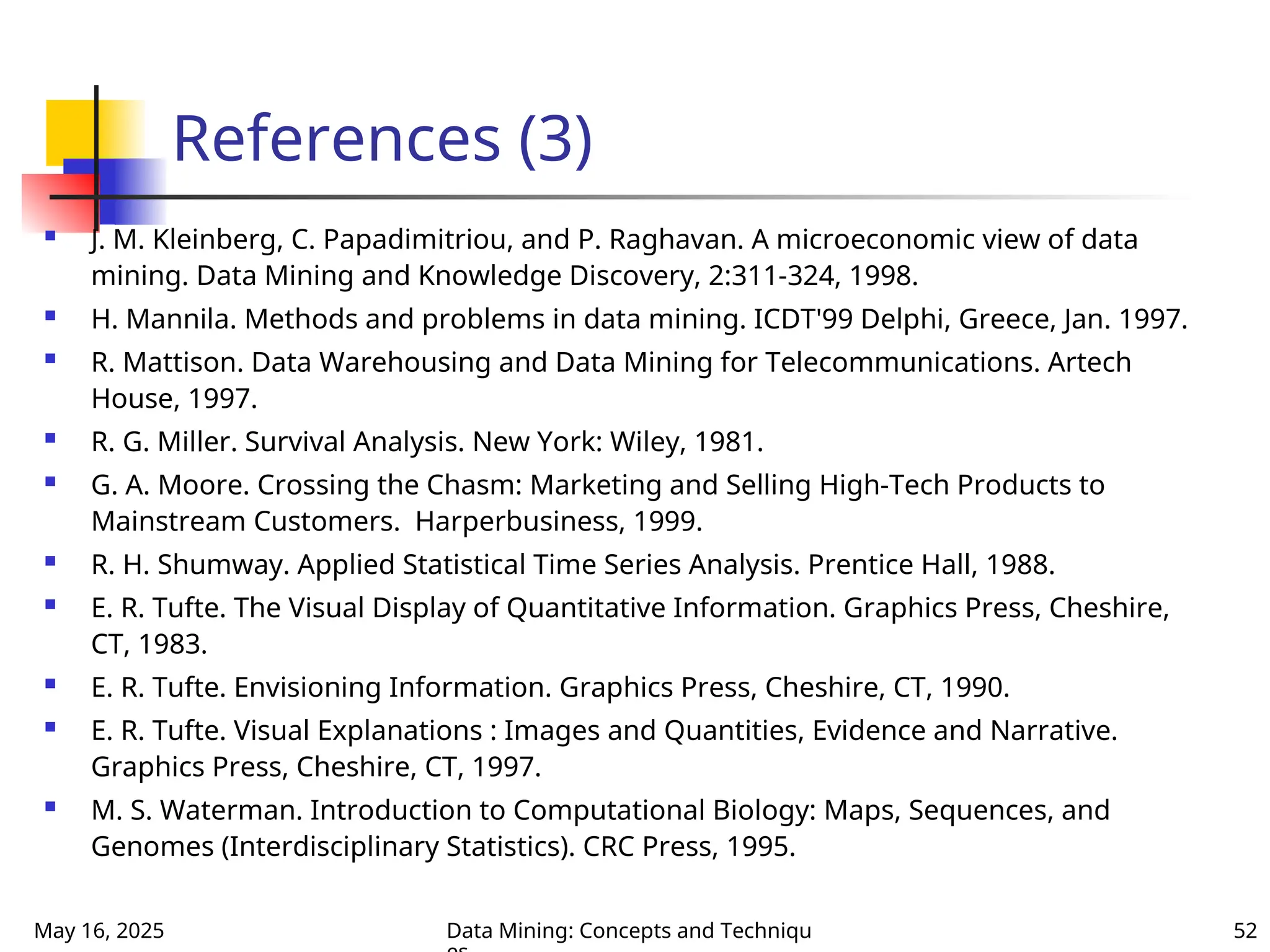

References (3)
 J. M. Kleinberg, C. Papadimitriou, and P. Raghavan. A microeconomic view of data
mining. Data Mining and Knowledge Discovery, 2:311-324, 1998.
 H. Mannila. Methods and problems in data mining. ICDT'99 Delphi, Greece, Jan. 1997.
 R. Mattison. Data Warehousing and Data Mining for Telecommunications. Artech
House, 1997.
 R. G. Miller. Survival Analysis. New York: Wiley, 1981.
 G. A. Moore. Crossing the Chasm: Marketing and Selling High-Tech Products to
Mainstream Customers. Harperbusiness, 1999.
 R. H. Shumway. Applied Statistical Time Series Analysis. Prentice Hall, 1988.
 E. R. Tufte. The Visual Display of Quantitative Information. Graphics Press, Cheshire,
CT, 1983.
 E. R. Tufte. Envisioning Information. Graphics Press, Cheshire, CT, 1990.
 E. R. Tufte. Visual Explanations : Images and Quantities, Evidence and Narrative.
Graphics Press, Cheshire, CT, 1997.
 M. S. Waterman. Introduction to Computational Biology: Maps, Sequences, and
Genomes (Interdisciplinary Statistics). CRC Press, 1995.

http://www.cs.sfu.ca/~han/
dmbook
Thank you !!!
Thank you !!!

data mining and the purpose of using mining

More Related Content

Similar to data mining and the purpose of using mining

More from ssuserd23711

Recently uploaded

data mining and the purpose of using mining
