Uploaded byAndrew Fisher
Droids, java script and web connected hardware
The document discusses the integration of JavaScript into robotics through the Nodebots stack, focusing on the use of the Johnny-Five library, which simplifies hardware interactions. It highlights the advantages of using JavaScript for robotics, such as flexibility and dynamic event handling, and provides a brief overview of hardware components and installation processes. Additionally, it includes examples of projects and applications that illustrate the practical use of JavaScript in robotic systems.
More Related Content
Similar to Droids, java script and web connected hardware
![UiPath Automation Suite Installation (Hands-On) [2/3]](https://cdn.slidesharecdn.com/ss_thumbnails/automationsuitecommunitysession2-251015095633-a6d862f1-thumbnail.jpg?width=600ounds&width=560&fit=bounds)
Droids, java script and web connected hardware
- 1. DROIDS, JAVASCRIPT ANDWEB CONNECTED HARDWARE JSConf China, July 11, 2015 Andrew Fisher @ajfisher Press'S'forfullspeakernotes.

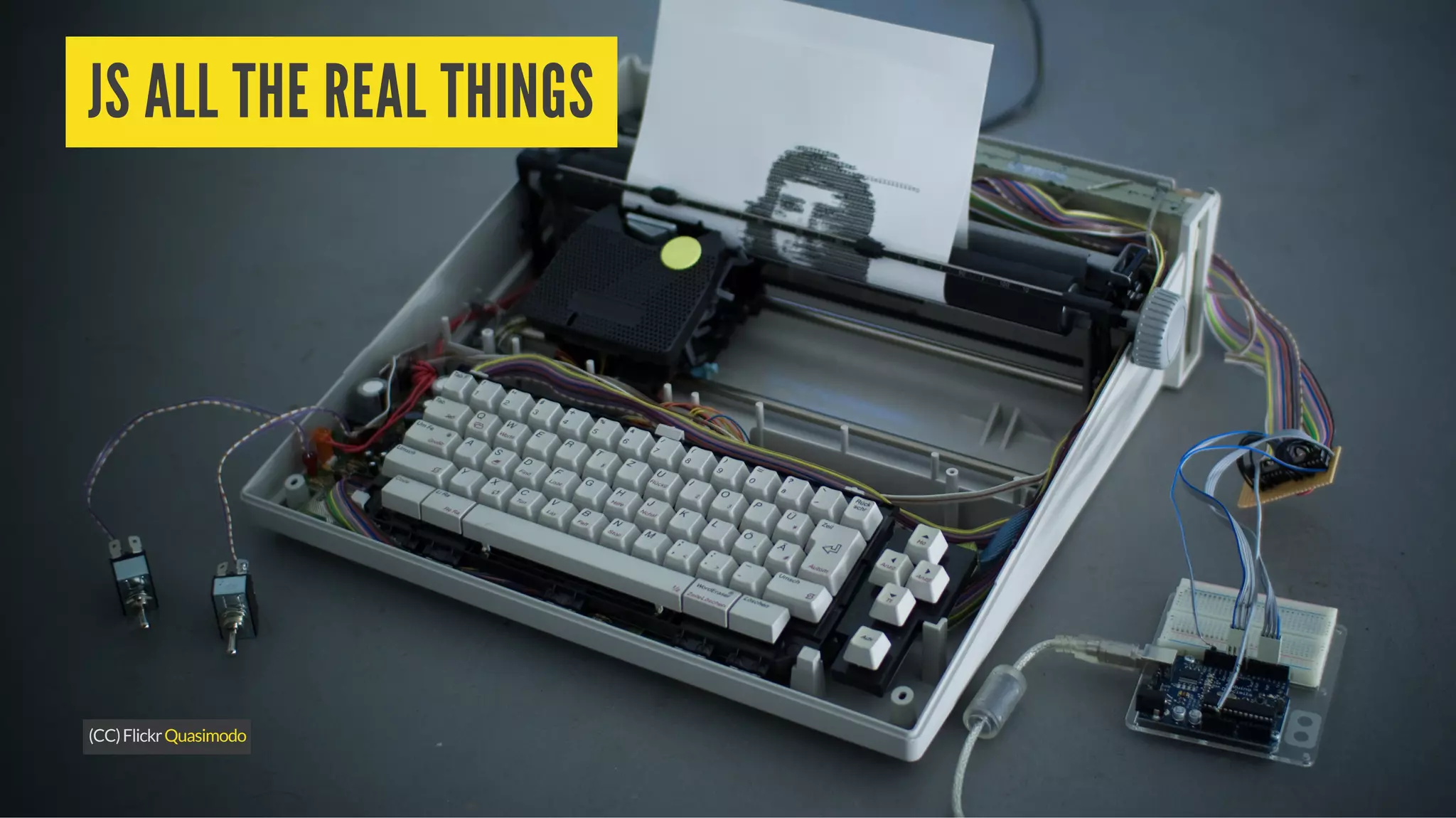

- 2. JS ALL THEREAL THINGS (CC)FlickrQuasimodo

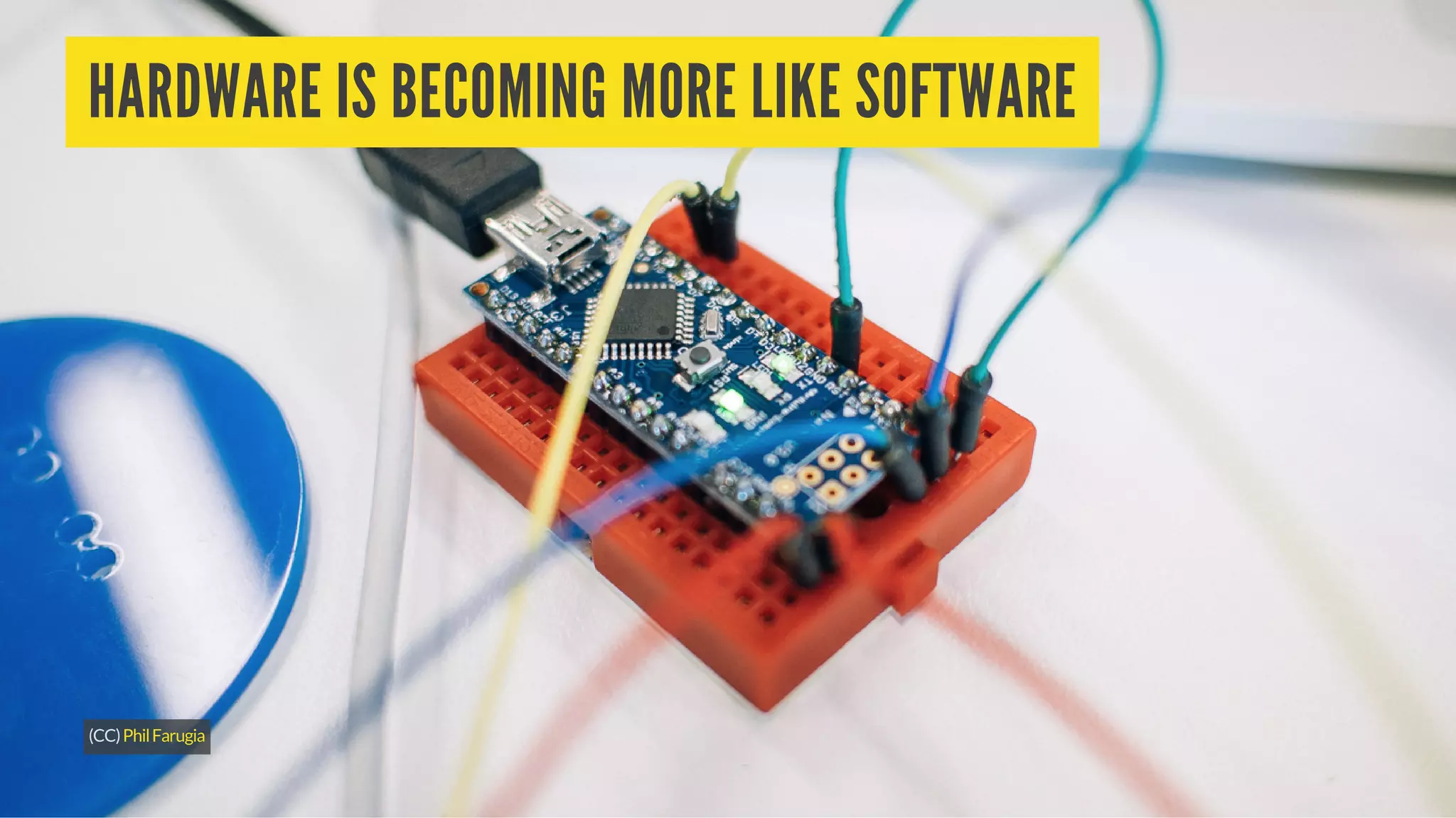

- 3. HARDWARE IS BECOMINGMORE LIKE SOFTWARE (CC)PhilFarugia

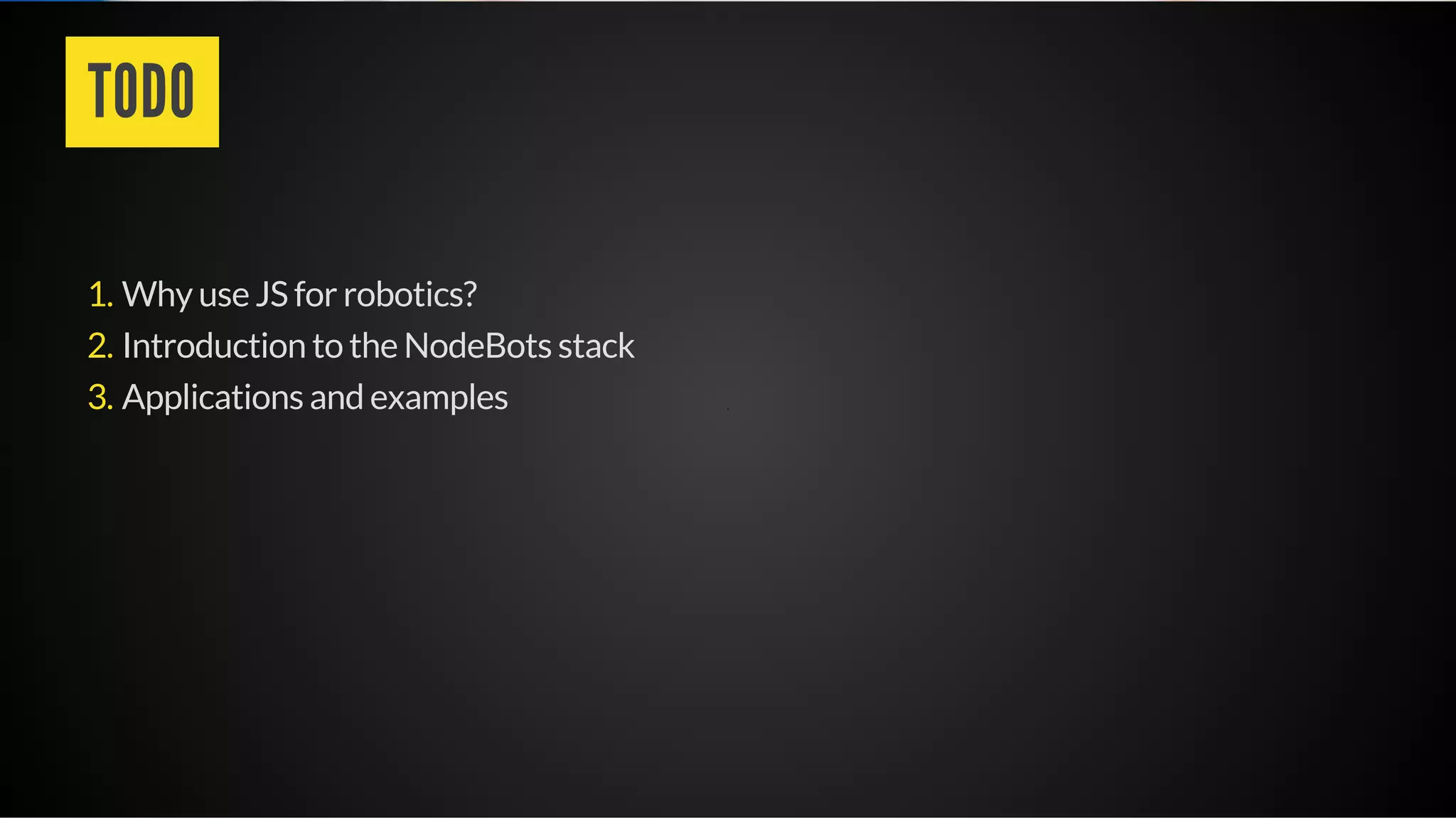

- 4. TODO Why use JSfor robotics? Introduction to the NodeBots stack Applications and examples 1. 2. 3.
- 5. WHY USE JAVASCRIPTFOR ROBOTICS? (CC)FlickrJohnGreenaway

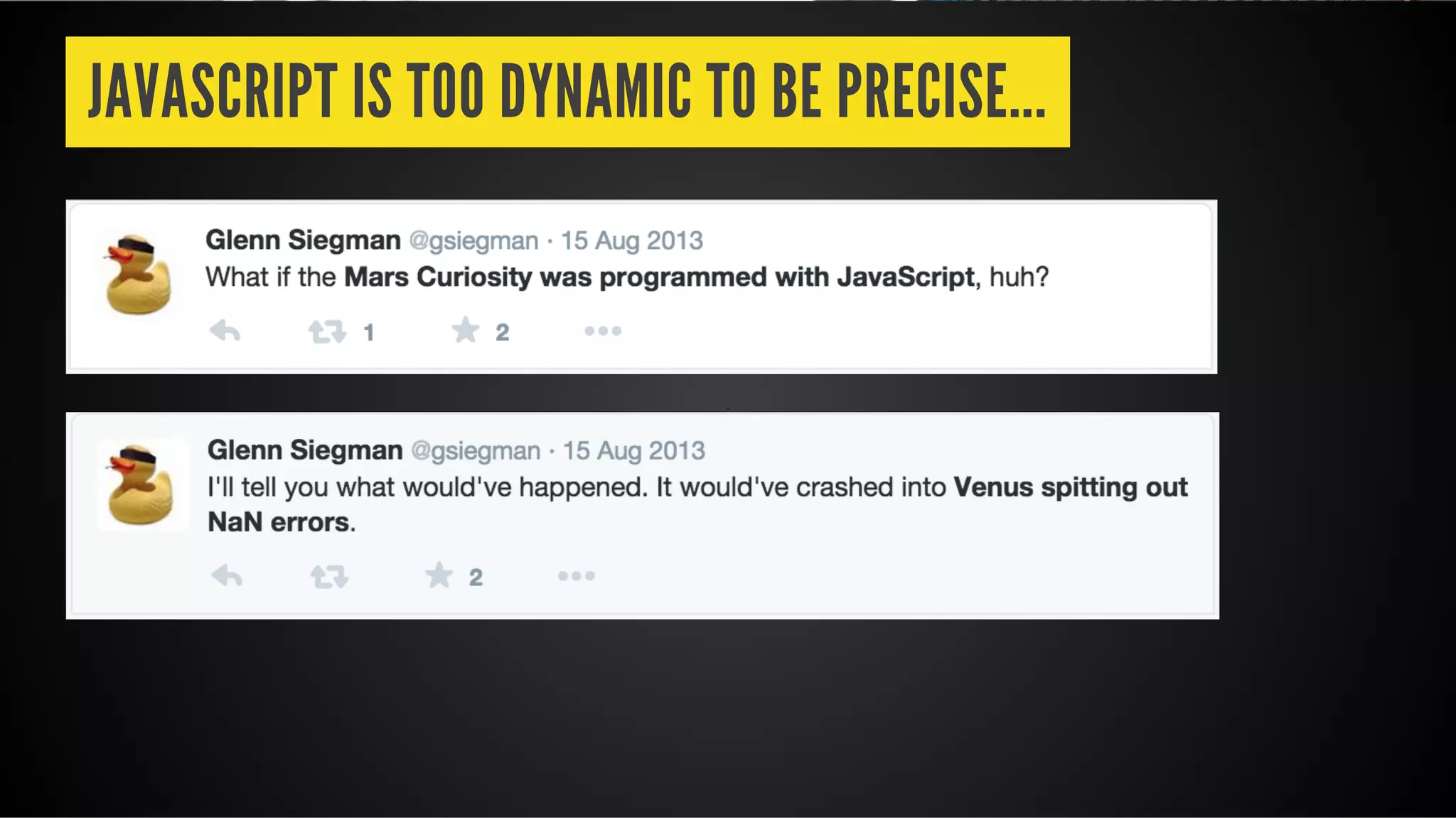

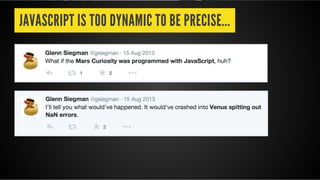

- 6. JAVASCRIPT IS TOODYNAMIC TO BE PRECISE...

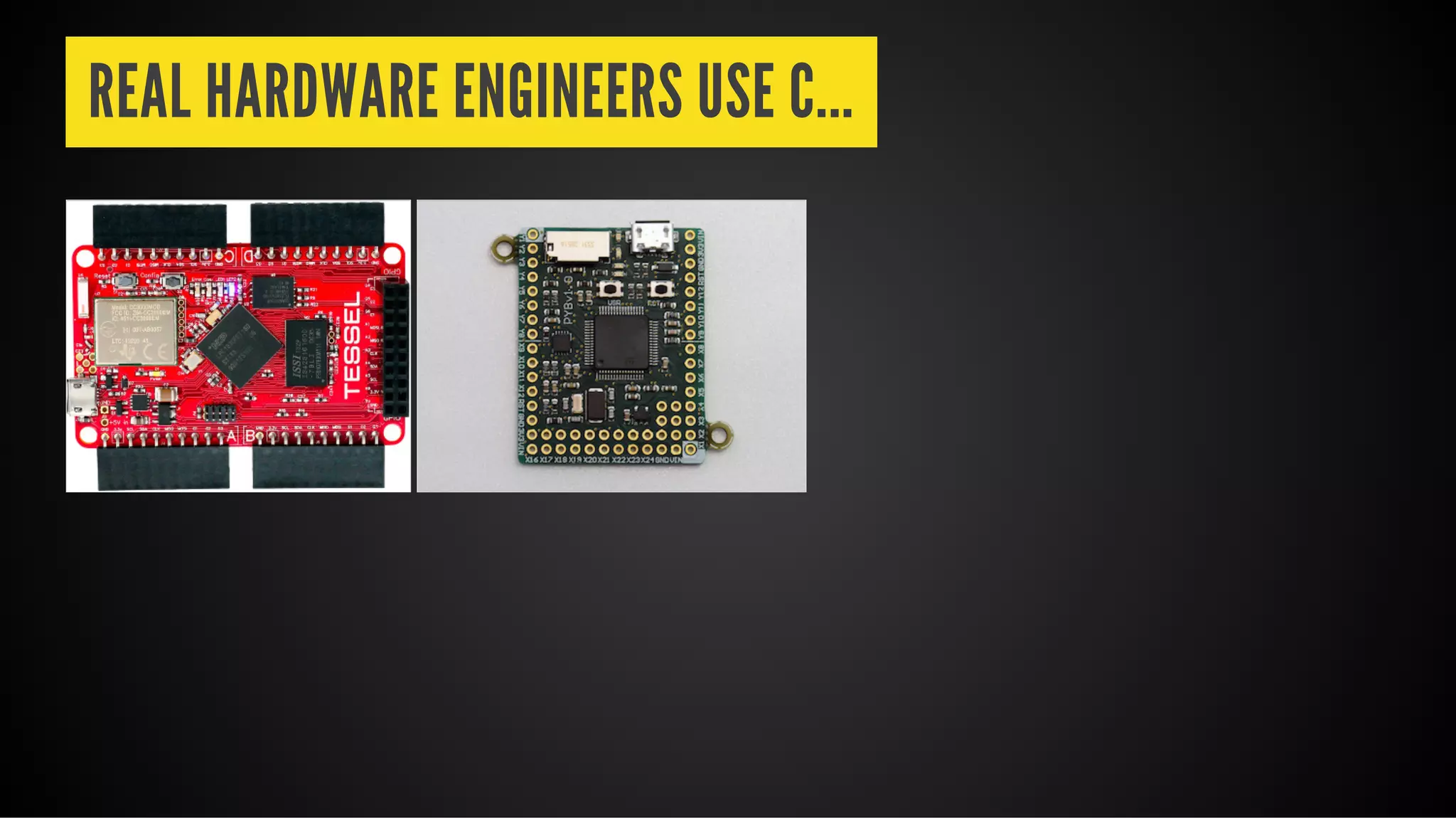

- 7. REAL HARDWARE ENGINEERSUSE C...

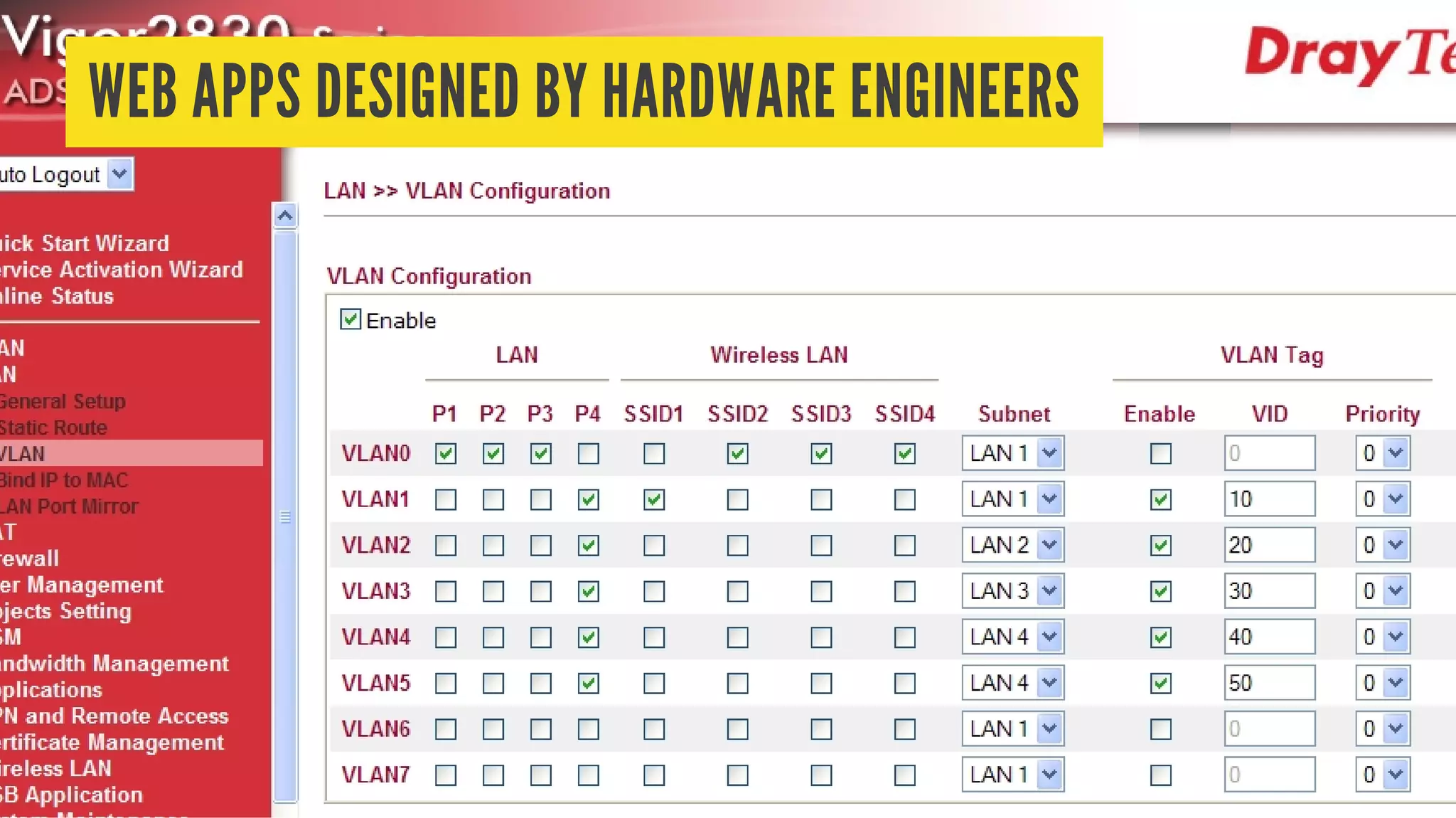

- 8. WEB APPS DESIGNEDBY HARDWARE ENGINEERS

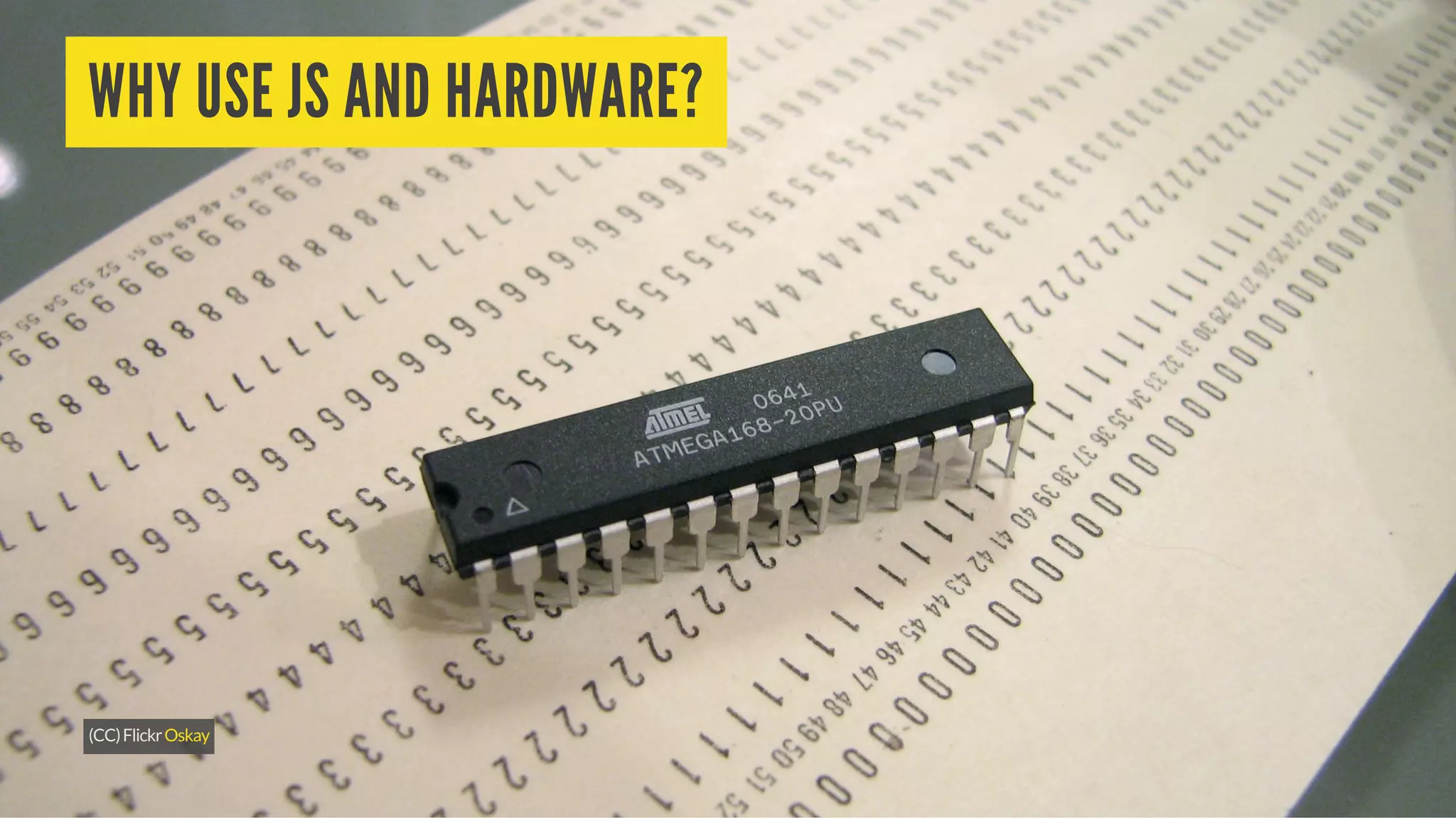

- 9. WHY USE JSAND HARDWARE? (CC)FlickrOskay
- 10.
- 11. THE REAL WORLDIS ALL EVENTS (CC)Flickrtxmx2

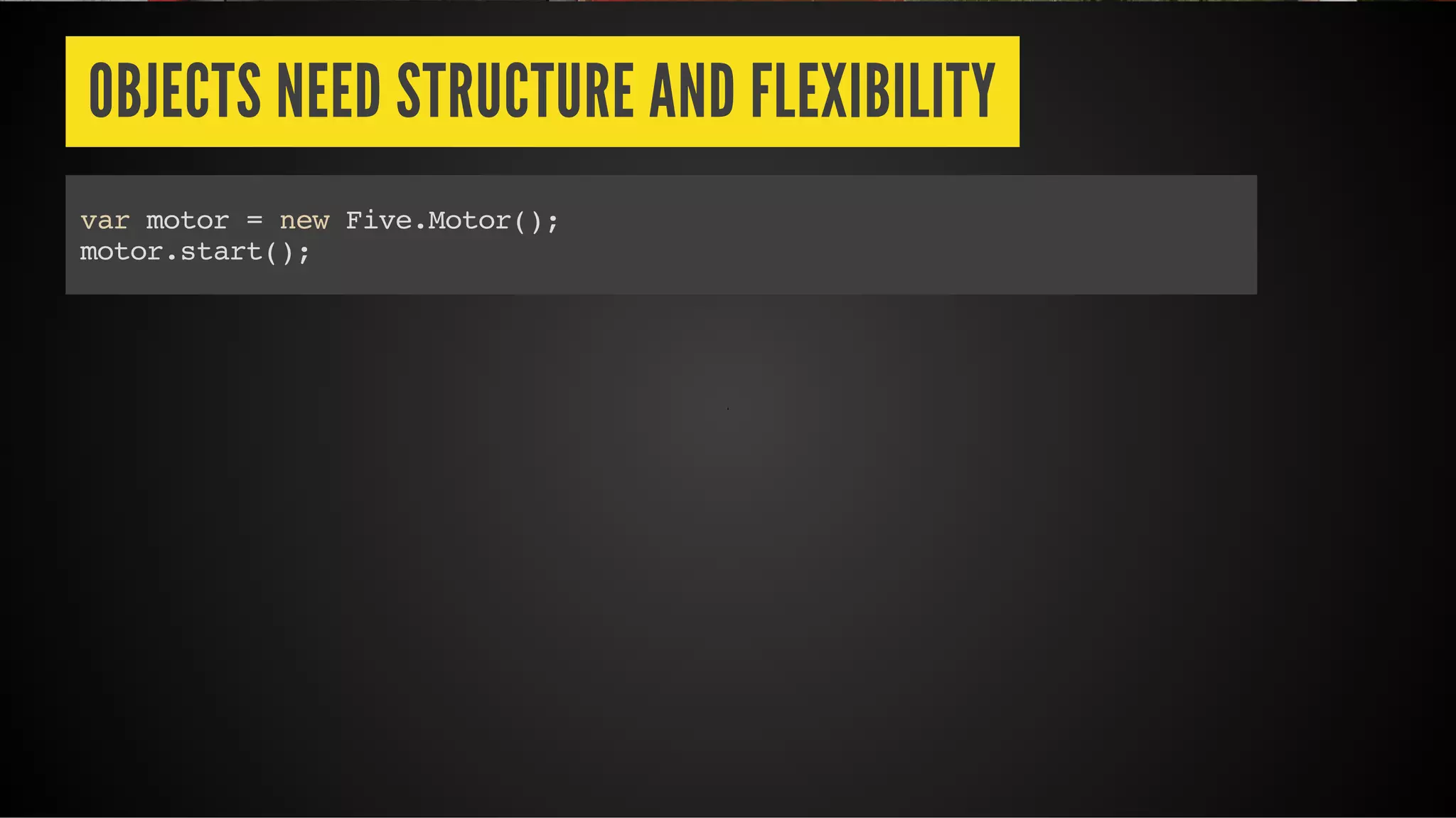

- 12. OBJECTS NEED STRUCTUREAND FLEXIBILITY var motor = new Five.Motor(); motor.start();

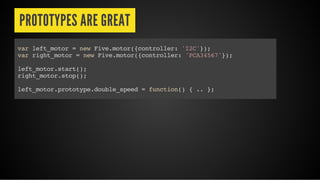

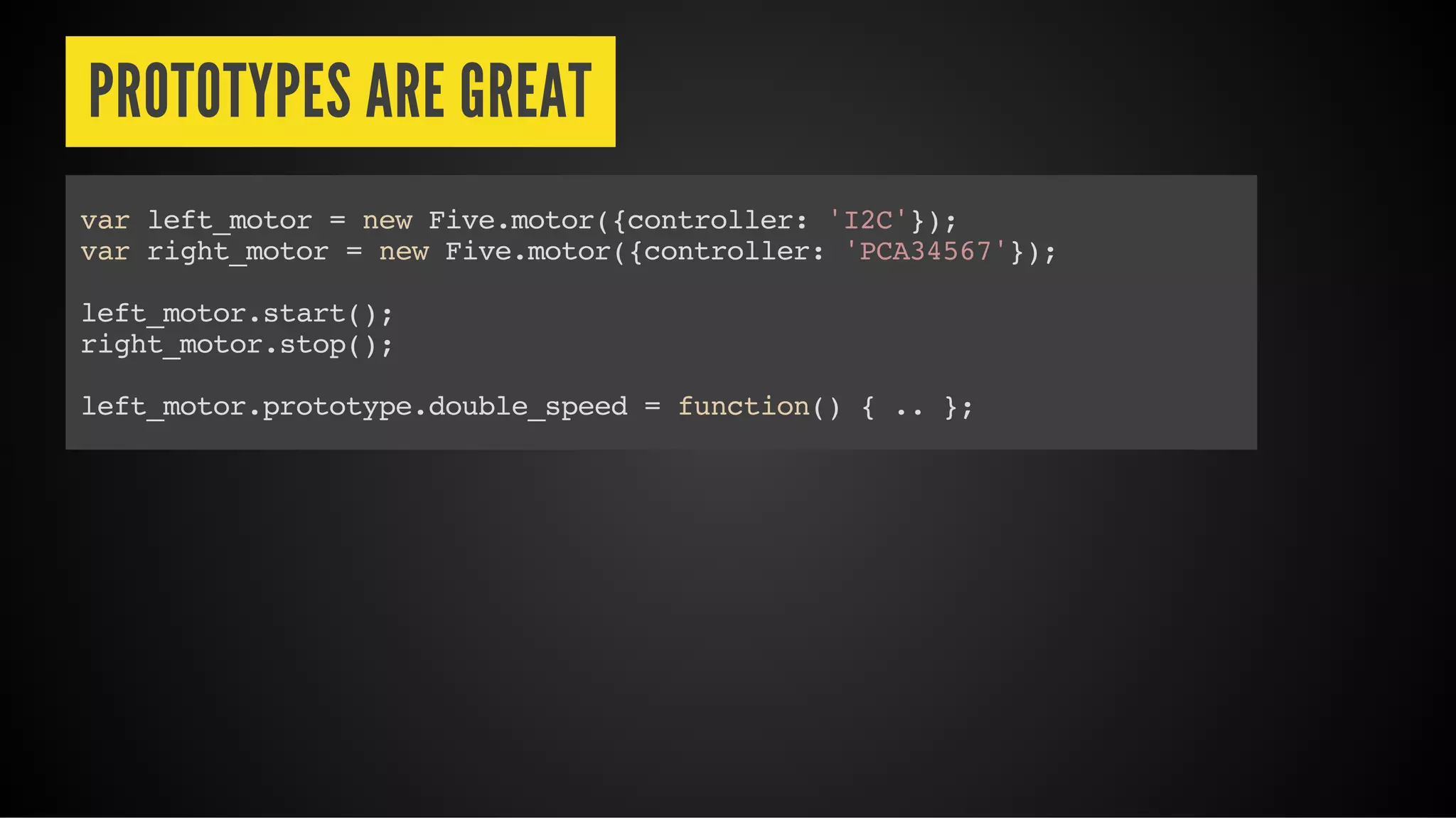

- 13. PROTOTYPES ARE GREAT varleft_motor = new Five.motor({controller: 'I2C'}); var right_motor = new Five.motor({controller: 'PCA34567'}); left_motor.start(); right_motor.stop(); left_motor.prototype.double_speed = function() { .. };
- 14.
- 15.
- 16.

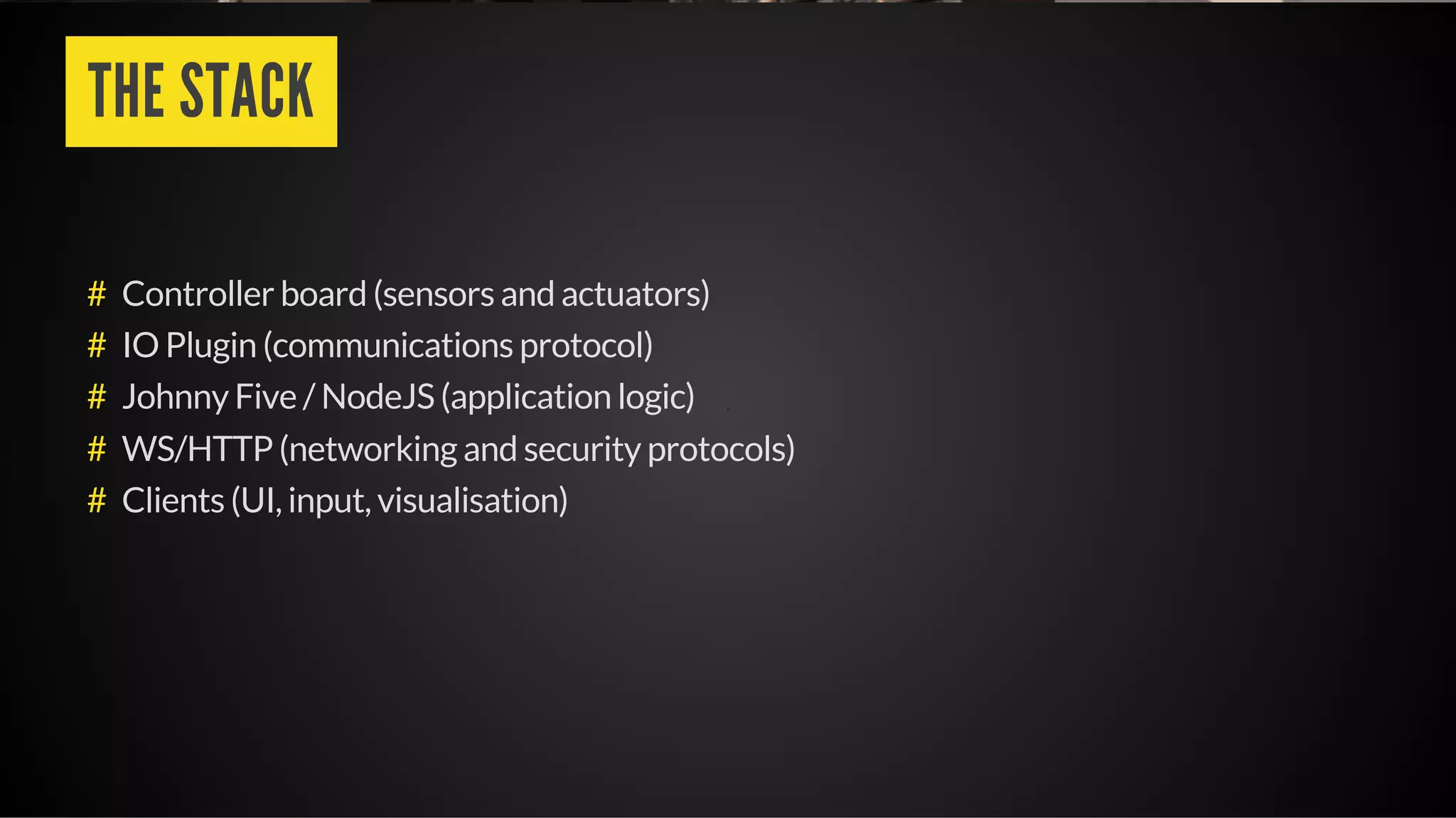

- 17. THE STACK Controller board(sensors and actuators) IO Plugin (communications protocol) Johnny Five / NodeJS (application logic) WS/HTTP (networking and security protocols) Clients (UI, input, visualisation) # # # # #

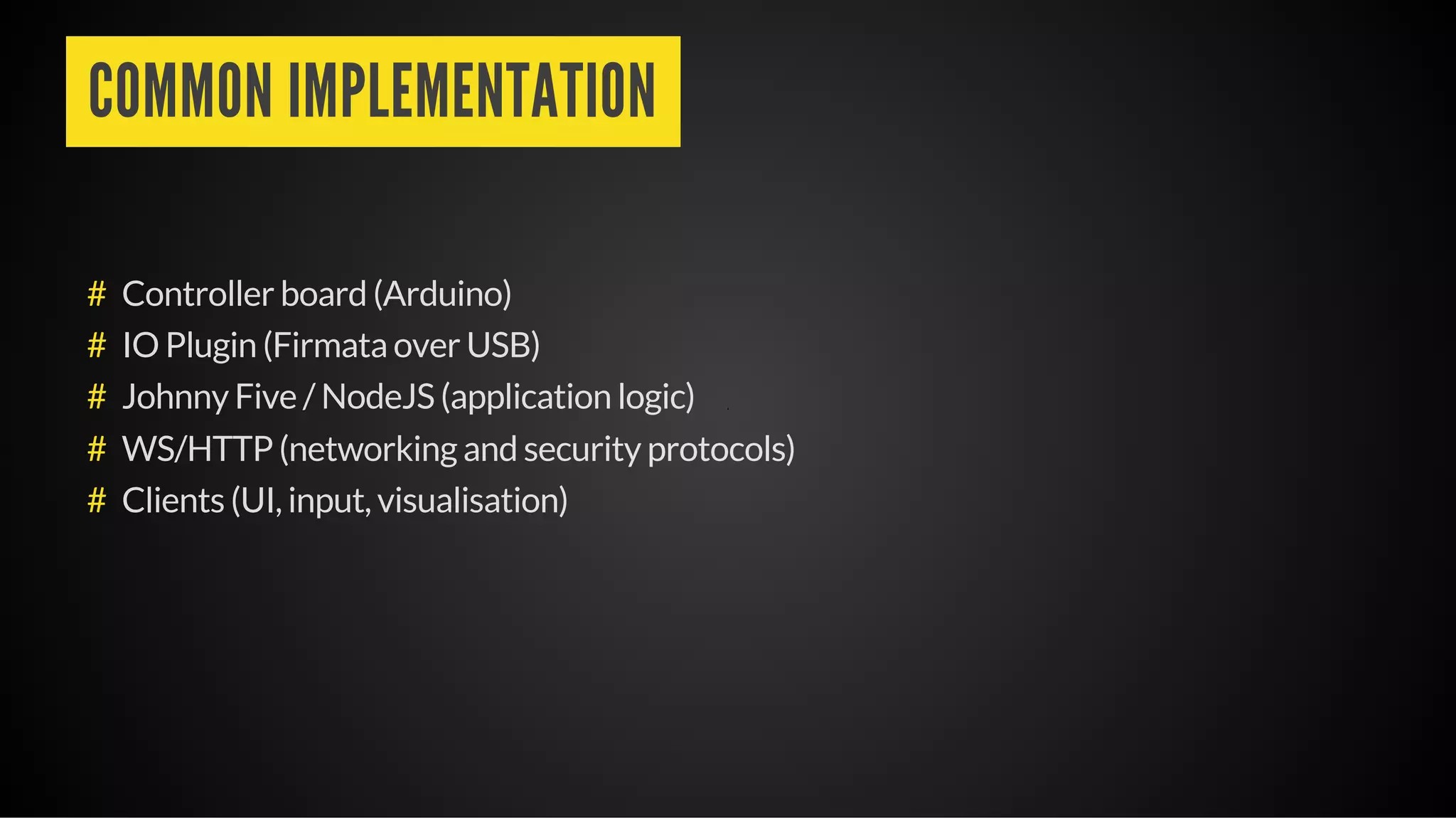

- 18. COMMON IMPLEMENTATION Controller board(Arduino) IO Plugin (Firmata over USB) Johnny Five / NodeJS (application logic) WS/HTTP (networking and security protocols) Clients (UI, input, visualisation) # # # # #

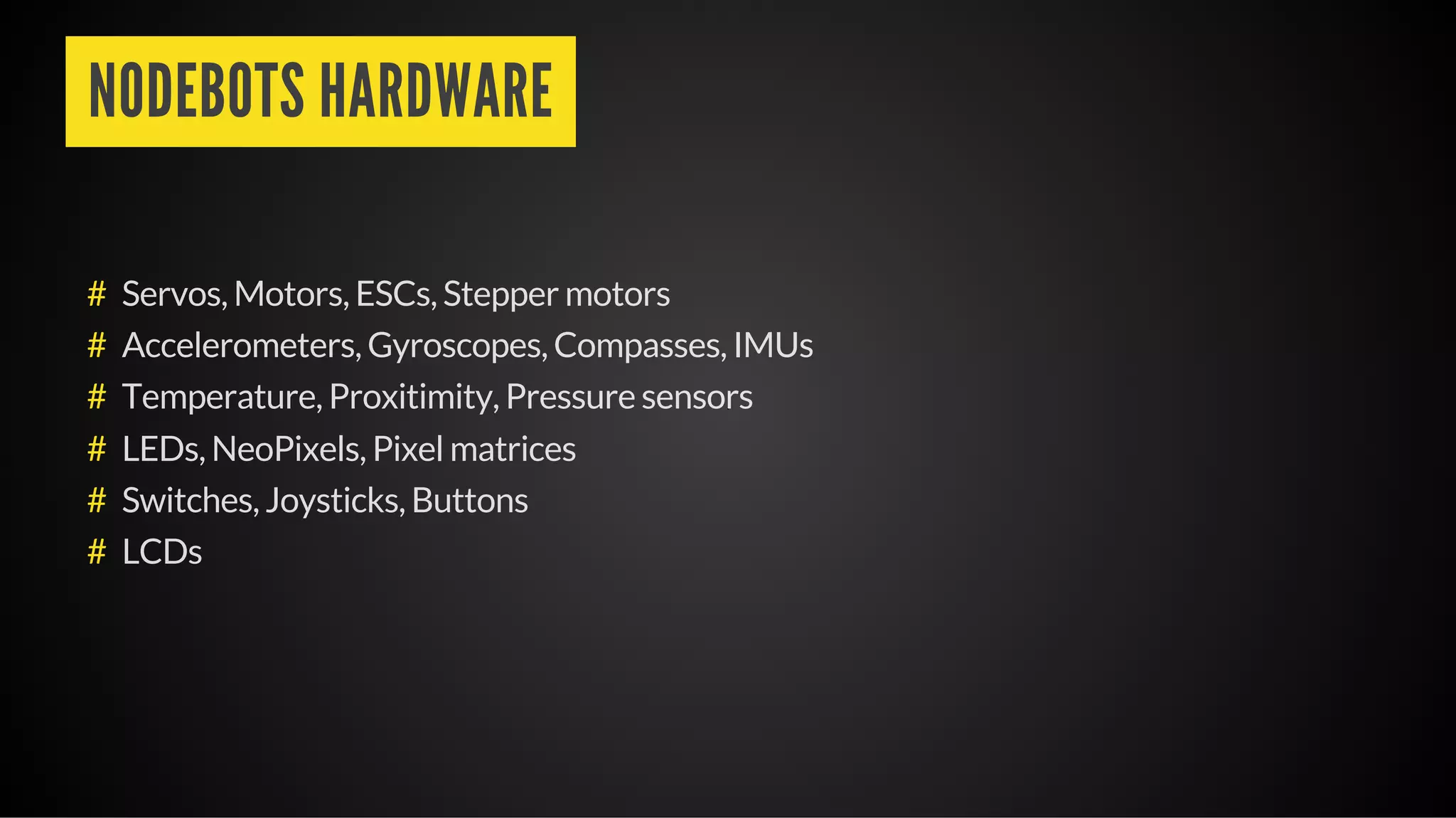

- 19. NODEBOTS HARDWARE Servos, Motors,ESCs, Stepper motors Accelerometers, Gyroscopes, Compasses, IMUs Temperature, Proxitimity, Pressure sensors LEDs, NeoPixels, Pixel matrices Switches, Joysticks, Buttons LCDs # # # # # #

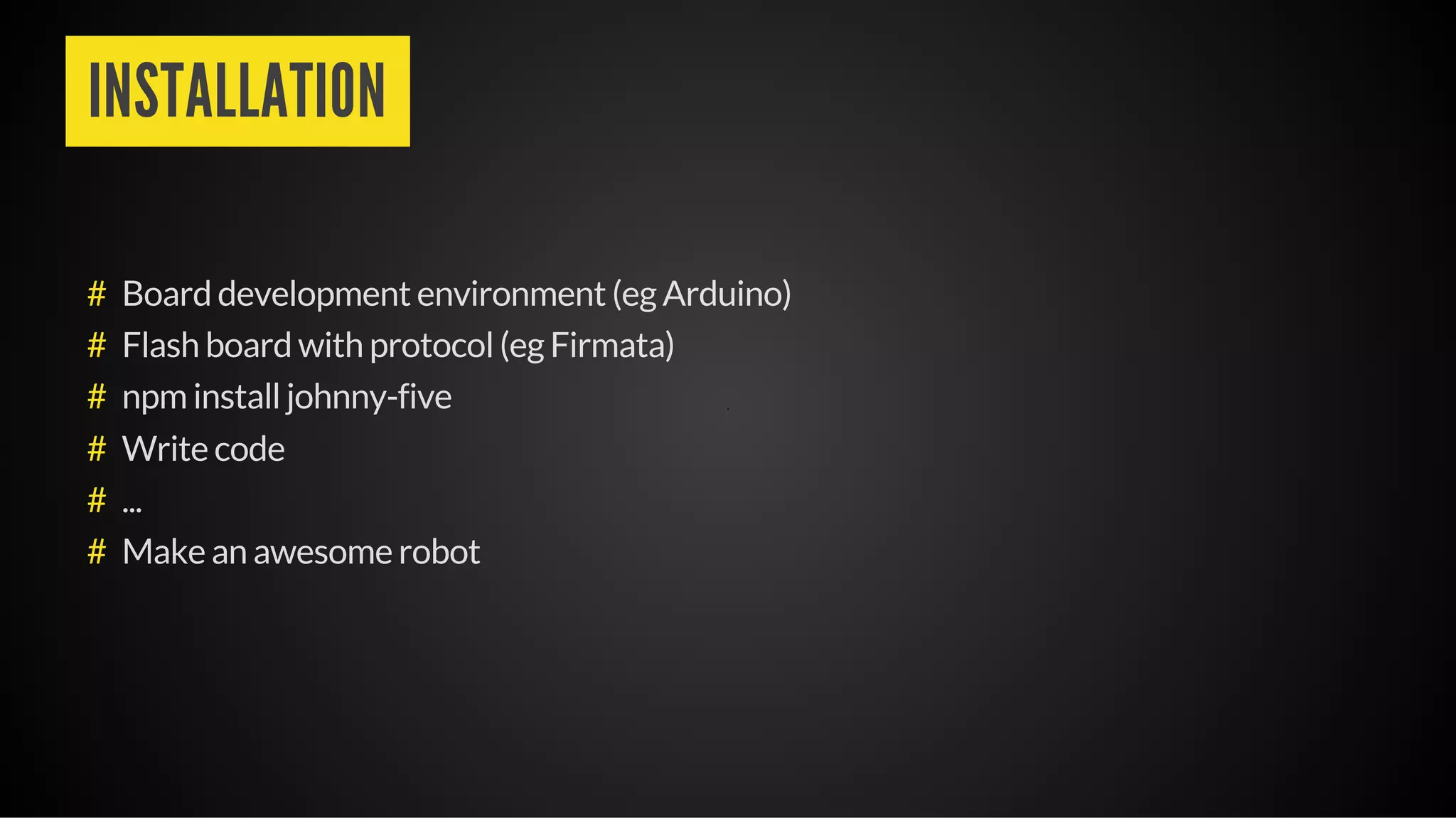

- 20. INSTALLATION Board development environment(eg Arduino) Flash board with protocol (eg Firmata) npm install johnny-five Write code ... Make an awesome robot # # # # # #

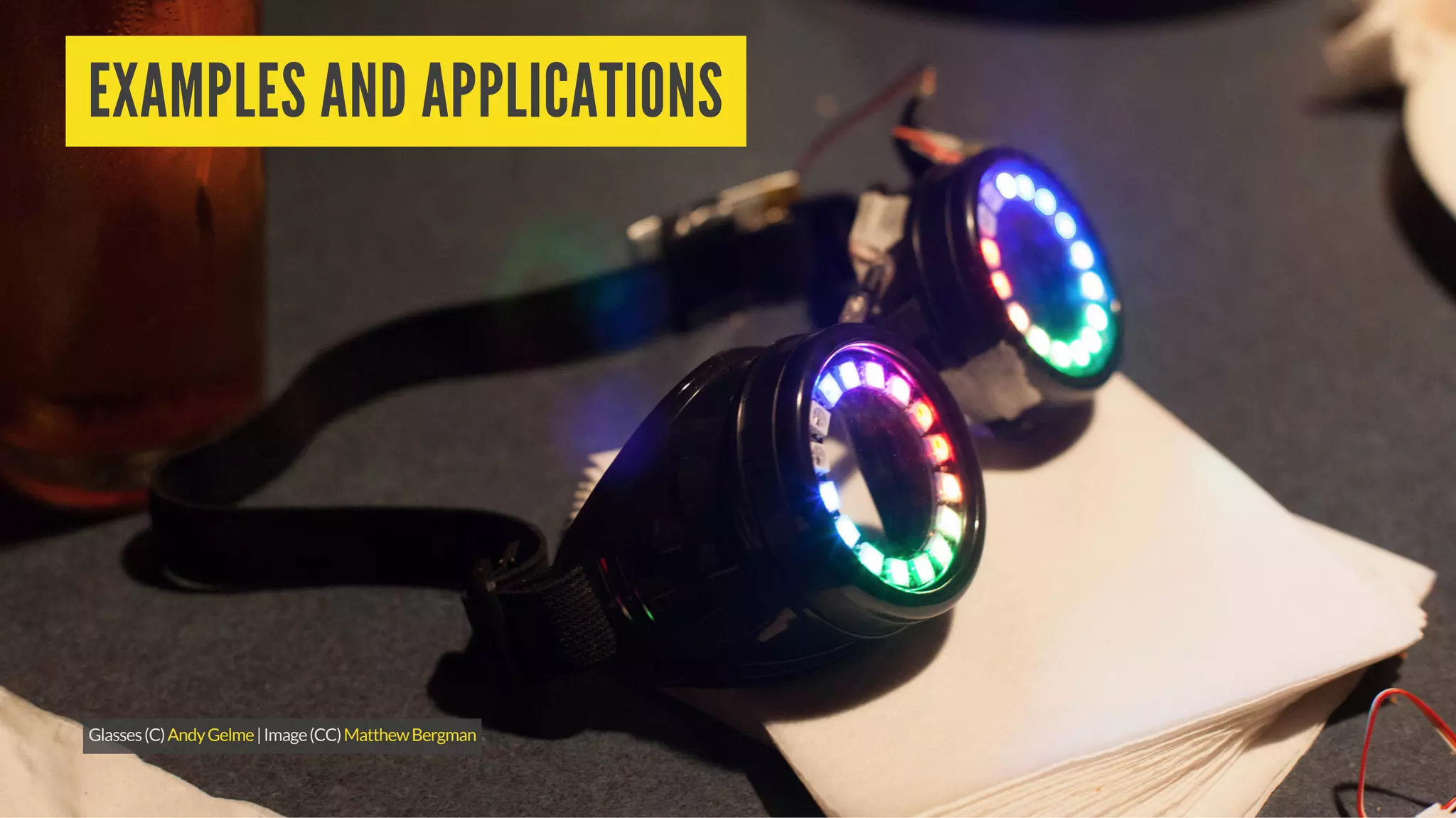

- 21. EXAMPLES AND APPLICATIONS Glasses(C)|Image(CC)AndyGelme MatthewBergman
- 22.
- 23. NODE SKIRT Skirt(C) |Image(CC)KassandraPerchMatthewBergman
- 24.
- 25.
- 26.

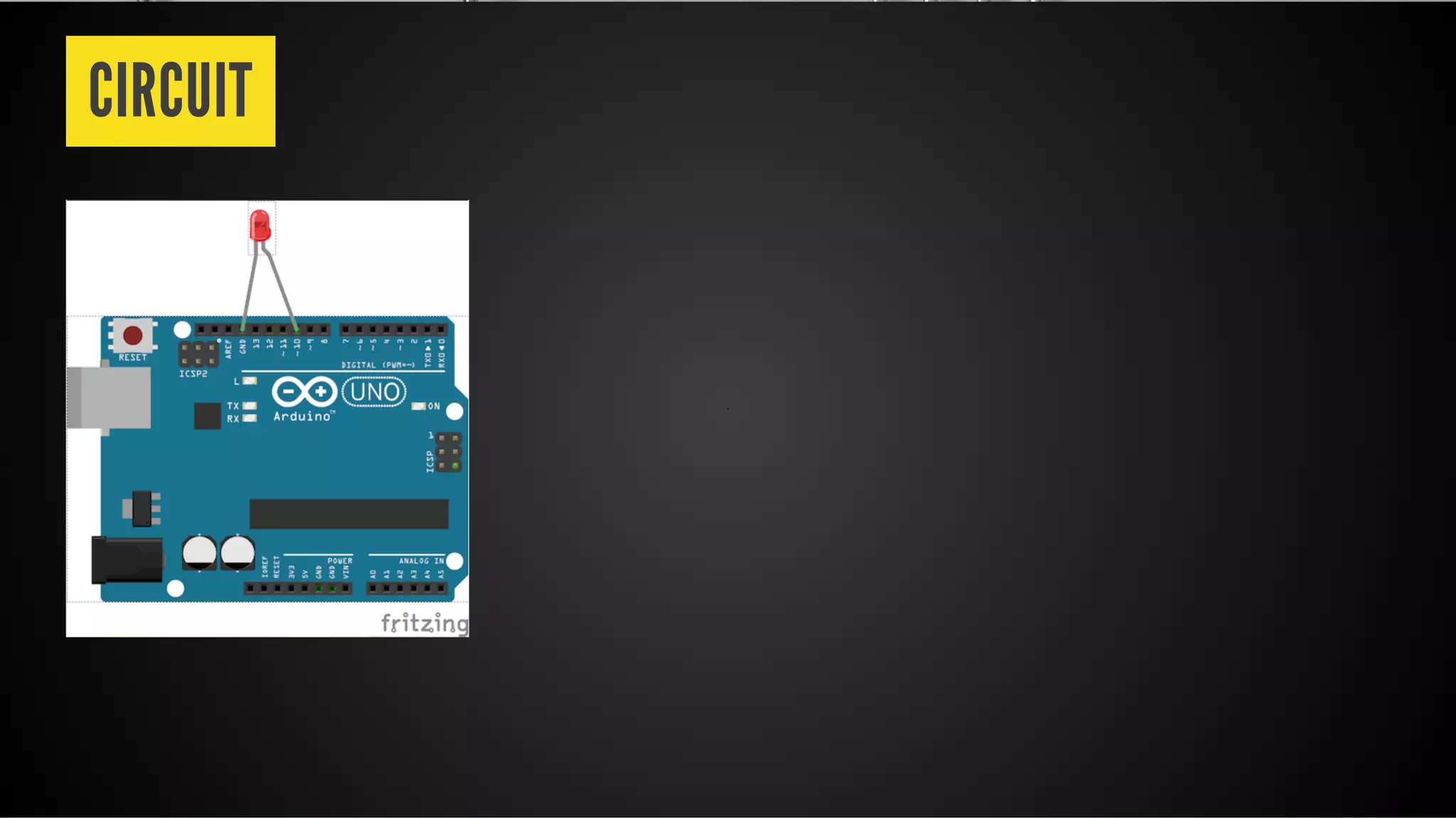

- 27.

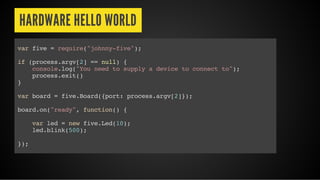

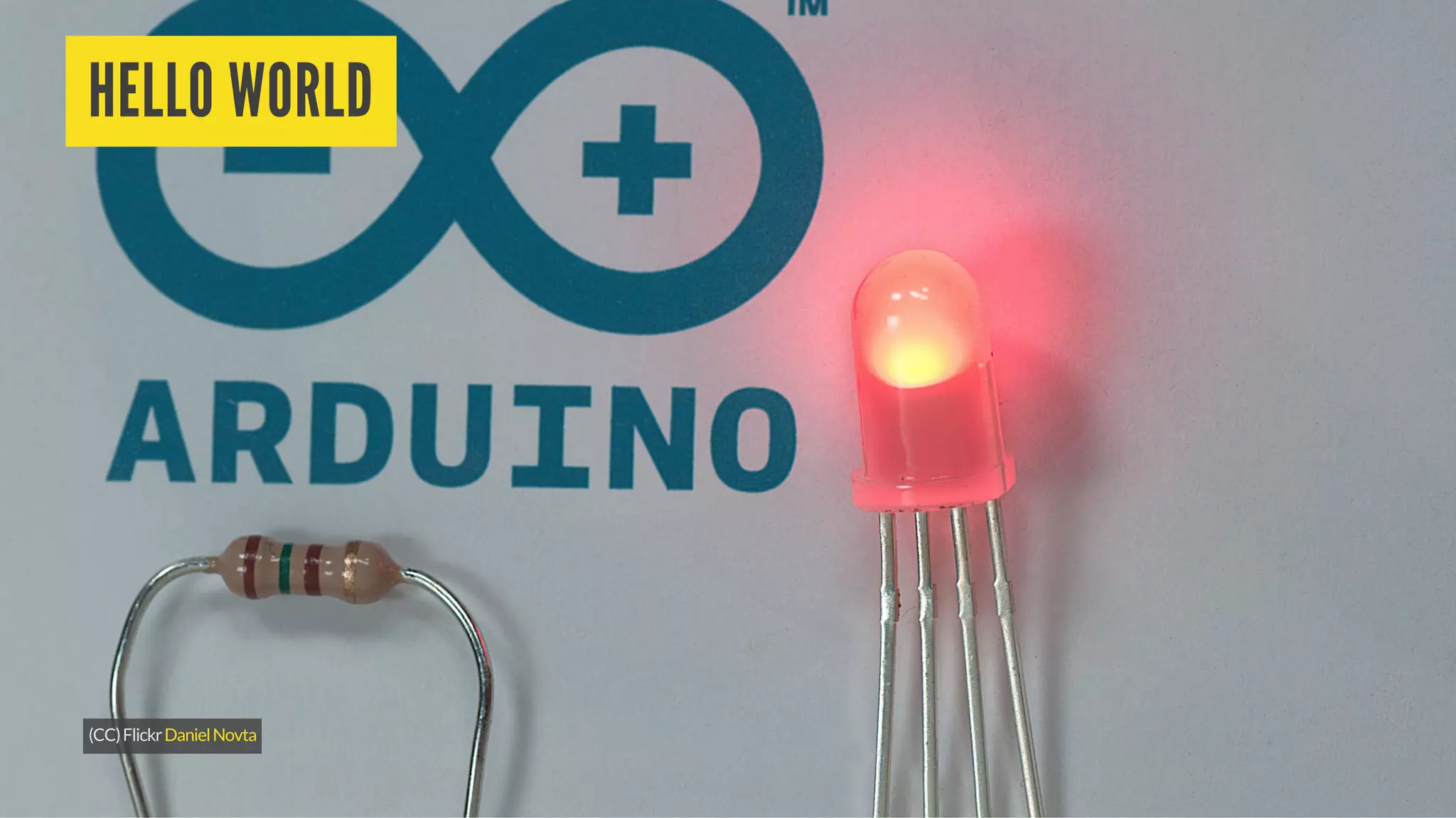

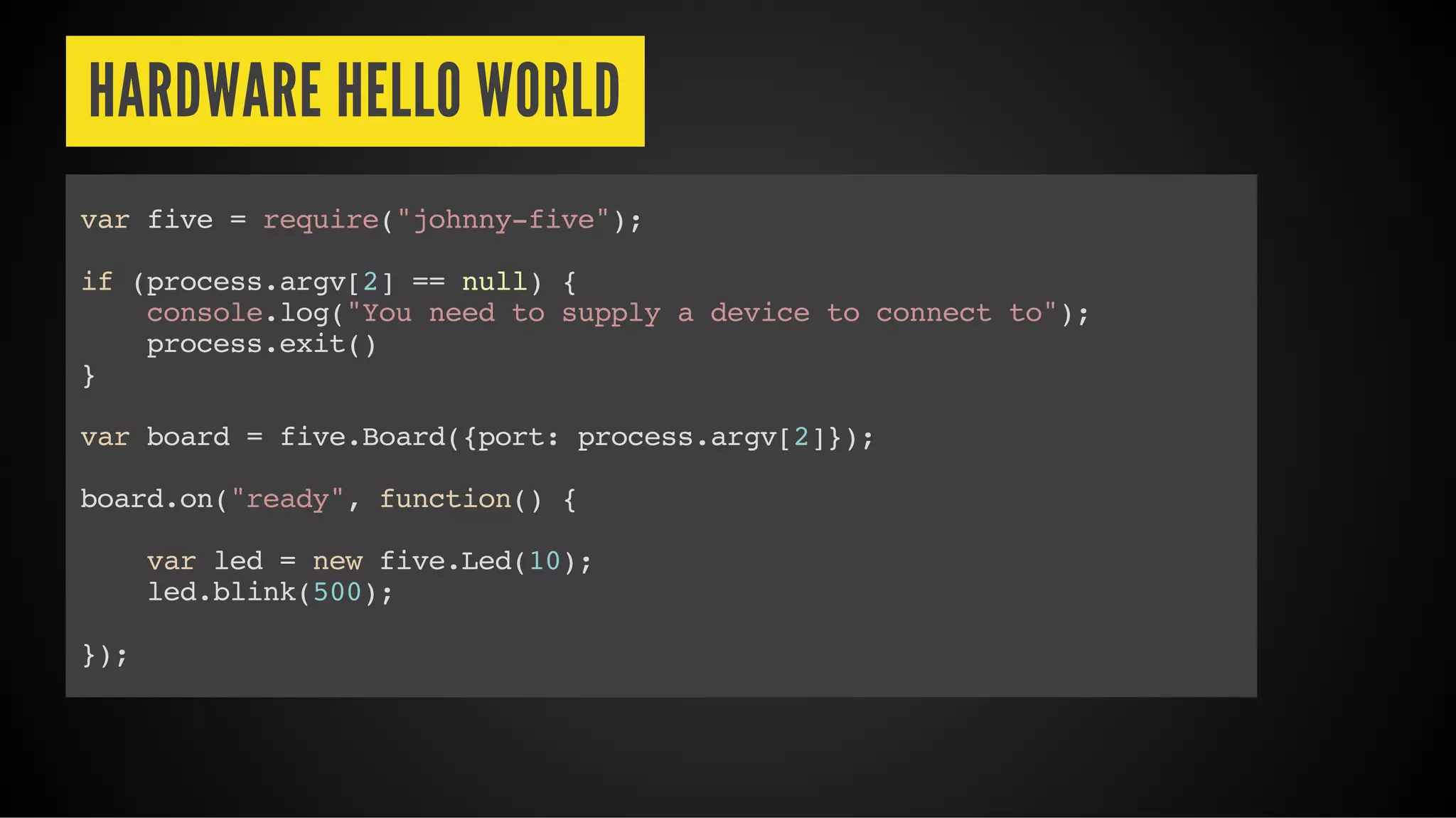

- 28. HARDWARE HELLO WORLD varfive = require("johnny-five"); if (process.argv[2] == null) { console.log("You need to supply a device to connect to"); process.exit() } var board = five.Board({port: process.argv[2]}); board.on("ready", function() { var led = new five.Led(10); led.blink(500); });

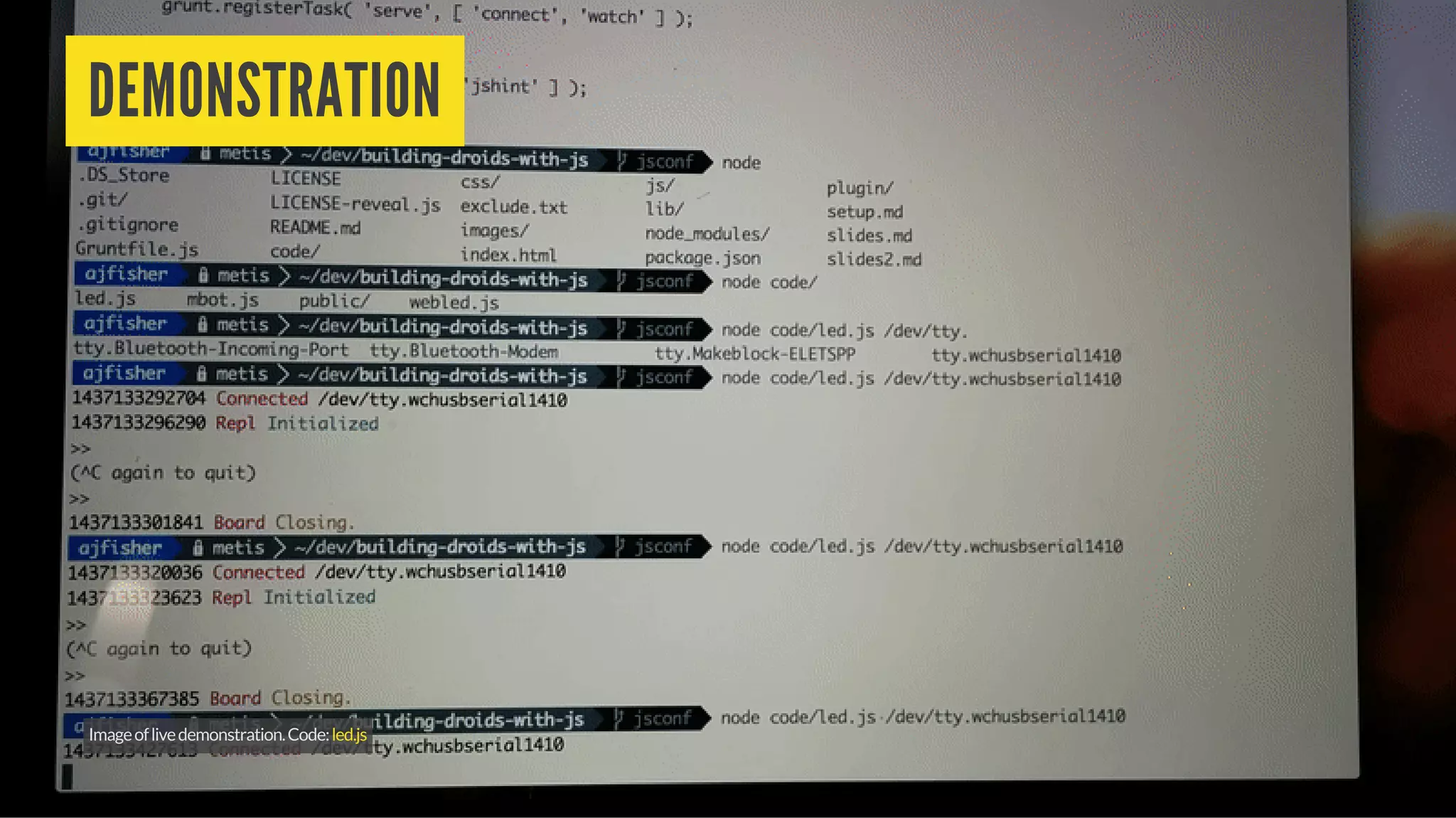

- 29.

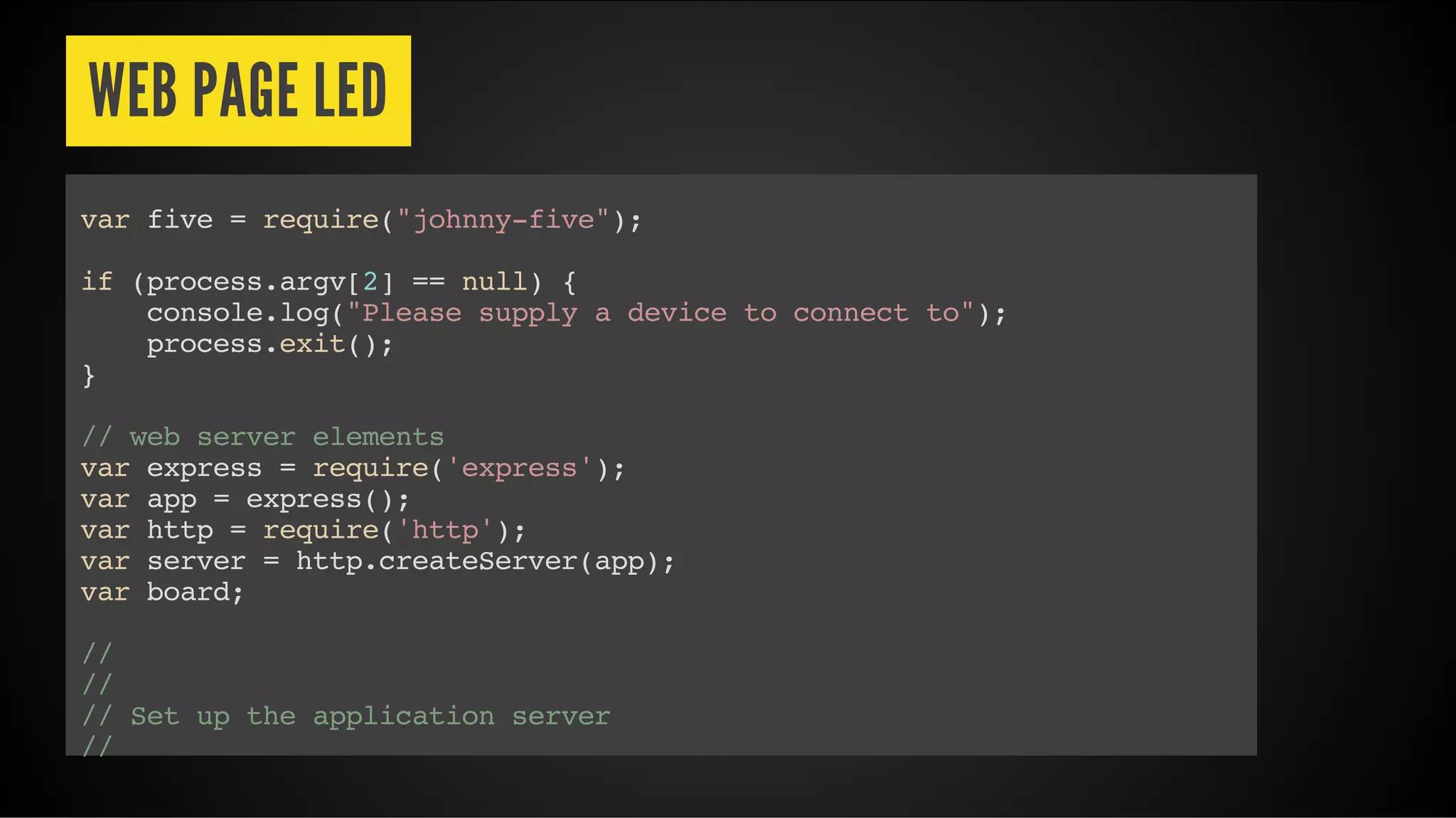

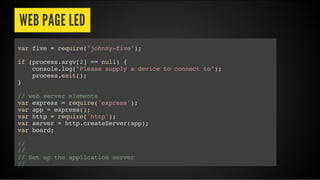

- 30. WEB PAGE LED varfive = require("johnny-five"); if (process.argv[2] == null) { console.log("Please supply a device to connect to"); process.exit(); } // web server elements var express = require('express'); var app = express(); var http = require('http'); var server = http.createServer(app); var board; // // // Set up the application server //
- 31.
- 32.

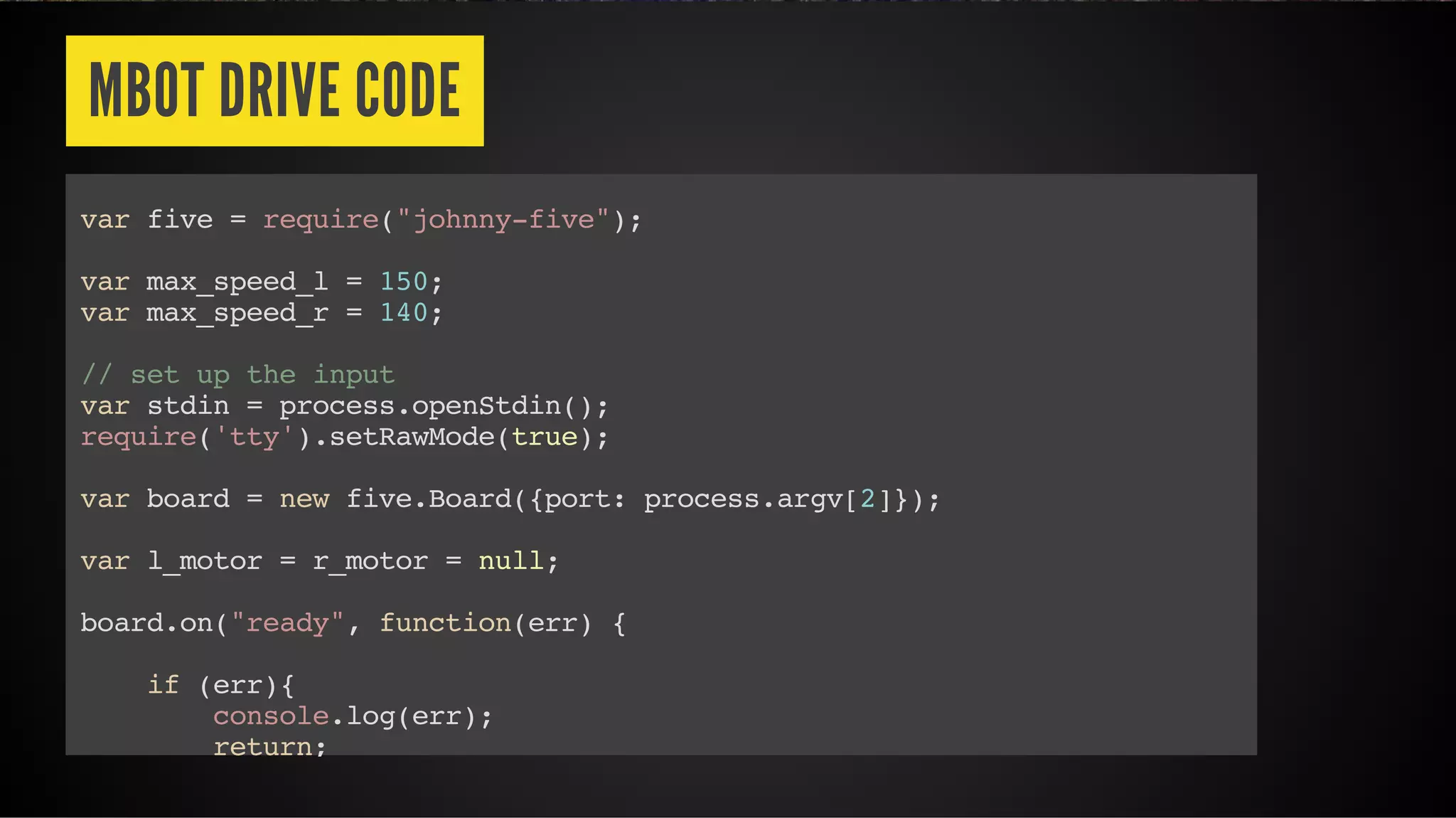

- 33. MBOT DRIVE CODE varfive = require("johnny-five"); var max_speed_l = 150; var max_speed_r = 140; // set up the input var stdin = process.openStdin(); require('tty').setRawMode(true); var board = new five.Board({port: process.argv[2]}); var l_motor = r_motor = null; board.on("ready", function(err) { if (err){ console.log(err); return; }
- 34.
- 35.

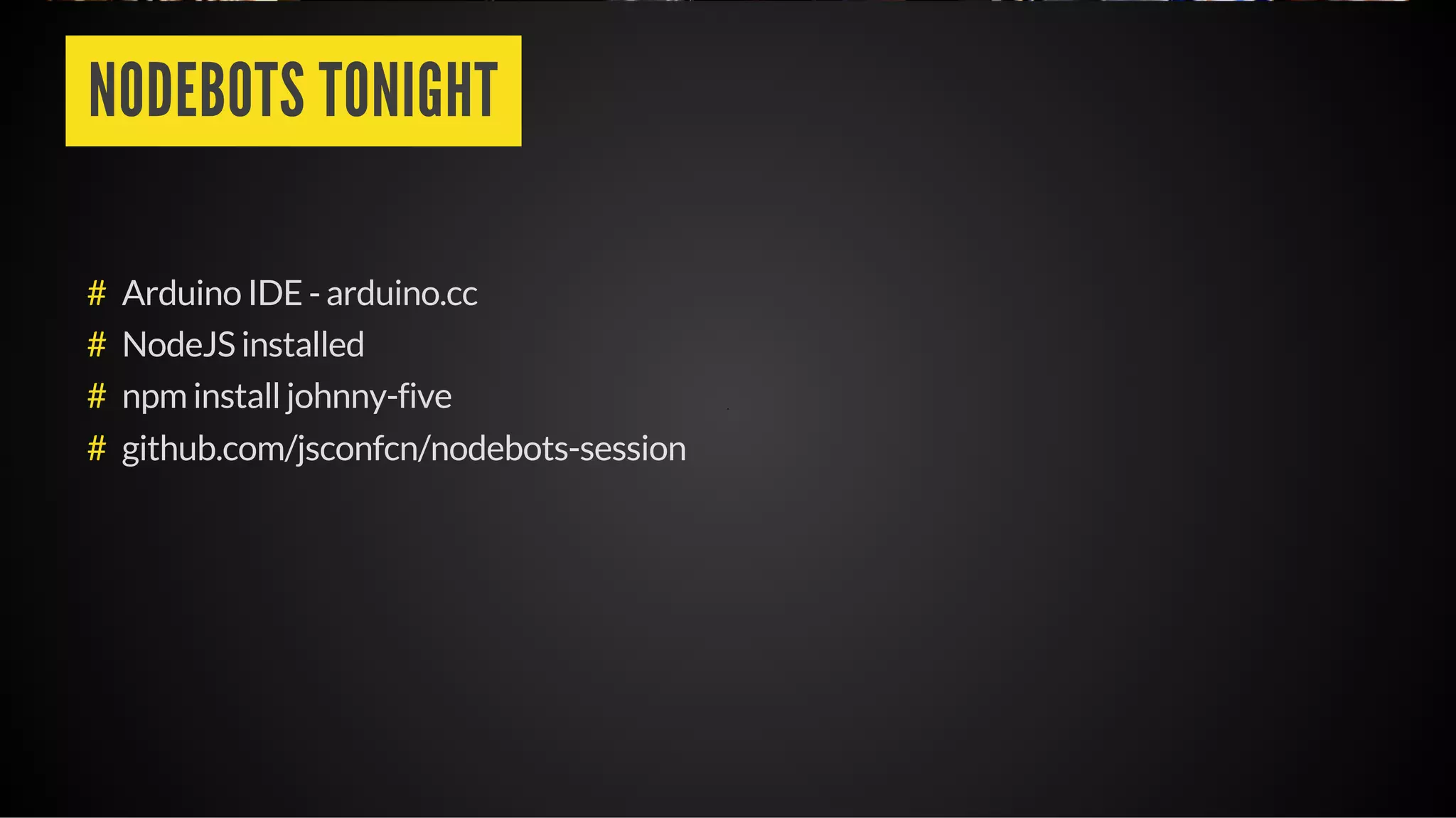

- 36. NODEBOTS TONIGHT Arduino IDE- arduino.cc NodeJS installed npm install johnny-five github.com/jsconfcn/nodebots-session # # # #
- 37. INTERNATIONAL NODEBOTS DAY July25, 2015 nodebotsday.com

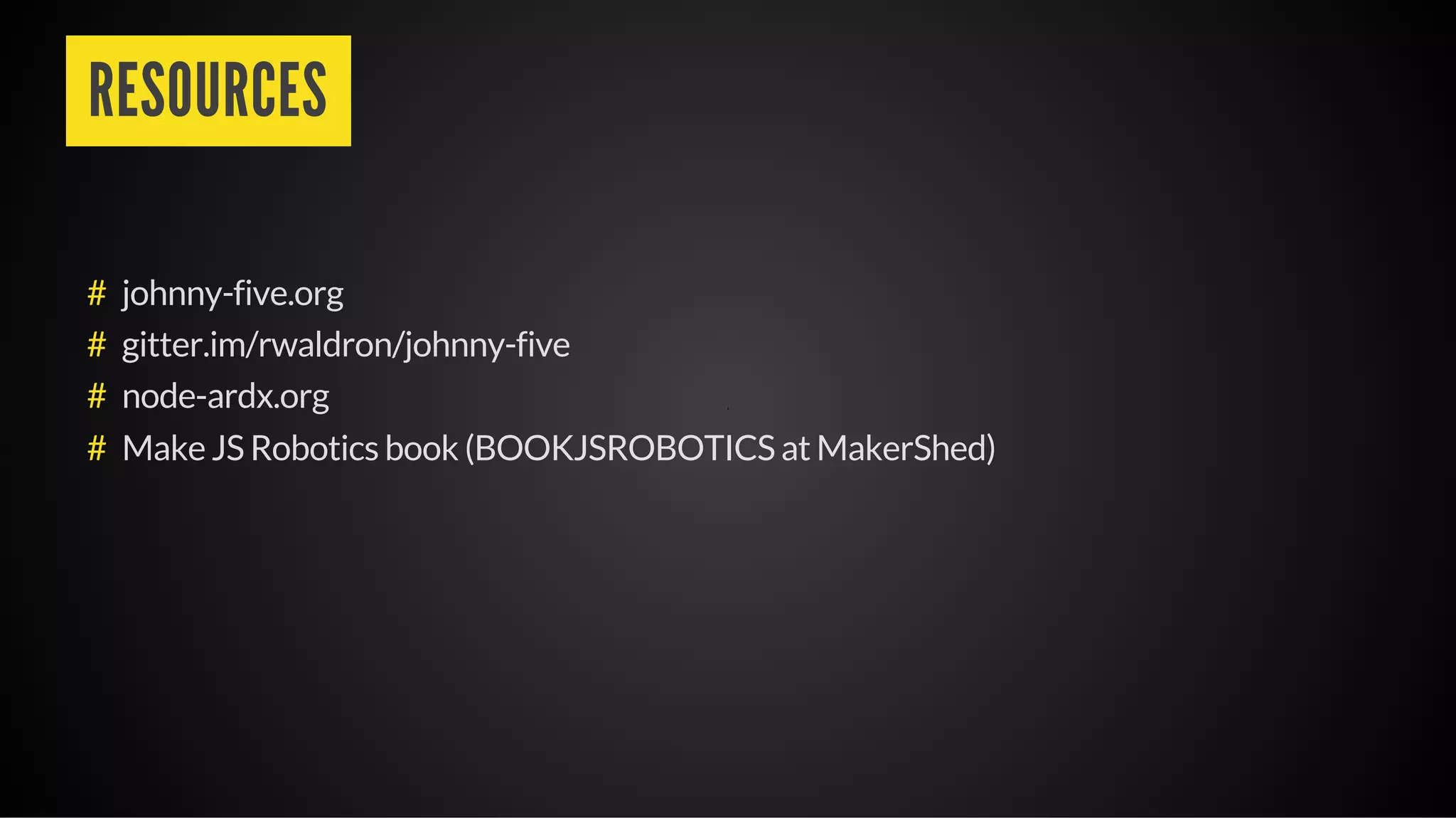

- 38. RESOURCES johnny-five.org gitter.im/rwaldron/johnny-five node-ardx.org Make JS Roboticsbook (BOOKJSROBOTICS at MakerShed) # # # #
- 39. DROIDS, JAVASCRIPT ANDWEB CONNECTED HARDWARE JSConf China, July 11, 2015 Andrew Fisher @ajfisher
