  MIT ADT UNIVERSITY- PUNE PRESENTED BY: ASHUTOSH SRIVASTAVA B.TECH 2nd Year ,3rd SEMESTER (ADT24SOCB0244) Binary tree
• 2.

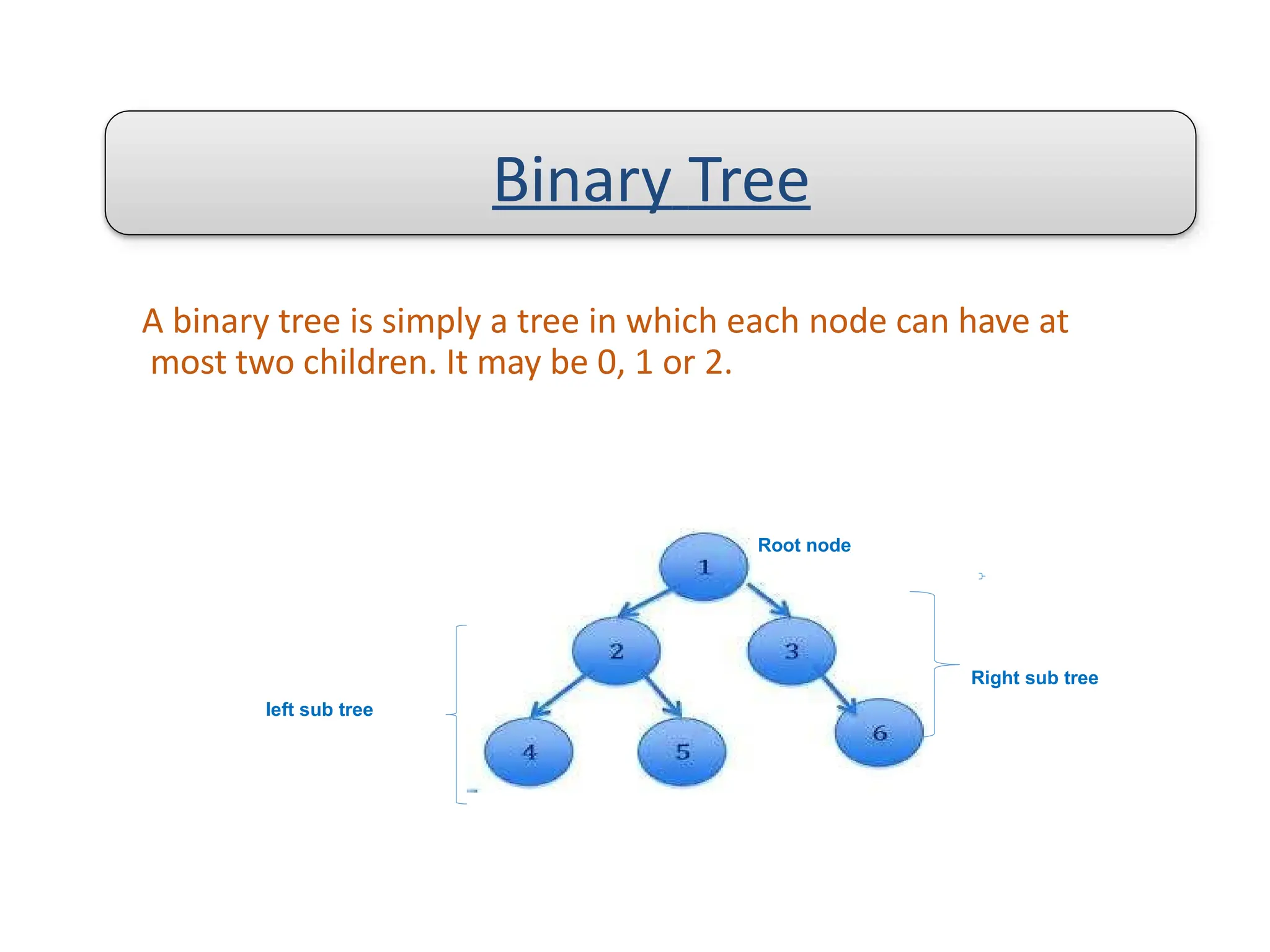

  Binary tree A binarytree is simply a tree in which each node can have at most two children. It may be 0, 1 or 2. Root node left sub tree Right sub tree Binary Tree
• 3.

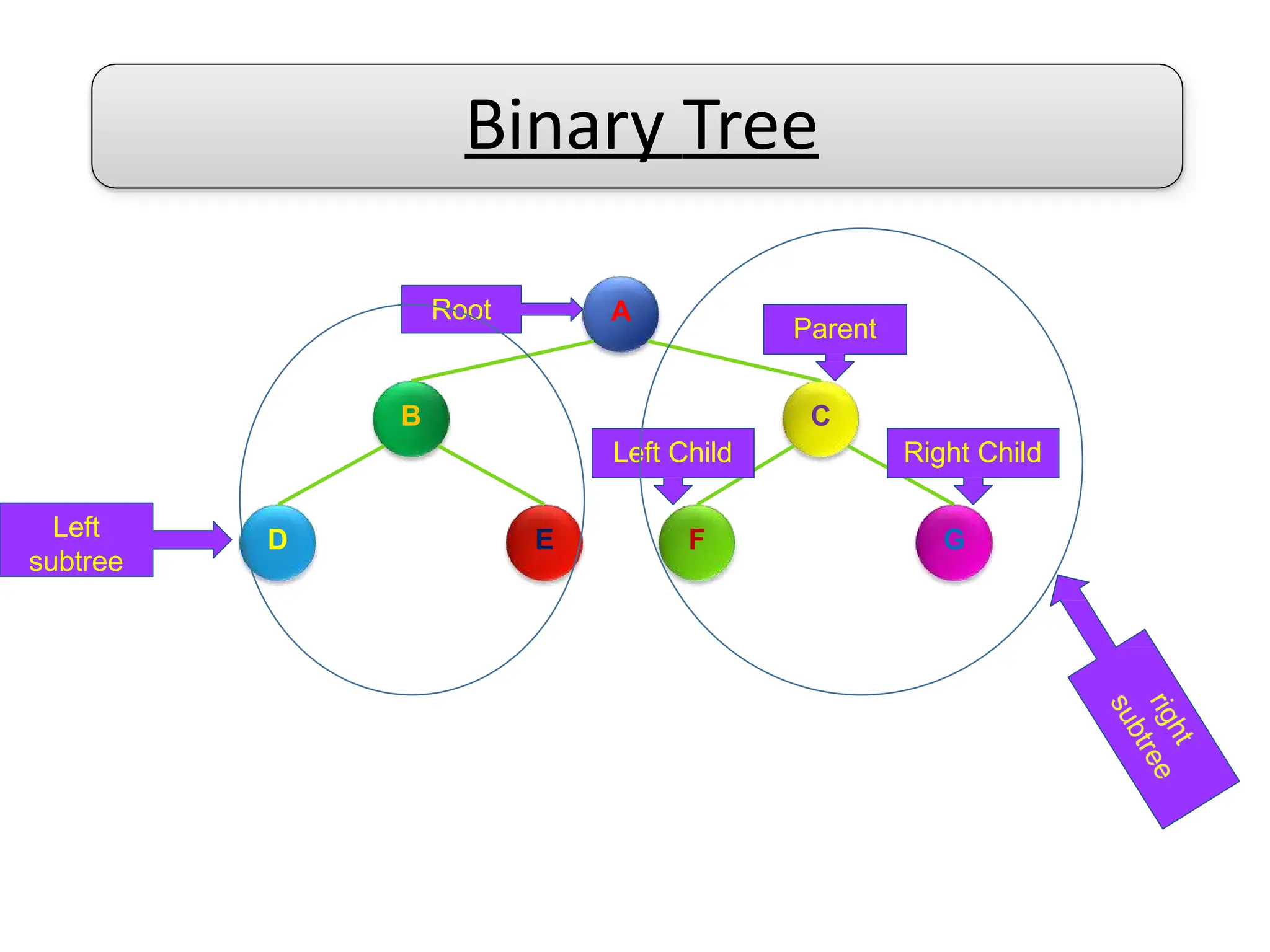

  Binary Tree A B G C D EF Left Child Right Child Root Parent Left subtree
• 4.

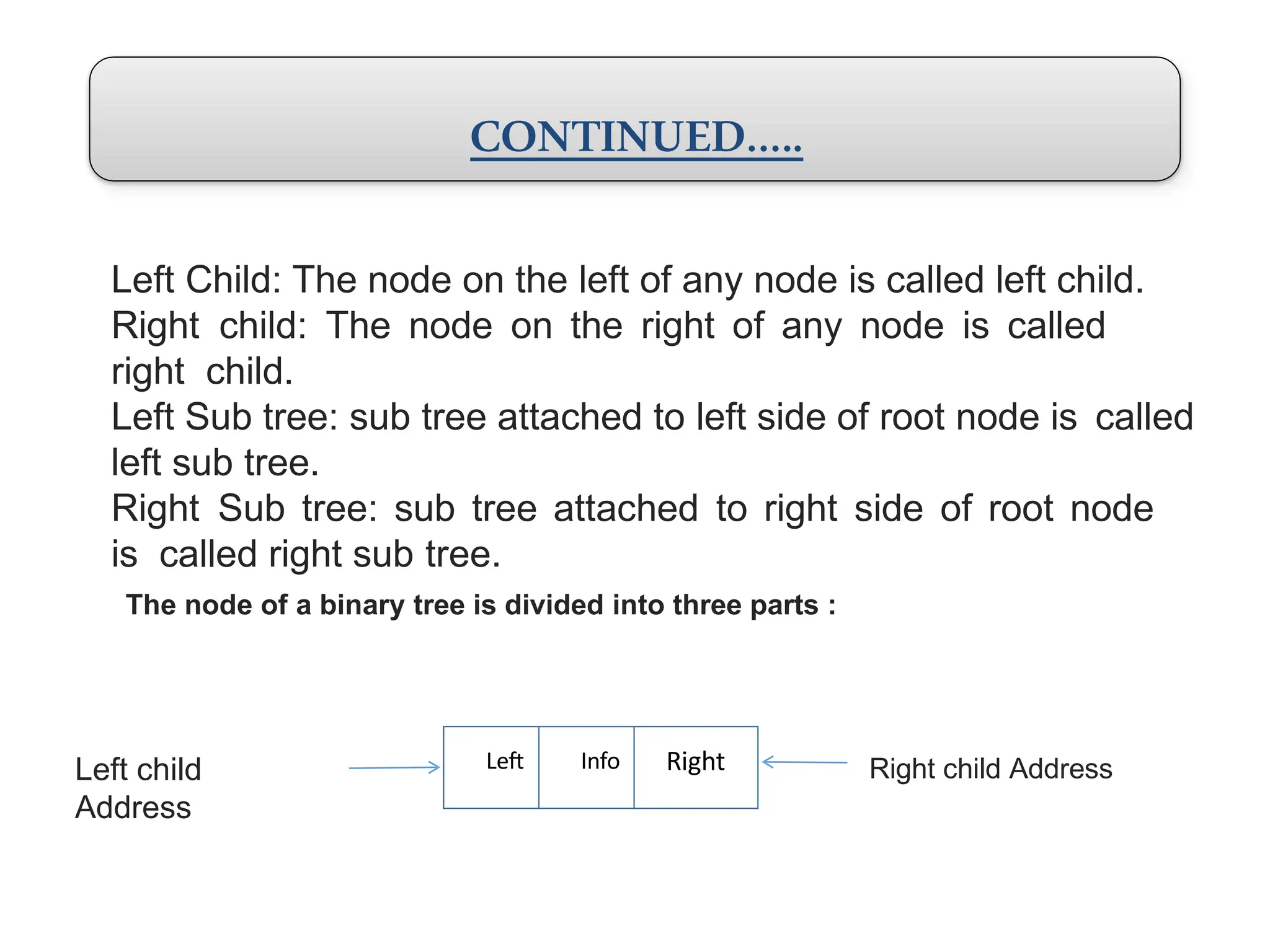

  CONTINUED….. Left Child: Thenode on the left of any node is called left child. Right child: The node on the right of any node is called right child. Left Sub tree: sub tree attached to left side of root node is called left sub tree. Right Sub tree: sub tree attached to right side of root node is called right sub tree. The node of a binary tree is divided into three parts : Left child Address Left Info Right Right child Address
• 5.

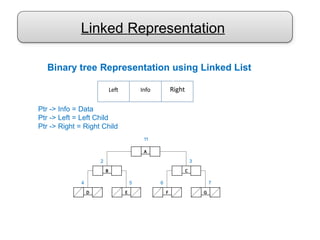

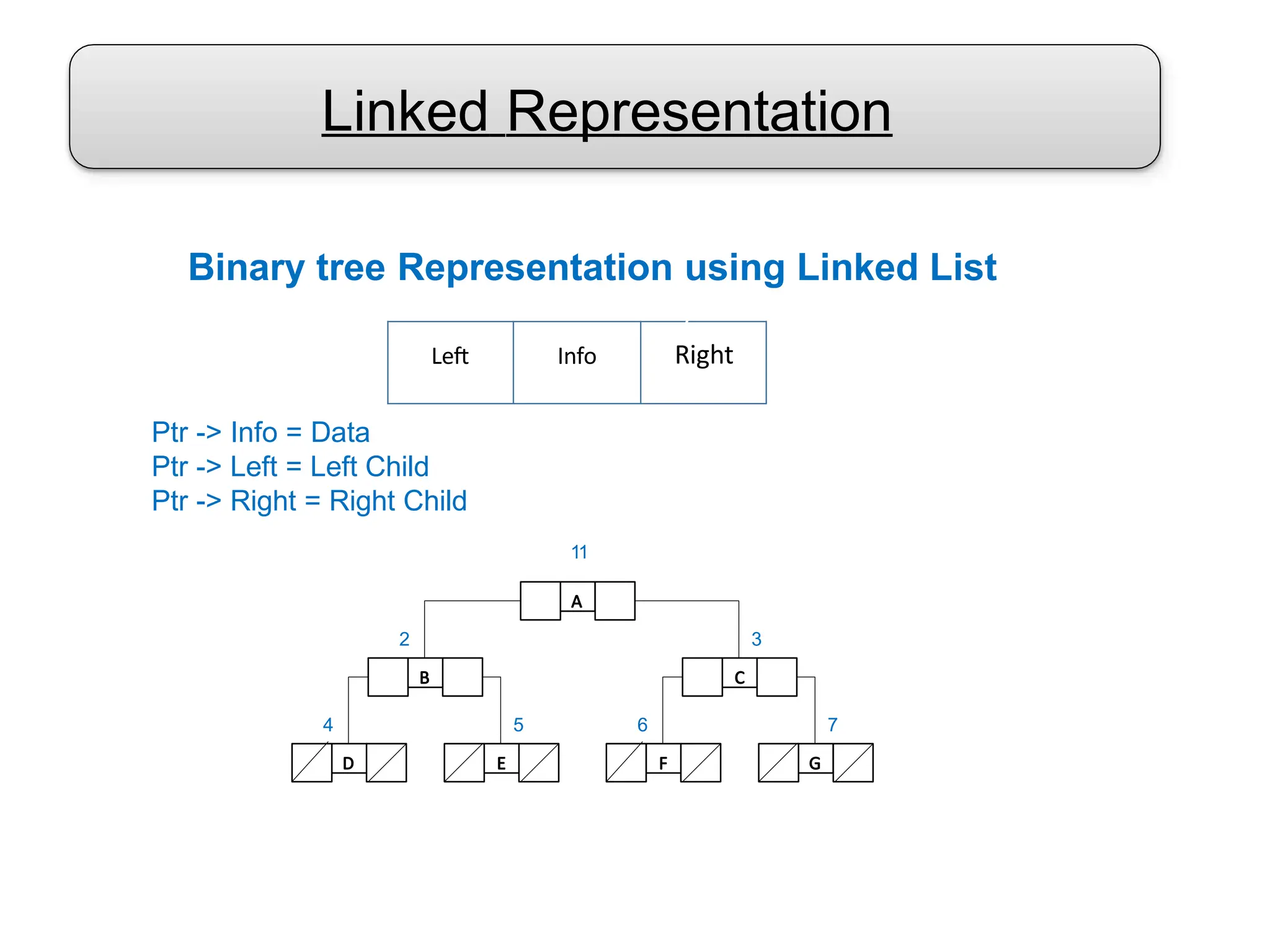

  Linked Representation Ptr ->Info = Data Ptr -> Left = Left Child Ptr -> Right = Right Child A B C 11 3 2 D E 5 4 F G 7 6 Left Info Right Binary tree Representation using Linked List y
• 6.

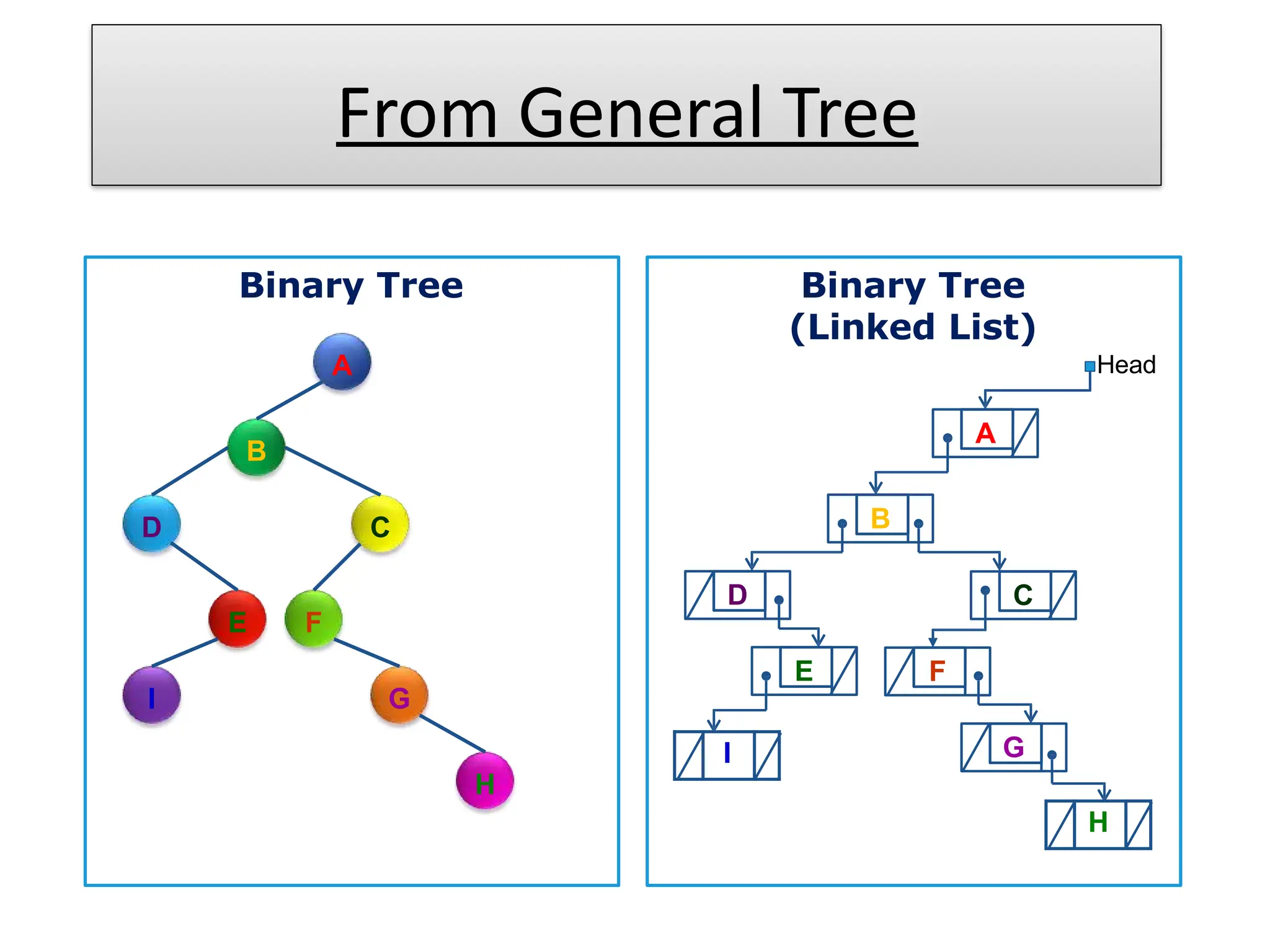

  From General Tree BinaryTree (Linked List) A B D E F C I G H Head Binary Tree A B H C D E F G I
• 7.

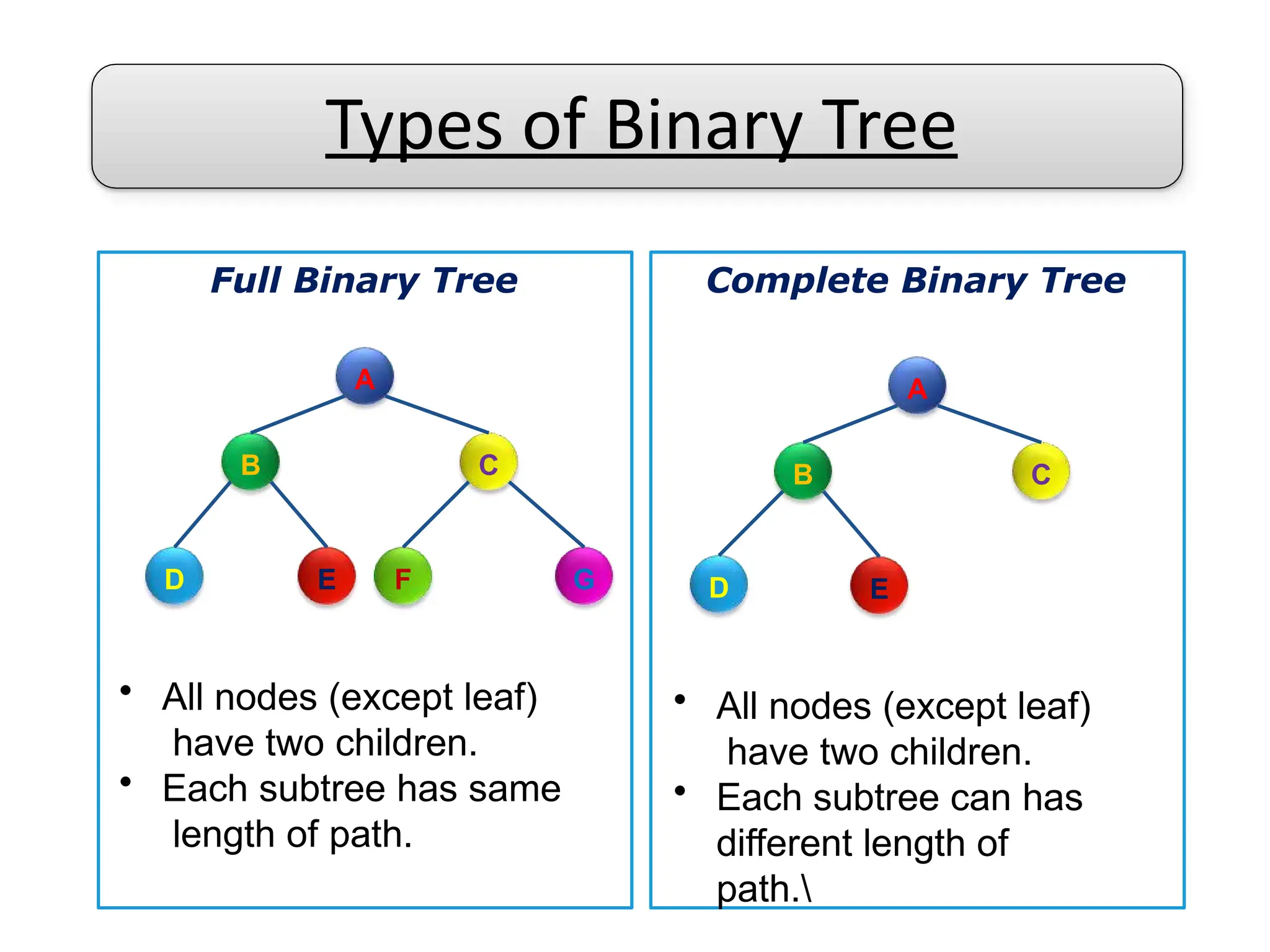

  Types of BinaryTree Full Binary Tree Complete Binary Tree A B G C D E F A B C D E • All nodes (except leaf) have two children. • Each subtree has same length of path. • All nodes (except leaf) have two children. • Each subtree can has different length of path.
• 8.

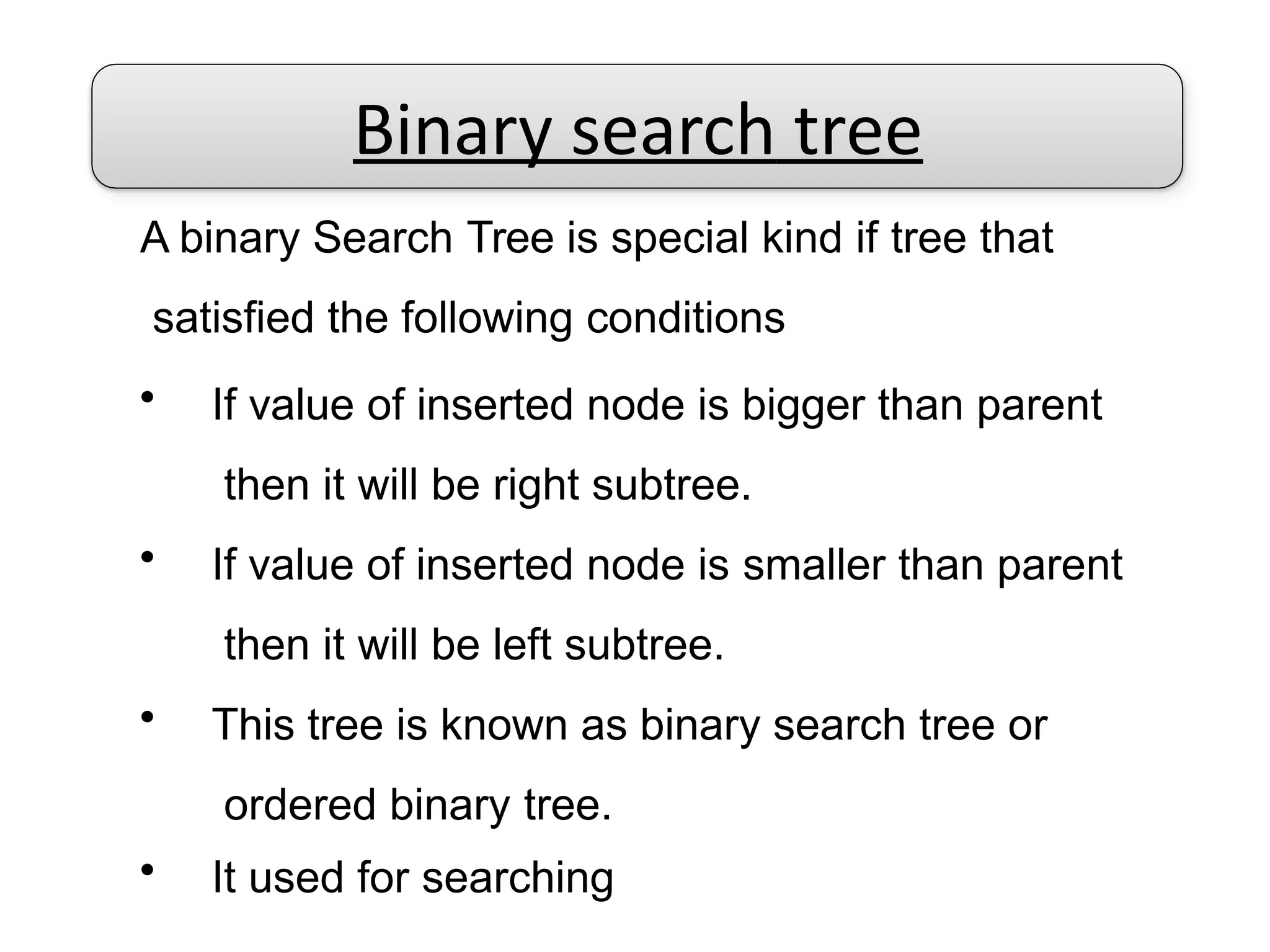

  Binary search tree Abinary Search Tree is special kind if tree that satisfied the following conditions • If value of inserted node is bigger than parent then it will be right subtree. • If value of inserted node is smaller than parent then it will be left subtree. • This tree is known as binary search tree or ordered binary tree. • It used for searching
• 9.

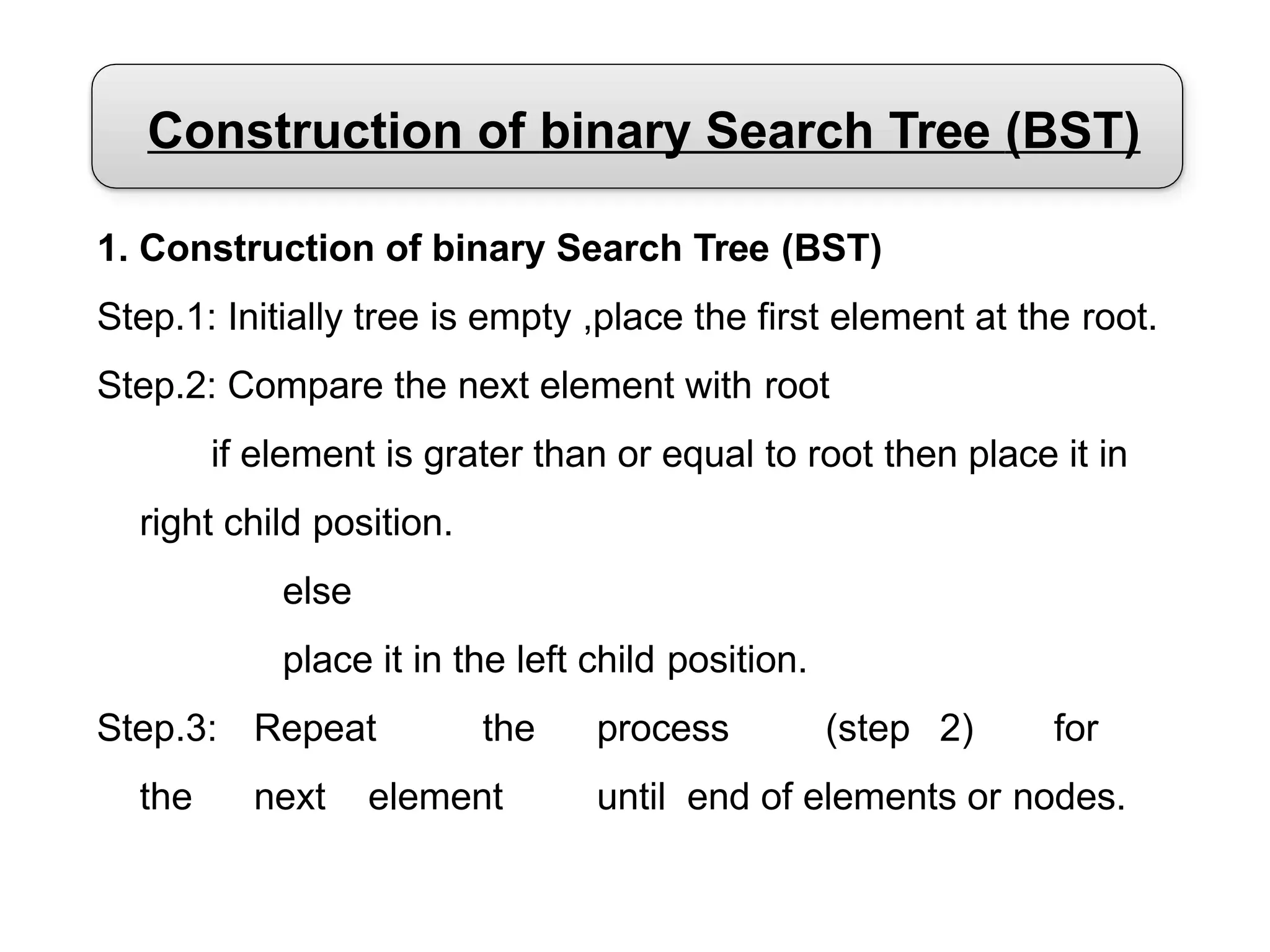

  Construction of binarySearch Tree (BST) 1. Construction of binary Search Tree (BST) Step.1: Initially tree is empty ,place the first element at the root. Step.2: Compare the next element with root if element is grater than or equal to root then place it in right child position. else place it in the left child position. Step.3: Repeat the process (step 2) for the next element until end of elements or nodes.
• 10.

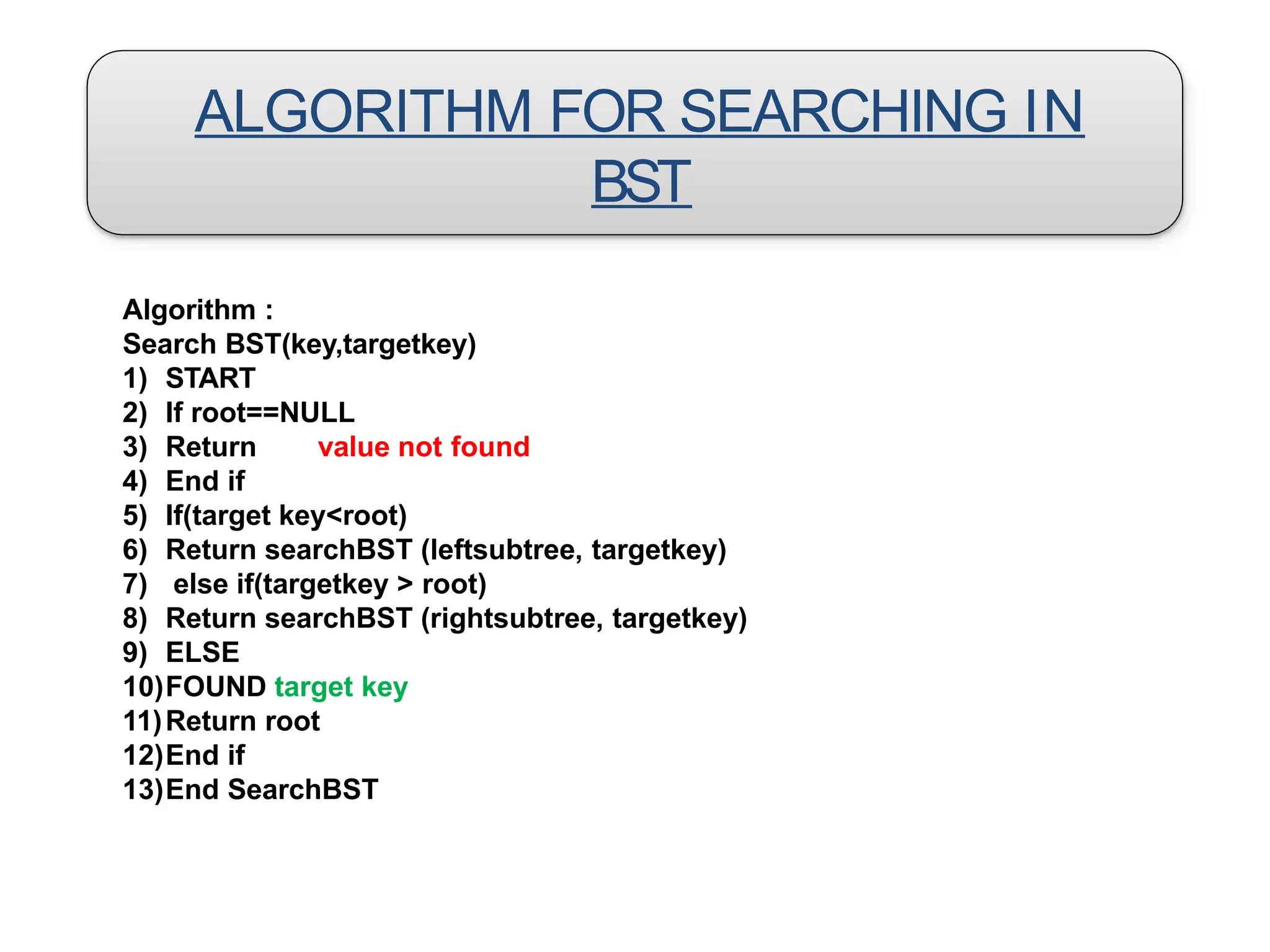

  ALGORITHM FOR SEARCHINGIN BST Algorithm : Search BST(key,targetkey) 1) START 2) If root==NULL 3) Return value not found 4) End if 5) If(target key<root) 6) Return searchBST (leftsubtree, targetkey) 7) else if(targetkey > root) 8) Return searchBST (rightsubtree, targetkey) 9) ELSE 10)FOUND target key 11)Return root 12)End if 13)End SearchBST
• 11.

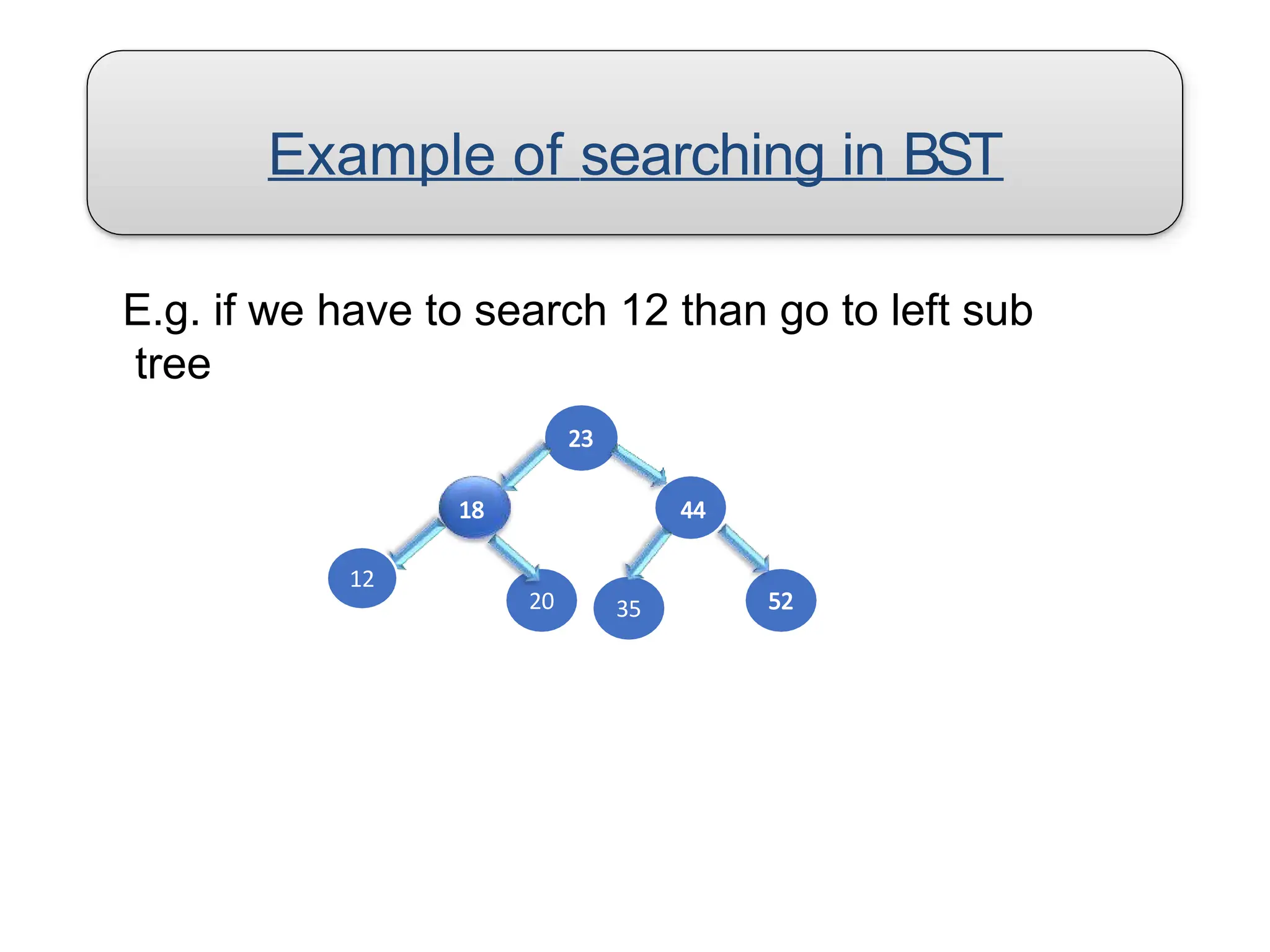

  Example of searchingin BST 52 20 35 12 E.g. if we have to search 12 than go to left sub tree 23 18 44
• 12.

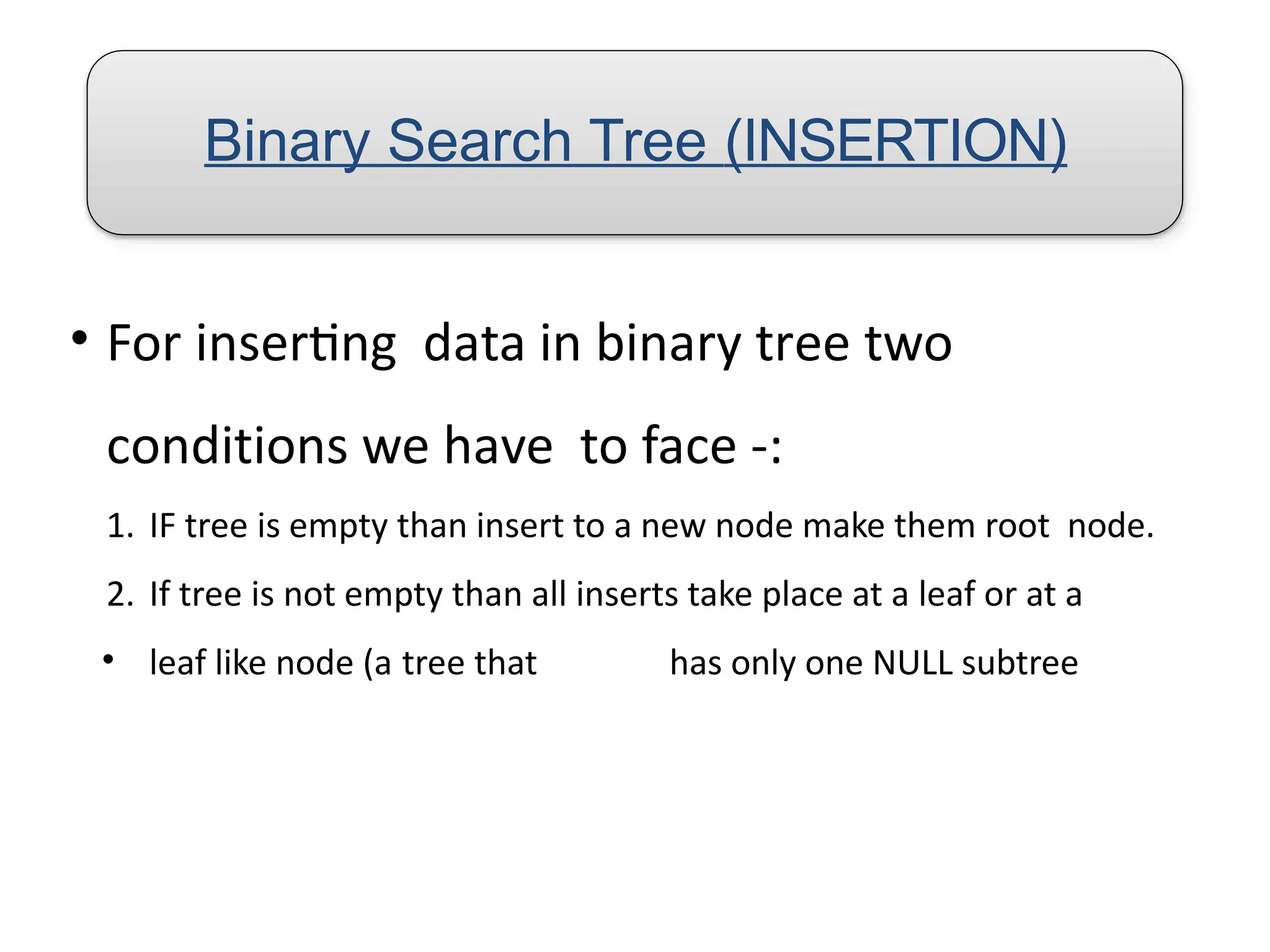

  Binary Search Tree(INSERTION) • For inserting data in binary tree two conditions we have to face -: 1. IF tree is empty than insert to a new node make them root node. 2. If tree is not empty than all inserts take place at a leaf or at a • leaf like node (a tree that has only one NULL subtree
• 13.

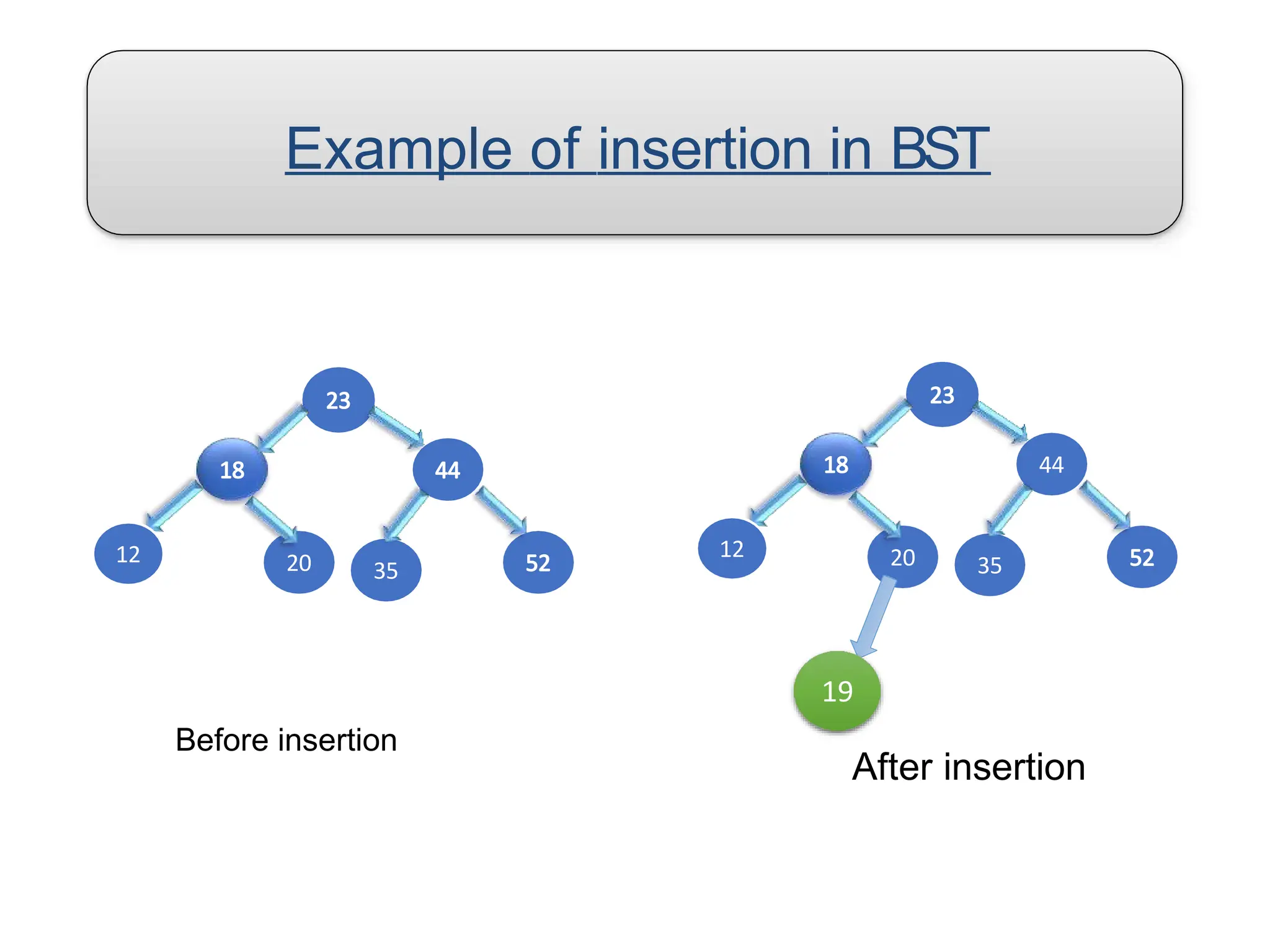

  Example of insertionin BST 23 44 18 52 20 35 12 23 44 18 52 20 35 12 Before insertion 19 After insertion
• 14.

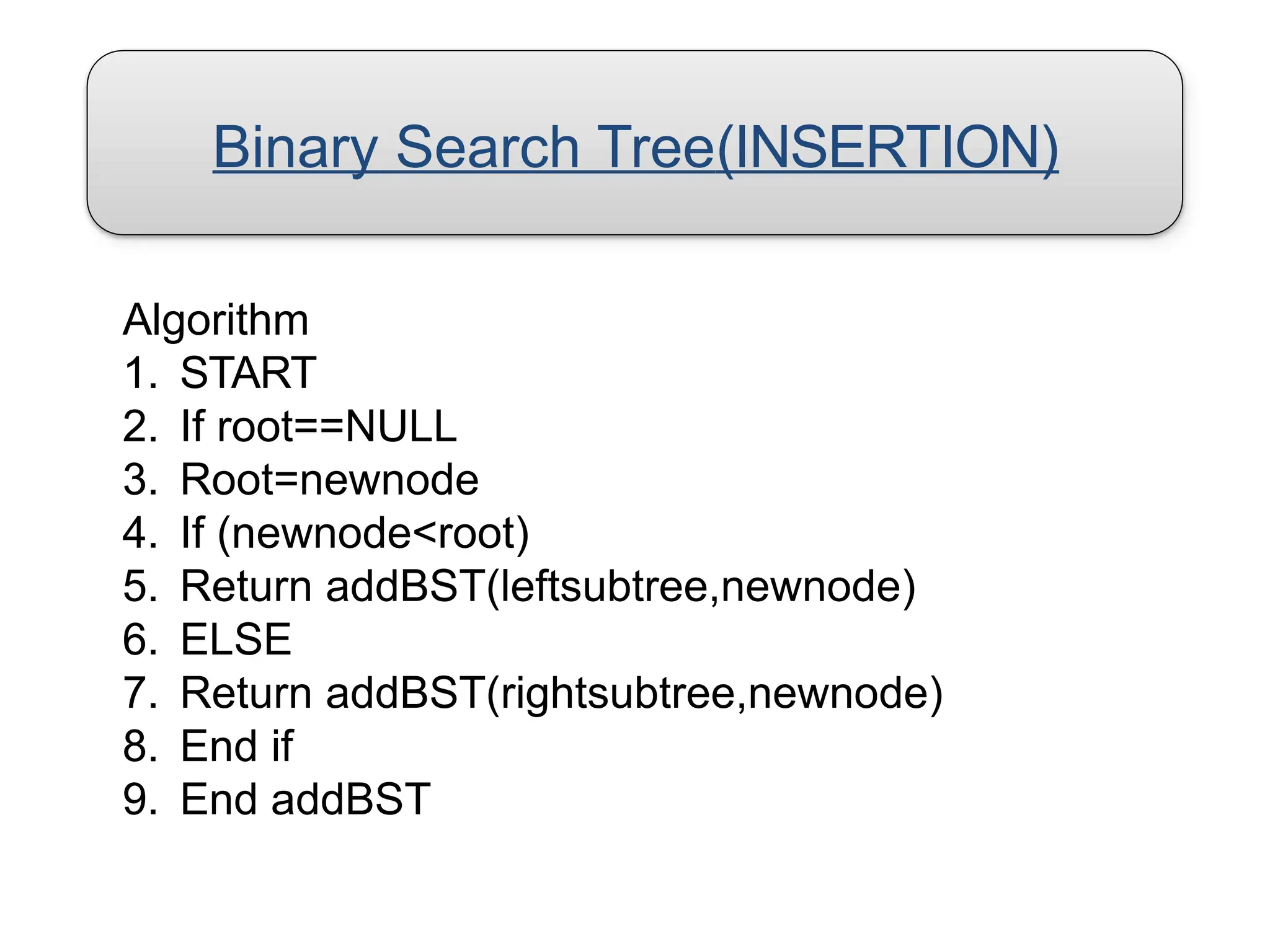

  Binary Search Tree(INSERTION) Algorithm 1.START 2. If root==NULL 3. Root=newnode 4. If (newnode<root) 5. Return addBST(leftsubtree,newnode) 6. ELSE 7. Return addBST(rightsubtree,newnode) 8. End if 9. End addBST
• 15.

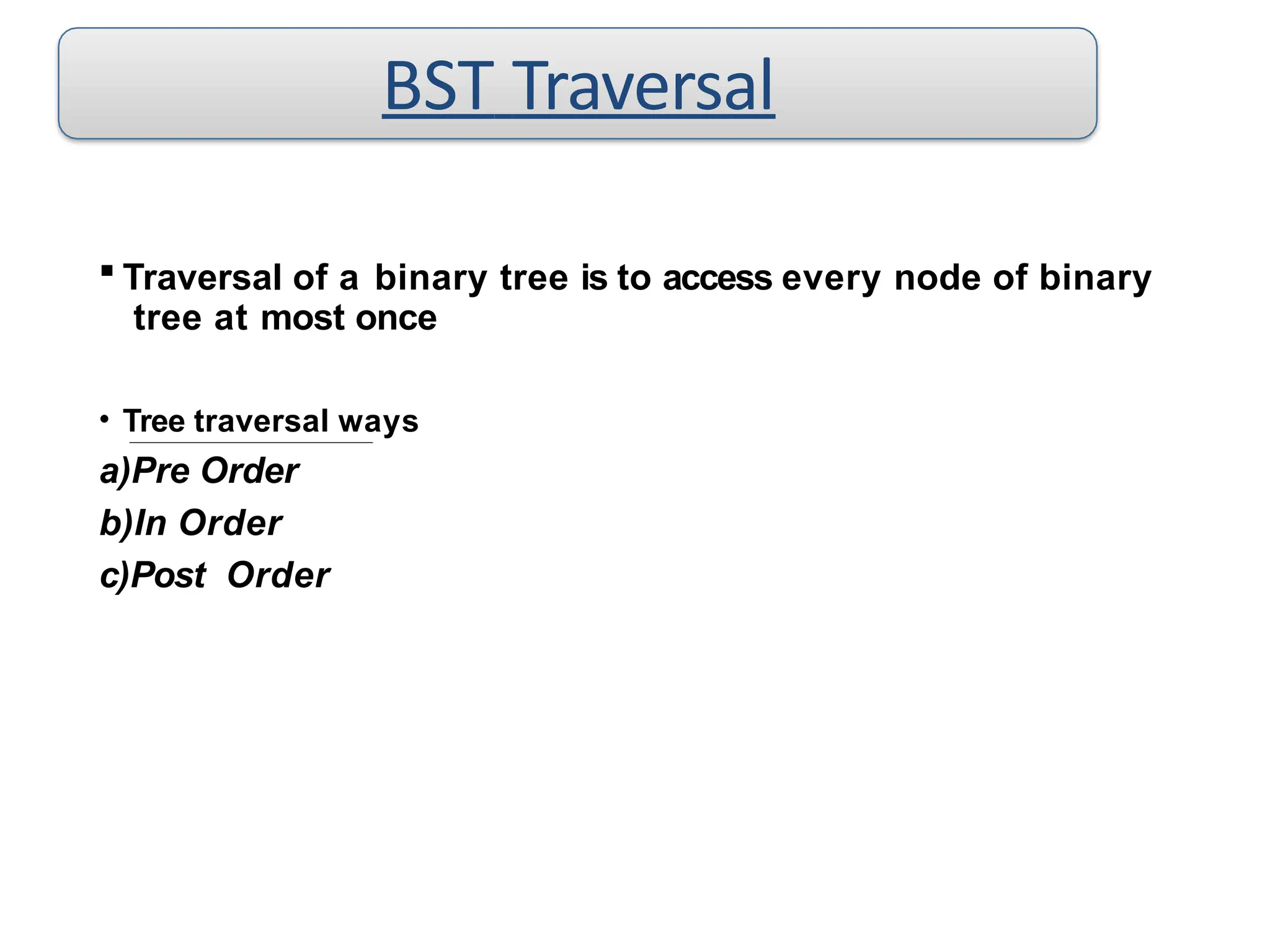

   Traversal ofa binary tree is to access every node of binary tree at most once • Tree traversal ways a)Pre Order b)In Order c)Post Order BST Traversal
• 16.

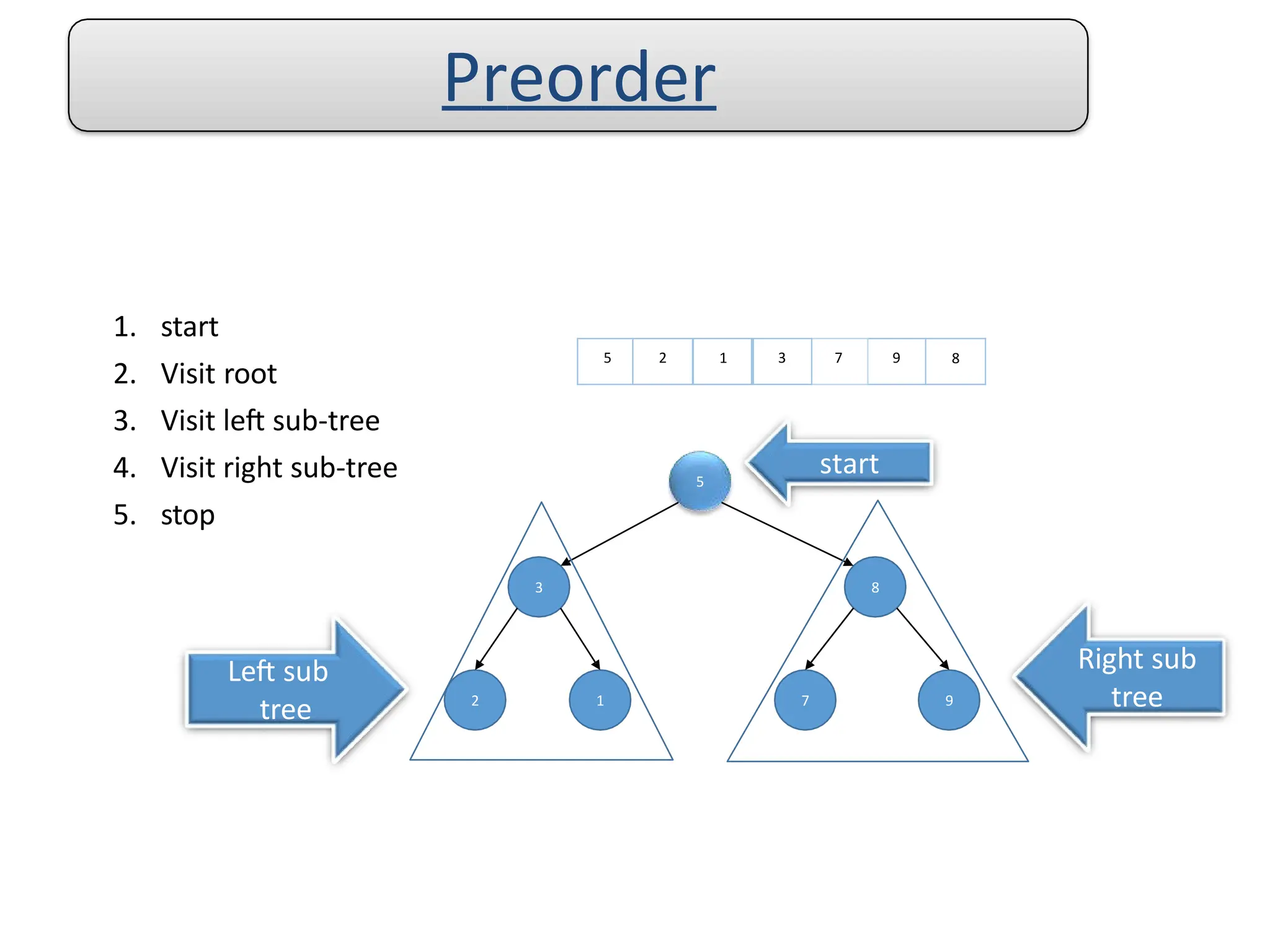

  1. start 2. Visitroot 3. Visit left sub-tree 4. Visit right sub-tree 5. stop 5 2 1 3 8 9 7 5 2 1 3 7 9 8 Preorder start Left sub tree Right sub tree
• 17.

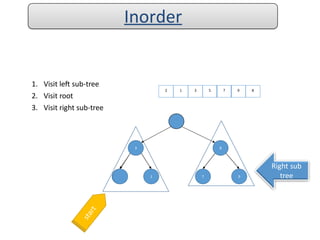

  1. Visit leftsub-tree 2. Visit root 3. Visit right sub-tree 5 2 2 1 3 5 7 9 8 Inorder 1 3 8 9 7 Right sub tree
• 18.

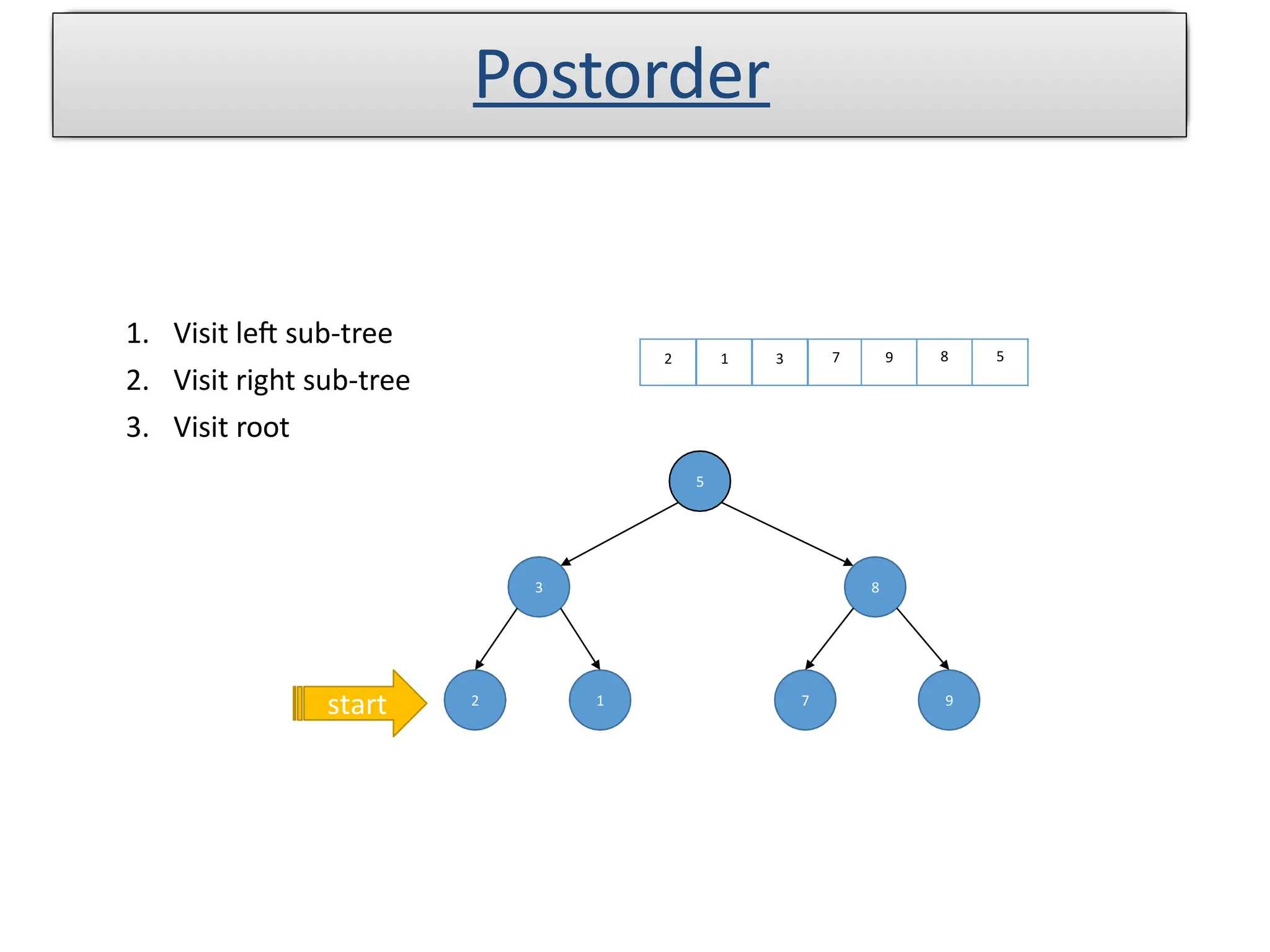

  1. Visit leftsub-tree 2. Visit right sub-tree 3. Visit root 5 2 1 3 8 9 7 2 1 3 7 9 8 5 Postorder start
• 19.

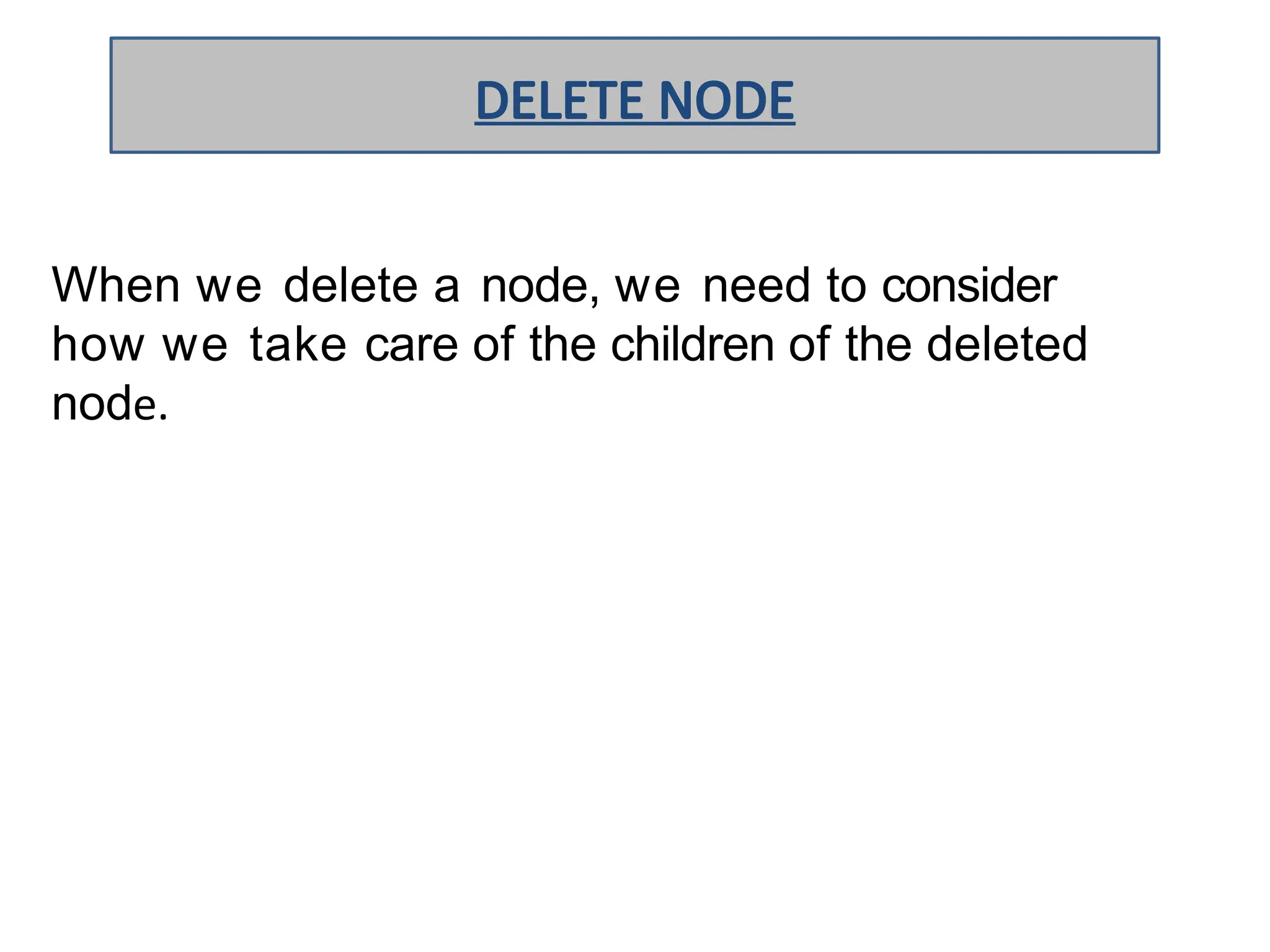

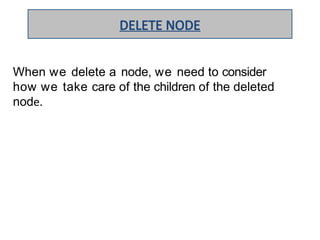

  When we deletea node, we need to consider how we take care of the children of the deleted node. DELETE NODE
• 20.

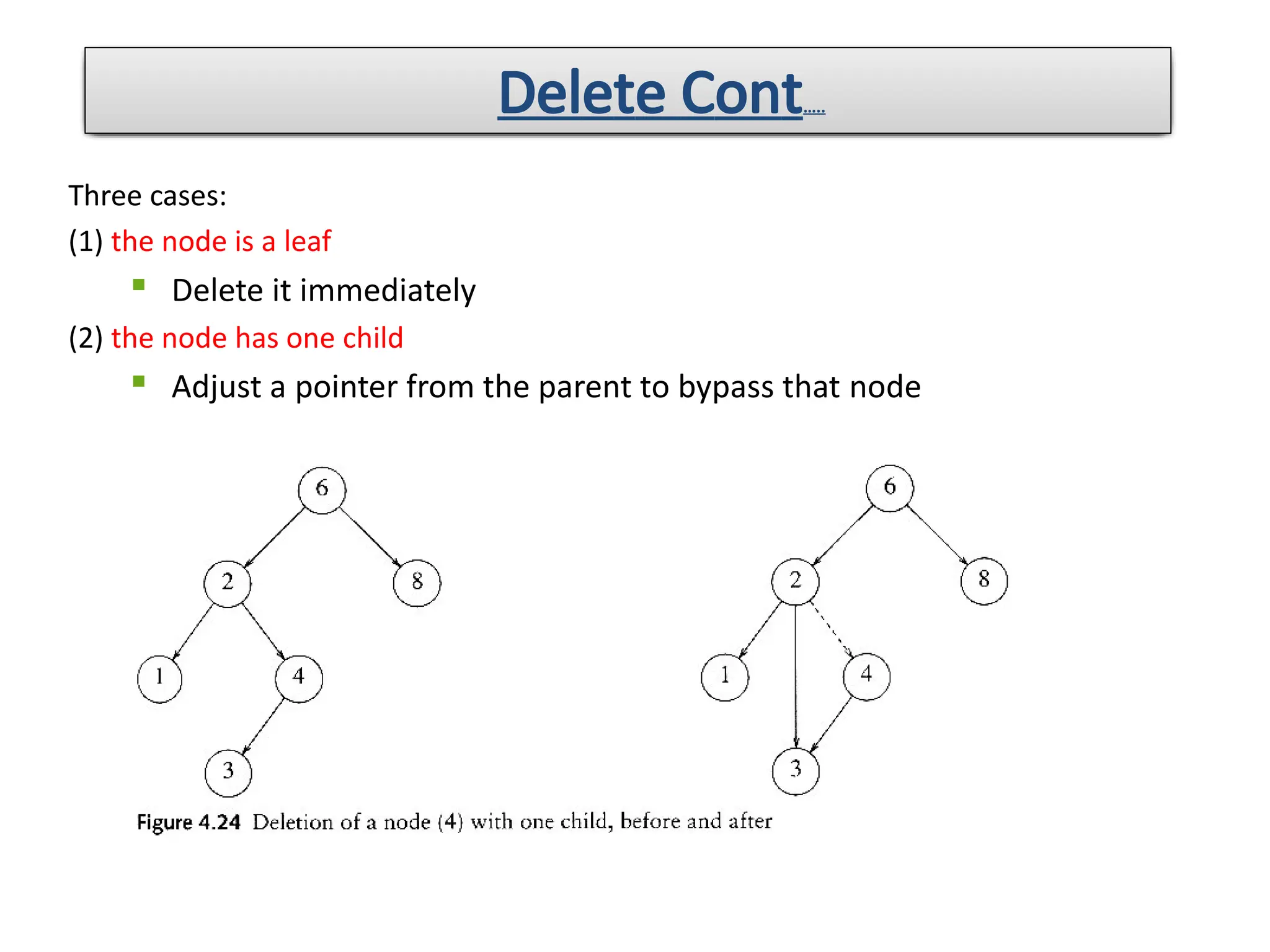

  Three cases: (1) thenode is a leaf  Delete it immediately (2) the node has one child  Adjust a pointer from the parent to bypass that node Delete Cont…..
• 21.

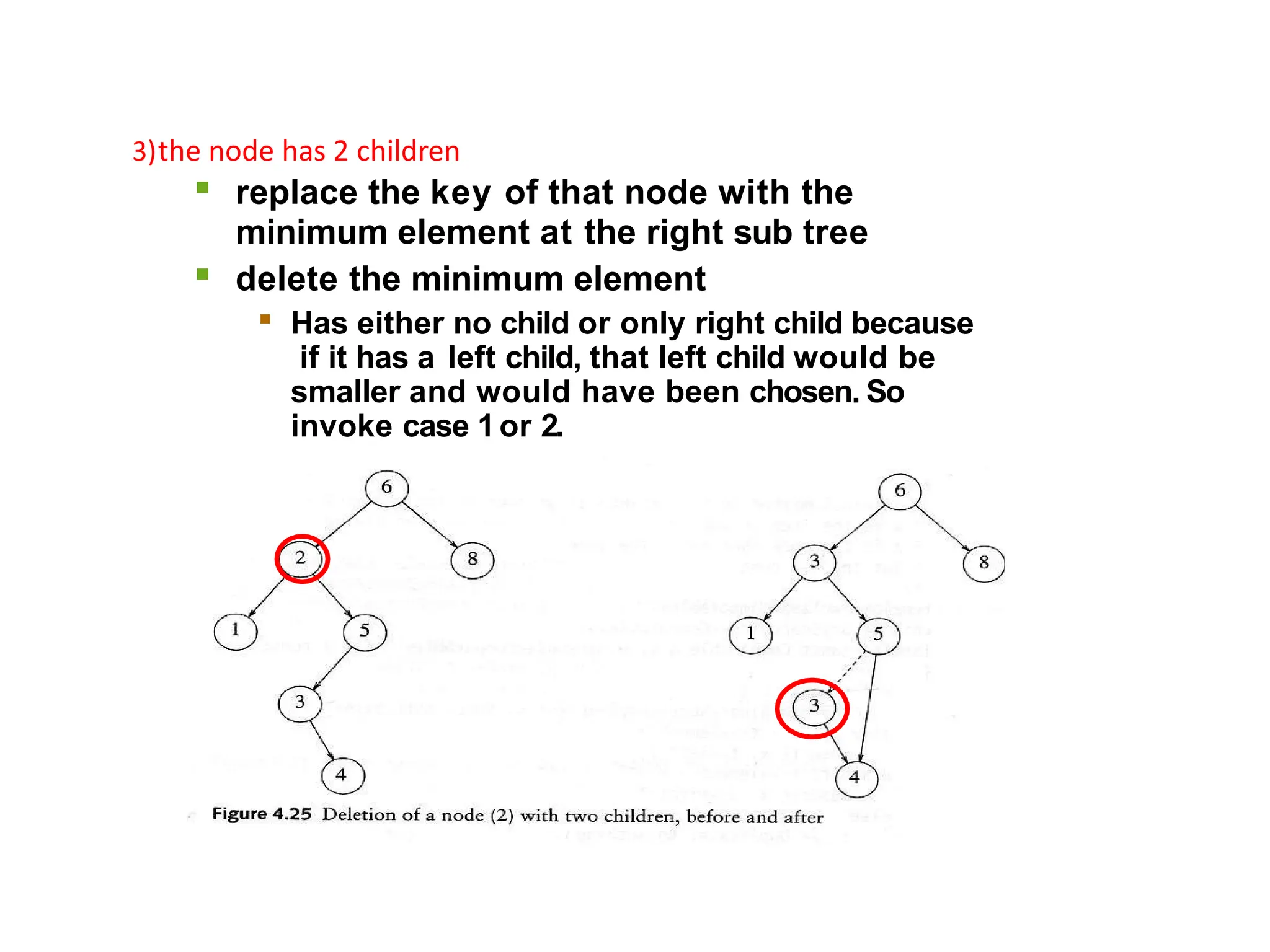

  3)the node has2 children  replace the key of that node with the minimum element at the right sub tree  delete the minimum element  Has either no child or only right child because if it has a left child, that left child would be smaller and would have been chosen. So invoke case 1or 2.
• 22.

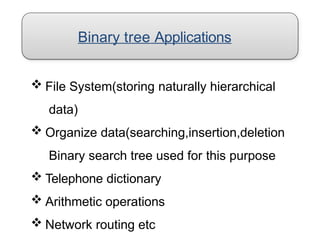

  Binary tree Applications File System(storing naturally hierarchical data)  Organize data(searching,insertion,deletion Binary search tree used for this purpose  Telephone dictionary  Arithmetic operations  Network routing etc
