Extended BPF and Data Plane Extensibility:
An overview of networking and Linux
Fernando Sanchez
Principal SE, PLUMgrid Inc.
@fernandosanchez
Brenden Blanco
Architect, Office of the CTO, PLUMgrid
@brendenblanco

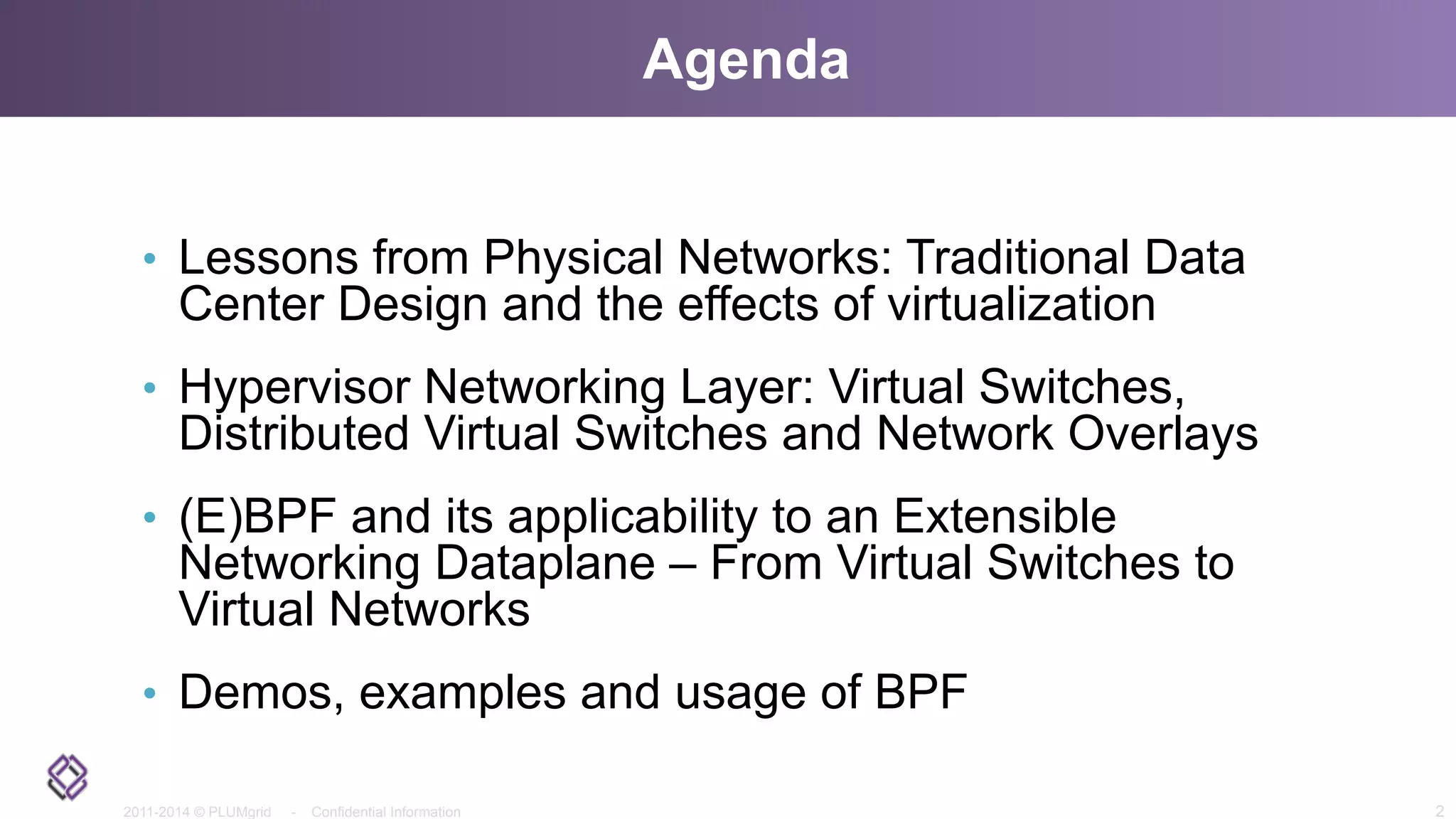

Agenda
•  Lessons from Physical Networks: Traditional Data
Center Design and the effects of virtualization
•  Hypervisor Networking Layer: Virtual Switches,
Distributed Virtual Switches and Network Overlays
•  (E)BPF and its applicability to an Extensible
Networking Dataplane – From Virtual Switches to
Virtual Networks
•  Demos, examples and usage of BPF
2

Lessons from Physical Networks:
Traditional Data Center Design and the effects of
virtualization
3

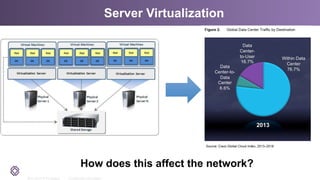

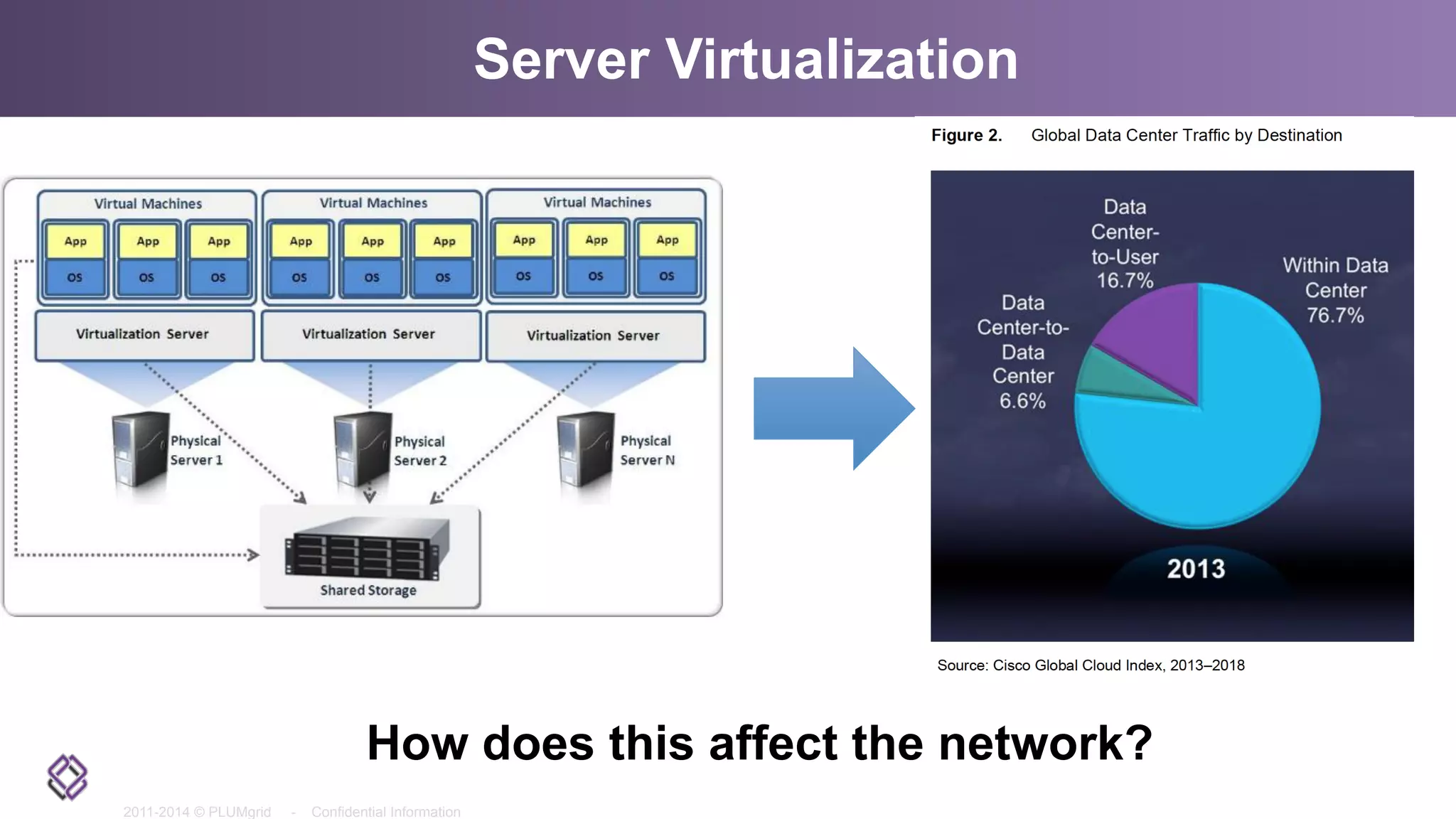

Server Virtualization
How does this affect the network?

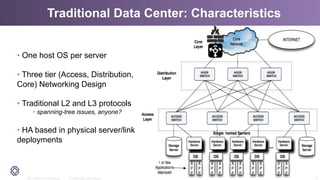

Traditional Data Center: Characteristics
5
• One host OS per server
• Three tier (Access, Distribution,
Core) Networking Design
• Traditional L2 and L3 protocols
• spanning-tree issues, anyone?
• HA based in physical server/link
deployments

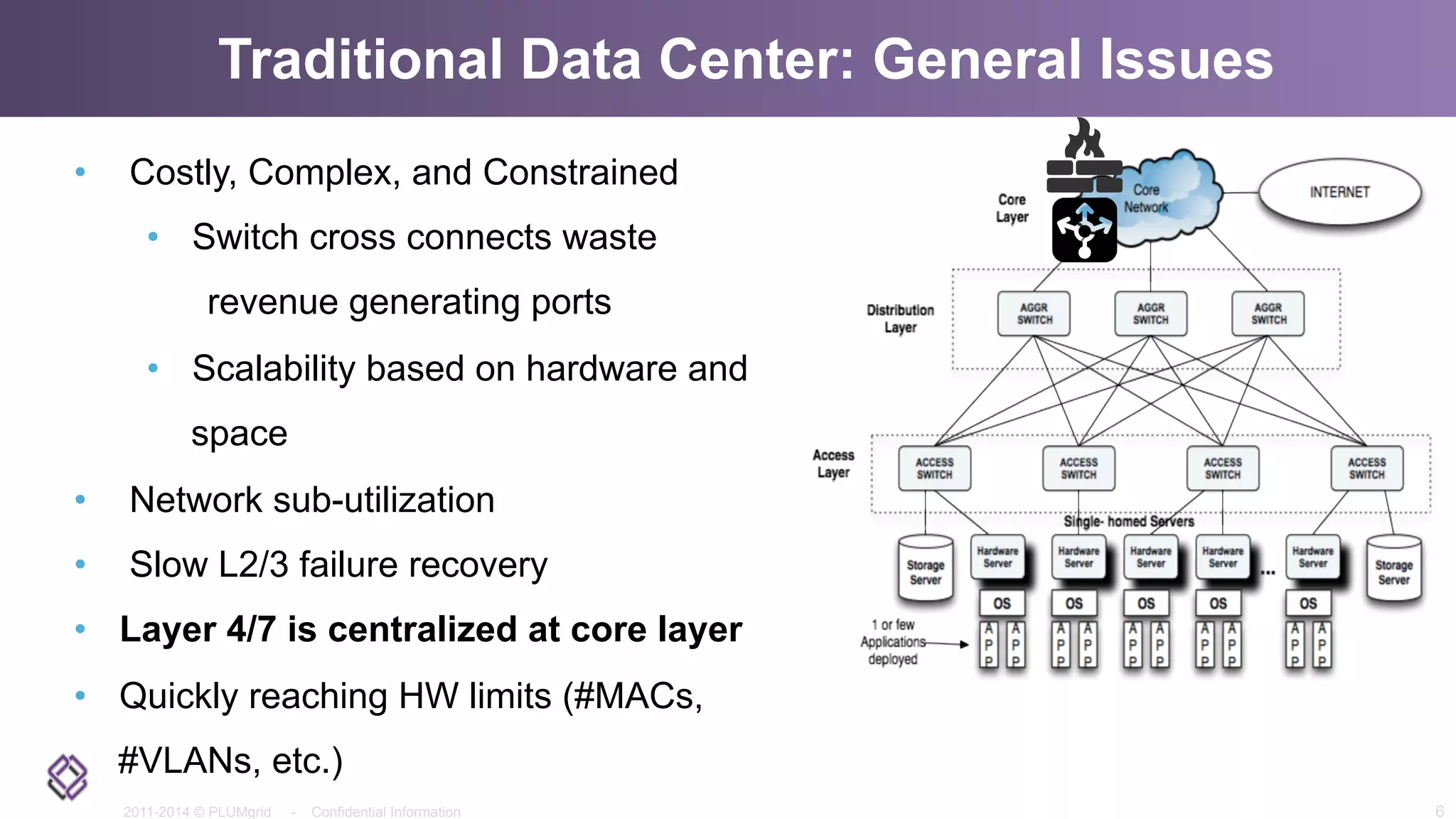

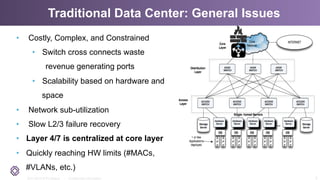

Traditional Data Center: General Issues
6
•  Costly, Complex, and Constrained
•  Switch cross connects waste
revenue generating ports
•  Scalability based on hardware and
space
•  Network sub-utilization
•  Slow L2/3 failure recovery
•  Layer 4/7 is centralized at core layer
•  Quickly reaching HW limits (#MACs,
#VLANs, etc.)

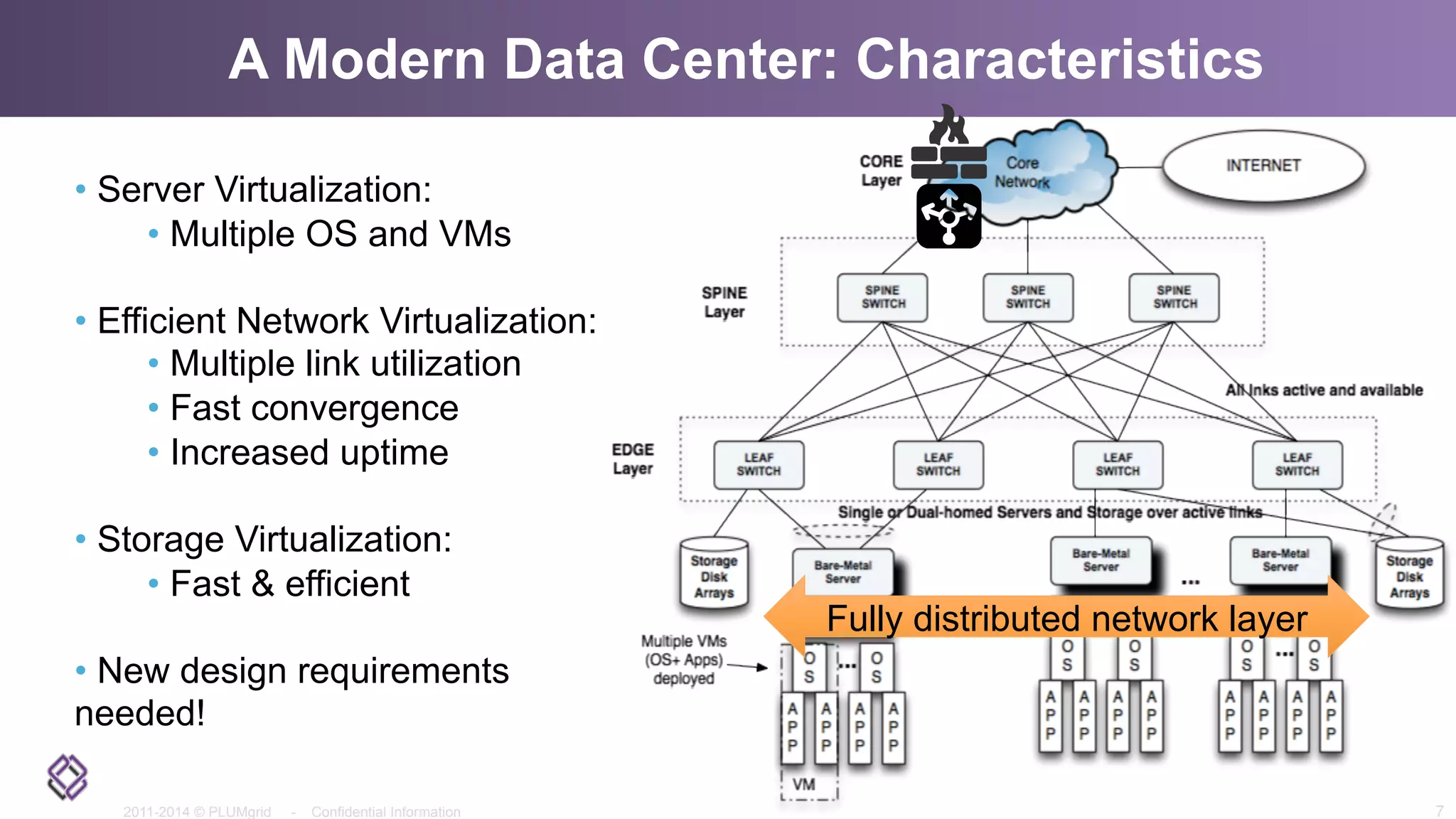

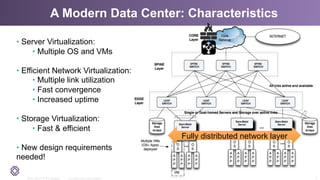

A Modern Data Center: Characteristics
7
• Server Virtualization:
• Multiple OS and VMs
• Efficient Network Virtualization:
• Multiple link utilization
• Fast convergence
• Increased uptime
• Storage Virtualization:
• Fast & efficient
• New design requirements
needed!
Fully distributed network layer

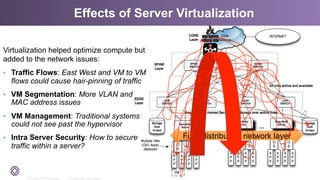

Effects of Server Virtualization
Virtualization helped optimize compute but
added to the network issues:
•  Traffic Flows: East West and VM to VM
flows could cause hair-pinning of traffic
•  VM Segmentation: More VLAN and
MAC address issues
•  VM Management: Traditional systems
could not see past the hypervisor
•  Intra Server Security: How to secure
traffic within a server?
Fully distributed network layer

Hypervisor Networking Layer: Virtual Switches,
Distributed Virtual Switches and Network Overlays
9

A New Networking Layer
Your data plane matters … A LOT
vSwitches
Distributed vSwitches
vRouters
Distributed topologies
Extensible data plane

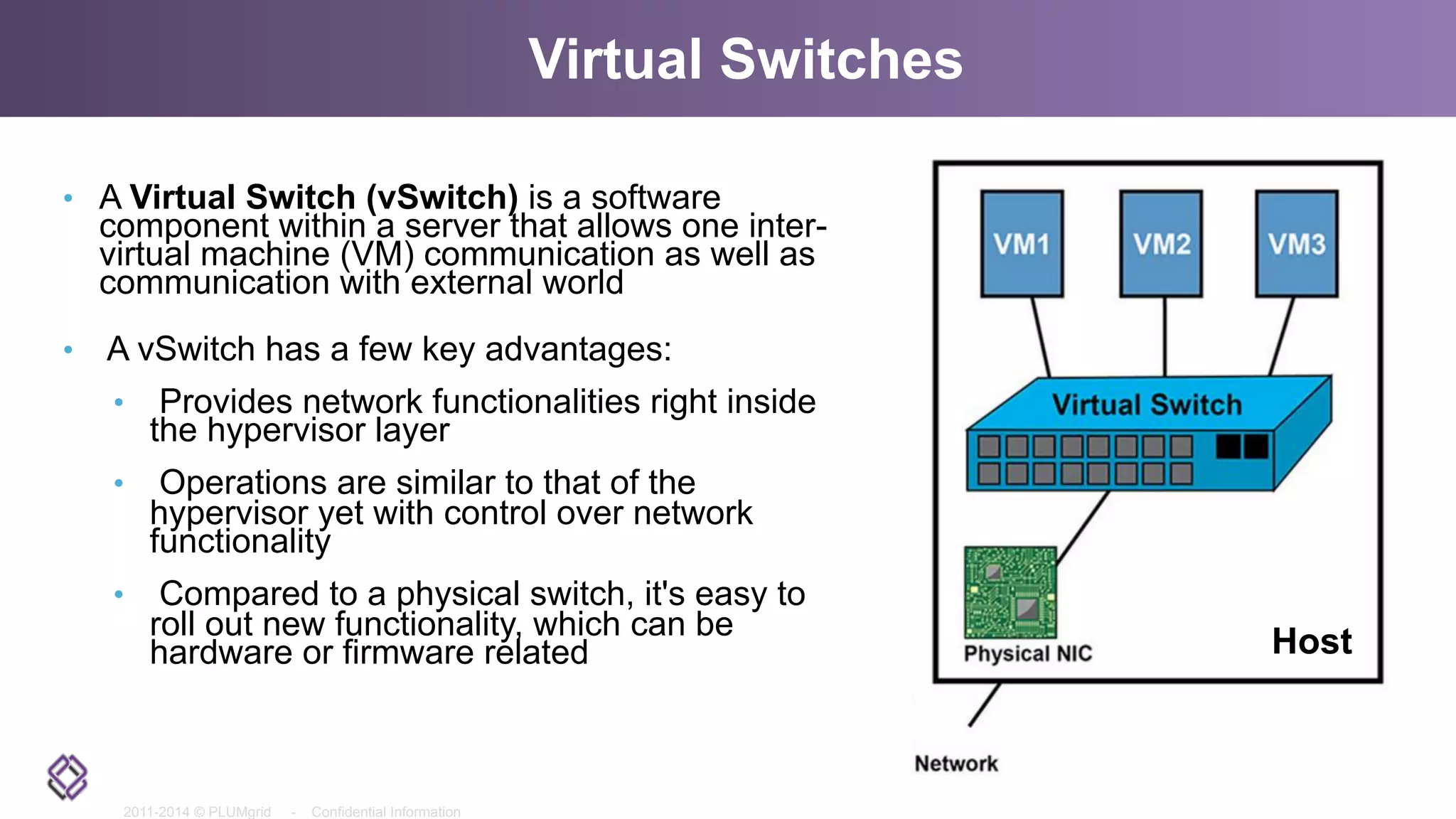

Virtual Switches
•  A Virtual Switch (vSwitch) is a software
component within a server that allows one inter-
virtual machine (VM) communication as well as
communication with external world
•  A vSwitch has a few key advantages:
•  Provides network functionalities right inside
the hypervisor layer
•  Operations are similar to that of the
hypervisor yet with control over network
functionality
•  Compared to a physical switch, it's easy to
roll out new functionality, which can be
hardware or firmware related Host

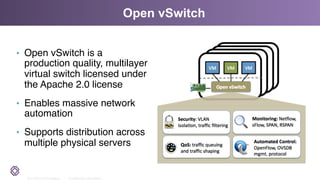

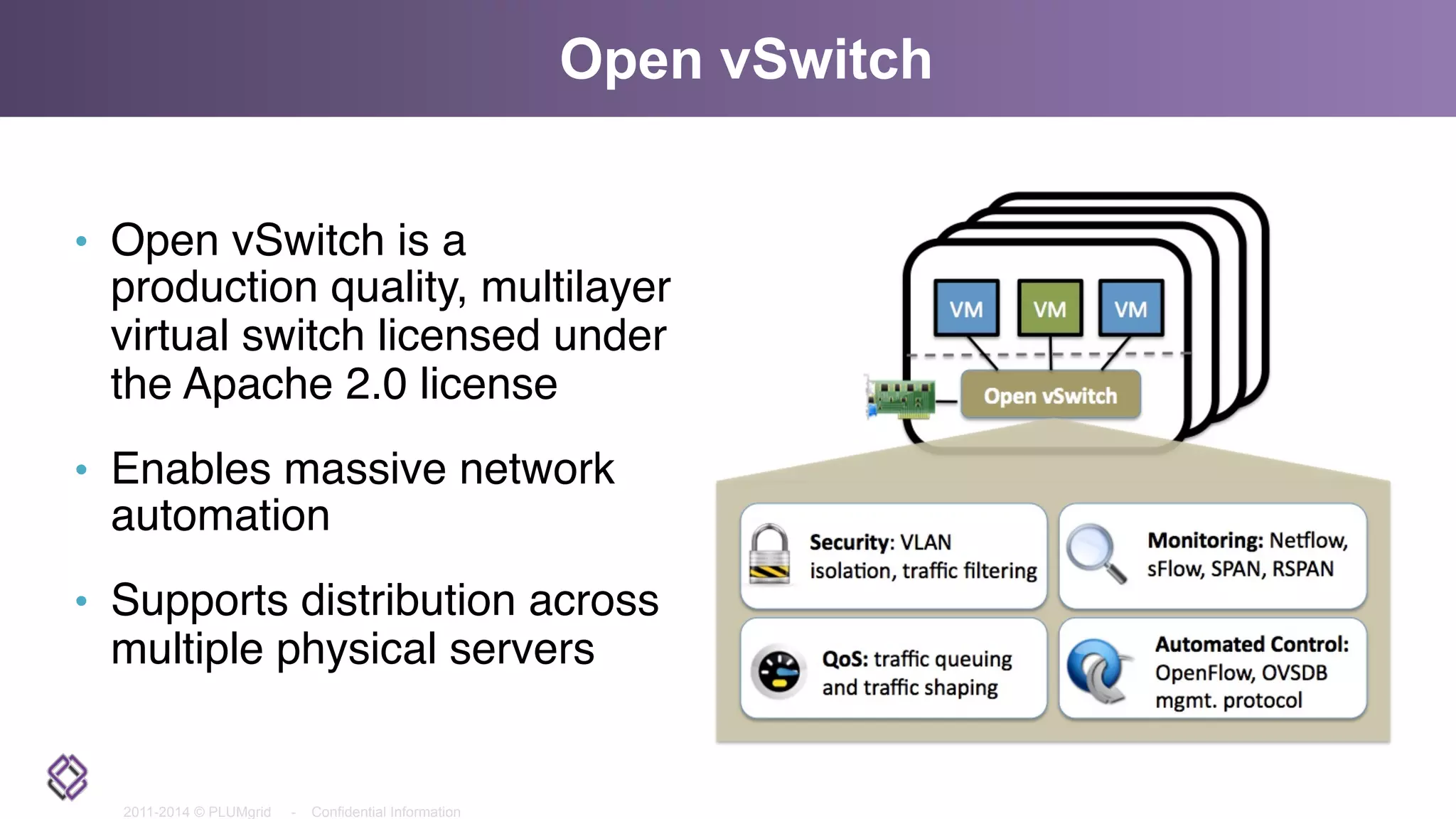

Open vSwitch
•  Open vSwitch is a
production quality, multilayer
virtual switch licensed under
the Apache 2.0 license
•  Enables massive network
automation
•  Supports distribution across
multiple physical servers

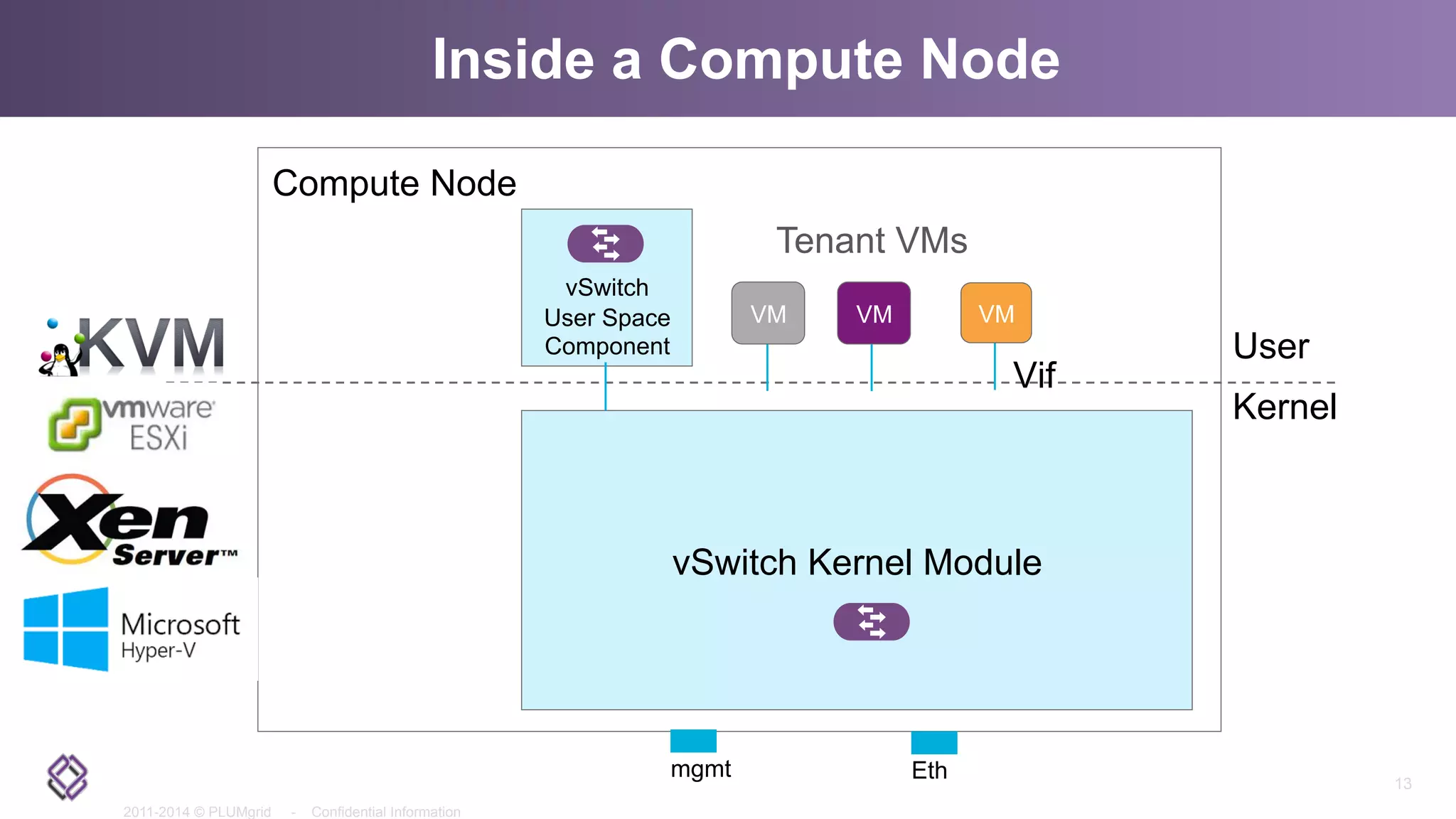

Inside a Compute Node
13
Compute Node
Kernel
Ethmgmt
vSwitch Kernel Module
Tenant VMs
VM VM VM
User
Vif
vSwitch
User Space
Component

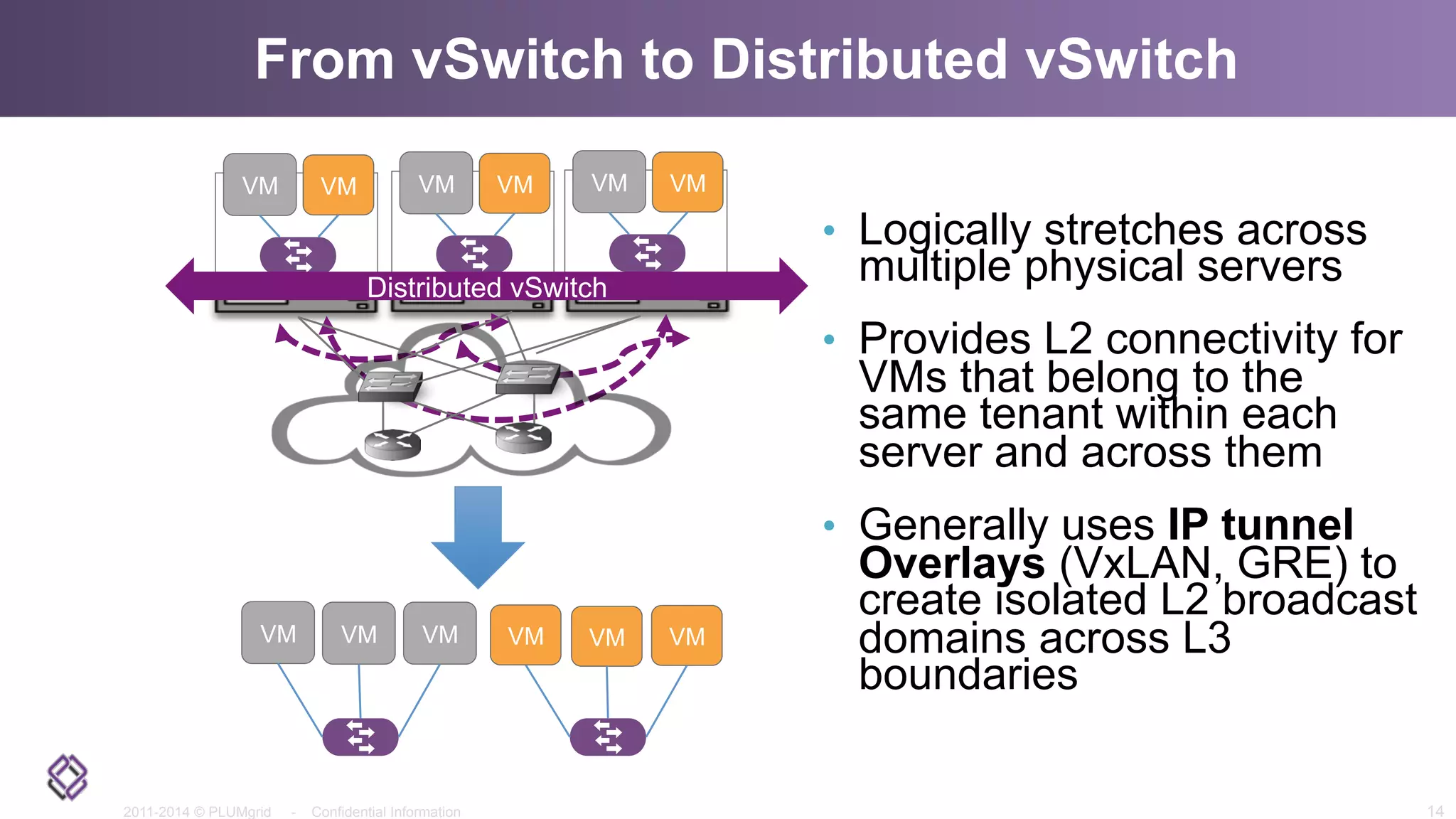

From vSwitch to Distributed vSwitch
•  Logically stretches across
multiple physical servers
•  Provides L2 connectivity for
VMs that belong to the
same tenant within each
server and across them
•  Generally uses IP tunnel
Overlays (VxLAN, GRE) to
create isolated L2 broadcast
domains across L3
boundaries
14
VM VM VM VM VM VM
Distributed vSwitch
VM VMVM VMVM VM

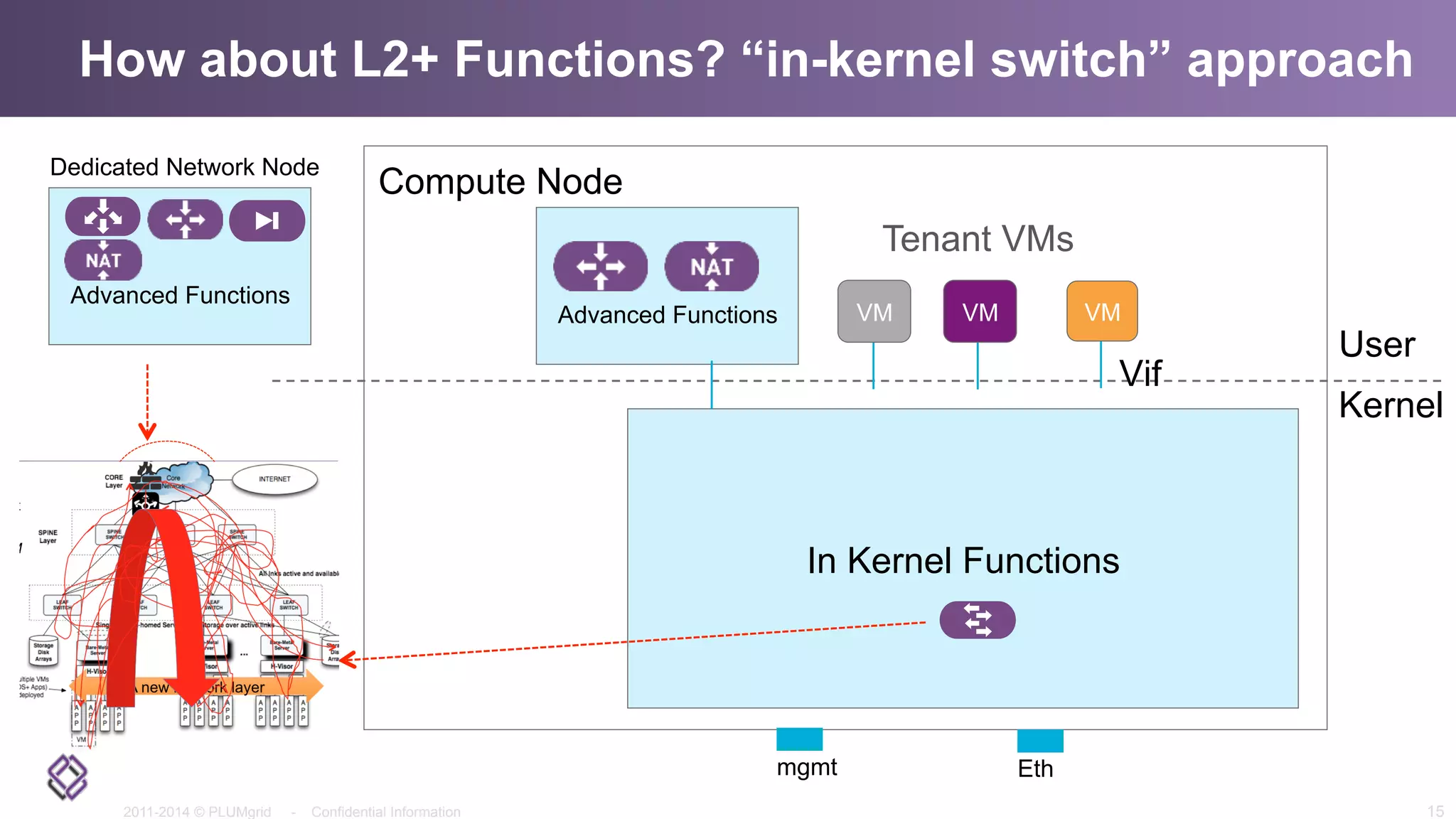

How about L2+ Functions? “in-kernel switch” approach
15
Compute Node
Kernel
Ethmgmt
In Kernel Functions
Tenant VMs
VM VM VM
User
Vif
Advanced Functions
Advanced Functions
Dedicated Network Node

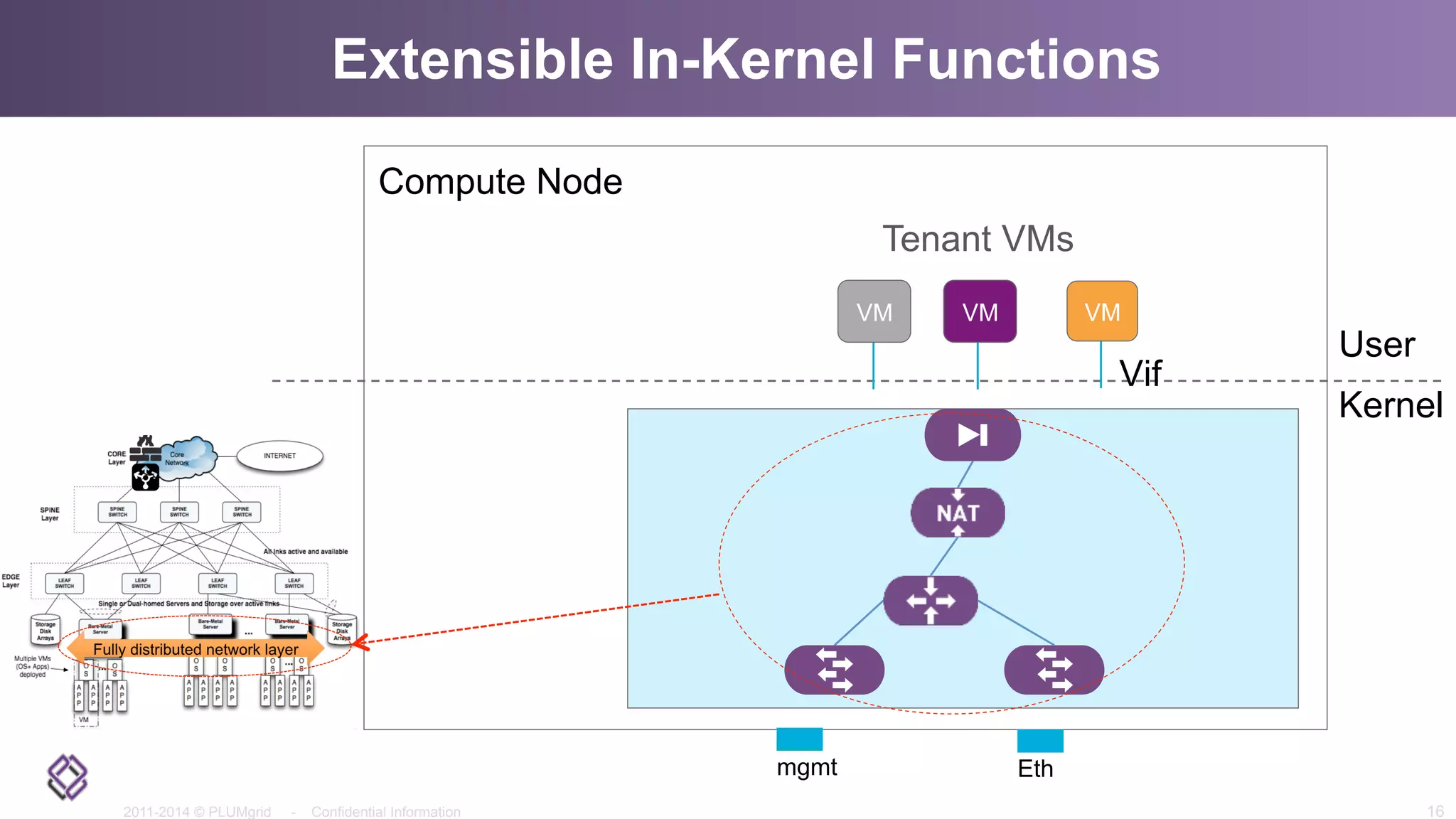

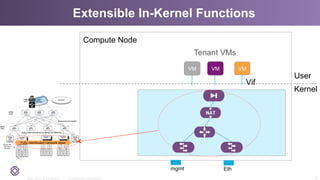

Extensible In-Kernel Functions
16
Compute Node
Kernel
Ethmgmt
Tenant VMs
VM VM VM
User
Vif

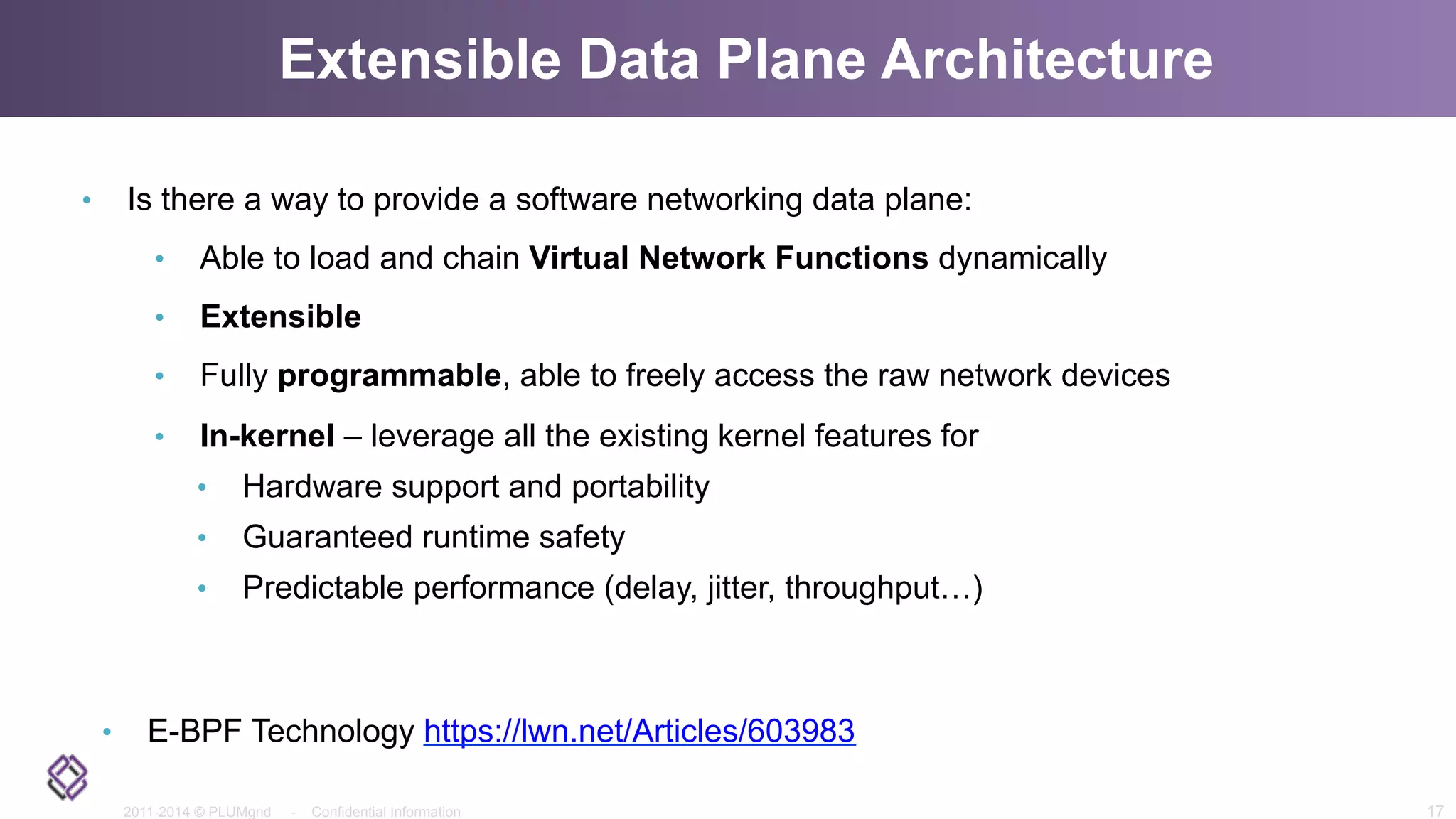

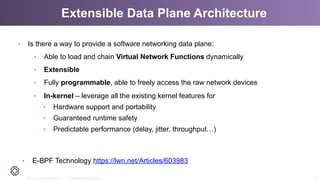

Extensible Data Plane Architecture
•  Is there a way to provide a software networking data plane:
•  Able to load and chain Virtual Network Functions dynamically
•  Extensible
•  Fully programmable, able to freely access the raw network devices
•  In-kernel – leverage all the existing kernel features for
•  Hardware support and portability
•  Guaranteed runtime safety
•  Predictable performance (delay, jitter, throughput…)
•  E-BPF Technology https://lwn.net/Articles/603983
17

(E)BPF and its applicability to an Extensible
Networking Dataplane – From Virtual Switches to
Virtual Networks
18

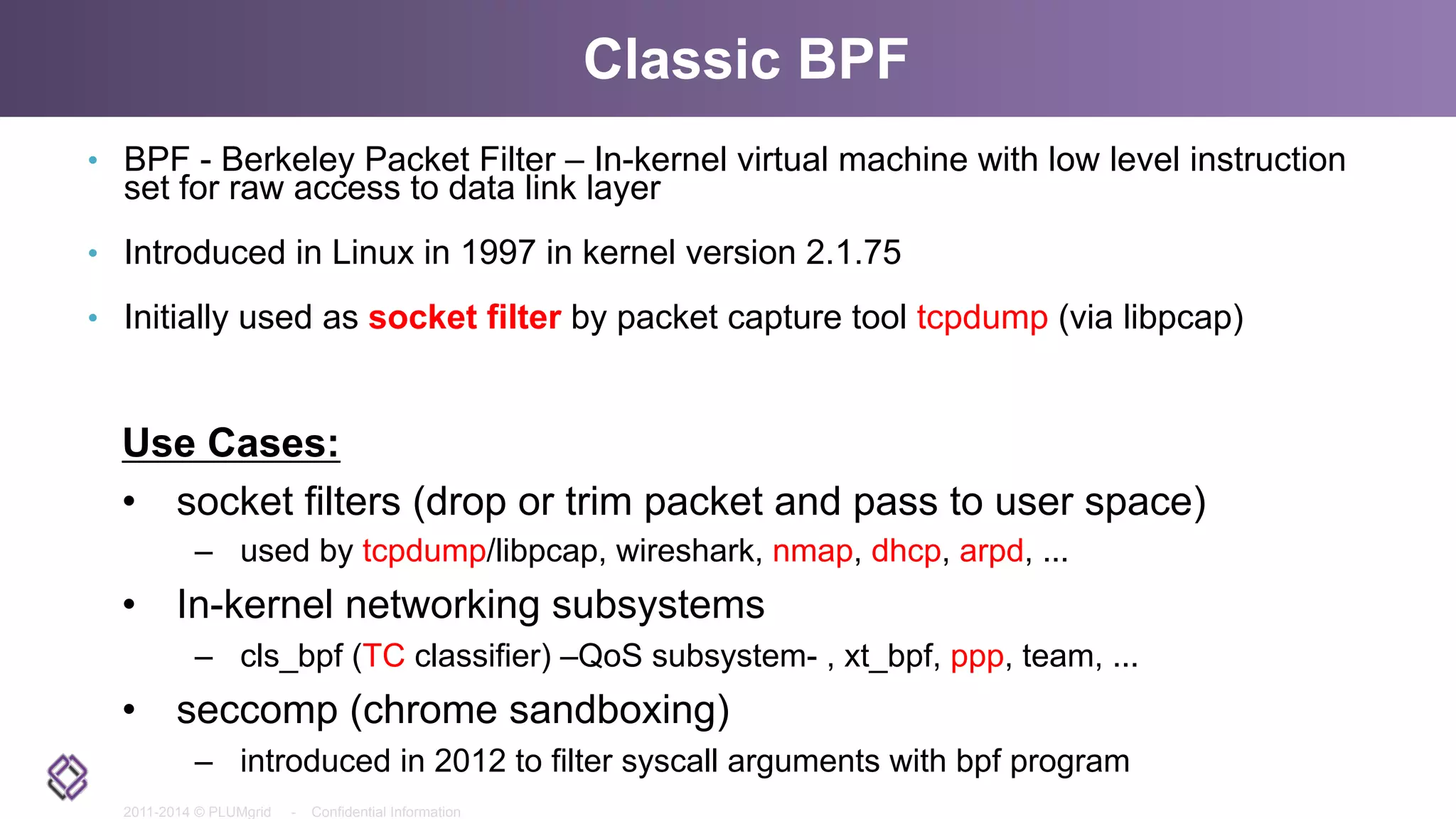

Classic BPF
•  BPF - Berkeley Packet Filter – In-kernel virtual machine with low level instruction
set for raw access to data link layer
•  Introduced in Linux in 1997 in kernel version 2.1.75
•  Initially used as socket filter by packet capture tool tcpdump (via libpcap)
Use Cases:
•  socket filters (drop or trim packet and pass to user space)
–  used by tcpdump/libpcap, wireshark, nmap, dhcp, arpd, ...
•  In-kernel networking subsystems
–  cls_bpf (TC classifier) –QoS subsystem- , xt_bpf, ppp, team, ...
•  seccomp (chrome sandboxing)
–  introduced in 2012 to filter syscall arguments with bpf program

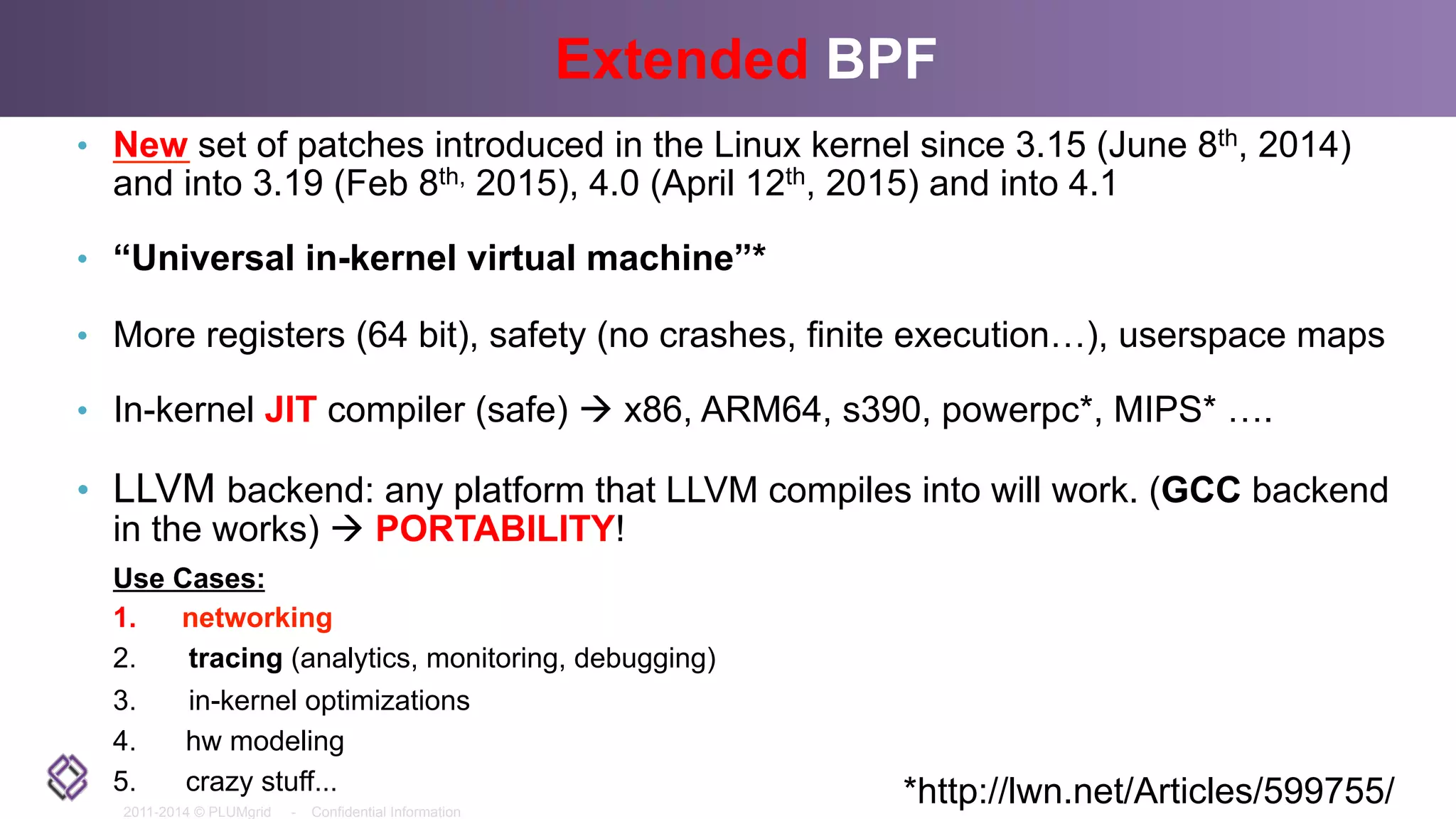

Extended BPF
•  New set of patches introduced in the Linux kernel since 3.15 (June 8th, 2014)
and into 3.19 (Feb 8th, 2015), 4.0 (April 12th, 2015) and into 4.1
•  “Universal in-kernel virtual machine”*
•  More registers (64 bit), safety (no crashes, finite execution…), userspace maps
•  In-kernel JIT compiler (safe) à x86, ARM64, s390, powerpc*, MIPS* ….
•  LLVM backend: any platform that LLVM compiles into will work. (GCC backend
in the works) à PORTABILITY!
Use Cases:
1.  networking
2.  tracing (analytics, monitoring, debugging)
3.  in-kernel optimizations
4.  hw modeling
5.  crazy stuff... *http://lwn.net/Articles/599755/

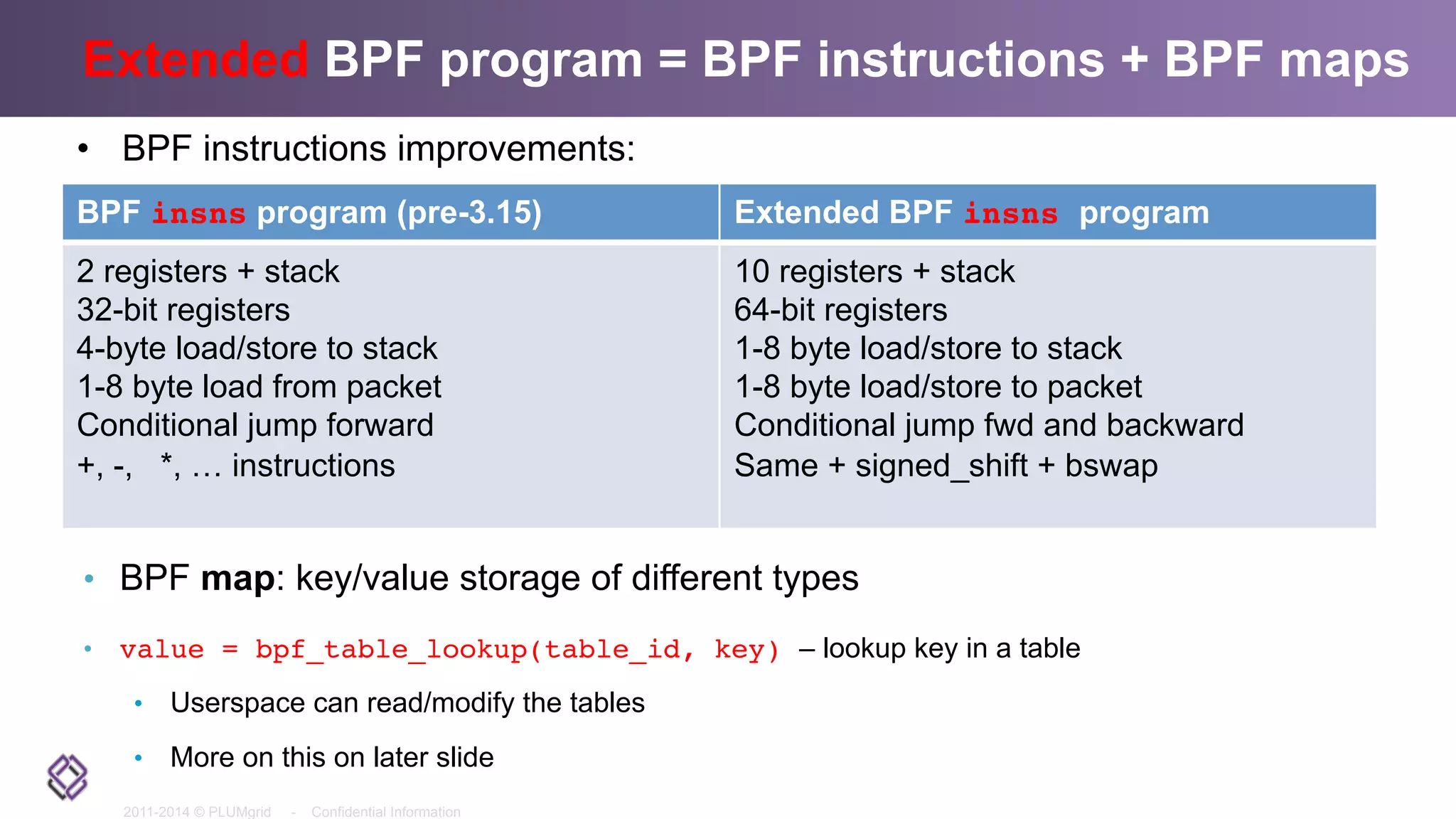

Extended BPF program = BPF instructions + BPF maps
•  BPF map: key/value storage of different types
•  value = bpf_table_lookup(table_id, key) – lookup key in a table
•  Userspace can read/modify the tables
•  More on this on later slide
BPF insns program (pre-3.15) Extended BPF insns program
2 registers + stack
32-bit registers
4-byte load/store to stack
1-8 byte load from packet
Conditional jump forward
+, -, *, … instructions
10 registers + stack
64-bit registers
1-8 byte load/store to stack
1-8 byte load/store to packet
Conditional jump fwd and backward
Same + signed_shift + bswap
•  BPF instructions improvements:

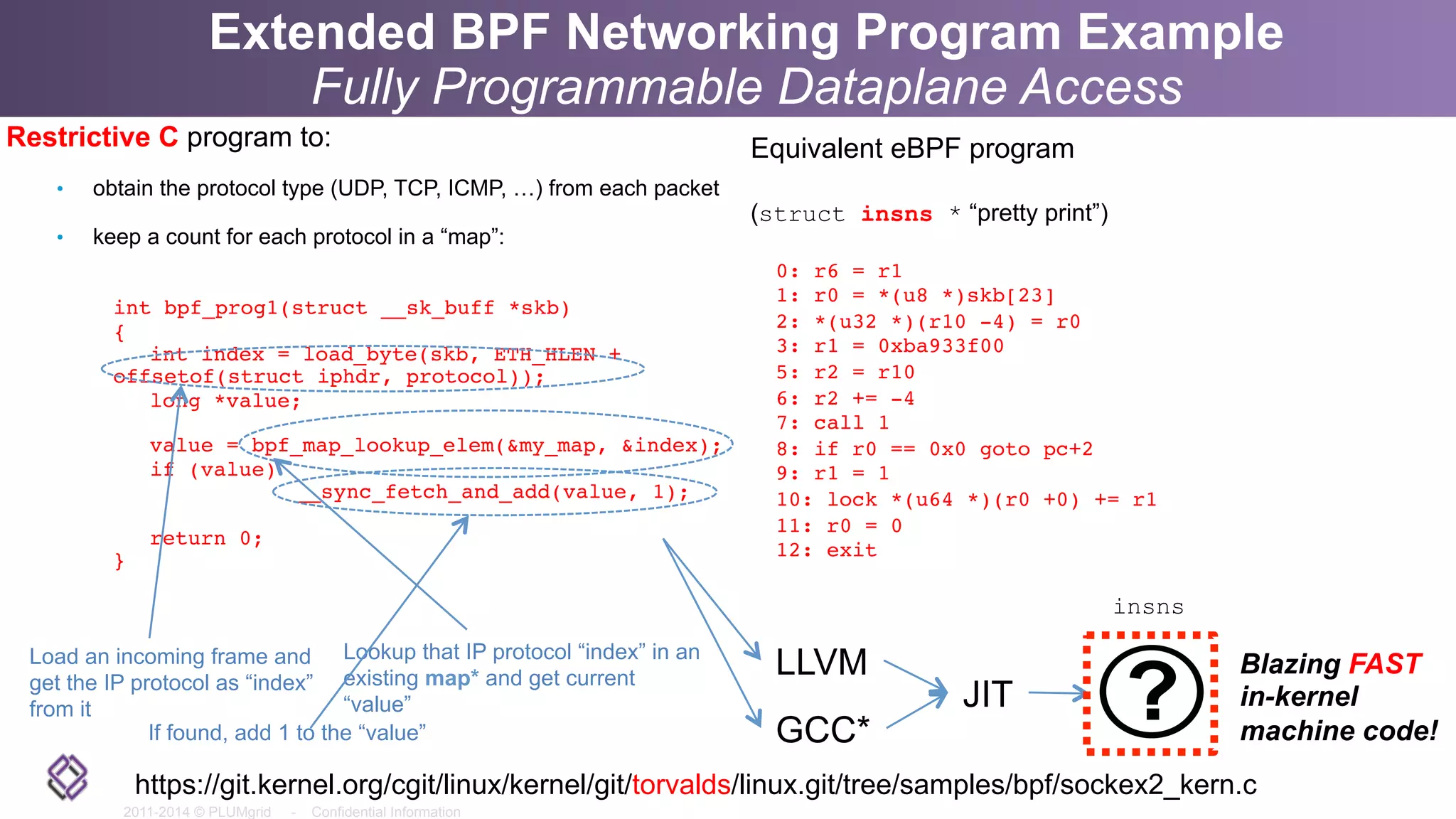

Extended BPF Networking Program Example
Fully Programmable Dataplane Access
Restrictive C program to:
•  obtain the protocol type (UDP, TCP, ICMP, …) from each packet
•  keep a count for each protocol in a “map”:
int bpf_prog1(struct __sk_buff *skb)
{
int index = load_byte(skb, ETH_HLEN +
offsetof(struct iphdr, protocol));
long *value;
value = bpf_map_lookup_elem(&my_map, &index);
if (value)
__sync_fetch_and_add(value, 1);
return 0;
}
Equivalent eBPF program
(struct insns * “pretty print”)
Load an incoming frame and
get the IP protocol as “index”
from it
Lookup that IP protocol “index” in an
existing map* and get current
“value”
If found, add 1 to the “value”
LLVM
GCC*
JIT
https://git.kernel.org/cgit/linux/kernel/git/torvalds/linux.git/tree/samples/bpf/sockex2_kern.c
Blazing FAST
in-kernel
machine code!
insns
0: r6 = r1
1: r0 = *(u8 *)skb[23]
2: *(u32 *)(r10 -4) = r0
3: r1 = 0xba933f00
5: r2 = r10
6: r2 += -4
7: call 1
8: if r0 == 0x0 goto pc+2
9: r1 = 1
10: lock *(u64 *)(r0 +0) += r1
11: r0 = 0
12: exit

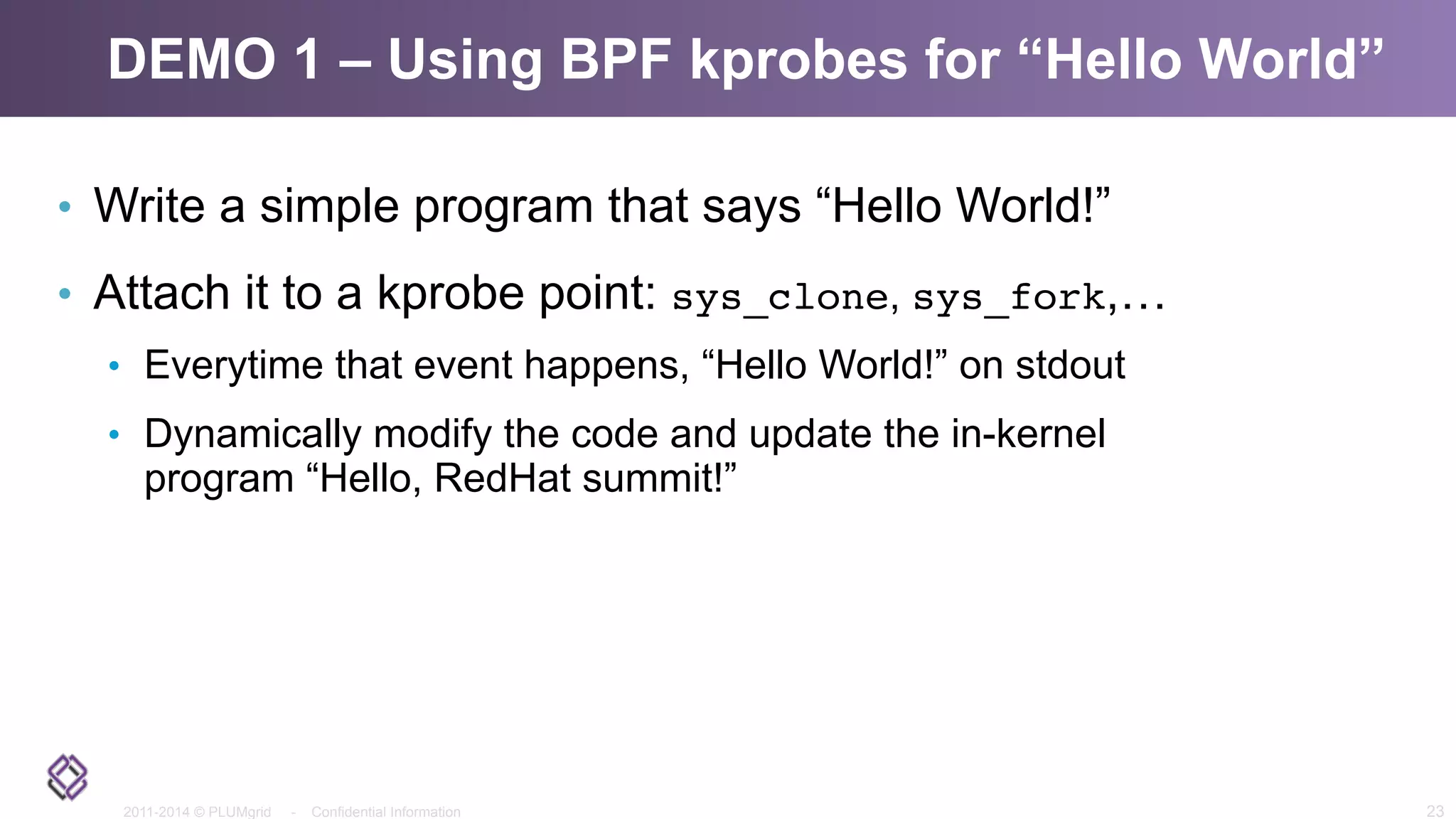

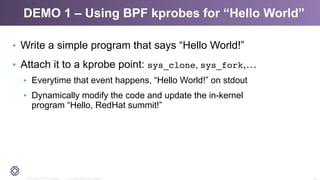

DEMO 1 – Using BPF kprobes for “Hello World”
•  Write a simple program that says “Hello World!”
•  Attach it to a kprobe point: sys_clone, sys_fork,…
•  Everytime that event happens, “Hello World!” on stdout
•  Dynamically modify the code and update the in-kernel
program “Hello, RedHat summit!”
23

•  BPF programs can attach to sockets, the traffic
control (TC) subsystem, kprobe, syscalls,
tracepoints…
•  Sockets can be STREAM (L4/UDP), DATAGRAM (L4/
TCP) or RAW (TC)
•  This allows to hook at different levels of the Linux
networking stack, providing the ability to act on traffic
that has or hasn’t been processed already by other
pieces of the stack
•  Opens up the possibility to implement network
functions at different layers of the stack

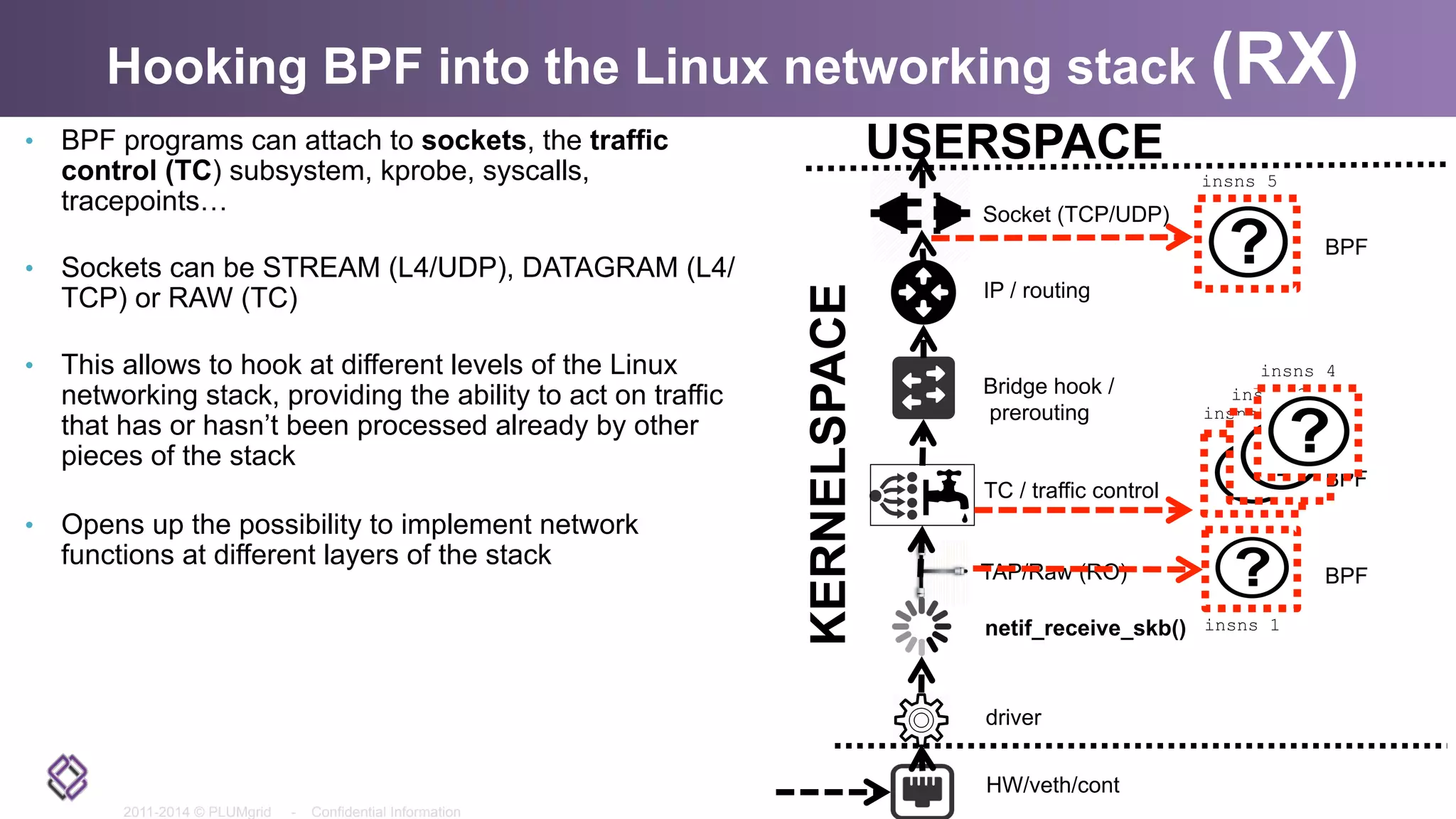

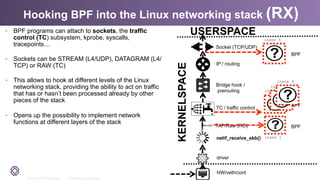

Hooking BPF into the Linux networking stack (RX)
HW/veth/cont
USERSPACE
TAP/Raw (RO)
driver
netif_receive_skb()
TC / traffic control
Bridge hook /
prerouting
IP / routing
KERNELSPACE
insns 1
BPF
Socket (TCP/UDP)
insns 5
BPF
insns 2
BPF
insns 3
insns 4

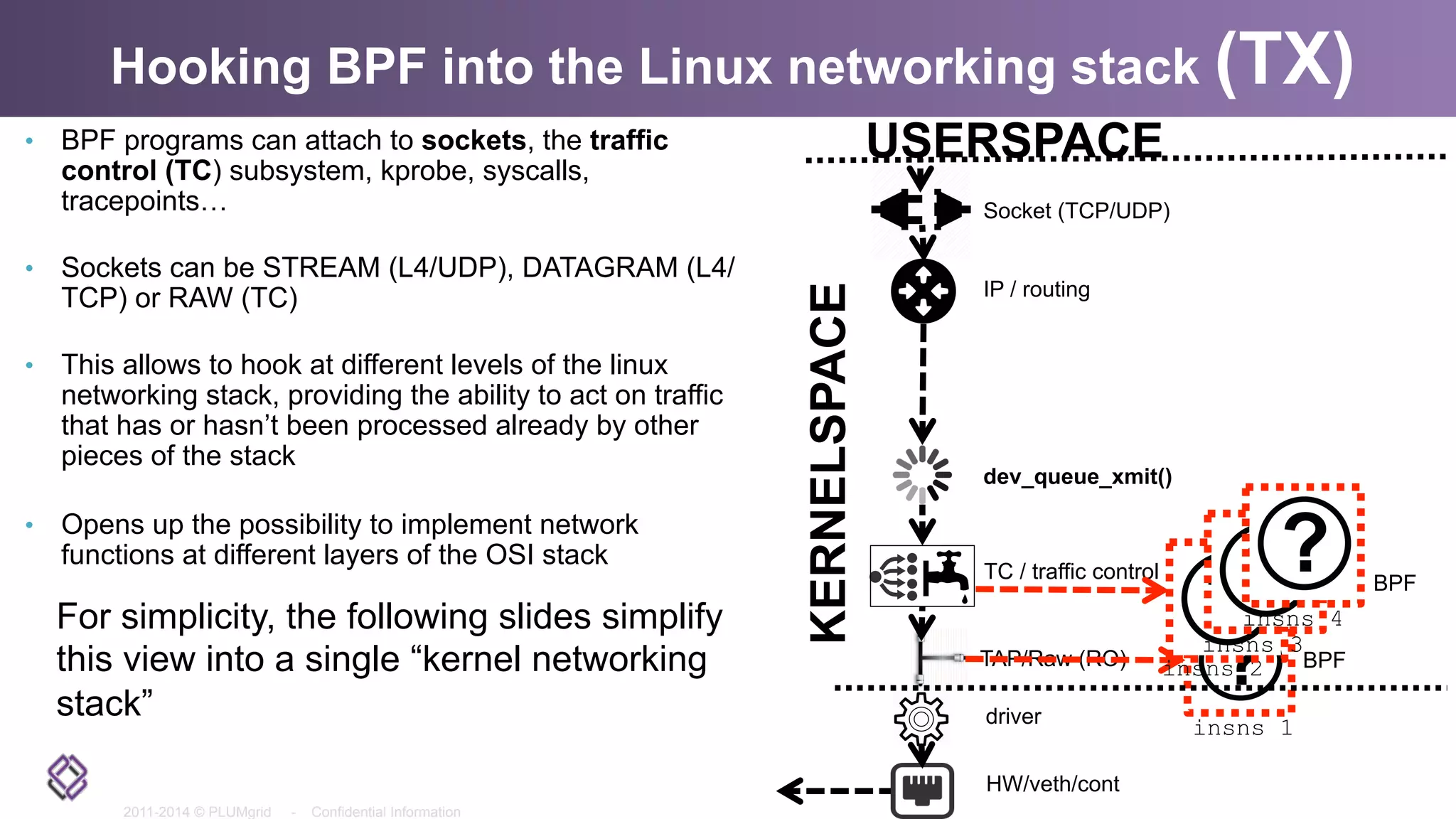

•  BPF programs can attach to sockets, the traffic
control (TC) subsystem, kprobe, syscalls,
tracepoints…
•  Sockets can be STREAM (L4/UDP), DATAGRAM (L4/
TCP) or RAW (TC)
•  This allows to hook at different levels of the linux
networking stack, providing the ability to act on traffic
that has or hasn’t been processed already by other
pieces of the stack
•  Opens up the possibility to implement network
functions at different layers of the OSI stack
Hooking BPF into the Linux networking stack (TX)
HW/veth/cont
USERSPACE
TAP/Raw (RO)
driver
dev_queue_xmit()
TC / traffic control
IP / routing
KERNELSPACE
insns 1
BPF
Socket (TCP/UDP)
For simplicity, the following slides simplify
this view into a single “kernel networking
stack”
insns 2
BPF
insns 3
insns 4

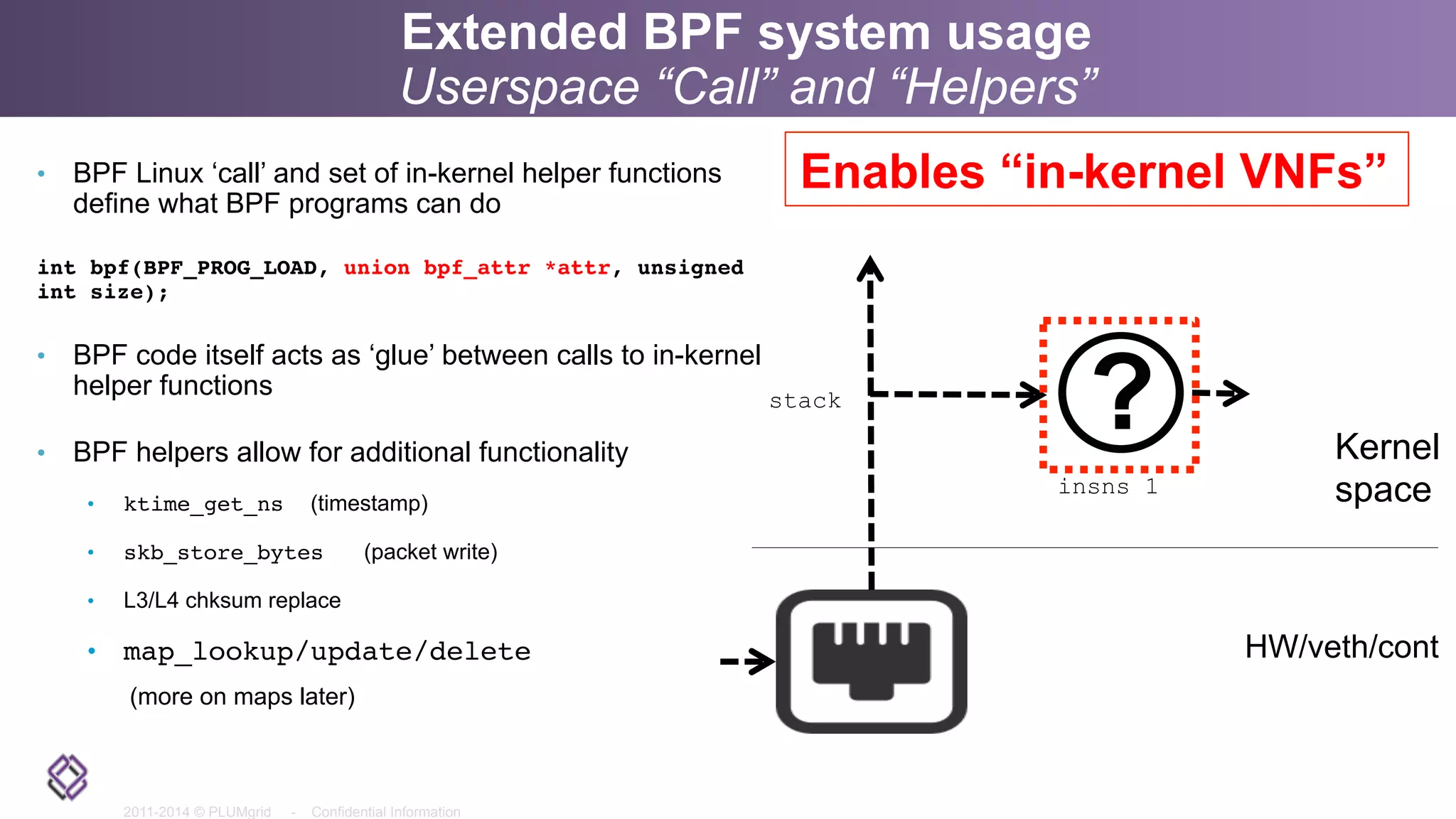

•  BPF Linux ‘call’ and set of in-kernel helper functions
define what BPF programs can do
int bpf(BPF_PROG_LOAD, union bpf_attr *attr, unsigned
int size);
•  BPF code itself acts as ‘glue’ between calls to in-kernel
helper functions
•  BPF helpers allow for additional functionality
•  ktime_get_ns (timestamp)
•  skb_store_bytes (packet write)
•  L3/L4 chksum replace
•  map_lookup/update/delete
(more on maps later)

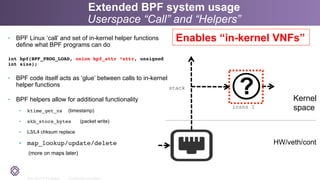

Extended BPF system usage
Userspace “Call” and “Helpers”
insns 1
stack
Kernel
space
HW/veth/cont
Enables “in-kernel VNFs”

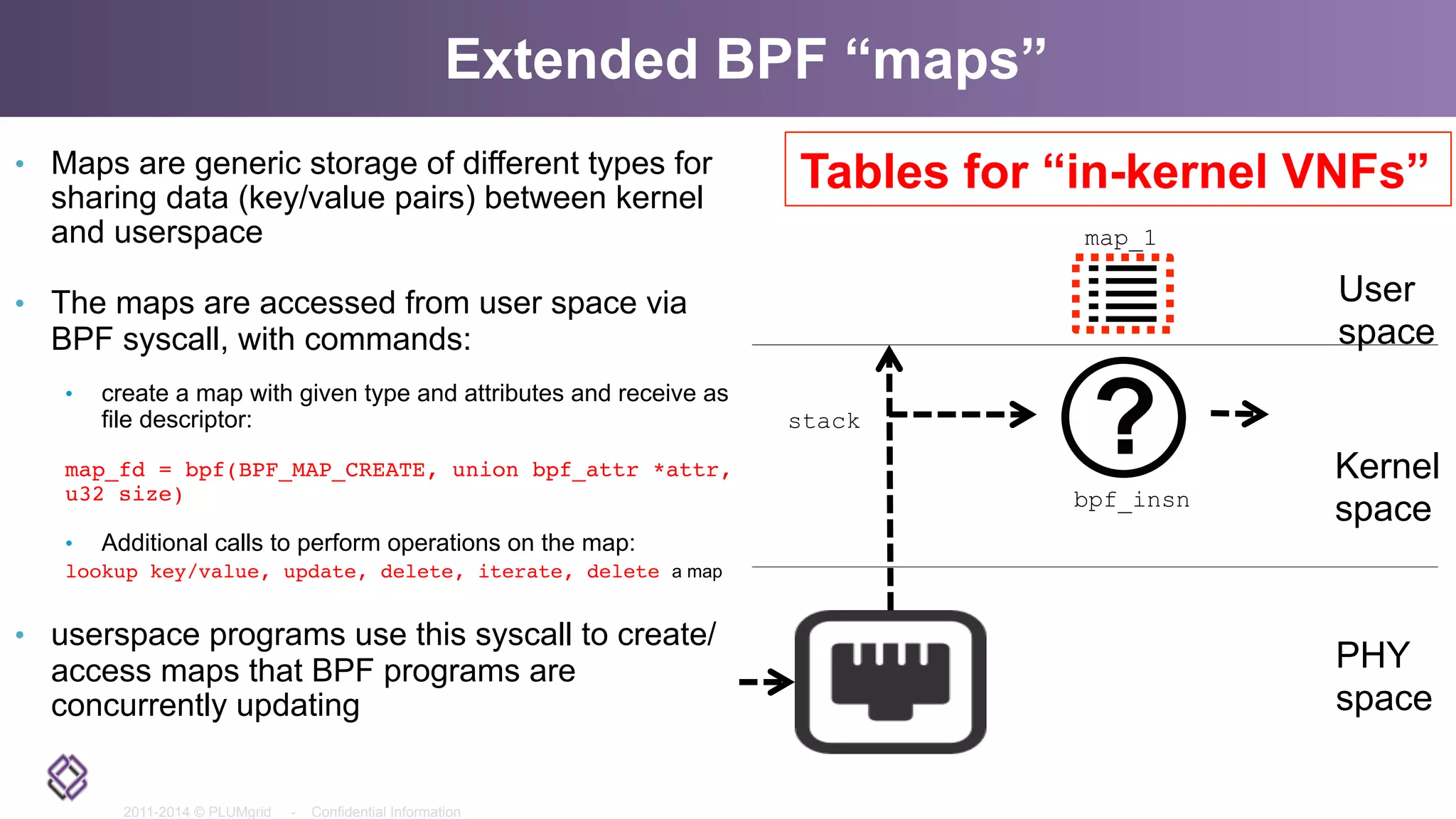

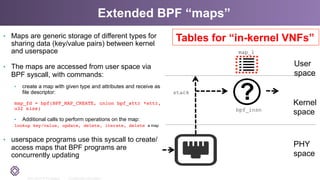

Extended BPF “maps”
•  Maps are generic storage of different types for
sharing data (key/value pairs) between kernel
and userspace
•  The maps are accessed from user space via
BPF syscall, with commands:
•  create a map with given type and attributes and receive as
file descriptor:
map_fd = bpf(BPF_MAP_CREATE, union bpf_attr *attr,
u32 size)
•  Additional calls to perform operations on the map:
lookup key/value, update, delete, iterate, delete a map
•  userspace programs use this syscall to create/
access maps that BPF programs are
concurrently updating
bpf_insn
stack
map_1
User
space
PHY
space
Kernel
space
Tables for “in-kernel VNFs”

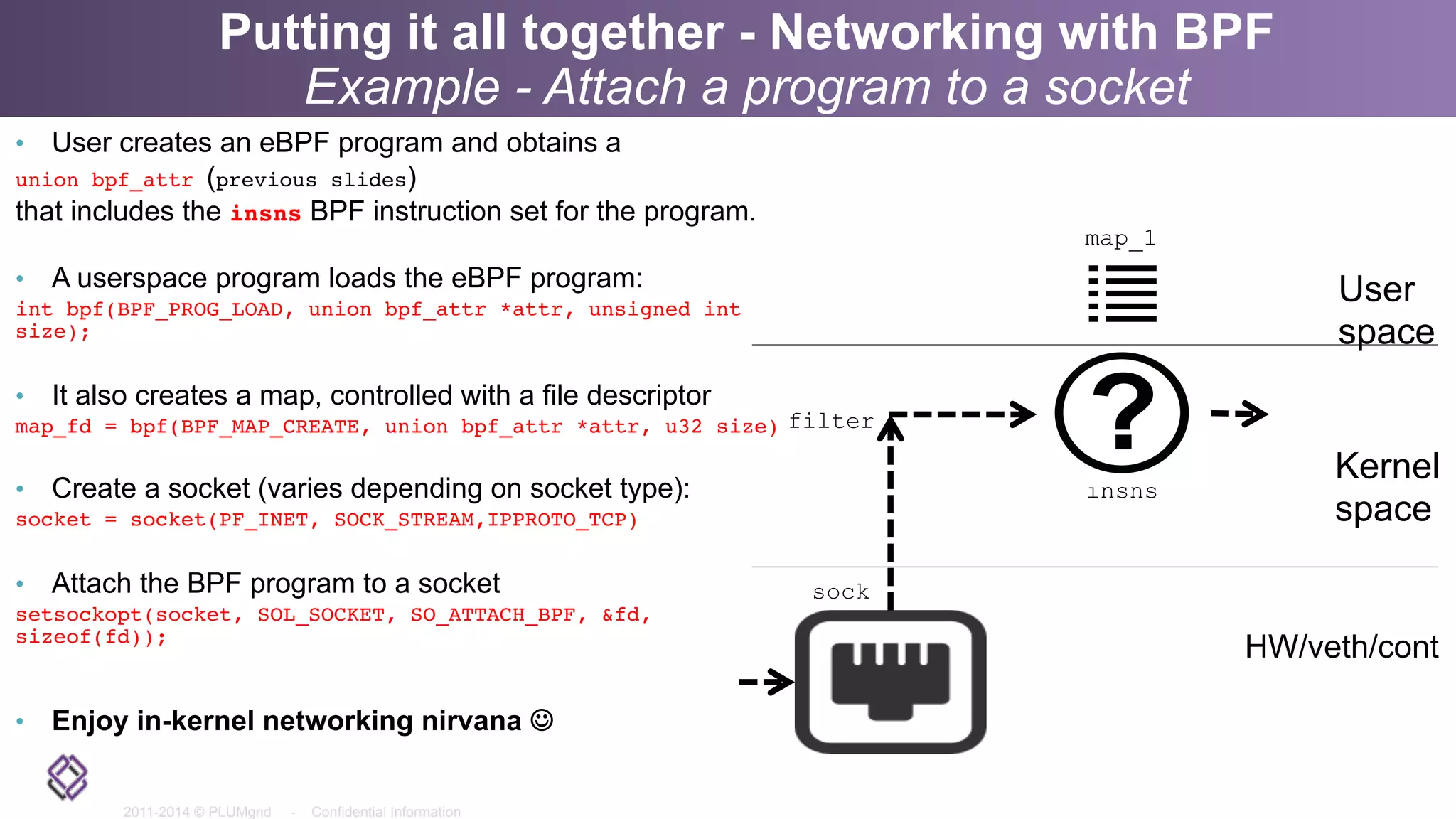

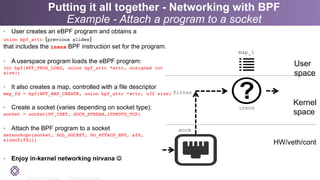

Putting it all together - Networking with BPF
Example - Attach a program to a socket
•  User creates an eBPF program and obtains a
union bpf_attr (previous slides)
that includes the insns BPF instruction set for the program.
•  A userspace program loads the eBPF program:
int bpf(BPF_PROG_LOAD, union bpf_attr *attr, unsigned int
size);
•  It also creates a map, controlled with a file descriptor
map_fd = bpf(BPF_MAP_CREATE, union bpf_attr *attr, u32 size)
•  Create a socket (varies depending on socket type):
socket = socket(PF_INET, SOCK_STREAM,IPPROTO_TCP)
•  Attach the BPF program to a socket
setsockopt(socket, SOL_SOCKET, SO_ATTACH_BPF, &fd,
sizeof(fd));
•  Enjoy in-kernel networking nirvana ☺
insns
sock
filter
map_1
User
space
Kernel
space
HW/veth/cont

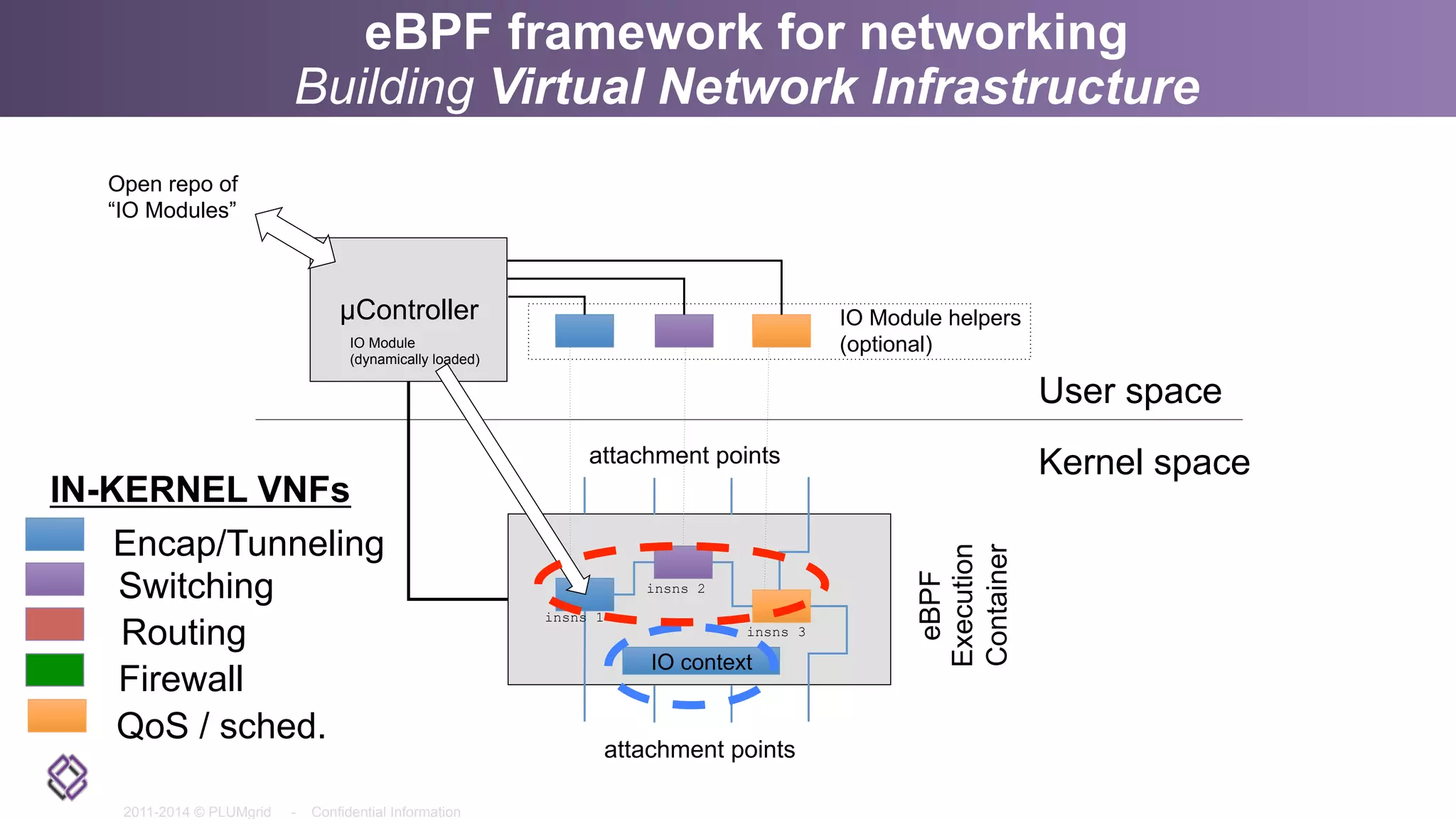

eBPF framework for networking
Building Virtual Network Infrastructure
µController
attachment points
attachment points
eBPF
Execution
Container
Kernel space
User space
IO context
IO Module helpers
(optional)IO Module
(dynamically loaded)
Open repo of
“IO Modules”
Encap/Tunneling
QoS / sched.
IN-KERNEL VNFs
Switching
Routing
Firewall
insns 1
insns 2
insns 3

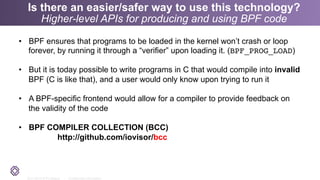

Is there an easier/safer way to use this technology?
Higher-level APIs for producing and using BPF code
•  BPF ensures that programs to be loaded in the kernel won’t crash or loop
forever, by running it through a “verifier” upon loading it. (BPF_PROG_LOAD)
•  But it is today possible to write programs in C that would compile into invalid
BPF (C is like that), and a user would only know upon trying to run it
•  A BPF-specific frontend would allow for a compiler to provide feedback on
the validity of the code
•  BPF COMPILER COLLECTION (BCC)
http://github.com/iovisor/bcc

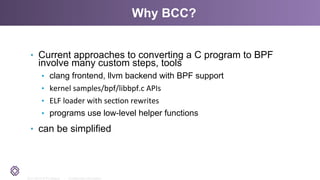

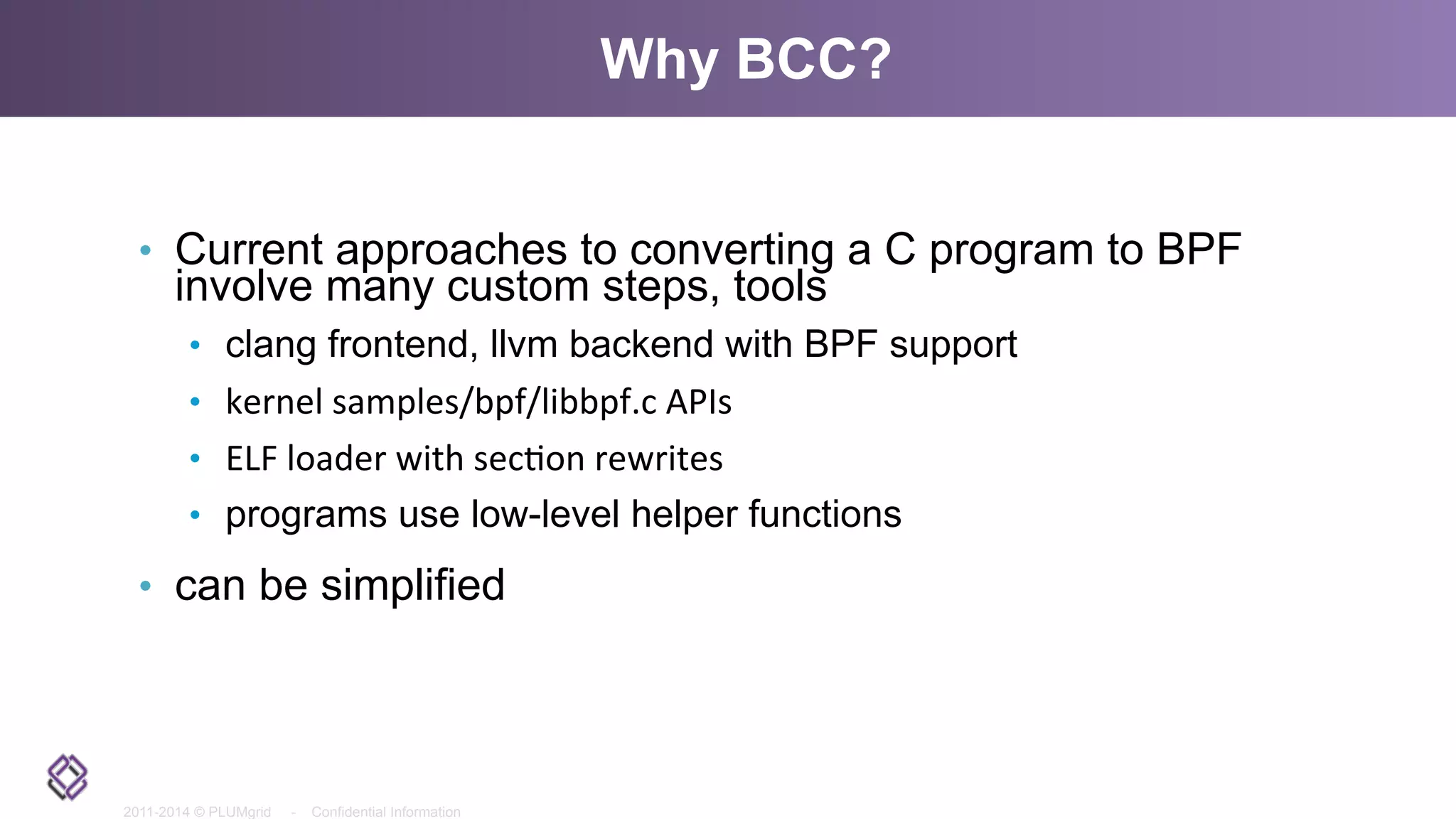

Why BCC?
•  Current approaches to converting a C program to BPF
involve many custom steps, tools
•  clang frontend, llvm backend with BPF support
•  kernel
samples/bpf/libbpf.c
APIs

•  ELF
loader
with
sec<on
rewrites

•  programs use low-level helper functions
•  can be simplified

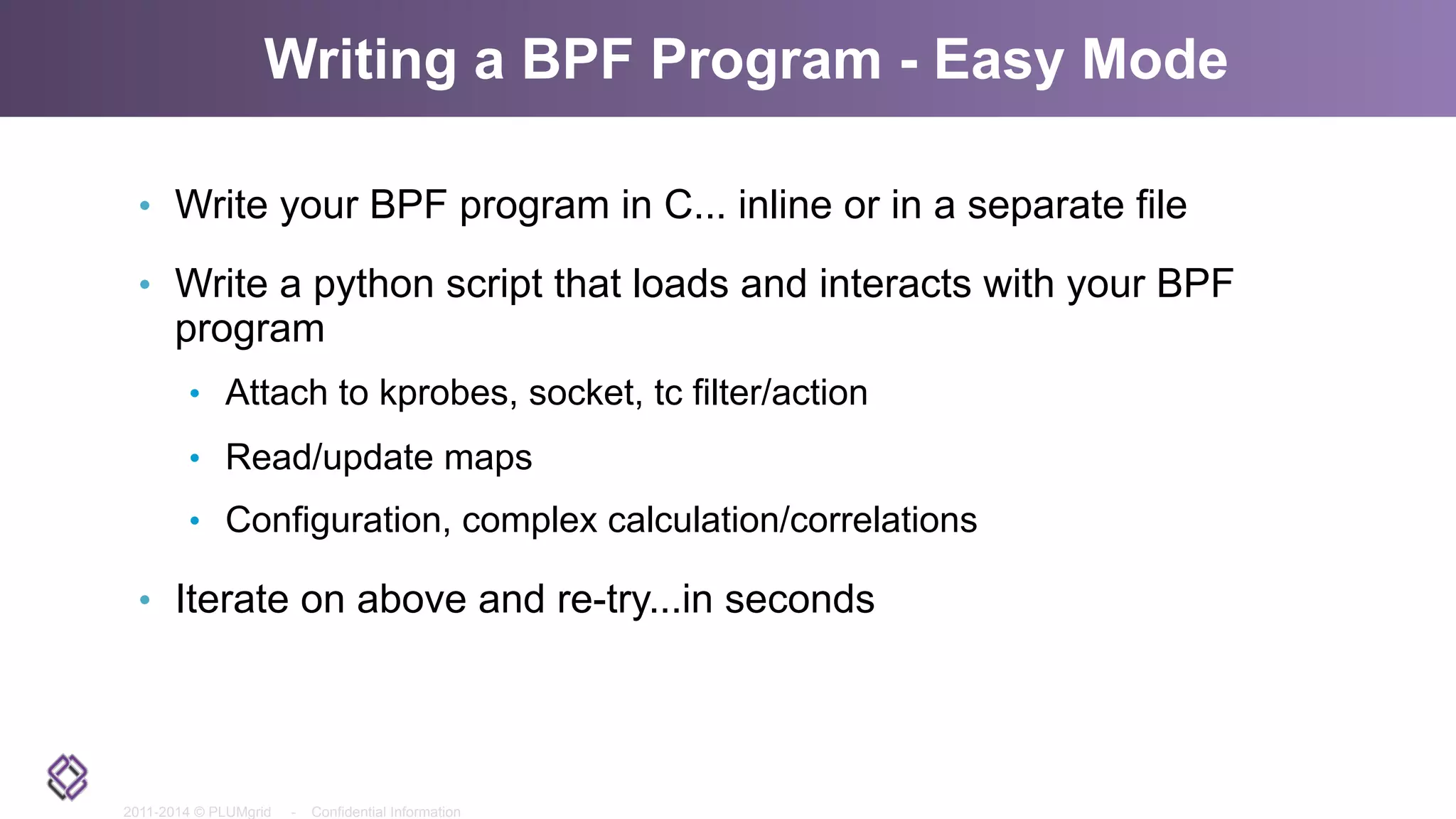

Writing a BPF Program - Easy Mode
•  Write your BPF program in C... inline or in a separate file
•  Write a python script that loads and interacts with your BPF
program
•  Attach to kprobes, socket, tc filter/action
•  Read/update maps
•  Configuration, complex calculation/correlations
•  Iterate on above and re-try...in seconds

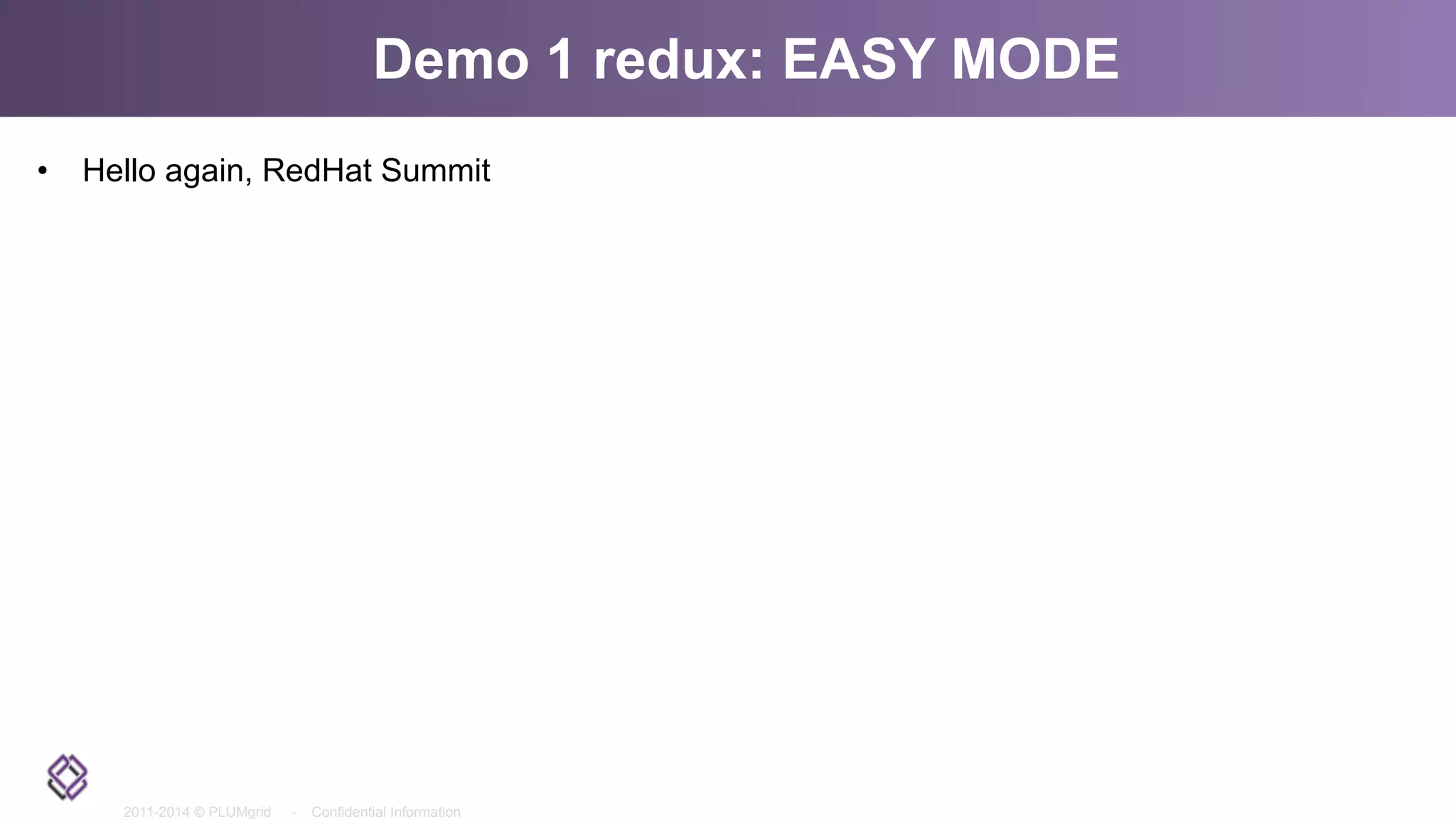

Demo 1 redux: EASY MODE
•  Hello again, RedHat Summit

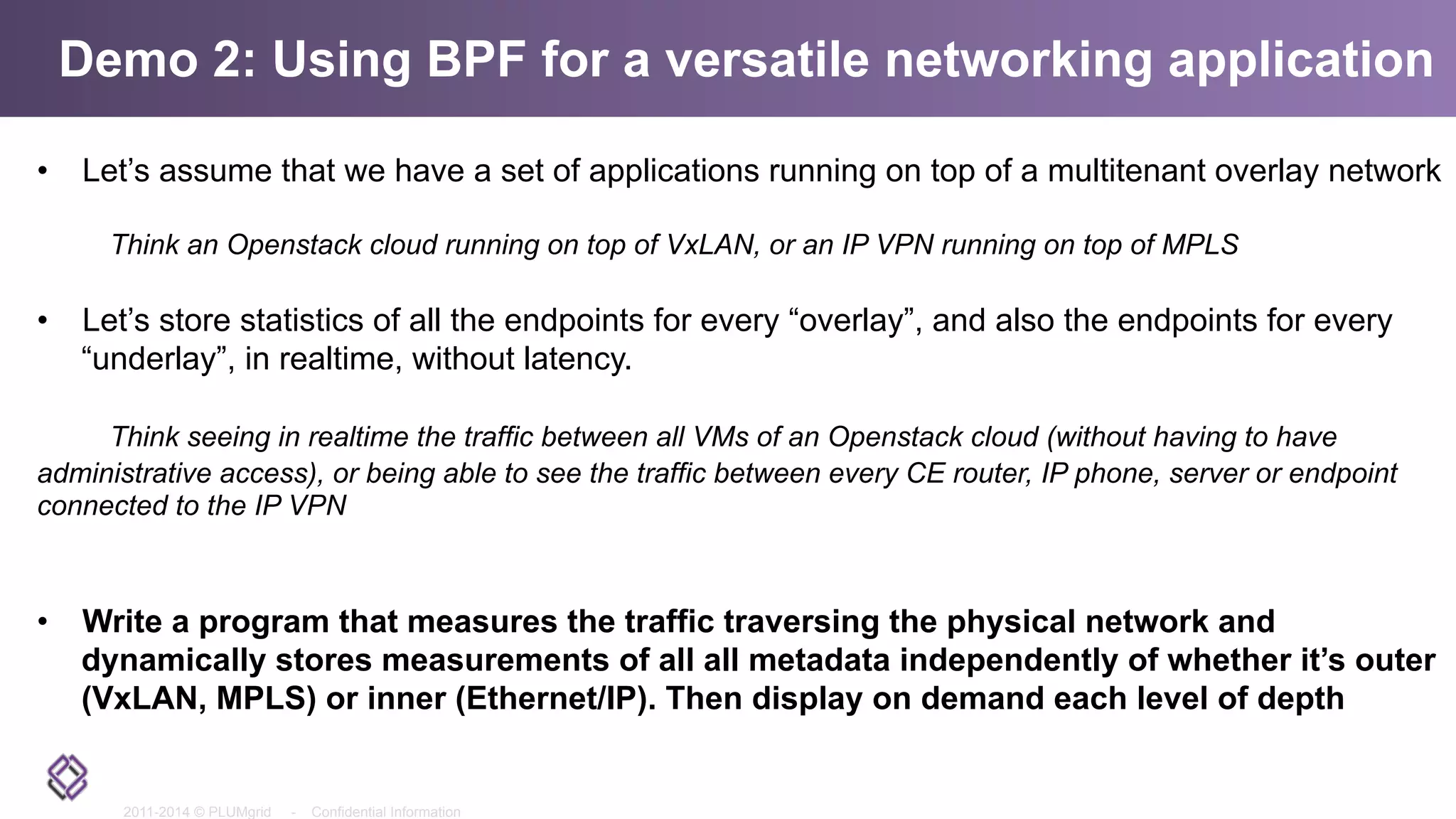

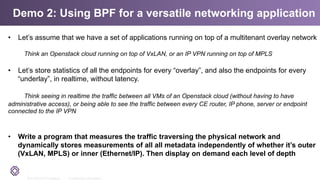

Demo 2: Using BPF for a versatile networking application
•  Let’s assume that we have a set of applications running on top of a multitenant overlay network
Think an Openstack cloud running on top of VxLAN, or an IP VPN running on top of MPLS
•  Let’s store statistics of all the endpoints for every “overlay”, and also the endpoints for every
“underlay”, in realtime, without latency.
Think seeing in realtime the traffic between all VMs of an Openstack cloud (without having to have
administrative access), or being able to see the traffic between every CE router, IP phone, server or endpoint
connected to the IP VPN
•  Write a program that measures the traffic traversing the physical network and
dynamically stores measurements of all all metadata independently of whether it’s outer
(VxLAN, MPLS) or inner (Ethernet/IP). Then display on demand each level of depth

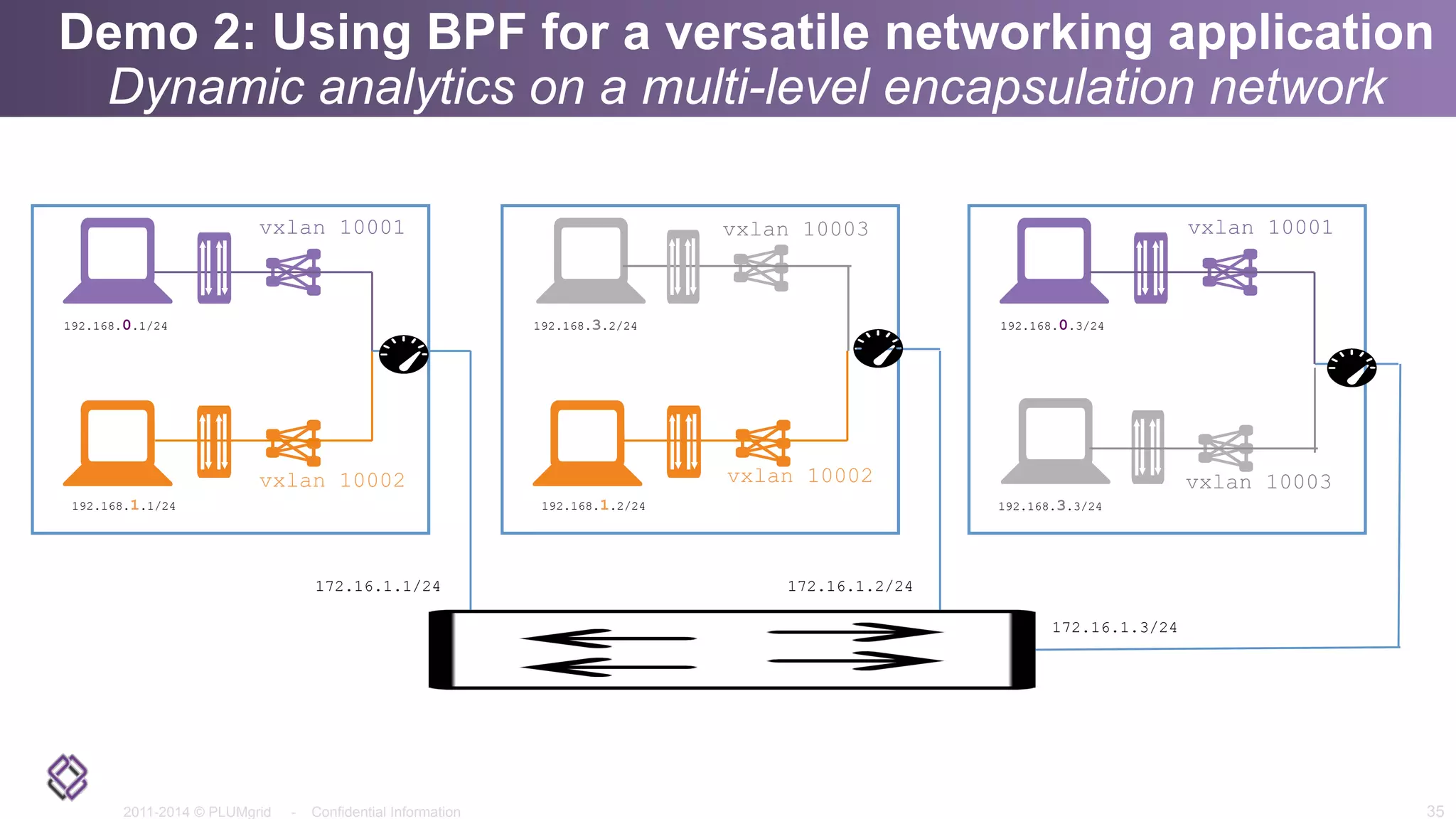

Demo 2: Using BPF for a versatile networking application
Dynamic analytics on a multi-level encapsulation network
35
172.16.1.1/24
192.168.0.1/24
192.168.1.1/24
192.168.3.2/24
192.168.1.2/24
192.168.0.3/24
192.168.3.3/24
172.16.1.2/24
172.16.1.3/24
vxlan 10001 vxlan 10001
vxlan 10002 vxlan 10002
vxlan 10003
vxlan 10003

Our Vision
36
Thank You

EBPF and Linux Networking

In this document

More Related Content

What's hot

Similar to EBPF and Linux Networking

More from PLUMgrid

Recently uploaded

EBPF and Linux Networking
