LinuxCon 2015 Linux Kernel Networking Walkthrough
The document provides a comprehensive overview of kernel networking as presented by Thomas Graf at LinuxCon 2015, covering packet processing, receive and transmit mechanisms, and various network stack components like NAPI and RSS. It explains hardware offloading techniques, including segmentation and checksum offloading, to improve performance, along with memory management in socket buffers and flow control. The document concludes with a Q&A section and contact information for further inquiries.
TechnologyâŠ
More Related Content
Similar to LinuxCon 2015 Linux Kernel Networking Walkthrough
LinuxCon 2015 Linux Kernel Networking Walkthrough
- 1. Kernel Networking Walkthrough LinuxCon2015, Seattle Thomas Graf Kernel & Open vSwitch Team Noiro Networks (Cisco)

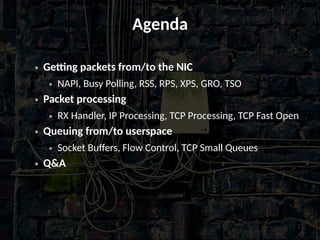

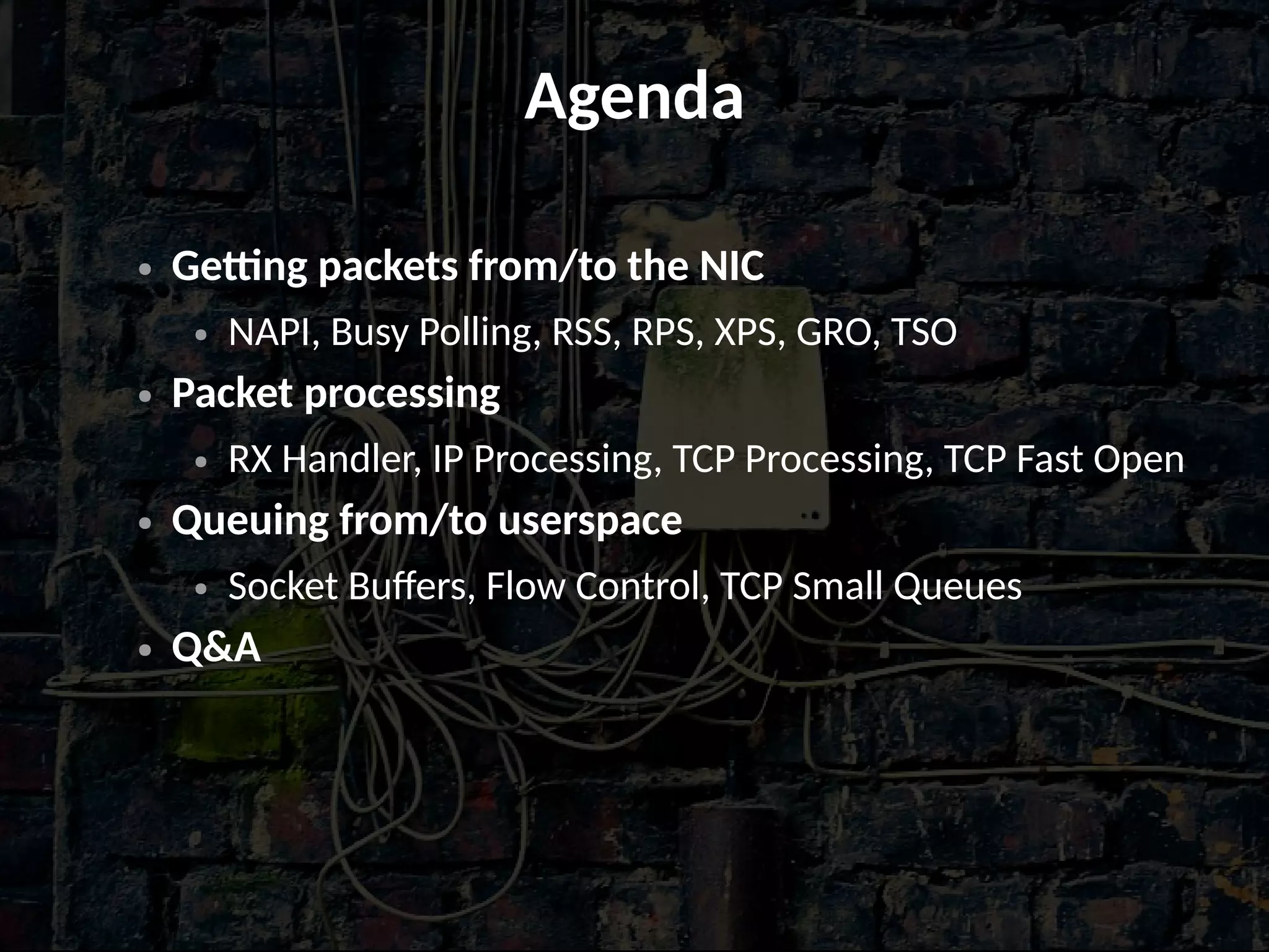

- 2. Agenda â Getting packetsfrom/to the NIC â NAPI, Busy Polling, RSS, RPS, XPS, GRO, TSO â Packet processing â RX Handler, IP Processing, TCP Processing, TCP Fast Open â Queuing from/to userspace â Socket Buffers, Flow Control, TCP Small Queues â Q&A
- 3. Touring the NetworkStack Expectation Reality
- 4. How does apacket get in and out of the Network Stack?

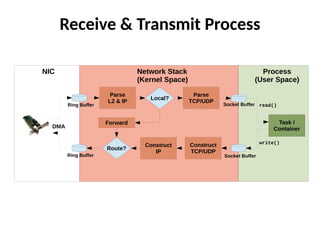

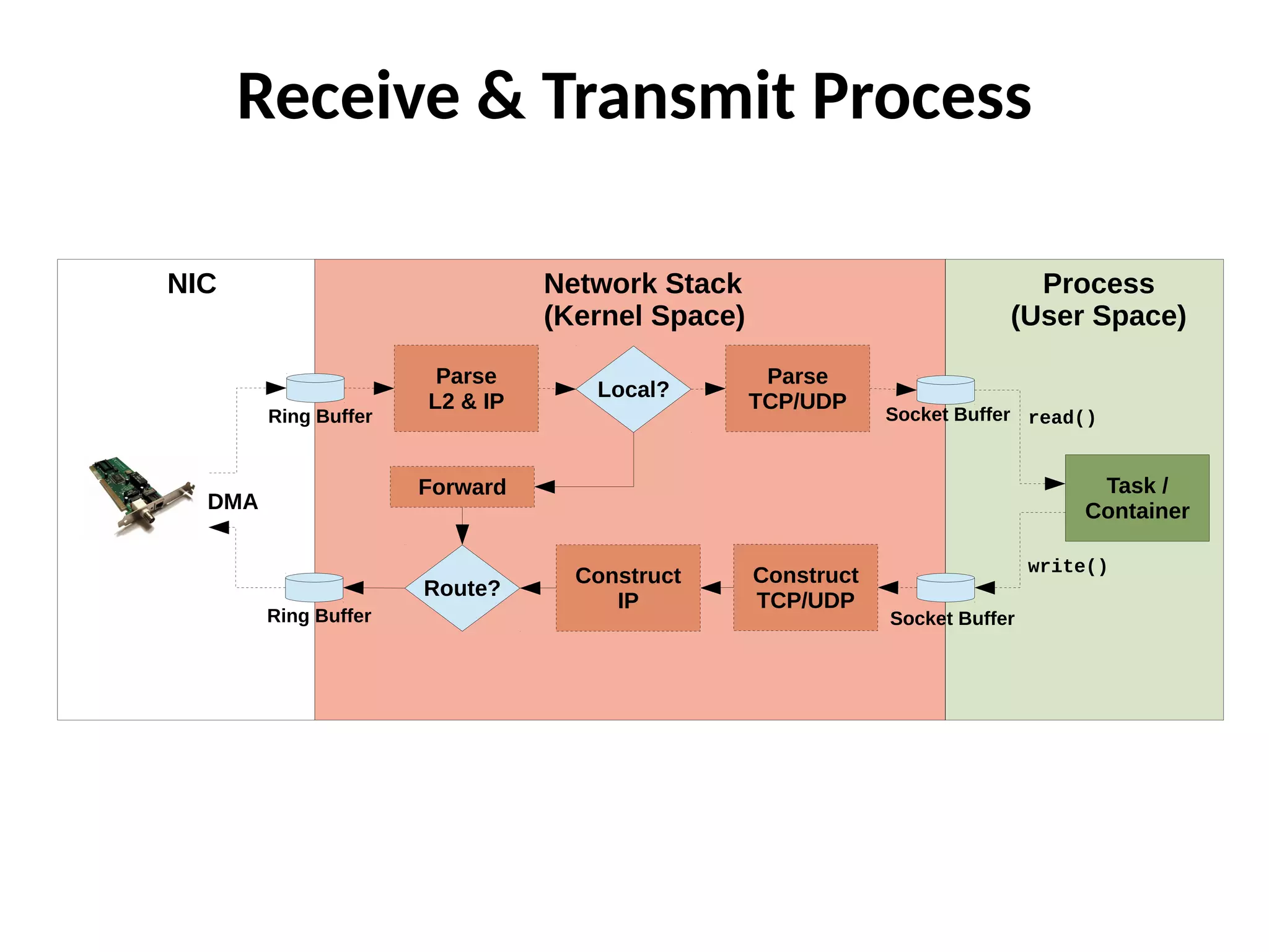

- 5. Receive & TransmitProcess Ring Buffer DMA Parse L2 & IP Parse TCP/UDP Socket Buffer Task / Container read() Ring Buffer Construct IP Construct TCP/UDP Local? Socket Buffer Forward Route? write() NIC Network Stack (Kernel Space) Process (User Space)

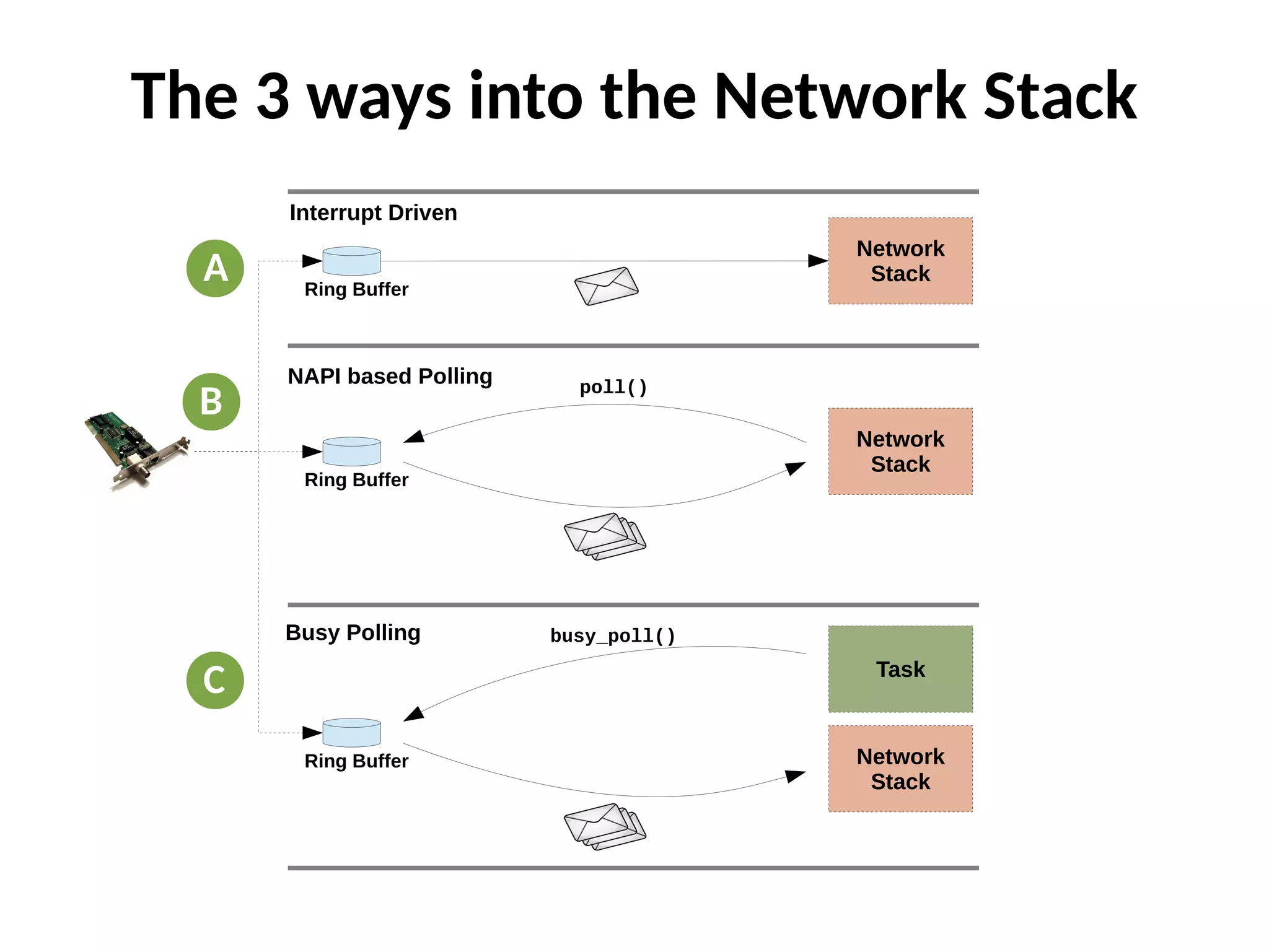

- 6. The 3 waysinto the Network Stack Ring Buffer Network Stack Interrupt Driven A Ring Buffer Network Stack NAPI based Polling poll() B Ring Buffer Network Stack Busy Polling busy_poll() Task C

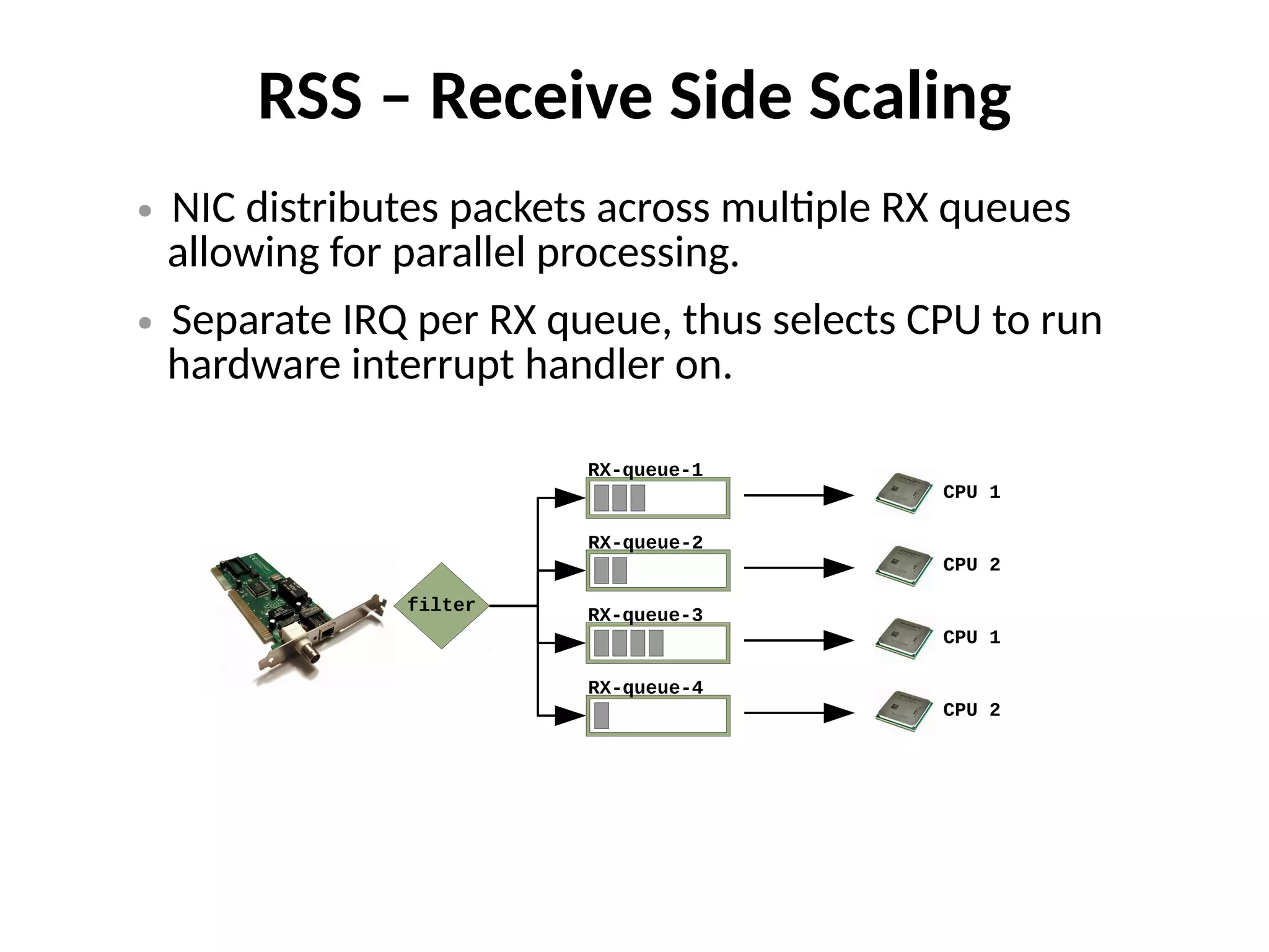

- 7. RSS â ReceiveSide Scaling â NIC distributes packets across multiple RX queues allowing for parallel processing. â Separate IRQ per RX queue, thus selects CPU to run hardware interrupt handler on. RX-queue-1 RX-queue-2 RX-queue-3 RX-queue-4 CPU 1 CPU 2 CPU 1 CPU 2 filter

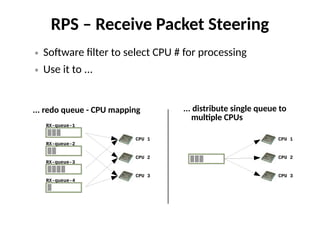

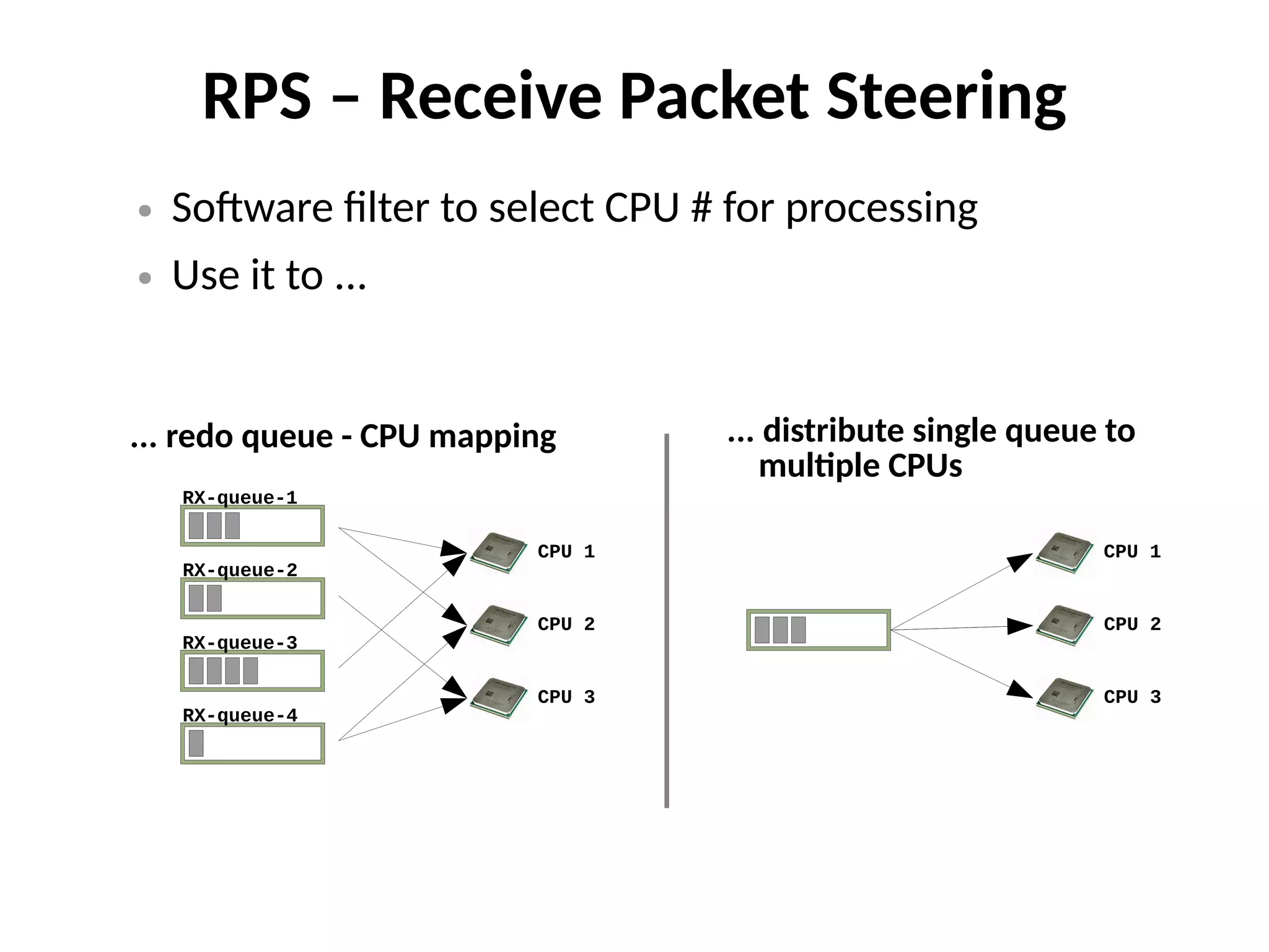

- 8. RPS â ReceivePacket Steering â Software filter to select CPU # for processing â Use it to ... RX-queue-1 RX-queue-2 RX-queue-3 RX-queue-4 CPU 1 CPU 2 CPU 3 CPU 1 CPU 2 CPU 3 ... redo queue - CPU mapping ... distribute single queue to multiple CPUs

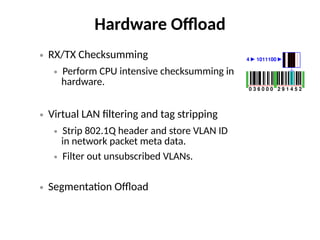

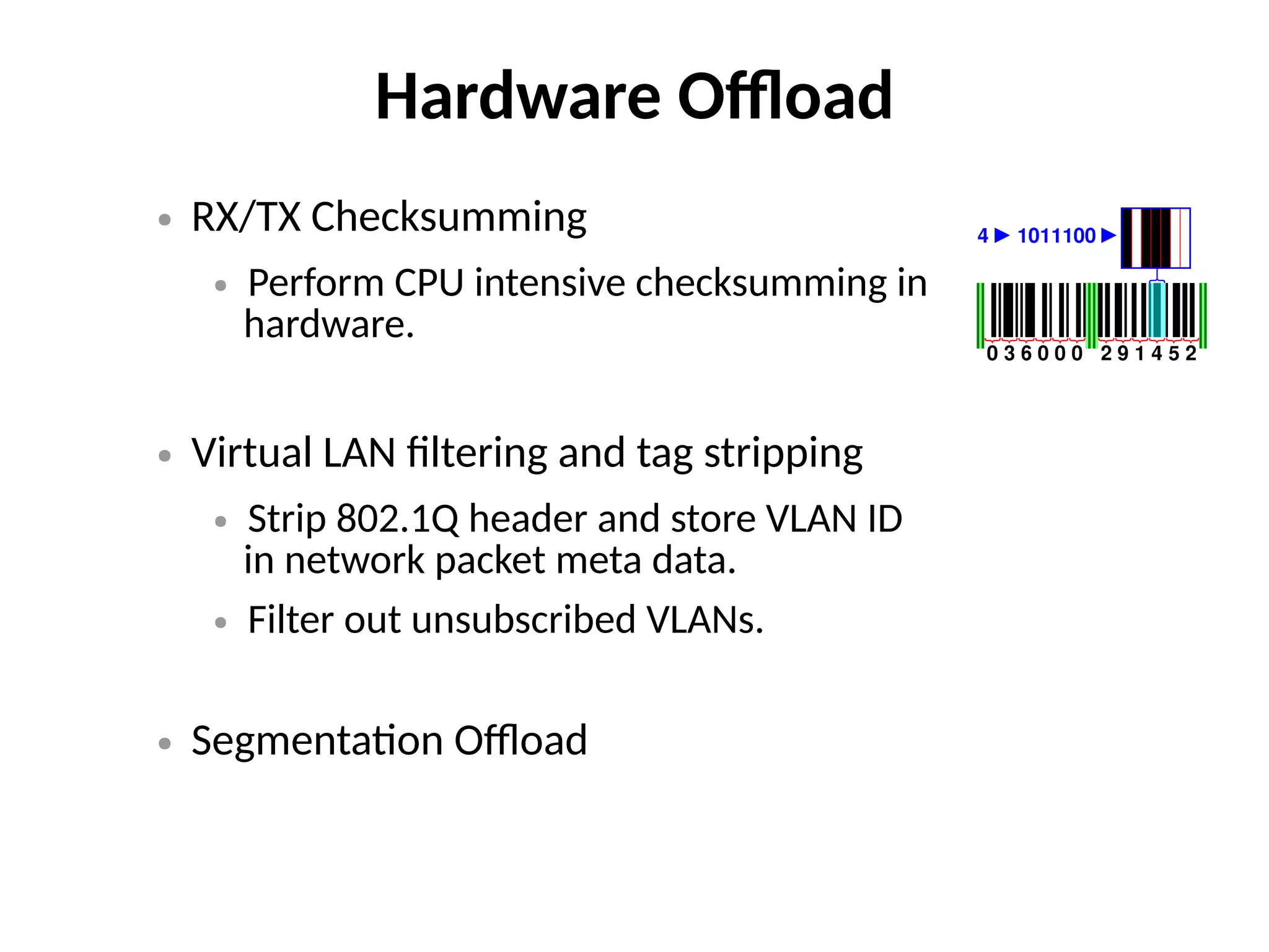

- 9. Hardware Offload â RX/TXChecksumming â Perform CPU intensive checksumming in hardware. â Virtual LAN filtering and tag stripping â Strip 802.1Q header and store VLAN ID in network packet meta data. â Filter out unsubscribed VLANs. â Segmentation Offload

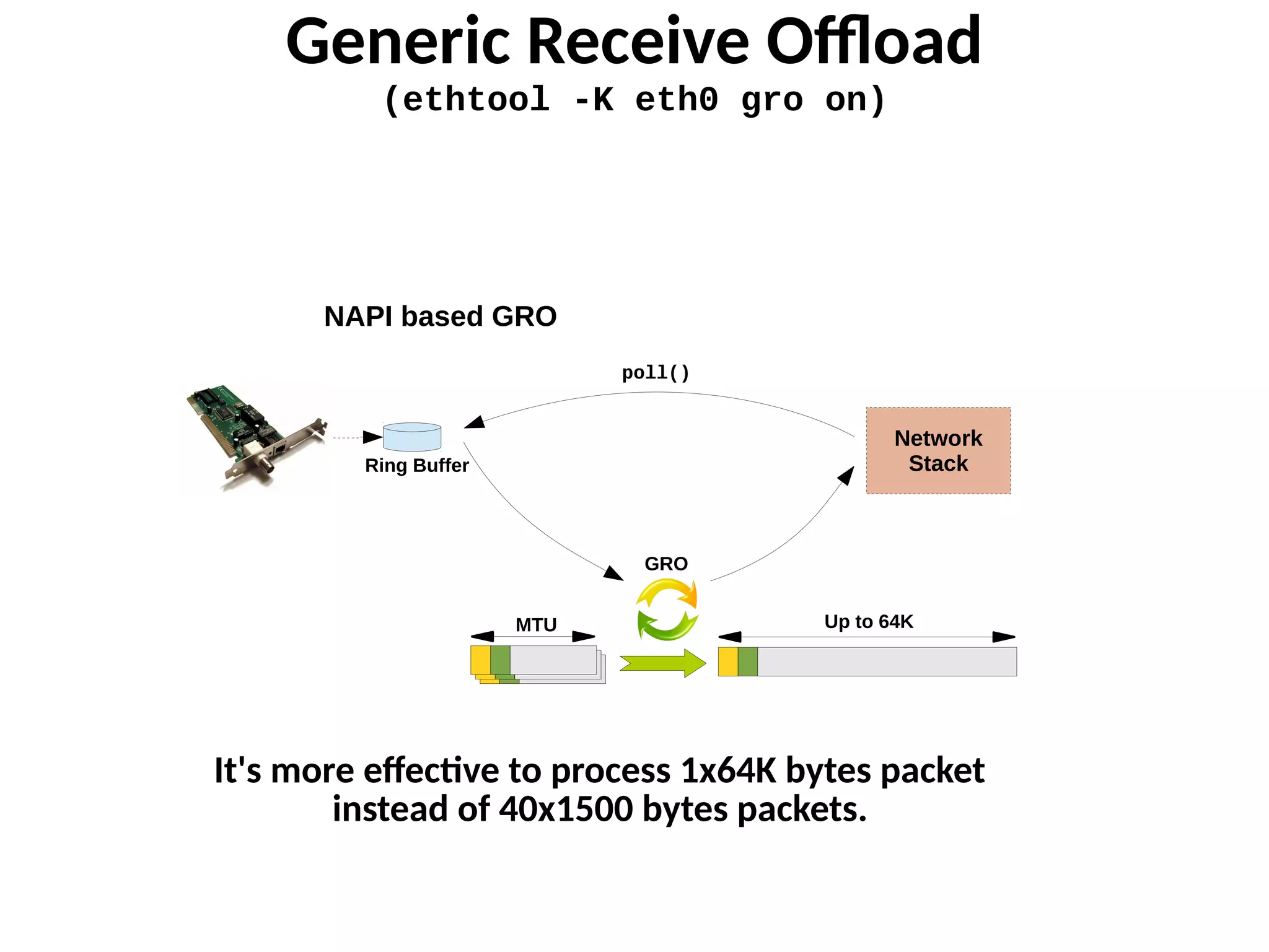

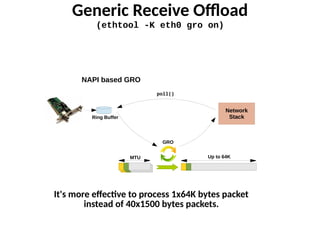

- 10. Generic Receive Offload (ethtool-K eth0 gro on) Ring Buffer Network Stack poll() NAPI based GRO MTU GRO Up to 64K It's more effective to process 1x64K bytes packet instead of 40x1500 bytes packets.

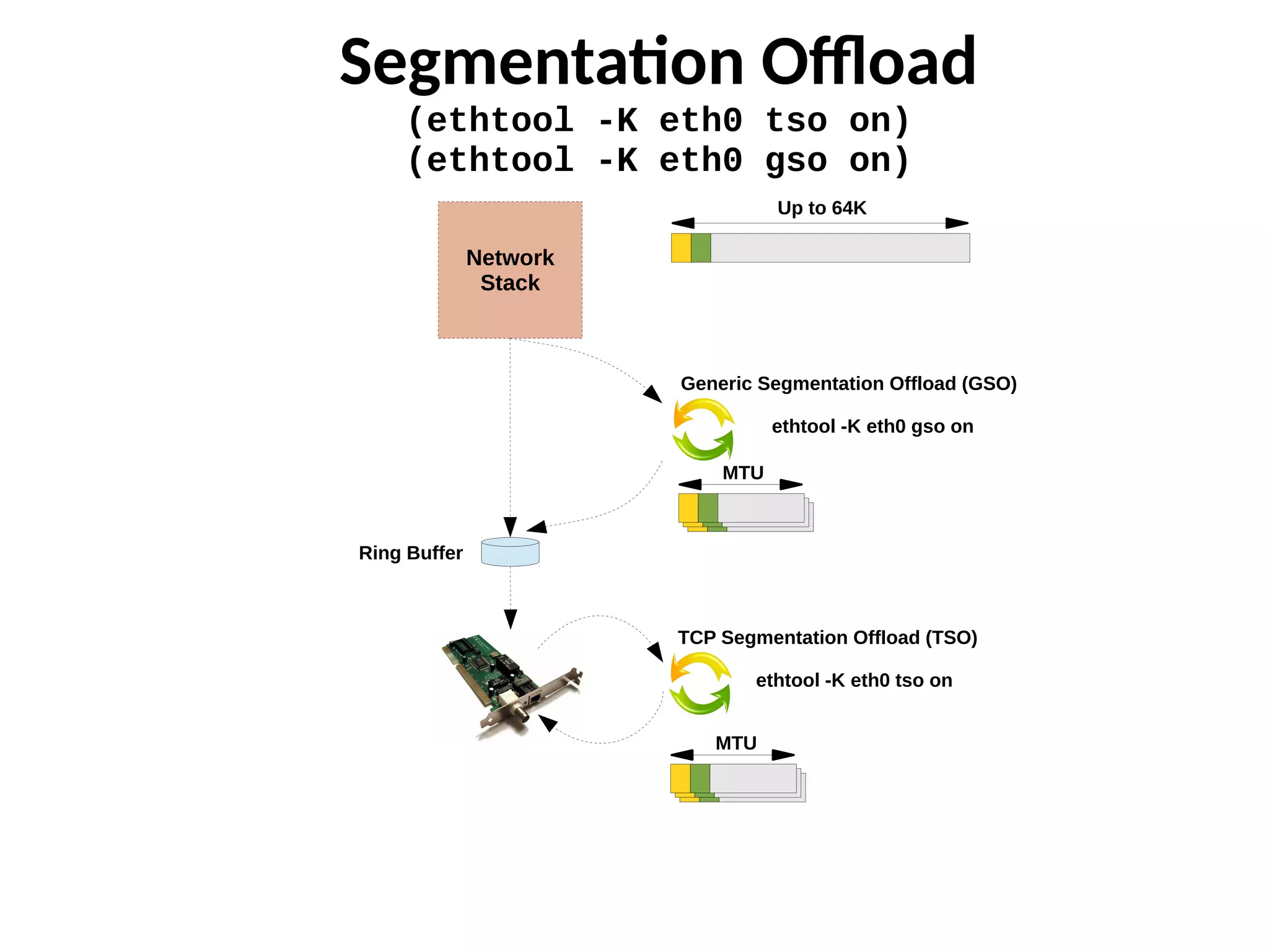

- 11. Segmentation Offload (ethtool -Keth0 tso on) (ethtool -K eth0 gso on) Ring Buffer Network Stack Generic Segmentation Offload (GSO) ethtool -K eth0 gso on MTU TCP Segmentation Offload (TSO) ethtool -K eth0 tso on MTU Up to 64K
- 12. How does apacket get through the Network Stack? (c) Karen Sagovac

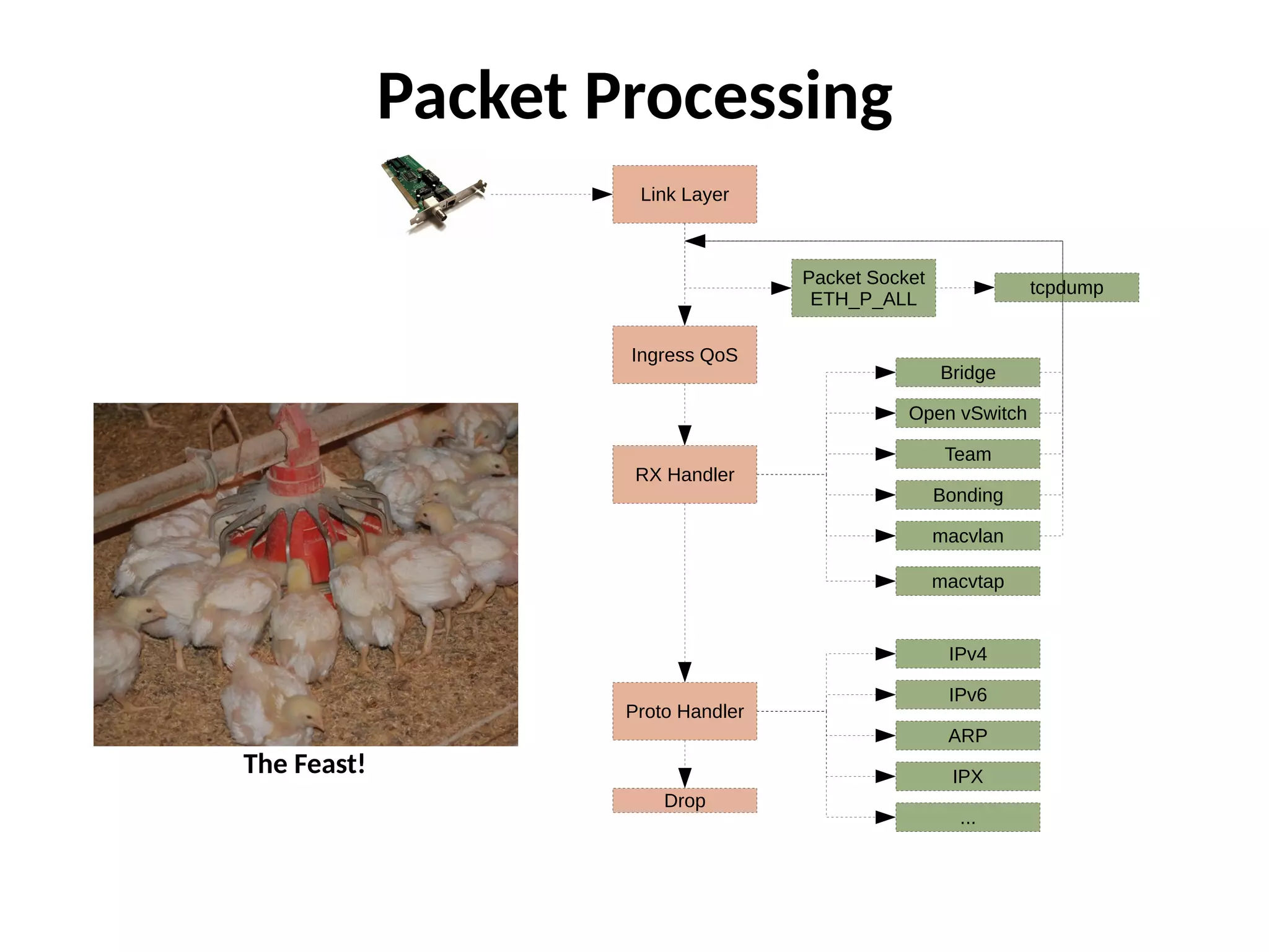

- 13. Packet Processing Link Layer IngressQoS Proto Handler IPv4 IPv6 ARP IPX ... Drop The Feast! RX Handler Open vSwitch Team Bonding Bridge macvlan macvtap Packet Socket ETH_P_ALL tcpdump

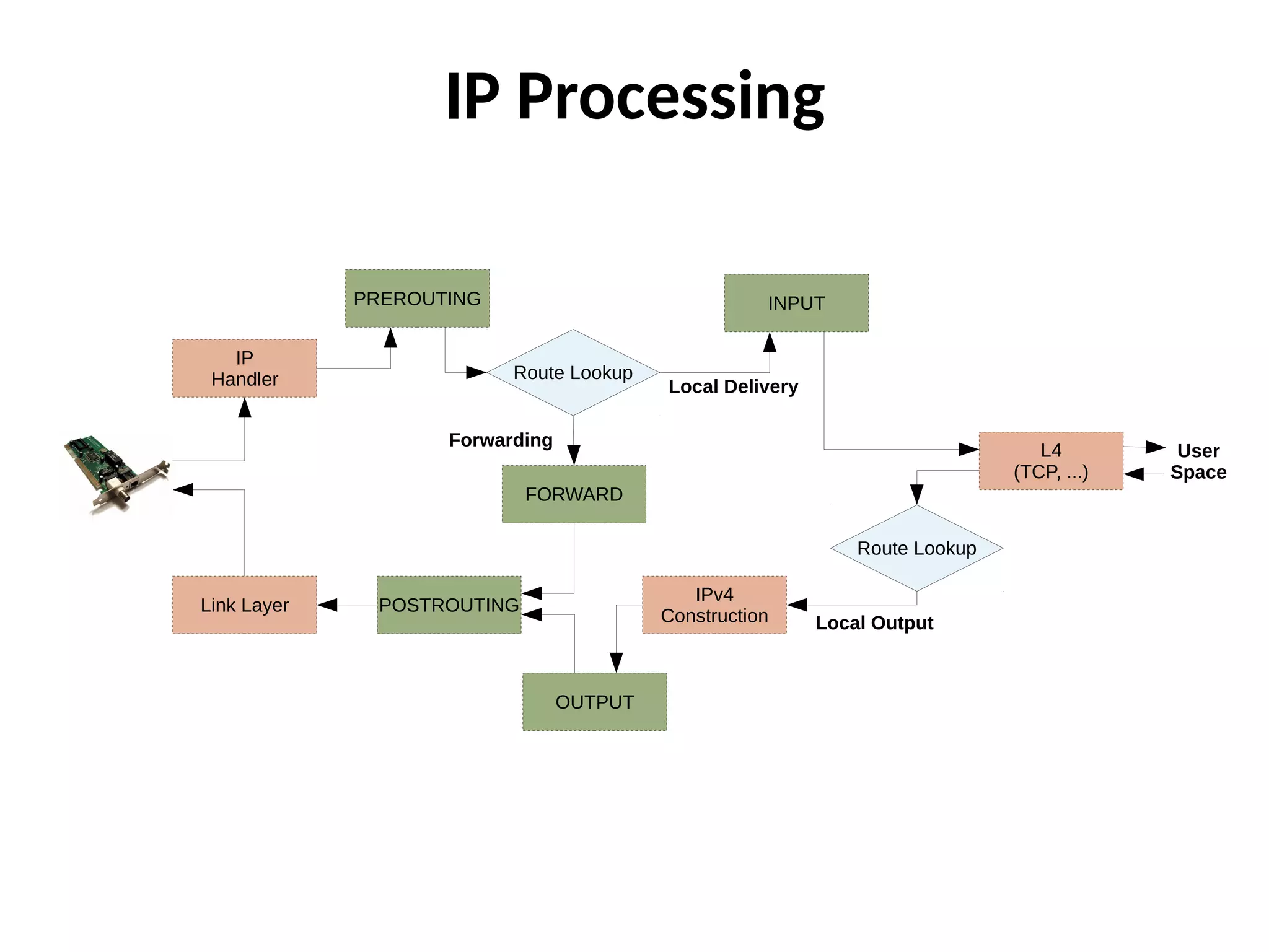

- 14. IP Processing IP Handler RouteLookup PREROUTING IPv4 Construction Route Lookup Local Output OUTPUT POSTROUTINGLink Layer FORWARD Forwarding L4 (TCP, ...) Local Delivery INPUT User Space

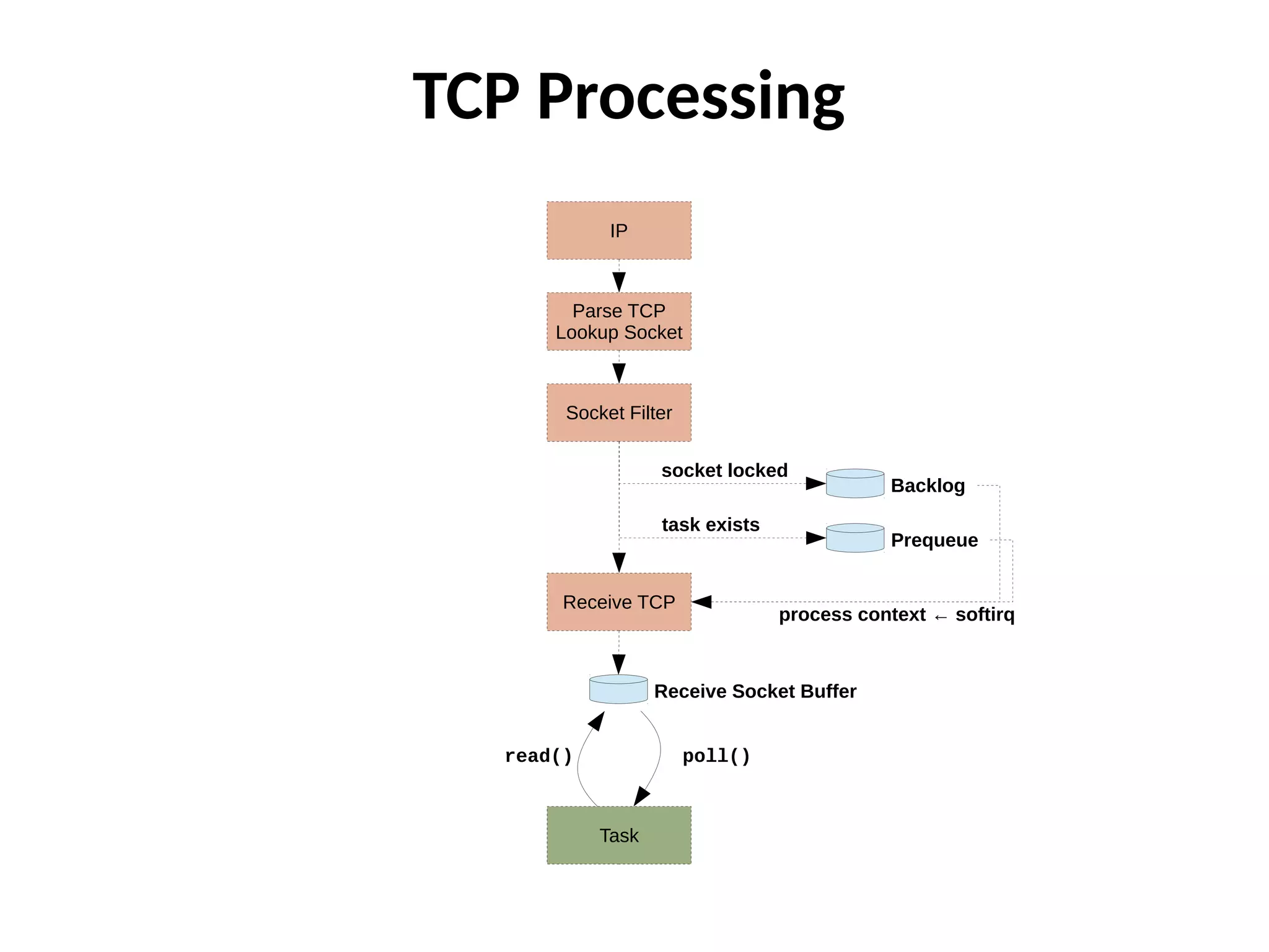

- 15. TCP Processing IP Socket Filter ReceiveTCP Parse TCP Lookup Socket Backlog socket locked Receive Socket Buffer Prequeue task exists process context â softirq Task poll()read()

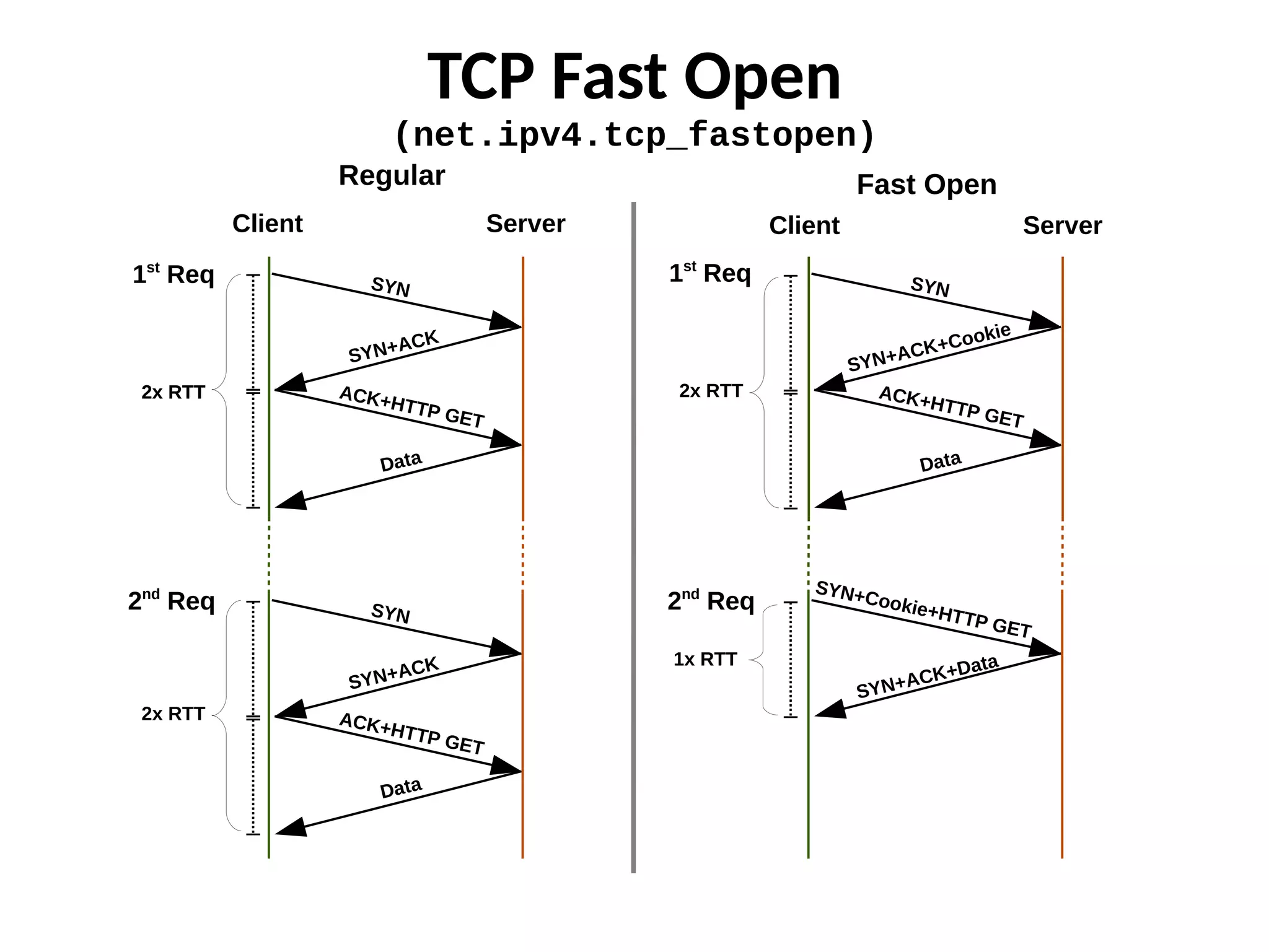

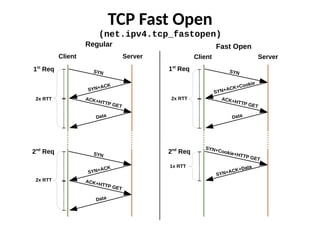

- 16. TCP Fast Open (net.ipv4.tcp_fastopen) 2nd ReqSYN SYN+ACK ACK+HTTP GET Data 2x RTT SYN+Cookie+HTTP GET SYN+ACK+Data 2nd Req 1x RTT Client Server SYN SYN+ACK ACK+HTTP GET 1st Req Data 2x RTT2x RTT Regular Client Server SYN SYN+ACK+Cookie ACK+HTTP GET 1st Req Data 2x RTT Fast Open
- 17. Memory Accounting &Flow Control

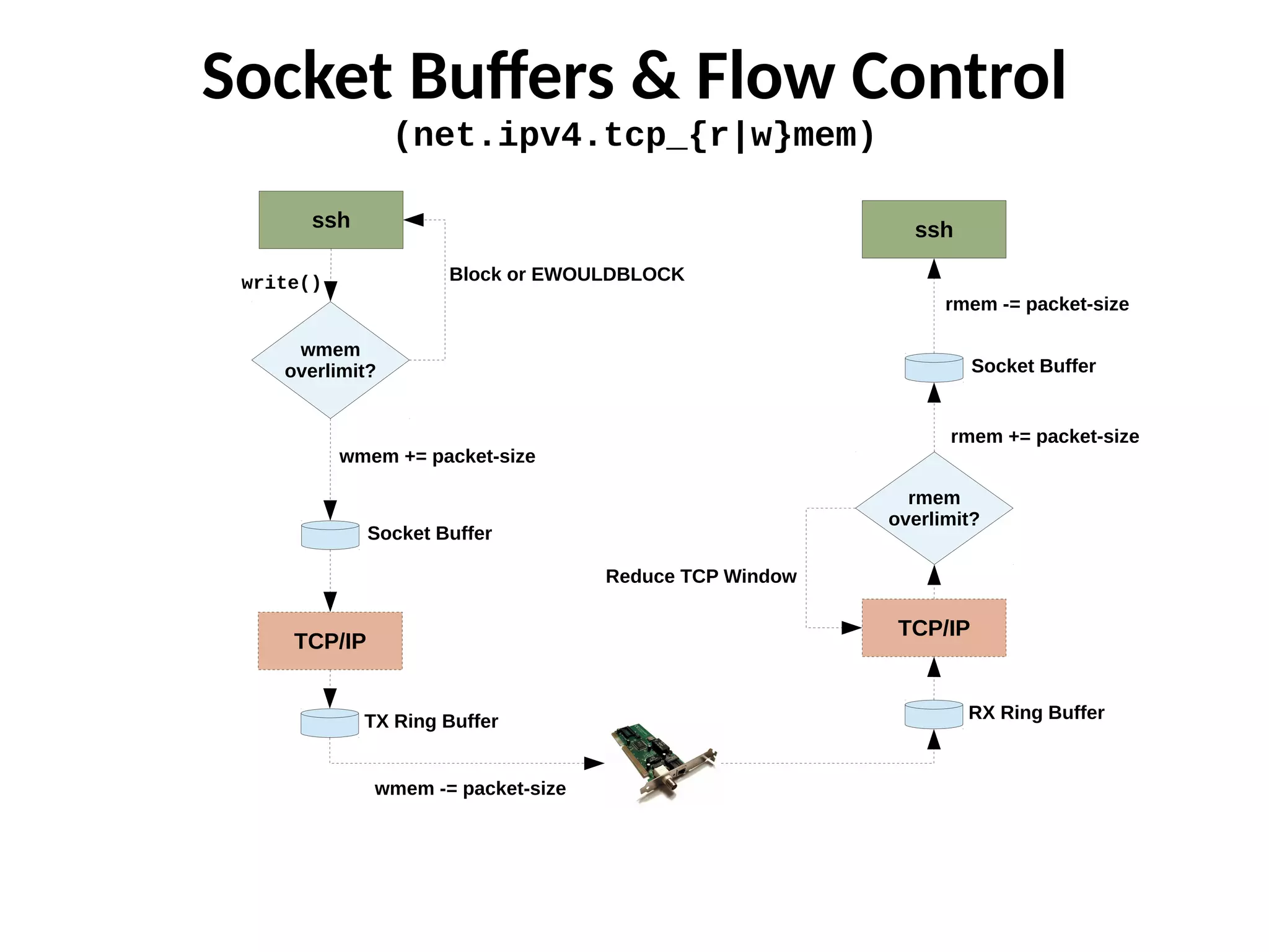

- 18. Socket Buffers &Flow Control (net.ipv4.tcp_{r|w}mem) ssh TX Ring Buffer TCP/IP Socket Buffer wmem overlimit? Block or EWOULDBLOCK wmem += packet-size ssh RX Ring Buffer TCP/IP Socket Buffer rmem -= packet-size rmem overlimit? Reduce TCP Window rmem += packet-size wmem -= packet-size write()

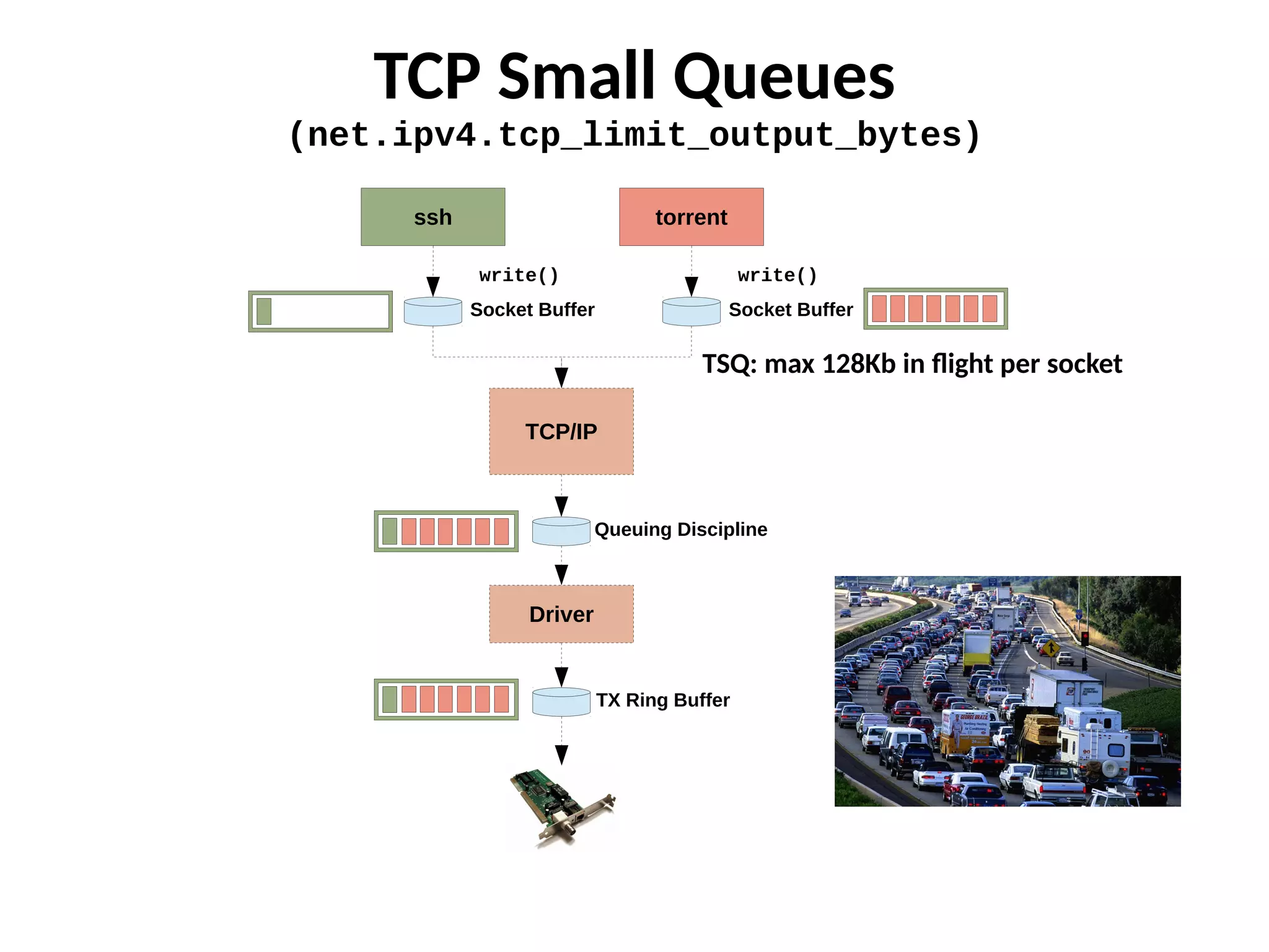

- 19. TCP Small Queues (net.ipv4.tcp_limit_output_bytes) ssh TXRing Buffer Driver TCP/IP Socket Buffer write() Queuing Discipline torrent Socket Buffer write() TSQ: max 128Kb in flight per socket
- 20. Q&A Contact: â E-Mail: tgraf@suug.ch âTwitter: @tgraf__
