Enterprise Application Integration Technologies

© Peter R. Egli 2015
1/16
Rev. 1.70
Enterprise Application Integration indigoo.com
Peter R. Egli
INDIGOO.COM
OVERVIEW OF ENTERPRISE APPLICATION
INTEGRATION CONCEPTS AND ARCHITECTURES
EAI

2/16
Rev. 1.70

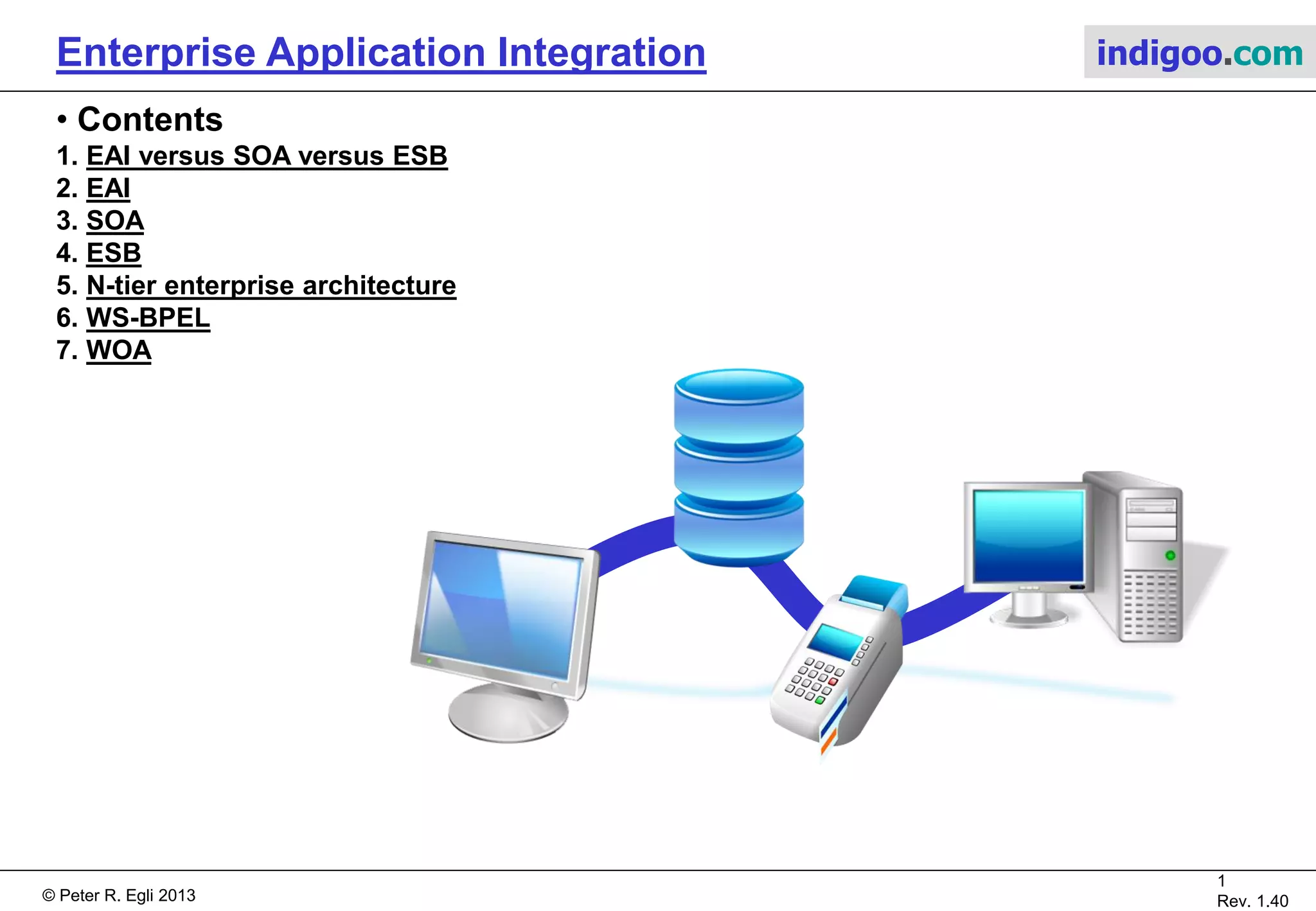

Contents
1. EAI versus SOA versus ESB
2. EAI
3. SOA
4. ESB
5. N-tier enterprise architecture
6. WS-BPEL
7. WOA

3/16
Rev. 1.70

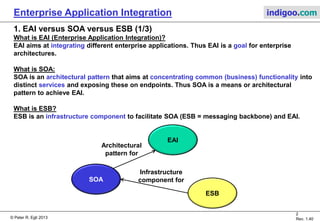

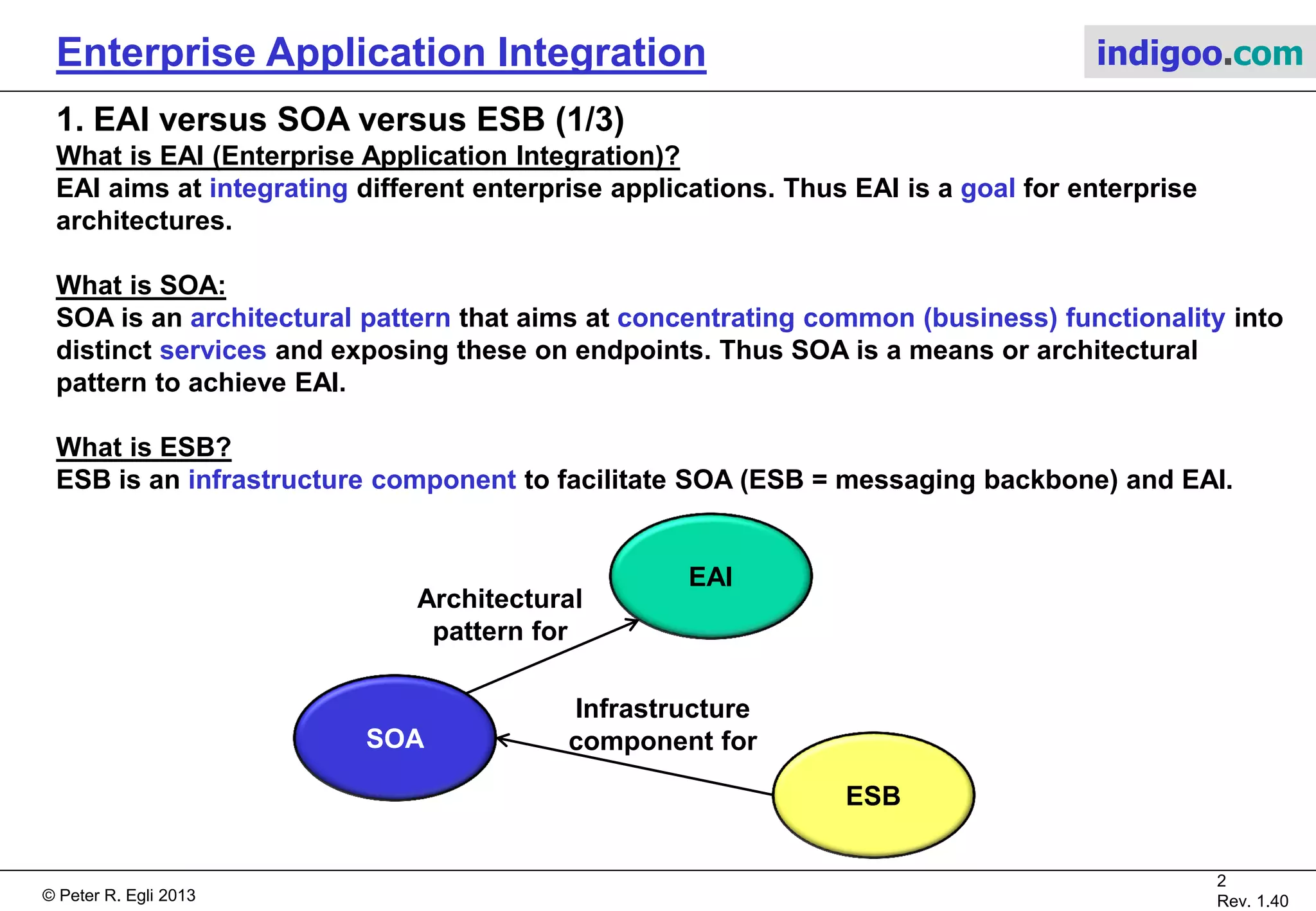

1. EAI versus SOA versus ESB (1/3)
What is EAI (Enterprise Application Integration)?
EAI aims at integrating different enterprise applications. Thus EAI is a goal for enterprise
architectures.
What is SOA:
SOA is an architectural pattern that aims at concentrating common (business) functionality into
distinct services and exposing these on endpoints. Thus SOA is a means or architectural
pattern to achieve EAI.
What is ESB?
ESB is an infrastructure component to facilitate SOA (ESB = messaging backbone) and EAI.
EAI
SOA
Architectural
pattern for
ESB
Infrastructure
component for

4/16
Rev. 1.70

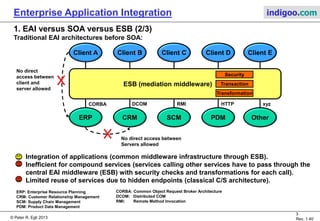

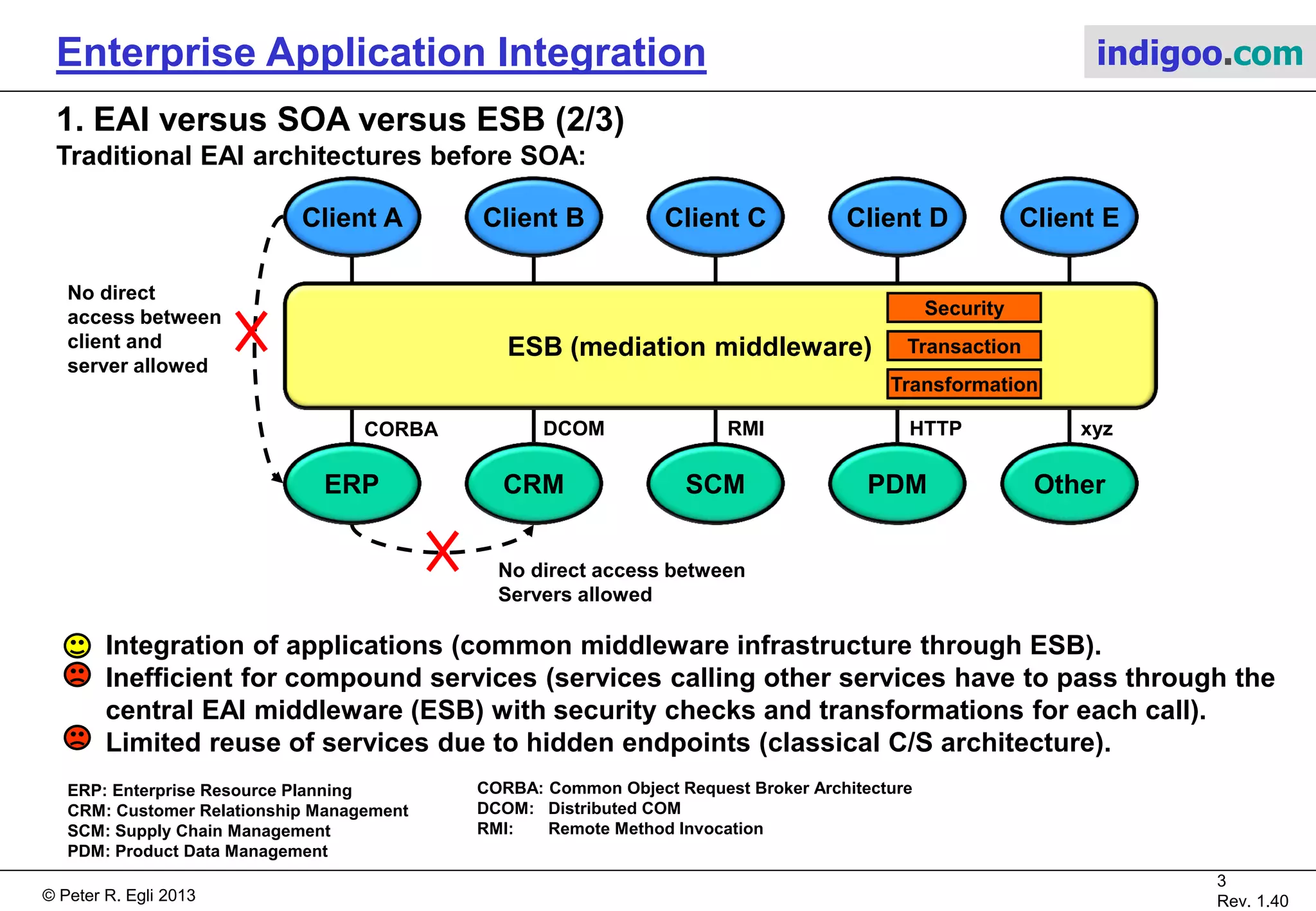

Traditional EAI architectures before SOA:
ERP
Client A
CRM
Client B
SCM
Client C
PDM
Client D
Other
Client E
ESB (mediation middleware)
Security
Transaction
Transformation
No direct
access between
client and
server allowed
No direct access between
Servers allowed
CORBA DCOM RMI HTTP xyz
Integration of applications (common middleware infrastructure through ESB).
Inefficient for compound services (services calling other services have to pass through the
central EAI middleware (ESB) with security checks and transformations for each call).
Limited reuse of services due to hidden endpoints (classical C/S architecture).
ERP: Enterprise Resource Planning
CRM: Customer Relationship Management
SCM: Supply Chain Management
PDM: Product Data Management
CORBA: Common Object Request Broker Architecture
DCOM: Distributed COM
RMI: Remote Method Invocation

5/16
Rev. 1.70

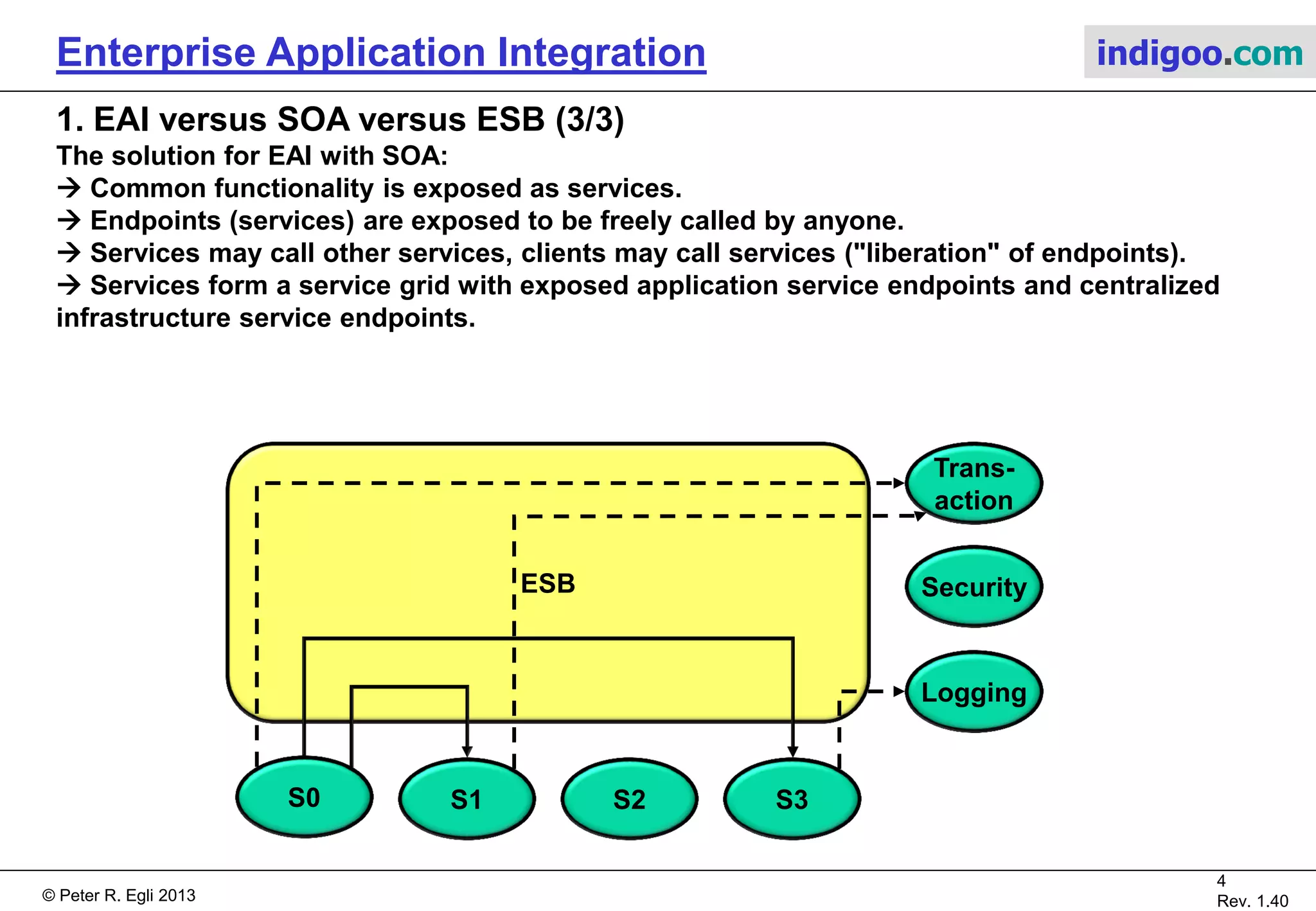

The solution for EAI with SOA:
• Common functionality is exposed as services.
• Endpoints (services) are exposed to be freely called by anyone.
• Services may call other services, clients may call services ("liberation" of endpoints).
• Services form a service grid with exposed application service endpoints and centralized
infrastructure service endpoints.
S0
ESB
S1 S2 S3
Trans-
action
Security
Logging

6/16
Rev. 1.70

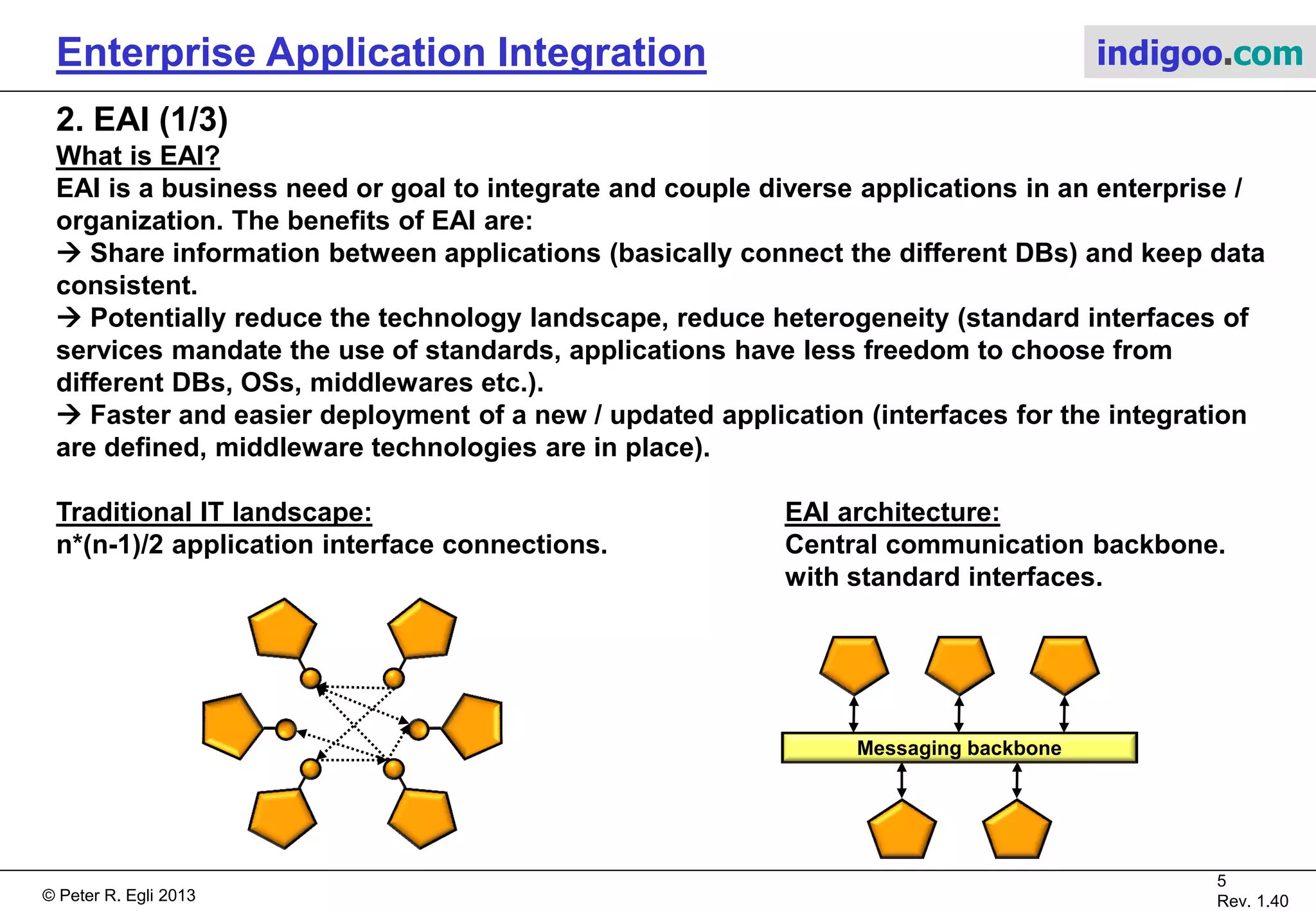

2. EAI (1/3)
What is EAI?
EAI is a business need or goal to integrate and couple diverse applications in an enterprise /
organization. The benefits of EAI are:
 Share information between applications (basically connect the different DBs) and keep data
consistent.
 Potentially reduce the technology landscape, reduce heterogeneity (standard interfaces of
services mandate the use of standards, applications have less freedom to choose from
different DBs, OSs, middlewares etc.).
 Faster and easier deployment of a new / updated application (interfaces for the integration
are defined, middleware technologies are in place).
Traditional IT landscape: EAI architecture:
n*(n-1)/2 application interface connections. Central communication backbone.
with standard interfaces.
Messaging backbone

7/16
Rev. 1.70
2. EAI (2/3)

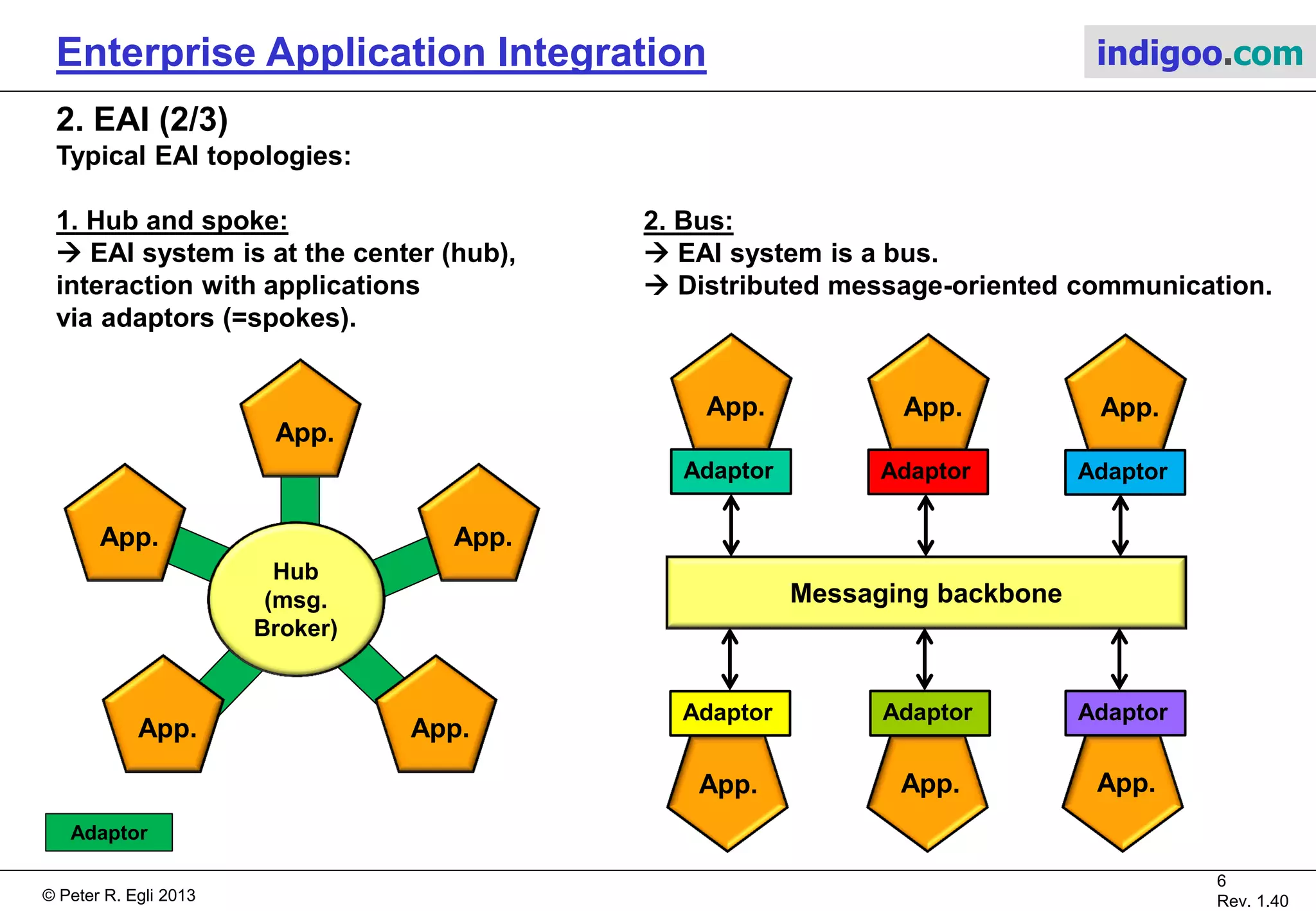

Typical EAI topologies:
1. Hub and spoke:
 EAI system is at the center (hub),
interaction with applications
via adaptors (=spokes).
2. Bus:
 EAI system is a bus.
 Distributed message-oriented communication.
App.
App.
App.
App.
Hub
(msg.
Broker)
App.
Adaptor
App.
Adaptor
Messaging backbone
App.
Adaptor
App.
Adaptor
Adaptor
App.
Adaptor Adaptor
App. App.

8/16
Rev. 1.70

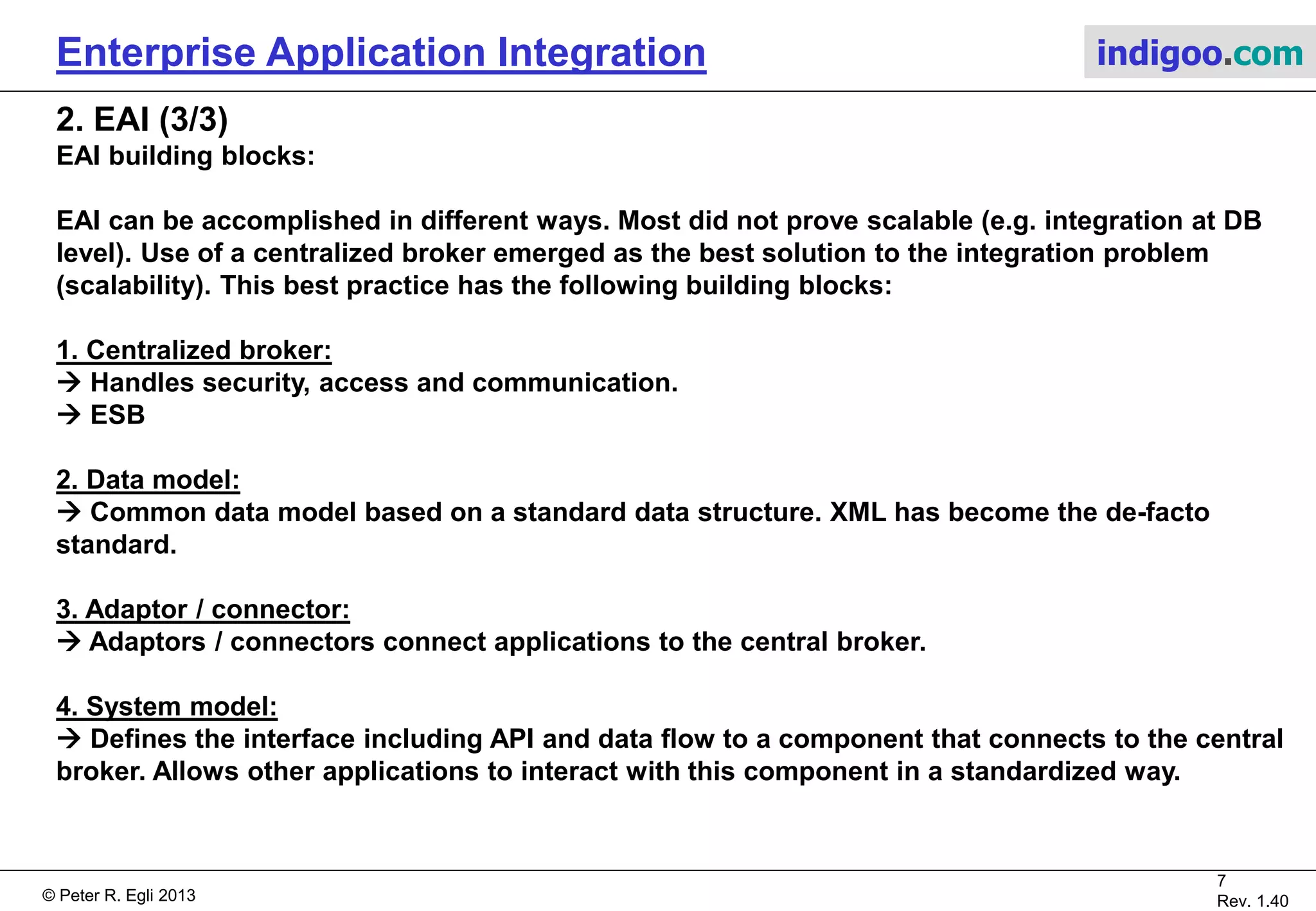

2. EAI (3/3)
EAI building blocks:
EAI can be accomplished in different ways. Most did not prove scalable (e.g. integration at DB
level). Use of a centralized broker emerged as the best solution to the integration problem
(scalability). This best practice has the following building blocks:
1. Centralized broker:
 Handles security, access and communication.
 ESB
2. Data model:
 Common data model based on a standard data structure. XML has become the de-facto
standard.
3. Adaptor / connector:
 Adaptors / connectors connect applications to the central broker.
4. System model:
 Defines the interface including API and data flow to a component that connects to the central
broker. Allows other applications to interact with this component in a standardized way.

9/16
Rev. 1.70

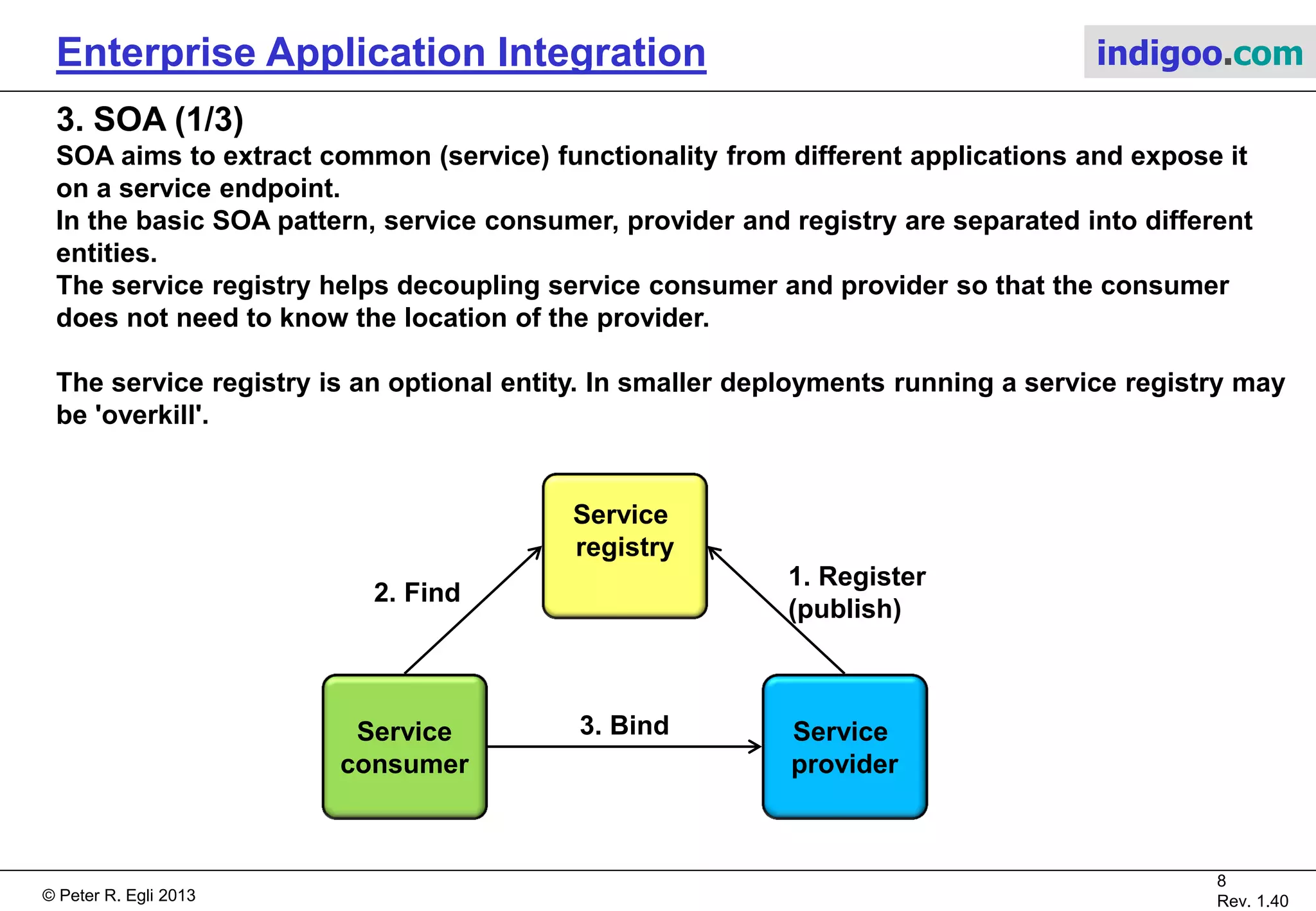

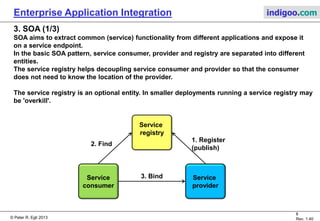

3. SOA (1/3)
SOA aims to extract common (service) functionality from different applications and expose it
on a service endpoint.
In the basic SOA pattern, service consumer, provider and registry are separated into different
entities.
The service registry helps decoupling service consumer and provider so that the consumer
does not need to know the location of the provider.
The service registry is an optional entity. In smaller deployments running a service registry may
be 'overkill'.
Service
registry
Service
consumer
Service
provider
1. Register
(publish)
2. Find
3. Bind

10/16
Rev. 1.70

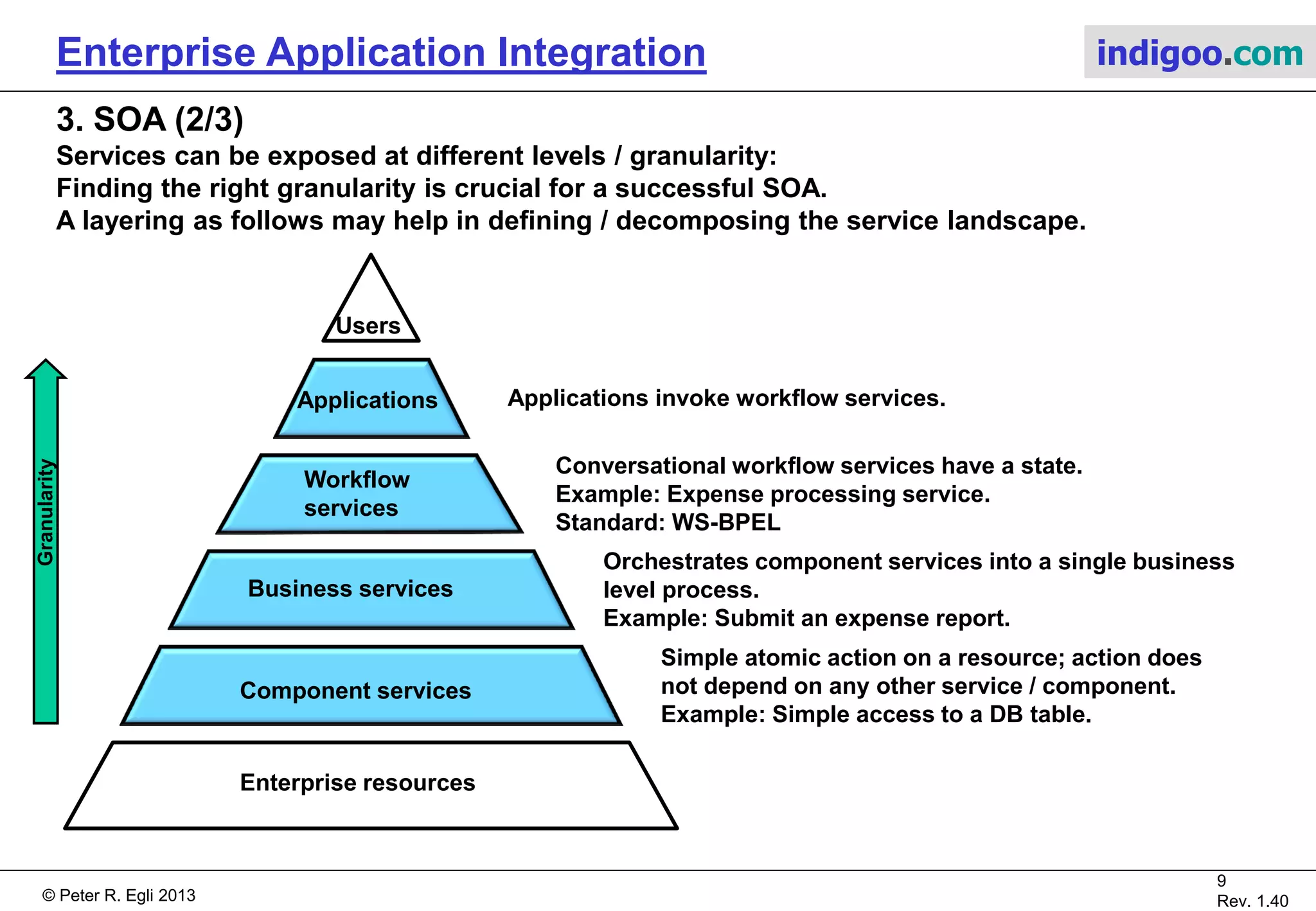

3. SOA (2/3)
Services can be exposed at different levels / granularity:
Finding the right granularity is crucial for a successful SOA.
A layering as follows may help in defining / decomposing the service landscape.
Enterprise resources
Component services
Business services
Workflow
services
Applications
Users
Granularity
Simple atomic action on a resource; action does
not depend on any other service / component.
Example: Simple access to a DB table.
Orchestrates component services into a single business
level process.
Example: Submit an expense report.
Conversational workflow services have a state.
Example: Expense processing service.
Standard: WS-BPEL
Applications invoke workflow services.

11/16
Rev. 1.70

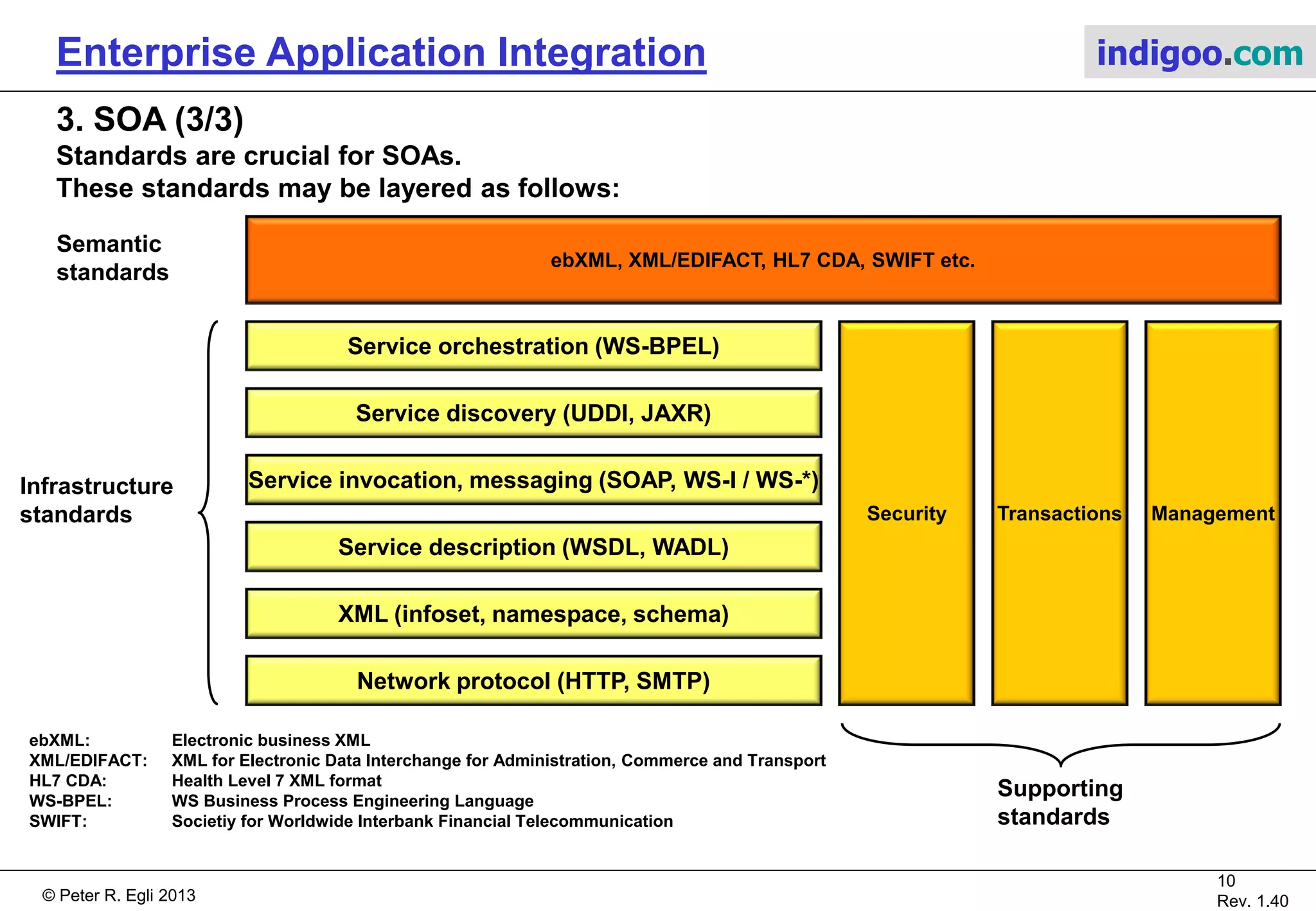

3. SOA (3/3)
Standards are crucial for SOAs.
These standards may be layered as follows:
Network protocol (HTTP, SMTP)
XML (infoset, namespace, schema)
Service description (WSDL, WADL)
Service invocation, messaging (SOAP, WS-I / WS-*)
Service discovery (UDDI, JAXR)
Service orchestration (WS-BPEL)
Security Transactions Management
Infrastructure
standards
Semantic
standards
ebXML, XML/EDIFACT, HL7 CDA, SWIFT etc.
ebXML: Electronic business XML
XML/EDIFACT: XML for Electronic Data Interchange for Administration, Commerce and Transport
HL7 CDA: Health Level 7 XML format
WS-BPEL: WS Business Process Engineering Language
SWIFT: Societiy for Worldwide Interbank Financial Telecommunication
Supporting
standards

12/16
Rev. 1.70

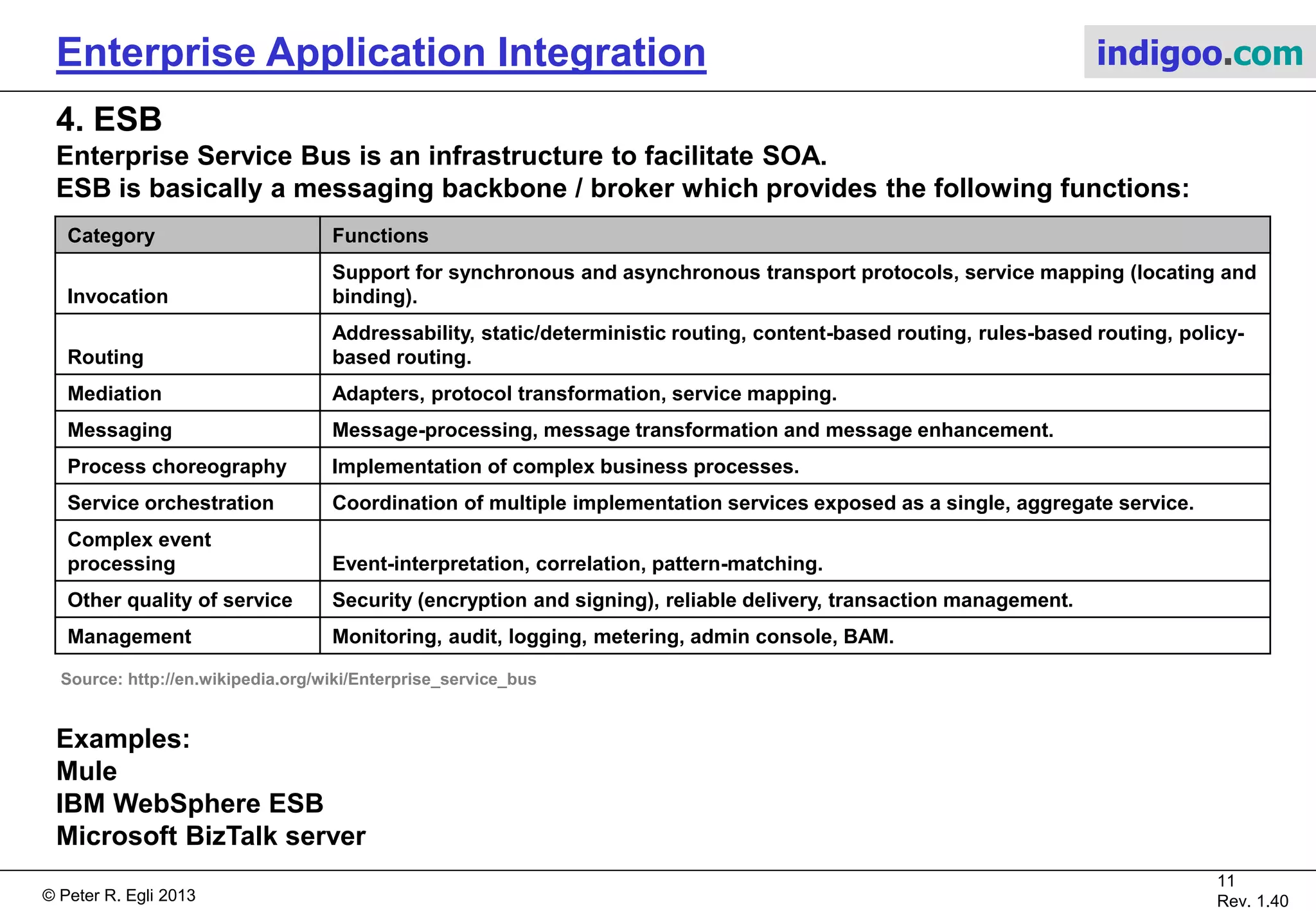

4. ESB
Enterprise Service Bus is an infrastructure to facilitate SOA.
ESB is basically a messaging backbone / broker which provides the following functions:
Examples:
Mule
IBM WebSphere ESB
Microsoft BizTalk server
Category Functions
Invocation
Support for synchronous and asynchronous transport protocols, service mapping (locating and
binding).
Routing
Addressability, static/deterministic routing, content-based routing, rules-based routing, policy-
based routing.
Mediation Adapters, protocol transformation, service mapping.
Messaging Message-processing, message transformation and message enhancement.
Process choreography Implementation of complex business processes.
Service orchestration Coordination of multiple implementation services exposed as a single, aggregate service.
Complex event
processing Event-interpretation, correlation, pattern-matching.
Other quality of service Security (encryption and signing), reliable delivery, transaction management.
Management Monitoring, audit, logging, metering, admin console, BAM.
Source: http://en.wikipedia.org/wiki/Enterprise_service_bus

13/16
Rev. 1.70

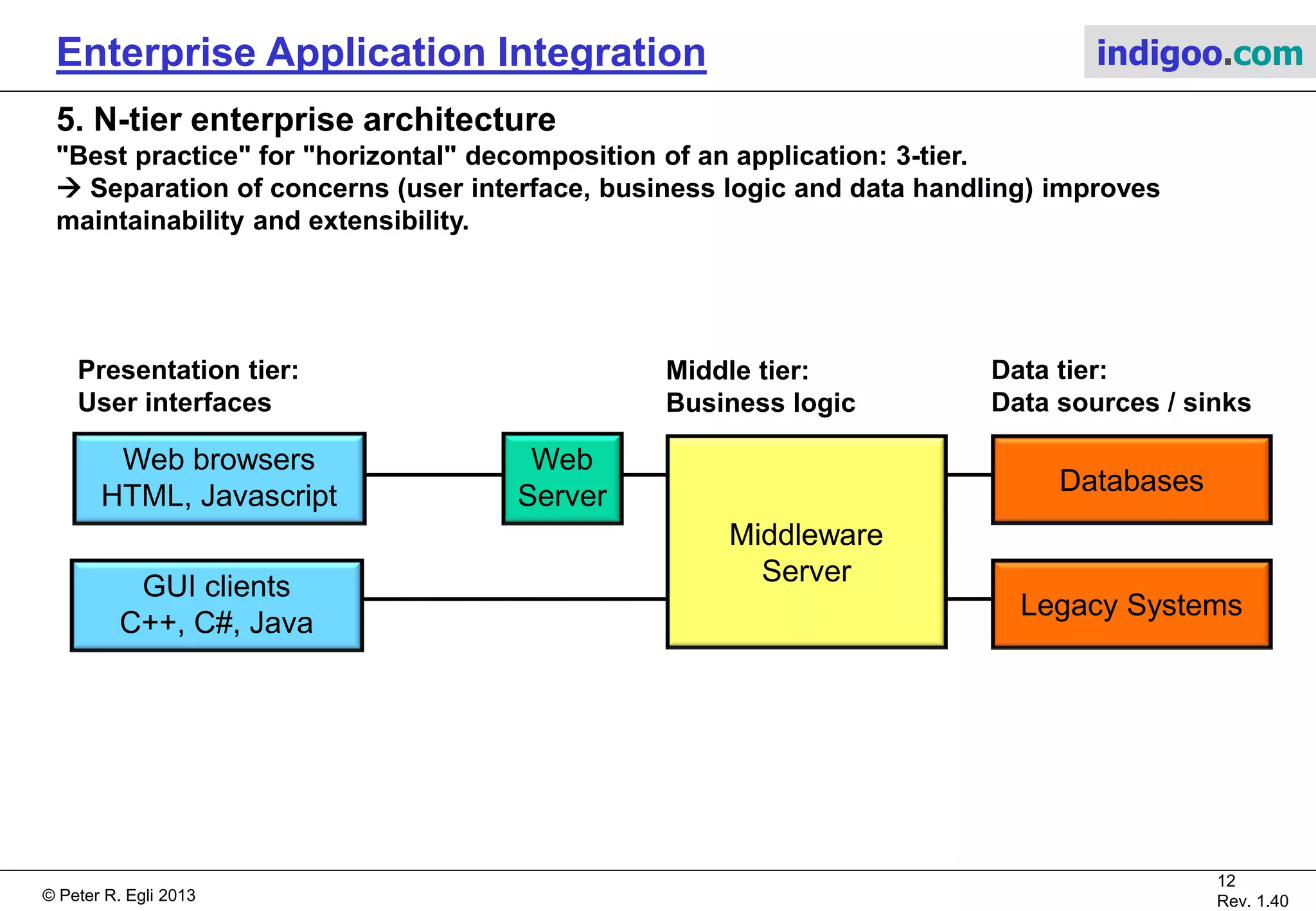

5. N-tier enterprise architecture
"Best practice" for "horizontal" decomposition of an application: 3-tier.
 Separation of concerns (user interface, business logic and data handling) improves
maintainability and extensibility.
Web browsers
HTML, Javascript
GUI clients
C++, C#, Java
Web
Server
Middleware
Server
Databases
Legacy Systems
Presentation tier:
User interfaces
Middle tier:
Business logic
Data tier:
Data sources / sinks

14/16
Rev. 1.70

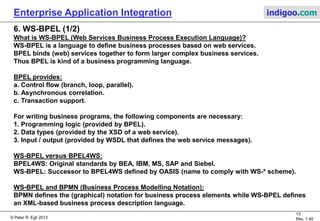

6. WS-BPEL (1/2)
What is WS-BPEL (Web Services Business Process Execution Language)?
WS-BPEL is a language to define business processes based on web services.
BPEL binds (web) services together to form larger complex business services.
Thus BPEL is kind of a business programming language.
BPEL provides:
a. Control flow (branch, loop, parallel).
b. Asynchronous correlation.
c. Transaction support.
For writing business programs, the following components are necessary:
1. Programming logic (provided by BPEL).
2. Data types (provided by the XSD of a web service).
3. Input / output (provided by WSDL that defines the web service messages).
WS-BPEL versus BPEL4WS:
BPEL4WS: Original standards by BEA, IBM, MS, SAP and Siebel.
WS-BPEL: Successor to BPEL4WS defined by OASIS (name to comply with WS-* scheme).
WS-BPEL and BPMN (Business Process Modelling Notation):
BPMN defines the (graphical) notation for business process elements while WS-BPEL defines
an XML-based business process description language.

15/16
Rev. 1.70

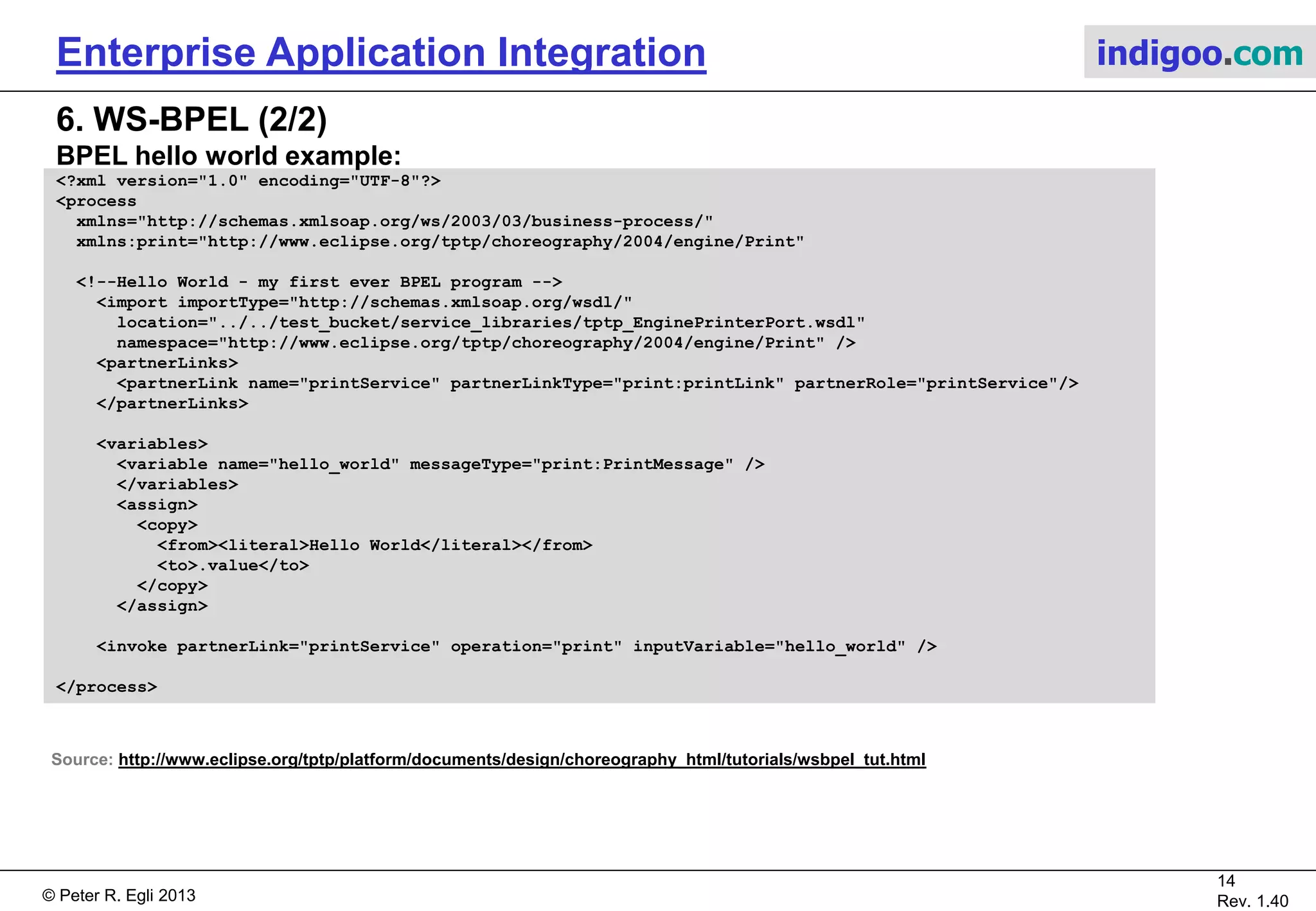

6. WS-BPEL (2/2)
BPEL hello world example:
<?xml version="1.0" encoding="UTF-8"?>
<process
xmlns="http://schemas.xmlsoap.org/ws/2003/03/business-process/"
xmlns:print="http://www.eclipse.org/tptp/choreography/2004/engine/Print"

<import importType="http://schemas.xmlsoap.org/wsdl/"
location="../../test_bucket/service_libraries/tptp_EnginePrinterPort.wsdl"
namespace="http://www.eclipse.org/tptp/choreography/2004/engine/Print" />
<partnerLinks>
<partnerLink name="printService" partnerLinkType="print:printLink" partnerRole="printService"/>
</partnerLinks>
<variables>
<variable name="hello_world" messageType="print:PrintMessage" />
</variables>
<assign>
<copy>
<from><literal>Hello World</literal></from>
<to>.value</to>
</copy>
</assign>
<invoke partnerLink="printService" operation="print" inputVariable="hello_world" />
</process>
Source: http://www.eclipse.org/tptp/platform/documents/design/choreography_html/tutorials/wsbpel_tut.html

16/16
Rev. 1.70

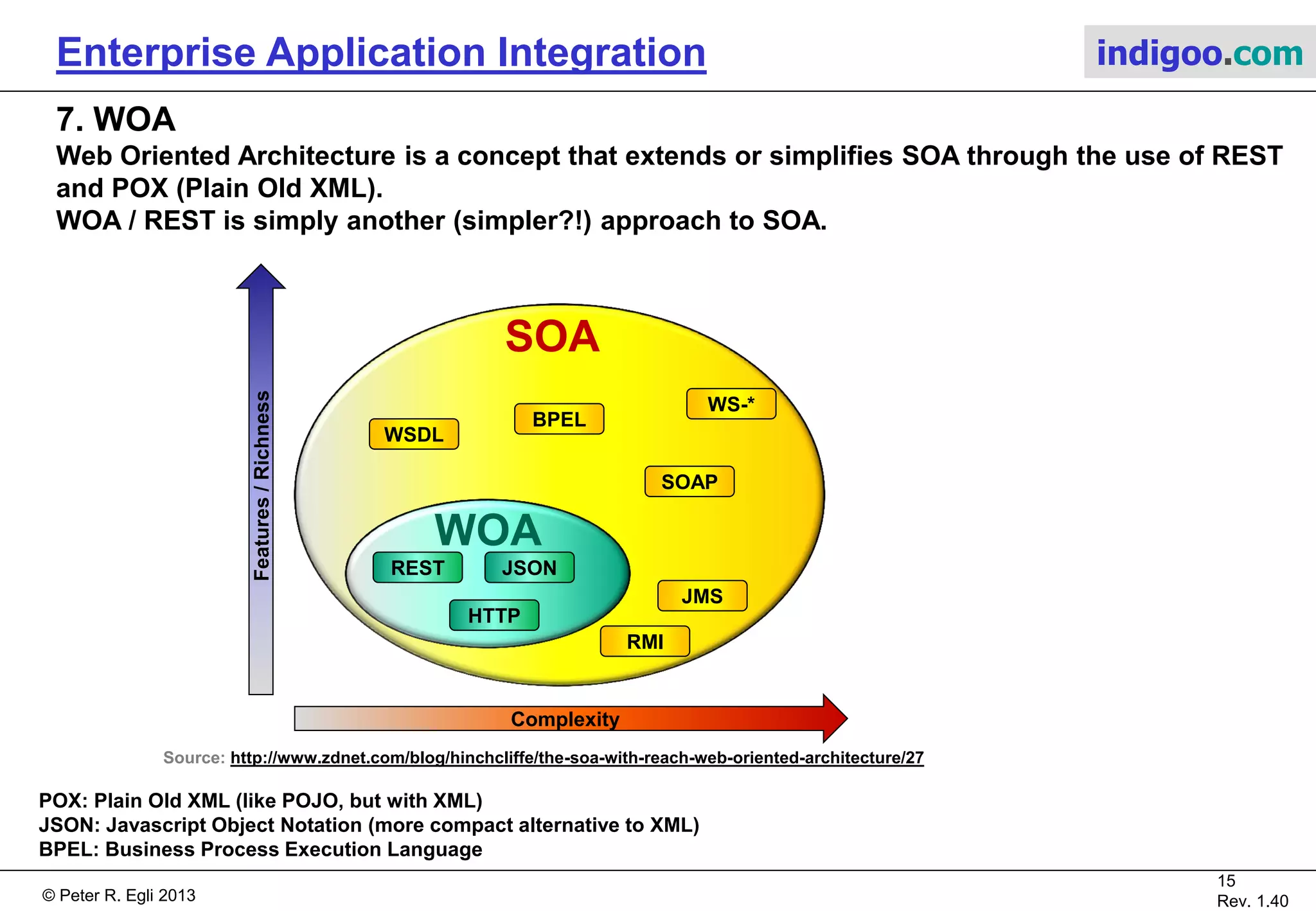

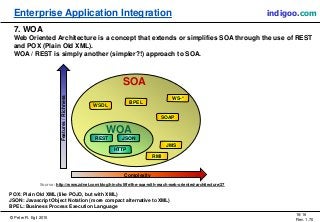

7. WOA
Web Oriented Architecture is a concept that extends or simplifies SOA through the use of REST
and POX (Plain Old XML).
WOA / REST is simply another (simpler?!) approach to SOA.
POX: Plain Old XML (like POJO, but with XML)
JSON: Javascript Object Notation (more compact alternative to XML)
BPEL: Business Process Execution Language
Complexity
Features/Richness
SOA
WOA
Source: http://www.zdnet.com/blog/hinchcliffe/the-soa-with-reach-web-oriented-architecture/27
WSDL
REST
BPEL
JMS
RMI
SOAP
WS-*
JSON
HTTP
