Database Systems:
Design, Implementation, and
Management
Ninth Edition
Chapter 4
Entity Relationship (ER) Modeling

Database Systems, 9th Edition 2

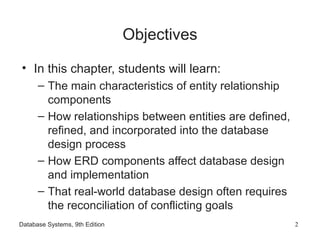

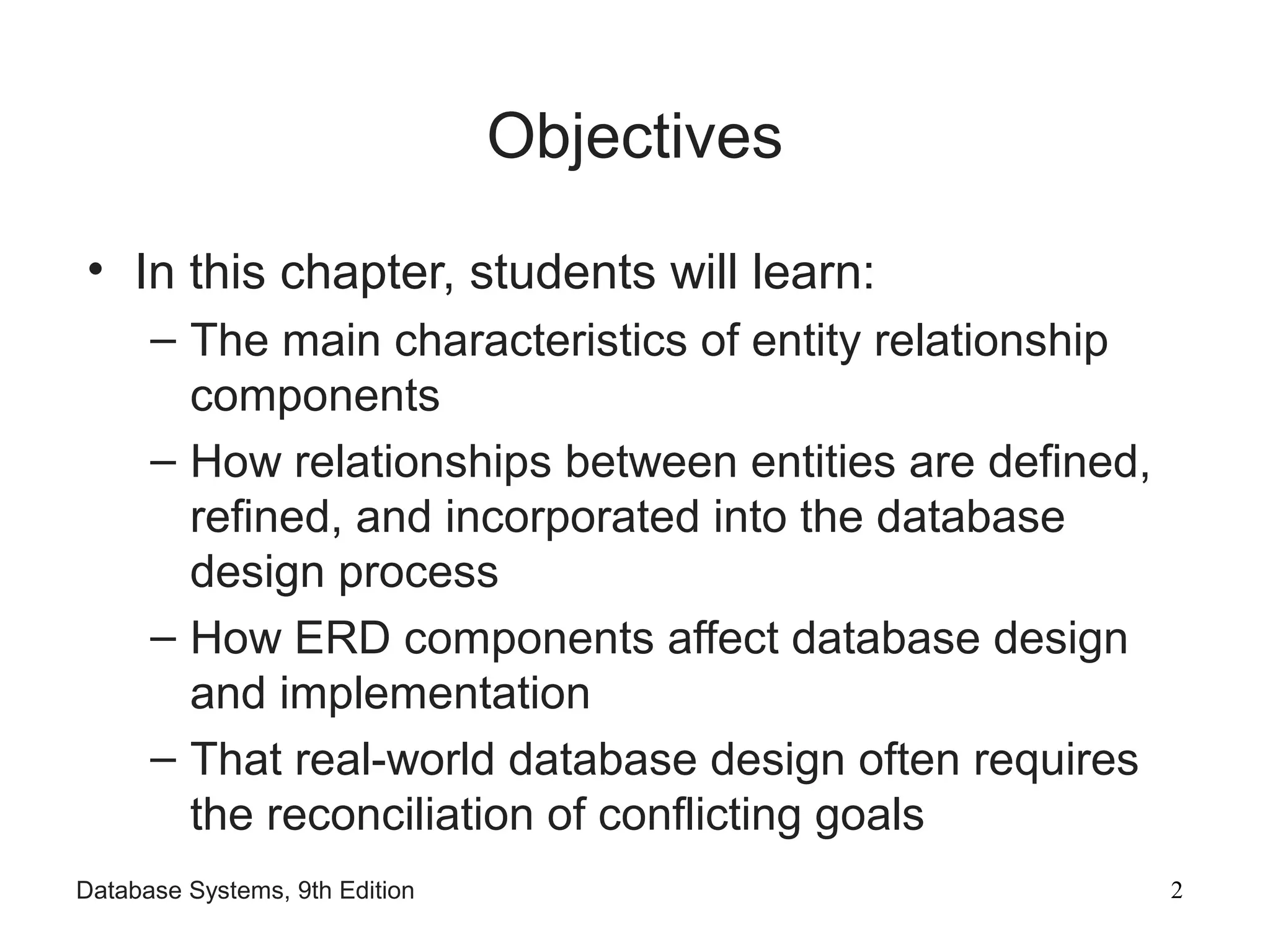

Objectives
• In this chapter, students will learn:
– The main characteristics of entity relationship
components
– How relationships between entities are defined,
refined, and incorporated into the database
design process
– How ERD components affect database design
and implementation
– That real-world database design often requires
the reconciliation of conflicting goals

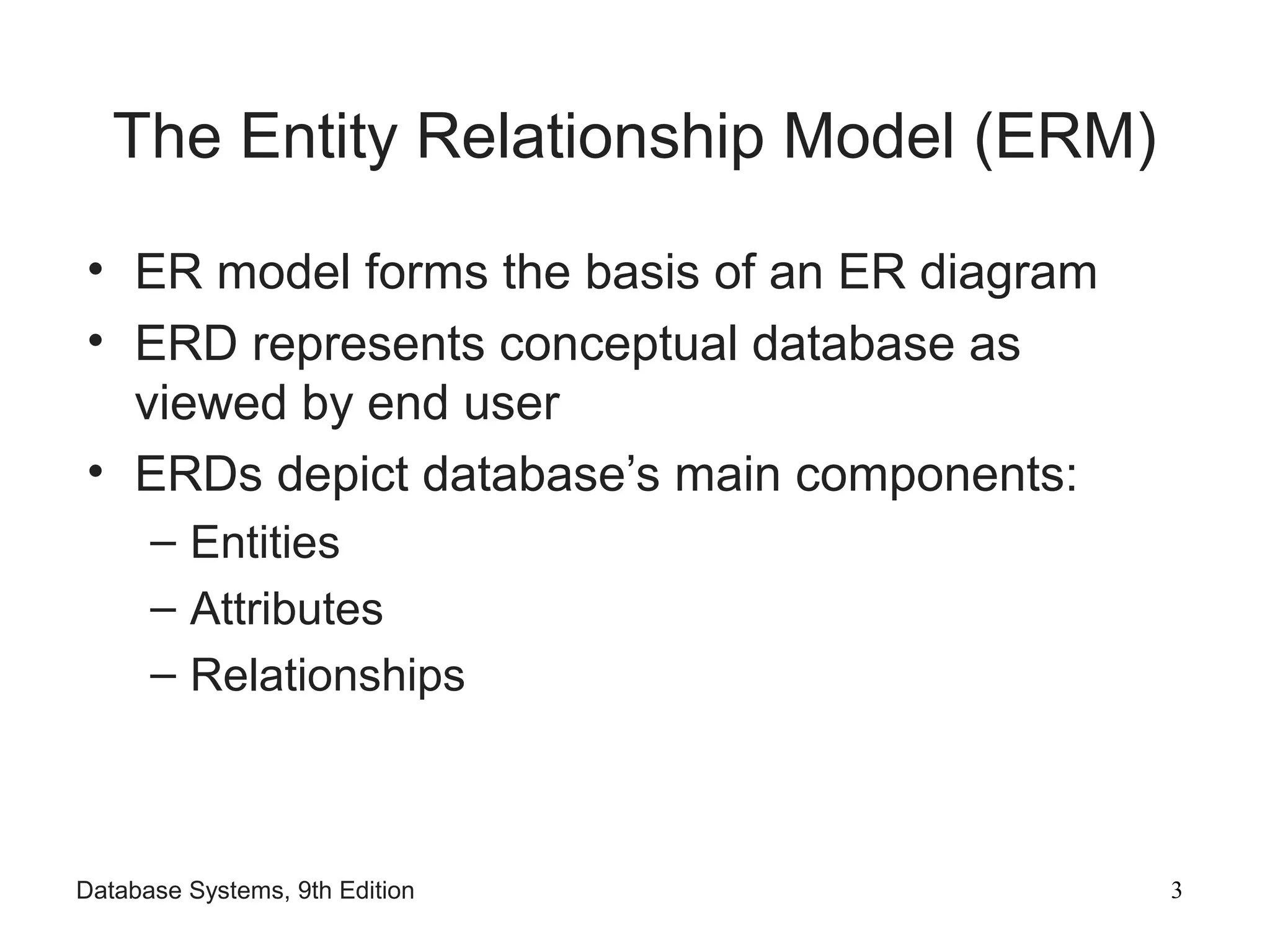

The Entity Relationship Model (ERM)
• ER model forms the basis of an ER diagram
• ERD represents conceptual database as
viewed by end user
• ERDs depict database’s main components:
– Entities
– Attributes
– Relationships

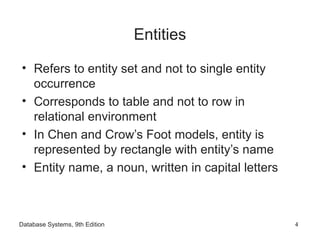

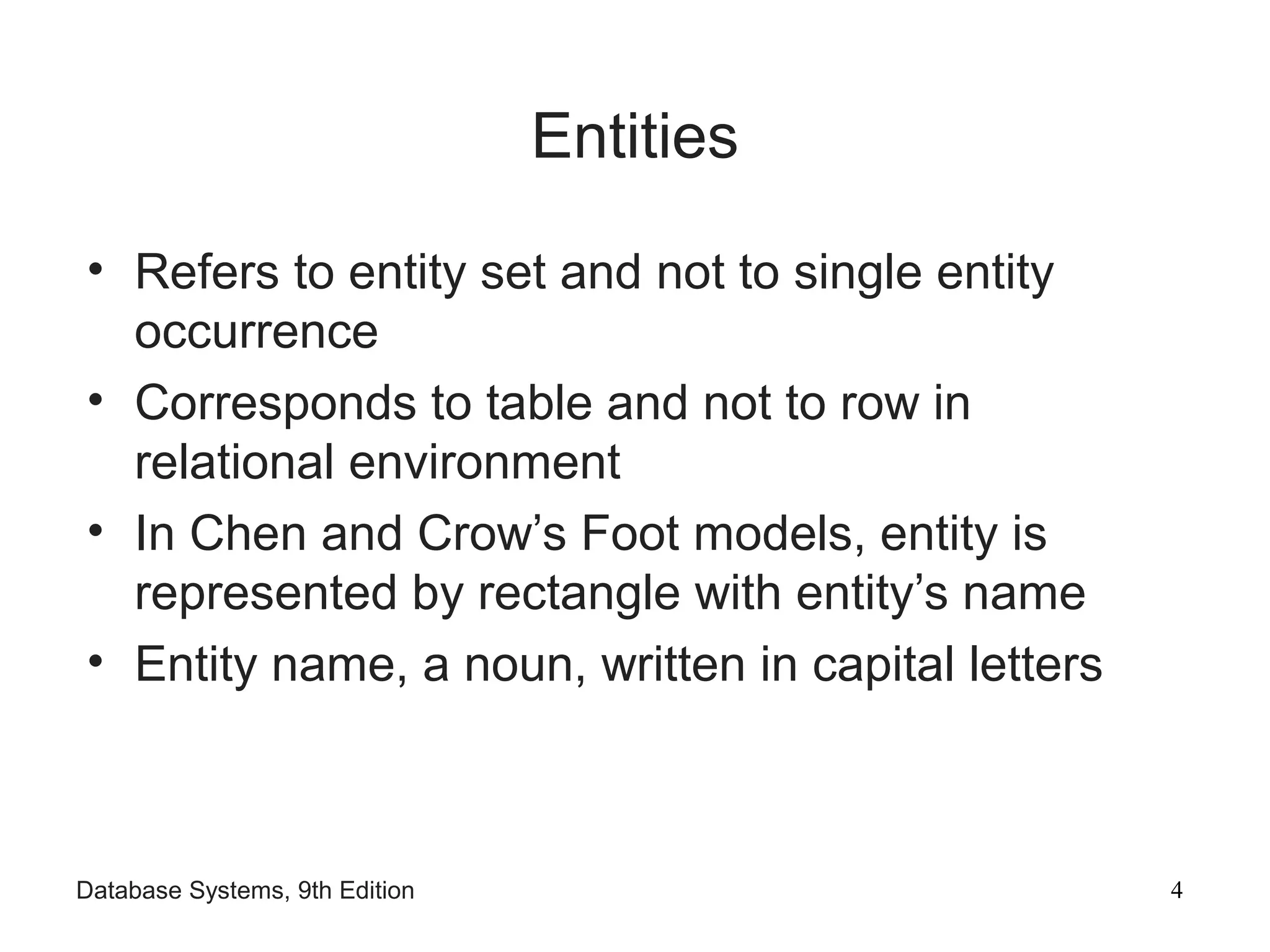

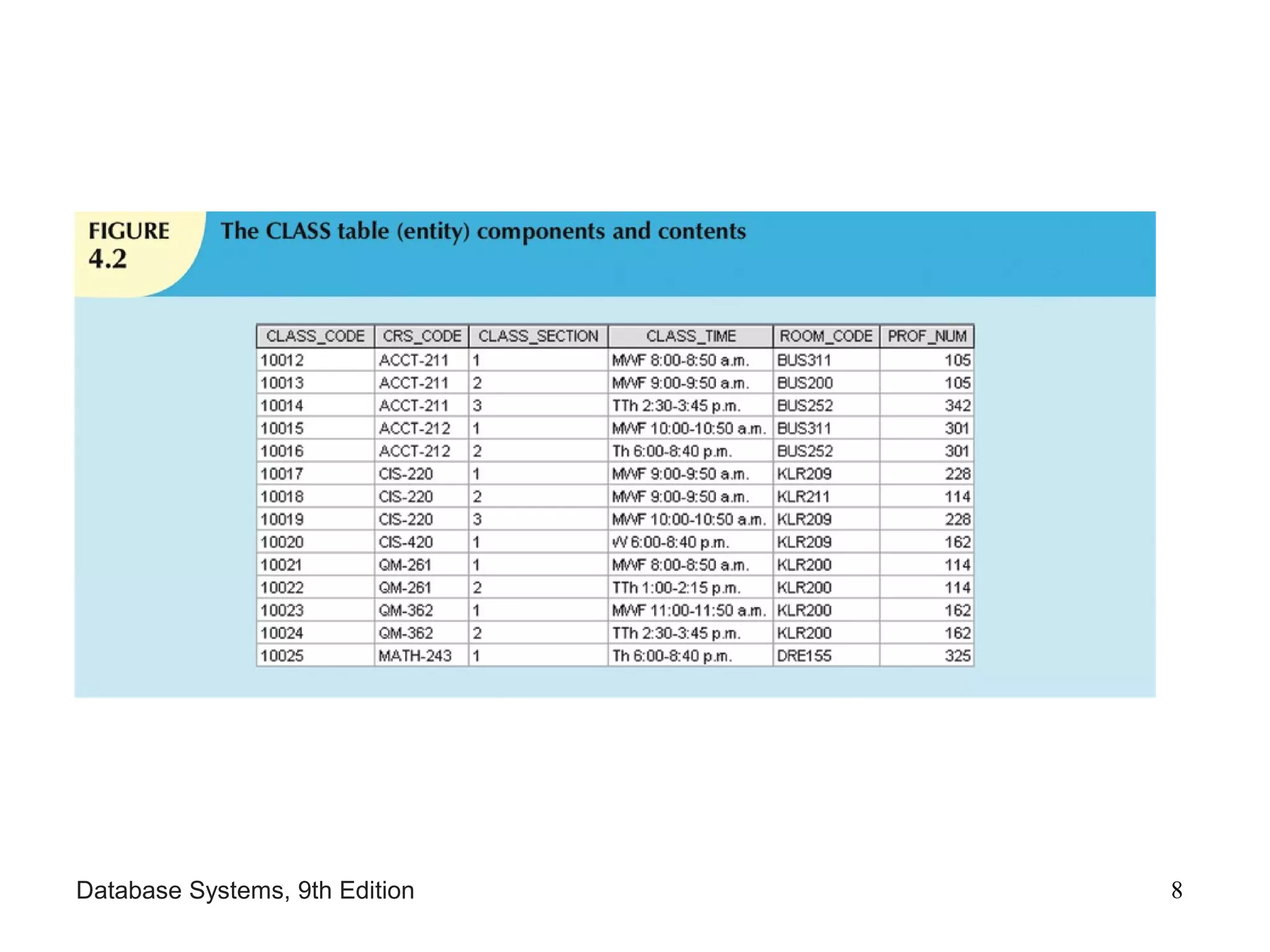

Entities
• Refers to entity set and not to single entity
occurrence
• Corresponds to table and not to row in
relational environment
• In Chen and Crow’s Foot models, entity is
represented by rectangle with entity’s name
• Entity name, a noun, written in capital letters

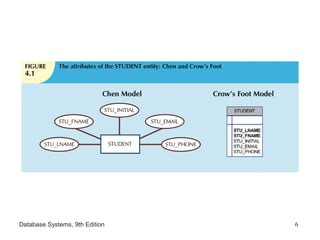

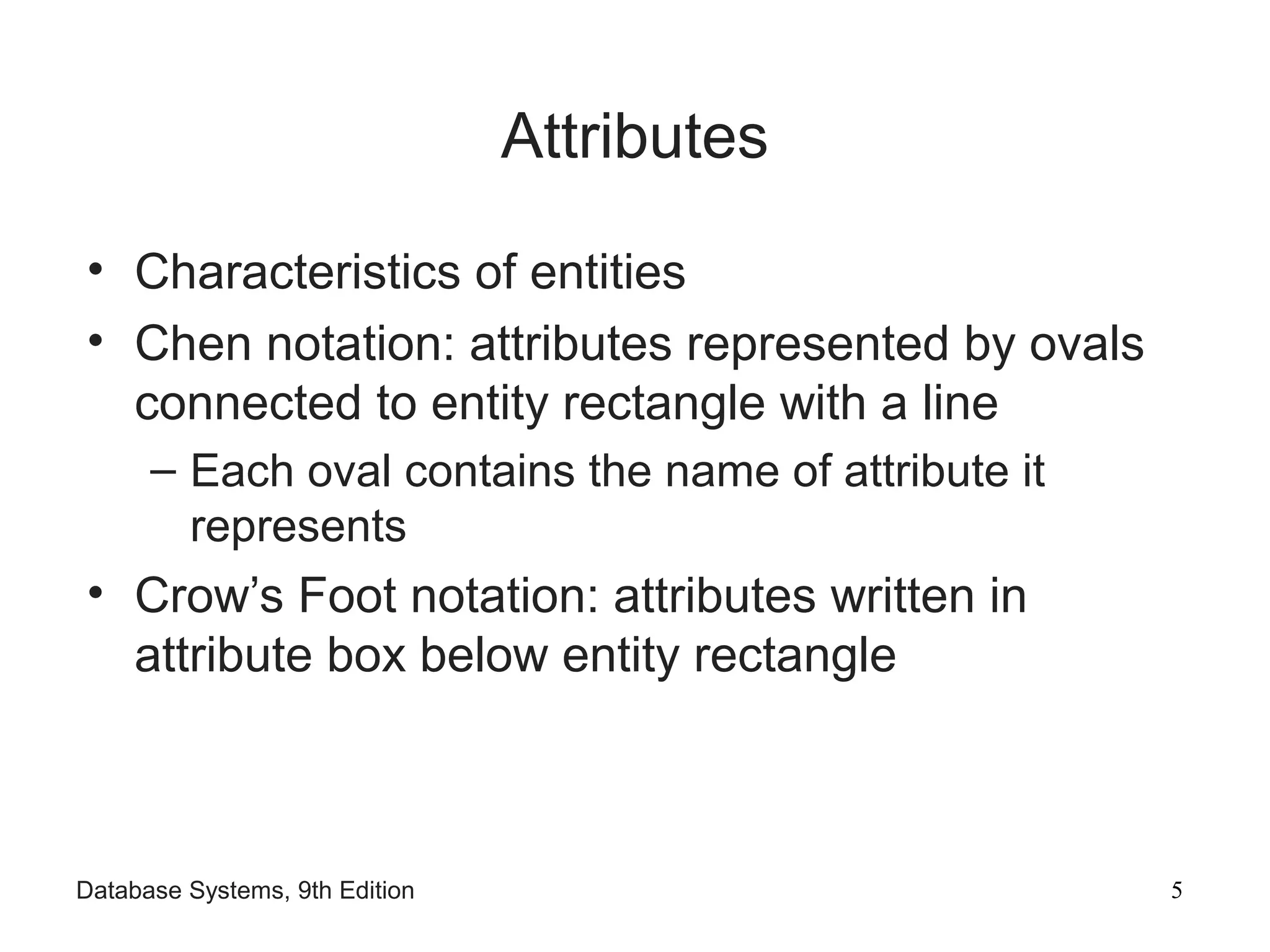

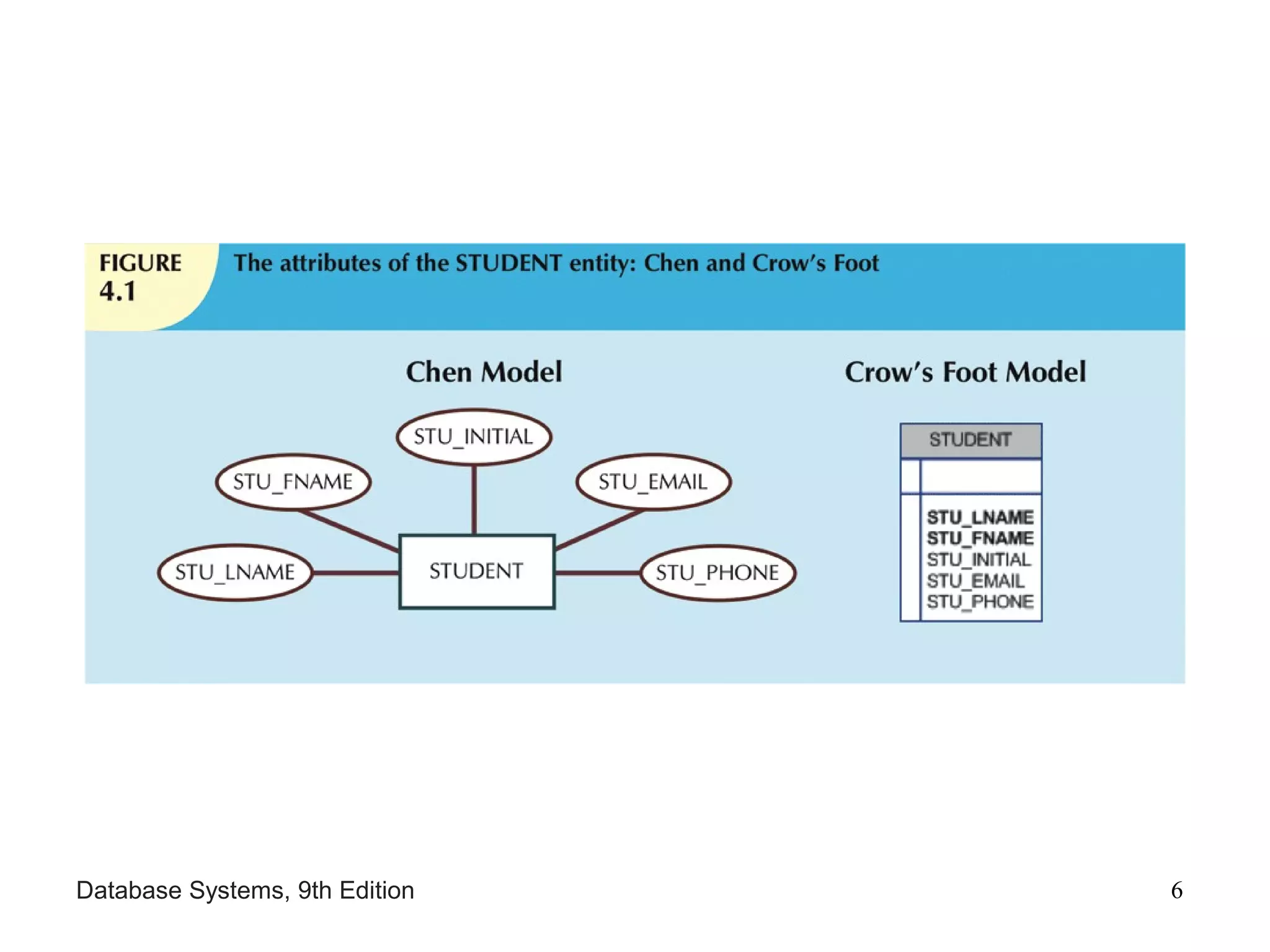

Attributes
• Characteristics of entities
• Chen notation: attributes represented by ovals
connected to entity rectangle with a line
– Each oval contains the name of attribute it
represents
• Crow’s Foot notation: attributes written in
attribute box below entity rectangle

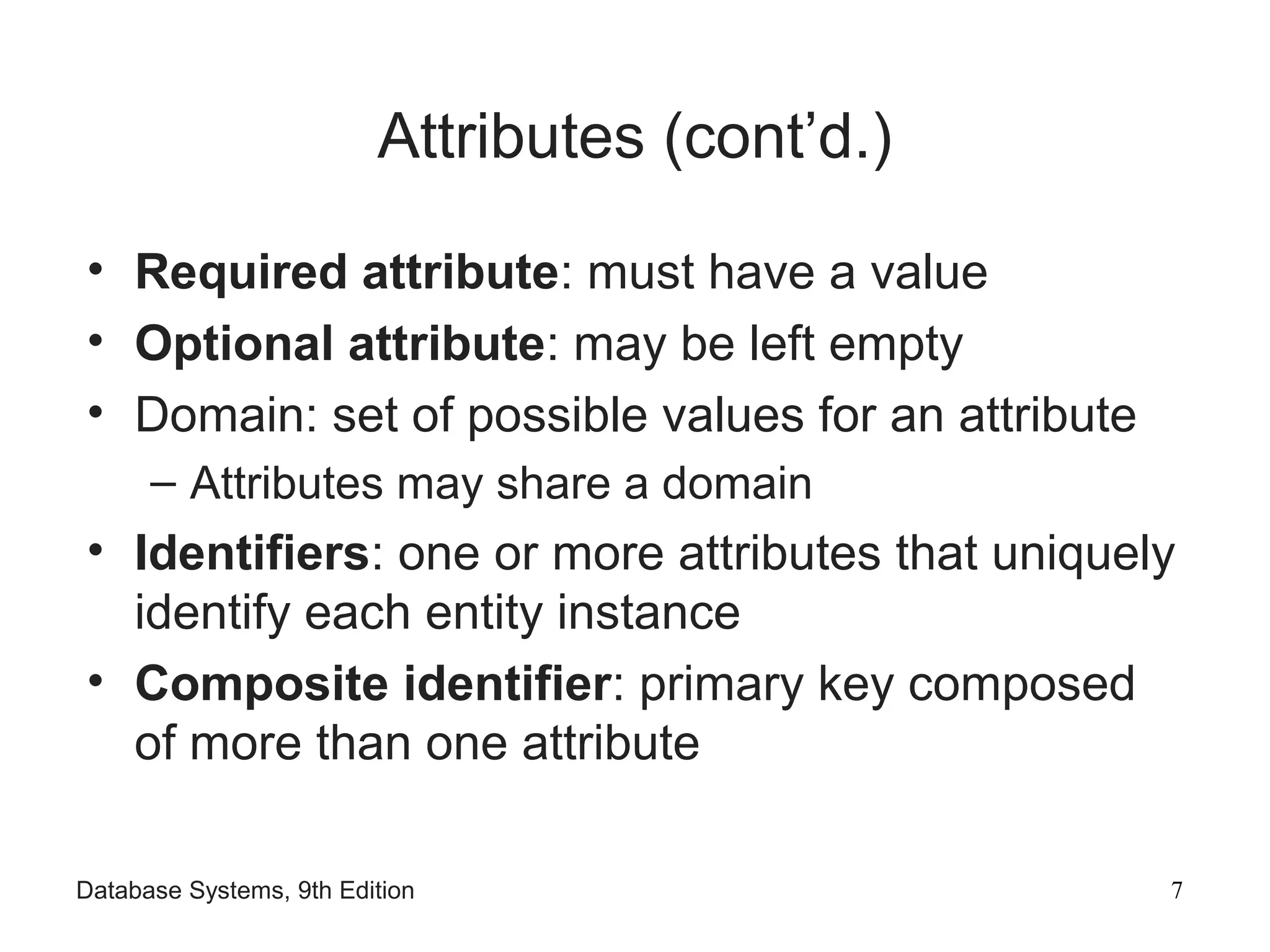

Attributes (cont’d.)
• Required attribute: must have a value
• Optional attribute: may be left empty
• Domain: set of possible values for an attribute
– Attributes may share a domain
• Identifiers: one or more attributes that uniquely
identify each entity instance
• Composite identifier: primary key composed
of more than one attribute

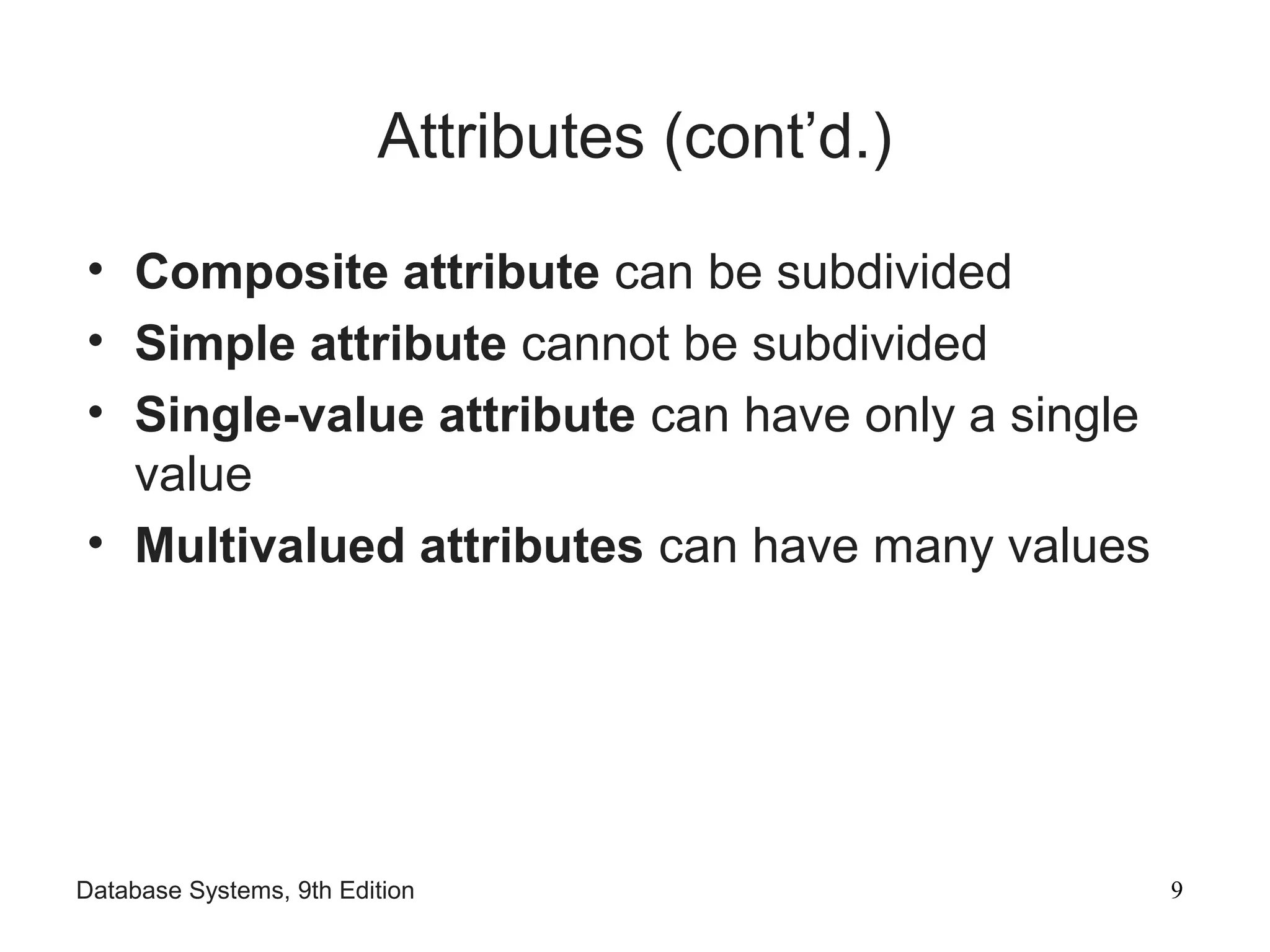

• Composite attribute can be subdivided
• Simple attribute cannot be subdivided
• Single-value attribute can have only a single
value

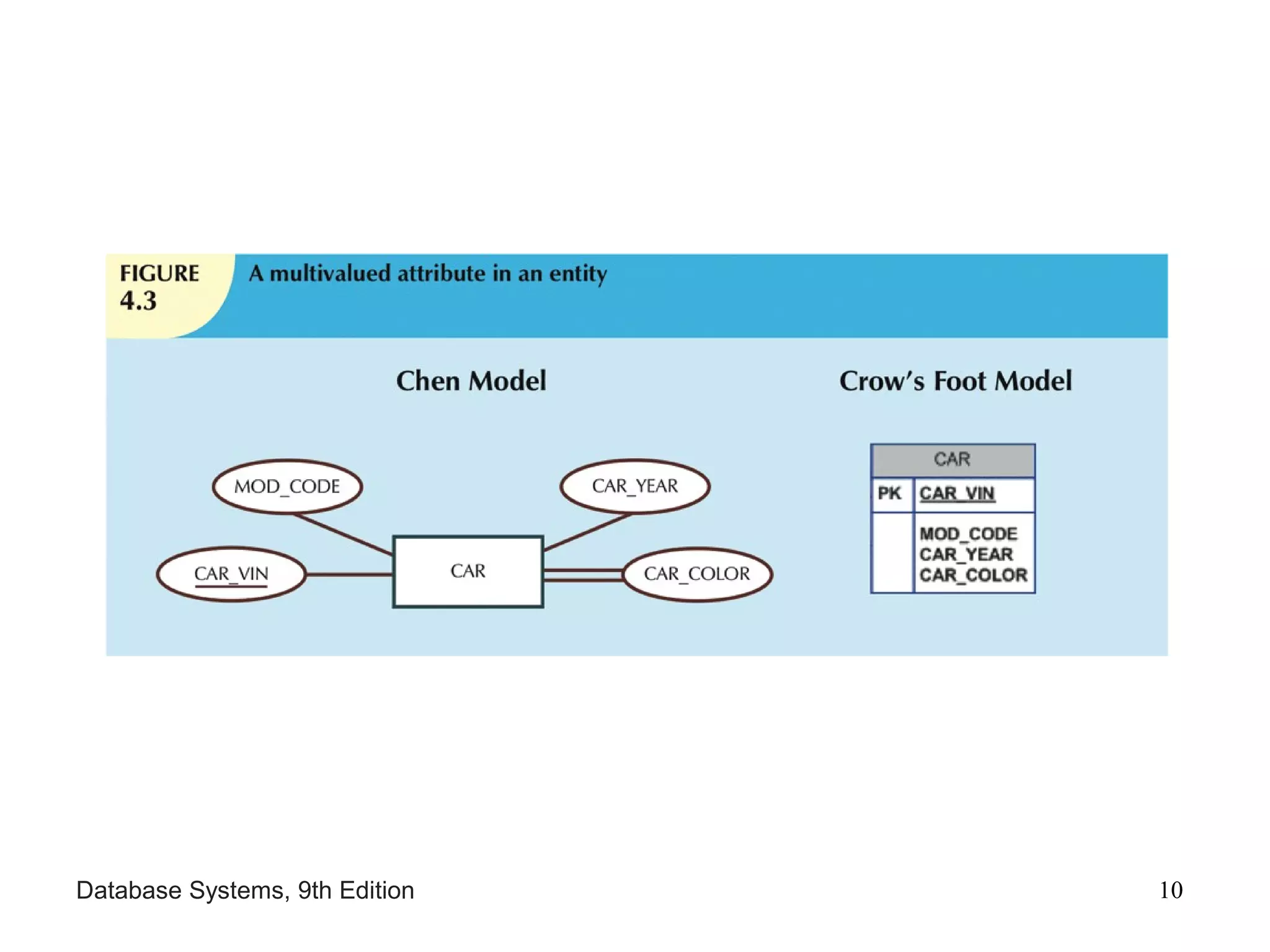

• Multivalued attributes can have many values

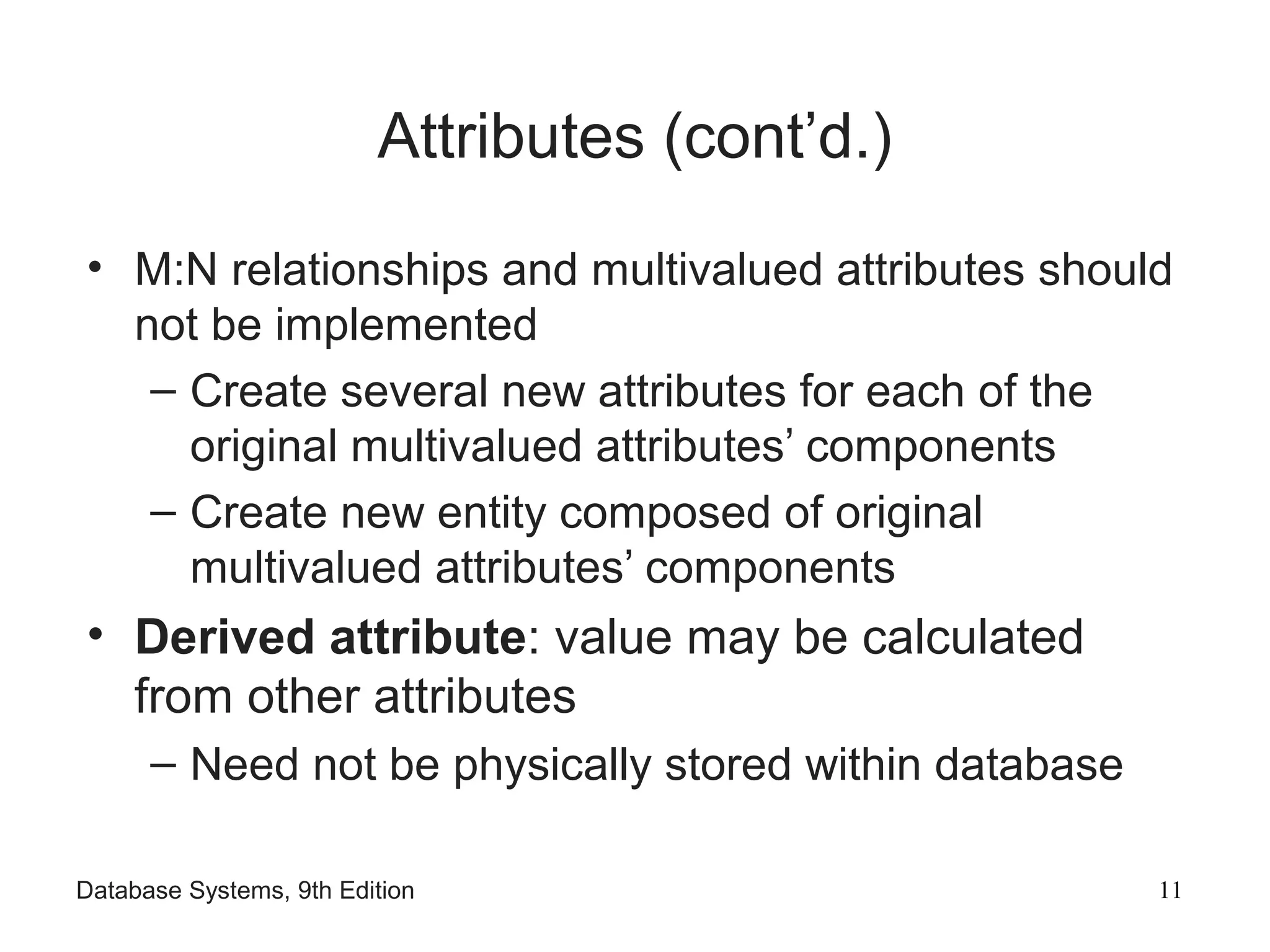

• M:N relationships and multivalued attributes should
not be implemented
– Create several new attributes for each of the
original multivalued attributes’ components
– Create new entity composed of original
multivalued attributes’ components

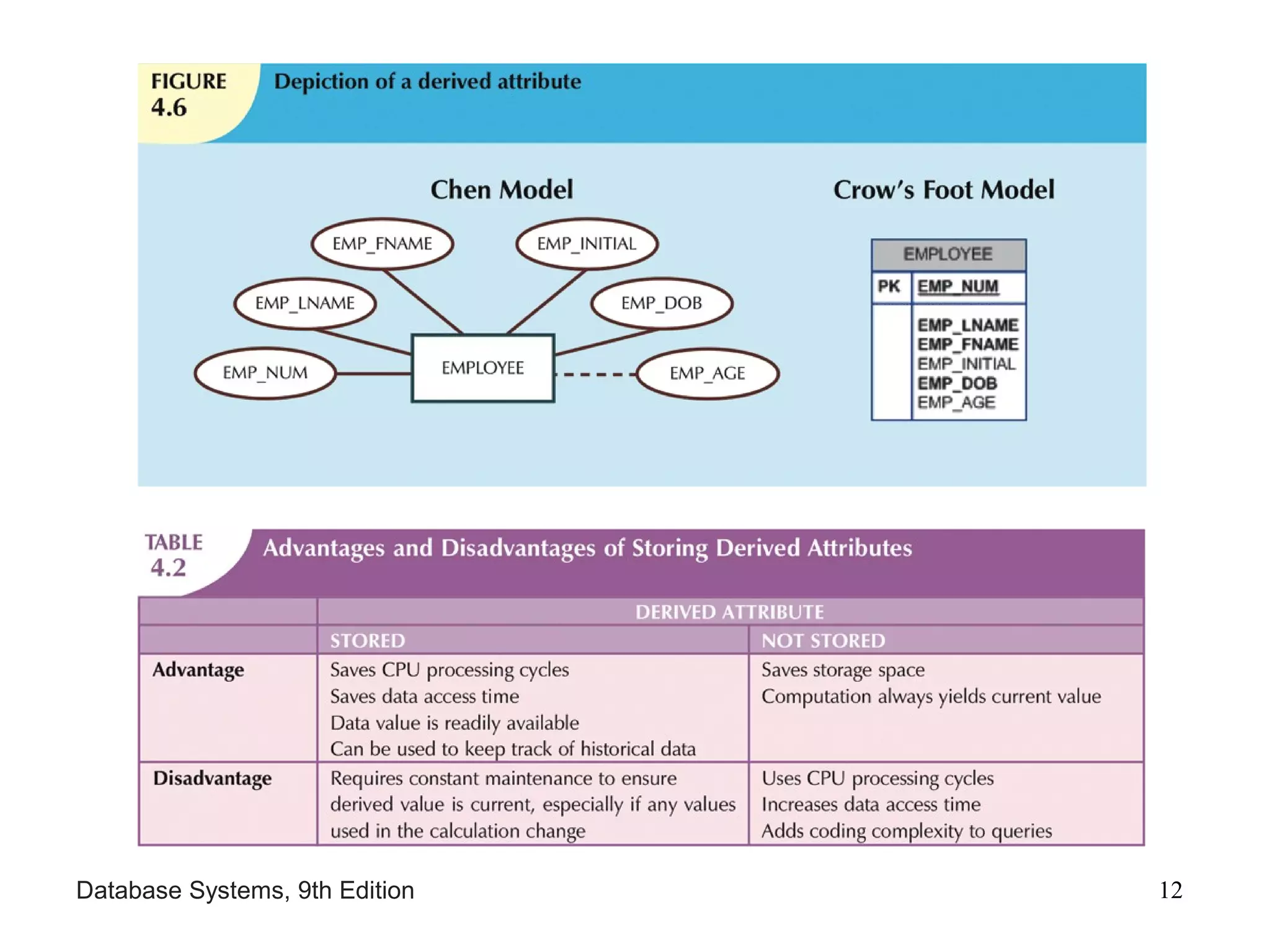

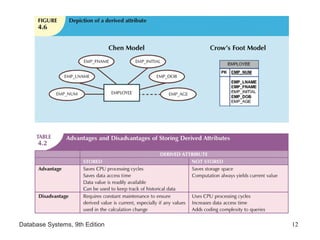

• Derived attribute: value may be calculated
from other attributes
– Need not be physically stored within database

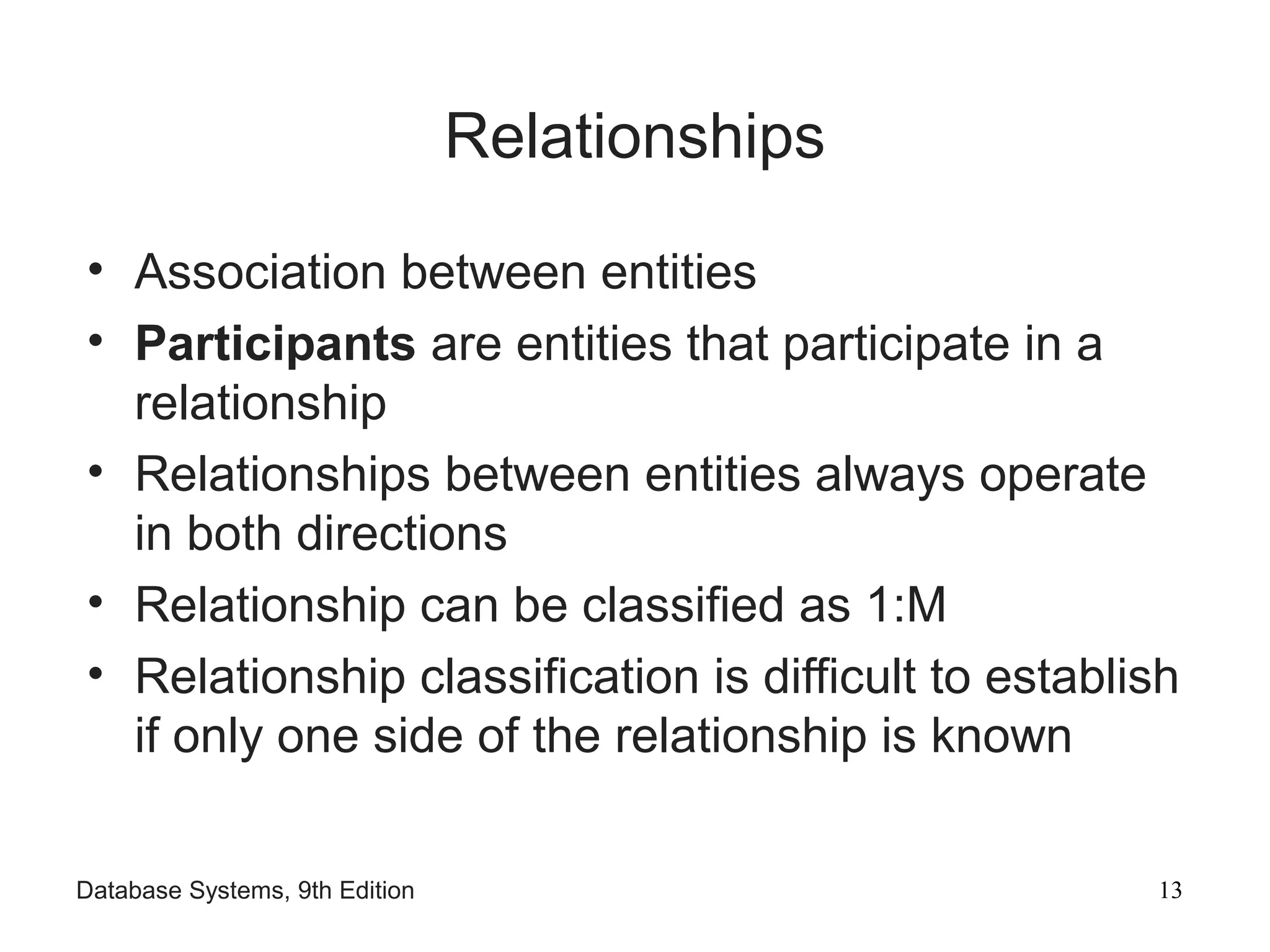

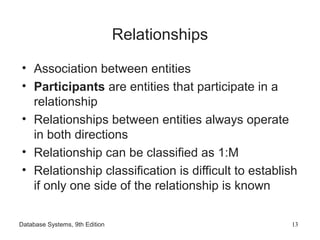

Relationships
• Association between entities
• Participants are entities that participate in a
relationship
• Relationships between entities always operate
in both directions
• Relationship can be classified as 1:M
• Relationship classification is difficult to establish
if only one side of the relationship is known

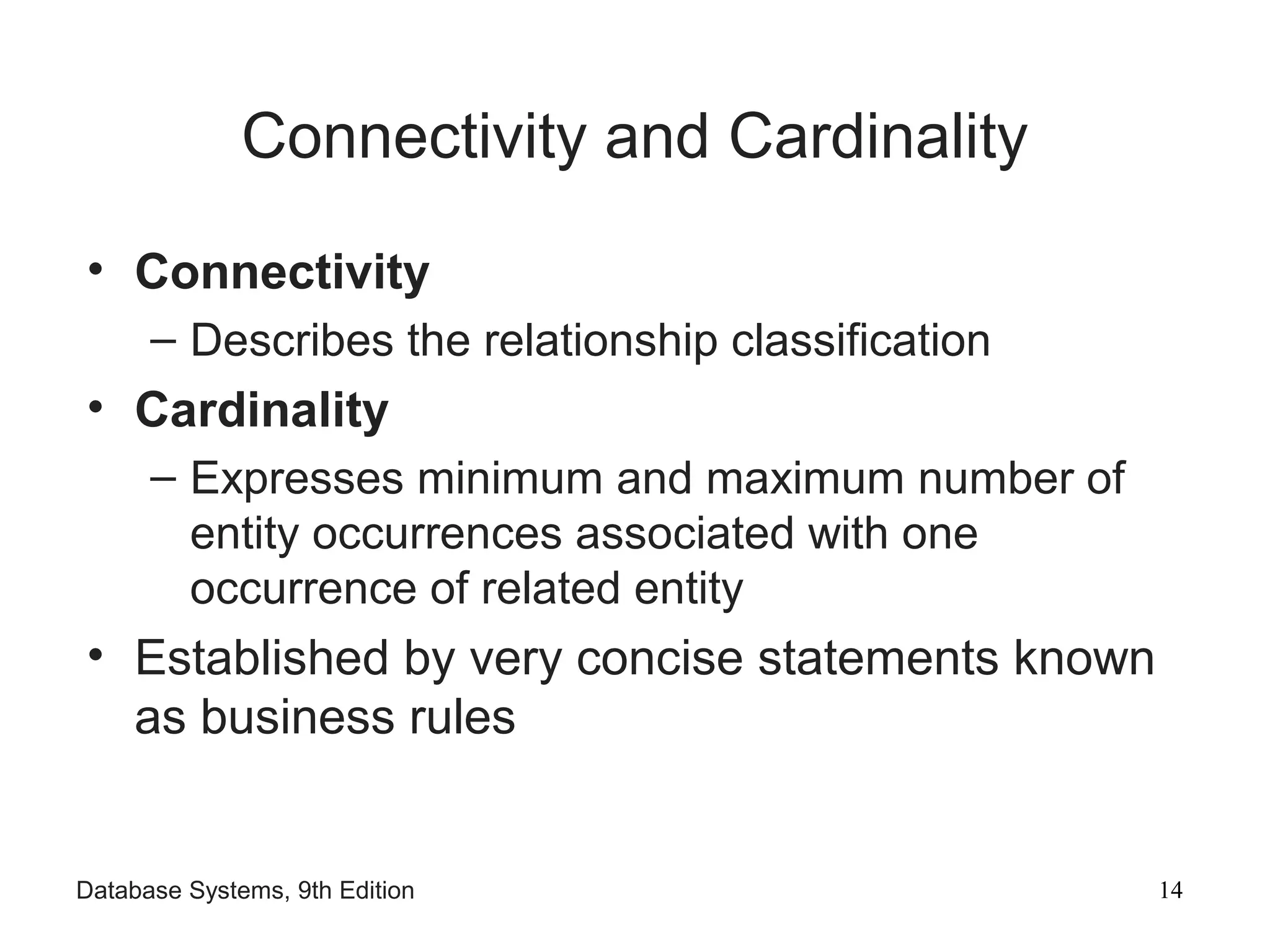

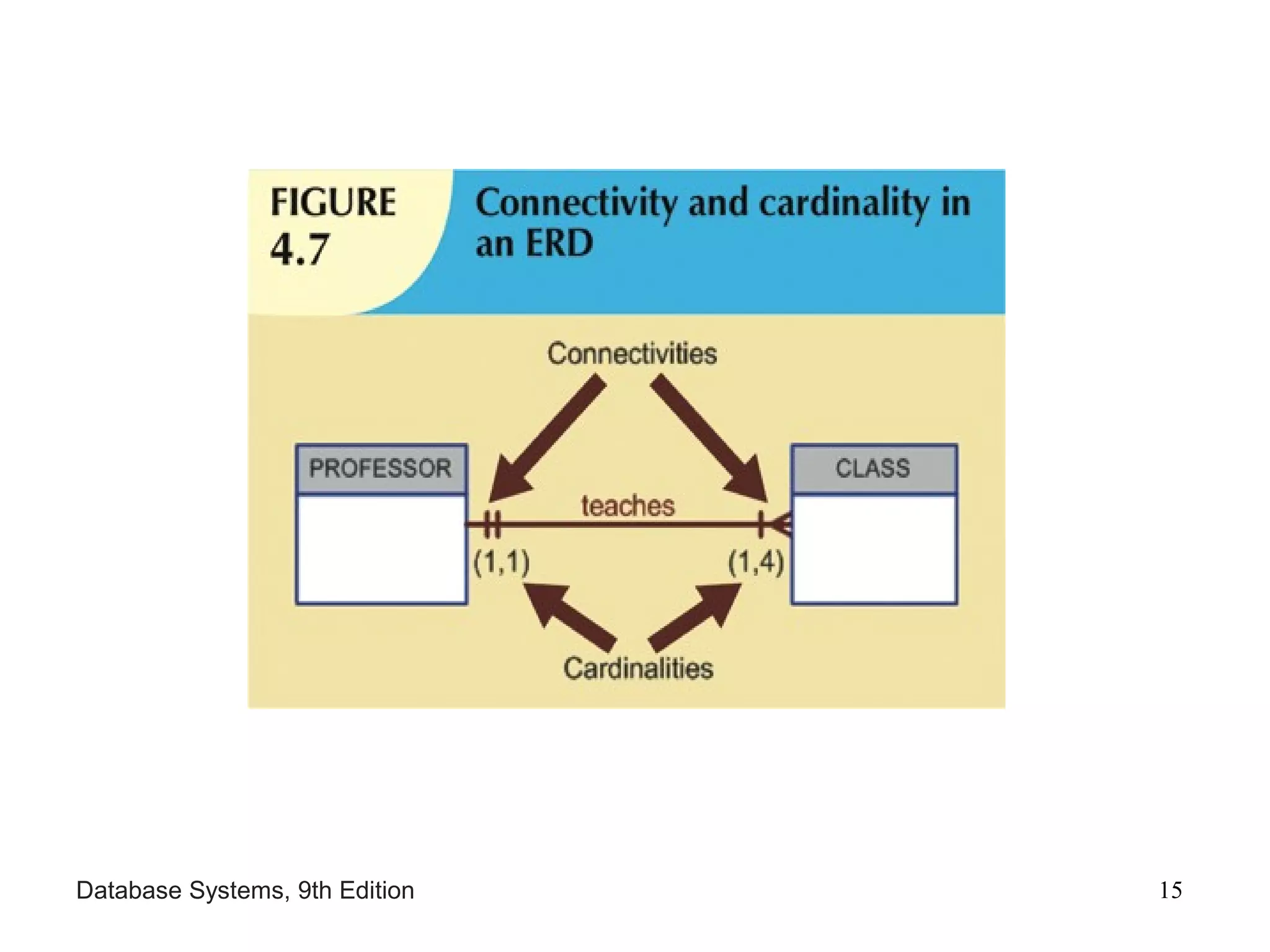

Connectivity and Cardinality
• Connectivity
– Describes the relationship classification
• Cardinality
– Expresses minimum and maximum number of
entity occurrences associated with one
occurrence of related entity
• Established by very concise statements known
as business rules

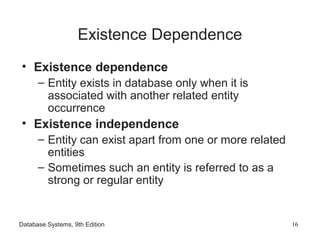

Existence Dependence
• Existence dependence
– Entity exists in database only when it is
associated with another related entity
occurrence
• Existence independence
– Entity can exist apart from one or more related
entities
– Sometimes such an entity is referred to as a
strong or regular entity

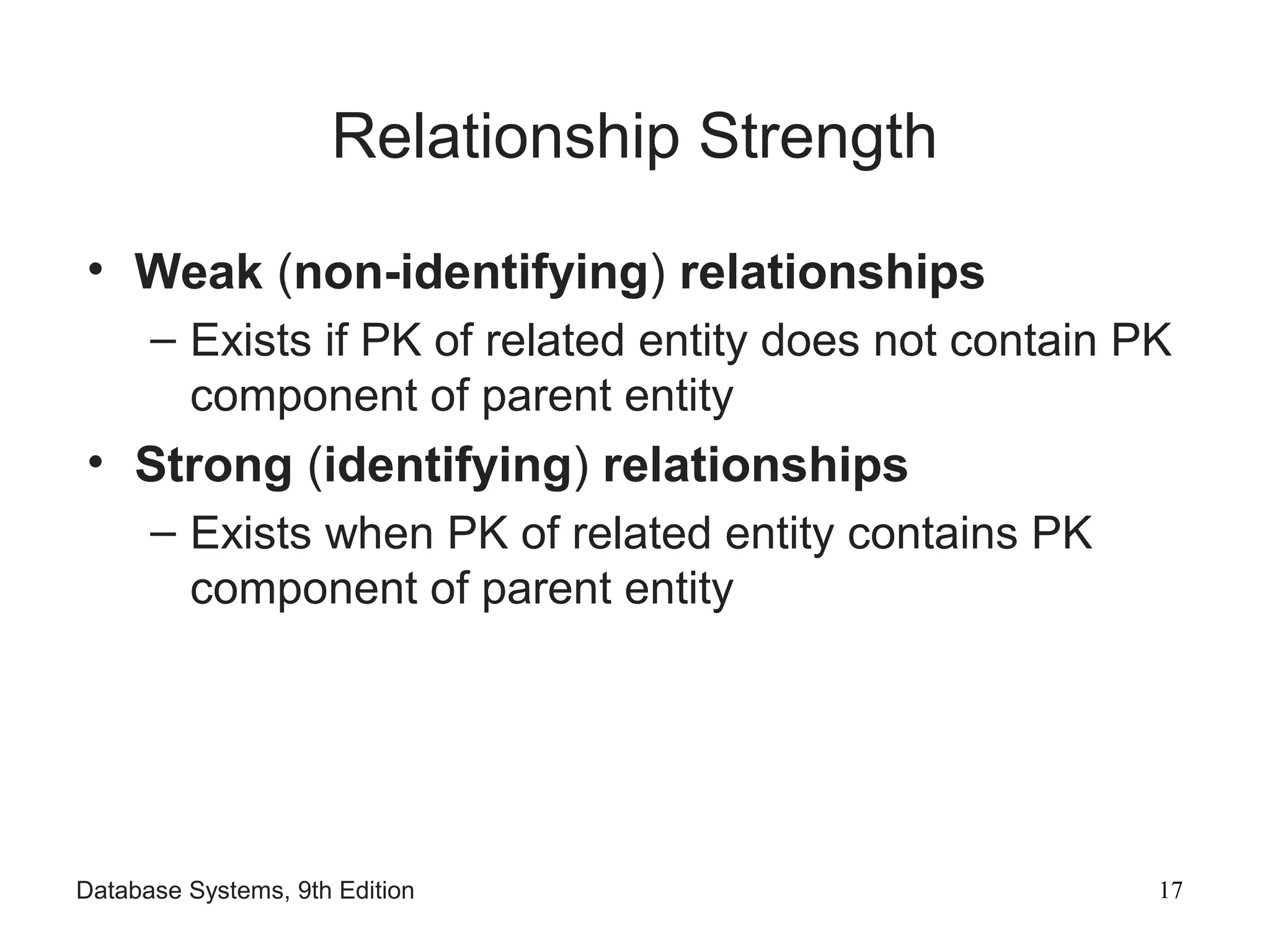

Relationship Strength

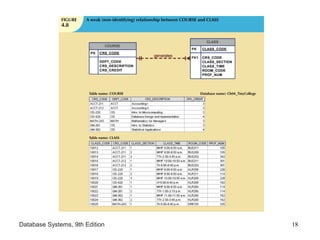

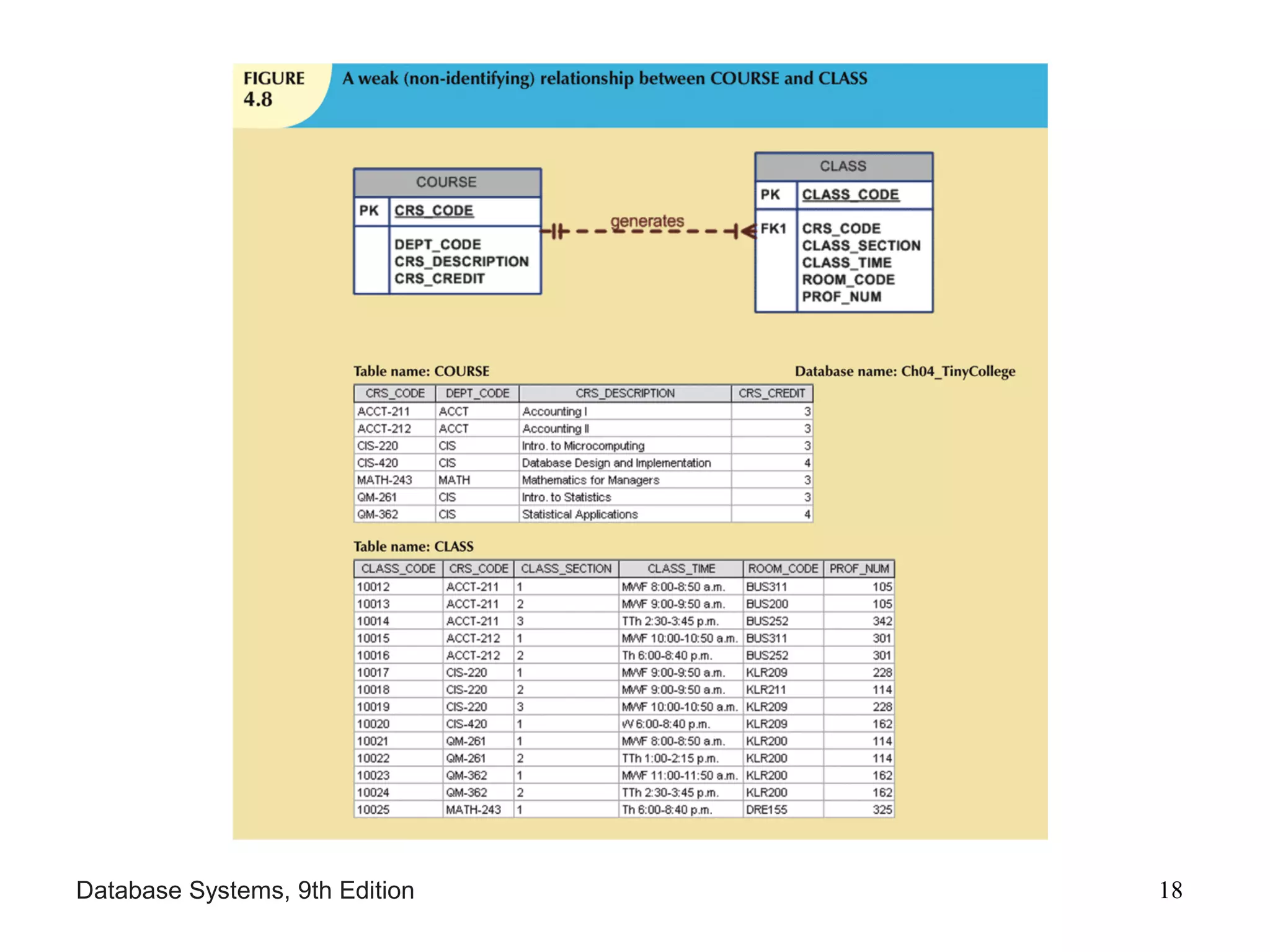

• Weak (non-identifying) relationships
– Exists if PK of related entity does not contain PK
component of parent entity

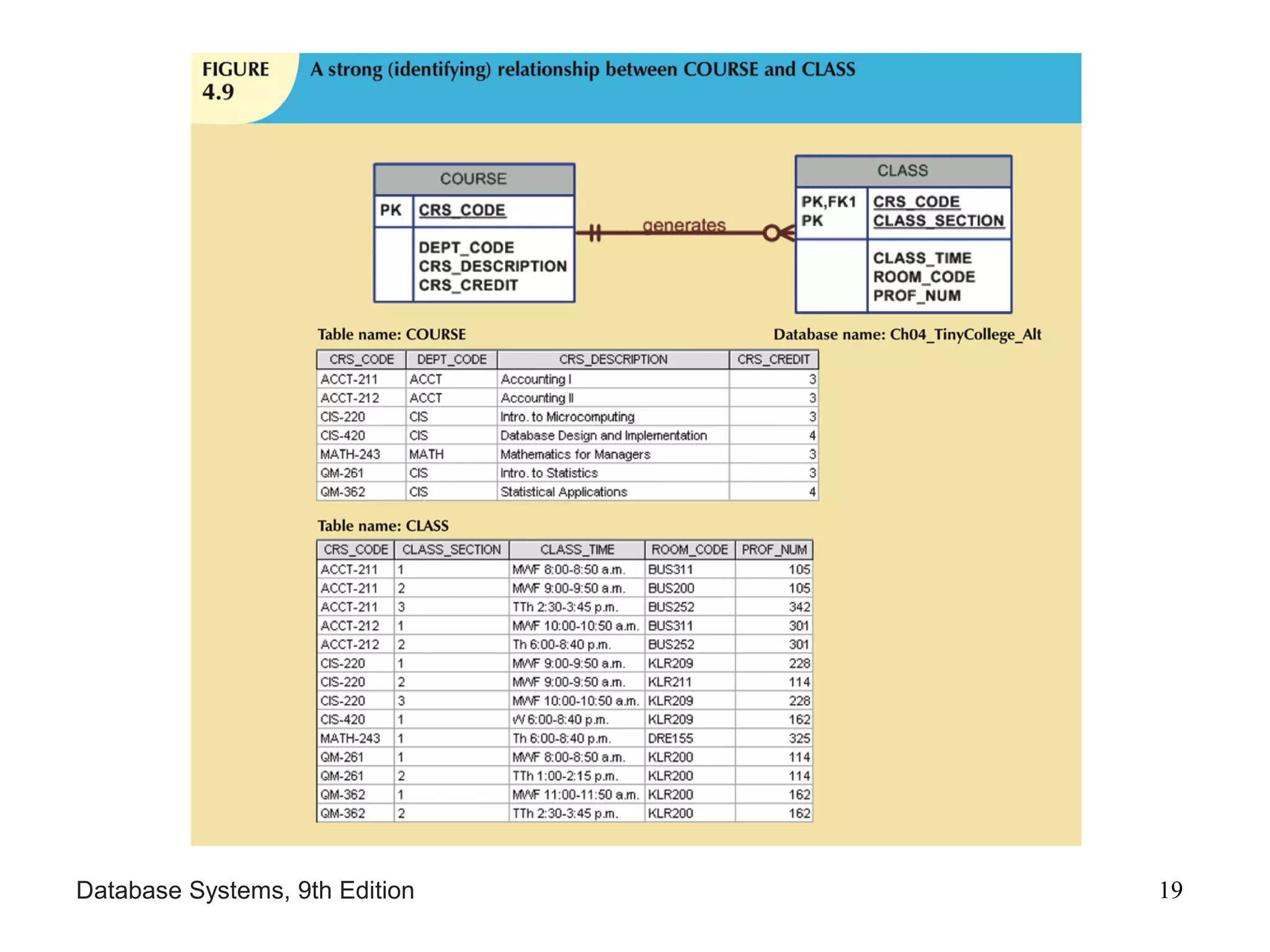

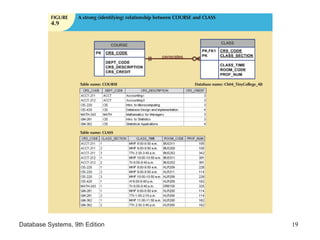

• Strong (identifying) relationships
– Exists when PK of related entity contains PK
component of parent entity

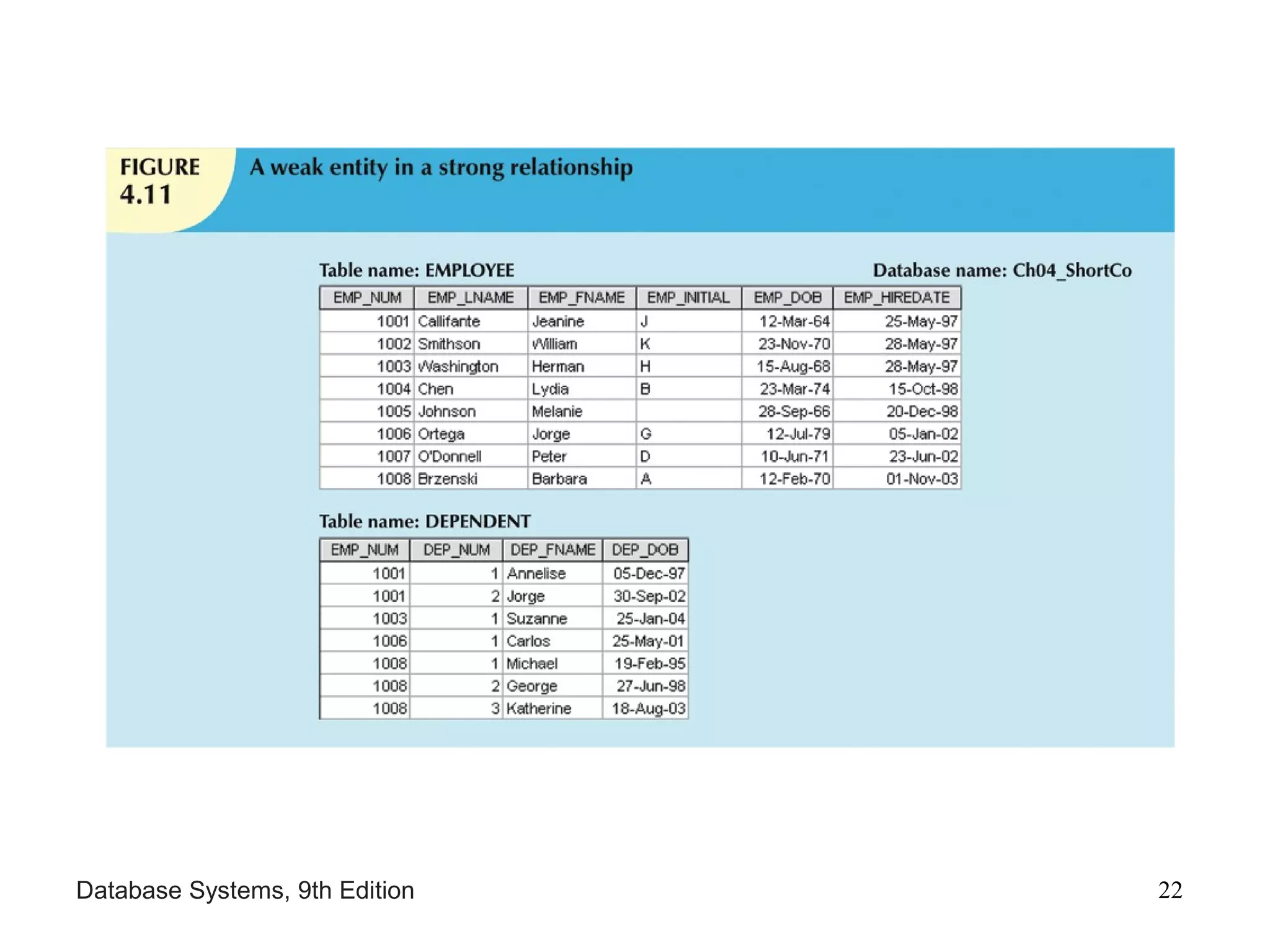

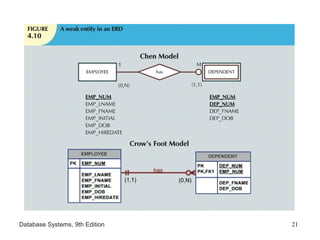

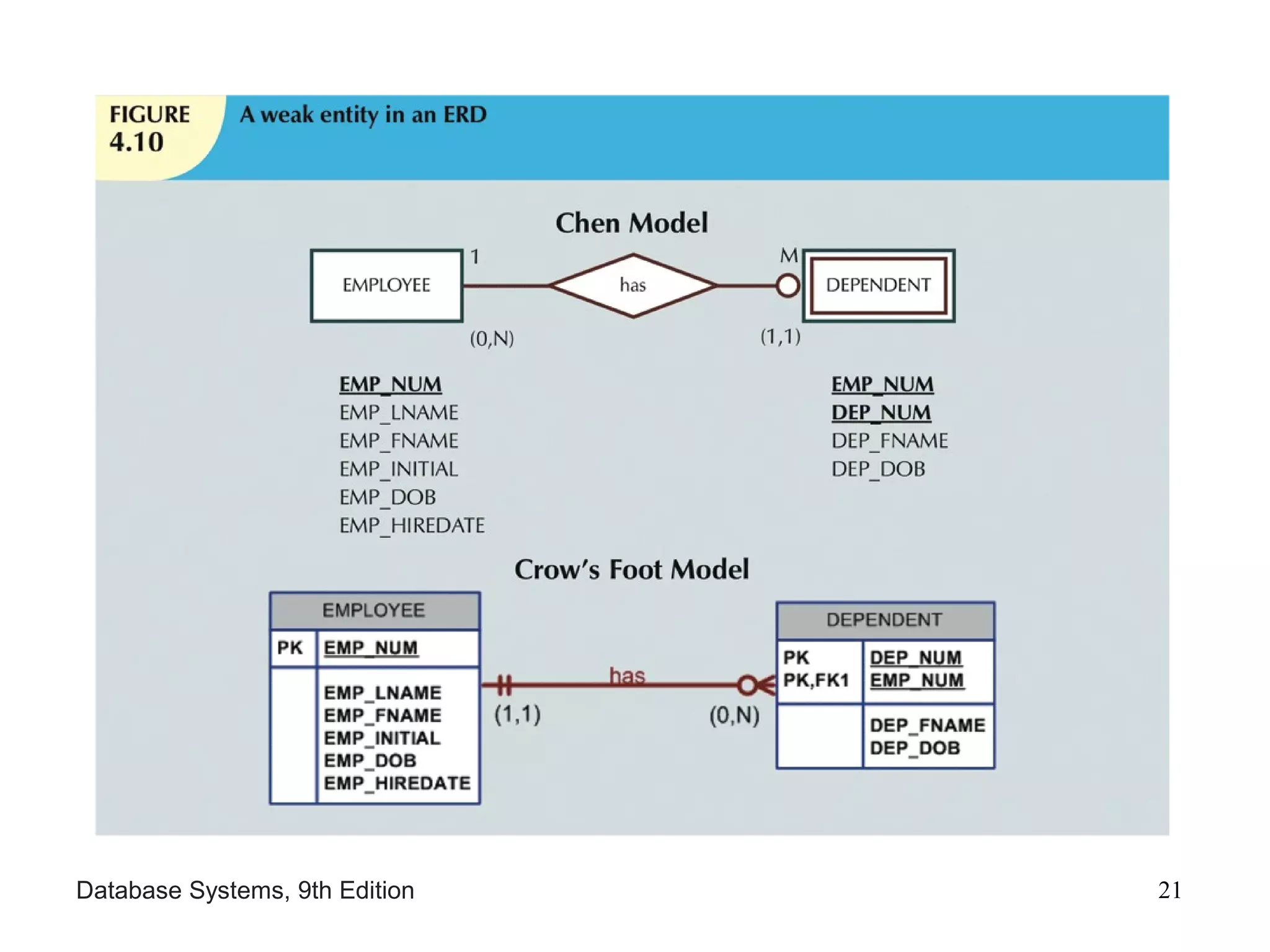

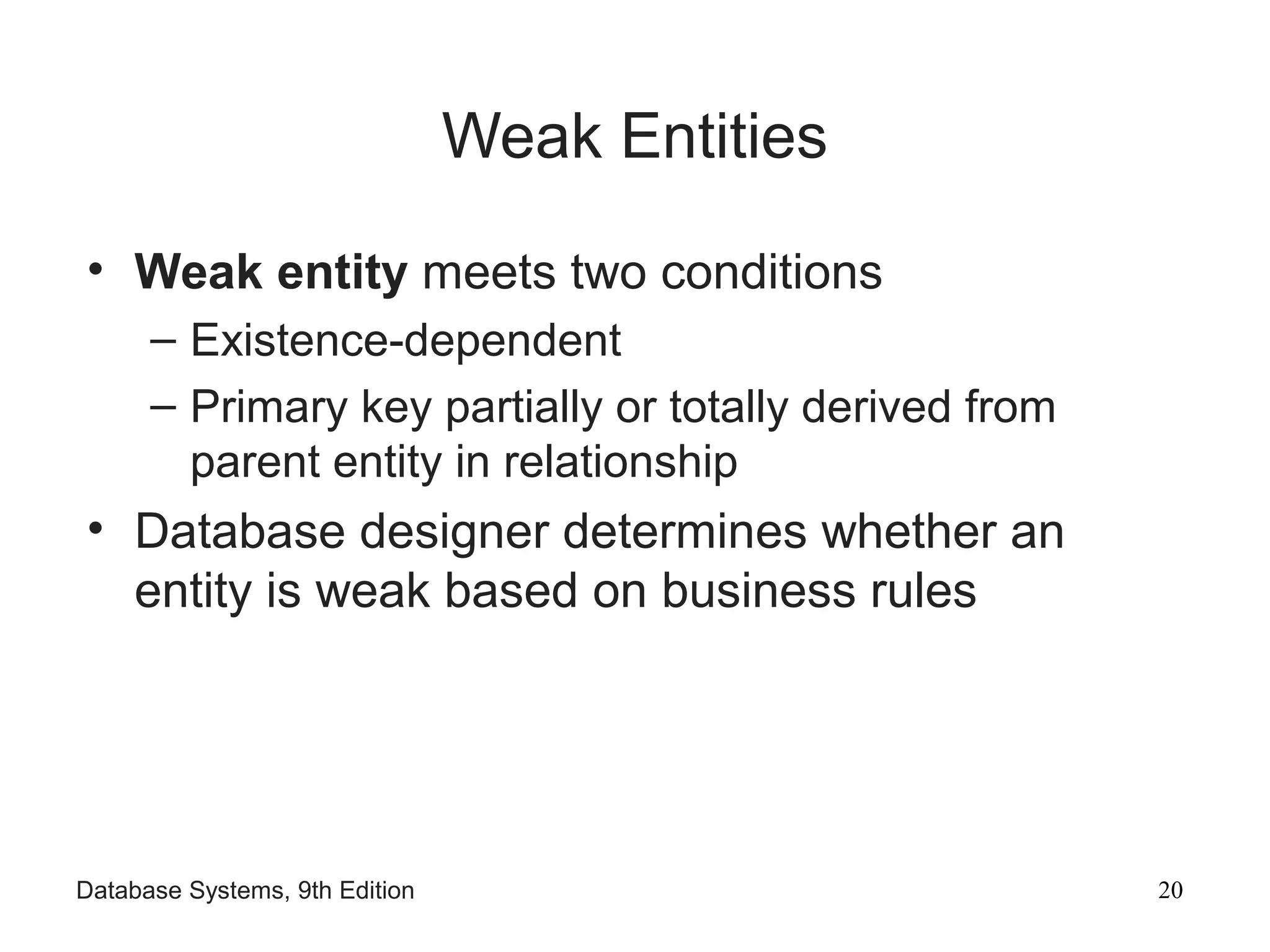

Weak Entities
• Weak entity meets two conditions
– Existence-dependent
– Primary key partially or totally derived from
parent entity in relationship
• Database designer determines whether an
entity is weak based on business rules

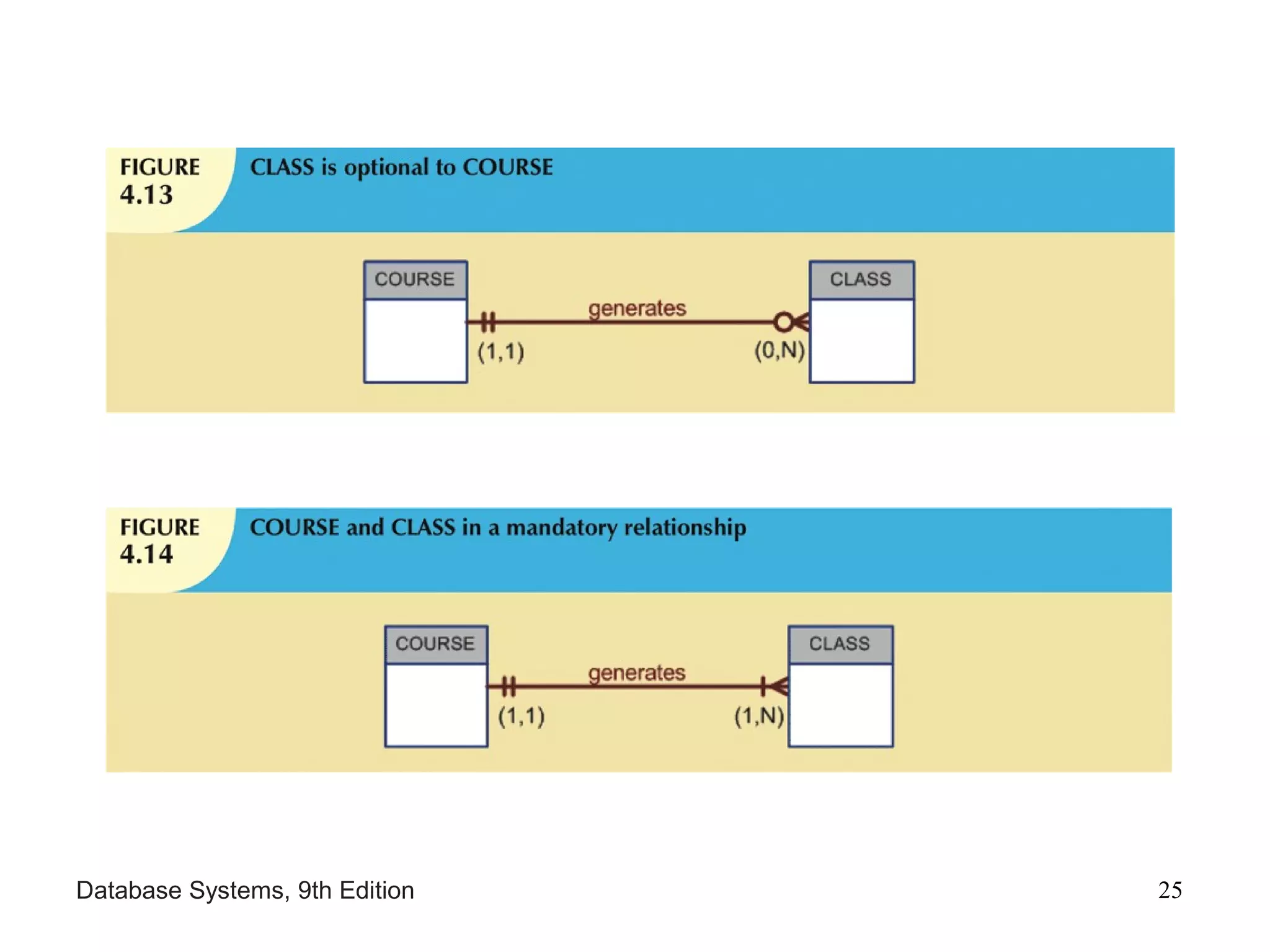

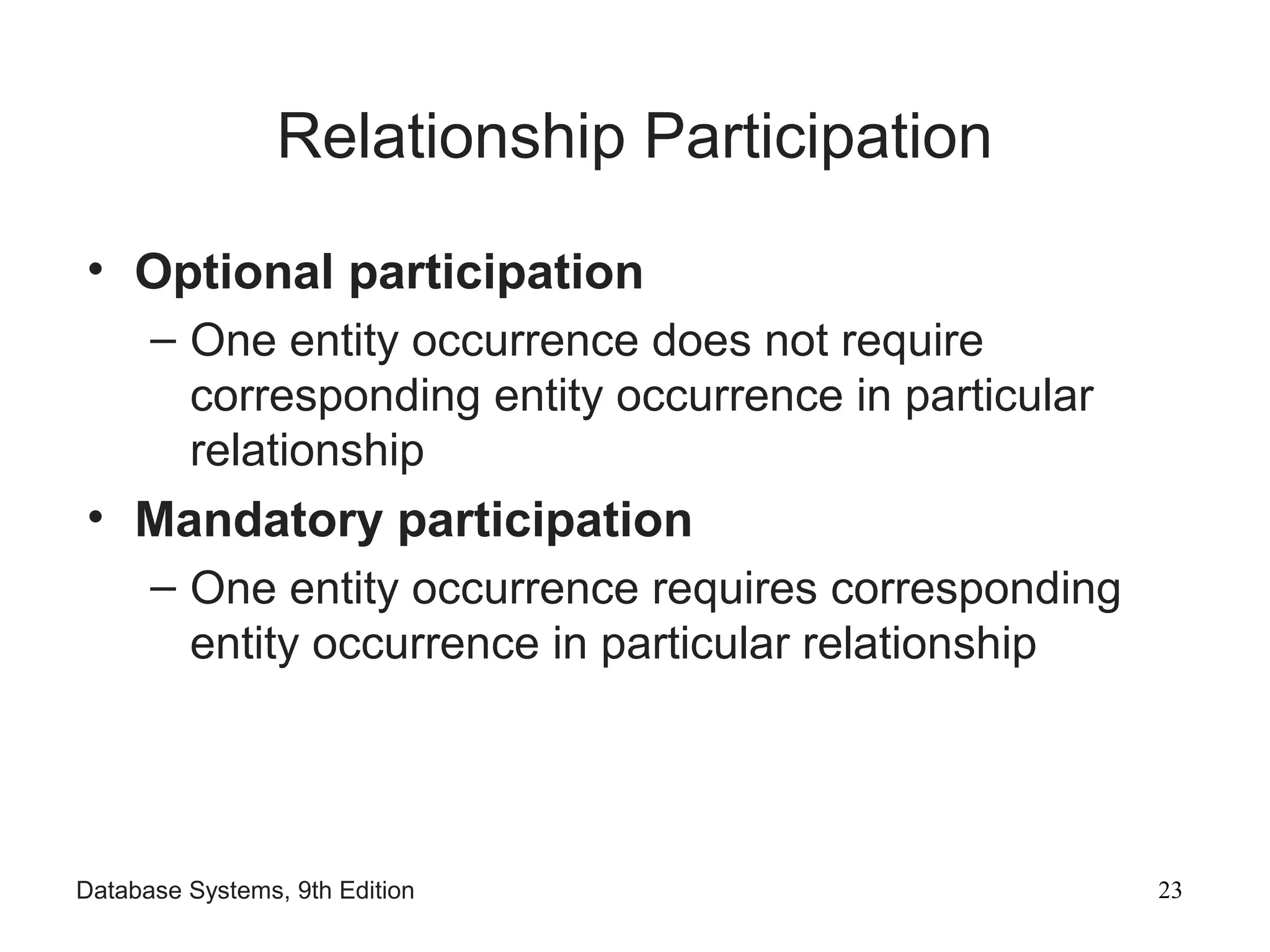

Relationship Participation
• Optional participation
– One entity occurrence does not require
corresponding entity occurrence in particular
relationship
• Mandatory participation
– One entity occurrence requires corresponding
entity occurrence in particular relationship

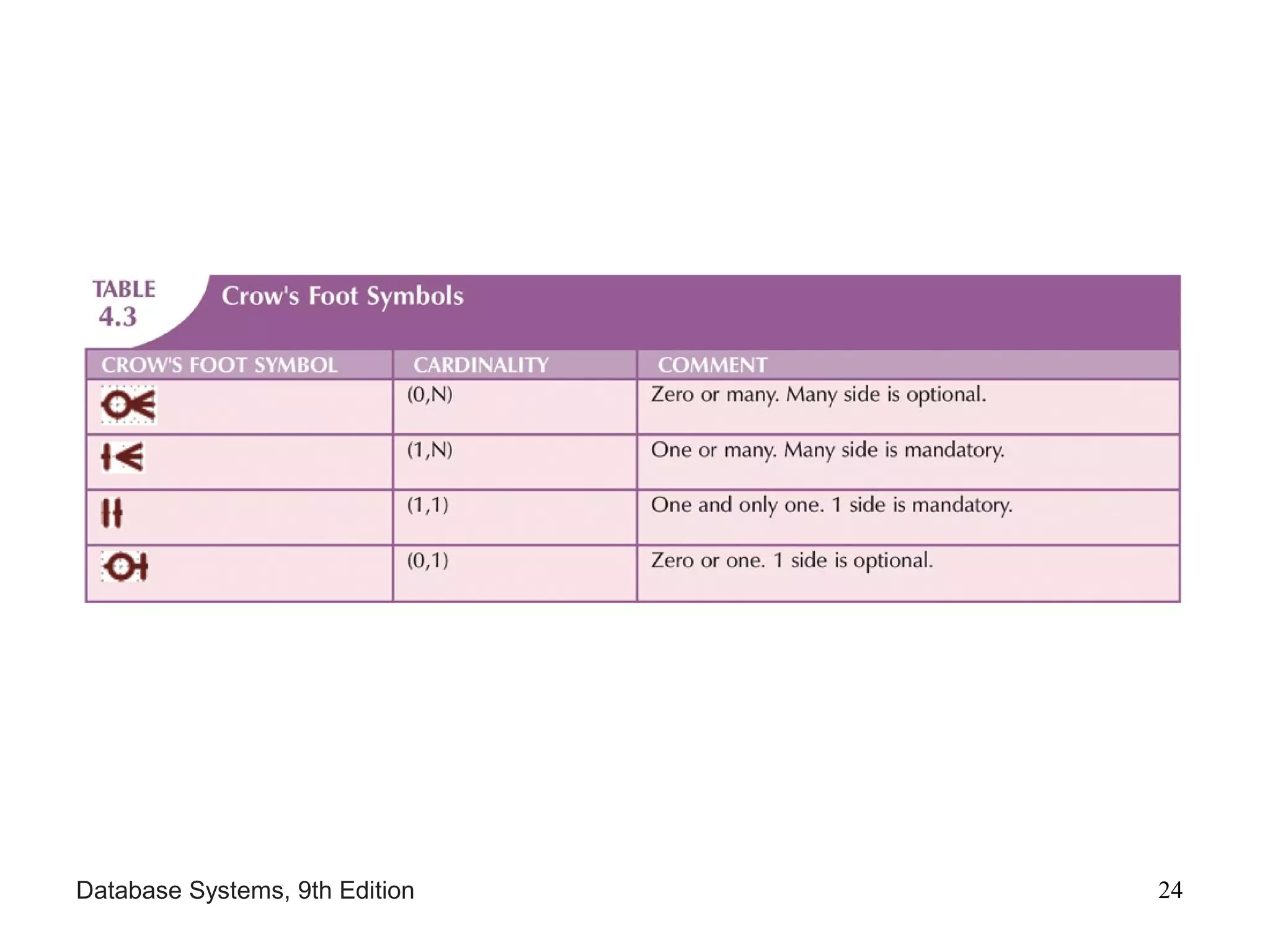

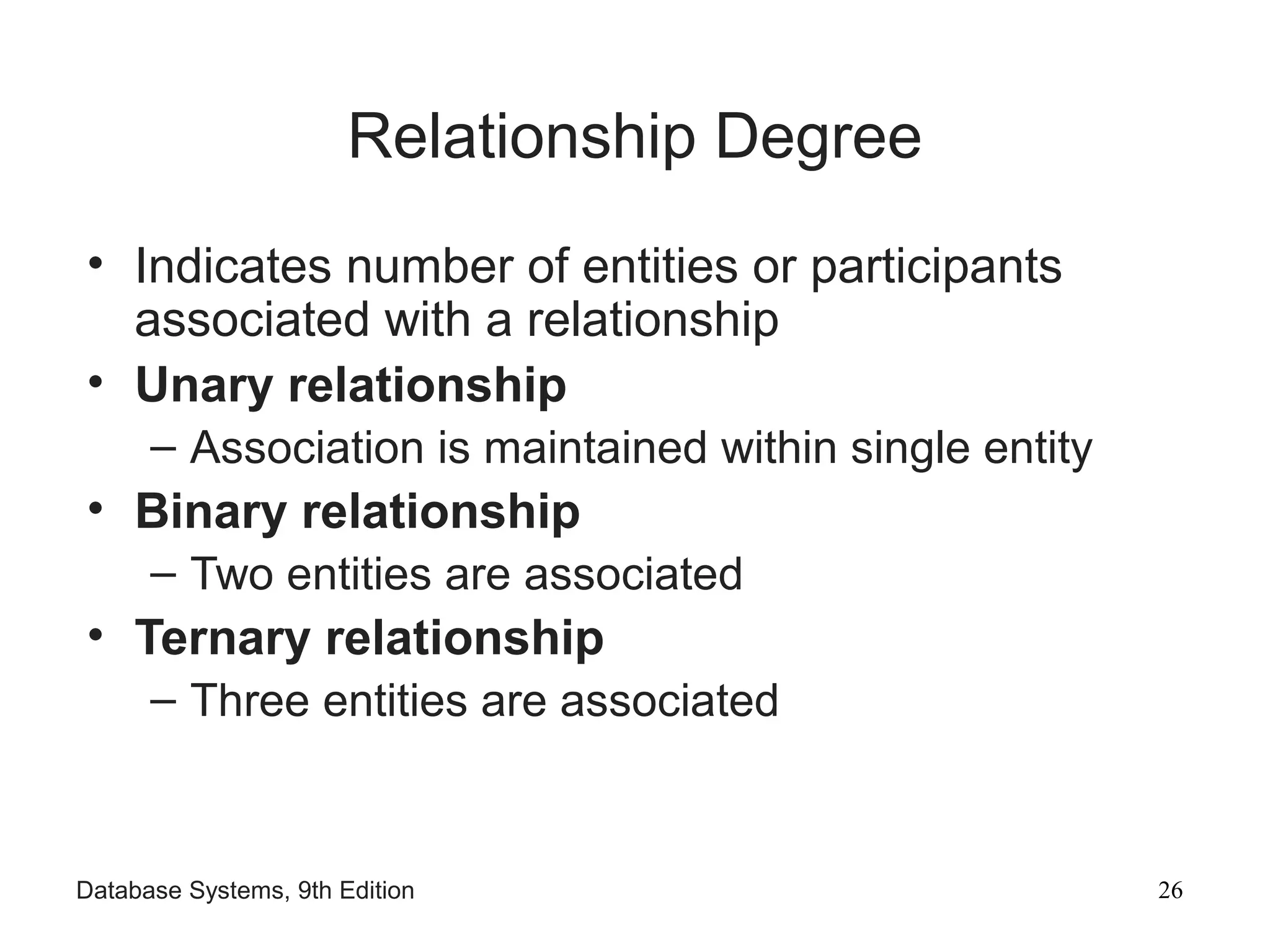

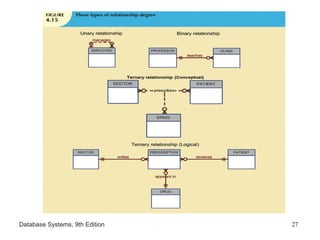

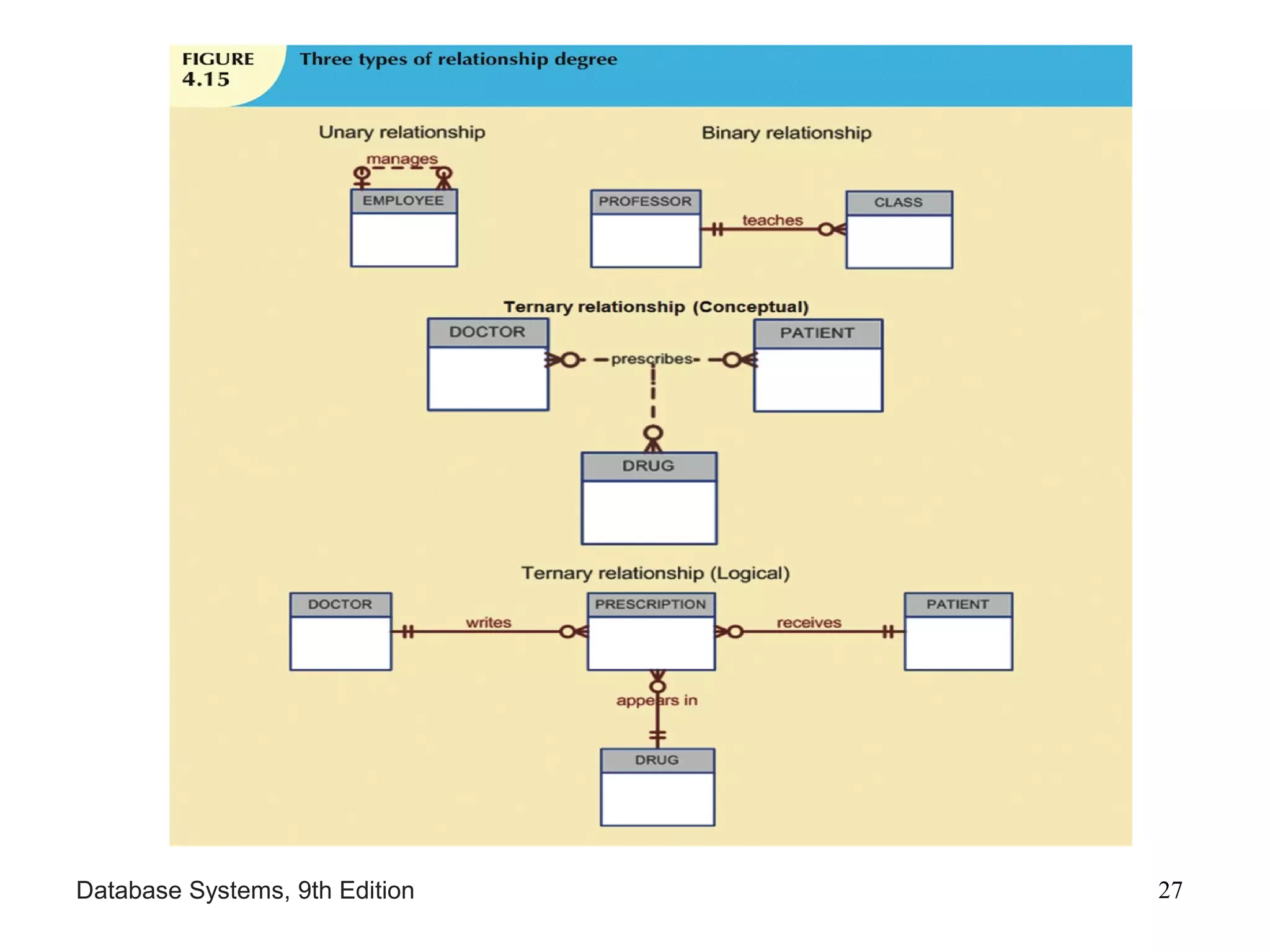

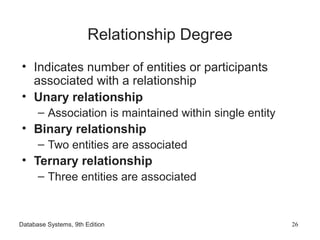

Relationship Degree
• Indicates number of entities or participants
associated with a relationship
• Unary relationship
– Association is maintained within single entity
• Binary relationship
– Two entities are associated

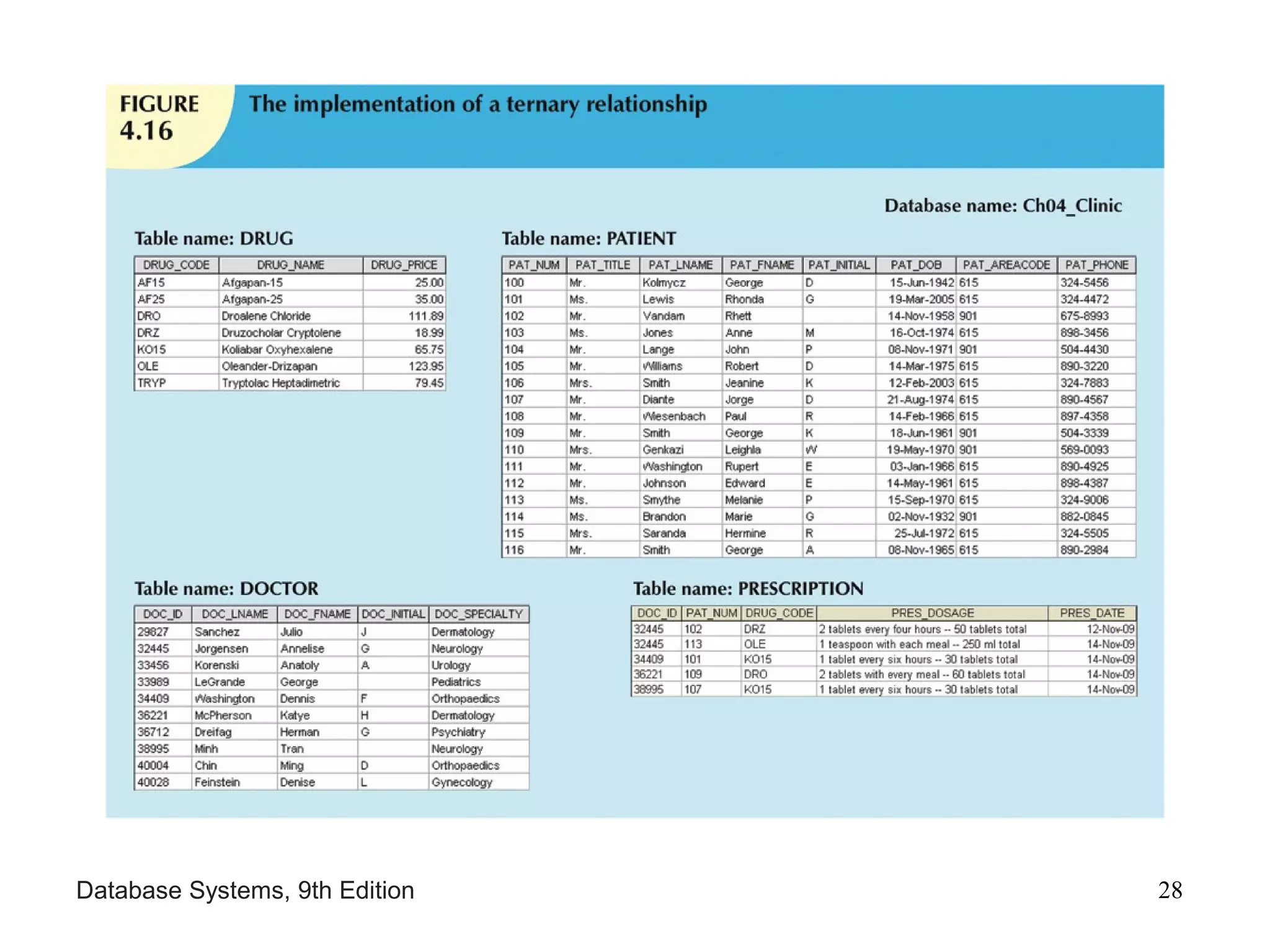

• Ternary relationship
– Three entities are associated

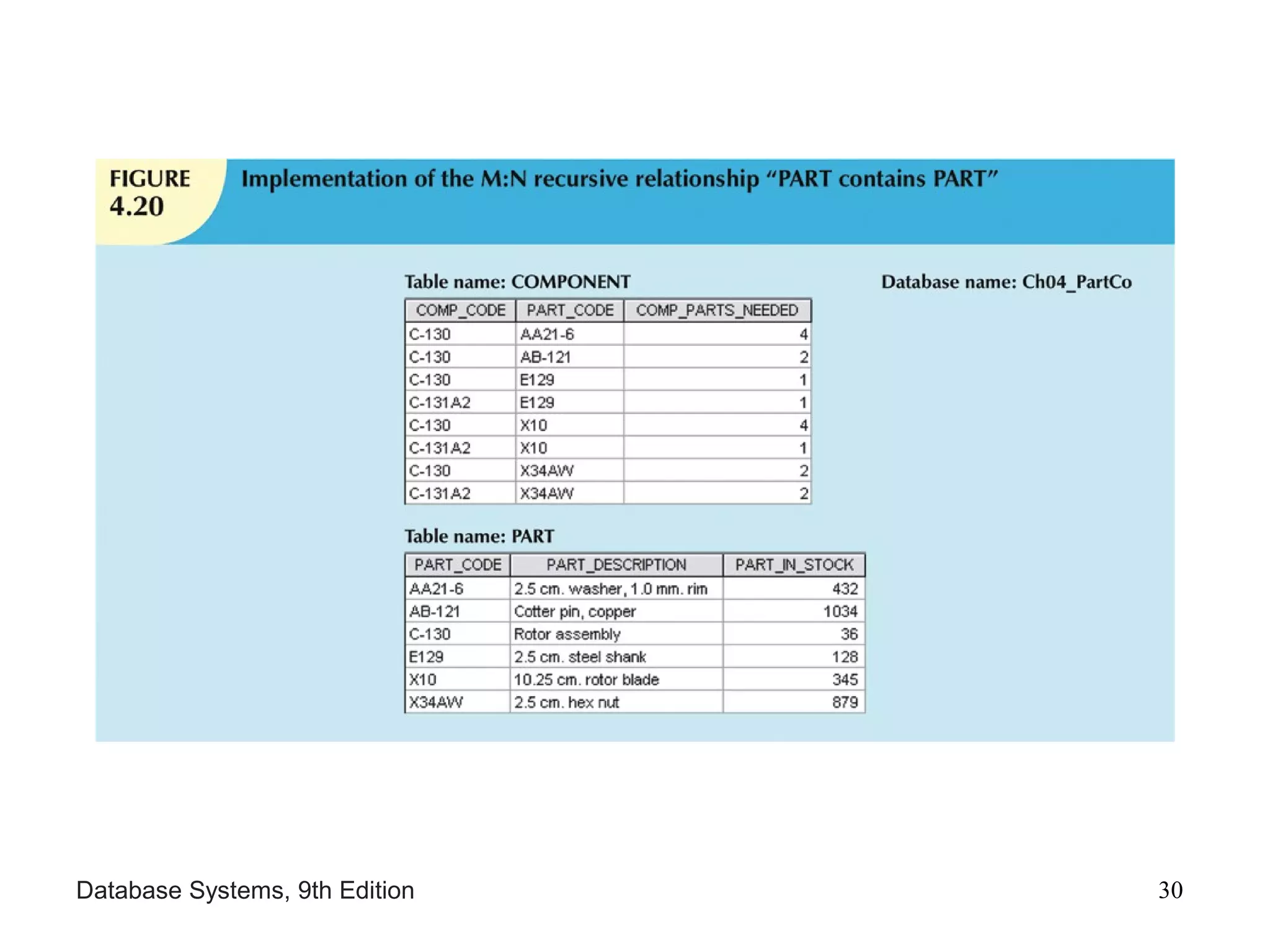

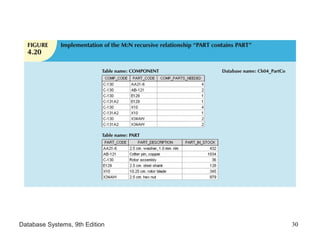

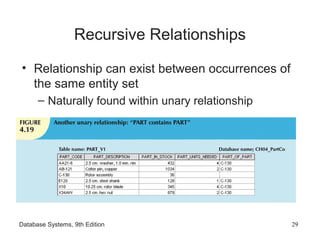

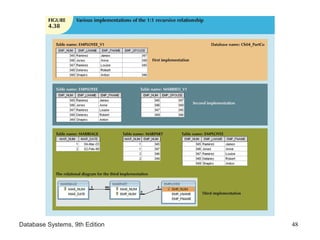

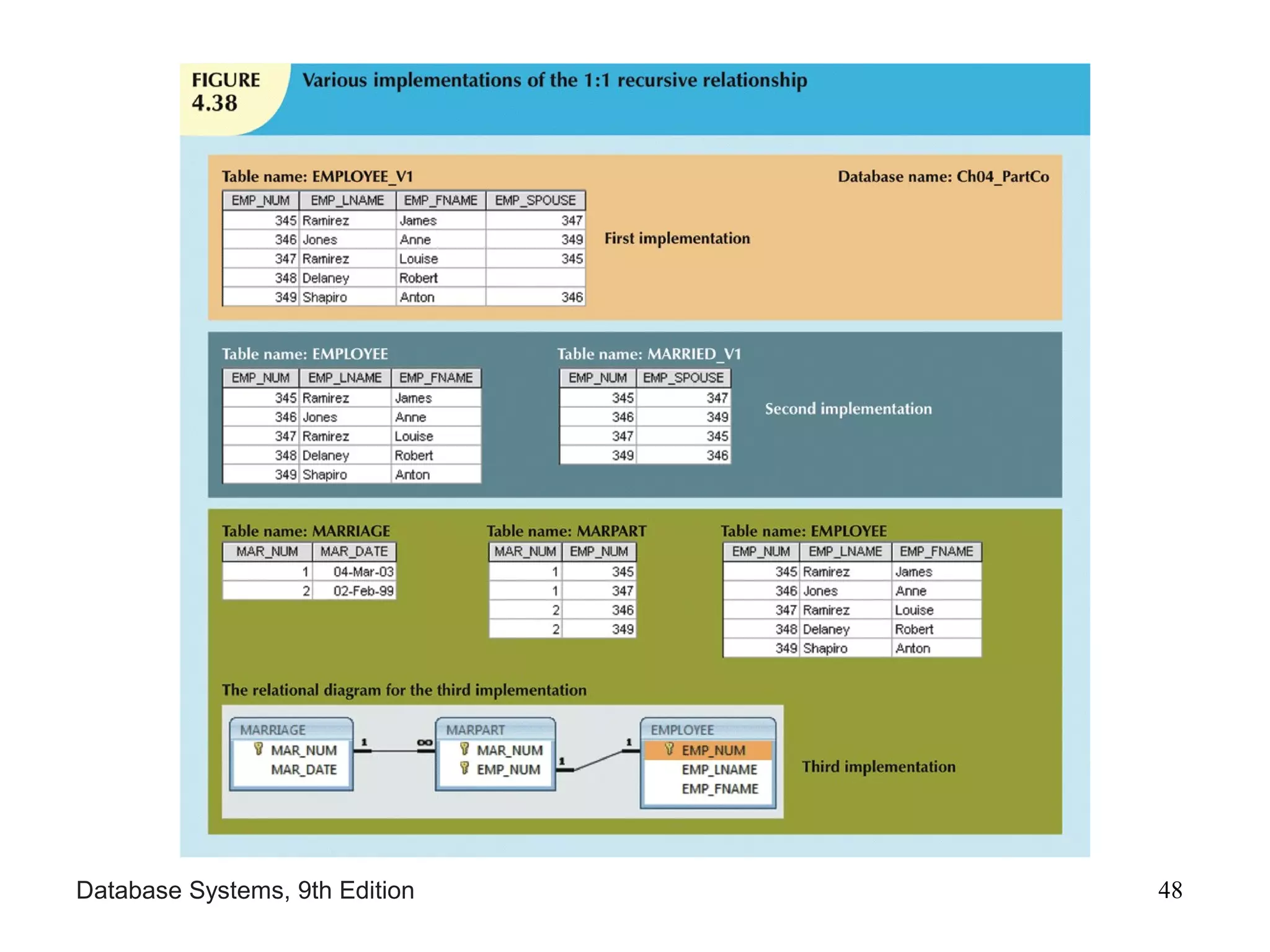

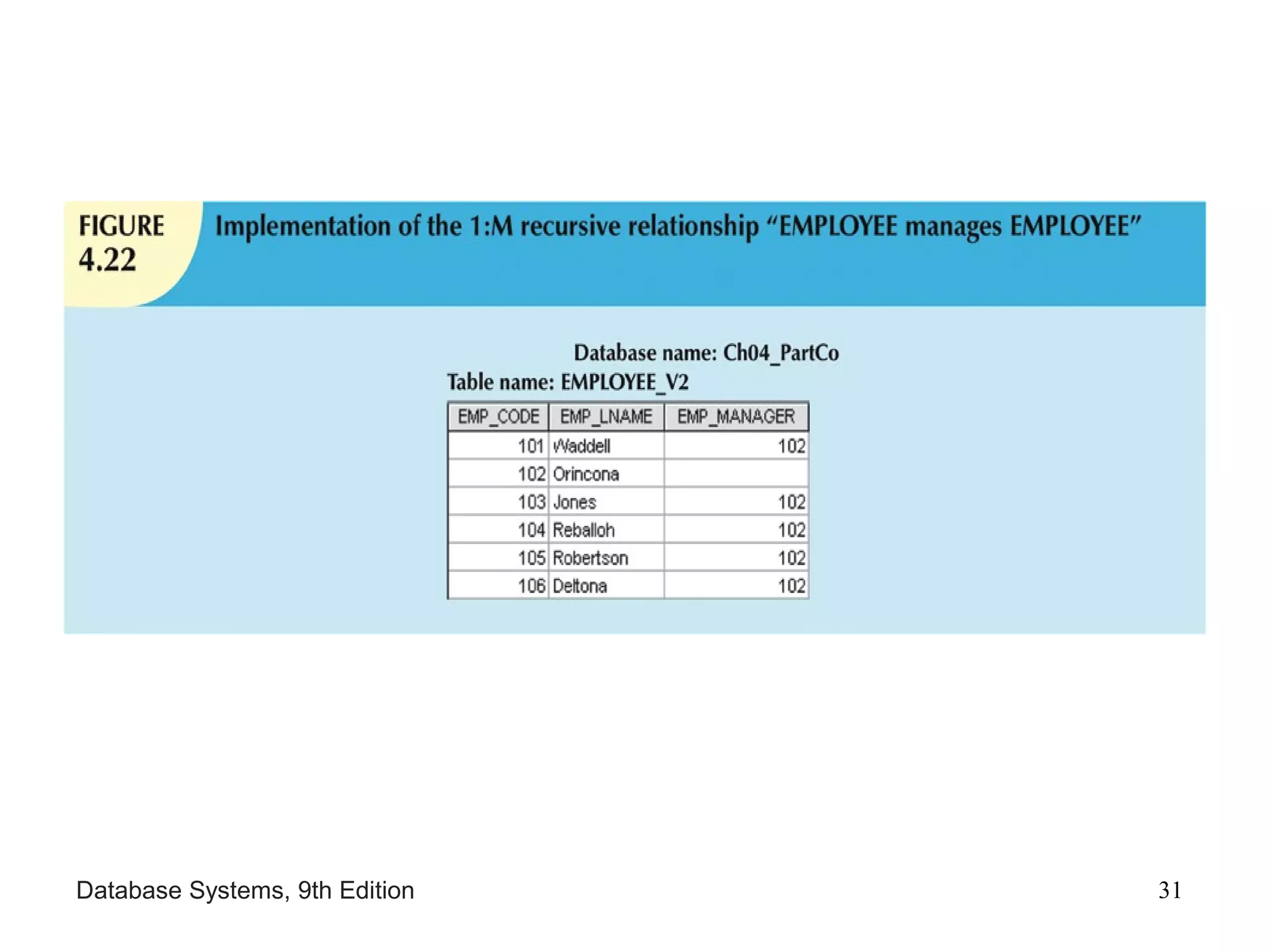

Recursive Relationships
• Relationship can exist between occurrences of
the same entity set
– Naturally found within unary relationship

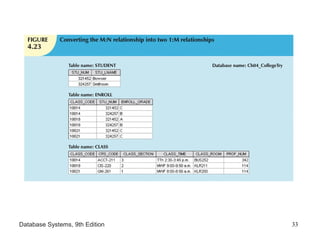

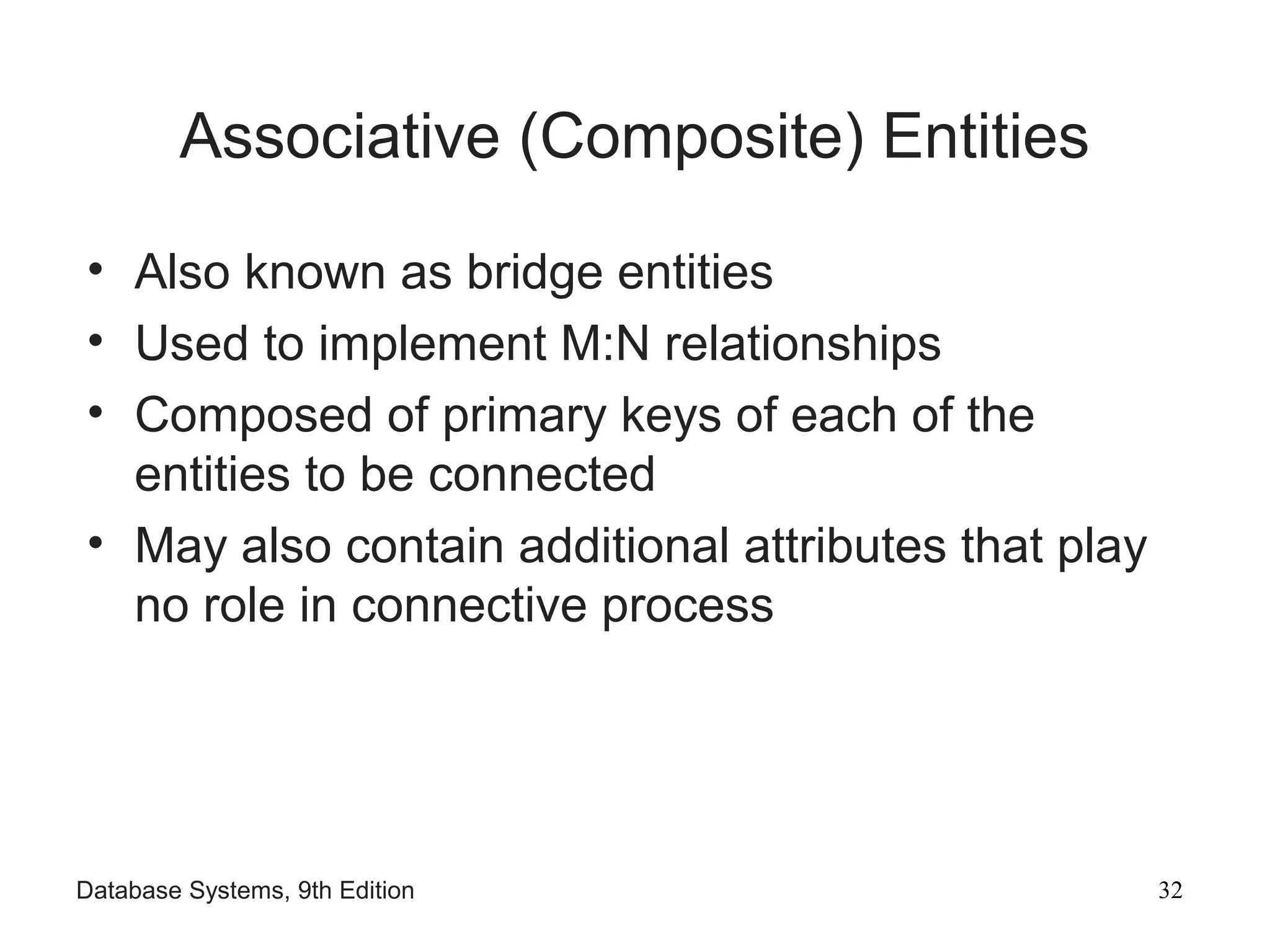

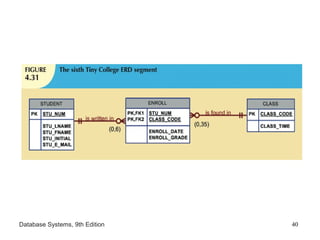

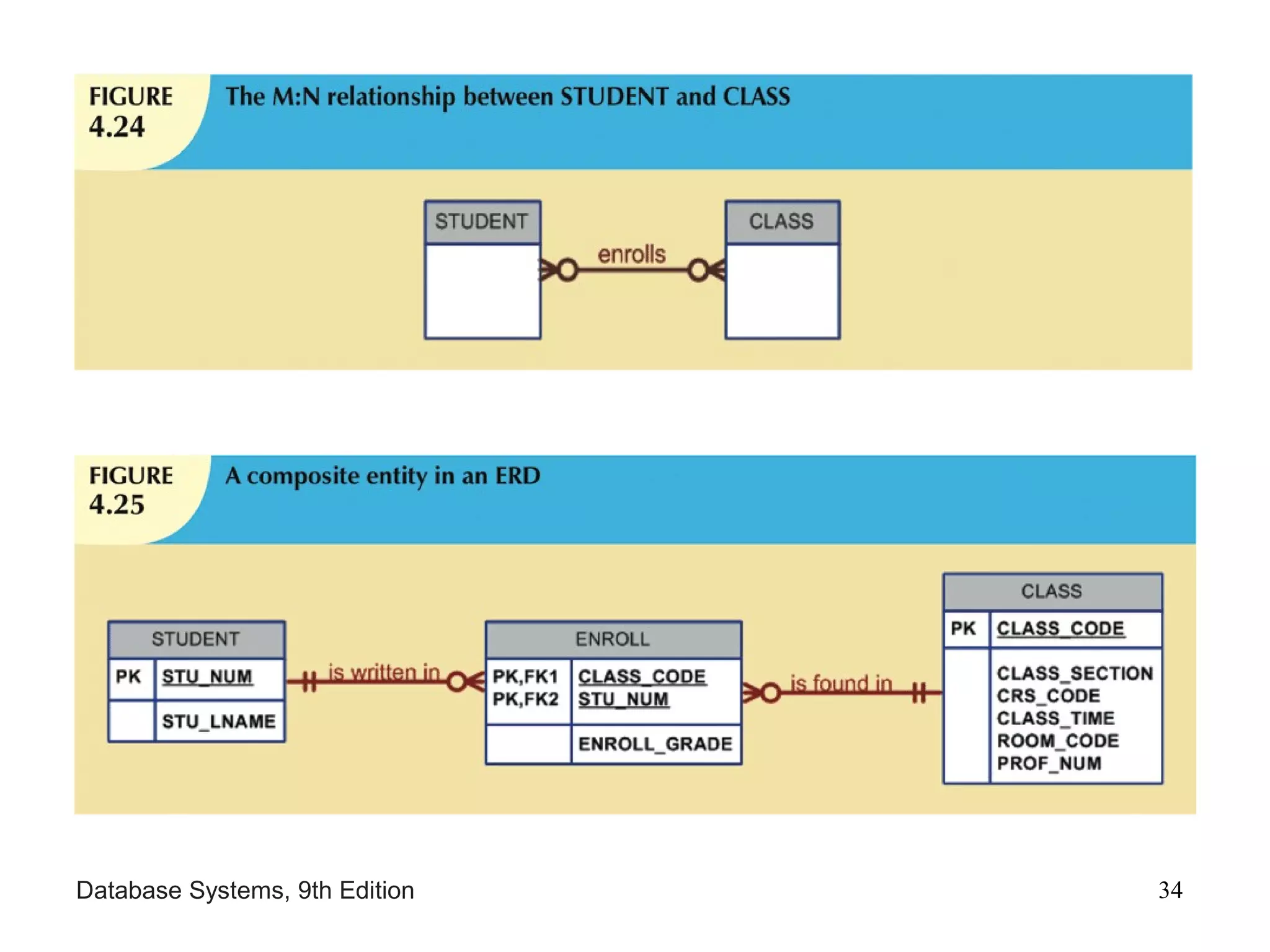

Associative (Composite) Entities
• Also known as bridge entities
• Used to implement M:N relationships
• Composed of primary keys of each of the
entities to be connected
• May also contain additional attributes that play
no role in connective process

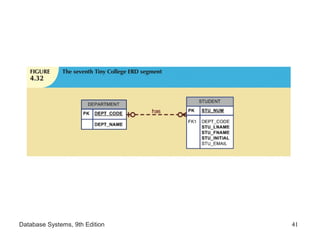

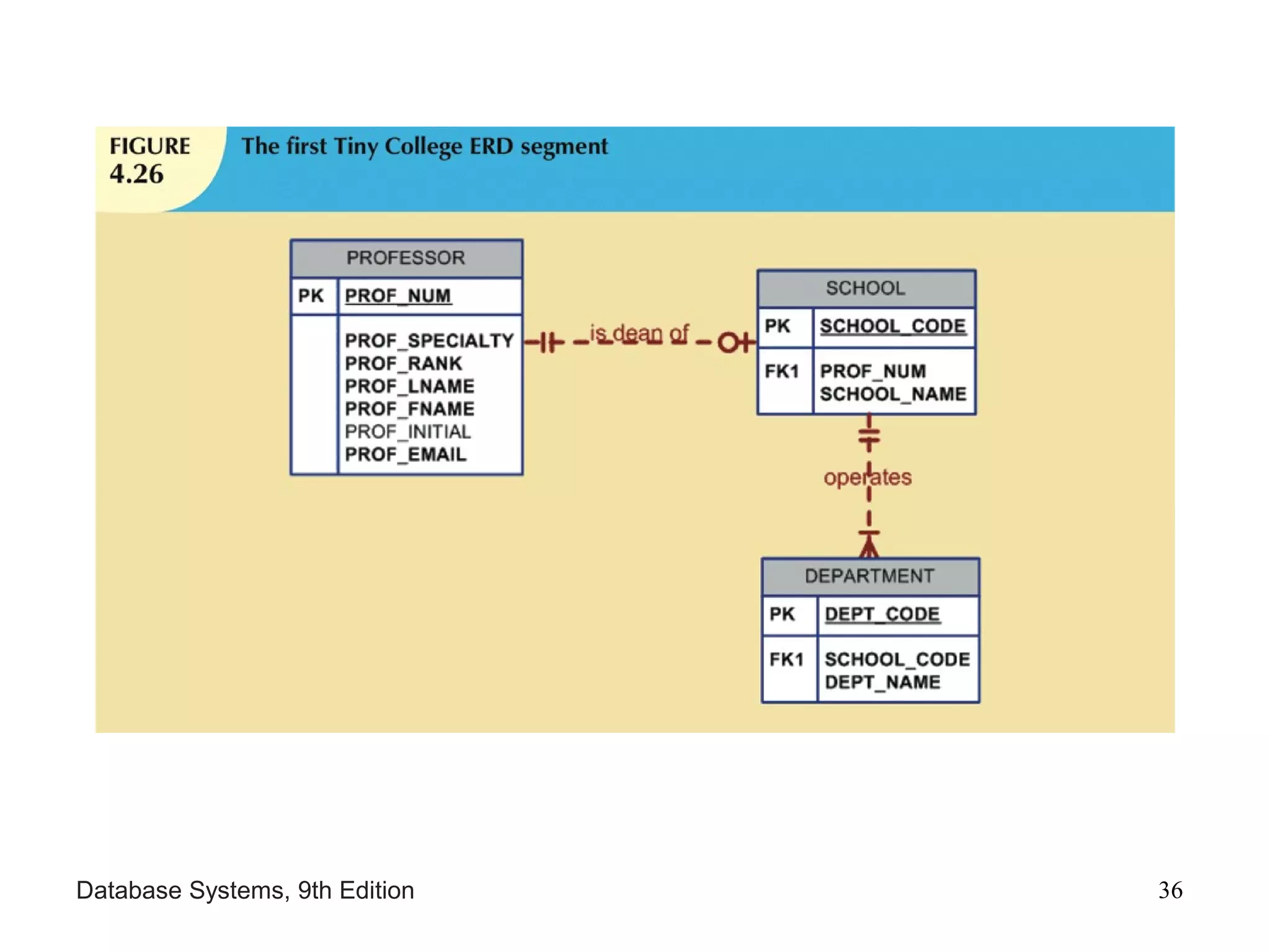

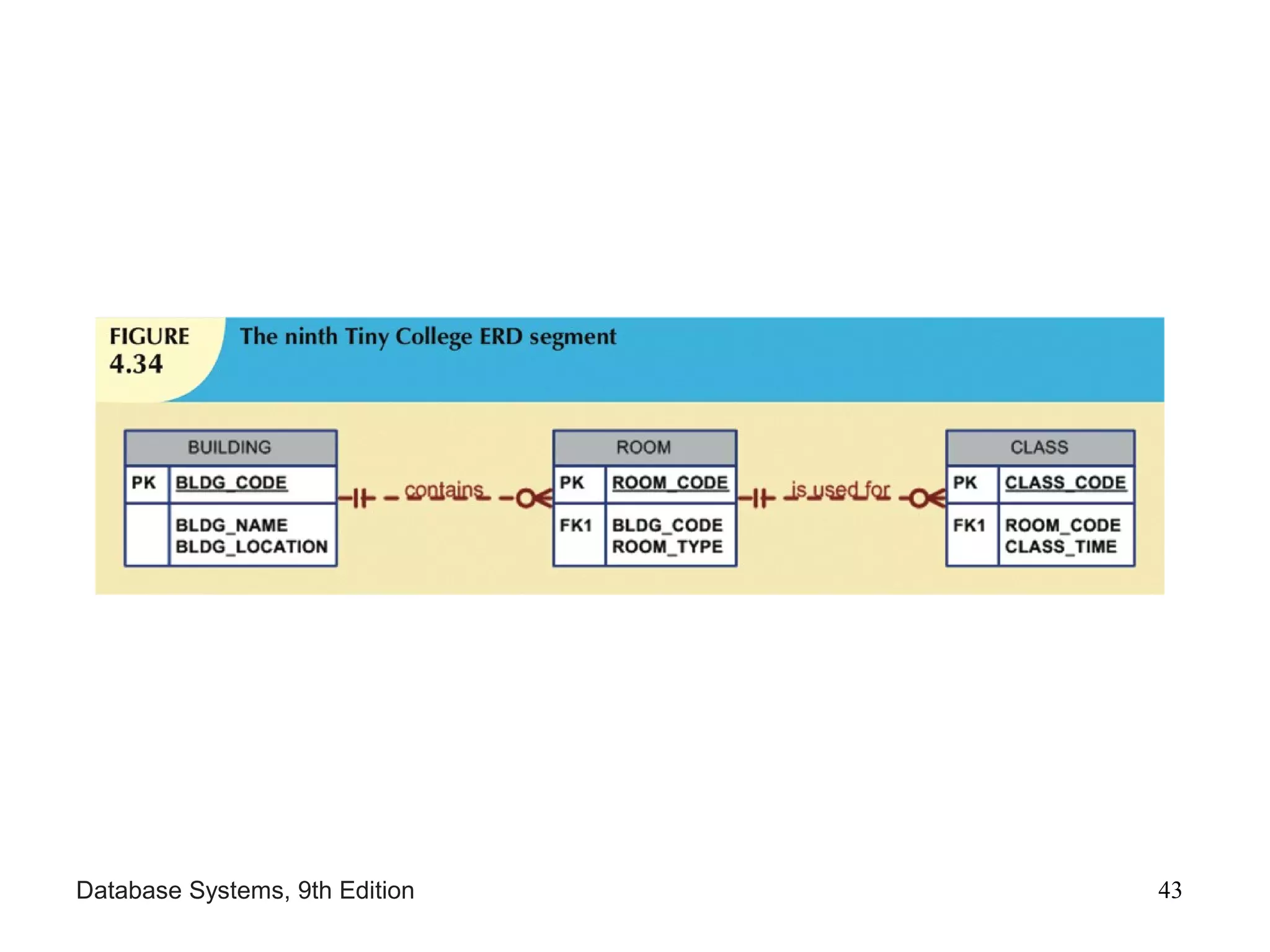

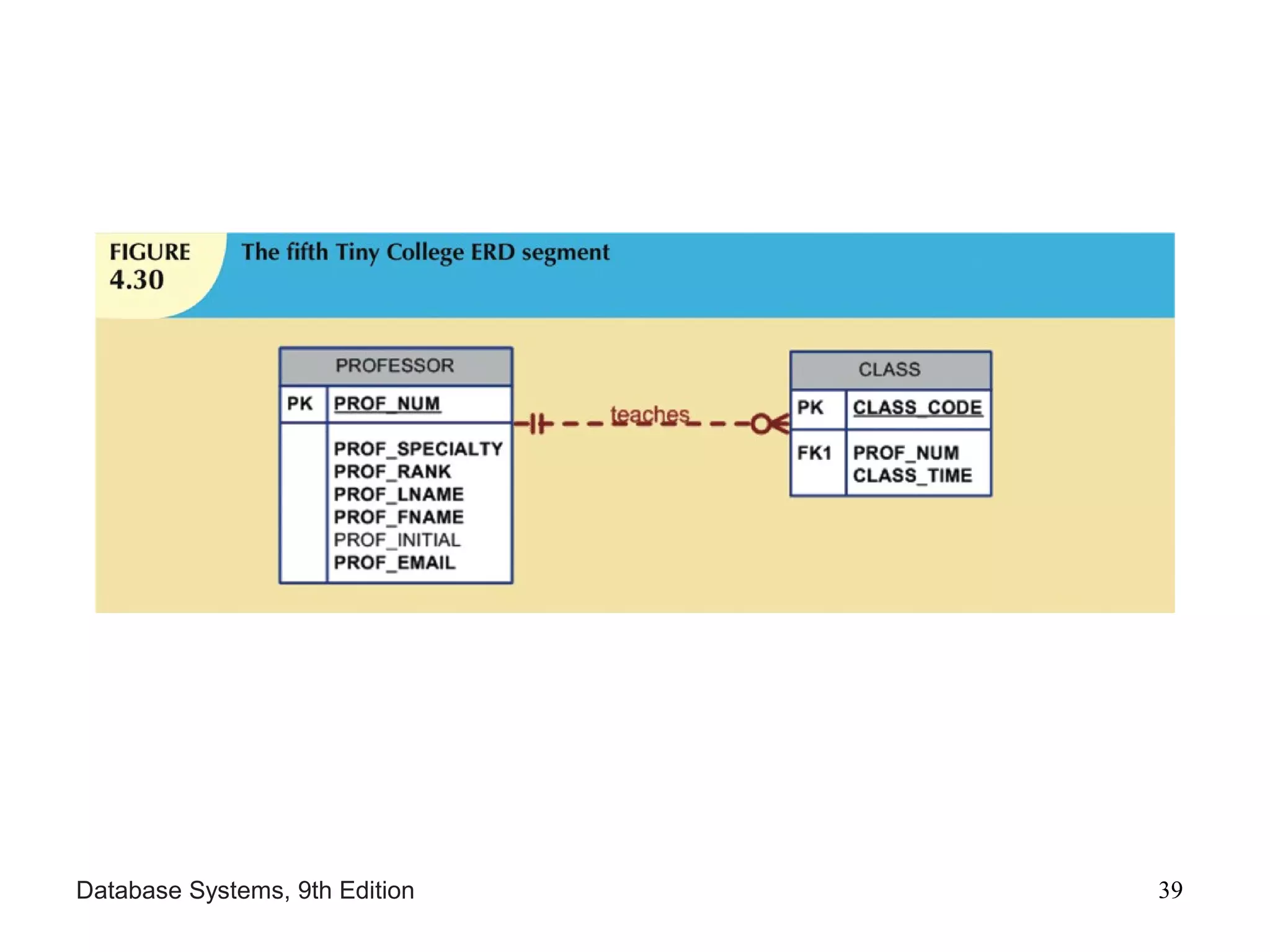

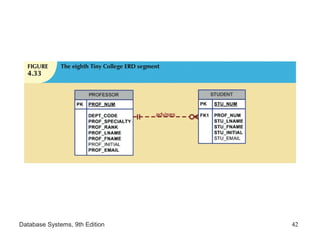

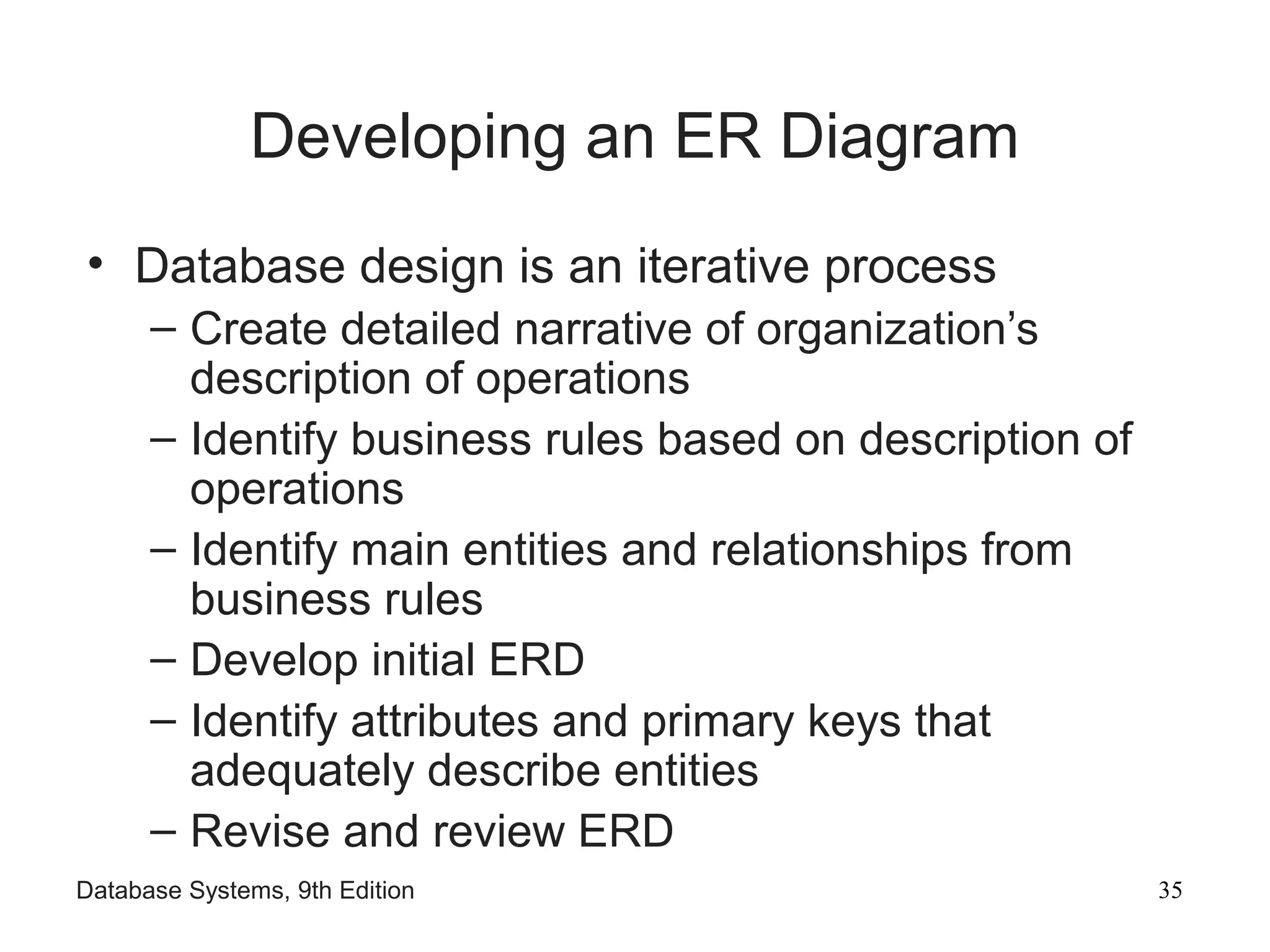

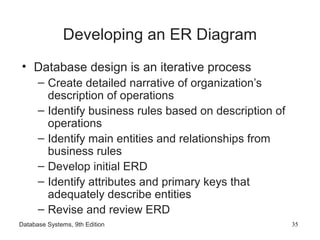

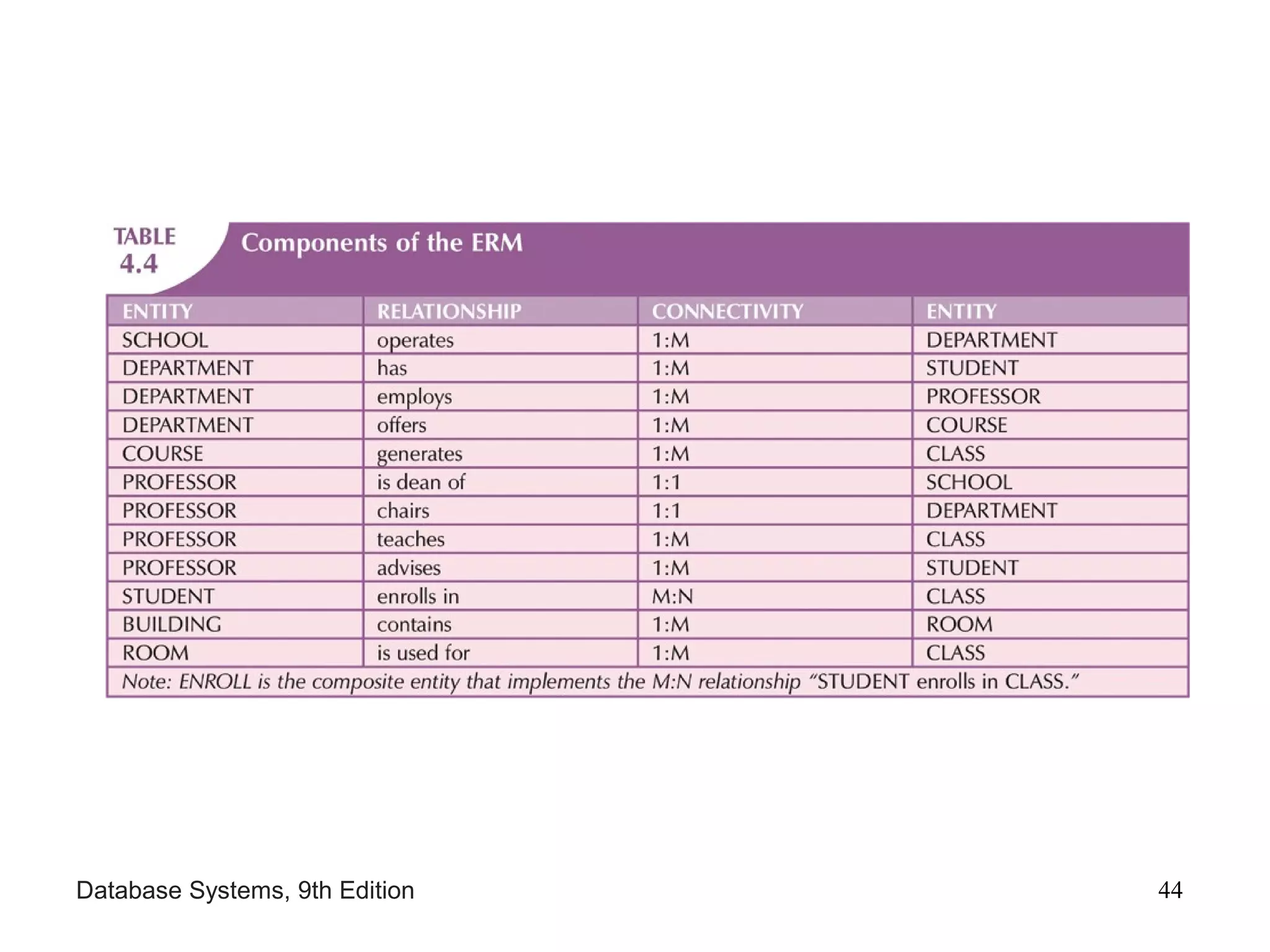

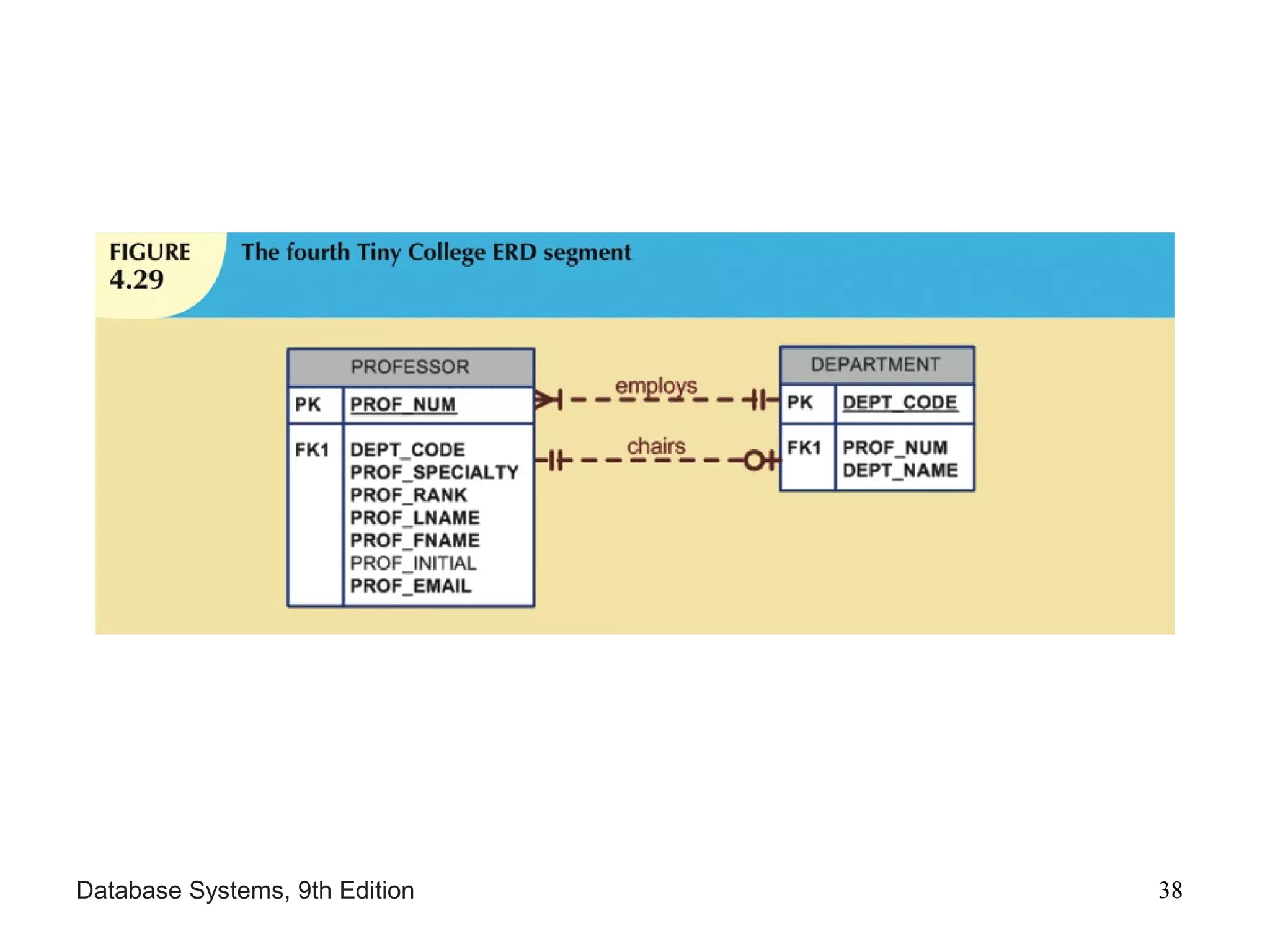

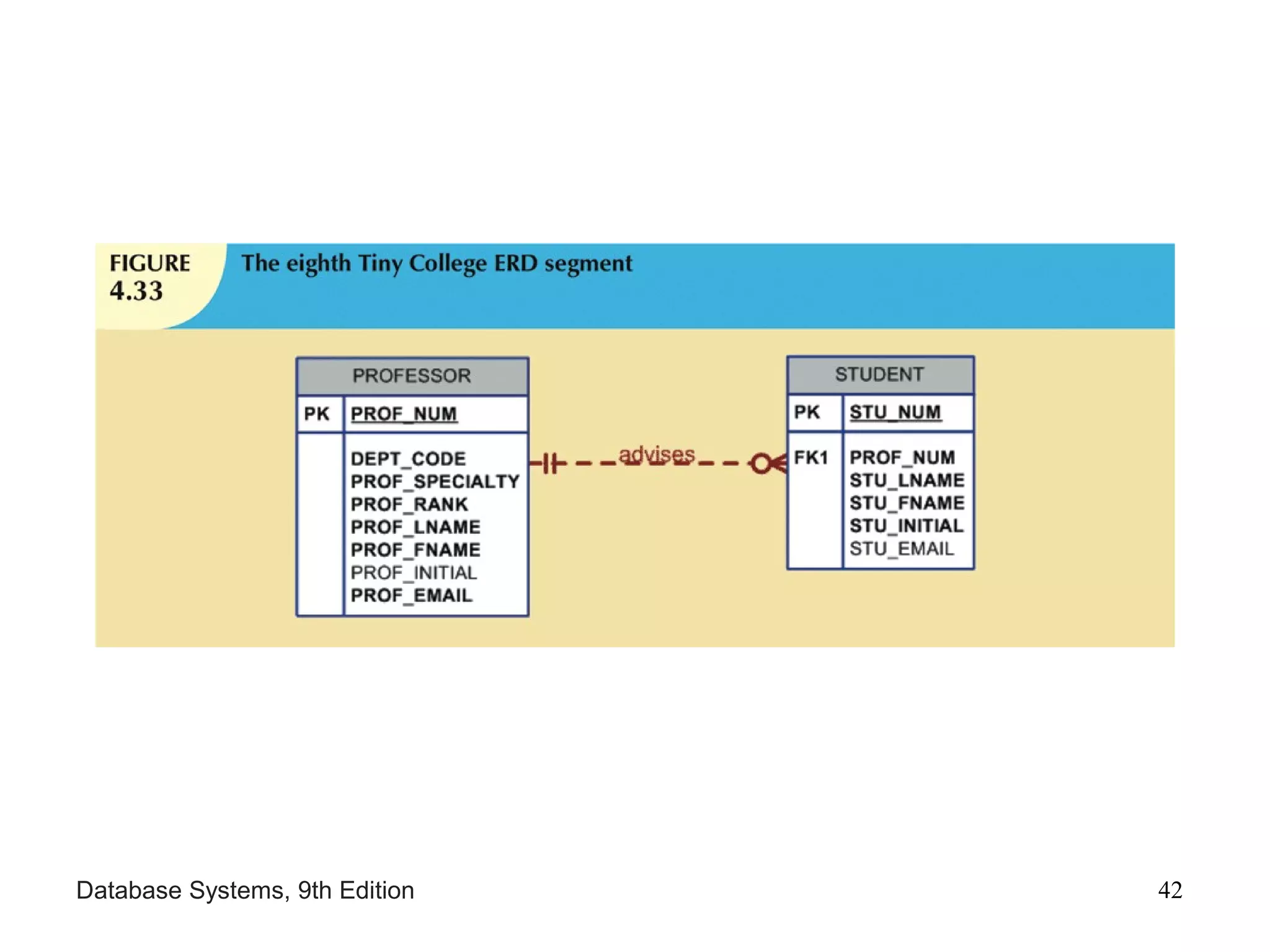

Developing an ER Diagram
• Database design is an iterative process
– Create detailed narrative of organization’s
description of operations
– Identify business rules based on description of
operations
– Identify main entities and relationships from
business rules
– Develop initial ERD
– Identify attributes and primary keys that
adequately describe entities
– Revise and review ERD

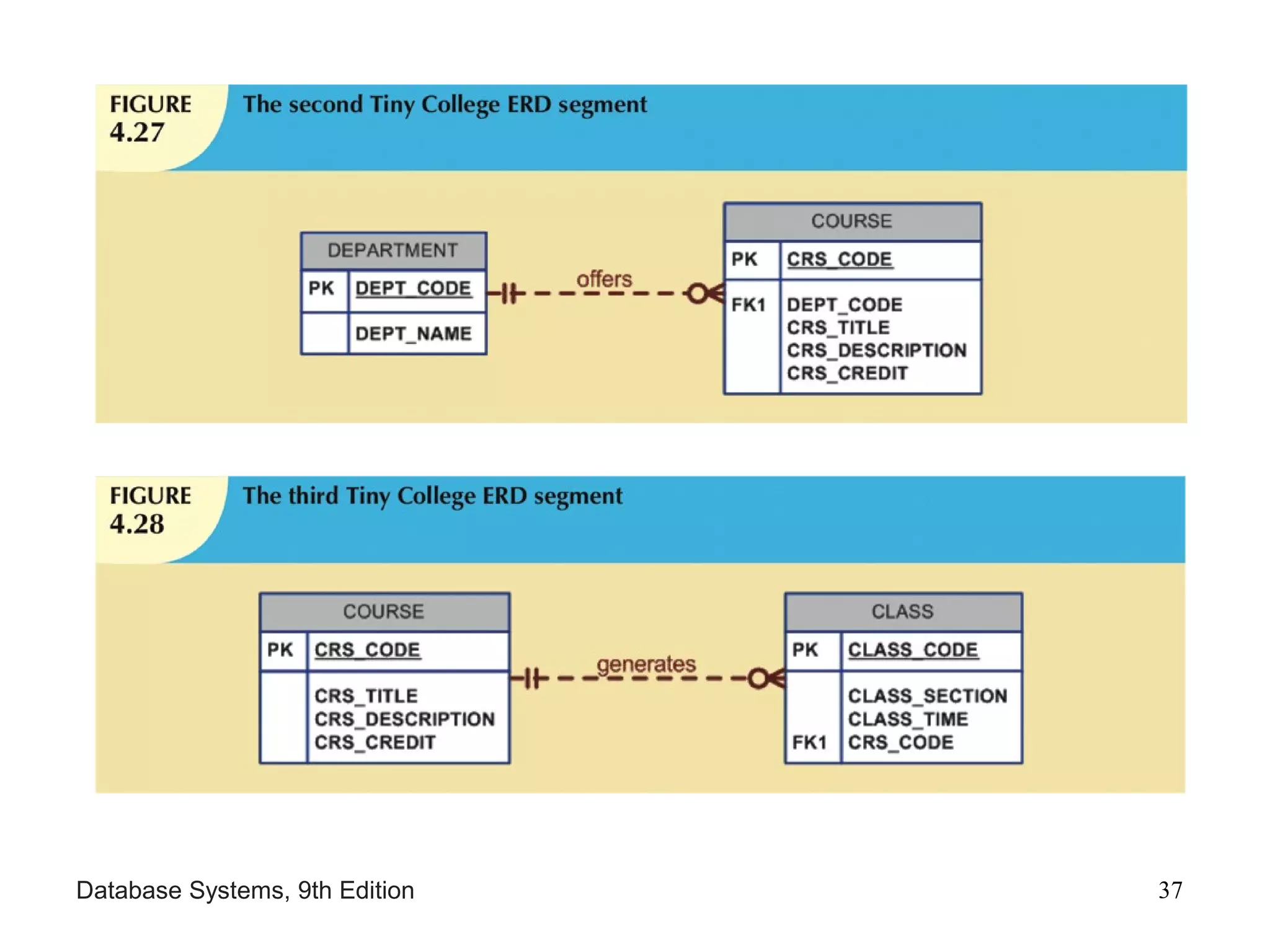

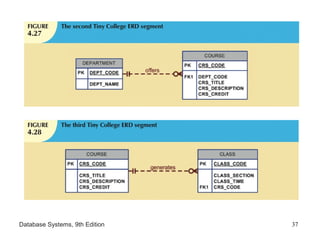

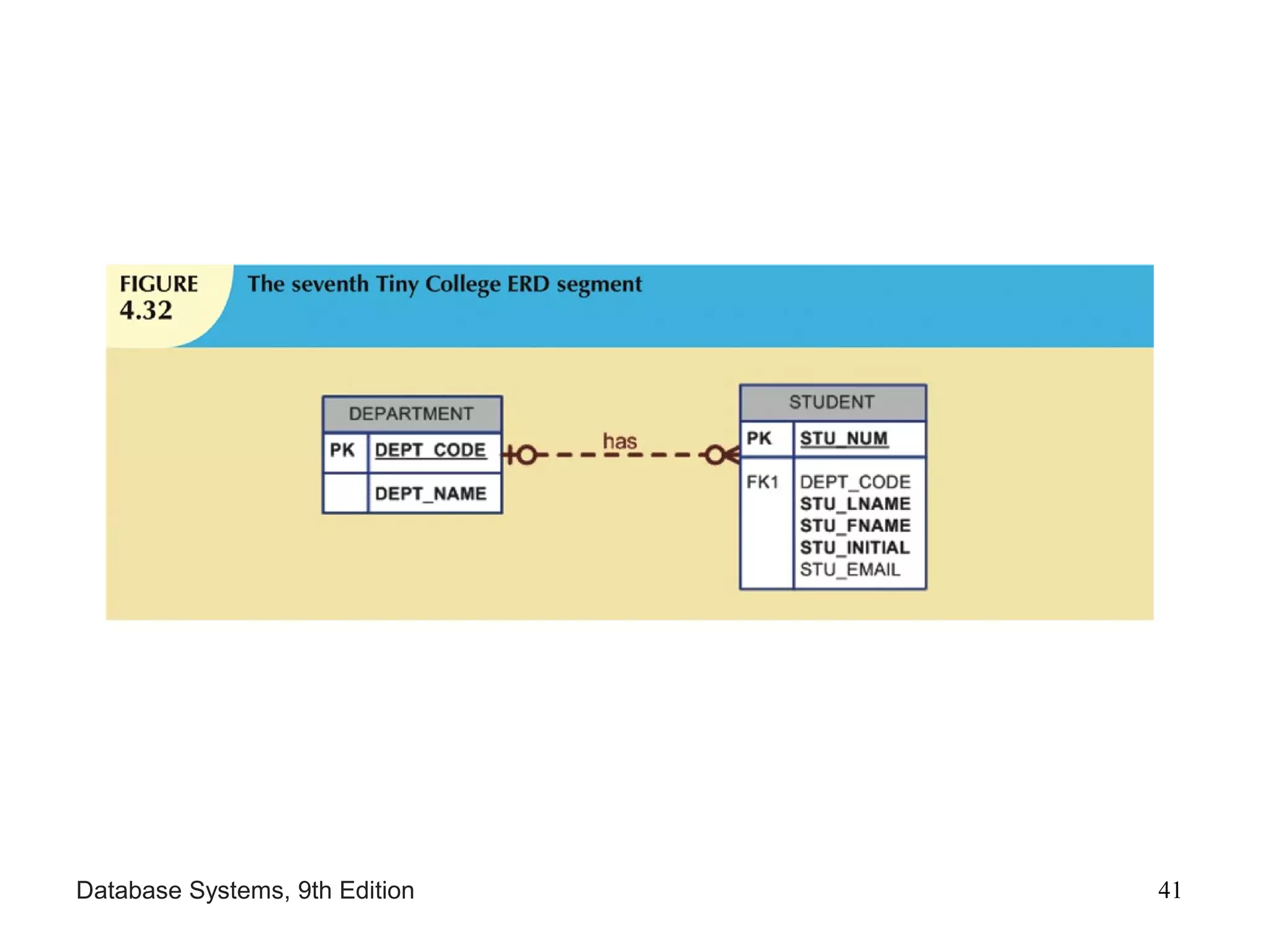

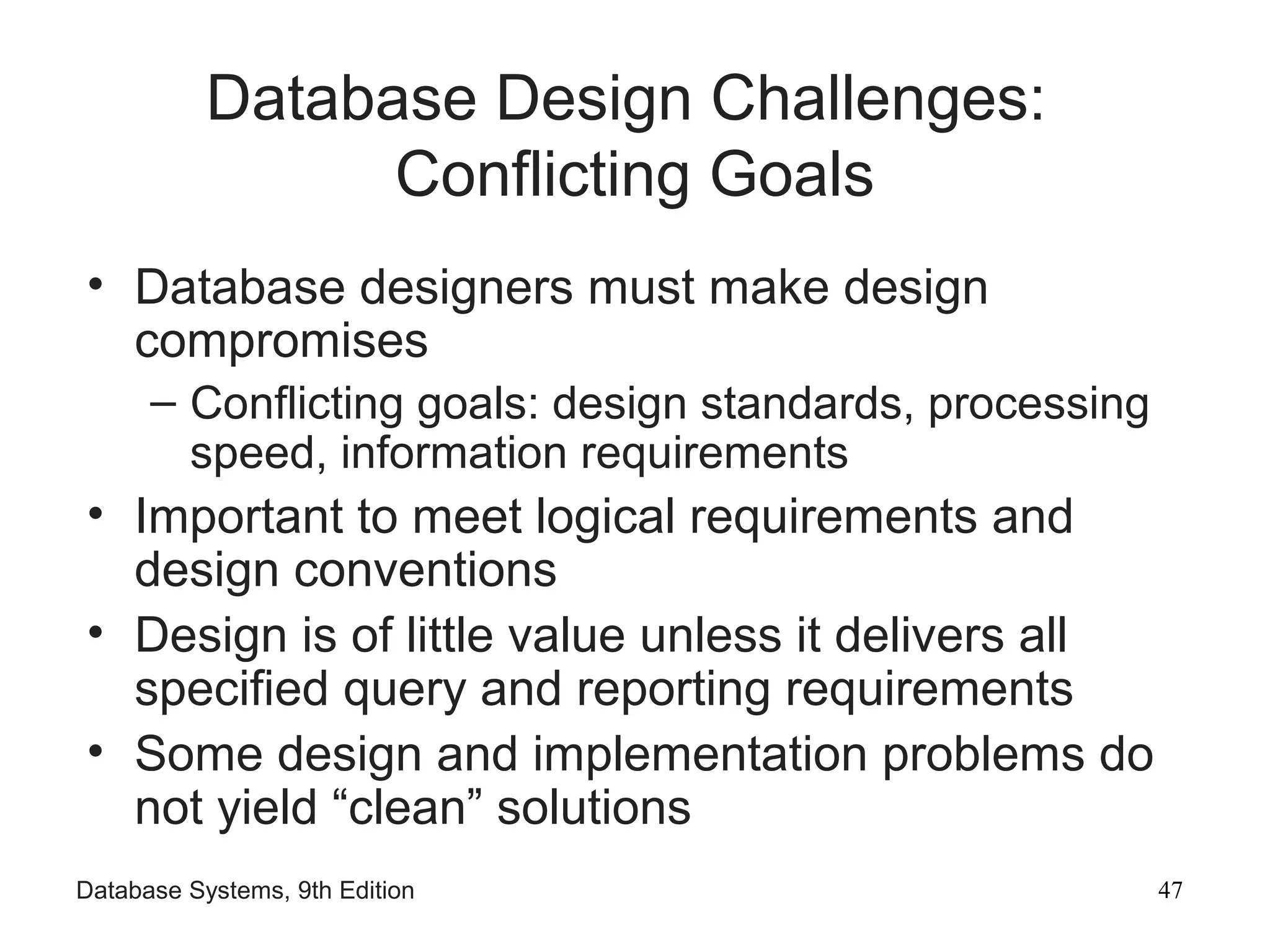

Database Design Challenges:
Conflicting Goals
• Database designers must make design
compromises
– Conflicting goals: design standards, processing
speed, information requirements
• Important to meet logical requirements and
design conventions
• Design is of little value unless it delivers all
specified query and reporting requirements
• Some design and implementation problems do
not yield “clean” solutions

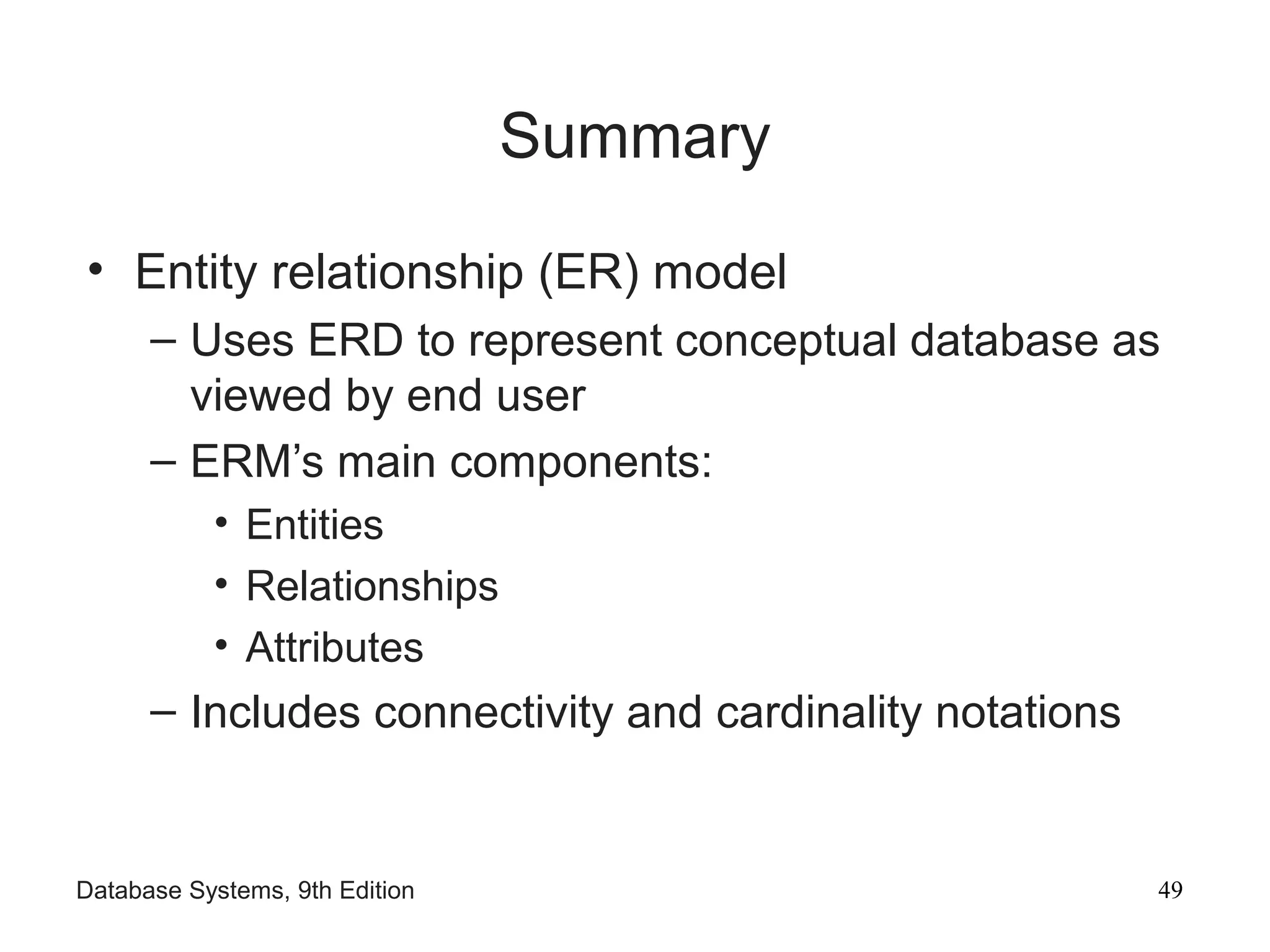

Summary
• Entity relationship (ER) model
– Uses ERD to represent conceptual database as
viewed by end user
– ERM’s main components:
• Entities
• Relationships
• Attributes
– Includes connectivity and cardinality notations

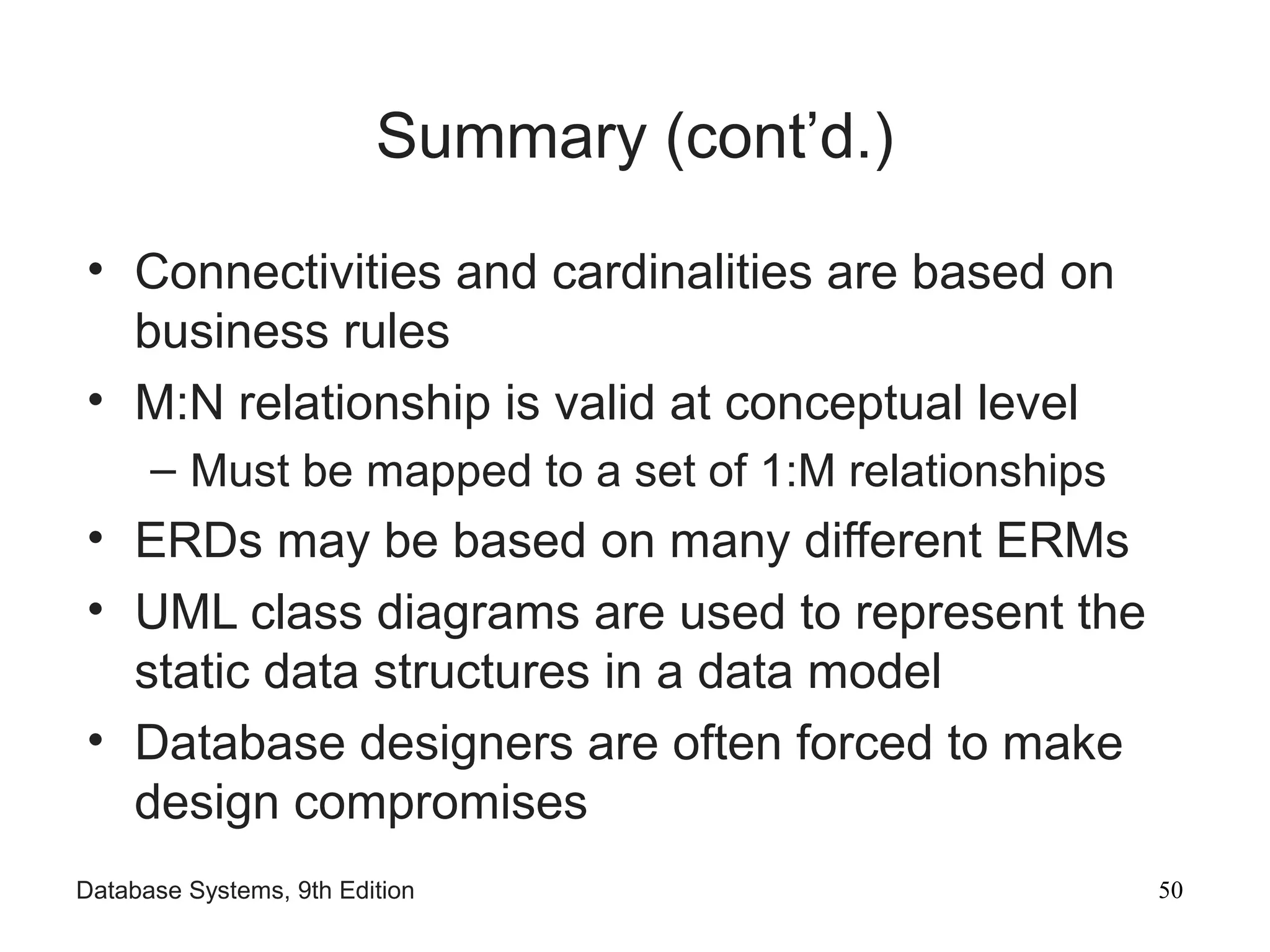

Summary (cont’d.)
• Connectivities and cardinalities are based on
business rules

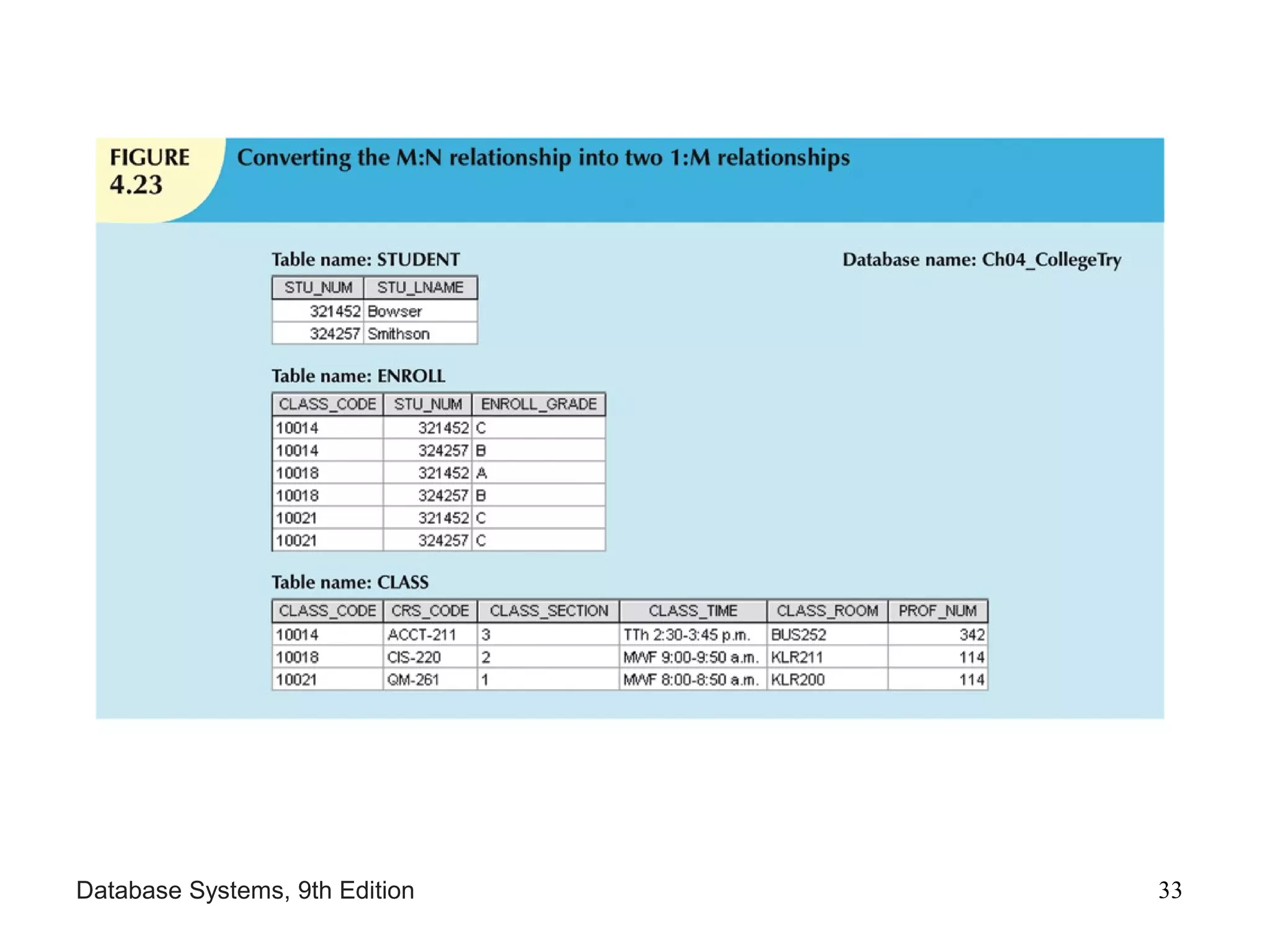

• M:N relationship is valid at conceptual level
– Must be mapped to a set of 1:M relationships
• ERDs may be based on many different ERMs

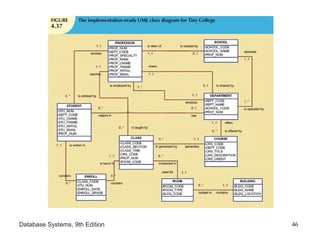

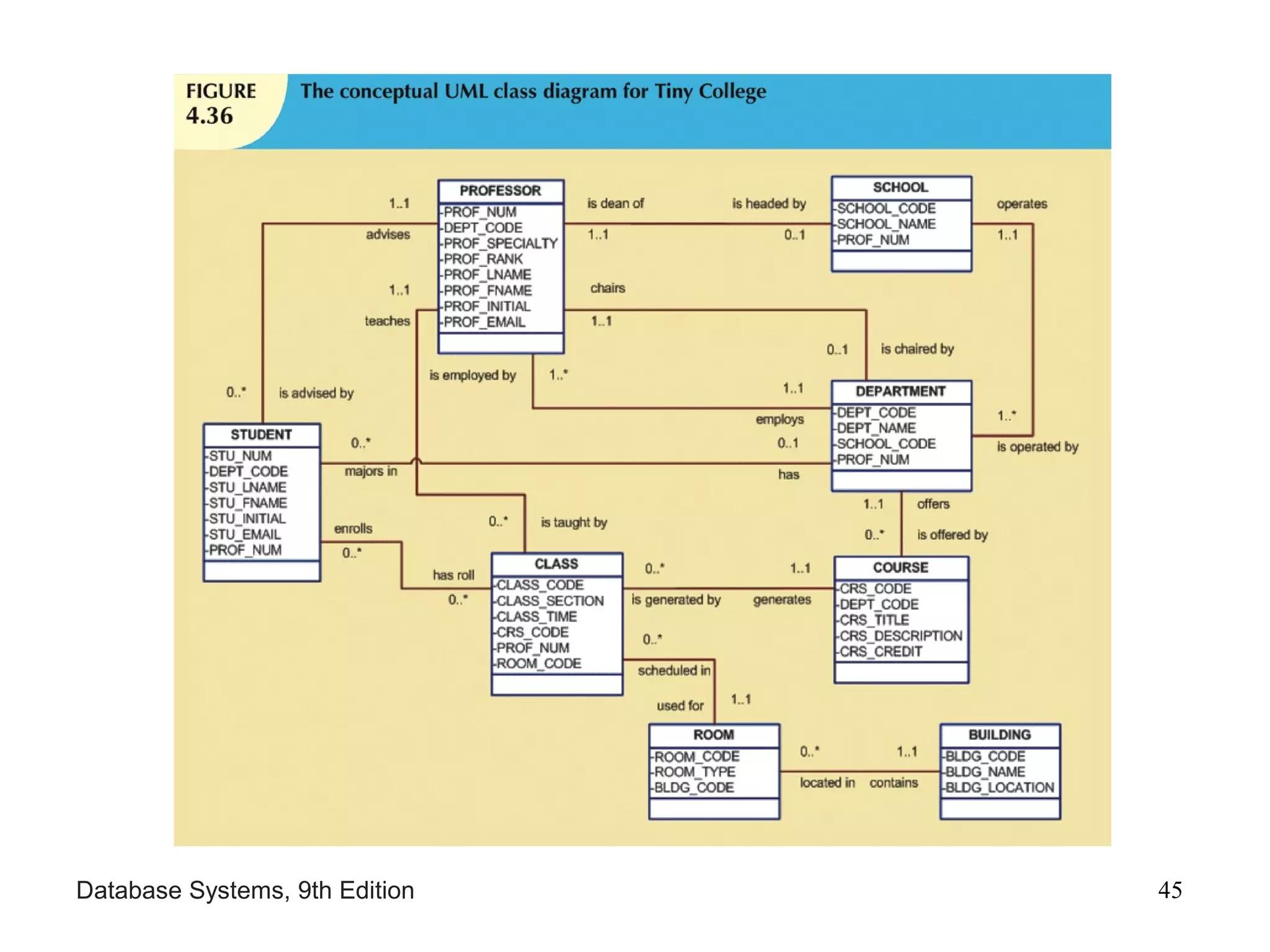

• UML class diagrams are used to represent the
static data structures in a data model
• Database designers are often forced to make
design compromises
