Getting started with MVC 5 and Visual Studio 2013

Getting Started with MVC 5 and
Visual Studio 2013
Thomas Robbins, Kentico CMS (thomasr@Kentico.com)
@trobbins
Slides will be available at: http://bit.ly/thomrobbins

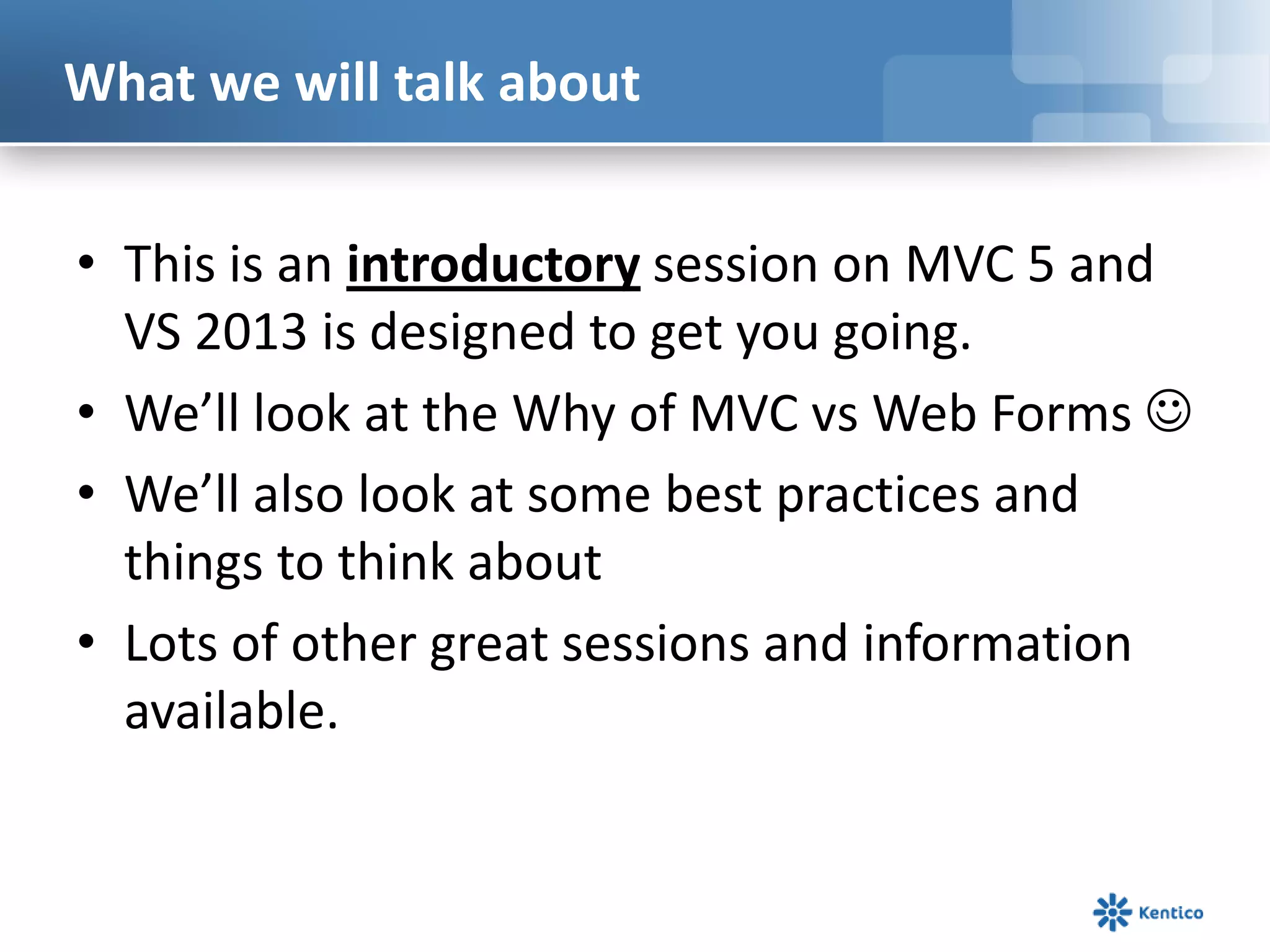

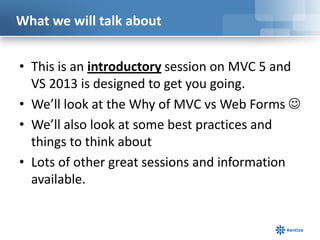

What we will talk about
• This is an introductory session on MVC 5 and
VS 2013 is designed to get you going.
• We’ll look at the Why of MVC vs Web Forms 
• We’ll also look at some best practices and
things to think about
• Lots of other great sessions and information
available.

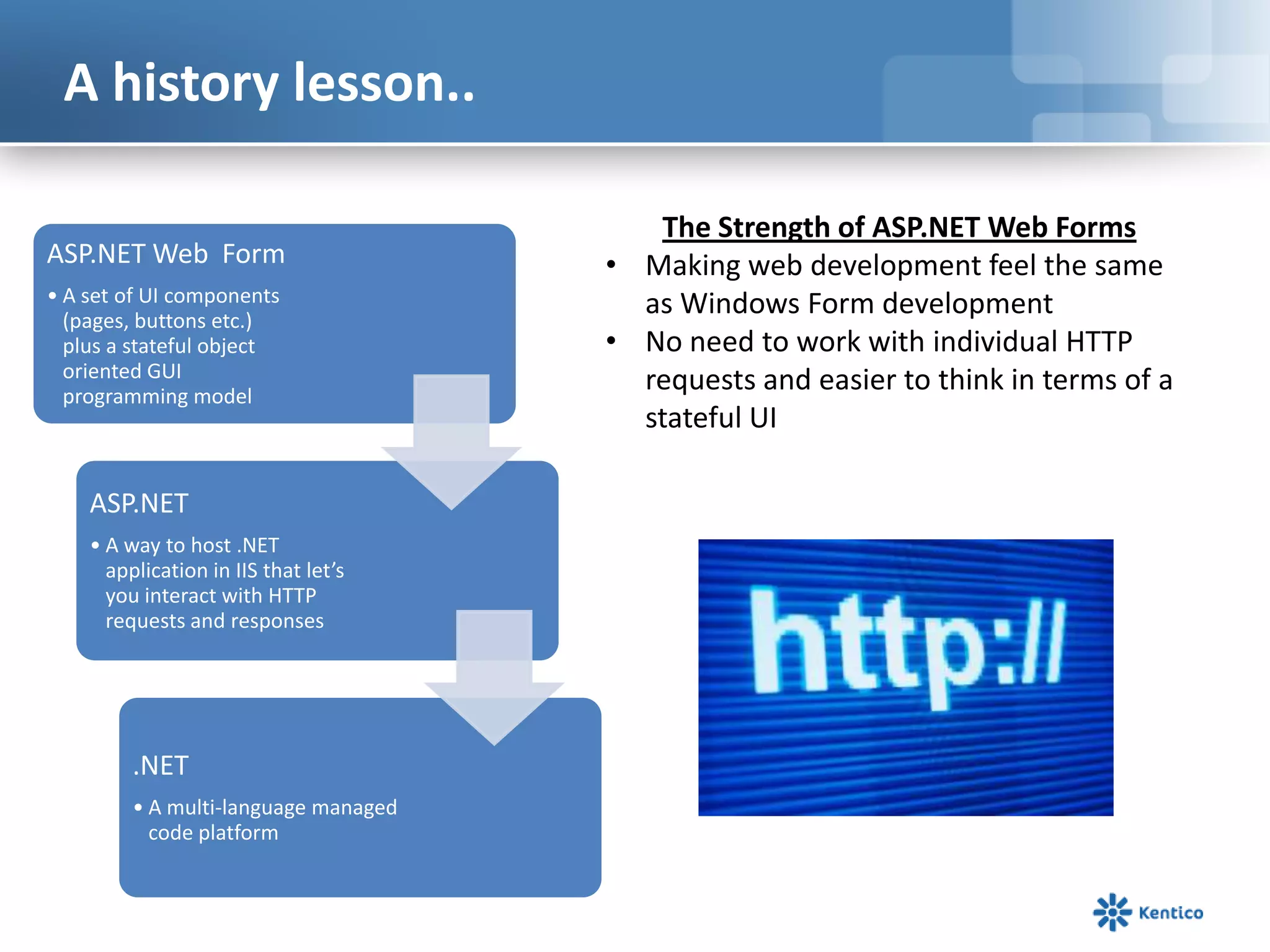

A history lesson..
ASP.NET Web Form
• A set of UI components
(pages, buttons etc.)
plus a stateful object
oriented GUI
programming model

ASP.NET
• A way to host .NET
application in IIS that let’s
you interact with HTTP
requests and responses

.NET
• A multi-language managed
code platform

The Strength of ASP.NET Web Forms
• Making web development feel the same
as Windows Form development
• No need to work with individual HTTP
requests and easier to think in terms of a
stateful UI

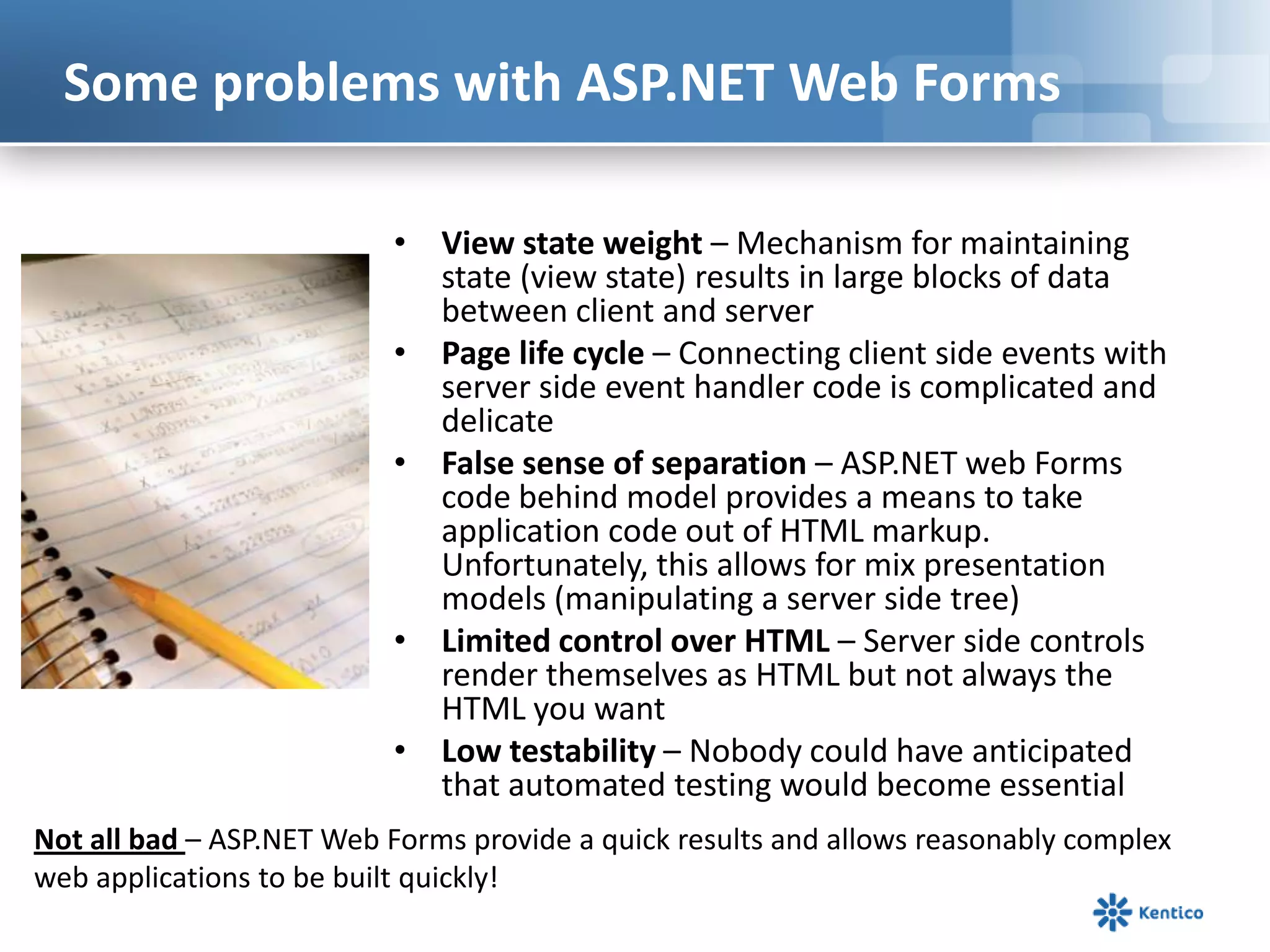

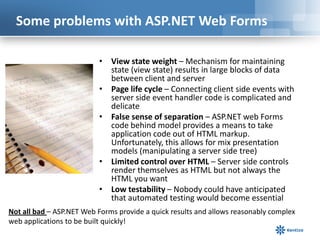

Some problems with ASP.NET Web Forms
• View state weight – Mechanism for maintaining
state (view state) results in large blocks of data
between client and server
• Page life cycle – Connecting client side events with
server side event handler code is complicated and
delicate
• False sense of separation – ASP.NET web Forms
code behind model provides a means to take
application code out of HTML markup.
Unfortunately, this allows for mix presentation
models (manipulating a server side tree)
• Limited control over HTML – Server side controls
render themselves as HTML but not always the
HTML you want
• Low testability – Nobody could have anticipated
that automated testing would become essential
Not all bad – ASP.NET Web Forms provide a quick results and allows reasonably complex
web applications to be built quickly!

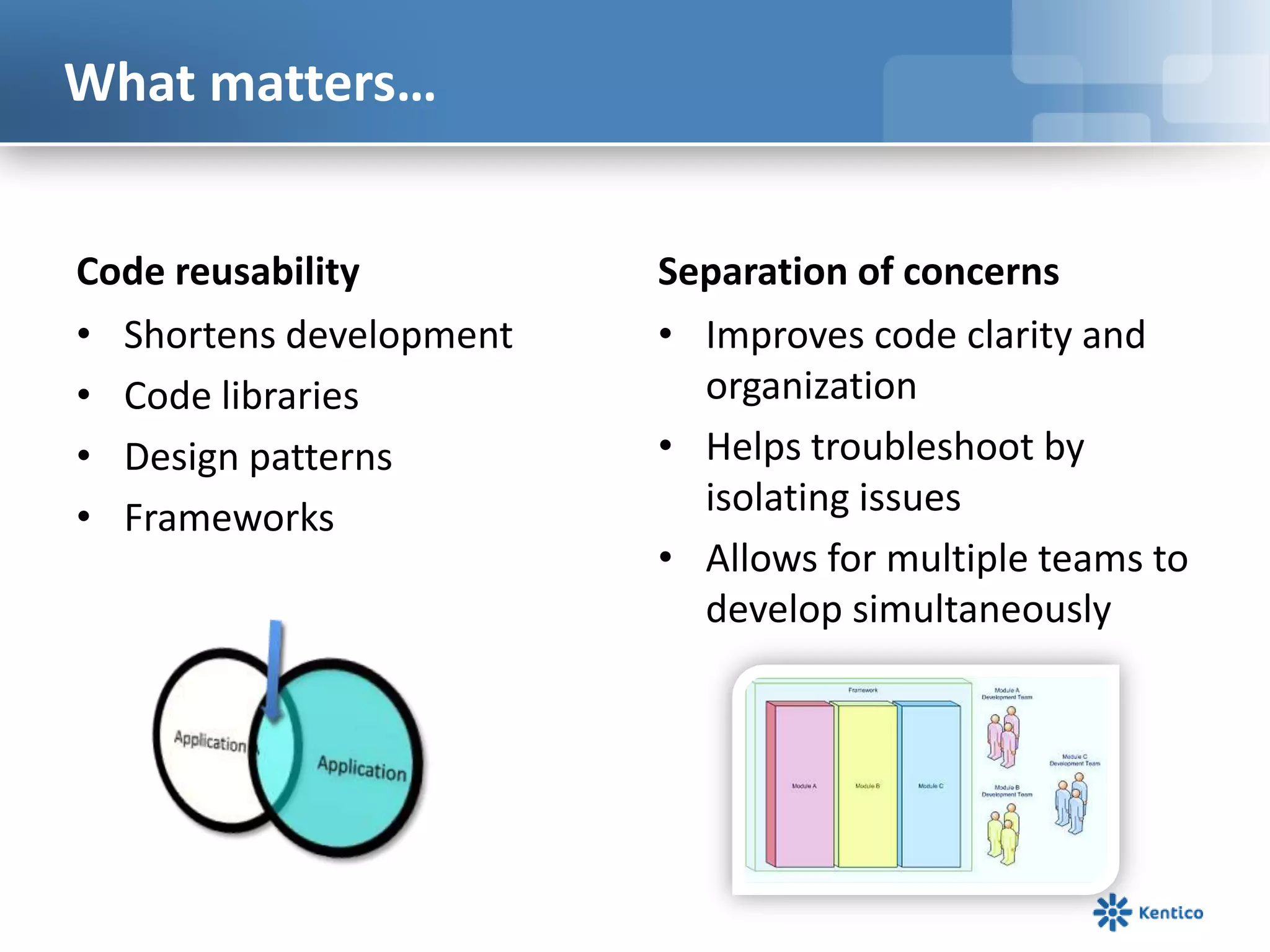

What matters…
Code reusability
• Shortens development
• Code libraries
• Design patterns
• Frameworks

Separation of concerns
• Improves code clarity and
organization
• Helps troubleshoot by
isolating issues
• Allows for multiple teams to
develop simultaneously

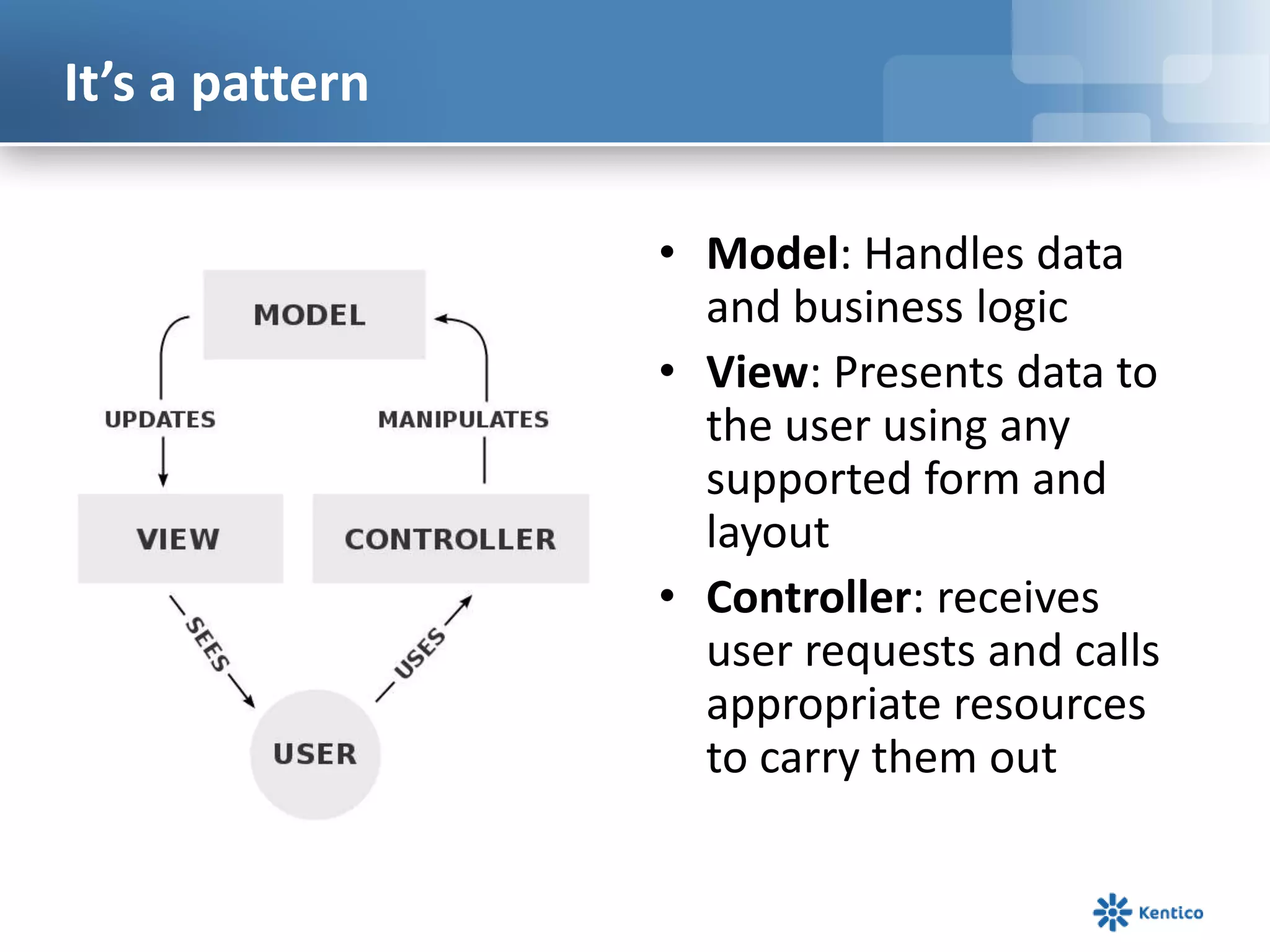

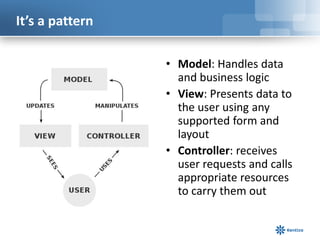

It’s a pattern
• Model: Handles data
and business logic
• View: Presents data to
the user using any
supported form and
layout
• Controller: receives
user requests and calls
appropriate resources
to carry them out

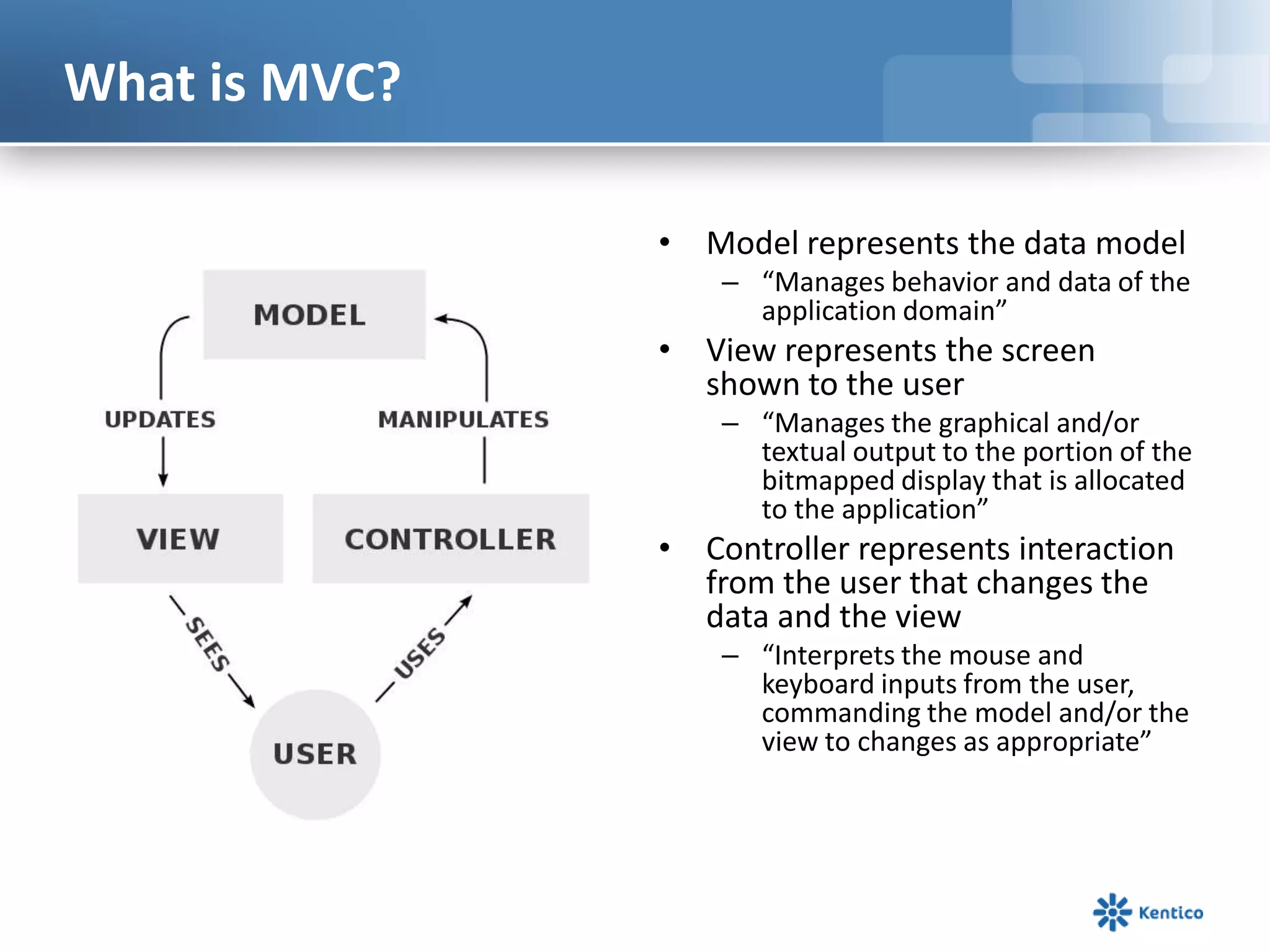

What is MVC?
• Model represents the data model
– “Manages behavior and data of the
application domain”

• View represents the screen
shown to the user
– “Manages the graphical and/or
textual output to the portion of the
bitmapped display that is allocated
to the application”

• Controller represents interaction
from the user that changes the
data and the view
– “Interprets the mouse and
keyboard inputs from the user,
commanding the model and/or the
view to changes as appropriate”

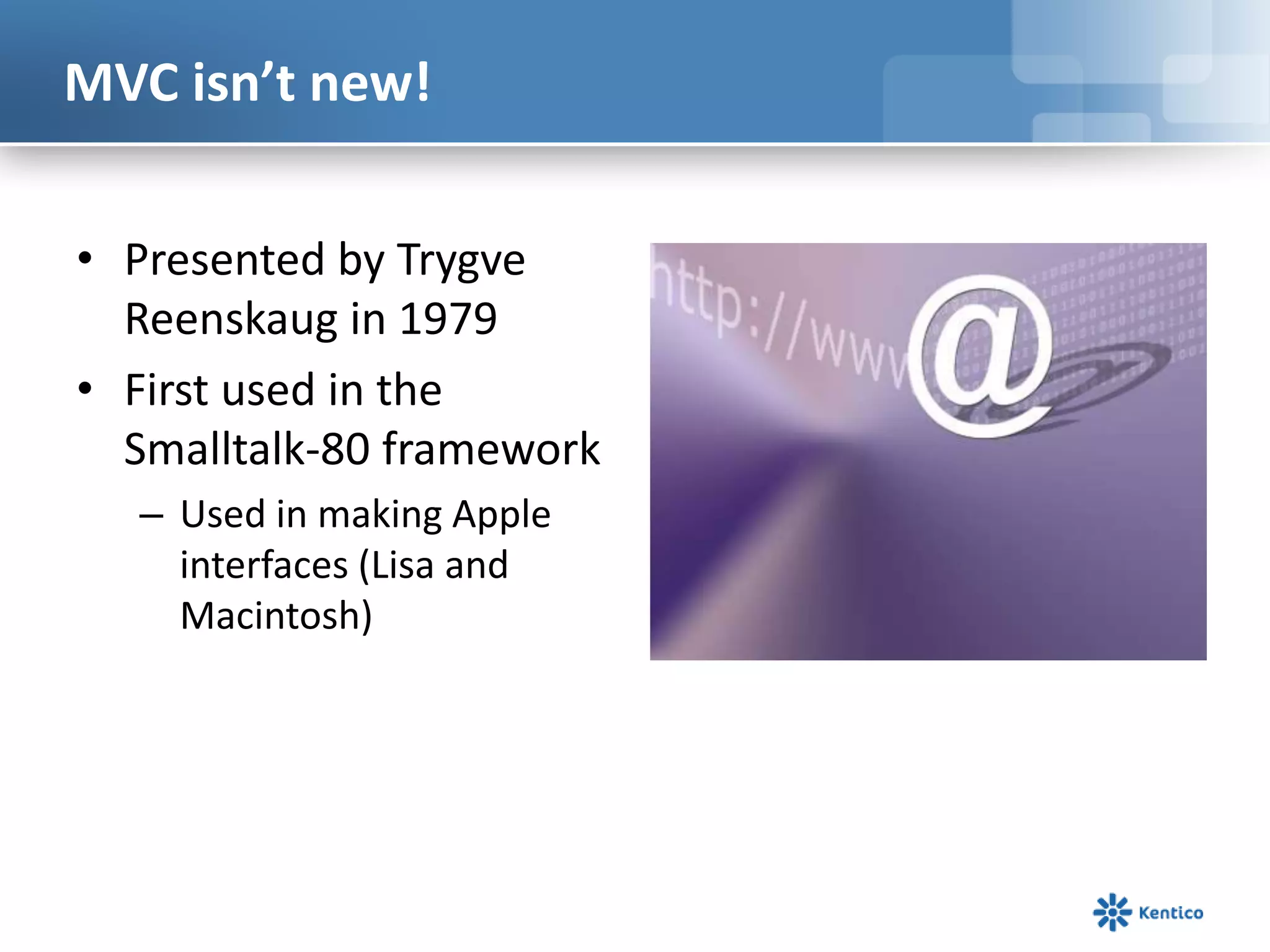

MVC isn’t new!
• Presented by Trygve
Reenskaug in 1979
• First used in the
Smalltalk-80 framework
– Used in making Apple
interfaces (Lisa and
Macintosh)

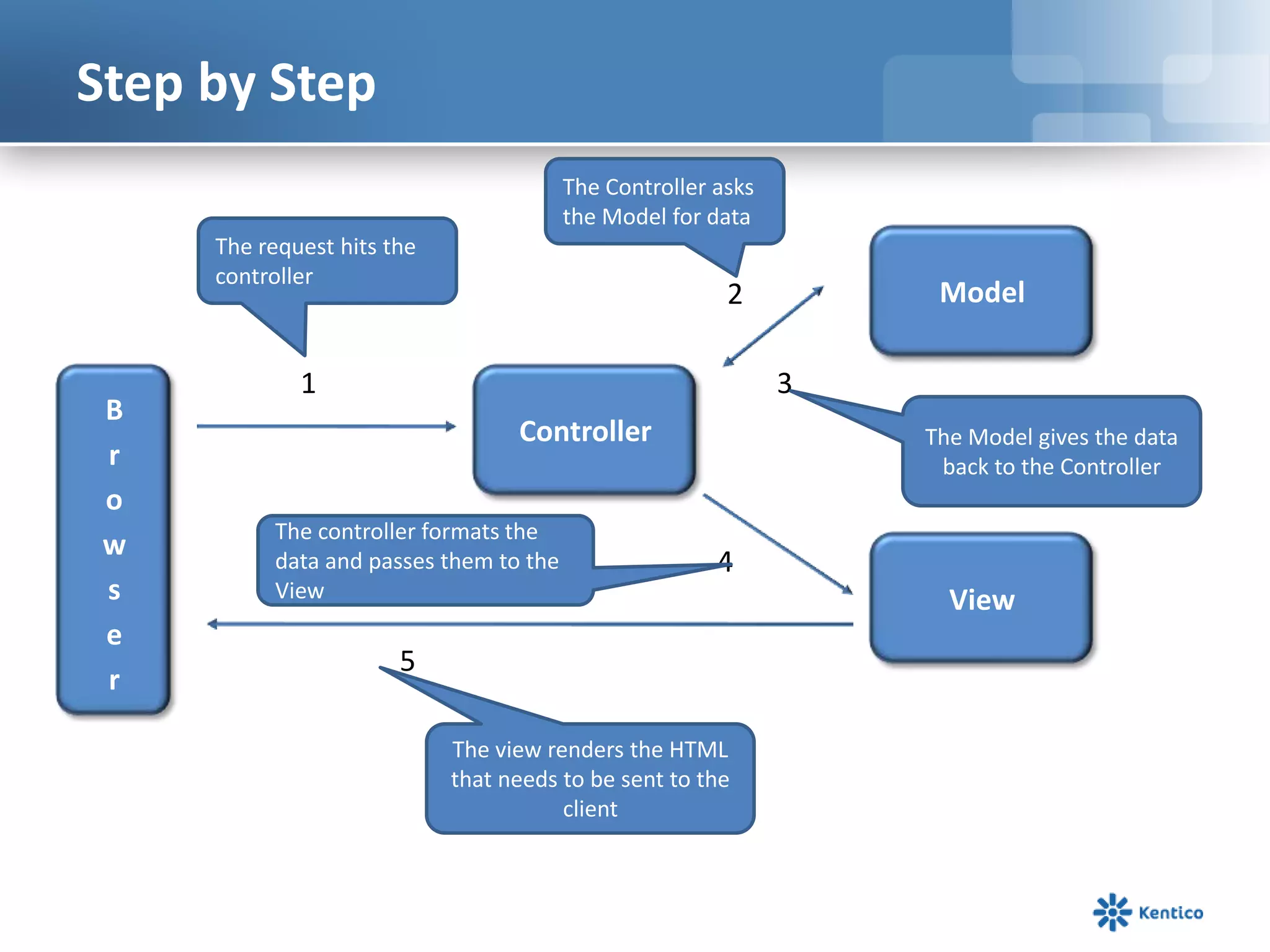

Step by Step
The Controller asks
the Model for data
The request hits the
controller

B
r
o
w
s
e
r

Model

2

1

3
Controller

The controller formats the
data and passes them to the
View

The Model gives the data
back to the Controller

4

5
The view renders the HTML
that needs to be sent to the
client

View

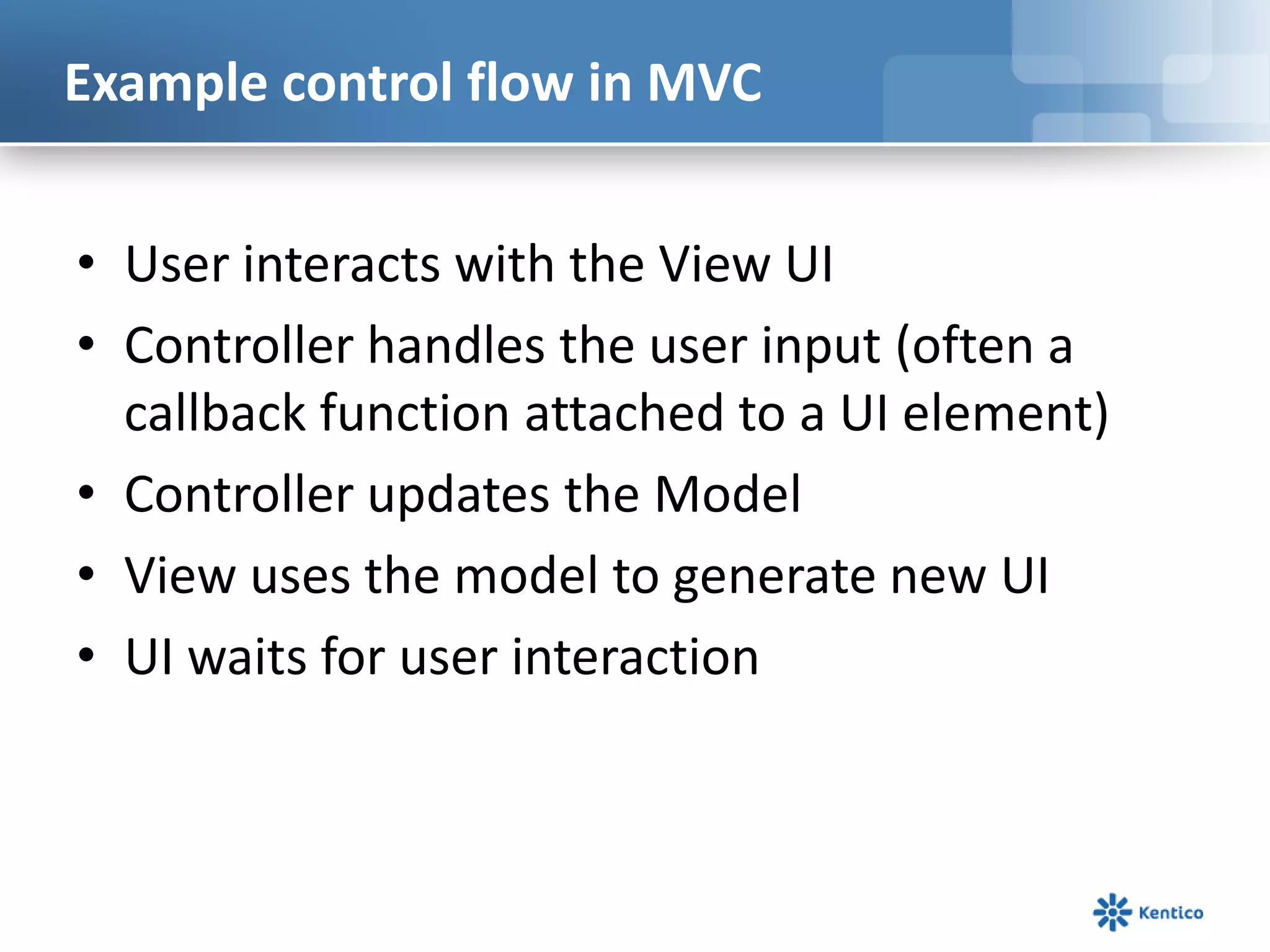

Example control flow in MVC
• User interacts with the View UI
• Controller handles the user input (often a
callback function attached to a UI element)
• Controller updates the Model
• View uses the model to generate new UI
• UI waits for user interaction

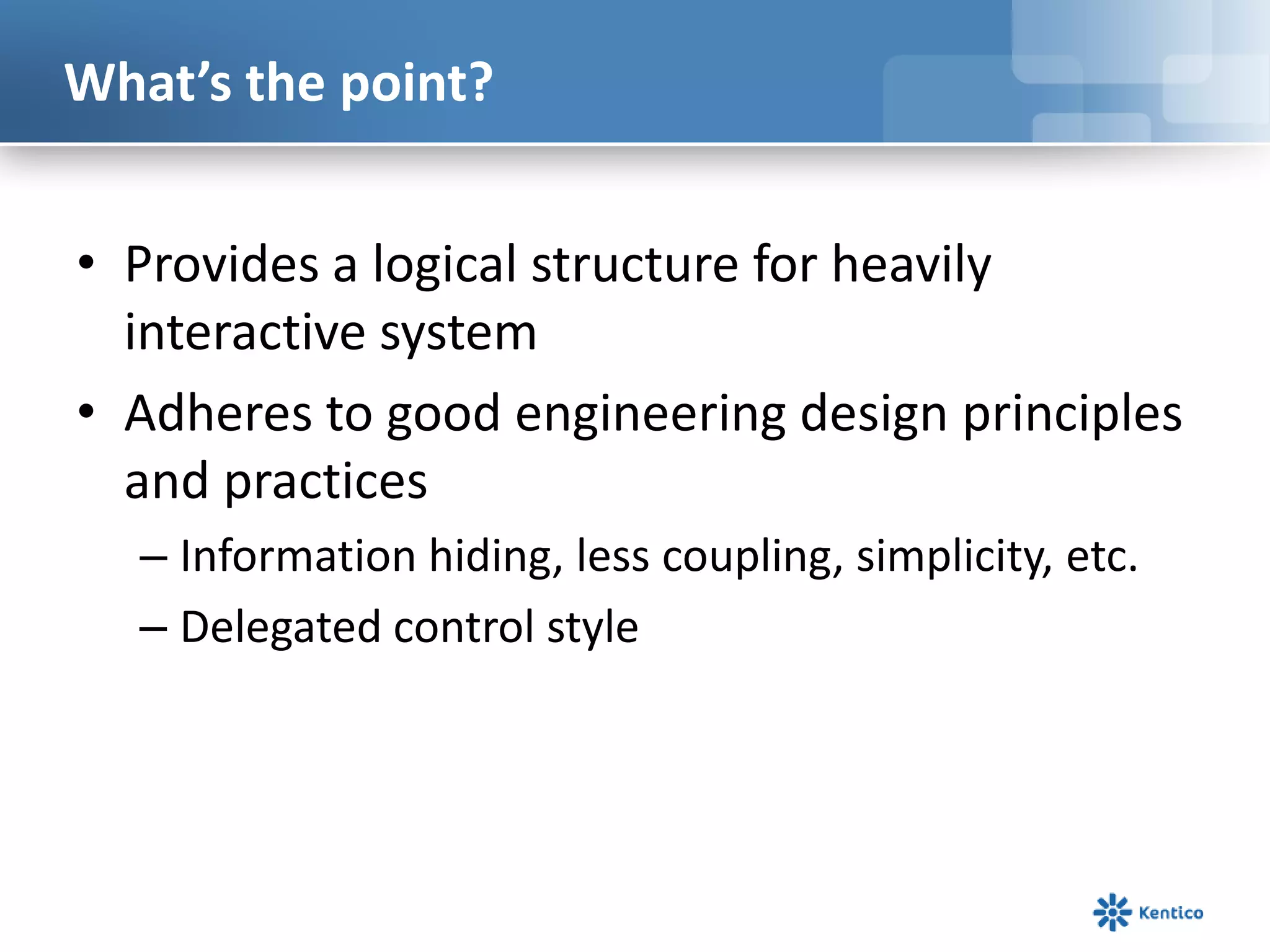

What’s the point?
• Provides a logical structure for heavily
interactive system
• Adheres to good engineering design principles
and practices
– Information hiding, less coupling, simplicity, etc.
– Delegated control style

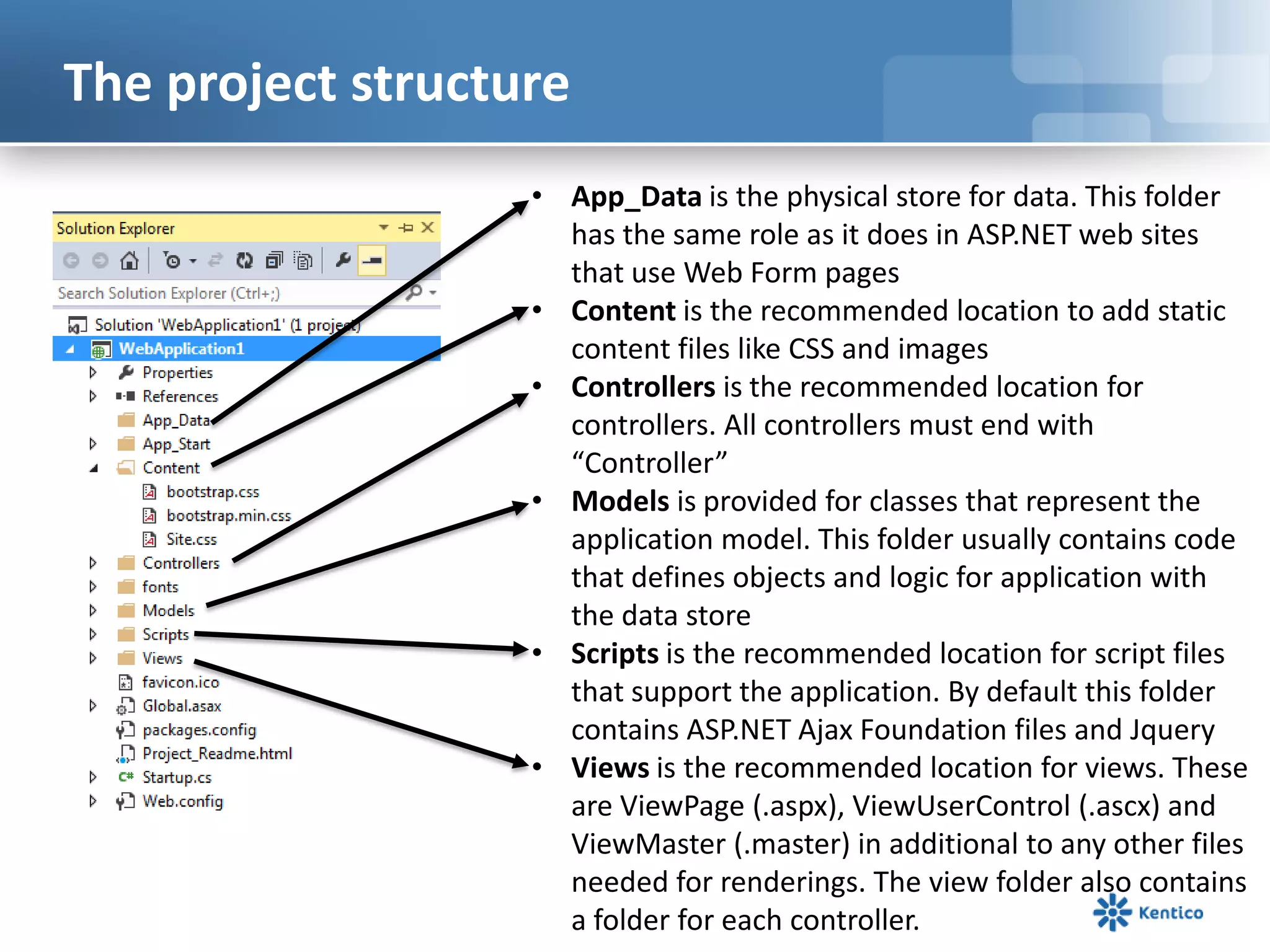

The project structure
• App_Data is the physical store for data. This folder
has the same role as it does in ASP.NET web sites
that use Web Form pages
• Content is the recommended location to add static
content files like CSS and images
• Controllers is the recommended location for
controllers. All controllers must end with
“Controller”
• Models is provided for classes that represent the
application model. This folder usually contains code
that defines objects and logic for application with
the data store
• Scripts is the recommended location for script files
that support the application. By default this folder
contains ASP.NET Ajax Foundation files and Jquery
• Views is the recommended location for views. These
are ViewPage (.aspx), ViewUserControl (.ascx) and
ViewMaster (.master) in additional to any other files
needed for renderings. The view folder also contains
a folder for each controller.

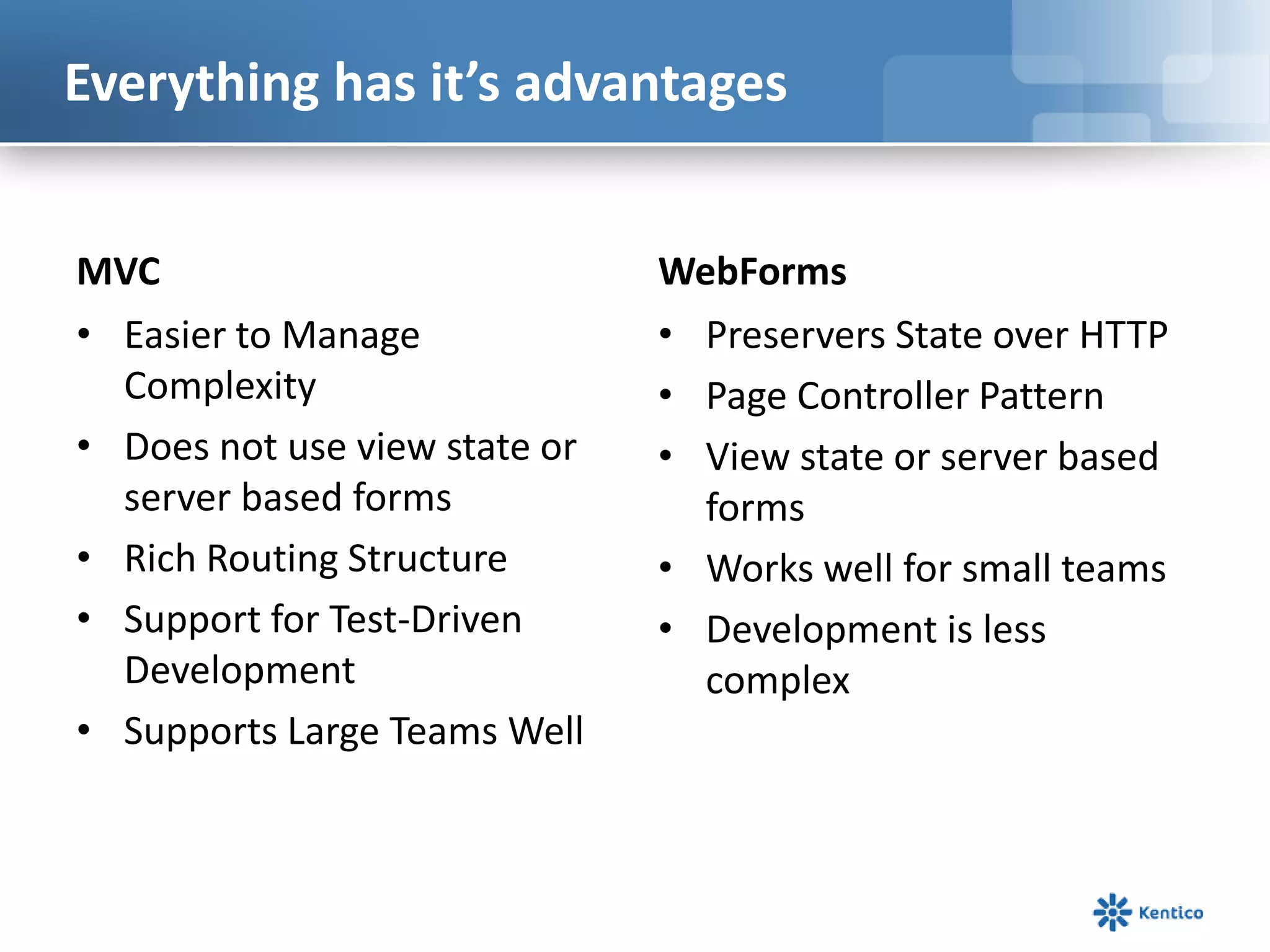

Everything has it’s advantages
MVC
• Easier to Manage
Complexity
• Does not use view state or
server based forms
• Rich Routing Structure
• Support for Test-Driven
Development
• Supports Large Teams Well

WebForms
• Preservers State over HTTP
• Page Controller Pattern
• View state or server based
forms
• Works well for small teams
• Development is less
complex

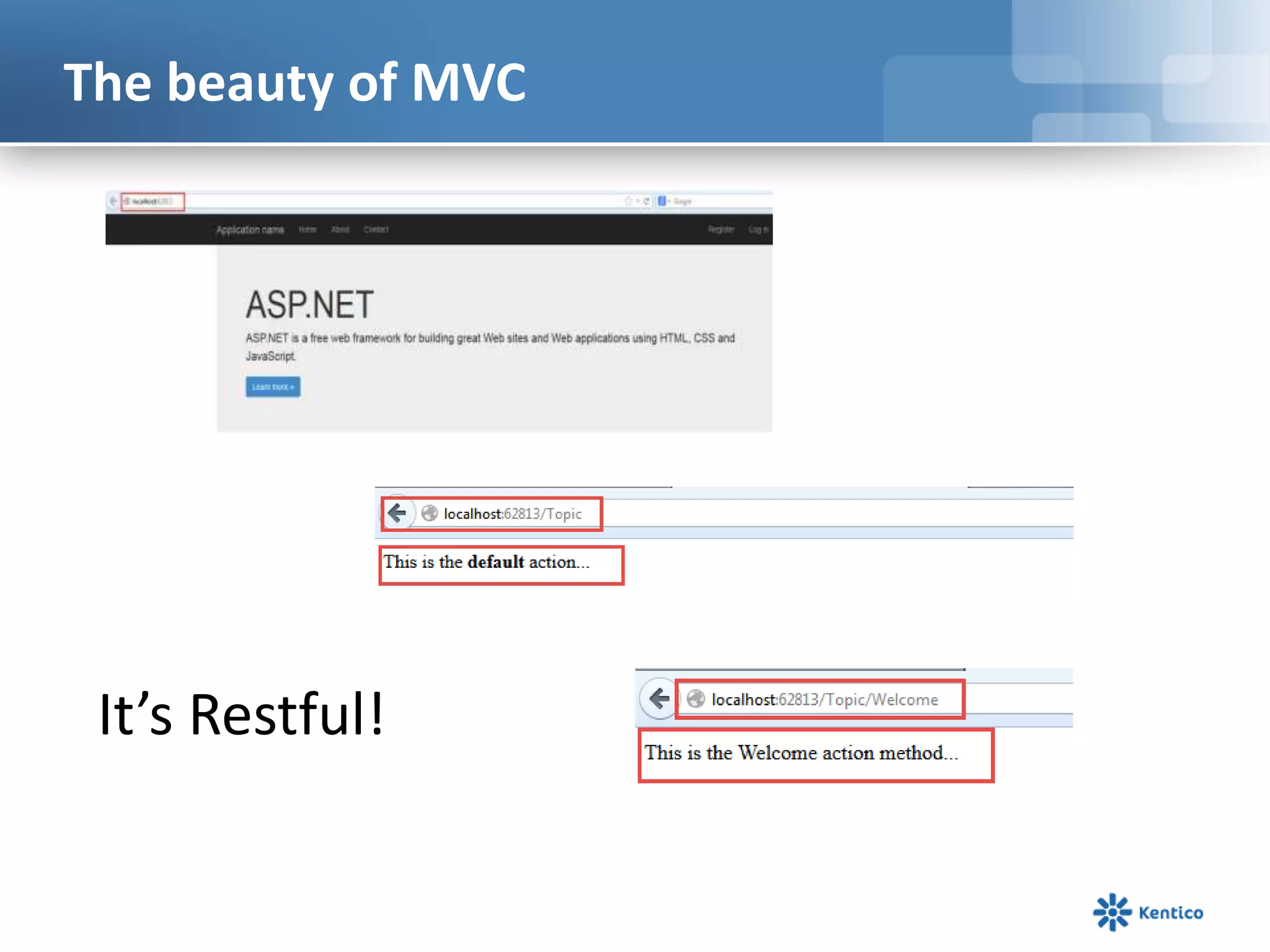

The beauty of MVC

It’s Restful!

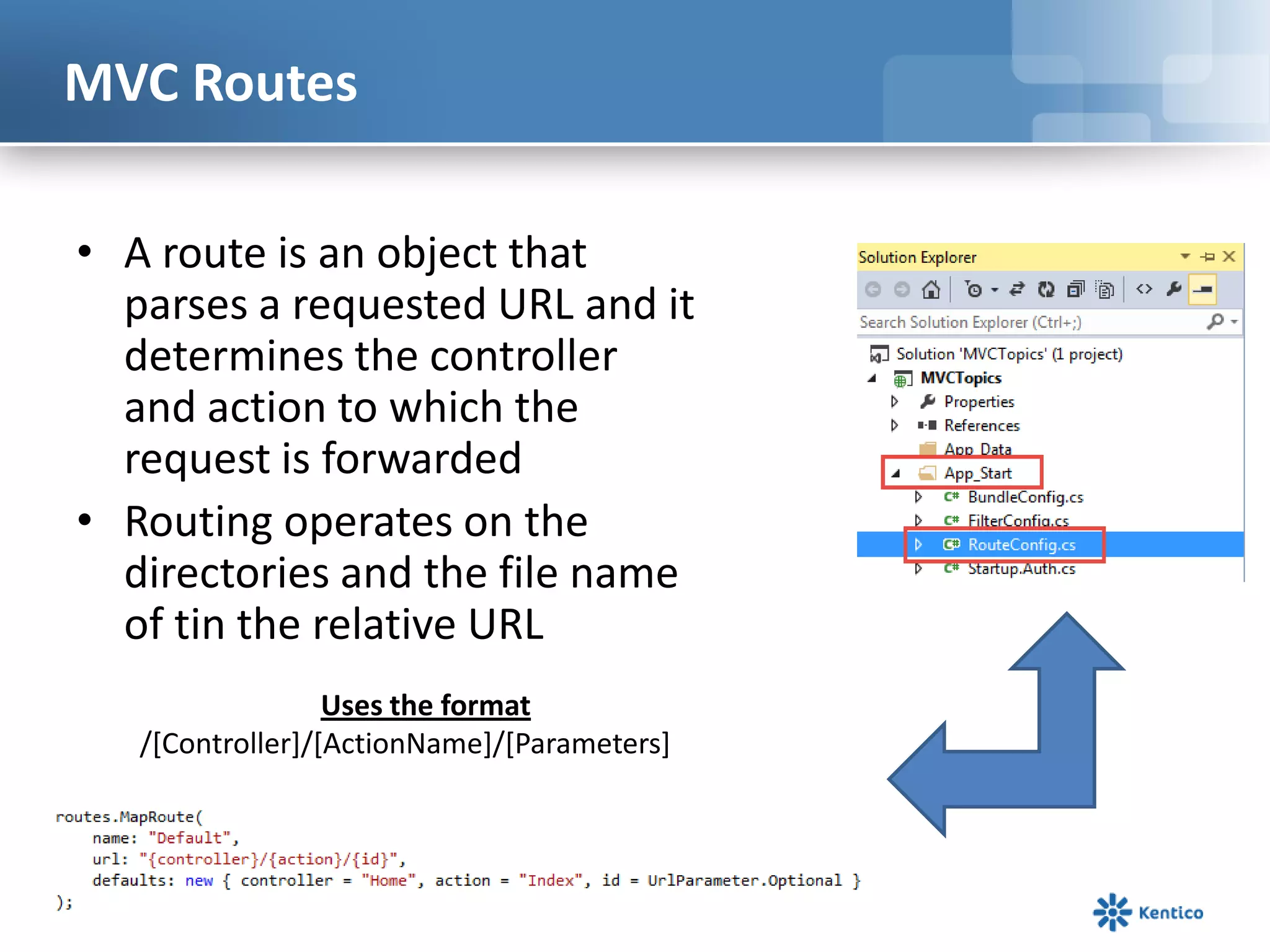

MVC Routes
• A route is an object that
parses a requested URL and it
determines the controller
and action to which the
request is forwarded
• Routing operates on the
directories and the file name
of tin the relative URL
Uses the format
/[Controller]/[ActionName]/[Parameters]

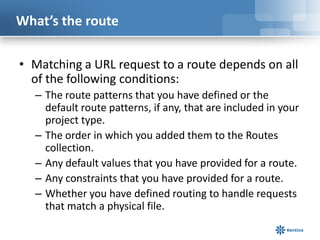

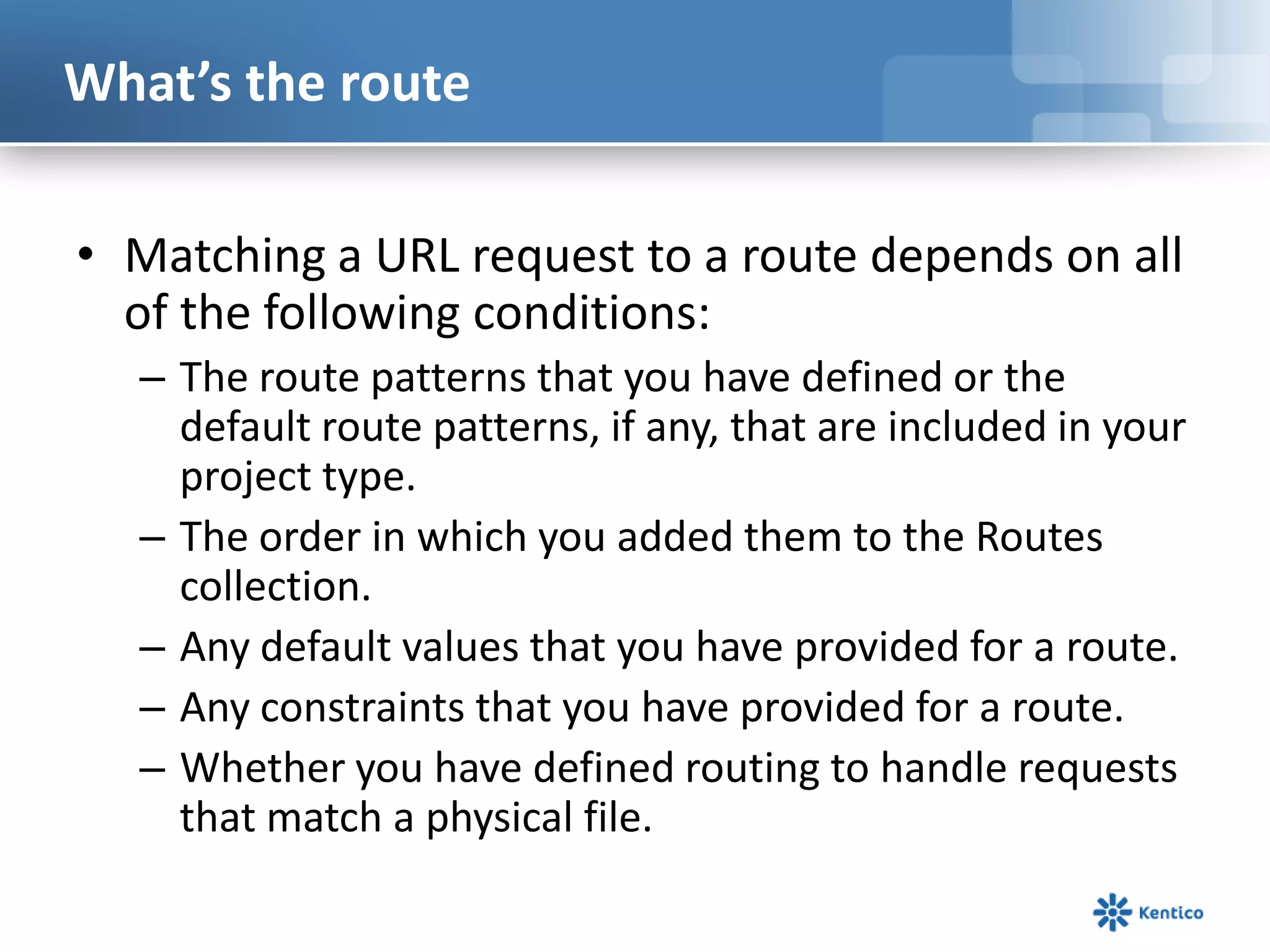

What’s the route
• Matching a URL request to a route depends on all
of the following conditions:
– The route patterns that you have defined or the
default route patterns, if any, that are included in your
project type.
– The order in which you added them to the Routes
collection.
– Any default values that you have provided for a route.
– Any constraints that you have provided for a route.
– Whether you have defined routing to handle requests
that match a physical file.

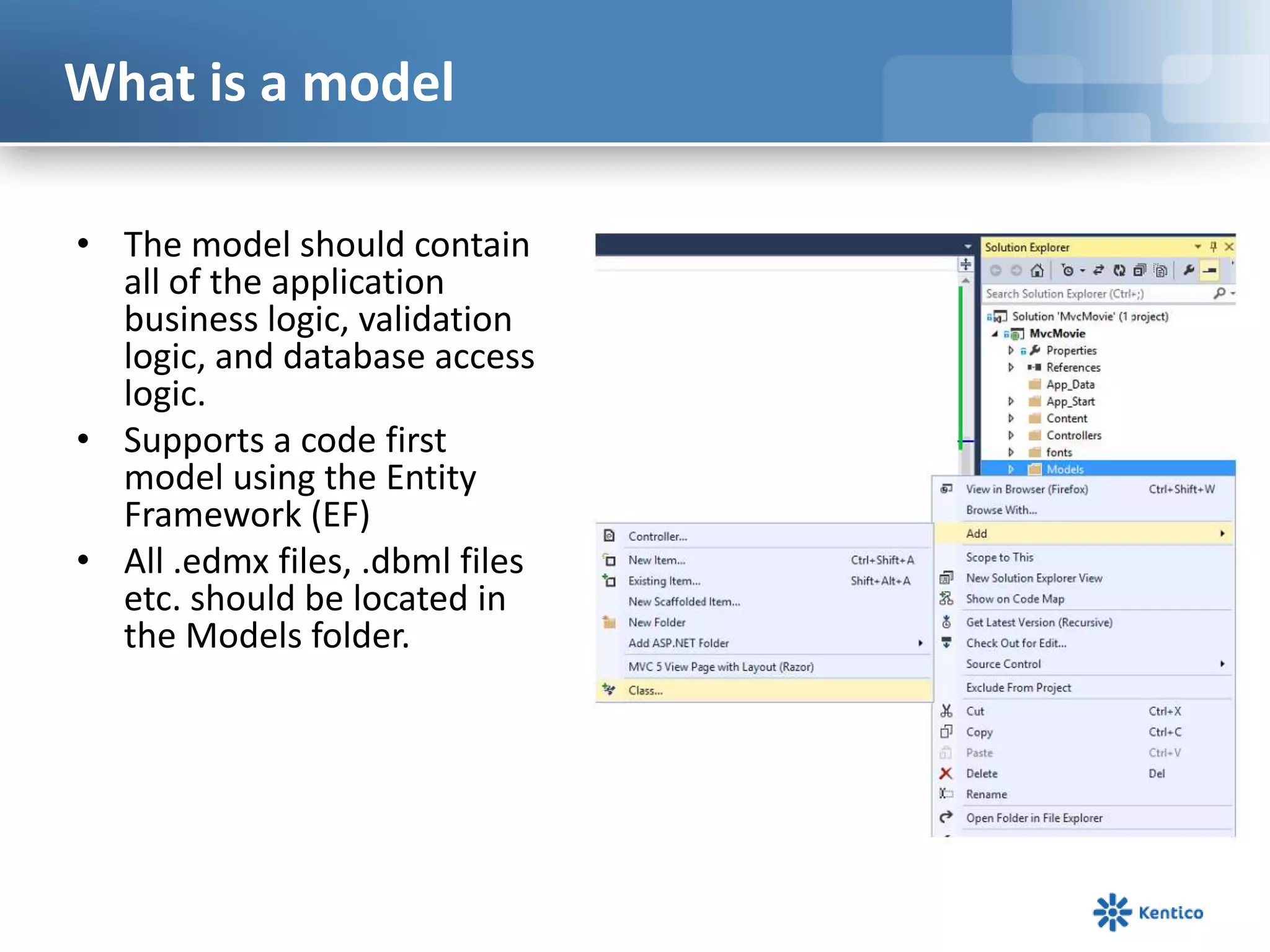

What is a model
• The model should contain
all of the application
business logic, validation
logic, and database access
logic.
• Supports a code first
model using the Entity
Framework (EF)
• All .edmx files, .dbml files
etc. should be located in
the Models folder.

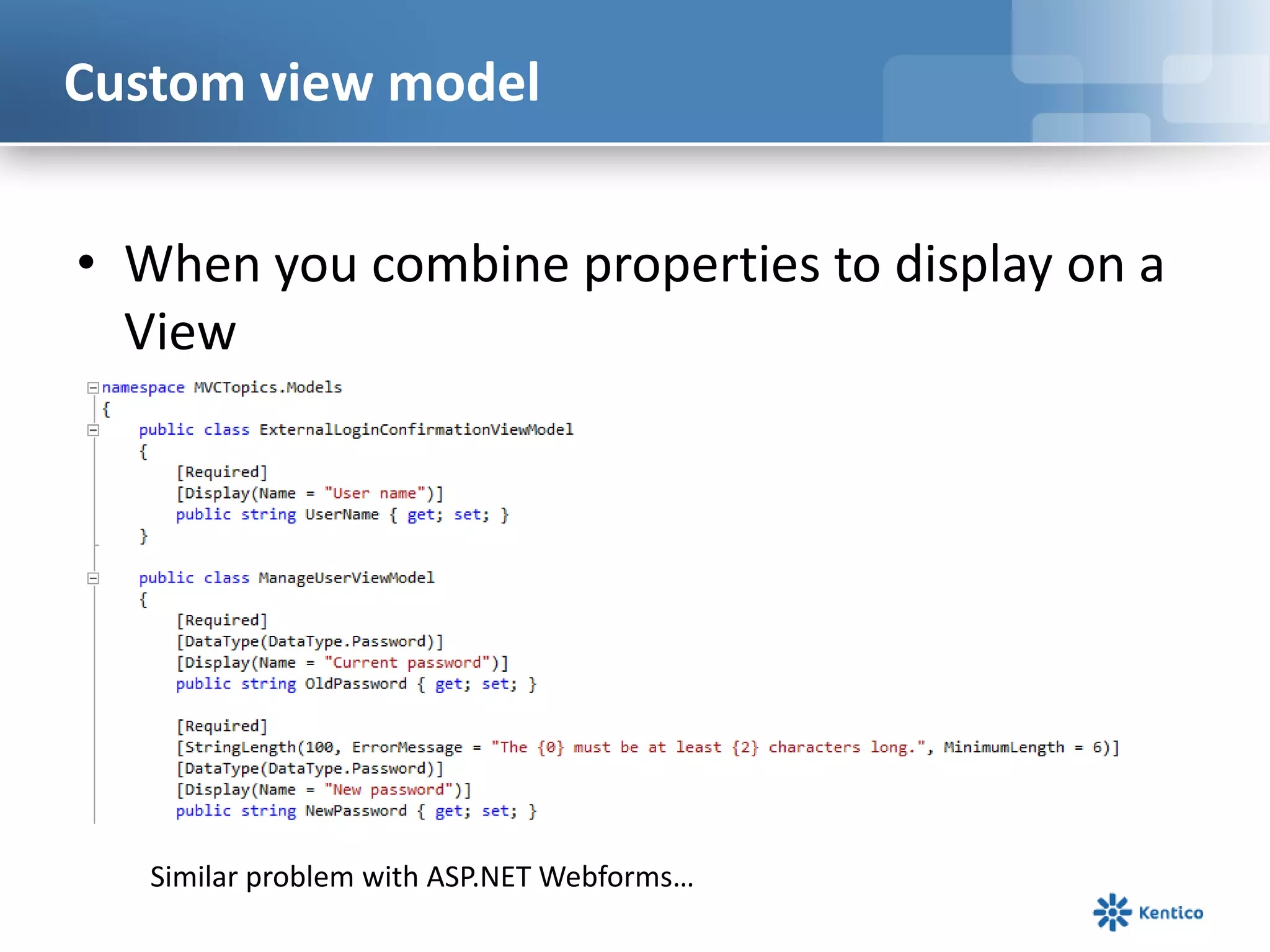

Custom view model
• When you combine properties to display on a
View

Similar problem with ASP.NET Webforms…

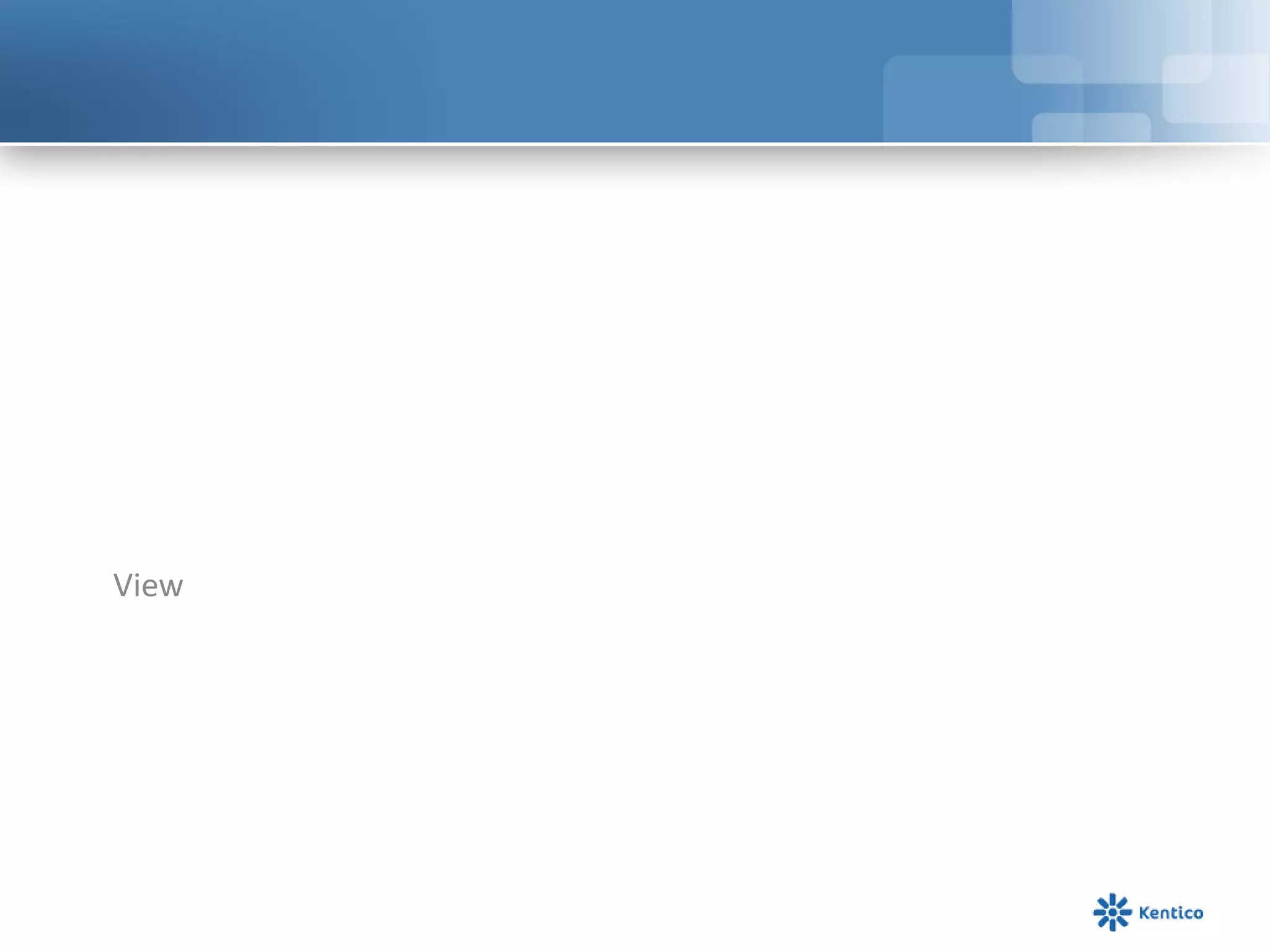

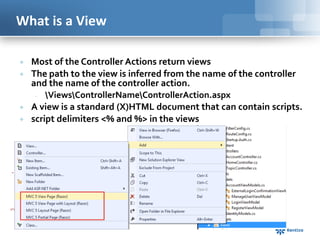

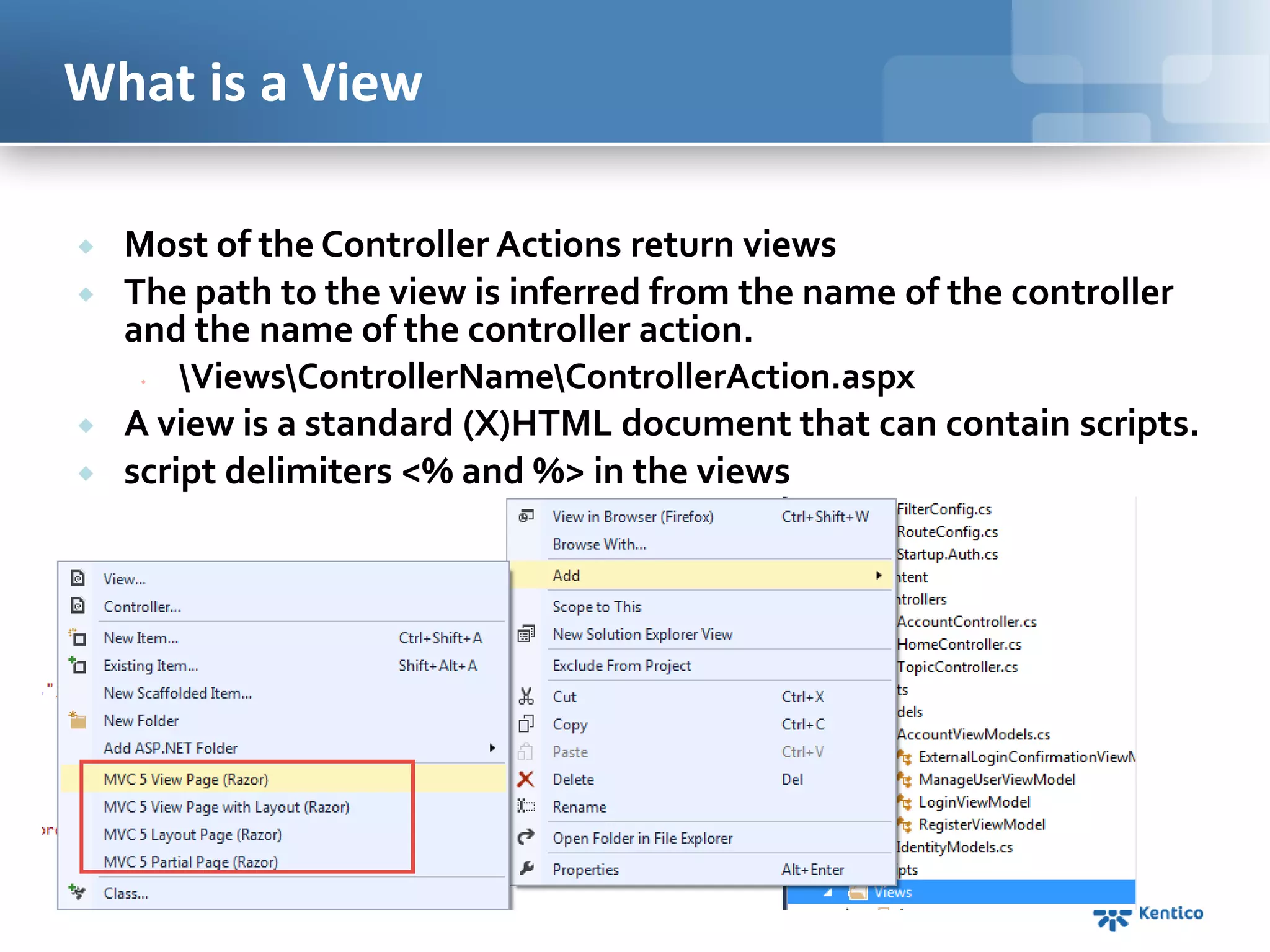

What is a View






Most of the Controller Actions return views
The path to the view is inferred from the name of the controller
and the name of the controller action.

ViewsControllerNameControllerAction.aspx
A view is a standard (X)HTML document that can contain scripts.
script delimiters <% and %> in the views

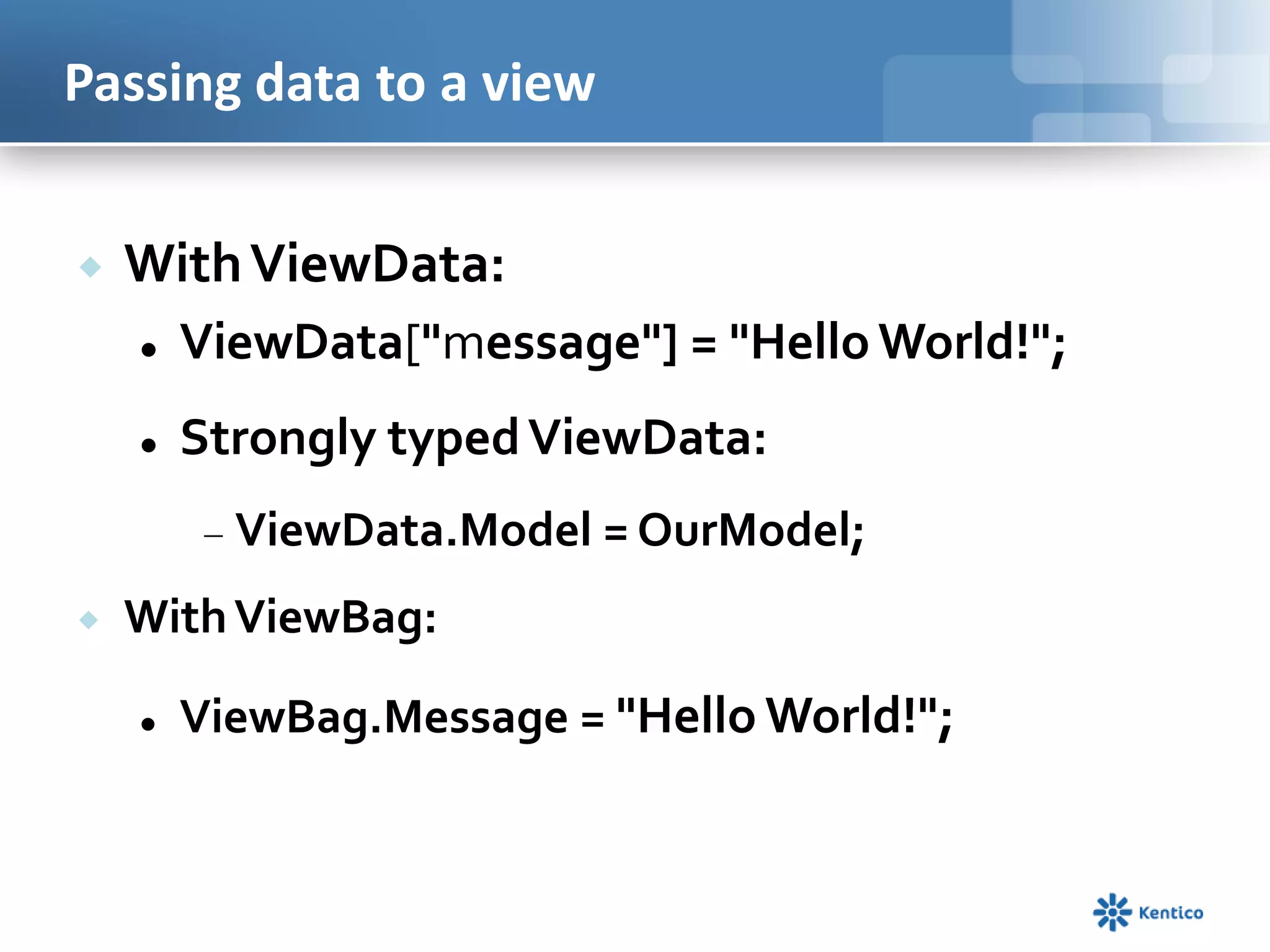

Passing data to a view


With ViewData:


ViewData["message"] = "Hello World!";



Strongly typed ViewData:
ViewData.Model = OurModel;



With ViewBag:


ViewBag.Message = "Hello World!";

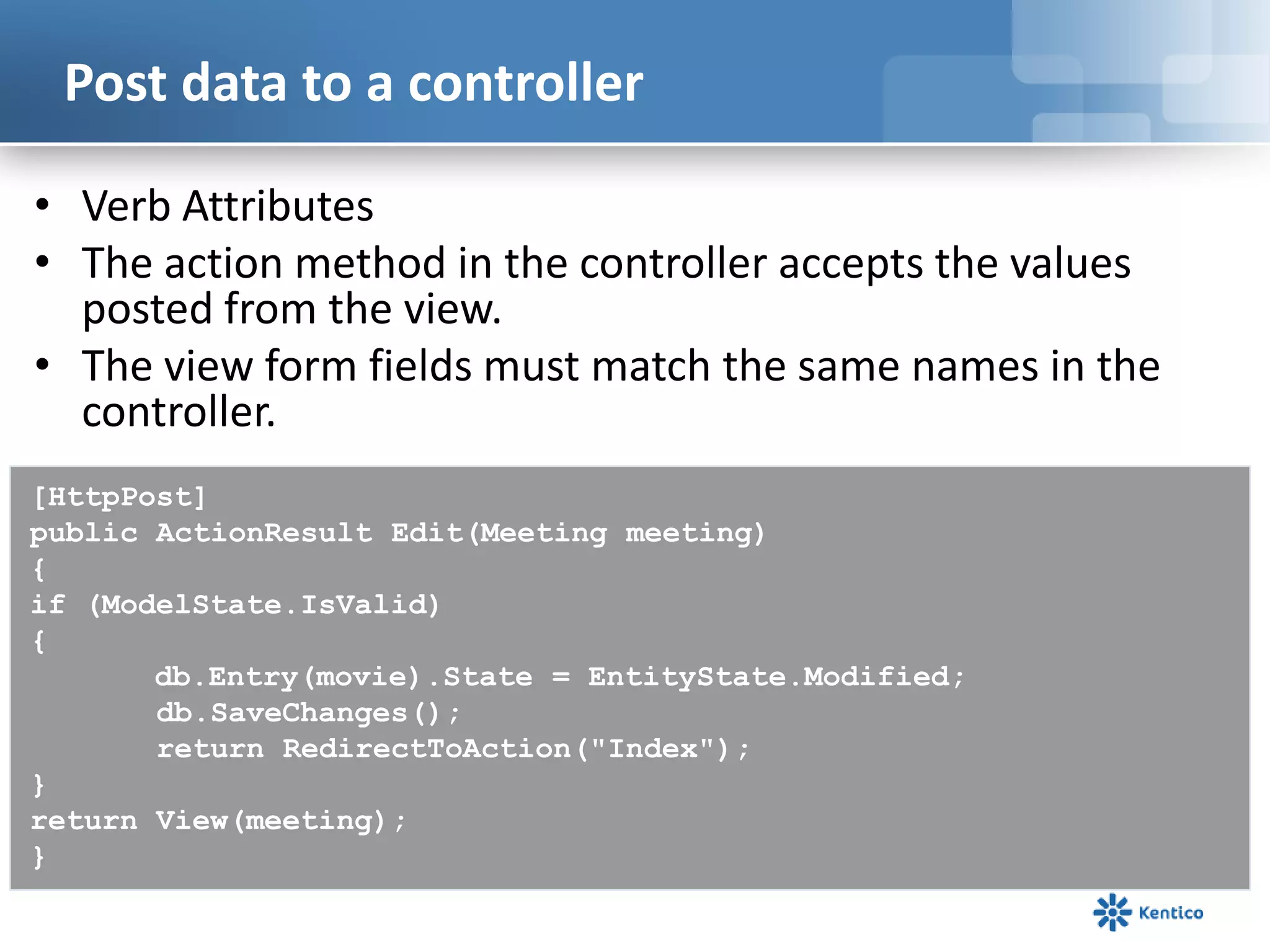

Post data to a controller
• Verb Attributes
• The action method in the controller accepts the values
posted from the view.
• The view form fields must match the same names in the
controller.
[HttpPost]
public ActionResult Edit(Meeting meeting)
{
if (ModelState.IsValid)
{
db.Entry(movie).State = EntityState.Modified;
db.SaveChanges();
return RedirectToAction("Index");
}
return View(meeting);
}

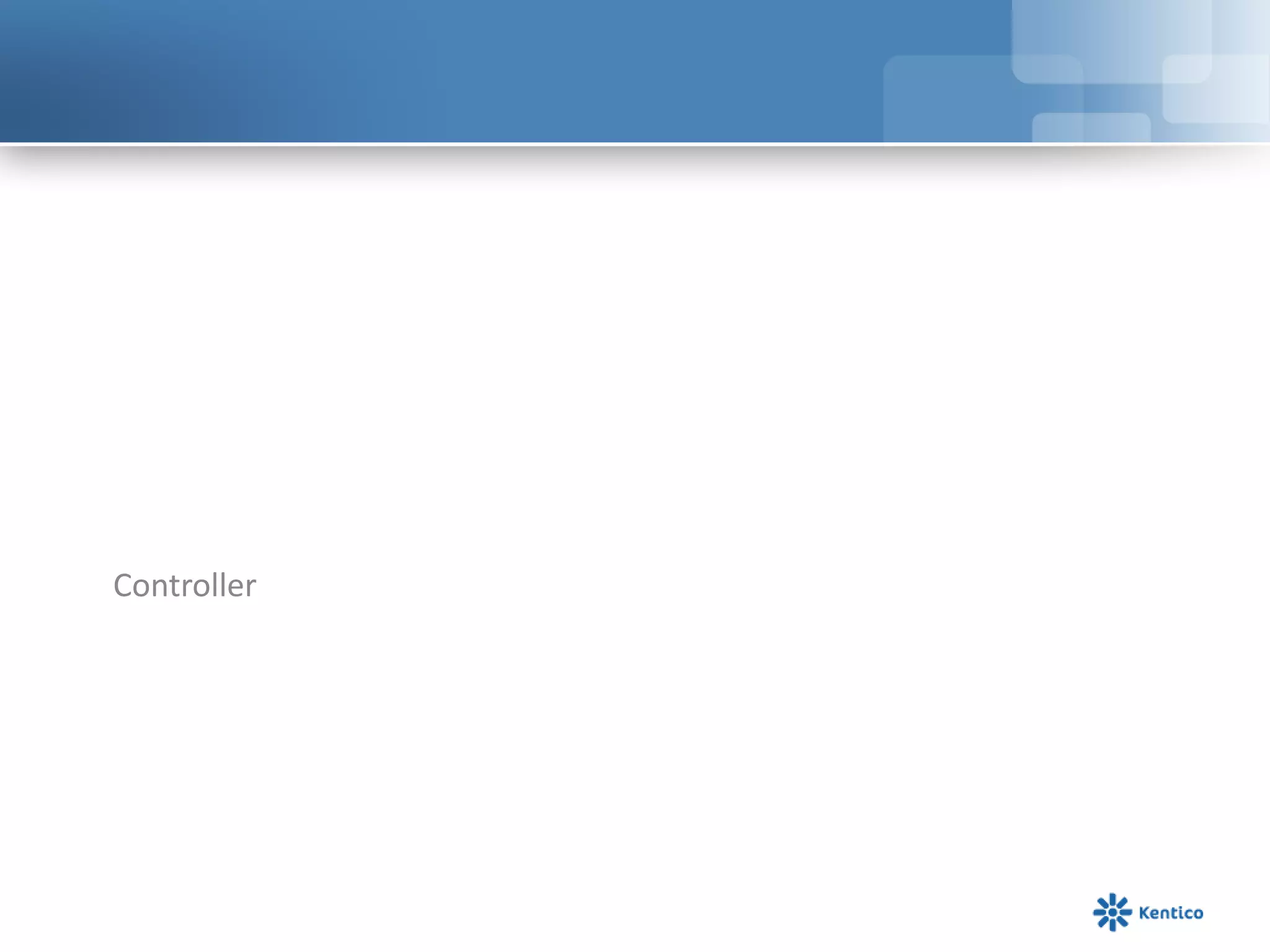

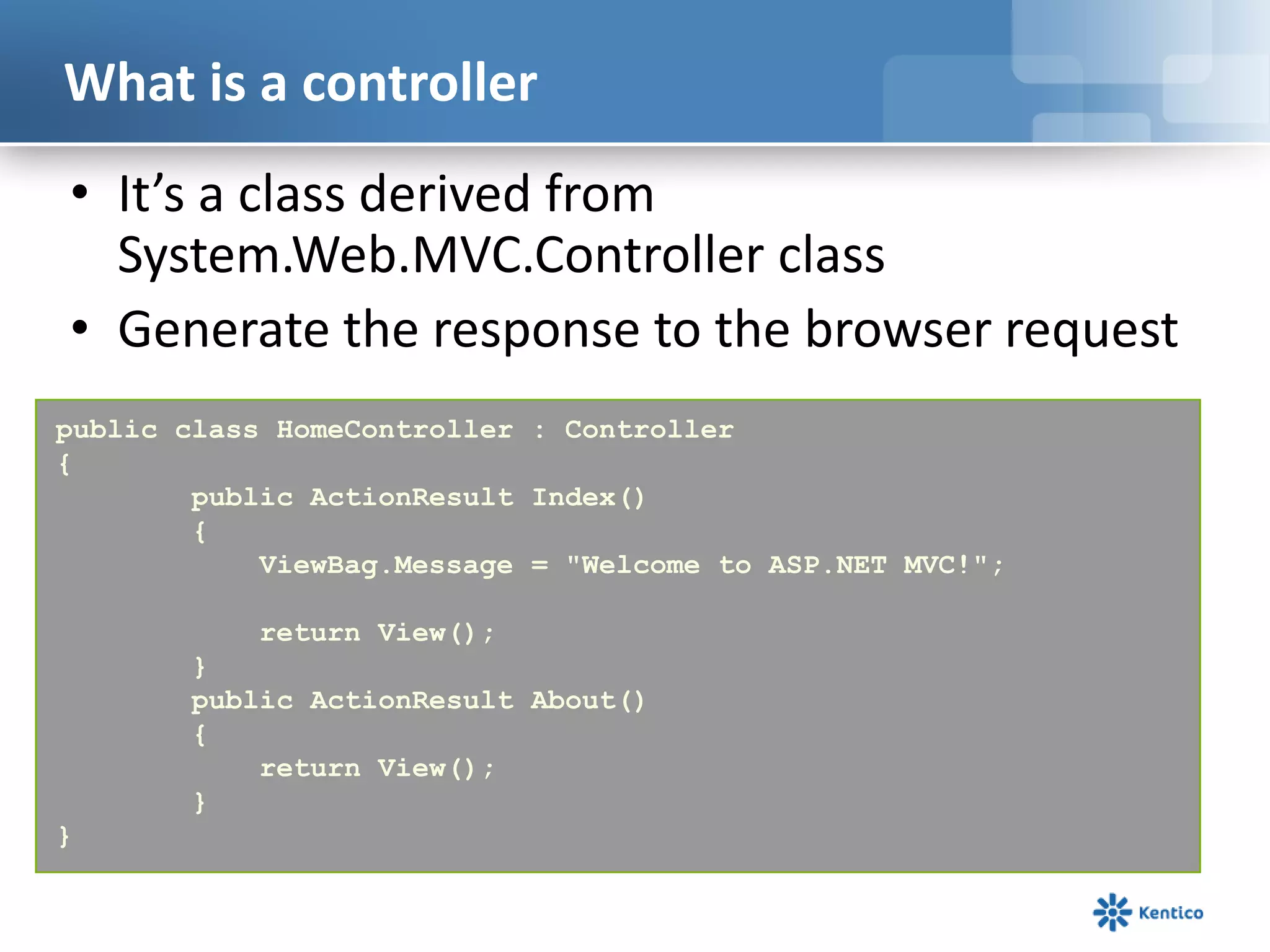

What is a controller
• It’s a class derived from
System.Web.MVC.Controller class
• Generate the response to the browser request
public class HomeController : Controller
{
public ActionResult Index()
{
ViewBag.Message = "Welcome to ASP.NET MVC!";
return View();
}
public ActionResult About()
{
return View();
}
}

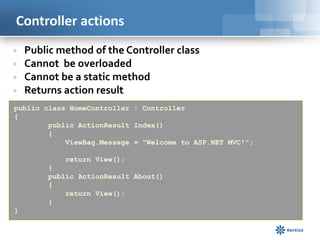

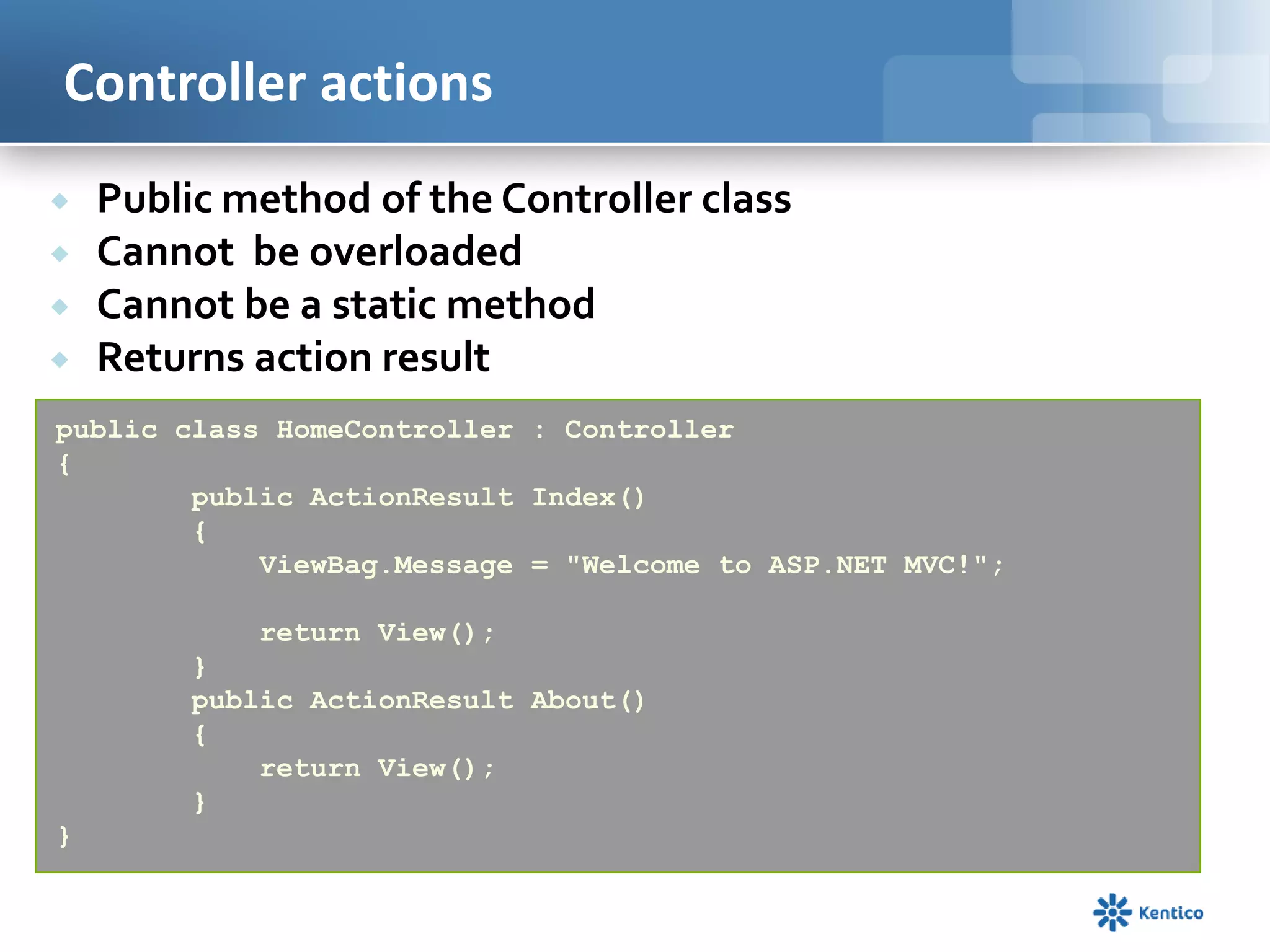

Controller actions





Public method of the Controller class
Cannot be overloaded
Cannot be a static method
Returns action result

public class HomeController : Controller
{
public ActionResult Index()
{
ViewBag.Message = "Welcome to ASP.NET MVC!";
return View();
}
public ActionResult About()
{
return View();
}
}

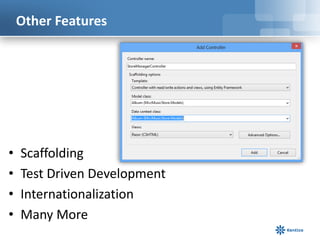

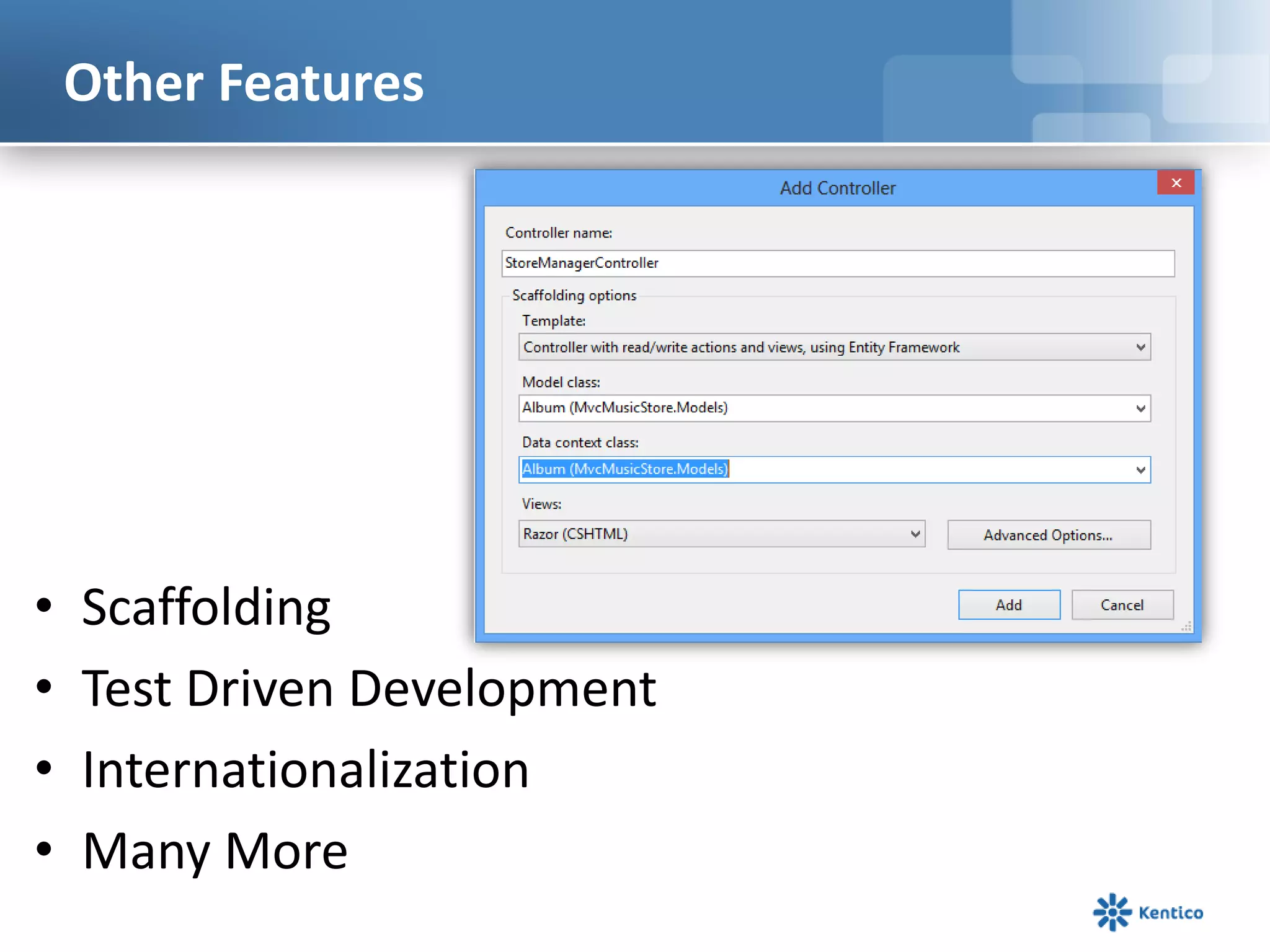

Other Features

•
•
•
•

Scaffolding
Test Driven Development
Internationalization
Many More

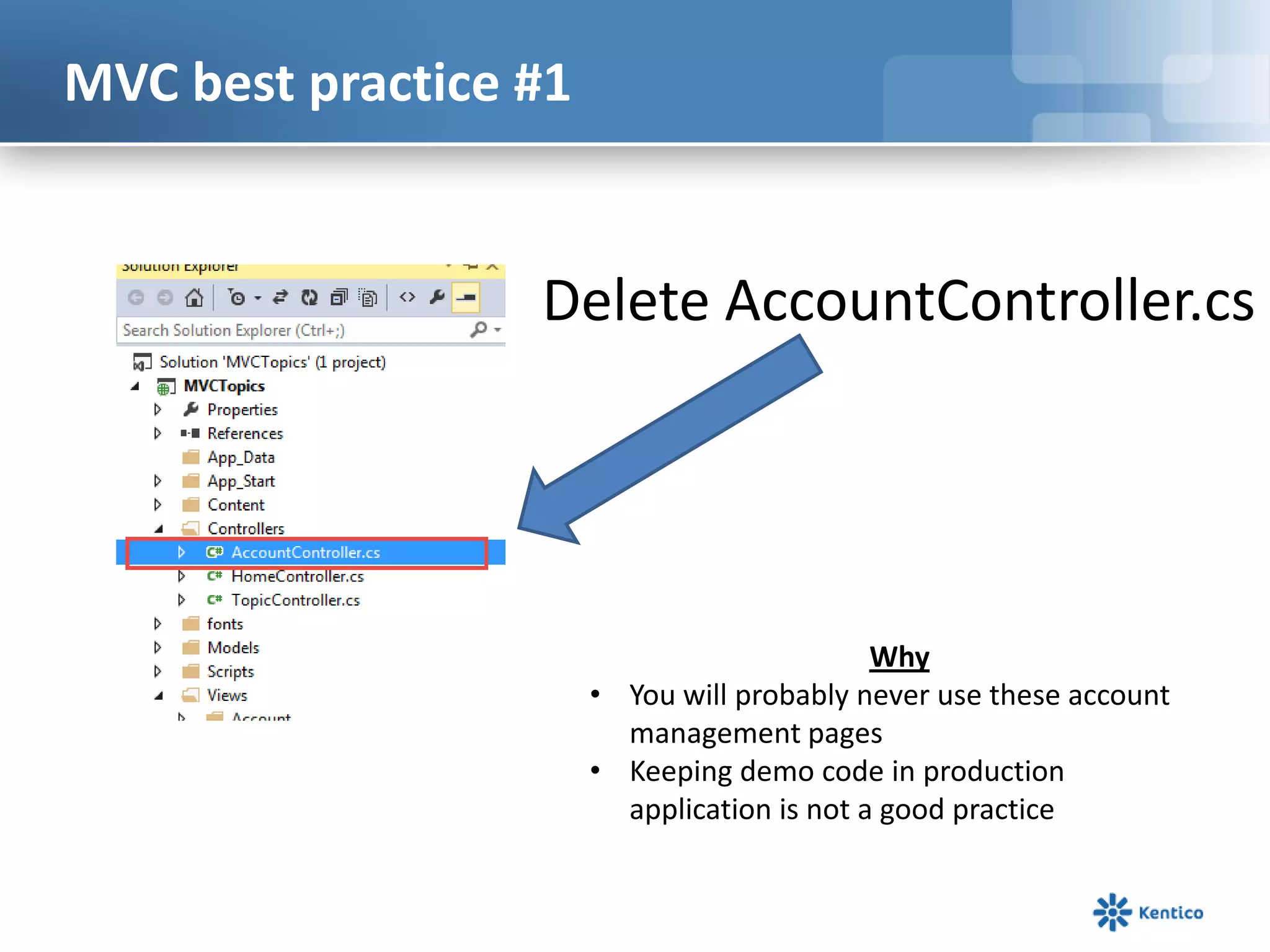

MVC best practice #1

Delete AccountController.cs

Why
• You will probably never use these account
management pages
• Keeping demo code in production
application is not a good practice

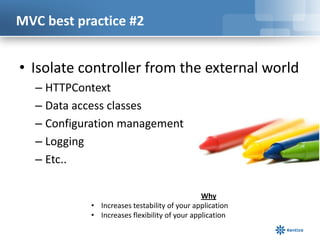

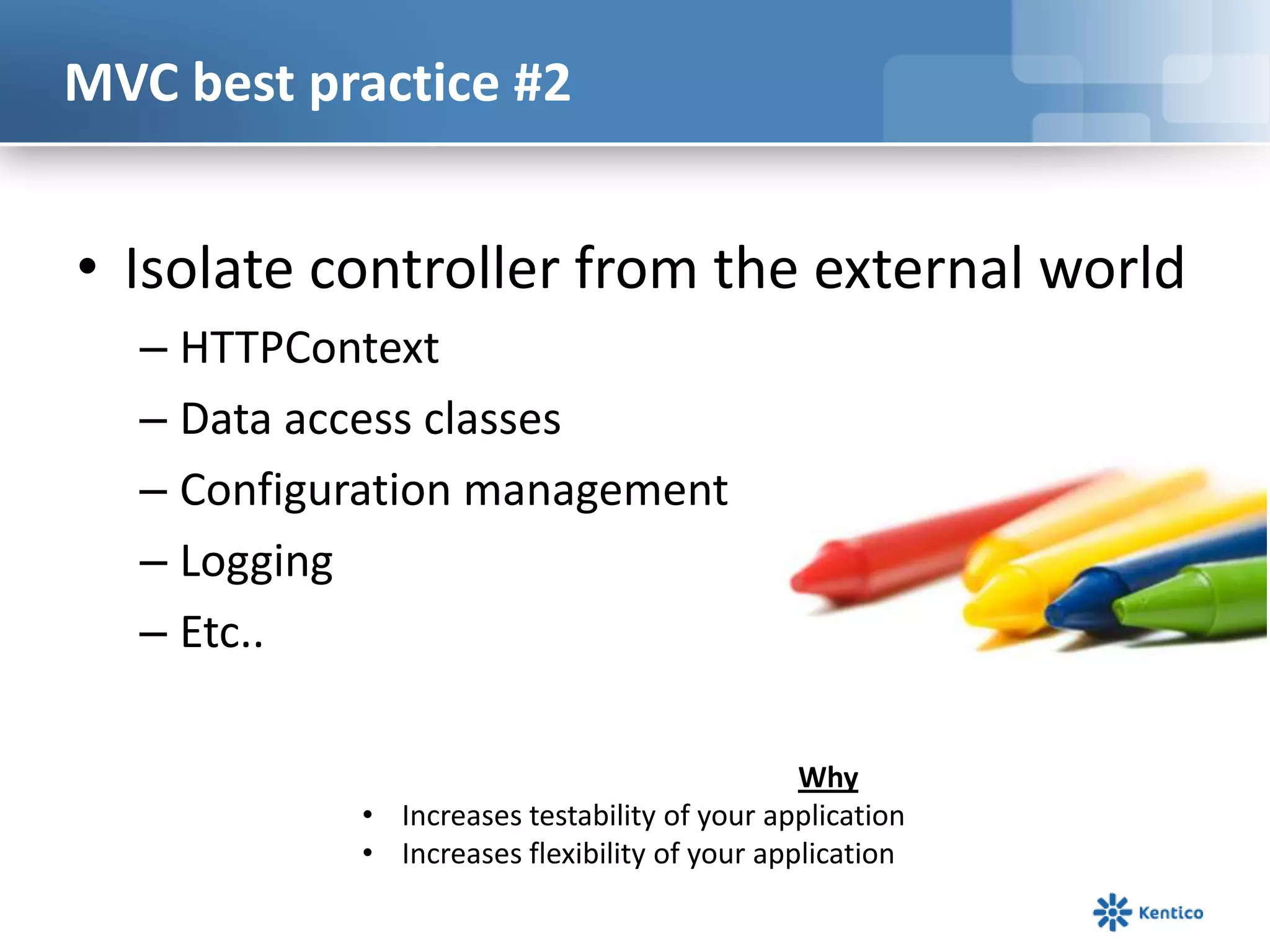

• Isolate controller from the external world
– HTTPContext
– Data access classes
– Configuration management
– Logging
– Etc..
Why
• Increases testability of your application
• Increases flexibility of your application

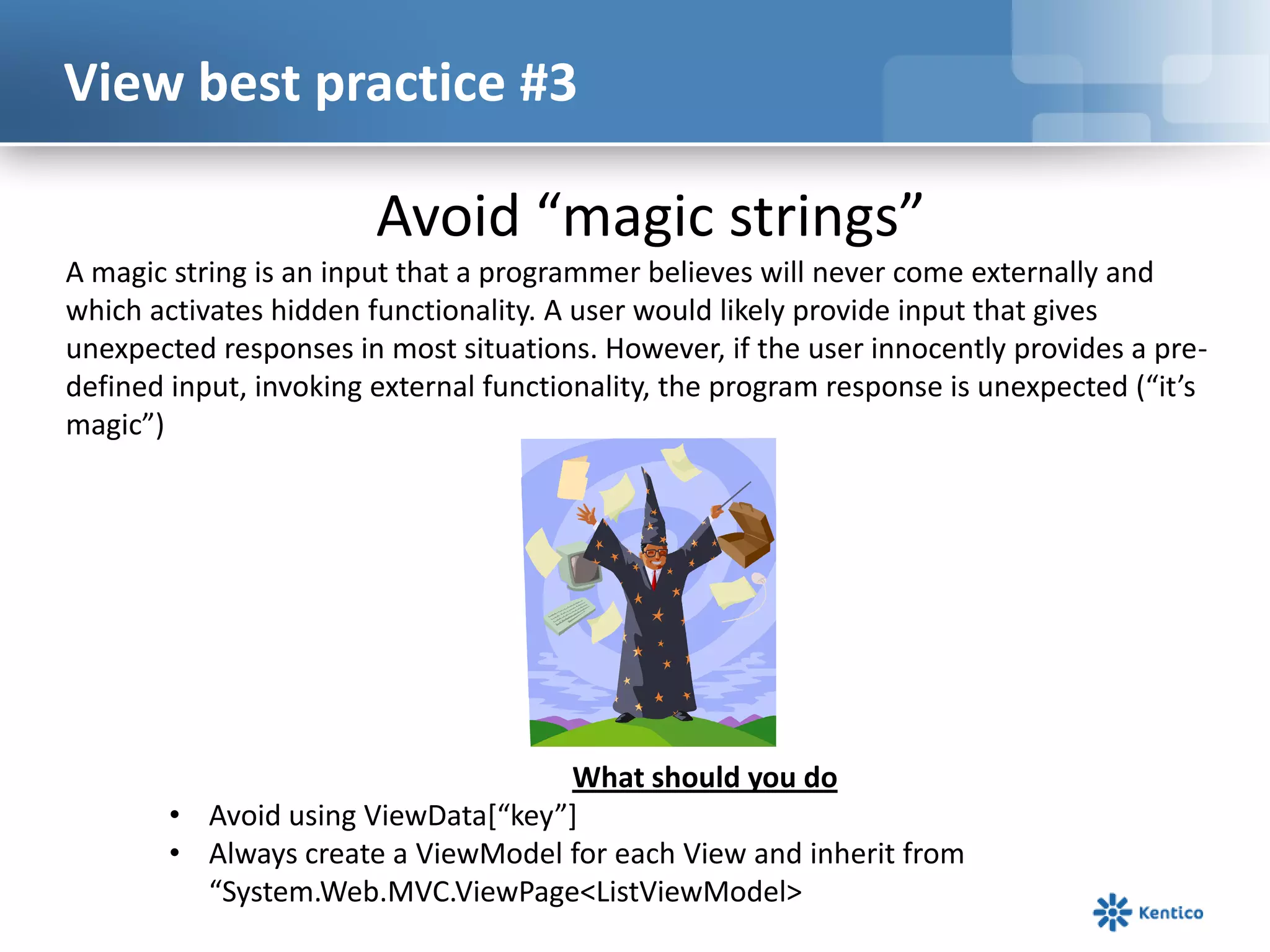

View best practice #3

Avoid “magic strings”
A magic string is an input that a programmer believes will never come externally and
which activates hidden functionality. A user would likely provide input that gives
unexpected responses in most situations. However, if the user innocently provides a predefined input, invoking external functionality, the program response is unexpected (“it’s
magic”)

What should you do
• Avoid using ViewData*“key”+
• Always create a ViewModel for each View and inherit from
“System.Web.MVC.ViewPage<ListViewModel>

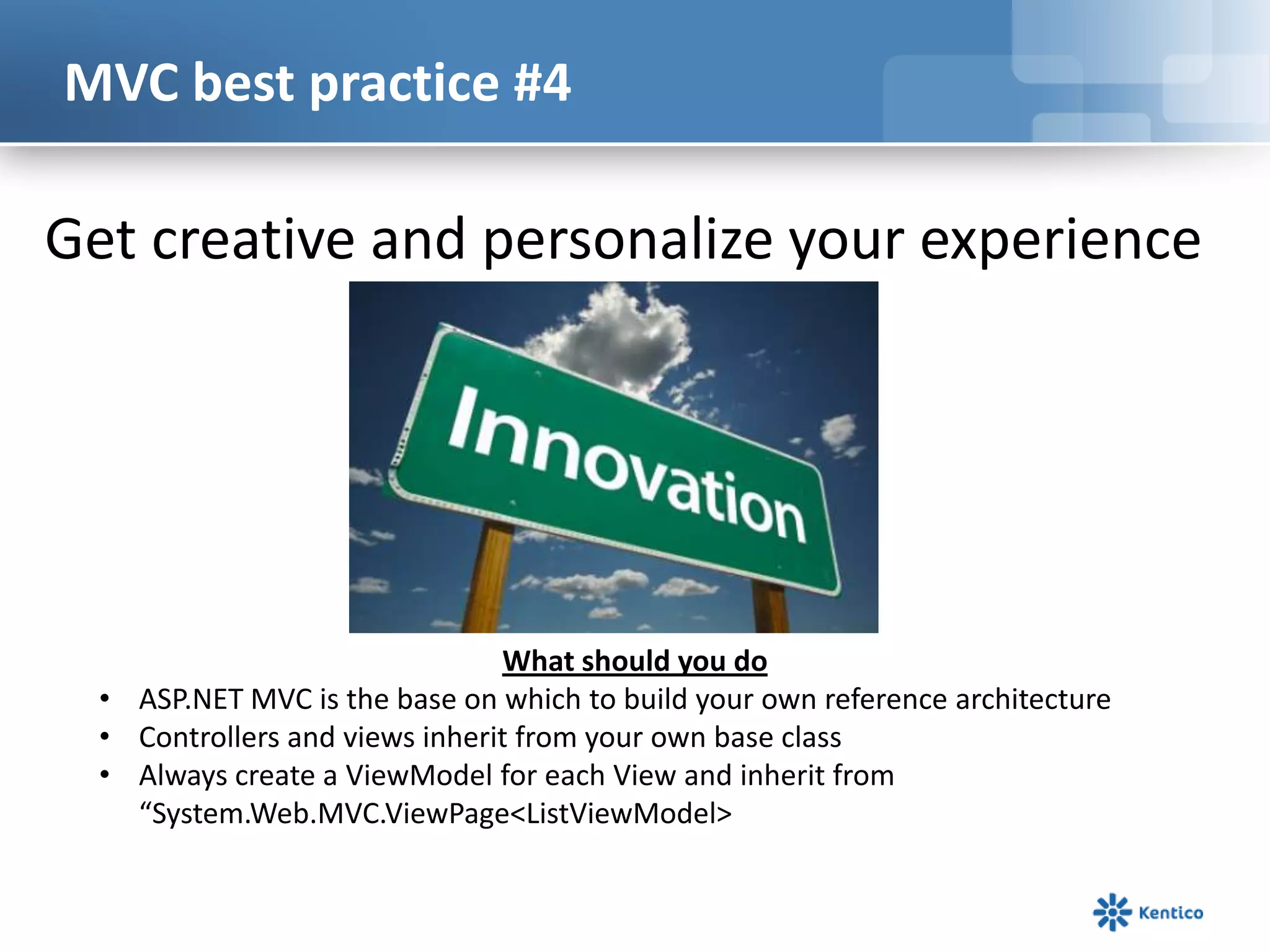

Get creative and personalize your experience

What should you do
• ASP.NET MVC is the base on which to build your own reference architecture
• Controllers and views inherit from your own base class
• Always create a ViewModel for each View and inherit from
“System.Web.MVC.ViewPage<ListViewModel>

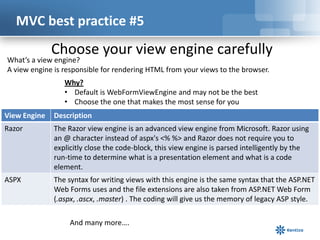

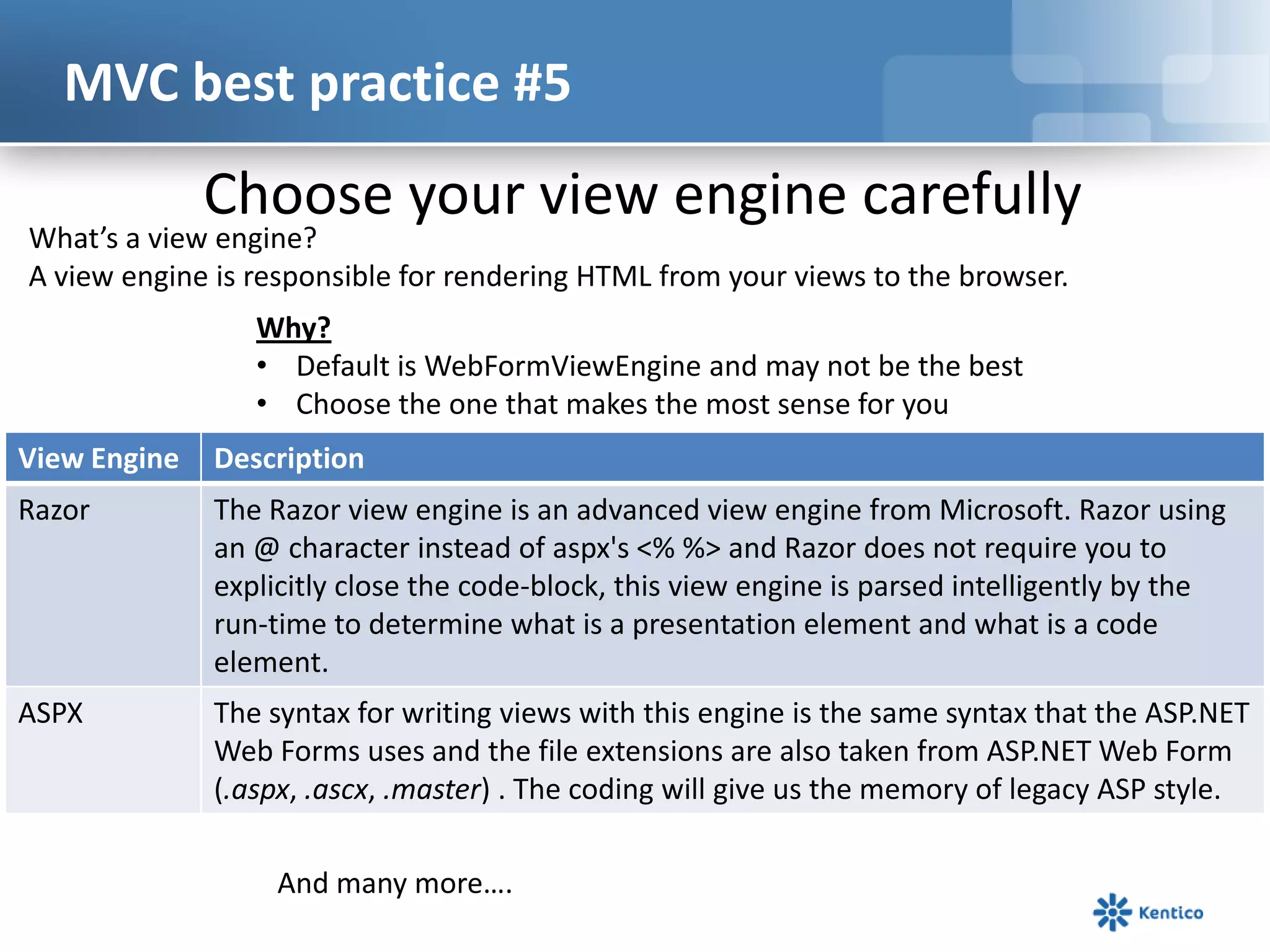

Choose your view engine carefully

What’s a view engine?
A view engine is responsible for rendering HTML from your views to the browser.
Why?
• Default is WebFormViewEngine and may not be the best
• Choose the one that makes the most sense for you

View Engine

Description

Razor

The Razor view engine is an advanced view engine from Microsoft. Razor using
an @ character instead of aspx's <% %> and Razor does not require you to
explicitly close the code-block, this view engine is parsed intelligently by the
run-time to determine what is a presentation element and what is a code
element.

ASPX

The syntax for writing views with this engine is the same syntax that the ASP.NET
Web Forms uses and the file extensions are also taken from ASP.NET Web Form
(.aspx, .ascx, .master) . The coding will give us the memory of legacy ASP style.
And many more….

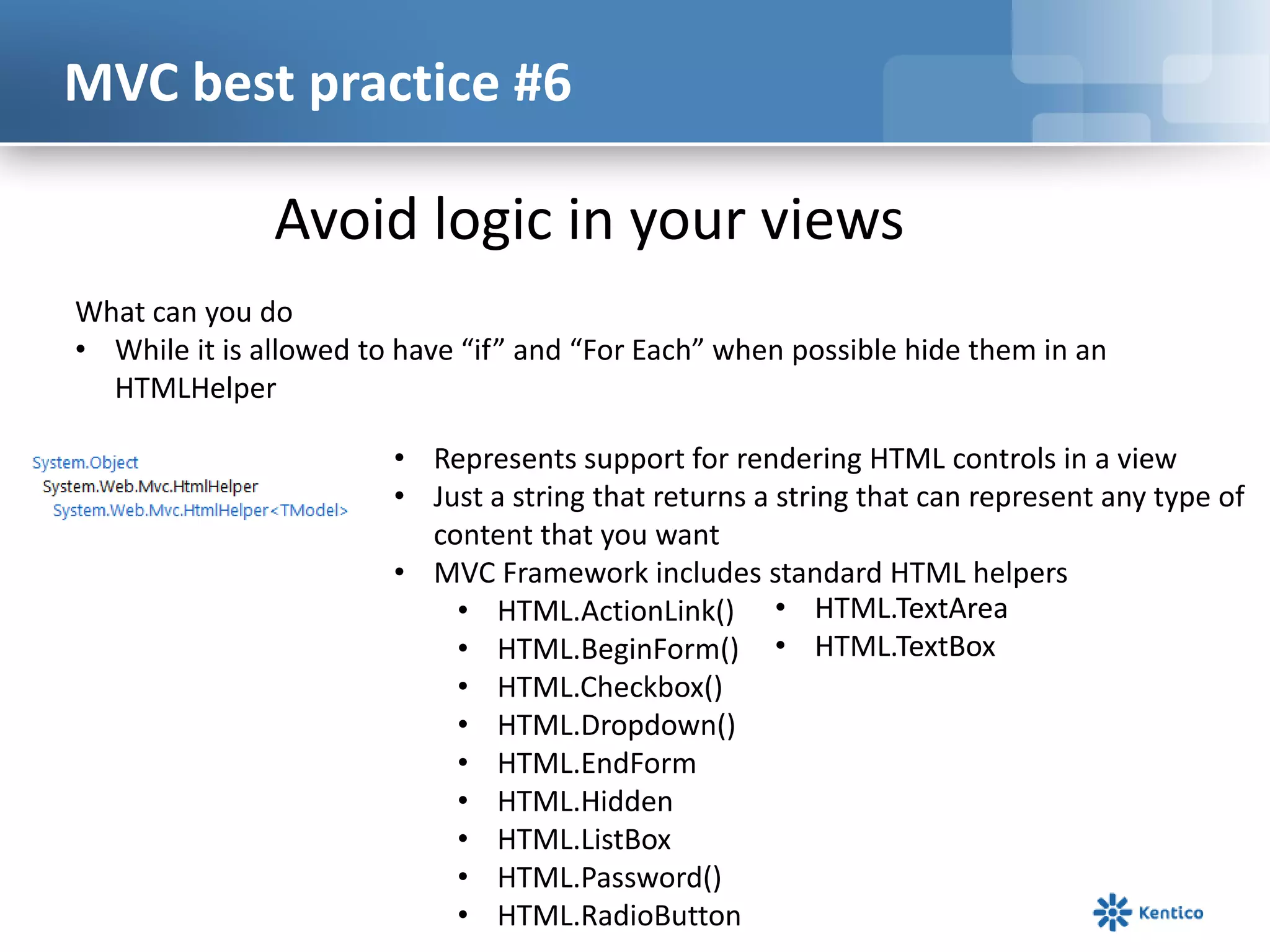

Avoid logic in your views
What can you do
• While it is allowed to have “if” and “For Each” when possible hide them in an
HTMLHelper
• Represents support for rendering HTML controls in a view
• Just a string that returns a string that can represent any type of
content that you want
• MVC Framework includes standard HTML helpers
• HTML.ActionLink() • HTML.TextArea
• HTML.BeginForm() • HTML.TextBox
• HTML.Checkbox()
• HTML.Dropdown()
• HTML.EndForm
• HTML.Hidden
• HTML.ListBox
• HTML.Password()
• HTML.RadioButton

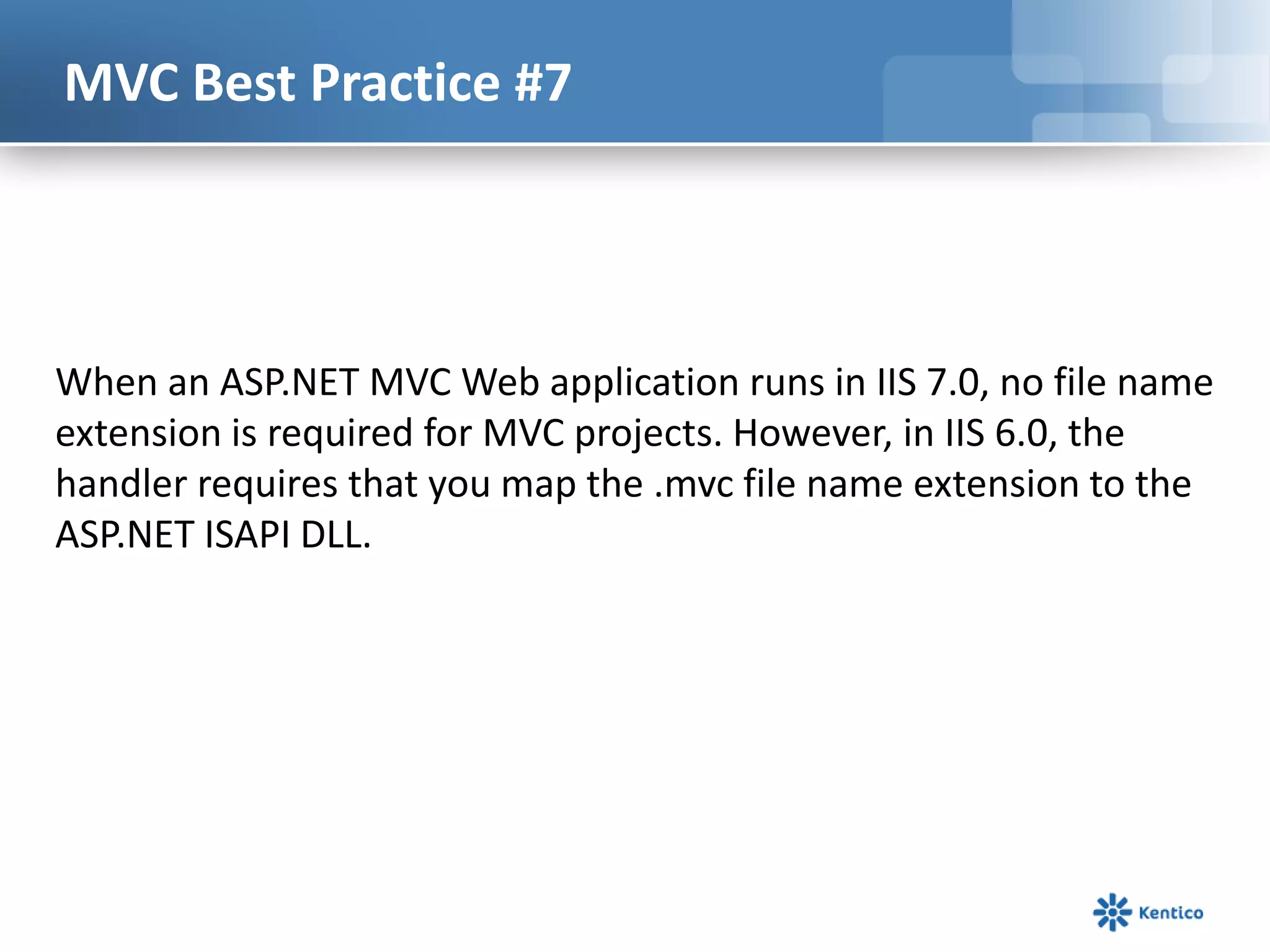

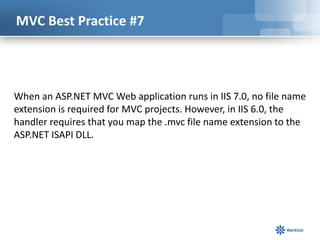

MVC Best Practice #7

When an ASP.NET MVC Web application runs in IIS 7.0, no file name
extension is required for MVC projects. However, in IIS 6.0, the
handler requires that you map the .mvc file name extension to the
ASP.NET ISAPI DLL.

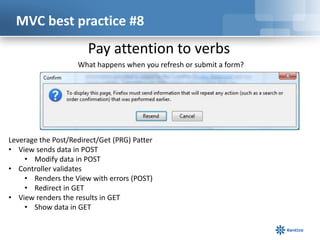

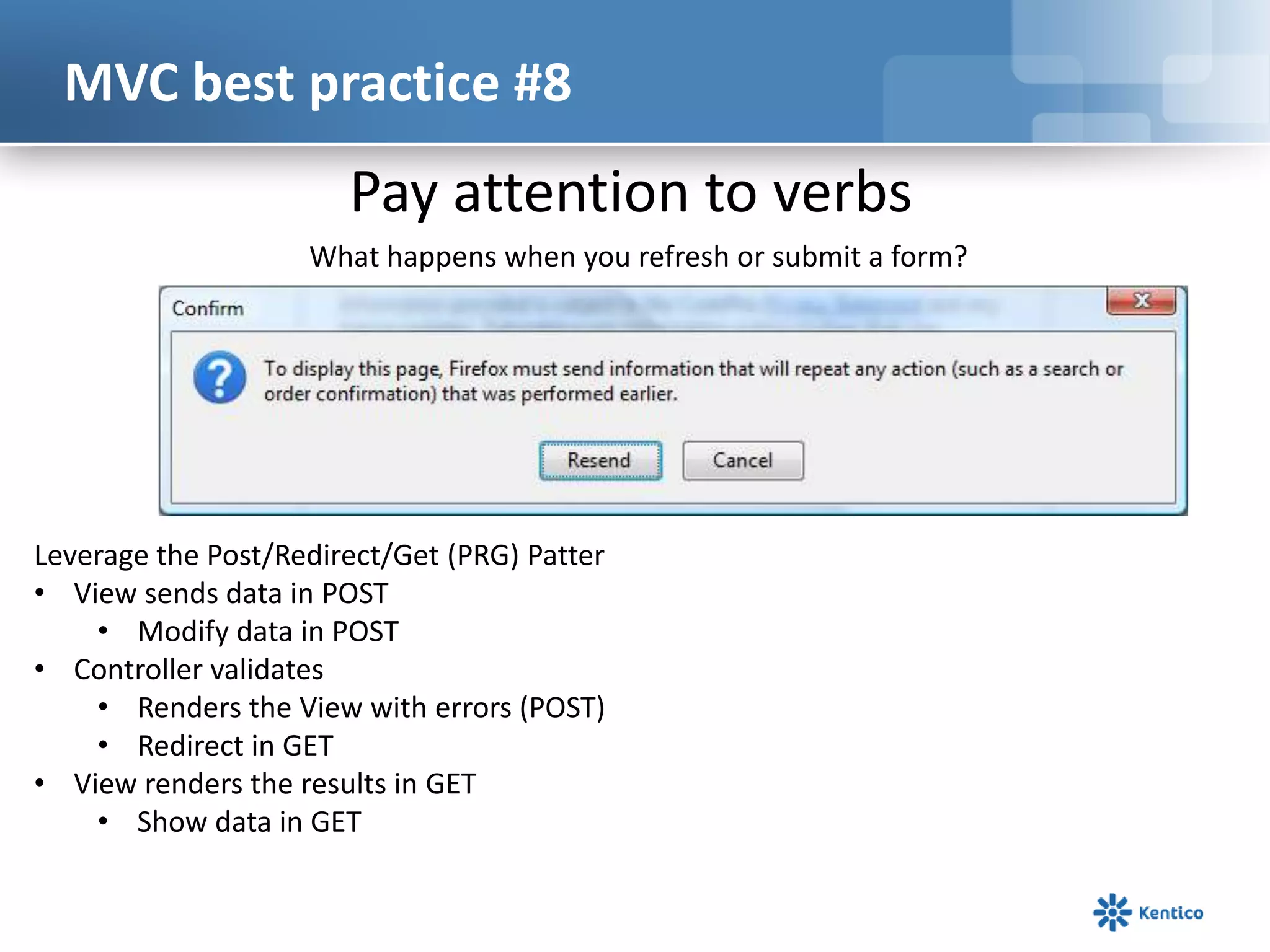

Pay attention to verbs
What happens when you refresh or submit a form?

Leverage the Post/Redirect/Get (PRG) Patter
• View sends data in POST
• Modify data in POST
• Controller validates
• Renders the View with errors (POST)
• Redirect in GET
• View renders the results in GET
• Show data in GET

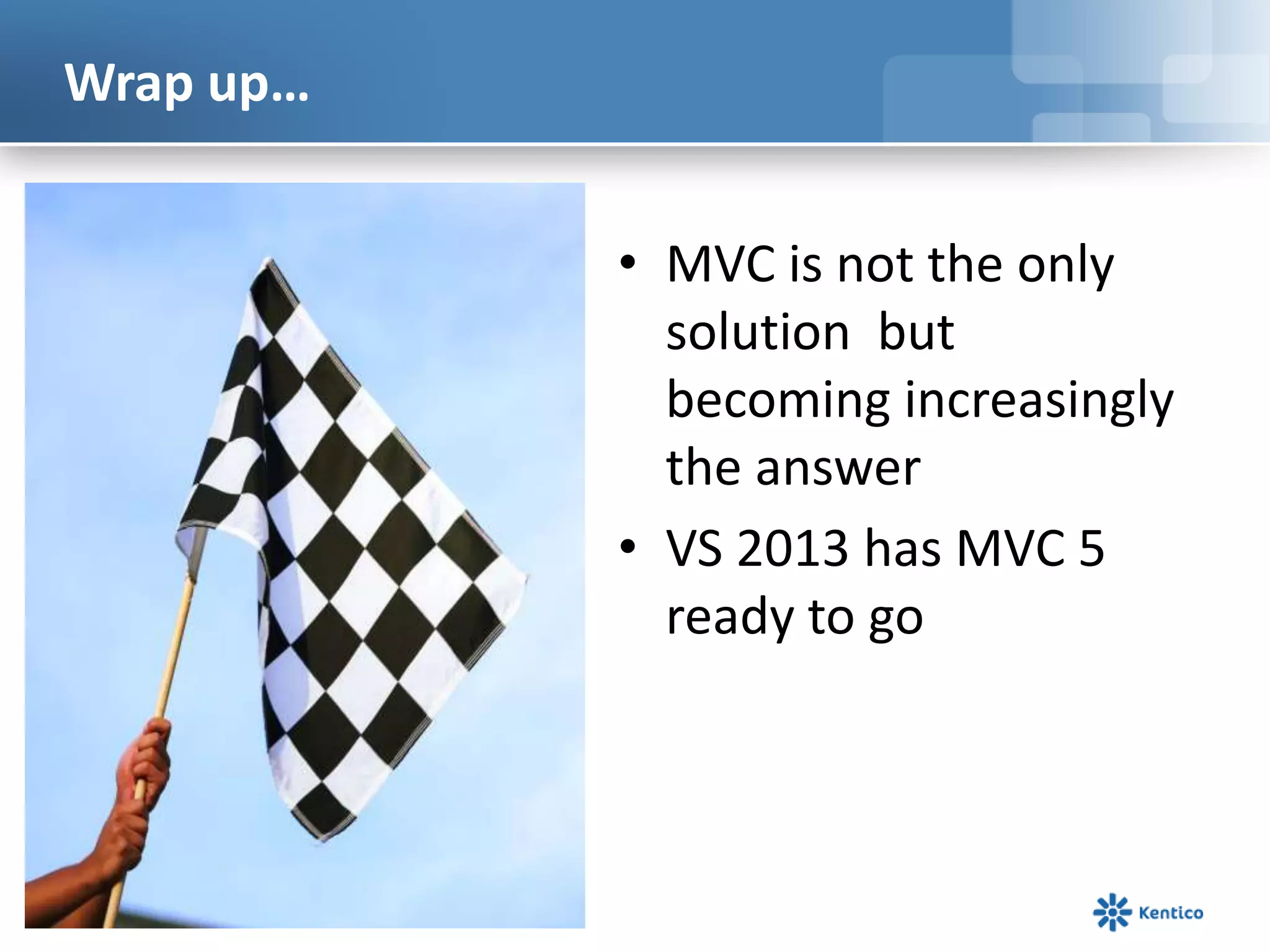

Wrap up…
• MVC is not the only
solution but
becoming increasingly
the answer
• VS 2013 has MVC 5
ready to go

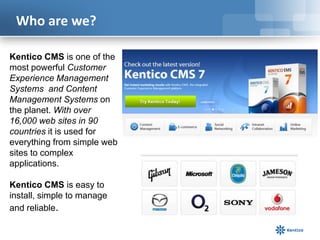

Who are we?
Kentico CMS is one of the
most powerful Customer
Experience Management
Systems and Content
Management Systems on
the planet. With over
16,000 web sites in 90
countries it is used for
everything from simple web
sites to complex
applications.
Kentico CMS is easy to
install, simple to manage
and reliable.

Getting started with MVC 5 and Visual Studio 2013

More Related Content

What's hot

Viewers also liked

Similar to Getting started with MVC 5 and Visual Studio 2013

More from Thomas Robbins

Recently uploaded

Getting started with MVC 5 and Visual Studio 2013
