Going MicroServices with Net
- 1. GOING MICROSERVICES WITH .NETDavidRevoledo @deirevoledo
- 2. Contamos con elapoyo de:
- 3. About me ! DavidRevoledo | @deirevoledo • Working with Microsoft technologies pretty much all my career. • Speaker • .Net, AzureTrainer and Consultant. • Open Source active contributor (Azure event hub, service bus SDK’s and a Few Plugins). • Focused onAsp. NET Core / Azure • Software Architect at DGENIX 19/12/2018

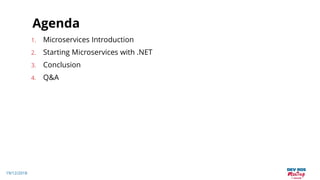

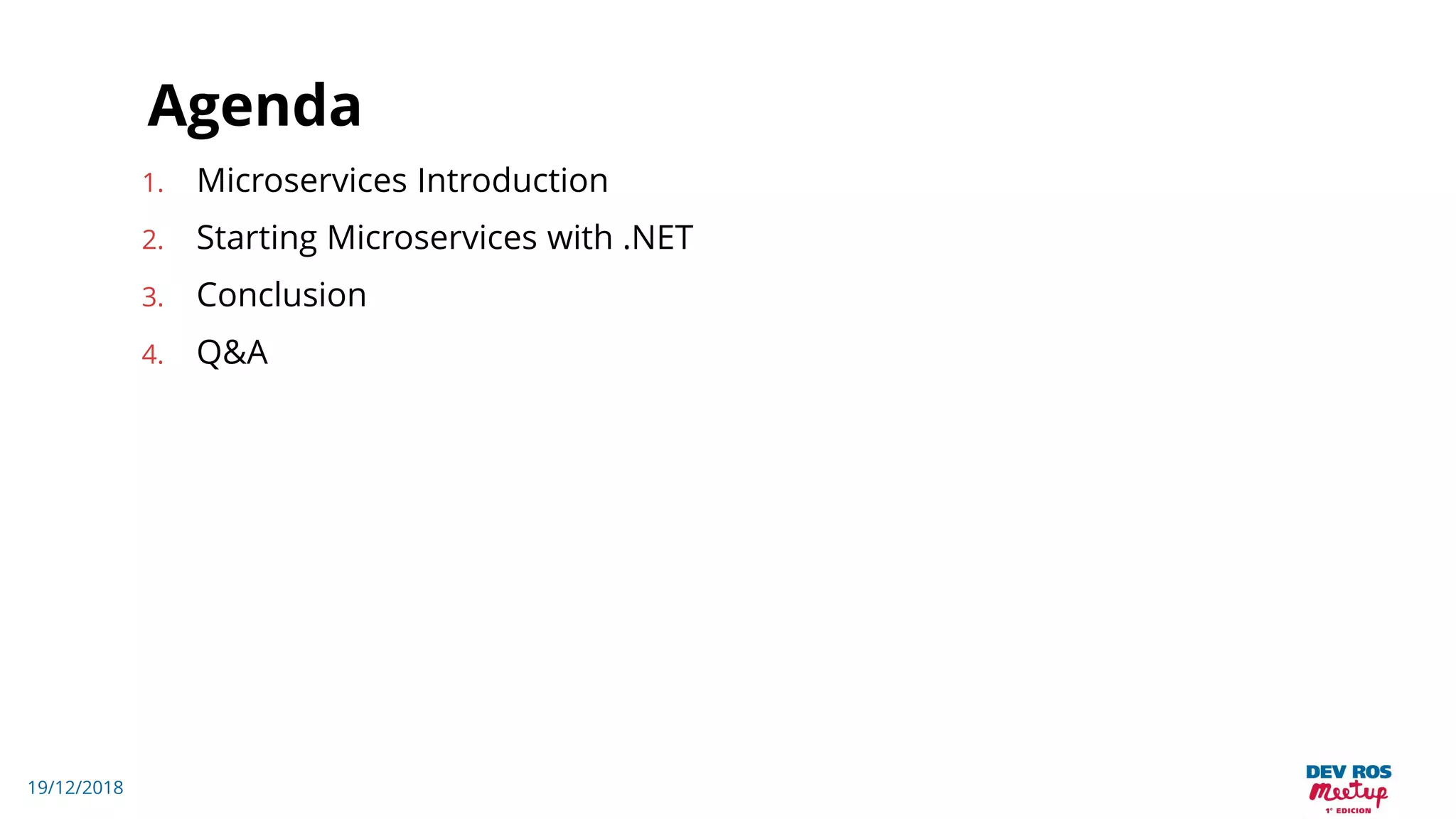

- 4. 19/12/2018 Agenda 1. Microservices Introduction 2.Starting Microservices with .NET 3. Conclusion 4. Q&A
- 5.

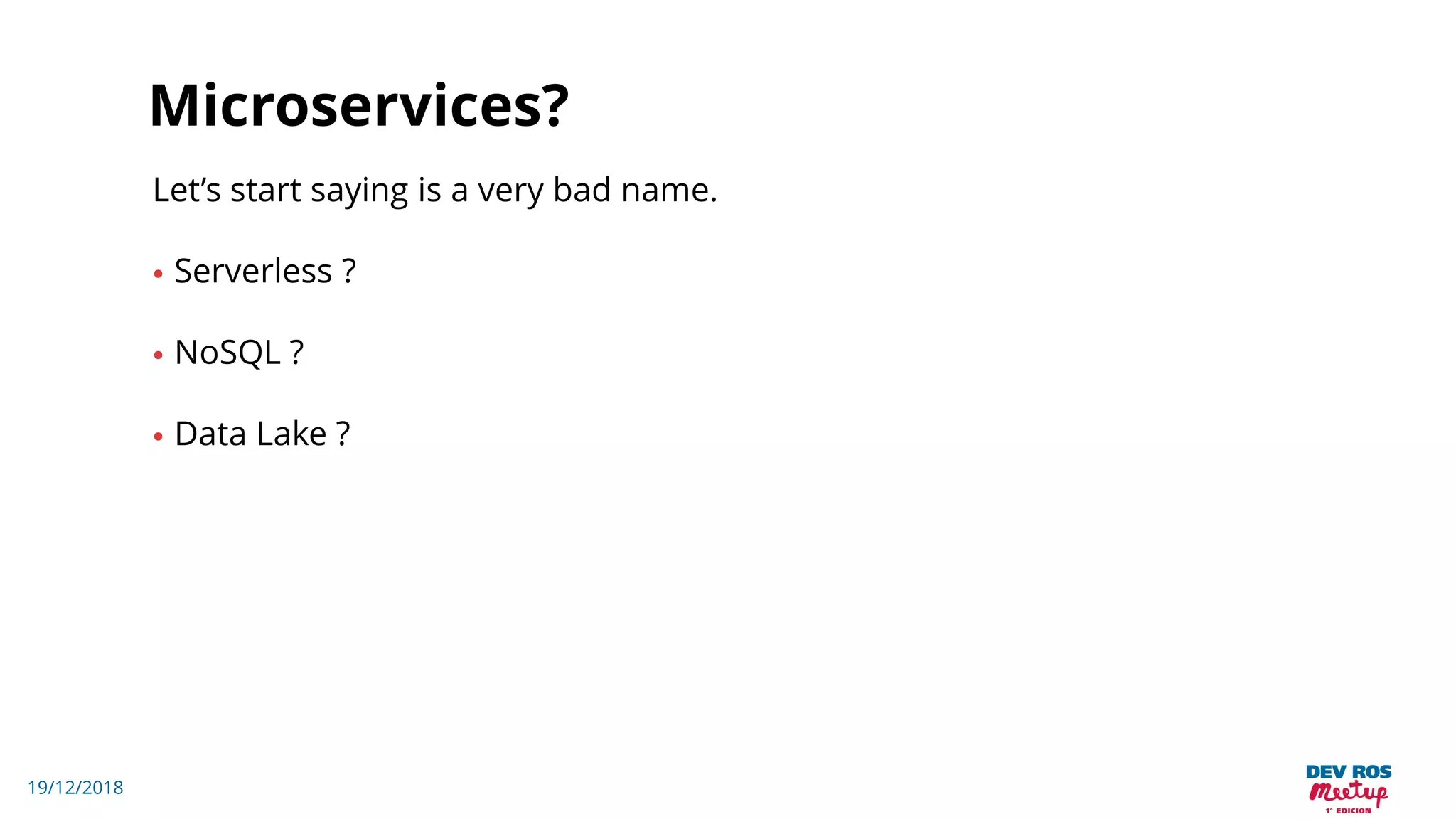

- 6. 19/12/2018 Microservices? Let’s start sayingis a very bad name. • Serverless ? • NoSQL ? • Data Lake ?

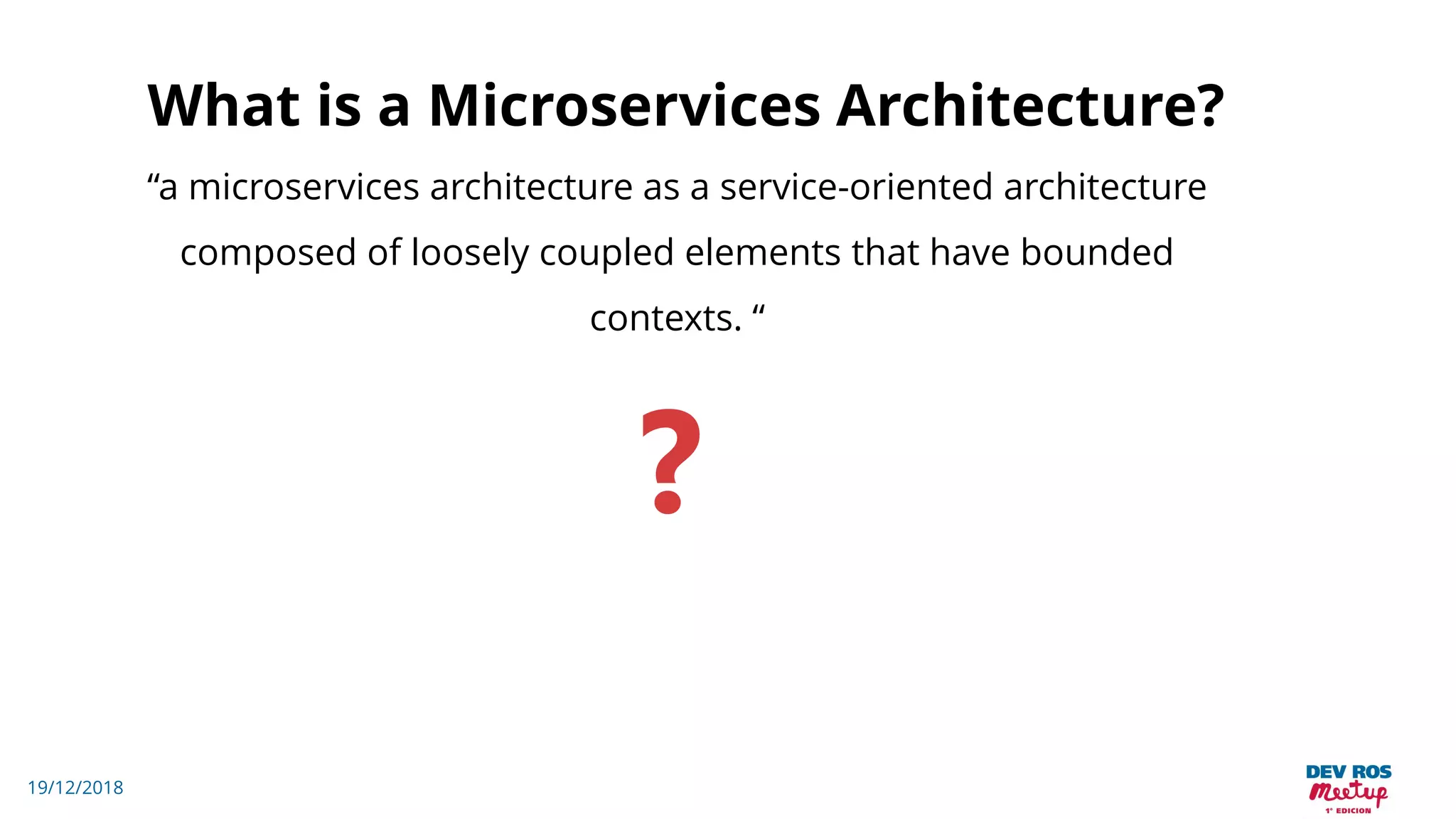

- 7. 19/12/2018 What is aMicroservices Architecture? “a microservices architecture as a service-oriented architecture composed of loosely coupled elements that have bounded contexts. “ ?

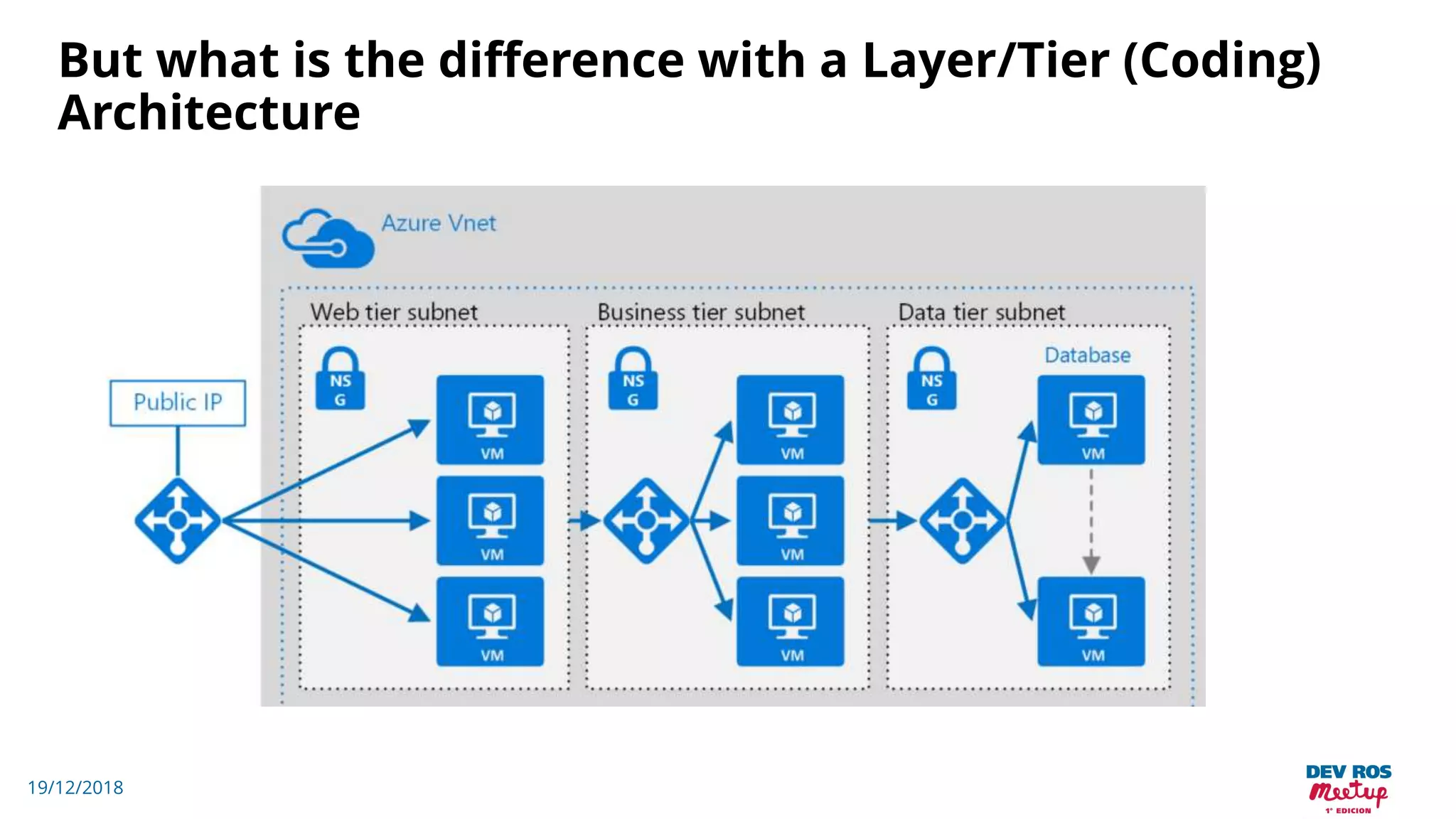

- 8. 19/12/2018 But what isthe difference with a Layer/Tier (Coding) Architecture

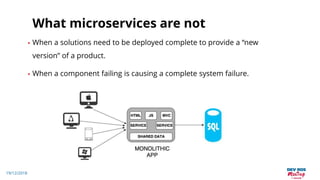

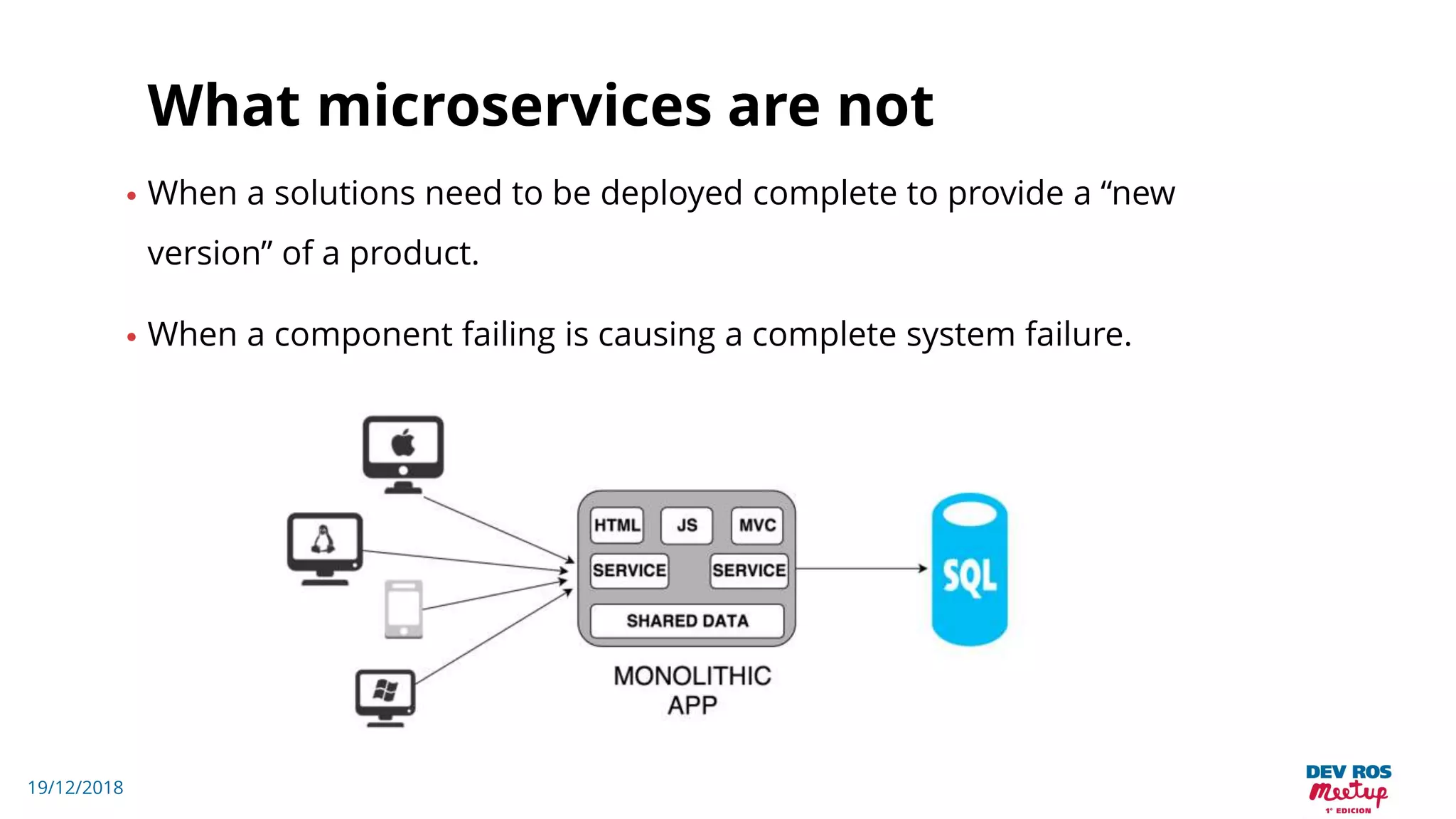

- 9. 19/12/2018 What microservices arenot • When a solutions need to be deployed complete to provide a “new version” of a product. • When a component failing is causing a complete system failure.

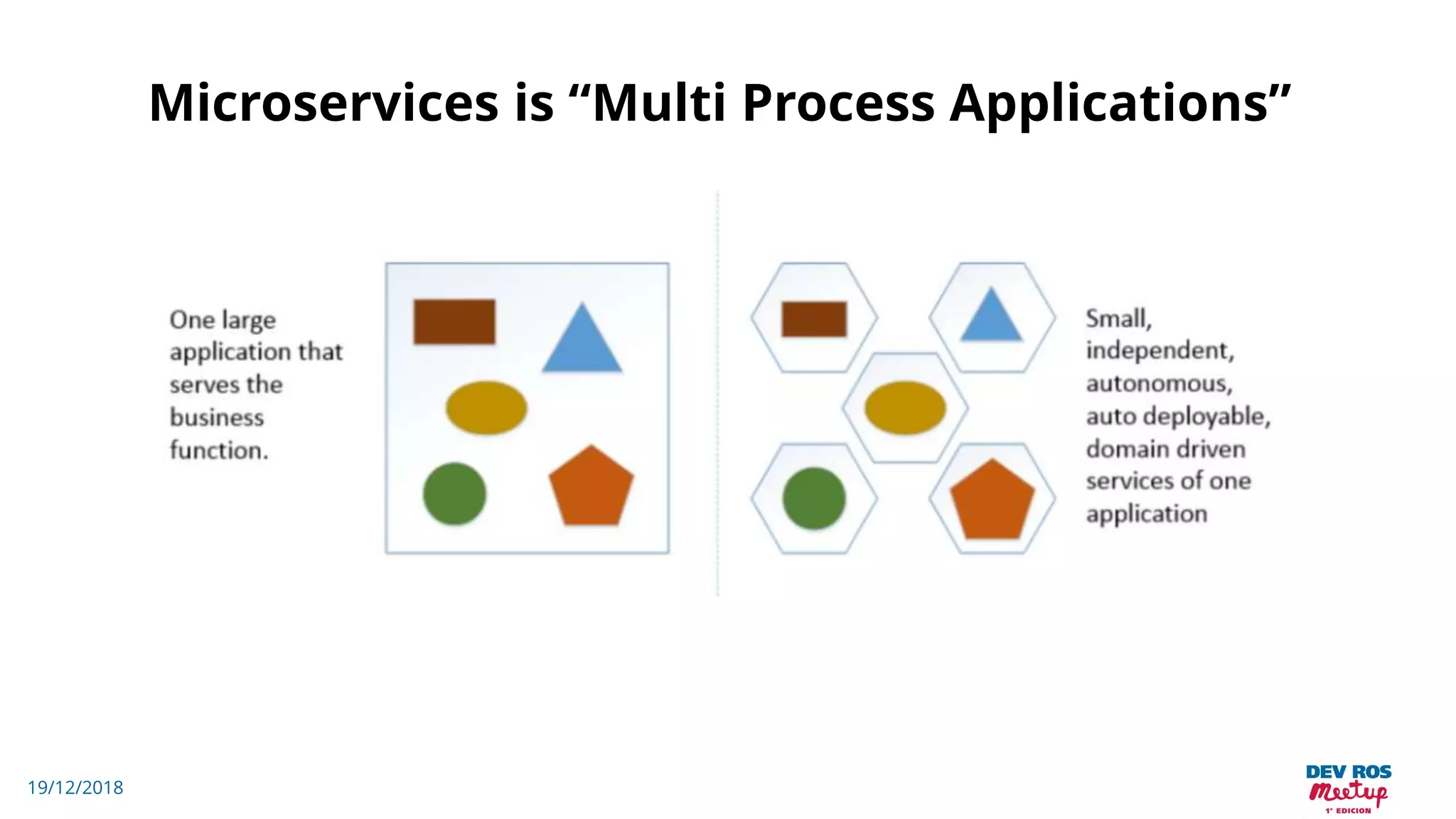

- 10. 19/12/2018 Microservices is “MultiProcess Applications”

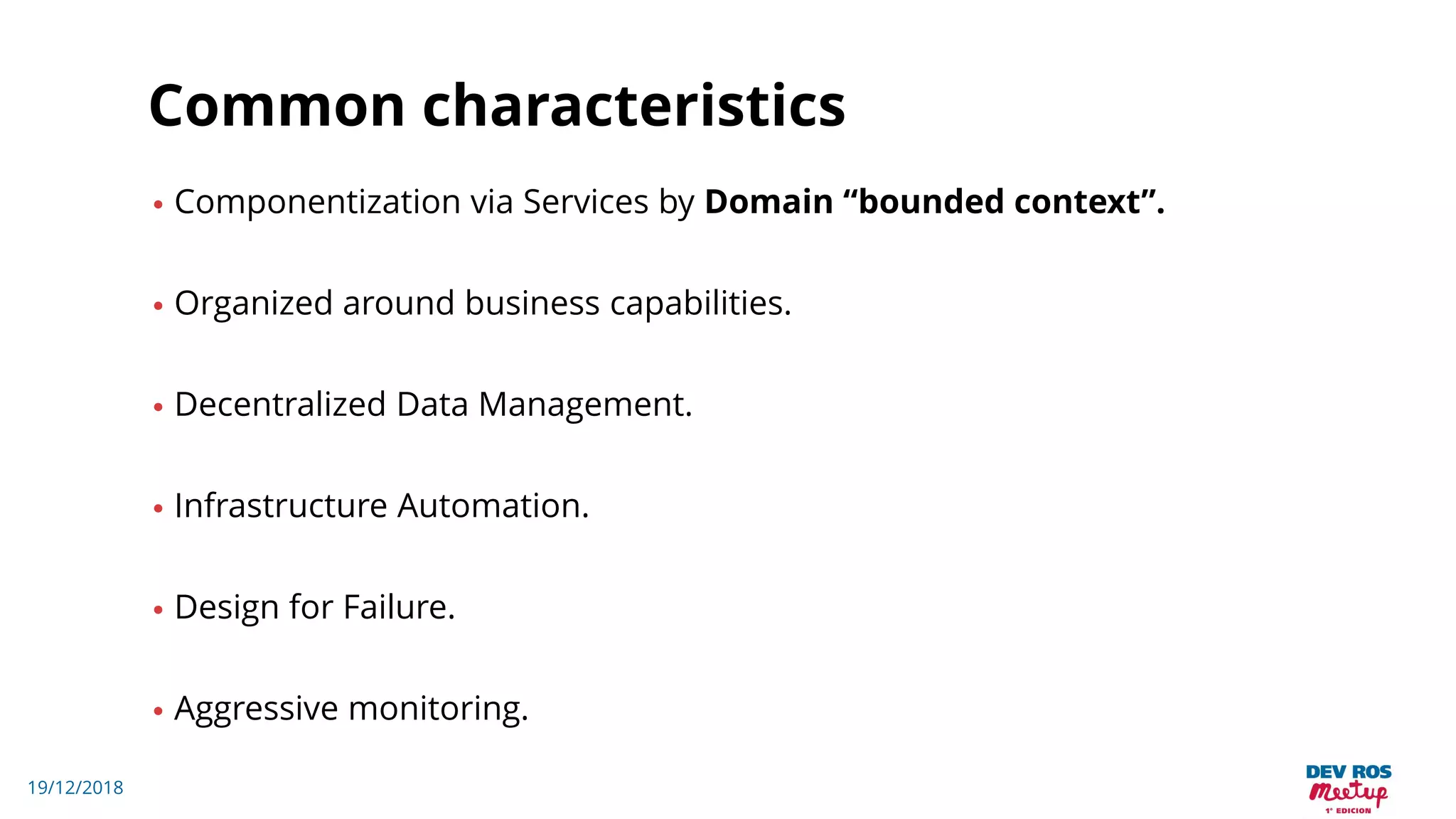

- 11. 19/12/2018 Common characteristics • Componentizationvia Services by Domain “bounded context”. • Organized around business capabilities. • Decentralized Data Management. • Infrastructure Automation. • Design for Failure. • Aggressive monitoring.

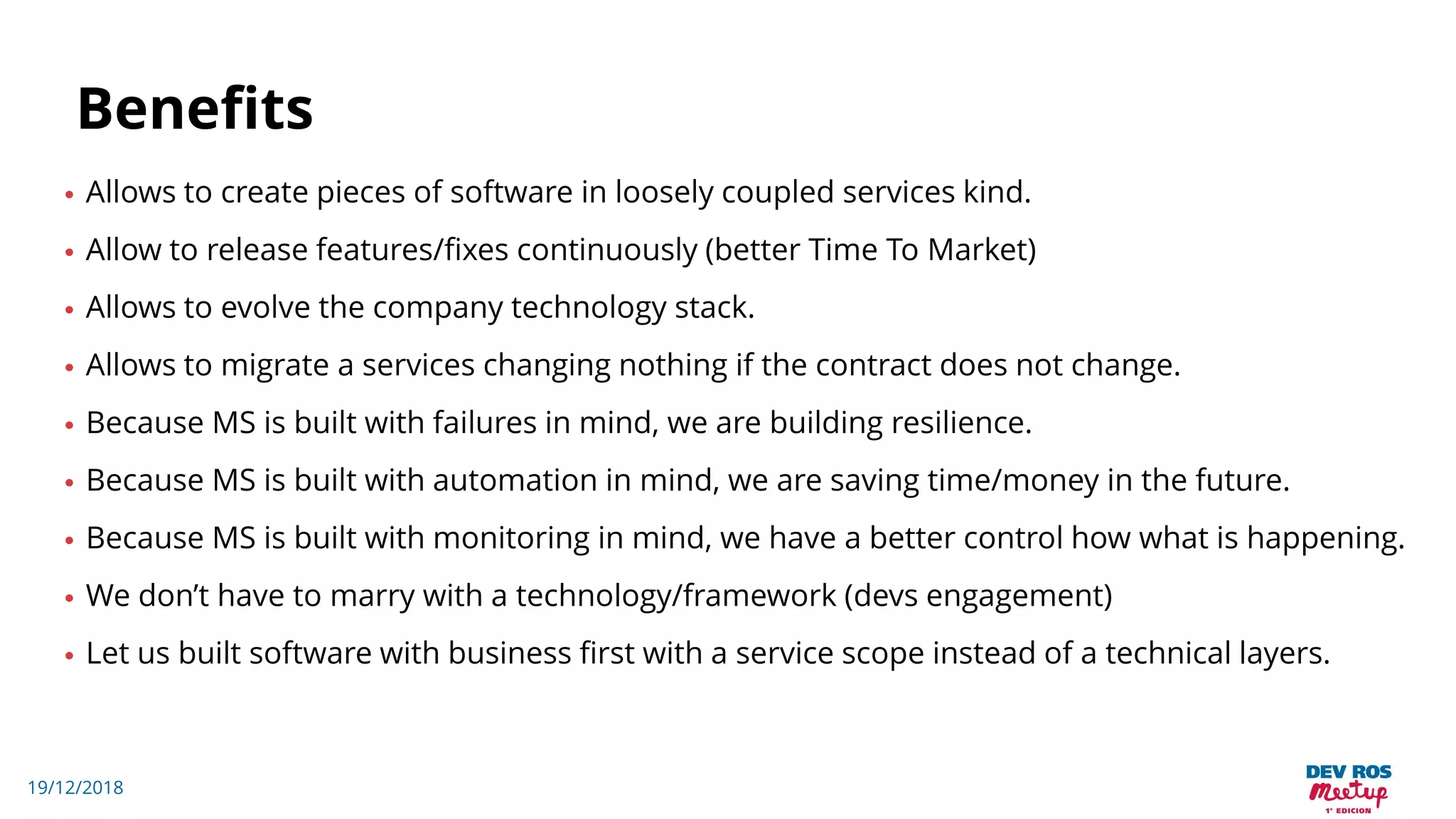

- 12. 19/12/2018 Benefits • Allows tocreate pieces of software in loosely coupled services kind. • Allow to release features/fixes continuously (better Time To Market) • Allows to evolve the company technology stack. • Allows to migrate a services changing nothing if the contract does not change. • Because MS is built with failures in mind, we are building resilience. • Because MS is built with automation in mind, we are saving time/money in the future. • Because MS is built with monitoring in mind, we have a better control how what is happening. • We don’t have to marry with a technology/framework (devs engagement) • Let us built software with business first with a service scope instead of a technical layers.

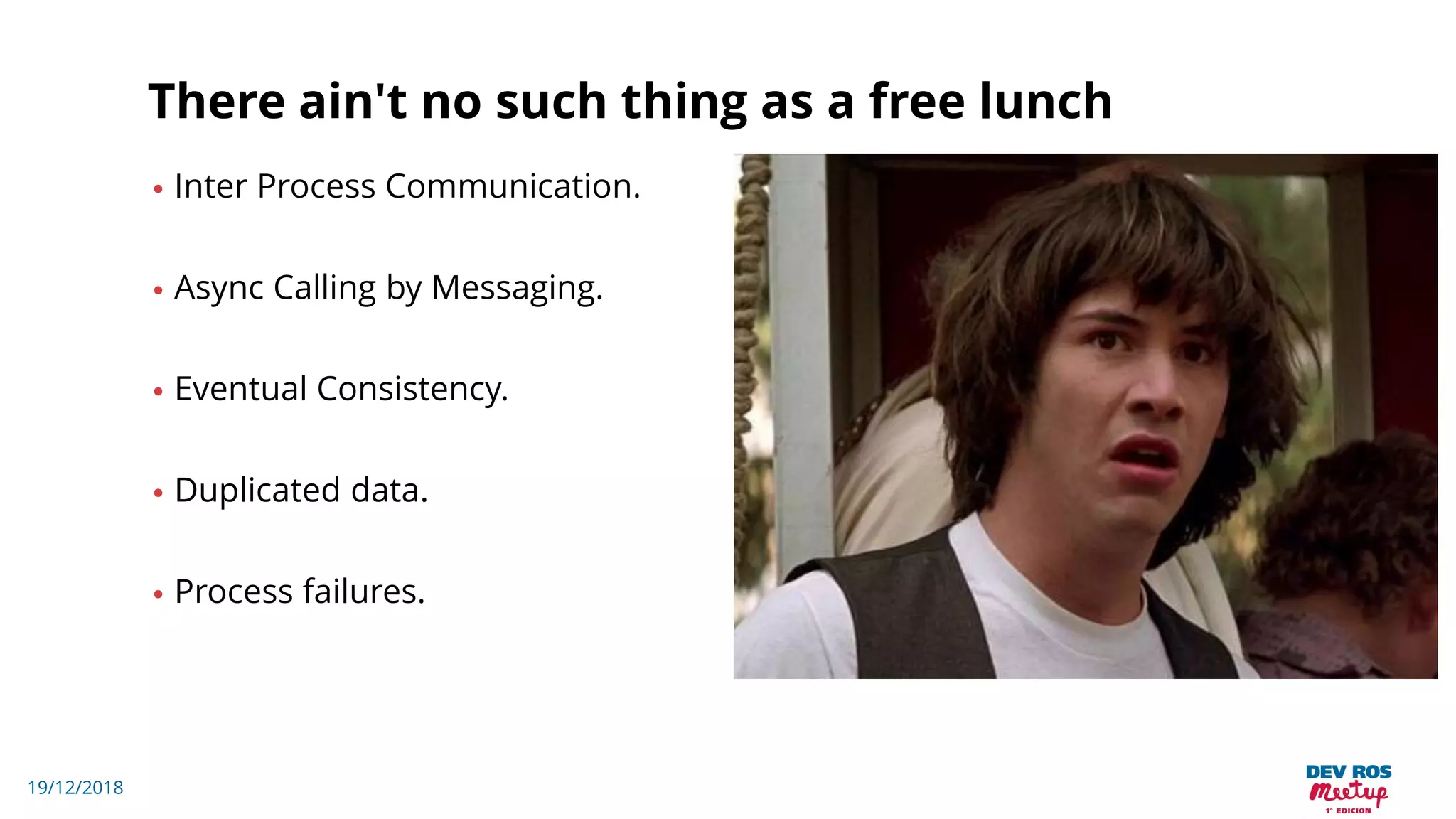

- 13. 19/12/2018 There ain't nosuch thing as a free lunch • Inter Process Communication. • Async Calling by Messaging. • Eventual Consistency. • Duplicated data. • Process failures.
- 14.
- 15.

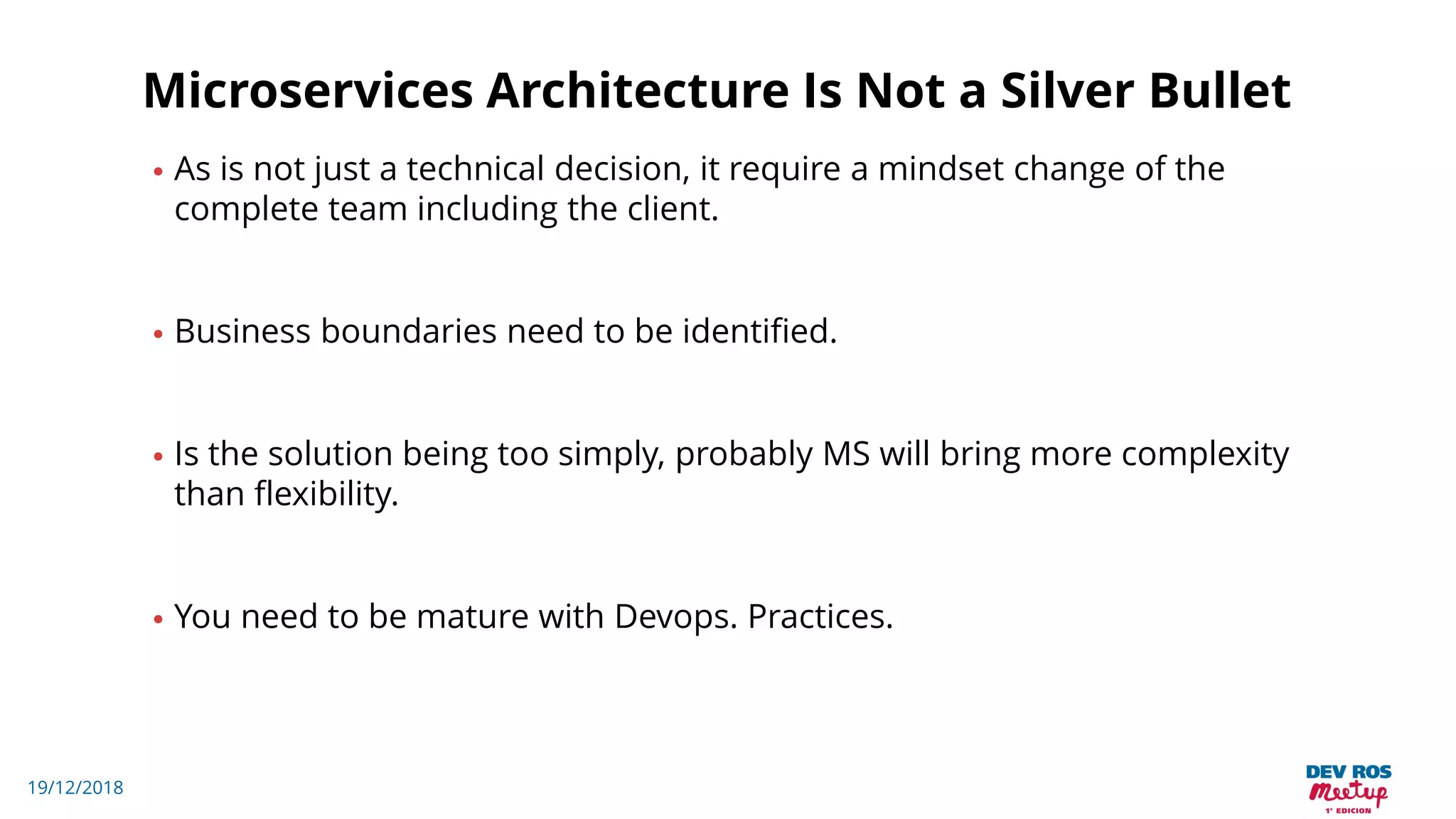

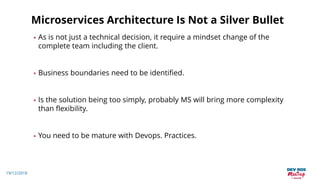

- 16. 19/12/2018 Microservices Architecture IsNot a Silver Bullet • As is not just a technical decision, it require a mindset change of the complete team including the client. • Business boundaries need to be identified. • Is the solution being too simply, probably MS will bring more complexity than flexibility. • You need to be mature with Devops. Practices.

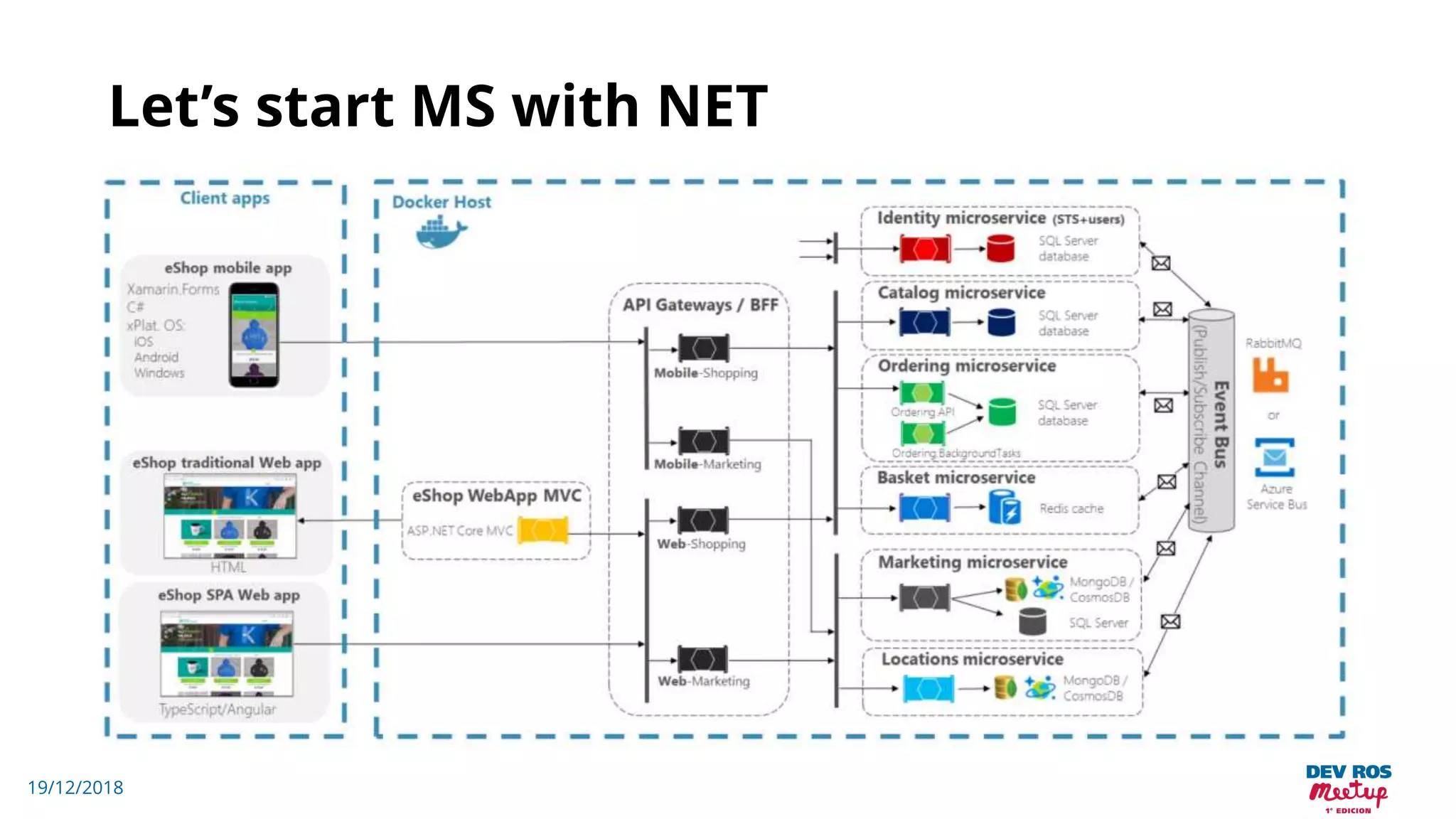

- 17. 19/12/2018 Let’s start MSwith NET

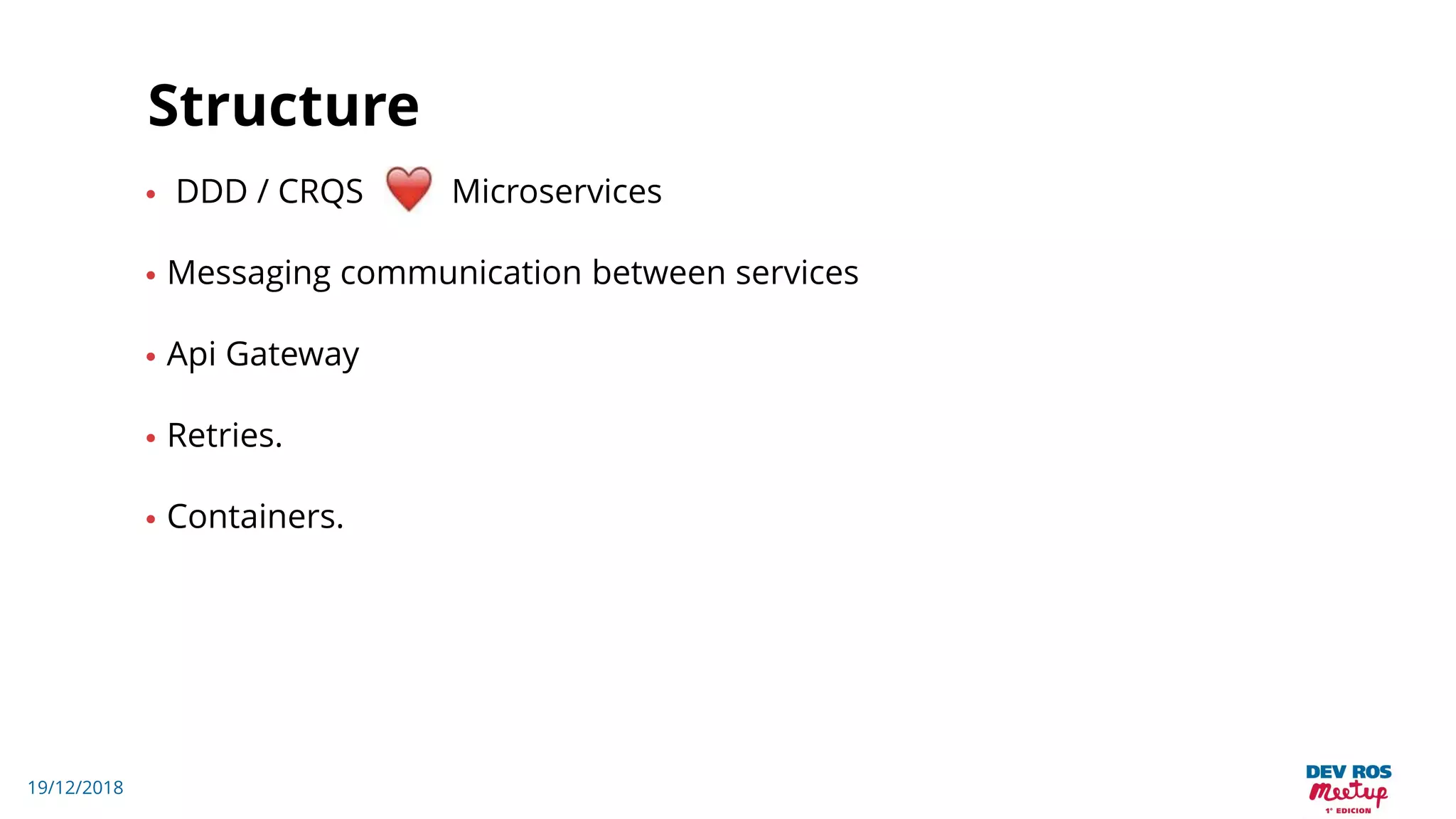

- 18. 19/12/2018 Structure • DDD /CRQS Microservices • Messaging communication between services • Api Gateway • Retries. • Containers.

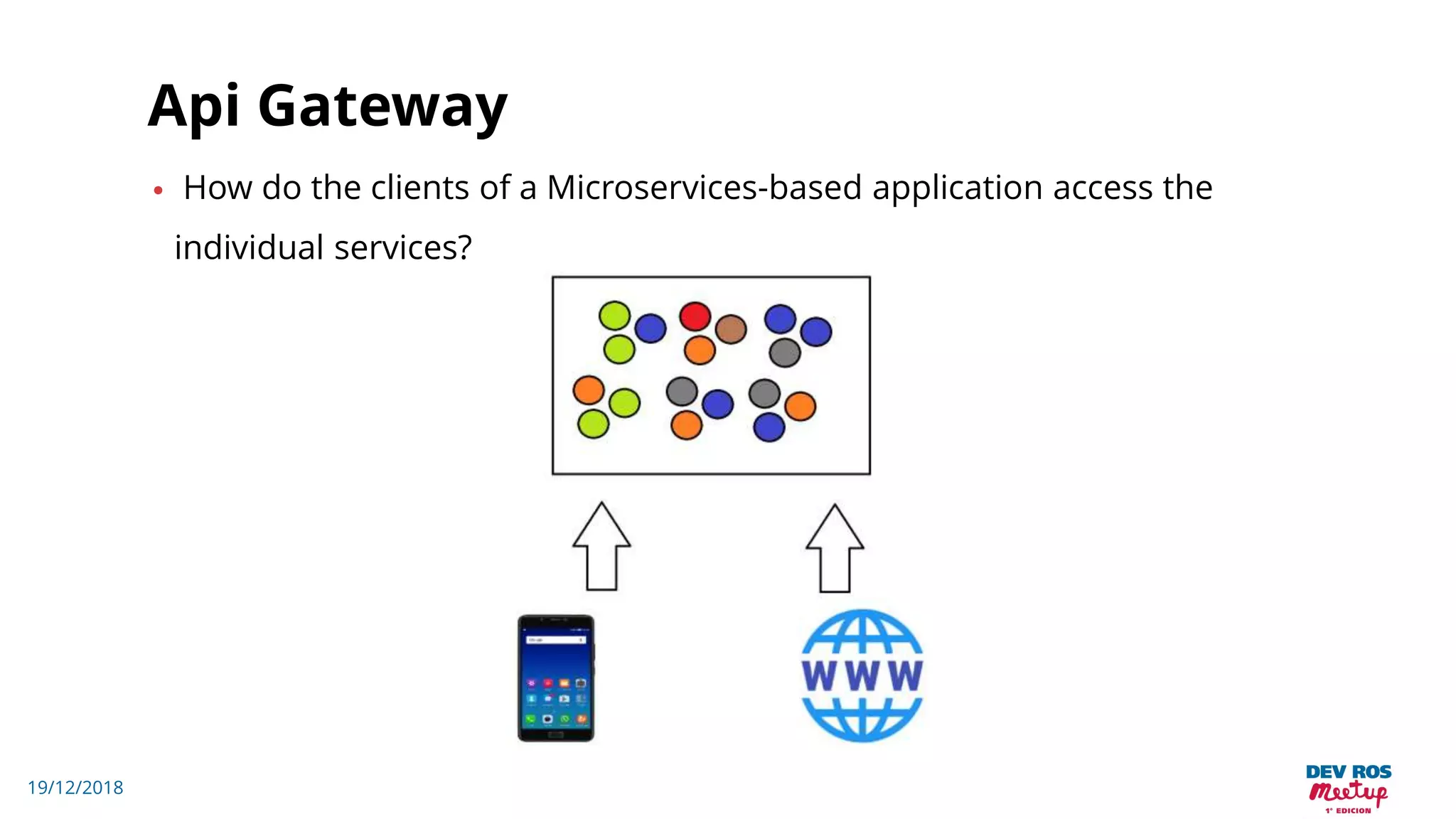

- 19. 19/12/2018 Api Gateway • Howdo the clients of a Microservices-based application access the individual services?
- 20.

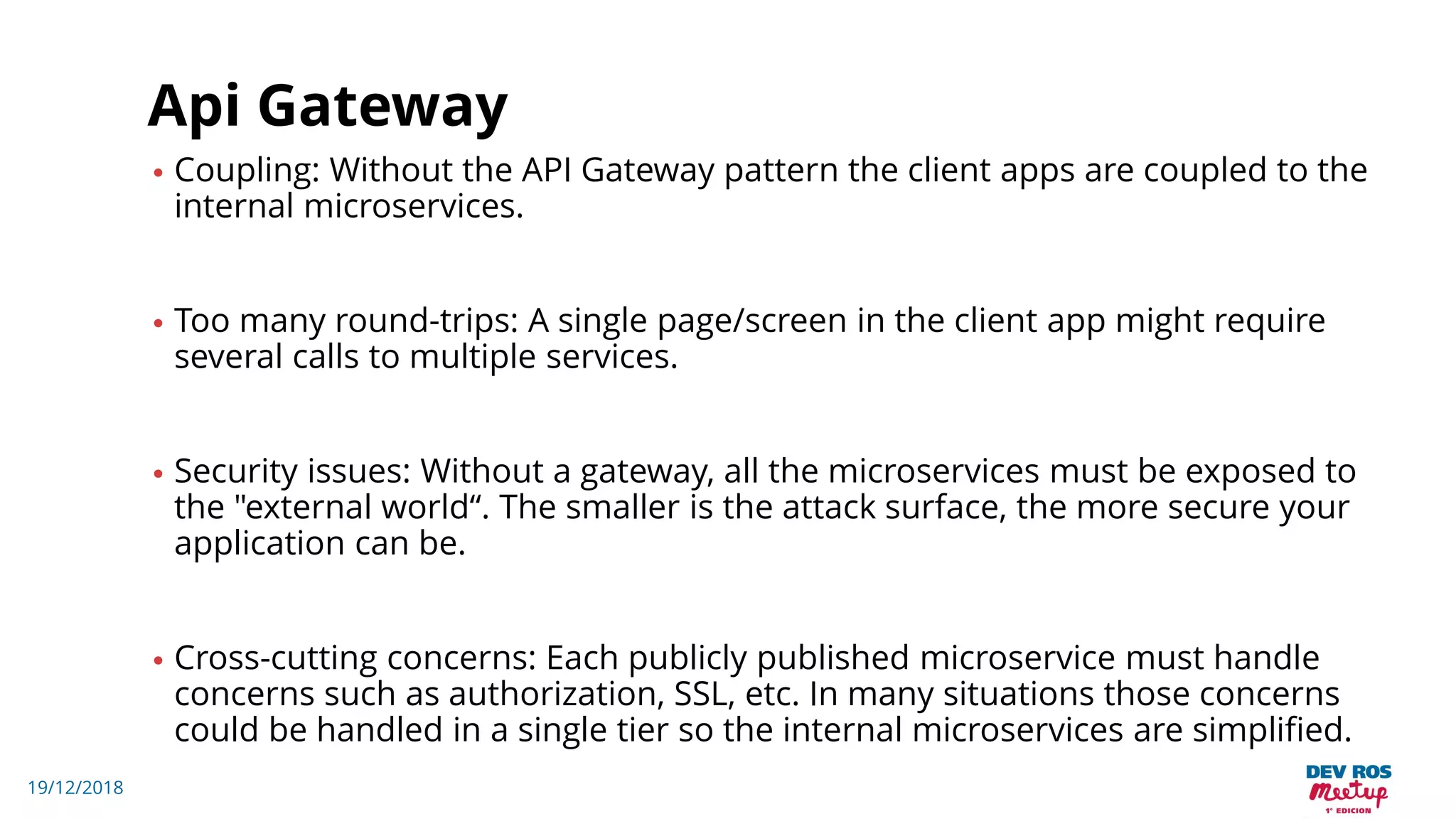

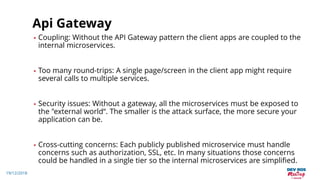

- 21. 19/12/2018 Api Gateway • Coupling:Without the API Gateway pattern the client apps are coupled to the internal microservices. • Too many round-trips: A single page/screen in the client app might require several calls to multiple services. • Security issues: Without a gateway, all the microservices must be exposed to the "external world“. The smaller is the attack surface, the more secure your application can be. • Cross-cutting concerns: Each publicly published microservice must handle concerns such as authorization, SSL, etc. In many situations those concerns could be handled in a single tier so the internal microservices are simplified.

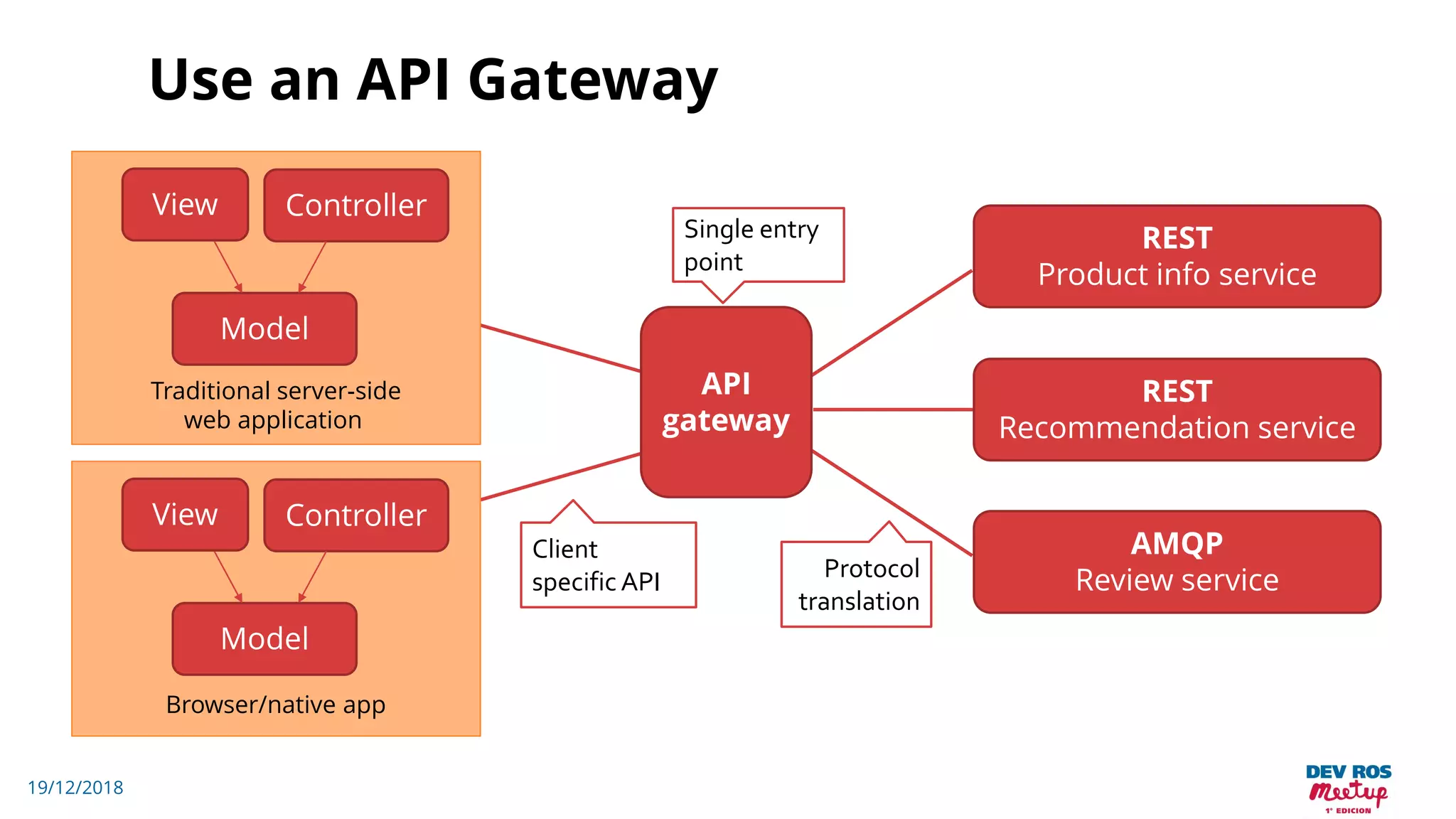

- 22. 19/12/2018 Use an APIGateway REST Product info service REST Recommendation service AMQP Review service API gateway View Controller Model Traditional server-side web application View Controller Model Browser/native app Single entry point Client specific API Protocol translation

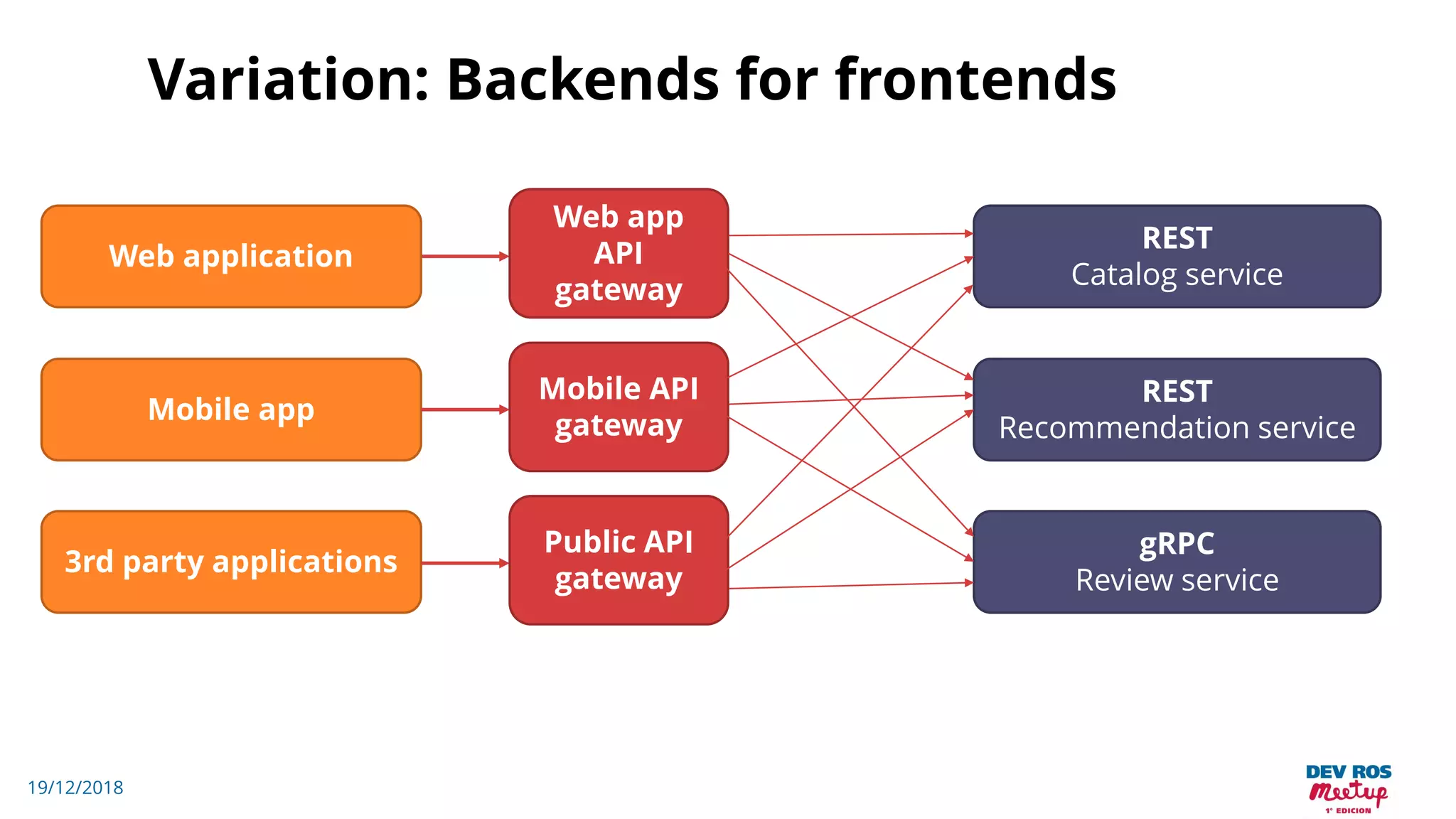

- 23. 19/12/2018 Variation: Backends forfrontends Web application Mobile app 3rd party applications Web app API gateway Mobile API gateway Public API gateway REST Catalog service REST Recommendation service gRPC Review service

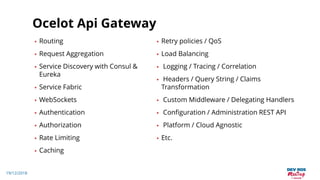

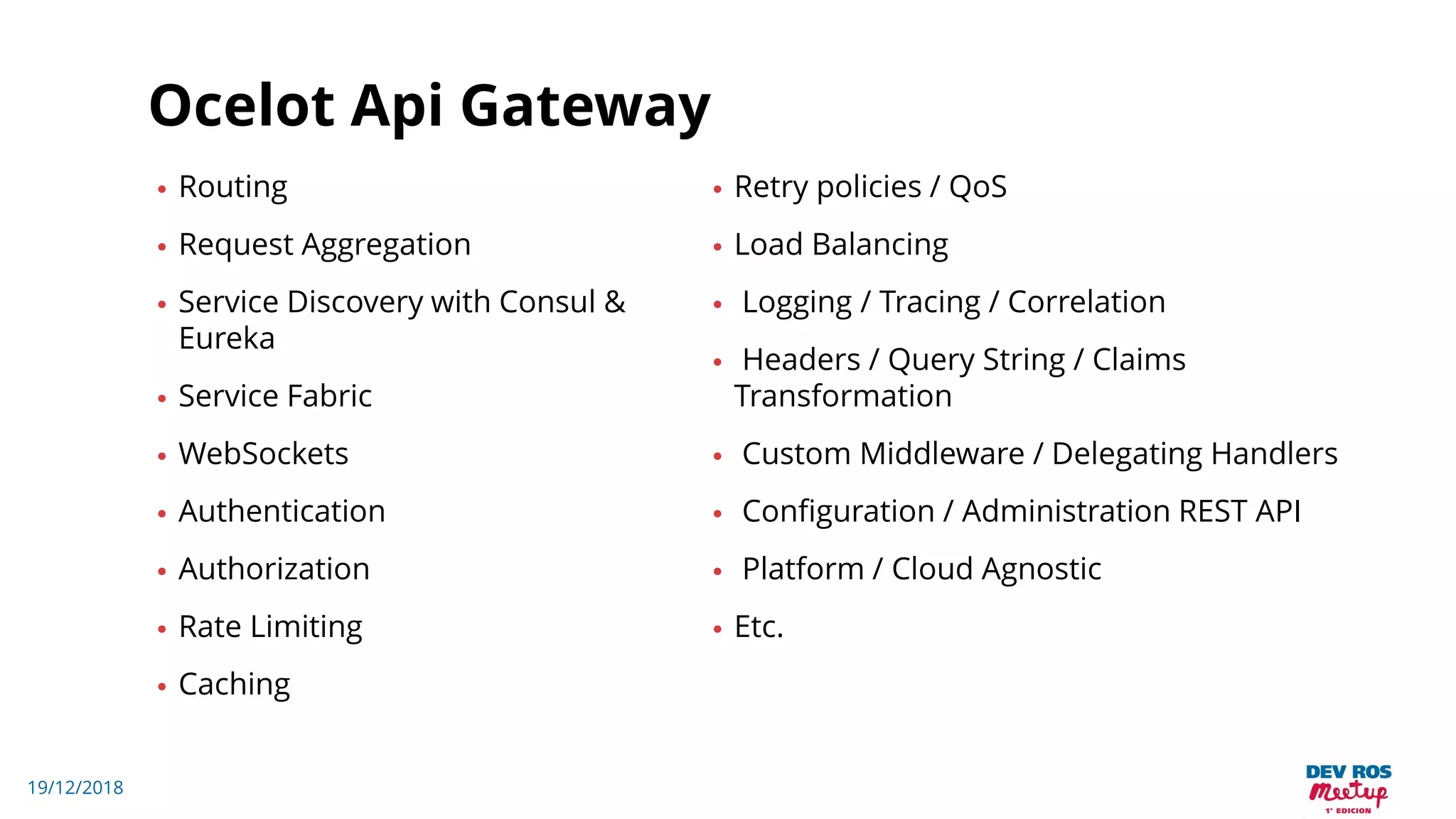

- 24. 19/12/2018 Ocelot Api Gateway •Routing • Request Aggregation • Service Discovery with Consul & Eureka • Service Fabric • WebSockets • Authentication • Authorization • Rate Limiting • Caching • Retry policies / QoS • Load Balancing • Logging / Tracing / Correlation • Headers / Query String / Claims Transformation • Custom Middleware / Delegating Handlers • Configuration / Administration REST API • Platform / Cloud Agnostic • Etc.

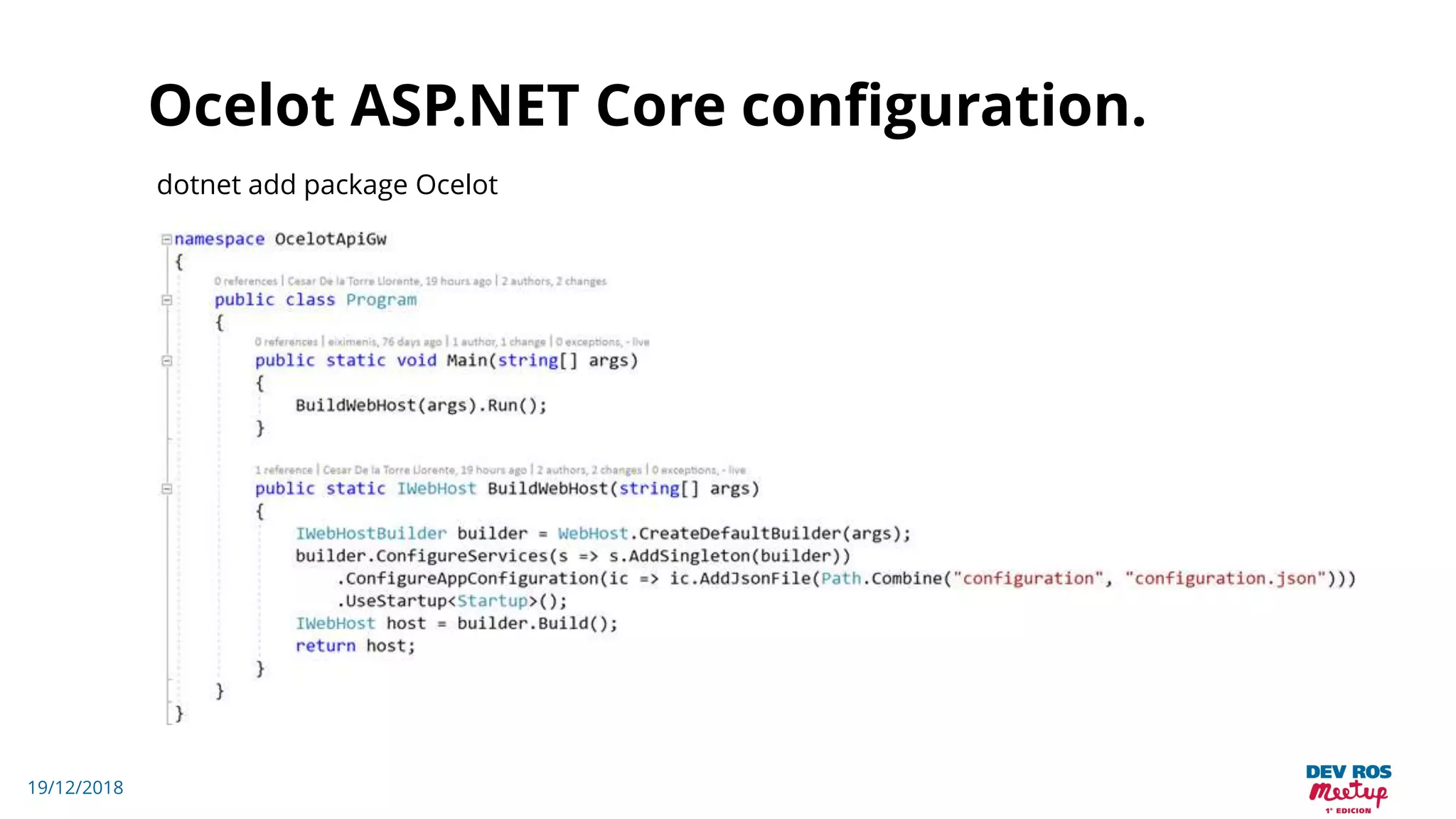

- 25. 19/12/2018 Ocelot ASP.NET Coreconfiguration. dotnet add package Ocelot

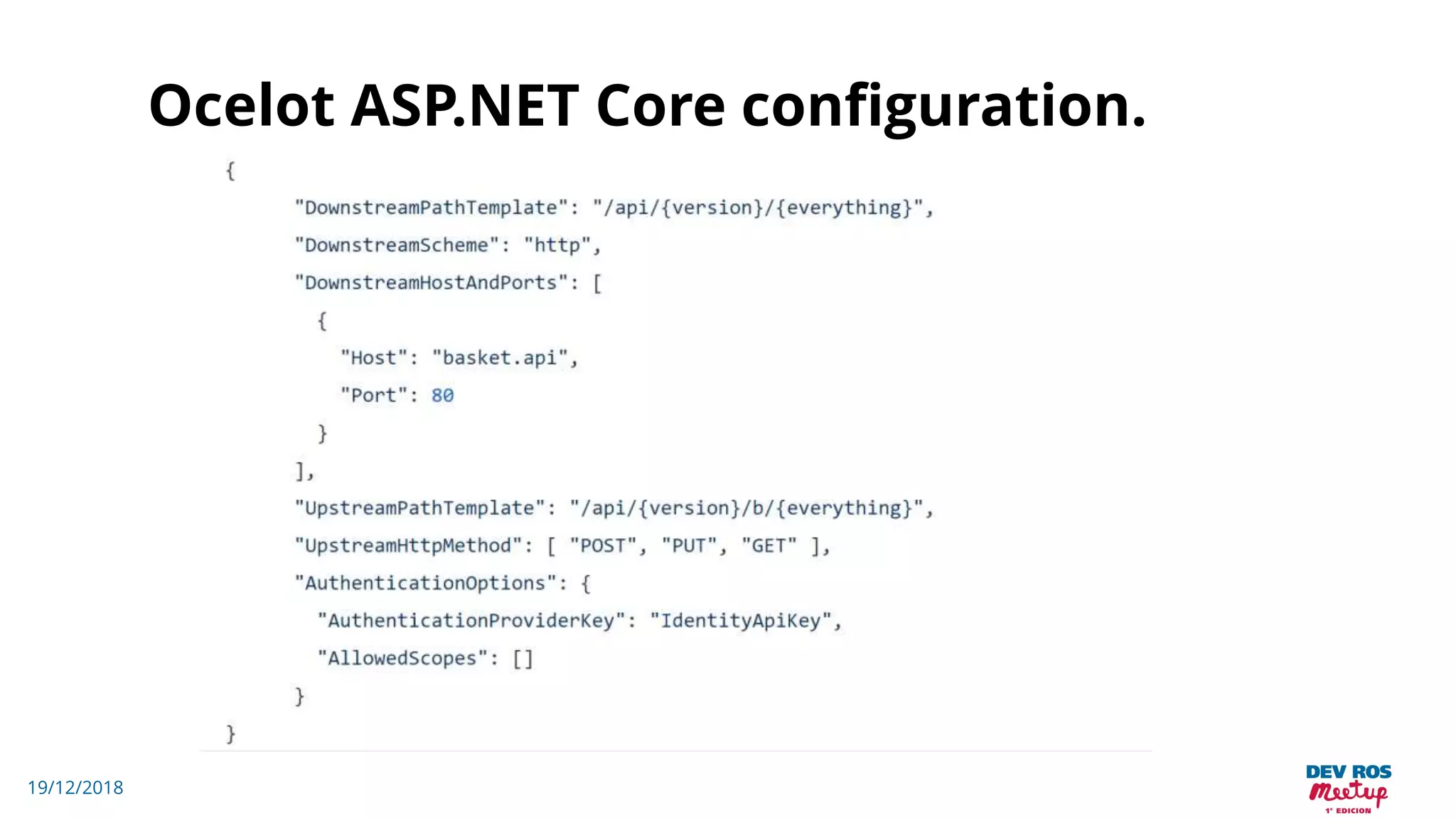

- 26. 19/12/2018 Ocelot ASP.NET Coreconfiguration.
- 27.
- 28.
- 29.

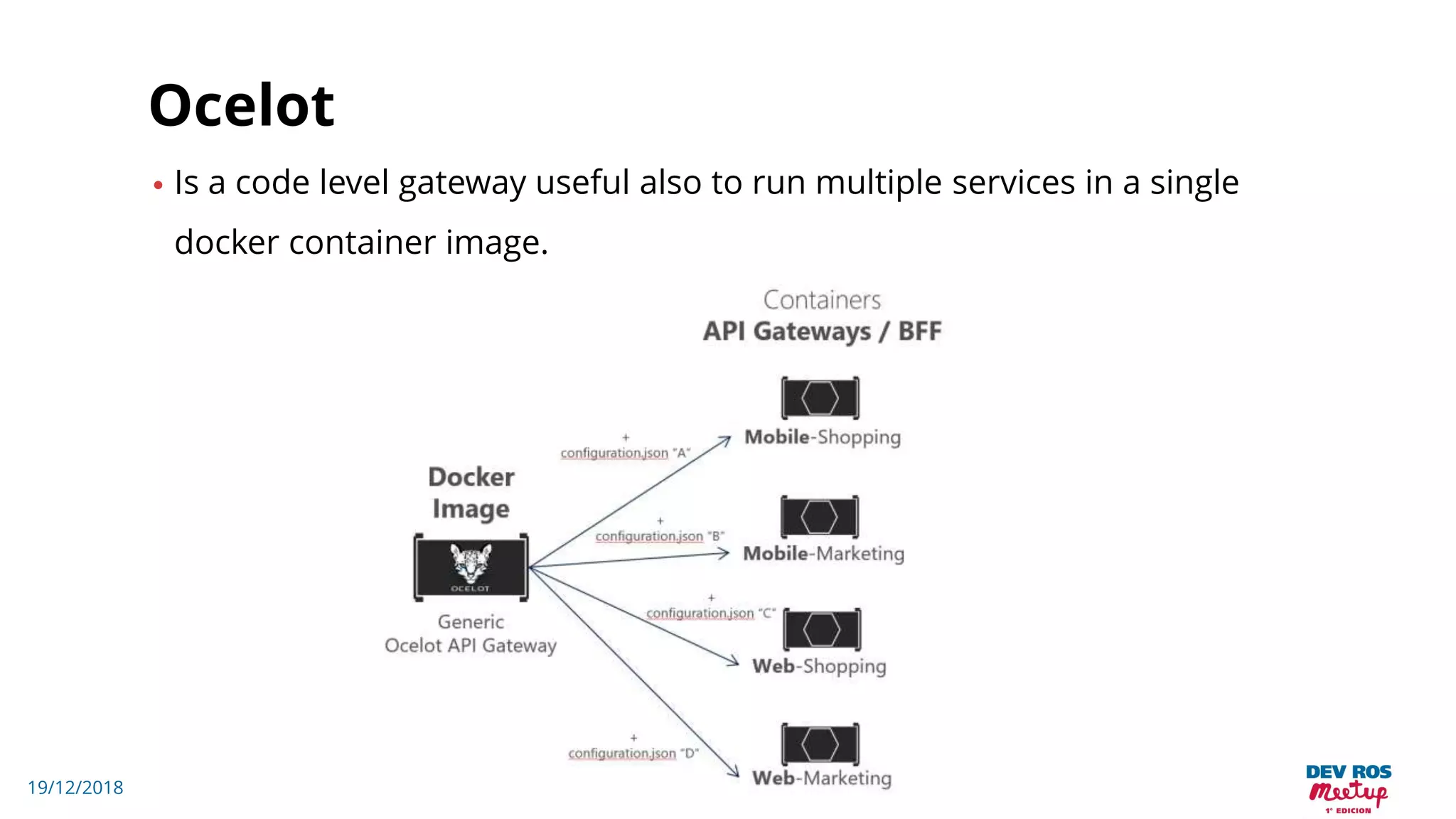

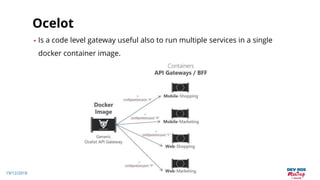

- 30. 19/12/2018 Ocelot • Is acode level gateway useful also to run multiple services in a single docker container image.

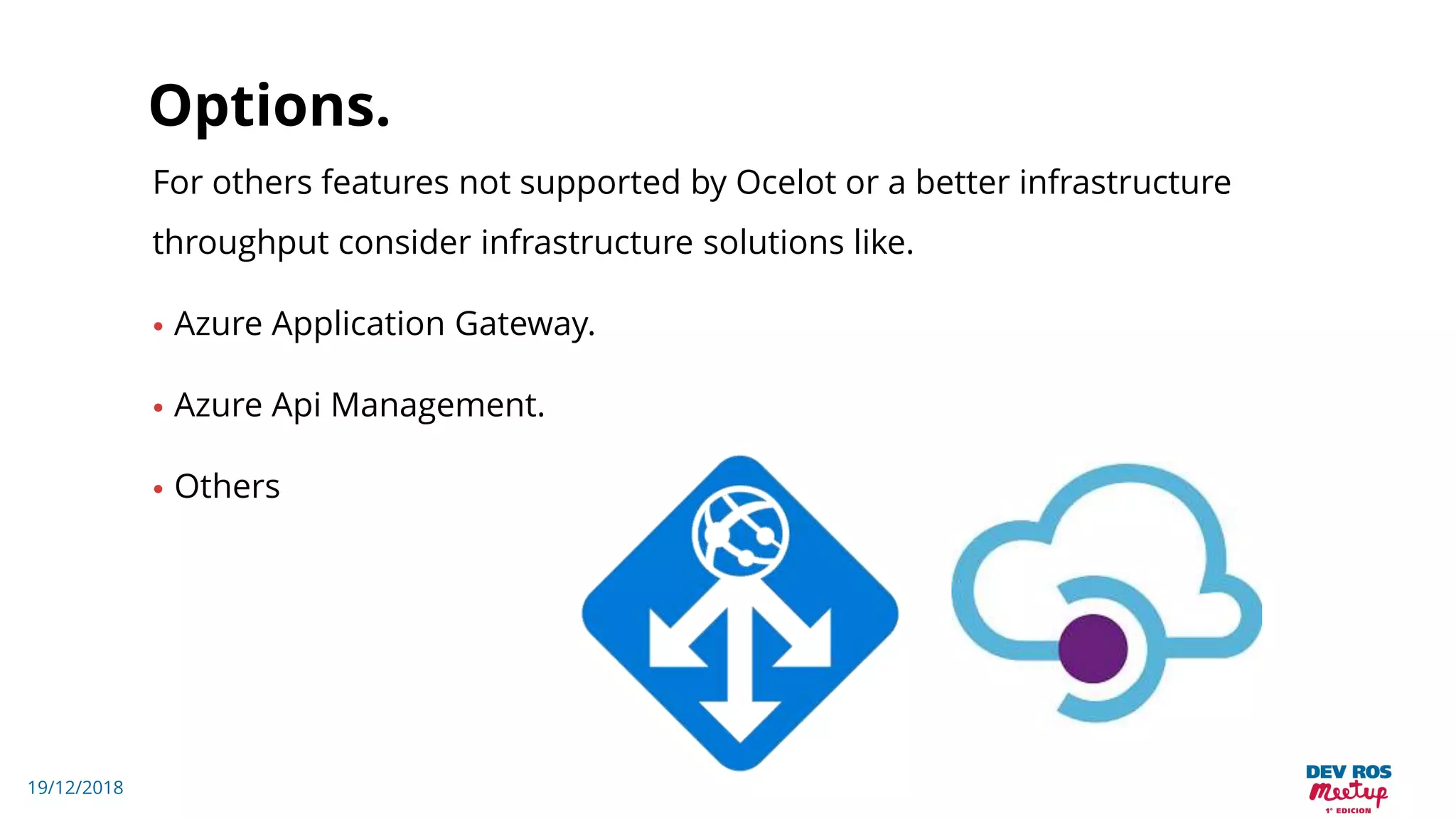

- 31. 19/12/2018 Options. For others featuresnot supported by Ocelot or a better infrastructure throughput consider infrastructure solutions like. • Azure Application Gateway. • Azure Api Management. • Others

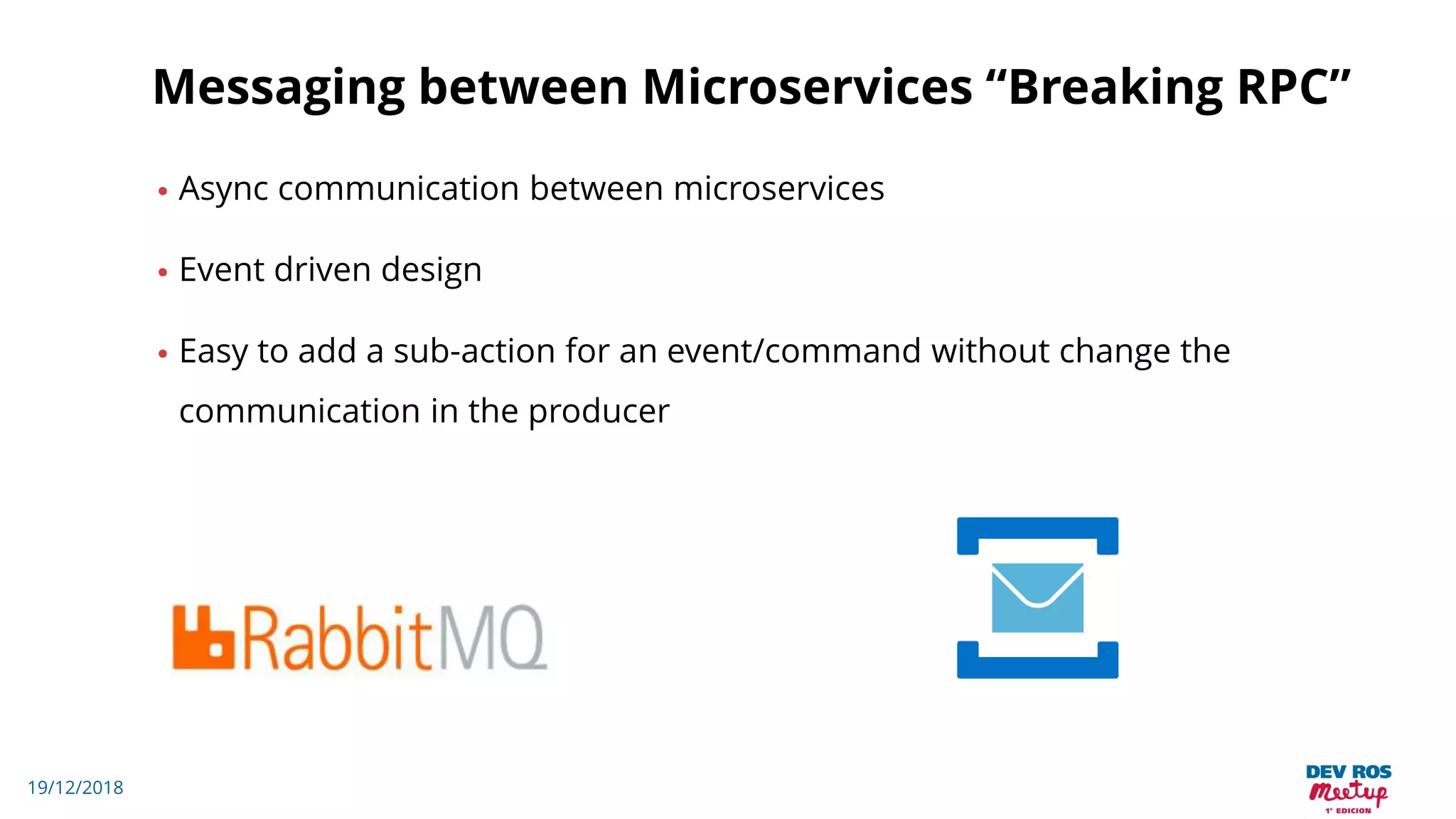

- 32. 19/12/2018 Messaging between Microservices“Breaking RPC” • Async communication between microservices • Event driven design • Easy to add a sub-action for an event/command without change the communication in the producer

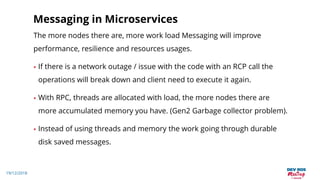

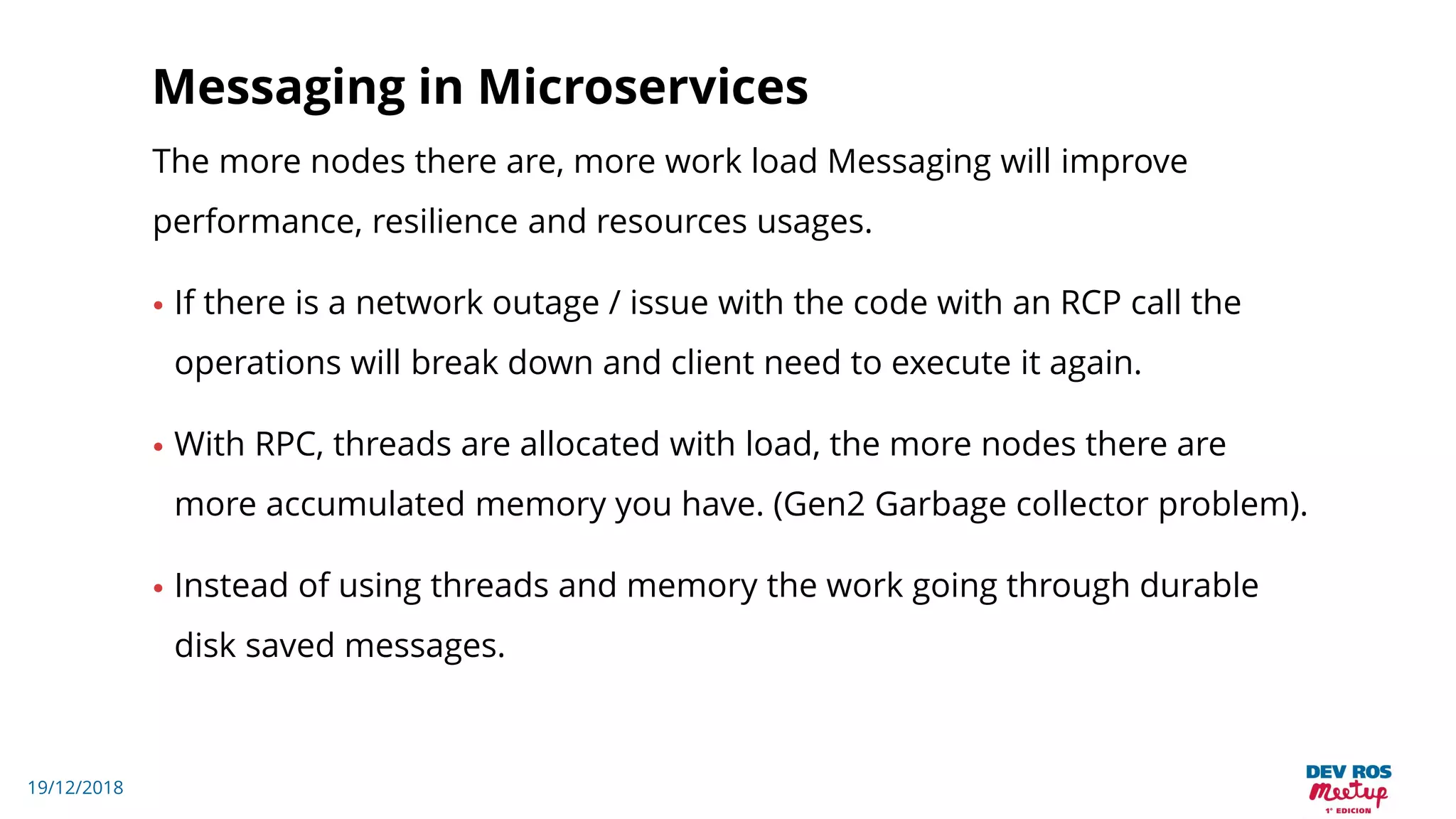

- 33. 19/12/2018 Messaging in Microservices Themore nodes there are, more work load Messaging will improve performance, resilience and resources usages. • If there is a network outage / issue with the code with an RCP call the operations will break down and client need to execute it again. • With RPC, threads are allocated with load, the more nodes there are more accumulated memory you have. (Gen2 Garbage collector problem). • Instead of using threads and memory the work going through durable disk saved messages.
- 34.
- 35.

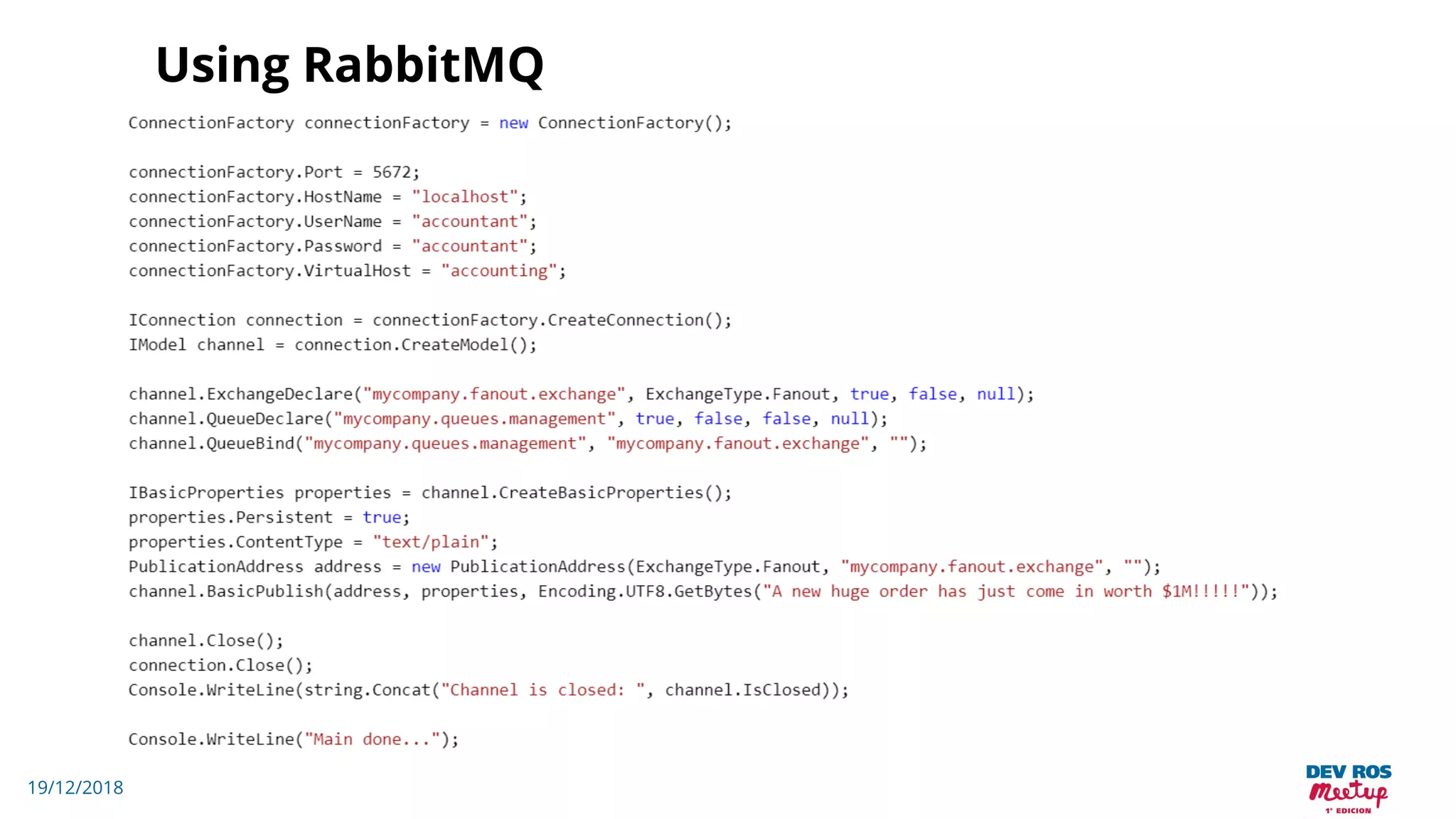

- 36.

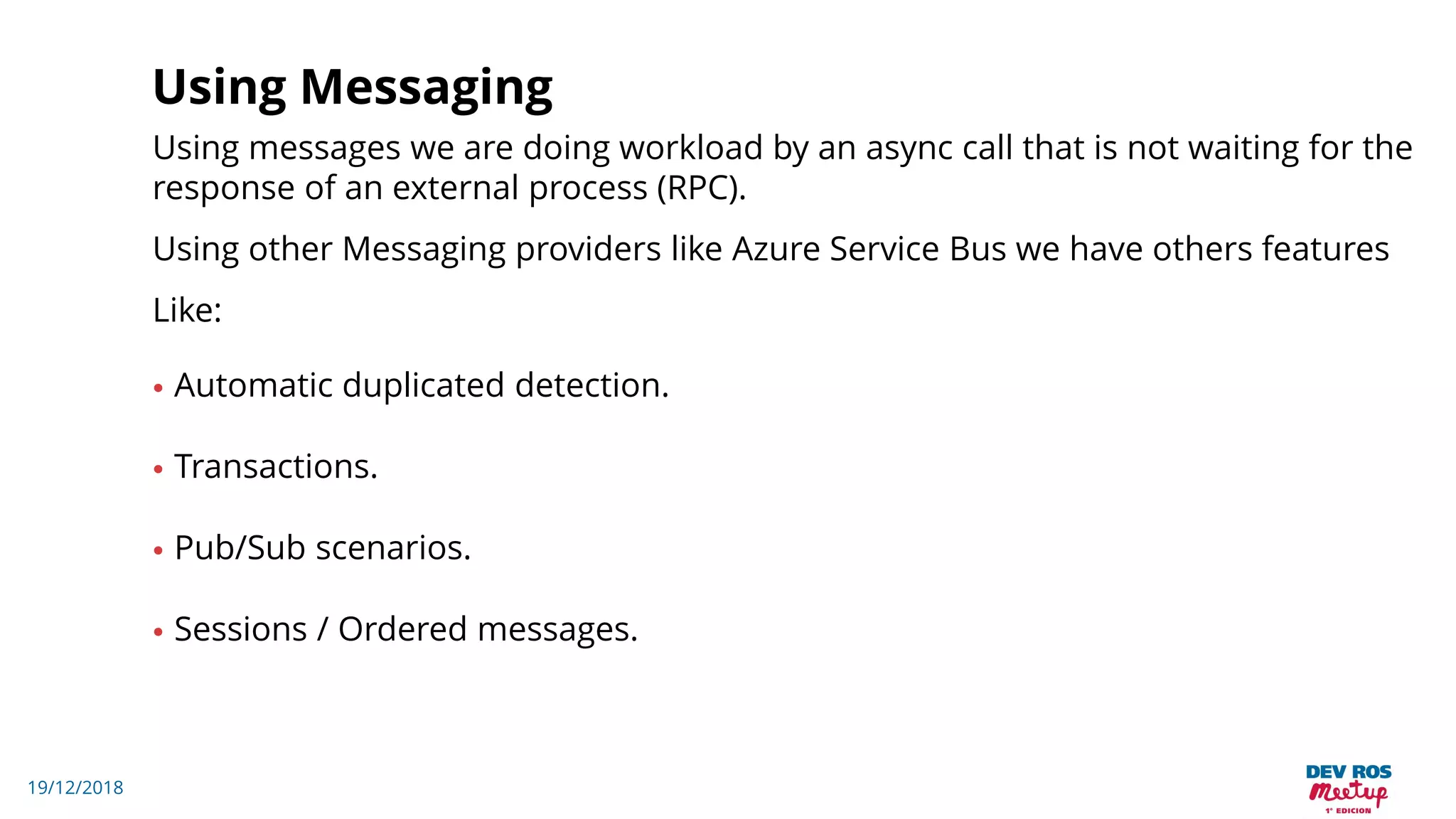

- 37. 19/12/2018 Using Messaging Using messageswe are doing workload by an async call that is not waiting for the response of an external process (RPC). Using other Messaging providers like Azure Service Bus we have others features Like: • Automatic duplicated detection. • Transactions. • Pub/Sub scenarios. • Sessions / Ordered messages.

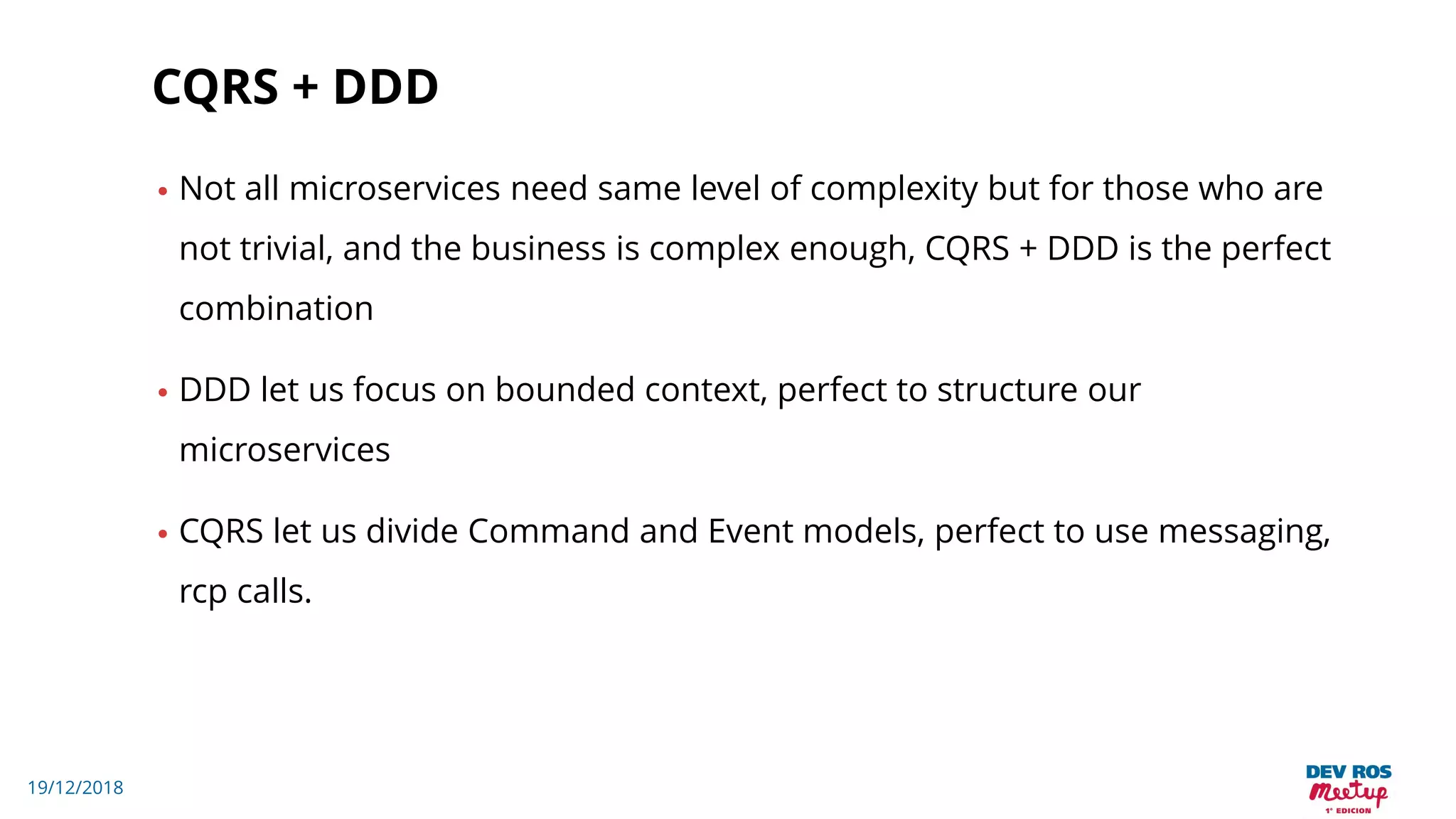

- 38. 19/12/2018 CQRS + DDD •Not all microservices need same level of complexity but for those who are not trivial, and the business is complex enough, CQRS + DDD is the perfect combination • DDD let us focus on bounded context, perfect to structure our microservices • CQRS let us divide Command and Event models, perfect to use messaging, rcp calls.

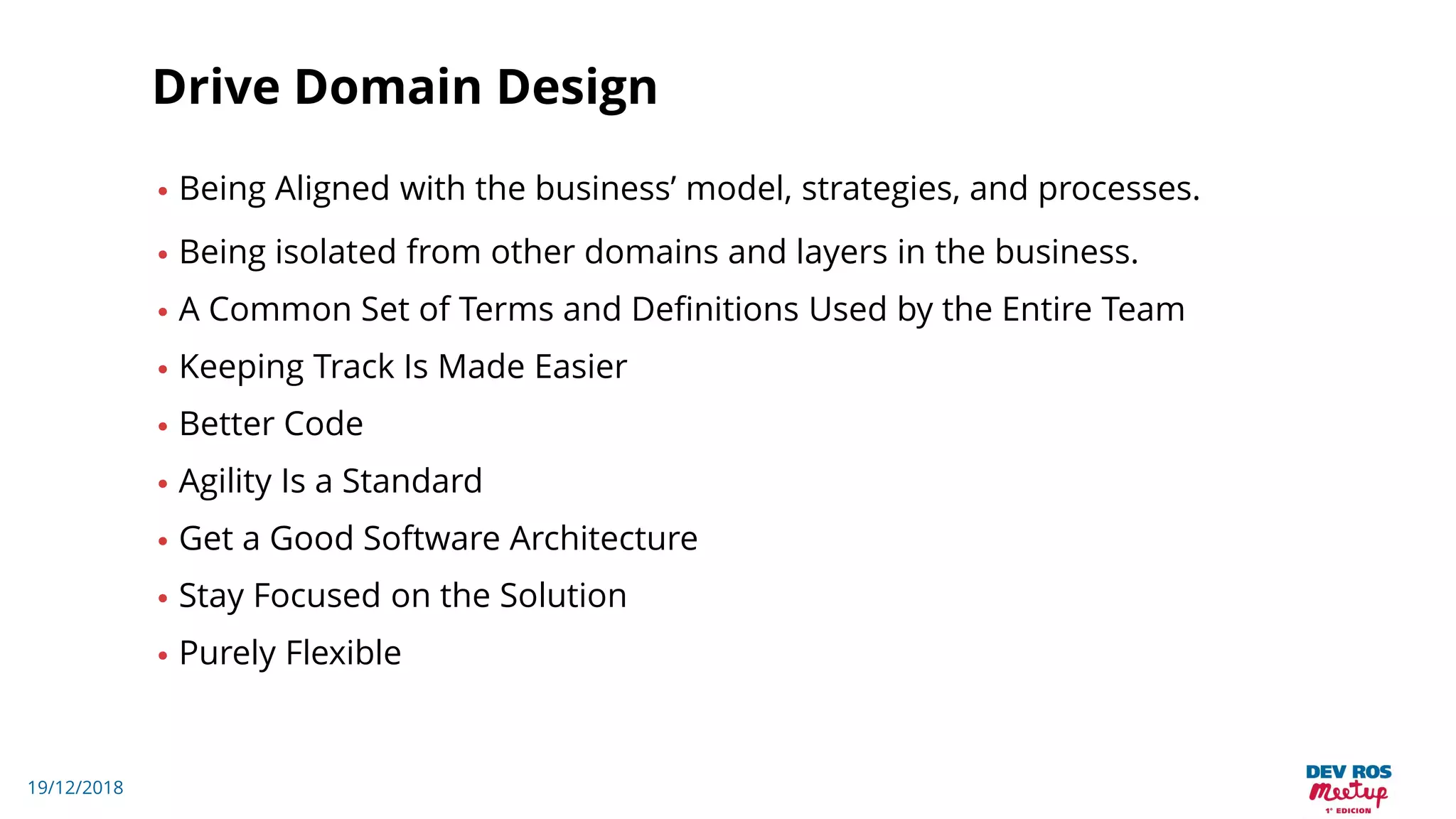

- 39. 19/12/2018 Drive Domain Design •Being Aligned with the business’ model, strategies, and processes. • Being isolated from other domains and layers in the business. • A Common Set of Terms and Definitions Used by the Entire Team • Keeping Track Is Made Easier • Better Code • Agility Is a Standard • Get a Good Software Architecture • Stay Focused on the Solution • Purely Flexible

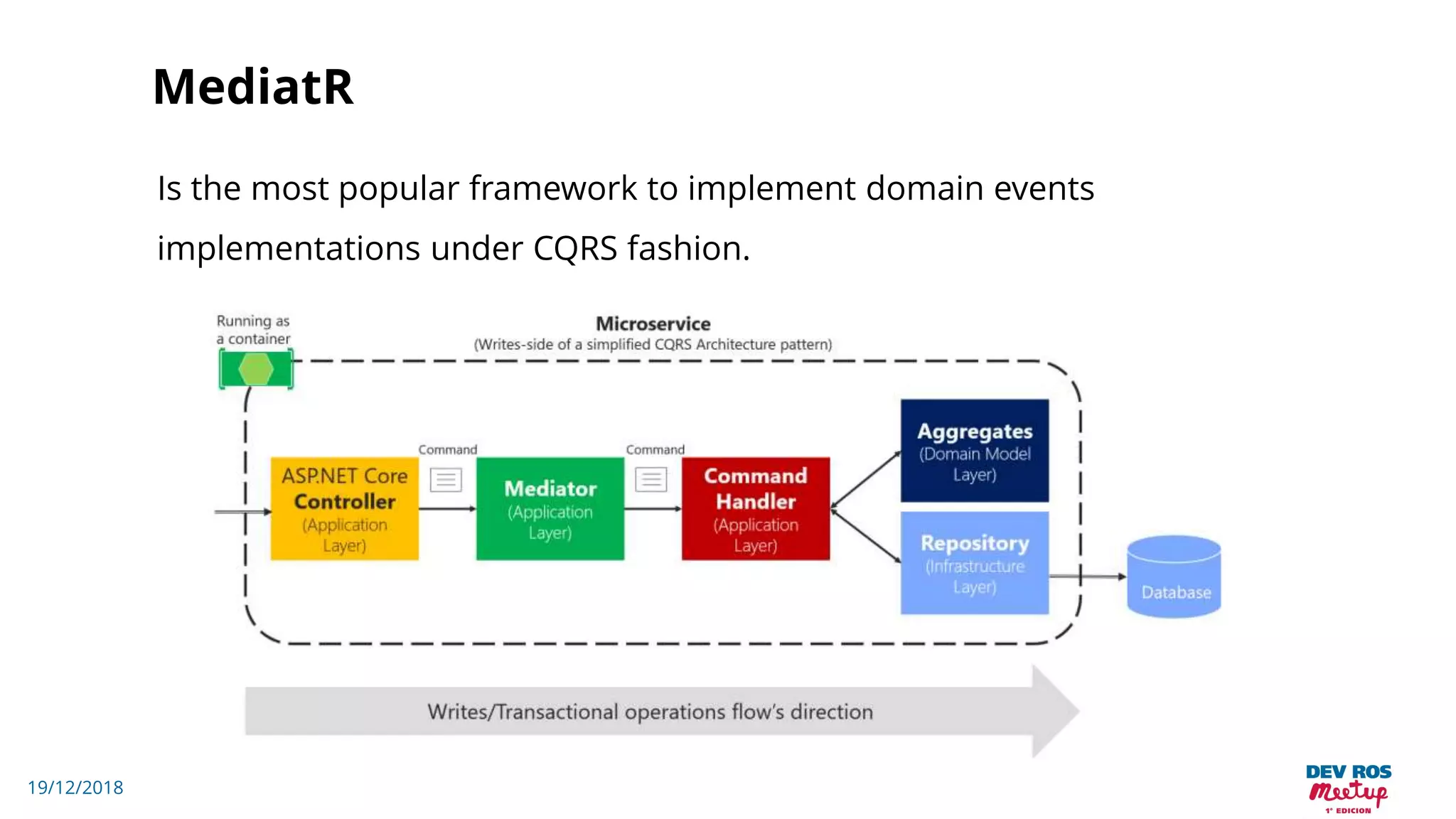

- 40. 19/12/2018 MediatR Is the mostpopular framework to implement domain events implementations under CQRS fashion.
- 41. 19/12/2018 MediatR MediatR acting asan internal process message broker has two kinds of messages it dispatches: • Request/response messages, dispatched to a single handler • Notification messages, dispatched to multiple handlers

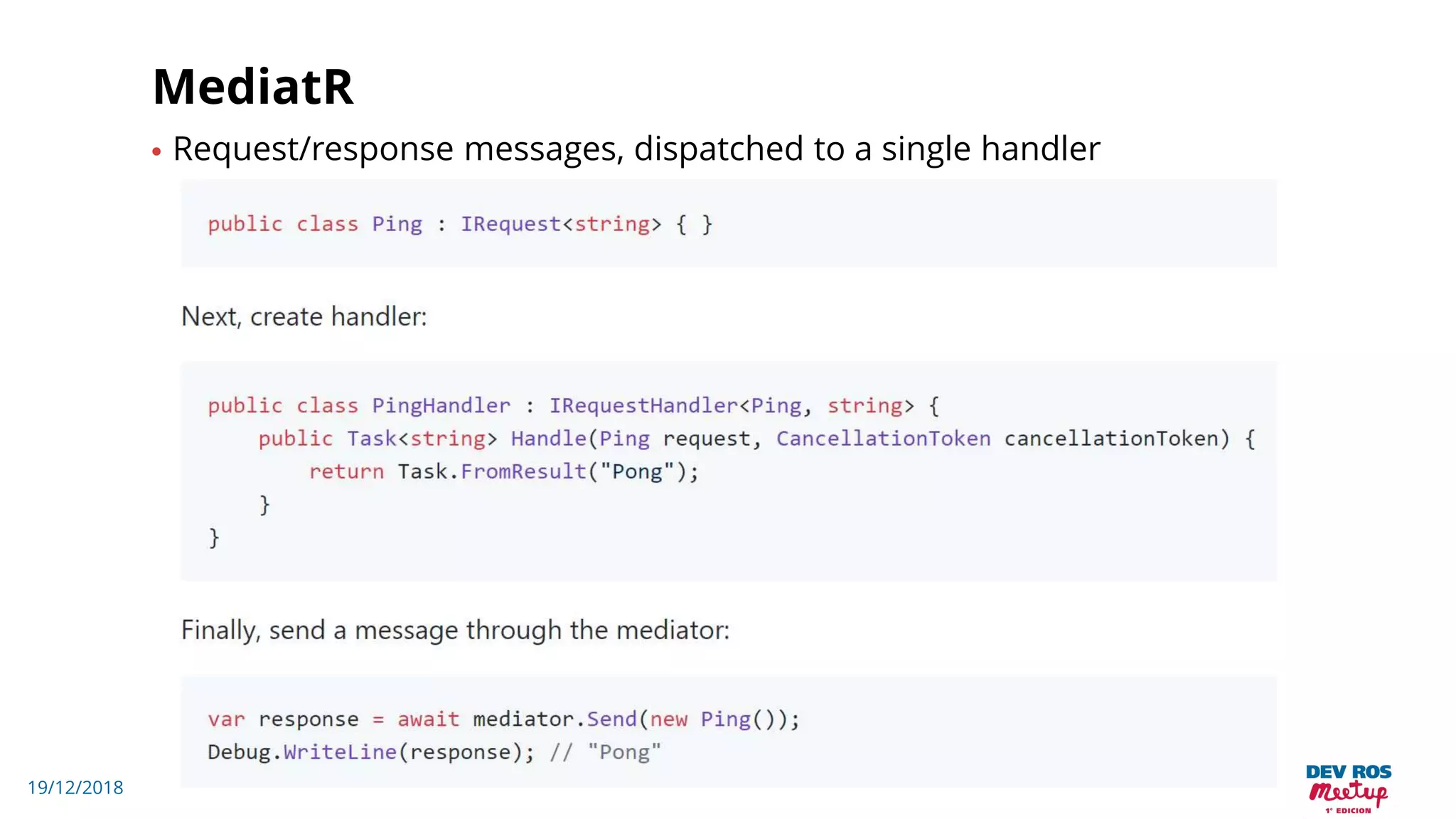

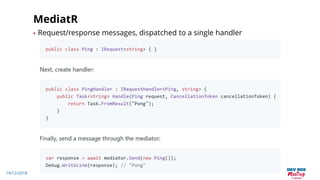

- 42. 19/12/2018 MediatR • Request/response messages,dispatched to a single handler

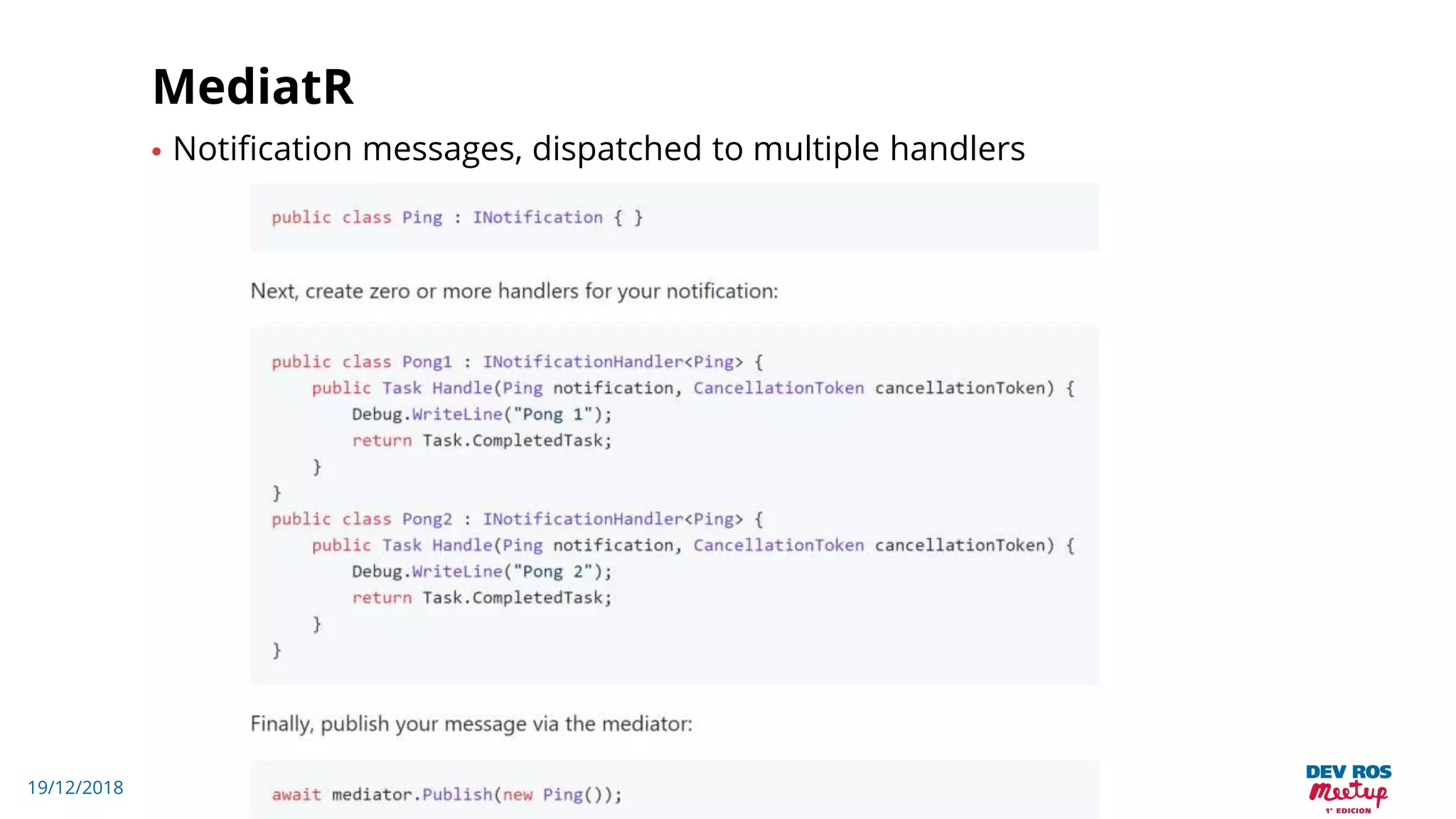

- 43. 19/12/2018 MediatR • Notification messages,dispatched to multiple handlers

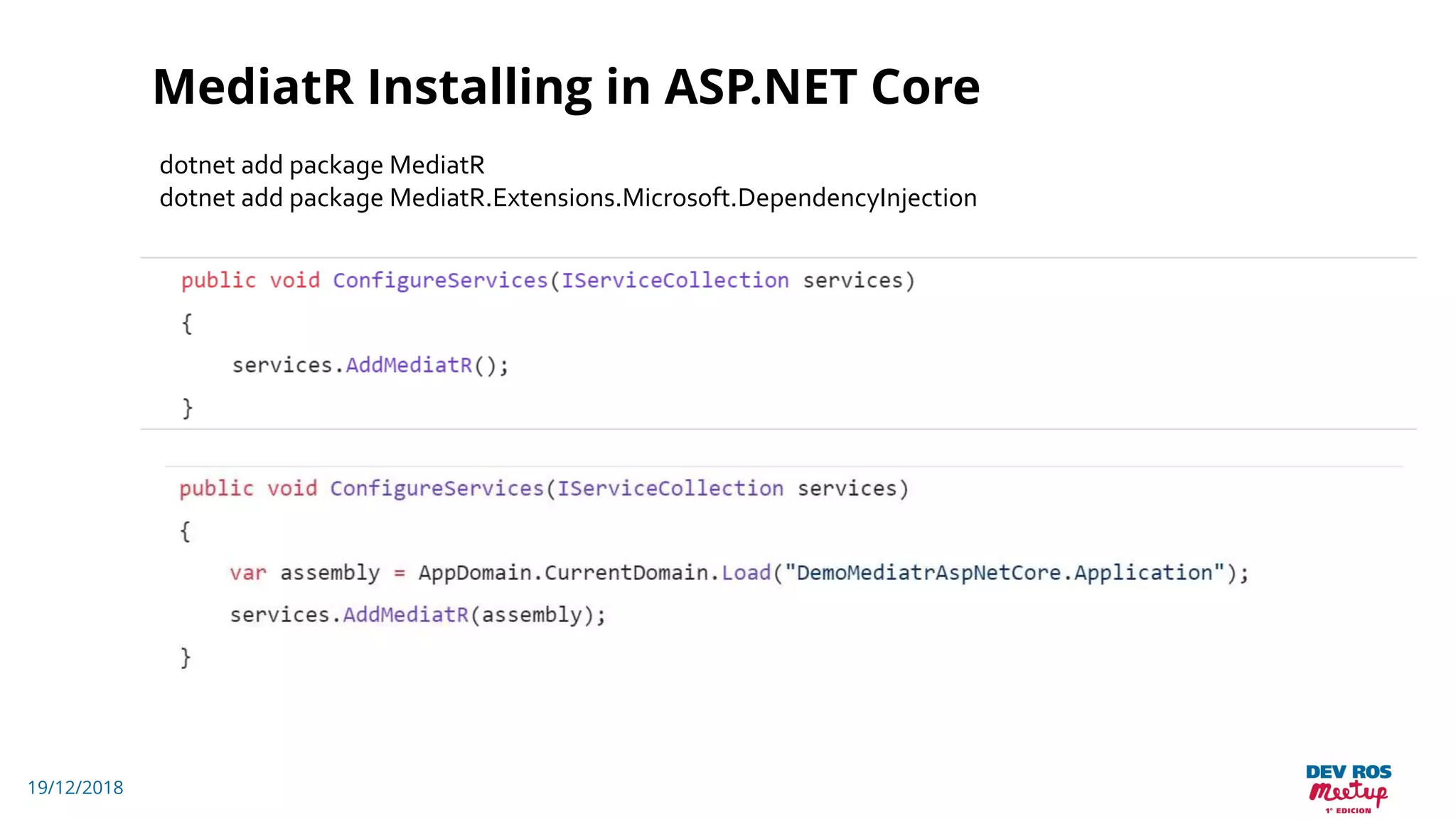

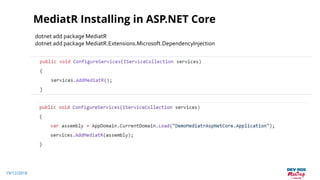

- 44. 19/12/2018 MediatR Installing inASP.NET Core dotnet add package MediatR dotnet add package MediatR.Extensions.Microsoft.DependencyInjection

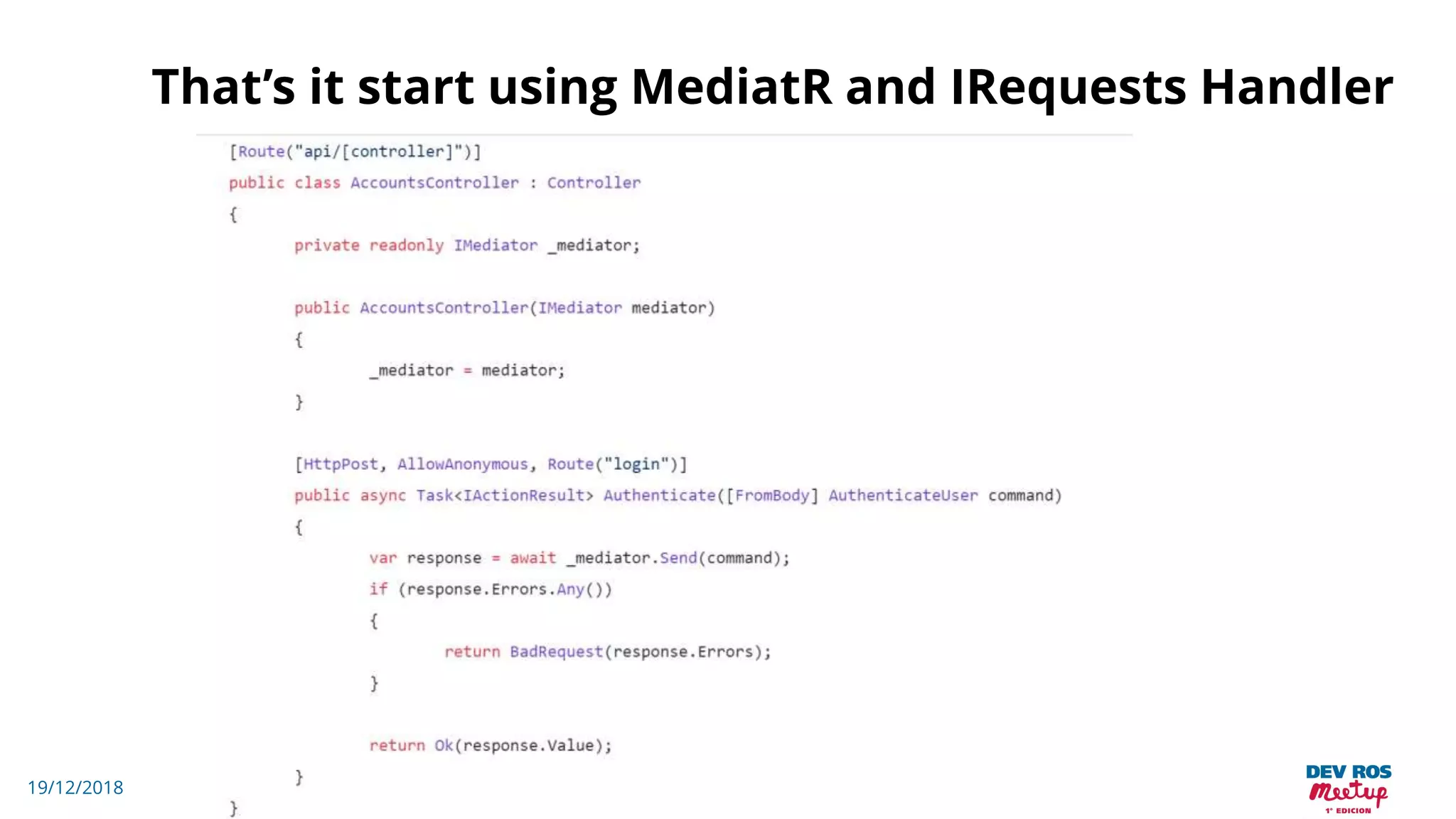

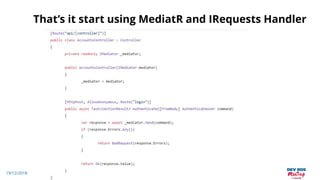

- 45. 19/12/2018 That’s it startusing MediatR and IRequests Handler

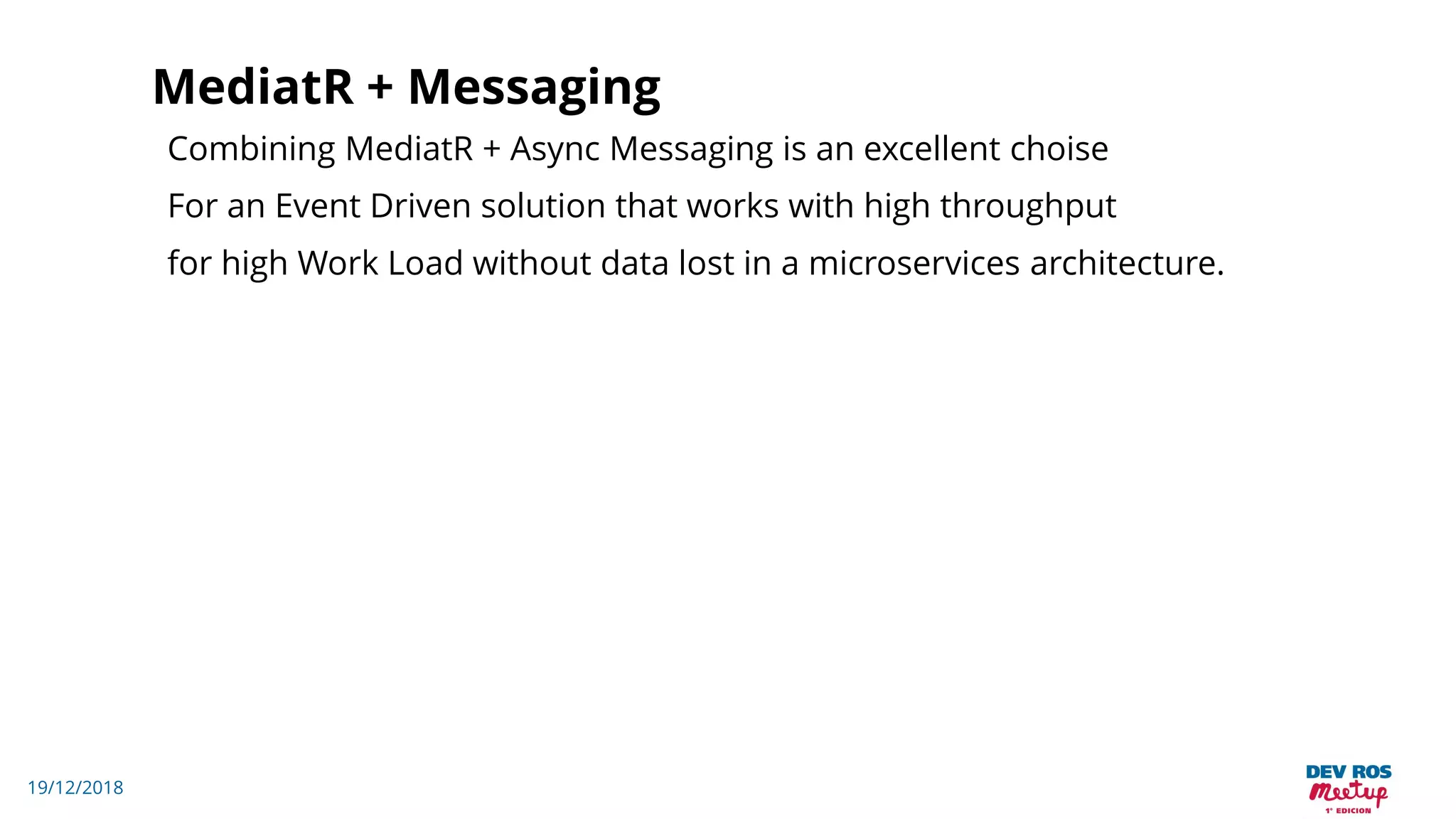

- 46. 19/12/2018 MediatR + Messaging CombiningMediatR + Async Messaging is an excellent choise For an Event Driven solution that works with high throughput for high Work Load without data lost in a microservices architecture.
- 47.

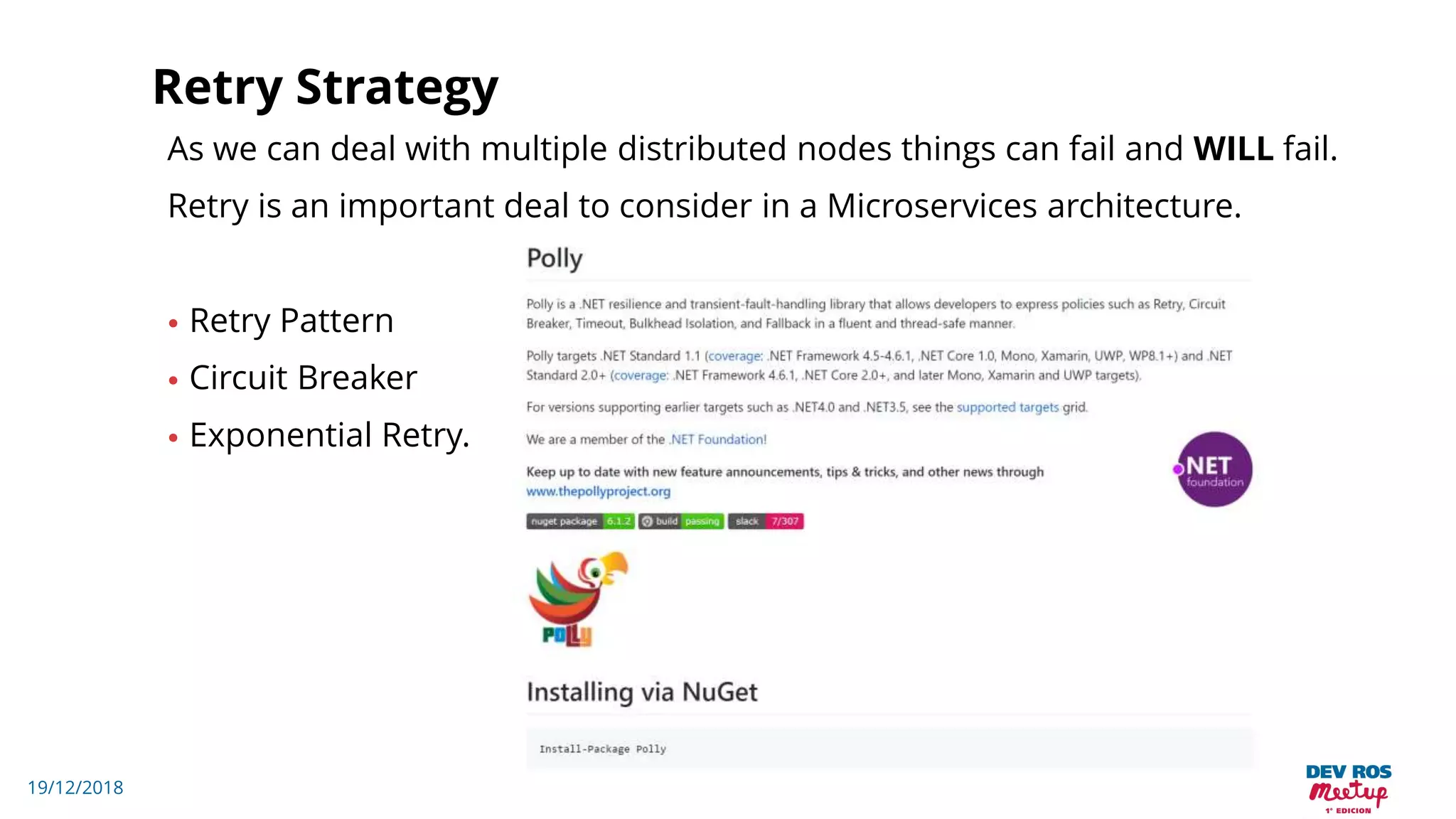

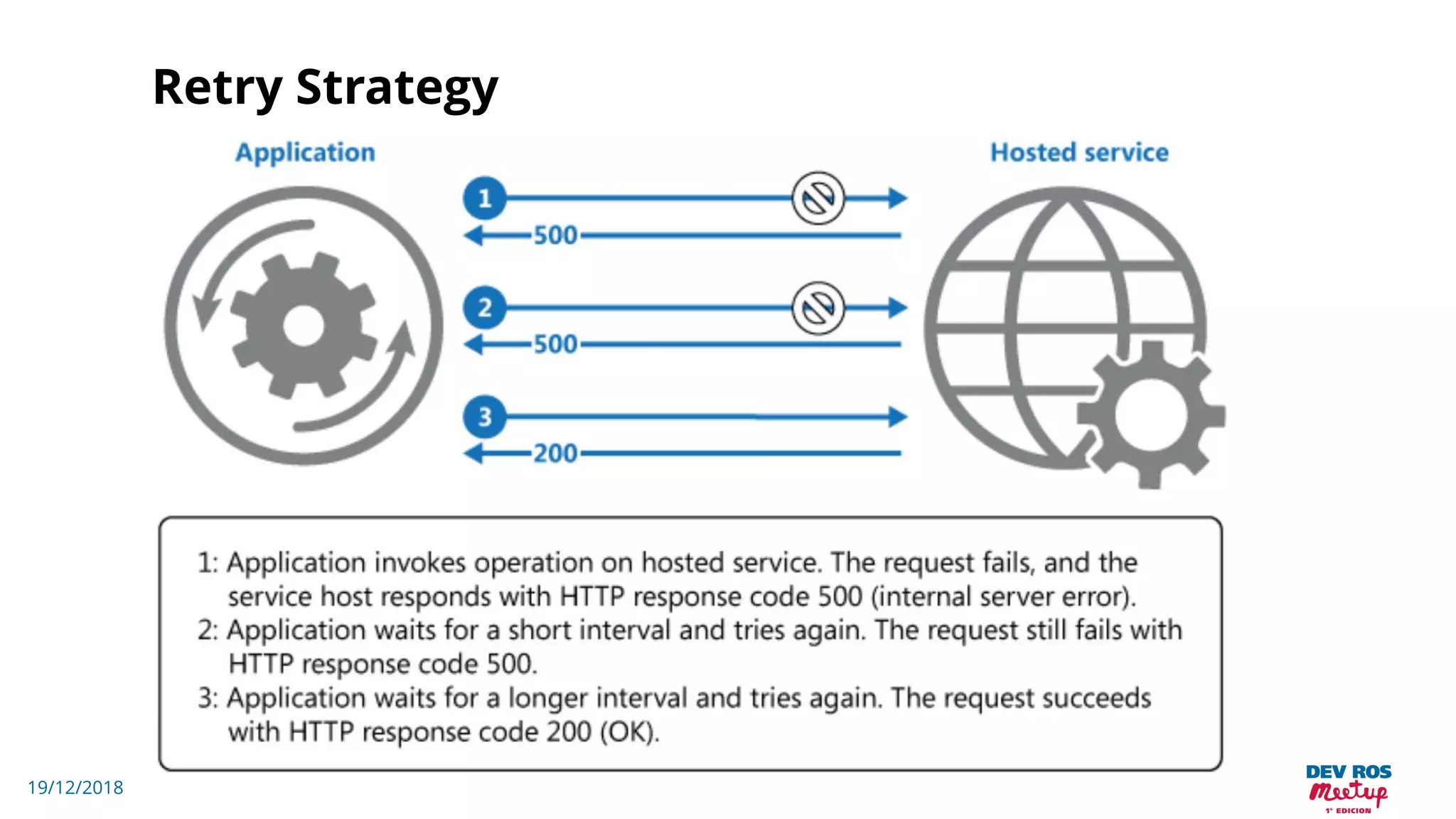

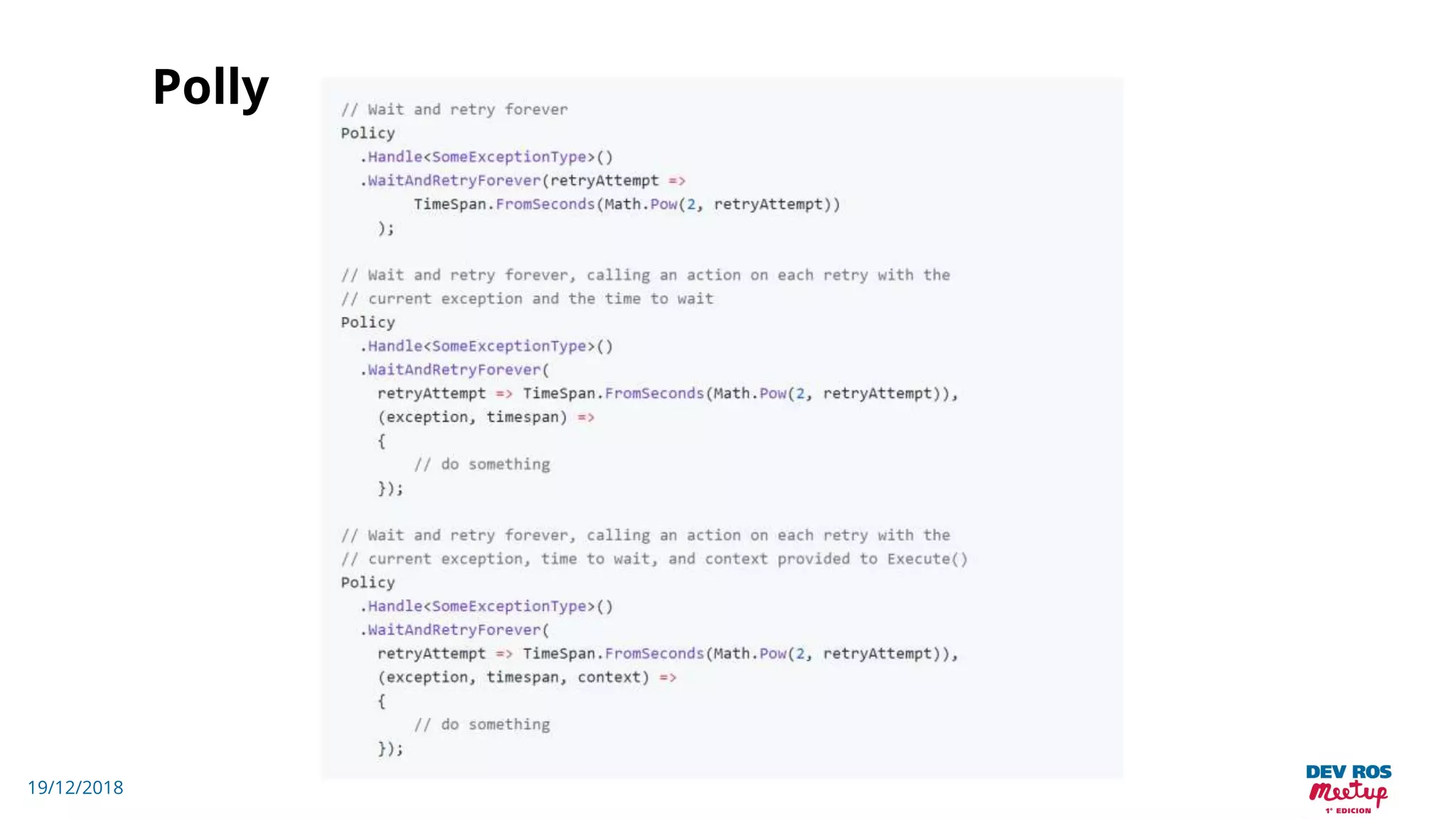

- 48. 19/12/2018 Retry Strategy As wecan deal with multiple distributed nodes things can fail and WILL fail. Retry is an important deal to consider in a Microservices architecture. • Retry Pattern • Circuit Breaker • Exponential Retry.
- 49.

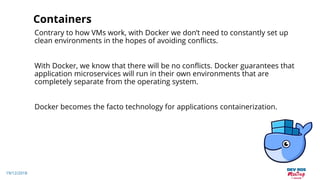

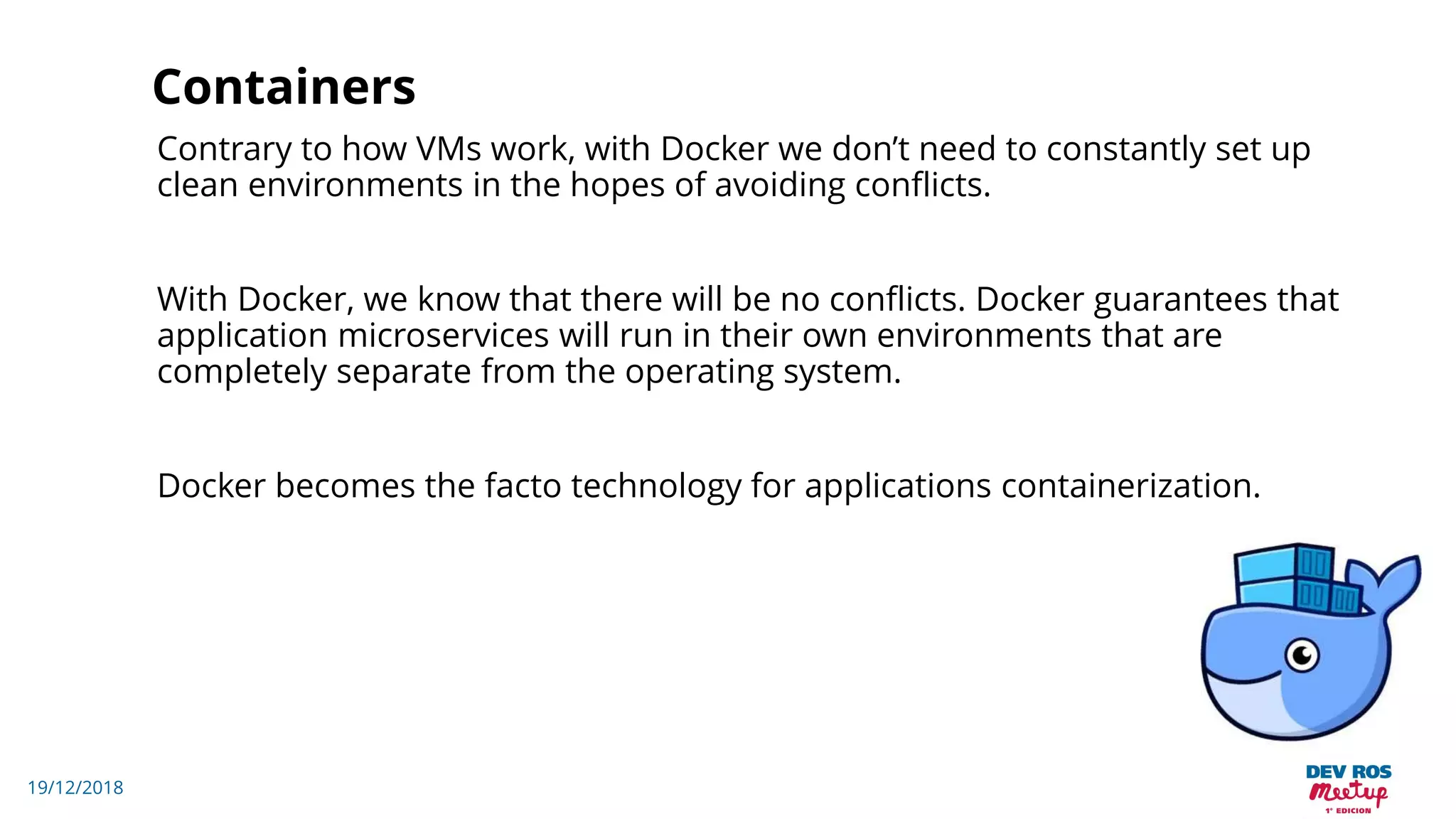

- 50. 19/12/2018 Containers Contrary to howVMs work, with Docker we don’t need to constantly set up clean environments in the hopes of avoiding conflicts. With Docker, we know that there will be no conflicts. Docker guarantees that application microservices will run in their own environments that are completely separate from the operating system. Docker becomes the facto technology for applications containerization.

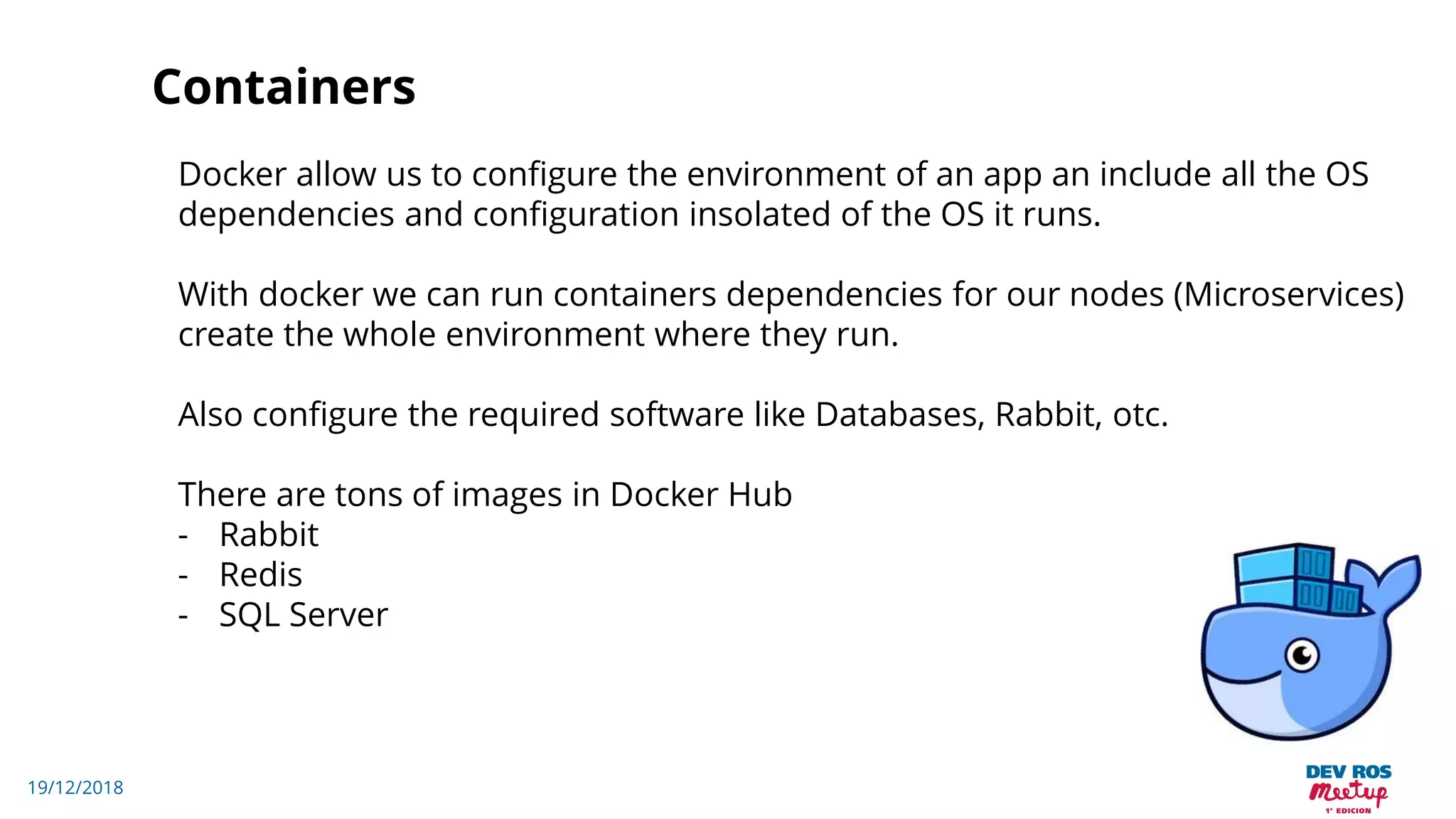

- 51. 19/12/2018 Containers Docker allow usto configure the environment of an app an include all the OS dependencies and configuration insolated of the OS it runs. With docker we can run containers dependencies for our nodes (Microservices) create the whole environment where they run. Also configure the required software like Databases, Rabbit, otc. There are tons of images in Docker Hub - Rabbit - Redis - SQL Server

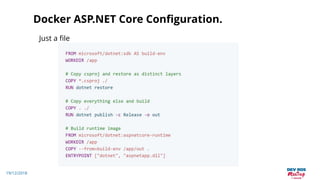

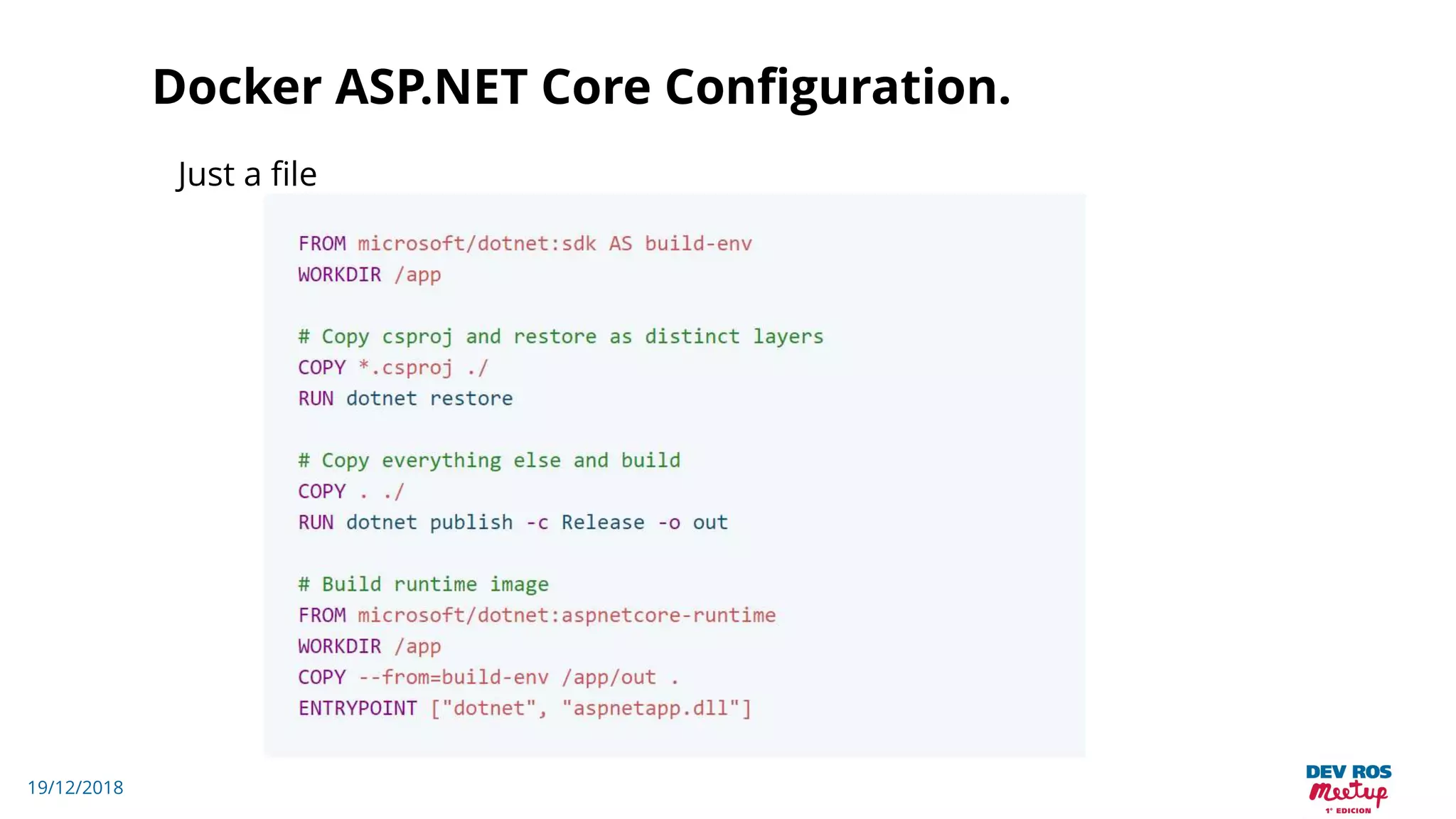

- 52. 19/12/2018 Docker ASP.NET CoreConfiguration. Just a file

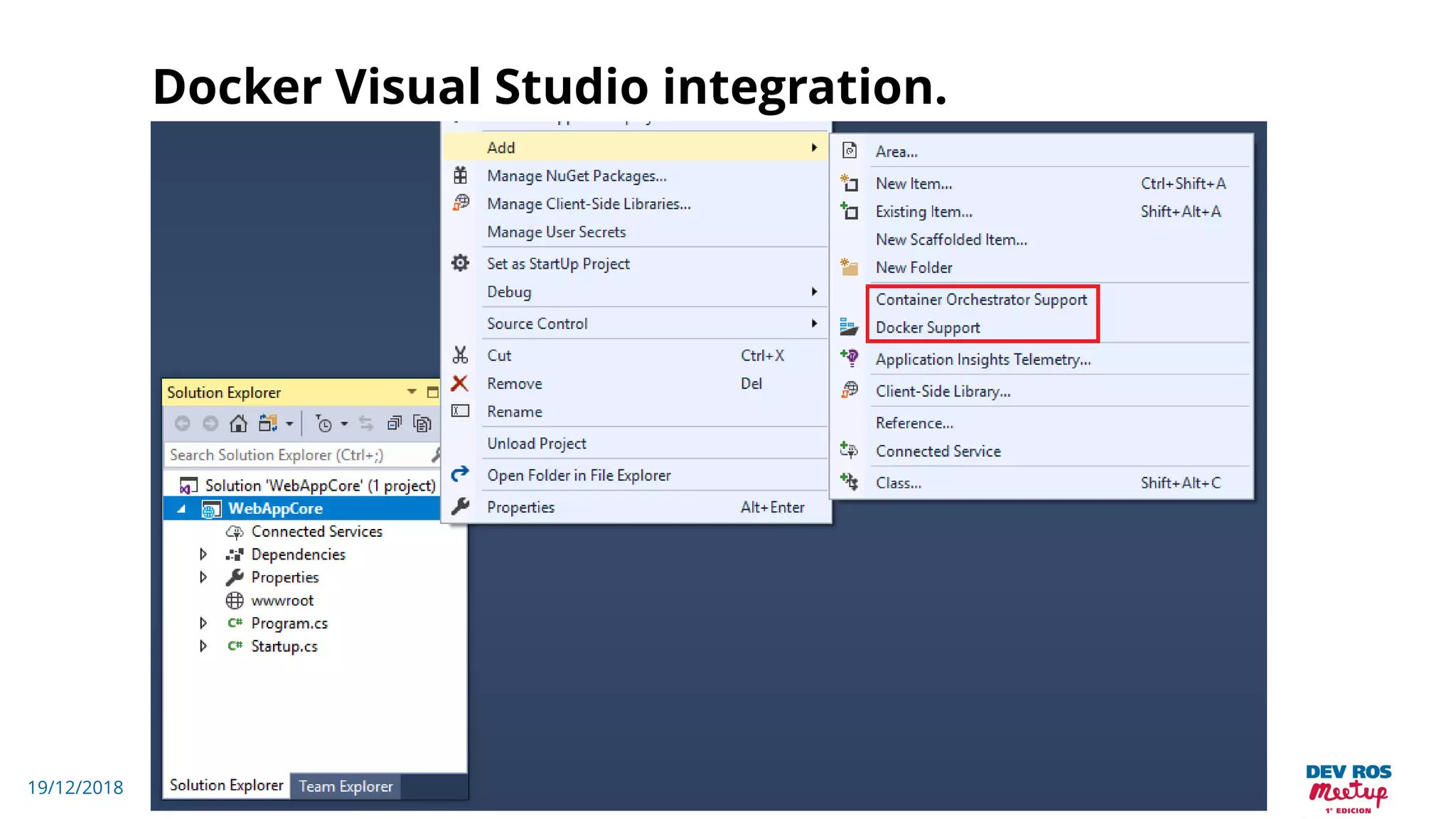

- 53. 19/12/2018 Docker Visual Studiointegration.
- 54.

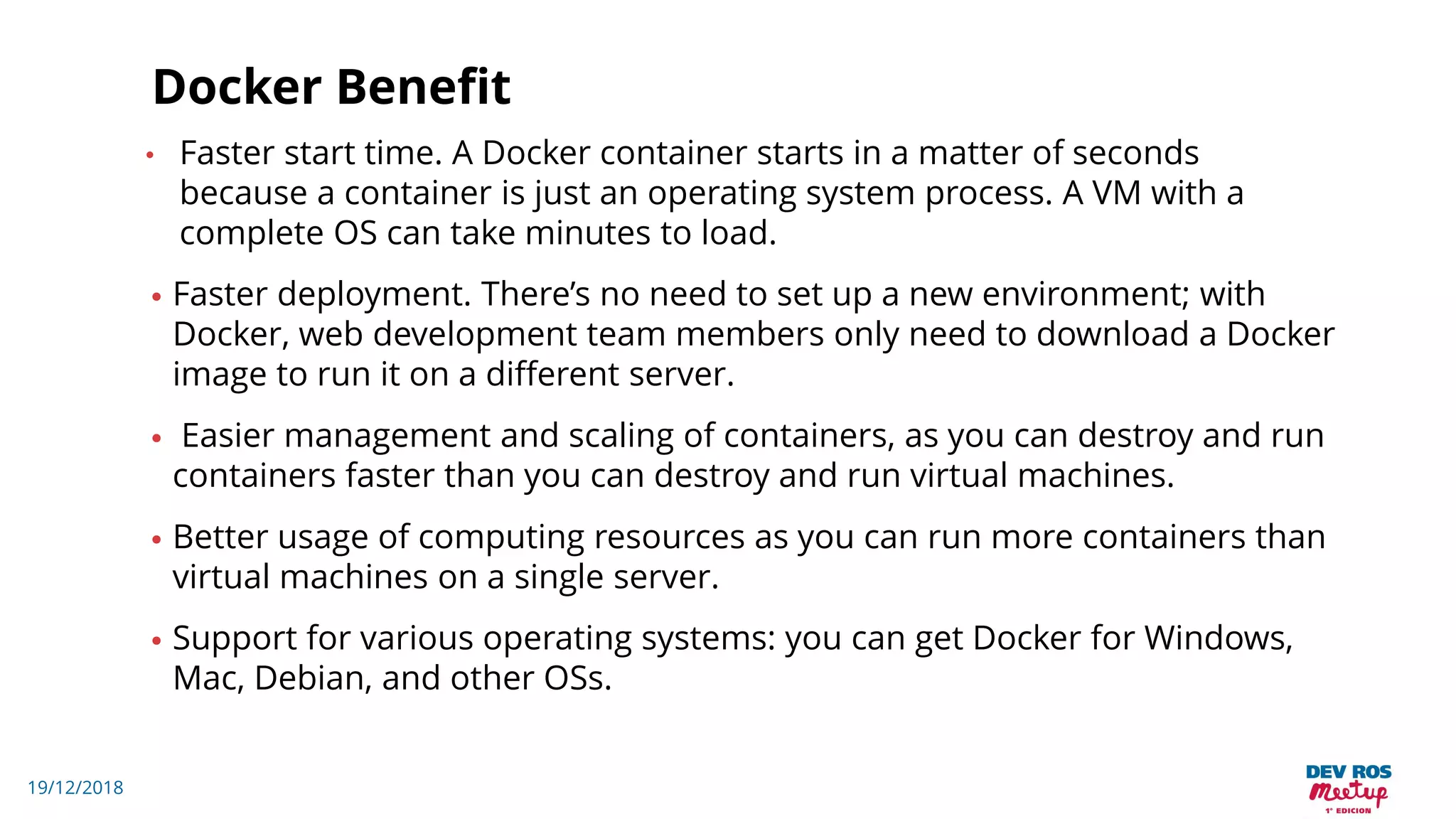

- 55. 19/12/2018 Docker Benefit • Fasterstart time. A Docker container starts in a matter of seconds because a container is just an operating system process. A VM with a complete OS can take minutes to load. • Faster deployment. There’s no need to set up a new environment; with Docker, web development team members only need to download a Docker image to run it on a different server. • Easier management and scaling of containers, as you can destroy and run containers faster than you can destroy and run virtual machines. • Better usage of computing resources as you can run more containers than virtual machines on a single server. • Support for various operating systems: you can get Docker for Windows, Mac, Debian, and other OSs.

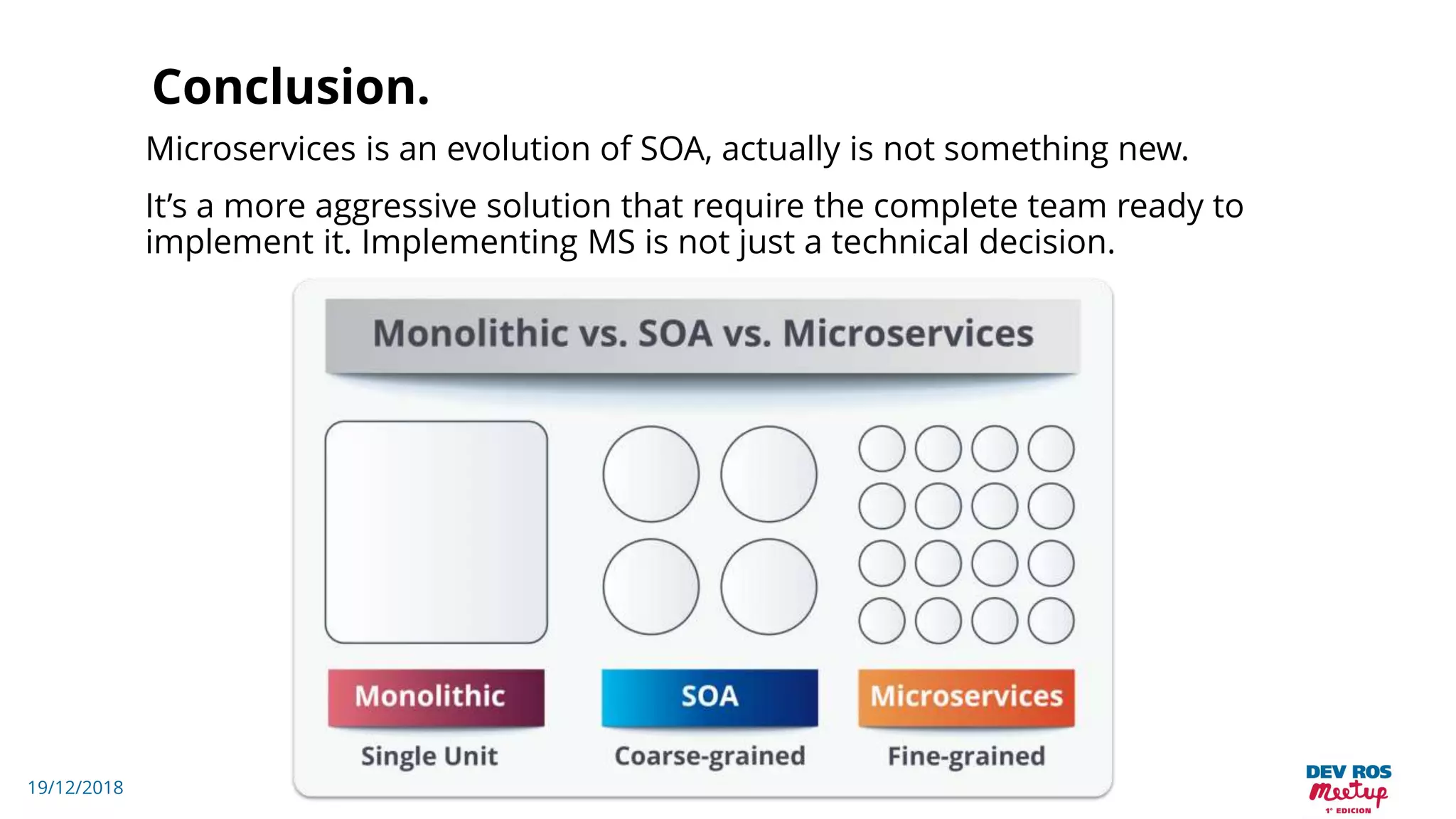

- 56. 19/12/2018 Conclusion. Microservices is anevolution of SOA, actually is not something new. It’s a more aggressive solution that require the complete team ready to implement it. Implementing MS is not just a technical decision.
- 57.

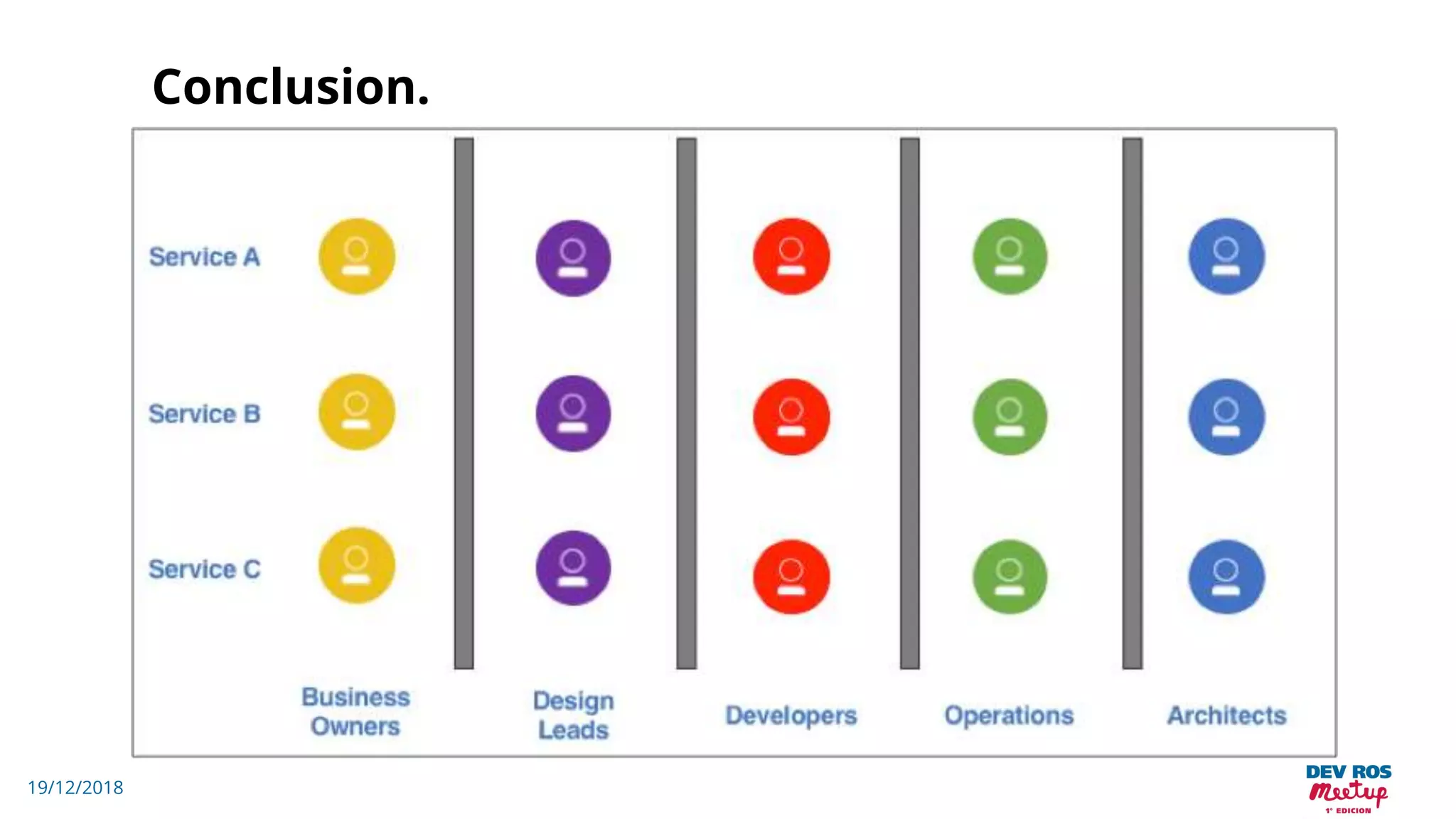

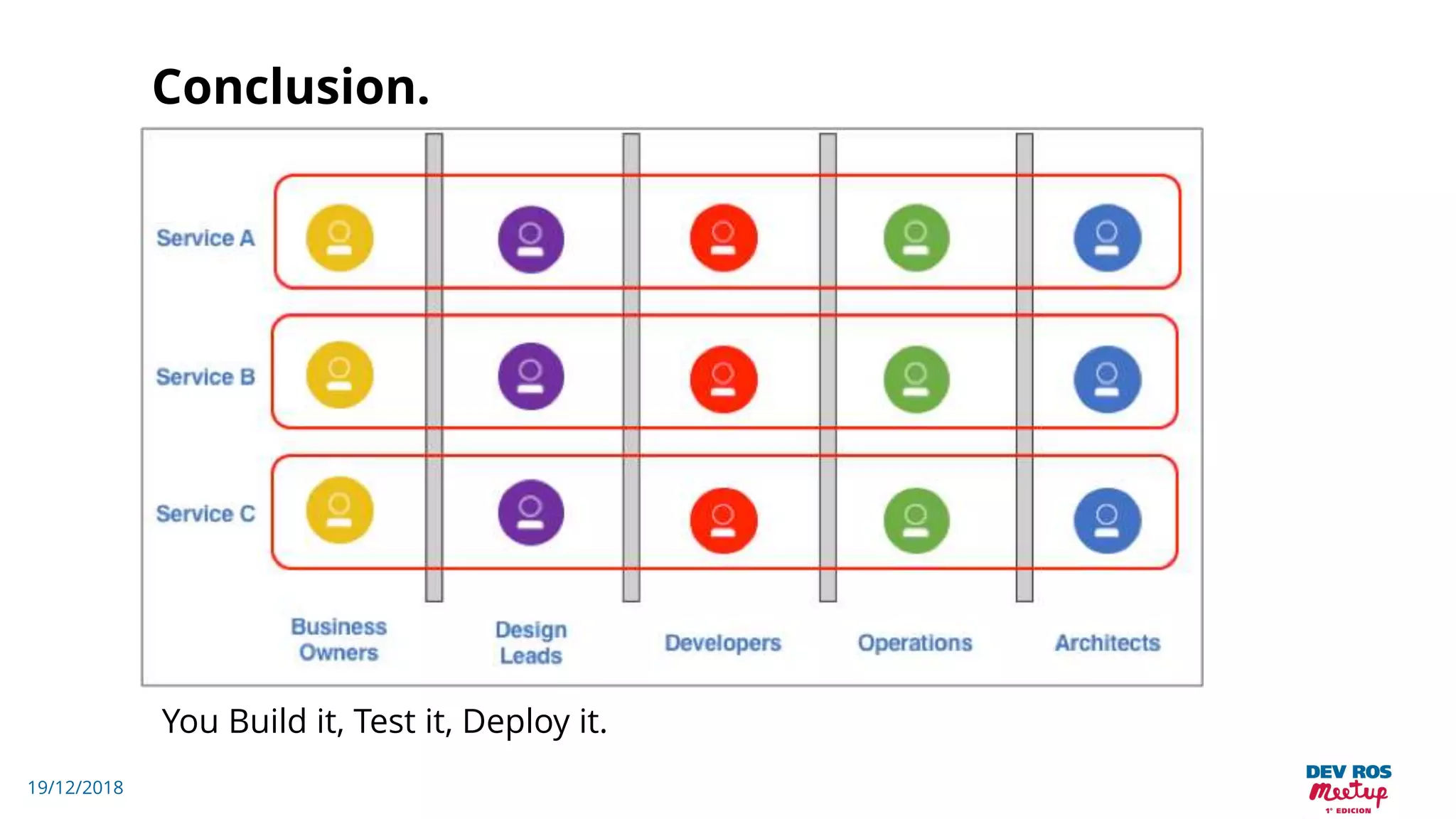

- 58. 19/12/2018 Conclusion. You Build it,Test it, Deploy it.
