Google App Engine With Java And Groovy

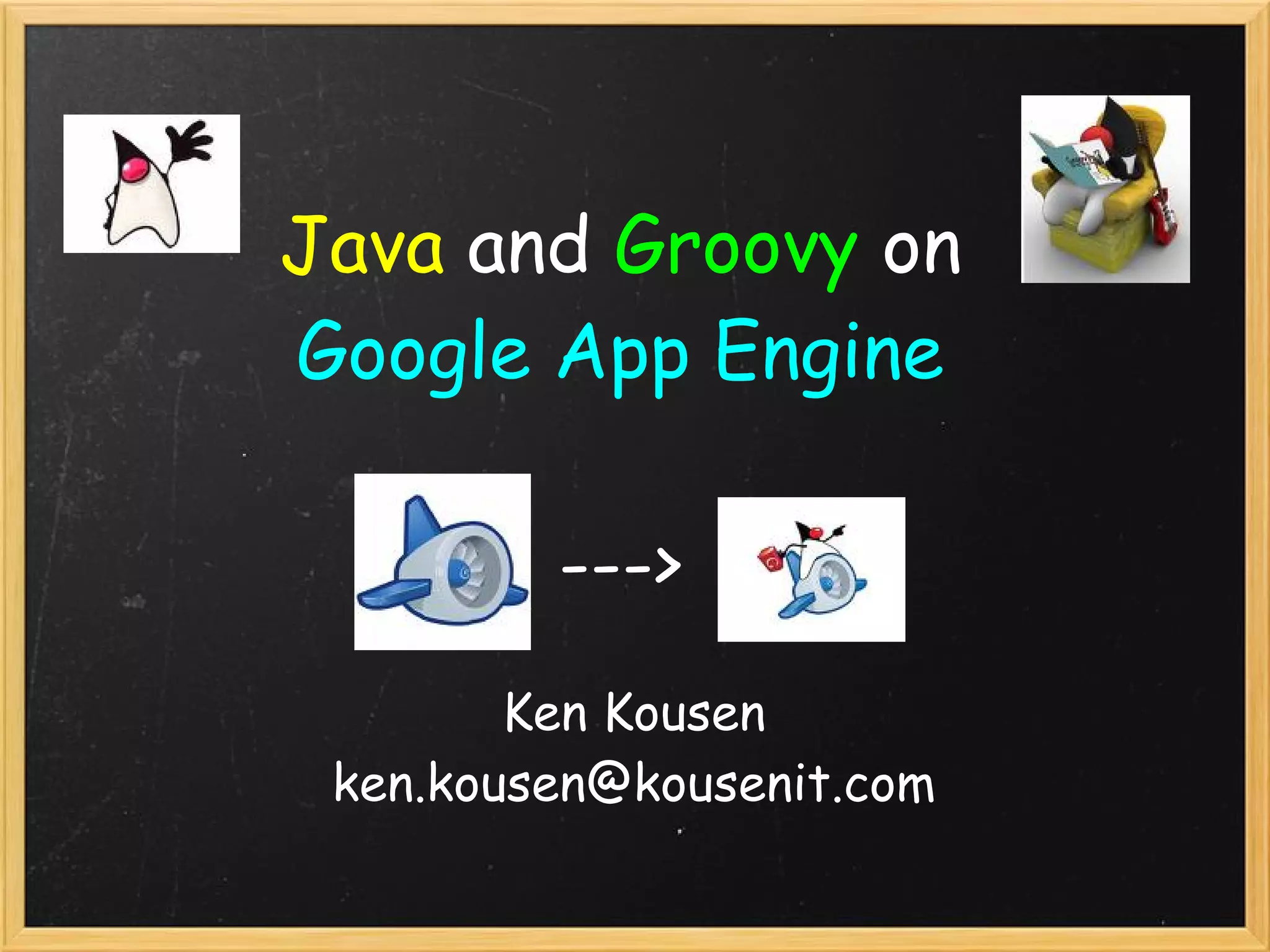

Java and Groovy on
Google App Engine

--->
Ken Kousen
ken.kousen@kousenit.com

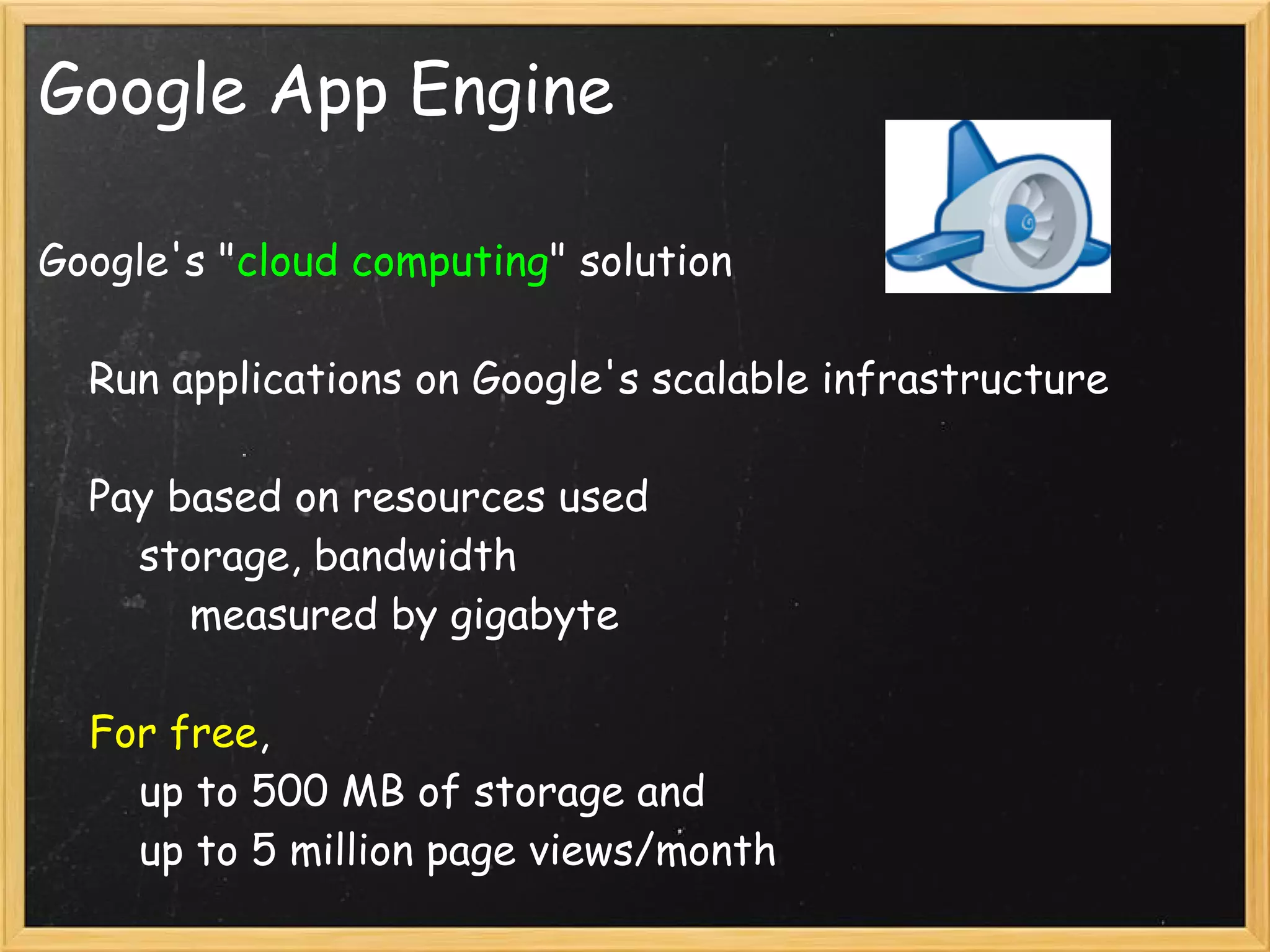

Google App Engine

Google's "cloud computing" solution

   Run applications on Google's scalable infrastructure

   Pay based on resources used
       storage, bandwidth
           measured by gigabyte

   For free,
       up to 500 MB of storage and
       up to 5 million page views/month

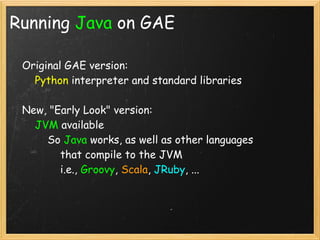

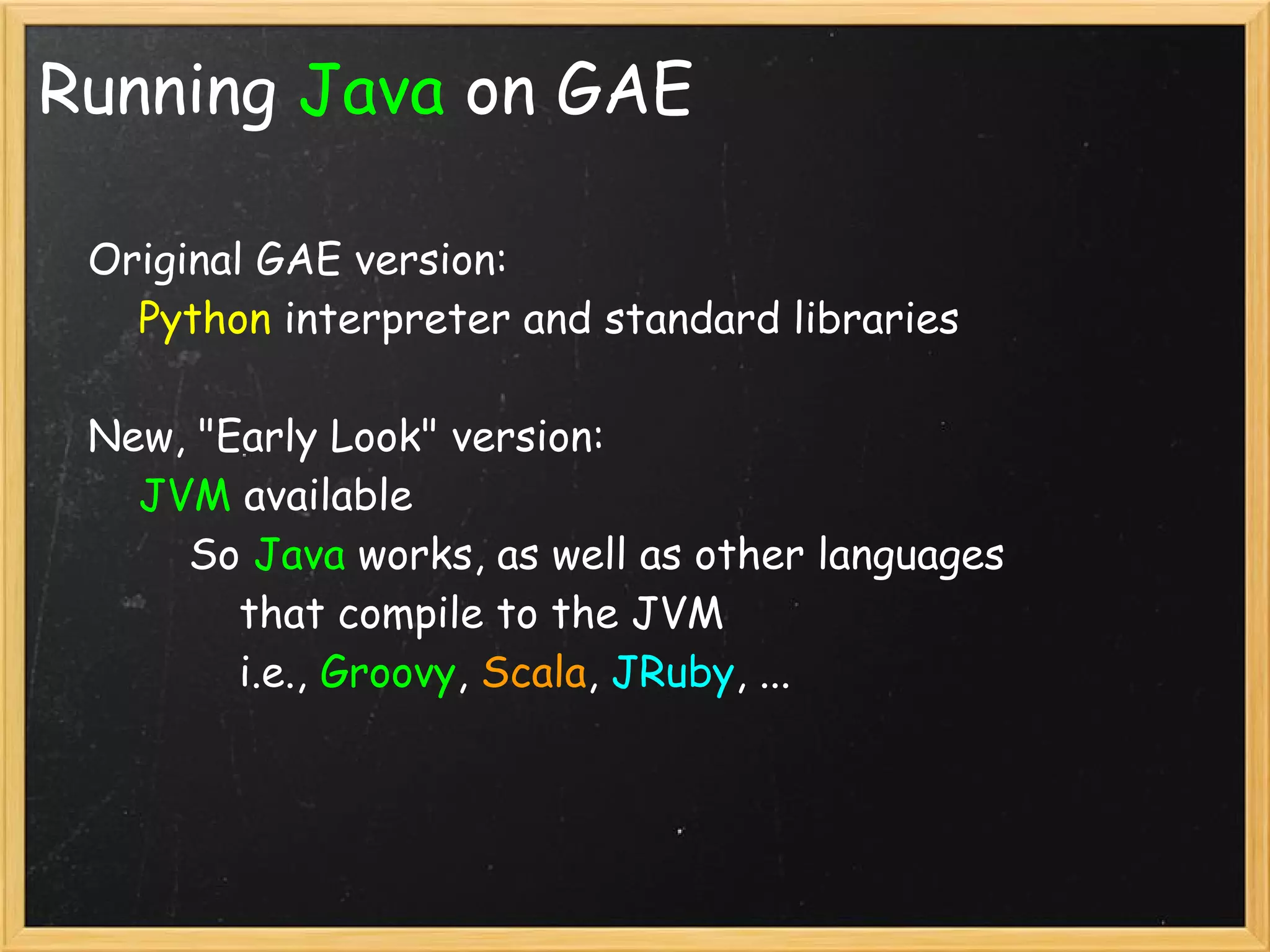

Running Java on GAE

   Original GAE version:
       Python interpreter and standard libraries

   New, "Early Look" version:
       JVM available
           So Java works, as well as other languages
               that compile to the JVM
               i.e., Groovy, Scala, JRuby, ...

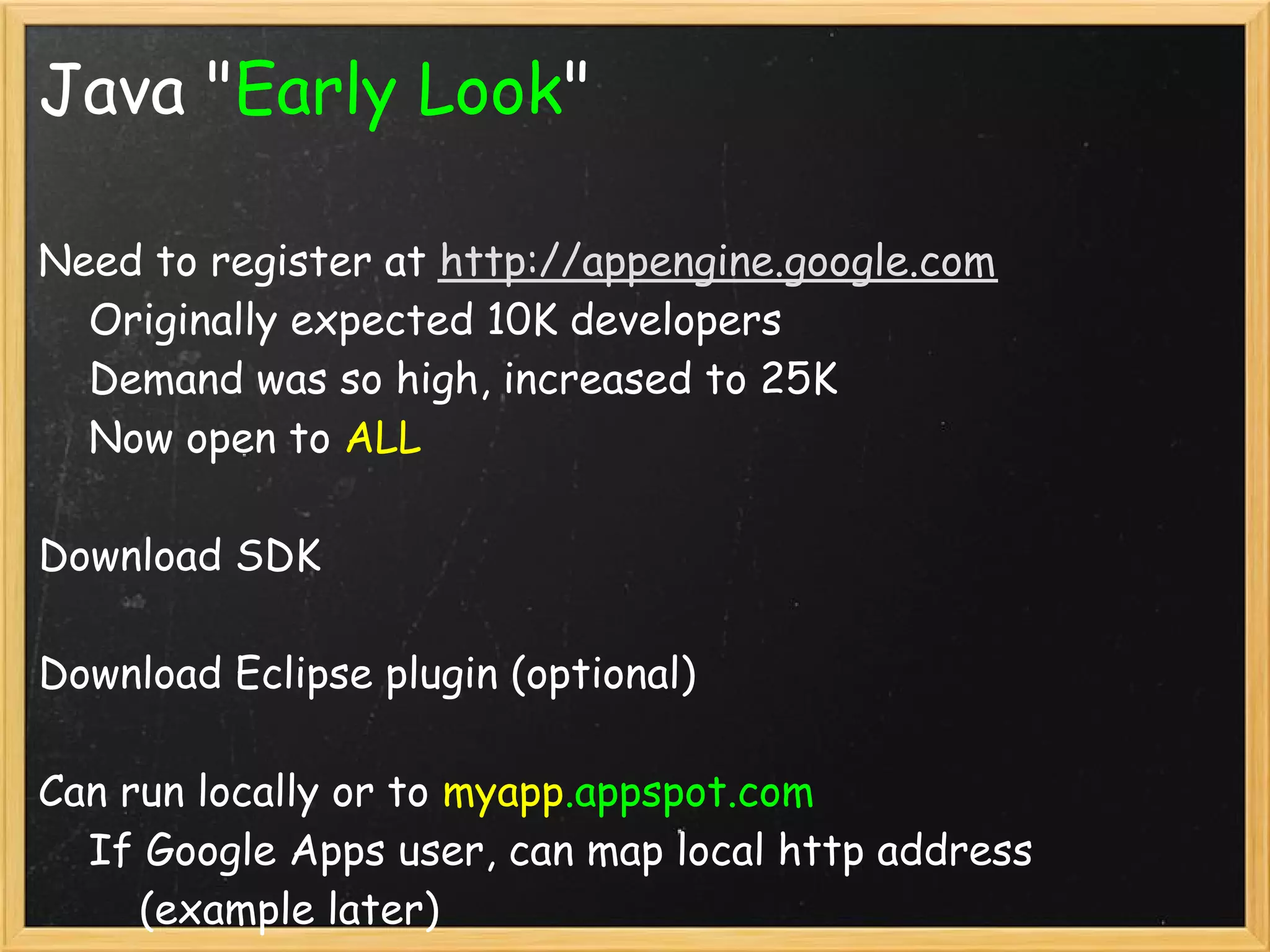

Java "Early Look"

Need to register at http://appengine.google.com
   Originally expected 10K developers
   Demand was so high, increased to 25K
   Now open to ALL

Download SDK

Download Eclipse plugin (optional)

Can run locally or to myapp.appspot.com
   If Google Apps user, can map local http address
       (example later)

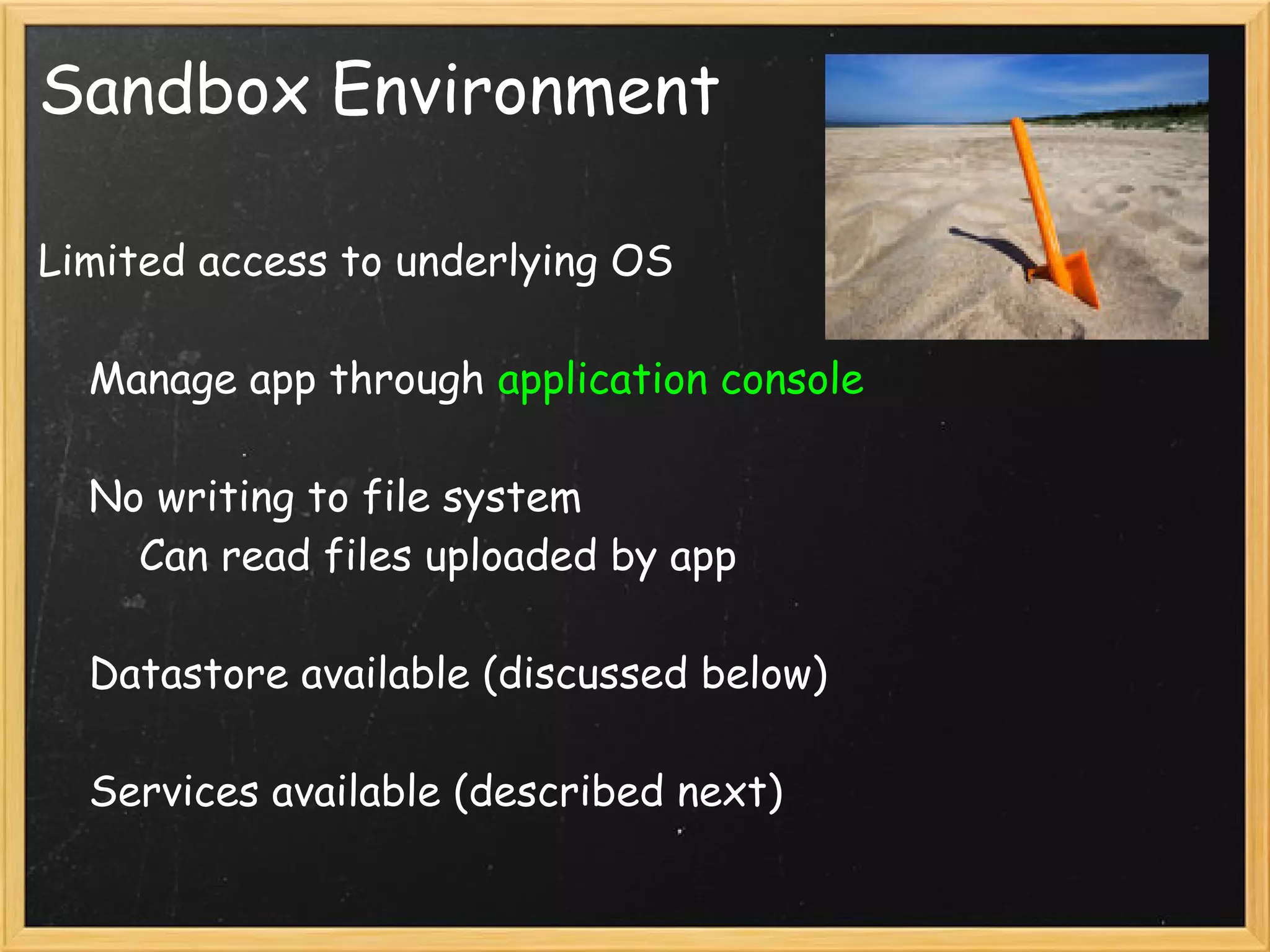

Sandbox Environment

Limited access to underlying OS

   Manage app through application console

   No writing to file system
       Can read files uploaded by app

   Datastore available (discussed below)

   Services available (described next)

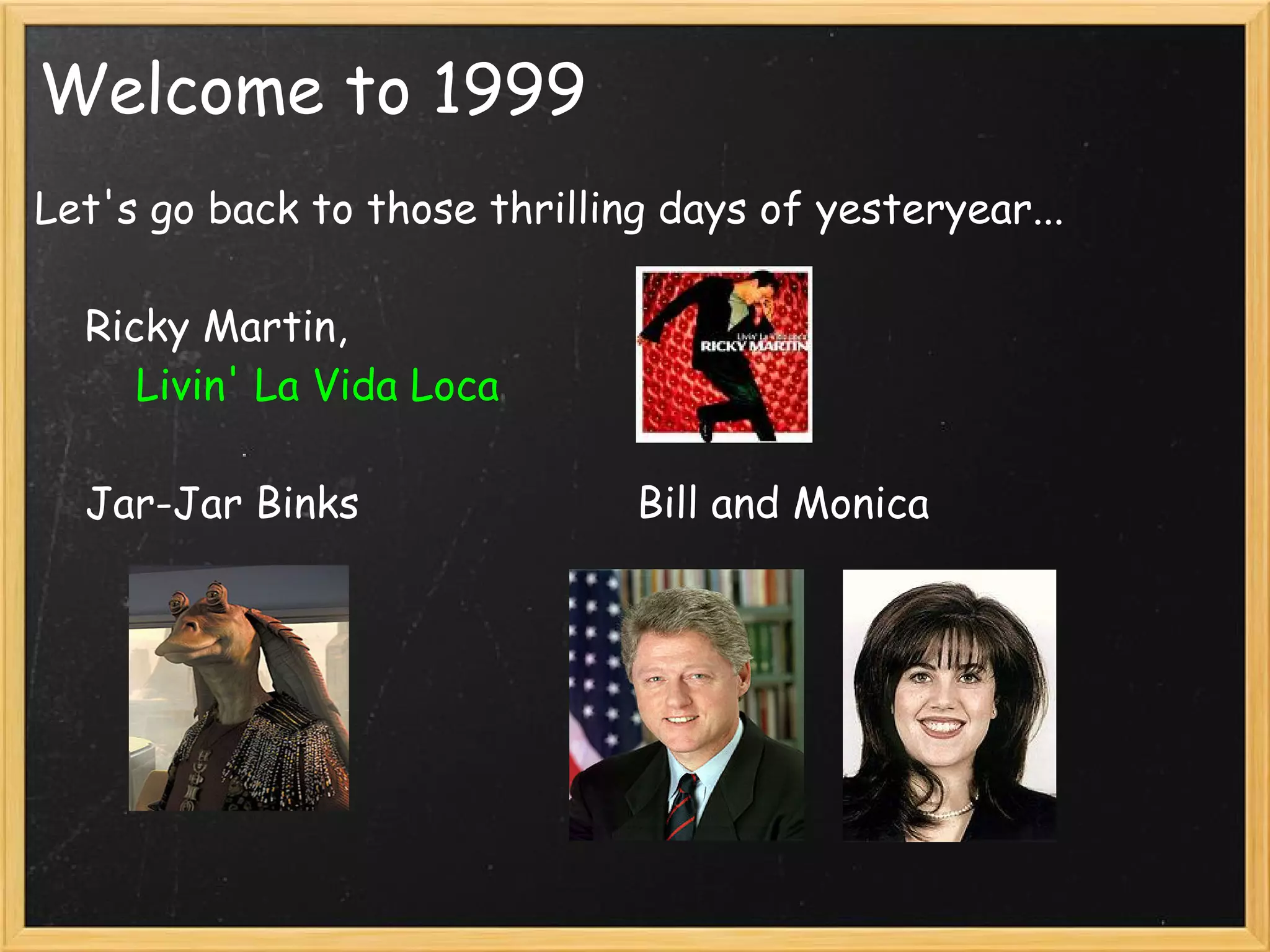

Welcome to 1999
Let's go back to those thrilling days of yesteryear...

   Ricky Martin,
       Livin' La Vida Loca

   Jar-Jar Binks Bill and Monica

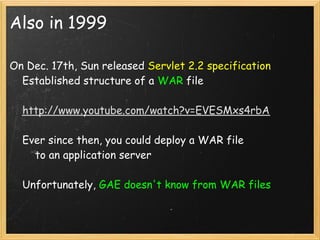

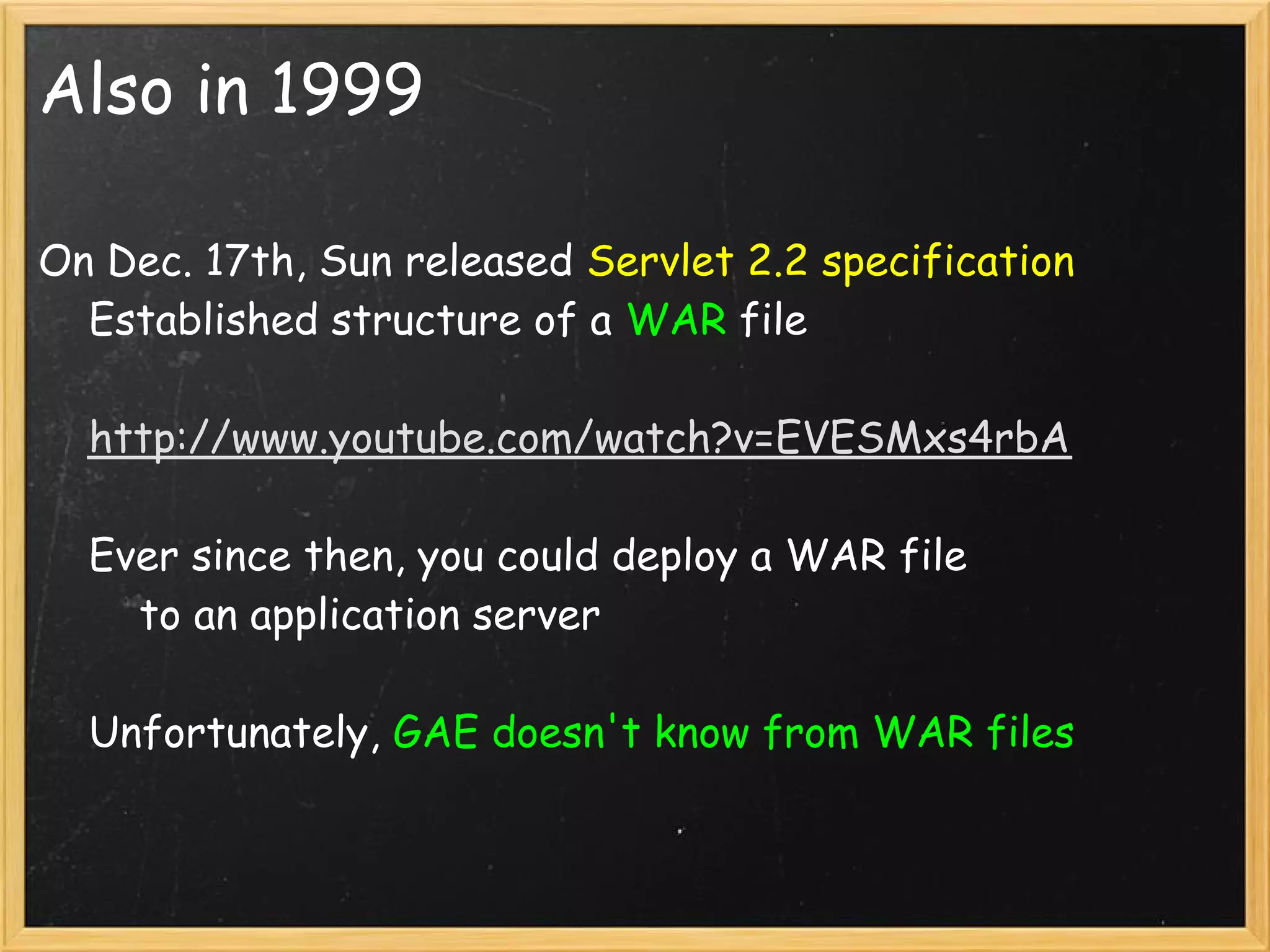

Also in 1999

On Dec. 17th, Sun released Servlet 2.2 specification
   Established structure of a WAR file

   http://www.youtube.com/watch?v=EVESMxs4rbA

   Ever since then, you could deploy a WAR file
       to an application server

   Unfortunately, GAE doesn't know from WAR files

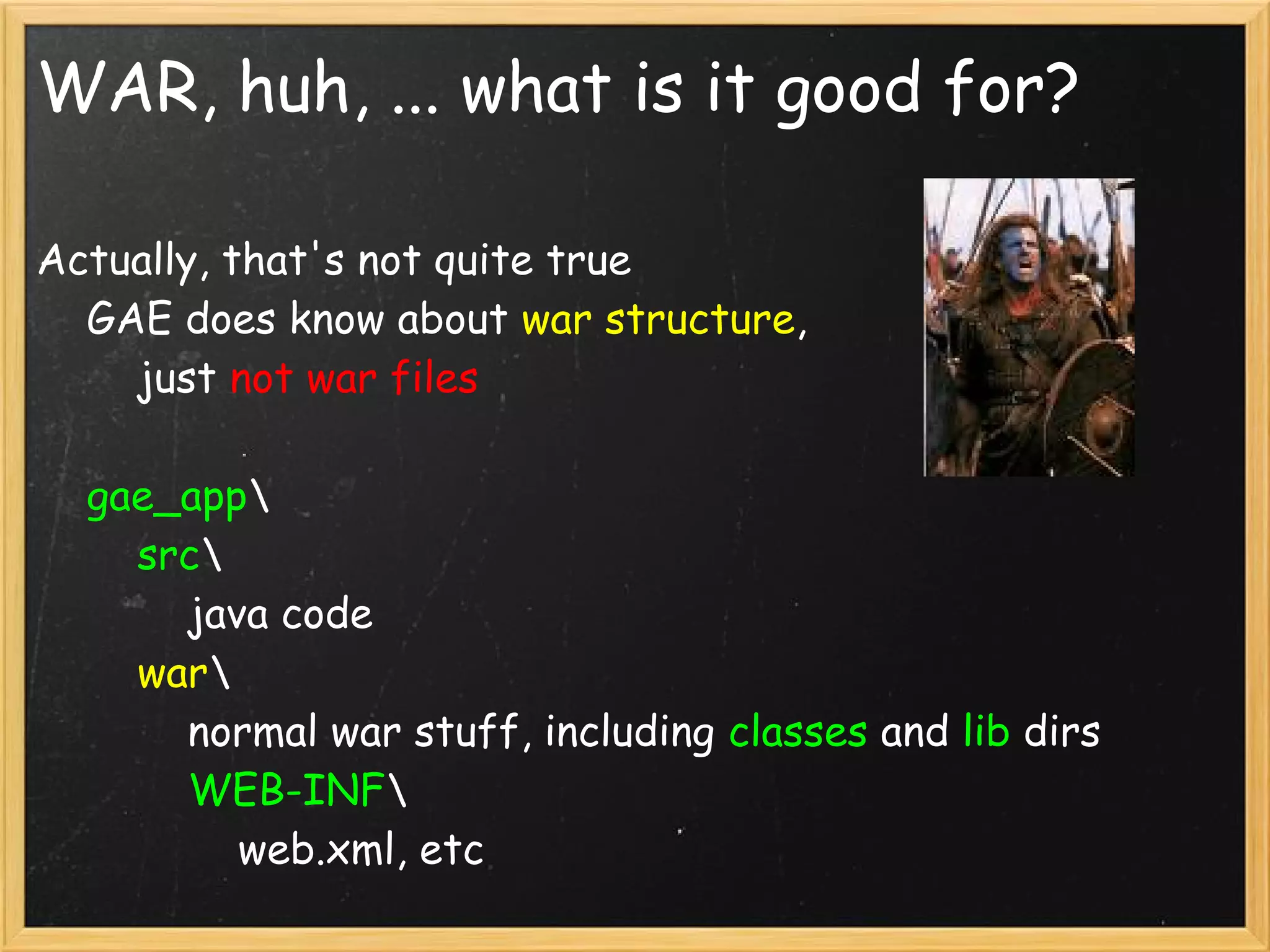

WAR, huh, ... what is it good for?

Actually, that's not quite true
   GAE does know about war structure,
       just not war files

   gae_app
       src
           java code
       war
           normal war stuff, including classes and lib dirs
           WEB-INF
               web.xml, etc

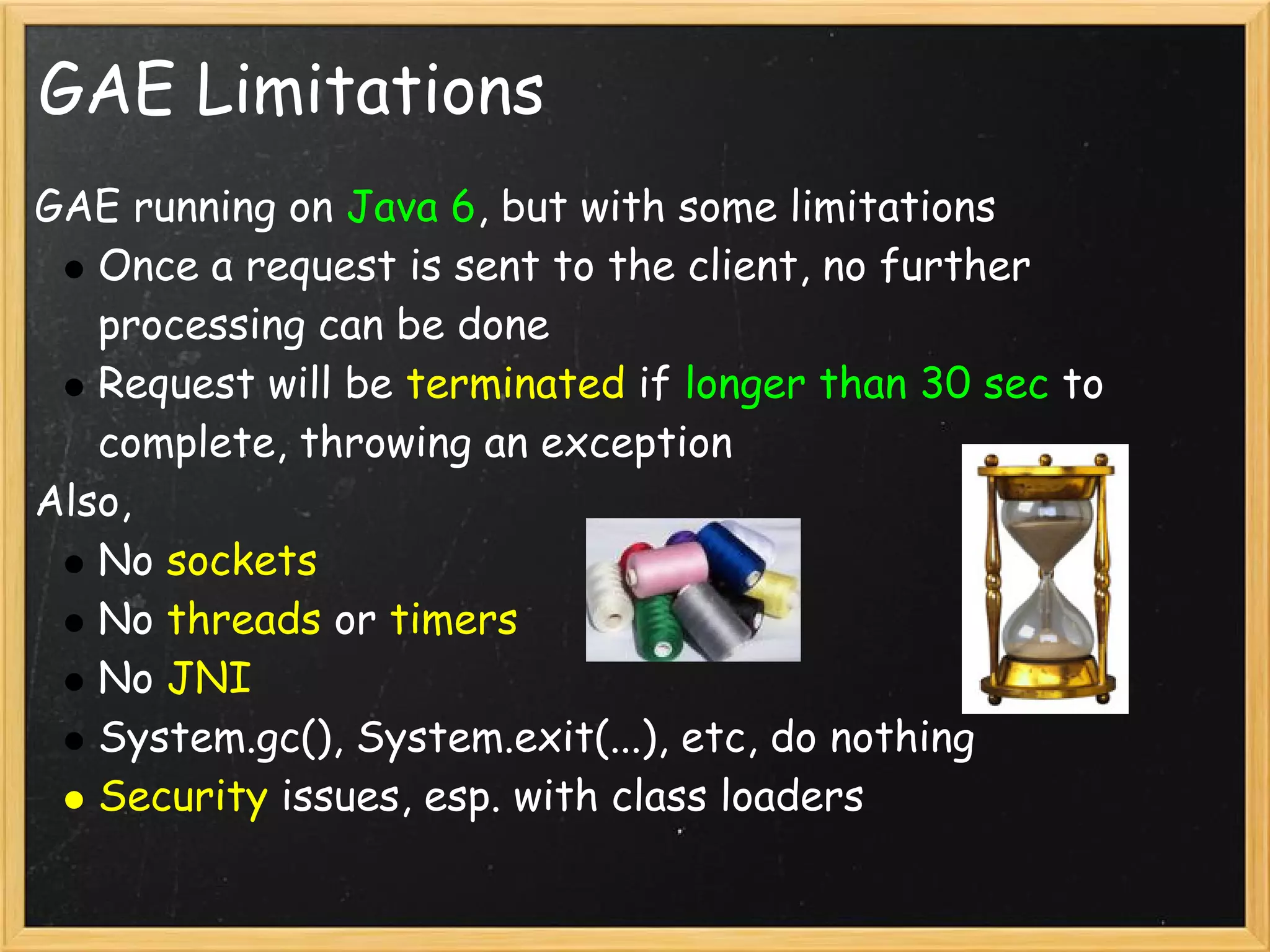

GAE Limitations
GAE running on Java 6, but with some limitations
Once a request is sent to the client, no further
processing can be done
Request will be terminated if longer than 30 sec to
complete, throwing an exception
Also,
No sockets
No threads or timers
No JNI
System.gc(), System.exit(...), etc, do nothing
Security issues, esp. with class loaders

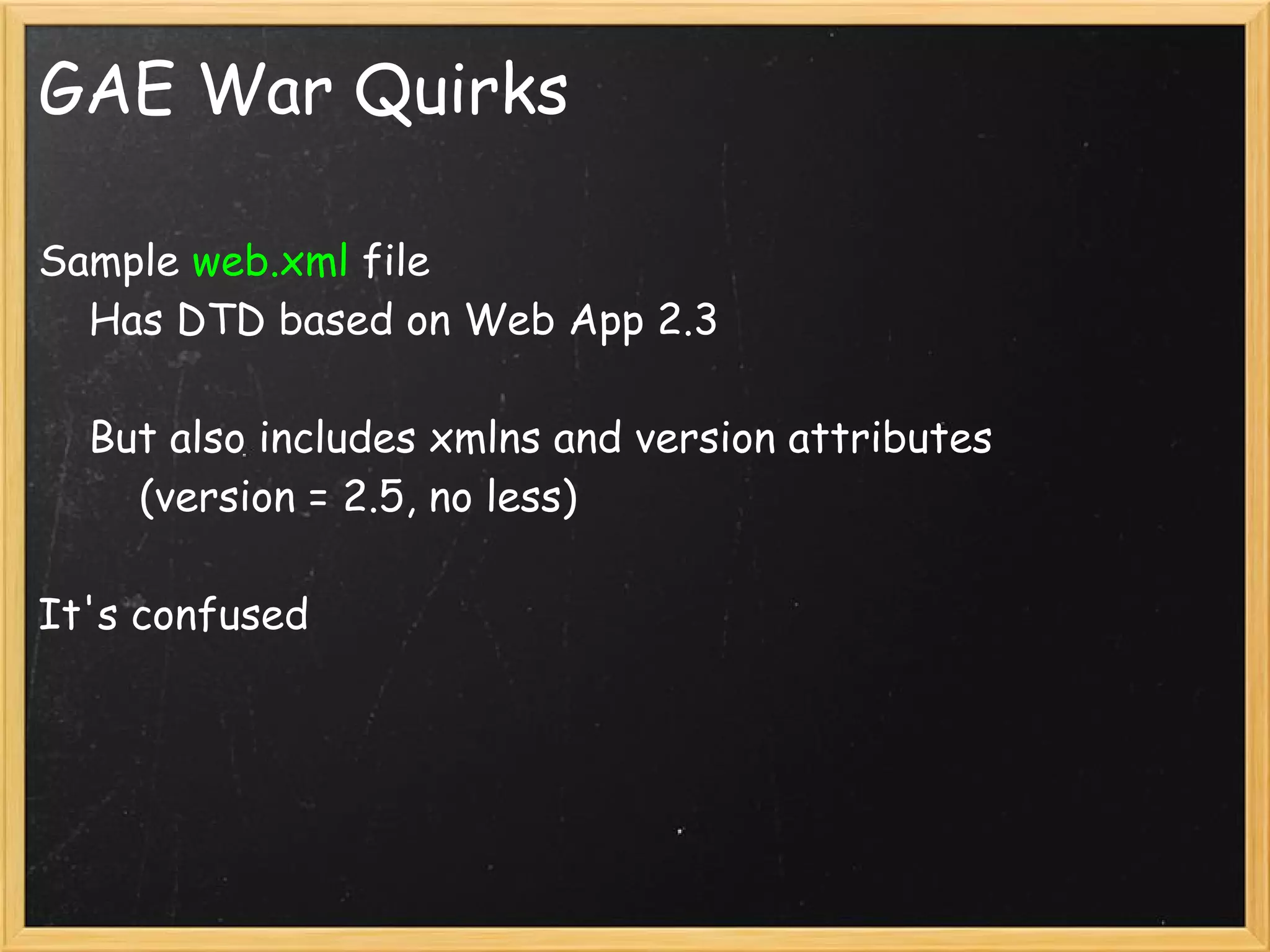

GAE War Quirks

Sample web.xml file
   Has DTD based on Web App 2.3

   But also includes xmlns and version attributes
       (version = 2.5, no less)

It's confused

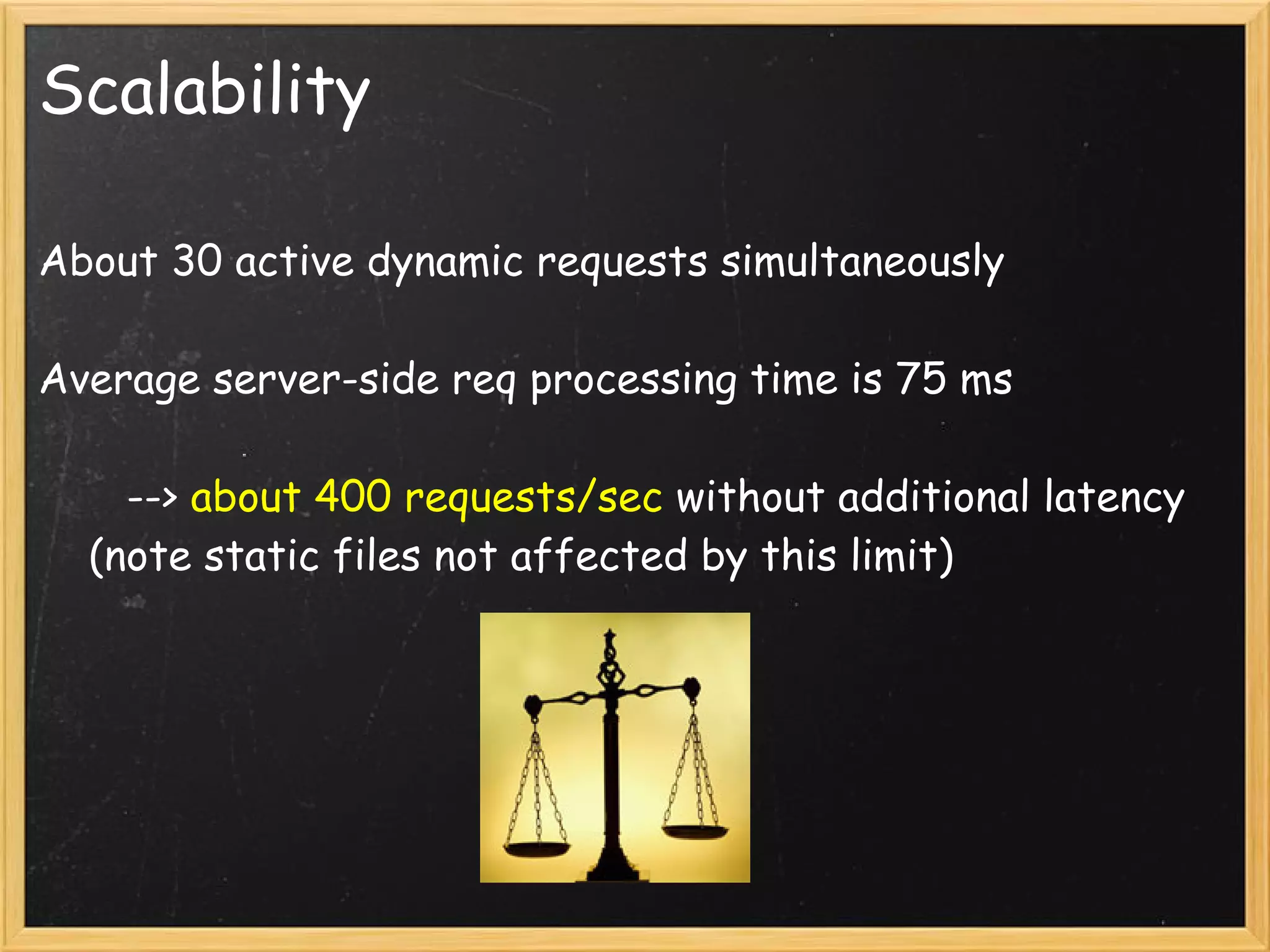

Scalability

About 30 active dynamic requests simultaneously

Average server-side req processing time is 75 ms

--> about 400 requests/sec without additional latency
(note static files not affected by this limit)

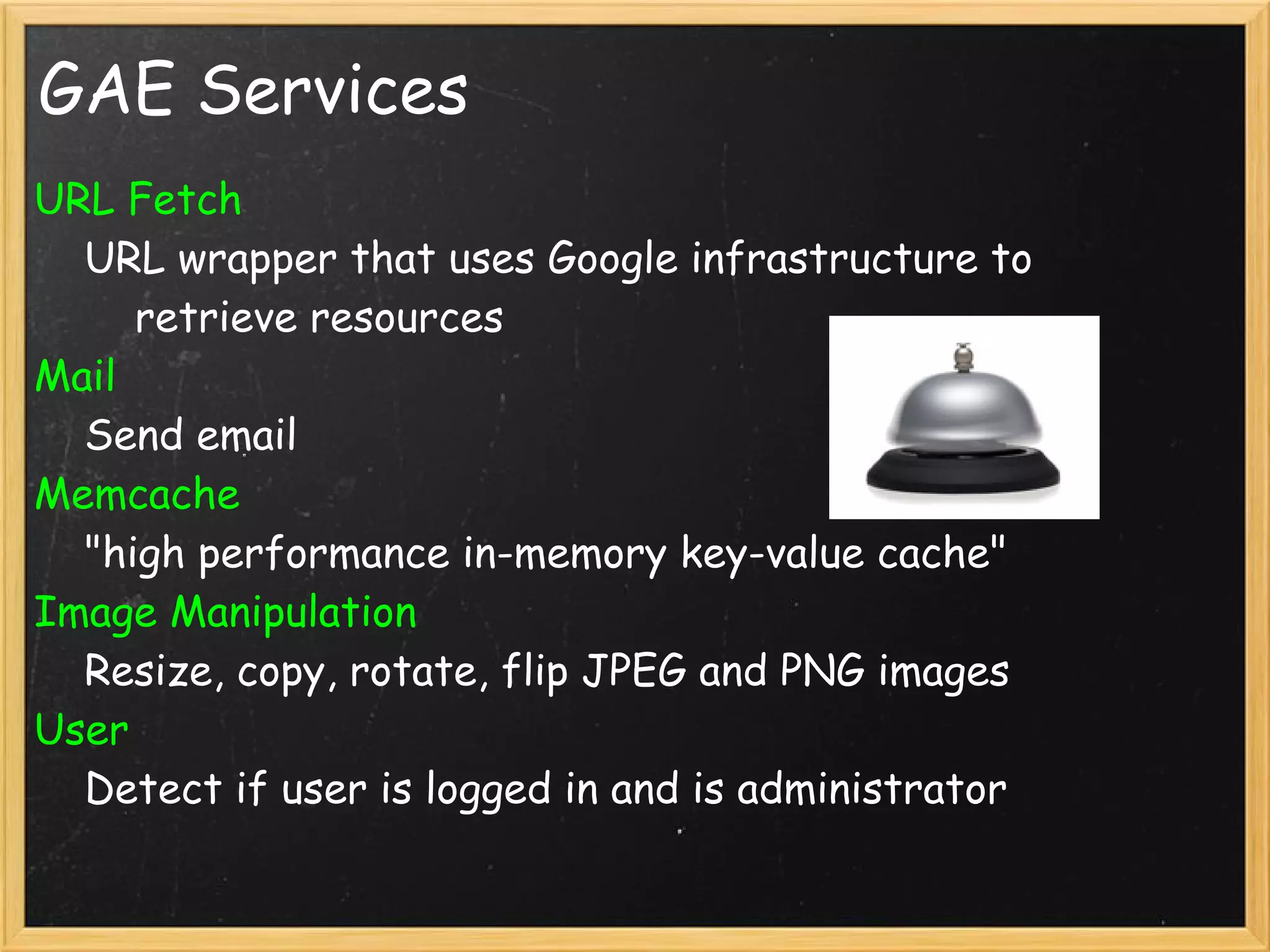

GAE Services
URL Fetch
   URL wrapper that uses Google infrastructure to
       retrieve resources
Mail
   Send email
Memcache
   "high performance in-memory key-value cache"
Image Manipulation
   Resize, copy, rotate, flip JPEG and PNG images
User
   Detect if user is logged in and is administrator

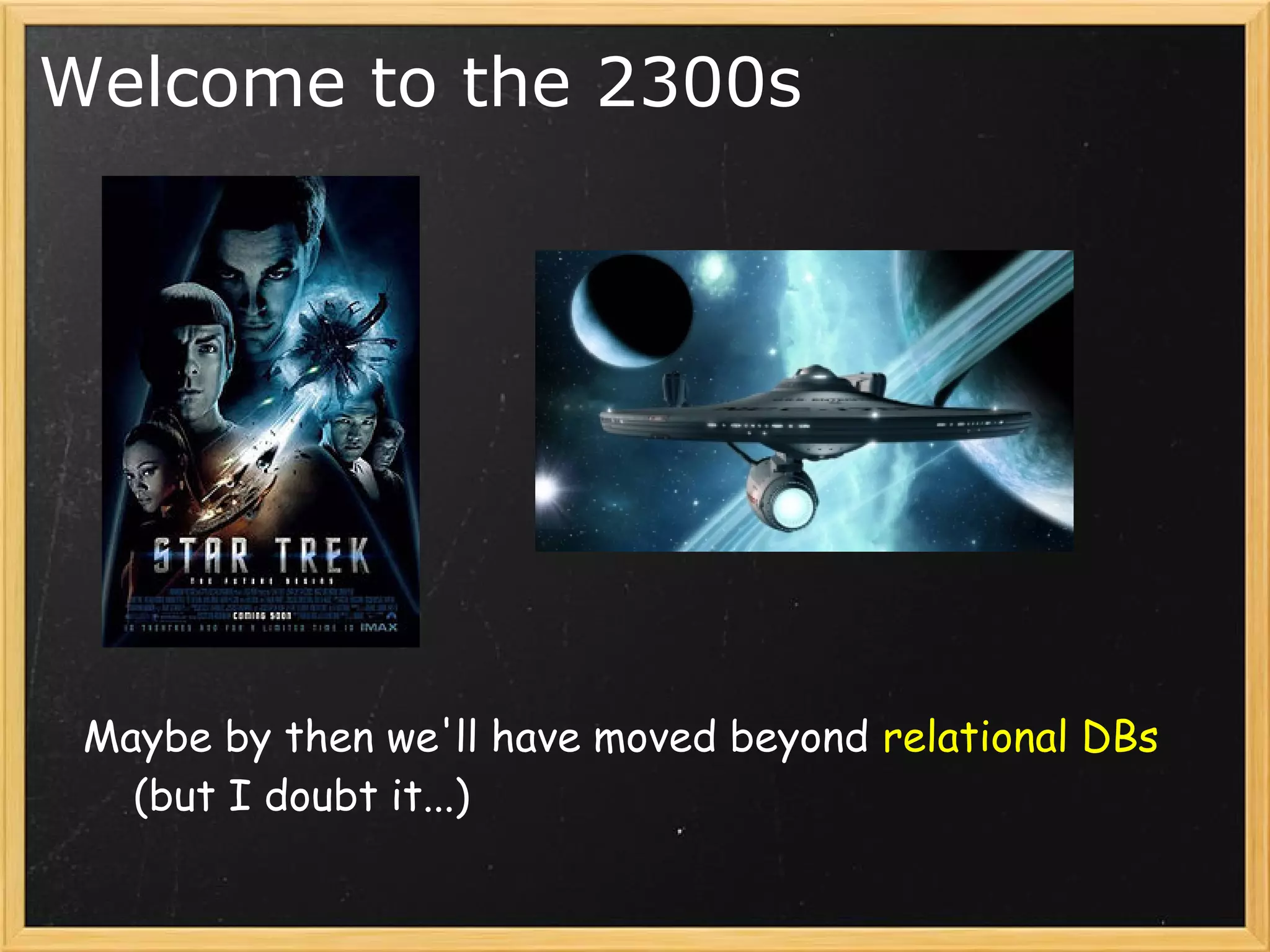

Welcome to the 2300s

Maybe by then we'll have moved beyond relational DBs
(but I doubt it...)

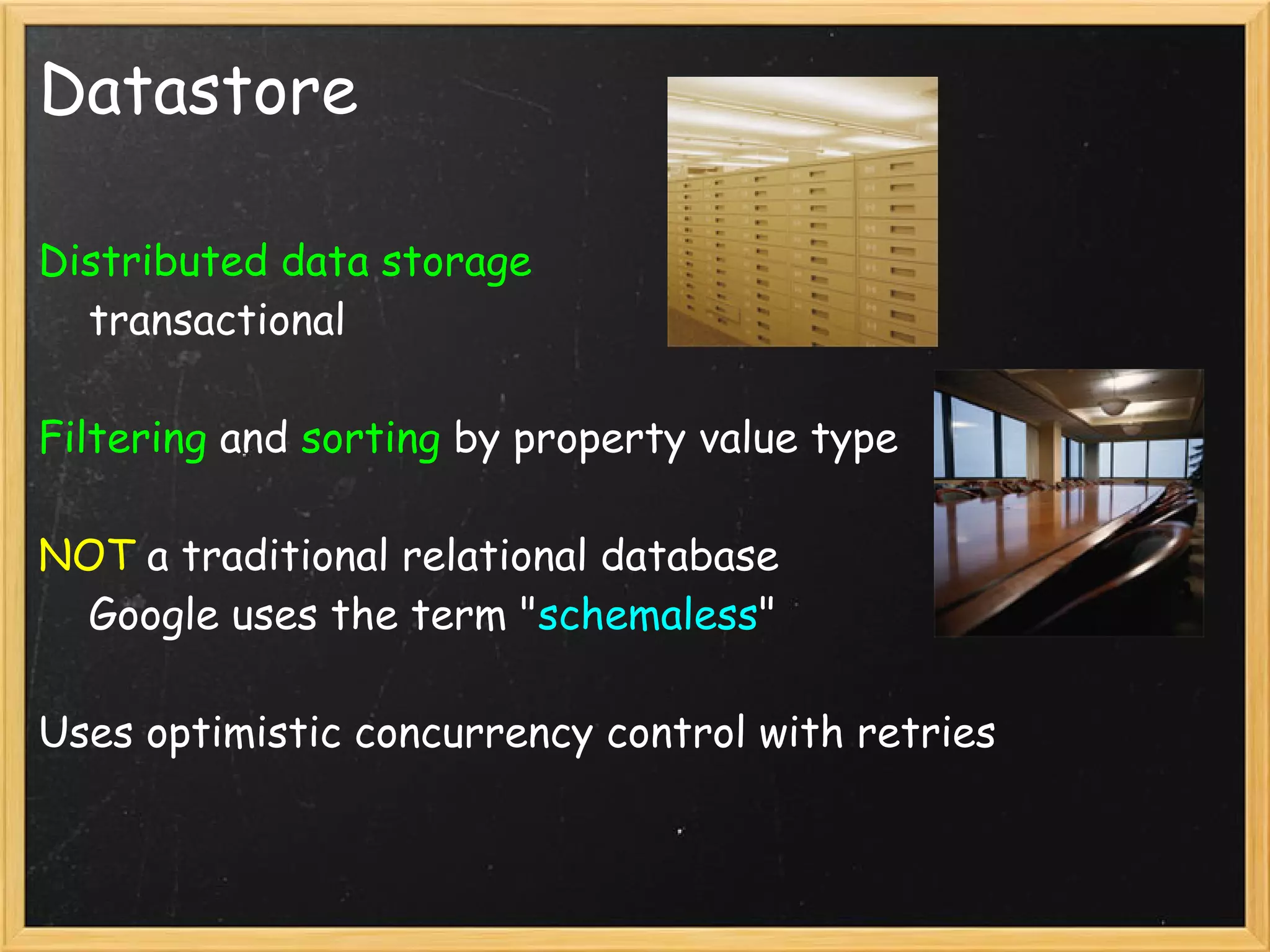

Datastore

Distributed data storage
transactional

Filtering and sorting by property value type

NOT a traditional relational database
Google uses the term "schemaless"

Uses optimistic concurrency control with retries

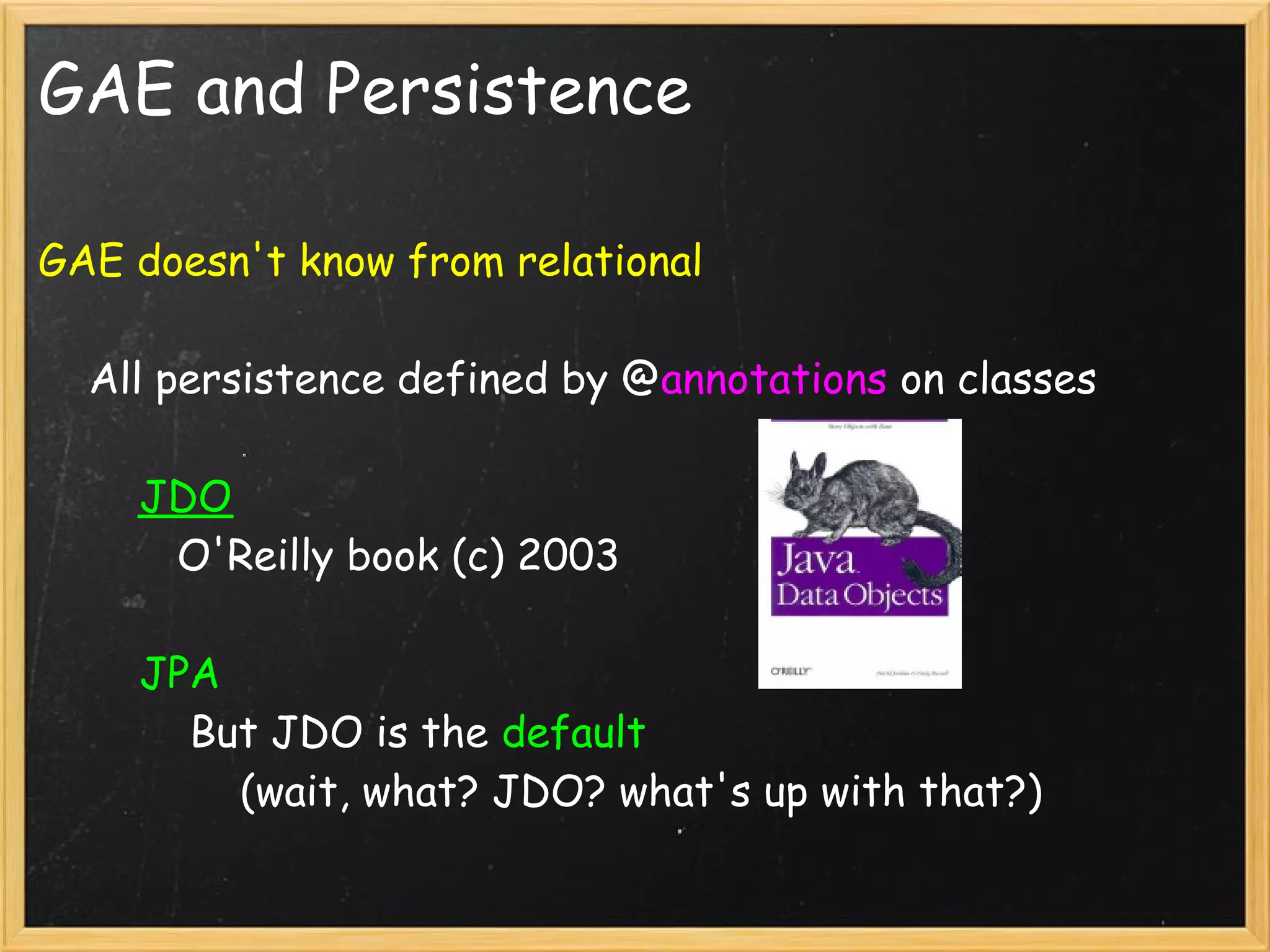

GAE and Persistence

GAE doesn't know from relational

   All persistence defined by @annotations on classes

       JDO
          O'Reilly book (c) 2003

       JPA
           But JDO is the default
               (wait, what? JDO? what's up with that?)

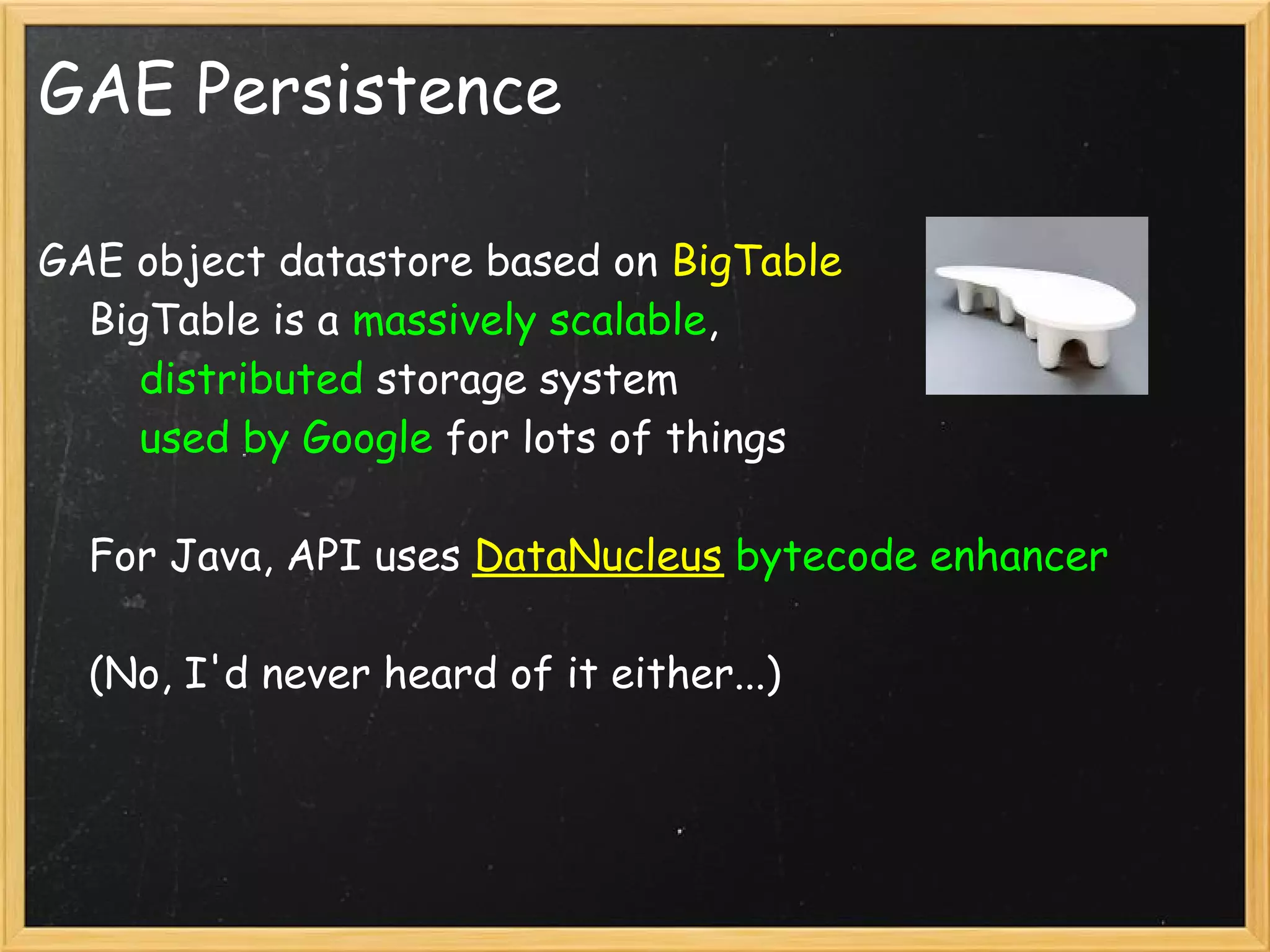

GAE Persistence

GAE object datastore based on BigTable
   BigTable is a massively scalable,
       distributed storage system
       used by Google for lots of things

   For Java, API uses DataNucleus bytecode enhancer

   (No, I'd never heard of it either...)

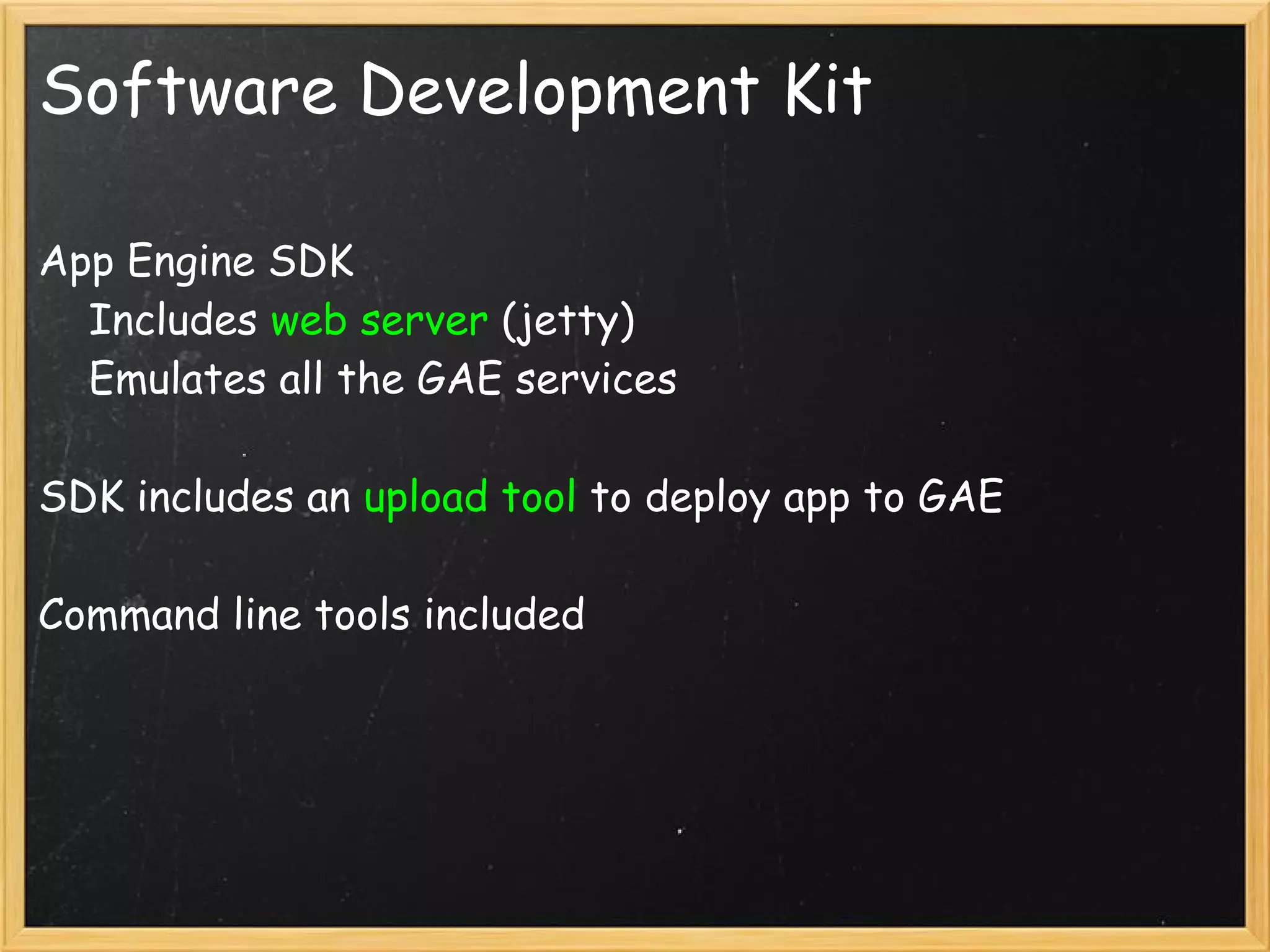

Software Development Kit

App Engine SDK
Includes web server (jetty)
Emulates all the GAE services

SDK includes an upload tool to deploy app to GAE

Command line tools included

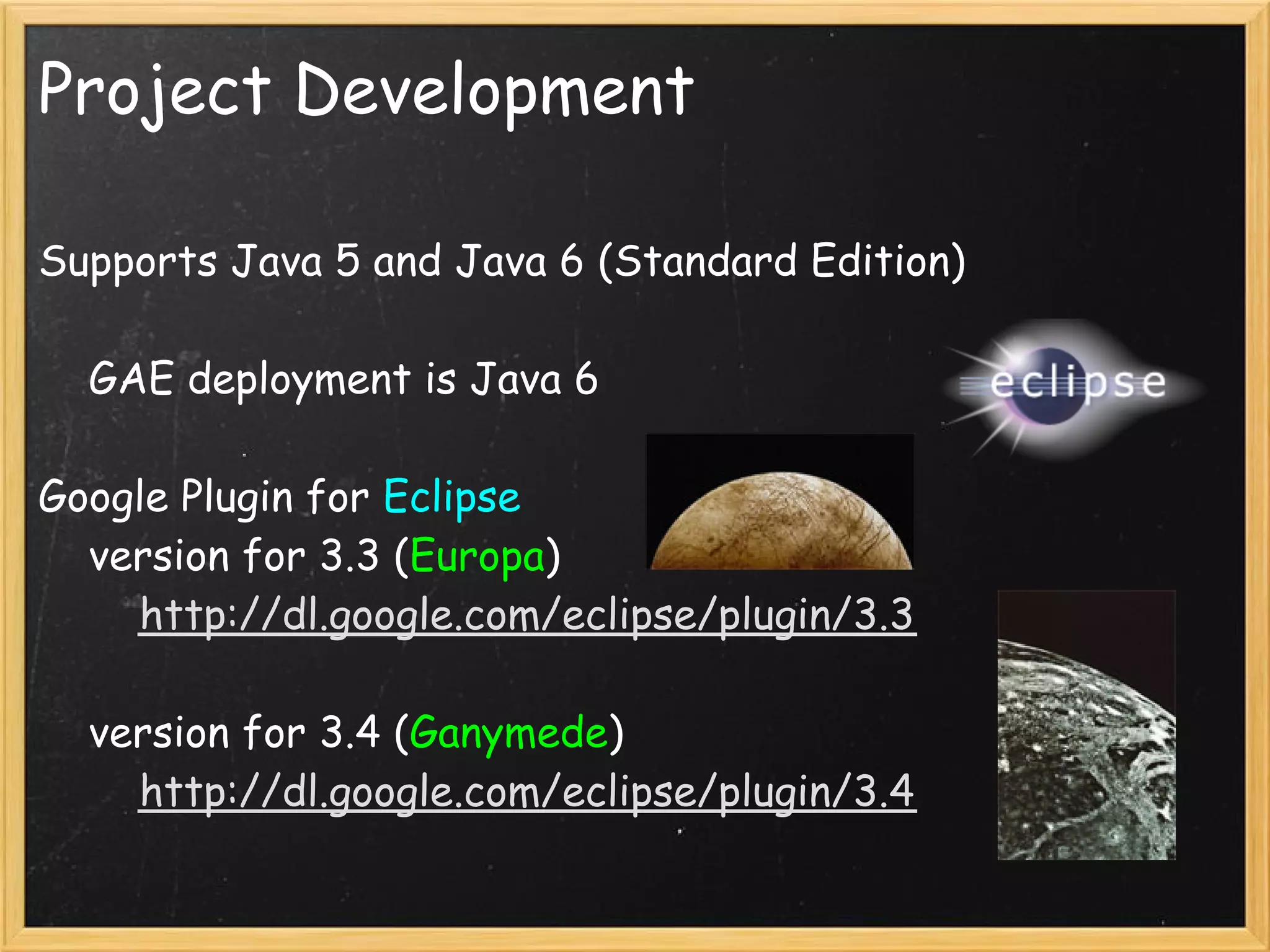

Project Development

Supports Java 5 and Java 6 (Standard Edition)

   GAE deployment is Java 6

Google Plugin for Eclipse
   version for 3.3 (Europa)
       http://dl.google.com/eclipse/plugin/3.3

   version for 3.4 (Ganymede)
       http://dl.google.com/eclipse/plugin/3.4

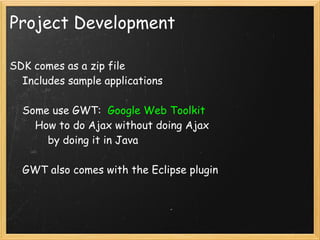

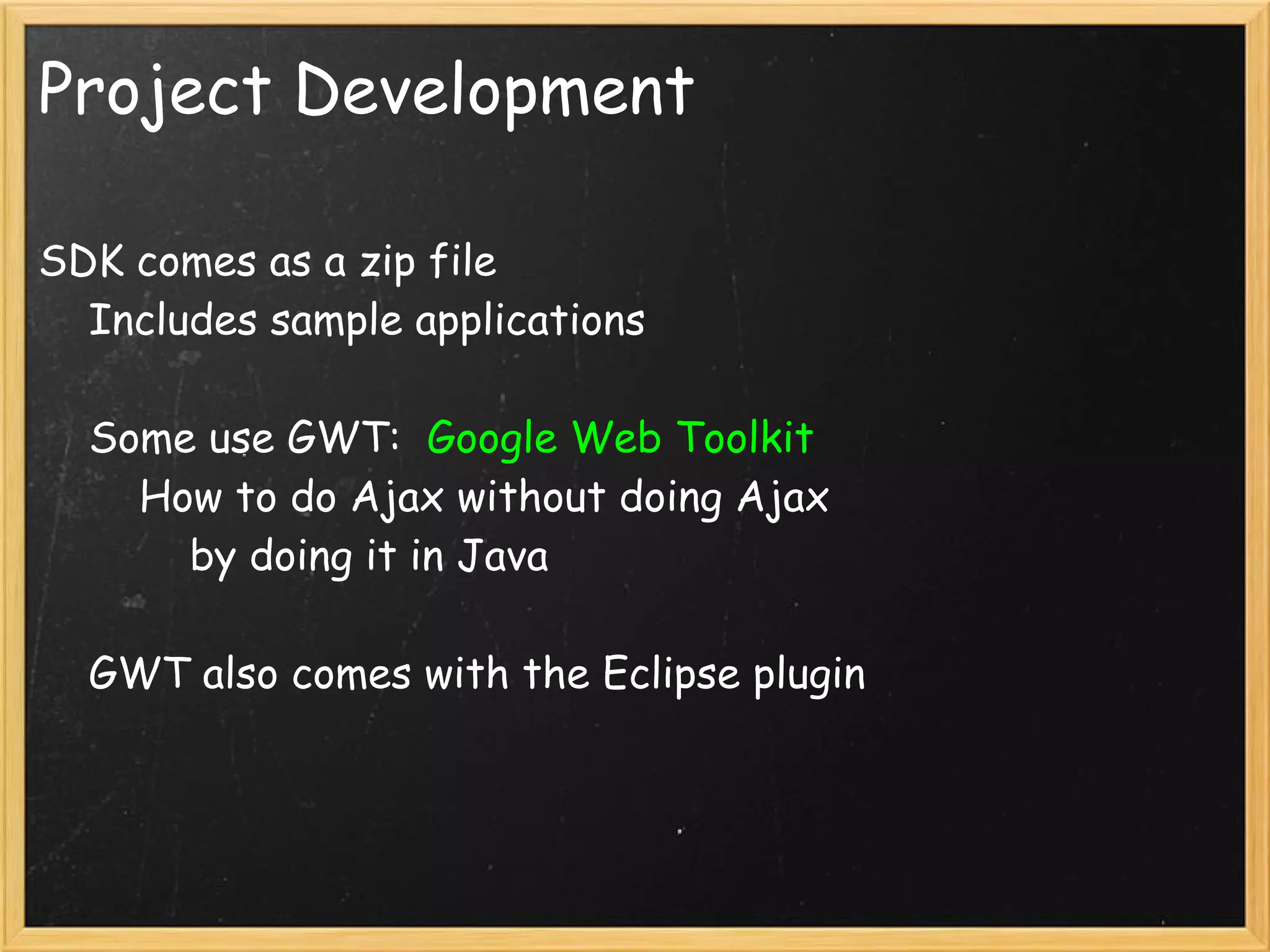

Project Development

SDK comes as a zip file
   Includes sample applications

   Some use GWT: Google Web Toolkit
       How to do Ajax without doing Ajax
           by doing it in Java

   GWT also comes with the Eclipse plugin

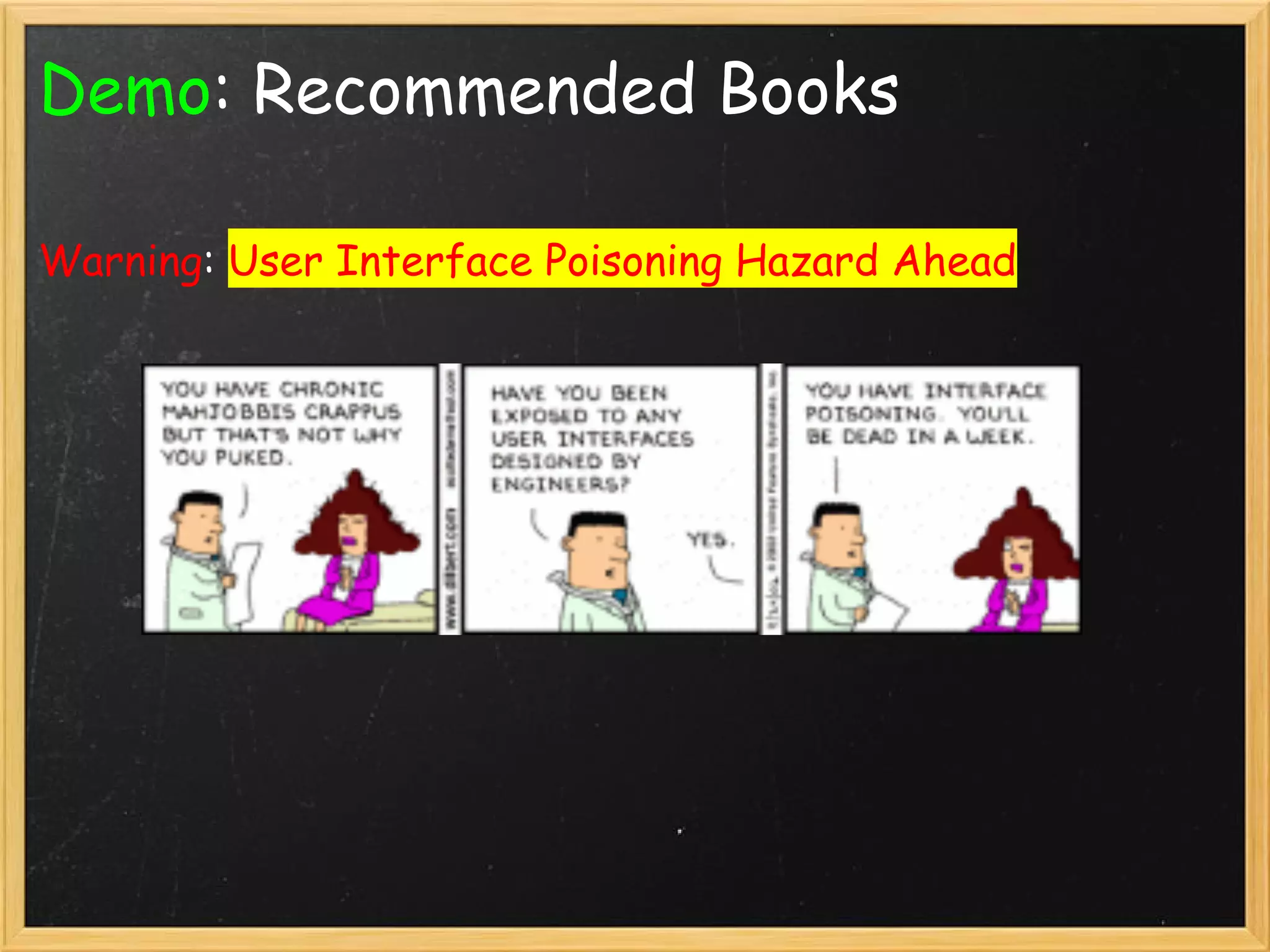

Demo: Recommended Books

Warning: User Interface Poisoning Hazard Ahead

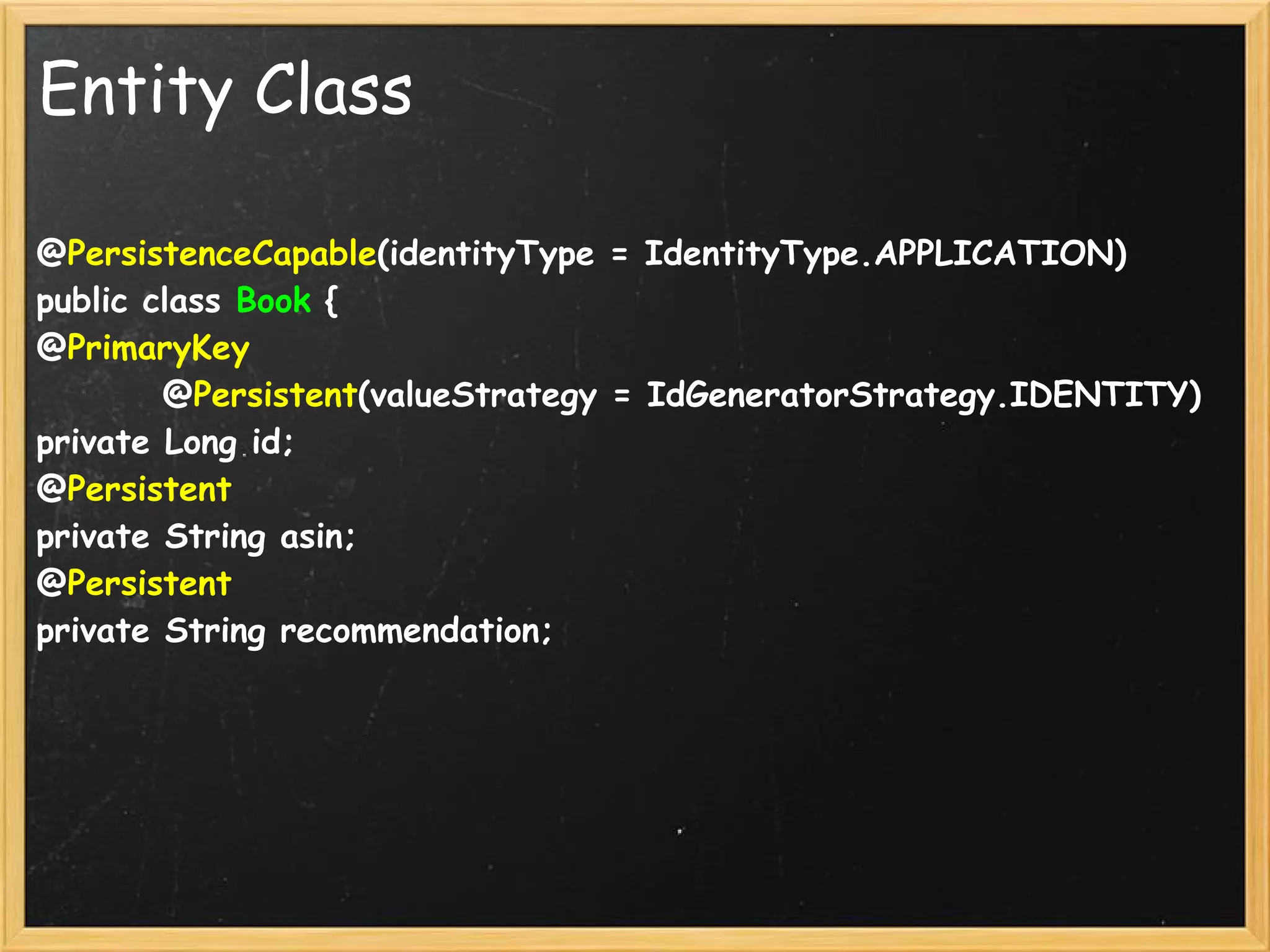

Entity Class

@PersistenceCapable(identityType = IdentityType.APPLICATION)
public class Book {
@PrimaryKey
@Persistent(valueStrategy = IdGeneratorStrategy.IDENTITY)
private Long id;
@Persistent
private String asin;
@Persistent
private String recommendation;

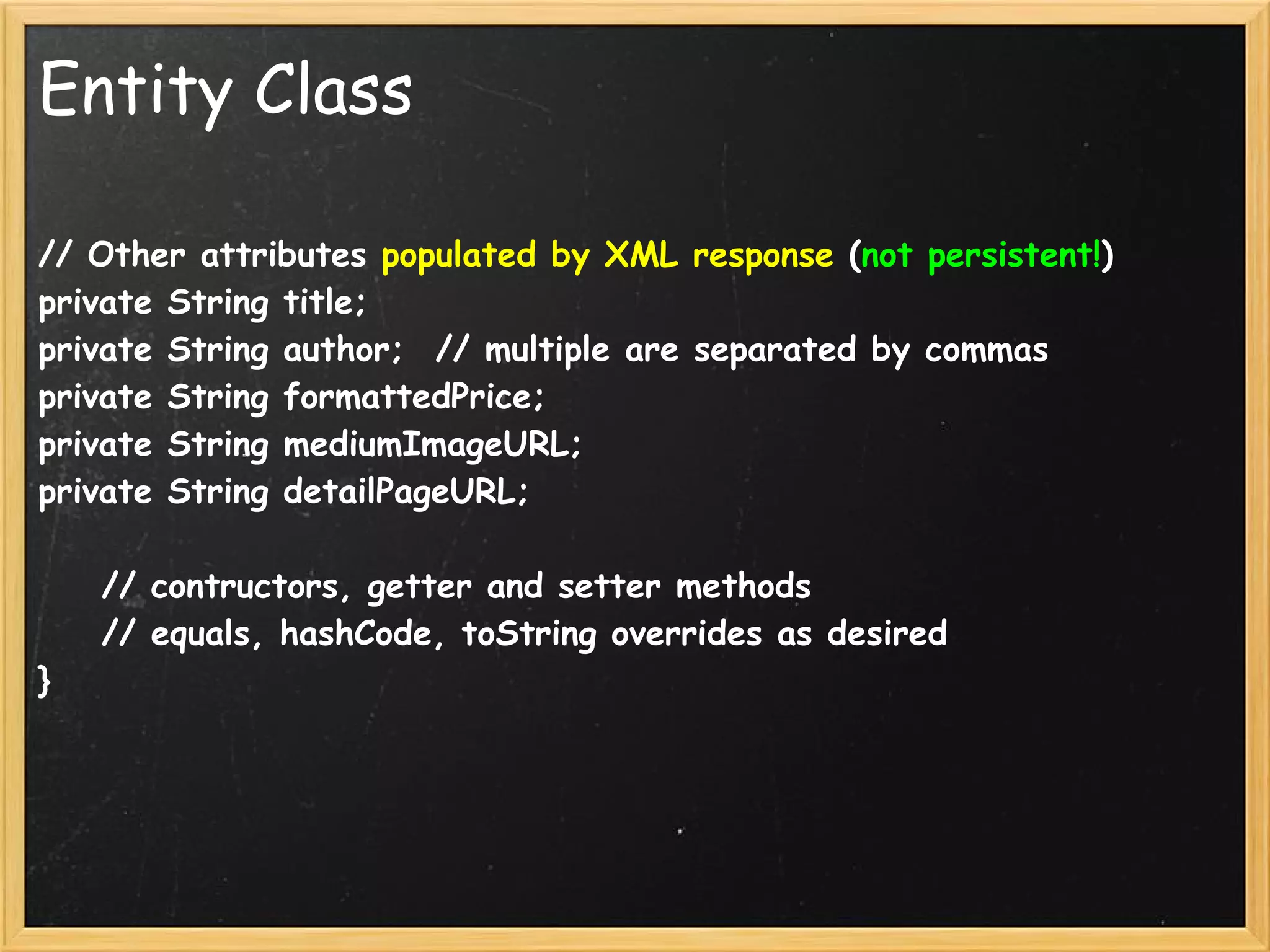

Entity Class

// Other attributes populated by XML response (not persistent!)
private String title;
private String author; // multiple are separated by commas
private String formattedPrice;
private String mediumImageURL;
private String detailPageURL;

// contructors, getter and setter methods
// equals, hashCode, toString overrides as desired
}

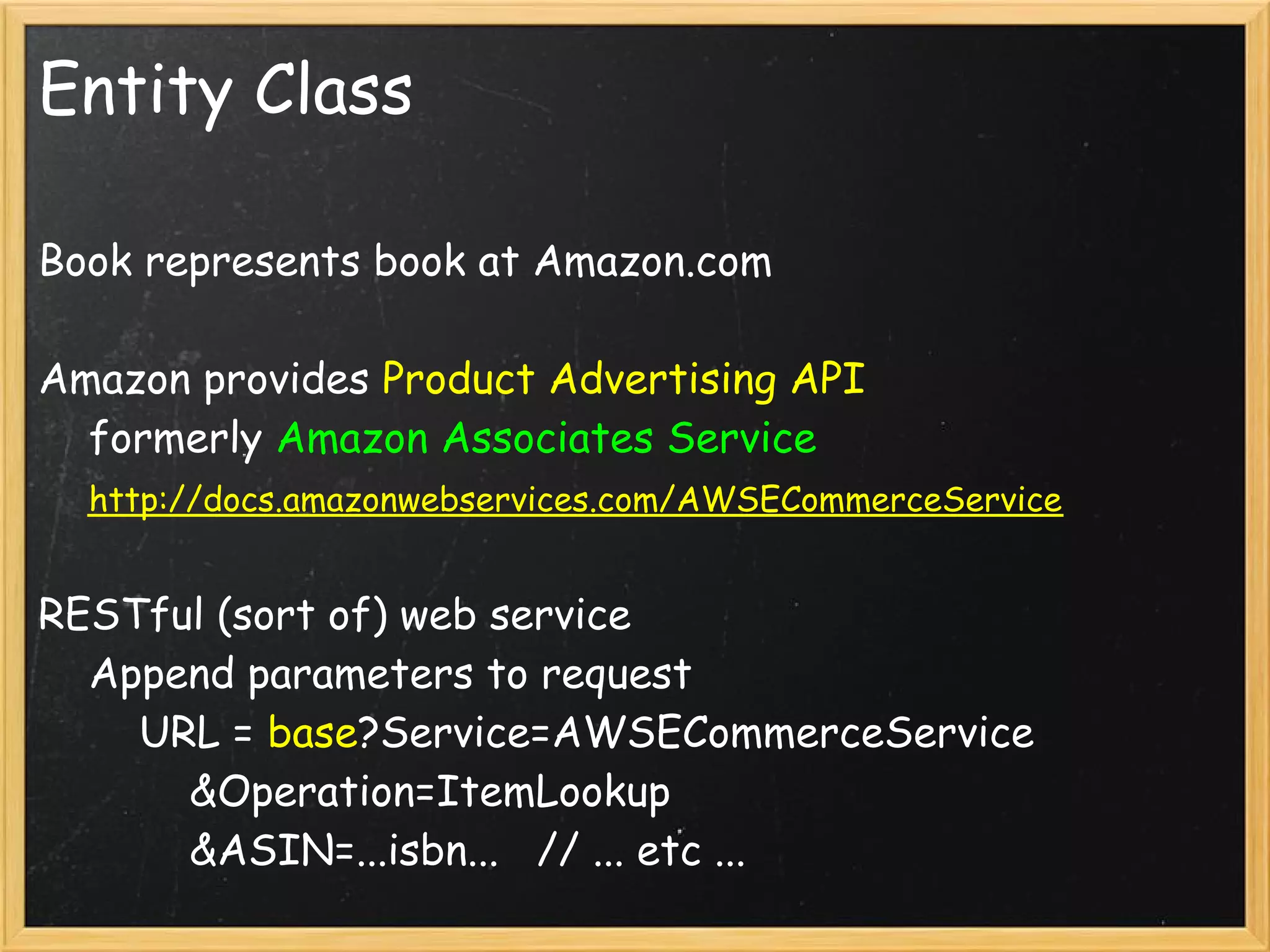

Entity Class

Book represents book at Amazon.com

Amazon provides Product Advertising API
   formerly Amazon Associates Service
   http://docs.amazonwebservices.com/AWSECommerceService

RESTful (sort of) web service
   Append parameters to request
       URL = base?Service=AWSECommerceService
           &Operation=ItemLookup
           &ASIN=...isbn... // ... etc ...

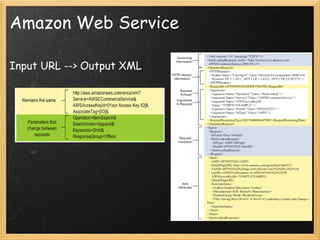

Amazon Web Service

Input URL --> Output XML

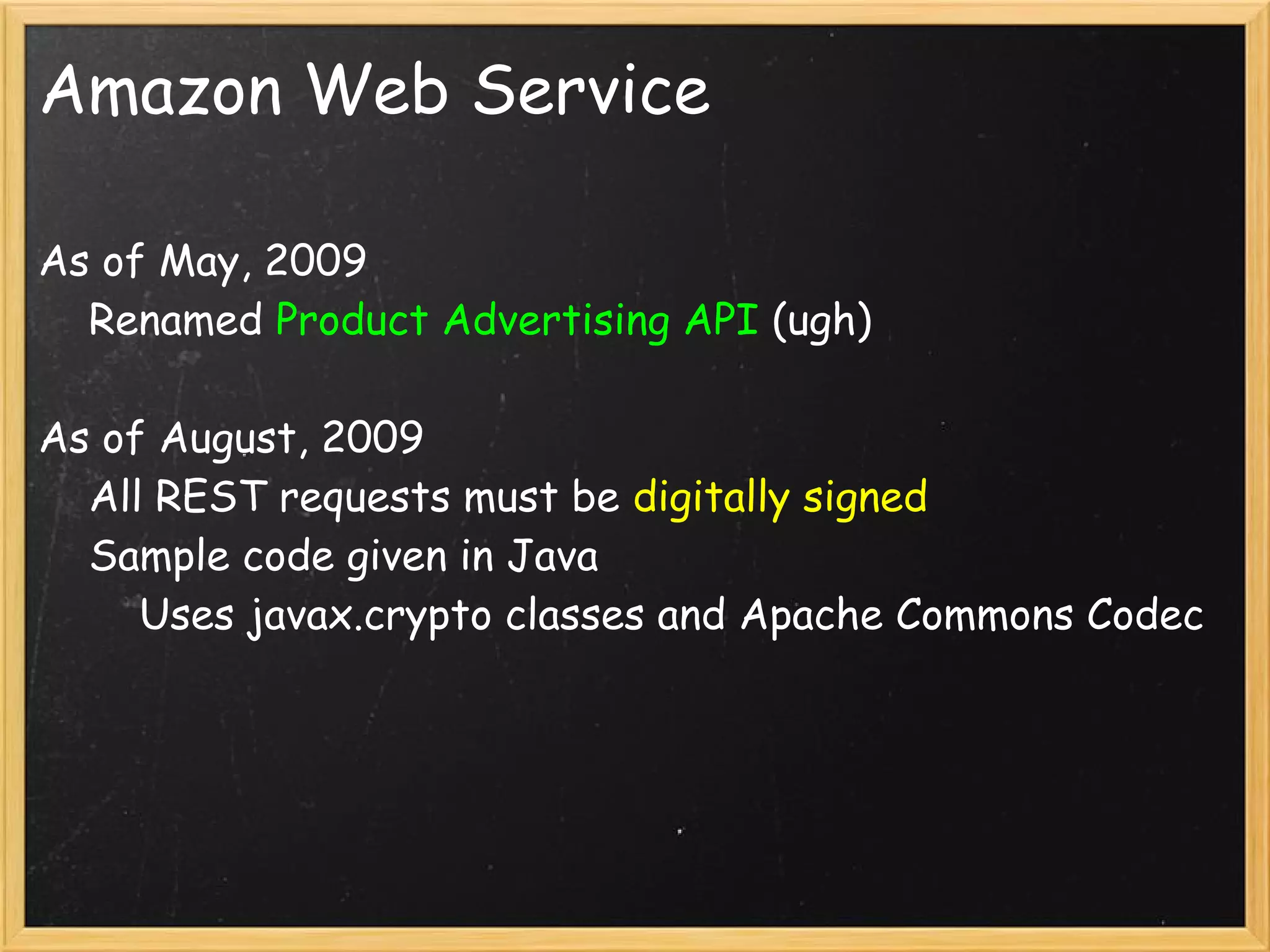

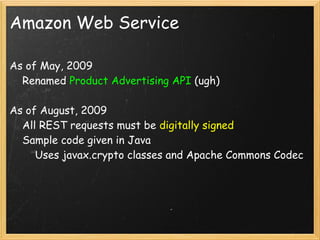

Amazon Web Service

As of May, 2009
   Renamed Product Advertising API (ugh)

As of August, 2009
   All REST requests must be digitally signed
   Sample code given in Java
       Uses javax.crypto classes and Apache Commons Codec

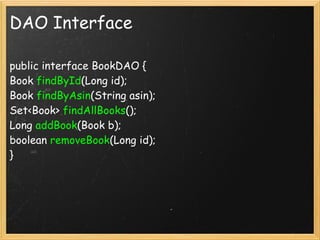

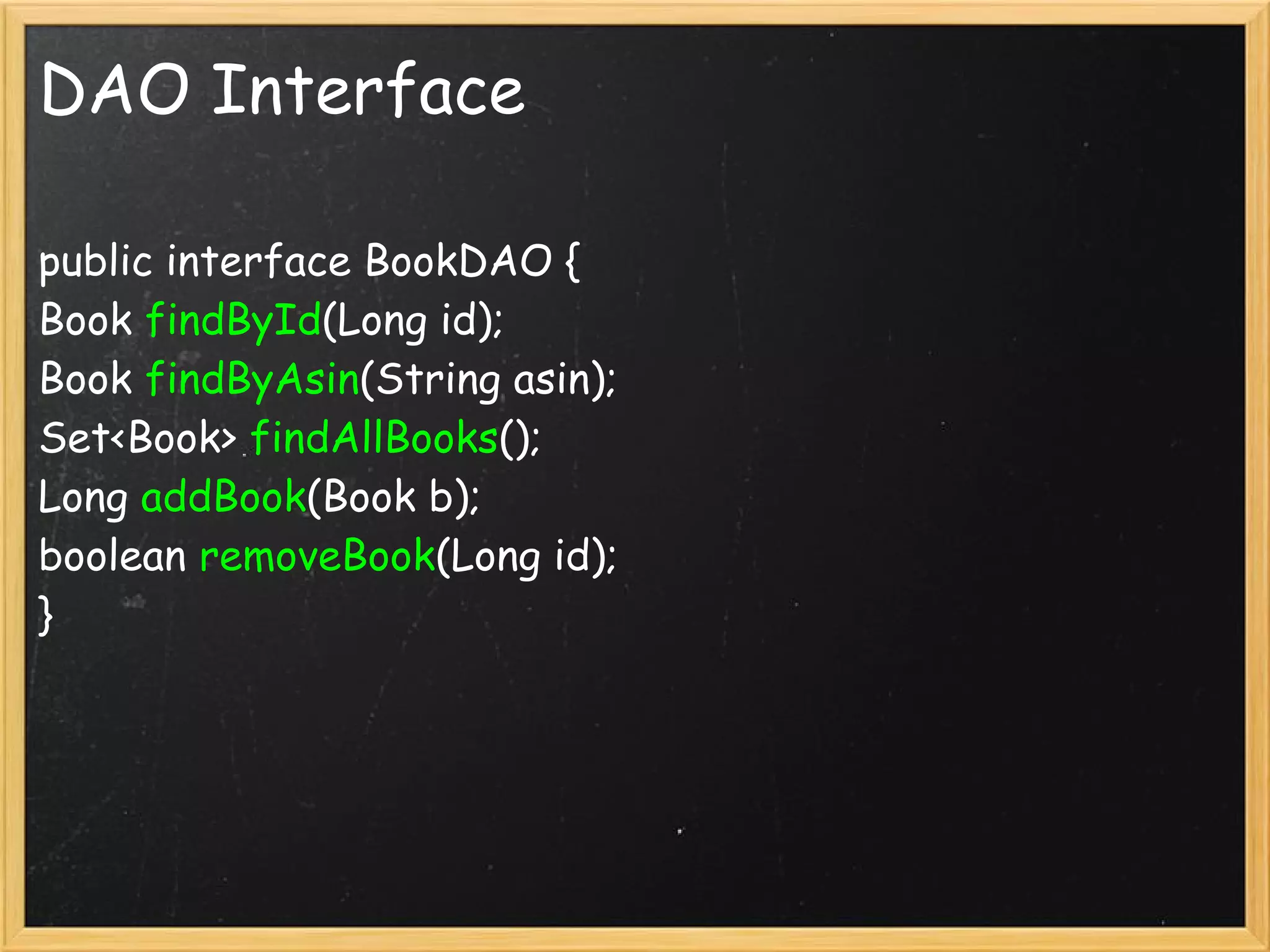

DAO Interface

public interface BookDAO {
Book findById(Long id);
Book findByAsin(String asin);
Set<Book> findAllBooks();
Long addBook(Book b);
boolean removeBook(Long id);
}

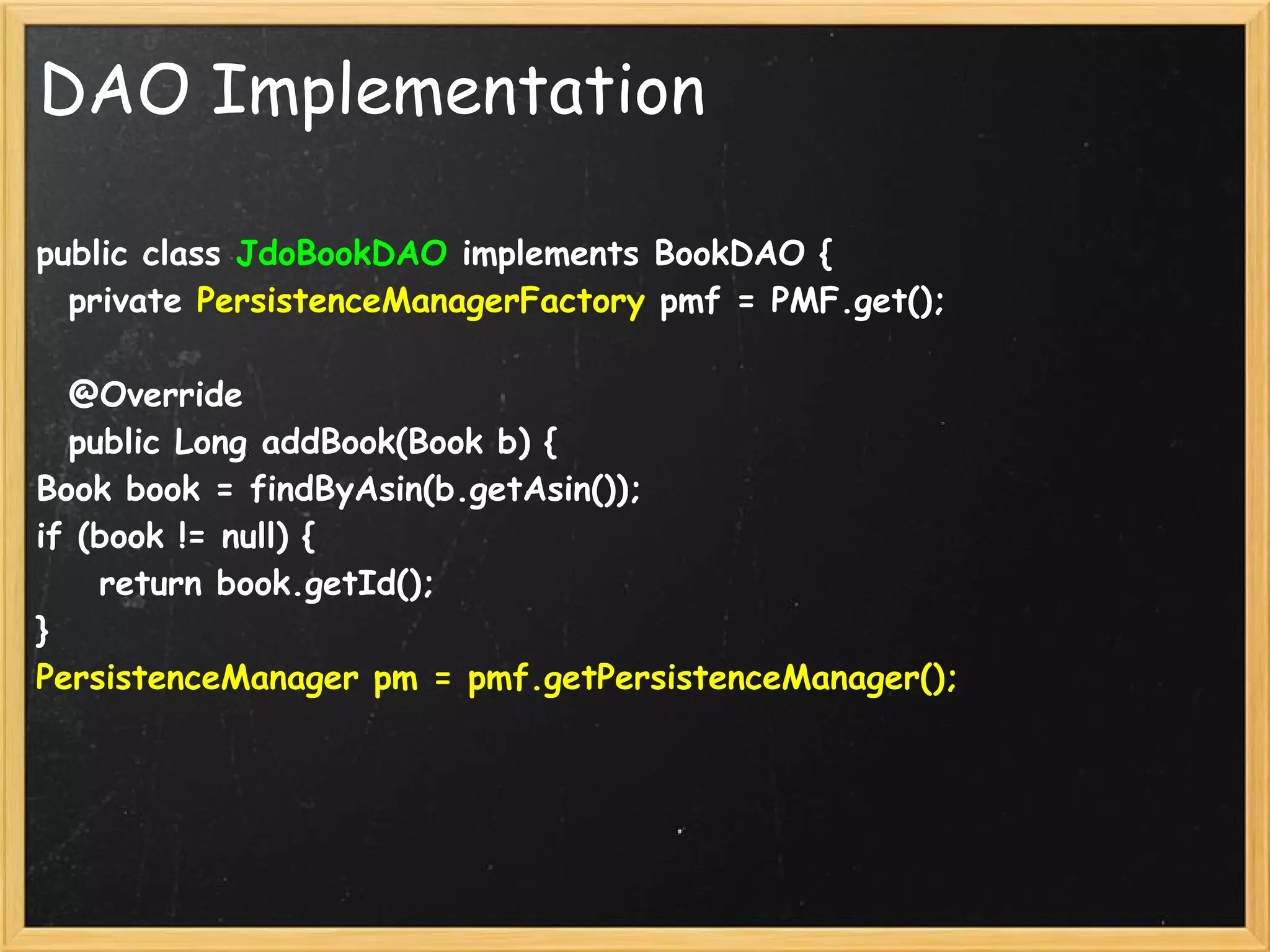

DAO Implementation

public class JdoBookDAO implements BookDAO {
  private PersistenceManagerFactory pmf = PMF.get();

  @Override
  public Long addBook(Book b) {
Book book = findByAsin(b.getAsin());
if (book != null) {
   return book.getId();
}
PersistenceManager pm = pmf.getPersistenceManager();

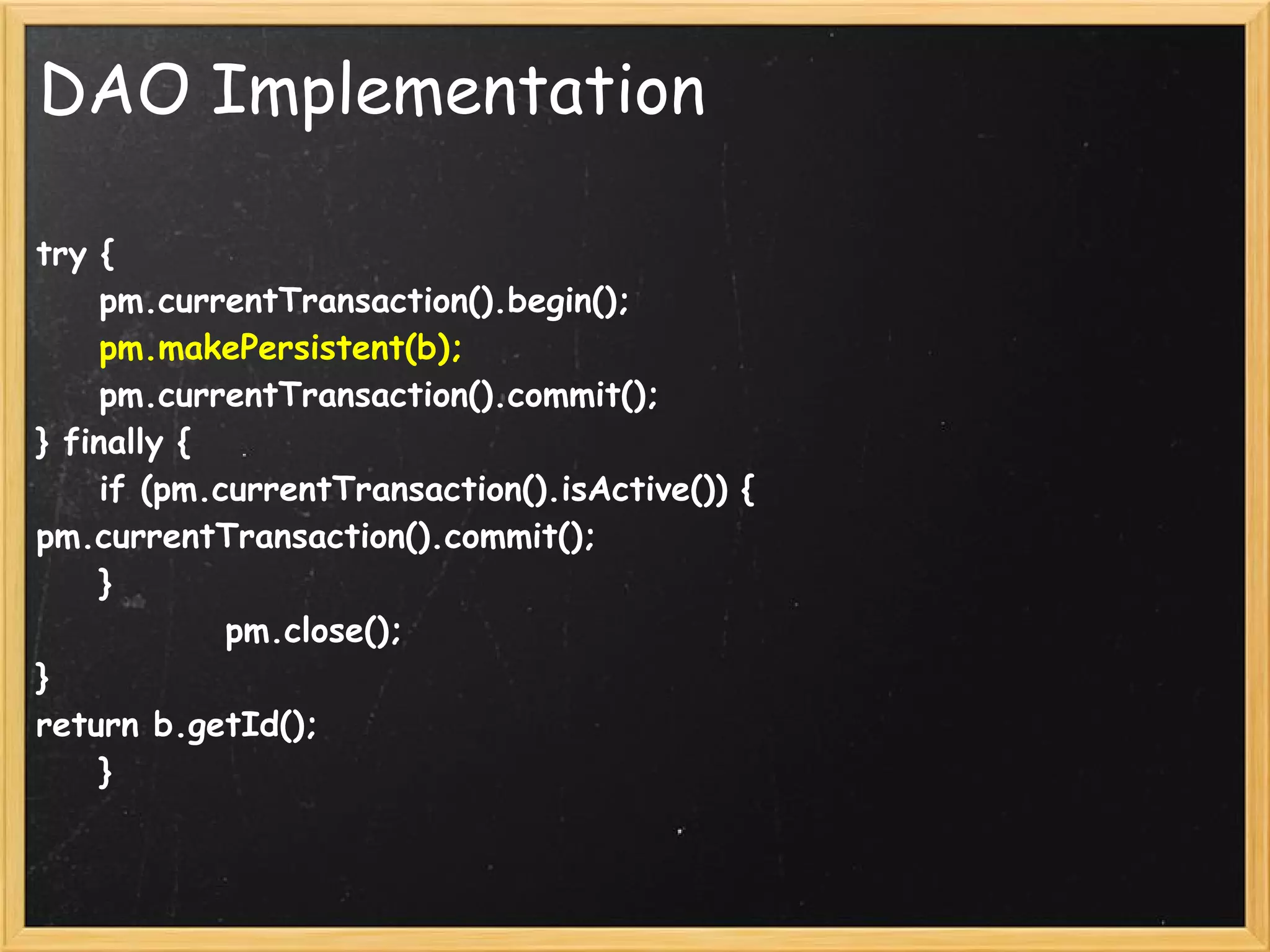

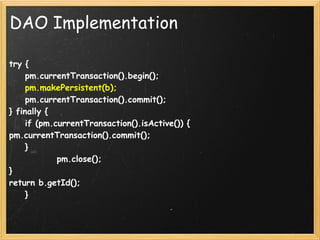

DAO Implementation

try {
   pm.currentTransaction().begin();
   pm.makePersistent(b);
   pm.currentTransaction().commit();
} finally {
   if (pm.currentTransaction().isActive()) {
pm.currentTransaction().commit();
   }
           pm.close();
}
return b.getId();
   }

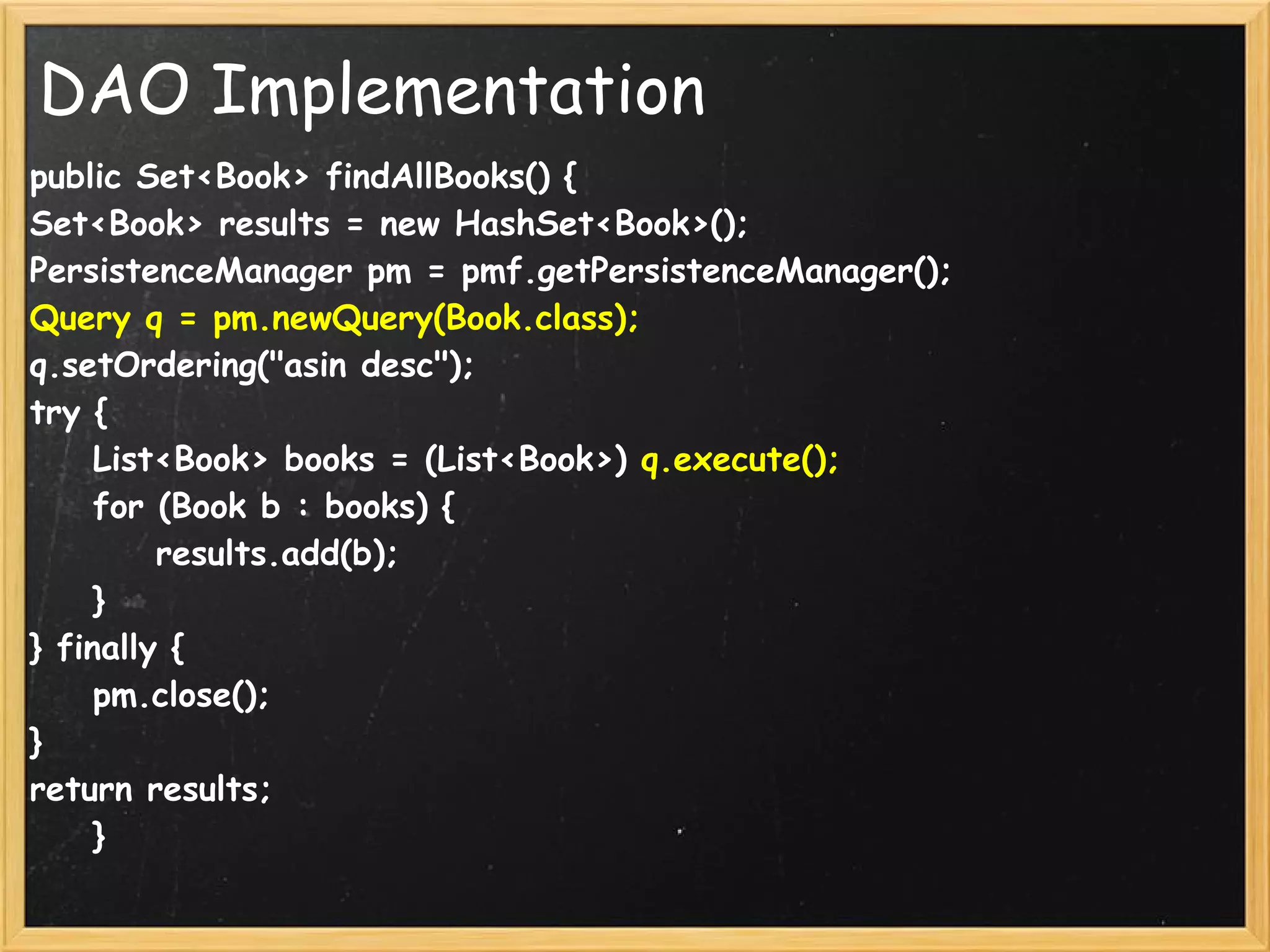

DAO Implementation
public Set<Book> findAllBooks() {
Set<Book> results = new HashSet<Book>();
PersistenceManager pm = pmf.getPersistenceManager();
Query q = pm.newQuery(Book.class);
q.setOrdering("asin desc");
try {
   List<Book> books = (List<Book>) q.execute();
   for (Book b : books) {
       results.add(b);
   }
} finally {
   pm.close();
}
return results;
   }

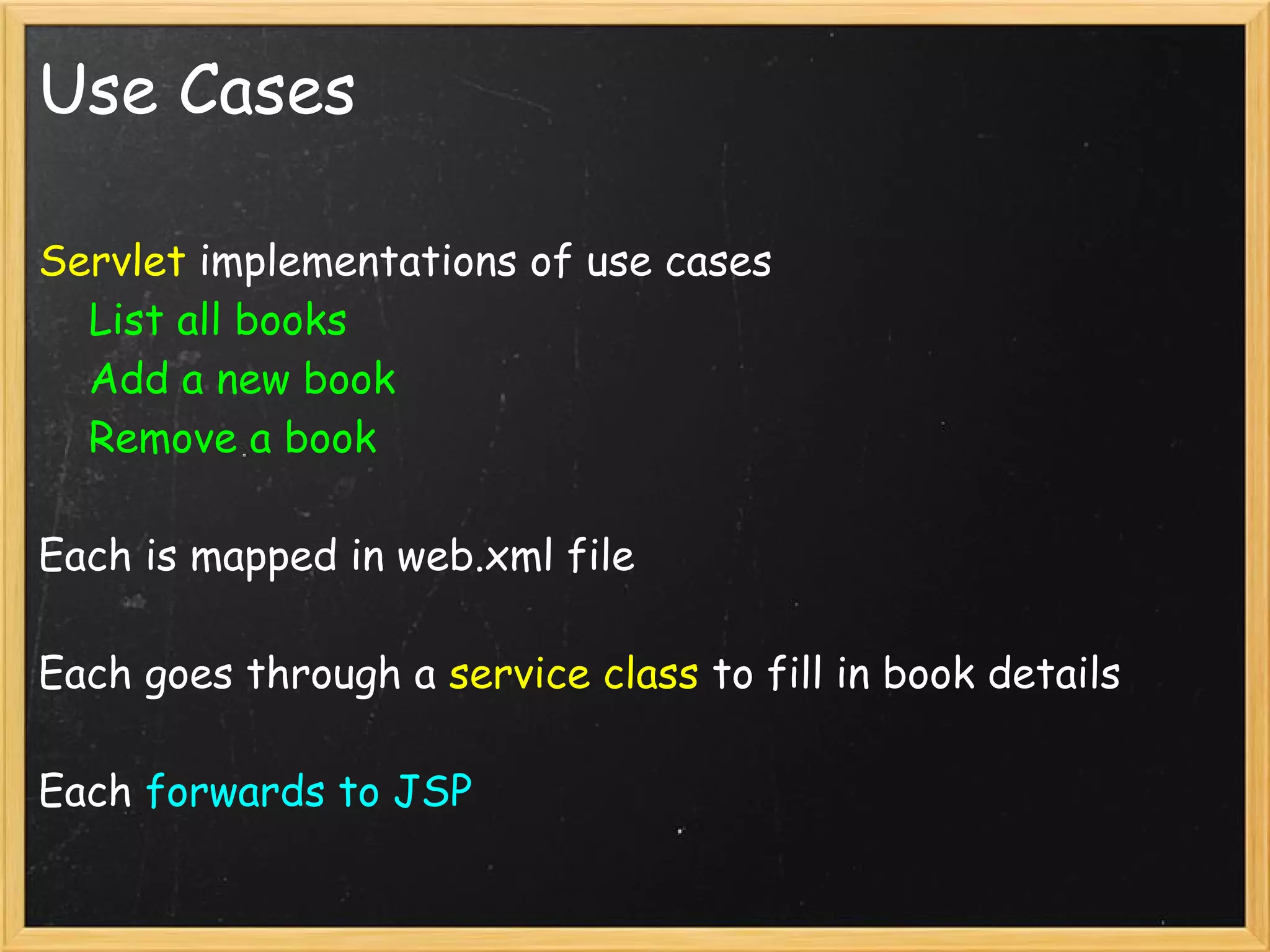

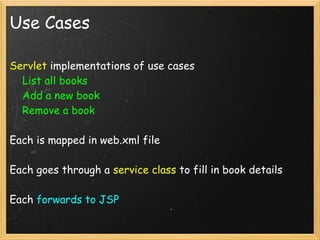

Use Cases

Servlet implementations of use cases
   List all books
   Add a new book
   Remove a book

Each is mapped in web.xml file

Each goes through a service class to fill in book details

Each forwards to JSP

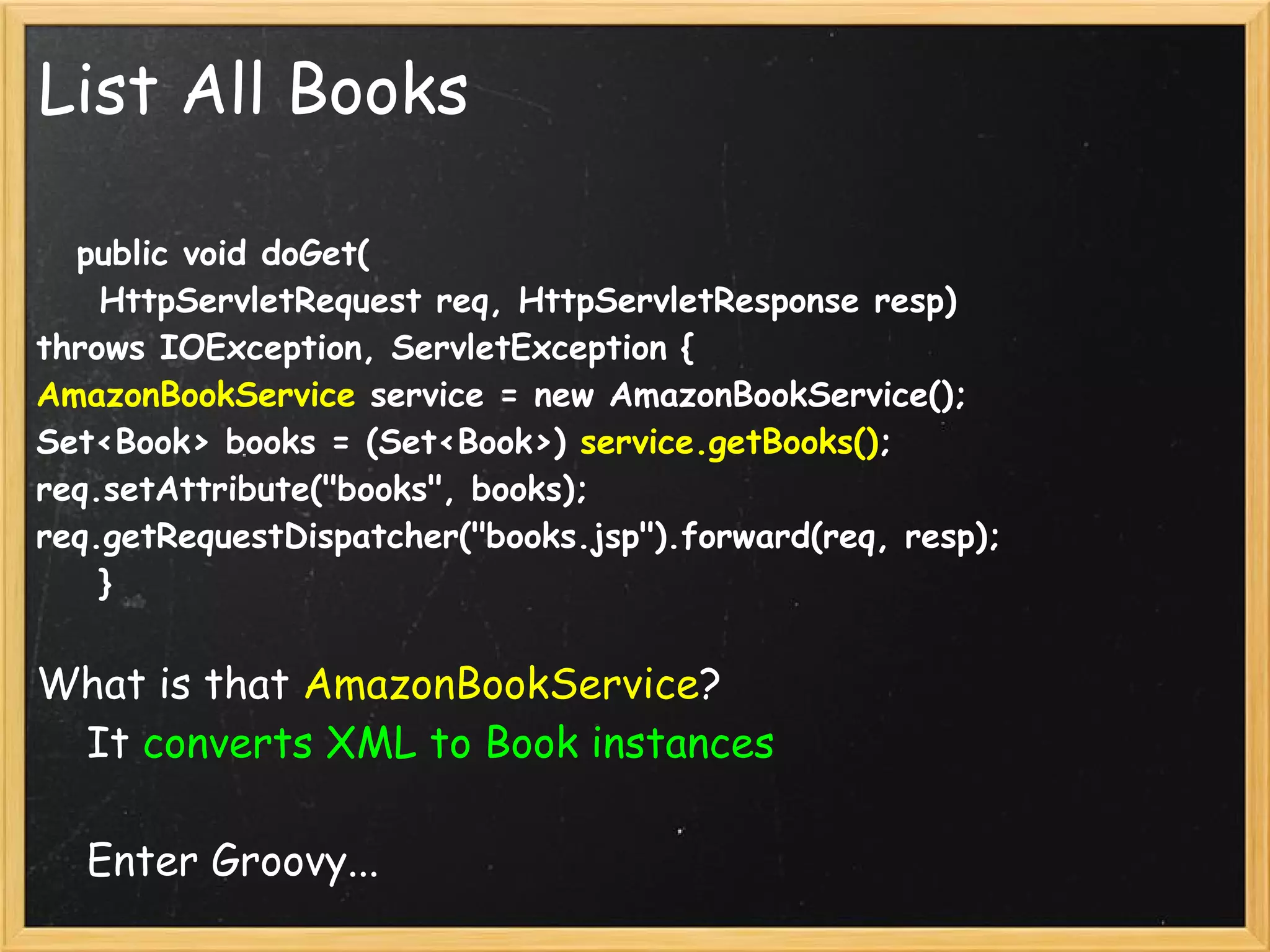

List All Books

   public void doGet(
   HttpServletRequest req, HttpServletResponse resp)
throws IOException, ServletException {
AmazonBookService service = new AmazonBookService();
Set<Book> books = (Set<Book>) service.getBooks();
req.setAttribute("books", books);
req.getRequestDispatcher("books.jsp").forward(req, resp);
   }

What is that AmazonBookService?
   It converts XML to Book instances

   Enter Groovy...

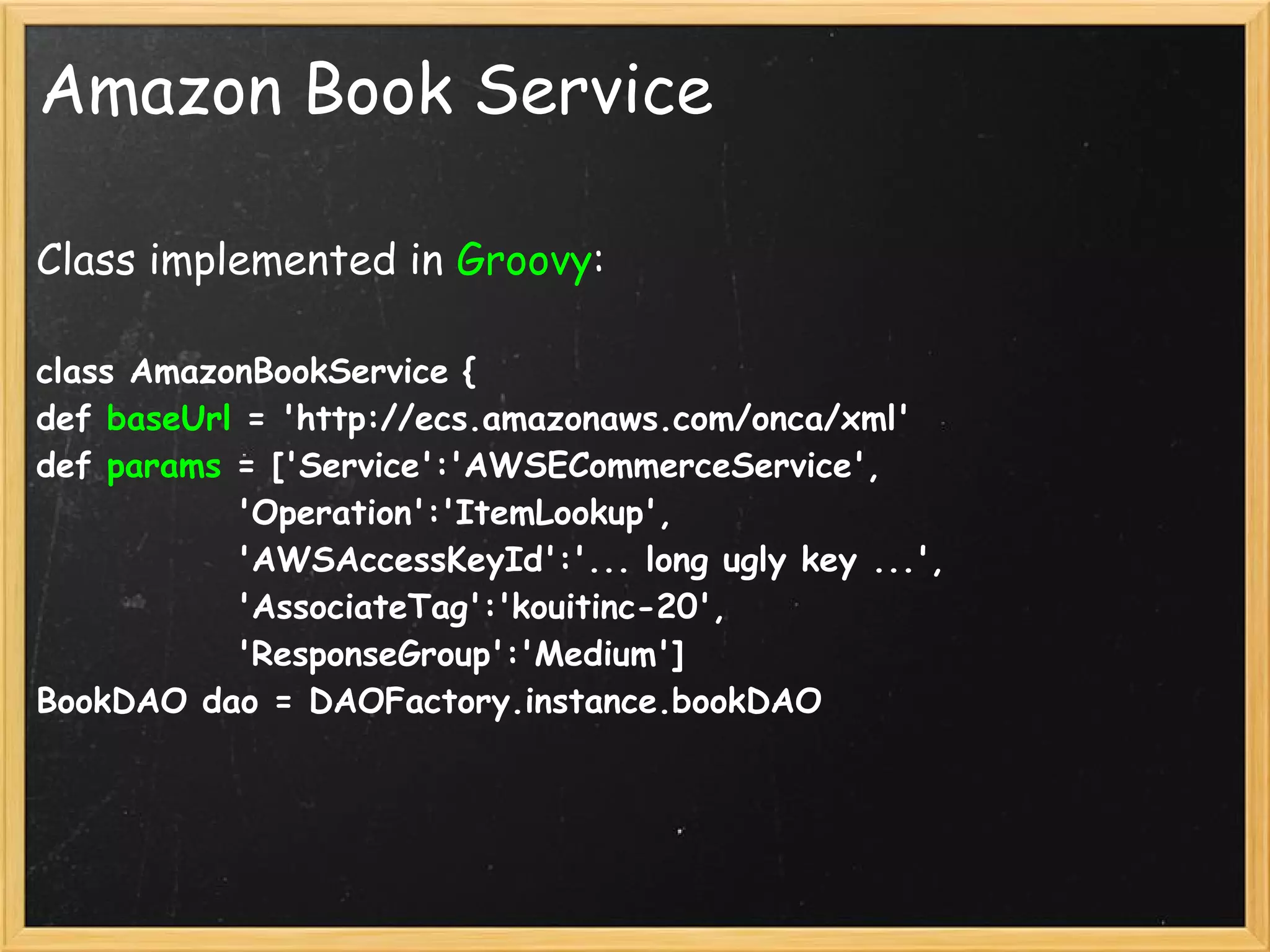

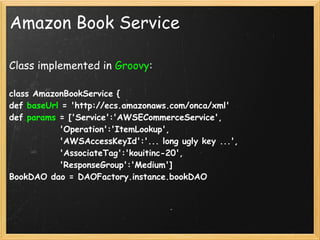

Amazon Book Service

Class implemented in Groovy:

class AmazonBookService {
def baseUrl = 'http://ecs.amazonaws.com/onca/xml'
def params = ['Service':'AWSECommerceService',
'Operation':'ItemLookup',
'AWSAccessKeyId':'... long ugly key ...',
'AssociateTag':'kouitinc-20',
'ResponseGroup':'Medium']
BookDAO dao = DAOFactory.instance.bookDAO

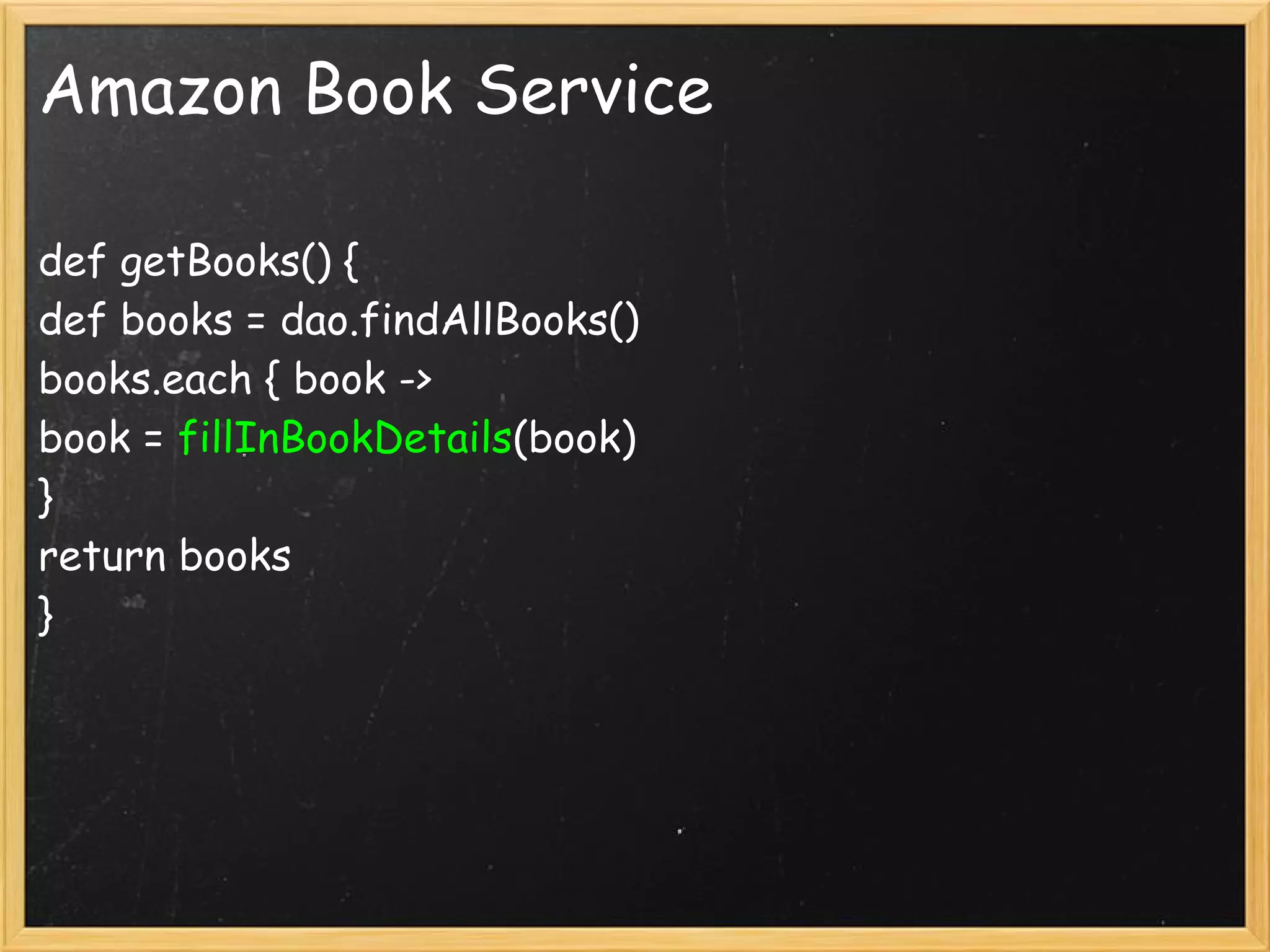

Amazon Book Service

def getBooks() {
def books = dao.findAllBooks()
books.each { book ->
book = fillInBookDetails(book)
}
return books
}

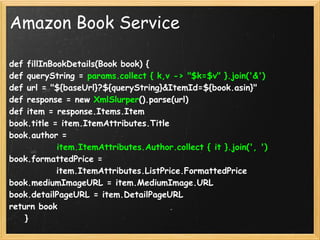

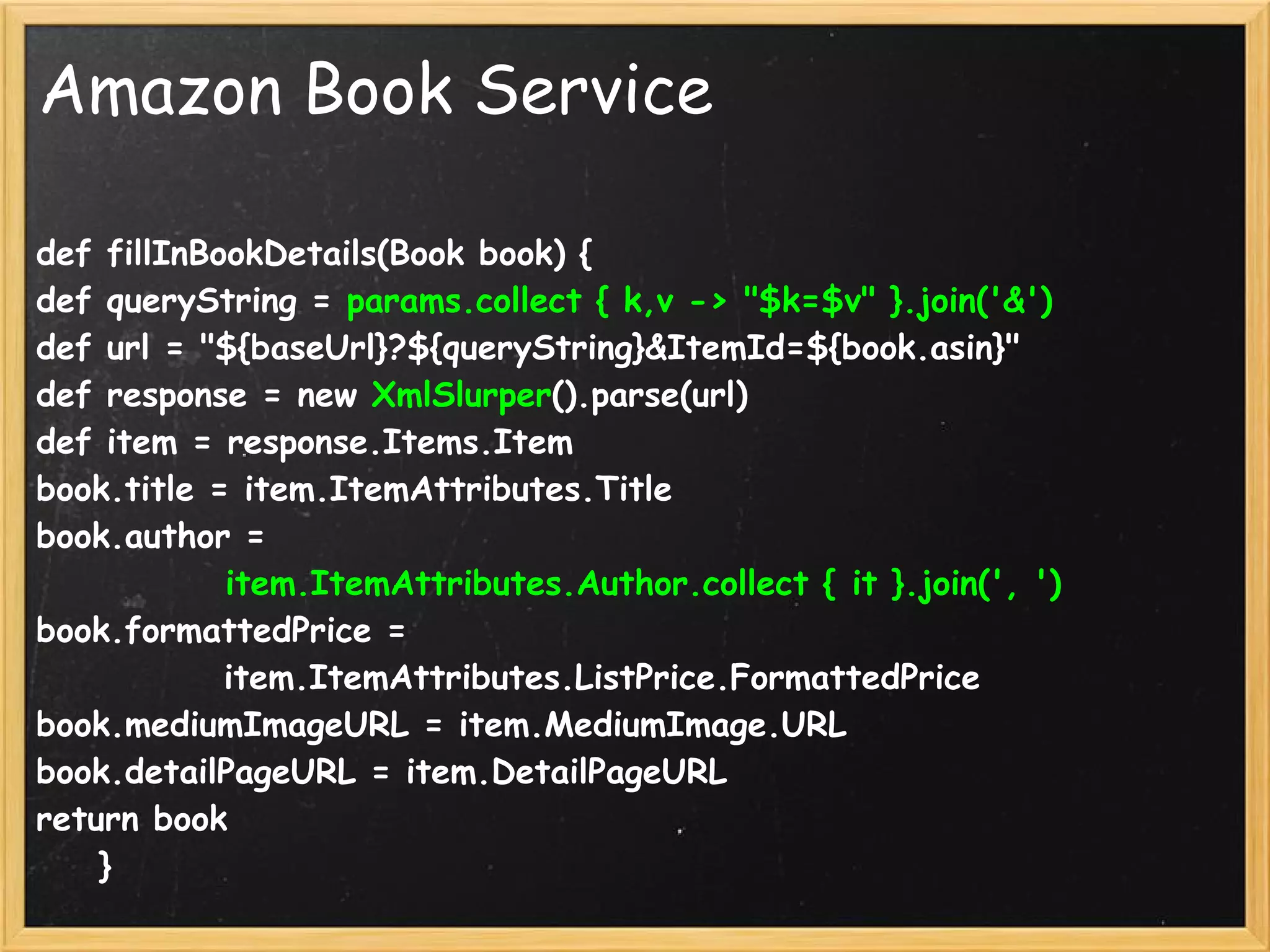

Amazon Book Service

def fillInBookDetails(Book book) {
def queryString = params.collect { k,v -> "$k=$v" }.join('&')
def url = "${baseUrl}?${queryString}&ItemId=${book.asin}"
def response = new XmlSlurper().parse(url)
def item = response.Items.Item
book.title = item.ItemAttributes.Title
book.author =
           item.ItemAttributes.Author.collect { it }.join(', ')
book.formattedPrice =
       item.ItemAttributes.ListPrice.FormattedPrice
book.mediumImageURL = item.MediumImage.URL
book.detailPageURL = item.DetailPageURL
return book
   }

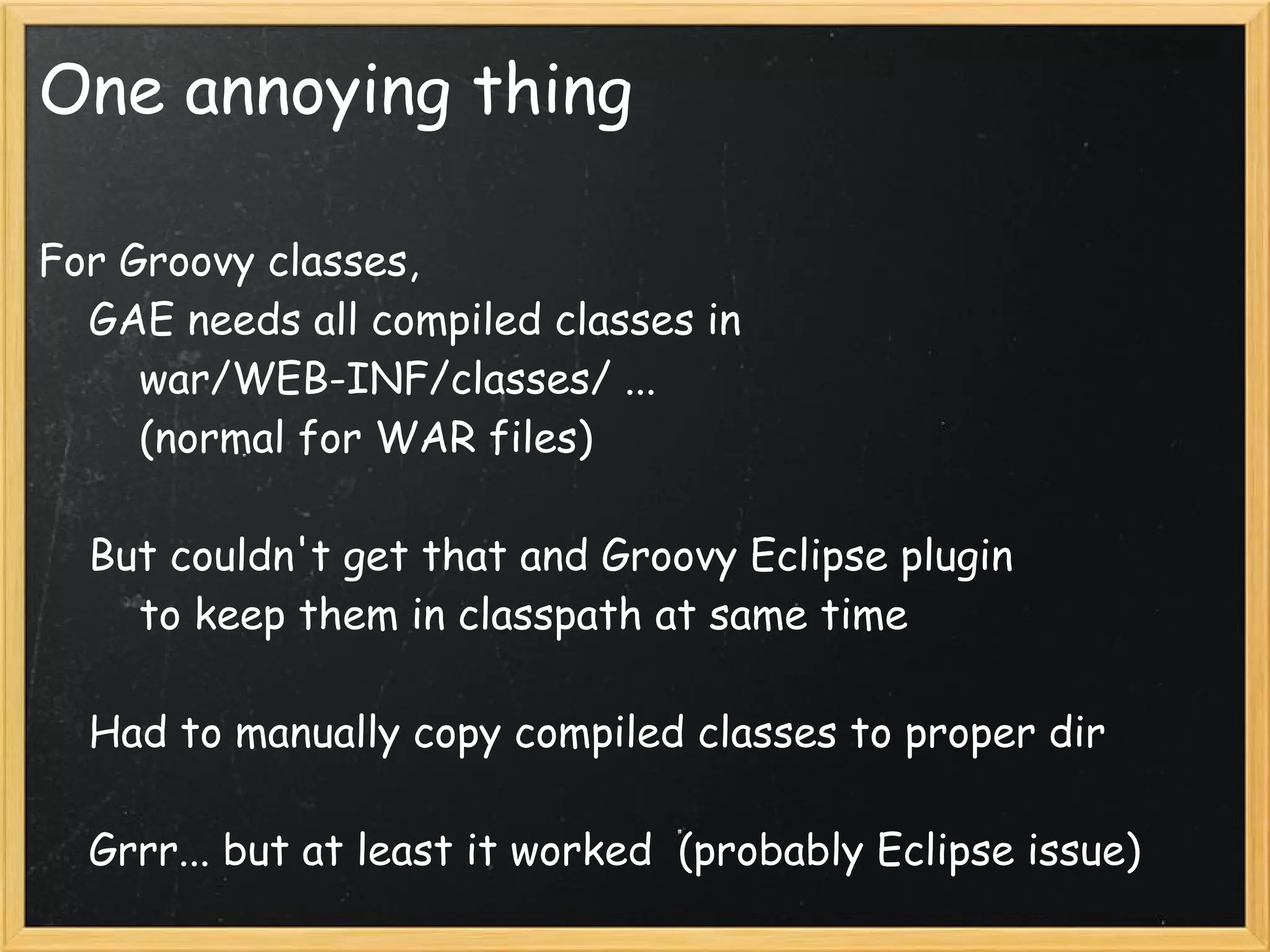

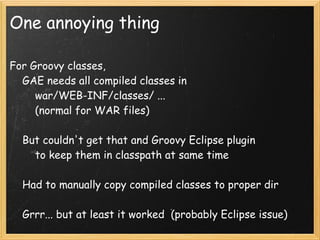

One annoying thing

For Groovy classes,
   GAE needs all compiled classes in
       war/WEB-INF/classes/ ...
       (normal for WAR files)

   But couldn't get that and Groovy Eclipse plugin
       to keep them in classpath at same time

   Had to manually copy compiled classes to proper dir

   Grrr... but at least it worked (probably Eclipse issue)

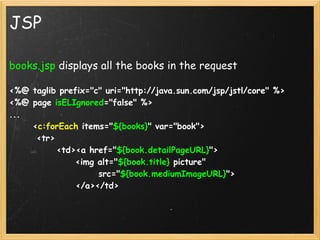

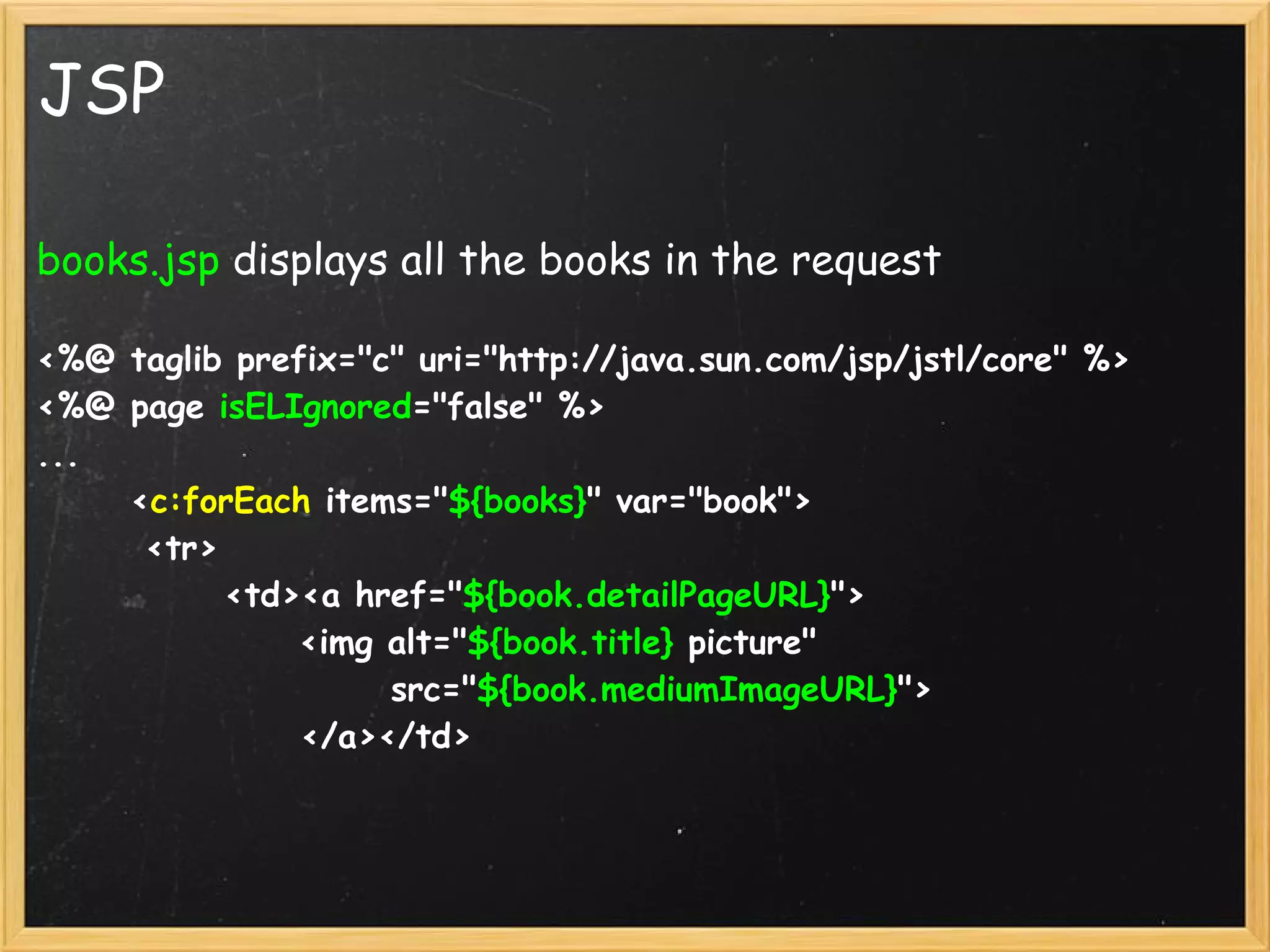

JSP

books.jsp displays all the books in the request

<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%@ page isELIgnored="false" %>
...
   <c:forEach items="${books}" var="book">
   <tr>
       <td><a href="${book.detailPageURL}">
   <img alt="${book.title} picture"
   src="${book.mediumImageURL}">
      </a></td>

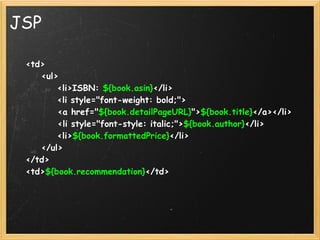

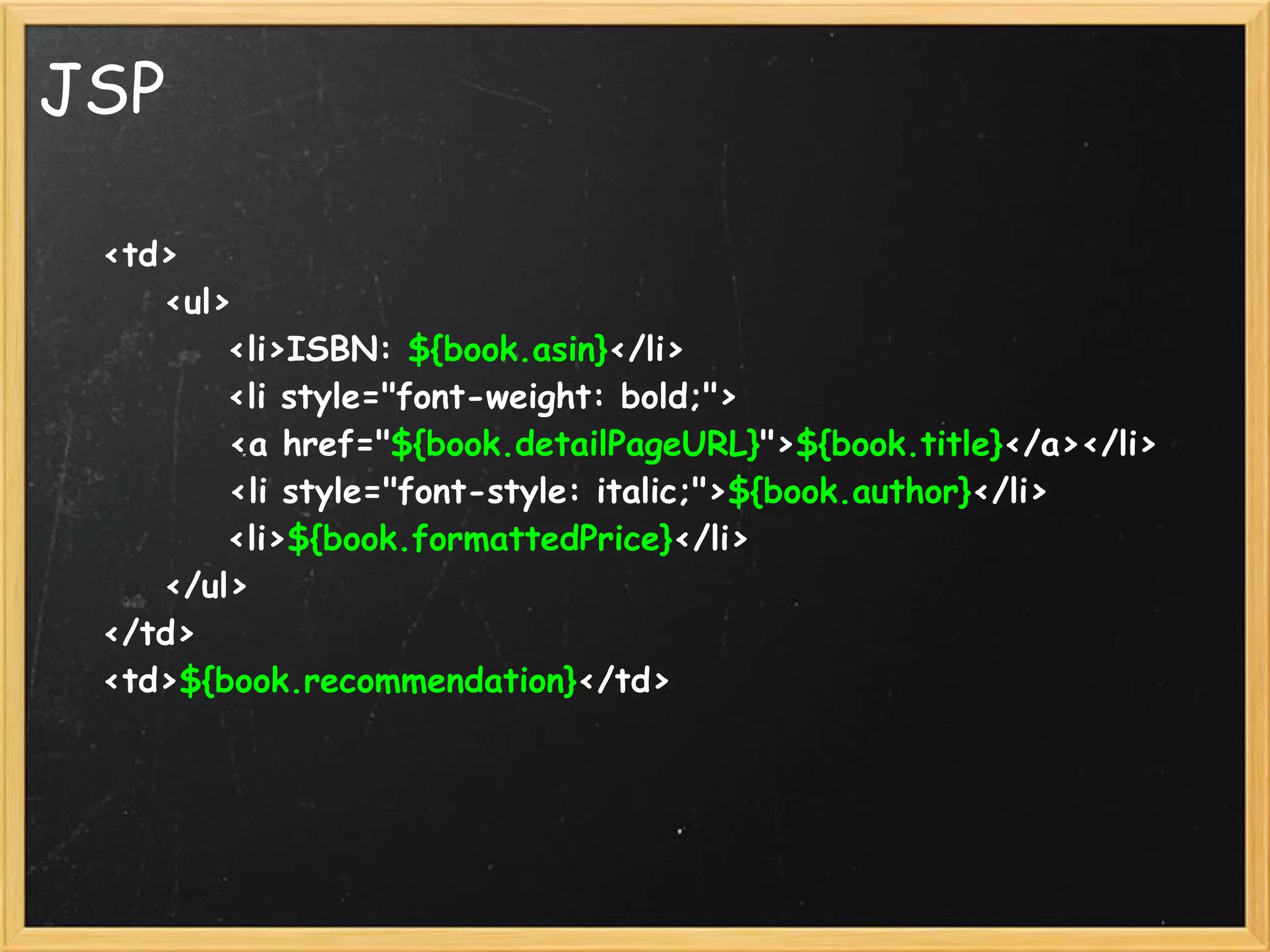

JSP

   <td>
      <ul>
         <li>ISBN: ${book.asin}</li>
         <li style="font-weight: bold;">
           <a href="${book.detailPageURL}">${book.title}</a></li>
           <li style="font-style: italic;">${book.author}</li>
       <li>${book.formattedPrice}</li>
   </ul>
   </td>
   <td>${book.recommendation}</td>

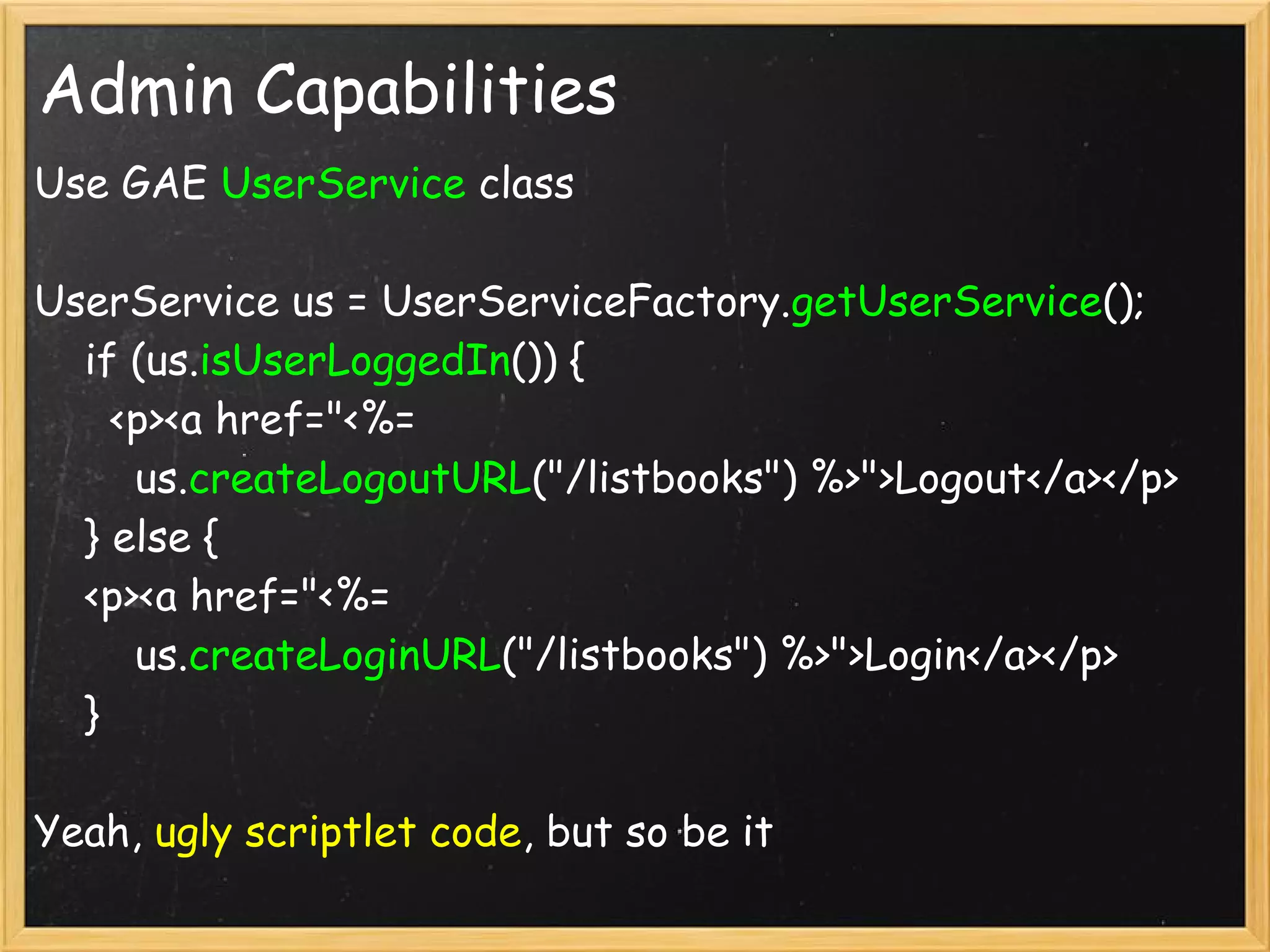

Admin Capabilities
Use GAE UserService class

UserService us = UserServiceFactory.getUserService();
   if (us.isUserLoggedIn()) {
      <p><a href="<%=
       us.createLogoutURL("/listbooks") %>">Logout</a></p>
   } else {
   <p><a href="<%=
       us.createLoginURL("/listbooks") %>">Login</a></p>
   }

Yeah, ugly scriptlet code, but so be it

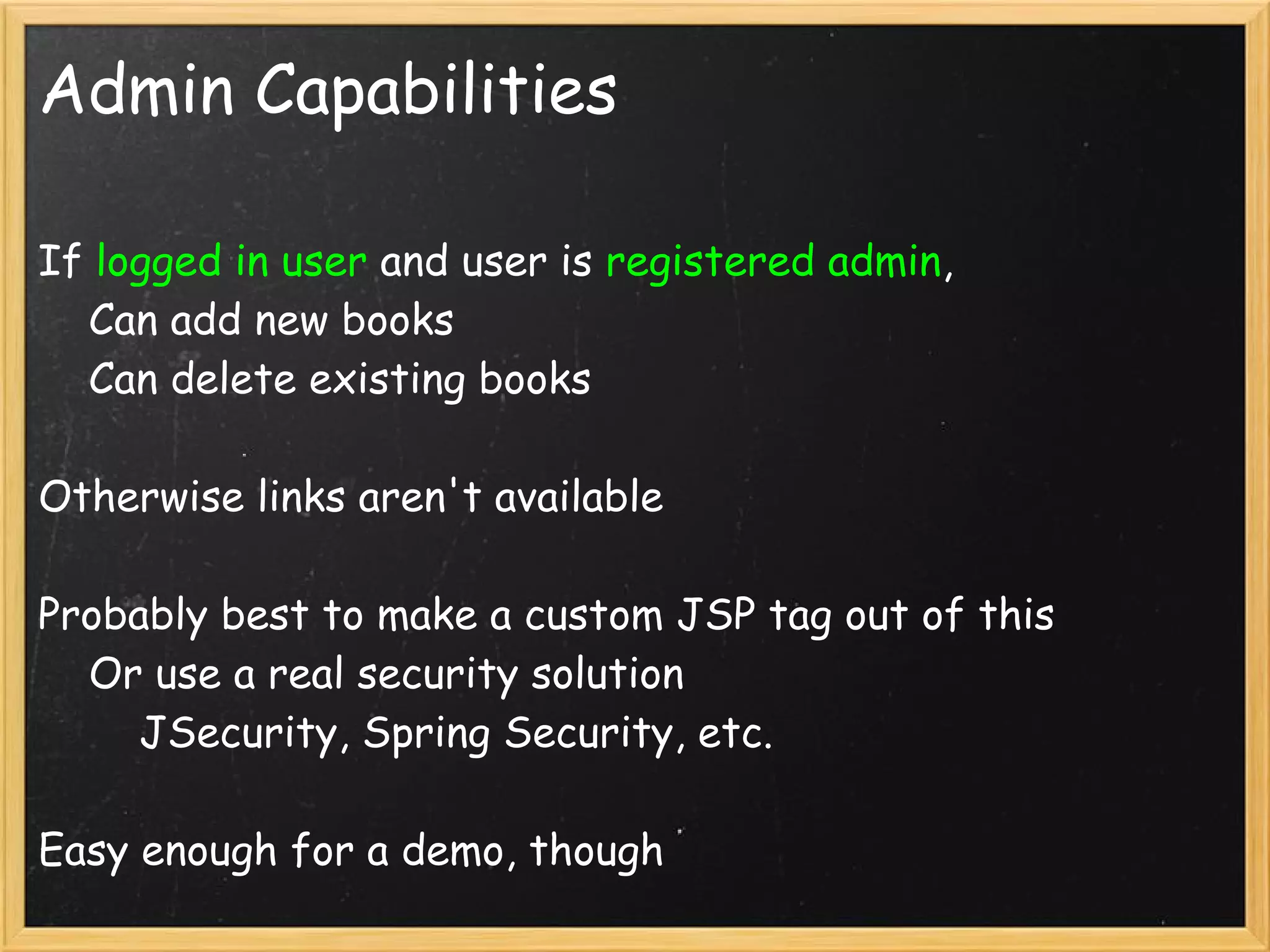

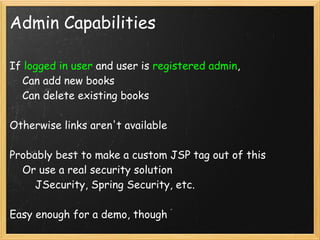

Admin Capabilities

If logged in user and user is registered admin,
   Can add new books
   Can delete existing books

Otherwise links aren't available

Probably best to make a custom JSP tag out of this
   Or use a real security solution
       JSecurity, Spring Security, etc.

Easy enough for a demo, though

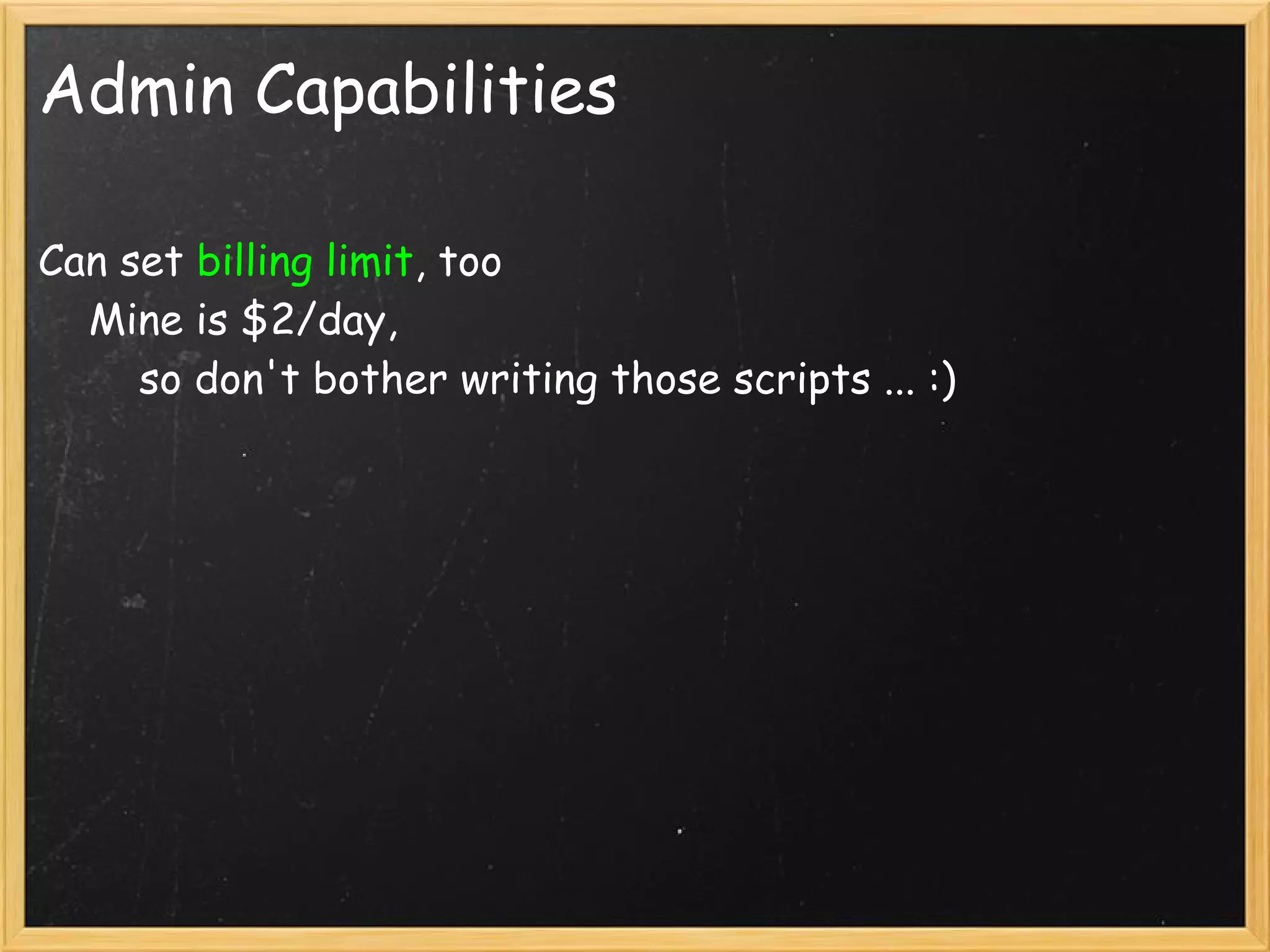

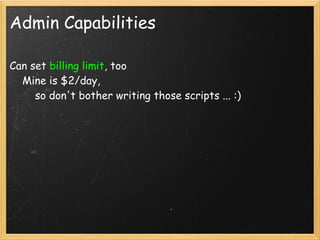

Admin Capabilities

Can set billing limit, too
Mine is $2/day,
so don't bother writing those scripts ... :)

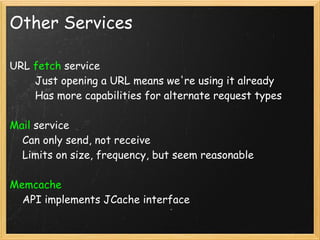

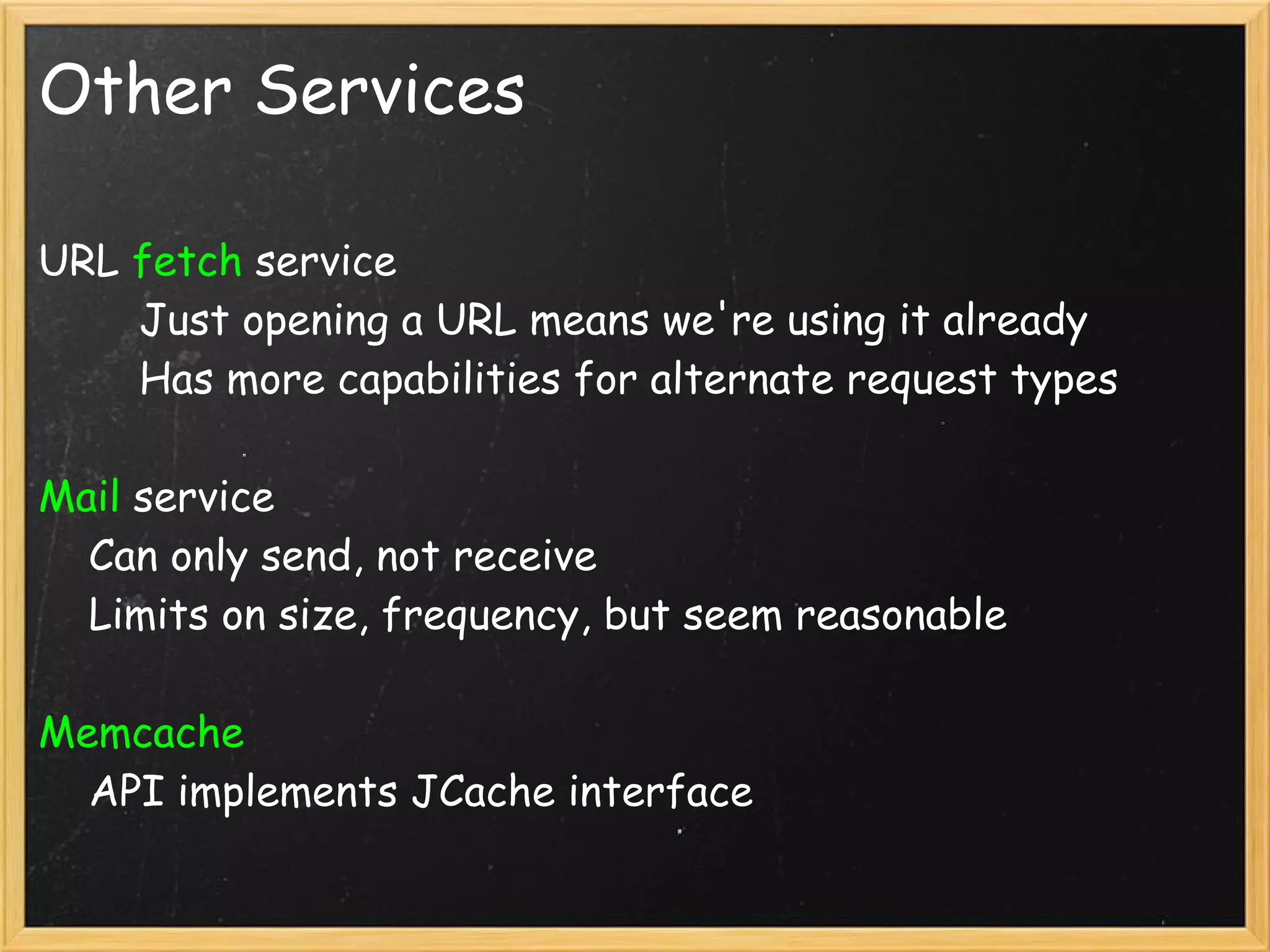

Other Services

URL fetch service
       Just opening a URL means we're using it already
       Has more capabilities for alternate request types

Mail service
   Can only send, not receive
   Limits on size, frequency, but seem reasonable

Memcache
   API implements JCache interface

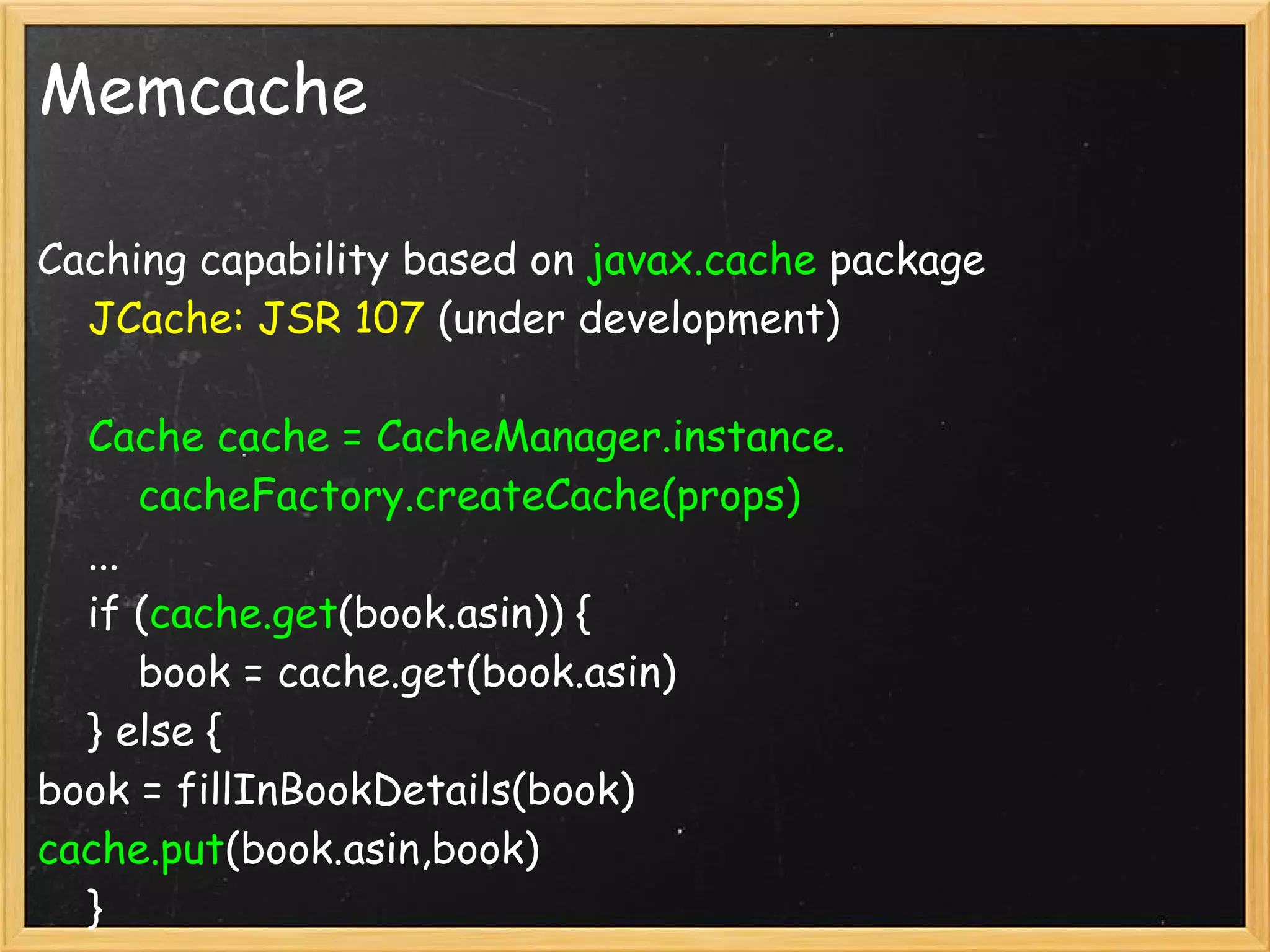

Memcache

Caching capability based on javax.cache package
   JCache: JSR 107 (under development)

   Cache cache = CacheManager.instance.
       cacheFactory.createCache(props)
   ...
   if (cache.get(book.asin)) {
       book = cache.get(book.asin)
   } else {
book = fillInBookDetails(book)
cache.put(book.asin,book)
   }

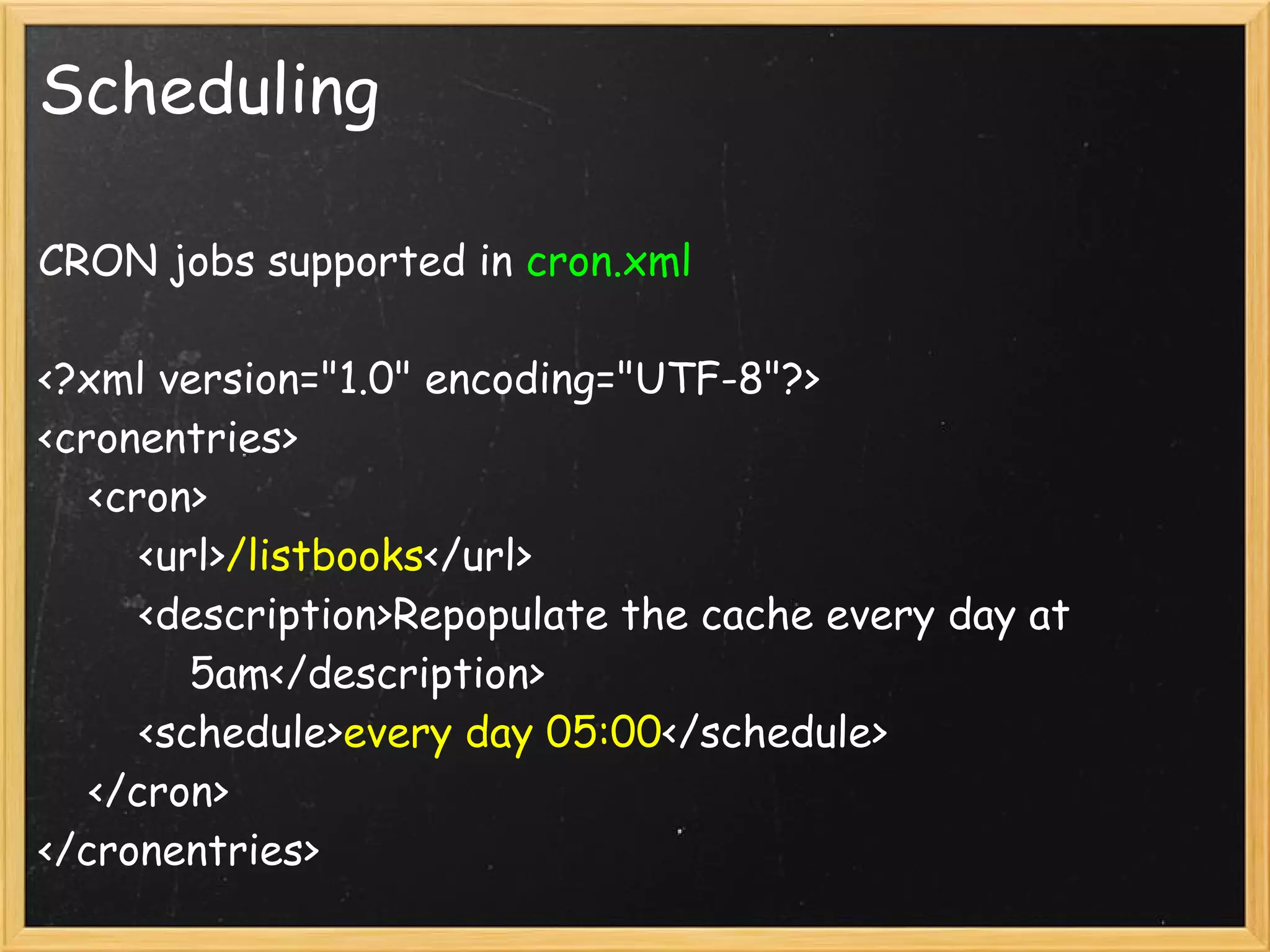

Scheduling

CRON jobs supported in cron.xml

<?xml version="1.0" encoding="UTF-8"?>
<cronentries>
   <cron>
       <url>/listbooks</url>
       <description>Repopulate the cache every day at
           5am</description>
       <schedule>every day 05:00</schedule>
   </cron>
</cronentries>

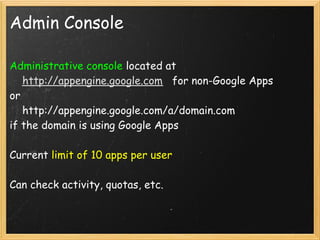

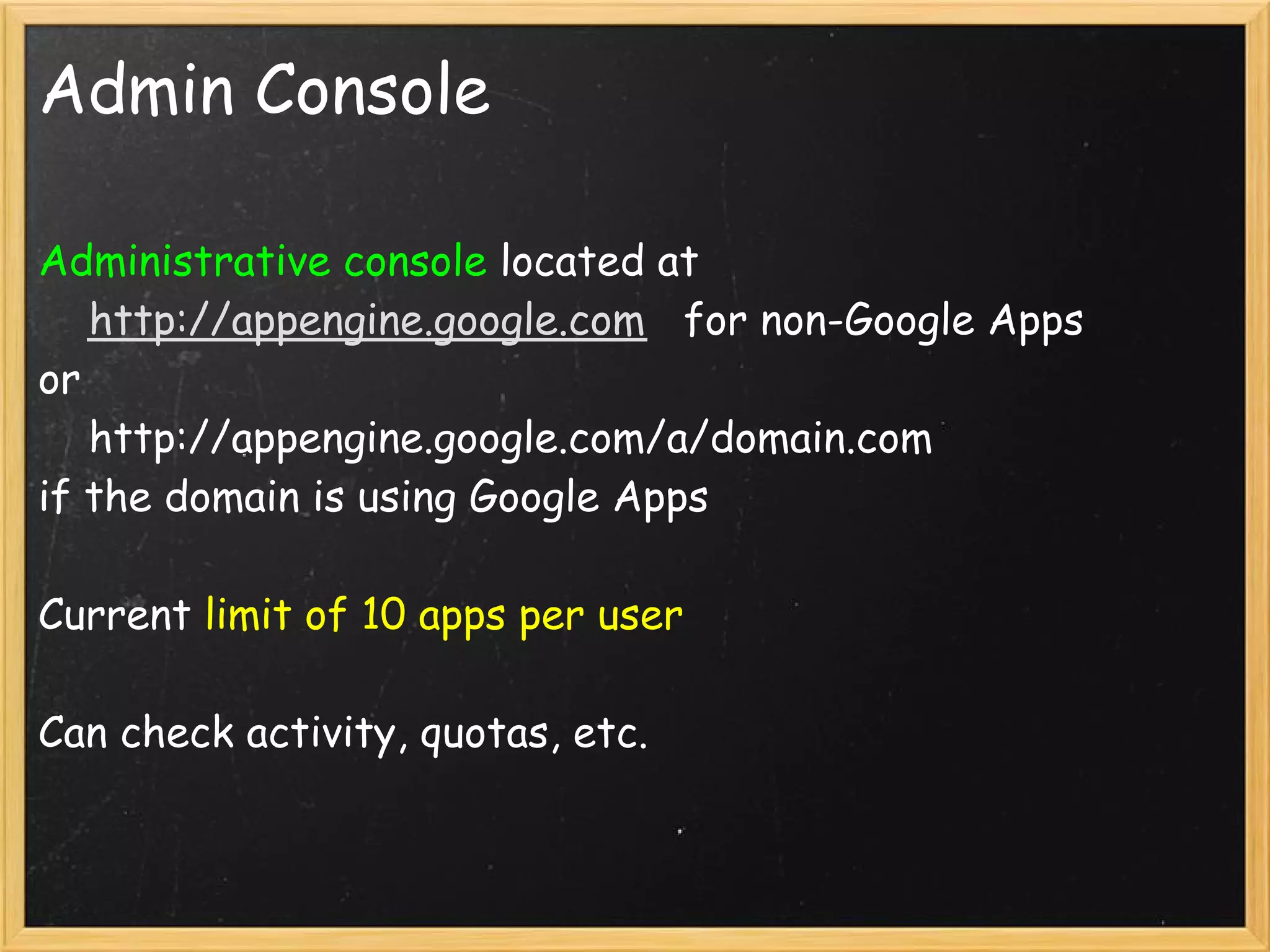

Admin Console

Administrative console located at
http://appengine.google.com for non-Google Apps
or
http://appengine.google.com/a/domain.com
if the domain is using Google Apps

Current limit of 10 apps per user

Can check activity, quotas, etc.

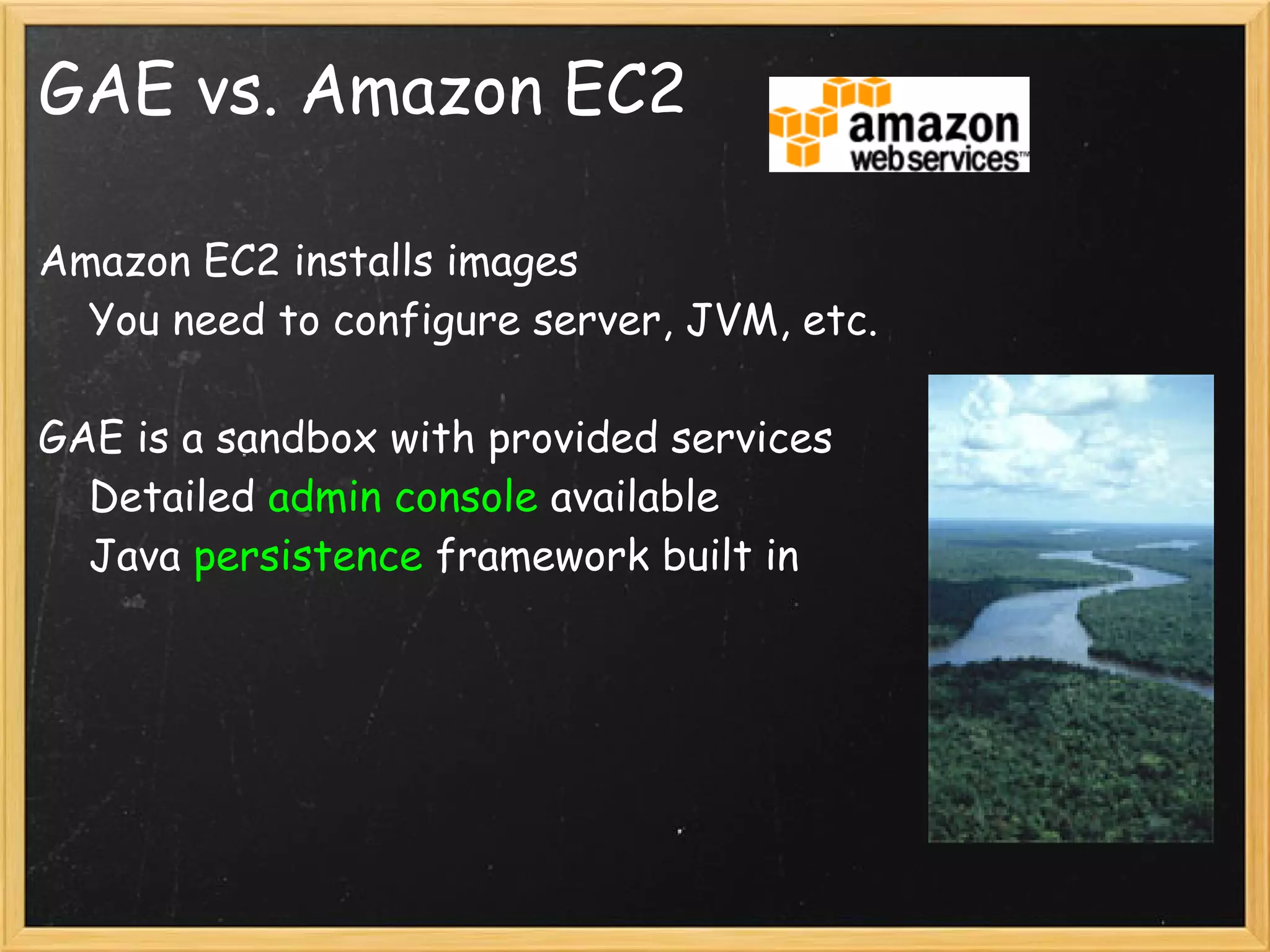

GAE vs. Amazon EC2

Amazon EC2 installs images
   You need to configure server, JVM, etc.

GAE is a sandbox with provided services
   Detailed admin console available
   Java persistence framework built in

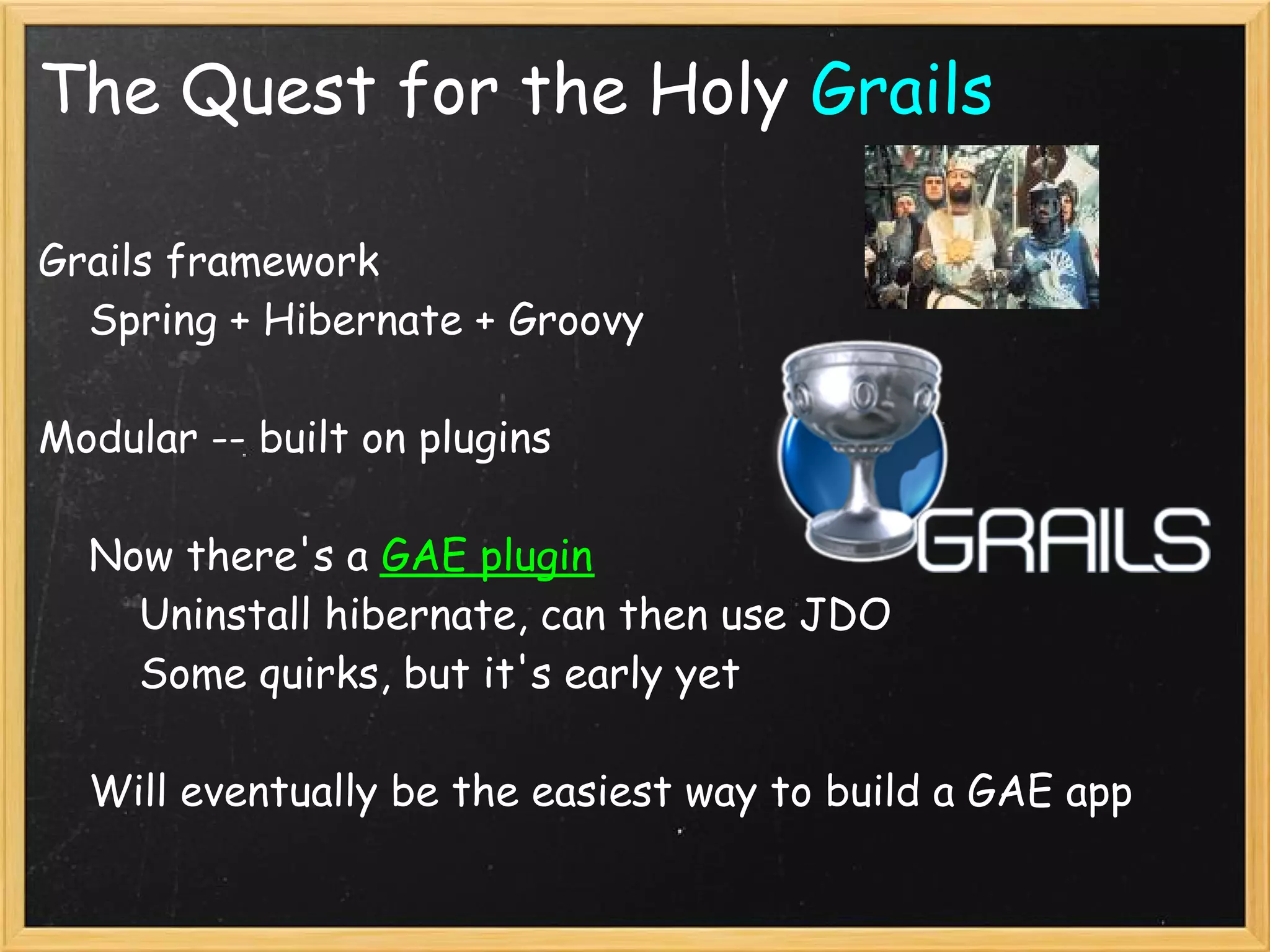

The Quest for the Holy Grails

Grails framework
   Spring + Hibernate + Groovy

Modular -- built on plugins

   Now there's a GAE plugin
       Uninstall hibernate, can then use JDO
       Some quirks, but it's early yet

   Will eventually be the easiest way to build a GAE app

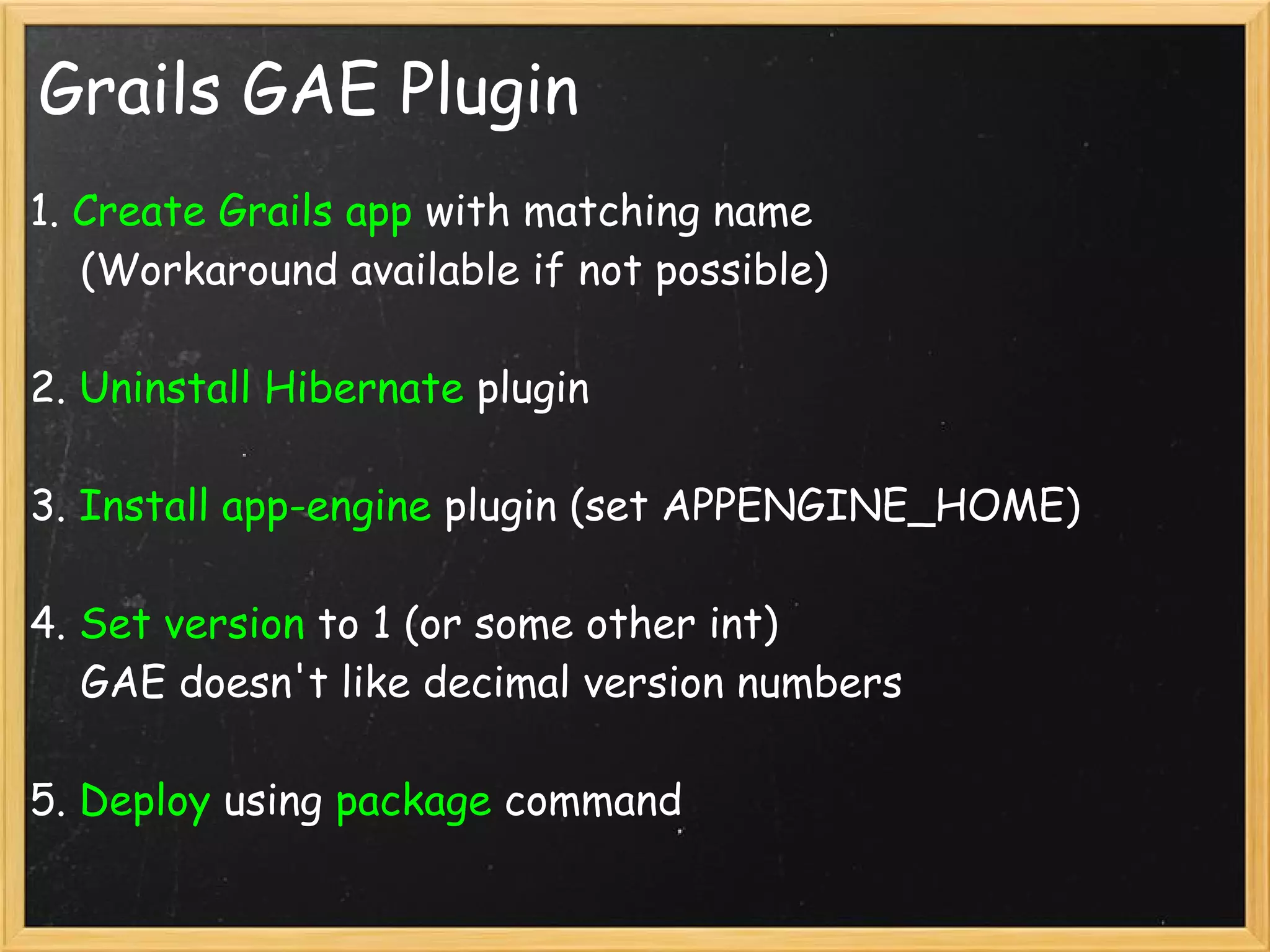

Grails GAE Plugin
1. Create Grails app with matching name
(Workaround available if not possible)

2. Uninstall Hibernate plugin

3. Install app-engine plugin (set APPENGINE_HOME)

4. Set version to 1 (or some other int)
GAE doesn't like decimal version numbers

5. Deploy using package command

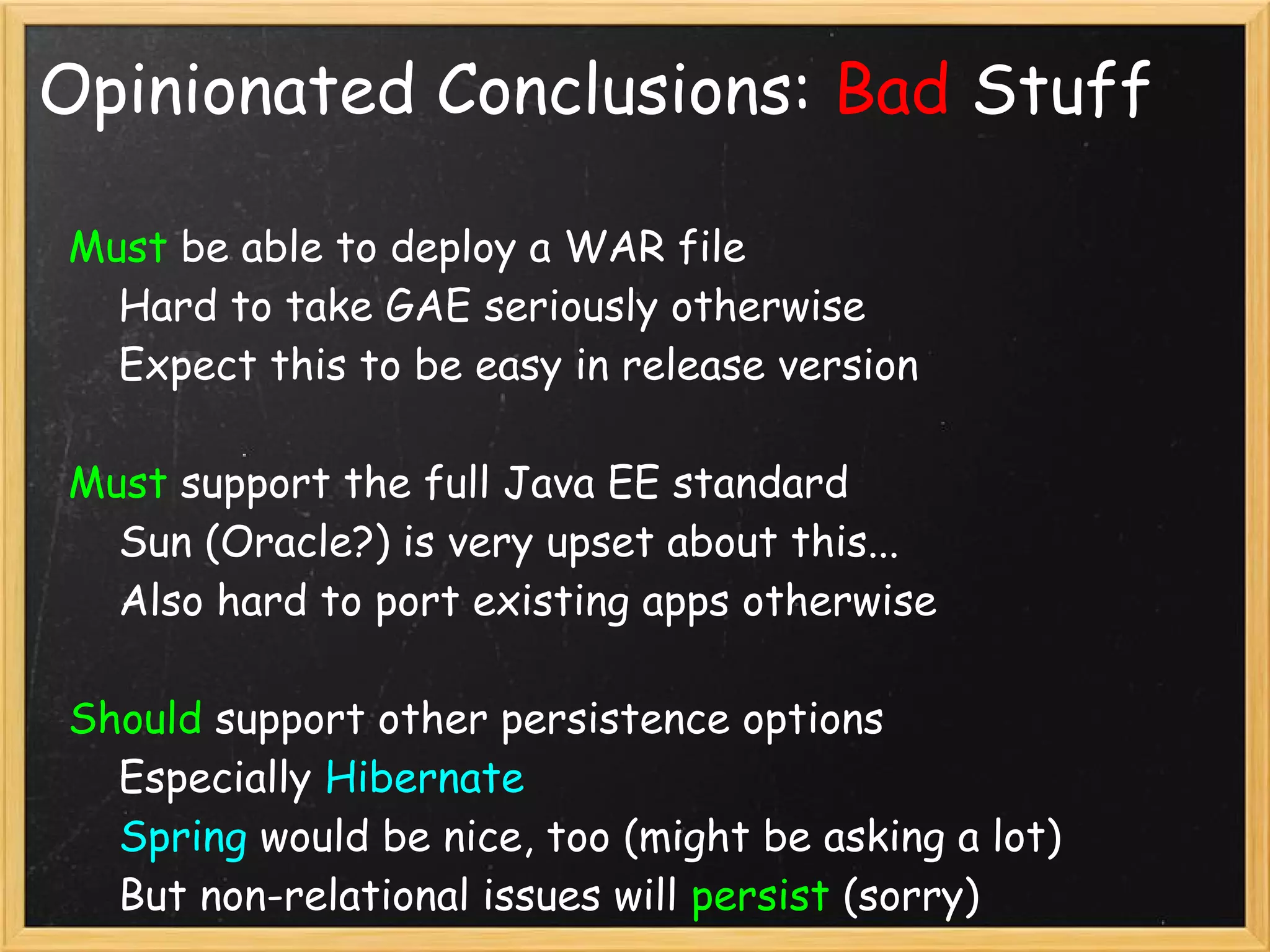

Opinionated Conclusions: Bad Stuff

Must be able to deploy a WAR file
   Hard to take GAE seriously otherwise
   Expect this to be easy in release version

Must support the full Java EE standard
   Sun (Oracle?) is very upset about this...
   Also hard to port existing apps otherwise

Should support other persistence options
   Especially Hibernate
   Spring would be nice, too (might be asking a lot)
   But non-relational issues will persist (sorry)

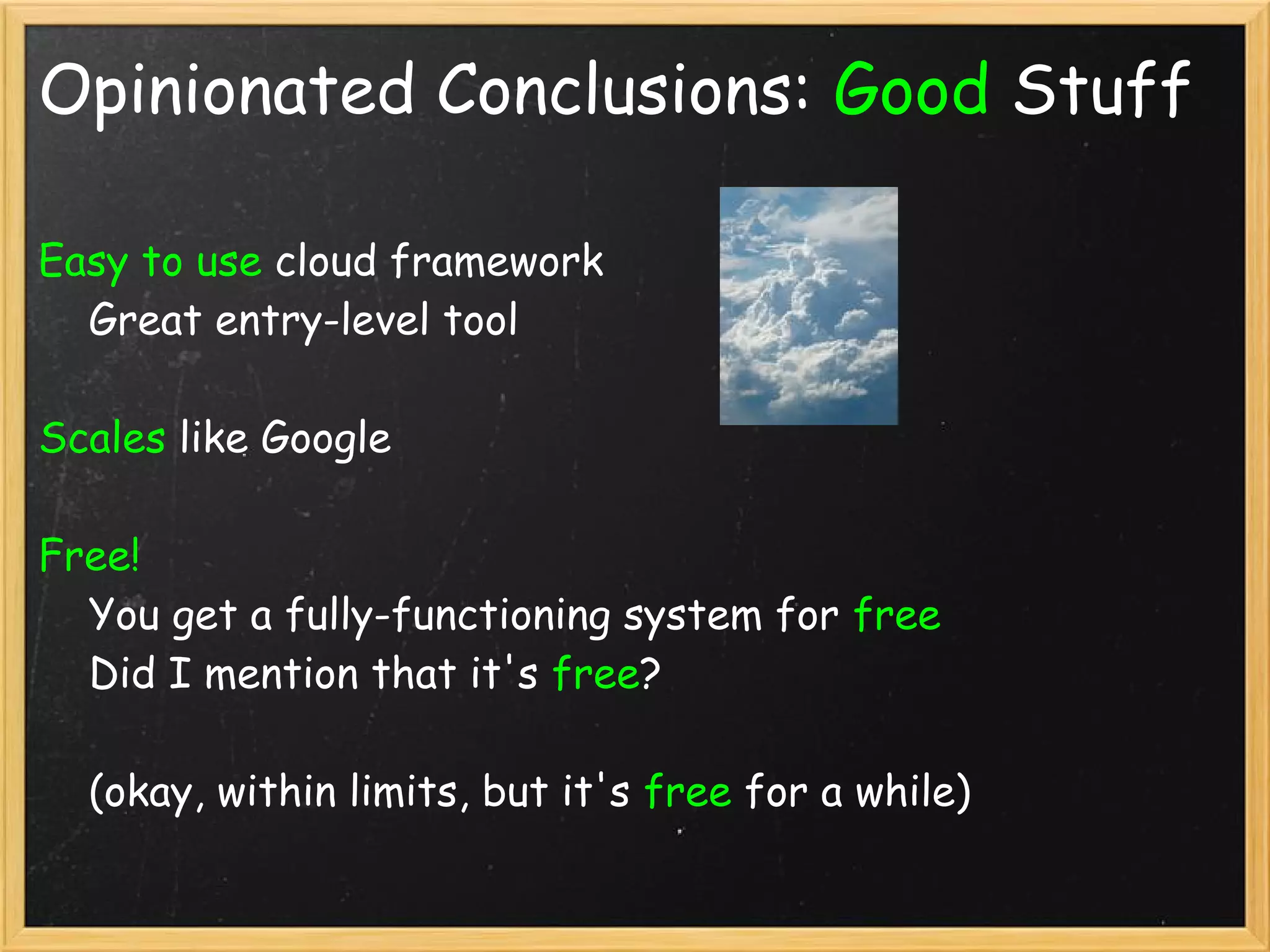

Opinionated Conclusions: Good Stuff

Easy to use cloud framework
   Great entry-level tool

Scales like Google

Free!
   You get a fully-functioning system for free
   Did I mention that it's free?

   (okay, within limits, but it's free for a while)

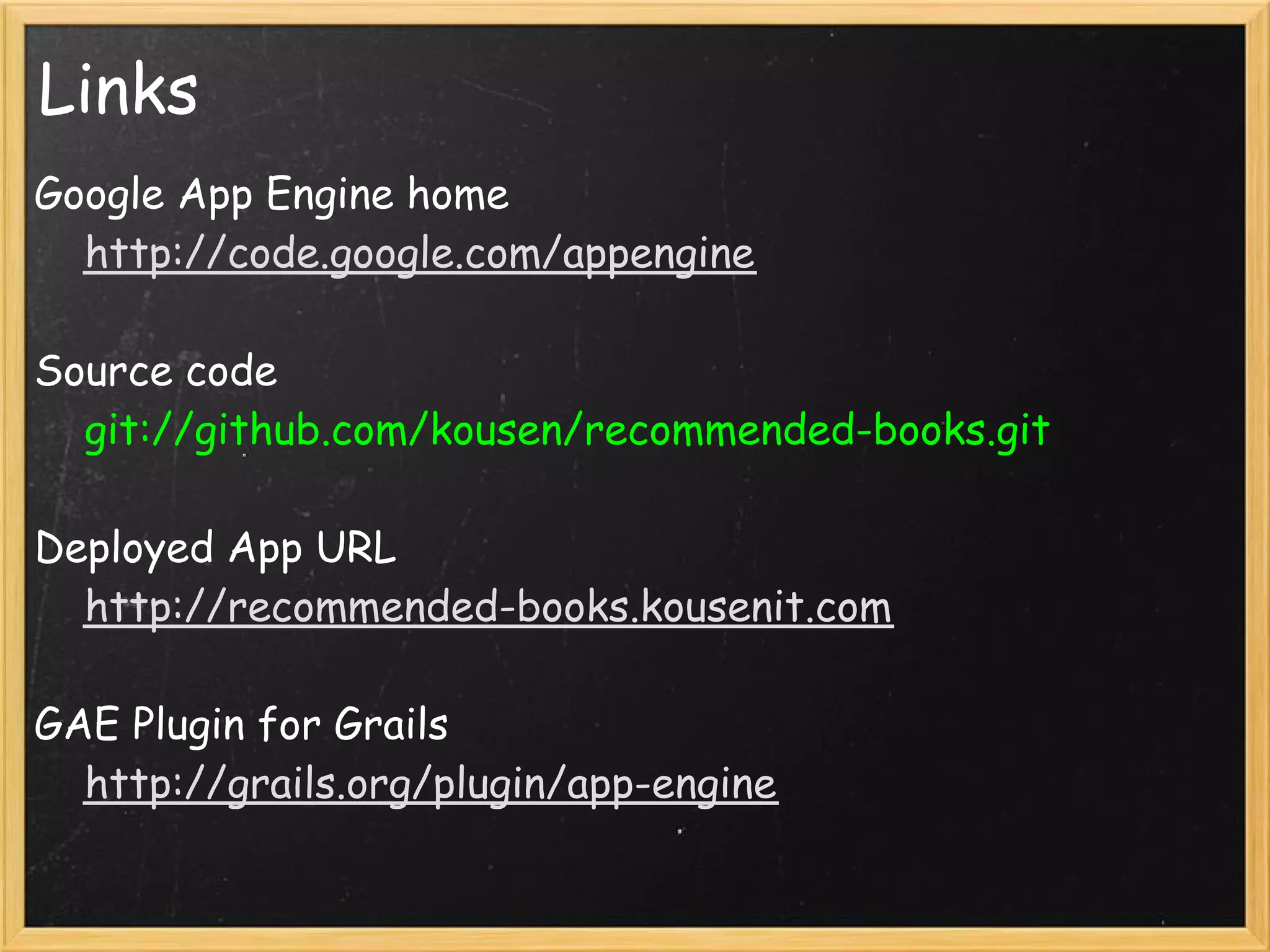

Links
Google App Engine home
   http://code.google.com/appengine

Source code
   git://github.com/kousen/recommended-books.git

Deployed App URL
   http://recommended-books.kousenit.com

GAE Plugin for Grails
   http://grails.org/plugin/app-engine

Google App Engine With Java And Groovy

More Related Content

What's hot

Viewers also liked

Similar to Google App Engine With Java And Groovy

Recently uploaded

Google App Engine With Java And Groovy
