Graphics Programming OpenGL & GLUT in Code::Blocks
This document provides instructions for setting up OpenGL and GLUT projects in Code::Blocks. It discusses downloading Code::Blocks and the necessary GLUT files, and saving them in the appropriate directories. It then outlines the steps to create a new GLUT project in Code::Blocks, including selecting the compiler and building the application. The document also provides examples of OpenGL code using geometric primitives, transformations, and GLUT functions.
Educationā¦
More Related Content
Similar to Graphics Programming OpenGL & GLUT in Code::Blocks
Graphics Programming OpenGL & GLUT in Code::Blocks
- 1. CSC 307 1.0 GraphicsProgramming Budditha Hettige Department of Statistics and Computer Science
- 2. Graphics Programming OpenGL &GLUT in Code::Blocks 2Budditha Hettige

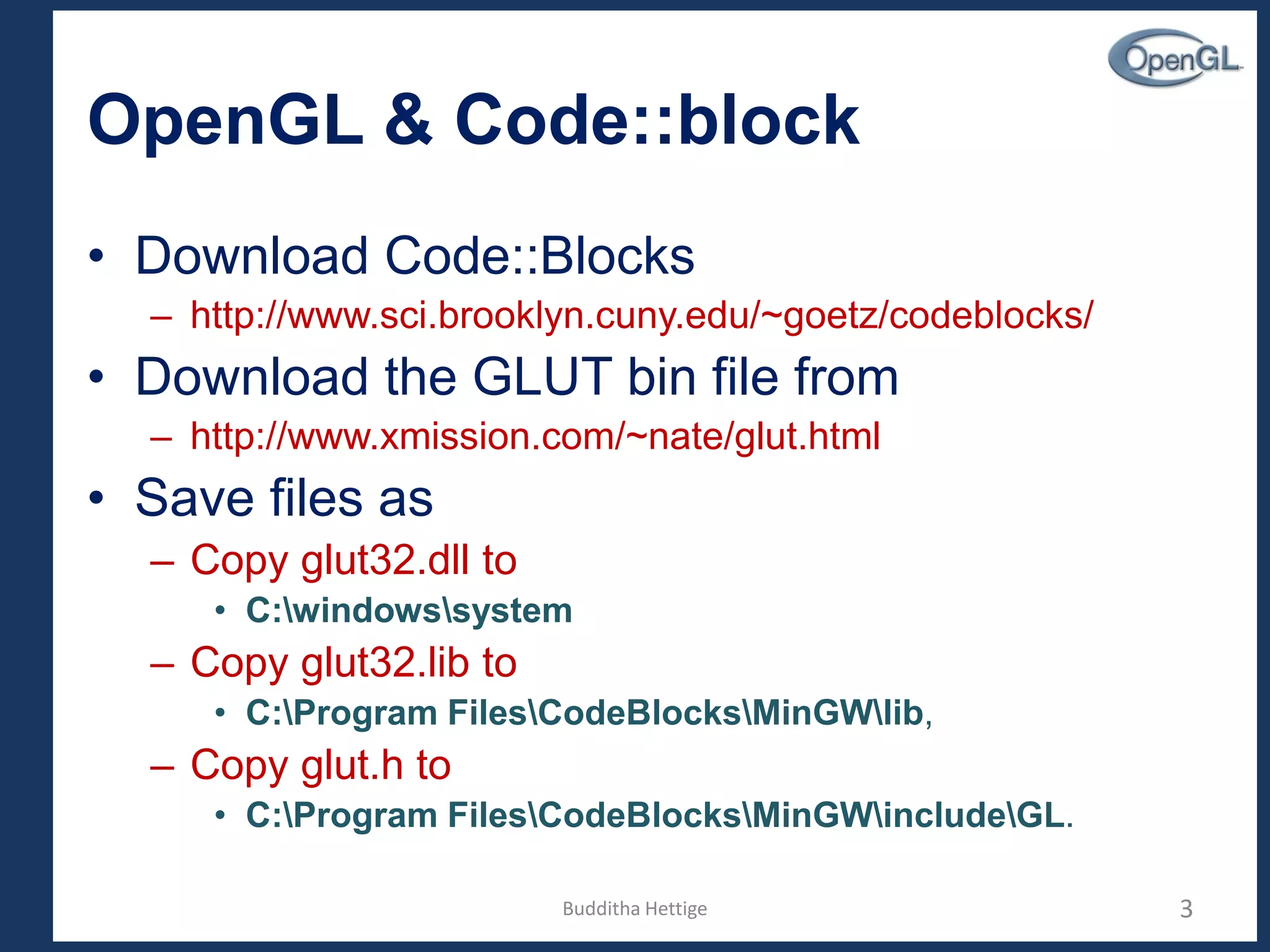

- 3. OpenGL & Code::block ā¢Download Code::Blocks ā http://www.sci.brooklyn.cuny.edu/~goetz/codeblocks/ ā¢ Download the GLUT bin file from ā http://www.xmission.com/~nate/glut.html ā¢ Save files as ā Copy glut32.dll to ā¢ C:windowssystem ā Copy glut32.lib to ā¢ C:Program FilesCodeBlocksMinGWlib, ā Copy glut.h to ā¢ C:Program FilesCodeBlocksMinGWincludeGL. 3Budditha Hettige

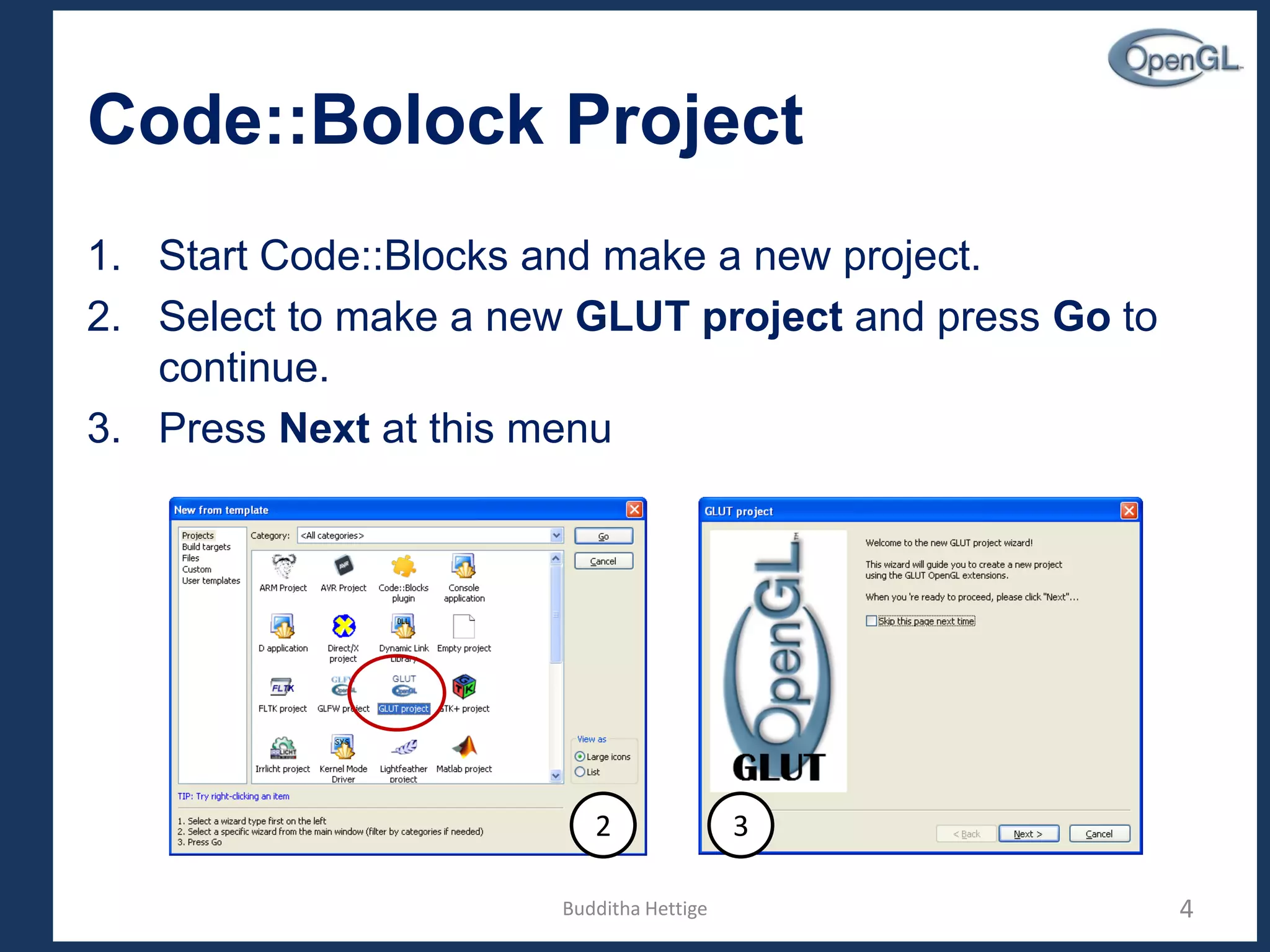

- 4. Code::Bolock Project 1. StartCode::Blocks and make a new project. 2. Select to make a new GLUT project and press Go to continue. 3. Press Next at this menu 4 2 3 Budditha Hettige

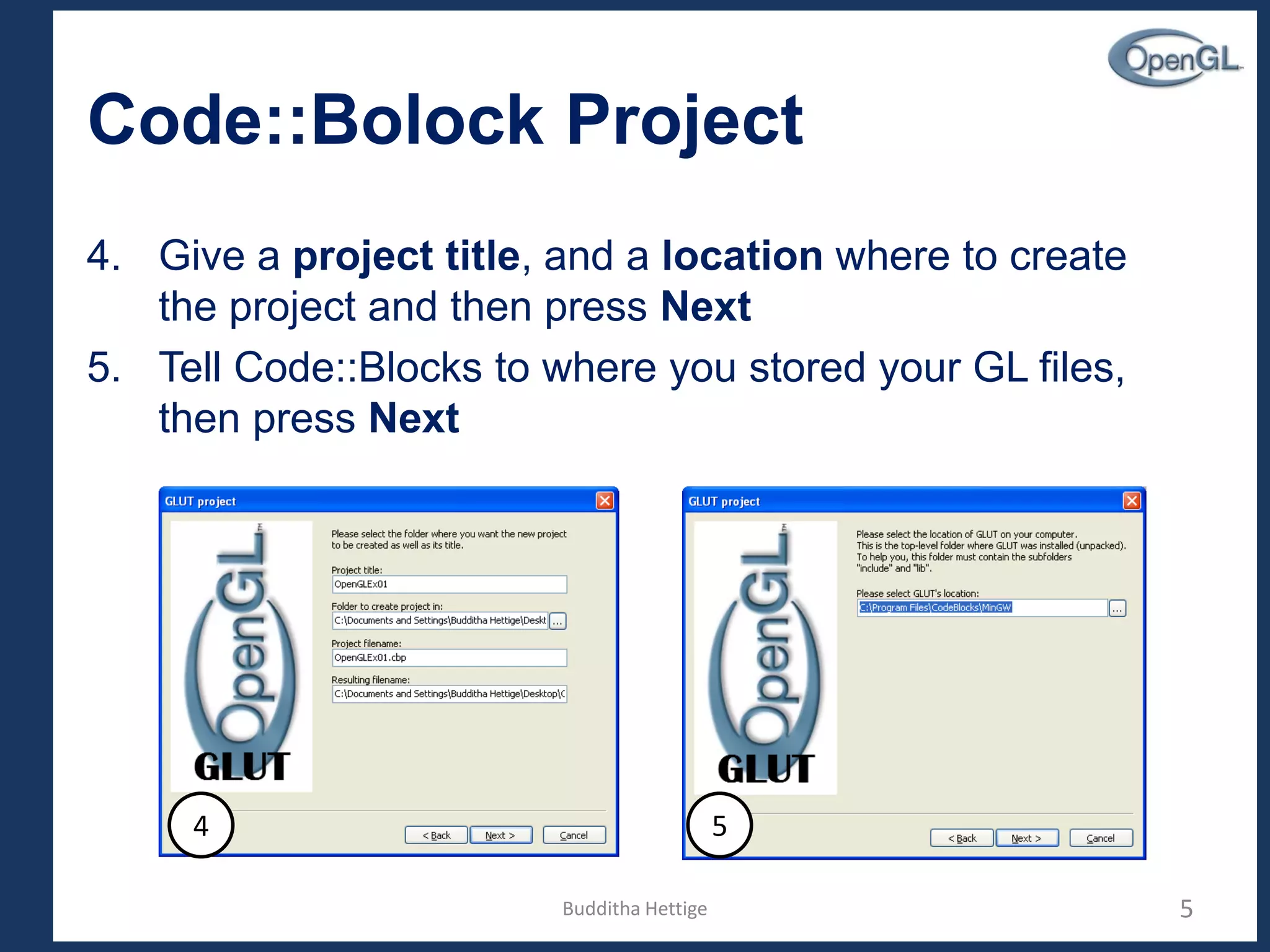

- 5. Code::Bolock Project 4. Givea project title, and a location where to create the project and then press Next 5. Tell Code::Blocks to where you stored your GL files, then press Next 5 4 5 Budditha Hettige

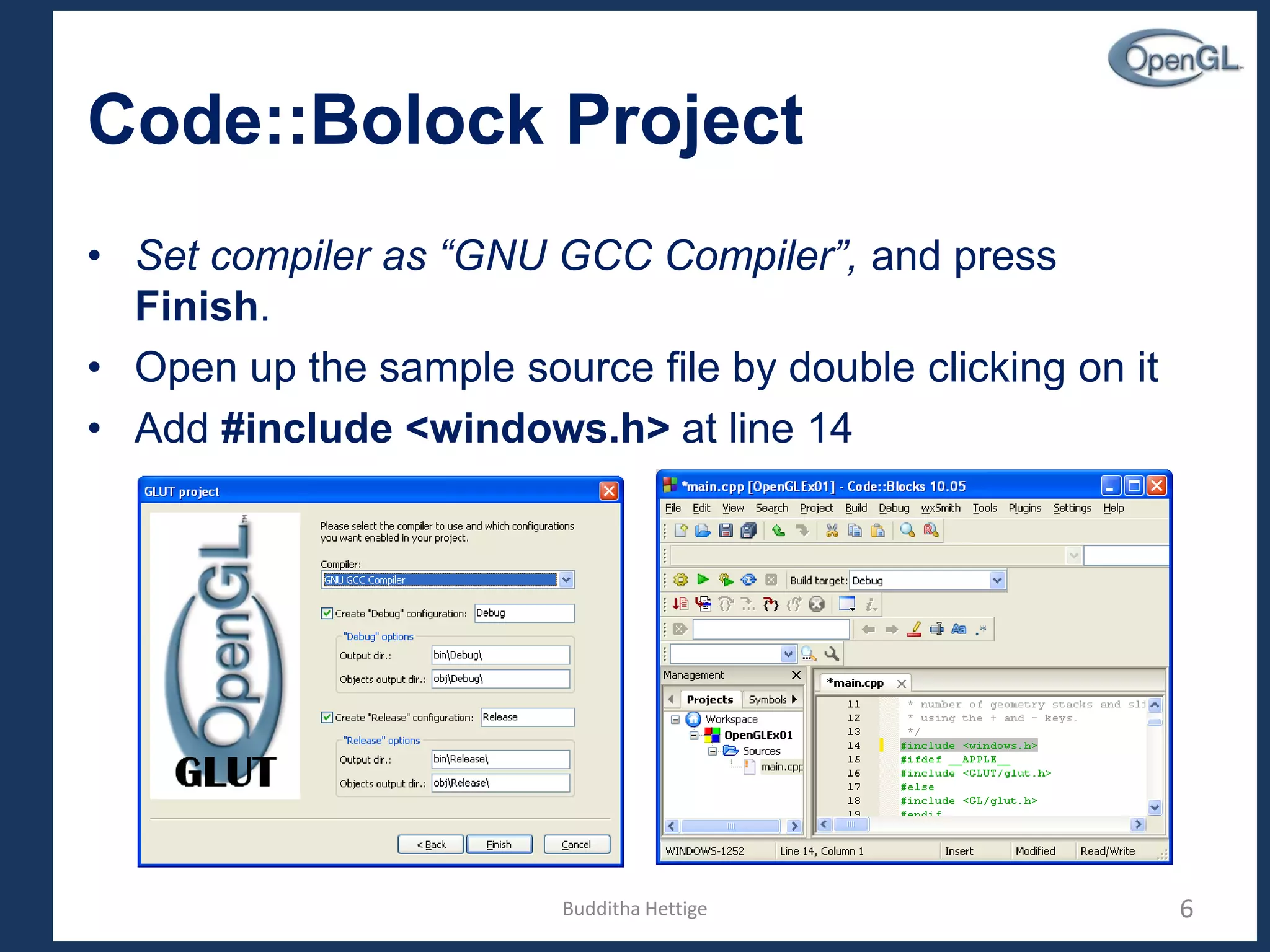

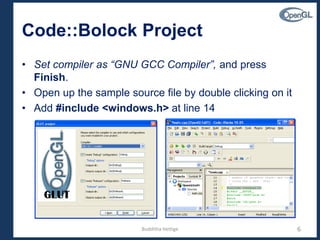

- 6. Code::Bolock Project ā¢ Setcompiler as āGNU GCC Compilerā, and press Finish. ā¢ Open up the sample source file by double clicking on it ā¢ Add #include <windows.h> at line 14 6Budditha Hettige

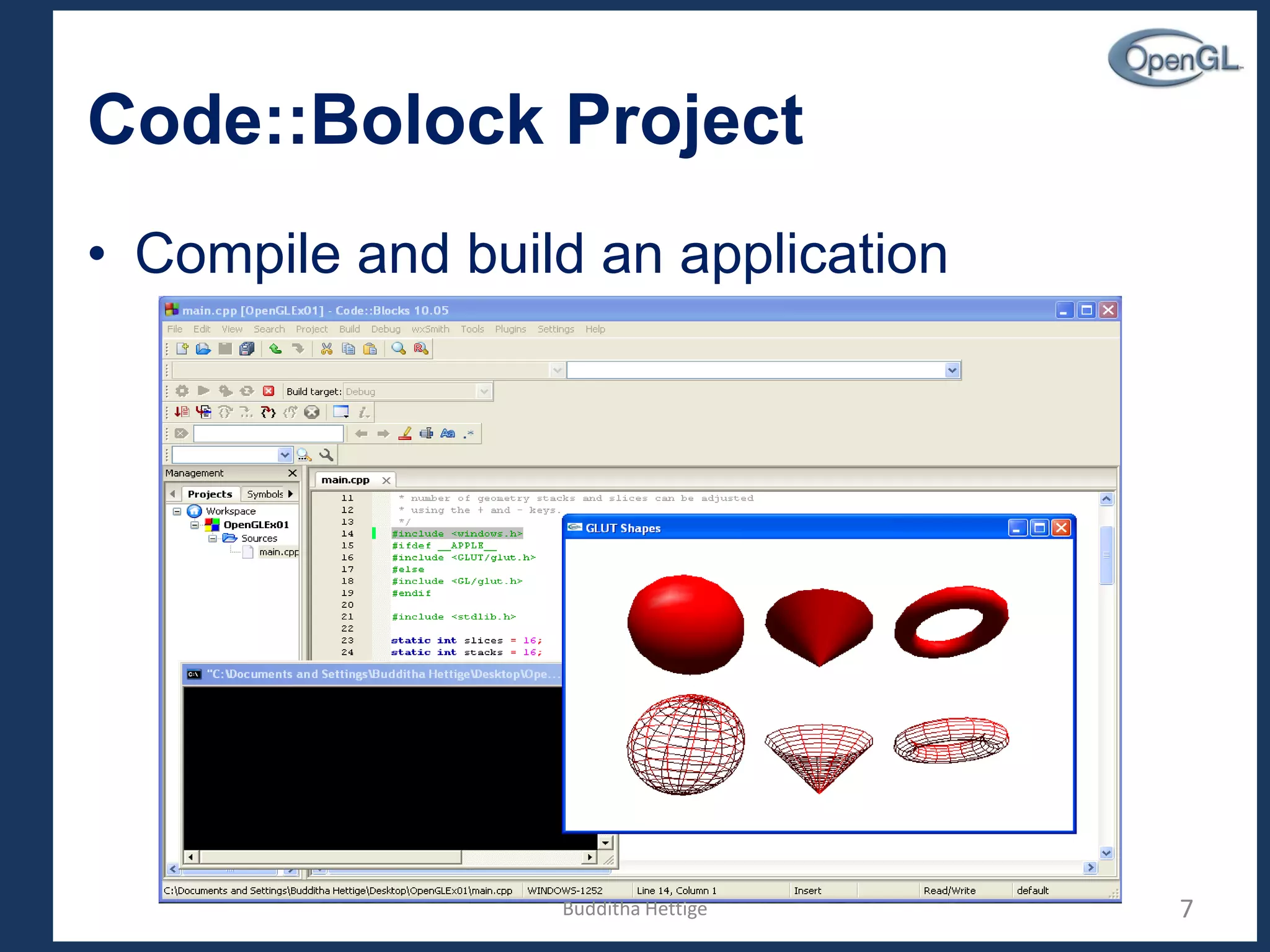

- 7. Code::Bolock Project ā¢ Compileand build an application 7Budditha Hettige

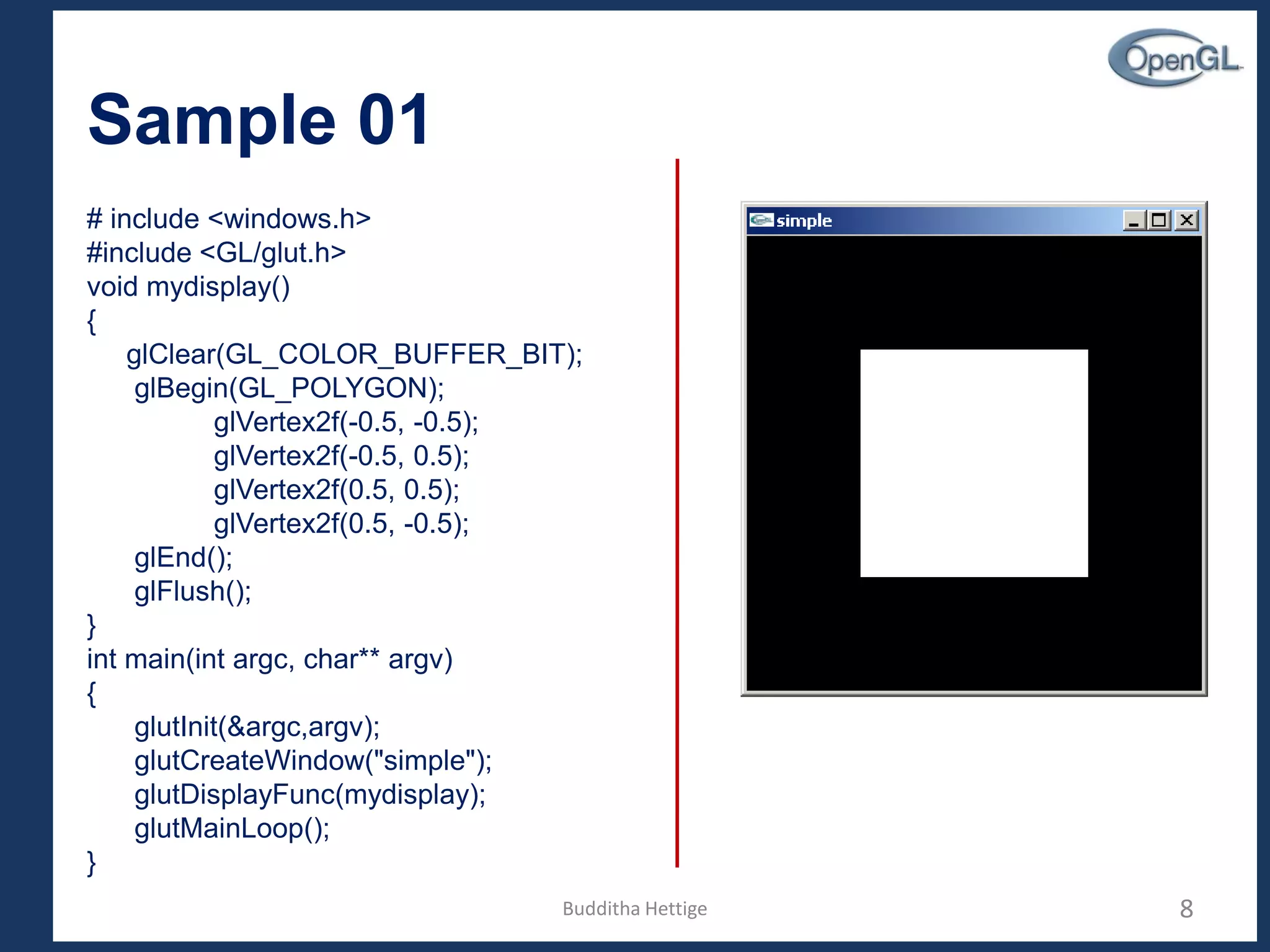

- 8. Sample 01 # include<windows.h> #include <GL/glut.h> void mydisplay() { glClear(GL_COLOR_BUFFER_BIT); glBegin(GL_POLYGON); glVertex2f(-0.5, -0.5); glVertex2f(-0.5, 0.5); glVertex2f(0.5, 0.5); glVertex2f(0.5, -0.5); glEnd(); glFlush(); } int main(int argc, char** argv) { glutInit(&argc,argv); glutCreateWindow("simple"); glutDisplayFunc(mydisplay); glutMainLoop(); } 8Budditha Hettige

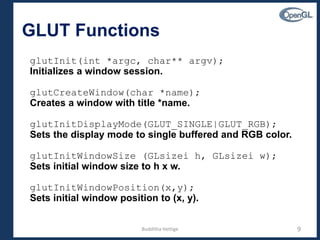

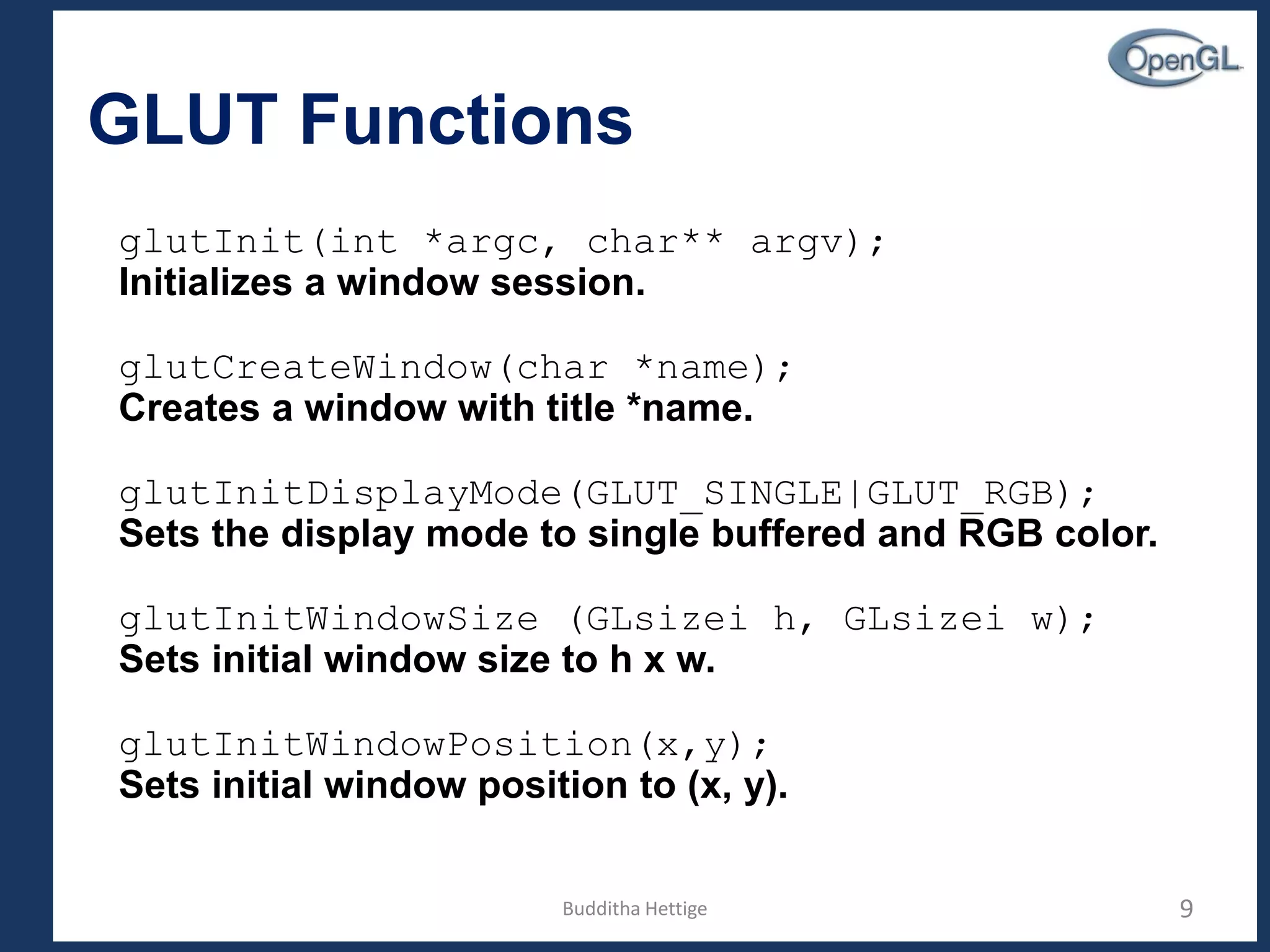

- 9. GLUT Functions glutInit(int *argc,char** argv); Initializes a window session. glutCreateWindow(char *name); Creates a window with title *name. glutInitDisplayMode(GLUT_SINGLE|GLUT_RGB); Sets the display mode to single buffered and RGB color. glutInitWindowSize (GLsizei h, GLsizei w); Sets initial window size to h x w. glutInitWindowPosition(x,y); Sets initial window position to (x, y). 9Budditha Hettige

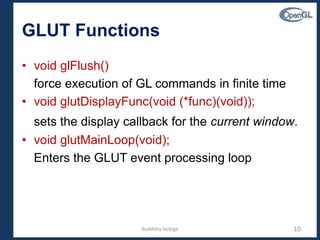

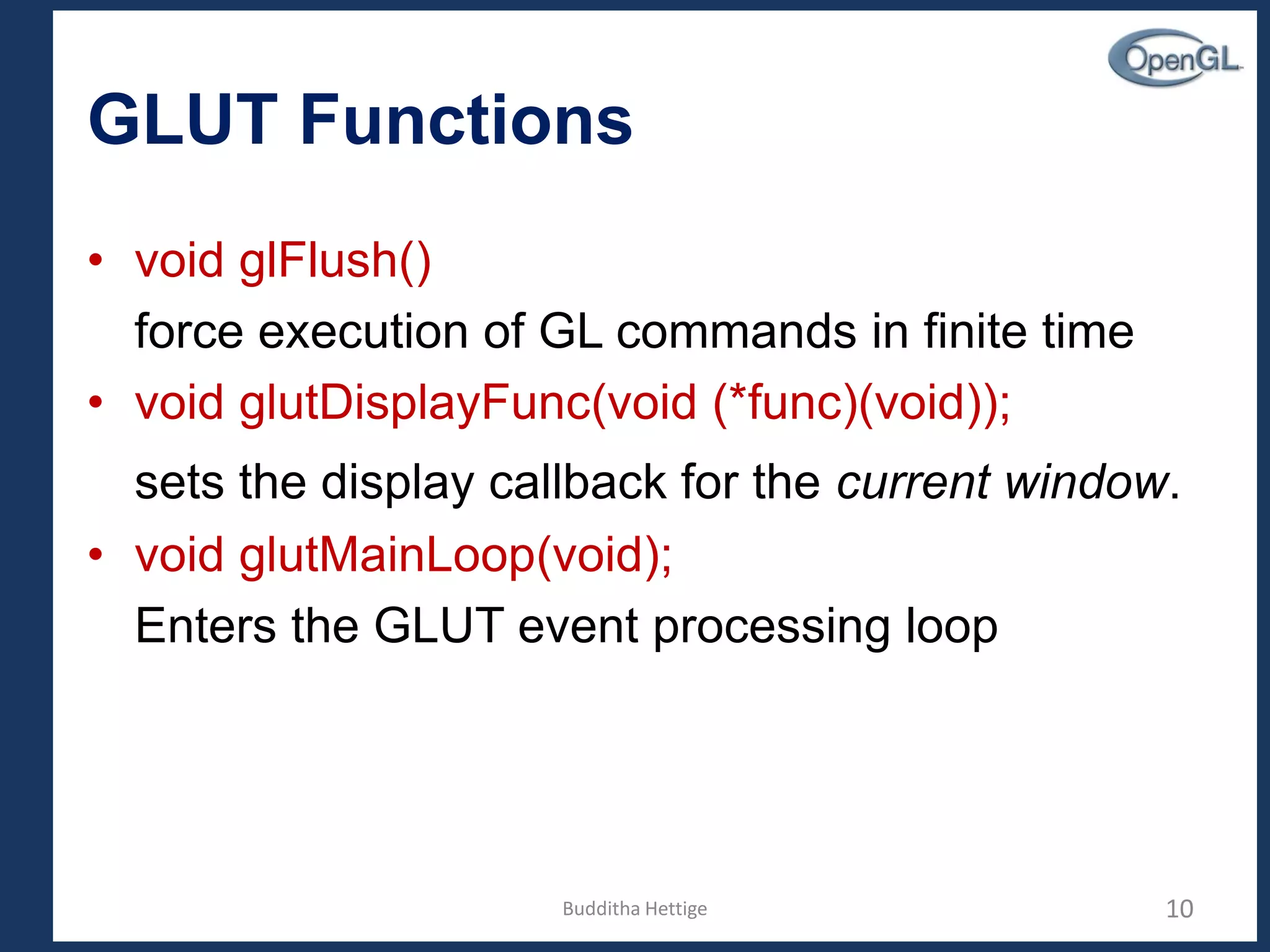

- 10. GLUT Functions ā¢ voidglFlush() force execution of GL commands in finite time ā¢ void glutDisplayFunc(void (*func)(void)); sets the display callback for the current window. ā¢ void glutMainLoop(void); Enters the GLUT event processing loop 10Budditha Hettige

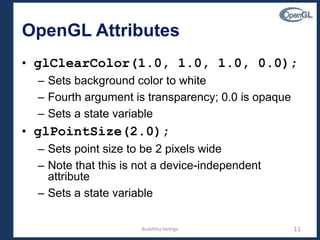

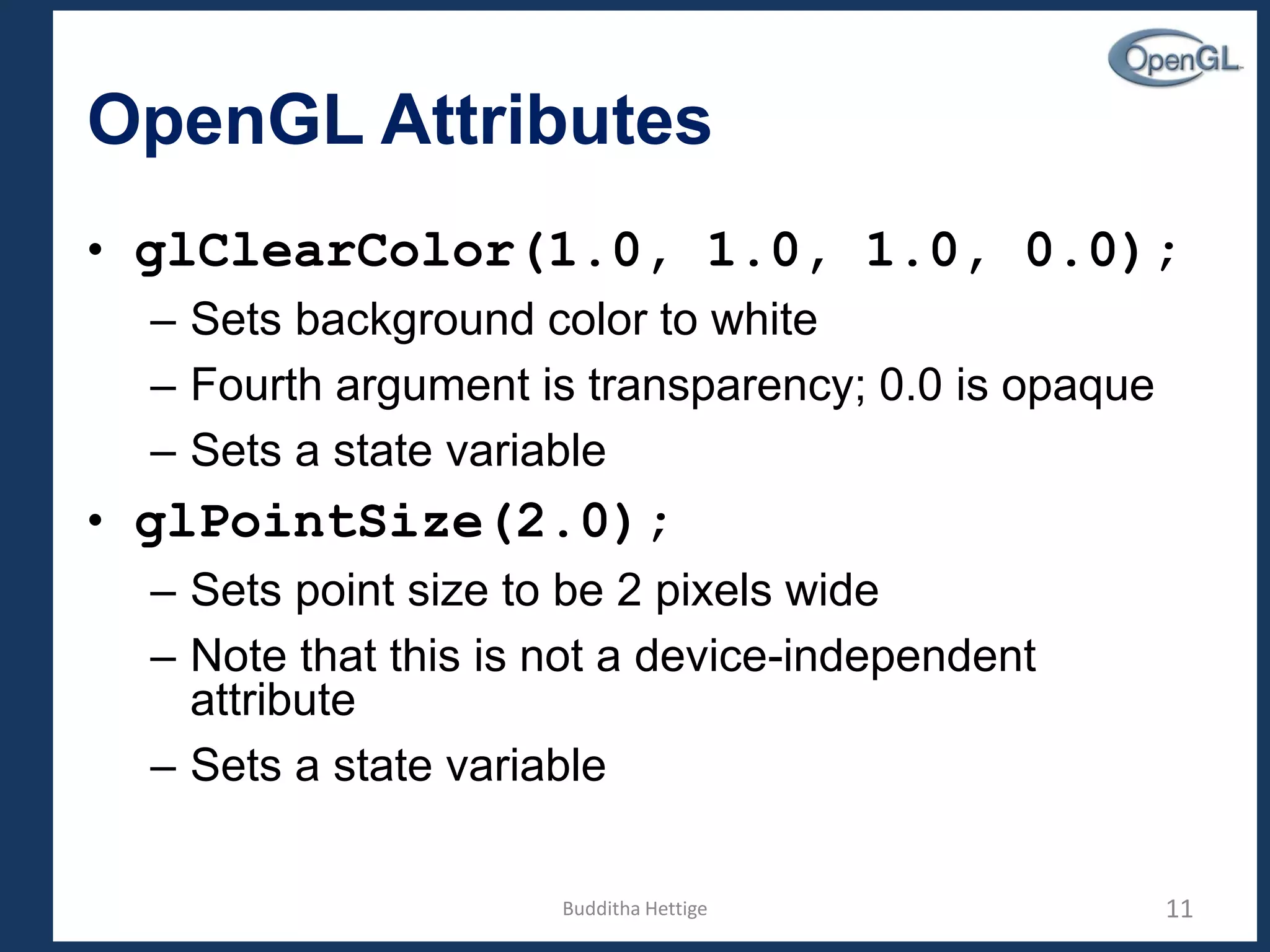

- 11. OpenGL Attributes ā¢ glClearColor(1.0,1.0, 1.0, 0.0); ā Sets background color to white ā Fourth argument is transparency; 0.0 is opaque ā Sets a state variable ā¢ glPointSize(2.0); ā Sets point size to be 2 pixels wide ā Note that this is not a device-independent attribute ā Sets a state variable 11Budditha Hettige

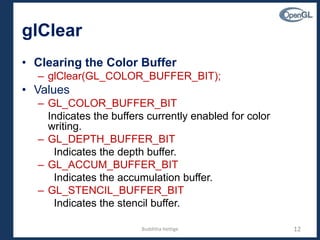

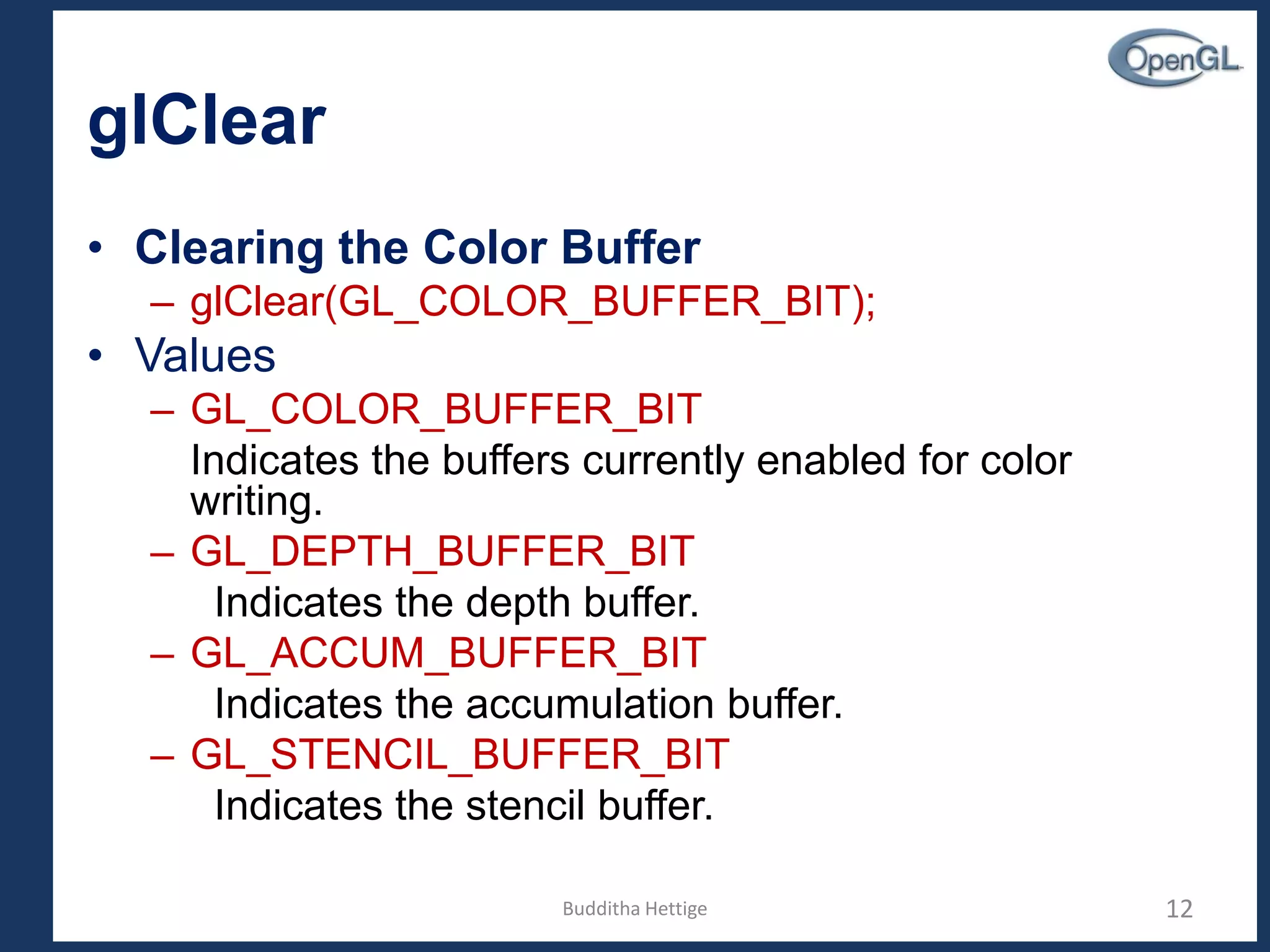

- 12. glClear ā¢ Clearing theColor Buffer ā glClear(GL_COLOR_BUFFER_BIT); ā¢ Values ā GL_COLOR_BUFFER_BIT Indicates the buffers currently enabled for color writing. ā GL_DEPTH_BUFFER_BIT Indicates the depth buffer. ā GL_ACCUM_BUFFER_BIT Indicates the accumulation buffer. ā GL_STENCIL_BUFFER_BIT Indicates the stencil buffer. 12Budditha Hettige
- 13.

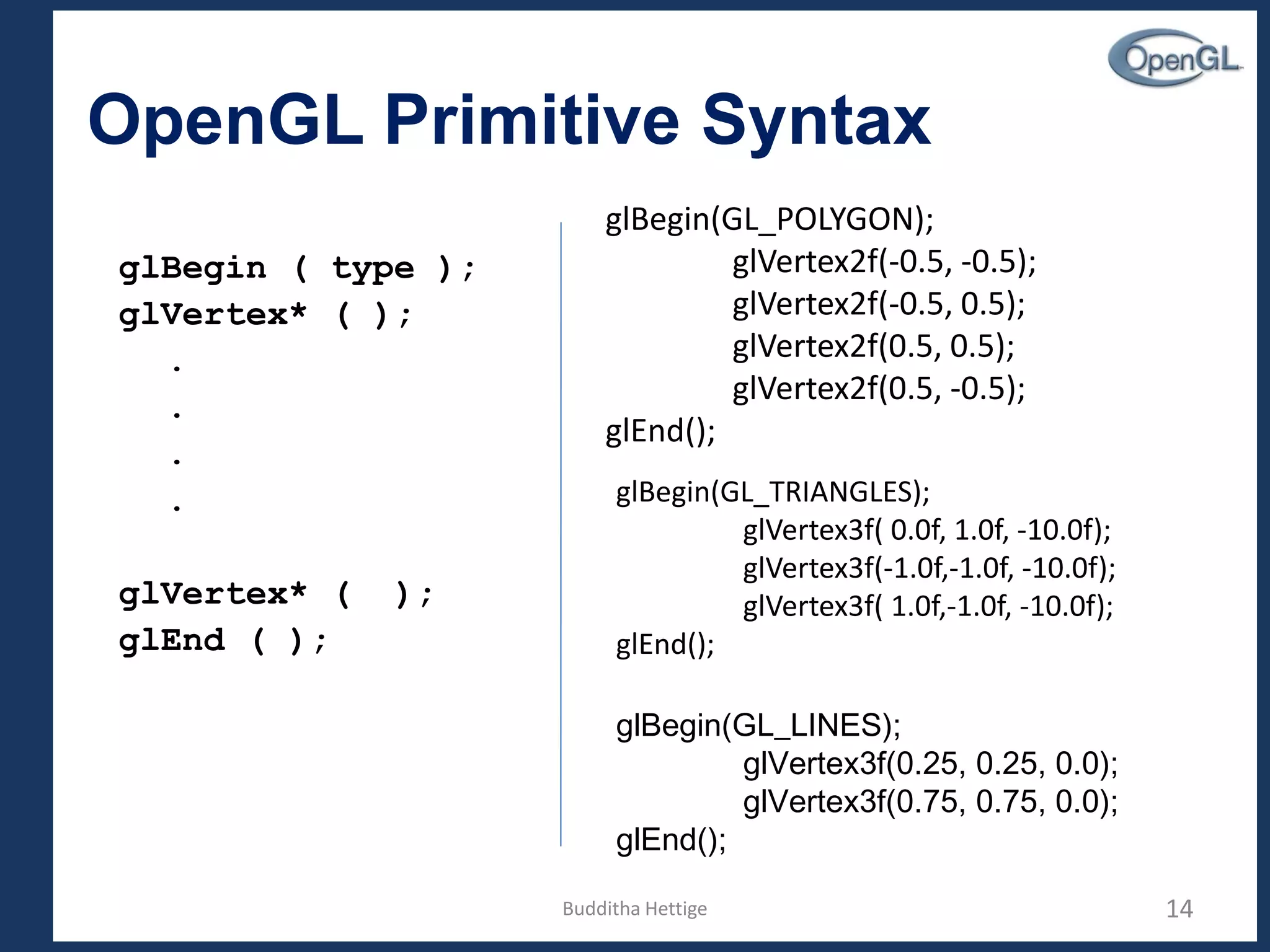

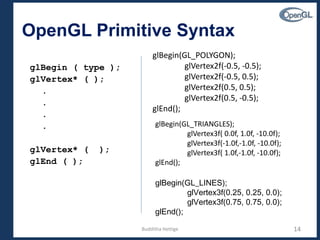

- 14. OpenGL Primitive Syntax glBegin( type ); glVertex* ( ); . . . . glVertex* ( ); glEnd ( ); 14 glBegin(GL_POLYGON); glVertex2f(-0.5, -0.5); glVertex2f(-0.5, 0.5); glVertex2f(0.5, 0.5); glVertex2f(0.5, -0.5); glEnd(); glBegin(GL_TRIANGLES); glVertex3f( 0.0f, 1.0f, -10.0f); glVertex3f(-1.0f,-1.0f, -10.0f); glVertex3f( 1.0f,-1.0f, -10.0f); glEnd(); glBegin(GL_LINES); glVertex3f(0.25, 0.25, 0.0); glVertex3f(0.75, 0.75, 0.0); glEnd(); Budditha Hettige

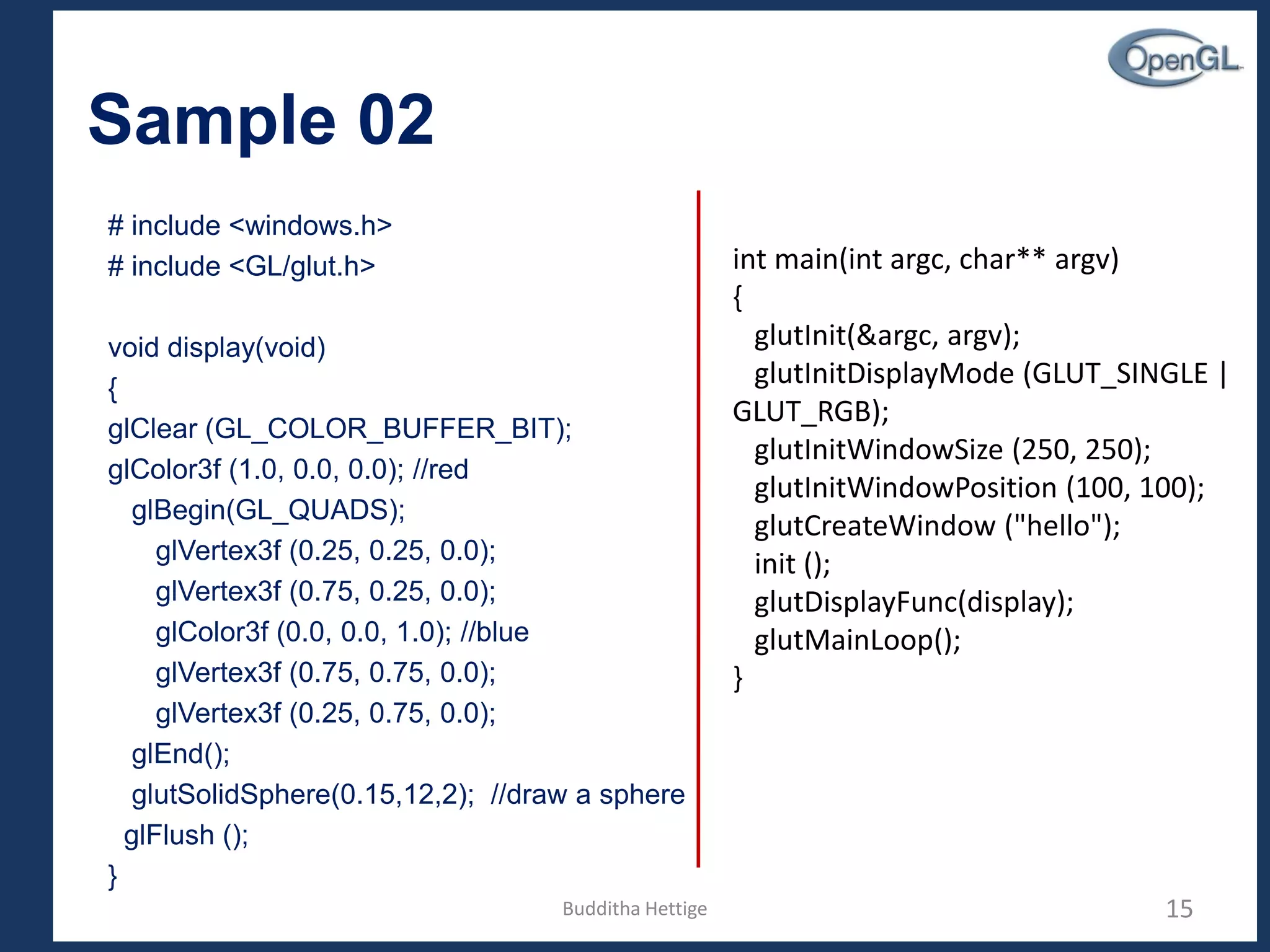

- 15. Sample 02 # include<windows.h> # include <GL/glut.h> void display(void) { glClear (GL_COLOR_BUFFER_BIT); glColor3f (1.0, 0.0, 0.0); //red glBegin(GL_QUADS); glVertex3f (0.25, 0.25, 0.0); glVertex3f (0.75, 0.25, 0.0); glColor3f (0.0, 0.0, 1.0); //blue glVertex3f (0.75, 0.75, 0.0); glVertex3f (0.25, 0.75, 0.0); glEnd(); glutSolidSphere(0.15,12,2); //draw a sphere glFlush (); } 15 int main(int argc, char** argv) { glutInit(&argc, argv); glutInitDisplayMode (GLUT_SINGLE | GLUT_RGB); glutInitWindowSize (250, 250); glutInitWindowPosition (100, 100); glutCreateWindow ("hello"); init (); glutDisplayFunc(display); glutMainLoop(); } Budditha Hettige

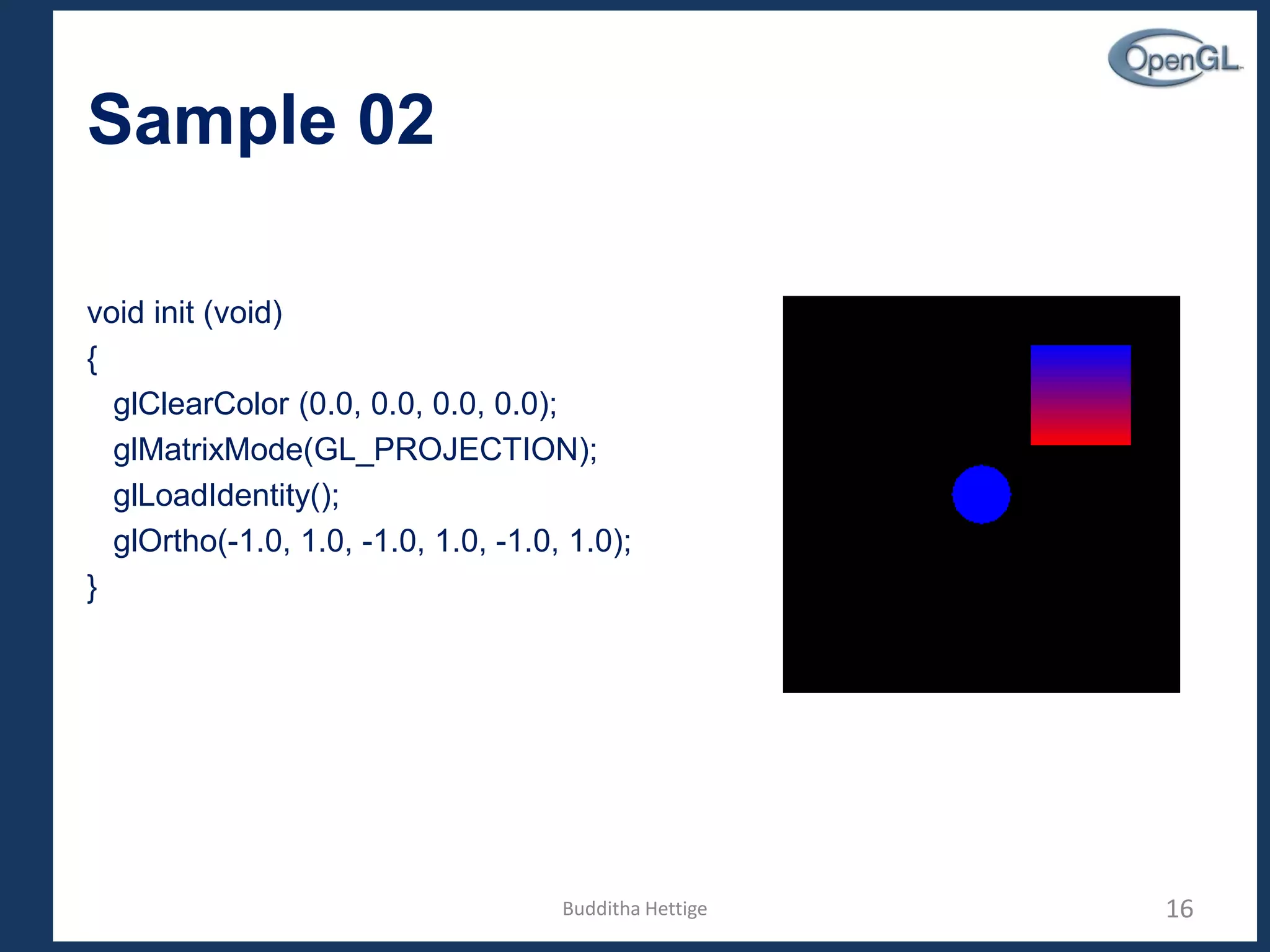

- 16. Sample 02 void init(void) { glClearColor (0.0, 0.0, 0.0, 0.0); glMatrixMode(GL_PROJECTION); glLoadIdentity(); glOrtho(-1.0, 1.0, -1.0, 1.0, -1.0, 1.0); } 16Budditha Hettige

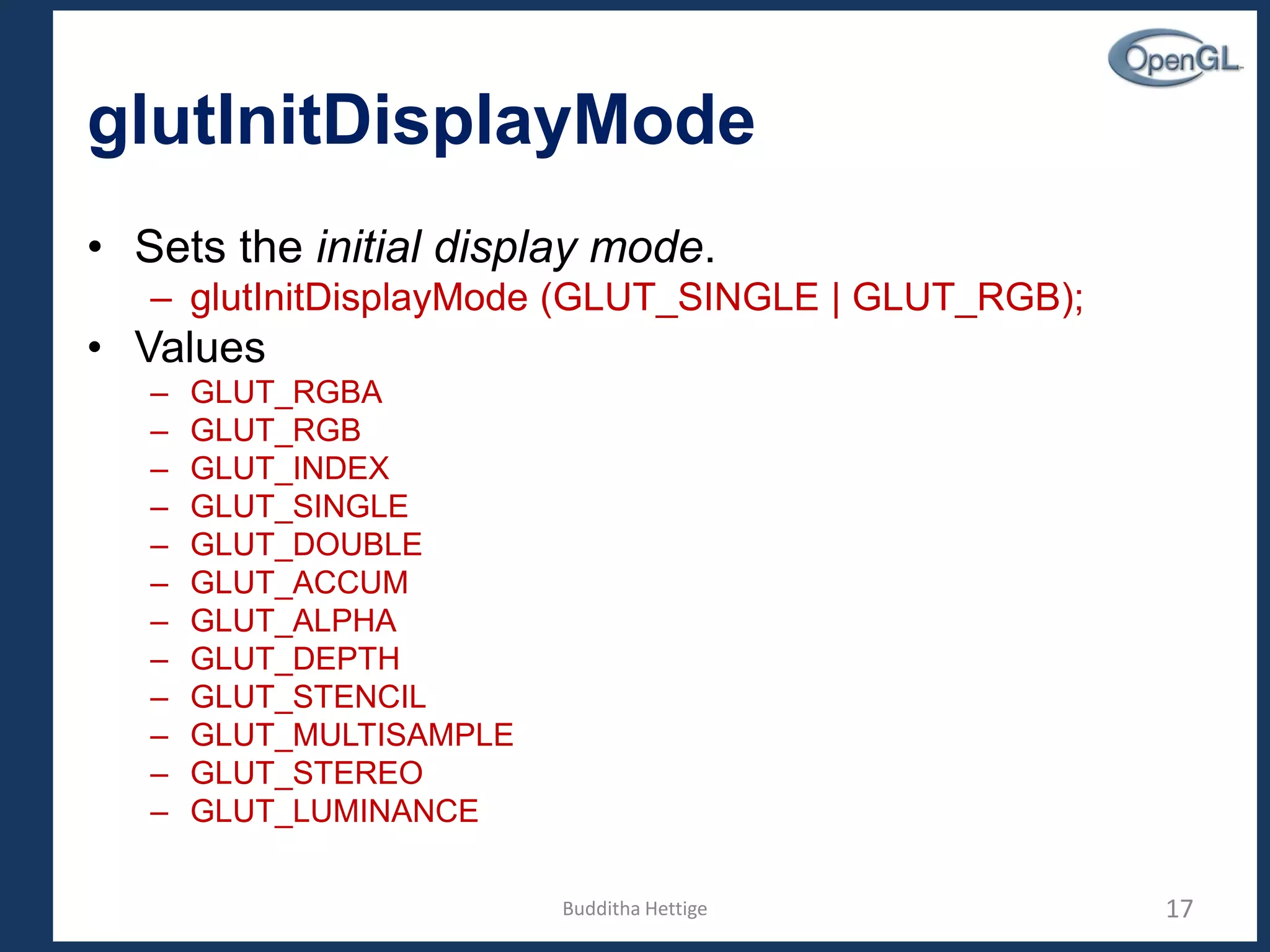

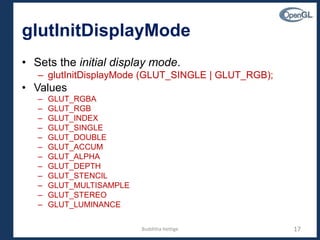

- 17. glutInitDisplayMode ā¢ Sets theinitial display mode. ā glutInitDisplayMode (GLUT_SINGLE | GLUT_RGB); ā¢ Values ā GLUT_RGBA ā GLUT_RGB ā GLUT_INDEX ā GLUT_SINGLE ā GLUT_DOUBLE ā GLUT_ACCUM ā GLUT_ALPHA ā GLUT_DEPTH ā GLUT_STENCIL ā GLUT_MULTISAMPLE ā GLUT_STEREO ā GLUT_LUMINANCE 17Budditha Hettige

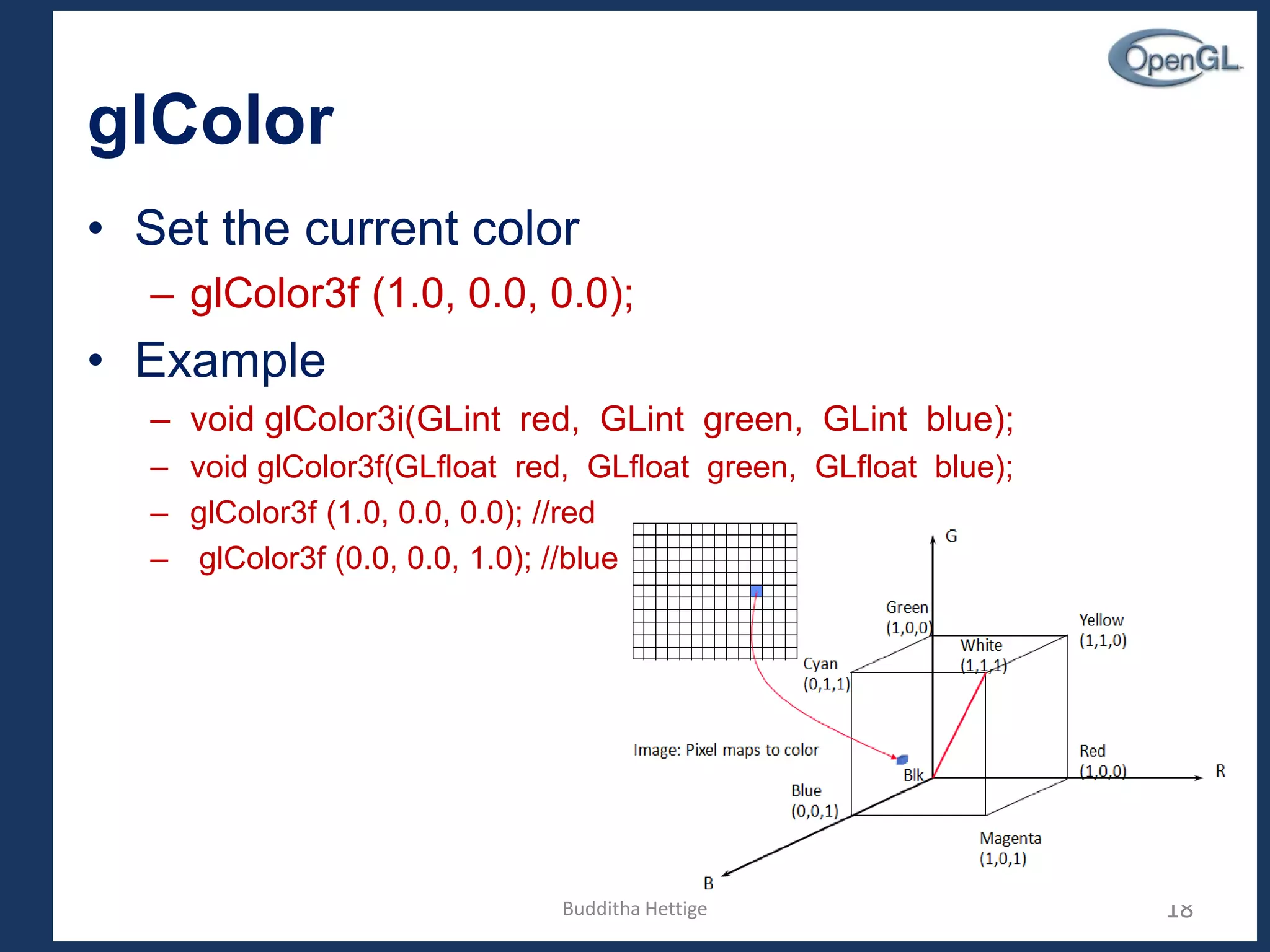

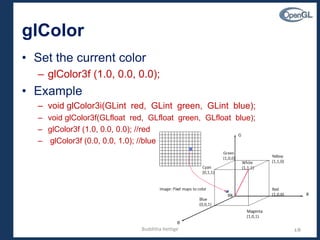

- 18. glColor ā¢ Set thecurrent color ā glColor3f (1.0, 0.0, 0.0); ā¢ Example ā void glColor3i(GLint red, GLint green, GLint blue); ā void glColor3f(GLfloat red, GLfloat green, GLfloat blue); ā glColor3f (1.0, 0.0, 0.0); //red ā glColor3f (0.0, 0.0, 1.0); //blue 18Budditha Hettige

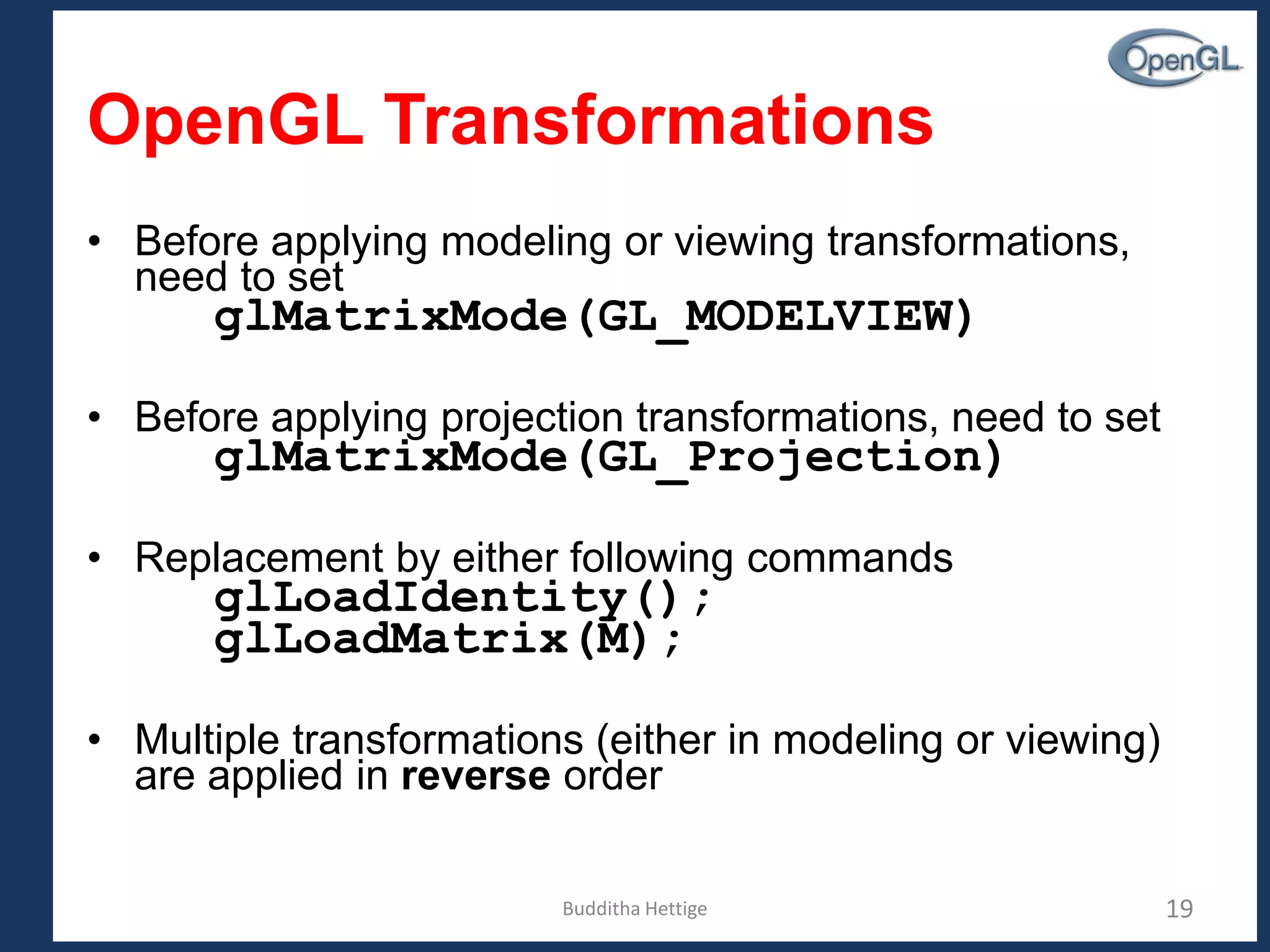

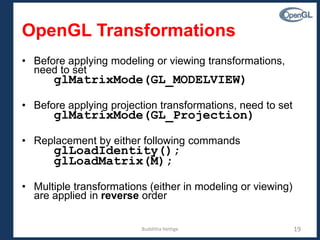

- 19. Budditha Hettige 19 OpenGLTransformations ā¢ Before applying modeling or viewing transformations, need to set glMatrixMode(GL_MODELVIEW) ā¢ Before applying projection transformations, need to set glMatrixMode(GL_Projection) ā¢ Replacement by either following commands glLoadIdentity(); glLoadMatrix(M); ā¢ Multiple transformations (either in modeling or viewing) are applied in reverse order

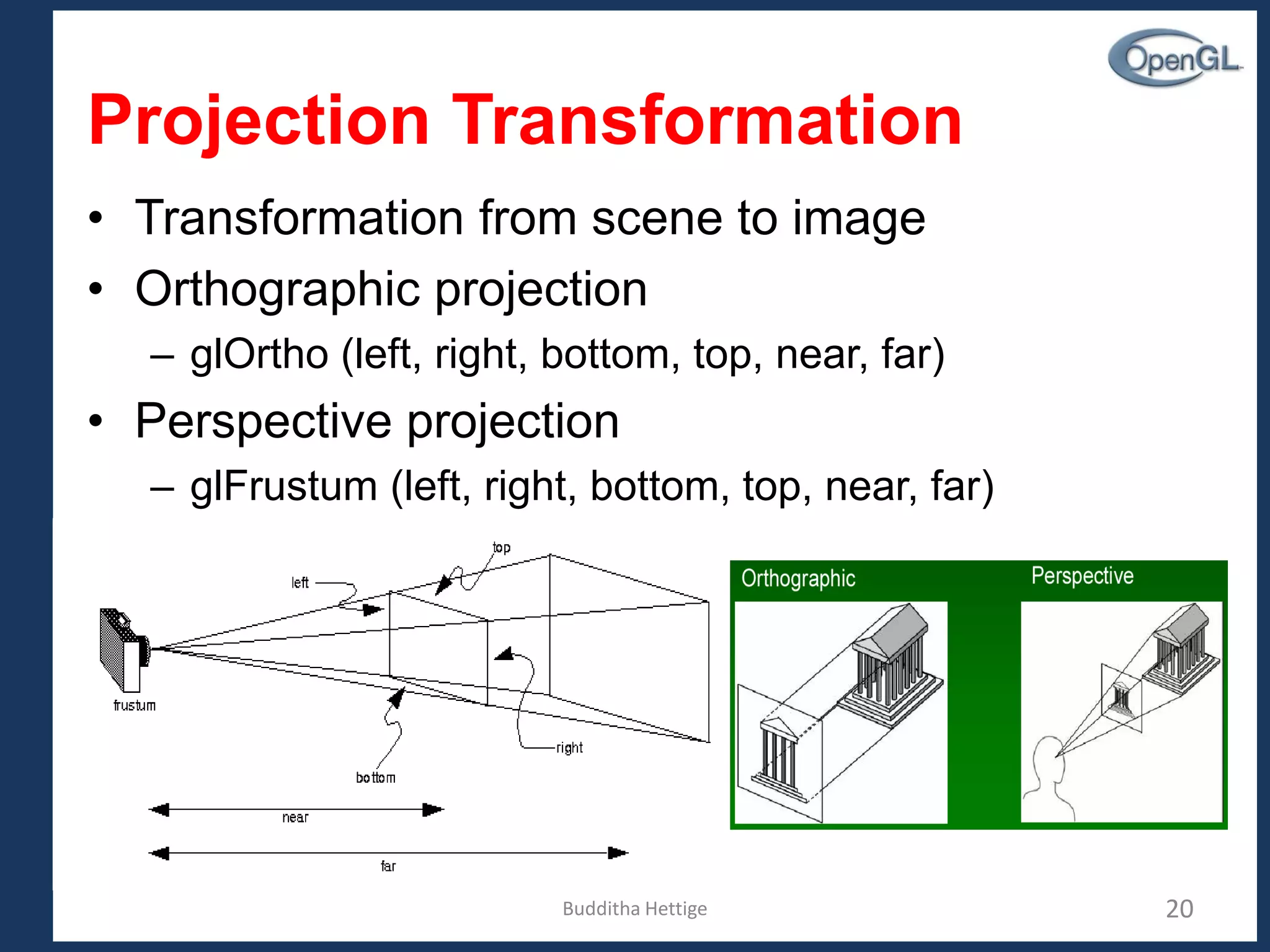

- 20. Projection Transformation ā¢ Transformationfrom scene to image ā¢ Orthographic projection ā glOrtho (left, right, bottom, top, near, far) ā¢ Perspective projection ā glFrustum (left, right, bottom, top, near, far) 20Budditha Hettige

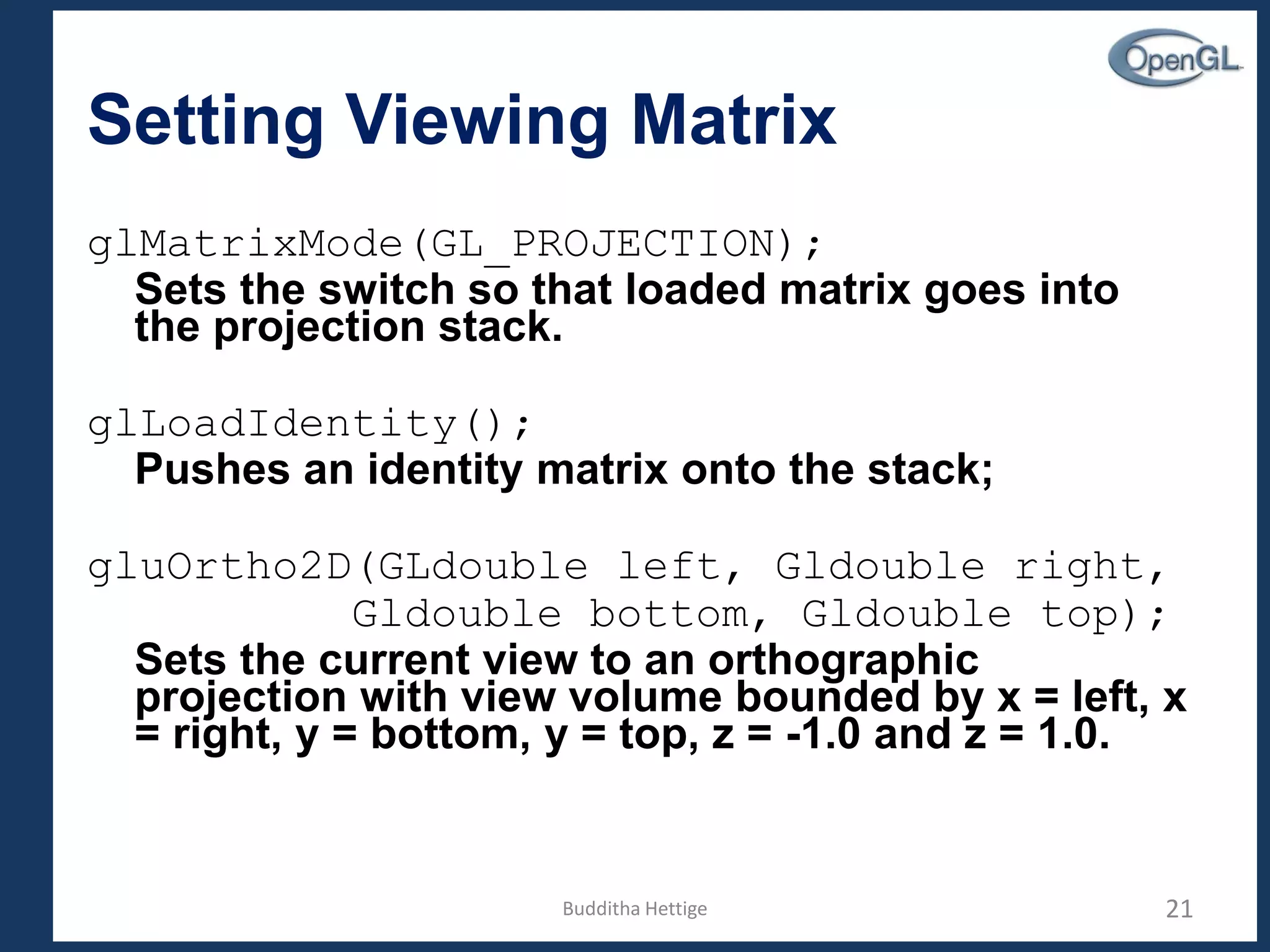

- 21. Setting Viewing Matrix glMatrixMode(GL_PROJECTION); Setsthe switch so that loaded matrix goes into the projection stack. glLoadIdentity(); Pushes an identity matrix onto the stack; gluOrtho2D(GLdouble left, Gldouble right, Gldouble bottom, Gldouble top); Sets the current view to an orthographic projection with view volume bounded by x = left, x = right, y = bottom, y = top, z = -1.0 and z = 1.0. 21Budditha Hettige

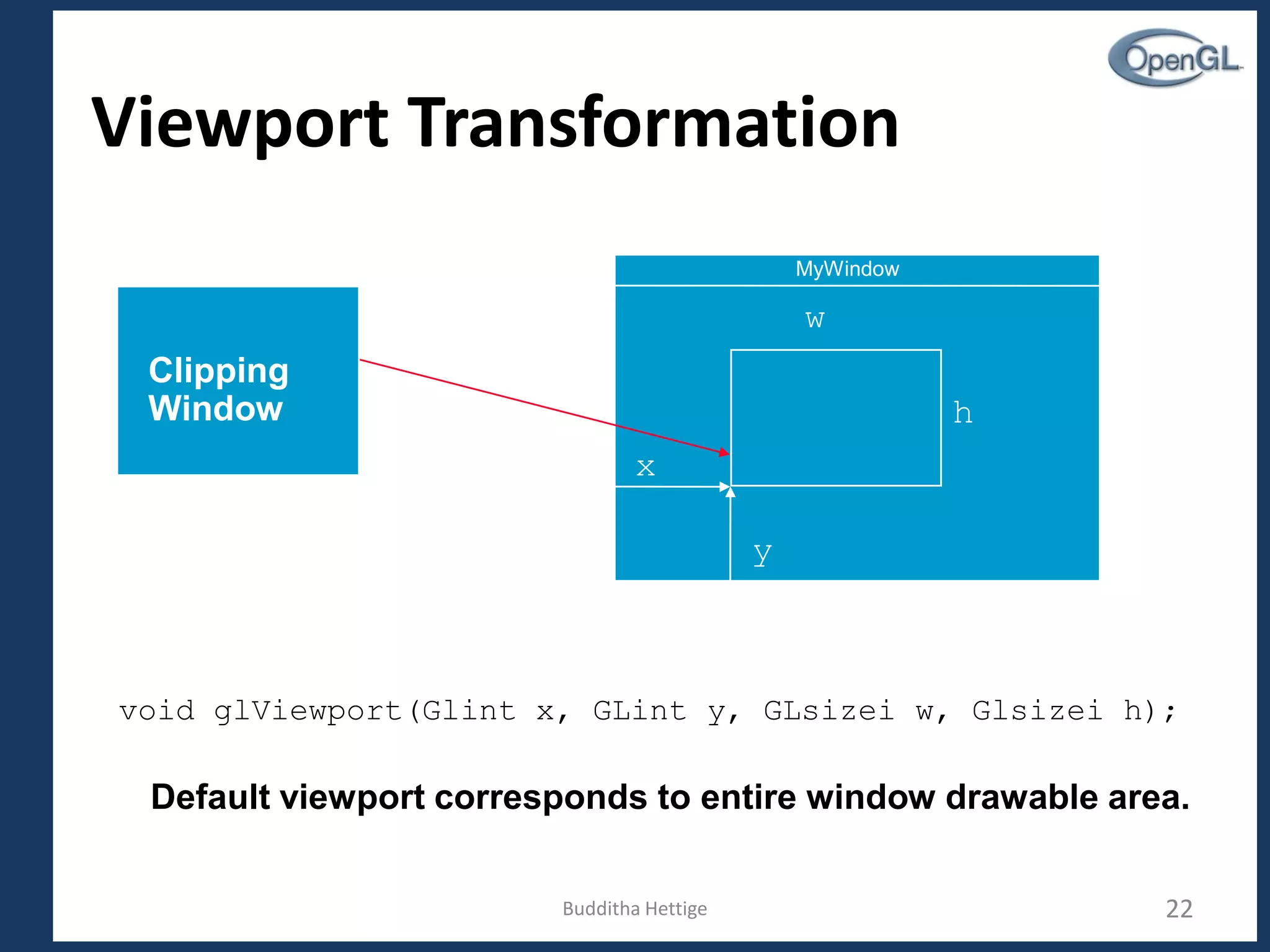

- 22. Viewport Transformation MyWindow x y h w void glViewport(Glintx, GLint y, GLsizei w, Glsizei h); Default viewport corresponds to entire window drawable area. Clipping Window Budditha Hettige 22

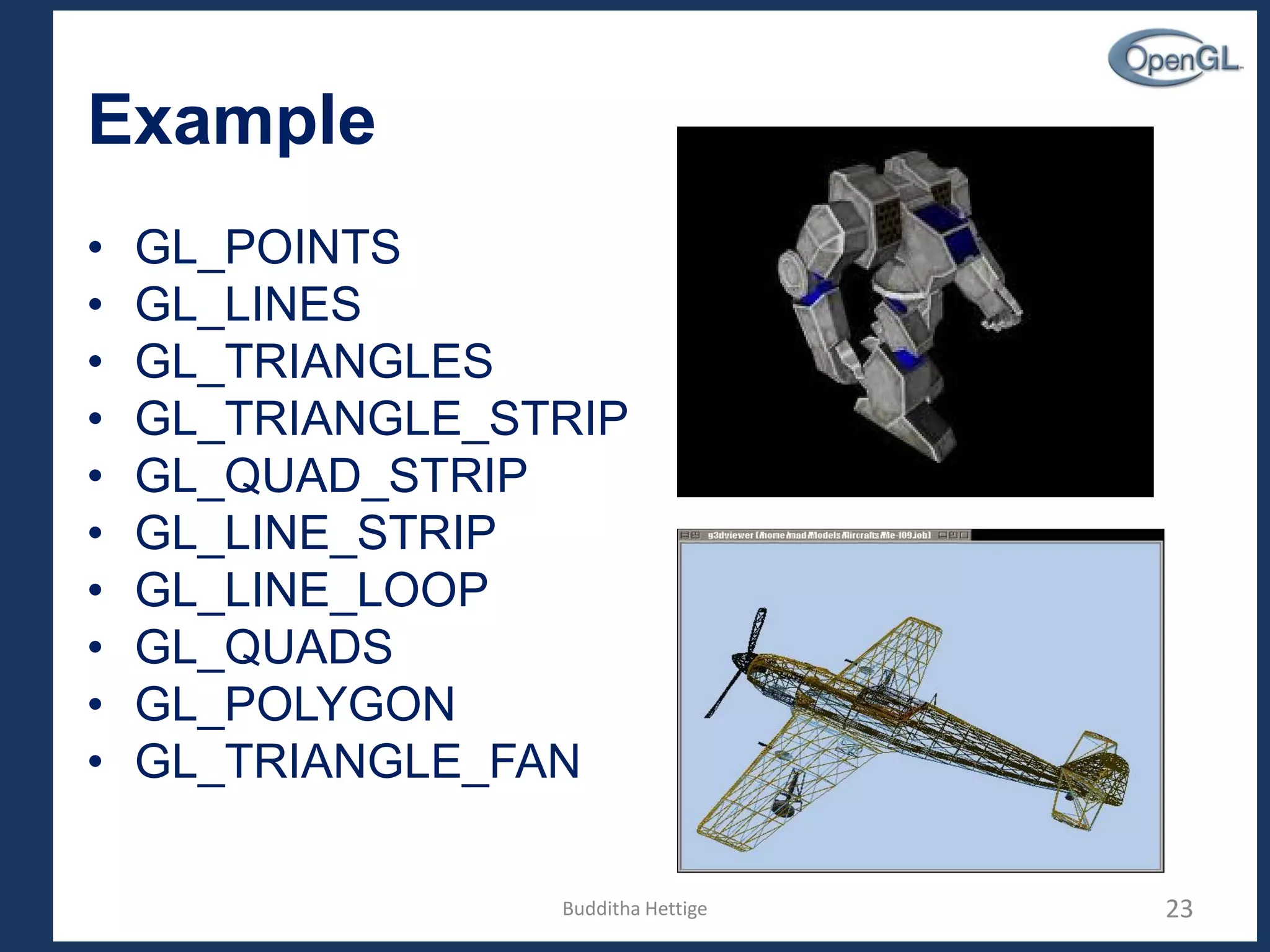

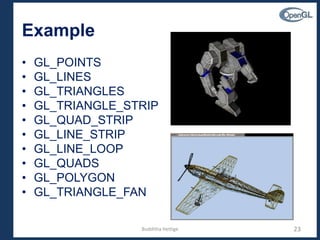

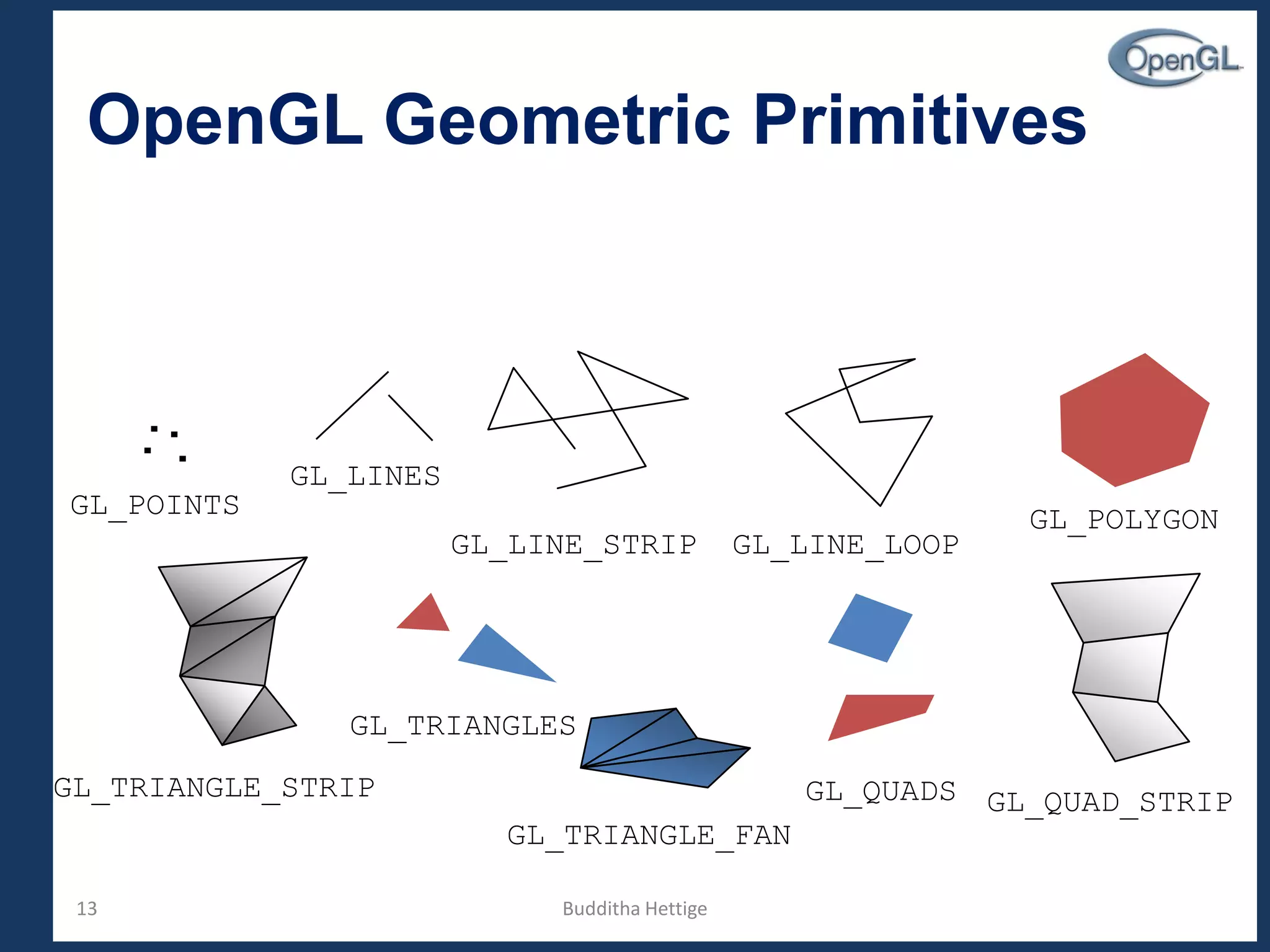

- 23. Example ā¢ GL_POINTS ā¢ GL_LINES ā¢GL_TRIANGLES ā¢ GL_TRIANGLE_STRIP ā¢ GL_QUAD_STRIP ā¢ GL_LINE_STRIP ā¢ GL_LINE_LOOP ā¢ GL_QUADS ā¢ GL_POLYGON ā¢ GL_TRIANGLE_FAN 23Budditha Hettige

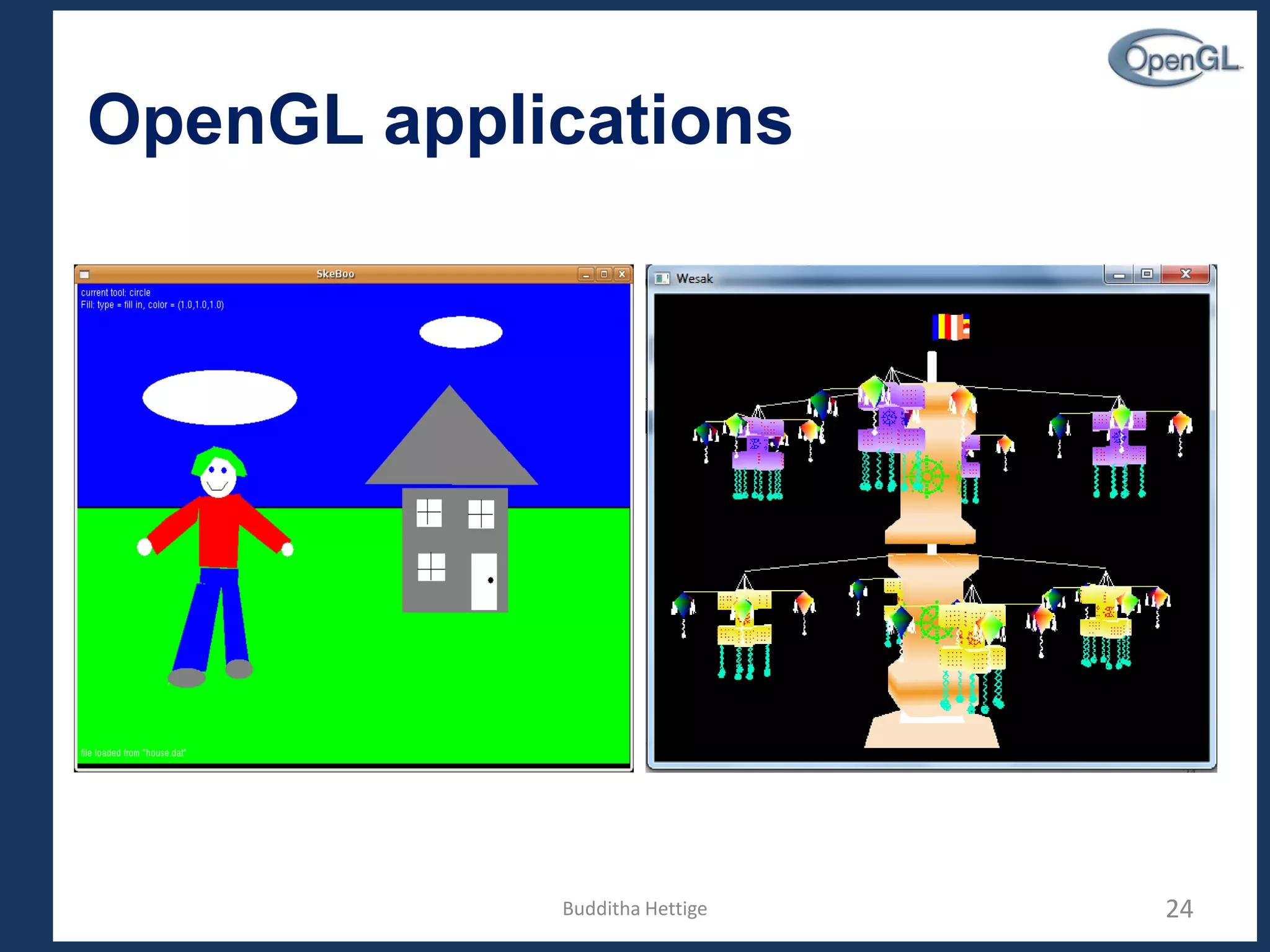

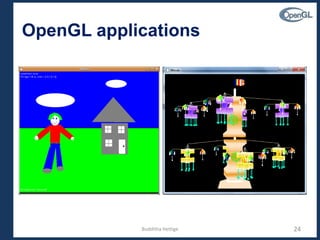

- 24.
