Artificial Intelligence-- Search Algorithms

© 2000-2012 Franz Kurfess Agents

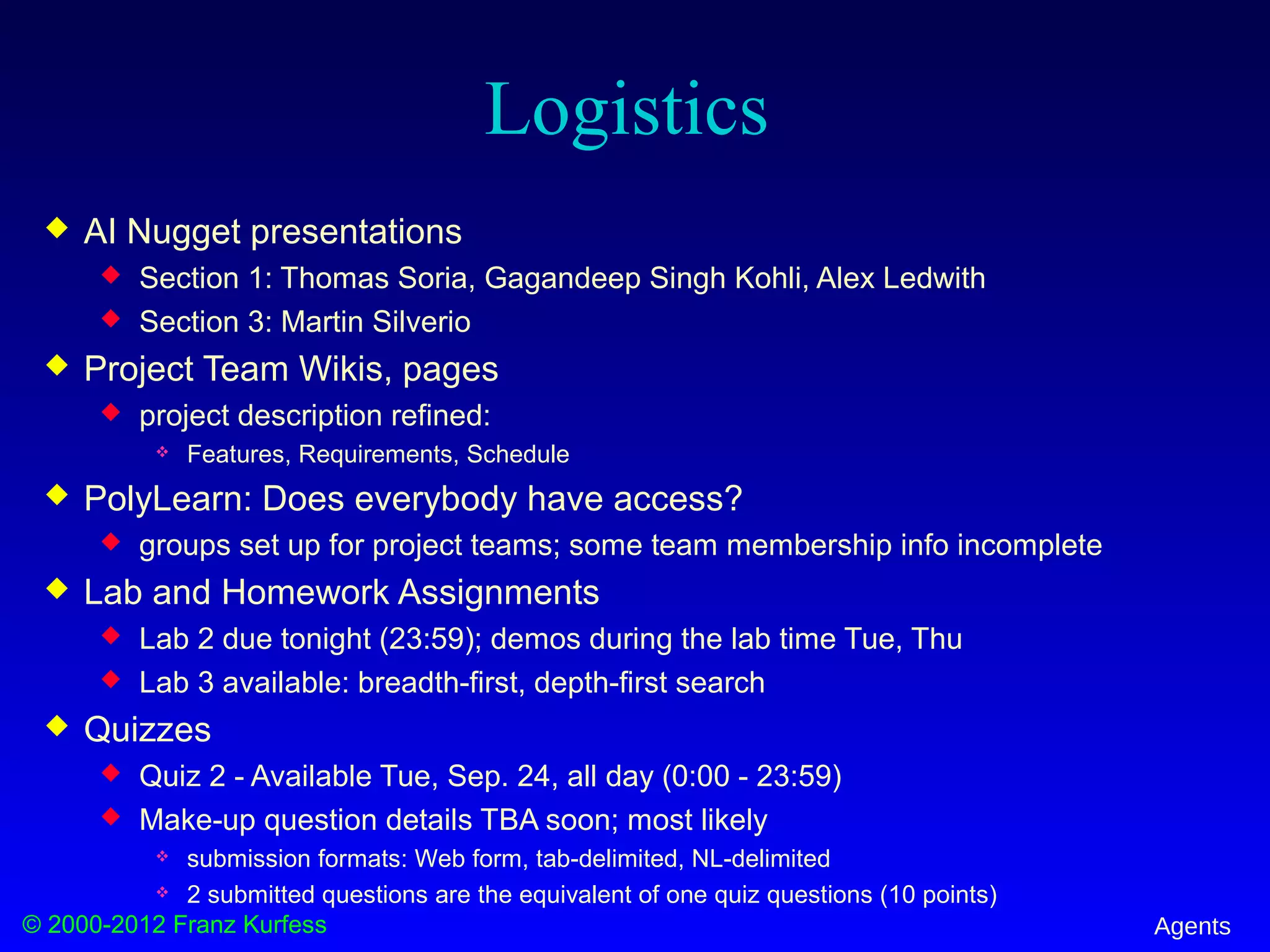

Logistics
 AI Nugget presentations
 Section 1: Thomas Soria, Gagandeep Singh Kohli, Alex Ledwith
 Section 3: Martin Silverio
 Project Team Wikis, pages
 project description refined:
 Features, Requirements, Schedule
 PolyLearn: Does everybody have access?
 groups set up for project teams; some team membership info incomplete
 Lab and Homework Assignments
 Lab 2 due tonight (23:59); demos during the lab time Tue, Thu
 Lab 3 available: breadth-first, depth-first search
 Quizzes
 Quiz 2 - Available Tue, Sep. 24, all day (0:00 - 23:59)
 Make-up question details TBA soon; most likely
 submission formats: Web form, tab-delimited, NL-delimited
 2 submitted questions are the equivalent of one quiz questions (10 points)

© 2000-2012 Franz Kurfess Search

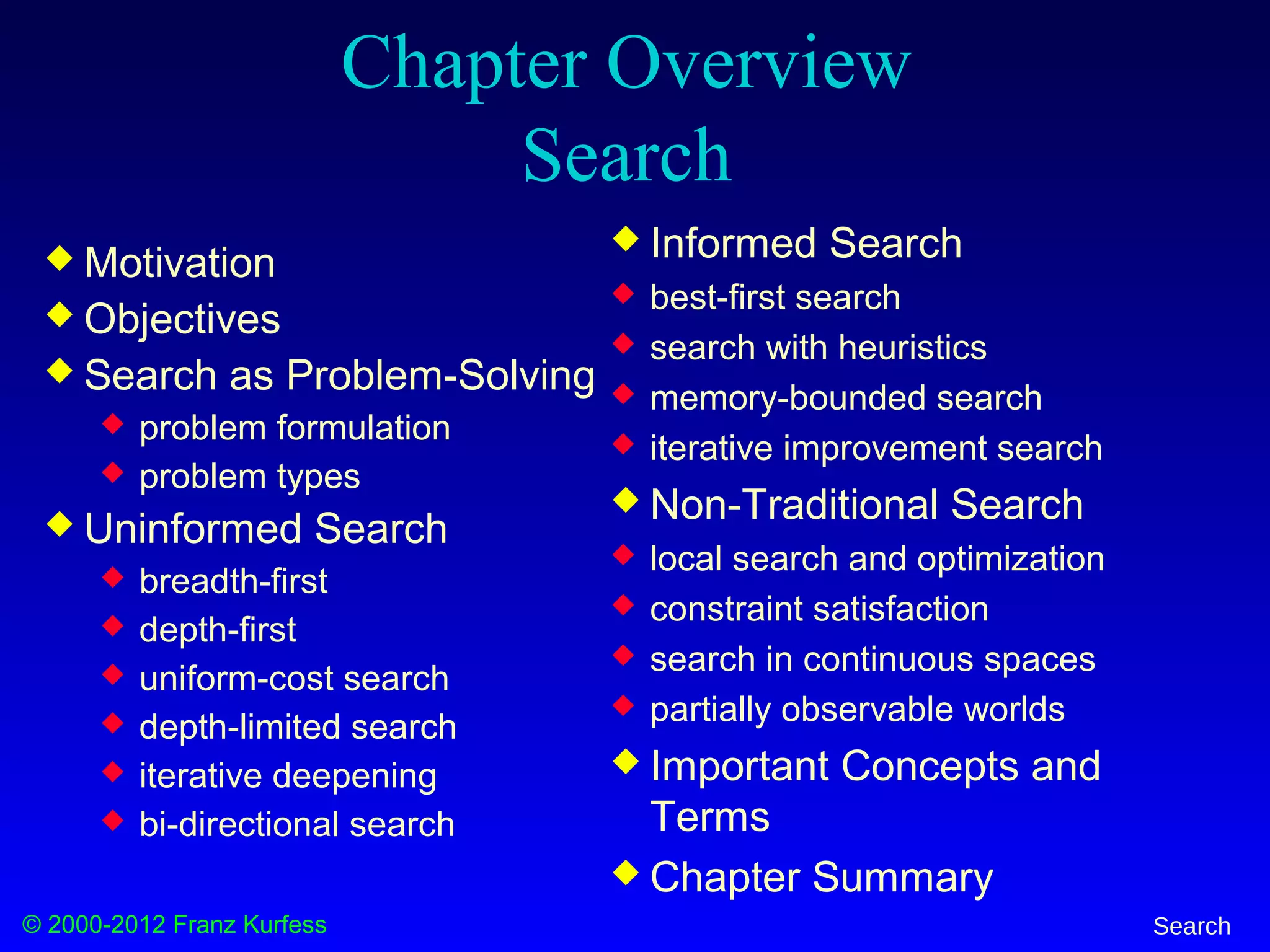

Chapter Overview
Search
 Motivation
 Objectives
 Search as Problem-Solving
 problem formulation
 problem types
 Uninformed Search

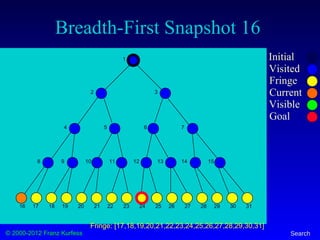

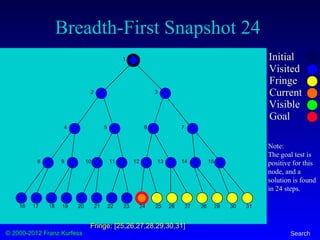

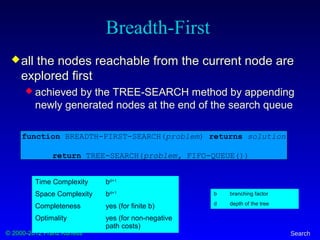

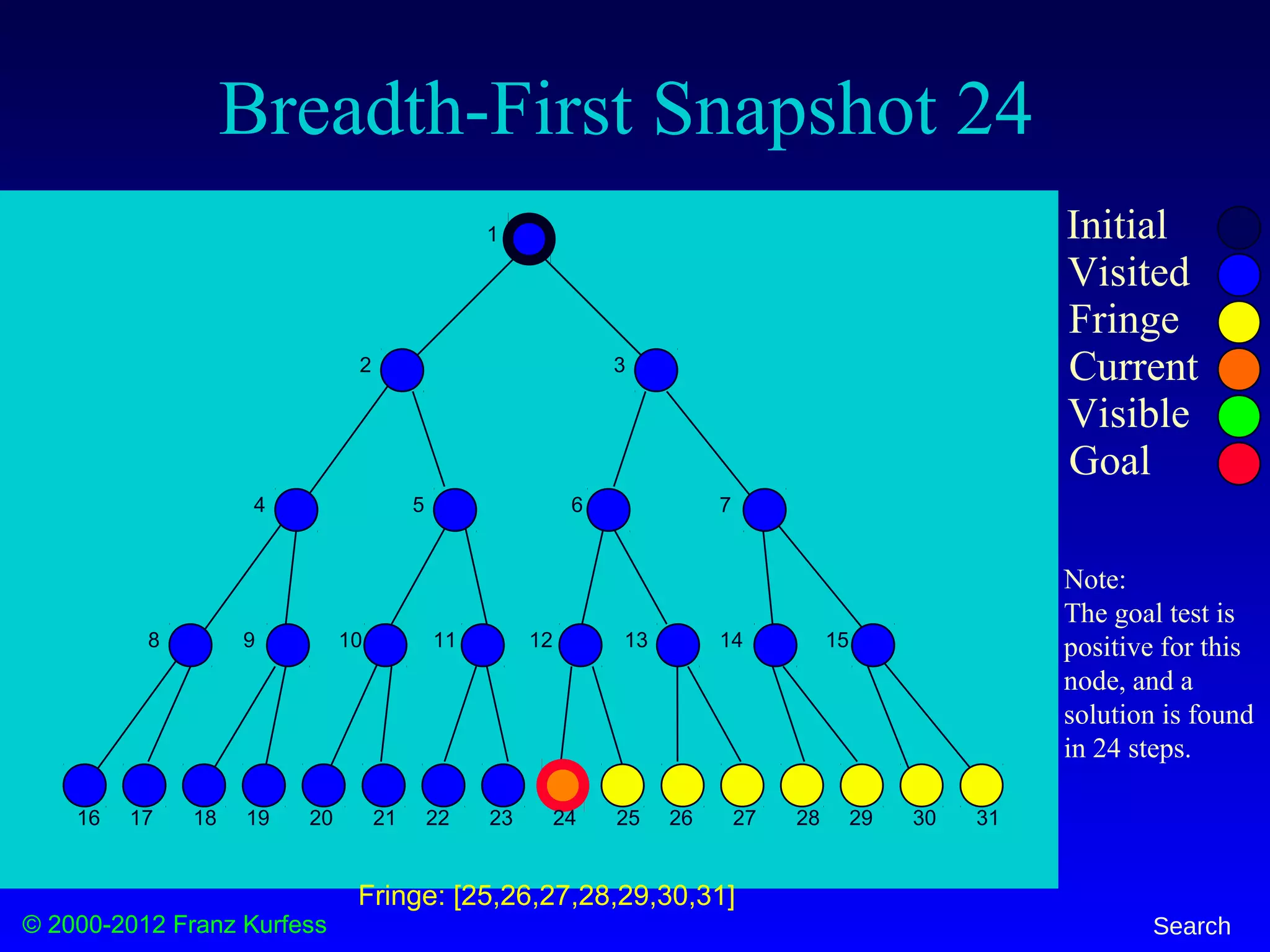

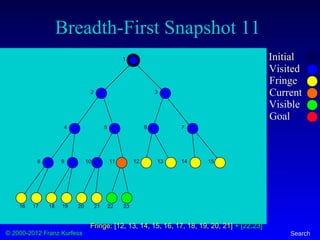

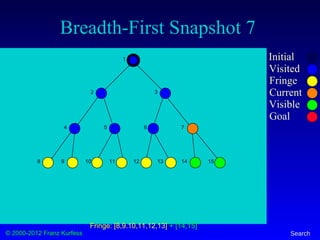

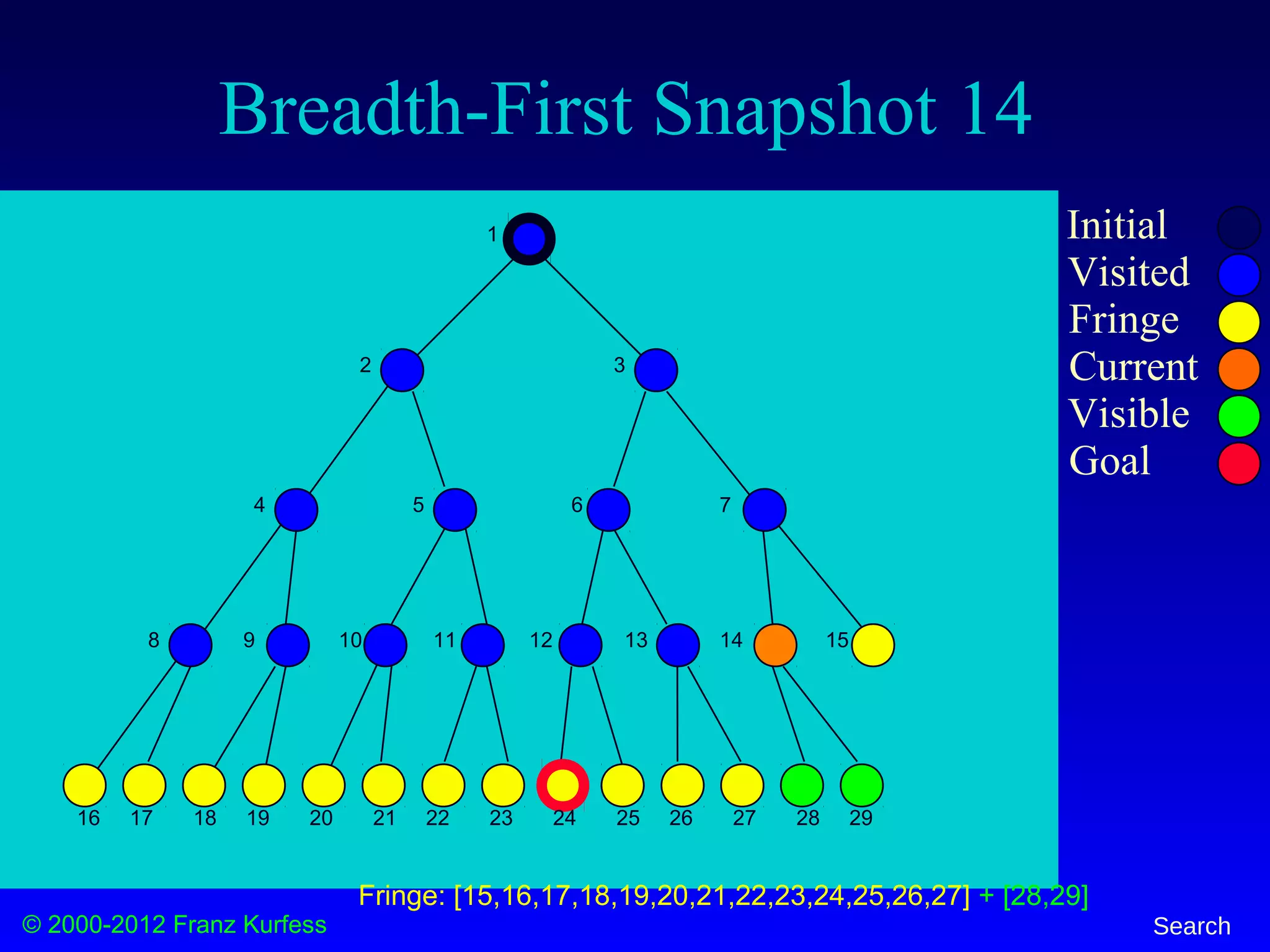

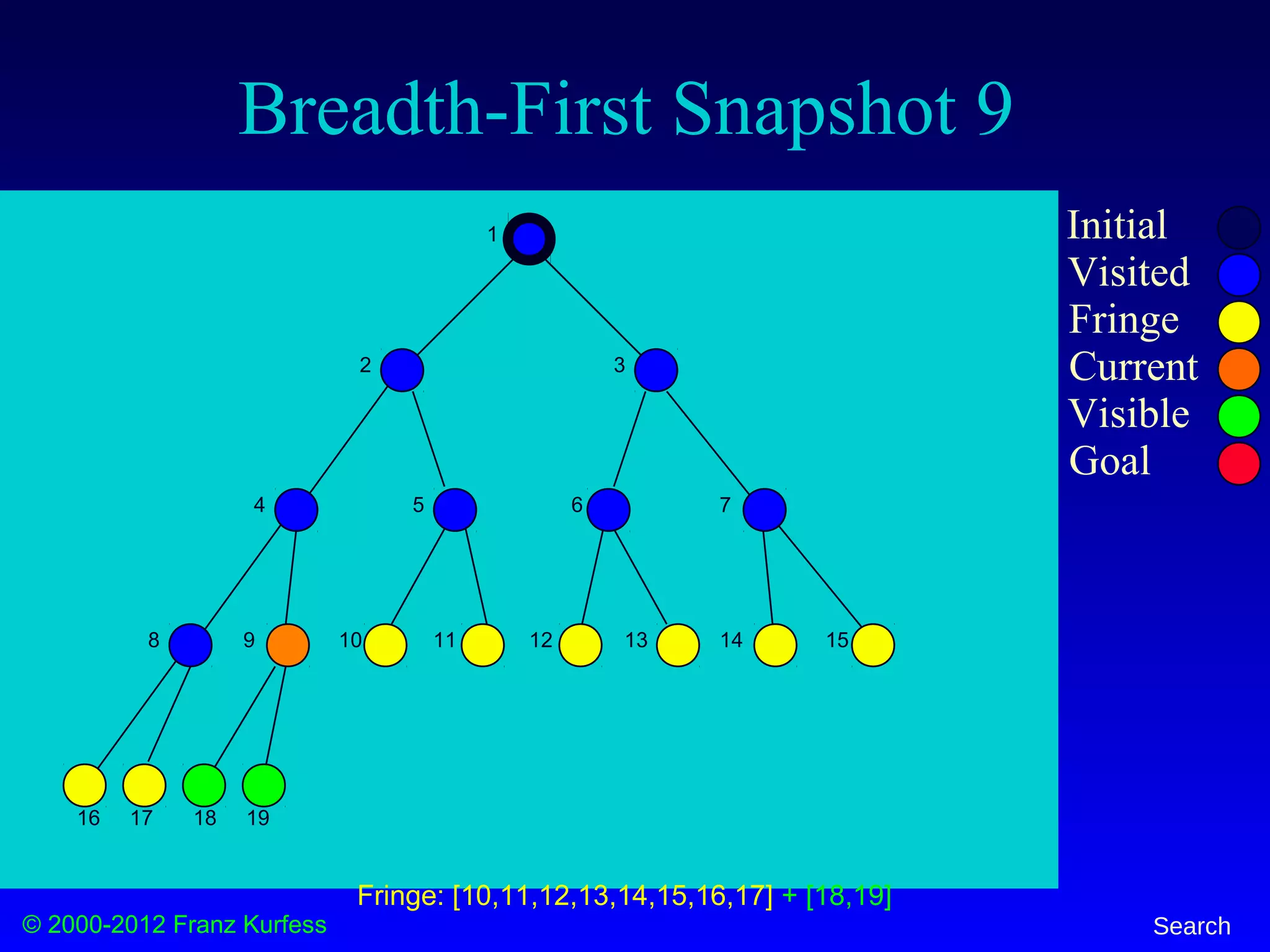

 breadth-first

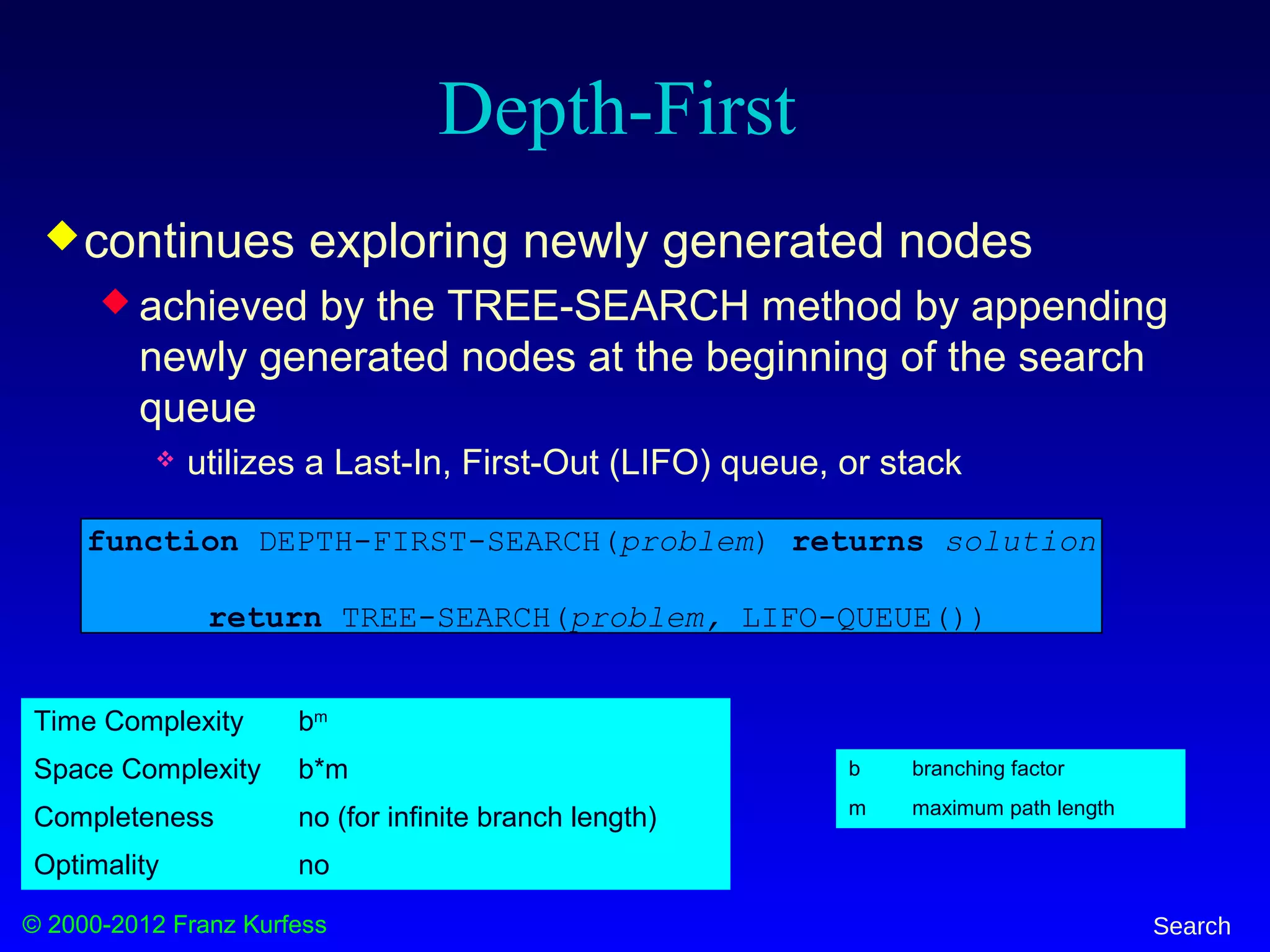

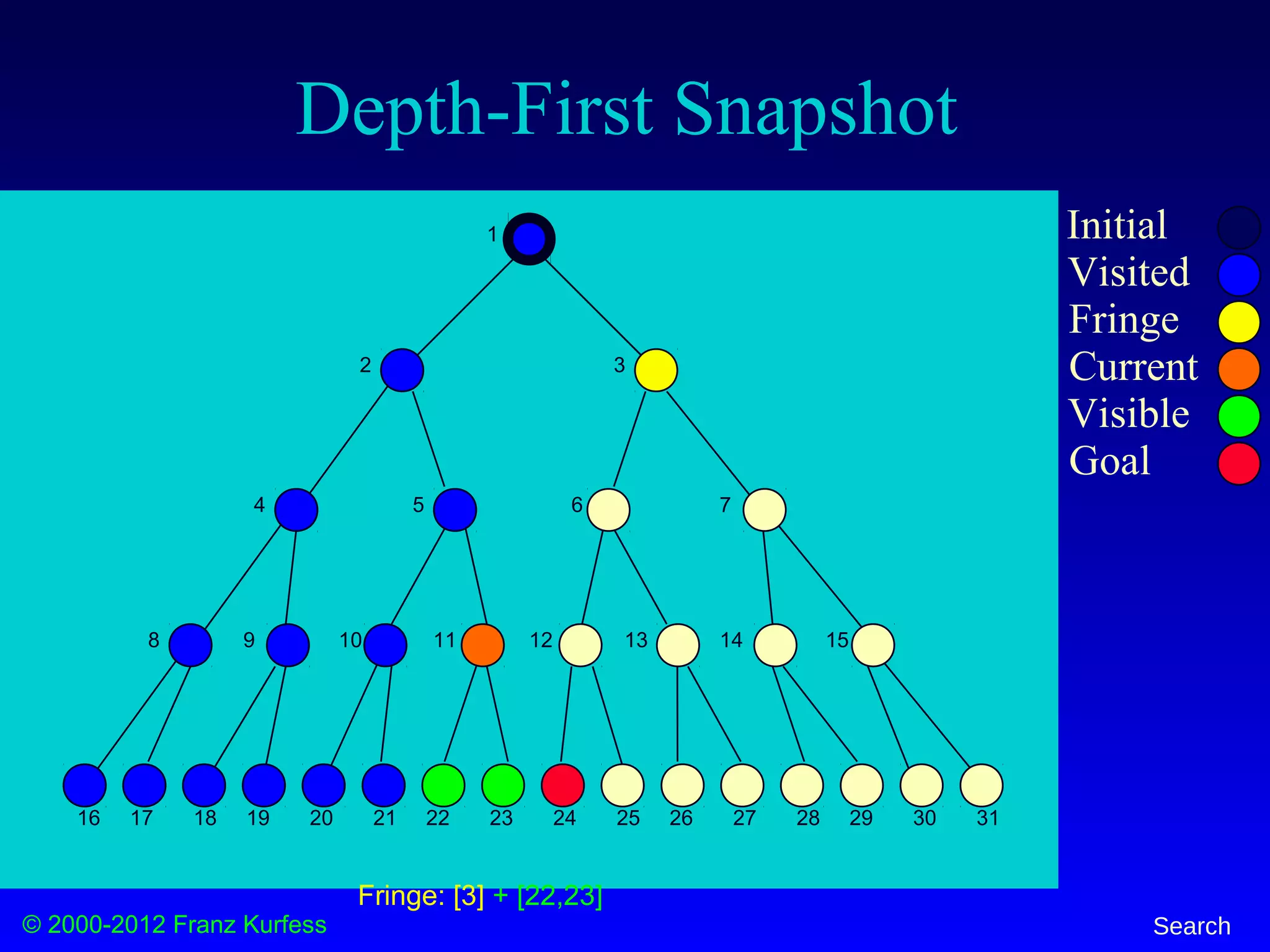

 depth-first

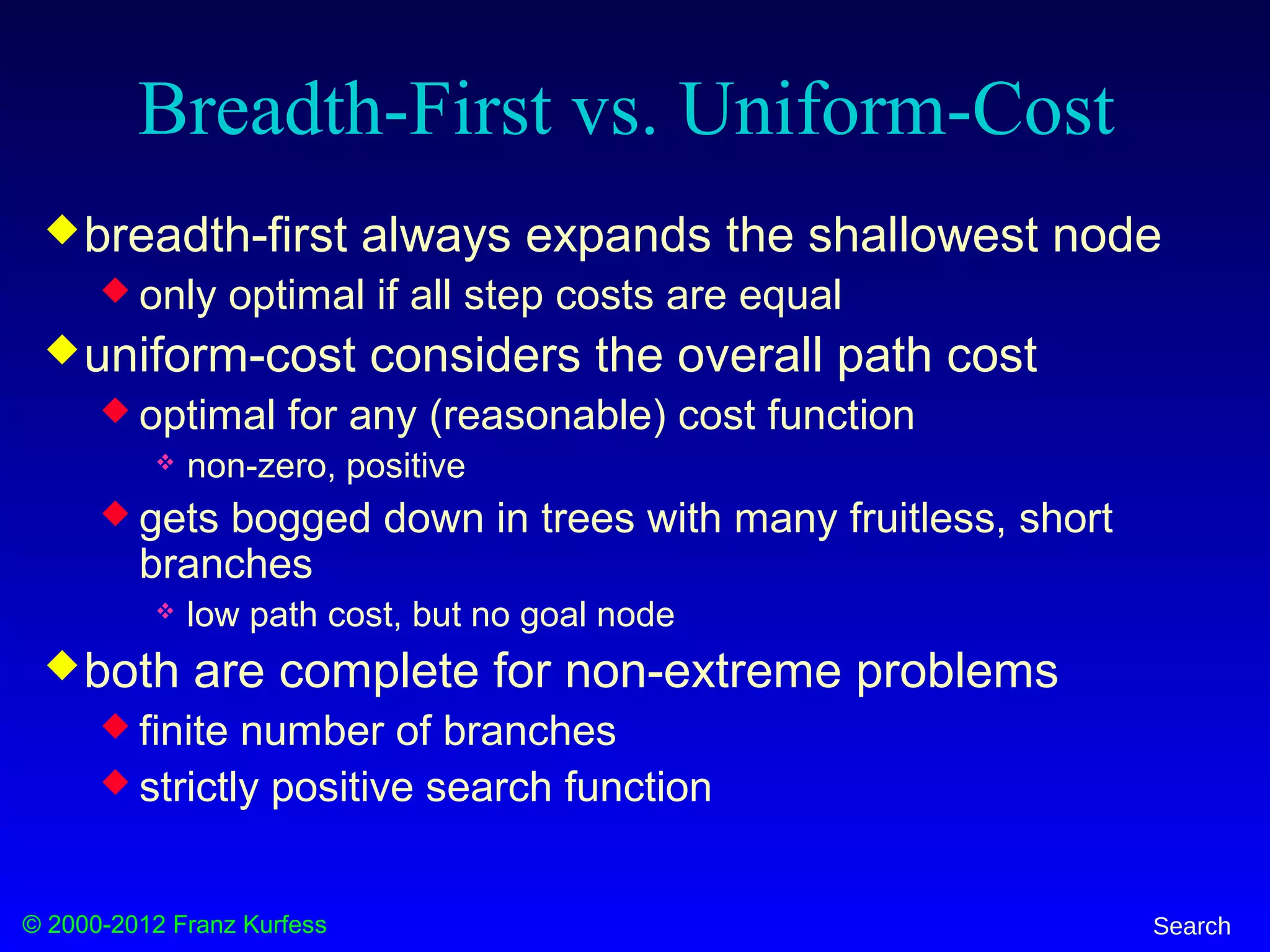

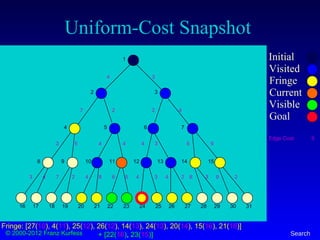

 uniform-cost search

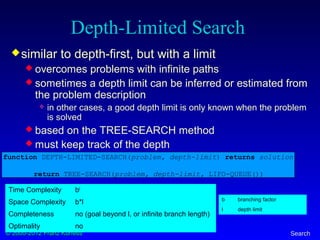

 depth-limited search

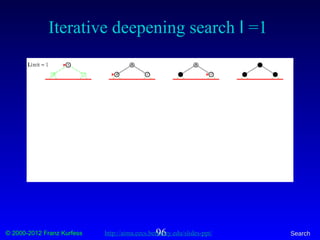

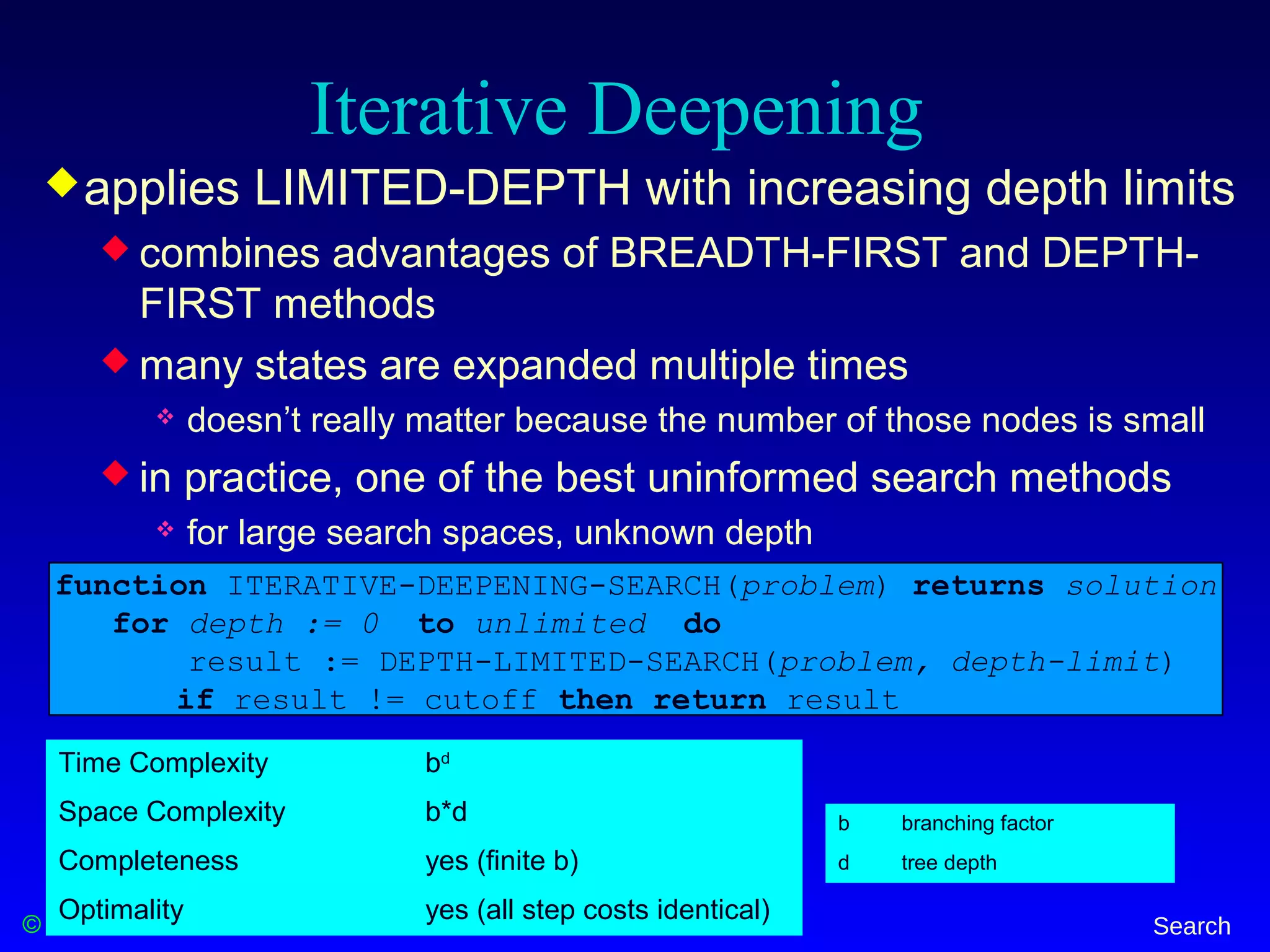

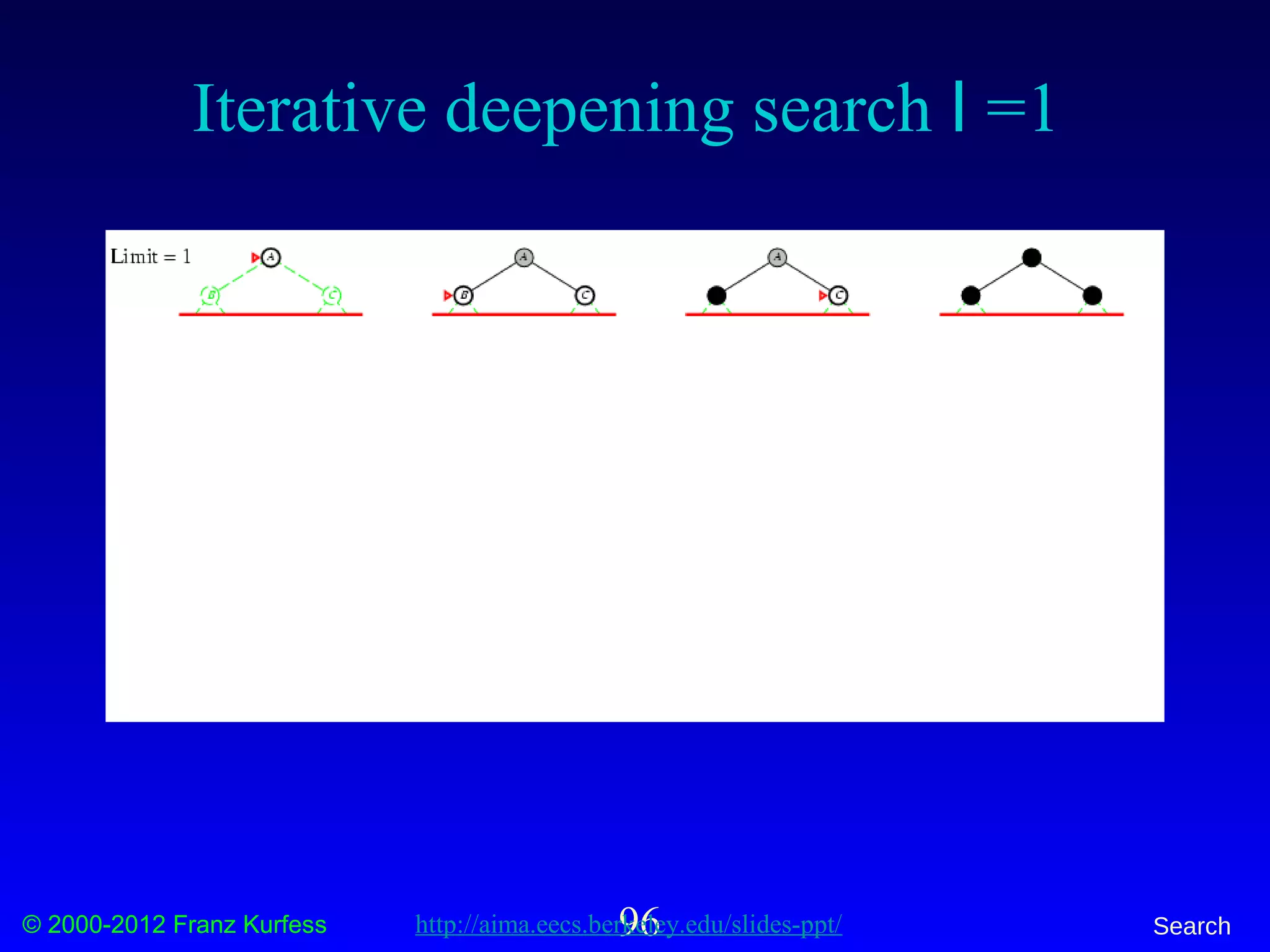

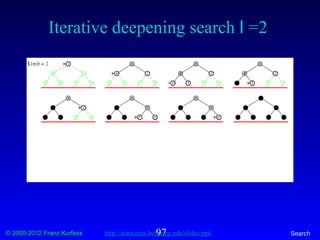

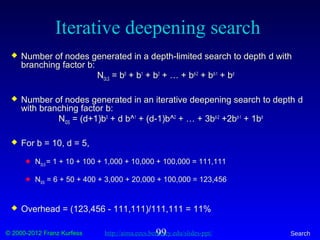

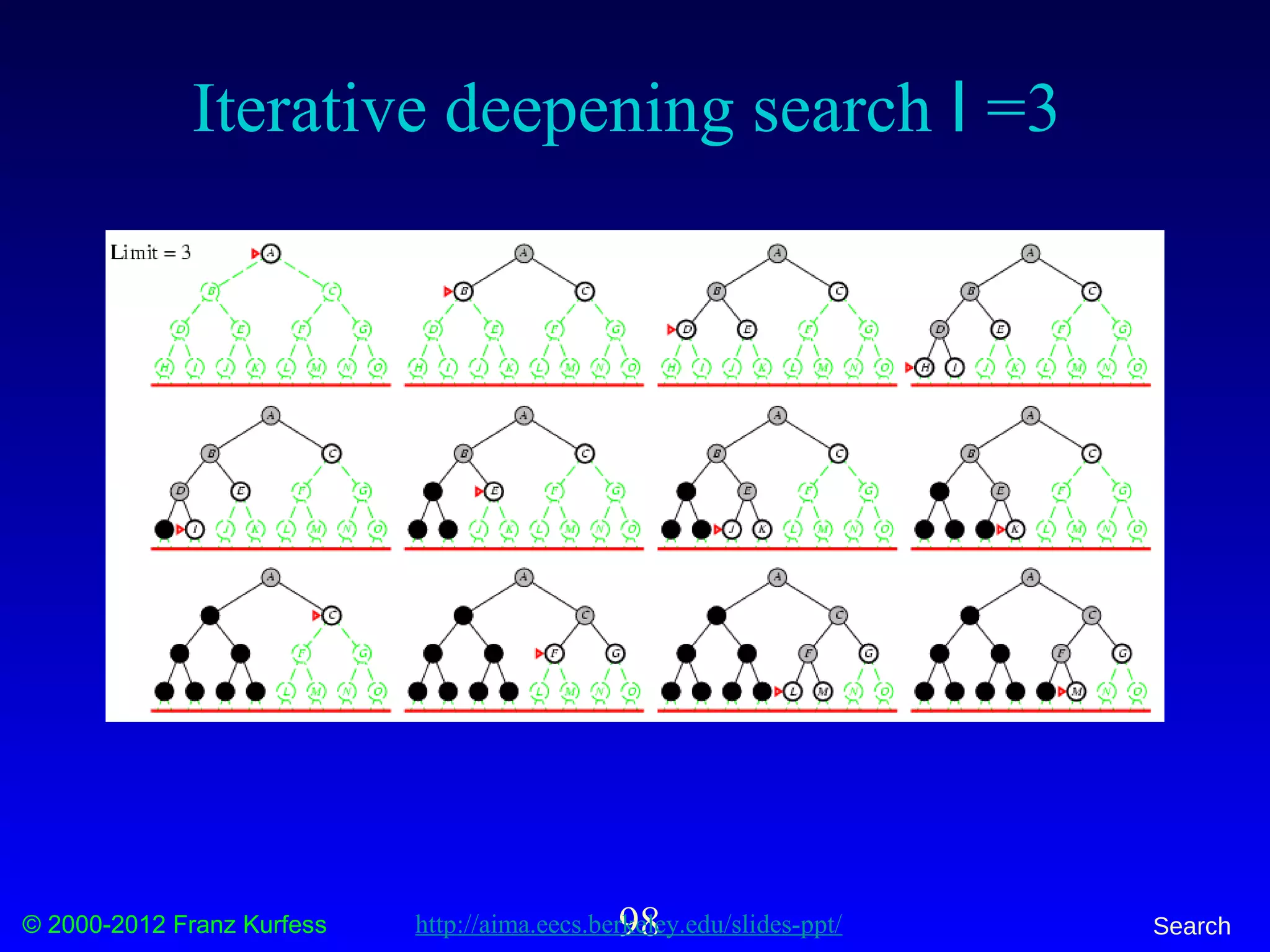

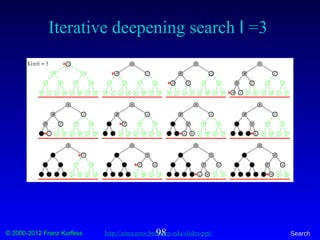

 iterative deepening

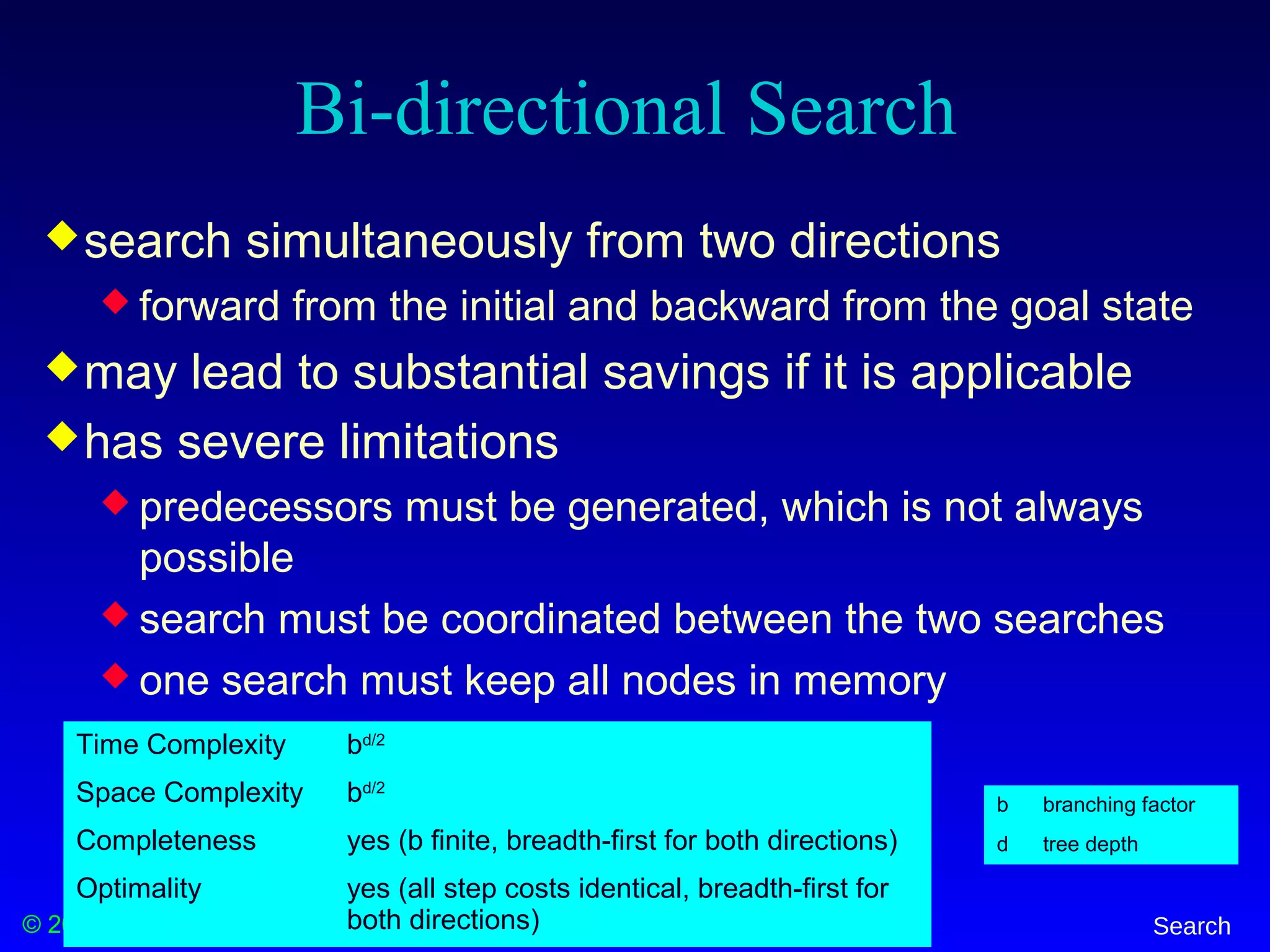

 bi-directional search

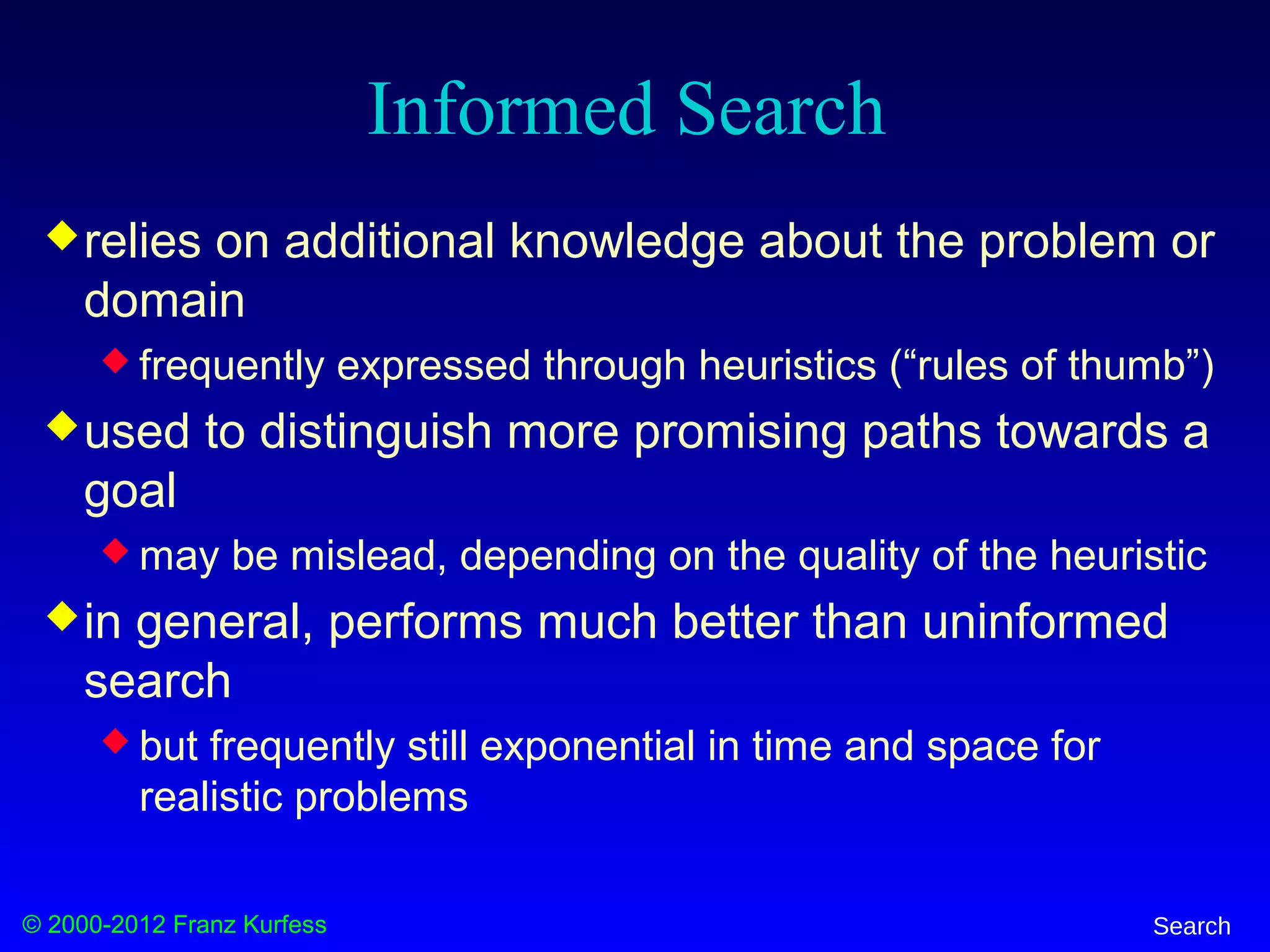

 Informed Search

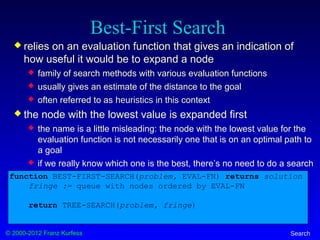

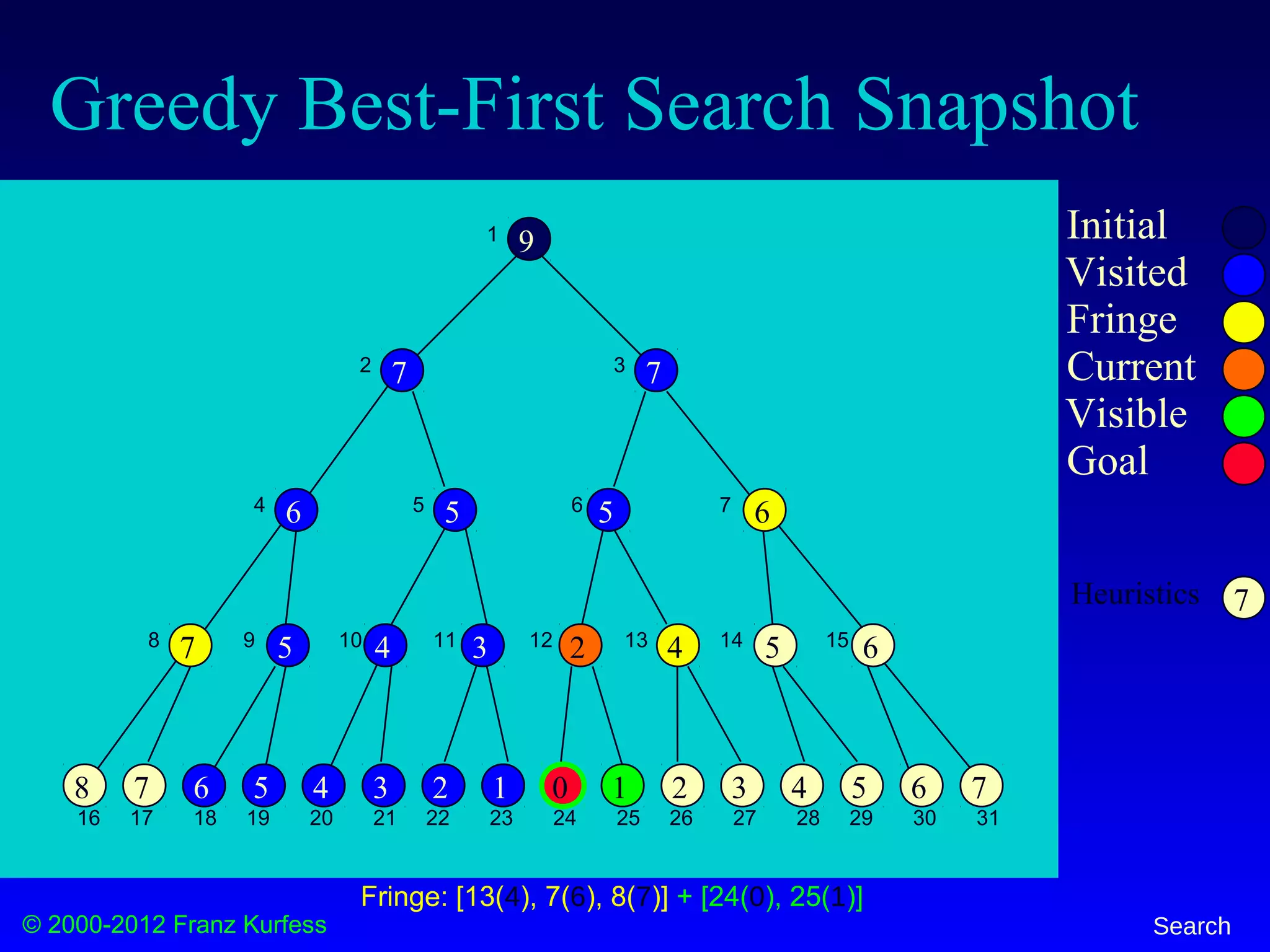

 best-first search

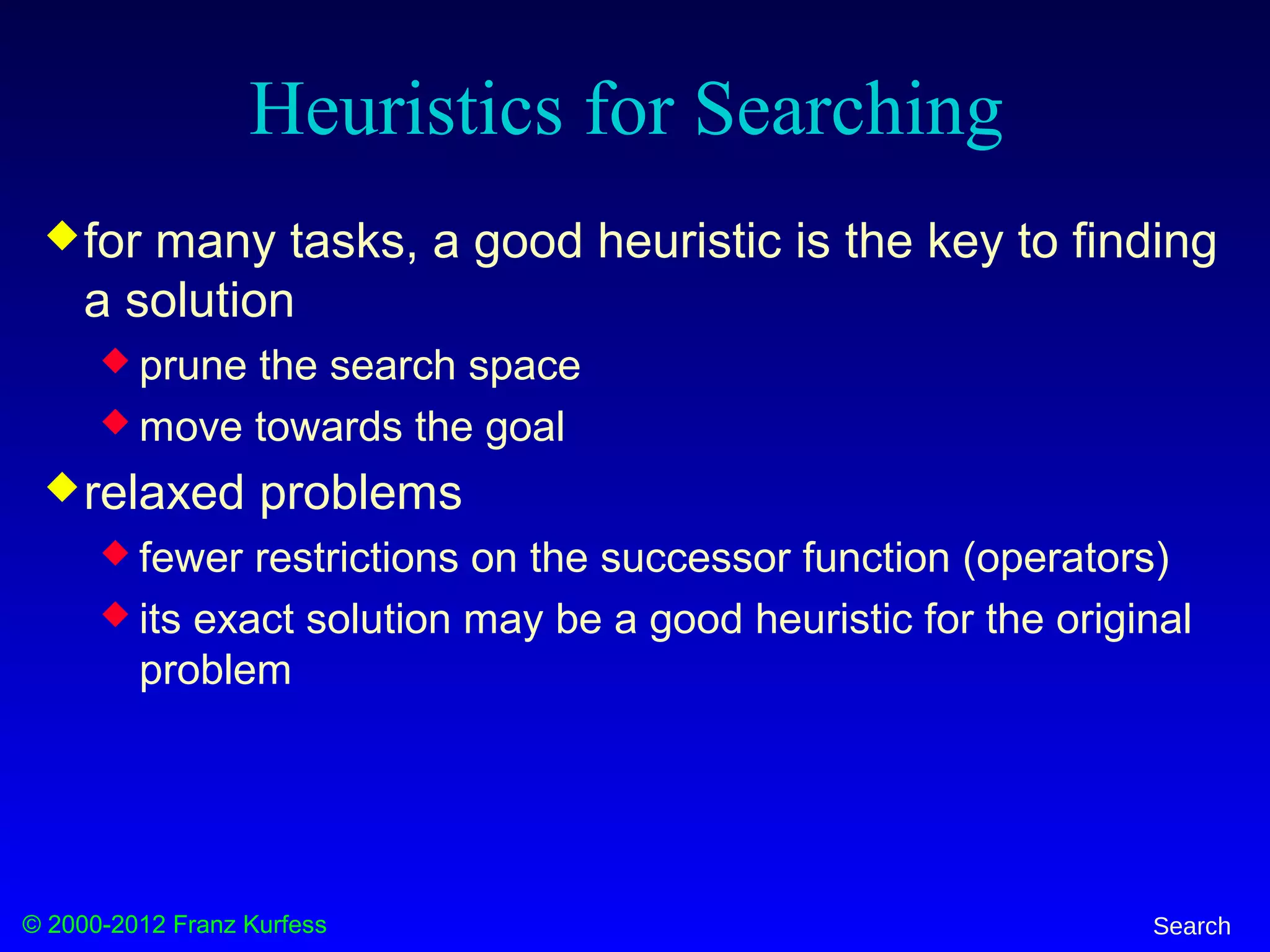

 search with heuristics

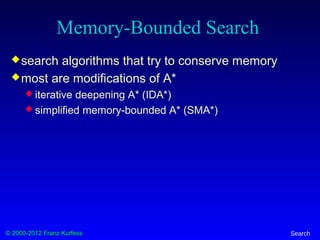

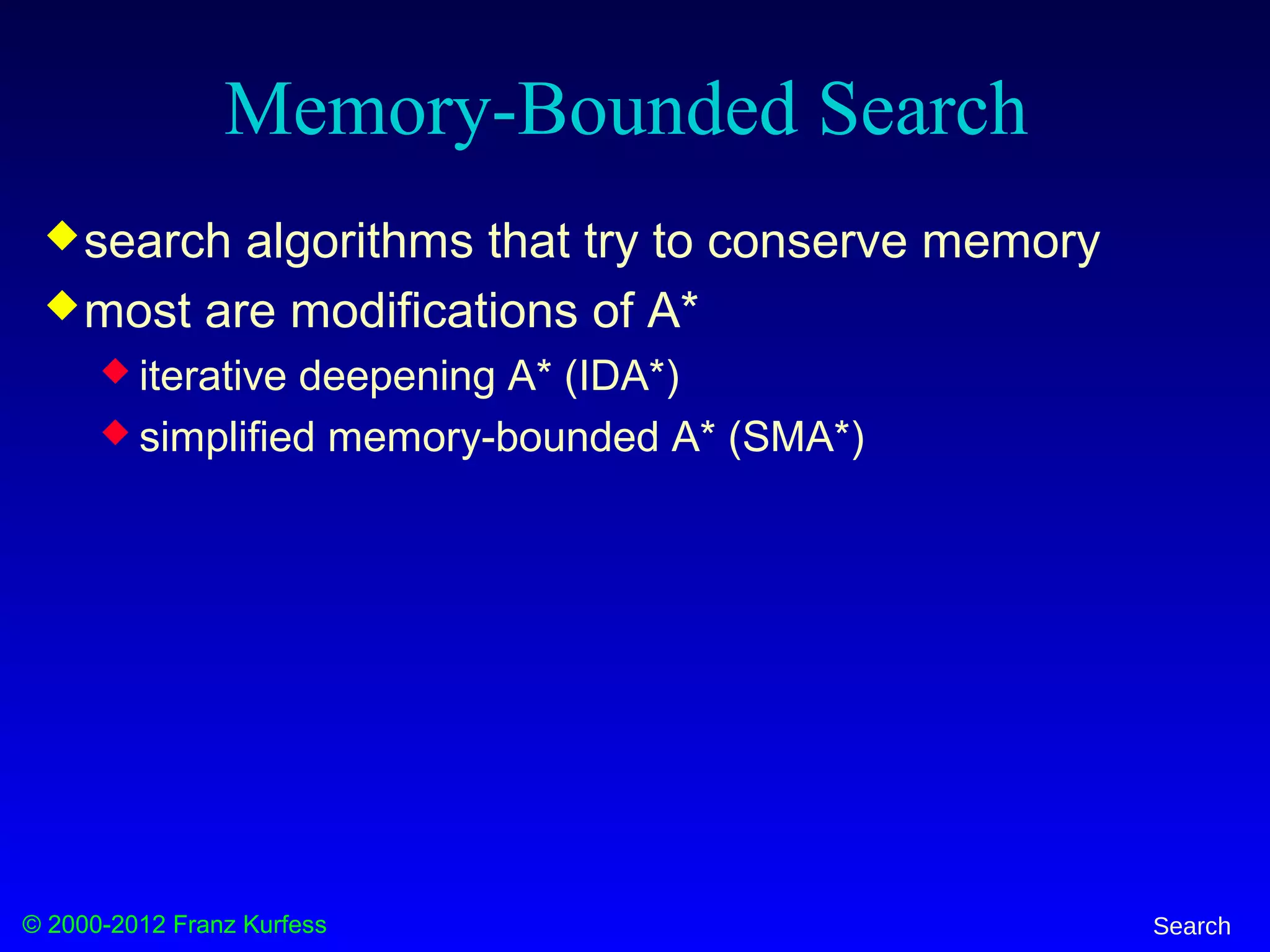

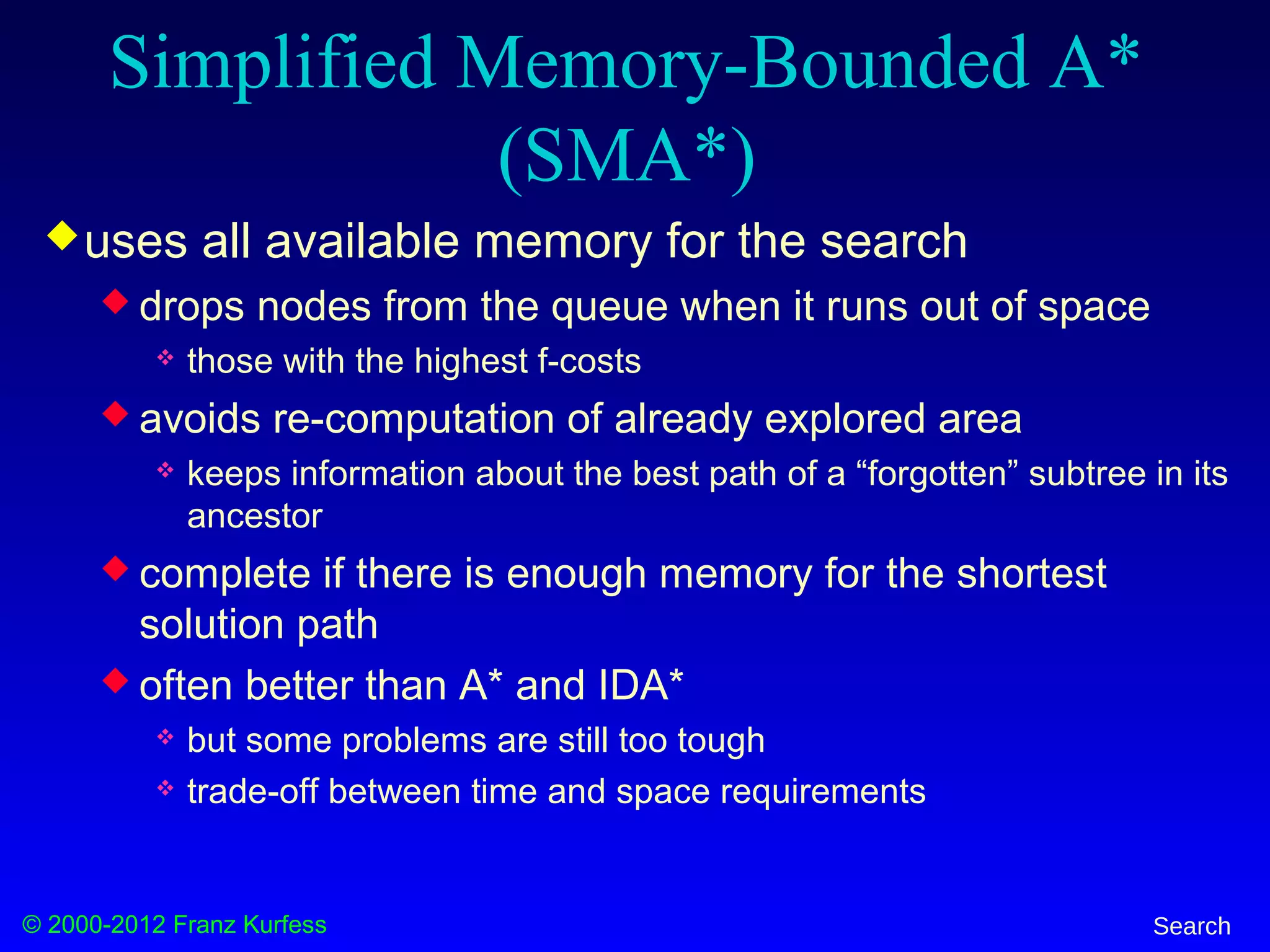

 memory-bounded search
 iterative improvement search
 Non-Traditional Search
 local search and optimization
 constraint satisfaction
 search in continuous spaces
 partially observable worlds

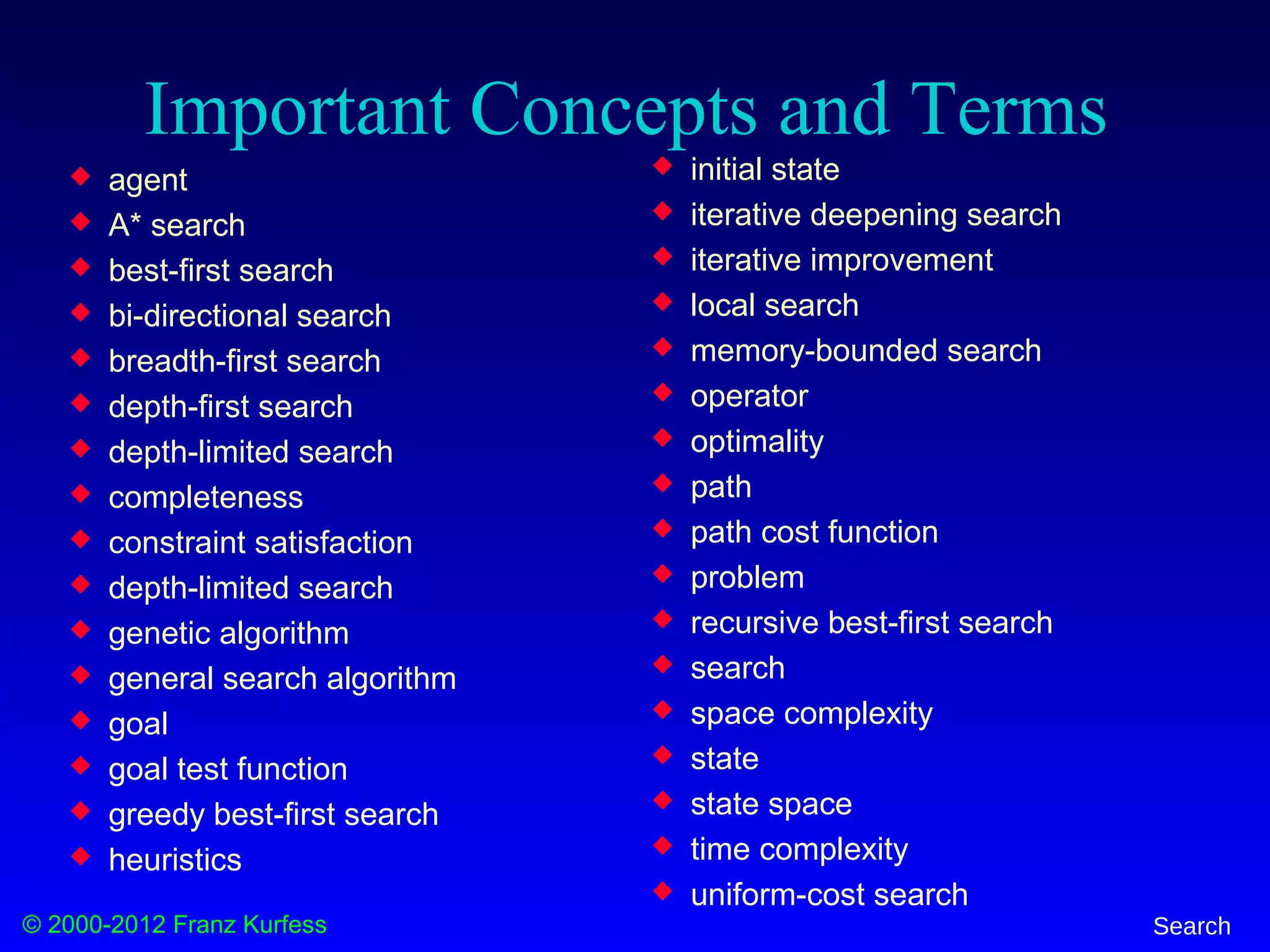

 Important Concepts and
Terms

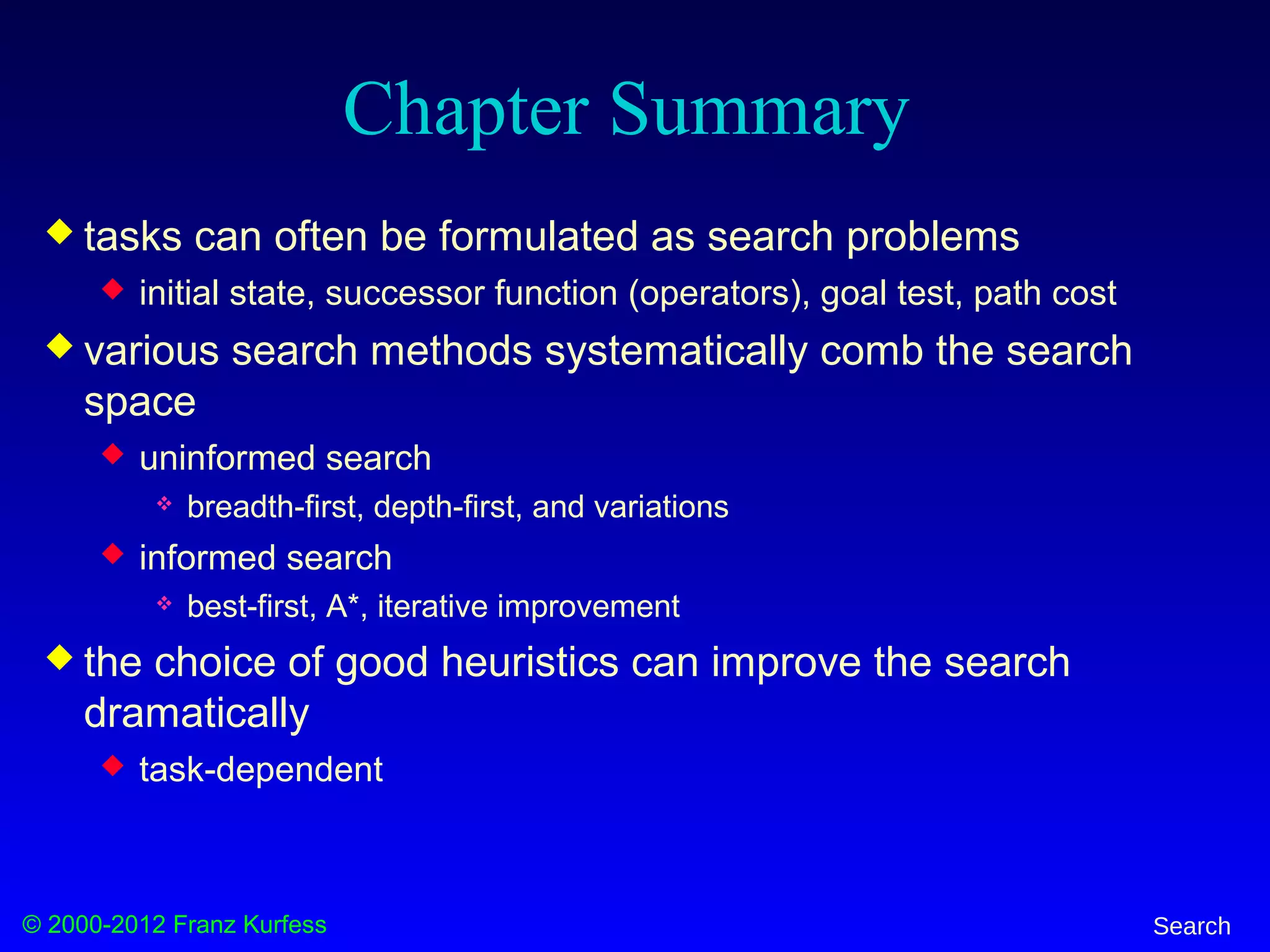

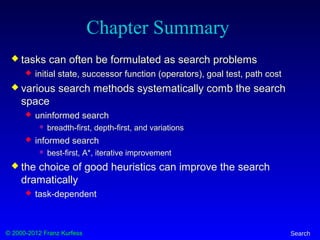

 Chapter Summary

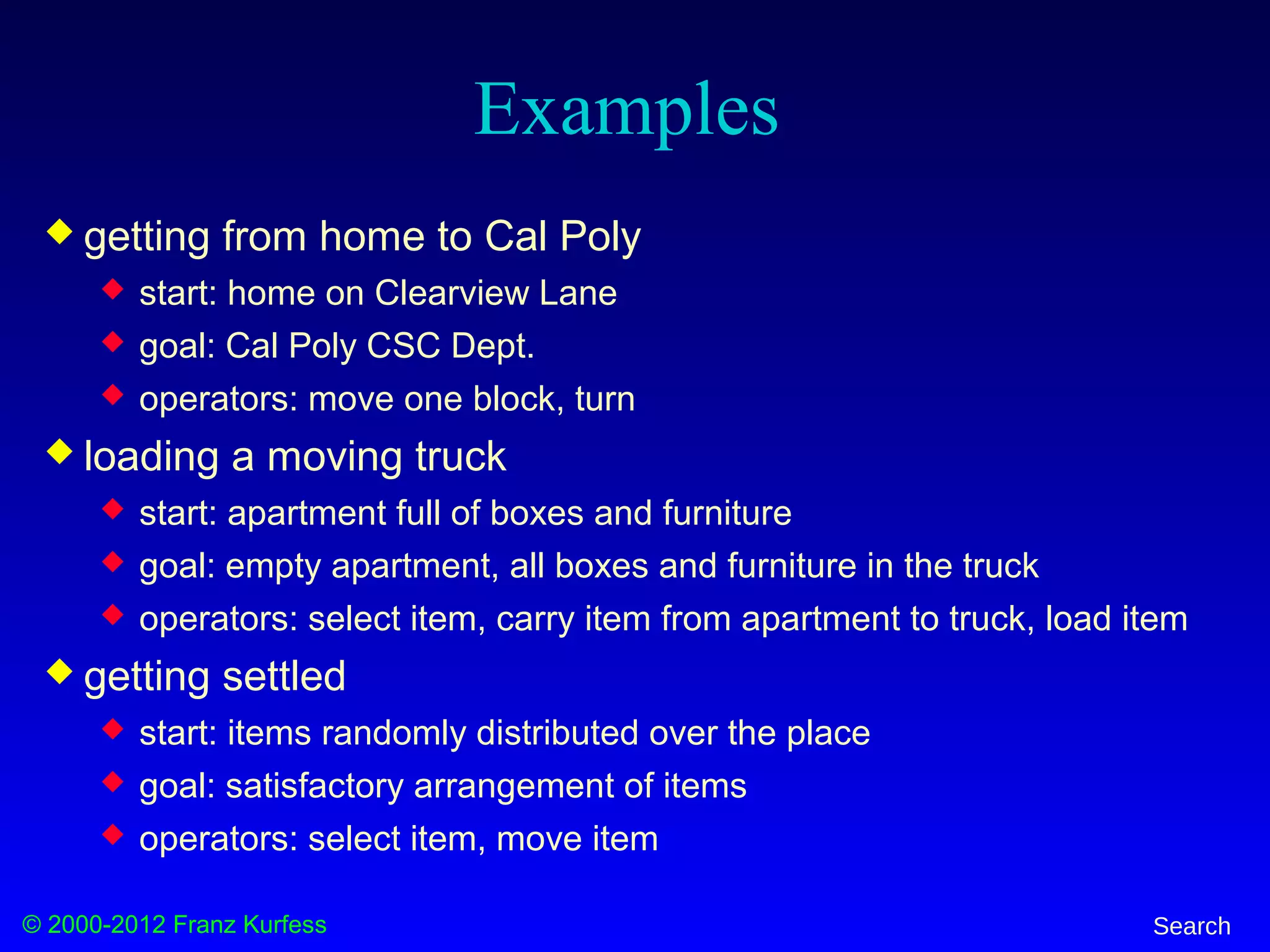

Examples
 getting from home to Cal Poly
 start: home on Clearview Lane
 goal: Cal Poly CSC Dept.
 operators: move one block, turn
 loading a moving truck
 start: apartment full of boxes and furniture
 goal: empty apartment, all boxes and furniture in the truck
 operators: select item, carry item from apartment to truck, load item
 getting settled
 start: items randomly distributed over the place
 goal: satisfactory arrangement of items
 operators: select item, move item

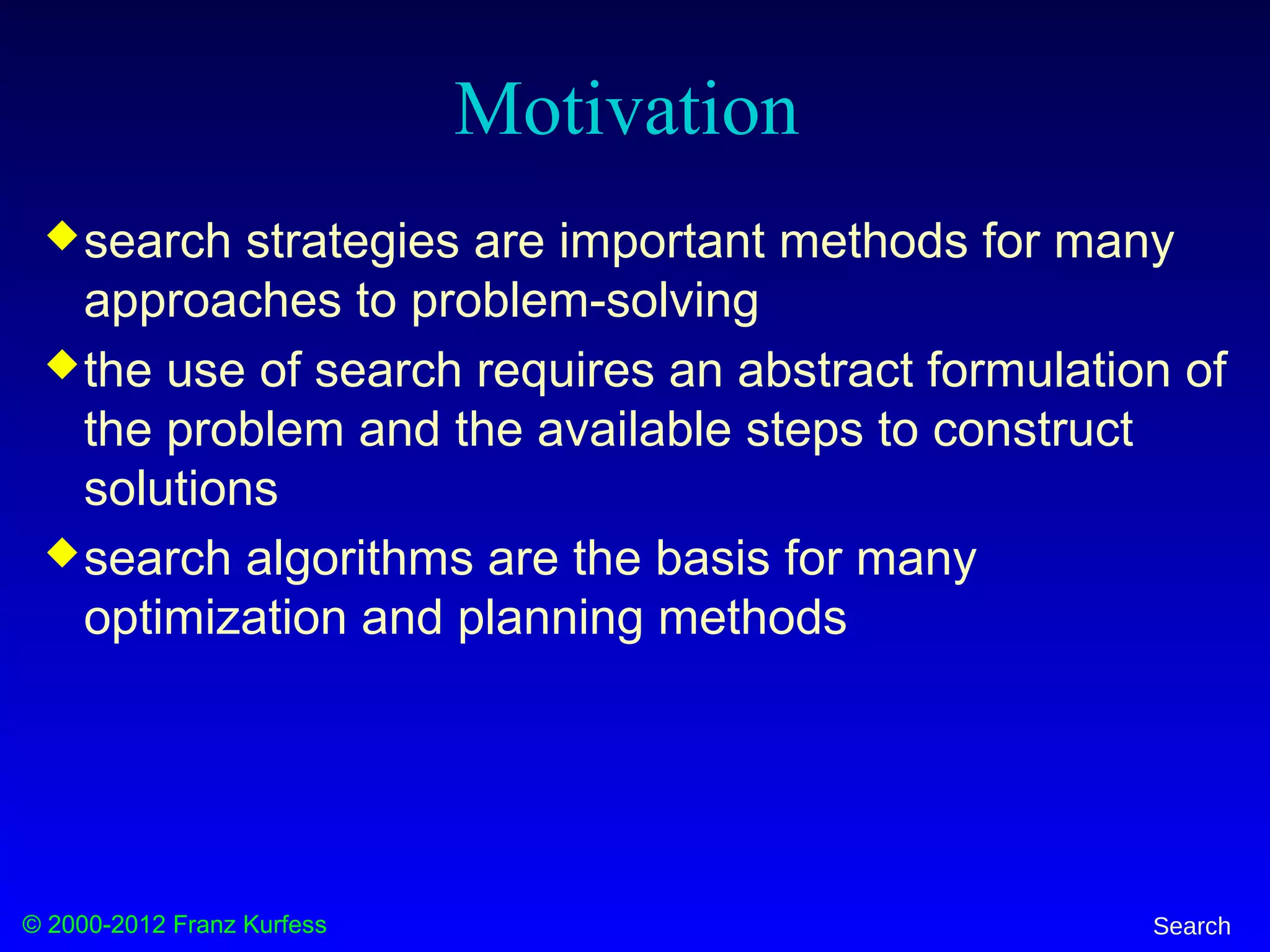

Motivation
search strategies are important methods for many
approaches to problem-solving
the use of search requires an abstract formulation of
the problem and the available steps to construct
solutions
search algorithms are the basis for many
optimization and planning methods

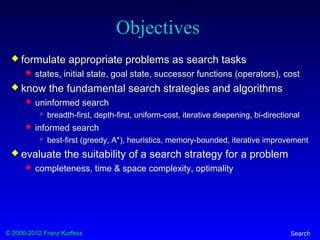

Objectives
 formulate appropriate problems as search tasks
 states, initial state, goal state, successor functions (operators), cost
 know the fundamental search strategies and algorithms
 uninformed search
 breadth-first, depth-first, uniform-cost, iterative deepening, bi-directional
 informed search
 best-first (greedy, A*), heuristics, memory-bounded, iterative improvement
 evaluate the suitability of a search strategy for a problem
 completeness, time & space complexity, optimality

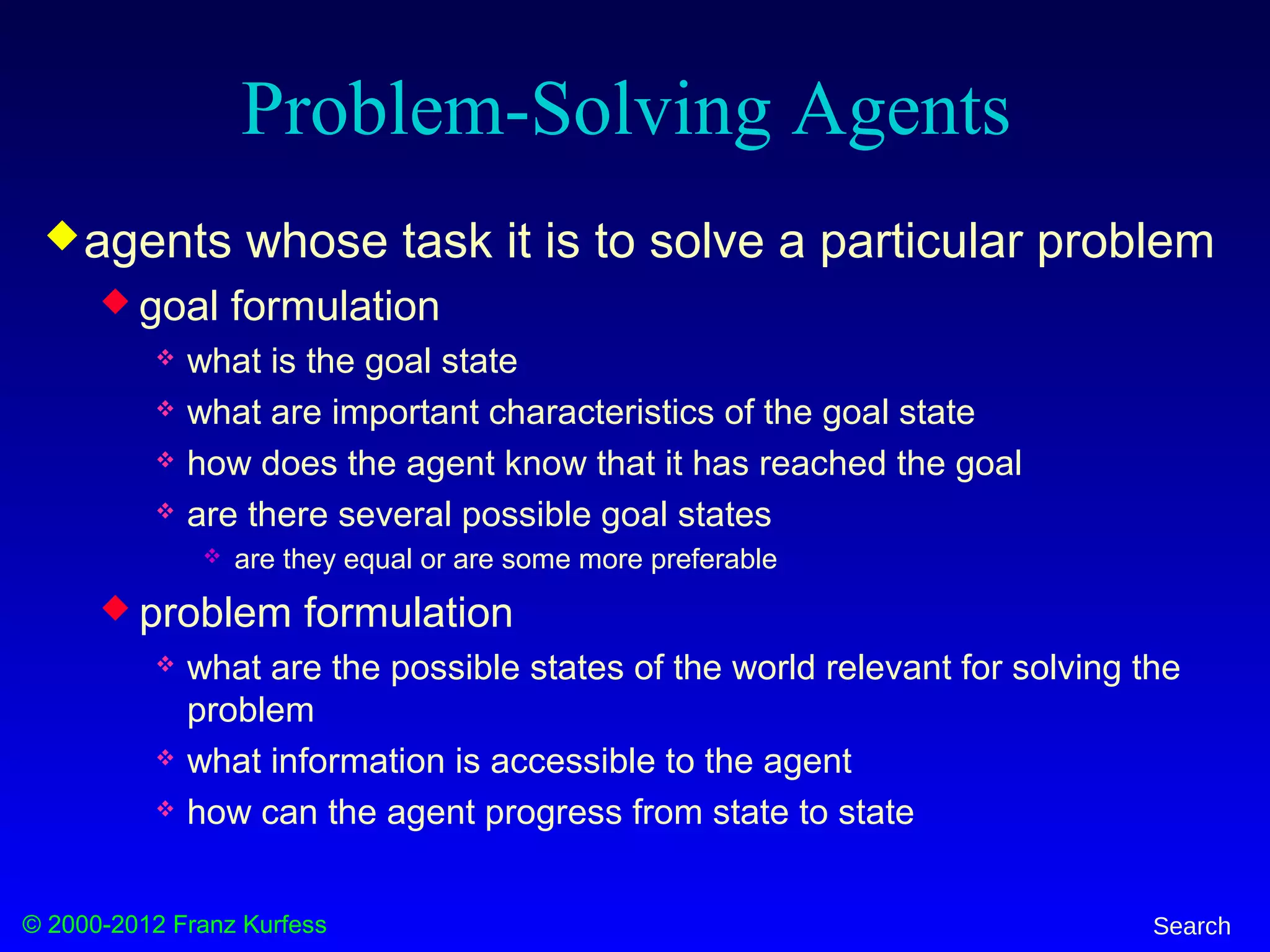

Problem-Solving Agents
agents whose task it is to solve a particular problem
 goal formulation
 what is the goal state
 what are important characteristics of the goal state
 how does the agent know that it has reached the goal
 are there several possible goal states
 are they equal or are some more preferable
 problem formulation
 what are the possible states of the world relevant for solving the
problem
 what information is accessible to the agent
 how can the agent progress from state to state

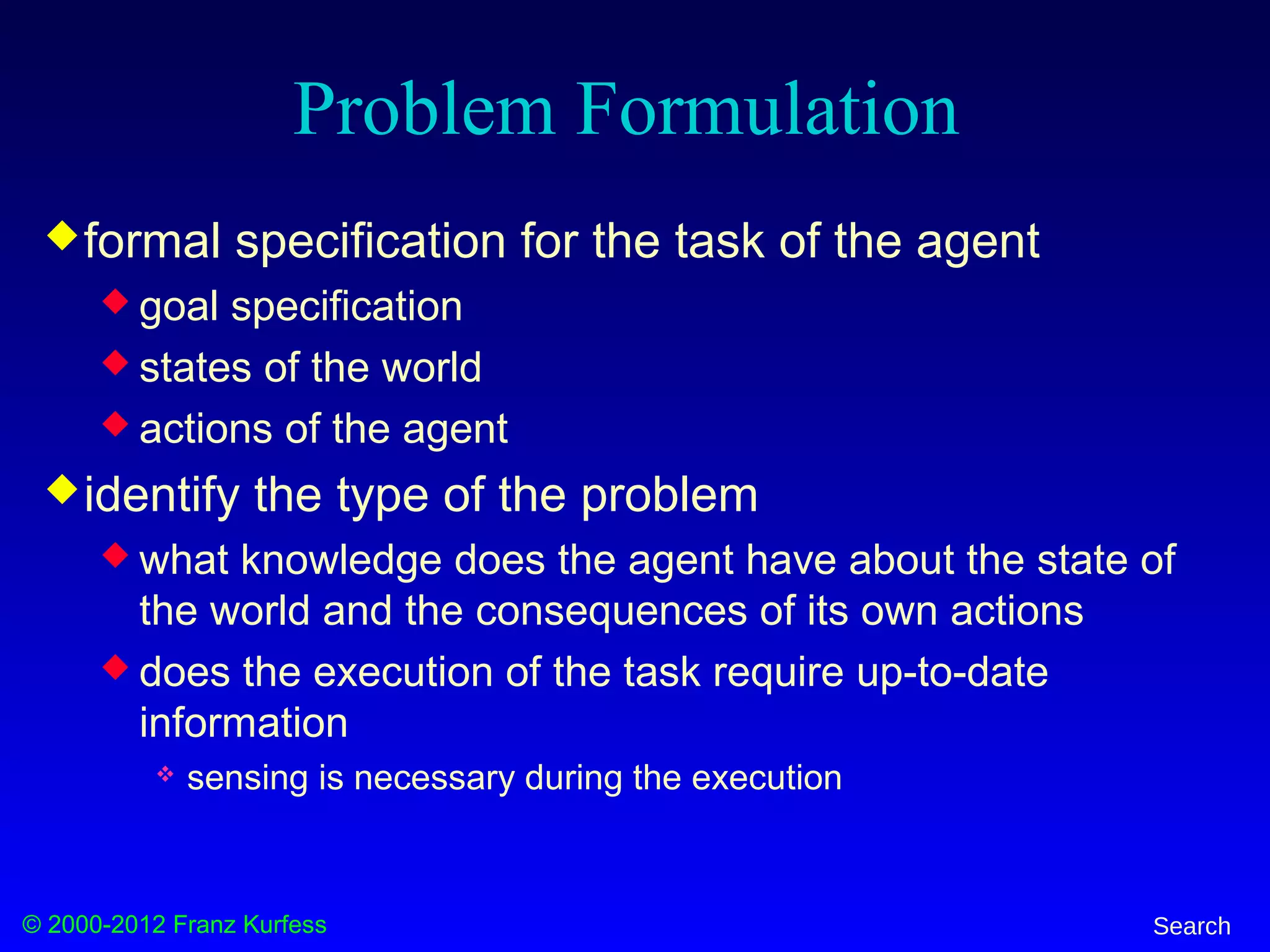

Problem Formulation
formal specification for the task of the agent
 goal specification
 states of the world
 actions of the agent
identify the type of the problem
 what knowledge does the agent have about the state of
the world and the consequences of its own actions
 does the execution of the task require up-to-date
information
 sensing is necessary during the execution

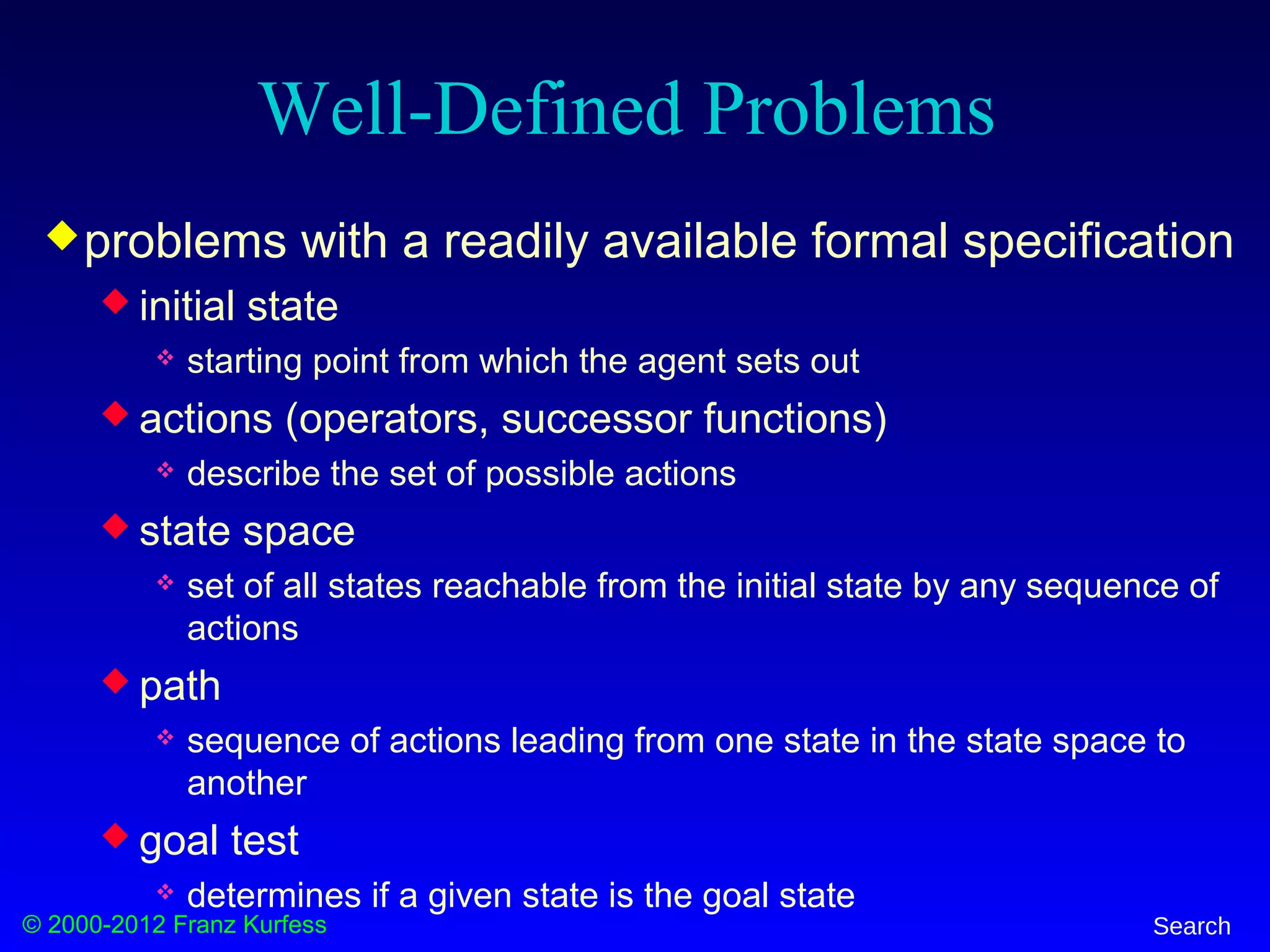

Well-Defined Problems
problems with a readily available formal specification
 initial state
 starting point from which the agent sets out
 actions (operators, successor functions)
 describe the set of possible actions
 state space
 set of all states reachable from the initial state by any sequence of
actions
 path
 sequence of actions leading from one state in the state space to
another
 goal test
 determines if a given state is the goal state

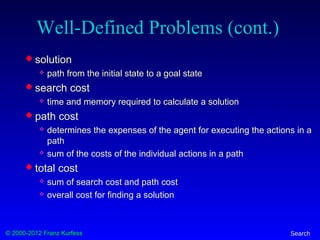

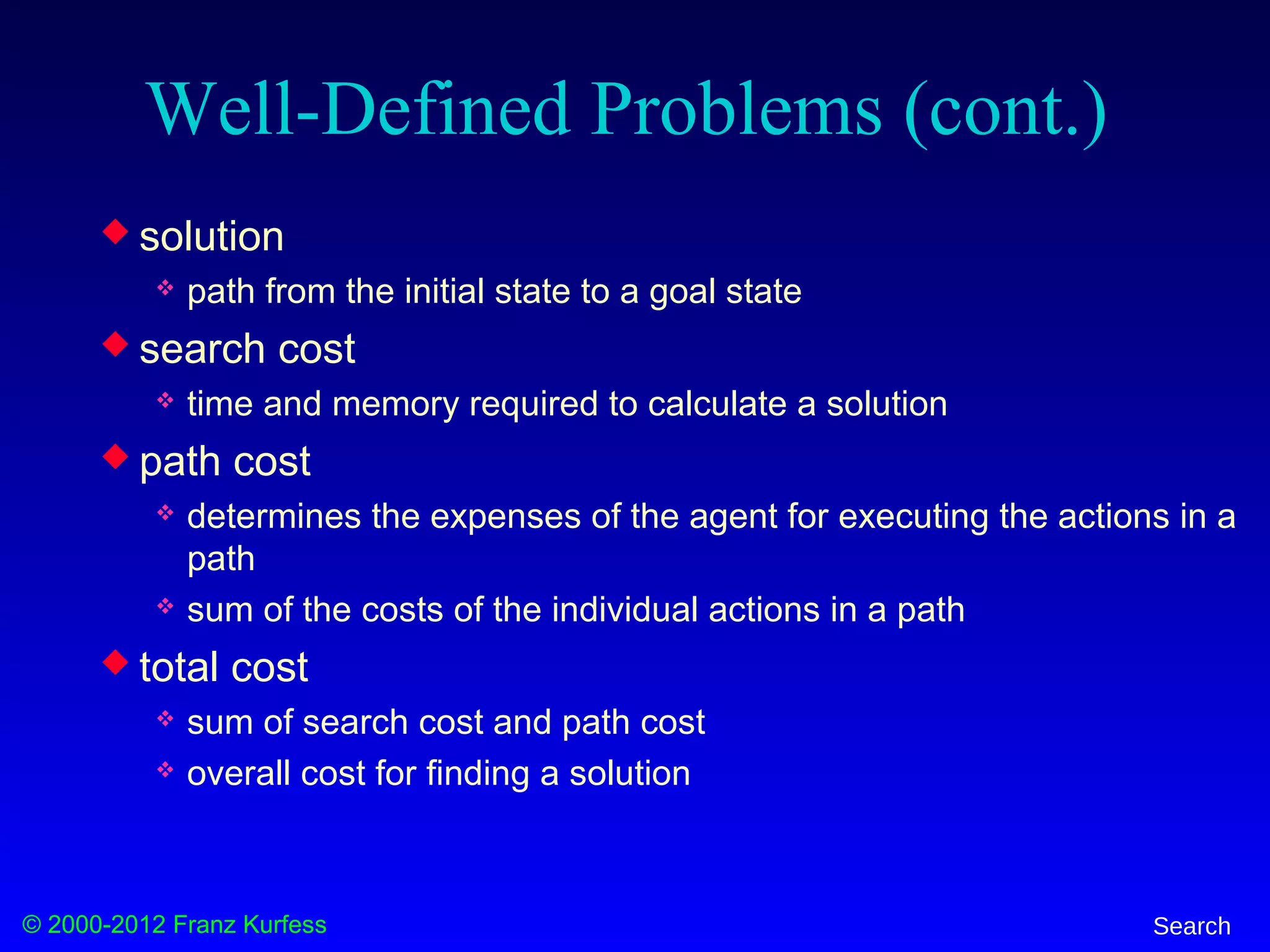

Well-Defined Problems (cont.)
 solution
 path from the initial state to a goal state

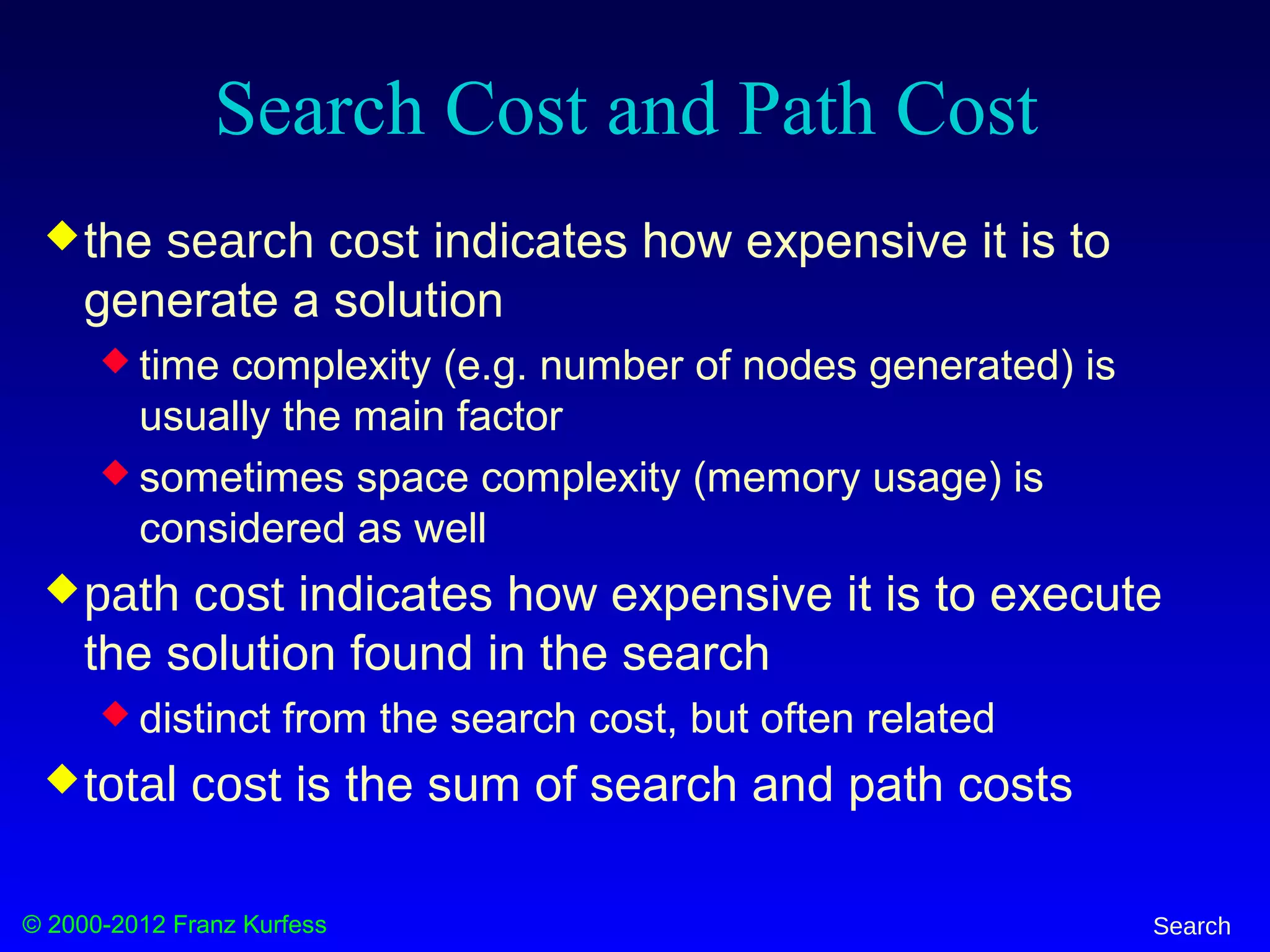

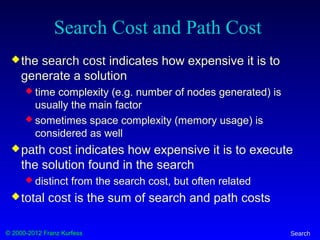

 search cost
 time and memory required to calculate a solution
 path cost
 determines the expenses of the agent for executing the actions in a
path
 sum of the costs of the individual actions in a path
 total cost
 sum of search cost and path cost
 overall cost for finding a solution

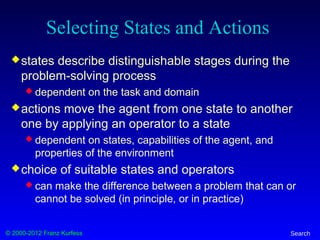

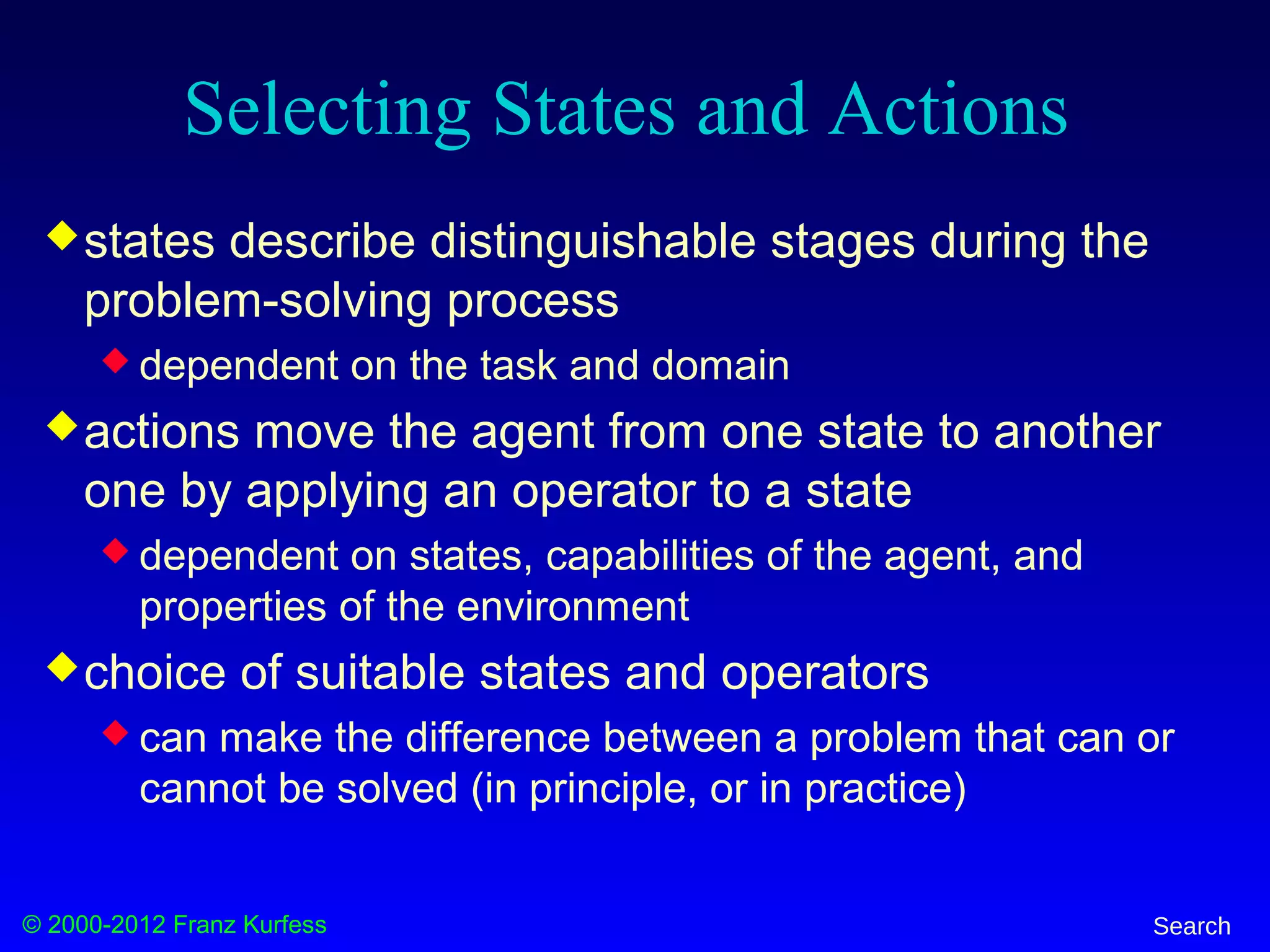

Selecting States and Actions
states describe distinguishable stages during the
problem-solving process
 dependent on the task and domain
actions move the agent from one state to another
one by applying an operator to a state
 dependent on states, capabilities of the agent, and
properties of the environment
choice of suitable states and operators
 can make the difference between a problem that can or
cannot be solved (in principle, or in practice)

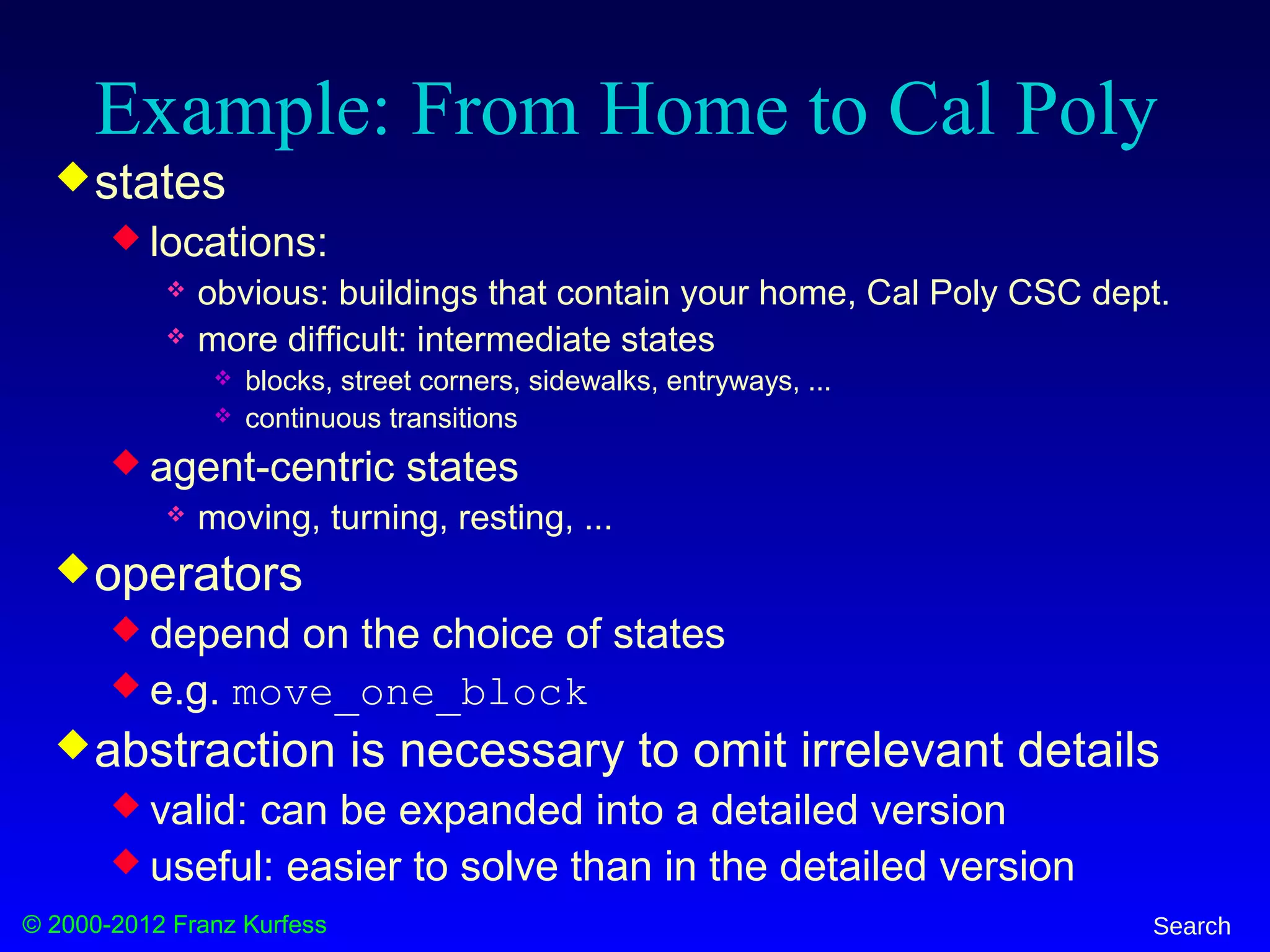

Example: From Home to Cal Poly
states
 locations:
 obvious: buildings that contain your home, Cal Poly CSC dept.
 more difficult: intermediate states
 blocks, street corners, sidewalks, entryways, ...
 continuous transitions
 agent-centric states
 moving, turning, resting, ...
operators
 depend on the choice of states
 e.g. move_one_block
abstraction is necessary to omit irrelevant details
 valid: can be expanded into a detailed version
 useful: easier to solve than in the detailed version

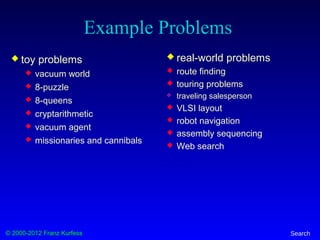

Example Problems
 toy problems
 vacuum world
 8-puzzle
 8-queens
 cryptarithmetic
 vacuum agent
 missionaries and cannibals
 real-world problems
 route finding
 touring problems
 traveling salesperson
 VLSI layout

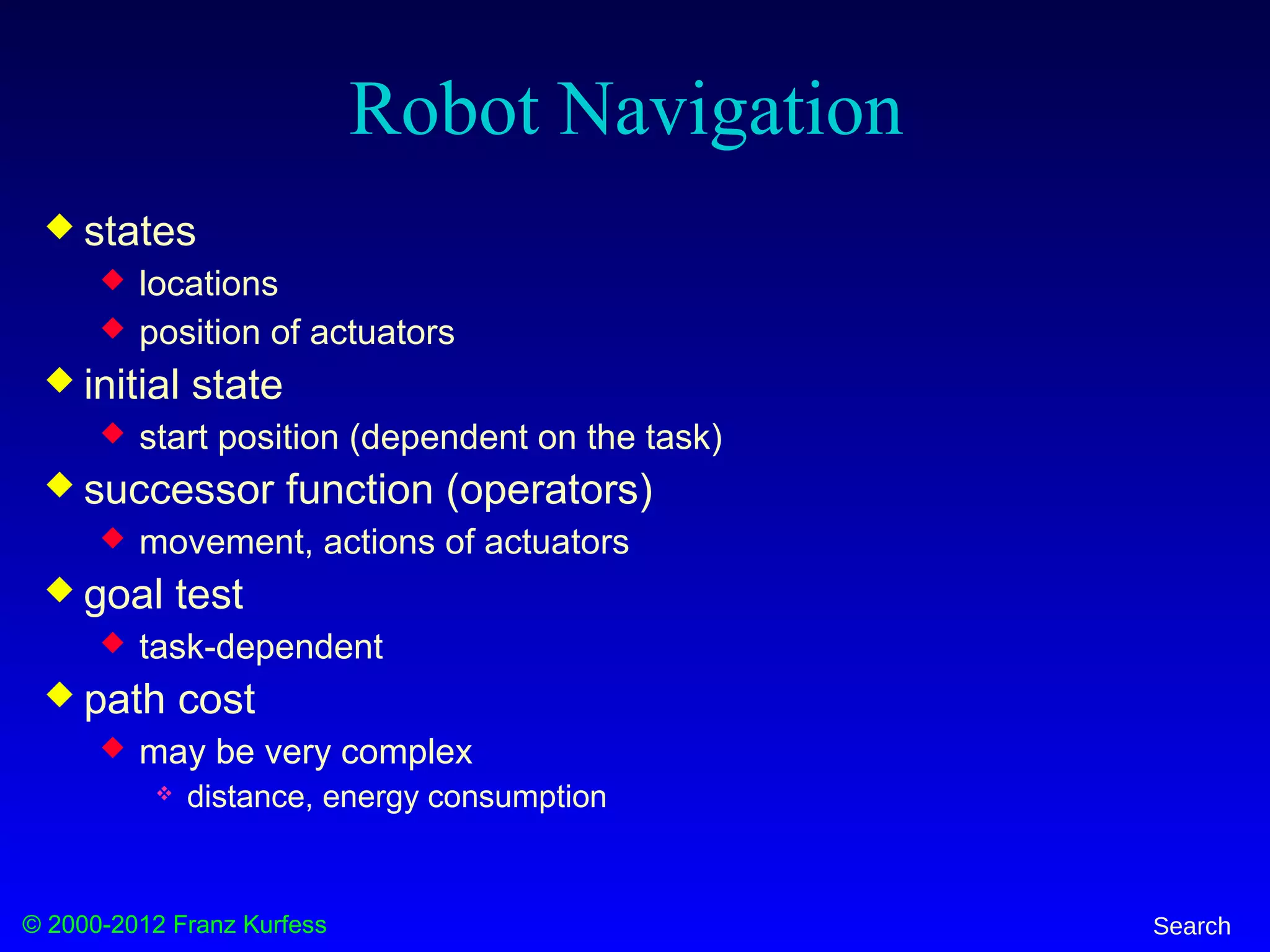

 robot navigation

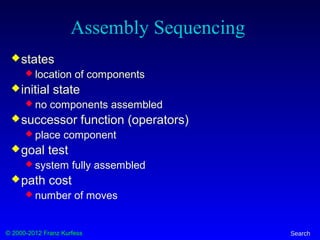

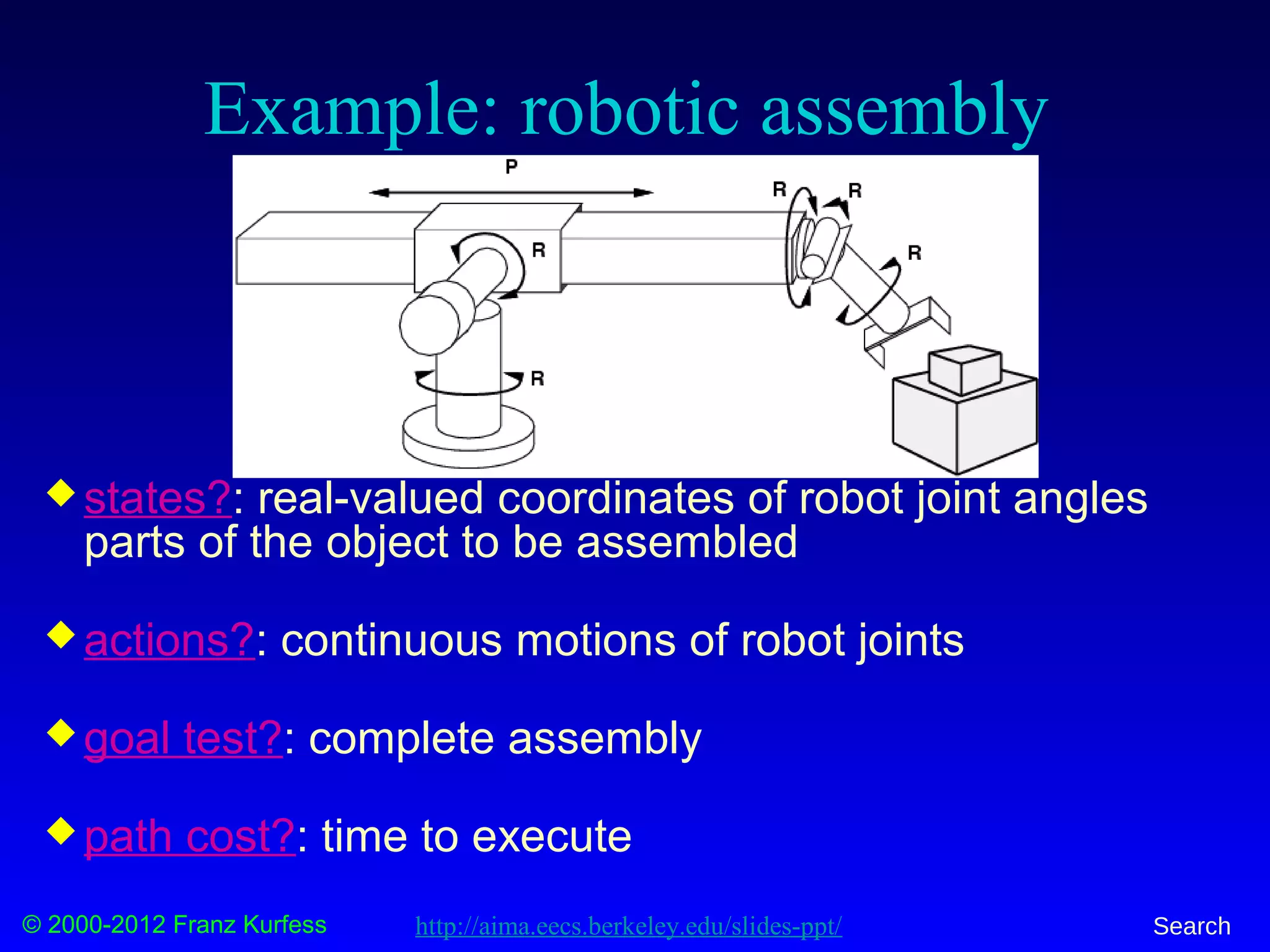

 assembly sequencing
 Web search

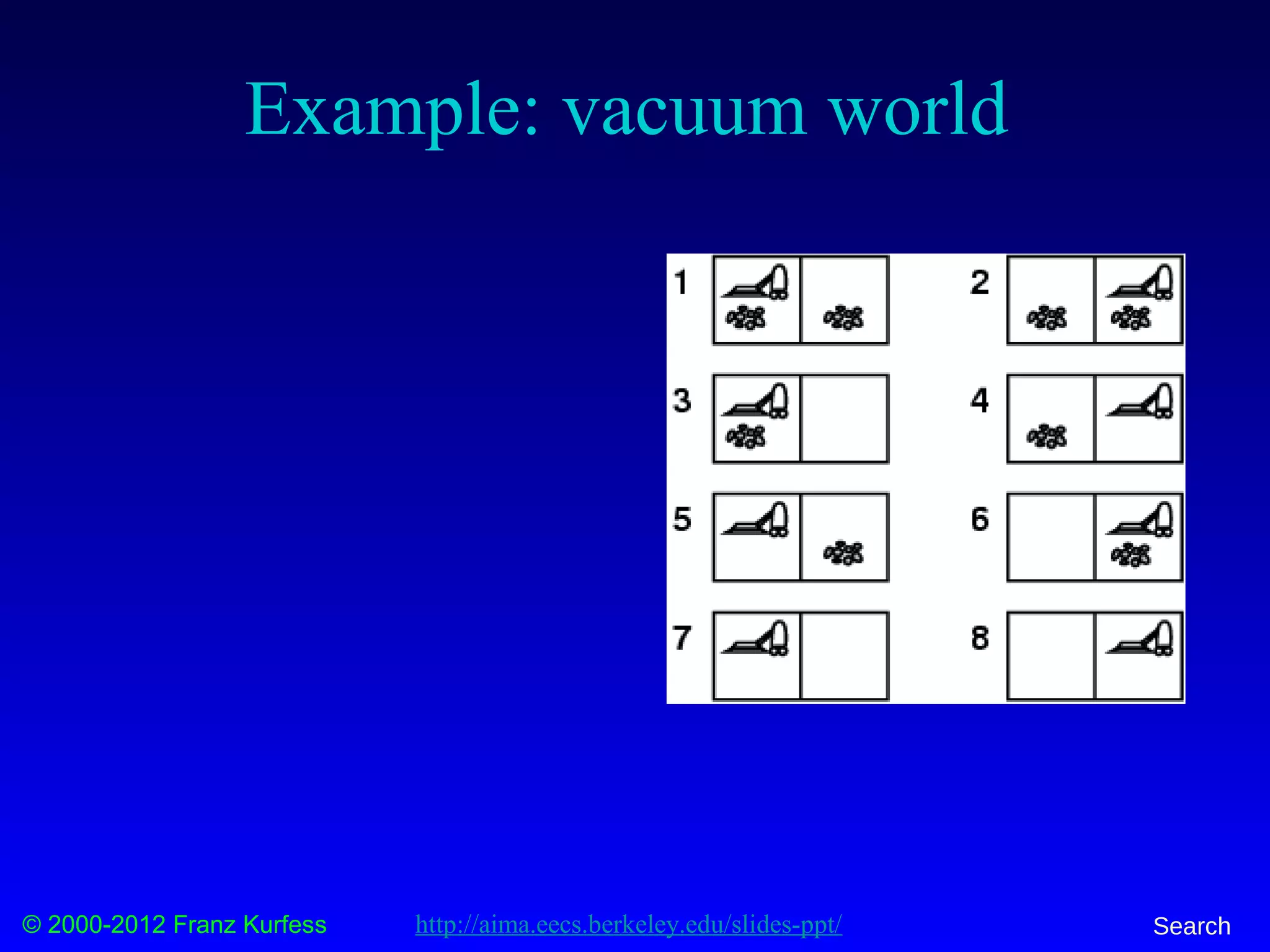

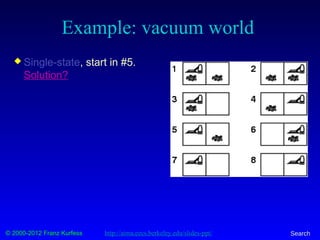

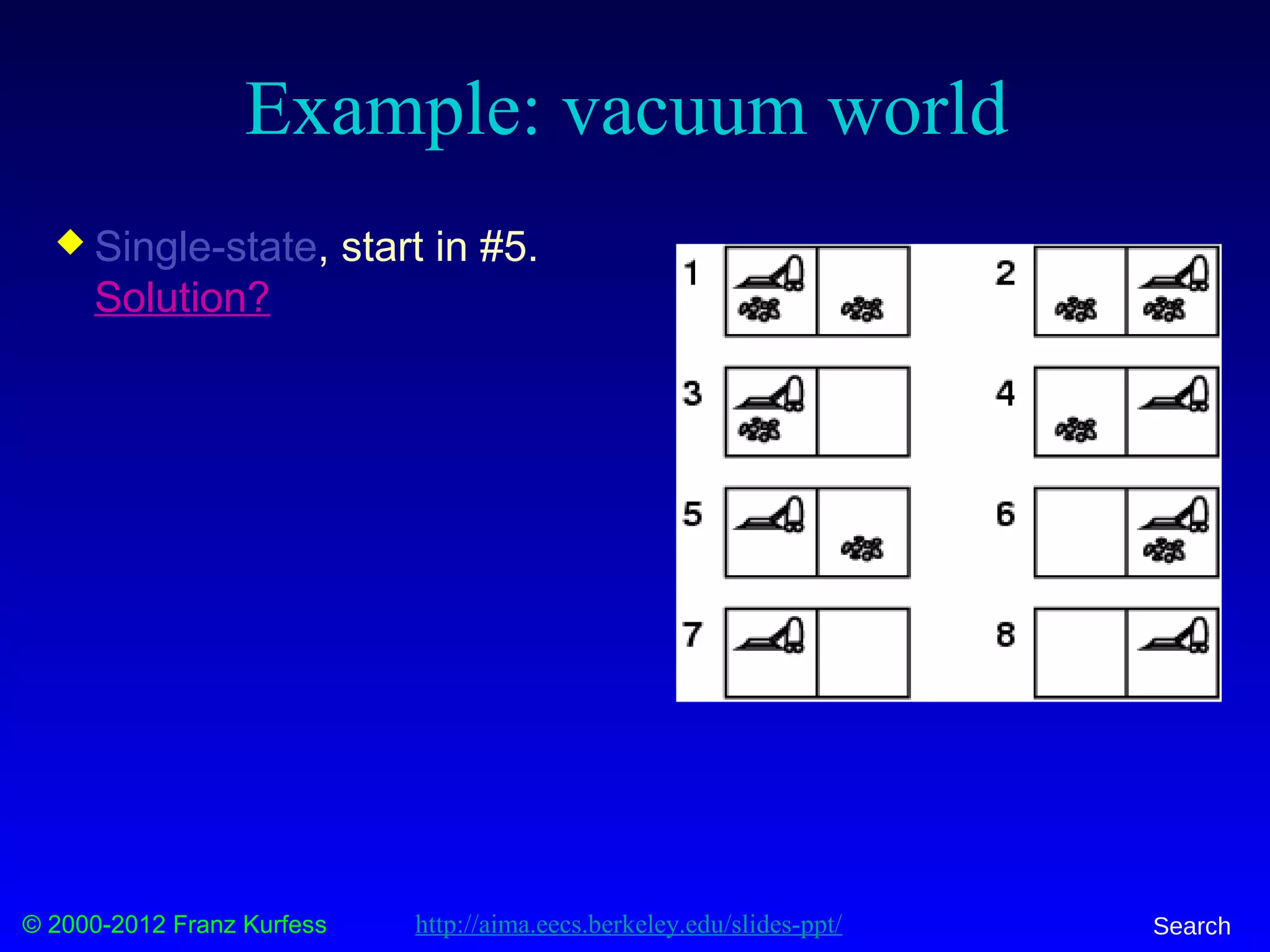

Example: Vacuum World

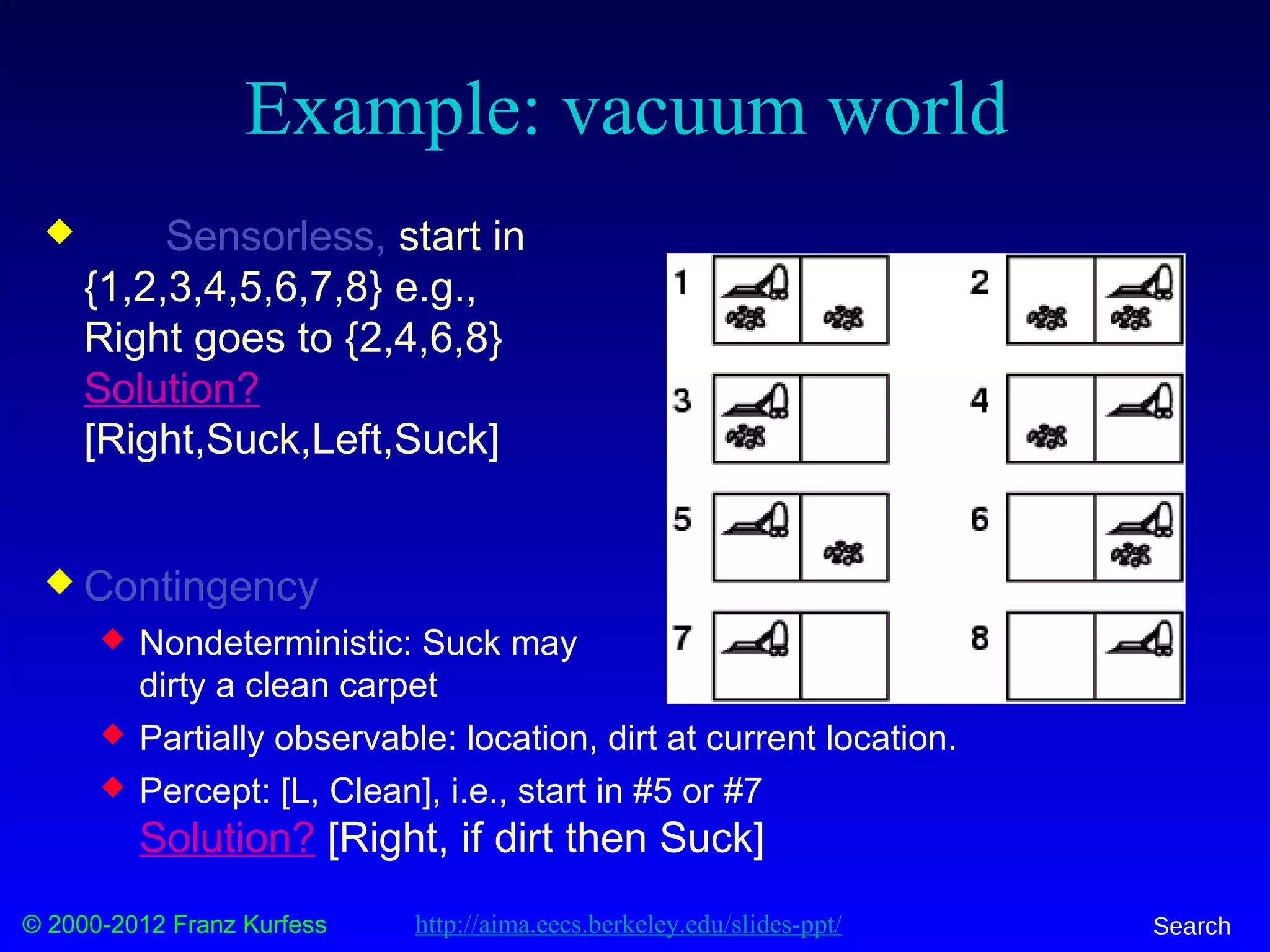

Example: vacuum world
 Single-state, start in #5.
Solution?
http://aima.eecs.berkeley.edu/slides-ppt/

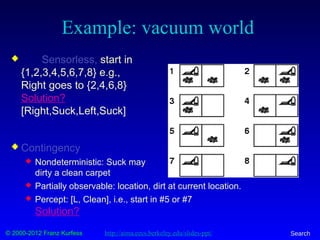

 Sensorless, start in
{1,2,3,4,5,6,7,8} e.g.,
Right goes to {2,4,6,8}
Solution?
[Right,Suck,Left,Suck]
 Contingency
 Nondeterministic: Suck may
dirty a clean carpet
 Partially observable: location, dirt at current location.
 Percept: [L, Clean], i.e., start in #5 or #7
Solution?

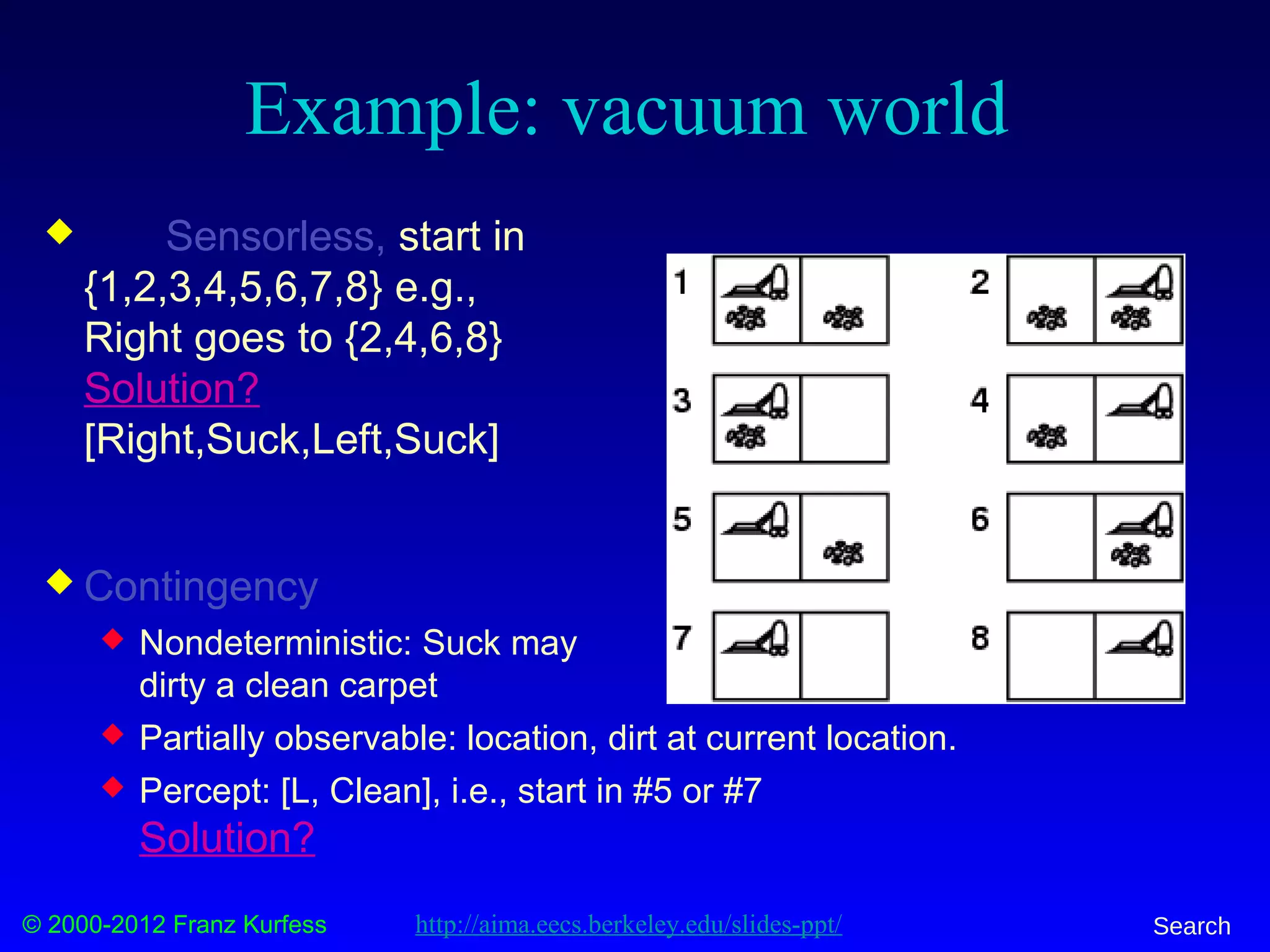

 Sensorless, start in
{1,2,3,4,5,6,7,8} e.g.,
Right goes to {2,4,6,8}
Solution?
[Right,Suck,Left,Suck]
 Contingency
 Nondeterministic: Suck may
dirty a clean carpet
 Partially observable: location, dirt at current location.
 Percept: [L, Clean], i.e., start in #5 or #7
Solution? [Right, if dirt then Suck]

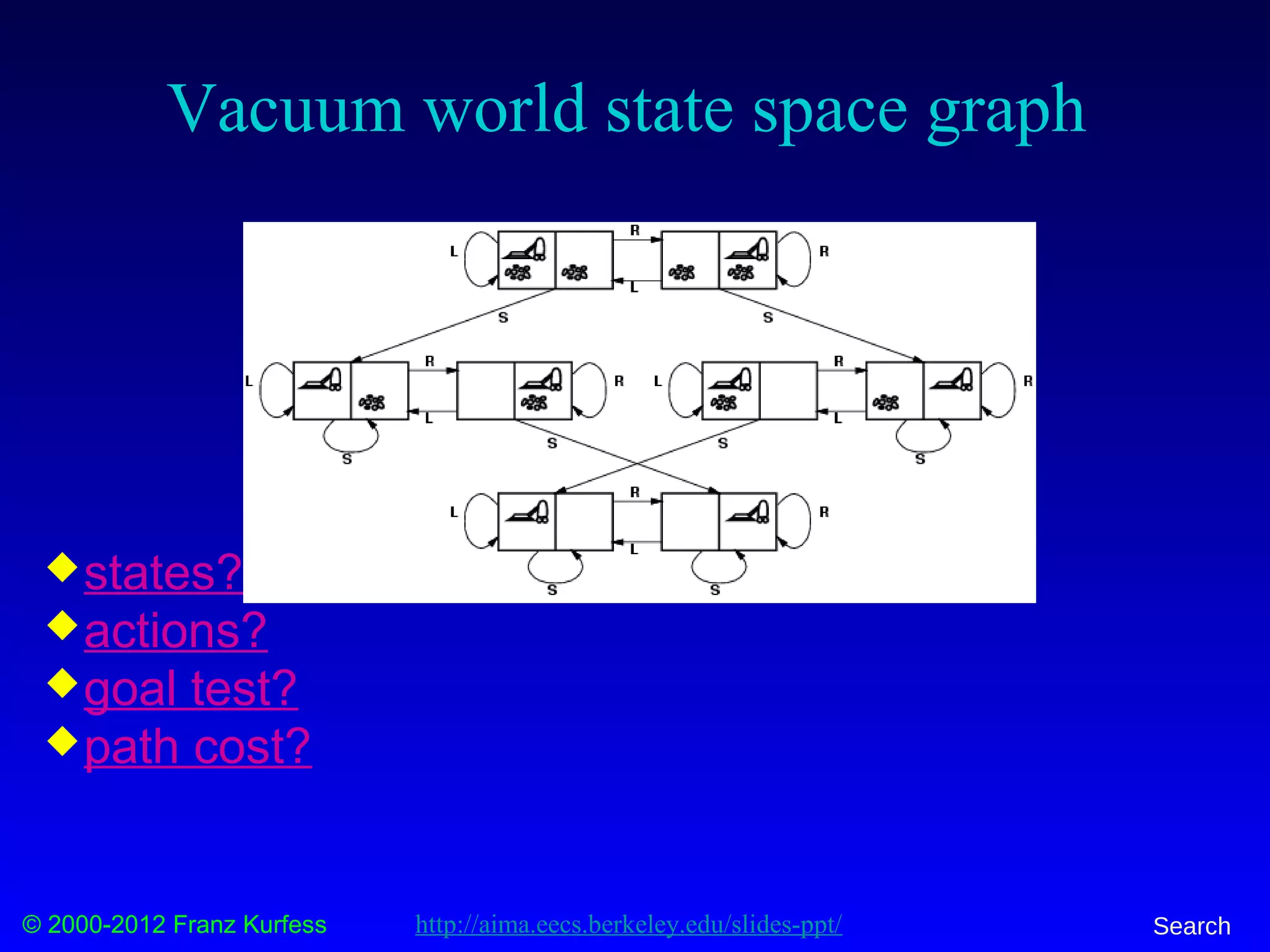

Vacuum world state space graph
states?
actions?
goal test?
path cost?

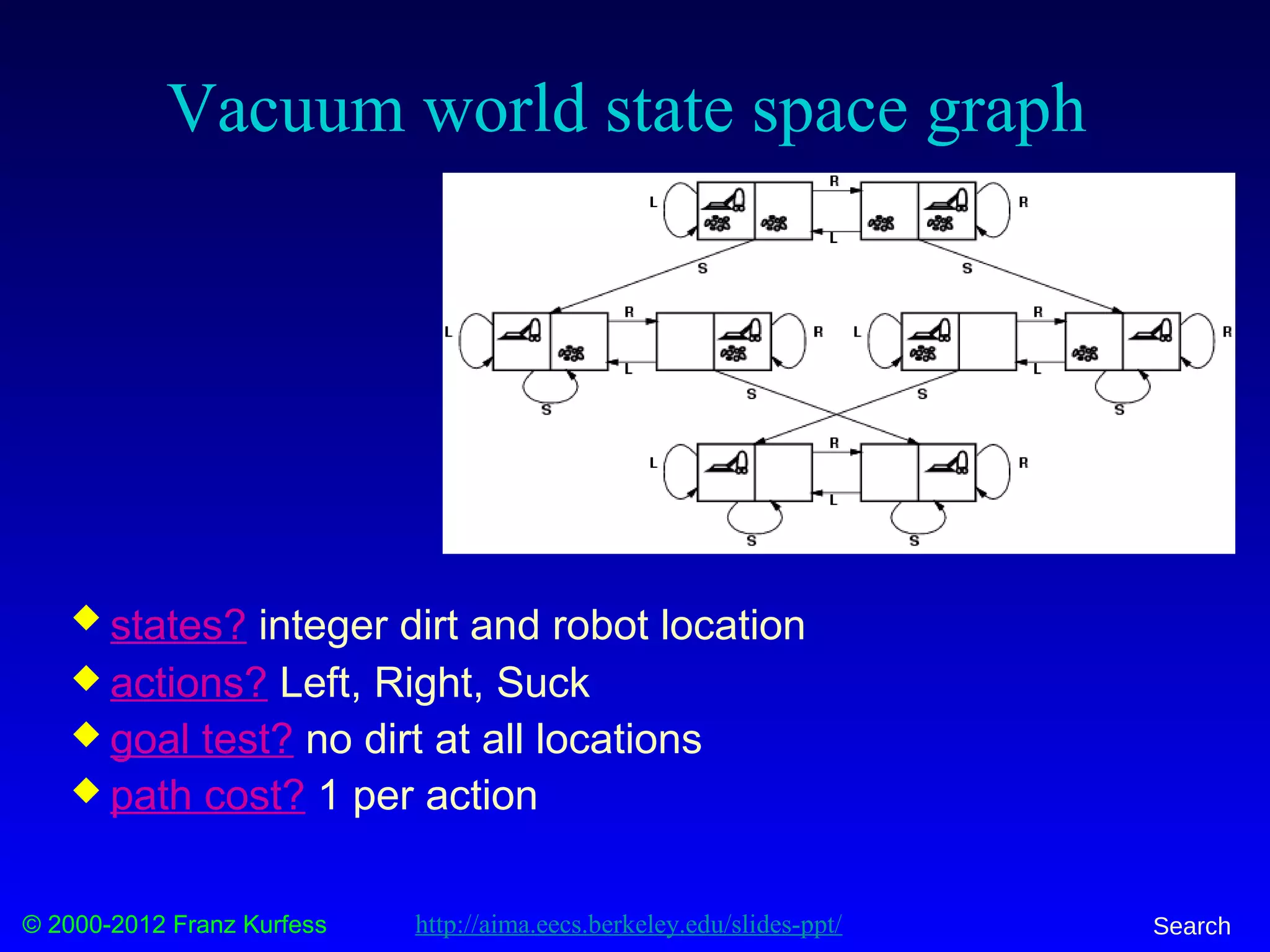

Vacuum world state space graph
 states? integer dirt and robot location
 actions? Left, Right, Suck
 goal test? no dirt at all locations
 path cost? 1 per action

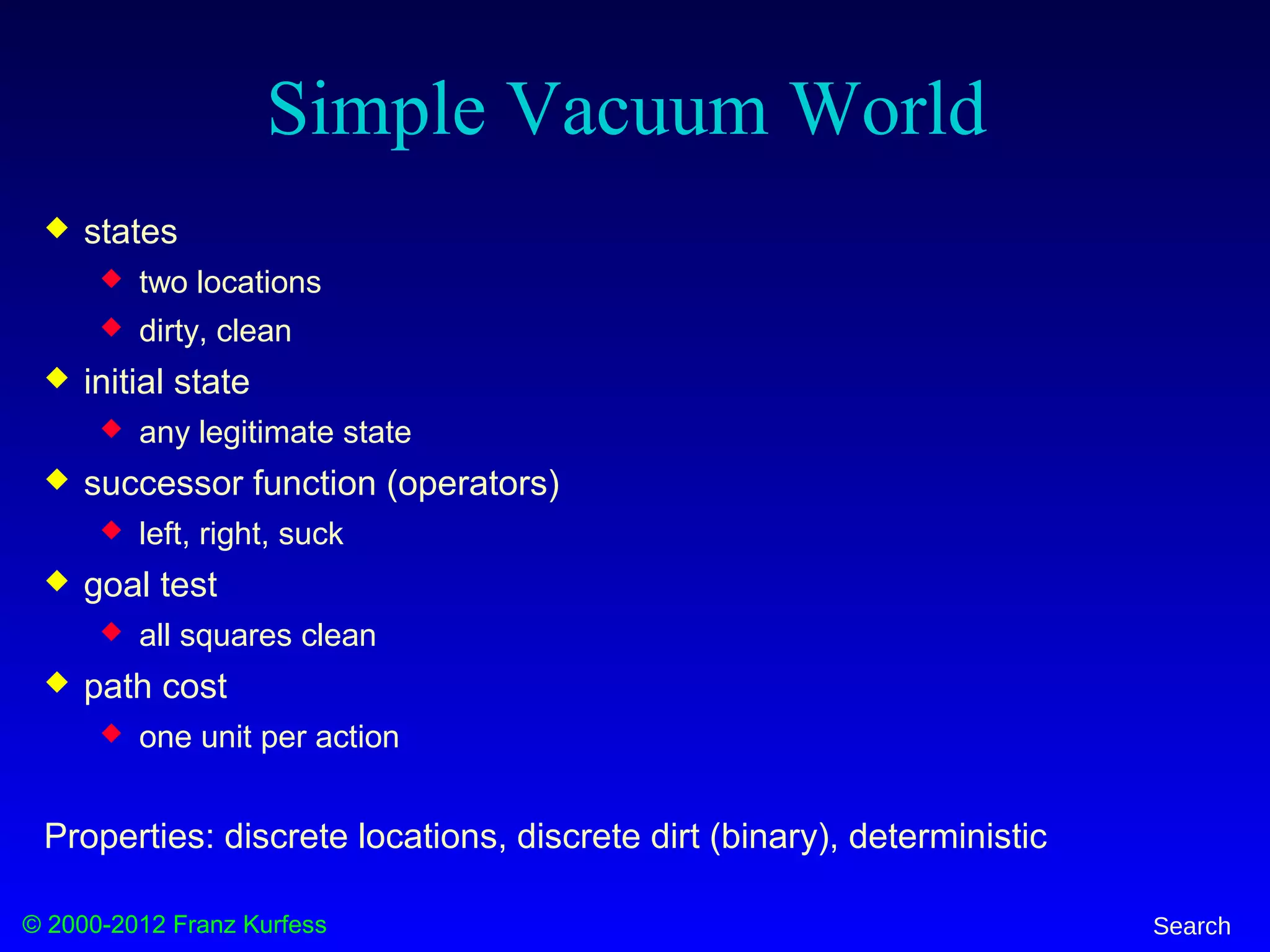

Simple Vacuum World
 states
 two locations
 dirty, clean
 initial state
 any legitimate state
 successor function (operators)
 left, right, suck
 goal test
 all squares clean
 path cost
 one unit per action
Properties: discrete locations, discrete dirt (binary), deterministic

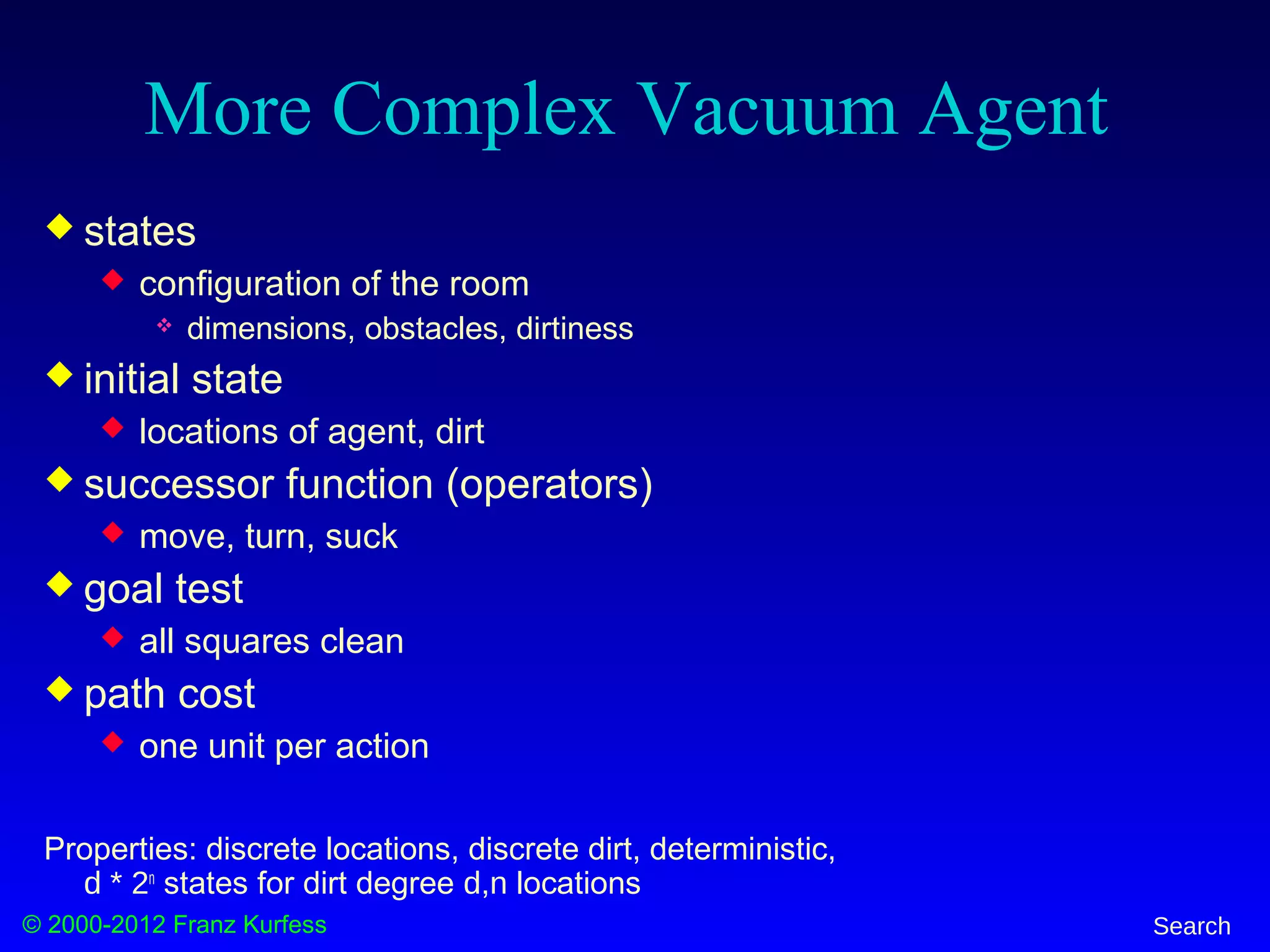

More Complex Vacuum Agent
 states
 configuration of the room
 dimensions, obstacles, dirtiness
 initial state
 locations of agent, dirt
 move, turn, suck
 goal test
 all squares clean
 path cost
 one unit per action
Properties: discrete locations, discrete dirt, deterministic,
d * 2n
states for dirt degree d,n locations

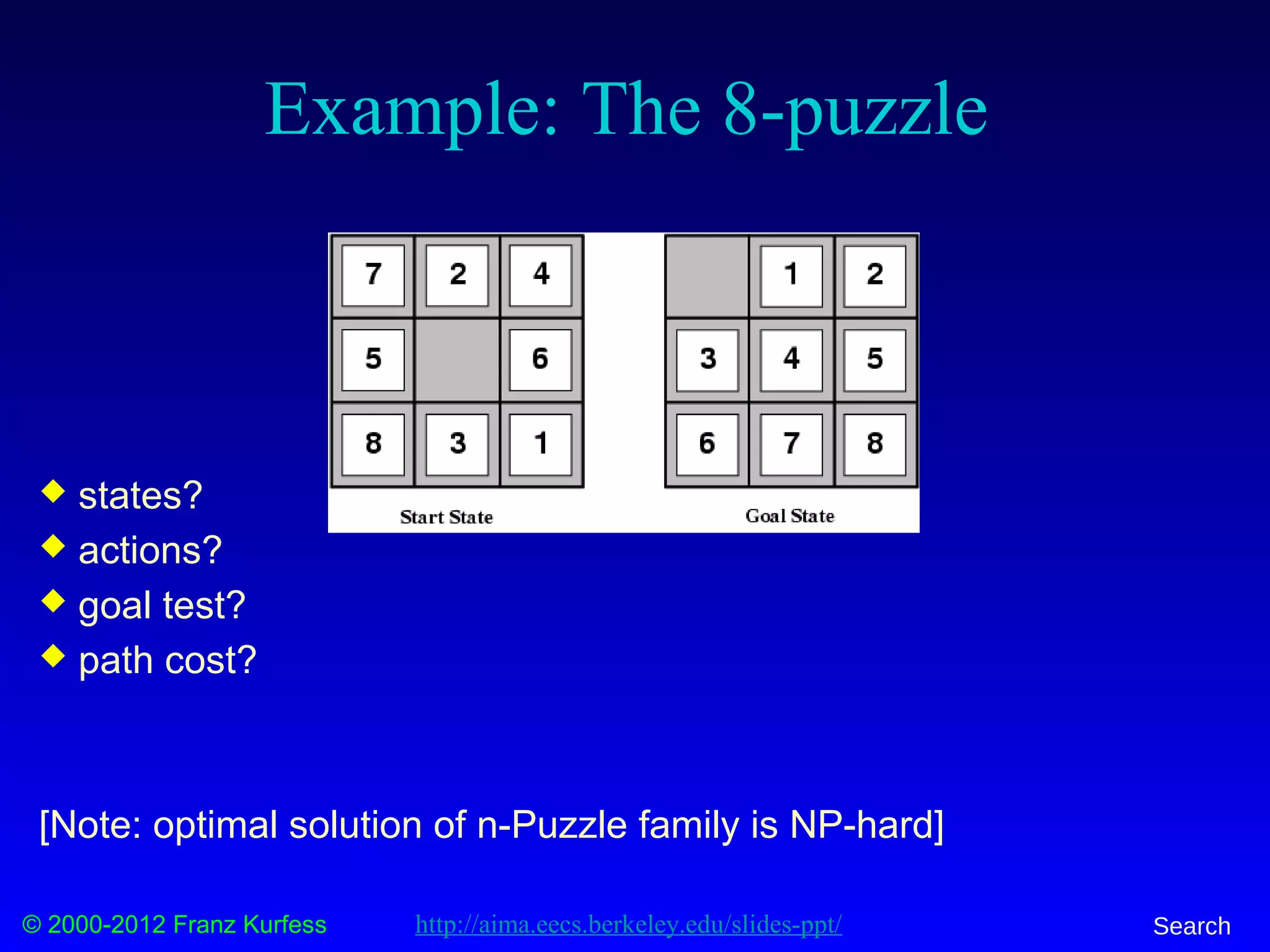

Example: The 8-puzzle
 states?
 actions?
 goal test?
 path cost?
[Note: optimal solution of n-Puzzle family is NP-hard]

8-Puzzle
 states
 location of tiles (including blank tile)
 initial state
 any legitimate configuration
 move tile
 alternatively: move blank
 goal test
 any legitimate configuration of tiles
 path cost
 one unit per move
Properties: abstraction leads to discrete configurations, discrete moves,
deterministic
9!/2 = 181,440 reachable states

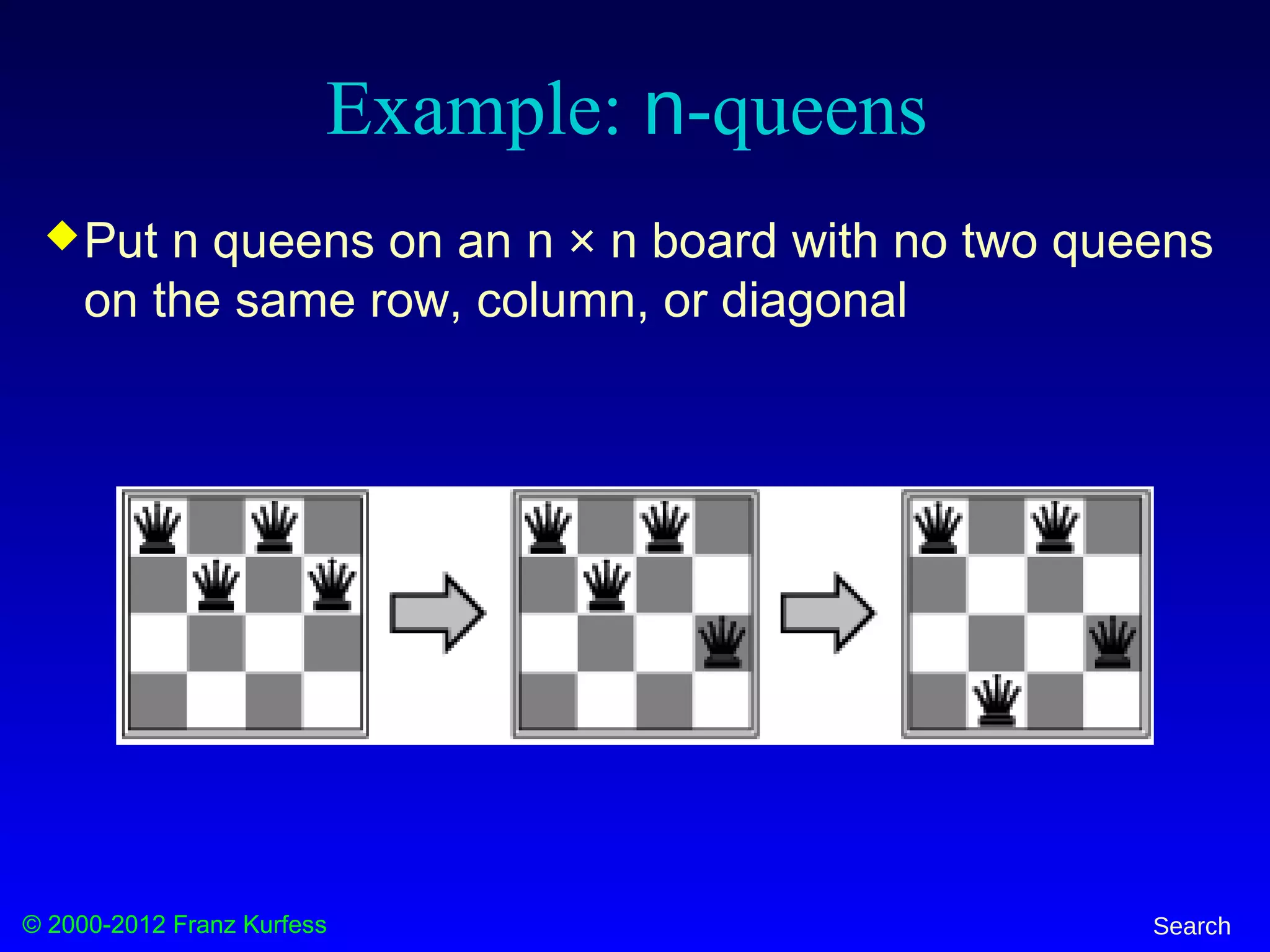

Example: n-queens
Put n queens on an n × n board with no two queens
on the same row, column, or diagonal

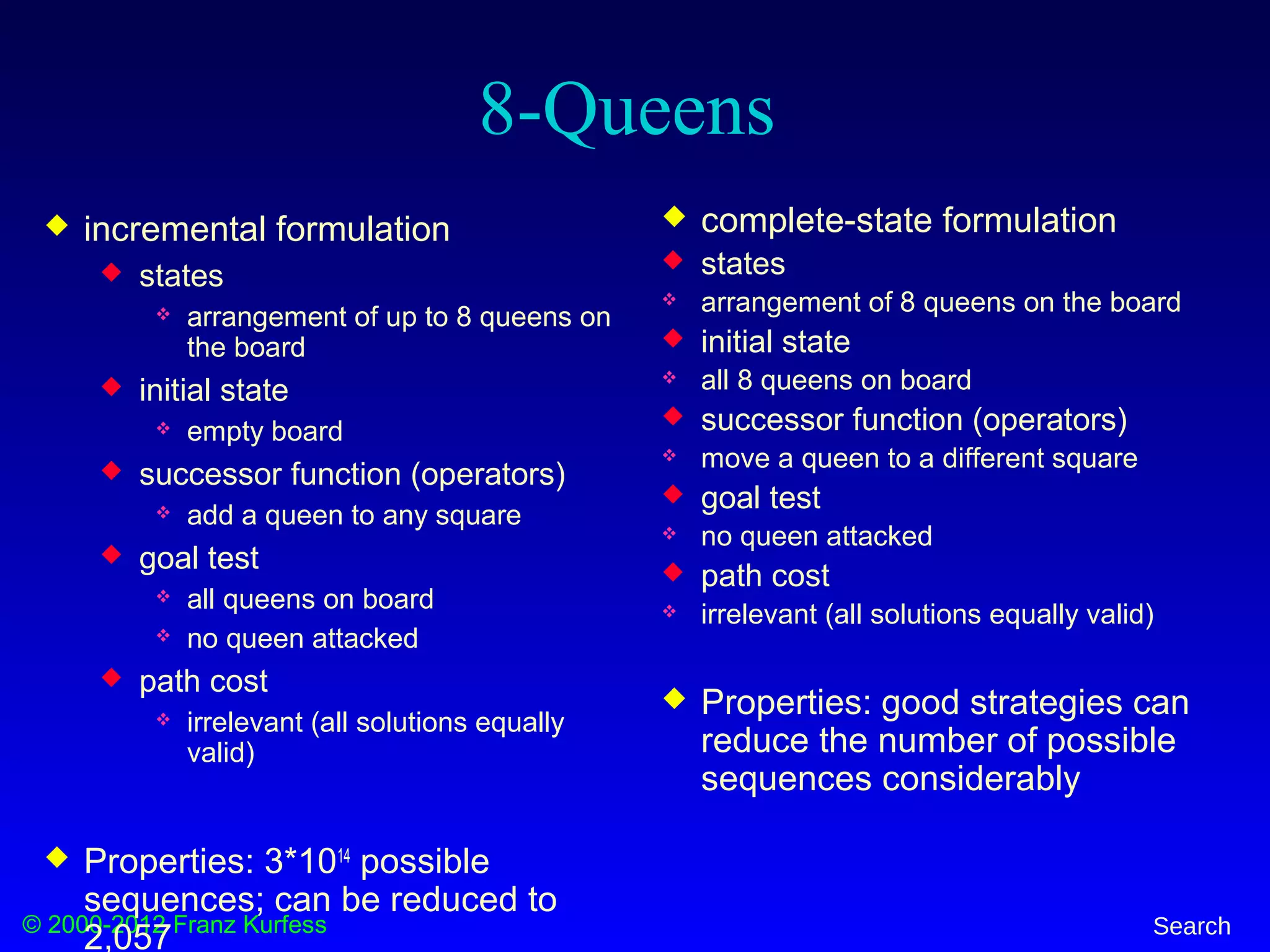

8-Queens
 incremental formulation
 states
 arrangement of up to 8 queens on
the board
 initial state
 empty board
 add a queen to any square
 goal test
 all queens on board
 no queen attacked
 path cost
 irrelevant (all solutions equally
valid)
 Properties: 3*1014
possible
sequences; can be reduced to
2,057
 complete-state formulation
 states
 arrangement of 8 queens on the board
 initial state
 all 8 queens on board
 move a queen to a different square
 goal test
 no queen attacked
 path cost
 irrelevant (all solutions equally valid)
 Properties: good strategies can
reduce the number of possible
sequences considerably

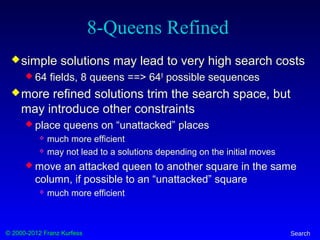

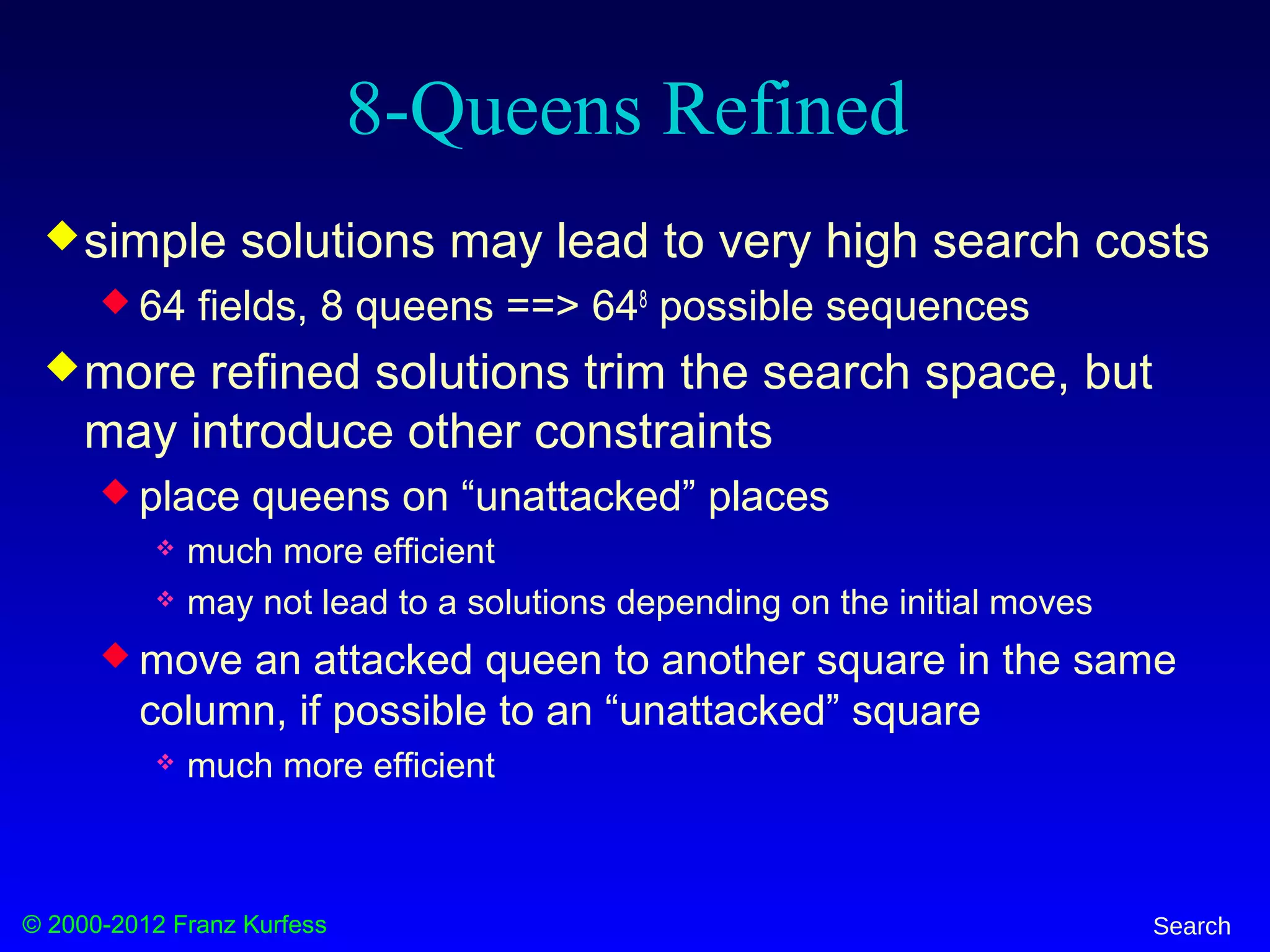

8-Queens Refined
simple solutions may lead to very high search costs
 64 fields, 8 queens ==> 648
possible sequences
more refined solutions trim the search space, but
may introduce other constraints
 place queens on “unattacked” places
 much more efficient
 may not lead to a solutions depending on the initial moves
 move an attacked queen to another square in the same
column, if possible to an “unattacked” square
 much more efficient

Crypt-
arithmetic
 states
 puzzle with letters and digits
 initial state
 only letters present
 replace all occurrences of a letter by a digit not used yet
 goal test
 only digits in the puzzle
 calculation is correct
 path cost
 all solutions are equally valid

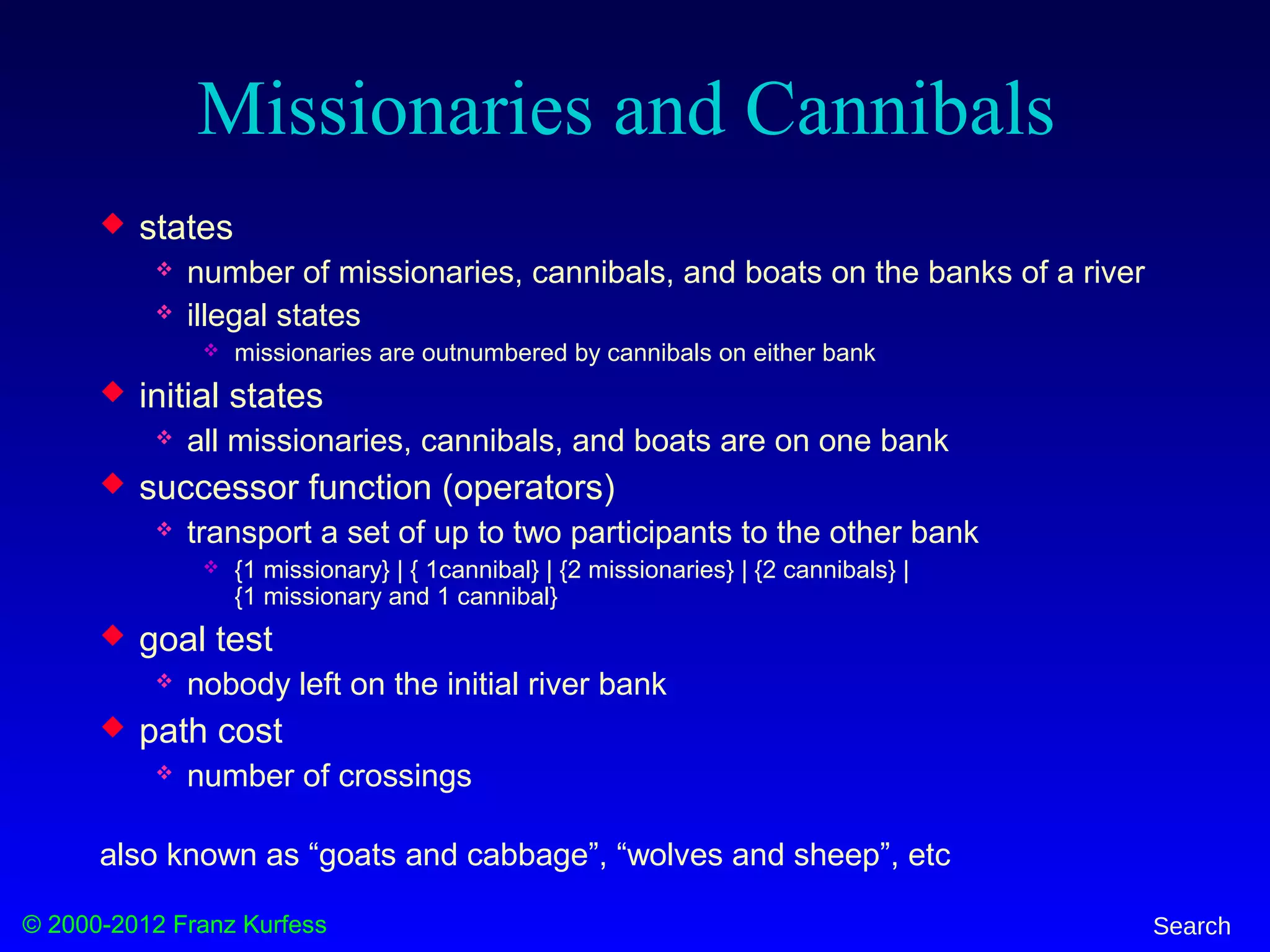

Missionaries and Cannibals
 states
 number of missionaries, cannibals, and boats on the banks of a river
 illegal states
 missionaries are outnumbered by cannibals on either bank
 initial states
 all missionaries, cannibals, and boats are on one bank
 transport a set of up to two participants to the other bank
 {1 missionary} | { 1cannibal} | {2 missionaries} | {2 cannibals} |
{1 missionary and 1 cannibal}
 goal test
 nobody left on the initial river bank
 path cost
 number of crossings
also known as “goats and cabbage”, “wolves and sheep”, etc

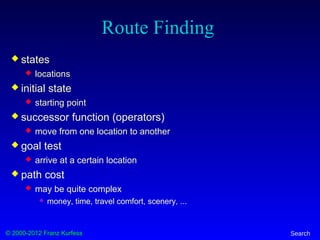

Route Finding
 states
 locations
 initial state
 starting point
 move from one location to another
 goal test
 arrive at a certain location
 path cost
 may be quite complex
 money, time, travel comfort, scenery, ...

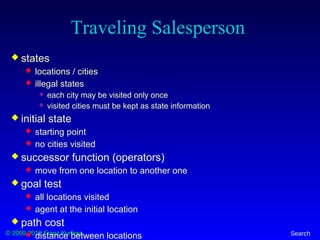

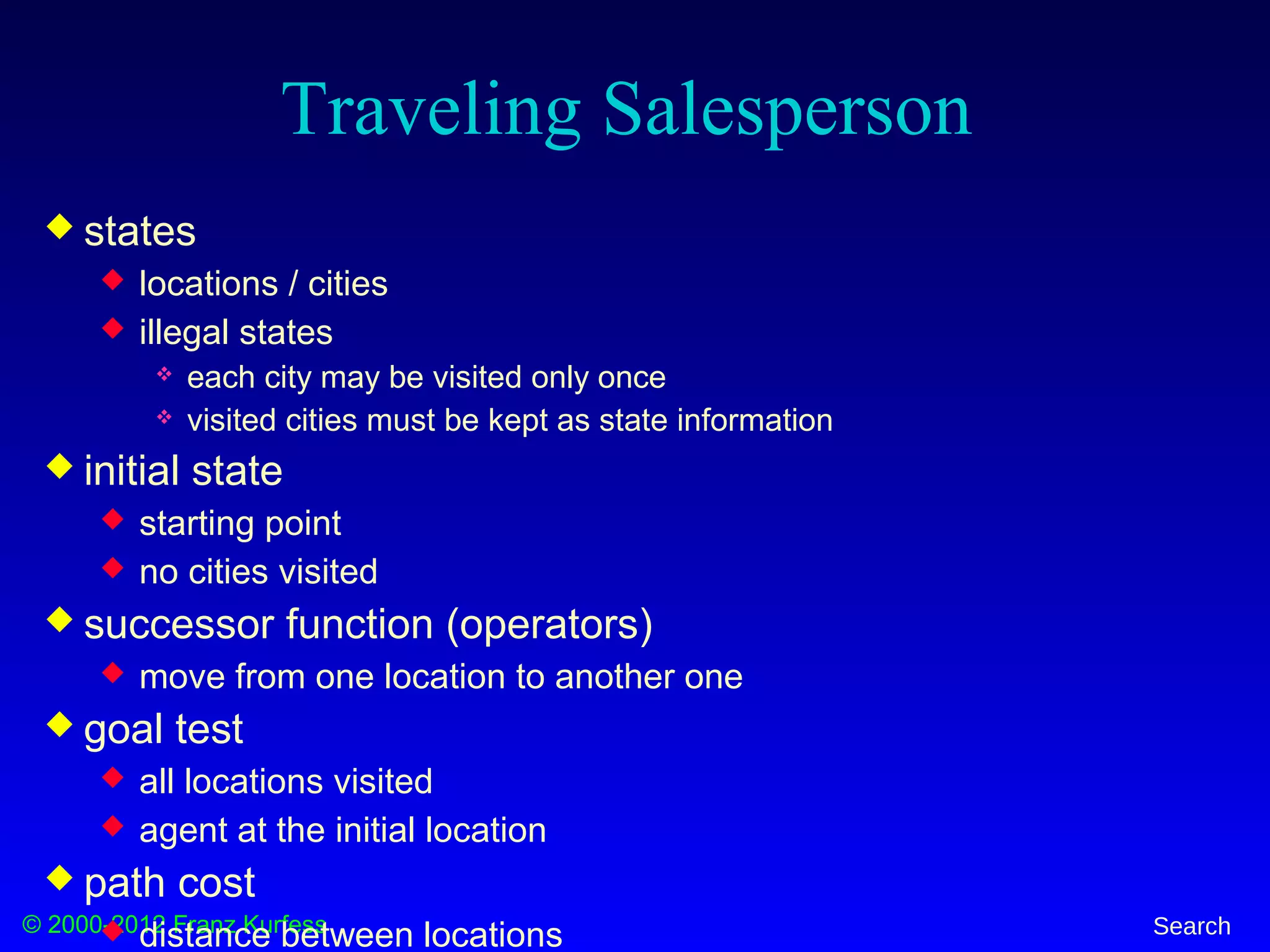

Traveling Salesperson
 states
 locations / cities
 illegal states
 each city may be visited only once
 visited cities must be kept as state information
 initial state
 starting point
 no cities visited
 move from one location to another one
 goal test
 all locations visited
 agent at the initial location
 path cost
 distance between locations

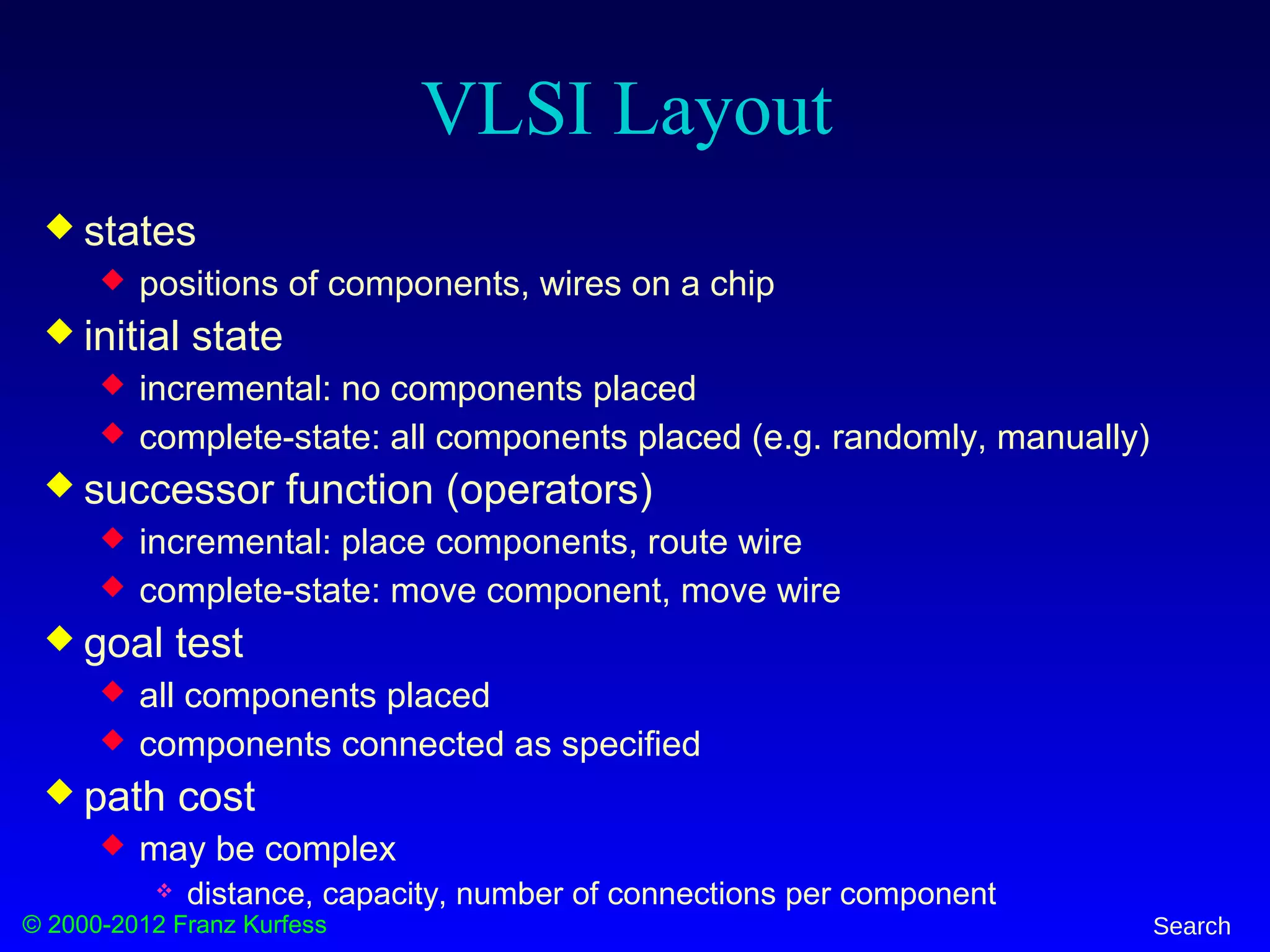

VLSI Layout
 states
 positions of components, wires on a chip
 initial state
 incremental: no components placed
 complete-state: all components placed (e.g. randomly, manually)
 incremental: place components, route wire
 complete-state: move component, move wire
 goal test
 all components placed
 components connected as specified
 path cost
 may be complex
 distance, capacity, number of connections per component

Robot Navigation
 states
 locations
 position of actuators
 initial state
 start position (dependent on the task)
 movement, actions of actuators
 goal test
 task-dependent
 path cost
 may be very complex
 distance, energy consumption

Assembly Sequencing
states
 location of components
initial state
 no components assembled
successor function (operators)
 place component
goal test
 system fully assembled
path cost
 number of moves

Example: robotic assembly
 states?: real-valued coordinates of robot joint angles
parts of the object to be assembled
 actions?: continuous motions of robot joints
 goal test?: complete assembly
 path cost?: time to execute

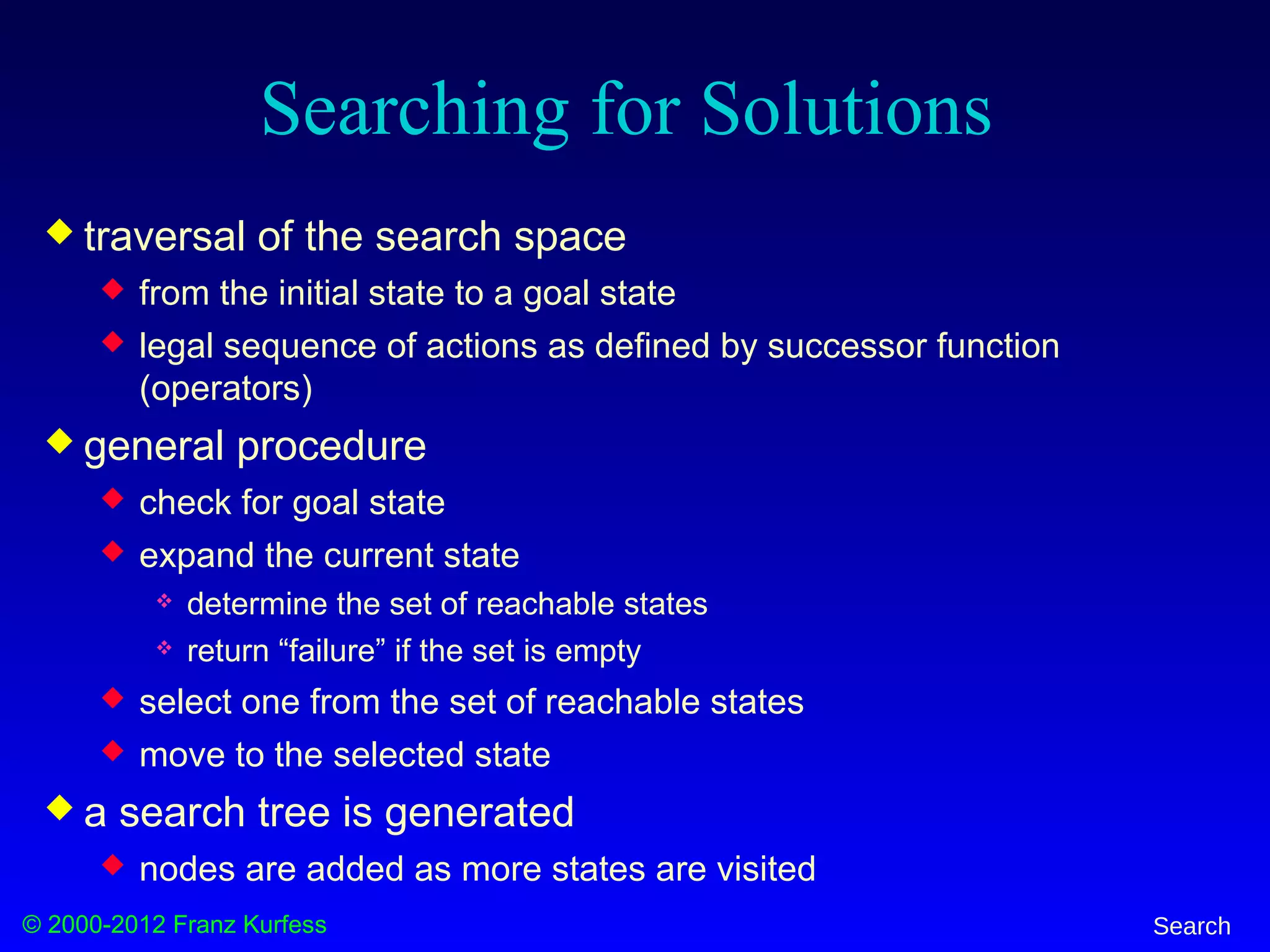

Searching for Solutions
 traversal of the search space
 from the initial state to a goal state
 legal sequence of actions as defined by successor function
(operators)
 general procedure
 check for goal state
 expand the current state
 determine the set of reachable states
 return “failure” if the set is empty
 select one from the set of reachable states
 move to the selected state
 a search tree is generated
 nodes are added as more states are visited

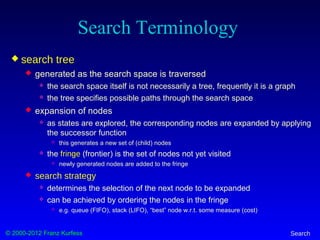

Search Terminology
 search tree
 generated as the search space is traversed
 the search space itself is not necessarily a tree, frequently it is a graph
 the tree specifies possible paths through the search space
 expansion of nodes
 as states are explored, the corresponding nodes are expanded by applying
the successor function
 this generates a new set of (child) nodes
 the fringe (frontier) is the set of nodes not yet visited
 newly generated nodes are added to the fringe
 search strategy
 determines the selection of the next node to be expanded
 can be achieved by ordering the nodes in the fringe
 e.g. queue (FIFO), stack (LIFO), “best” node w.r.t. some measure (cost)

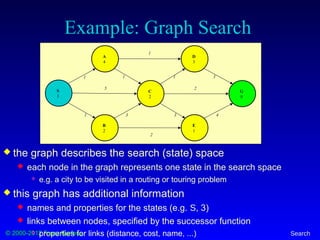

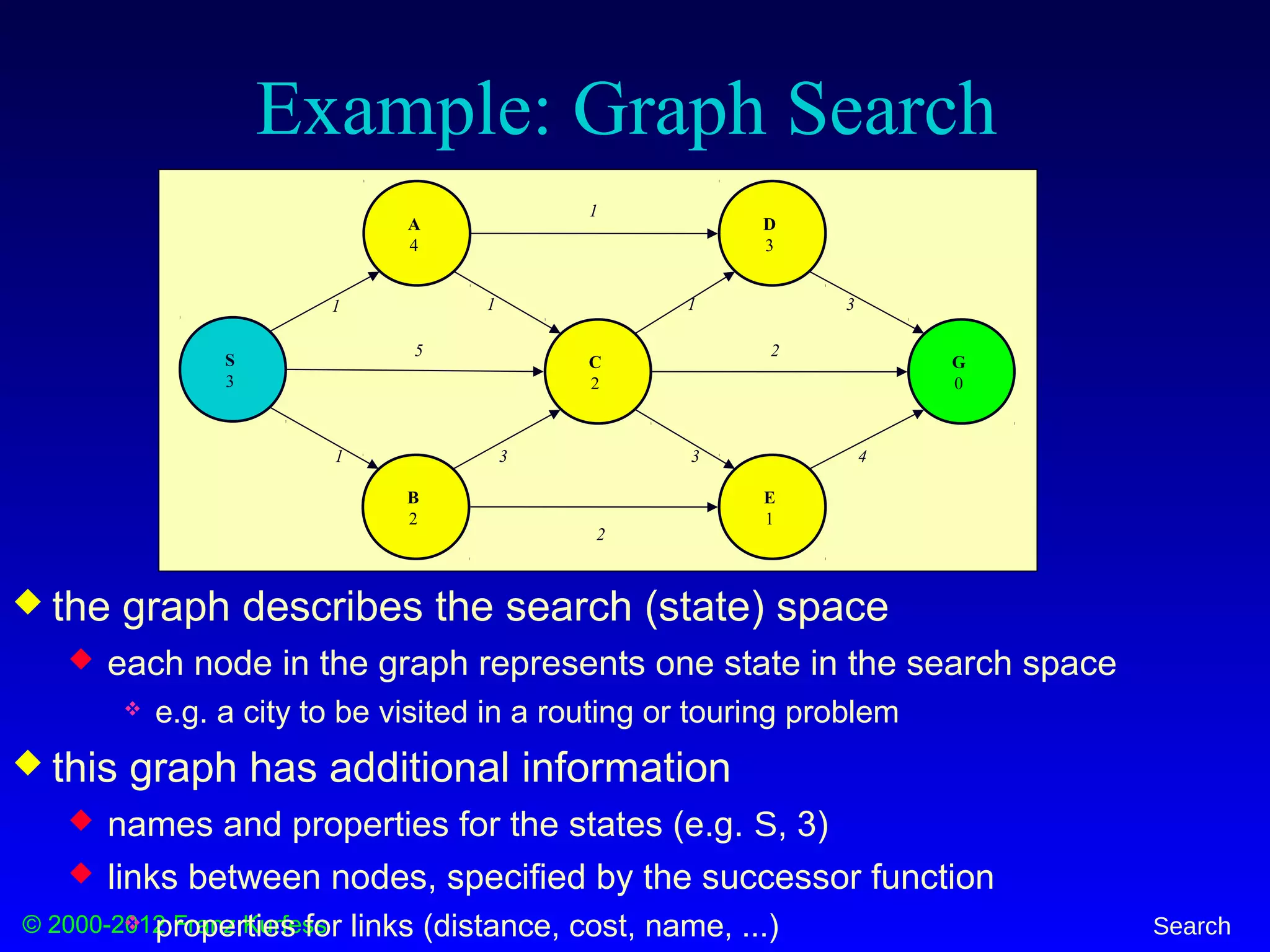

Example: Graph Search
S
3
A
4
C
2
D
3
E
1
B
2
G
0
1 1 1 3
1 3 3 4
5
1
2
2
 the graph describes the search (state) space
 each node in the graph represents one state in the search space
 e.g. a city to be visited in a routing or touring problem
 this graph has additional information
 names and properties for the states (e.g. S, 3)
 links between nodes, specified by the successor function
 properties for links (distance, cost, name, ...)

Graph
and TreeS
3
A
4
C
2
D
3
E
1
B
2
G
0
1 1 1 3
1 3 3 4
5
1
2
2
S
3
5
A
4
D
3
1
1
33
4
2
C
2
D
3
G
0
G
0
G
0
E
1
G
0
1
1
3
3
4
2
C
2
D
3
G
0
G
0
E
1
G
0
1
3
B
2
1
3
C
2
D
3
G
0
G
0
E
1
G
0
1
3
4 E
1
G
0
2 4
3 2
4
 the tree is generated
by traversing the
graph
 the same node in the
graph may appear
repeatedly in the tree
 the arrangement of
the tree depends on
the traversal strategy
(search method)
 the initial state
becomes the root
node of the tree
 in the fully expanded
tree, the goal states
are the leaf nodes
 cycles in graphs may
result in infinite
branches

© 2000-2012 Franz Kurfess Agents
Logistics
AI Nugget presentations
 Section 1:
 Ray Tam: Image Processing
 Andrew Sinclair: Autonomous Bitcoin Agents
 Section 3: -

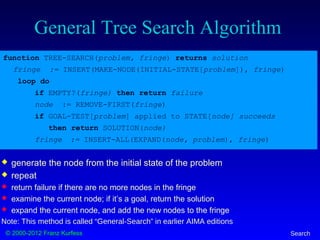

General Tree Search Algorithm
function TREE-SEARCH(problem, fringe) returns solution
fringe := INSERT(MAKE-NODE(INITIAL-STATE[problem]), fringe)
loop do
if EMPTY?(fringe) then return failure
node := REMOVE-FIRST(fringe)
if GOAL-TEST[problem] applied to STATE[node] succeeds
then return SOLUTION(node)
fringe := INSERT-ALL(EXPAND(node, problem), fringe)
 generate the node from the initial state of the problem
 repeat
 return failure if there are no more nodes in the fringe
 examine the current node; if it’s a goal, return the solution
 expand the current node, and add the new nodes to the fringe
Note: This method is called “General-Search” in earlier AIMA editions

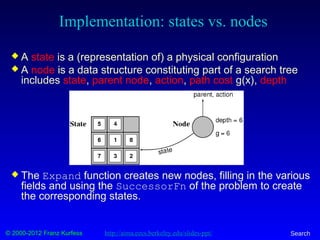

Implementation: states vs. nodes
 A state is a (representation of) a physical configuration
 A node is a data structure constituting part of a search tree
includes state, parent node, action, path cost g(x), depth
 The Expand function creates new nodes, filling in the various
fields and using the SuccessorFn of the problem to create
the corresponding states.

Evaluation Criteria
completeness
 if there is a solution, will it be found
optimality
 the best solution will be found
time complexity
 time it takes to find the solution
 does not include the time to perform actions
space complexity
 memory required for the search
main factors for complexity considerations:
branching factor b, depth d of the shallowest goal node, maximum path length m

Search Cost and Path Cost
the search cost indicates how expensive it is to
generate a solution
 time complexity (e.g. number of nodes generated) is
usually the main factor
 sometimes space complexity (memory usage) is
considered as well
path cost indicates how expensive it is to execute
the solution found in the search
 distinct from the search cost, but often related
total cost is the sum of search and path costs

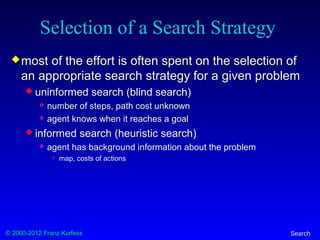

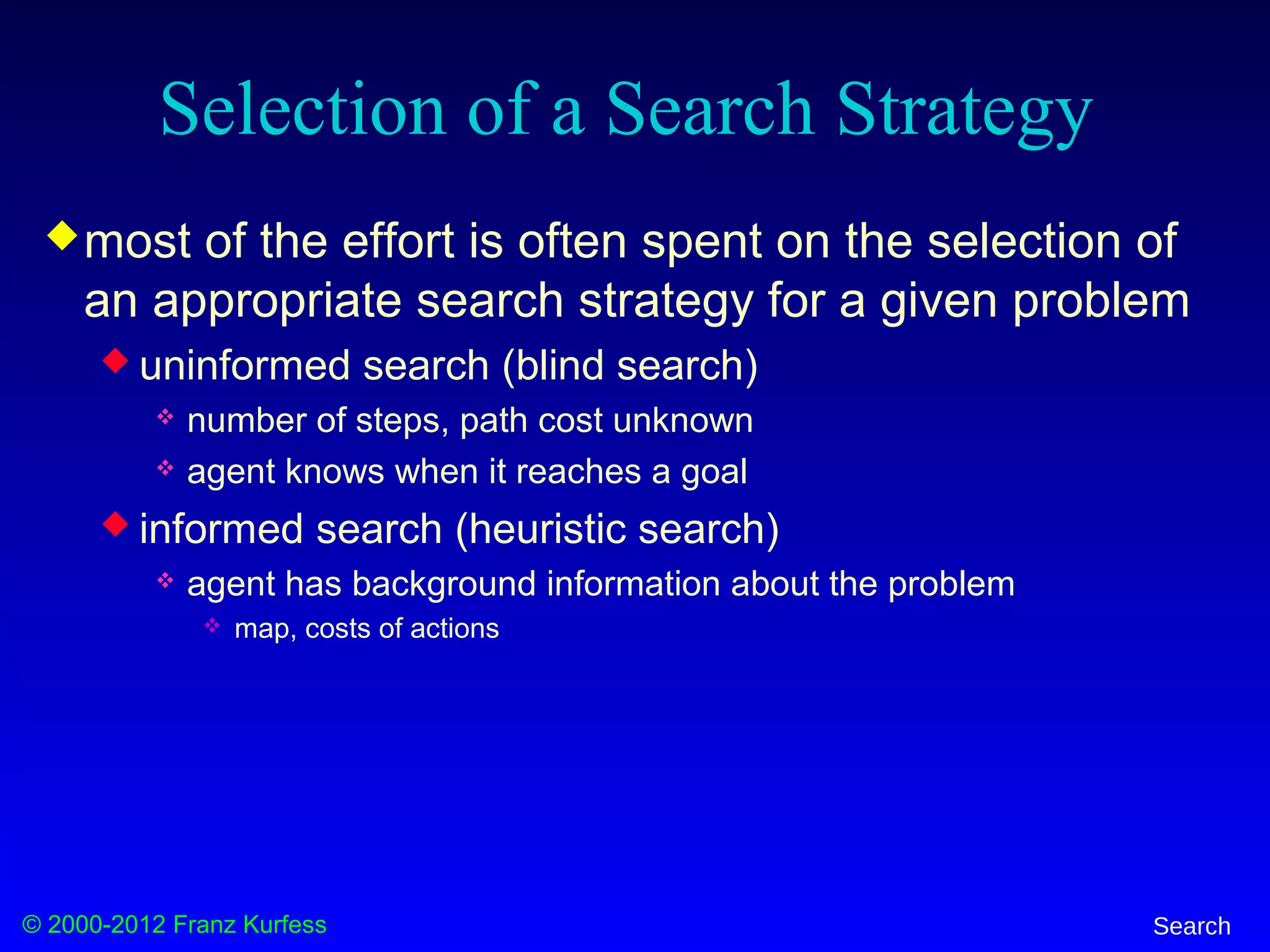

Selection of a Search Strategy
most of the effort is often spent on the selection of
an appropriate search strategy for a given problem
 uninformed search (blind search)
 number of steps, path cost unknown
 agent knows when it reaches a goal
 informed search (heuristic search)
 agent has background information about the problem
 map, costs of actions

Search Strategies
 Uninformed Search
 breadth-first
 depth-first
 iterative deepening
 Informed Search
 search with heuristics
 iterative improvement search
 Local Search and
Optimization
 hill-climbing
 simulated annealing
 local beam search
 genetic algorithms
 Search in Continuous
Spaces
 Non-deterministic Actions
 Partial Observations
 Online Search

all the nodes reachable from the current node are
explored first
 achieved by the TREE-SEARCH method by appending
newly generated nodes at the end of the search queue
function BREADTH-FIRST-SEARCH(problem) returns solution
return TREE-SEARCH(problem, FIFO-QUEUE())
Breadth-First
b branching factor
d depth of the tree
Time Complexity bd+1
Space Complexity bd+1
Completeness yes (for finite b)
Optimality yes (for non-negative
path costs)

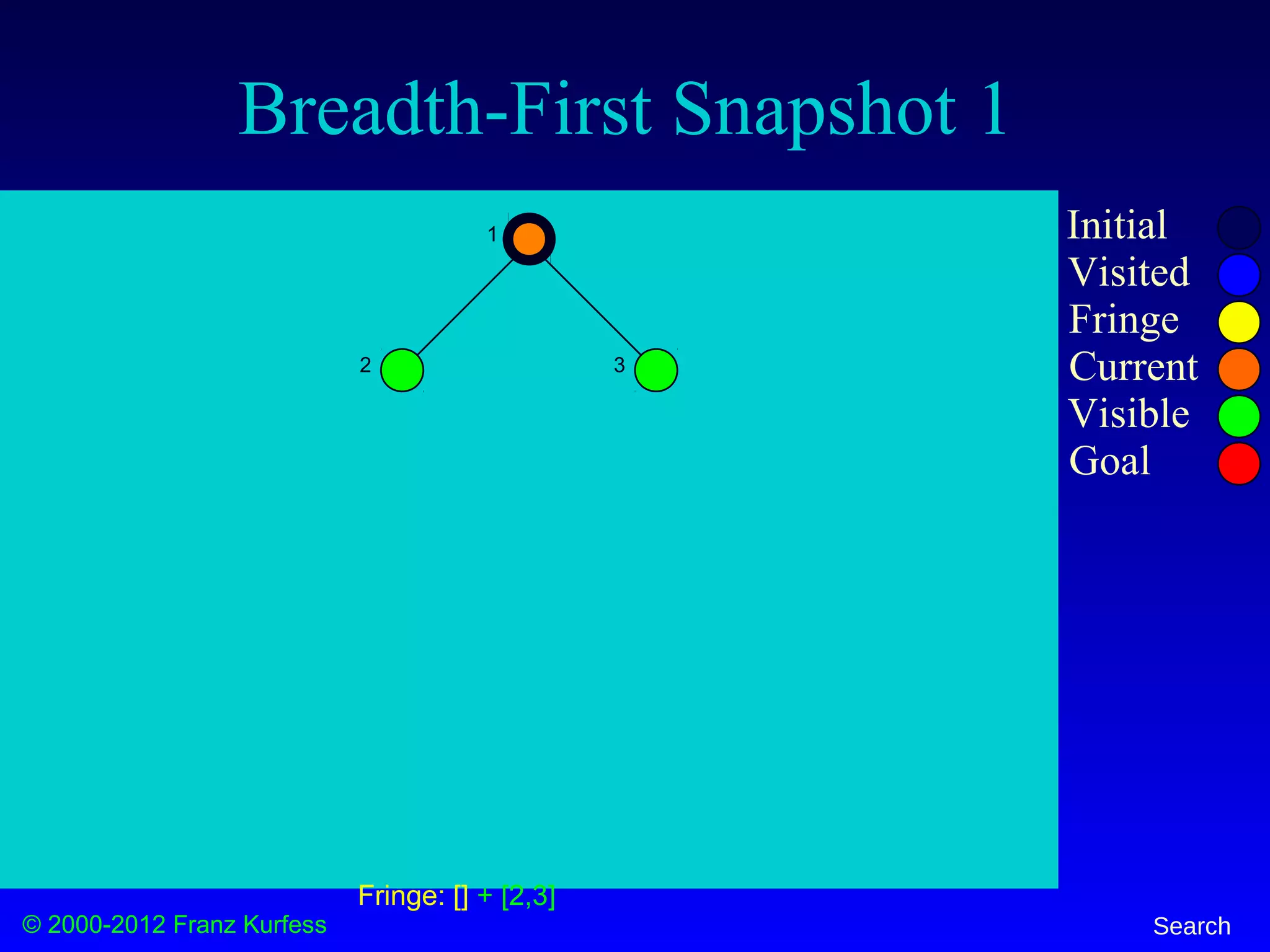

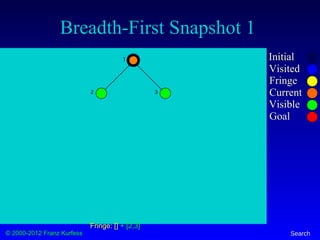

Breadth-First Snapshot 1
Initial
Visited
Fringe
Current
Visible
Goal
1
2 3
Fringe: [] + [2,3]

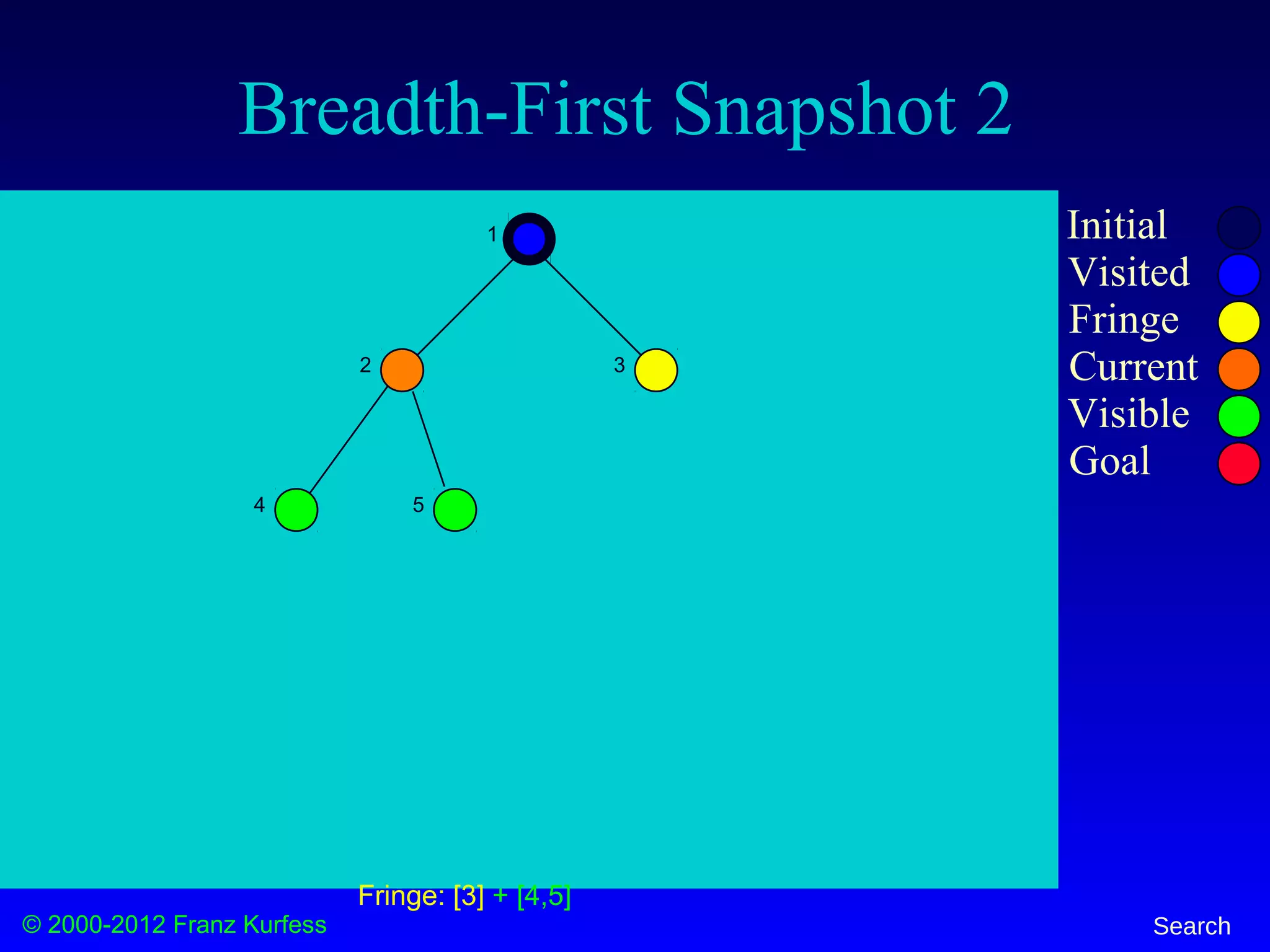

Initial
Visited
Fringe
Current
Visible
Goal
1
2 3
4 5
Fringe: [3] + [4,5]

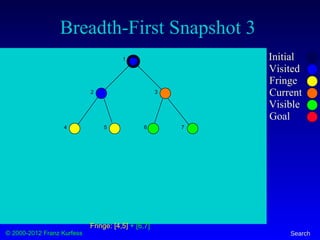

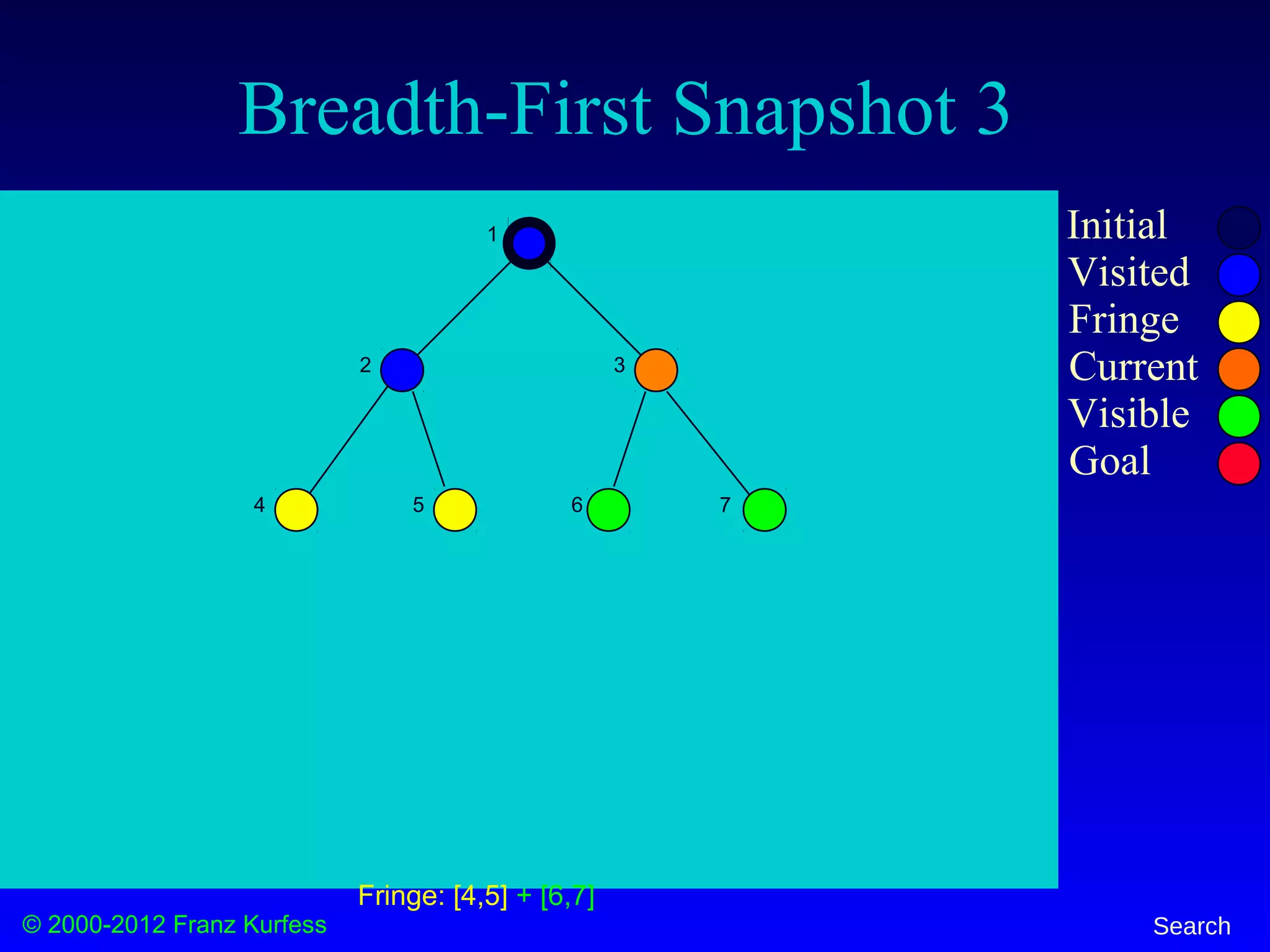

Initial
Visited
Fringe
Current
Visible
Goal
1
2 3
4 5 6 7
Fringe: [4,5] + [6,7]

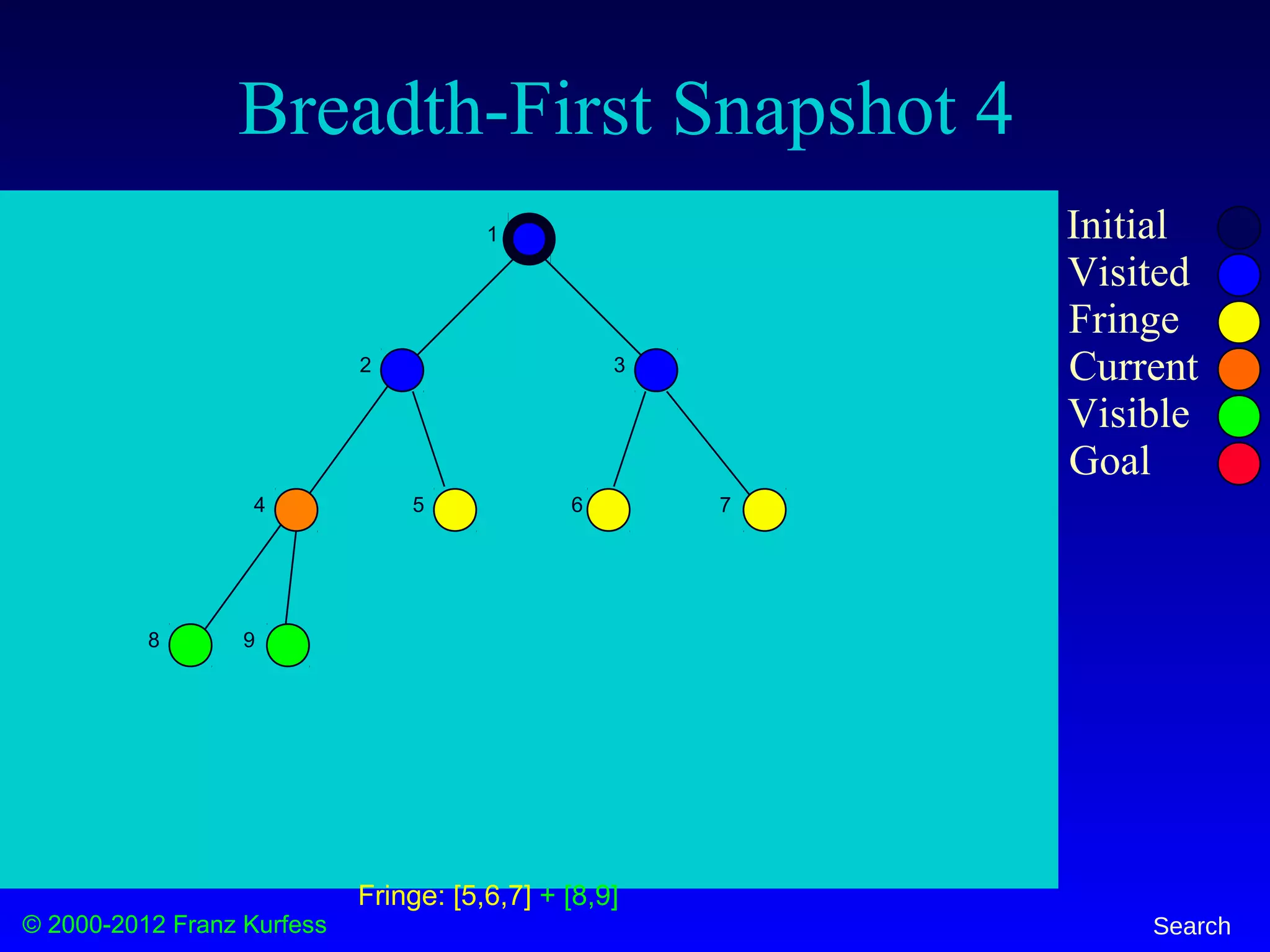

Initial
Visited
Fringe
Current
Visible
Goal
1
2 3
4 5 6 7
8 9
Fringe: [5,6,7] + [8,9]

Initial
Visited
Fringe
Current
Visible
Goal
1
2 3
4 5 6 7
8 9 10 11

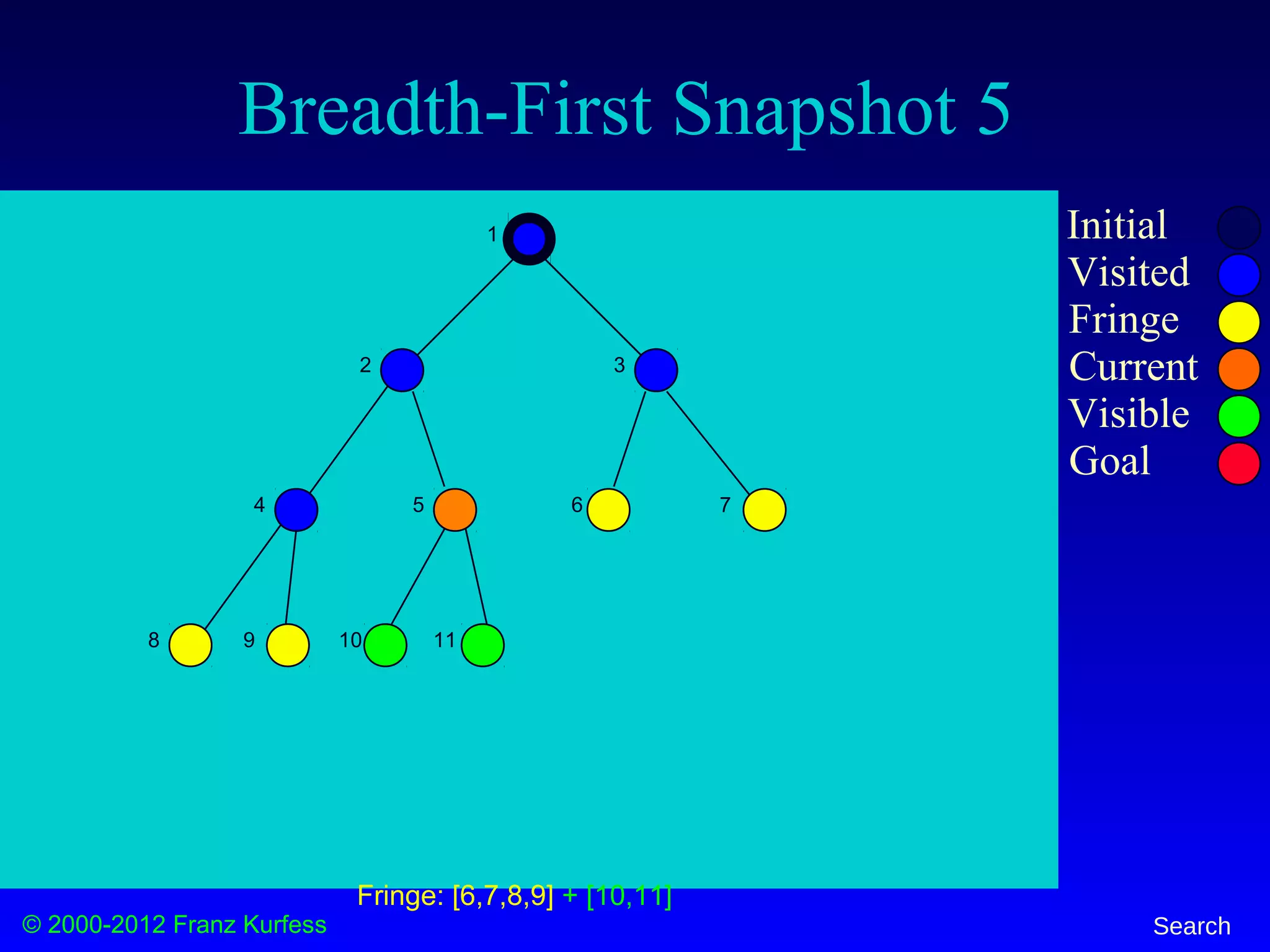

Fringe: [6,7,8,9] + [10,11]

Initial
Visited
Fringe
Current
Visible
Goal
1
2 3
4 5 6 7
8 9 10 11 12 13

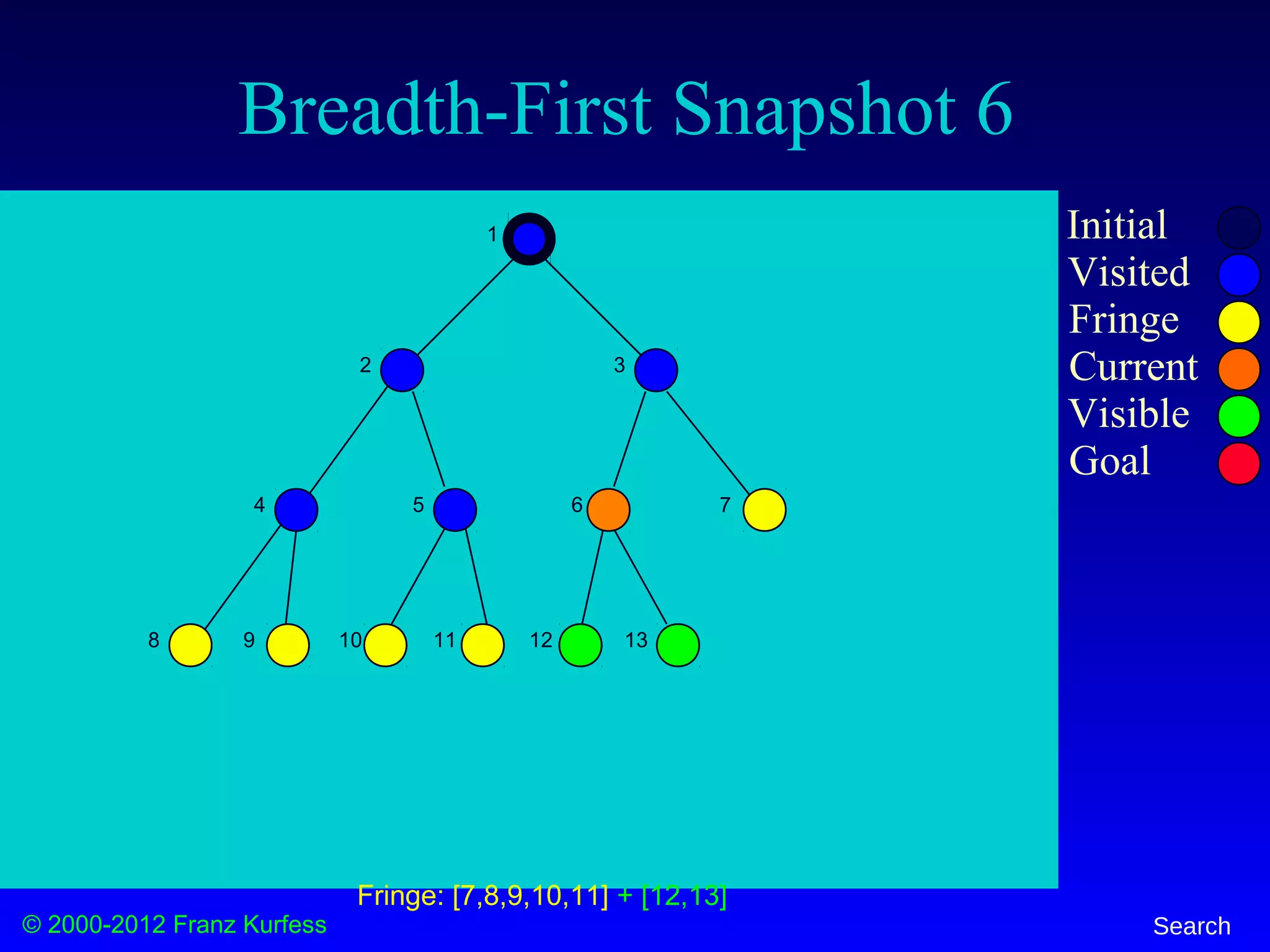

Fringe: [7,8,9,10,11] + [12,13]

Initial
Visited
Fringe
Current
Visible
Goal
1
2 3
4 5 6 7
8 9 10 11 12 13 14 15
Fringe: [8,9.10,11,12,13] + [14,15]

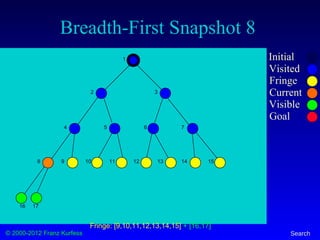

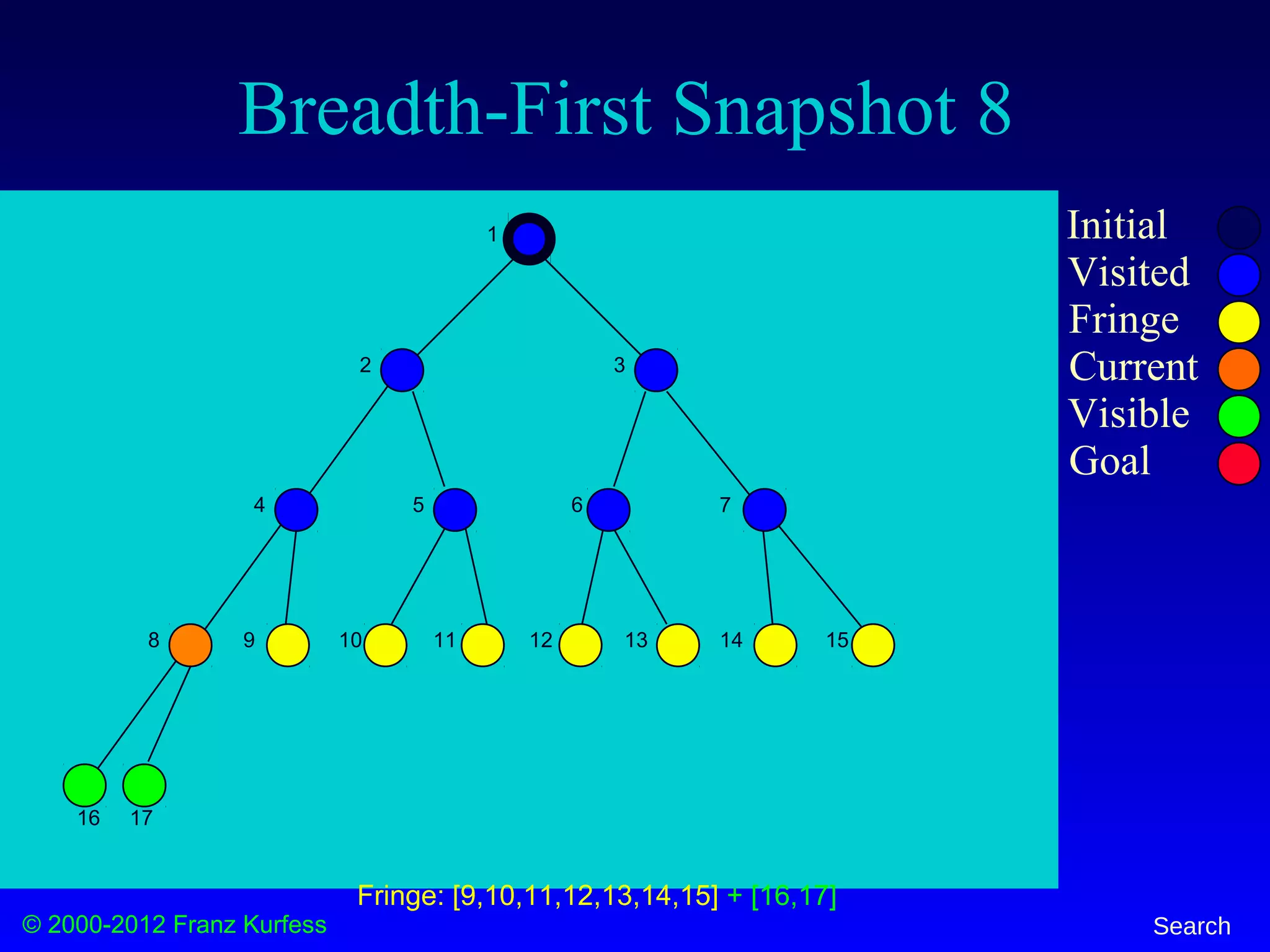

Initial
Visited
Fringe
Current
Visible
Goal
1
2 3
4 5 6 7
8 9 10 11 12 13 14 15
16 17
Fringe: [9,10,11,12,13,14,15] + [16,17]

Initial
Visited
Fringe
Current
Visible
Goal
1
2 3
4 5 6 7
8 9 10 11 12 13 14 15
16 17 18 19
Fringe: [10,11,12,13,14,15,16,17] + [18,19]

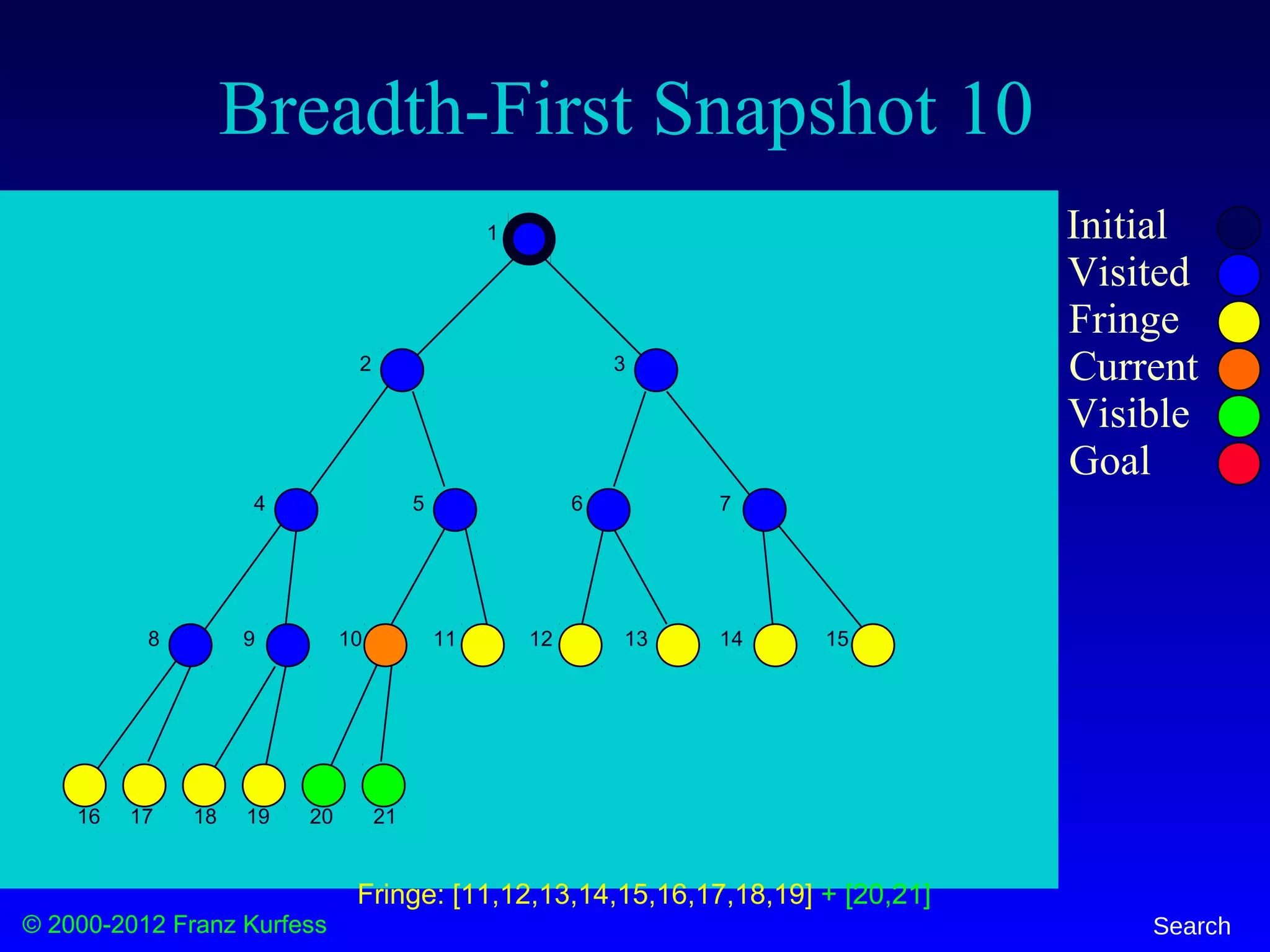

Initial
Visited
Fringe
Current
Visible
Goal
1
2 3
4 5 6 7
8 9 10 11 12 13 14 15
16 17 18 19 20 21
Fringe: [11,12,13,14,15,16,17,18,19] + [20,21]

Initial
Visited
Fringe
Current
Visible
Goal
1
2 3
4 5 6 7
8 9 10 11 12 13 14 15
16 17 18 19 20 21 22 23

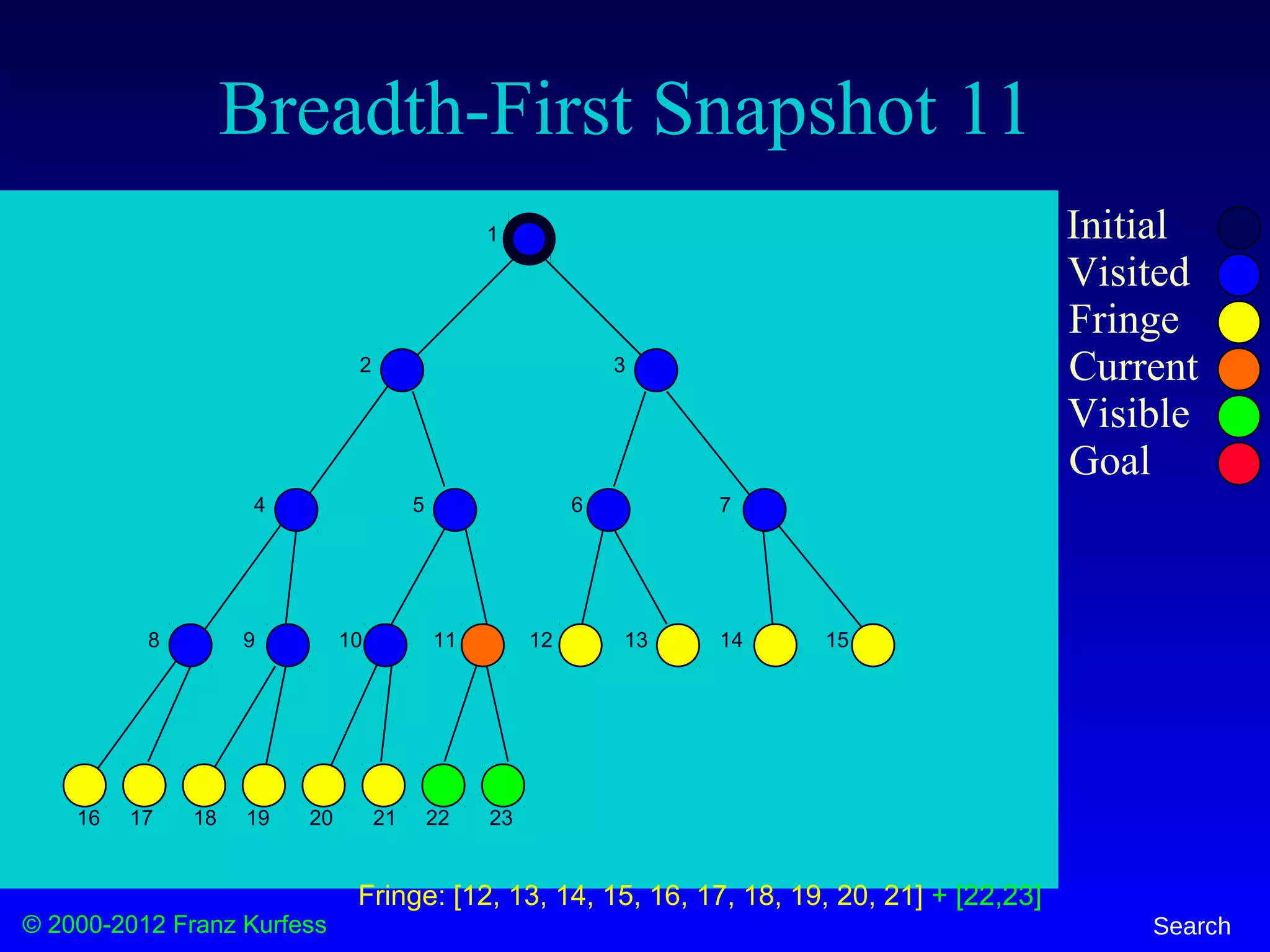

Fringe: [12, 13, 14, 15, 16, 17, 18, 19, 20, 21] + [22,23]

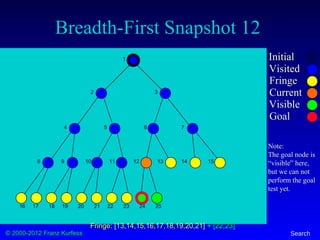

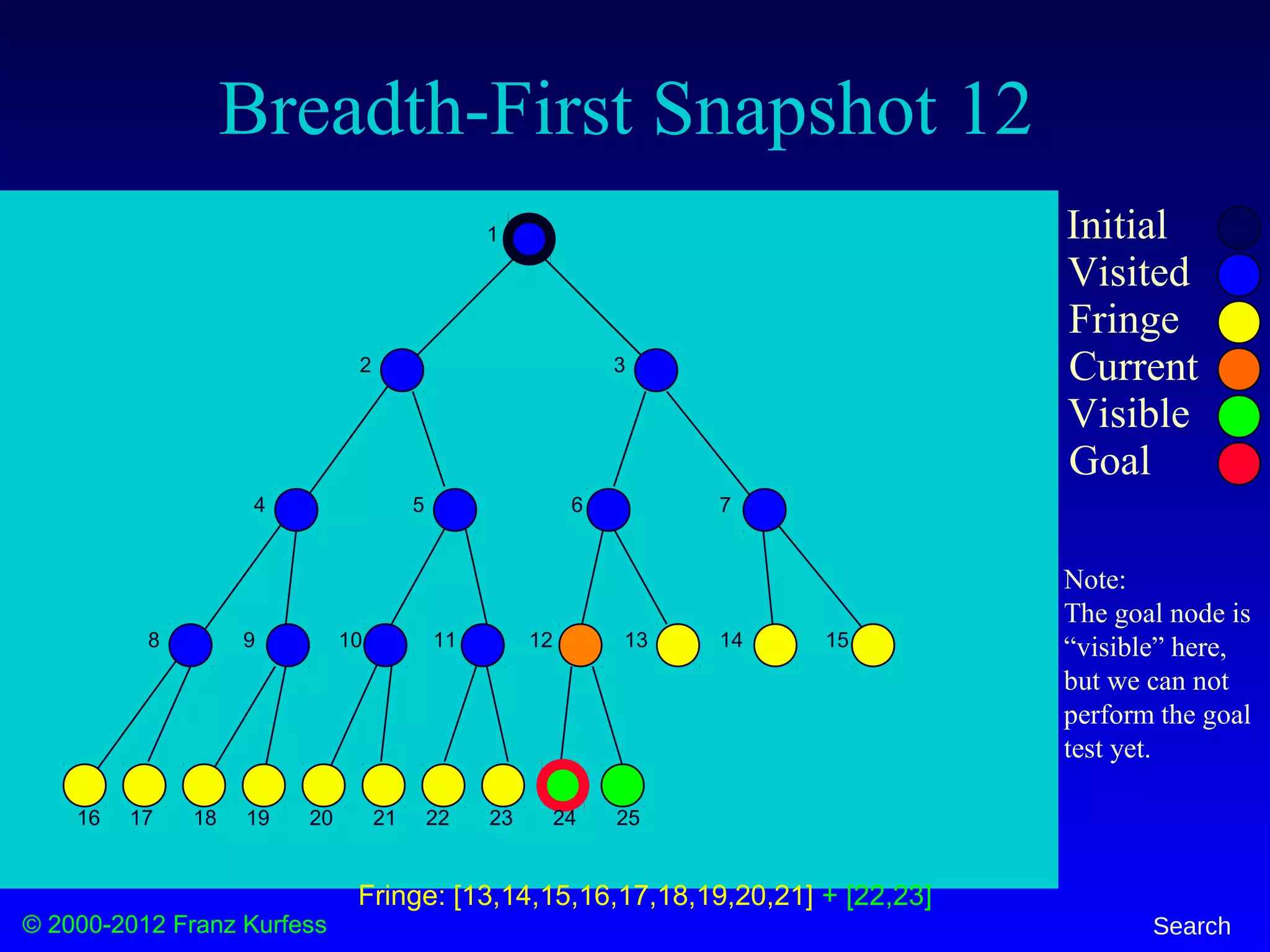

Initial
Visited
Fringe
Current
Visible
Goal
1
2 3
4 5 6 7
8 9 10 11 12 13 14 15
16 17 18 19 20 21 22 23 24 25
Fringe: [13,14,15,16,17,18,19,20,21] + [22,23]
Note:
The goal node is
“visible” here,
but we can not
perform the goal
test yet.

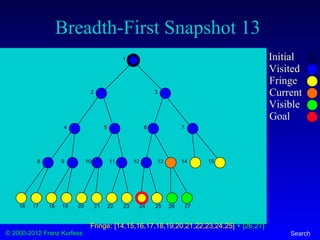

Initial
Visited
Fringe
Current
Visible
Goal
1
2 3
4 5 6 7
8 9 10 11 12 13 14 15
16 17 18 19 20 21 22 23 24 25 26 27

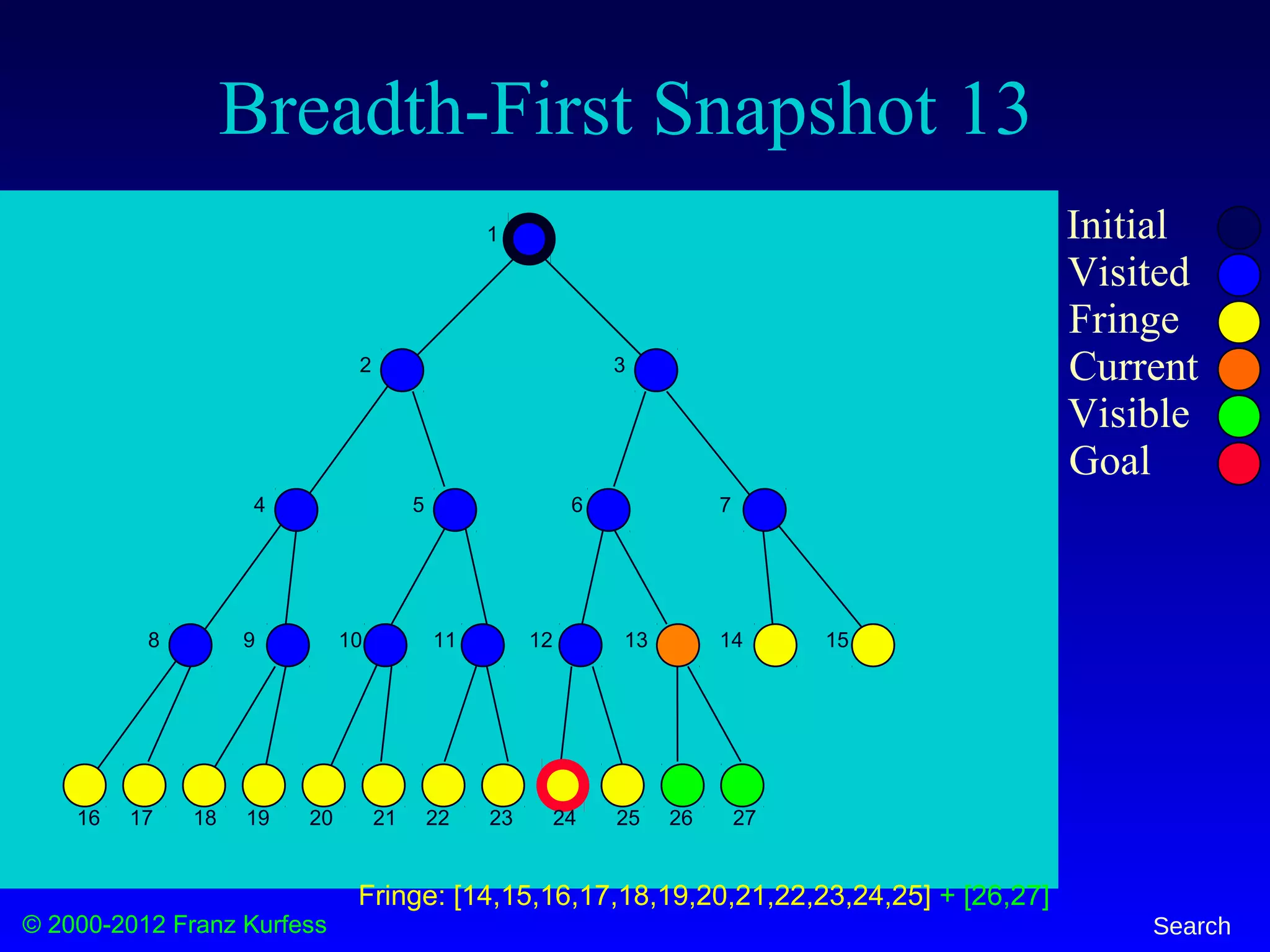

Fringe: [14,15,16,17,18,19,20,21,22,23,24,25] + [26,27]

Initial
Visited
Fringe
Current
Visible
Goal
1
2 3
4 5 6 7
8 9 10 11 12 13 14 15
16 17 18 19 20 21 22 23 24 25 26 27 28 29
Fringe: [15,16,17,18,19,20,21,22,23,24,25,26,27] + [28,29]

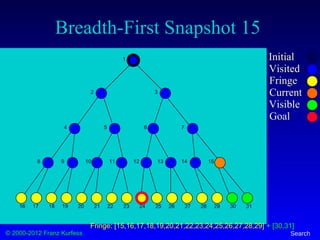

Initial
Visited
Fringe
Current
Visible
Goal
1
2 3
4 5 6 7
8 9 10 11 12 13 14 15
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31

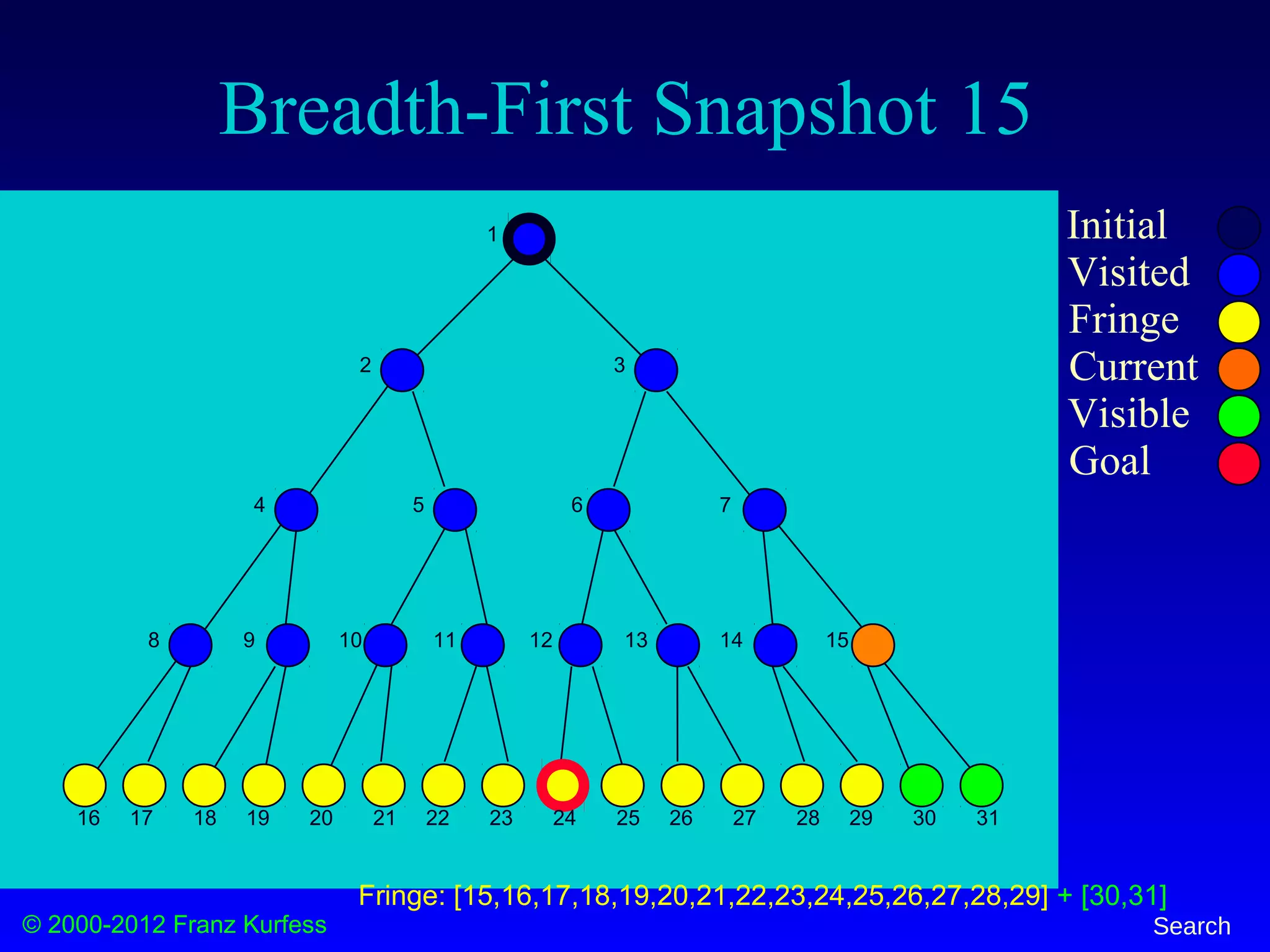

Fringe: [15,16,17,18,19,20,21,22,23,24,25,26,27,28,29] + [30,31]

Initial
Visited
Fringe
Current
Visible
Goal
1
2 3
4 5 6 7
8 9 10 11 12 13 14 15
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31
Fringe: [17,18,19,20,21,22,23,24,25,26,27,28,29,30,31]

Initial
Visited
Fringe
Current
Visible
Goal
1
2 3
4 5 6 7
8 9 10 11 12 13 14 15
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31
Fringe: [18,19,20,21,22,23,24,25,26,27,28,29,30,31]

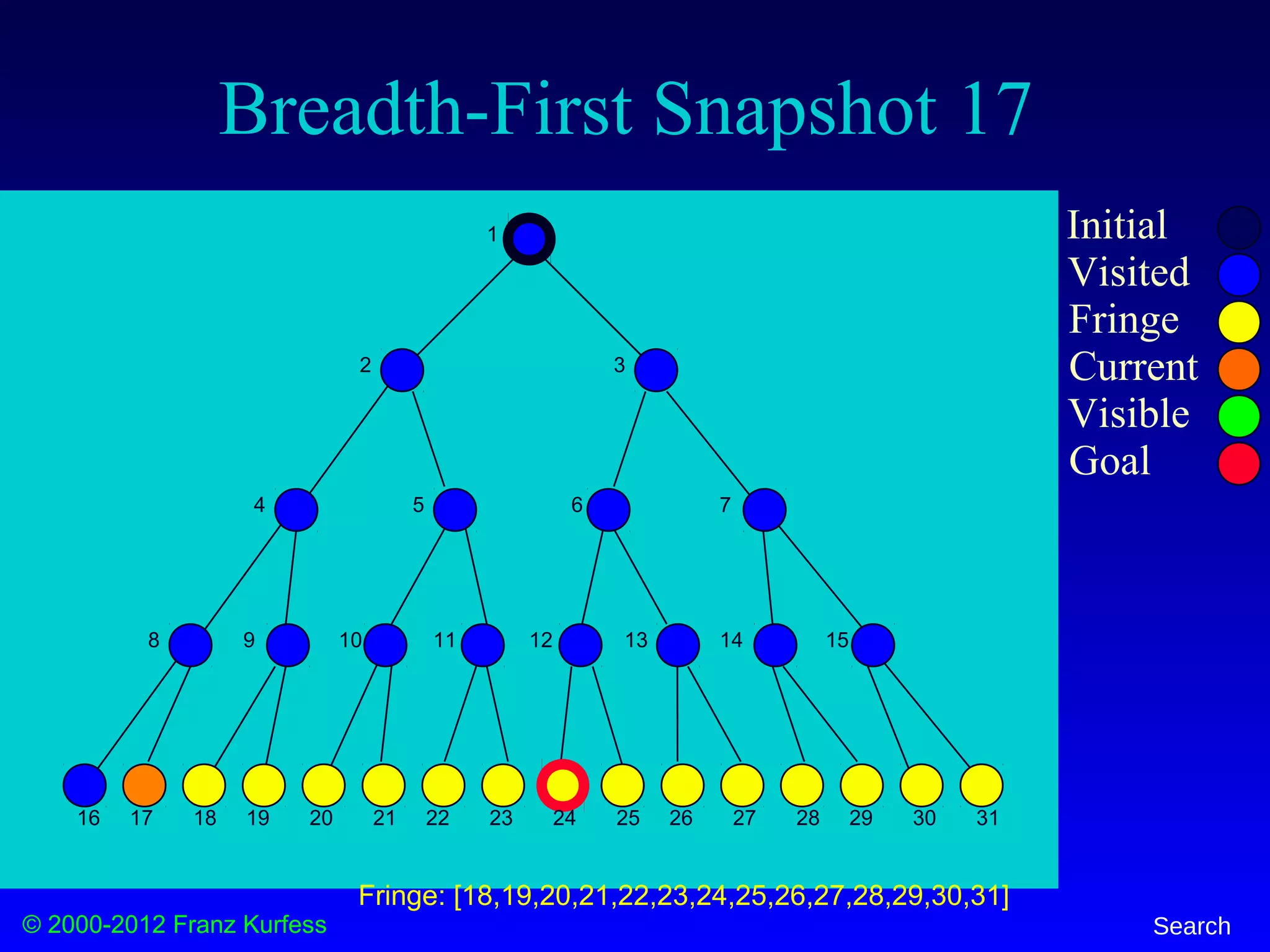

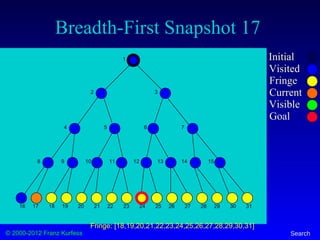

Initial
Visited
Fringe
Current
Visible
Goal
1
2 3
4 5 6 7
8 9 10 11 12 13 14 15
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31
Fringe: [19,20,21,22,23,24,25,26,27,28,29,30,31]

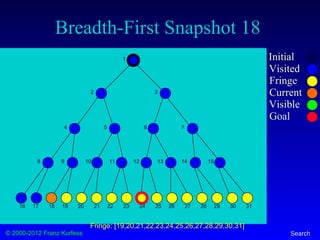

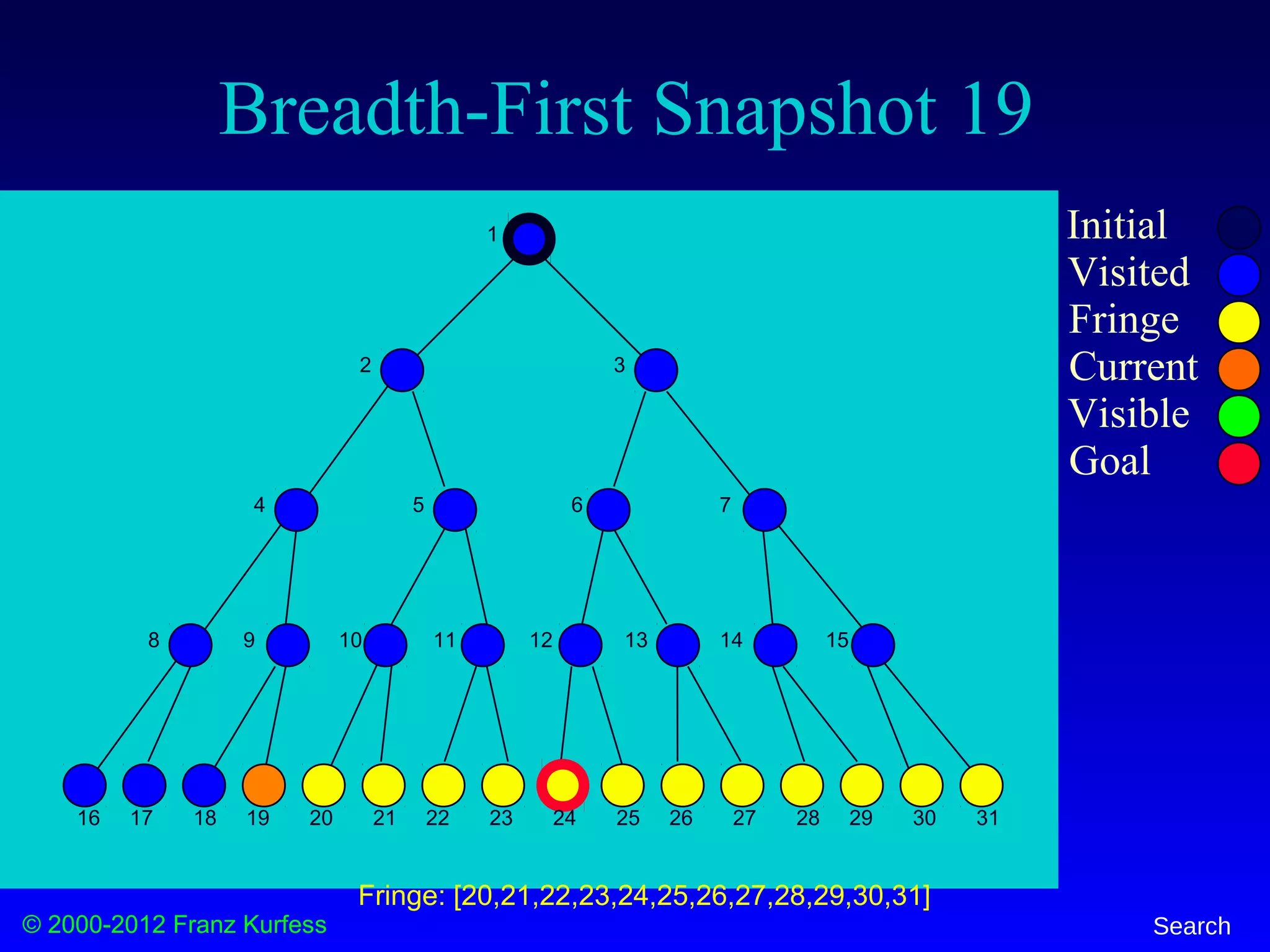

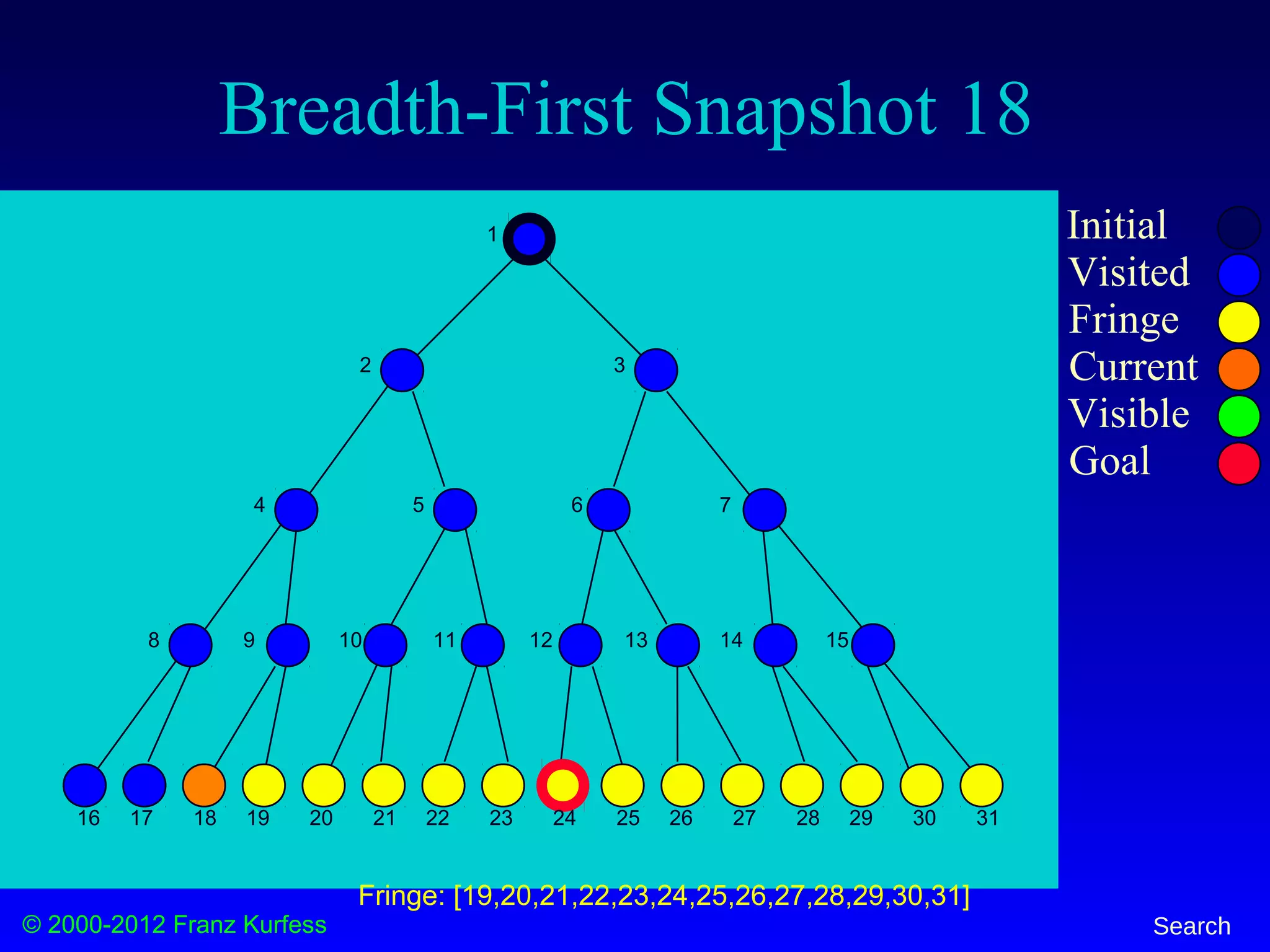

Initial
Visited
Fringe
Current
Visible
Goal
1
2 3
4 5 6 7
8 9 10 11 12 13 14 15
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31
Fringe: [20,21,22,23,24,25,26,27,28,29,30,31]

Initial
Visited
Fringe
Current
Visible
Goal
1
2 3
4 5 6 7
8 9 10 11 12 13 14 15
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31

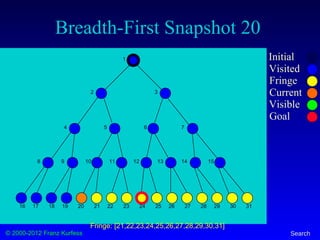

Fringe: [21,22,23,24,25,26,27,28,29,30,31]

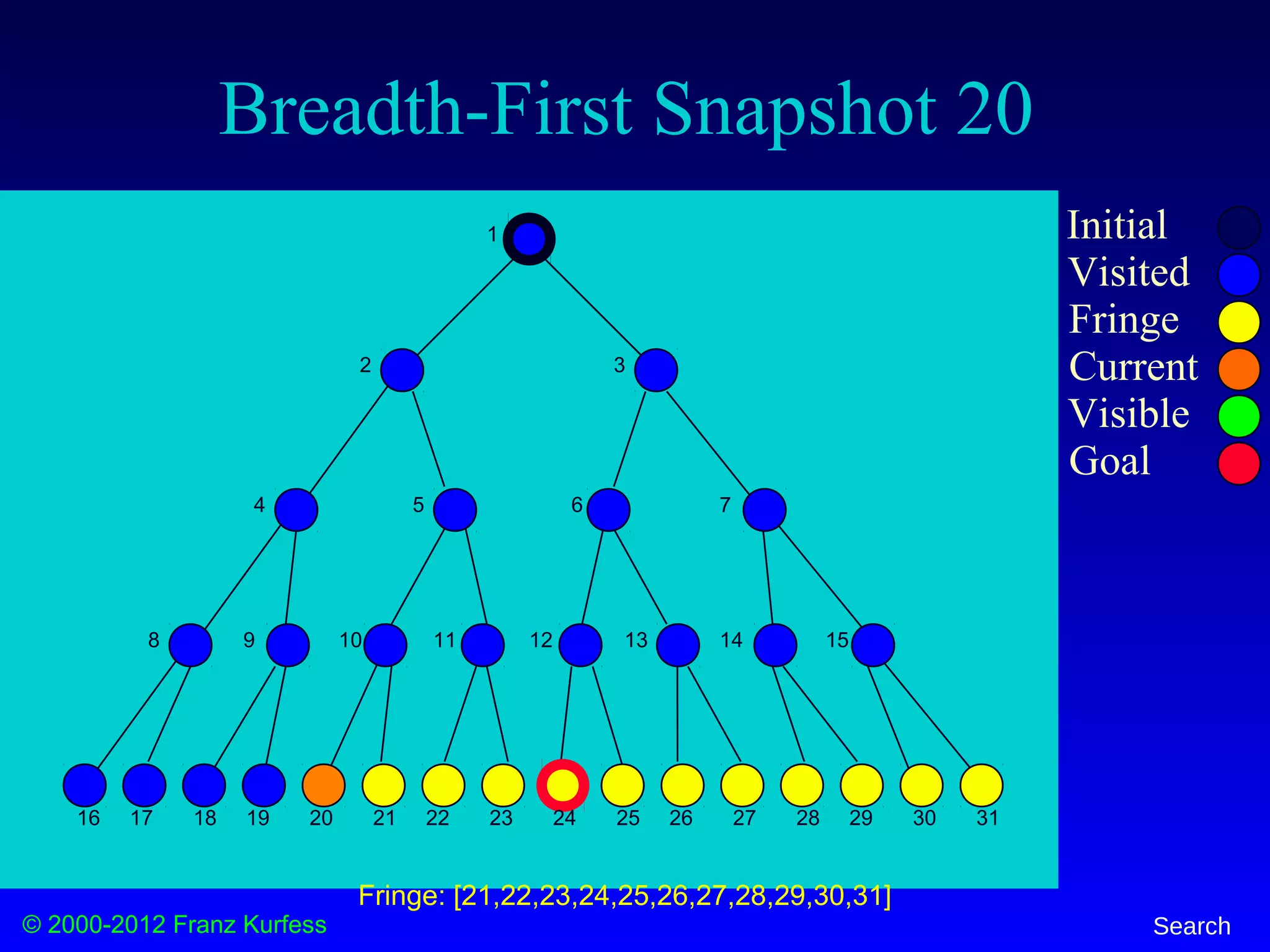

Initial
Visited
Fringe
Current
Visible
Goal
1
2 3
4 5 6 7
8 9 10 11 12 13 14 15
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31
Fringe: [22,23,24,25,26,27,28,29,30,31]

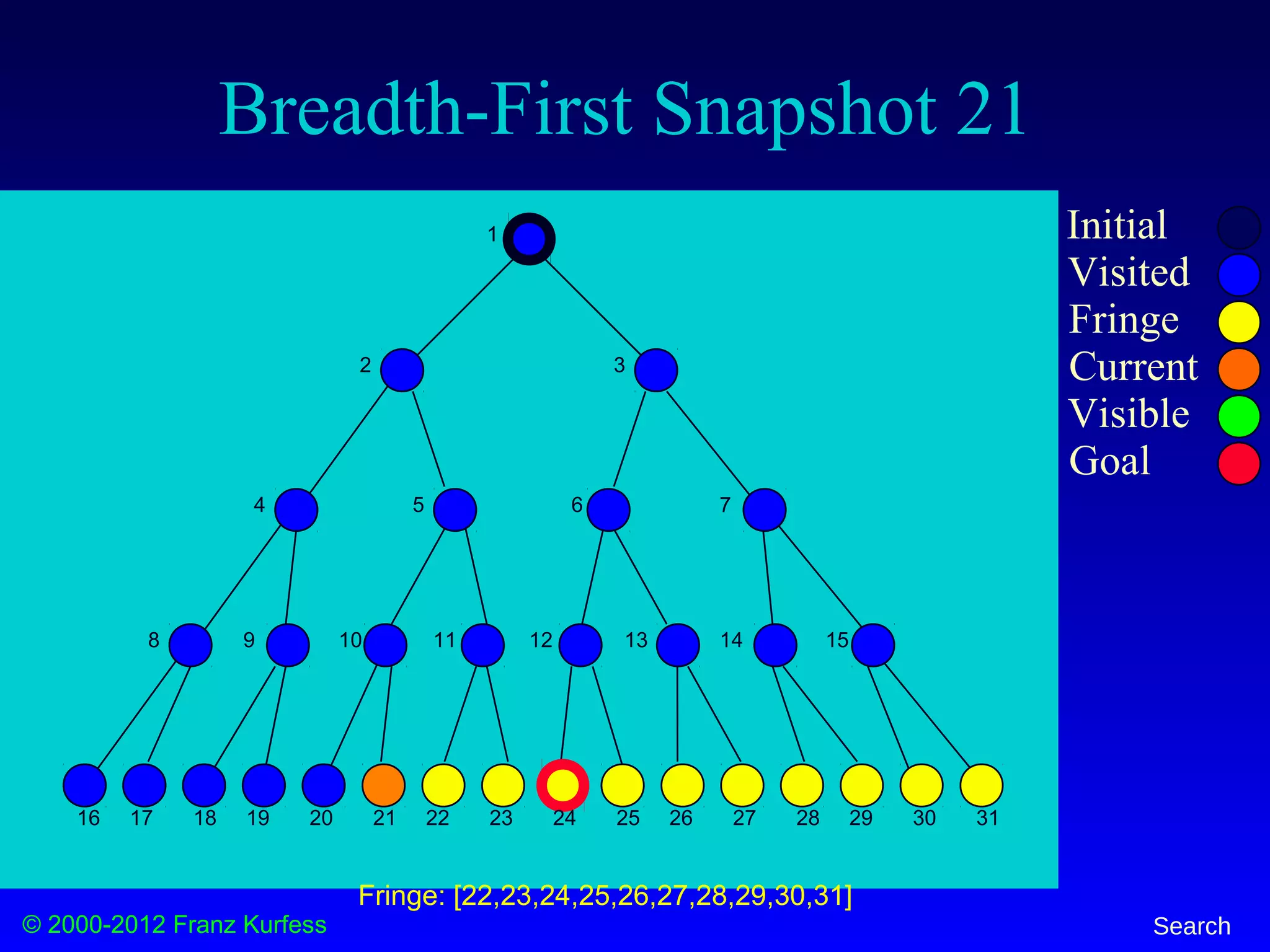

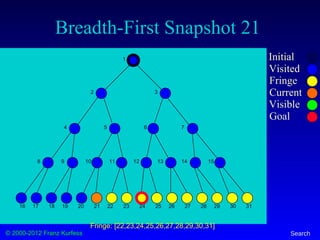

Initial
Visited
Fringe
Current
Visible
Goal
1
2 3
4 5 6 7
8 9 10 11 12 13 14 15
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31
Fringe: [23,24,25,26,27,28,29,30,31]

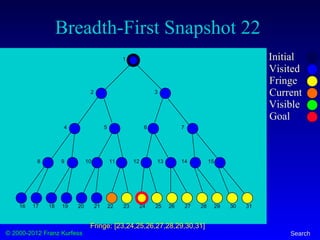

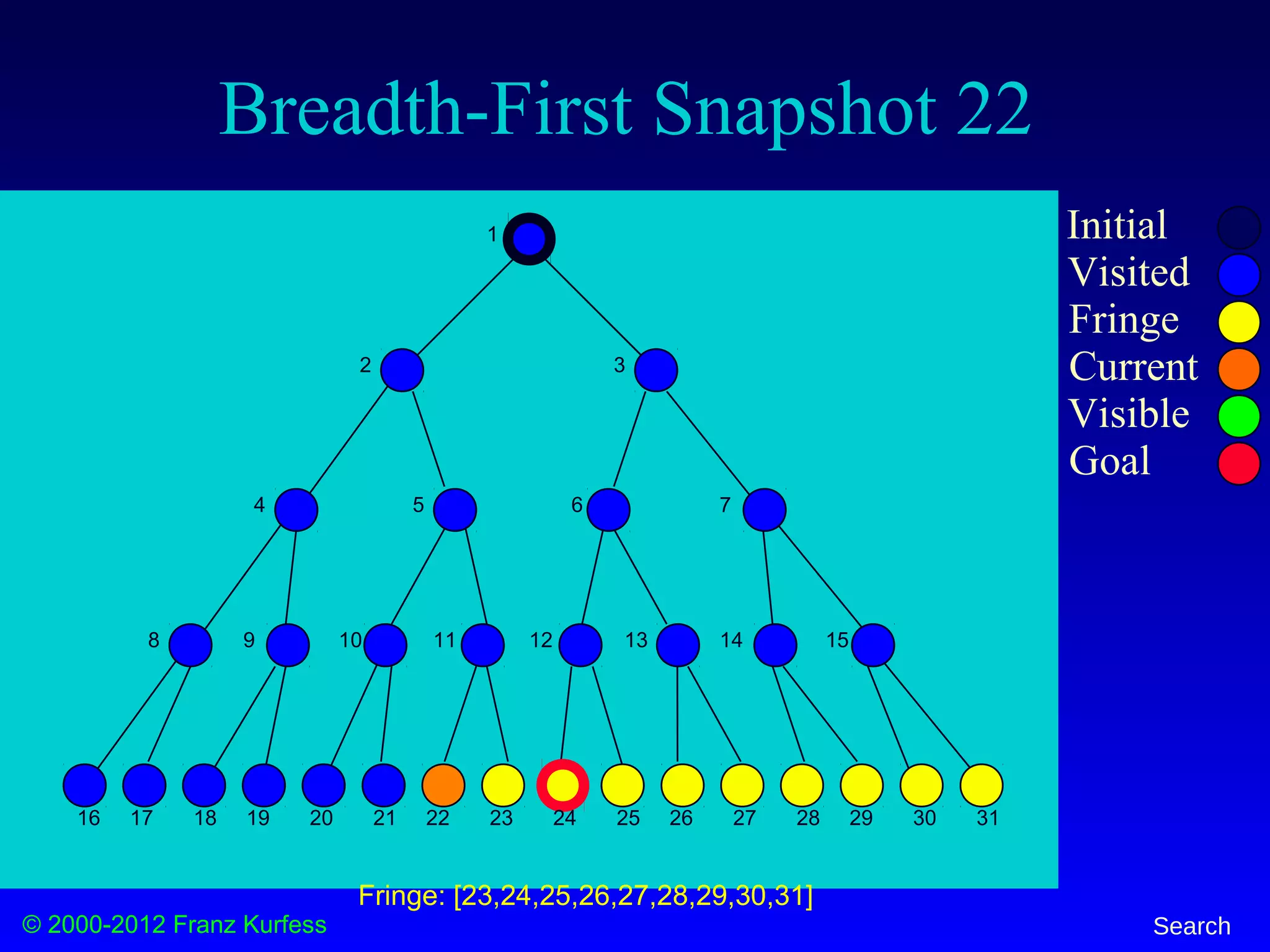

Initial
Visited
Fringe
Current
Visible
Goal
1
2 3
4 5 6 7
8 9 10 11 12 13 14 15
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31

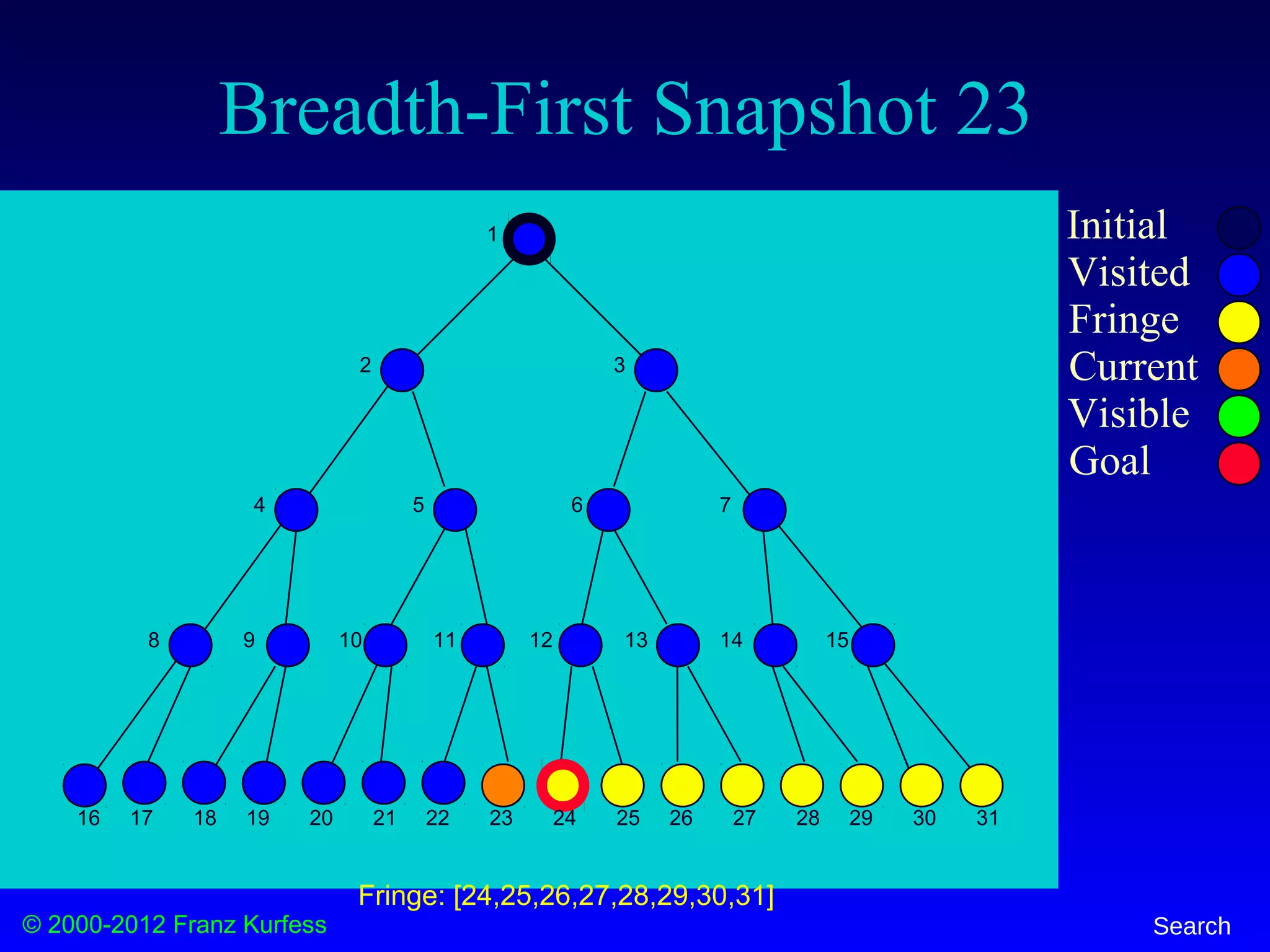

Fringe: [24,25,26,27,28,29,30,31]

Initial
Visited
Fringe
Current
Visible
Goal
1
2 3
4 5 6 7
8 9 10 11 12 13 14 15
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31
Fringe: [25,26,27,28,29,30,31]
Note:
The goal test is
positive for this
node, and a
solution is found
in 24 steps.

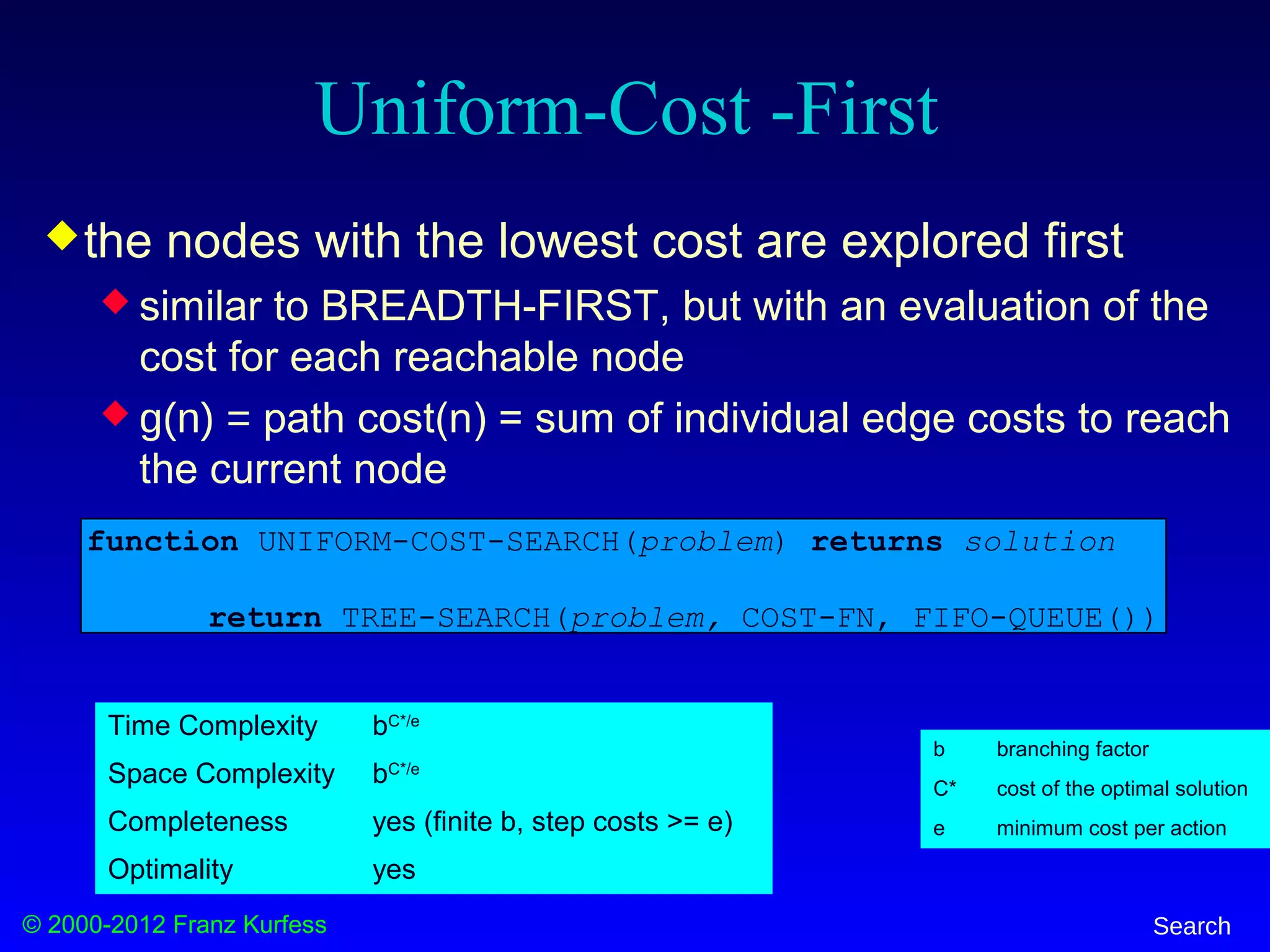

the nodes with the lowest cost are explored first
 similar to BREADTH-FIRST, but with an evaluation of the
cost for each reachable node
 g(n) = path cost(n) = sum of individual edge costs to reach
the current node
function UNIFORM-COST-SEARCH(problem) returns solution
return TREE-SEARCH(problem, COST-FN, FIFO-QUEUE())
Uniform-Cost -First
Time Complexity bC*/e
Space Complexity bC*/e
Completeness yes (finite b, step costs >= e)
Optimality yes
b branching factor
C* cost of the optimal solution
e minimum cost per action

Uniform-Cost Snapshot
Initial
Visited
Fringe
Current
Visible
Goal
1
2 3
4 5 6 7
8 9 10 11 12 13 14 15
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31
4 3
7
2
2 2 4
5 4 4 4 3 6 9
3 4 7 2 4 8 6 4 3 4 2 3 9 25 8
Fringe: [27(10), 4(11), 25(12), 26(12), 14(13), 24(13), 20(14), 15(16), 21(18)]
+ [22(16), 23(15)]
Edge Cost 9

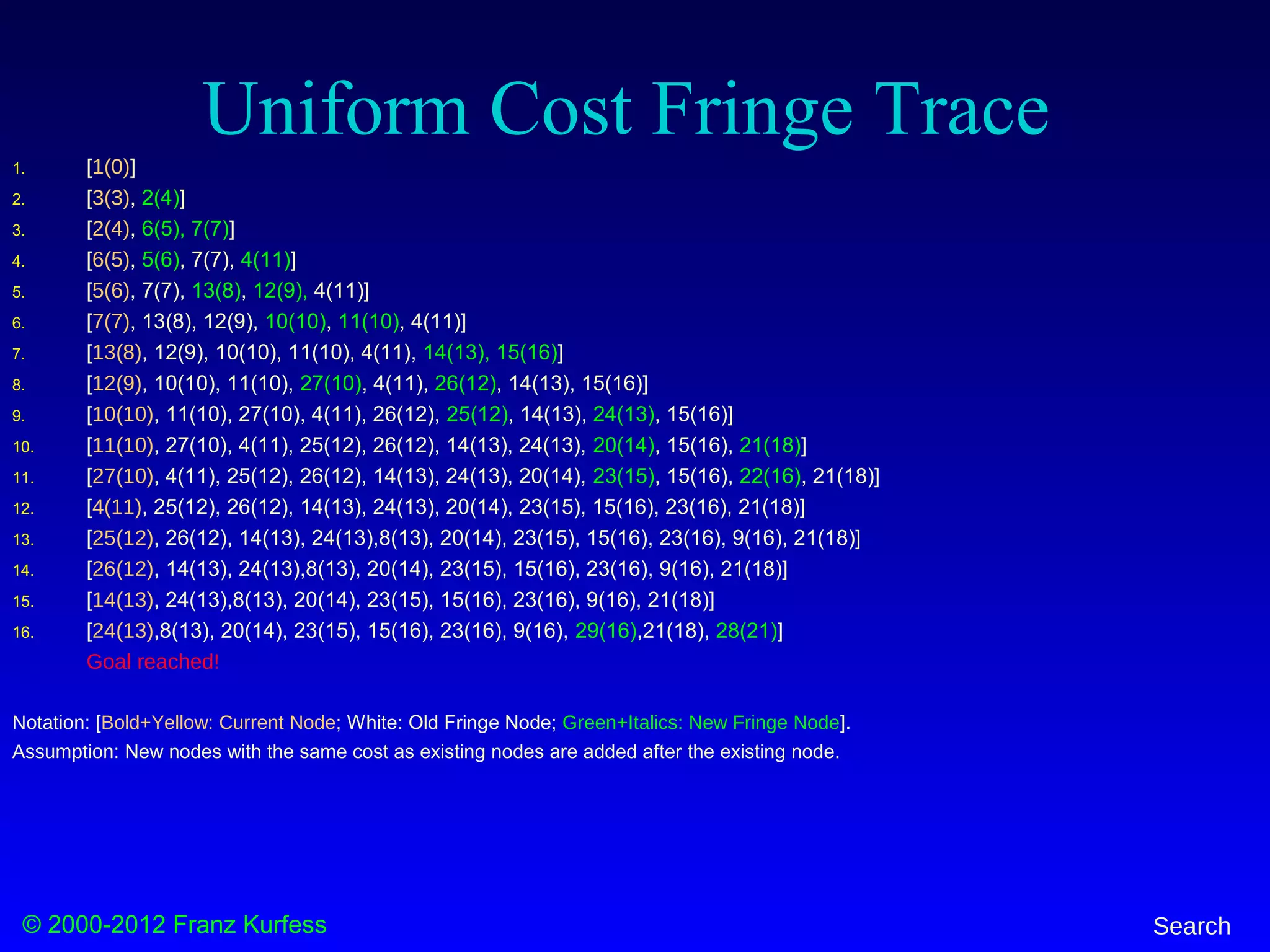

Uniform Cost Fringe Trace
1. [1(0)]
2. [3(3), 2(4)]
3. [2(4), 6(5), 7(7)]
4. [6(5), 5(6), 7(7), 4(11)]
5. [5(6), 7(7), 13(8), 12(9), 4(11)]
6. [7(7), 13(8), 12(9), 10(10), 11(10), 4(11)]
7. [13(8), 12(9), 10(10), 11(10), 4(11), 14(13), 15(16)]
8. [12(9), 10(10), 11(10), 27(10), 4(11), 26(12), 14(13), 15(16)]
9. [10(10), 11(10), 27(10), 4(11), 26(12), 25(12), 14(13), 24(13), 15(16)]
10. [11(10), 27(10), 4(11), 25(12), 26(12), 14(13), 24(13), 20(14), 15(16), 21(18)]
11. [27(10), 4(11), 25(12), 26(12), 14(13), 24(13), 20(14), 23(15), 15(16), 22(16), 21(18)]
12. [4(11), 25(12), 26(12), 14(13), 24(13), 20(14), 23(15), 15(16), 23(16), 21(18)]
13. [25(12), 26(12), 14(13), 24(13),8(13), 20(14), 23(15), 15(16), 23(16), 9(16), 21(18)]
14. [26(12), 14(13), 24(13),8(13), 20(14), 23(15), 15(16), 23(16), 9(16), 21(18)]
15. [14(13), 24(13),8(13), 20(14), 23(15), 15(16), 23(16), 9(16), 21(18)]
16. [24(13),8(13), 20(14), 23(15), 15(16), 23(16), 9(16), 29(16),21(18), 28(21)]
Goal reached!
Notation: [Bold+Yellow: Current Node; White: Old Fringe Node; Green+Italics: New Fringe Node].
Assumption: New nodes with the same cost as existing nodes are added after the existing node.

Breadth-First vs. Uniform-Cost
breadth-first always expands the shallowest node
 only optimal if all step costs are equal
uniform-cost considers the overall path cost
 optimal for any (reasonable) cost function
 non-zero, positive
 gets bogged down in trees with many fruitless, short
branches
 low path cost, but no goal node
both are complete for non-extreme problems
 finite number of branches
 strictly positive search function

continues exploring newly generated nodes
 achieved by the TREE-SEARCH method by appending
newly generated nodes at the beginning of the search
queue
 utilizes a Last-In, First-Out (LIFO) queue, or stack
function DEPTH-FIRST-SEARCH(problem) returns solution
return TREE-SEARCH(problem, LIFO-QUEUE())
Depth-First
b branching factor
m maximum path length
Time Complexity bm
Space Complexity b*m
Completeness no (for infinite branch length)
Optimality no

Depth-First Snapshot
Initial
Visited
Fringe
Current
Visible
Goal
1
2 3
4 5 6 7
8 9 10 11 12 13 14 15
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31
Fringe: [3] + [22,23]

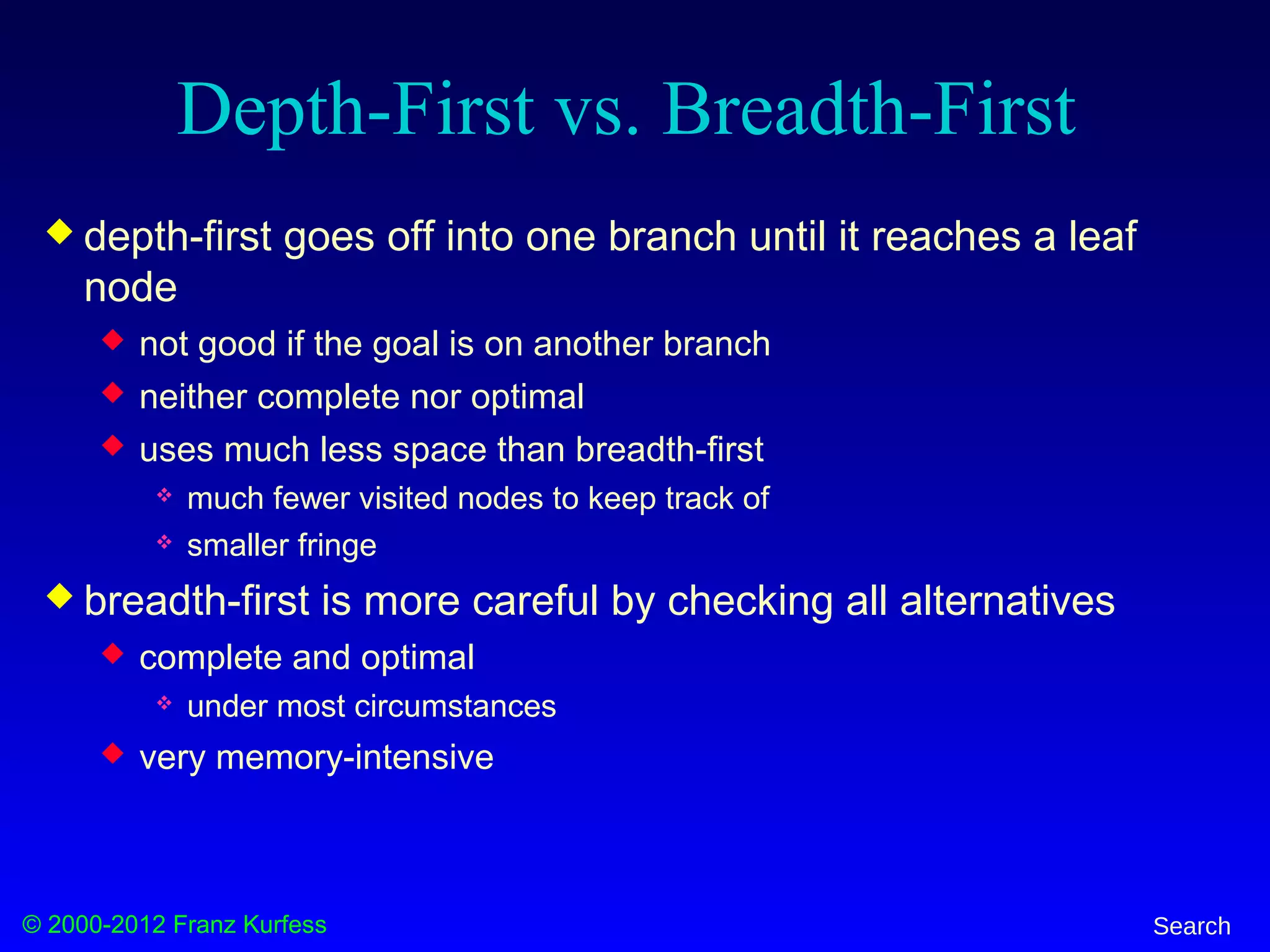

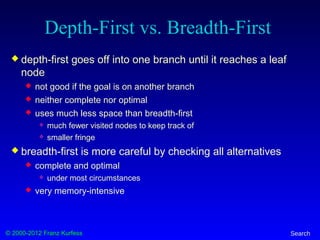

Depth-First vs. Breadth-First
 depth-first goes off into one branch until it reaches a leaf
node
 not good if the goal is on another branch
 neither complete nor optimal
 uses much less space than breadth-first
 much fewer visited nodes to keep track of
 smaller fringe
 breadth-first is more careful by checking all alternatives
 complete and optimal
 under most circumstances
 very memory-intensive

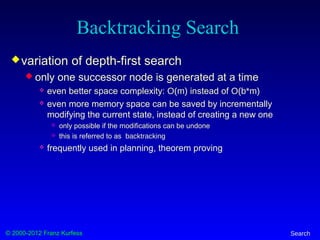

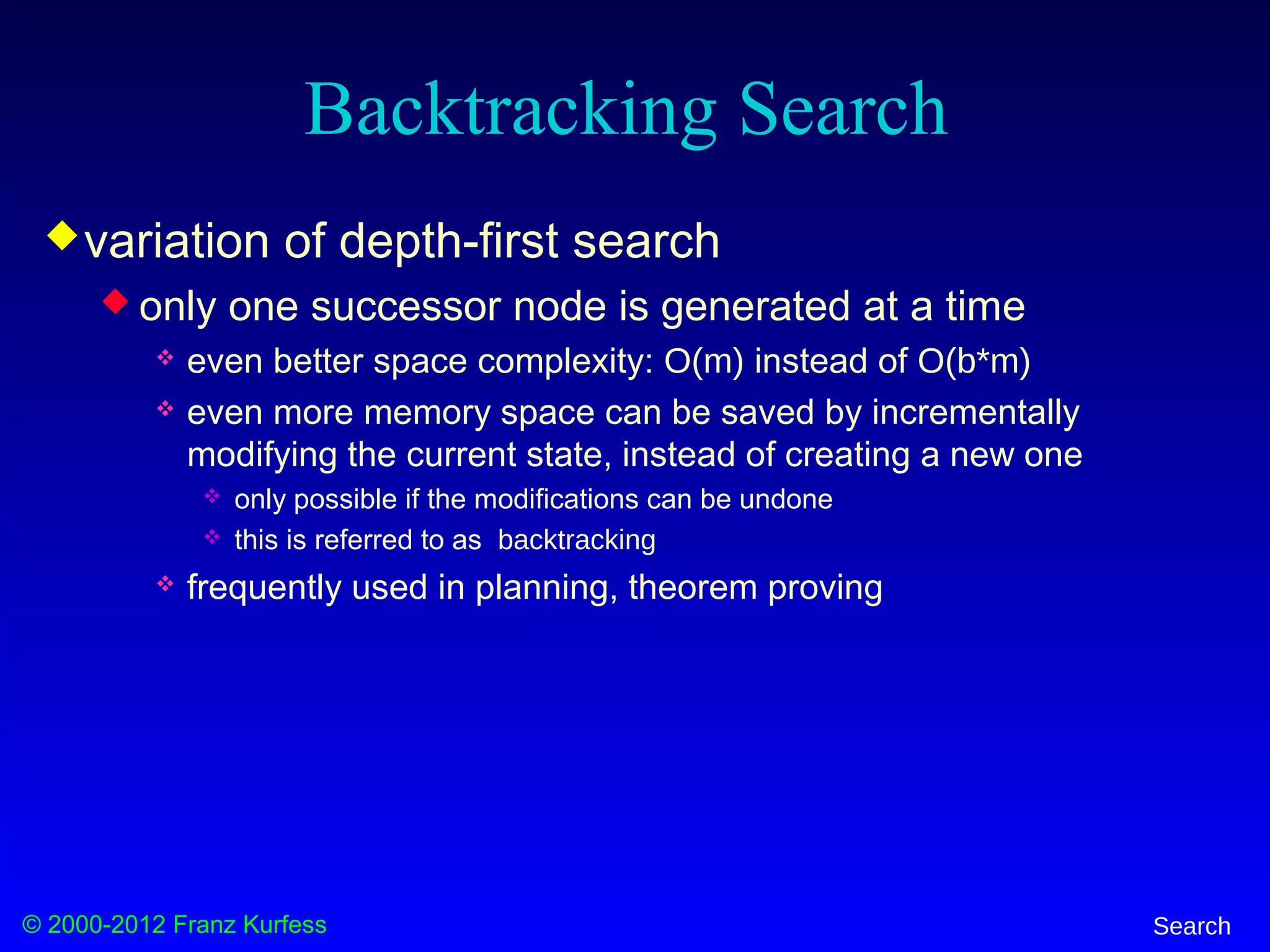

Backtracking Search
variation of depth-first search
 only one successor node is generated at a time
 even better space complexity: O(m) instead of O(b*m)
 even more memory space can be saved by incrementally
modifying the current state, instead of creating a new one
 only possible if the modifications can be undone
 this is referred to as backtracking
 frequently used in planning, theorem proving

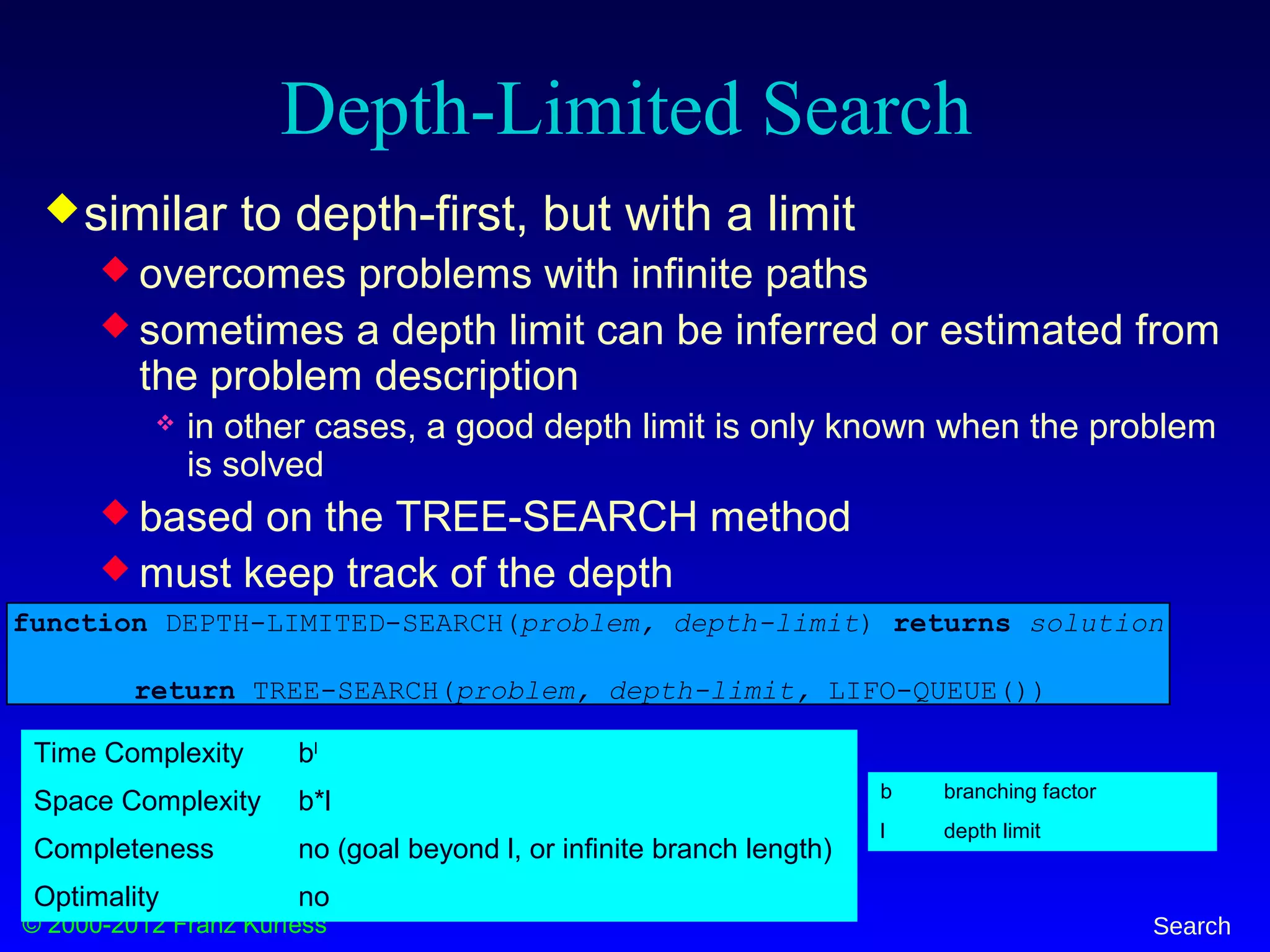

Depth-Limited Search
similar to depth-first, but with a limit
 overcomes problems with infinite paths
 sometimes a depth limit can be inferred or estimated from
the problem description
 in other cases, a good depth limit is only known when the problem
is solved
 based on the TREE-SEARCH method
 must keep track of the depth
function DEPTH-LIMITED-SEARCH(problem, depth-limit) returns solution
return TREE-SEARCH(problem, depth-limit, LIFO-QUEUE())
b branching factor
l depth limit
Time Complexity bl
Space Complexity b*l
Completeness no (goal beyond l, or infinite branch length)
Optimality no

applies LIMITED-DEPTH with increasing depth limits
 combines advantages of BREADTH-FIRST and DEPTH-
FIRST methods
 many states are expanded multiple times
 doesn’t really matter because the number of those nodes is small
 in practice, one of the best uninformed search methods
 for large search spaces, unknown depth
function ITERATIVE-DEEPENING-SEARCH(problem) returns solution
for depth := 0 to unlimited do
result := DEPTH-LIMITED-SEARCH(problem, depth-limit)
if result != cutoff then return result
Iterative Deepening
b branching factor
d tree depth
Time Complexity bd
Space Complexity b*d
Completeness yes (finite b)
Optimality yes (all step costs identical)

Iterative deepening search l =0

Iterative deepening search
 Number of nodes generated in a depth-limited search to depth d with
branching factor b:
NDLS = b0
+ b1
+ b2
+ … + bd-2
+ bd-1
+ bd
 Number of nodes generated in an iterative deepening search to depth d
with branching factor b:
NIDS = (d+1)b0
+ d b^1
+ (d-1)b^2
+ … + 3bd-2
+2bd-1
+ 1bd
 For b = 10, d = 5,
 NDLS = 1 + 10 + 100 + 1,000 + 10,000 + 100,000 = 111,111
 NIDS = 6 + 50 + 400 + 3,000 + 20,000 + 100,000 = 123,456
 Overhead = (123,456 - 111,111)/111,111 = 11%

Bi-directional Search
search simultaneously from two directions
 forward from the initial and backward from the goal state
may lead to substantial savings if it is applicable
has severe limitations
 predecessors must be generated, which is not always
possible
 search must be coordinated between the two searches
 one search must keep all nodes in memory
b branching factor
d tree depth
Time Complexity bd/2
Space Complexity bd/2
Completeness yes (b finite, breadth-first for both directions)
Optimality yes (all step costs identical, breadth-first for
both directions)

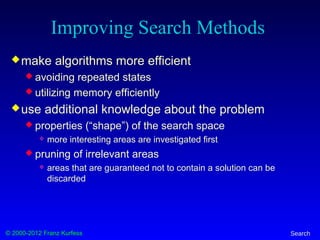

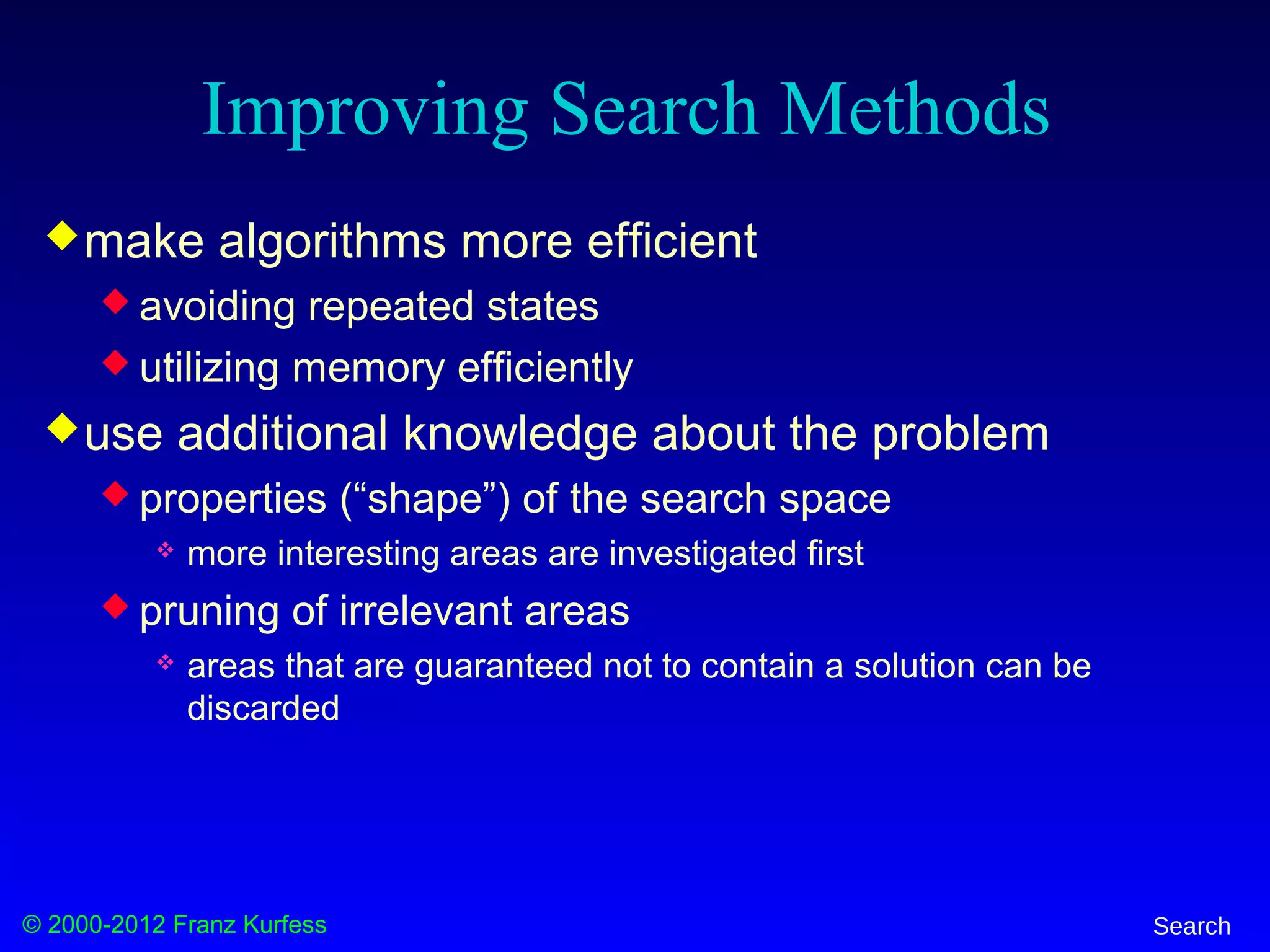

Improving Search Methods
make algorithms more efficient
 avoiding repeated states
 utilizing memory efficiently
use additional knowledge about the problem
 properties (“shape”) of the search space
 more interesting areas are investigated first
 pruning of irrelevant areas
 areas that are guaranteed not to contain a solution can be
discarded

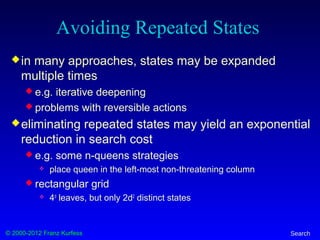

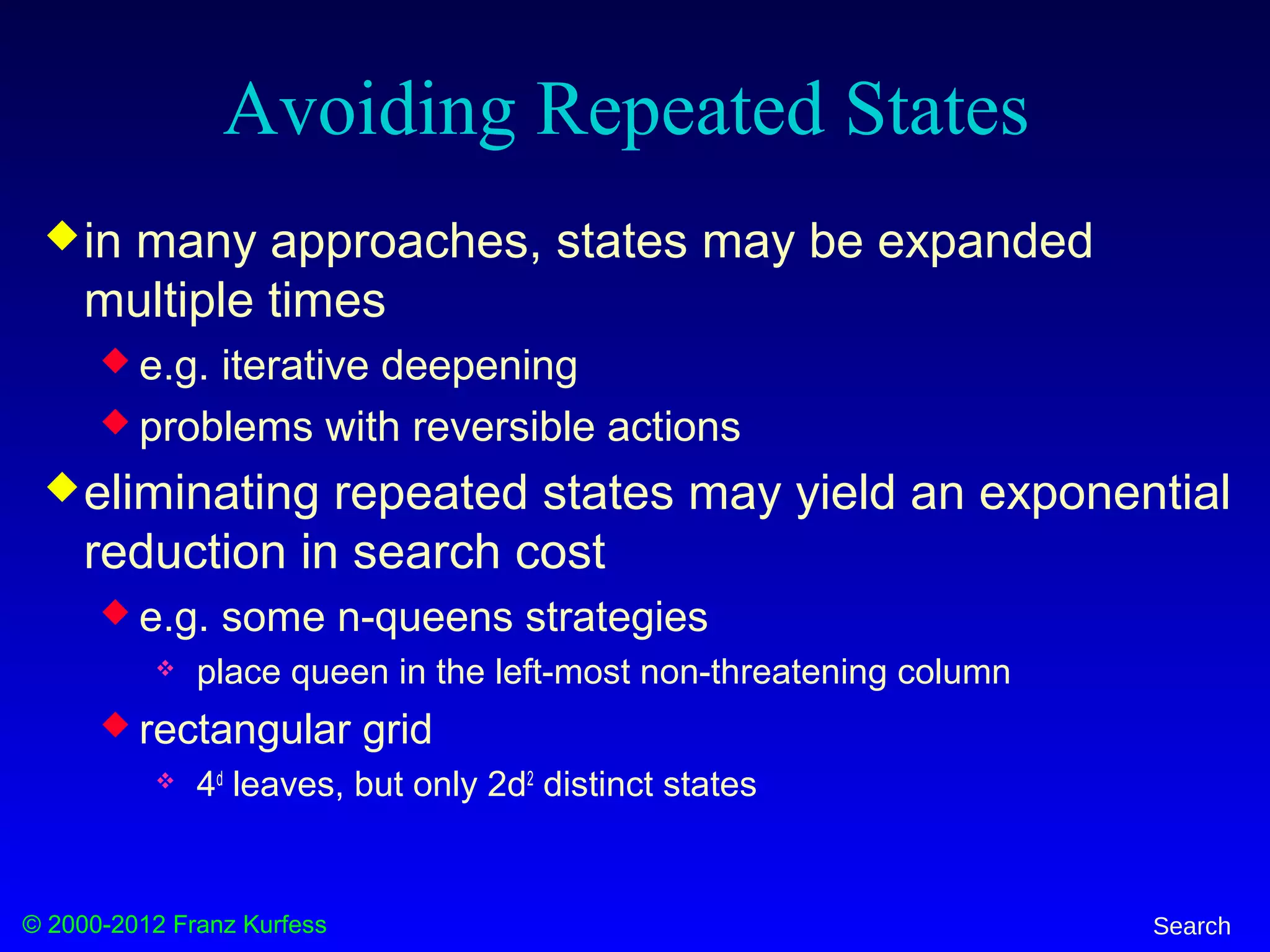

Avoiding Repeated States
in many approaches, states may be expanded
multiple times
 e.g. iterative deepening
 problems with reversible actions
eliminating repeated states may yield an exponential
reduction in search cost
 e.g. some n-queens strategies
 place queen in the left-most non-threatening column
 rectangular grid
 4d
leaves, but only 2d2
distinct states

Informed Search
relies on additional knowledge about the problem or
domain
 frequently expressed through heuristics (“rules of thumb”)
used to distinguish more promising paths towards a
goal
 may be mislead, depending on the quality of the heuristic
in general, performs much better than uninformed
search
 but frequently still exponential in time and space for
realistic problems

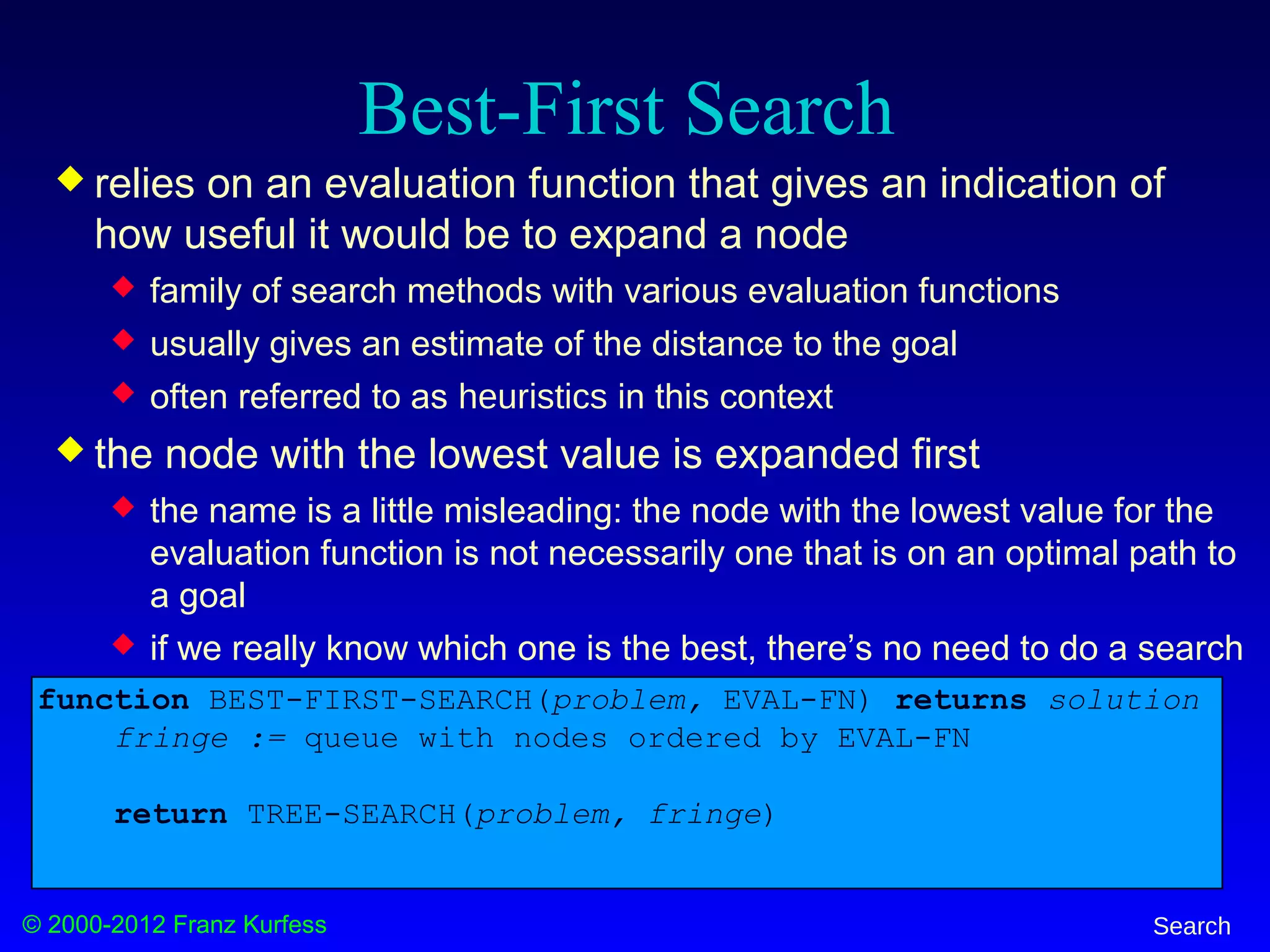

Best-First Search
 relies on an evaluation function that gives an indication of
how useful it would be to expand a node
 family of search methods with various evaluation functions
 usually gives an estimate of the distance to the goal
 often referred to as heuristics in this context
 the node with the lowest value is expanded first
 the name is a little misleading: the node with the lowest value for the
evaluation function is not necessarily one that is on an optimal path to
a goal
 if we really know which one is the best, there’s no need to do a search
function BEST-FIRST-SEARCH(problem, EVAL-FN) returns solution
fringe := queue with nodes ordered by EVAL-FN
return TREE-SEARCH(problem, fringe)

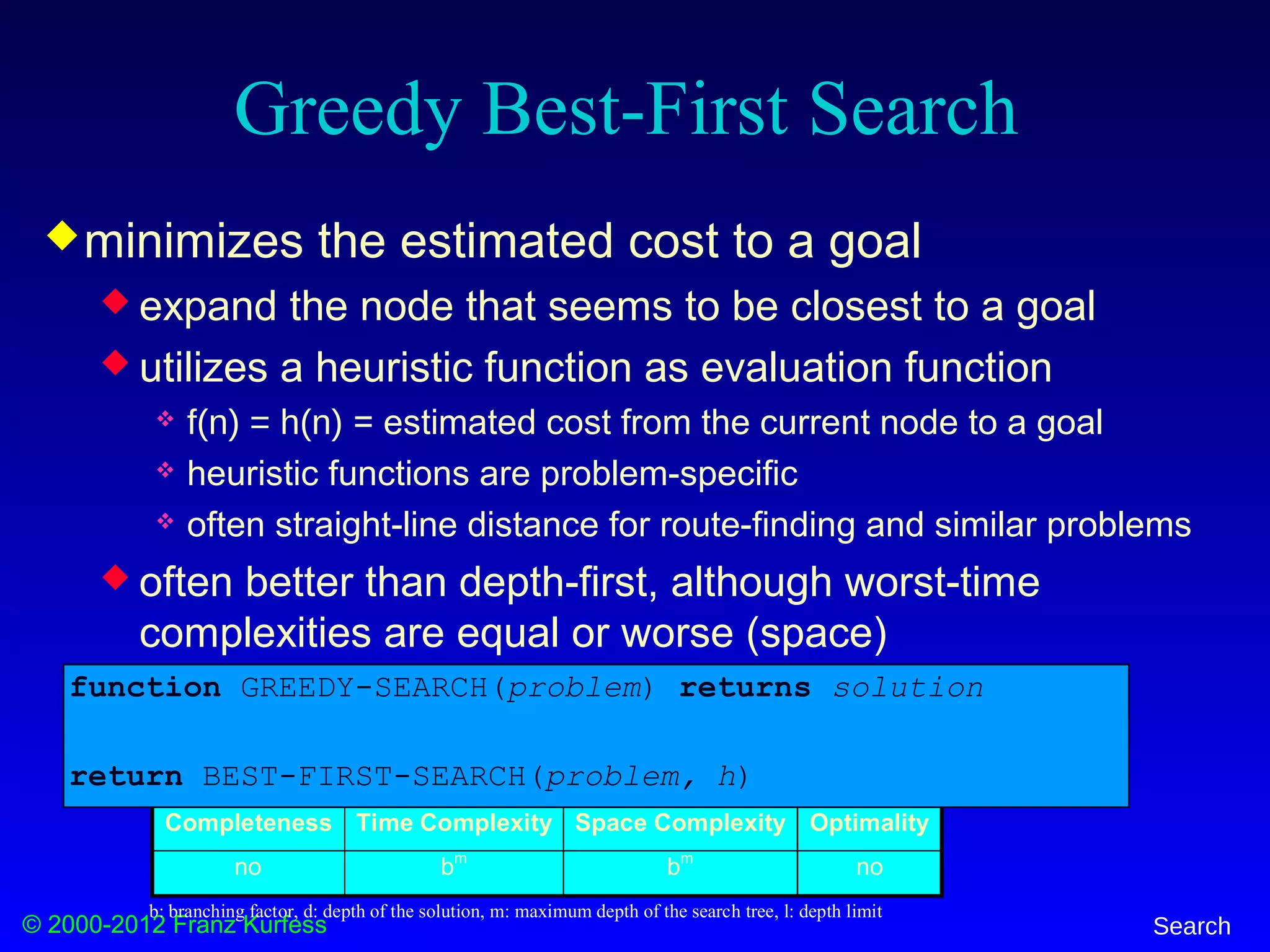

Greedy Best-First Search
minimizes the estimated cost to a goal
 expand the node that seems to be closest to a goal
 utilizes a heuristic function as evaluation function
 f(n) = h(n) = estimated cost from the current node to a goal
 heuristic functions are problem-specific
 often straight-line distance for route-finding and similar problems
 often better than depth-first, although worst-time
complexities are equal or worse (space)
Completeness Time Complexity Space Complexity Optimality
no bm
bm
no
b: branching factor, d: depth of the solution, m: maximum depth of the search tree, l: depth limit
function GREEDY-SEARCH(problem) returns solution
return BEST-FIRST-SEARCH(problem, h)

Greedy Best-First Search Snapshot
77 6 5 4 3 2 1 0 1 3 5 62 48
65 4 2 4 537
65 56
77
9 Initial
Visited
Fringe
Current
Visible
Goal
1
2 3
4 5 6 7
8 9 10 11 12 13 14 15
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31
Fringe: [13(4), 7(6), 8(7)] + [24(0), 25(1)]
7Heuristics

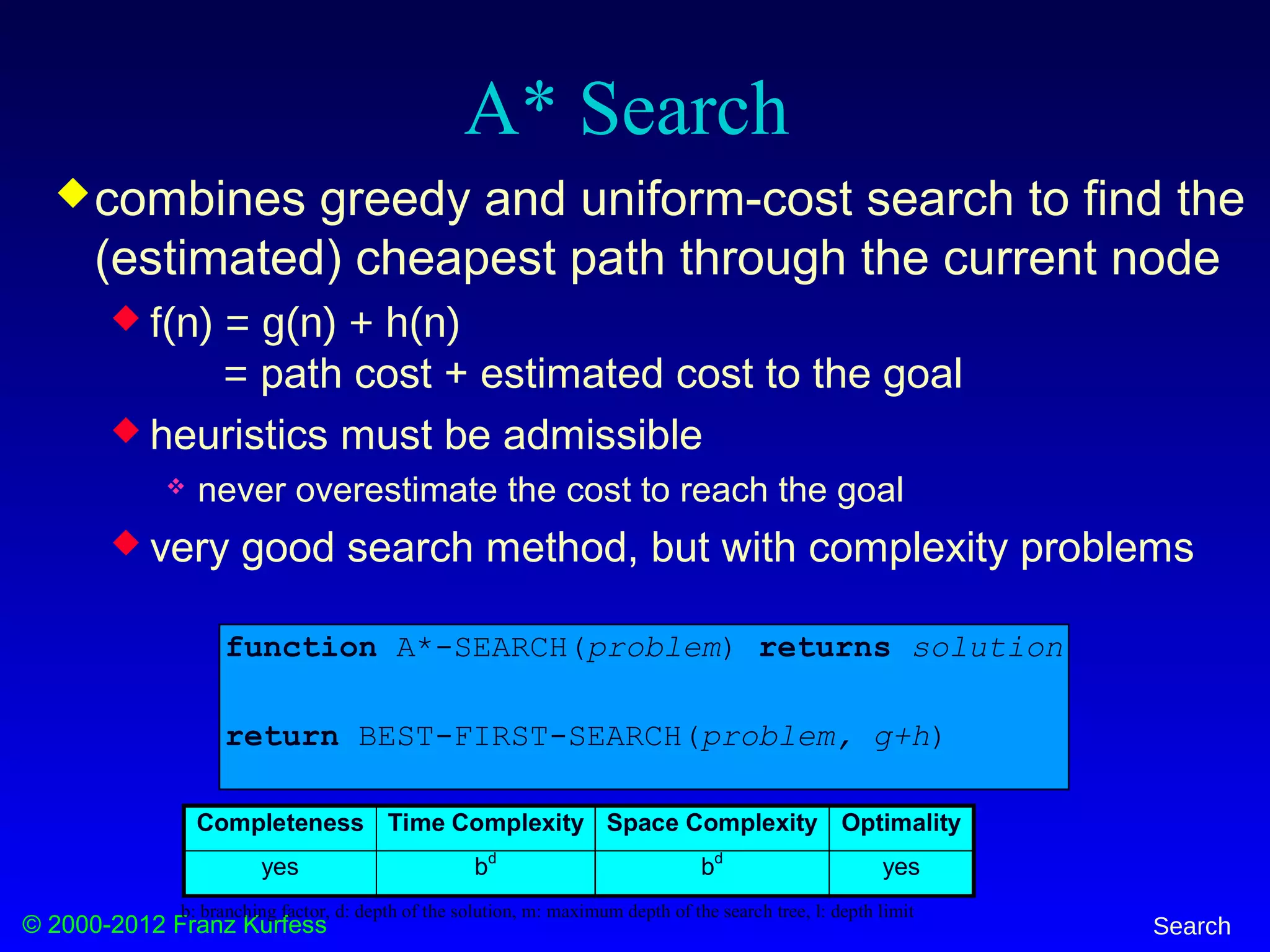

A* Search
combines greedy and uniform-cost search to find the
(estimated) cheapest path through the current node
 f(n) = g(n) + h(n)
= path cost + estimated cost to the goal
 heuristics must be admissible
 never overestimate the cost to reach the goal
 very good search method, but with complexity problems
function A*-SEARCH(problem) returns solution
return BEST-FIRST-SEARCH(problem, g+h)
Completeness Time Complexity Space Complexity Optimality
yes bd
bd
yes
b: branching factor, d: depth of the solution, m: maximum depth of the search tree, l: depth limit

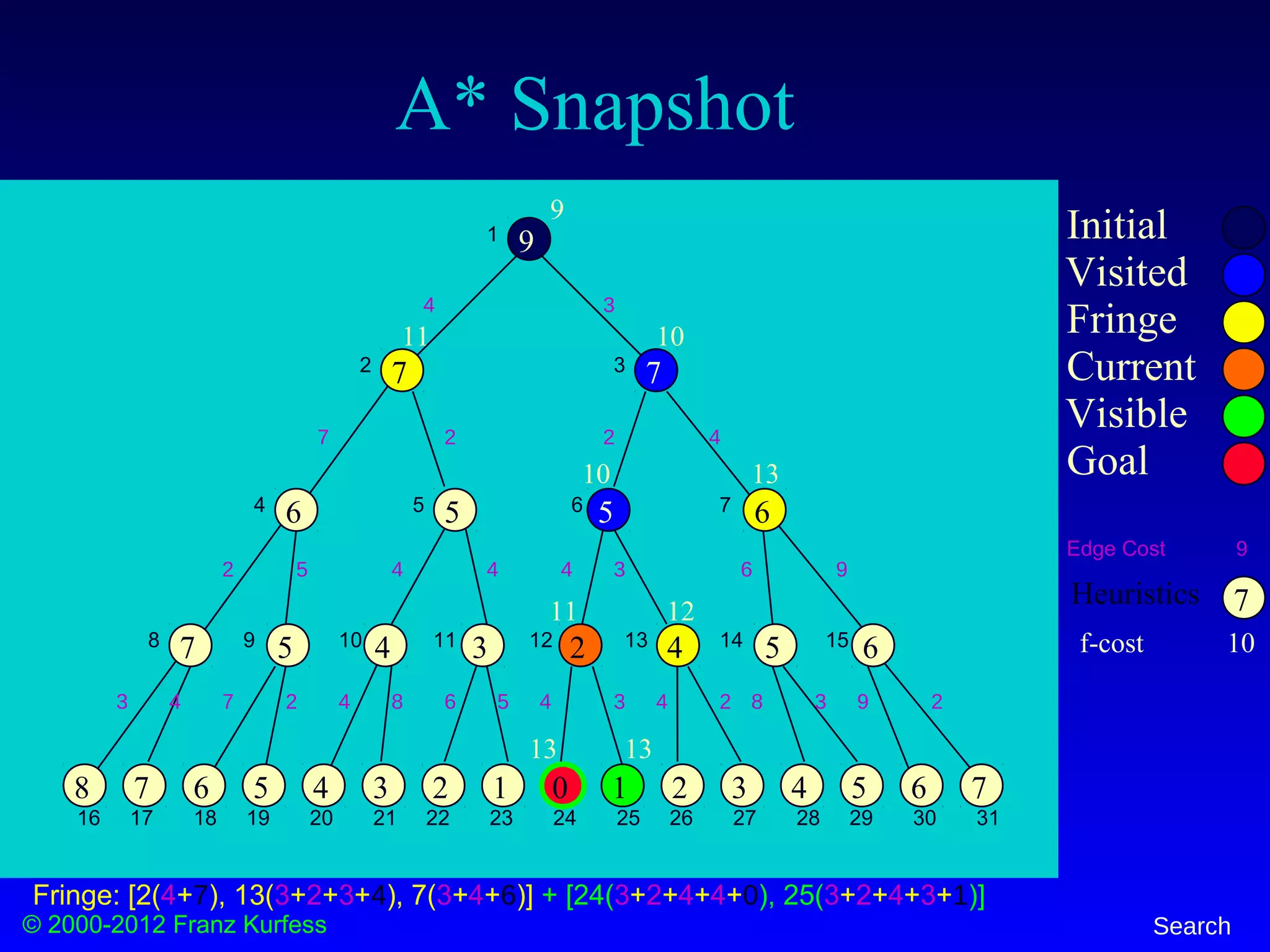

A* Snapshot
77 6 5 4 3 2 1 0 1 3 5 62 48
65 4 2 4 537
65 56
77
9 Initial
Visited
Fringe
Current
Visible
Goal
1
2 3
4 5 6 7
8 9 10 11 12 13 14 15
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31
4 3
7
2
2 2 4
5 4 4 4 3 6 9
3 4 7 2 4 8 6 4 3 4 2 3 9 25 8
Fringe: [2(4+7), 13(3+2+3+4), 7(3+4+6)] + [24(3+2+4+4+0), 25(3+2+4+3+1)]
Edge Cost
7Heuristics
9
f-cost 10
9
11 10
11
10 13
12
13 13

A* Snapshot with all f-Costs
77 6 5 4 3 2 1 0 1 3 5 62 48
65 4 2 4 537
65 56
77
9 Initial
Visited
Fringe
Current
Visible
Goal
1
2 3
4 5 6 7
8 9 10 11 12 13 14 15
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31
4 3
7
2
2 2 4
5 4 4 4 3 6 9
3 4 7 2 4 8 6 4 3 4 2 3 9 25 8
Edge Cost
7Heuristics
9
11 10
17 11 10 13
20 21 13 11 12 18 22
24 24 29 23 18 19 18 16 13 13 14 25 31 2513
f-cost 10
21
14

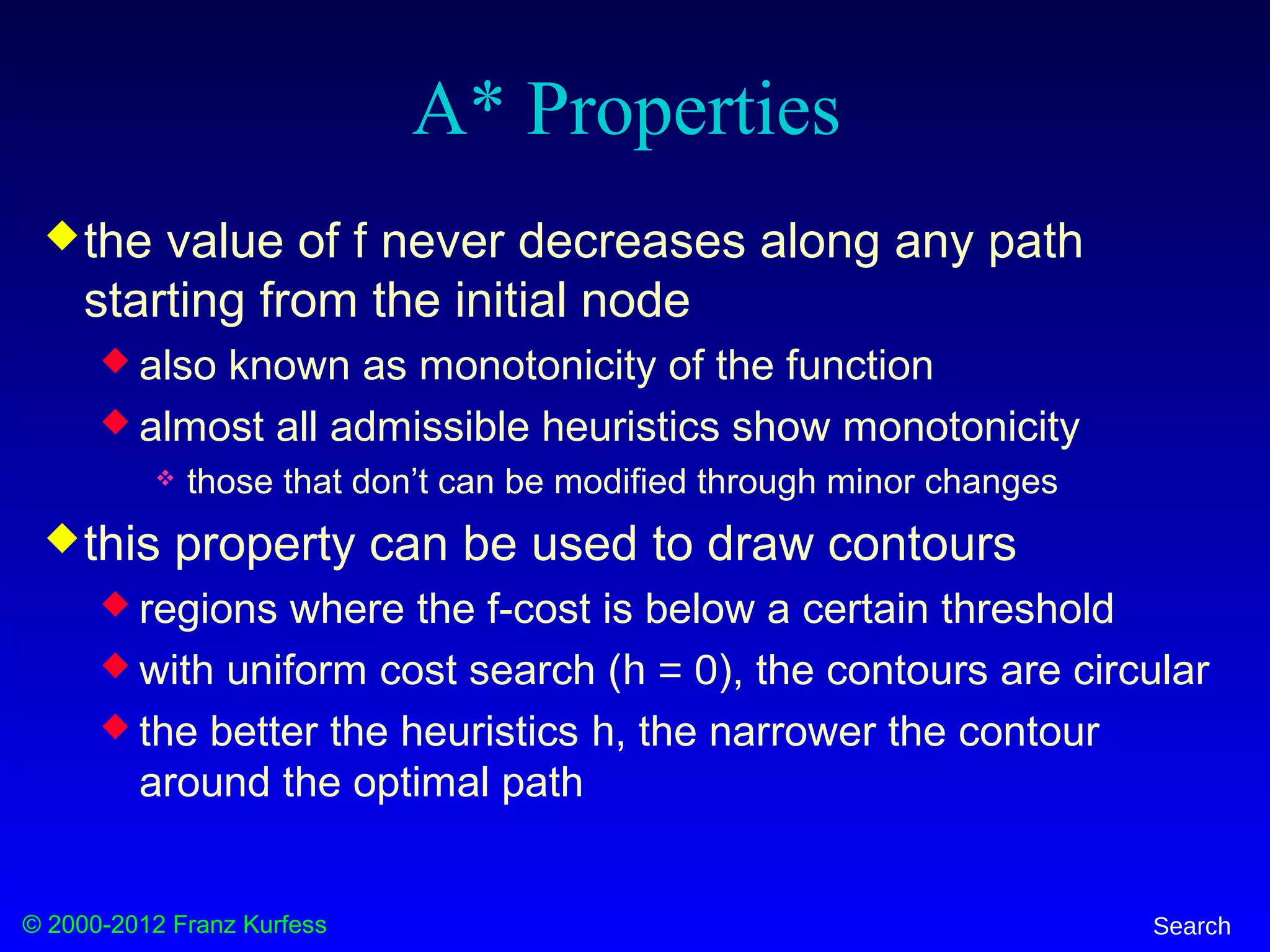

A* Properties
the value of f never decreases along any path
starting from the initial node
 also known as monotonicity of the function
 almost all admissible heuristics show monotonicity
 those that don’t can be modified through minor changes
this property can be used to draw contours
 regions where the f-cost is below a certain threshold
 with uniform cost search (h = 0), the contours are circular
 the better the heuristics h, the narrower the contour
around the optimal path

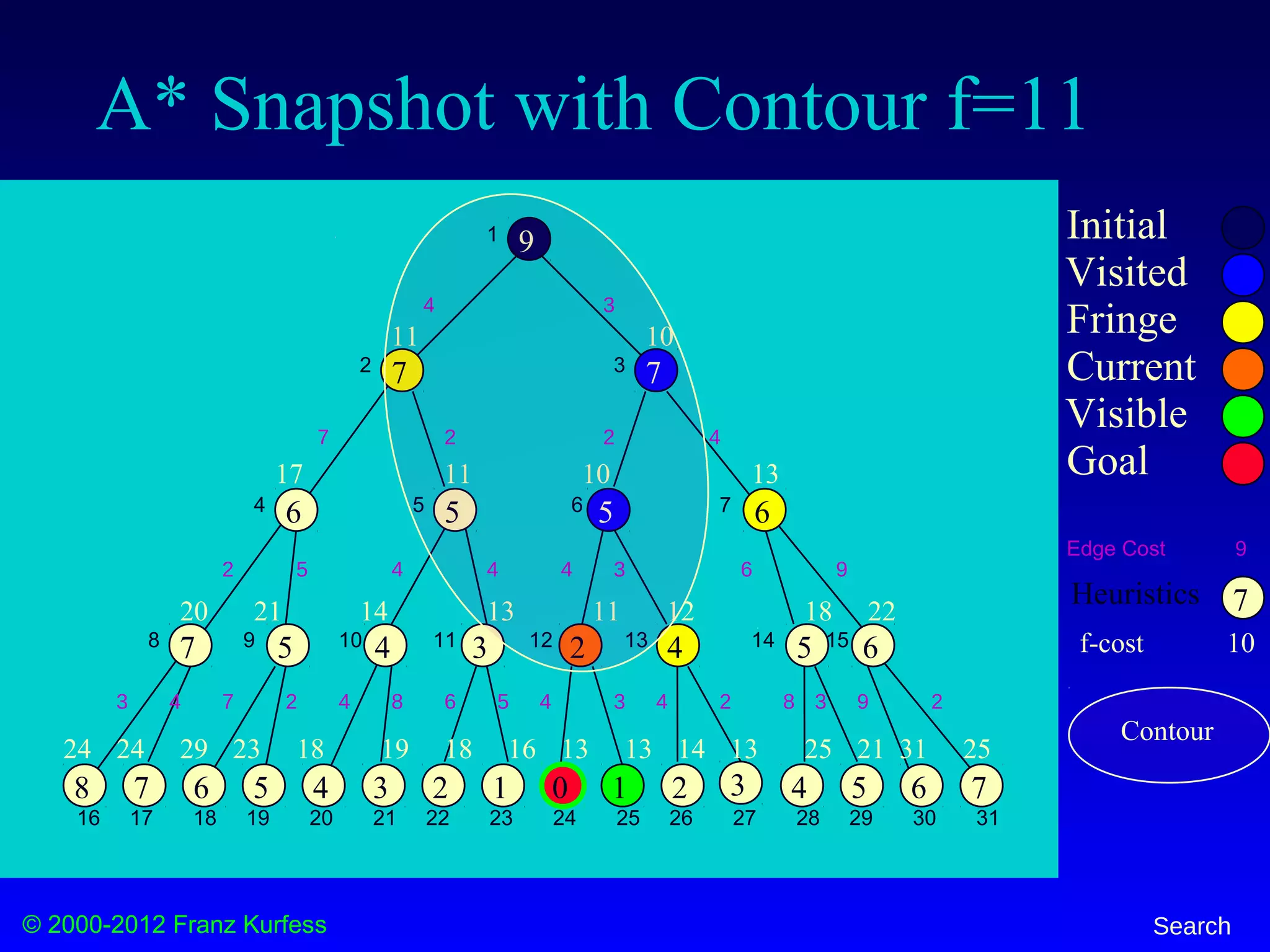

A* Snapshot with Contour f=11
77 6 5 4 3 2 1 0 1 3 5 62 48
65 4 2 4 537
65 56
77
9 Initial
Visited
Fringe
Current
Visible
Goal
1
2 3
4 5 6 7
8 9 10 11 12 13 14 15
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31
4 3
7
2
2 2 4
5 4 4 4 3 6 9
3 4 7 2 4 8 6 4 3 4 2 3 9 25 8
Edge Cost
7Heuristics
9
11 10
17 11 10 13
20 21 13 11 12 18 22
24 24 29 23 18 19 18 16 13 13 14 25 31 2513
f-cost 10
21
14
Contour

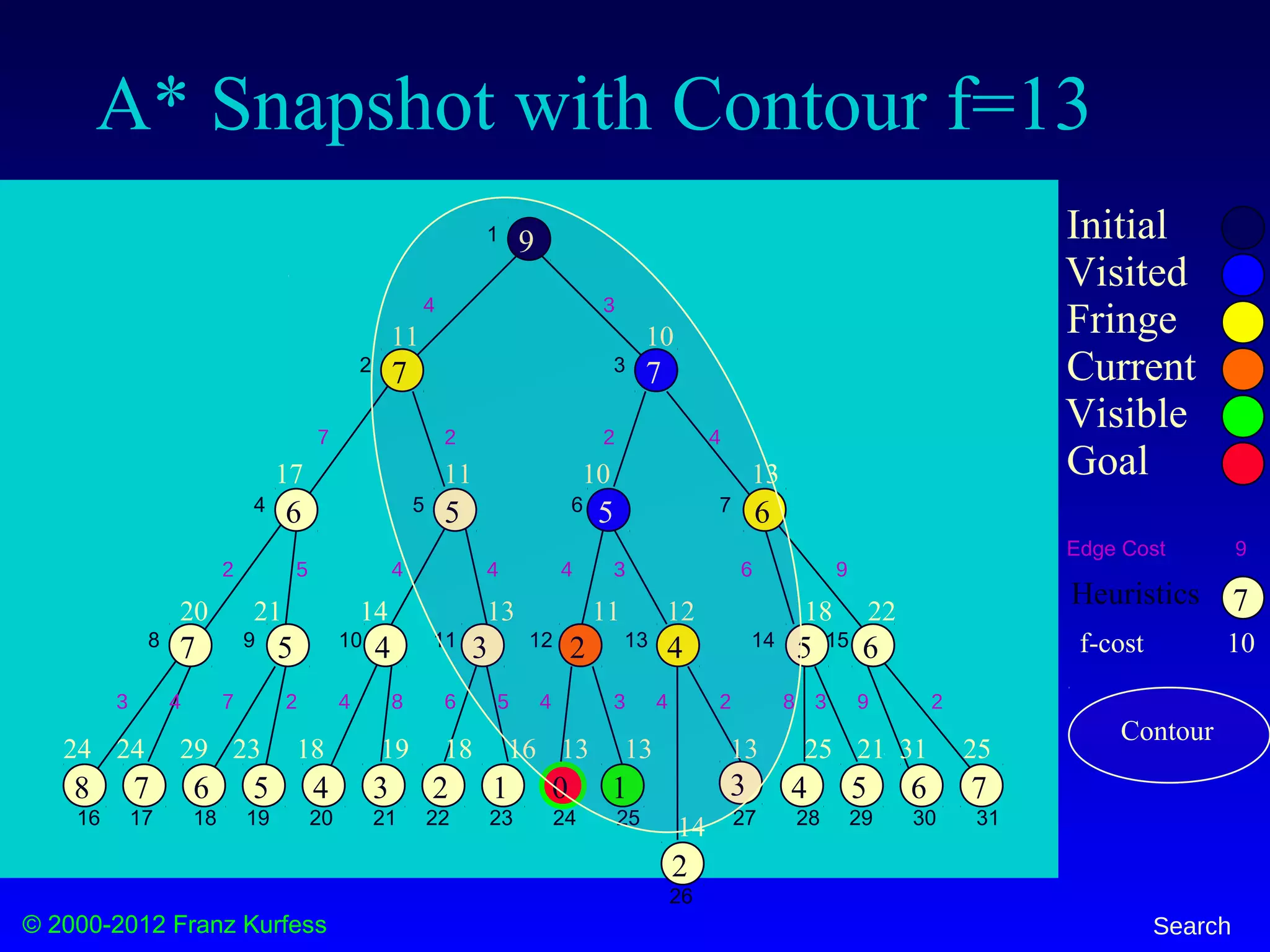

A* Snapshot with Contour f=13
77 6 5 4 3 2 1 0 1 3 5 6
2
48
65 4 2 4 537
65 56
77
9 Initial
Visited
Fringe
Current
Visible
Goal
1
2 3
4 5 6 7
8 9 10 11 12 13 14 15
16 17 18 19 20 21 22 23 24 25
26
27 28 29 30 31
4 3
7
2
2 2 4
5 4 4 4 3 6 9
3 4 7 2 4 8 6 4 3 4 2 3 9 25 8
Edge Cost
7Heuristics
9
11 10
17 11 10 13
20 21 13 11 12 18 22
24 24 29 23 18 19 18 16 13 13
14
25 31 2513
f-cost 10
21
14
Contour

Optimality of A*
A* will find the optimal solution
 the first solution found is the optimal one
A* is optimally efficient
 no other algorithm is guaranteed to expand fewer nodes
than A*
A* is not always “the best” algorithm
 optimality refers to the expansion of nodes
 other criteria might be more relevant
 it generates and keeps all nodes in memory
 improved in variations of A*

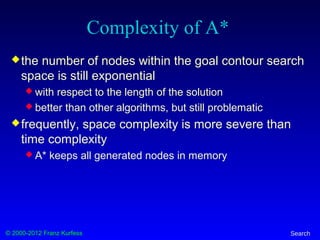

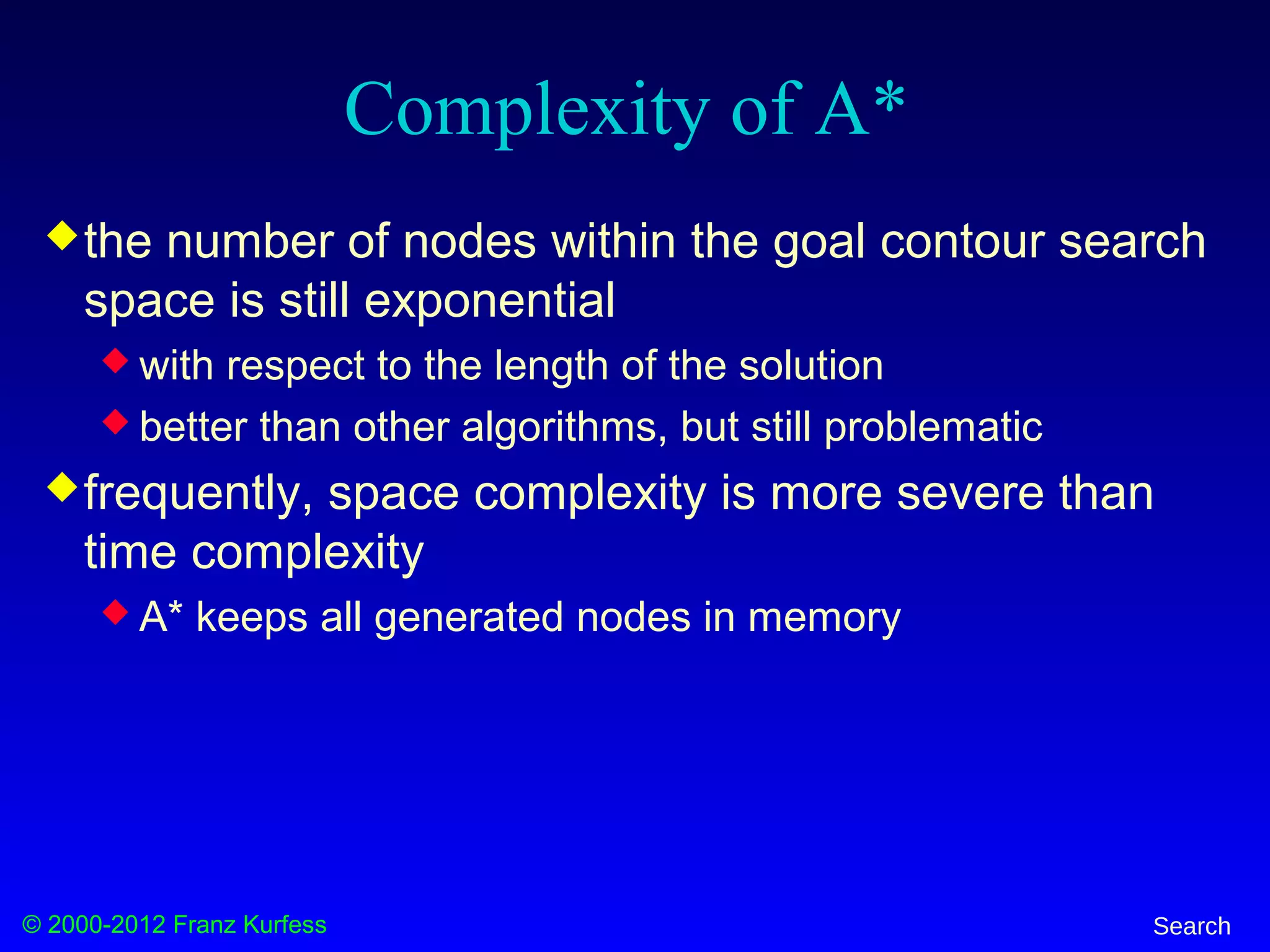

Complexity of A*
the number of nodes within the goal contour search
space is still exponential
 with respect to the length of the solution
 better than other algorithms, but still problematic
frequently, space complexity is more severe than
time complexity
 A* keeps all generated nodes in memory

Memory-Bounded Search
search algorithms that try to conserve memory
most are modifications of A*
 iterative deepening A* (IDA*)
 simplified memory-bounded A* (SMA*)

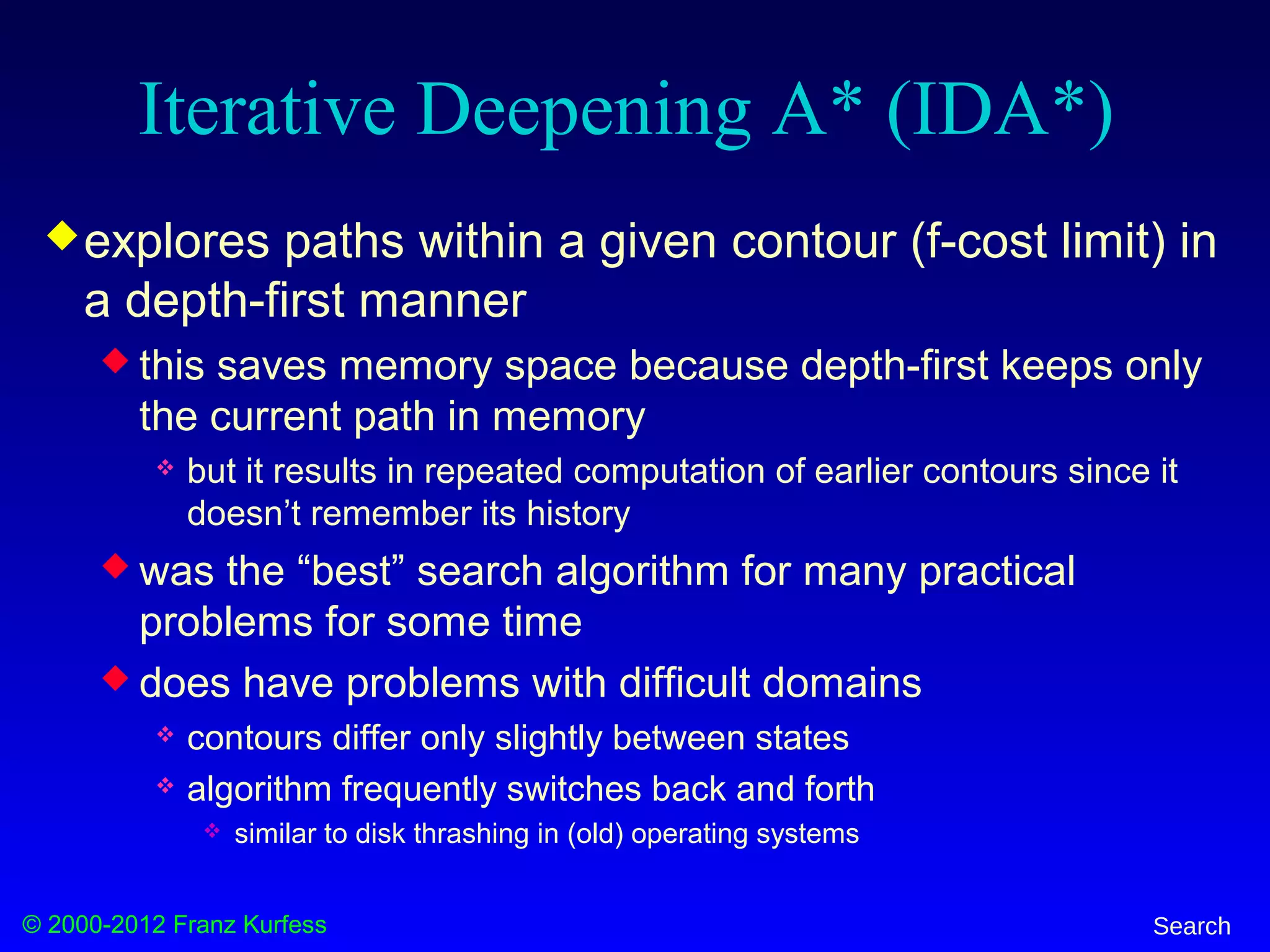

Iterative Deepening A* (IDA*)
explores paths within a given contour (f-cost limit) in
a depth-first manner
 this saves memory space because depth-first keeps only
the current path in memory
 but it results in repeated computation of earlier contours since it
doesn’t remember its history
 was the “best” search algorithm for many practical
problems for some time
 does have problems with difficult domains
 contours differ only slightly between states
 algorithm frequently switches back and forth
 similar to disk thrashing in (old) operating systems

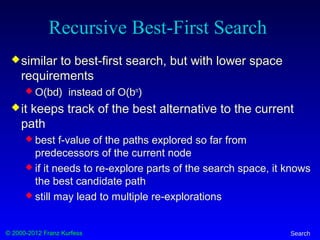

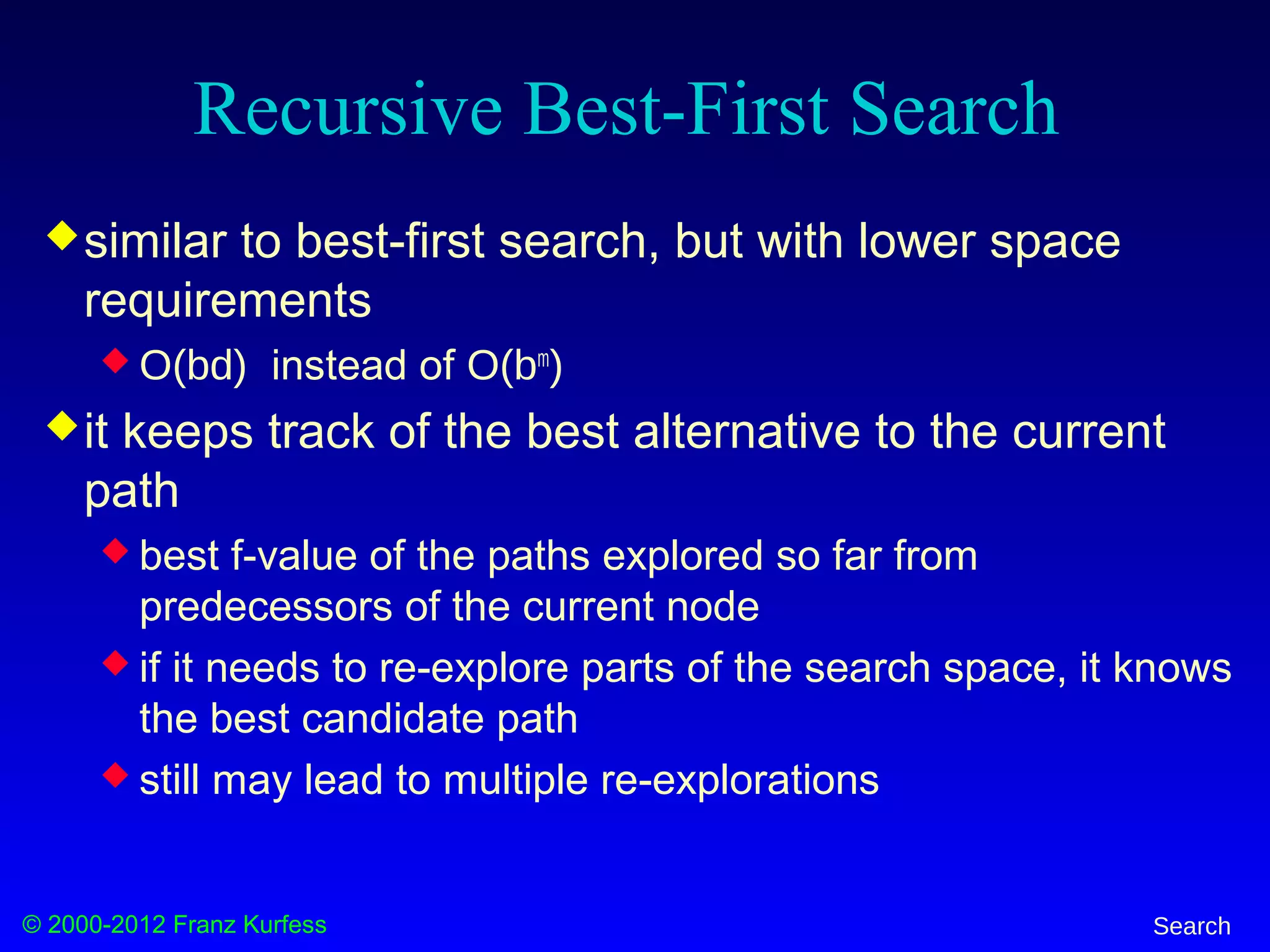

Recursive Best-First Search
similar to best-first search, but with lower space
requirements
 O(bd) instead of O(bm
)
it keeps track of the best alternative to the current
path
 best f-value of the paths explored so far from
predecessors of the current node
 if it needs to re-explore parts of the search space, it knows
the best candidate path
 still may lead to multiple re-explorations

Simplified Memory-Bounded A*
(SMA*)
uses all available memory for the search
 drops nodes from the queue when it runs out of space
 those with the highest f-costs
 avoids re-computation of already explored area
 keeps information about the best path of a “forgotten” subtree in its
ancestor
 complete if there is enough memory for the shortest
solution path
 often better than A* and IDA*
 but some problems are still too tough
 trade-off between time and space requirements

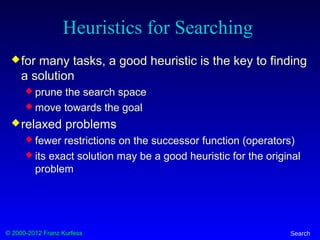

Heuristics for Searching
for many tasks, a good heuristic is the key to finding
a solution
 prune the search space
 move towards the goal
relaxed problems
 fewer restrictions on the successor function (operators)
 its exact solution may be a good heuristic for the original
problem

8-Puzzle Heuristics
 level of difficulty
 around 20 steps for a typical solution
 branching factor is about 3
 exhaustive search would be 320
=3.5 * 109
 9!/2 = 181,440 different reachable states
 distinct arrangements of 9 squares
 candidates for heuristic functions
 number of tiles in the wrong position
 sum of distances of the tiles from their goal position
 city block or Manhattan distance
 generation of heuristics
 possible from formal specifications

Admissible heuristics
E.g., for the 8-puzzle:
• h1(n) = number of misplaced tiles
• h2(n) = total Manhattan distance
(i.e., no. of squares from desired location of each tile)
• h1(S) = ? 8
• h2(S) = ? 3+1+2+2+2+3+3+2 = 18

Important Concepts and Terms
 initial state
 iterative deepening search
 iterative improvement
 local search
 operator
 optimality
 path
 path cost function
 problem
 recursive best-first search
 search
 space complexity
 state
 state space
 time complexity
 agent
 A* search
 breadth-first search
 depth-first search
 completeness
 genetic algorithm
 general search algorithm
 goal
 goal test function
 greedy best-first search
 heuristics

Chapter Summary
 tasks can often be formulated as search problems
 initial state, successor function (operators), goal test, path cost
 various search methods systematically comb the search
space
 uninformed search
 breadth-first, depth-first, and variations
 informed search
 best-first, A*, iterative improvement
 the choice of good heuristics can improve the search
dramatically
 task-dependent

Artificial Intelligence -- Search Algorithms

More Related Content

What's hot

Viewers also liked

Similar to Artificial Intelligence -- Search Algorithms

Recently uploaded
