HTML5: Building the Next Generation of Web Applications

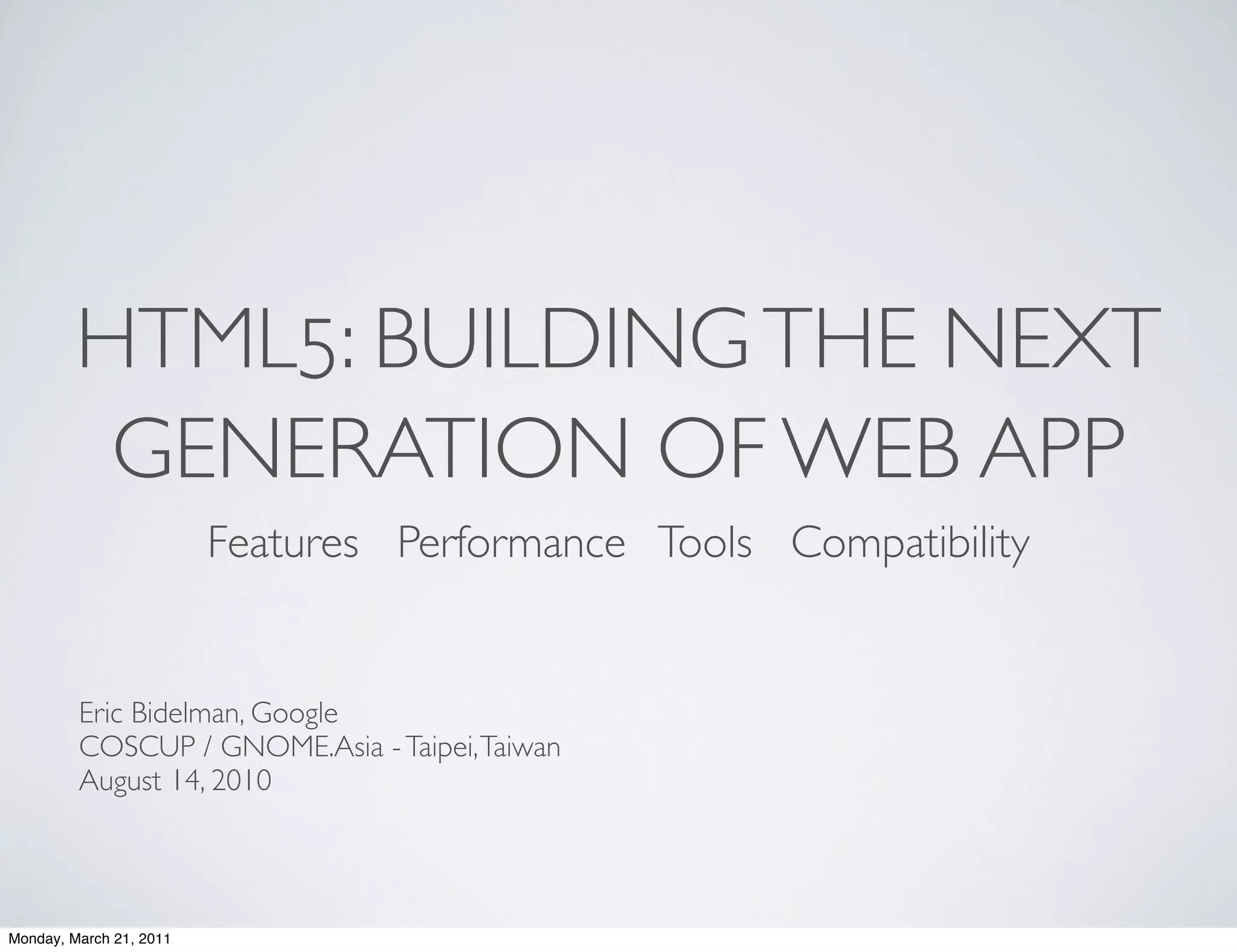

HTML5: BUILDING THE NEXT
GENERATION OF WEB APP
Features Performance Tools Compatibility

Eric Bidelman, Google
COSCUP / GNOME.Asia - Taipei, Taiwan
August 14, 2010

Monday, March 21, 2011

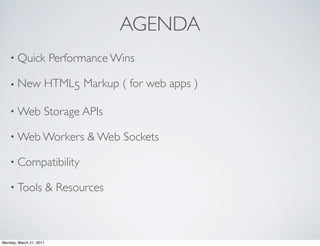

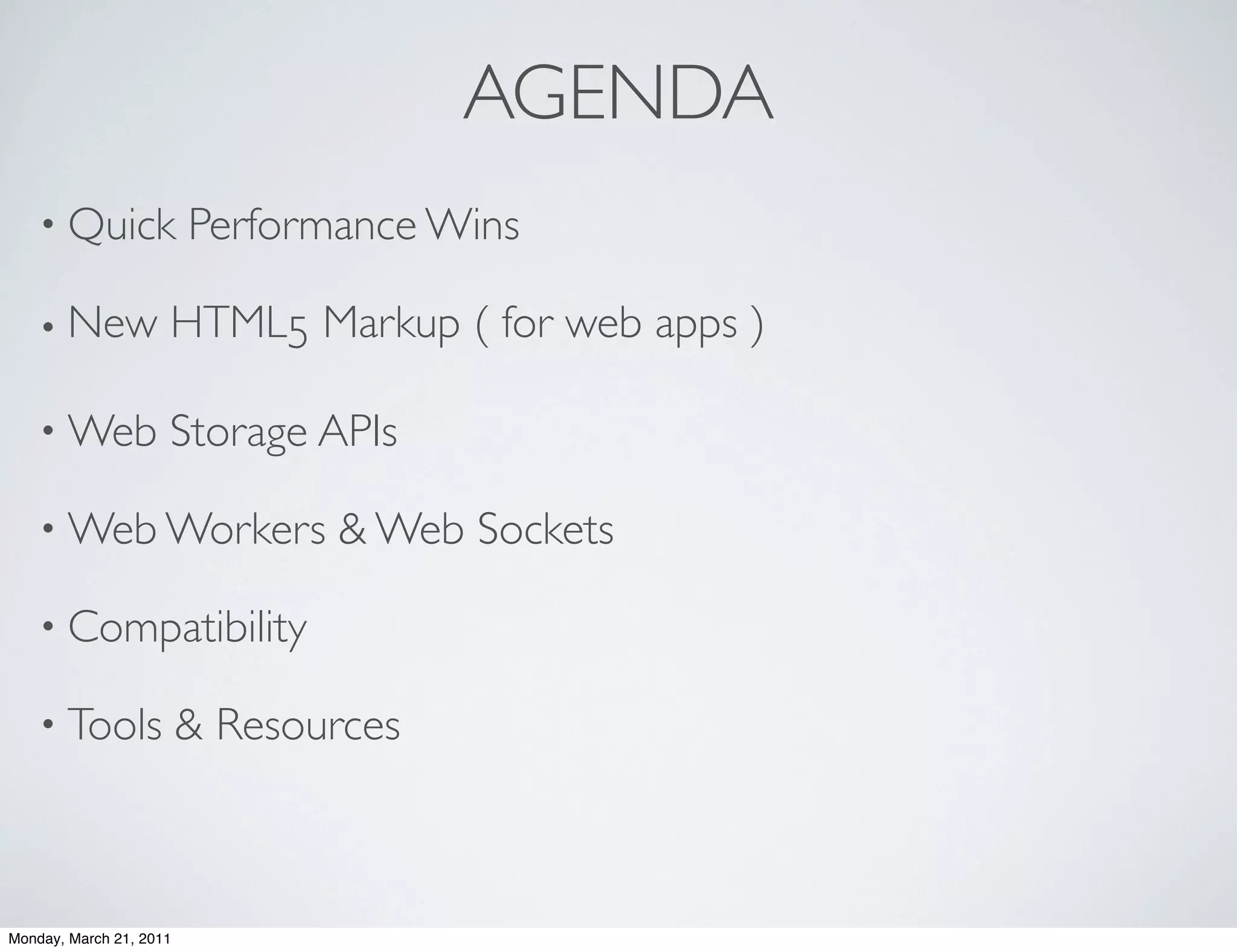

AGENDA
• Quick Performance Wins

• New HTML5 Markup ( for web apps )

• Web Storage APIs

• Web Workers & Web Sockets

• Compatibility

• Tools & Resources


PERFORMANCE WINS

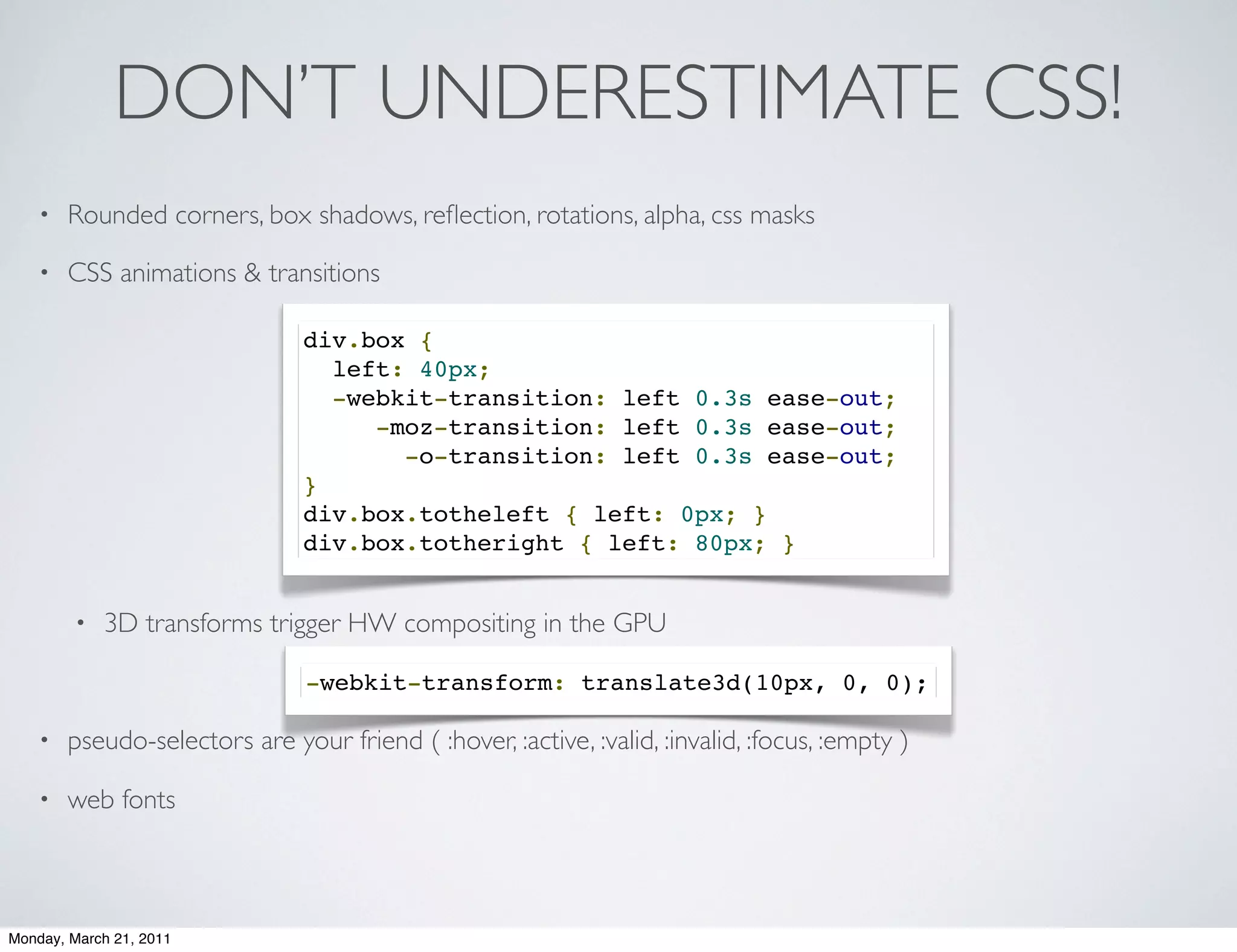

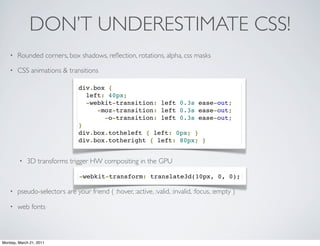

DON’T UNDERESTIMATE CSS!
• Rounded corners, box shadows, reﬂection, rotations, alpha, css masks

• CSS animations & transitions

div.box {
left: 40px;
-webkit-transition: left 0.3s ease-out;
-moz-transition: left 0.3s ease-out;
-o-transition: left 0.3s ease-out;
}
div.box.totheleft { left: 0px; }
div.box.totheright { left: 80px; }

• 3D transforms trigger HW compositing in the GPU

-webkit-transform: translate3d(10px, 0, 0);

• pseudo-selectors are your friend ( :hover, :active, :valid, :invalid, :focus, :empty )

• web fonts

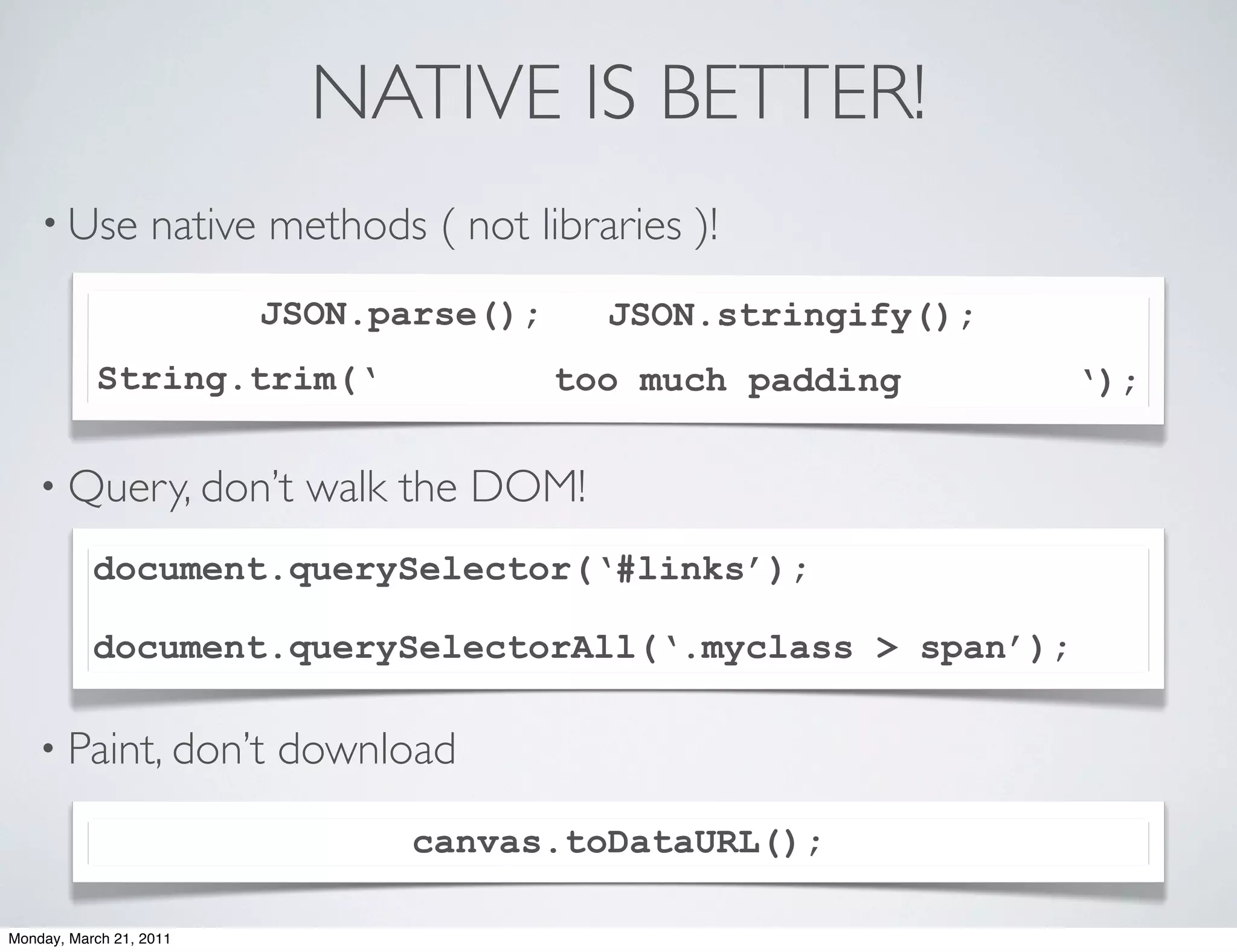

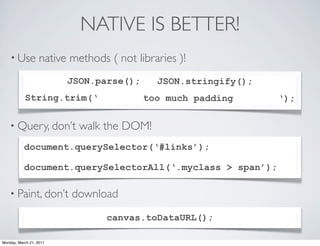

NATIVE IS BETTER!
• Use native methods ( not libraries )!
JSON.parse(); JSON.stringify();
String.trim(‘ too much padding ‘);

• Query, don’t walk the DOM!
document.querySelector(‘#links’);

document.querySelectorAll(‘.myclass > span’);

• Paint, don’t download
canvas.toDataURL();

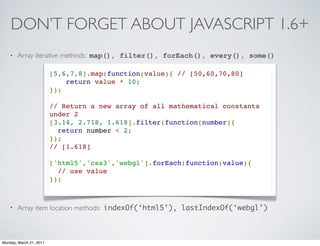

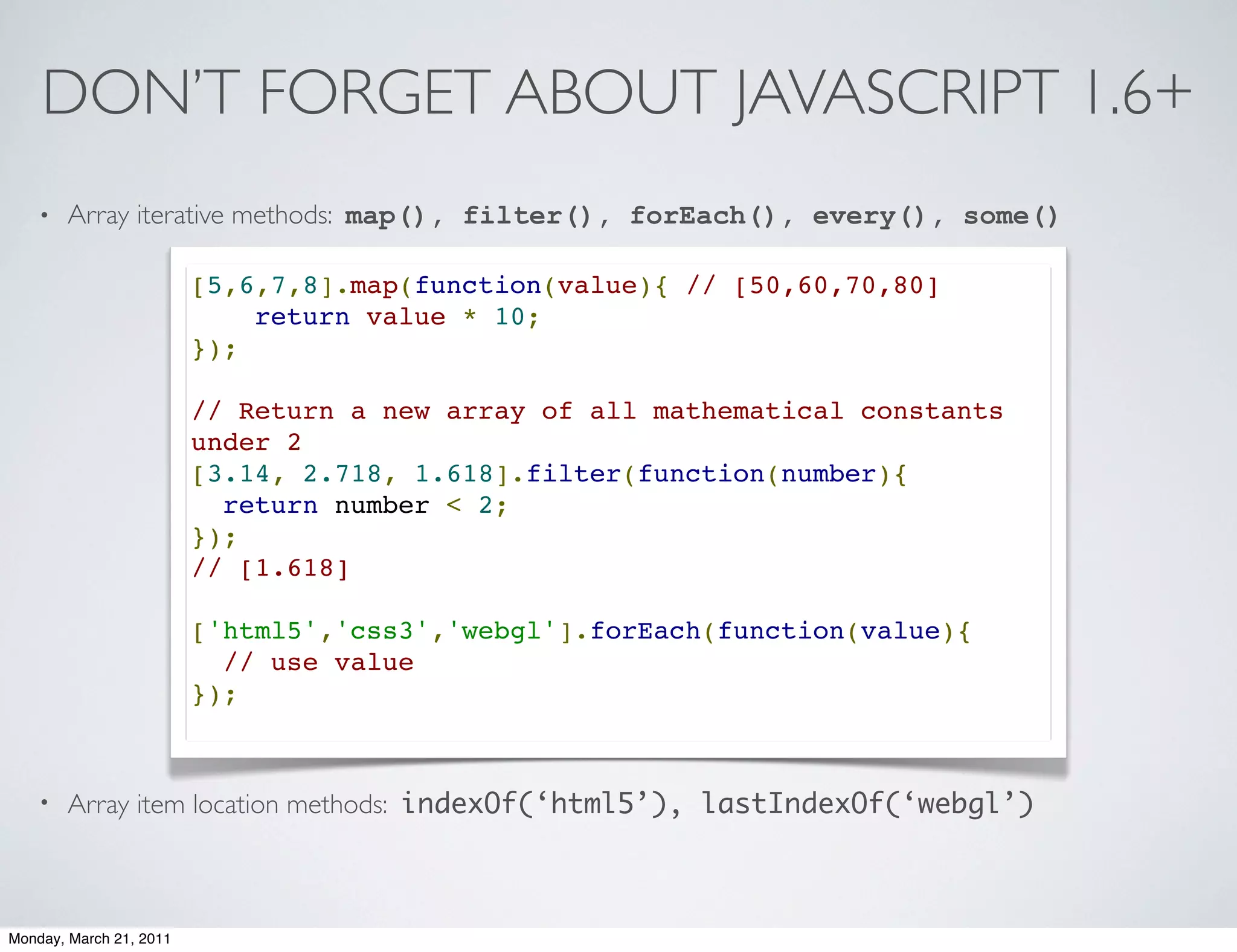

DON’T FORGET ABOUT JAVASCRIPT 1.6+
• Array iterative methods: map(), filter(), forEach(), every(), some()

[5,6,7,8].map(function(value){ // [50,60,70,80]
return value * 10;
});

// Return a new array of all mathematical constants
under 2
[3.14, 2.718, 1.618].filter(function(number){
return number < 2;
});
// [1.618]

['html5','css3','webgl'].forEach(function(value){
// use value
});

• Array item location methods: indexOf(‘html5’), lastIndexOf(‘webgl’)

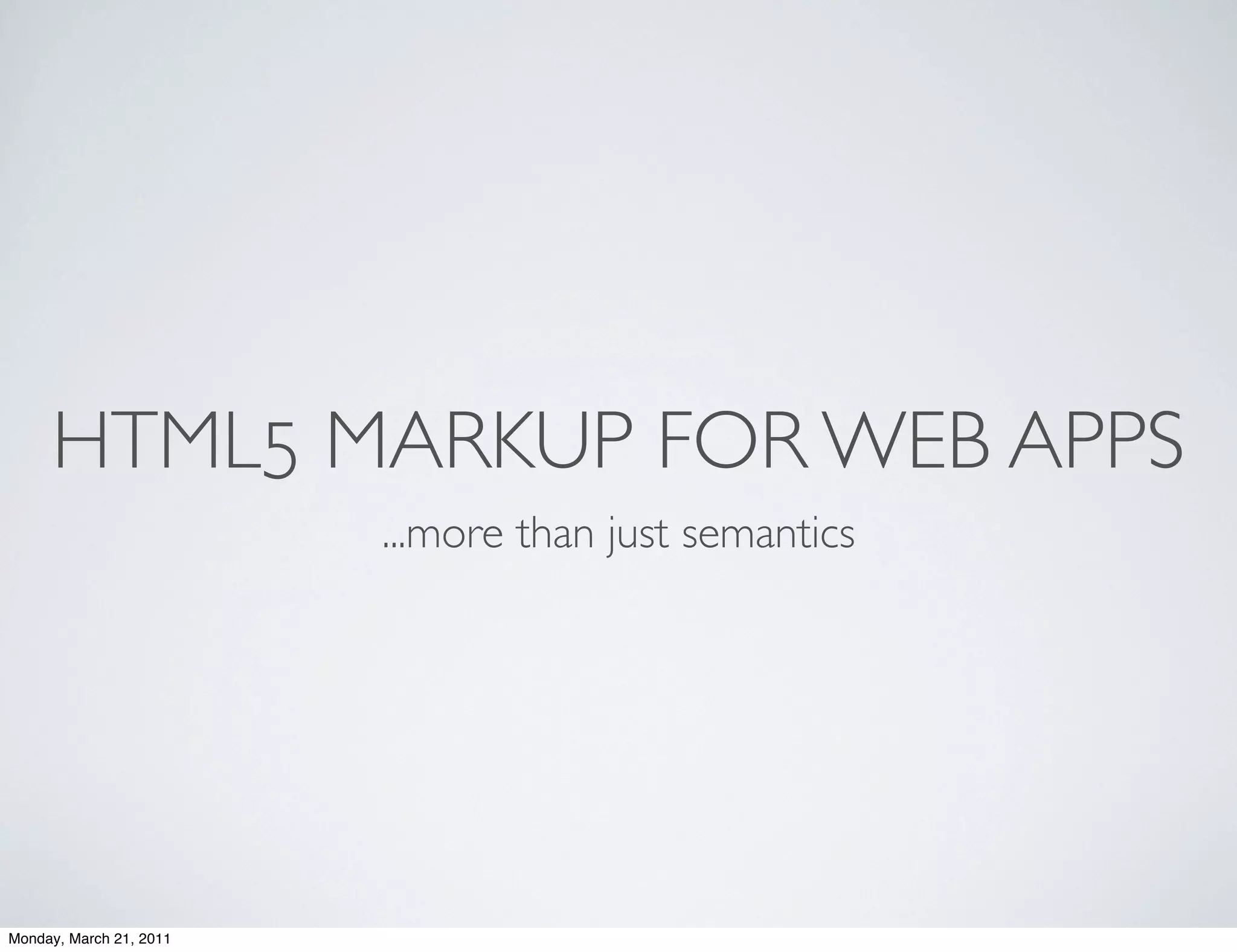

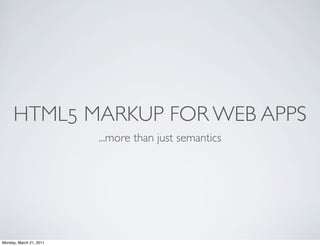

HTML5 MARKUP FOR WEB APPS
...more than just semantics

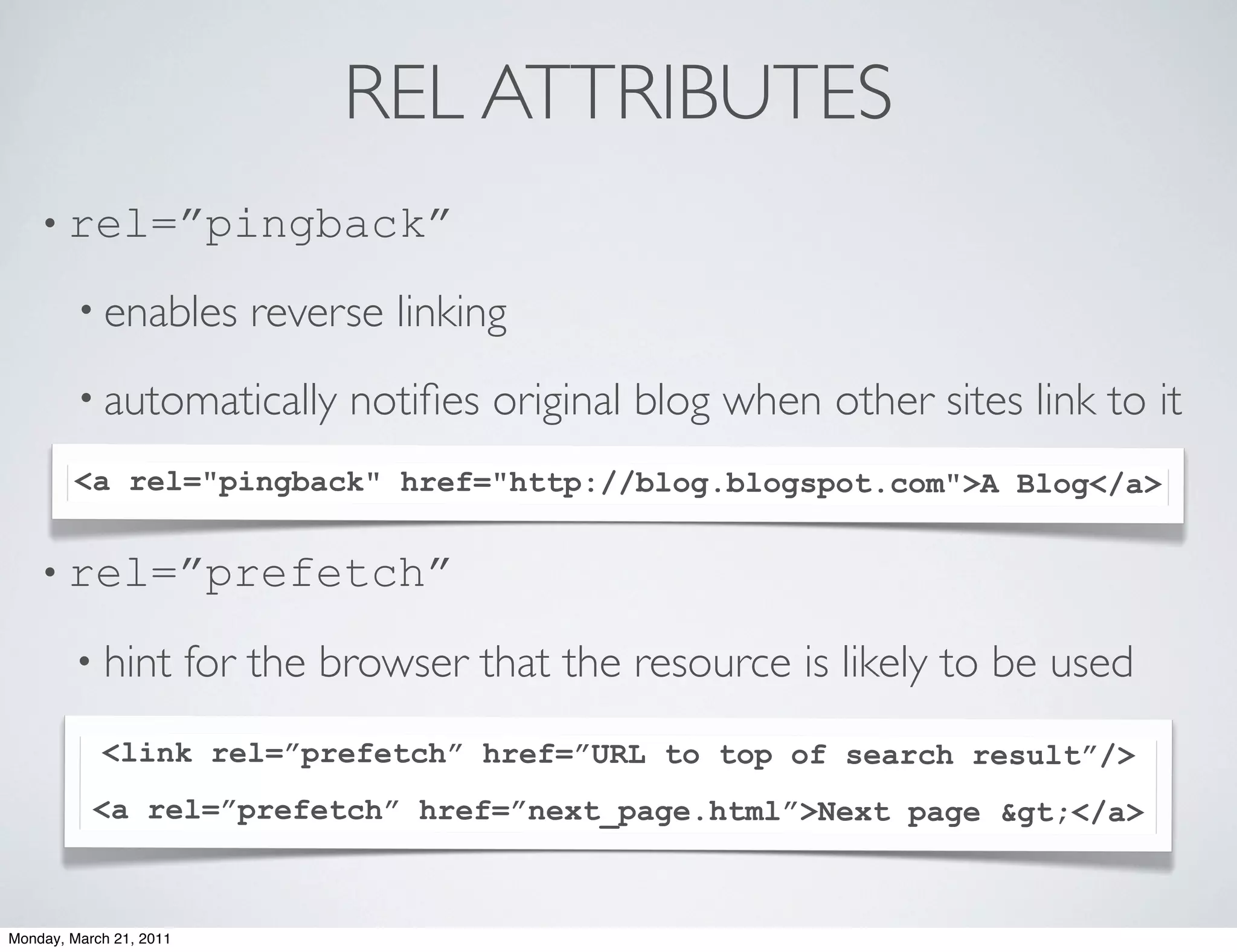

REL ATTRIBUTES
• rel=”pingback”

• enables reverse linking
• automatically notiﬁes original blog when other sites link to it
<a rel="pingback" href="http://blog.blogspot.com">A Blog</a>
•

• rel=”prefetch”

• hint for the browser that the resource is likely to be used
<link rel=”prefetch” href=”URL to top of search result”/>
<a rel=”prefetch” href=”next_page.html”>Next page ></a>

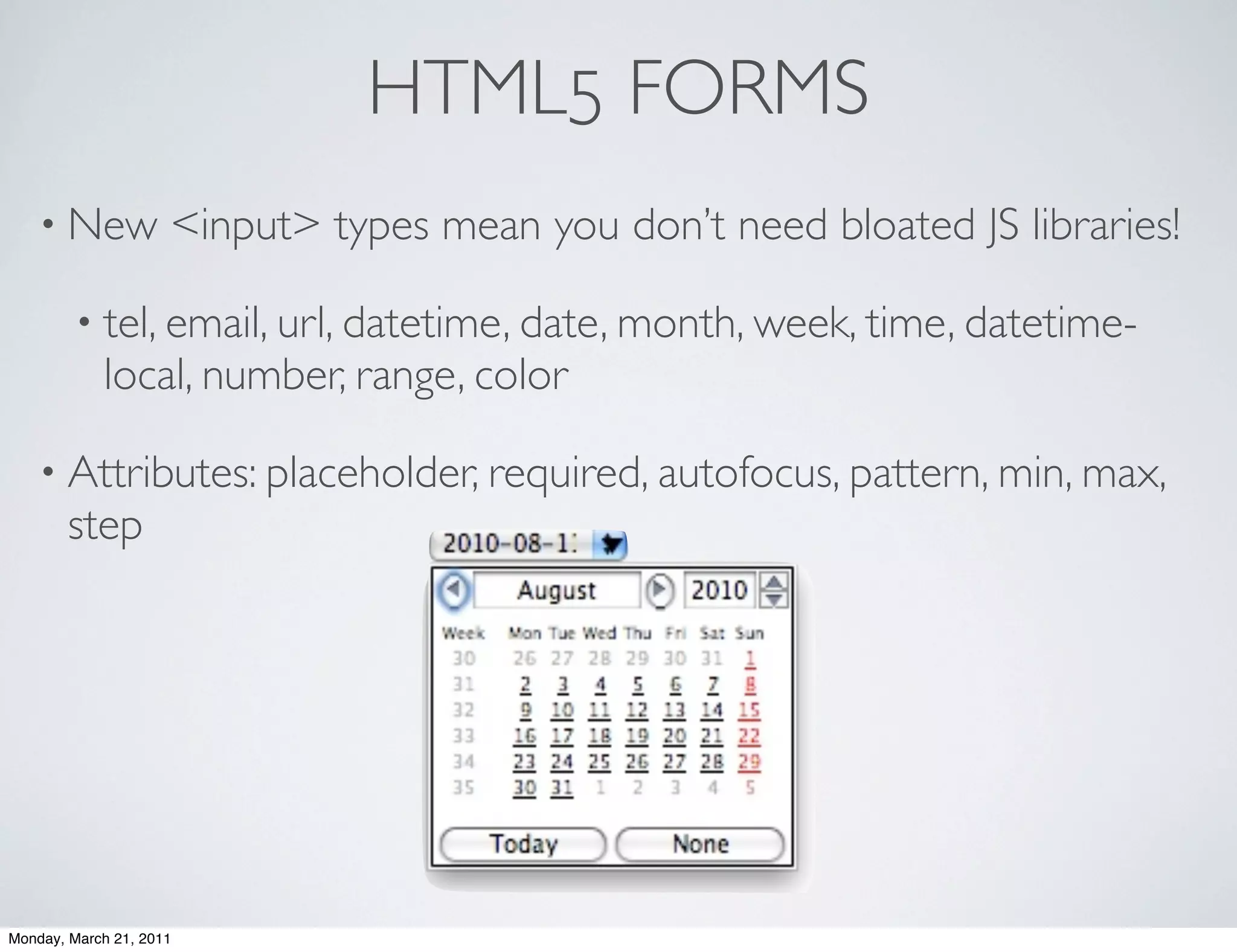

HTML5 FORMS
• New <input> types mean you don’t need bloated JS libraries!

• tel, email, url, datetime, date, month, week, time, datetime-
local, number, range, color

• Attributes: placeholder, required, autofocus, pattern, min, max,
step

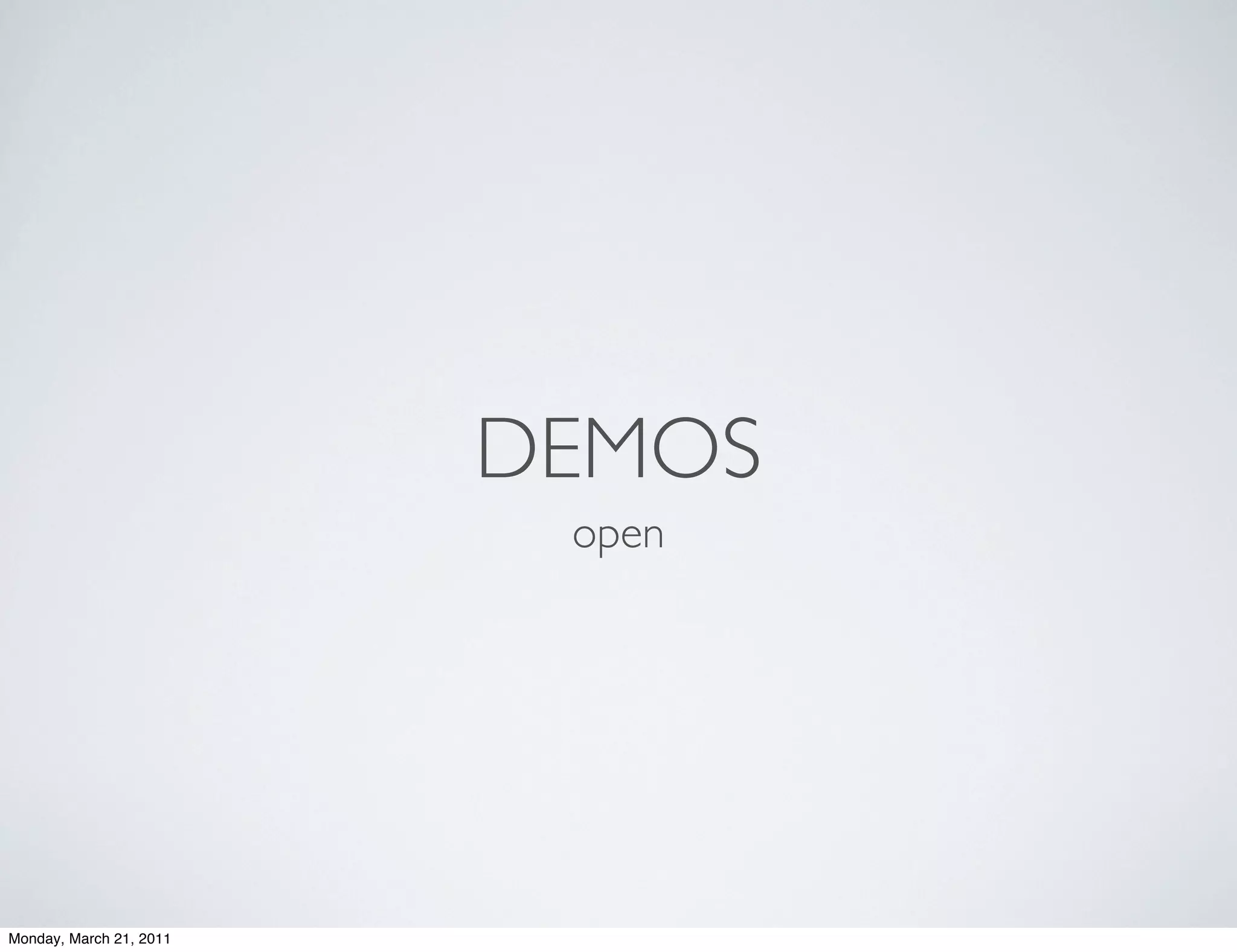

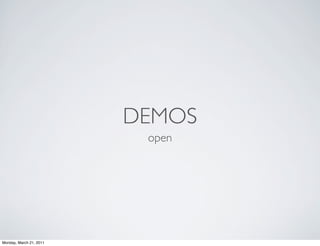

DEMOS
open


WEB STORAGE
Not Just For Ofﬂine

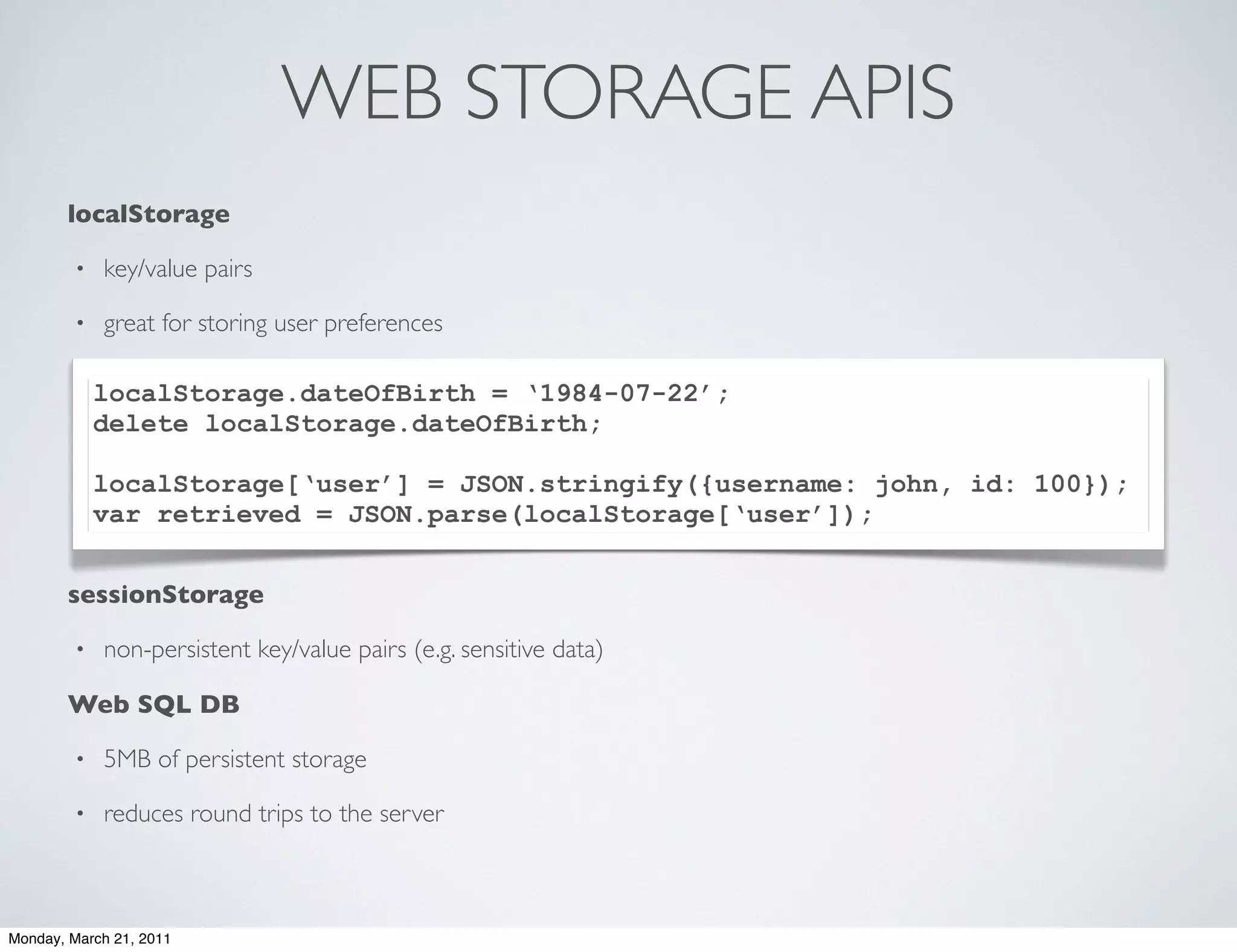

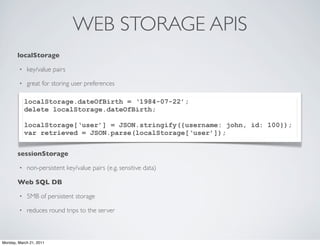

WEB STORAGE APIS
localStorage

• key/value pairs

• great for storing user preferences

localStorage.dateOfBirth = ‘1984-07-22’;
delete localStorage.dateOfBirth;

localStorage[‘user’] = JSON.stringify({username: john, id: 100});
var retrieved = JSON.parse(localStorage[‘user’]);

sessionStorage

• non-persistent key/value pairs (e.g. sensitive data)

Web SQL DB

• 5MB of persistent storage

• reduces round trips to the server

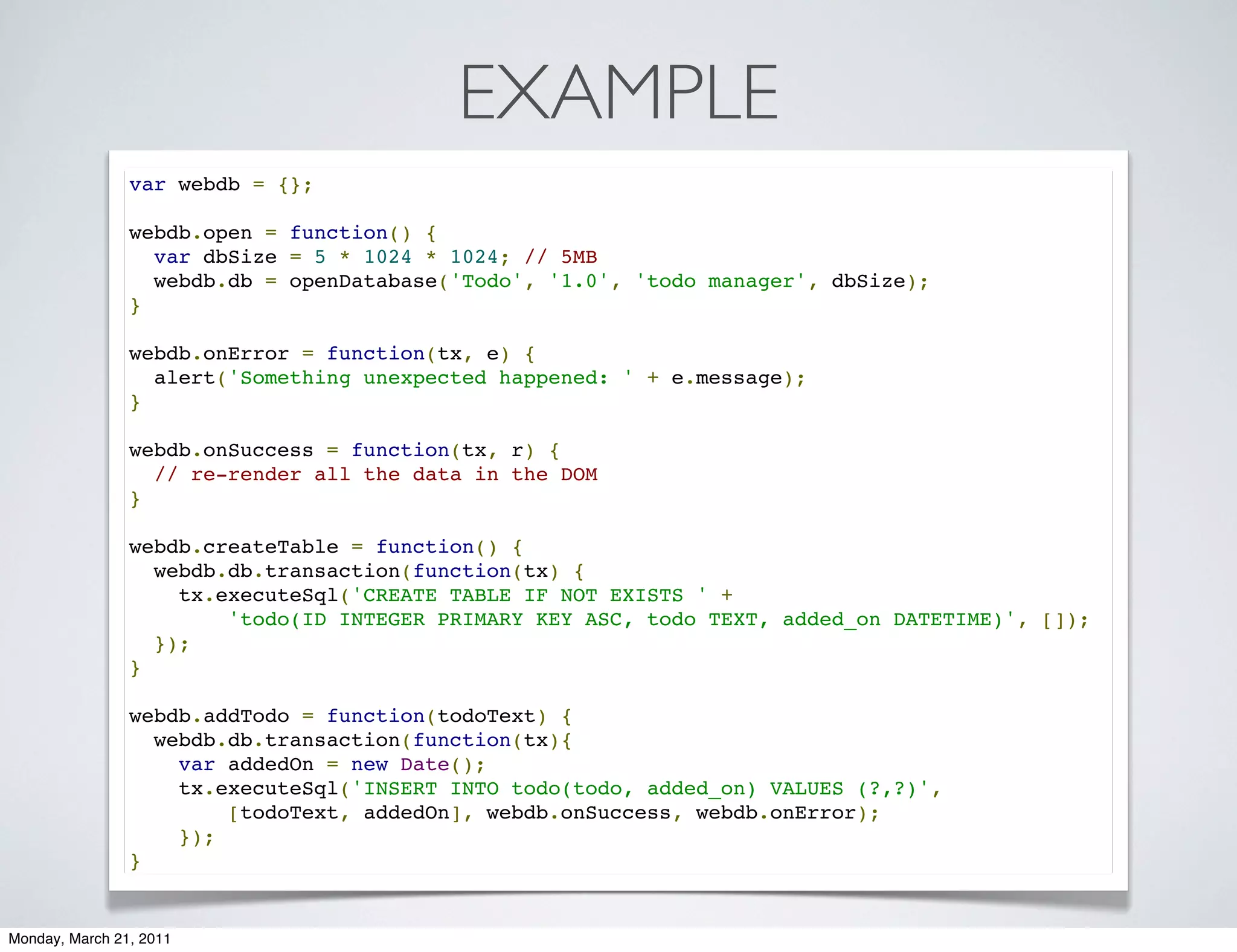

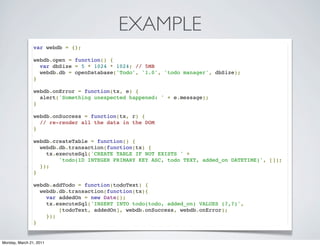

EXAMPLE
var webdb = {};

webdb.open = function() {
var dbSize = 5 * 1024 * 1024; // 5MB
webdb.db = openDatabase('Todo', '1.0', 'todo manager', dbSize);
}

webdb.onError = function(tx, e) {
alert('Something unexpected happened: ' + e.message);
}

webdb.onSuccess = function(tx, r) {
// re-render all the data in the DOM
}

webdb.createTable = function() {
webdb.db.transaction(function(tx) {
tx.executeSql('CREATE TABLE IF NOT EXISTS ' +
'todo(ID INTEGER PRIMARY KEY ASC, todo TEXT, added_on DATETIME)', []);
});
}

webdb.addTodo = function(todoText) {
webdb.db.transaction(function(tx){
var addedOn = new Date();
tx.executeSql('INSERT INTO todo(todo, added_on) VALUES (?,?)',
[todoText, addedOn], webdb.onSuccess, webdb.onError);
});
}

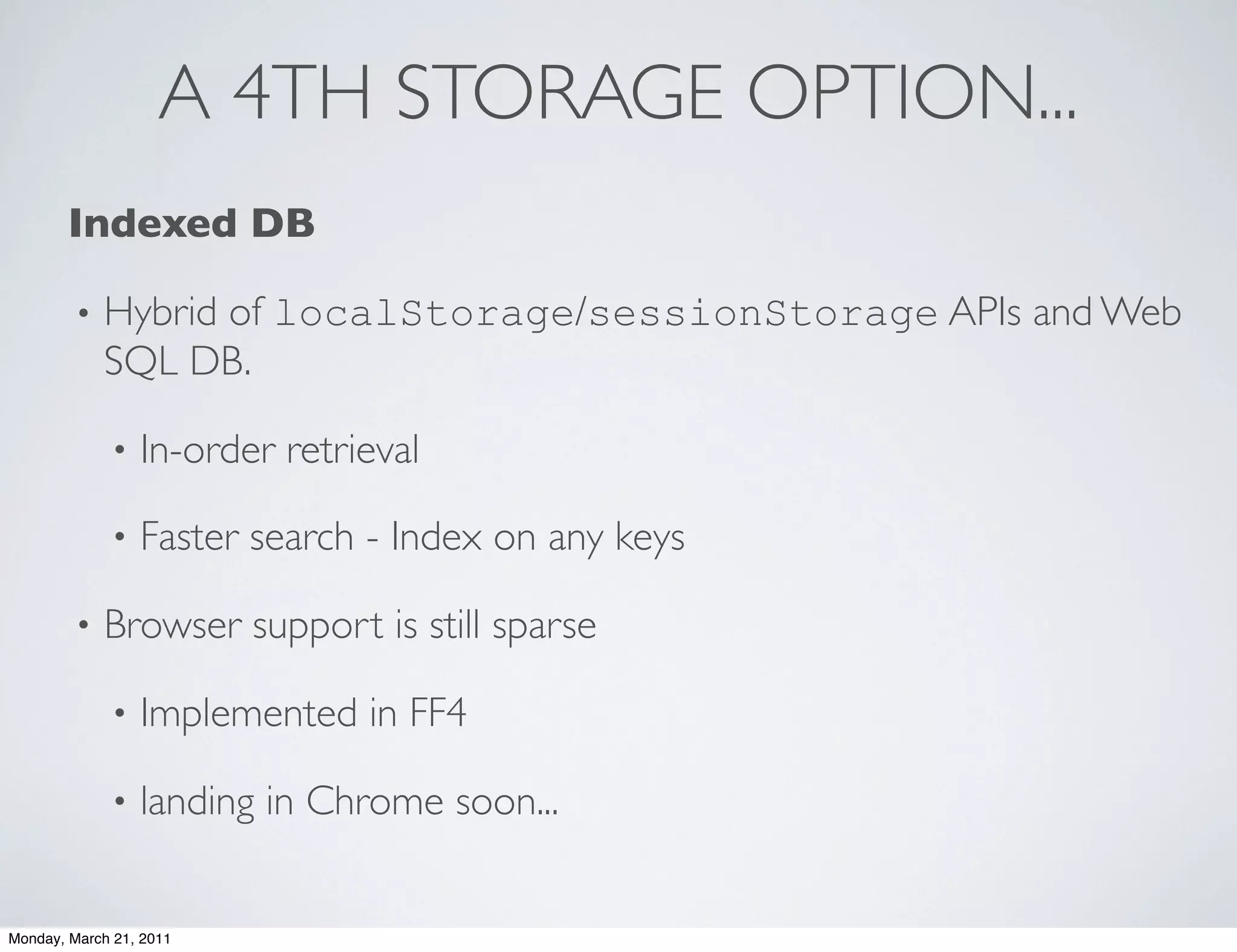

A 4TH STORAGE OPTION...
Indexed DB

• Hybrid of localStorage/sessionStorage APIs and Web
SQL DB.

• In-order retrieval

• Faster search - Index on any keys

• Browser support is still sparse

• Implemented in FF4

• landing in Chrome soon...

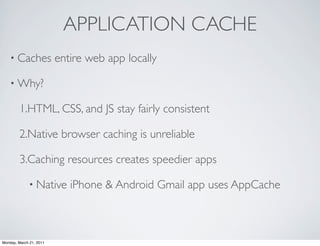

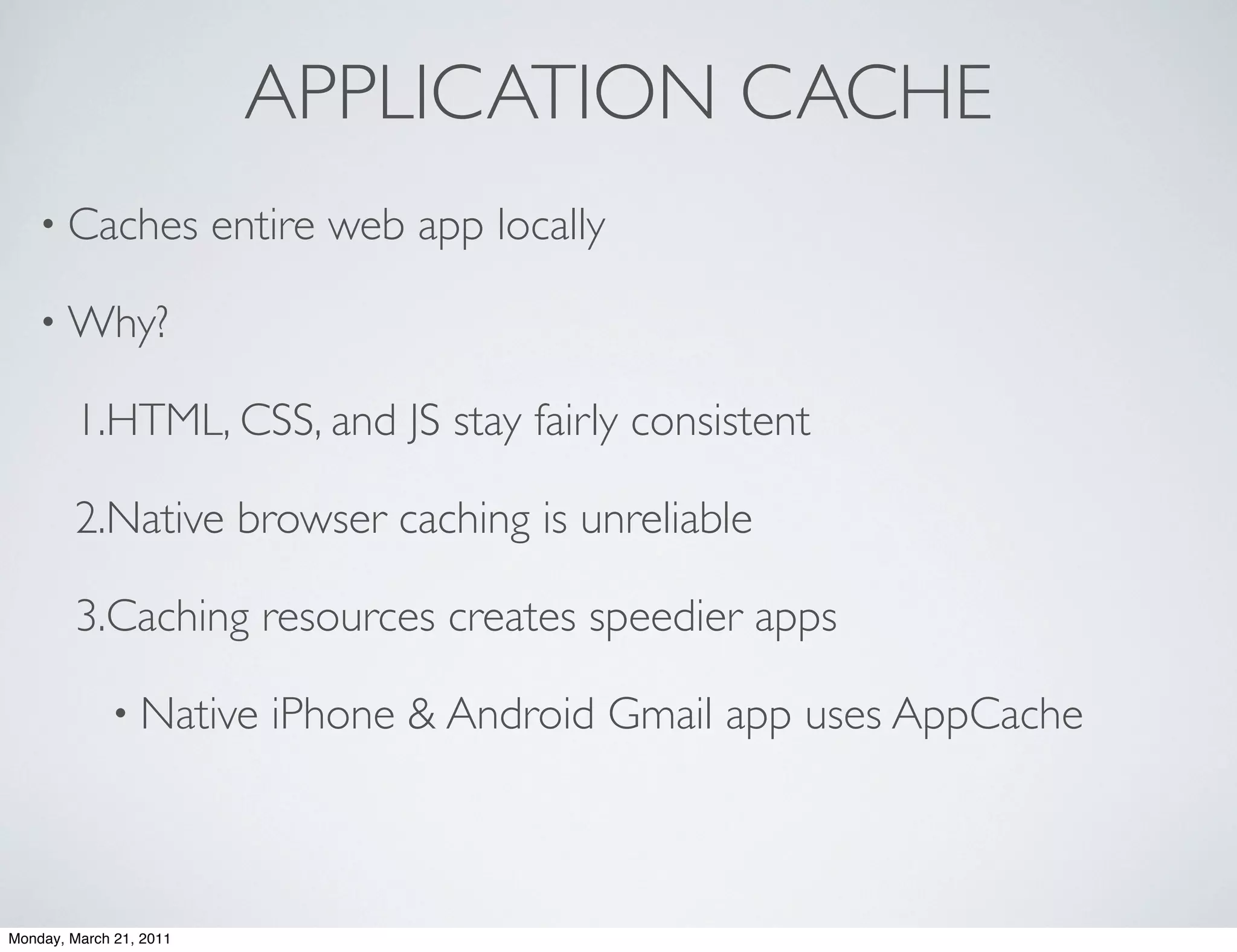

APPLICATION CACHE
• Caches entire web app locally

• Why?

1.HTML, CSS, and JS stay fairly consistent

2.Native browser caching is unreliable

3.Caching resources creates speedier apps

• Native iPhone & Android Gmail app uses AppCache

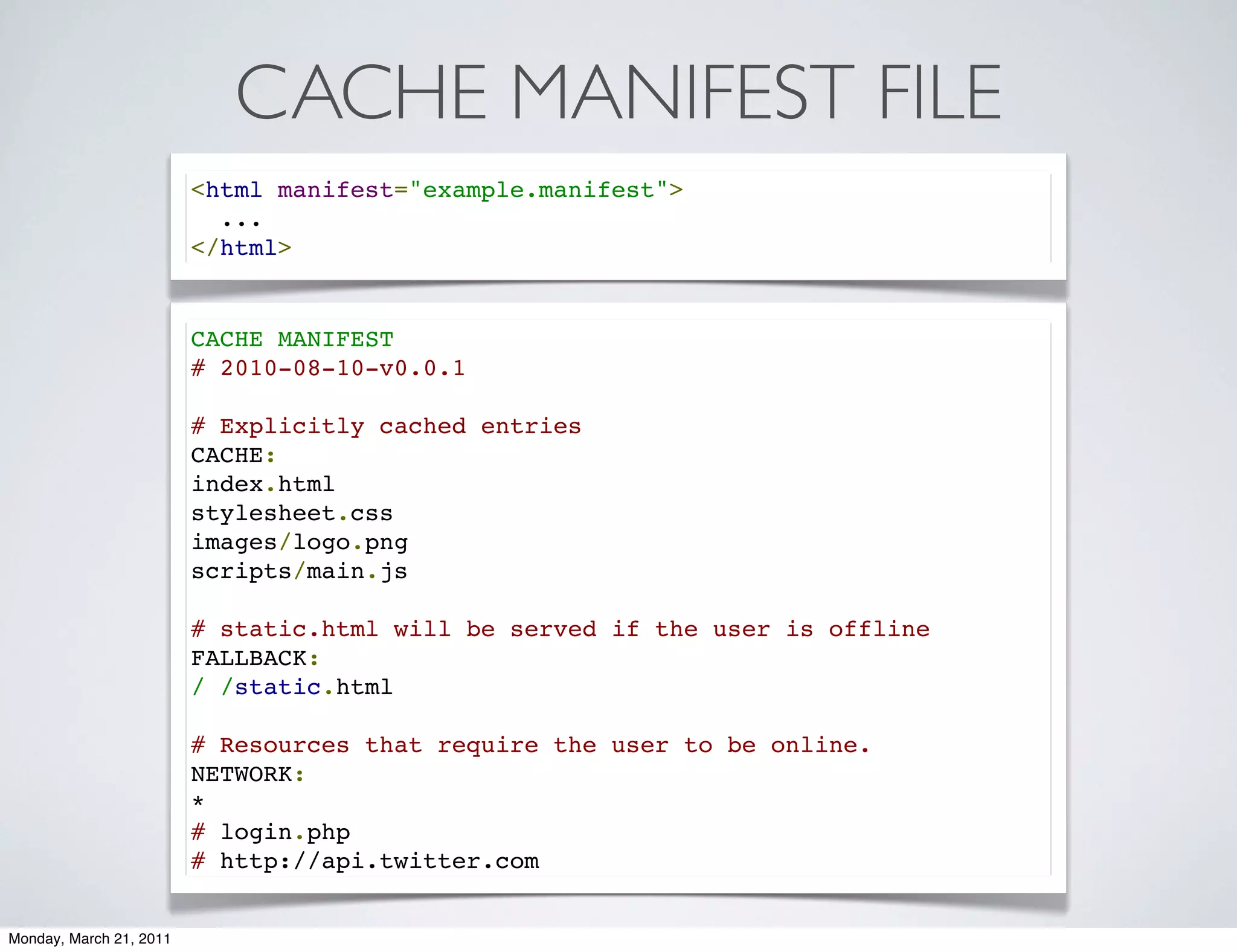

CACHE MANIFEST FILE
<html manifest="example.manifest">
...
</html>

CACHE MANIFEST
# 2010-08-10-v0.0.1

# Explicitly cached entries
CACHE:
index.html
stylesheet.css
images/logo.png
scripts/main.js

# static.html will be served if the user is offline
FALLBACK:
/ /static.html

# Resources that require the user to be online.
NETWORK:
*
# login.php
# http://api.twitter.com

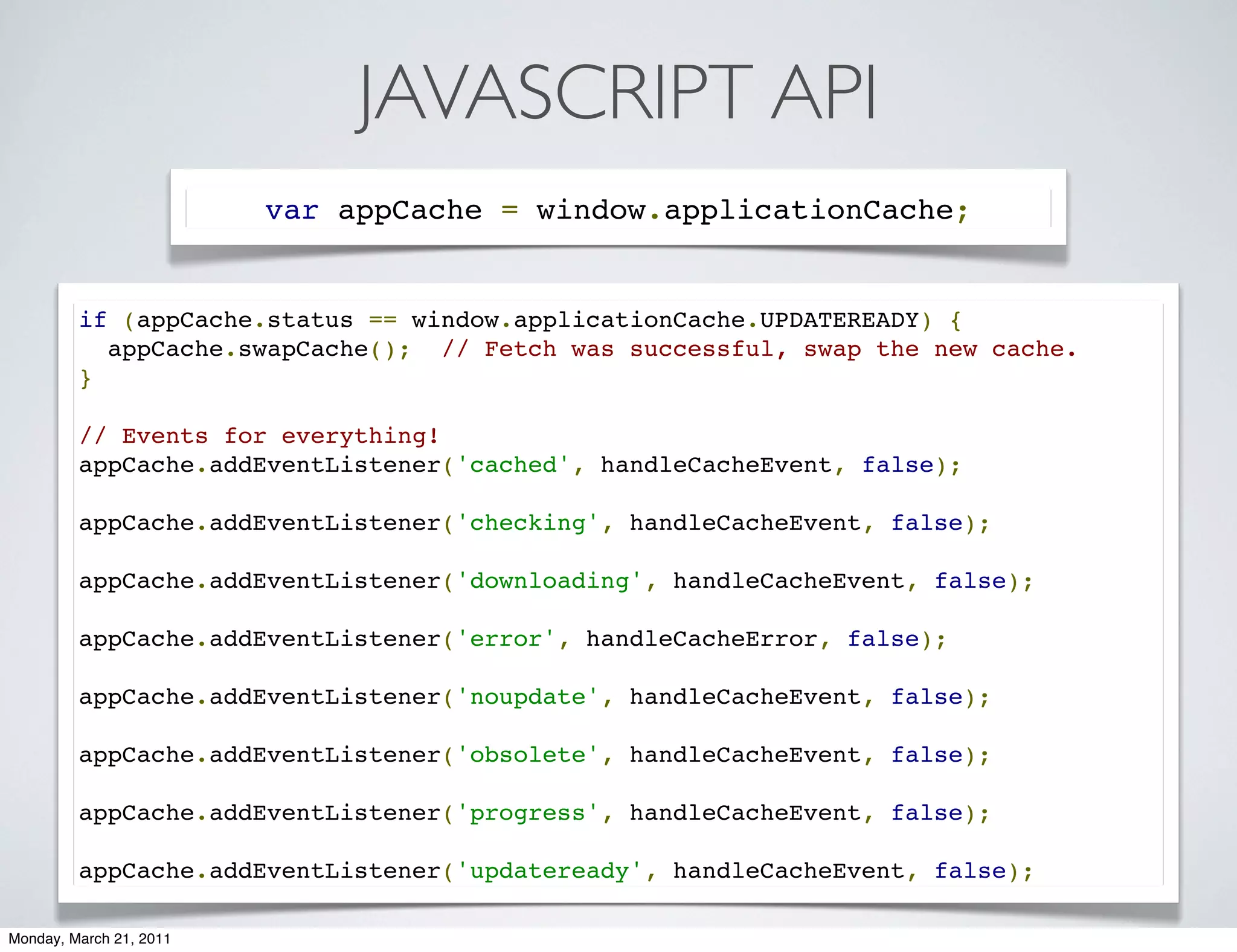

JAVASCRIPT API
var appCache = window.applicationCache;

if (appCache.status == window.applicationCache.UPDATEREADY) {
appCache.swapCache(); // Fetch was successful, swap the new cache.
}

// Events for everything!
appCache.addEventListener('cached', handleCacheEvent, false);

appCache.addEventListener('checking', handleCacheEvent, false);

appCache.addEventListener('downloading', handleCacheEvent, false);

appCache.addEventListener('error', handleCacheError, false);

appCache.addEventListener('noupdate', handleCacheEvent, false);

appCache.addEventListener('obsolete', handleCacheEvent, false);

appCache.addEventListener('progress', handleCacheEvent, false);

appCache.addEventListener('updateready', handleCacheEvent, false);

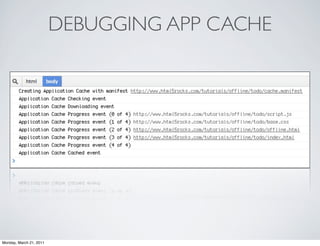

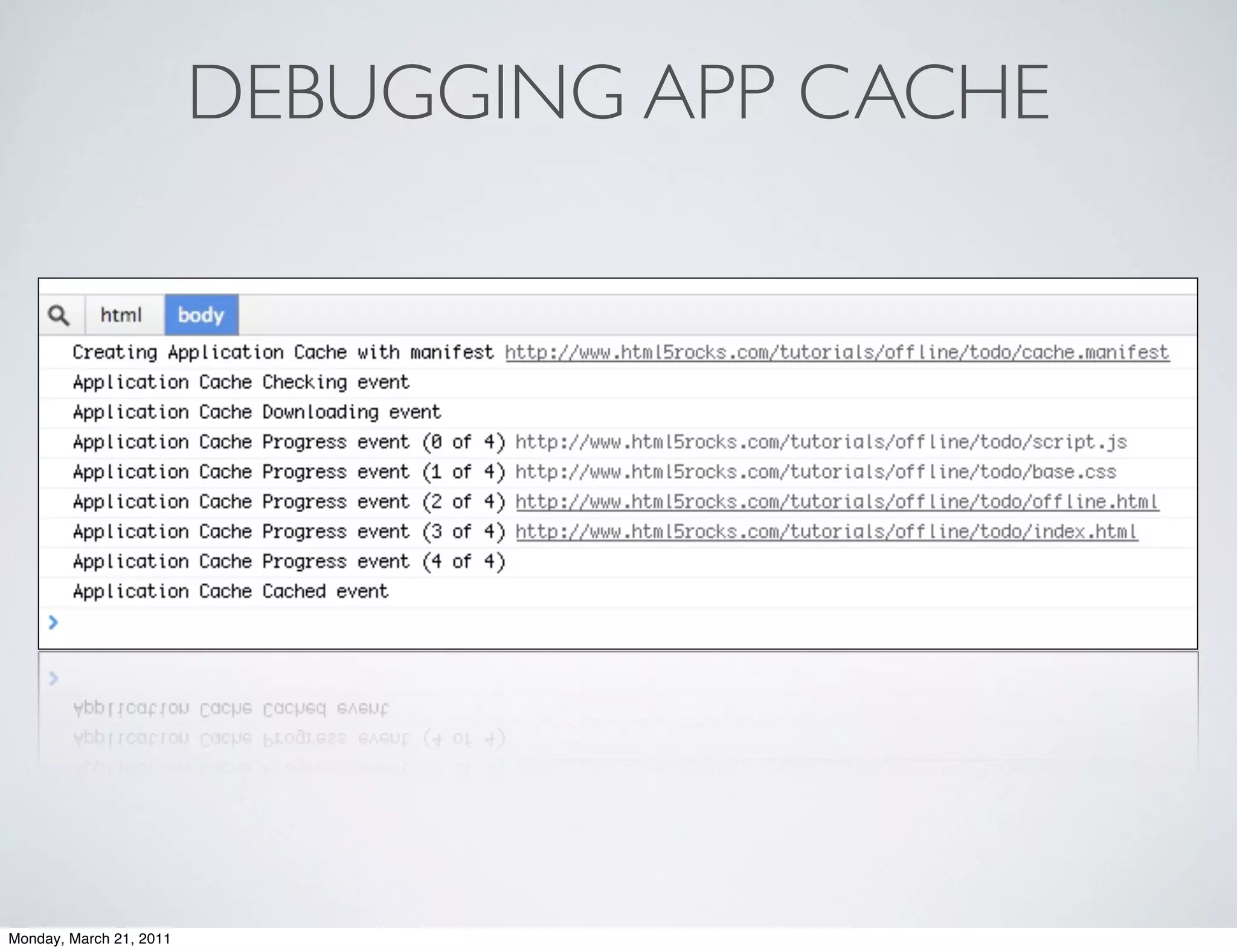

DEBUGGING APP CACHE

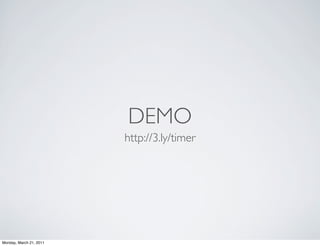

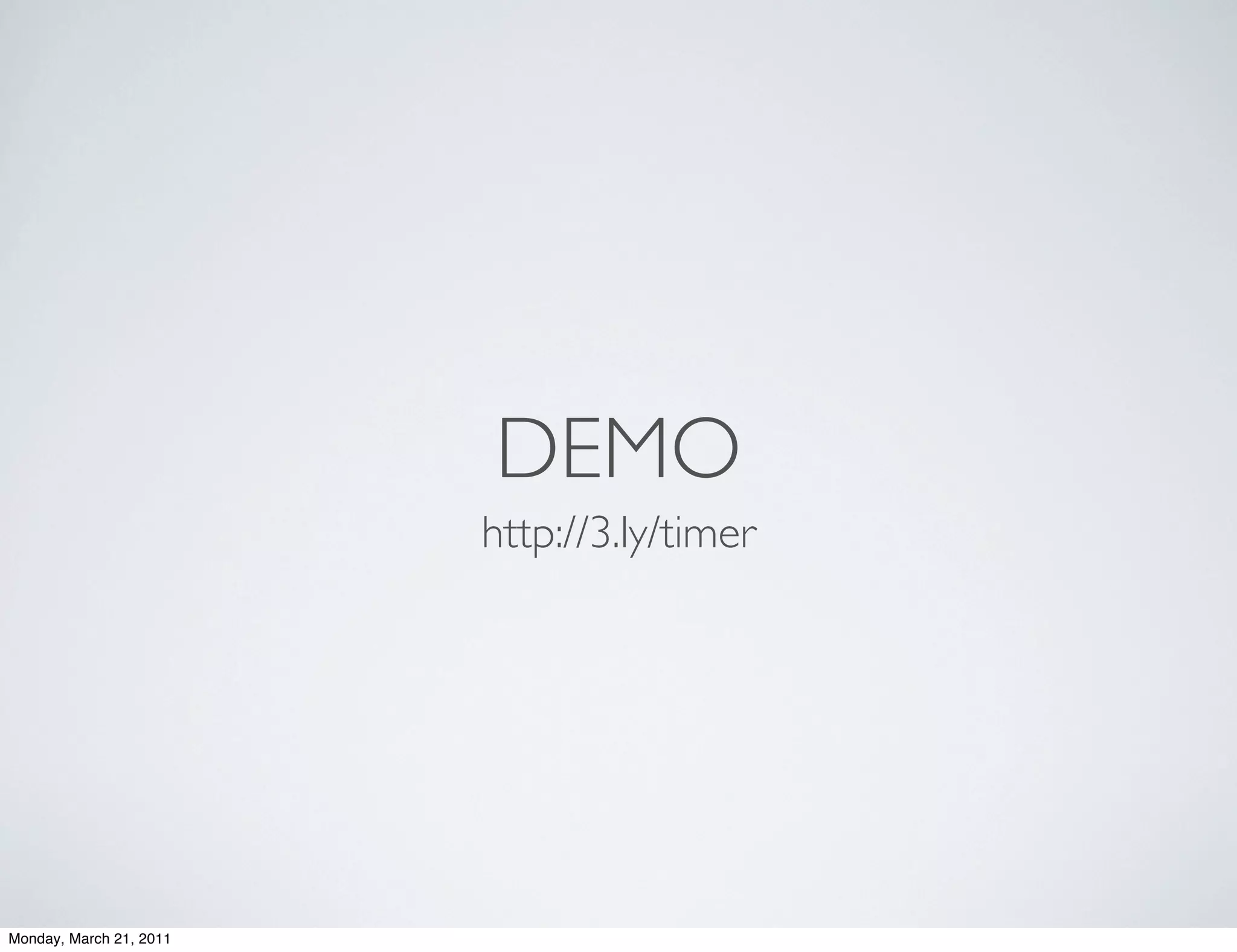

DEMO
http://3.ly/timer

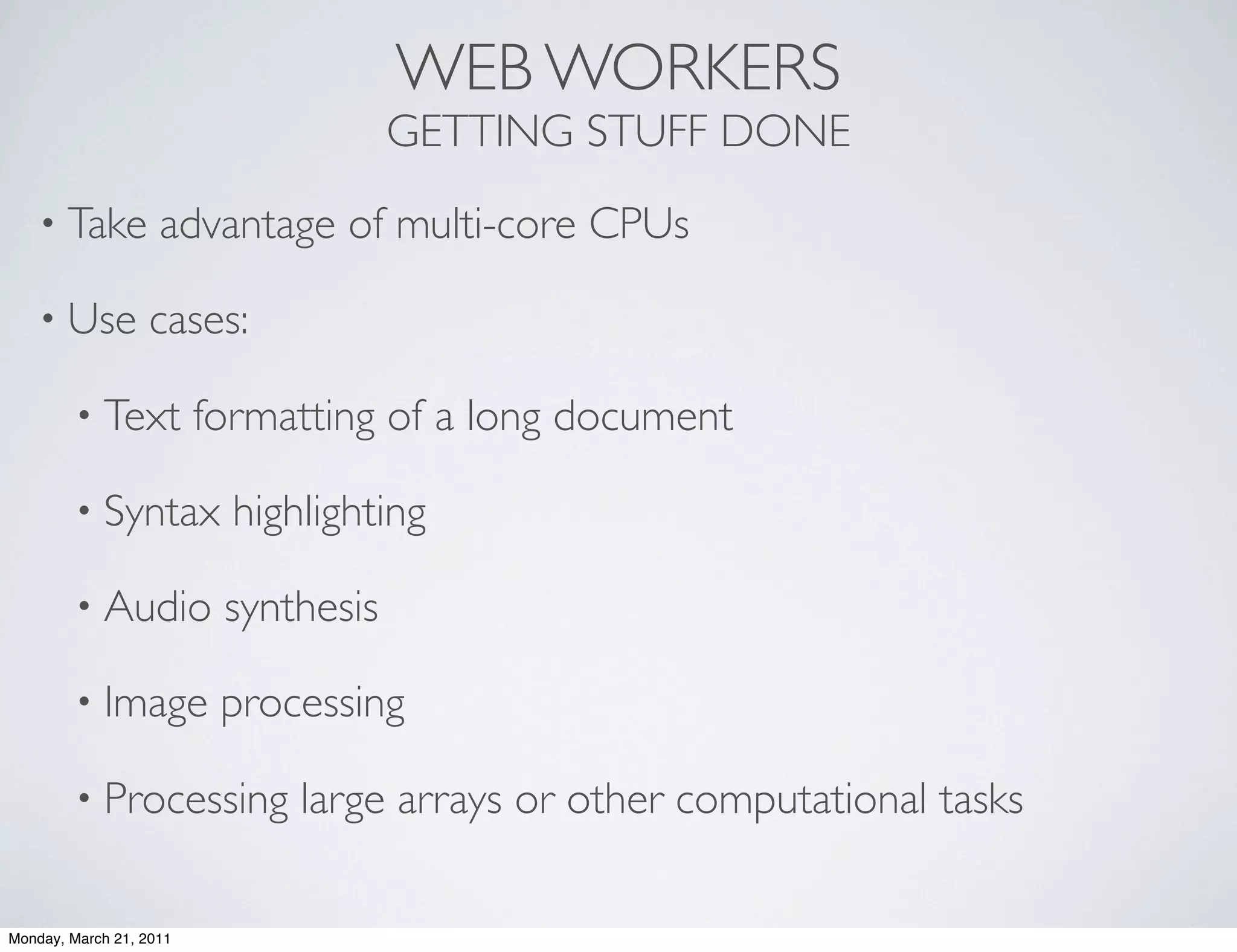

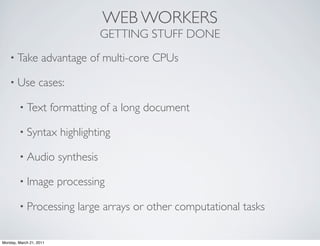

WEB WORKERS
GETTING STUFF DONE
• Take advantage of multi-core CPUs

• Use cases:

• Text formatting of a long document

• Syntax highlighting

• Audio synthesis

• Image processing

• Processing large arrays or other computational tasks

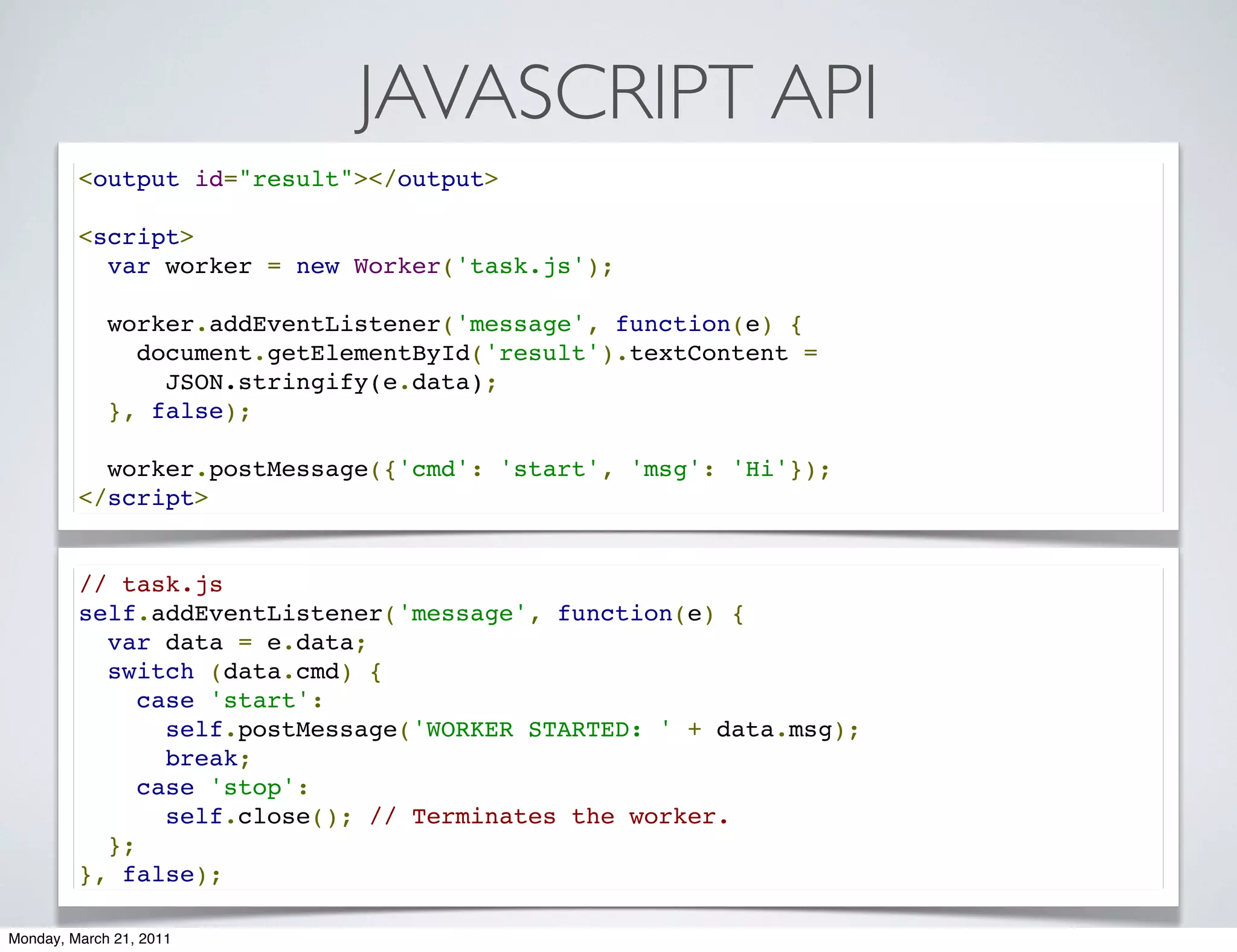

JAVASCRIPT API
<output id="result"></output>

<script>
var worker = new Worker('task.js');

worker.addEventListener('message', function(e) {
document.getElementById('result').textContent =
JSON.stringify(e.data);
}, false);

worker.postMessage({'cmd': 'start', 'msg': 'Hi'});
</script>

// task.js
self.addEventListener('message', function(e) {
var data = e.data;
switch (data.cmd) {
case 'start':
self.postMessage('WORKER STARTED: ' + data.msg);
break;
case 'stop':
self.close(); // Terminates the worker.
};
}, false);

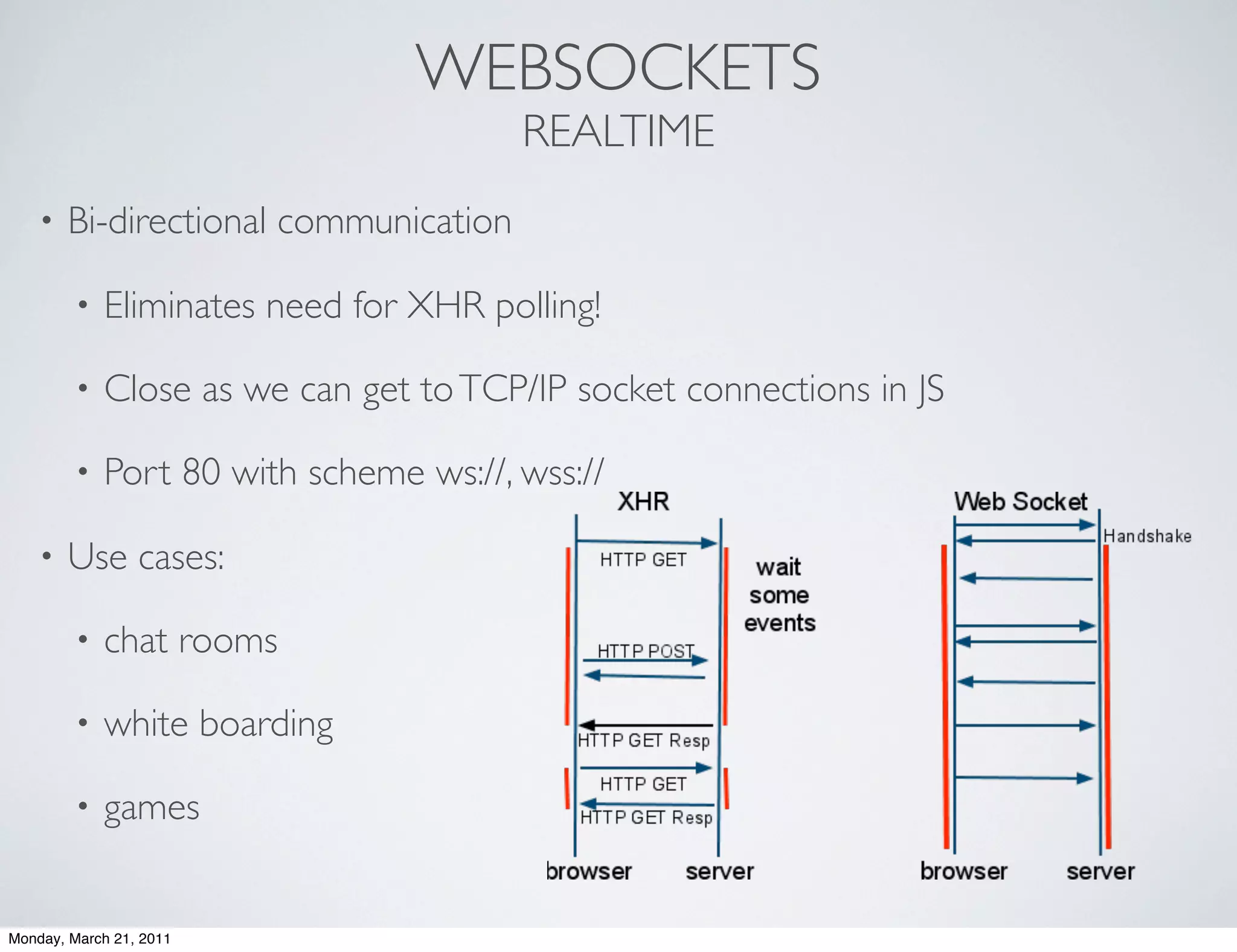

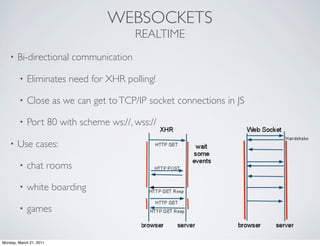

WEBSOCKETS
REALTIME
• Bi-directional communication

• Eliminates need for XHR polling!

• Close as we can get to TCP/IP socket connections in JS

• Port 80 with scheme ws://, wss://

• Use cases:

• chat rooms

• white boarding

• games

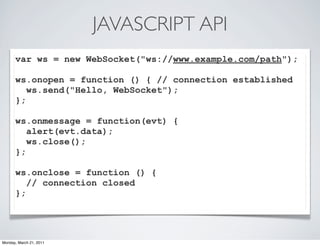

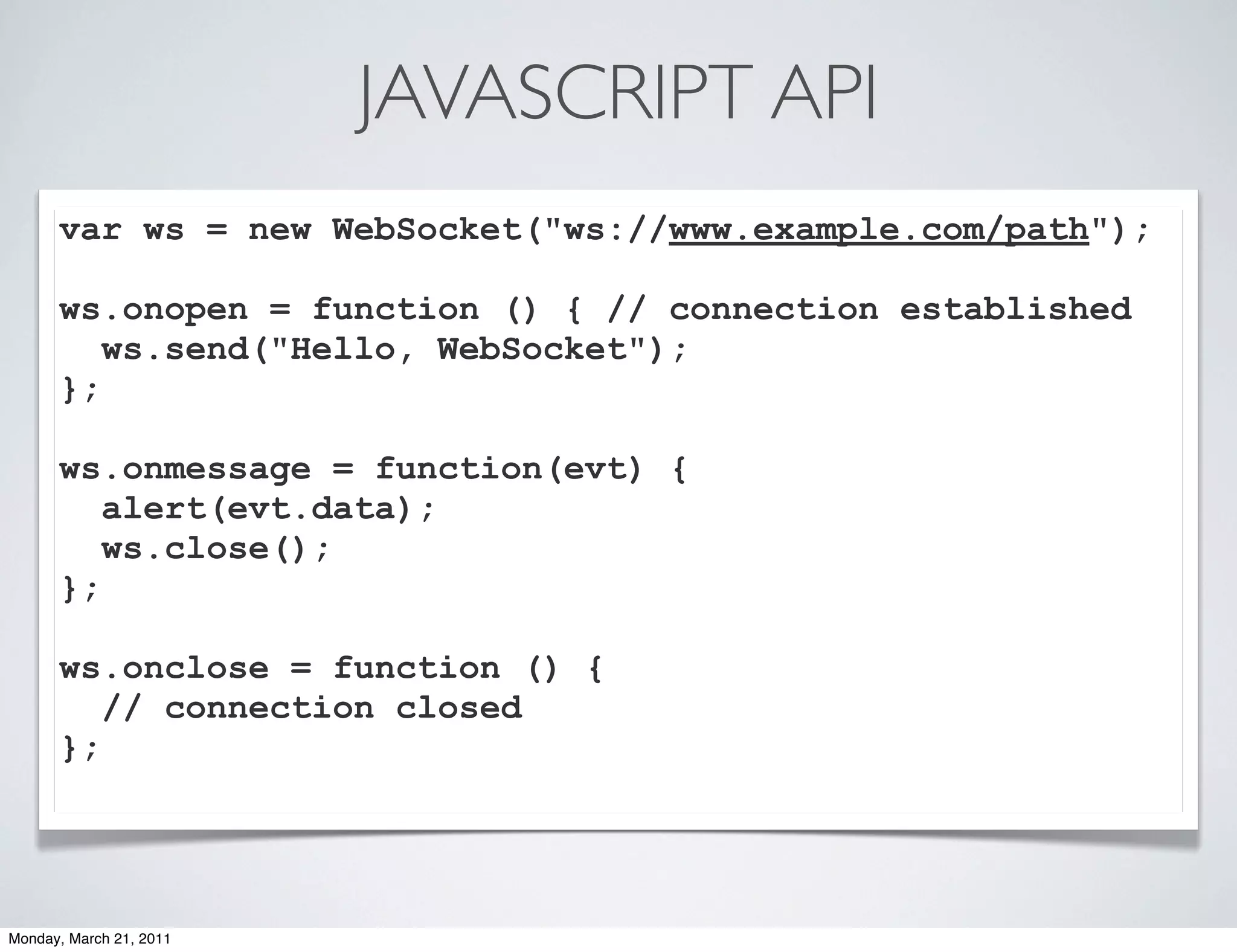

JAVASCRIPT API
var ws = new WebSocket("ws://www.example.com/path");

ws.onopen = function () { // connection established
ws.send("Hello, WebSocket");
};

ws.onmessage = function(evt) {
alert(evt.data);
ws.close();
};

ws.onclose = function () {
// connection closed
};

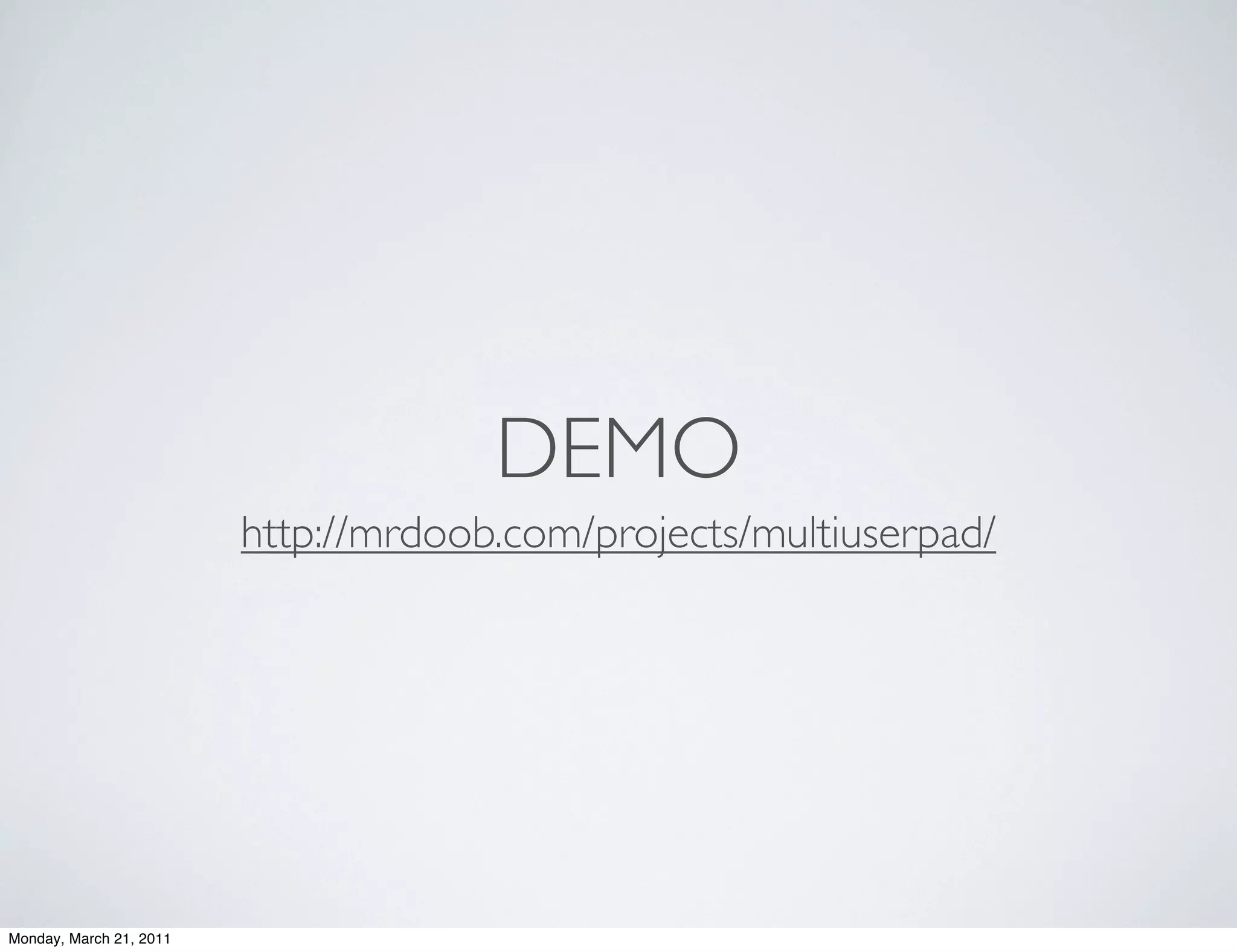

DEMO
http://mrdoob.com/projects/multiuserpad/

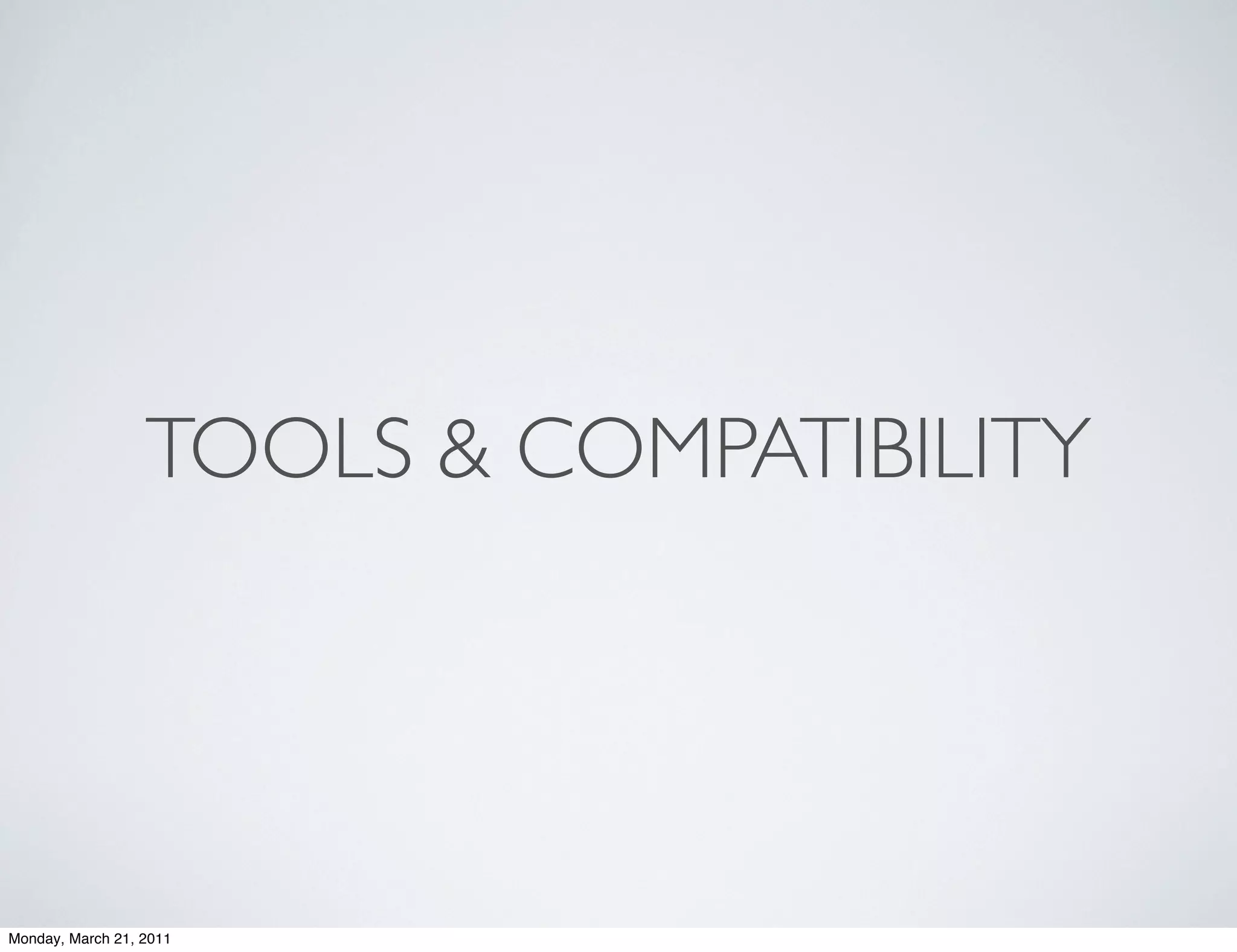

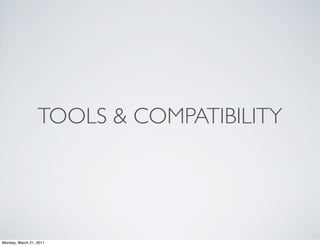

TOOLS & COMPATIBILITY

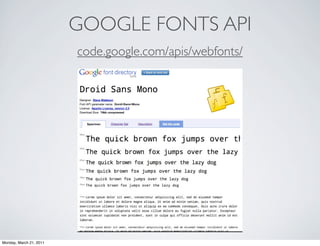

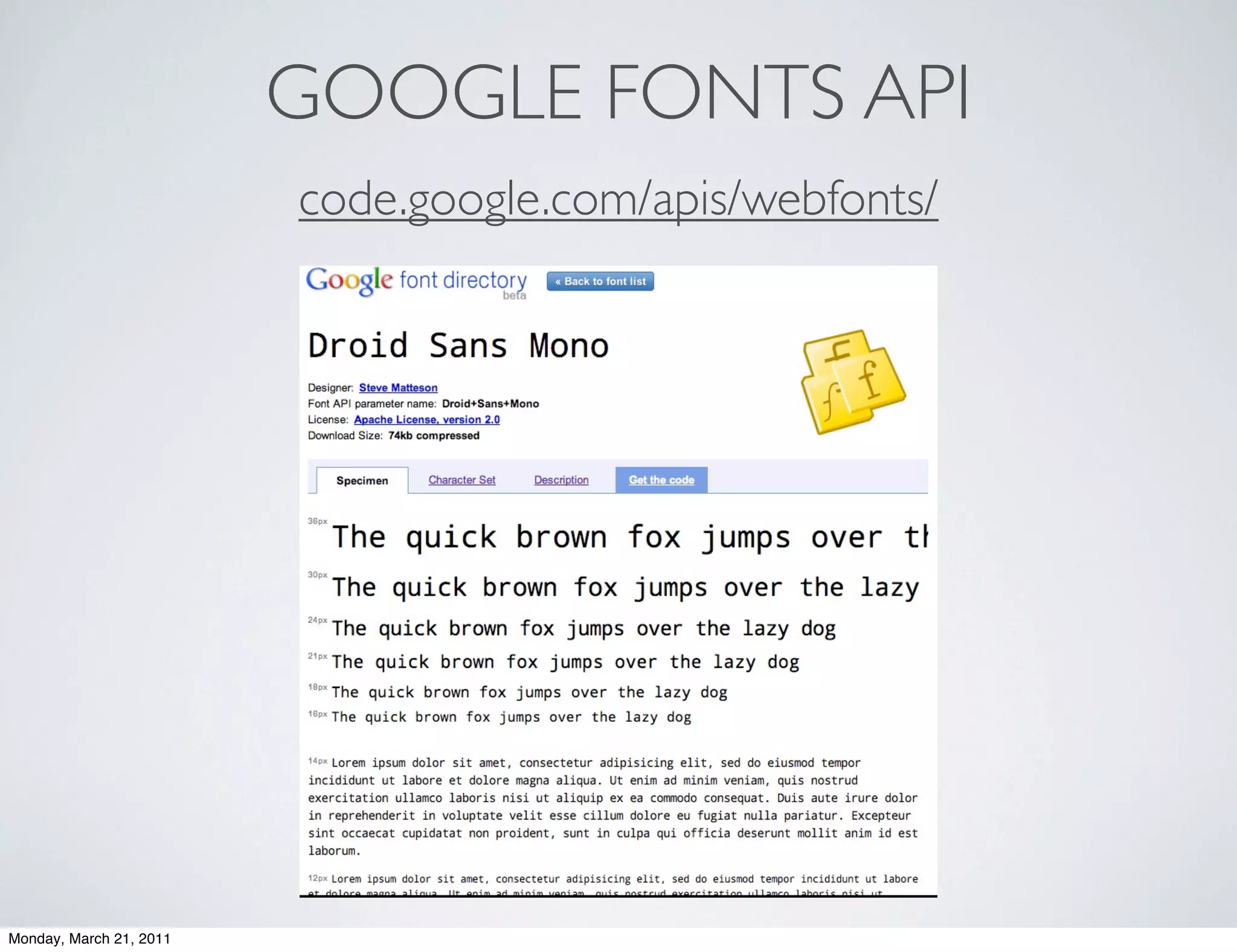

GOOGLE FONTS API
code.google.com/apis/webfonts/

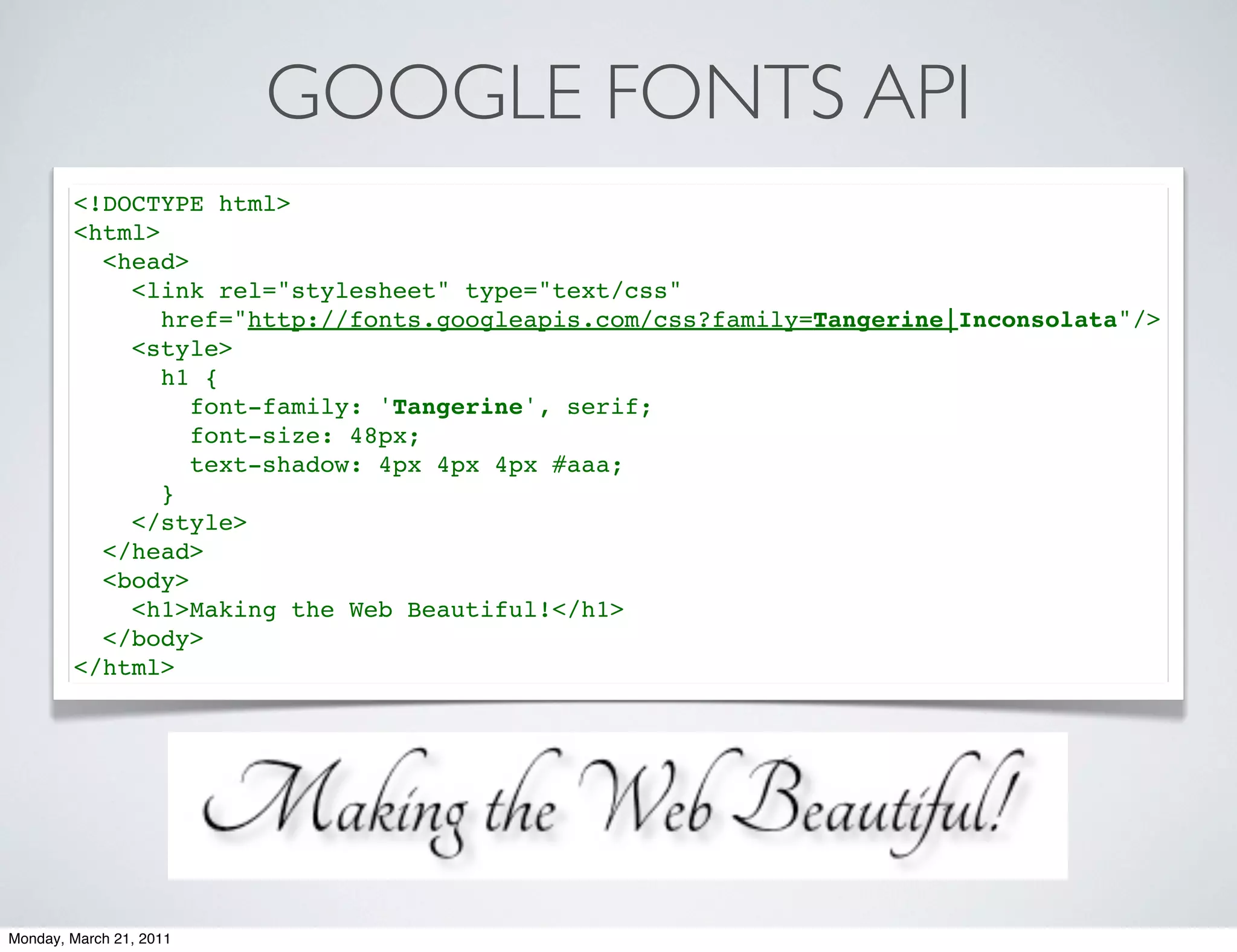

GOOGLE FONTS API
<!DOCTYPE html>
<html>
<head>
<link rel="stylesheet" type="text/css"
href="http://fonts.googleapis.com/css?family=Tangerine|Inconsolata"/>
<style>
h1 {
font-family: 'Tangerine', serif;
font-size: 48px;
text-shadow: 4px 4px 4px #aaa;
}
</style>
</head>
<body>
<h1>Making the Web Beautiful!</h1>
</body>
</html>

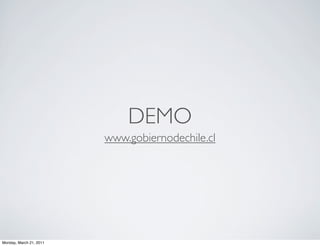

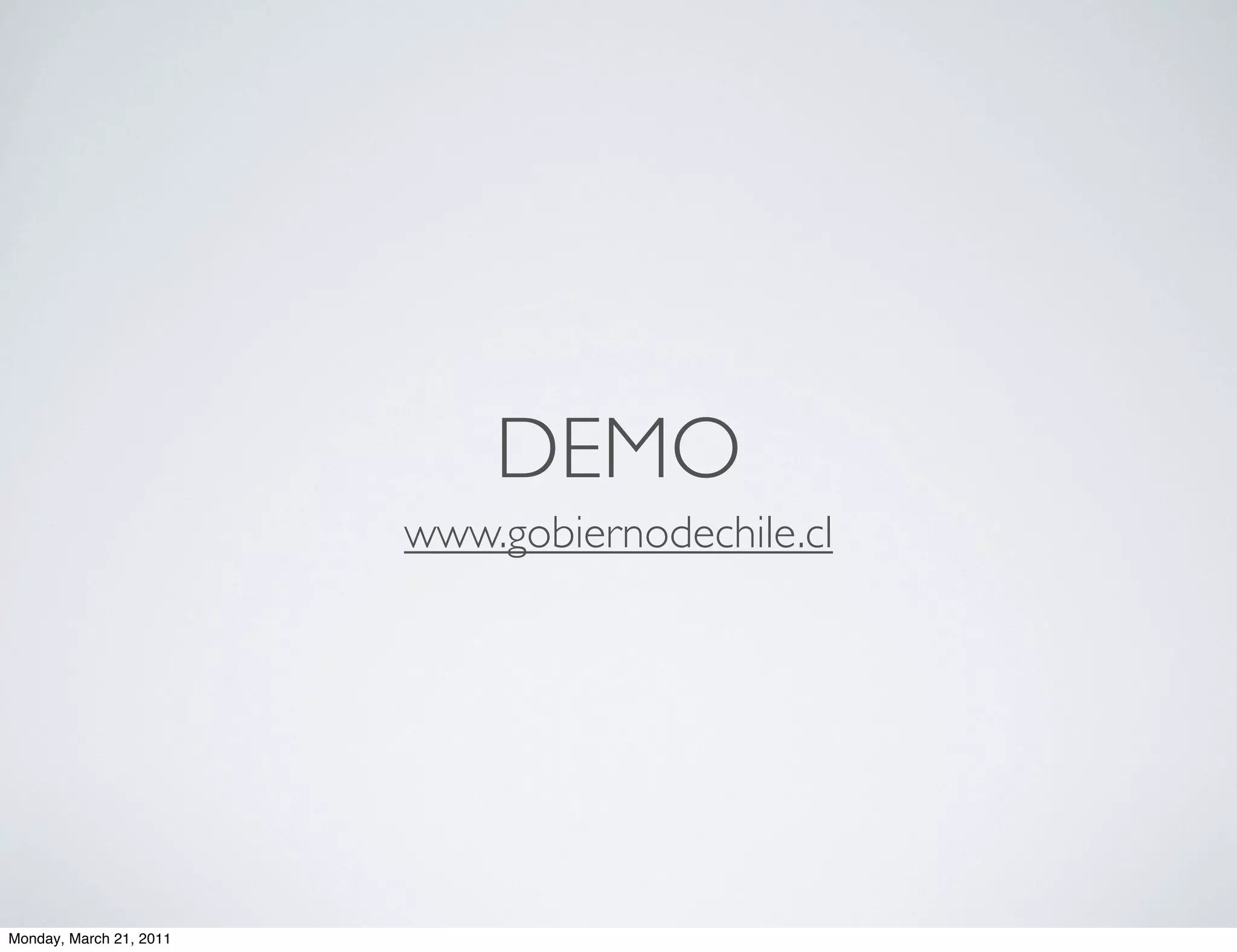

DEMO
www.gobiernodechile.cl

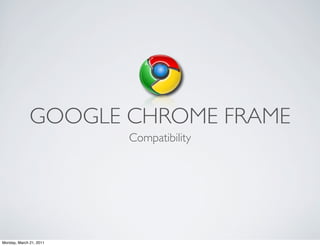

GOOGLE CHROME FRAME
Compatibility

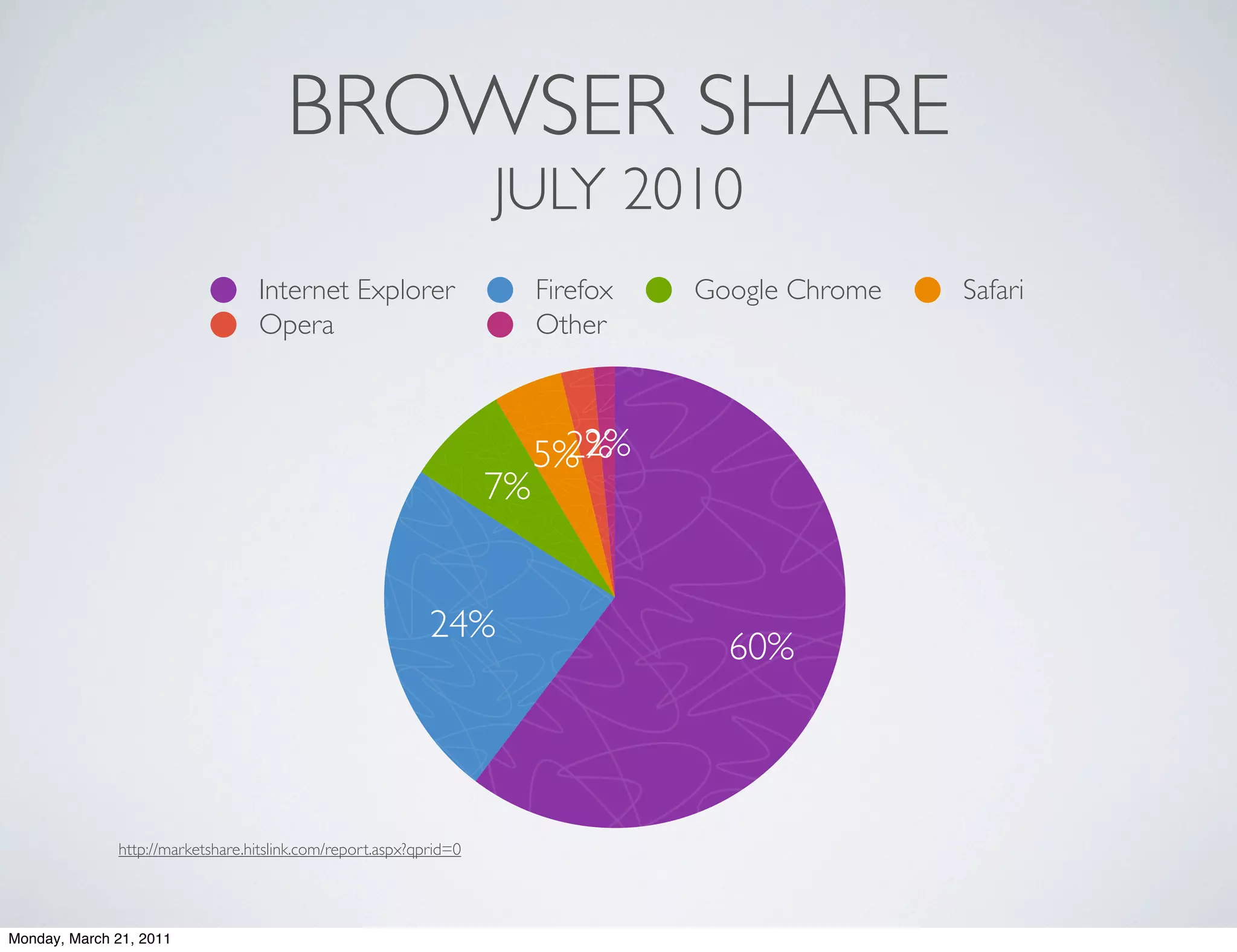

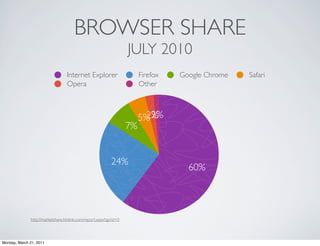

BROWSER SHARE
JULY 2010
Internet Explorer Firefox Google Chrome Safari
Opera Other

5% 2%
2%
7%

24%
60%

http://marketshare.hitslink.com/report.aspx?qprid=0

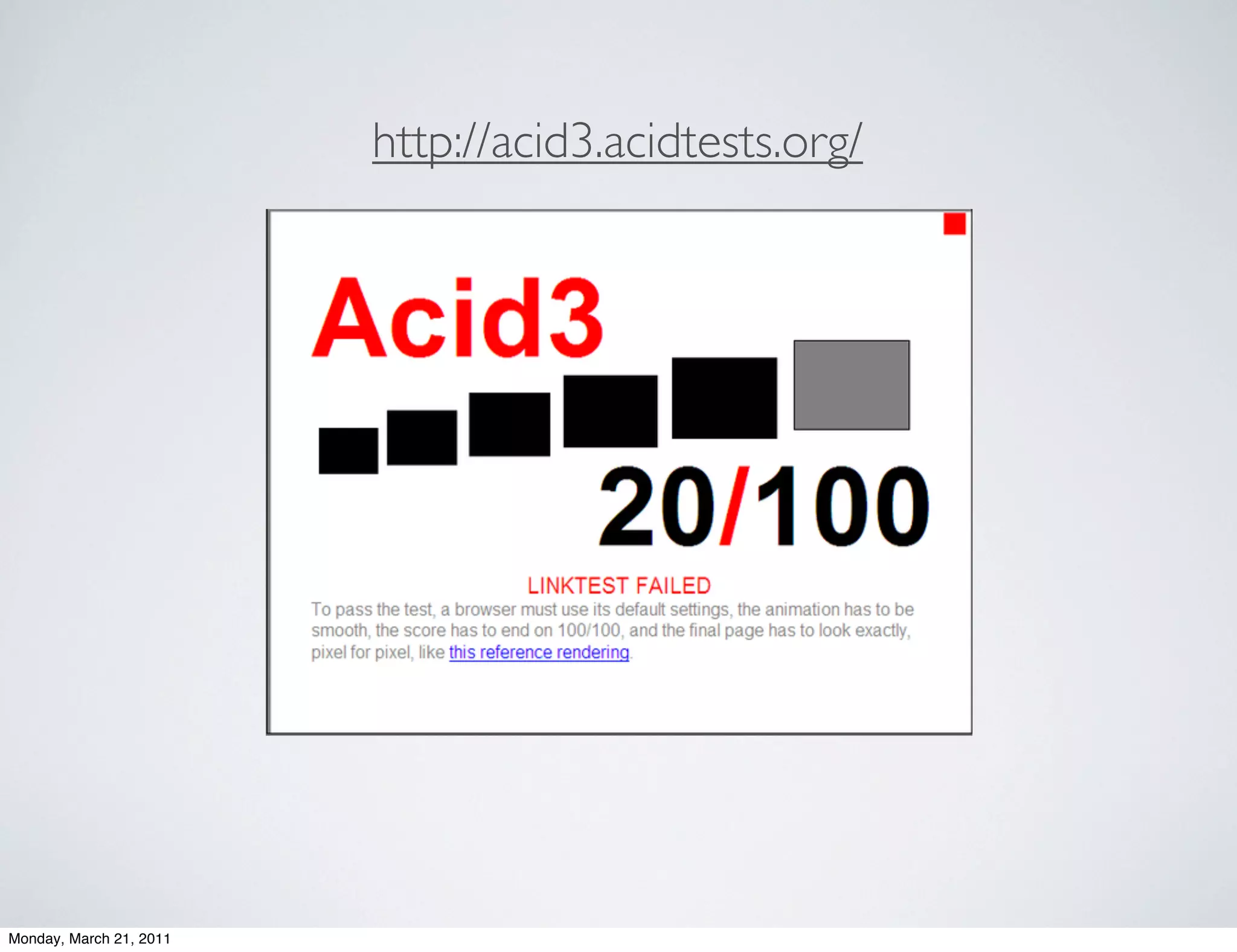

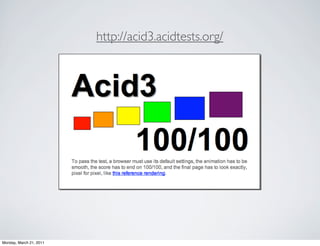

http://acid3.acidtests.org/

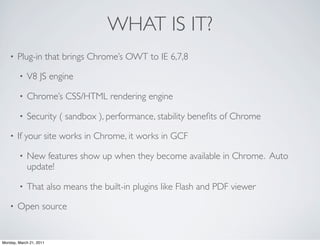

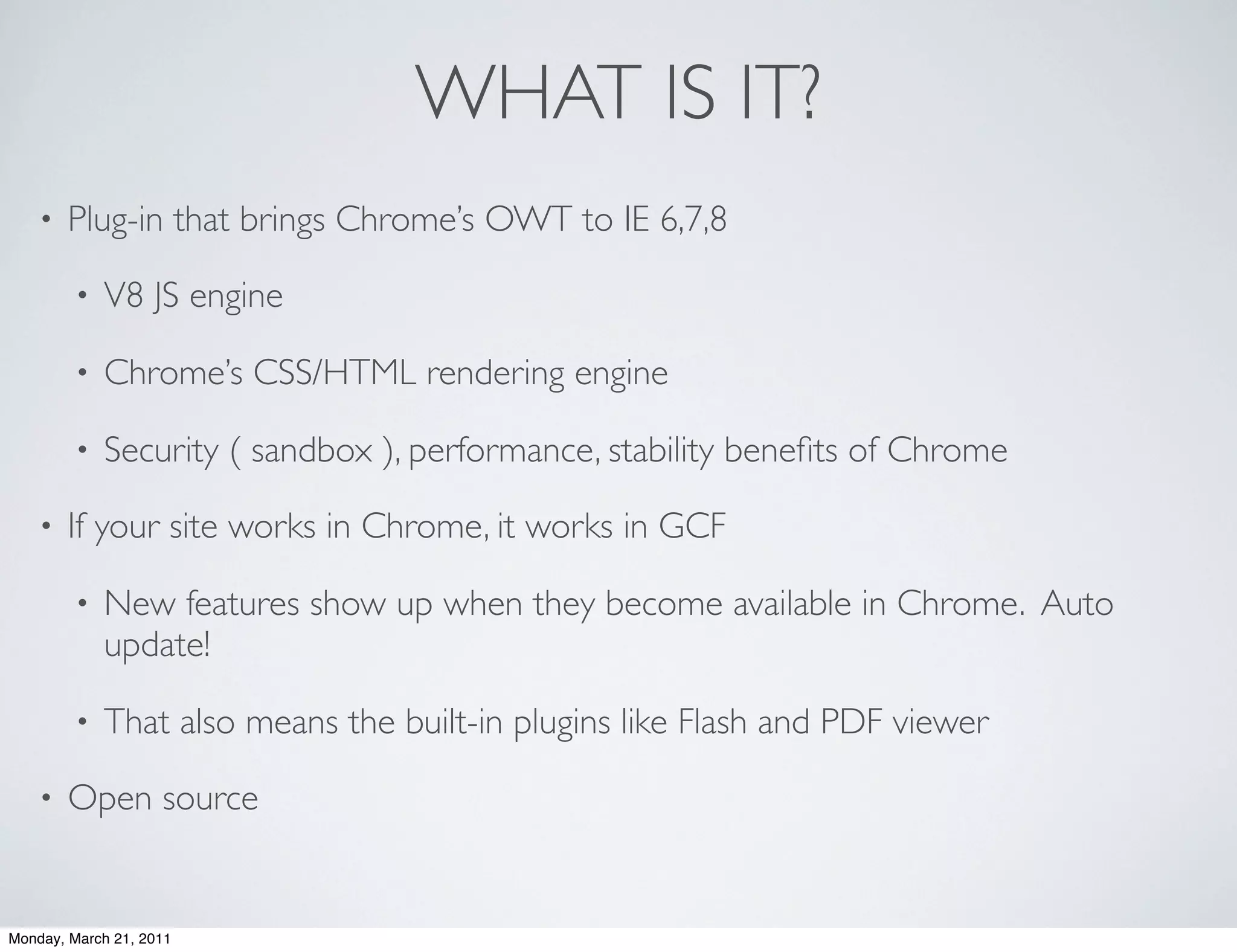

WHAT IS IT?
• Plug-in that brings Chrome’s OWT to IE 6,7,8

• V8 JS engine

• Chrome’s CSS/HTML rendering engine

• Security ( sandbox ), performance, stability beneﬁts of Chrome

• If your site works in Chrome, it works in GCF

• New features show up when they become available in Chrome. Auto
update!

• That also means the built-in plugins like Flash and PDF viewer

• Open source

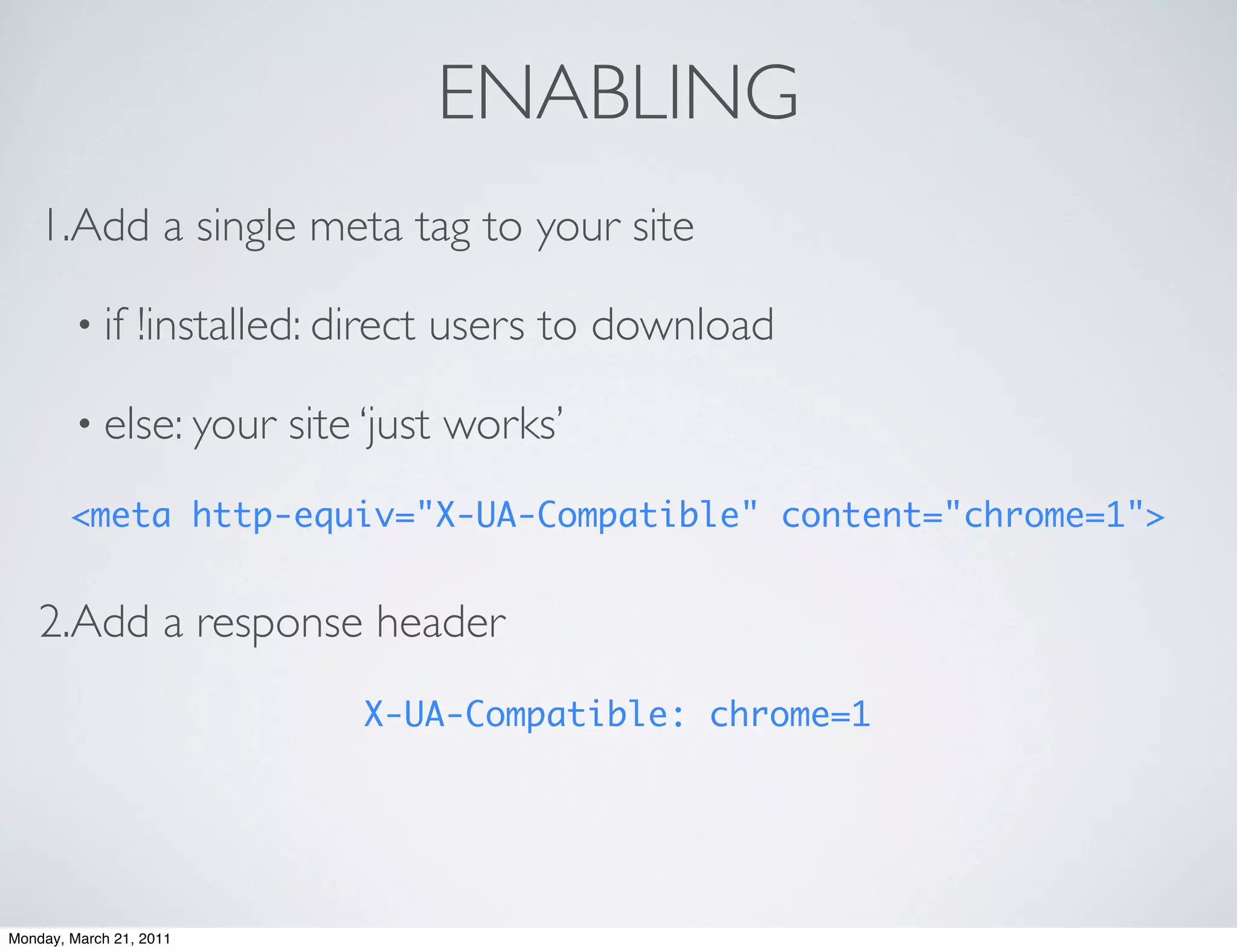

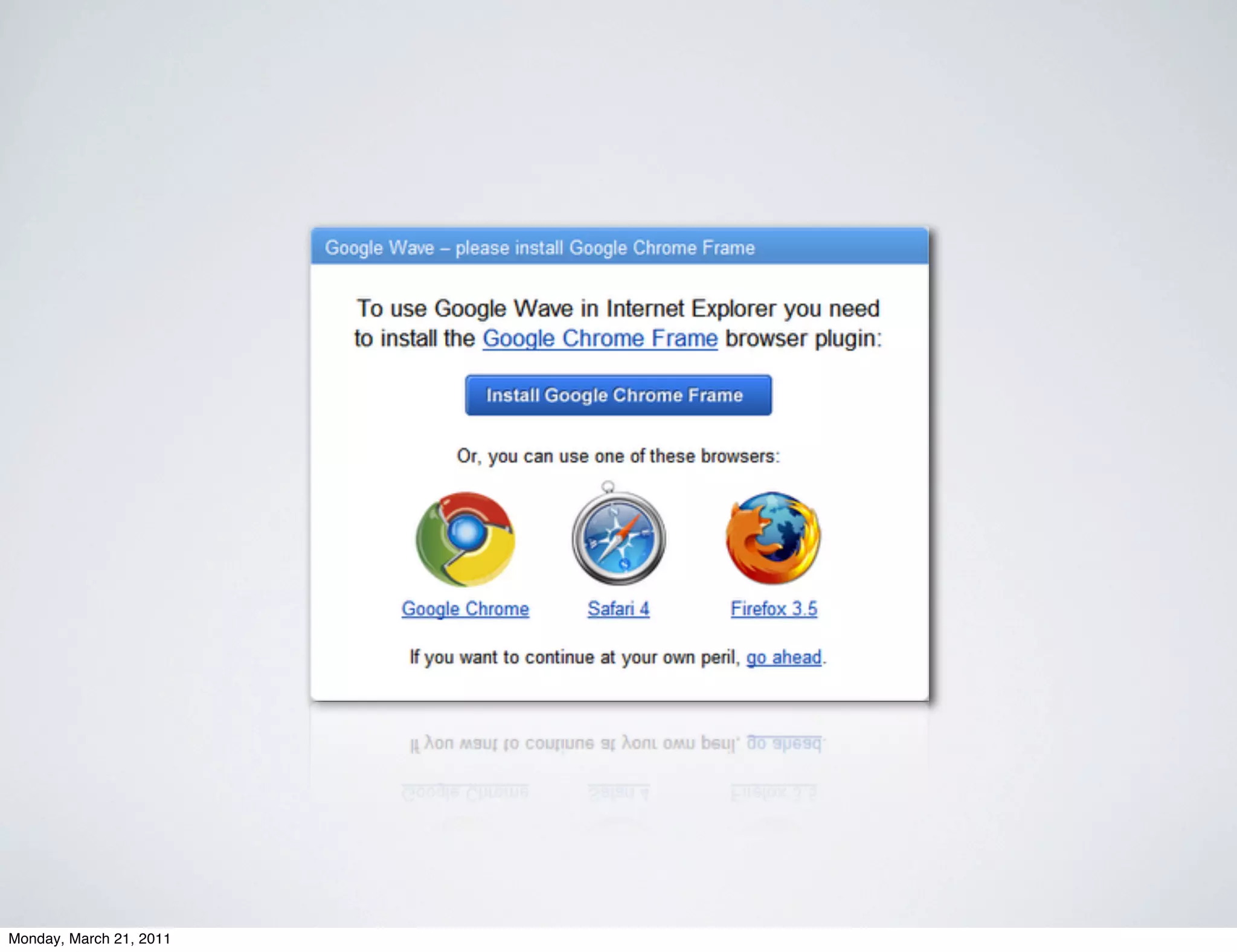

ENABLING
1.Add a single meta tag to your site

• if !installed: direct users to download

• else: your site ‘just works’
<meta http-equiv="X-UA-Compatible" content="chrome=1">

2.Add a response header
X-UA-Compatible: chrome=1

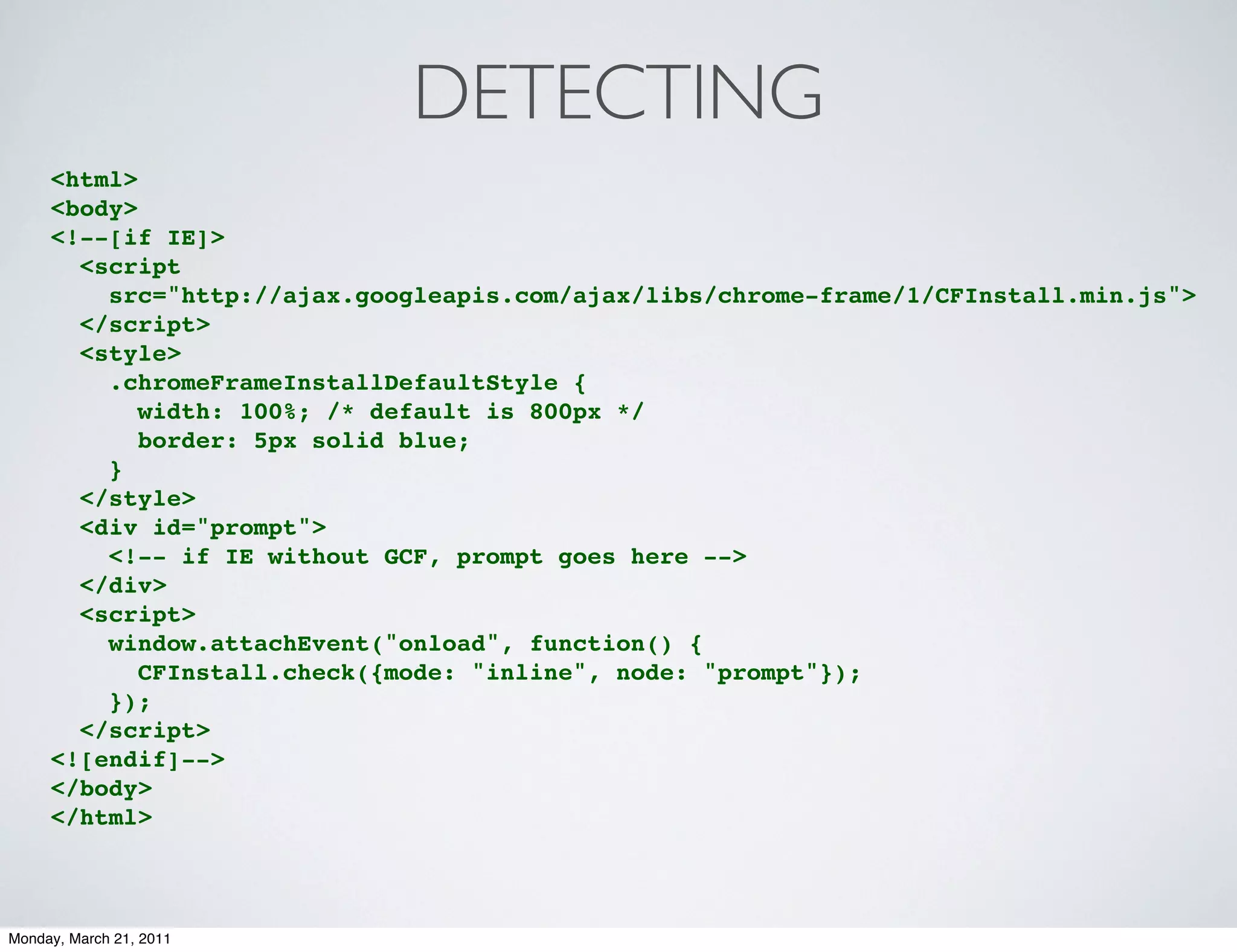

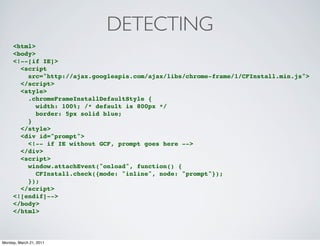

DETECTING
<html>
<body>

</div>
<script>
window.attachEvent("onload", function() {
CFInstall.check({mode: "inline", node: "prompt"});
});
</script>
<![endif]-->
</body>
</html>

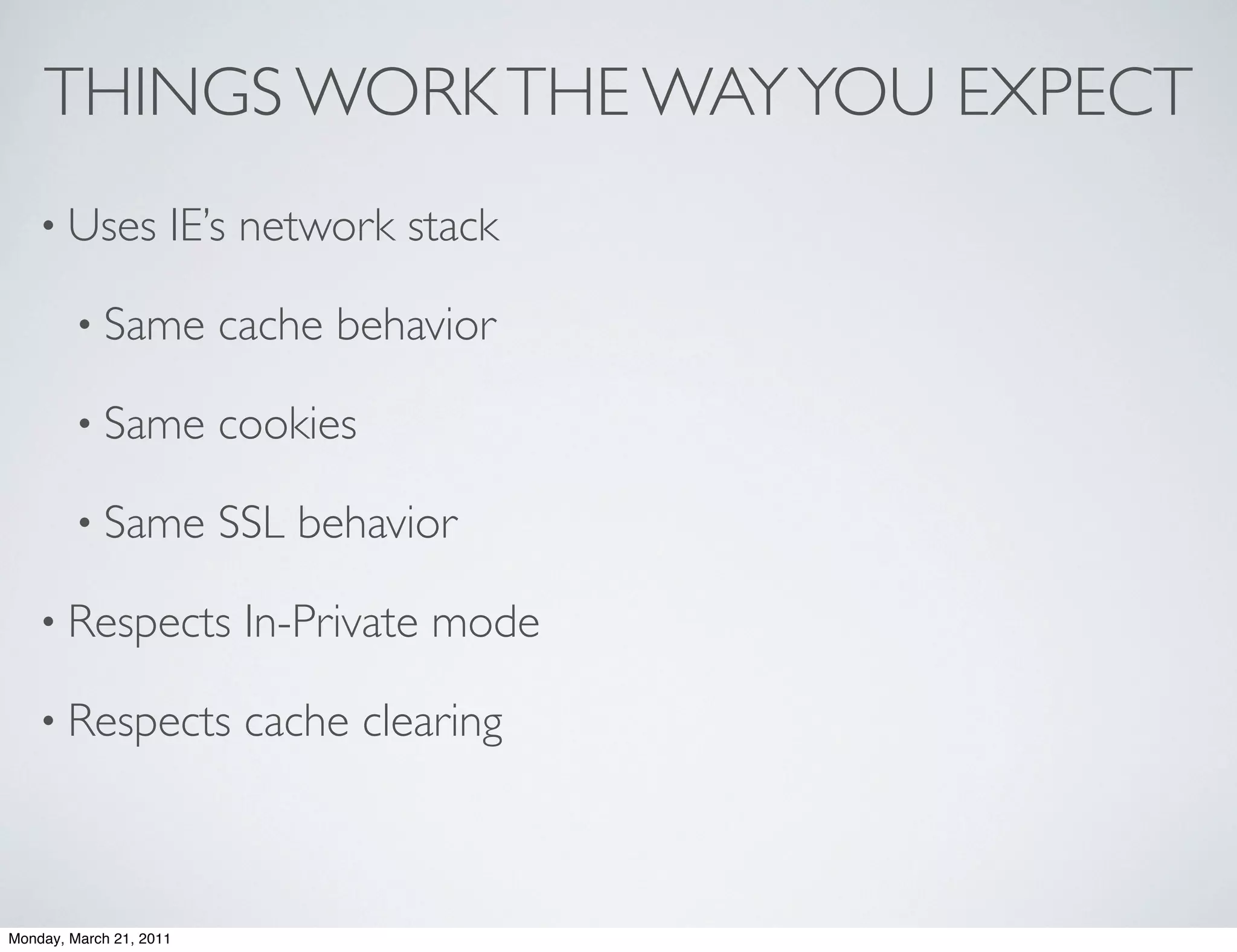

THINGS WORK THE WAY YOU EXPECT
• Uses IE’s network stack

• Same cache behavior

• Same cookies

• Same SSL behavior

• Respects In-Private mode

• Respects cache clearing

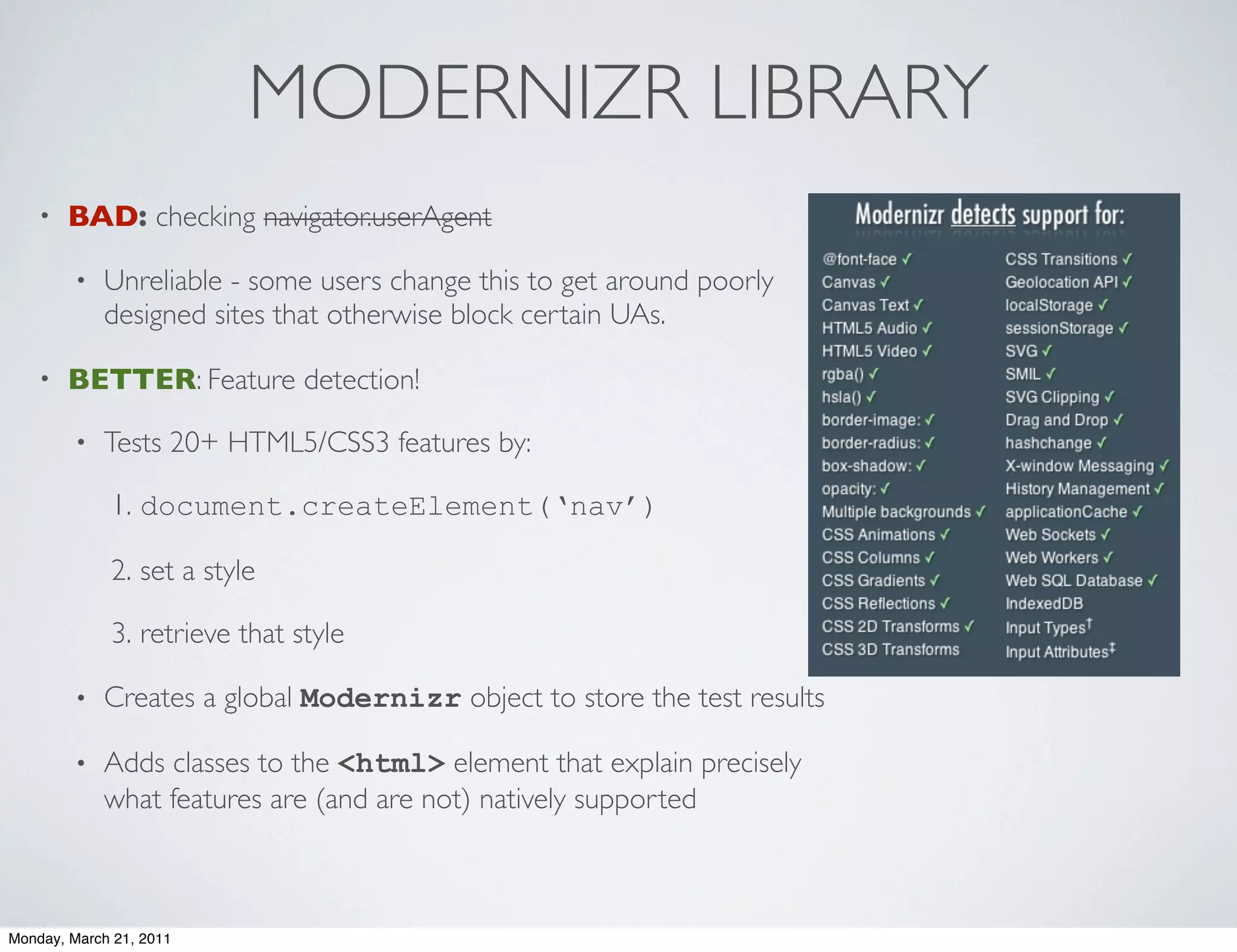

MODERNIZR LIBRARY
• BAD: checking navigator.userAgent

• Unreliable - some users change this to get around poorly
designed sites that otherwise block certain UAs.

• BETTER: Feature detection!

• Tests 20+ HTML5/CSS3 features by:

1. document.createElement(‘nav’)

2. set a style

3. retrieve that style

• Creates a global Modernizr object to store the test results

• Adds classes to the <html> element that explain precisely
what features are (and are not) natively supported

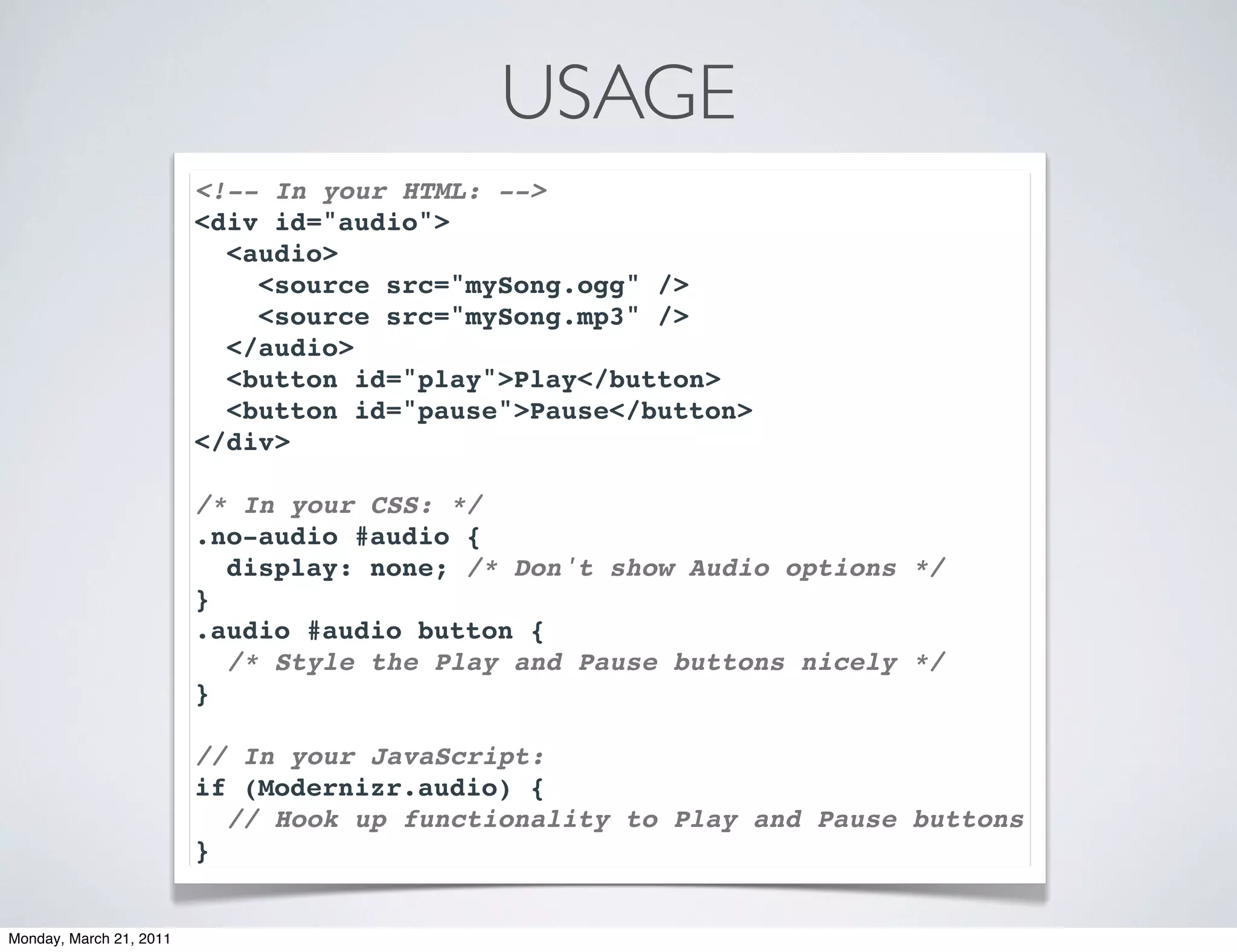

USAGE

<div id="audio">
<audio>
<source src="mySong.ogg" />
<source src="mySong.mp3" />
</audio>
<button id="play">Play</button>
<button id="pause">Pause</button>
</div>

/* In your CSS: */
.no-audio #audio {
display: none; /* Don't show Audio options */
}
.audio #audio button {
/* Style the Play and Pause buttons nicely */
}

// In your JavaScript:
if (Modernizr.audio) {
// Hook up functionality to Play and Pause buttons
}

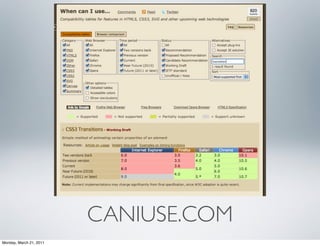

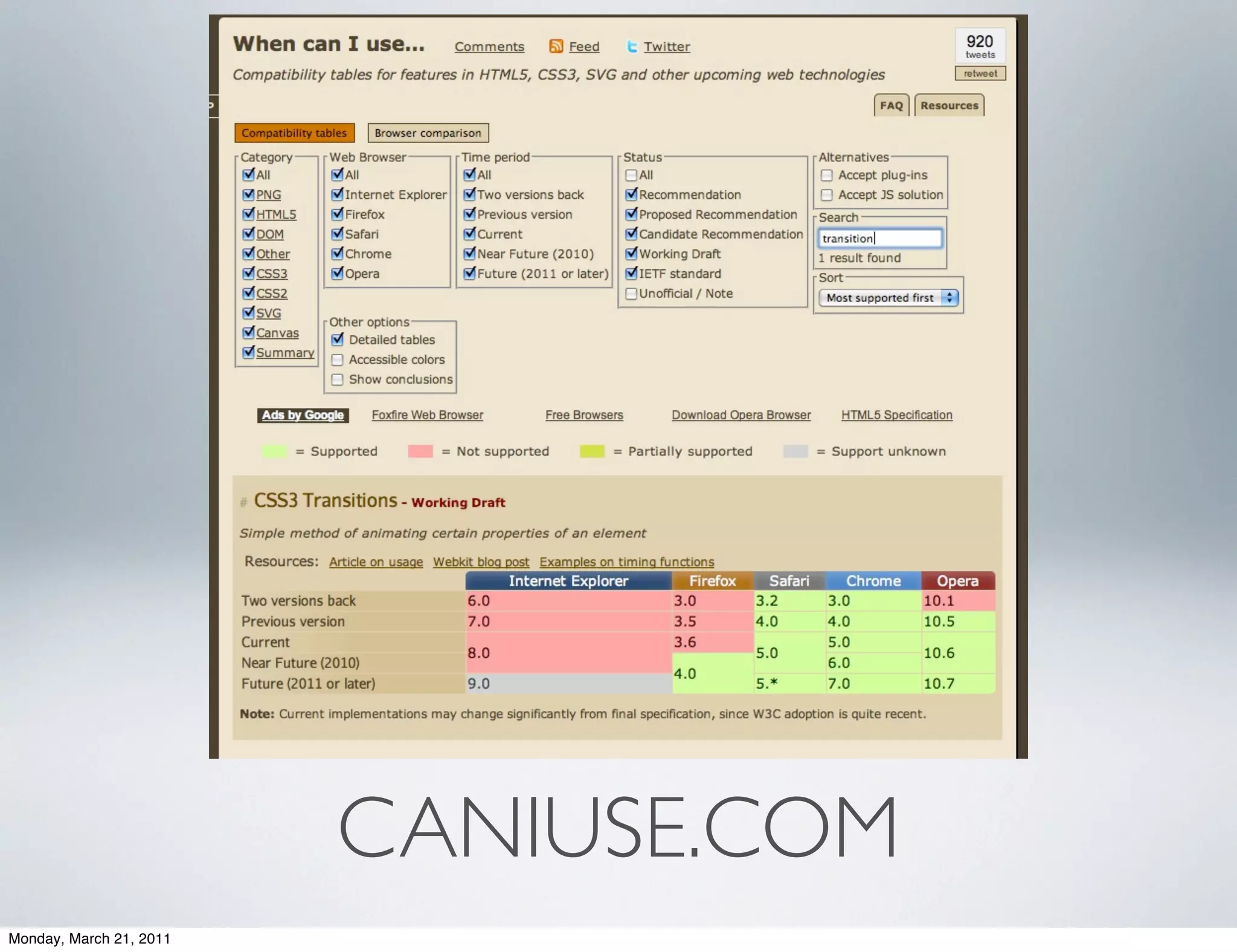

CANIUSE.COM

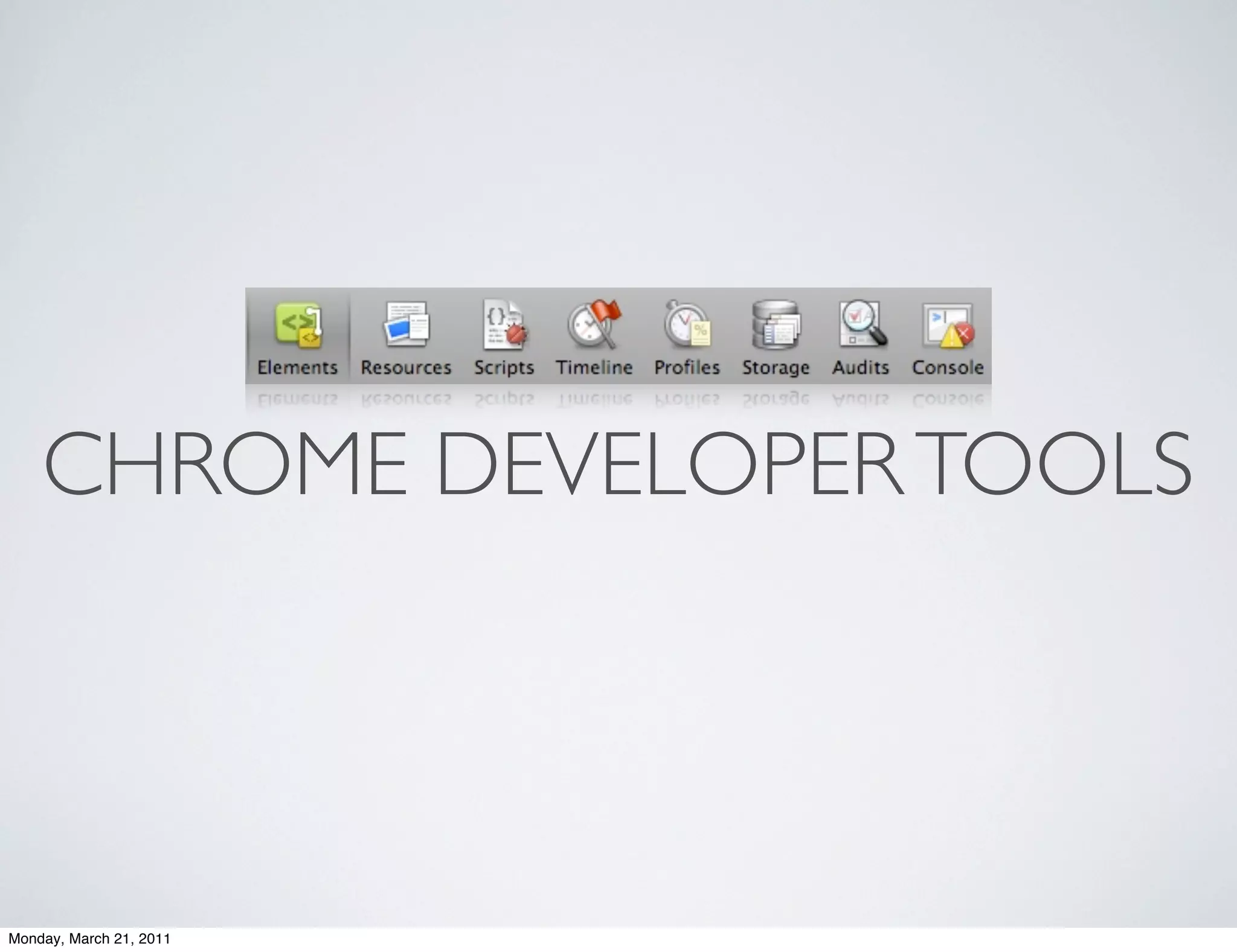

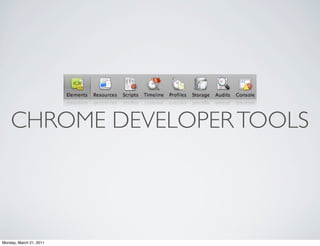

CHROME DEVELOPER TOOLS

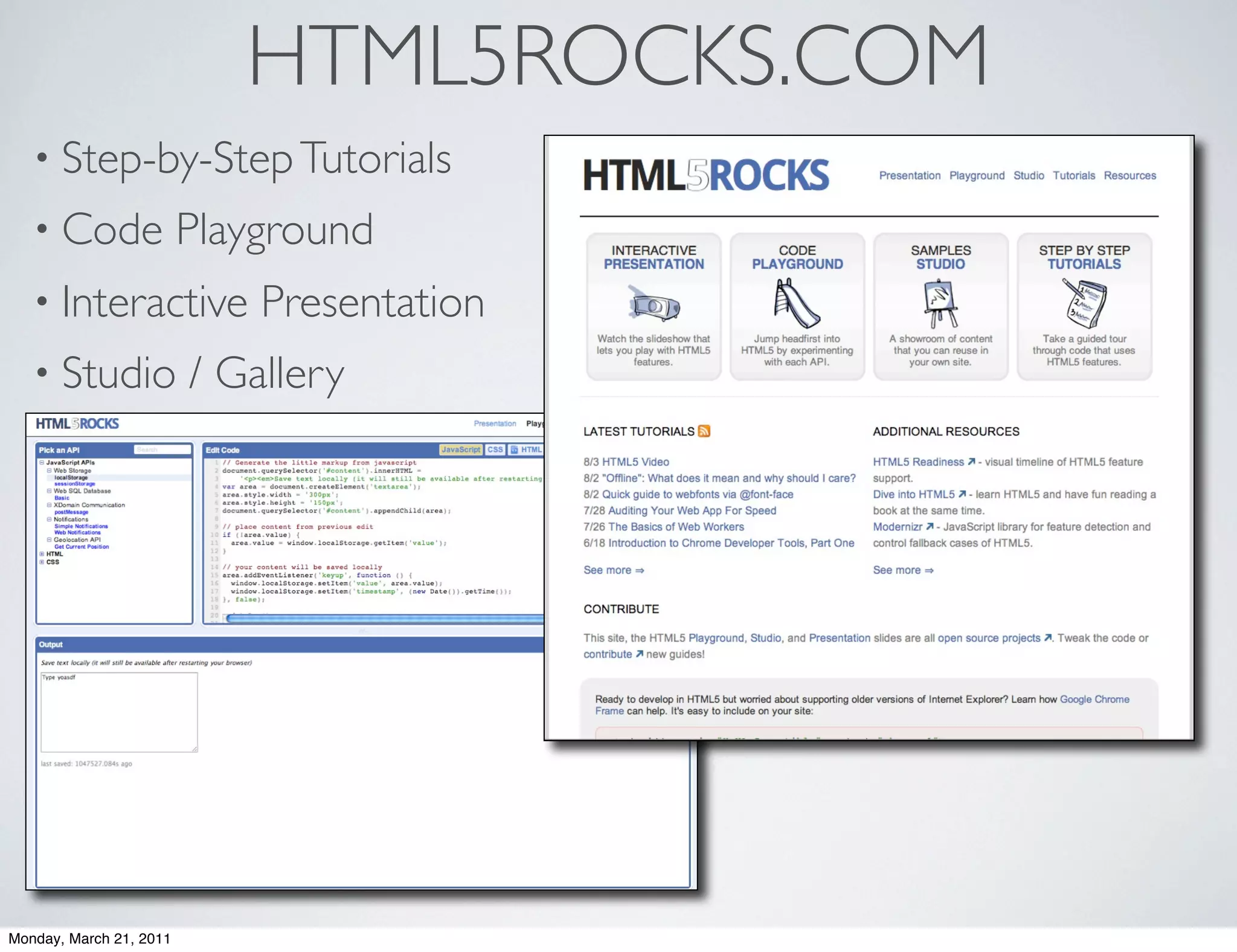

HTML5ROCKS.COM
• Step-by-Step Tutorials
• Code Playground
• Interactive Presentation
• Studio / Gallery

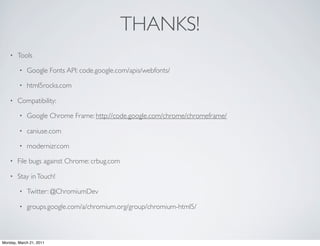

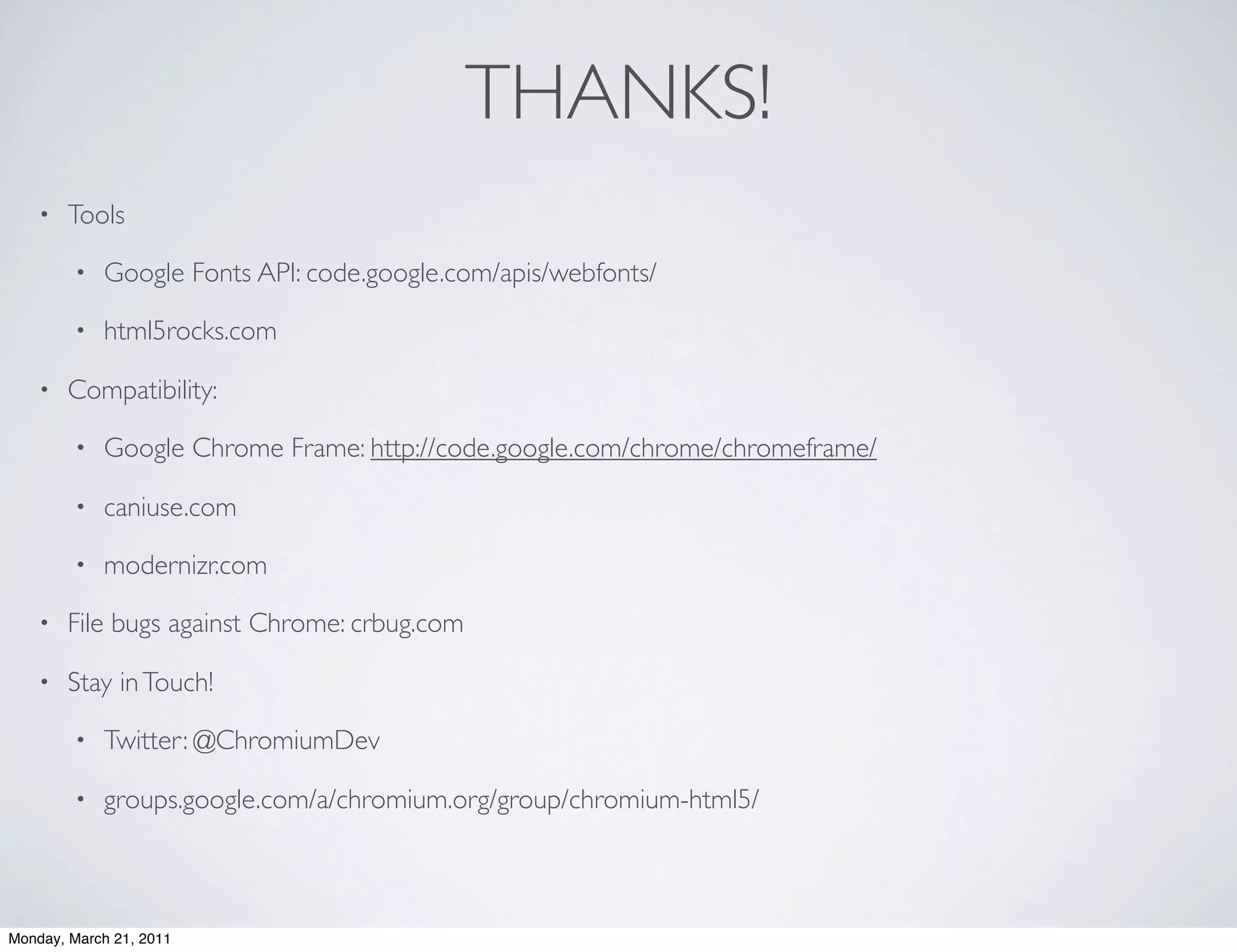

THANKS!
• Tools

• Google Fonts API: code.google.com/apis/webfonts/

• html5rocks.com

• Compatibility:

• Google Chrome Frame: http://code.google.com/chrome/chromeframe/

• caniuse.com

• modernizr.com

• File bugs against Chrome: crbug.com

• Stay in Touch!

• Twitter: @ChromiumDev

• groups.google.com/a/chromium.org/group/chromium-html5/
