Implementing New Web

IMPLEMENTING NEW WEBAPIS
Gregor Wagner (gwagner@mozilla.com)
Julian Viereck (jviereck@mozilla.com)

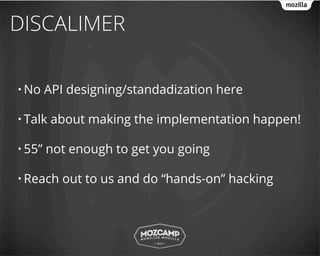

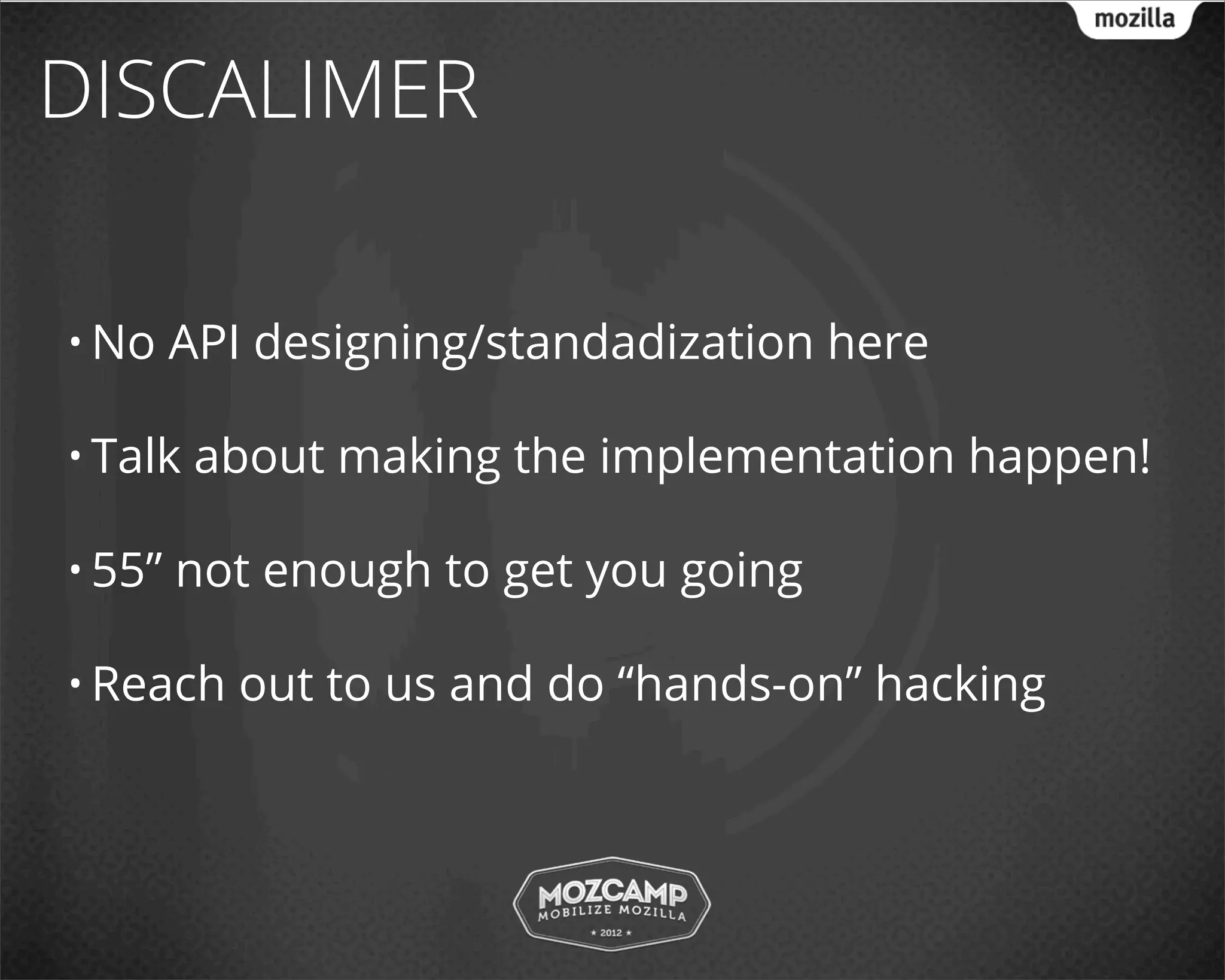

DISCALIMER

• No API designing/standadization here

• Talk about making the implementation happen!

• 55” not enough to get you going

• Reach out to us and do “hands-on” hacking

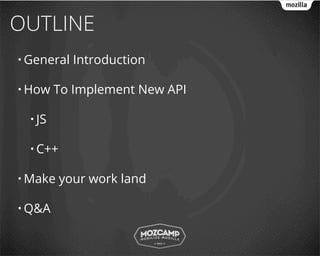

OUTLINE
• General Introduction

• How To Implement New API

• JS

• C++

• Make your work land

• Q&A

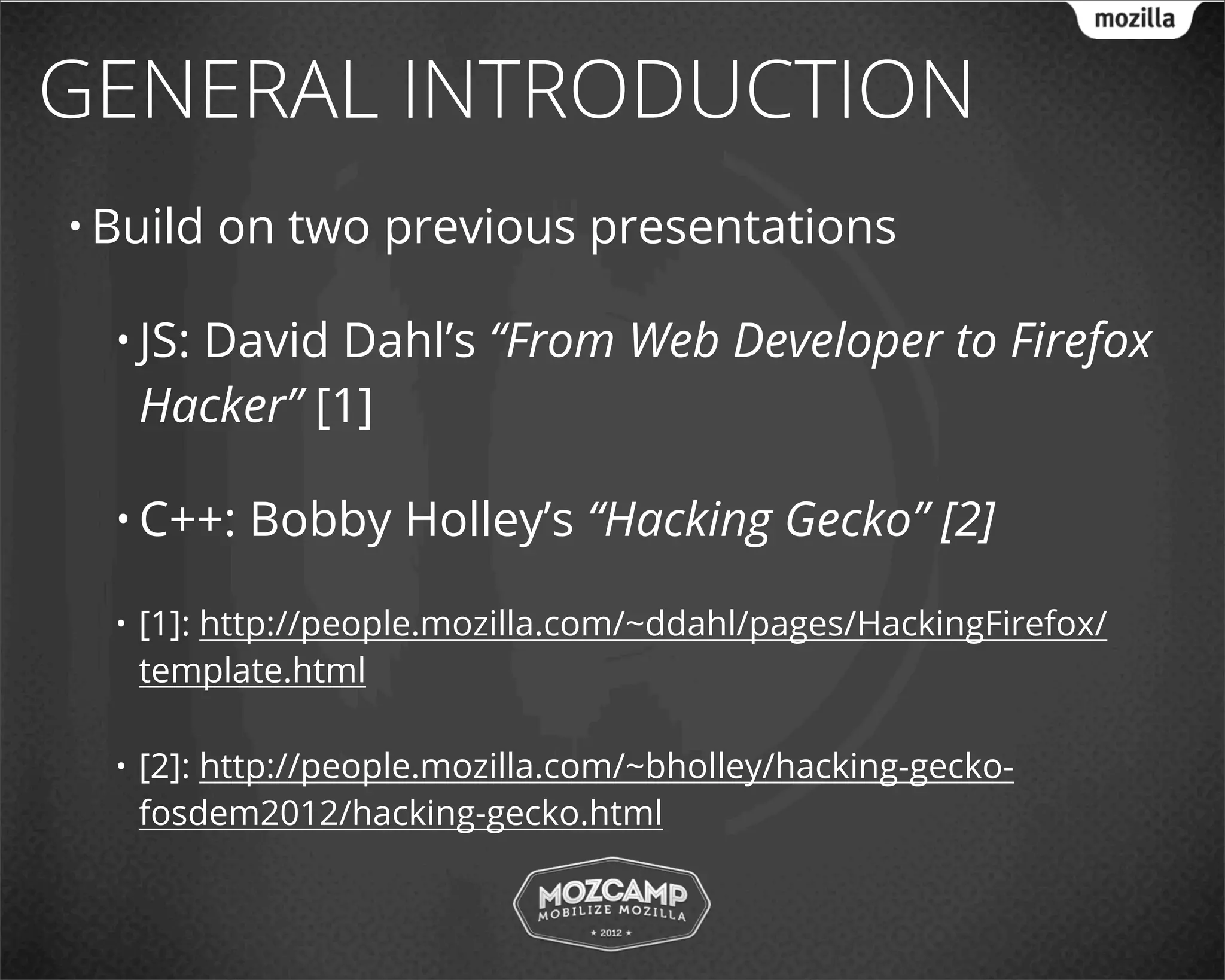

GENERAL INTRODUCTION
• Build on two previous presentations

• JS: David Dahl’s “From Web Developer to Firefox
Hacker” [1]

• C++: Bobby Holley’s “Hacking Gecko” [2]

• [1]: http://people.mozilla.com/~ddahl/pages/HackingFirefox/
template.html

• [2]: http://people.mozilla.com/~bholley/hacking-gecko-
fosdem2012/hacking-gecko.html

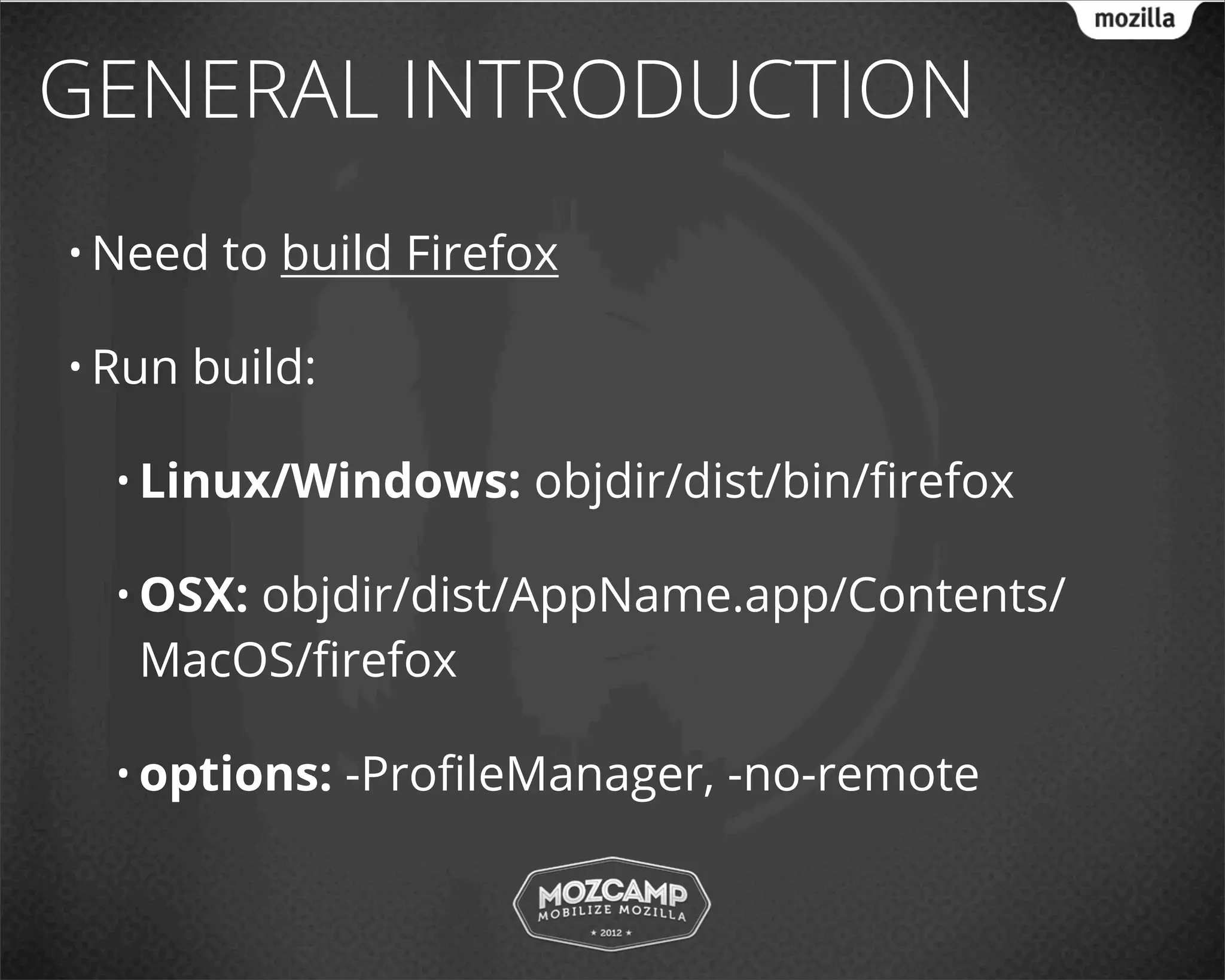

• Need to build Firefox

• Run build:

• Linux/Windows: objdir/dist/bin/firefox

• OSX:
objdir/dist/AppName.app/Contents/
MacOS/firefox

• options: -ProfileManager, -no-remote

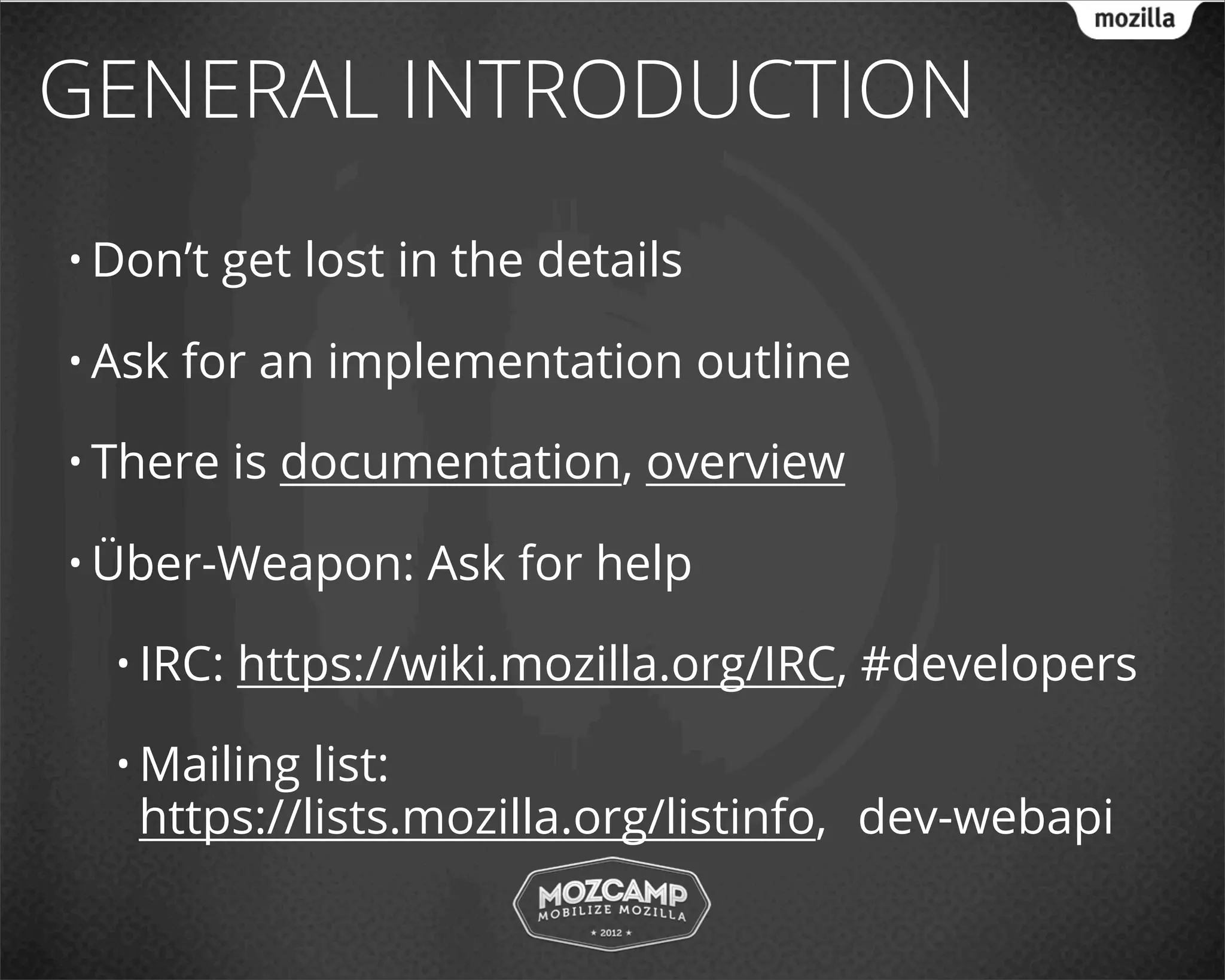

• Don’t get lost in the details

• Ask for an implementation outline

• There is documentation, overview

• Über-Weapon: Ask for help

• IRC: https://wiki.mozilla.org/IRC, #developers

• Mailing list:
https://lists.mozilla.org/listinfo, dev-webapi

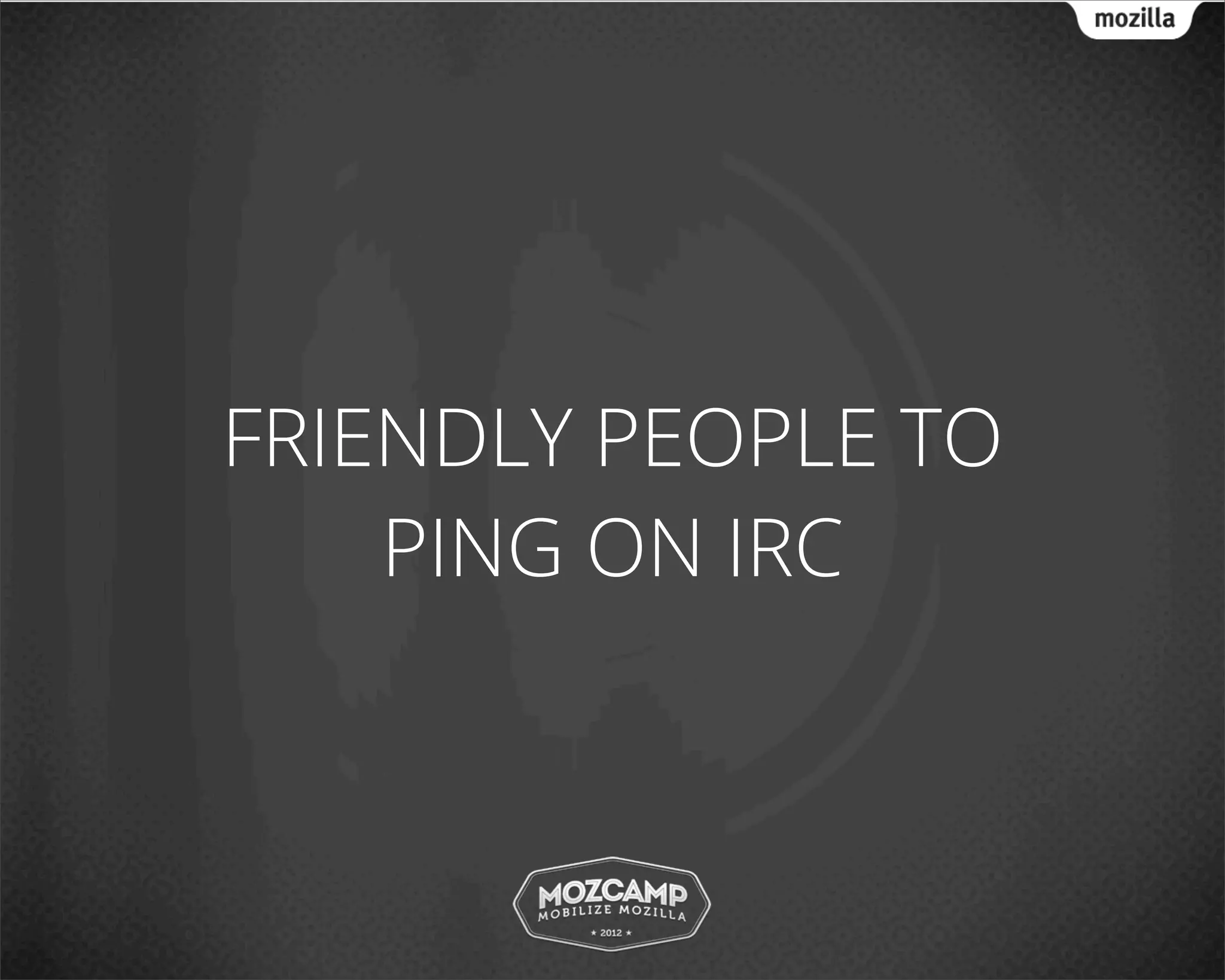

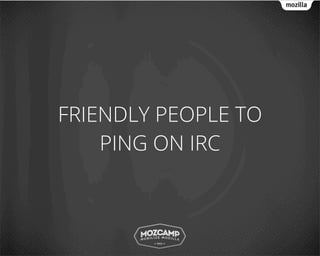

FRIENDLY PEOPLE TO
PING ON IRC

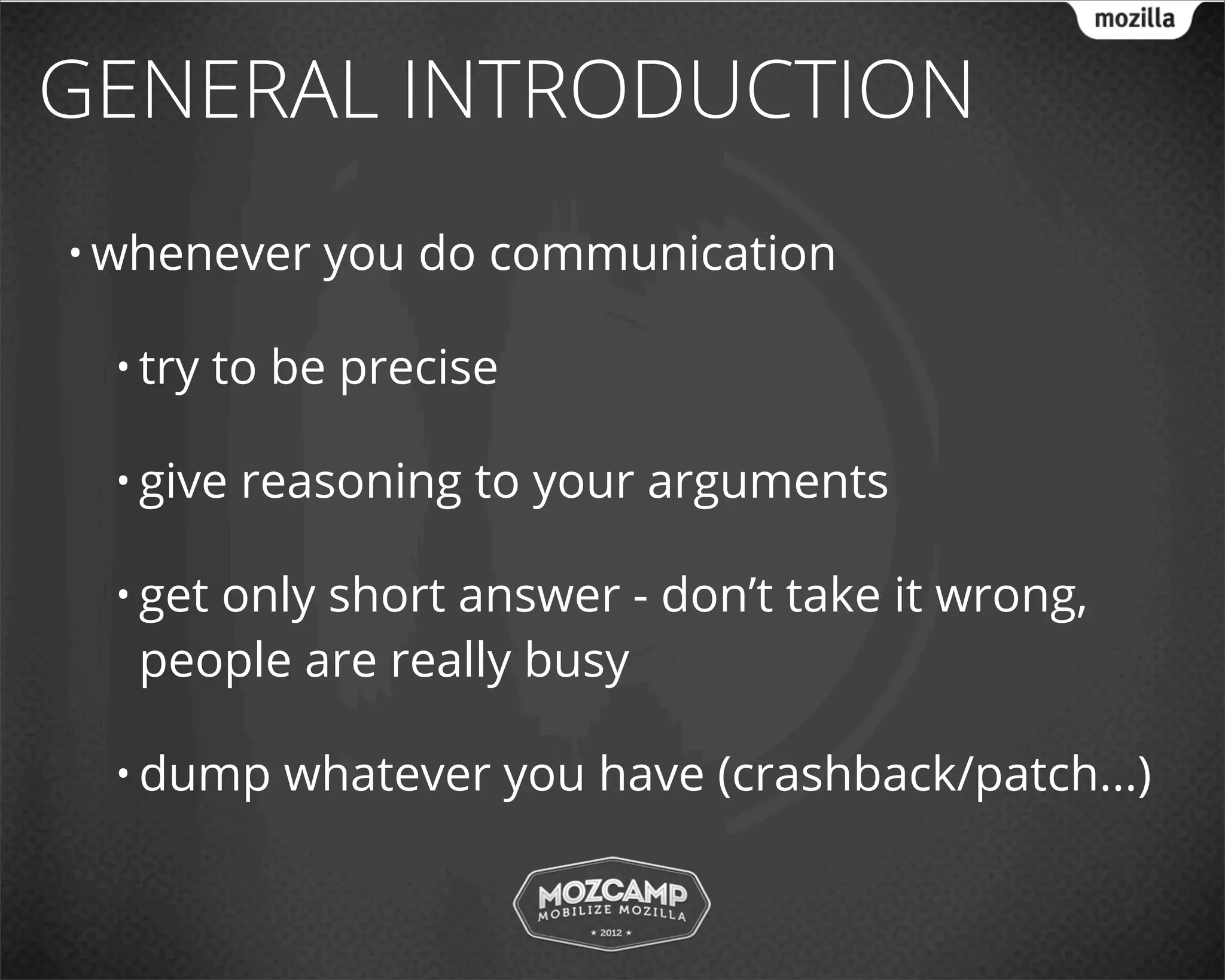

• whenever you do communication

• try to be precise

• give reasoning to your arguments

• get
only short answer - don’t take it wrong,
people are really busy

• dump whatever you have (crashback/patch...)

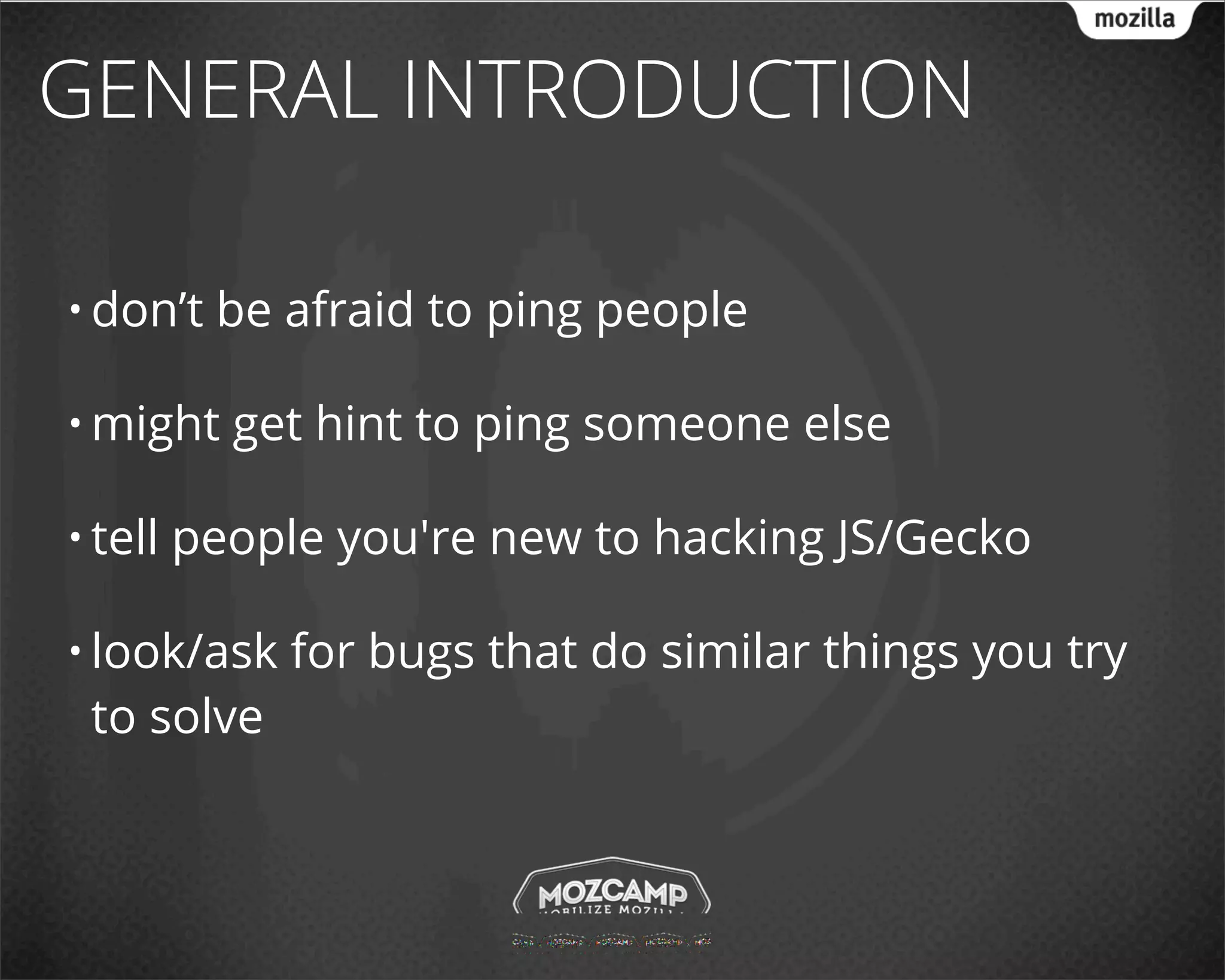

• don’t be afraid to ping people

• might get hint to ping someone else

• tell people you're new to hacking JS/Gecko

• look/ask for bugs that do similar things you try
to solve

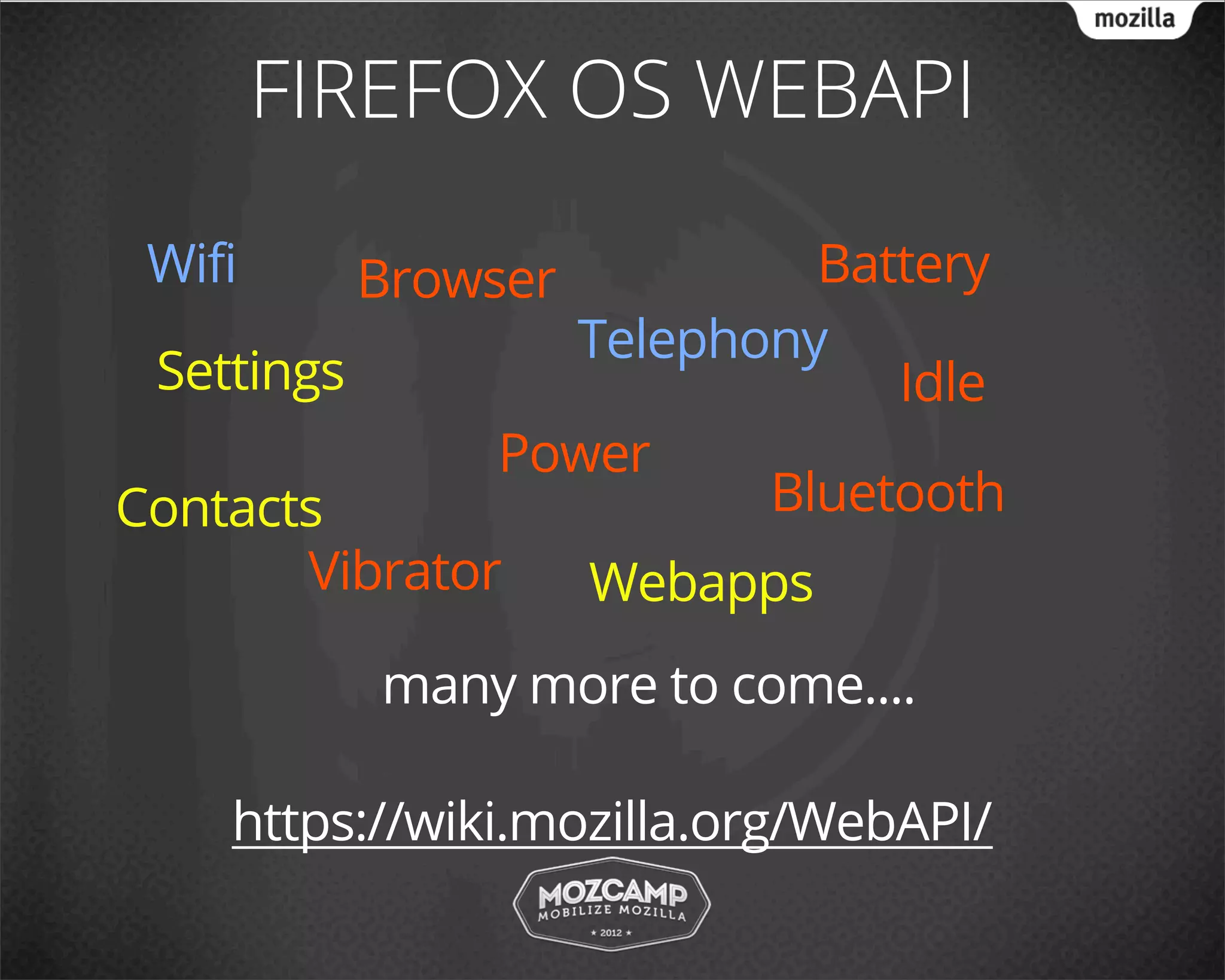

FIREFOX OS WEBAPI

Wifi Browser Battery
Telephony
Settings Idle
Power
Contacts Bluetooth
Vibrator Webapps
many more to come....

https://wiki.mozilla.org/WebAPI/

IT ALL STARTS WITH AN INTERFACE

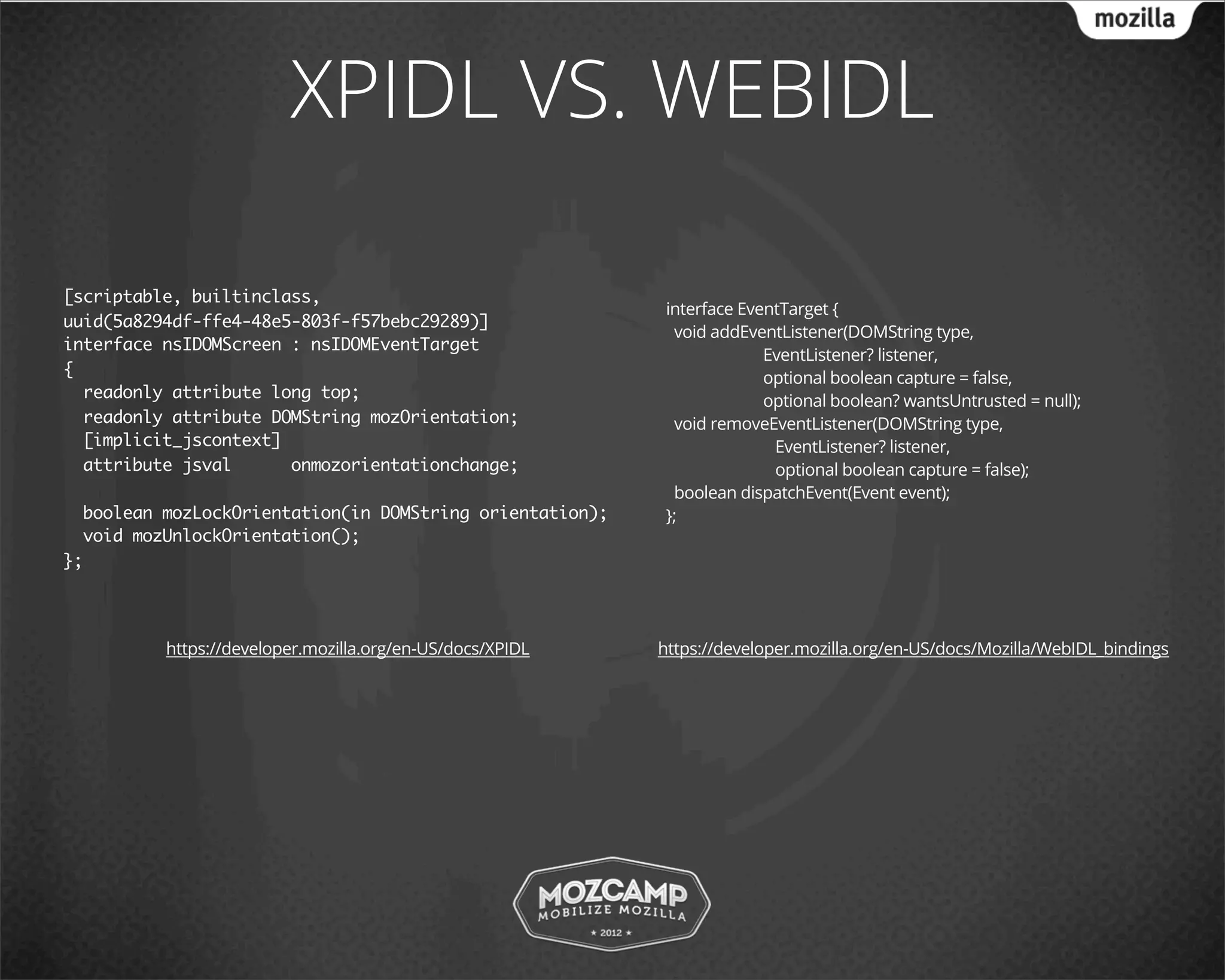

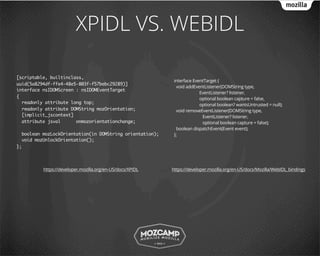

XPIDL VS. WEBIDL

XPIDL VS. WEBIDL

[scriptable, builtinclass,
interface EventTarget {
uuid(5a8294df-ffe4-48e5-803f-f57bebc29289)]
void addEventListener(DOMString type,
interface nsIDOMScreen : nsIDOMEventTarget
EventListener? listener,
{ optional boolean capture = false,
readonly attribute long top; optional boolean? wantsUntrusted = null);
readonly attribute DOMString mozOrientation; void removeEventListener(DOMString type,
[implicit_jscontext] EventListener? listener,
attribute jsval onmozorientationchange; optional boolean capture = false);
boolean dispatchEvent(Event event);
boolean mozLockOrientation(in DOMString orientation); };
void mozUnlockOrientation();
};

https://developer.mozilla.org/en-US/docs/XPIDL https://developer.mozilla.org/en-US/docs/Mozilla/WebIDL_bindings

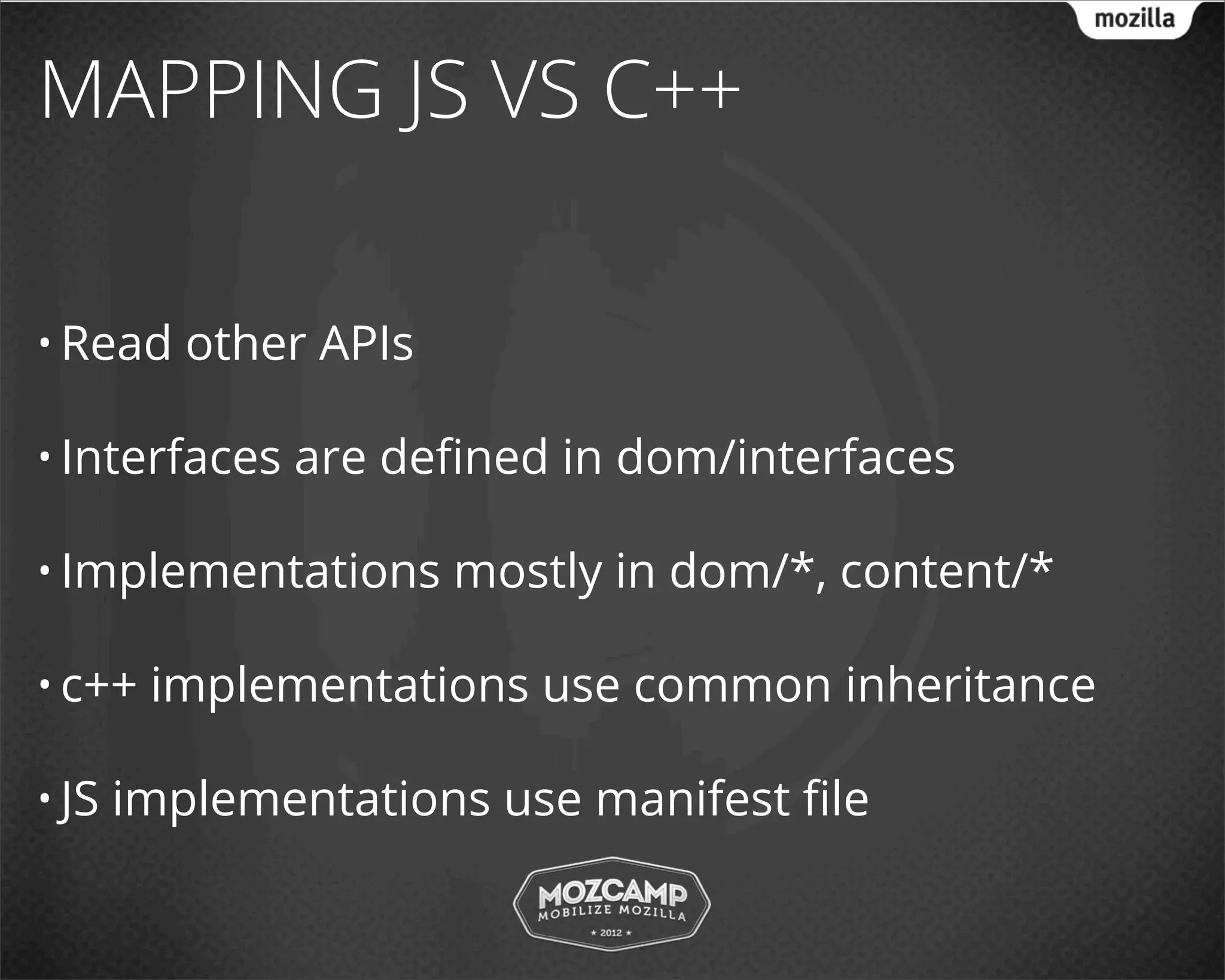

MAPPING JS VS C++

• Read other APIs

• Interfaces are deﬁned in dom/interfaces

• Implementations mostly in dom/*, content/*

• c++ implementations use common inheritance

• JS implementations use manifest ﬁle

TIME TO FILE A BUG
Bugzilla: DOM:Device Interfaces

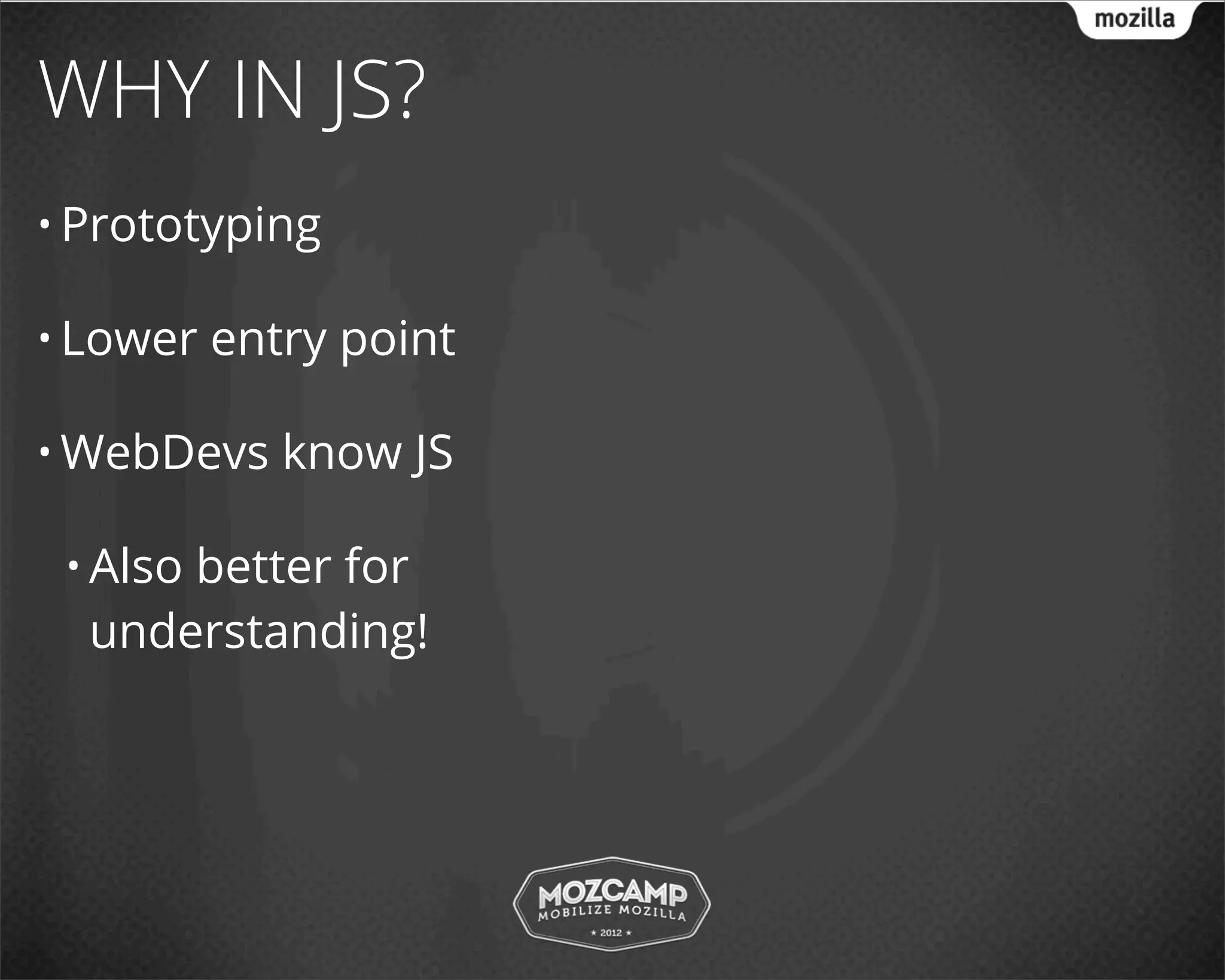

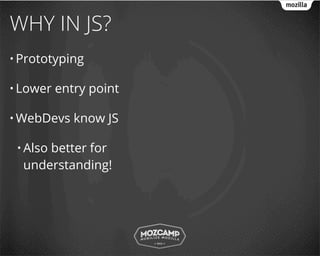

WHY IN JS?
• Prototyping

• Lower entry point

• WebDevs know JS

• Also
better for
understanding!

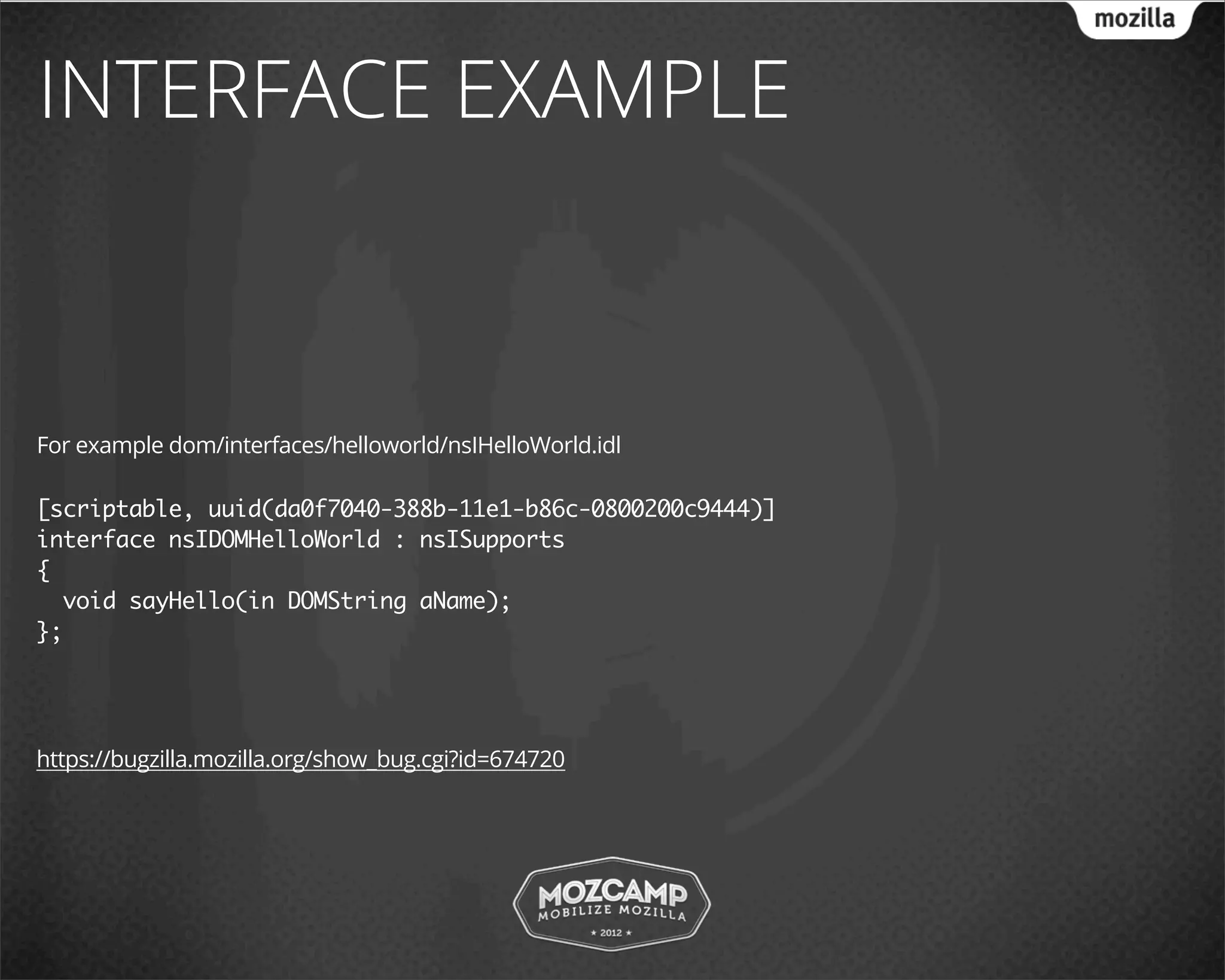

INTERFACE EXAMPLE

For example dom/interfaces/helloworld/nsIHelloWorld.idl

[scriptable, uuid(da0f7040-388b-11e1-b86c-0800200c9444)]
interface nsIDOMHelloWorld : nsISupports
{
void sayHello(in DOMString aName);
};

https://bugzilla.mozilla.org/show_bug.cgi?id=674720

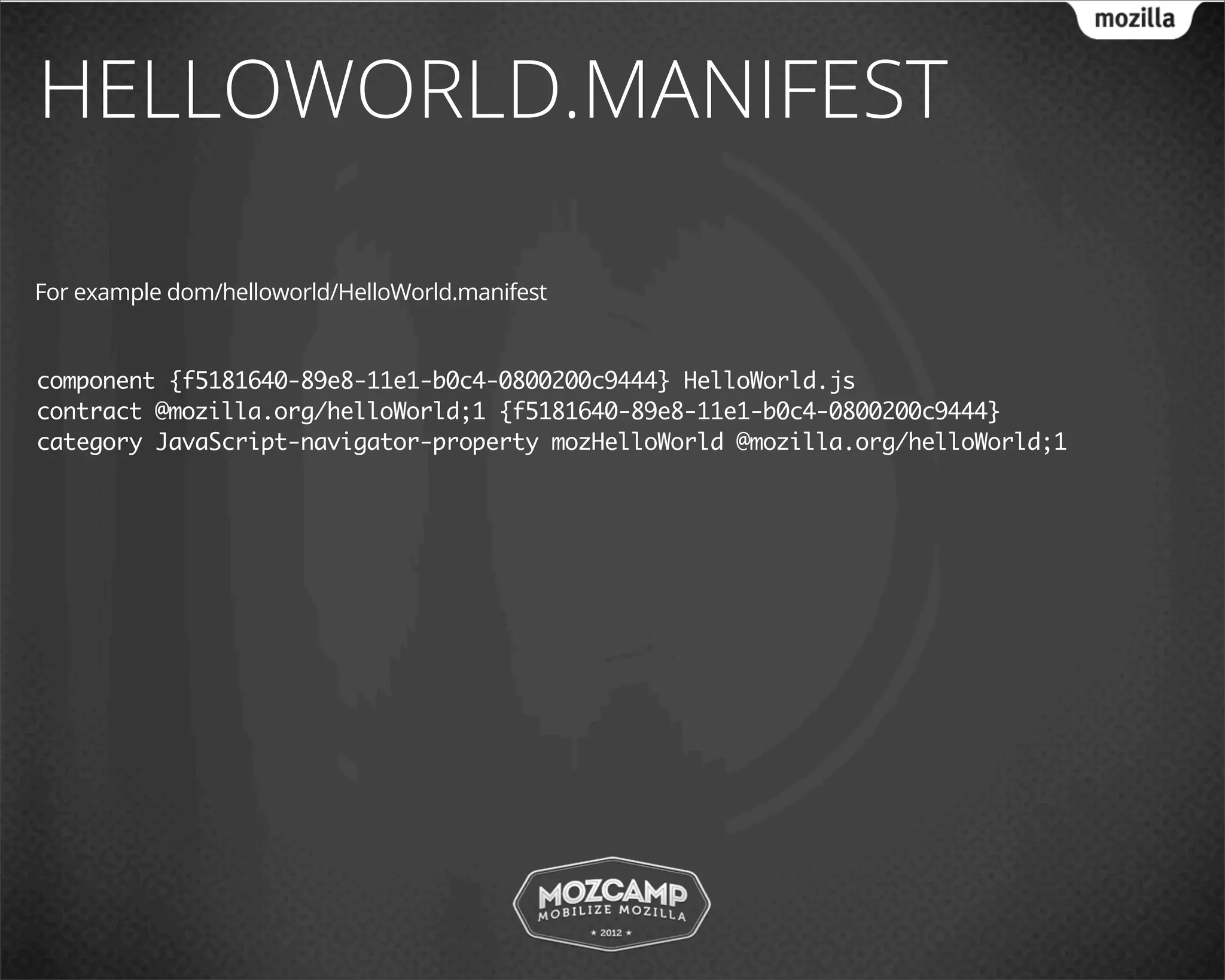

HELLOWORLD.MANIFEST

For example dom/helloworld/HelloWorld.manifest

component {f5181640-89e8-11e1-b0c4-0800200c9444} HelloWorld.js
contract @mozilla.org/helloWorld;1 {f5181640-89e8-11e1-b0c4-0800200c9444}
category JavaScript-navigator-property mozHelloWorld @mozilla.org/helloWorld;1

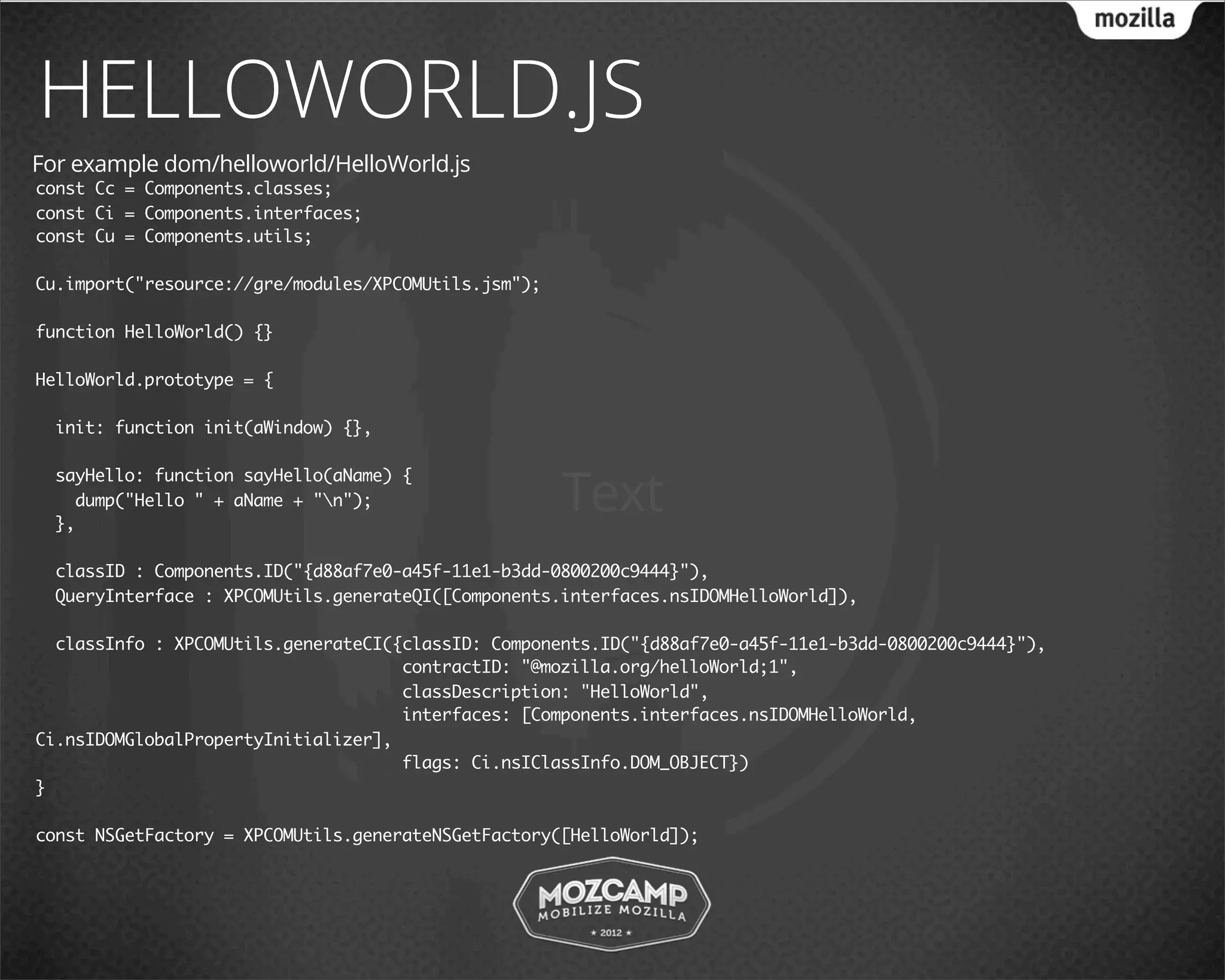

HELLOWORLD.JS
For example dom/helloworld/HelloWorld.js
const Cc = Components.classes;
const Ci = Components.interfaces;
const Cu = Components.utils;

Cu.import("resource://gre/modules/XPCOMUtils.jsm");

function HelloWorld() {}

HelloWorld.prototype = {

init: function init(aWindow) {},

Text
sayHello: function sayHello(aName) {
dump("Hello " + aName + "n");
},

classID : Components.ID("{d88af7e0-a45f-11e1-b3dd-0800200c9444}"),
QueryInterface : XPCOMUtils.generateQI([Components.interfaces.nsIDOMHelloWorld]),

classInfo : XPCOMUtils.generateCI({classID: Components.ID("{d88af7e0-a45f-11e1-b3dd-0800200c9444}"),
contractID: "@mozilla.org/helloWorld;1",
classDescription: "HelloWorld",
interfaces: [Components.interfaces.nsIDOMHelloWorld,
Ci.nsIDOMGlobalPropertyInitializer],
flags: Ci.nsIClassInfo.DOM_OBJECT})
}

const NSGetFactory = XPCOMUtils.generateNSGetFactory([HelloWorld]);

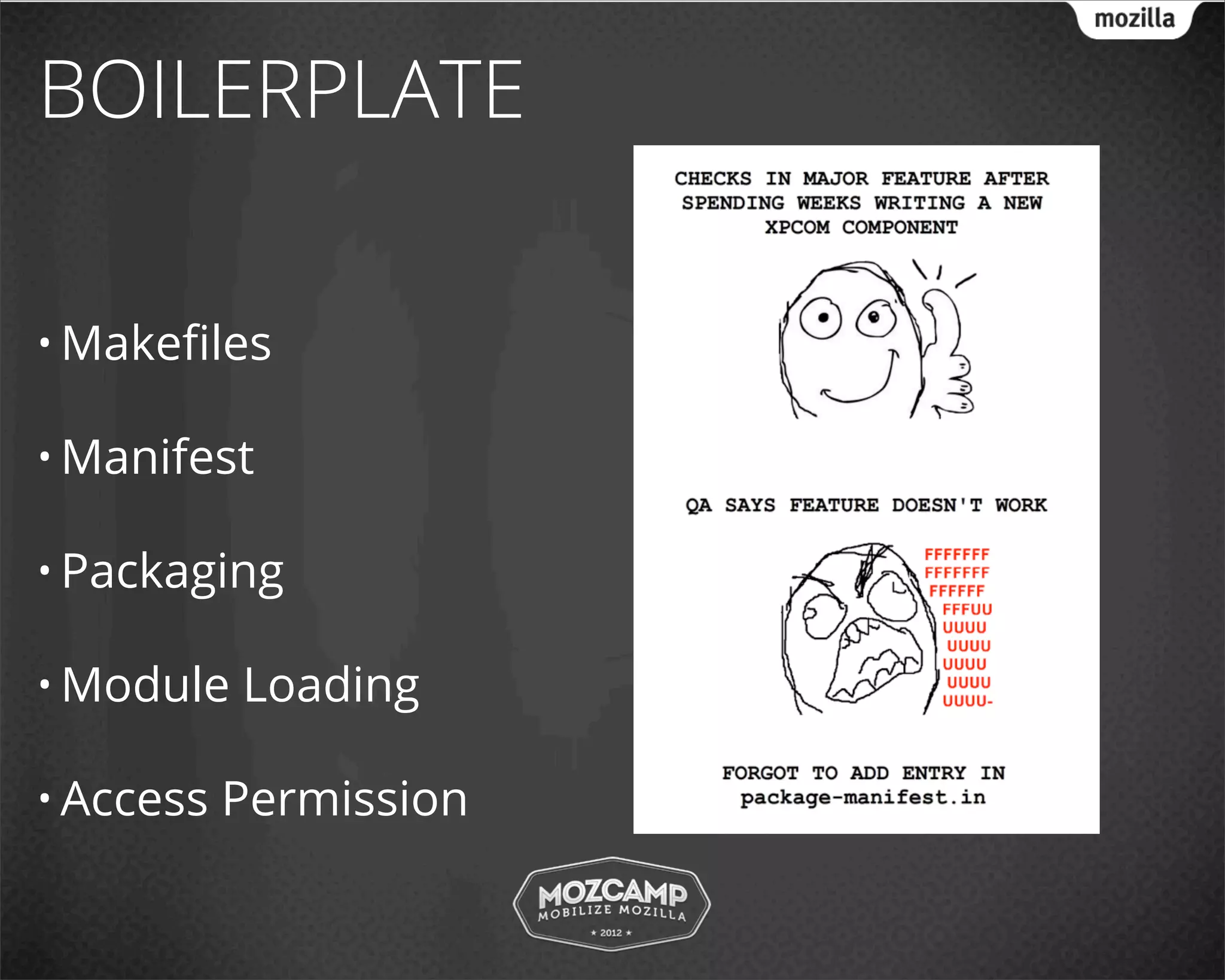

BOILERPLATE

• Makeﬁles

• Manifest

• Packaging

• Module Loading

• Access Permission

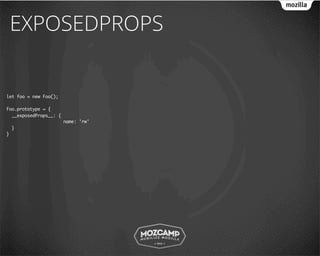

EXPOSEDPROPS

let foo = new Foo();

Foo.prototype = {
__exposedProps__: {
name: 'rw'
}
}

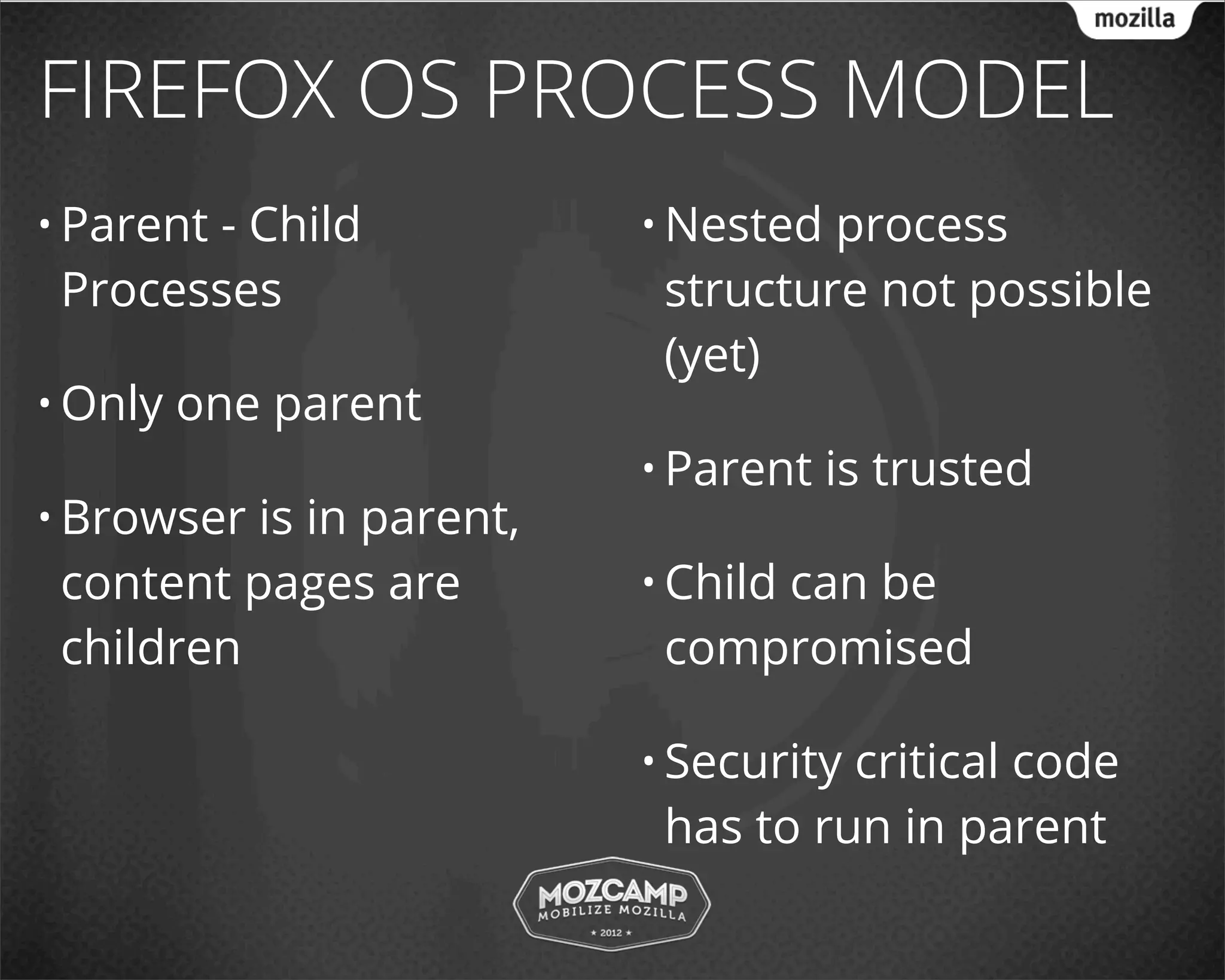

FIREFOX OS PROCESS MODEL
• Parent
- Child • Nested process
Processes structure not possible
(yet)
• Only one parent
• Parent is trusted
• Browser is in parent,
content pages are • Child
can be
children compromised

• Securitycritical code
has to run in parent

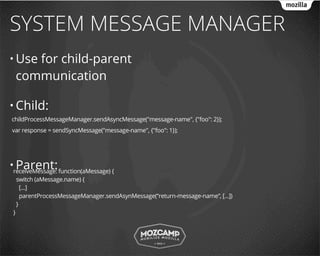

SYSTEM MESSAGE MANAGER
• Use for child-parent
communication

• Child:
childProcessMessageManager.sendAsyncMessage("message-name", {"foo": 2});
var response = sendSyncMessage("message-name", {"foo": 1});

Parent:
•receiveMessage: function(aMessage) {
switch (aMessage.name) {
[...]
parentProcessMessageManager.sendAsynMessage(“return-message-name”, [...])
}
}

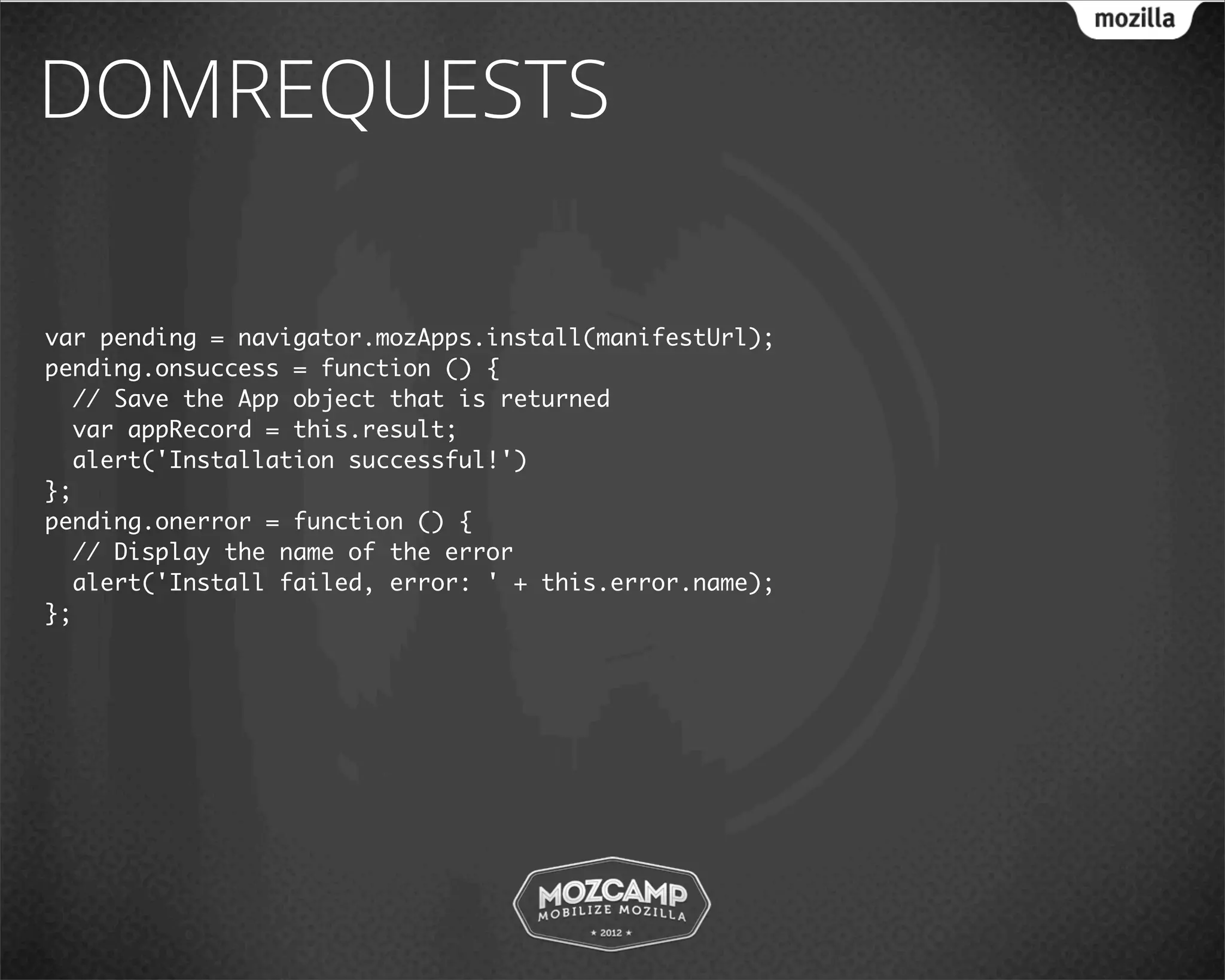

DOMREQUESTS

var pending = navigator.mozApps.install(manifestUrl);
pending.onsuccess = function () {
  // Save the App object that is returned
  var appRecord = this.result;
  alert('Installation successful!')
};
pending.onerror = function () {
  // Display the name of the error
  alert('Install failed, error: ' + this.error.name);
};

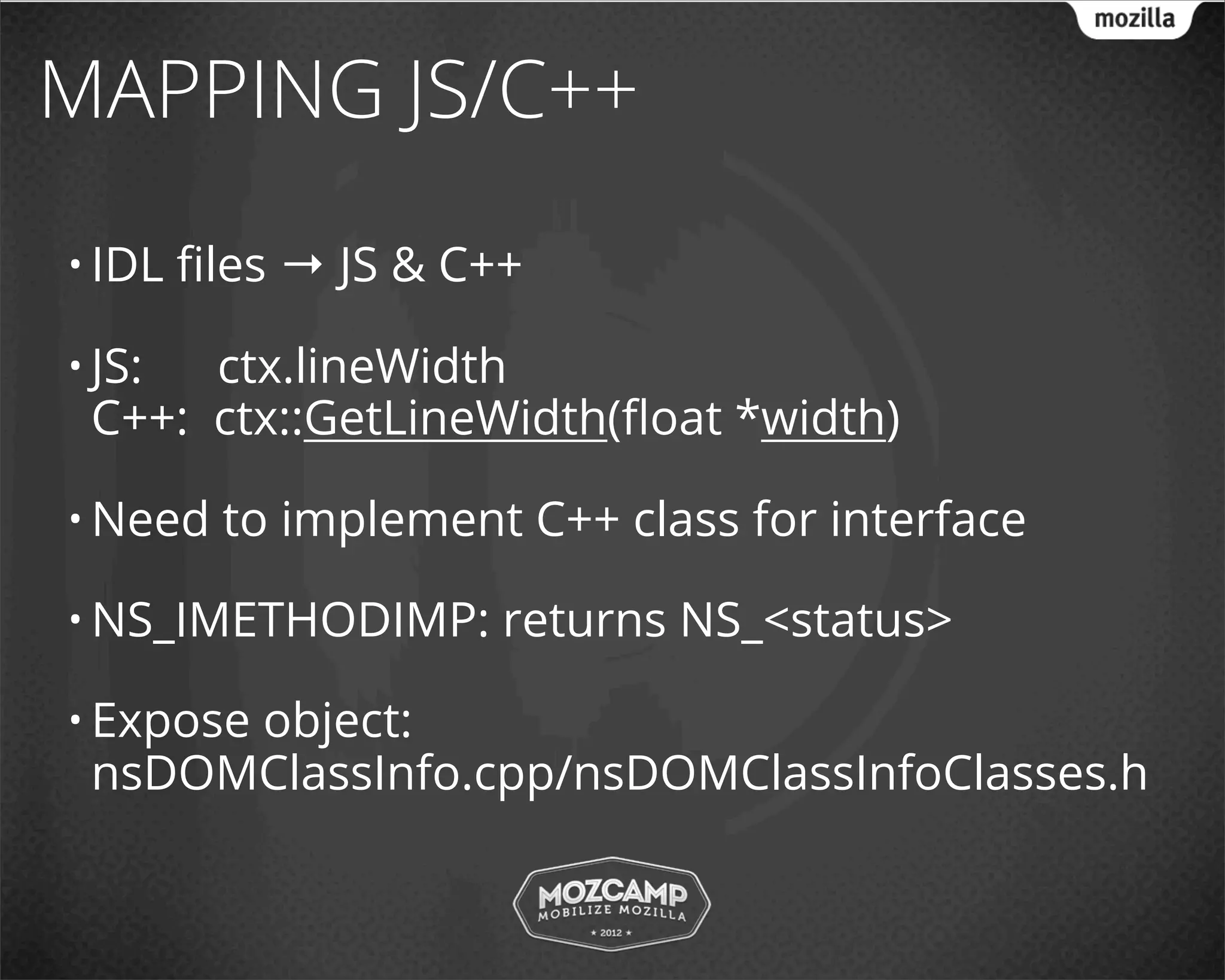

MAPPING JS/C++
• IDL ﬁles → JS & C++

• JS: ctx.lineWidth
C++: ctx::GetLineWidth(ﬂoat *width)

• Need to implement C++ class for interface

• NS_IMETHODIMP: returns NS_<status>

• Expose
object:
nsDOMClassInfo.cpp/nsDOMClassInfoClasses.h

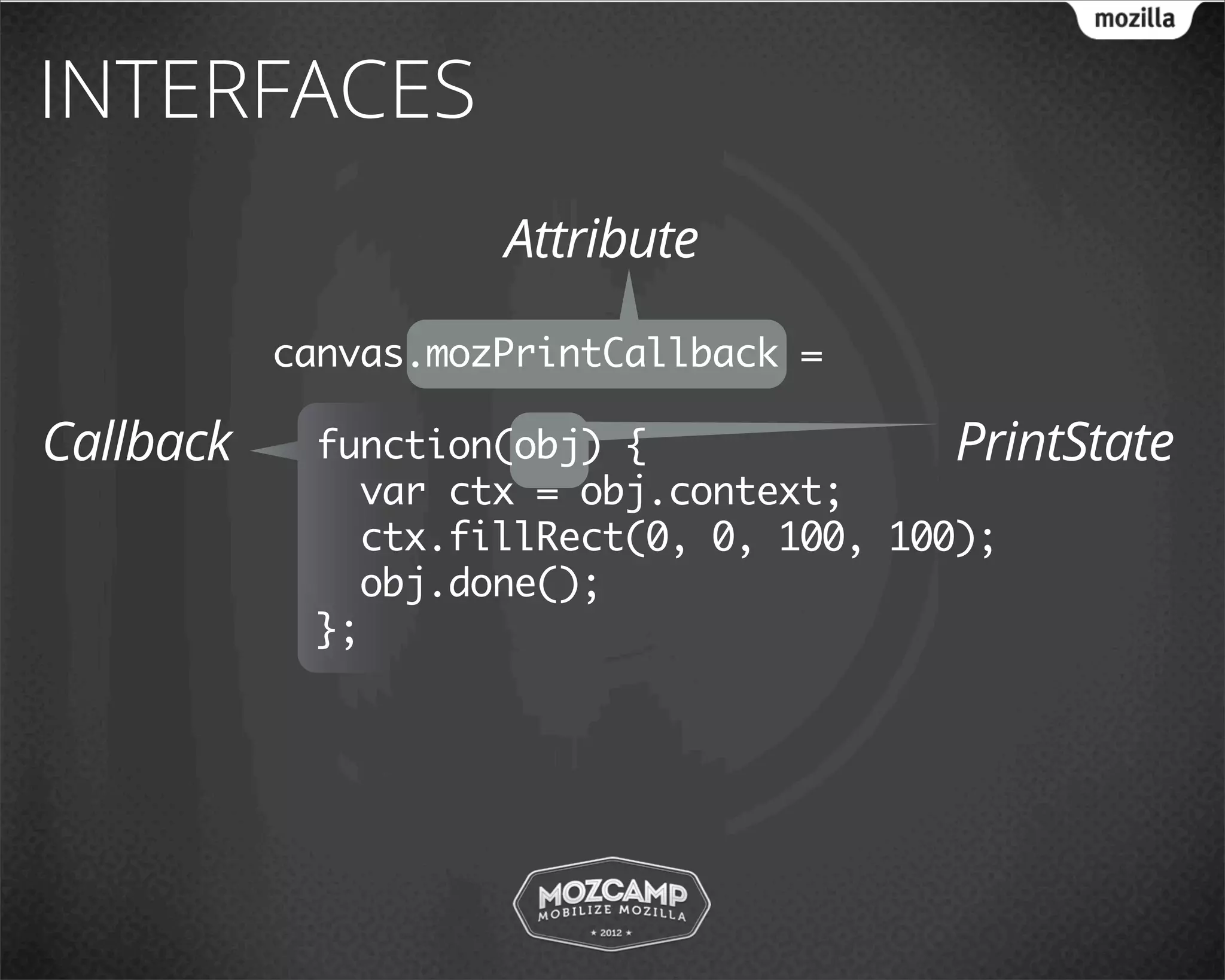

INTERFACES
Attribute

canvas.mozPrintCallback =

Callback function(obj) { PrintState
var ctx = obj.context;
ctx.fillRect(0, 0, 100, 100);
obj.done();
};

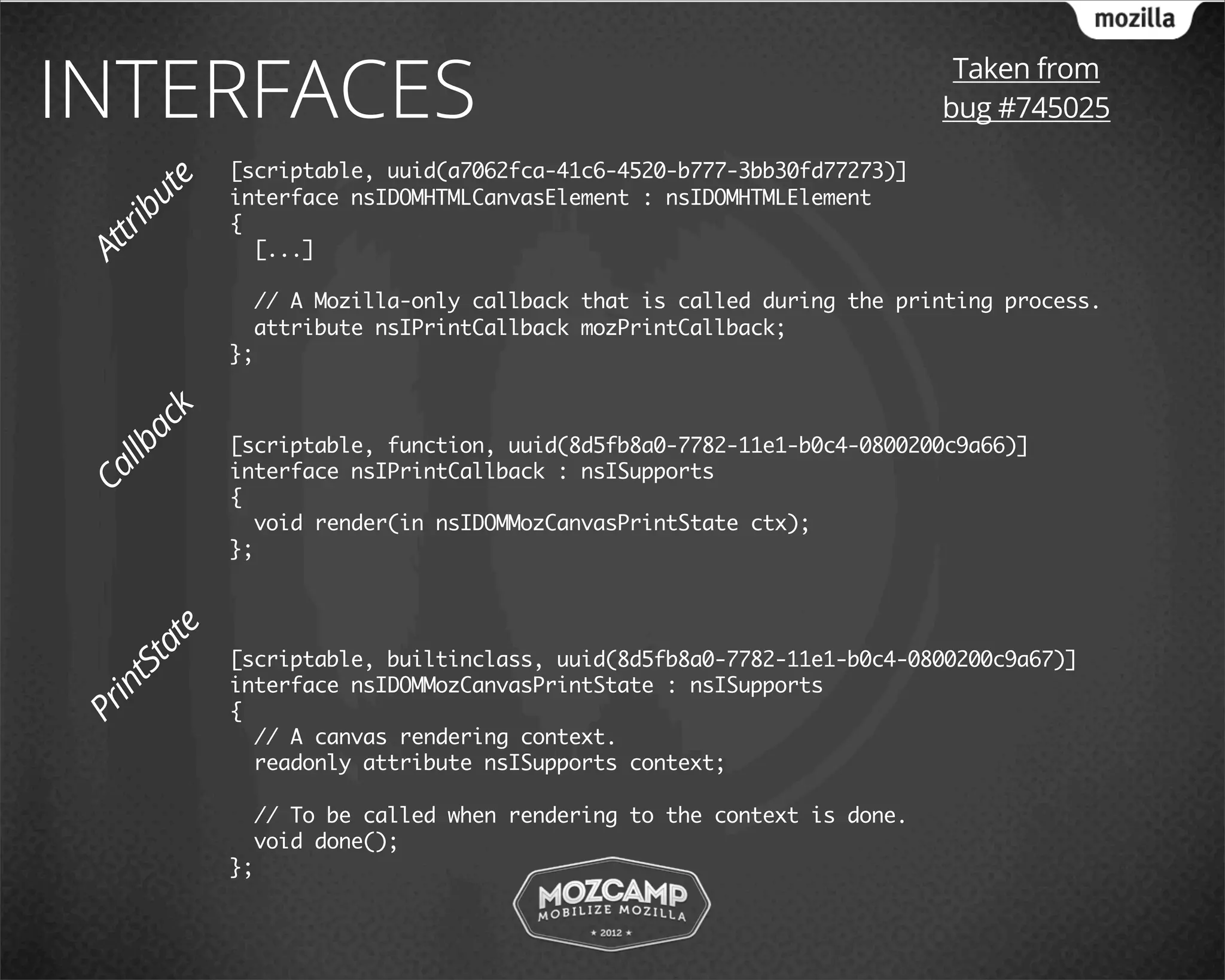

INTERFACES Taken from
bug #745025

te [scriptable, uuid(a7062fca-41c6-4520-b777-3bb30fd77273)]
interface nsIDOMHTMLCanvasElement : nsIDOMHTMLElement
bu

{
tri

[...]
At

// A Mozilla-only callback that is called during the printing process.
attribute nsIPrintCallback mozPrintCallback;
};
k
ac

[scriptable, function, uuid(8d5fb8a0-7782-11e1-b0c4-0800200c9a66)]
llb

interface nsIPrintCallback : nsISupports
Ca

{
void render(in nsIDOMMozCanvasPrintState ctx);
};
te
ta

[scriptable, builtinclass, uuid(8d5fb8a0-7782-11e1-b0c4-0800200c9a67)]
tS

interface nsIDOMMozCanvasPrintState : nsISupports
in

{
Pr

// A canvas rendering context.
readonly attribute nsISupports context;

// To be called when rendering to the context is done.
void done();
};

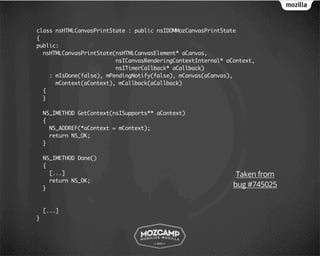

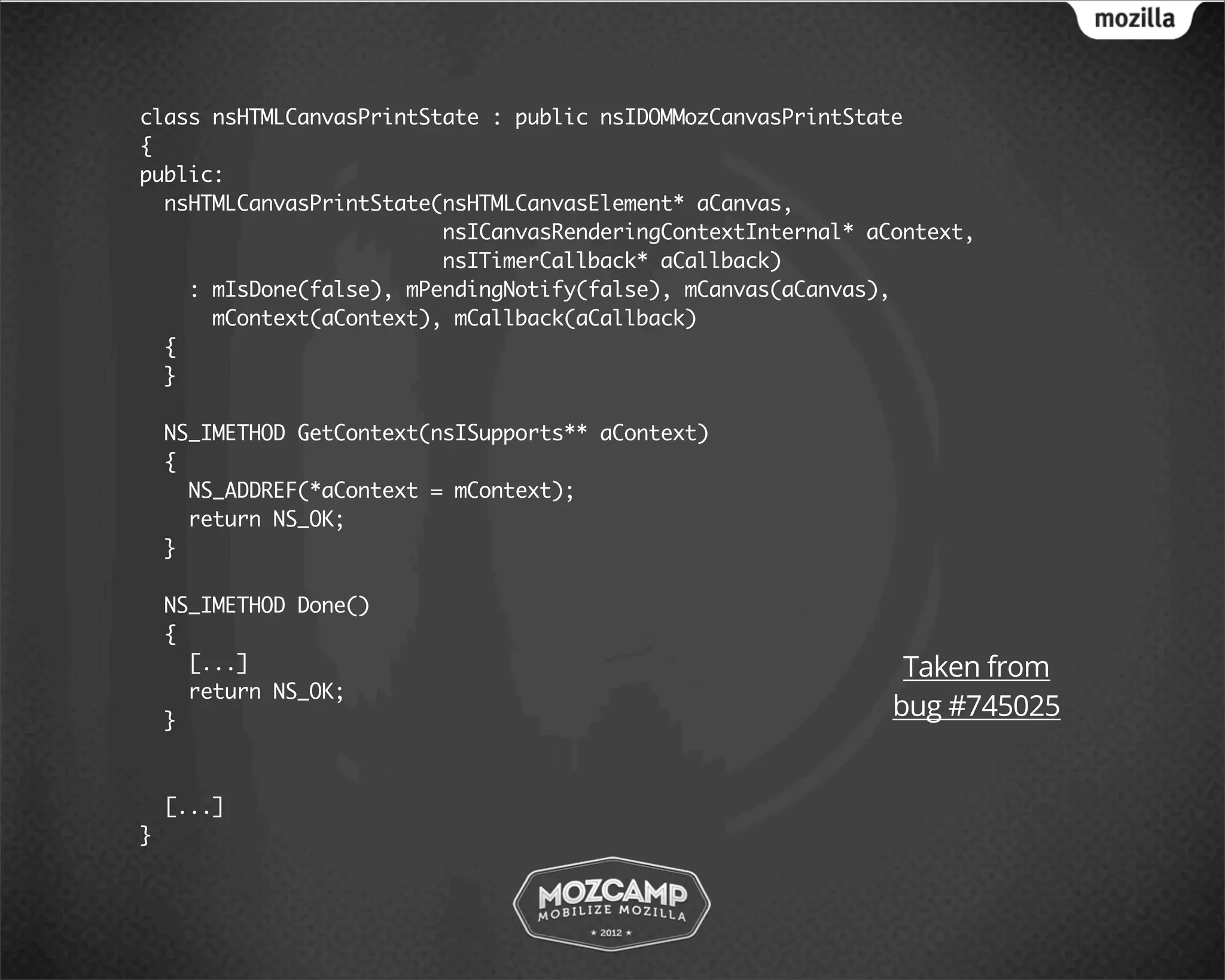

class nsHTMLCanvasPrintState : public nsIDOMMozCanvasPrintState
{
public:
nsHTMLCanvasPrintState(nsHTMLCanvasElement* aCanvas,
nsICanvasRenderingContextInternal* aContext,
nsITimerCallback* aCallback)
: mIsDone(false), mPendingNotify(false), mCanvas(aCanvas),
mContext(aContext), mCallback(aCallback)
{
}

NS_IMETHOD GetContext(nsISupports** aContext)
{
NS_ADDREF(*aContext = mContext);
return NS_OK;
}

NS_IMETHOD Done()
{
[...] Taken from
return NS_OK;
}
bug #745025

[...]
}

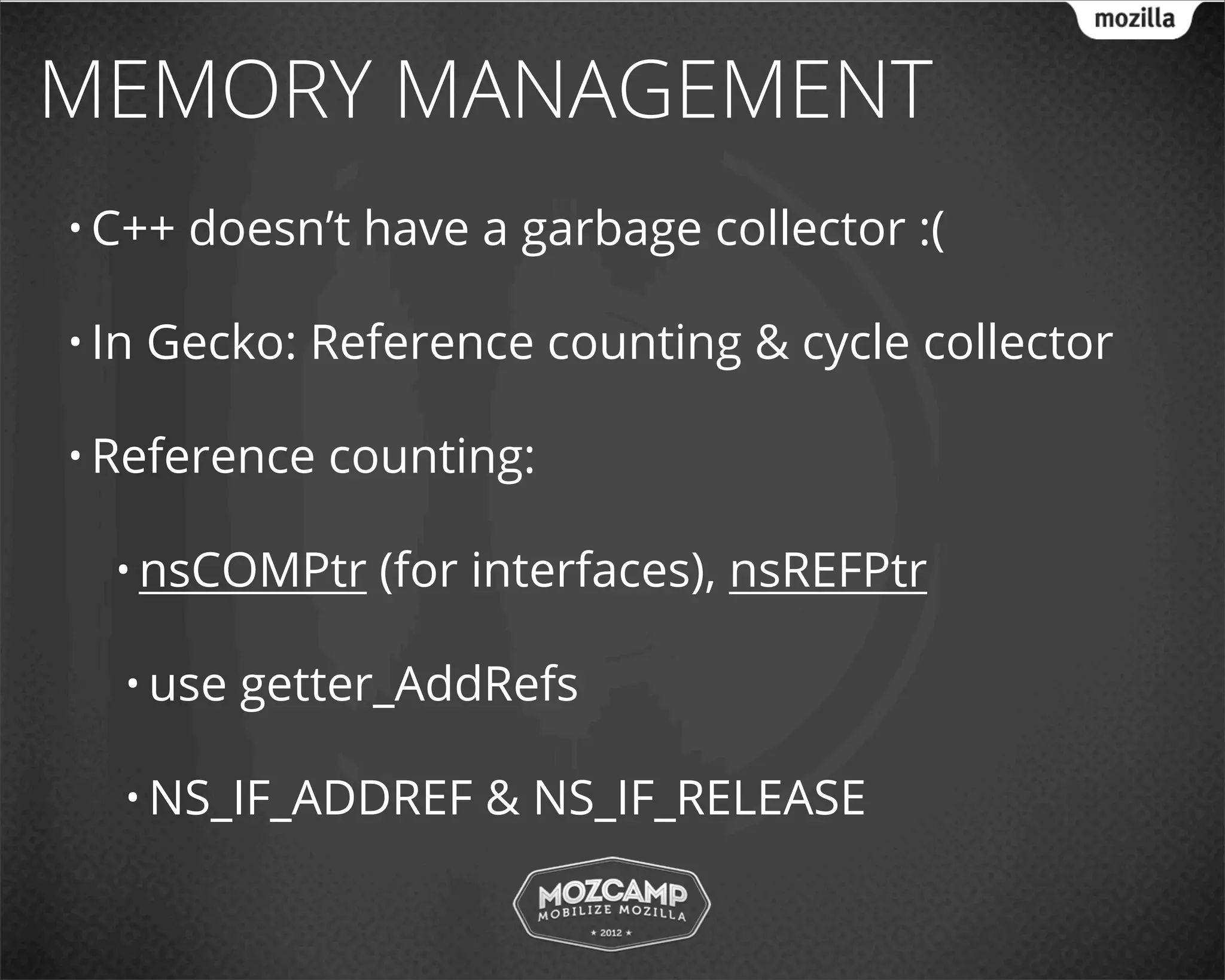

MEMORY MANAGEMENT
• C++ doesn’t have a garbage collector :(

• In Gecko: Reference counting & cycle collector

• Reference counting:

• nsCOMPtr (for interfaces), nsREFPtr

• use getter_AddRefs

• NS_IF_ADDREF & NS_IF_RELEASE

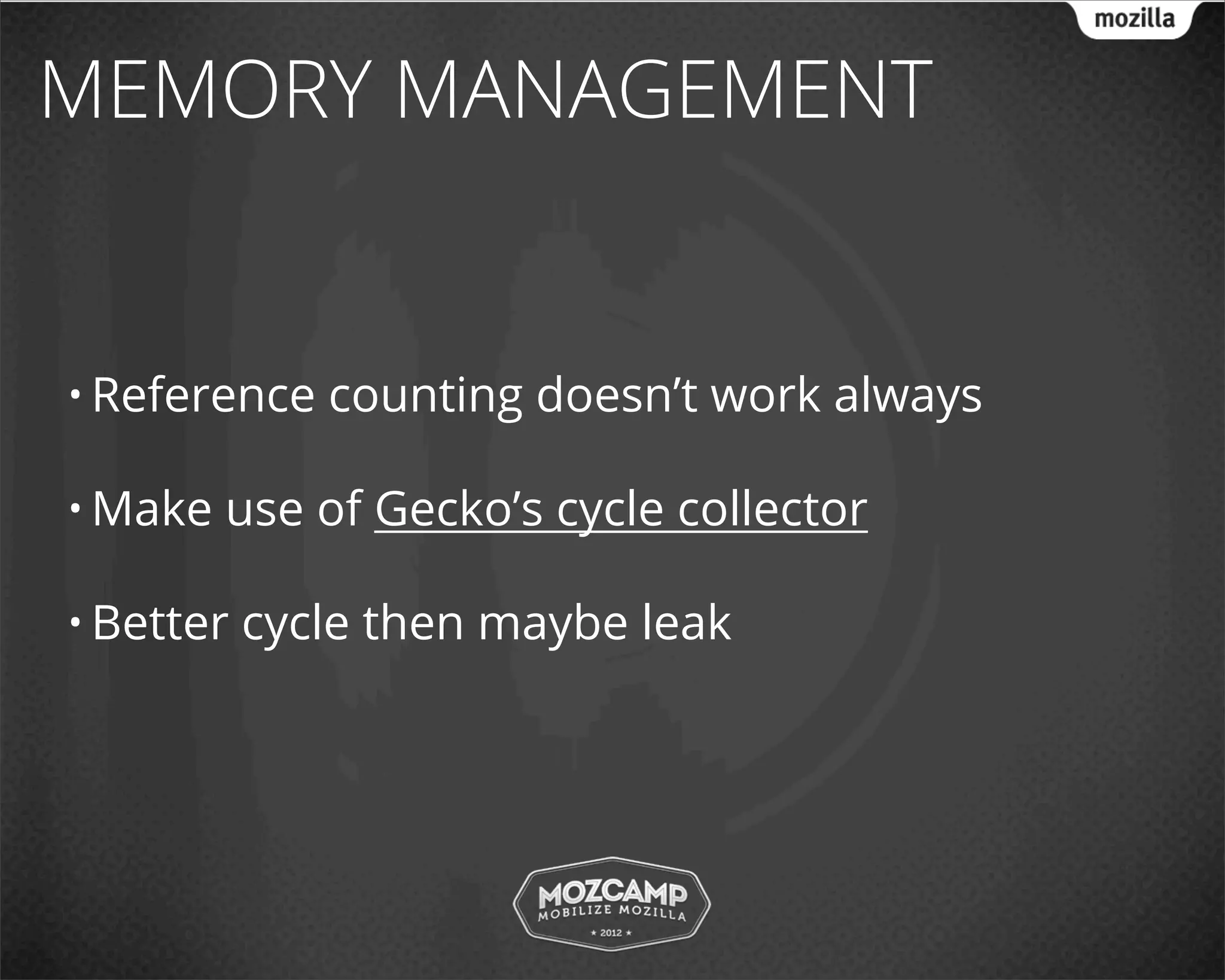

MEMORY MANAGEMENT

• Reference counting doesn’t work always

• Make use of Gecko’s cycle collector

• Better cycle then maybe leak

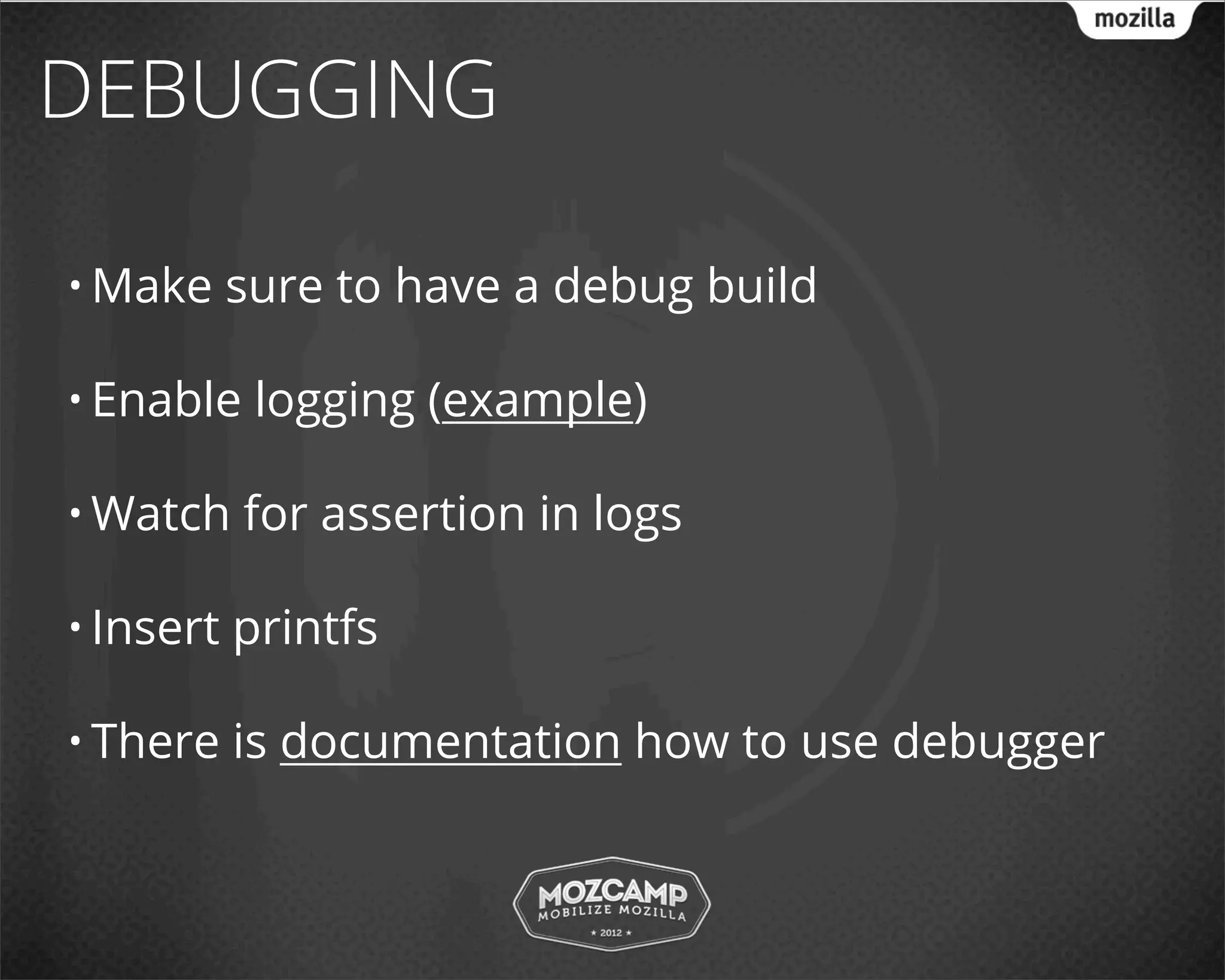

DEBUGGING

• Make sure to have a debug build

• Enable logging (example)

• Watch for assertion in logs

• Insert printfs

• There is documentation how to use debugger

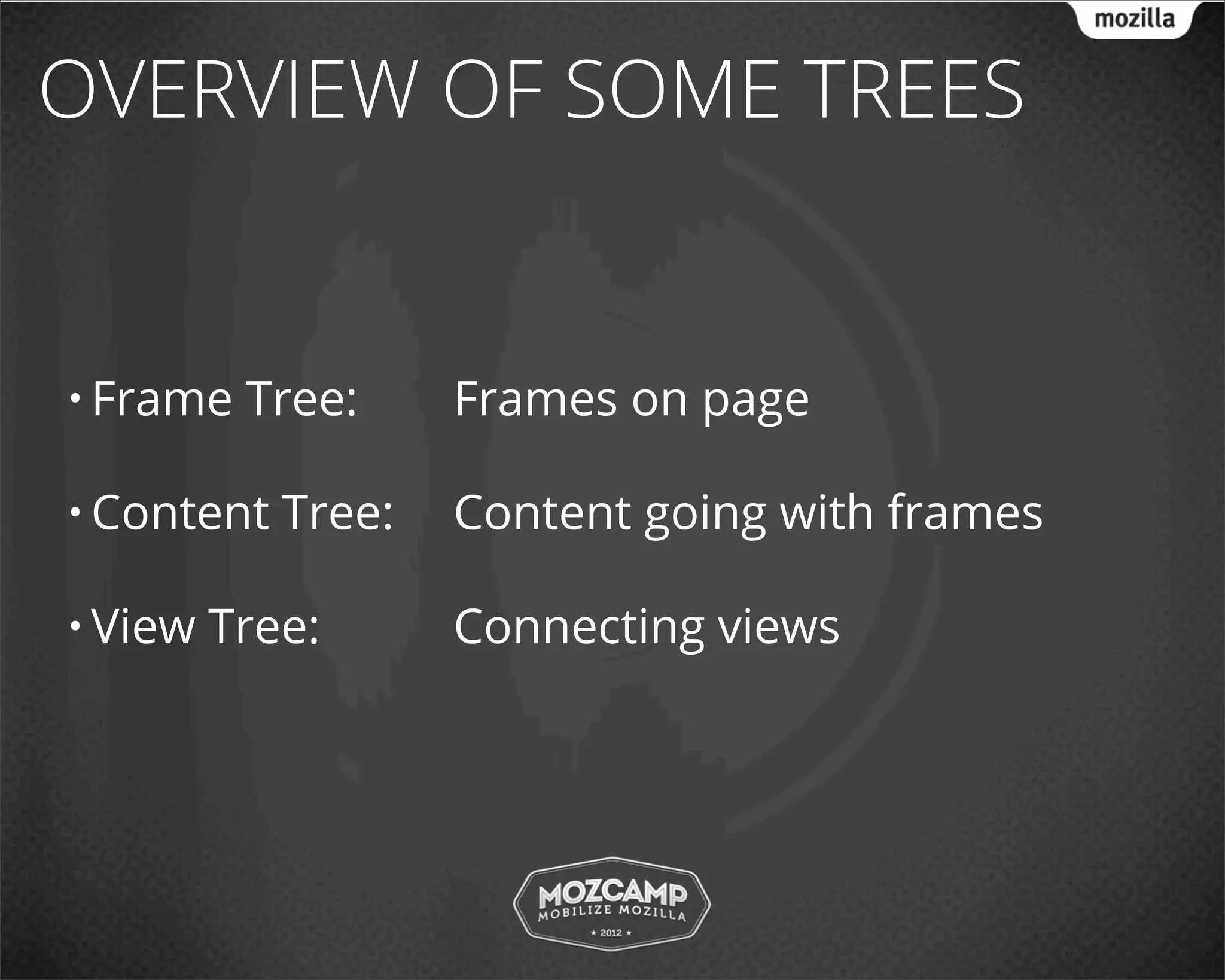

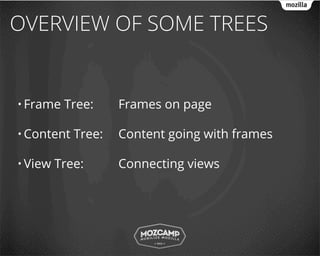

OVERVIEW OF SOME TREES

• Frame Tree: Frames on page

• Content Tree: Content going with frames

• View Tree: Connecting views

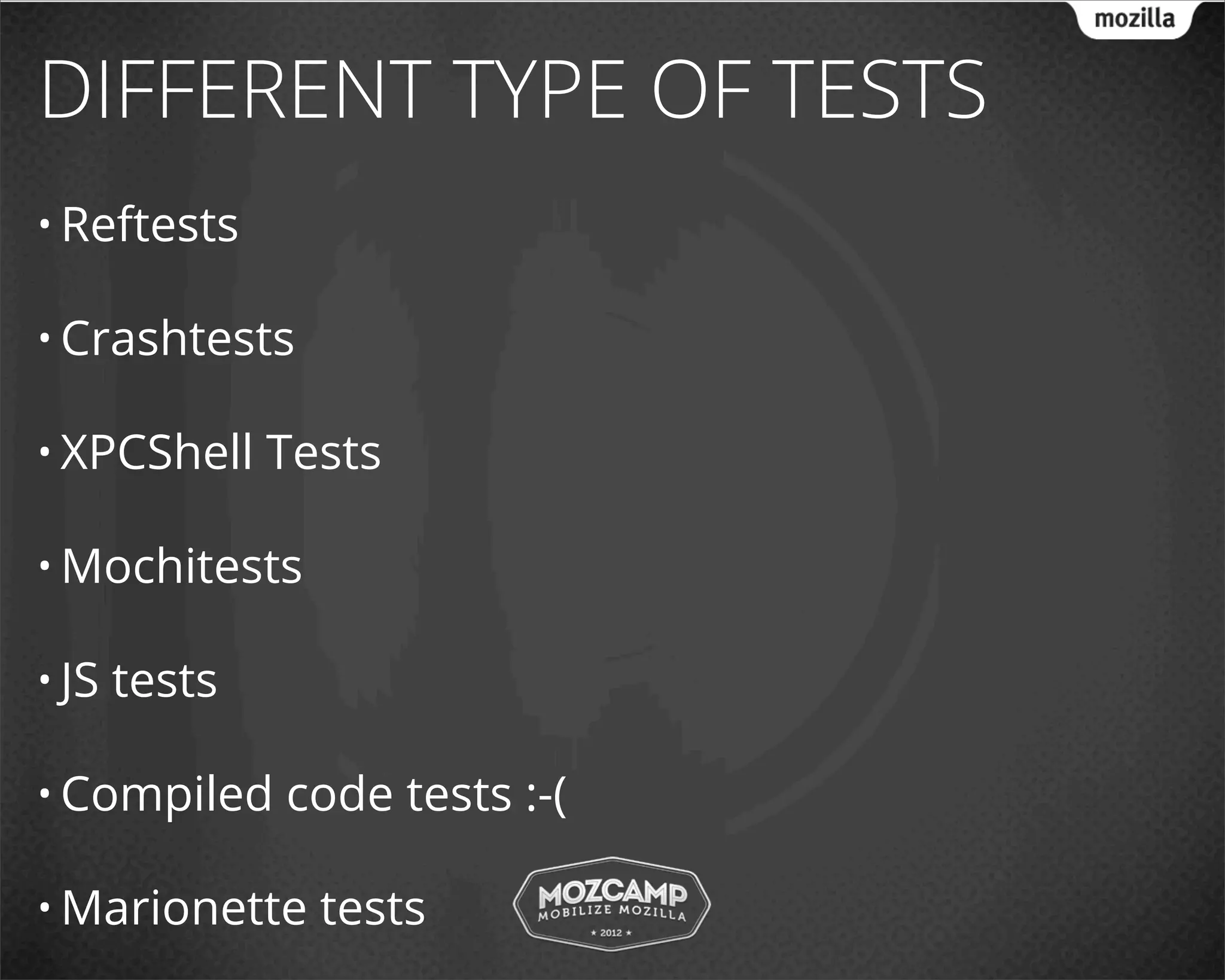

DIFFERENT TYPE OF TESTS
• Reftests

• Crashtests

• XPCShell Tests

• Mochitests

• JS tests

• Compiled code tests :-(

• Marionette tests

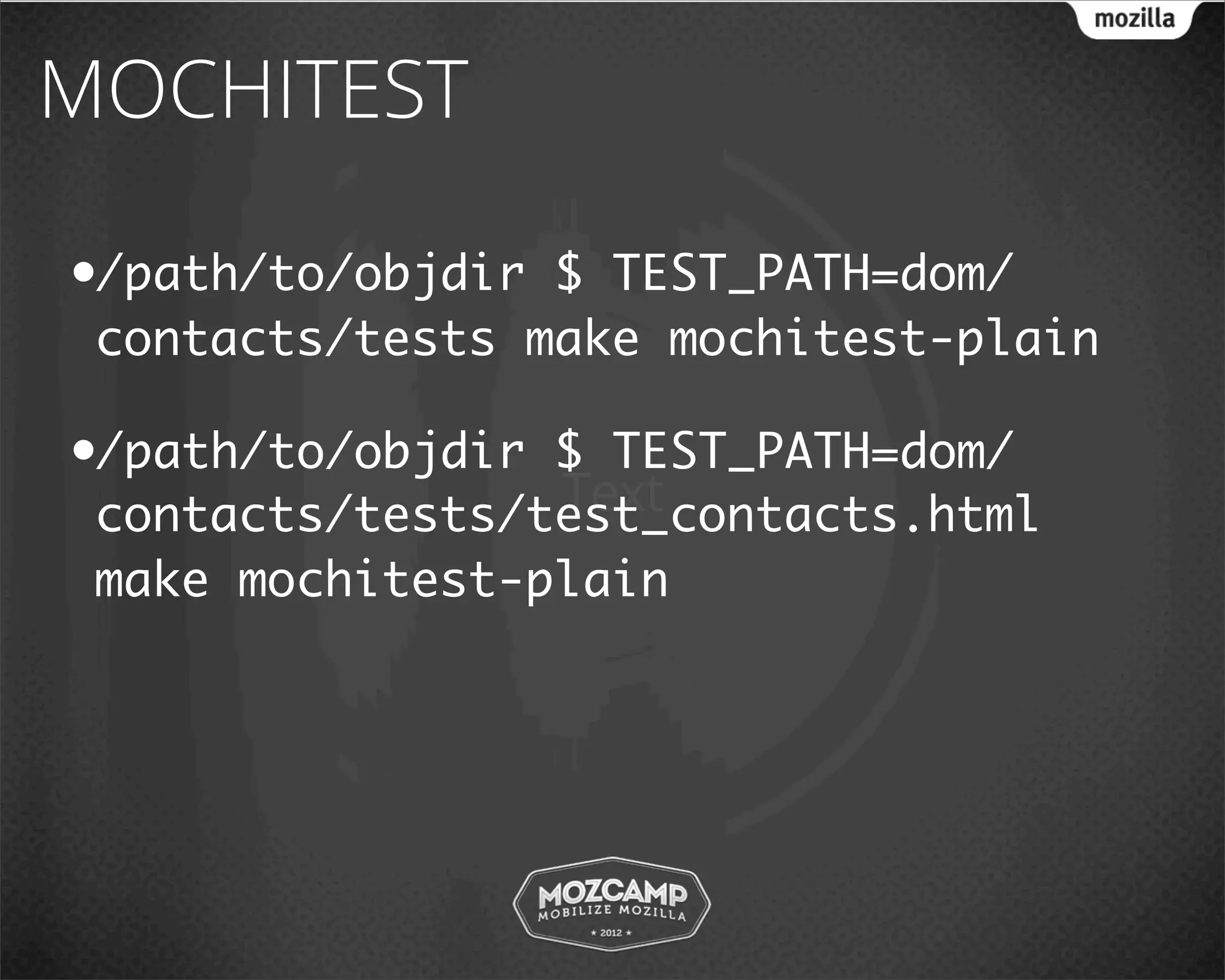

MOCHITEST

•/path/to/objdir $ TEST_PATH=dom/
contacts/tests make mochitest-plain

•/path/to/objdir $ TEST_PATH=dom/
Text
contacts/tests/test_contacts.html
make mochitest-plain

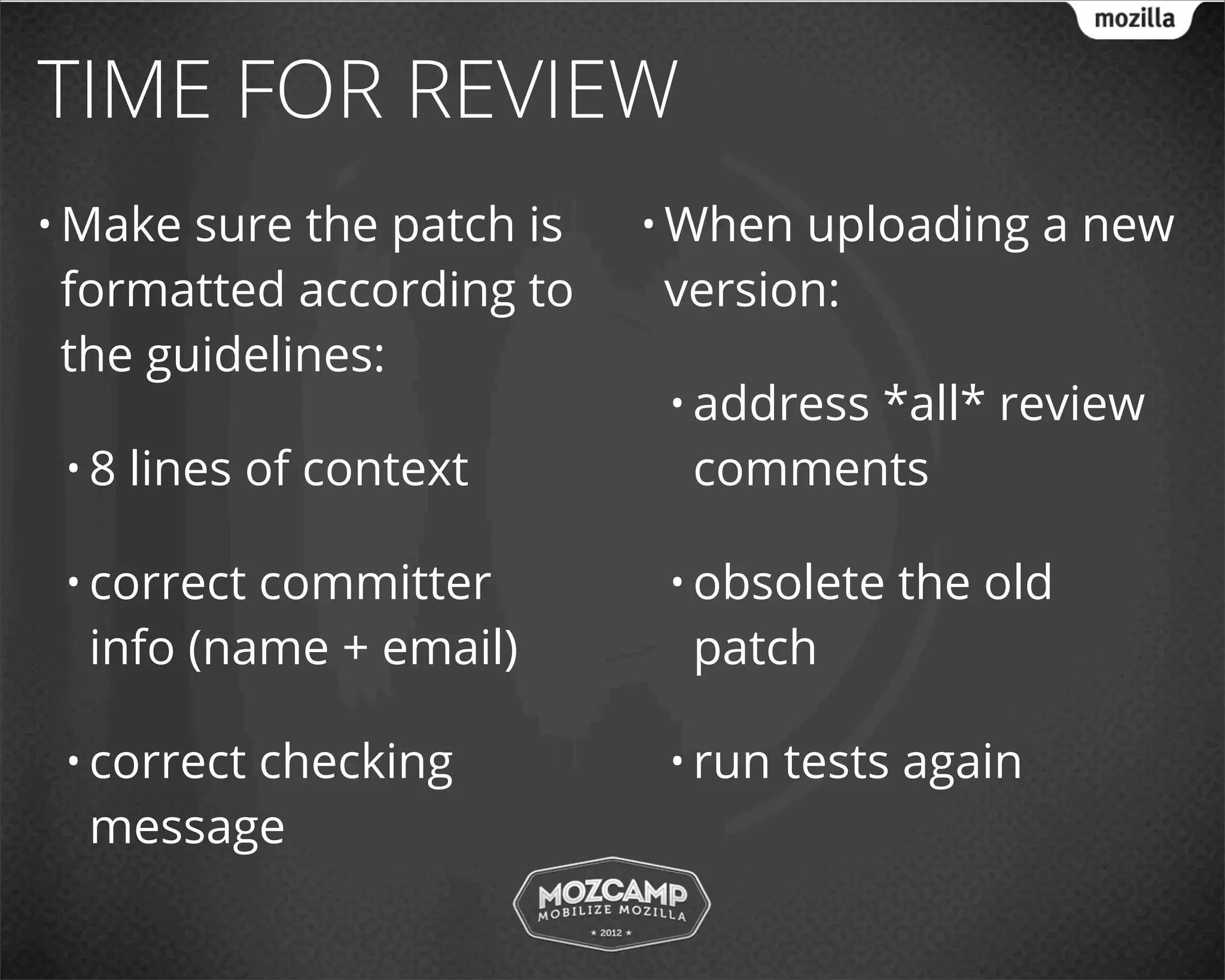

TIME FOR REVIEW
• Makesure the patch is • Whenuploading a new
formatted according to version:
the guidelines:
• address
*all* review
•8 lines of context comments

• correctcommitter • obsolete the old
info (name + email) patch

• correct
checking • run tests again
message

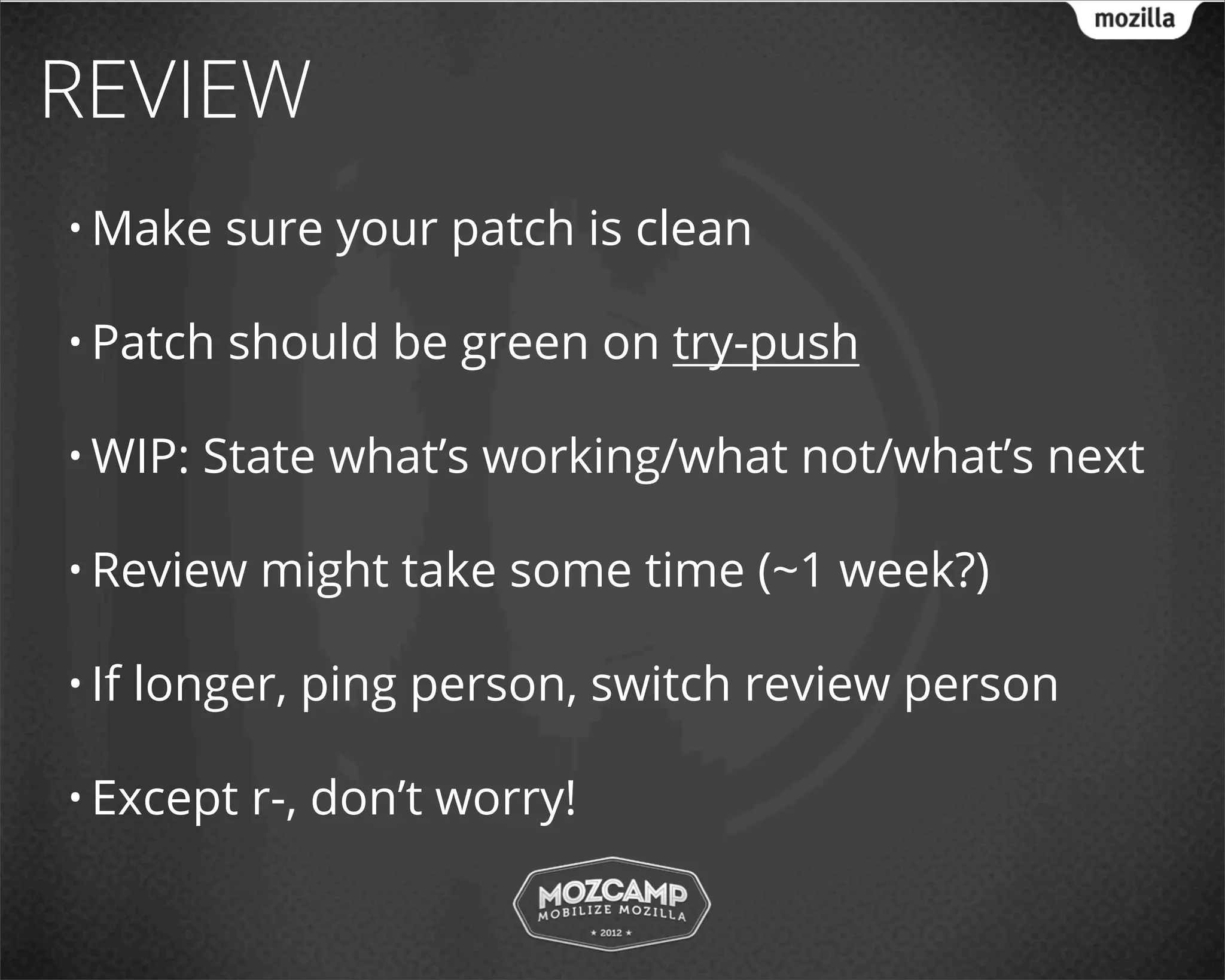

REVIEW
• Make sure your patch is clean

• Patch should be green on try-push

• WIP: State what’s working/what not/what’s next

• Review might take some time (~1 week?)

• If longer, ping person, switch review person

• Except r-, don’t worry!

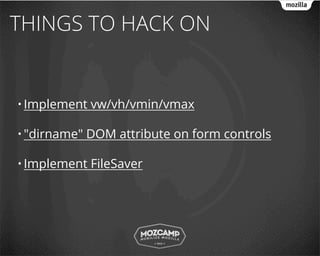

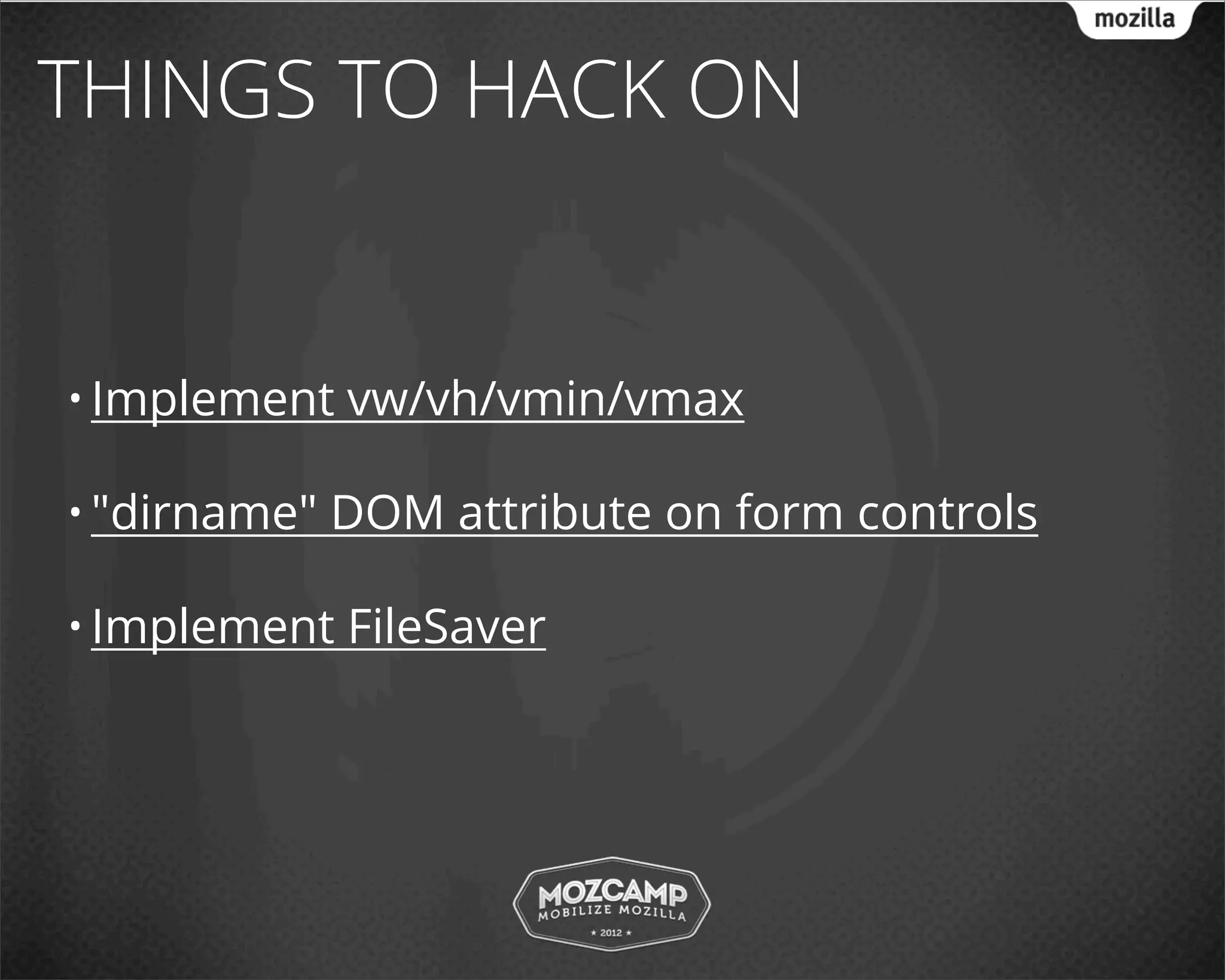

THINGS TO HACK ON

• Implement vw/vh/vmin/vmax

• "dirname" DOM attribute on form controls

• Implement FileSaver
