Internet of Things using Raspberry Pi

Internet of Things using Raspberry Pi

• 1.
  Organized by INTERNET OFTHINGS USING RASPBERRY PI Pantech Solutions & Institute of Engineering & Technology, Alwar -RAJASTAN
• 2.
  ANNOUNCEMENT Attendance Link willbe given in the description or in Live chat after 11:10 AM
• 3.
  ABOUT IET ABOUT Alwar isthe First self-financed college of Rajasthan, established in 1998 at Alwar and managed by All India Society for Advanced Education & Research COURSES B. Tech. | M. Tech. | MBA | B. Pharma | D. Pharma | Ph.D. DEPARTMENTS ECE | EEE | APPLIED SCIENCE | MECHANICAL | CS | MBA
• 4.
  ABOUT PANTECH ABOUT Established on2004 | 7 Branches | 100+ Team | 1500+ Workshops | 250+ FDP | 100+ Seminars R & D Manufacturer of Lab equipment‘s & Development boards | Industrial &Funded projects | Online retail store of engineering products and projects VISION “To Gain Global Leadership in providing Technological Solutions through Sustained Innovation”
• 5.

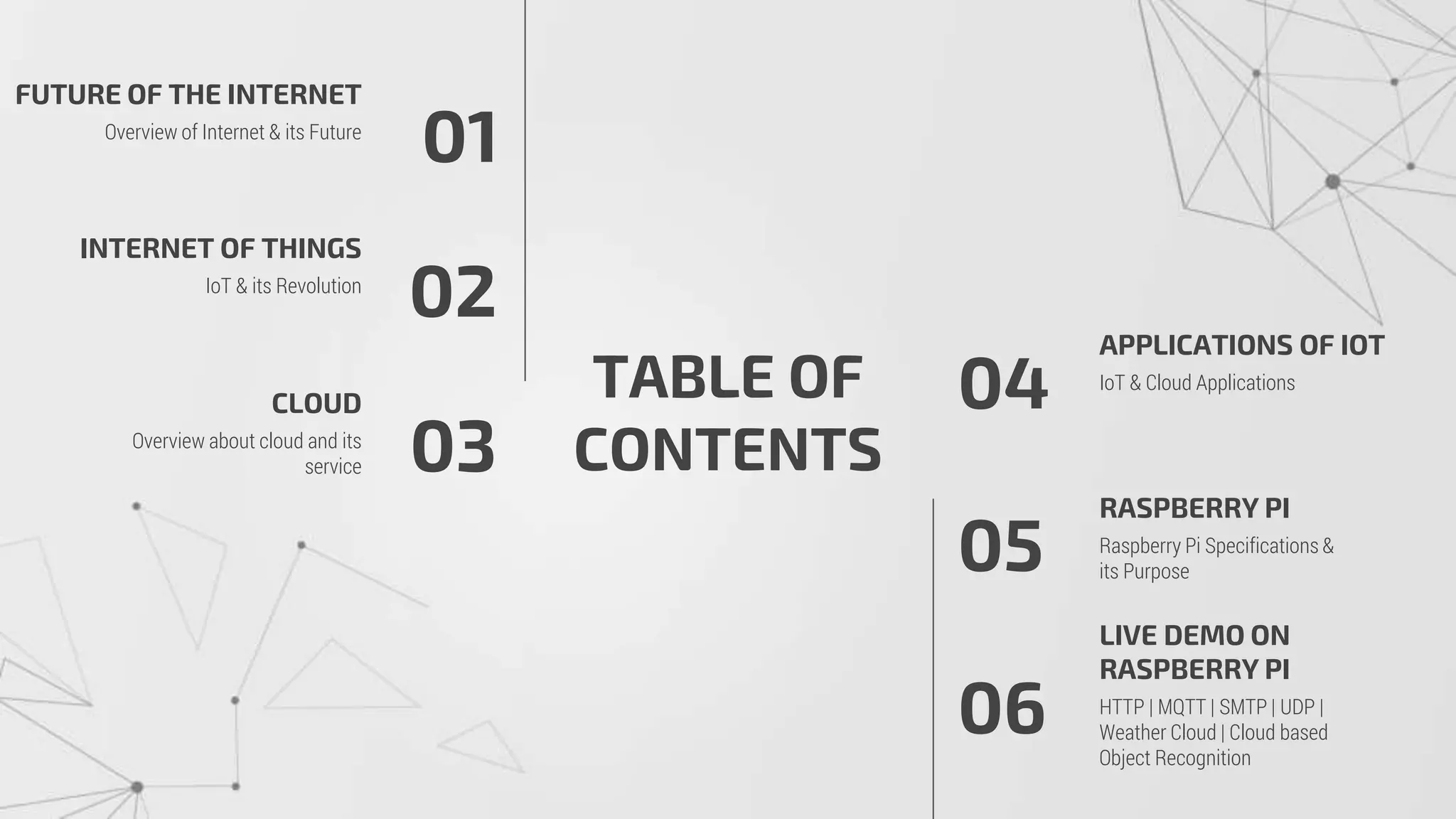

  TABLE OF CONTENTS FUTURE OFTHE INTERNET Overview of Internet & its Future INTERNET OF THINGS IoT & its Revolution 01 03 02 04 05 06 CLOUD Overview about cloud and its service APPLICATIONS OF IOT IoT & Cloud Applications RASPBERRY PI Raspberry Pi Specifications & its Purpose LIVE DEMO ON RASPBERRY PI HTTP | MQTT | SMTP | UDP | Weather Cloud | Cloud based Object Recognition
• 6.
  ABOUT INTERNET ANY TIMEANY WHERE ANY PERSON ANY BUISNESS ANY DEVICE ANY NETWORK
• 7.
  FUTURE OF INTERNET 50,000,000,000+Connected devices
• 8.
  INTERNET OF THINGS IOT Theterm Internet of Things was first used by Kevin Ashton in 1999. The Internet of Things (IoT) is the network of physical objects devices, vehicles, buildings and other items embedded with electronics, software, sensors, and network connectivity that enables these objects to collect and exchange data.
• 9.

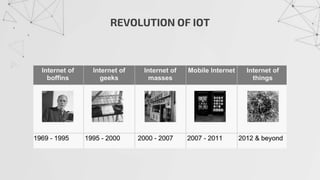

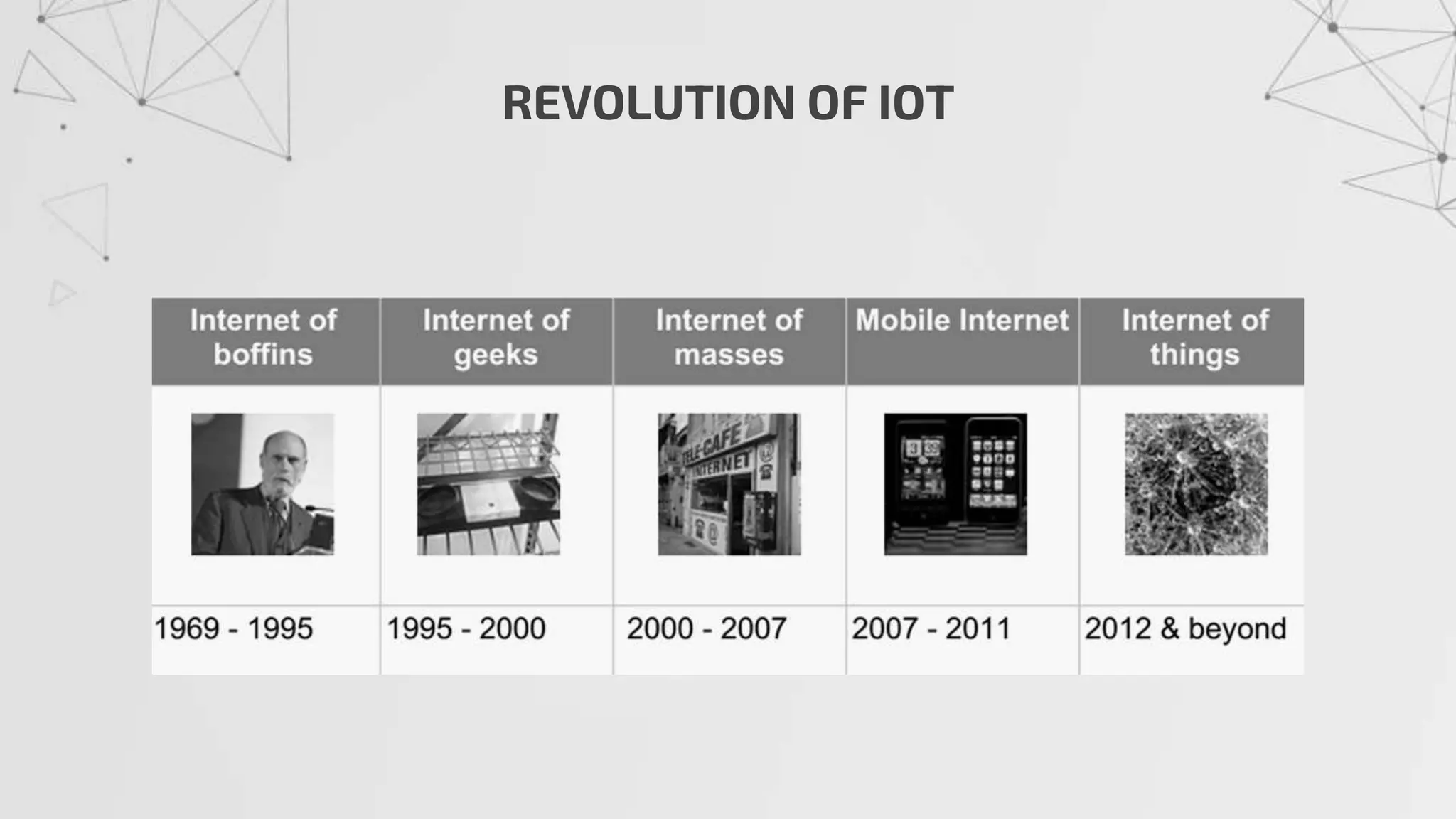

  REVOLUTION OF IOT
• 10.
  CLOUD & ITSSERVICE
• 11.

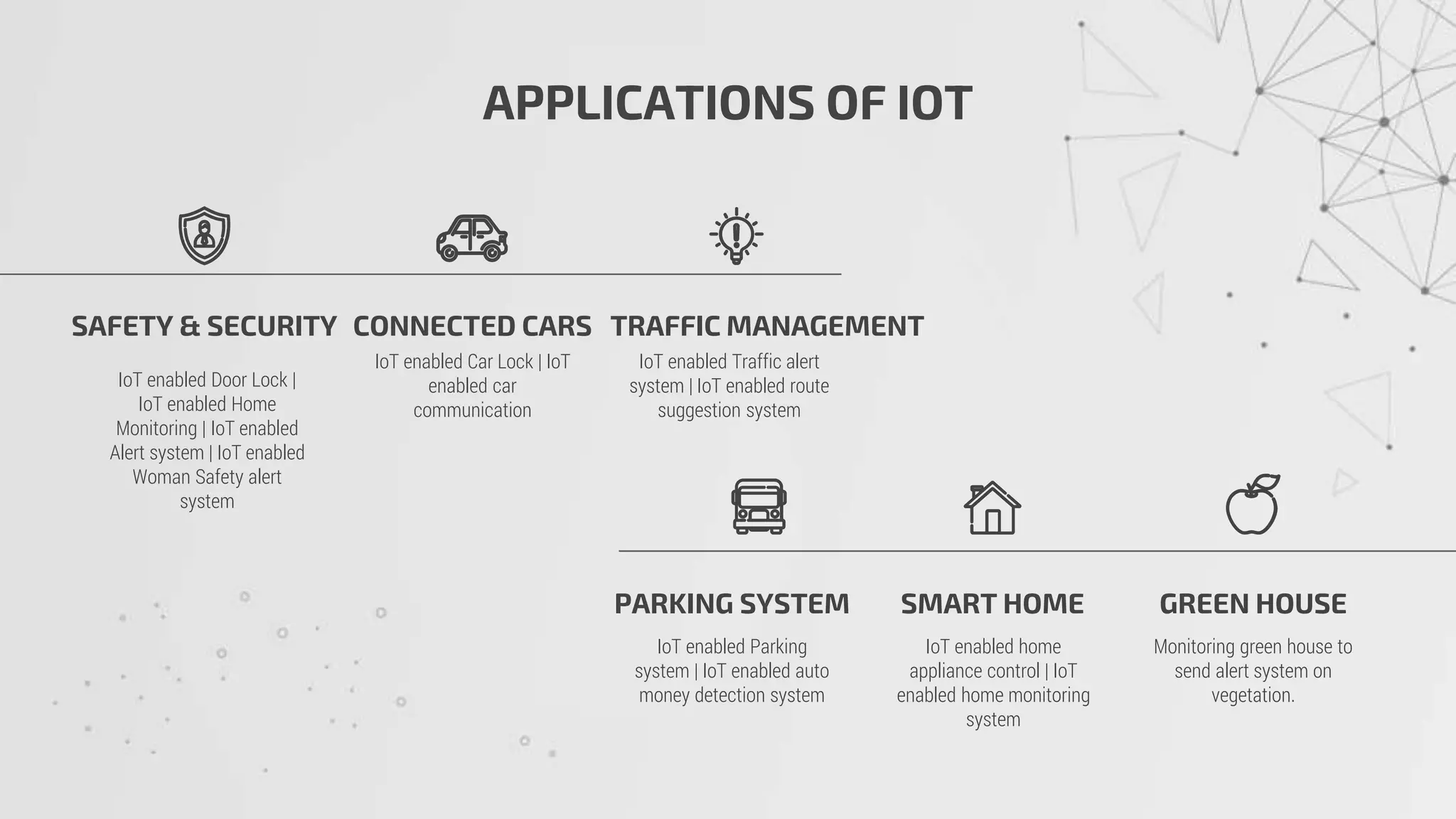

  APPLICATIONS OF IOT SAFETY& SECURITY IoT enabled Door Lock | IoT enabled Home Monitoring | IoT enabled Alert system | IoT enabled Woman Safety alert system CONNECTED CARS IoT enabled Car Lock | IoT enabled car communication TRAFFIC MANAGEMENT IoT enabled Traffic alert system | IoT enabled route suggestion system PARKING SYSTEM IoT enabled Parking system | IoT enabled auto money detection system SMART HOME IoT enabled home appliance control | IoT enabled home monitoring system GREEN HOUSE Monitoring green house to send alert system on vegetation.
• 12.

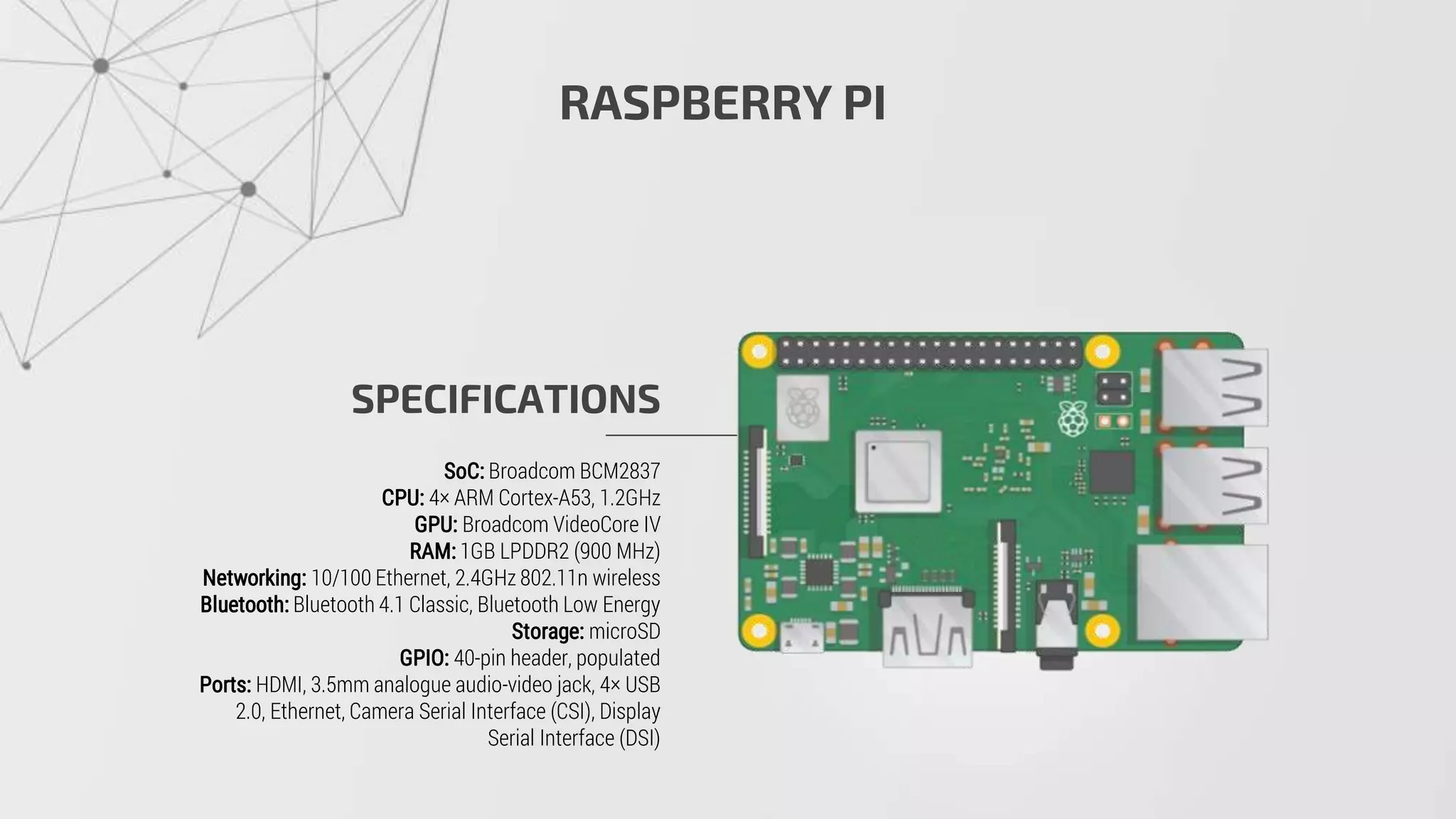

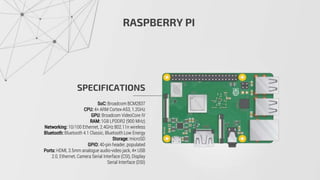

  RASPBERRY PI SPECIFICATIONS SoC: BroadcomBCM2837 CPU: 4× ARM Cortex-A53, 1.2GHz GPU: Broadcom VideoCore IV RAM: 1GB LPDDR2 (900 MHz) Networking: 10/100 Ethernet, 2.4GHz 802.11n wireless Bluetooth: Bluetooth 4.1 Classic, Bluetooth Low Energy Storage: microSD GPIO: 40-pin header, populated Ports: HDMI, 3.5mm analogue audio-video jack, 4× USB 2.0, Ethernet, Camera Serial Interface (CSI), Display Serial Interface (DSI)
• 13.

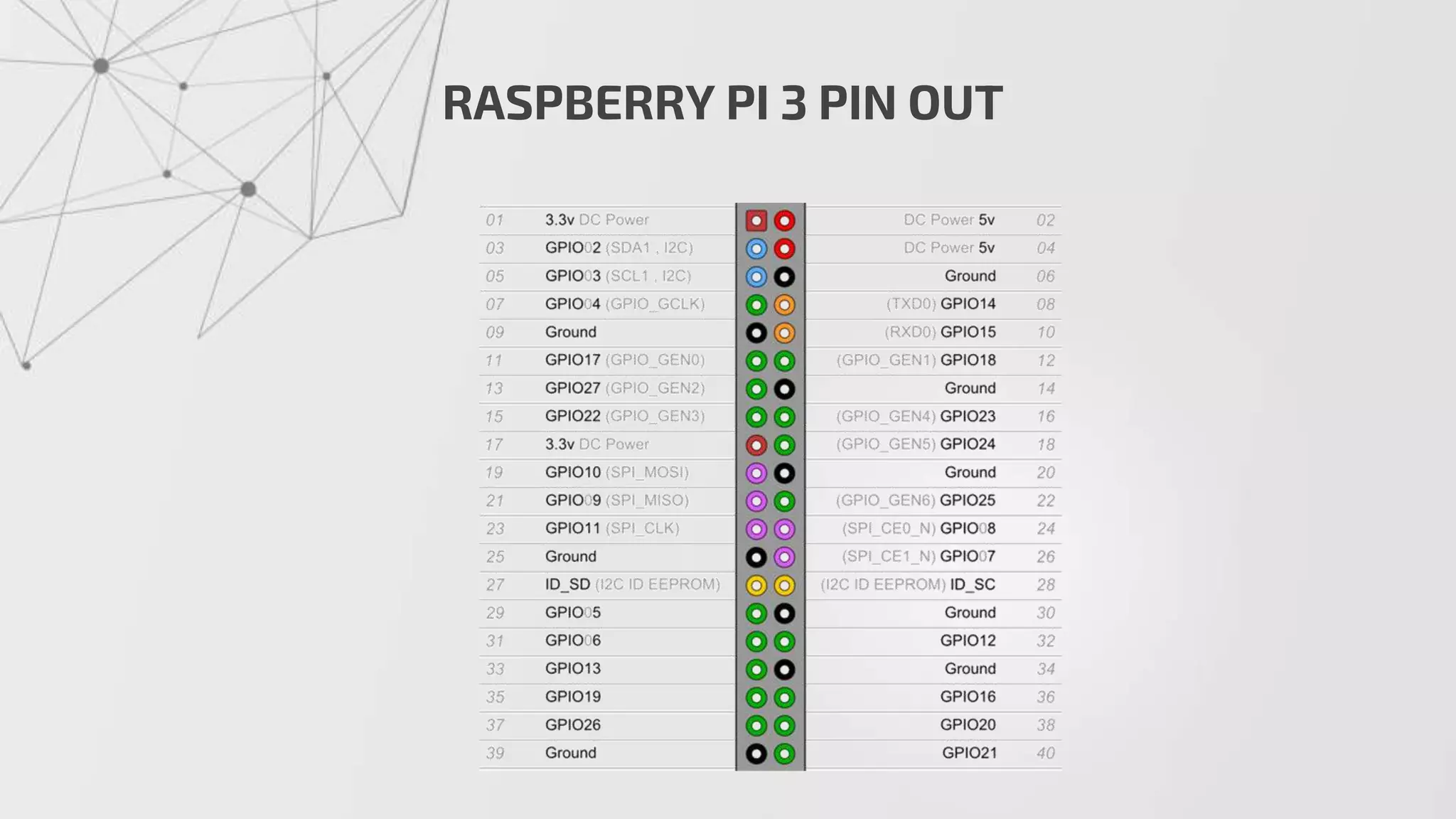

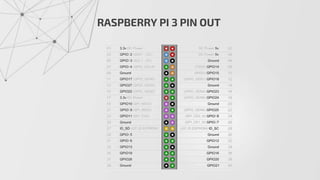

  RASPBERRY PI 3PIN OUT
• 14.
  DEMO SESSION
• 15.
  CLOUD BASED ENVIRONMENT MONITORINGSYSTEM - HTTP 01
• 16.

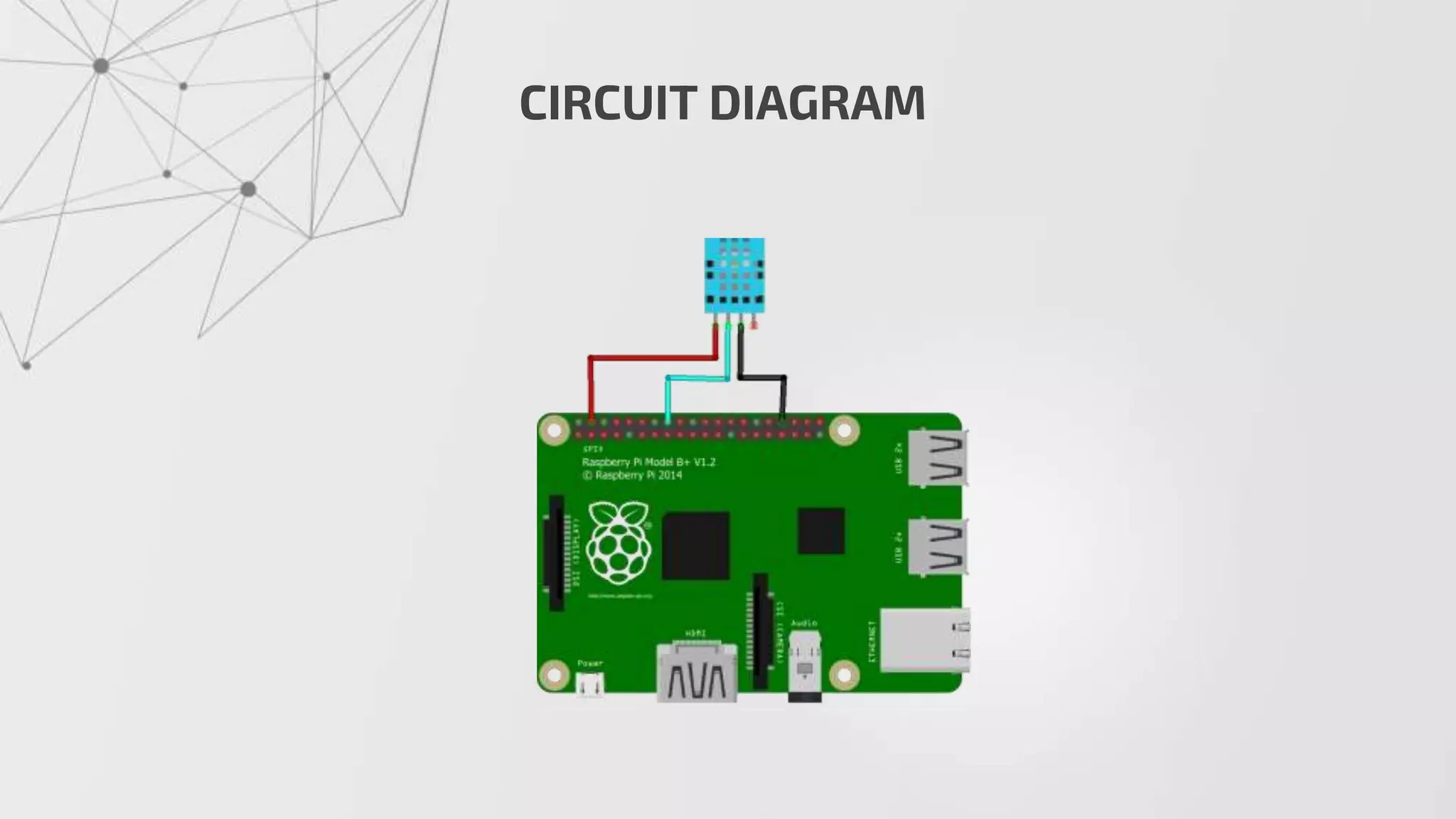

  CIRCUIT DIAGRAM
• 17.
  DATA TRANSMISSION USING UDP& MQTT PROTOCOL 02
• 18.
  SENDING MAIL THROUGHSMTP PROTOCOL 03
• 19.
  WEATHER MONITORING SYSTEM USINGWEATHER CLOUD 04
• 20.
  CLOUD BASED OBJECT RECOGNITION 05
• 21.
  Q & A SESSION
• 22.
  www.pantechsolutions.net THANKS Upcoming Session Computer visionusing Raspberry Pi
