介绍 MySQL

2

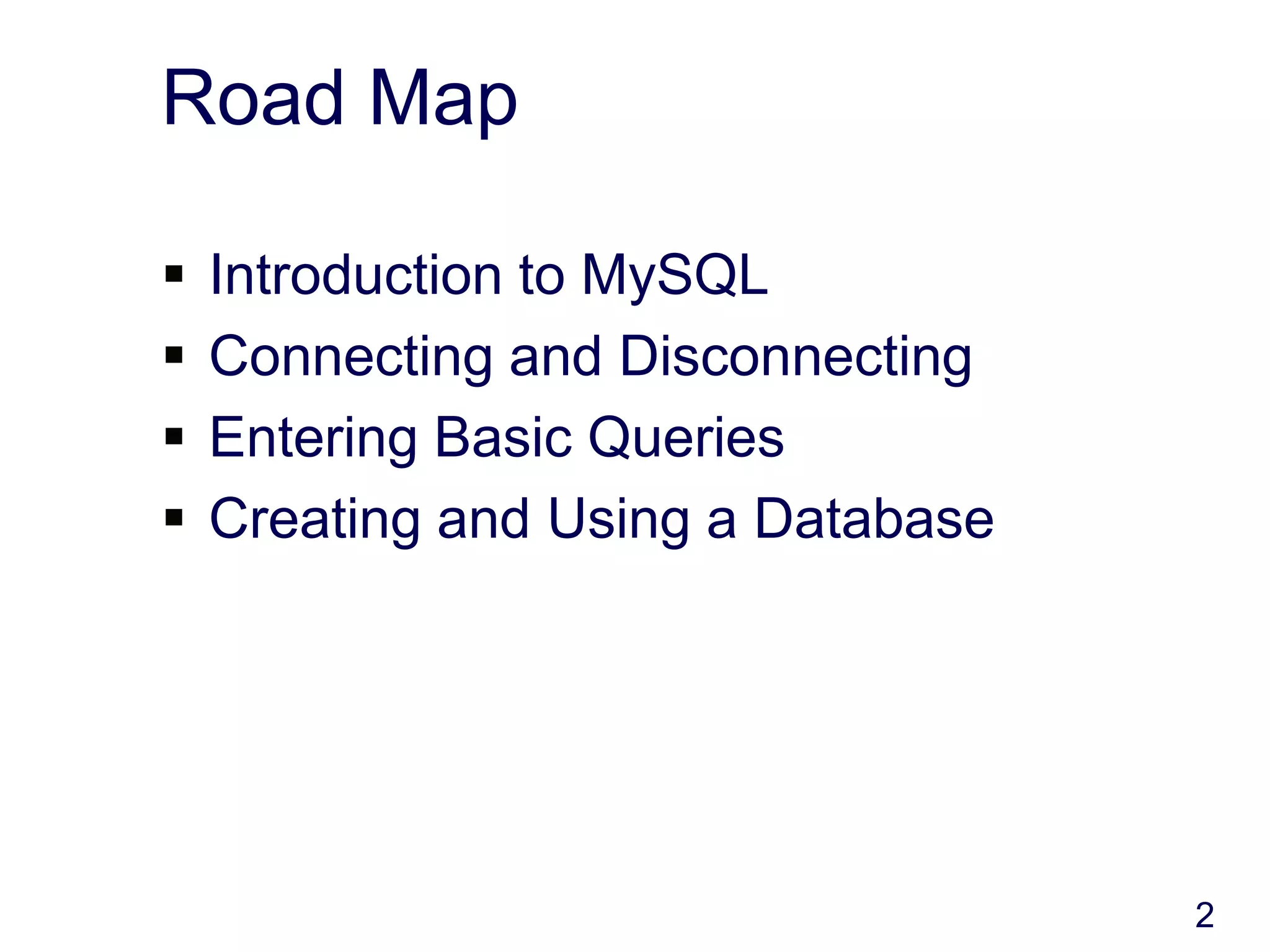

Road Map
 Introduction to MySQL
 Connecting and Disconnecting
 Entering Basic Queries
 Creating and Using a Database

3

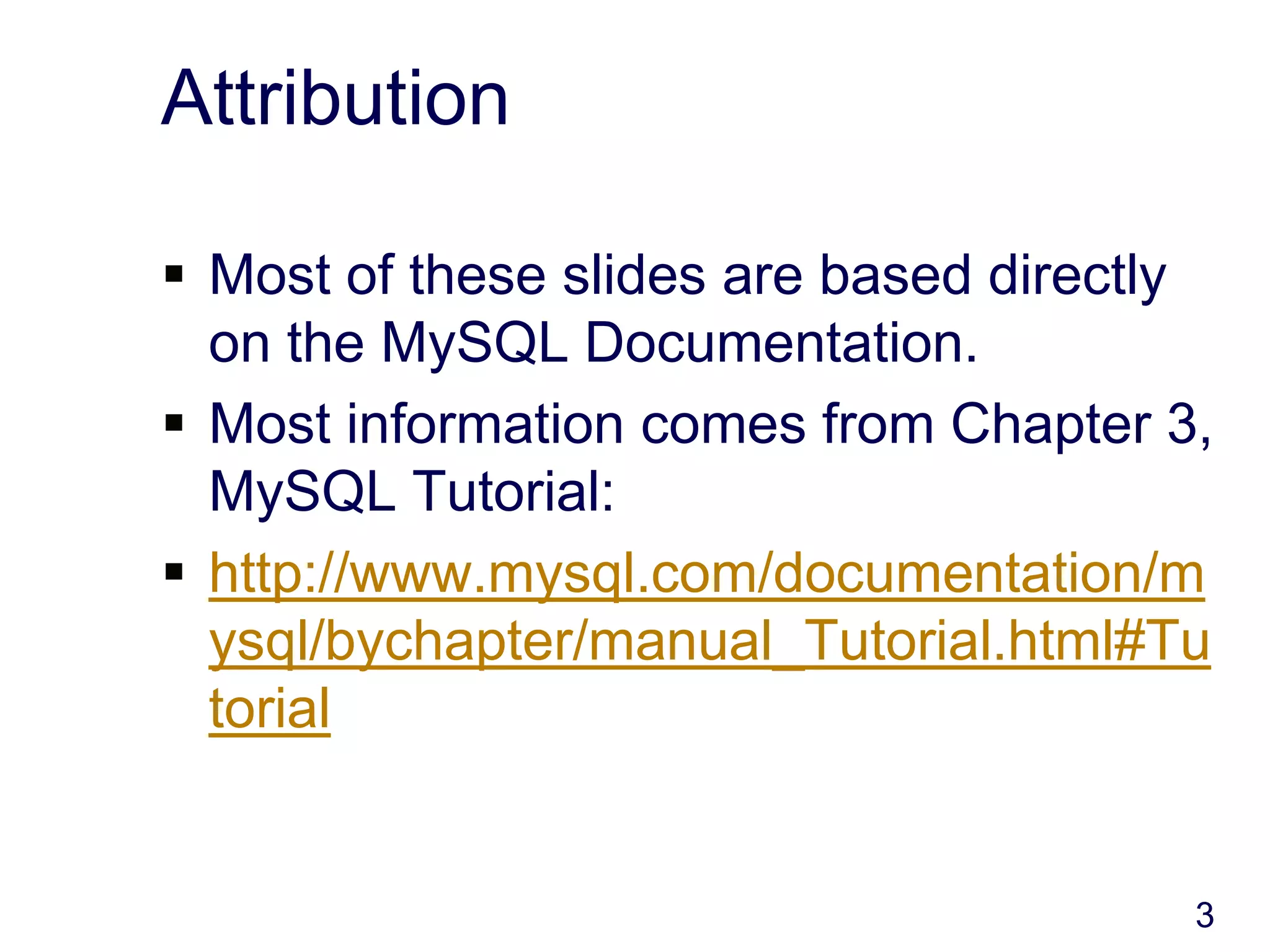

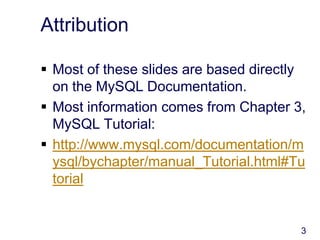

Attribution
 Most of these slides are based directly
on the MySQL Documentation.
 Most information comes from Chapter 3,
MySQL Tutorial:
 http://www.mysql.com/documentation/m
ysql/bychapter/manual_Tutorial.html#Tu
torial

4

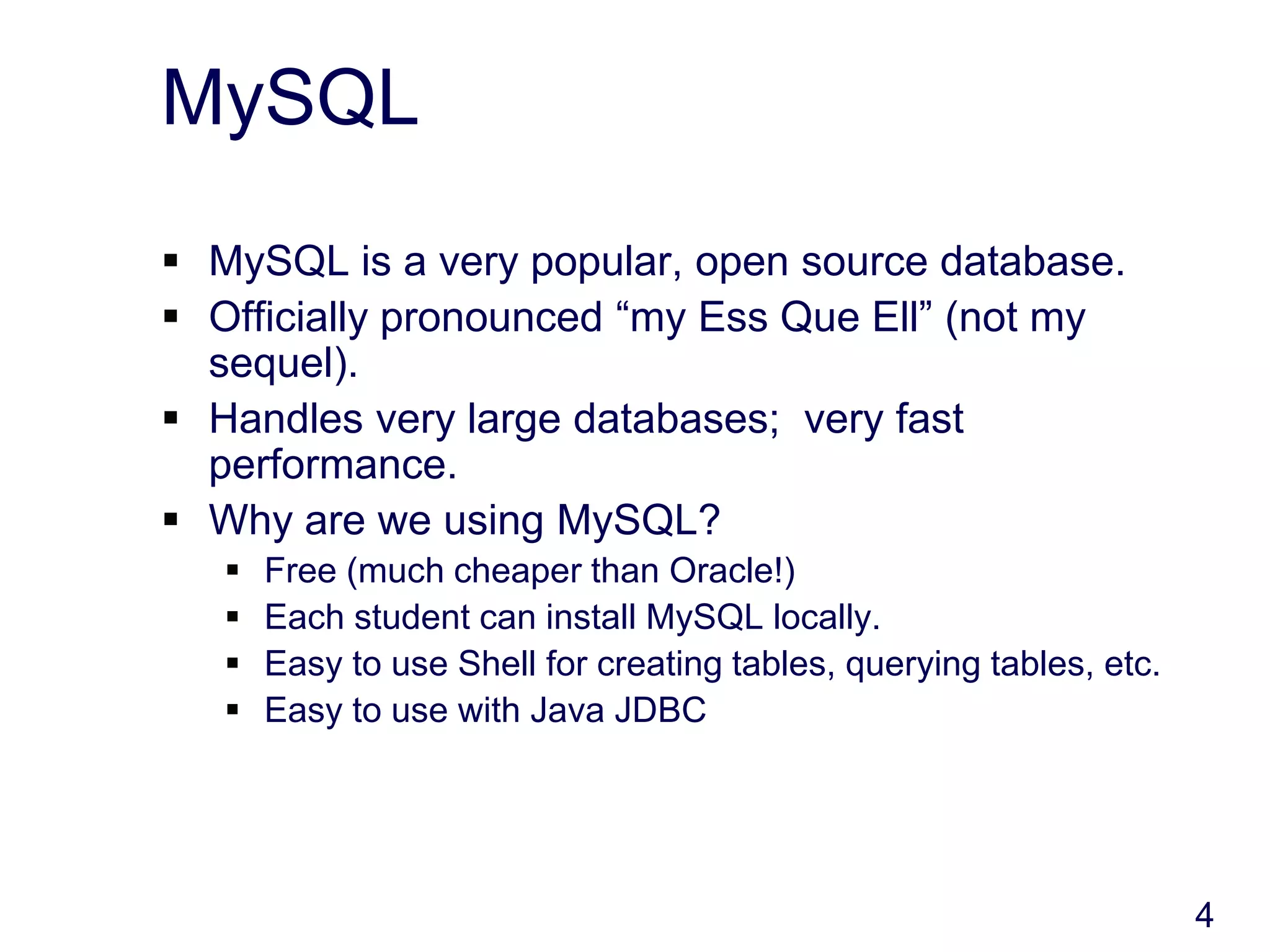

MySQL
 MySQL is a very popular, open source database.
 Officially pronounced “my Ess Que Ell” (not my
sequel).
 Handles very large databases; very fast
performance.
 Why are we using MySQL?
 Free (much cheaper than Oracle!)
 Each student can install MySQL locally.
 Easy to use Shell for creating tables, querying tables, etc.
 Easy to use with Java JDBC

5

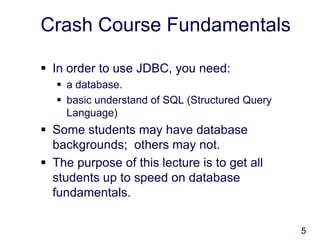

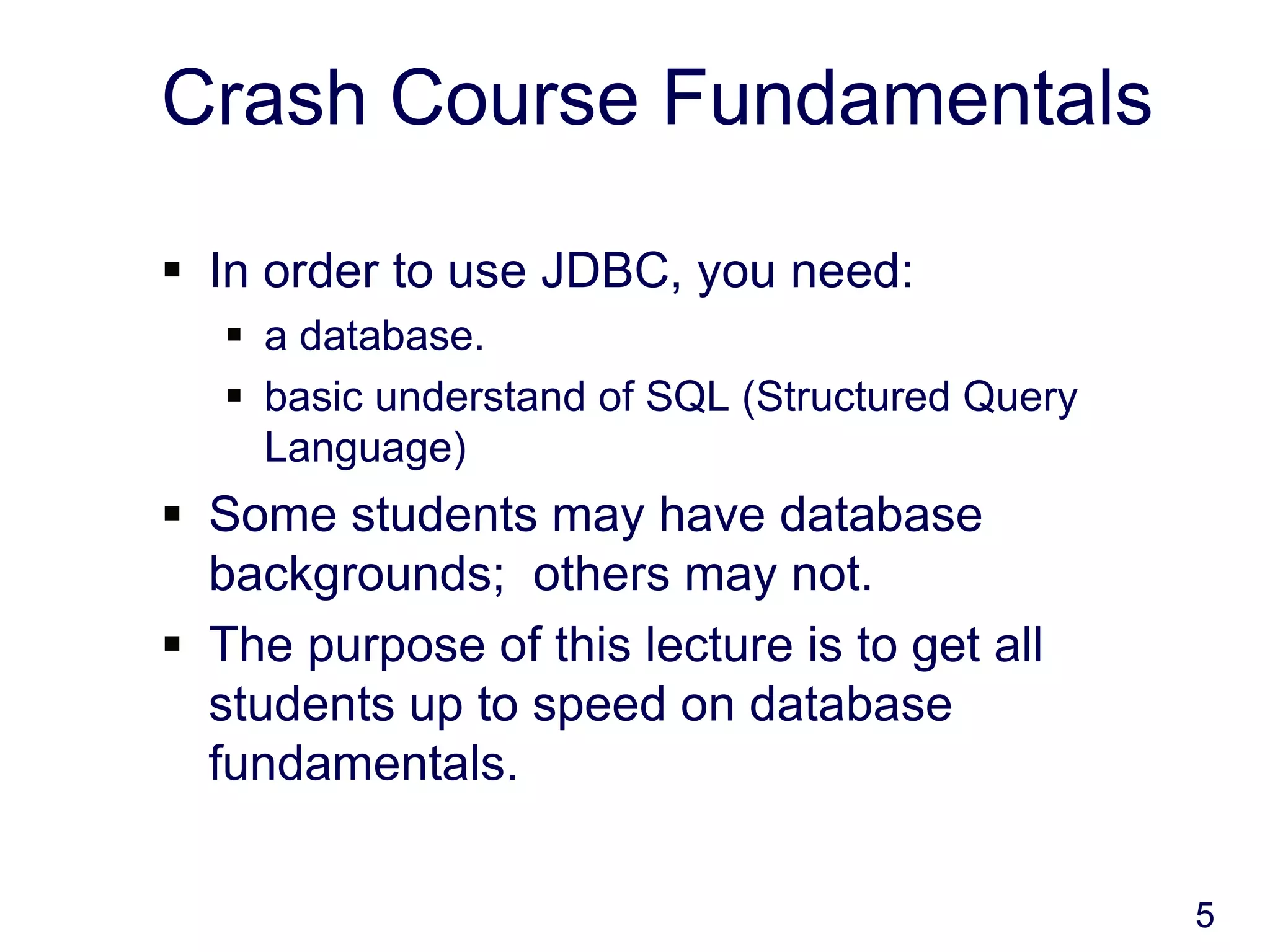

Crash Course Fundamentals
 In order to use JDBC, you need:
 a database.
 basic understand of SQL (Structured Query
Language)
 Some students may have database
backgrounds; others may not.
 The purpose of this lecture is to get all
students up to speed on database
fundamentals.

6

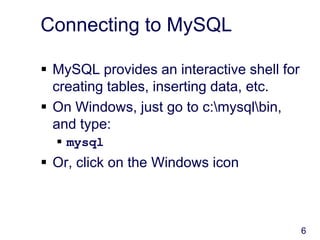

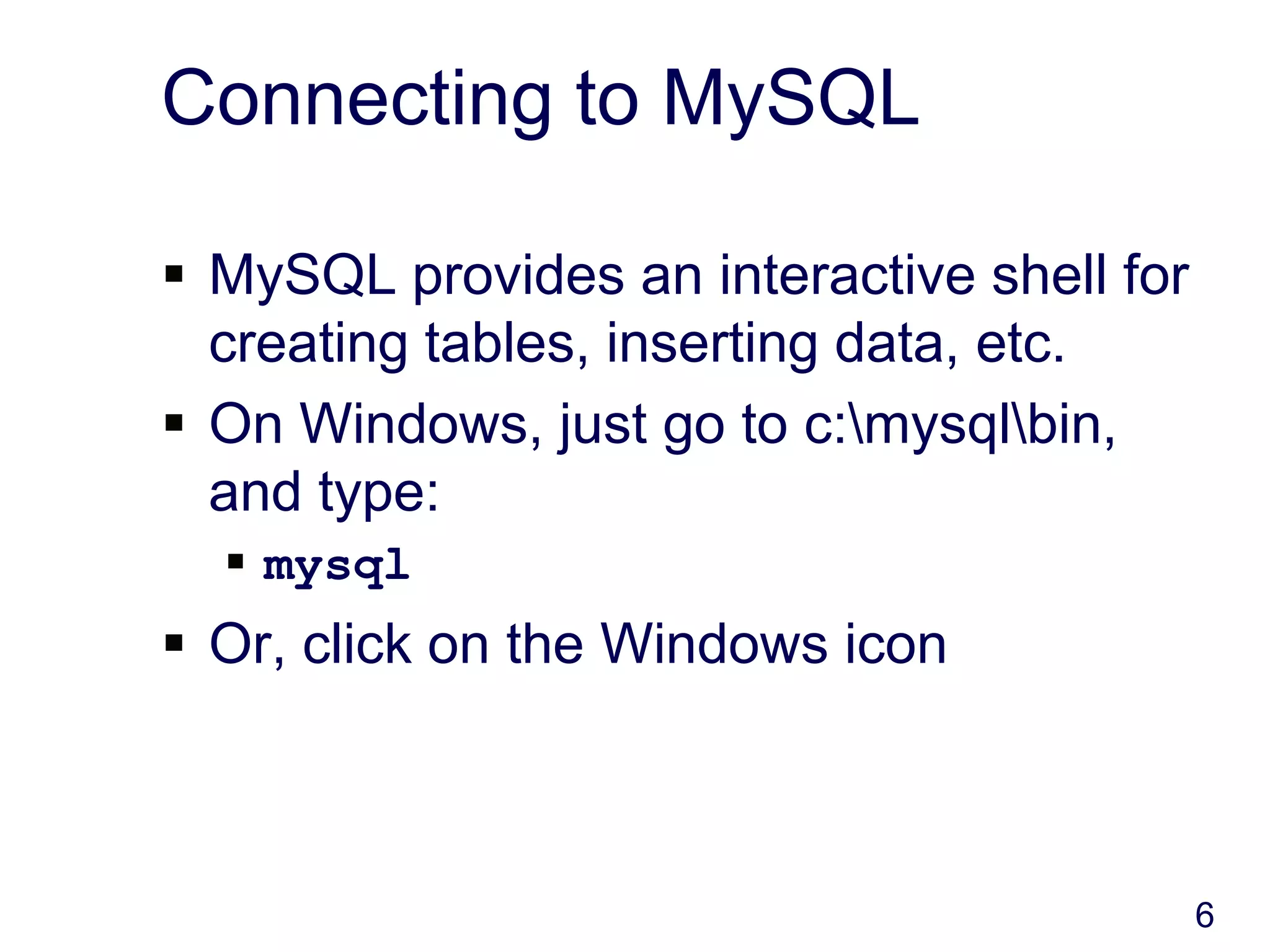

Connecting to MySQL
 MySQL provides an interactive shell for
creating tables, inserting data, etc.
 On Windows, just go to c:mysqlbin,
and type:
 mysql
 Or, click on the Windows icon

7

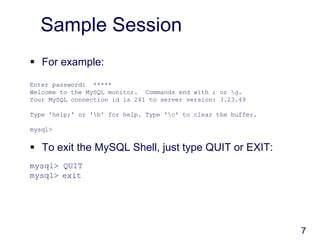

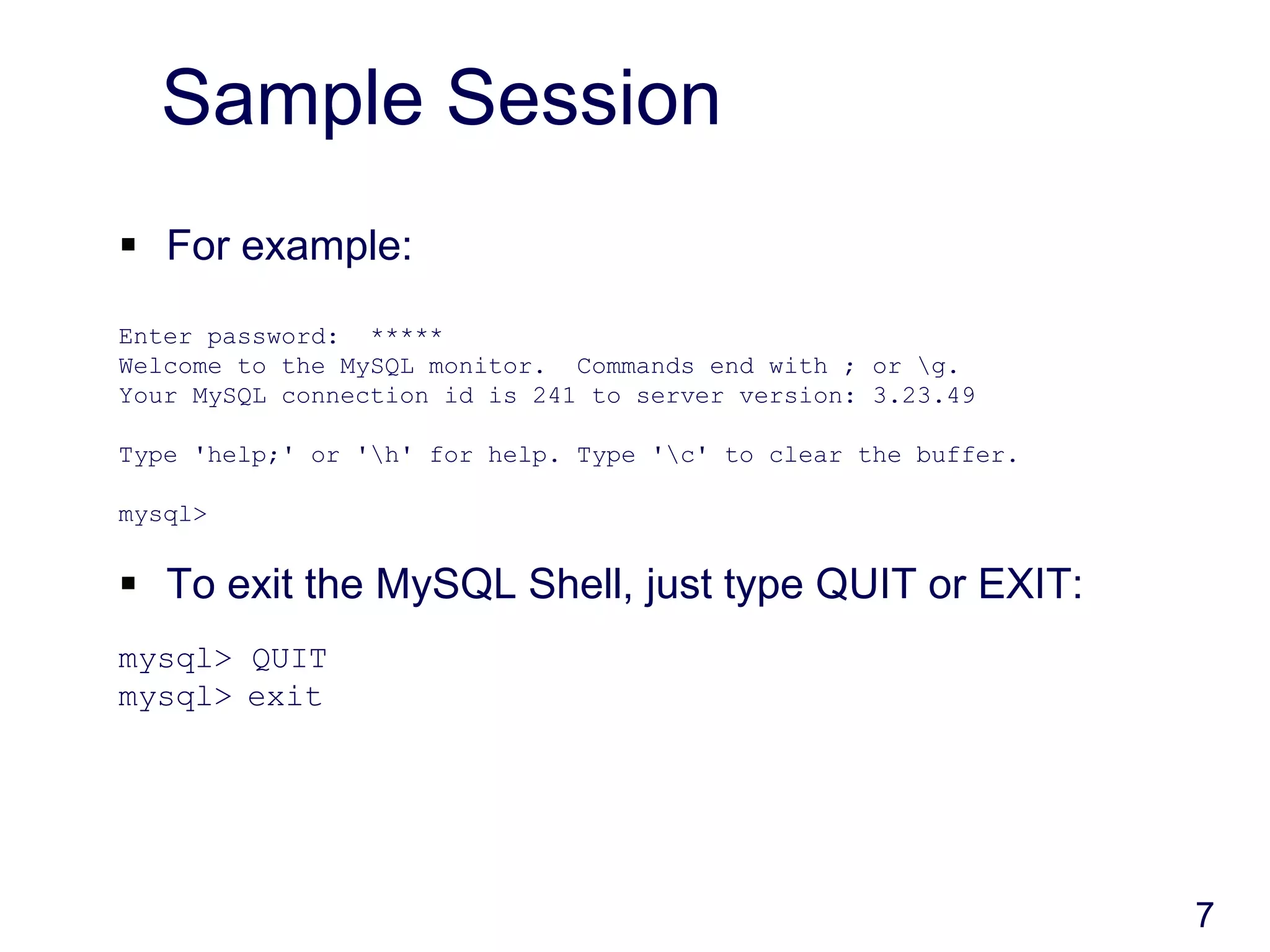

Sample Session
 For example:
Enter password: *****
Welcome to the MySQL monitor. Commands end with ; or g.
Your MySQL connection id is 241 to server version: 3.23.49
Type 'help;' or 'h' for help. Type 'c' to clear the buffer.
mysql>
 To exit the MySQL Shell, just type QUIT or EXIT:
mysql> QUIT
mysql> exit

8

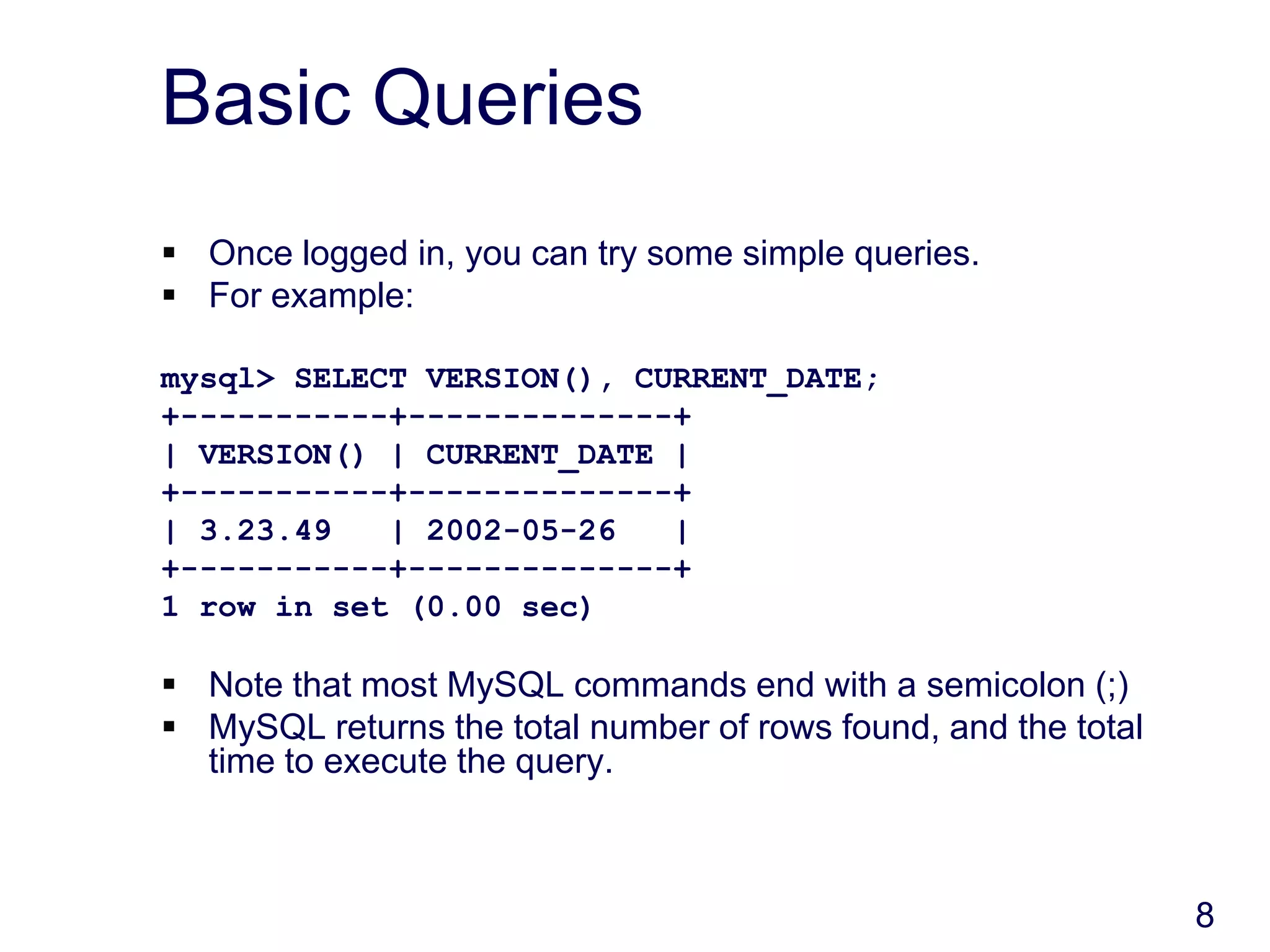

Basic Queries
 Once logged in, you can try some simple queries.
 For example:
mysql> SELECT VERSION(), CURRENT_DATE;
+-----------+--------------+
| VERSION() | CURRENT_DATE |
+-----------+--------------+
| 3.23.49 | 2002-05-26 |
+-----------+--------------+
1 row in set (0.00 sec)
 Note that most MySQL commands end with a semicolon (;)
 MySQL returns the total number of rows found, and the total
time to execute the query.

9

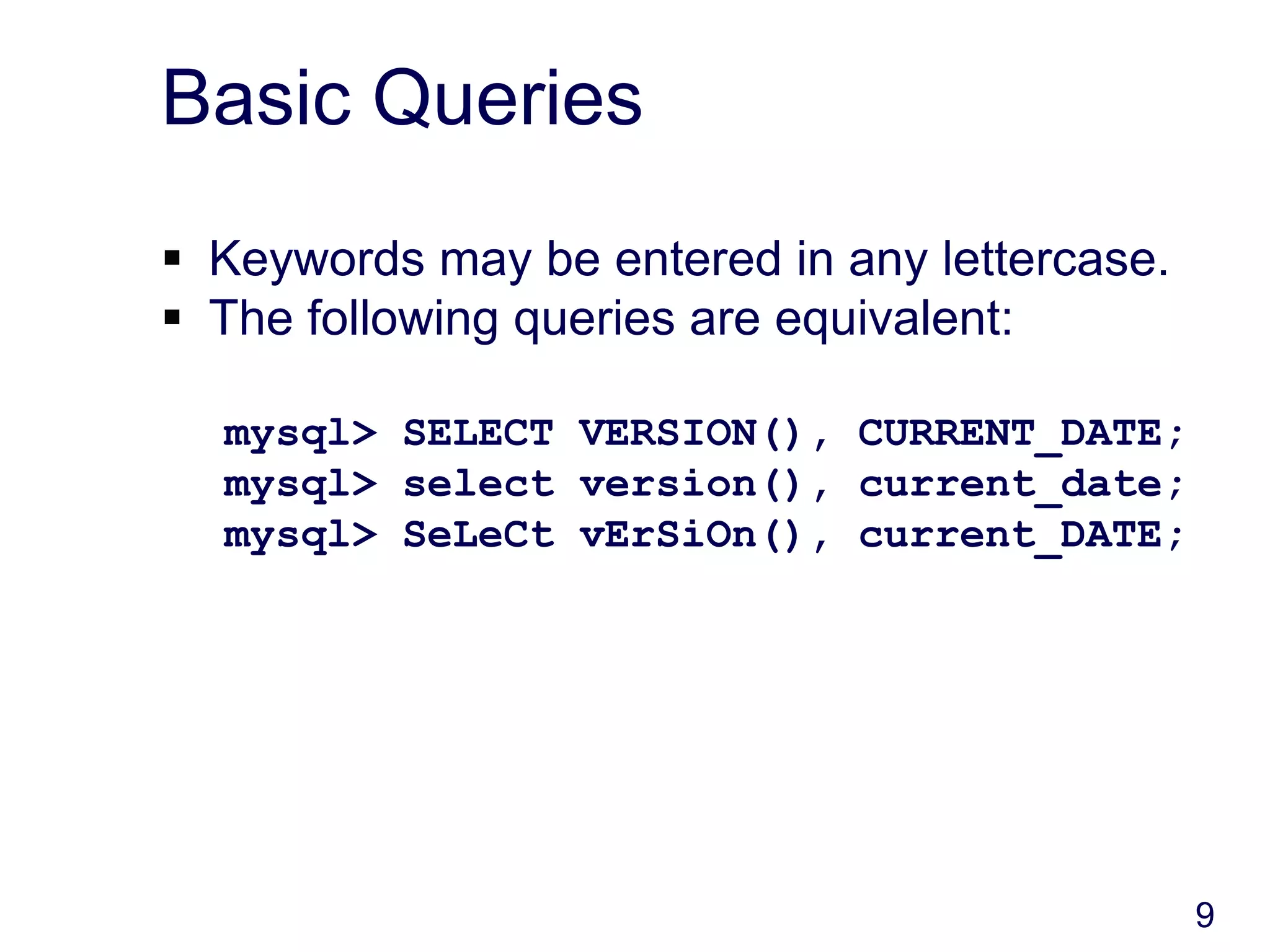

Basic Queries
 Keywords may be entered in any lettercase.
 The following queries are equivalent:
mysql> SELECT VERSION(), CURRENT_DATE;
mysql> select version(), current_date;
mysql> SeLeCt vErSiOn(), current_DATE;

10

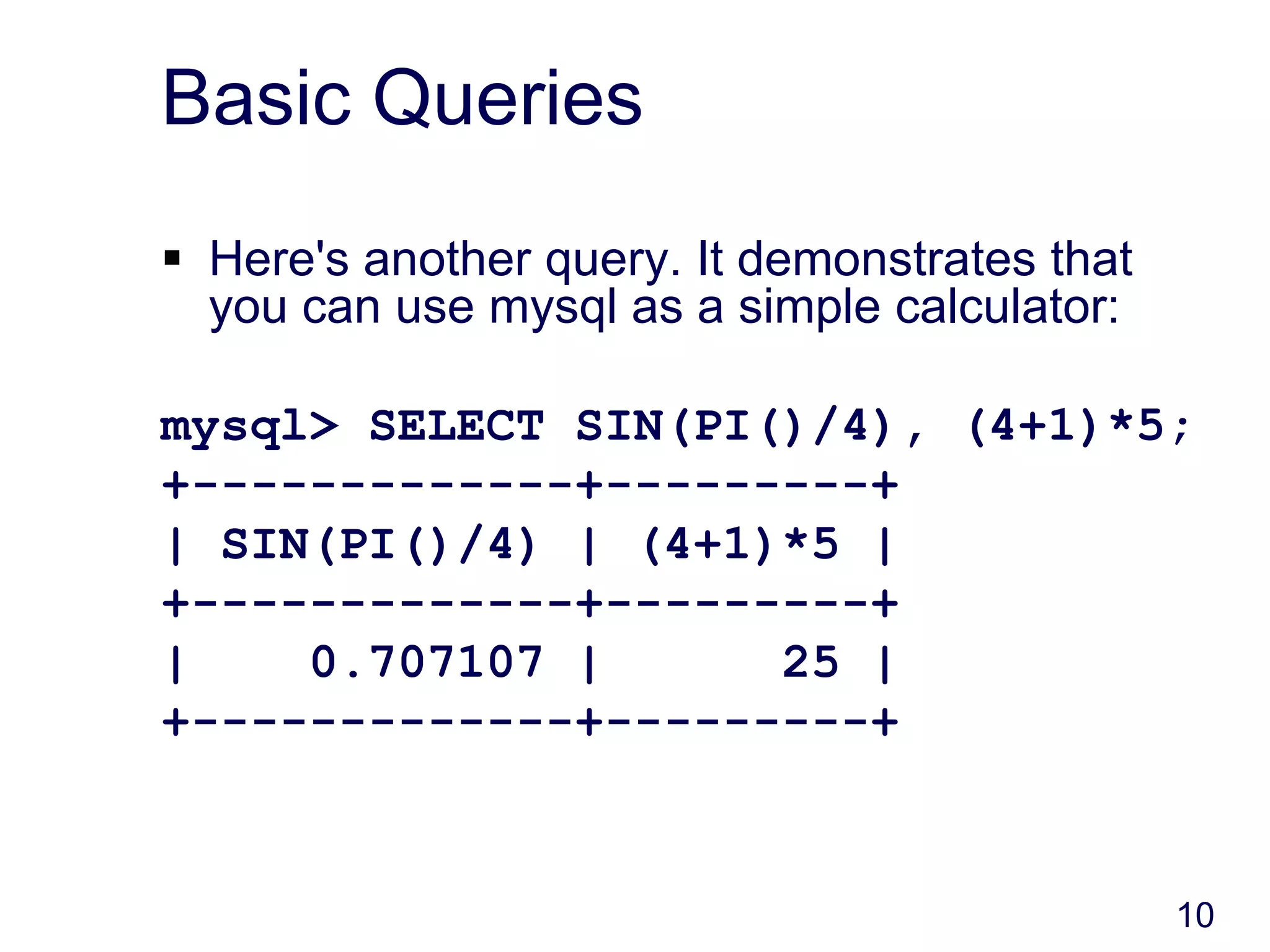

Basic Queries
 Here's another query. It demonstrates that
you can use mysql as a simple calculator:
mysql> SELECT SIN(PI()/4), (4+1)*5;
+-------------+---------+
| SIN(PI()/4) | (4+1)*5 |
+-------------+---------+
| 0.707107 | 25 |
+-------------+---------+

11

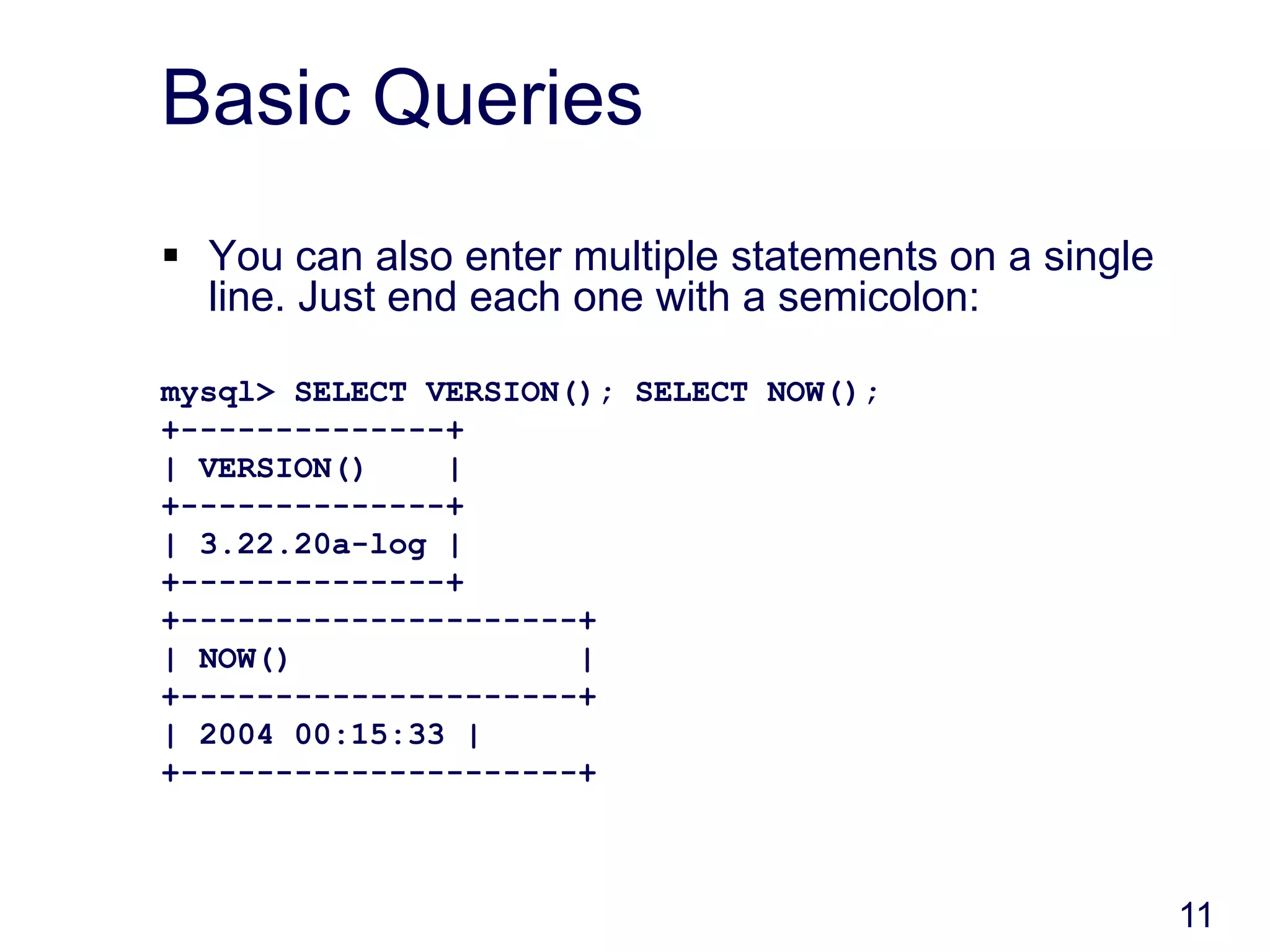

Basic Queries
 You can also enter multiple statements on a single
line. Just end each one with a semicolon:
mysql> SELECT VERSION(); SELECT NOW();
+--------------+
| VERSION() |
+--------------+
| 3.22.20a-log |
+--------------+
+---------------------+
| NOW() |
+---------------------+
| 2004 00:15:33 |
+---------------------+

12

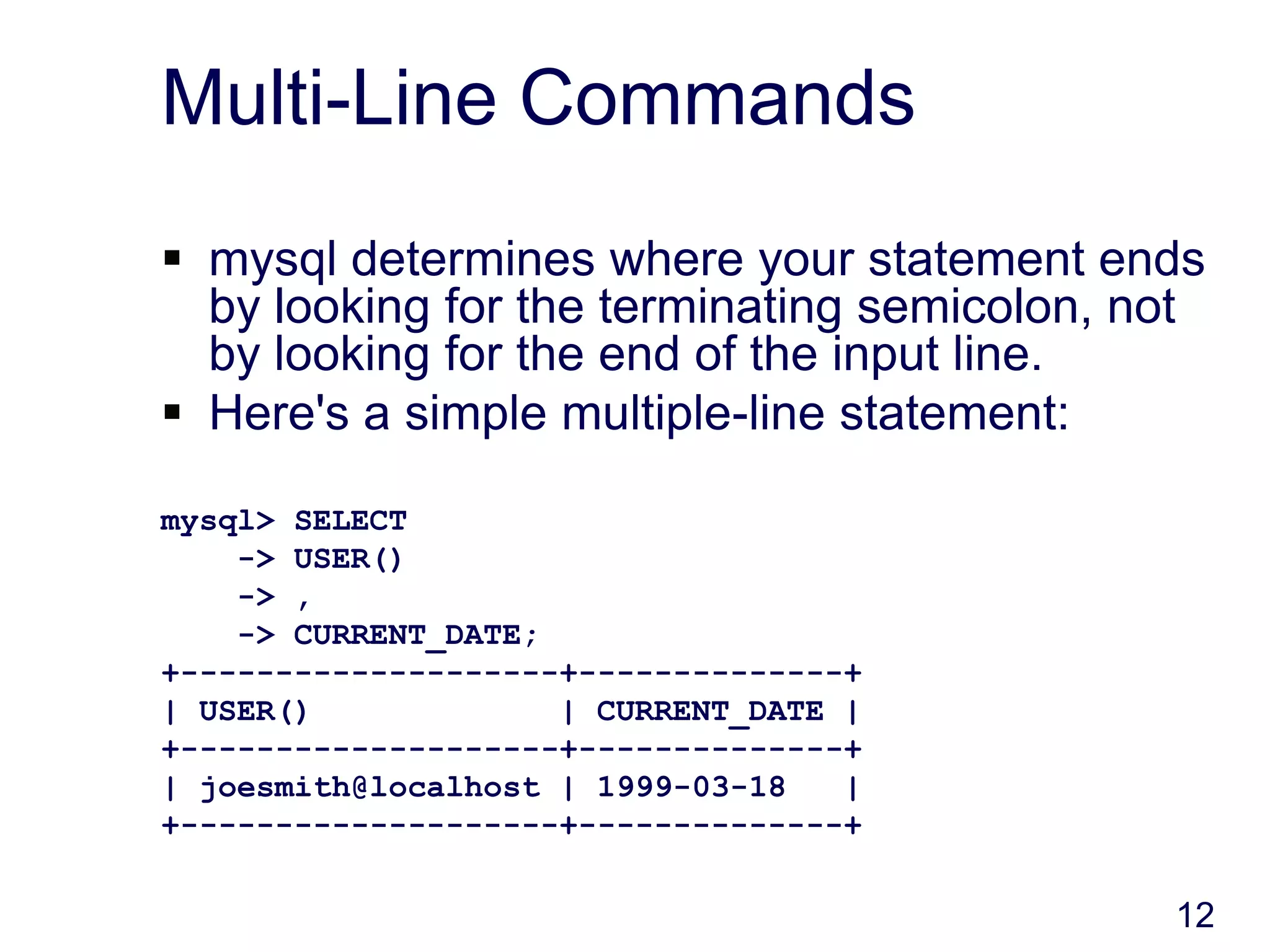

Multi-Line Commands
 mysql determines where your statement ends
by looking for the terminating semicolon, not
by looking for the end of the input line.
 Here's a simple multiple-line statement:
mysql> SELECT
-> USER()
-> ,
-> CURRENT_DATE;
+--------------------+--------------+
| USER() | CURRENT_DATE |
+--------------------+--------------+
| joesmith@localhost | 1999-03-18 |
+--------------------+--------------+

13

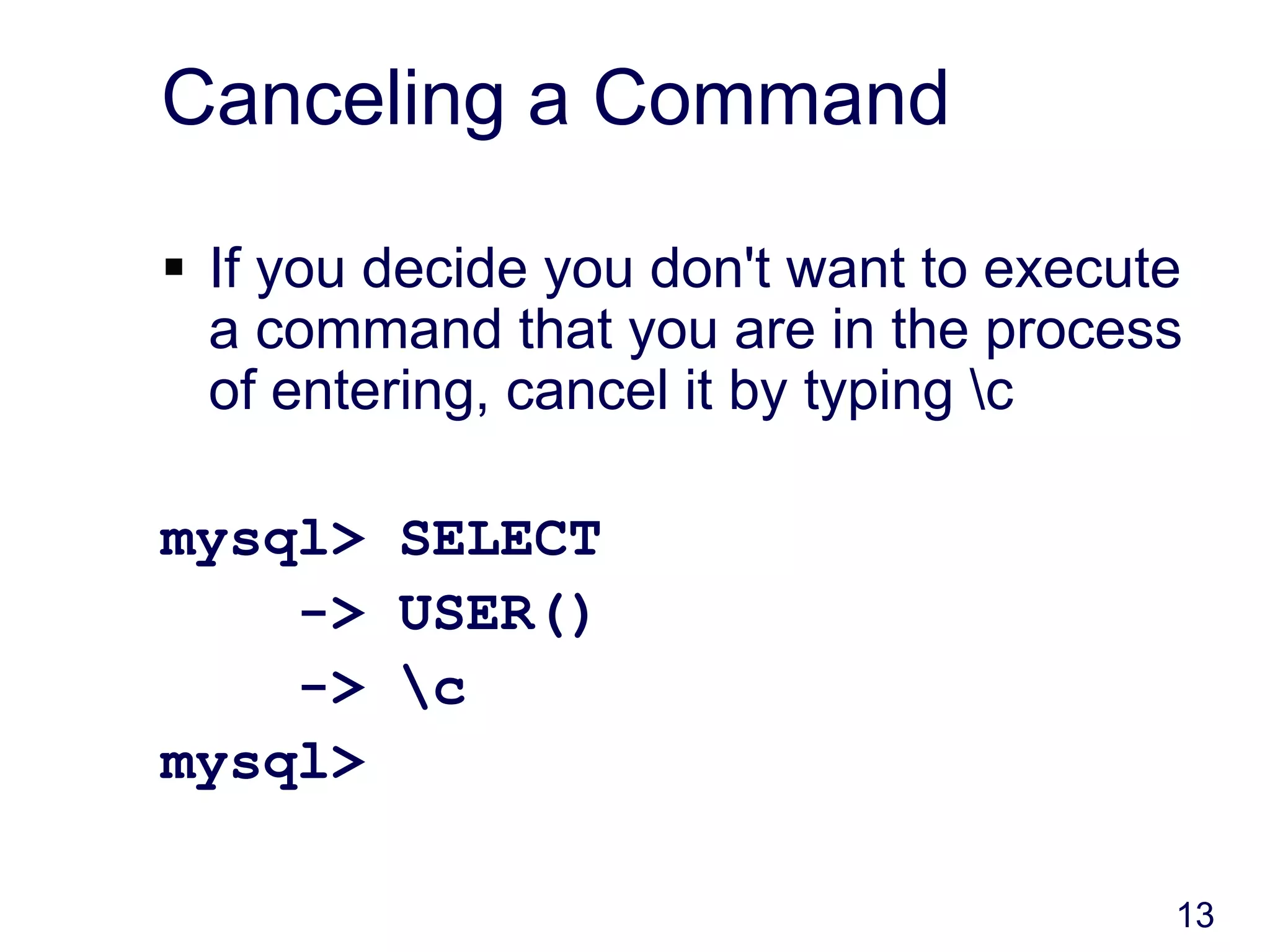

Canceling a Command
 If you decide you don't want to execute
a command that you are in the process
of entering, cancel it by typing c
mysql> SELECT
-> USER()
-> c
mysql>

14

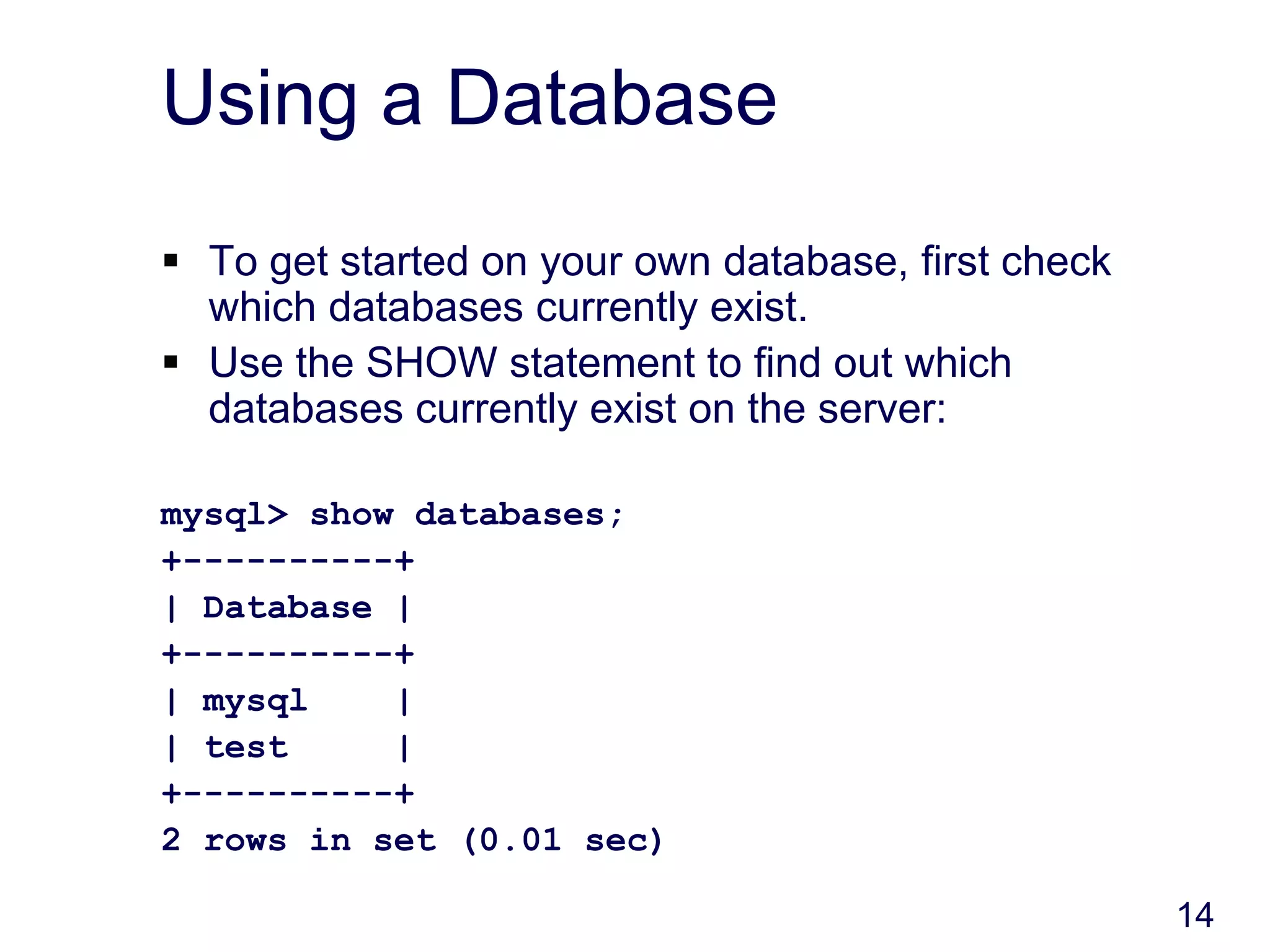

Using a Database
 To get started on your own database, first check
which databases currently exist.
 Use the SHOW statement to find out which
databases currently exist on the server:
mysql> show databases;
+----------+
| Database |
+----------+
| mysql |
| test |
+----------+
2 rows in set (0.01 sec)

15

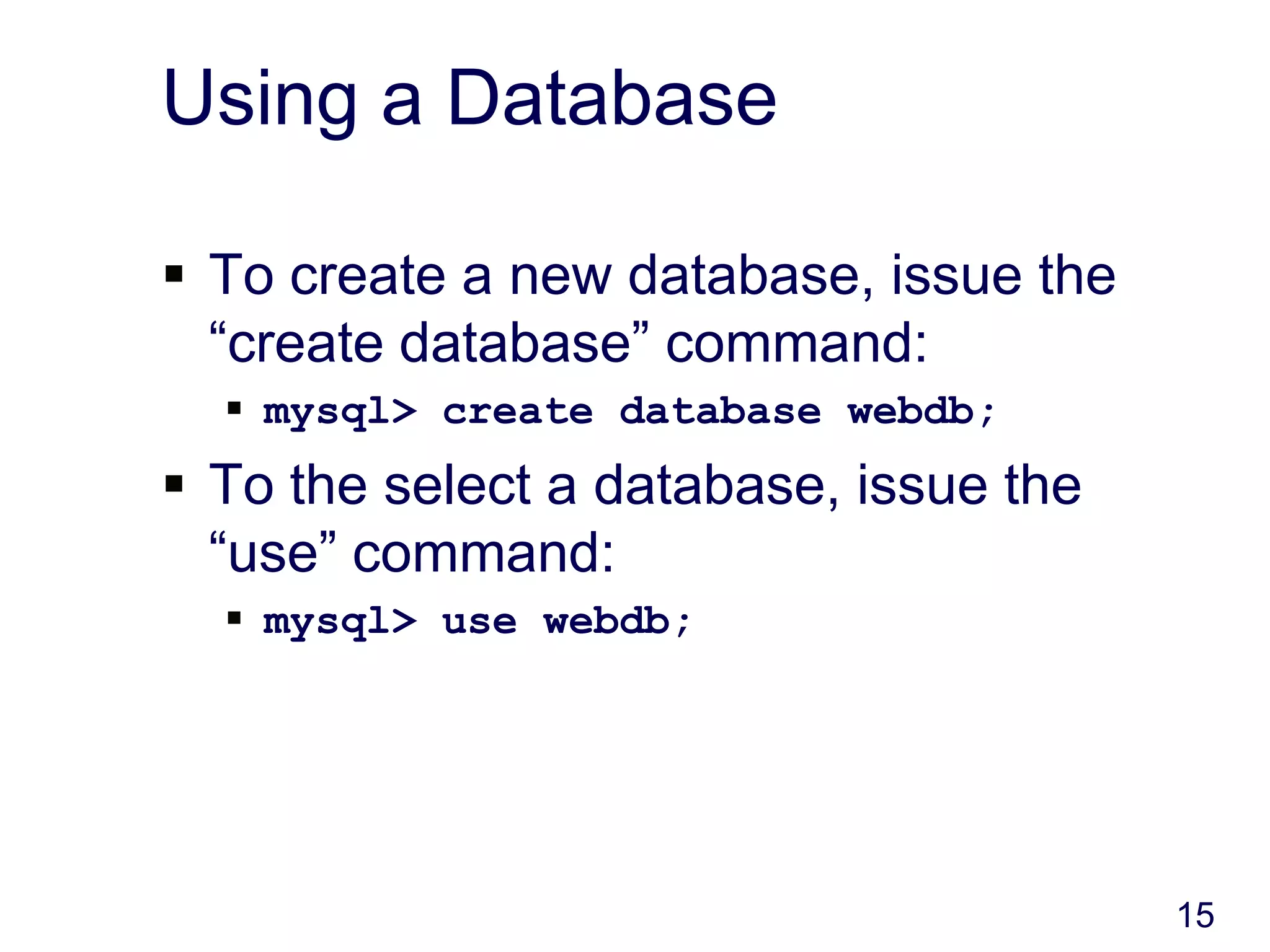

Using a Database
 To create a new database, issue the
“create database” command:
 mysql> create database webdb;
 To the select a database, issue the
“use” command:
 mysql> use webdb;

16

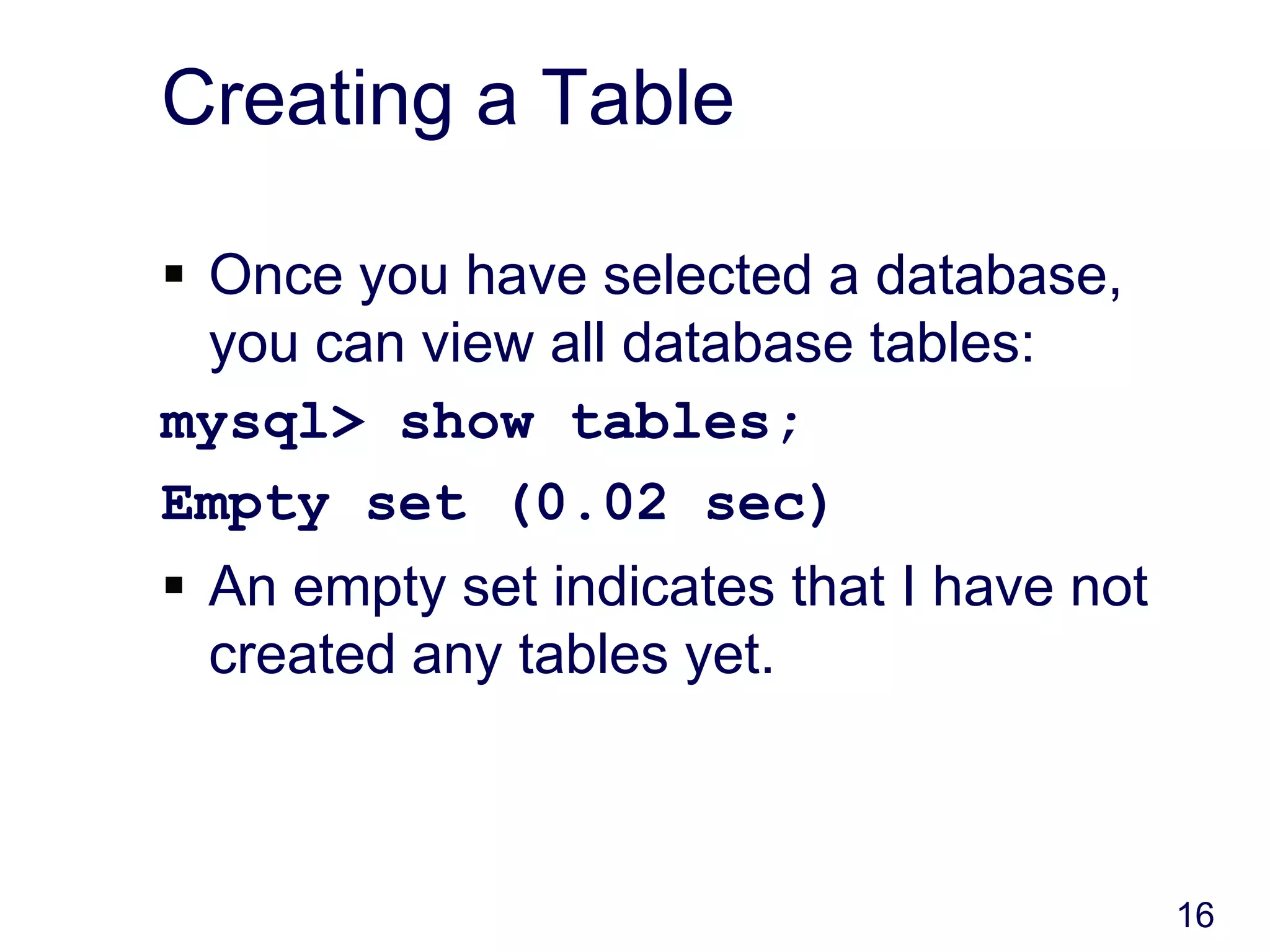

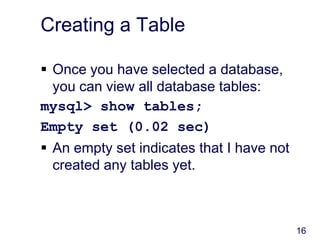

Creating a Table
 Once you have selected a database,
you can view all database tables:
mysql> show tables;
Empty set (0.02 sec)
 An empty set indicates that I have not
created any tables yet.

17

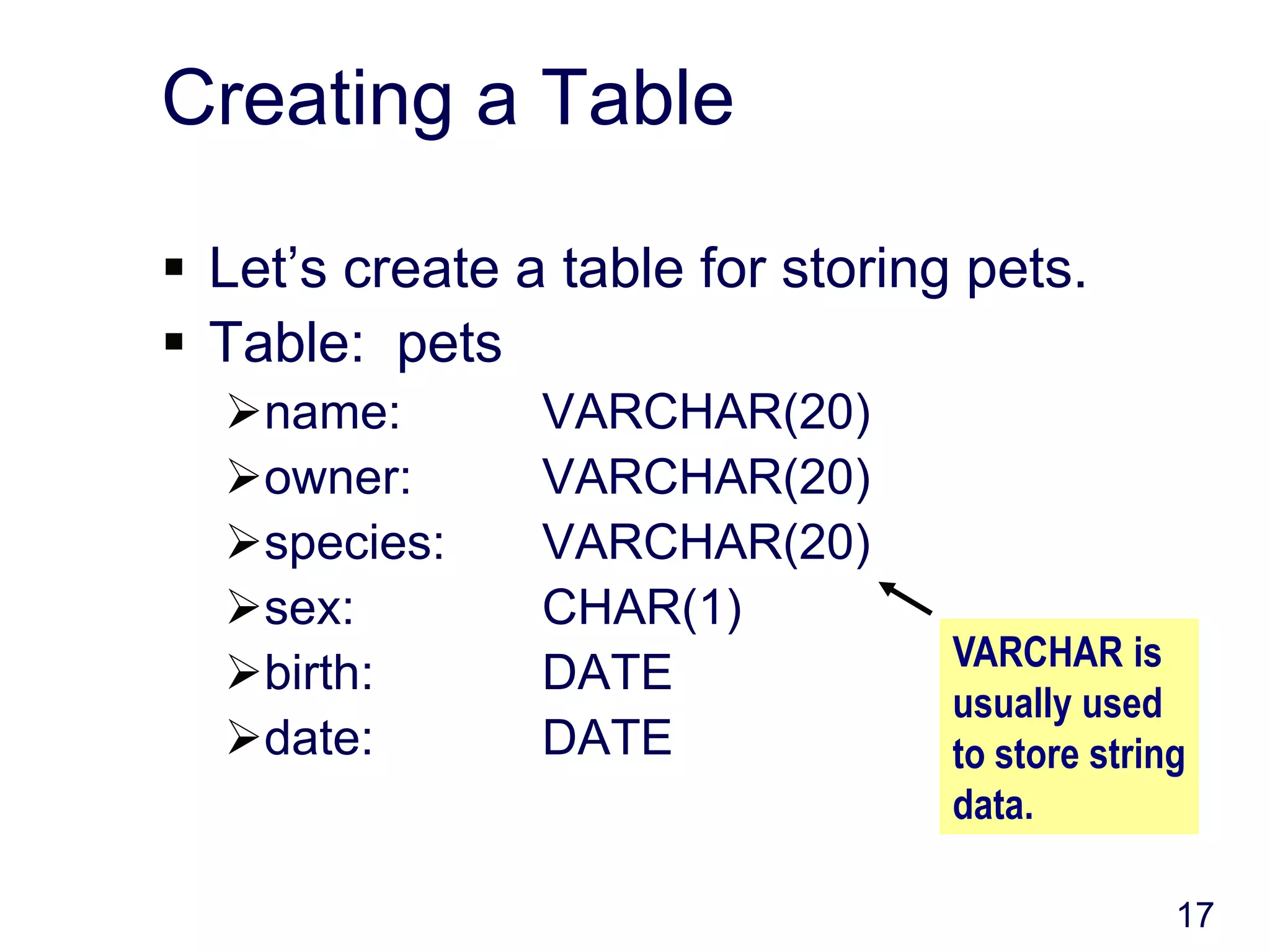

Creating a Table
 Let’s create a table for storing pets.
 Table: pets
name: VARCHAR(20)
owner: VARCHAR(20)
species: VARCHAR(20)
sex: CHAR(1)
birth: DATE
date: DATE
VARCHAR is
usually used
to store string
data.

18

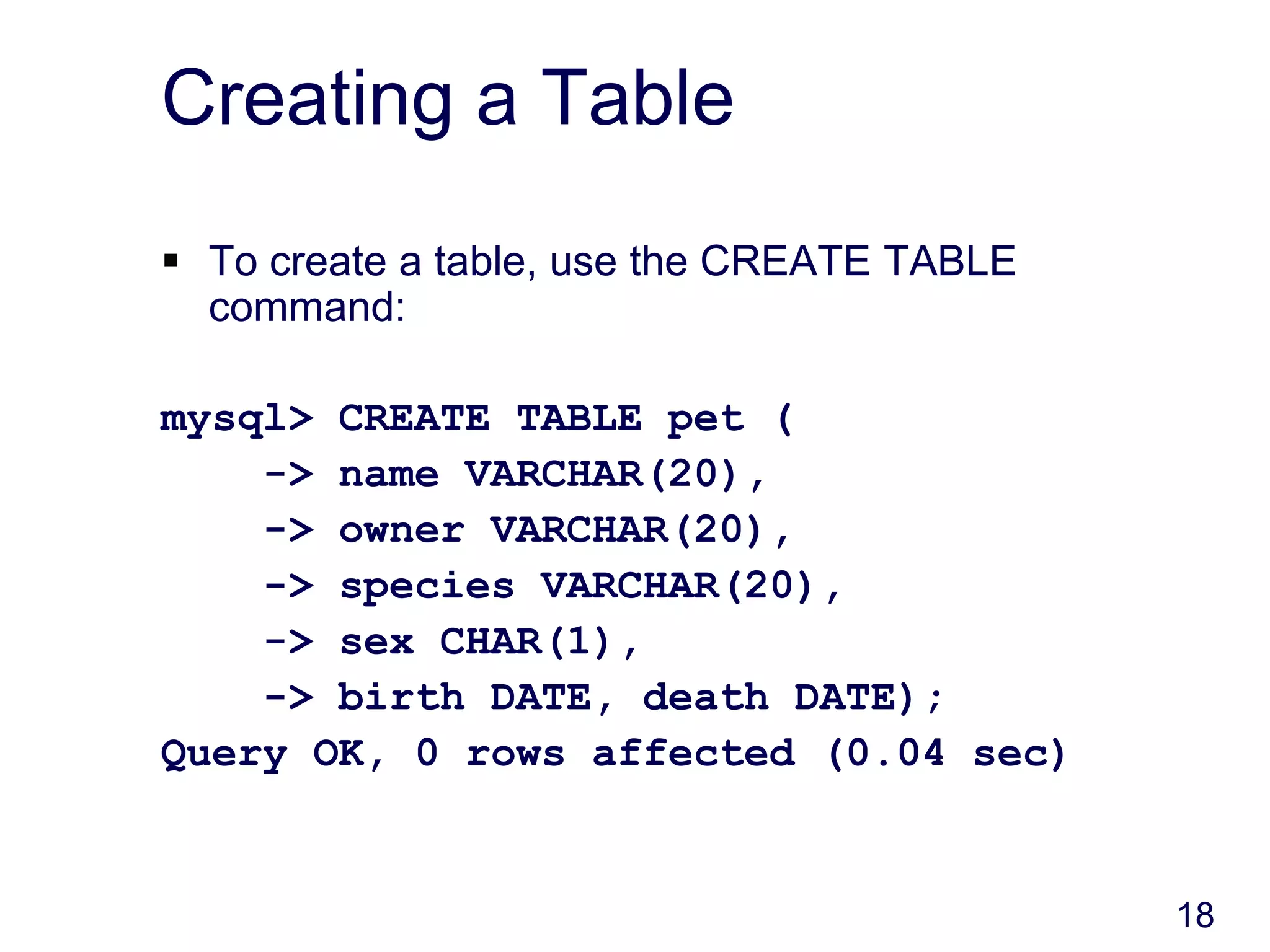

Creating a Table
 To create a table, use the CREATE TABLE
command:
mysql> CREATE TABLE pet (
-> name VARCHAR(20),
-> owner VARCHAR(20),
-> species VARCHAR(20),
-> sex CHAR(1),
-> birth DATE, death DATE);
Query OK, 0 rows affected (0.04 sec)

19

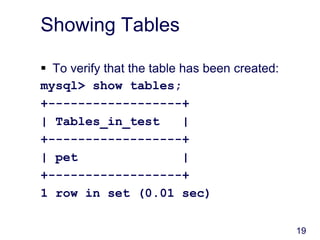

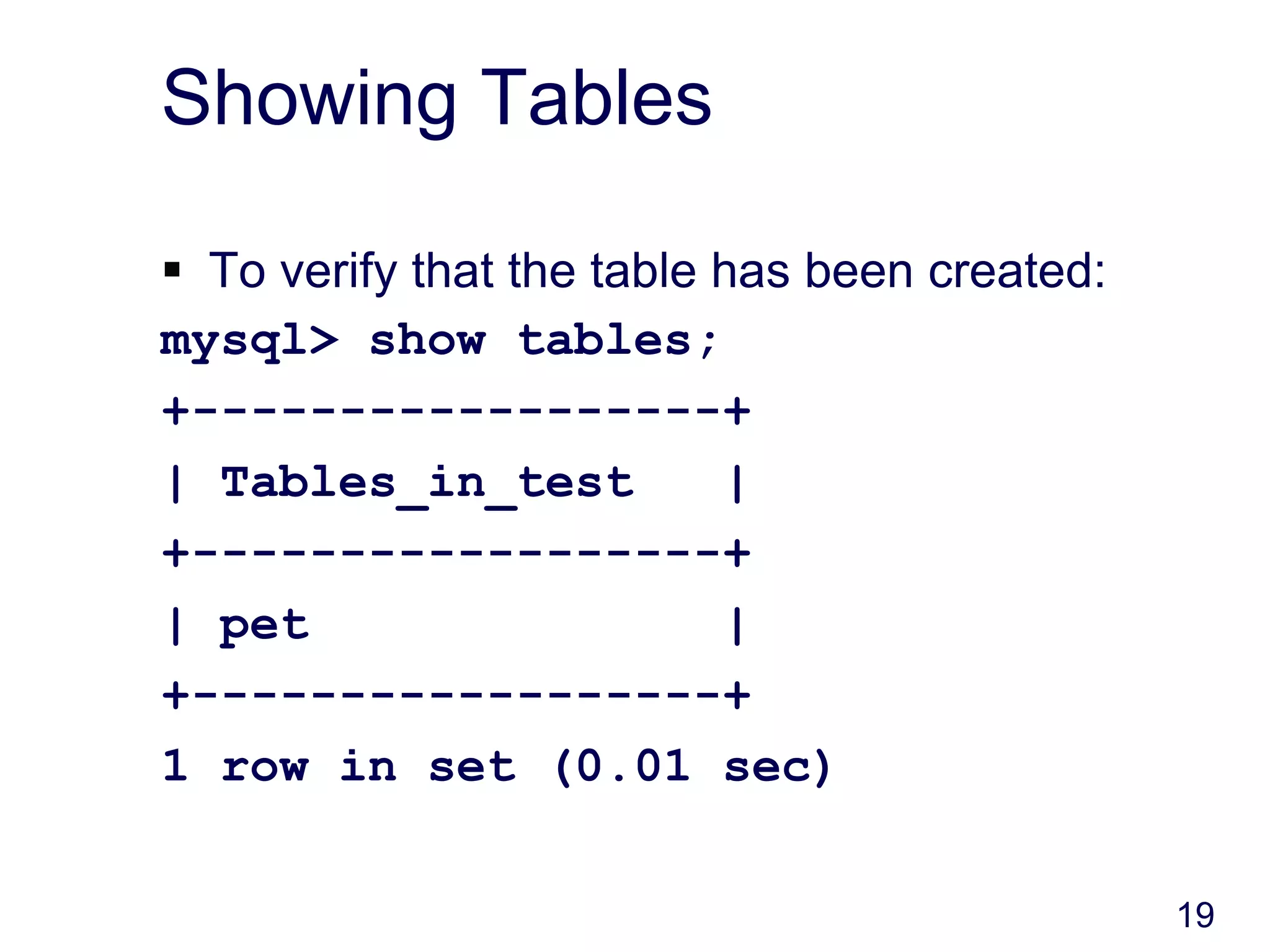

Showing Tables
 To verify that the table has been created:
mysql> show tables;
+------------------+
| Tables_in_test |
+------------------+
| pet |
+------------------+

21

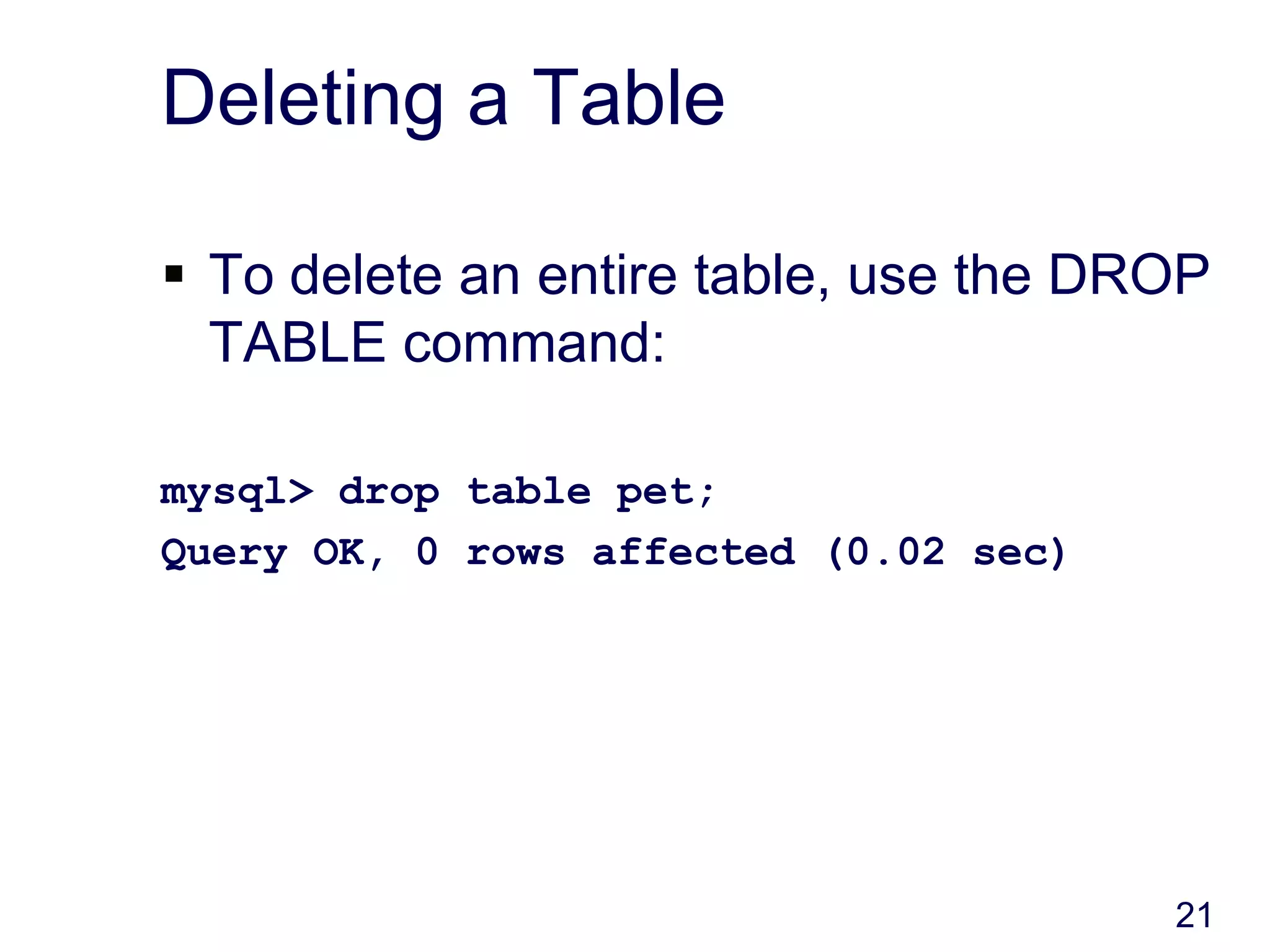

Deleting a Table
 To delete an entire table, use the DROP
TABLE command:
mysql> drop table pet;
Query OK, 0 rows affected (0.02 sec)

22

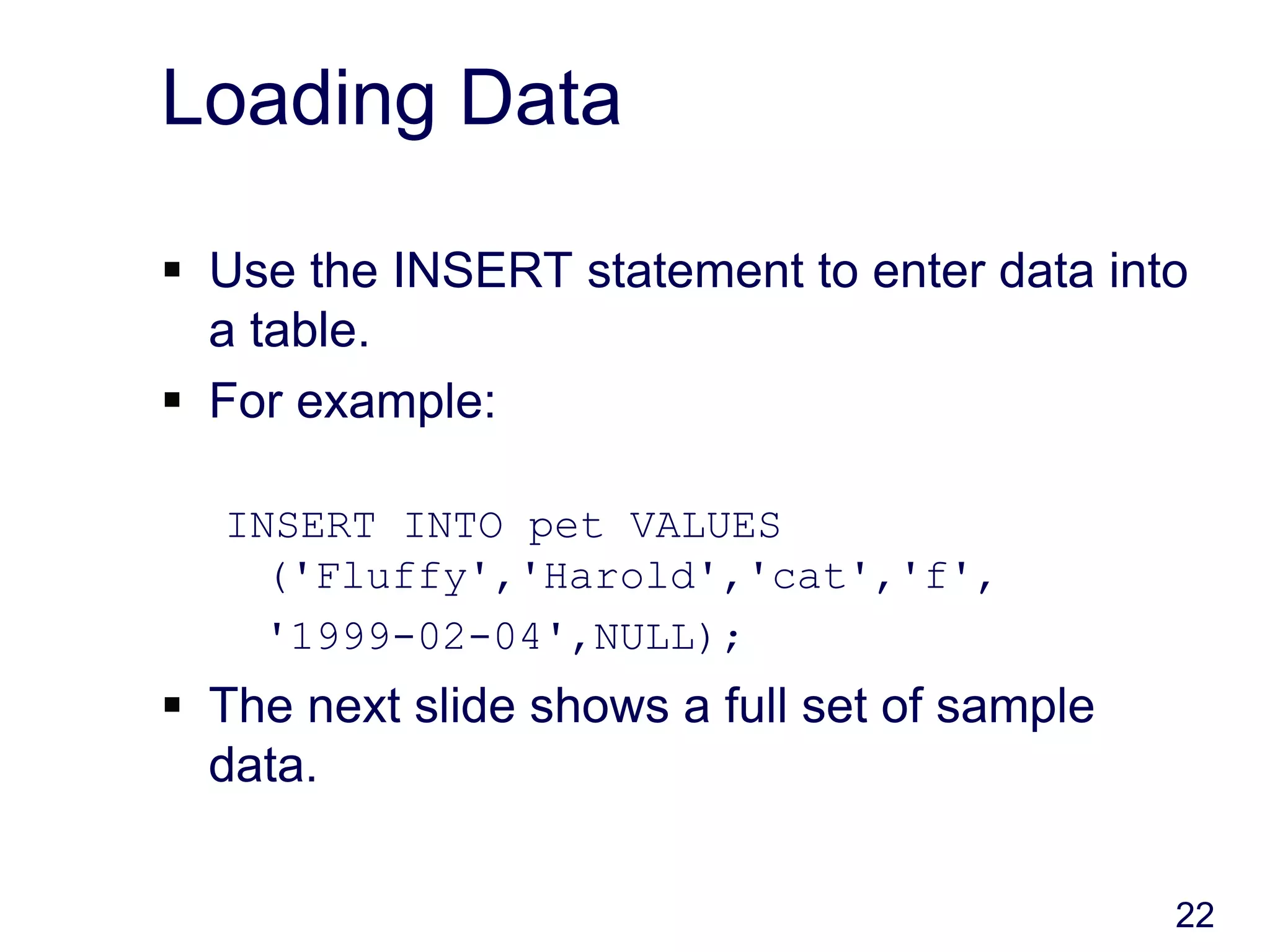

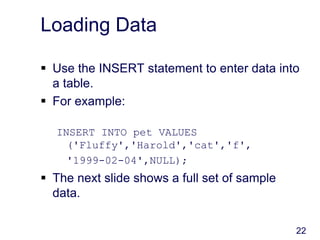

Loading Data
 Use the INSERT statement to enter data into
a table.
 For example:
INSERT INTO pet VALUES
('Fluffy','Harold','cat','f',
'1999-02-04',NULL);
 The next slide shows a full set of sample
data.

23

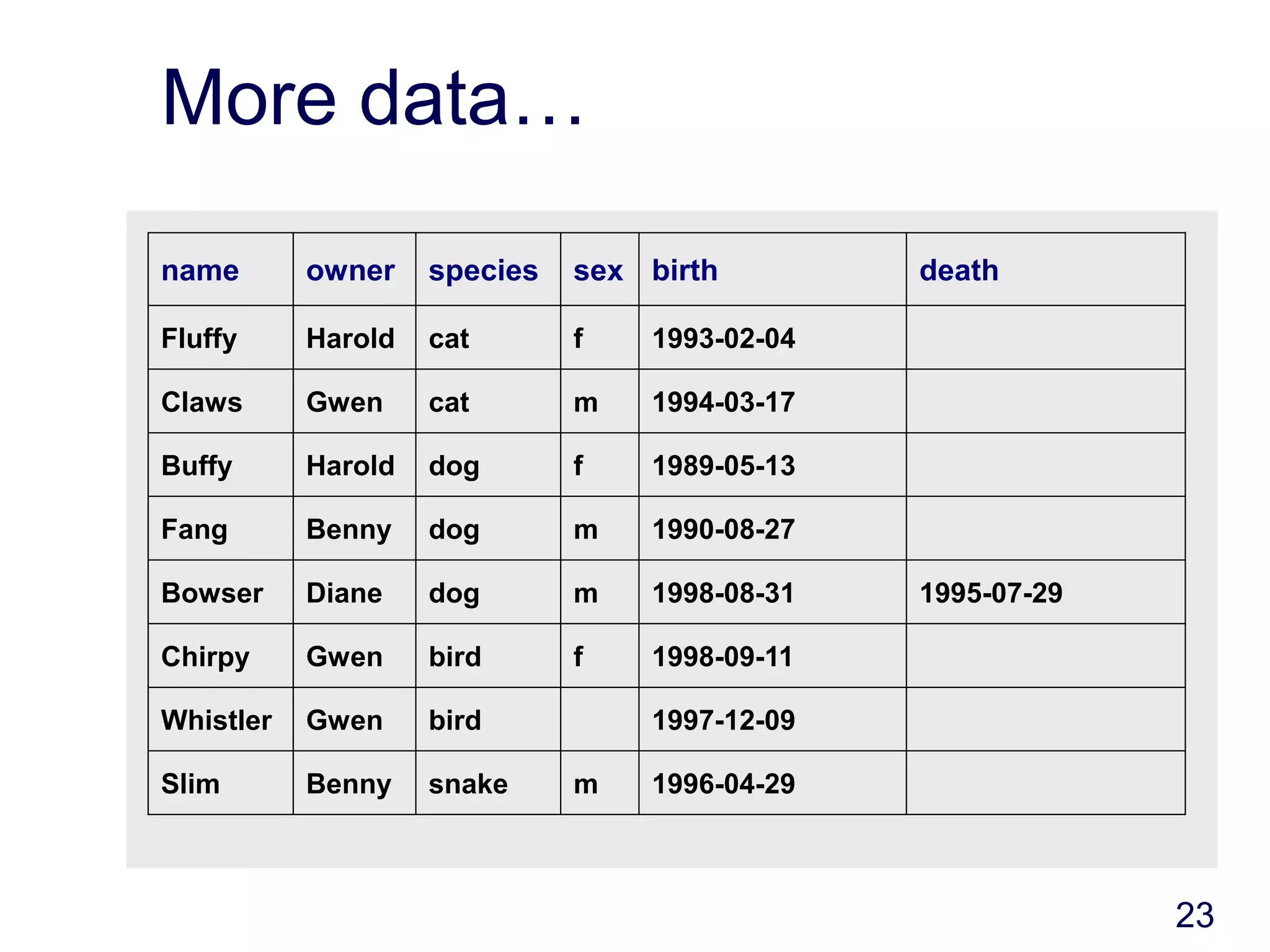

More data…
name owner species sex birth death
Fluffy Harold cat f 1993-02-04
Claws Gwen cat m 1994-03-17
Buffy Harold dog f 1989-05-13
Fang Benny dog m 1990-08-27
Bowser Diane dog m 1998-08-31 1995-07-29
Chirpy Gwen bird f 1998-09-11
Whistler Gwen bird 1997-12-09
Slim Benny snake m 1996-04-29

24

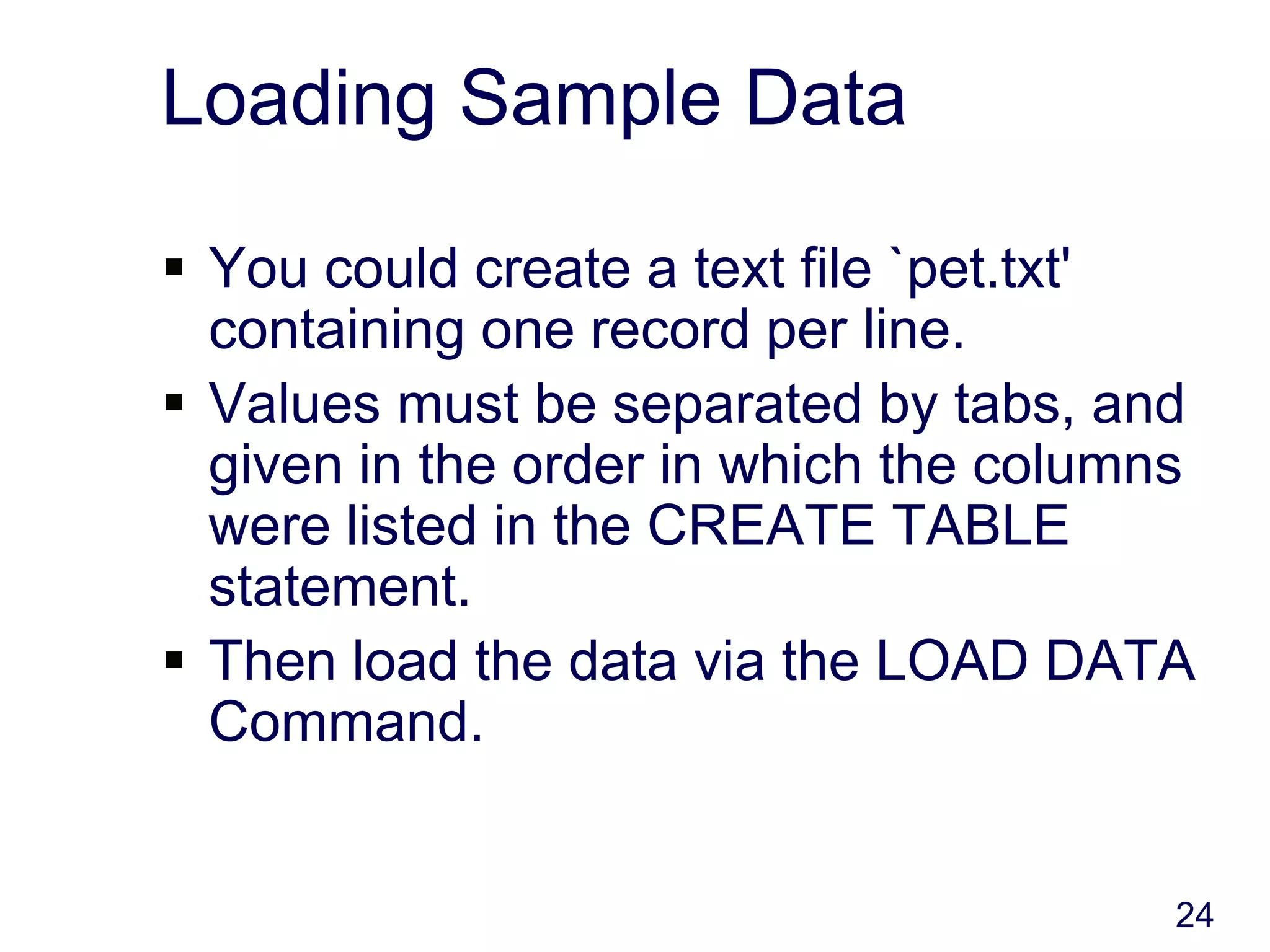

Loading Sample Data
 You could create a text file `pet.txt'
containing one record per line.
 Values must be separated by tabs, and
given in the order in which the columns
were listed in the CREATE TABLE
statement.
 Then load the data via the LOAD DATA
Command.

25

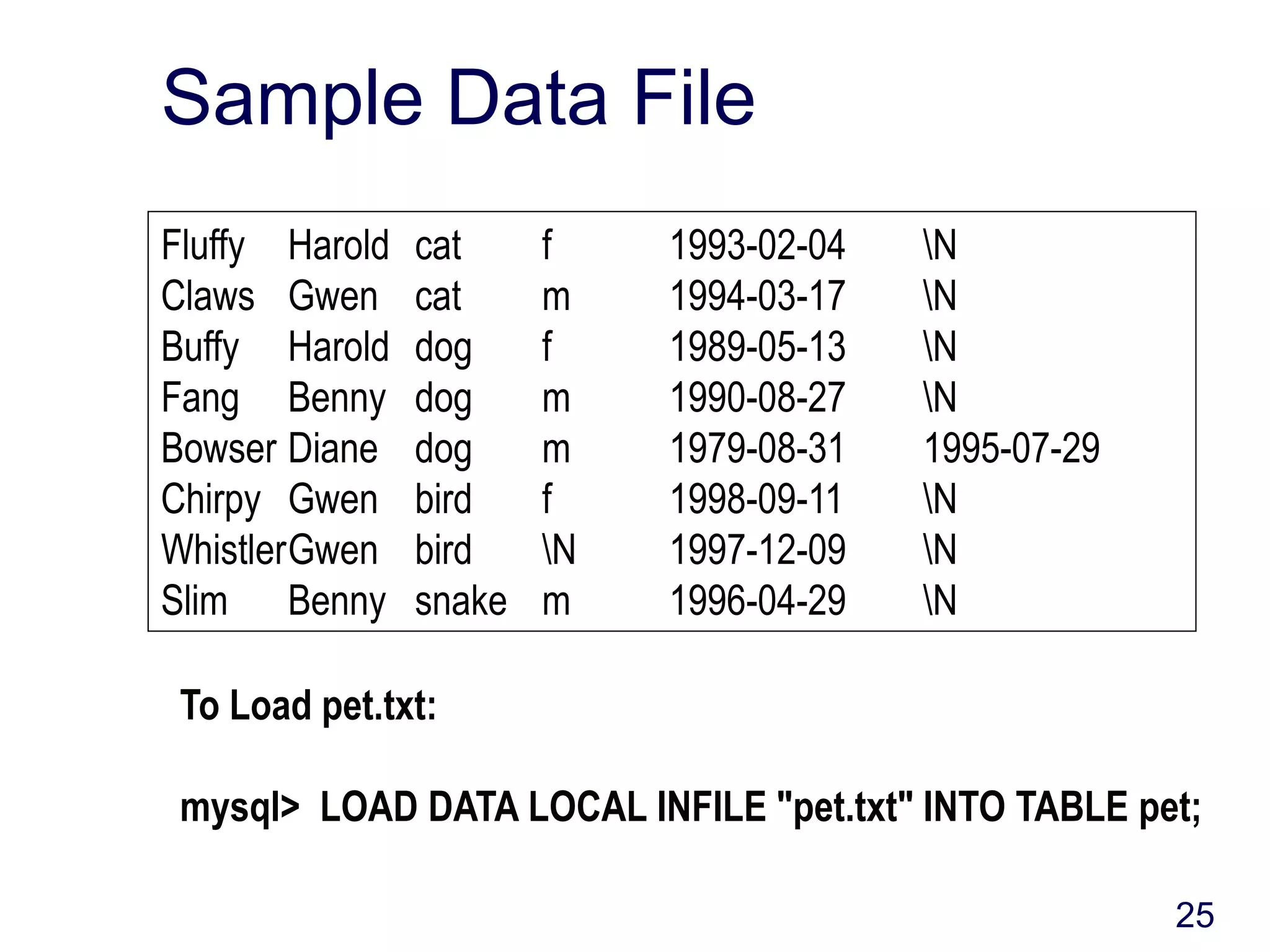

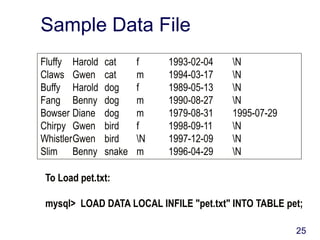

Sample Data File
Fluffy Harold cat f 1993-02-04 N
Claws Gwen cat m 1994-03-17 N
Buffy Harold dog f 1989-05-13 N
Fang Benny dog m 1990-08-27 N
Chirpy Gwen bird f 1998-09-11 N
WhistlerGwen bird N 1997-12-09 N
Slim Benny snake m 1996-04-29 N
To Load pet.txt:
mysql> LOAD DATA LOCAL INFILE "pet.txt" INTO TABLE pet;

26

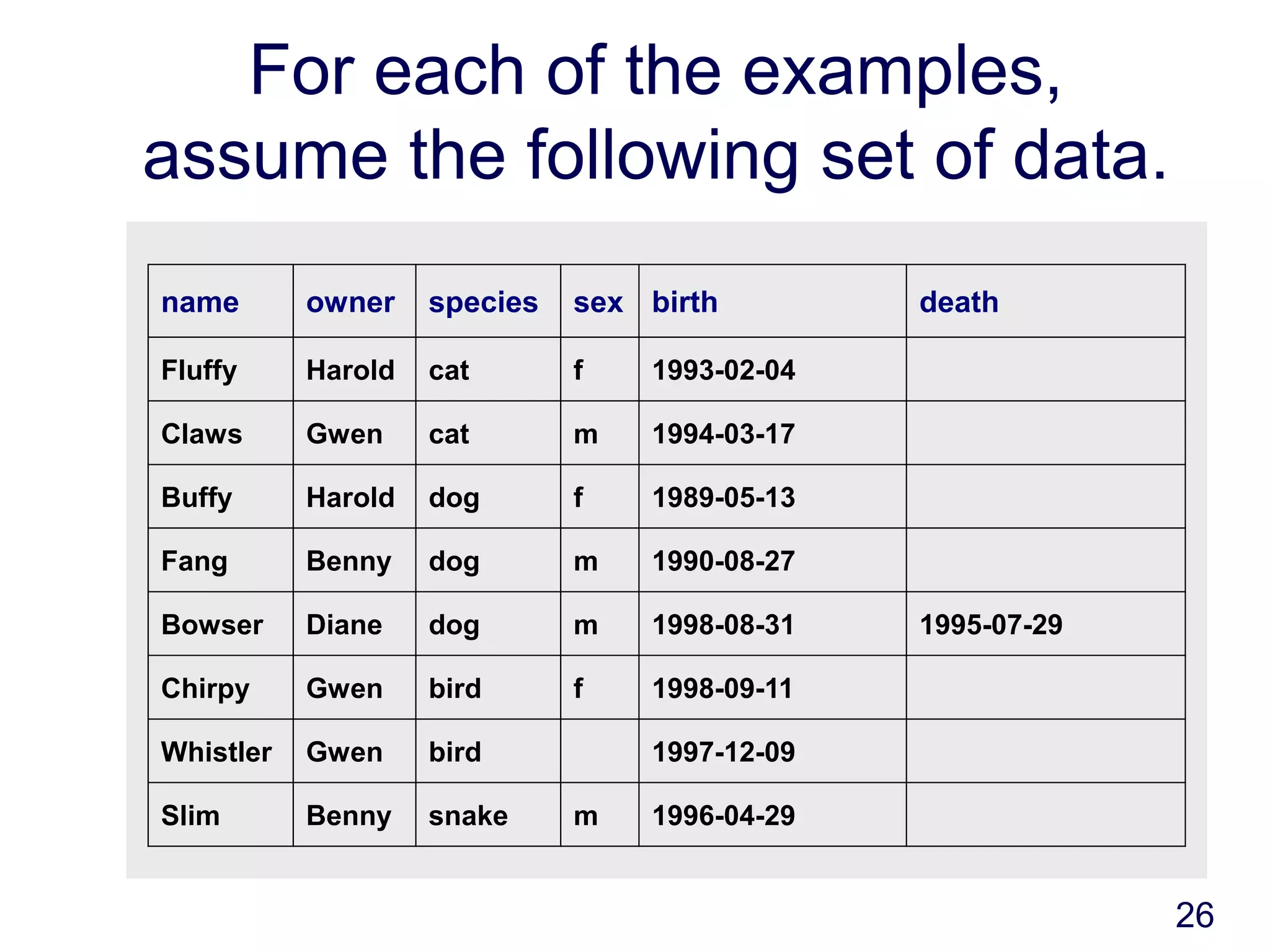

For each of the examples,
assume the following set of data.
name owner species sex birth death
Fluffy Harold cat f 1993-02-04
Claws Gwen cat m 1994-03-17
Buffy Harold dog f 1989-05-13
Fang Benny dog m 1990-08-27
Chirpy Gwen bird f 1998-09-11
Whistler Gwen bird 1997-12-09
Slim Benny snake m 1996-04-29

27

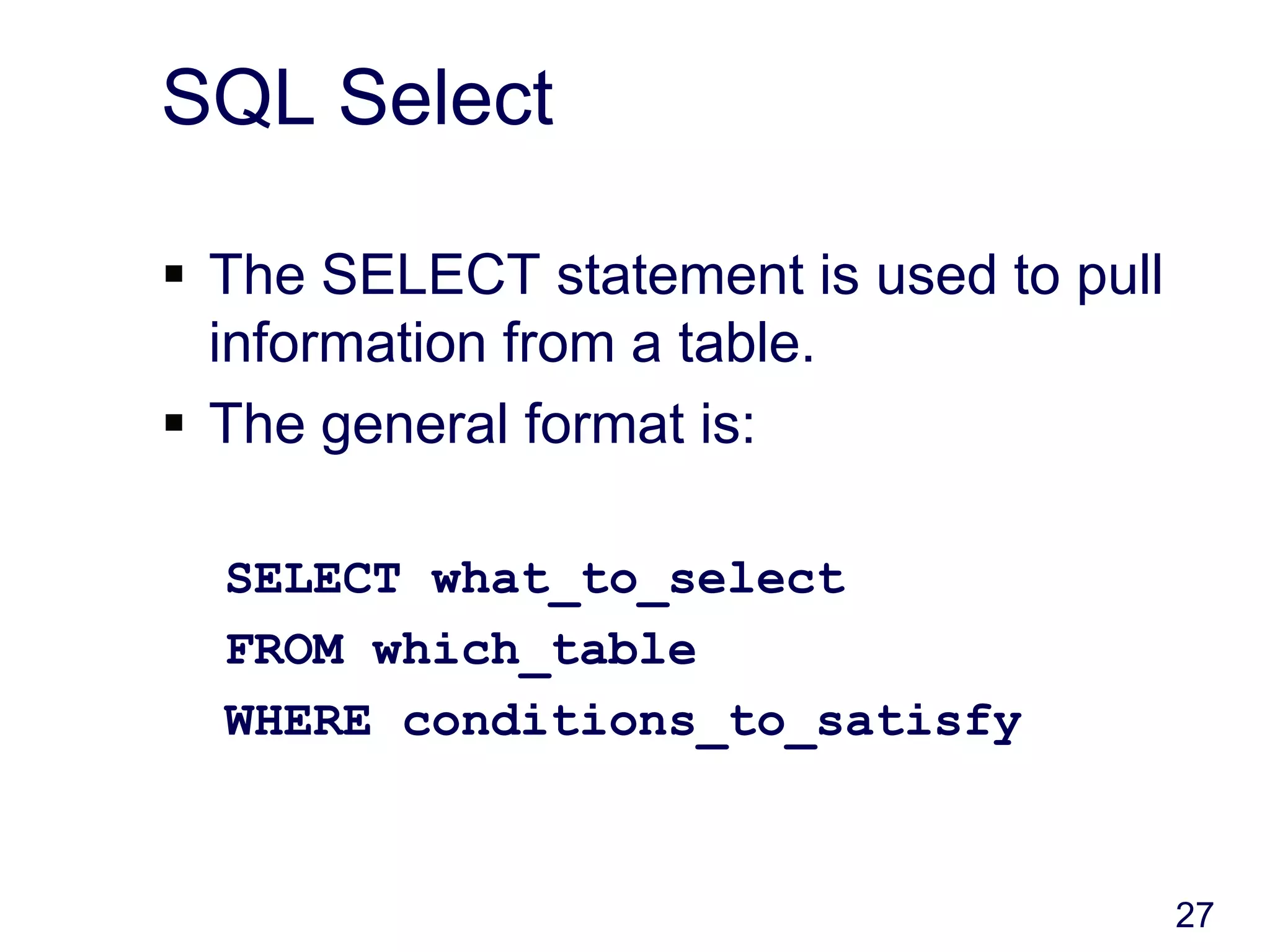

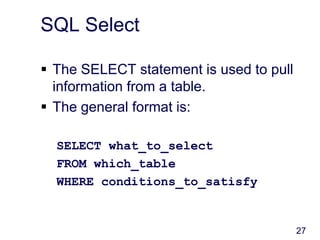

SQL Select
 The SELECT statement is used to pull
information from a table.
 The general format is:
SELECT what_to_select
FROM which_table
WHERE conditions_to_satisfy

28

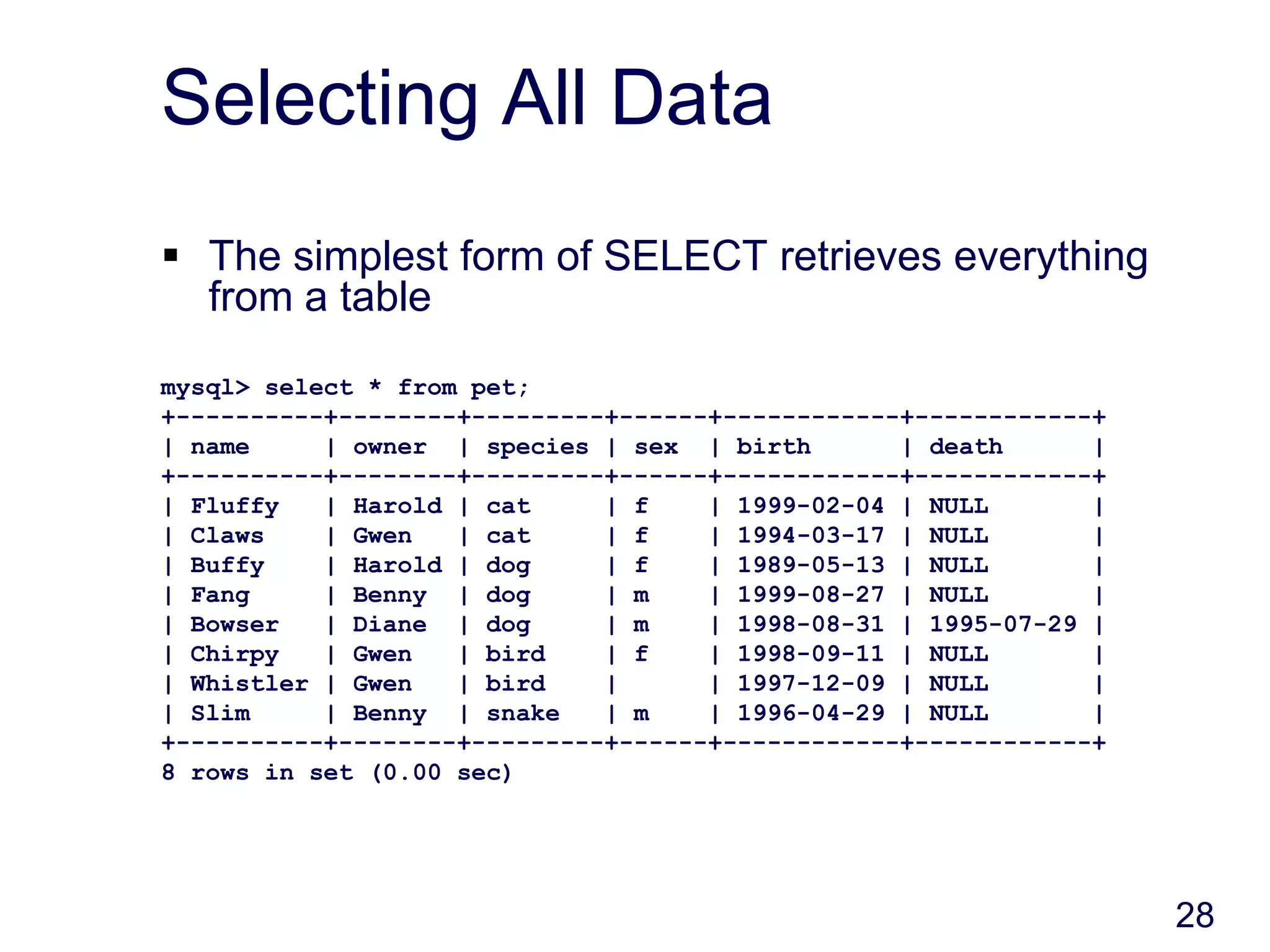

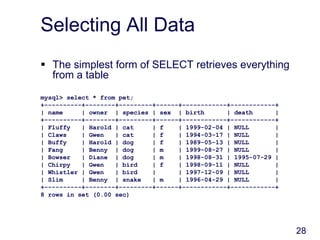

Selecting All Data
 The simplest form of SELECT retrieves everything
from a table
mysql> select * from pet;
+----------+--------+---------+------+------------+------------+
| name | owner | species | sex | birth | death |
+----------+--------+---------+------+------------+------------+
| Fluffy | Harold | cat | f | 1999-02-04 | NULL |
| Claws | Gwen | cat | f | 1994-03-17 | NULL |
| Buffy | Harold | dog | f | 1989-05-13 | NULL |
| Fang | Benny | dog | m | 1999-08-27 | NULL |
| Bowser | Diane | dog | m | 1998-08-31 | 1995-07-29 |
| Chirpy | Gwen | bird | f | 1998-09-11 | NULL |
| Whistler | Gwen | bird | | 1997-12-09 | NULL |
| Slim | Benny | snake | m | 1996-04-29 | NULL |
+----------+--------+---------+------+------------+------------+

29

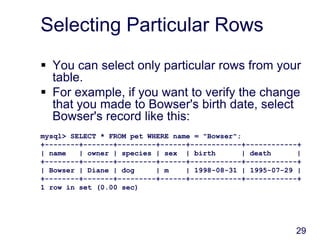

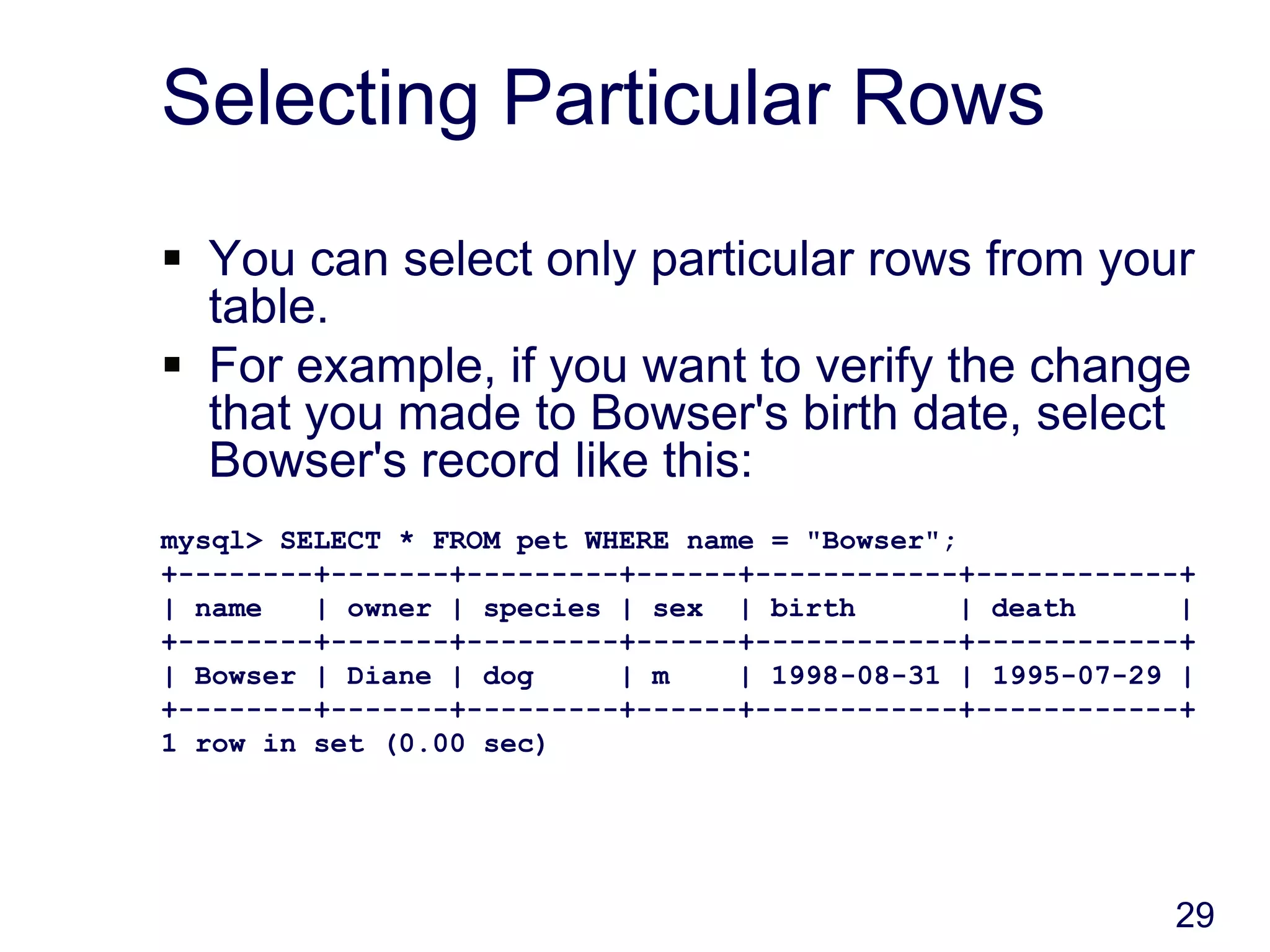

Selecting Particular Rows
 You can select only particular rows from your
table.
 For example, if you want to verify the change
that you made to Bowser's birth date, select
Bowser's record like this:
mysql> SELECT * FROM pet WHERE name = "Bowser";
+--------+-------+---------+------+------------+------------+
+--------+-------+---------+------+------------+------------+
+--------+-------+---------+------+------------+------------+

30

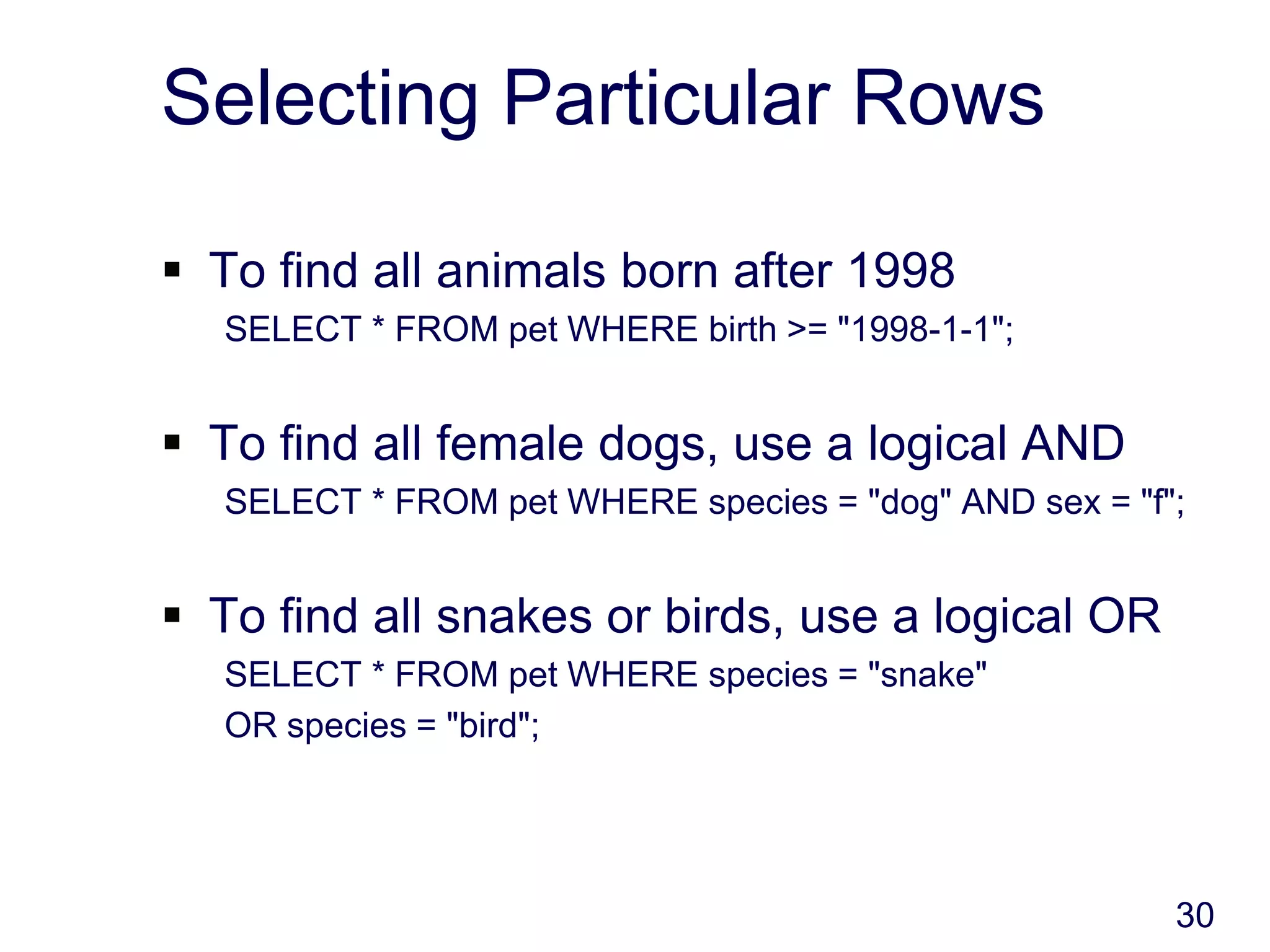

Selecting Particular Rows
 To find all animals born after 1998
SELECT * FROM pet WHERE birth >= "1998-1-1";
 To find all female dogs, use a logical AND
SELECT * FROM pet WHERE species = "dog" AND sex = "f";
 To find all snakes or birds, use a logical OR
SELECT * FROM pet WHERE species = "snake"
OR species = "bird";

31

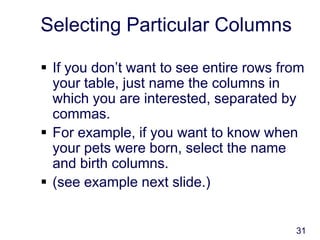

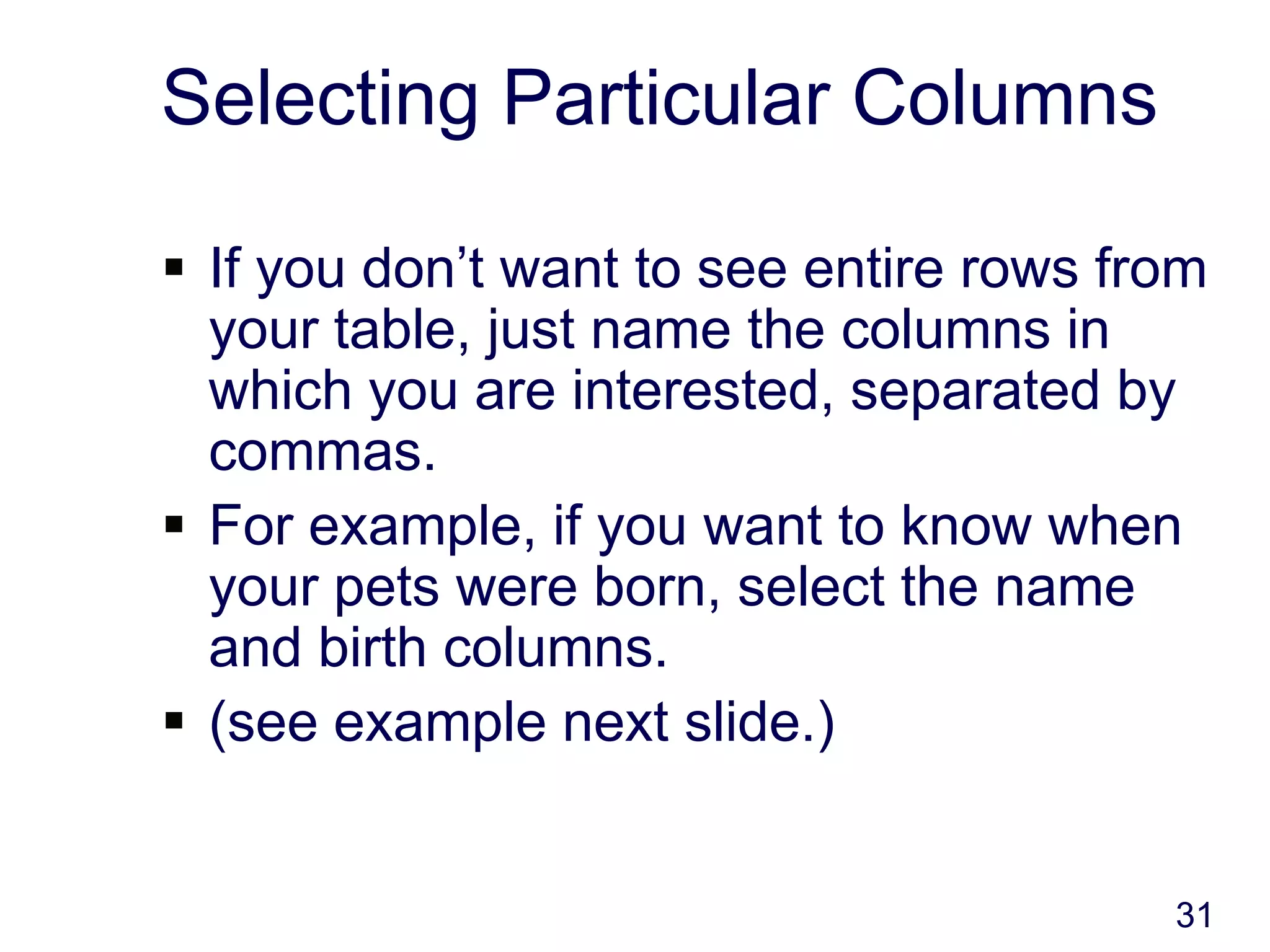

Selecting Particular Columns
 If you don’t want to see entire rows from
your table, just name the columns in
which you are interested, separated by
commas.
 For example, if you want to know when
your pets were born, select the name
and birth columns.
 (see example next slide.)

32

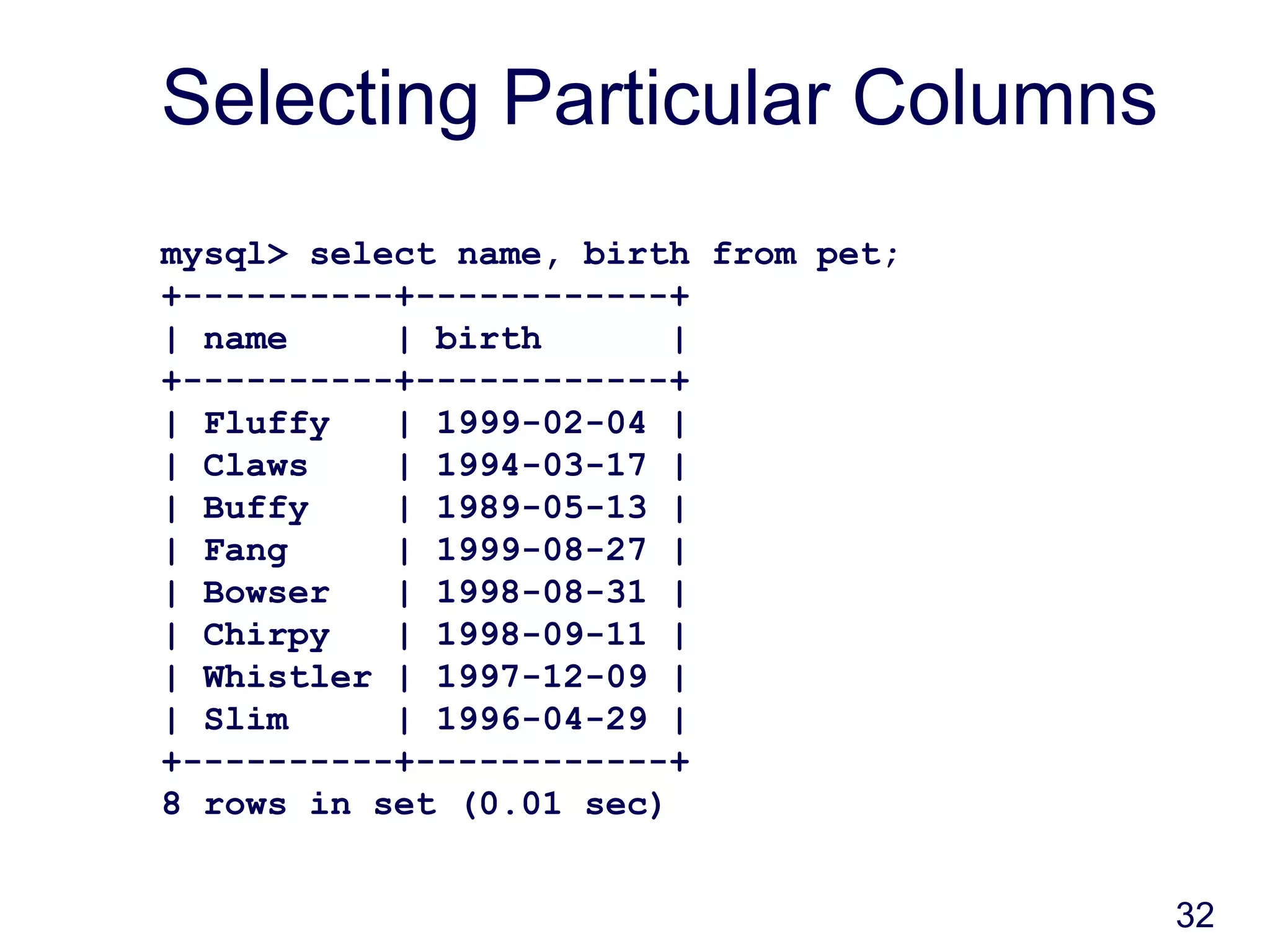

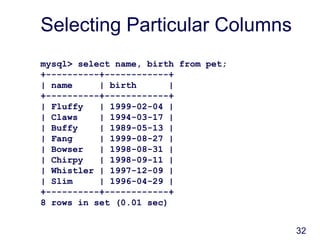

Selecting Particular Columns
mysql> select name, birth from pet;
+----------+------------+
| name | birth |
+----------+------------+
| Fluffy | 1999-02-04 |
| Claws | 1994-03-17 |
| Buffy | 1989-05-13 |
| Fang | 1999-08-27 |
| Bowser | 1998-08-31 |
| Chirpy | 1998-09-11 |
| Whistler | 1997-12-09 |
| Slim | 1996-04-29 |
+----------+------------+

33

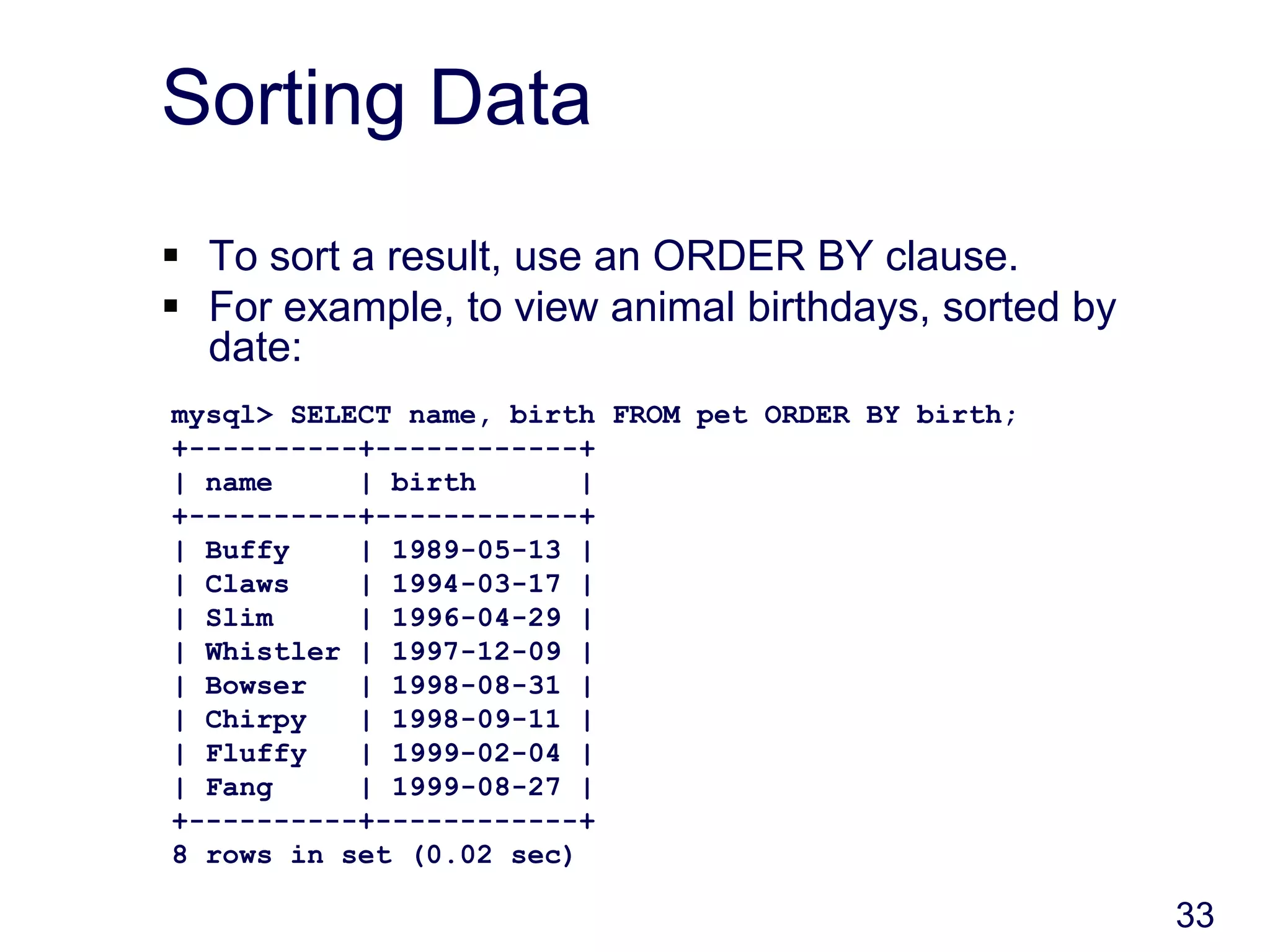

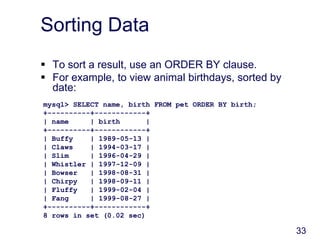

Sorting Data
 To sort a result, use an ORDER BY clause.
 For example, to view animal birthdays, sorted by
date:
mysql> SELECT name, birth FROM pet ORDER BY birth;
+----------+------------+
| name | birth |
+----------+------------+
| Buffy | 1989-05-13 |
| Claws | 1994-03-17 |
| Slim | 1996-04-29 |
| Whistler | 1997-12-09 |
| Bowser | 1998-08-31 |
| Chirpy | 1998-09-11 |
| Fluffy | 1999-02-04 |
| Fang | 1999-08-27 |
+----------+------------+

34

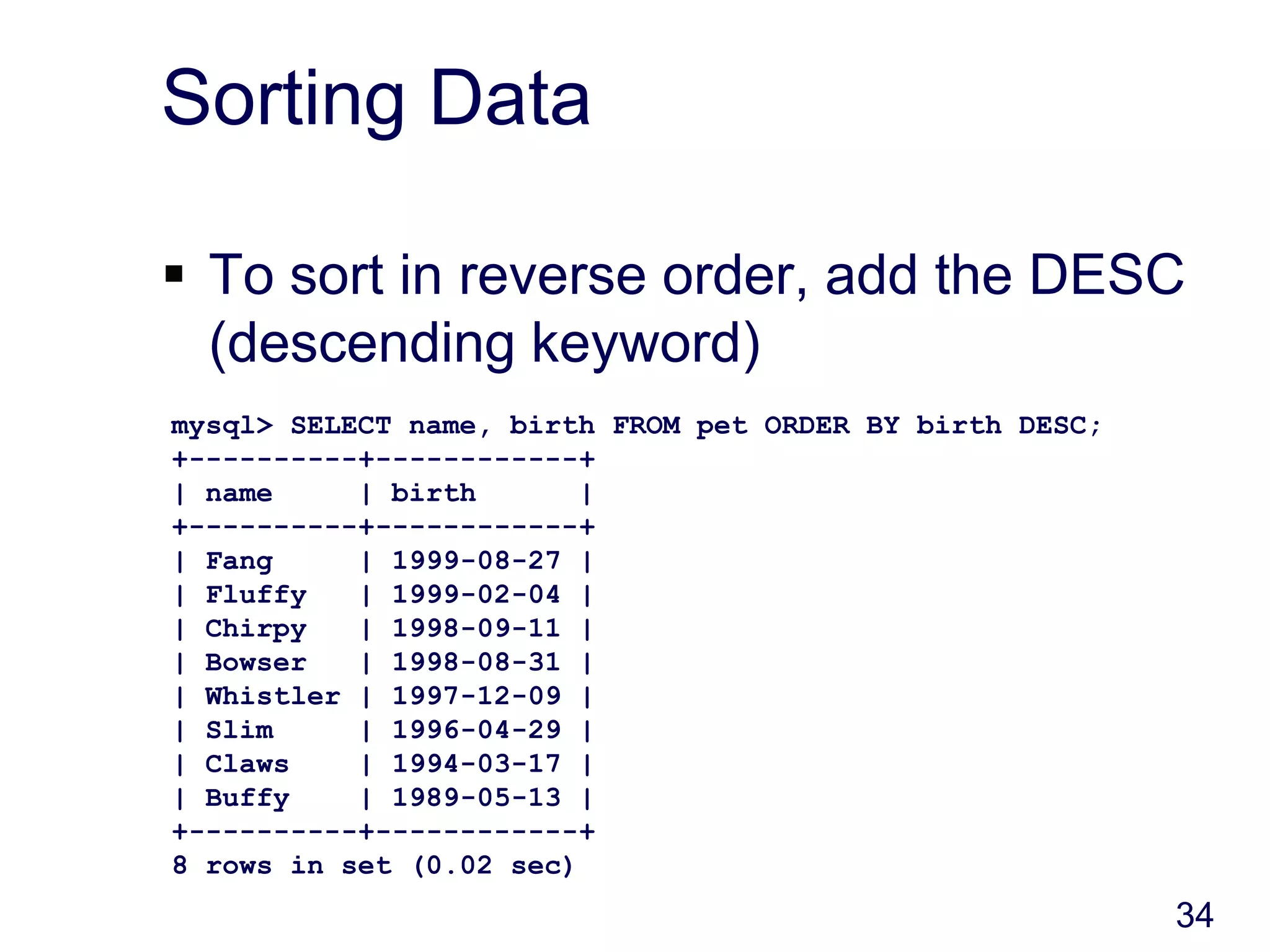

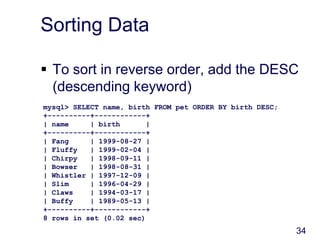

Sorting Data
 To sort in reverse order, add the DESC
(descending keyword)
mysql> SELECT name, birth FROM pet ORDER BY birth DESC;
+----------+------------+
| name | birth |
+----------+------------+
| Fang | 1999-08-27 |
| Fluffy | 1999-02-04 |
| Chirpy | 1998-09-11 |
| Bowser | 1998-08-31 |
| Whistler | 1997-12-09 |
| Slim | 1996-04-29 |
| Claws | 1994-03-17 |
| Buffy | 1989-05-13 |
+----------+------------+

35

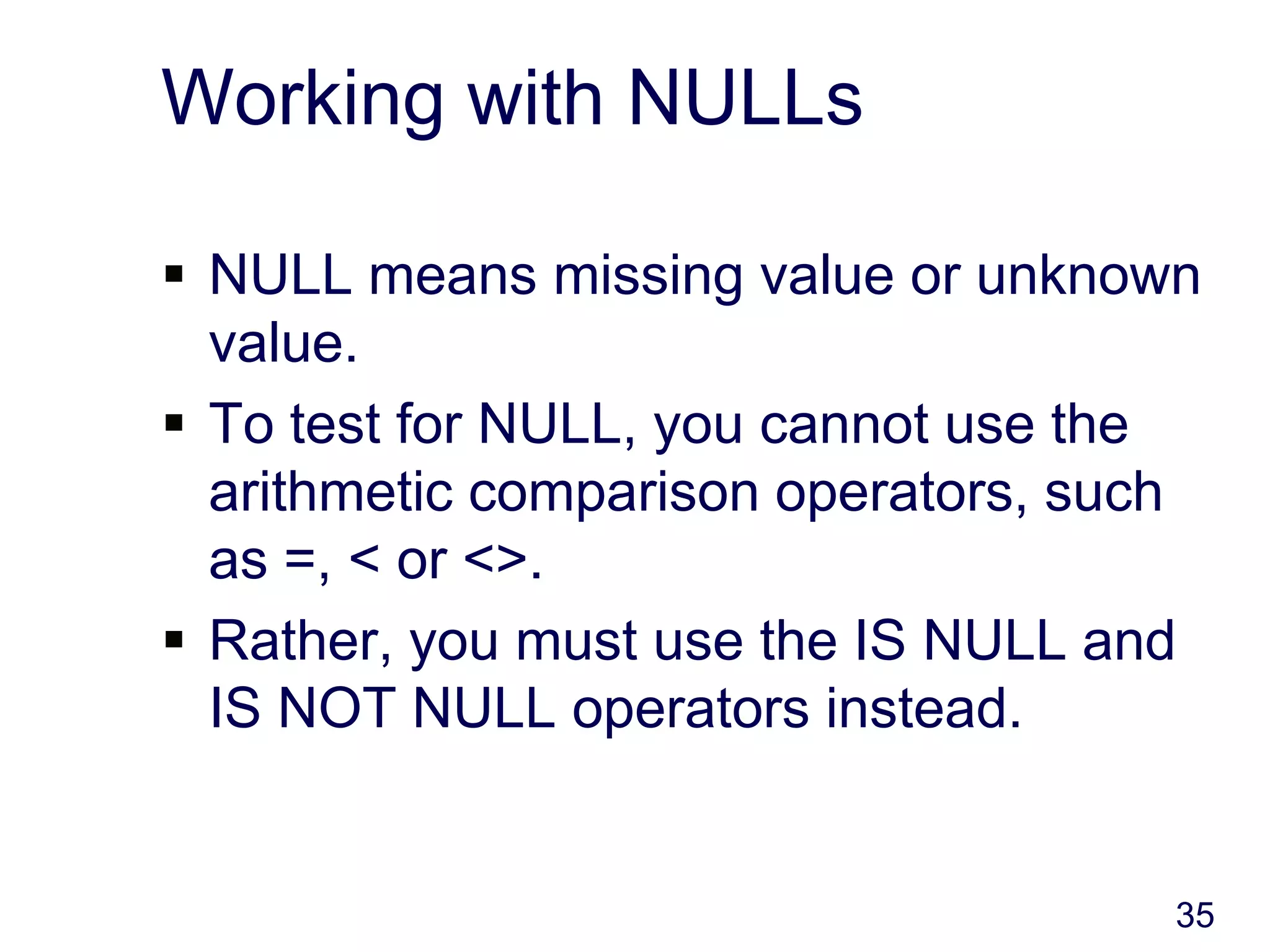

Working with NULLs
 NULL means missing value or unknown
value.
 To test for NULL, you cannot use the
arithmetic comparison operators, such
as =, < or <>.
 Rather, you must use the IS NULL and
IS NOT NULL operators instead.

36

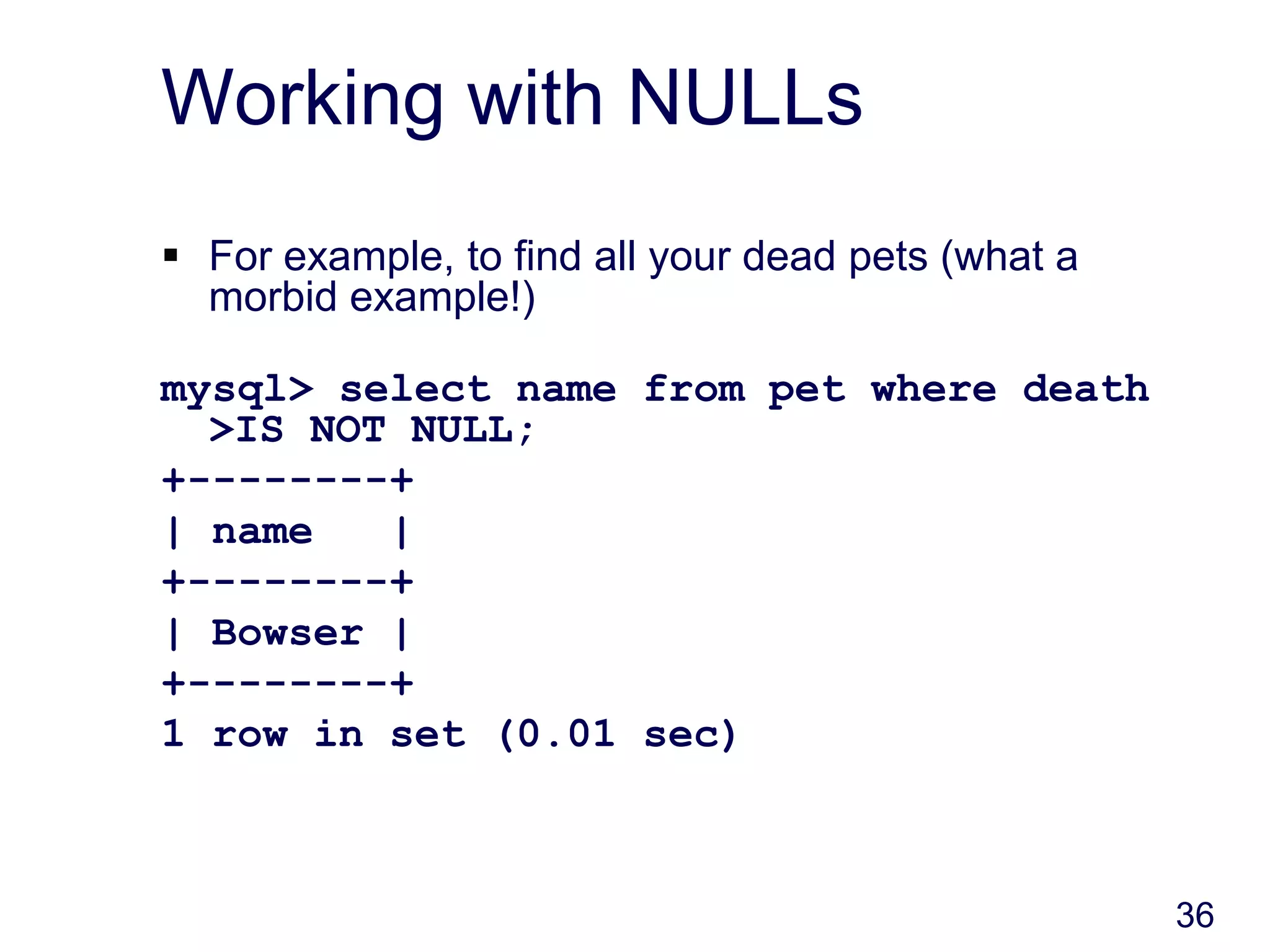

Working with NULLs
 For example, to find all your dead pets (what a
morbid example!)
mysql> select name from pet where death
>IS NOT NULL;
+--------+
| name |
+--------+
| Bowser |
+--------+

37

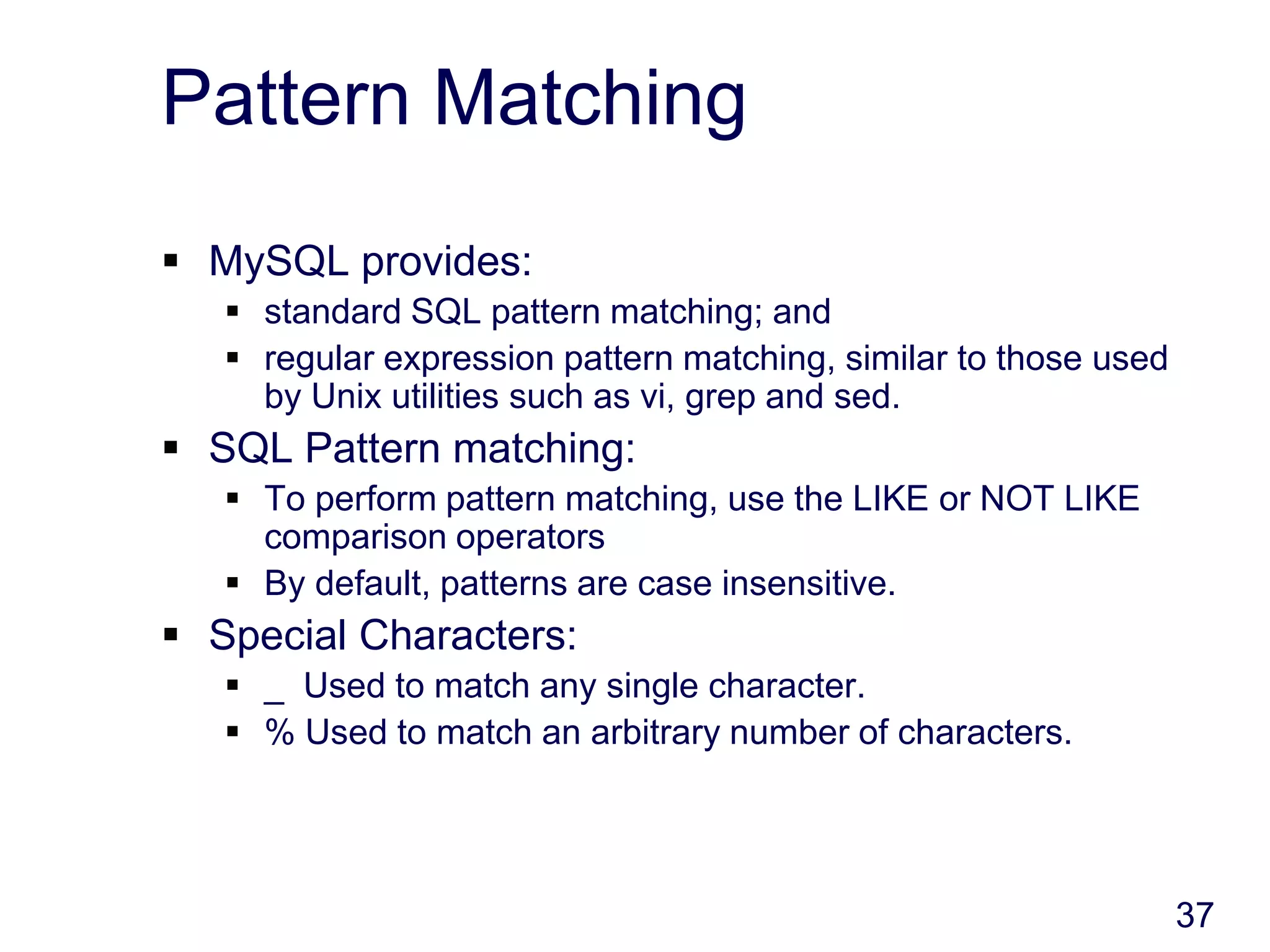

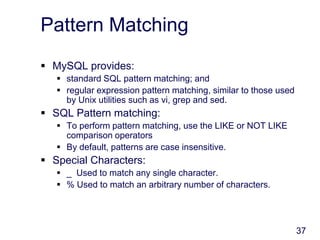

Pattern Matching
 MySQL provides:
 standard SQL pattern matching; and
 regular expression pattern matching, similar to those used
by Unix utilities such as vi, grep and sed.
 SQL Pattern matching:
 To perform pattern matching, use the LIKE or NOT LIKE
comparison operators
 By default, patterns are case insensitive.
 Special Characters:
 _ Used to match any single character.
 % Used to match an arbitrary number of characters.

38

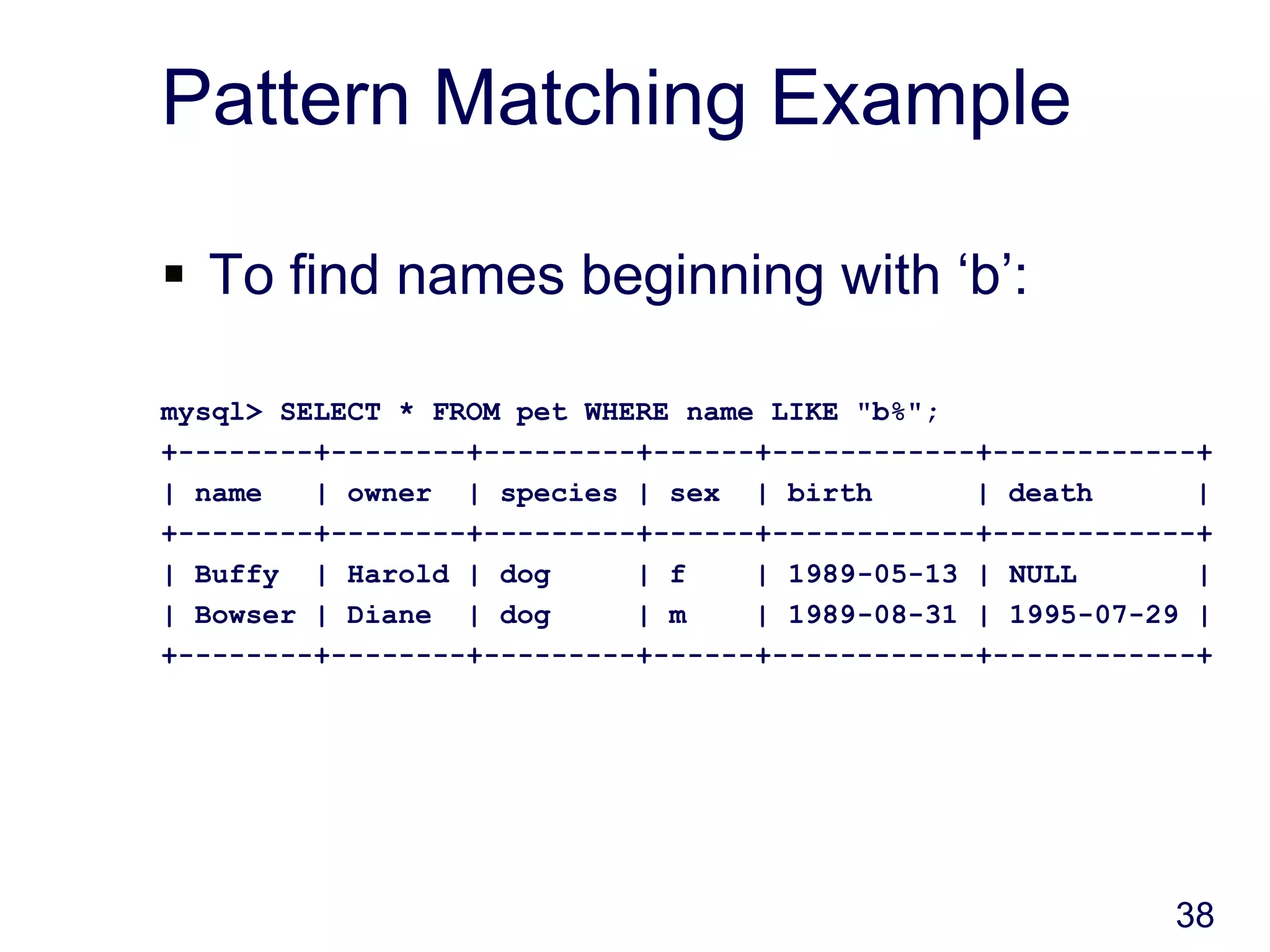

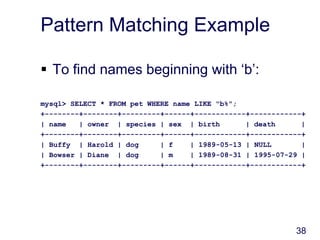

Pattern Matching Example
 To find names beginning with ‘b’:
mysql> SELECT * FROM pet WHERE name LIKE "b%";
+--------+--------+---------+------+------------+------------+
+--------+--------+---------+------+------------+------------+
+--------+--------+---------+------+------------+------------+

39

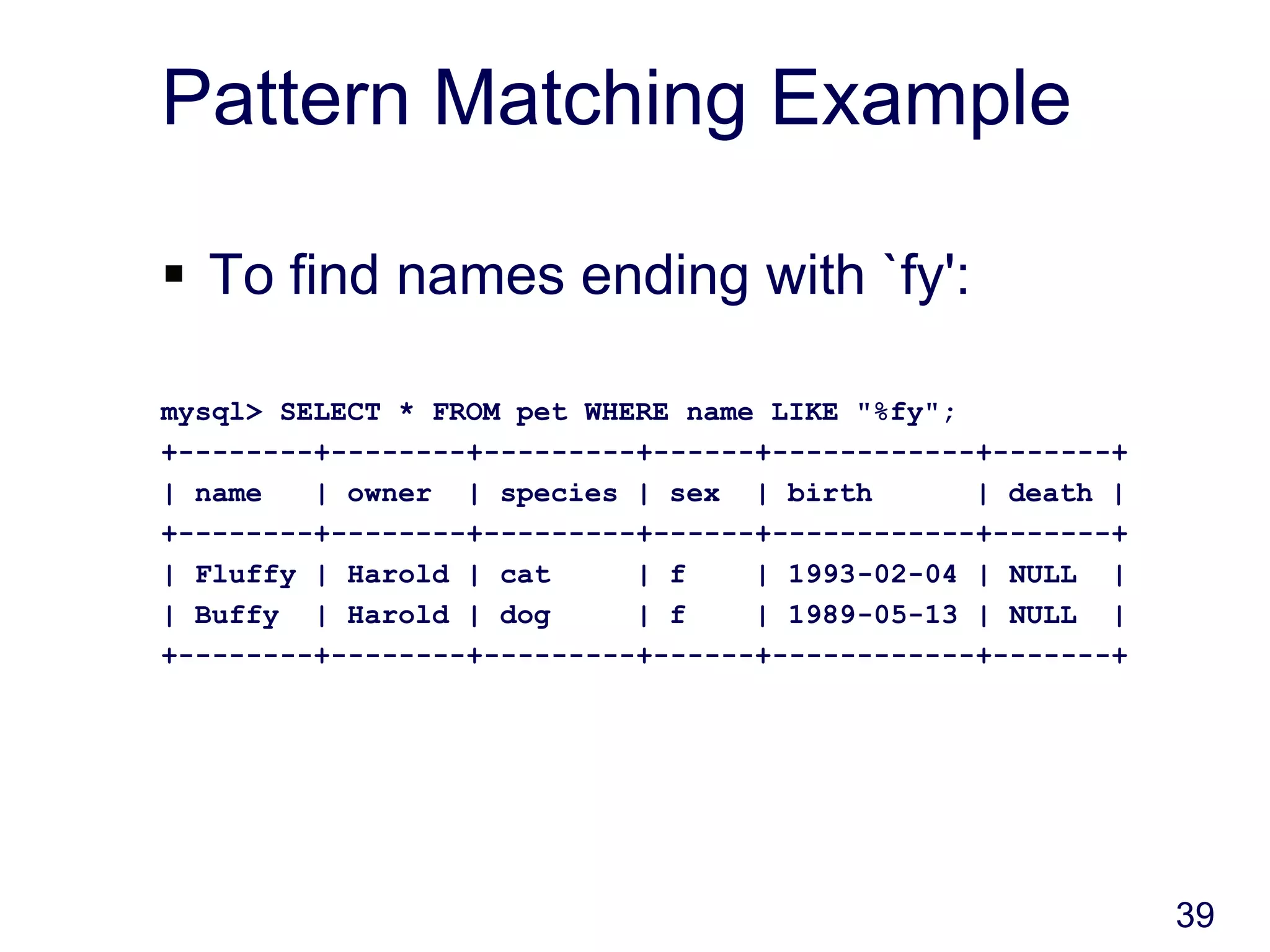

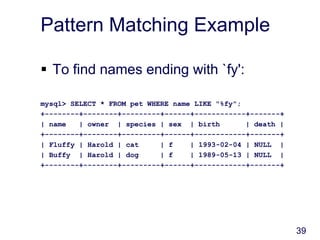

 To find names ending with `fy':
mysql> SELECT * FROM pet WHERE name LIKE "%fy";
+--------+--------+---------+------+------------+-------+
+--------+--------+---------+------+------------+-------+
+--------+--------+---------+------+------------+-------+

41

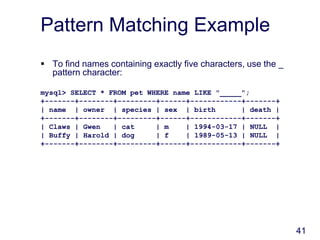

 To find names containing exactly five characters, use the _
pattern character:
mysql> SELECT * FROM pet WHERE name LIKE "_____";
+-------+--------+---------+------+------------+-------+
+-------+--------+---------+------+------------+-------+
| Claws | Gwen | cat | m | 1994-03-17 | NULL |
+-------+--------+---------+------+------------+-------+

42

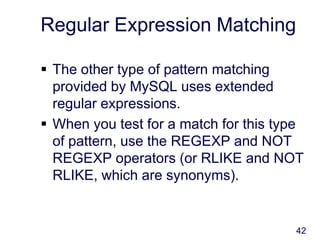

Regular Expression Matching
 The other type of pattern matching
provided by MySQL uses extended
regular expressions.
 When you test for a match for this type
of pattern, use the REGEXP and NOT
REGEXP operators (or RLIKE and NOT
RLIKE, which are synonyms).

43

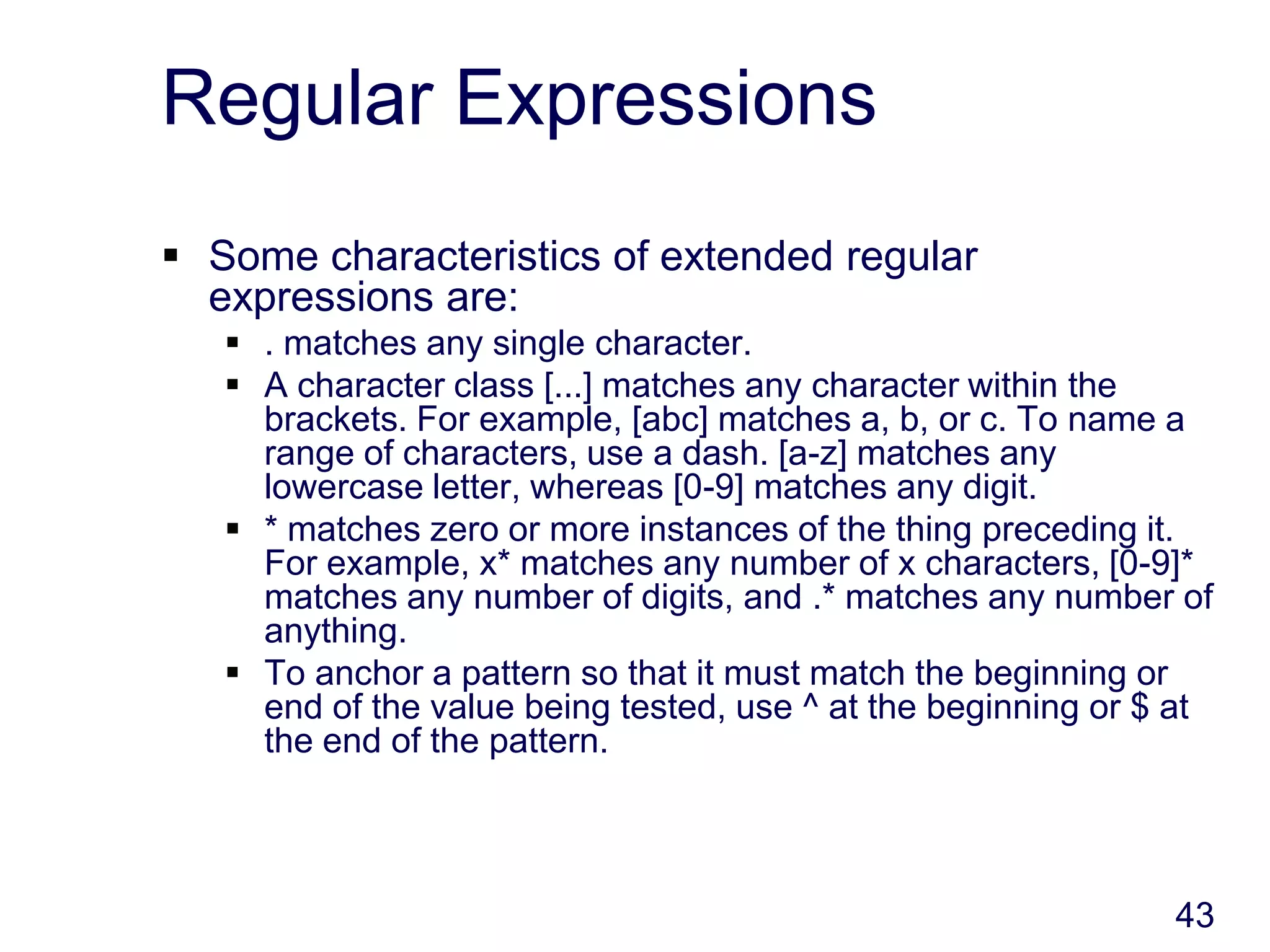

Regular Expressions
 Some characteristics of extended regular
expressions are:
 . matches any single character.
 A character class [...] matches any character within the
brackets. For example, [abc] matches a, b, or c. To name a
range of characters, use a dash. [a-z] matches any
lowercase letter, whereas [0-9] matches any digit.
 * matches zero or more instances of the thing preceding it.
For example, x* matches any number of x characters, [0-9]*
matches any number of digits, and .* matches any number of
anything.
 To anchor a pattern so that it must match the beginning or
end of the value being tested, use ^ at the beginning or $ at
the end of the pattern.

44

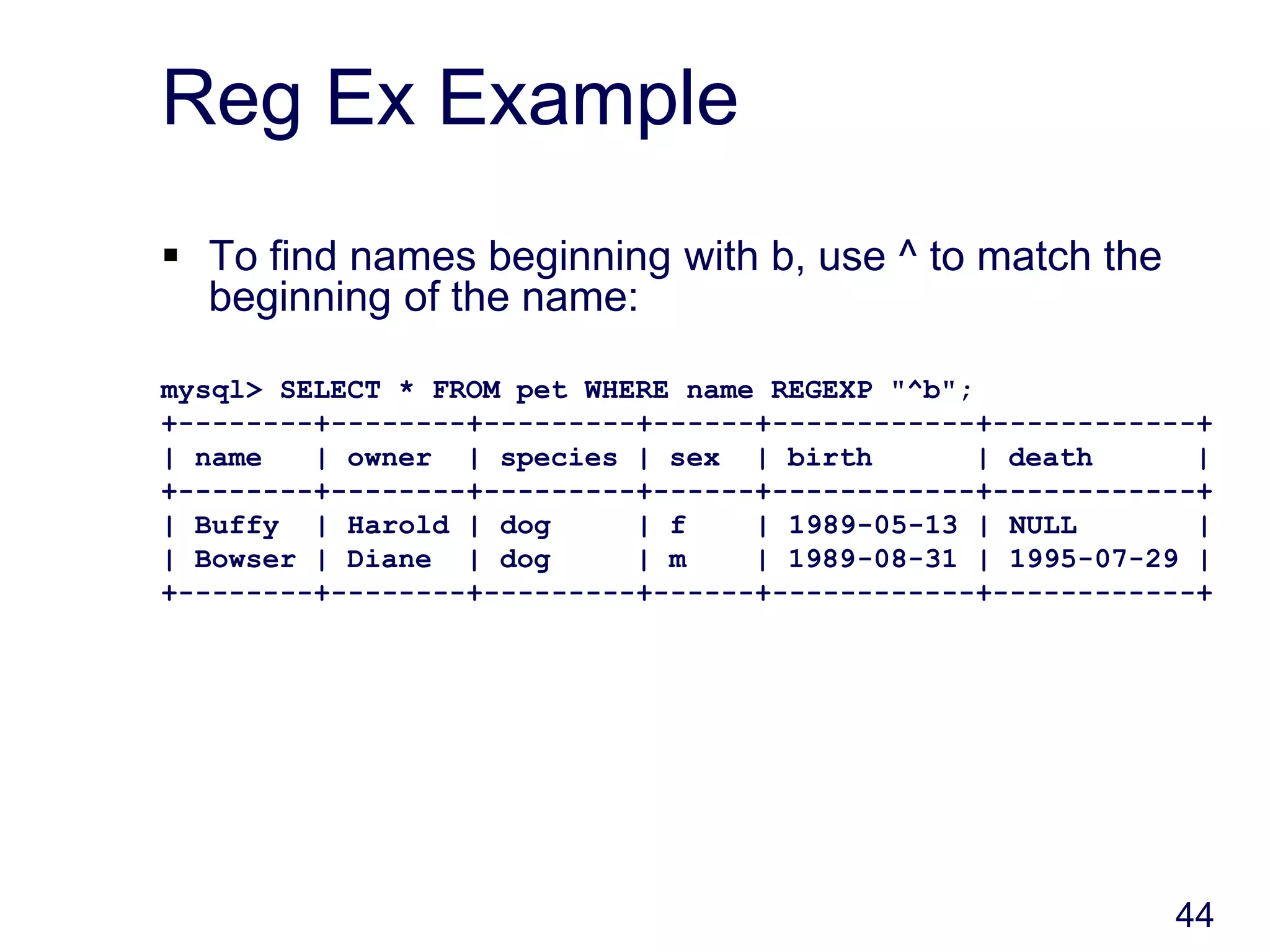

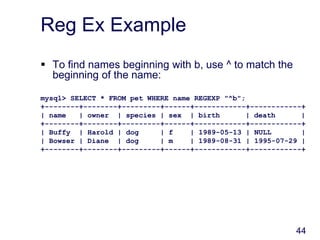

Reg Ex Example
 To find names beginning with b, use ^ to match the
beginning of the name:
mysql> SELECT * FROM pet WHERE name REGEXP "^b";
+--------+--------+---------+------+------------+------------+
+--------+--------+---------+------+------------+------------+
+--------+--------+---------+------+------------+------------+

45

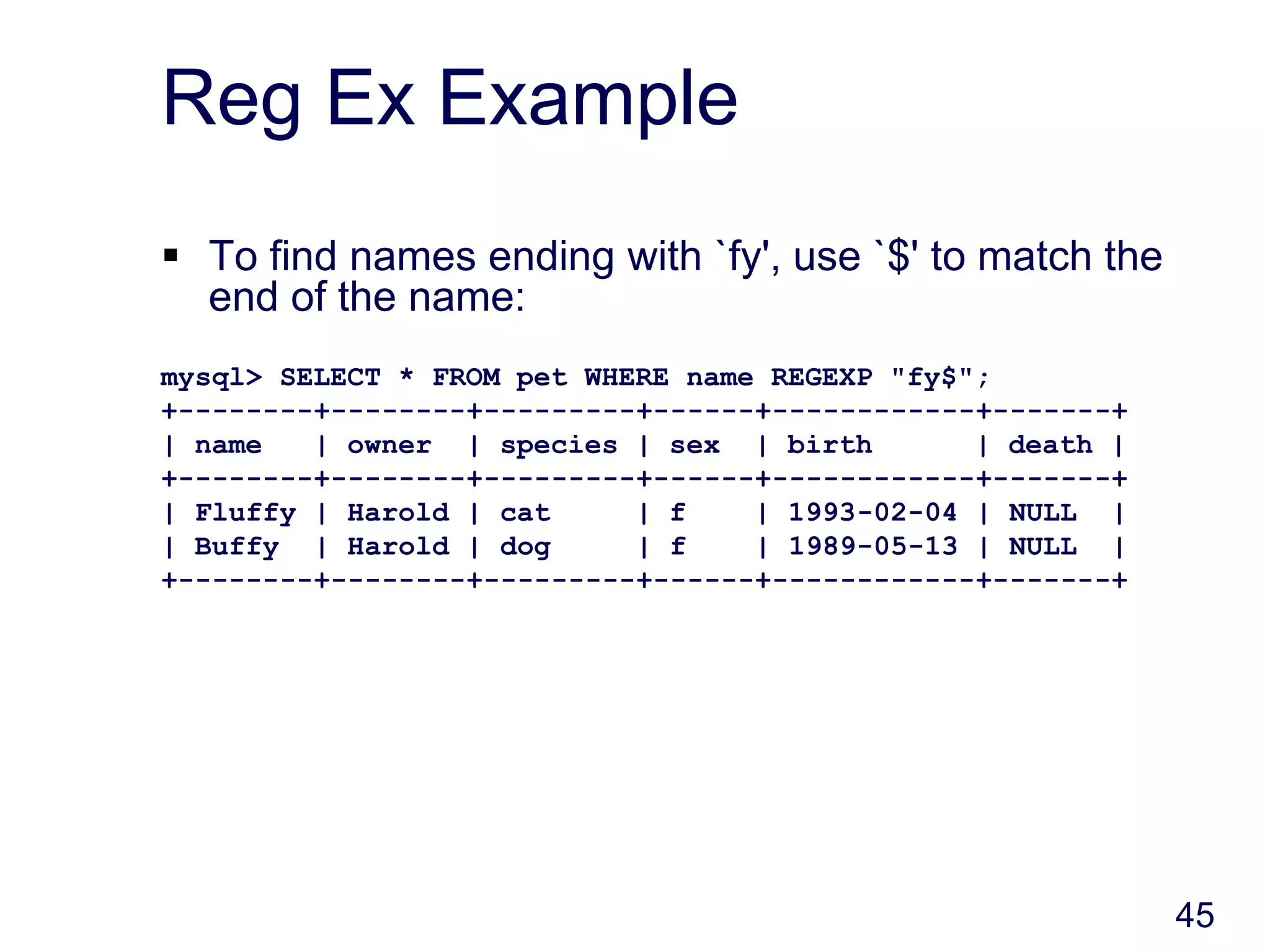

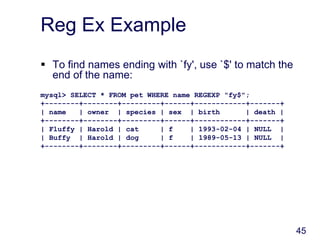

Reg Ex Example
 To find names ending with `fy', use `$' to match the
end of the name:
mysql> SELECT * FROM pet WHERE name REGEXP "fy$";
+--------+--------+---------+------+------------+-------+
+--------+--------+---------+------+------------+-------+
+--------+--------+---------+------+------------+-------+

46

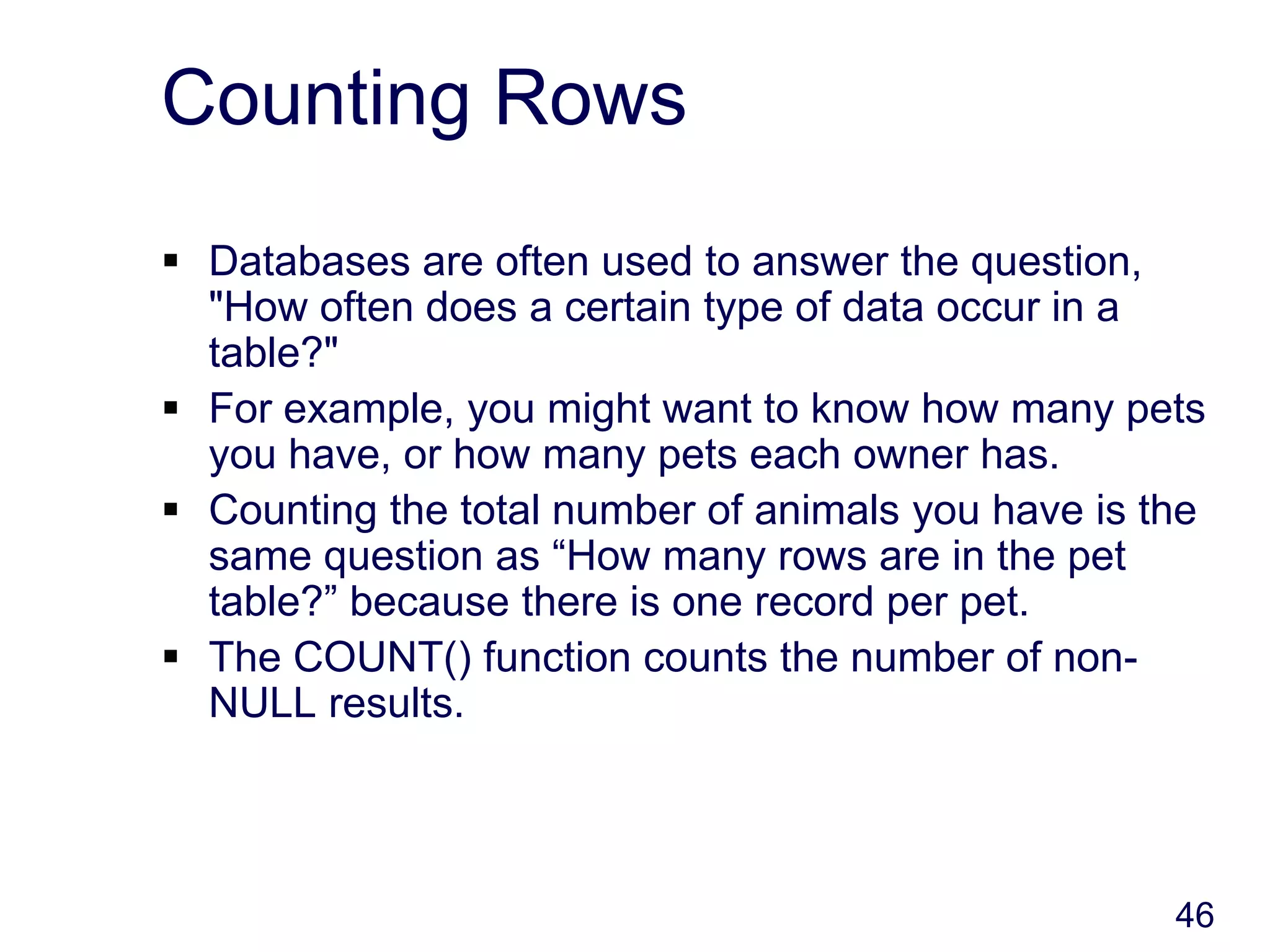

Counting Rows
 Databases are often used to answer the question,
"How often does a certain type of data occur in a
table?"
 For example, you might want to know how many pets
you have, or how many pets each owner has.
 Counting the total number of animals you have is the
same question as “How many rows are in the pet
table?” because there is one record per pet.
 The COUNT() function counts the number of non-
NULL results.

47

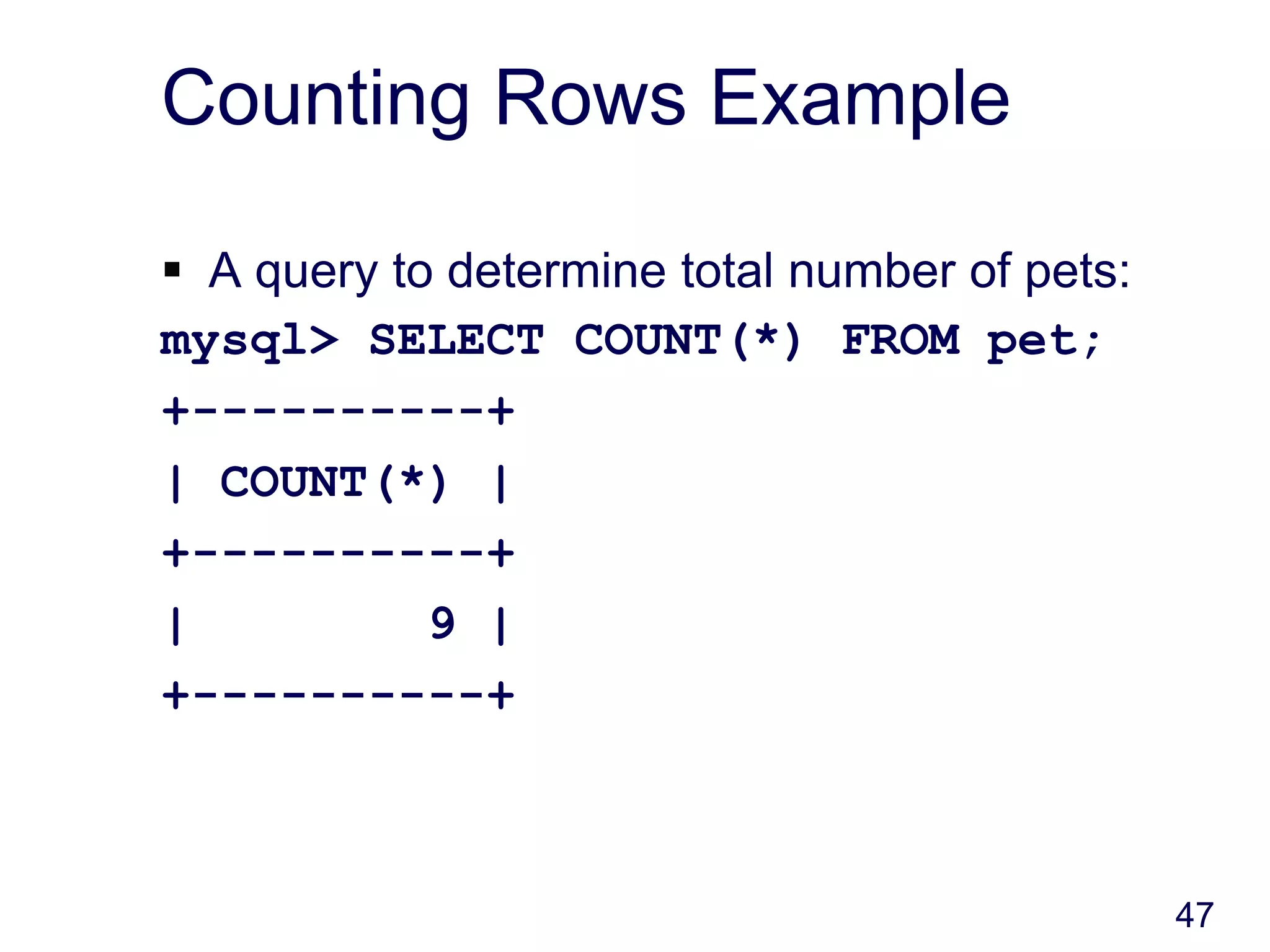

Counting Rows Example
 A query to determine total number of pets:
mysql> SELECT COUNT(*) FROM pet;
+----------+
| COUNT(*) |
+----------+
| 9 |
+----------+

48

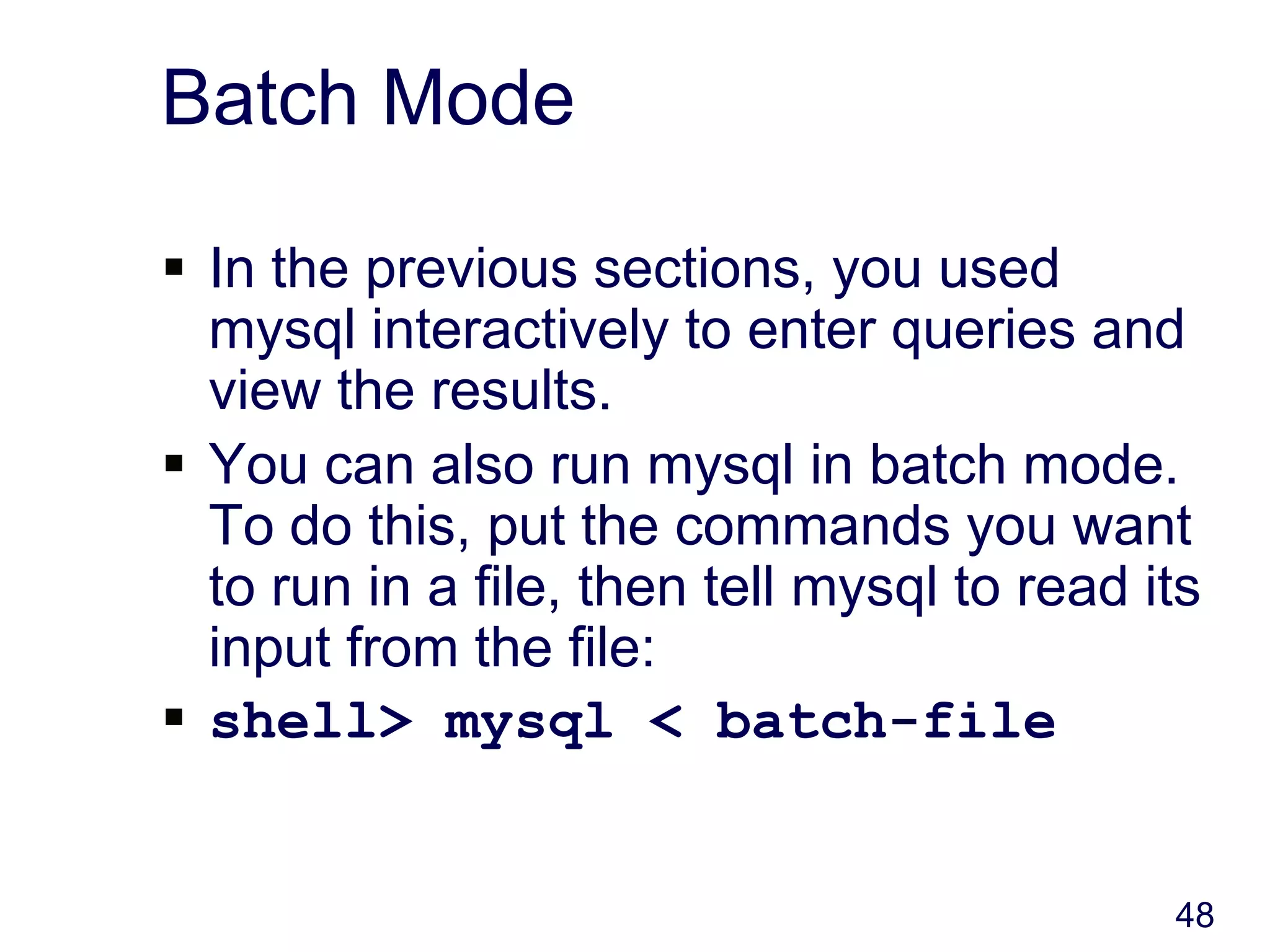

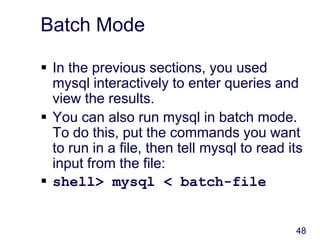

Batch Mode
 In the previous sections, you used
mysql interactively to enter queries and
view the results.
 You can also run mysql in batch mode.
To do this, put the commands you want
to run in a file, then tell mysql to read its
input from the file:
 shell> mysql < batch-file

49

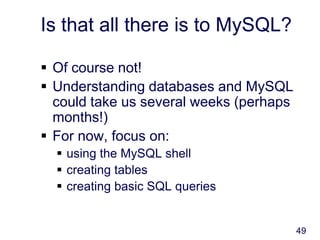

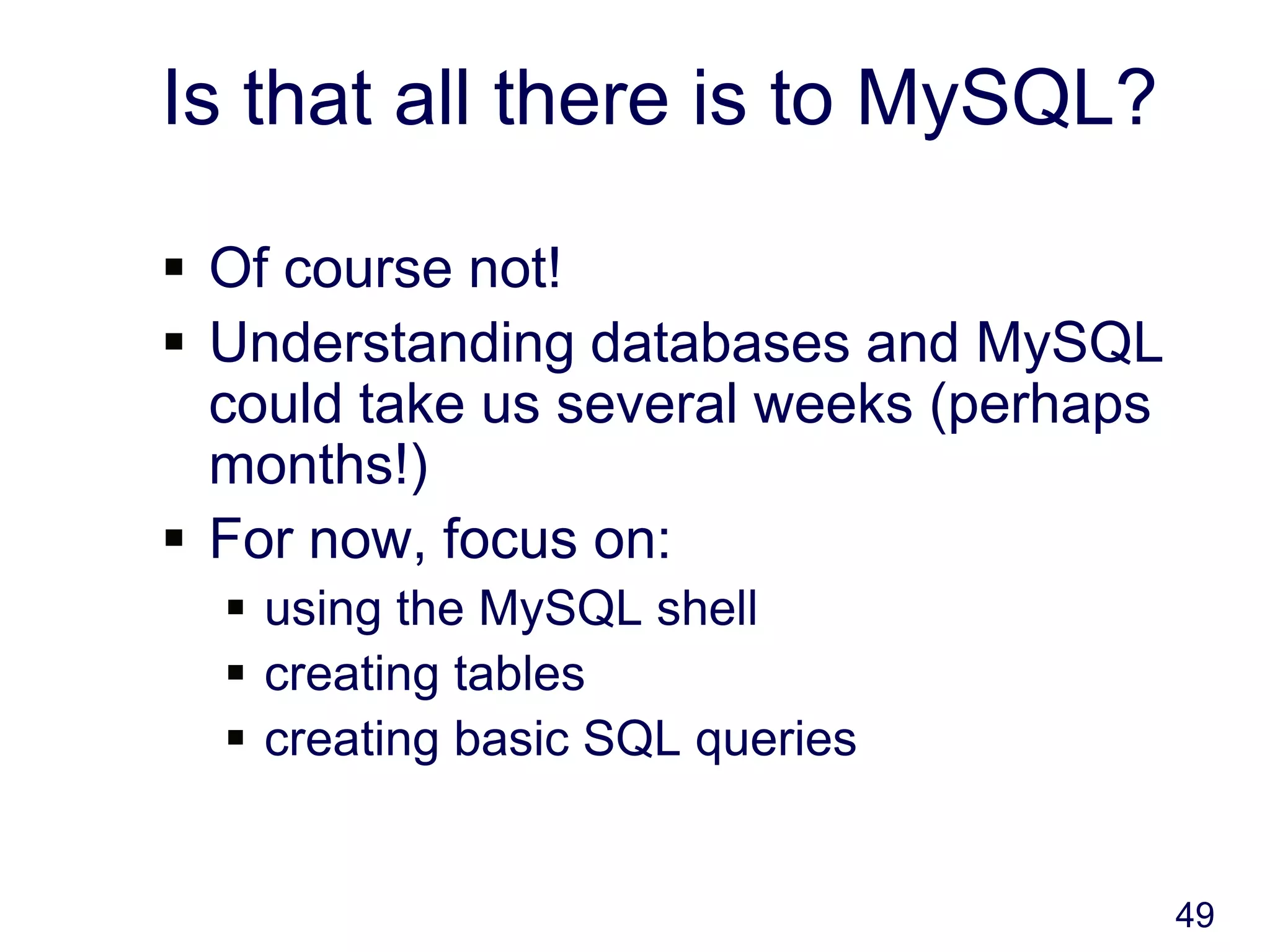

Is that all there is to MySQL?
 Of course not!
 Understanding databases and MySQL
could take us several weeks (perhaps
months!)
 For now, focus on:
 using the MySQL shell
 creating tables
 creating basic SQL queries

50

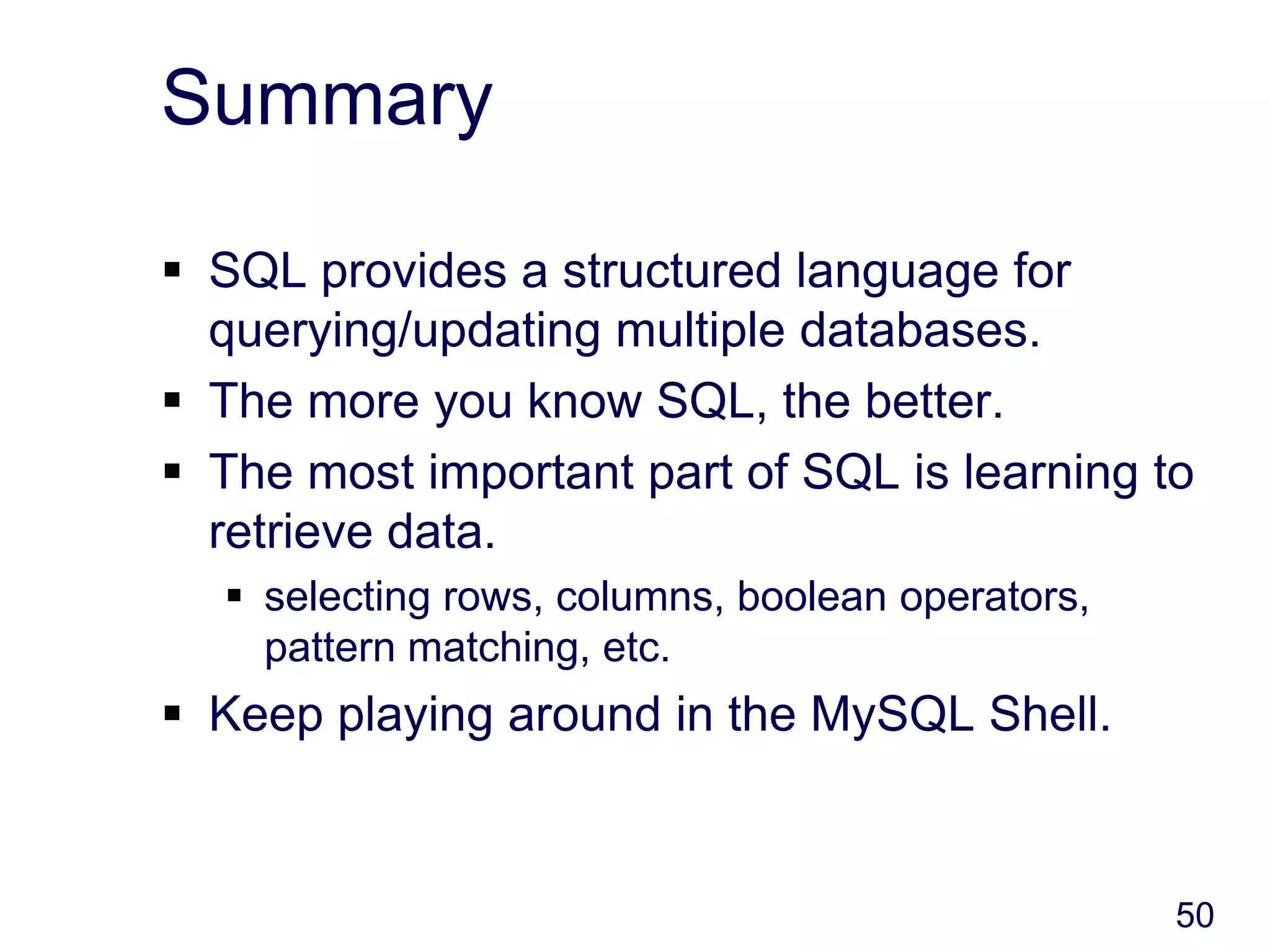

Summary
 SQL provides a structured language for
querying/updating multiple databases.
 The more you know SQL, the better.
 The most important part of SQL is learning to
retrieve data.
 selecting rows, columns, boolean operators,
pattern matching, etc.
 Keep playing around in the MySQL Shell.

介绍 MySQL

More Related Content

What's hot

Similar to 介绍 MySQL

More from YUCHENG HU

Recently uploaded

介绍 MySQL
