Introduction to Robot Framework
This document provides instructions for installing and setting up the Robot Framework for acceptance testing and acceptance-test driven development. It discusses installing Python, pip, Robot Framework, and Selenium libraries. It also covers test structure, standard and external Robot Framework libraries, Selenium keywords, creating simple tests, running tests, and handling proxies. The document aims to help users create test cases with Robot Framework to test websites like Google, login pages, and todo applications.
In this document
Powered by AI
Overview of SPRINT3R, an automation framework for acceptance testing based on Python and a keyword-driven approach.
Instructions for installing Python, pip, and configuring the environment variables necessary for setup.
Details on installing Robot Framework and Selenium library using pip for automated testing.
Configuration of Sublime Text for Robot Framework development including installation of necessary plugins.
Outline of the test structure and the standard and external libraries available in Robot Framework for various testing needs.
Introduction to commonly used Selenium keywords for browser interaction within test automation scripts.
Steps to create a simple test file and run it using Robot Framework with emphasis on proper spacing in test cases.
Guidance on resolving proxy setup issues for Firefox across different operating systems and configurations.
Hands-on workshops focusing on creating test cases with Robot Framework, including Google search and login demos.
Open floor for any questions regarding the presentation and Robot Framework usage.
More Related Content
Similar to Introduction to Robot Framework
Introduction to Robot Framework
- 1. by Siam ChamnanKit Co., Ltd. and Odd-e (Thailand) Co, Ltd. SPRINT3R Acceptance Test and Acceptance-Test Driven Development with Robot Framework 1
- 2. Introduction • Test automationframework • For acceptance testing (ATDD) • https://code.google.com/p/robotframework/ • Keyword-Driven Development • Based on Python • Open source • Sponsor by Nokia Siemens Networks 2
- 3.
- 4.

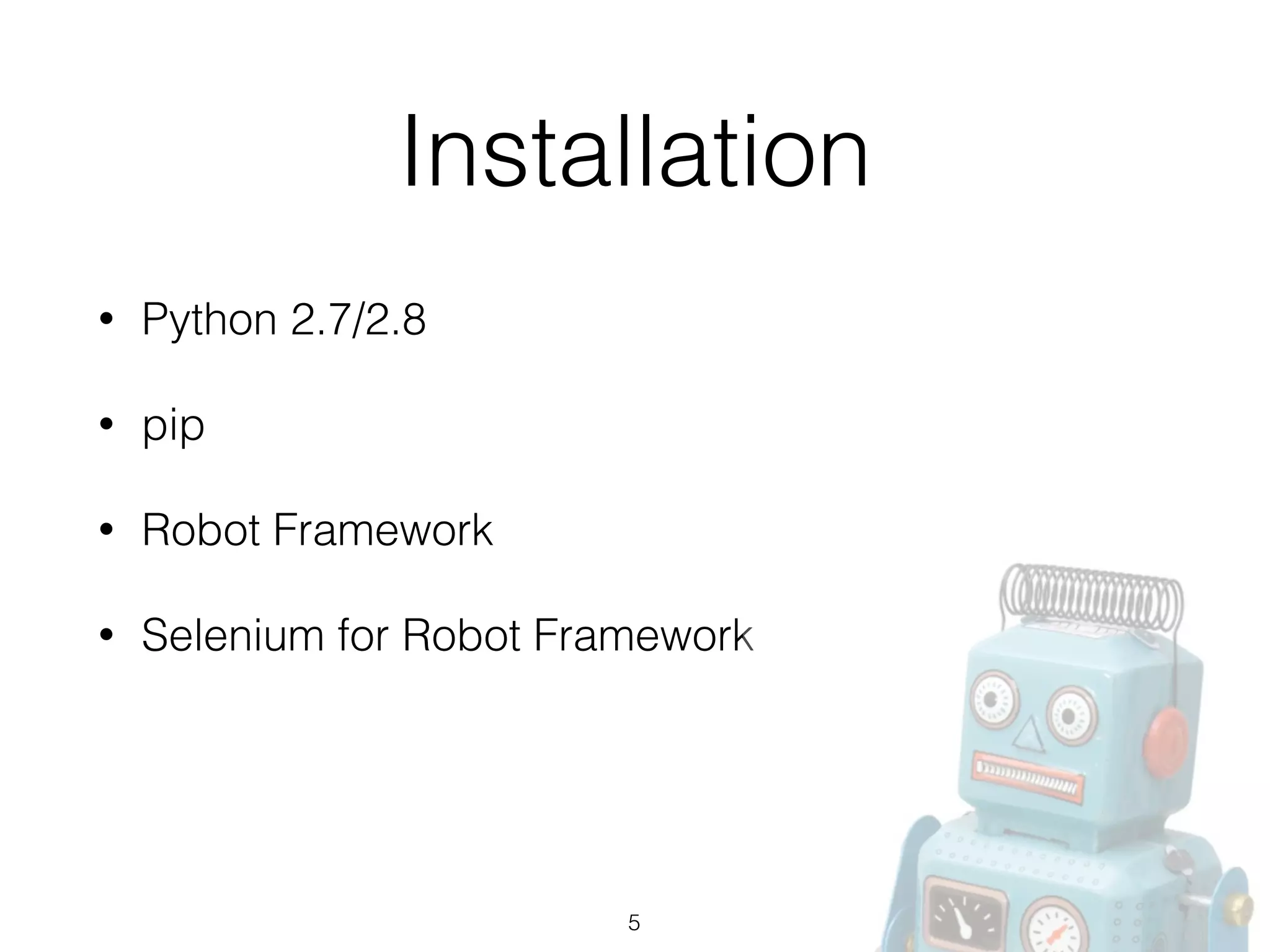

- 5. Installation • Python 2.7/2.8 •pip • Robot Framework • Selenium for Robot Framework 5

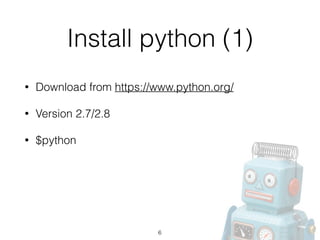

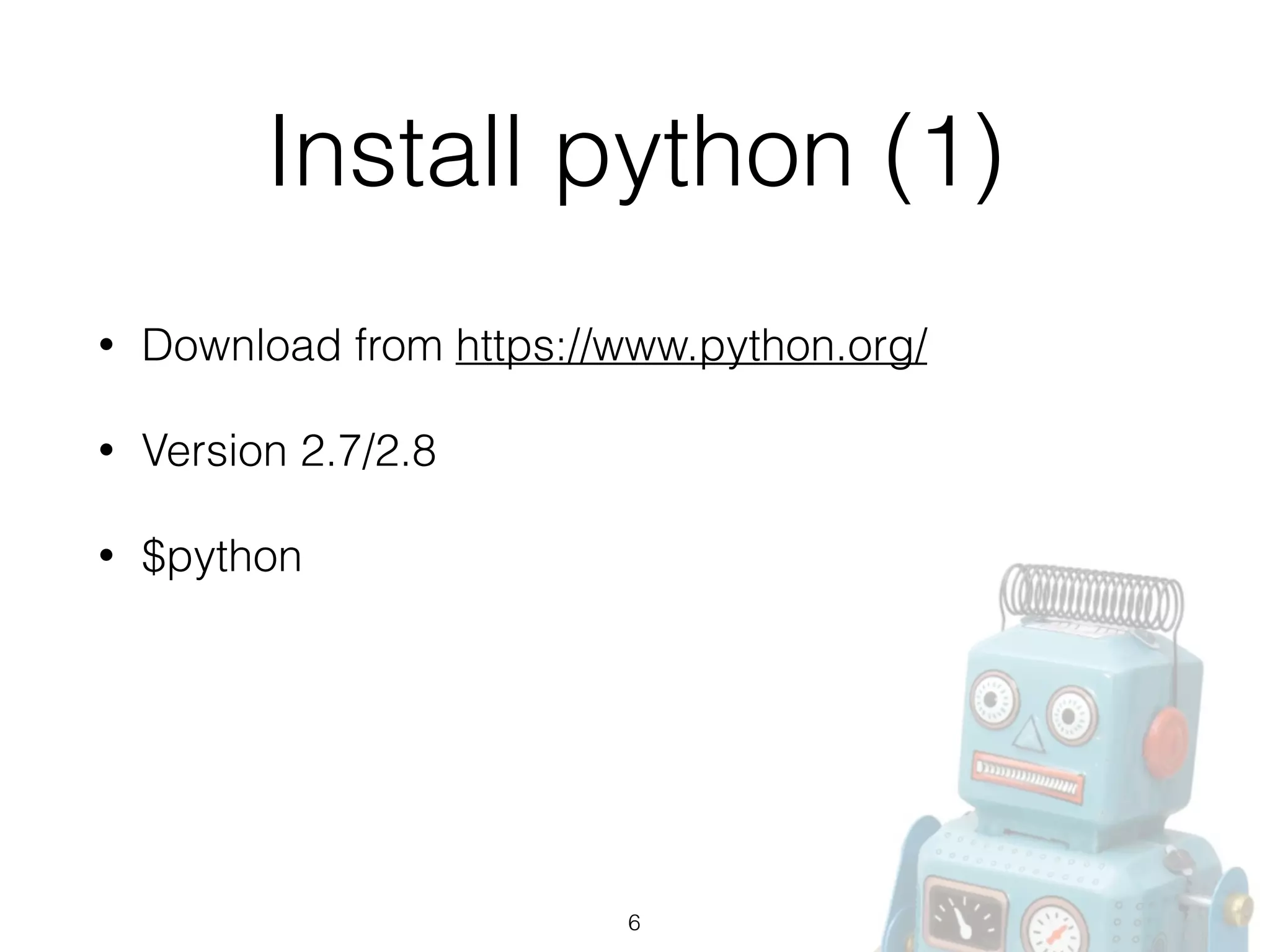

- 6. Install python (1) •Download from https://www.python.org/ • Version 2.7/2.8 • $python 6

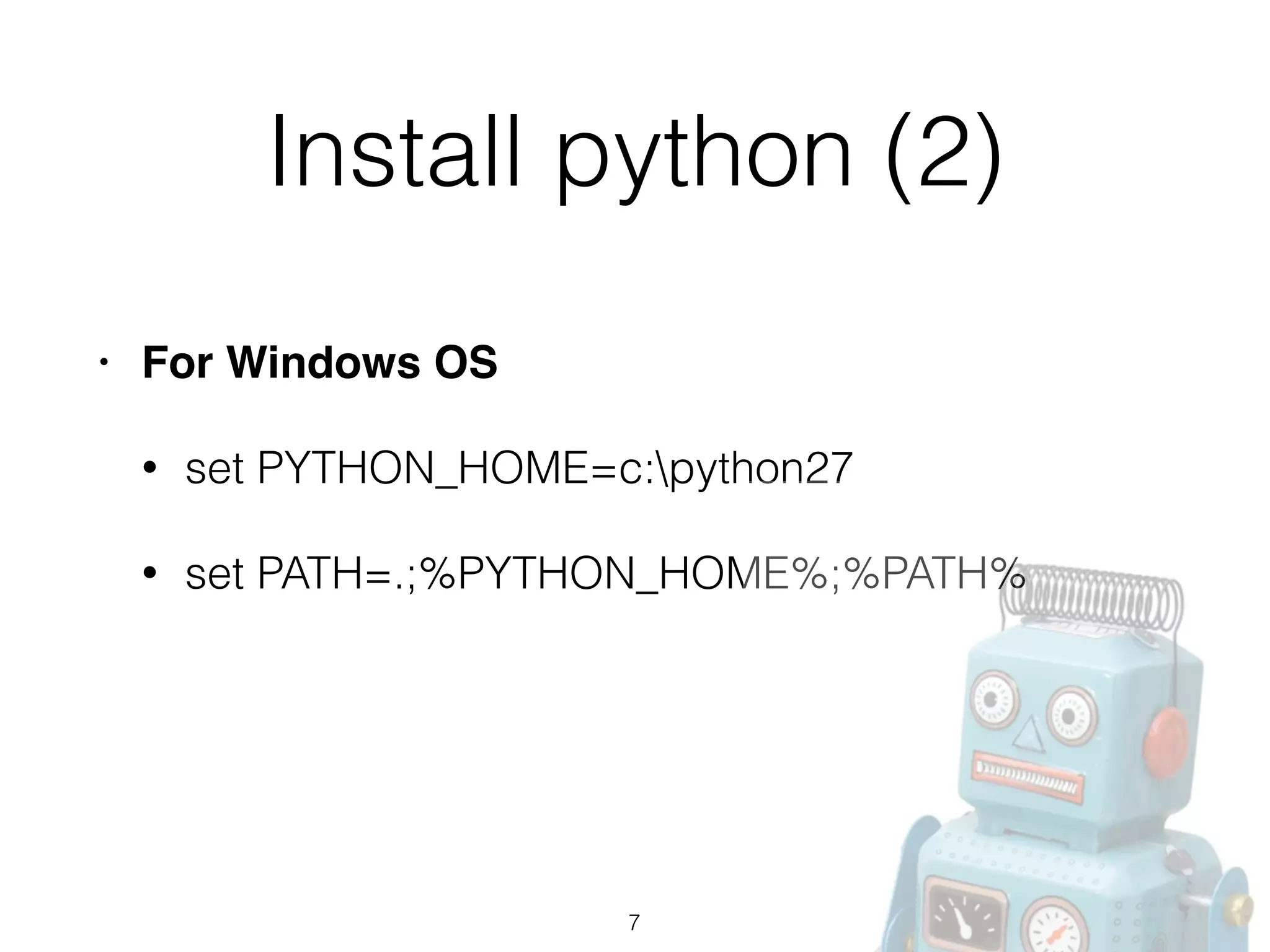

- 7. Install python (2) •For Windows OS! • set PYTHON_HOME=c:python27 • set PATH=.;%PYTHON_HOME%;%PATH% 7

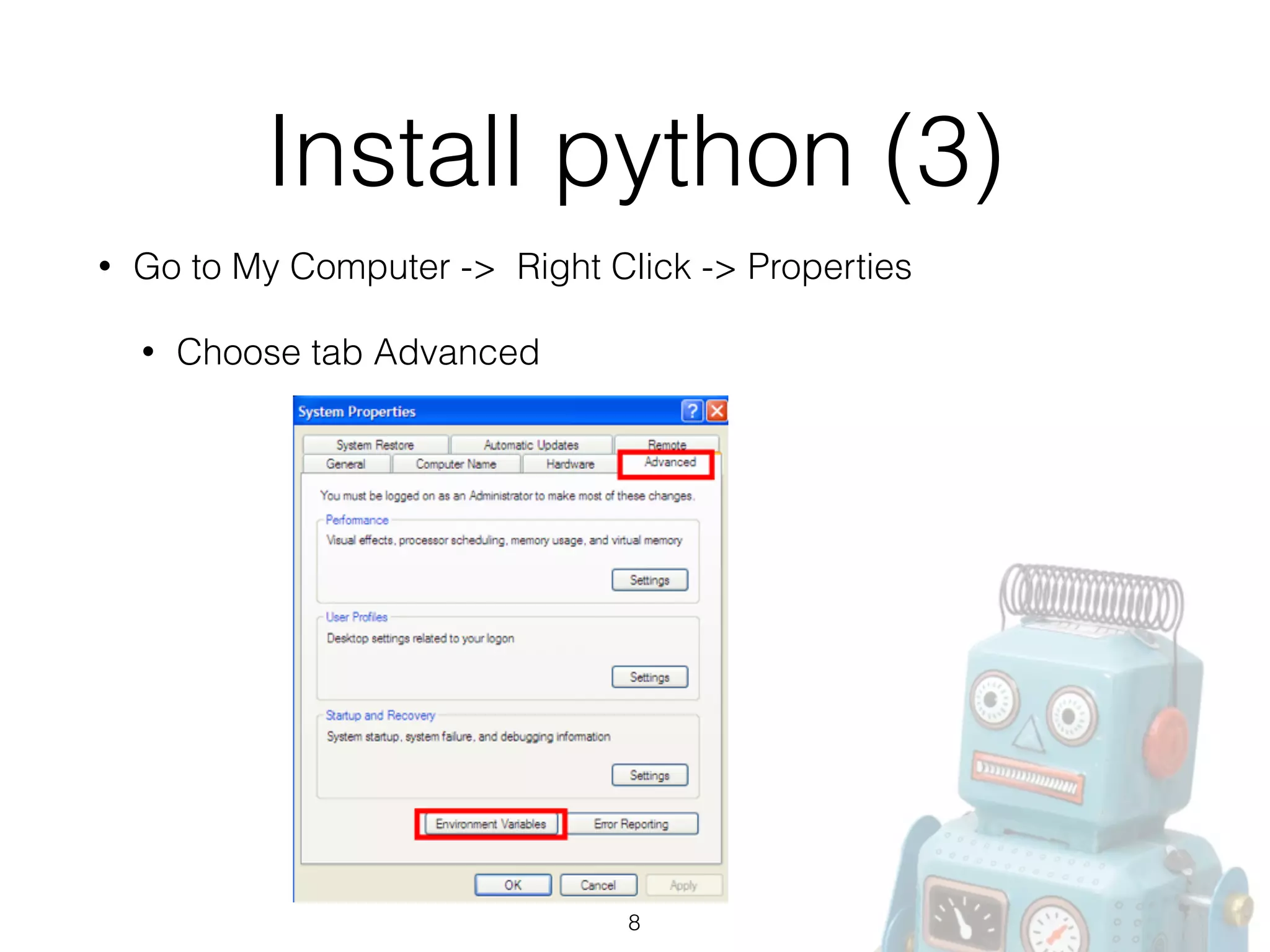

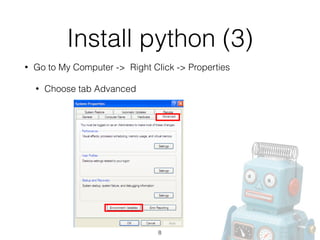

- 8. Install python (3) •Go to My Computer -> Right Click -> Properties • Choose tab Advanced 8

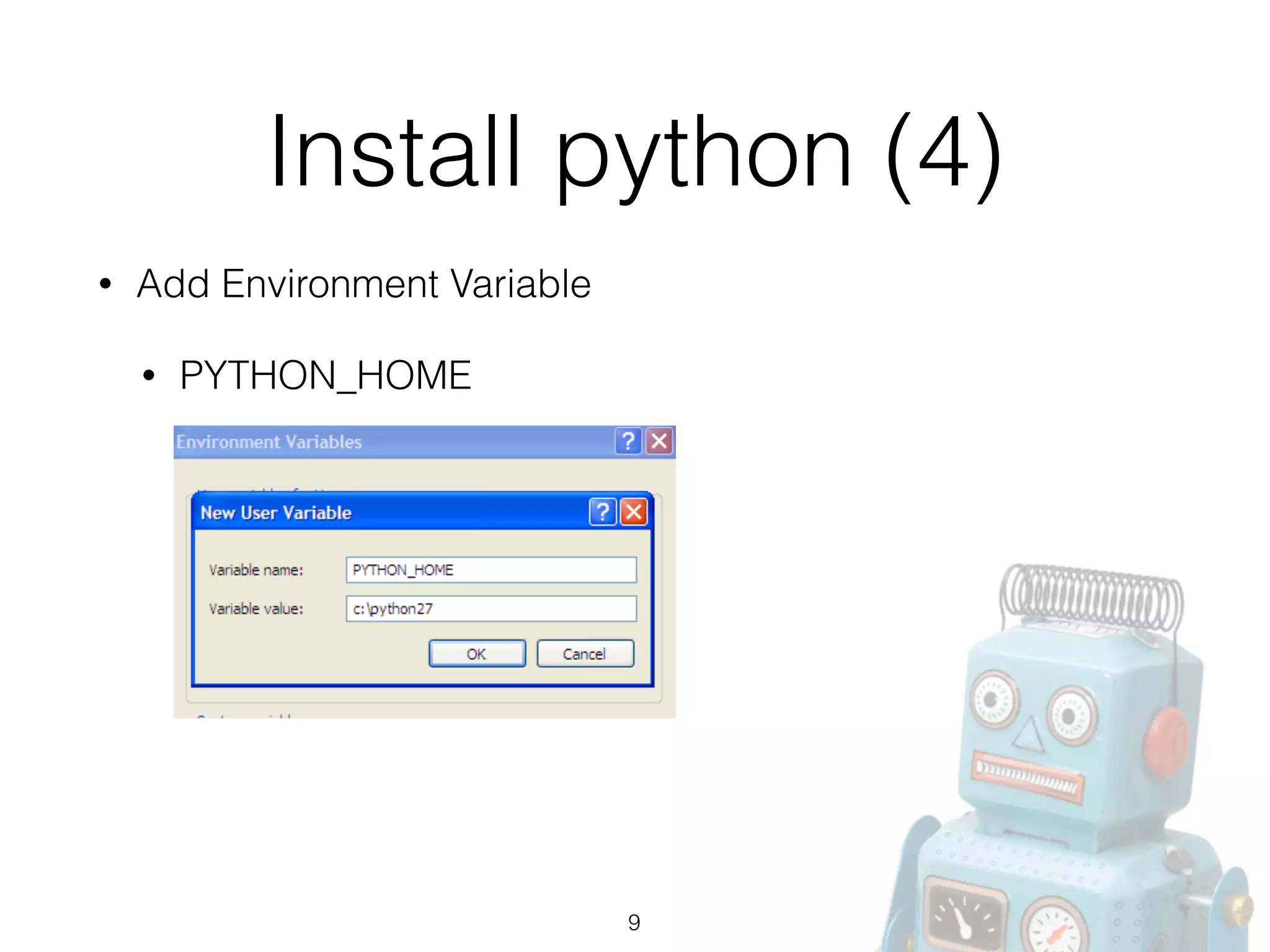

- 9. Install python (4) •Add Environment Variable • PYTHON_HOME 9

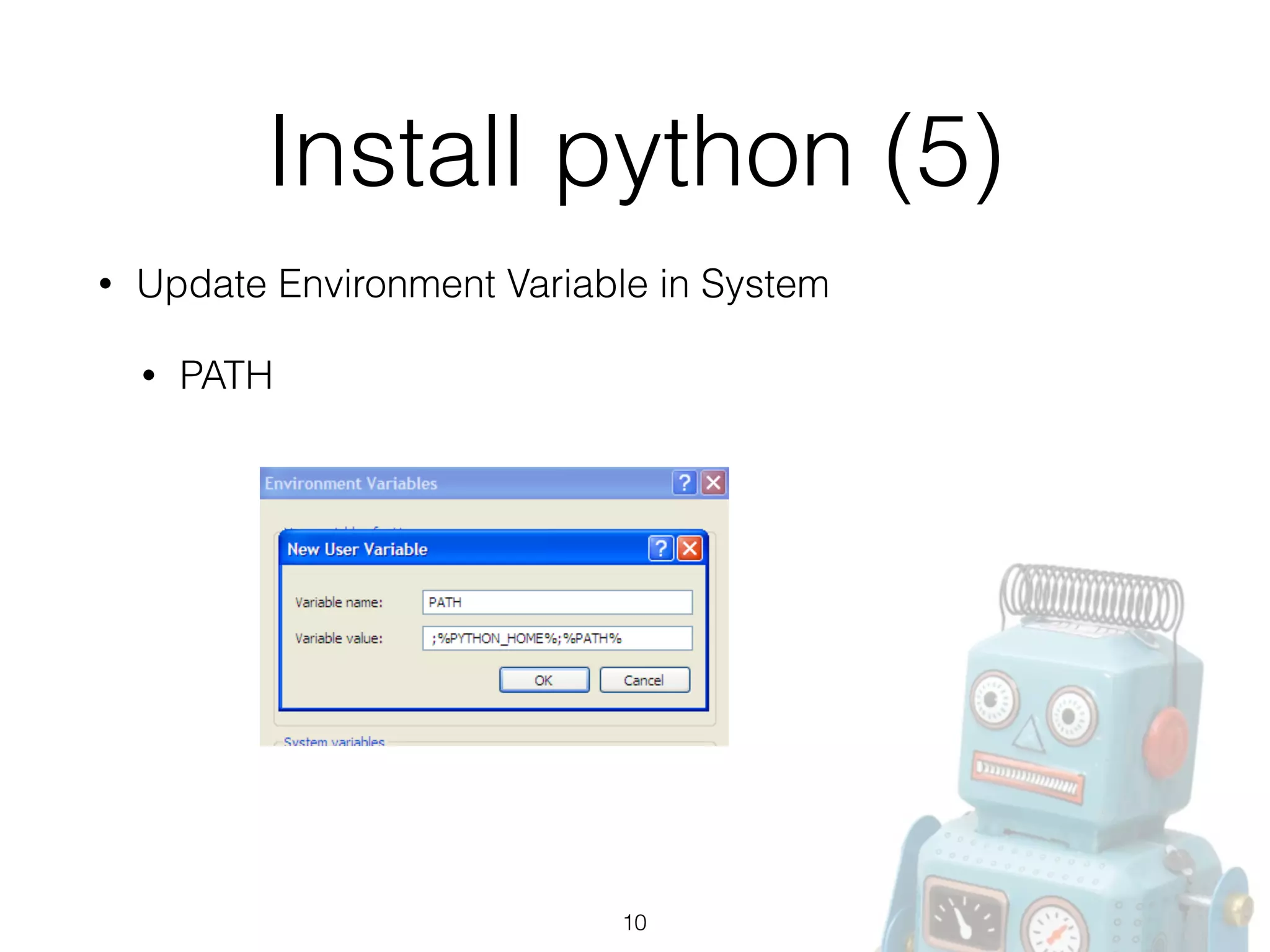

- 10. Install python (5) •Update Environment Variable in System • PATH 10

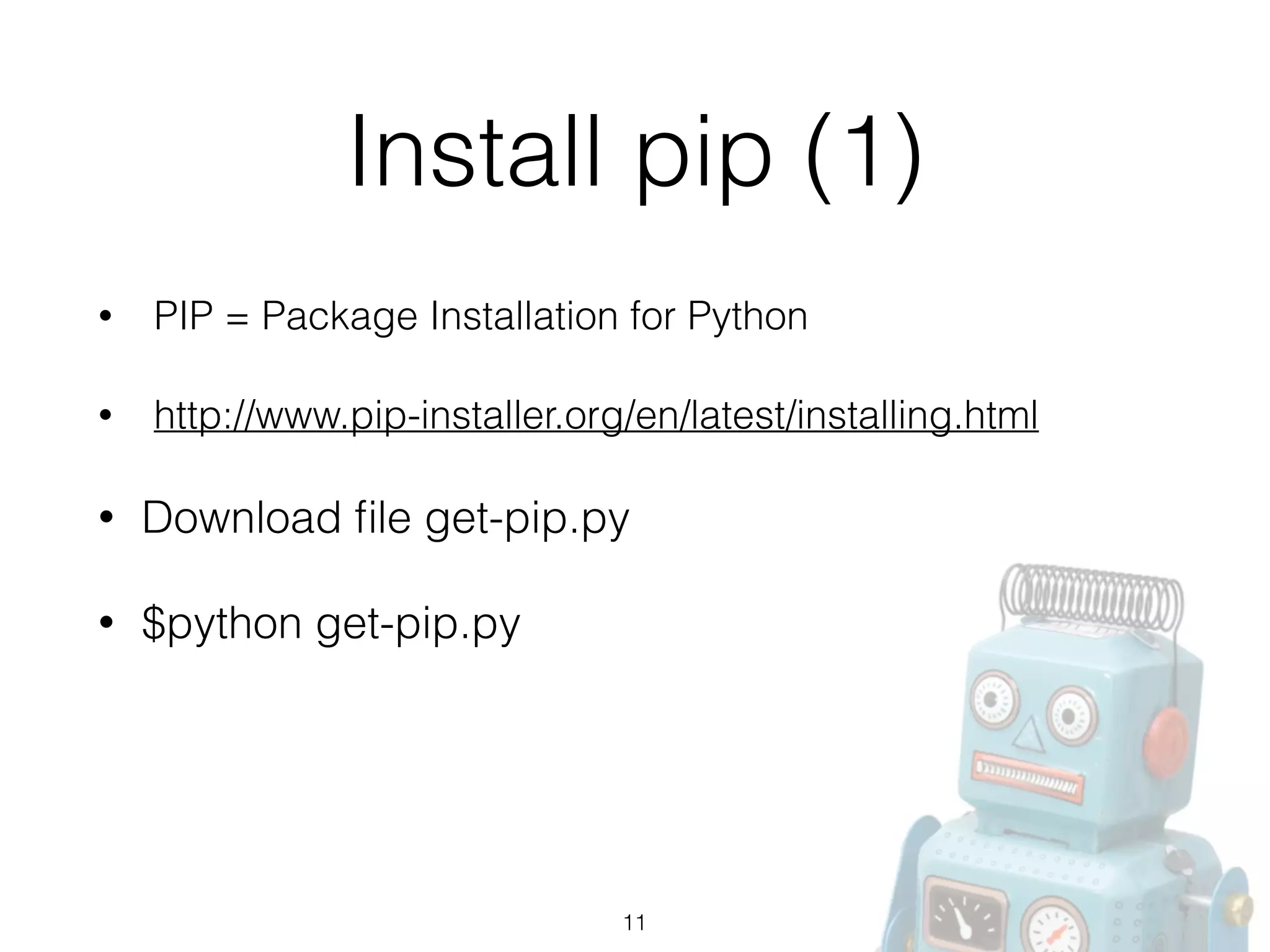

- 11. Install pip (1) •PIP = Package Installation for Python • http://www.pip-installer.org/en/latest/installing.html • Download file get-pip.py • $python get-pip.py 11

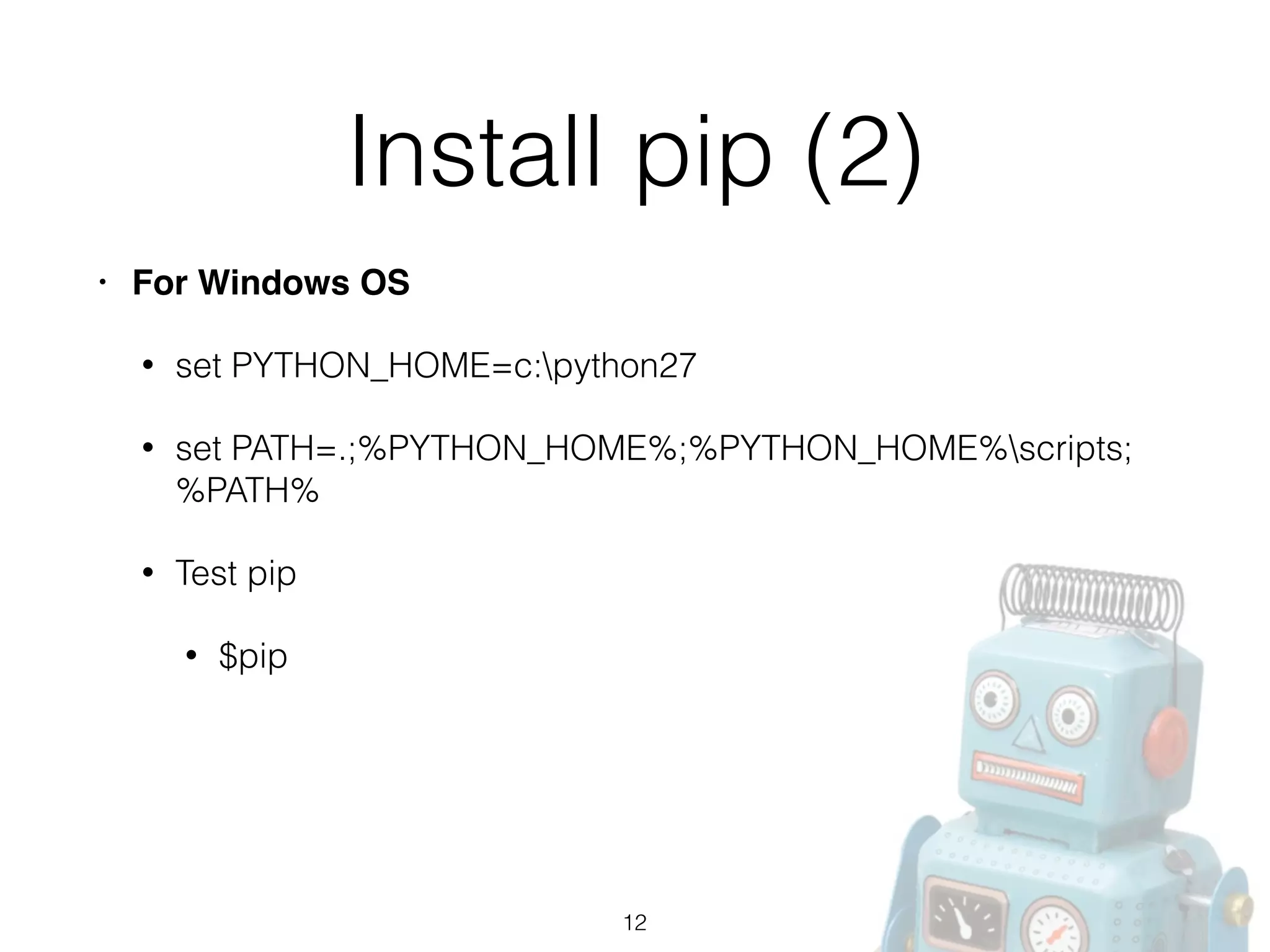

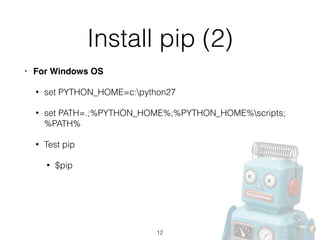

- 12. Install pip (2) •For Windows OS! • set PYTHON_HOME=c:python27 • set PATH=.;%PYTHON_HOME%;%PYTHON_HOME%scripts; %PATH% • Test pip • $pip 12

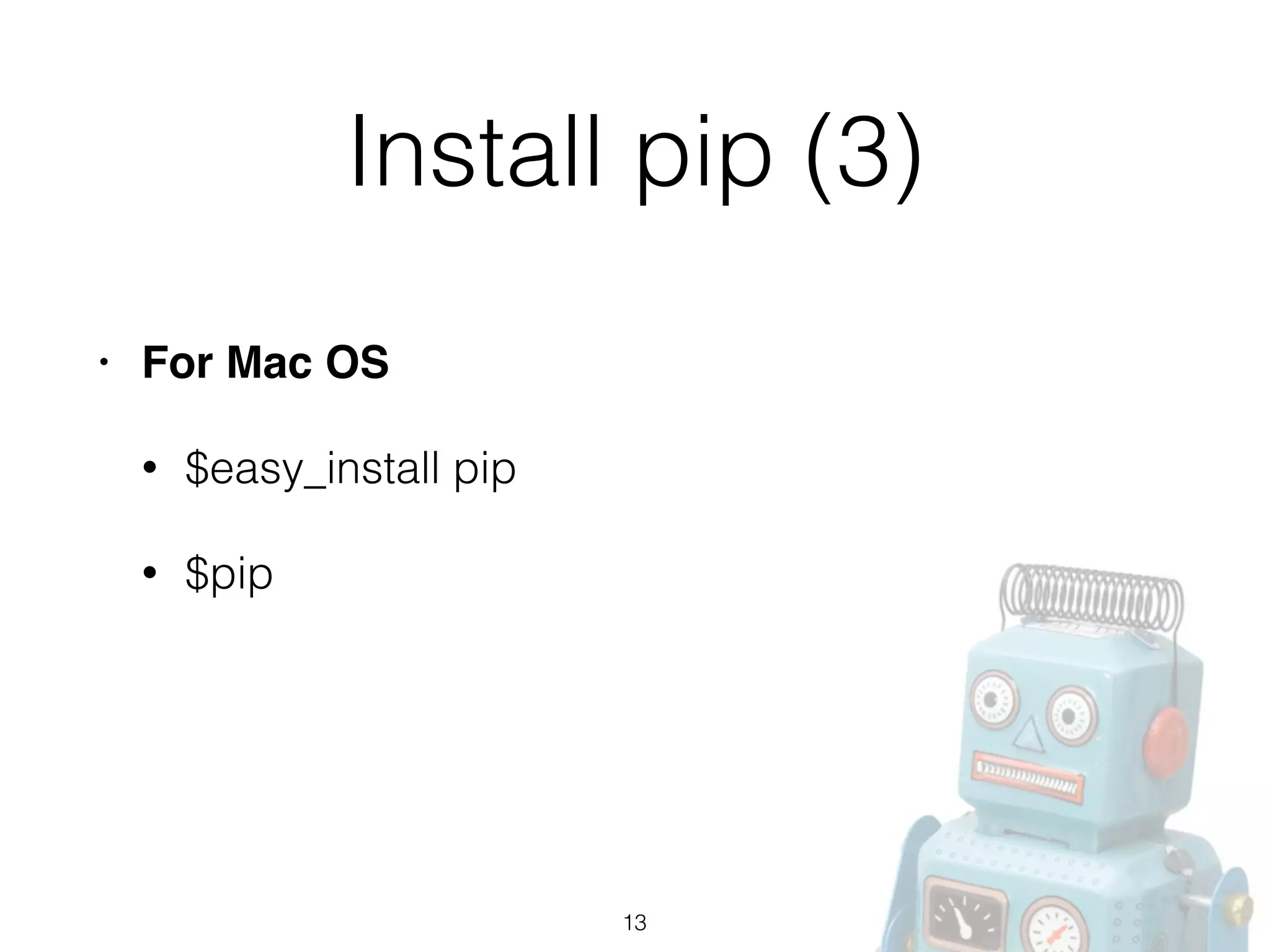

- 13. Install pip (3) •For Mac OS! • $easy_install pip • $pip 13

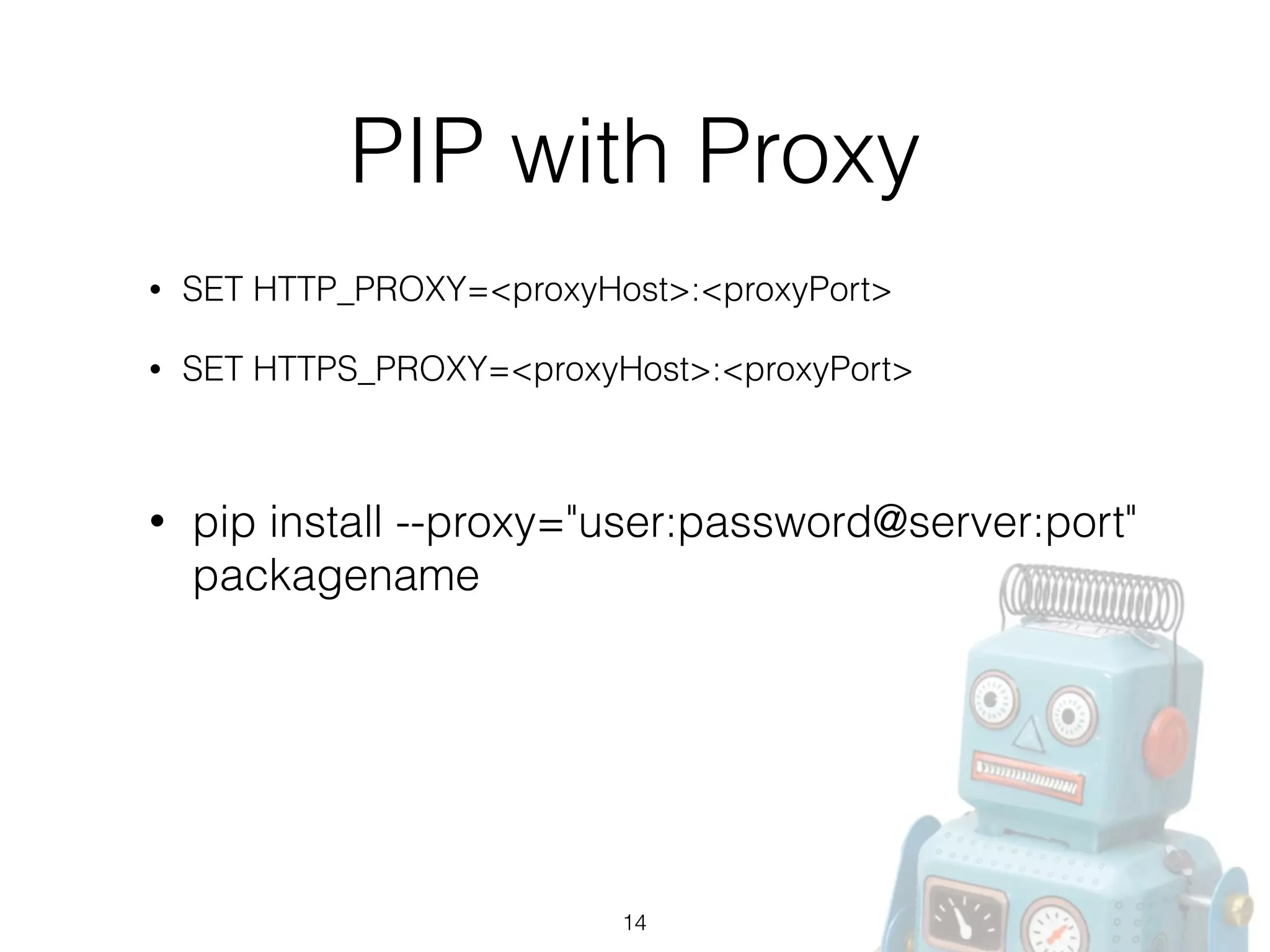

- 14. PIP with Proxy •SET HTTP_PROXY=<proxyHost>:<proxyPort> • SET HTTPS_PROXY=<proxyHost>:<proxyPort> 14 • pip install --proxy="user:password@server:port" packagename

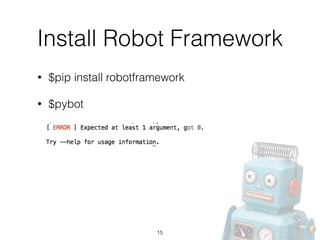

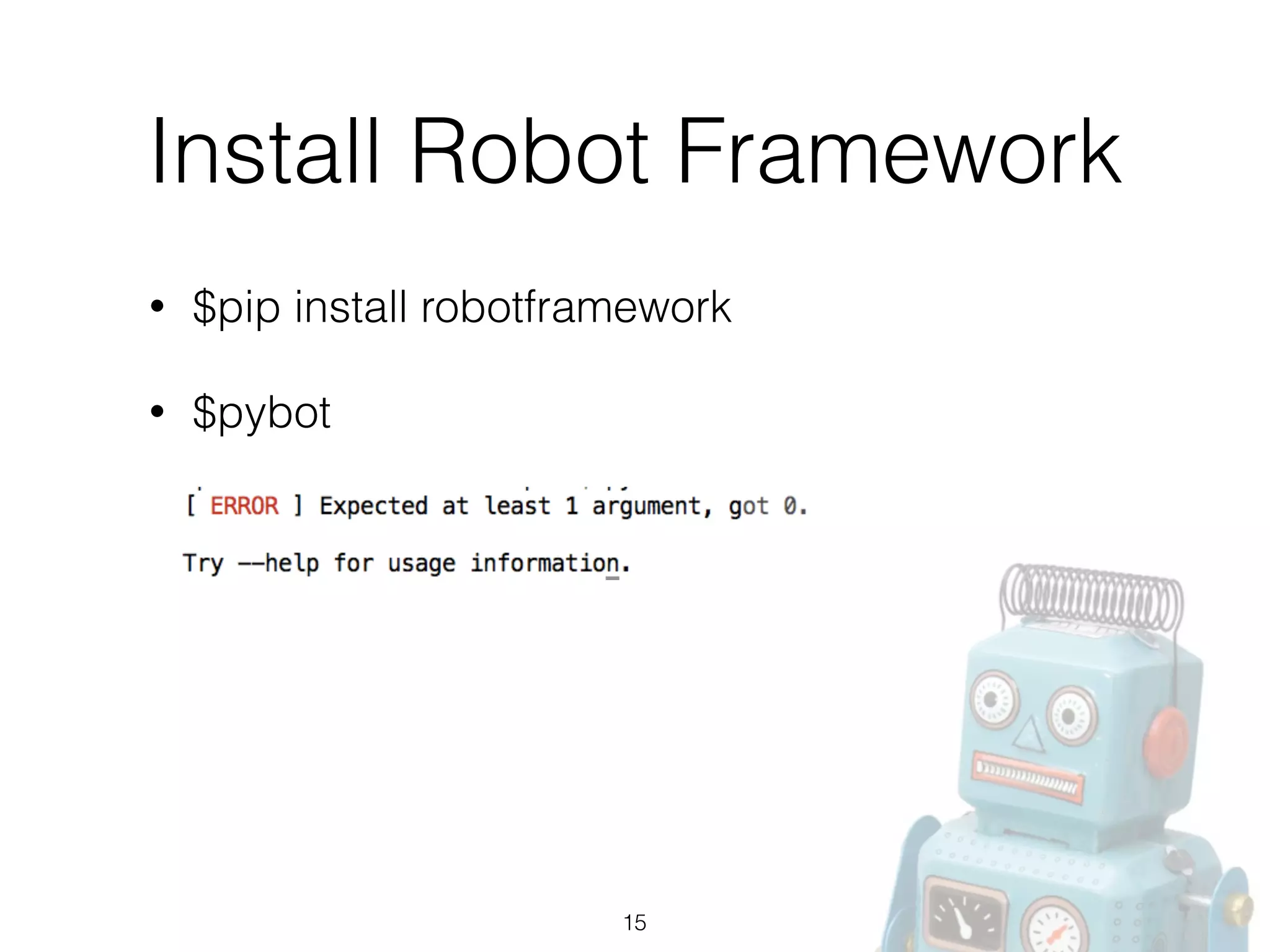

- 15. Install Robot Framework •$pip install robotframework • $pybot 15

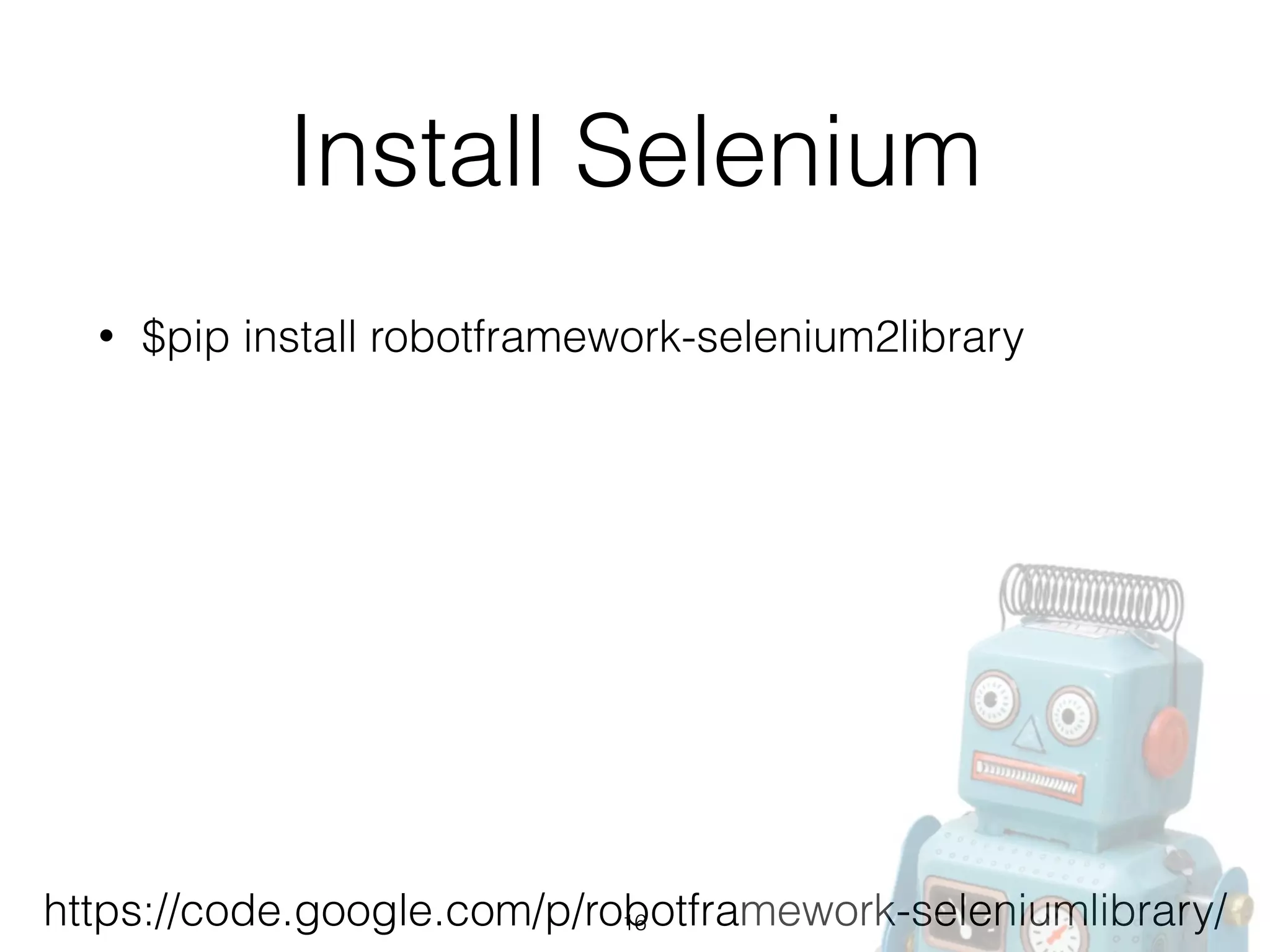

- 16. Install Selenium • $pipinstall robotframework-selenium2library https://code.google.com/p/robotframework-seleniumlibrary/16

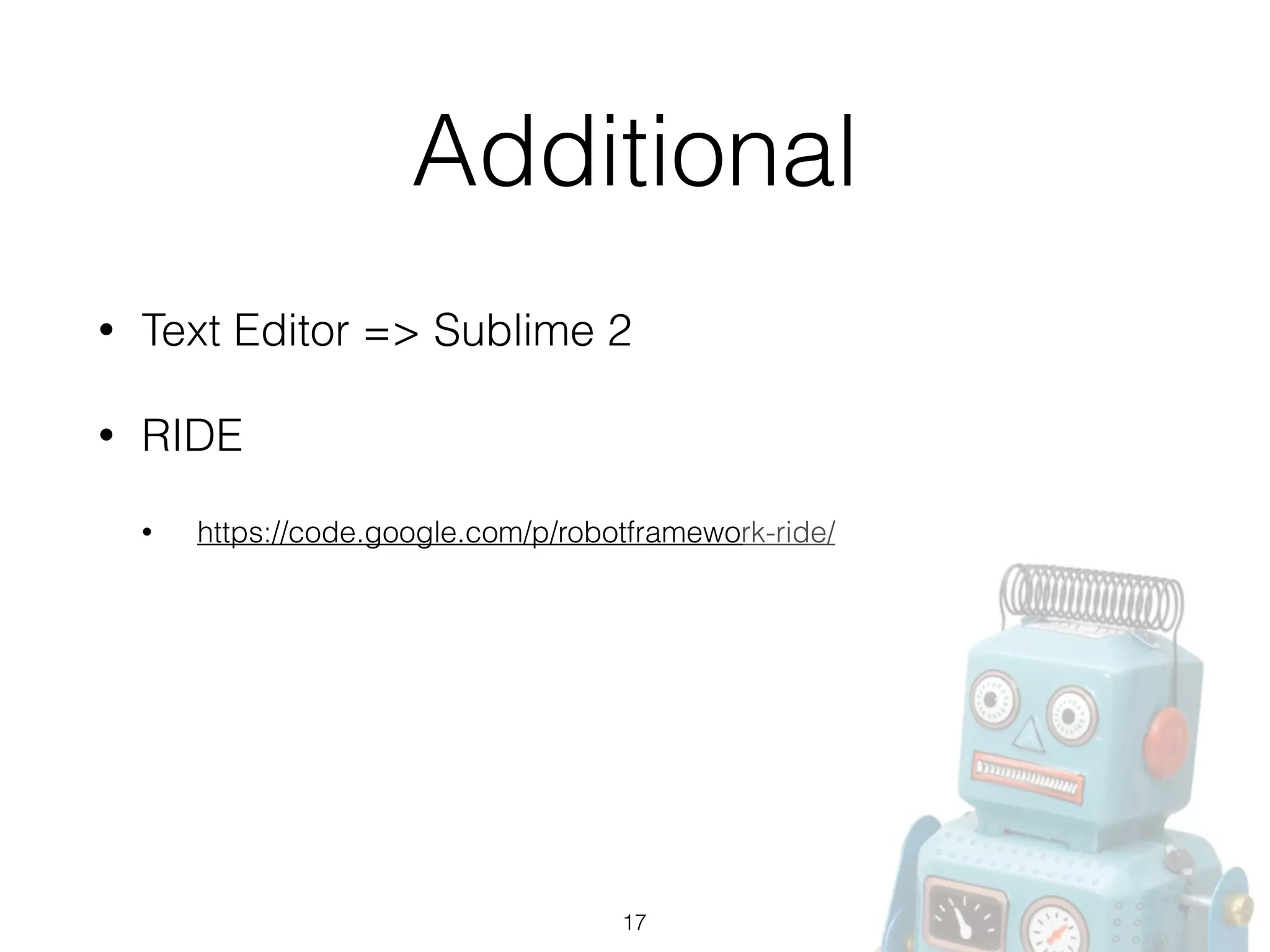

- 17. Additional • Text Editor=> Sublime 2 • RIDE • https://code.google.com/p/robotframework-ride/ 17

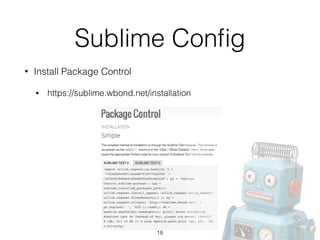

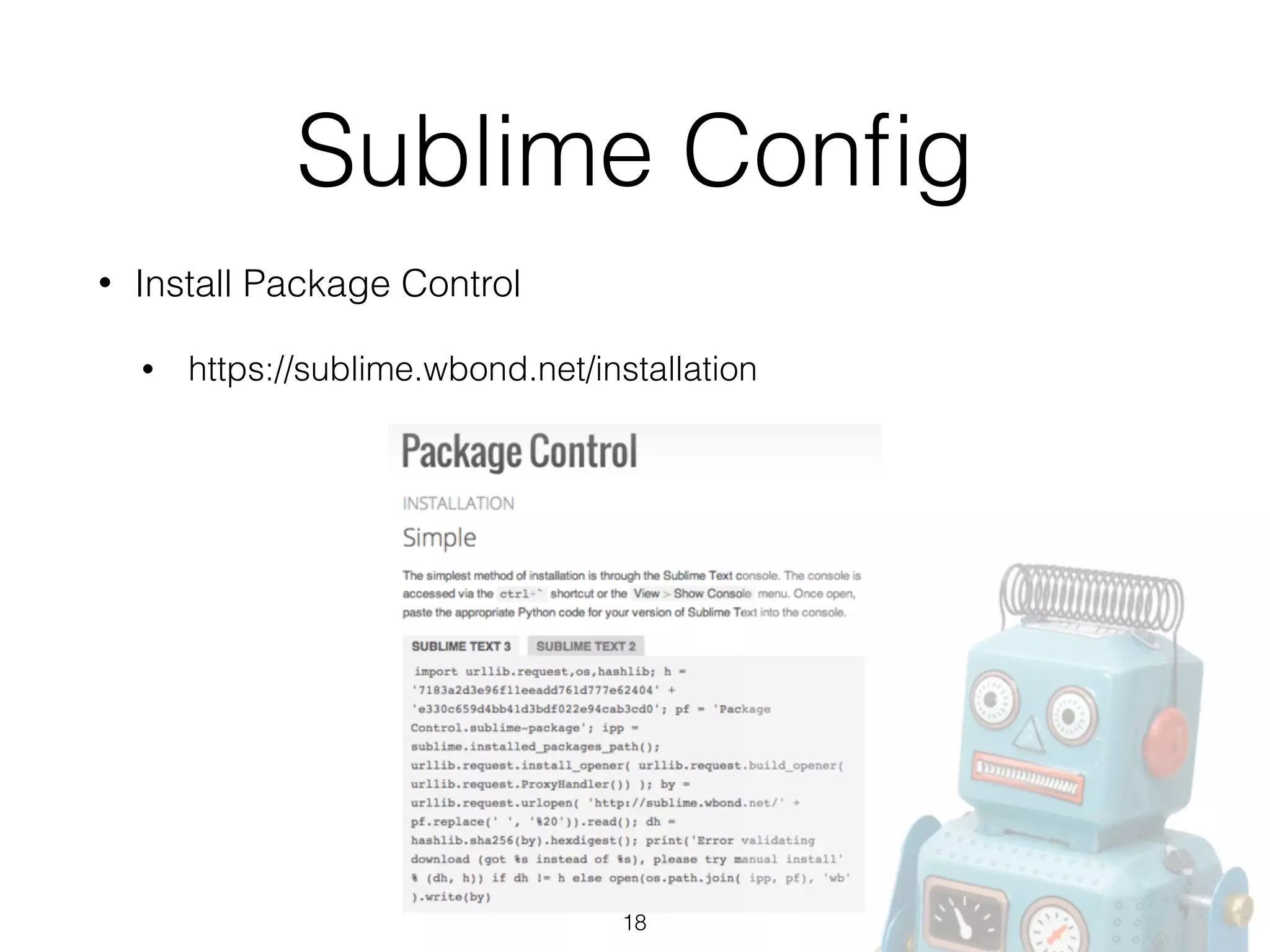

- 18. Sublime Config • InstallPackage Control • https://sublime.wbond.net/installation 18

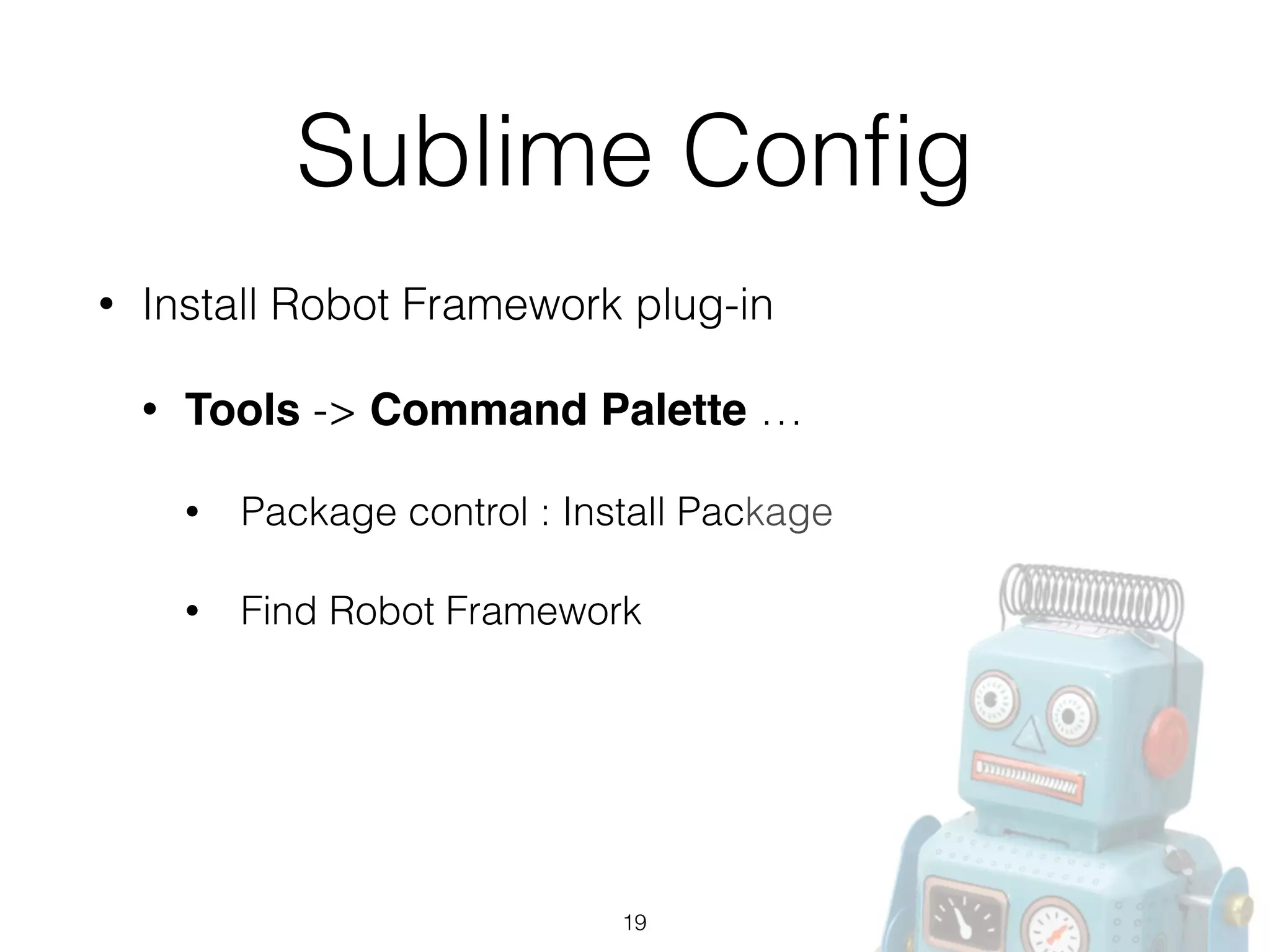

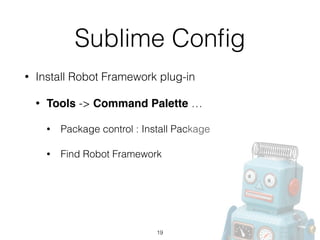

- 19. Sublime Config • InstallRobot Framework plug-in • Tools -> Command Palette … • Package control : Install Package • Find Robot Framework 19
- 20.
- 21.

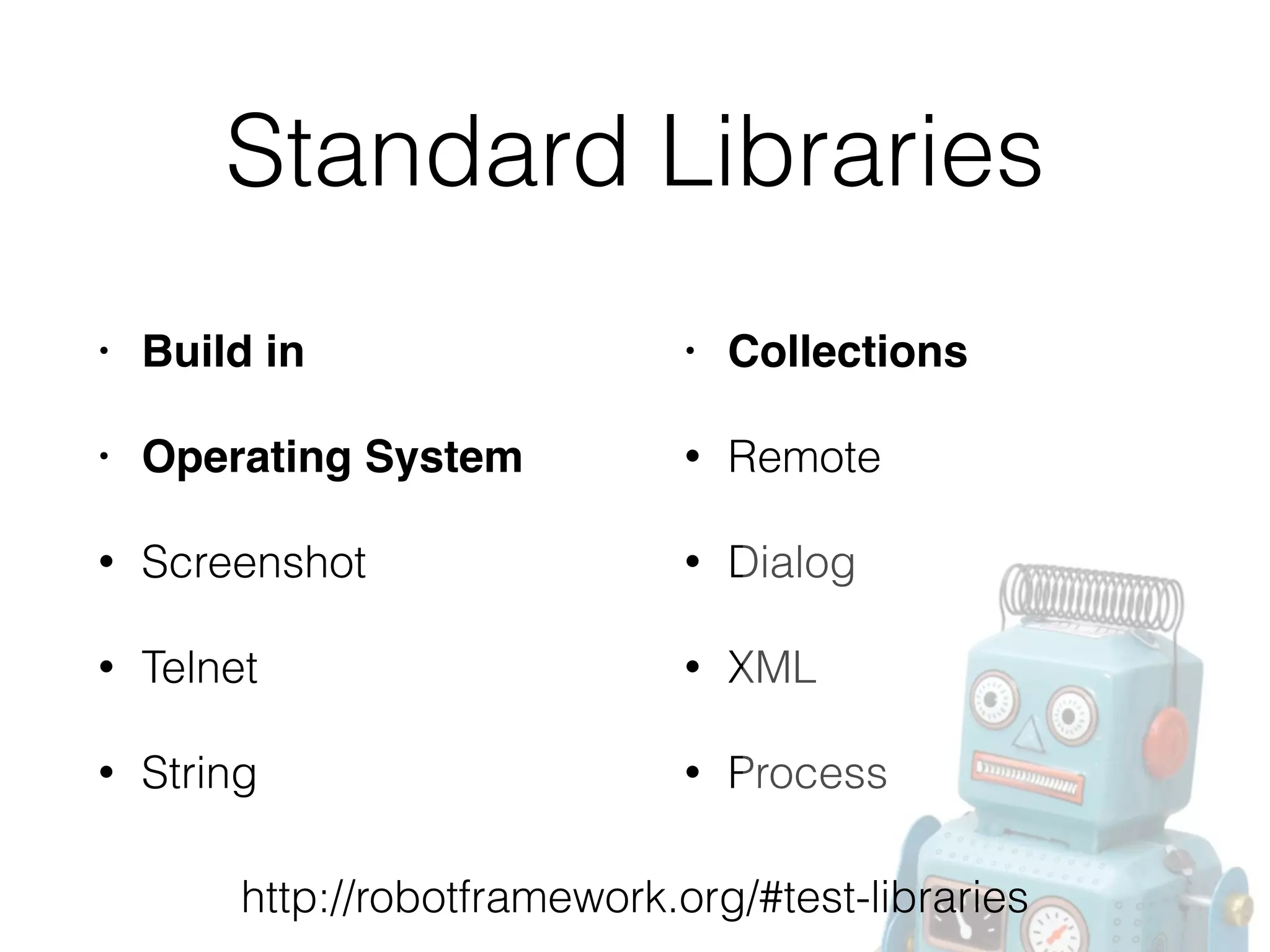

- 22. Standard Libraries • Buildin! • Operating System! • Screenshot • Telnet • String • Collections! • Remote • Dialog • XML • Process http://robotframework.org/#test-libraries

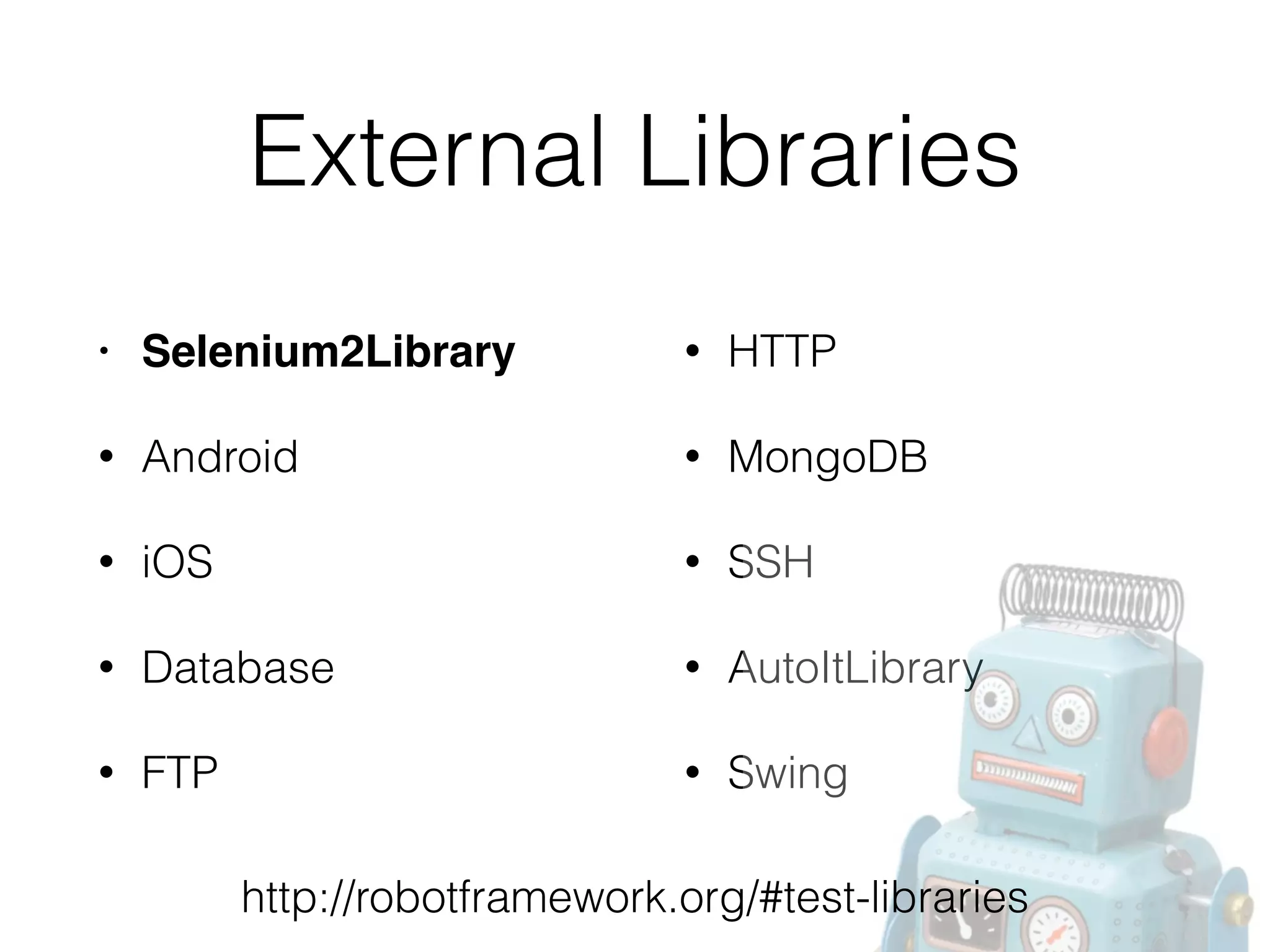

- 23. External Libraries • Selenium2Library! •Android • iOS • Database • FTP • HTTP • MongoDB • SSH • AutoItLibrary • Swing http://robotframework.org/#test-libraries

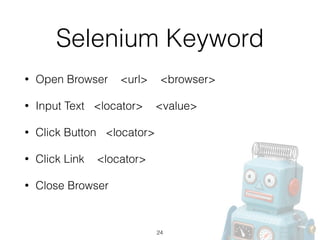

- 24. Selenium Keyword • OpenBrowser <url> <browser> • Input Text <locator> <value> • Click Button <locator> • Click Link <locator> • Close Browser 24

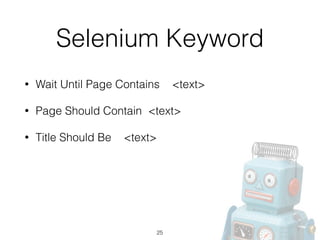

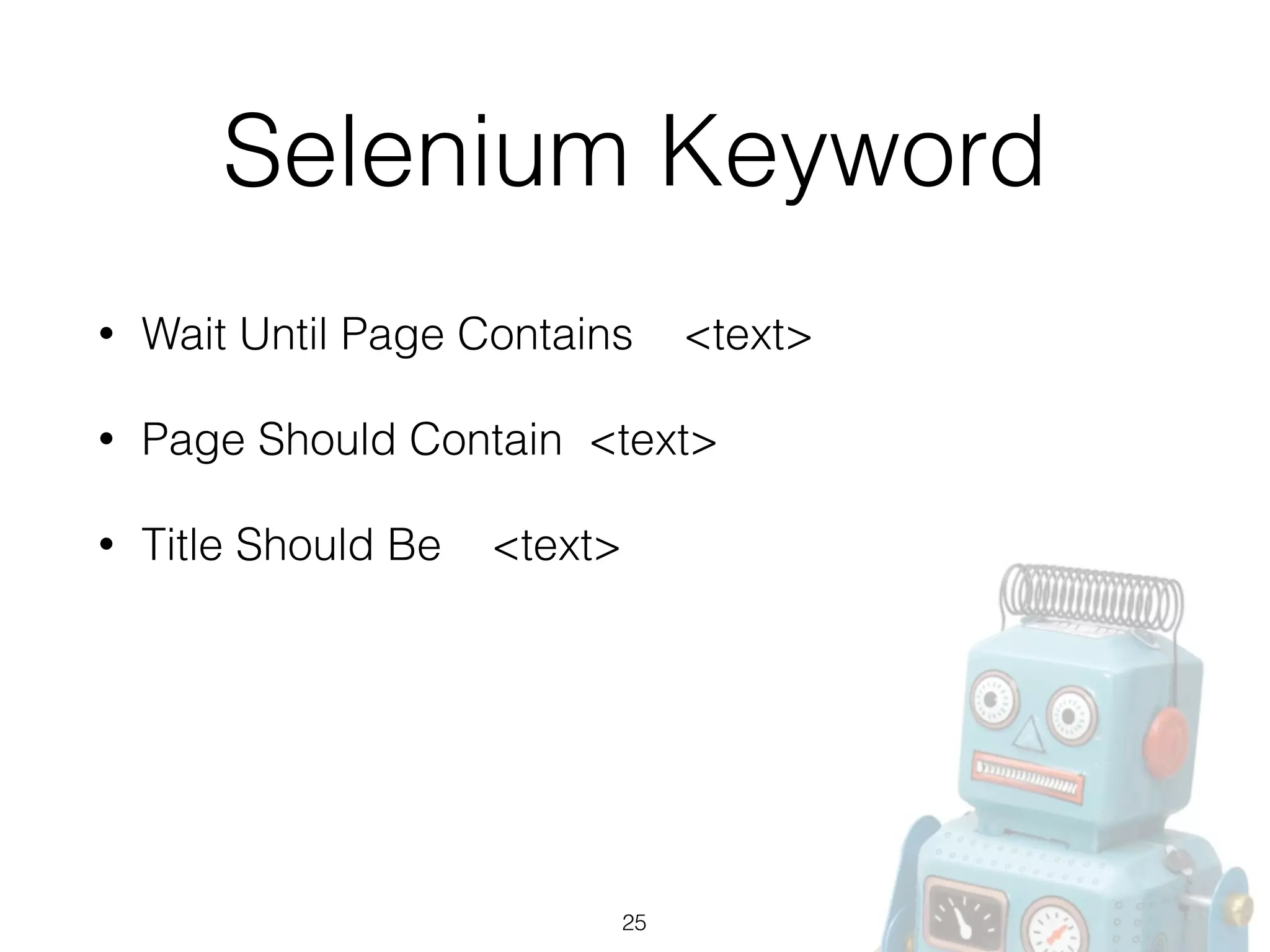

- 25. Selenium Keyword • WaitUntil Page Contains <text> • Page Should Contain <text> • Title Should Be <text> 25

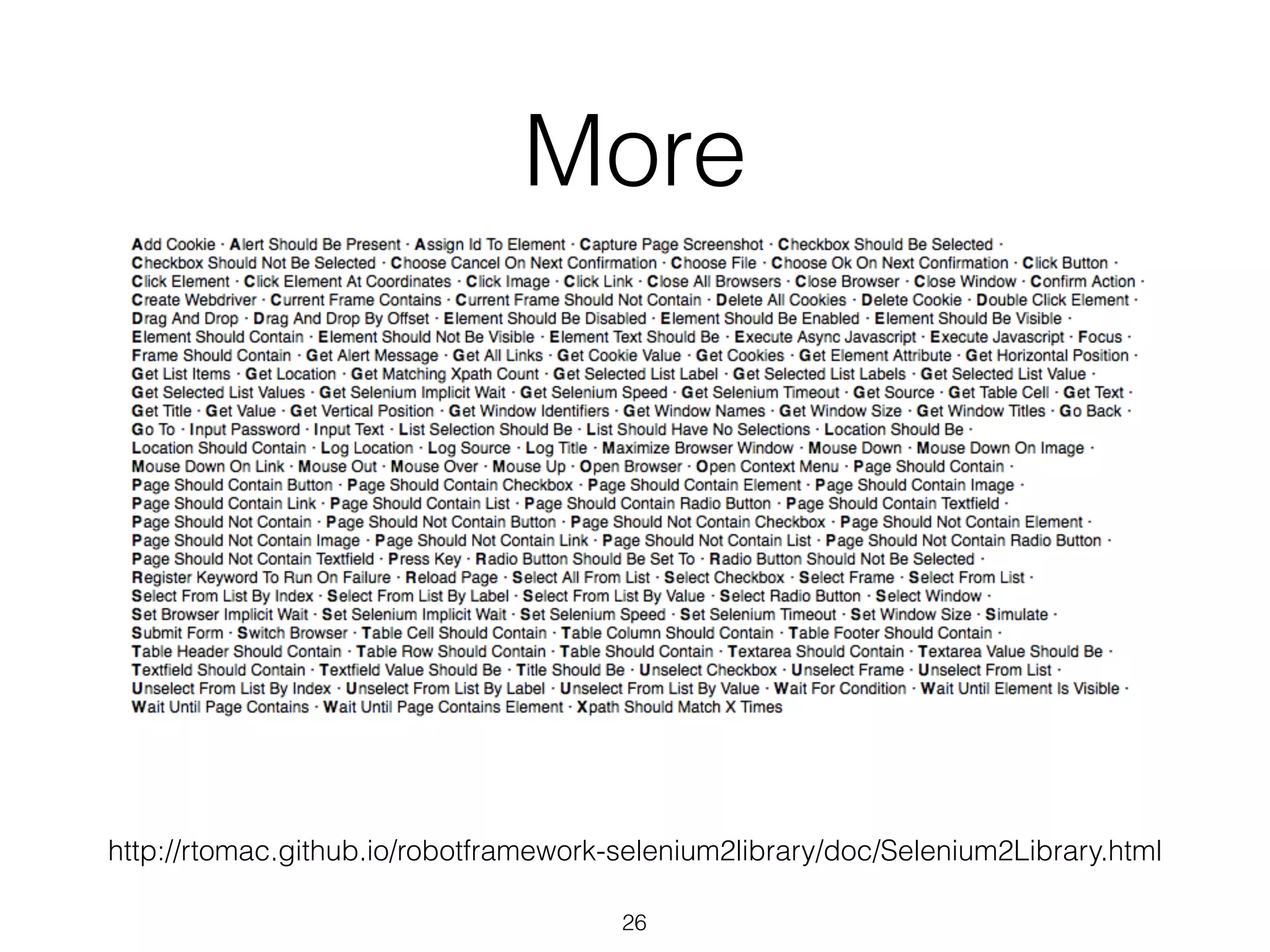

- 26.

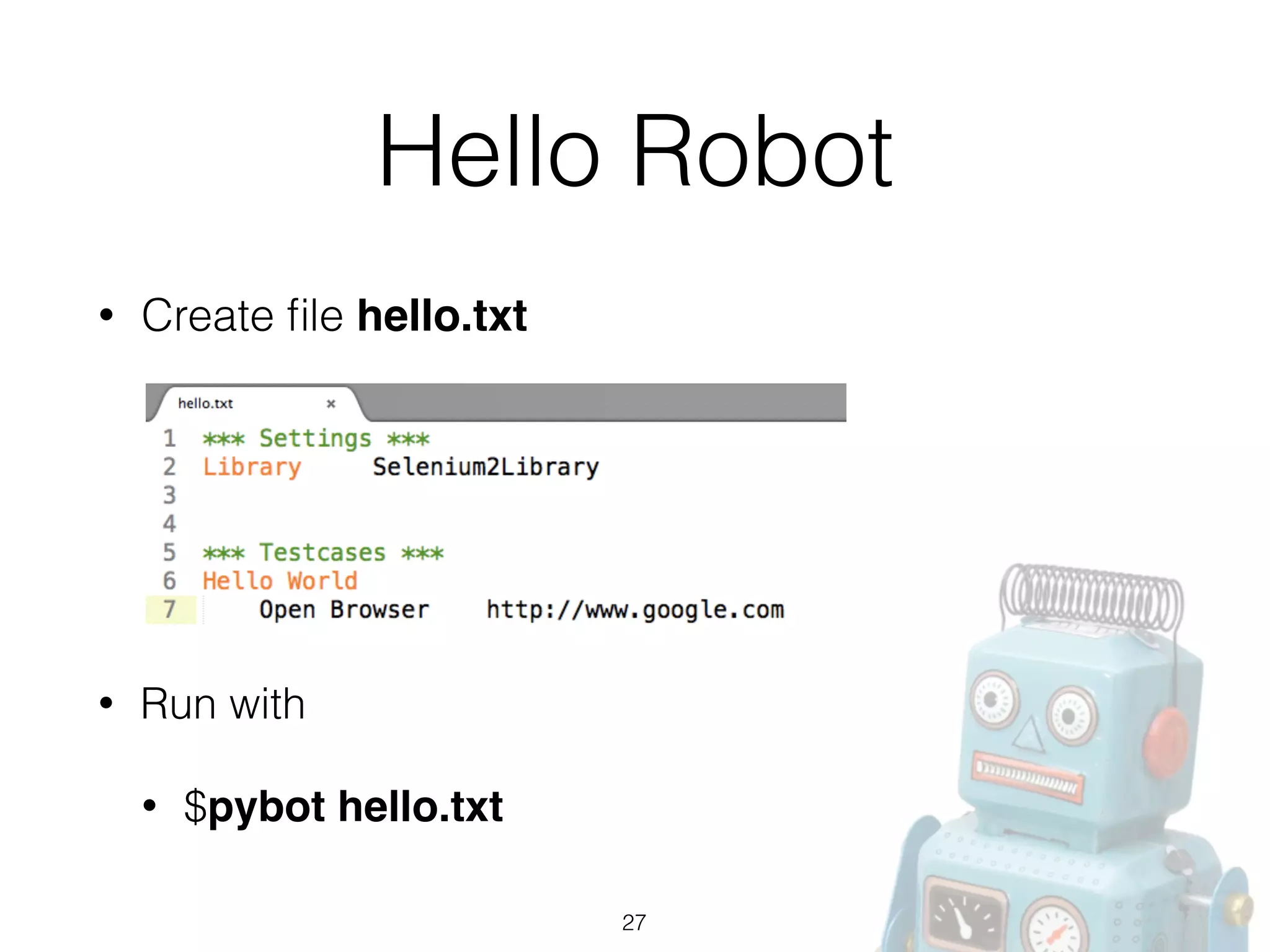

- 27. Hello Robot • Createfile hello.txt • Run with • $pybot hello.txt 27

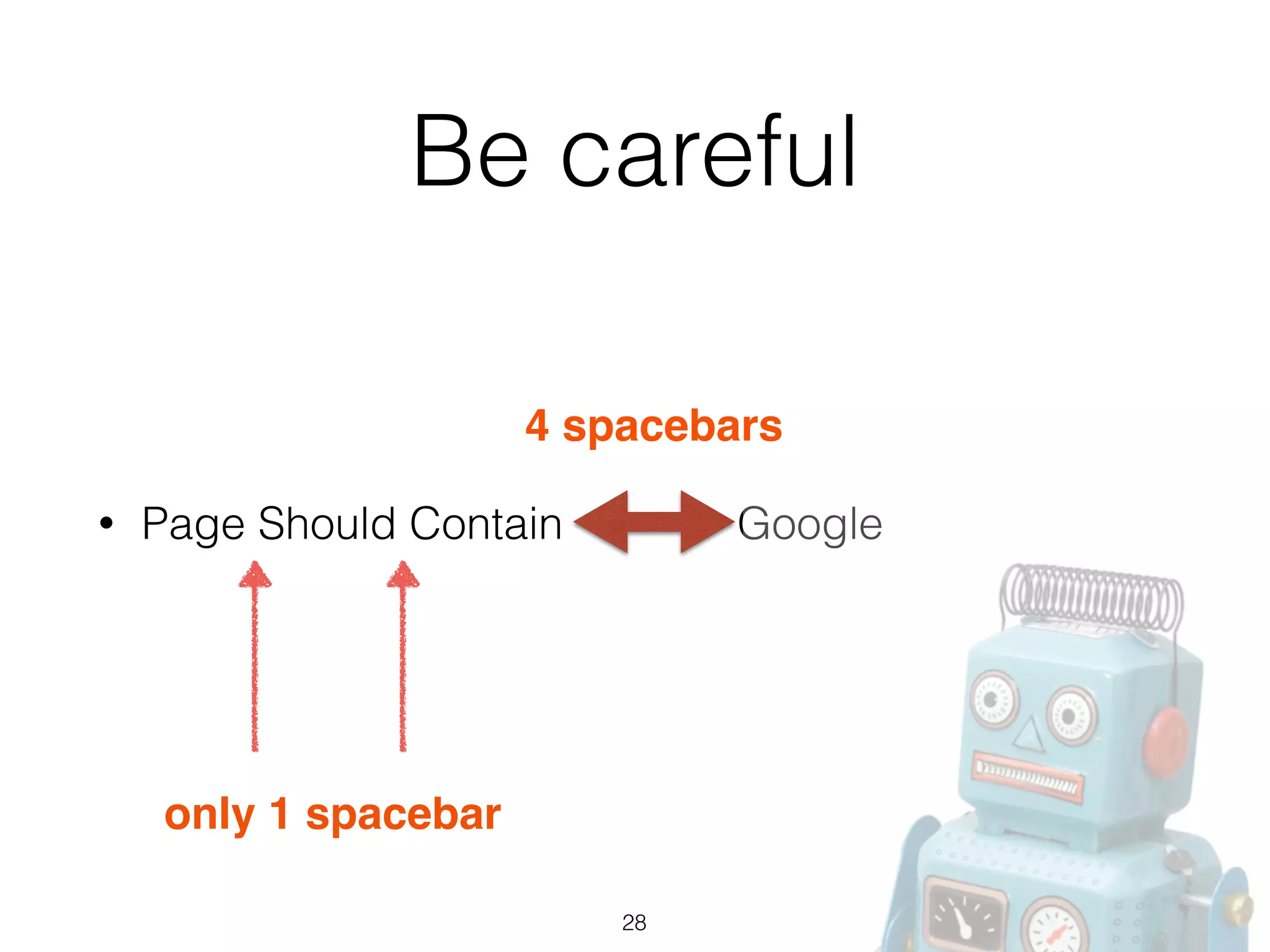

- 28. Be careful • PageShould Contain Google 4 spacebars only 1 spacebar 28
- 29.

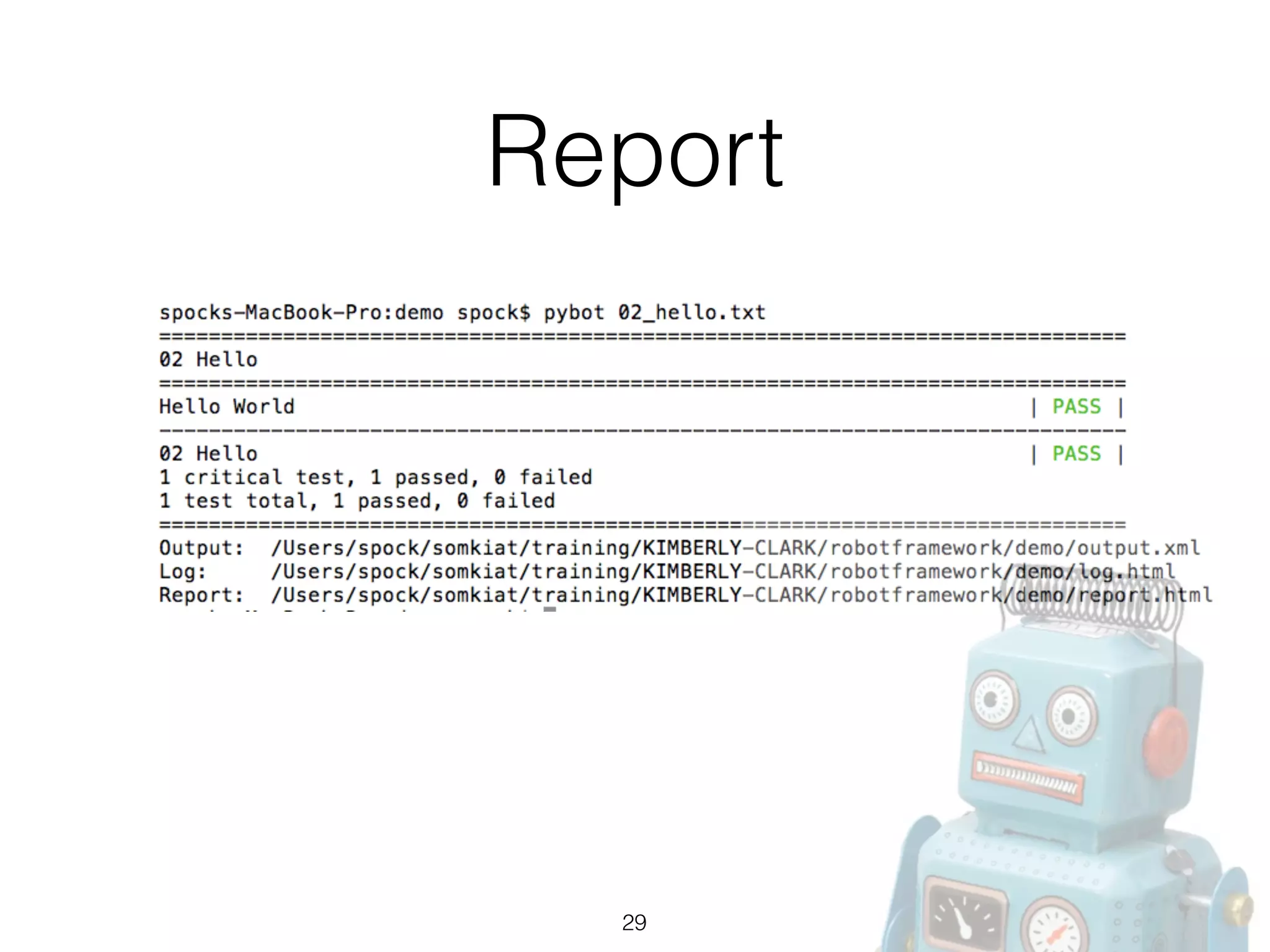

- 30.

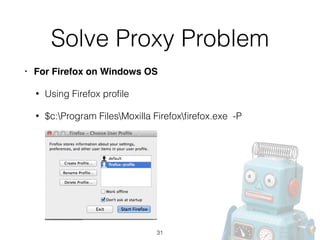

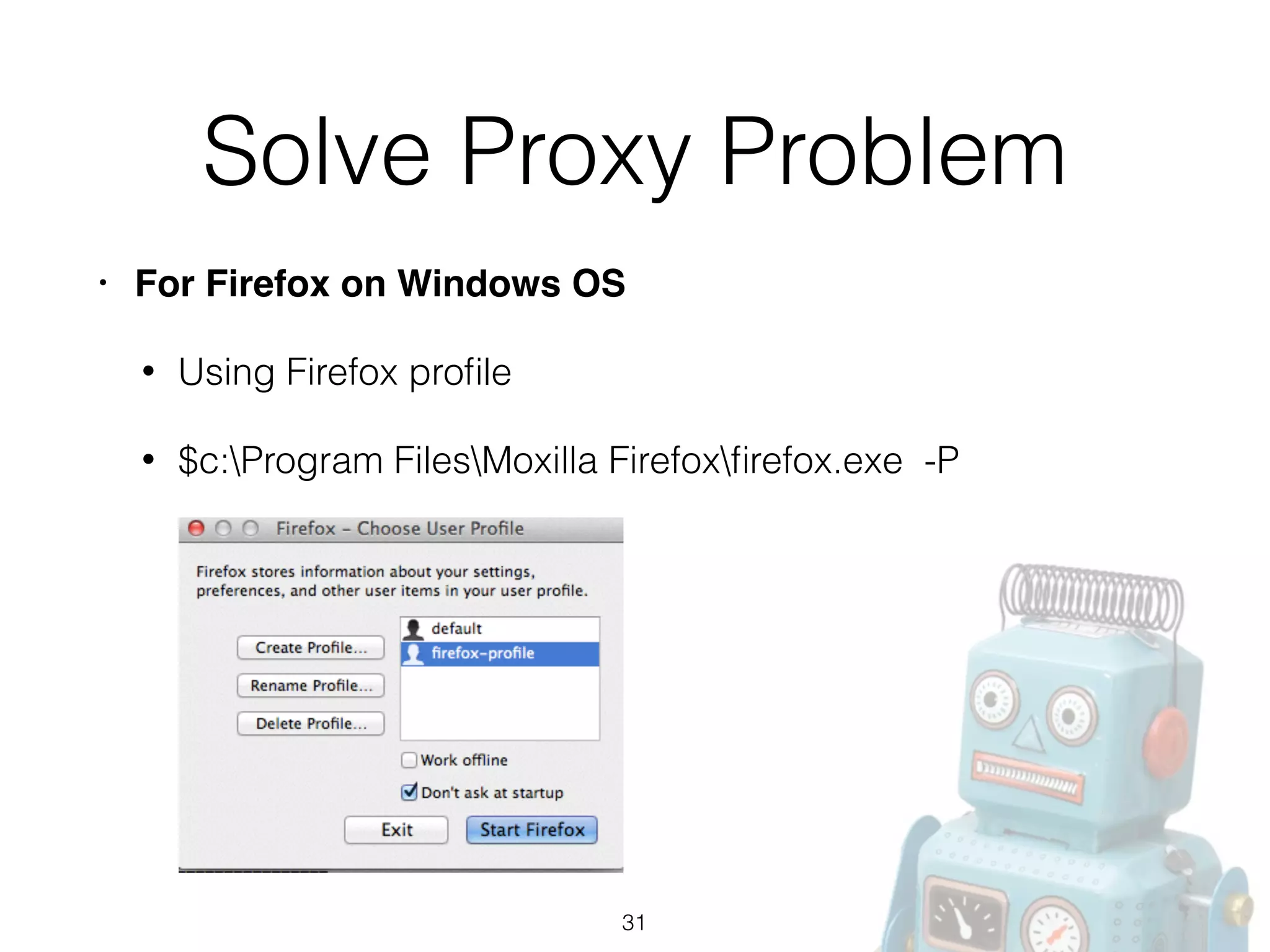

- 31. Solve Proxy Problem •For Firefox on Windows OS! • Using Firefox profile • $c:Program FilesMoxilla Firefoxfirefox.exe -P 31

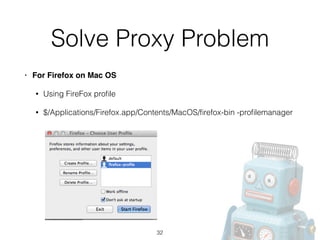

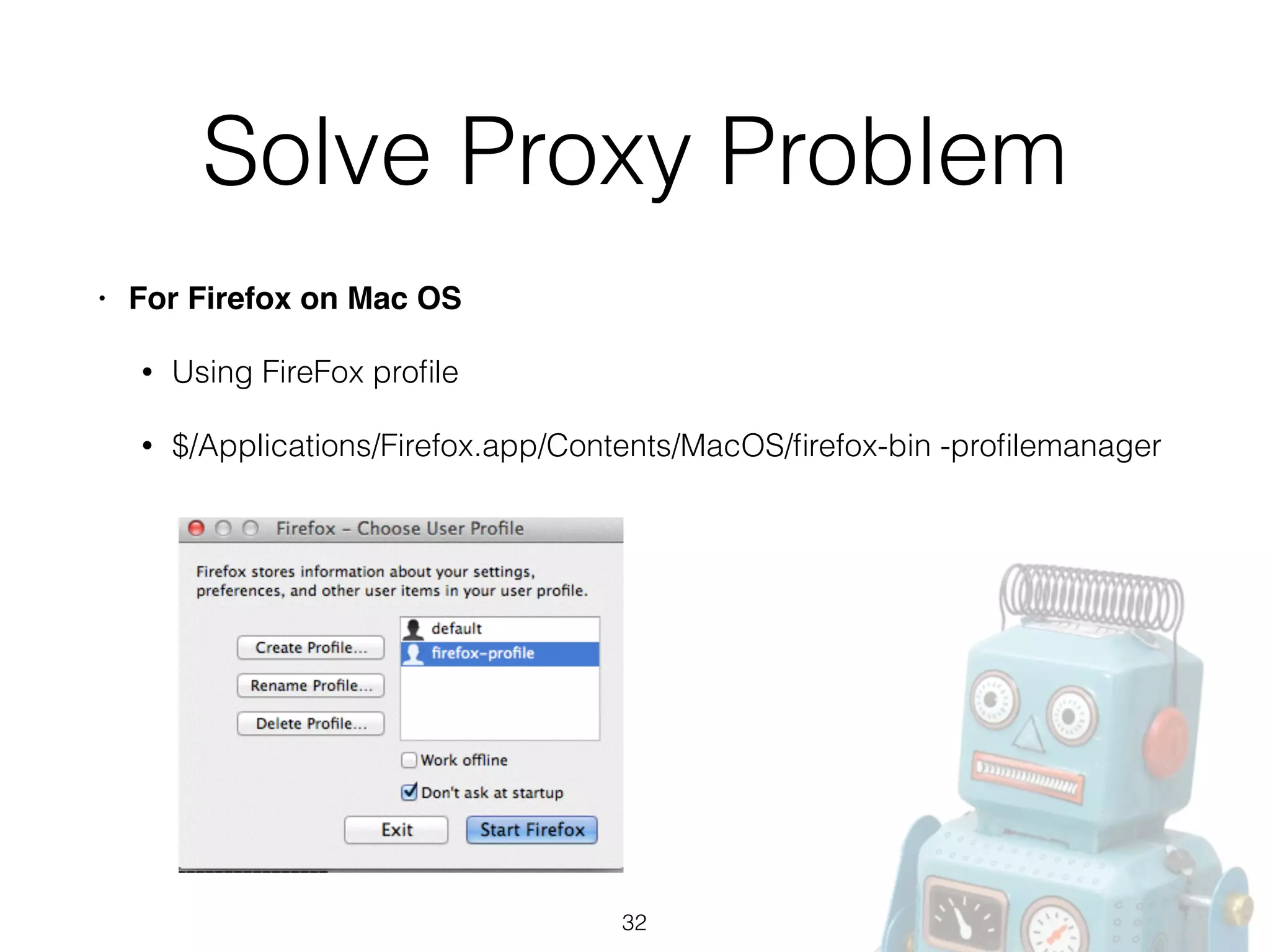

- 32. Solve Proxy Problem •For Firefox on Mac OS! • Using FireFox profile • $/Applications/Firefox.app/Contents/MacOS/firefox-bin -profilemanager 32

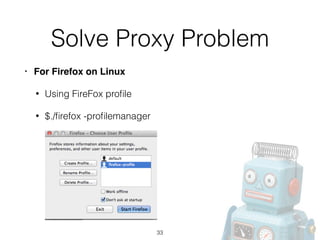

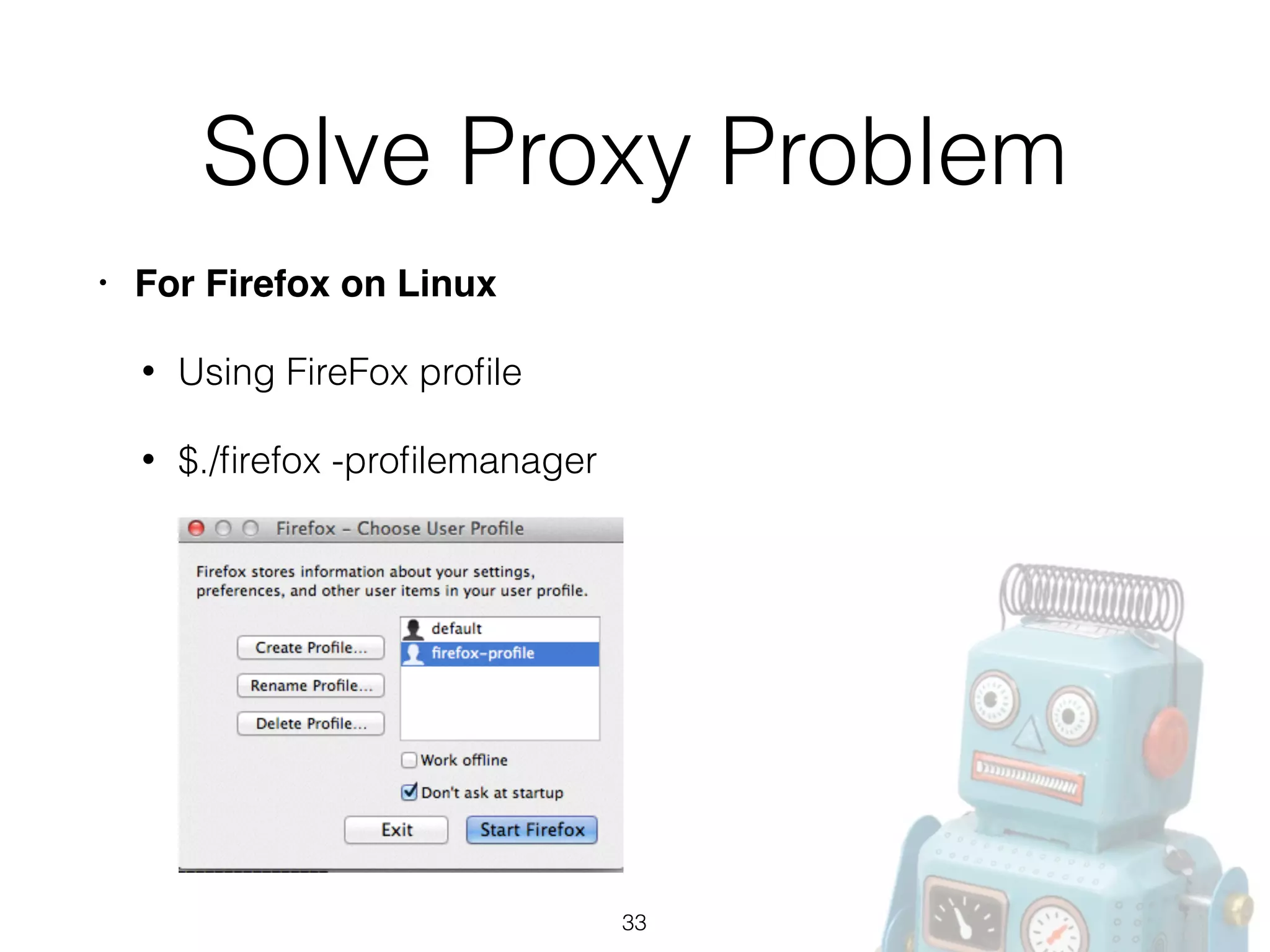

- 33. Solve Proxy Problem •For Firefox on Linux! • Using FireFox profile • $./firefox -profilemanager 33

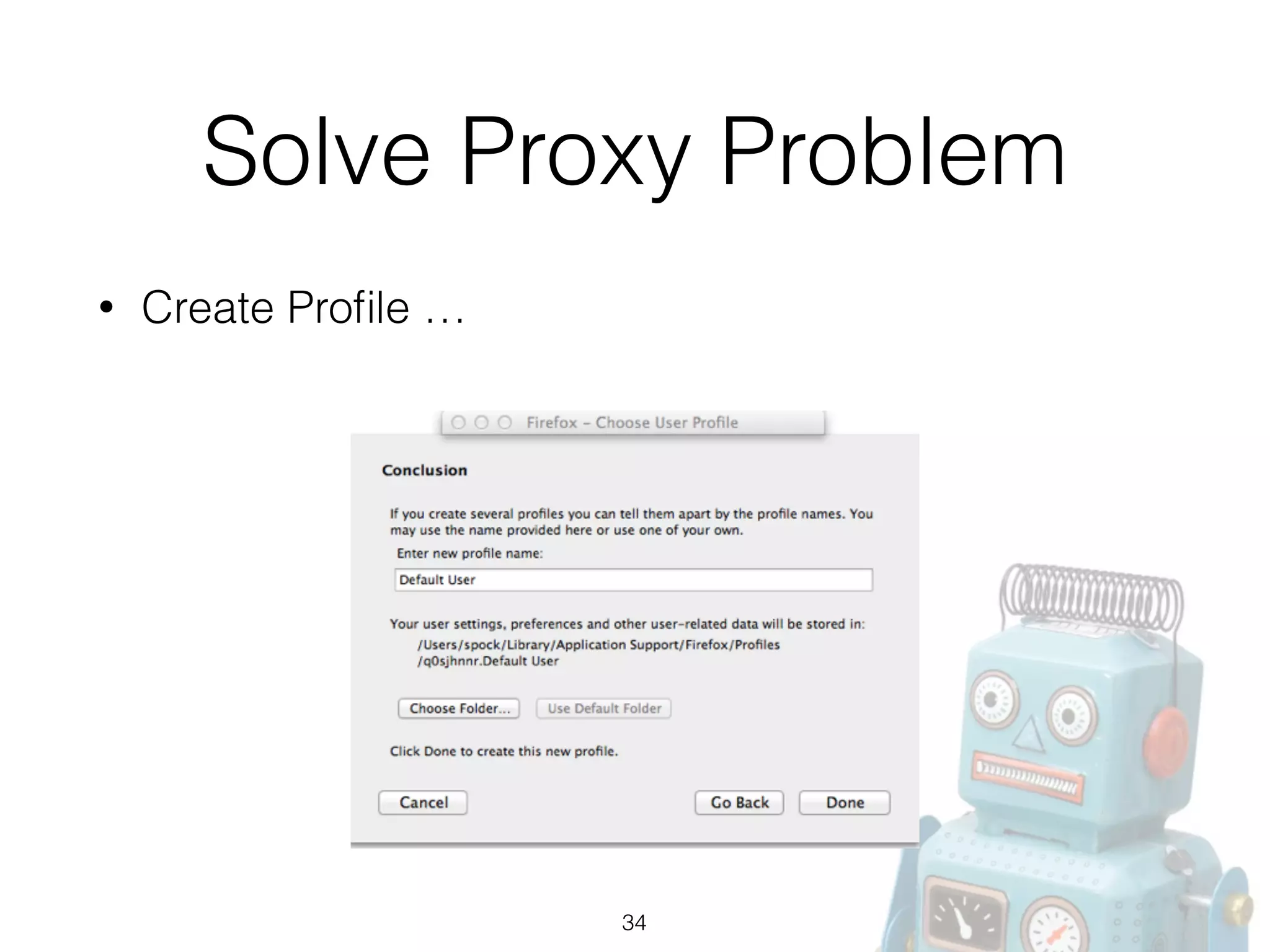

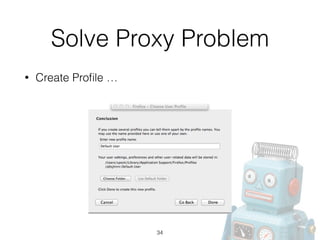

- 34. Solve Proxy Problem •Create Profile … 34

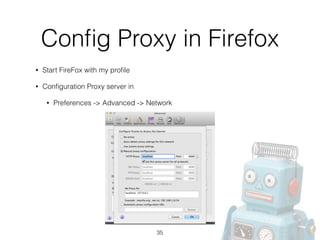

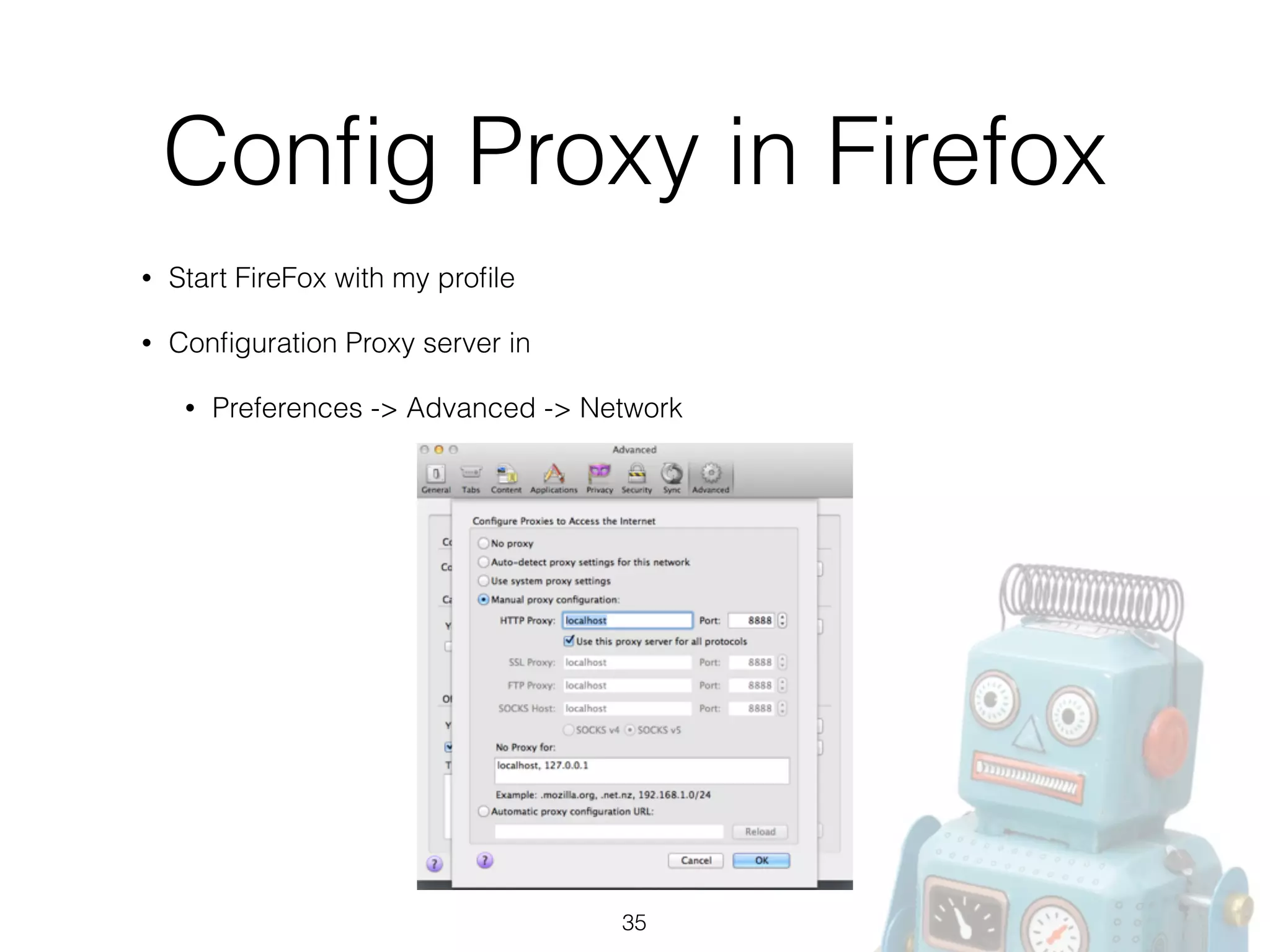

- 35. Config Proxy inFirefox • Start FireFox with my profile • Configuration Proxy server in • Preferences -> Advanced -> Network 35

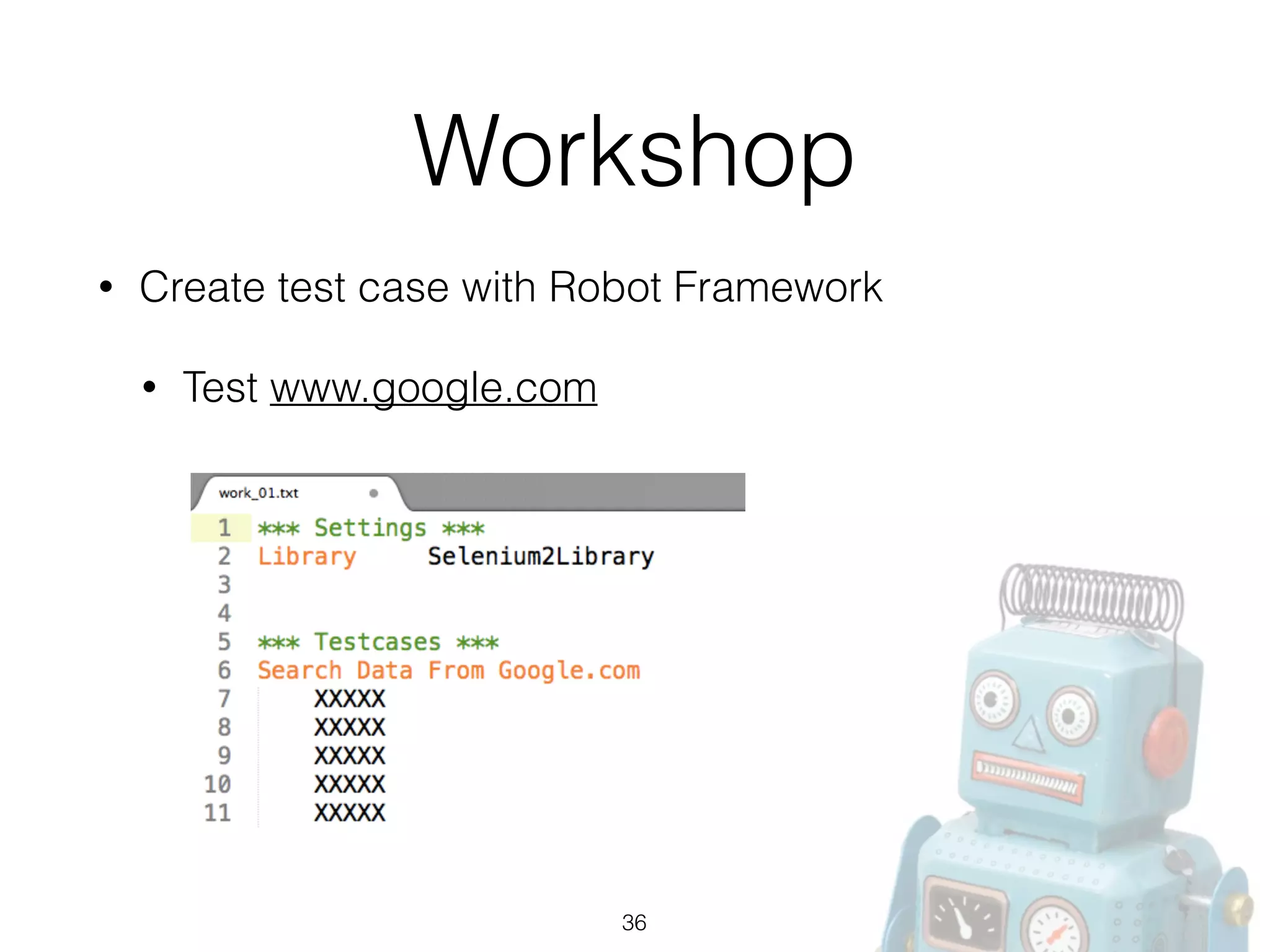

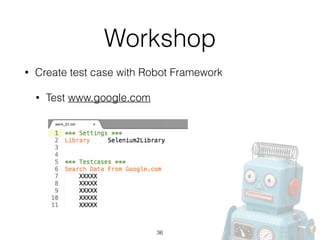

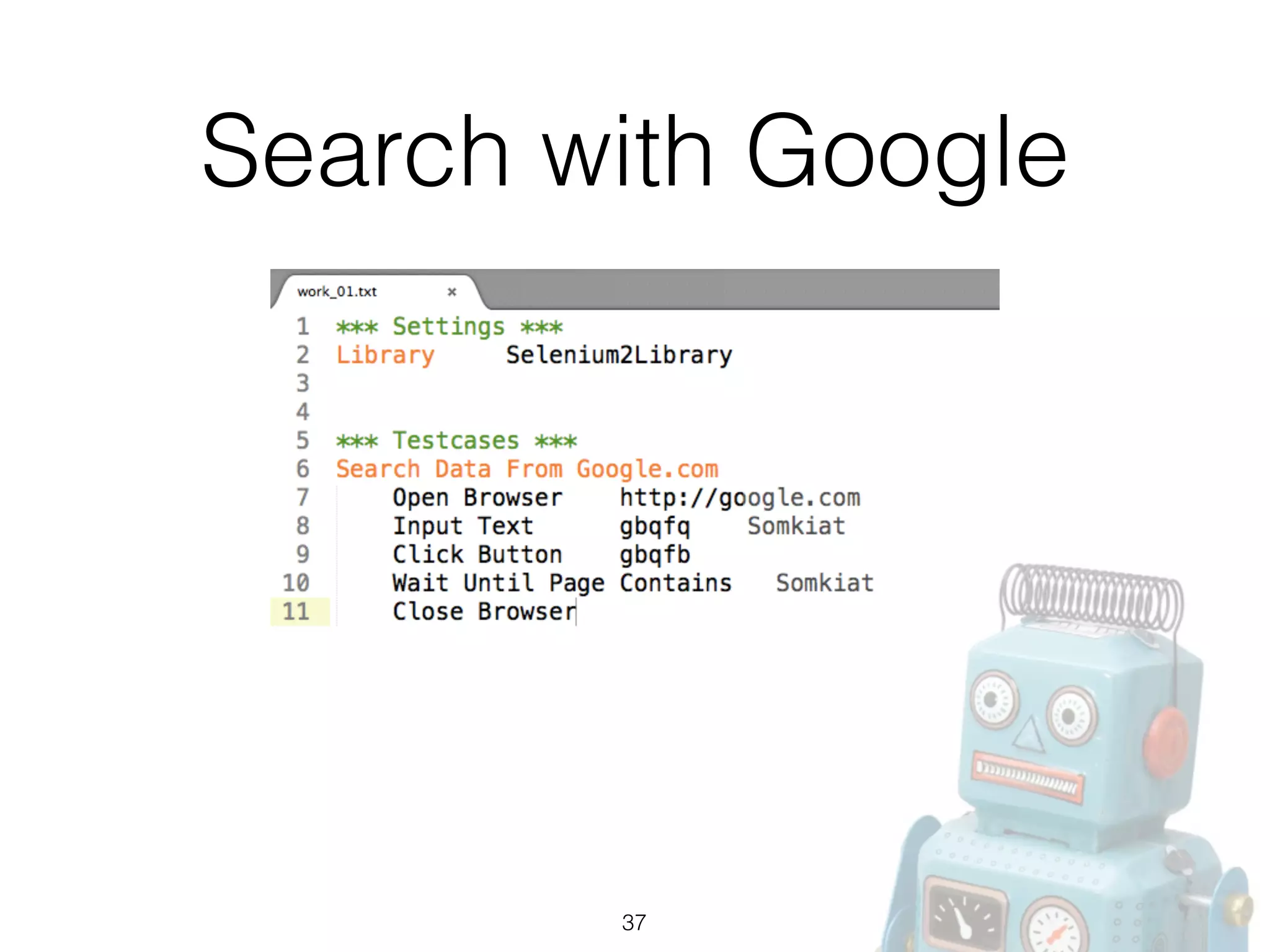

- 36. Workshop • Create testcase with Robot Framework • Test www.google.com 36

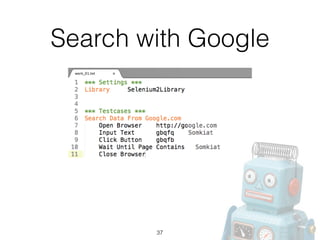

- 37.

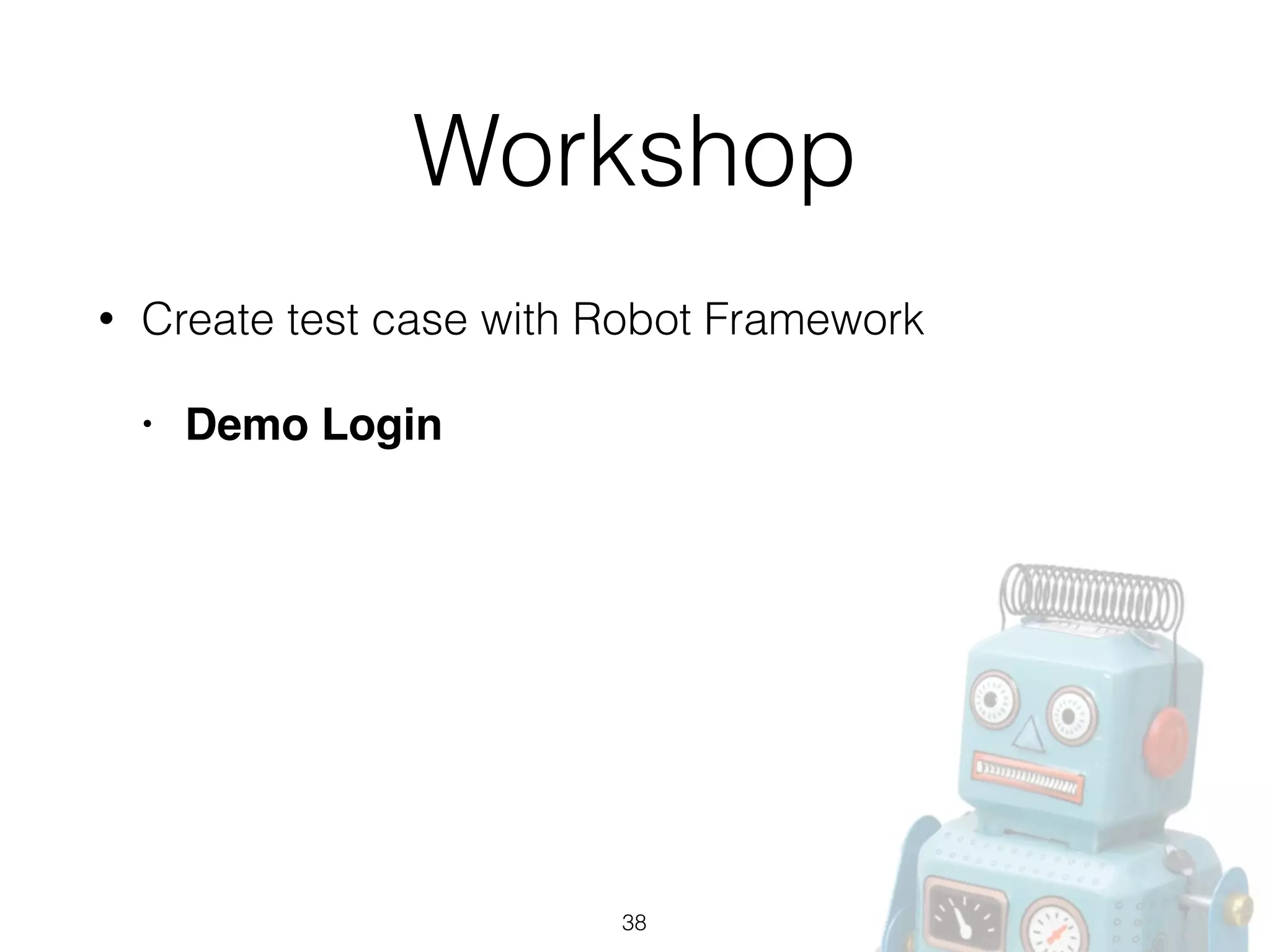

- 38. Workshop • Create testcase with Robot Framework • Demo Login 38

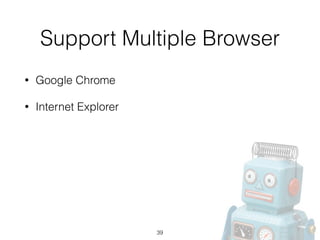

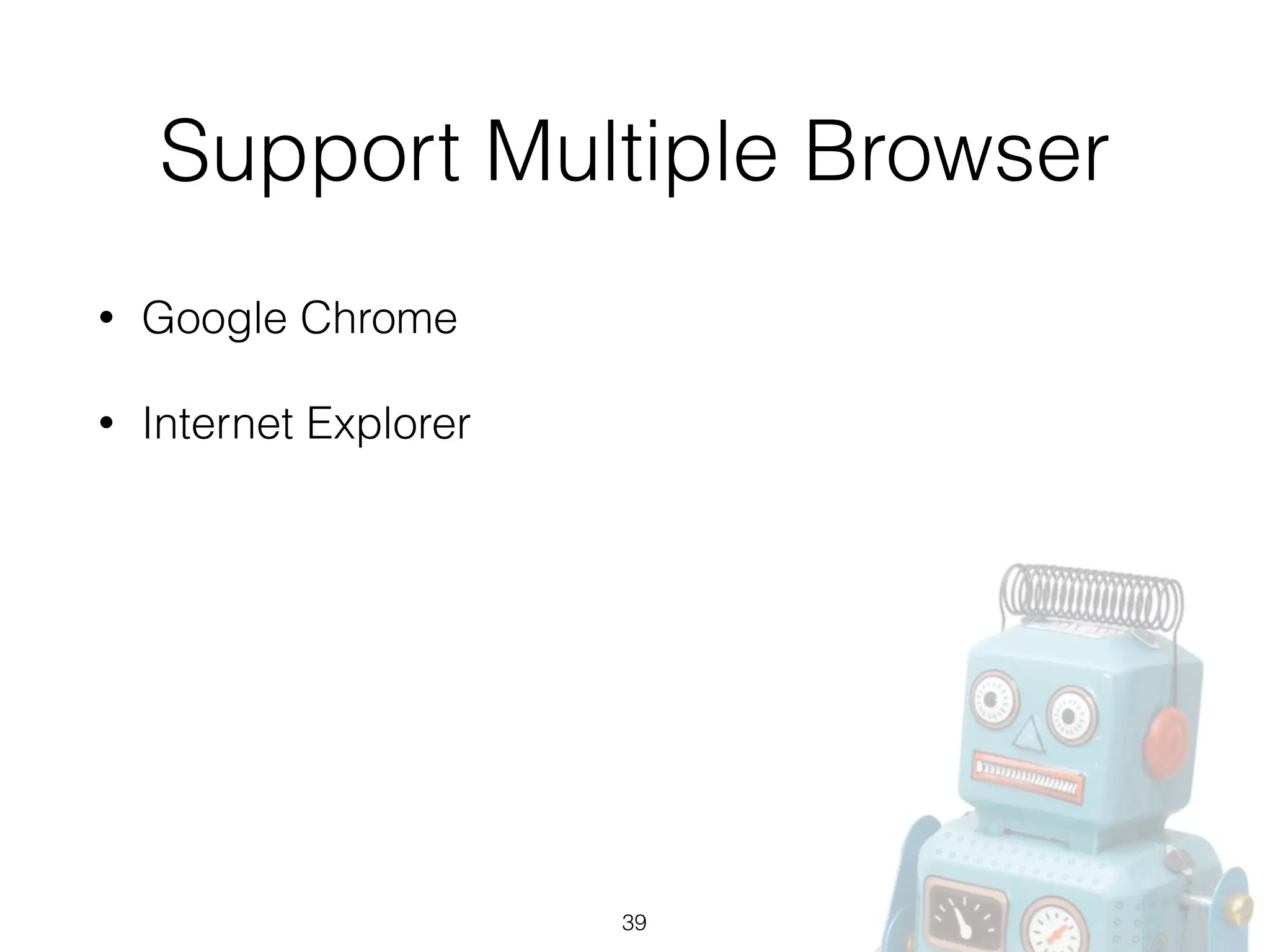

- 39. Support Multiple Browser •Google Chrome • Internet Explorer 39

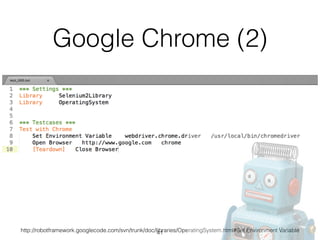

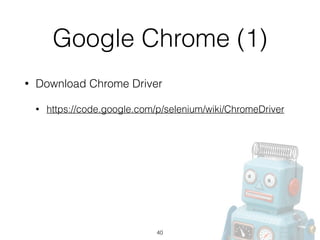

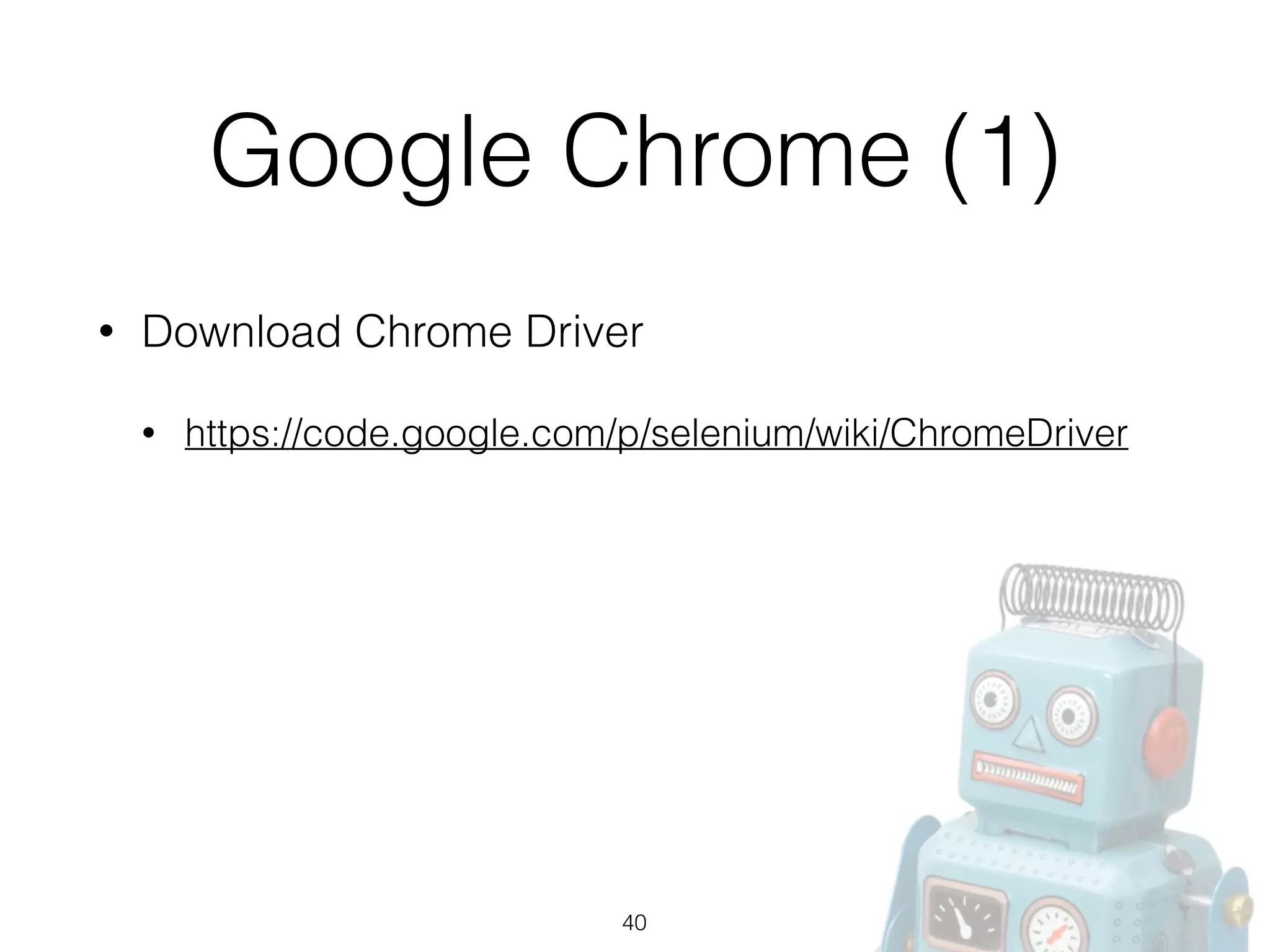

- 40. Google Chrome (1) •Download Chrome Driver • https://code.google.com/p/selenium/wiki/ChromeDriver 40

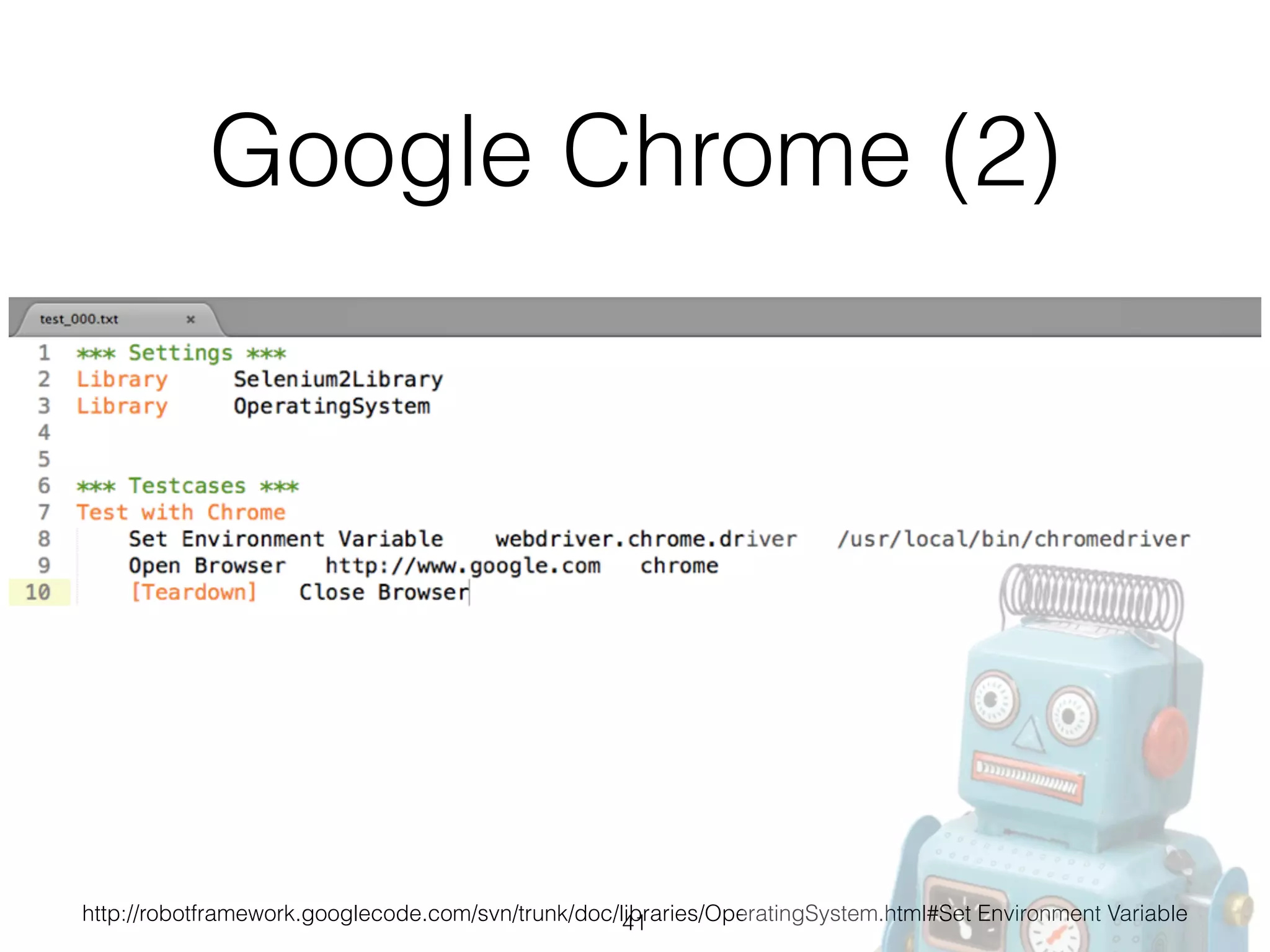

- 41.

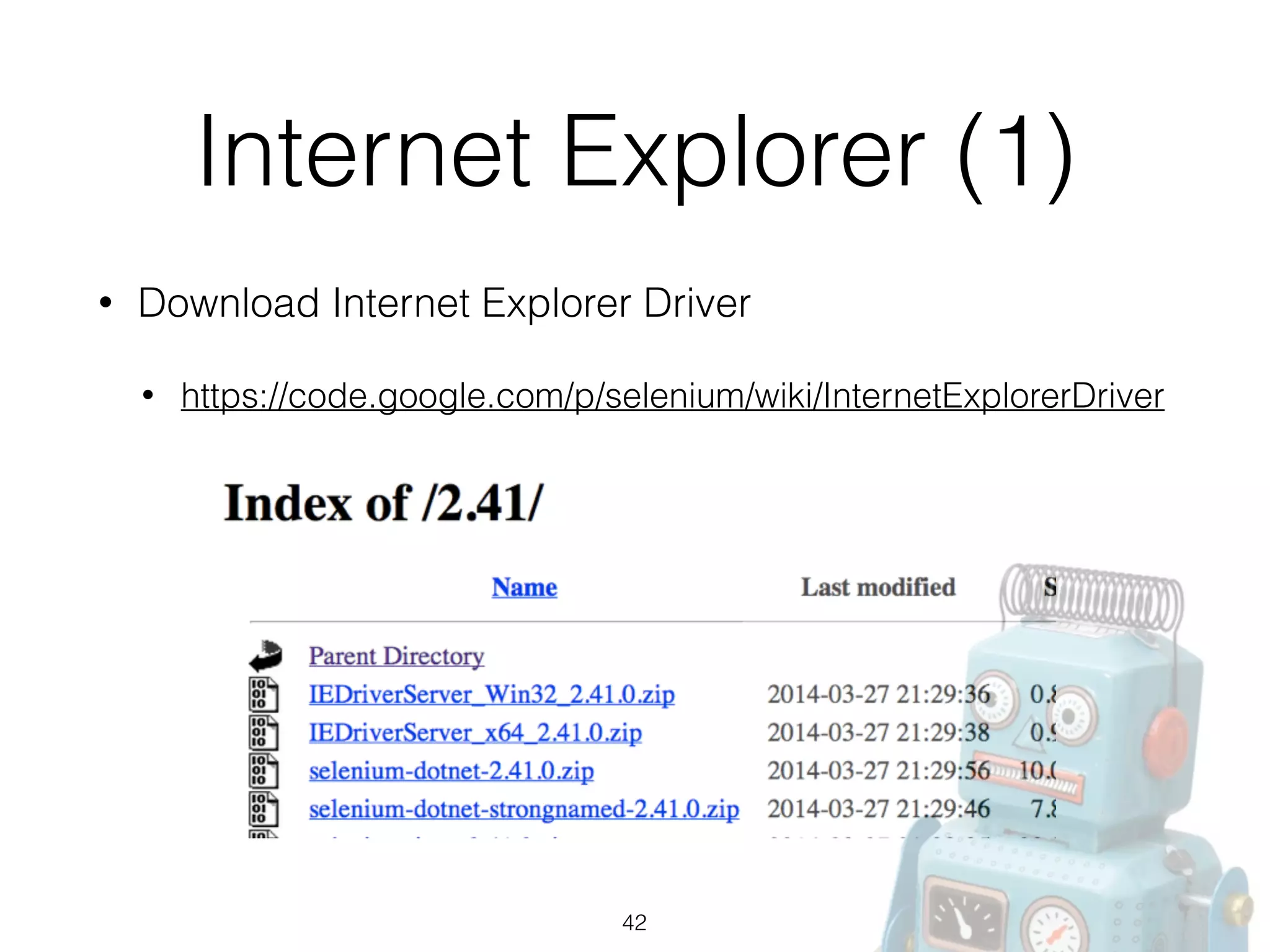

- 42. Internet Explorer (1) •Download Internet Explorer Driver • https://code.google.com/p/selenium/wiki/InternetExplorerDriver 42

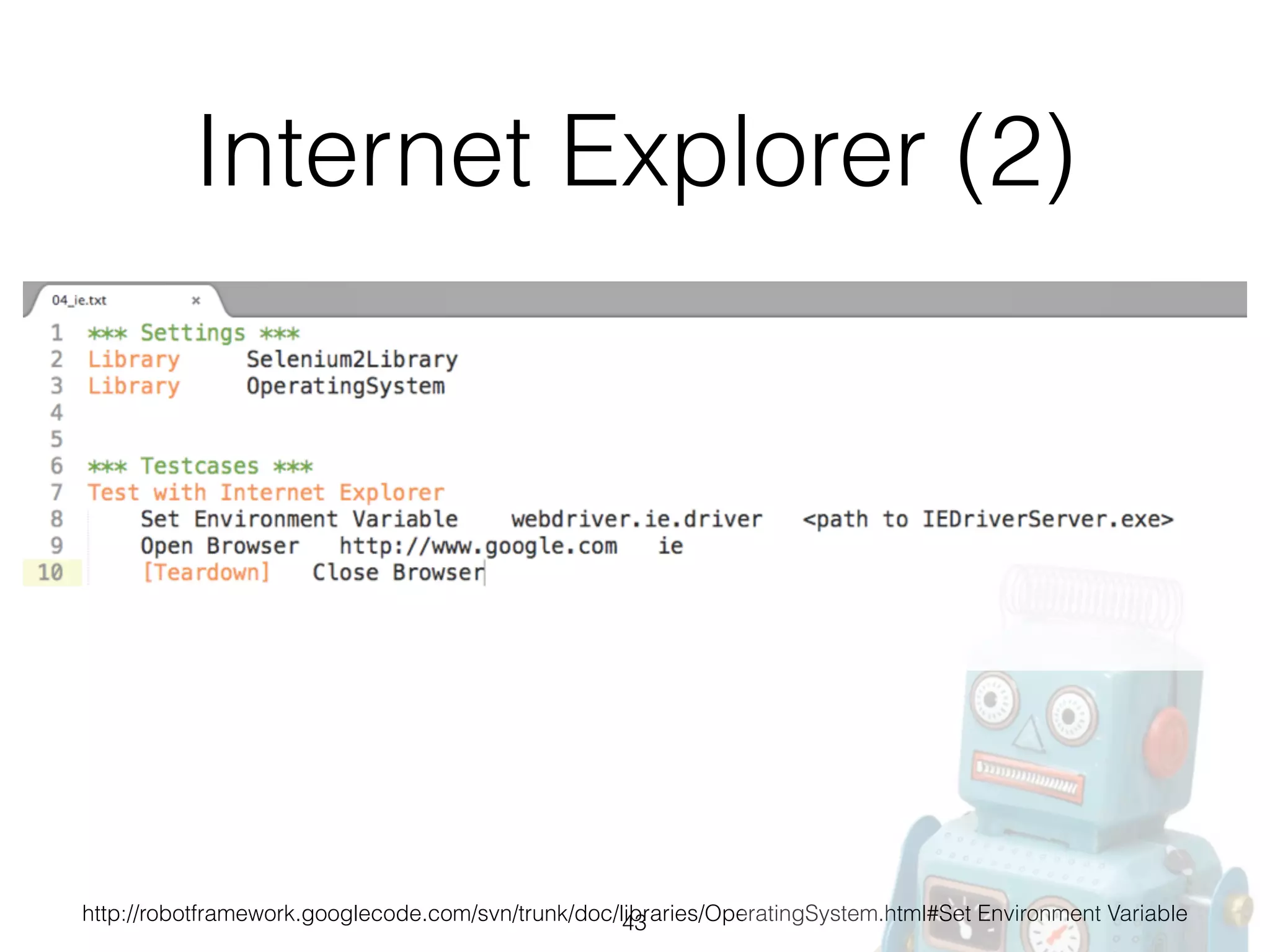

- 43.

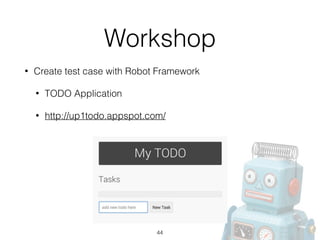

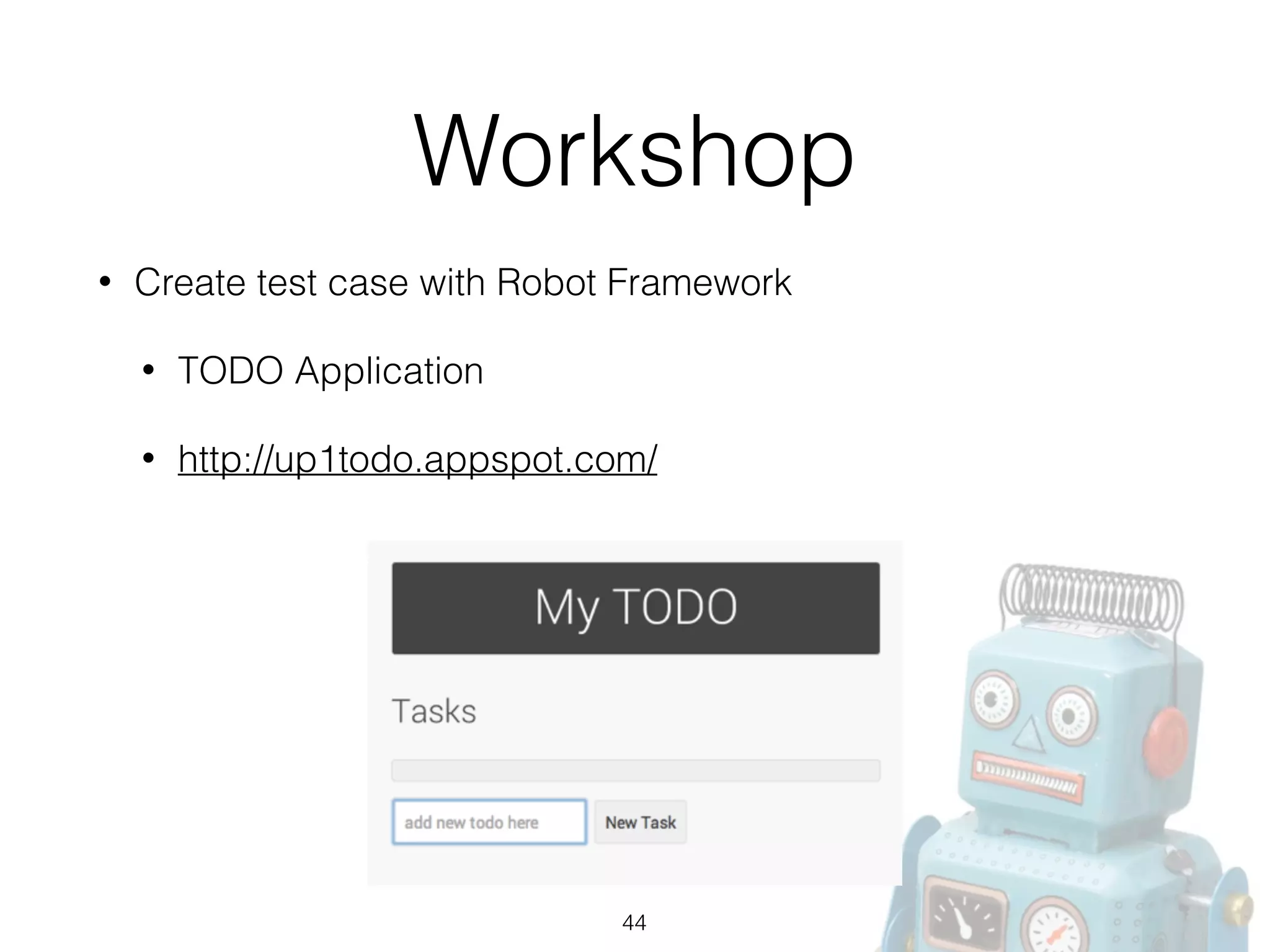

- 44. Workshop • Create testcase with Robot Framework • TODO Application • http://up1todo.appspot.com/ 44
- 45.
