• 1.
  @chonla Aloha! September25, 2014
• 2.

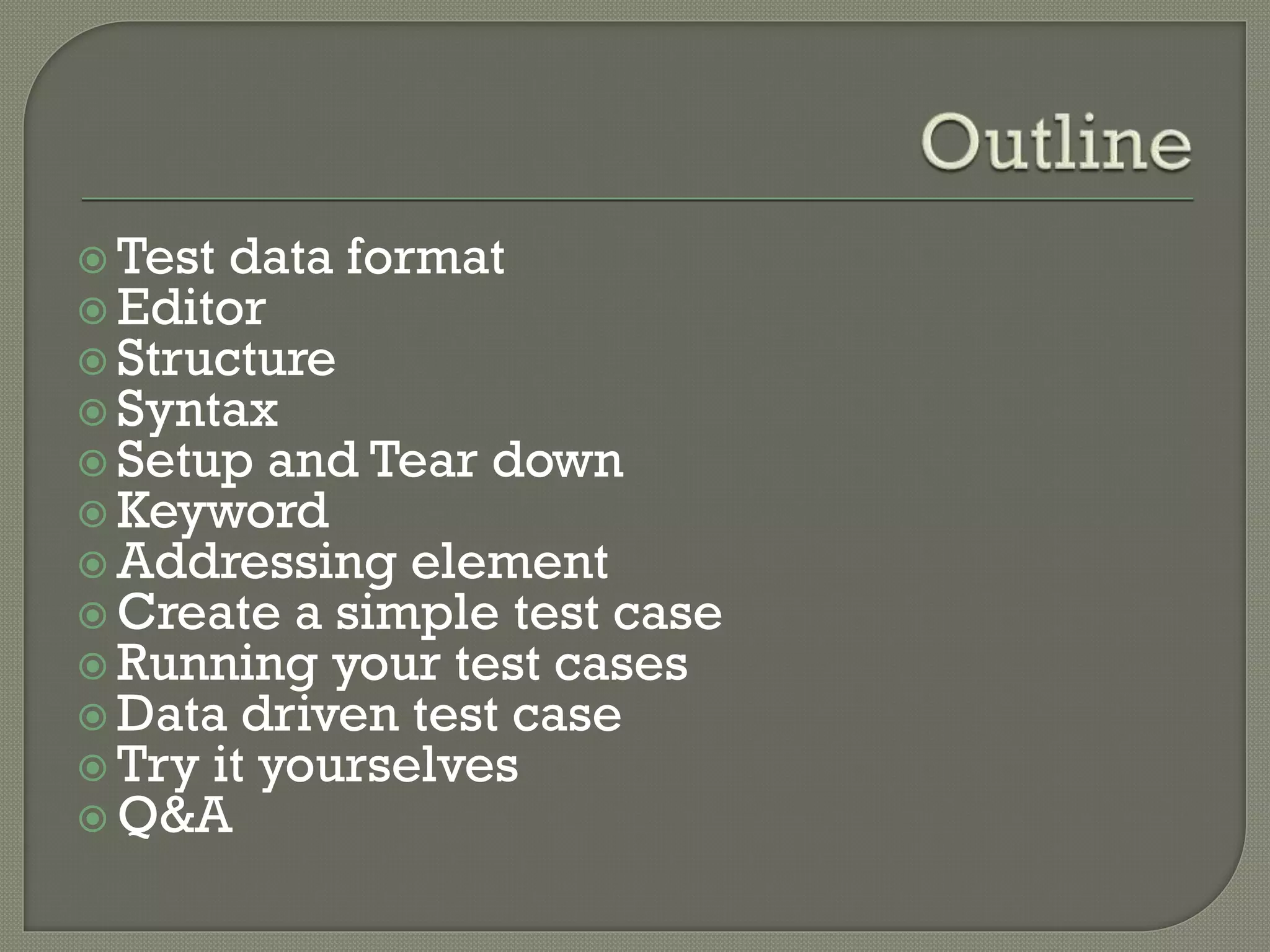

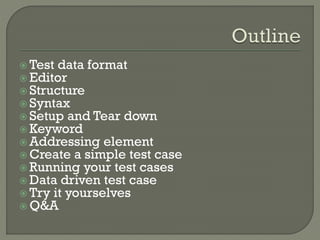

   Test dataformat  Editor  Structure  Syntax  Setup and Tear down Keyword Addressing element Create a simple test case  Running your test cases  Data driven test case  Try it yourselves Q&A
• 3.

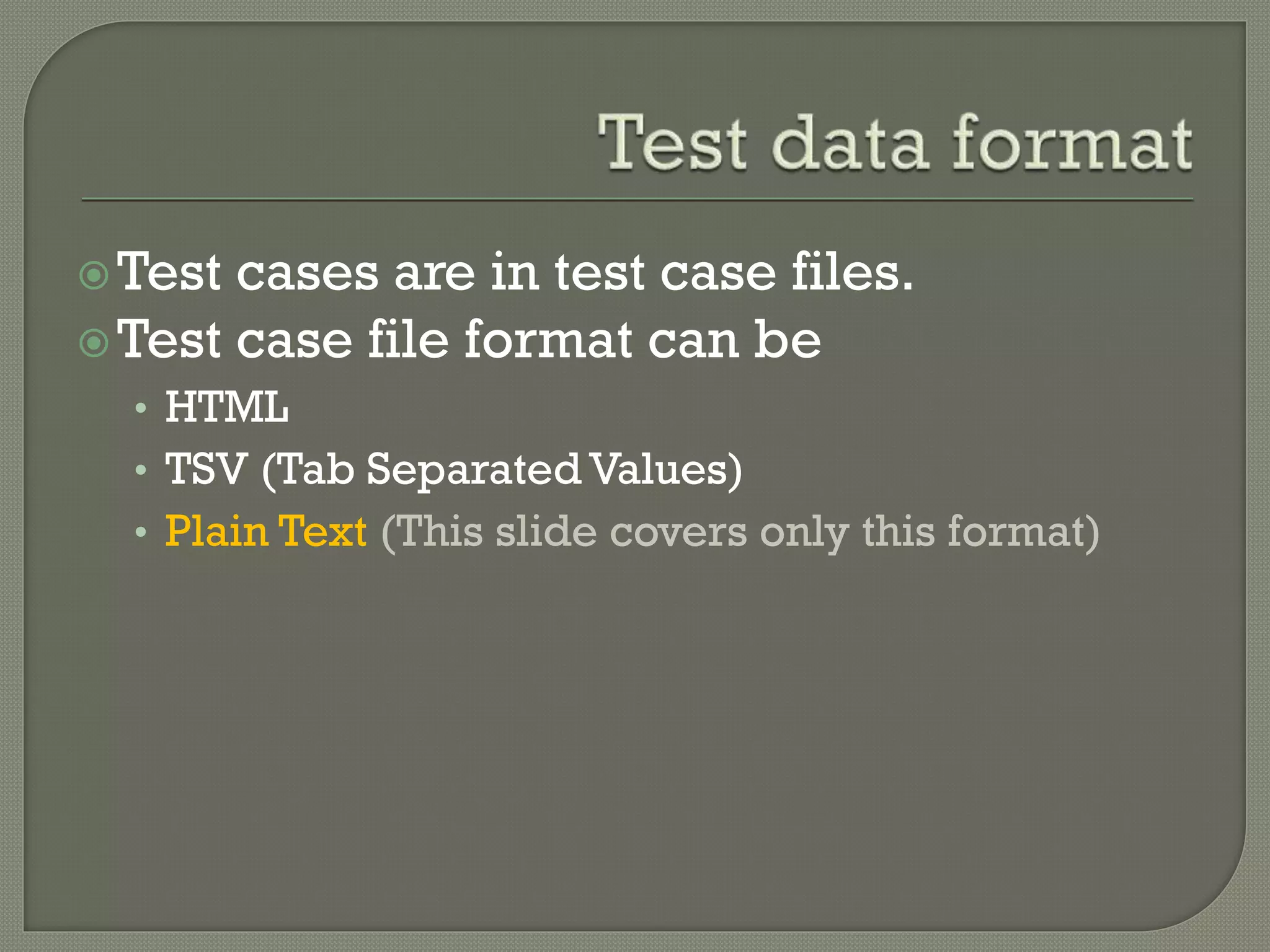

  Test cases arein test case files. Test case file format can be • HTML • TSV (Tab Separated Values) • Plain Text (This slide covers only this format)
• 4.

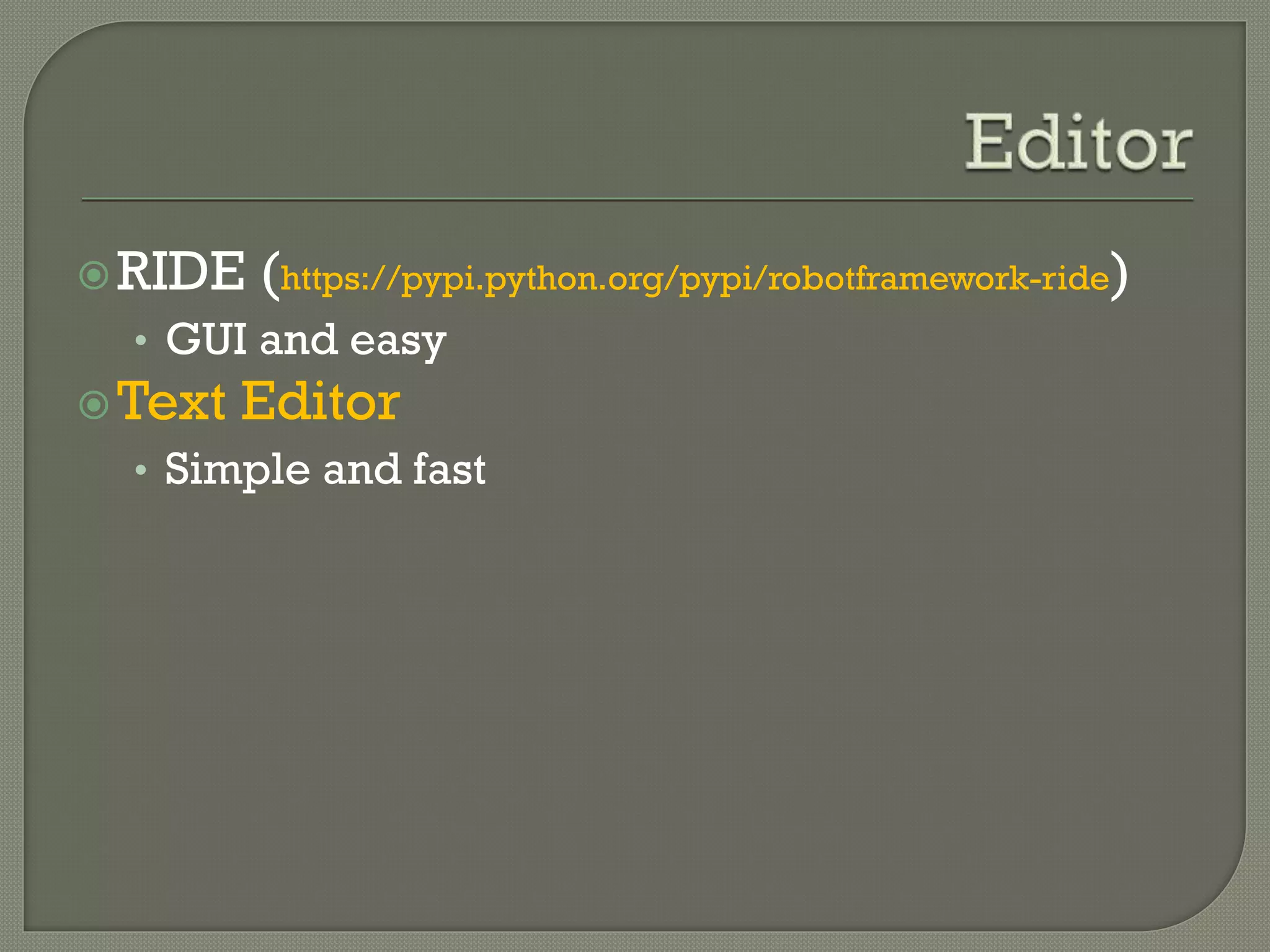

  RIDE (https://pypi.python.org/pypi/robotframework-ride) •GUI and easy Text Editor • Simple and fast
• 5.

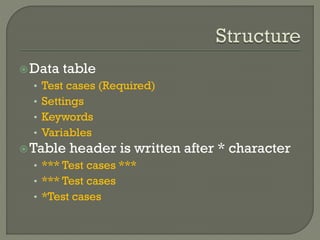

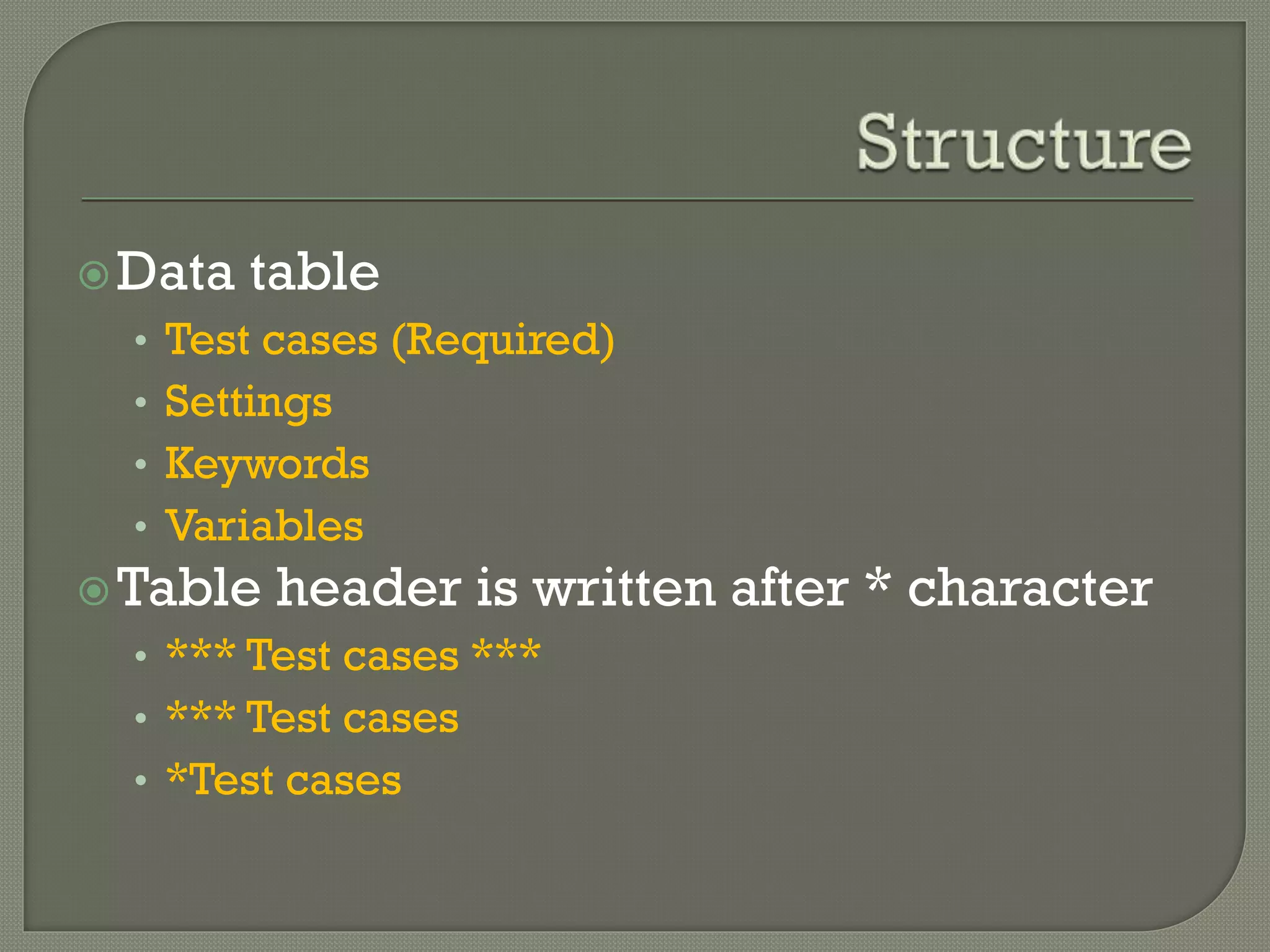

  Data table •Test cases (Required) • Settings • Keywords • Variables Table header is written after * character • *** Test cases *** • *** Test cases • *Test cases
• 6.

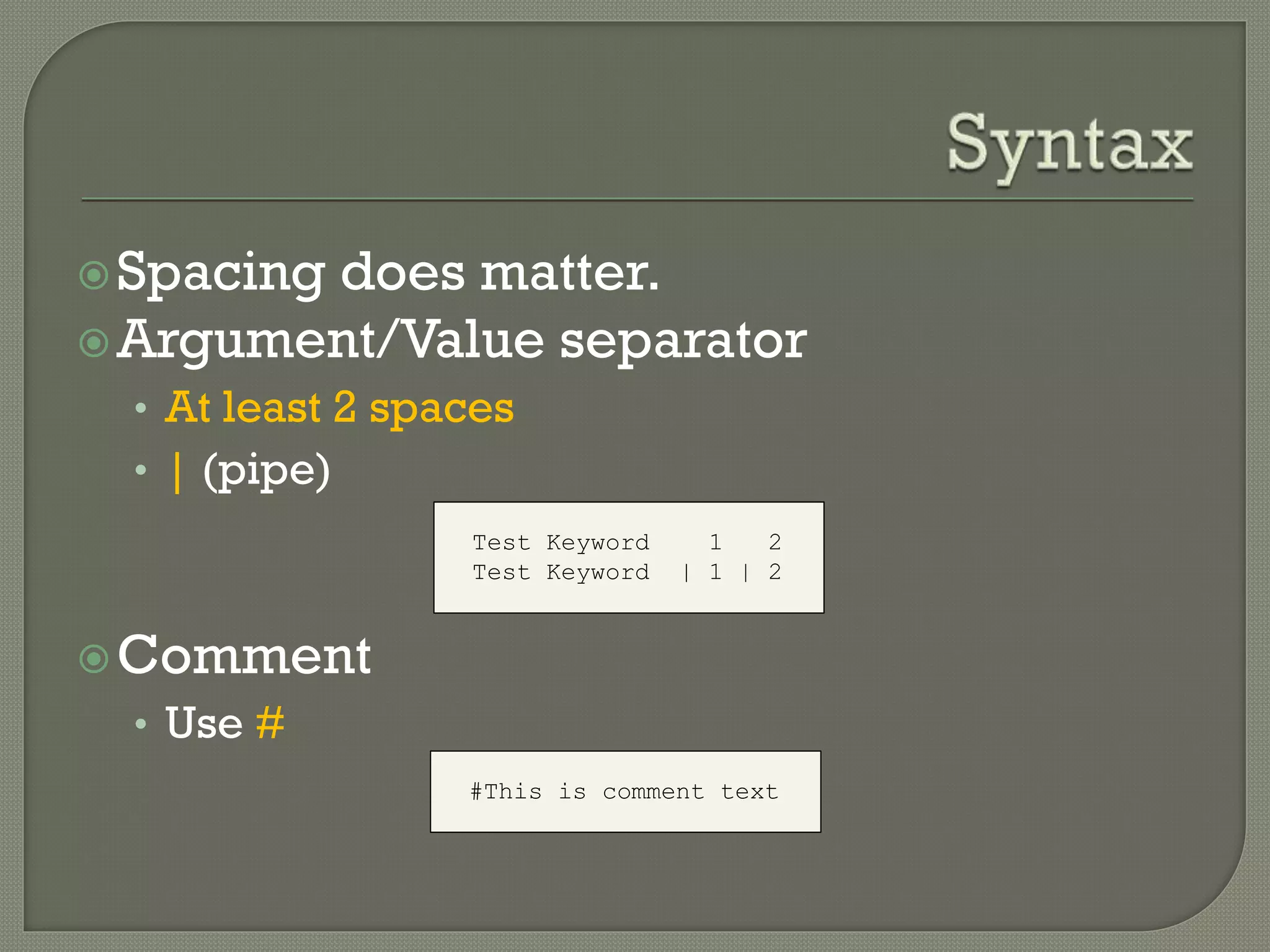

  Spacing does matter. Argument/Value separator • At least 2 spaces • | (pipe) Comment • Use # Test Keyword 1 2 Test Keyword | 1 | 2 #This is comment text
• 7.

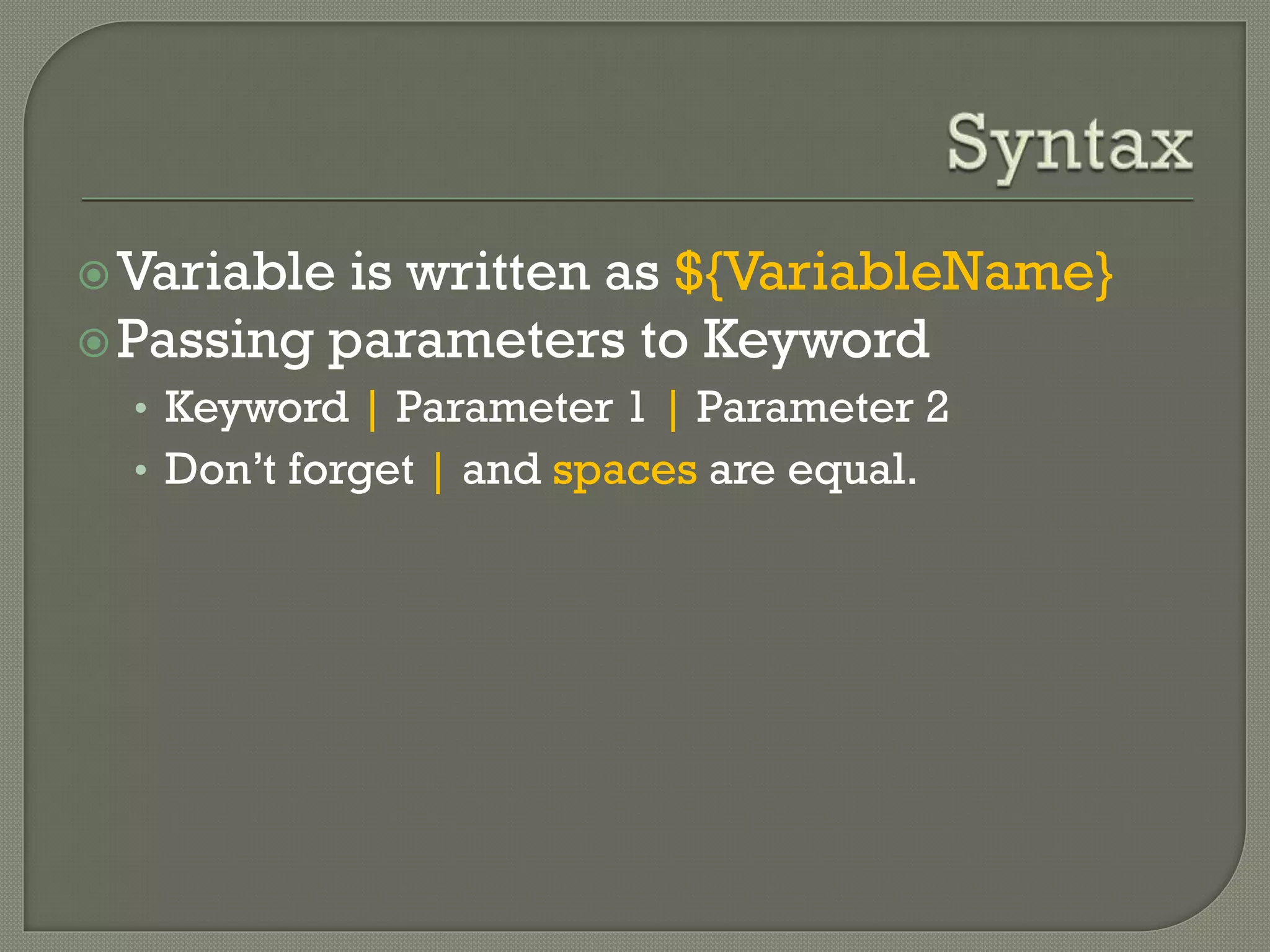

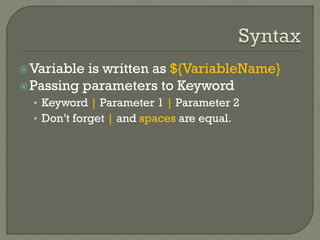

  Variable is writtenas ${VariableName} Passing parameters to Keyword • Keyword | Parameter 1 | Parameter 2 • Don’t forget | and spaces are equal.
• 8.

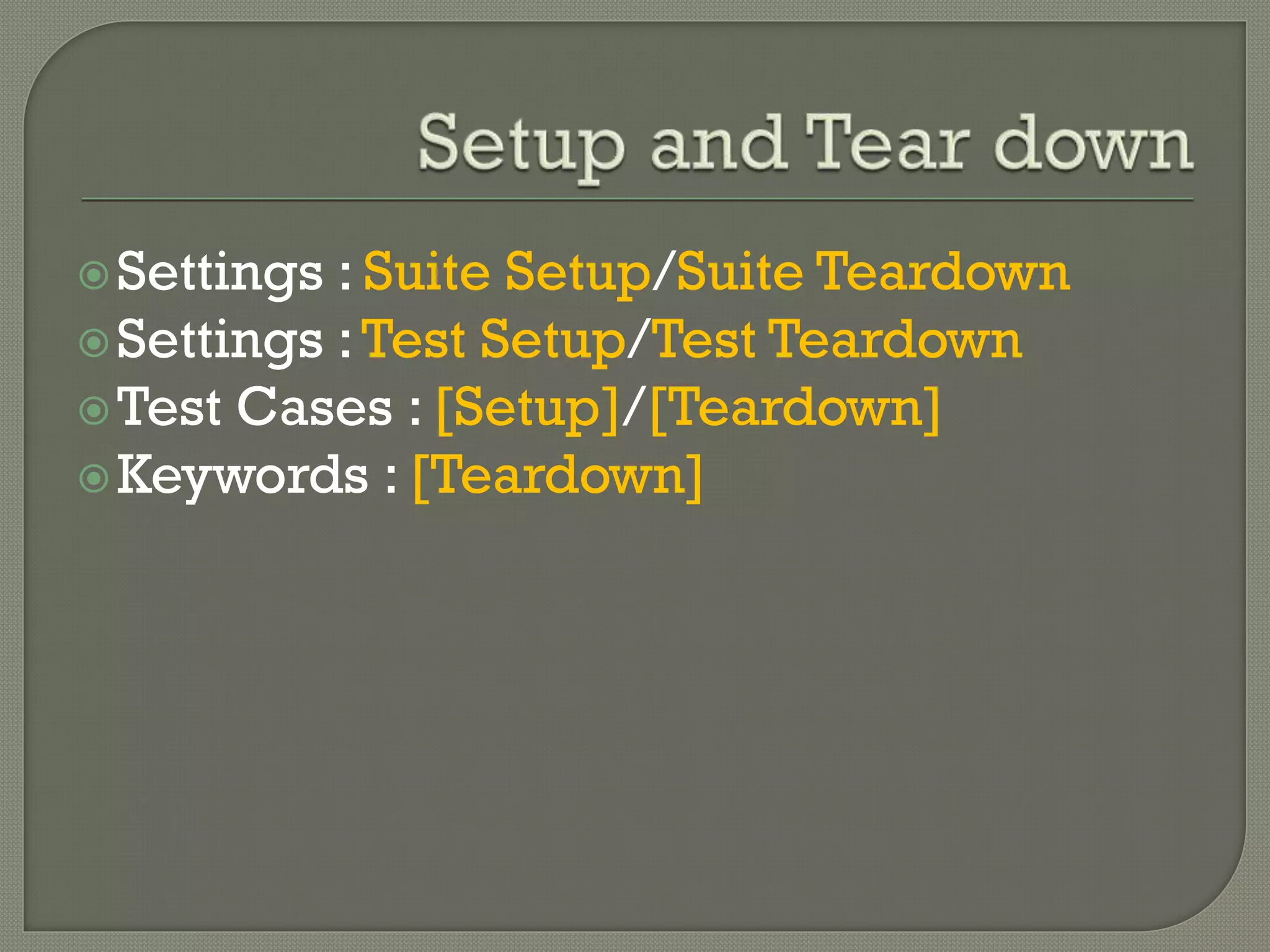

  Settings : SuiteSetup/Suite Teardown Settings : Test Setup/Test Teardown Test Cases : [Setup]/[Teardown] Keywords : [Teardown]
• 9.

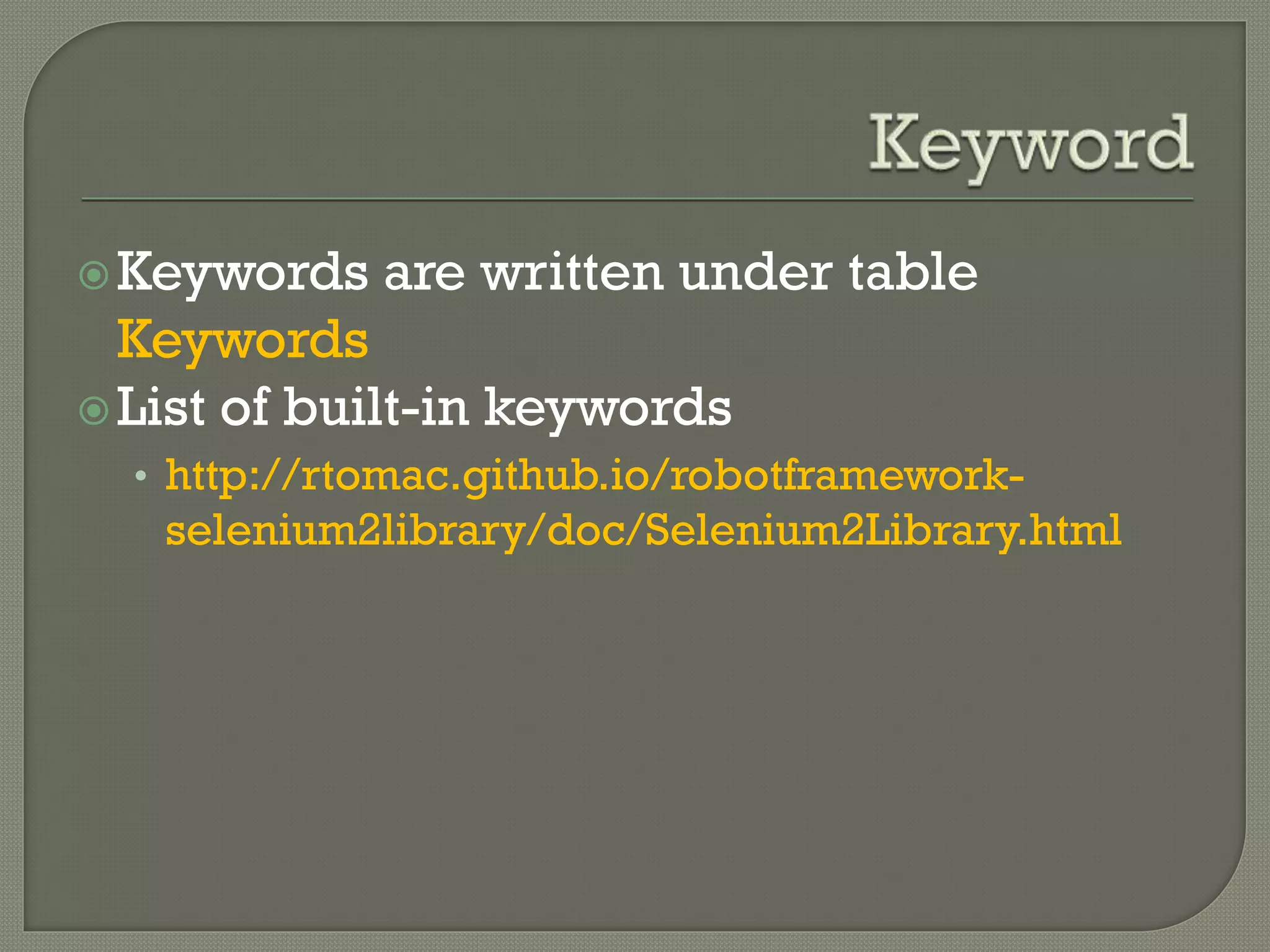

  Keywords are writtenunder table Keywords  List of built-in keywords • http://rtomac.github.io/robotframework-selenium2library/ doc/Selenium2Library.html
• 10.

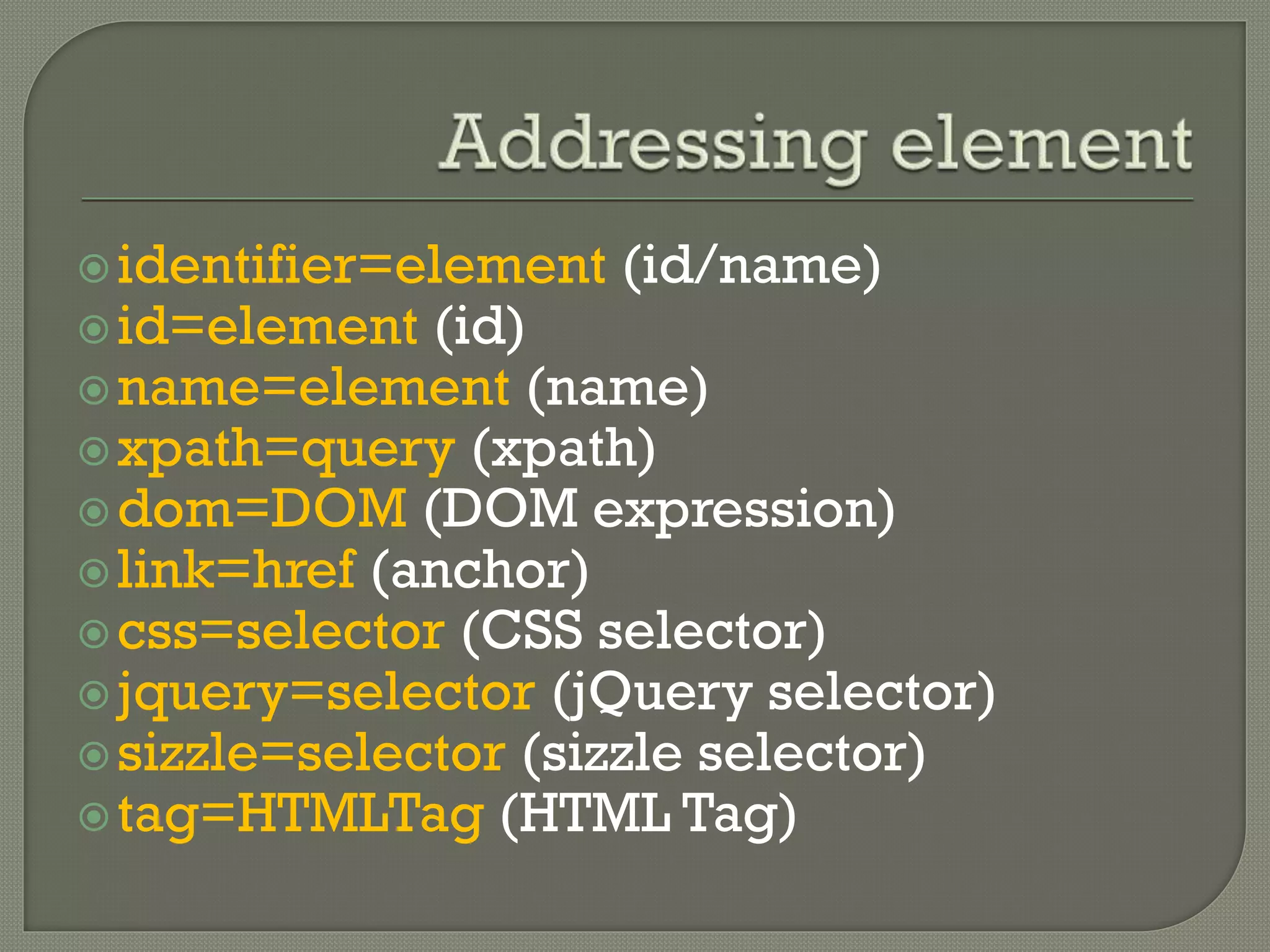

  identifier=element (id/name) id=element(id) name=element (name) xpath=query (xpath) dom=DOM (DOM expression) link=href (anchor) css=selector (CSS selector) jquery=selector (jQuery selector) sizzle=selector (sizzle selector) tag=HTMLTag (HTML Tag)
• 11.

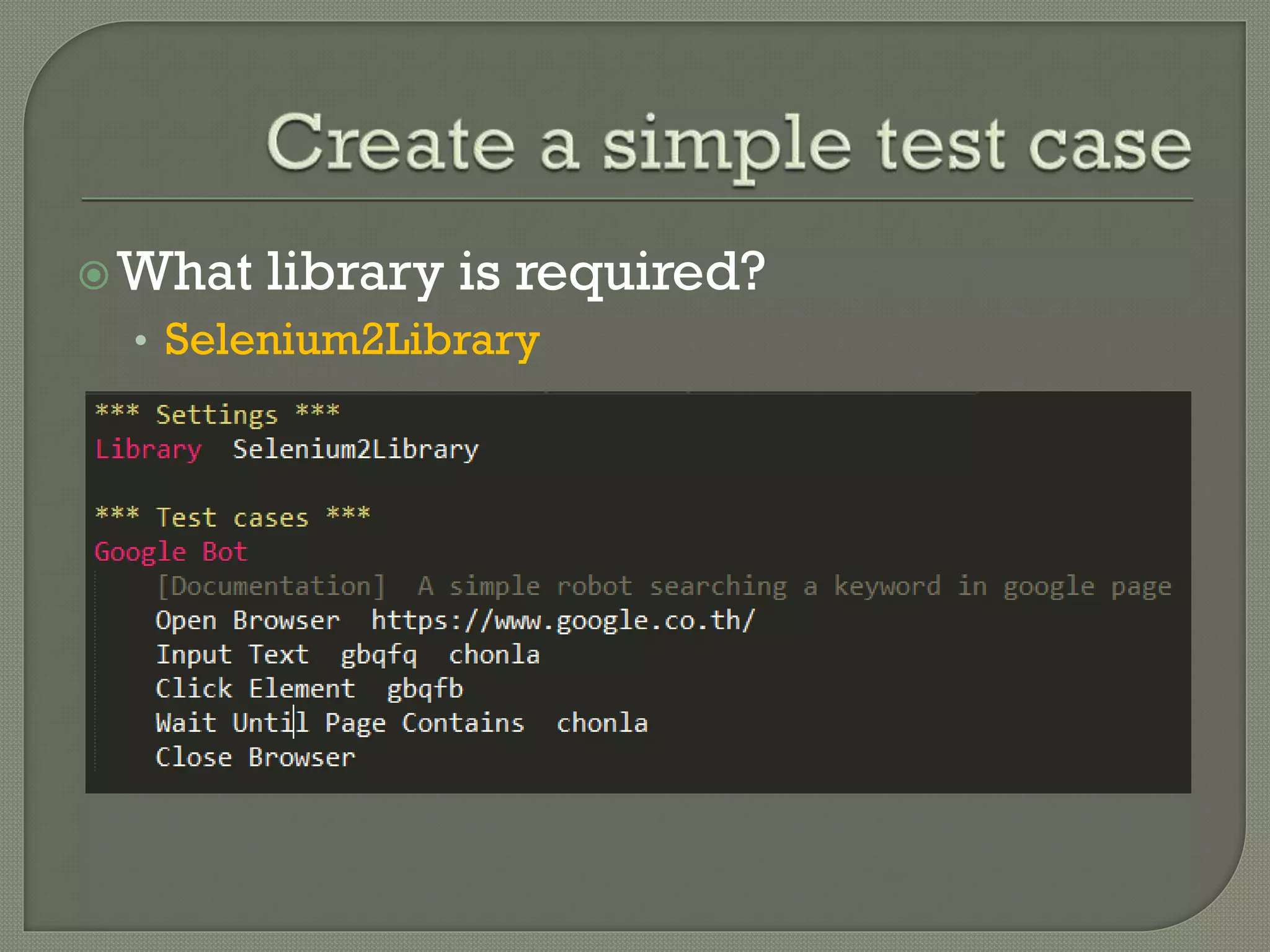

  What library isrequired? • Selenium2Library
• 12.

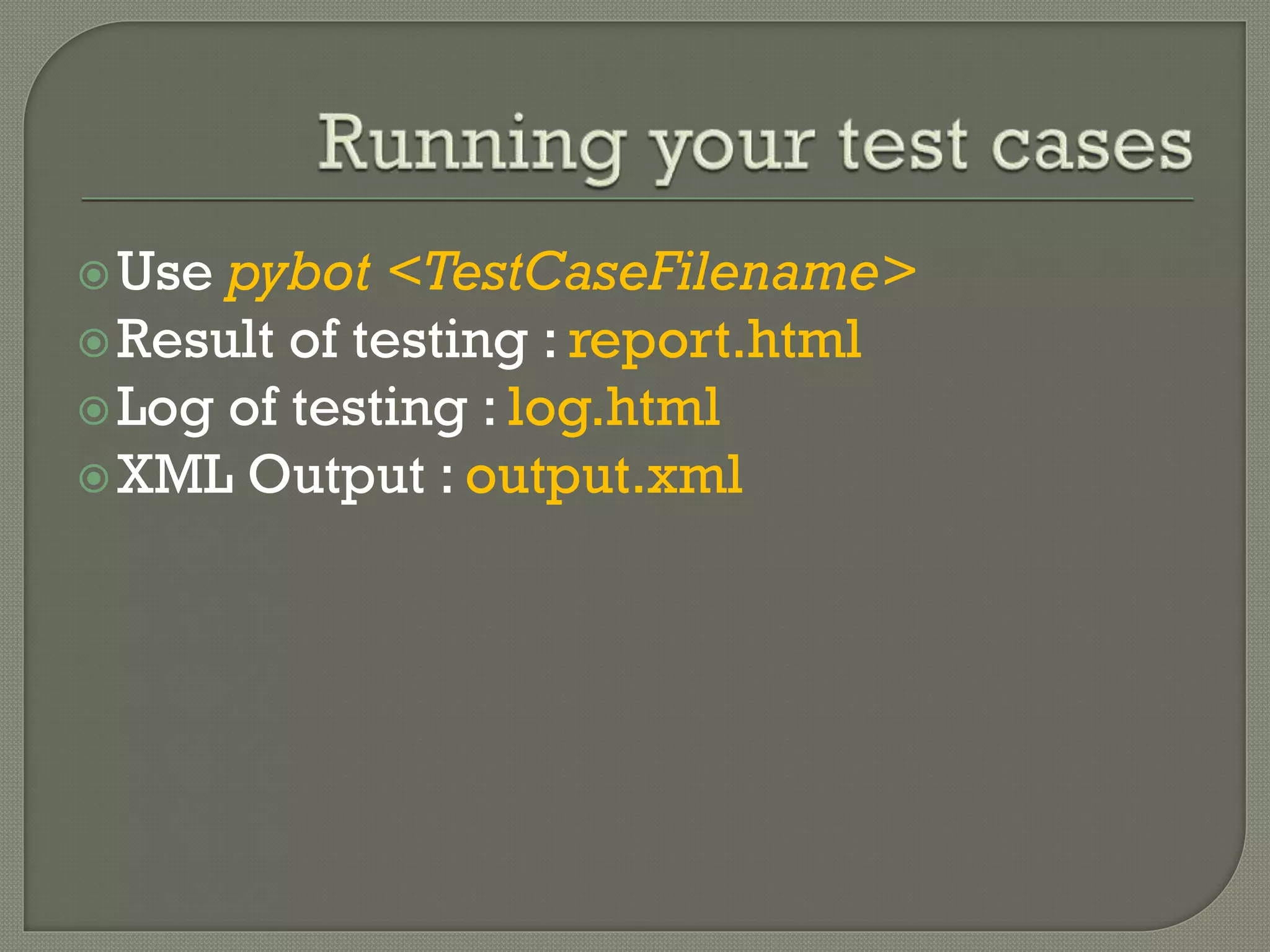

  Use pybot <TestCaseFilename> Result of testing : report.html Log of testing : log.html XML Output : output.xml
• 13.

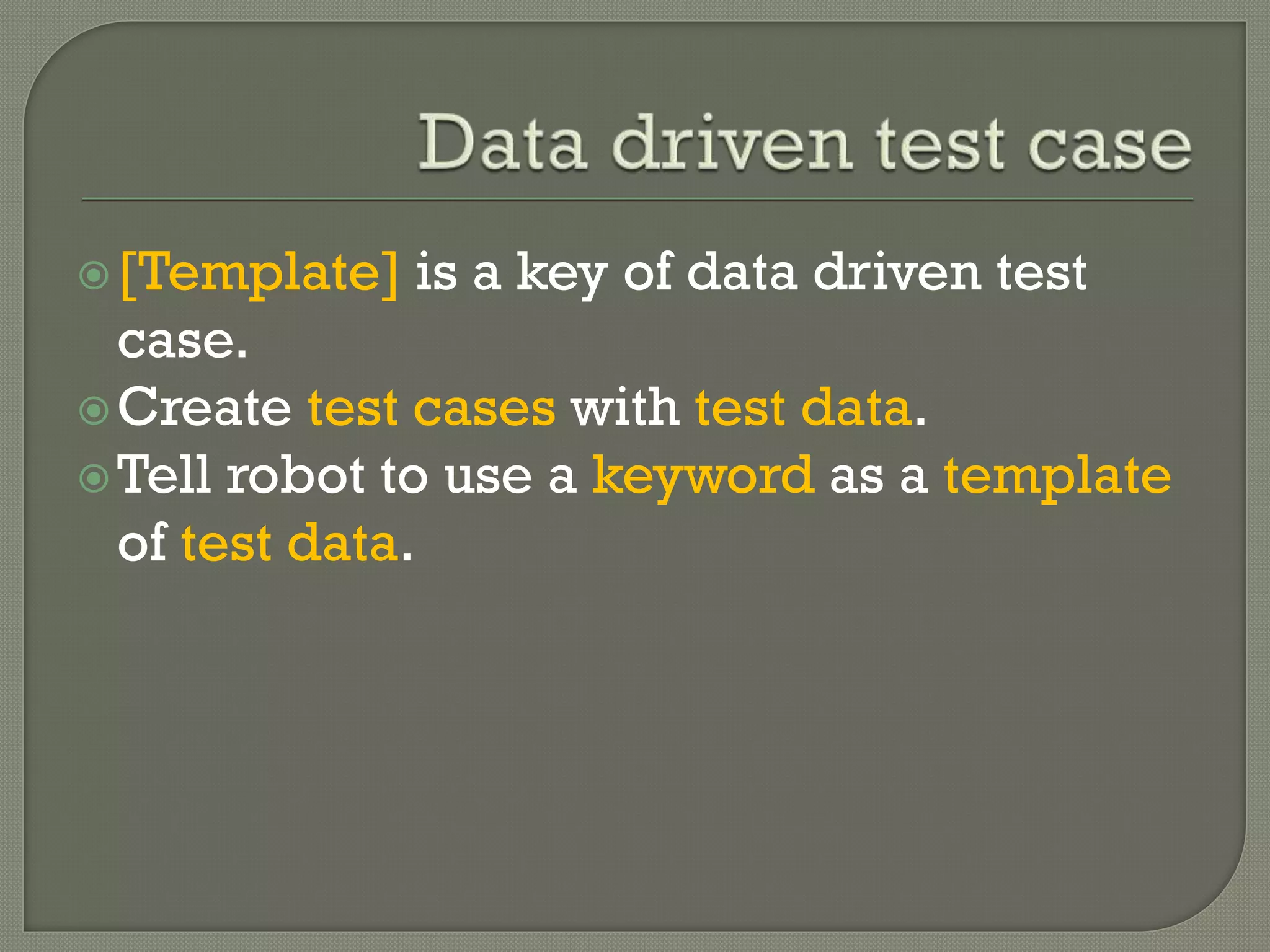

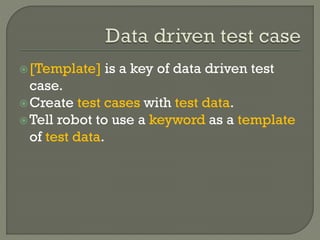

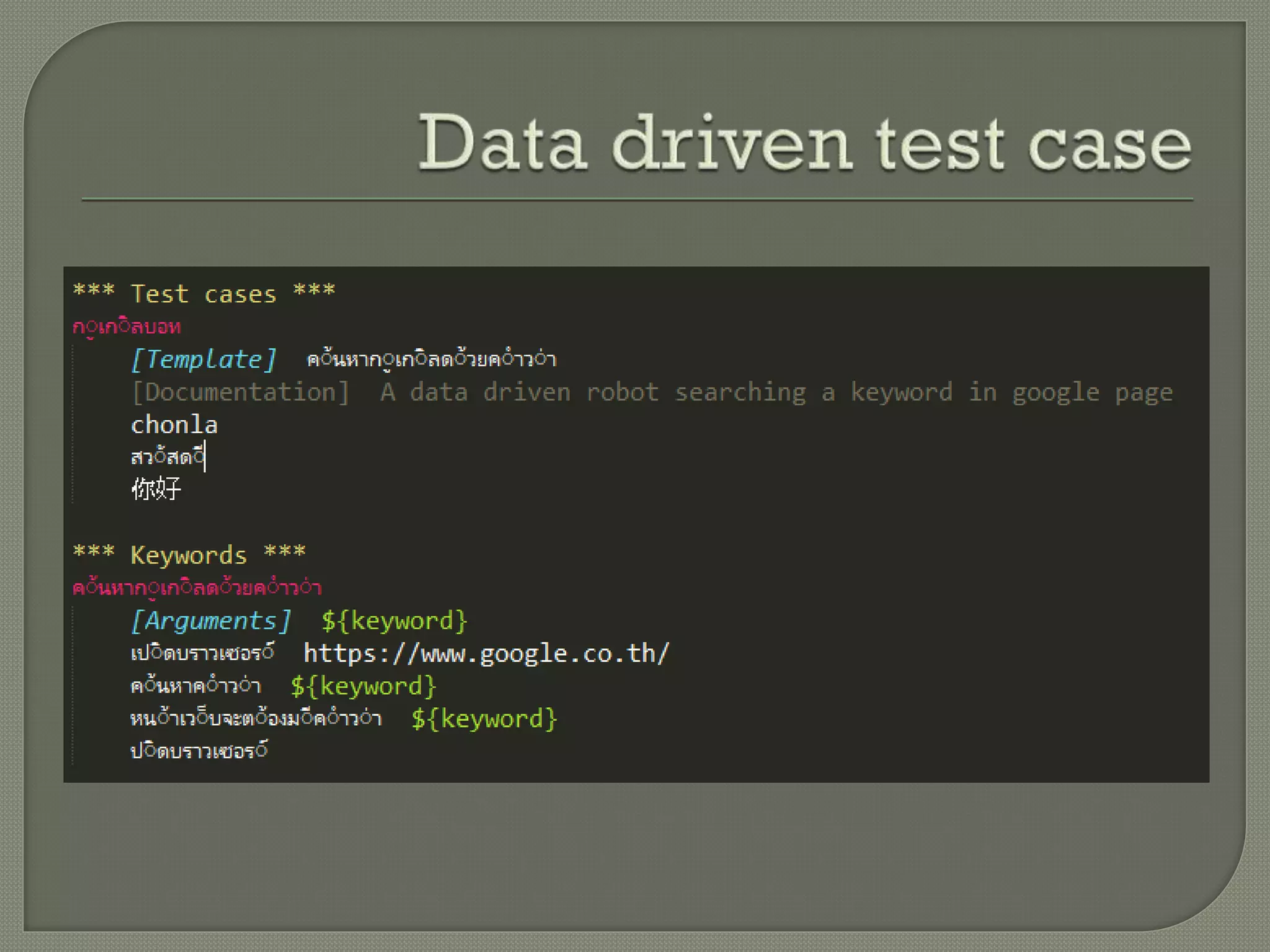

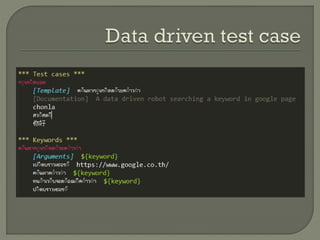

  [Template] is akey of data driven test case. Create test cases with test data. Tell robot to use a keyword as a template of test data.
• 15.

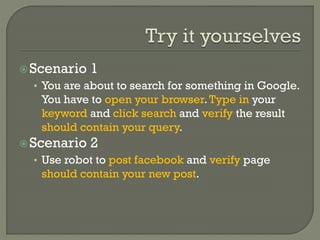

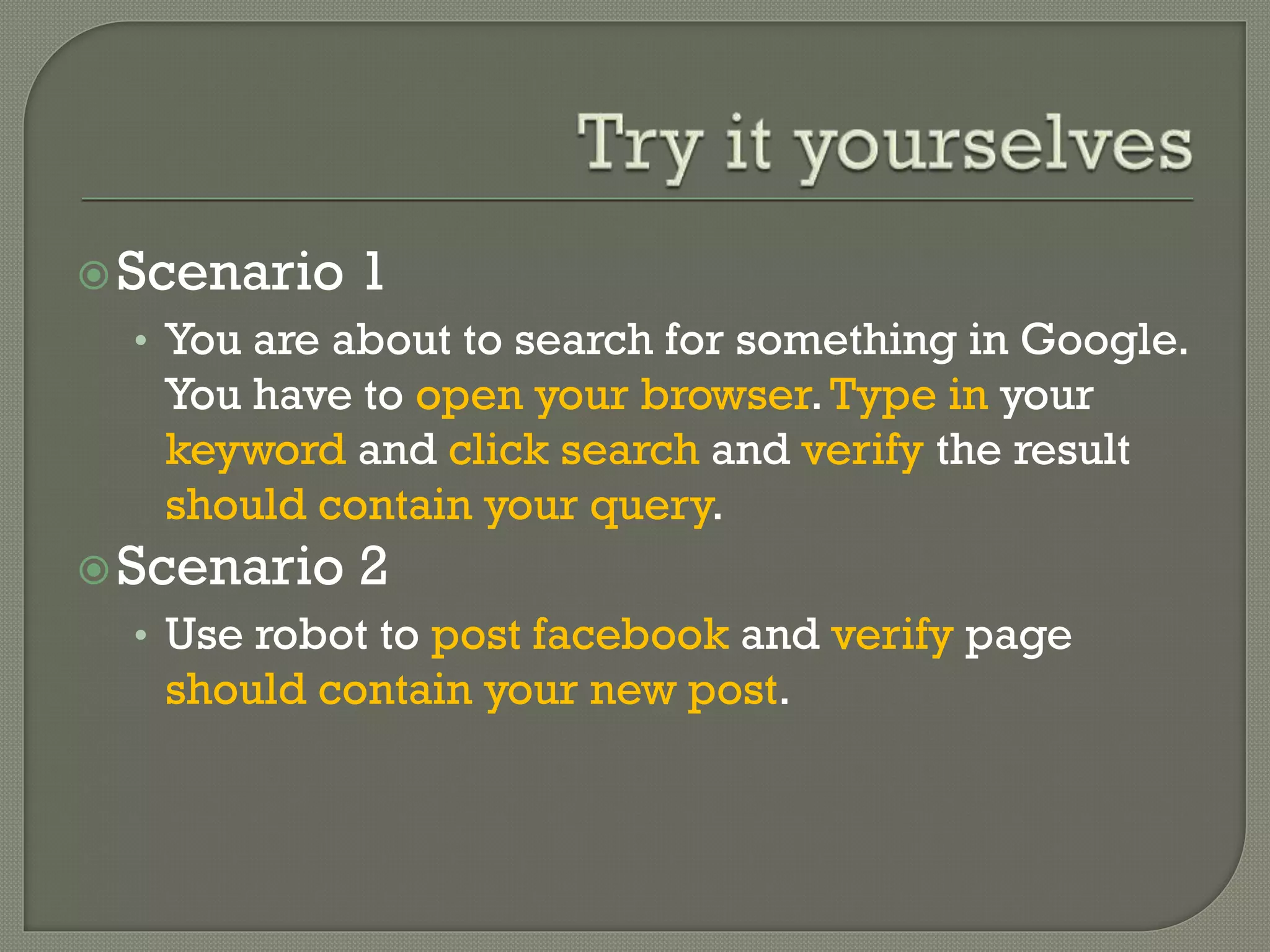

  Scenario 1 •You are about to search for something in Google. You have to open your browser. Type in your keyword and click search and verify the result should contain your query. Scenario 2 • Use robot to post facebook and verify page should contain your new post.
• 16.
  Enjoy automating!
