Java EE 7 - Into the Cloud

1 Markus Eisele, Insurance - Strategic IT-Architecture msg systems ag, 17.10.2011

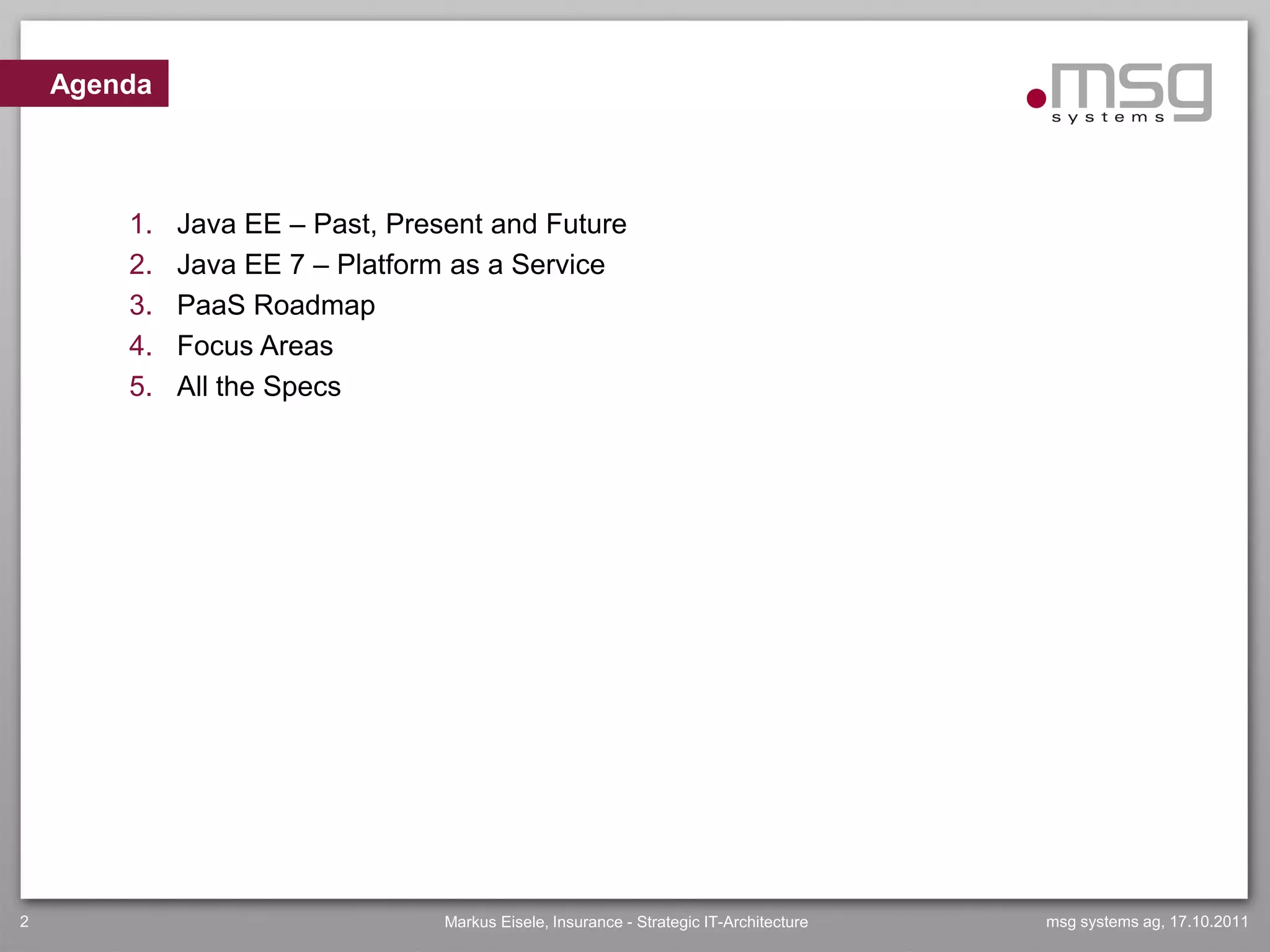

Agenda

1. Java EE – Past, Present and Future
2. Java EE 7 – Platform as a Service
3. PaaS Roadmap
4. Focus Areas
5. All the Specs


http://blog.eisele.net

http://twitter.com/myfear

markus.eisele@msg-systems.com

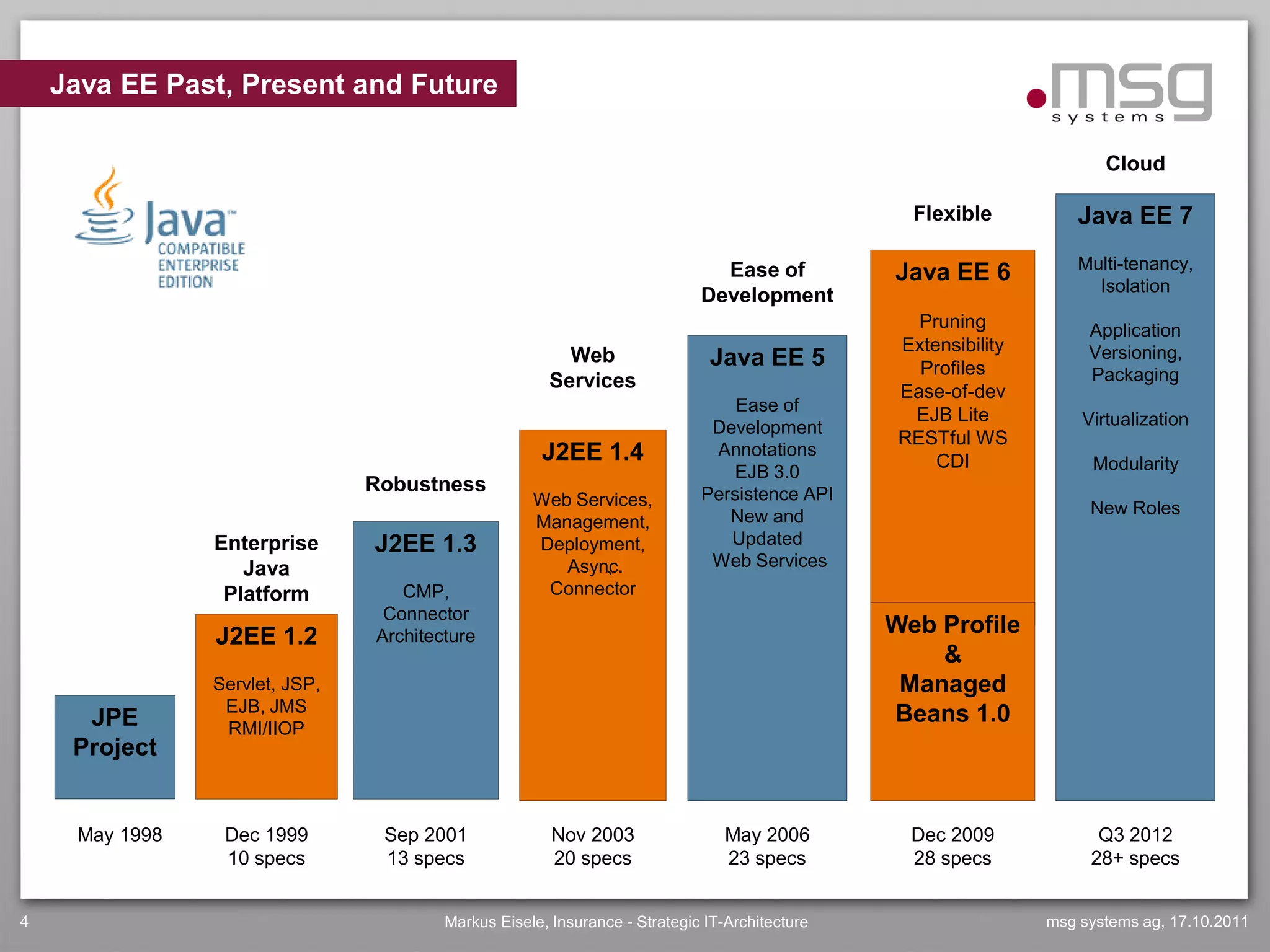

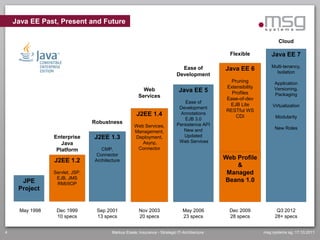

Java EE Past, Present and Future

Cloud

Flexible Java EE 7

Ease of Multi-tenancy,
Java EE 6 Isolation
Development
Pruning Application
Extensibility Versioning,
Web Java EE 5 Profiles Packaging
Services Ease-of-dev
Ease of
EJB Lite Virtualization
Development
RESTful WS
J2EE 1.4 Annotations
CDI Modularity
EJB 3.0
Robustness Persistence API
Web Services, New Roles
Management, New and
Enterprise J2EE 1.3 Deployment, Updated
Java Async. Web Services
Platform CMP, `
Connector
Connector
J2EE 1.2 Architecture
Web Profile
&
Servlet, JSP, Managed
EJB, JMS Beans 1.0
JPE RMI/IIOP
Project

May 1998 Dec 1999 Sep 2001 Nov 2003 May 2006 Dec 2009 Q3 2012
10 specs 13 specs 20 specs 23 specs 28 specs 28+ specs

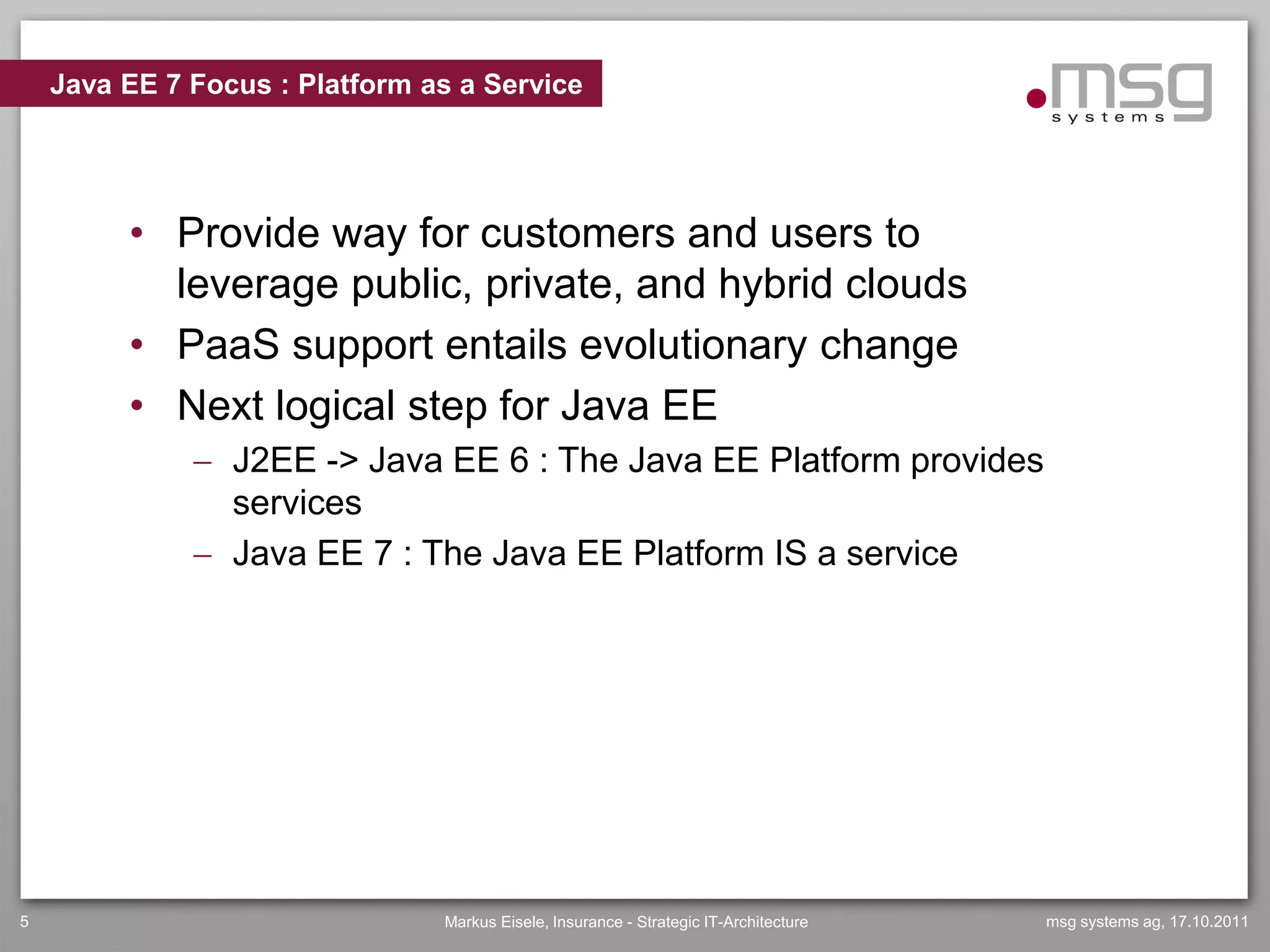

Java EE 7 Focus : Platform as a Service

• Provide way for customers and users to
leverage public, private, and hybrid clouds
• PaaS support entails evolutionary change
• Next logical step for Java EE
 J2EE -> Java EE 6 : The Java EE Platform provides
services
 Java EE 7 : The Java EE Platform IS a service

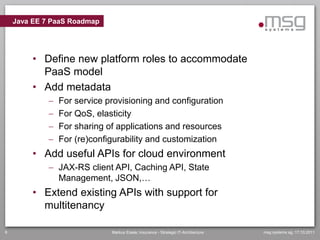

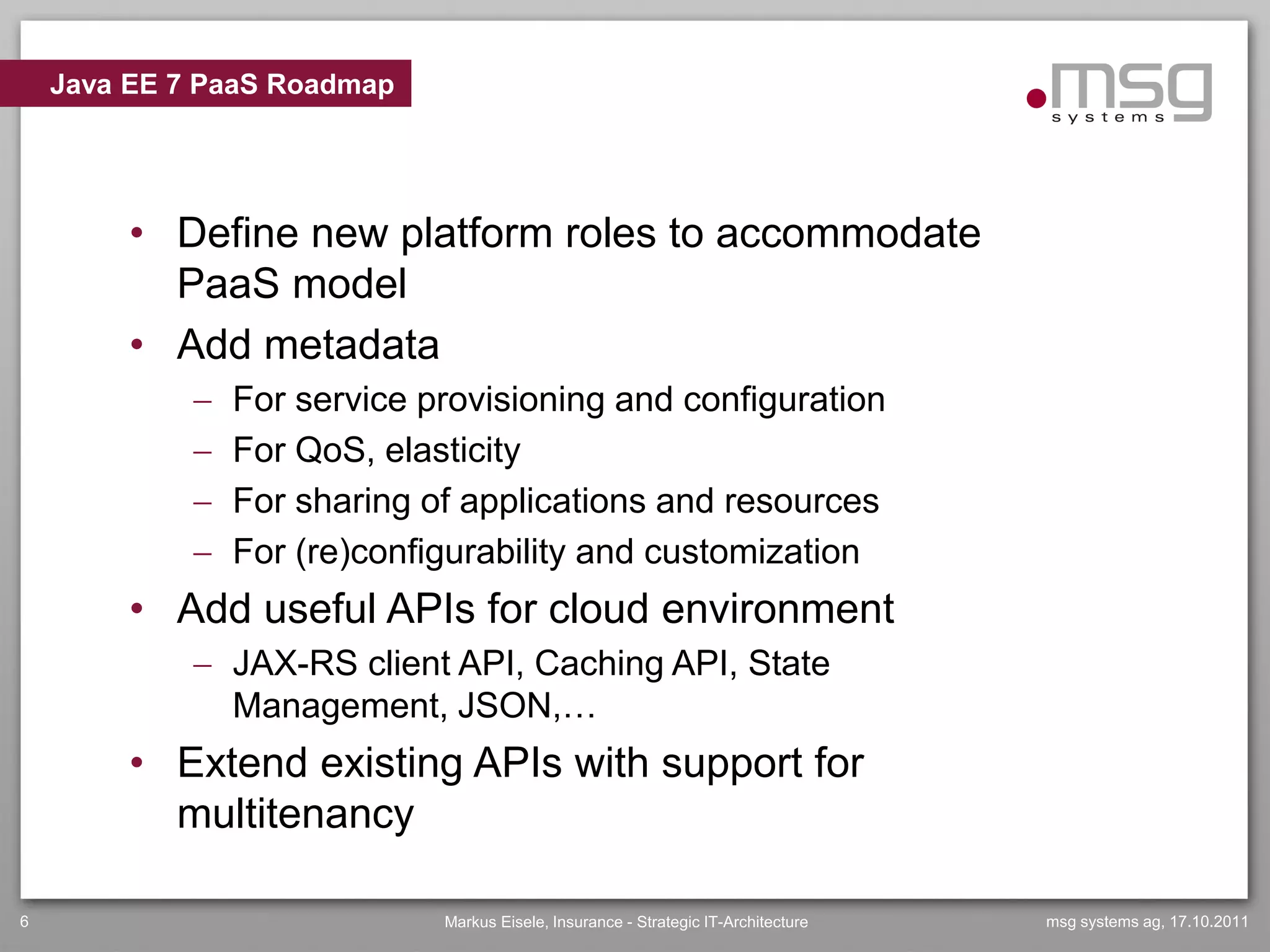

Java EE 7 PaaS Roadmap

• Define new platform roles to accommodate
PaaS model
• Add metadata
 For service provisioning and configuration
 For QoS, elasticity
 For sharing of applications and resources
 For (re)configurability and customization
• Add useful APIs for cloud environment
 JAX-RS client API, Caching API, State
Management, JSON,…
• Extend existing APIs with support for
multitenancy

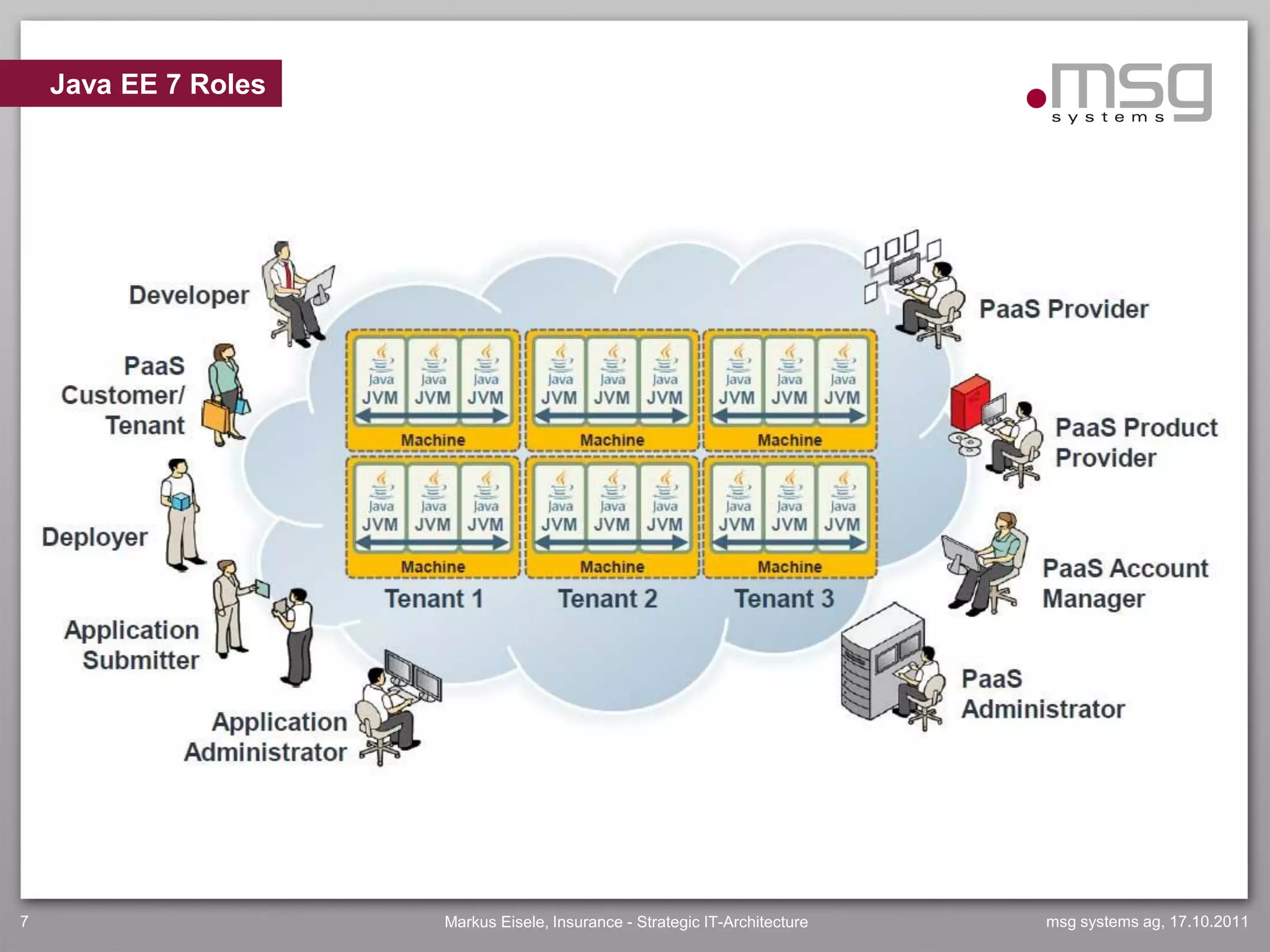

Java EE 7 Roles

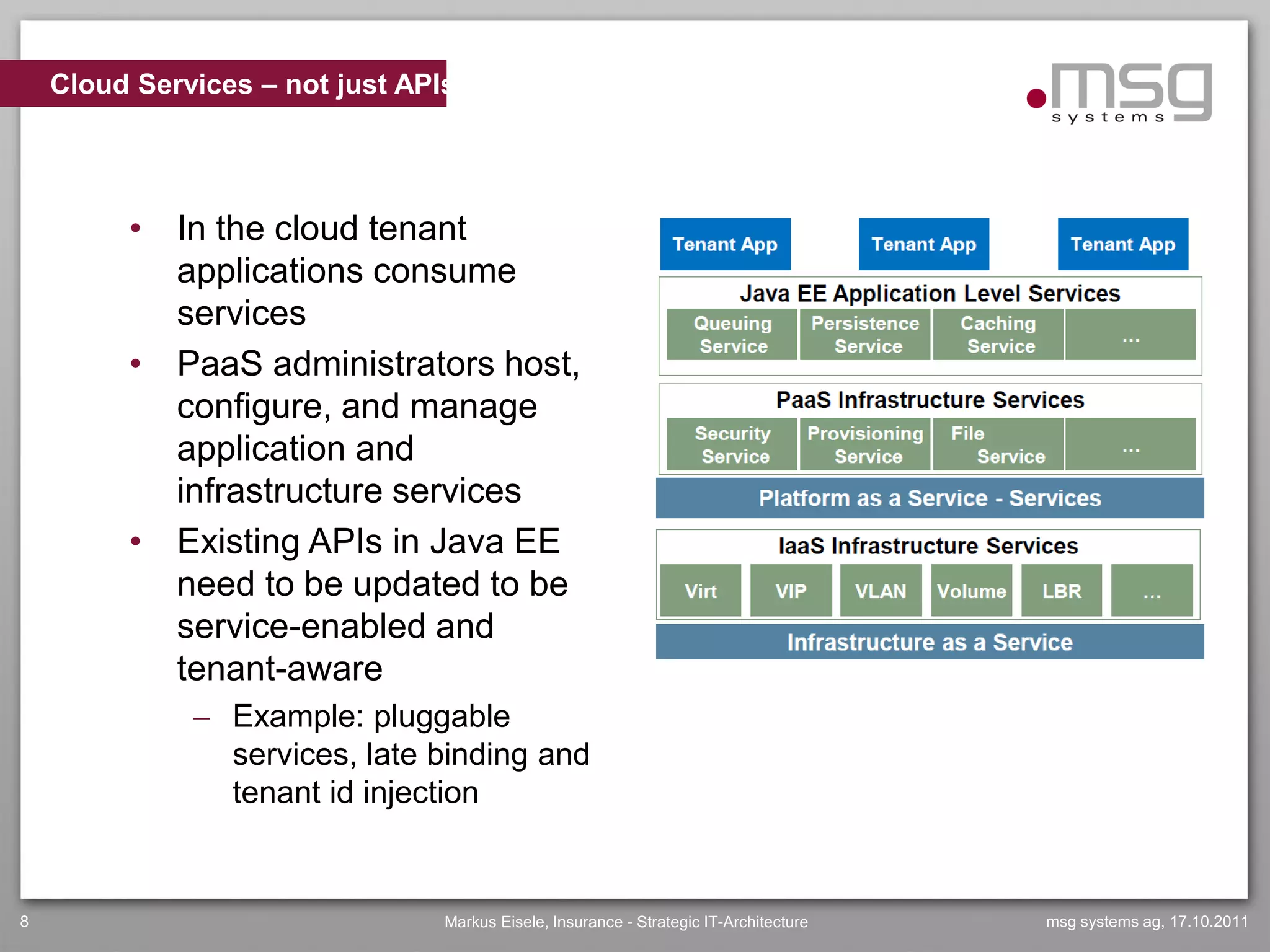

Cloud Services – not just APIs

• In the cloud tenant
applications consume
services
• PaaS administrators host,
configure, and manage
application and
infrastructure services
• Existing APIs in Java EE
need to be updated to be
service-enabled and
tenant-aware
 Example: pluggable
services, late binding and
tenant id injection

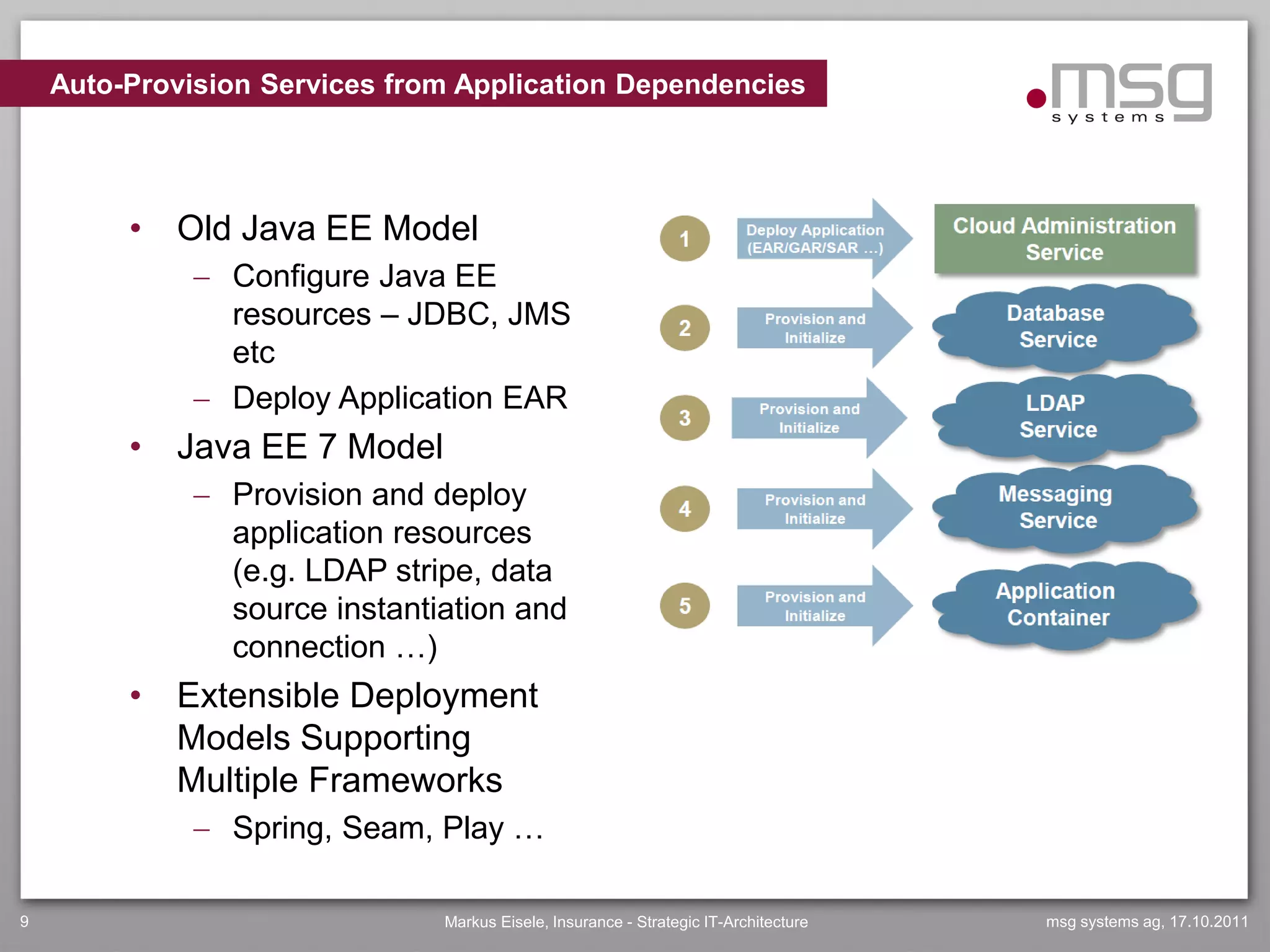

Auto-Provision Services from Application Dependencies

• Old Java EE Model
 Configure Java EE
resources – JDBC, JMS
etc
 Deploy Application EAR
• Java EE 7 Model
 Provision and deploy
application resources
(e.g. LDAP stripe, data
source instantiation and
connection …)
• Extensible Deployment
Models Supporting
Multiple Frameworks
 Spring, Seam, Play …

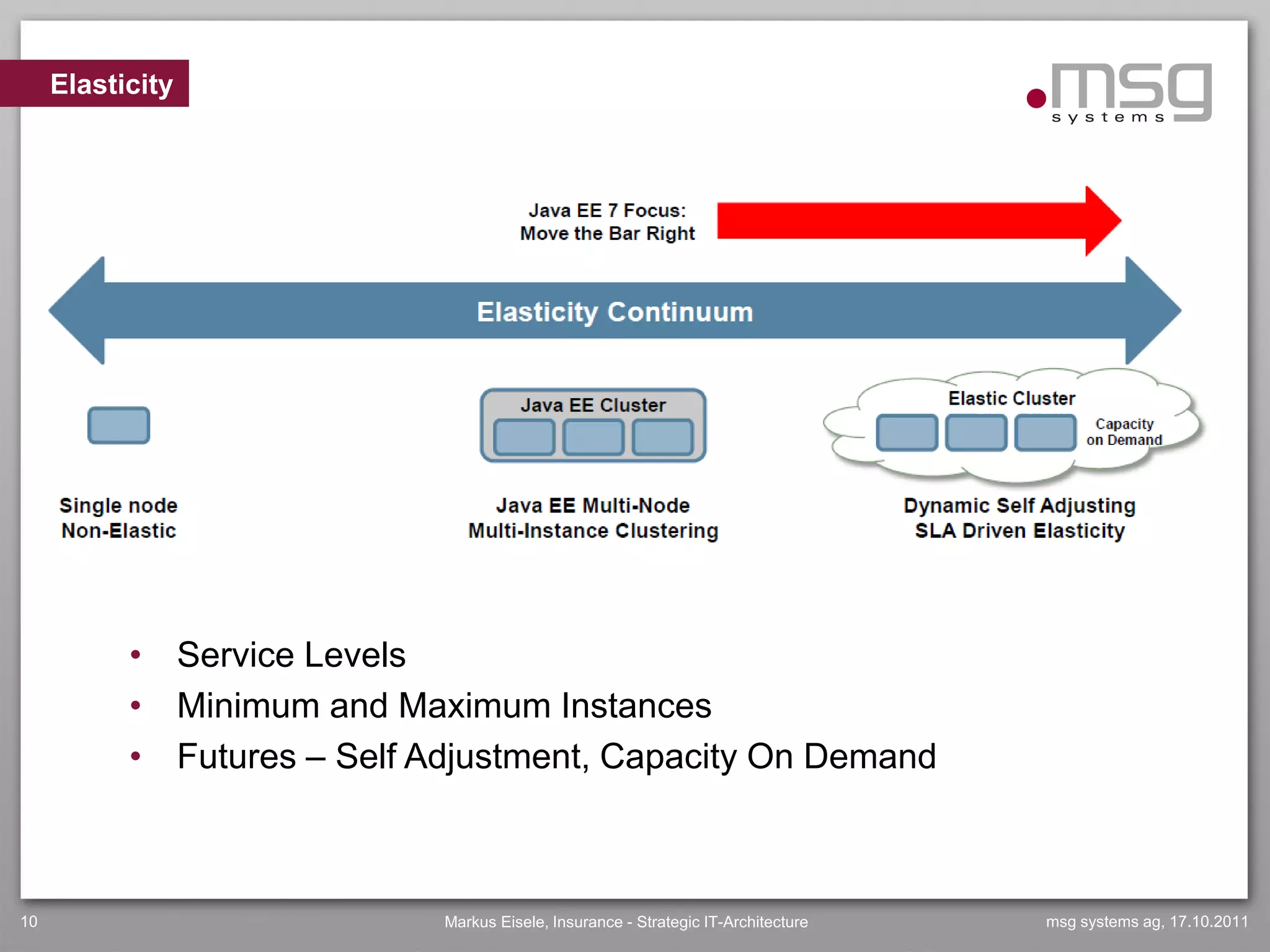

Elasticity

• Service Levels
• Minimum and Maximum Instances
• Futures – Self Adjustment, Capacity On Demand

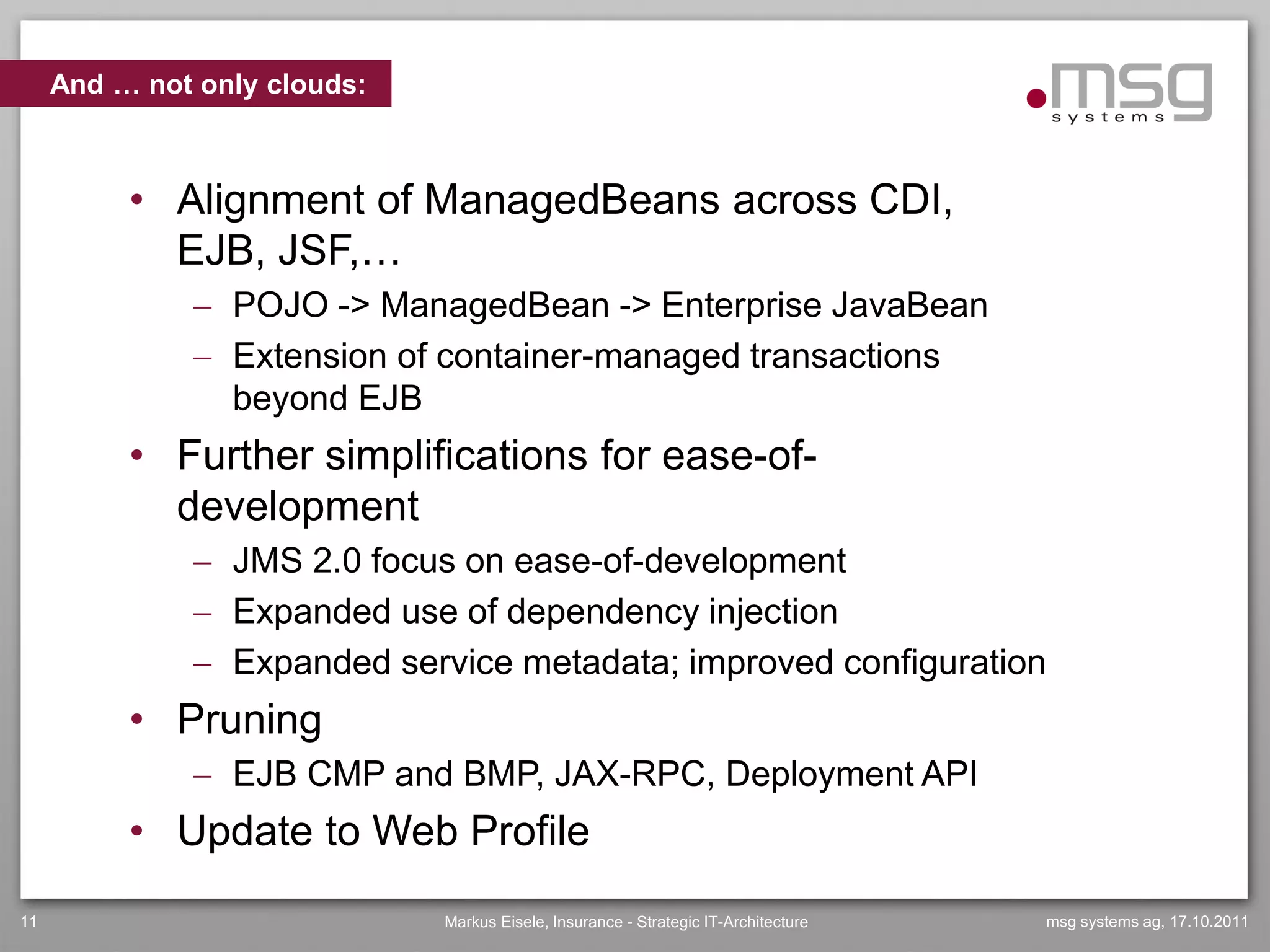

And … not only clouds:

• Alignment of ManagedBeans across CDI,
EJB, JSF,…
 POJO -> ManagedBean -> Enterprise JavaBean
 Extension of container-managed transactions
beyond EJB
• Further simplifications for ease-of-
development
 JMS 2.0 focus on ease-of-development
 Expanded use of dependency injection
 Expanded service metadata; improved configuration
• Pruning
 EJB CMP and BMP, JAX-RPC, Deployment API
• Update to Web Profile

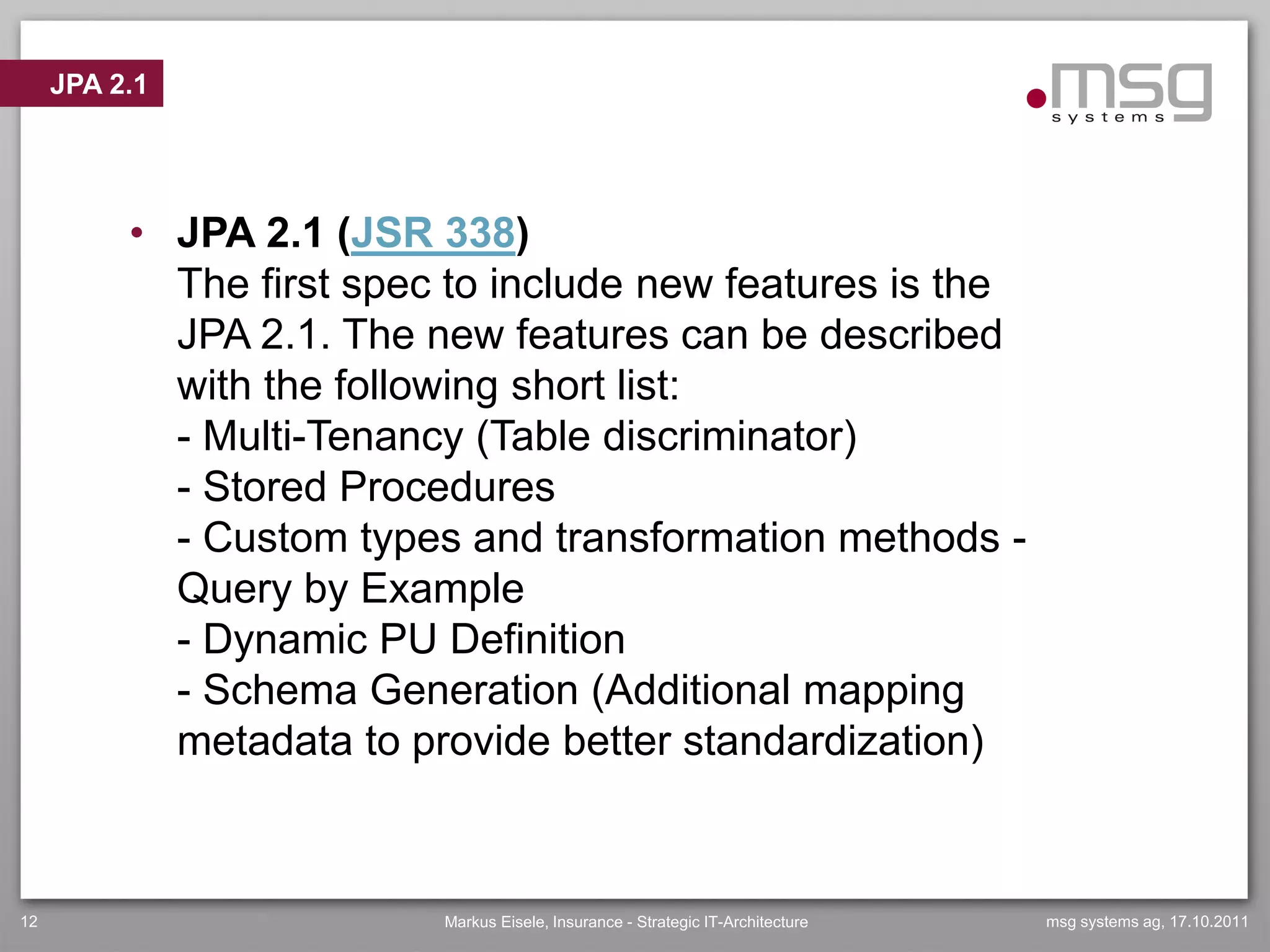

JPA 2.1

• JPA 2.1 (JSR 338)
The first spec to include new features is the
JPA 2.1. The new features can be described
with the following short list:
- Multi-Tenancy (Table discriminator)
- Stored Procedures
- Custom types and transformation methods -
Query by Example
- Dynamic PU Definition
- Schema Generation (Additional mapping
metadata to provide better standardization)

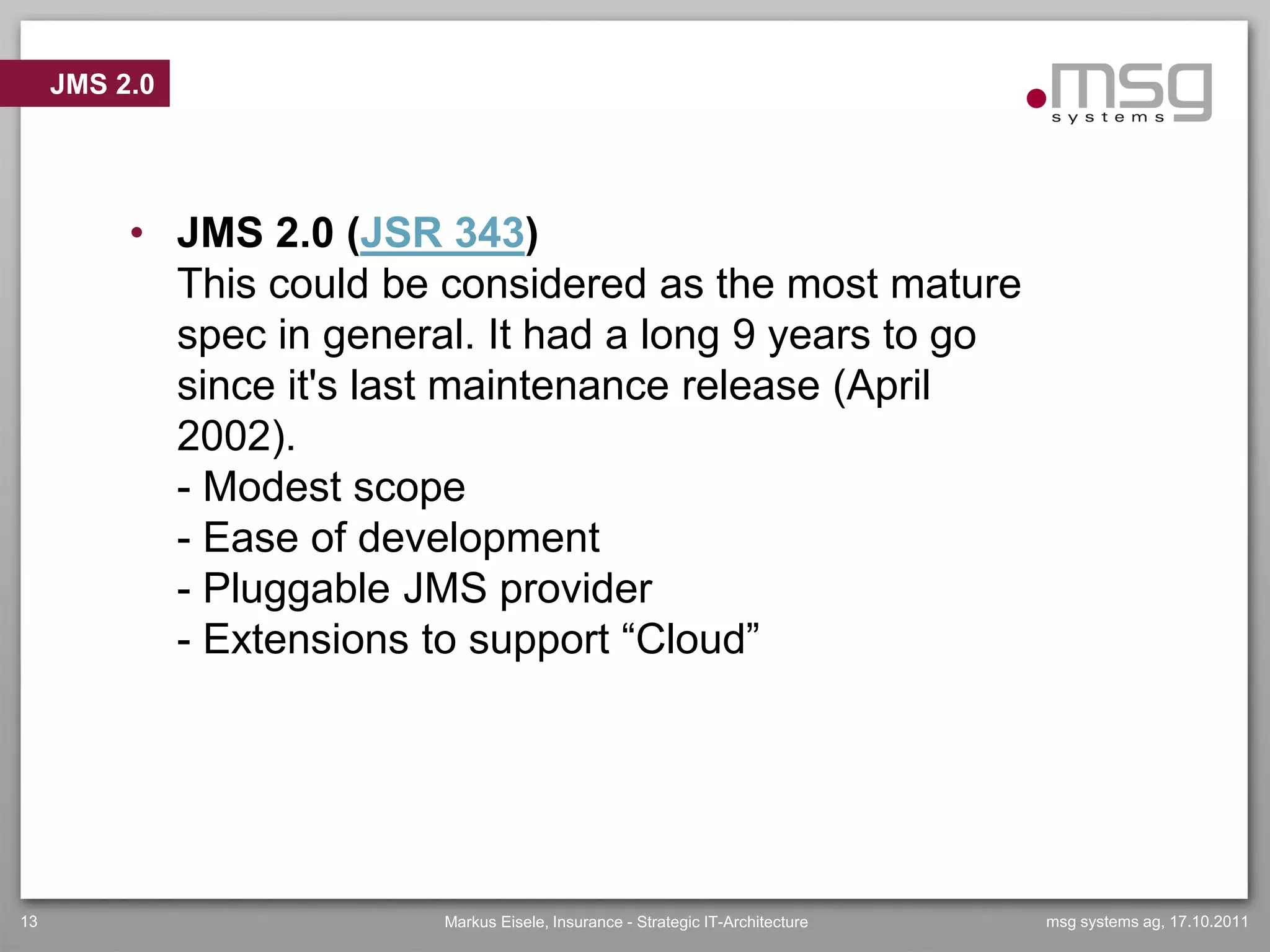

JMS 2.0

• JMS 2.0 (JSR 343)
This could be considered as the most mature
spec in general. It had a long 9 years to go
since it's last maintenance release (April
2002).
- Modest scope
- Ease of development
- Pluggable JMS provider
- Extensions to support “Cloud”

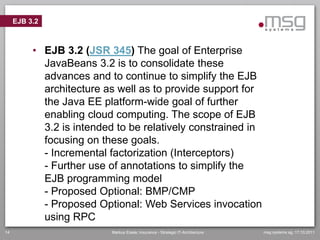

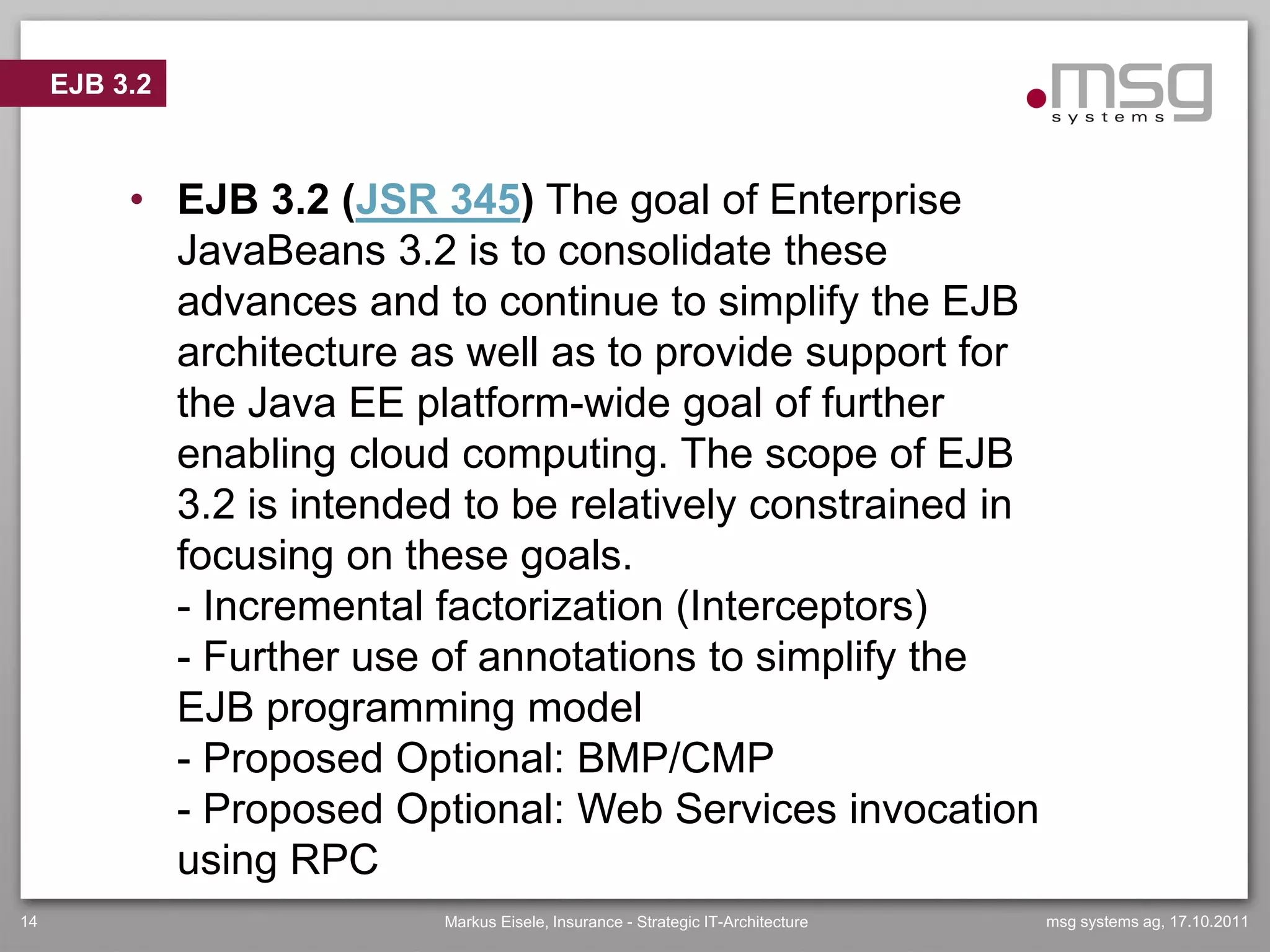

EJB 3.2

• EJB 3.2 (JSR 345) The goal of Enterprise
JavaBeans 3.2 is to consolidate these
advances and to continue to simplify the EJB
architecture as well as to provide support for
the Java EE platform-wide goal of further
enabling cloud computing. The scope of EJB
3.2 is intended to be relatively constrained in
focusing on these goals.
- Incremental factorization (Interceptors)
- Further use of annotations to simplify the
EJB programming model
- Proposed Optional: BMP/CMP
- Proposed Optional: Web Services invocation
using RPC

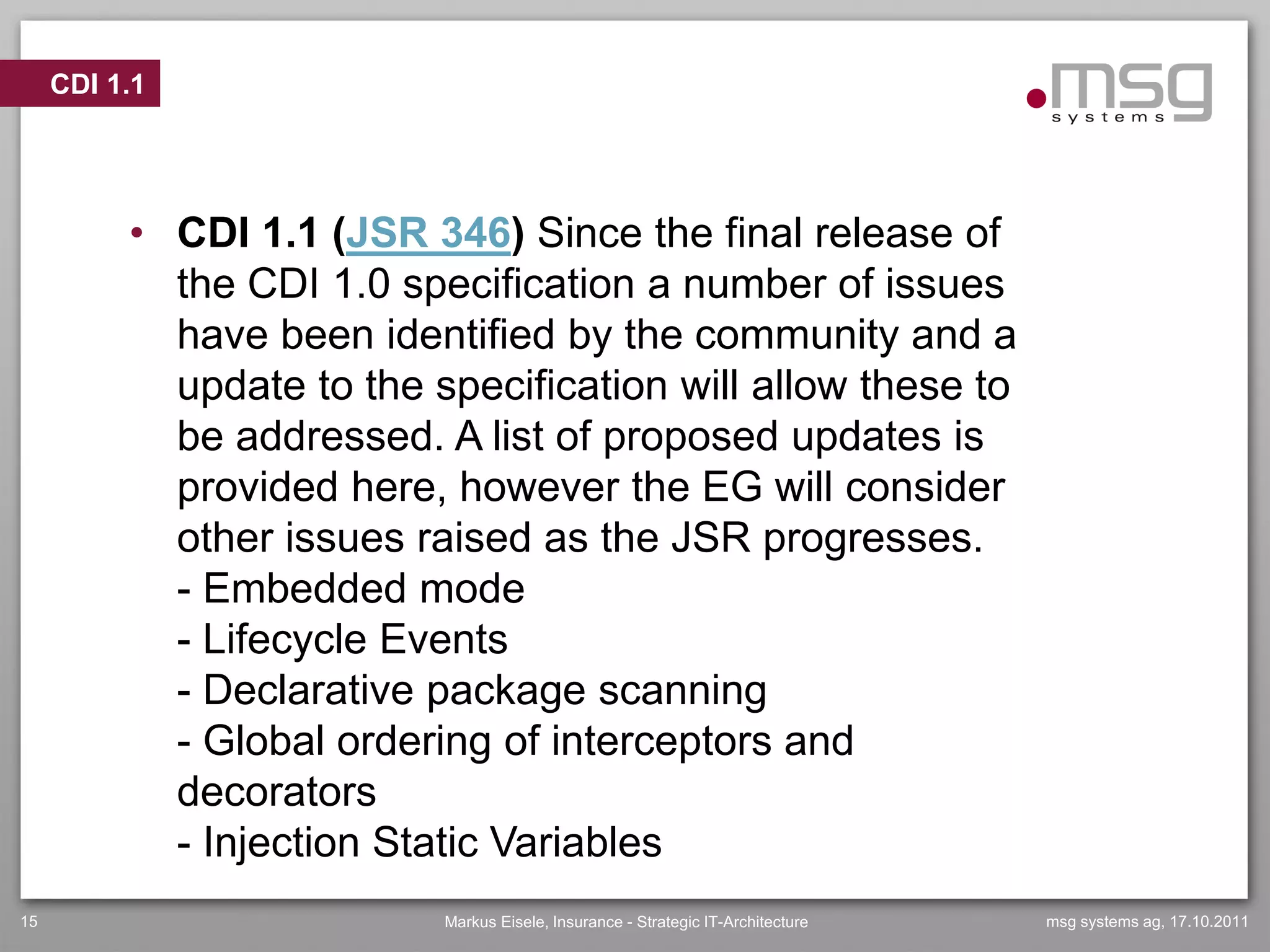

CDI 1.1

• CDI 1.1 (JSR 346) Since the final release of
the CDI 1.0 specification a number of issues
have been identified by the community and a
update to the specification will allow these to
be addressed. A list of proposed updates is
provided here, however the EG will consider
other issues raised as the JSR progresses.
- Embedded mode
- Lifecycle Events
- Declarative package scanning
- Global ordering of interceptors and
decorators
- Injection Static Variables

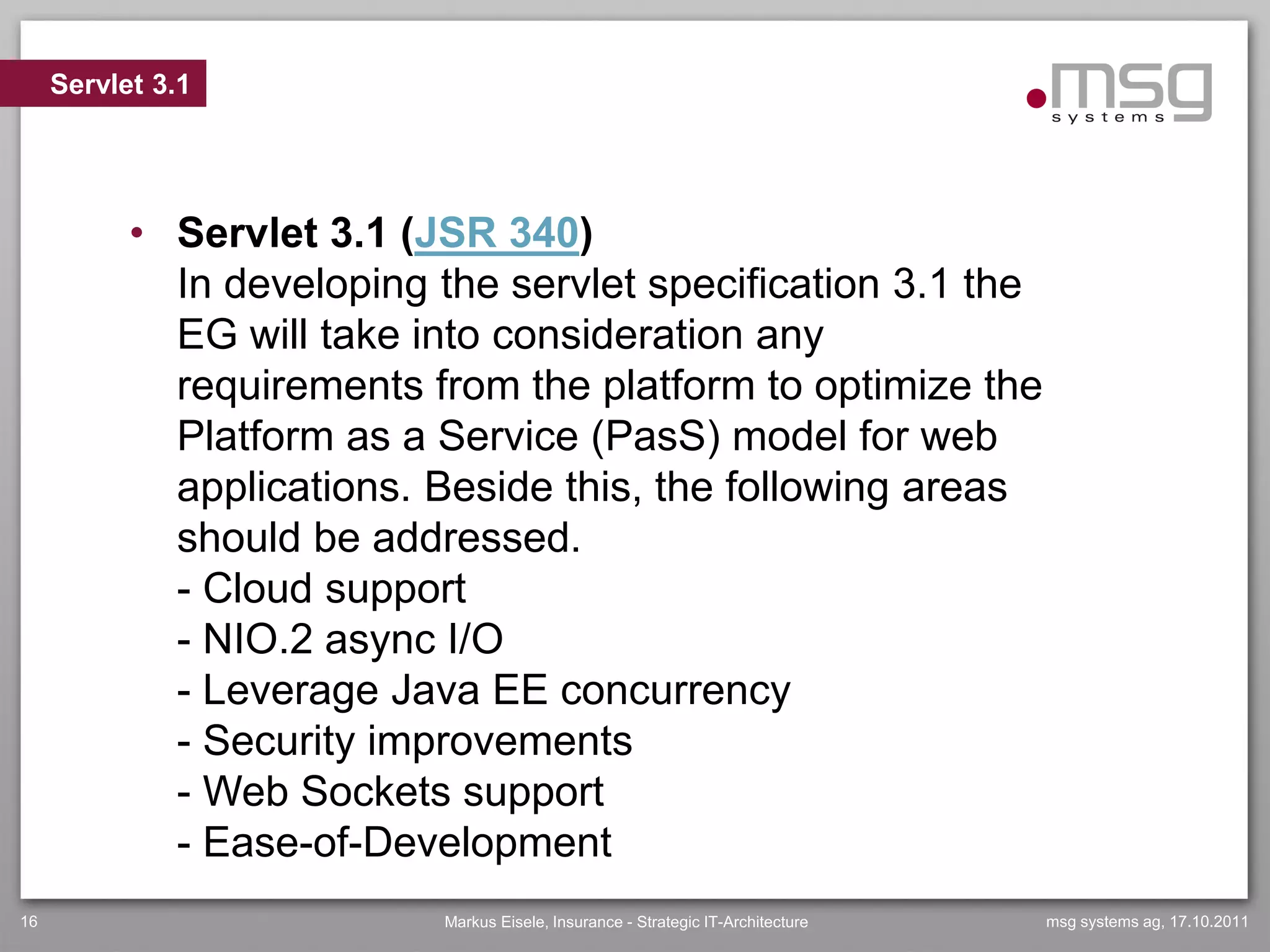

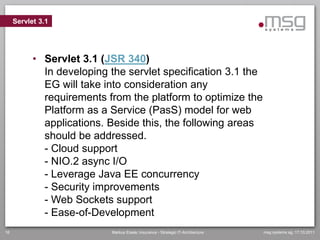

Servlet 3.1

• Servlet 3.1 (JSR 340)
In developing the servlet specification 3.1 the
EG will take into consideration any
requirements from the platform to optimize the
Platform as a Service (PasS) model for web
applications. Beside this, the following areas
should be addressed.
- Cloud support
- NIO.2 async I/O
- Leverage Java EE concurrency
- Security improvements
- Web Sockets support
- Ease-of-Development

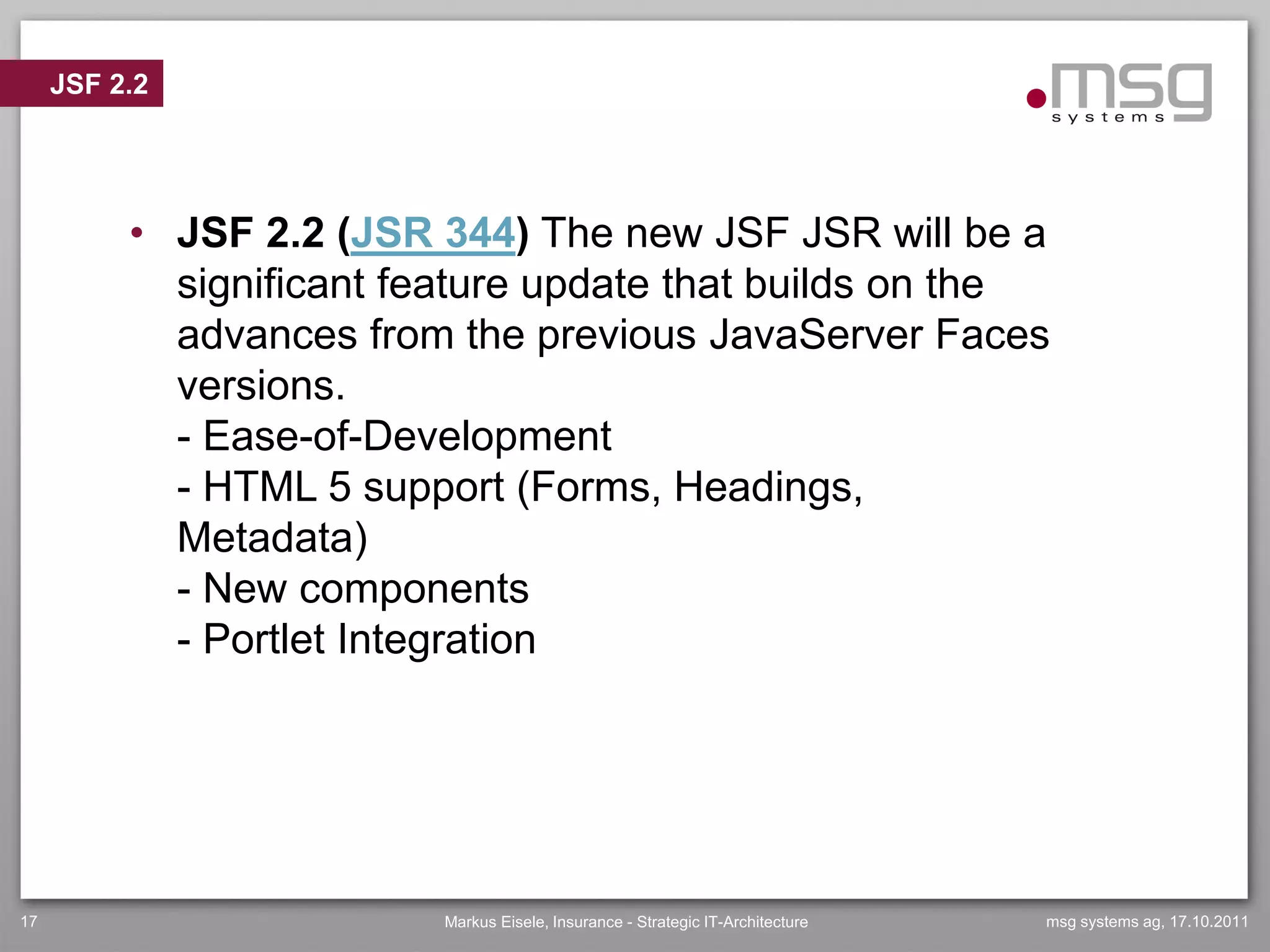

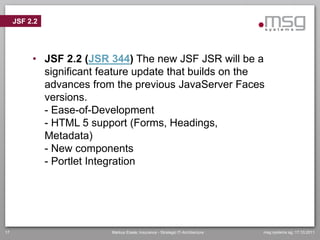

JSF 2.2

• JSF 2.2 (JSR 344) The new JSF JSR will be a
significant feature update that builds on the
advances from the previous JavaServer Faces
versions.
- HTML 5 support (Forms, Headings,
Metadata)
- New components
- Portlet Integration

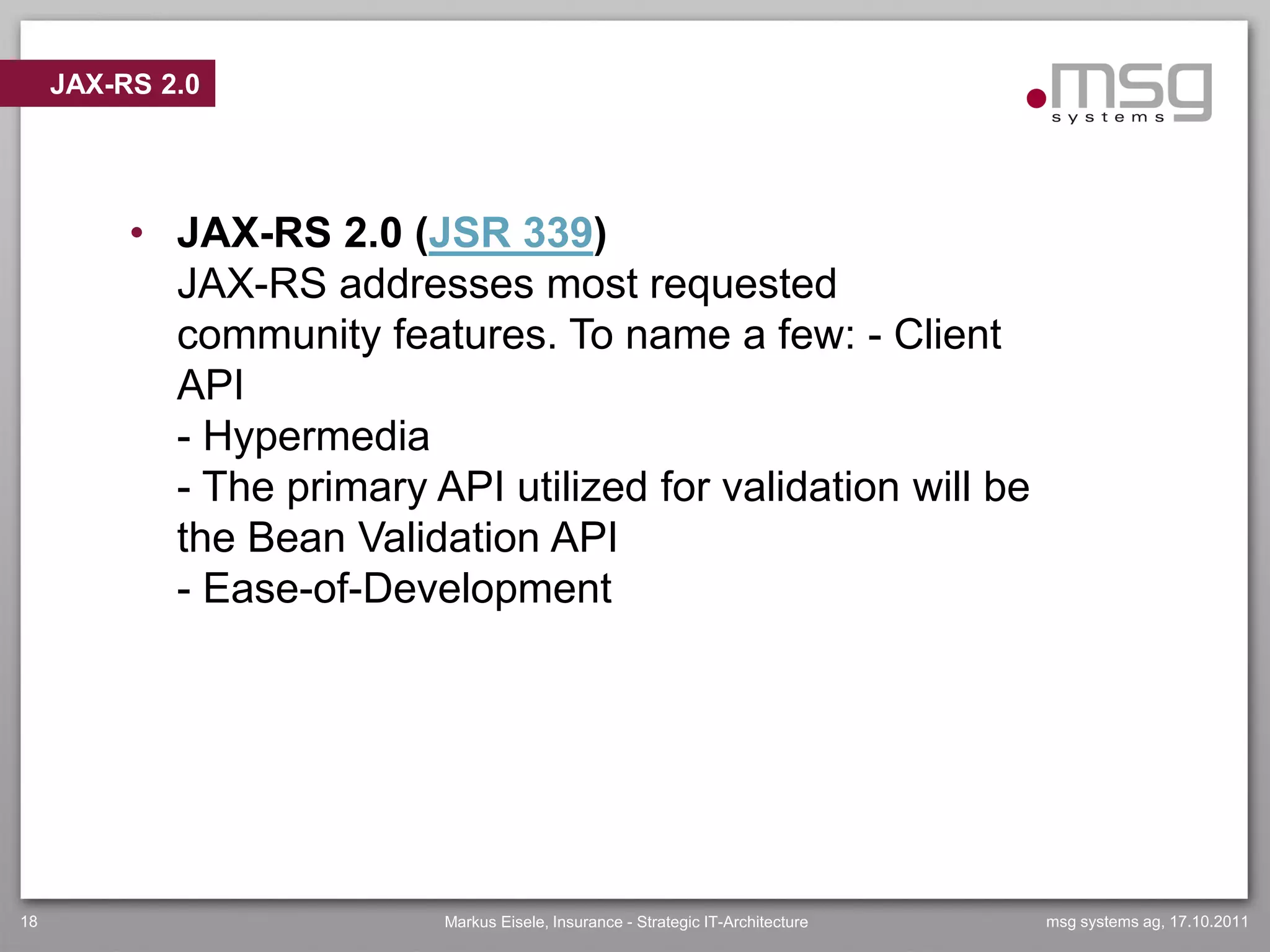

JAX-RS 2.0

• JAX-RS 2.0 (JSR 339)
JAX-RS addresses most requested
community features. To name a few: - Client
API
- Hypermedia
- The primary API utilized for validation will be
the Bean Validation API

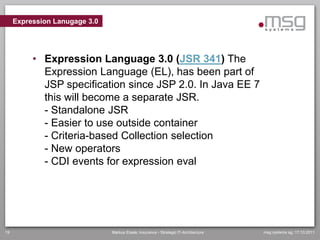

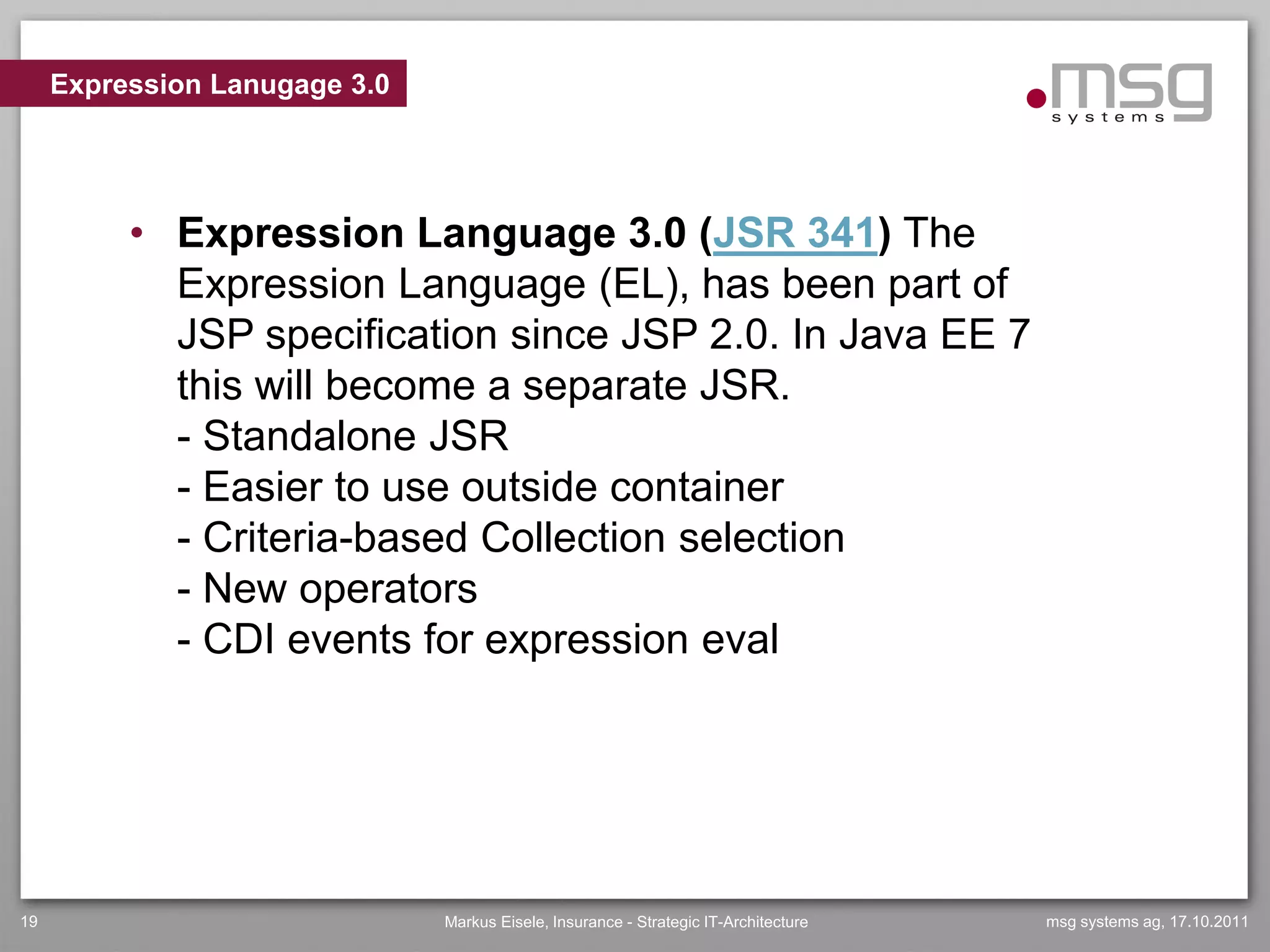

Expression Lanugage 3.0

• Expression Language 3.0 (JSR 341) The
Expression Language (EL), has been part of
JSP specification since JSP 2.0. In Java EE 7
this will become a separate JSR.
- Standalone JSR
- Easier to use outside container
- Criteria-based Collection selection
- New operators
- CDI events for expression eval

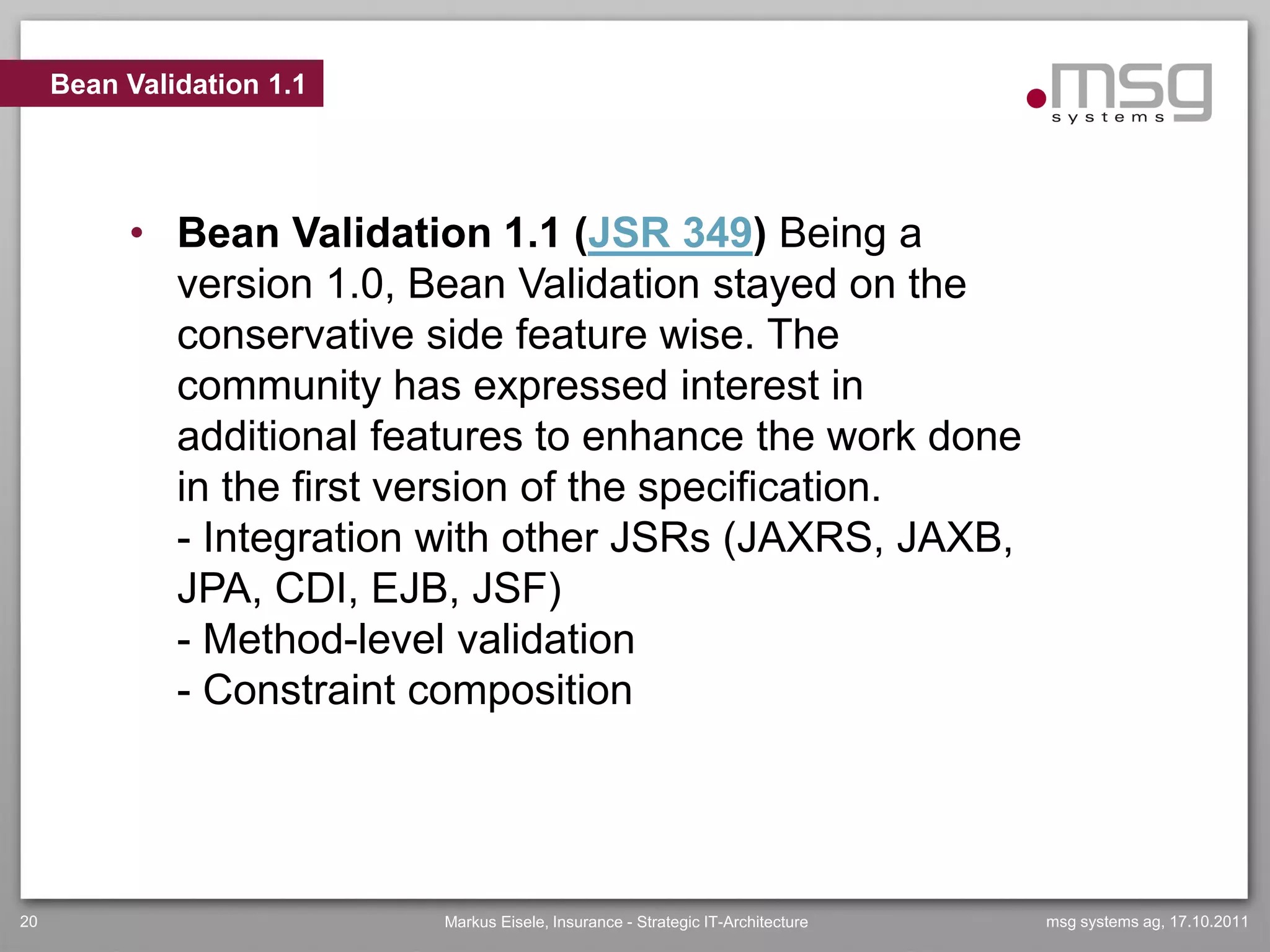

Bean Validation 1.1

• Bean Validation 1.1 (JSR 349) Being a
version 1.0, Bean Validation stayed on the
conservative side feature wise. The
community has expressed interest in
additional features to enhance the work done
in the first version of the specification.
- Integration with other JSRs (JAXRS, JAXB,
JPA, CDI, EJB, JSF)
- Method-level validation
- Constraint composition

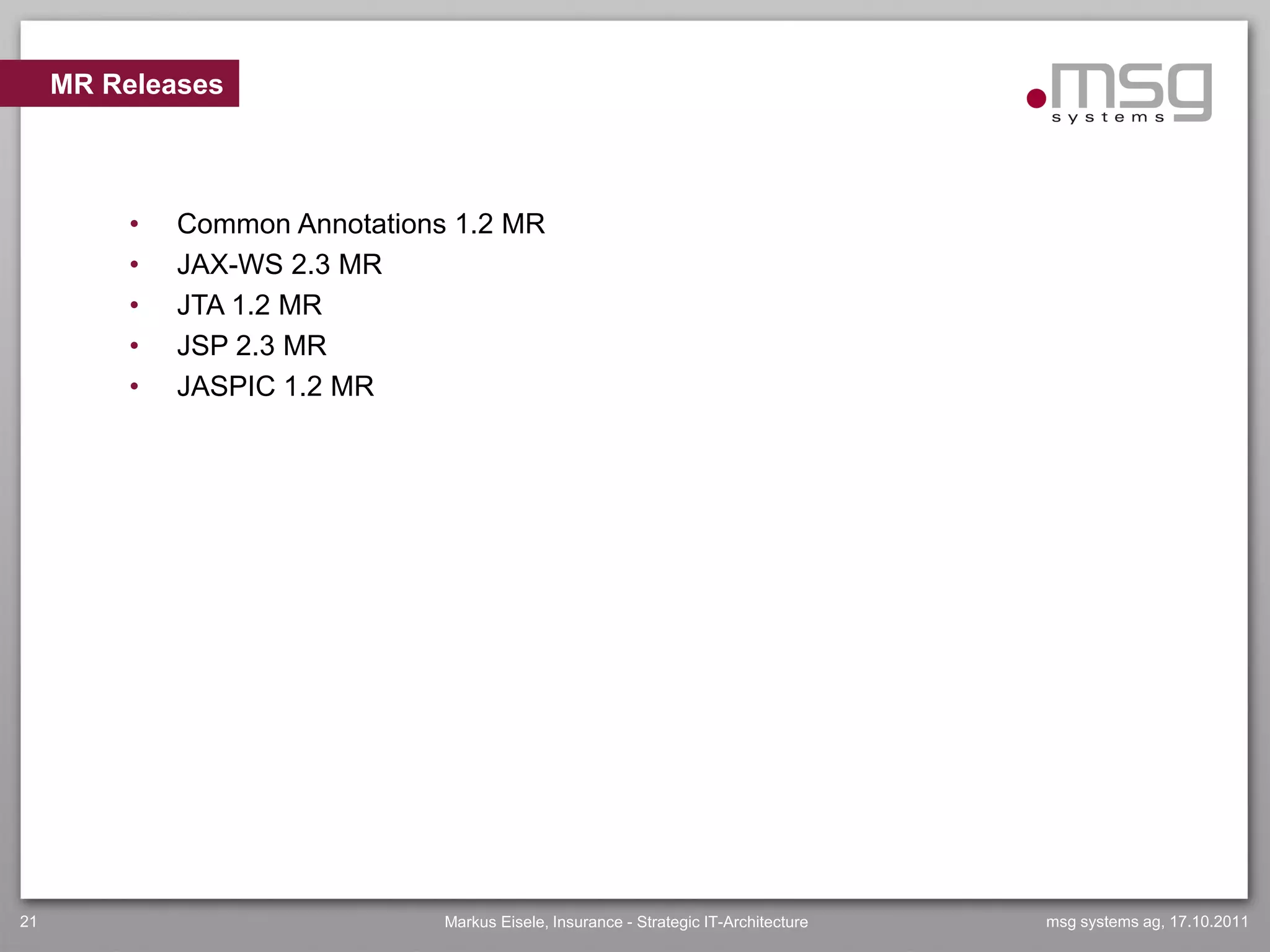

MR Releases

• Common Annotations 1.2 MR
• JAX-WS 2.3 MR
• JTA 1.2 MR
• JSP 2.3 MR
• JASPIC 1.2 MR

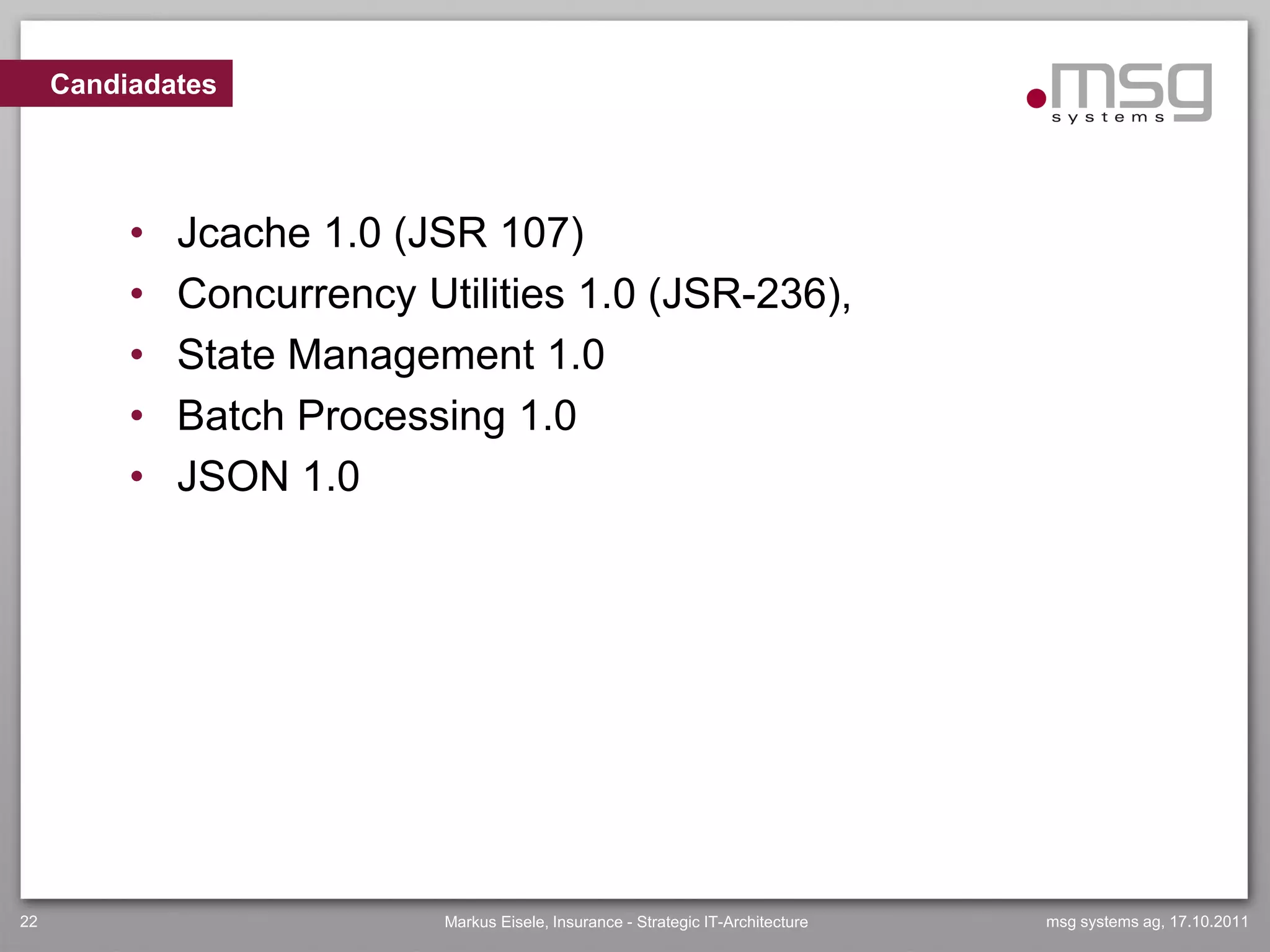

Candiadates

• Jcache 1.0 (JSR 107)
• Concurrency Utilities 1.0 (JSR-236),
• State Management 1.0
• Batch Processing 1.0
• JSON 1.0

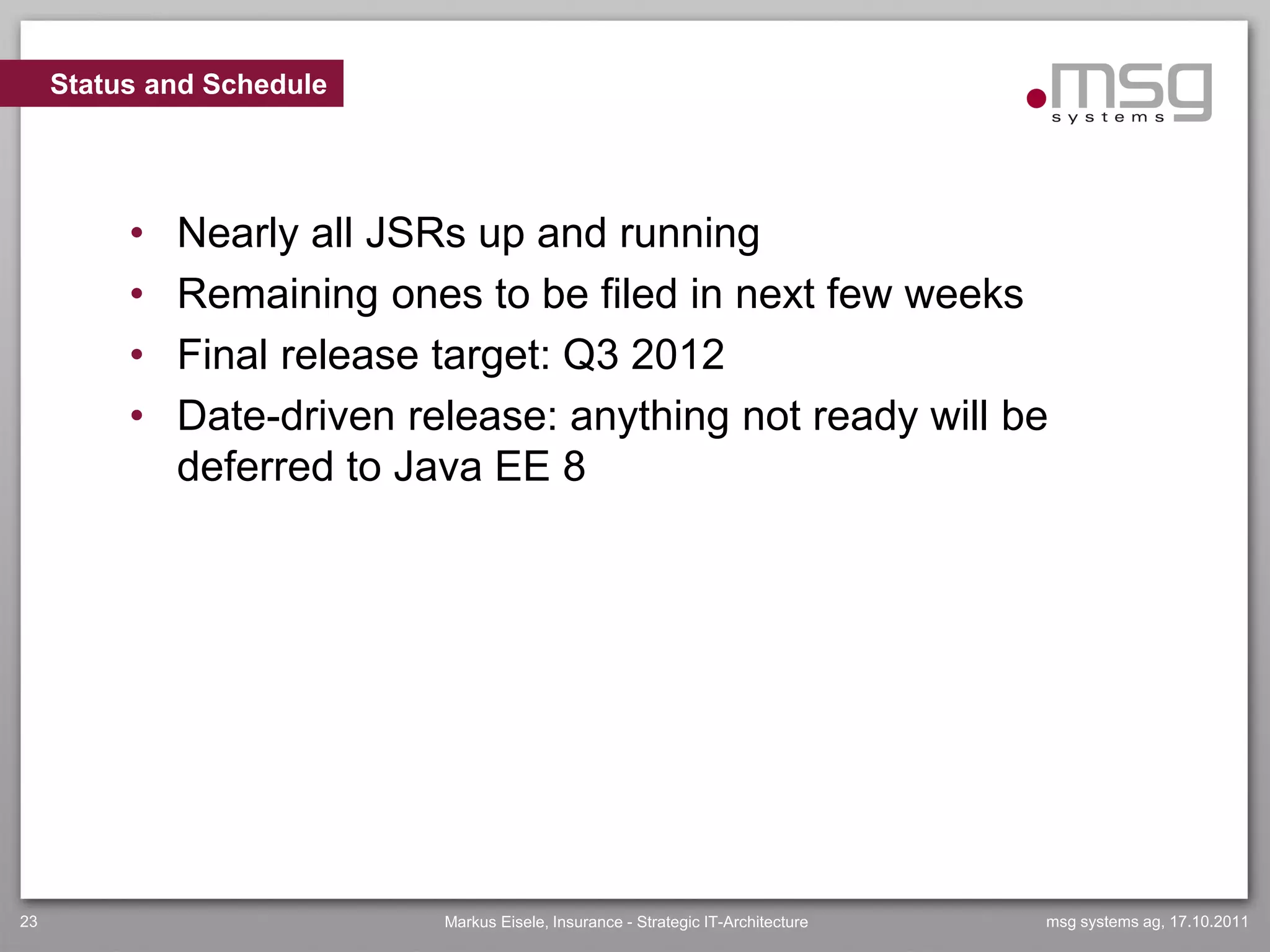

Status and Schedule

• Nearly all JSRs up and running
• Remaining ones to be filed in next few weeks
• Final release target: Q3 2012
• Date-driven release: anything not ready will be
deferred to Java EE 8

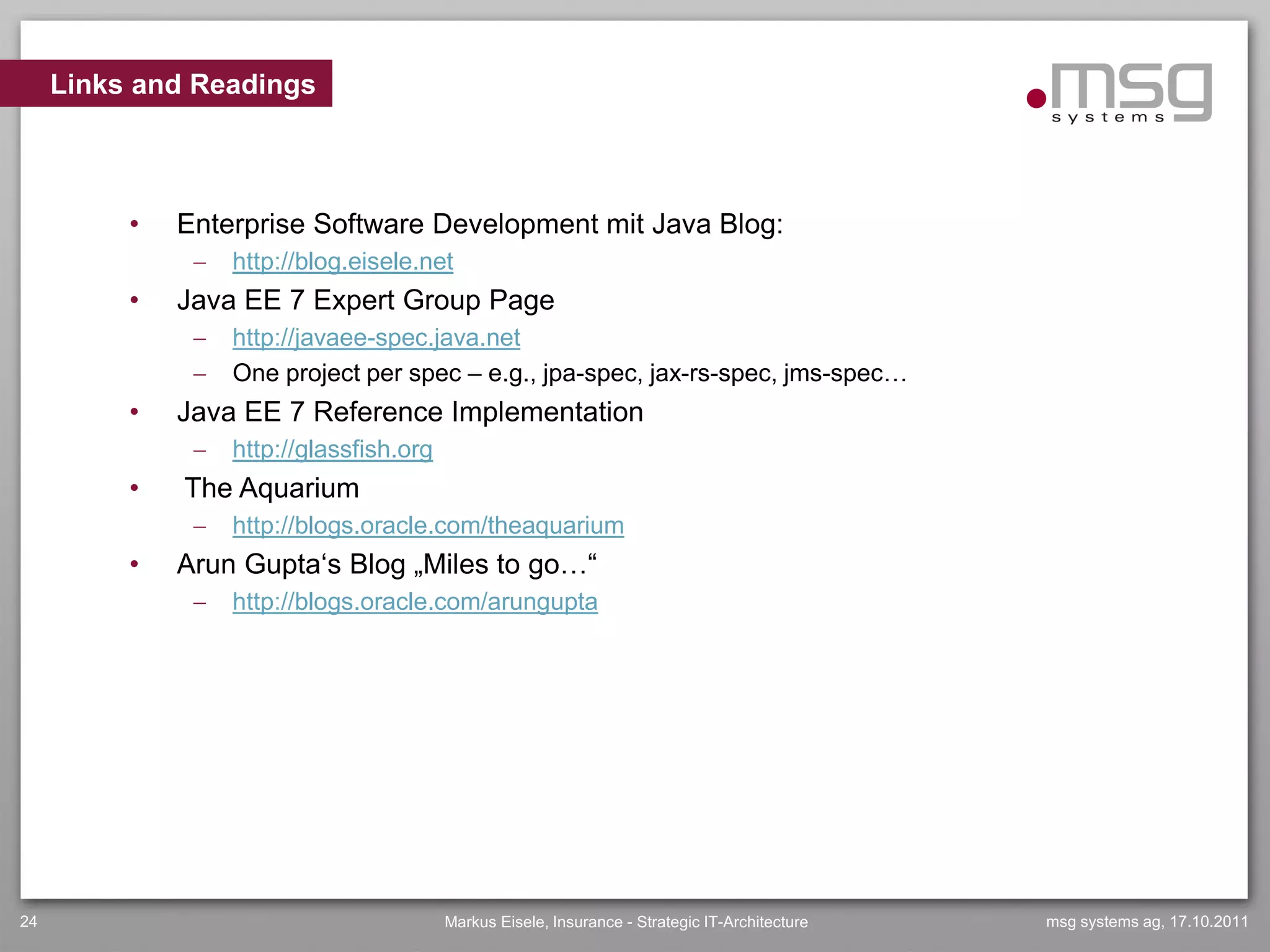

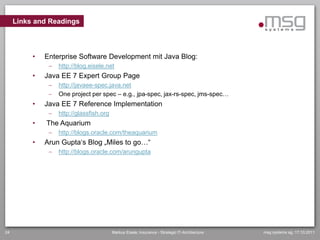

Links and Readings

• Enterprise Software Development mit Java Blog:
 http://blog.eisele.net
• Java EE 7 Expert Group Page
 http://javaee-spec.java.net
 One project per spec – e.g., jpa-spec, jax-rs-spec, jms-spec…
• Java EE 7 Reference Implementation
 http://glassfish.org
• The Aquarium
 http://blogs.oracle.com/theaquarium
• Arun Gupta„s Blog „Miles to go…“
 http://blogs.oracle.com/arungupta

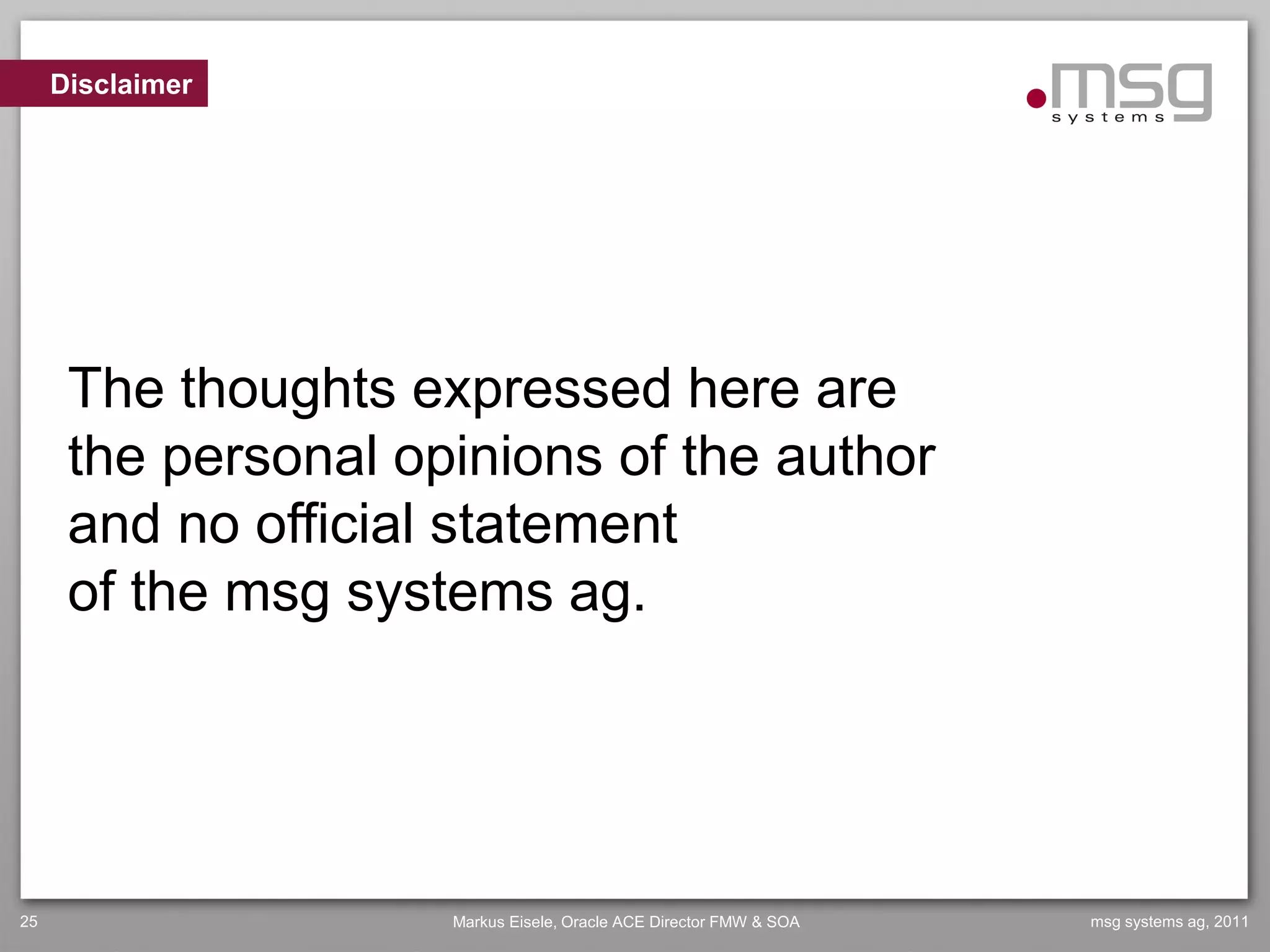

Disclaimer

The thoughts expressed here are
the personal opinions of the author
and no official statement
of the msg systems ag.

25 Markus Eisele, Oracle ACE Director FMW & SOA msg systems ag, 2011

Vielen Dank für Ihre Aufmerksamkeit

Markus Eisele

markus.eisele@msg-systems.com

www.msg-systems.com

www.msg-systems.com
