Uploaded byArun Gupta
Java EE and NoSQL using JBoss EAP 7 and OpenShift
The document discusses using Java EE 7 and NoSQL databases with JBoss EAP 7 and OpenShift. It highlights key features of Java EE 7 including improved developer productivity. It also provides an overview of different types of NoSQL databases like key-value, document, graph and columnar databases. Examples are given of using Couchbase with Java applications and frameworks like WildFly Swarm.
More Related Content
![[NYC Meetup] Docker at Nuxeo](https://cdn.slidesharecdn.com/ss_thumbnails/dockermeetupnyc-140605110024-phpapp01-thumbnail.jpg?width=600ounds&width=560&fit=bounds)
Similar to Java EE and NoSQL using JBoss EAP 7 and OpenShift
![UiPath Automation Suite Installation (Hands-On) [2/3]](https://cdn.slidesharecdn.com/ss_thumbnails/automationsuitecommunitysession2-251015095633-a6d862f1-thumbnail.jpg?width=600ounds&width=560&fit=bounds)
Java EE and NoSQL using JBoss EAP 7 and OpenShift
- 1. Java EE and NoSQL using JBoss EAP 7 and OpenShift Arun Gupta, @arungupta Matt Ingenthron, @ingenthr

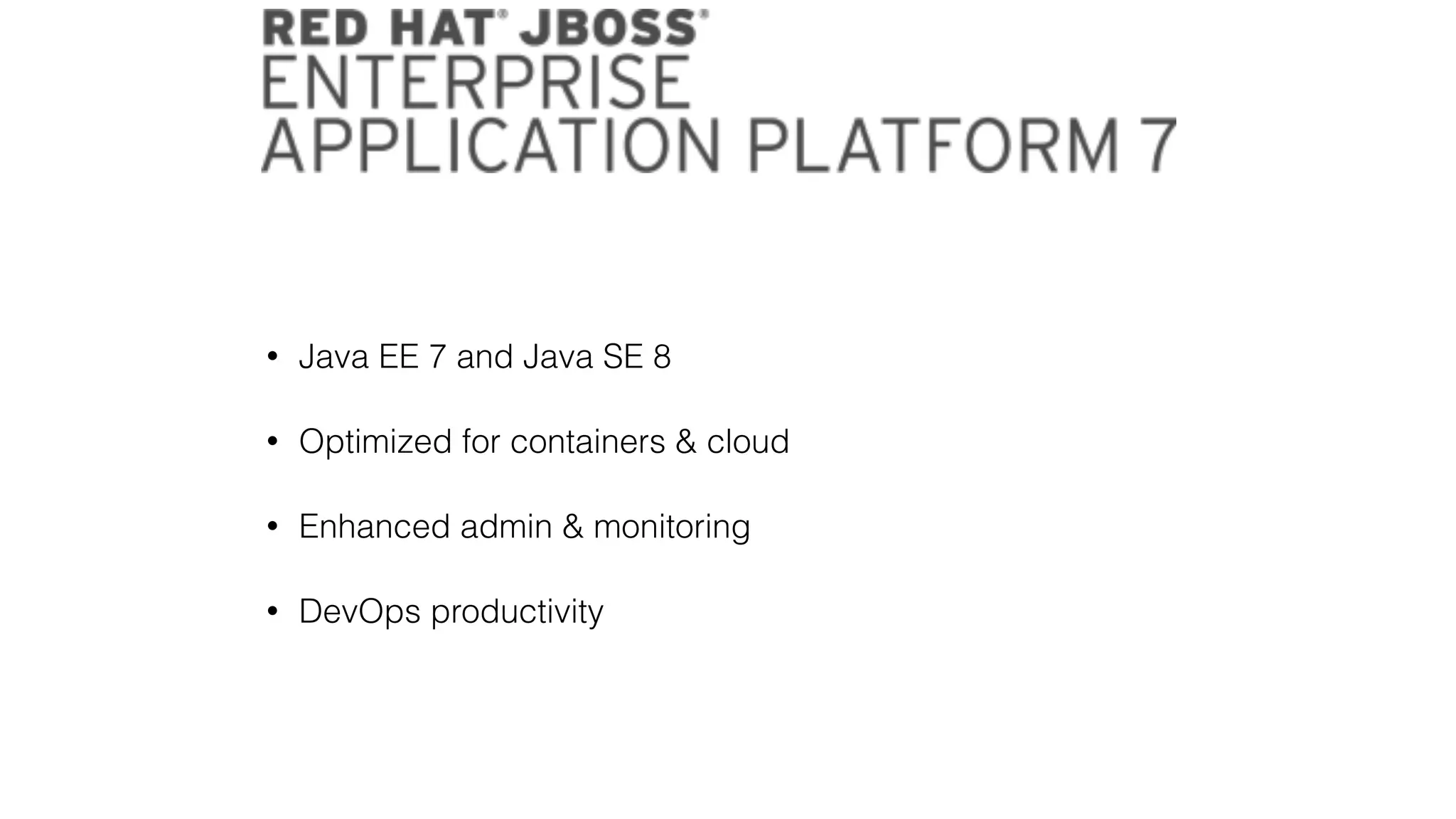

- 2. • Java EE7 and Java SE 8 • Optimized for containers & cloud • Enhanced admin & monitoring • DevOps productivity

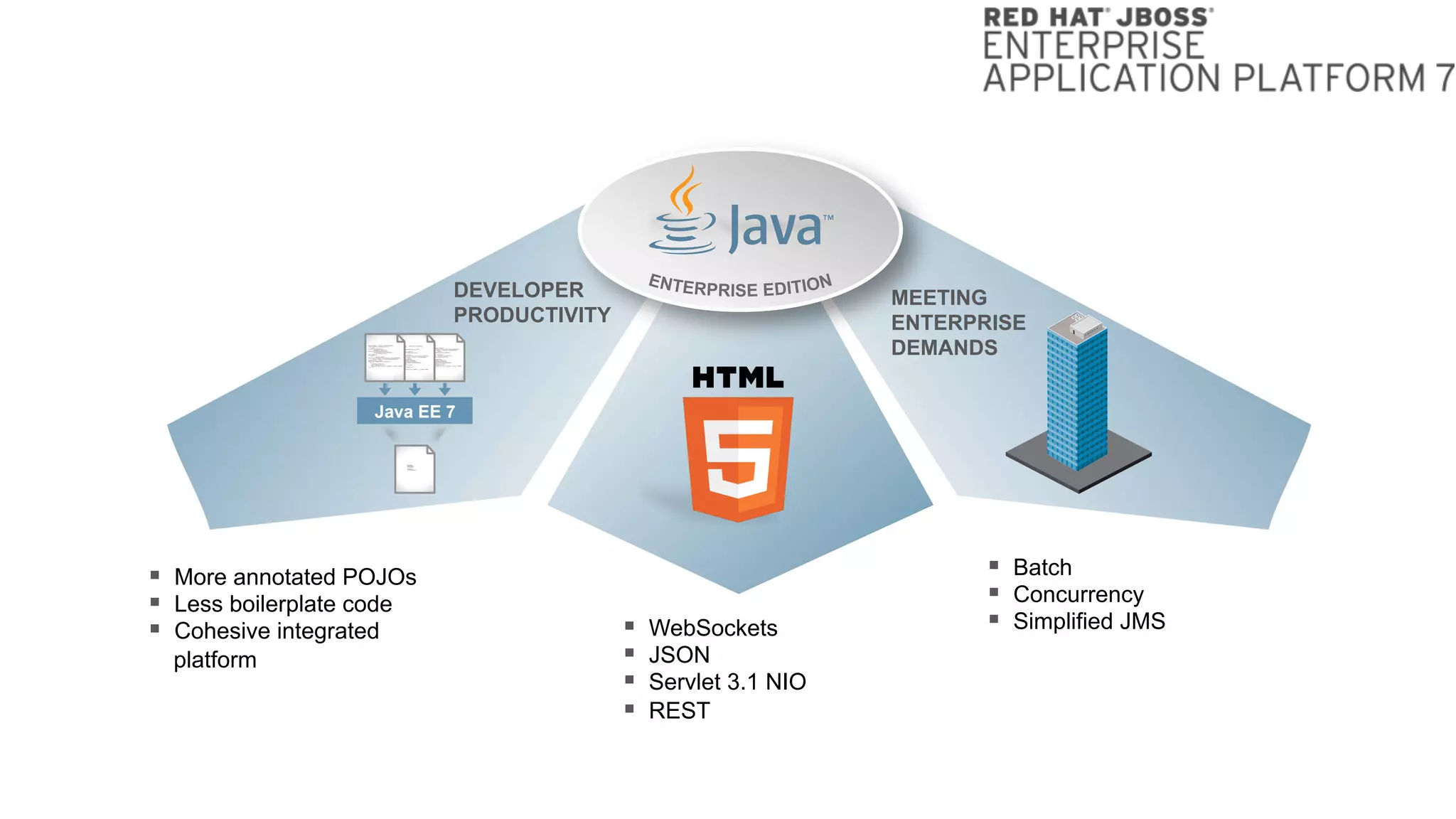

- 3. DEVELOPER PRODUCTIVITY MEETING ENTERPRISE DEMANDS Java EE 7 ! Batch ! Concurrency ! Simplified JMS ! More annotated POJOs ! Less boilerplate code ! Cohesive integrated platform ! WebSockets ! JSON ! Servlet 3.1 NIO ! REST

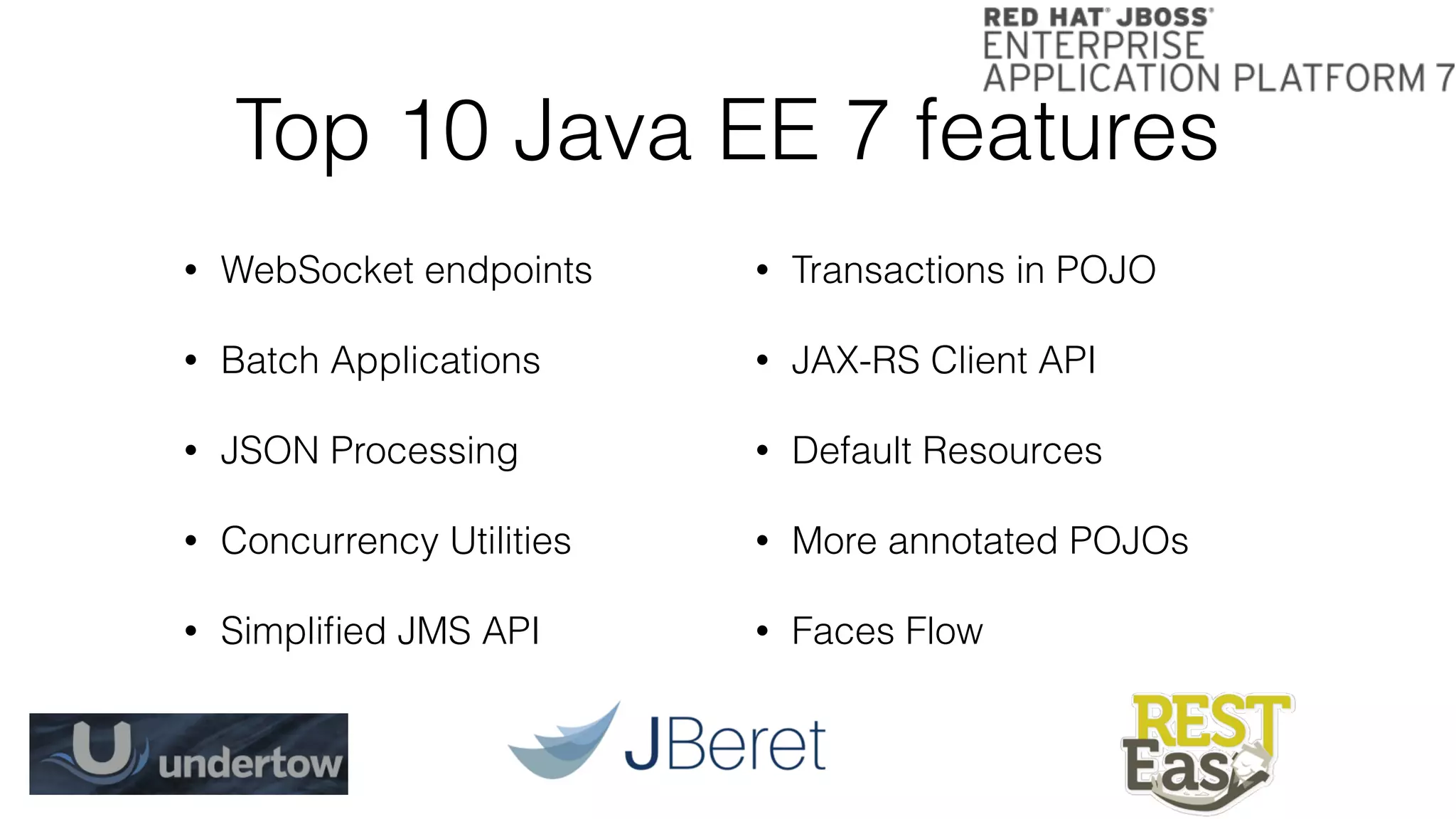

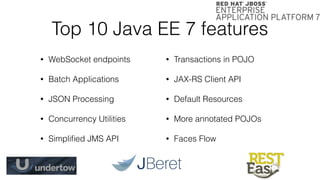

- 4. Top 10 JavaEE 7 features • WebSocket endpoints • Batch Applications • JSON Processing • Concurrency Utilities • Simplified JMS API • Transactions in POJO • JAX-RS Client API • Default Resources • More annotated POJOs • Faces Flow

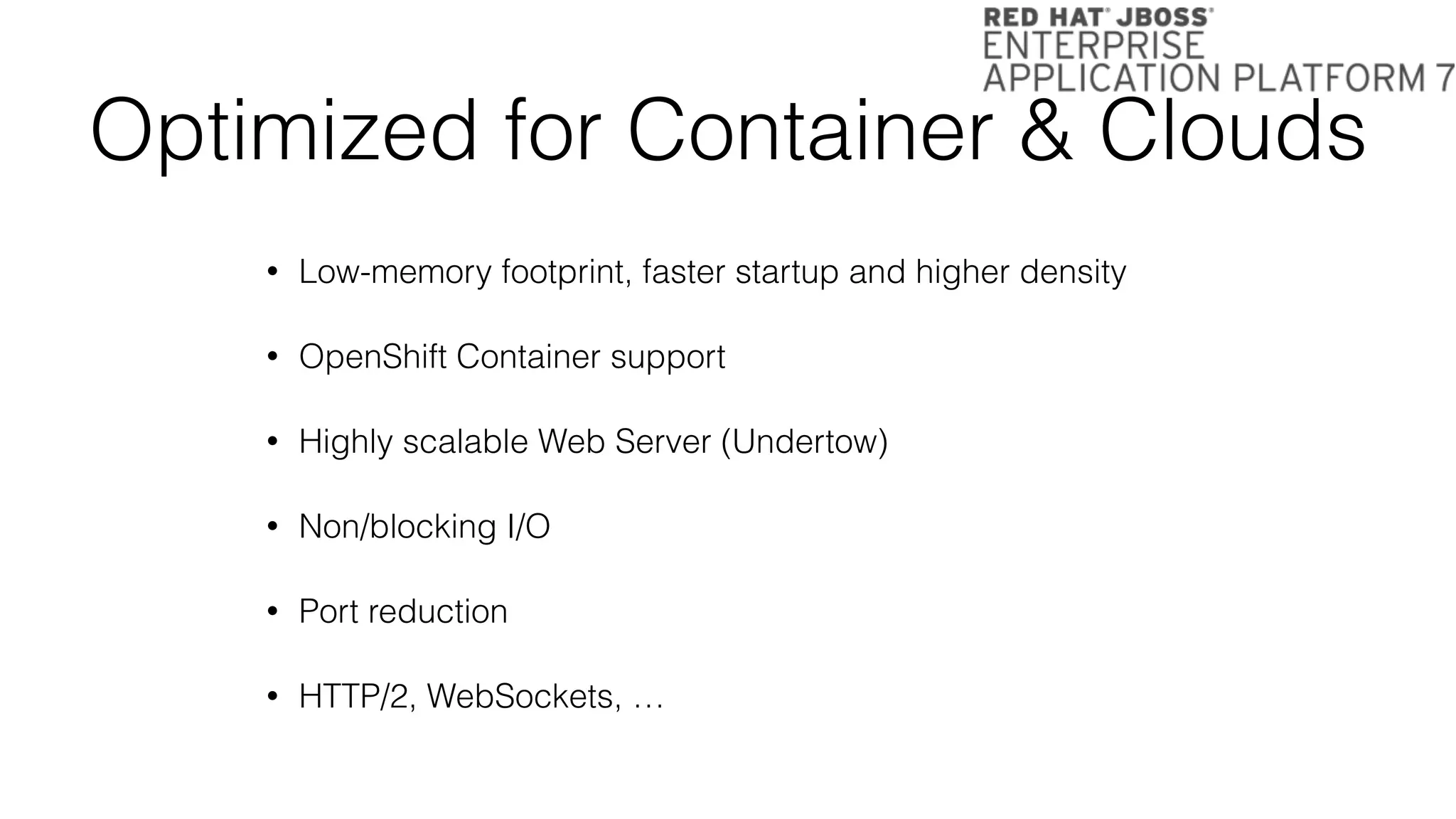

- 5. Optimized for Container& Clouds • Low-memory footprint, faster startup and higher density • OpenShift Container support • Highly scalable Web Server (Undertow) • Non/blocking I/O • Port reduction • HTTP/2, WebSockets, …

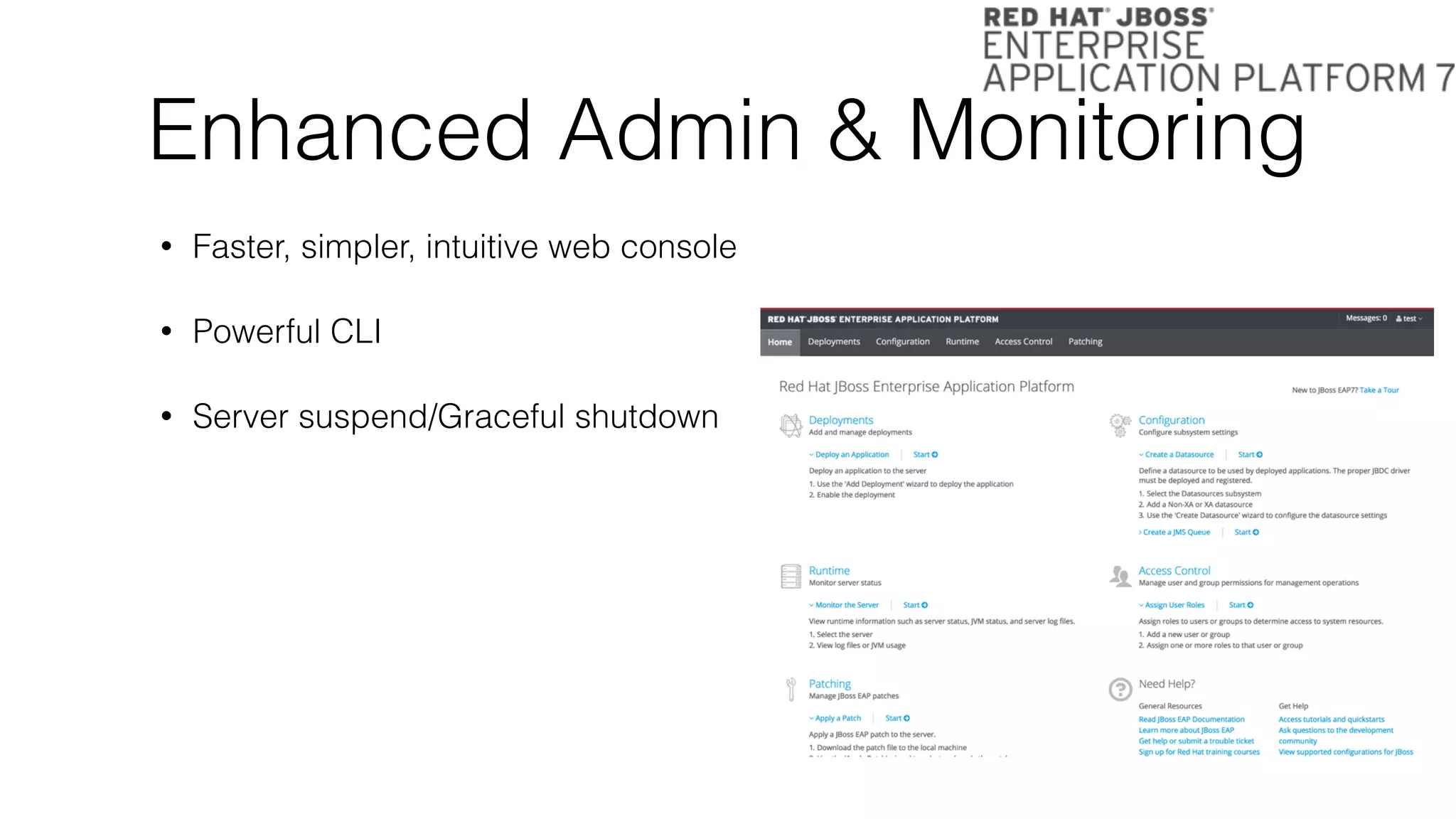

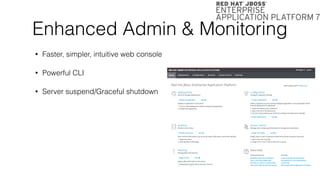

- 6. Enhanced Admin &Monitoring • Faster, simpler, intuitive web console • Powerful CLI • Server suspend/Graceful shutdown

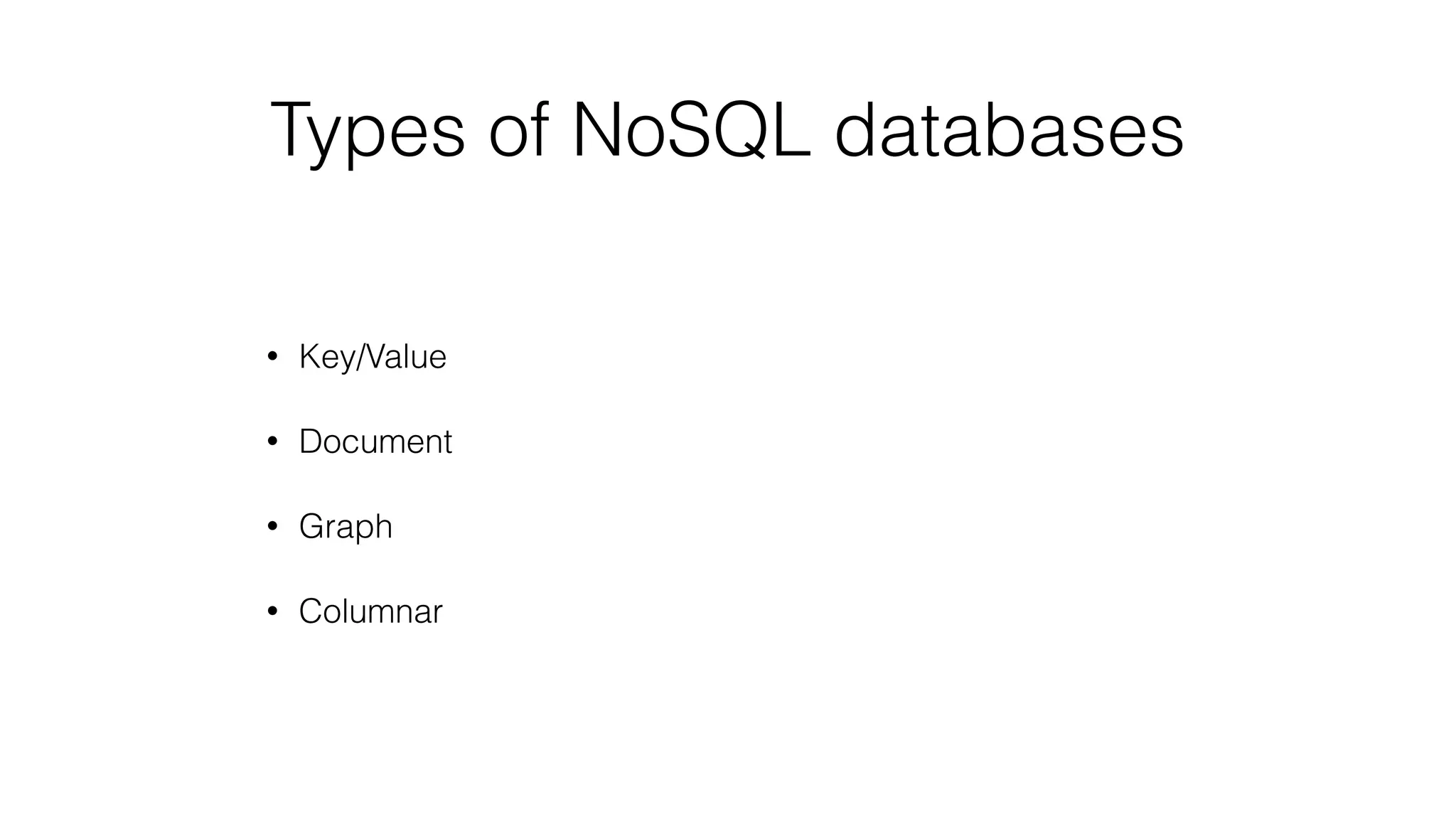

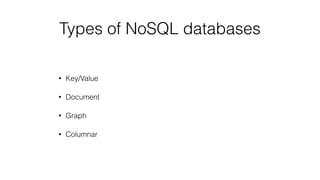

- 7. Types of NoSQLdatabases • Key/Value • Document • Graph • Columnar

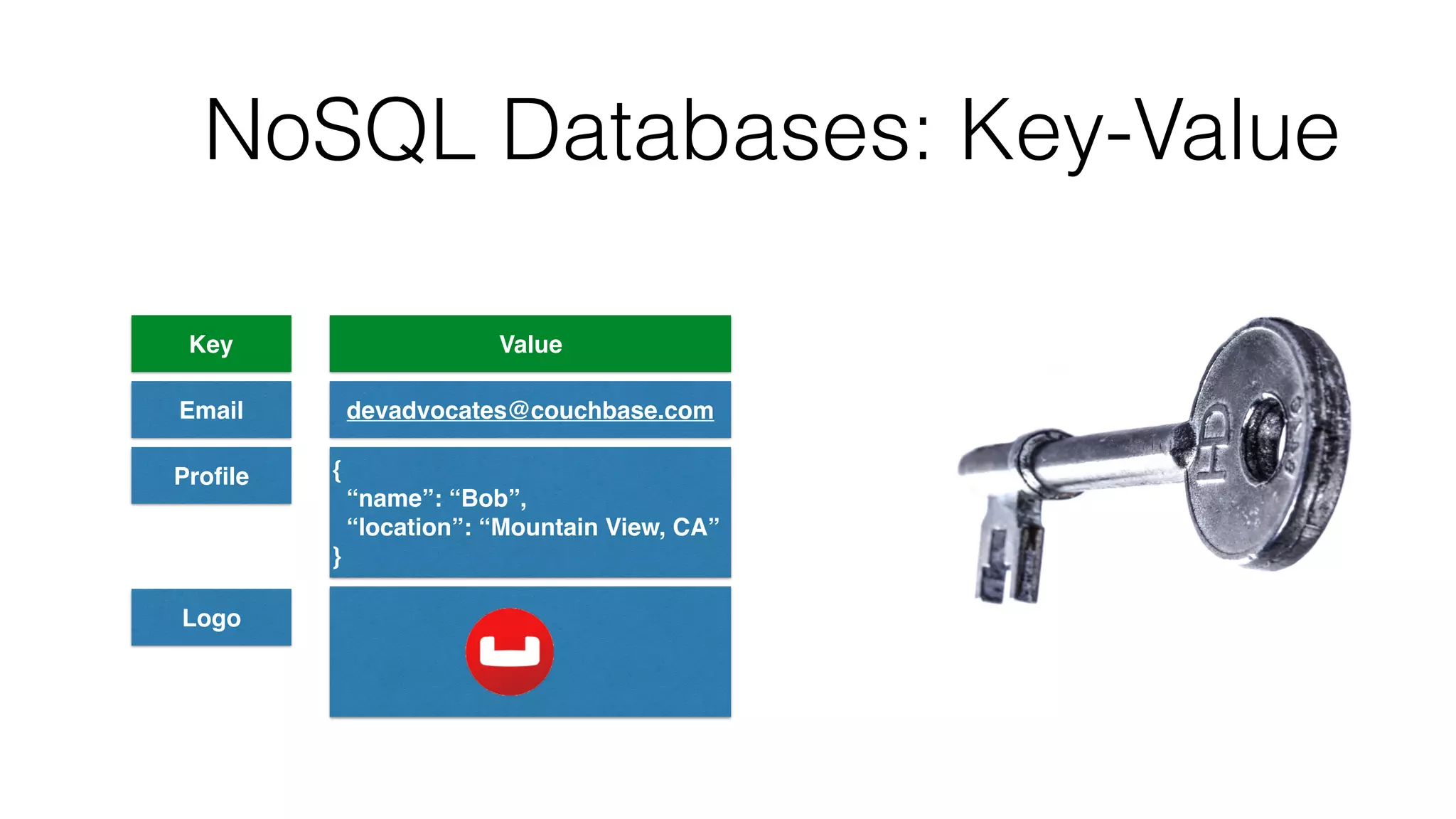

- 8. NoSQL Databases: Key-Value KeyValue Email devadvocates@couchbase.com Profile { “name”: “Bob”, “location”: “Mountain View, CA” } Logo

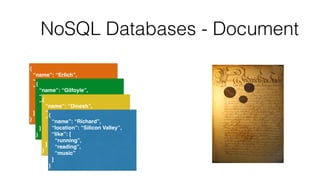

- 9. NoSQL Databases -Document { “name”: “Erlich”, “location”: “Mountain View, CA”, “like”: [ “running”, “reading”, “music” ] } { “name”: “Gilfoyle”, “location”: “Mountain View, CA”, “like”: [ “running”, “reading”, “music” ] } { “name”: “Dinesh”, “location”: “Mountain View, CA”, “like”: [ “running”, “reading”, “music” ] } { “name”: “Richard”, “location”: “Silicon Valley”, “like”: [ “running”, “reading”, “music” ] }

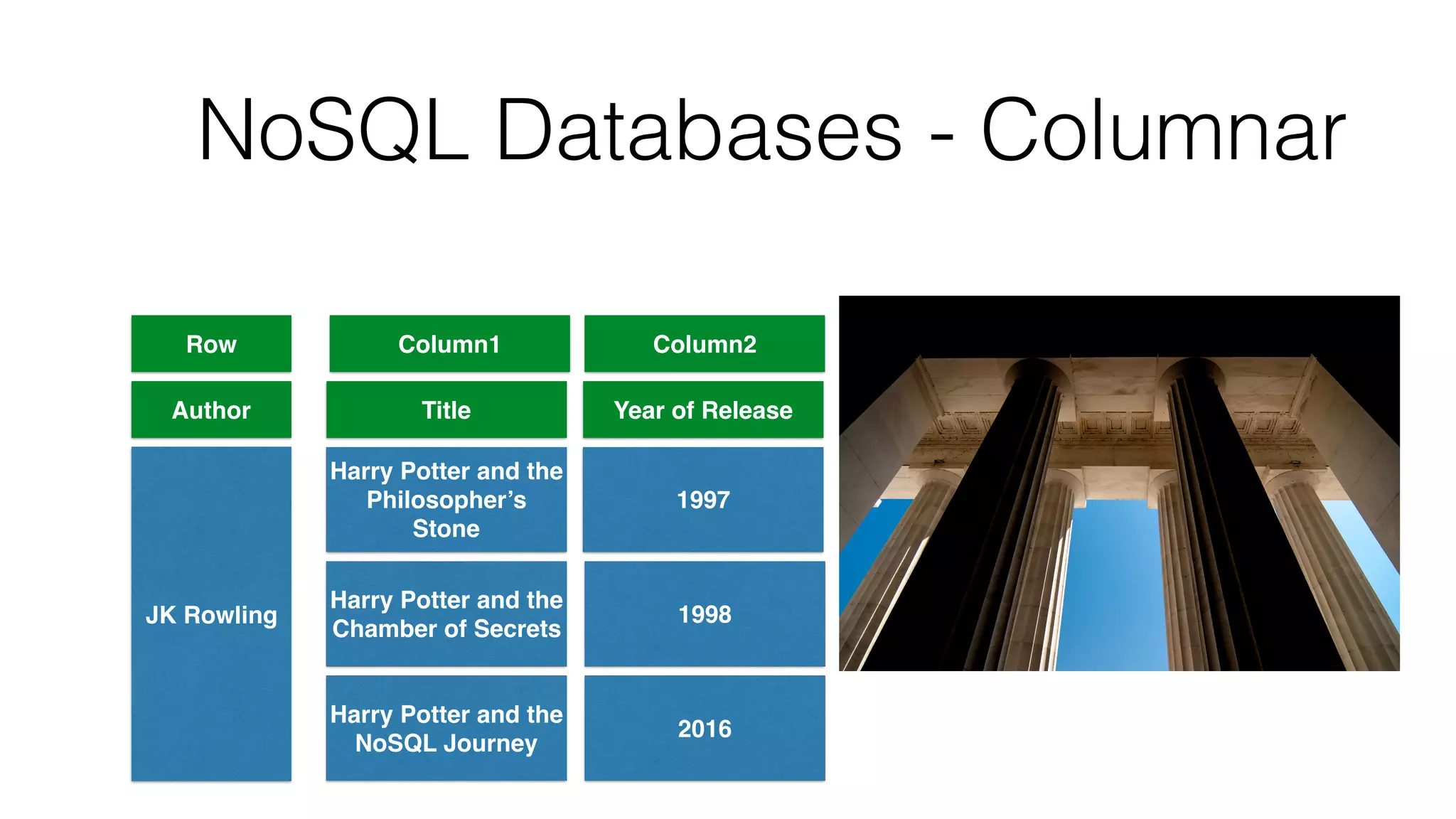

- 10. NoSQL Databases -Columnar Row Column1 JK Rowling Harry Potter and the Philosopher’s Stone Column2 Author Title Year of Release Harry Potter and the Chamber of Secrets Harry Potter and the NoSQL Journey 1997 1998 2016

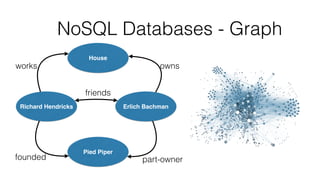

- 11. NoSQL Databases -Graph Richard Hendricks Pied Piper Erlich Bachman House ownsworks founded part-owner friends

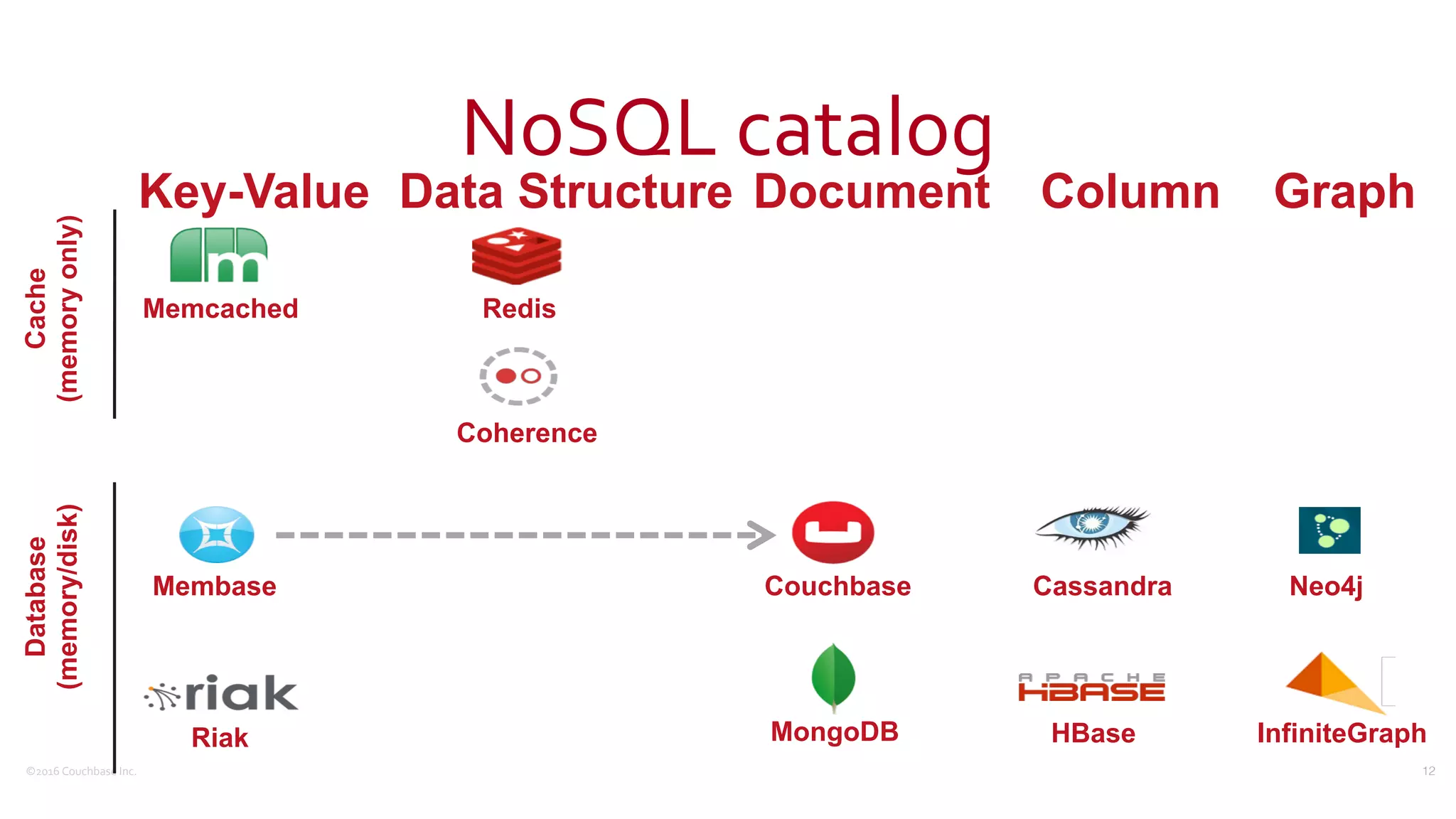

- 12. ©2016 Couchbase Inc. NoSQL catalog 12 Key-Value Memcached Cache (memoryonly) Database (memory/disk) Redis Data Structure Riak Couchbase MongoDB Document Column Cassandra Graph Neo4j HBase InfiniteGraph Coherence Membase

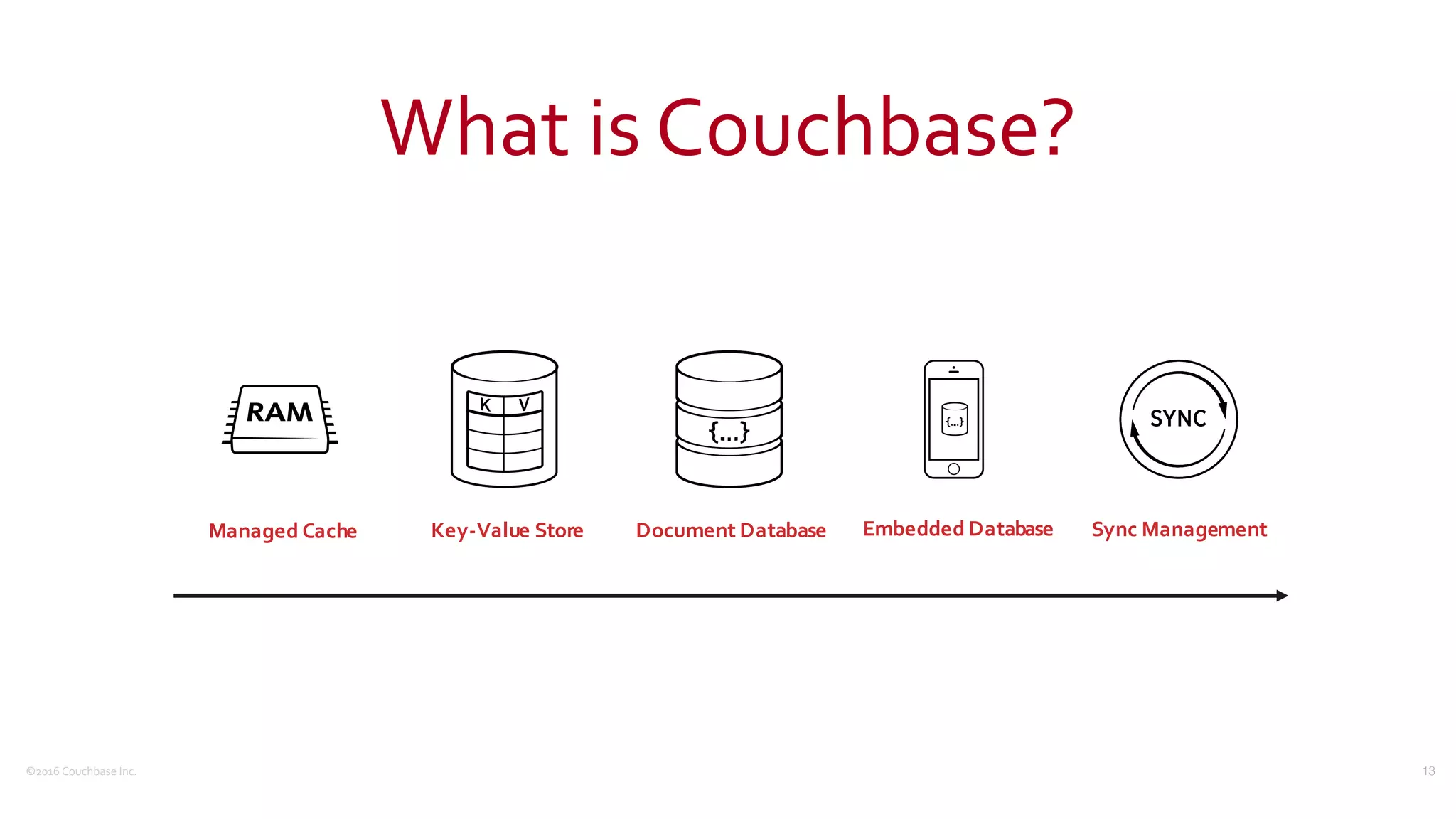

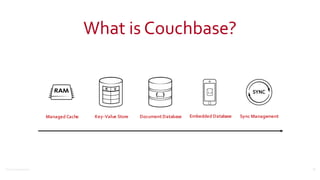

- 13. ©2016 Couchbase Inc. What is Couchbase? 13 Managed'Cache Key-Value'Store Document'Database Embedded'Database Sync'Management

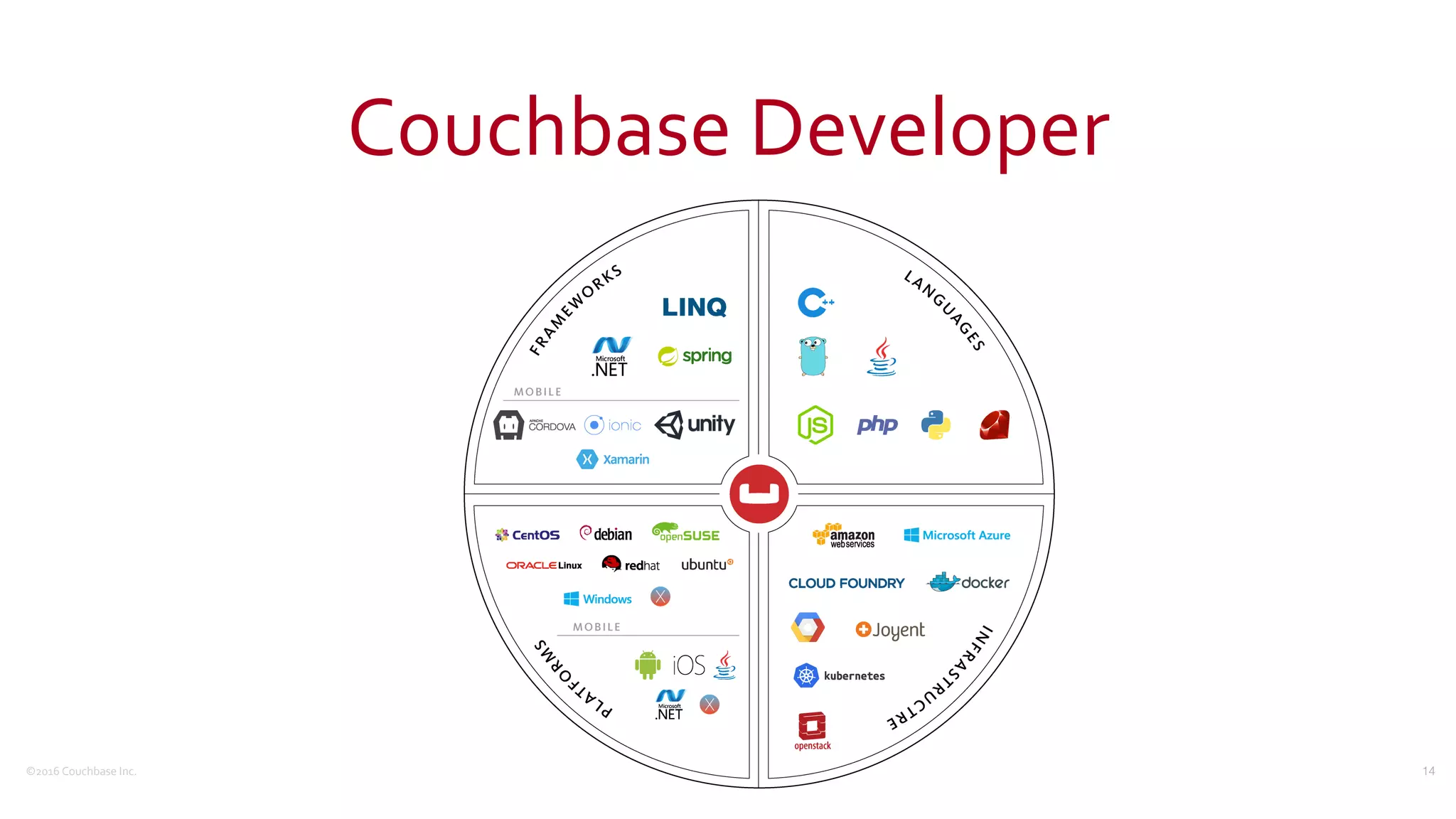

- 14. ©2016 Couchbase Inc. Couchbase Developer 14

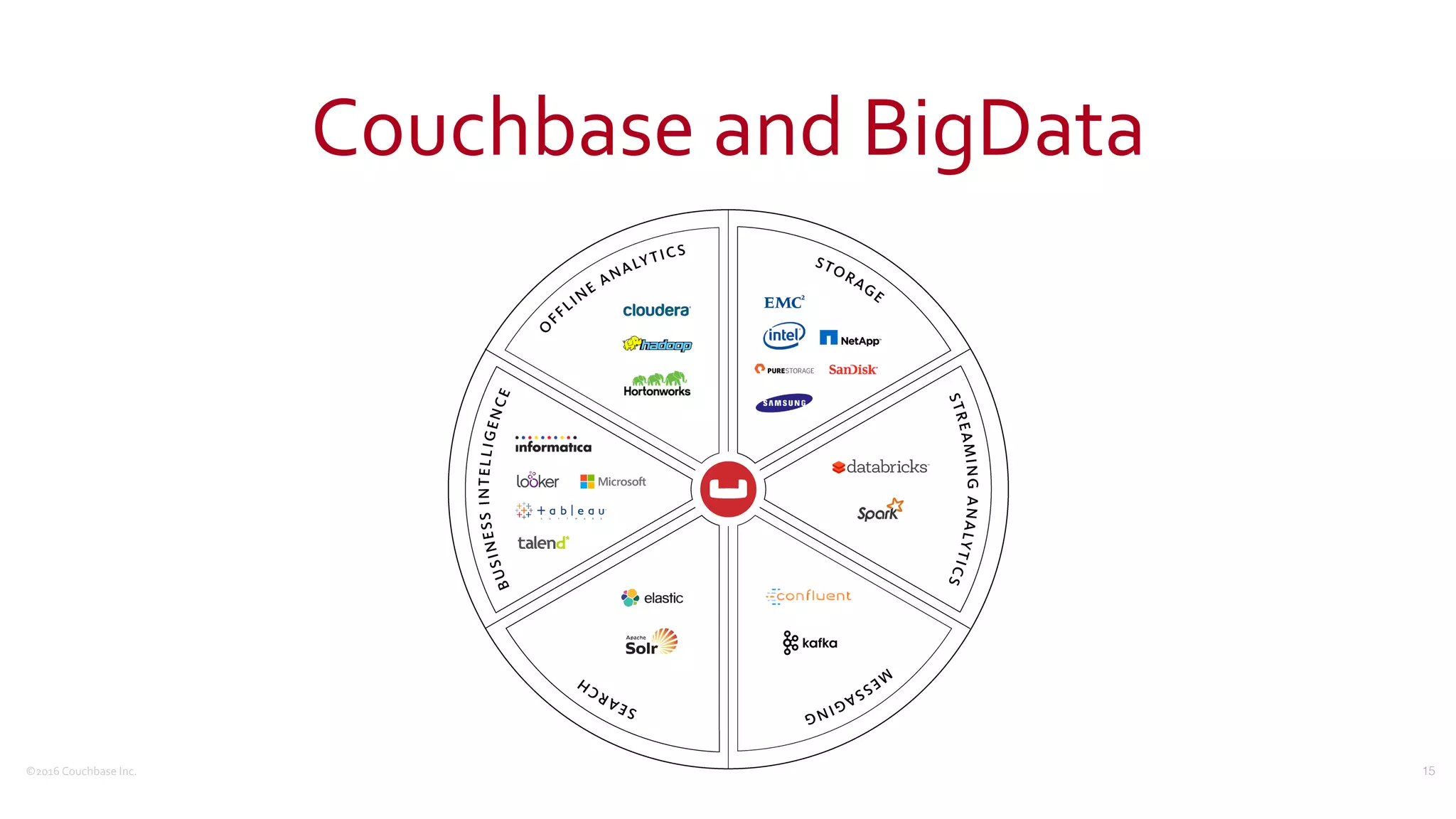

- 15. ©2016 Couchbase Inc. Couchbase and BigData 15

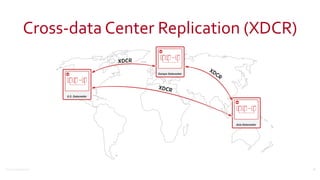

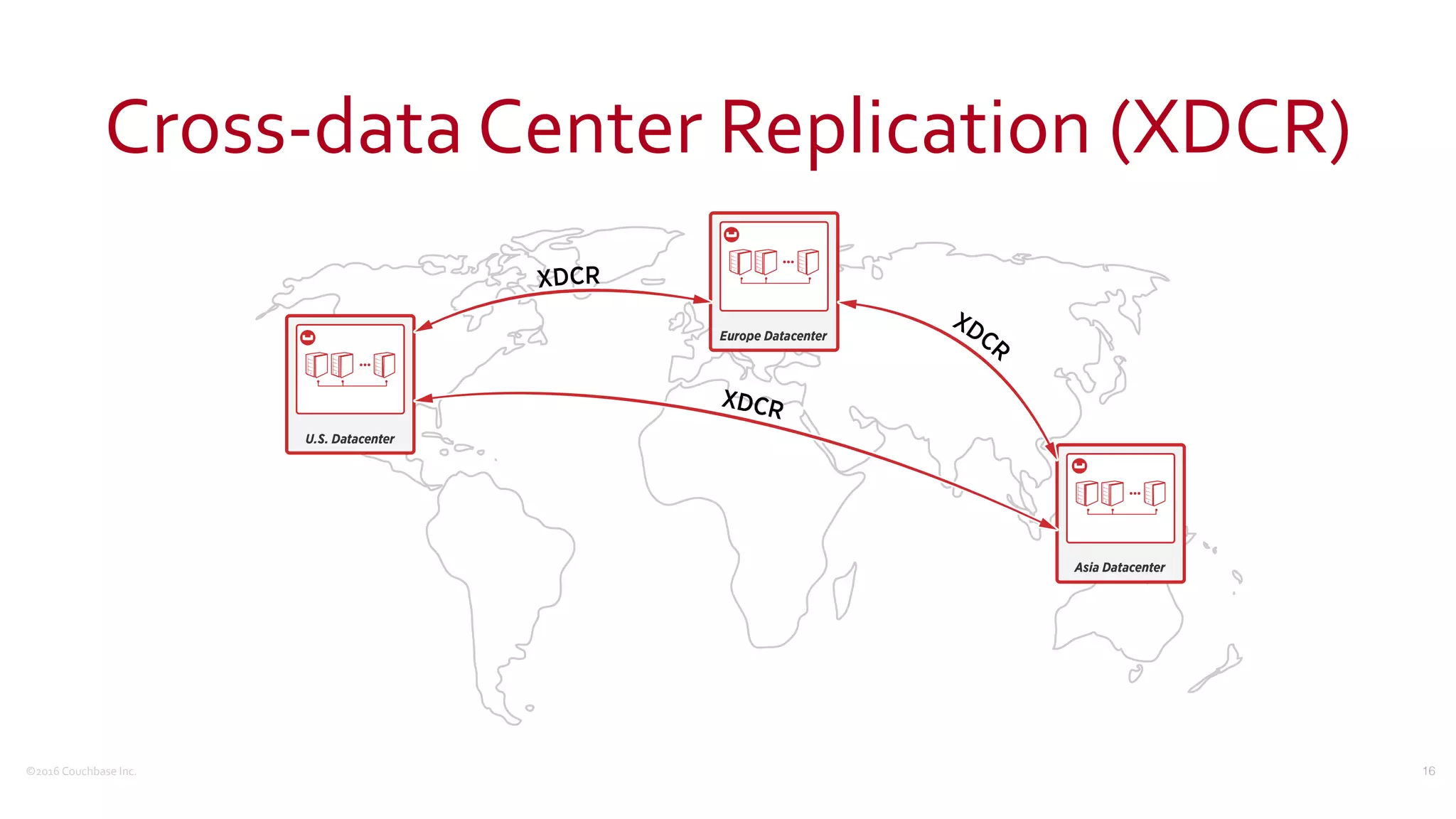

- 16. ©2016 Couchbase Inc. Cross-‐data Center Replication (XDCR) 16

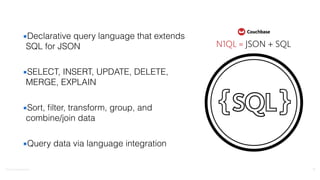

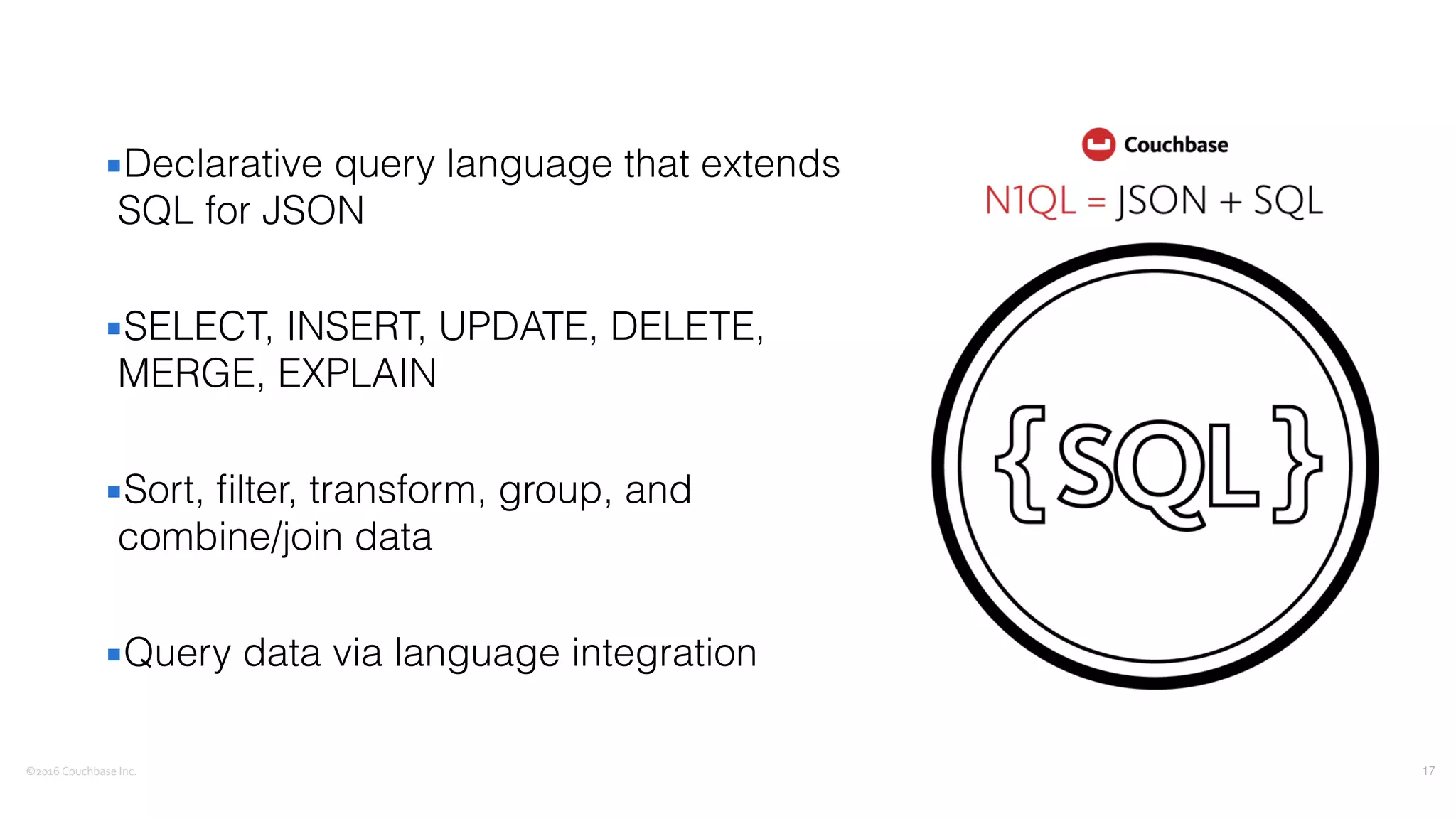

- 17. ©2016 Couchbase Inc. ▪Declarativequery language that extends SQL for JSON ▪SELECT, INSERT, UPDATE, DELETE, MERGE, EXPLAIN ▪Sort, filter, transform, group, and combine/join data ▪Query data via language integration 17

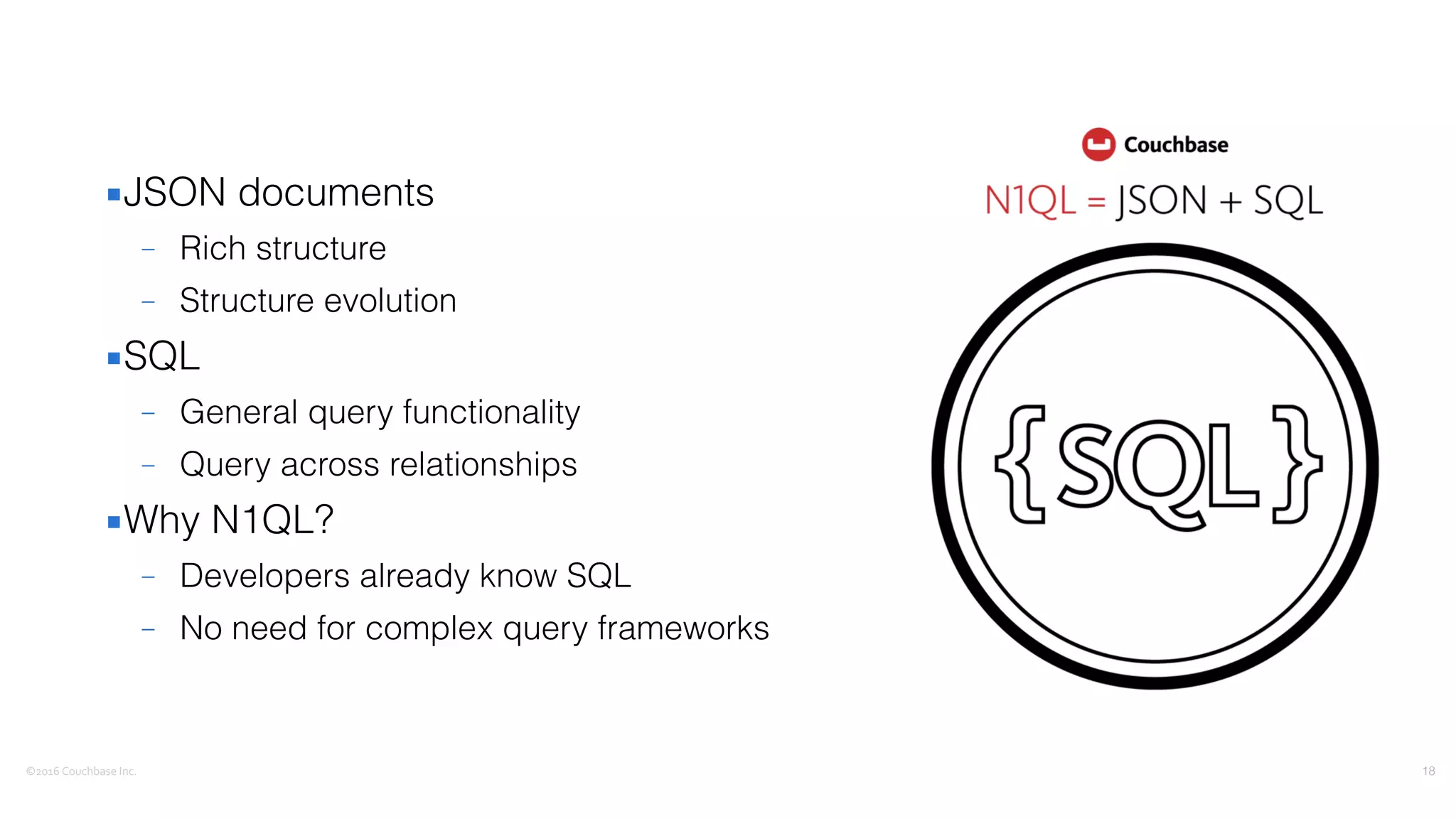

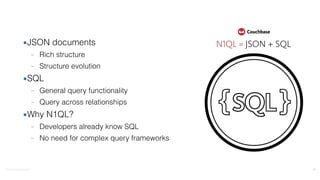

- 18. ©2016 Couchbase Inc. ▪JSONdocuments – Rich structure – Structure evolution ▪SQL – General query functionality – Query across relationships ▪Why N1QL? – Developers already know SQL – No need for complex query frameworks 18

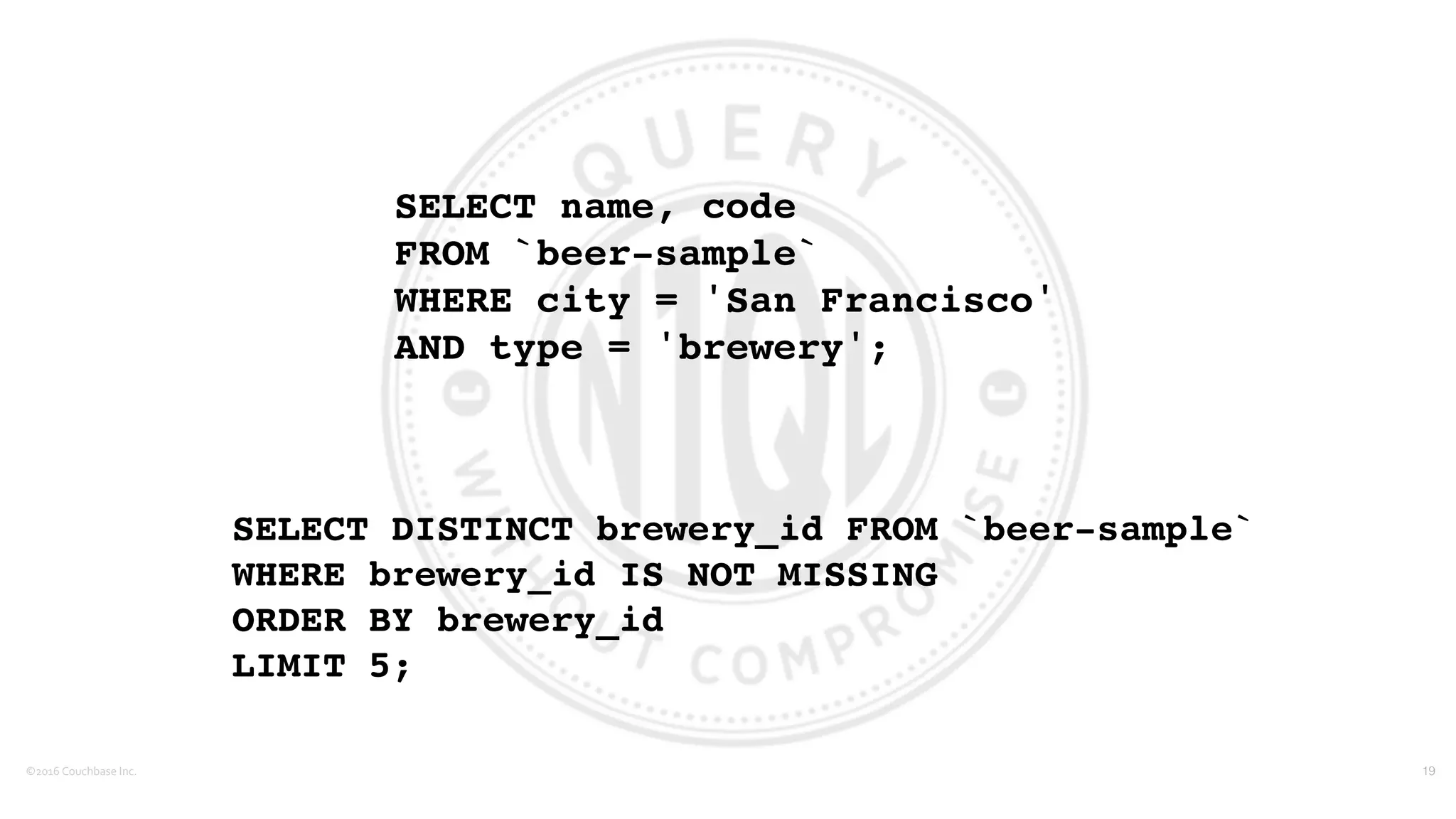

- 19. ©2016 Couchbase Inc. SELECTname, code FROM `beer-sample` WHERE city = 'San Francisco' AND type = 'brewery'; 19 SELECT DISTINCT brewery_id FROM `beer-sample` WHERE brewery_id IS NOT MISSING ORDER BY brewery_id LIMIT 5;

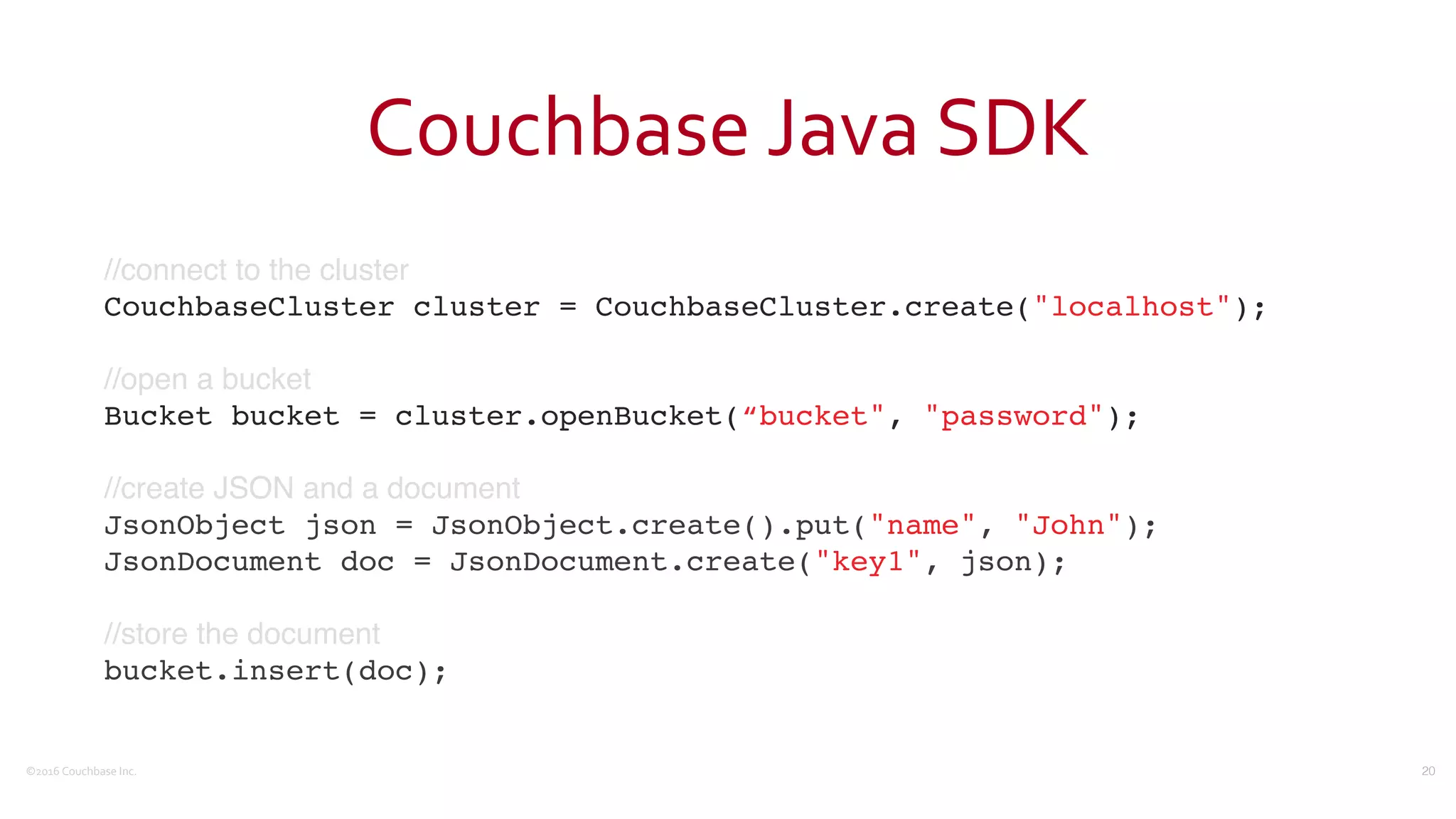

- 20. ©2016 Couchbase Inc. Couchbase Java SDK //connect to the cluster CouchbaseCluster cluster = CouchbaseCluster.create("localhost"); //open a bucket Bucket bucket = cluster.openBucket(“bucket", "password"); //create JSON and a document JsonObject json = JsonObject.create().put("name", "John"); JsonDocument doc = JsonDocument.create("key1", json); //store the document bucket.insert(doc); 20

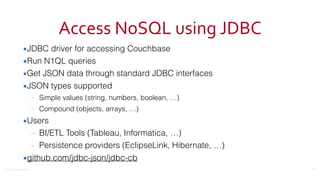

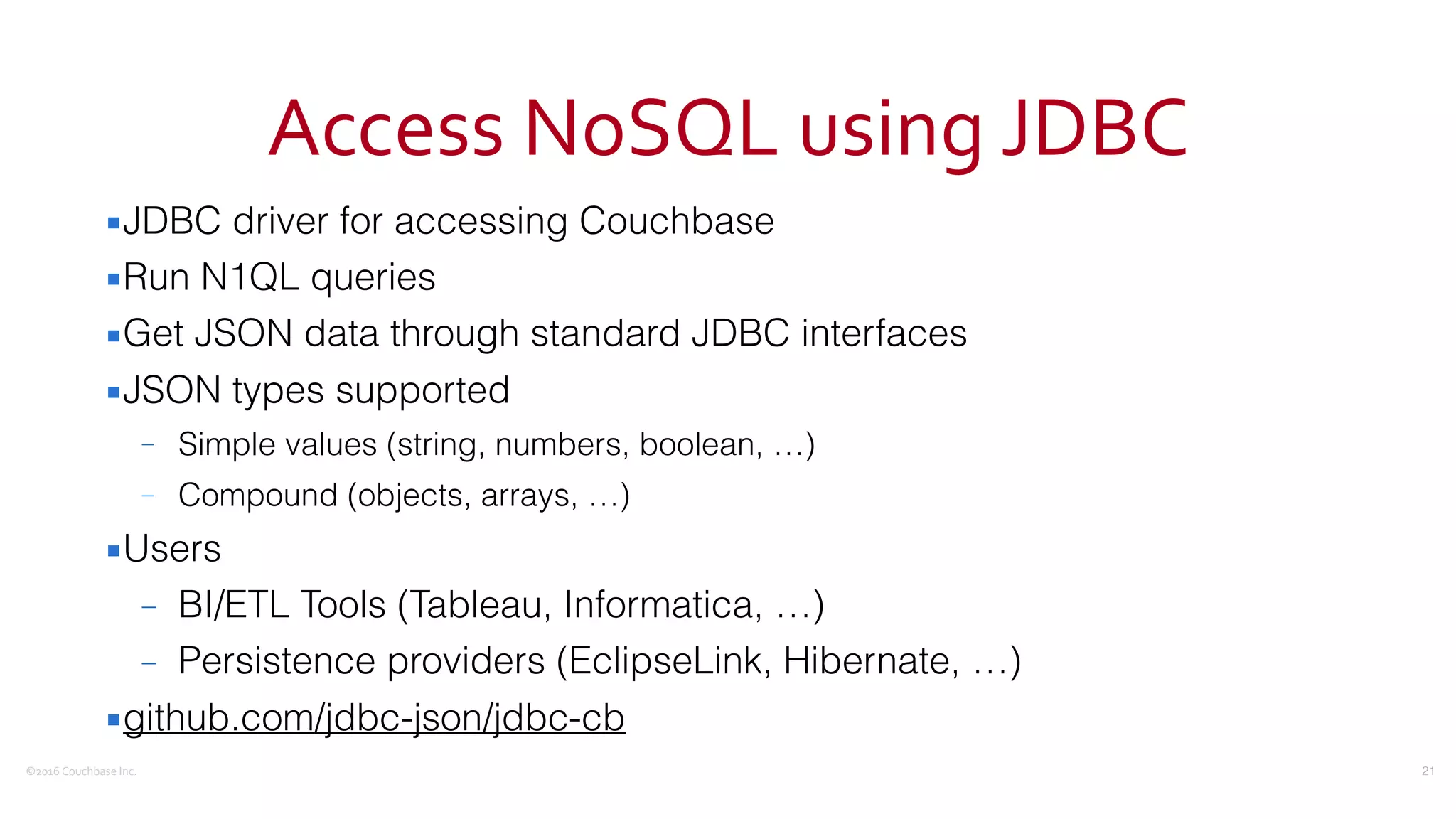

- 21. ©2016 Couchbase Inc. Access NoSQL using JDBC ▪JDBC driver for accessing Couchbase ▪Run N1QL queries ▪Get JSON data through standard JDBC interfaces ▪JSON types supported – Simple values (string, numbers, boolean, …) – Compound (objects, arrays, …) ▪Users – BI/ETL Tools (Tableau, Informatica, …) – Persistence providers (EclipseLink, Hibernate, …) ▪github.com/jdbc-json/jdbc-cb 21

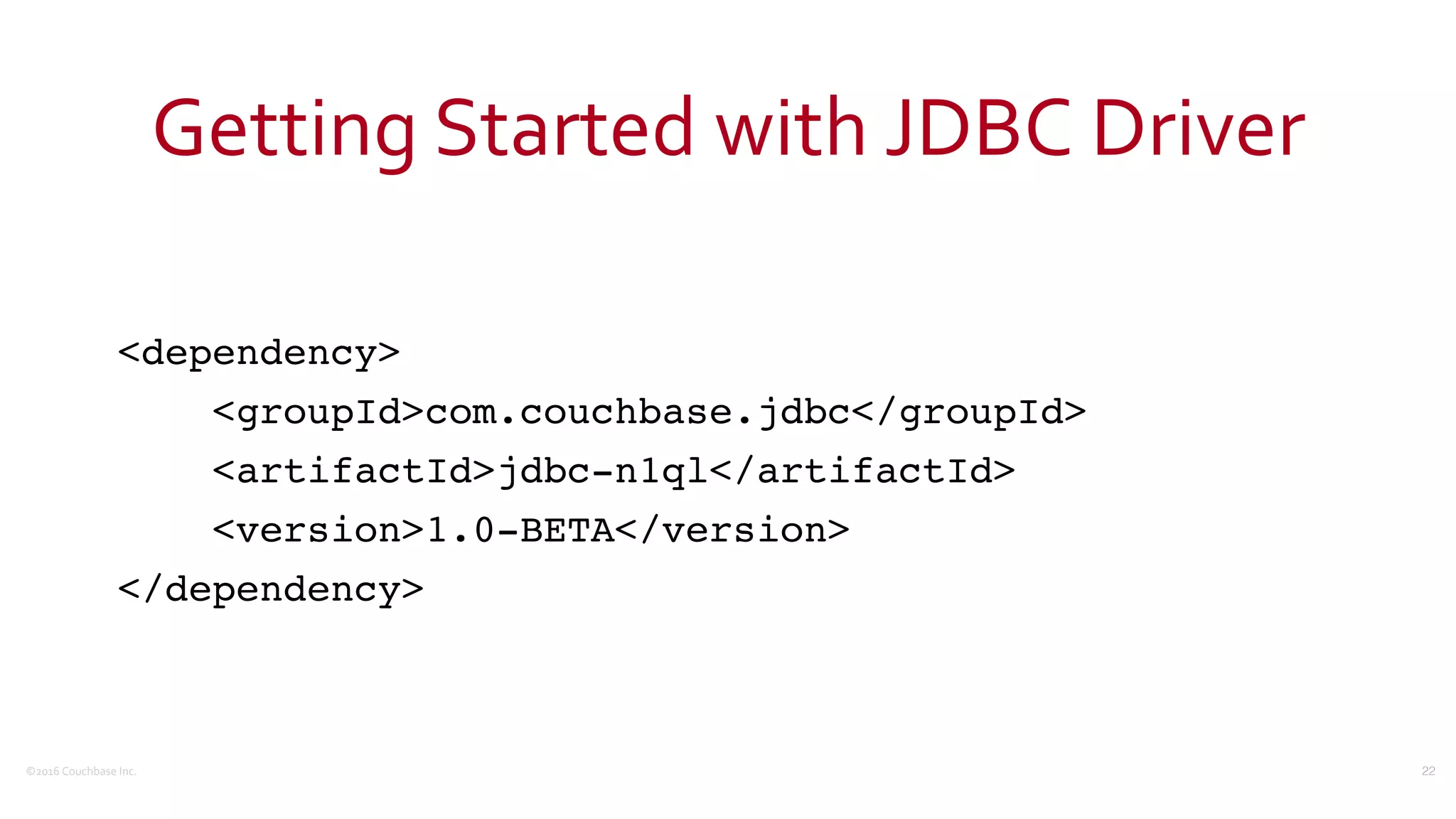

- 22. ©2016 Couchbase Inc. Getting Started with JDBC Driver <dependency> <groupId>com.couchbase.jdbc</groupId> <artifactId>jdbc-n1ql</artifactId> <version>1.0-BETA</version> </dependency> 22

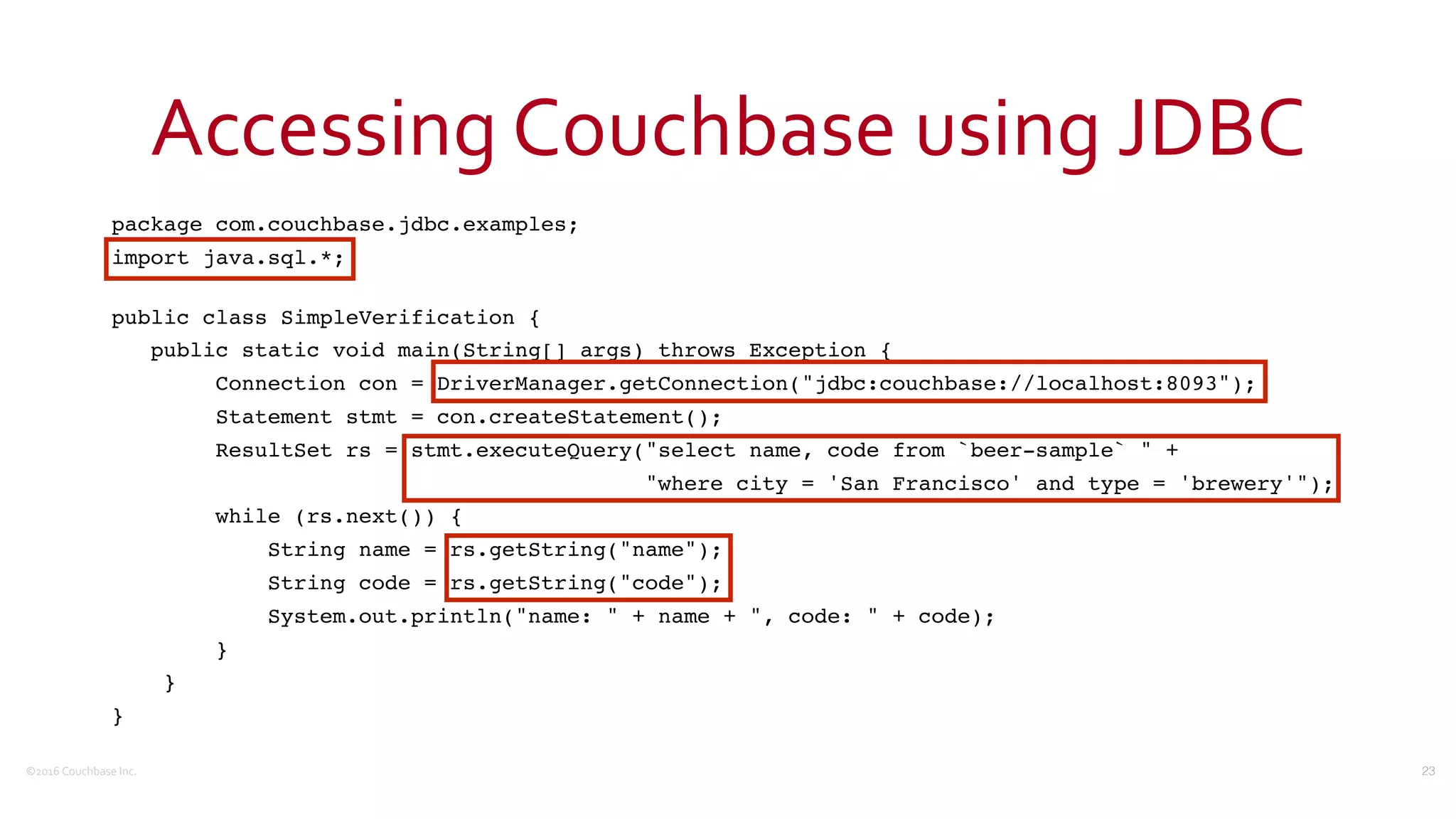

- 23. ©2016 Couchbase Inc. Accessing Couchbase using JDBC package com.couchbase.jdbc.examples; import java.sql.*; public class SimpleVerification { public static void main(String[] args) throws Exception { Connection con = DriverManager.getConnection("jdbc:couchbase://localhost:8093"); Statement stmt = con.createStatement(); ResultSet rs = stmt.executeQuery("select name, code from `beer-sample` " + "where city = 'San Francisco' and type = 'brewery'"); while (rs.next()) { String name = rs.getString("name"); String code = rs.getString("code"); System.out.println("name: " + name + ", code: " + code); } } } 23

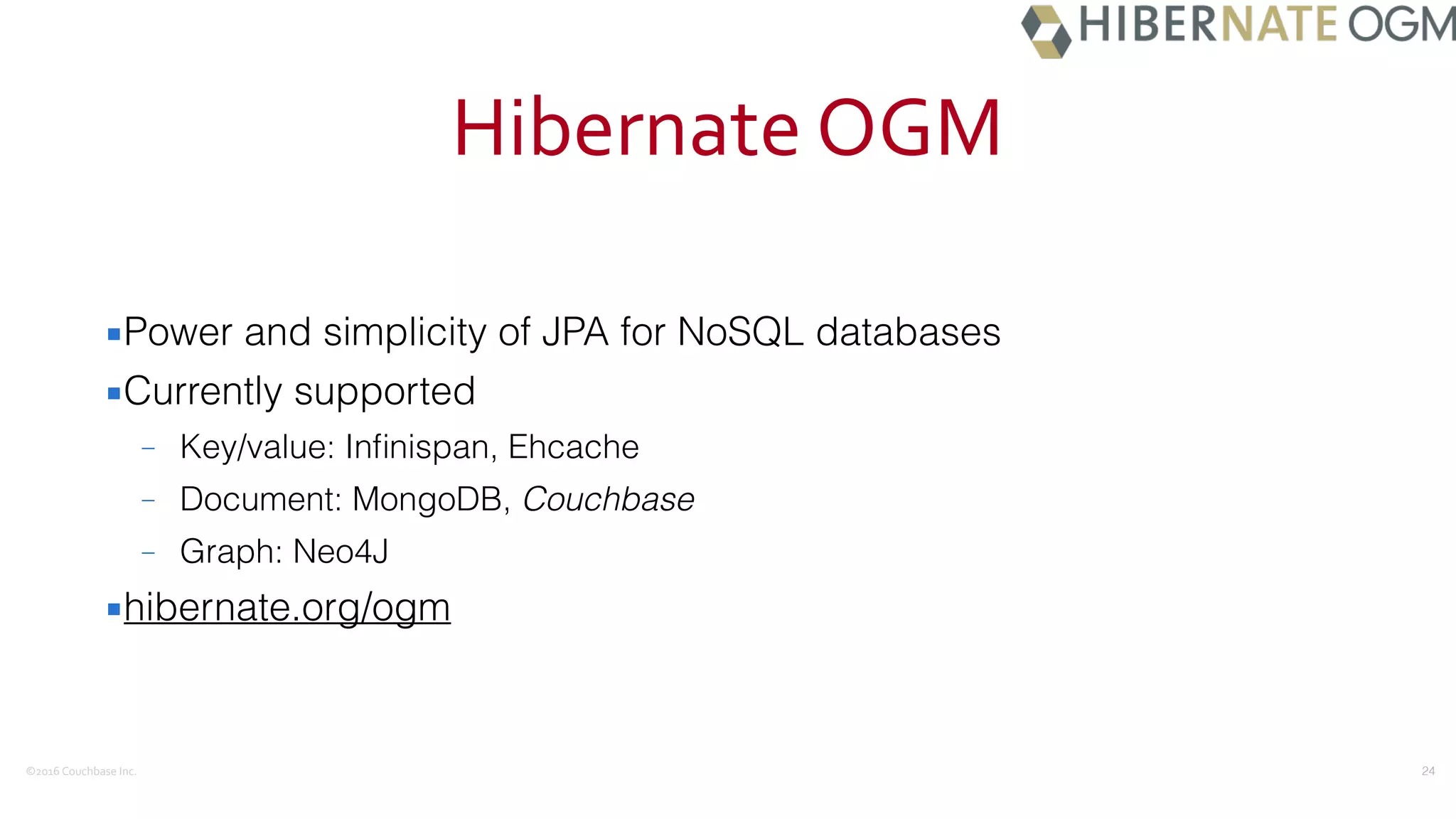

- 24. ©2016 Couchbase Inc. Hibernate OGM ▪Power and simplicity of JPA for NoSQL databases ▪Currently supported – Key/value: Infinispan, Ehcache – Document: MongoDB, Couchbase – Graph: Neo4J ▪hibernate.org/ogm 24

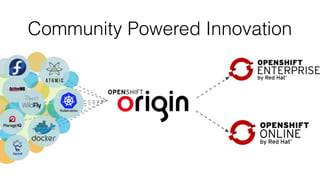

- 26.
- 27.

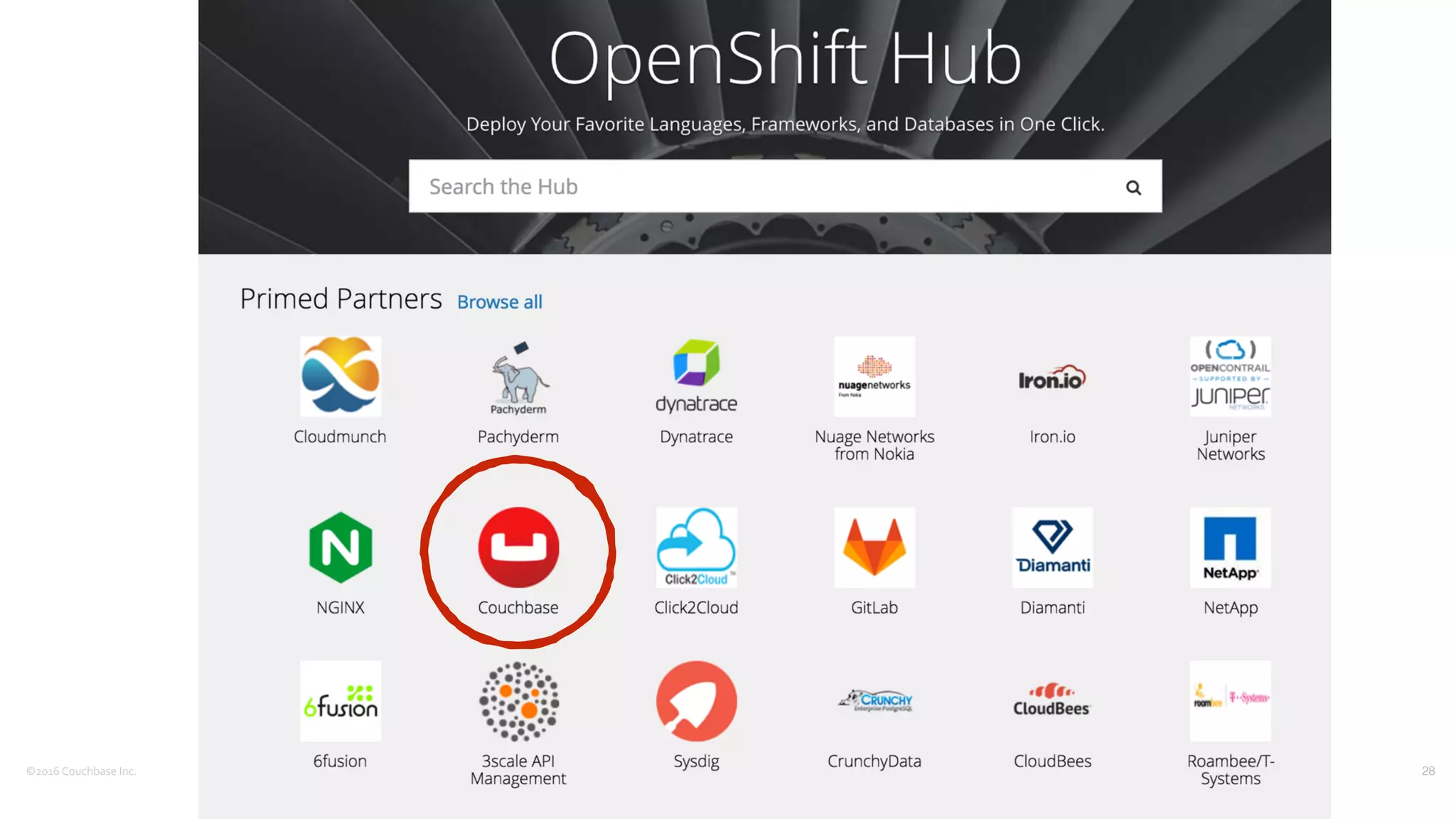

- 28.
- 29. ©2016 Couchbase Inc. ▪Technicalreadiness for OpenShift ▪First and only NoSQL database primed for OpenShift 29

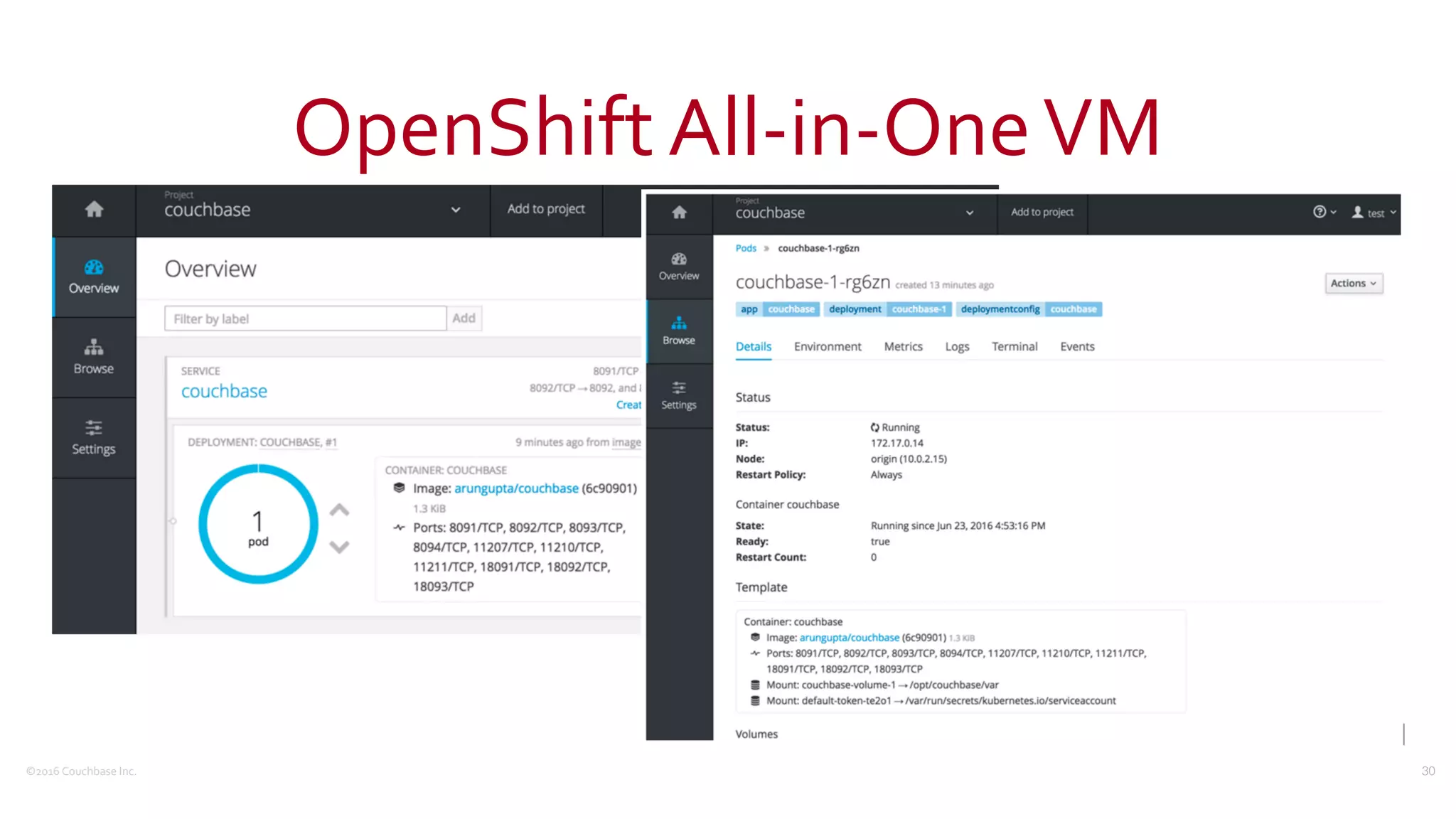

- 30. ©2016 Couchbase Inc. OpenShift All-‐in-‐One VM 30
- 31.
- 32.

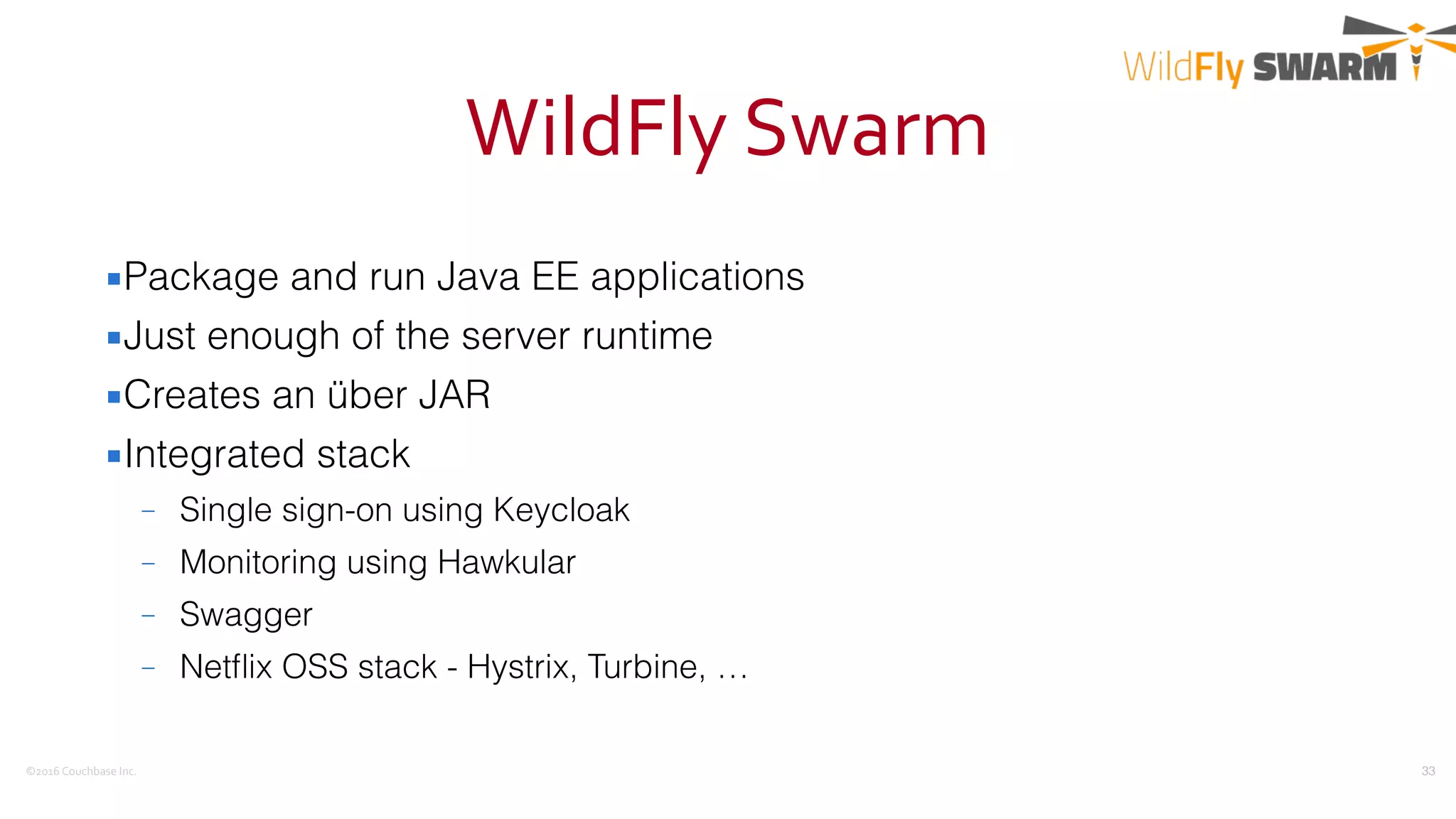

- 33. ©2016 Couchbase Inc. WildFly Swarm ▪Package and run Java EE applications ▪Just enough of the server runtime ▪Creates an über JAR ▪Integrated stack – Single sign-on using Keycloak – Monitoring using Hawkular – Swagger – Netflix OSS stack - Hystrix, Turbine, … 33

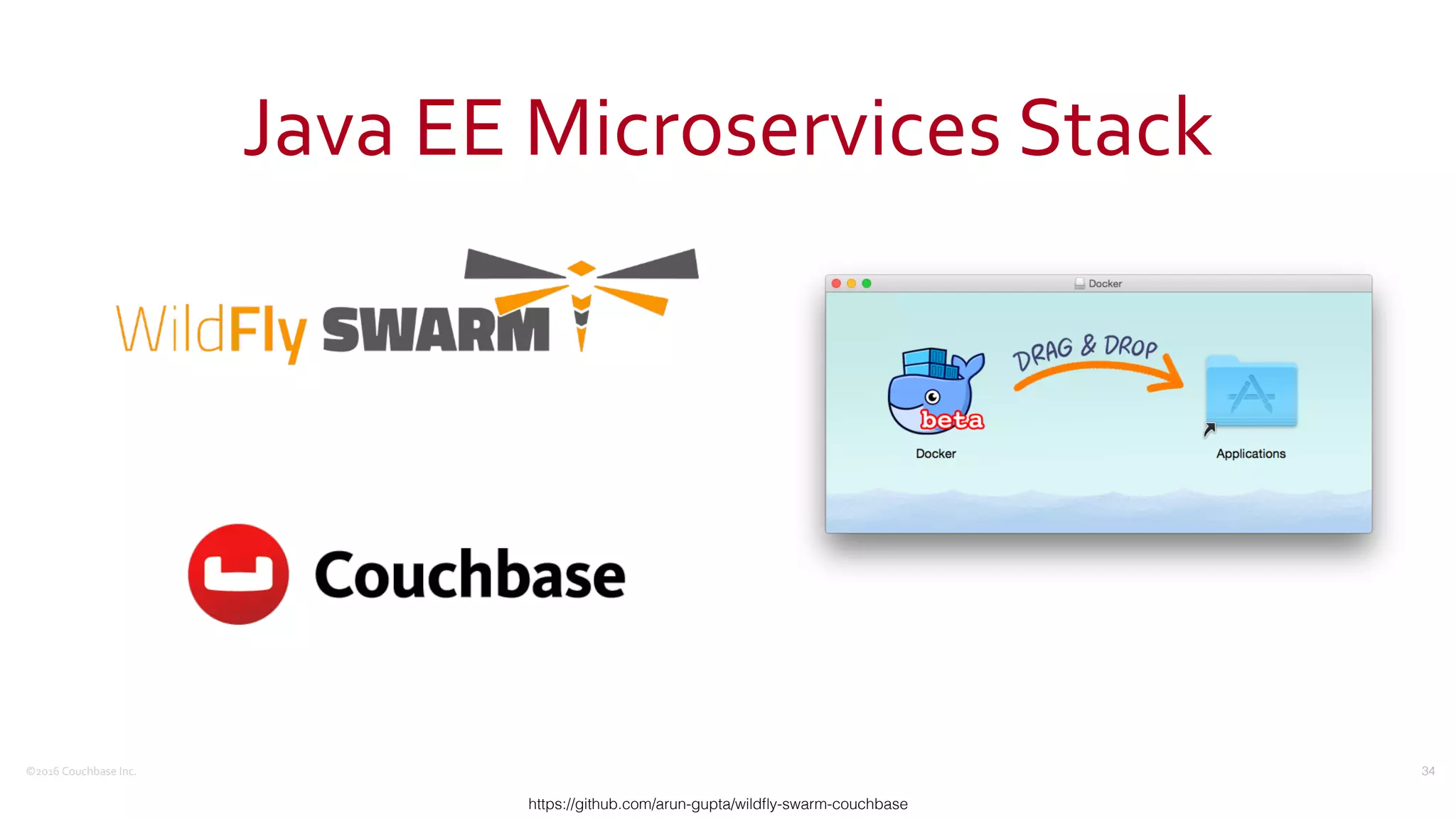

- 34. ©2016 Couchbase Inc. Java EE Microservices Stack 34 https://github.com/arun-gupta/wildfly-swarm-couchbase

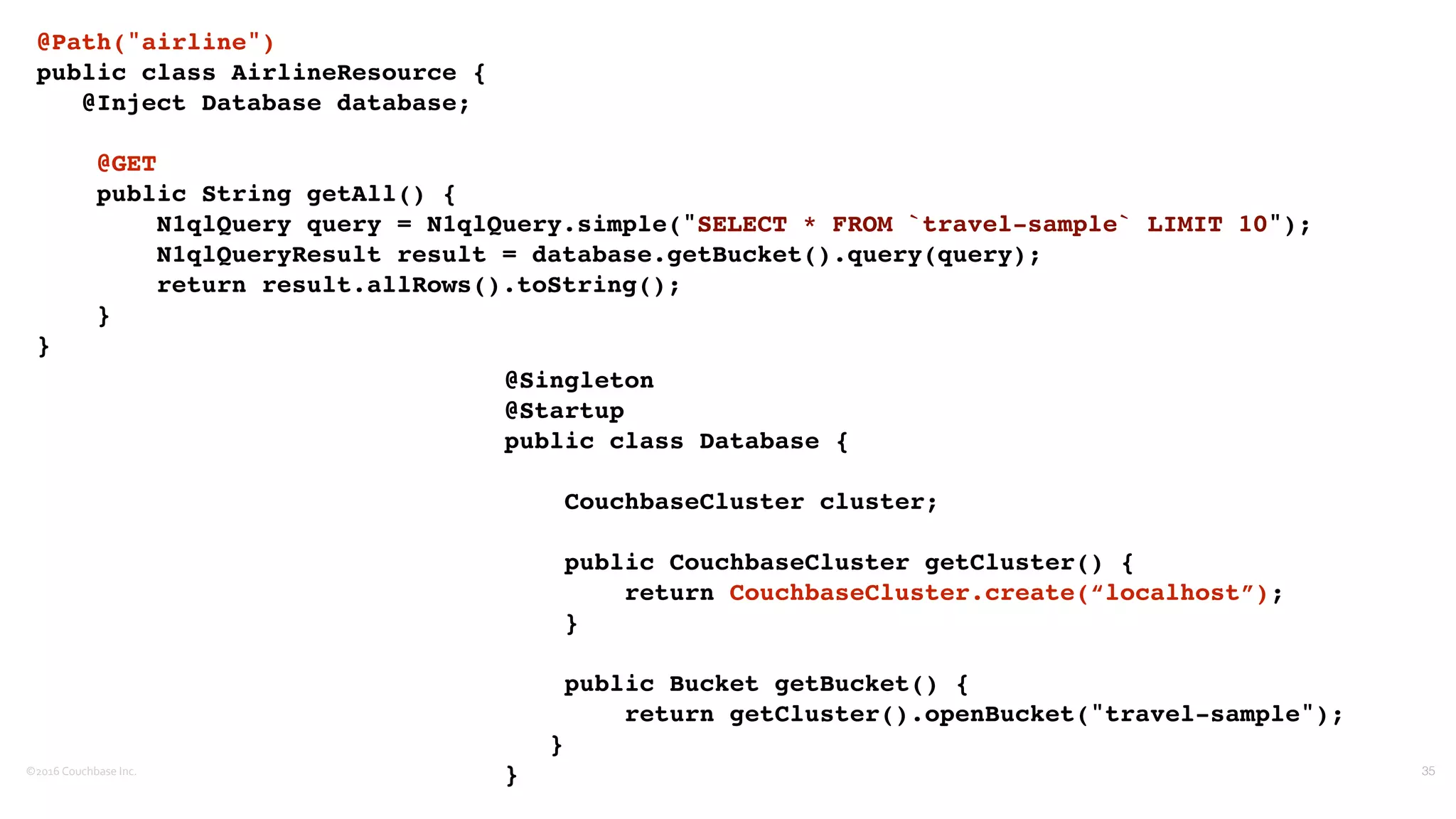

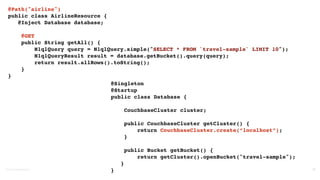

- 35. ©2016 Couchbase Inc.35 @Path("airline") public class AirlineResource { @Inject Database database; @GET public String getAll() { N1qlQuery query = N1qlQuery.simple("SELECT * FROM `travel-sample` LIMIT 10"); N1qlQueryResult result = database.getBucket().query(query); return result.allRows().toString(); } } @Singleton @Startup public class Database { CouchbaseCluster cluster; public CouchbaseCluster getCluster() { return CouchbaseCluster.create(“localhost”); } public Bucket getBucket() { return getCluster().openBucket("travel-sample"); } }
- 36.

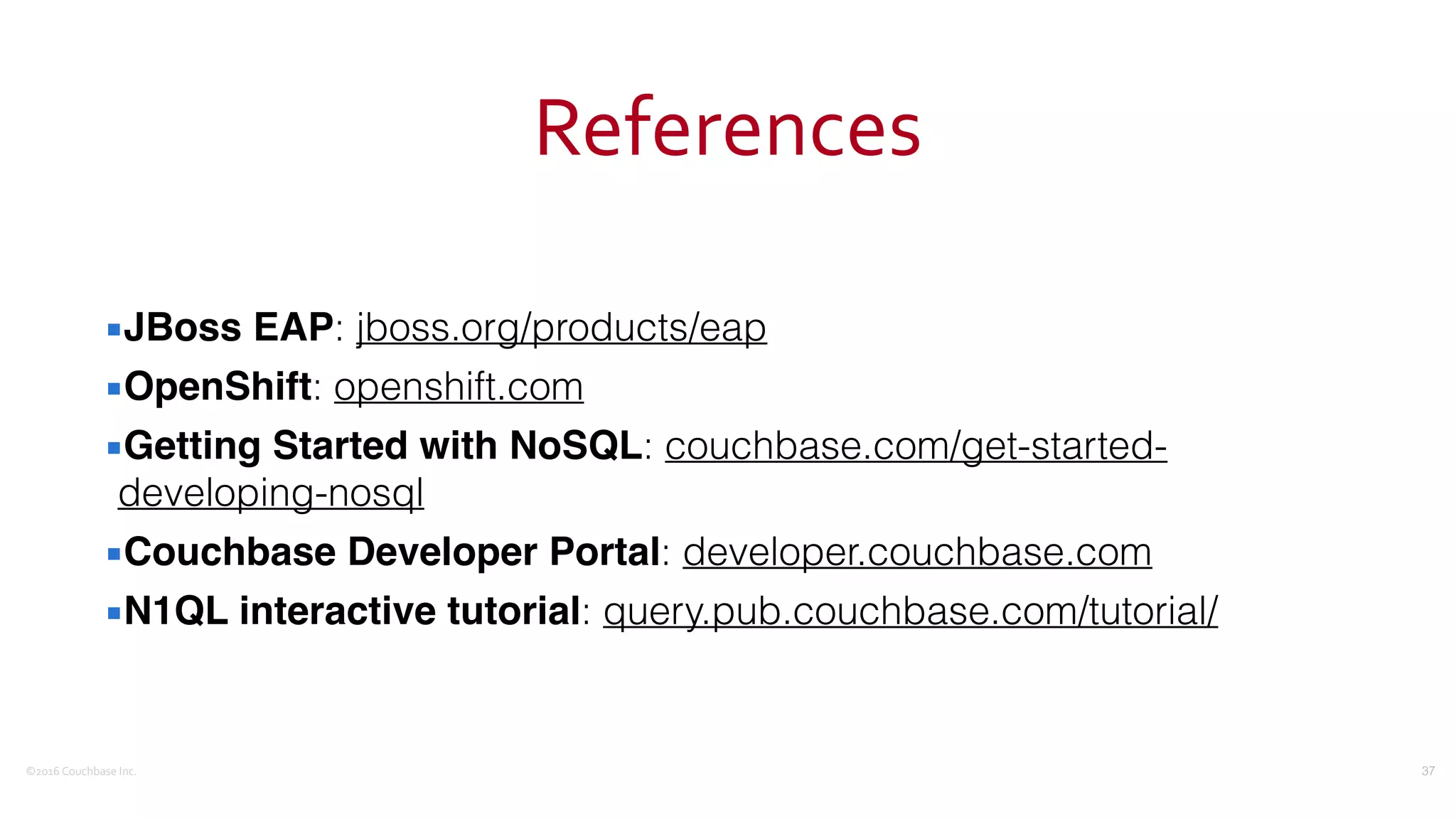

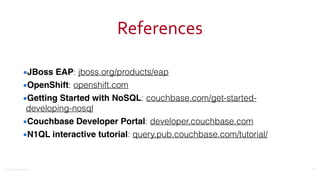

- 37. ©2016 Couchbase Inc. References ▪JBossEAP: jboss.org/products/eap ▪OpenShift: openshift.com ▪Getting Started with NoSQL: couchbase.com/get-started- developing-nosql ▪Couchbase Developer Portal: developer.couchbase.com ▪N1QL interactive tutorial: query.pub.couchbase.com/tutorial/ 37
- 38.
