- 1. Real-World Batch Processing withJava EE [CON3339] Arshal Ameen (@AforArsh) Hirofumi Iwasaki (@HirofumiIwasaki) Financial Services Department, Rakuten, Inc.

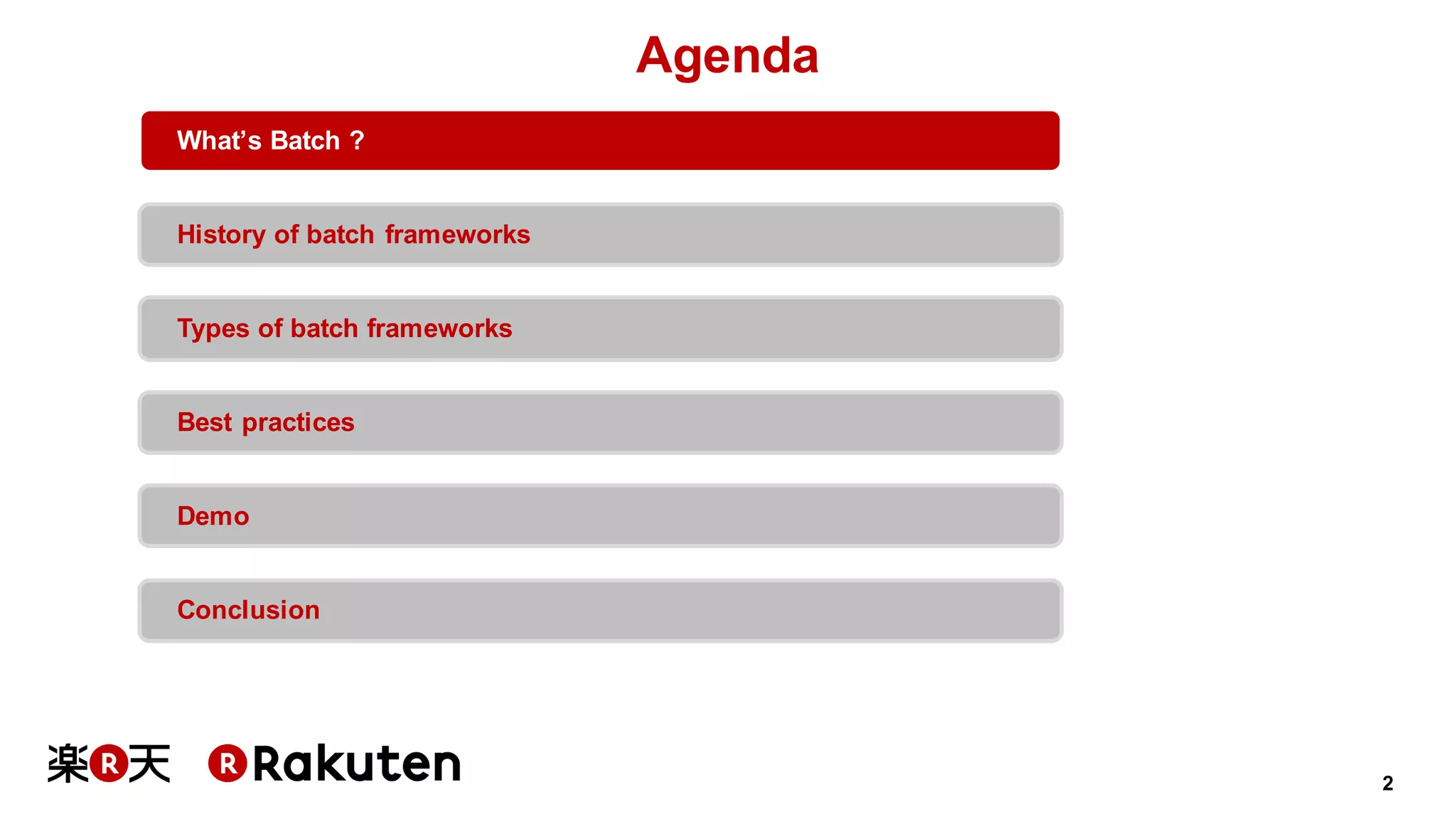

- 2. 2 Agenda What’s Batch ? Historyof batch frameworks Types of batch frameworks Best practices Demo Conclusion

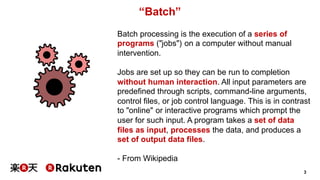

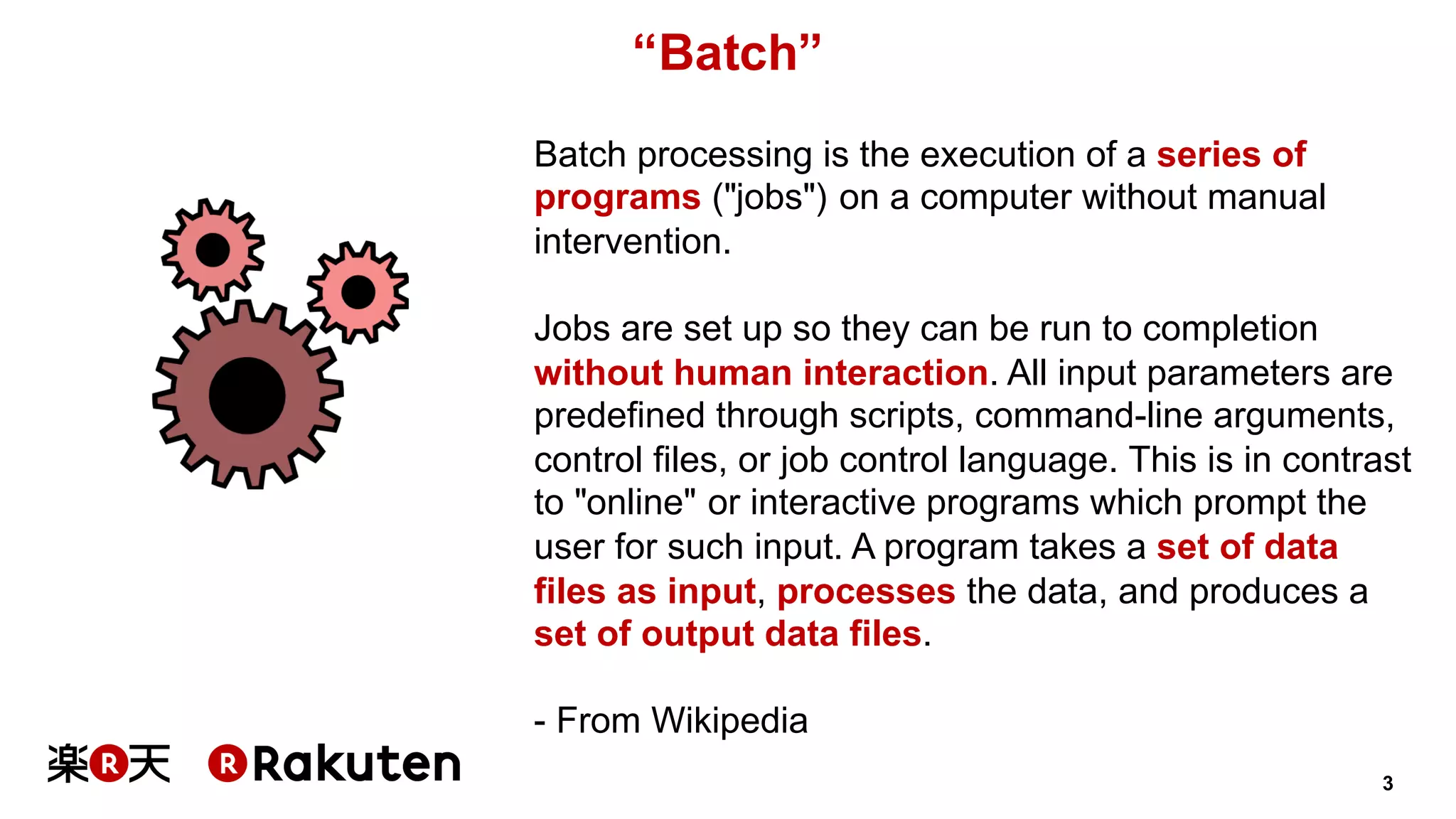

- 3. 3 “Batch” Batch processing isthe execution of a series of programs ("jobs") on a computer without manual intervention. Jobs are set up so they can be run to completion without human interaction. All input parameters are predefined through scripts, command-line arguments, control files, or job control language. This is in contrast to "online" or interactive programs which prompt the user for such input. A program takes a set of data files as input, processes the data, and produces a set of output data files. - From Wikipedia

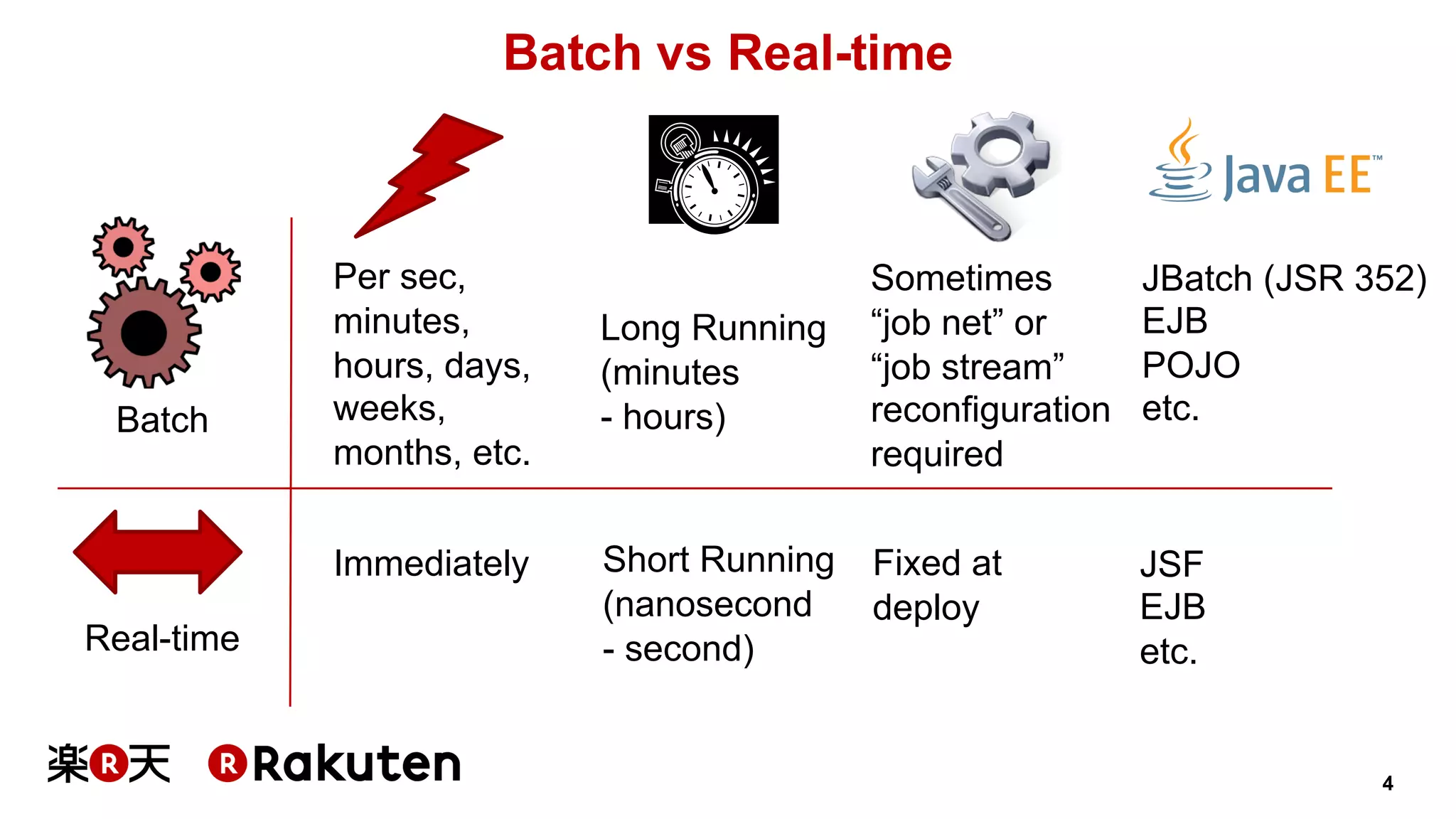

- 4. 4 Batch vs Real-time Batch Real-time ShortRunning (nanosecond - second) Long Running (minutes - hours) JSF EJB etc. JBatch (JSR 352) EJB POJO etc. Sometimes “job net” or “job stream” reconfiguration required Fixed at deploy Immediately Per sec, minutes, hours, days, weeks, months, etc.

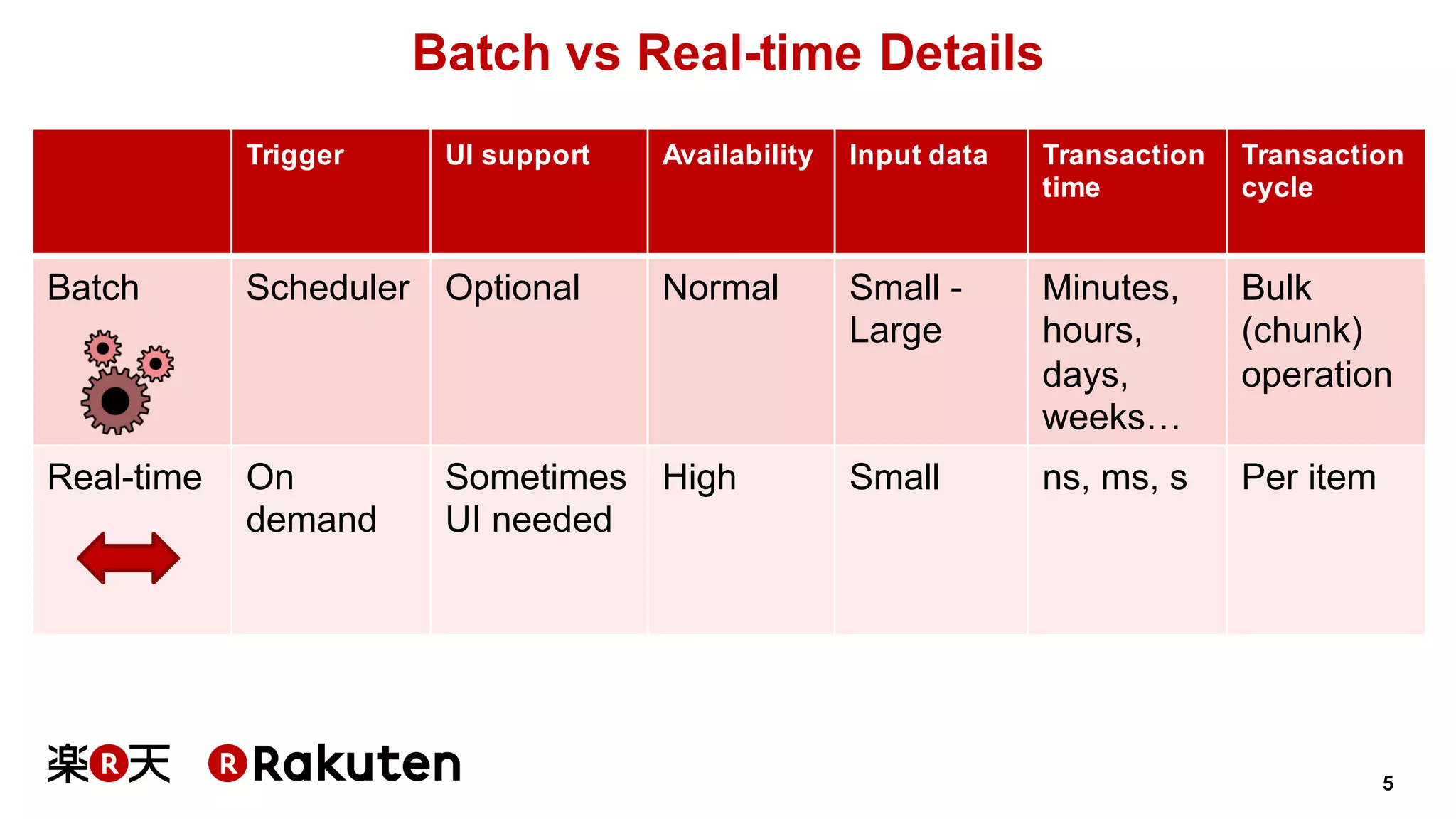

- 5. 5 Batch vs Real-timeDetails Trigger UI support Availability Input data Transaction time Transaction cycle Batch Scheduler Optional Normal Small - Large Minutes, hours, days, weeks… Bulk (chunk) operation Real-time On demand Sometimes UI needed High Small ns, ms, s Per item

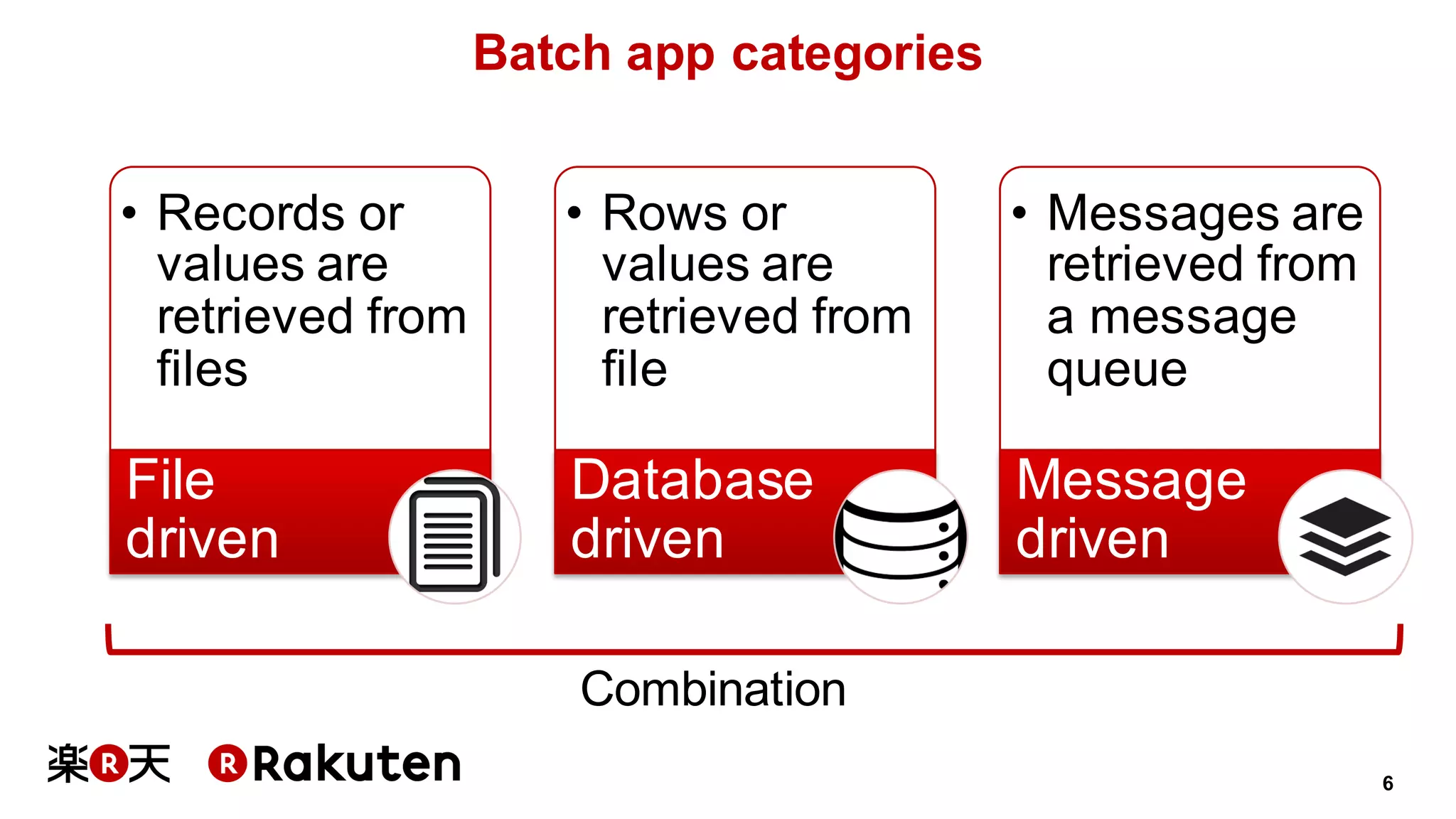

- 6. 6 Batch app categories •Records or values are retrieved from files File driven • Rows or values are retrieved from file Database driven • Messages are retrieved from a message queue Message driven Combination

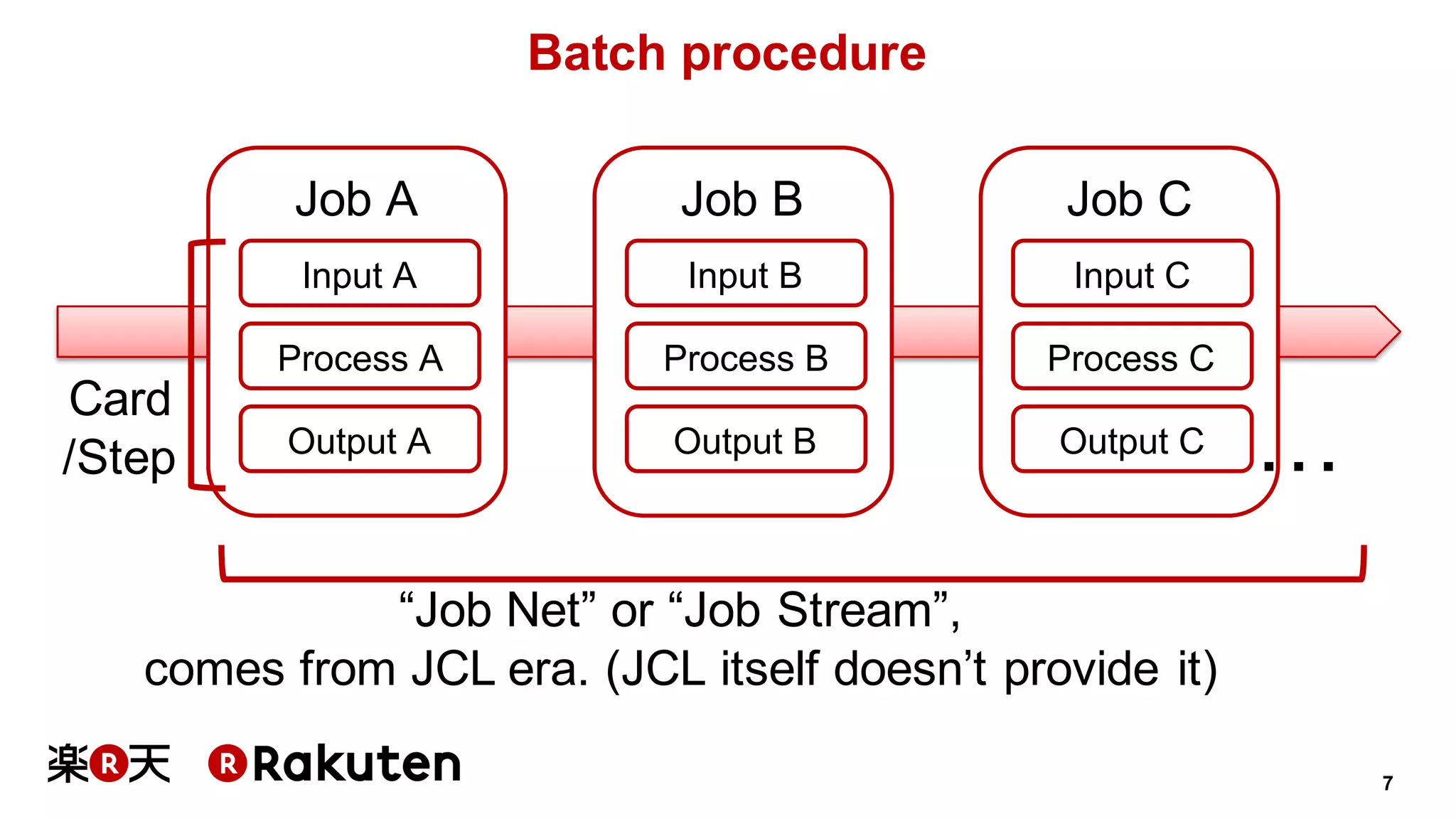

- 7. 7 Batch procedure Stream Job A InputA Process A Output A Job B Input B Process B Output B Job C Input C Process C Output C … “Job Net” or “Job Stream”, comes from JCL era. (JCL itself doesn’t provide it) Card /Step

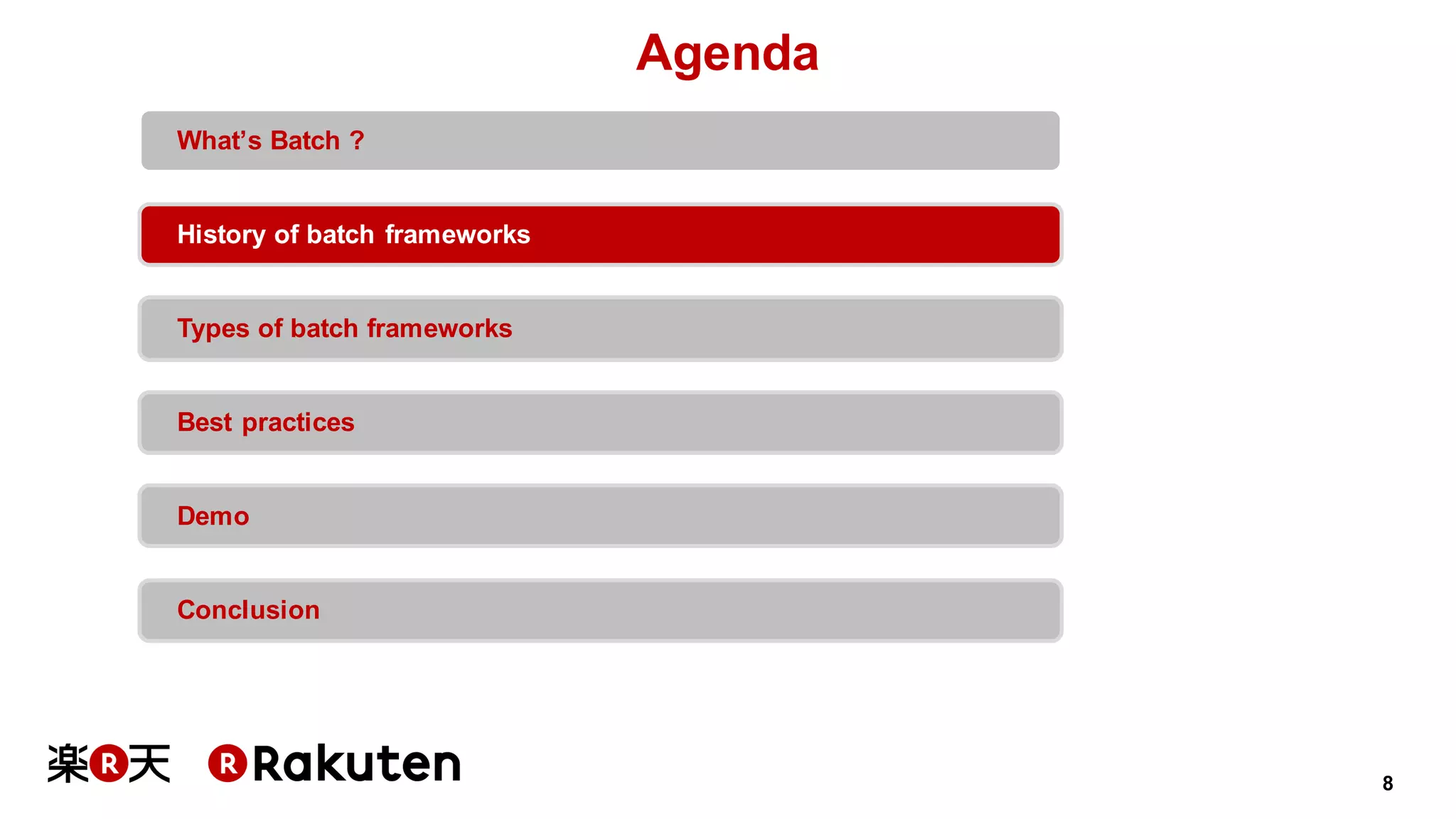

- 8. 8 Agenda What’s Batch ? Historyof batch frameworks Types of batch frameworks Best practices Demo Conclusion

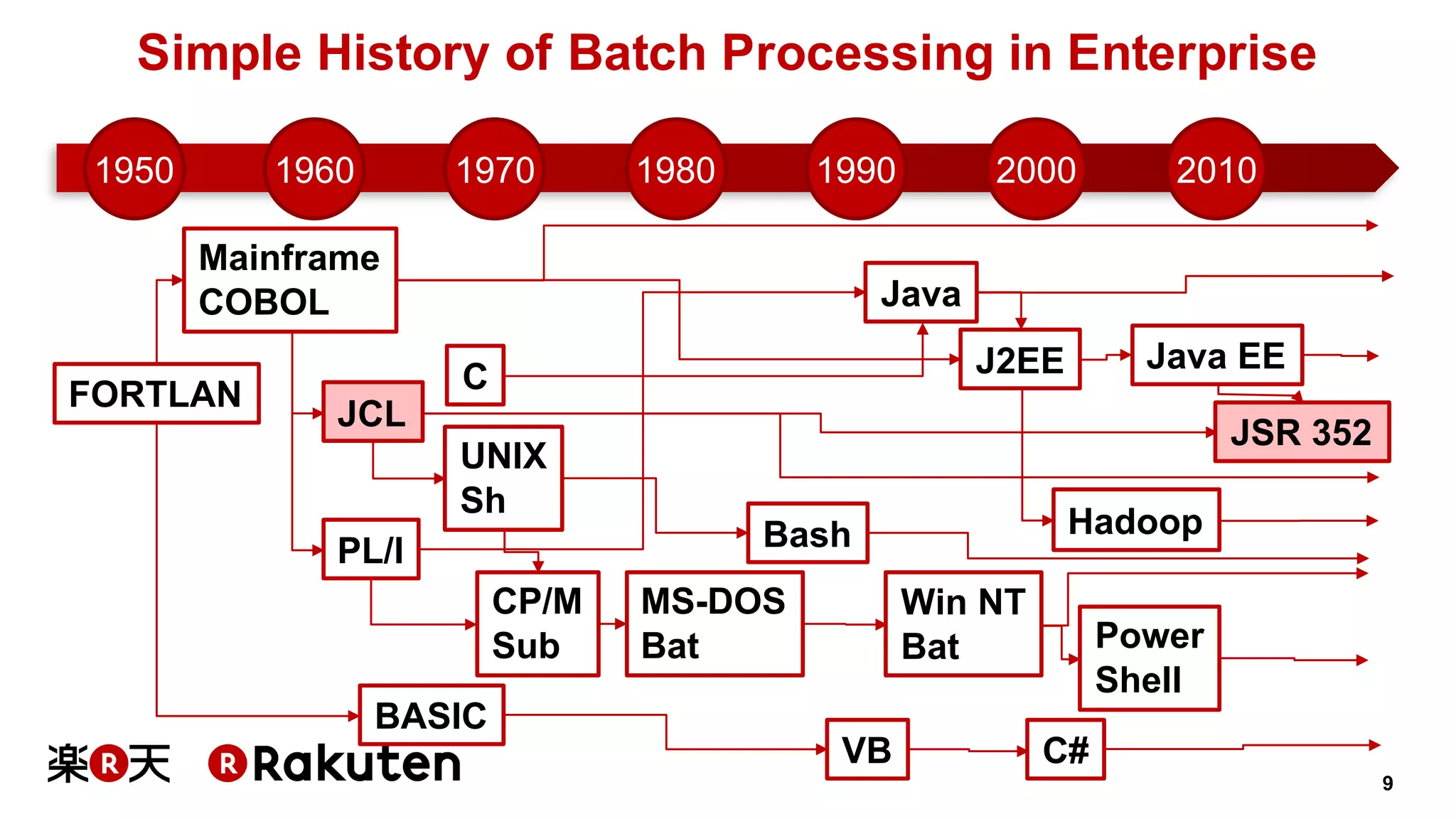

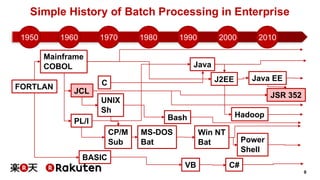

- 9. 9 Simple History ofBatch Processing in Enterprise 1950 1960 1970 1980 1990 2000 2010 JCL J2EE MS-DOS Bat UNIX Sh Mainframe COBOL Java JSR 352 Java EE Win NT Bat Bash C CP/M Sub Power Shell FORTLAN BASIC VB C# PL/I Hadoop

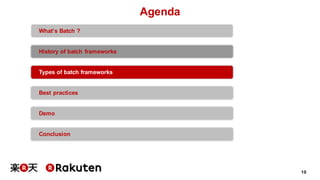

- 10. 10 Agenda What’s Batch ? Historyof batch frameworks Types of batch frameworks Best practices Demo Conclusion

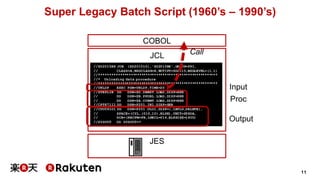

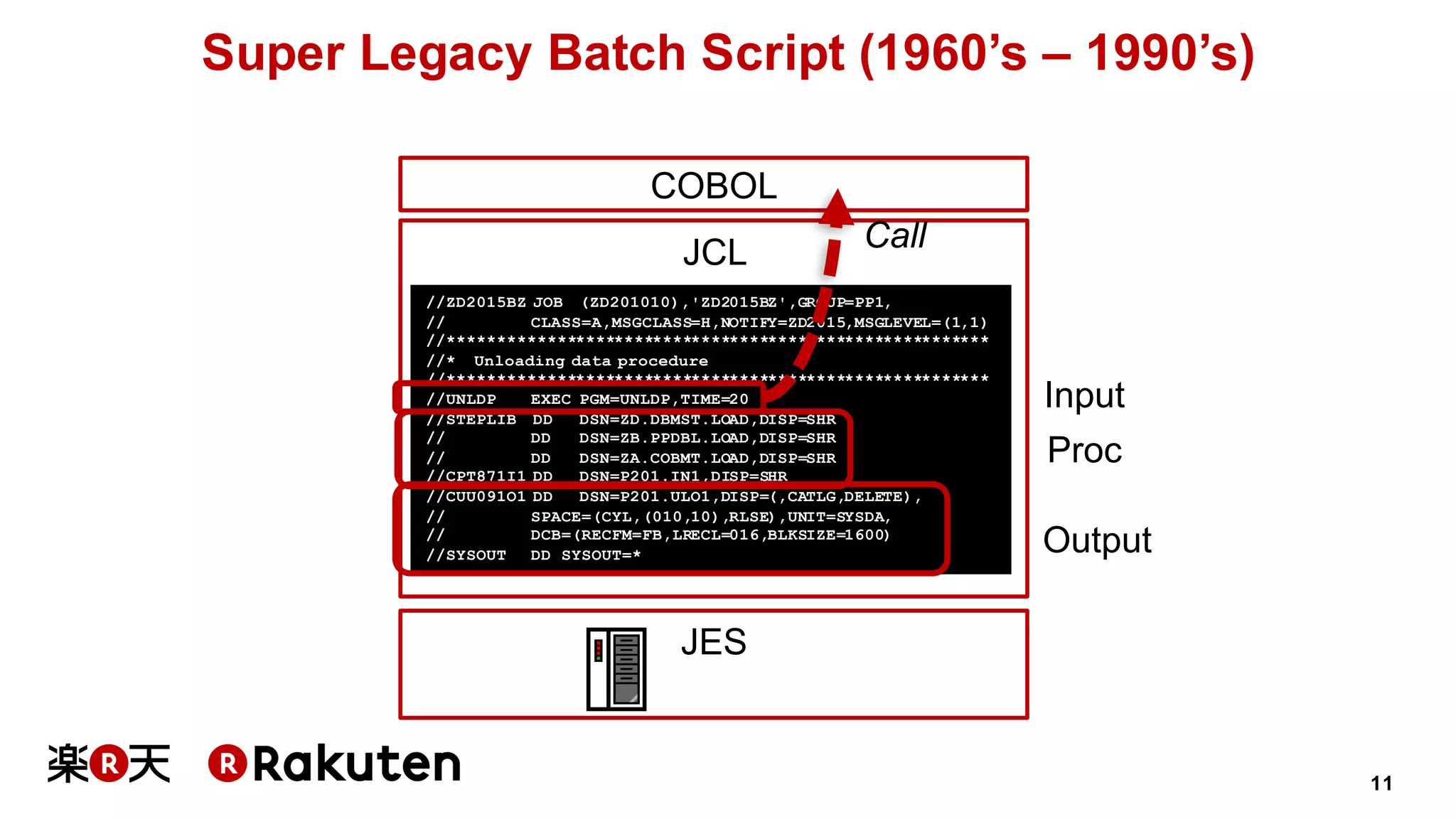

- 11. 11 Super Legacy BatchScript (1960’s – 1990’s) JCL //ZD2015BZ JOB (ZD201010),'ZD2015BZ',GROUP=PP1, // CLASS=A,MSGCLASS=H,NOTIFY=ZD2015,MSGLEVEL=(1,1) //******************************************************** //* Unloading data procedure //******************************************************** //UNLDP EXEC PGM=UNLDP,TIME=20 //STEPLIB DD DSN=ZD.DBMST.LOAD,DISP=SHR // DD DSN=ZB.PPDBL.LOAD,DISP=SHR // DD DSN=ZA.COBMT.LOAD,DISP=SHR //CPT871I1 DD DSN=P201.IN1,DISP=SHR //CUU091O1 DD DSN=P201.ULO1,DISP=(,CATLG,DELETE), // SPACE=(CYL,(010,10),RLSE),UNIT=SYSDA, // DCB=(RECFM=FB,LRECL=016,BLKSIZE=1600) //SYSOUT DD SYSOUT=* JES COBOL Call Input Output Proc

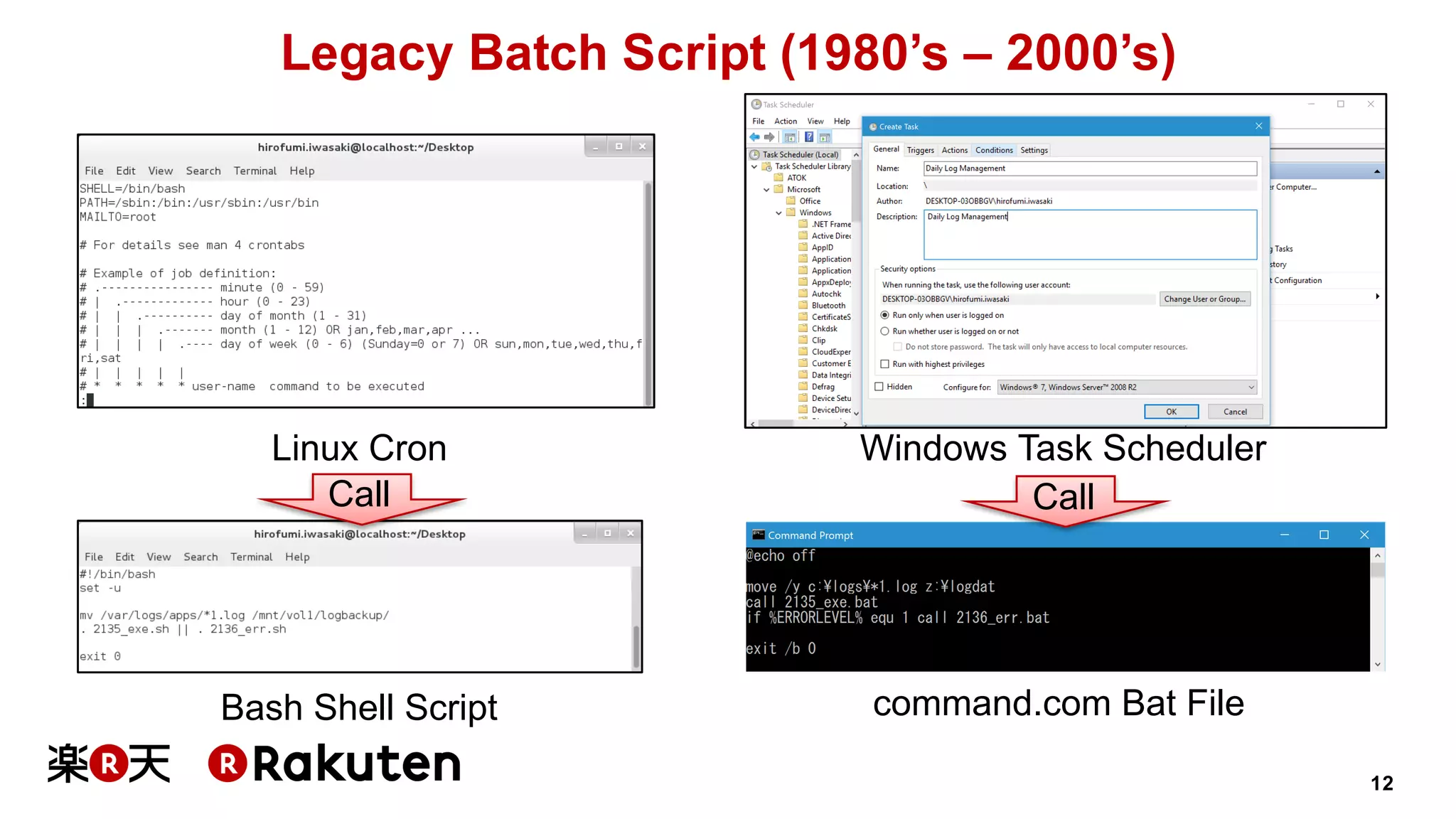

- 12. 12 Legacy Batch Script(1980’s – 2000’s) Windows Task Scheduler command.com Bat FileBash Shell Script Linux Cron Call Call

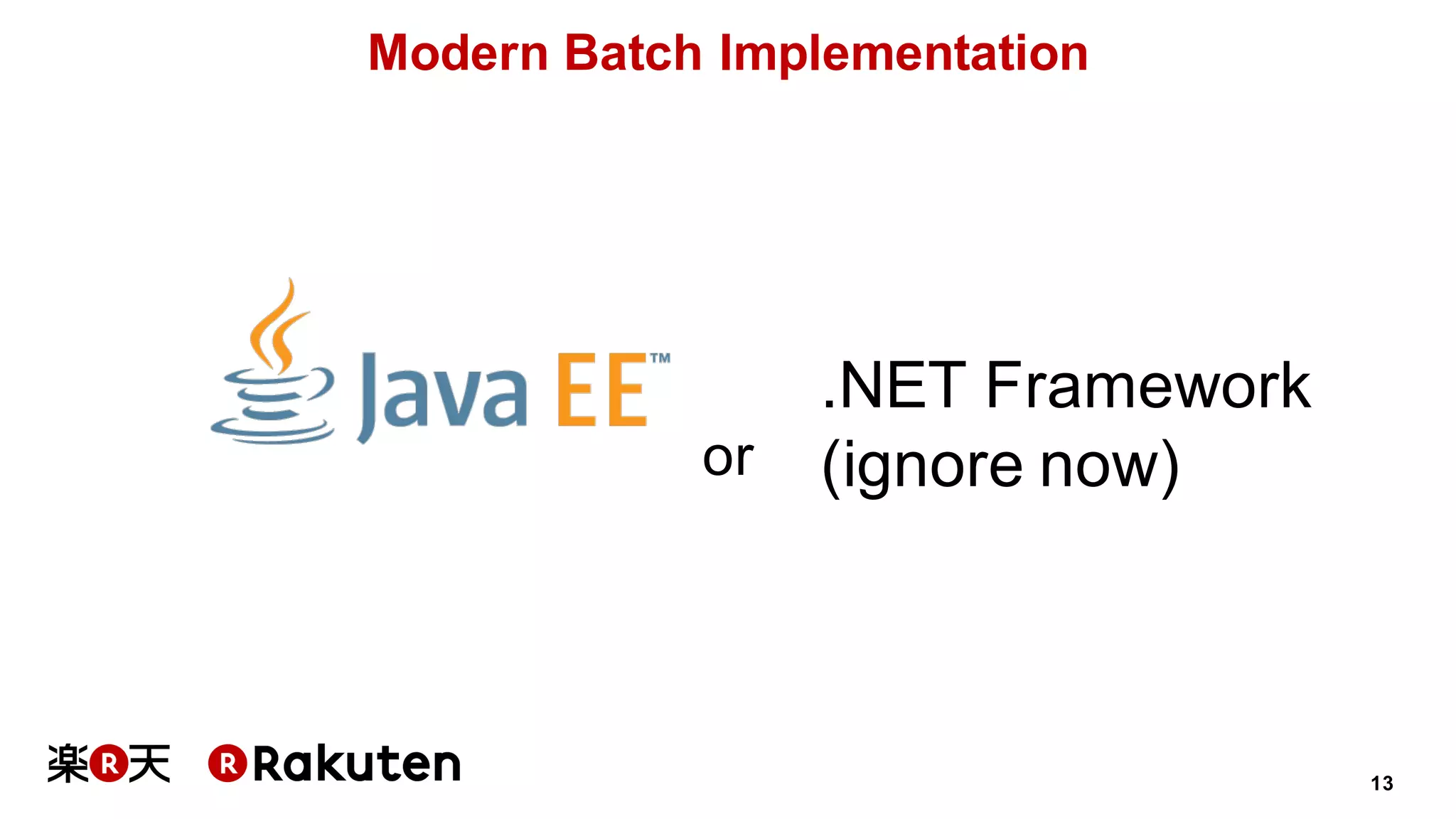

- 13. 13 Modern Batch Implementation or .NETFramework (ignore now)

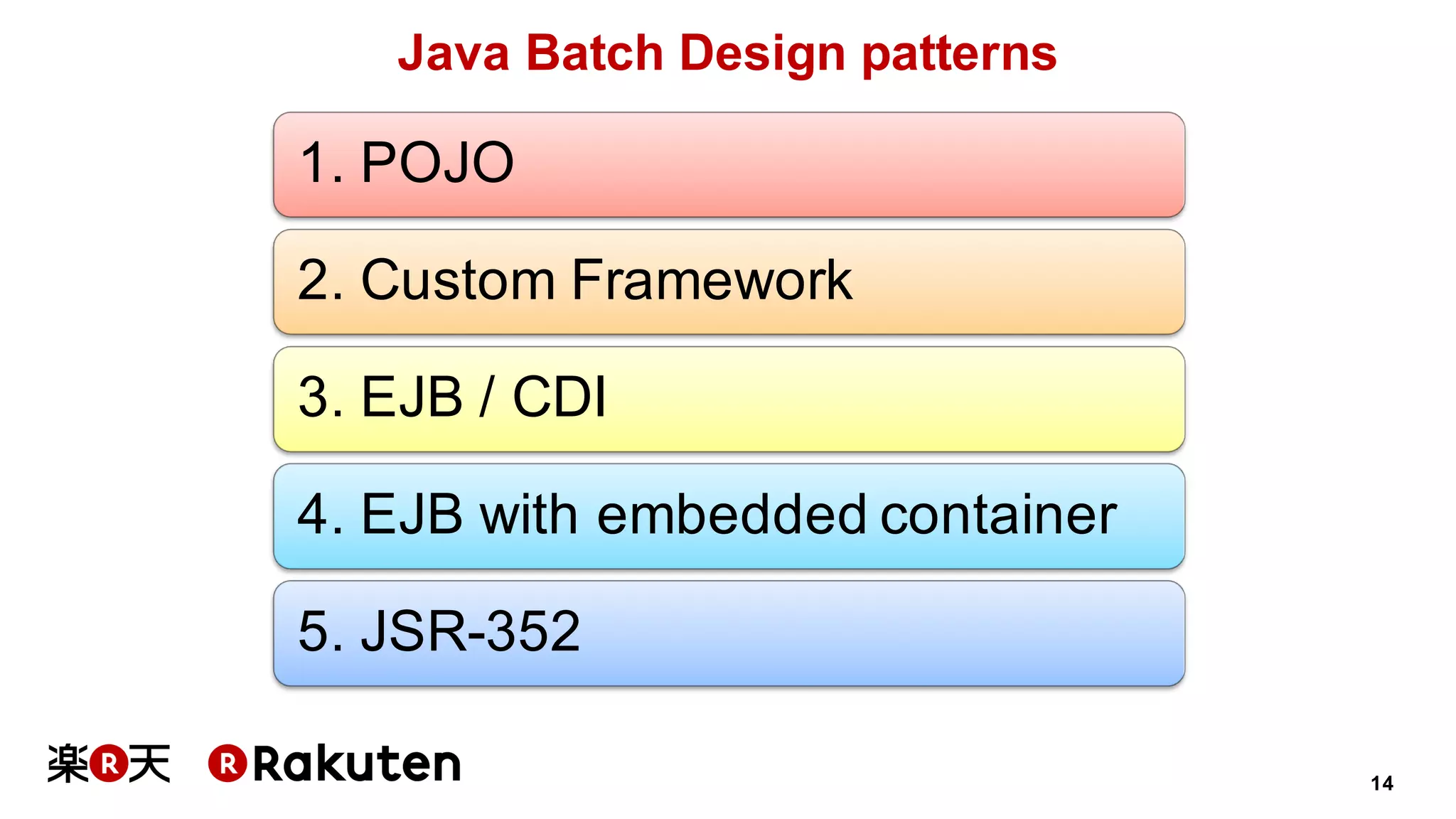

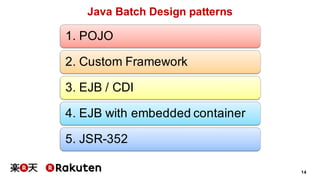

- 14. 14 Java Batch Designpatterns 1. POJO 2. Custom Framework 3. EJB / CDI 4. EJB with embedded container 5. JSR-352

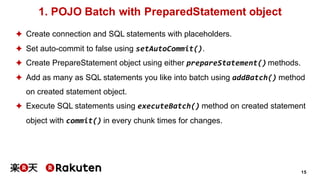

- 15. 15 1. POJO Batchwith PreparedStatement object ✦ Create connection and SQL statements with placeholders. ✦ Set auto-commit to false using setAutoCommit(). ✦ Create PrepareStatement object using either prepareStatement() methods. ✦ Add as many as SQL statements you like into batch using addBatch() method on created statement object. ✦ Execute SQL statements using executeBatch() method on created statement object with commit() in every chunk times for changes.

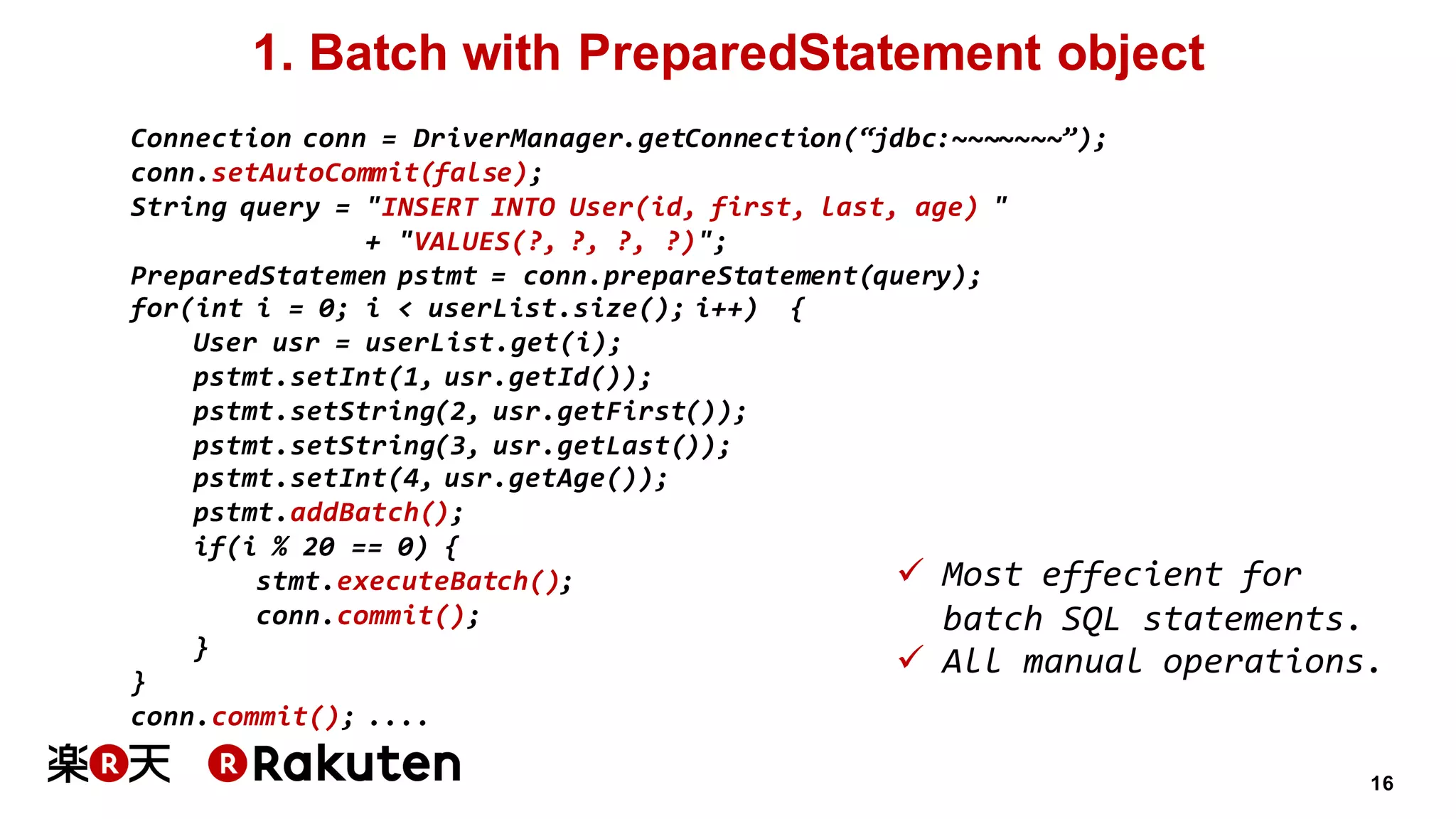

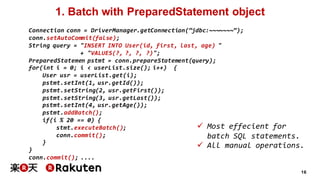

- 16. 16 1. Batch withPreparedStatement object Connection conn = DriverManager.getConnection(“jdbc:~~~~~~~”); conn.setAutoCommit(false); String query = "INSERT INTO User(id, first, last, age) " + "VALUES(?, ?, ?, ?)"; PreparedStatemen pstmt = conn.prepareStatement(query); for(int i = 0; i < userList.size(); i++) { User usr = userList.get(i); pstmt.setInt(1, usr.getId()); pstmt.setString(2, usr.getFirst()); pstmt.setString(3, usr.getLast()); pstmt.setInt(4, usr.getAge()); pstmt.addBatch(); if(i % 20 == 0) { stmt.executeBatch(); conn.commit(); } } conn.commit(); .... ü Most effecient for batch SQL statements. ü All manual operations.

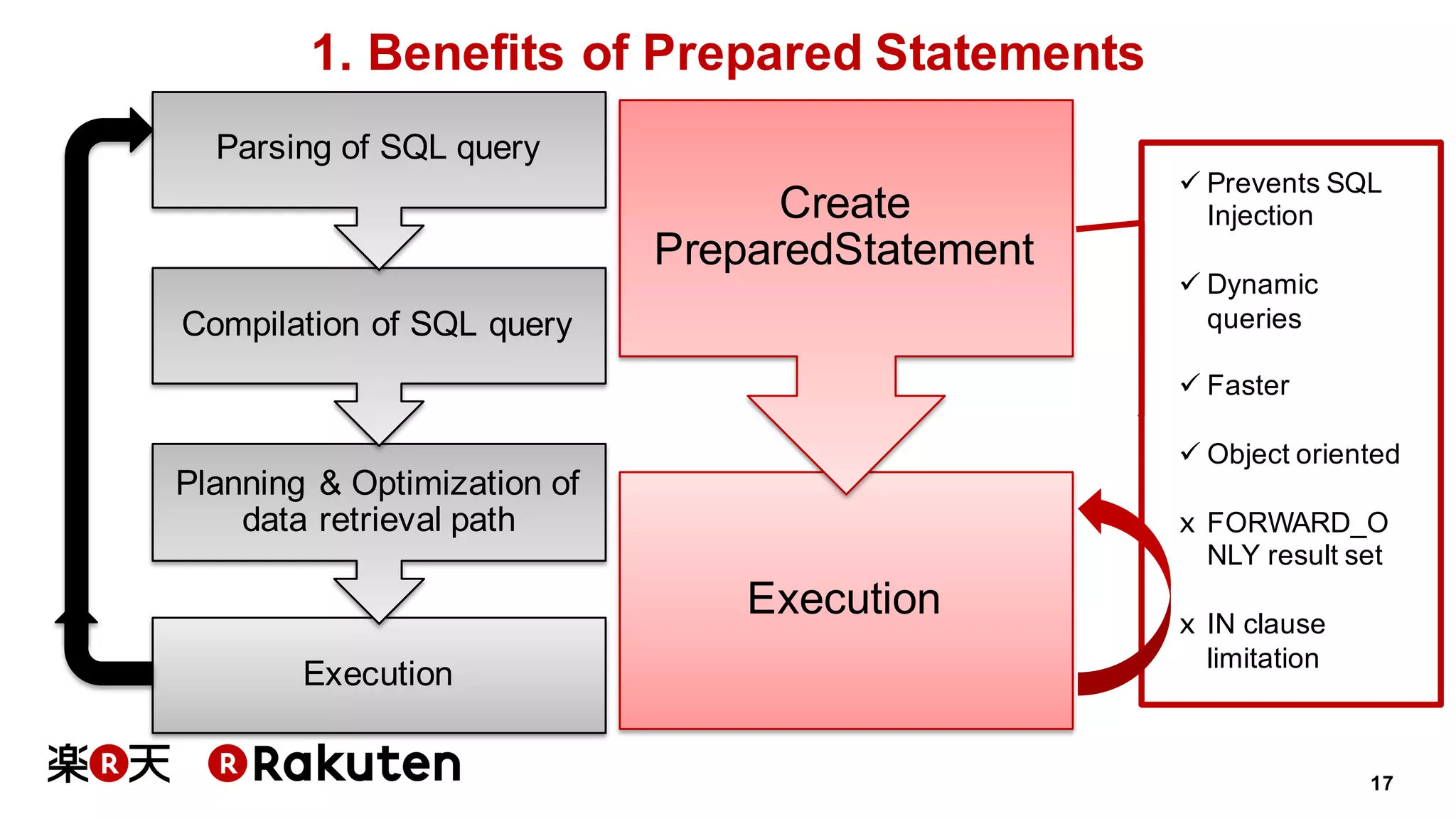

- 17. 17 1. Benefits ofPrepared Statements Execution Planning & Optimization of data retrieval path Compilation of SQL query Parsing of SQL query Execution Create PreparedStatement ü Prevents SQL Injection ü Dynamic queries ü Faster ü Object oriented x FORWARD_O NLY result set x IN clause limitation

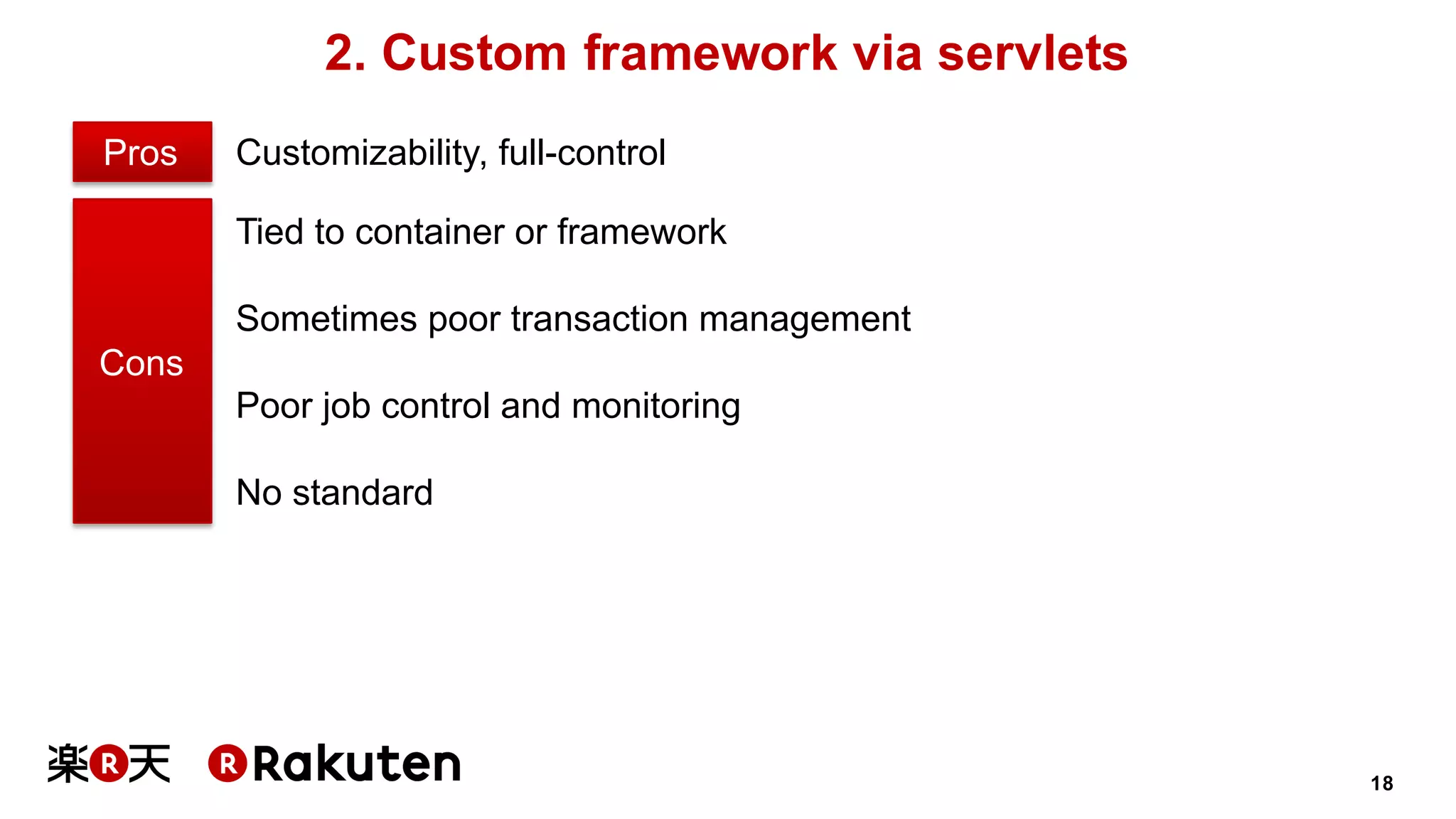

- 18. 18 2. Custom frameworkvia servlets Customizability, full-controlPros Tied to container or framework Sometimes poor transaction management Poor job control and monitoring No standard Cons

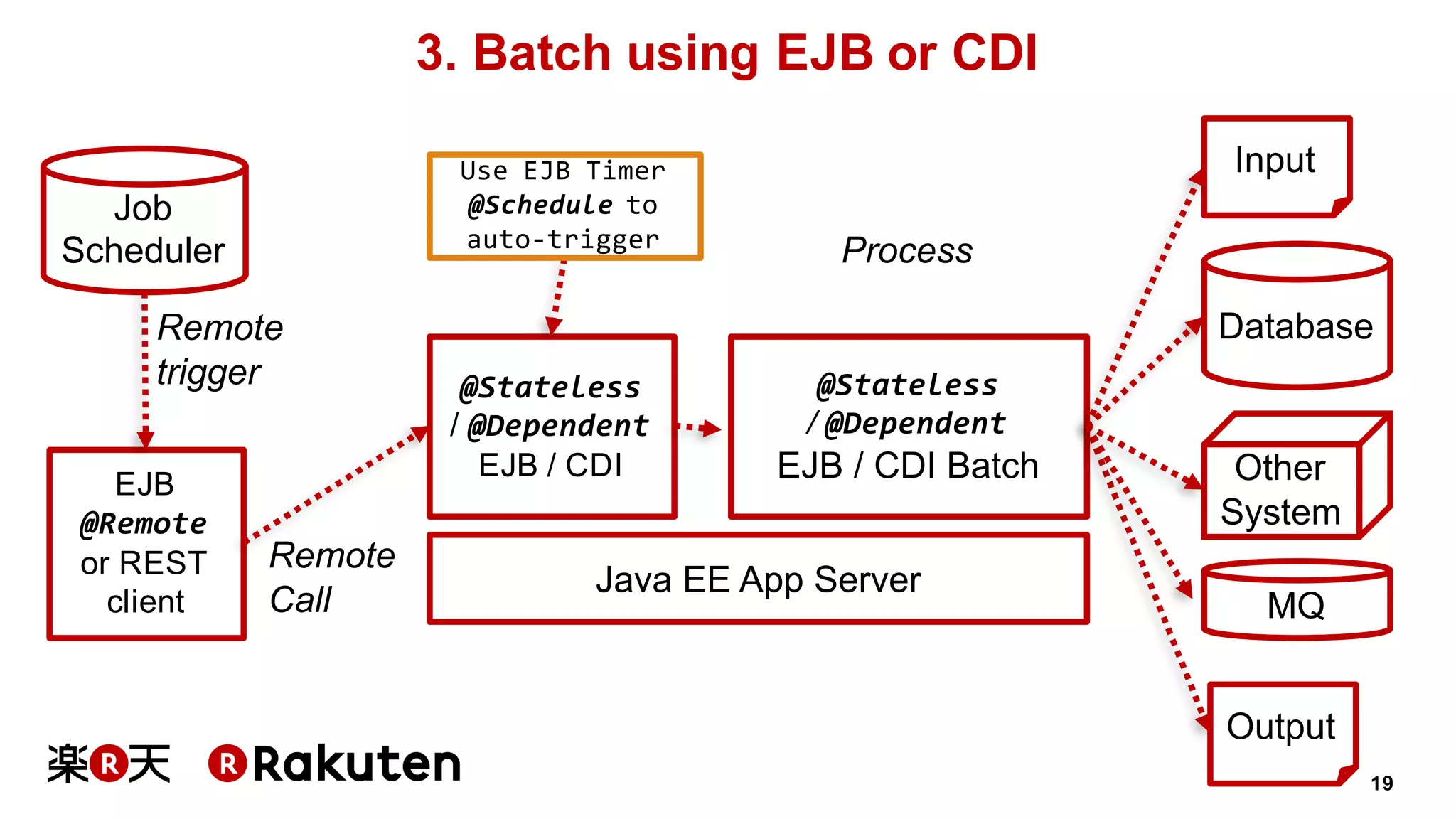

- 19. 19 3. Batch usingEJB or CDI Java EE App Server @Stateless / @Dependent EJB / CDI BatchEJB @Remote or REST client Remote Call Database Input Output Job Scheduler Remote trigger Other System Process MQ @Stateless / @Dependent EJB / CDI Use EJB Timer @Schedule to auto-trigger

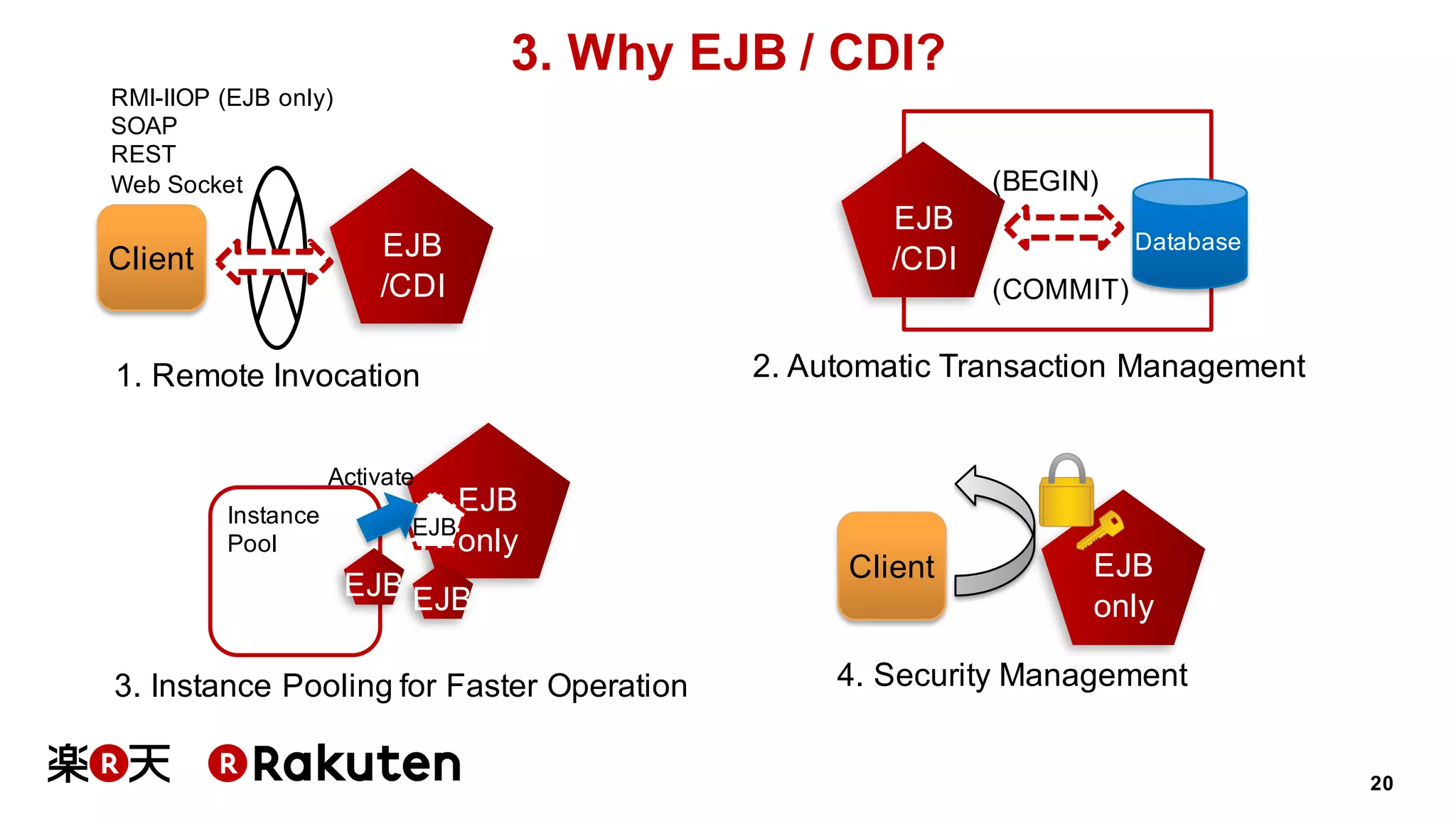

- 20. 20 3. Why EJB/ CDI? EJB /CDI Client 1. Remote Invocation EJB /CDI 2. Automatic Transaction Management Database (BEGIN) (COMMIT) EJB only EJB EJB EJBInstance Pool Activate 3. Instance Pooling for Faster Operation RMI-IIOP (EJB only) SOAP REST Web Socket EJB only Client 4. Security Management

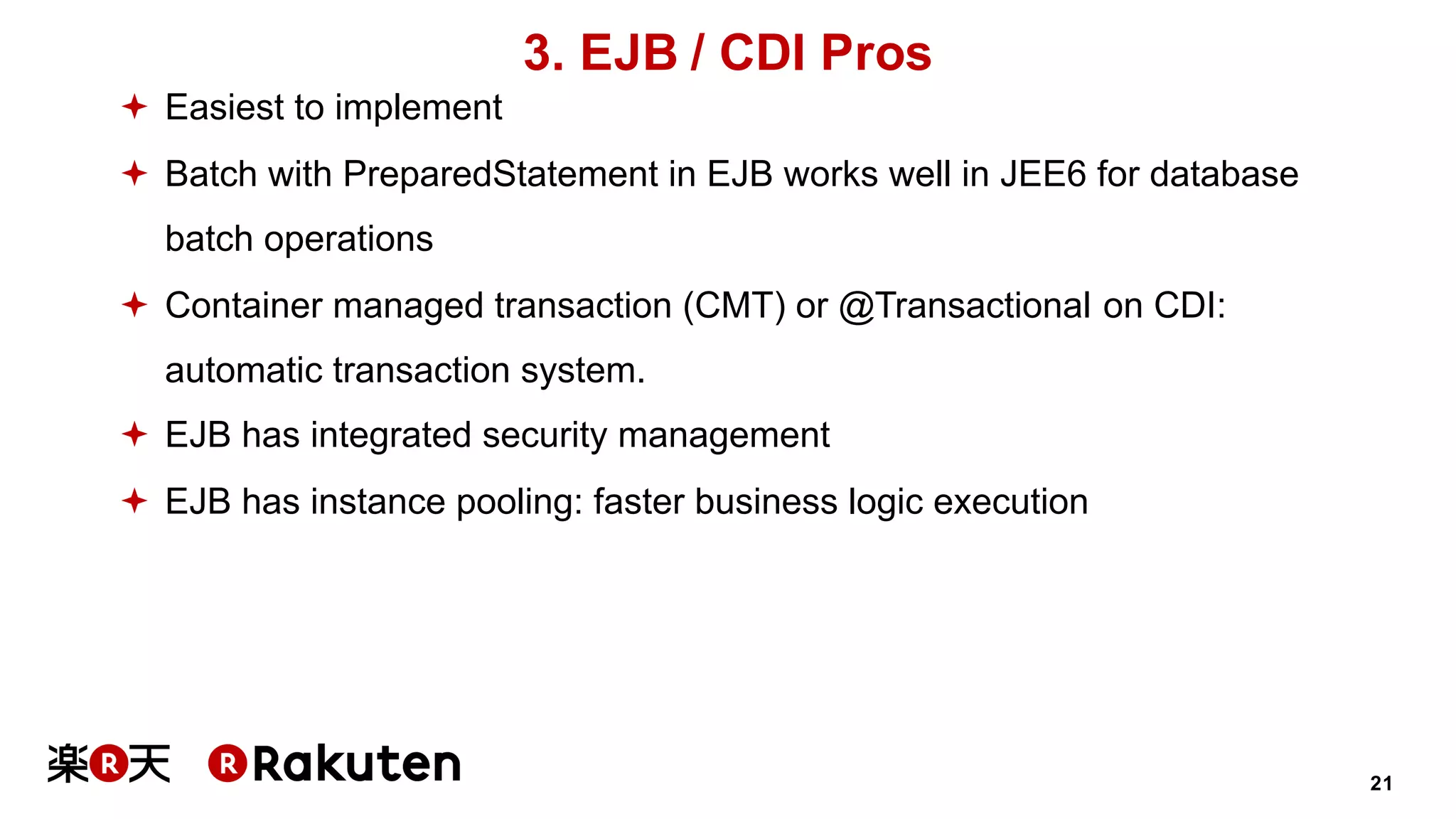

- 21. 21 3. EJB /CDI Pros ª Easiest to implement ª Batch with PreparedStatement in EJB works well in JEE6 for database batch operations ª Container managed transaction (CMT) or @Transactional on CDI: automatic transaction system. ª EJB has integrated security management ª EJB has instance pooling: faster business logic execution

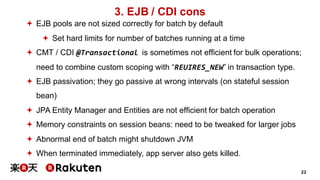

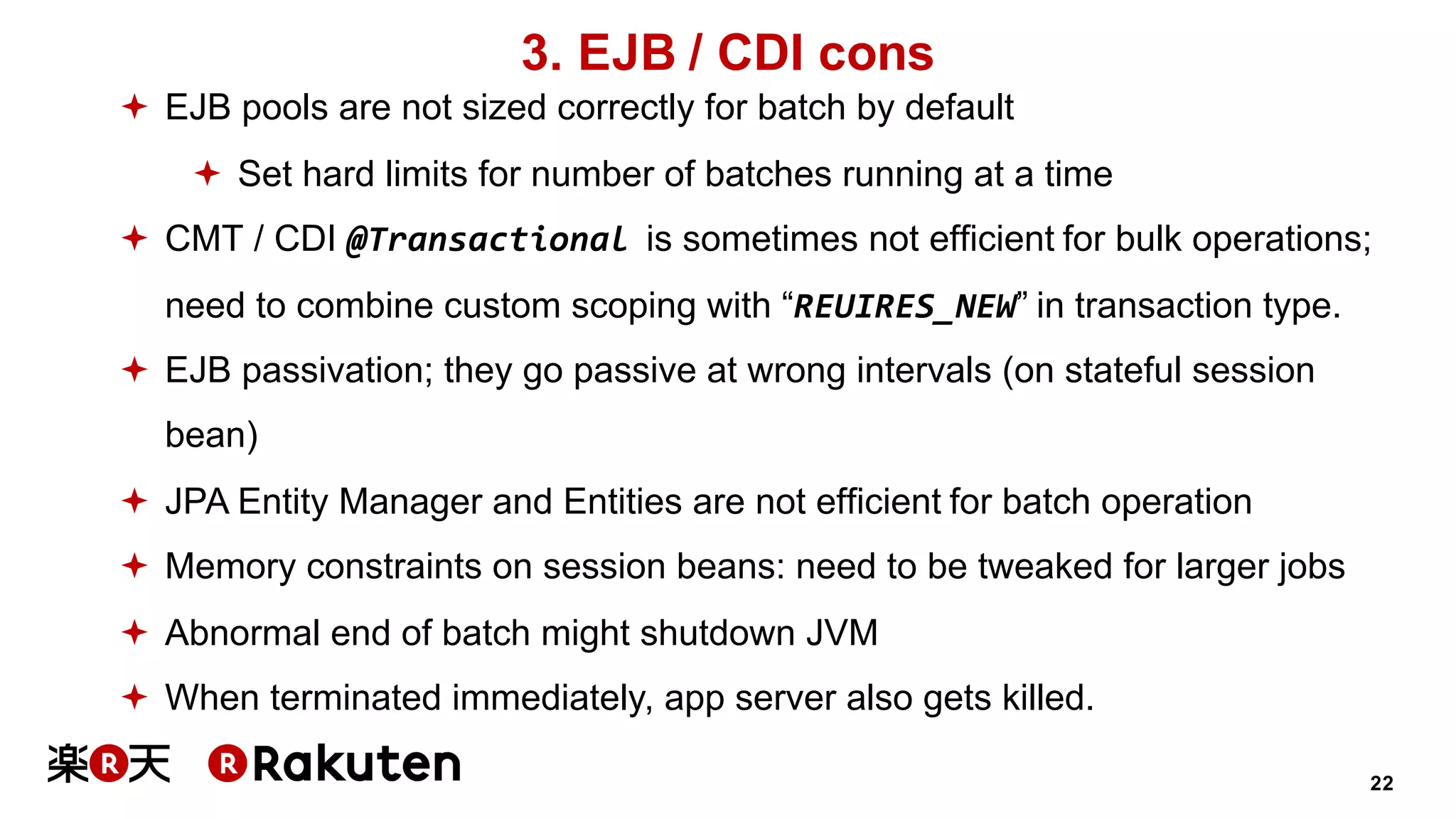

- 22. 22 3. EJB /CDI cons ª EJB pools are not sized correctly for batch by default ª Set hard limits for number of batches running at a time ª CMT / CDI @Transactional is sometimes not efficient for bulk operations; need to combine custom scoping with “REUIRES_NEW” in transaction type. ª EJB passivation; they go passive at wrong intervals (on stateful session bean) ª JPA Entity Manager and Entities are not efficient for batch operation ª Memory constraints on session beans: need to be tweaked for larger jobs ª Abnormal end of batch might shutdown JVM ª When terminated immediately, app server also gets killed.

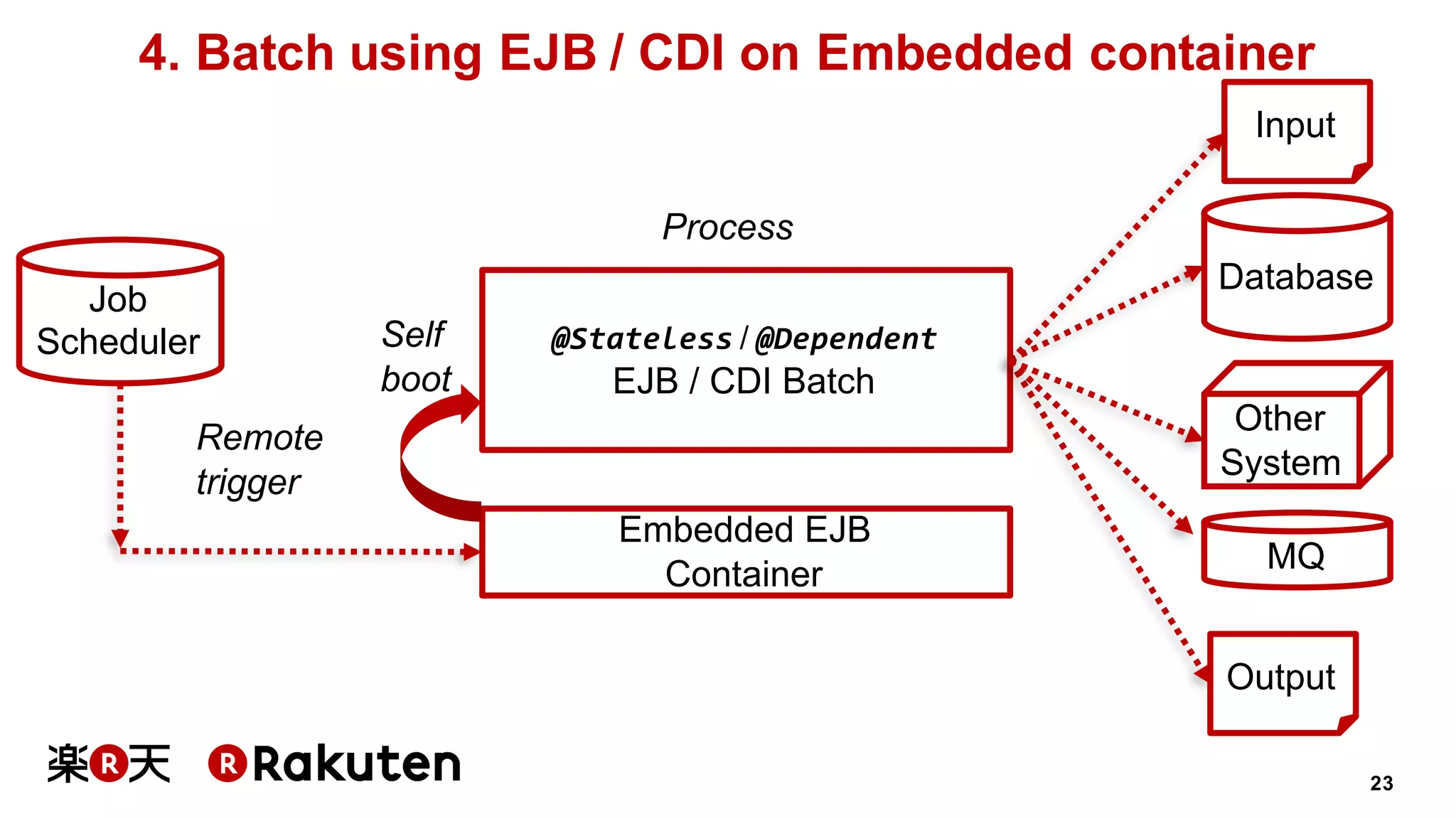

- 23. 23 4. Batch usingEJB / CDI on Embedded container Embedded EJB Container @Stateless / @Dependent EJB / CDI Batch Database Input Output Job Scheduler Remote trigger Other System Process MQ Self boot

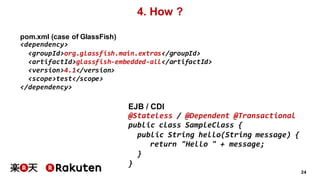

- 24. 24 4. How ? pom.xml(case of GlassFish) <dependency> <groupId>org.glassfish.main.extras</groupId> <artifactId>glassfish-embedded-all</artifactId> <version>4.1</version> <scope>test</scope> </dependency> EJB / CDI @Stateless / @Dependent @Transactional public class SampleClass { public String hello(String message) { return "Hello " + message; } }

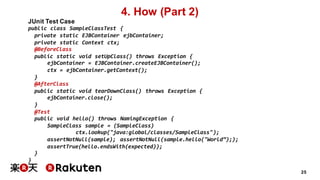

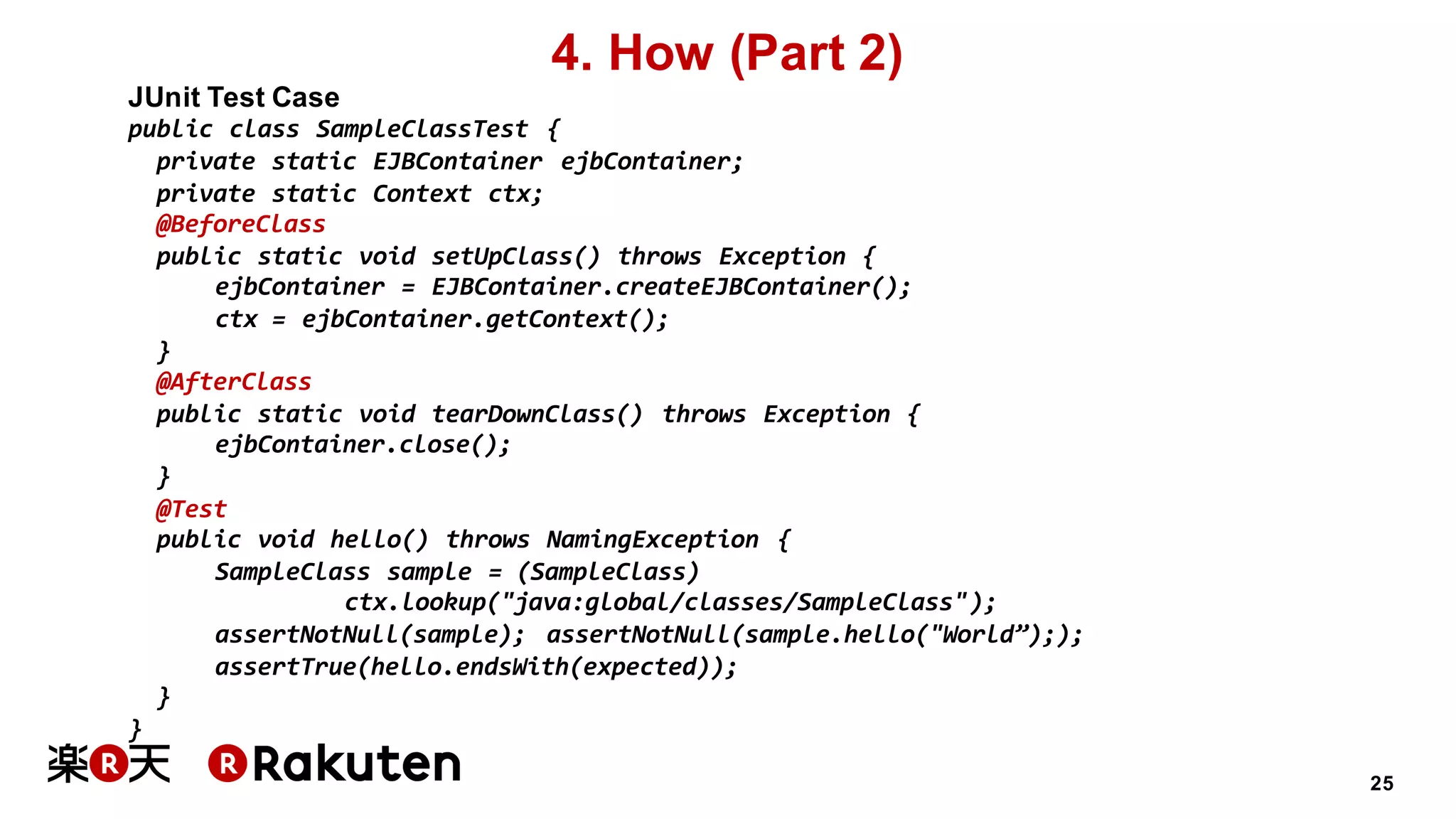

- 25. 25 4. How (Part2) JUnit Test Case public class SampleClassTest { private static EJBContainer ejbContainer; private static Context ctx; @BeforeClass public static void setUpClass() throws Exception { ejbContainer = EJBContainer.createEJBContainer(); ctx = ejbContainer.getContext(); } @AfterClass public static void tearDownClass() throws Exception { ejbContainer.close(); } @Test public void hello() throws NamingException { SampleClass sample = (SampleClass) ctx.lookup("java:global/classes/SampleClass"); assertNotNull(sample); assertNotNull(sample.hello("World”);); assertTrue(hello.endsWith(expected)); } }

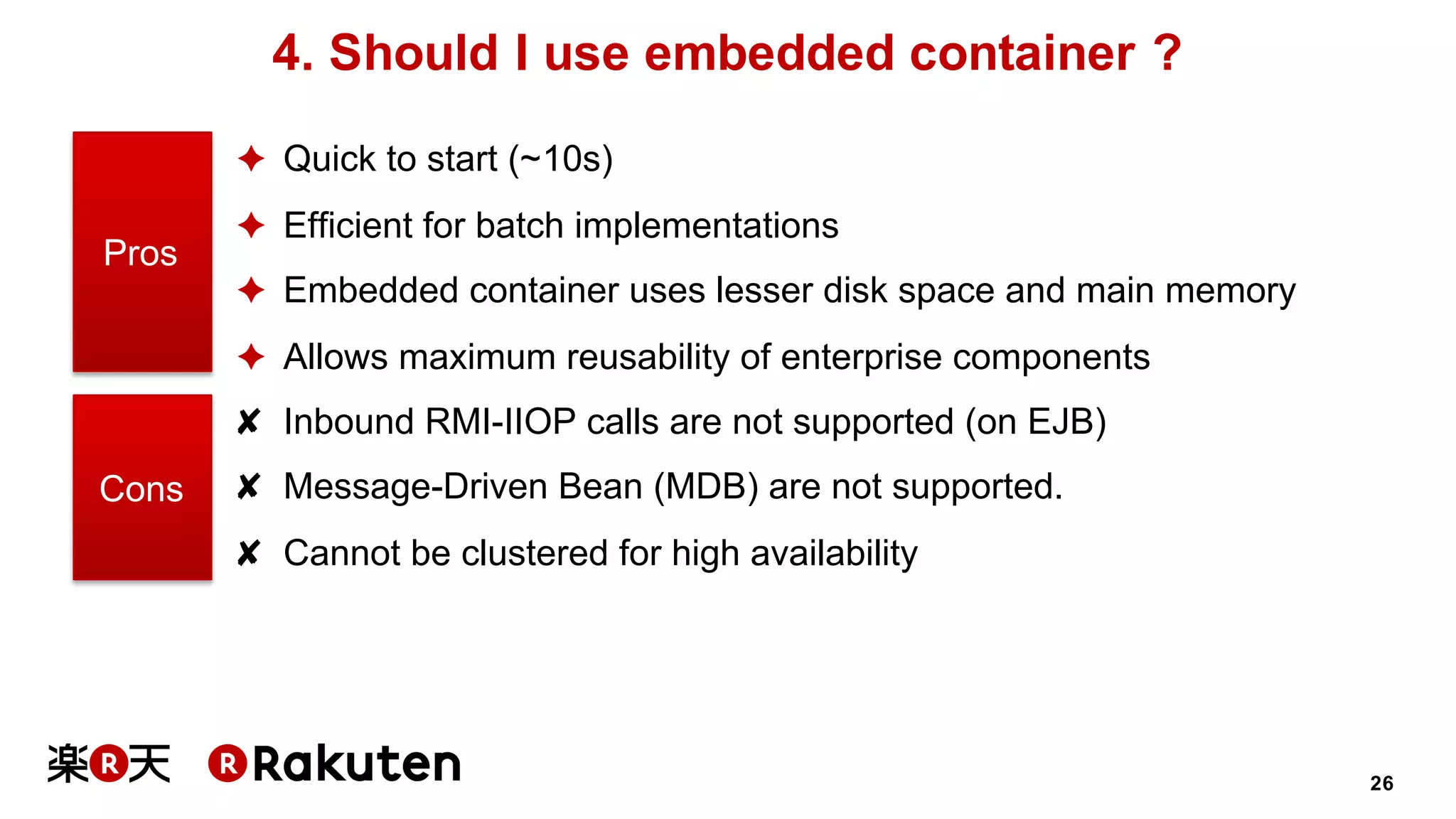

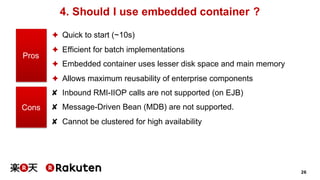

- 26. 26 4. Should Iuse embedded container ? ✦ Quick to start (~10s) ✦ Efficient for batch implementations ✦ Embedded container uses lesser disk space and main memory ✦ Allows maximum reusability of enterprise components ✘ Inbound RMI-IIOP calls are not supported (on EJB) ✘ Message-Driven Bean (MDB) are not supported. ✘ Cannot be clustered for high availability Pros Cons

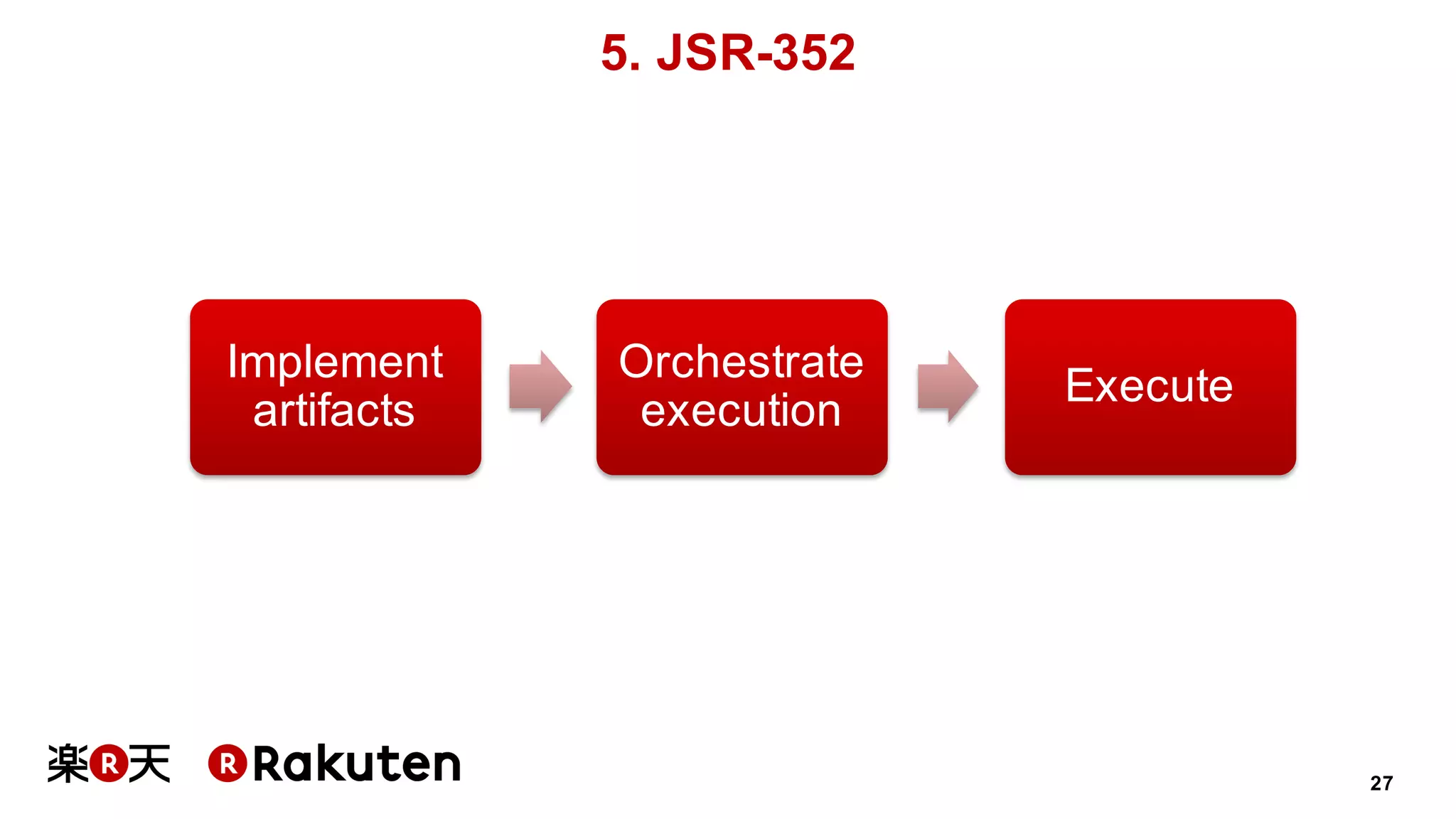

- 27.

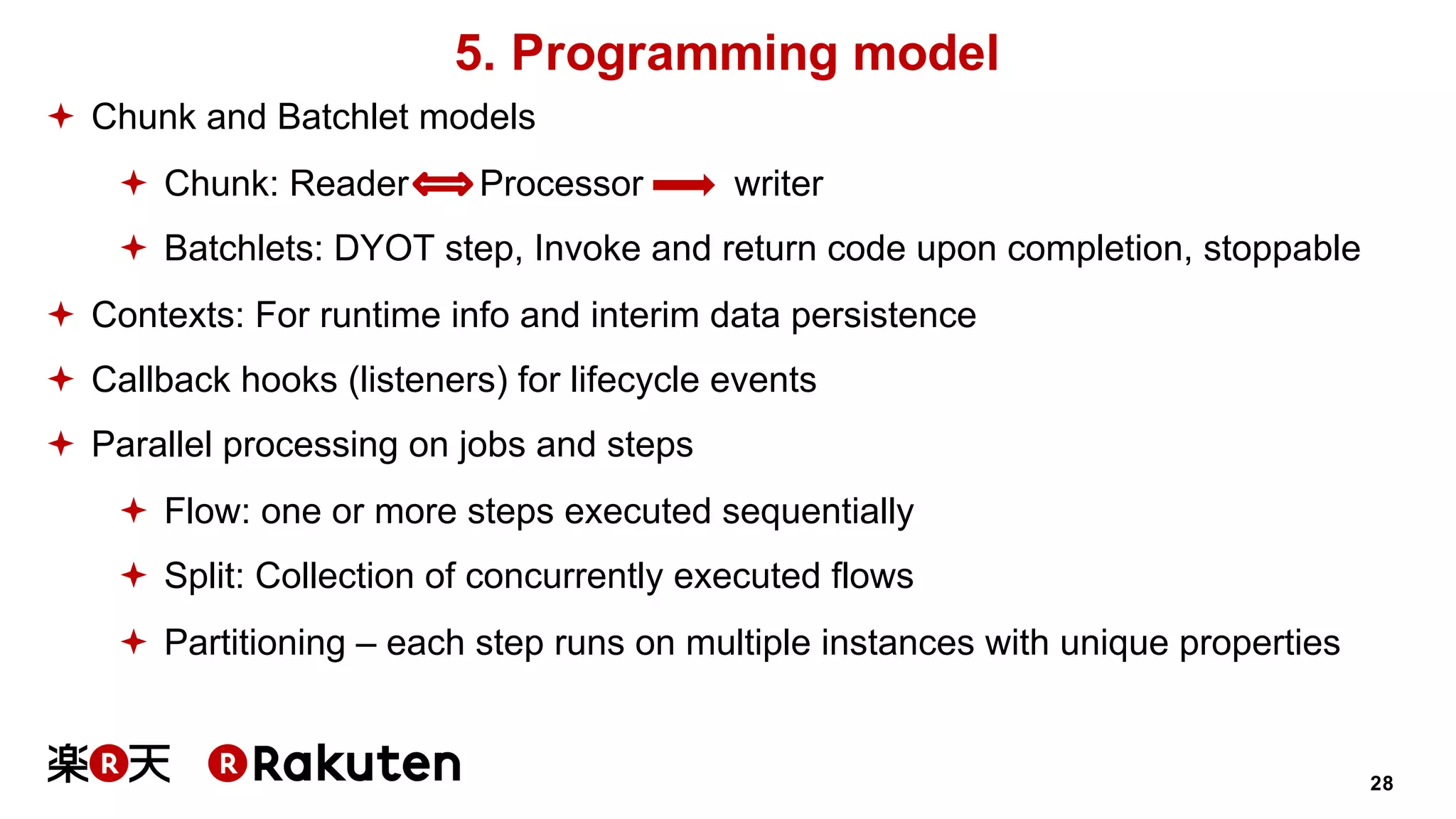

- 28. 28 5. Programming model ªChunk and Batchlet models ª Chunk: Reader Processor writer ª Batchlets: DYOT step, Invoke and return code upon completion, stoppable ª Contexts: For runtime info and interim data persistence ª Callback hooks (listeners) for lifecycle events ª Parallel processing on jobs and steps ª Flow: one or more steps executed sequentially ª Split: Collection of concurrently executed flows ª Partitioning – each step runs on multiple instances with unique properties

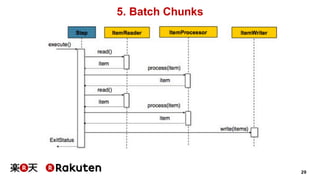

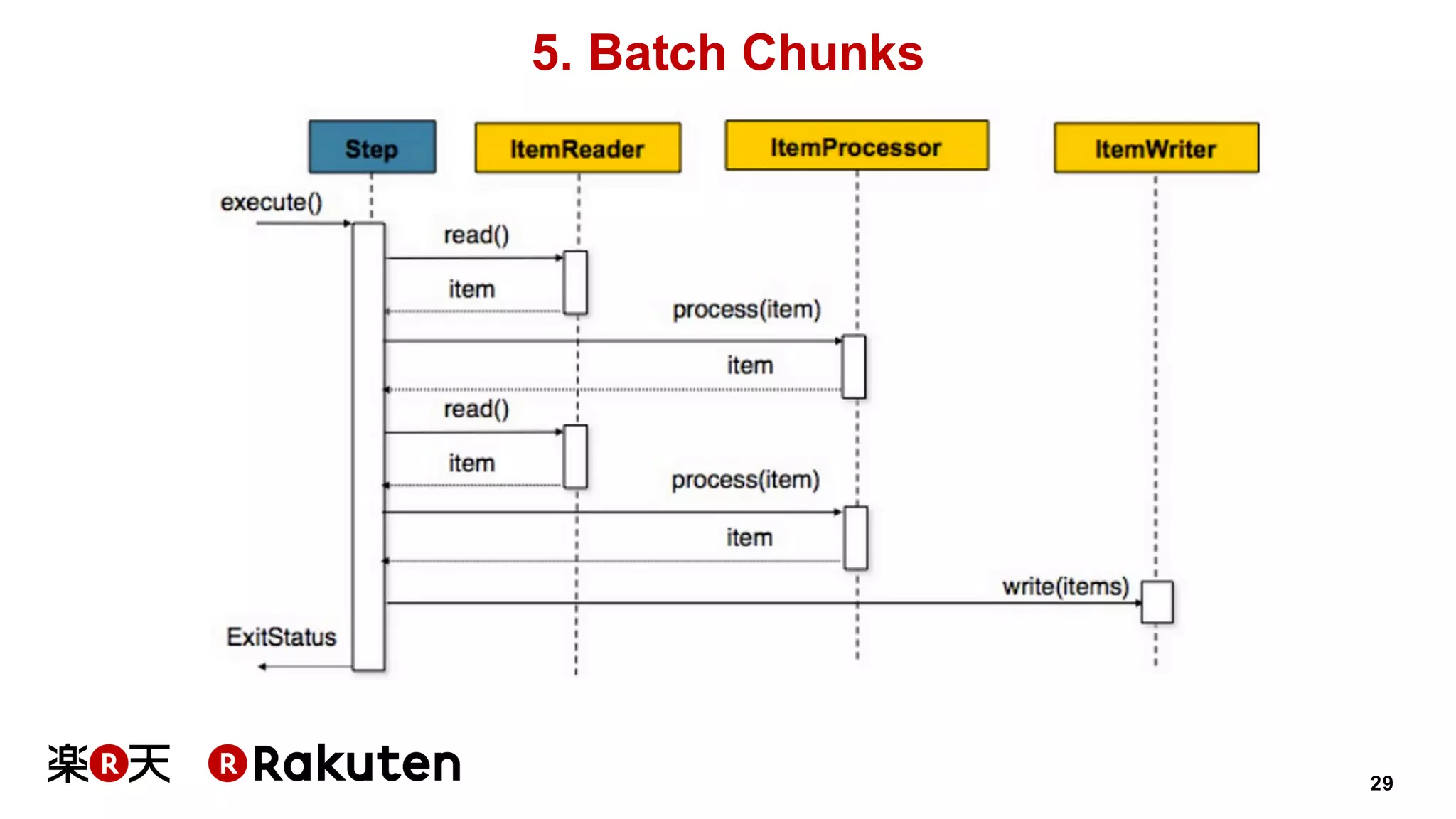

- 29.

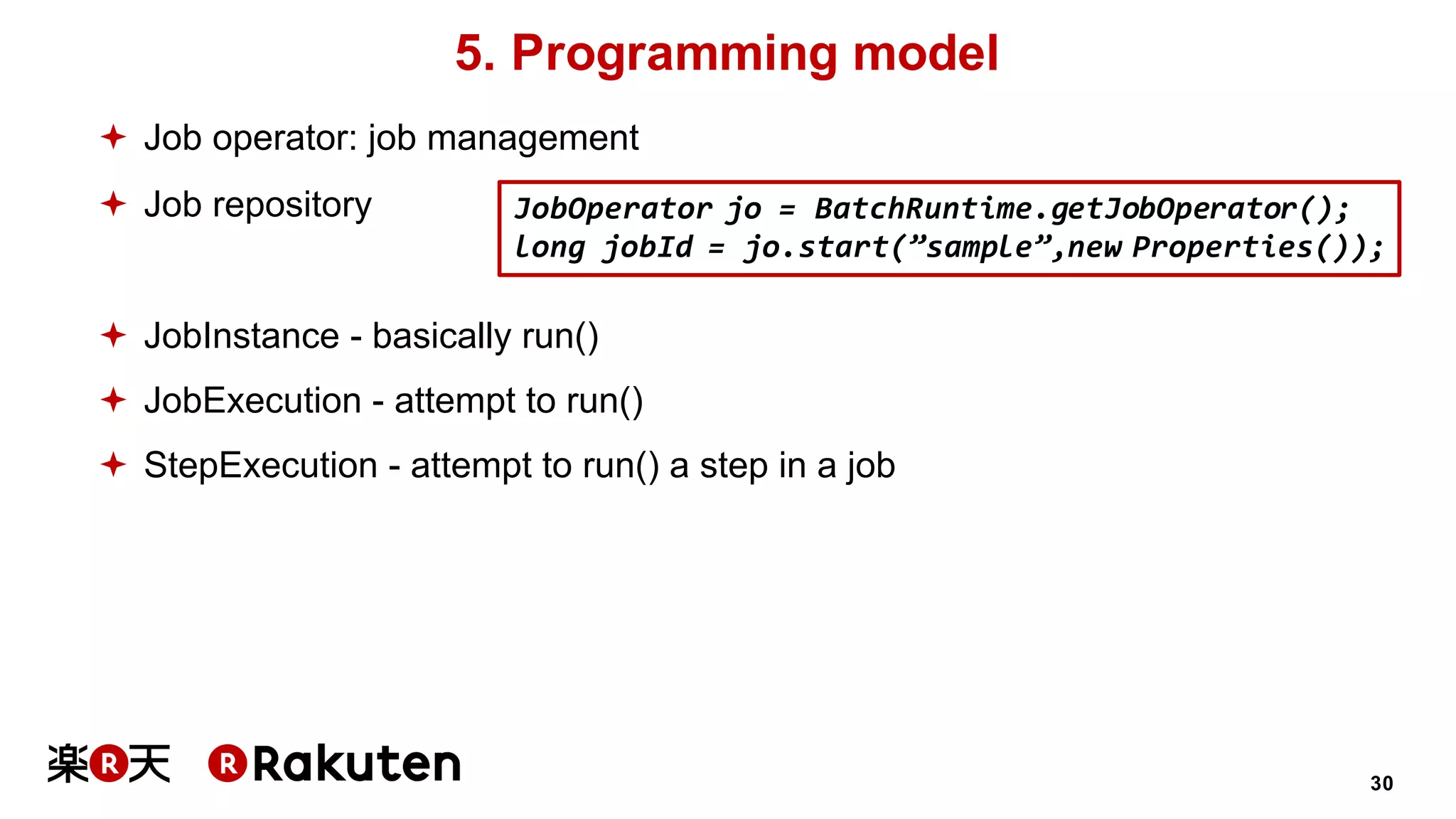

- 30. 30 5. Programming model ªJob operator: job management ª Job repository ª JobInstance - basically run() ª JobExecution - attempt to run() ª StepExecution - attempt to run() a step in a job JobOperator jo = BatchRuntime.getJobOperator(); long jobId = jo.start(”sample”,new Properties());

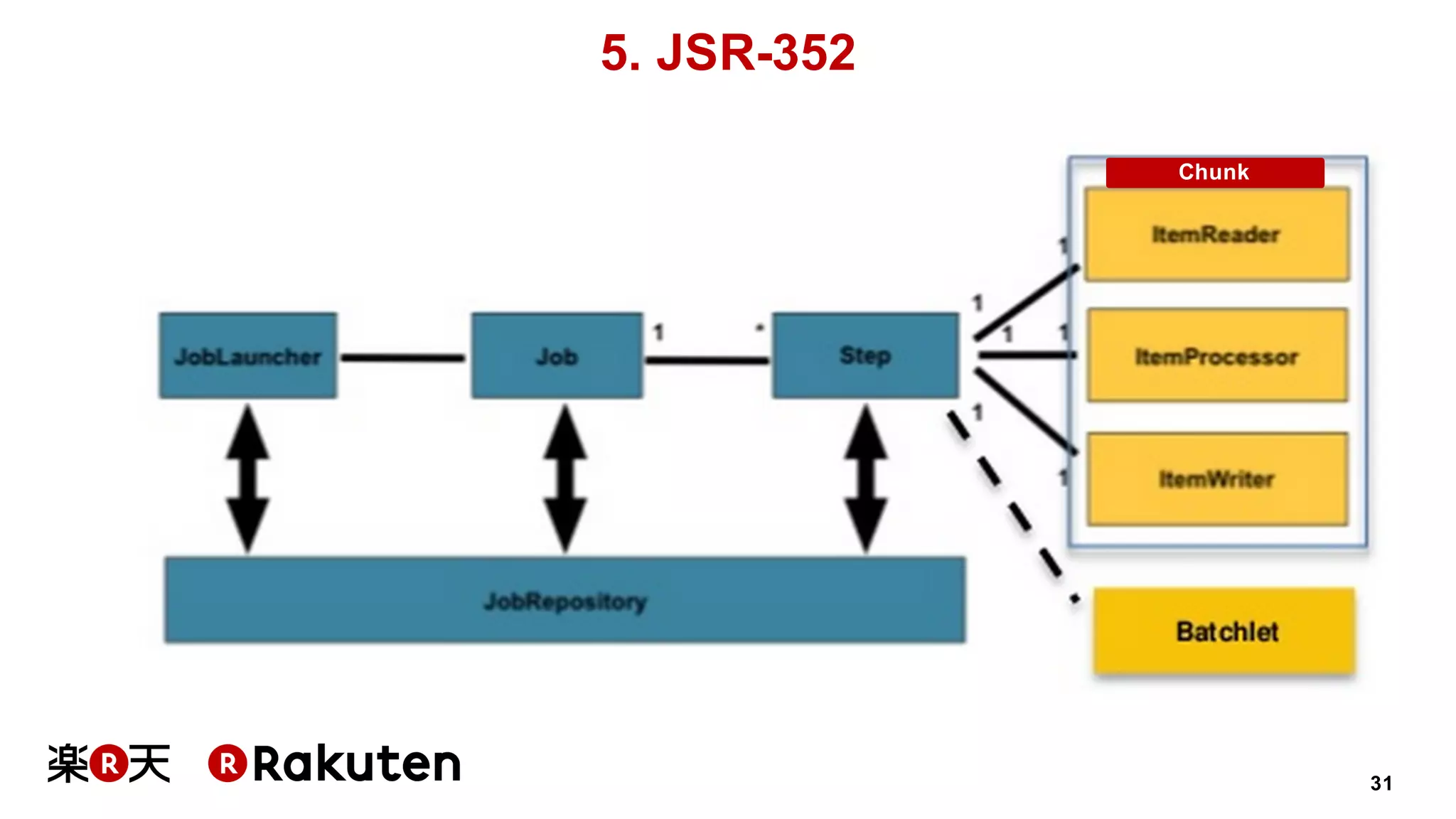

- 31.

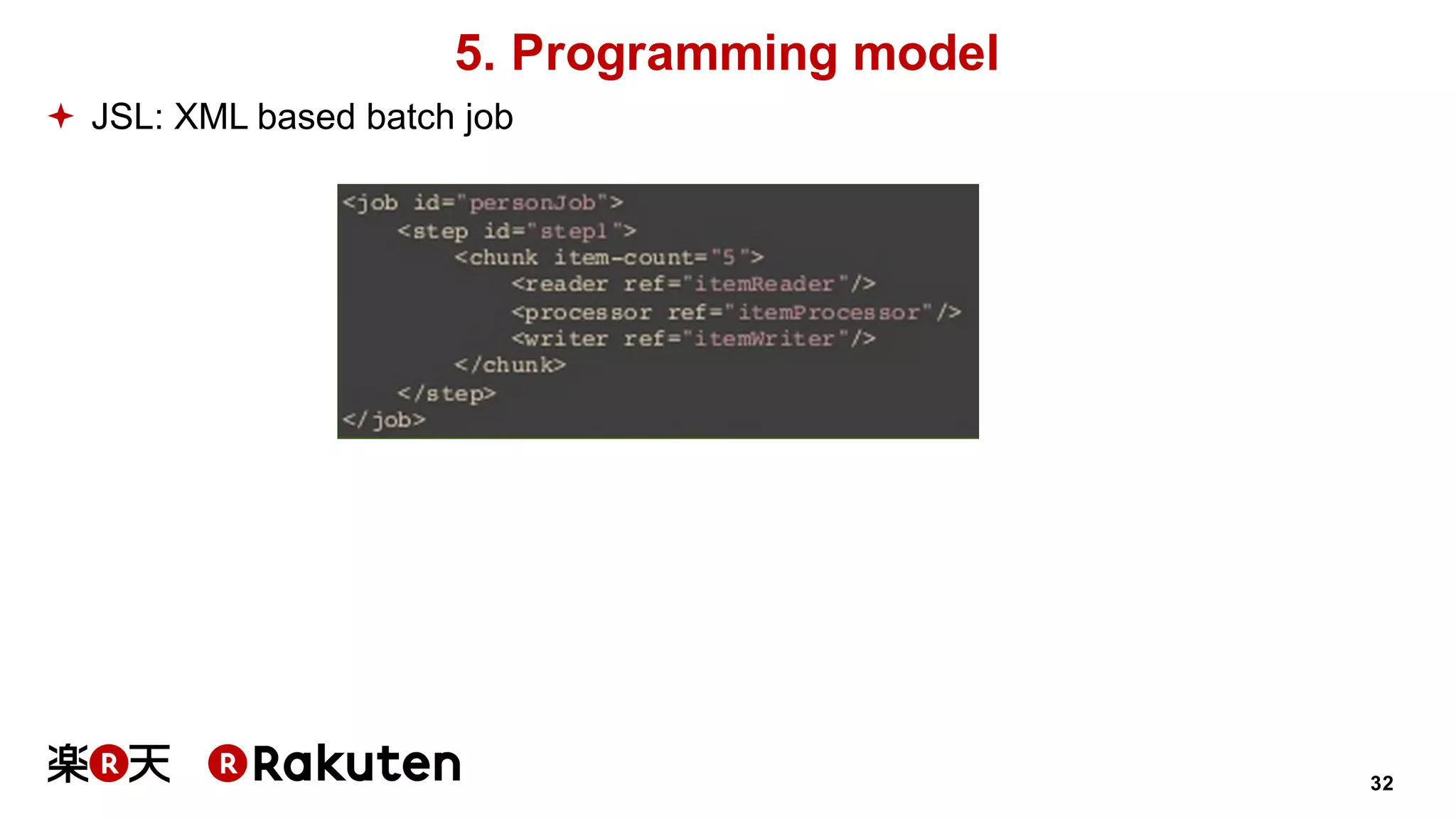

- 32. 32 5. Programming model ªJSL: XML based batch job

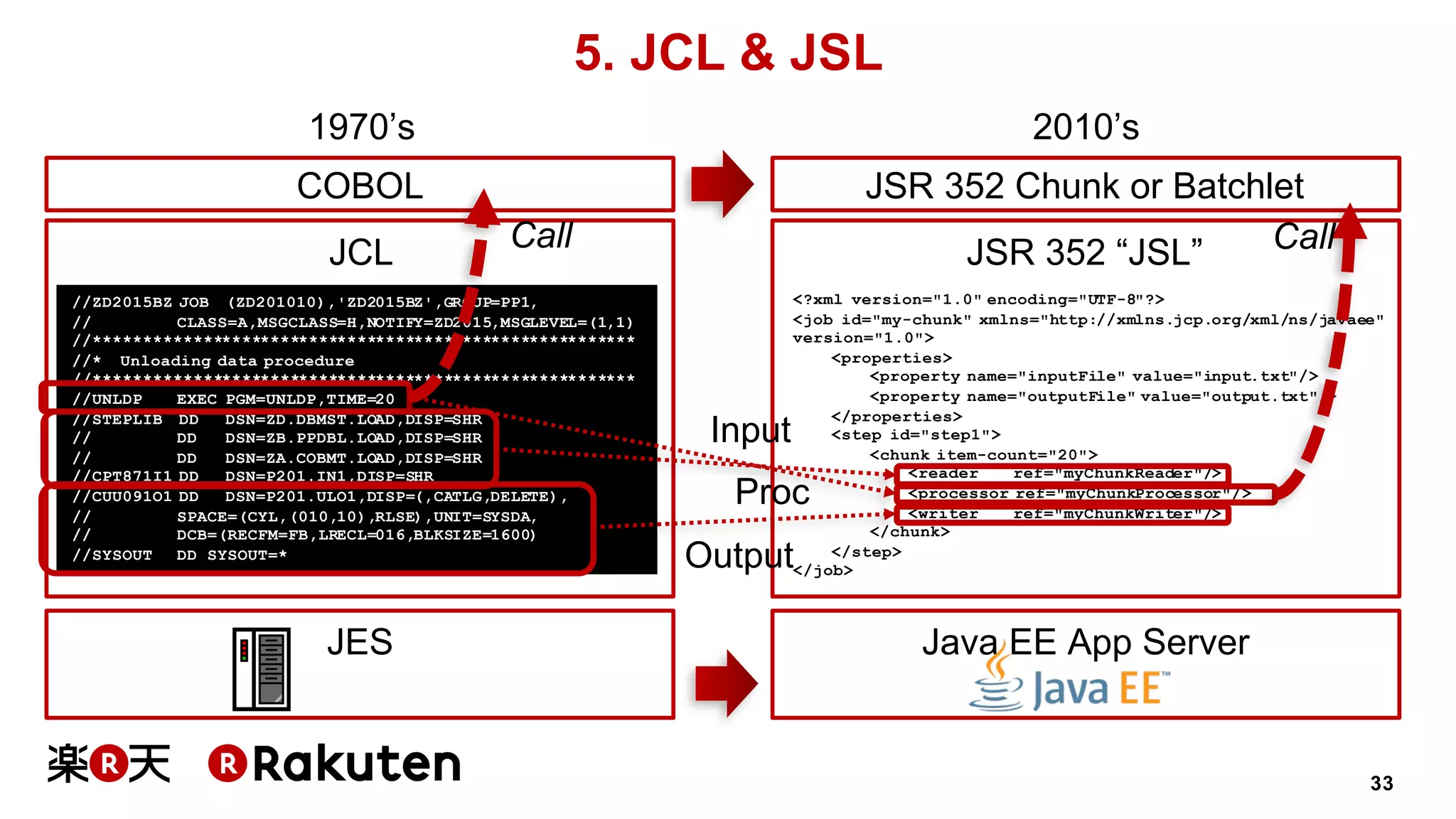

- 33. 33 5. JCL &JSL JCL JSR 352 “JSL” //ZD2015BZ JOB (ZD201010),'ZD2015BZ',GROUP=PP1, // CLASS=A,MSGCLASS=H,NOTIFY=ZD2015,MSGLEVEL=(1,1) //******************************************************** //* Unloading data procedure //******************************************************** //UNLDP EXEC PGM=UNLDP,TIME=20 //STEPLIB DD DSN=ZD.DBMST.LOAD,DISP=SHR // DD DSN=ZB.PPDBL.LOAD,DISP=SHR // DD DSN=ZA.COBMT.LOAD,DISP=SHR //CPT871I1 DD DSN=P201.IN1,DISP=SHR //CUU091O1 DD DSN=P201.ULO1,DISP=(,CATLG,DELETE), // SPACE=(CYL,(010,10),RLSE),UNIT=SYSDA, // DCB=(RECFM=FB,LRECL=016,BLKSIZE=1600) //SYSOUT DD SYSOUT=* JES Java EE App Server 1970’s 2010’s <?xml version="1.0" encoding="UTF-8"?> <job id="my-chunk" xmlns="http://xmlns.jcp.org/xml/ns/javaee" version="1.0"> <properties> <property name="inputFile" value="input.txt"/> <property name="outputFile" value="output.txt"/> </properties> <step id="step1"> <chunk item-count="20"> <reader ref="myChunkReader"/> <processor ref="myChunkProcessor"/> <writer ref="myChunkWriter"/> </chunk> </step> </job> COBOL JSR 352 Chunk or Batchlet Input Output Proc Call Call

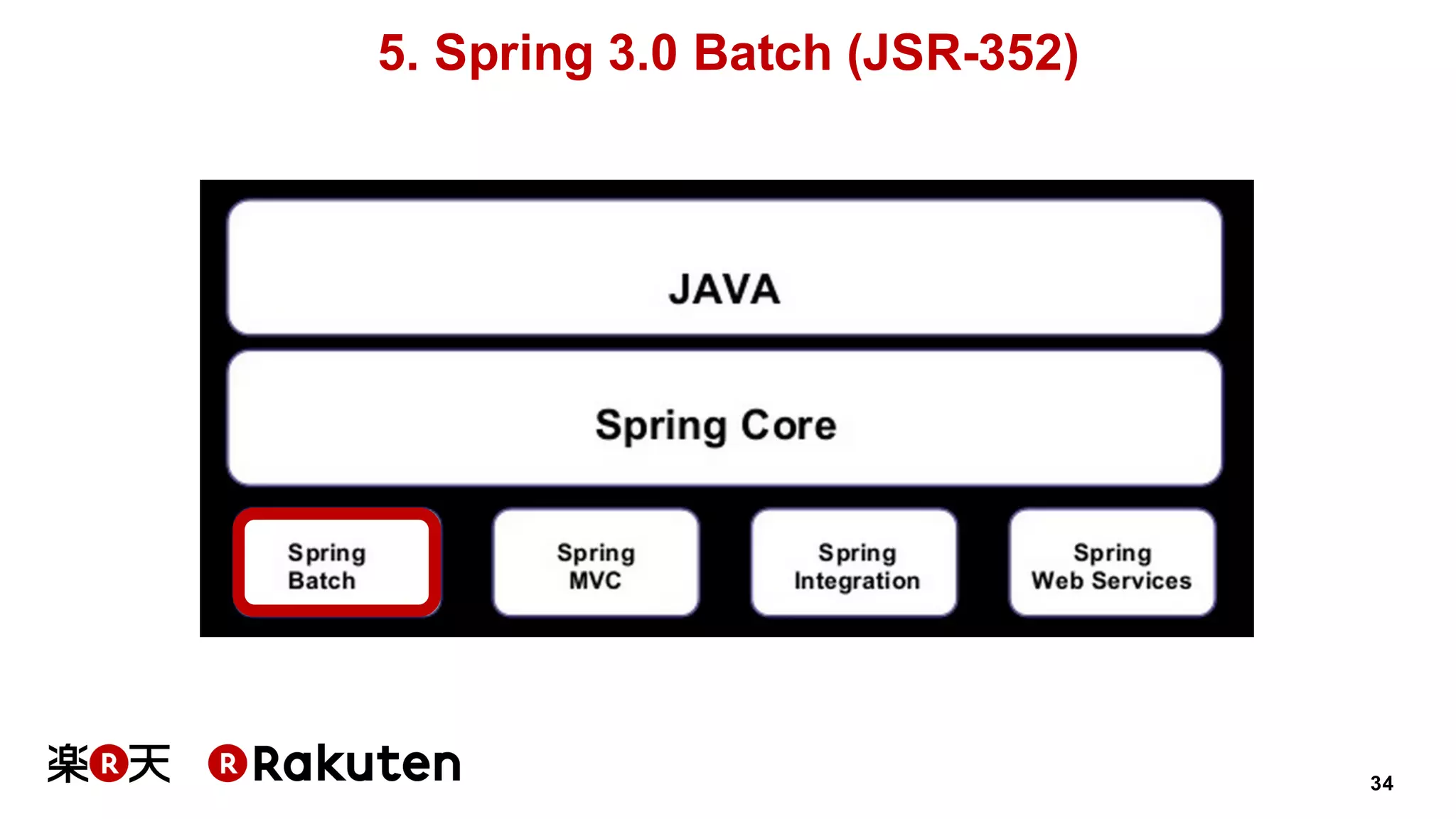

- 34. 34 5. Spring 3.0Batch (JSR-352)

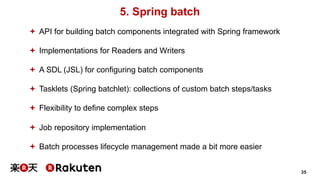

- 35. 35 5. Spring batch ªAPI for building batch components integrated with Spring framework ª Implementations for Readers and Writers ª A SDL (JSL) for configuring batch components ª Tasklets (Spring batchlet): collections of custom batch steps/tasks ª Flexibility to define complex steps ª Job repository implementation ª Batch processes lifecycle management made a bit more easier

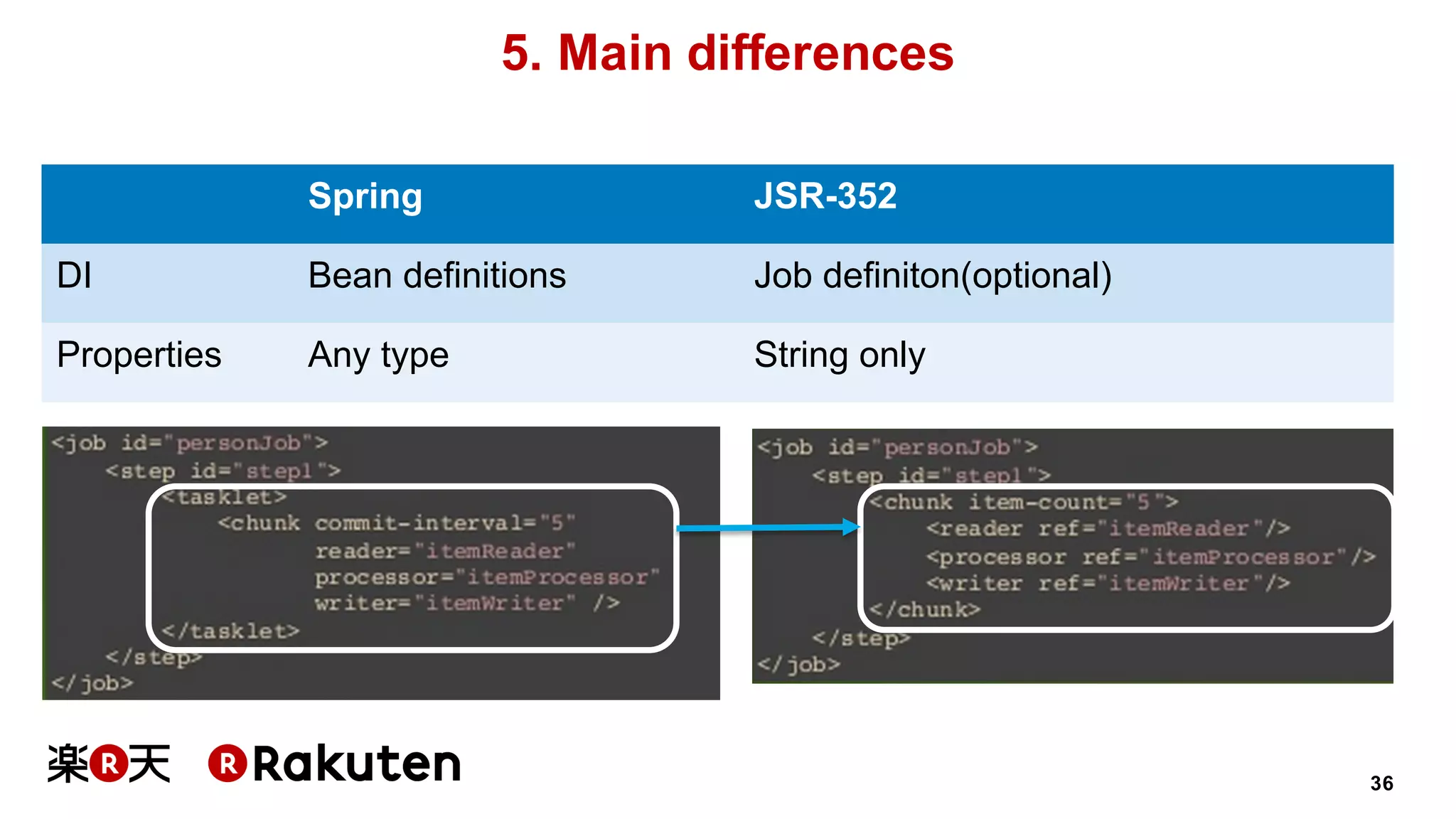

- 36. 36 5. Main differences SpringJSR-352 DI Bean definitions Job definiton(optional) Properties Any type String only

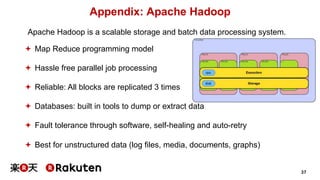

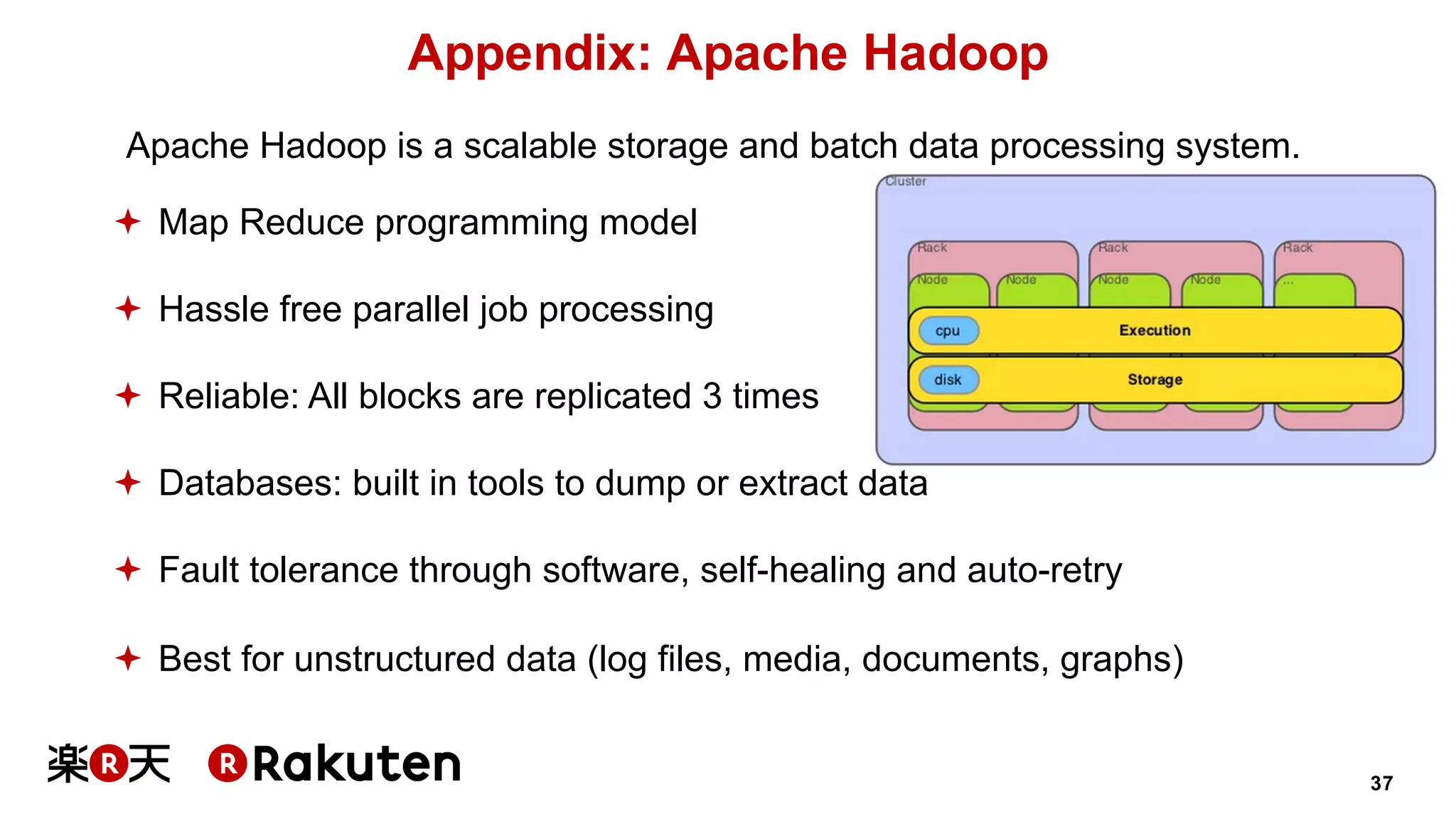

- 37. 37 Appendix: Apache Hadoop ApacheHadoop is a scalable storage and batch data processing system. ª Map Reduce programming model ª Hassle free parallel job processing ª Reliable: All blocks are replicated 3 times ª Databases: built in tools to dump or extract data ª Fault tolerance through software, self-healing and auto-retry ª Best for unstructured data (log files, media, documents, graphs)

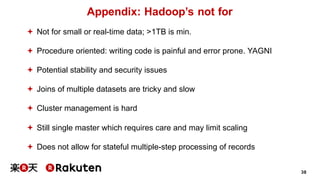

- 38. 38 Appendix: Hadoop’s notfor ª Not for small or real-time data; >1TB is min. ª Procedure oriented: writing code is painful and error prone. YAGNI ª Potential stability and security issues ª Joins of multiple datasets are tricky and slow ª Cluster management is hard ª Still single master which requires care and may limit scaling ª Does not allow for stateful multiple-step processing of records

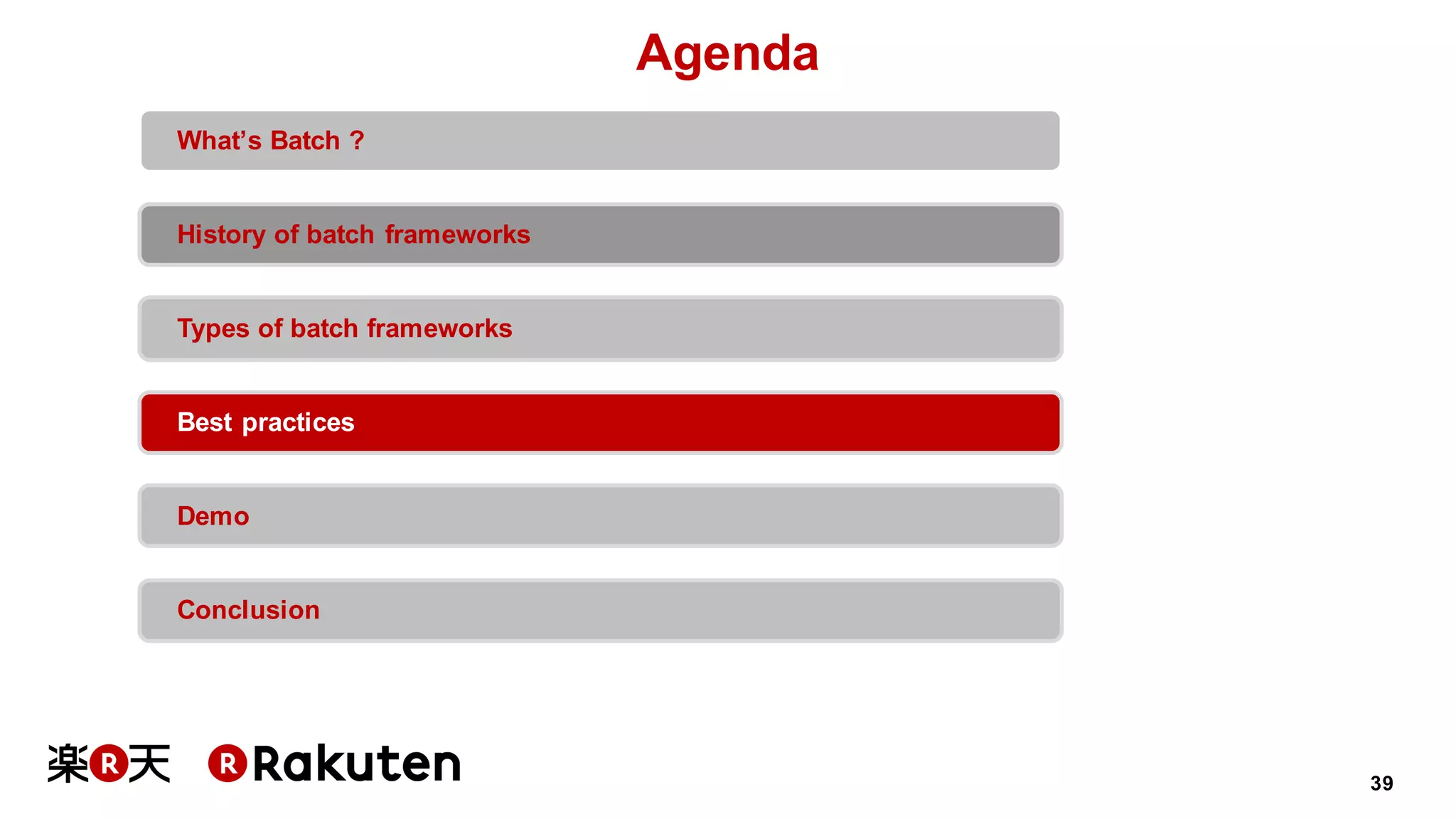

- 39. 39 Agenda What’s Batch ? Historyof batch frameworks Types of batch frameworks Best practices Demo Conclusion

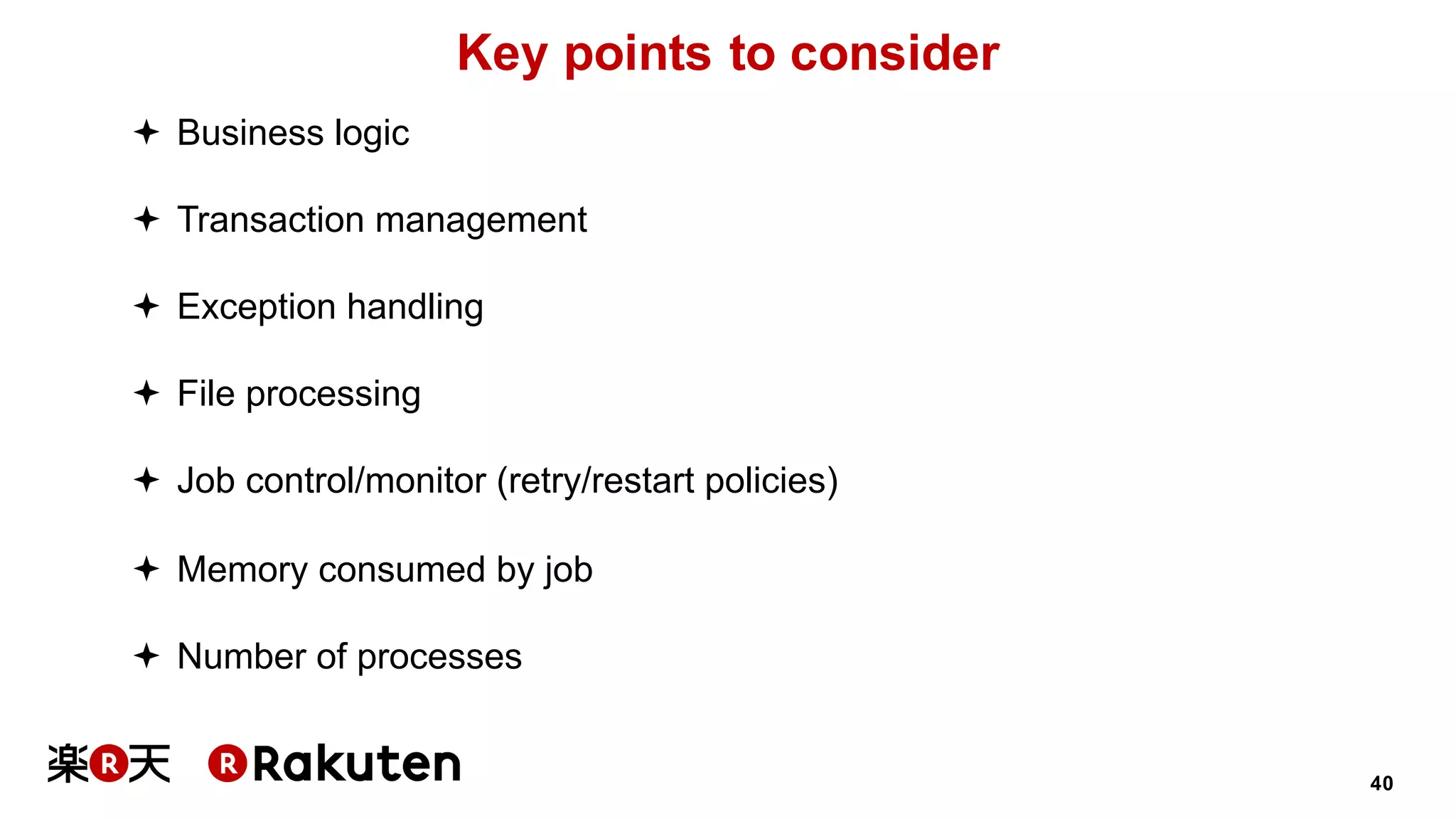

- 40. 40 Key points toconsider ª Business logic ª Transaction management ª Exception handling ª File processing ª Job control/monitor (retry/restart policies) ª Memory consumed by job ª Number of processes

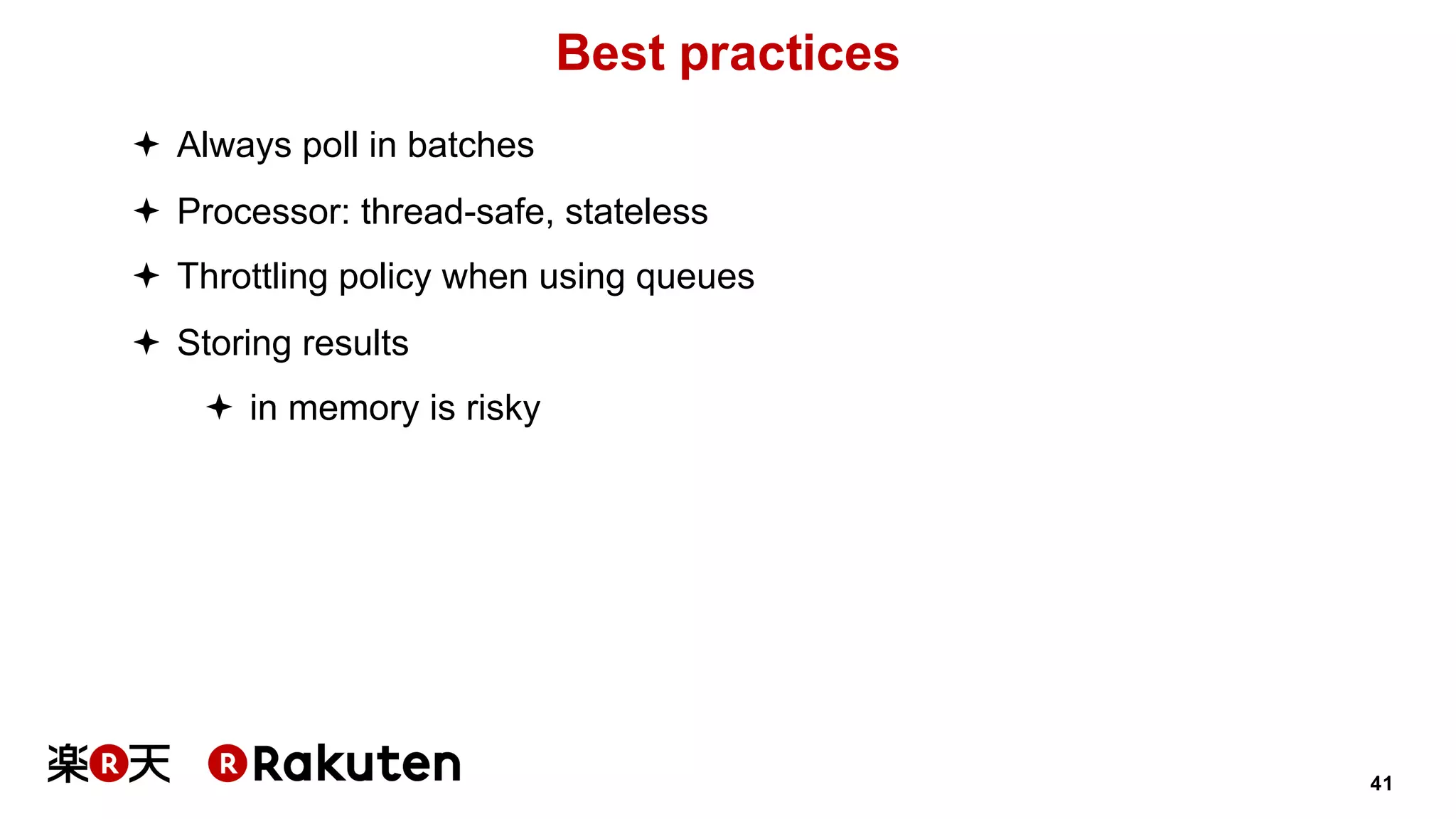

- 41. 41 Best practices ª Alwayspoll in batches ª Processor: thread-safe, stateless ª Throttling policy when using queues ª Storing results ª in memory is risky

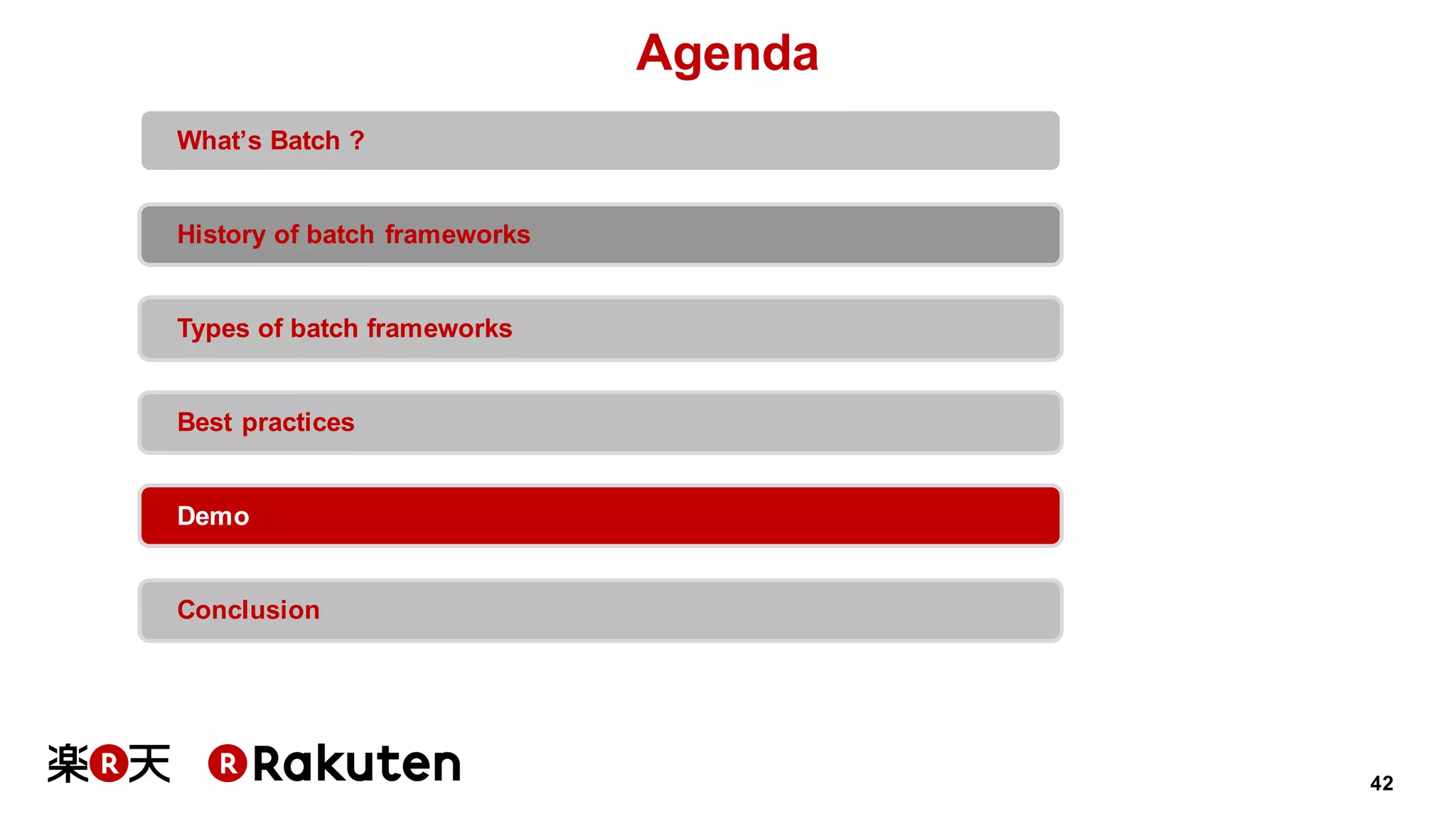

- 42. 42 Agenda What’s Batch ? Historyof batch frameworks Types of batch frameworks Best practices Demo Conclusion

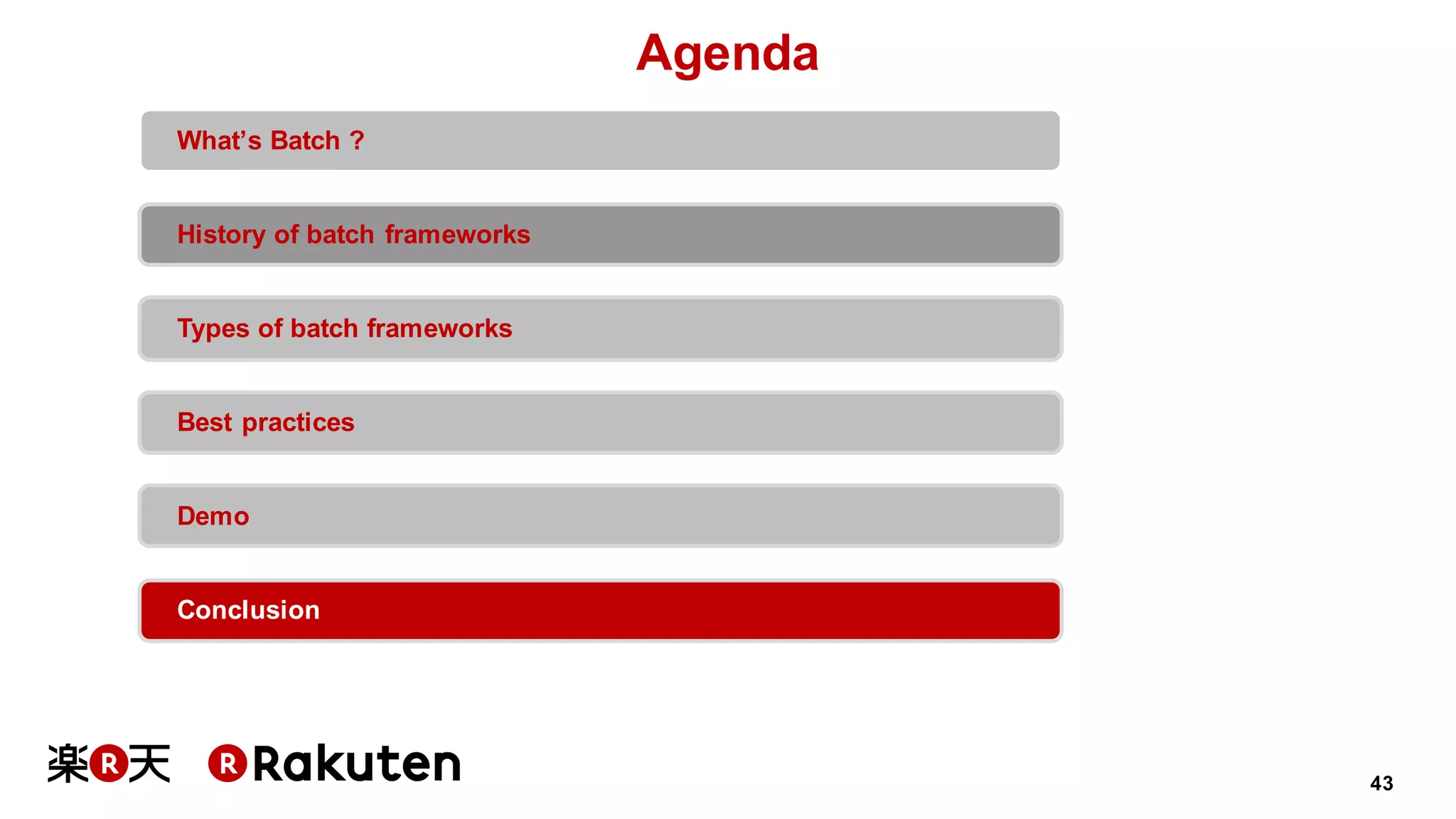

- 43. 43 Agenda What’s Batch ? Historyof batch frameworks Types of batch frameworks Best practices Demo Conclusion

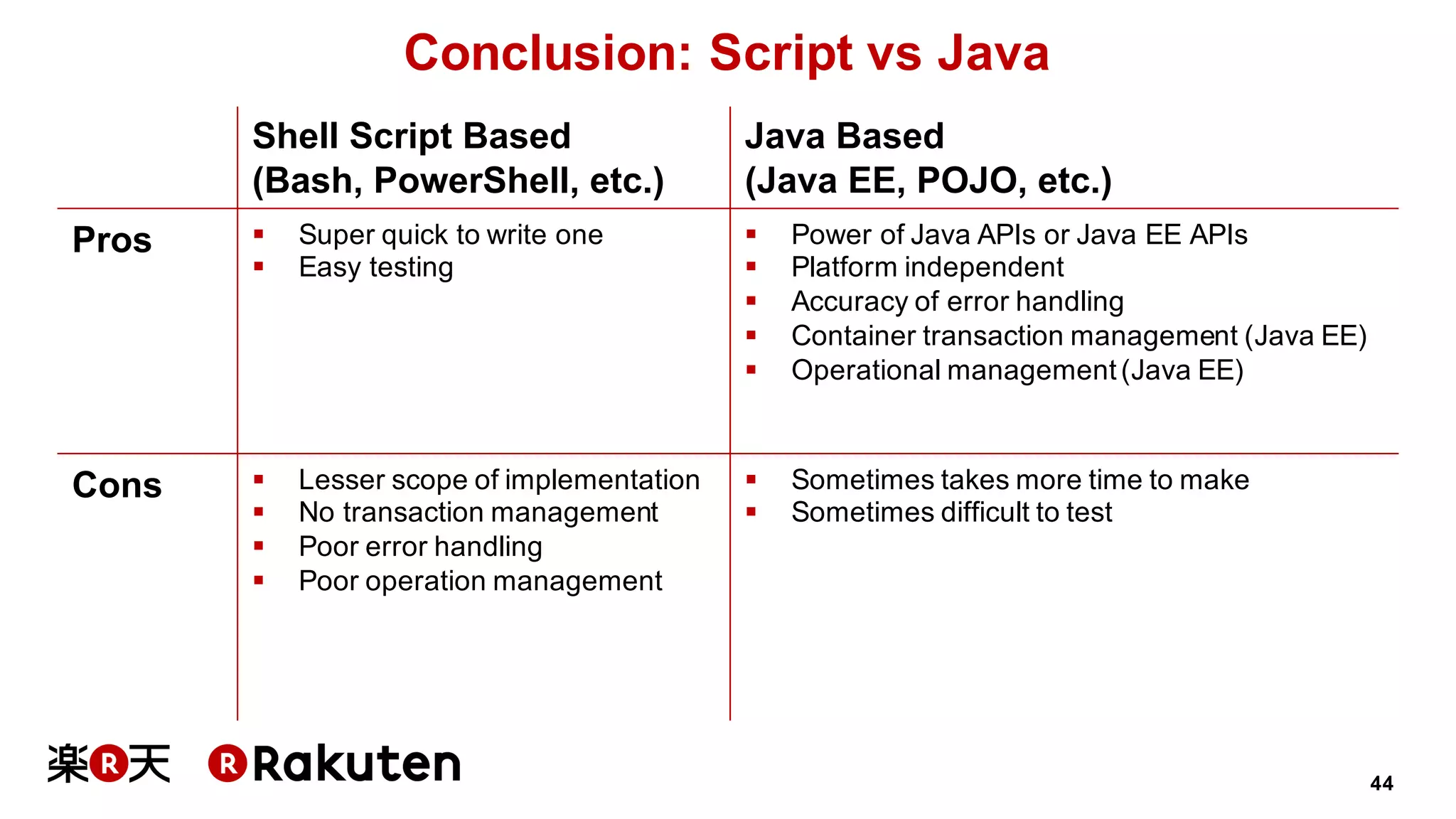

- 44. 44 Conclusion: Script vsJava Shell Script Based (Bash, PowerShell, etc.) Java Based (Java EE, POJO, etc.) Pros § Super quick to write one § Easy testing § Power of Java APIs or Java EE APIs § Platform independent § Accuracy of error handling § Container transaction management (Java EE) § Operational management(Java EE) Cons § Lesser scope of implementation § No transaction management § Poor error handling § Poor operation management § Sometimes takes more time to make § Sometimes difficult to test

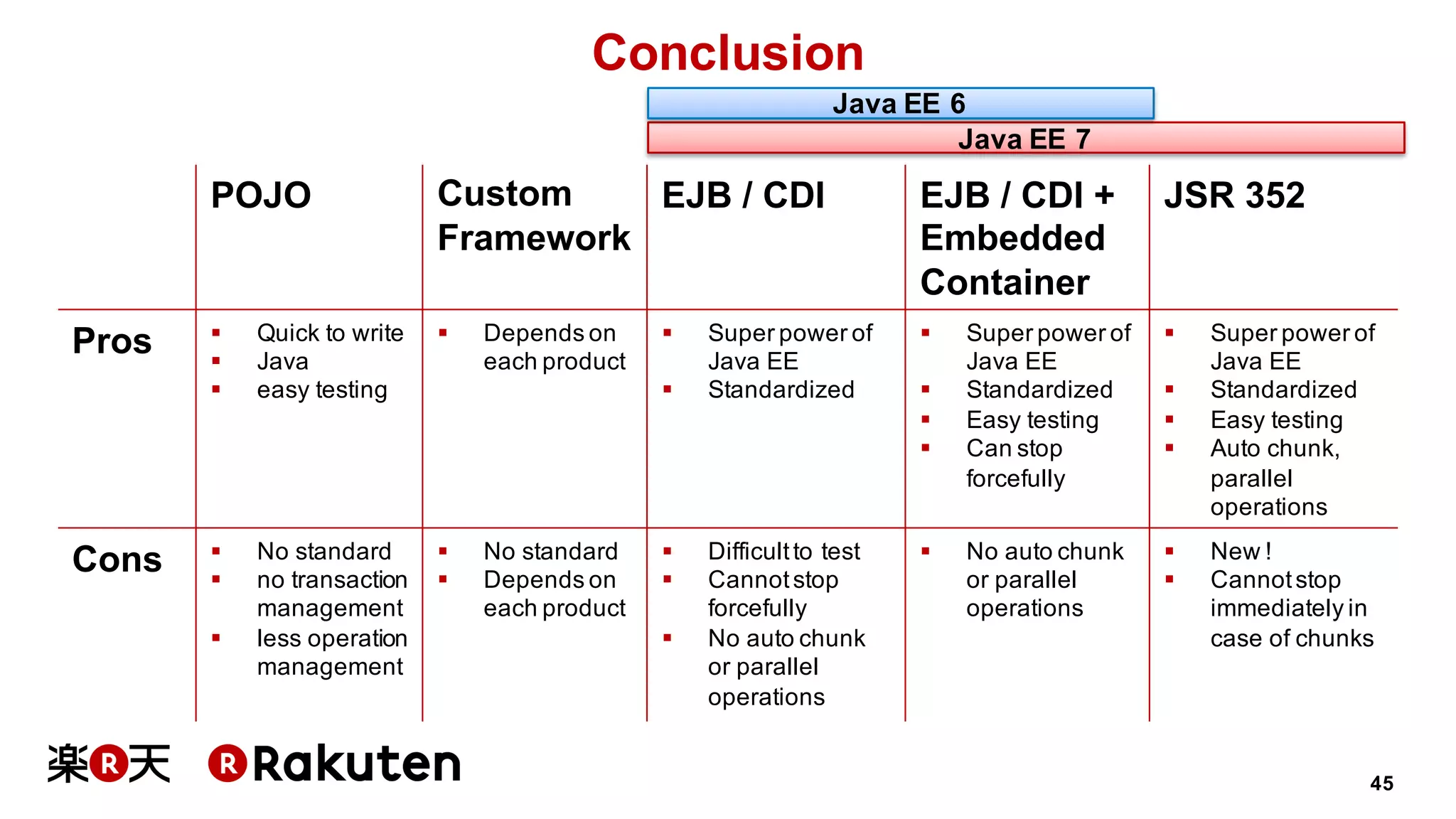

- 45. 45 Conclusion POJO Custom Framework EJB /CDI EJB / CDI + Embedded Container JSR 352 Pros § Quick to write § Java § easy testing § Depends on each product § Super power of Java EE § Standardized § Super power of Java EE § Standardized § Easy testing § Can stop forcefully § Super power of Java EE § Standardized § Easy testing § Auto chunk, parallel operations Cons § No standard § no transaction management § less operation management § No standard § Depends on each product § Difficultto test § Cannotstop forcefully § No auto chunk or parallel operations § No auto chunk or parallel operations § New ! § Cannotstop immediately in case of chunks Java EE 7 Java EE 6
- 46. 46 Contact Arshal (@AforArsh) Hirofumi Iwasaki(@HirofumiIwasaki)
