자바 웹 개발 시작하기 (1주차 : 웹 어플리케이션 체험 실습)

자바 웹 개발 시작하기
(1주차 : 웹 어플리케이션 체험 실습)
2011. 10. 26

DEVELOPMENT #2

이덕곤

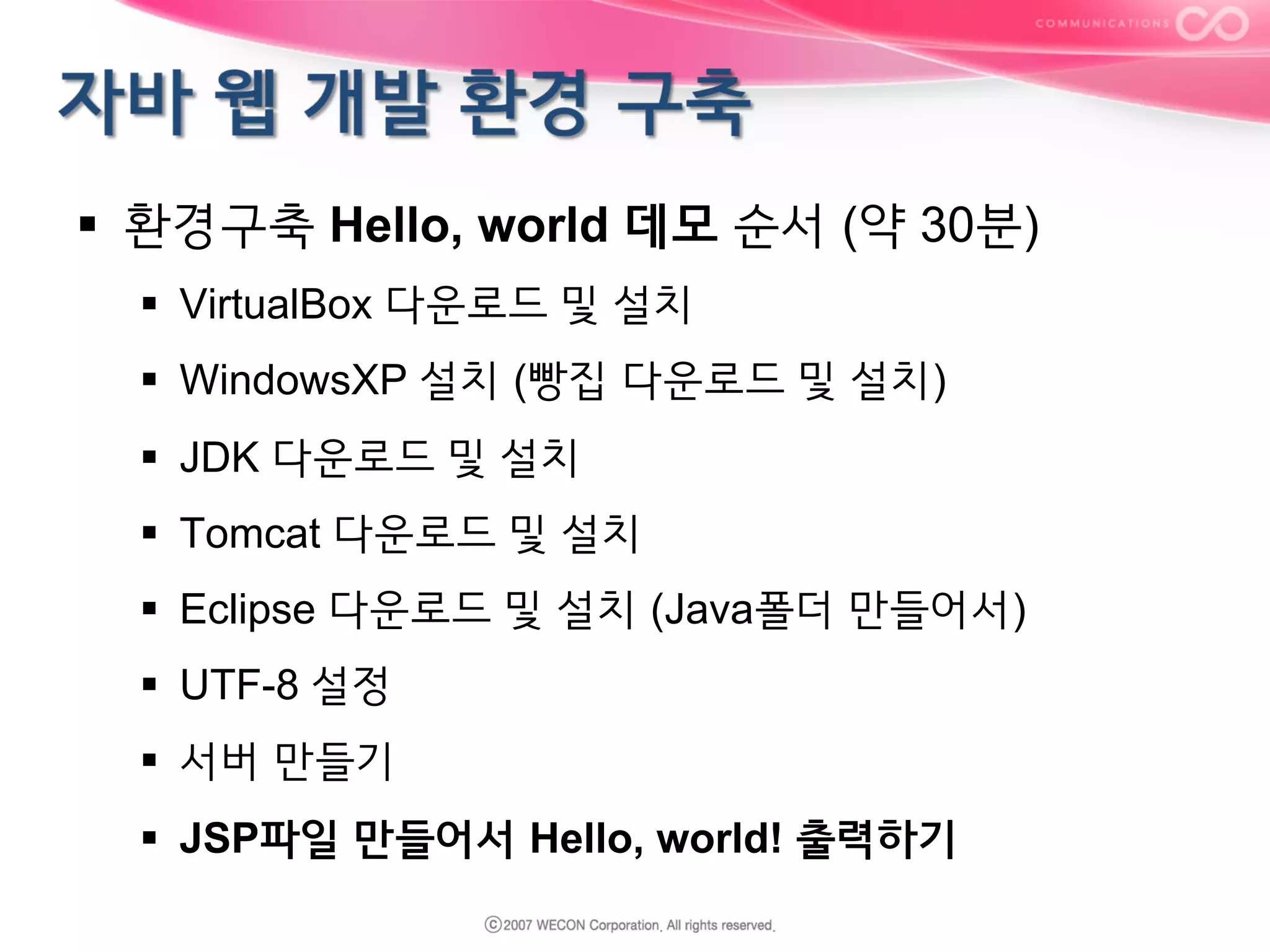

§  환경구축 Hello, world 데모 순서 (약 30분)
§  VirtualBox 다운로드 및 설치
§  WindowsXP 설치 (빵집 다운로드 및 설치)
§  JDK 다운로드 및 설치
§  Tomcat 다운로드 및 설치
§  Eclipse 다운로드 및 설치 (Java폴더 만들어서)
§  UTF-8 설정
§  서버 만들기
§  JSP파일 만들어서 Hello, world! 출력하기

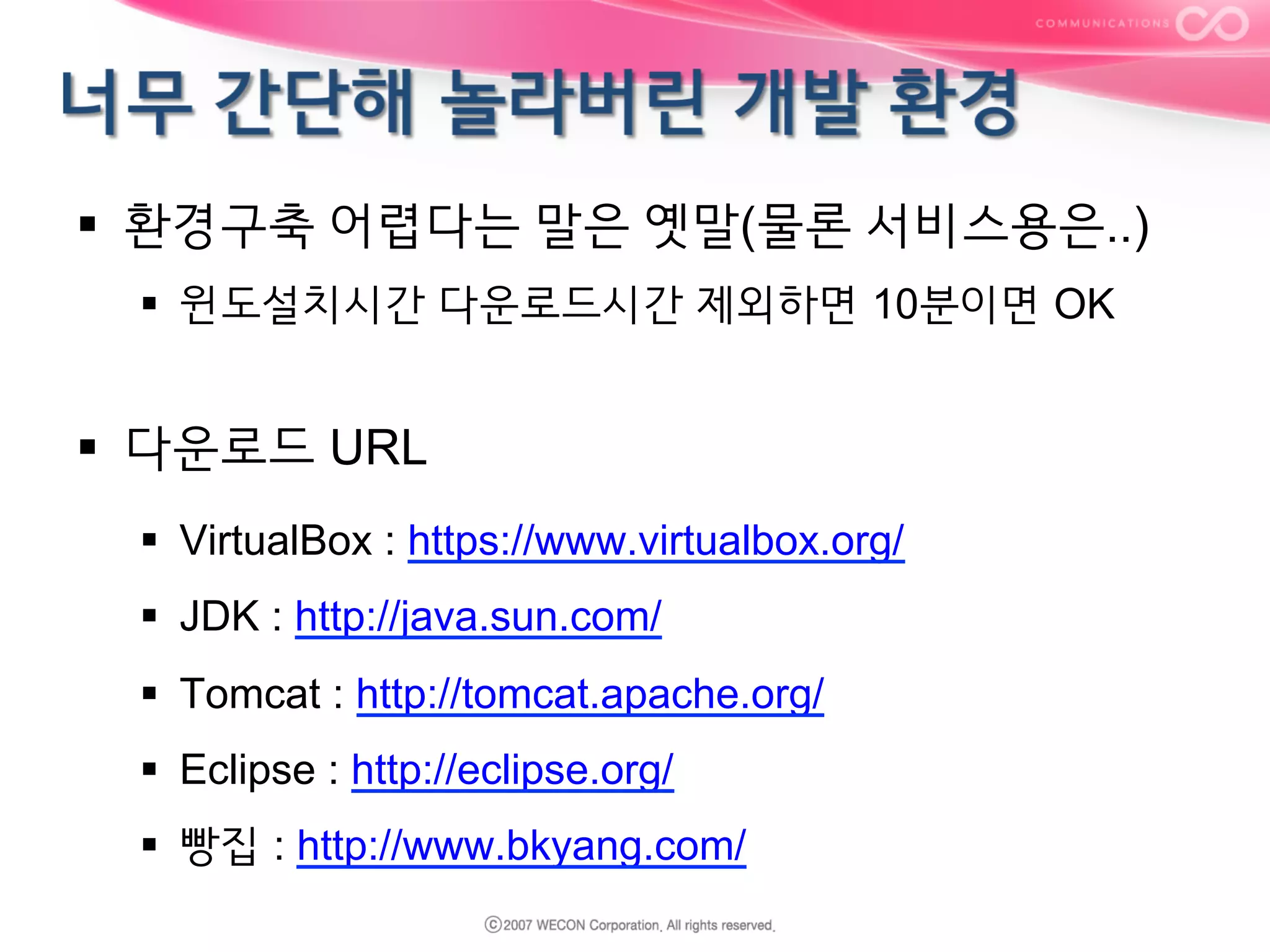

§  환경구축 어렵다는 말은 옛말(물론 서비스용은..)
§  윈도설치시간 다운로드시간 제외하면 10분이면 OK

§  다운로드 URL
§  VirtualBox : https://www.virtualbox.org/
§  JDK : http://java.sun.com/
§  Tomcat : http://tomcat.apache.org/
§  Eclipse : http://eclipse.org/
§  빵집 : http://www.bkyang.com/

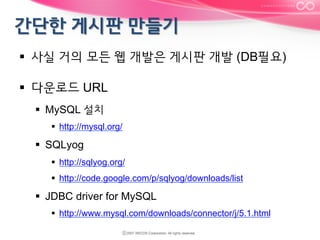

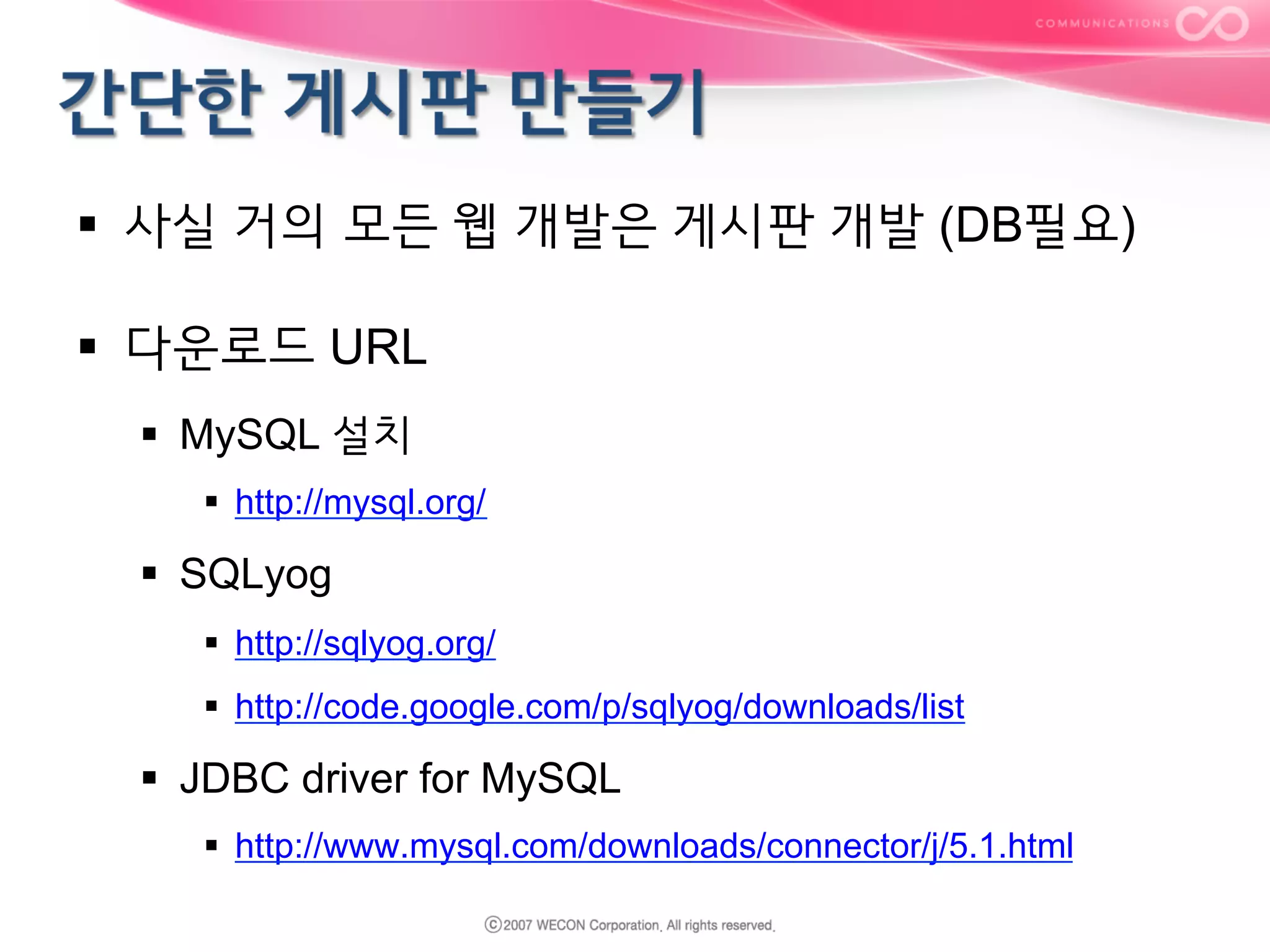

§  사실 거의 모든 웹 개발은 게시판 개발 (DB필요)
§  다운로드 URL
§  MySQL 설치
§  http://mysql.org/

§  SQLyog
§  http://sqlyog.org/
§  http://code.google.com/p/sqlyog/downloads/list

§  JDBC driver for MySQL
§  http://www.mysql.com/downloads/connector/j/5.1.html

§  DB생성
CREATE DATABASE `study`
CHARACTER SET utf8 COLLATE utf8_unicode_ci;

§  테이블 생성
CREATE TABLE `test` (
`idx` int(11) NOT NULL AUTO_INCREMENT,
`subject` varchar(500) COLLATE utf8_unicode_ci NOT NULL,
PRIMARY KEY (`idx`)
) ENGINE=InnoDB AUTO_INCREMENT=1
DEFAULT CHARSET=utf8 COLLATE=utf8_unicode_ci;

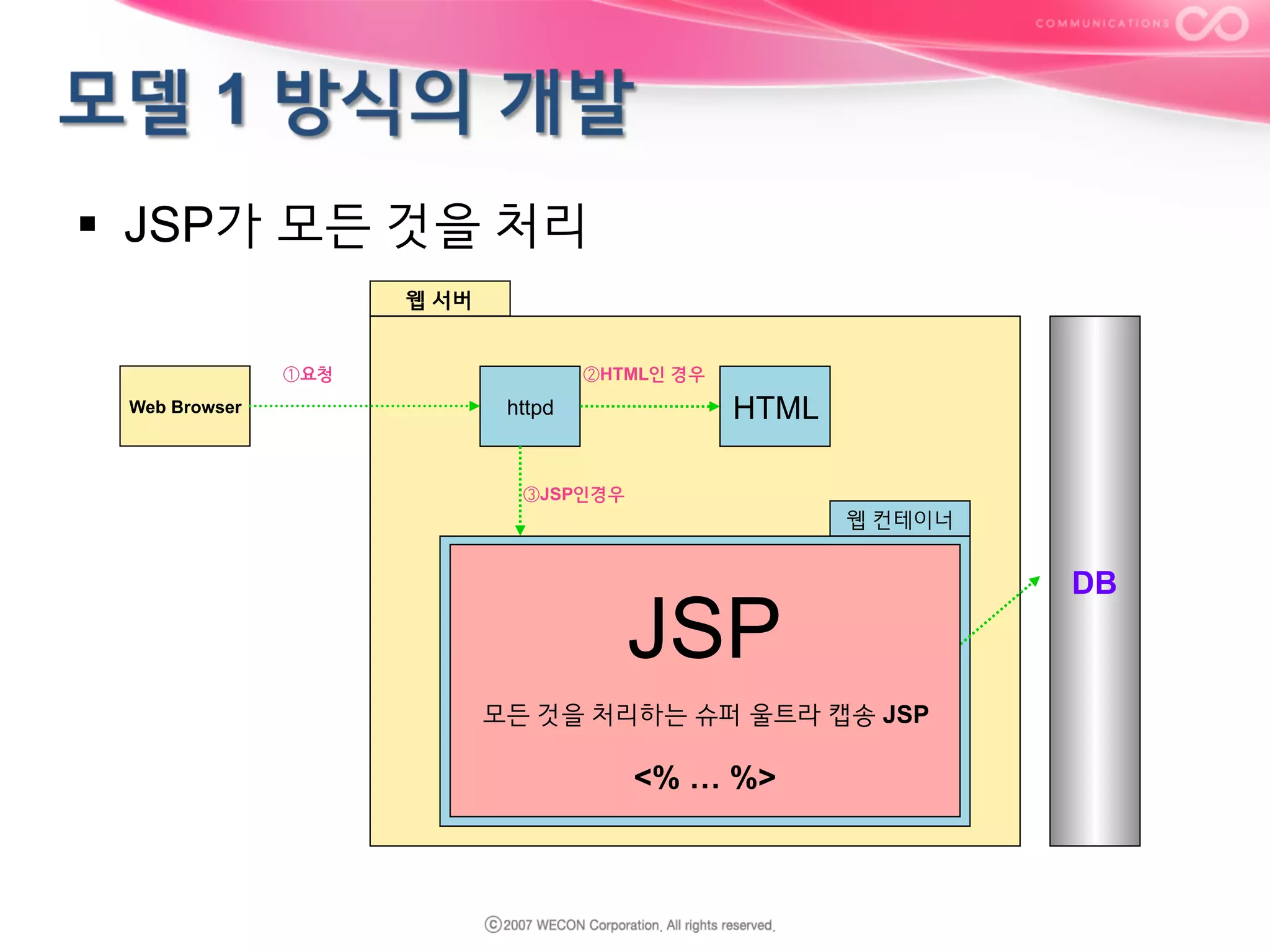

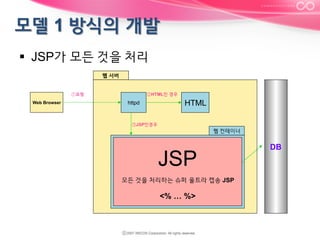

§  JSP가 모든 것을 처리
웹 서버
①요청
Web Browser

②HTML인 경우

HTML

httpd

③JSP인경우

웹 컨테이너

웹컨테이너

JSP
(빈즈호출)

JSP

④<JSP:useBean../>

⑥다음 JSP호출

DB
⑤DB처리

모든 것을 처리하는 슈퍼 울트라 캡송 JSP

JSP
(결과뷰어)

<% … %>
⑦<JSP:useBean../>

BANS

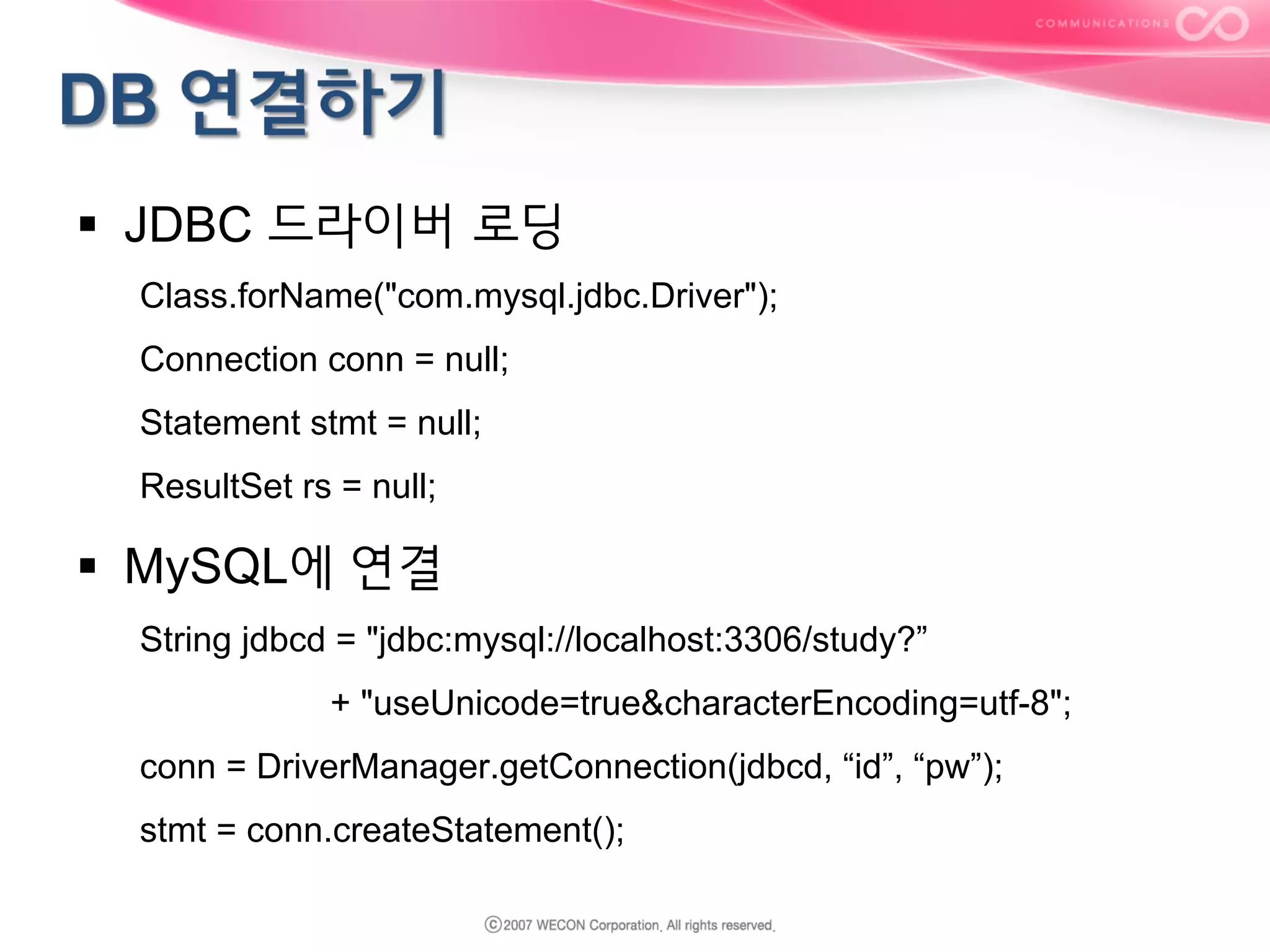

§  JDBC 드라이버 로딩
Class.forName("com.mysql.jdbc.Driver");
Connection conn = null;
Statement stmt = null;
ResultSet rs = null;

§  MySQL에 연결
String jdbcd = "jdbc:mysql://localhost:3306/study?”
+ "useUnicode=true&characterEncoding=utf-8";
conn = DriverManager.getConnection(jdbcd, “id”, “pw”);
stmt = conn.createStatement();

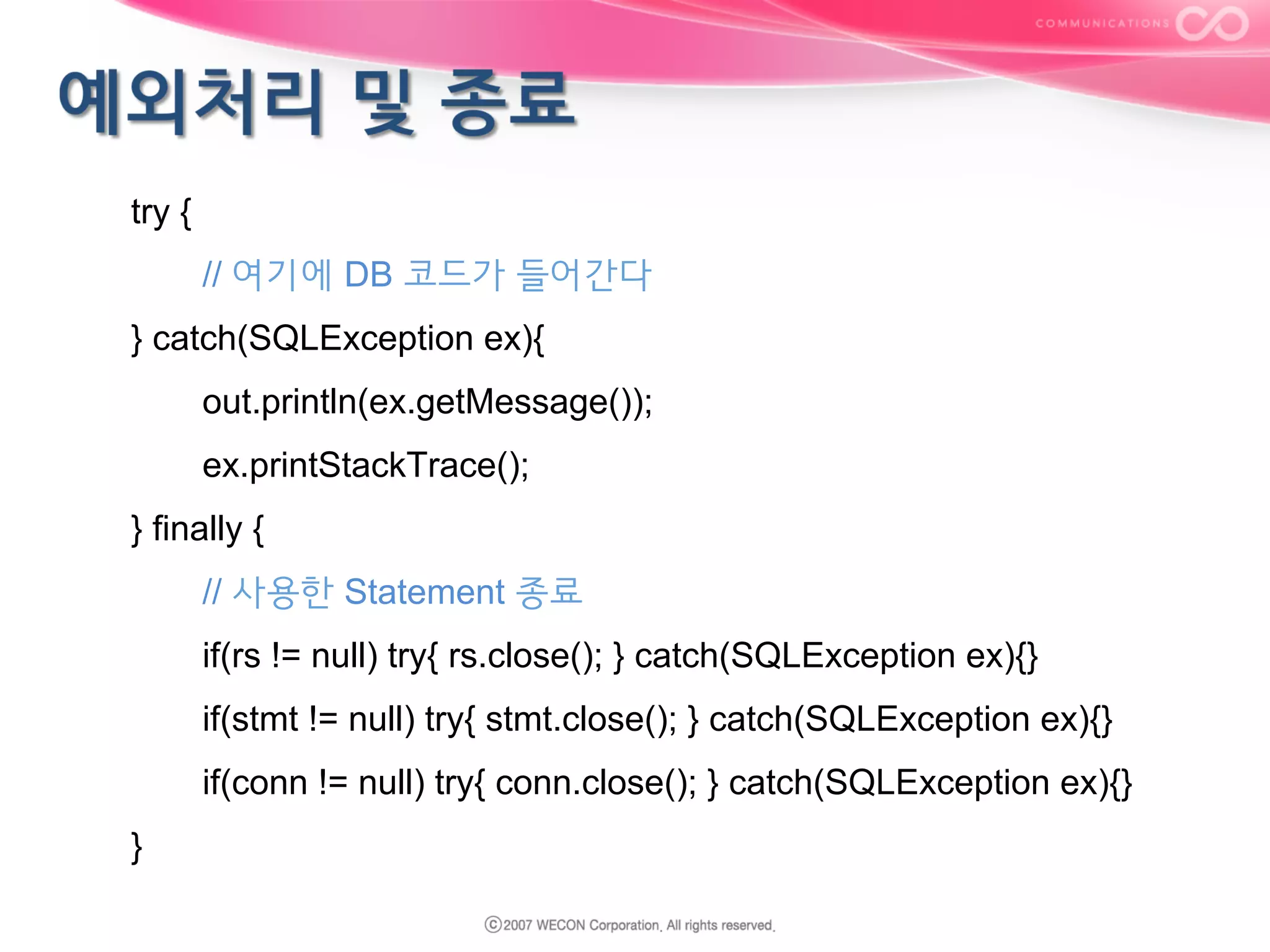

try {
// 여기에 DB 코드가 들어간다
} catch(SQLException ex){
out.println(ex.getMessage());
ex.printStackTrace();
} finally {
// 사용한 Statement 종료
if(rs != null) try{ rs.close(); } catch(SQLException ex){}
if(stmt != null) try{ stmt.close(); } catch(SQLException ex){}
if(conn != null) try{ conn.close(); } catch(SQLException ex){}
}

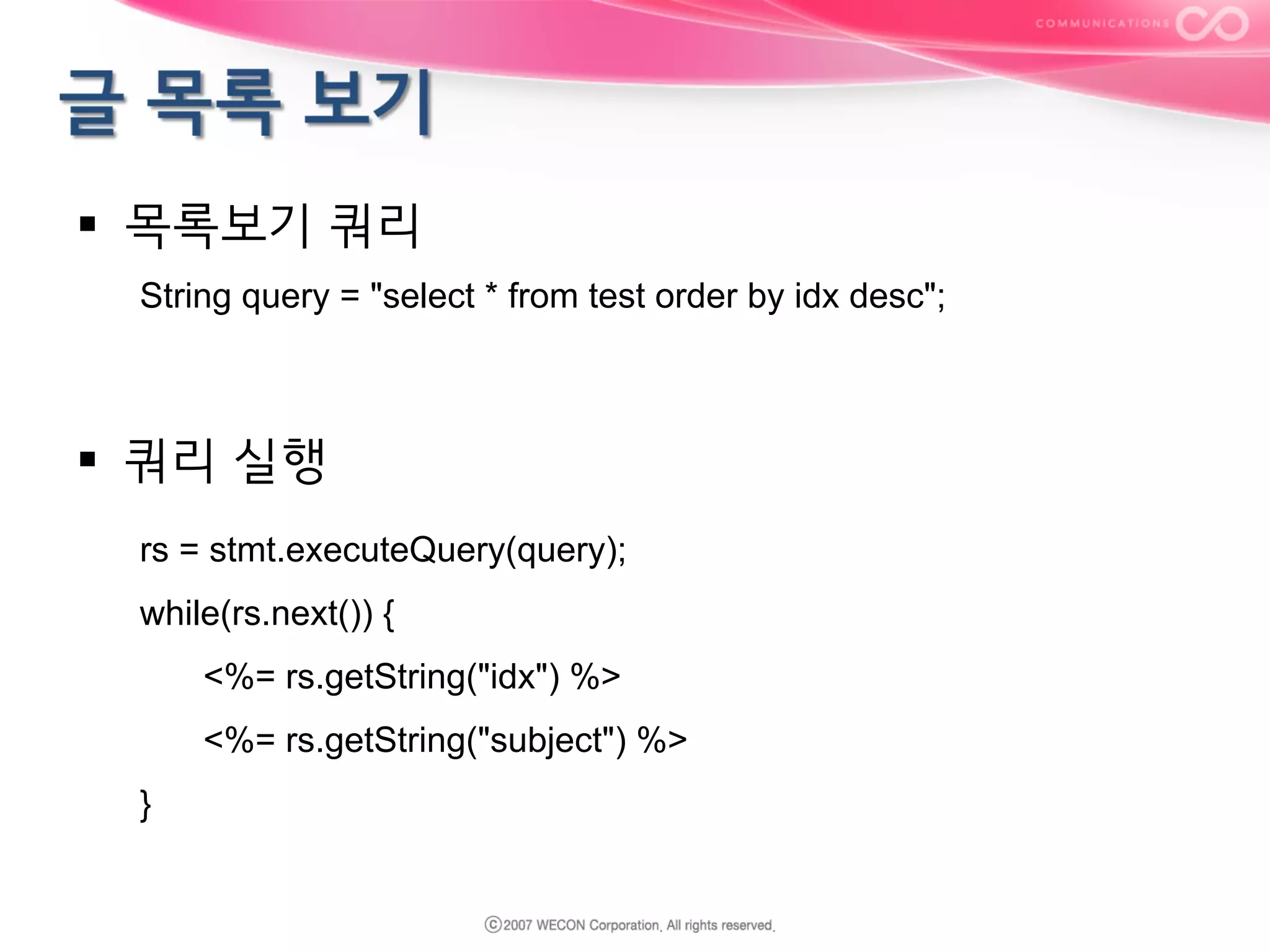

§  목록보기 쿼리
String query = "select * from test order by idx desc";

§  쿼리 실행
rs = stmt.executeQuery(query);
while(rs.next()) {
<%= rs.getString("idx") %>
<%= rs.getString("subject") %>
}

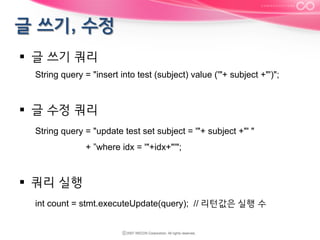

§  글 쓰기 쿼리
String query = "insert into test (subject) value ('"+ subject +"')";

§  글 수정 쿼리
String query = "update test set subject = '"+ subject +"' "
+ ”where idx = '"+idx+"'";

§  쿼리 실행
int count = stmt.executeUpdate(query); // 리턴값은 실행 수

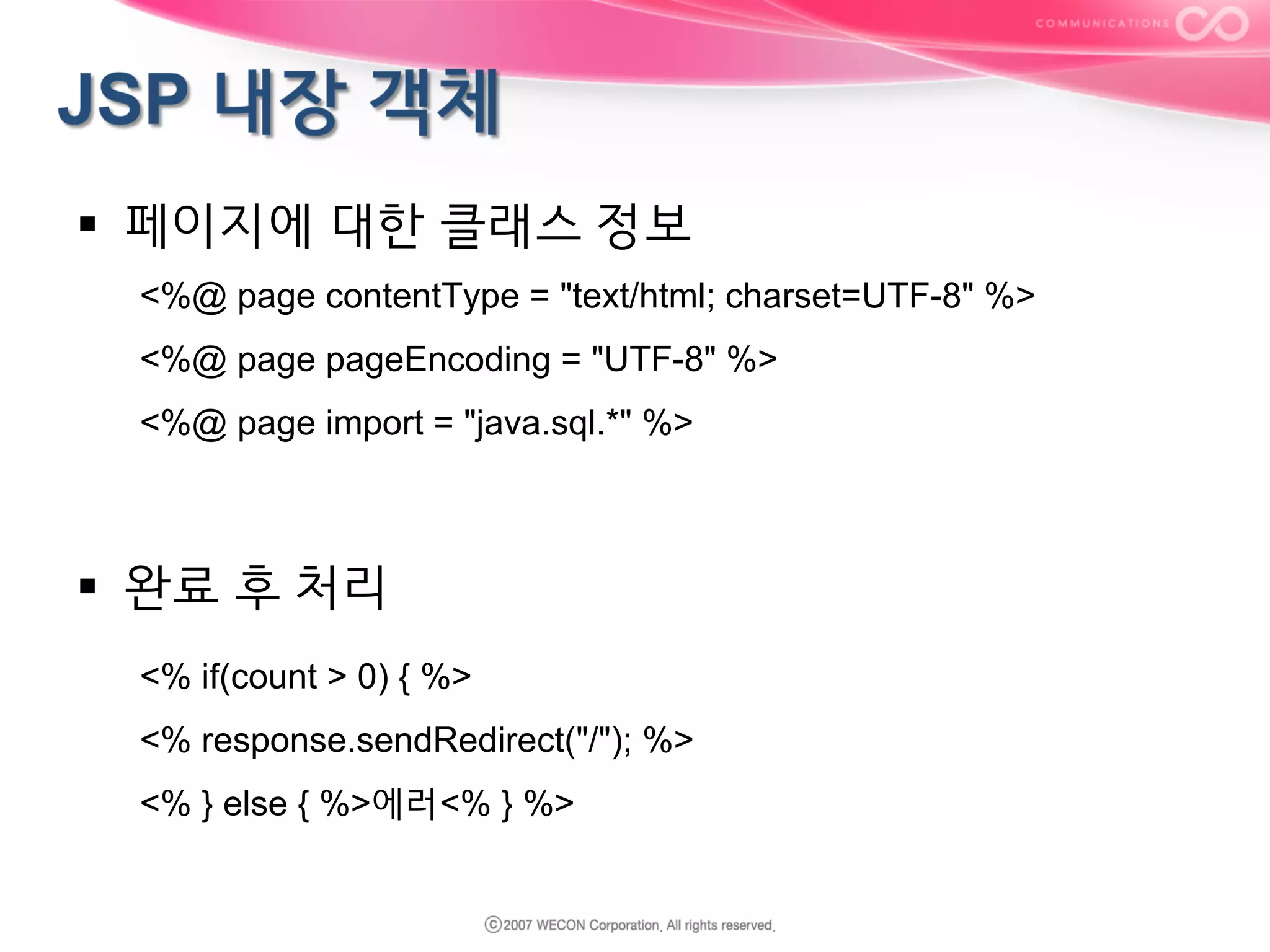

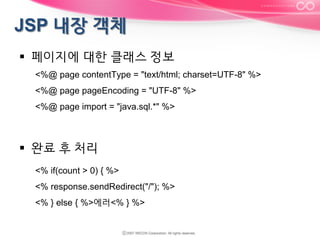

§  페이지에 대한 클래스 정보
<%@ page contentType = "text/html; charset=UTF-8" %>
<%@ page pageEncoding = "UTF-8" %>
<%@ page import = "java.sql.*" %>

§  완료 후 처리
<% if(count > 0) { %>
<% response.sendRedirect("/"); %>
<% } else { %>에러<% } %>

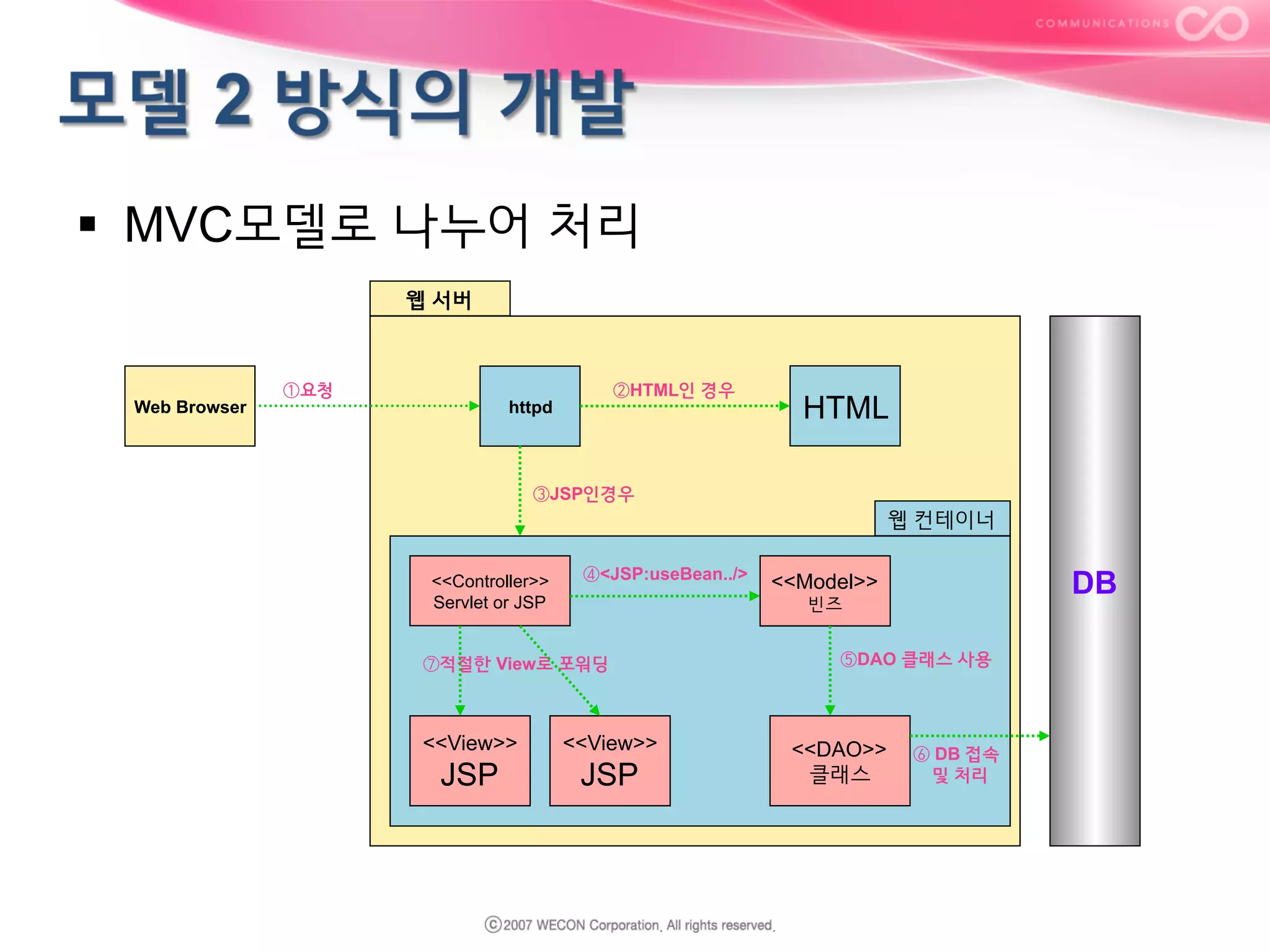

§  MVC모델로 나누어 처리
웹 서버

Web Browser

①요청

②HTML인 경우

httpd

HTML

③JSP인경우

웹 컨테이너
<<Controller>>
Servlet or JSP

④<JSP:useBean../>

<<Model>>
웹컨테이너

DB

빈즈

⑦적절한 View로 포워딩

<<View>>

<<View>>

JSP

JSP

⑤DAO 클래스 사용

<<DAO>>
클래스

⑥ DB 접속
및 처리

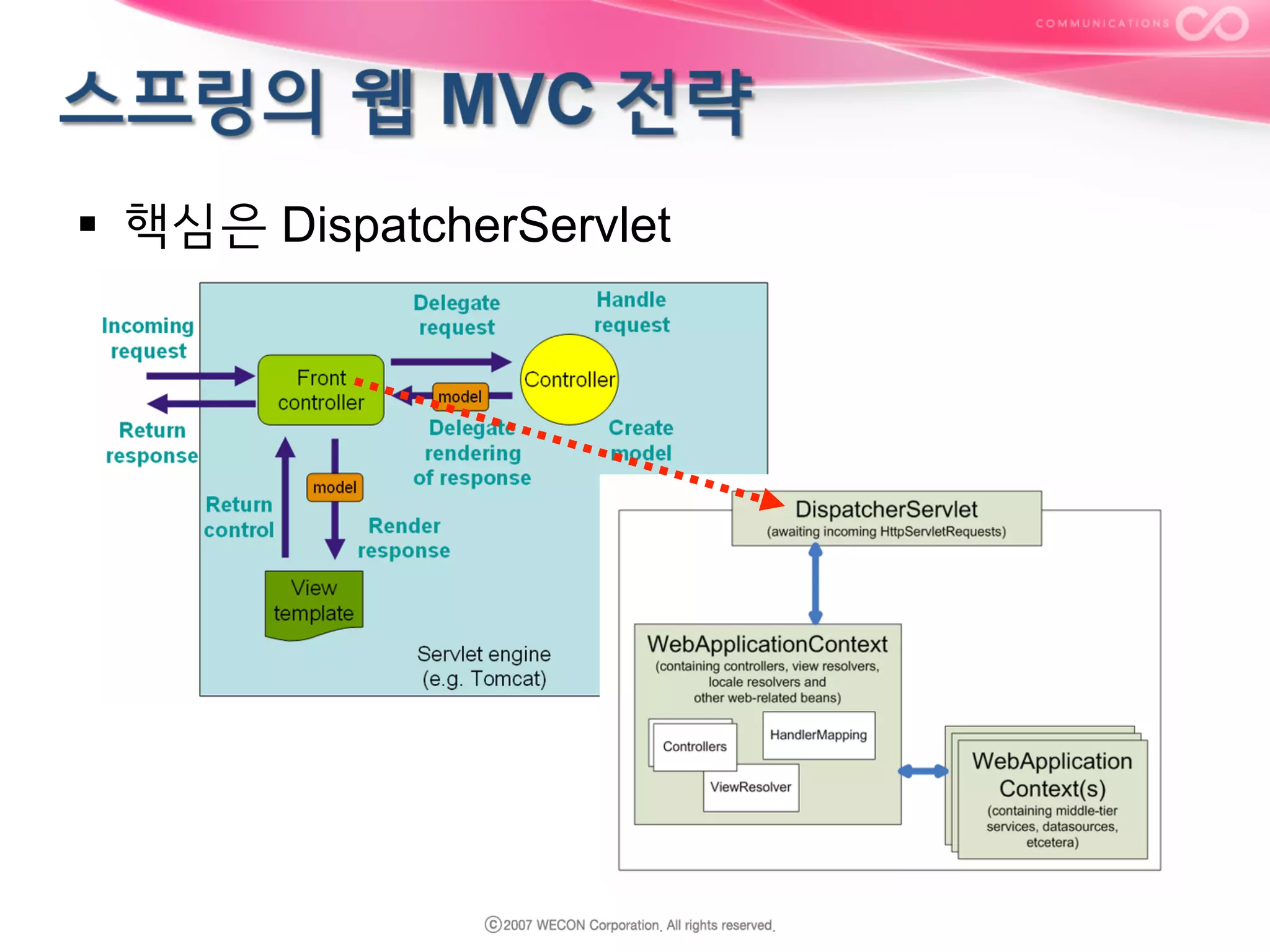

§  핵심은 DispatcherServlet

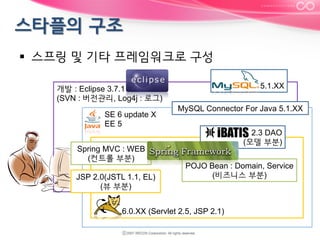

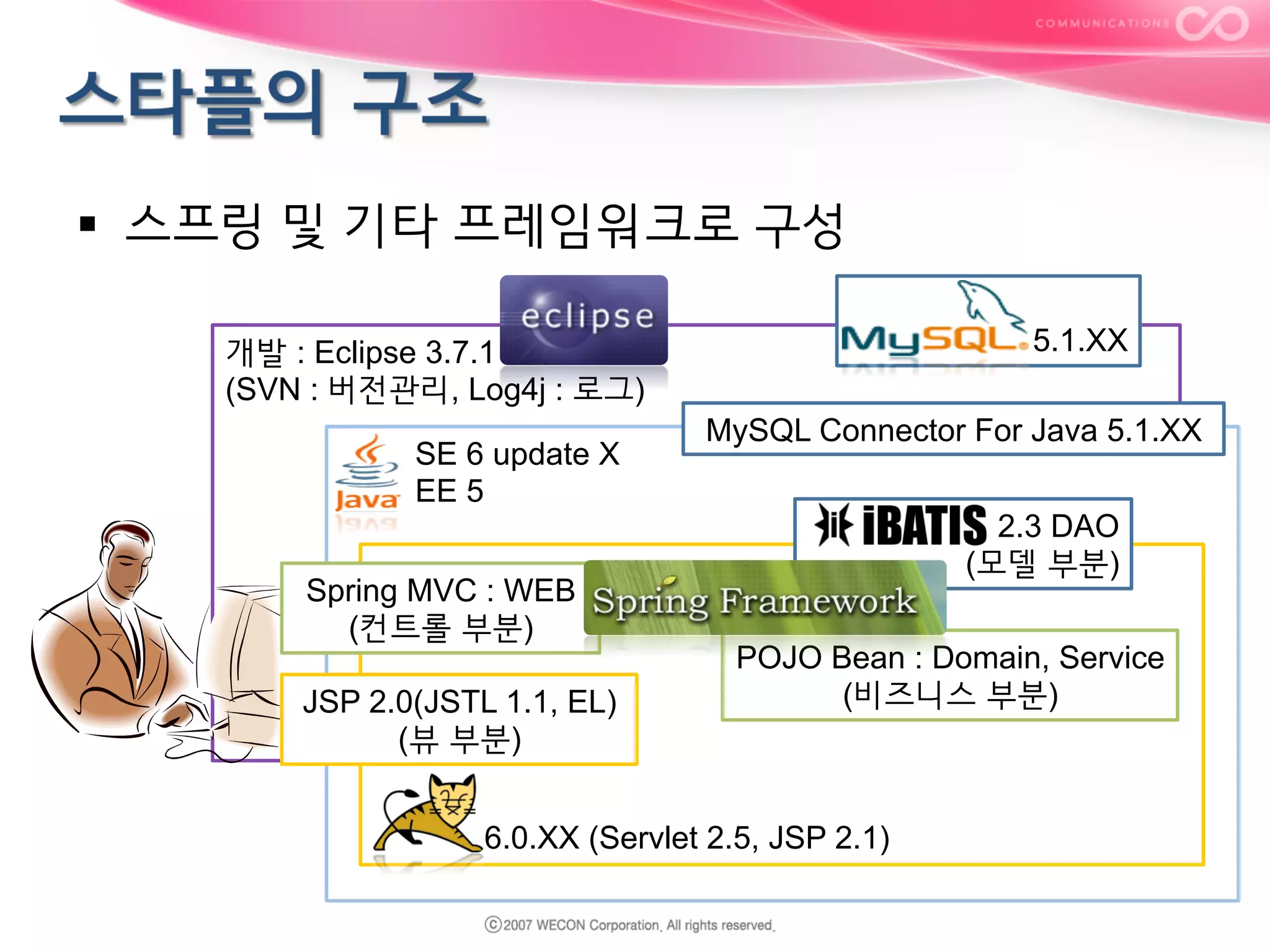

§  스프링 및 기타 프레임워크로 구성
5.1.XX

개발 : Eclipse 3.7.1
(SVN : 버전관리, Log4j : 로그)
Java SE 6 update X
Java EE 5
Spring MVC : WEB
(컨트롤 부분)
JSP 2.0(JSTL 1.1, EL)
(뷰 부분)

MySQL Connector For Java 5.1.XX
2.3 DAO
(모델 부분)
POJO Bean : Domain, Service
(비즈니스 부분)

Tomcat 6.0.XX (Servlet 2.5, JSP 2.1)

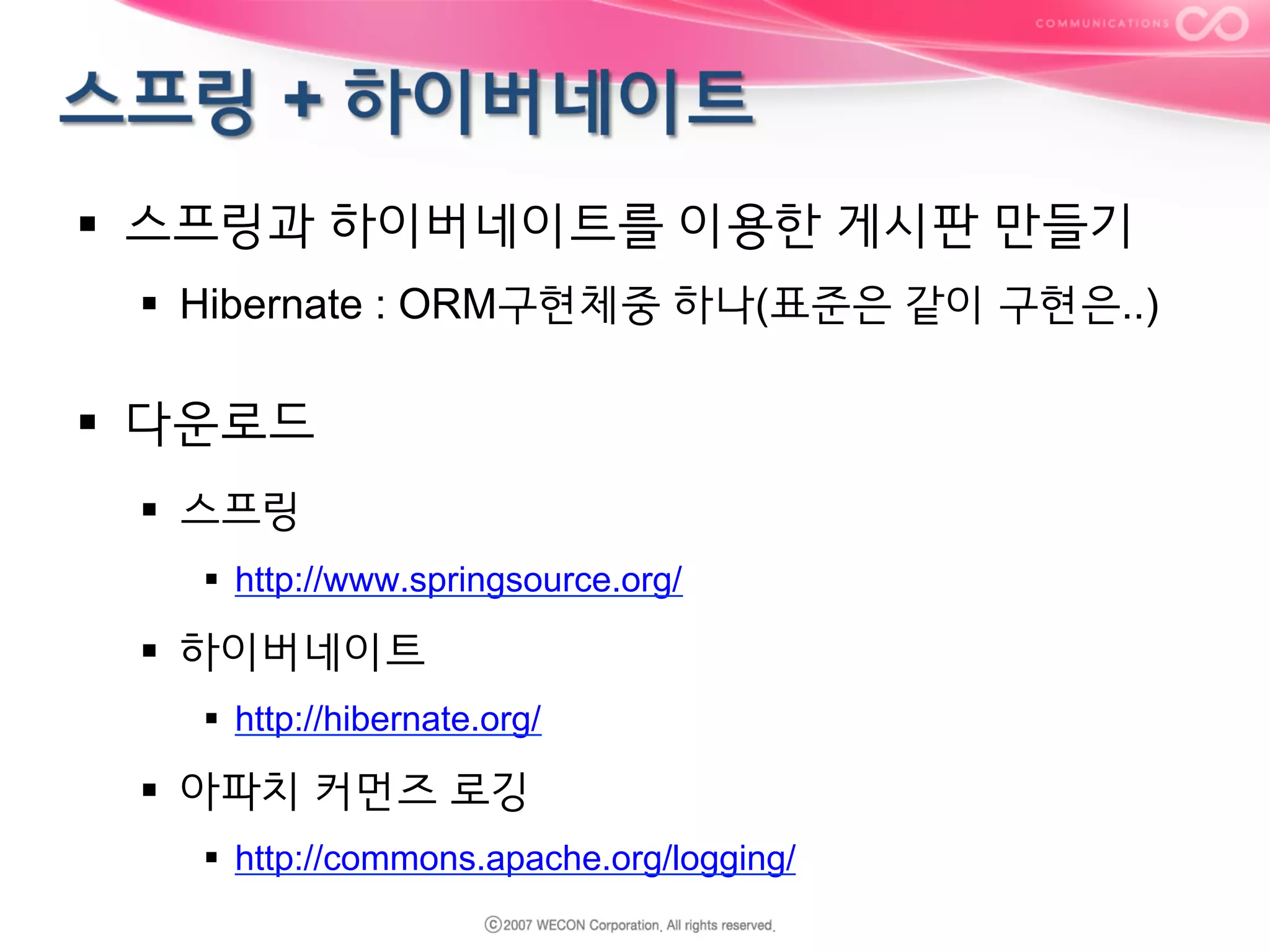

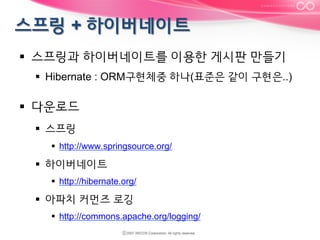

§  스프링과 하이버네이트를 이용한 게시판 만들기
§  Hibernate : ORM구현체중 하나(표준은 같이 구현은..)

§  다운로드
§  스프링
§  http://www.springsource.org/

§  하이버네이트
§  http://hibernate.org/

§  아파치 커먼즈 로깅
§  http://commons.apache.org/logging/

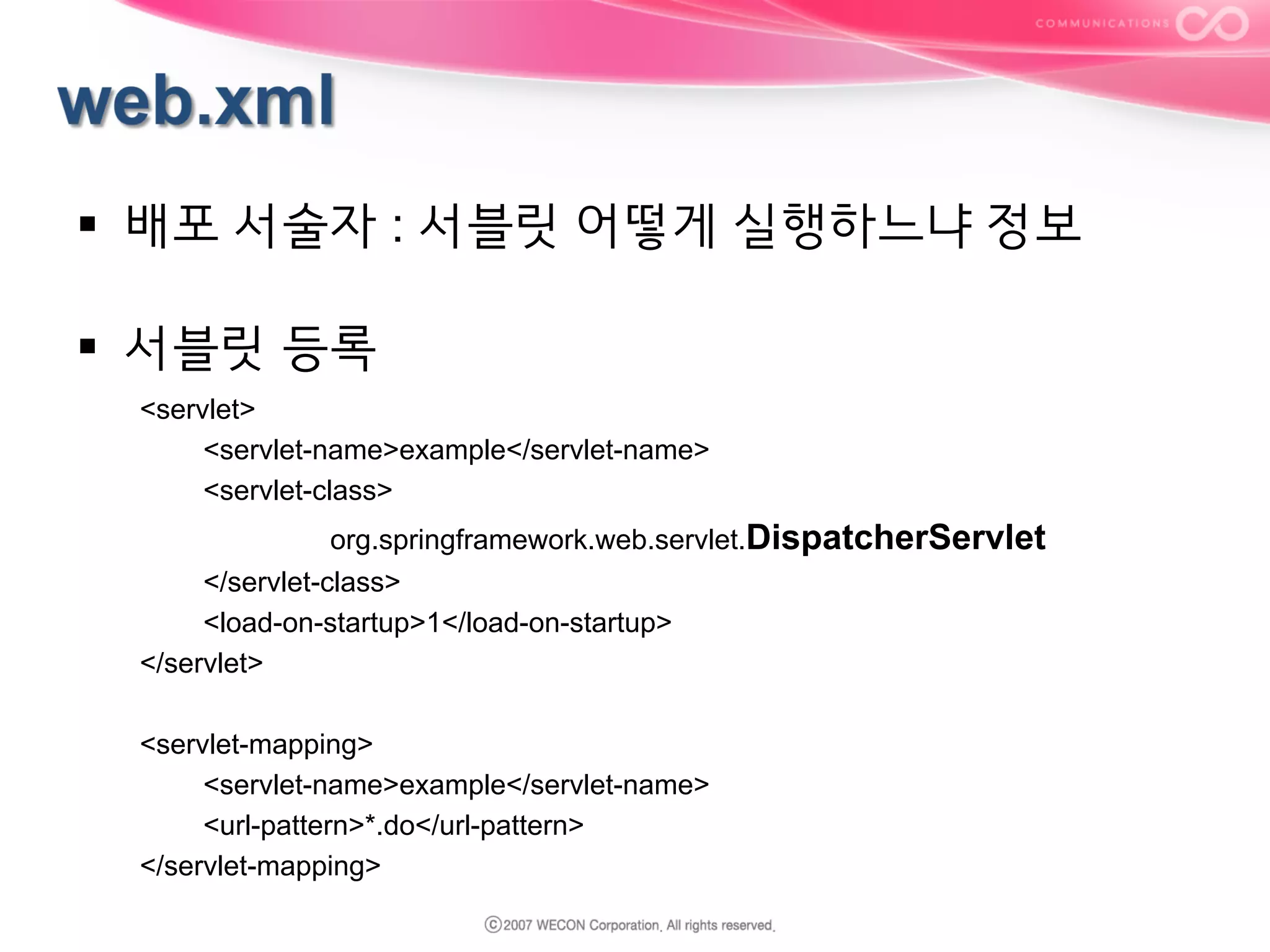

§  배포 서술자 : 서블릿 어떻게 실행하느냐 정보
§  서블릿 등록
<servlet>
<servlet-name>example</servlet-name>
<servlet-class>
org.springframework.web.servlet.DispatcherServlet
</servlet-class>
<load-on-startup>1</load-on-startup>
</servlet>
<servlet-mapping>
<servlet-name>example</servlet-name>
<url-pattern>*.do</url-pattern>
</servlet-mapping>

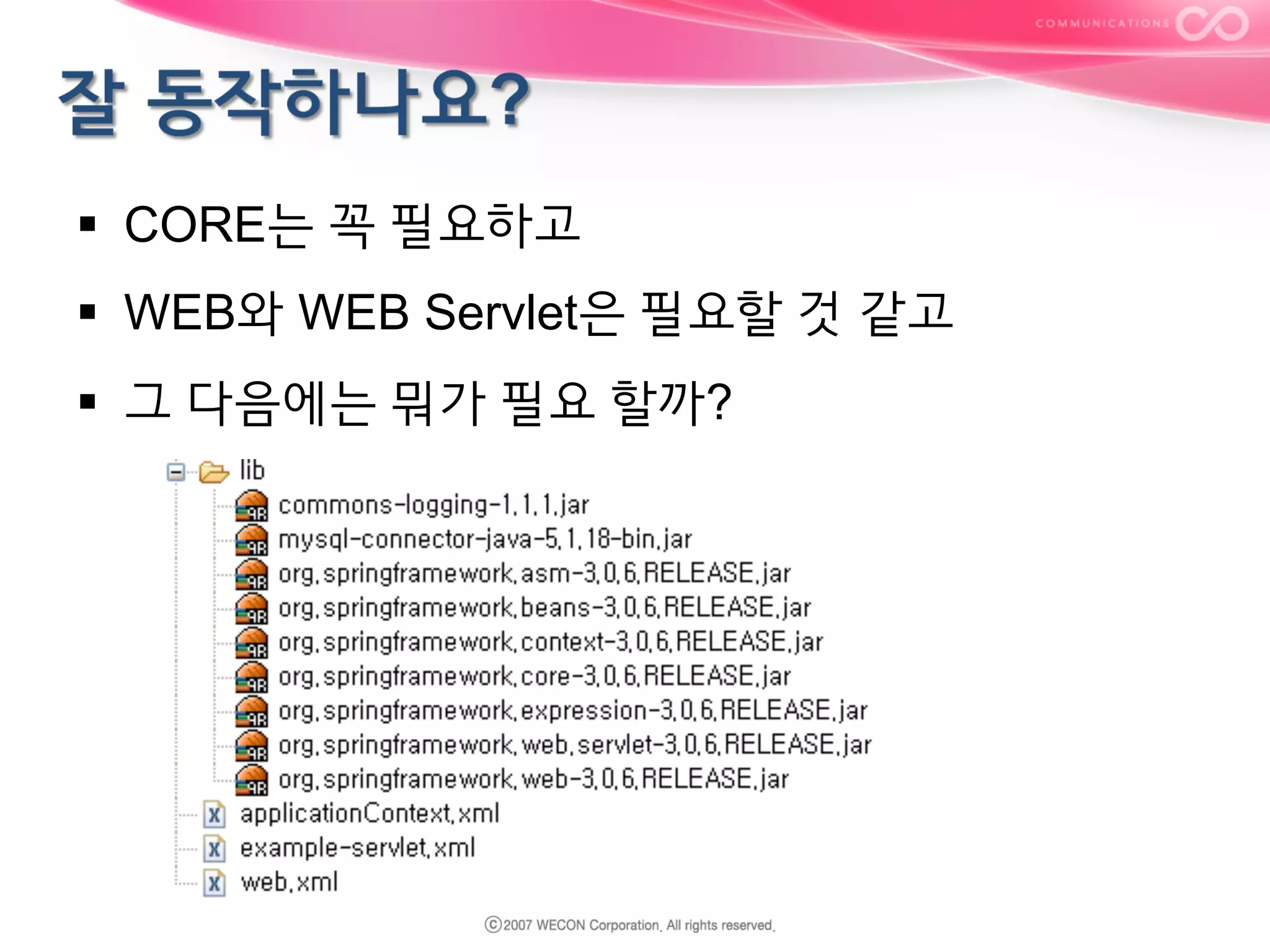

§  CORE는 꼭 필요하고
§  WEB와 WEB Servlet은 필요할 것 같고
§  그 다음에는 뭐가 필요 할까?

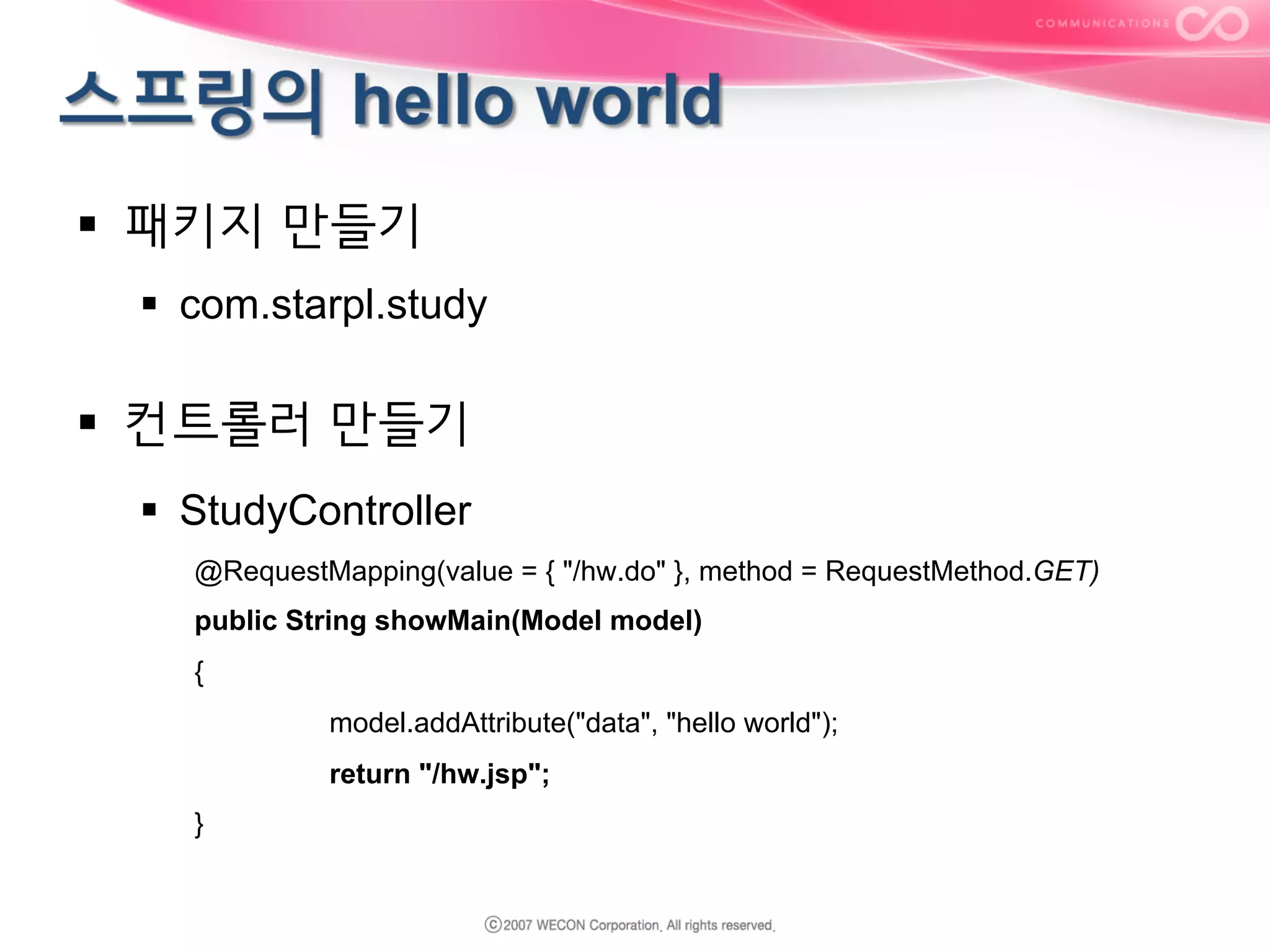

§  패키지 만들기
§  com.starpl.study

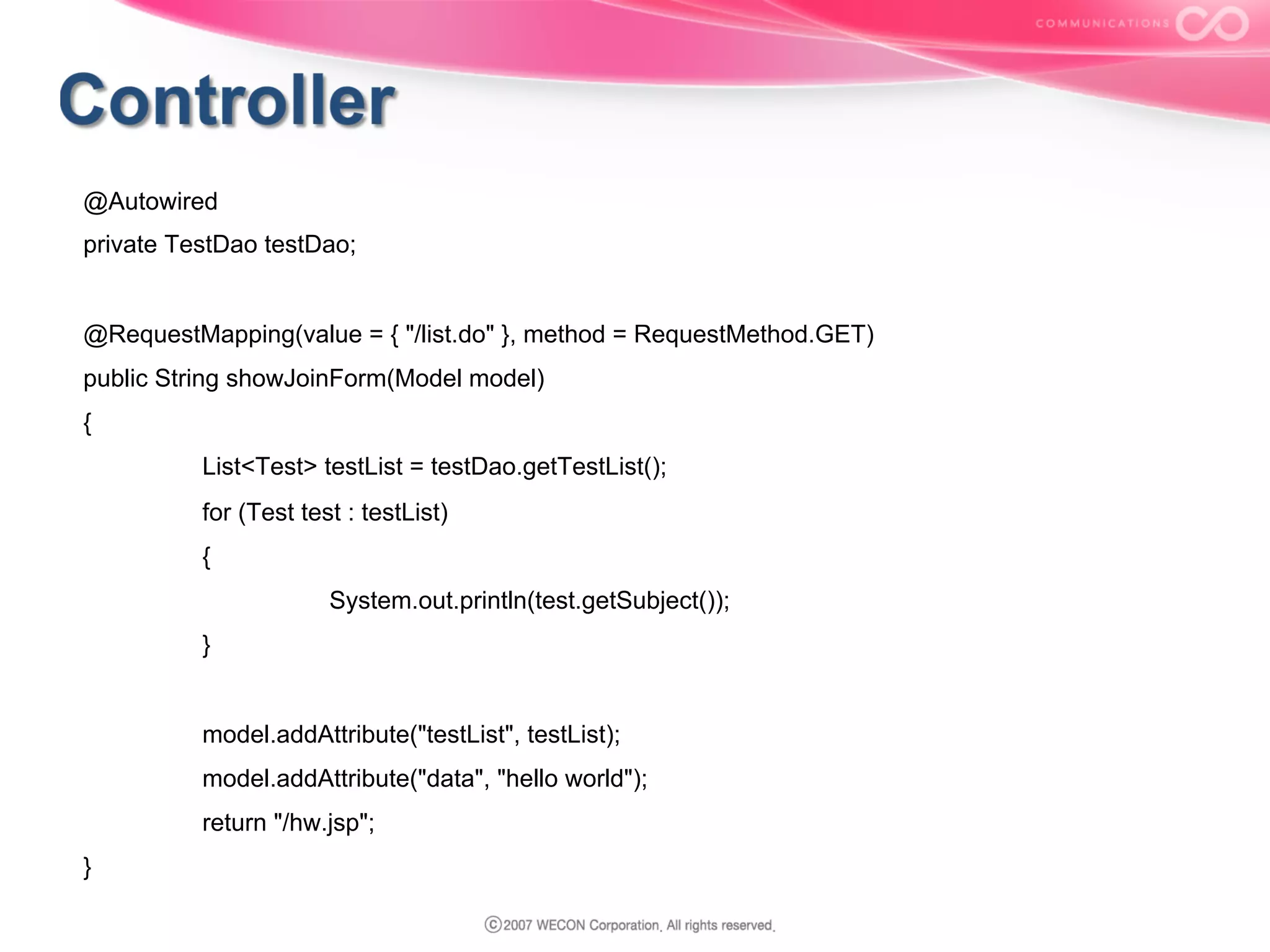

§  컨트롤러 만들기
§  StudyController
@RequestMapping(value = { "/hw.do" }, method = RequestMethod.GET)
public String showMain(Model model)
{
model.addAttribute("data", "hello world");
return "/hw.jsp";
}

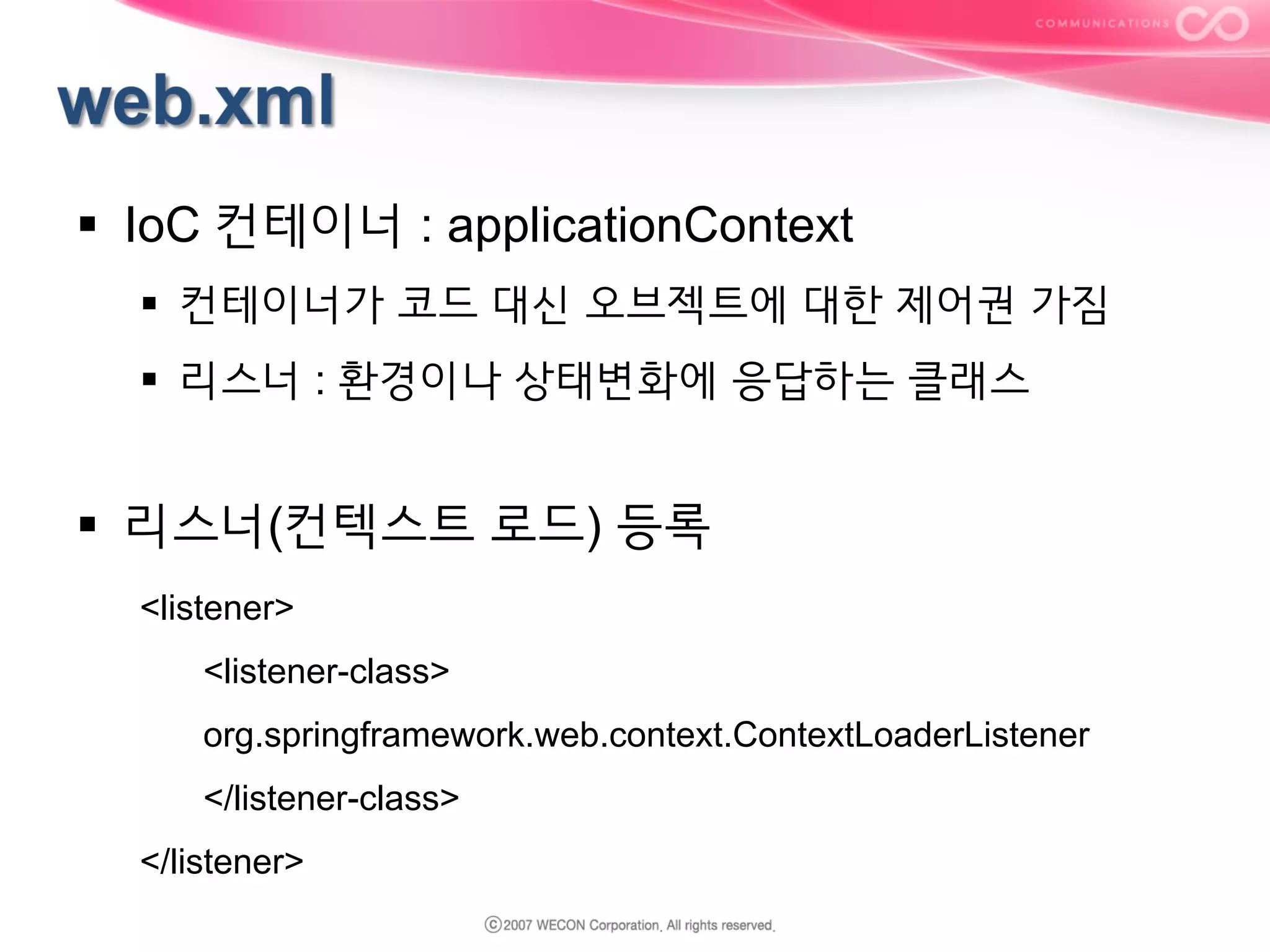

§  IoC 컨테이너 : applicationContext
§  컨테이너가 코드 대신 오브젝트에 대한 제어권 가짐
§  리스너 : 환경이나 상태변화에 응답하는 클래스

§  리스너(컨텍스트 로드) 등록
<listener>
<listener-class>
org.springframework.web.context.ContextLoaderListener
</listener-class>
</listener>

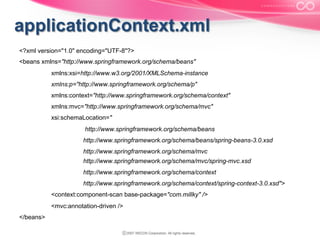

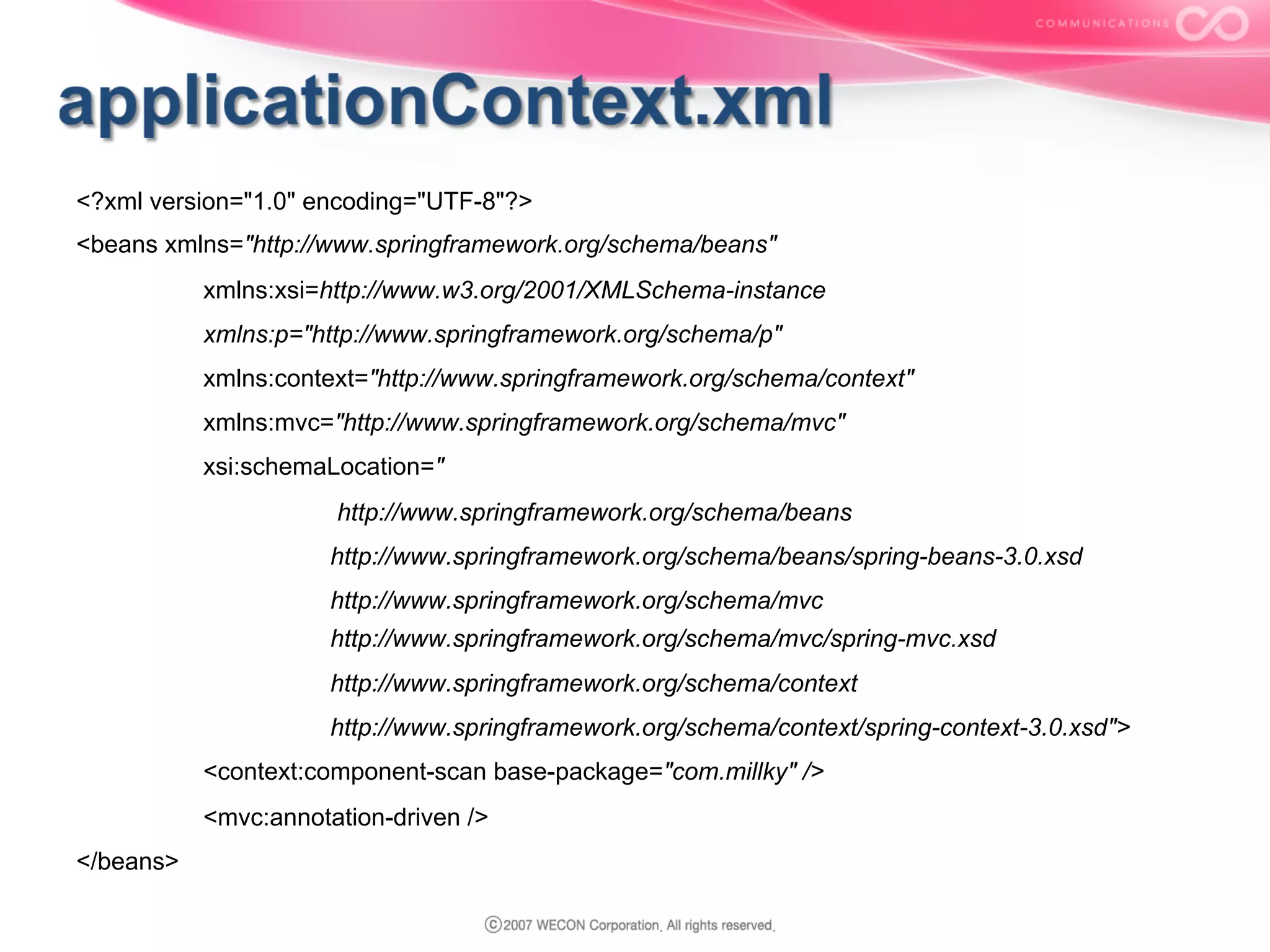

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi=http://www.w3.org/2001/XMLSchema-instance
xmlns:p="http://www.springframework.org/schema/p"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:mvc="http://www.springframework.org/schema/mvc"
xsi:schemaLocation="
http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
http://www.springframework.org/schema/mvc
http://www.springframework.org/schema/mvc/spring-mvc.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context-3.0.xsd">
<context:component-scan base-package="com.millky" />
<mvc:annotation-driven />
</beans>

xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
http://www.springframework.org/schema/beans/spring-beans.xsd">
</beans>

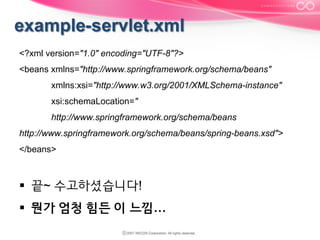

§  끝~ 수고하셨습니다!
§  뭔가 엄청 힘든 이 느낌…

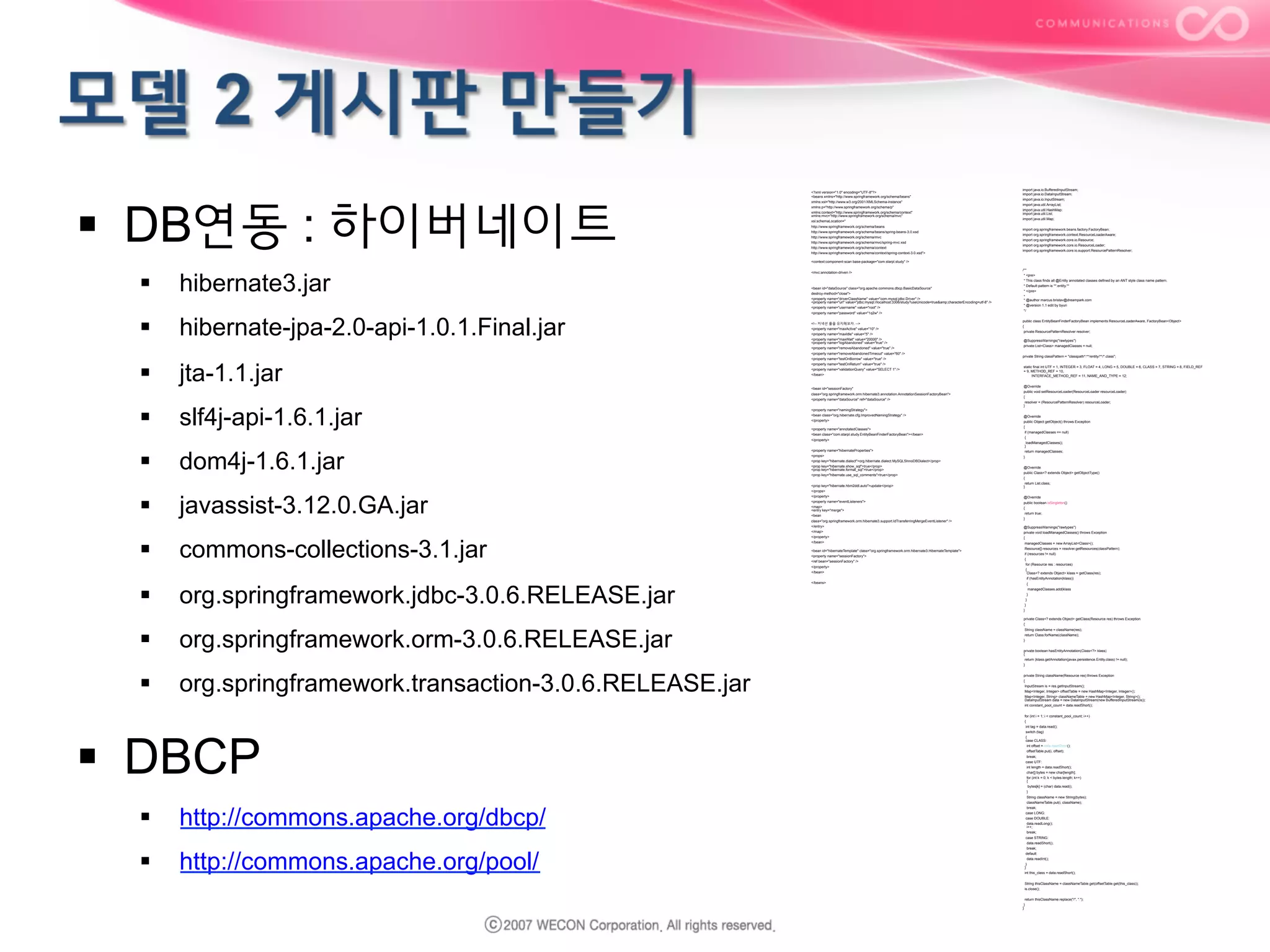

§  DB연동 : 하이버네이트

xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:p="http://www.springframework.org/schema/p"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:mvc="http://www.springframework.org/schema/mvc"
http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
http://www.springframework.org/schema/mvc
http://www.springframework.org/schema/mvc/spring-mvc.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context-3.0.xsd">

import java.io.BufferedInputStream;
import java.io.DataInputStream;
import java.io.InputStream;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
import org.springframework.beans.factory.FactoryBean;
import org.springframework.context.ResourceLoaderAware;
import org.springframework.core.io.Resource;
import org.springframework.core.io.ResourceLoader;
import org.springframework.core.io.support.ResourcePatternResolver;

<context:component-scan base-package="com.starpl.study" />

§ 
§ 
§ 

hibernate3.jar
hibernate-jpa-2.0-api-1.0.1.Final.jar
jta-1.1.jar

<mvc:annotation-driven />

<bean id="dataSource" class="org.apache.commons.dbcp.BasicDataSource"
destroy-method="close">
<property name="driverClassName" value="com.mysql.jdbc.Driver" />
<property name="url" value="jdbc:mysql://localhost:3306/study?useUnicode=true&characterEncoding=utf-8" />
<property name="username" value="root" />
<property name="password" value="1q2w" />

<property name="maxActive" value="10" />
<property name="maxIdle" value="5" />
<property name="maxWait" value="20000" />
<property name="logAbandoned" value="true" />
<property name="removeAbandoned" value="true" />
<property name="removeAbandonedTimeout" value="60" />
<property name="testOnBorrow" value="true" />
<property name="testOnReturn" value="true" />
<property name="validationQuery" value="SELECT 1" />
</bean>

<bean id="sessionFactory"
class="org.springframework.orm.hibernate3.annotation.AnnotationSessionFactoryBean">
<property name="dataSource" ref="dataSource" />

§ 

slf4j-api-1.6.1.jar

§ 

dom4j-1.6.1.jar

§ 
§ 
§ 

javassist-3.12.0.GA.jar
commons-collections-3.1.jar
org.springframework.jdbc-3.0.6.RELEASE.jar

<property name="namingStrategy">
<bean class="org.hibernate.cfg.ImprovedNamingStrategy" />
</property>
<property name="annotatedClasses">
<bean class="com.starpl.study.EntityBeanFinderFactoryBean"></bean>
</property>
<property name="hibernateProperties">
<props>
<prop key="hibernate.dialect">org.hibernate.dialect.MySQL5InnoDBDialect</prop>
<prop key="hibernate.show_sql">true</prop>
<prop key="hibernate.format_sql">true</prop>
<prop key="hibernate.use_sql_comments">true</prop>
<prop key="hibernate.hbm2ddl.auto">update</prop>
</props>
</property>
<property name="eventListeners">
<map>
<entry key="merge">
<bean
class="org.springframework.orm.hibernate3.support.IdTransferringMergeEventListener" />
</entry>
</map>
</property>
</bean>
<bean id="hibernateTemplate" class="org.springframework.orm.hibernate3.HibernateTemplate">
<property name="sessionFactory">
<ref bean="sessionFactory" />
</property>
</bean>
</beans>

/**
* <pre>
* This class finds all @Entity annotated classes defined by an ANT style class name pattern.
* Default pattern is **.entity.**
* </pre>
*
* @author marcus.bristav@dreampark.com
* @version 1.1 edit by byuri
*/
public class EntityBeanFinderFactoryBean implements ResourceLoaderAware, FactoryBean<Object>
{
private ResourcePatternResolver resolver;
@SuppressWarnings("rawtypes")
private List<Class> managedClasses = null;
private String classPattern = "classpath*:**/entity/**/*.class";
static final int UTF = 1, INTEGER = 3, FLOAT = 4, LONG = 5, DOUBLE = 6, CLASS = 7, STRING = 8, FIELD_REF
= 9, METHOD_REF = 10,
INTERFACE_METHOD_REF = 11, NAME_AND_TYPE = 12;
@Override
public void setResourceLoader(ResourceLoader resourceLoader)
{
resolver = (ResourcePatternResolver) resourceLoader;
}
@Override
public Object getObject() throws Exception
{
if (managedClasses == null)
{
loadManagedClasses();
}
return managedClasses;
}
@Override
public Class<? extends Object> getObjectType()
{
return List.class;
}
@Override
public boolean isSingleton()
{
return true;
}
@SuppressWarnings("rawtypes")
private void loadManagedClasses() throws Exception
{
managedClasses = new ArrayList<Class>();
Resource[] resources = resolver.getResources(classPattern);
if (resources != null)
{
for (Resource res : resources)
{
Class<? extends Object> klass = getClass(res);
if (hasEntityAnnotation(klass))
{
managedClasses.add(klass);
}
}
}
}
private Class<? extends Object> getClass(Resource res) throws Exception

§ 

org.springframework.orm-3.0.6.RELEASE.jar

§ 

org.springframework.transaction-3.0.6.RELEASE.jar

§  DBCP
§ 
§ 

http://commons.apache.org/dbcp/
http://commons.apache.org/pool/

{
String className = className(res);
return Class.forName(className);
}
private boolean hasEntityAnnotation(Class<?> klass)
{
return (klass.getAnnotation(javax.persistence.Entity.class) != null);
}
private String className(Resource res) throws Exception
{
InputStream is = res.getInputStream();
Map<Integer, Integer> offsetTable = new HashMap<Integer, Integer>();
Map<Integer, String> classNameTable = new HashMap<Integer, String>();
DataInputStream data = new DataInputStream(new BufferedInputStream(is));
int constant_pool_count = data.readShort();
for (int i = 1; i < constant_pool_count; i++)
{
int tag = data.read();
switch (tag)
{
case CLASS:
int offset = data.readShort();
offsetTable.put(i, offset);
break;
case UTF:
int length = data.readShort();
char[] bytes = new char[length];
for (int k = 0; k < bytes.length; k++)
{
bytes[k] = (char) data.read();
}
String className = new String(bytes);
classNameTable.put(i, className);
break;
case LONG:
case DOUBLE:
data.readLong();
i++;
break;
case STRING:
data.readShort();
break;
default:
data.readInt();
}
}
int this_class = data.readShort();
String thisClassName = classNameTable.get(offsetTable.get(this_class));
is.close();
return thisClassName.replace("/", ".");
}
}

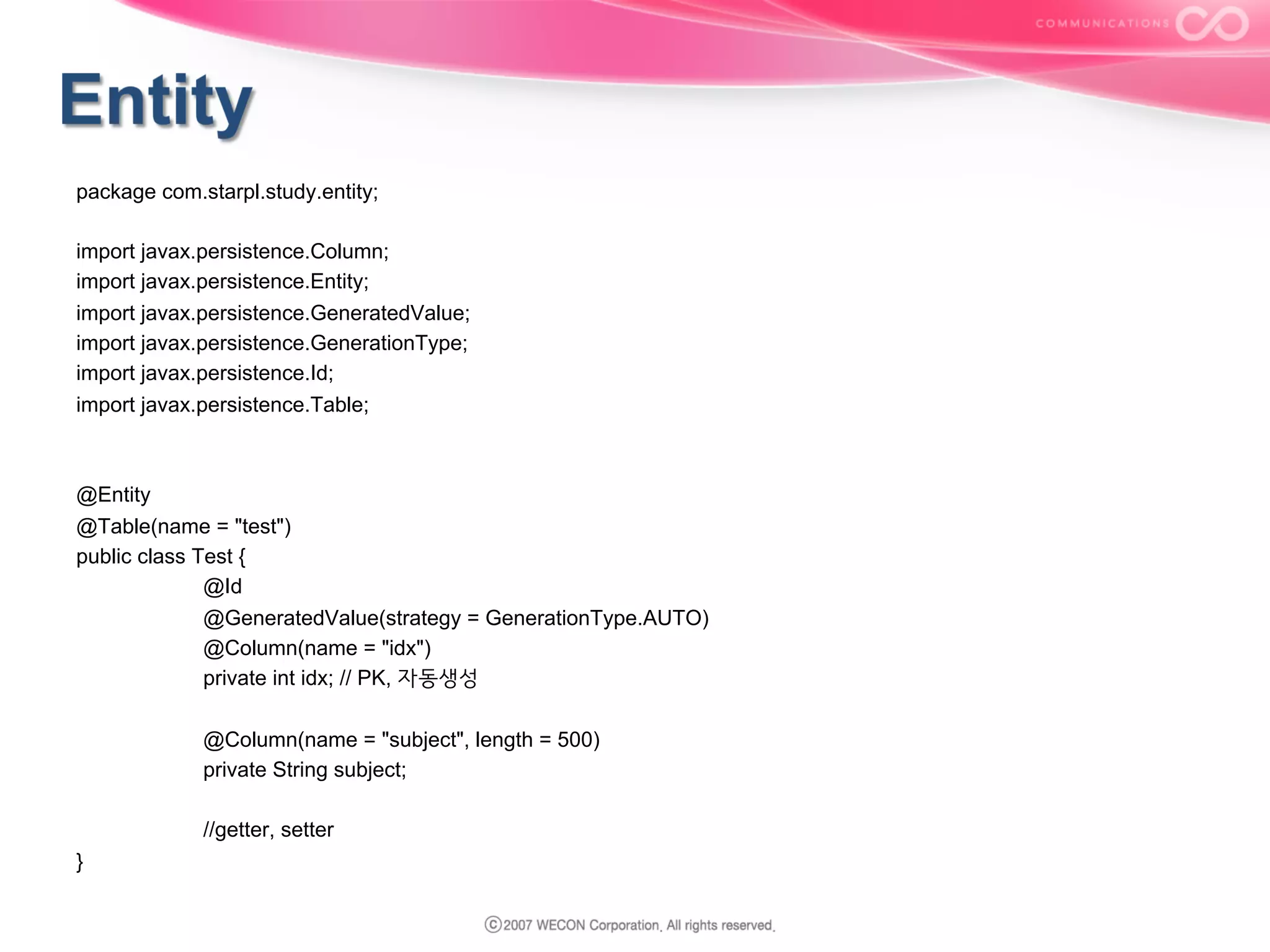

package com.starpl.study.entity;
import javax.persistence.Column;
import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.GenerationType;
import javax.persistence.Id;
import javax.persistence.Table;

@Entity
@Table(name = "test")
public class Test {
@Id
@GeneratedValue(strategy = GenerationType.AUTO)
@Column(name = "idx")
private int idx; // PK, 자동생성
@Column(name = "subject", length = 500)
private String subject;
//getter, setter
}

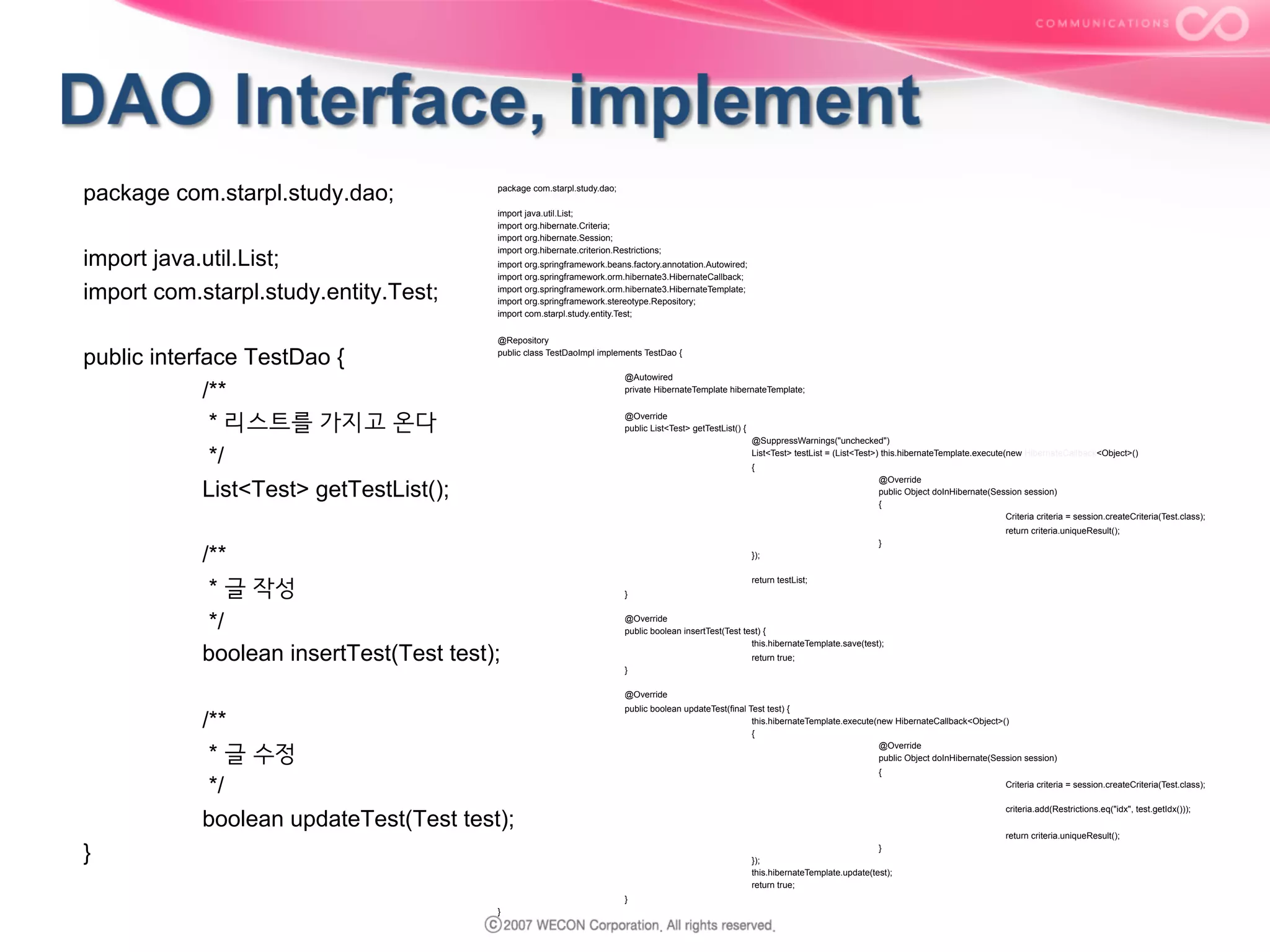

package com.starpl.study.dao;
import com.starpl.study.entity.Test;
public interface TestDao {
/**
* 리스트를 가지고 온다
*/
List<Test> getTestList();

package com.starpl.study.dao;
import org.hibernate.Criteria;
import org.hibernate.Session;
import org.hibernate.criterion.Restrictions;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.orm.hibernate3.HibernateCallback;
import org.springframework.orm.hibernate3.HibernateTemplate;
import org.springframework.stereotype.Repository;
import com.starpl.study.entity.Test;
@Repository
public class TestDaoImpl implements TestDao {
@Autowired
private HibernateTemplate hibernateTemplate;
@Override
public List<Test> getTestList() {
@SuppressWarnings("unchecked")
List<Test> testList = (List<Test>) this.hibernateTemplate.execute(new HibernateCallback<Object>()
{
@Override
public Object doInHibernate(Session session)
{
Criteria criteria = session.createCriteria(Test.class);
return criteria.uniqueResult();

/**
* 글 작성
*/
boolean insertTest(Test test);

}
});
return testList;
}
@Override
public boolean insertTest(Test test) {
this.hibernateTemplate.save(test);
return true;
}
@Override

/**
* 글 수정
*/
boolean updateTest(Test test);

public boolean updateTest(final Test test) {
this.hibernateTemplate.execute(new HibernateCallback<Object>()
{
@Override
public Object doInHibernate(Session session)
{
Criteria criteria = session.createCriteria(Test.class);
criteria.add(Restrictions.eq("idx", test.getIdx()));
return criteria.uniqueResult();

}

}
});
this.hibernateTemplate.update(test);
return true;
}
}

@Autowired
private TestDao testDao;

@RequestMapping(value = { "/list.do" }, method = RequestMethod.GET)
public String showJoinForm(Model model)
{
List<Test> testList = testDao.getTestList();
for (Test test : testList)
{
System.out.println(test.getSubject());
}

model.addAttribute("testList", testList);
model.addAttribute("data", "hello world");
return "/hw.jsp";
}

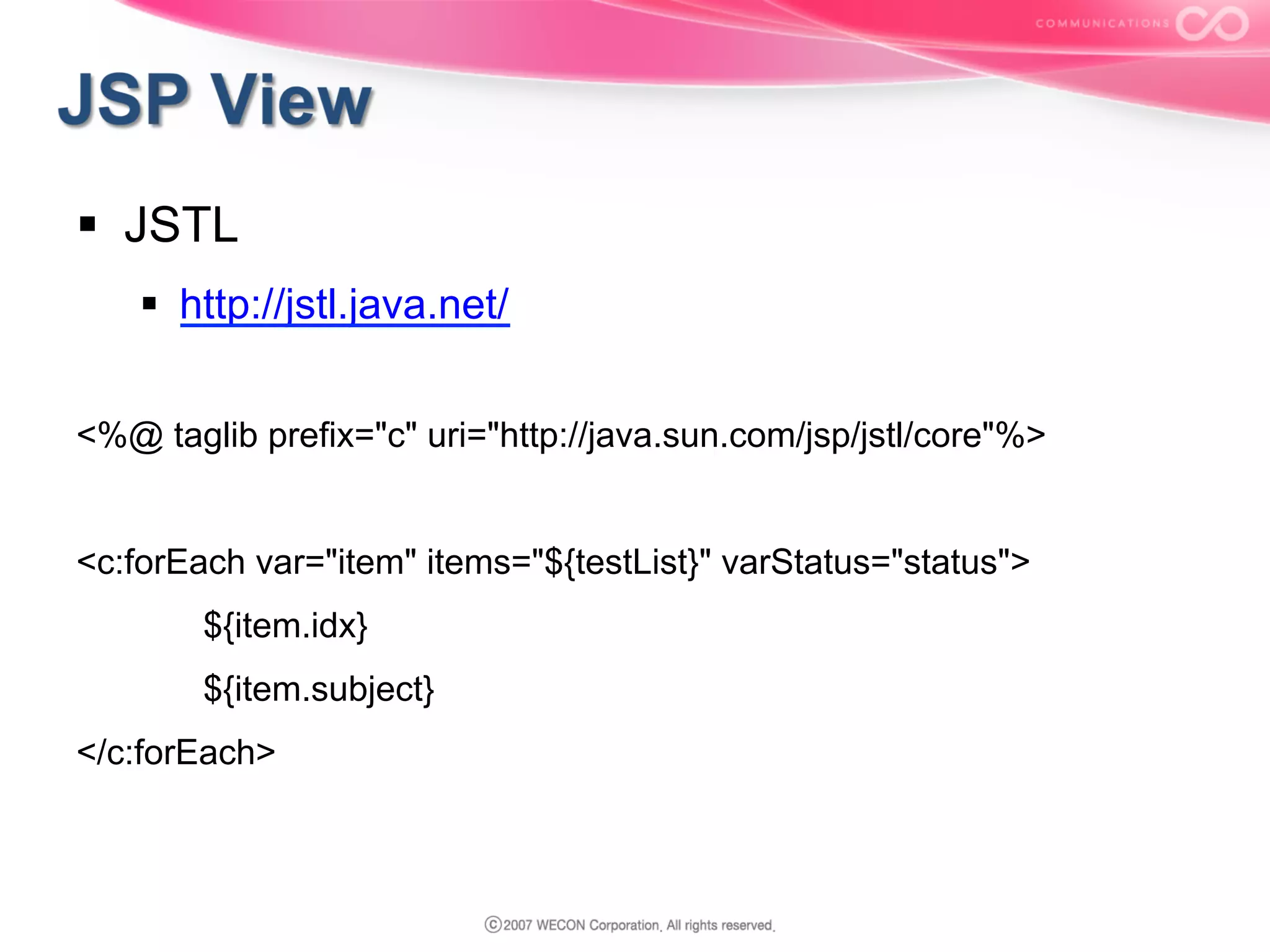

§  JSTL
§  http://jstl.java.net/
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>
<c:forEach var="item" items="${testList}" varStatus="status">
${item.idx}
${item.subject}
</c:forEach>

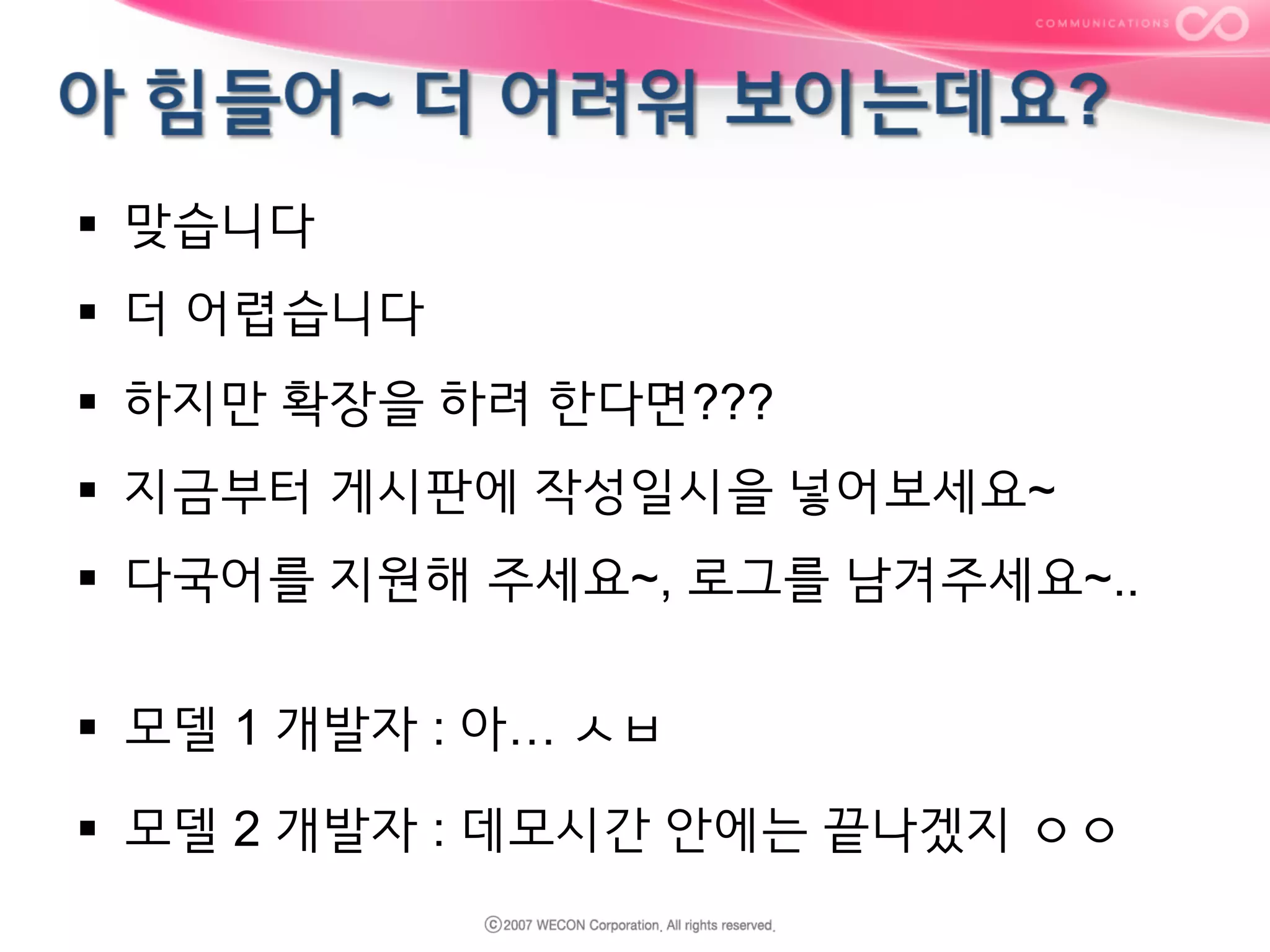

§  맞습니다
§  더 어렵습니다
§  하지만 확장을 하려 한다면???
§  지금부터 게시판에 작성일시을 넣어보세요~
§  다국어를 지원해 주세요~, 로그를 남겨주세요~..
§  모델 1 개발자 : 아… ㅅㅂ
§  모델 2 개발자 : 데모시간 안에는 끝나겠지 ㅇㅇ

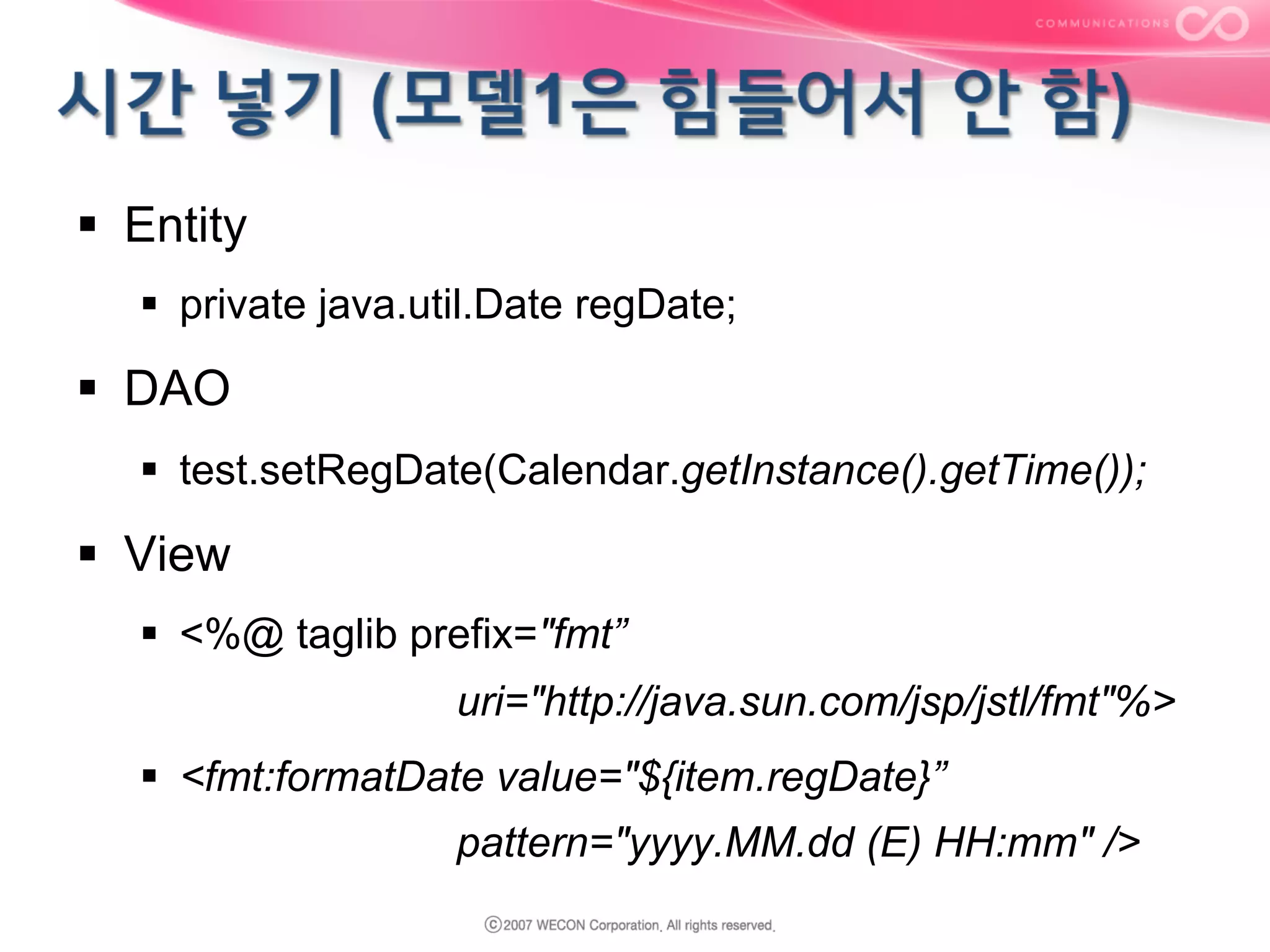

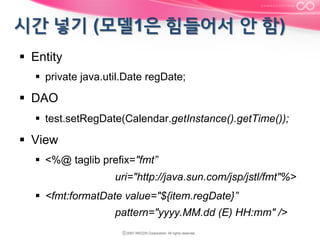

§  Entity
§  private java.util.Date regDate;

§  DAO
§  test.setRegDate(Calendar.getInstance().getTime());

§  View
§  <%@ taglib prefix="fmt”
uri="http://java.sun.com/jsp/jstl/fmt"%>
§  <fmt:formatDate value="${item.regDate}”
pattern="yyyy.MM.dd (E) HH:mm" />

§  결론 : 자바 웹 개발은 (

)다!

§  자바 웹 개발 환경 구축은 10분이면 된다
§  모델1, 모델2(스프링@MVC)의 차이를 이해했다
§  모델 2를 사용하니 유지보수가 쉽다
§  과제 1 : 직접 개발 환경을 구성해 오세요(OS 무관)
§  과제 2 : M2 게시판에 삭제 기능을 추가해 오세요

자바 웹 개발 시작하기 (1주차 : 웹 어플리케이션 체험 실습)

자바 웹 개발 시작하기 (1주차 : 웹 어플리케이션 체험 실습)

More Related Content

What's hot

Similar to 자바 웹 개발 시작하기 (1주차 : 웹 어플리케이션 체험 실습)

More from DK Lee

Recently uploaded

자바 웹 개발 시작하기 (1주차 : 웹 어플리케이션 체험 실습)
