Java DataBase Connectivity (JDBC)‫‏‬
By,
Hitha Paulson
Assistant Professor, Dept. of Computer Science
LF College, Guruvayoor

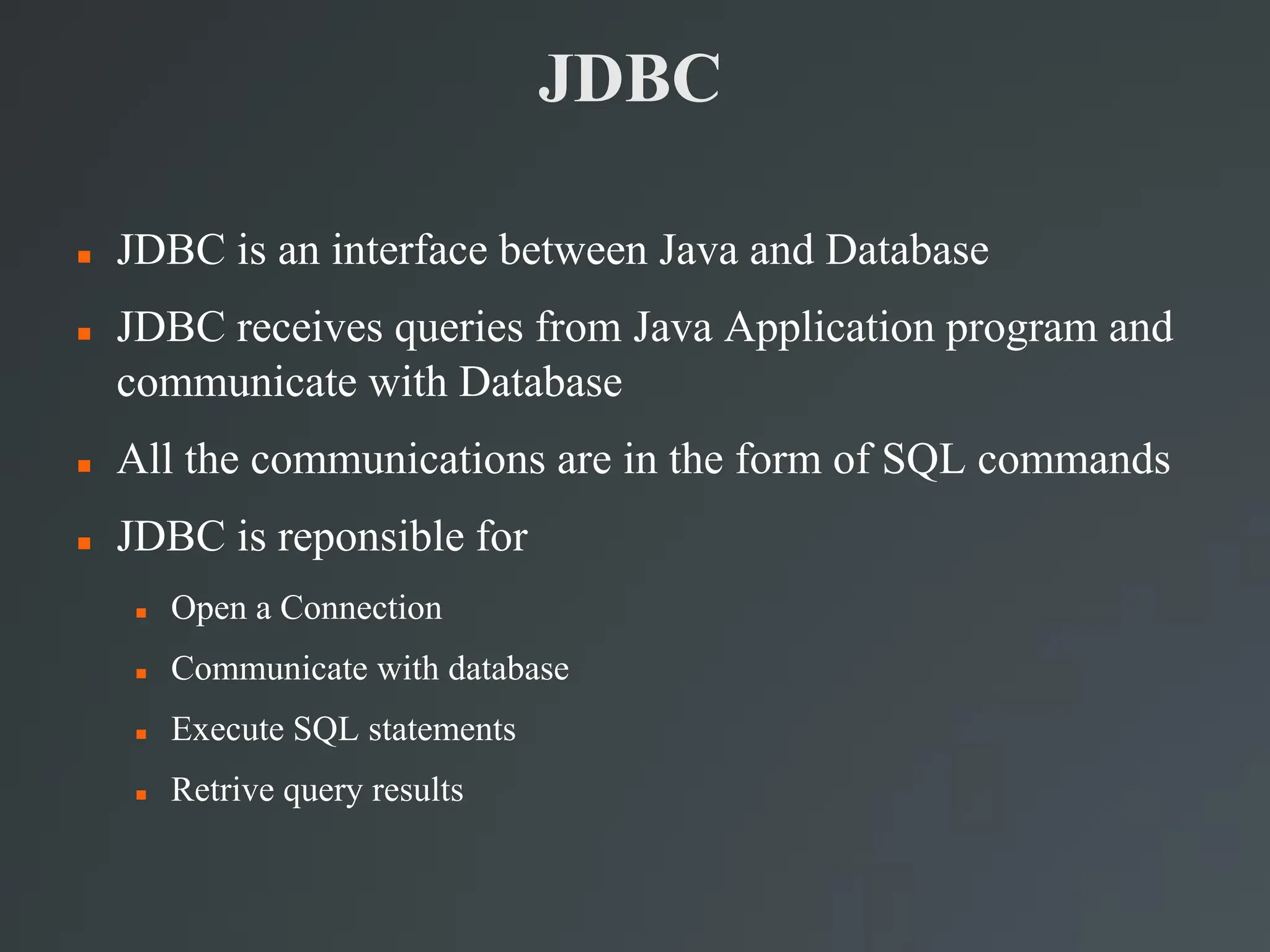

JDBC
 JDBC is an interface between Java and Database
 JDBC receives queries from Java Application program and
communicate with Database
 All the communications are in the form of SQL commands
 JDBC is reponsible for
 Open a Connection
 Communicate with database
 Execute SQL statements
 Retrive query results

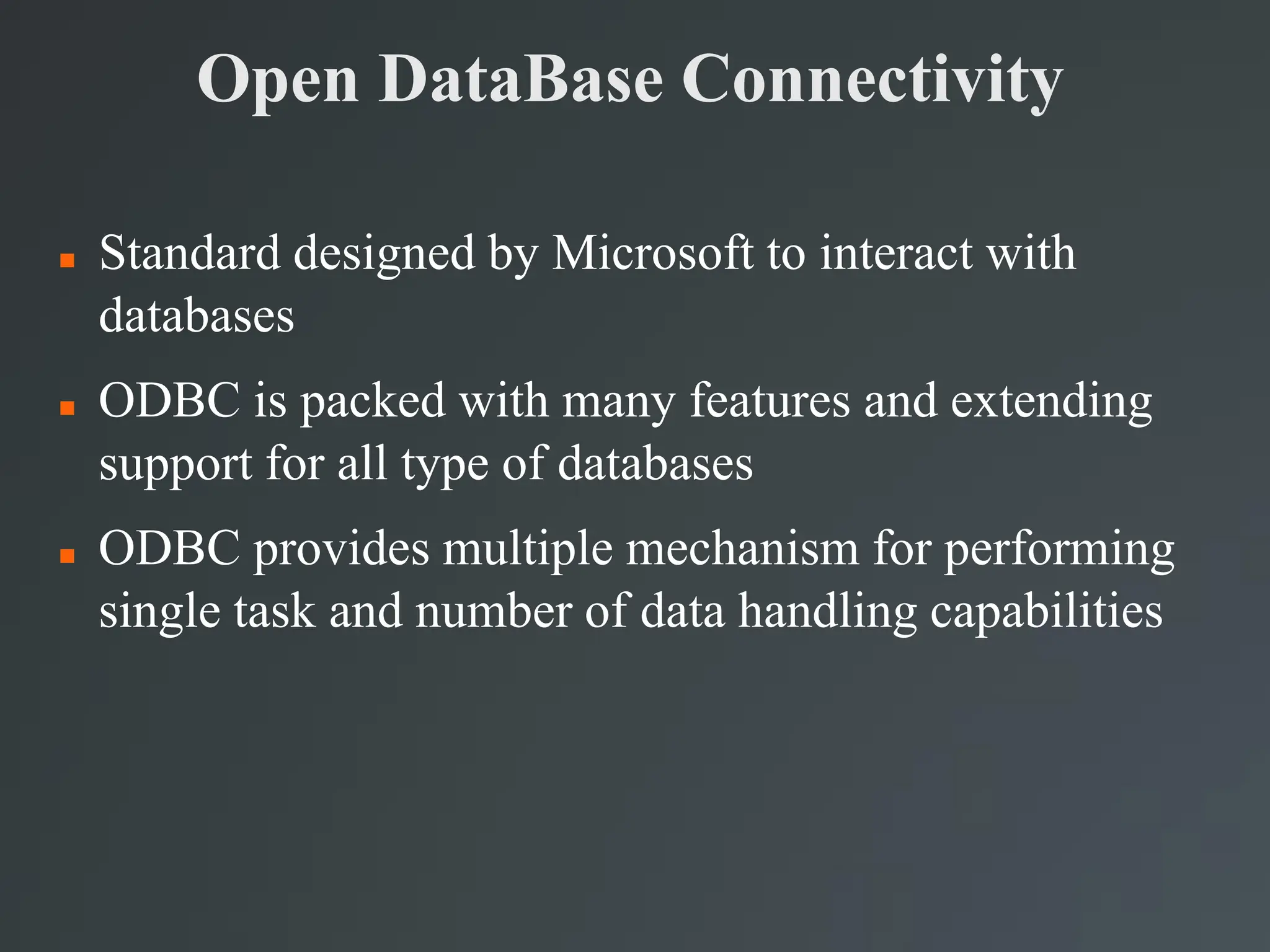

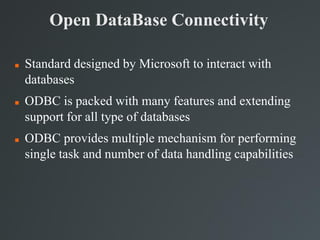

Open DataBase Connectivity
 Standard designed by Microsoft to interact with
databases
 ODBC is packed with many features and extending
support for all type of databases
 ODBC provides multiple mechanism for performing
single task and number of data handling capabilities

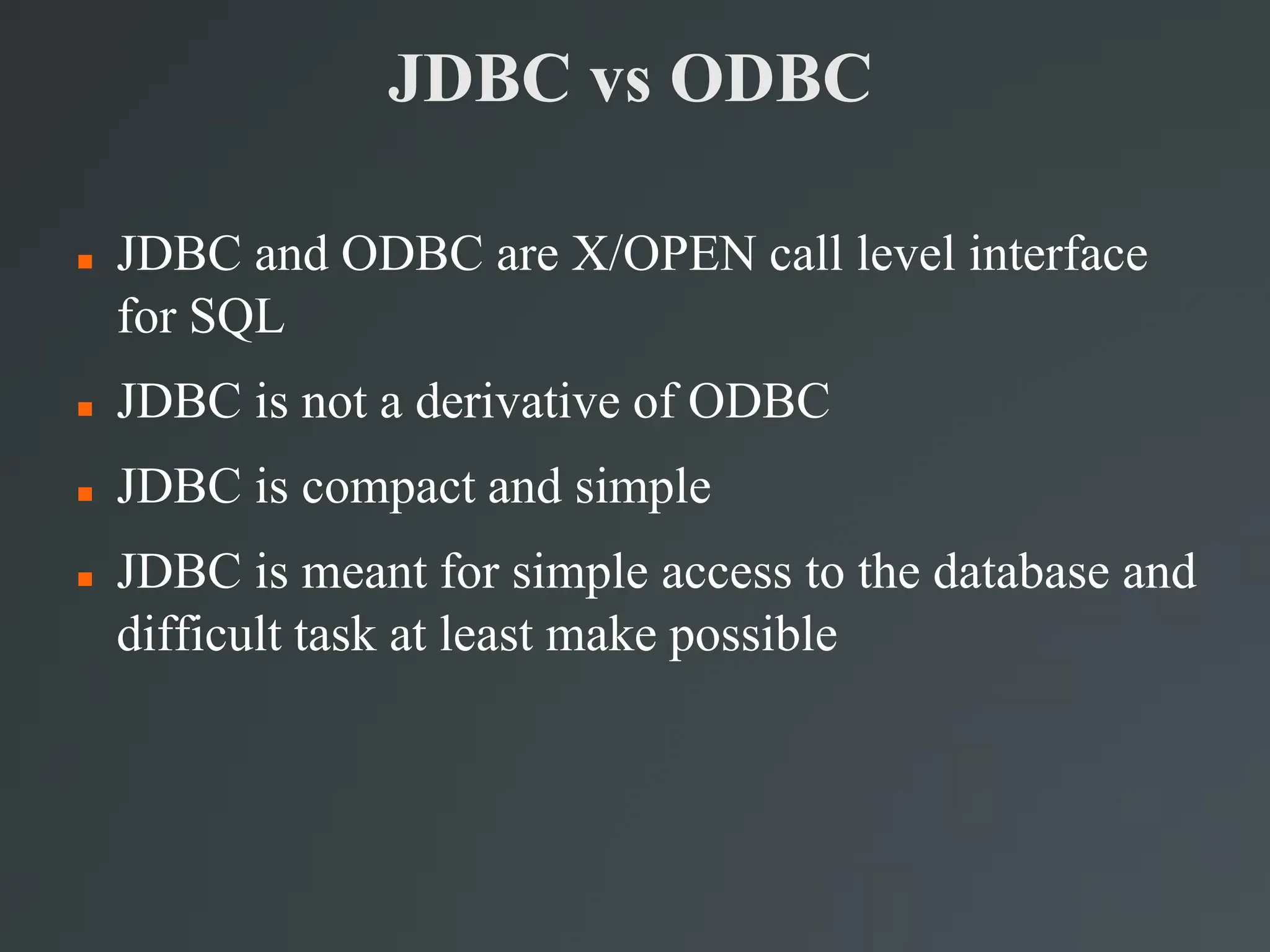

JDBC vs ODBC
 JDBC and ODBC are X/OPEN call level interface
for SQL
 JDBC is not a derivative of ODBC
 JDBC is compact and simple
 JDBC is meant for simple access to the database and
difficult task at least make possible

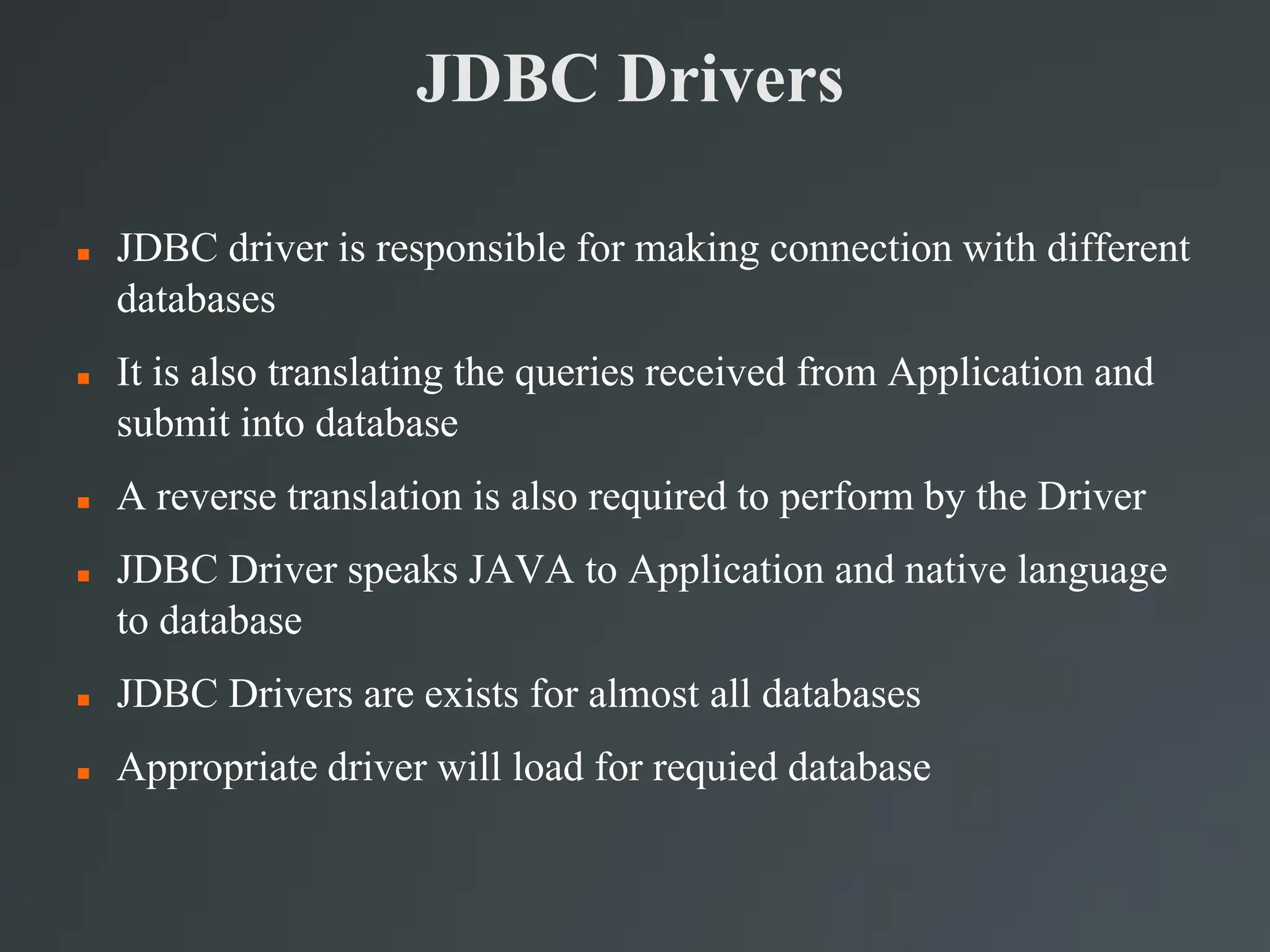

JDBC Drivers
 JDBC driver is responsible for making connection with different
databases
 It is also translating the queries received from Application and
submit into database
 A reverse translation is also required to perform by the Driver
 JDBC Driver speaks JAVA to Application and native language
to database
 JDBC Drivers are exists for almost all databases
 Appropriate driver will load for requied database

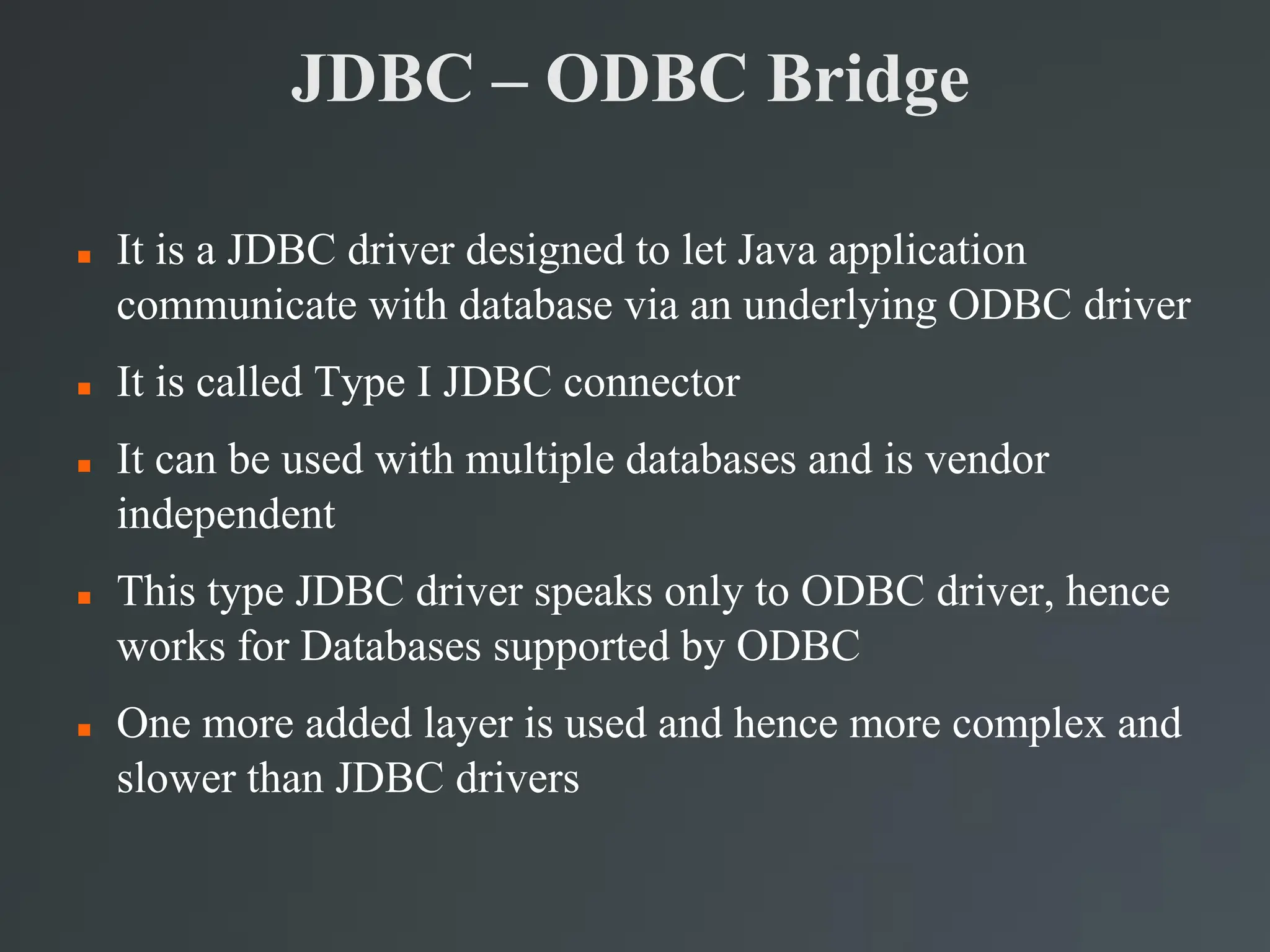

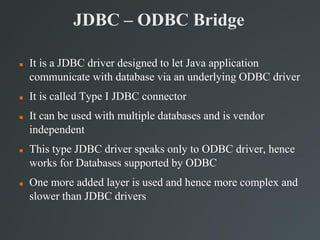

JDBC – ODBC Bridge
 It is a JDBC driver designed to let Java application
communicate with database via an underlying ODBC driver
 It is called Type I JDBC connector
 It can be used with multiple databases and is vendor
independent
 This type JDBC driver speaks only to ODBC driver, hence
works for Databases supported by ODBC
 One more added layer is used and hence more complex and
slower than JDBC drivers

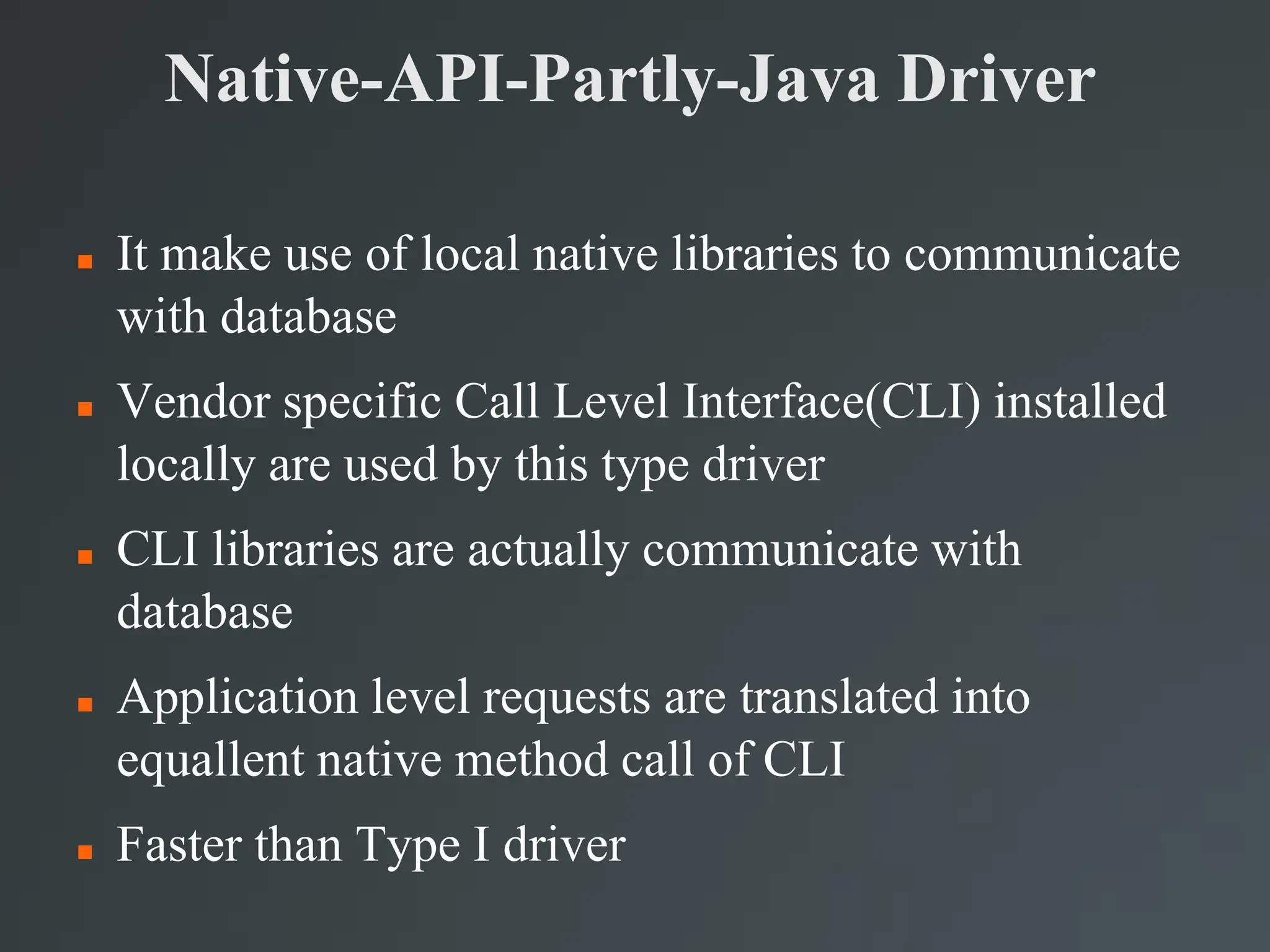

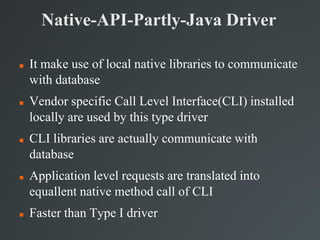

Native-API-Partly-Java Driver
 It make use of local native libraries to communicate
with database
 Vendor specific Call Level Interface(CLI) installed
locally are used by this type driver
 CLI libraries are actually communicate with
database
 Application level requests are translated into
equallent native method call of CLI
 Faster than Type I driver

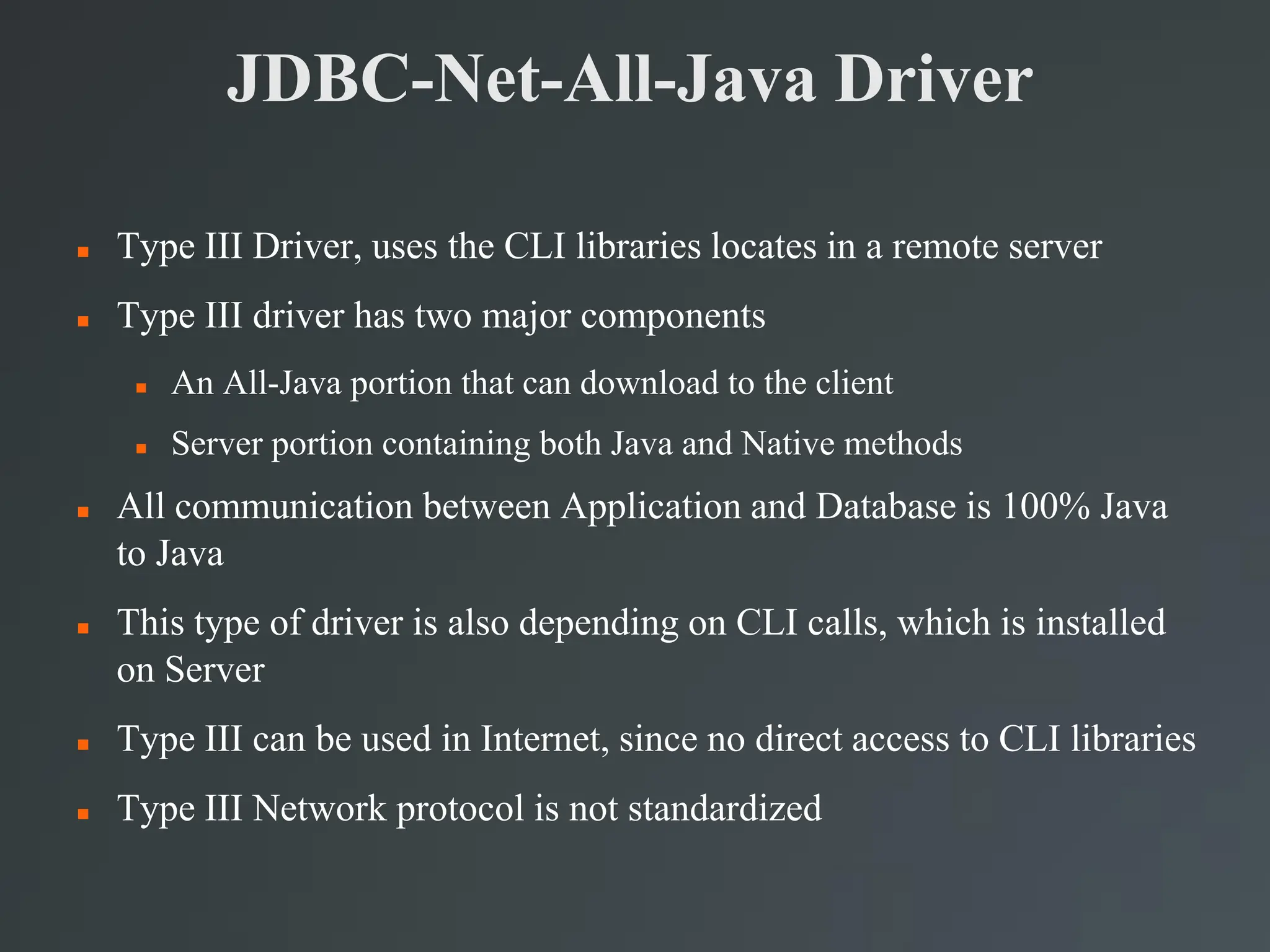

JDBC-Net-All-Java Driver
 Type III Driver, uses the CLI libraries locates in a remote server
 Type III driver has two major components
 An All-Java portion that can download to the client
 Server portion containing both Java and Native methods
 All communication between Application and Database is 100% Java
to Java
 This type of driver is also depending on CLI calls, which is installed
on Server
 Type III can be used in Internet, since no direct access to CLI libraries
 Type III Network protocol is not standardized

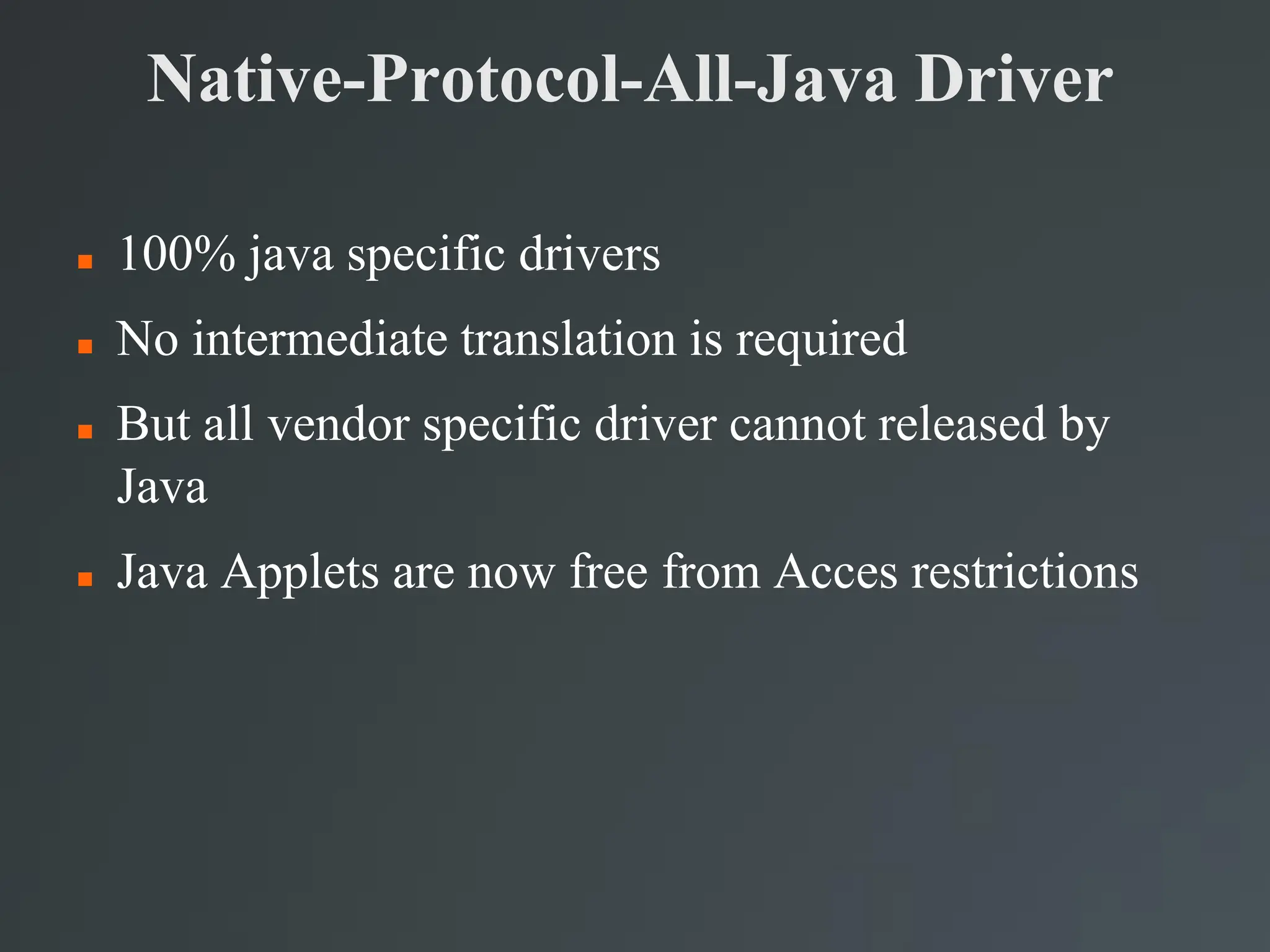

Native-Protocol-All-Java Driver
 100% java specific drivers
 No intermediate translation is required
 But all vendor specific driver cannot released by
Java
 Java Applets are now free from Acces restrictions

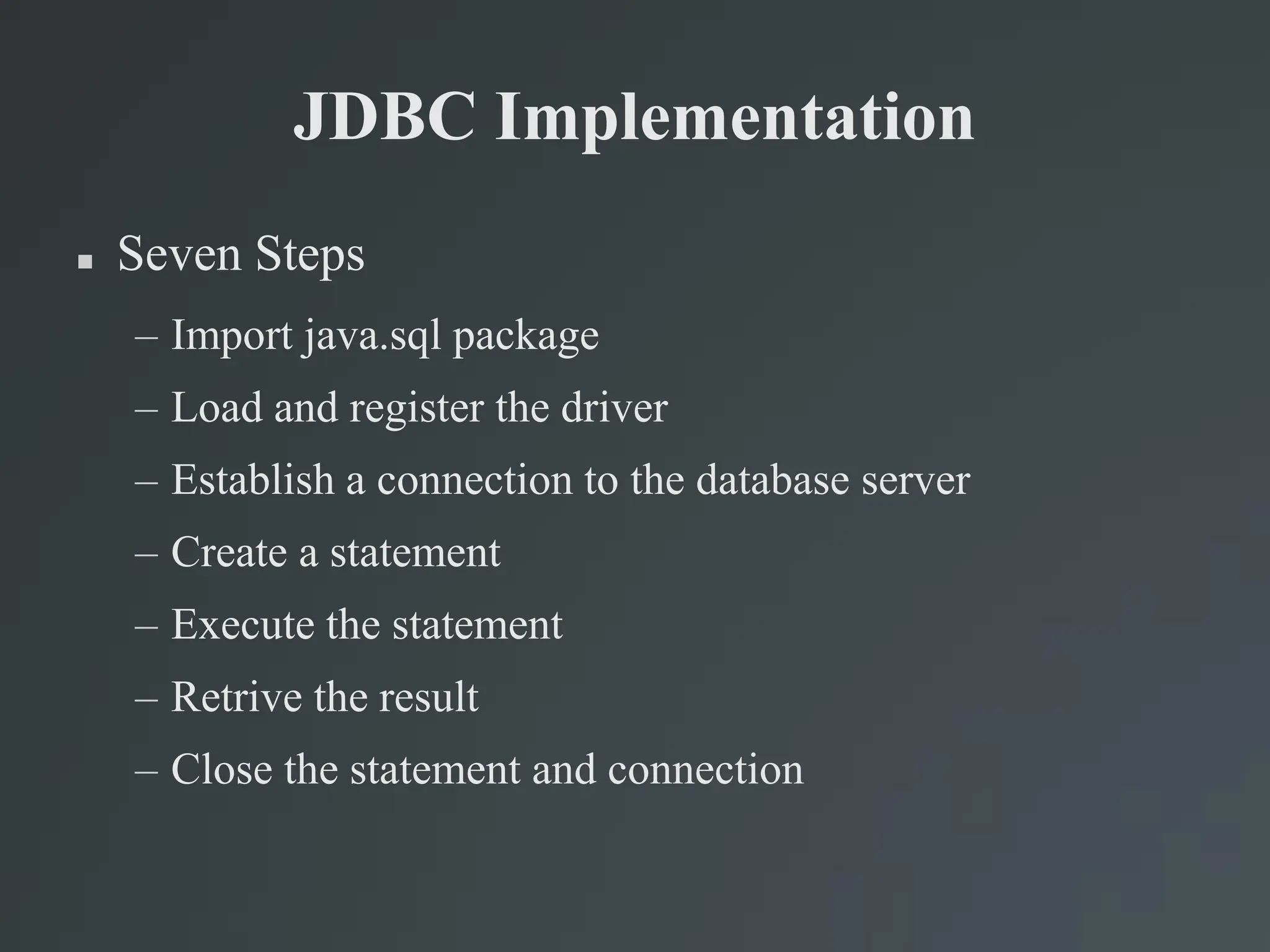

JDBC Implementation
 Seven Steps
– Import java.sql package
– Load and register the driver
– Establish a connection to the database server
– Create a statement
– Execute the statement
– Retrive the result
– Close the statement and connection

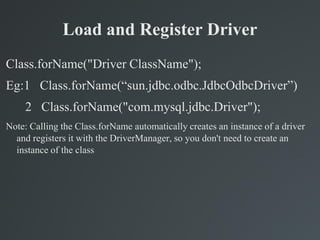

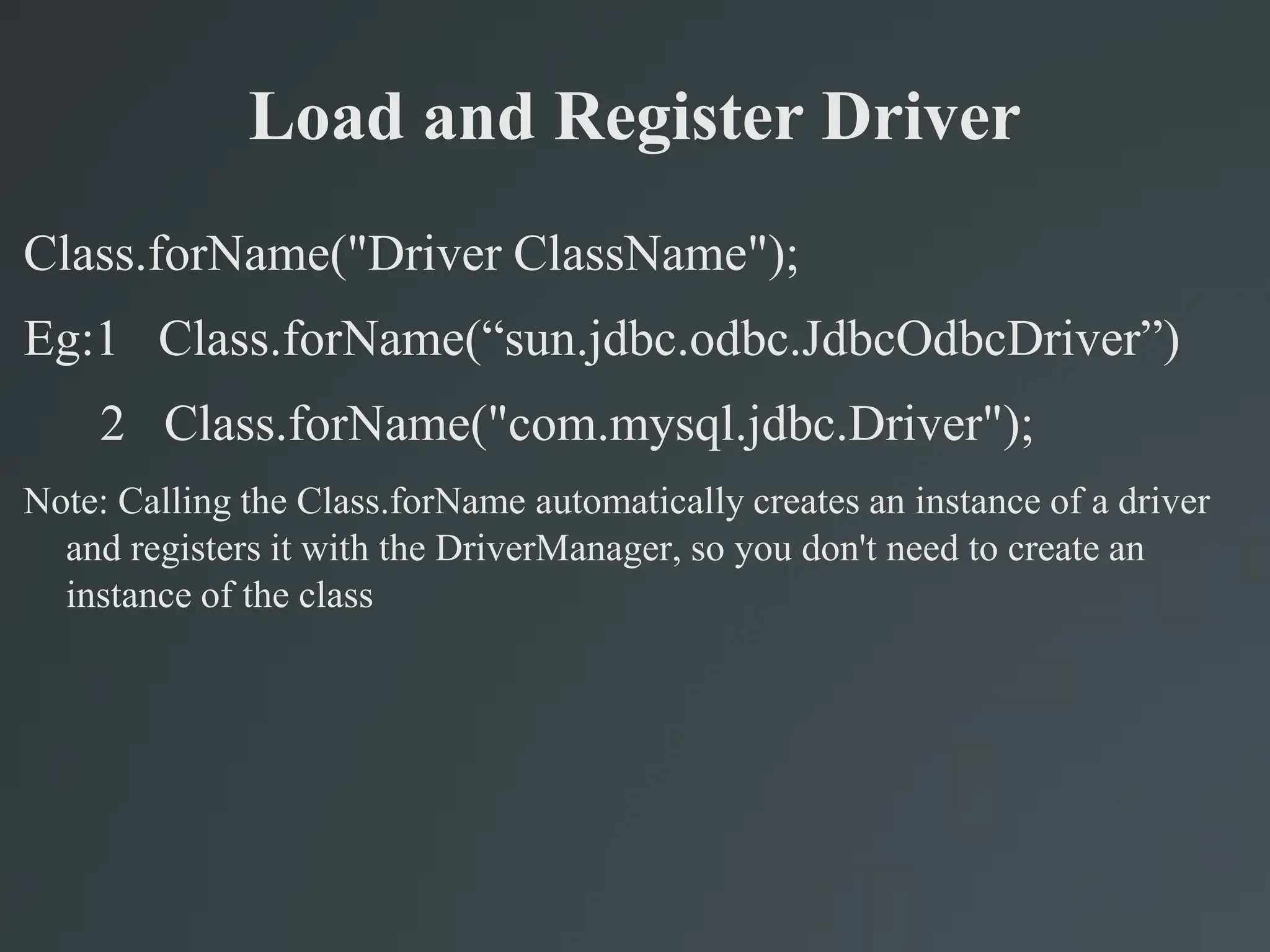

Load and Register Driver
Class.forName("Driver ClassName");
Eg:1 Class.forName(“sun.jdbc.odbc.JdbcOdbcDriver”)
2 Class.forName("com.mysql.jdbc.Driver");
Note: Calling the Class.forName automatically creates an instance of a driver
and registers it with the DriverManager, so you don't need to create an
instance of the class

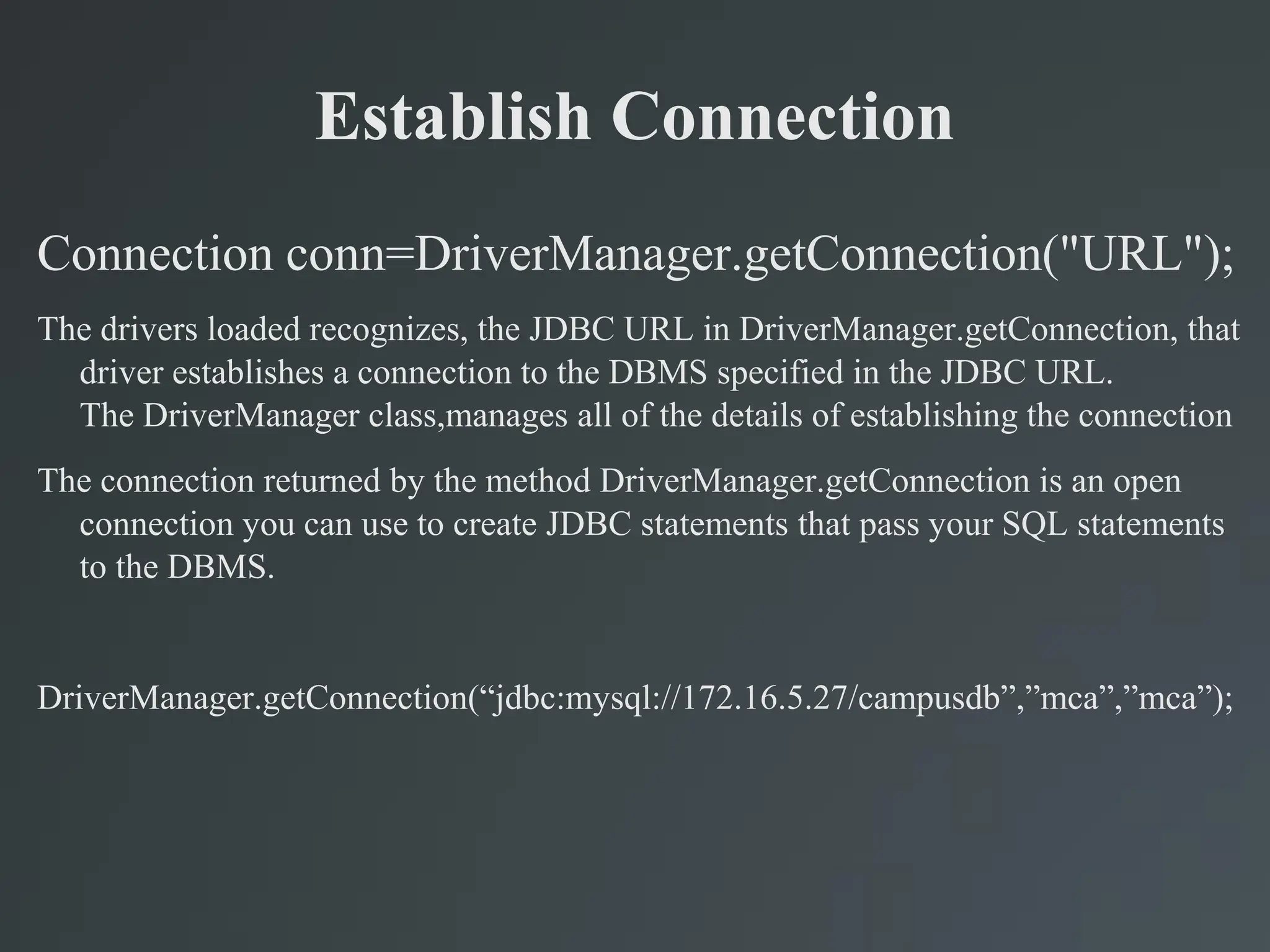

Establish Connection
Connection conn=DriverManager.getConnection("URL");
The drivers loaded recognizes, the JDBC URL in DriverManager.getConnection, that
driver establishes a connection to the DBMS specified in the JDBC URL.
The DriverManager class,manages all of the details of establishing the connection
The connection returned by the method DriverManager.getConnection is an open
connection you can use to create JDBC statements that pass your SQL statements
to the DBMS.
DriverManager.getConnection(“jdbc:mysql://172.16.5.27/campusdb”,”mca”,”mca”);

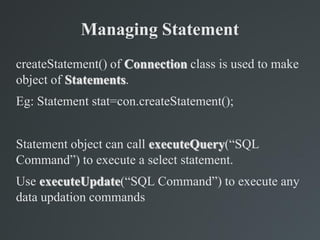

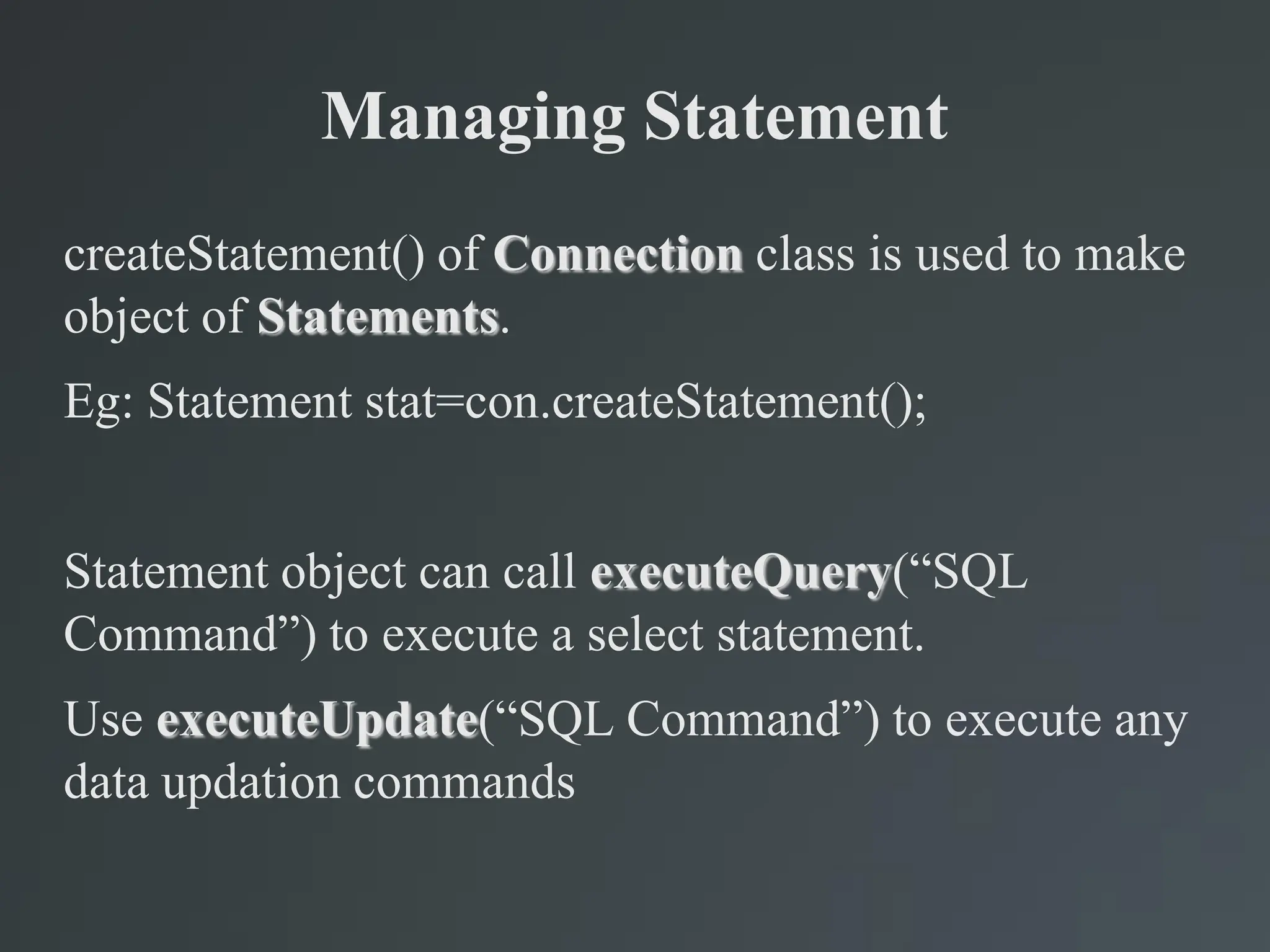

Managing Statement
createStatement() of Connection class is used to make
object of Statements.
Eg: Statement stat=con.createStatement();
Statement object can call executeQuery(“SQL
Command”) to execute a select statement.
Use executeUpdate(“SQL Command”) to execute any
data updation commands

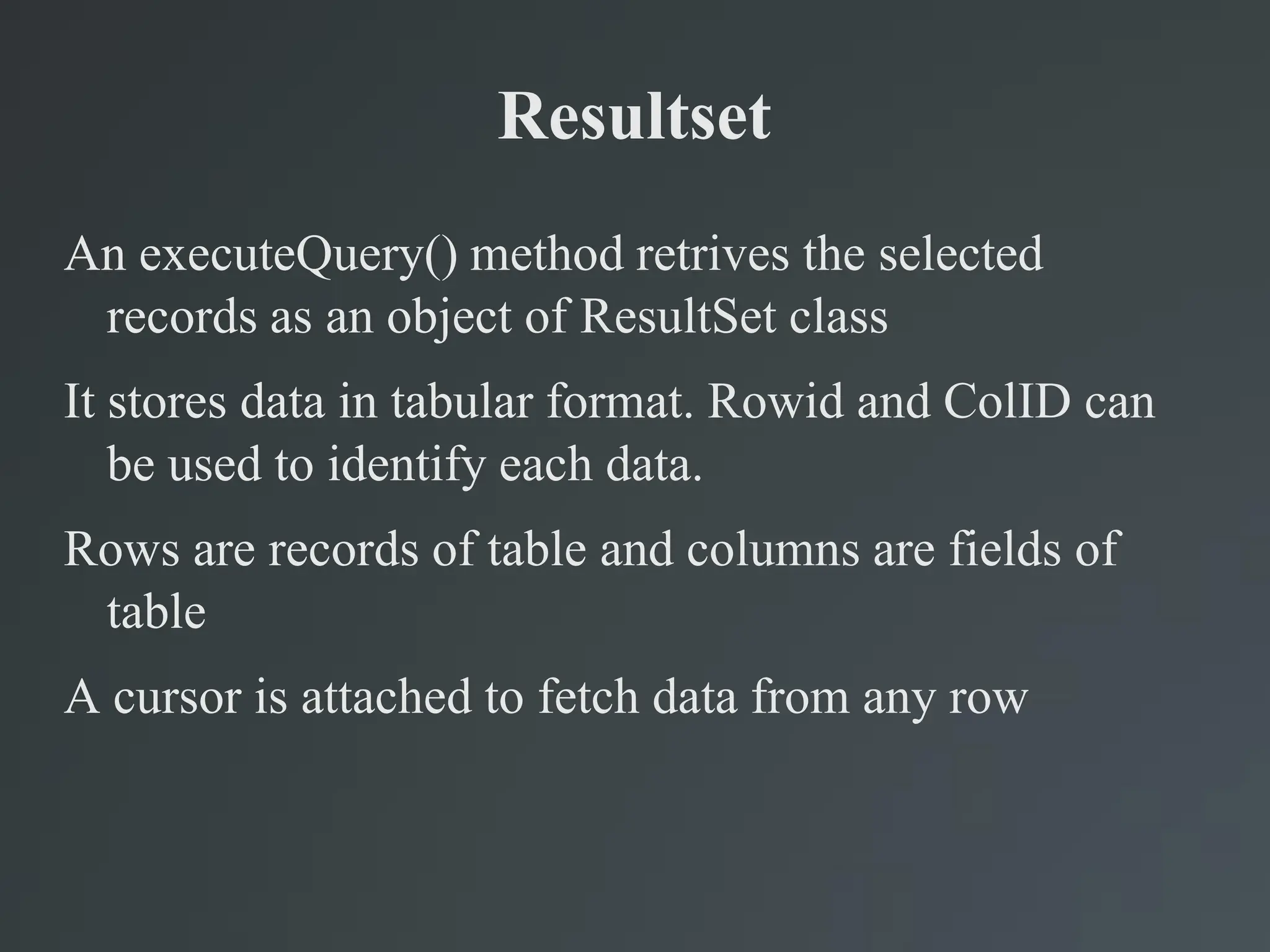

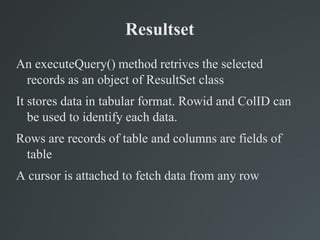

Resultset
An executeQuery() method retrives the selected
records as an object of ResultSet class
It stores data in tabular format. Rowid and ColID can
be used to identify each data.
Rows are records of table and columns are fields of
table
A cursor is attached to fetch data from any row

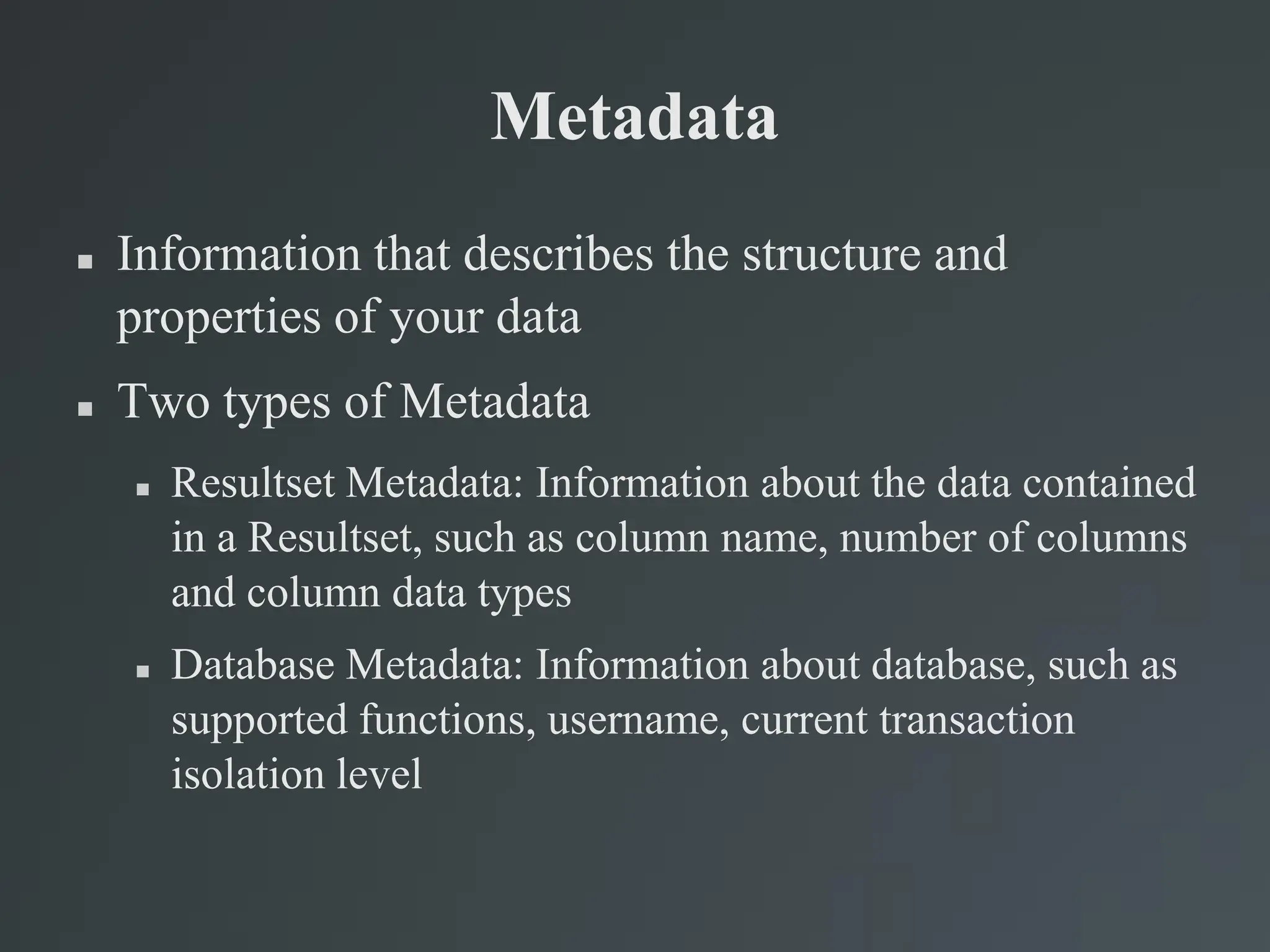

Metadata
 Information that describes the structure and
properties of your data
 Two types of Metadata
 Resultset Metadata: Information about the data contained
in a Resultset, such as column name, number of columns
and column data types
 Database Metadata: Information about database, such as
supported functions, username, current transaction
isolation level
