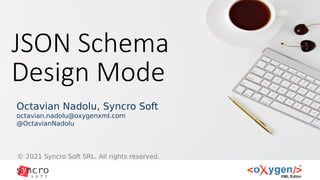

- 1. JSON Schema Design Mode ©2021 Syncro Soft SRL. All rights reserved. Octavian Nadolu, Syncro Soft octavian.nadolu@oxygenxml.com @OctavianNadolu

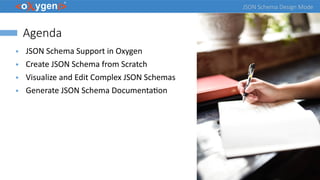

- 2. JSON Schema DesignMode Agenda ● JSON Schema Support in Oxygen ● Create JSON Schema from Scratch ● Visualize and Edit Complex JSON Schemas ● Generate JSON Schema Documentation

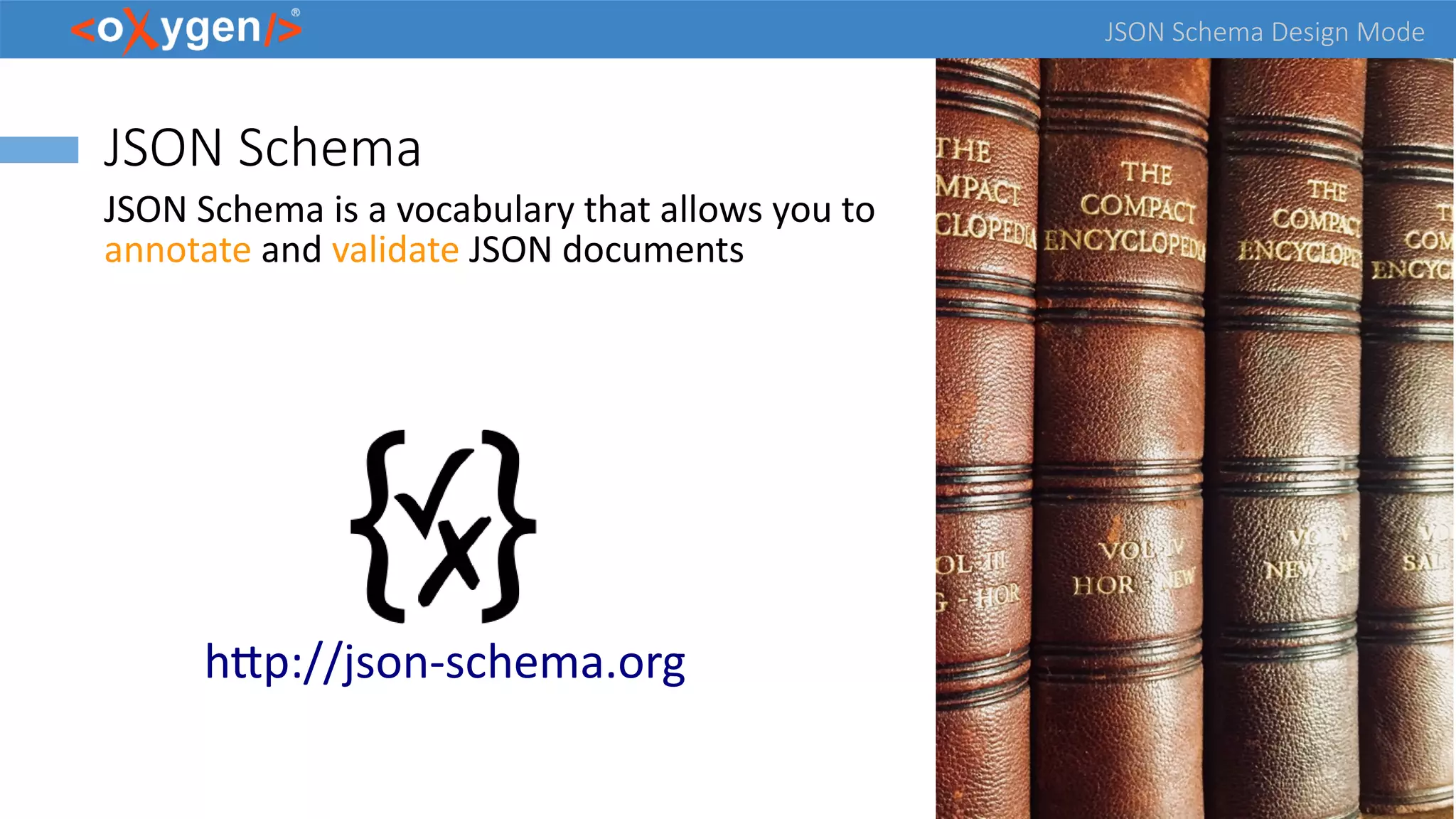

- 3. JSON Schema DesignMode JSON Schema JSON Schema is a vocabulary that allows you to annotate and validate JSON documents http://json-schema.org
- 4. JSON Schema DesignMode JSON Schema Definition ● It is recommended to to have the schema definition on the first level "$schema": "http://json-schema.org/draft-07/schema#" ● JSON Schema used versions: – draft-04 – draft-06 – draft-07 – draft/2020-12

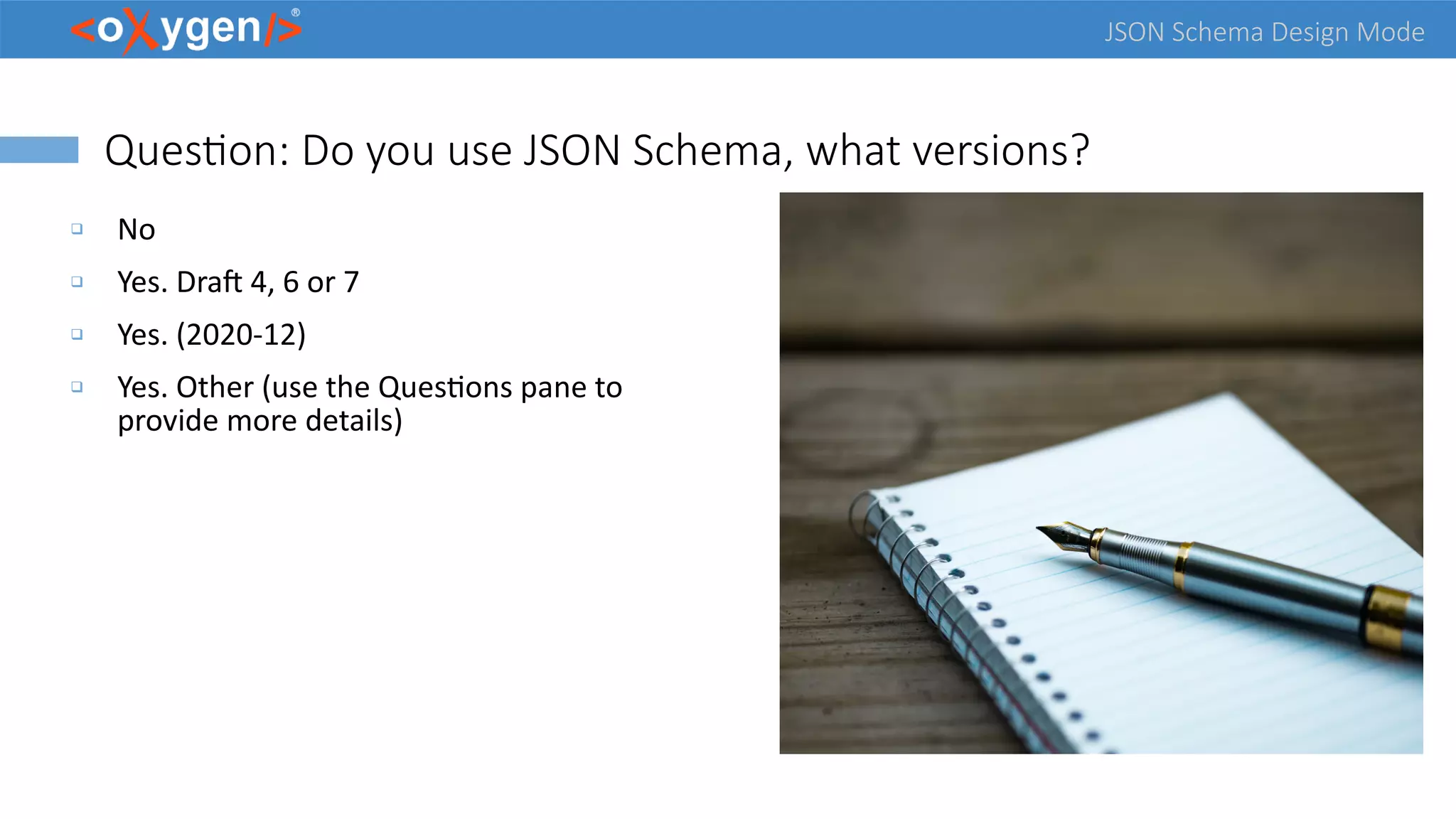

- 5. JSON Schema DesignMode Question: Do you use JSON Schema, what versions? No Yes. Draft 4, 6 or 7 Yes. (2020-12) Yes. Other (use the Questions pane to provide more details)

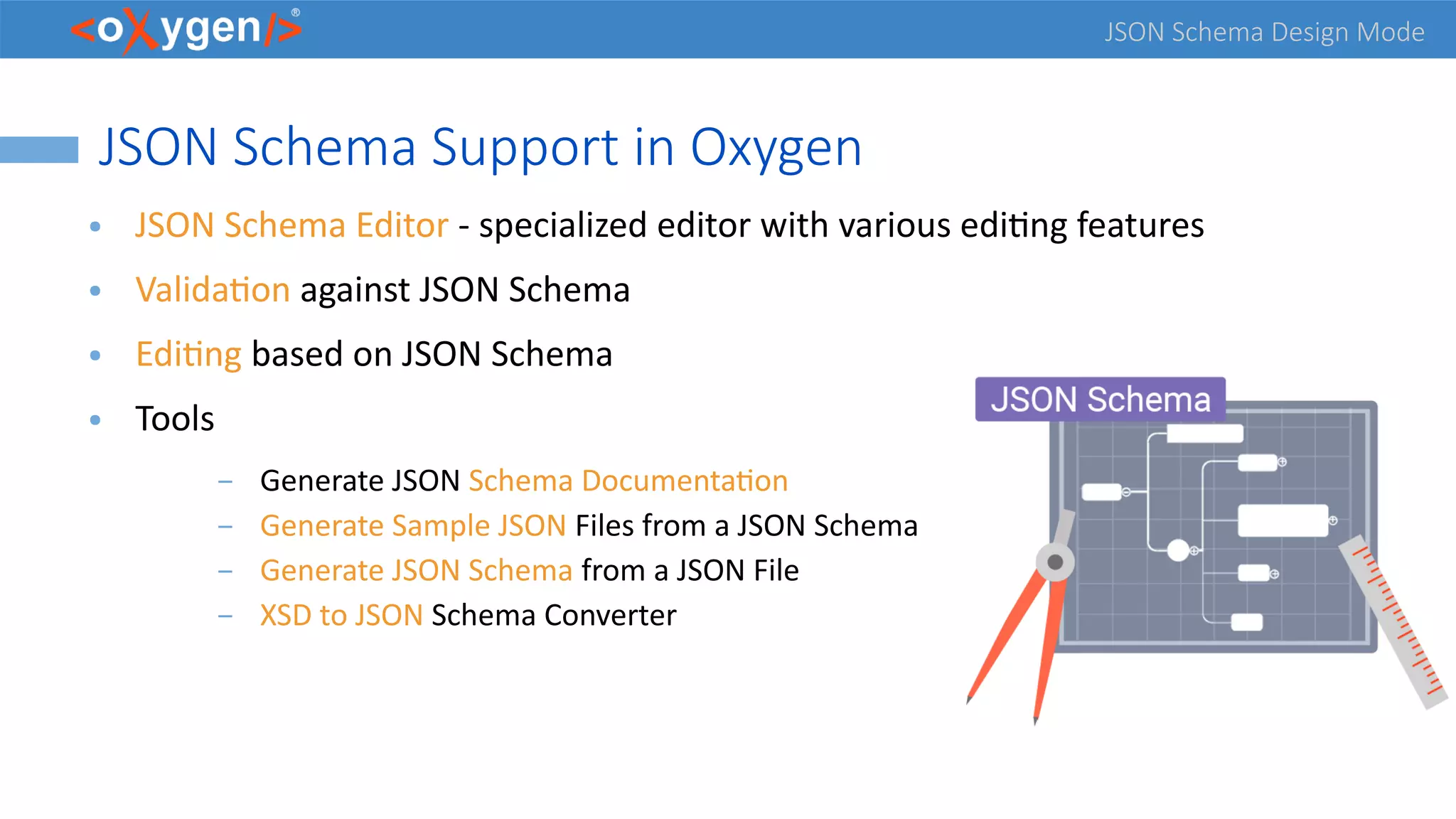

- 6. JSON Schema DesignMode JSON Schema Support in Oxygen ● JSON Schema Editor - specialized editor with various editing features ● Validation against JSON Schema ● Editing based on JSON Schema ● Tools – Generate JSON Schema Documentation – Generate Sample JSON Files from a JSON Schema – Generate JSON Schema from a JSON File – XSD to JSON Schema Converter

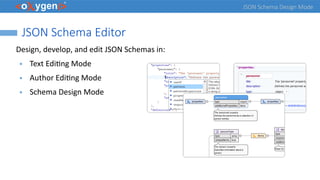

- 7. JSON Schema DesignMode JSON Schema Editor Design, develop, and edit JSON Schemas in: ● Text Editing Mode ● Author Editing Mode ● Schema Design Mode

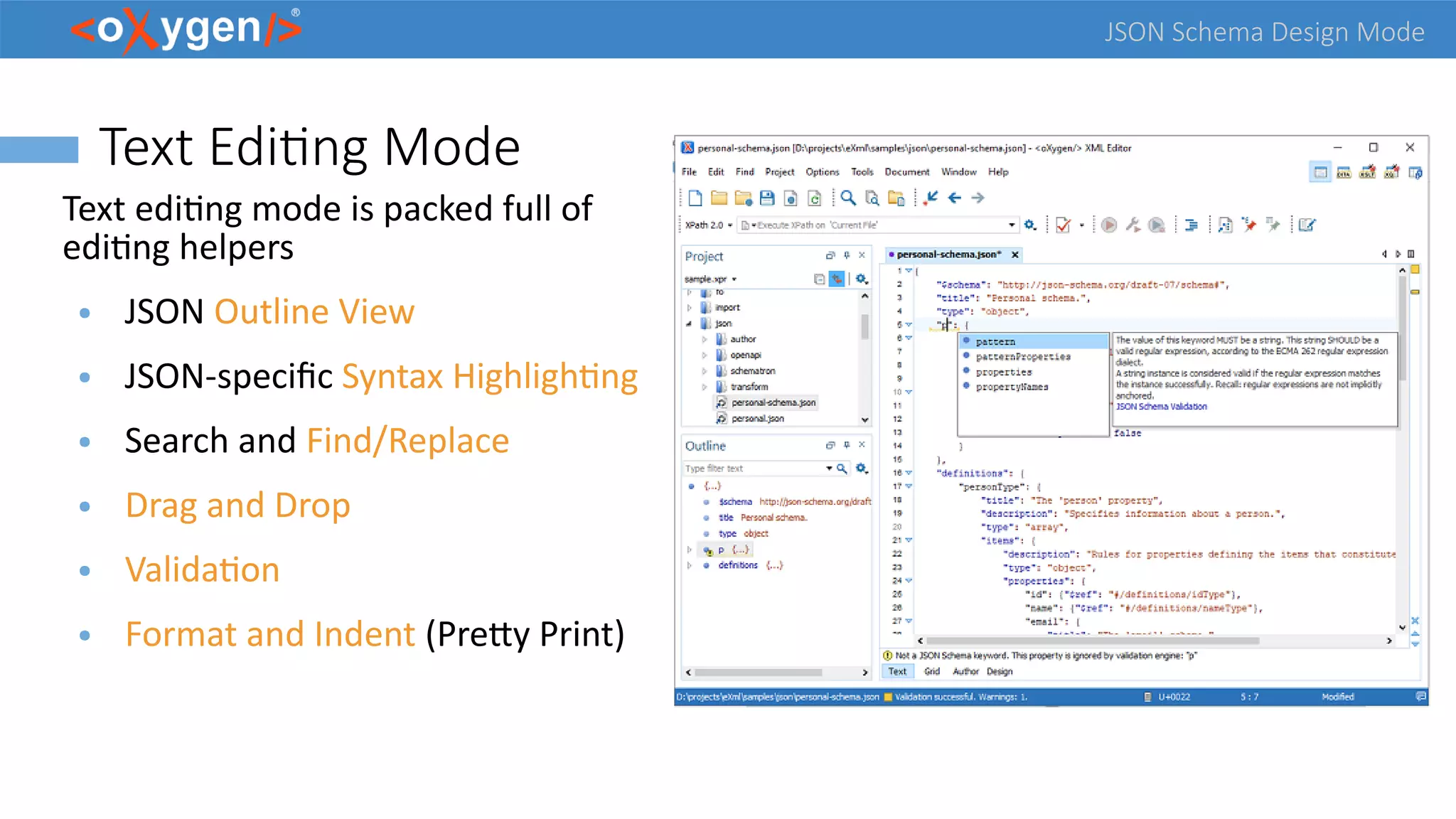

- 8. JSON Schema DesignMode Text Editing Mode Text editing mode is packed full of editing helpers ● JSON Outline View ● JSON-specific Syntax Highlighting ● Search and Find/Replace ● Drag and Drop ● Validation ● Format and Indent (Pretty Print)

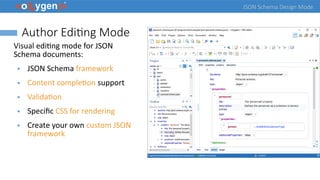

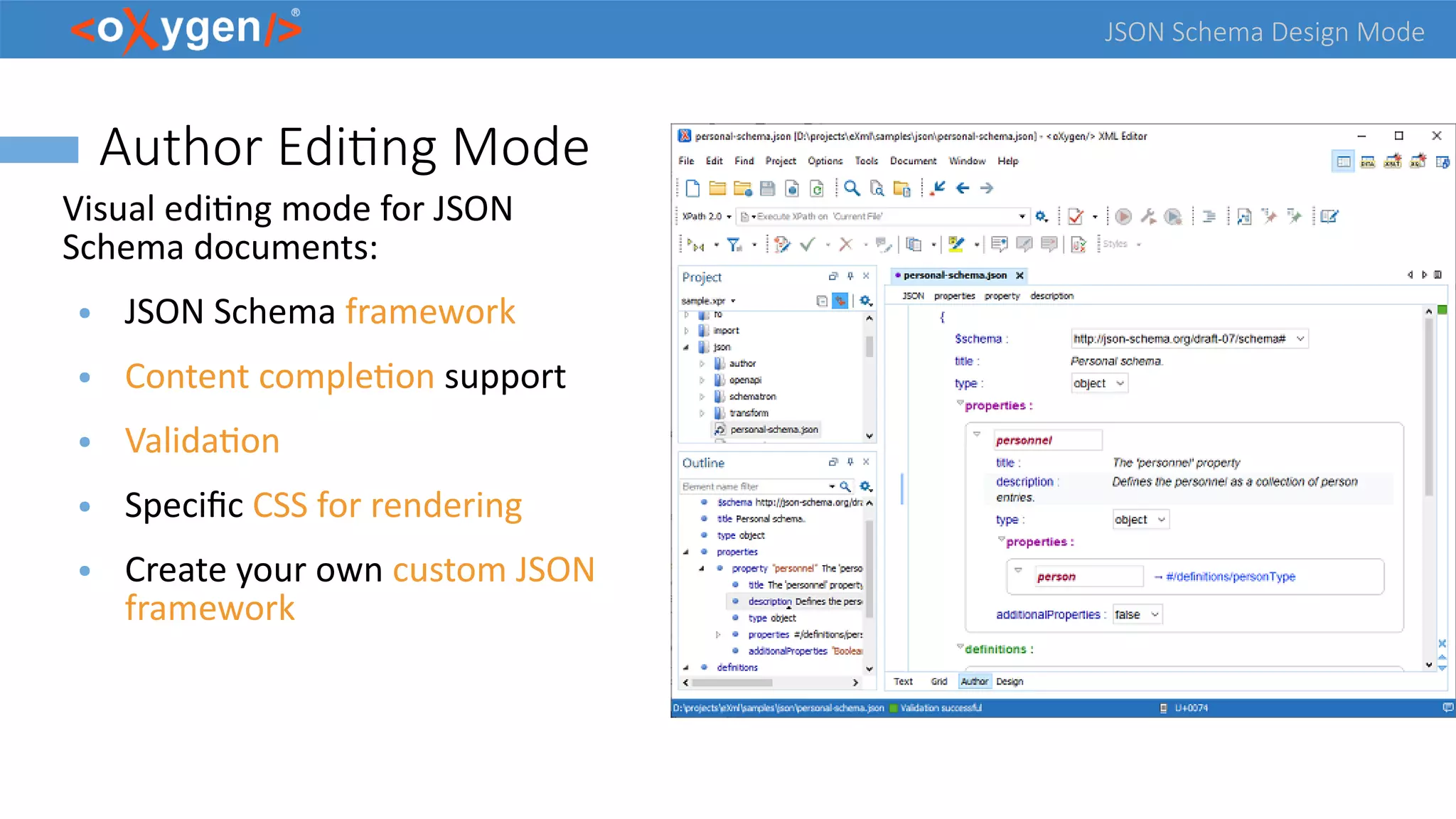

- 9. JSON Schema DesignMode Author Editing Mode Visual editing mode for JSON Schema documents: ● JSON Schema framework ● Content completion support ● Validation ● Specific CSS for rendering ● Create your own custom JSON framework
- 10. JSON Schema DesignMode Schema Design Mode Visualize, edit, and understand JSON Schemas ● In-Place Component Editing ● Edit Properties ● Edit Annotations ● Schema Editing Actions ● Move Component Up/Down Actions ● Print/Save as Image

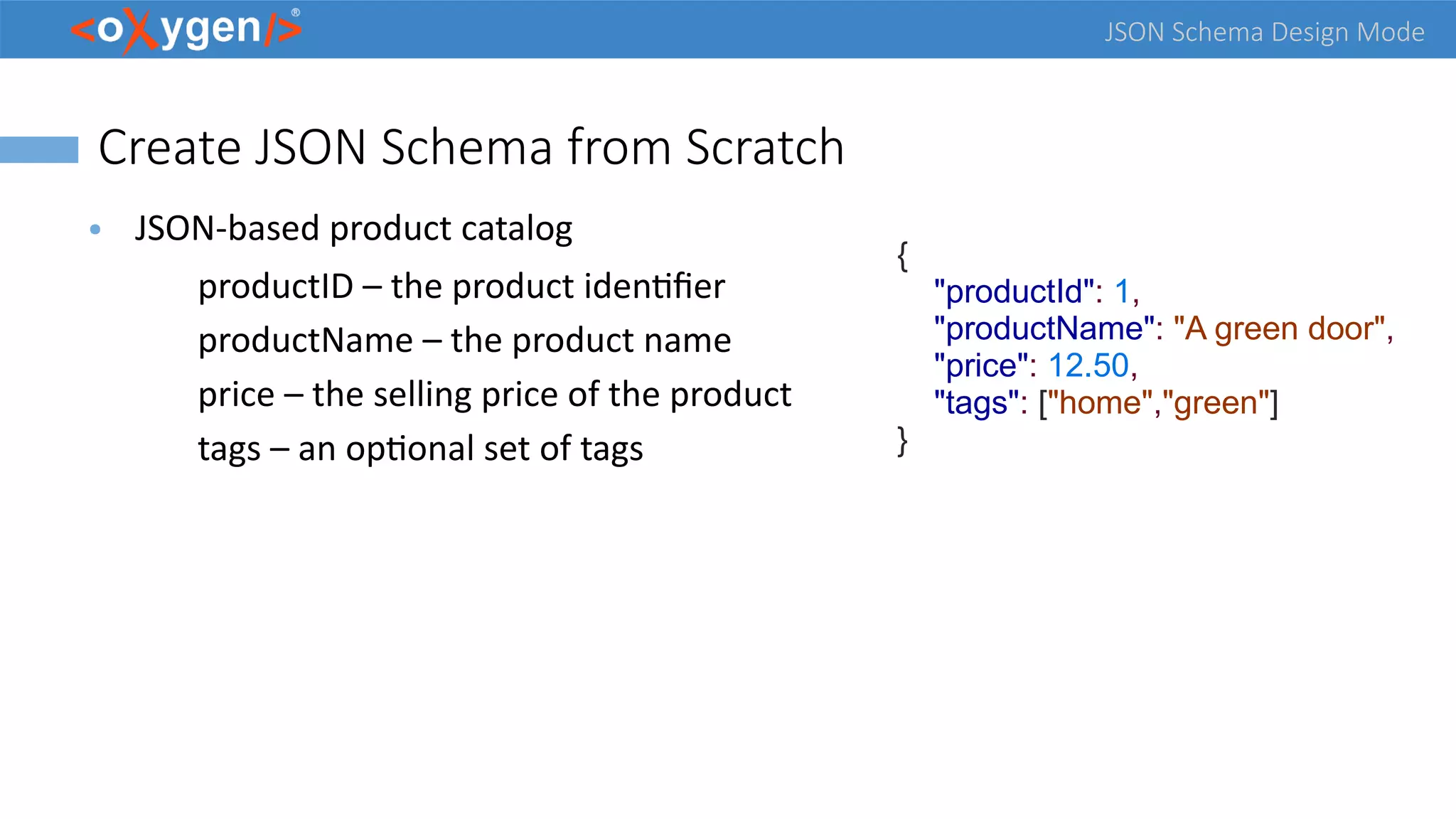

- 11. JSON Schema DesignMode Create JSON Schema from Scratch ● JSON-based product catalog productID – the product identifier productName – the product name price – the selling price of the product tags – an optional set of tags { "productId": 1, "productName": "A green door", "price": 12.50, "tags": ["home","green"] }

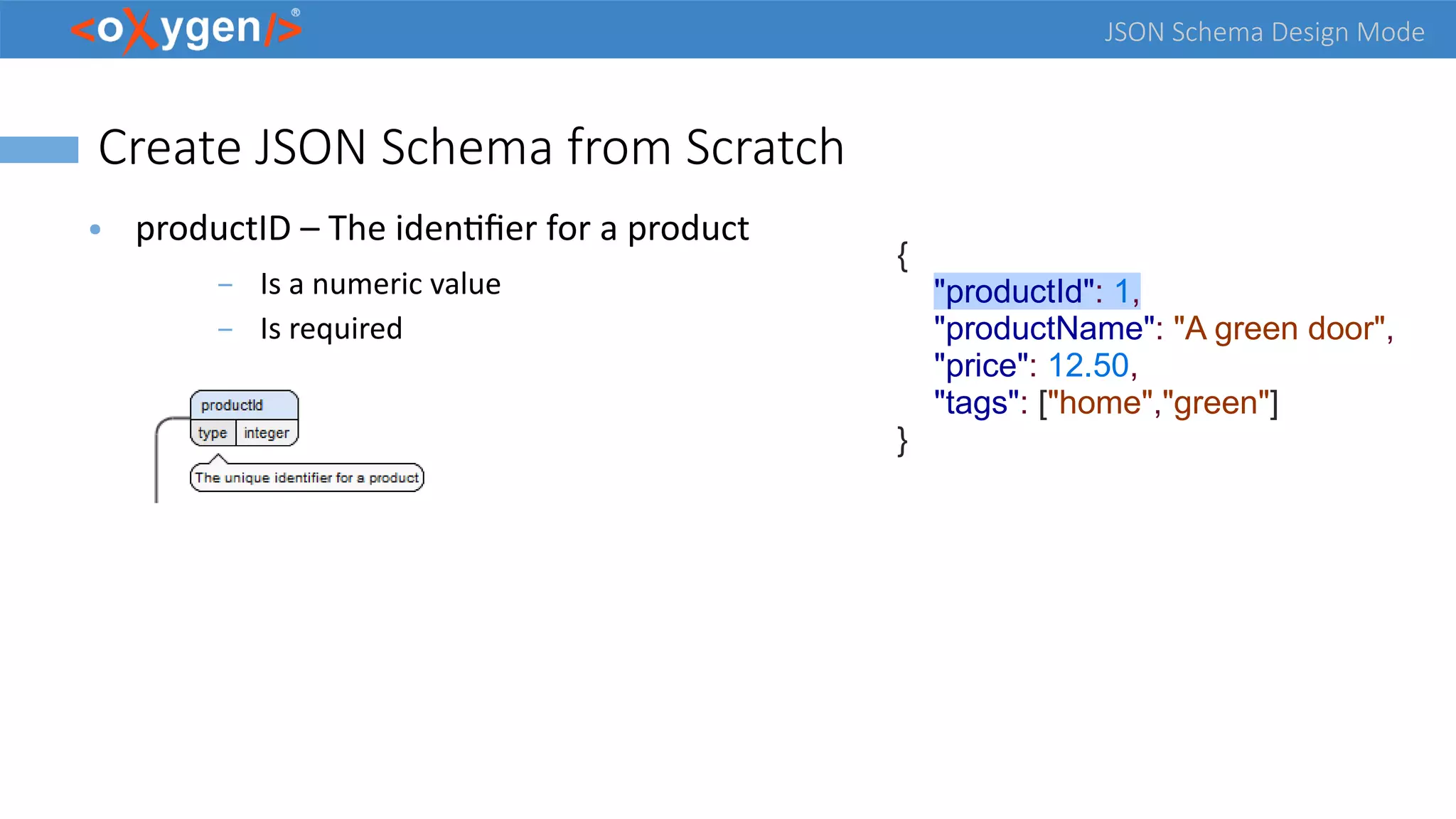

- 12. JSON Schema DesignMode Create JSON Schema from Scratch ● productID – The identifier for a product – Is a numeric value – Is required { "productId": 1, "productName": "A green door", "price": 12.50, "tags": ["home","green"] }

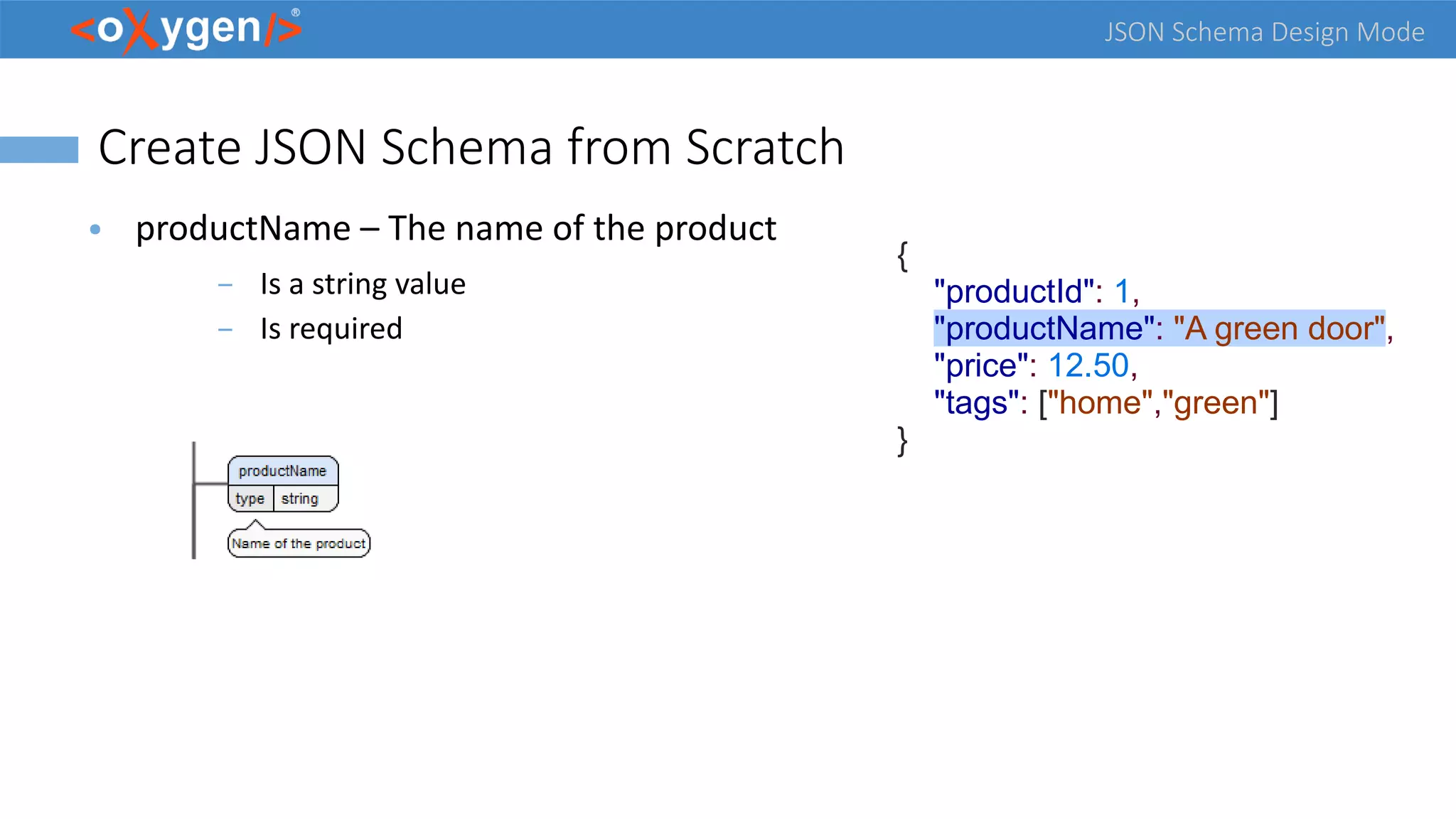

- 13. JSON Schema DesignMode Create JSON Schema from Scratch ● productName – The name of the product – Is a string value – Is required { "productId": 1, "productName": "A green door", "price": 12.50, "tags": ["home","green"] }

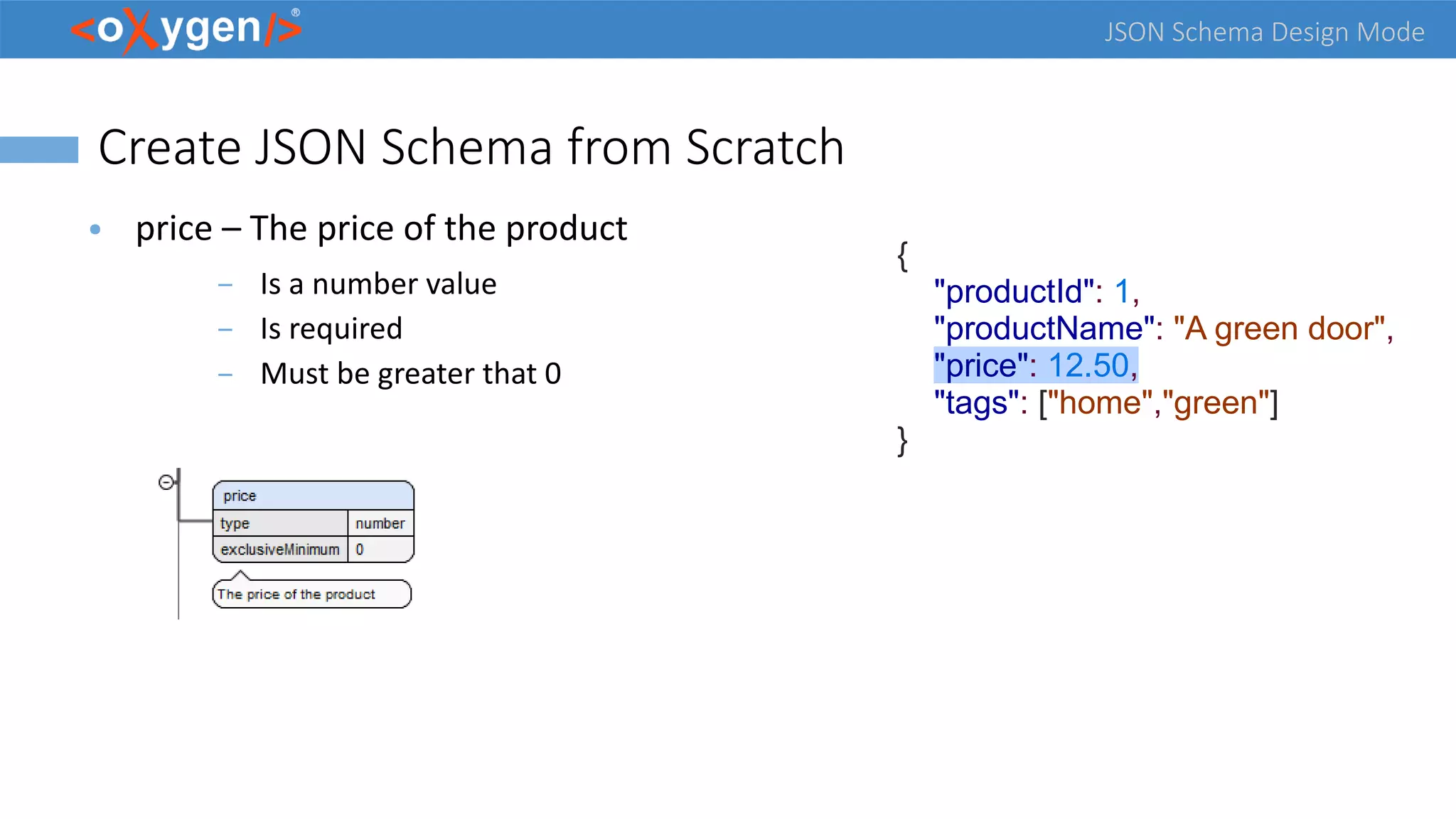

- 14. JSON Schema DesignMode Create JSON Schema from Scratch ● price – The price of the product – Is a number value – Is required – Must be greater that 0 { "productId": 1, "productName": "A green door", "price": 12.50, "tags": ["home","green"] }

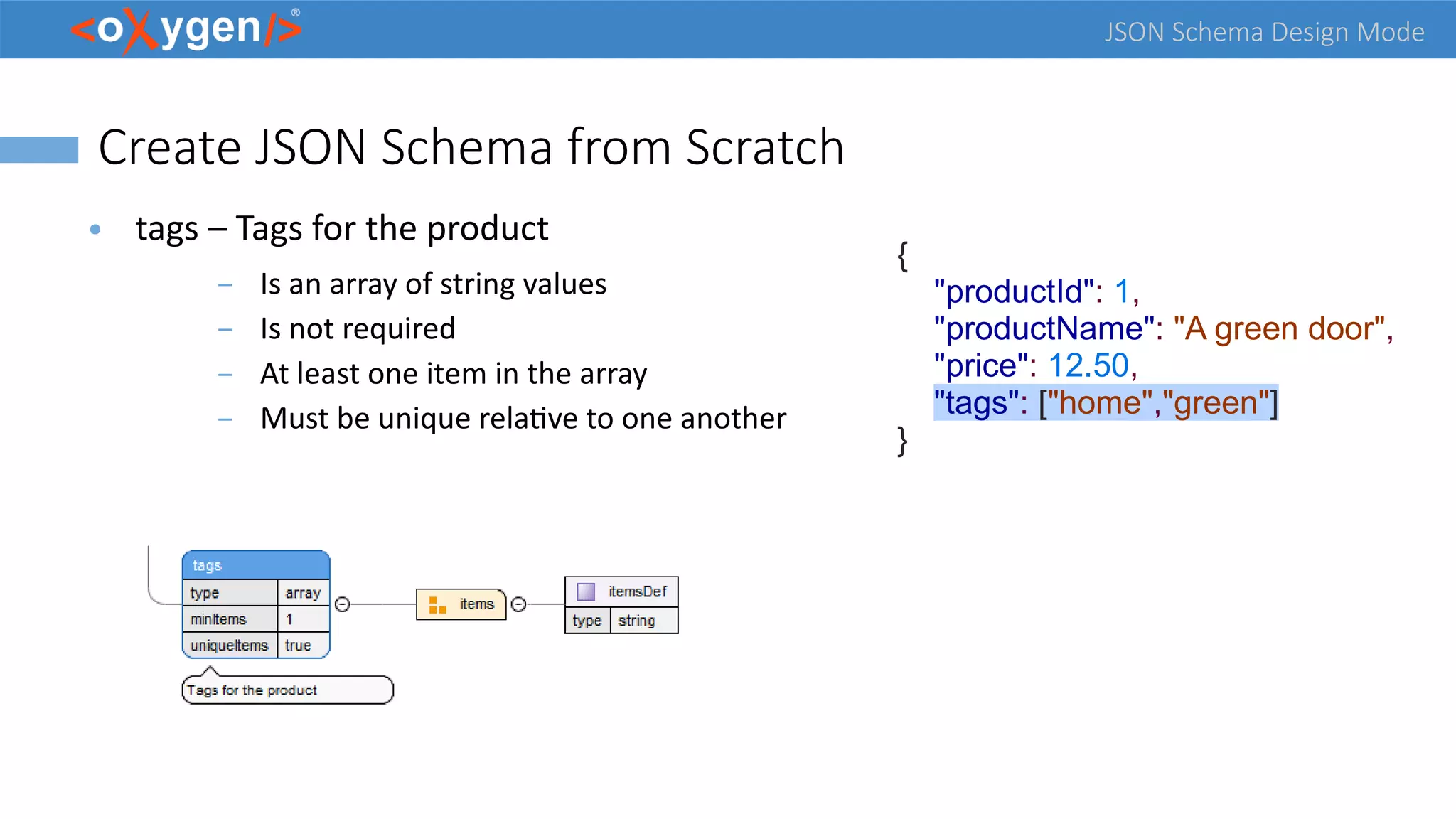

- 15. JSON Schema DesignMode Create JSON Schema from Scratch ● tags – Tags for the product – Is an array of string values – Is not required – At least one item in the array – Must be unique relative to one another { "productId": 1, "productName": "A green door", "price": 12.50, "tags": ["home","green"] }

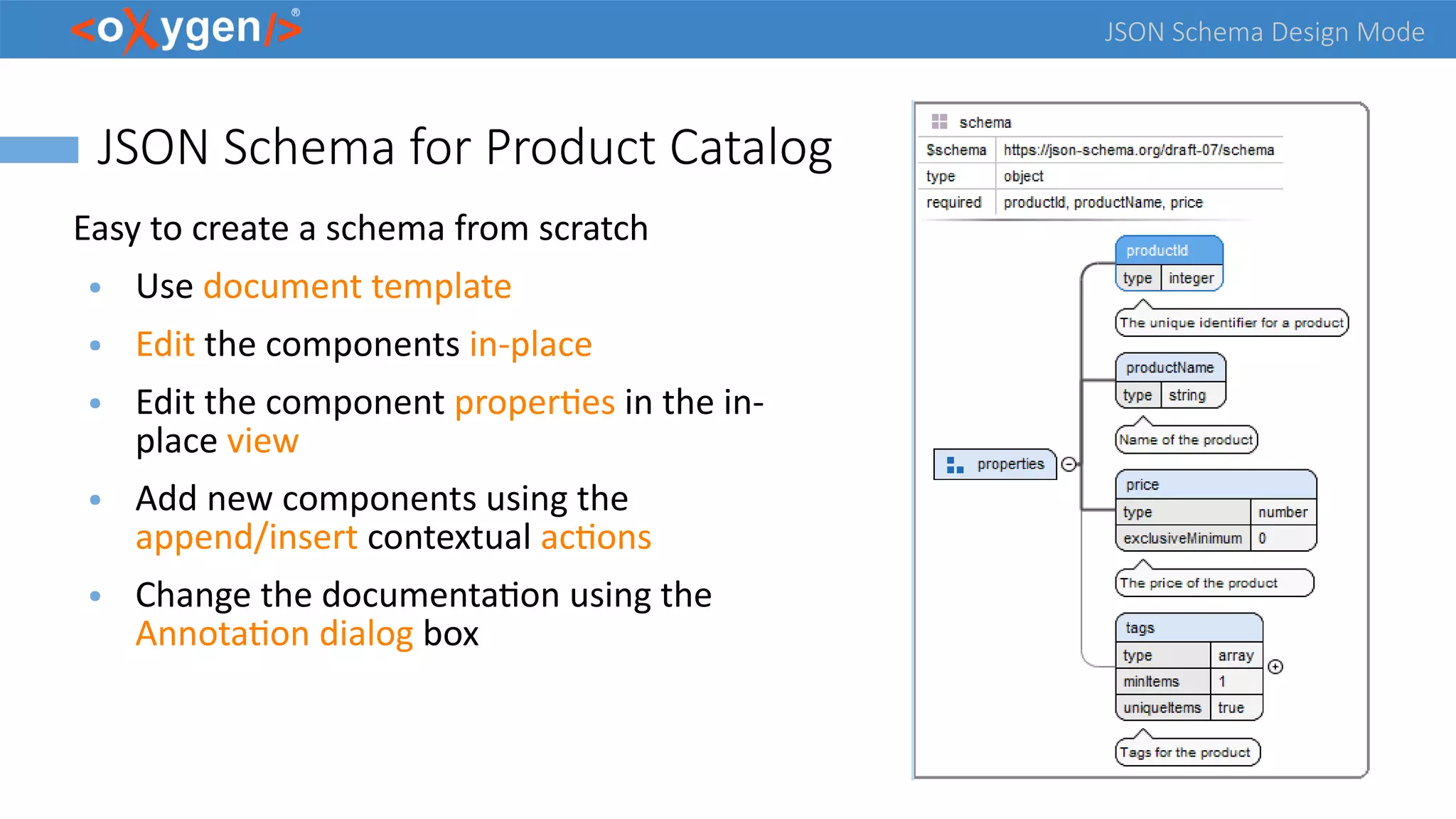

- 16. JSON Schema DesignMode JSON Schema for Product Catalog Easy to create a schema from scratch ● Use document template ● Edit the components in-place ● Edit the component properties in the in- place view ● Add new components using the append/insert contextual actions ● Change the documentation using the Annotation dialog box

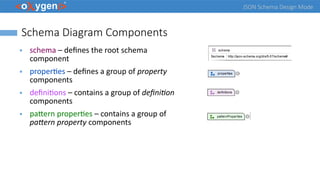

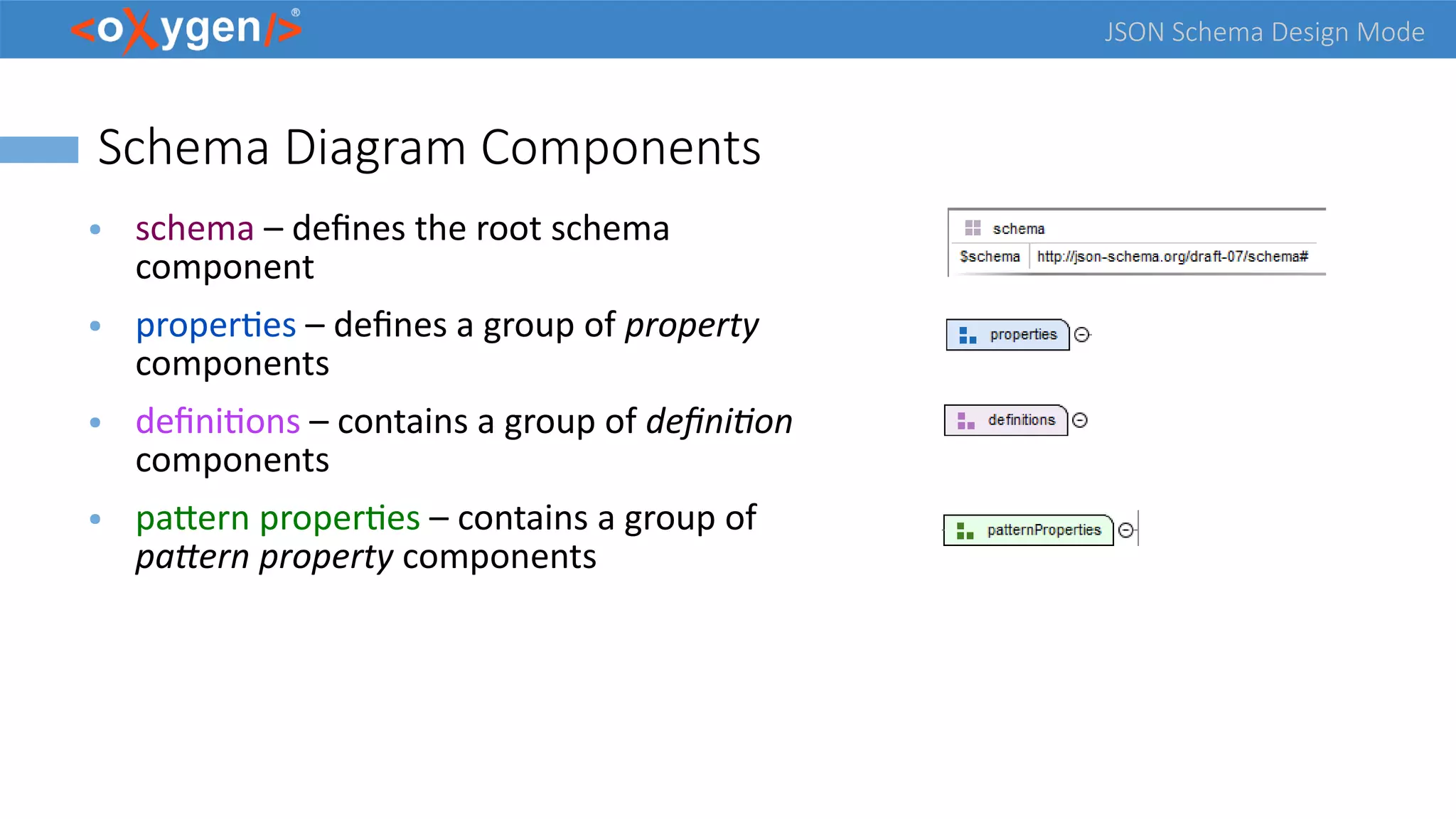

- 17. JSON Schema DesignMode Schema Diagram Components ● schema – defines the root schema component ● properties – defines a group of property components ● definitions – contains a group of definition components ● pattern properties – contains a group of pattern property components

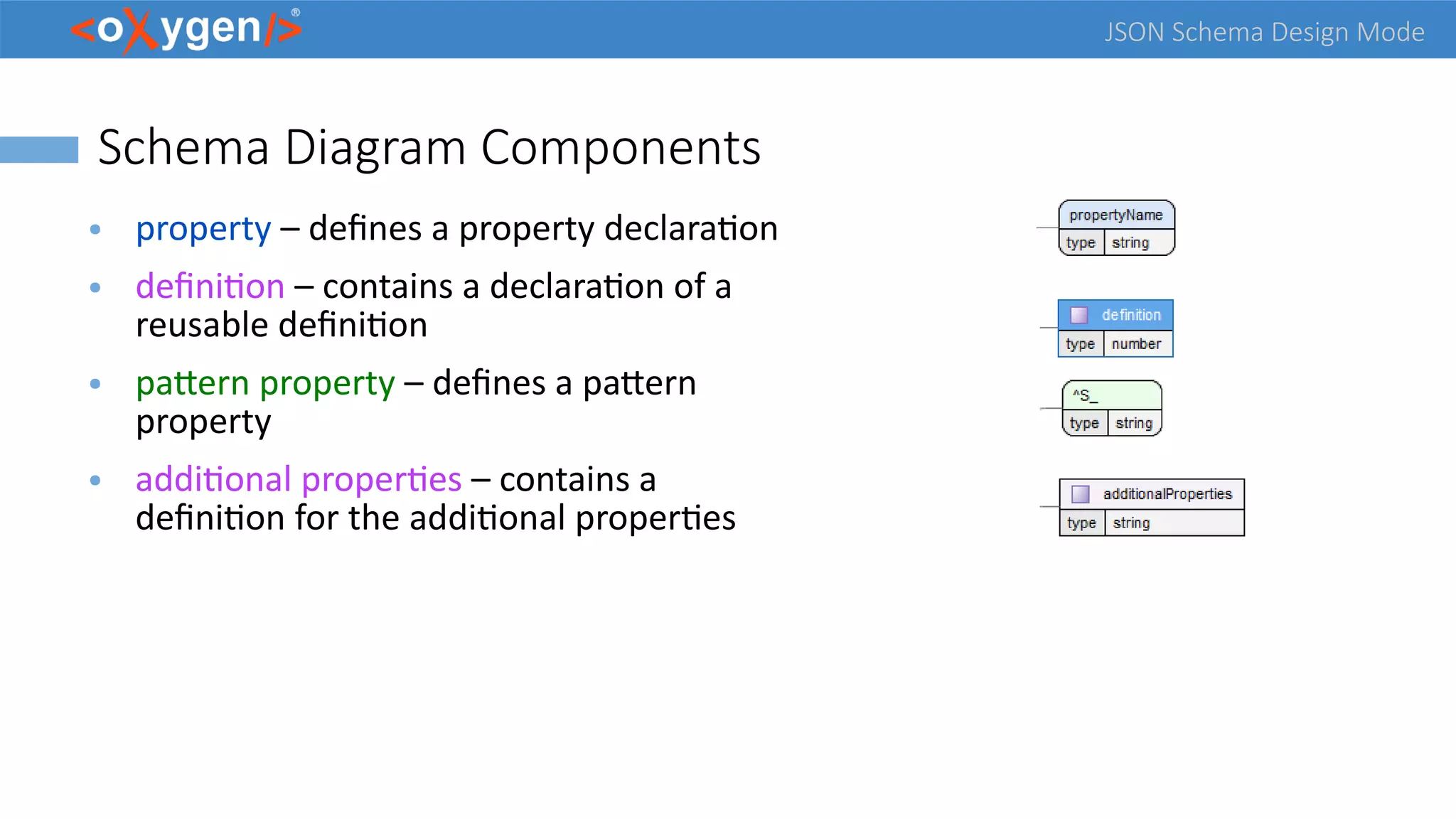

- 18. JSON Schema DesignMode Schema Diagram Components ● property – defines a property declaration ● definition – contains a declaration of a reusable definition ● pattern property – defines a pattern property ● additional properties – contains a definition for the additional properties

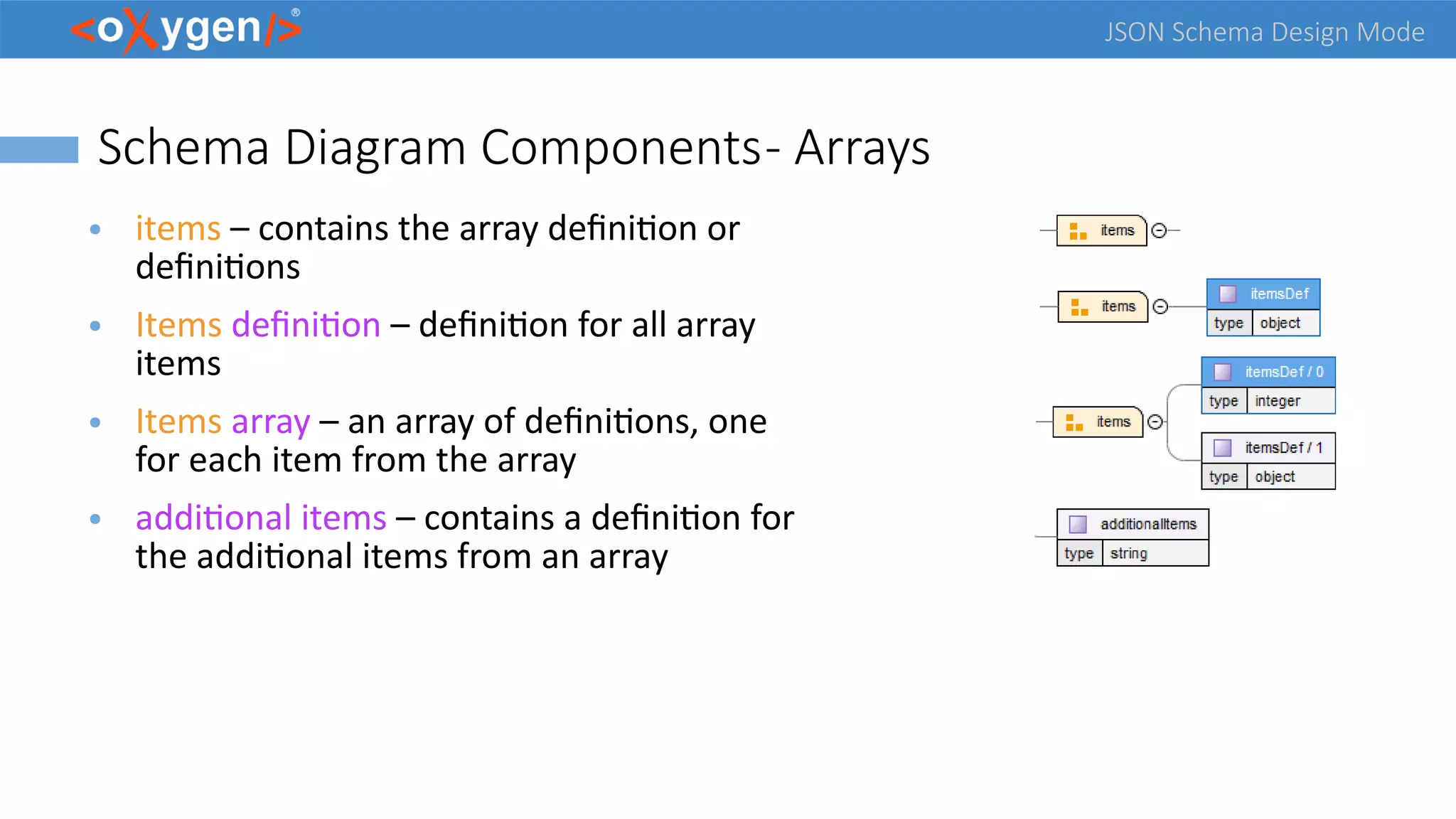

- 19. JSON Schema DesignMode Schema Diagram Components- Arrays ● items – contains the array definition or definitions ● Items definition – definition for all array items ● Items array – an array of definitions, one for each item from the array ● additional items – contains a definition for the additional items from an array

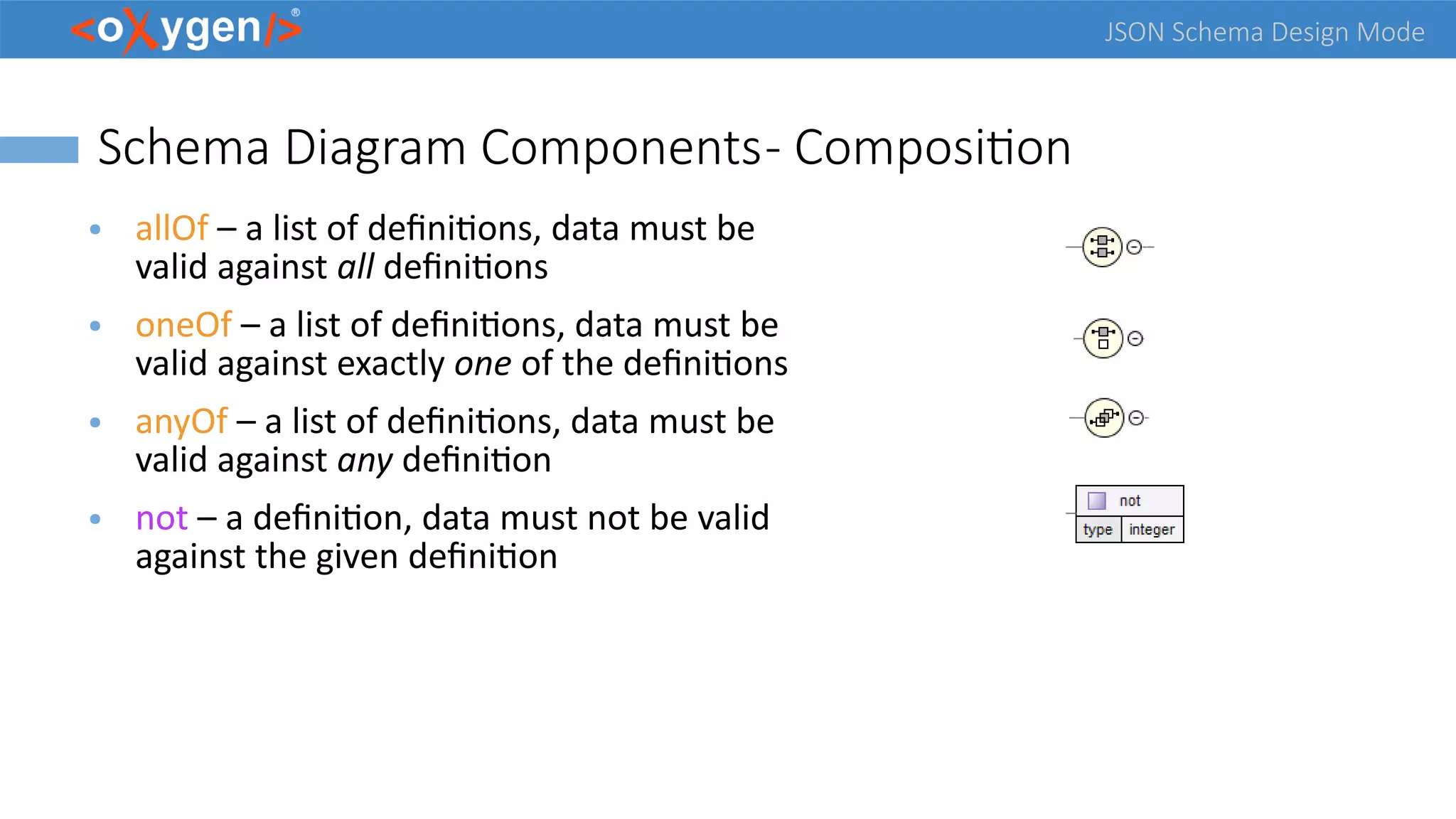

- 20. JSON Schema DesignMode Schema Diagram Components- Composition ● allOf – a list of definitions, data must be valid against all definitions ● oneOf – a list of definitions, data must be valid against exactly one of the definitions ● anyOf – a list of definitions, data must be valid against any definition ● not – a definition, data must not be valid against the given definition

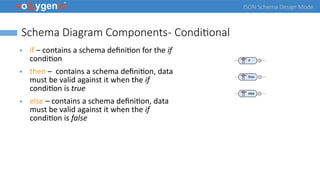

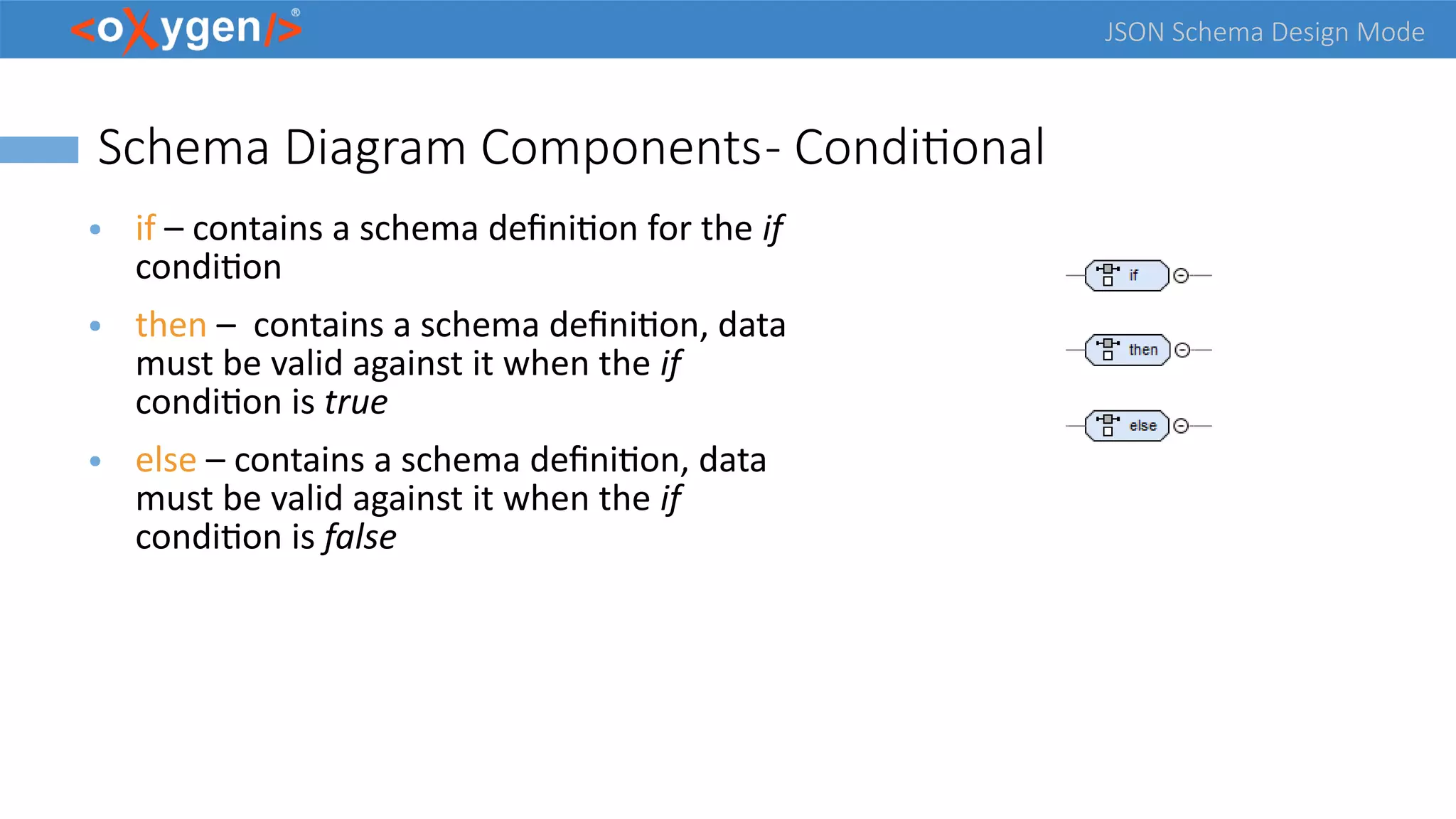

- 21. JSON Schema DesignMode Schema Diagram Components- Conditional ● if – contains a schema definition for the if condition ● then – contains a schema definition, data must be valid against it when the if condition is true ● else – contains a schema definition, data must be valid against it when the if condition is false
- 22. JSON Schema DesignMode Question: How do you use/intend to use JSON Schema? To define an API In a database To validate JSON documents Other (use the Questions pane to provide more details)

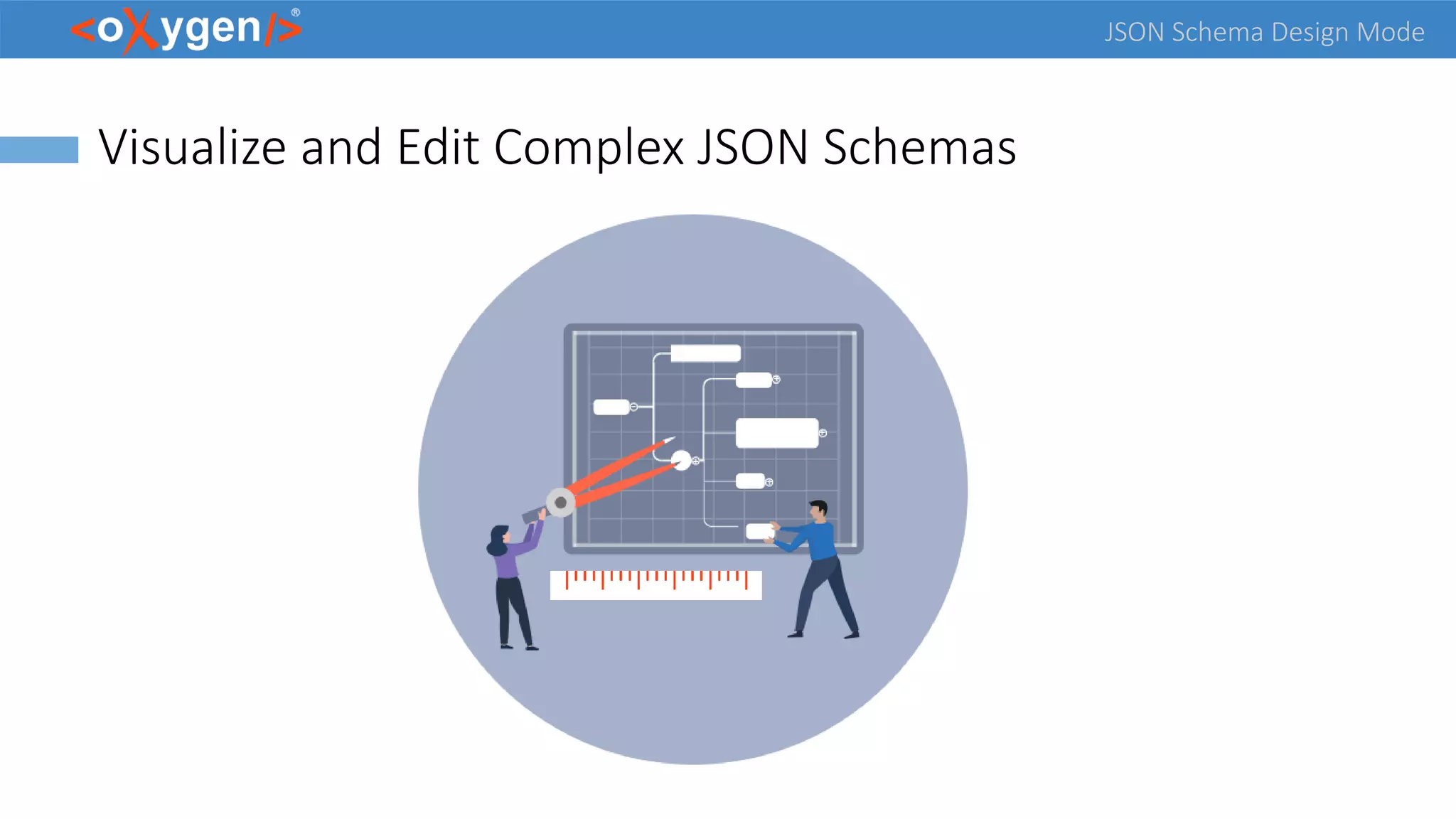

- 23. JSON Schema DesignMode Visualize and Edit Complex JSON Schemas

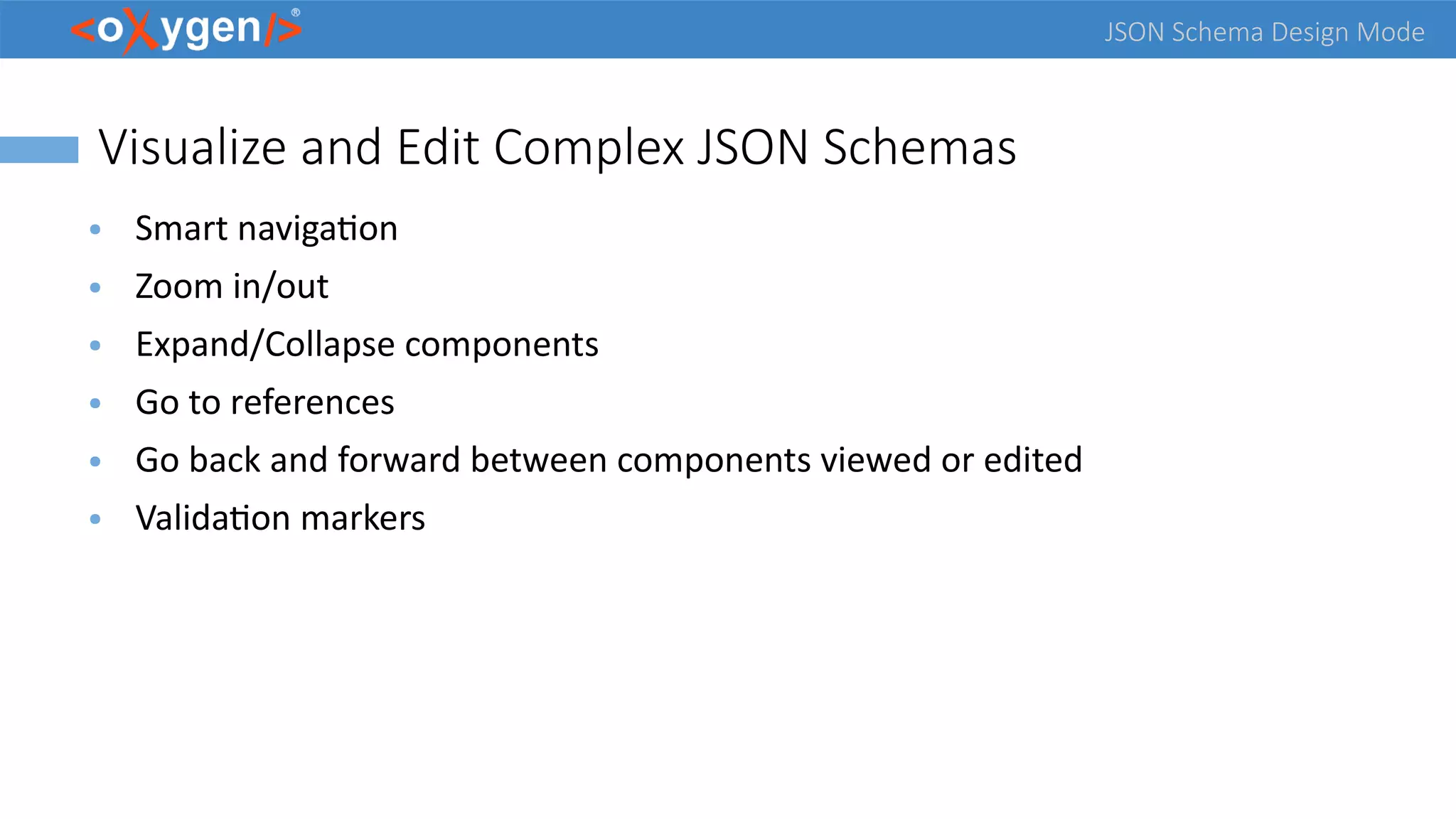

- 24. JSON Schema DesignMode Visualize and Edit Complex JSON Schemas ● Smart navigation ● Zoom in/out ● Expand/Collapse components ● Go to references ● Go back and forward between components viewed or edited ● Validation markers

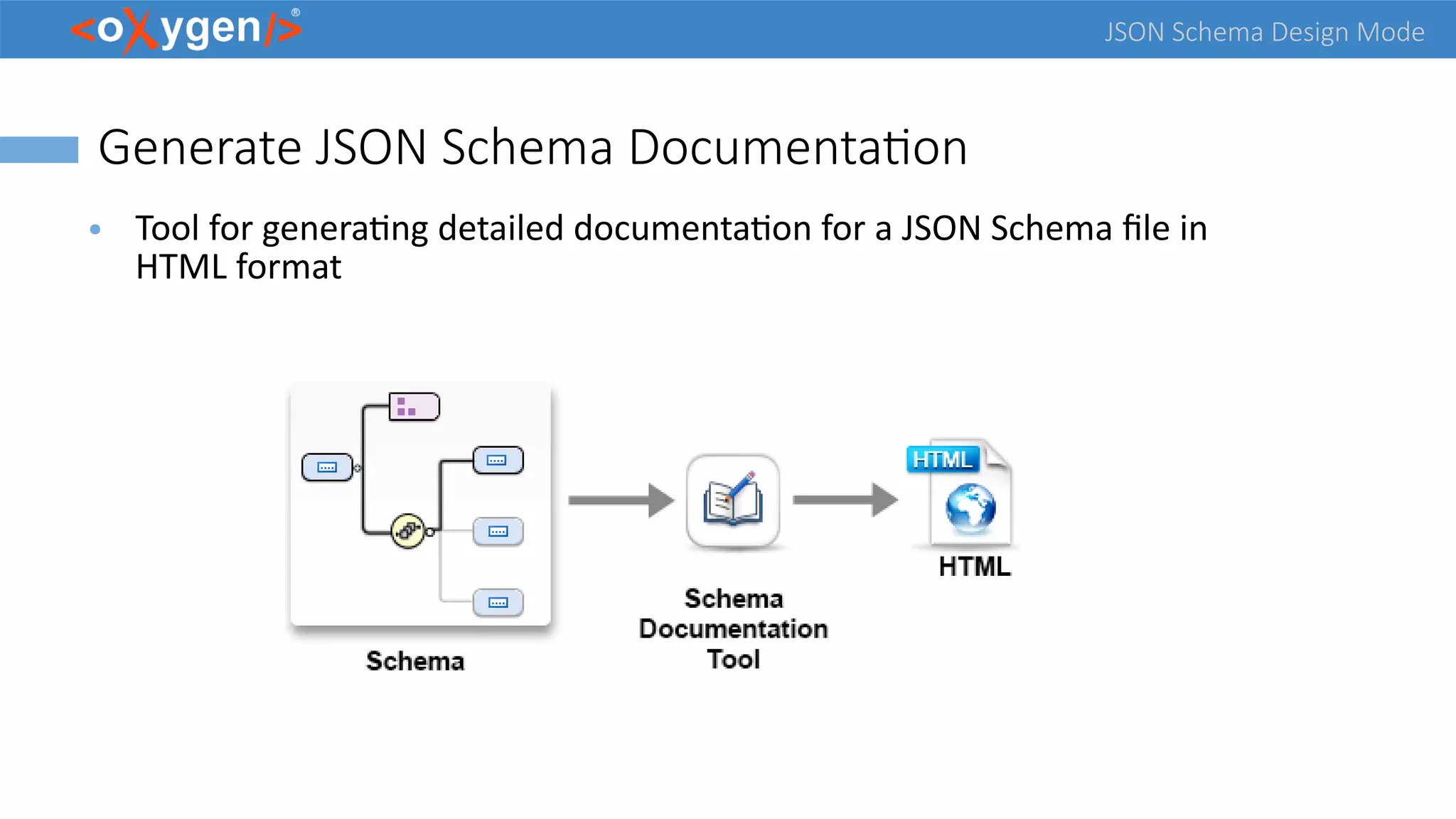

- 25. JSON Schema DesignMode Generate JSON Schema Documentation ● Tool for generating detailed documentation for a JSON Schema file in HTML format

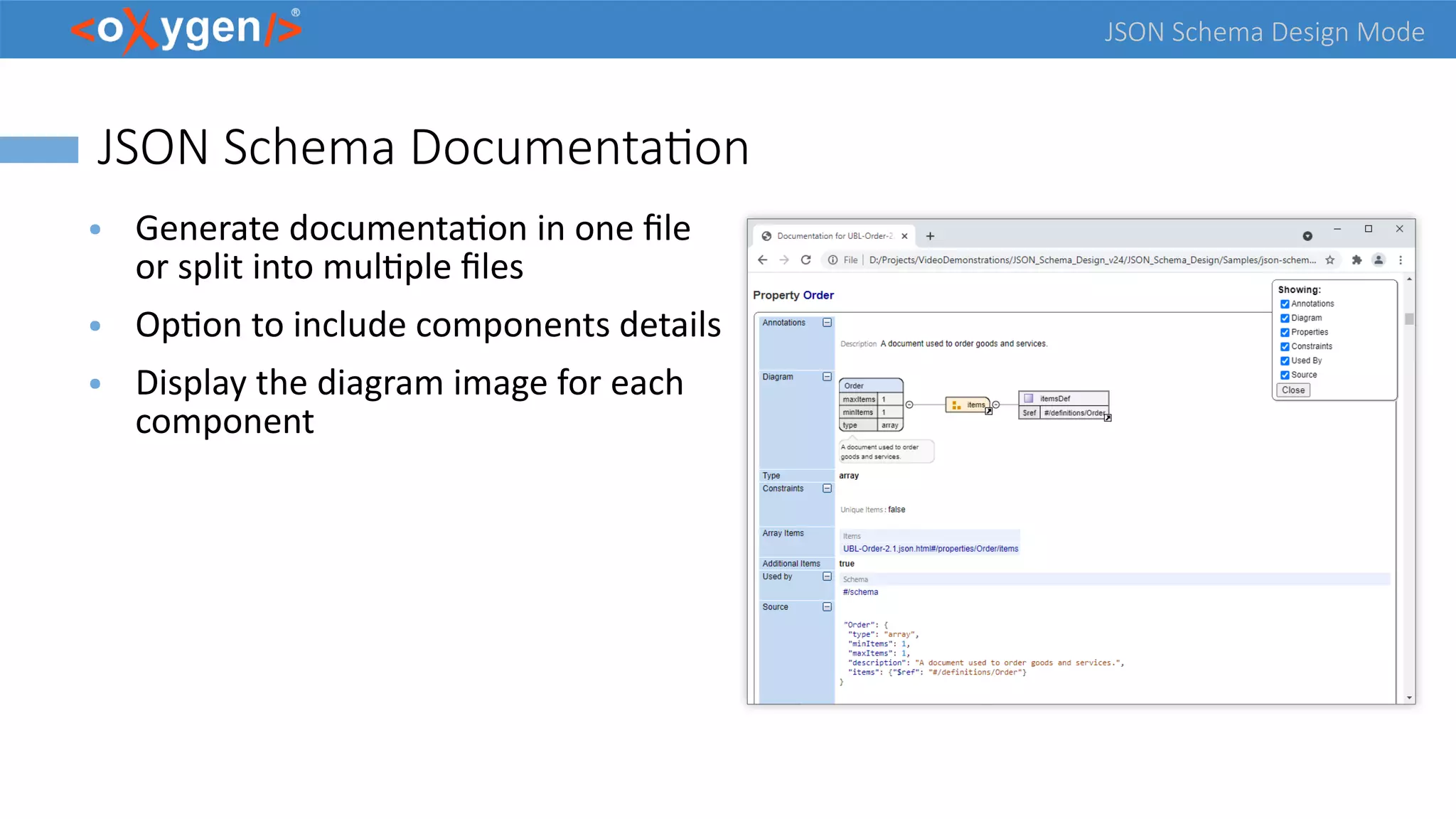

- 26. JSON Schema DesignMode JSON Schema Documentation ● Generate documentation in one file or split into multiple files ● Option to include components details ● Display the diagram image for each component

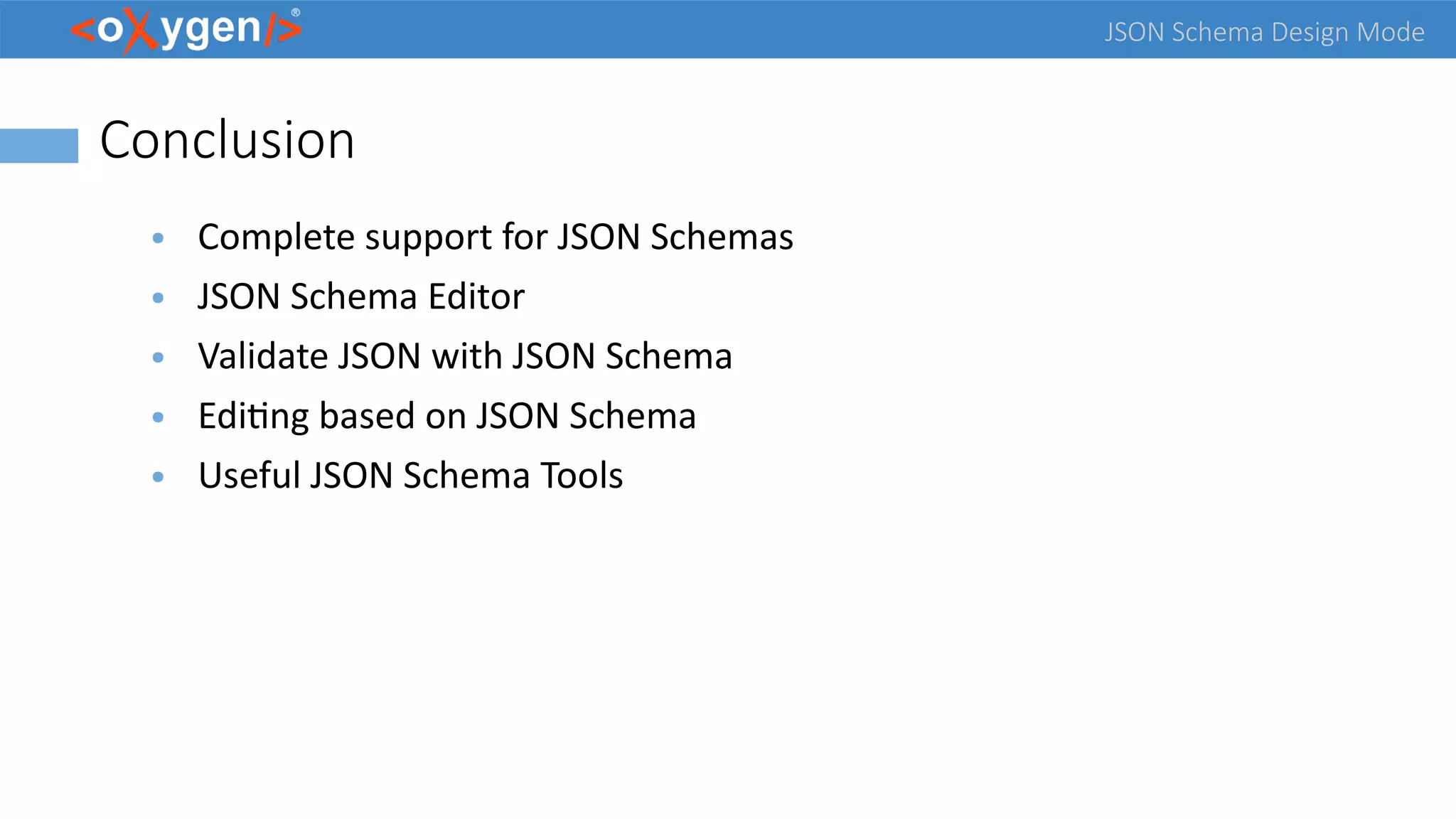

- 27. JSON Schema DesignMode Conclusion ● Complete support for JSON Schemas ● JSON Schema Editor ● Validate JSON with JSON Schema ● Editing based on JSON Schema ● Useful JSON Schema Tools

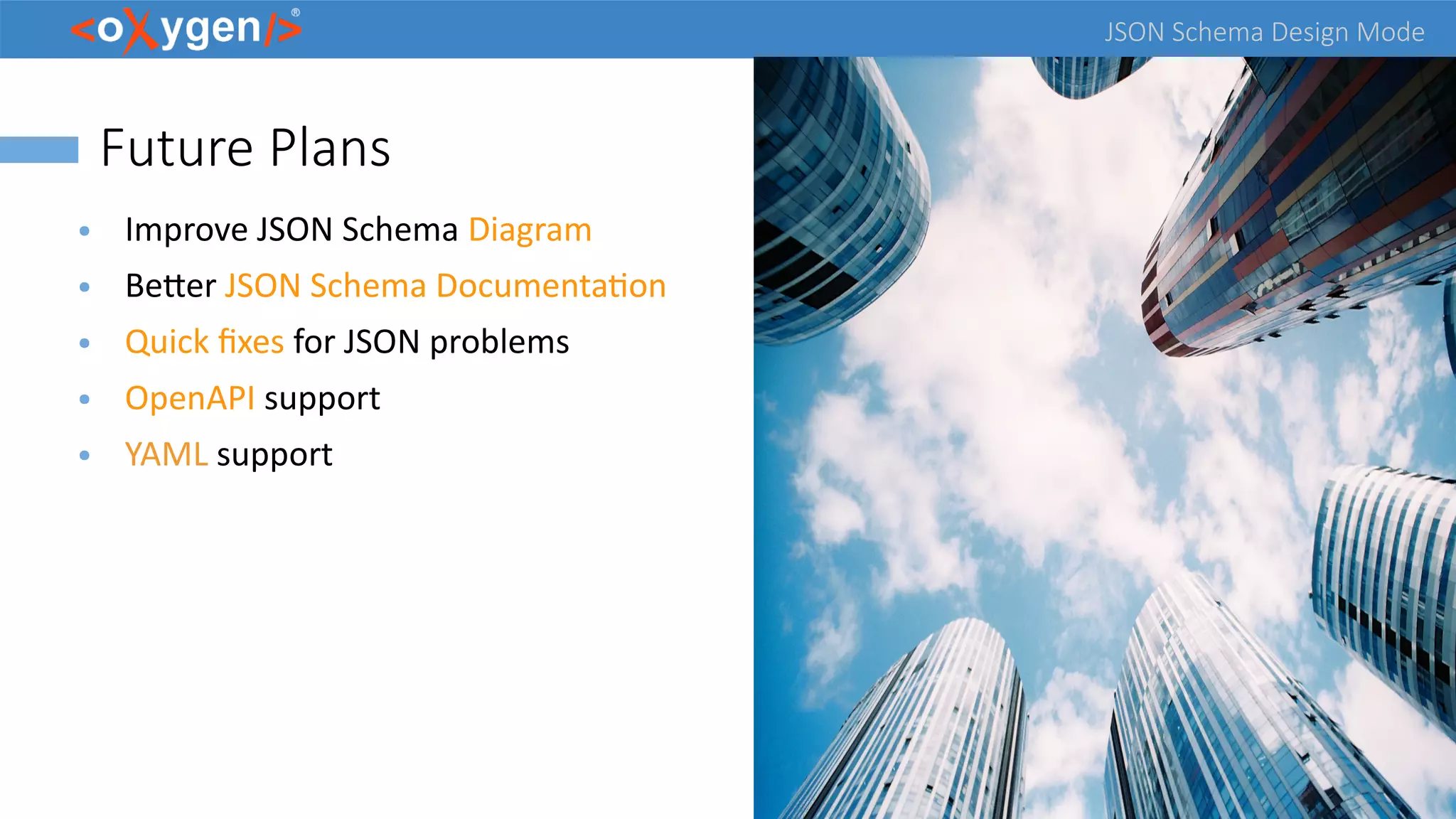

- 28. JSON Schema DesignMode Future Plans ● Improve JSON Schema Diagram ● Better JSON Schema Documentation ● Quick fixes for JSON problems ● OpenAPI support ● YAML support
- 29. JSON Schema DesignMode Question: What features are the most important for you? JSON Schema Diagram JSON Schema Documentation Quick fixes for JSON problems OpenAPI support YAML support

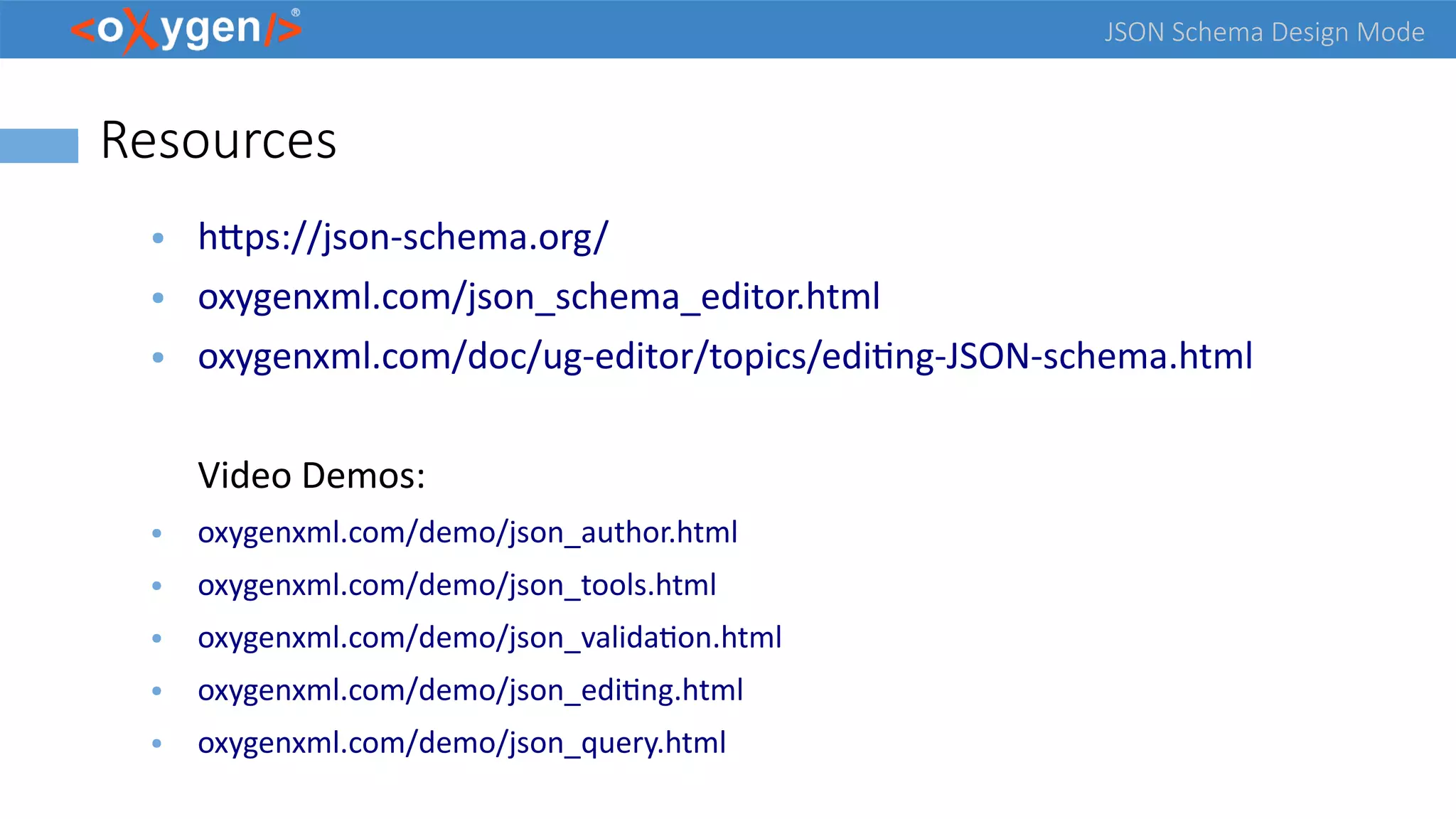

- 30. JSON Schema DesignMode Resources ● https://json-schema.org/ ● oxygenxml.com/json_schema_editor.html ● oxygenxml.com/doc/ug-editor/topics/editing-JSON-schema.html Video Demos: ● oxygenxml.com/demo/json_author.html ● oxygenxml.com/demo/json_tools.html ● oxygenxml.com/demo/json_validation.html ● oxygenxml.com/demo/json_editing.html ● oxygenxml.com/demo/json_query.html
- 31. Questions? Octavian Nadolu Product Managerat Syncro Soft octavian.nadolu@oxygenxml.com Twitter: @OctavianNadolu LinkedIn: octaviannadolu
