Kafka based Global Data Mesh at Wix

@NSilnitsky
@NSilnitsky
Kafka- based Global Data Mesh
Kafka-based Global Data
Mesh at Wix
Natan Silnitsky Backend Infra TL, Wix.com
natansil.com twitter@NSilnitsky linkedin/natansilnitsky github.com/natansil

@NSilnitsky
@NSilnitsky

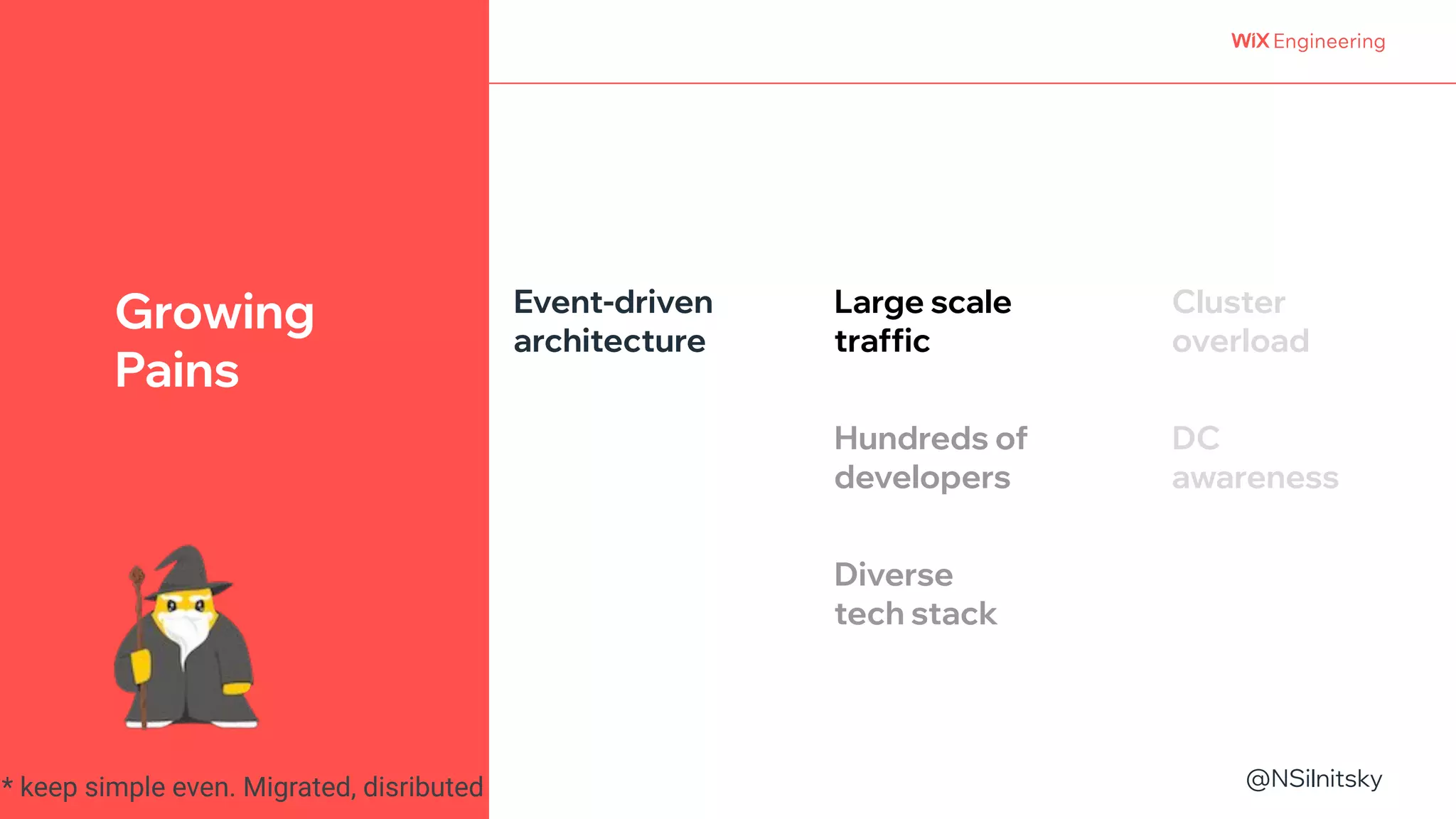

Growing
Pains
Large scale
traffic
Hundreds of
developers
Event-driven
architecture
Diverse
tech stack
Cluster
overload
DC
awareness
* keep simple even. Migrated, disributed

@NSilnitsky
@NSilnitsky

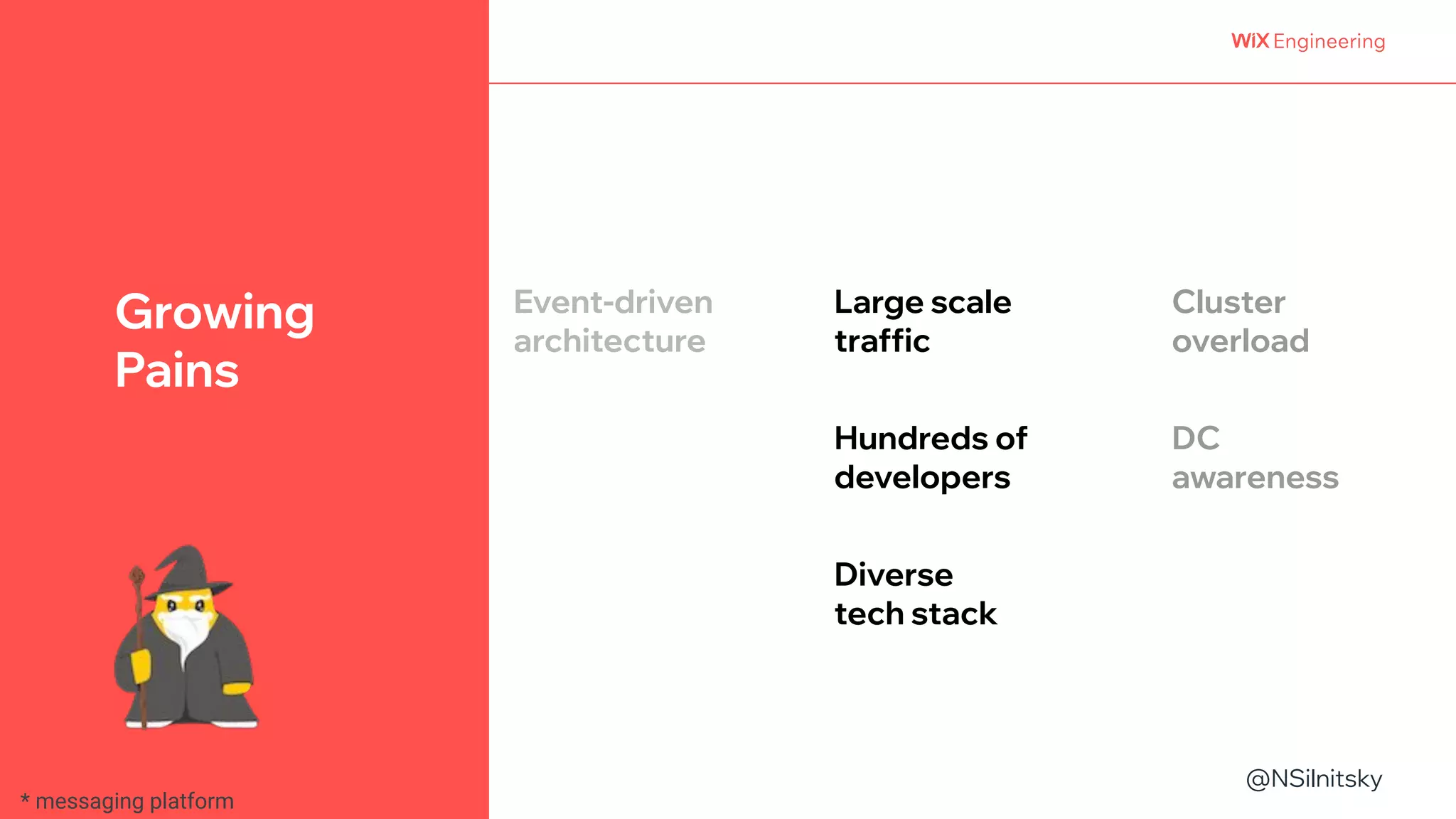

Growing
Pains
Large scale
traffic
Hundreds of
developers
Event-driven
architecture
Diverse
tech stack
Cluster
overload
DC
awareness
* messaging platform

@NSilnitsky
@NSilnitsky

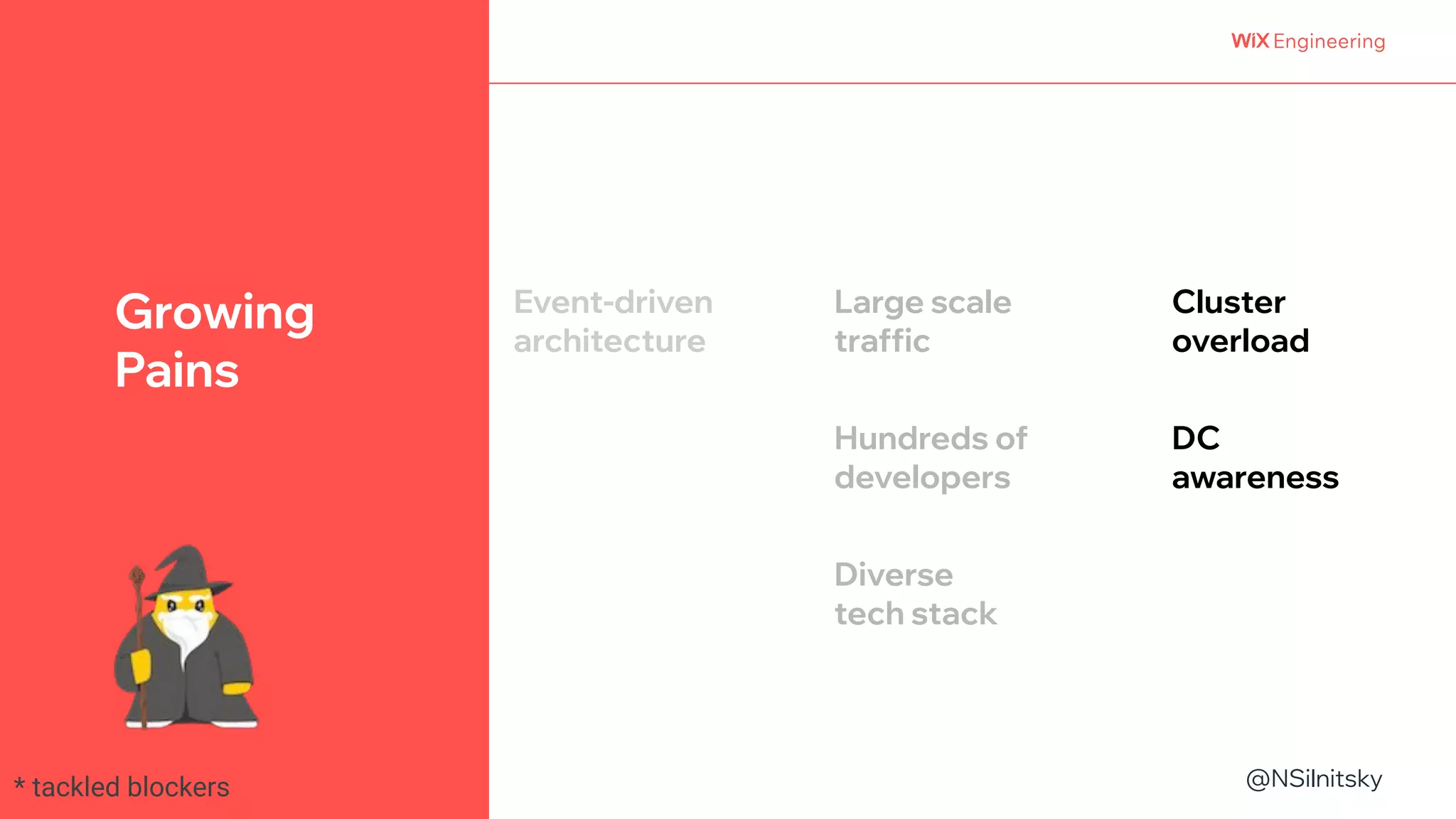

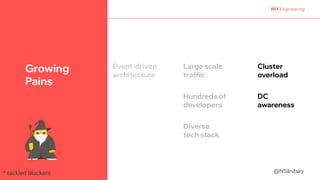

Growing
Pains
Large scale
traffic
Hundreds of
developers
Event-driven
architecture
Diverse
tech stack
Cluster
overload
DC
awareness
* tackled blockers

@NSilnitsky
@NSilnitsky

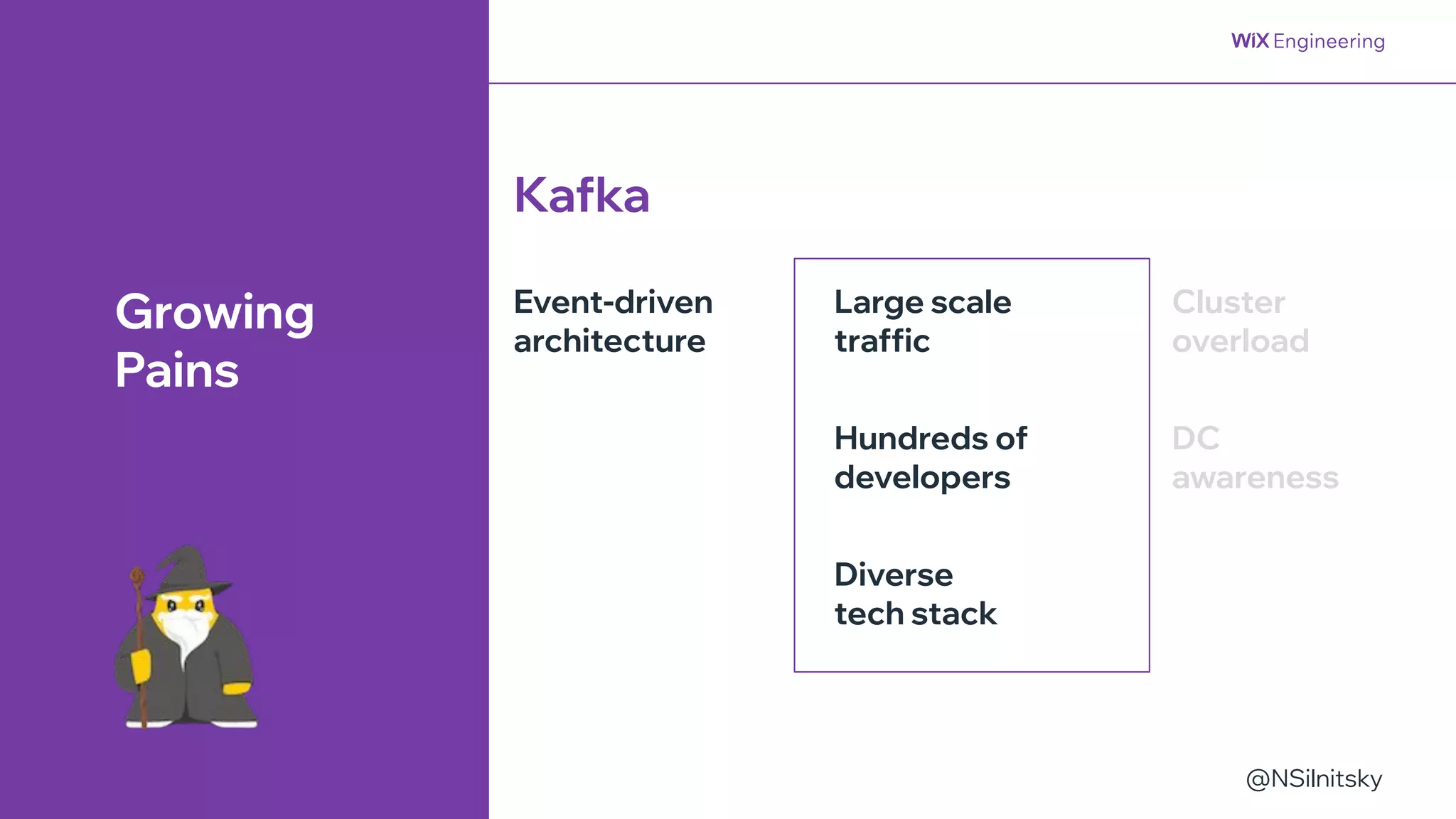

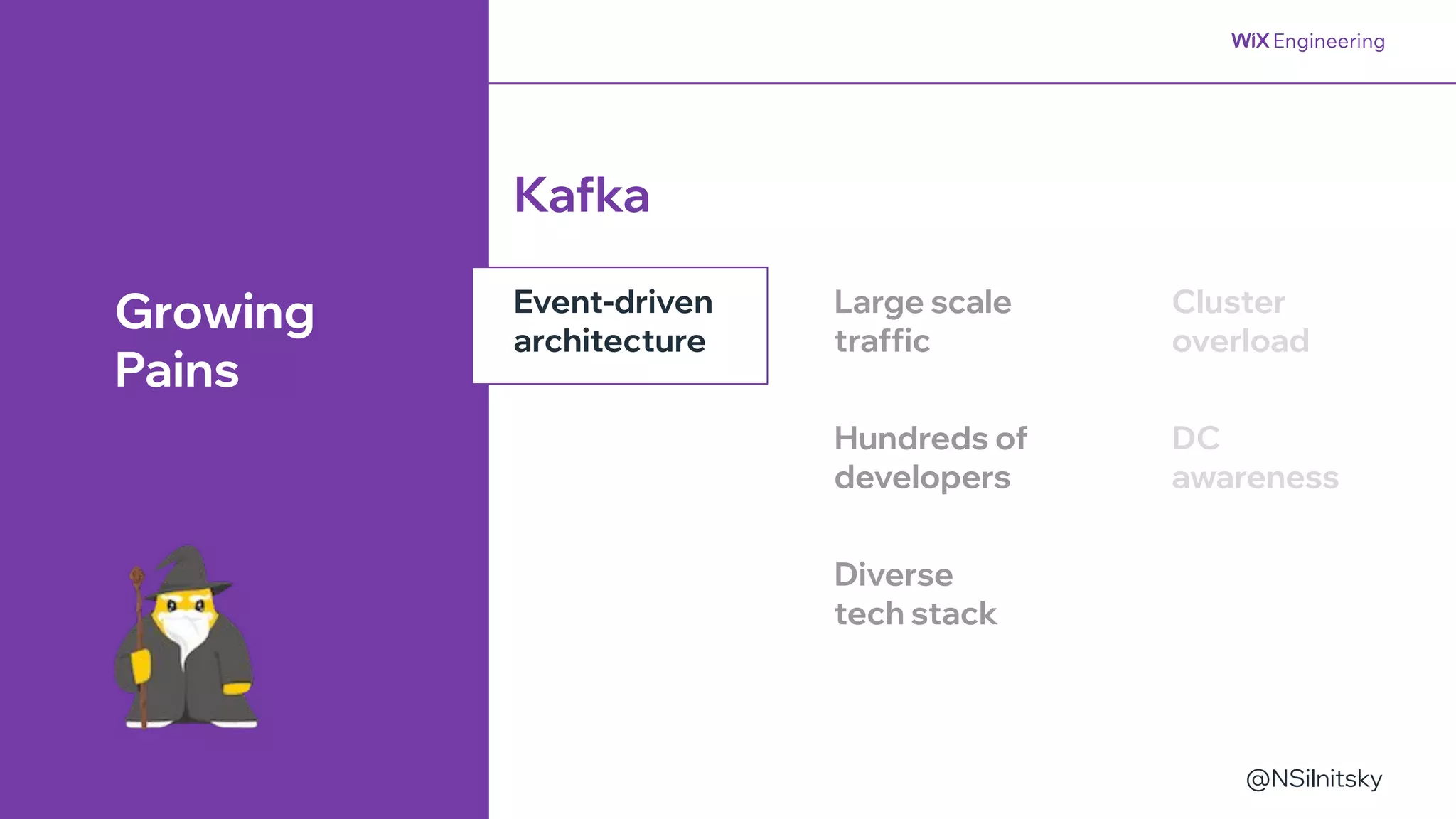

Event-driven
architecture
Kafka
Growing
Pains
Large scale
traffic
Hundreds of
developers
Diverse
tech stack
Cluster
overload
DC
awareness

@NSilnitsky

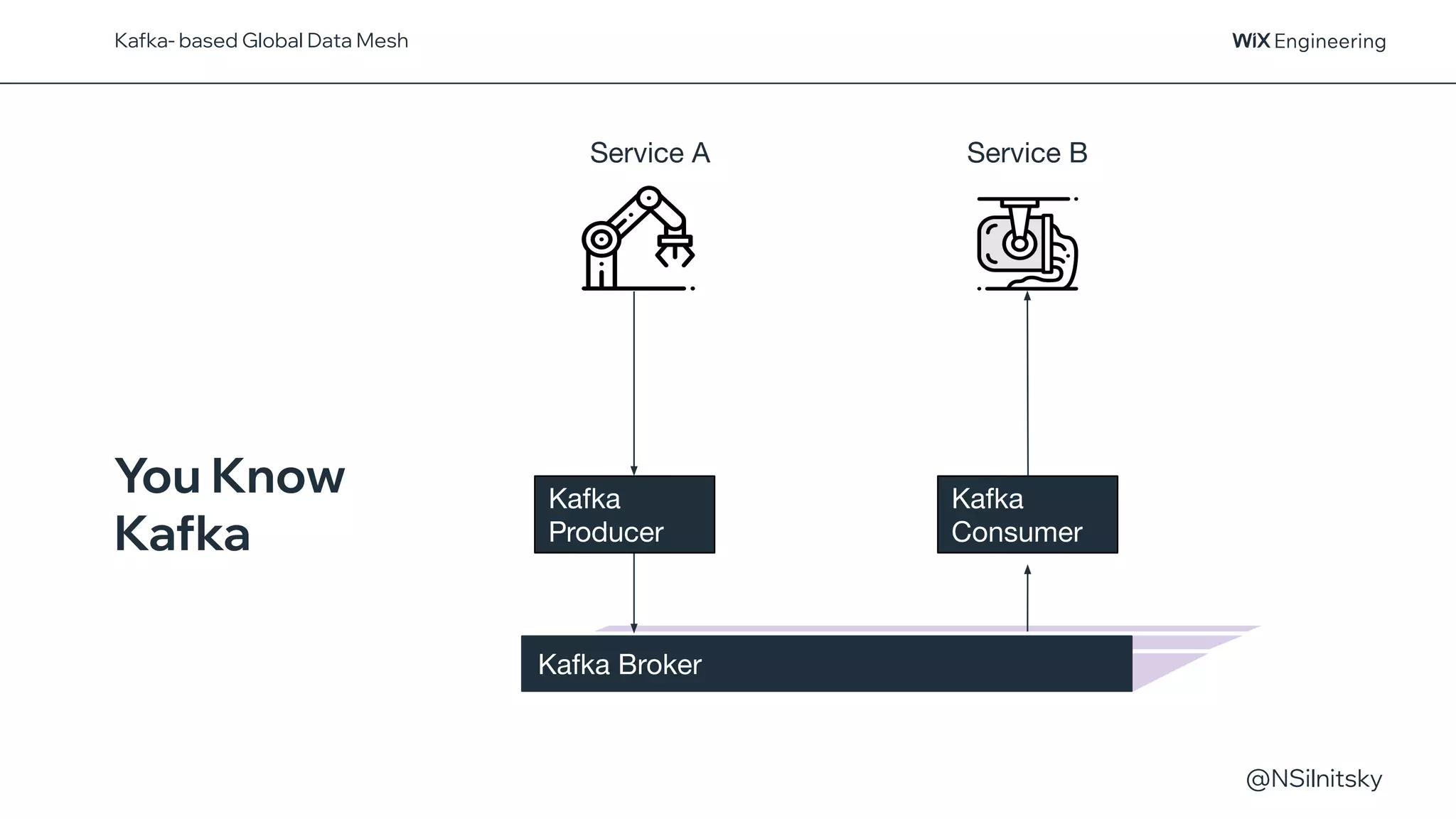

Kafka Broker
You Know
Kafka
Kafka
Consumer
Kafka Broker
Service A Service B
Kafka
Producer

@NSilnitsky

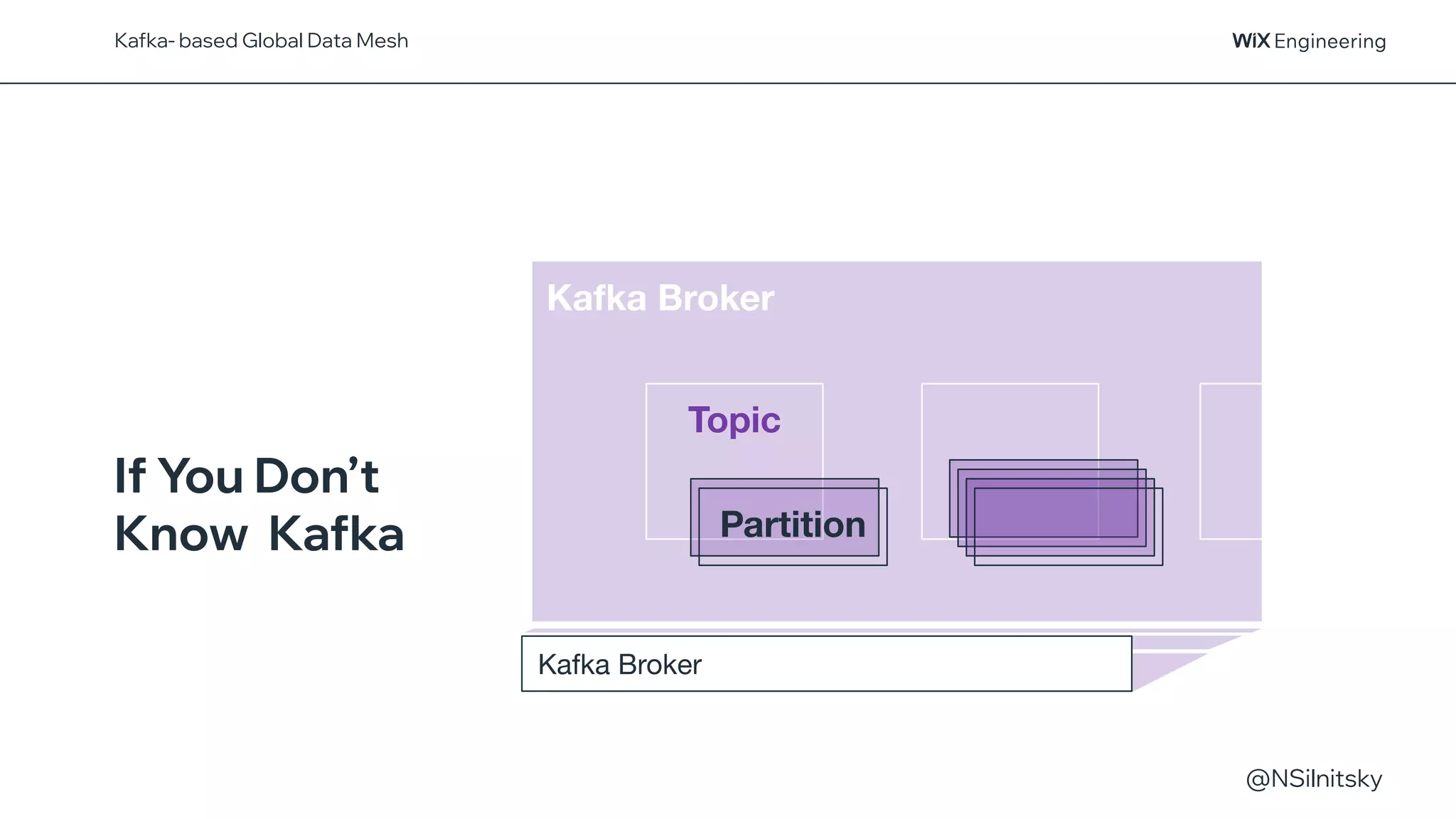

If You Don’t
Know Kafka
Kafka Broker
Kafka Broker
Topic
Partition

@NSilnitsky

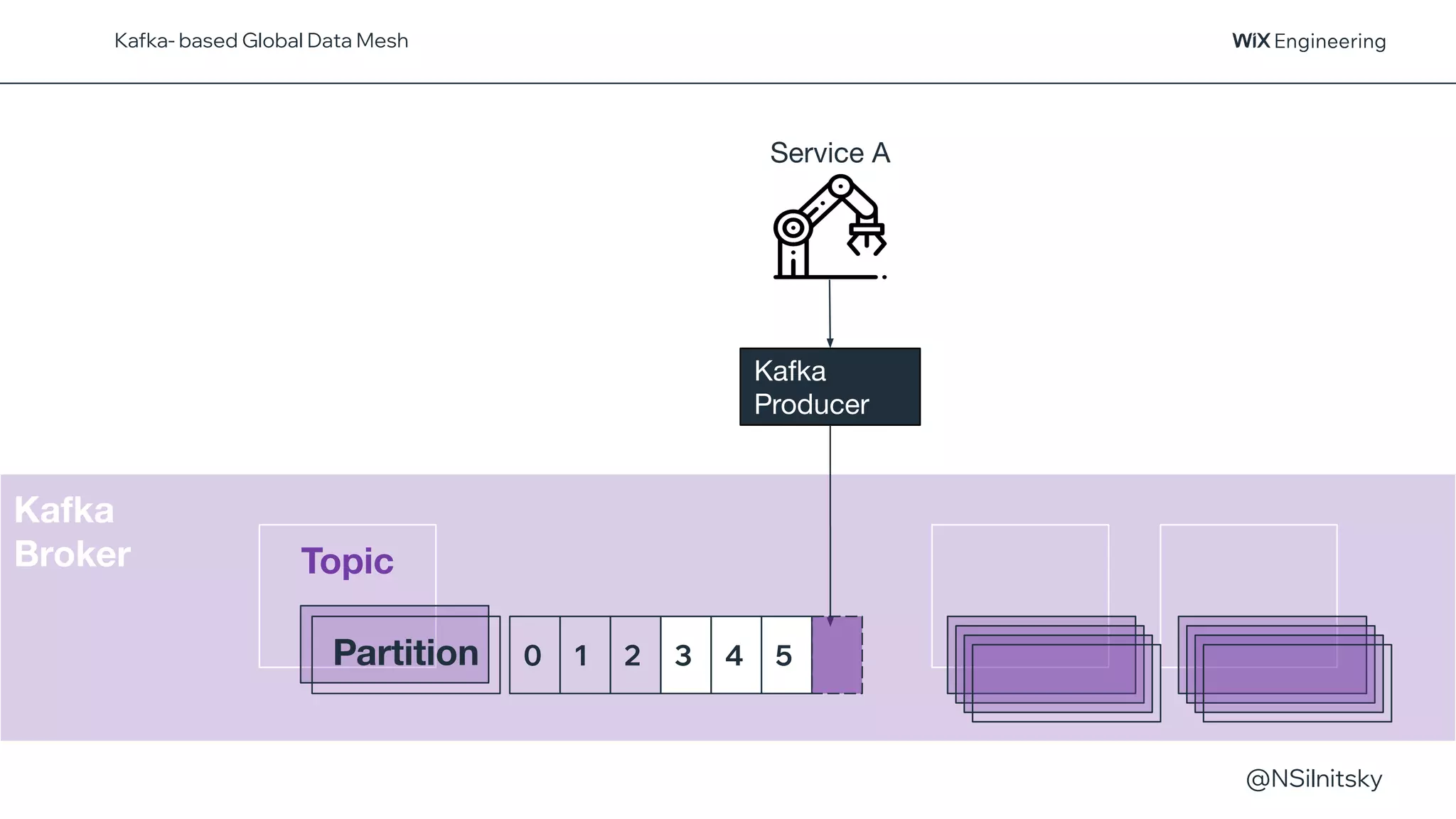

Kafka
Broker Topic
Partition
Kafka
Producer
0 1 2 3 4 5
Service A

@NSilnitsky

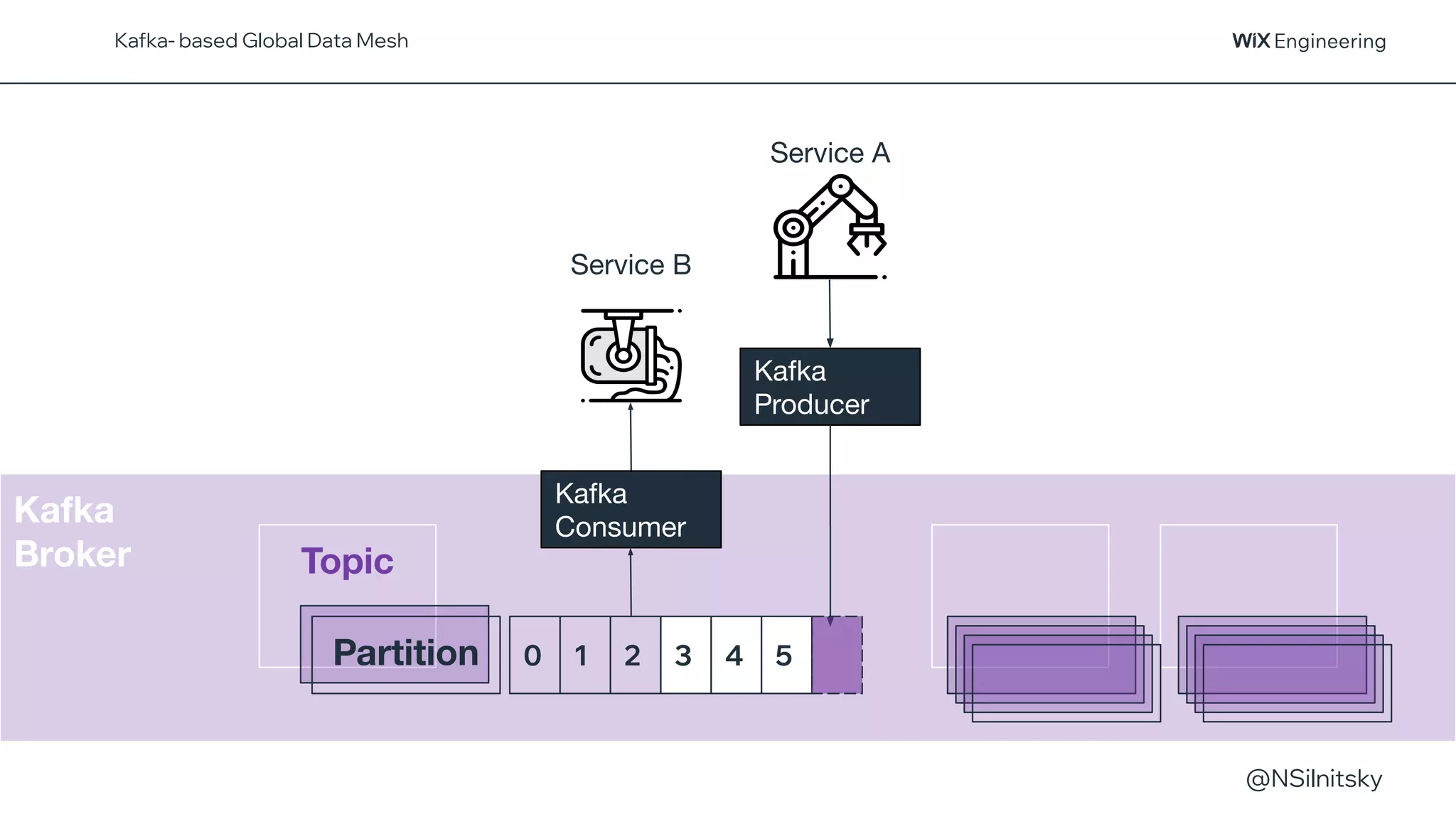

Kafka
Broker Topic
Partition
Kafka
Producer
0 1 2 3 4 5
Service A
Service B
Kafka
Consumer

@NSilnitsky
@NSilnitsky
Large scale
traffic
Hundreds of
developers
Event-driven
architecture
Diverse
tech stack
Kafka
Growing
Pains
Cluster
overload
DC
awareness

@NSilnitsky

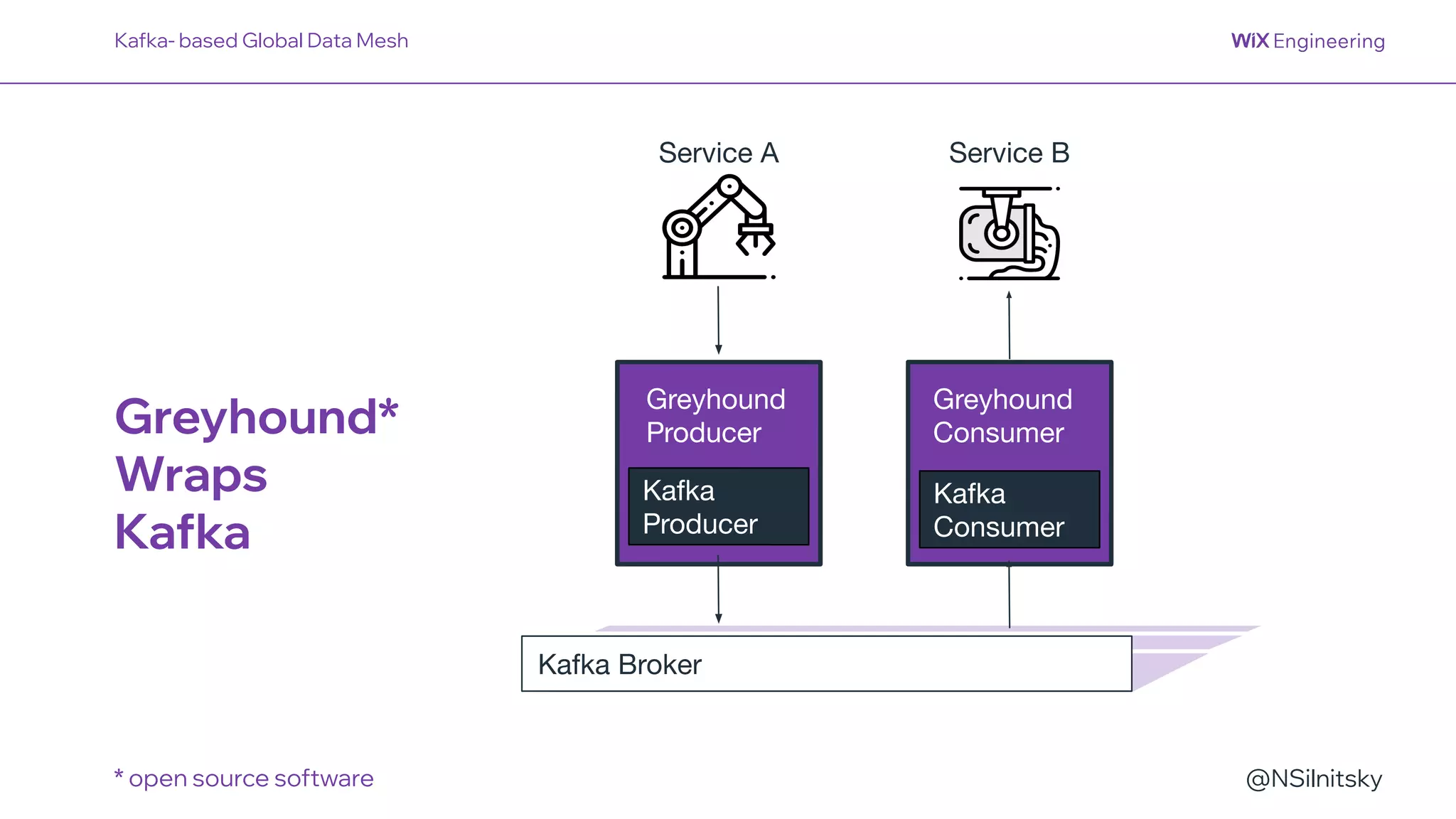

Greyhound
Consumer
Greyhound
Producer
Greyhound*
Wraps
Kafka
* open source software
Kafka Broker
Kafka
Producer
Service A Service B
Kafka
Consumer

@NSilnitsky

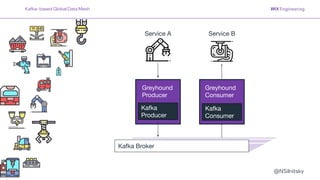

Greyhound
Consumer
Greyhound
Producer
Kafka Broker
Kafka
Producer
Service A Service B
Kafka
Consumer

@NSilnitsky
@NSilnitsky

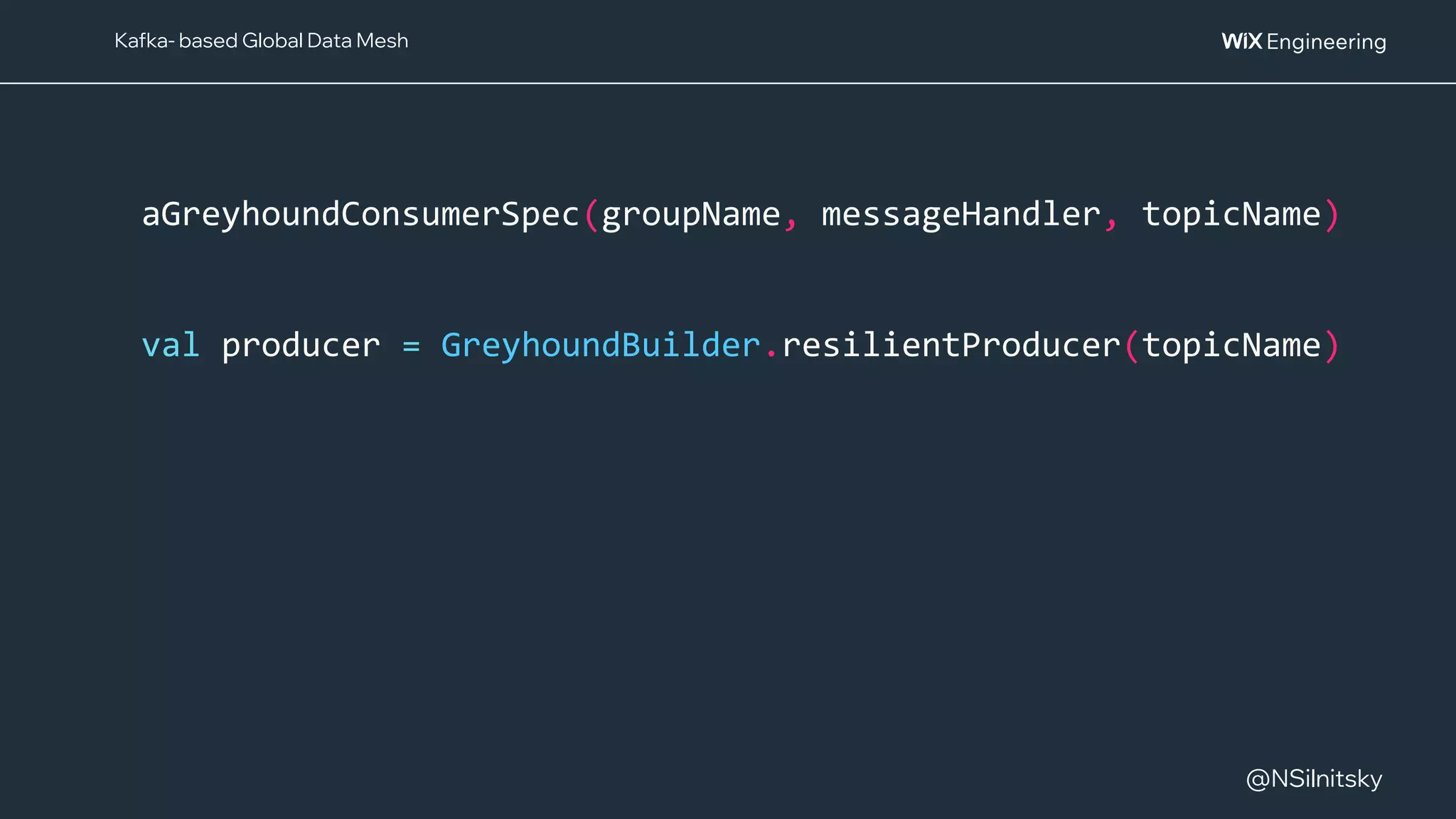

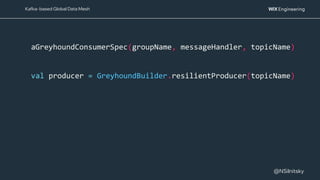

aGreyhoundConsumerSpec(groupName, messageHandler, topicName)
val producer = GreyhoundBuilder.resilientProducer(topicName)

@NSilnitsky

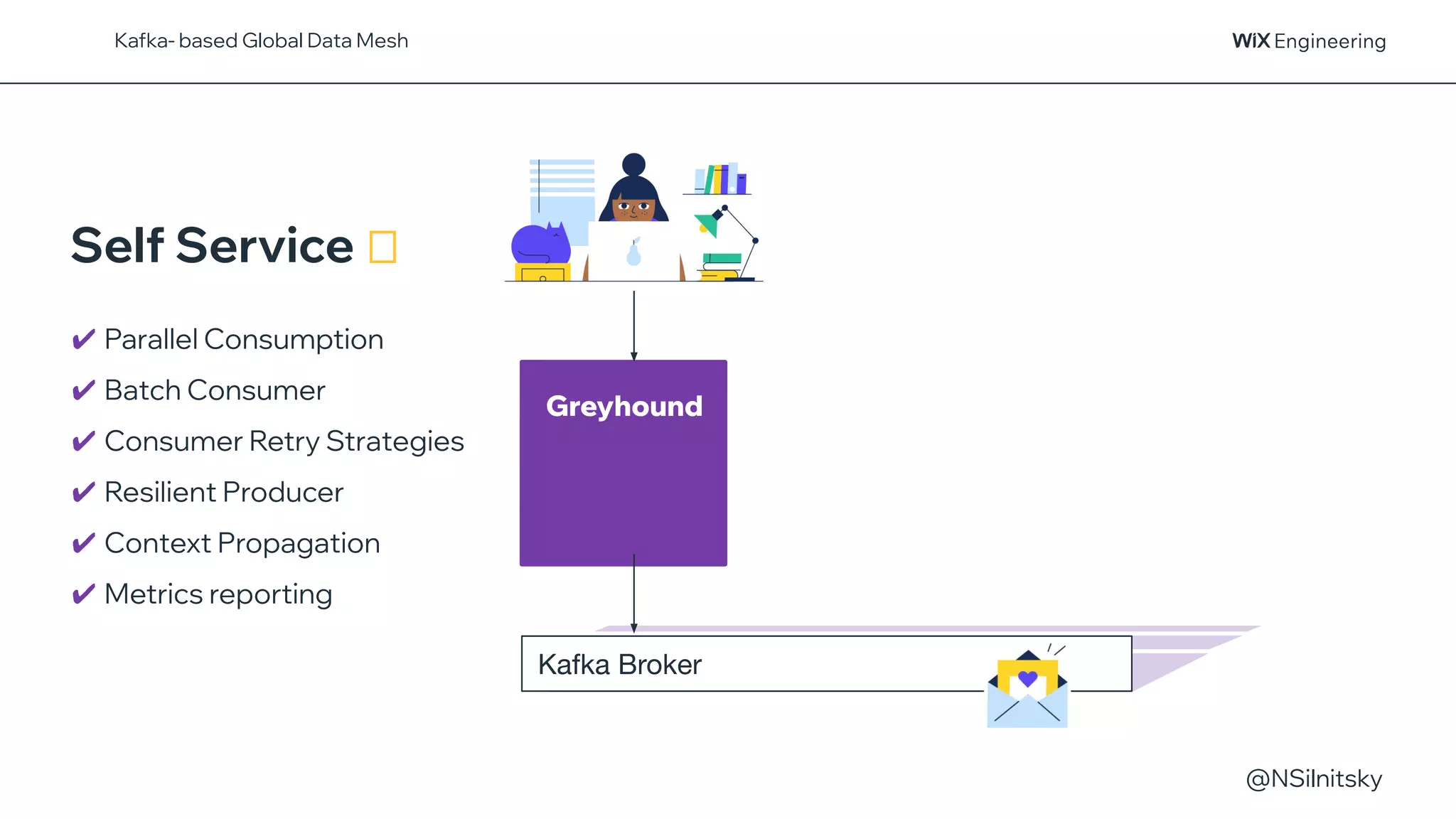

✔ Parallel Consumption
✔ Batch Consumer
✔ Consumer Retry Strategies
✔ Resilient Producer
✔ Context Propagation
✔ Metrics reporting
Self Service 🟊
Greyhound
Kafka Broker

@NSilnitsky

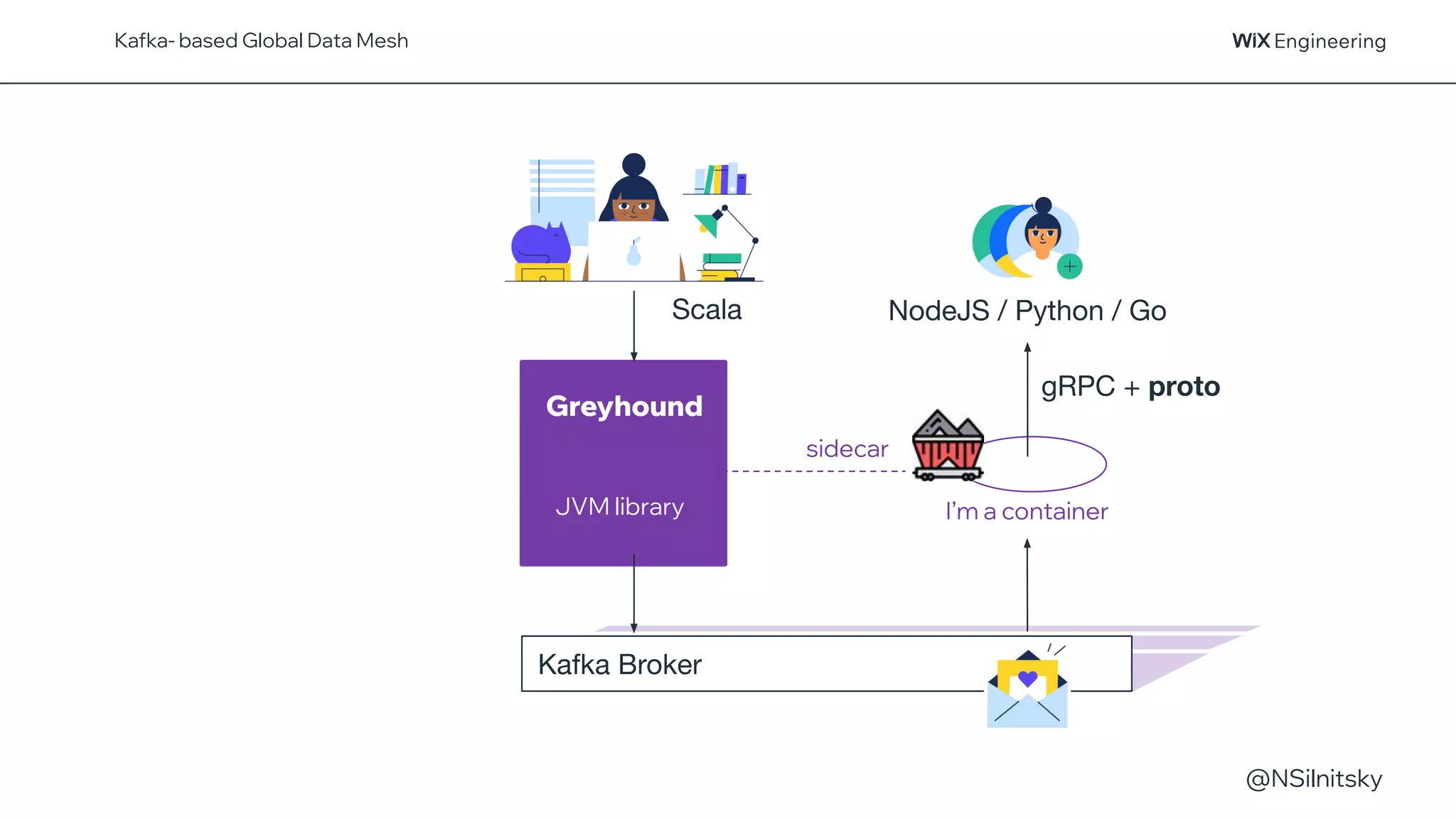

Scala NodeJS / Python / Go
Greyhound
Kafka Broker
I’m a container
gRPC + proto
sidecar
JVM library

@NSilnitsky

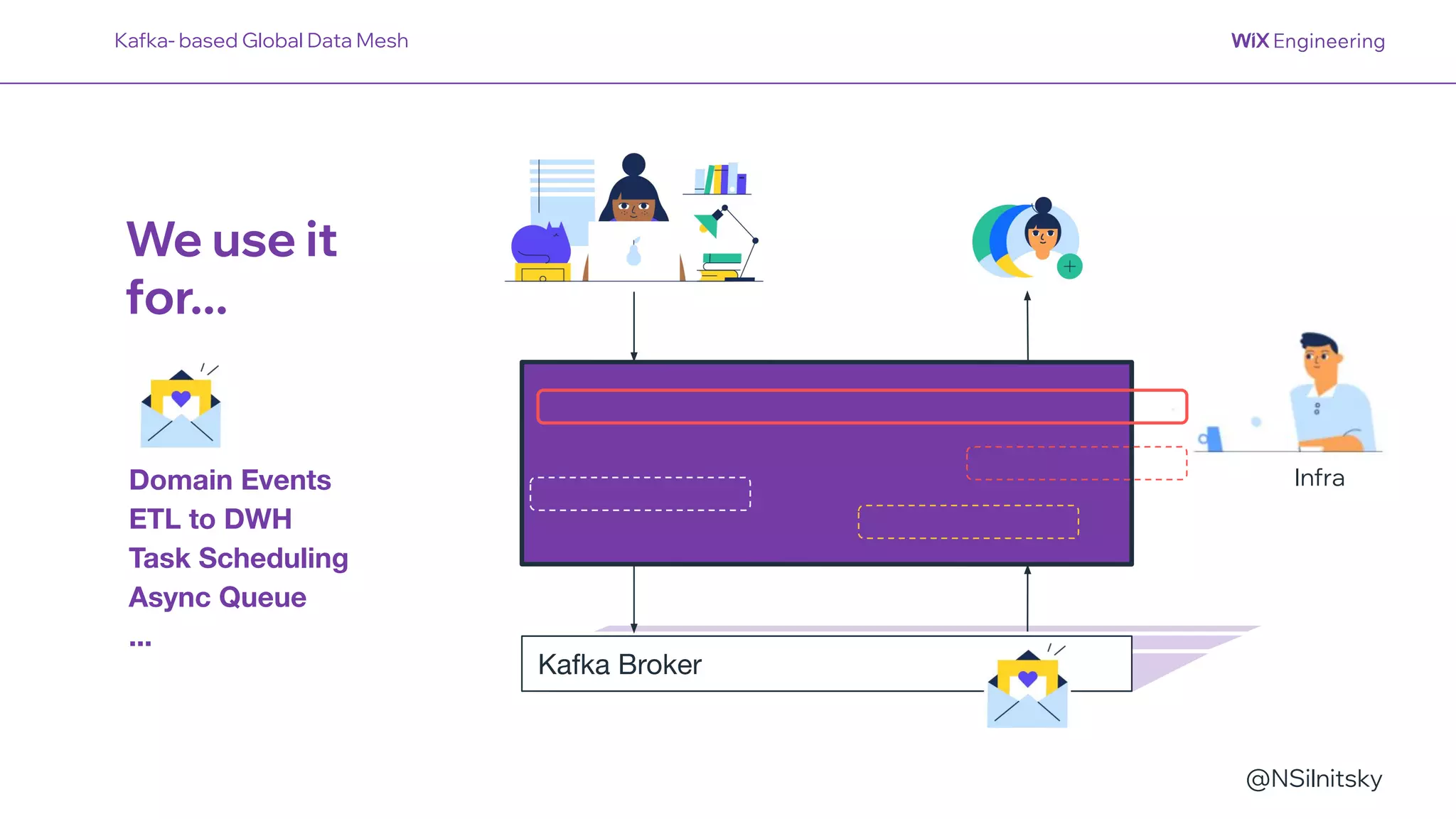

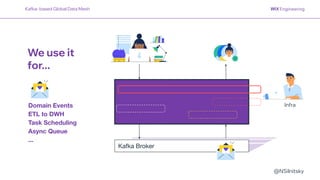

Kafka Broker
Domain Events
ETL to DWH
Task Scheduling
Async Queue
...
We use it
for...
Infra

@NSilnitsky

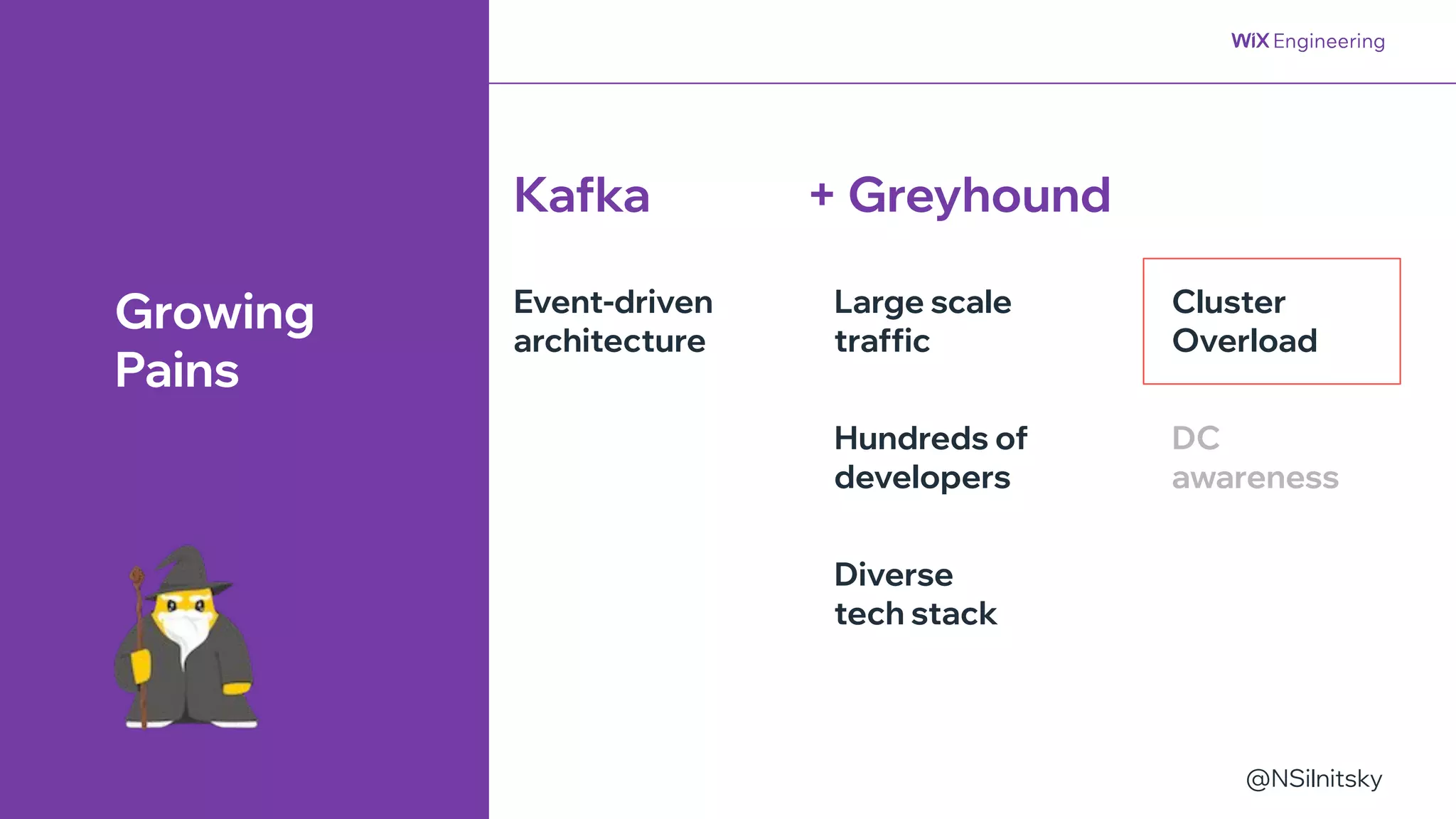

@NSilnitsky
Hundreds of
developers
Event-driven
architecture
Diverse
tech stack
Kafka + Greyhound
Growing
Pains
Large scale
traffic
Cluster
Overload
DC
awareness

@NSilnitsky
@NSilnitsky

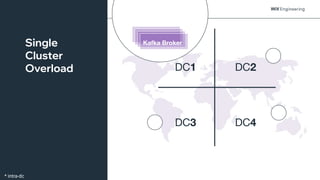

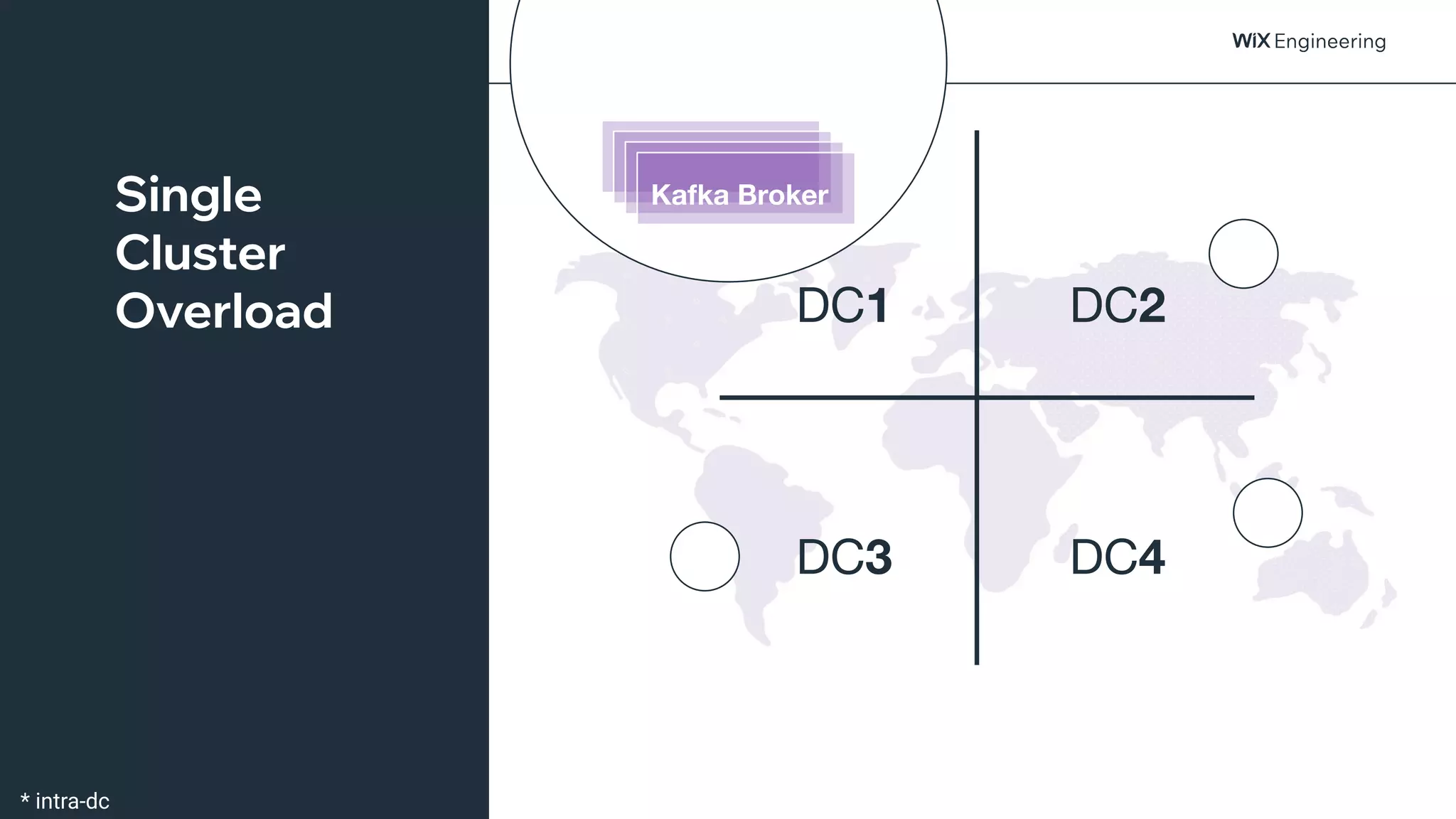

DC1 DC2
DC3 DC4
Kafka Broker
Single
Cluster
Overload
* intra-dc

@NSilnitsky
@NSilnitsky

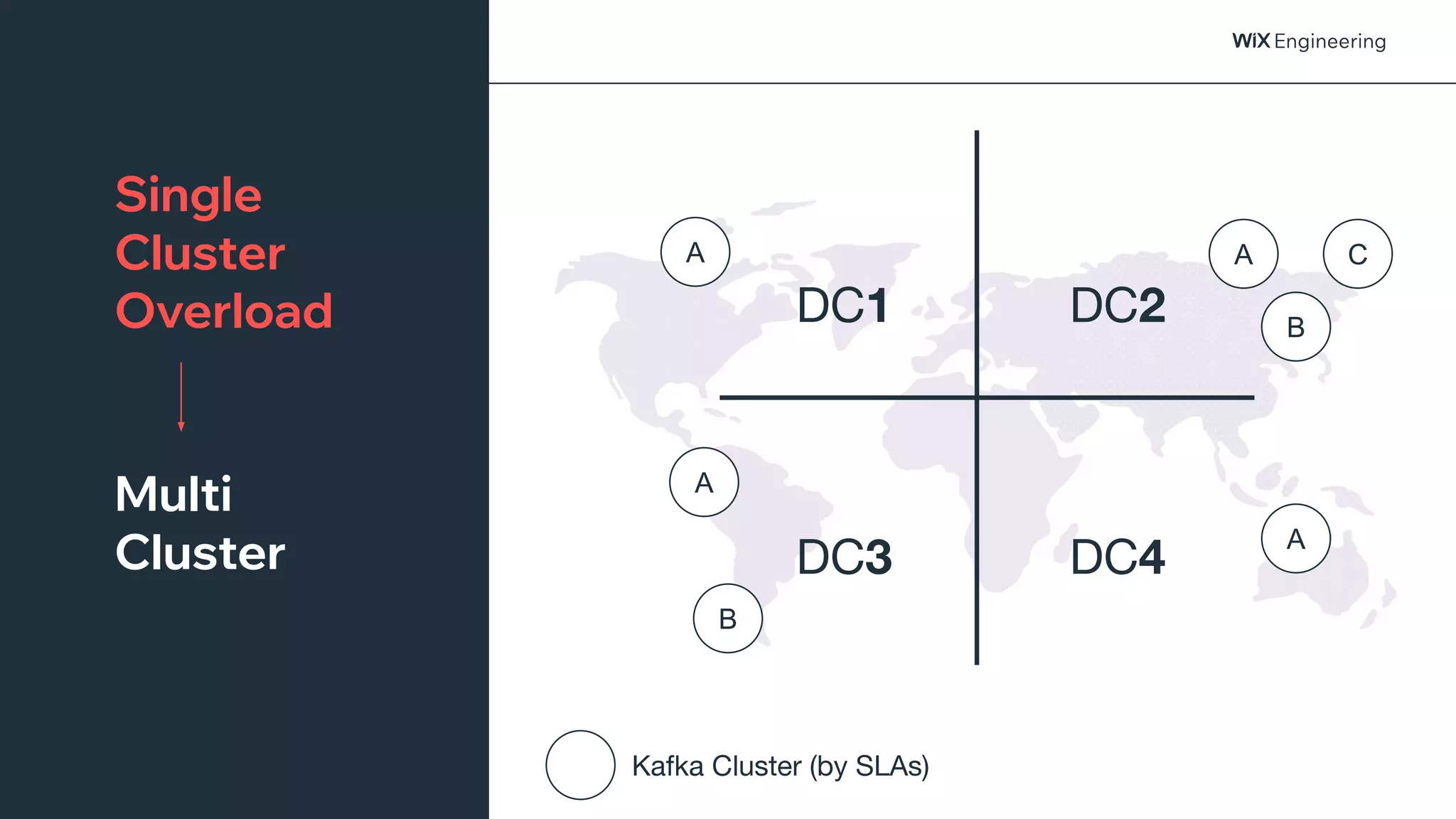

DC1 DC2
DC3 DC4
Single
Cluster
Overload
A
A
A
A
B
Kafka Cluster (by SLAs)
B
Multi
Cluster
C

@NSilnitsky
@NSilnitsky

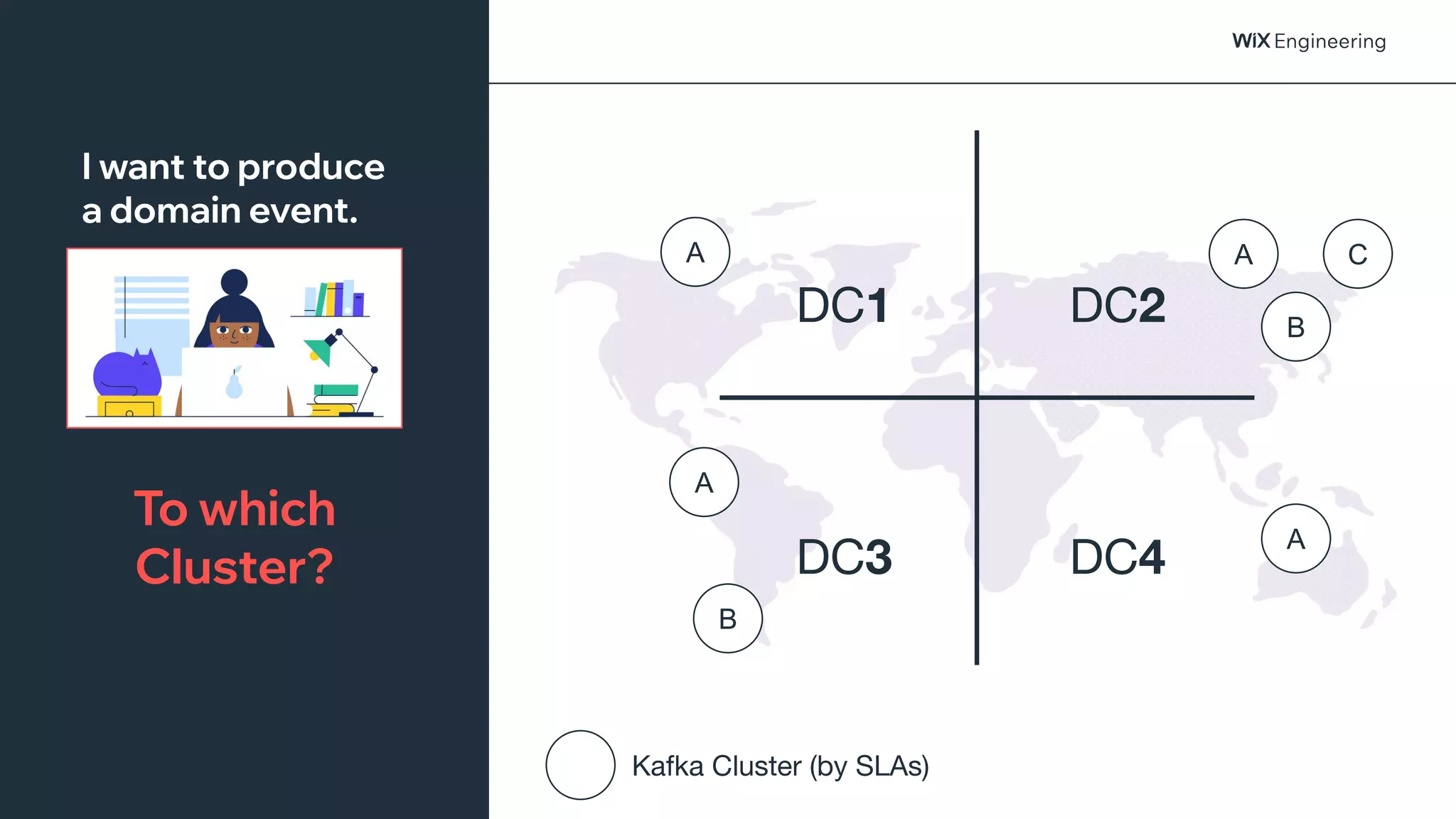

DC1 DC2
DC3 DC4
A
A
A
A
B
To which
Cluster?
Kafka Cluster (by SLAs)
B
I want to produce
a domain event.
C

@NSilnitsky
@NSilnitsky

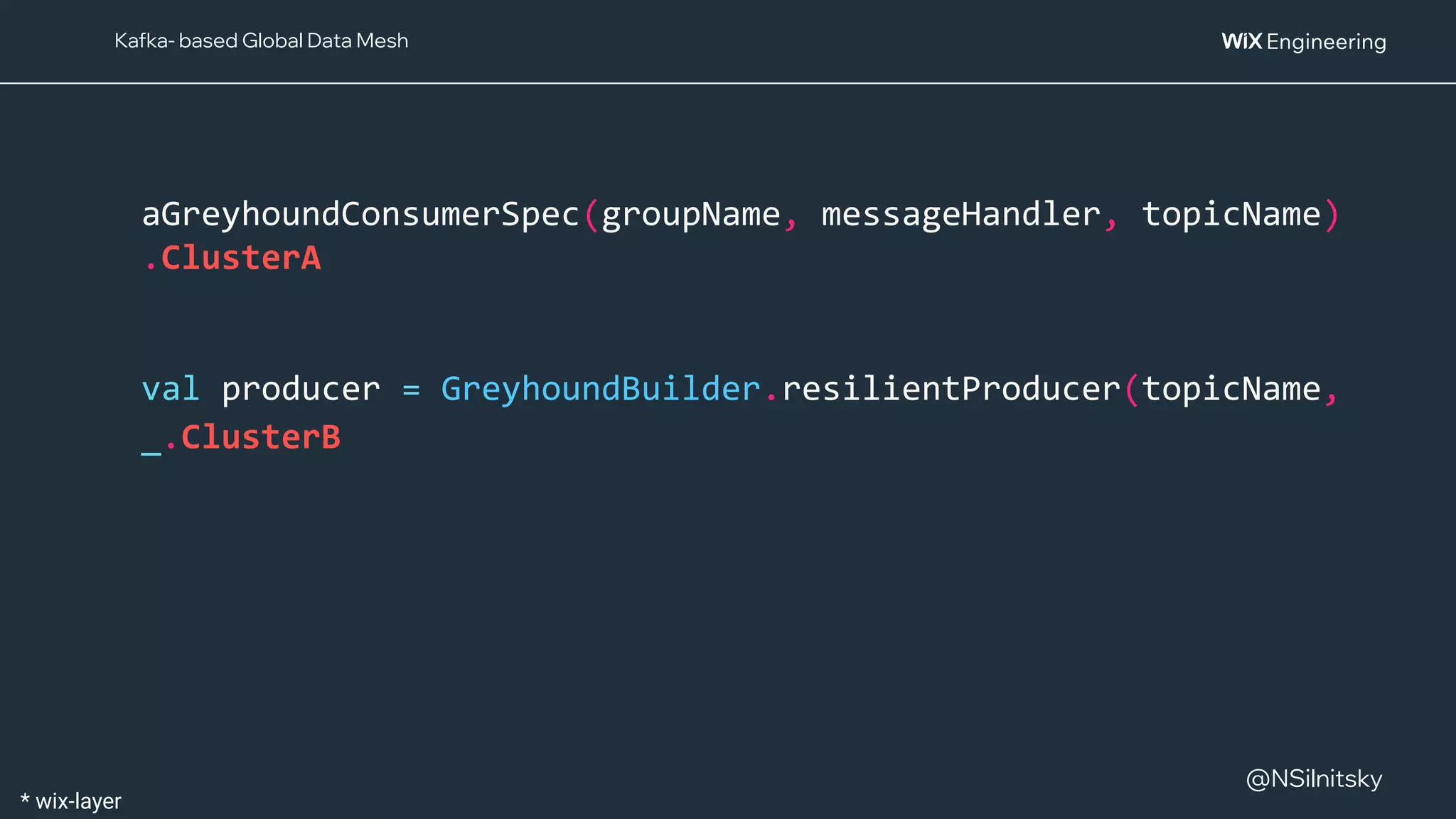

aGreyhoundConsumerSpec(groupName, messageHandler, topicName)
.ClusterA
val producer = GreyhoundBuilder.resilientProducer(topicName,
_.ClusterB
* wix-layer

@NSilnitsky
@NSilnitsky
Hundreds of
developers
Event-driven
architecture
Diverse
tech stack
Kafka + Greyhound
Growing
Pains
Large scale
traffic
Cluster
Overload
DC
awareness
+ Multi Cluster

@NSilnitsky
@NSilnitsky

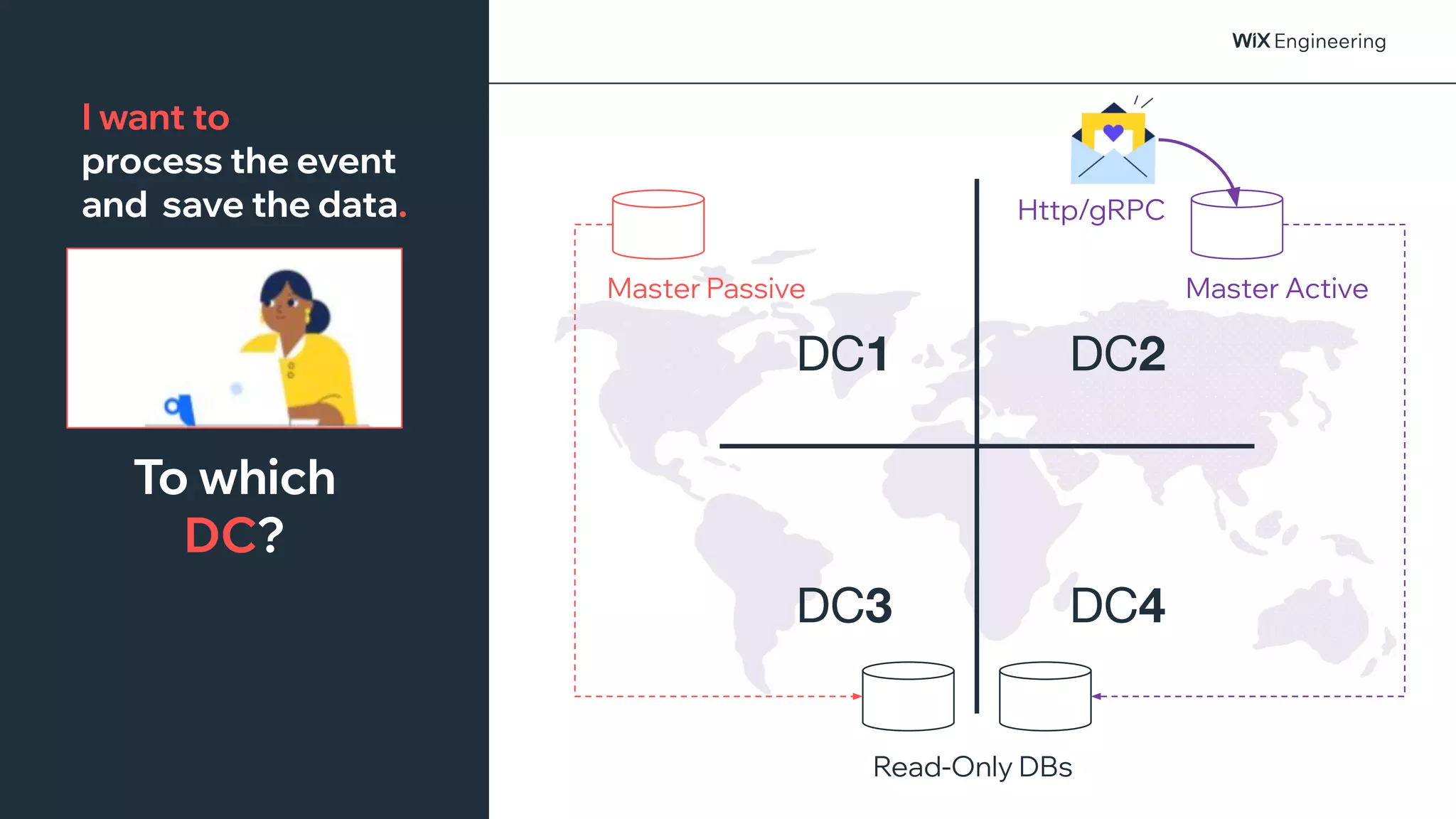

DC1 DC2
DC3 DC4
Master Active
Master Passive
Read-Only DBs
Http/gRPC
To which
DC?
I want to
process the event
and save the data.

@NSilnitsky
@NSilnitsky

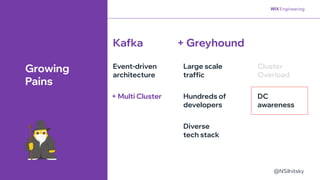

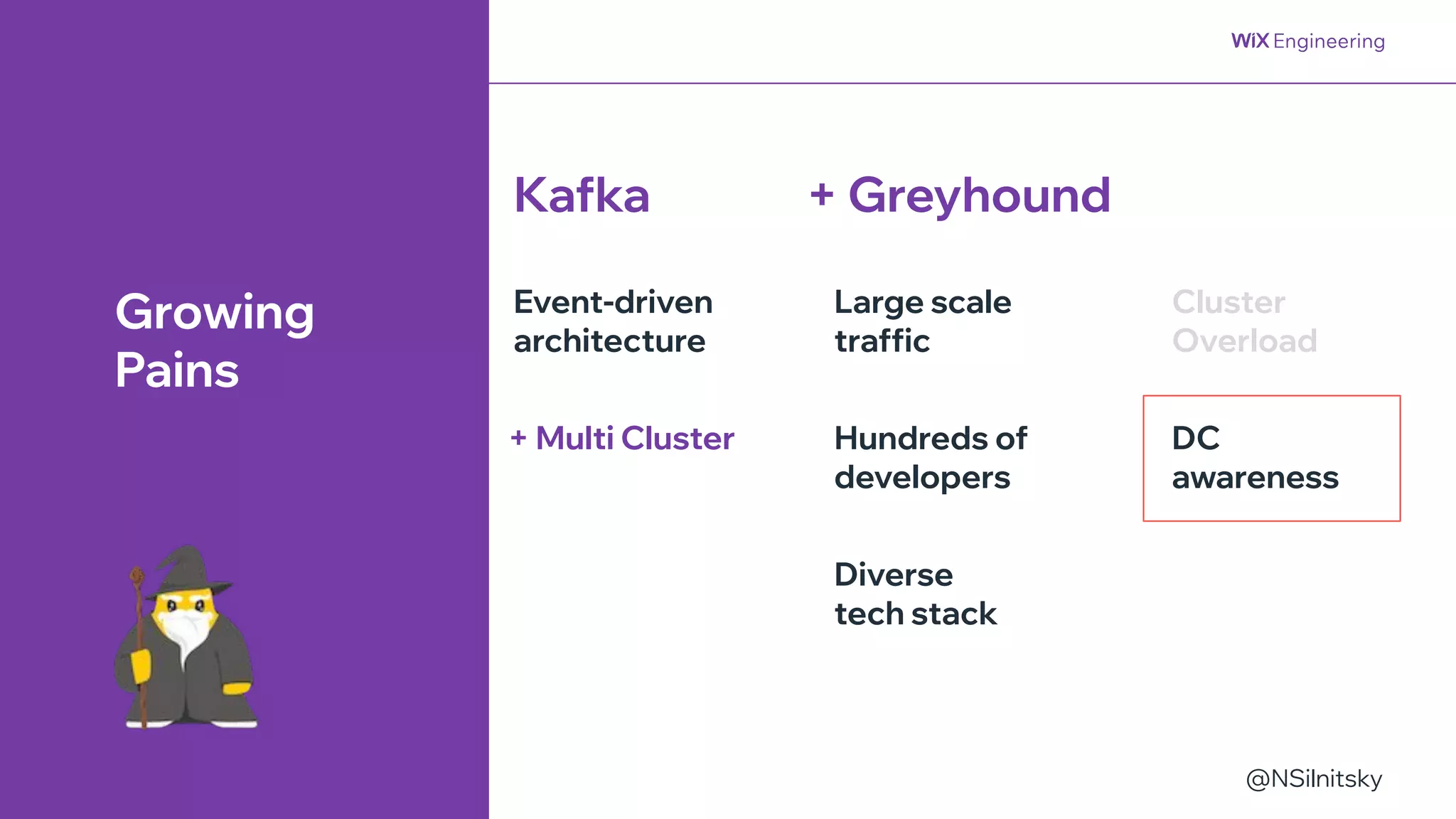

Kafka + Greyhound
+ Cross DC services
Growing
Pains
Hundreds of
developers
Event-driven
architecture
Diverse
tech stack
Large scale
traffic
Cluster
Overload
DC
awareness
+ Multi Cluster

@NSilnitsky
@NSilnitsky

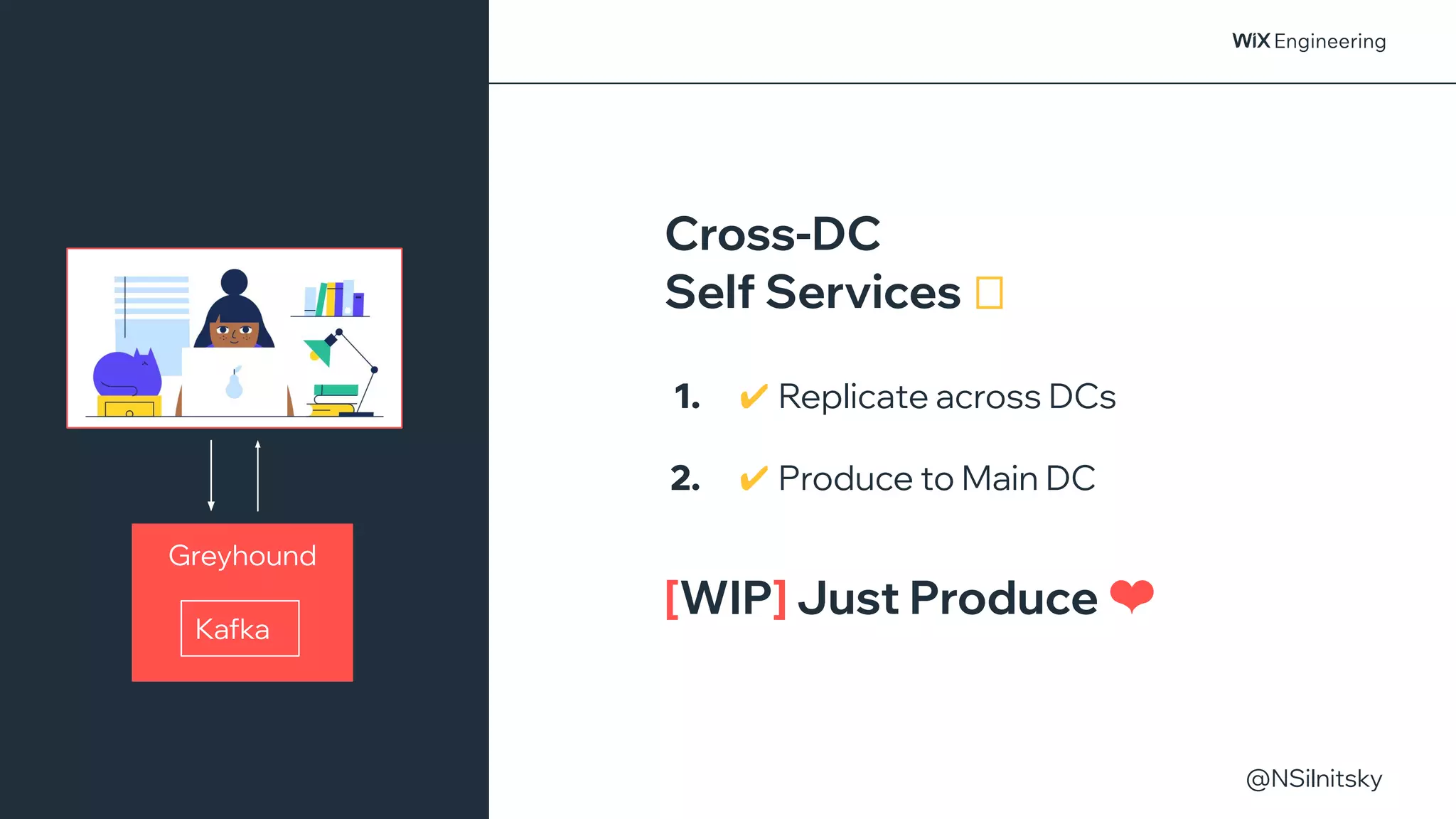

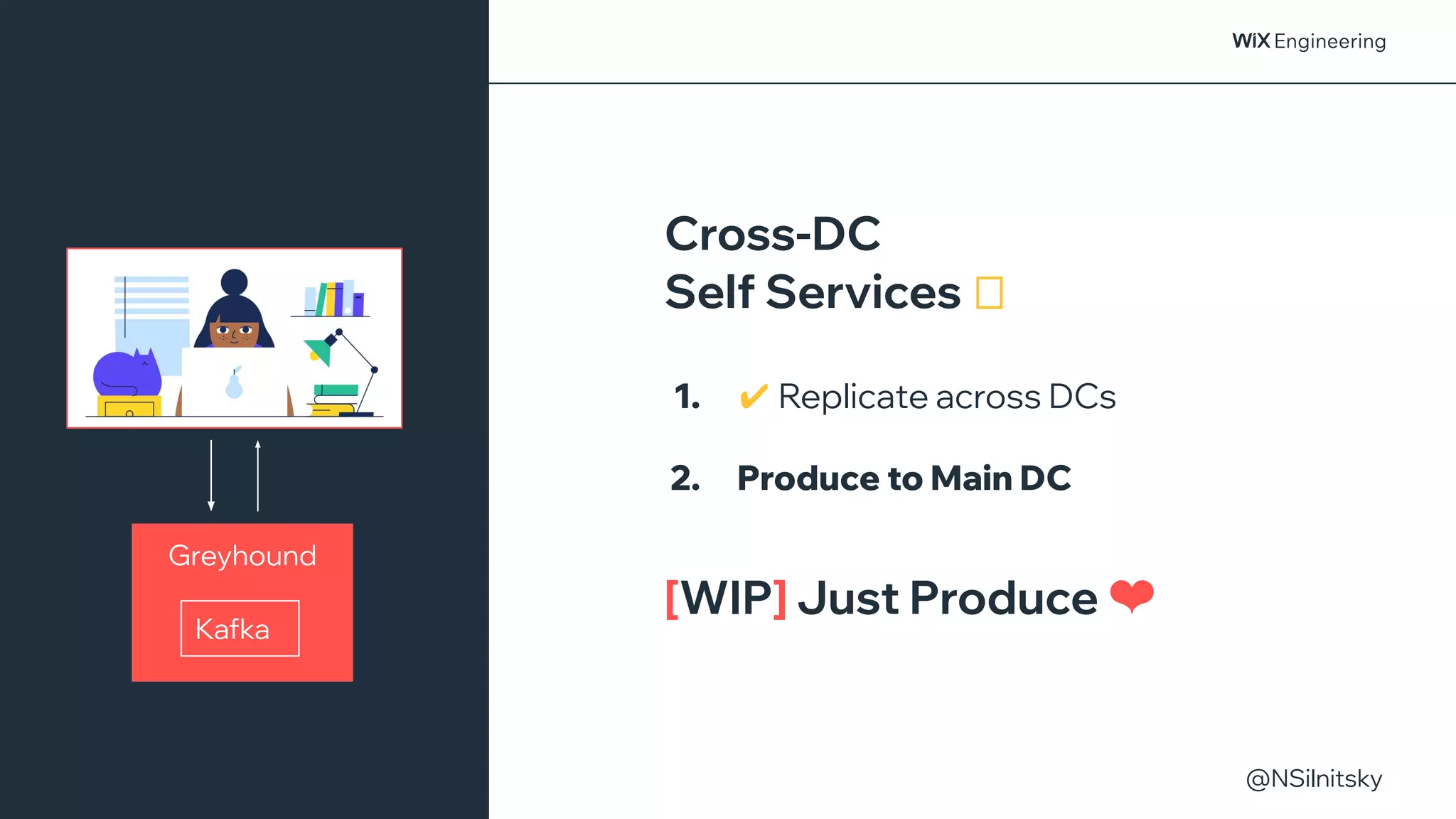

Cross-DC
Self Services 🟊
1. Replicate across DCs
2. Produce to Main DC
[WIP] Just Produce ❤
Greyhound
Kafka

@NSilnitsky

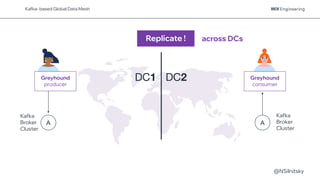

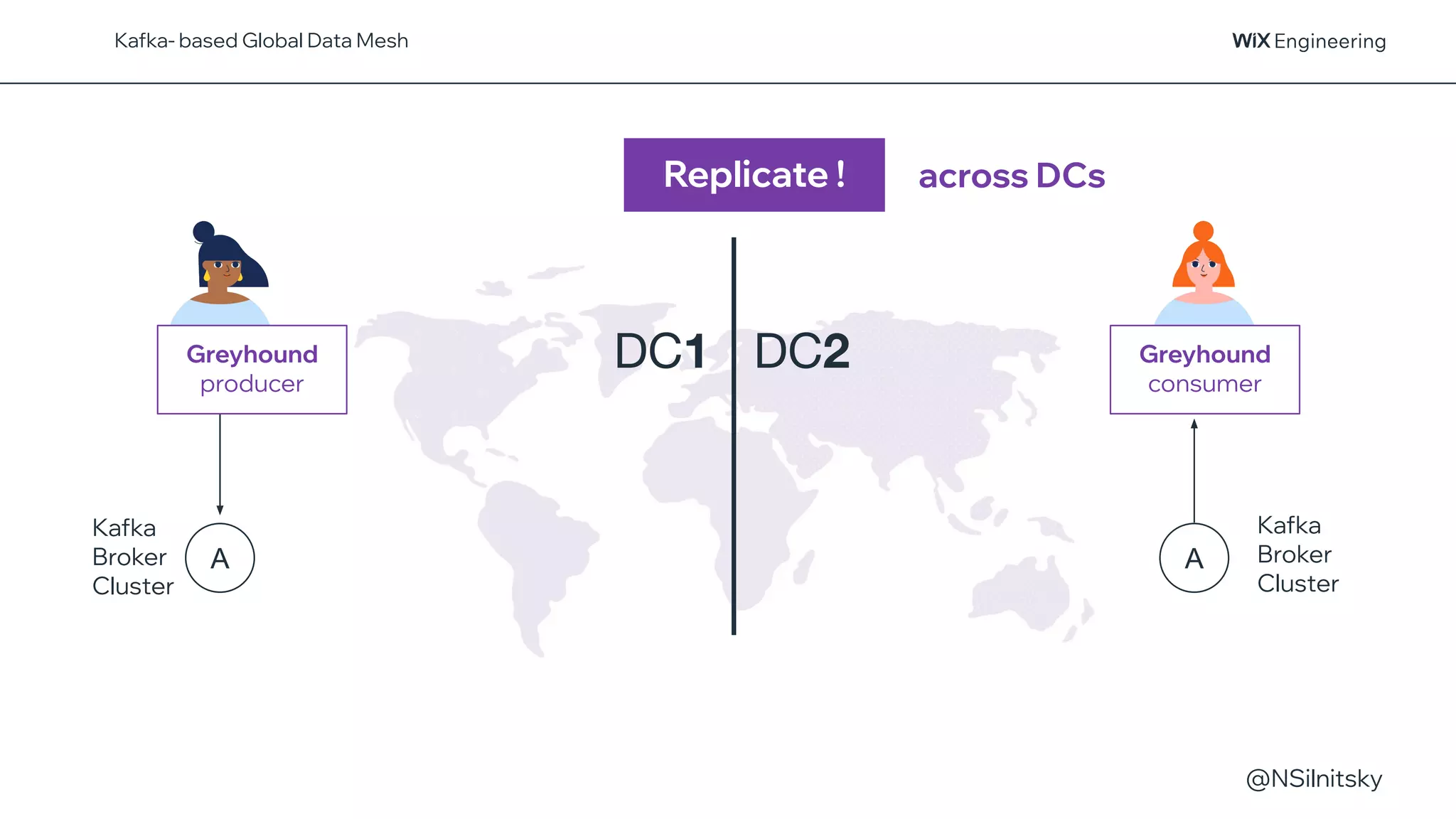

Replicate !
DC1 DC2
across DCs
Greyhound
producer
Greyhound
consumer
Kafka
Broker
Cluster
A
Kafka
Broker
Cluster
A

@NSilnitsky

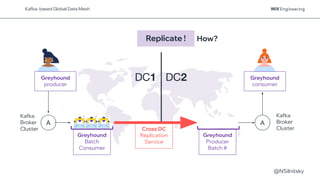

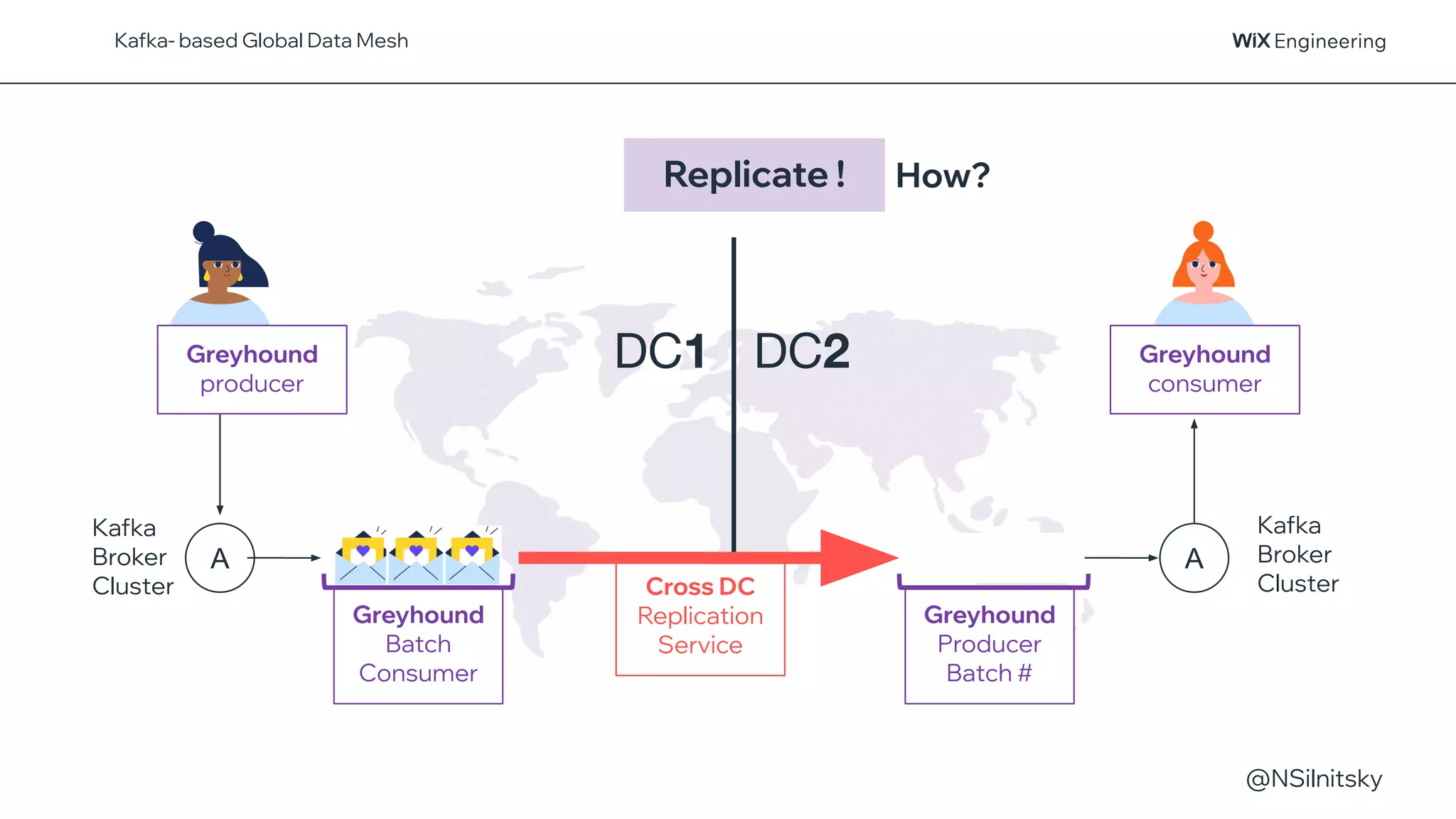

Greyhound
Batch
Consumer
Greyhound
Producer
Batch #
Replicate !
Kafka
Broker
Cluster
A
Kafka
Broker
Cluster
DC1 DC2
How?
Greyhound
producer
Greyhound
consumer
A
Cross DC
Replication
Service

@NSilnitsky

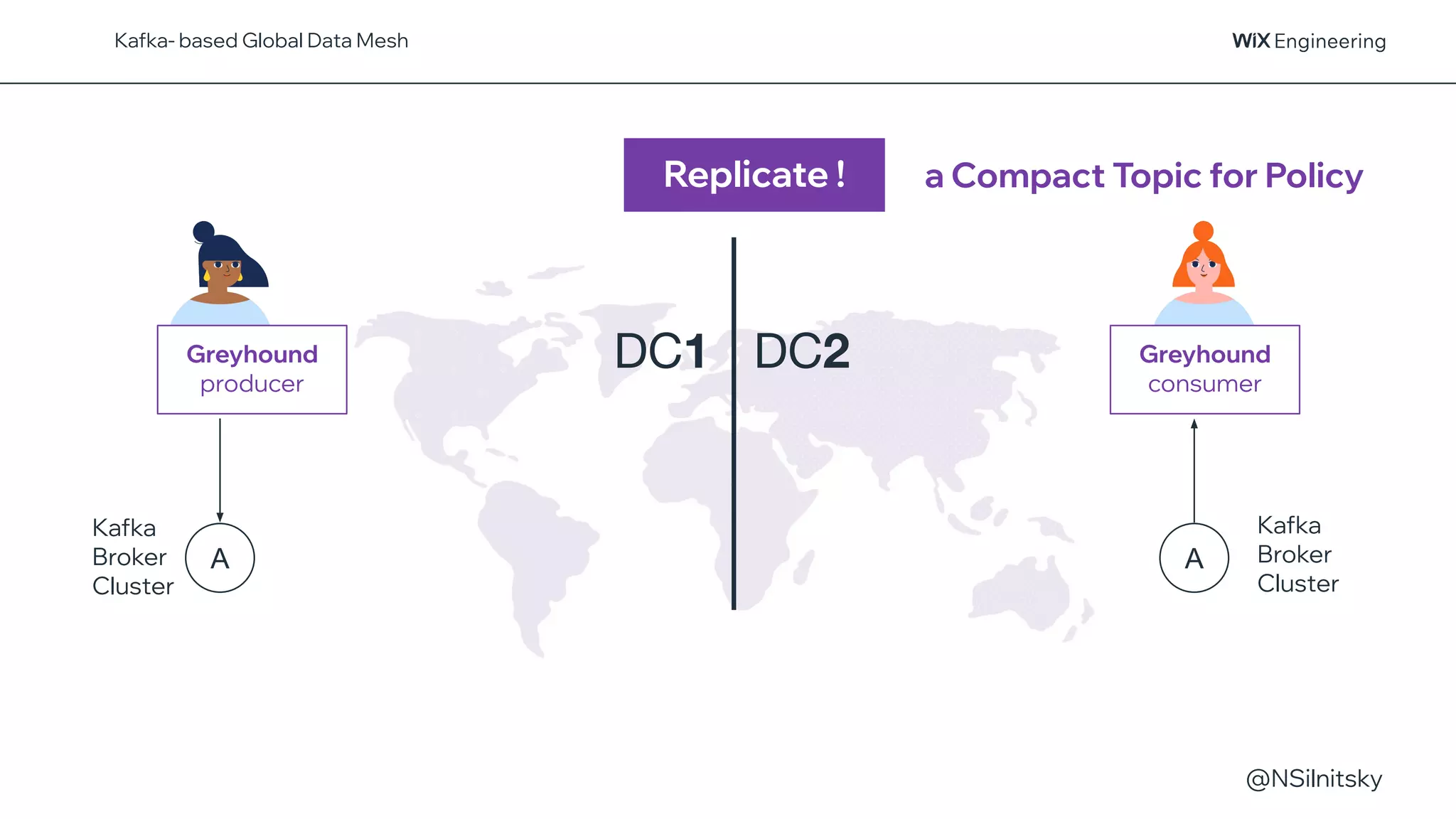

Replicate !
DC1 DC2
a Compact Topic for Policy
A
A
Kafka
Broker
Cluster
Kafka
Broker
Cluster
Greyhound
producer
Greyhound
consumer

@NSilnitsky

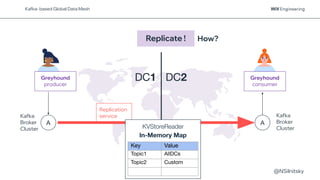

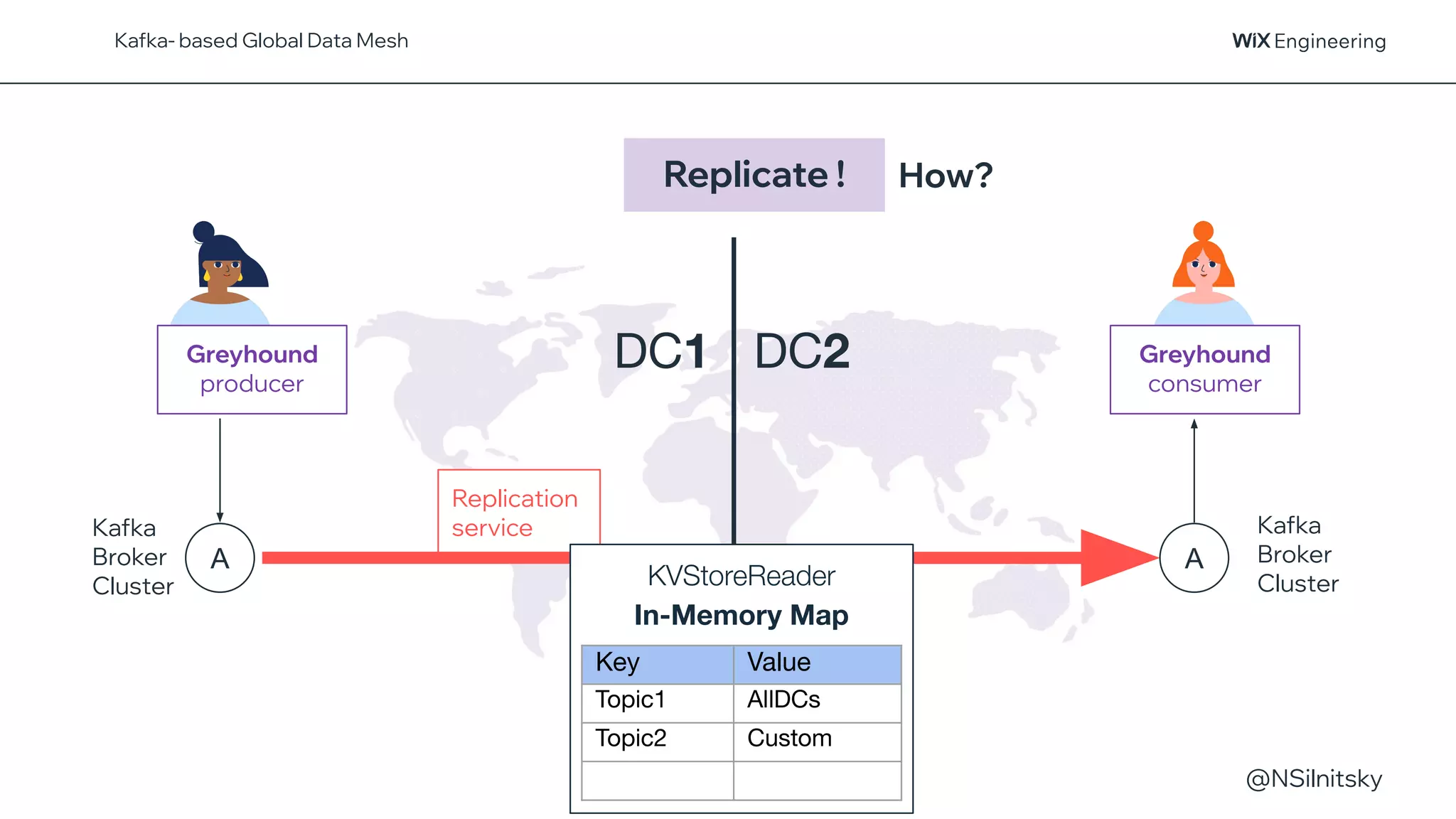

Replication
service
Replicate !
DC1 DC2
How?
A
KVStoreReader
In-Memory Map
Key Value
Topic1 AllDCs
Topic2 Custom
A
Kafka
Broker
Cluster
Kafka
Broker
Cluster
Greyhound
producer
Greyhound
consumer

@NSilnitsky

@NSilnitsky
@NSilnitsky
Cross-DC
Self Services 🟊
1. ✔ Replicate across DCs
2. Produce to Main DC
Greyhound
Kafka

@NSilnitsky

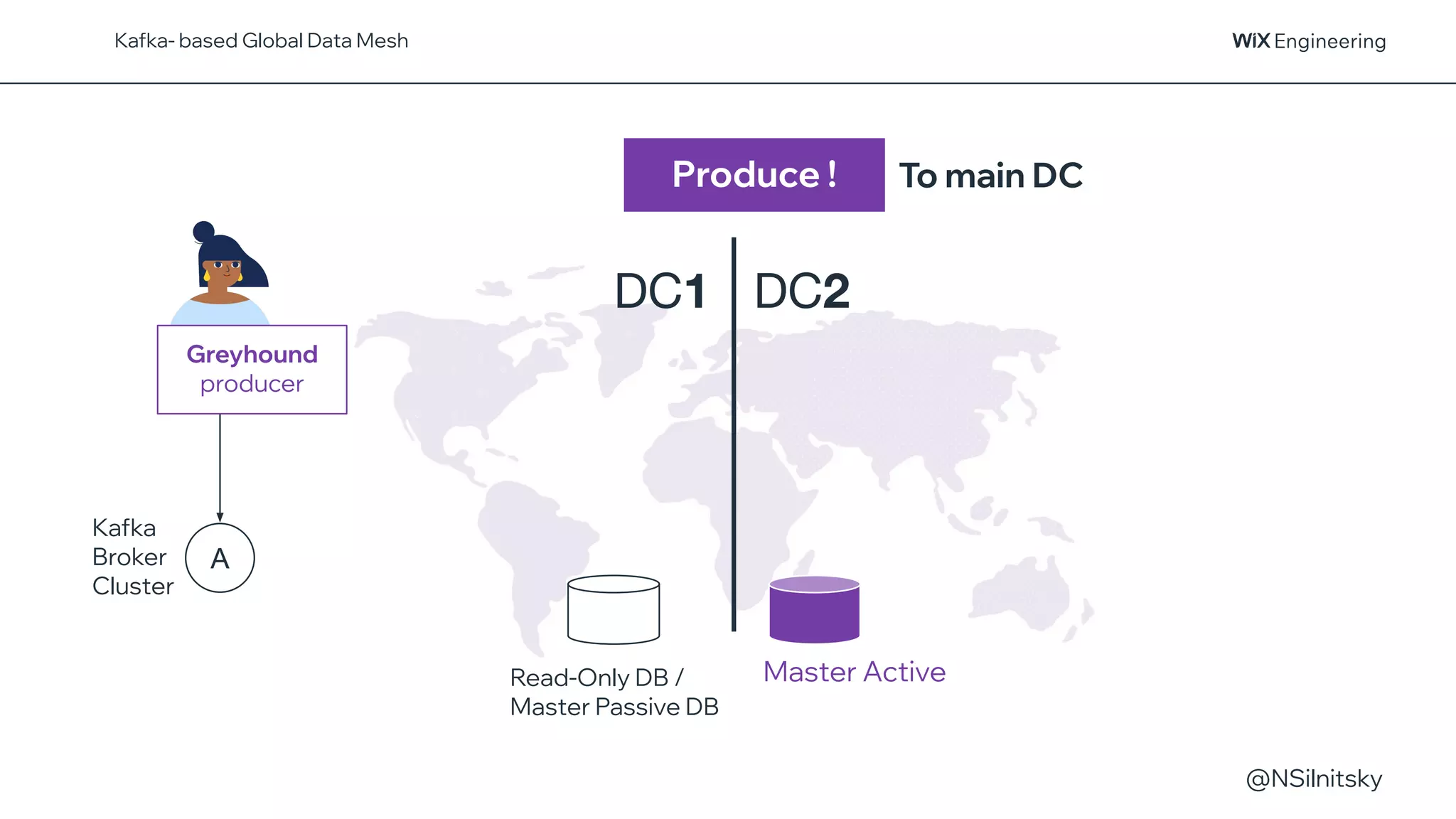

Produce !
DC1 DC2
To main DC
Read-Only DB /
Master Passive DB
Master Active
A
Kafka
Broker
Cluster
Greyhound
producer

@NSilnitsky

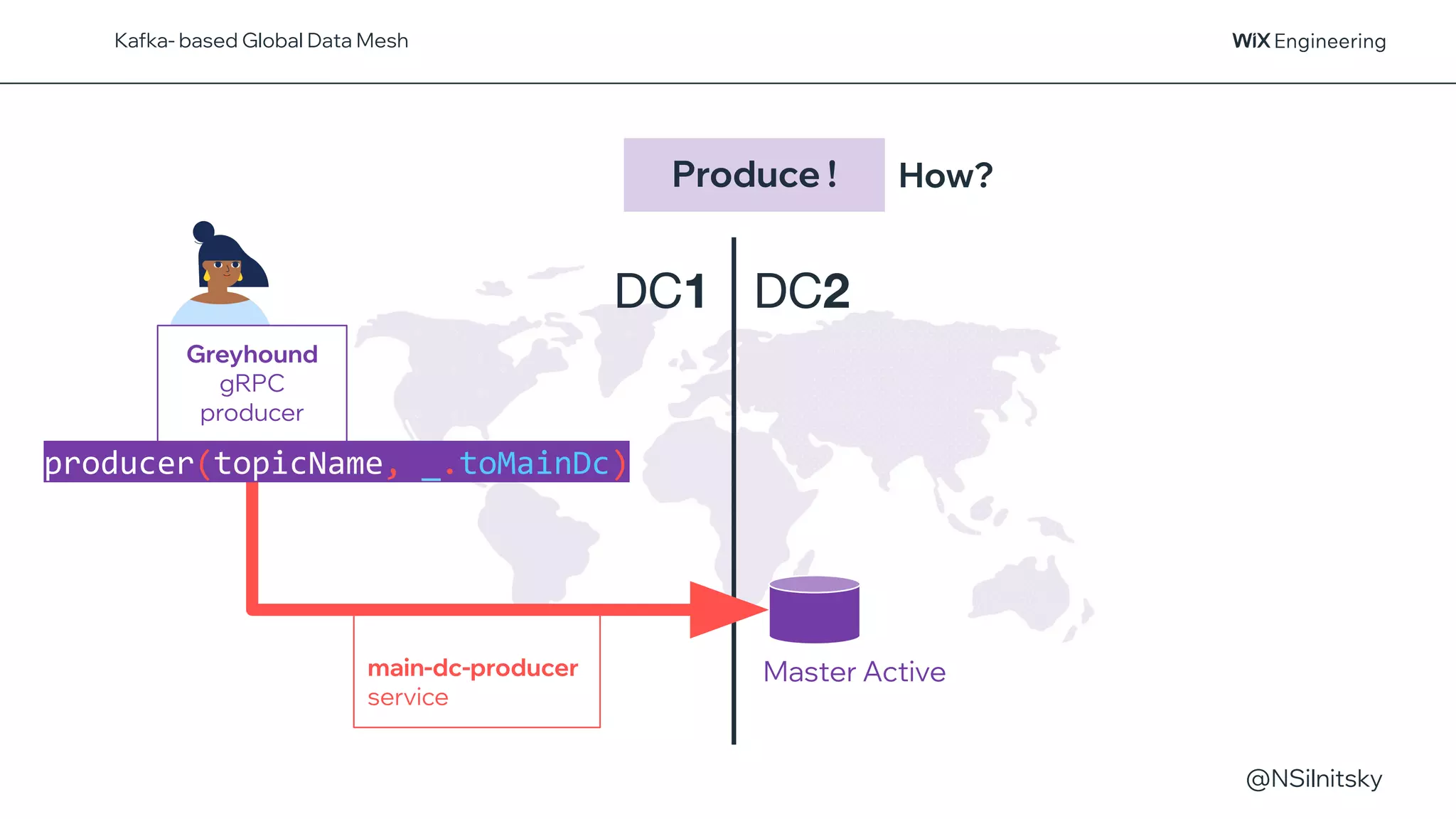

main-dc-producer
service
Produce !
DC1 DC2
How?
Master Active
Greyhound
gRPC
producer
producer(topicName, _.toMainDc)

@NSilnitsky
@NSilnitsky

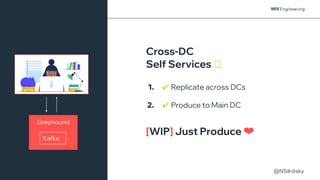

Cross-DC
Self Services 🟊
1. ✔ Replicate across DCs
2. ✔ Produce to Main DC
Greyhound
Kafka

@NSilnitsky

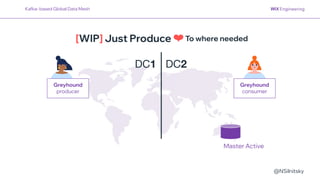

DC1 DC2
To where needed
Greyhound
producer
Greyhound
consumer
Master Active

@NSilnitsky
Topology
Topic List
[consumer
group:DC]
DC1 DC2
A
Kafka
Broker
Cluster
Greyhound
producer
Greyhound
consumer

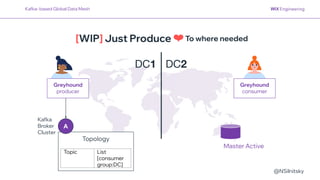

To where needed
Master Active

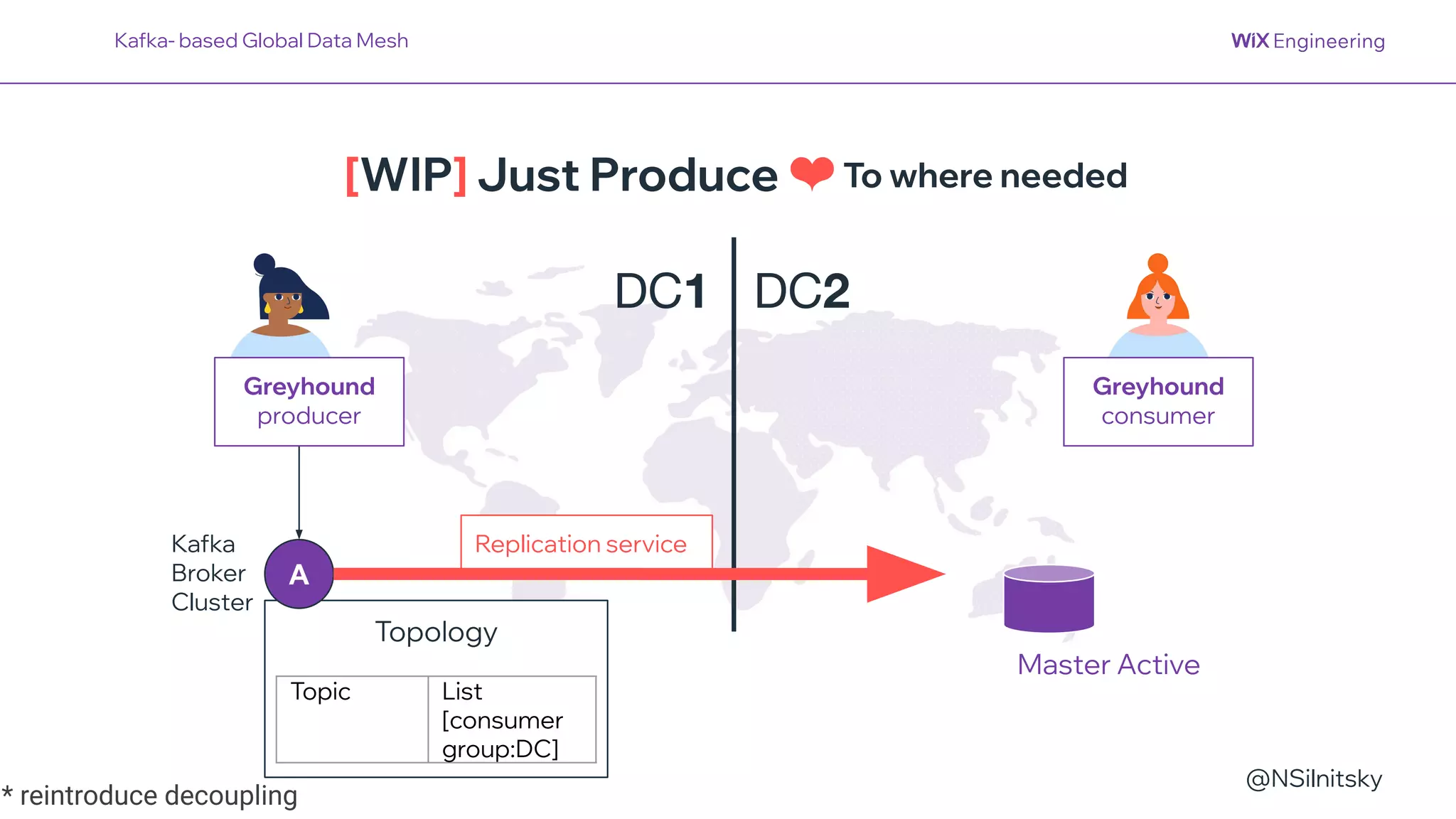

@NSilnitsky
Topology
Topic List
[consumer
group:DC]
DC1 DC2
A
Kafka
Broker
Cluster
Master Active
Greyhound
producer
Greyhound
consumer
To where needed
Replication service
* reintroduce decoupling

@NSilnitsky
@NSilnitsky
DC1 DC2
DC3 DC4
A
A
A
A
B
B

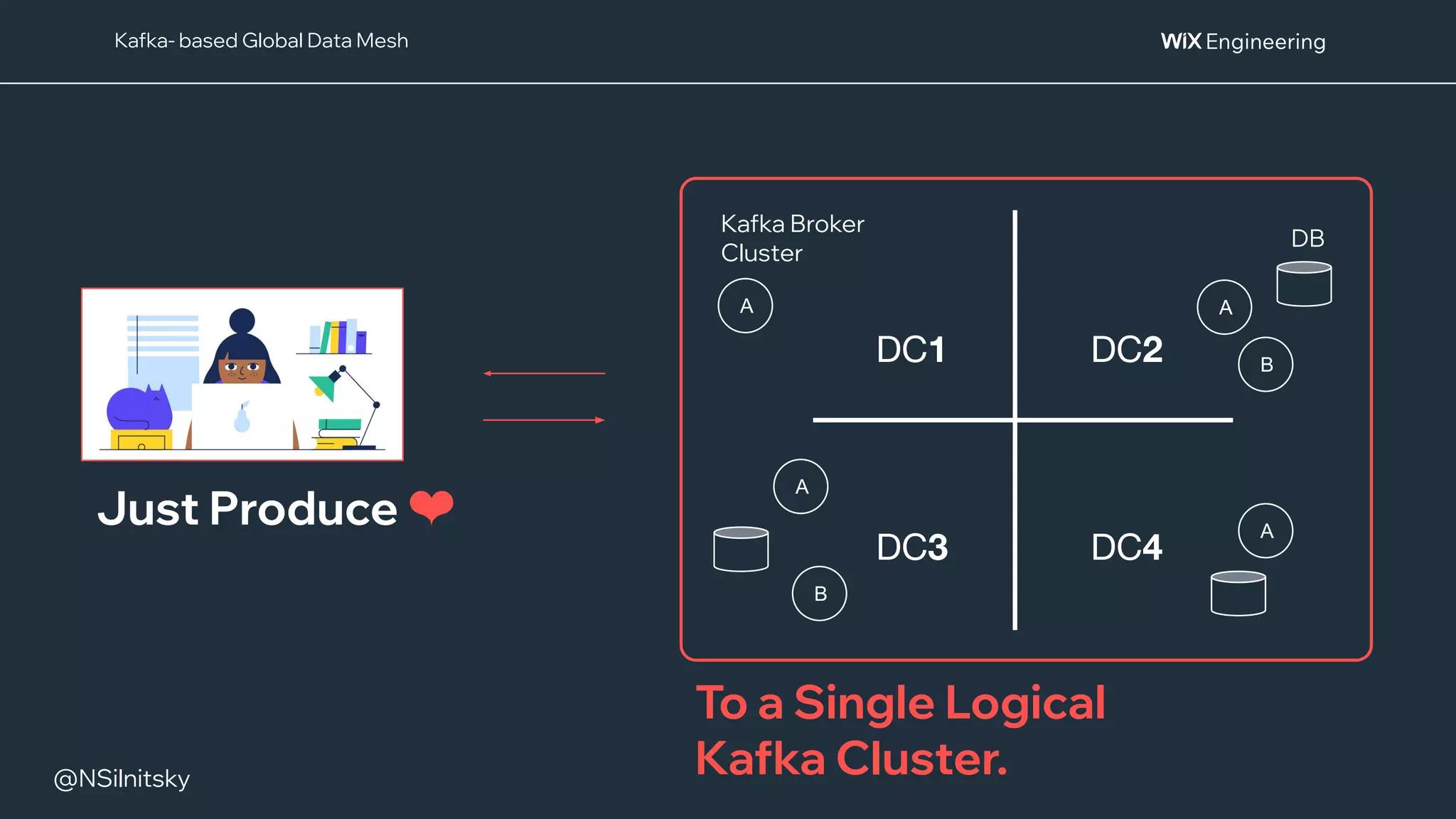

Just Produce ❤
To a Single Logical
Kafka Cluster.
Kafka Broker
Cluster
DB

@NSilnitsky
@NSilnitsky

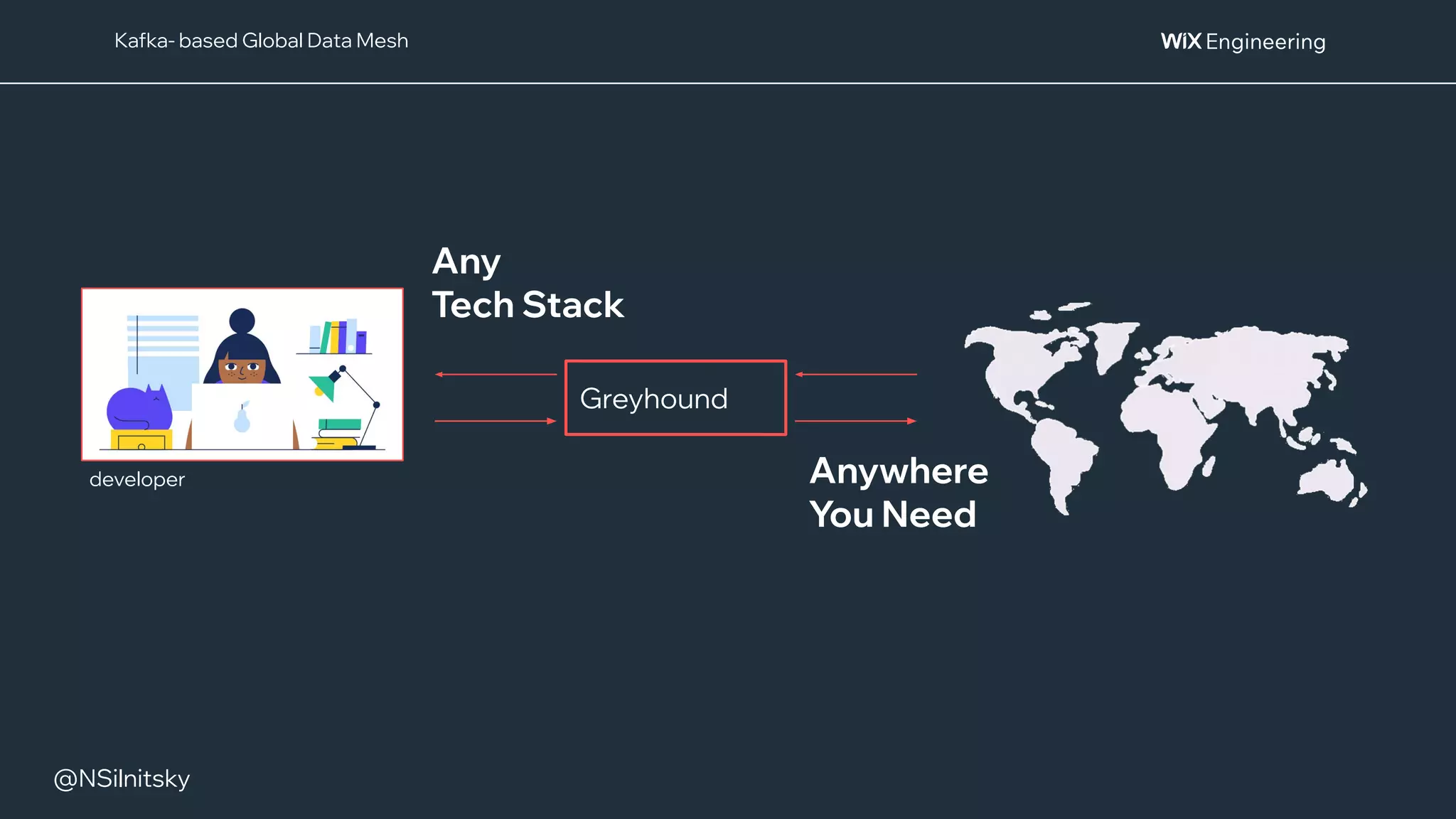

Any
Tech Stack
Greyhound
Anywhere
You Need
developer

@NSilnitsky
developer

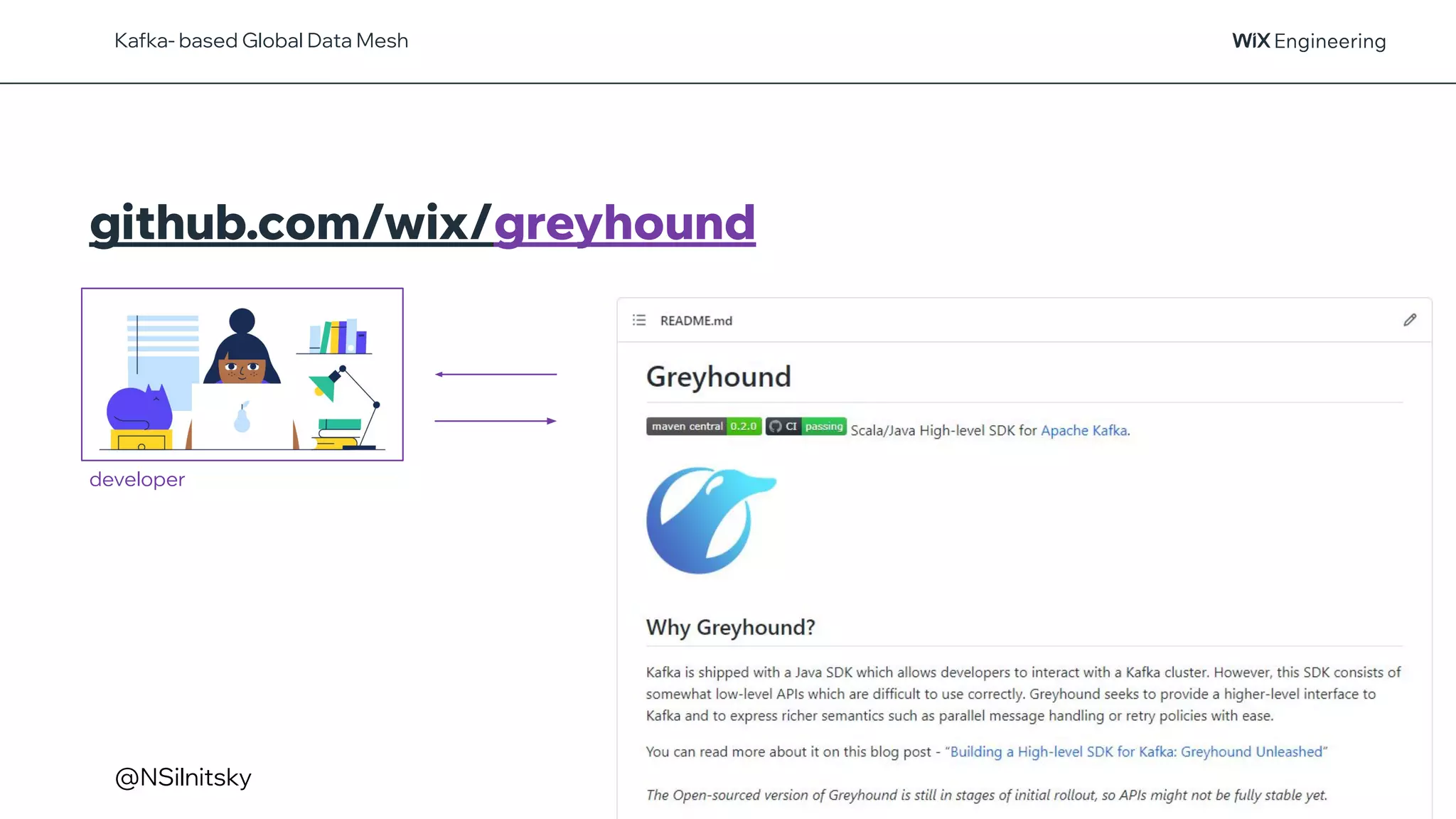

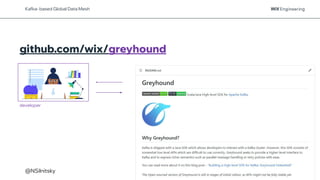

github.com/wix/greyhound

@NSilnitsky
@NSilnitsky
Thank
You!
👉 slideshare.net/NatanSilnitsky
Any questions?

@NSilnitsky
@NSilnitsky
Q&A
👉 slideshare.net/NatanSilnitsky
Any questions?
