![20KSQL- Streaming SQL for Apache Kafka
CREATE STREAM AS syntax
CREATE STREAM `stream_name`
[WITH (`property = expression` [, …] ) ]
AS SELECT `select_expr` [, ...]
FROM `from_item` [, ...]
[ WHERE `condition` ]
[ PARTITION BY `column_name` ]
● where property can be any of the following:
KAFKA_TOPIC = name - what to call the sink topic
FORMAT = DELIMITED | JSON | AVRO - defaults to format of input stream
AVROSCHEMAFILE = path/to/file - if FORMAT=AVRO, where the output schema file will be written to
PARTITIONS = # - number of partitions in sink topic
TIMESTAMP = column - The name of the column to use as the timestamp. This can be used to define the
event time.](https://image.slidesharecdn.com/201711wjaxksqlintroductionkaiwaehner-171109095743/85/KSQL-An-Open-Source-Streaming-Engine-for-Apache-Kafka-20-320.jpg)
![21KSQL- Streaming SQL for Apache Kafka

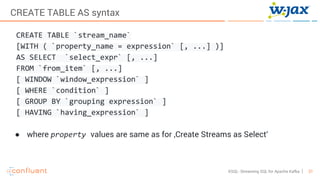

CREATE TABLE AS syntax
CREATE TABLE `stream_name`
[WITH ( `property_name = expression` [, ...] )]
AS SELECT `select_expr` [, ...]
FROM `from_item` [, ...]
[ WINDOW `window_expression` ]
[ WHERE `condition` ]
[ GROUP BY `grouping expression` ]
[ HAVING `having_expression` ]
● where property values are same as for ‚Create Streams as Select‘](https://image.slidesharecdn.com/201711wjaxksqlintroductionkaiwaehner-171109095743/85/KSQL-An-Open-Source-Streaming-Engine-for-Apache-Kafka-21-320.jpg)
![22KSQL- Streaming SQL for Apache Kafka

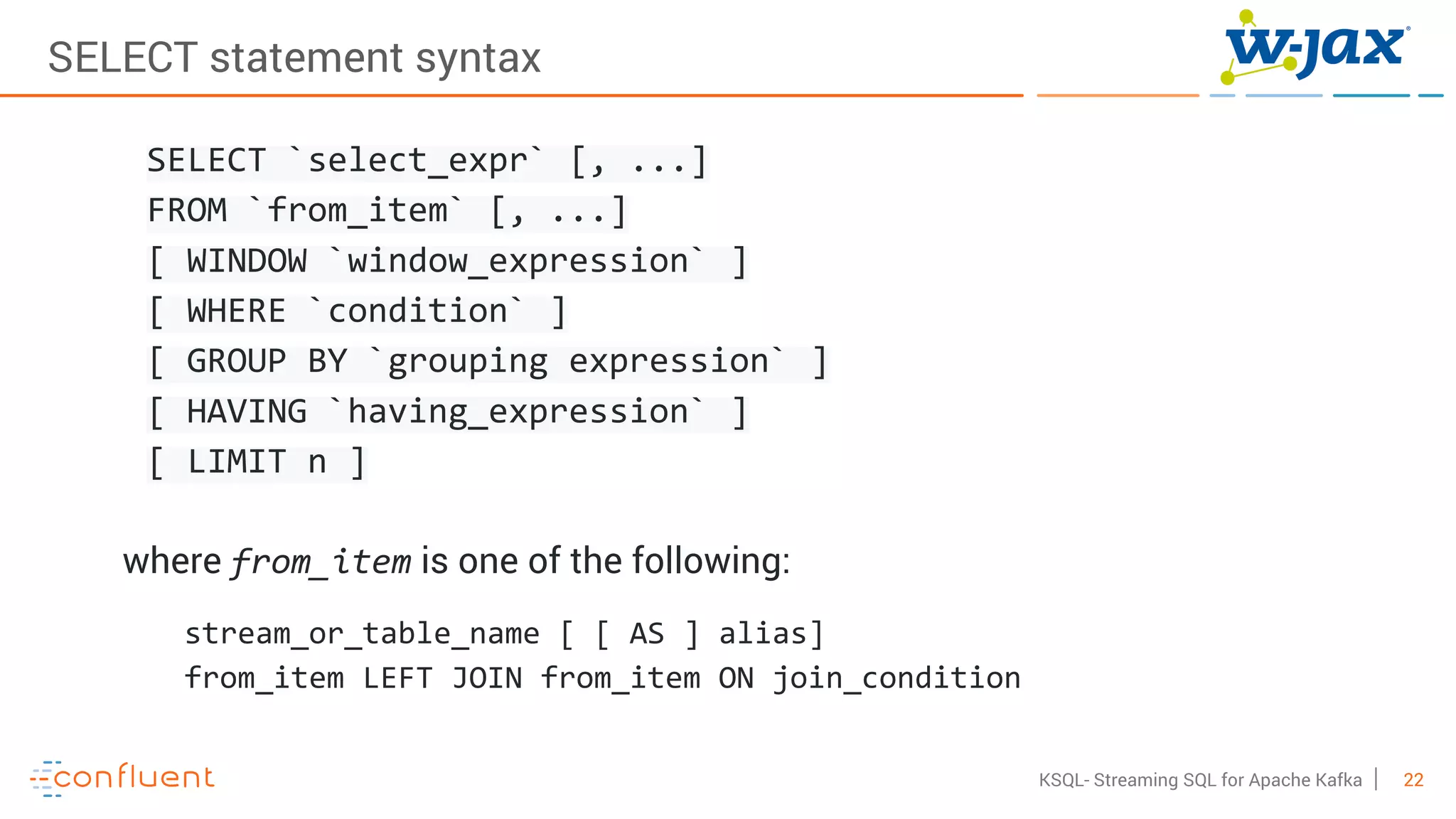

SELECT statement syntax
SELECT `select_expr` [, ...]
FROM `from_item` [, ...]
[ WINDOW `window_expression` ]
[ WHERE `condition` ]
[ GROUP BY `grouping expression` ]
[ HAVING `having_expression` ]
[ LIMIT n ]
where from_item is one of the following:
stream_or_table_name [ [ AS ] alias]
from_item LEFT JOIN from_item ON join_condition](https://image.slidesharecdn.com/201711wjaxksqlintroductionkaiwaehner-171109095743/85/KSQL-An-Open-Source-Streaming-Engine-for-Apache-Kafka-22-320.jpg)
![23KSQL- Streaming SQL for Apache Kafka

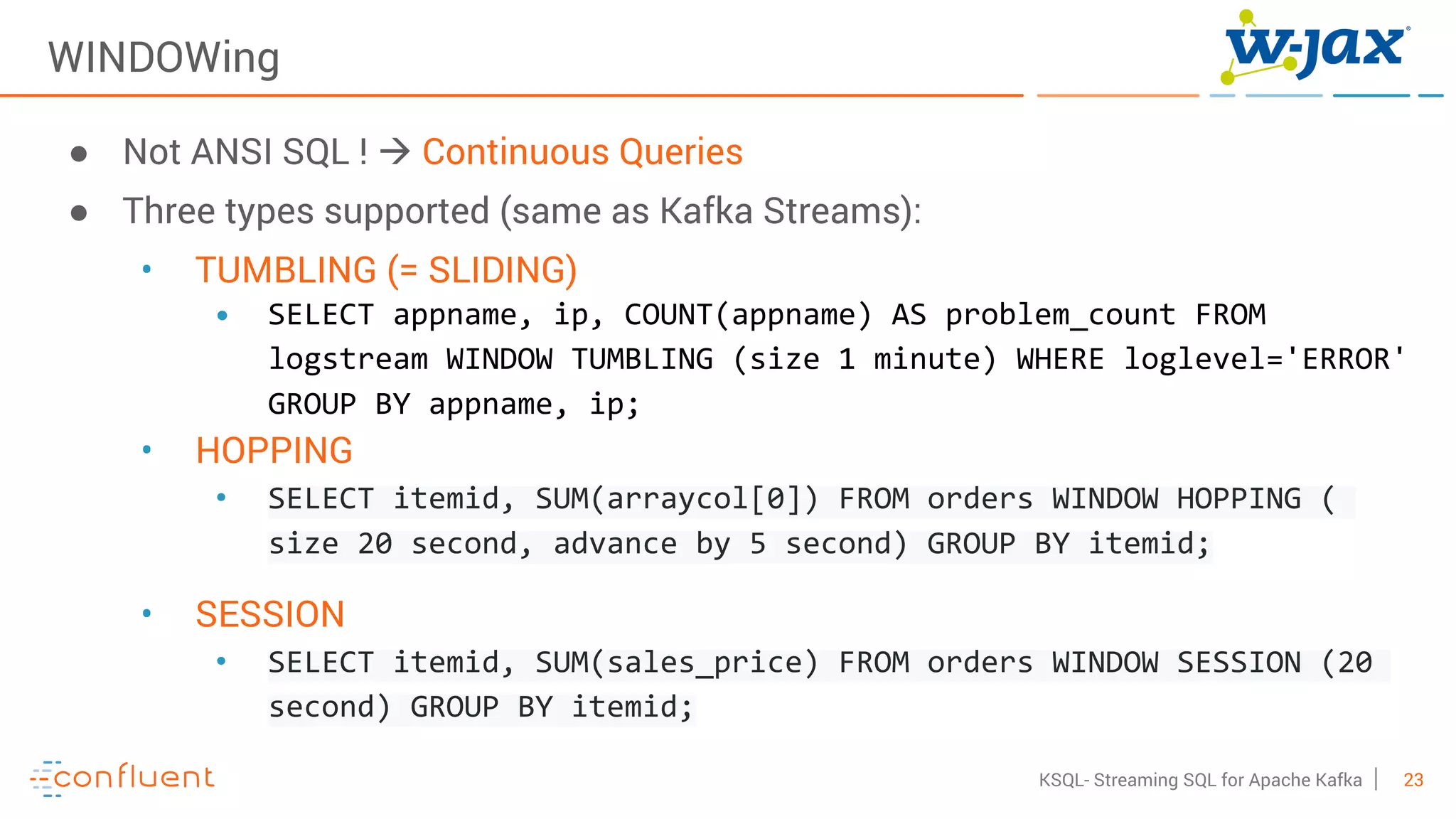

WINDOWing
● Not ANSI SQL ! à Continuous Queries
● Three types supported (same as Kafka Streams):
• TUMBLING (= SLIDING)
• SELECT appname, ip, COUNT(appname) AS problem_count FROM
logstream WINDOW TUMBLING (size 1 minute) WHERE loglevel='ERROR'
GROUP BY appname, ip;
• HOPPING
• SELECT itemid, SUM(arraycol[0]) FROM orders WINDOW HOPPING (
size 20 second, advance by 5 second) GROUP BY itemid;
• SESSION
• SELECT itemid, SUM(sales_price) FROM orders WINDOW SESSION (20
second) GROUP BY itemid;](https://image.slidesharecdn.com/201711wjaxksqlintroductionkaiwaehner-171109095743/85/KSQL-An-Open-Source-Streaming-Engine-for-Apache-Kafka-23-320.jpg)

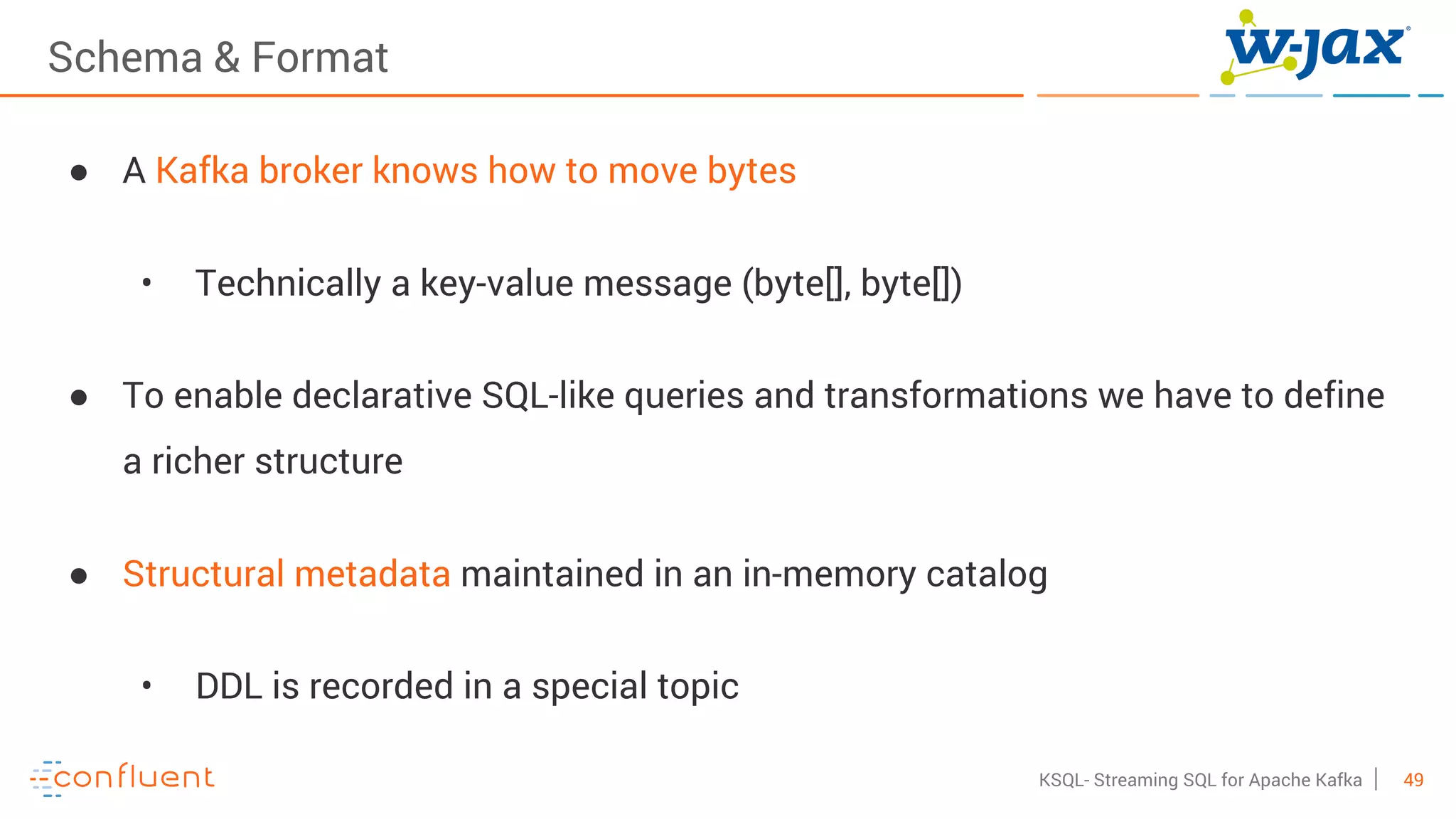

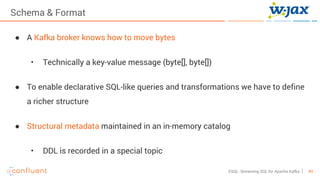

![49KSQL- Streaming SQL for Apache Kafka
Schema & Format
● A Kafka broker knows how to move bytes
• Technically a key-value message (byte[], byte[])
● To enable declarative SQL-like queries and transformations we have to define
a richer structure
● Structural metadata maintained in an in-memory catalog
• DDL is recorded in a special topic](https://image.slidesharecdn.com/201711wjaxksqlintroductionkaiwaehner-171109095743/85/KSQL-An-Open-Source-Streaming-Engine-for-Apache-Kafka-49-320.jpg)
![53KSQL- Streaming SQL for Apache Kafka
SELECT statement syntax
SELECT `select_expr` [, ...]
FROM `from_item` [, ...]
[ WINDOW `window_expression` ]
[ WHERE `condition` ]
[ GROUP BY `grouping expression` ]
[ HAVING `having_expression` ]
[ LIMIT n ]
where from_item is one of the following:
stream_or_table_name [ [ AS ] alias]
from_item LEFT JOIN from_item ON join_condition](https://image.slidesharecdn.com/201711wjaxksqlintroductionkaiwaehner-171109095743/85/KSQL-An-Open-Source-Streaming-Engine-for-Apache-Kafka-53-320.jpg)

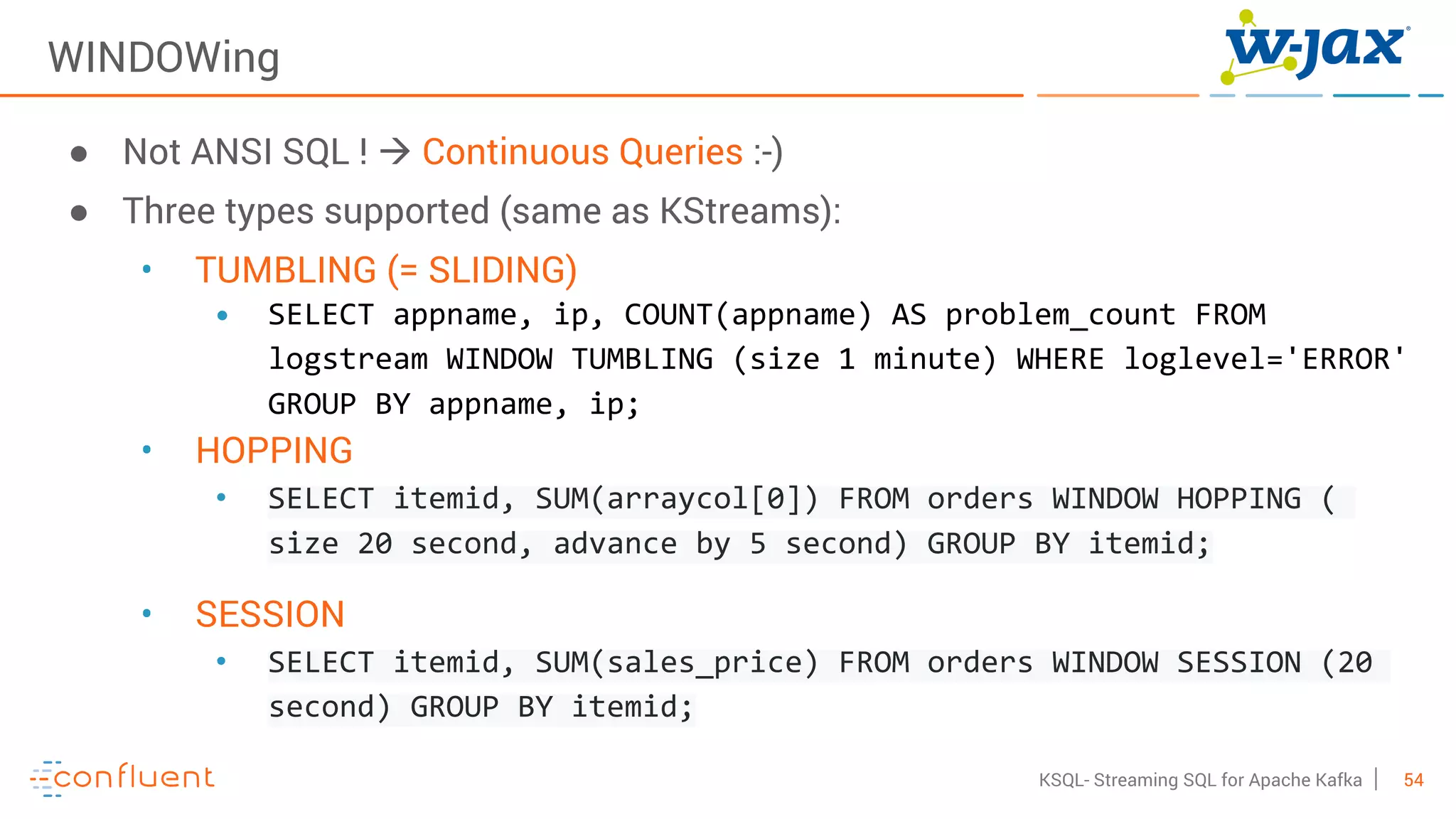

![54KSQL- Streaming SQL for Apache Kafka
WINDOWing
● Not ANSI SQL ! à Continuous Queries :-)
● Three types supported (same as KStreams):
• TUMBLING (= SLIDING)
• SELECT appname, ip, COUNT(appname) AS problem_count FROM
logstream WINDOW TUMBLING (size 1 minute) WHERE loglevel='ERROR'
GROUP BY appname, ip;
• HOPPING
• SELECT itemid, SUM(arraycol[0]) FROM orders WINDOW HOPPING (
size 20 second, advance by 5 second) GROUP BY itemid;
• SESSION
• SELECT itemid, SUM(sales_price) FROM orders WINDOW SESSION (20
second) GROUP BY itemid;](https://image.slidesharecdn.com/201711wjaxksqlintroductionkaiwaehner-171109095743/85/KSQL-An-Open-Source-Streaming-Engine-for-Apache-Kafka-54-320.jpg)
![56KSQL- Streaming SQL for Apache Kafka

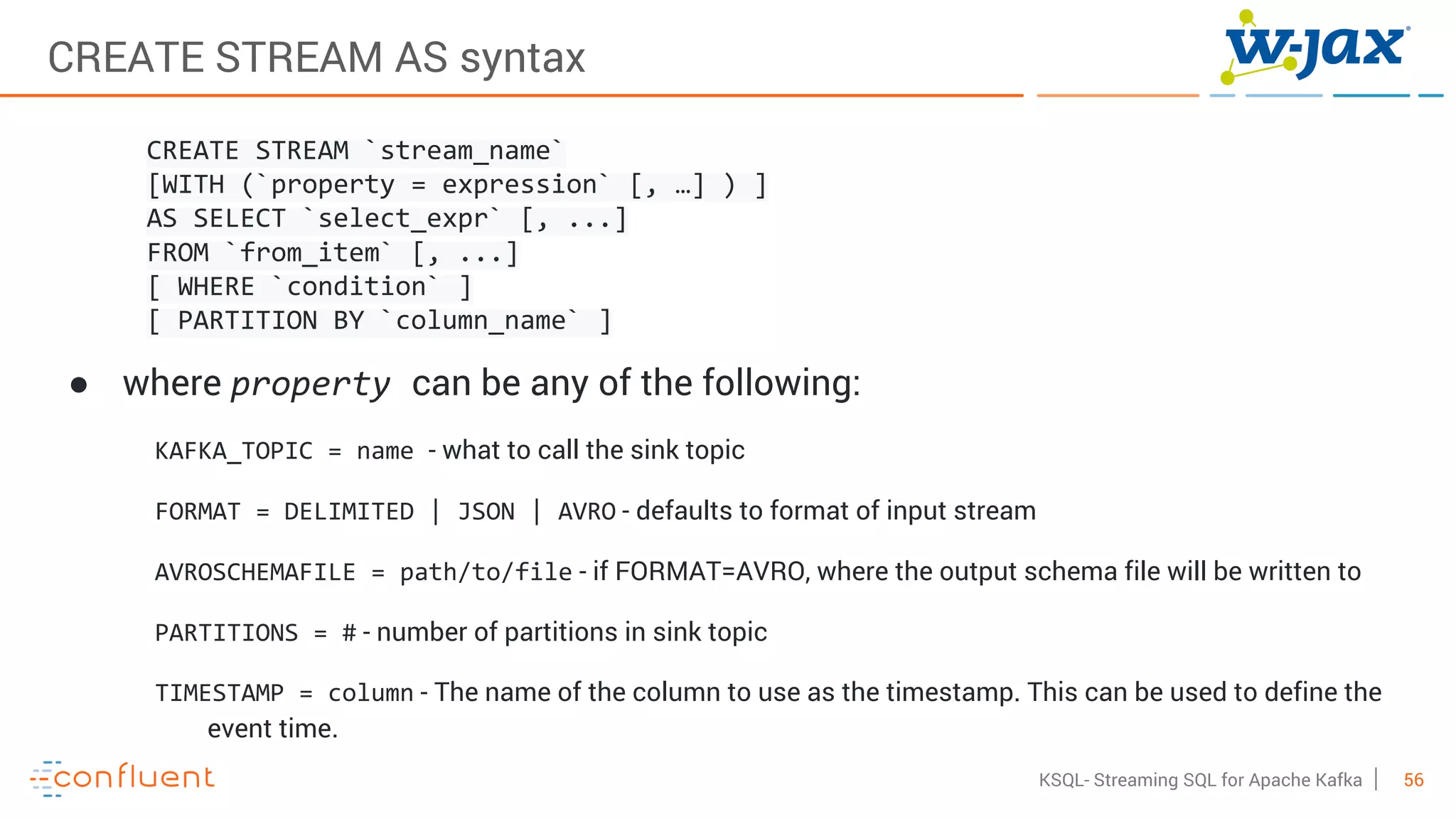

CREATE STREAM AS syntax
CREATE STREAM `stream_name`
[WITH (`property = expression` [, …] ) ]
AS SELECT `select_expr` [, ...]
FROM `from_item` [, ...]
[ WHERE `condition` ]
[ PARTITION BY `column_name` ]
● where property can be any of the following:
KAFKA_TOPIC = name - what to call the sink topic
FORMAT = DELIMITED | JSON | AVRO - defaults to format of input stream
AVROSCHEMAFILE = path/to/file - if FORMAT=AVRO, where the output schema file will be written to
PARTITIONS = # - number of partitions in sink topic
TIMESTAMP = column - The name of the column to use as the timestamp. This can be used to define the
event time.](https://image.slidesharecdn.com/201711wjaxksqlintroductionkaiwaehner-171109095743/85/KSQL-An-Open-Source-Streaming-Engine-for-Apache-Kafka-56-320.jpg)

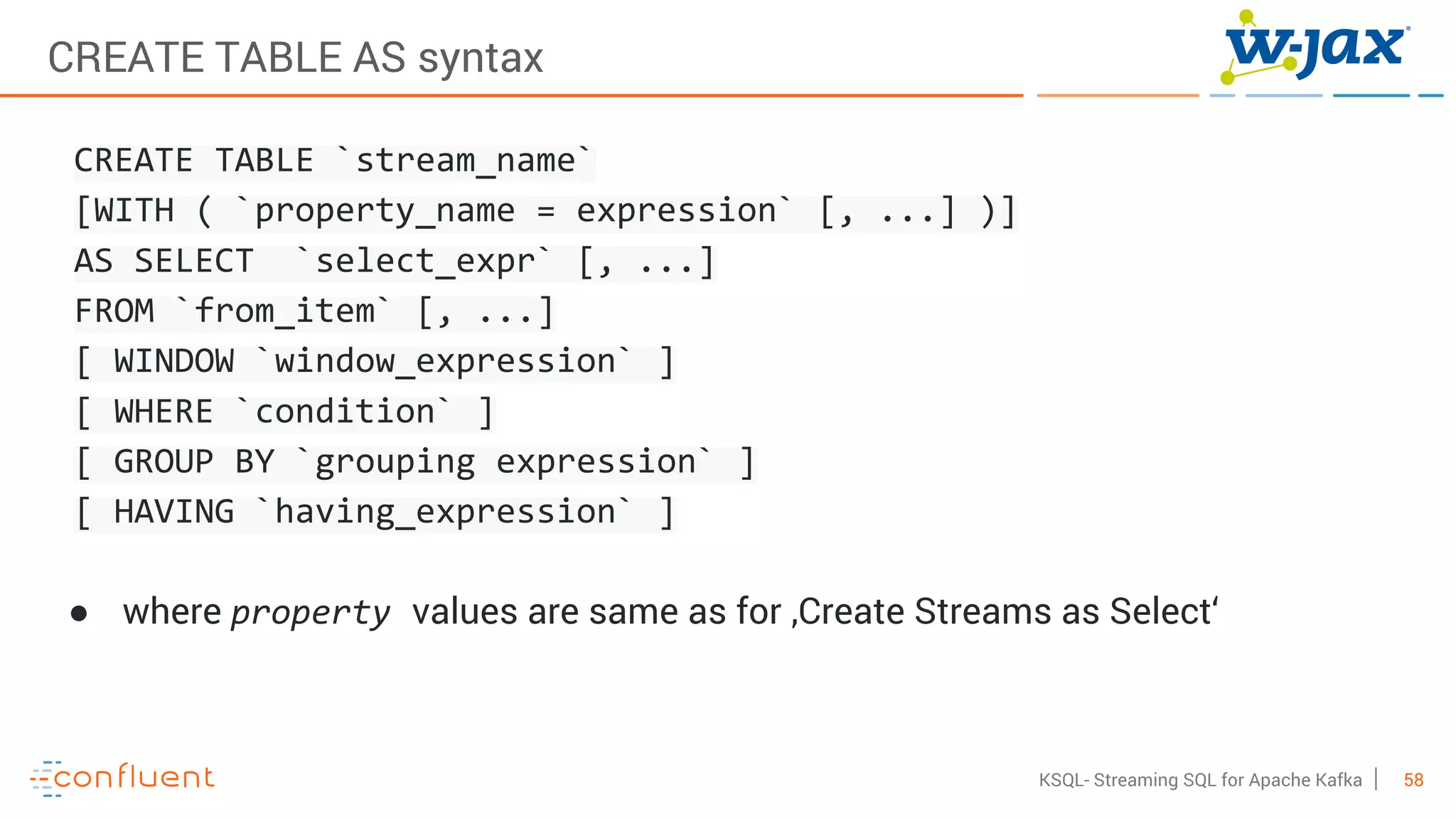

![58KSQL- Streaming SQL for Apache Kafka
CREATE TABLE AS syntax
CREATE TABLE `stream_name`
[WITH ( `property_name = expression` [, ...] )]
AS SELECT `select_expr` [, ...]
FROM `from_item` [, ...]
[ WINDOW `window_expression` ]
[ WHERE `condition` ]
[ GROUP BY `grouping expression` ]
[ HAVING `having_expression` ]
● where property values are same as for ‚Create Streams as Select‘](https://image.slidesharecdn.com/201711wjaxksqlintroductionkaiwaehner-171109095743/85/KSQL-An-Open-Source-Streaming-Engine-for-Apache-Kafka-58-320.jpg)
![20KSQL- Streaming SQL for Apache Kafka
CREATE STREAM AS syntax
CREATE STREAM `stream_name`
[WITH (`property = expression` [, …] ) ]
AS SELECT `select_expr` [, ...]
FROM `from_item` [, ...]
[ WHERE `condition` ]
[ PARTITION BY `column_name` ]
● where property can be any of the following:
KAFKA_TOPIC = name - what to call the sink topic
FORMAT = DELIMITED | JSON | AVRO - defaults to format of input stream
AVROSCHEMAFILE = path/to/file - if FORMAT=AVRO, where the output schema file will be written to
PARTITIONS = # - number of partitions in sink topic
TIMESTAMP = column - The name of the column to use as the timestamp. This can be used to define the
event time.](https://image.slidesharecdn.com/201711wjaxksqlintroductionkaiwaehner-171109095743/75/KSQL-An-Open-Source-Streaming-Engine-for-Apache-Kafka-20-2048.jpg)
![21KSQL- Streaming SQL for Apache Kafka
CREATE TABLE AS syntax
CREATE TABLE `stream_name`
[WITH ( `property_name = expression` [, ...] )]
AS SELECT `select_expr` [, ...]
FROM `from_item` [, ...]
[ WINDOW `window_expression` ]
[ WHERE `condition` ]
[ GROUP BY `grouping expression` ]
[ HAVING `having_expression` ]
● where property values are same as for ‚Create Streams as Select‘](https://image.slidesharecdn.com/201711wjaxksqlintroductionkaiwaehner-171109095743/75/KSQL-An-Open-Source-Streaming-Engine-for-Apache-Kafka-21-2048.jpg)
![22KSQL- Streaming SQL for Apache Kafka
SELECT statement syntax
SELECT `select_expr` [, ...]
FROM `from_item` [, ...]
[ WINDOW `window_expression` ]
[ WHERE `condition` ]
[ GROUP BY `grouping expression` ]
[ HAVING `having_expression` ]
[ LIMIT n ]
where from_item is one of the following:
stream_or_table_name [ [ AS ] alias]
from_item LEFT JOIN from_item ON join_condition](https://image.slidesharecdn.com/201711wjaxksqlintroductionkaiwaehner-171109095743/75/KSQL-An-Open-Source-Streaming-Engine-for-Apache-Kafka-22-2048.jpg)
![23KSQL- Streaming SQL for Apache Kafka
WINDOWing
● Not ANSI SQL ! à Continuous Queries
● Three types supported (same as Kafka Streams):
• TUMBLING (= SLIDING)
• SELECT appname, ip, COUNT(appname) AS problem_count FROM
logstream WINDOW TUMBLING (size 1 minute) WHERE loglevel='ERROR'
GROUP BY appname, ip;
• HOPPING
• SELECT itemid, SUM(arraycol[0]) FROM orders WINDOW HOPPING (
size 20 second, advance by 5 second) GROUP BY itemid;
• SESSION
• SELECT itemid, SUM(sales_price) FROM orders WINDOW SESSION (20
second) GROUP BY itemid;](https://image.slidesharecdn.com/201711wjaxksqlintroductionkaiwaehner-171109095743/75/KSQL-An-Open-Source-Streaming-Engine-for-Apache-Kafka-23-2048.jpg)
![49KSQL- Streaming SQL for Apache Kafka
Schema & Format
● A Kafka broker knows how to move bytes
• Technically a key-value message (byte[], byte[])
● To enable declarative SQL-like queries and transformations we have to define
a richer structure
● Structural metadata maintained in an in-memory catalog
• DDL is recorded in a special topic](https://image.slidesharecdn.com/201711wjaxksqlintroductionkaiwaehner-171109095743/75/KSQL-An-Open-Source-Streaming-Engine-for-Apache-Kafka-49-2048.jpg)
![53KSQL- Streaming SQL for Apache Kafka
SELECT statement syntax
SELECT `select_expr` [, ...]
FROM `from_item` [, ...]
[ WINDOW `window_expression` ]
[ WHERE `condition` ]
[ GROUP BY `grouping expression` ]
[ HAVING `having_expression` ]
[ LIMIT n ]
where from_item is one of the following:
stream_or_table_name [ [ AS ] alias]
from_item LEFT JOIN from_item ON join_condition](https://image.slidesharecdn.com/201711wjaxksqlintroductionkaiwaehner-171109095743/75/KSQL-An-Open-Source-Streaming-Engine-for-Apache-Kafka-53-2048.jpg)
![54KSQL- Streaming SQL for Apache Kafka
WINDOWing
● Not ANSI SQL ! à Continuous Queries :-)
● Three types supported (same as KStreams):
• TUMBLING (= SLIDING)
• SELECT appname, ip, COUNT(appname) AS problem_count FROM
logstream WINDOW TUMBLING (size 1 minute) WHERE loglevel='ERROR'
GROUP BY appname, ip;
• HOPPING
• SELECT itemid, SUM(arraycol[0]) FROM orders WINDOW HOPPING (
size 20 second, advance by 5 second) GROUP BY itemid;
• SESSION
• SELECT itemid, SUM(sales_price) FROM orders WINDOW SESSION (20
second) GROUP BY itemid;](https://image.slidesharecdn.com/201711wjaxksqlintroductionkaiwaehner-171109095743/75/KSQL-An-Open-Source-Streaming-Engine-for-Apache-Kafka-54-2048.jpg)
![56KSQL- Streaming SQL for Apache Kafka
CREATE STREAM AS syntax
CREATE STREAM `stream_name`
[WITH (`property = expression` [, …] ) ]
AS SELECT `select_expr` [, ...]
FROM `from_item` [, ...]
[ WHERE `condition` ]
[ PARTITION BY `column_name` ]
● where property can be any of the following:
KAFKA_TOPIC = name - what to call the sink topic
FORMAT = DELIMITED | JSON | AVRO - defaults to format of input stream
AVROSCHEMAFILE = path/to/file - if FORMAT=AVRO, where the output schema file will be written to
PARTITIONS = # - number of partitions in sink topic
TIMESTAMP = column - The name of the column to use as the timestamp. This can be used to define the
event time.](https://image.slidesharecdn.com/201711wjaxksqlintroductionkaiwaehner-171109095743/75/KSQL-An-Open-Source-Streaming-Engine-for-Apache-Kafka-56-2048.jpg)
![58KSQL- Streaming SQL for Apache Kafka
CREATE TABLE AS syntax
CREATE TABLE `stream_name`
[WITH ( `property_name = expression` [, ...] )]
AS SELECT `select_expr` [, ...]
FROM `from_item` [, ...]
[ WINDOW `window_expression` ]
[ WHERE `condition` ]
[ GROUP BY `grouping expression` ]
[ HAVING `having_expression` ]
● where property values are same as for ‚Create Streams as Select‘](https://image.slidesharecdn.com/201711wjaxksqlintroductionkaiwaehner-171109095743/75/KSQL-An-Open-Source-Streaming-Engine-for-Apache-Kafka-58-2048.jpg)
Uploaded byKai Wähner
KSQL – An Open Source Streaming Engine for Apache Kafka
The document discusses ksql, an open-source streaming SQL engine for Apache Kafka, providing an overview of its architecture, concepts, and use cases such as clickstream analysis and real-time monitoring. It covers key functionalities like creating streams and tables, executing queries, and the components involved in deploying ksql applications. The content includes examples of SQL-like queries for data transformation and analytics within the Kafka ecosystem.
More Related Content
Similar to KSQL – An Open Source Streaming Engine for Apache Kafka
KSQL – An Open Source Streaming Engine for Apache Kafka
- 1. 1Confidential KSQL An Open SourceStreaming SQL Engine for Apache Kafka Kai Waehner Technology Evangelist kontakt@kai-waehner.de LinkedIn @KaiWaehner www.confluent.io www.kai-waehner.de

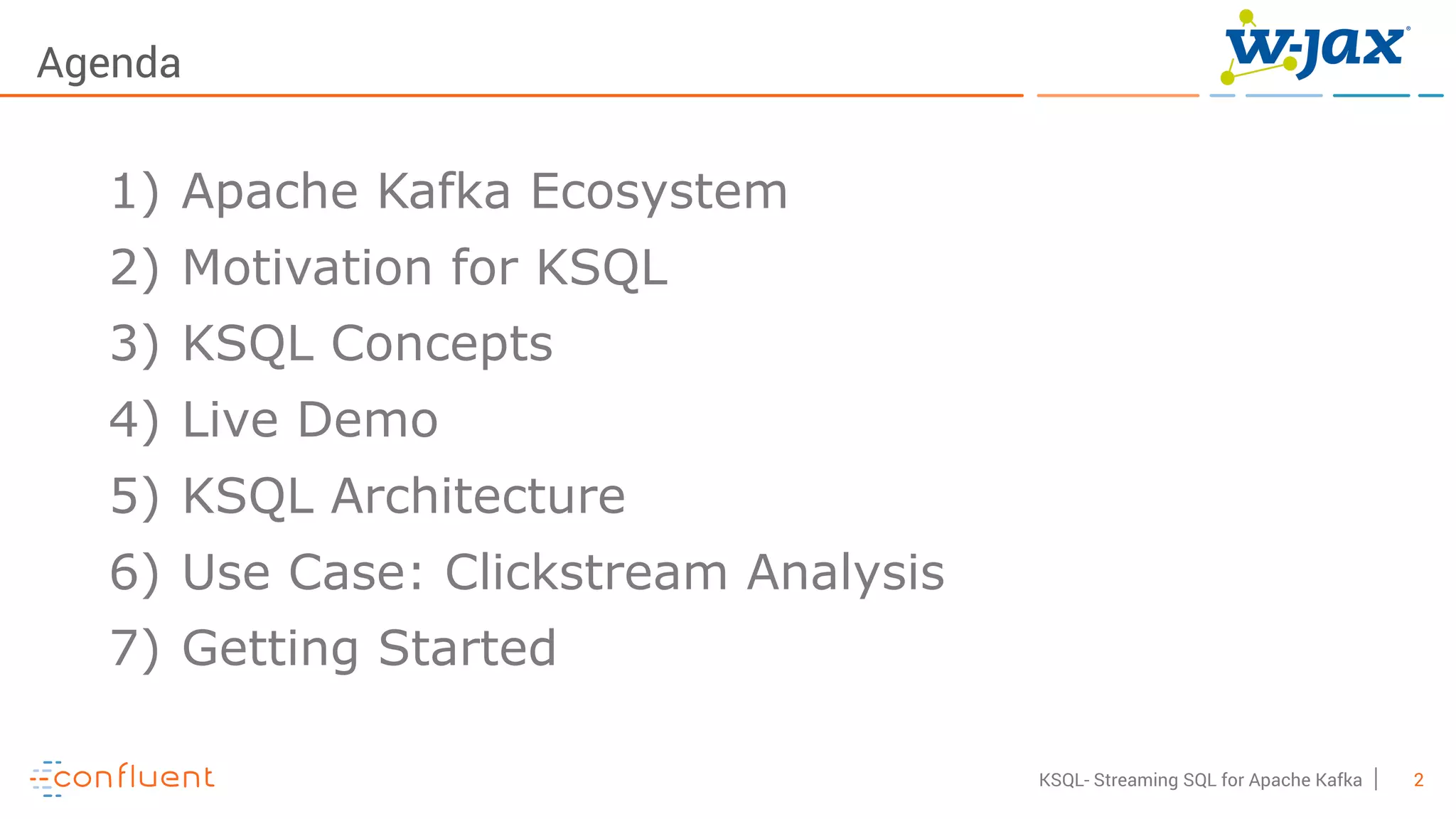

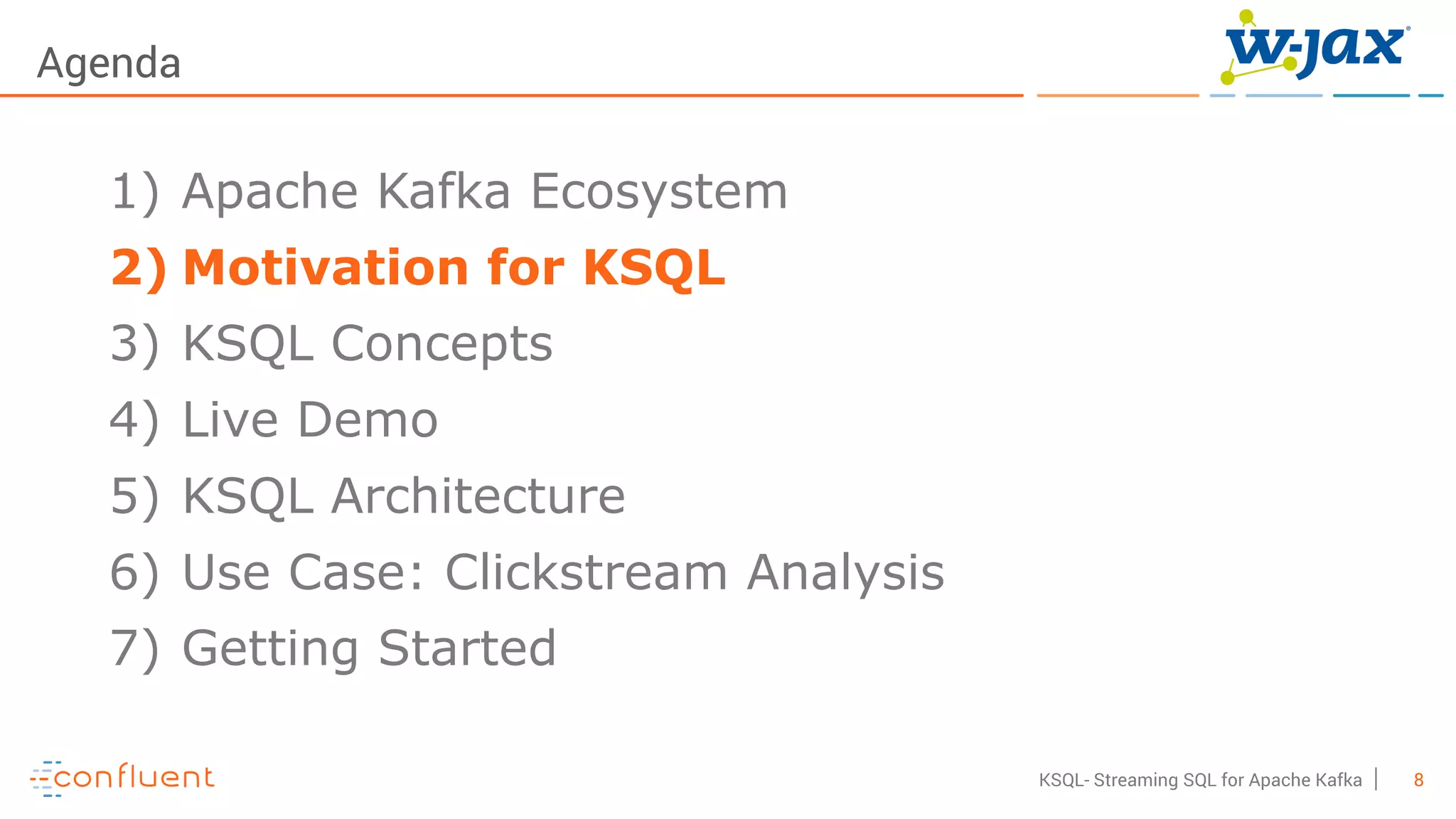

- 2. 2KSQL- Streaming SQLfor Apache Kafka Agenda 1) Apache Kafka Ecosystem 2) Motivation for KSQL 3) KSQL Concepts 4) Live Demo 5) KSQL Architecture 6) Use Case: Clickstream Analysis 7) Getting Started
- 3. 3KSQL- Streaming SQLfor Apache Kafka Agenda 1) Apache Kafka Ecosystem 2) Motivation for KSQL 3) KSQL Concepts 4) Live Demo 5) KSQL Architecture 6) Use Case: Clickstream Analysis 7) Getting Started

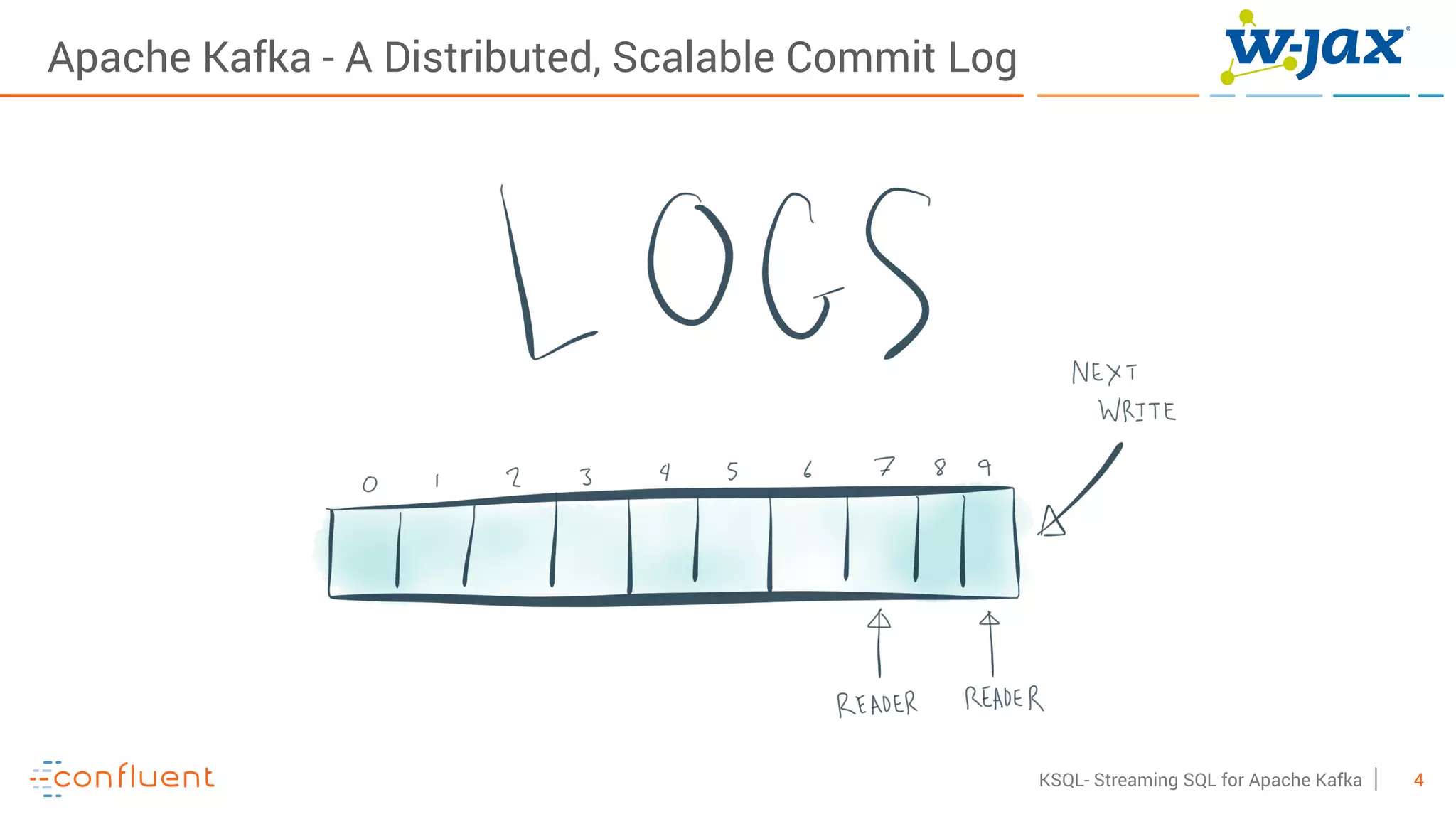

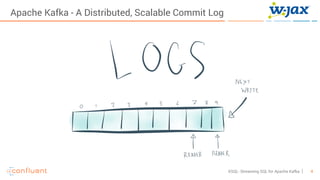

- 4. 4KSQL- Streaming SQLfor Apache Kafka Apache Kafka - A Distributed, Scalable Commit Log

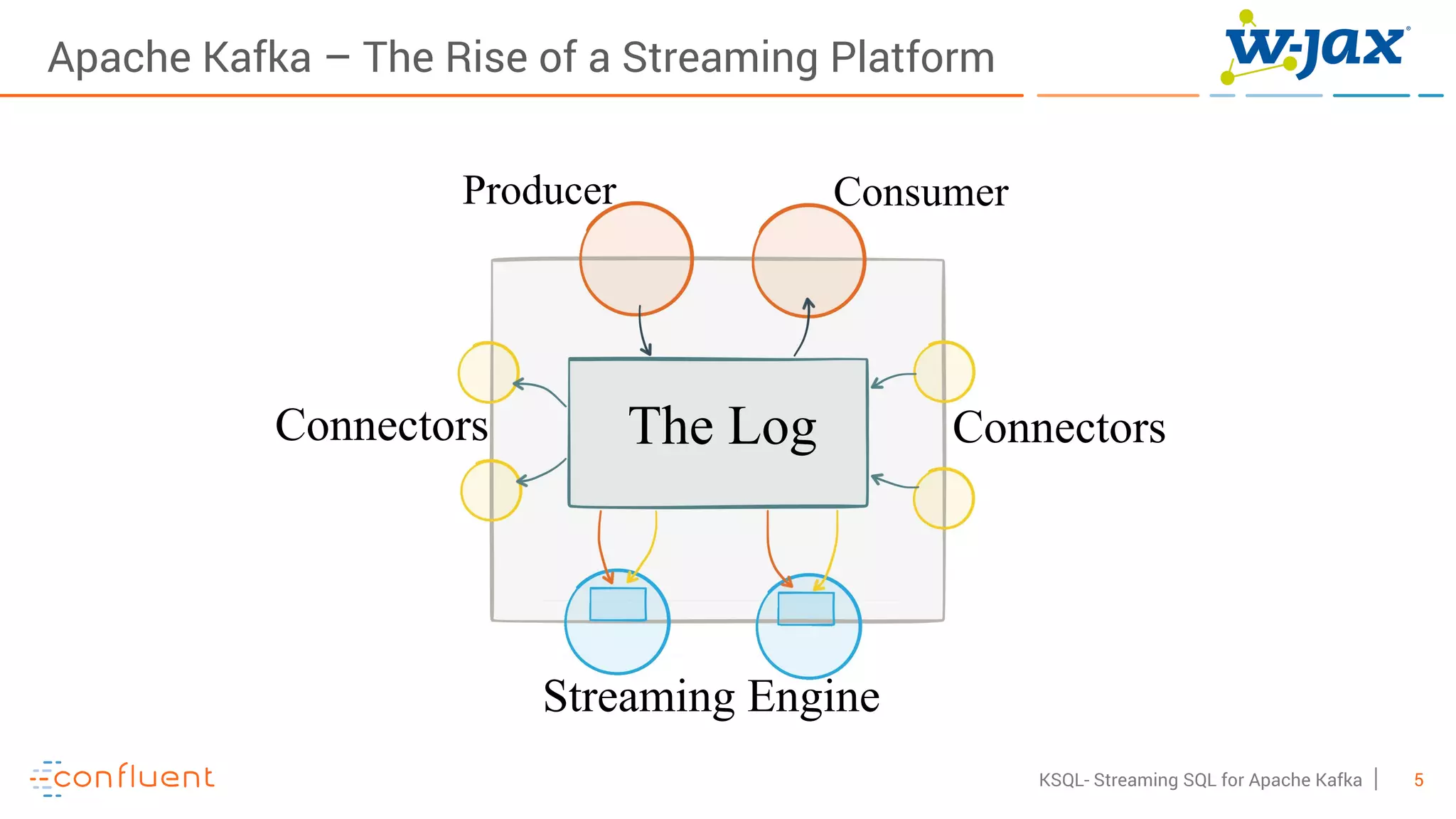

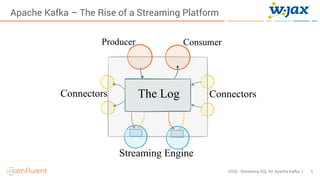

- 5. 5KSQL- Streaming SQLfor Apache Kafka The Log ConnectorsConnectors Producer Consumer Streaming Engine Apache Kafka – The Rise of a Streaming Platform

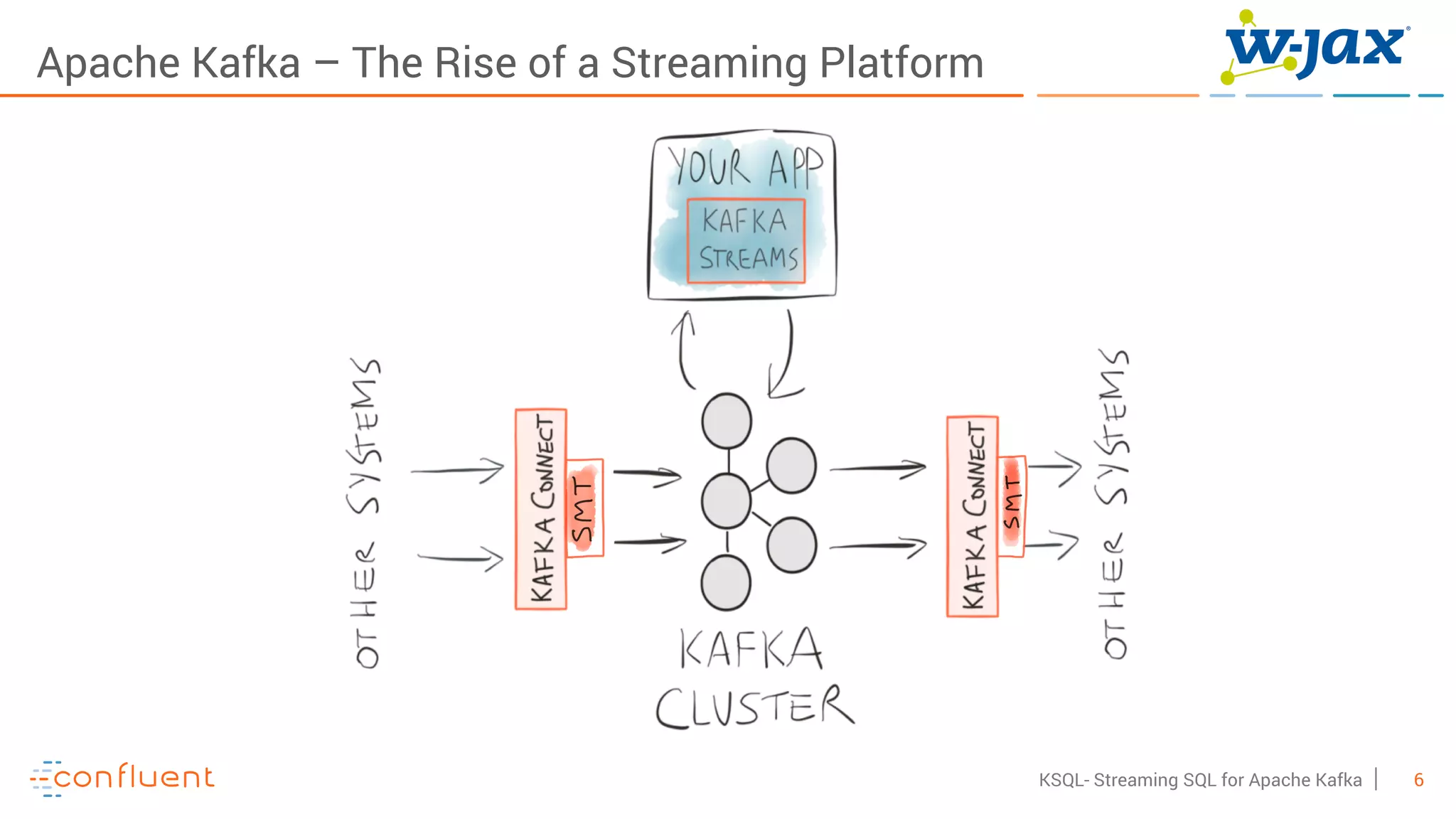

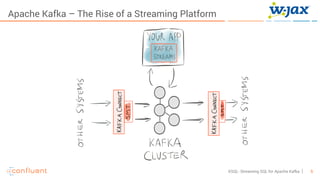

- 6. 6KSQL- Streaming SQLfor Apache Kafka Apache Kafka – The Rise of a Streaming Platform
- 7. 7KSQL- Streaming SQLfor Apache Kafka KSQL – A Streaming SQL Engine for Apache Kafka
- 8. 8KSQL- Streaming SQLfor Apache Kafka Agenda 1) Apache Kafka Ecosystem 2) Motivation for KSQL 3) KSQL Concepts 4) Live Demo 5) KSQL Architecture 6) Use Case: Clickstream Analysis 7) Getting Started

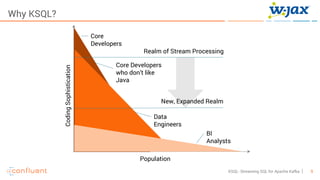

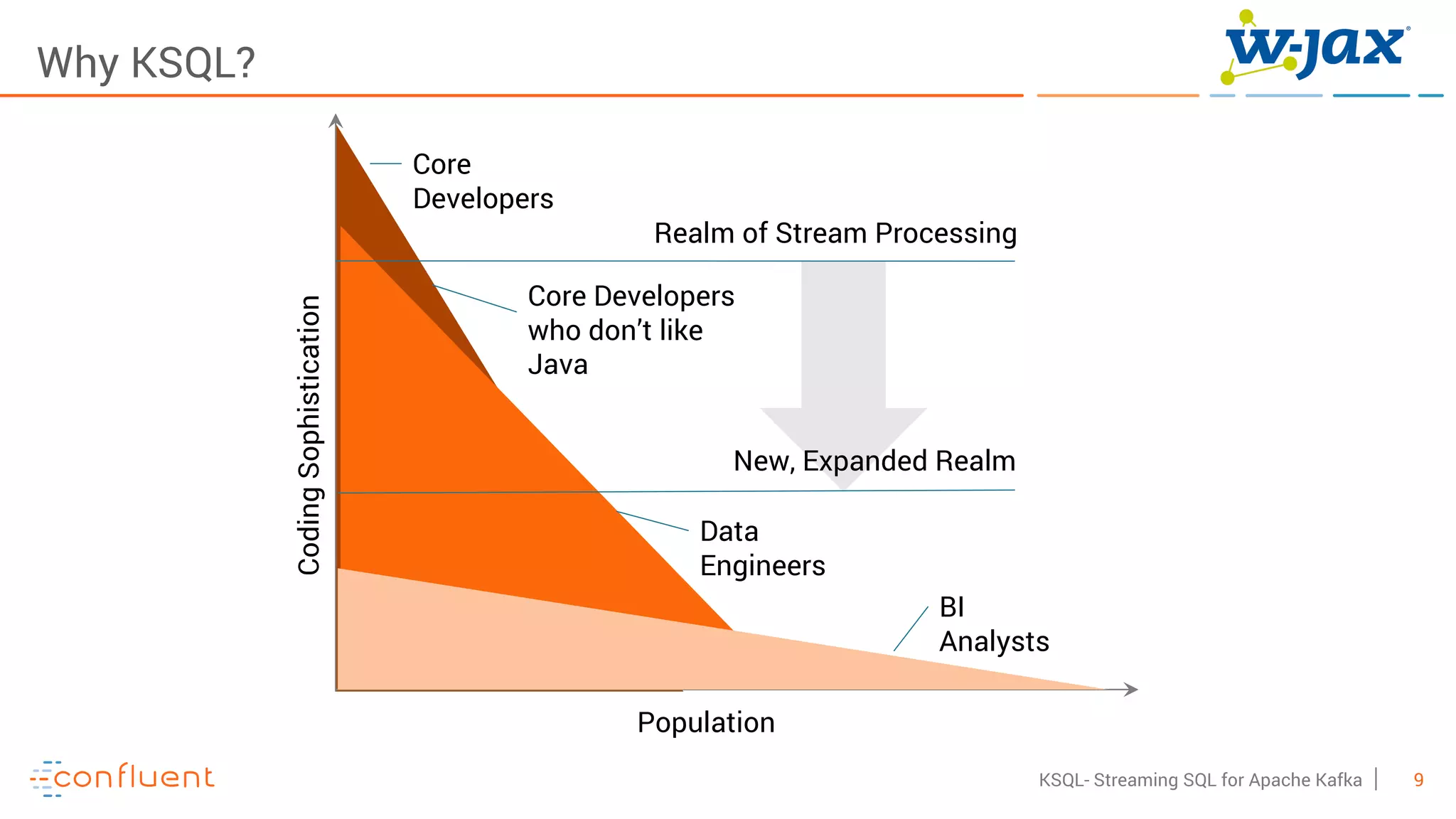

- 9. 9KSQL- Streaming SQLfor Apache Kafka Why KSQL? Population CodingSophistication Realm of Stream Processing New, Expanded Realm BI Analysts Core Developers Data Engineers Core Developers who don’t like Java

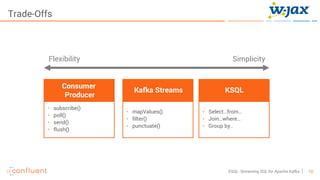

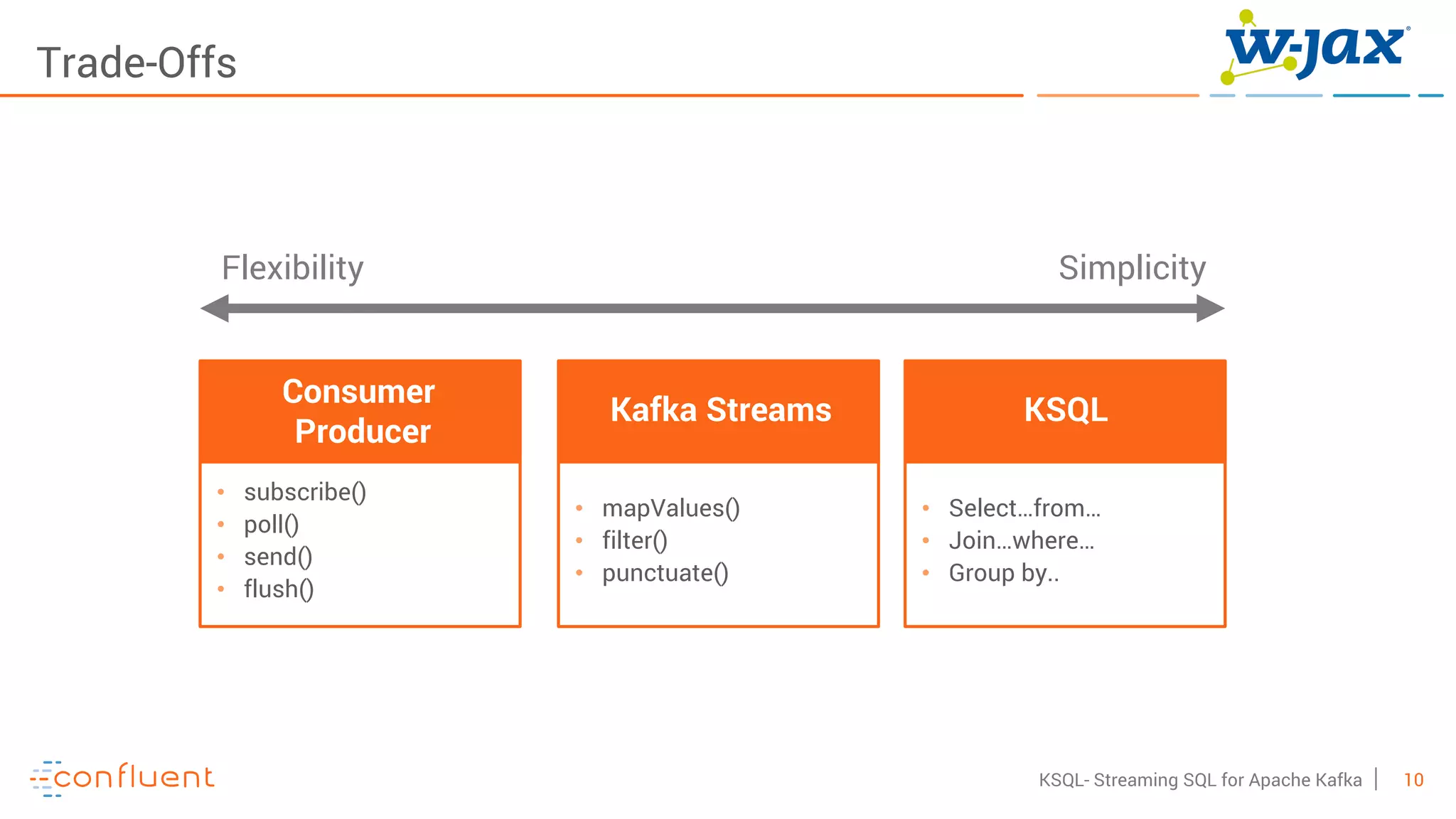

- 10. 10KSQL- Streaming SQLfor Apache Kafka Trade-Offs • subscribe() • poll() • send() • flush() • mapValues() • filter() • punctuate() • Select…from… • Join…where… • Group by.. Flexibility Simplicity Kafka Streams KSQL Consumer Producer

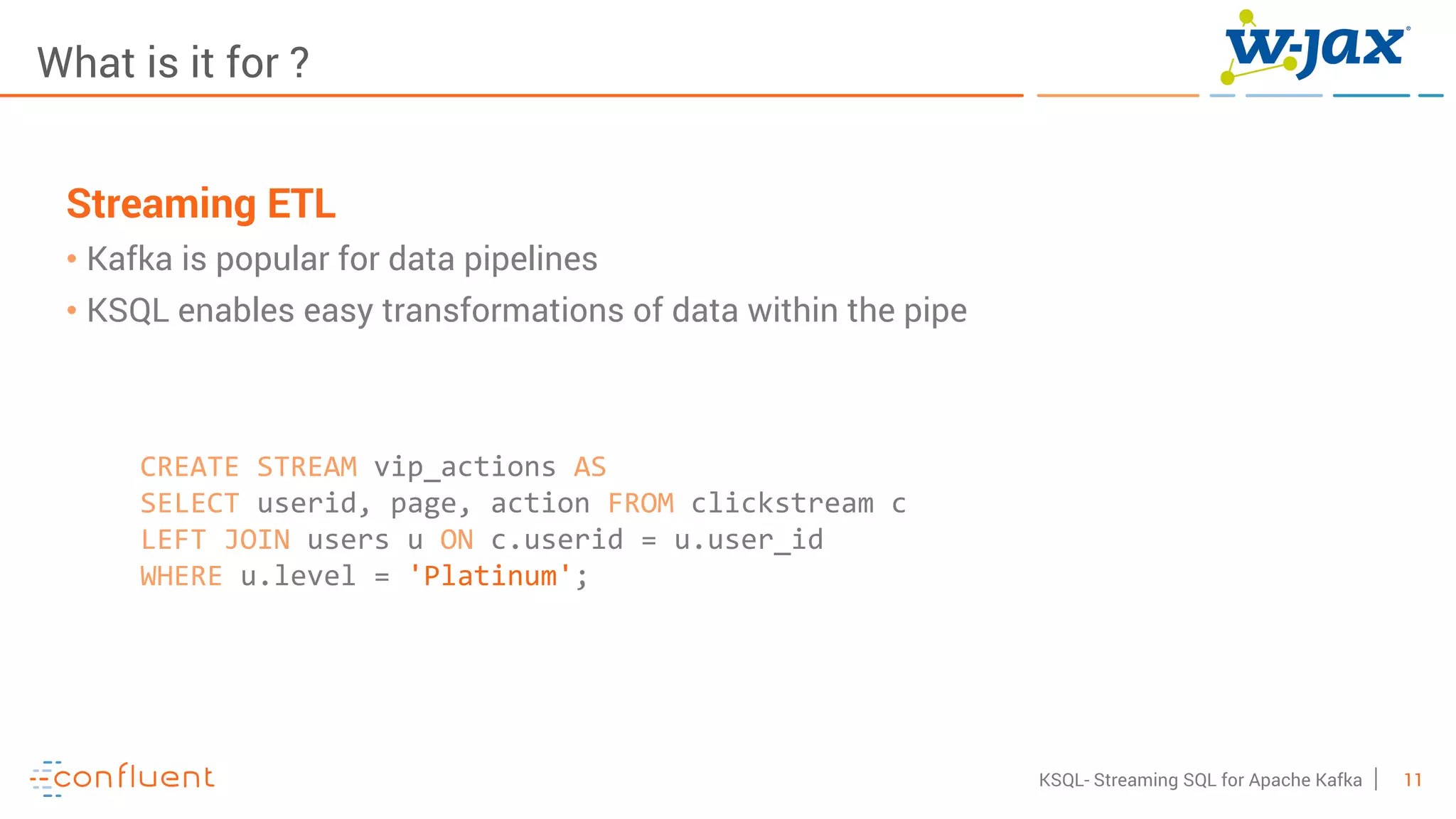

- 11. 11KSQL- Streaming SQLfor Apache Kafka What is it for ? Streaming ETL • Kafka is popular for data pipelines • KSQL enables easy transformations of data within the pipe CREATE STREAM vip_actions AS SELECT userid, page, action FROM clickstream c LEFT JOIN users u ON c.userid = u.user_id WHERE u.level = 'Platinum';

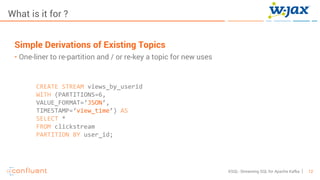

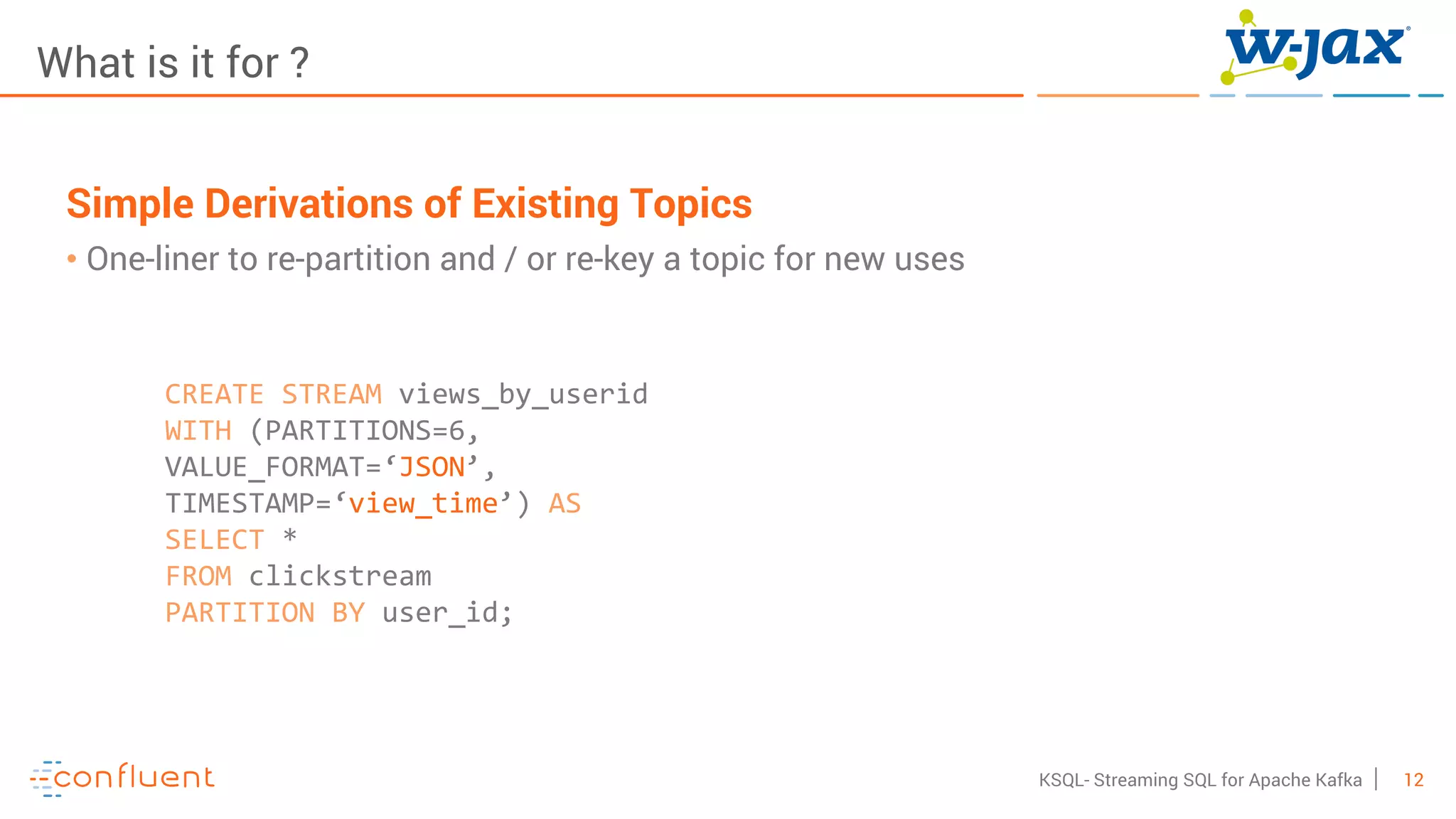

- 12. 12KSQL- Streaming SQLfor Apache Kafka What is it for ? Simple Derivations of Existing Topics • One-liner to re-partition and / or re-key a topic for new uses CREATE STREAM views_by_userid WITH (PARTITIONS=6, VALUE_FORMAT=‘JSON’, TIMESTAMP=‘view_time’) AS SELECT * FROM clickstream PARTITION BY user_id;

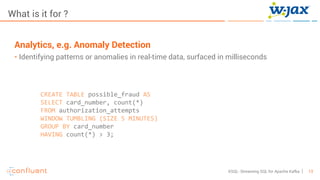

- 13. 13KSQL- Streaming SQLfor Apache Kafka What is it for ? Analytics, e.g. Anomaly Detection • Identifying patterns or anomalies in real-time data, surfaced in milliseconds CREATE TABLE possible_fraud AS SELECT card_number, count(*) FROM authorization_attempts WINDOW TUMBLING (SIZE 5 MINUTES) GROUP BY card_number HAVING count(*) > 3;

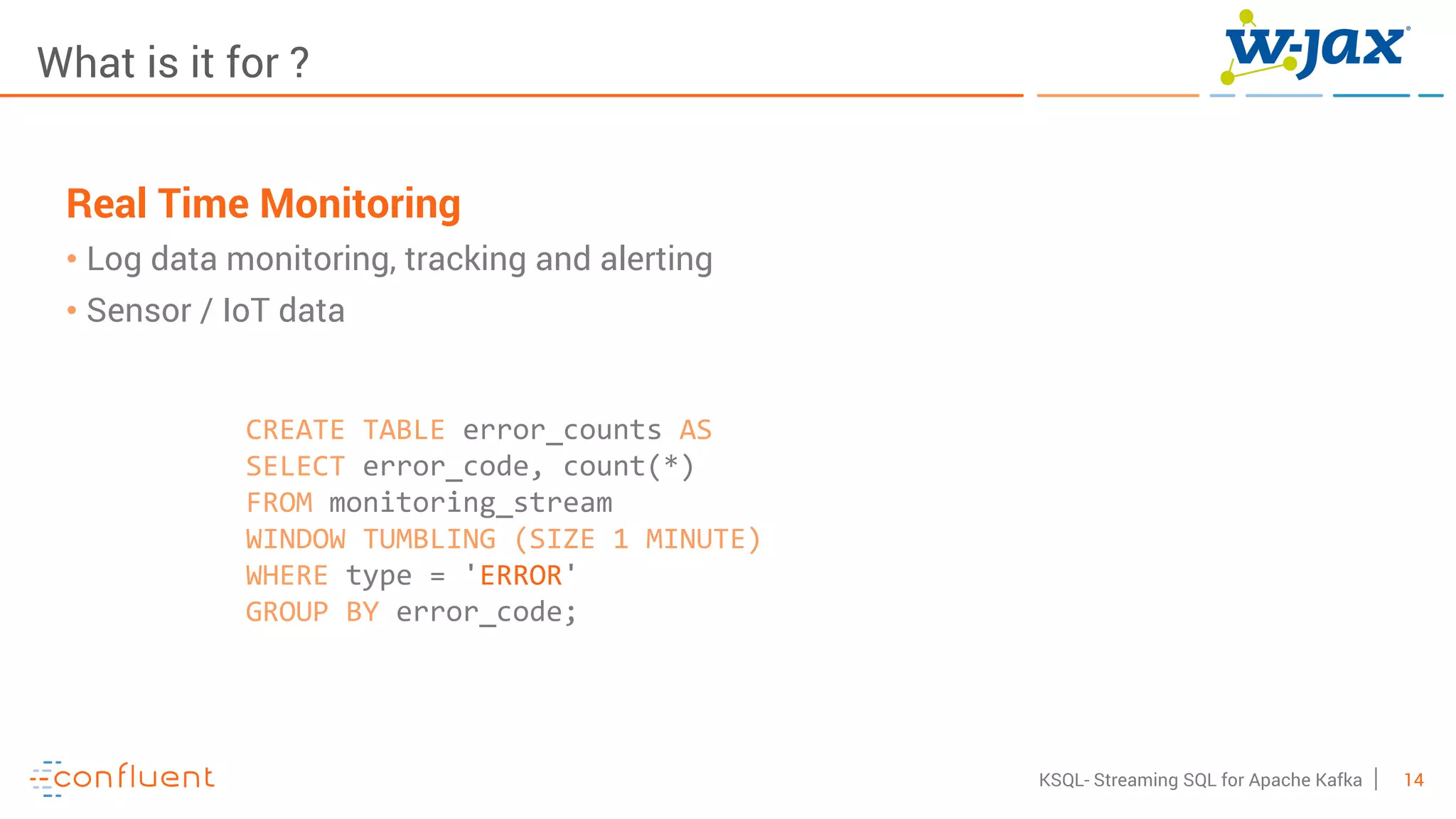

- 14. 14KSQL- Streaming SQLfor Apache Kafka What is it for ? Real Time Monitoring • Log data monitoring, tracking and alerting • Sensor / IoT data CREATE TABLE error_counts AS SELECT error_code, count(*) FROM monitoring_stream WINDOW TUMBLING (SIZE 1 MINUTE) WHERE type = 'ERROR' GROUP BY error_code;

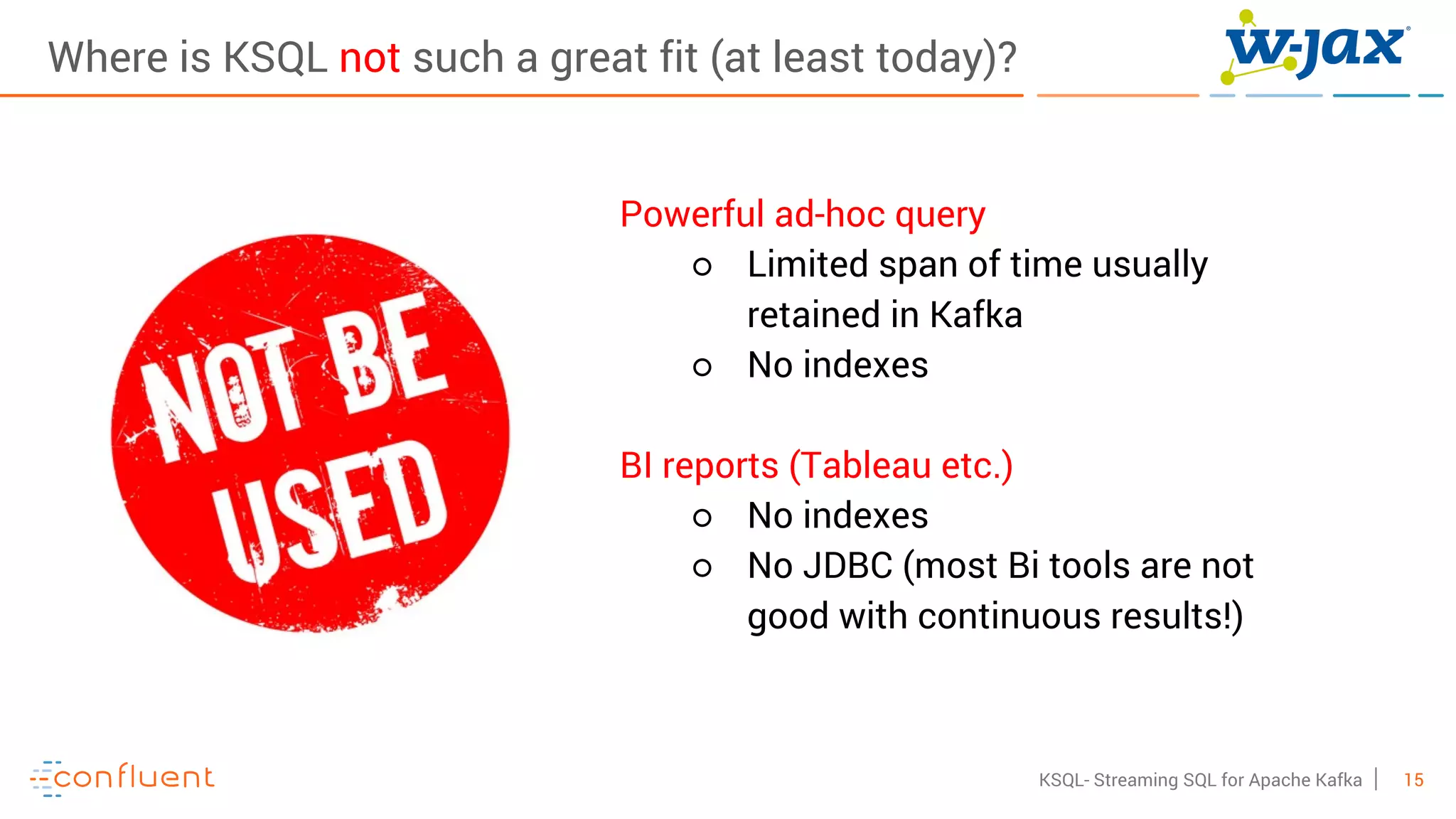

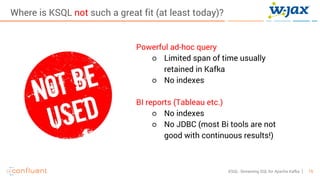

- 15. 15KSQL- Streaming SQLfor Apache Kafka Where is KSQL not such a great fit (at least today)? Powerful ad-hoc query ○ Limited span of time usually retained in Kafka ○ No indexes BI reports (Tableau etc.) ○ No indexes ○ No JDBC (most Bi tools are not good with continuous results!)
- 16. 16KSQL- Streaming SQLfor Apache Kafka Agenda 1) Apache Kafka Ecosystem 2) Motivation for KSQL 3) KSQL Concepts 4) Live Demo 5) KSQL Architecture 6) Use Case: Clickstream Analysis 7) Getting Started

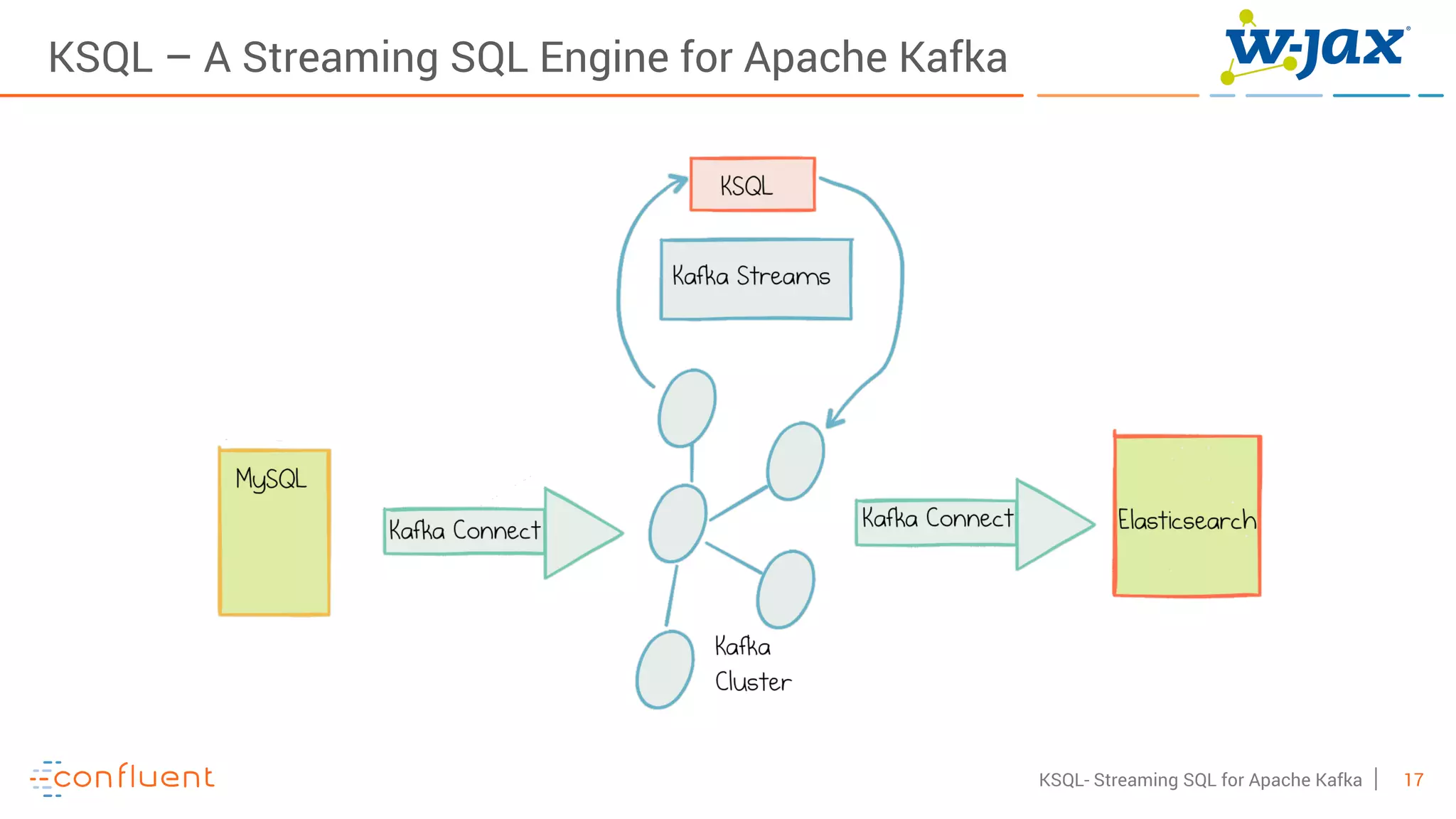

- 17. 17KSQL- Streaming SQLfor Apache Kafka KSQL – A Streaming SQL Engine for Apache Kafka

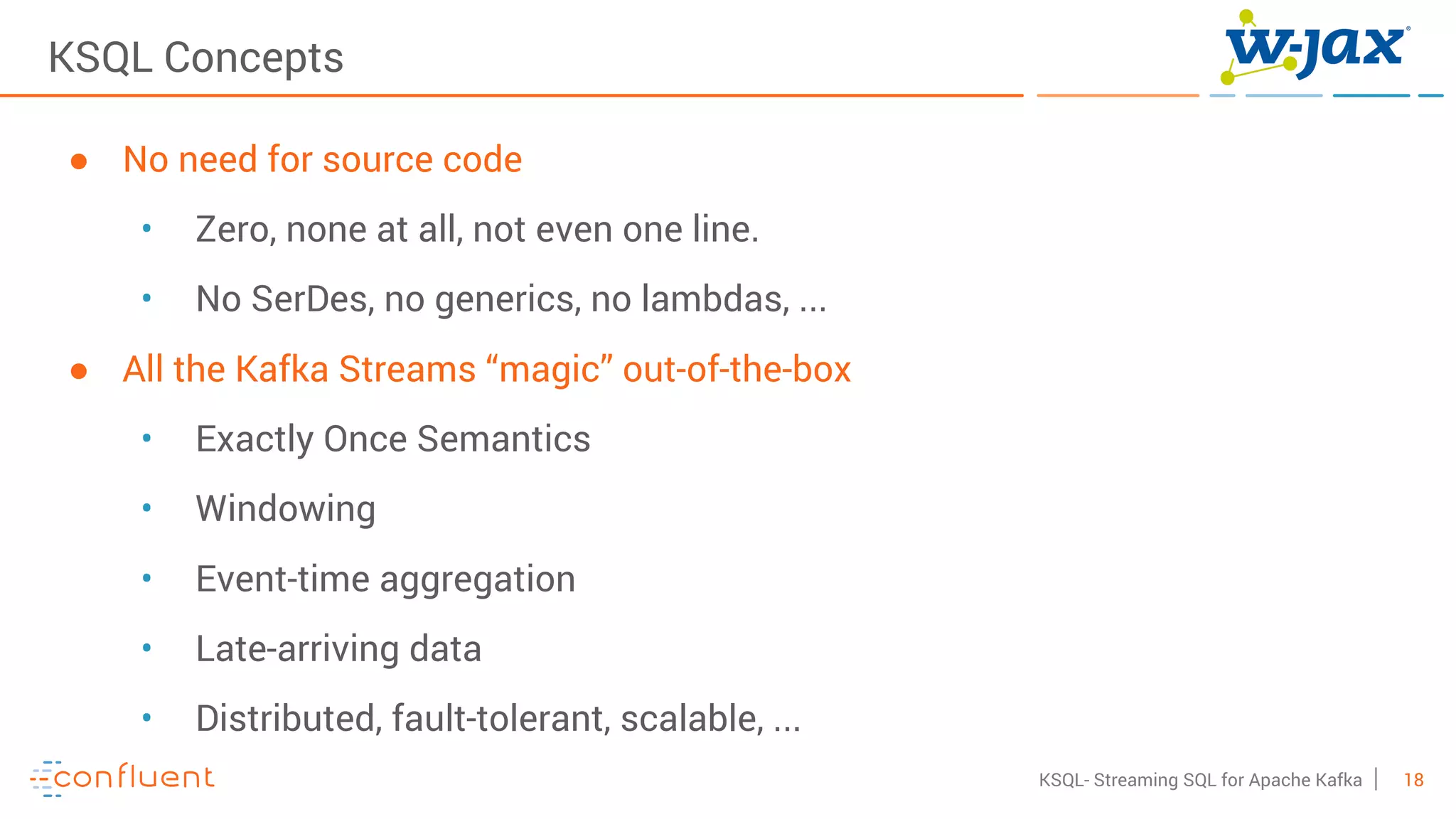

- 18. 18KSQL- Streaming SQLfor Apache Kafka KSQL Concepts ● No need for source code • Zero, none at all, not even one line. • No SerDes, no generics, no lambdas, ... ● All the Kafka Streams “magic” out-of-the-box • Exactly Once Semantics • Windowing • Event-time aggregation • Late-arriving data • Distributed, fault-tolerant, scalable, ...

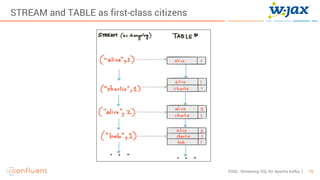

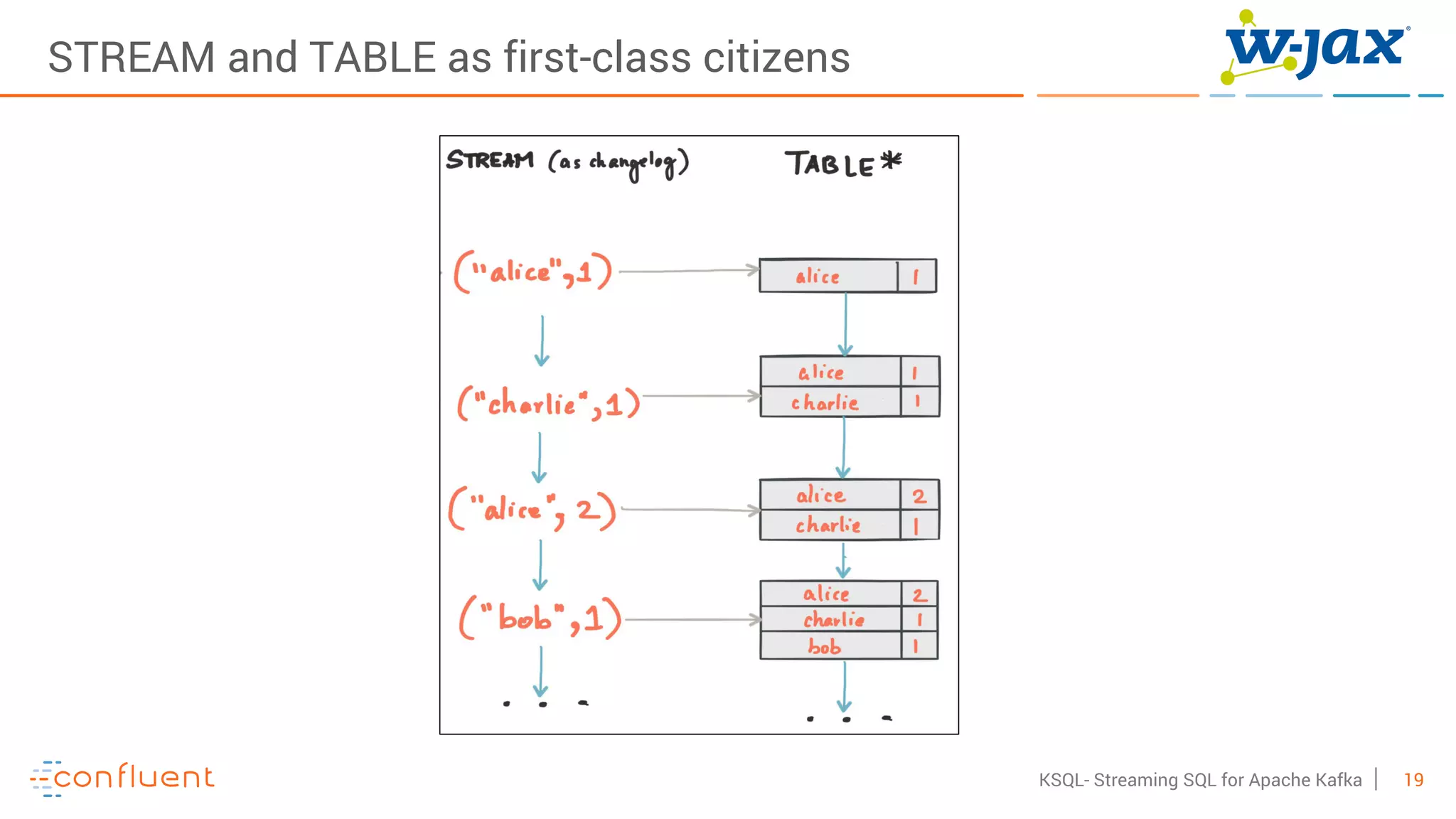

- 19. 19KSQL- Streaming SQLfor Apache Kafka STREAM and TABLE as first-class citizens
- 20. 20KSQL- Streaming SQLfor Apache Kafka CREATE STREAM AS syntax CREATE STREAM `stream_name` [WITH (`property = expression` [, …] ) ] AS SELECT `select_expr` [, ...] FROM `from_item` [, ...] [ WHERE `condition` ] [ PARTITION BY `column_name` ] ● where property can be any of the following: KAFKA_TOPIC = name - what to call the sink topic FORMAT = DELIMITED | JSON | AVRO - defaults to format of input stream AVROSCHEMAFILE = path/to/file - if FORMAT=AVRO, where the output schema file will be written to PARTITIONS = # - number of partitions in sink topic TIMESTAMP = column - The name of the column to use as the timestamp. This can be used to define the event time.
- 21. 21KSQL- Streaming SQLfor Apache Kafka CREATE TABLE AS syntax CREATE TABLE `stream_name` [WITH ( `property_name = expression` [, ...] )] AS SELECT `select_expr` [, ...] FROM `from_item` [, ...] [ WINDOW `window_expression` ] [ WHERE `condition` ] [ GROUP BY `grouping expression` ] [ HAVING `having_expression` ] ● where property values are same as for ‚Create Streams as Select‘
- 22. 22KSQL- Streaming SQLfor Apache Kafka SELECT statement syntax SELECT `select_expr` [, ...] FROM `from_item` [, ...] [ WINDOW `window_expression` ] [ WHERE `condition` ] [ GROUP BY `grouping expression` ] [ HAVING `having_expression` ] [ LIMIT n ] where from_item is one of the following: stream_or_table_name [ [ AS ] alias] from_item LEFT JOIN from_item ON join_condition
- 23. 23KSQL- Streaming SQLfor Apache Kafka WINDOWing ● Not ANSI SQL ! à Continuous Queries ● Three types supported (same as Kafka Streams): • TUMBLING (= SLIDING) • SELECT appname, ip, COUNT(appname) AS problem_count FROM logstream WINDOW TUMBLING (size 1 minute) WHERE loglevel='ERROR' GROUP BY appname, ip; • HOPPING • SELECT itemid, SUM(arraycol[0]) FROM orders WINDOW HOPPING ( size 20 second, advance by 5 second) GROUP BY itemid; • SESSION • SELECT itemid, SUM(sales_price) FROM orders WINDOW SESSION (20 second) GROUP BY itemid;

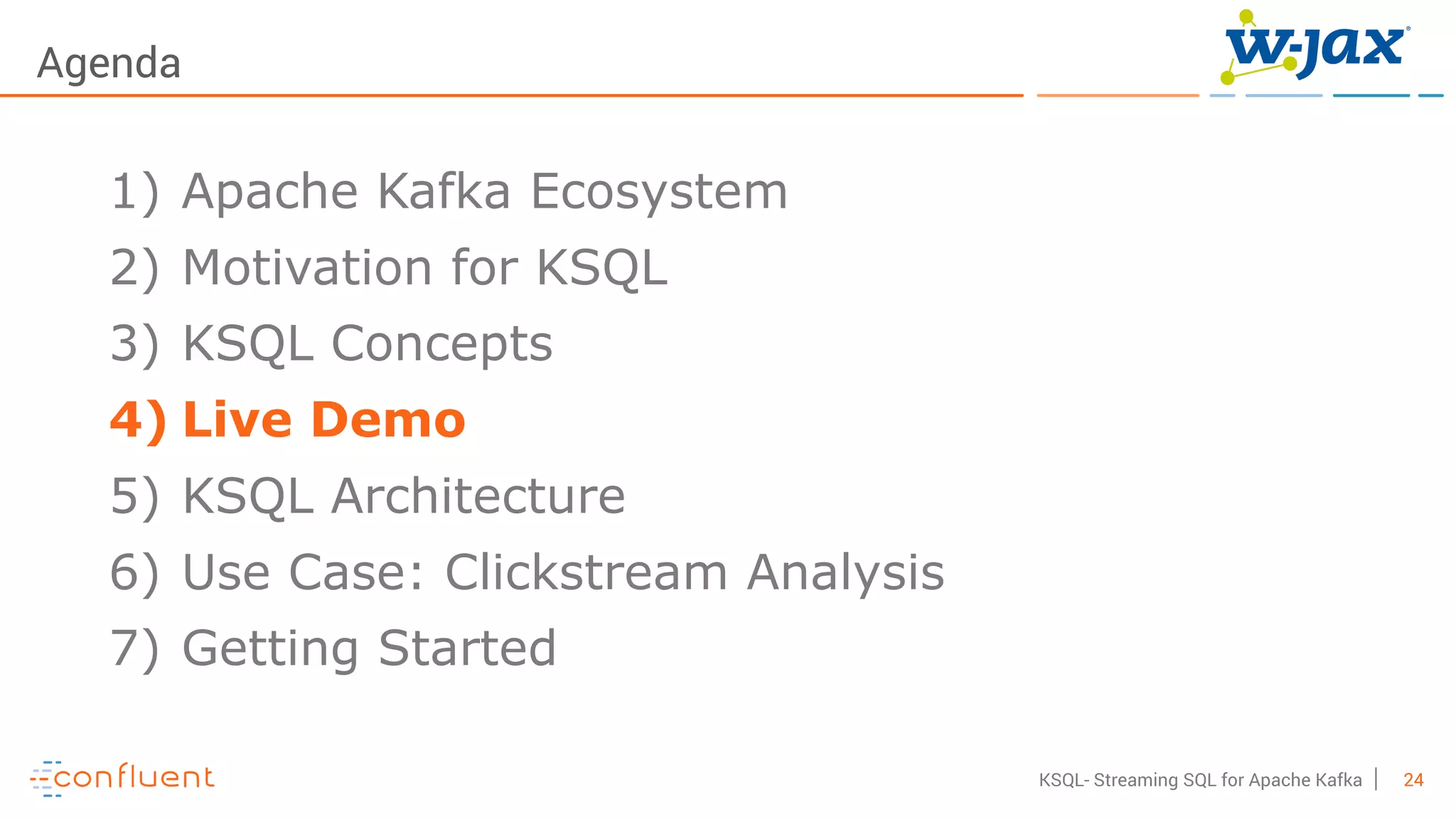

- 24. 24KSQL- Streaming SQLfor Apache Kafka Agenda 1) Apache Kafka Ecosystem 2) Motivation for KSQL 3) KSQL Concepts 4) Live Demo 5) KSQL Architecture 6) Use Case: Clickstream Analysis 7) Getting Started

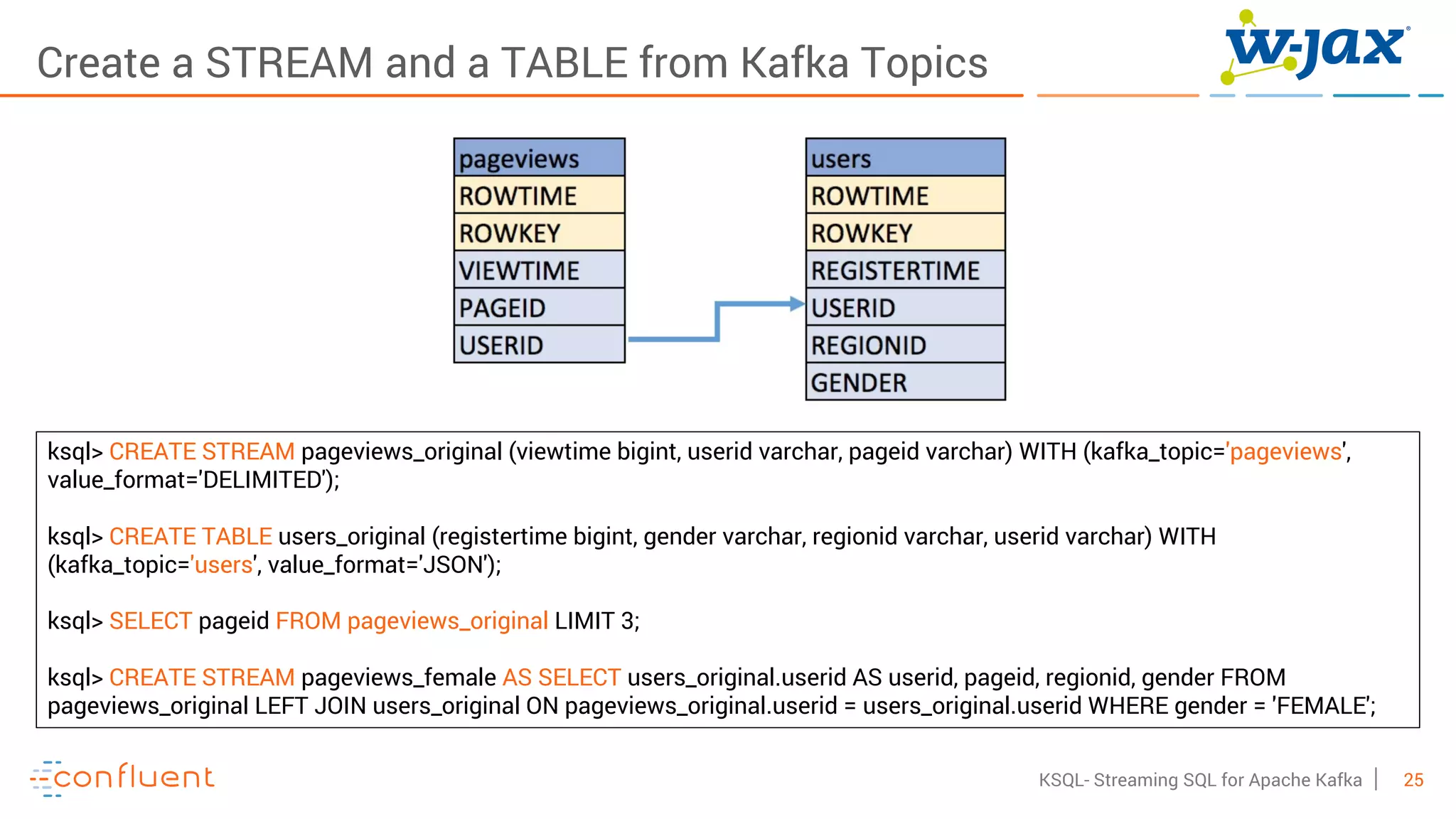

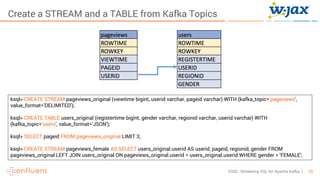

- 25. 25KSQL- Streaming SQLfor Apache Kafka Create a STREAM and a TABLE from Kafka Topics ksql> CREATE STREAM pageviews_original (viewtime bigint, userid varchar, pageid varchar) WITH (kafka_topic='pageviews', value_format='DELIMITED'); ksql> CREATE TABLE users_original (registertime bigint, gender varchar, regionid varchar, userid varchar) WITH (kafka_topic='users', value_format='JSON'); ksql> SELECT pageid FROM pageviews_original LIMIT 3; ksql> CREATE STREAM pageviews_female AS SELECT users_original.userid AS userid, pageid, regionid, gender FROM pageviews_original LEFT JOIN users_original ON pageviews_original.userid = users_original.userid WHERE gender = 'FEMALE';
- 26. 26KSQL- Streaming SQLfor Apache Kafka Live Demo – KSQL Hello World

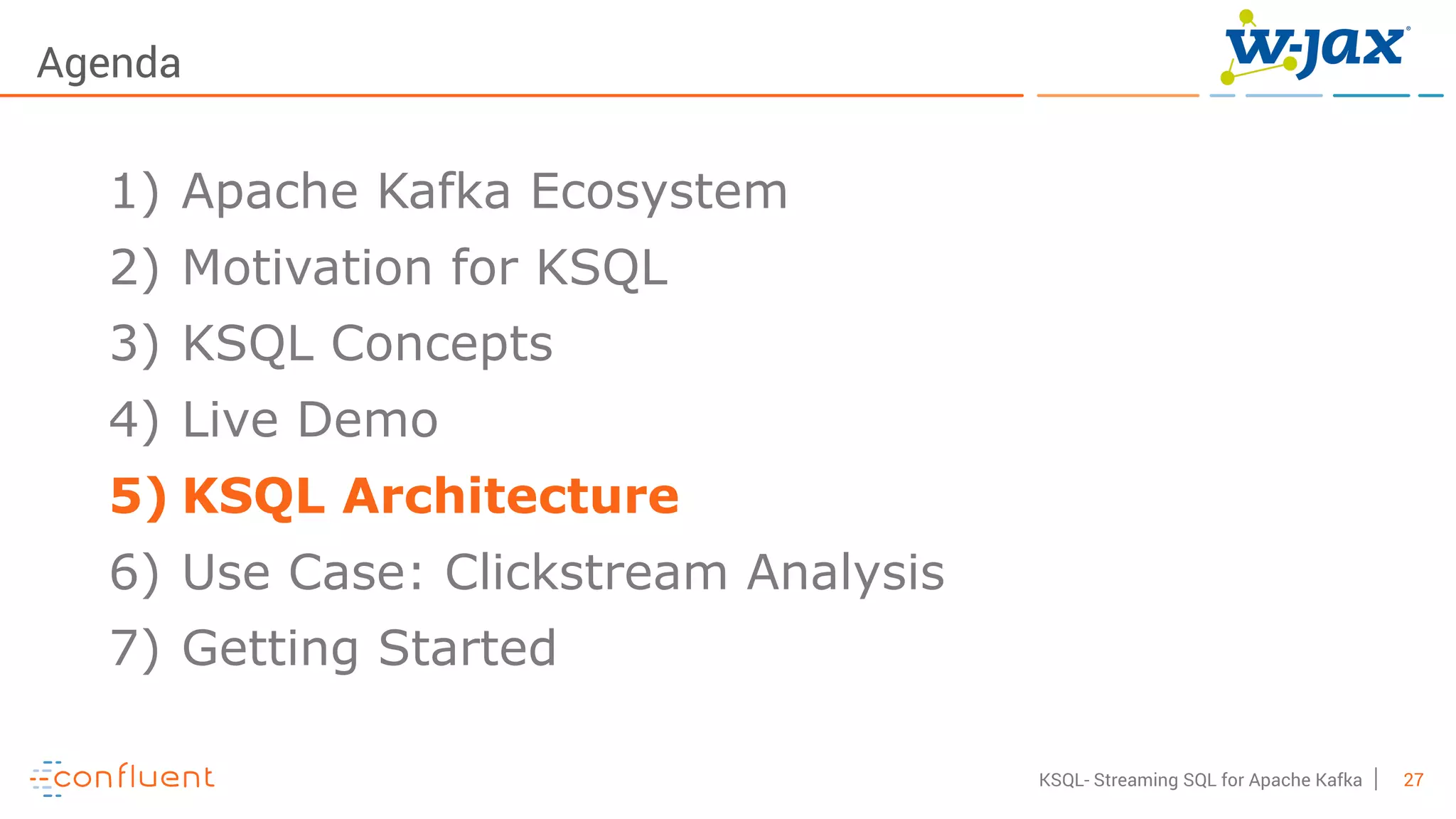

- 27. 27KSQL- Streaming SQLfor Apache Kafka Agenda 1) Apache Kafka Ecosystem 2) Motivation for KSQL 3) KSQL Concepts 4) Live Demo 5) KSQL Architecture 6) Use Case: Clickstream Analysis 7) Getting Started

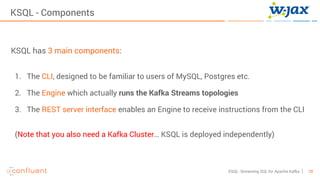

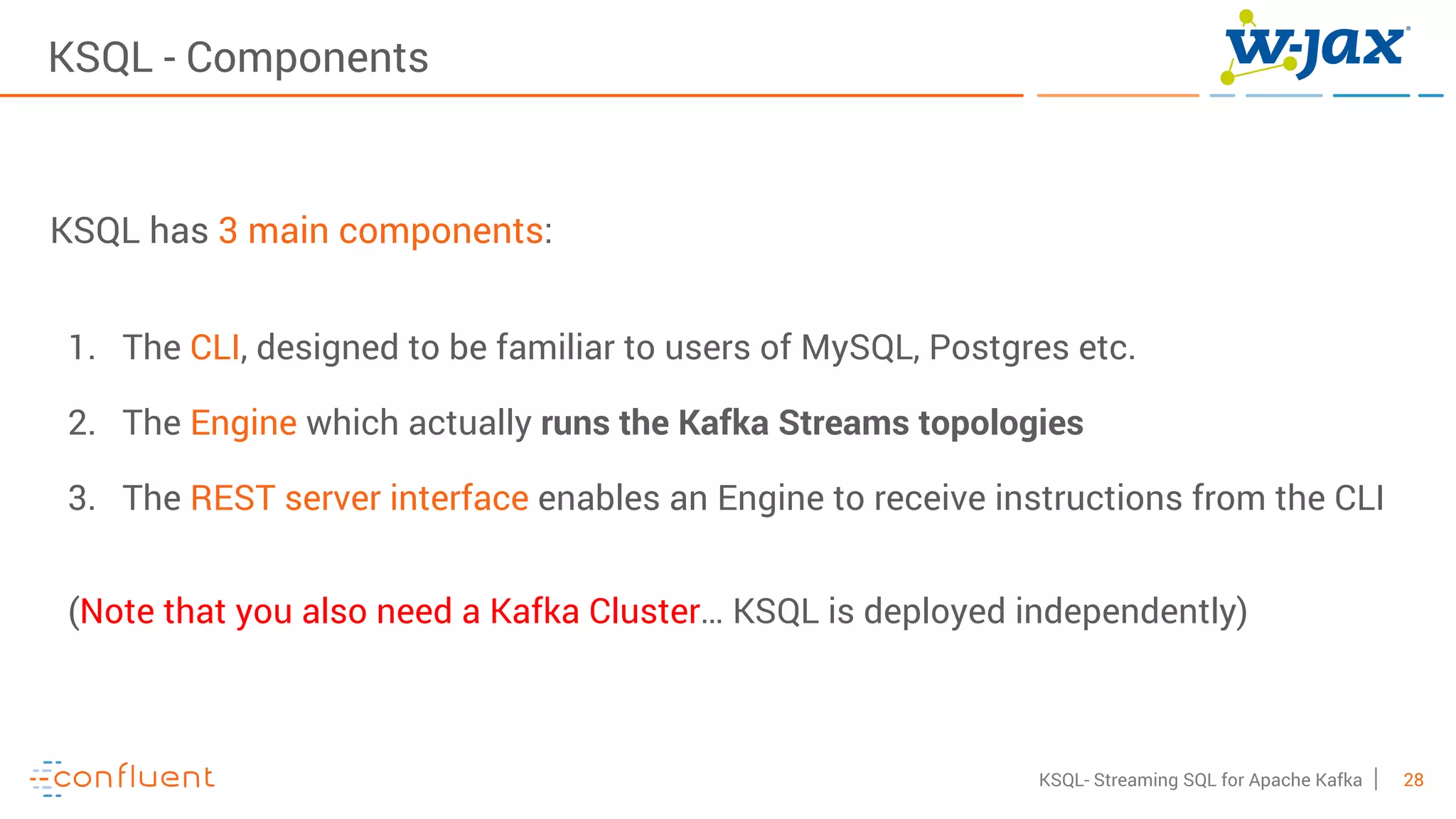

- 28. 28KSQL- Streaming SQLfor Apache Kafka KSQL - Components KSQL has 3 main components: 1. The CLI, designed to be familiar to users of MySQL, Postgres etc. 2. The Engine which actually runs the Kafka Streams topologies 3. The REST server interface enables an Engine to receive instructions from the CLI (Note that you also need a Kafka Cluster… KSQL is deployed independently)

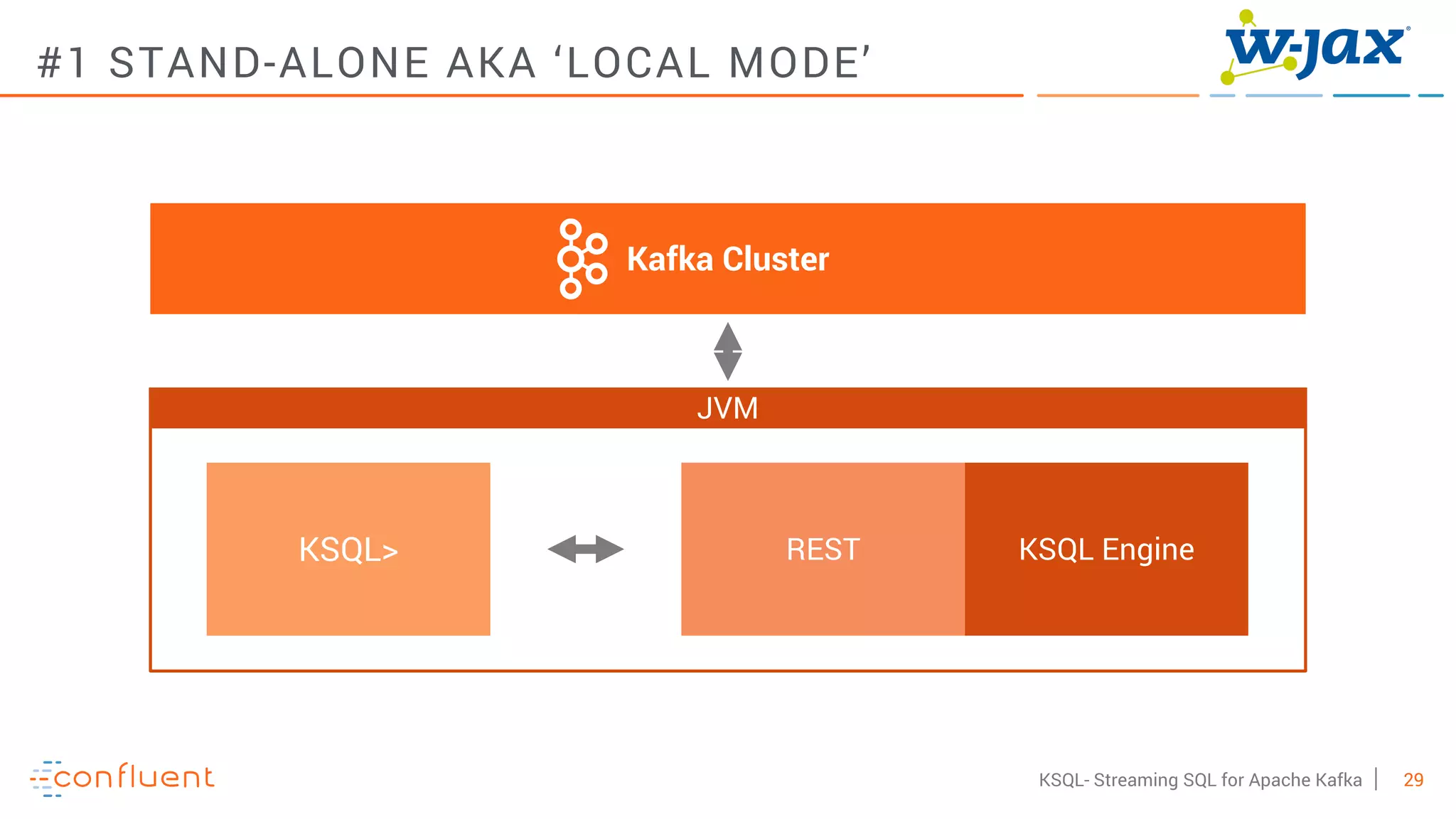

- 29. 29KSQL- Streaming SQLfor Apache Kafka Kafka Cluster JVM KSQL EngineRESTKSQL> #1 STAND-ALONE AKA ‘LOCAL MODE’

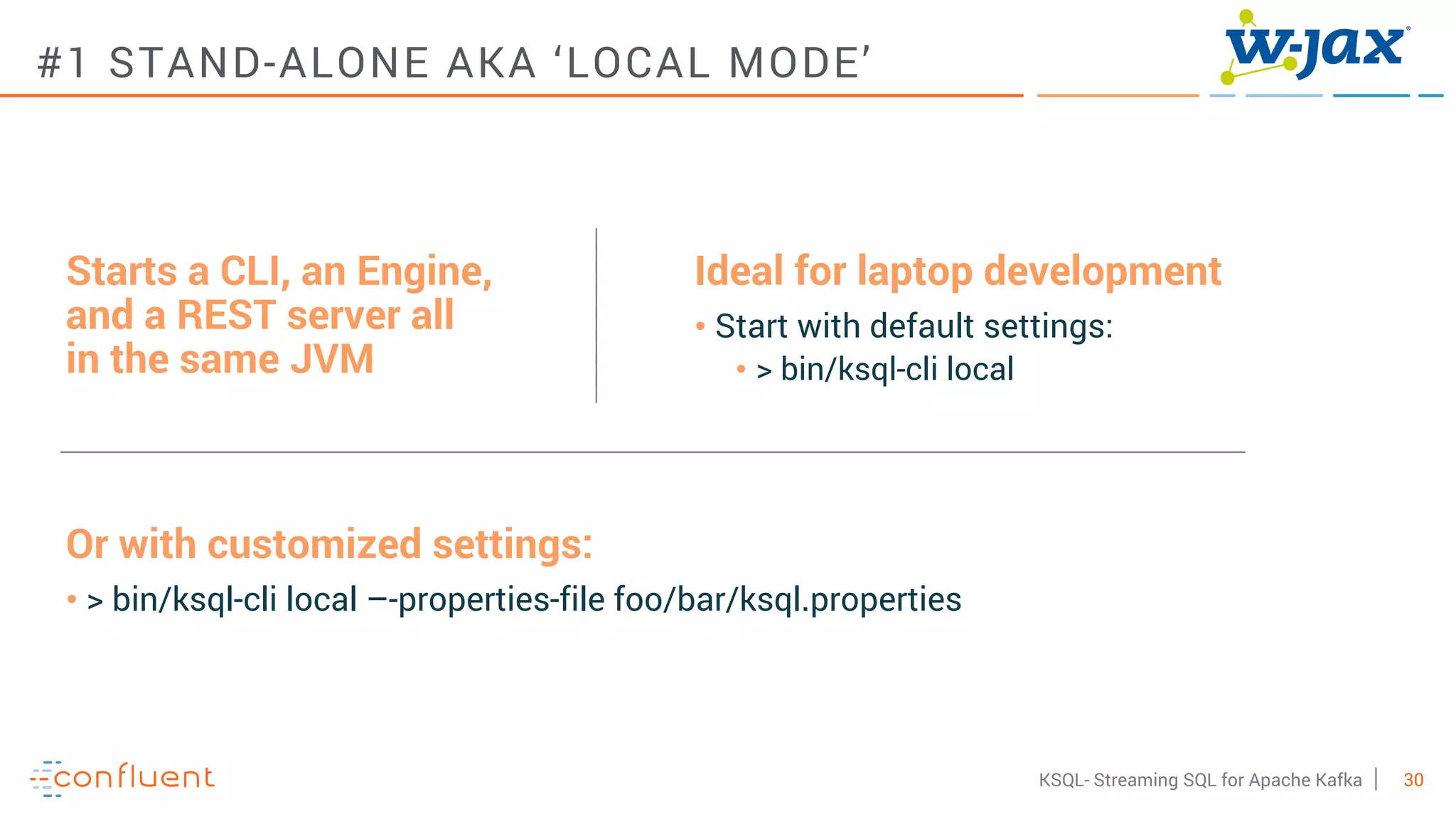

- 30. 30KSQL- Streaming SQLfor Apache Kafka #1 STAND-ALONE AKA ‘LOCAL MODE’ Starts a CLI, an Engine, and a REST server all in the same JVM Ideal for laptop development • Start with default settings: • > bin/ksql-cli local Or with customized settings: • > bin/ksql-cli local –-properties-file foo/bar/ksql.properties

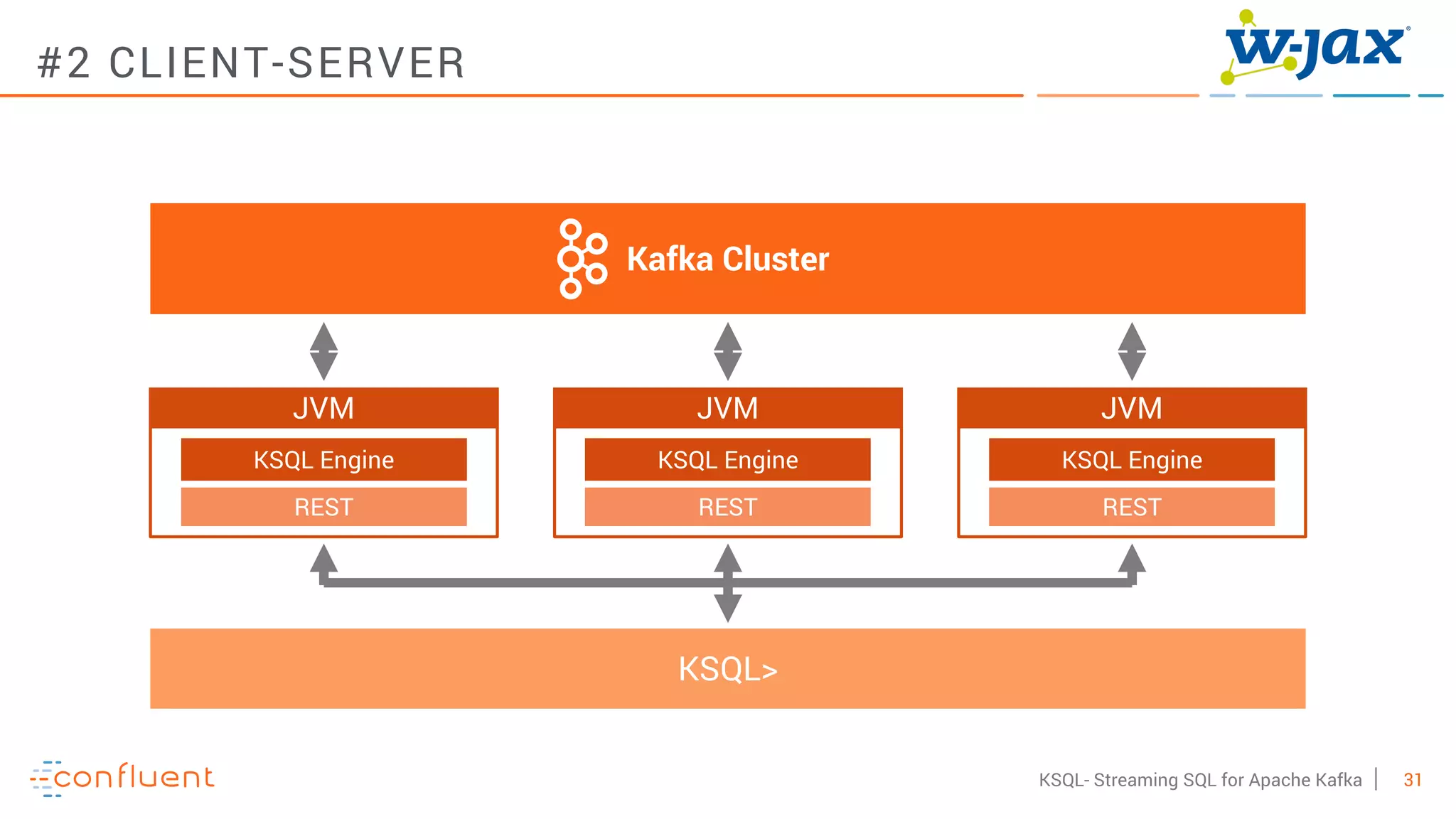

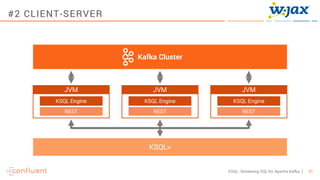

- 31. 31KSQL- Streaming SQLfor Apache Kafka #2 CLIENT-SERVER Kafka Cluster JVM KSQL Engine REST KSQL> JVM KSQL Engine REST JVM KSQL Engine REST

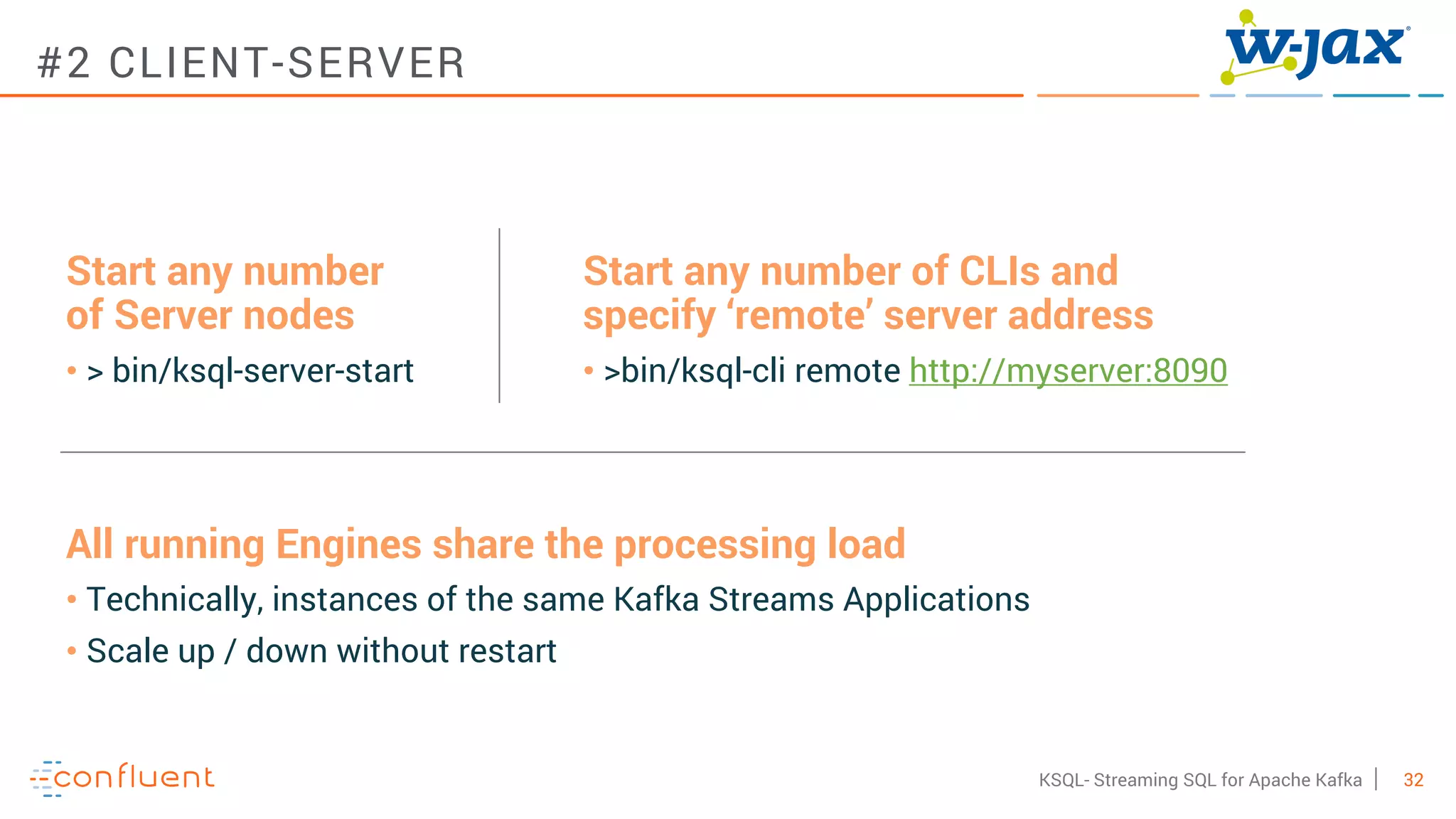

- 32. 32KSQL- Streaming SQLfor Apache Kafka #2 CLIENT-SERVER Start any number of Server nodes • > bin/ksql-server-start Start any number of CLIs and specify ‘remote’ server address • >bin/ksql-cli remote http://myserver:8090 All running Engines share the processing load • Technically, instances of the same Kafka Streams Applications • Scale up / down without restart

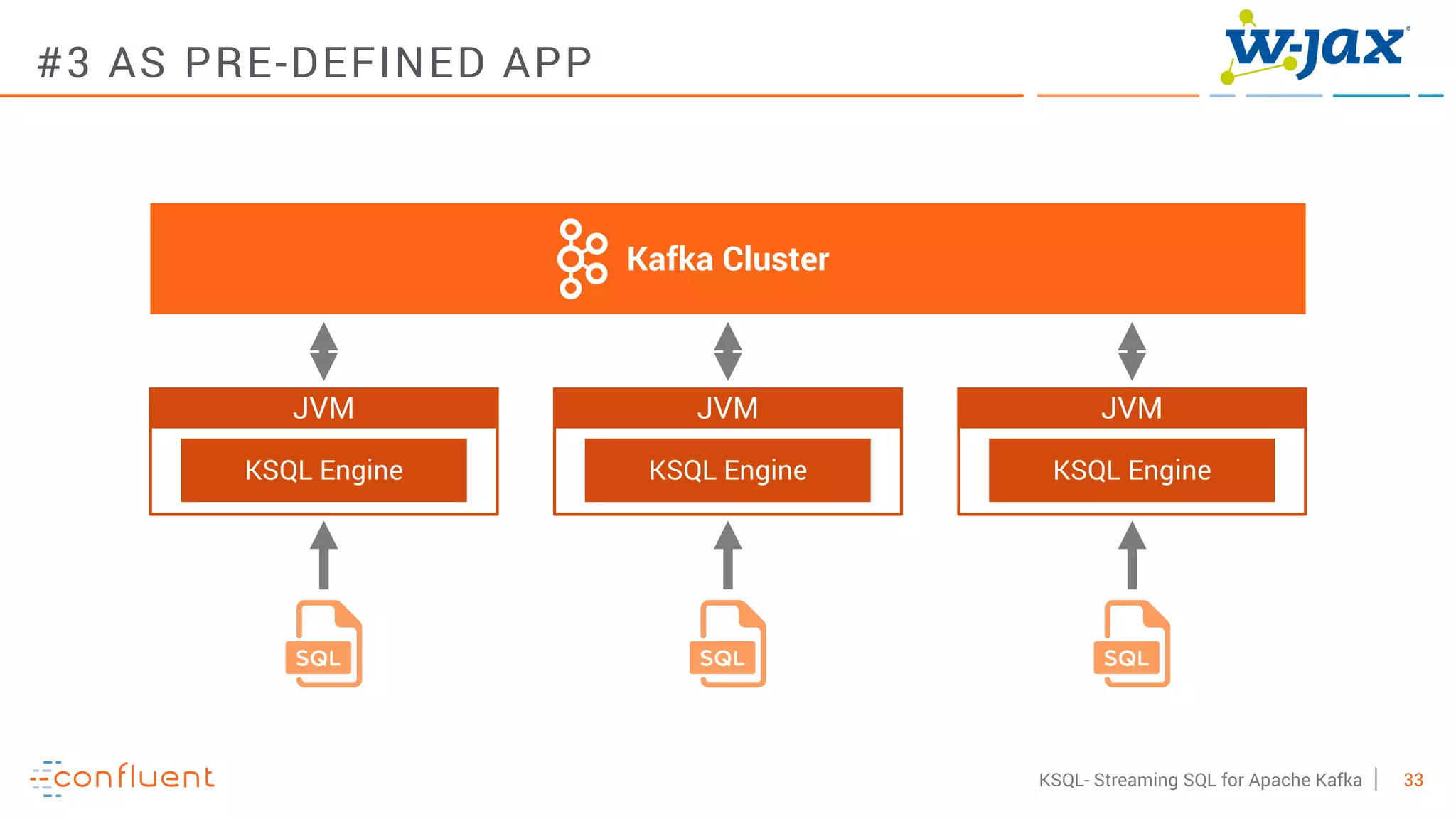

- 33. 33KSQL- Streaming SQLfor Apache Kafka #3 AS PRE-DEFINED APP Kafka Cluster JVM KSQL Engine JVM KSQL Engine JVM KSQL Engine

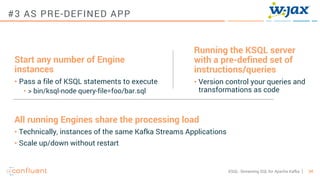

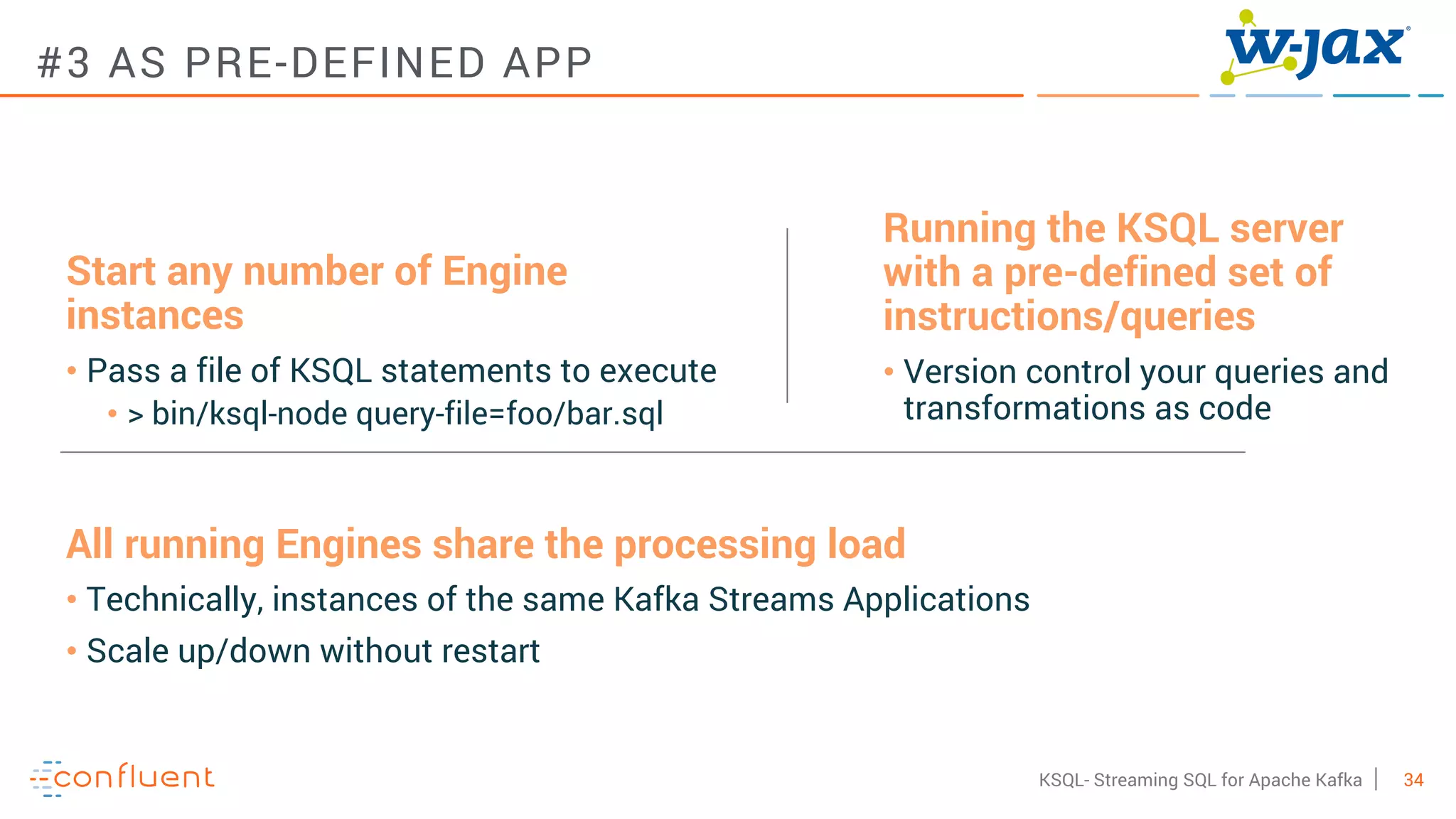

- 34. 34KSQL- Streaming SQLfor Apache Kafka #3 AS PRE-DEFINED APP Running the KSQL server with a pre-defined set of instructions/queries • Version control your queries and transformations as code Start any number of Engine instances • Pass a file of KSQL statements to execute • > bin/ksql-node query-file=foo/bar.sql All running Engines share the processing load • Technically, instances of the same Kafka Streams Applications • Scale up/down without restart

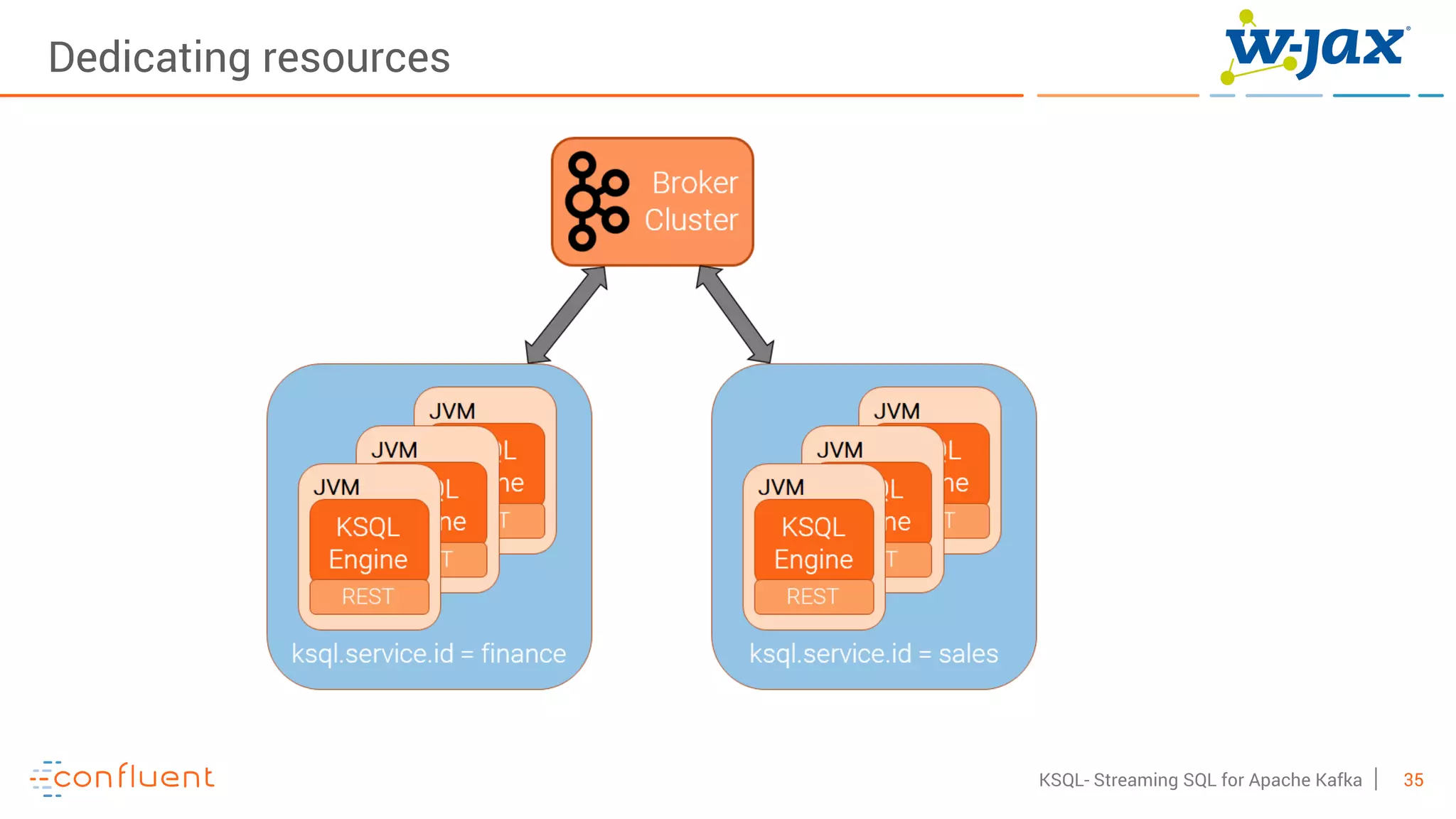

- 35. 35KSQL- Streaming SQLfor Apache Kafka Dedicating resources

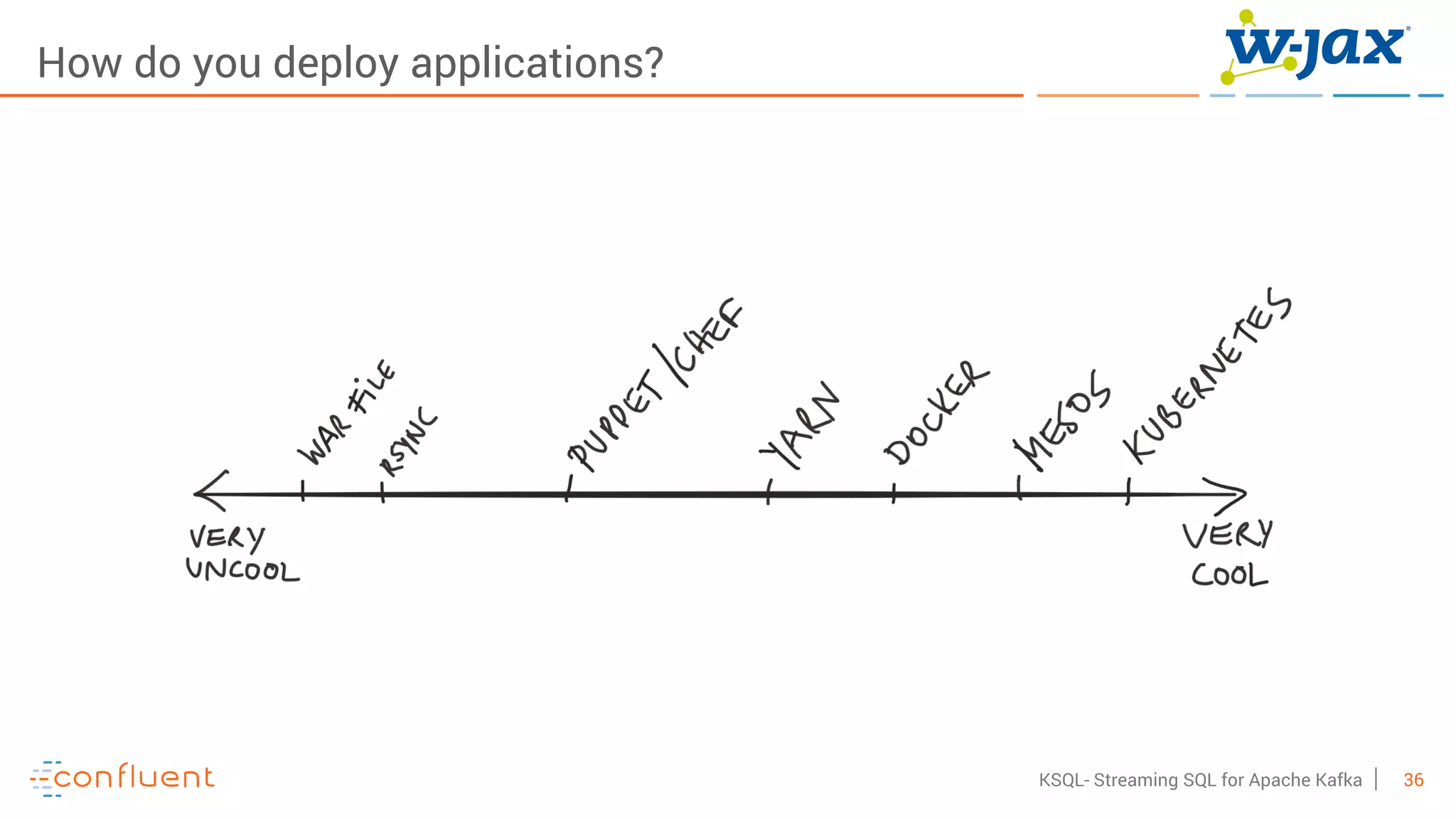

- 36. 36KSQL- Streaming SQLfor Apache Kafka How do you deploy applications?

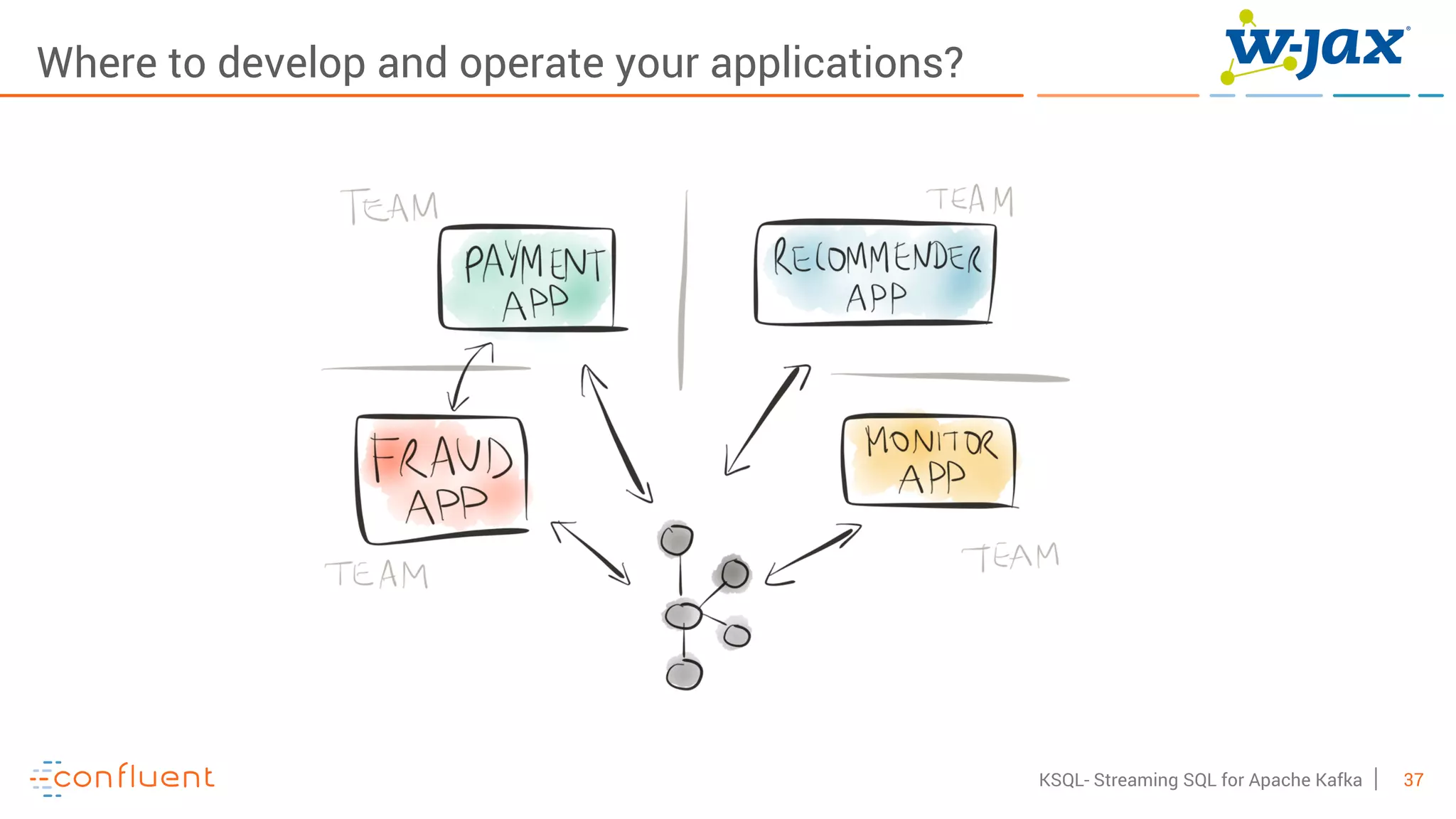

- 37. 37KSQL- Streaming SQLfor Apache Kafka Where to develop and operate your applications?
- 38. 38KSQL- Streaming SQLfor Apache Kafka Agenda 1) Apache Kafka Ecosystem 2) Motivation for KSQL 3) KSQL Concepts 4) Live Demo 5) KSQL Architecture 6) Use Case: Clickstream Analysis 7) Getting Started

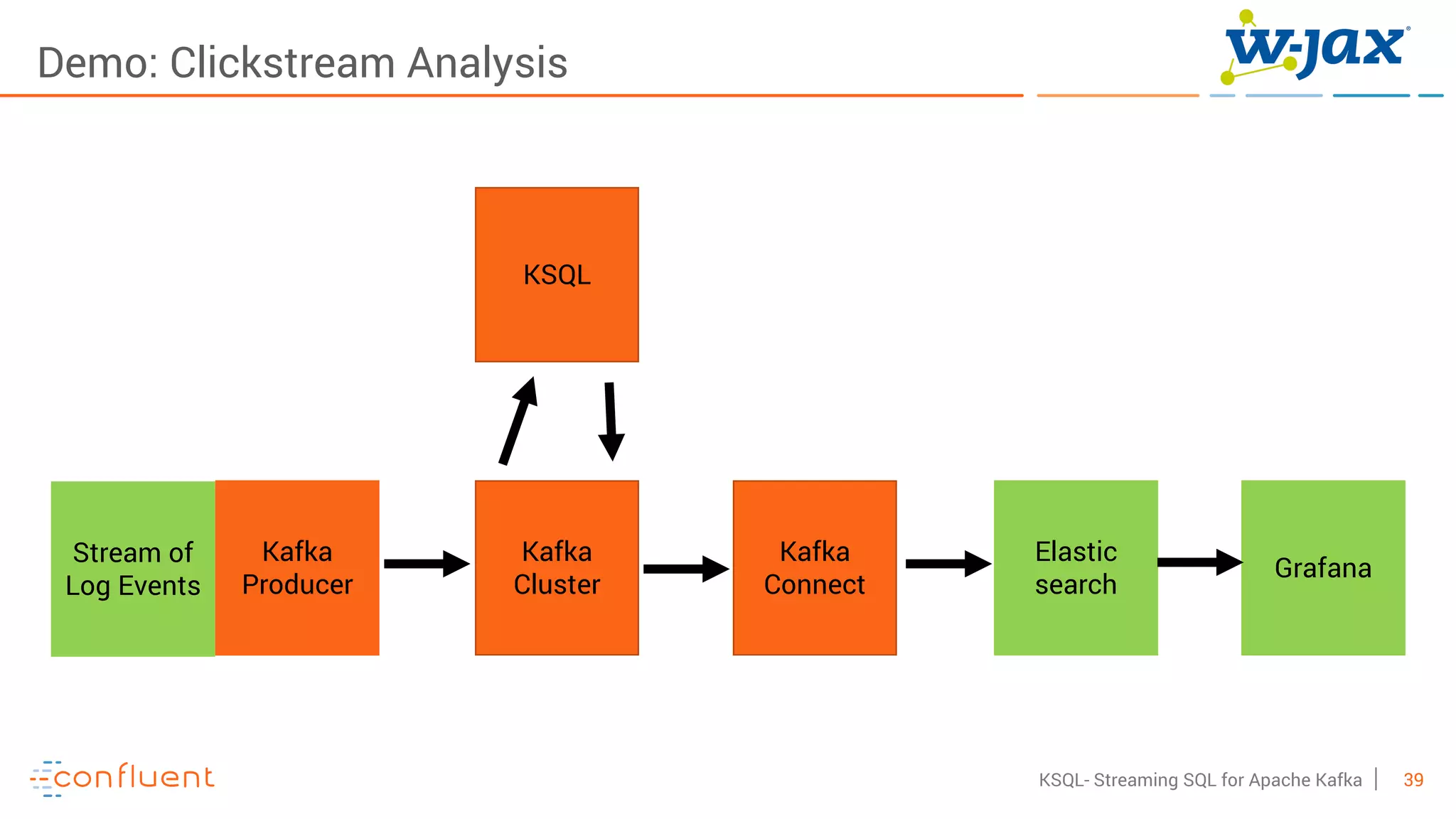

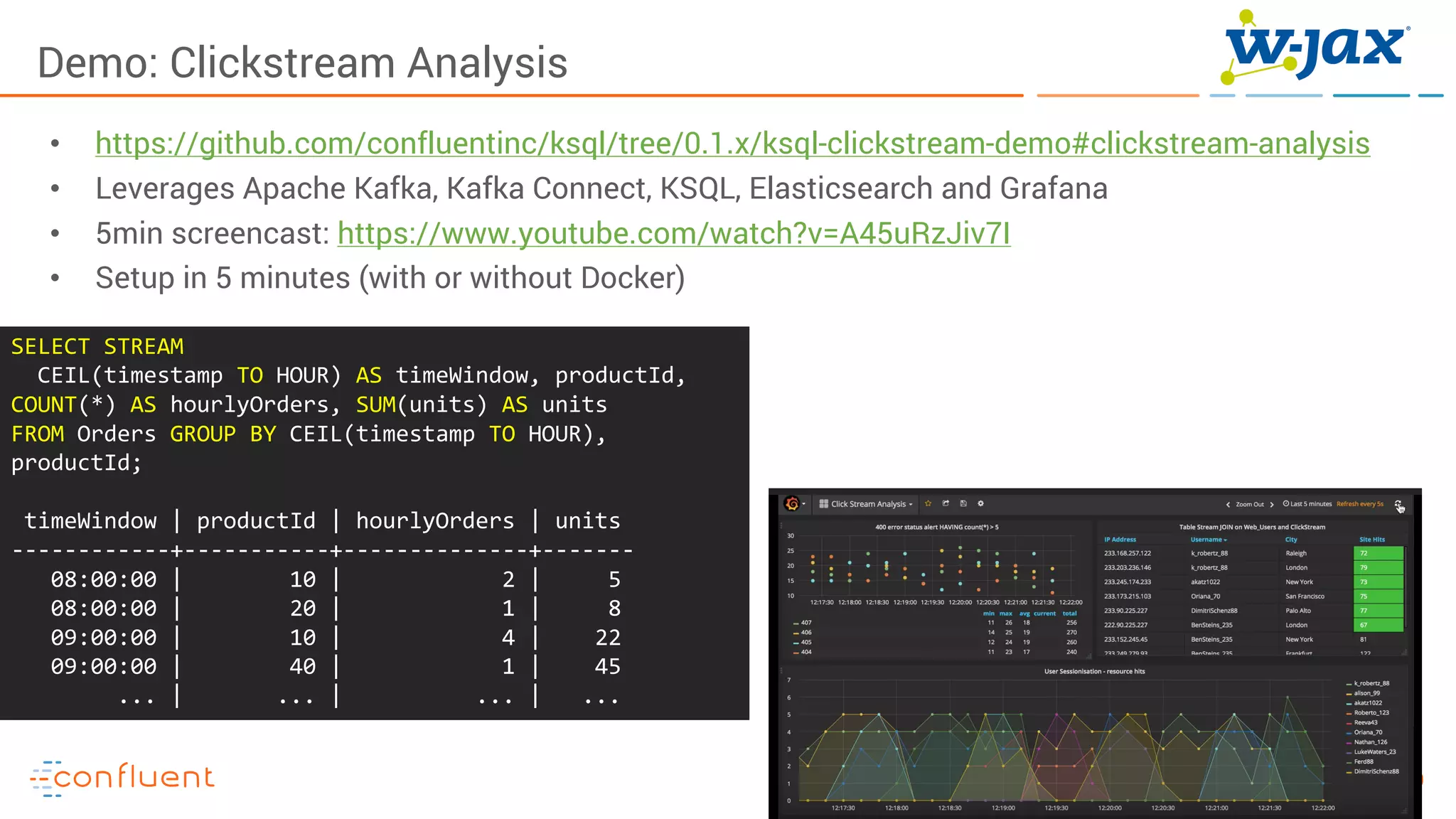

- 39. 39KSQL- Streaming SQLfor Apache Kafka Demo: Clickstream Analysis Kafka Producer Elastic search Grafana Kafka Cluster Kafka Connect KSQL Stream of Log Events
- 40. 40KSQL- Streaming SQLfor Apache Kafka Demo: Clickstream Analysis • https://github.com/confluentinc/ksql/tree/0.1.x/ksql-clickstream-demo#clickstream-analysis • Leverages Apache Kafka, Kafka Connect, KSQL, Elasticsearch and Grafana • 5min screencast: https://www.youtube.com/watch?v=A45uRzJiv7I • Setup in 5 minutes (with or without Docker) SELECT STREAM CEIL(timestamp TO HOUR) AS timeWindow, productId, COUNT(*) AS hourlyOrders, SUM(units) AS units FROM Orders GROUP BY CEIL(timestamp TO HOUR), productId; timeWindow | productId | hourlyOrders | units ------------+-----------+--------------+------- 08:00:00 | 10 | 2 | 5 08:00:00 | 20 | 1 | 8 09:00:00 | 10 | 4 | 22 09:00:00 | 40 | 1 | 45 ... | ... | ... | ...
- 41. 41KSQL- Streaming SQLfor Apache Kafka Live Demo – KSQL Clickstream Analysis

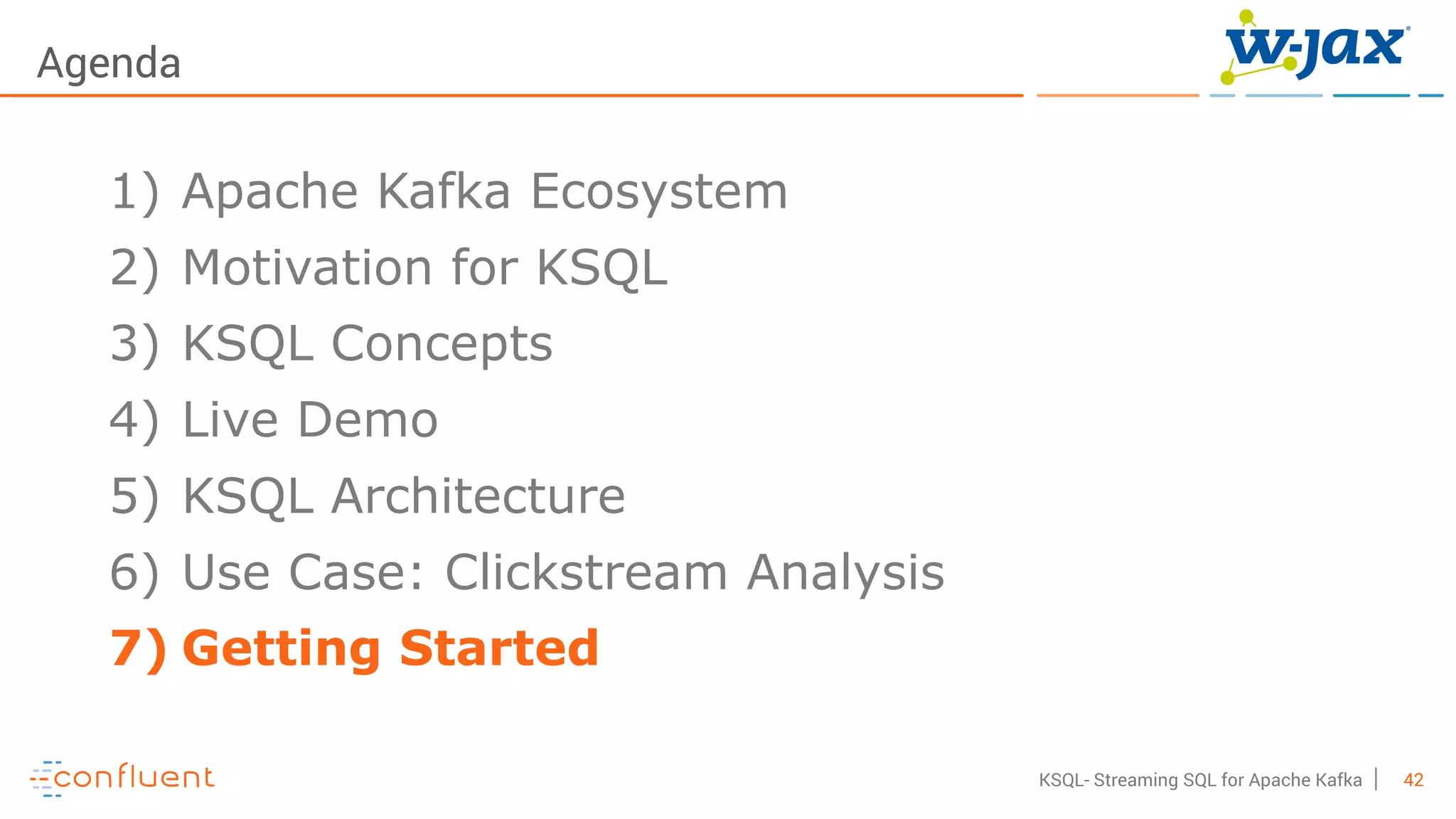

- 42. 42KSQL- Streaming SQLfor Apache Kafka Agenda 1) Apache Kafka Ecosystem 2) Motivation for KSQL 3) KSQL Concepts 4) Live Demo 5) KSQL Architecture 6) Use Case: Clickstream Analysis 7) Getting Started

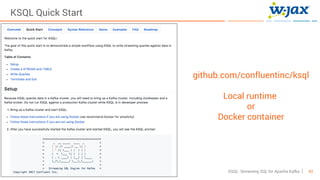

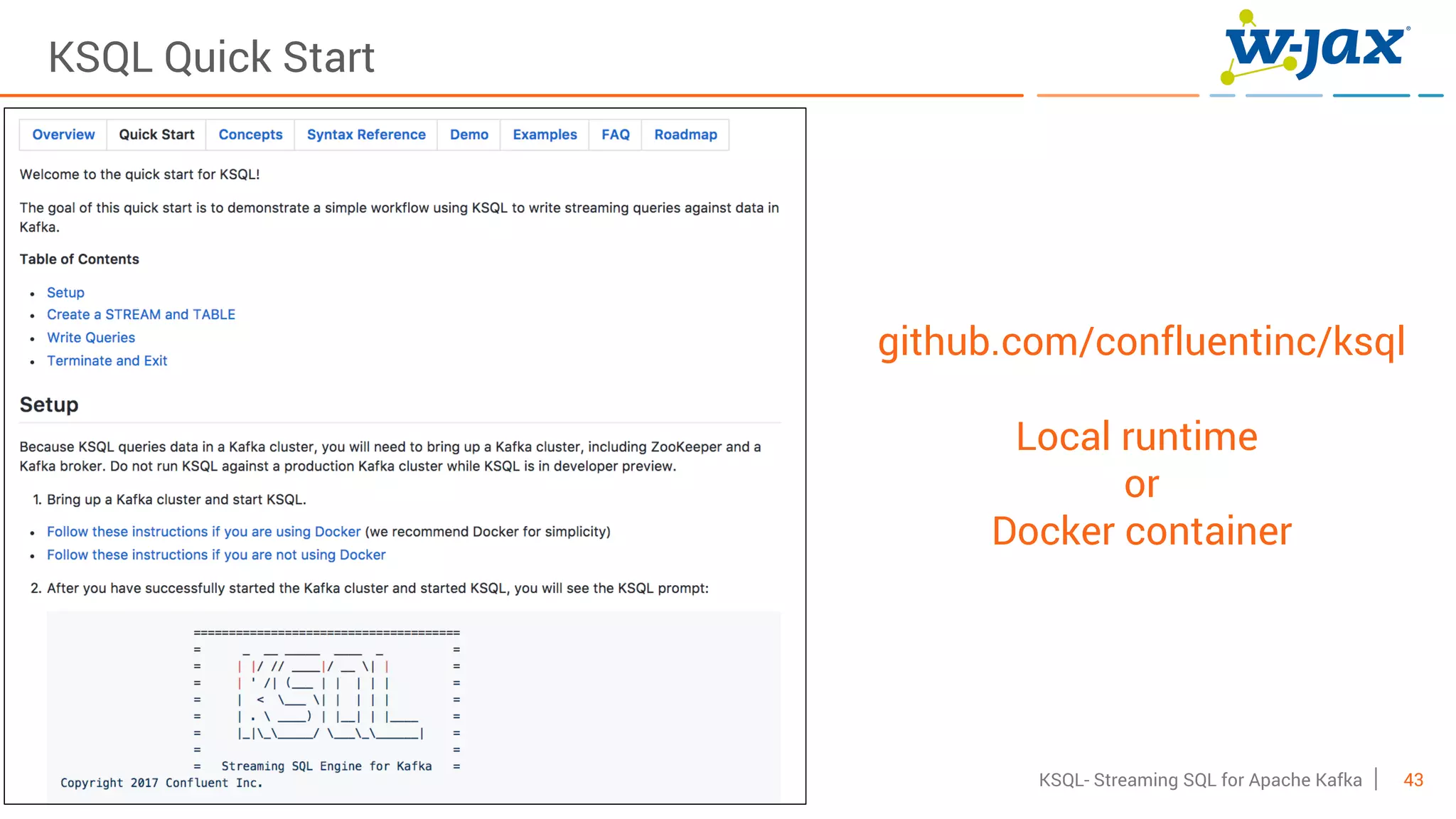

- 43. 43KSQL- Streaming SQLfor Apache Kafka KSQL Quick Start github.com/confluentinc/ksql Local runtime or Docker container

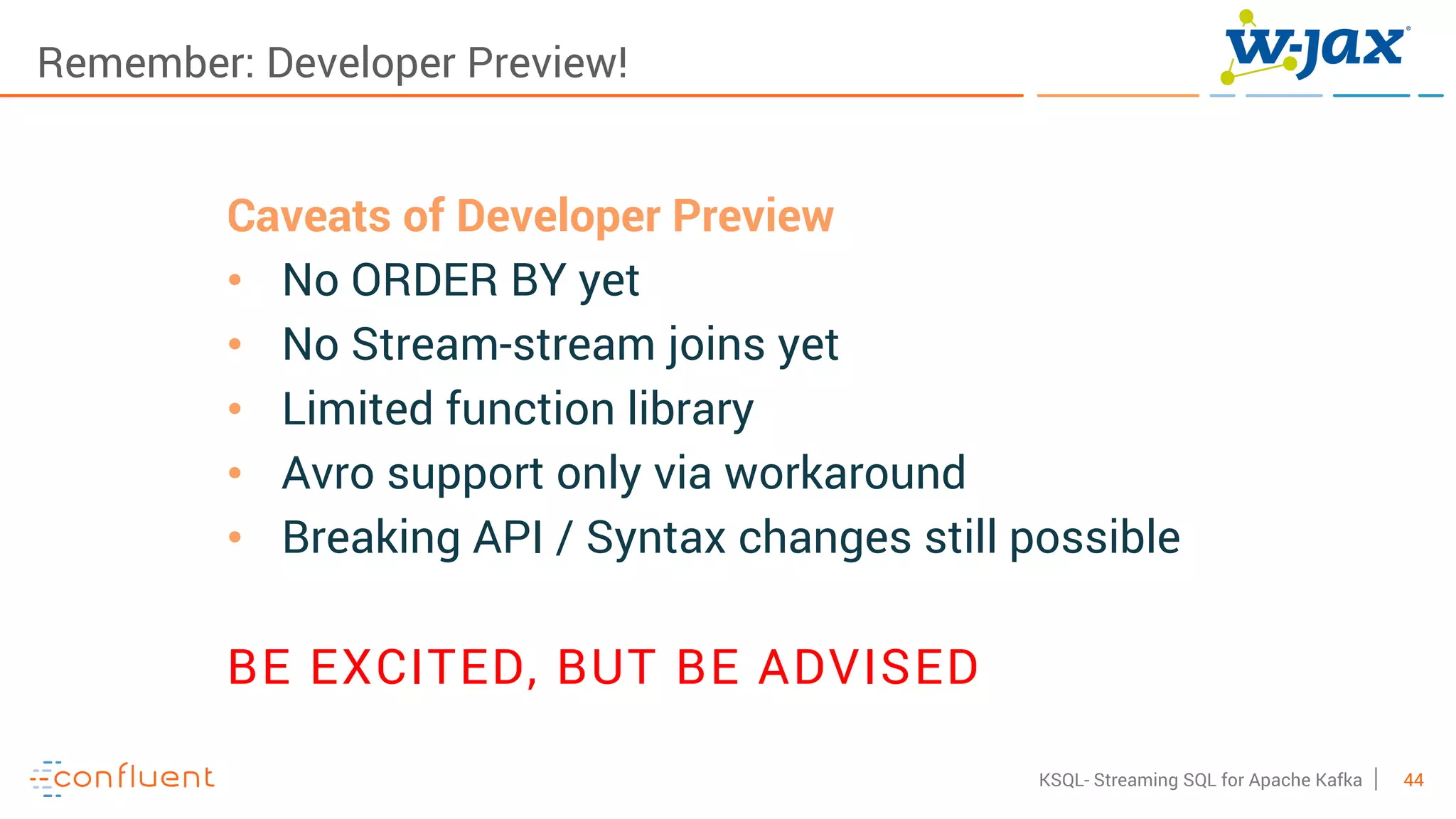

- 44. 44KSQL- Streaming SQLfor Apache Kafka Remember: Developer Preview! Caveats of Developer Preview • No ORDER BY yet • No Stream-stream joins yet • Limited function library • Avro support only via workaround • Breaking API / Syntax changes still possible BE EXCITED, BUT BE ADVISED

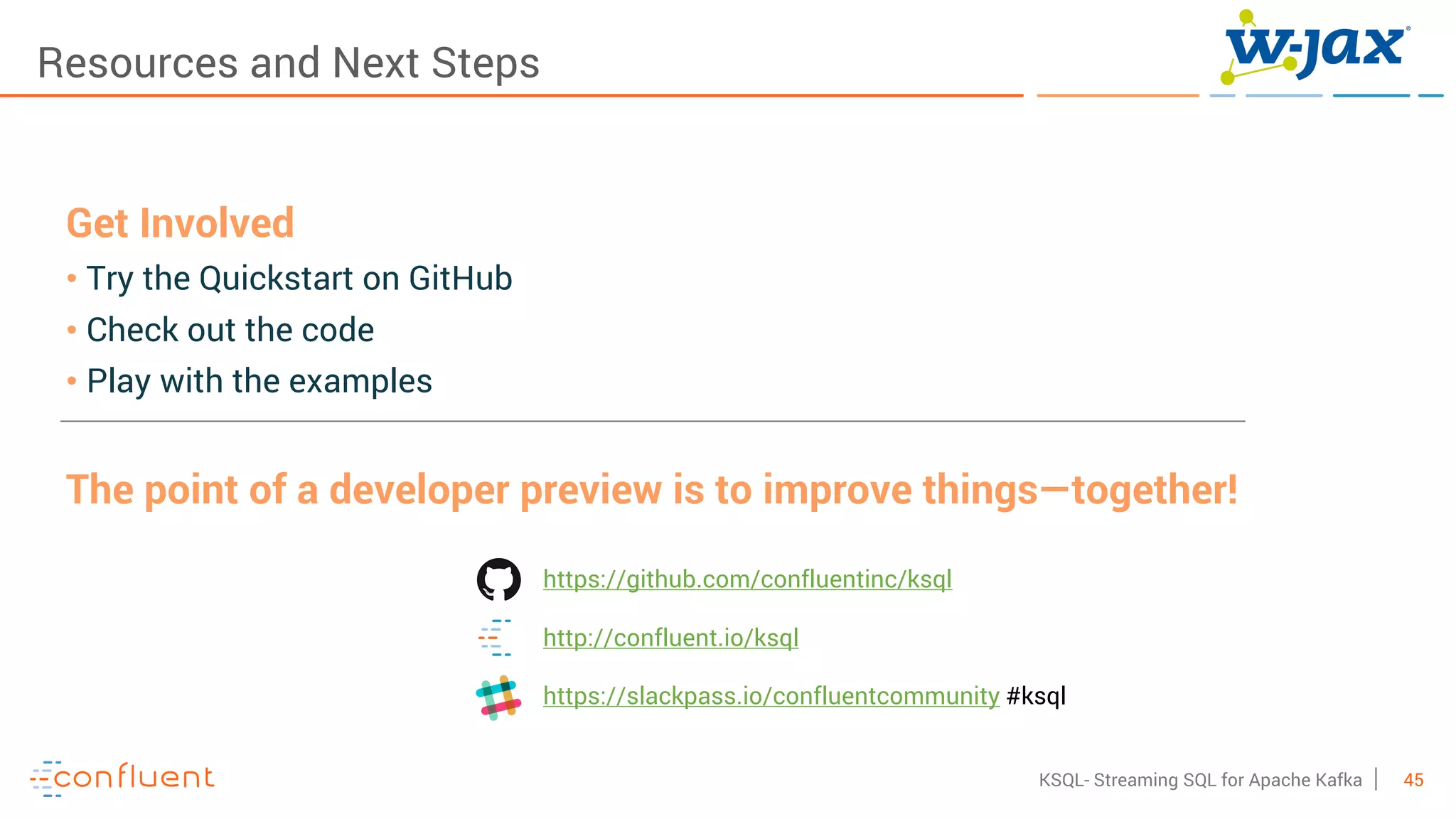

- 45. 45KSQL- Streaming SQLfor Apache Kafka Resources and Next Steps Get Involved • Try the Quickstart on GitHub • Check out the code • Play with the examples The point of a developer preview is to improve things—together! https://github.com/confluentinc/ksql http://confluent.io/ksql https://slackpass.io/confluentcommunity #ksql
- 46. 46KSQL- Streaming SQLfor Apache Kafka Kai Waehner Technology Evangelist kontakt@kai-waehner.de @KaiWaehner www.confluent.io www.kai-waehner.de LinkedIn Questions? Feedback? Please contact me… Come to our booth… Come to Kafka Summit London in April 2018…
- 47. 47KSQL- Streaming SQLfor Apache Kafka Appendix
- 48. 48KSQL- Streaming SQLfor Apache Kafka KSQL Concepts ● STREAM and TABLE as first-class citizens ● Interpretations of topic content ● STREAM - data in motion ● TABLE - collected state of a stream • One record per key (per window) • Current values (compacted topic) not yet • Changelog ● STREAM – TABLE Joins
- 49. 49KSQL- Streaming SQLfor Apache Kafka Schema & Format ● A Kafka broker knows how to move bytes • Technically a key-value message (byte[], byte[]) ● To enable declarative SQL-like queries and transformations we have to define a richer structure ● Structural metadata maintained in an in-memory catalog • DDL is recorded in a special topic
- 50. 50KSQL- Streaming SQLfor Apache Kafka Schema & Format Start with message (value) format ● JSON - the simplest choice ● DELIMITED - in this preview, the implicit delimiter is a comma and the escaping rules are built-in. Will be expanded. ● AVRO - requires that you also supply a schema-file (.avsc) Pseudo-columns are automatically provided • ROWKEY, ROWTIME - for querying the message key and timestamp • (PARTITION, OFFSET coming soon) • CREATE STREAM pageview (viewtime bigint, userid varchar, pageid varchar) WITH (value_format = 'delimited', kafka_topic='my_pageview_topic');

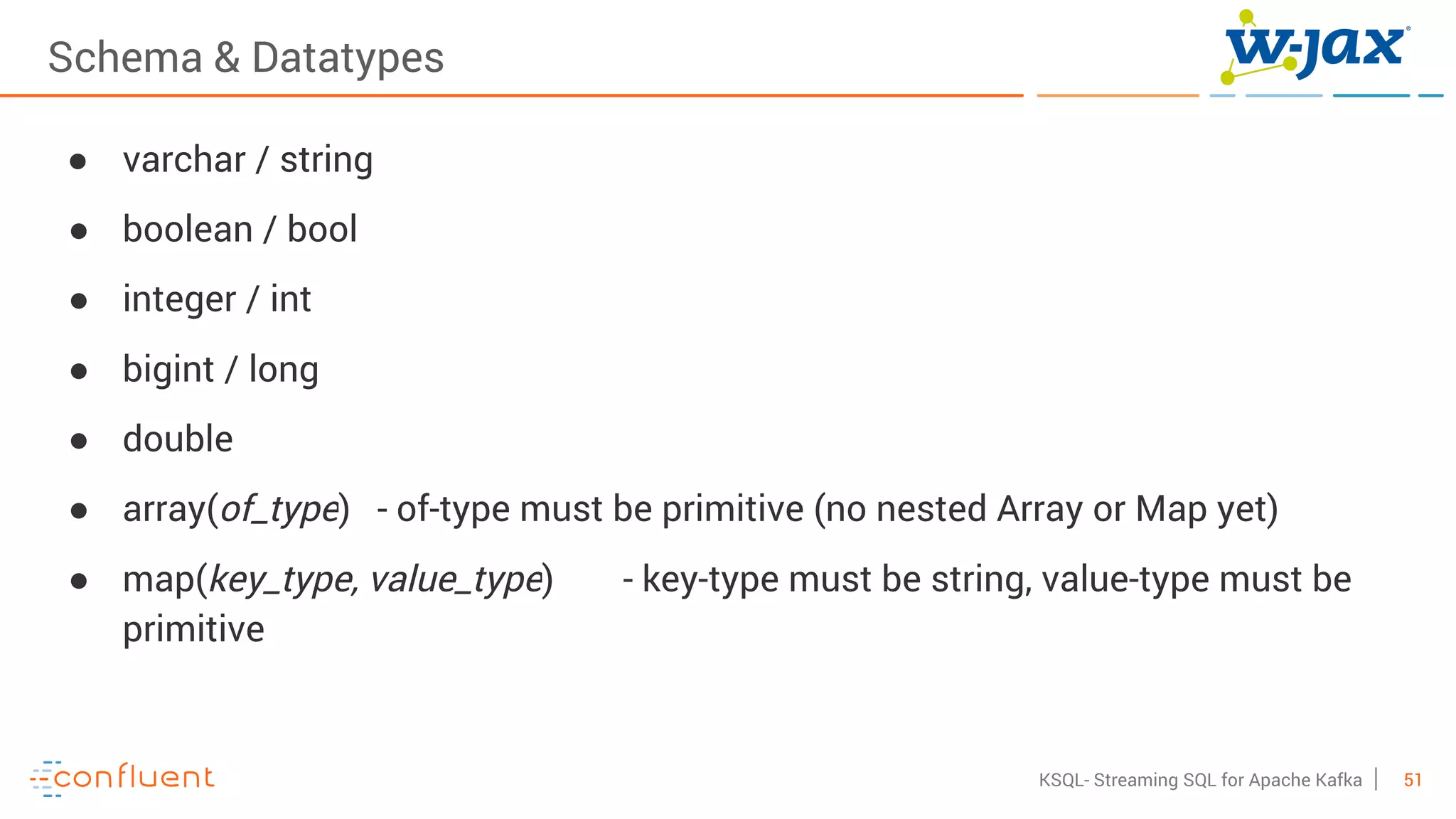

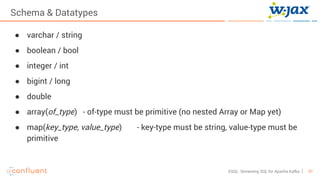

- 51. 51KSQL- Streaming SQLfor Apache Kafka Schema & Datatypes ● varchar / string ● boolean / bool ● integer / int ● bigint / long ● double ● array(of_type) - of-type must be primitive (no nested Array or Map yet) ● map(key_type, value_type) - key-type must be string, value-type must be primitive

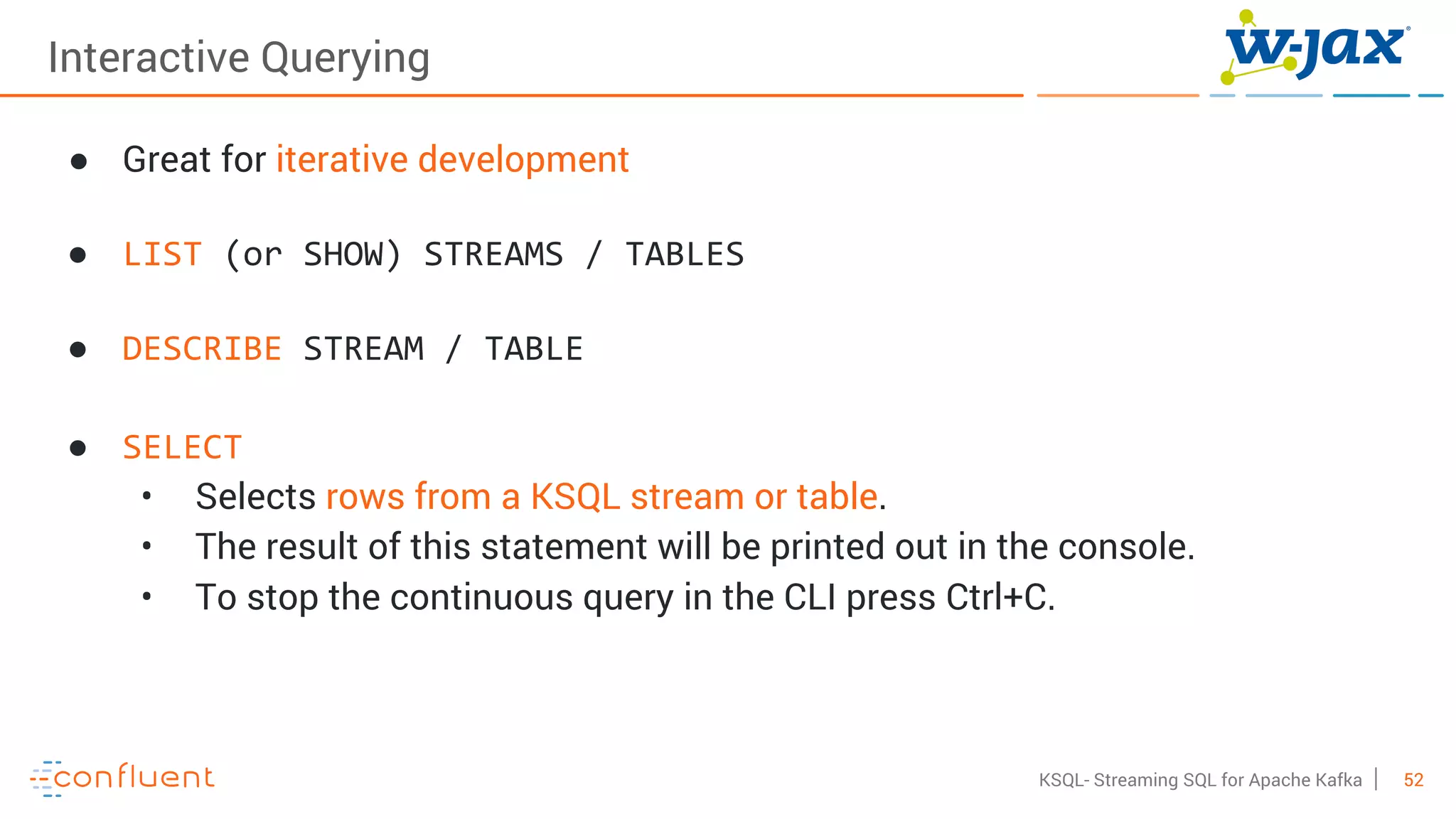

- 52. 52KSQL- Streaming SQLfor Apache Kafka Interactive Querying ● Great for iterative development ● LIST (or SHOW) STREAMS / TABLES ● DESCRIBE STREAM / TABLE ● SELECT • Selects rows from a KSQL stream or table. • The result of this statement will be printed out in the console. • To stop the continuous query in the CLI press Ctrl+C.
- 53. 53KSQL- Streaming SQLfor Apache Kafka SELECT statement syntax SELECT `select_expr` [, ...] FROM `from_item` [, ...] [ WINDOW `window_expression` ] [ WHERE `condition` ] [ GROUP BY `grouping expression` ] [ HAVING `having_expression` ] [ LIMIT n ] where from_item is one of the following: stream_or_table_name [ [ AS ] alias] from_item LEFT JOIN from_item ON join_condition
- 54. 54KSQL- Streaming SQLfor Apache Kafka WINDOWing ● Not ANSI SQL ! à Continuous Queries :-) ● Three types supported (same as KStreams): • TUMBLING (= SLIDING) • SELECT appname, ip, COUNT(appname) AS problem_count FROM logstream WINDOW TUMBLING (size 1 minute) WHERE loglevel='ERROR' GROUP BY appname, ip; • HOPPING • SELECT itemid, SUM(arraycol[0]) FROM orders WINDOW HOPPING ( size 20 second, advance by 5 second) GROUP BY itemid; • SESSION • SELECT itemid, SUM(sales_price) FROM orders WINDOW SESSION (20 second) GROUP BY itemid;

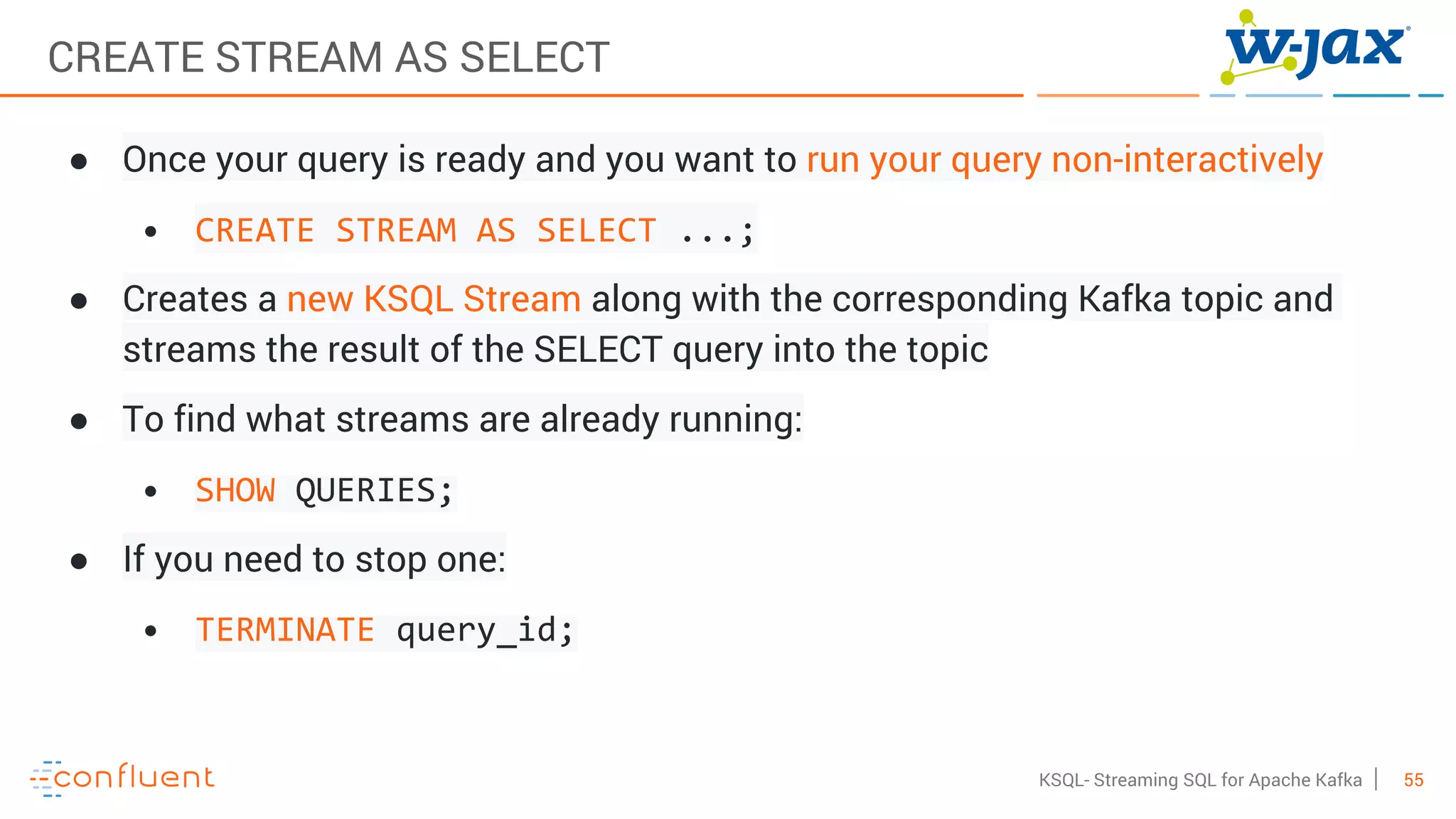

- 55. 55KSQL- Streaming SQLfor Apache Kafka CREATE STREAM AS SELECT ● Once your query is ready and you want to run your query non-interactively • CREATE STREAM AS SELECT ...; ● Creates a new KSQL Stream along with the corresponding Kafka topic and streams the result of the SELECT query into the topic ● To find what streams are already running: • SHOW QUERIES; ● If you need to stop one: • TERMINATE query_id;
- 56. 56KSQL- Streaming SQLfor Apache Kafka CREATE STREAM AS syntax CREATE STREAM `stream_name` [WITH (`property = expression` [, …] ) ] AS SELECT `select_expr` [, ...] FROM `from_item` [, ...] [ WHERE `condition` ] [ PARTITION BY `column_name` ] ● where property can be any of the following: KAFKA_TOPIC = name - what to call the sink topic FORMAT = DELIMITED | JSON | AVRO - defaults to format of input stream AVROSCHEMAFILE = path/to/file - if FORMAT=AVRO, where the output schema file will be written to PARTITIONS = # - number of partitions in sink topic TIMESTAMP = column - The name of the column to use as the timestamp. This can be used to define the event time.

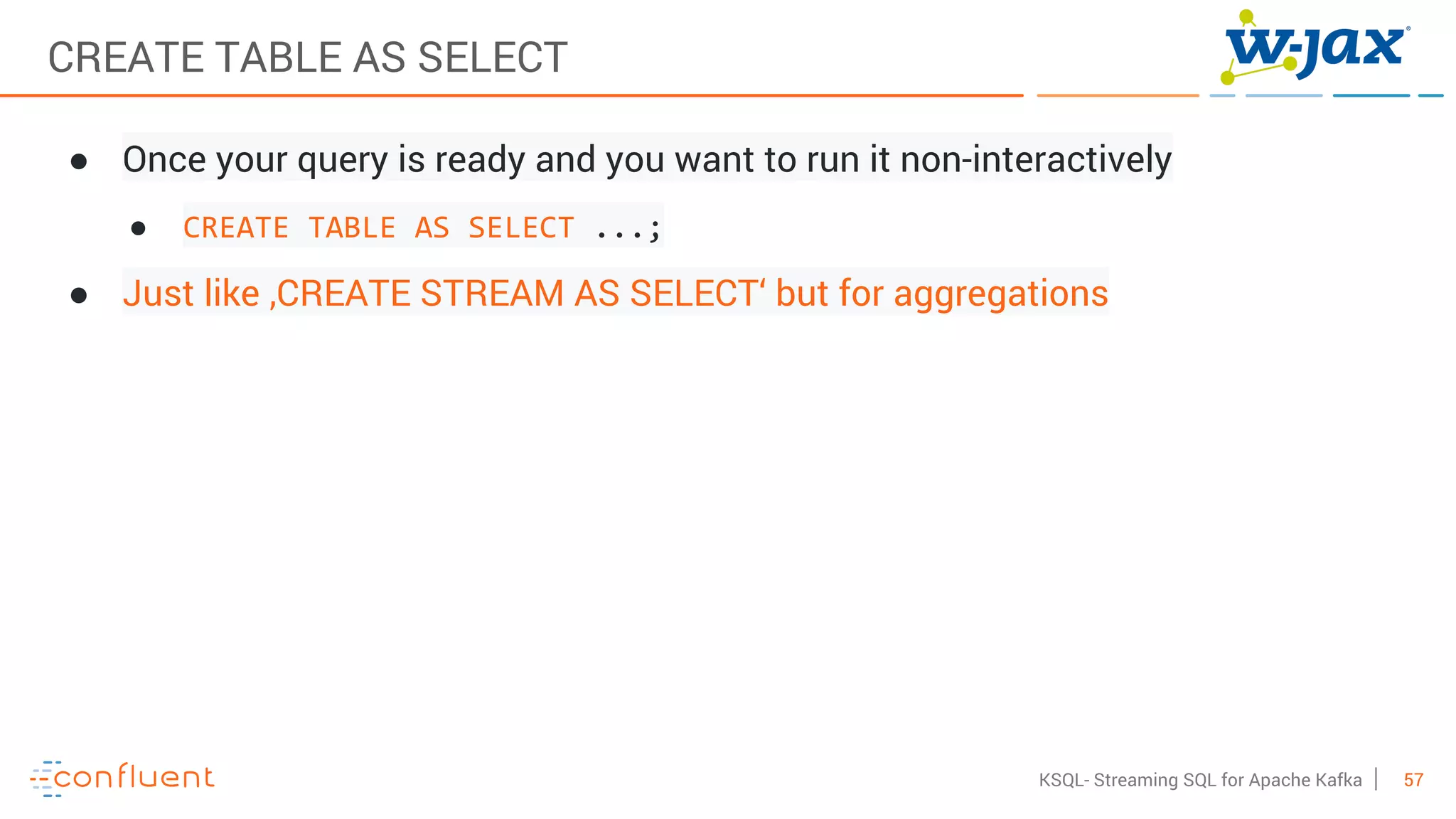

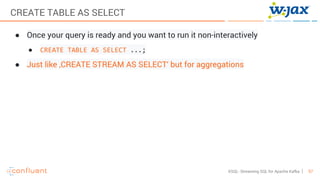

- 57. 57KSQL- Streaming SQLfor Apache Kafka CREATE TABLE AS SELECT ● Once your query is ready and you want to run it non-interactively ● CREATE TABLE AS SELECT ...; ● Just like ‚CREATE STREAM AS SELECT‘ but for aggregations
- 58. 58KSQL- Streaming SQLfor Apache Kafka CREATE TABLE AS syntax CREATE TABLE `stream_name` [WITH ( `property_name = expression` [, ...] )] AS SELECT `select_expr` [, ...] FROM `from_item` [, ...] [ WINDOW `window_expression` ] [ WHERE `condition` ] [ GROUP BY `grouping expression` ] [ HAVING `having_expression` ] ● where property values are same as for ‚Create Streams as Select‘

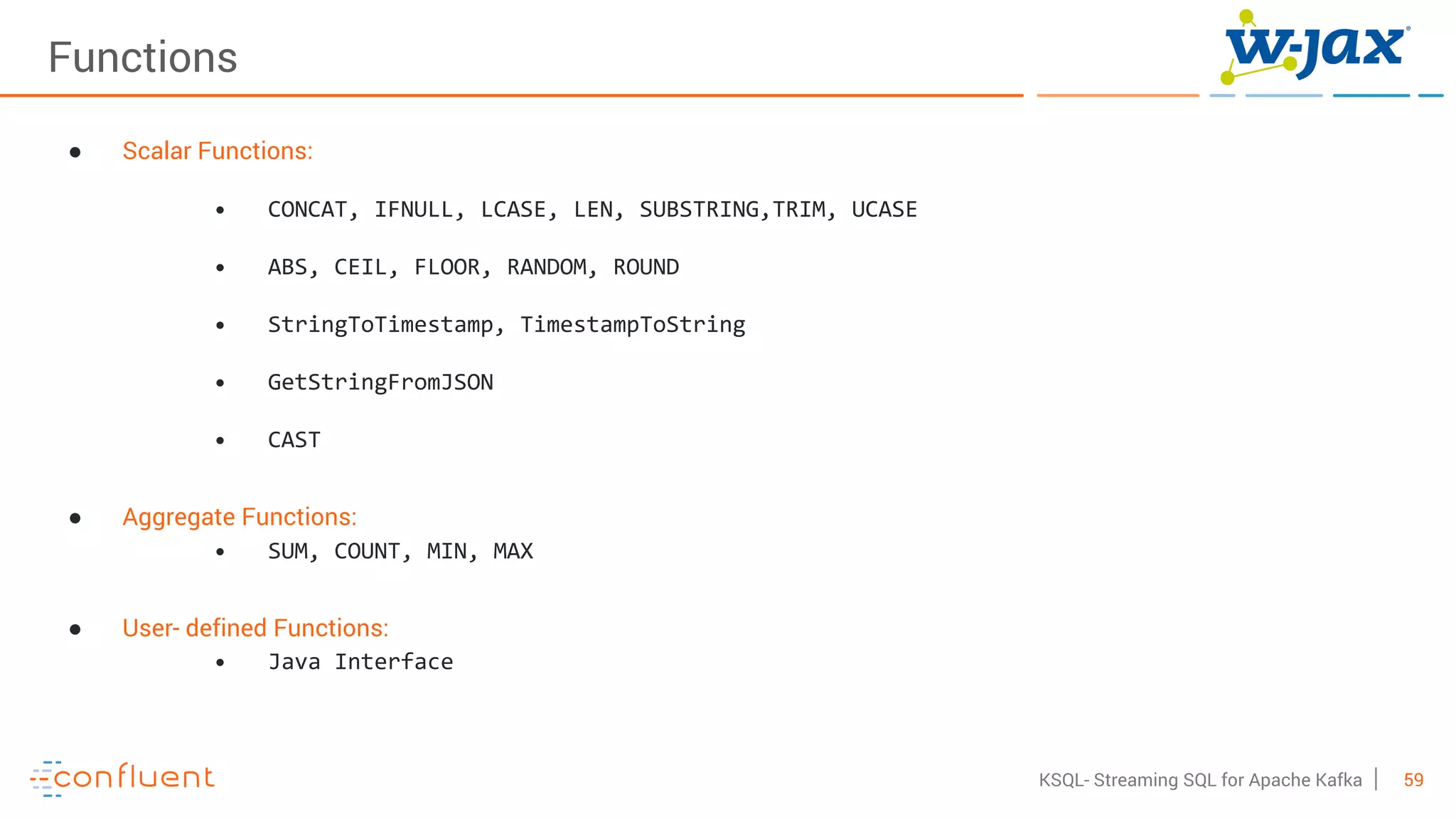

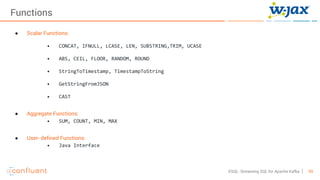

- 59. 59KSQL- Streaming SQLfor Apache Kafka Functions ● Scalar Functions: • CONCAT, IFNULL, LCASE, LEN, SUBSTRING,TRIM, UCASE • ABS, CEIL, FLOOR, RANDOM, ROUND • StringToTimestamp, TimestampToString • GetStringFromJSON • CAST ● Aggregate Functions: • SUM, COUNT, MIN, MAX ● User- defined Functions: • Java Interface

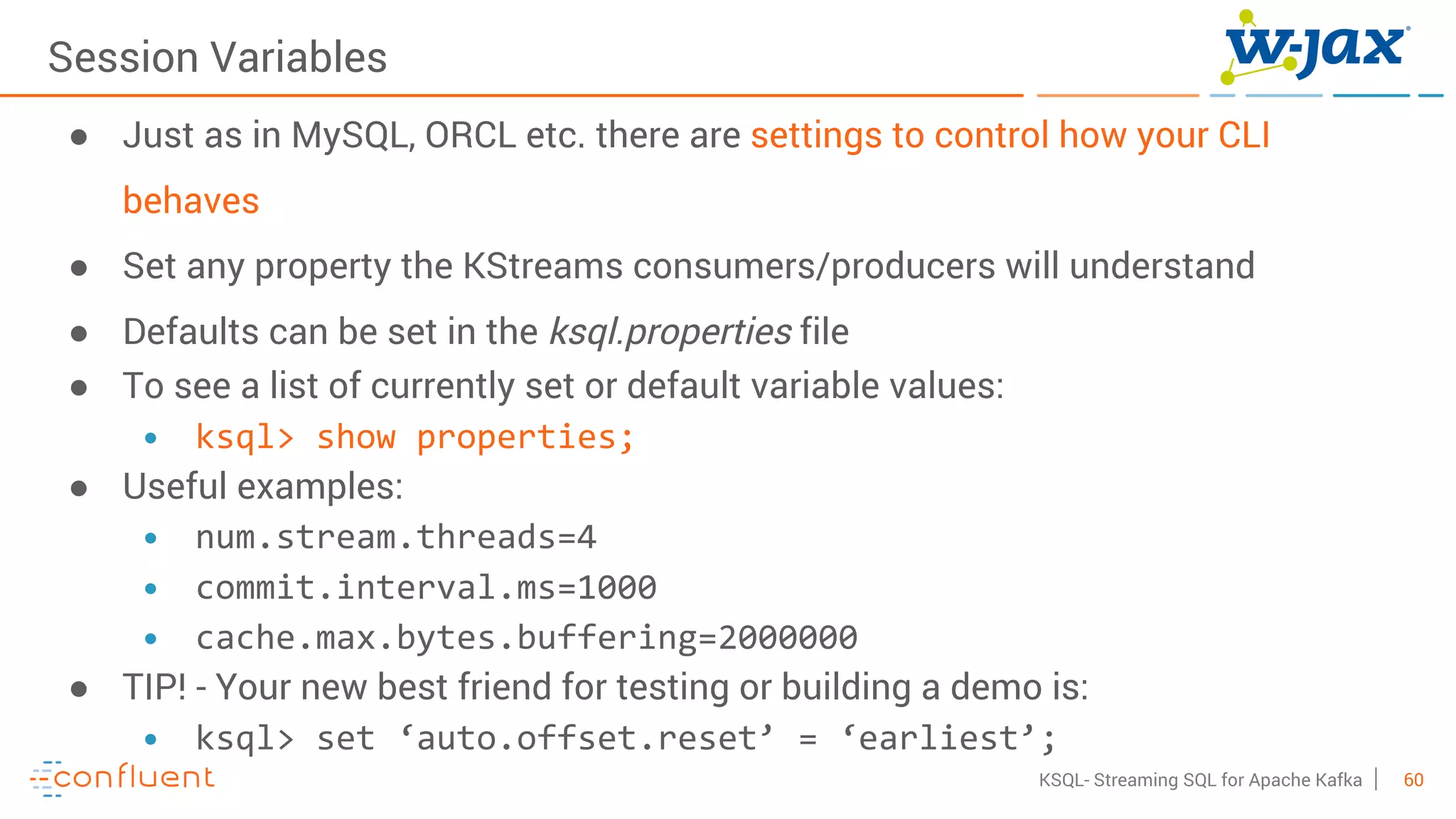

- 60. 60KSQL- Streaming SQLfor Apache Kafka Session Variables ● Just as in MySQL, ORCL etc. there are settings to control how your CLI behaves ● Set any property the KStreams consumers/producers will understand ● Defaults can be set in the ksql.properties file ● To see a list of currently set or default variable values: • ksql> show properties; ● Useful examples: • num.stream.threads=4 • commit.interval.ms=1000 • cache.max.bytes.buffering=2000000 ● TIP! - Your new best friend for testing or building a demo is: • ksql> set ‘auto.offset.reset’ = ‘earliest’;
