- 1. Ericsson Internal |2018-02-21 Operators - The Future of Kubernetes Hands-On Workshops On Operators and Tekton Krishna Venkata Laxmikanth Vajinapally Shabri nath Mota mary

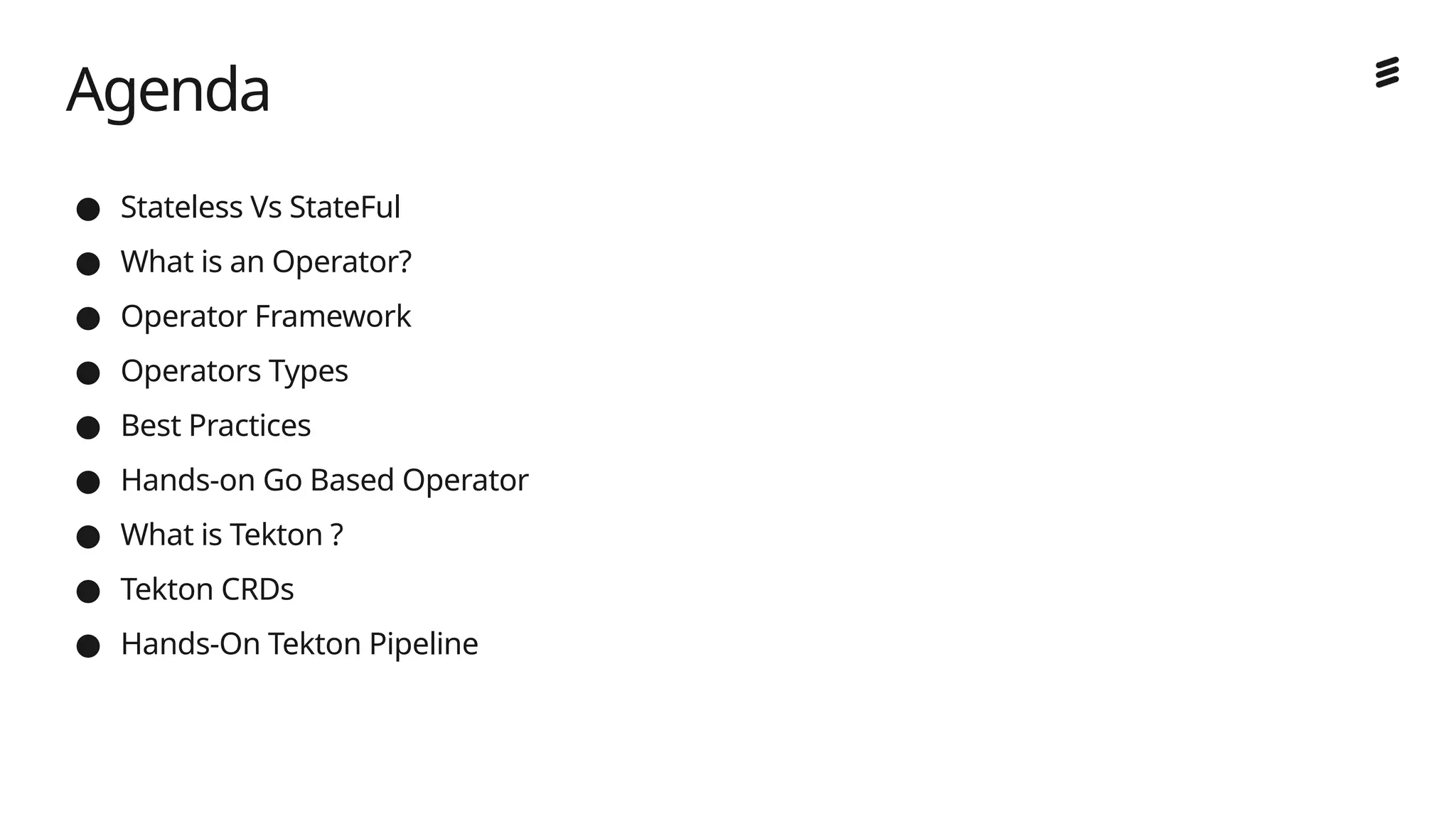

- 2. Ericsson Internal |2018-02-21 ● Stateless Vs StateFul ● What is an Operator? ● Operator Framework ● Operators Types ● Best Practices ● Hands-on Go Based Operator ● What is Tekton ? ● Tekton CRDs ● Hands-On Tekton Pipeline Agenda

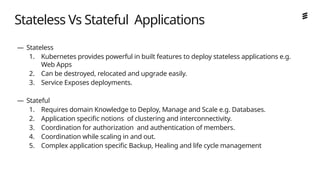

- 3. Ericsson Internal |2018-02-21 Stateless Vs Stateful Applications — Stateless 1. Kubernetes provides powerful in built features to deploy stateless applications e.g. Web Apps 2. Can be destroyed, relocated and upgrade easily. 3. Service Exposes deployments. — Stateful 1. Requires domain Knowledge to Deploy, Manage and Scale e.g. Databases. 2. Application specific notions of clustering and interconnectivity. 3. Coordination for authorization and authentication of members. 4. Coordination while scaling in and out. 5. Complex application specific Backup, Healing and life cycle management

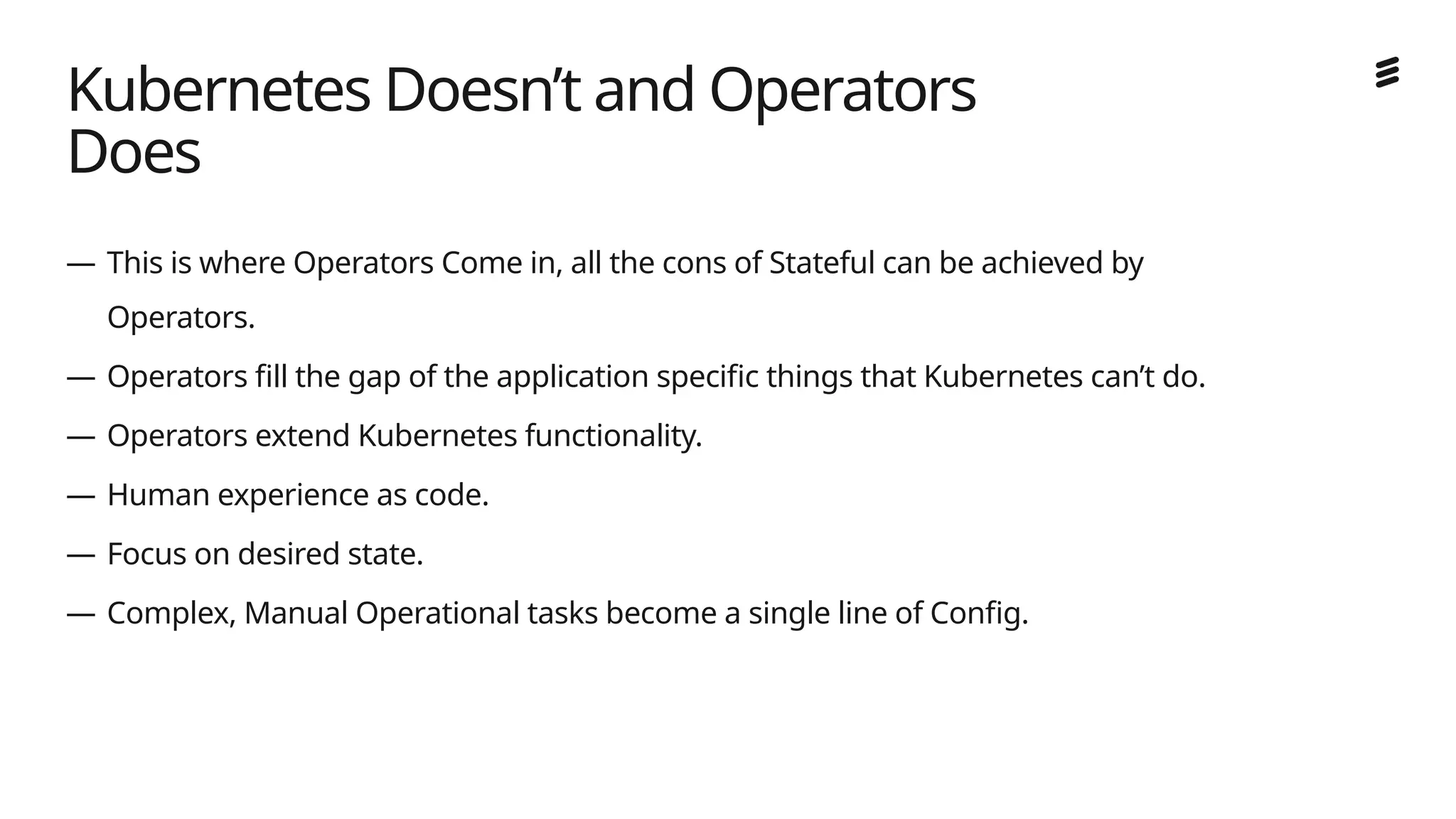

- 4. Ericsson Internal |2018-02-21 — This is where Operators Come in, all the cons of Stateful can be achieved by Operators. — Operators fill the gap of the application specific things that Kubernetes can’t do. — Operators extend Kubernetes functionality. — Human experience as code. — Focus on desired state. — Complex, Manual Operational tasks become a single line of Config. Kubernetes Doesn’t and Operators Does

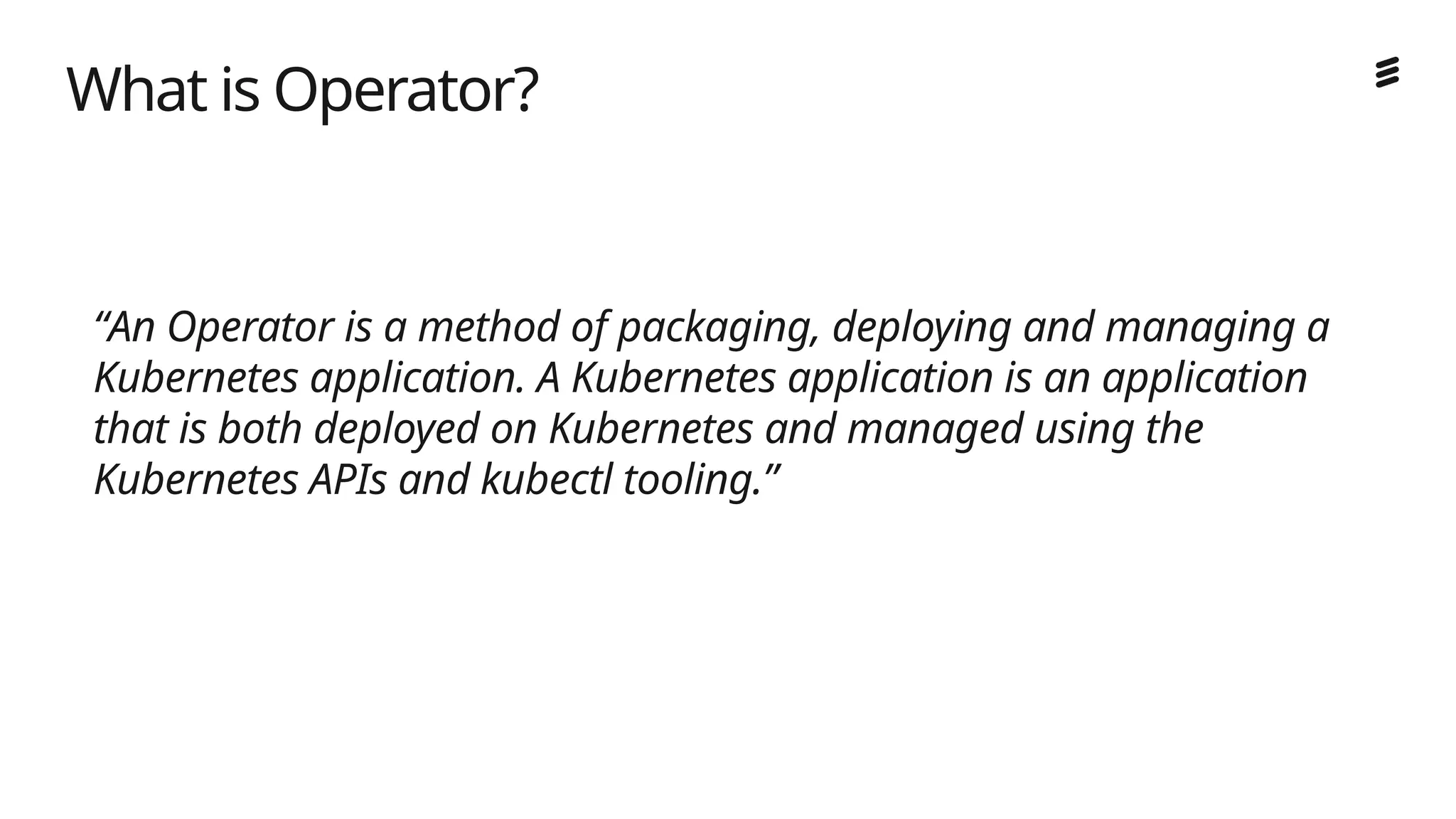

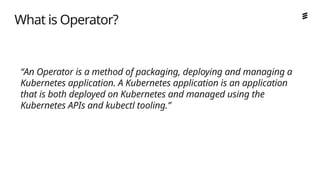

- 5. Ericsson Internal |2018-02-21 “An Operator is a method of packaging, deploying and managing a Kubernetes application. A Kubernetes application is an application that is both deployed on Kubernetes and managed using the Kubernetes APIs and kubectl tooling.” What is Operator?

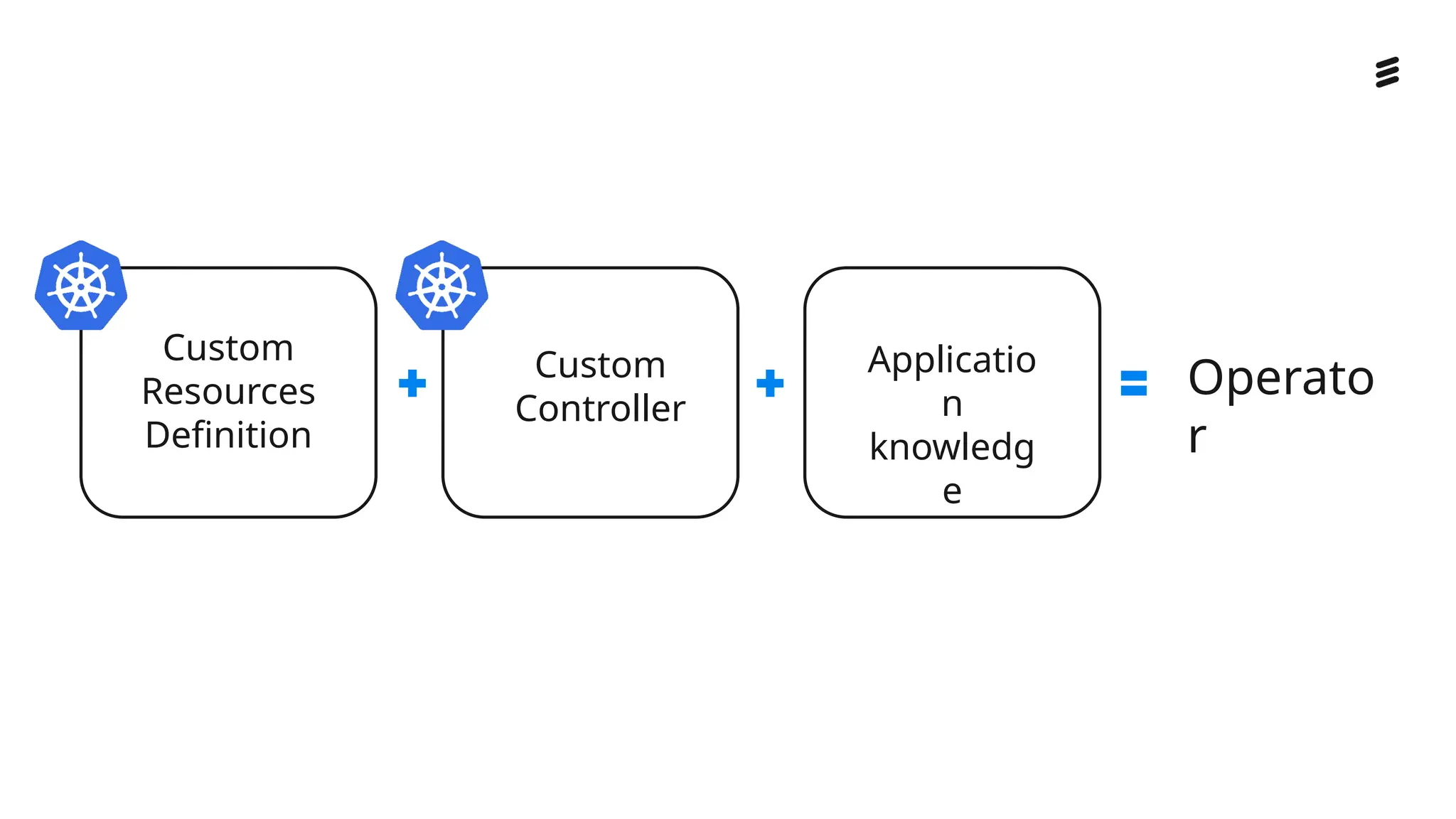

- 6. Ericsson Internal |2018-02-21 Custom Resources Definition Custom Controller Applicatio n knowledg e Operato r

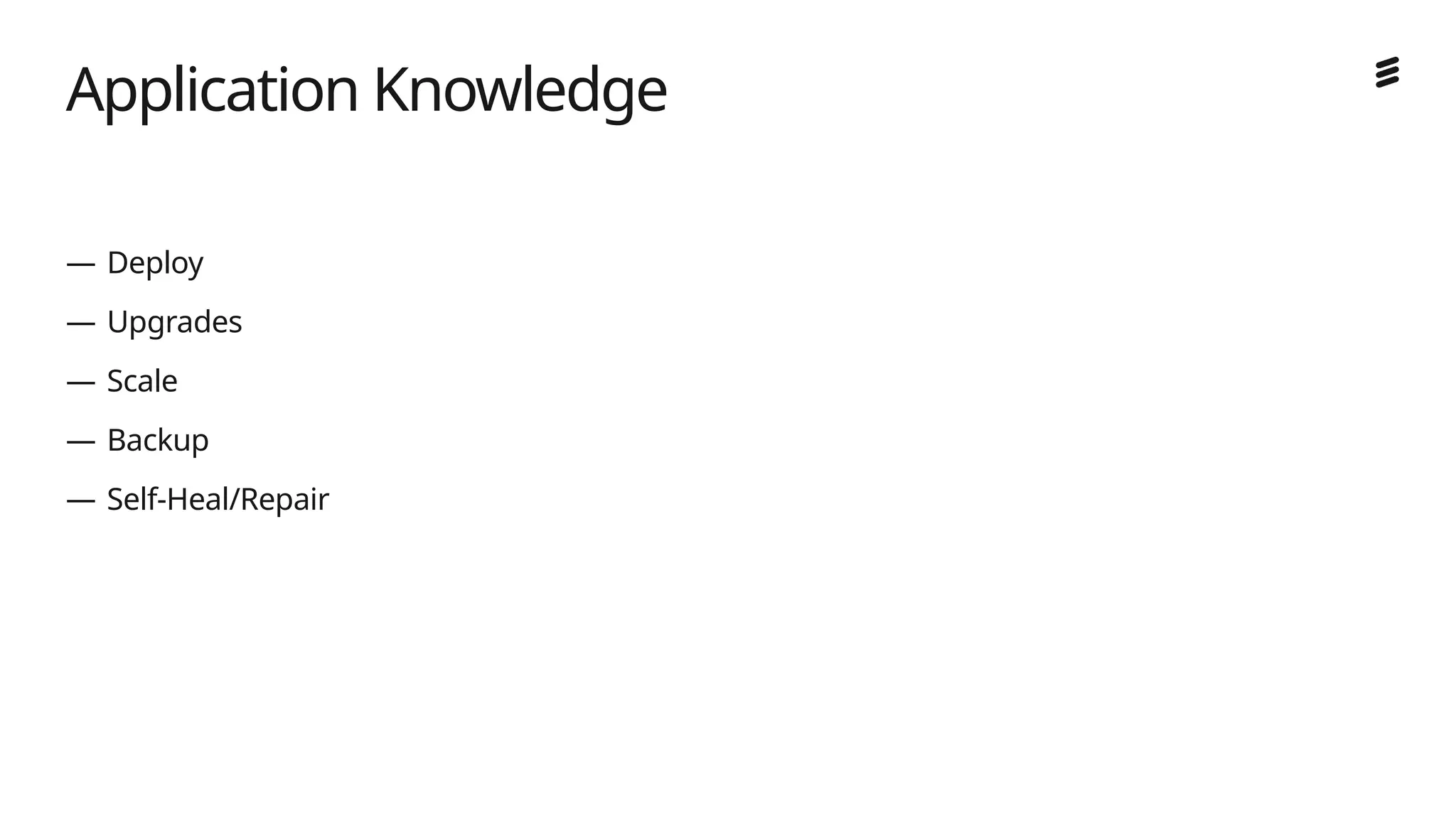

- 7. Ericsson Internal |2018-02-21 — Deploy — Upgrades — Scale — Backup — Self-Heal/Repair Application Knowledge

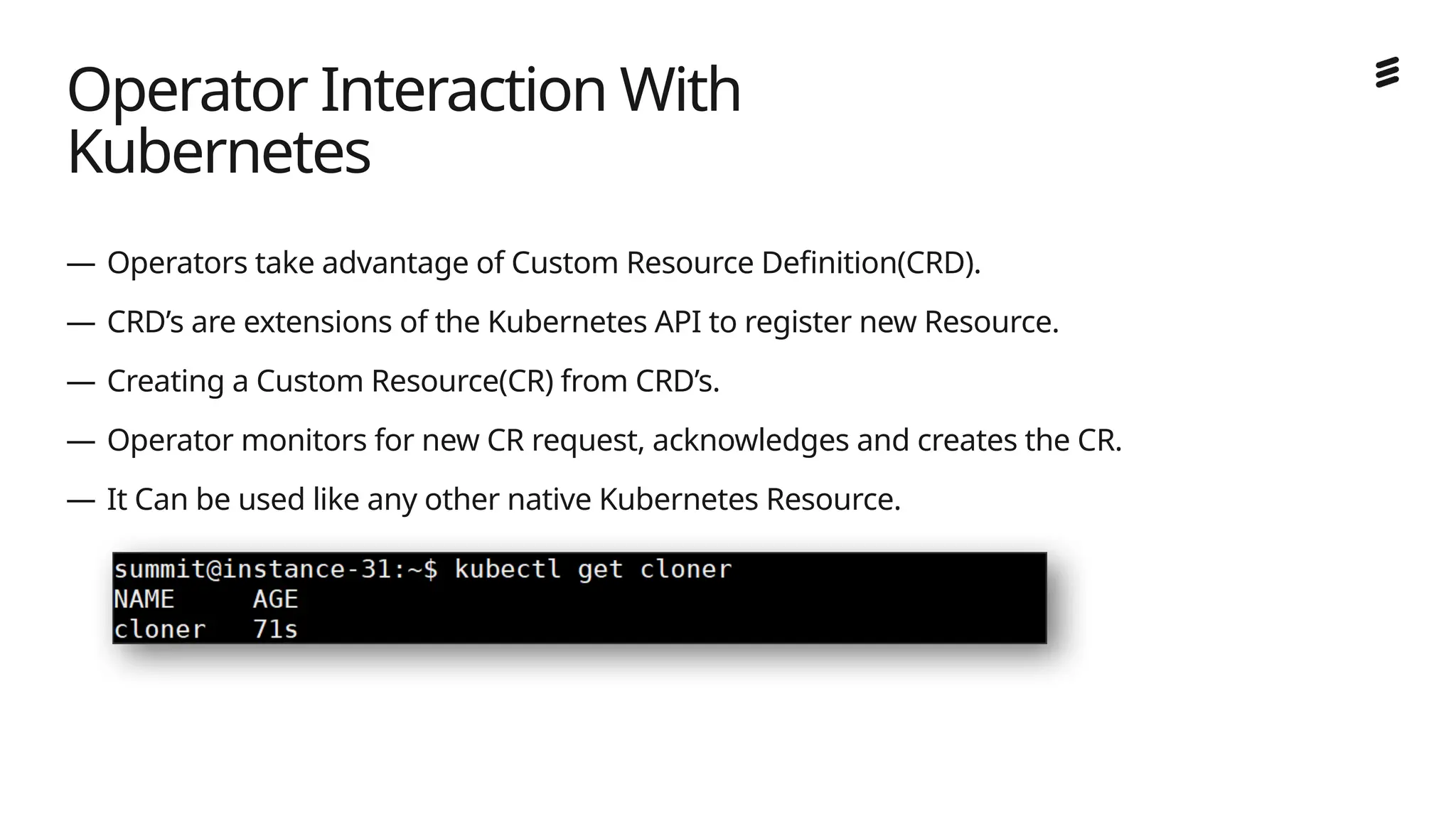

- 8. Ericsson Internal |2018-02-21 — Operators take advantage of Custom Resource Definition(CRD). — CRD’s are extensions of the Kubernetes API to register new Resource. — Creating a Custom Resource(CR) from CRD’s. — Operator monitors for new CR request, acknowledges and creates the CR. — It Can be used like any other native Kubernetes Resource. Operator Interaction With Kubernetes

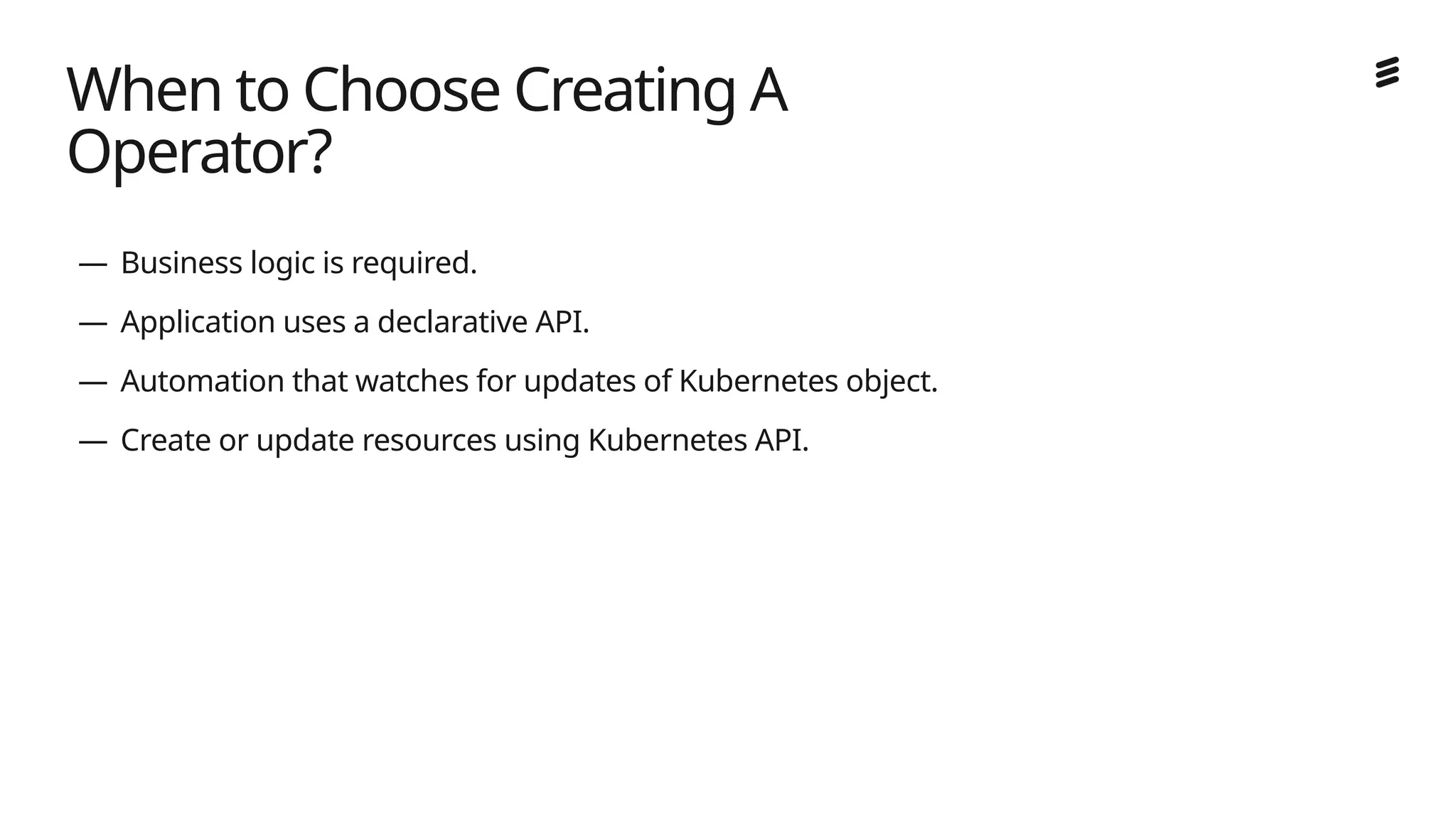

- 9. Ericsson Internal |2018-02-21 — Business logic is required. — Application uses a declarative API. — Automation that watches for updates of Kubernetes object. — Create or update resources using Kubernetes API. When to Choose Creating A Operator?

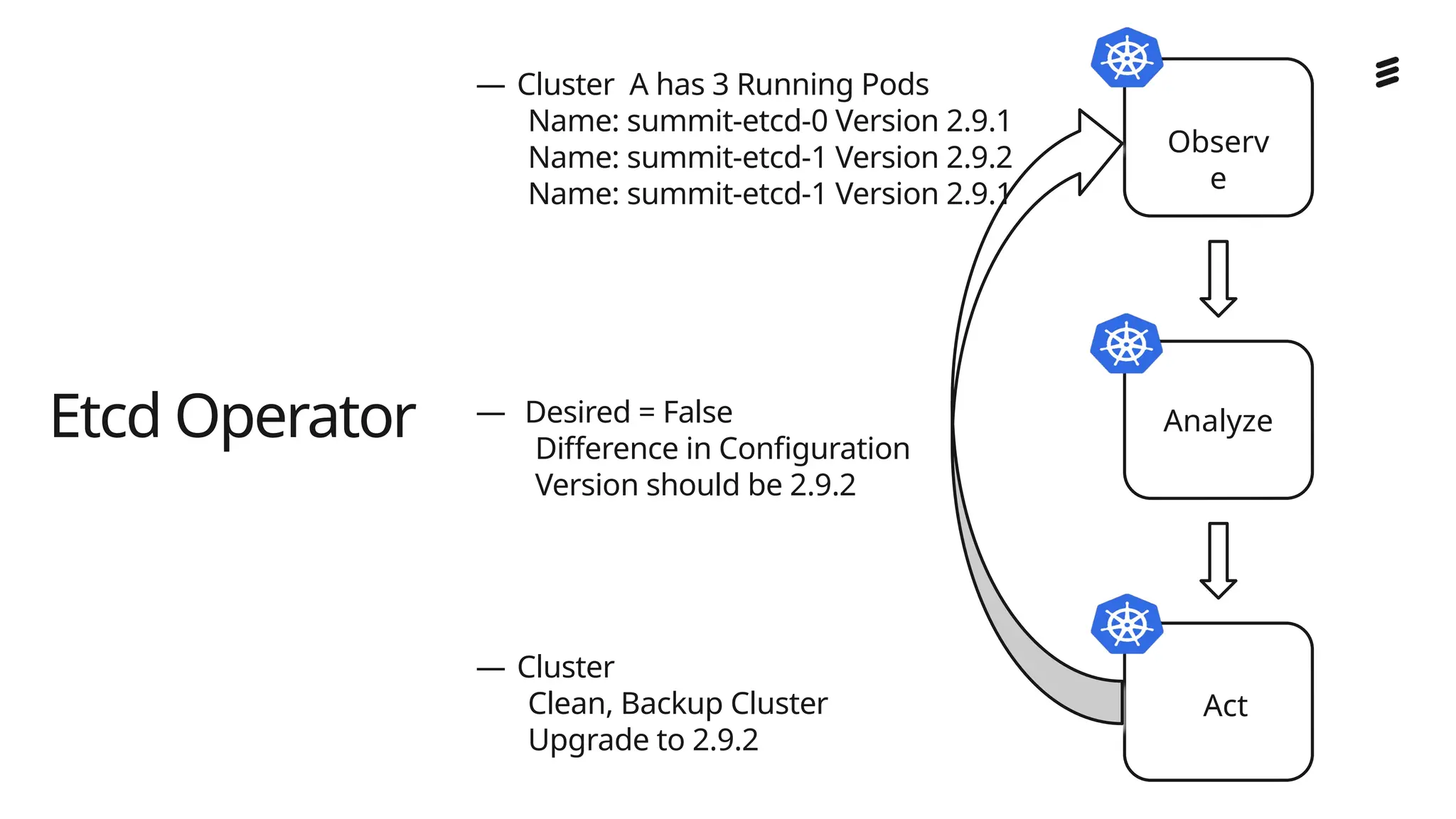

- 10. Ericsson Internal |2018-02-21 Etcd Operator Observ e Analyze Act — Cluster A has 3 Running Pods Name: summit-etcd-0 Version 2.9.1 Name: summit-etcd-1 Version 2.9.2 Name: summit-etcd-1 Version 2.9.1 — Desired = False Difference in Configuration Version should be 2.9.2 — Cluster Clean, Backup Cluster Upgrade to 2.9.2

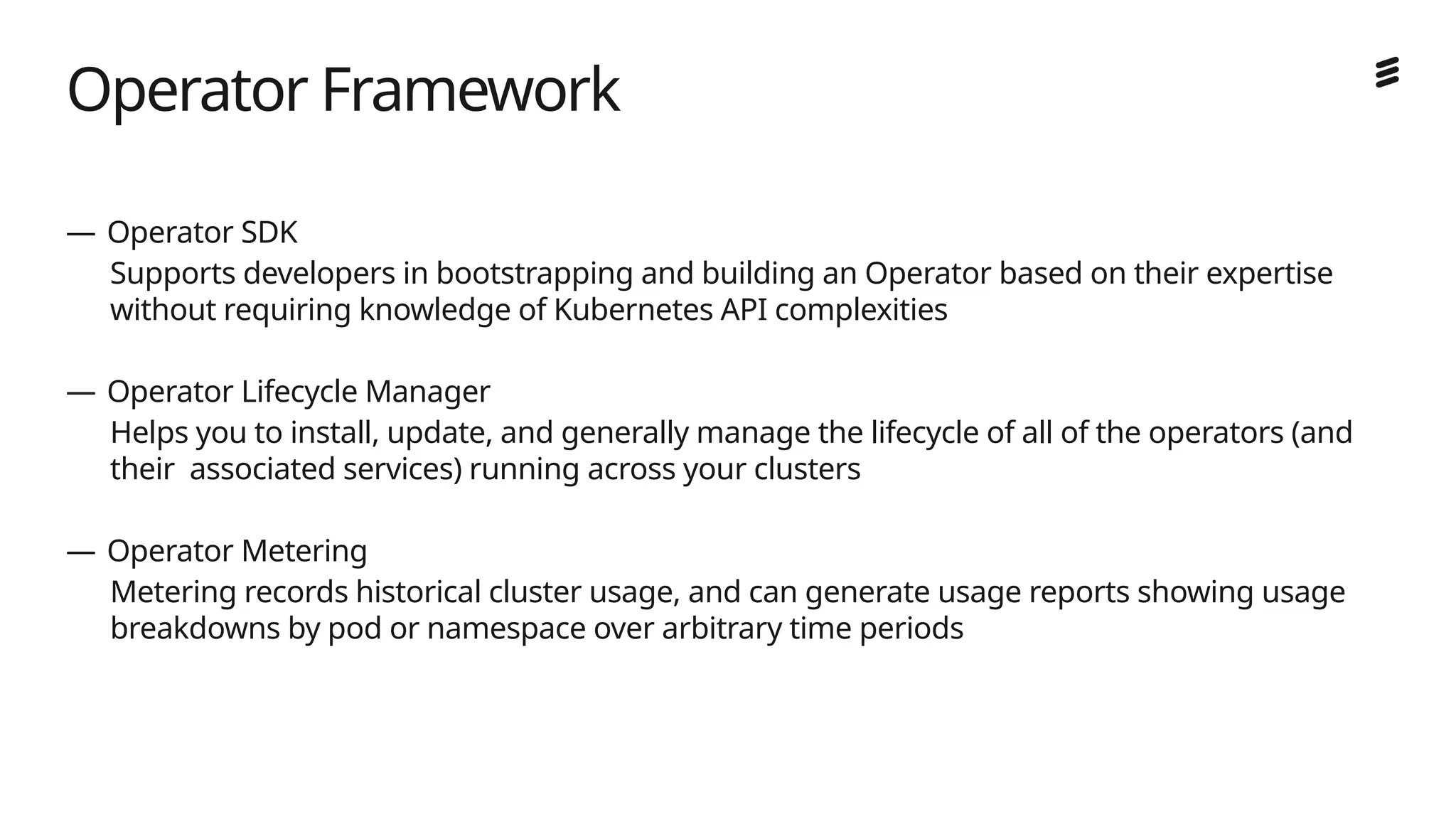

- 11. Ericsson Internal |2018-02-21 — Operator SDK Supports developers in bootstrapping and building an Operator based on their expertise without requiring knowledge of Kubernetes API complexities — Operator Lifecycle Manager Helps you to install, update, and generally manage the lifecycle of all of the operators (and their associated services) running across your clusters — Operator Metering Metering records historical cluster usage, and can generate usage reports showing usage breakdowns by pod or namespace over arbitrary time periods Operator Framework

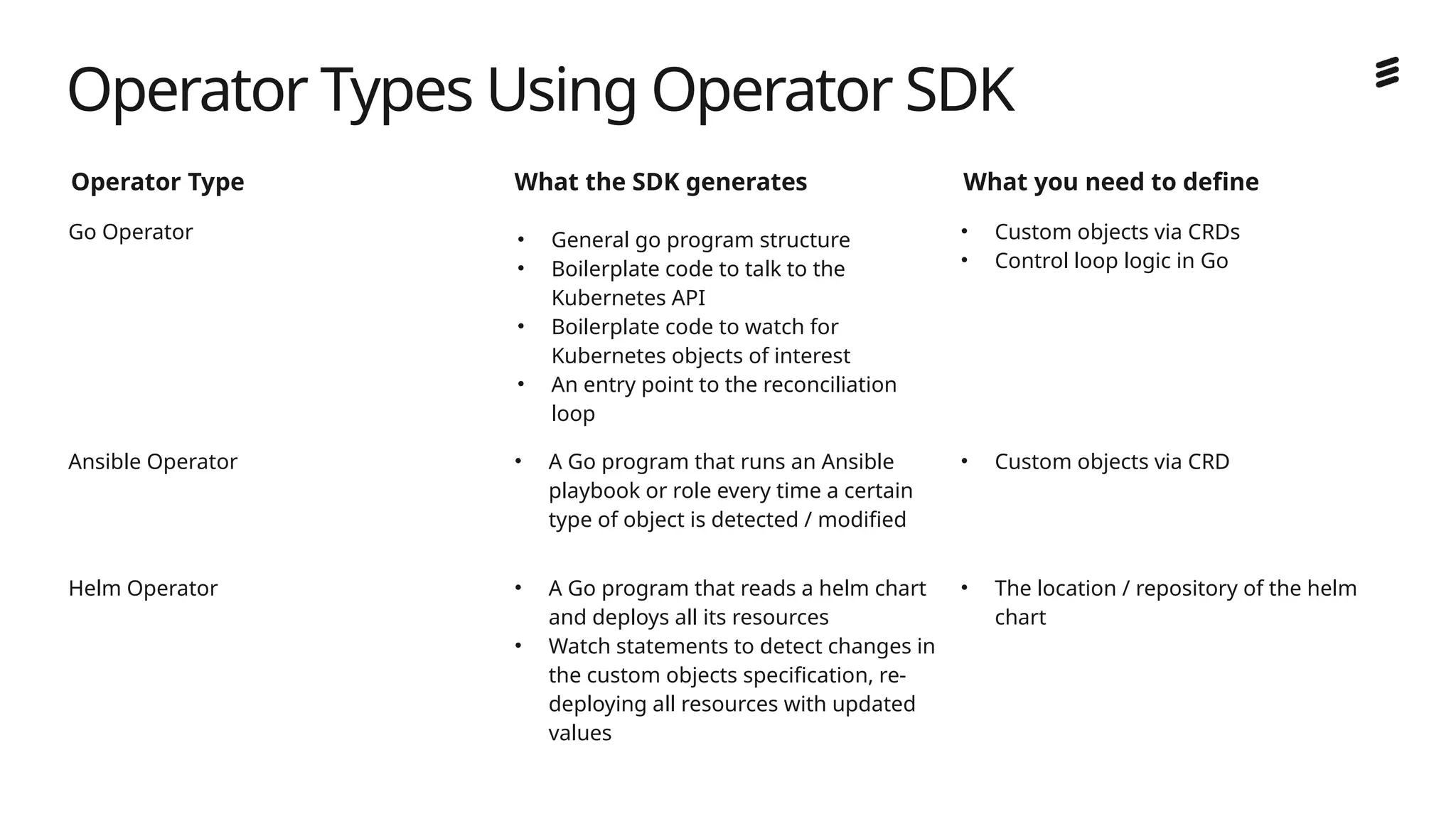

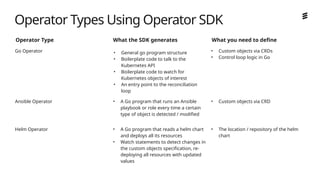

- 12. Ericsson Internal |2018-02-21 Operator Type What the SDK generates What you need to define Go Operator • General go program structure • Boilerplate code to talk to the Kubernetes API • Boilerplate code to watch for Kubernetes objects of interest • An entry point to the reconciliation loop • Custom objects via CRDs • Control loop logic in Go Ansible Operator • A Go program that runs an Ansible playbook or role every time a certain type of object is detected / modified • Custom objects via CRD Helm Operator • A Go program that reads a helm chart and deploys all its resources • Watch statements to detect changes in the custom objects specification, re- deploying all resources with updated values • The location / repository of the helm chart Operator Types Using Operator SDK

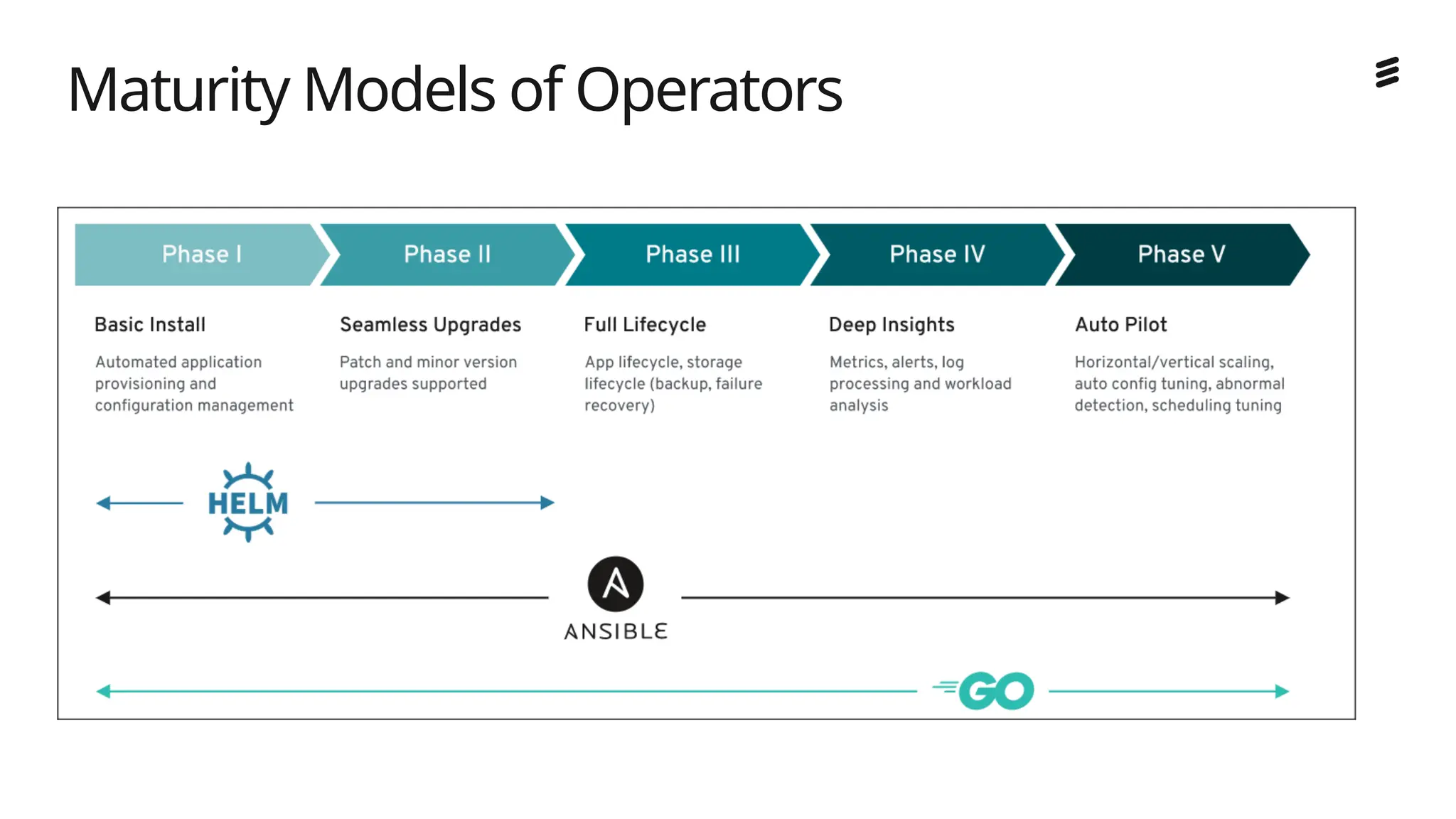

- 13. Ericsson Internal |2018-02-21 Maturity Models of Operators

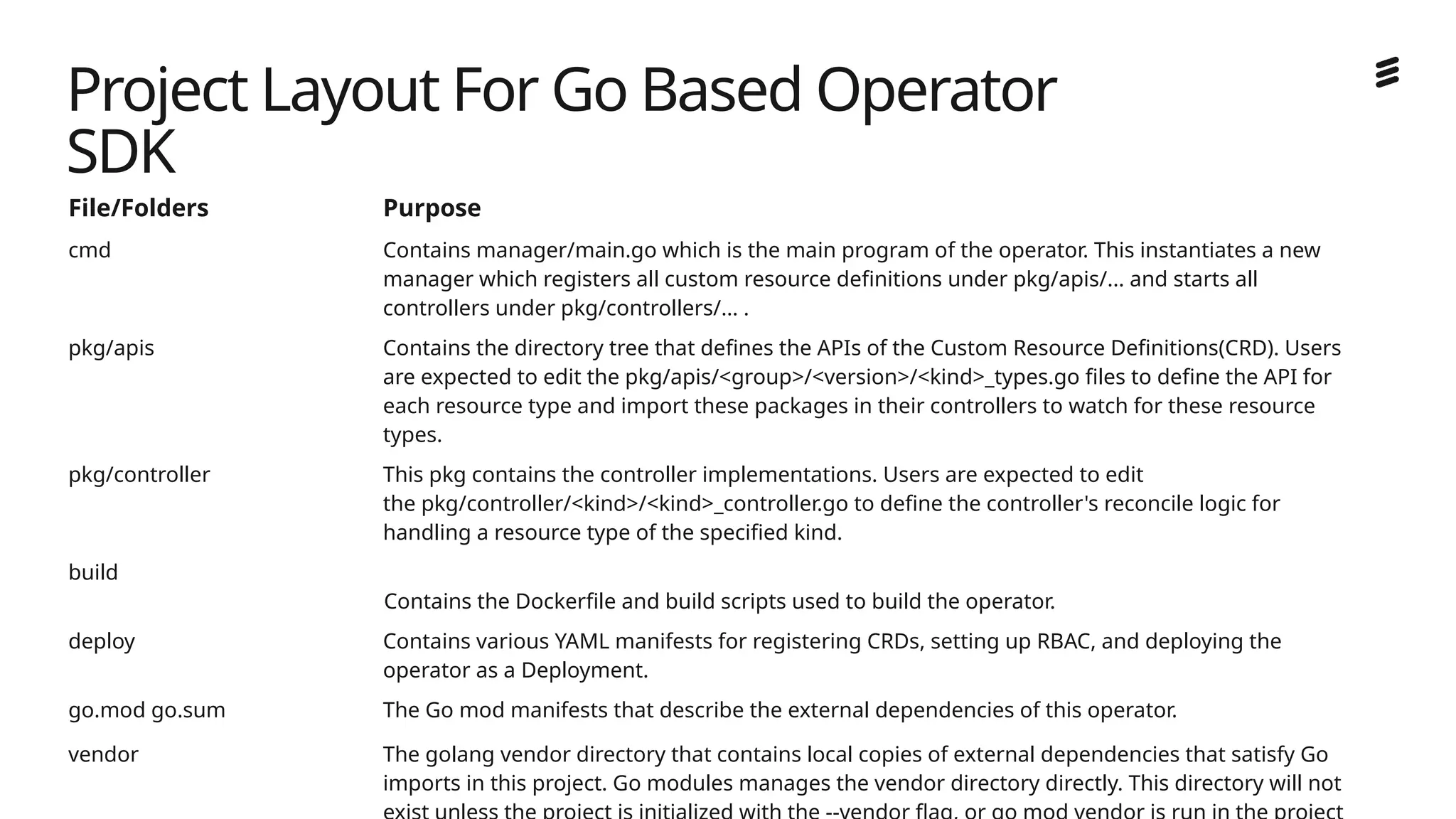

- 14. Ericsson Internal |2018-02-21 Project Layout For Go Based Operator SDK File/Folders Purpose cmd Contains manager/main.go which is the main program of the operator. This instantiates a new manager which registers all custom resource definitions under pkg/apis/... and starts all controllers under pkg/controllers/... . pkg/apis Contains the directory tree that defines the APIs of the Custom Resource Definitions(CRD). Users are expected to edit the pkg/apis/<group>/<version>/<kind>_types.go files to define the API for each resource type and import these packages in their controllers to watch for these resource types. pkg/controller This pkg contains the controller implementations. Users are expected to edit the pkg/controller/<kind>/<kind>_controller.go to define the controller's reconcile logic for handling a resource type of the specified kind. build Contains the Dockerfile and build scripts used to build the operator. deploy Contains various YAML manifests for registering CRDs, setting up RBAC, and deploying the operator as a Deployment. go.mod go.sum The Go mod manifests that describe the external dependencies of this operator. vendor The golang vendor directory that contains local copies of external dependencies that satisfy Go imports in this project. Go modules manages the vendor directory directly. This directory will not

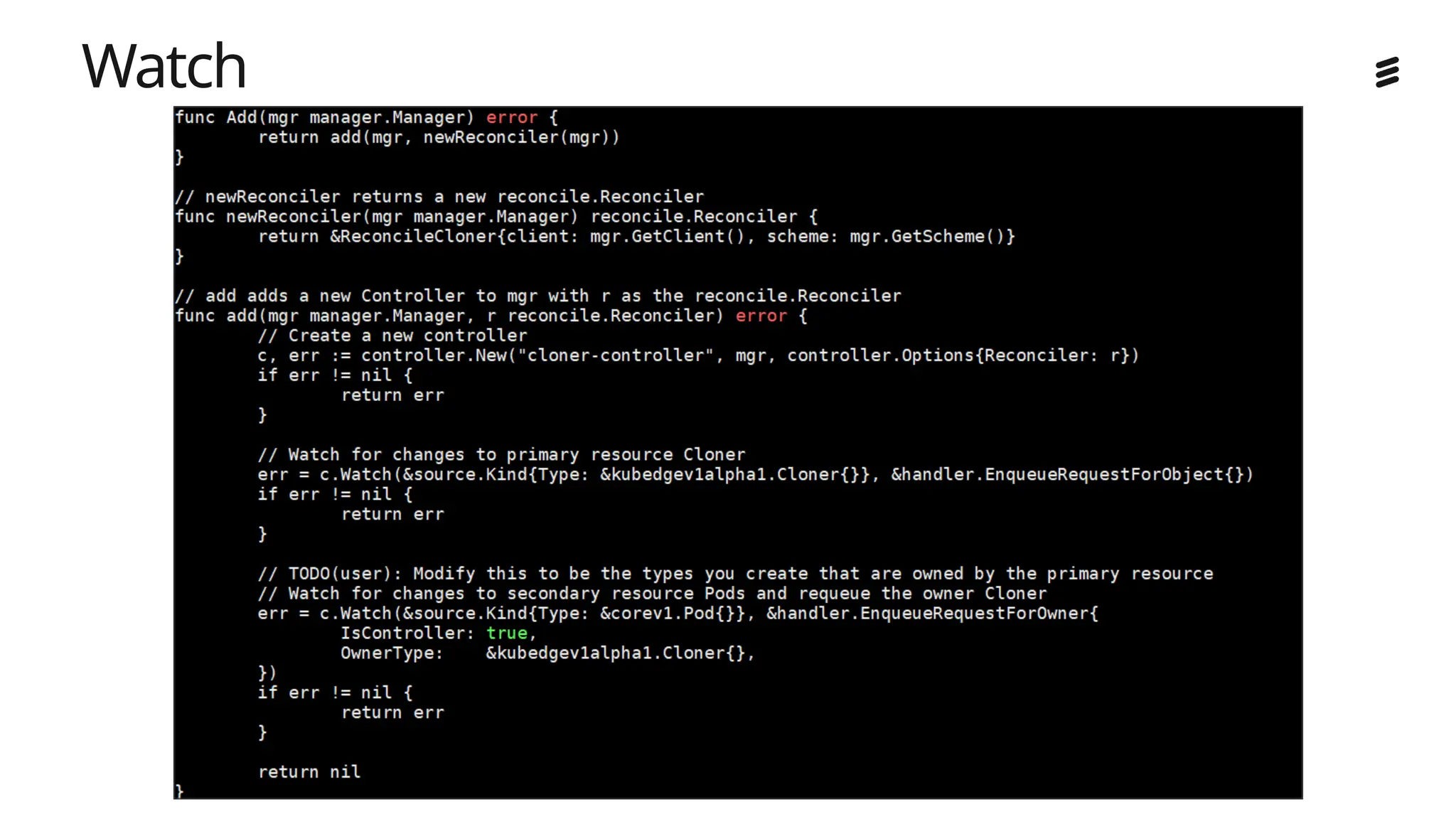

- 15. Ericsson Internal |2018-02-21 Watch

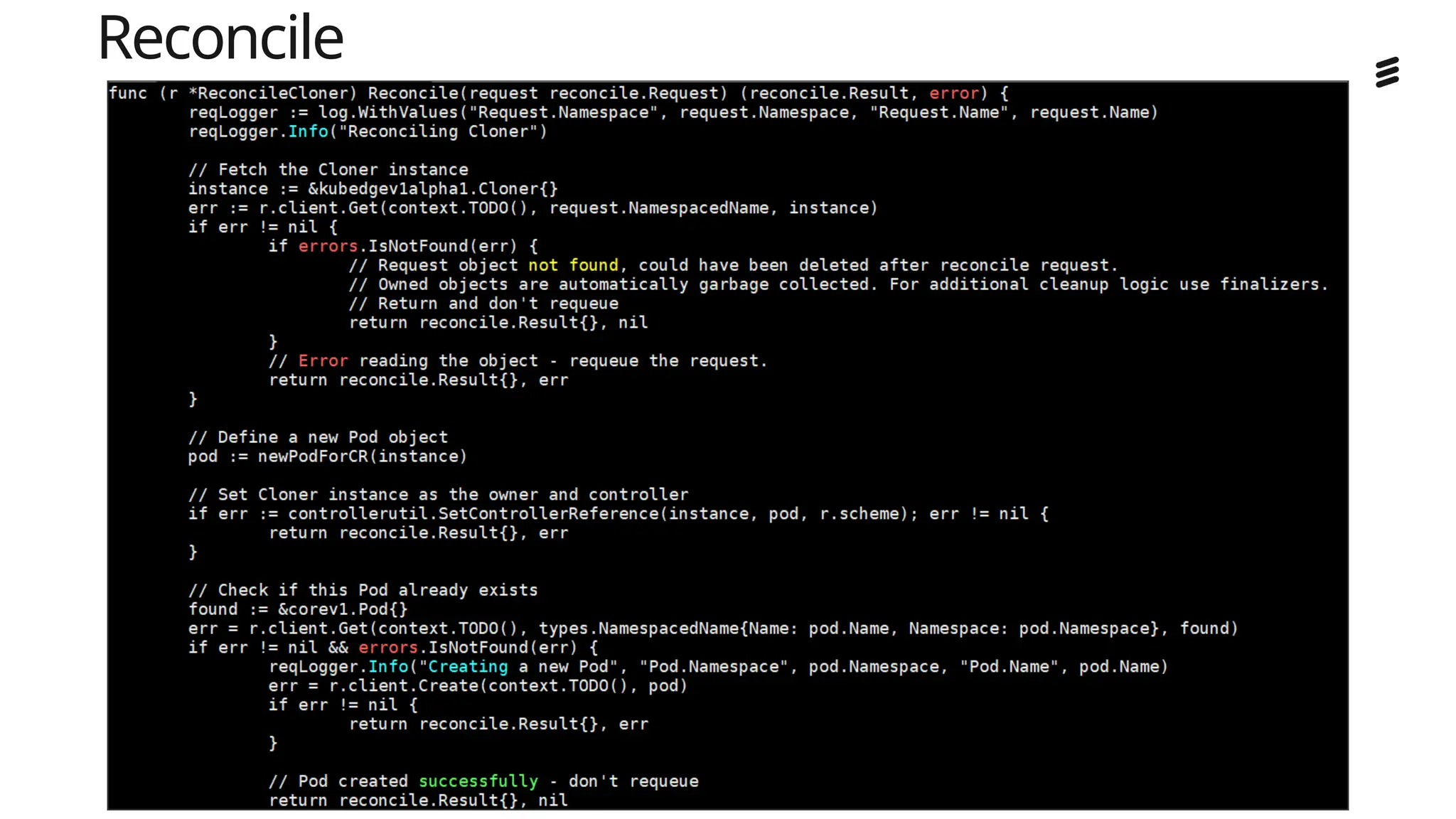

- 16. Ericsson Internal |2018-02-21 Reconcile

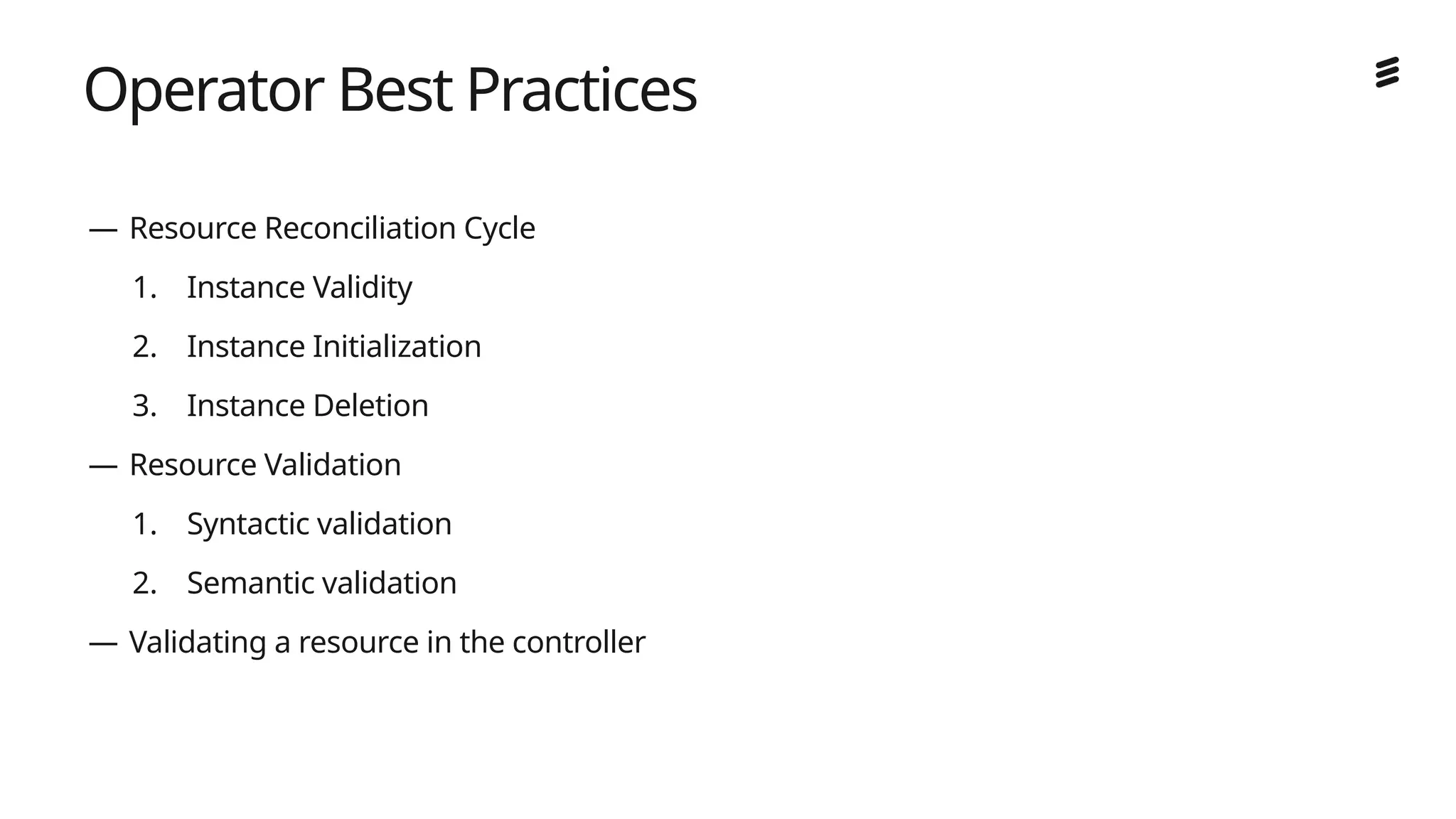

- 17. Ericsson Internal |2018-02-21 Operator Best Practices — Resource Reconciliation Cycle 1. Instance Validity 2. Instance Initialization 3. Instance Deletion — Resource Validation 1. Syntactic validation 2. Semantic validation — Validating a resource in the controller

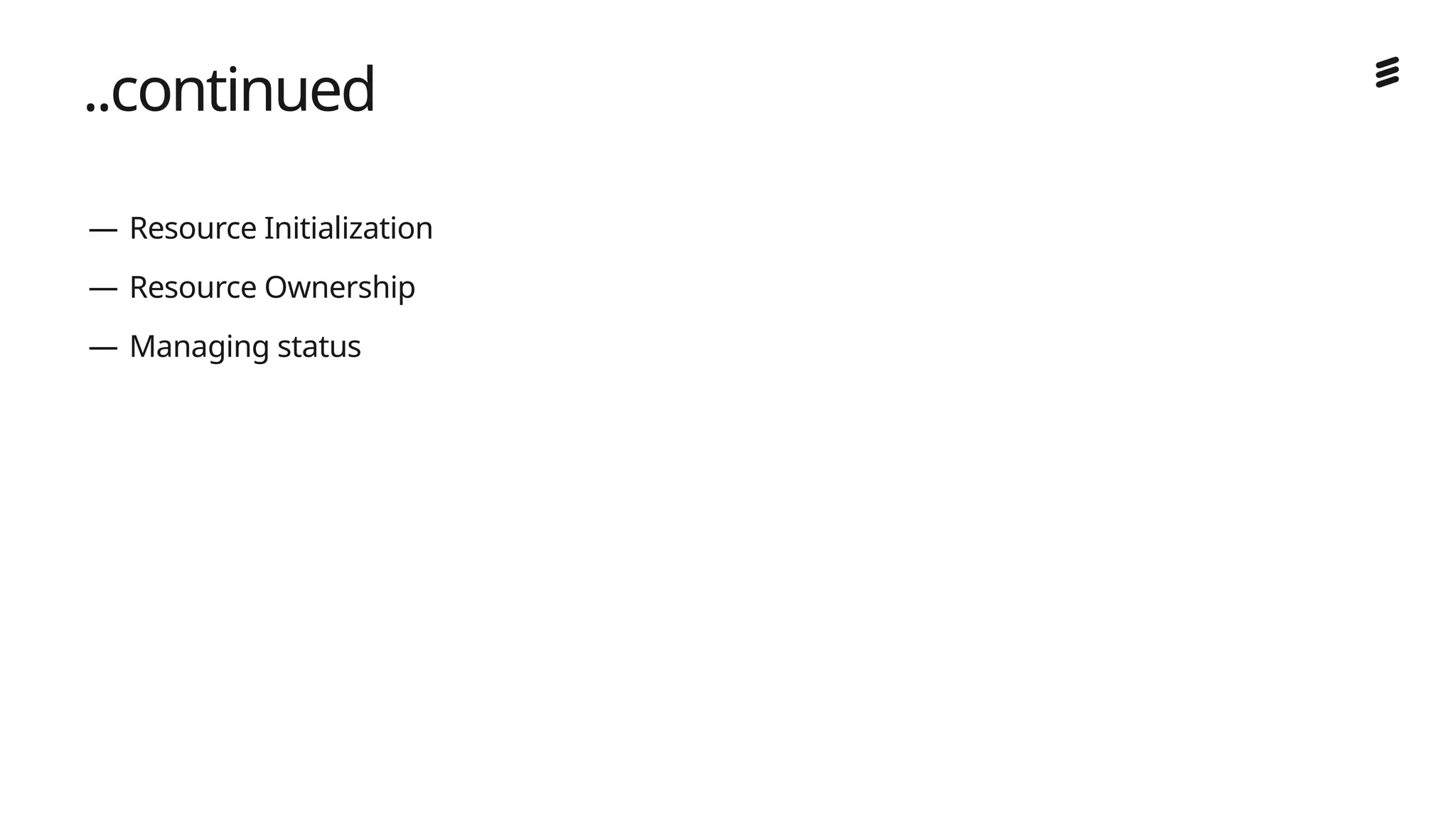

- 18. Ericsson Internal |2018-02-21 ..continued — Resource Initialization — Resource Ownership — Managing status

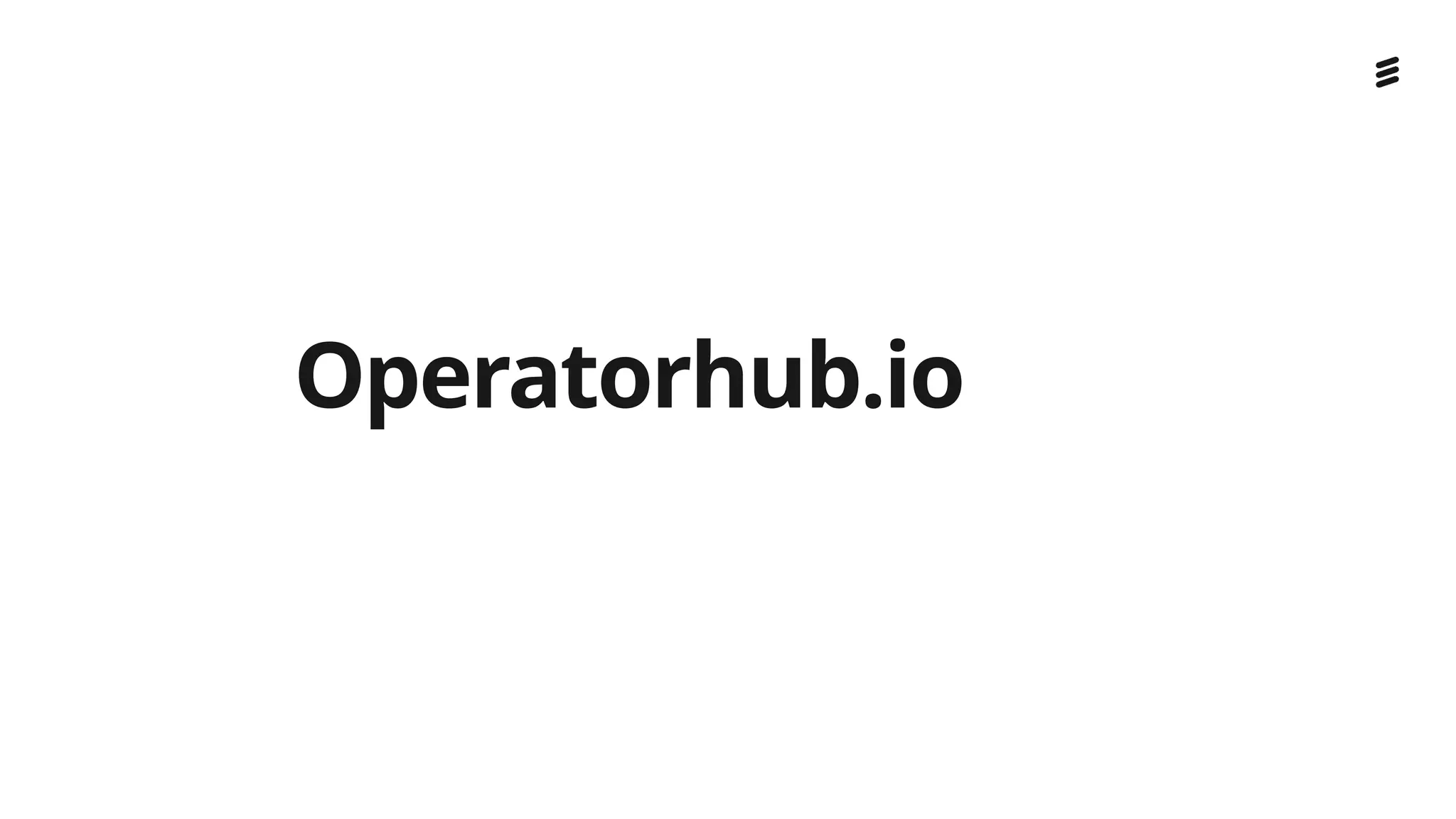

- 19. Ericsson Internal |2018-02-21 Operatorhub.io

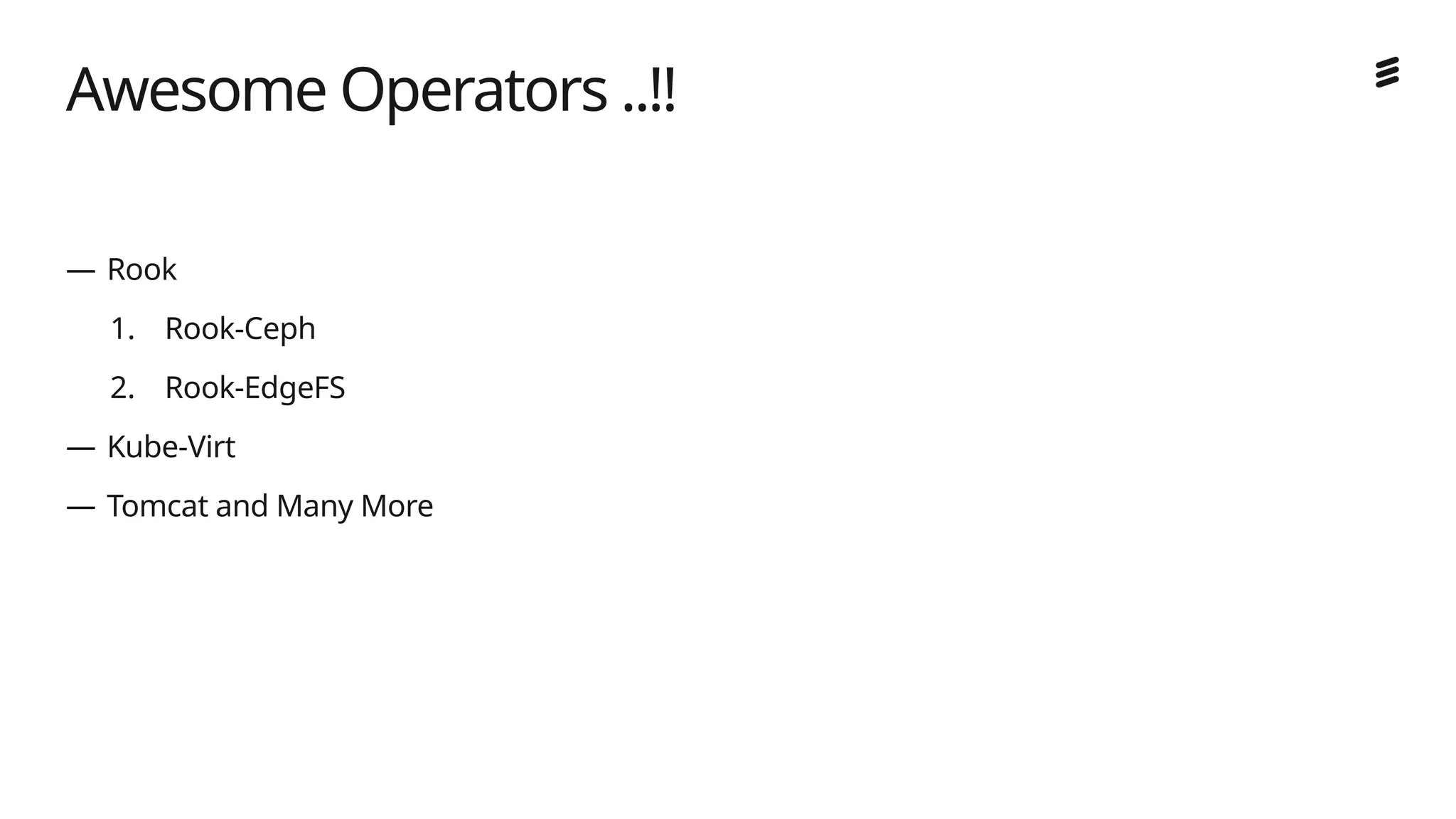

- 20. Ericsson Internal |2018-02-21 Awesome Operators ..!! — Rook 1. Rook-Ceph 2. Rook-EdgeFS — Kube-Virt — Tomcat and Many More

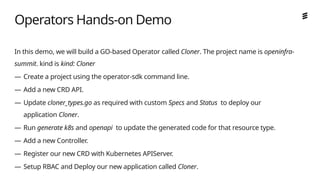

- 21. Ericsson Internal |2018-02-21 Operators Hands-on Demo In this demo, we will build a GO-based Operator called Cloner. The project name is openinfra- summit. kind is kind: Cloner — Create a project using the operator-sdk command line. — Add a new CRD API. — Update cloner_types.go as required with custom Specs and Status to deploy our application Cloner. — Run generate k8s and openapi to update the generated code for that resource type. — Add a new Controller. — Register our new CRD with Kubernetes APIServer. — Setup RBAC and Deploy our new application called Cloner.

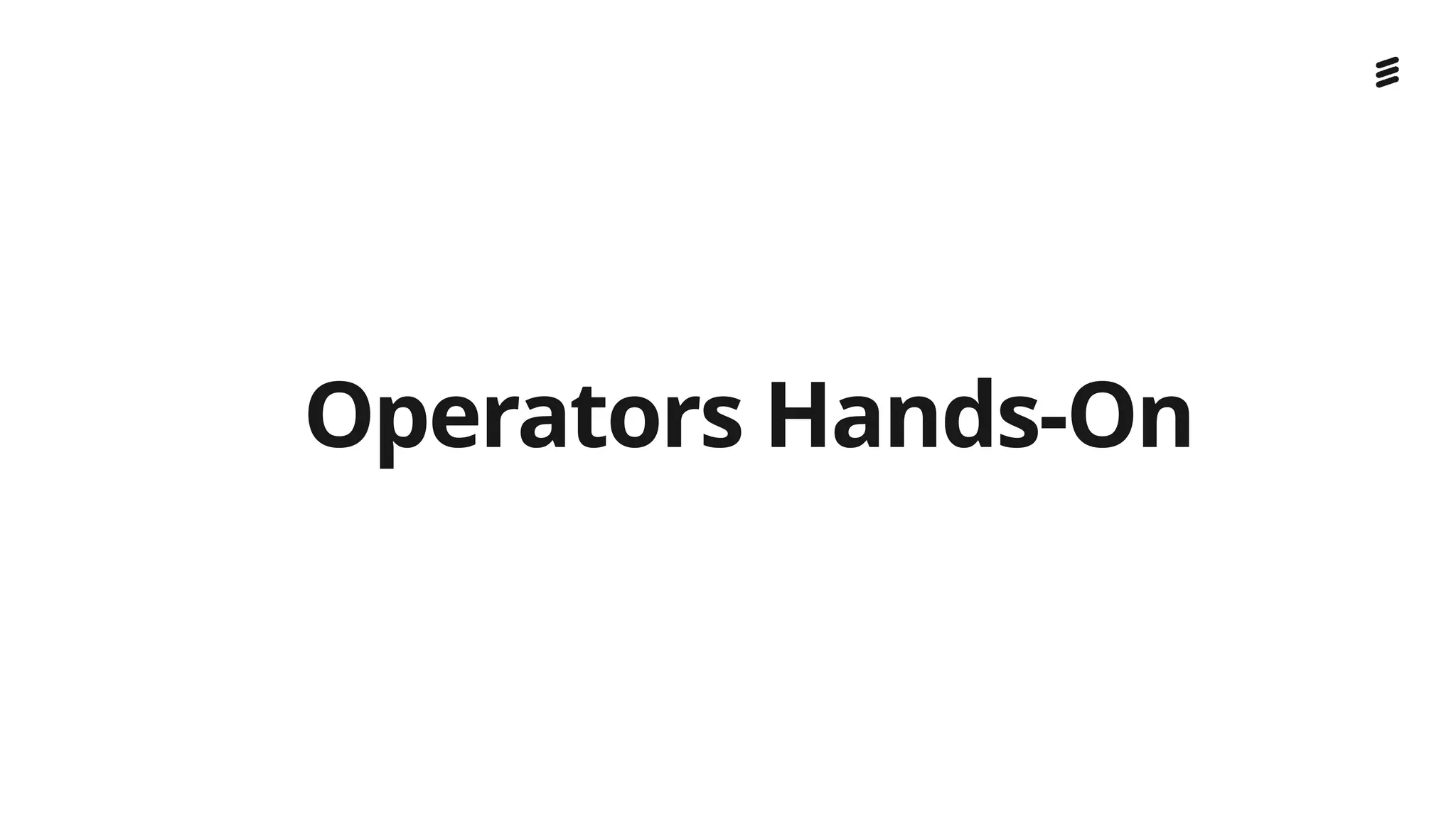

- 22. Ericsson Internal |2018-02-21 Operators Hands-On

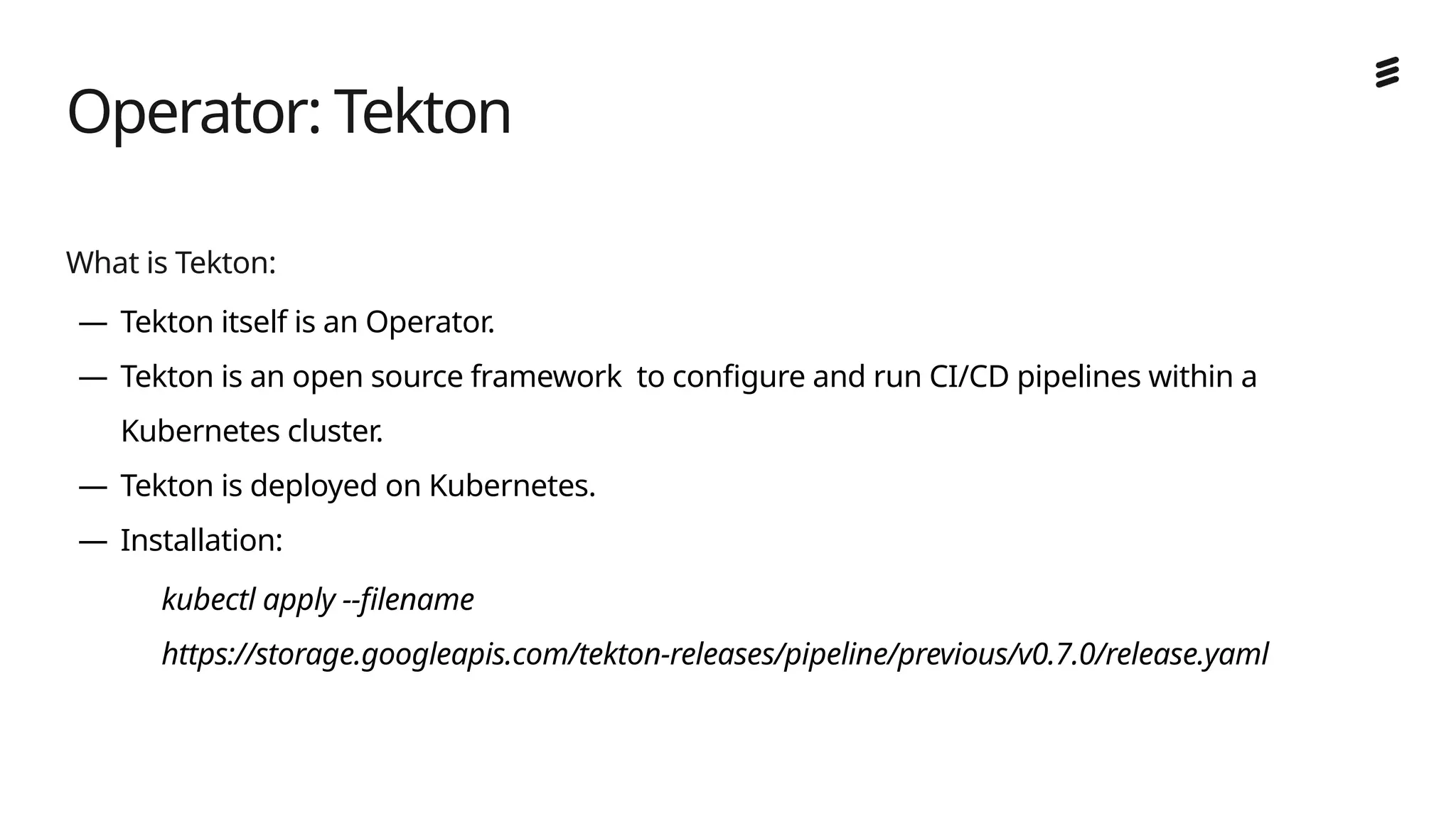

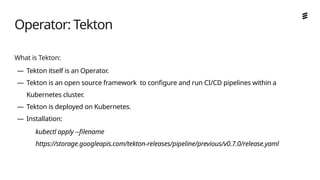

- 23. Ericsson Internal |2018-02-21 What is Tekton: — Tekton itself is an Operator. — Tekton is an open source framework to configure and run CI/CD pipelines within a Kubernetes cluster. — Tekton is deployed on Kubernetes. — Installation: kubectl apply --filename https://storage.googleapis.com/tekton-releases/pipeline/previous/v0.7.0/release.yaml Operator: Tekton

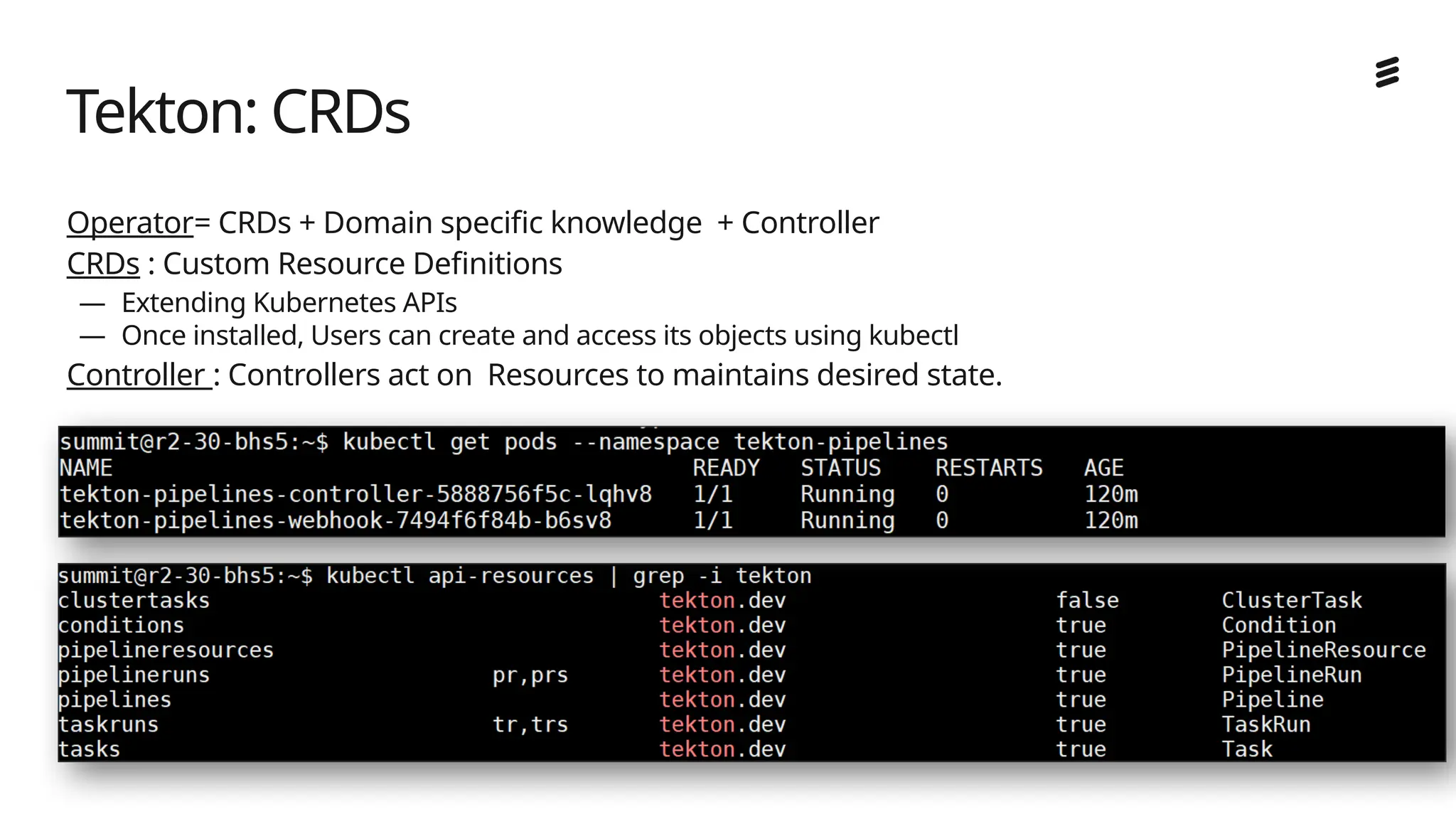

- 24. Ericsson Internal |2018-02-21 Operator= CRDs + Domain specific knowledge + Controller CRDs : Custom Resource Definitions — Extending Kubernetes APIs — Once installed, Users can create and access its objects using kubectl Controller : Controllers act on Resources to maintains desired state. Tekton: CRDs

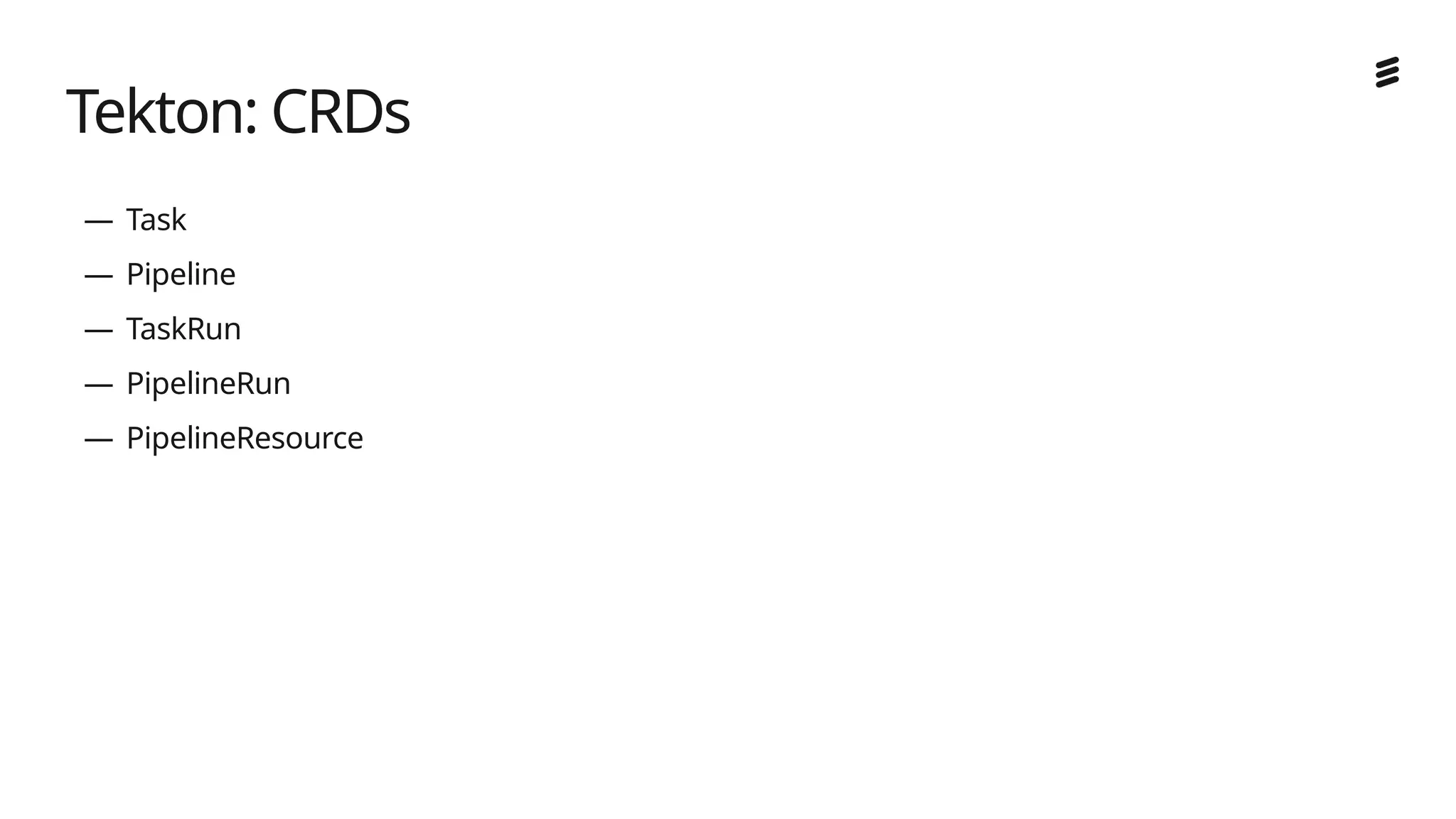

- 25. Ericsson Internal |2018-02-21 — Task — Pipeline — TaskRun — PipelineRun — PipelineResource Tekton: CRDs

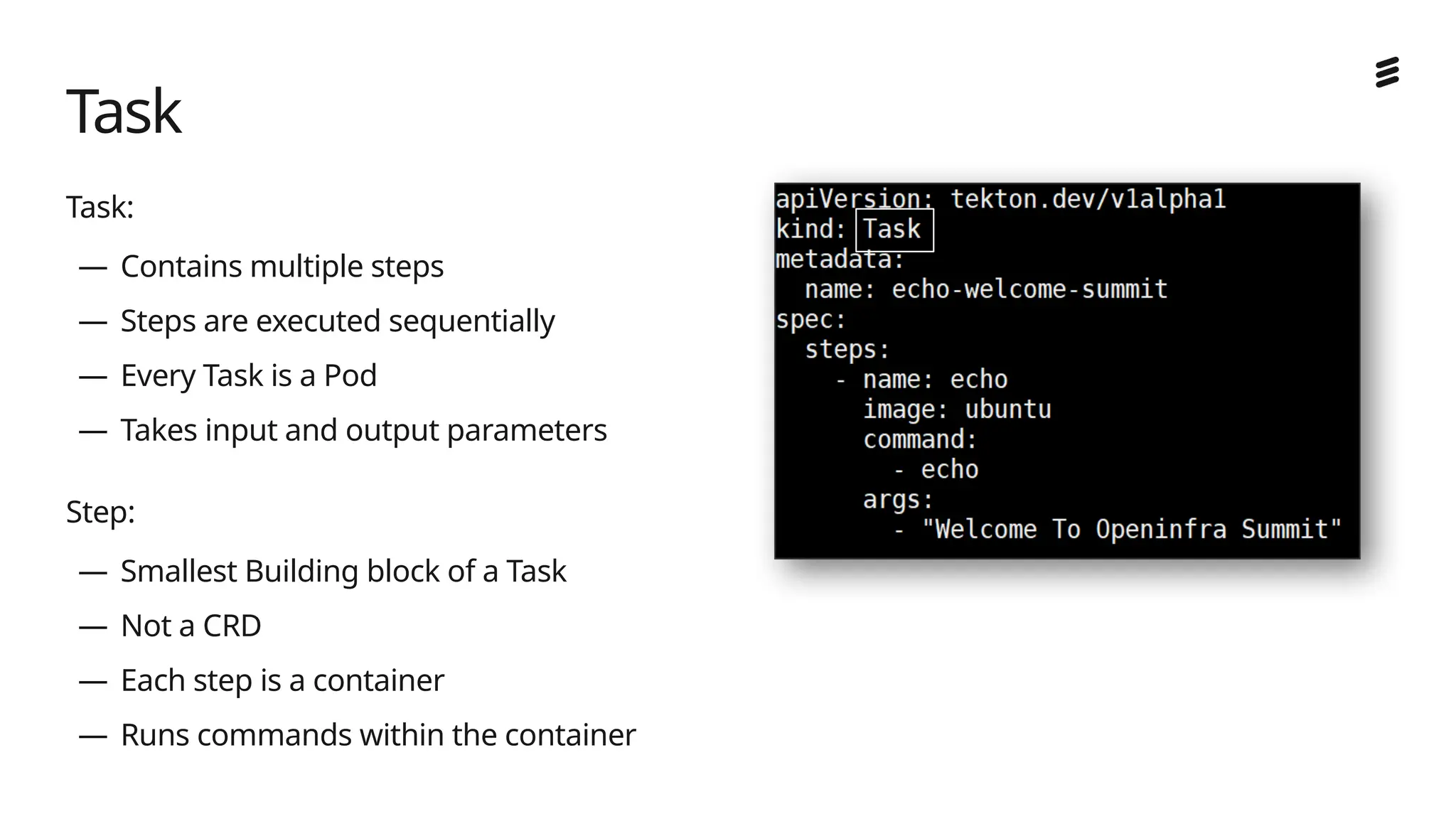

- 26. Ericsson Internal |2018-02-21 Task: — Contains multiple steps — Steps are executed sequentially — Every Task is a Pod — Takes input and output parameters Step: — Smallest Building block of a Task — Not a CRD — Each step is a container — Runs commands within the container Task

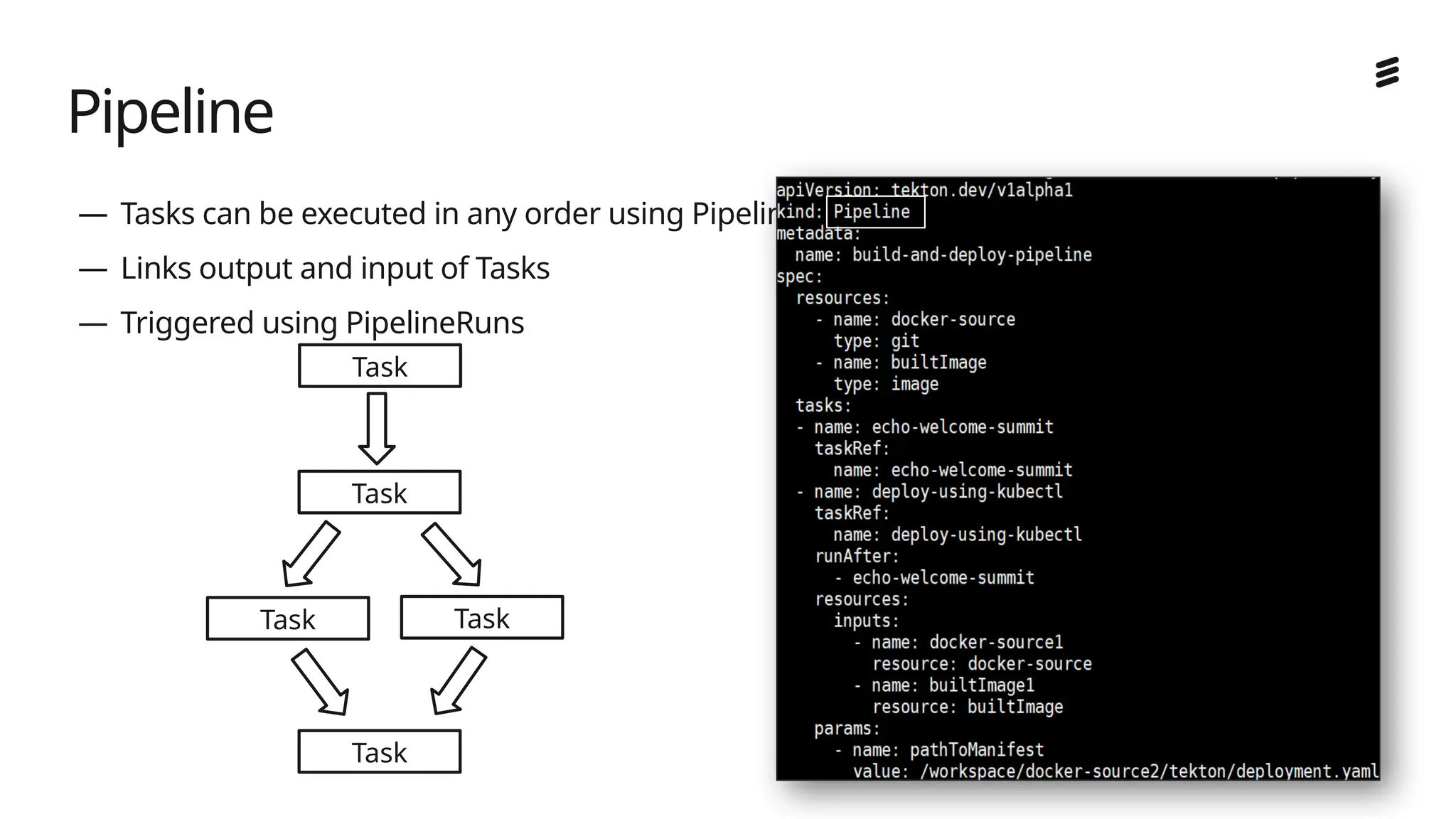

- 27. Ericsson Internal |2018-02-21 — Tasks can be executed in any order using Pipeline — Links output and input of Tasks — Triggered using PipelineRuns Pipeline Task Task Task Task Task

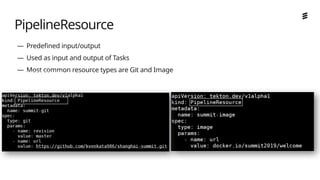

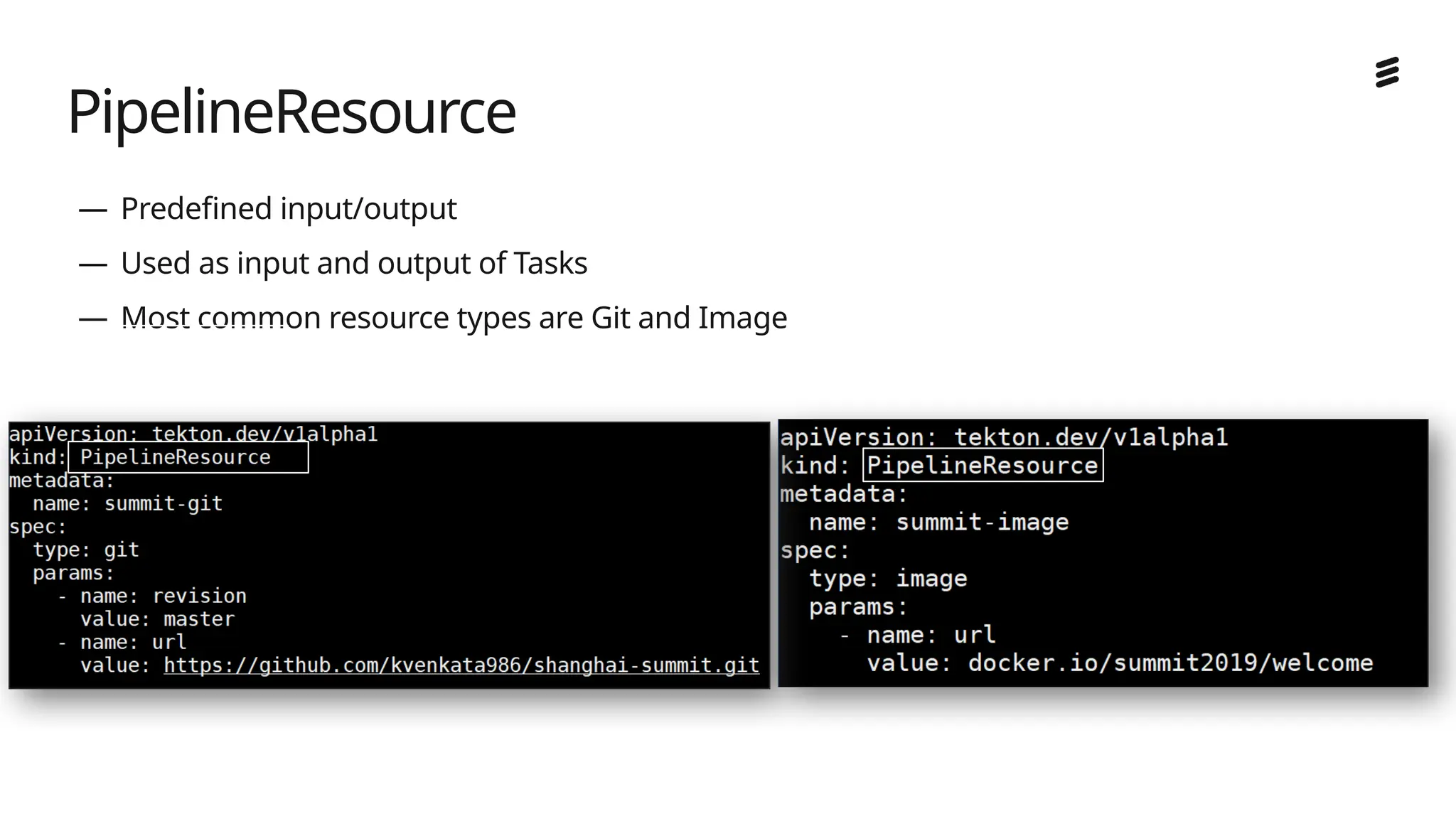

- 28. Ericsson Internal |2018-02-21 — Predefined input/output — Used as input and output of Tasks — Most common resource types are Git and Image PipelineResource

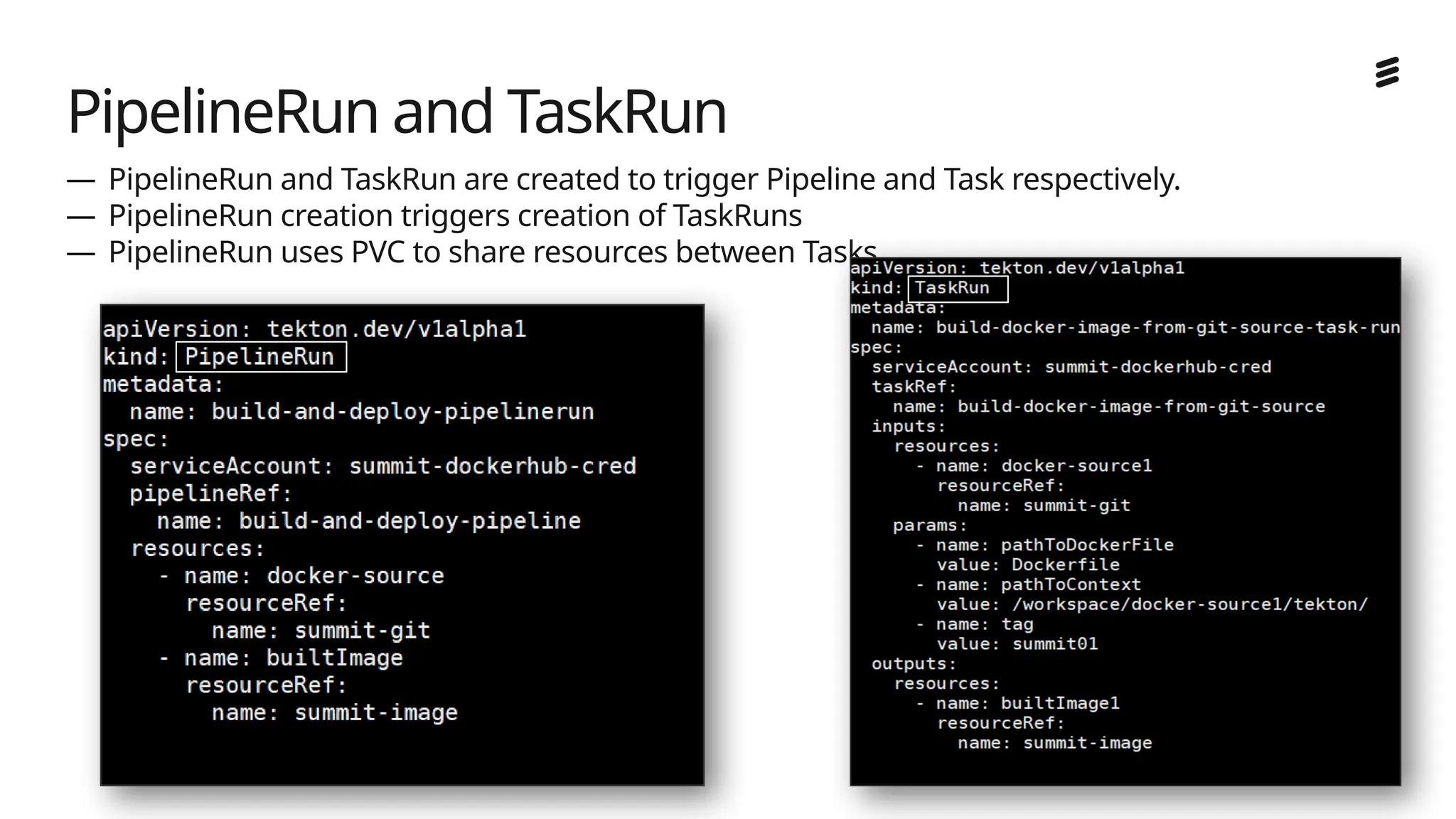

- 29. Ericsson Internal |2018-02-21 — PipelineRun and TaskRun are created to trigger Pipeline and Task respectively. — PipelineRun creation triggers creation of TaskRuns — PipelineRun uses PVC to share resources between Tasks PipelineRun and TaskRun

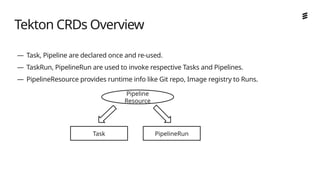

- 30. Ericsson Internal |2018-02-21 — Task, Pipeline are declared once and re-used. — TaskRun, PipelineRun are used to invoke respective Tasks and Pipelines. — PipelineResource provides runtime info like Git repo, Image registry to Runs. Tekton CRDs Overview Pipeline Resource PipelineRun Task

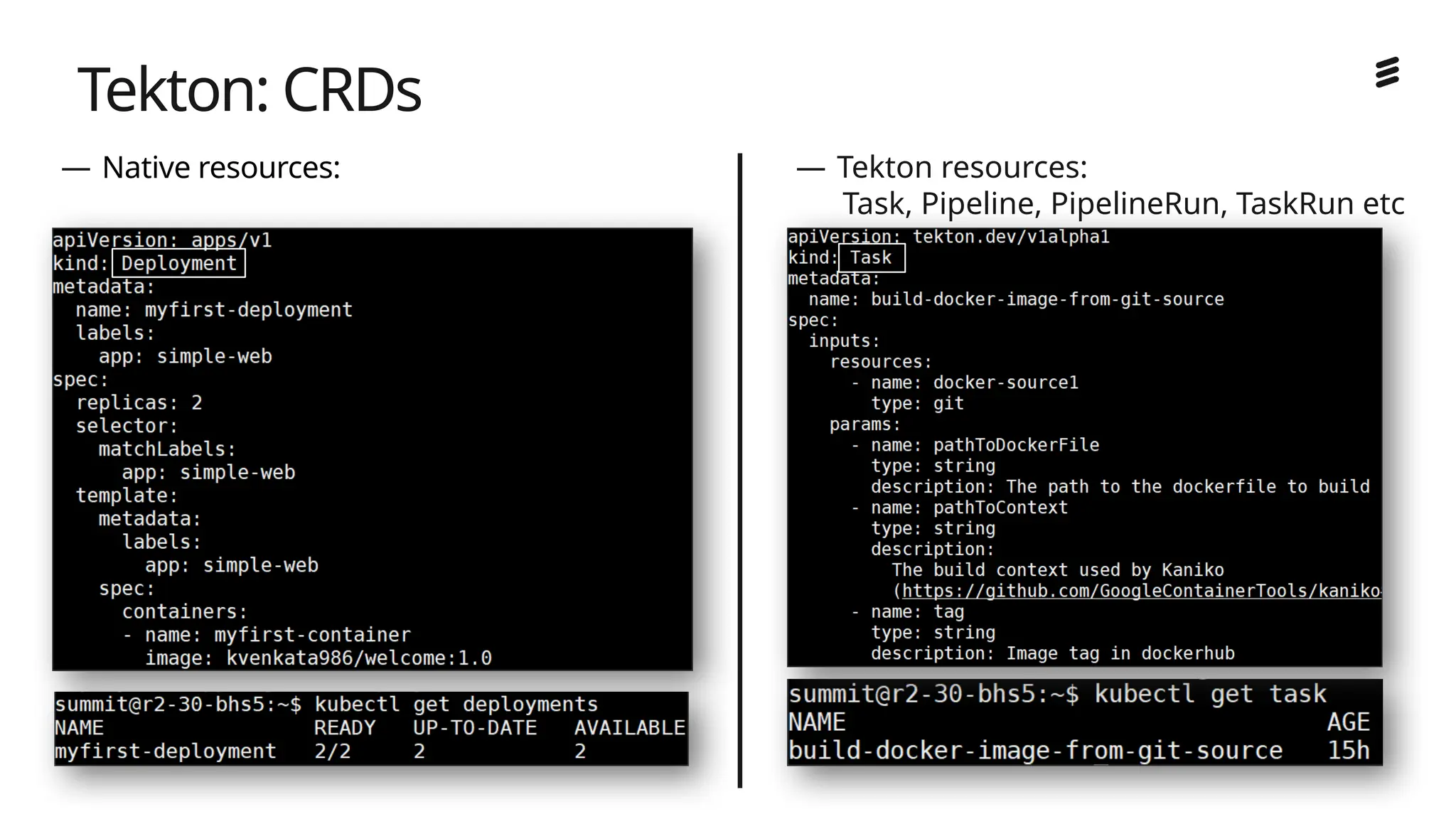

- 31. Ericsson Internal |2018-02-21 — Native resources: Pod, Deployment, Service, Ingress etc Tekton: CRDs — Tekton resources: Task, Pipeline, PipelineRun, TaskRun etc

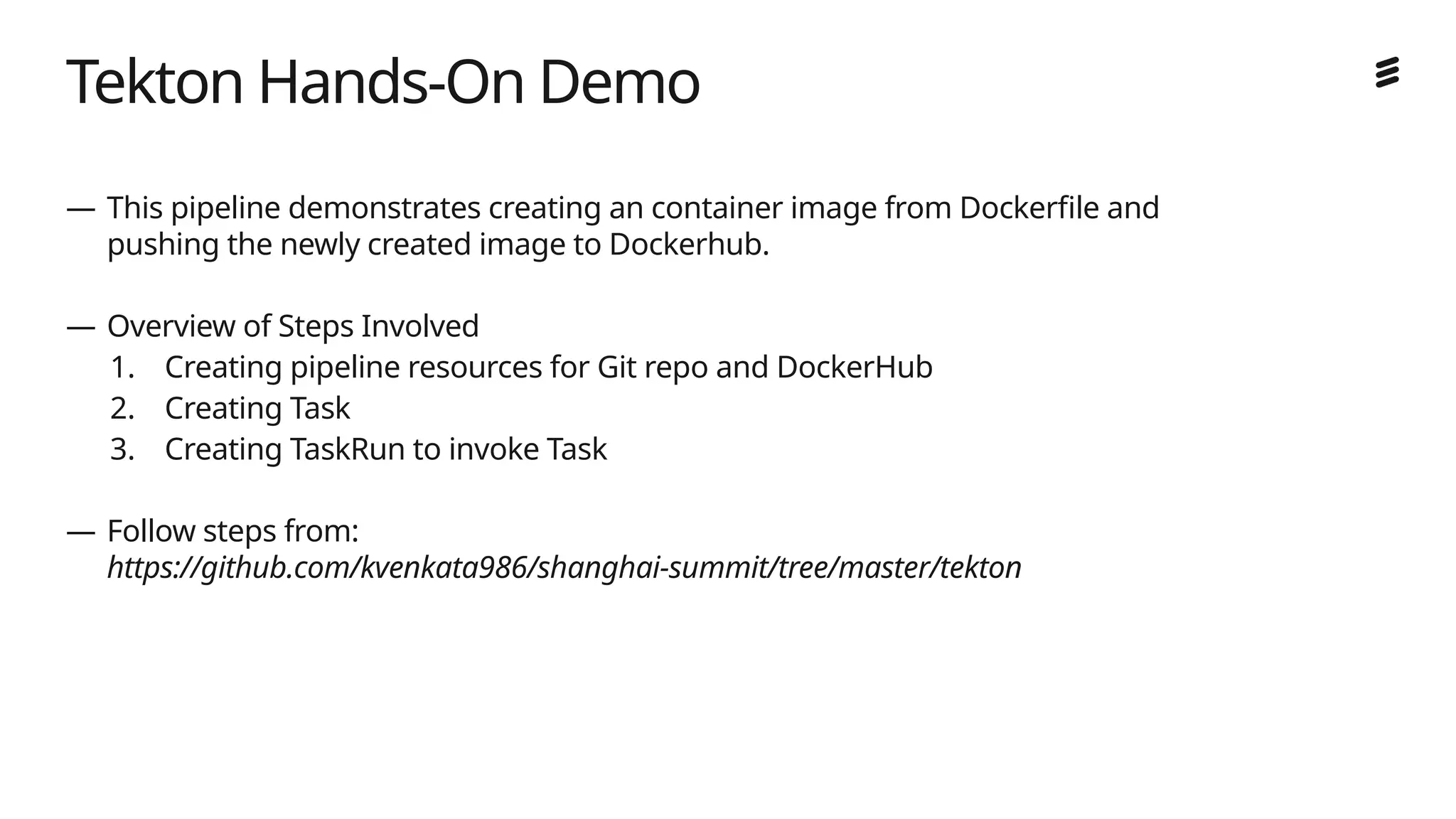

- 32. Ericsson Internal |2018-02-21 Tekton Hands-On Demo — This pipeline demonstrates creating an container image from Dockerfile and pushing the newly created image to Dockerhub. — Overview of Steps Involved 1. Creating pipeline resources for Git repo and DockerHub 2. Creating Task 3. Creating TaskRun to invoke Task — Follow steps from: https://github.com/kvenkata986/shanghai-summit/tree/master/tekton

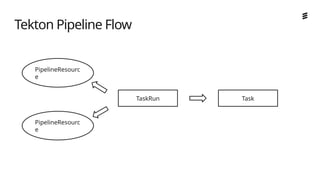

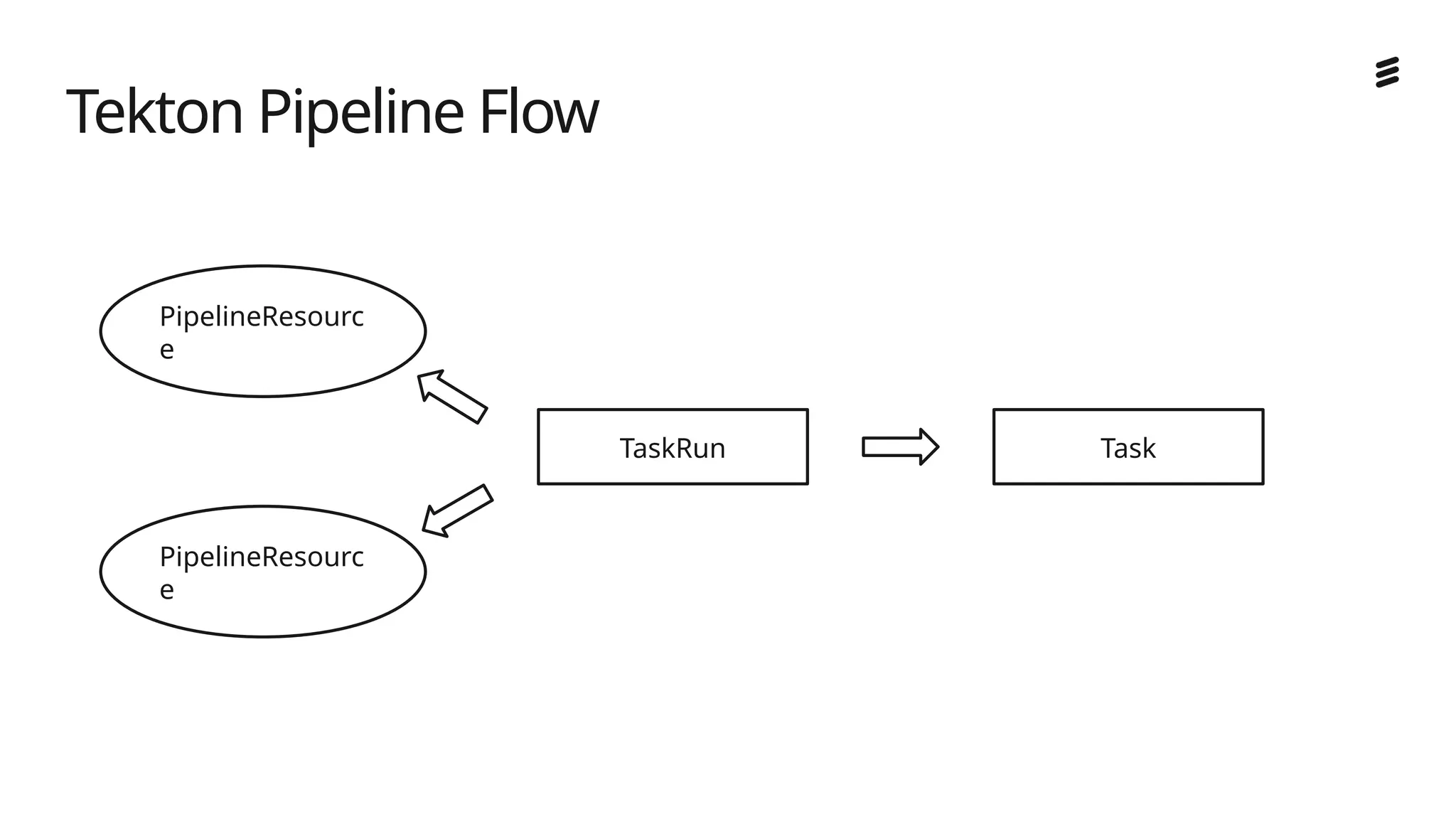

- 33. Ericsson Internal |2018-02-21 Tekton Pipeline Flow PipelineResourc e TaskRun Task PipelineResourc e

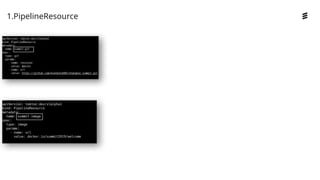

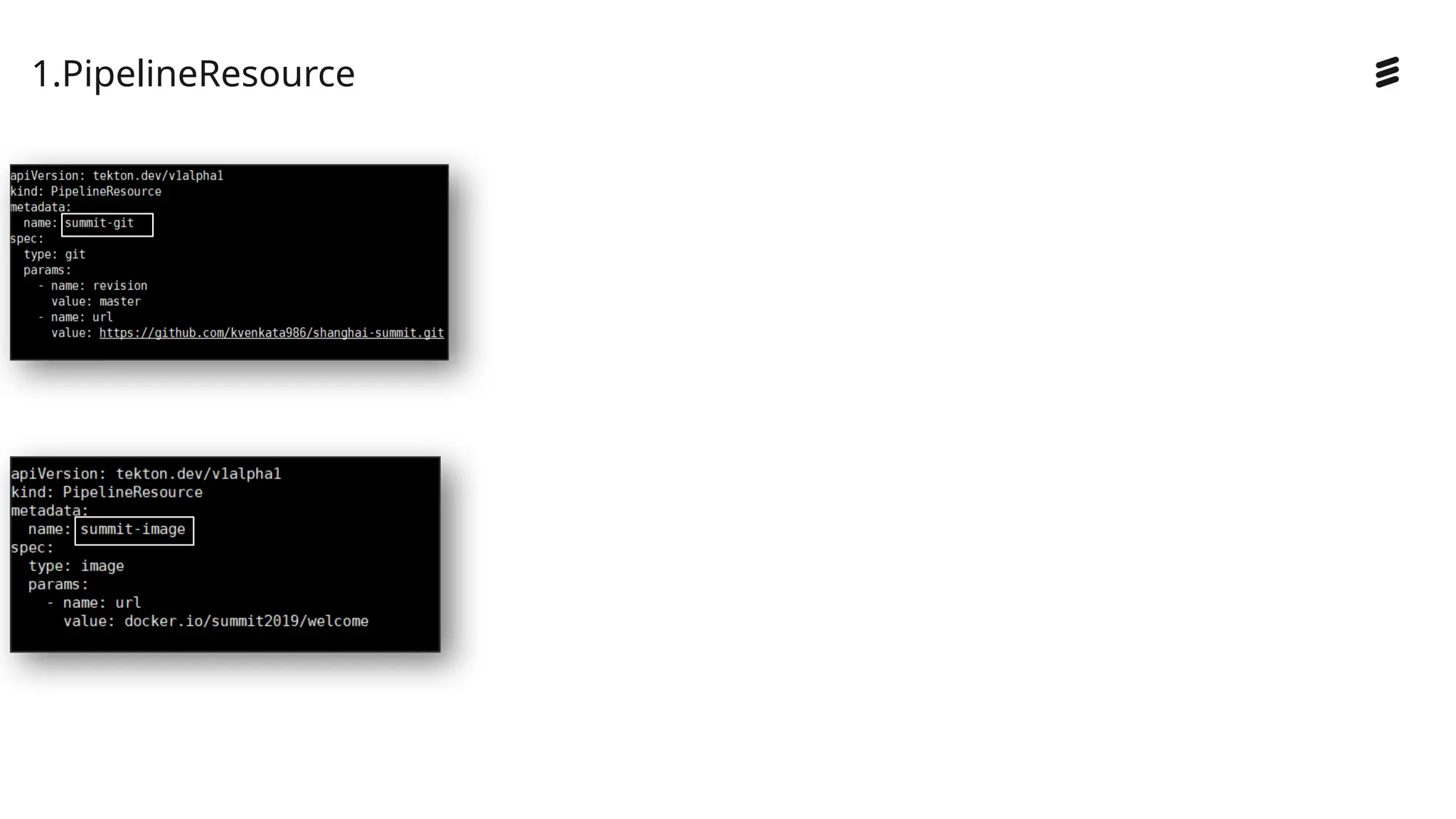

- 34. Ericsson Internal |2018-02-21 1.PipelineResource

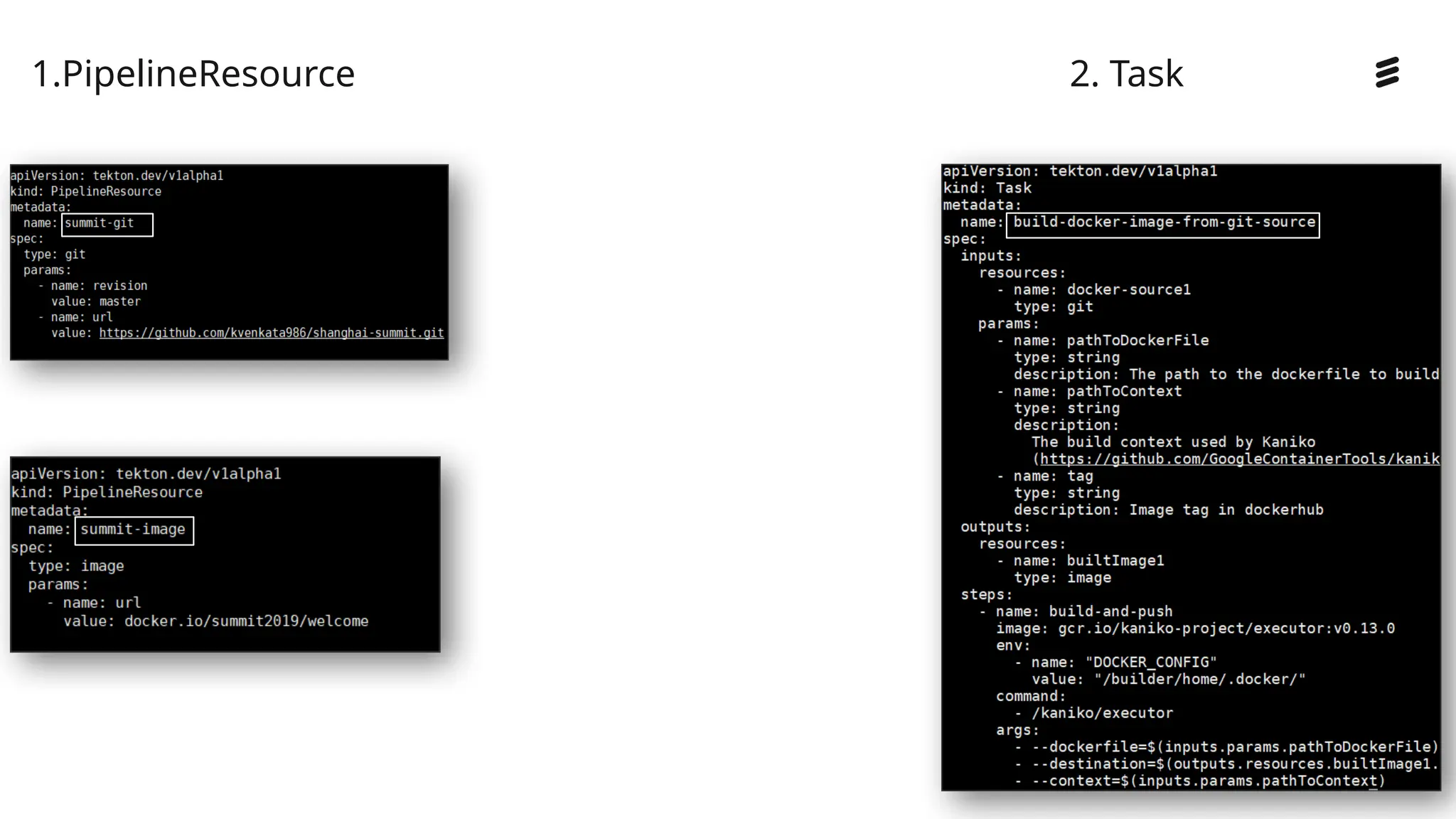

- 35. Ericsson Internal |2018-02-21 1.PipelineResource 2. Task

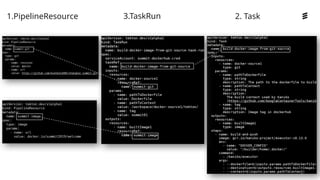

- 36. Ericsson Internal |2018-02-21 1.PipelineResource 3.TaskRun 2. Task

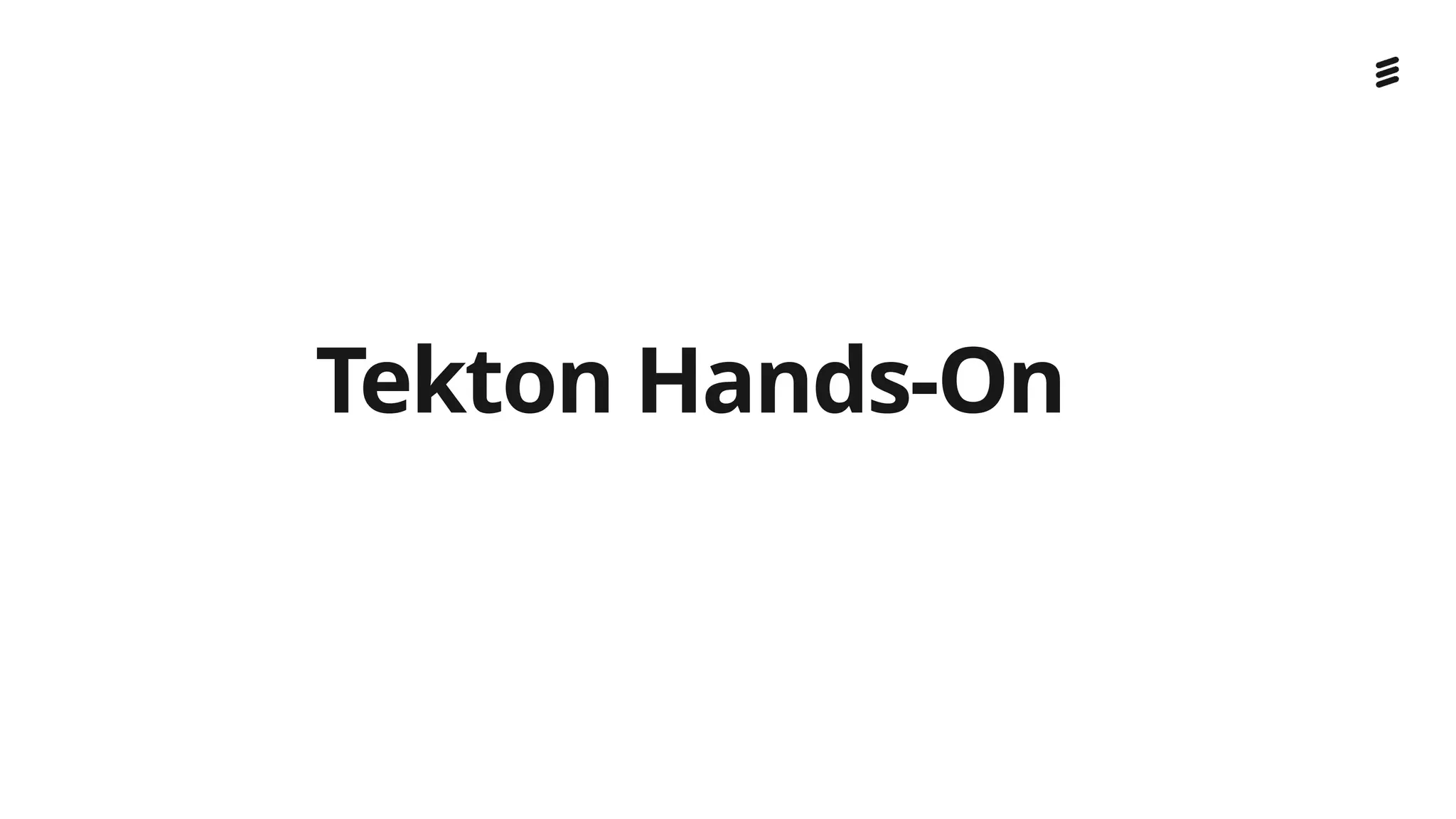

- 37. Ericsson Internal |2018-02-21 Tekton Hands-On

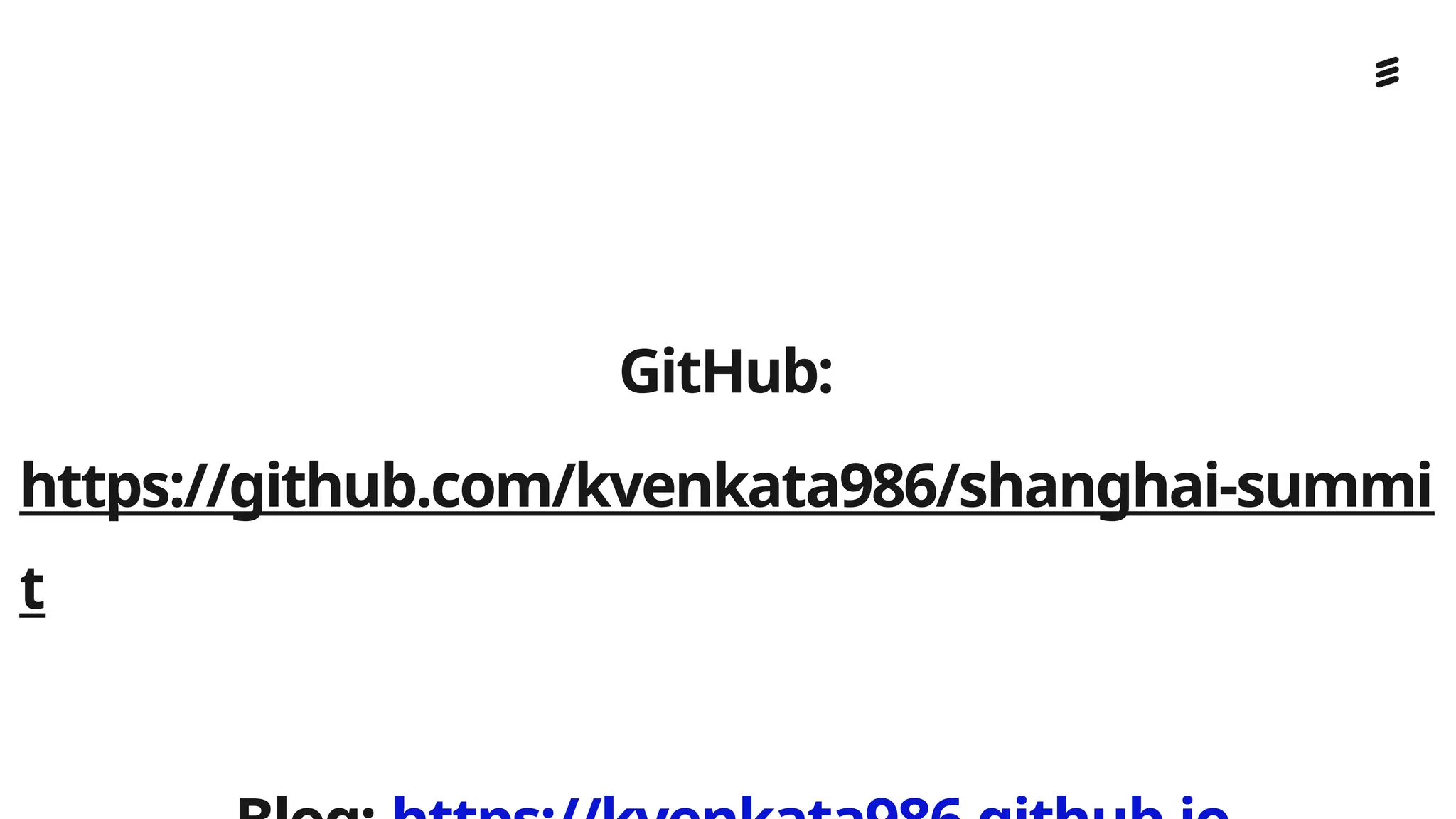

- 38. Ericsson Internal |2018-02-21 GitHub: https://github.com/kvenkata986/shanghai-summi t
