Kubernetes extensibility: CRDs & Operators
- 1. Building within Kubernetes CRDsand Operators 9 / 3 / 2018 - Incontro Devops Italia
- 2. whoami Giacomo Tirabassi Devops Engineer@ Sighup Srl twitter.com/gitirabassi github.com/gitirabassi I like to automate, cook and git together
- 3. Sighup Srl All thingsKubernetes sighup.io twitter.com/sighup_

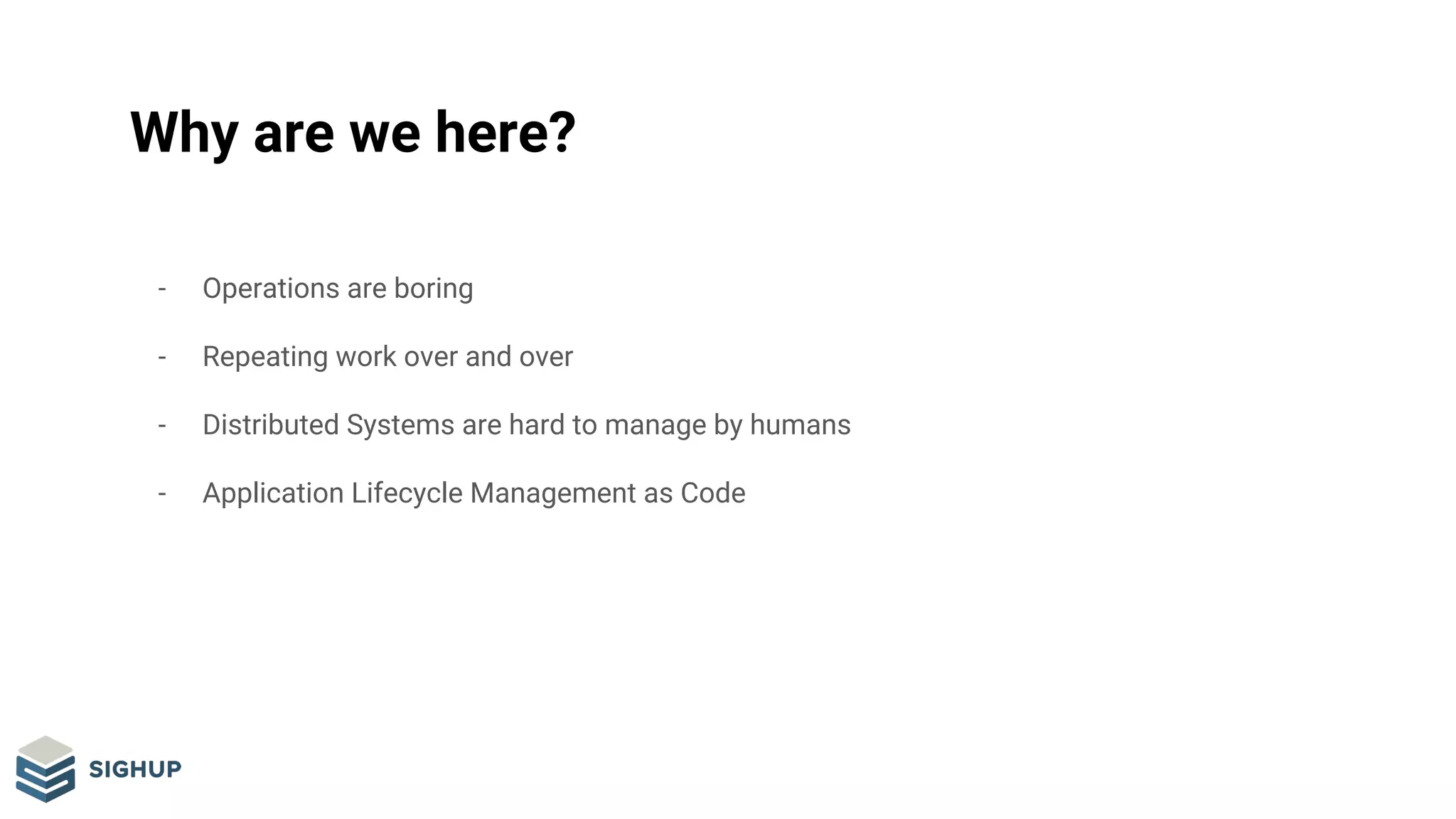

- 4. Why are wehere? - Operations are boring - Repeating work over and over - Distributed Systems are hard to manage by humans - Application Lifecycle Management as Code
- 6.
- 7.

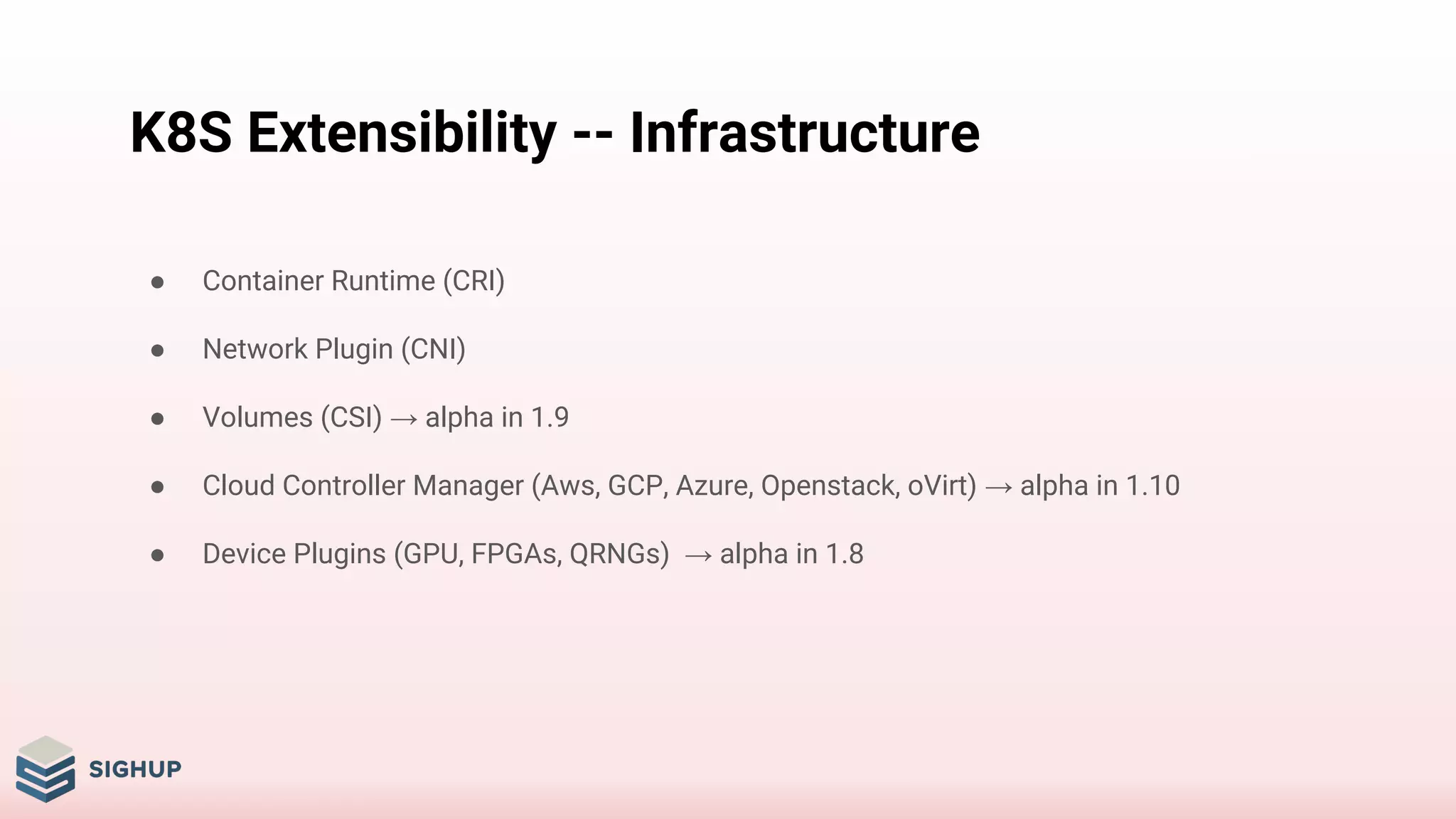

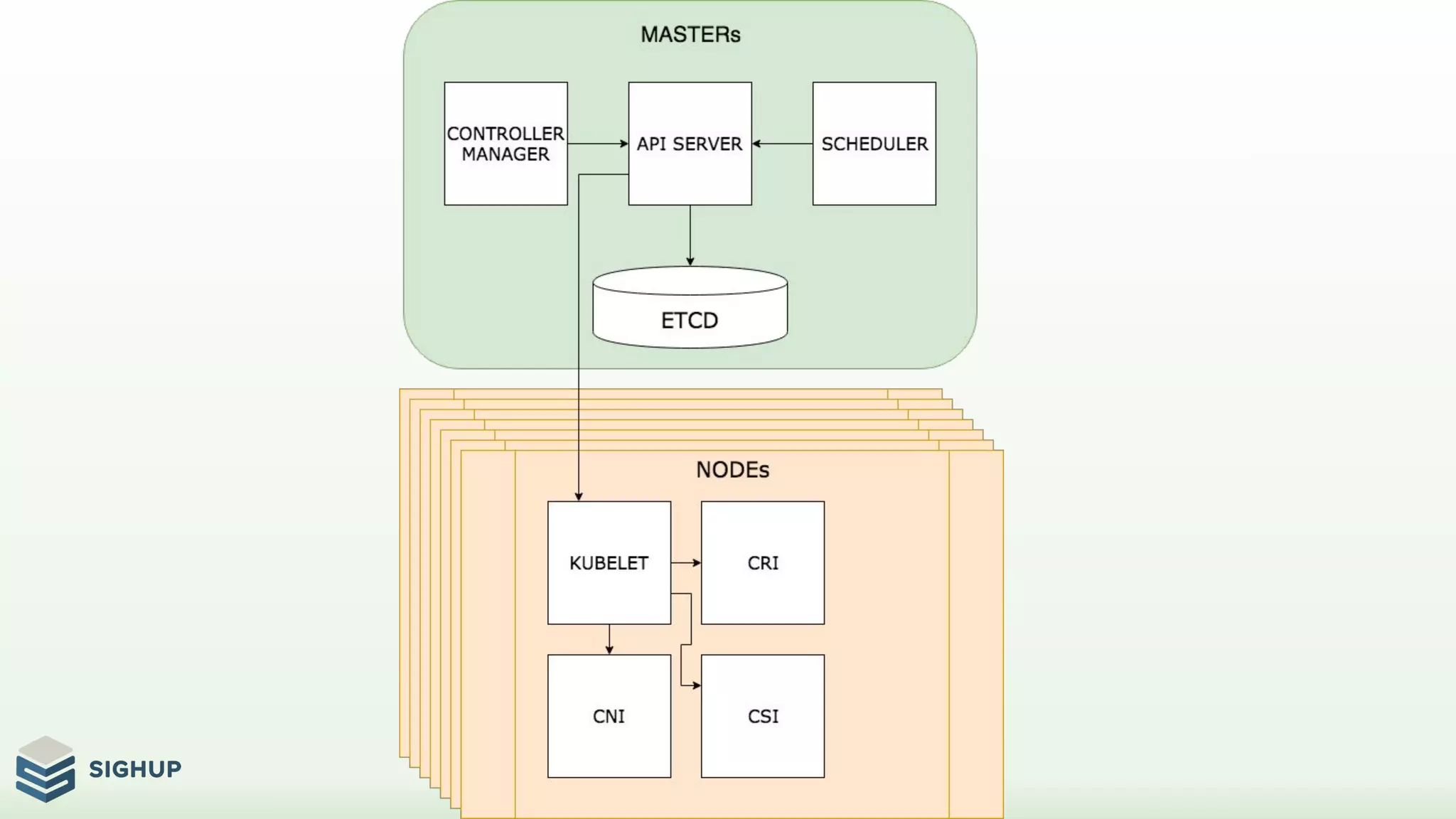

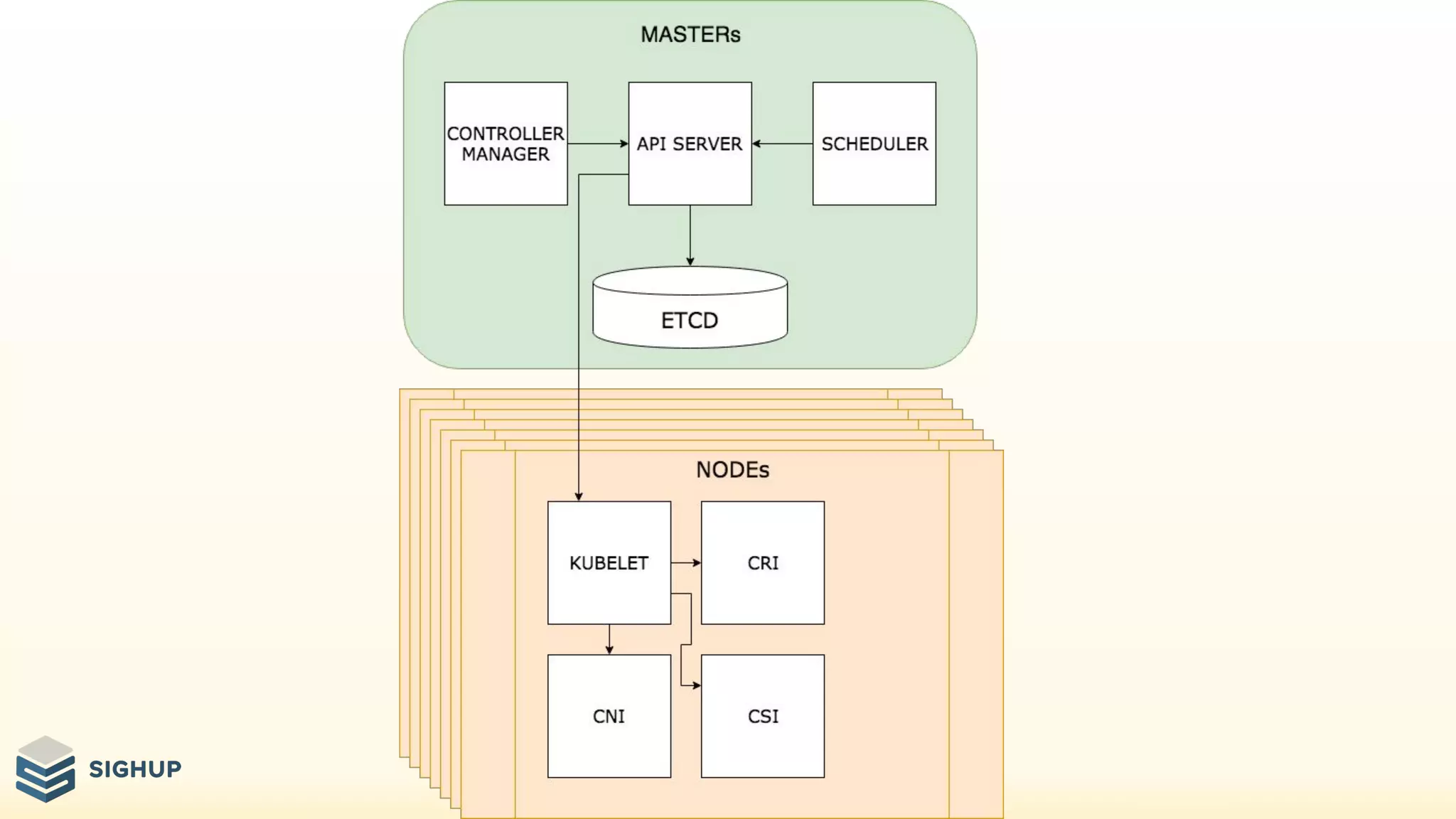

- 8. K8S Extensibility --Infrastructure ● Container Runtime (CRI) ● Network Plugin (CNI) ● Volumes (CSI) → alpha in 1.9 ● Cloud Controller Manager (Aws, GCP, Azure, Openstack, oVirt) → alpha in 1.10 ● Device Plugins (GPU, FPGAs, QRNGs) → alpha in 1.8

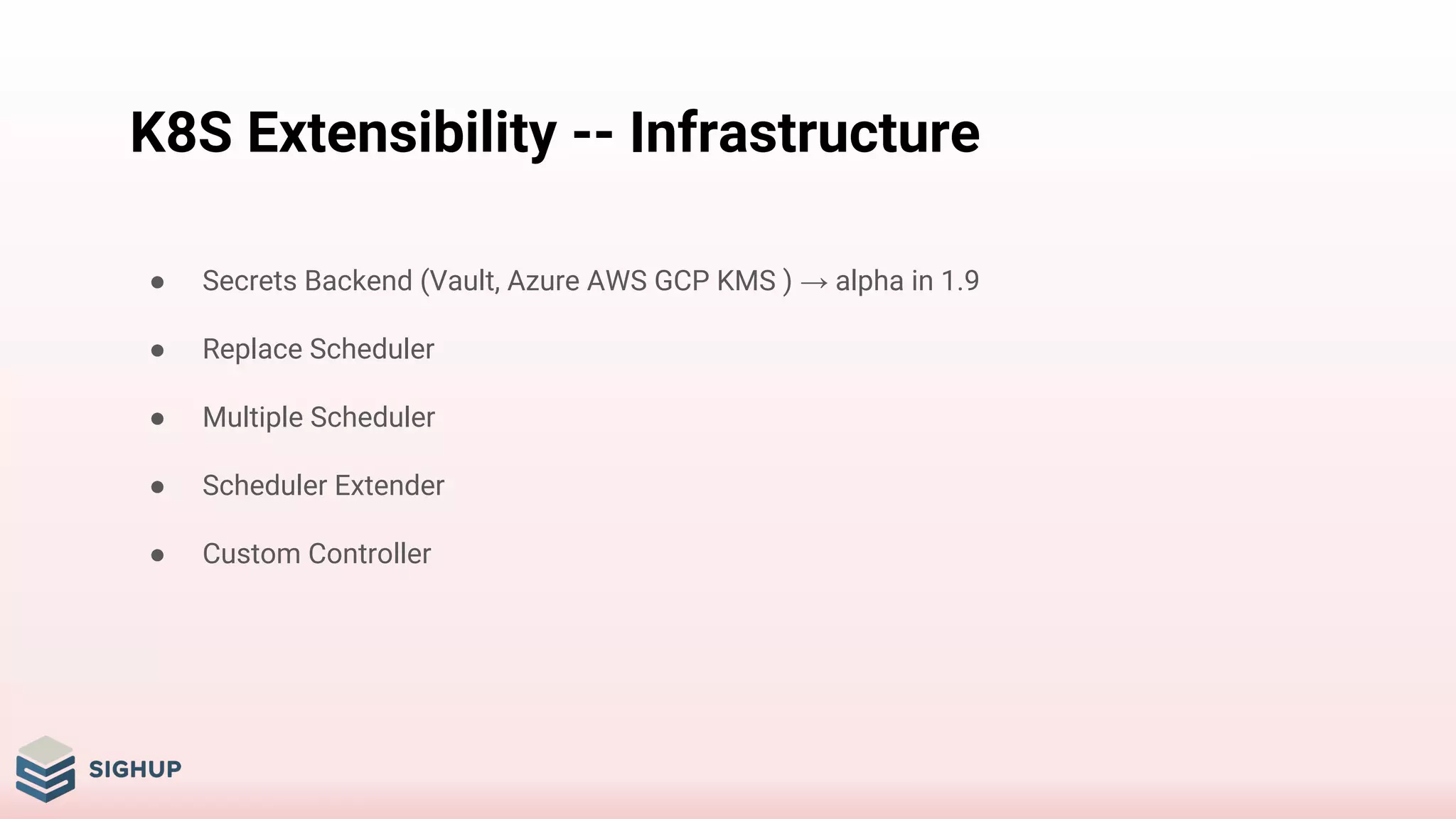

- 9. K8S Extensibility --Infrastructure ● Secrets Backend (Vault, Azure AWS GCP KMS ) → alpha in 1.9 ● Replace Scheduler ● Multiple Scheduler ● Scheduler Extender ● Custom Controller

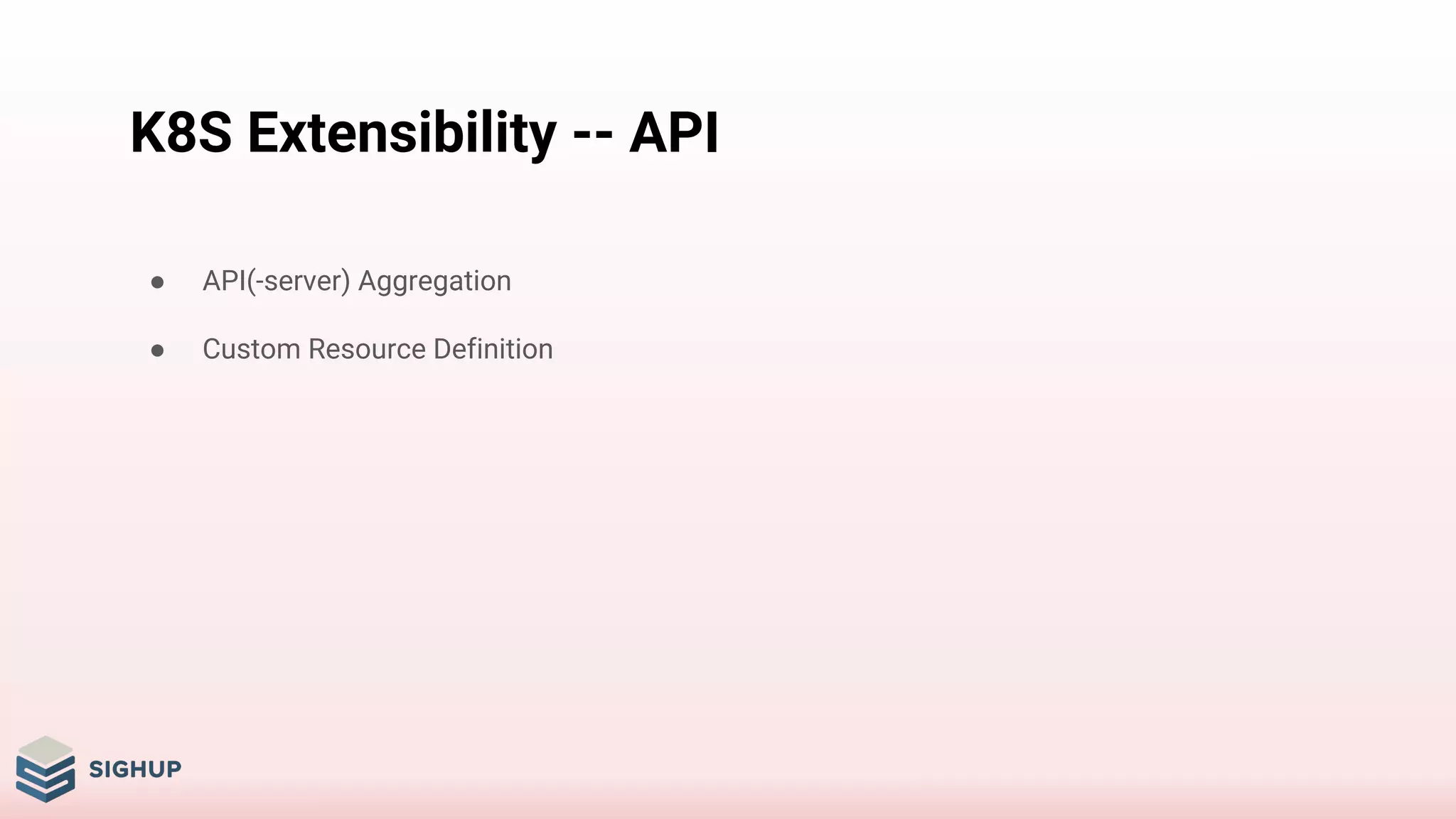

- 10. K8S Extensibility --API ● API(-server) Aggregation ● Custom Resource Definition

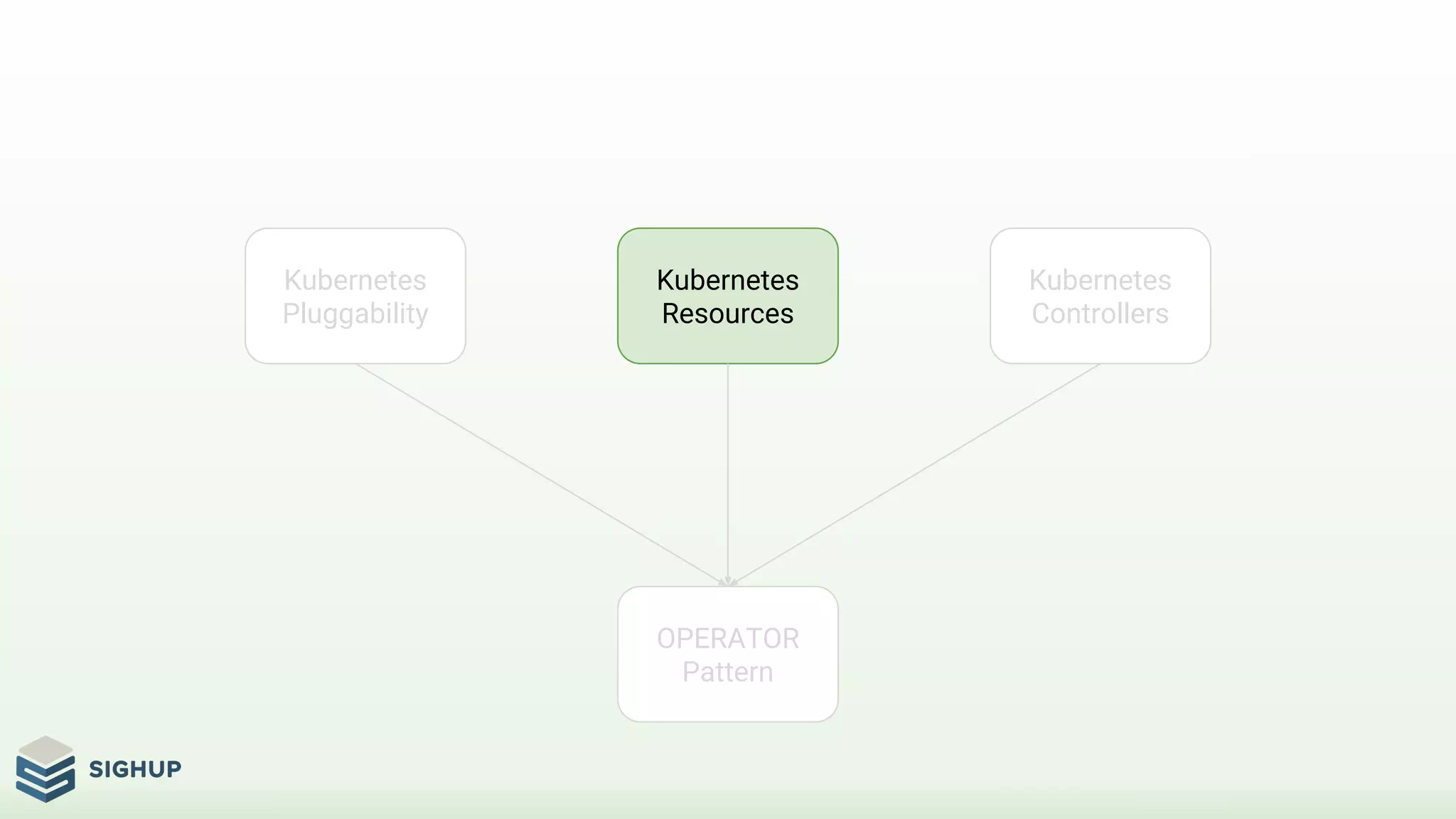

- 11.

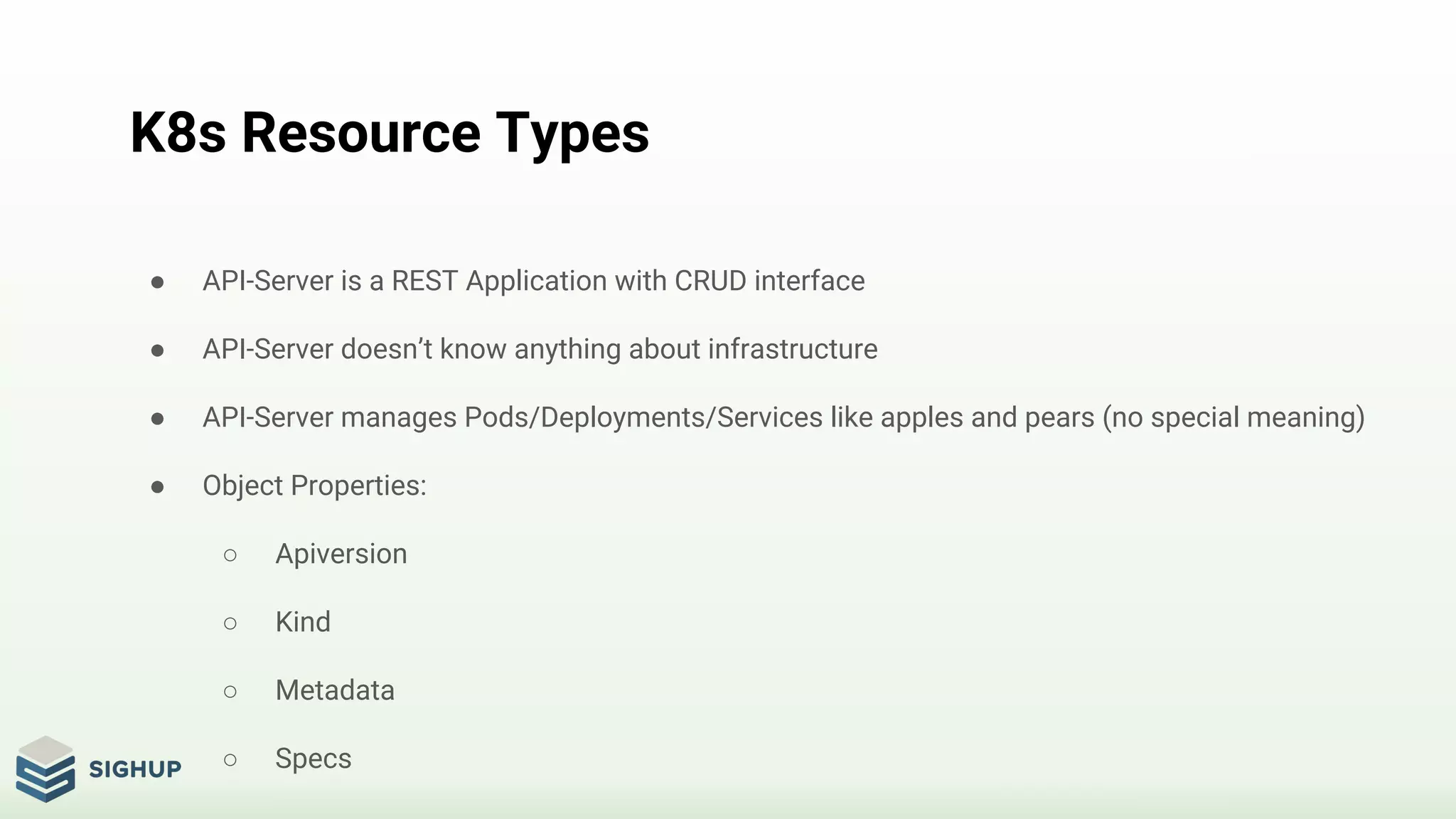

- 14. K8s Resource Types ●API-Server is a REST Application with CRUD interface ● API-Server doesn’t know anything about infrastructure ● API-Server manages Pods/Deployments/Services like apples and pears (no special meaning) ● Object Properties: ○ Apiversion ○ Kind ○ Metadata ○ Specs

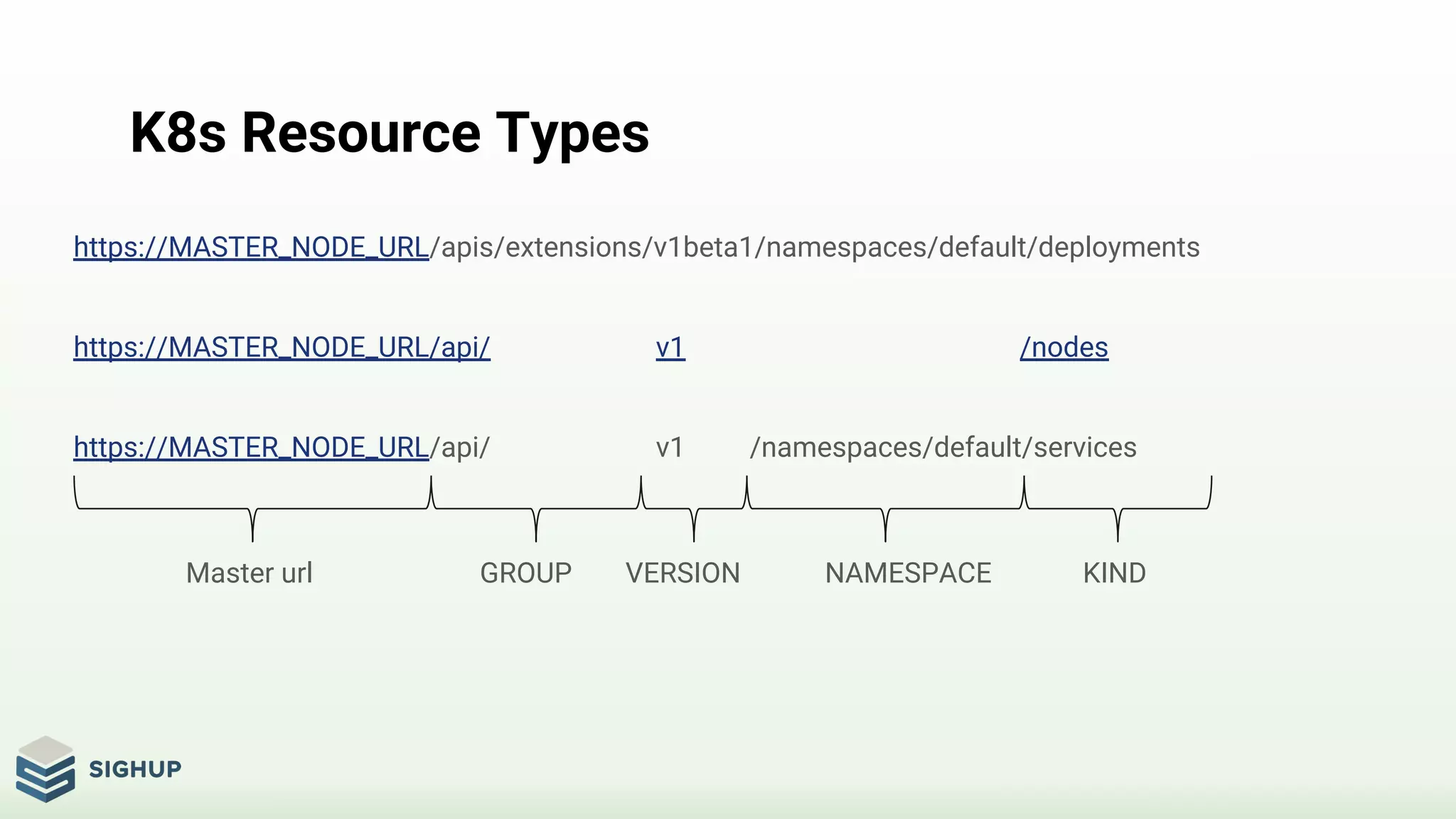

- 15. K8s Resource Types https://MASTER_NODE_URL/apis/extensions/v1beta1/namespaces/default/deployments https://MASTER_NODE_URL/api/v1 /nodes https://MASTER_NODE_URL/api/ v1 /namespaces/default/services Master url GROUP VERSION NAMESPACE KIND

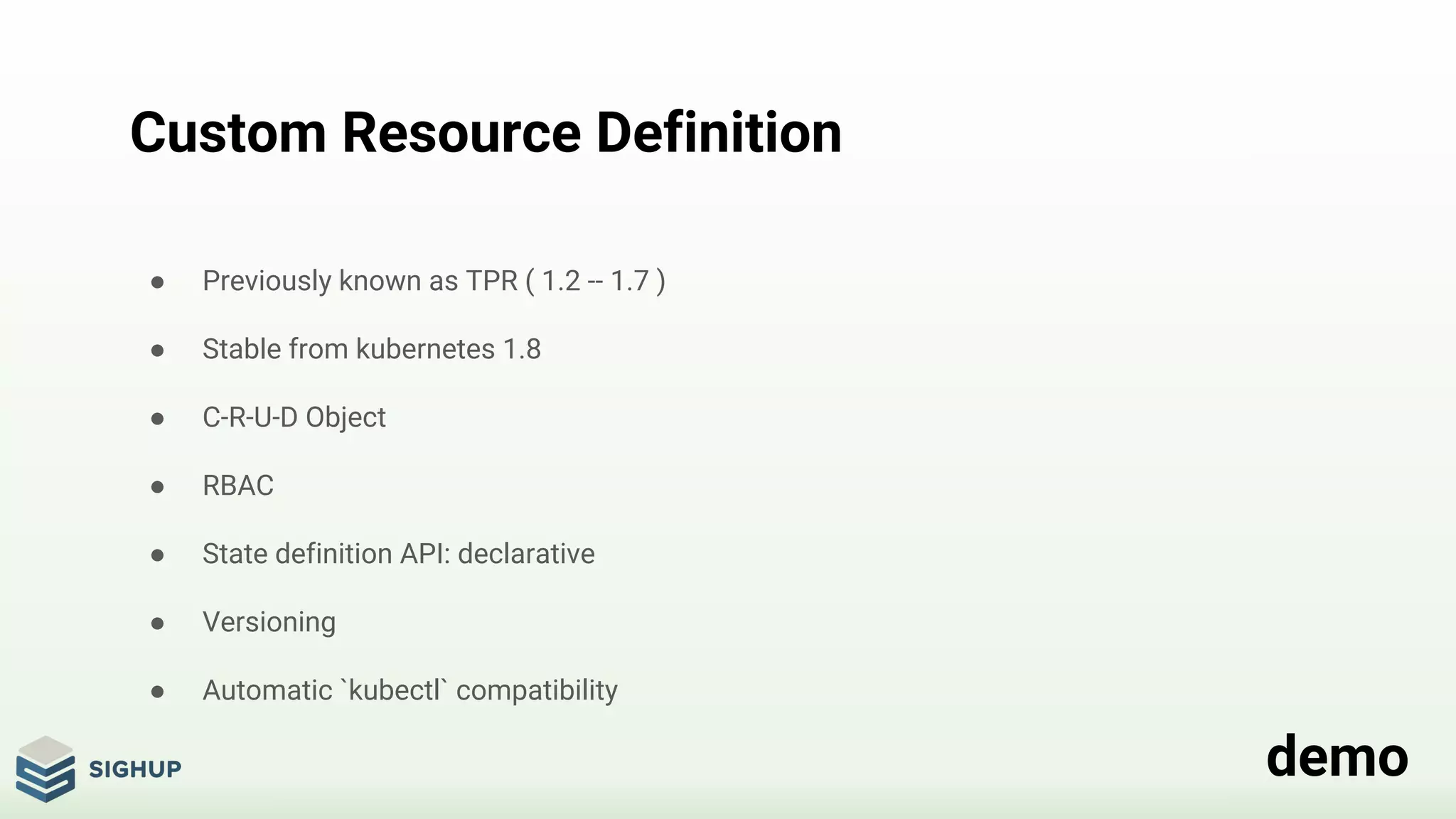

- 16. Custom Resource Definition ●Previously known as TPR ( 1.2 -- 1.7 ) ● Stable from kubernetes 1.8 ● C-R-U-D Object ● RBAC ● State definition API: declarative ● Versioning ● Automatic `kubectl` compatibility demo

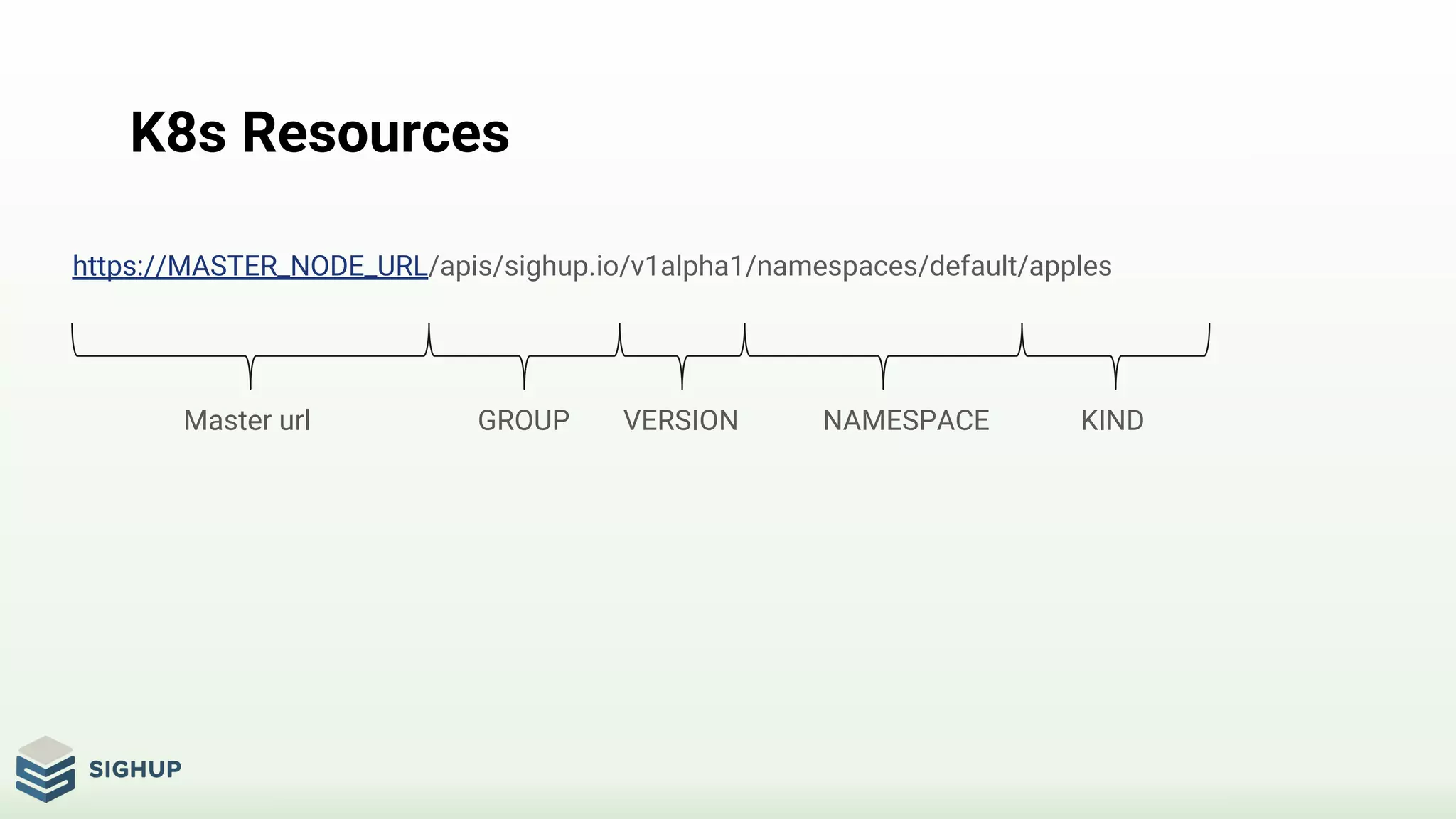

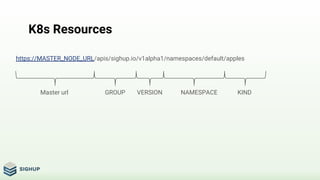

- 17. K8s Resources https://MASTER_NODE_URL/apis/sighup.io/v1alpha1/namespaces/default/apples Master urlGROUP VERSION NAMESPACE KIND

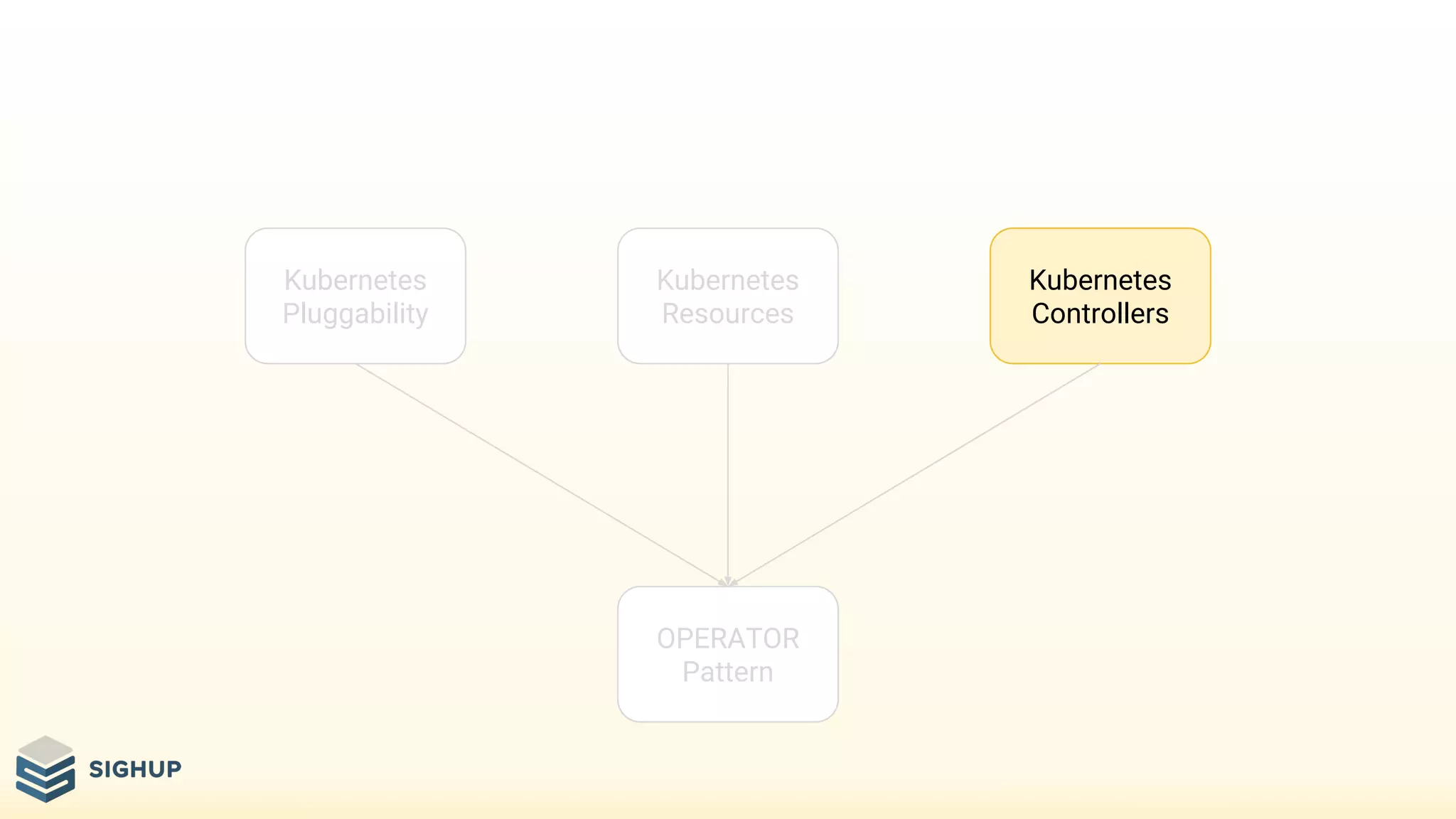

- 18.

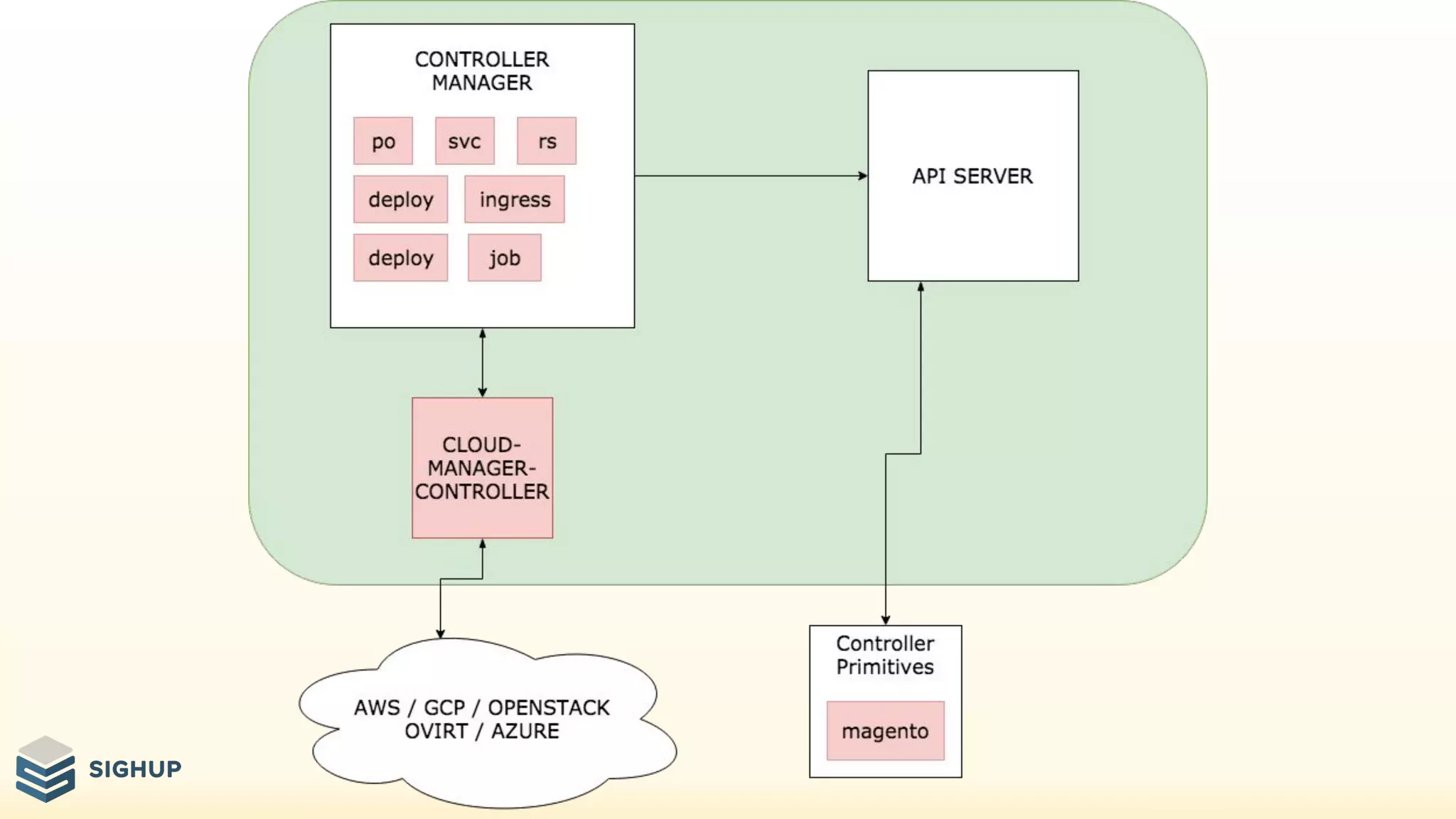

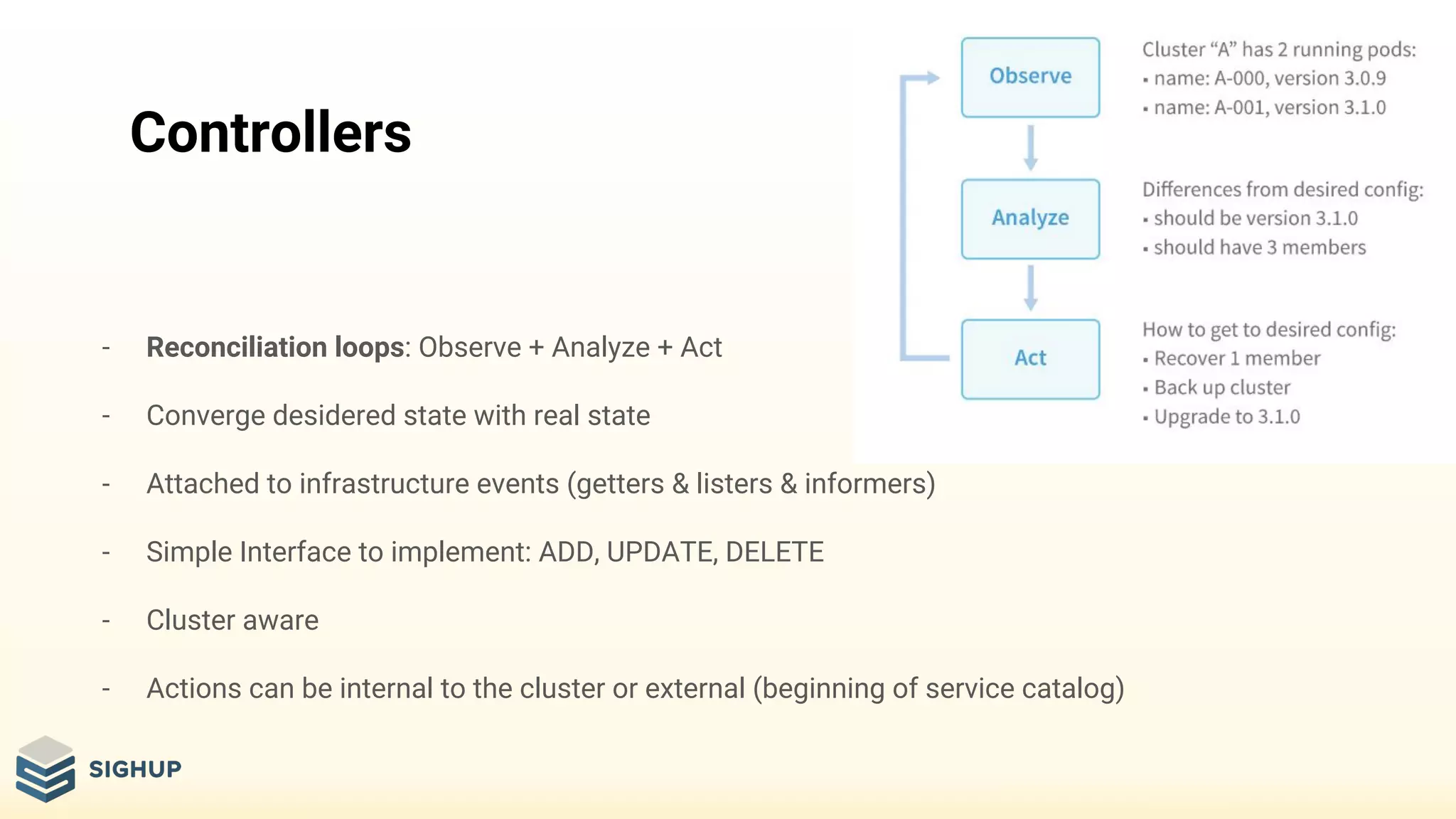

- 21. Controllers - Reconciliation loops:Observe + Analyze + Act - Converge desidered state with real state - Attached to infrastructure events (getters & listers & informers) - Simple Interface to implement: ADD, UPDATE, DELETE - Cluster aware - Actions can be internal to the cluster or external (beginning of service catalog)

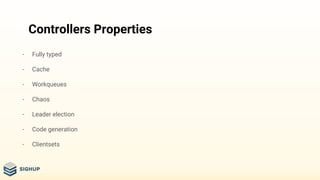

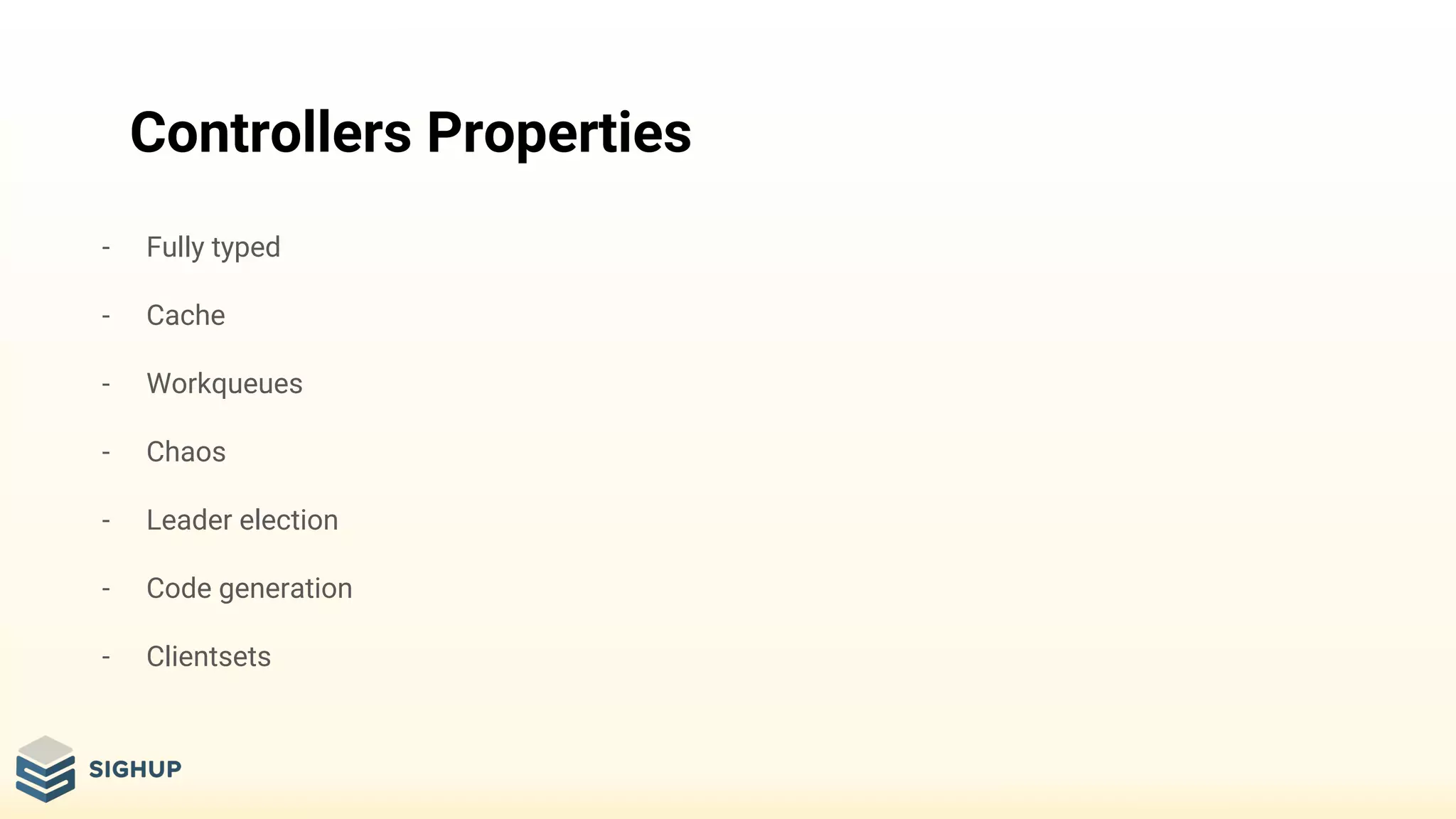

- 22. Controllers Properties - Fullytyped - Cache - Workqueues - Chaos - Leader election - Code generation - Clientsets

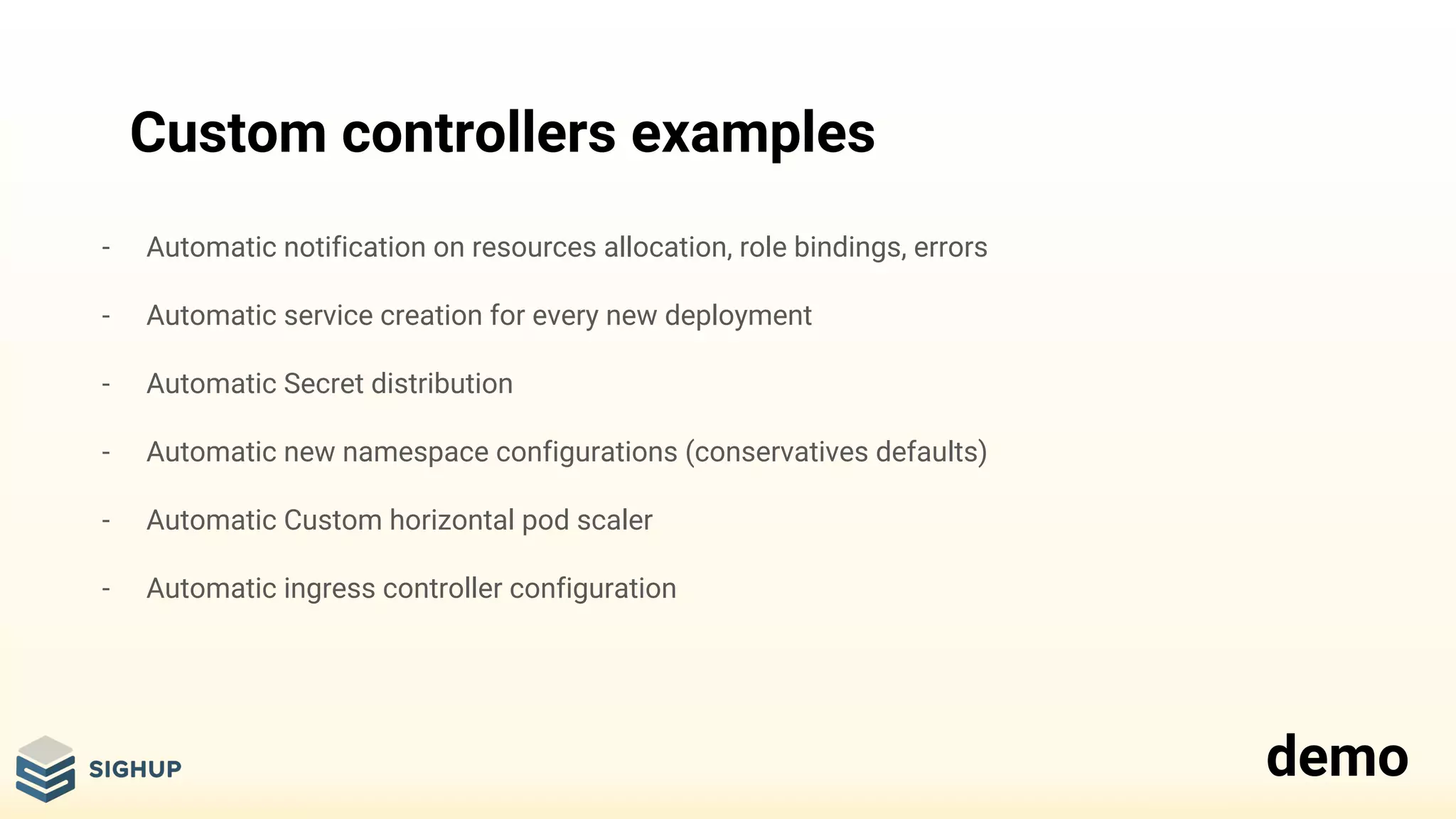

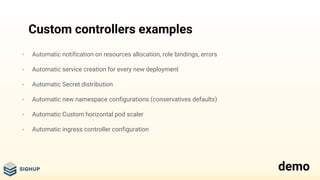

- 23. Custom controllers examples -Automatic notification on resources allocation, role bindings, errors - Automatic service creation for every new deployment - Automatic Secret distribution - Automatic new namespace configurations (conservatives defaults) - Automatic Custom horizontal pod scaler - Automatic ingress controller configuration demo
- 24.

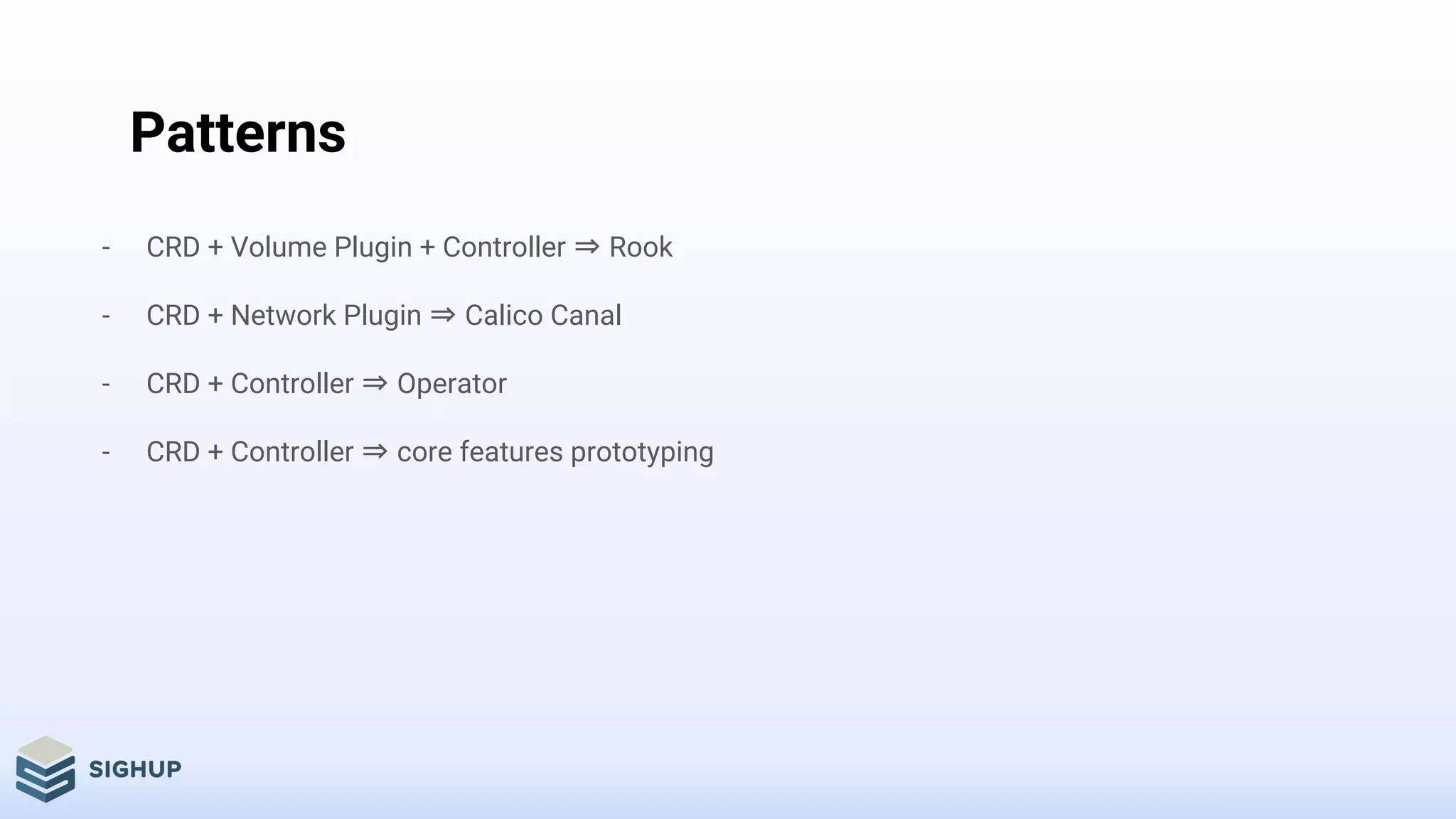

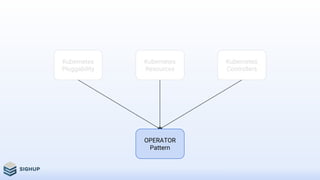

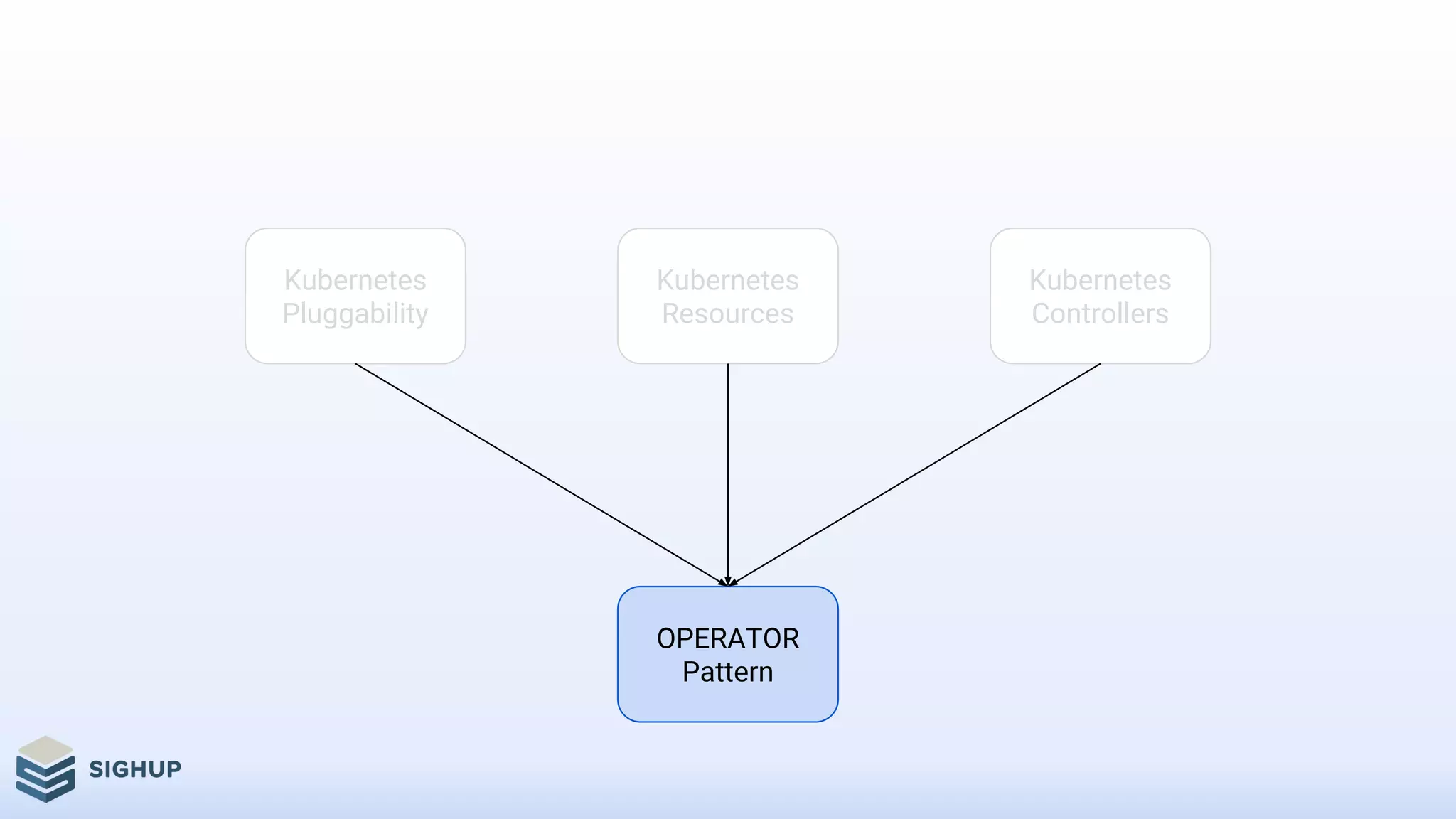

- 25. Patterns - CRD +Volume Plugin + Controller ⇒ Rook - CRD + Network Plugin ⇒ Calico Canal - CRD + Controller ⇒ Operator - CRD + Controller ⇒ core features prototyping

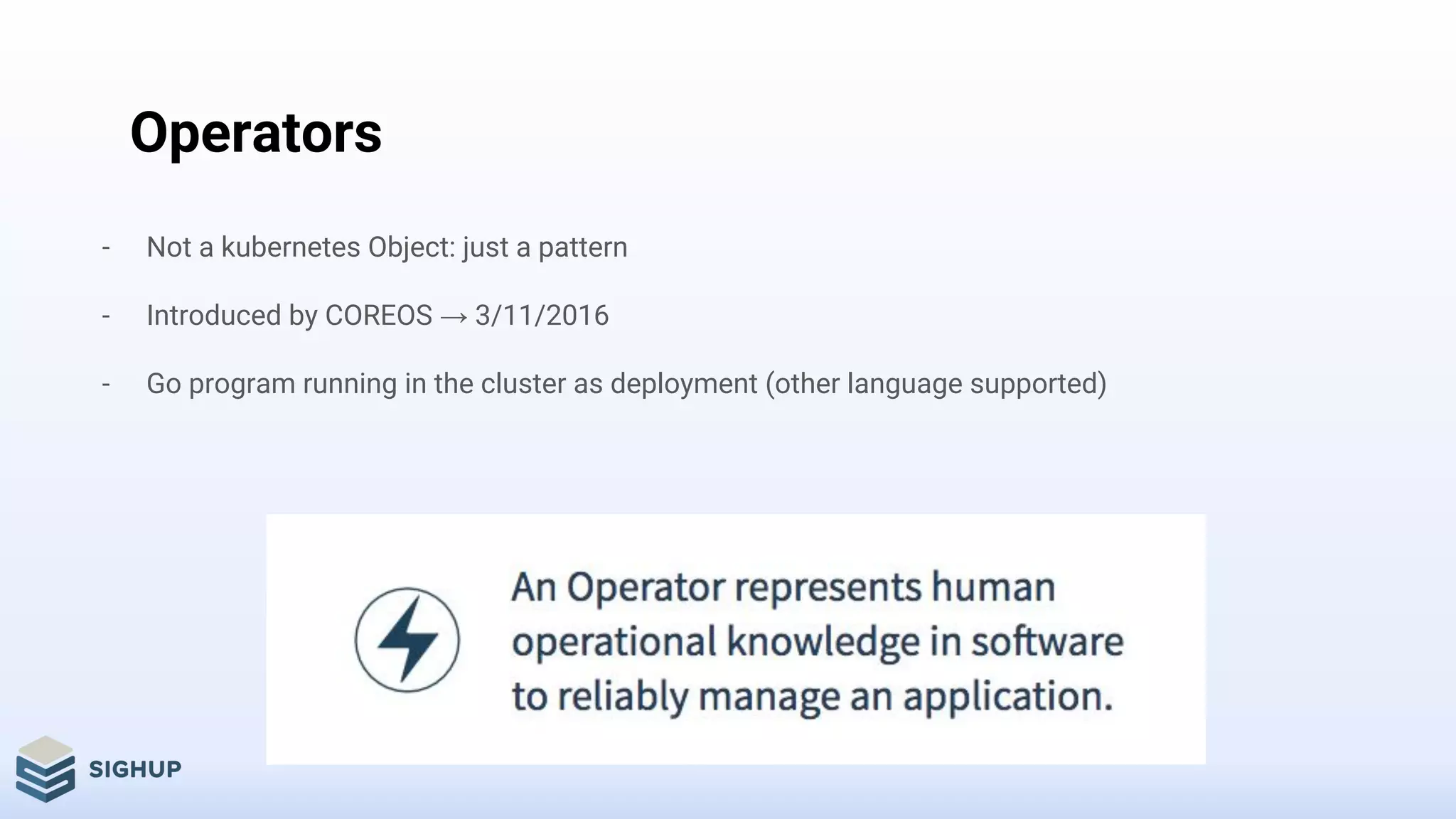

- 26. Operators - Not akubernetes Object: just a pattern - Introduced by COREOS → 3/11/2016 - Go program running in the cluster as deployment (other language supported)

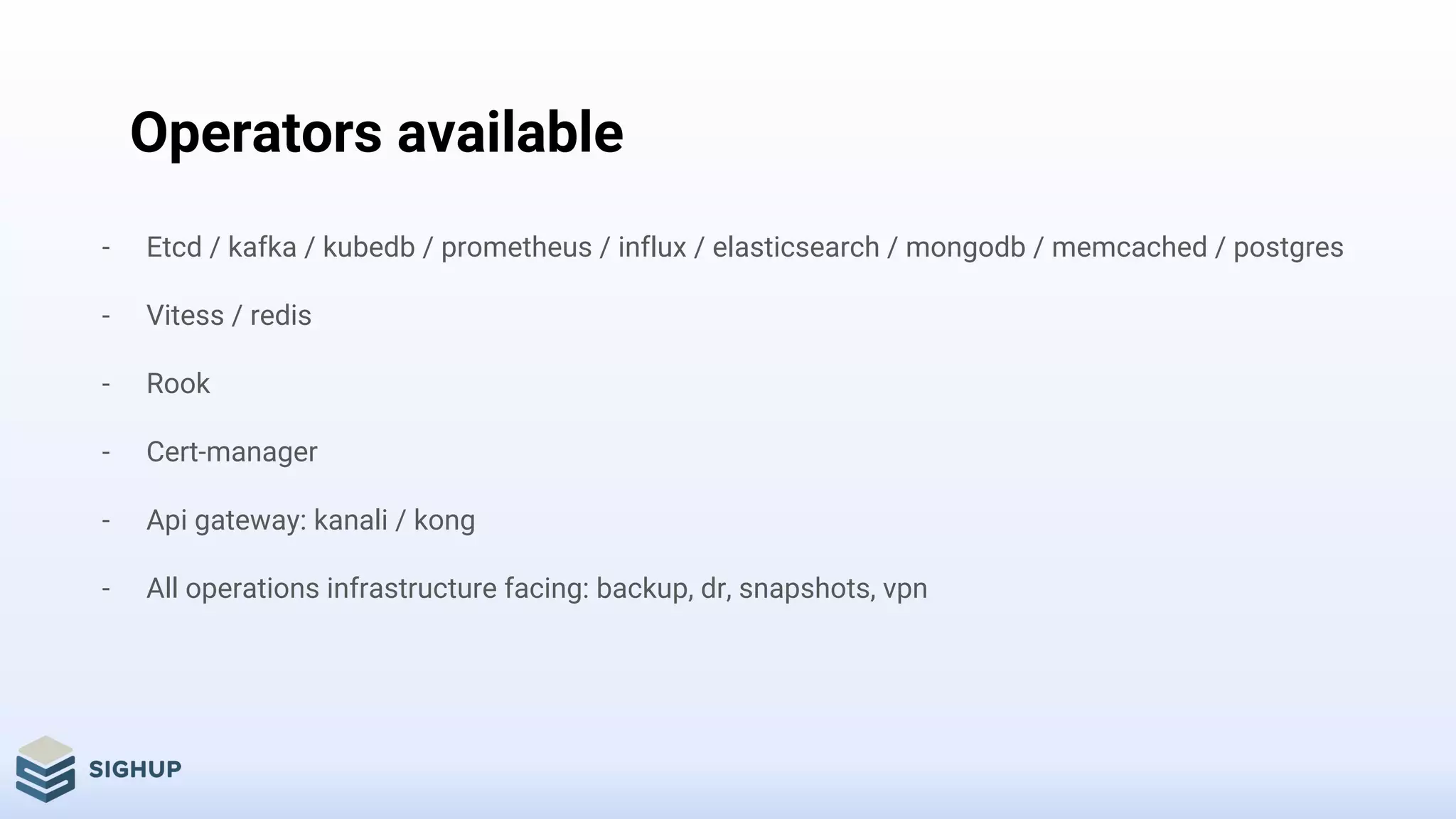

- 27. Operators available - Etcd/ kafka / kubedb / prometheus / influx / elasticsearch / mongodb / memcached / postgres - Vitess / redis - Rook - Cert-manager - Api gateway: kanali / kong - All operations infrastructure facing: backup, dr, snapshots, vpn

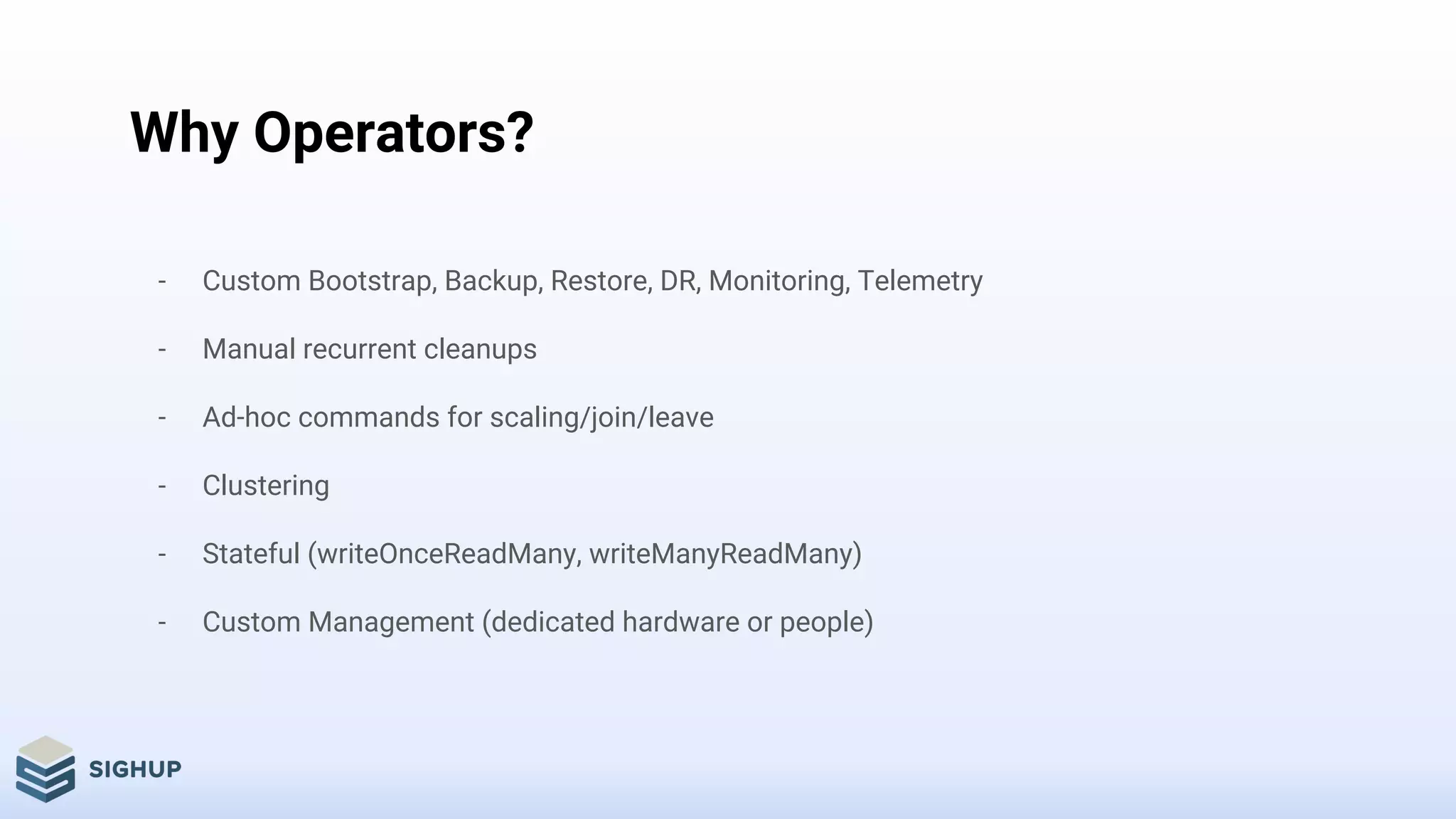

- 28. Why Operators? - CustomBootstrap, Backup, Restore, DR, Monitoring, Telemetry - Manual recurrent cleanups - Ad-hoc commands for scaling/join/leave - Clustering - Stateful (writeOnceReadMany, writeManyReadMany) - Custom Management (dedicated hardware or people)

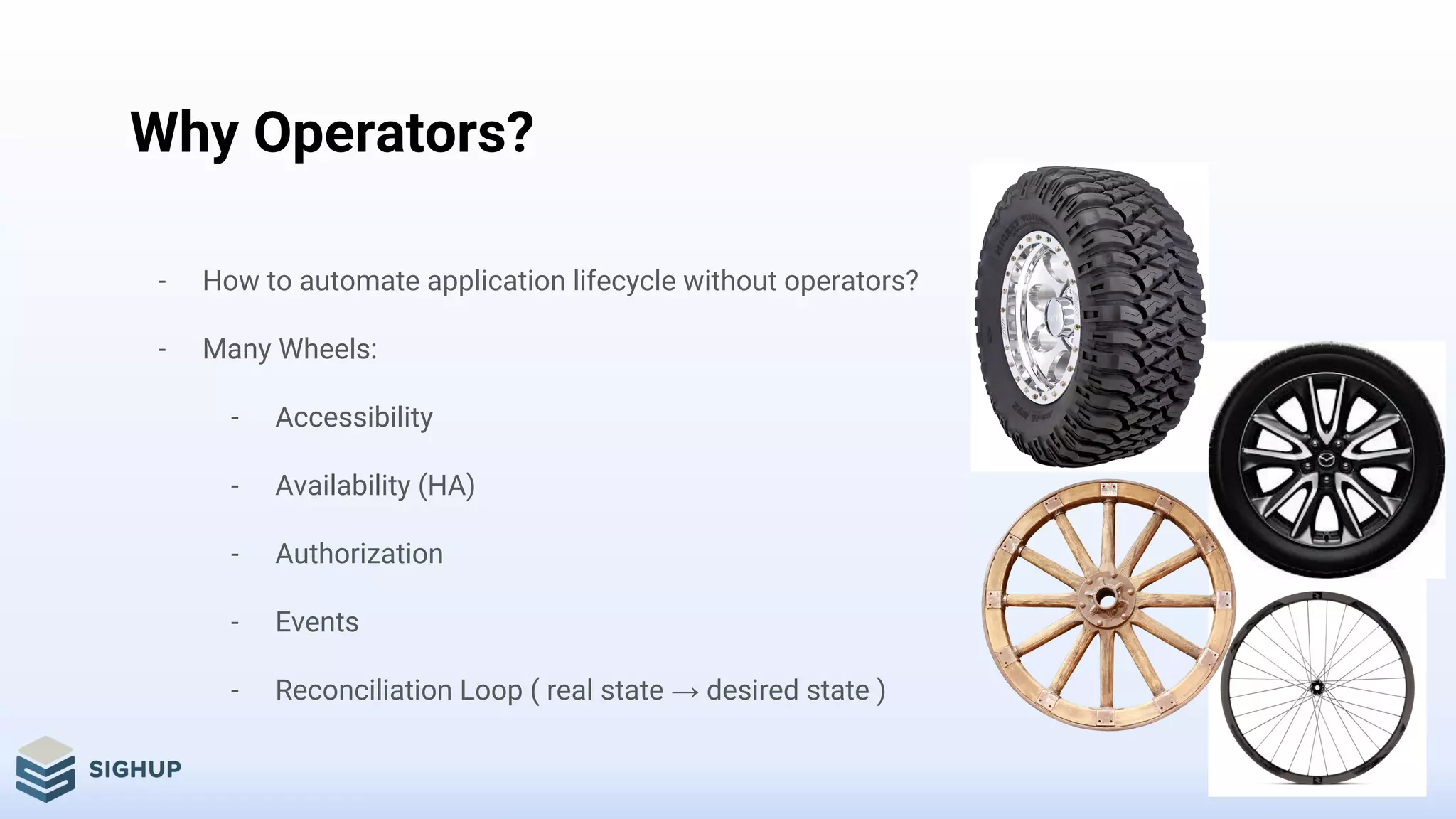

- 29. Why Operators? - Howto automate application lifecycle without operators? - Many Wheels: - Accessibility - Availability (HA) - Authorization - Events - Reconciliation Loop ( real state → desired state )

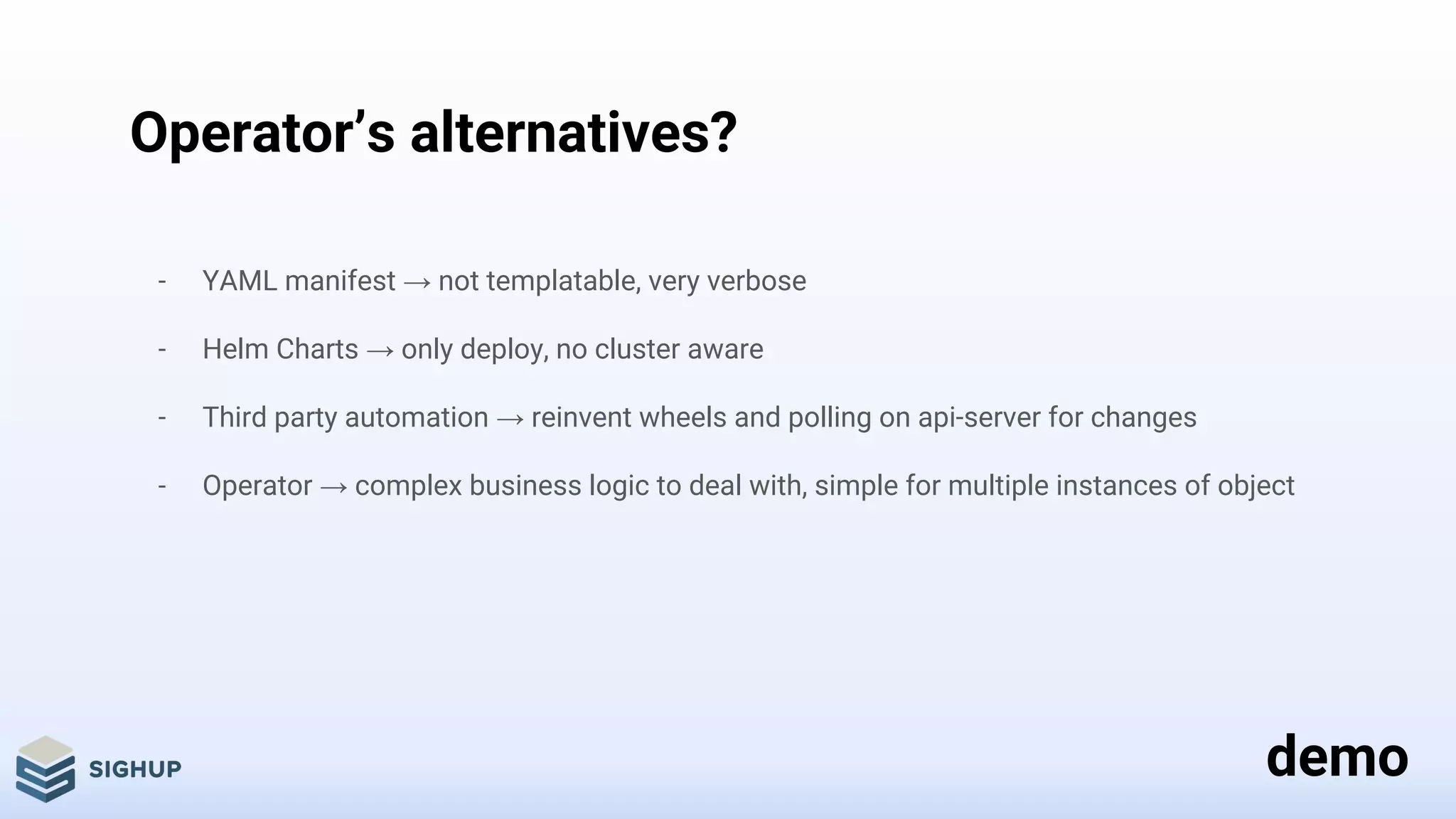

- 30. Operator’s alternatives? - YAMLmanifest → not templatable, very verbose - Helm Charts → only deploy, no cluster aware - Third party automation → reinvent wheels and polling on api-server for changes - Operator → complex business logic to deal with, simple for multiple instances of object demo

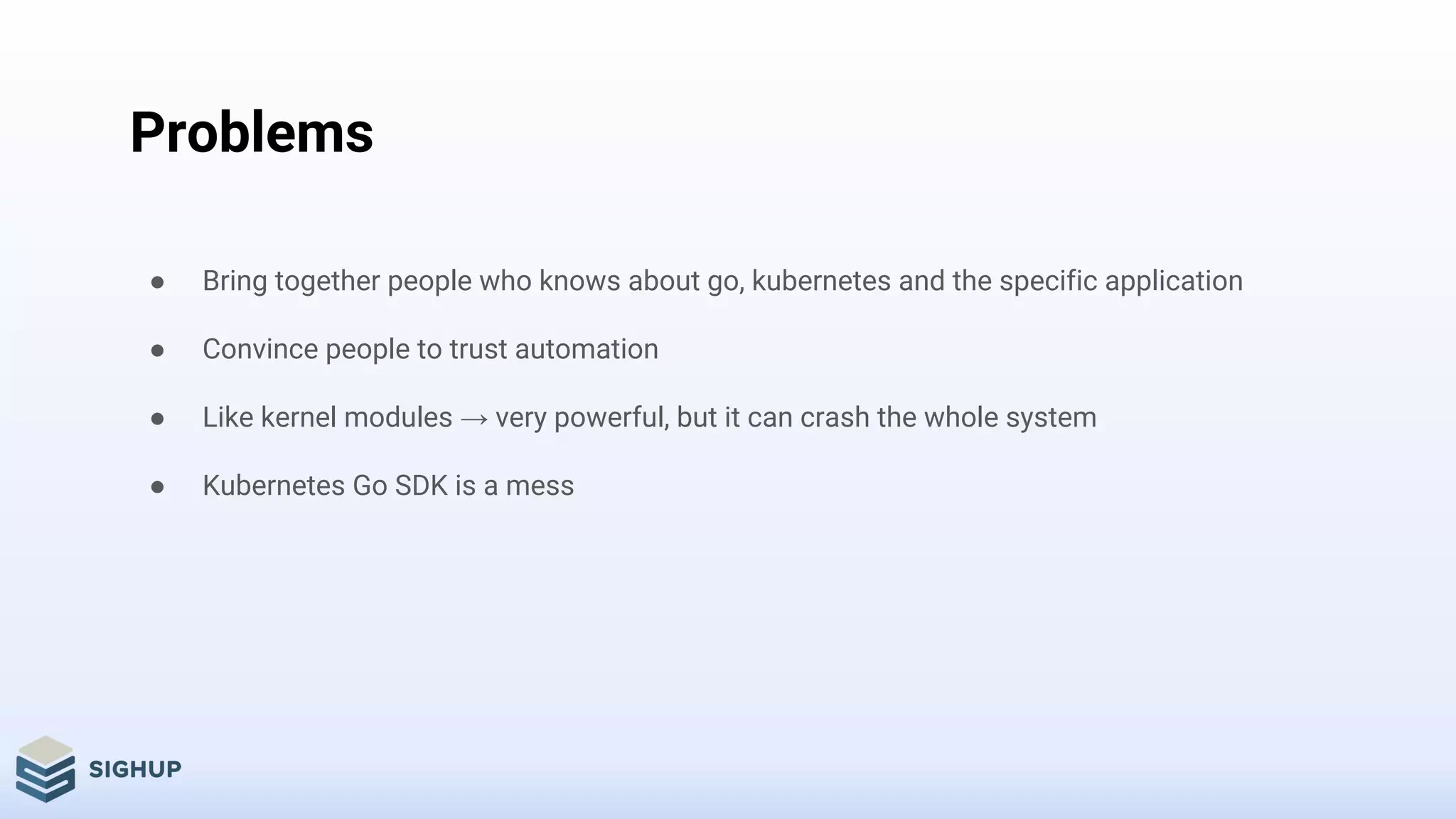

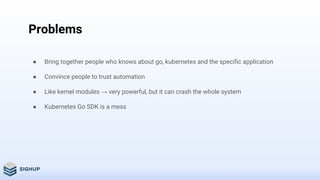

- 31. Problems ● Bring togetherpeople who knows about go, kubernetes and the specific application ● Convince people to trust automation ● Like kernel modules → very powerful, but it can crash the whole system ● Kubernetes Go SDK is a mess

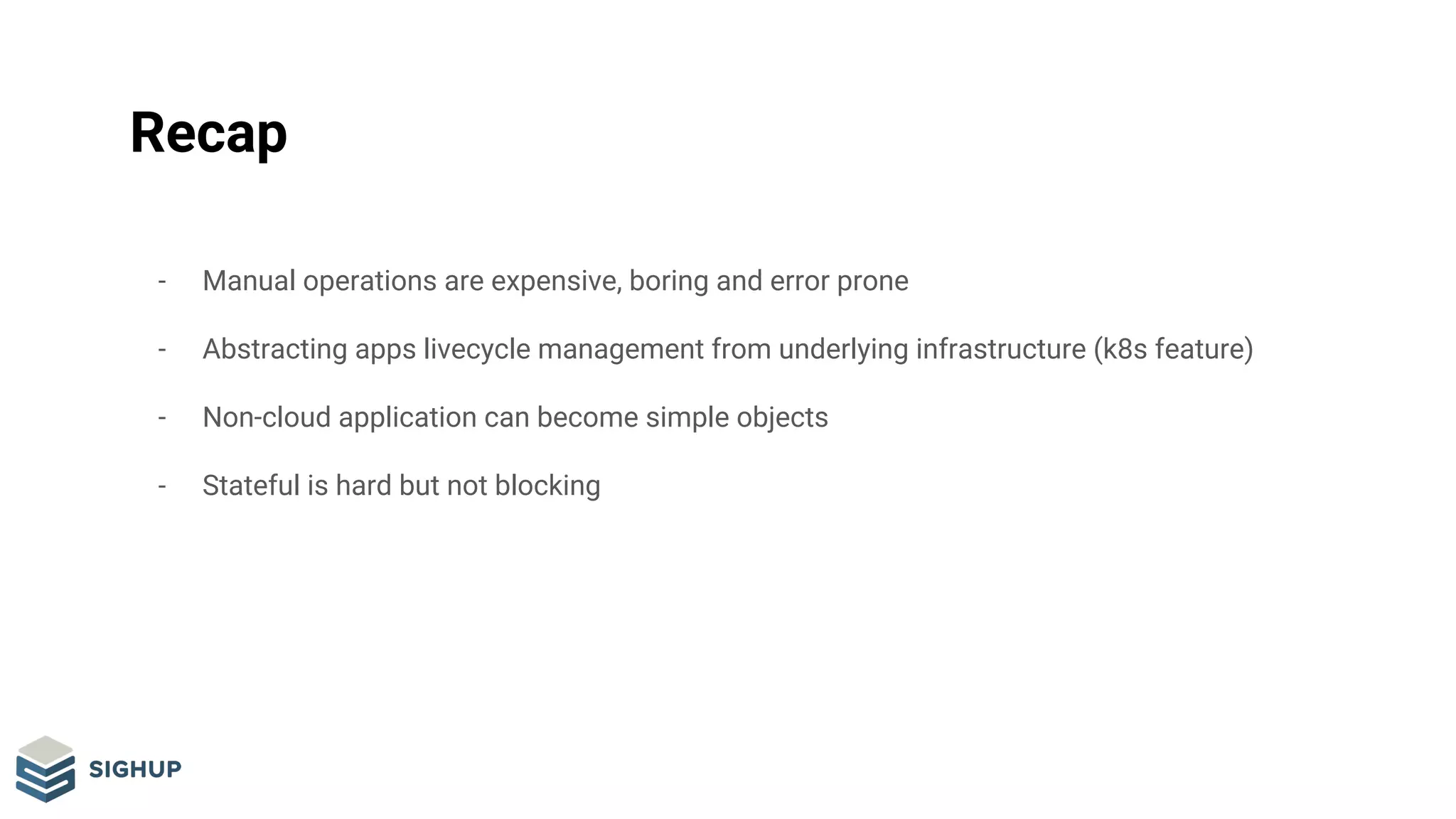

- 32. Recap - Manual operationsare expensive, boring and error prone - Abstracting apps livecycle management from underlying infrastructure (k8s feature) - Non-cloud application can become simple objects - Stateful is hard but not blocking

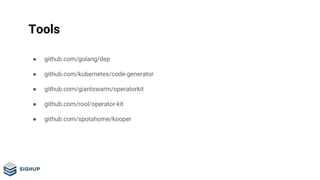

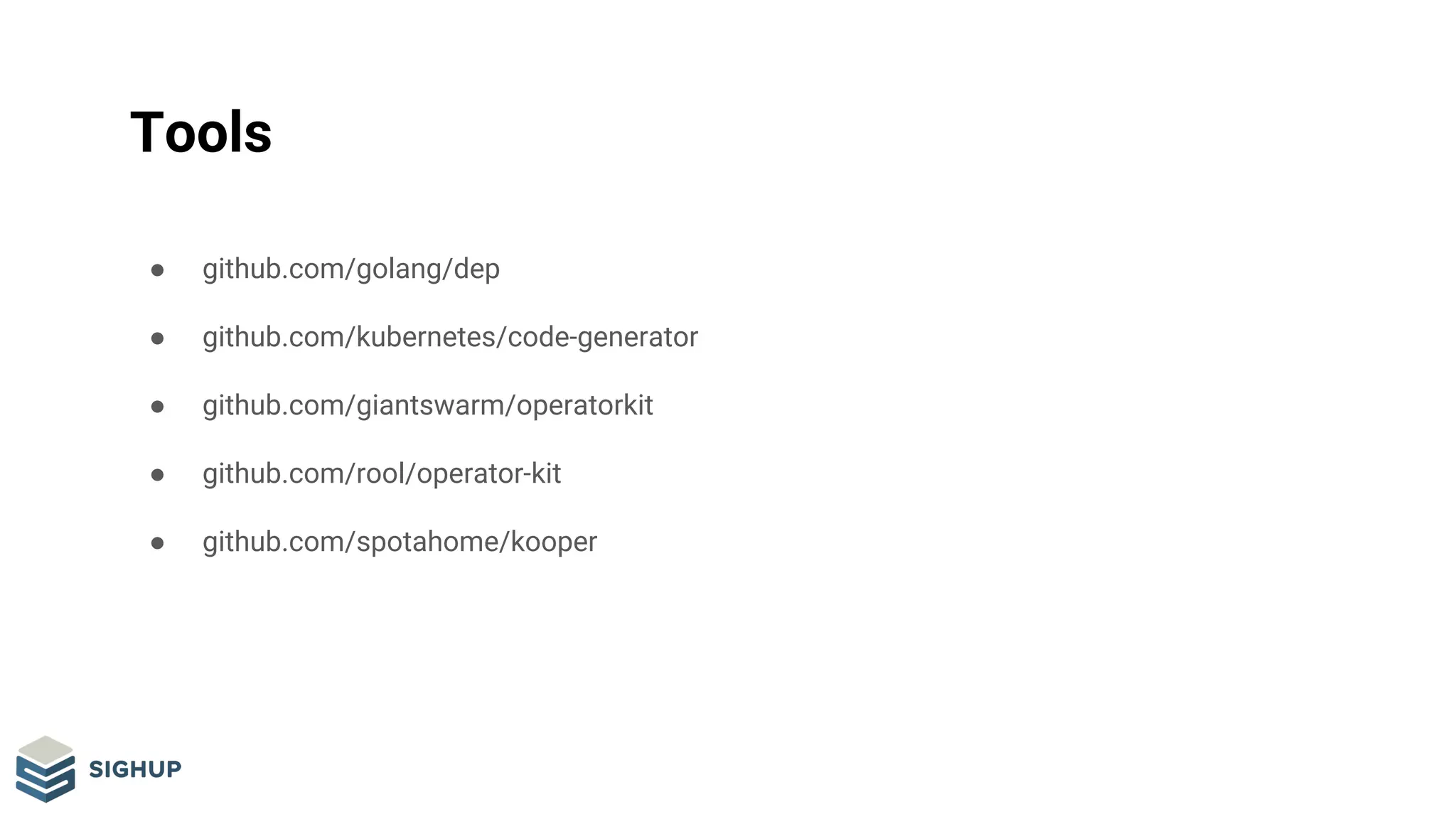

- 33. Tools ● github.com/golang/dep ● github.com/kubernetes/code-generator ●github.com/giantswarm/operatorkit ● github.com/rool/operator-kit ● github.com/spotahome/kooper
- 34.
