L16-L19-Searching&Sorting&string123.pptx

06/10/2025 CSE 1001 Department of CSE 2

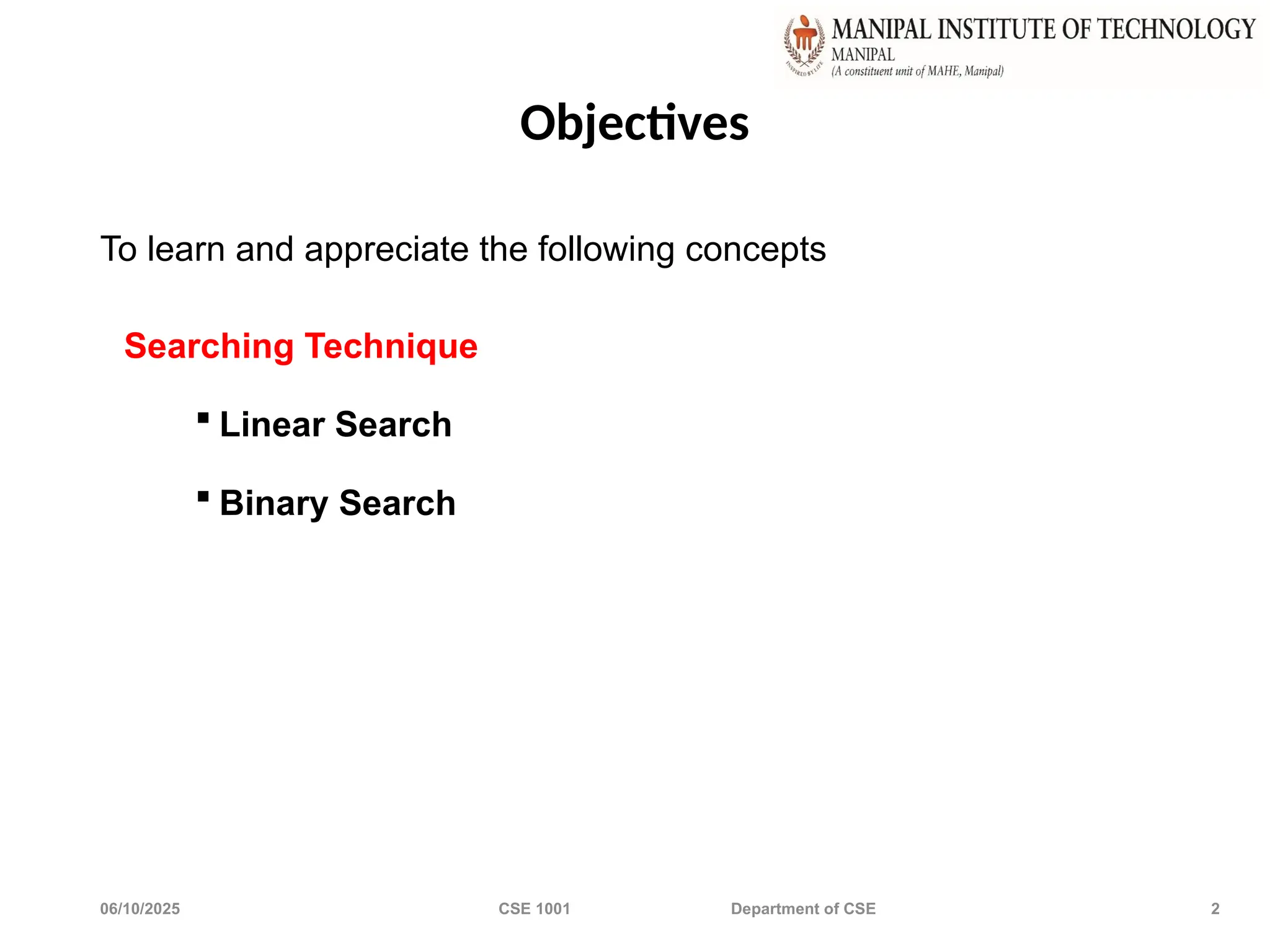

Objectives
To learn and appreciate the following concepts
Searching Technique
 Linear Search
 Binary Search

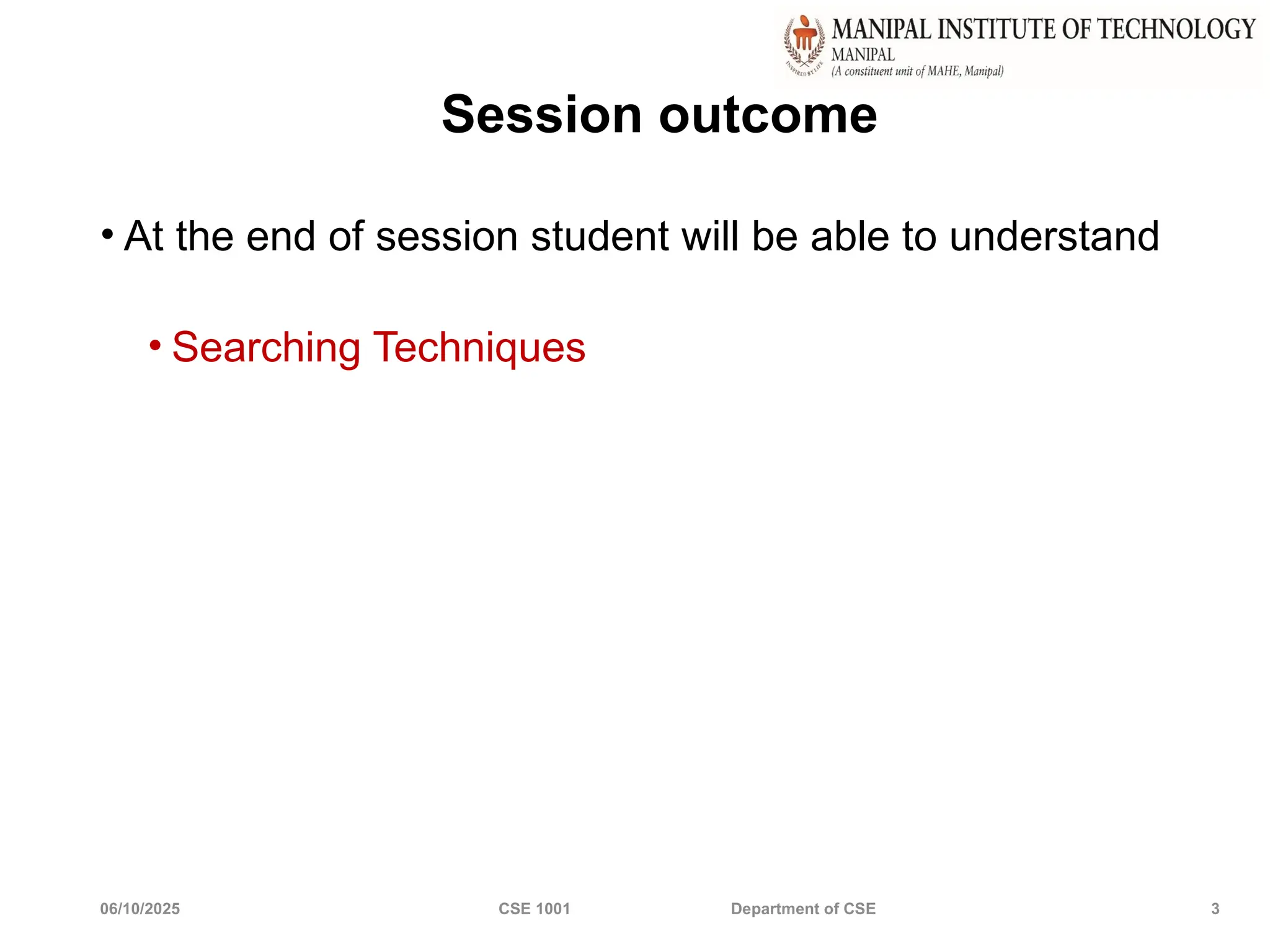

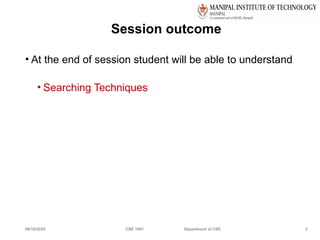

Session outcome
• At the end of session student will be able to understand
• Searching Techniques

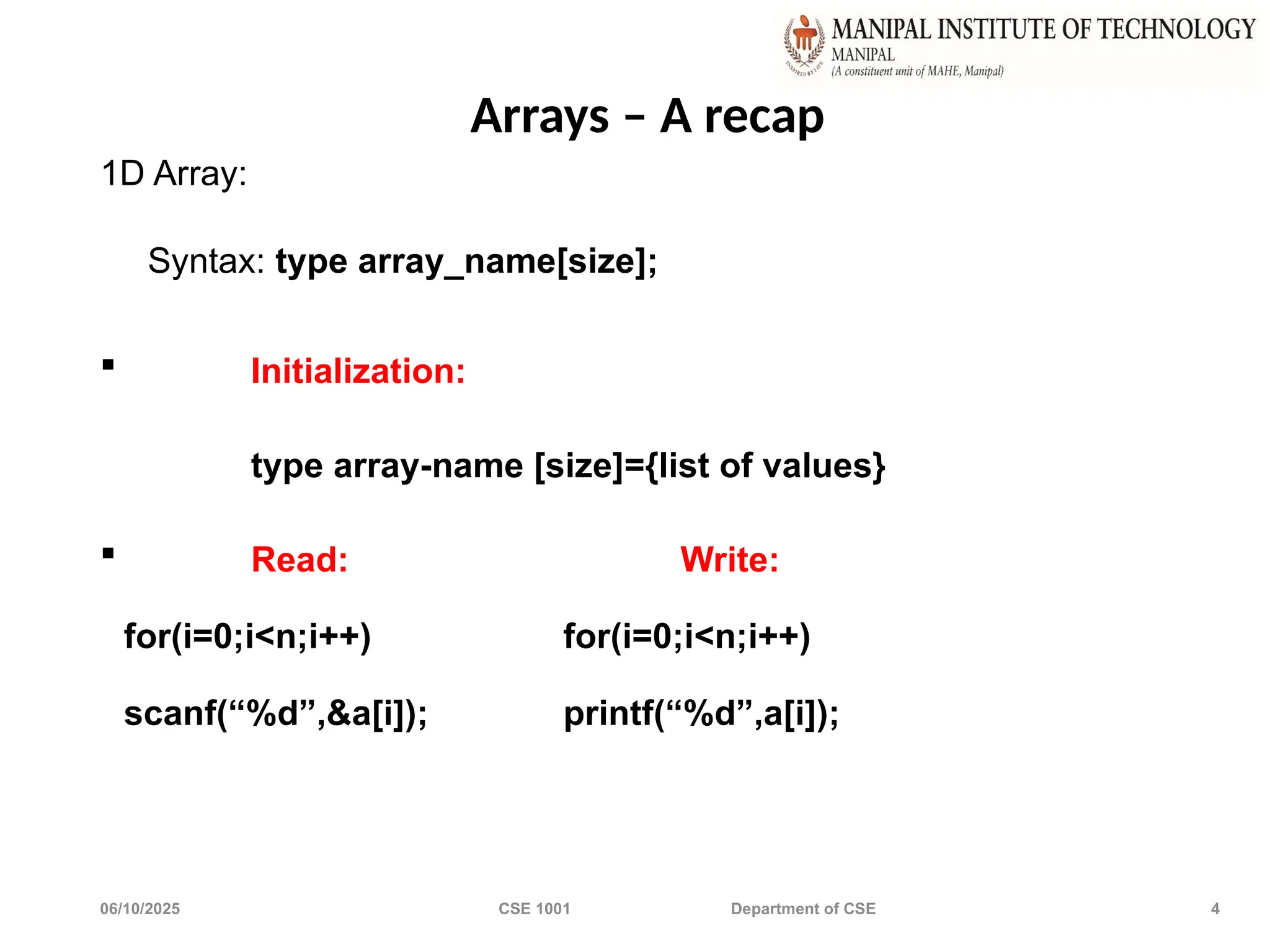

Arrays – A recap
1D Array:
Syntax: type array_name[size];
 Initialization:
type array-name [size]={list of values}
 Read: Write:
for(i=0;i<n;i++) for(i=0;i<n;i++)
scanf(“%d”,&a[i]); printf(“%d”,a[i]);

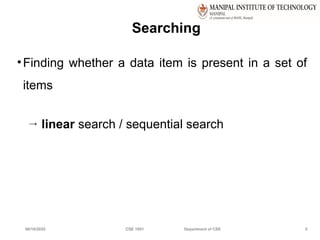

Searching
•Finding whether a data item is present in a set of
items
→ linear search / sequential search

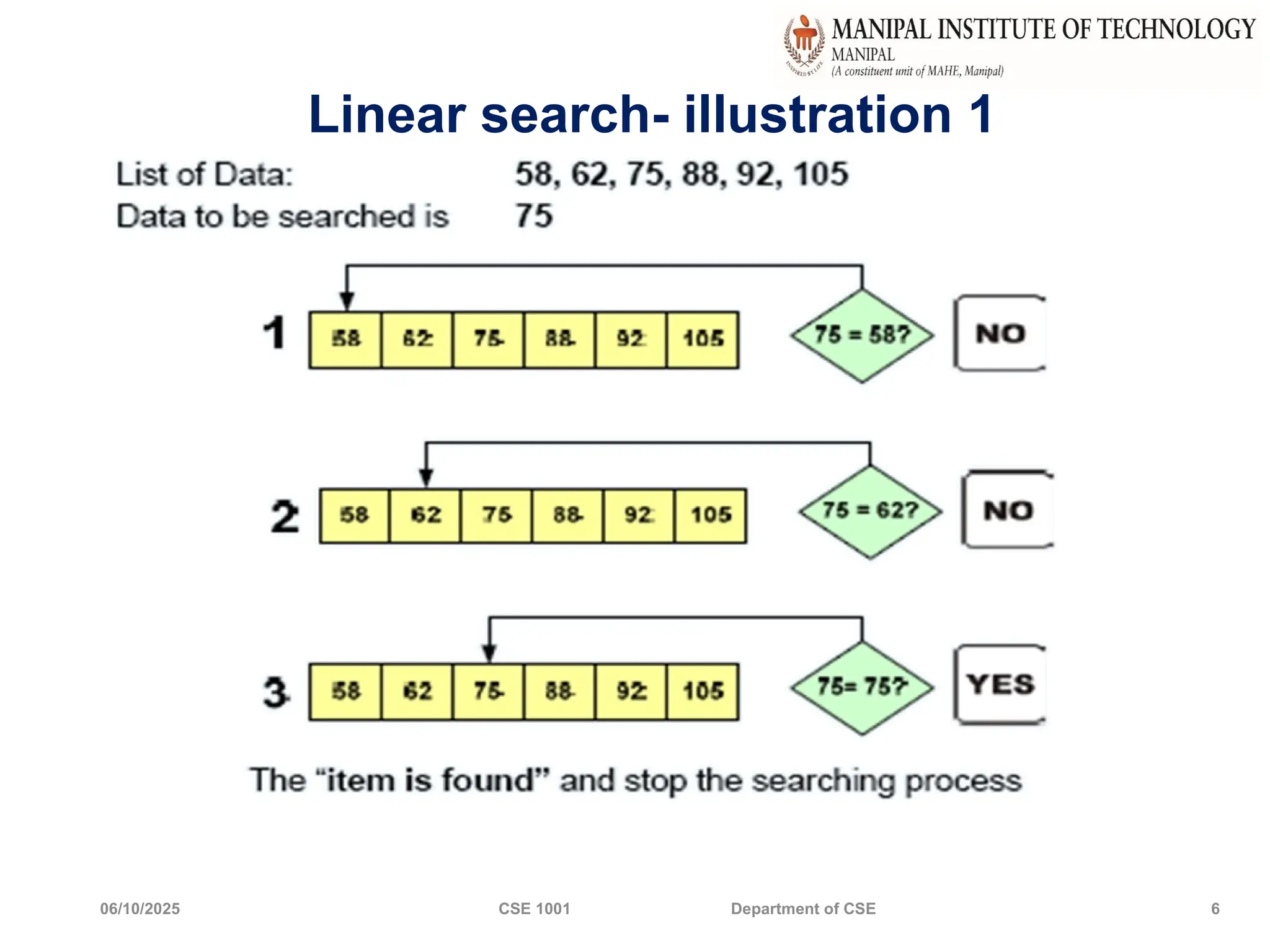

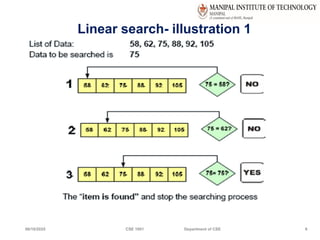

Linear search- illustration 1

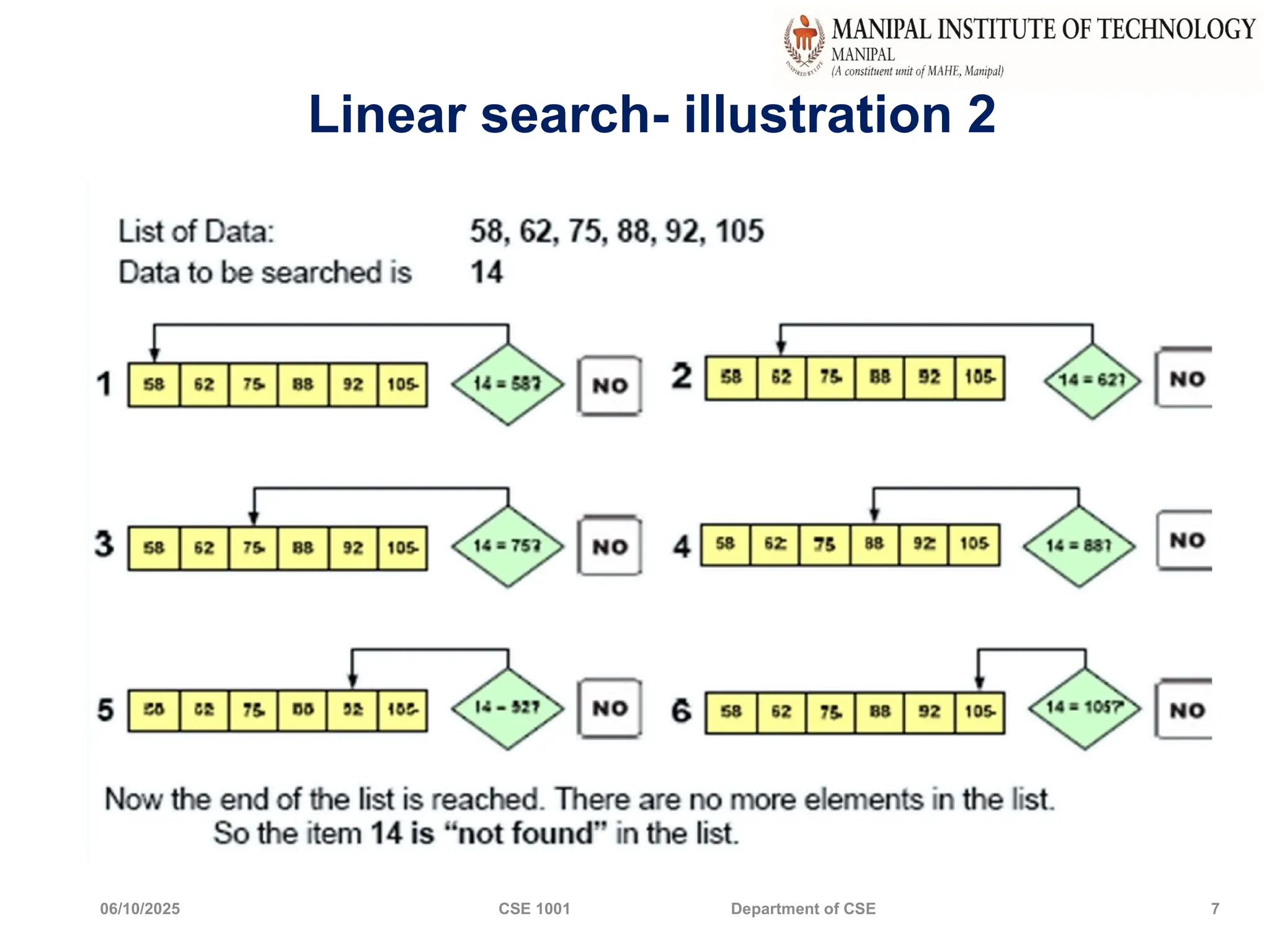

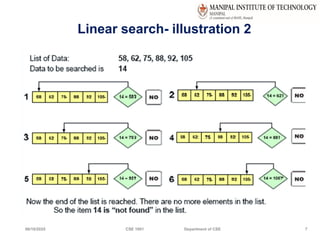

Linear search- illustration 2

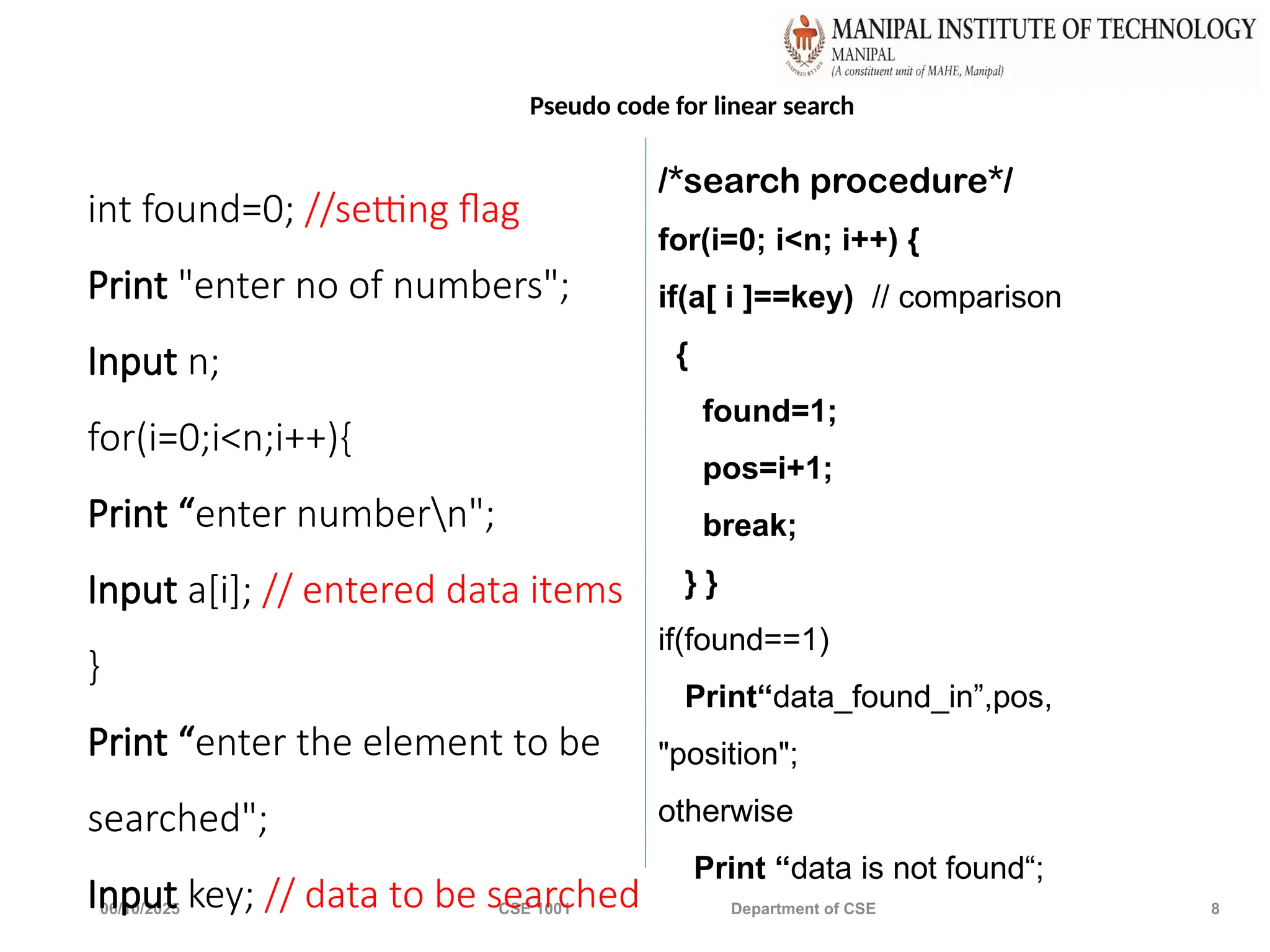

int found=0; //setting flag
Print "enter no of numbers";
Input n;
for(i=0;i<n;i++){
Print “enter numbern";
Input a[i]; // entered data items
}
Print “enter the element to be
searched";
Input key; // data to be searched
Pseudo code for linear search
/*search procedure*/
for(i=0; i<n; i++) {
if(a[ i ]==key) // comparison
{
found=1;
pos=i+1;
break;
} }
if(found==1)
Print“data_found_in”,pos,
"position";
otherwise
Print “data is not found“;

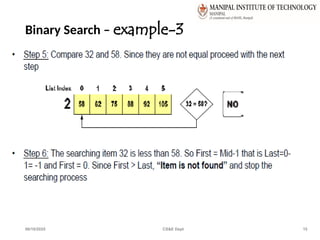

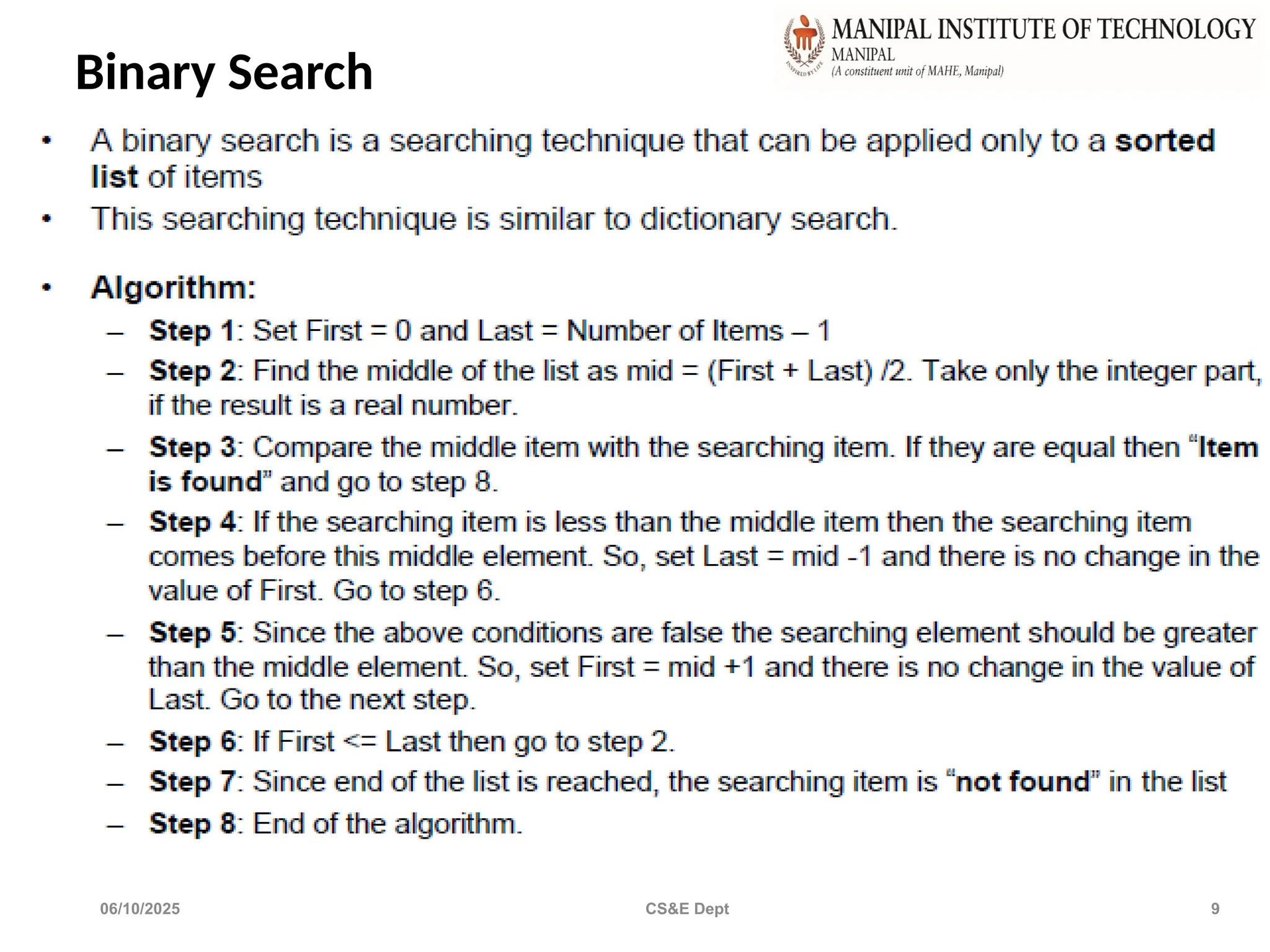

Binary Search
06/10/2025 CS&E Dept 9

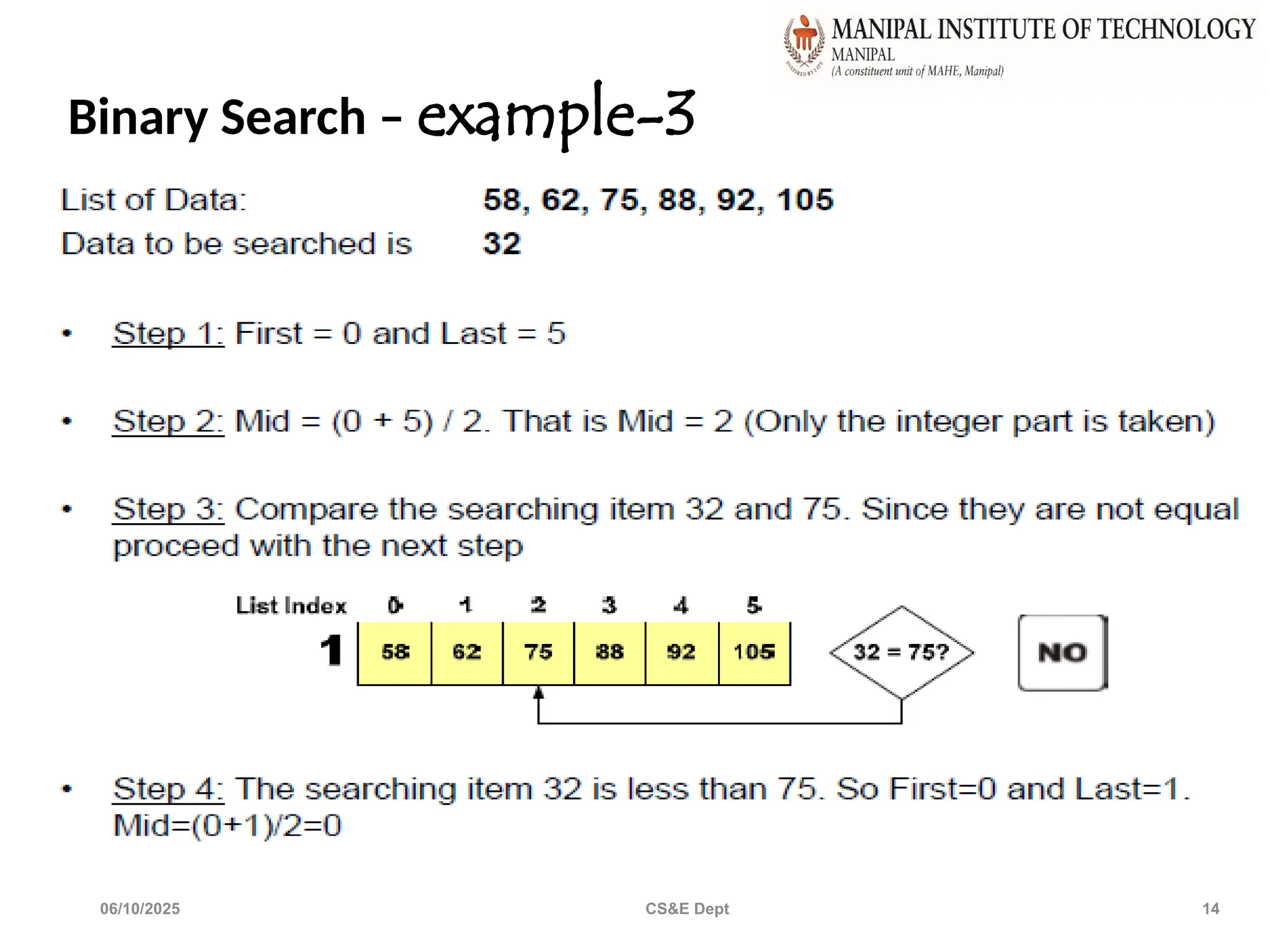

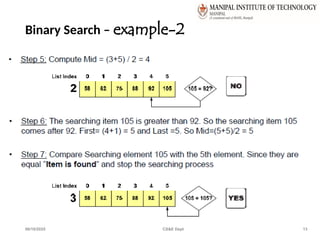

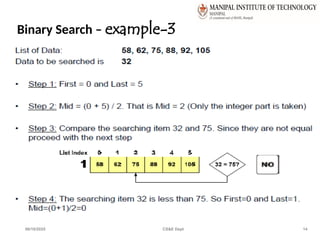

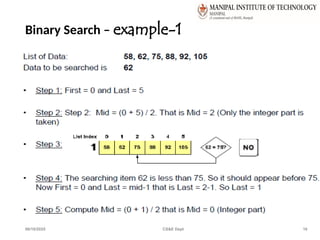

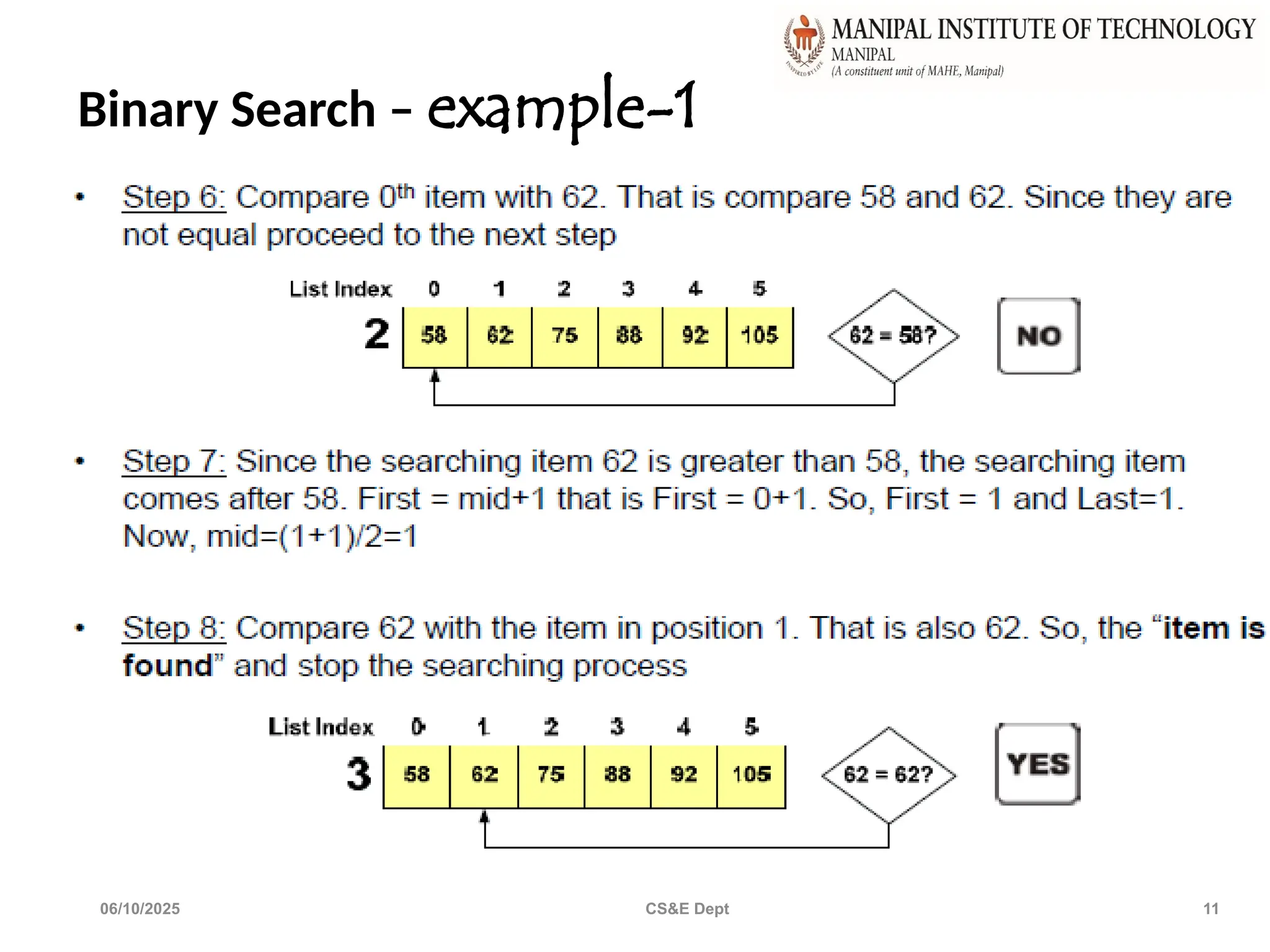

Binary Search – example-1
06/10/2025 CS&E Dept 10

06/10/2025 CS&E Dept 11

06/10/2025 CS&E Dept 12

06/10/2025 CS&E Dept 13

06/10/2025 CS&E Dept 14

06/10/2025 CS&E Dept 15

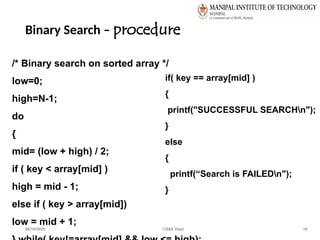

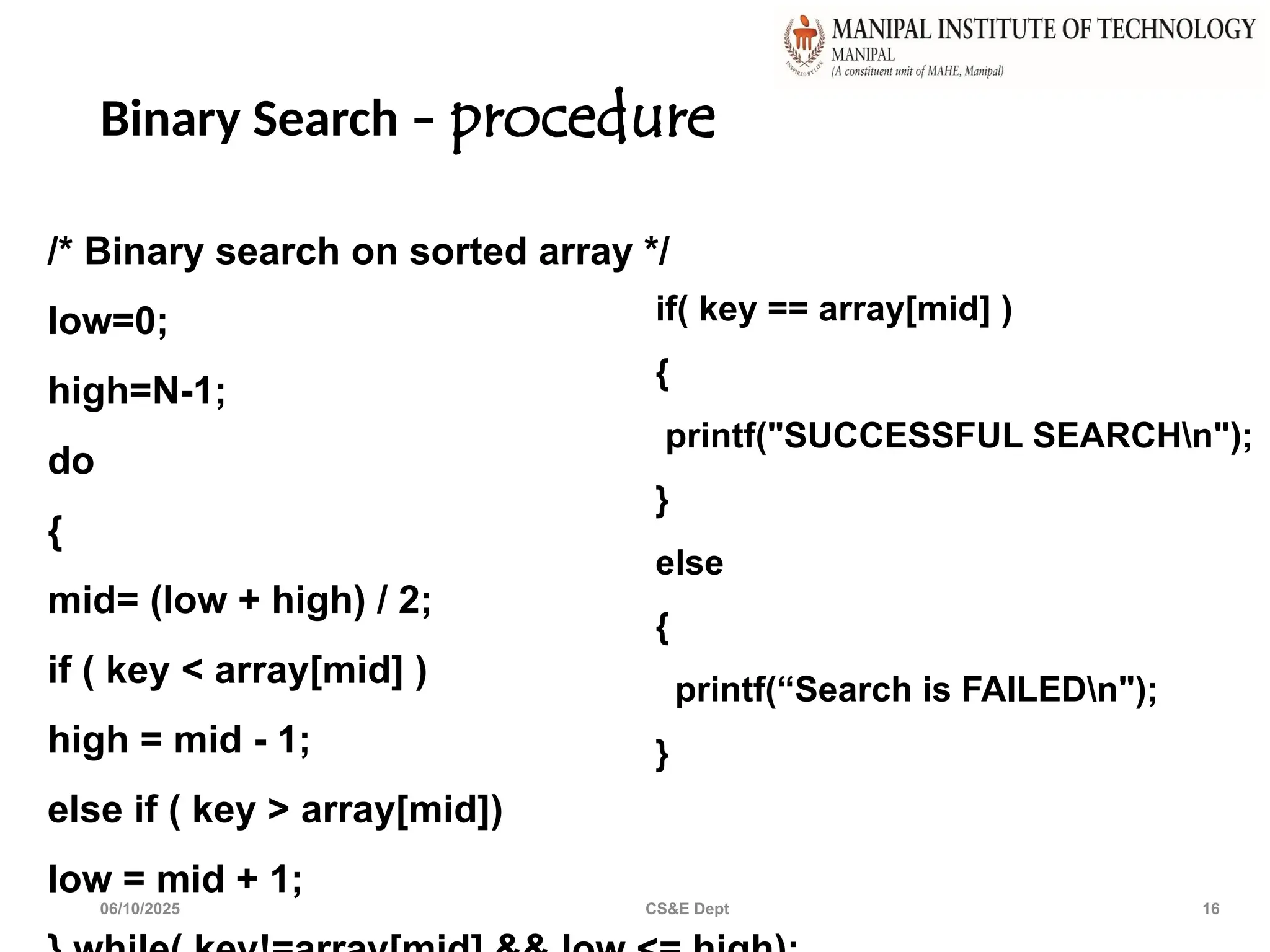

Binary Search – procedure
06/10/2025 CS&E Dept 16
/* Binary search on sorted array */
low=0;
high=N-1;
do
{
mid= (low + high) / 2;
if ( key < array[mid] )
high = mid - 1;
else if ( key > array[mid])
low = mid + 1;
if( key == array[mid] )
{
printf("SUCCESSFUL SEARCHn");
}
else
{
printf(“Search is FAILEDn");
}

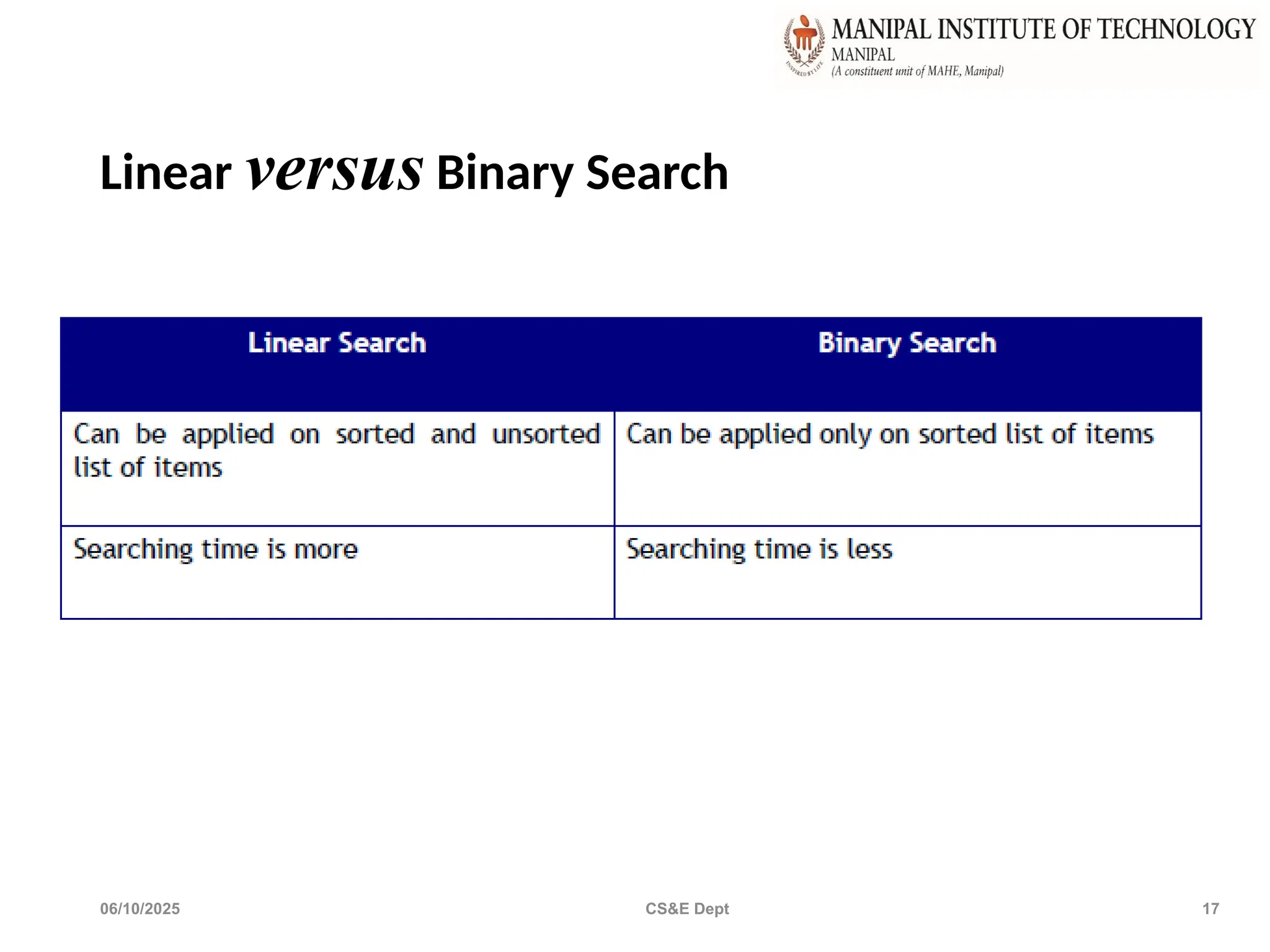

Linear versus Binary Search
06/10/2025 CS&E Dept 17

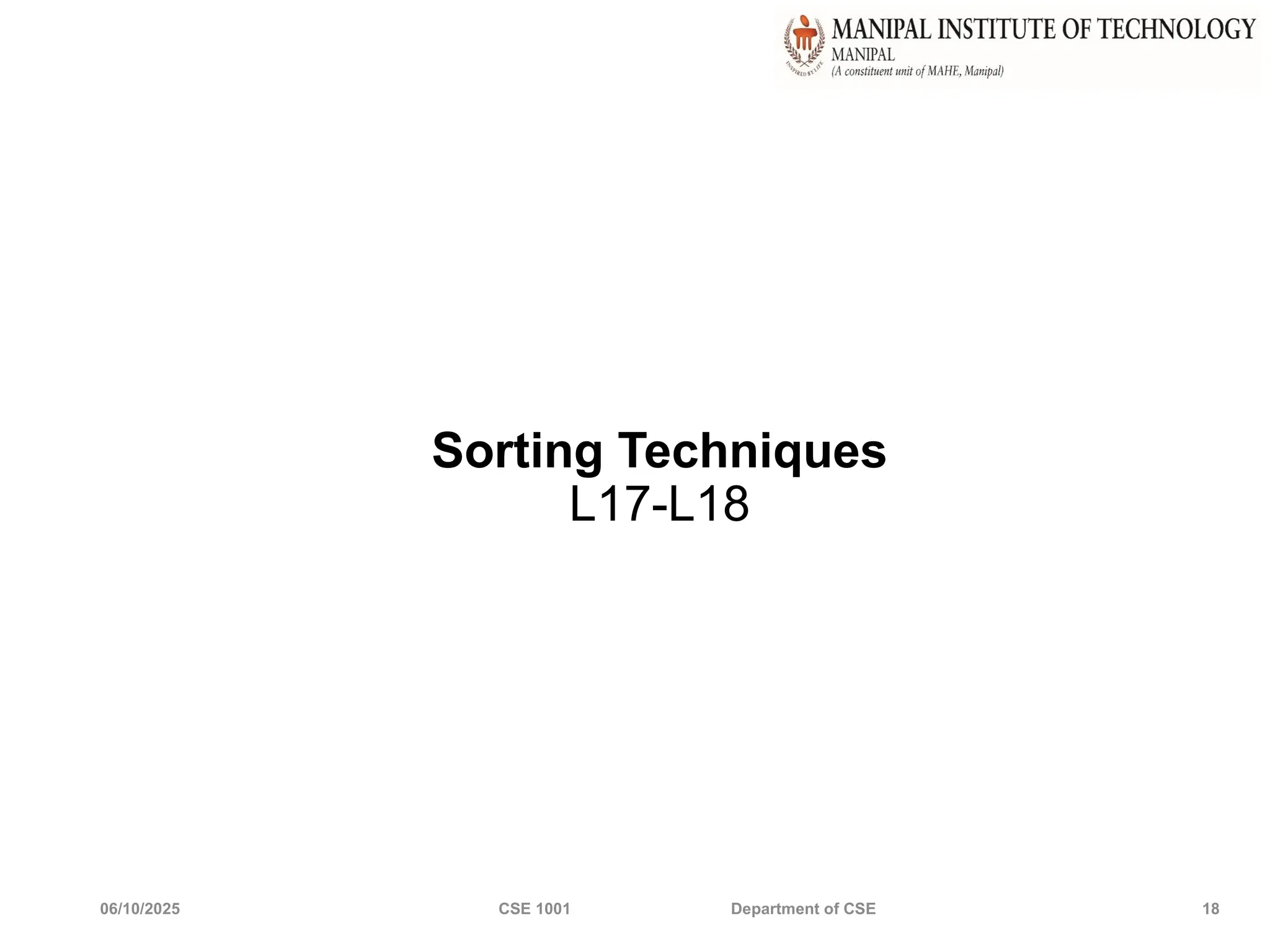

Sorting Techniques
L17-L18

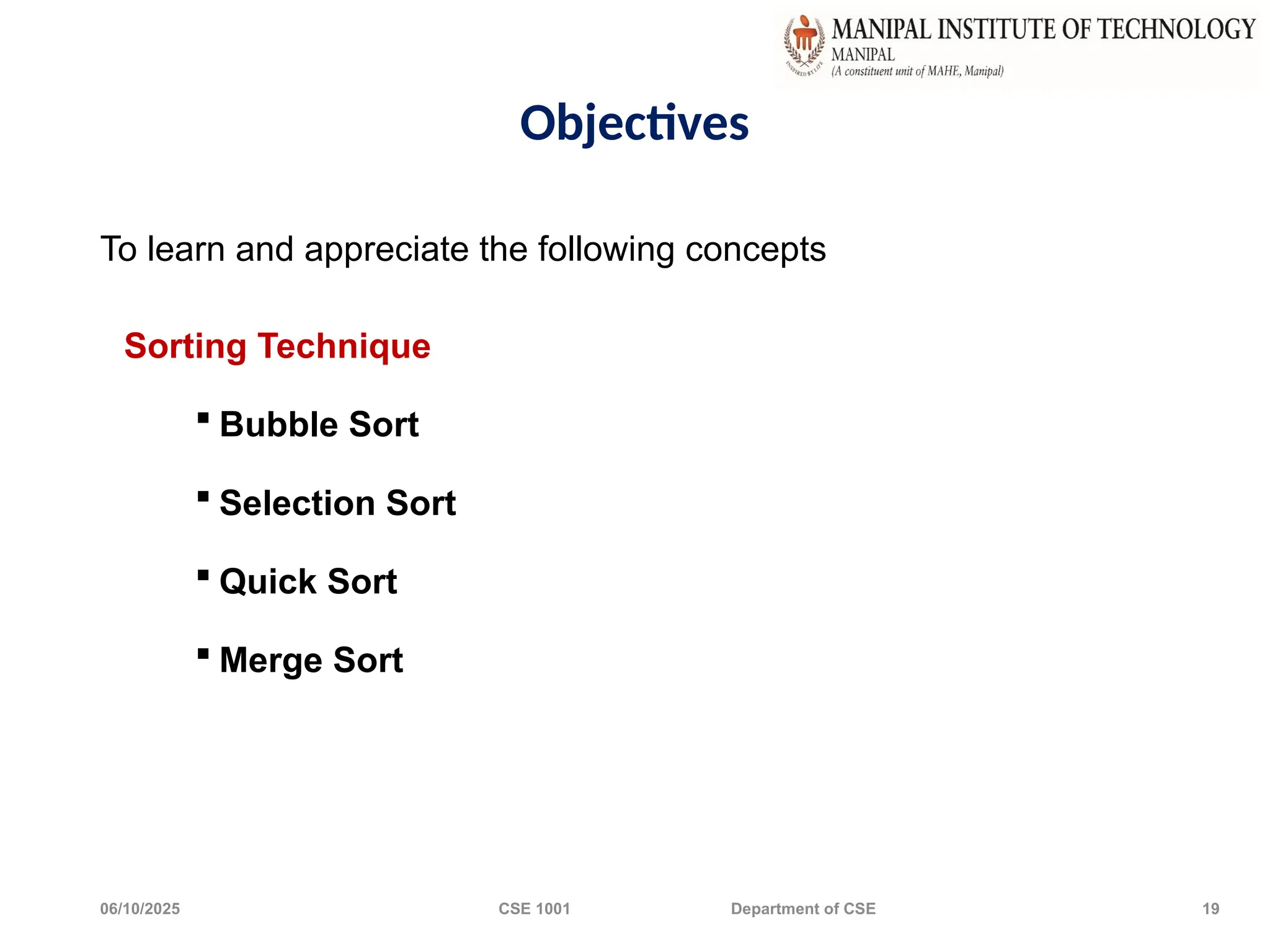

Objectives
Sorting Technique
 Bubble Sort
 Selection Sort
 Quick Sort
 Merge Sort

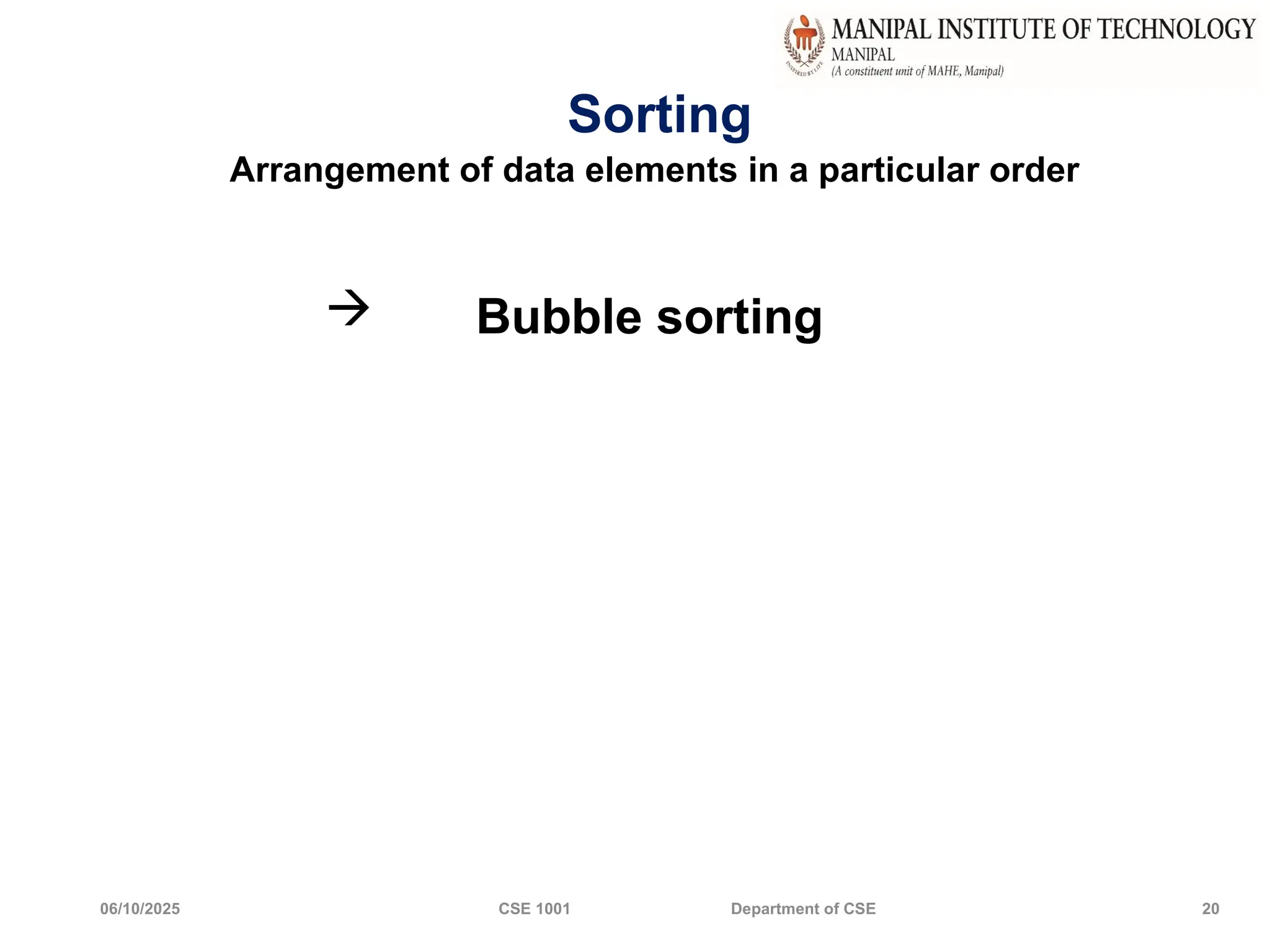

Sorting
Arrangement of data elements in a particular order
 Bubble sorting

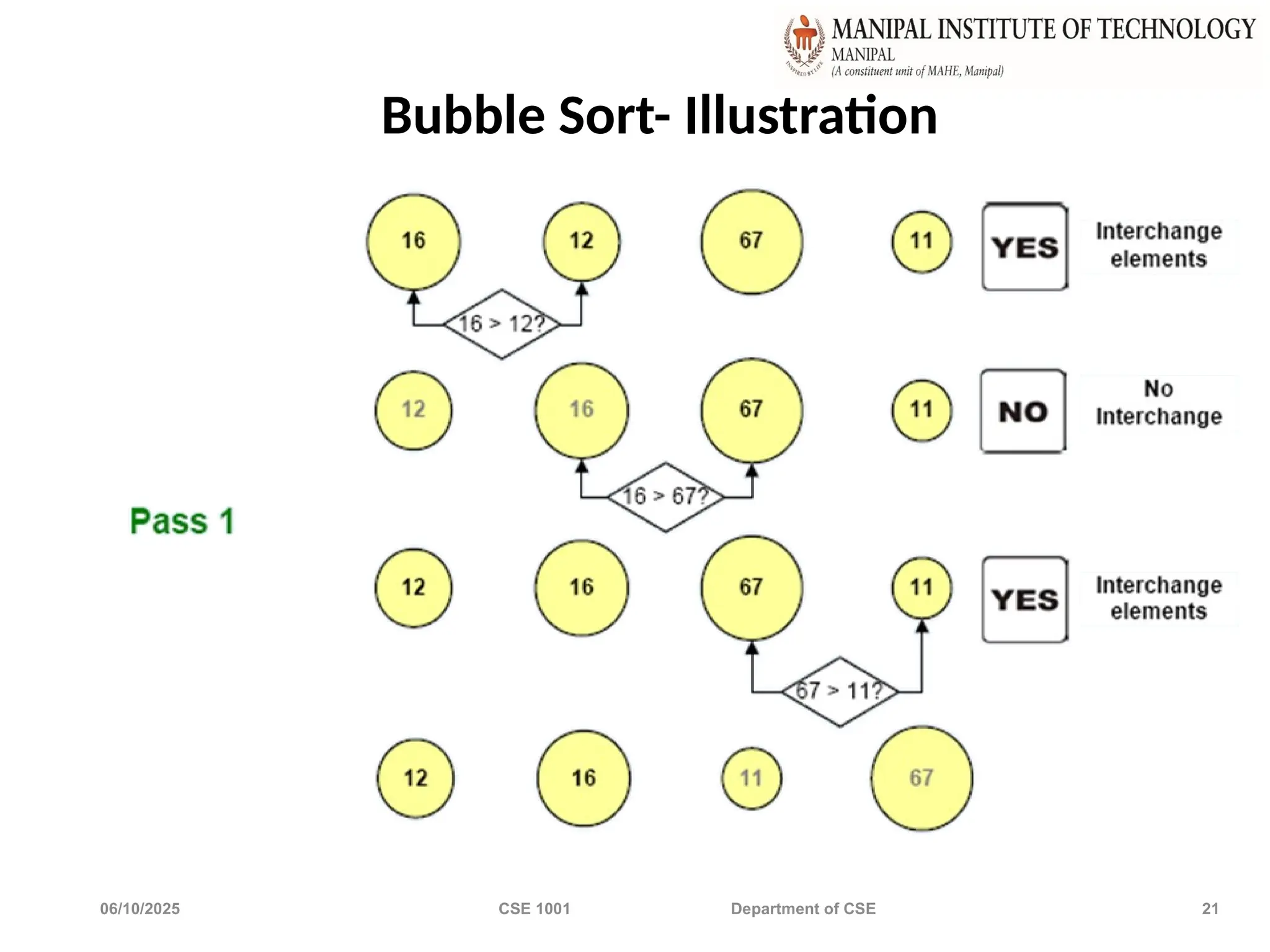

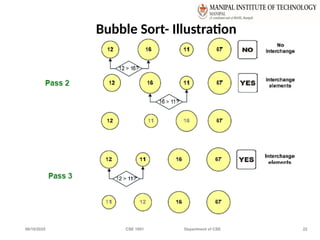

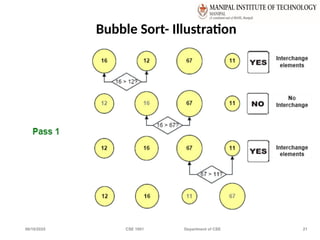

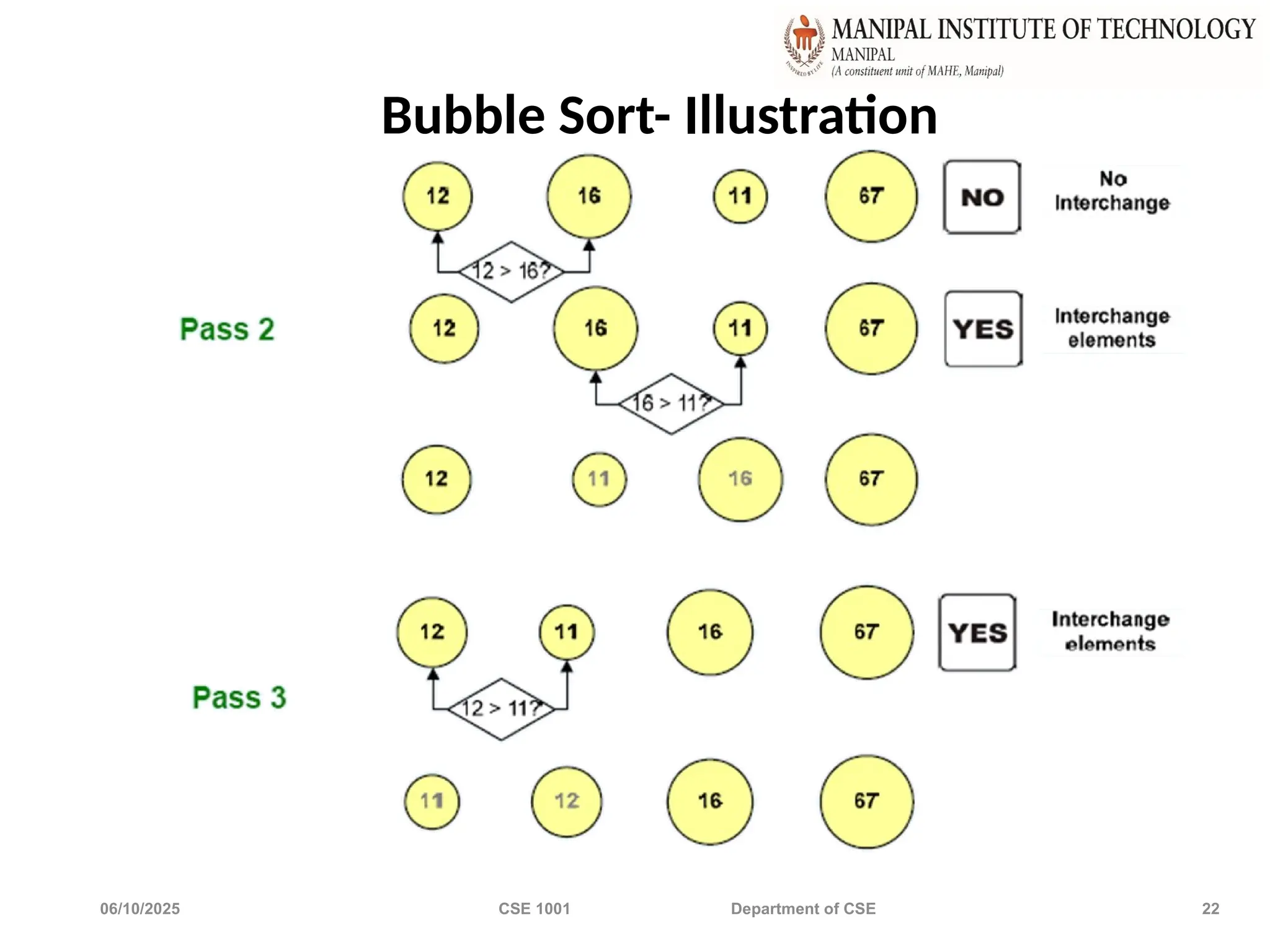

Bubble Sort- Illustration

for(i=0;i<n;i++)
Input a[i]; // entered elements
for(i=0;i<n-1;i++) //pass
{ for(j=0;j<n-i-1;j++)
{ if(a[j]>a[j+1]) // comparison
{ // interchange
temp=a[j];
a[j]=a[j+1];
a[j+1]=temp;
}
}
}

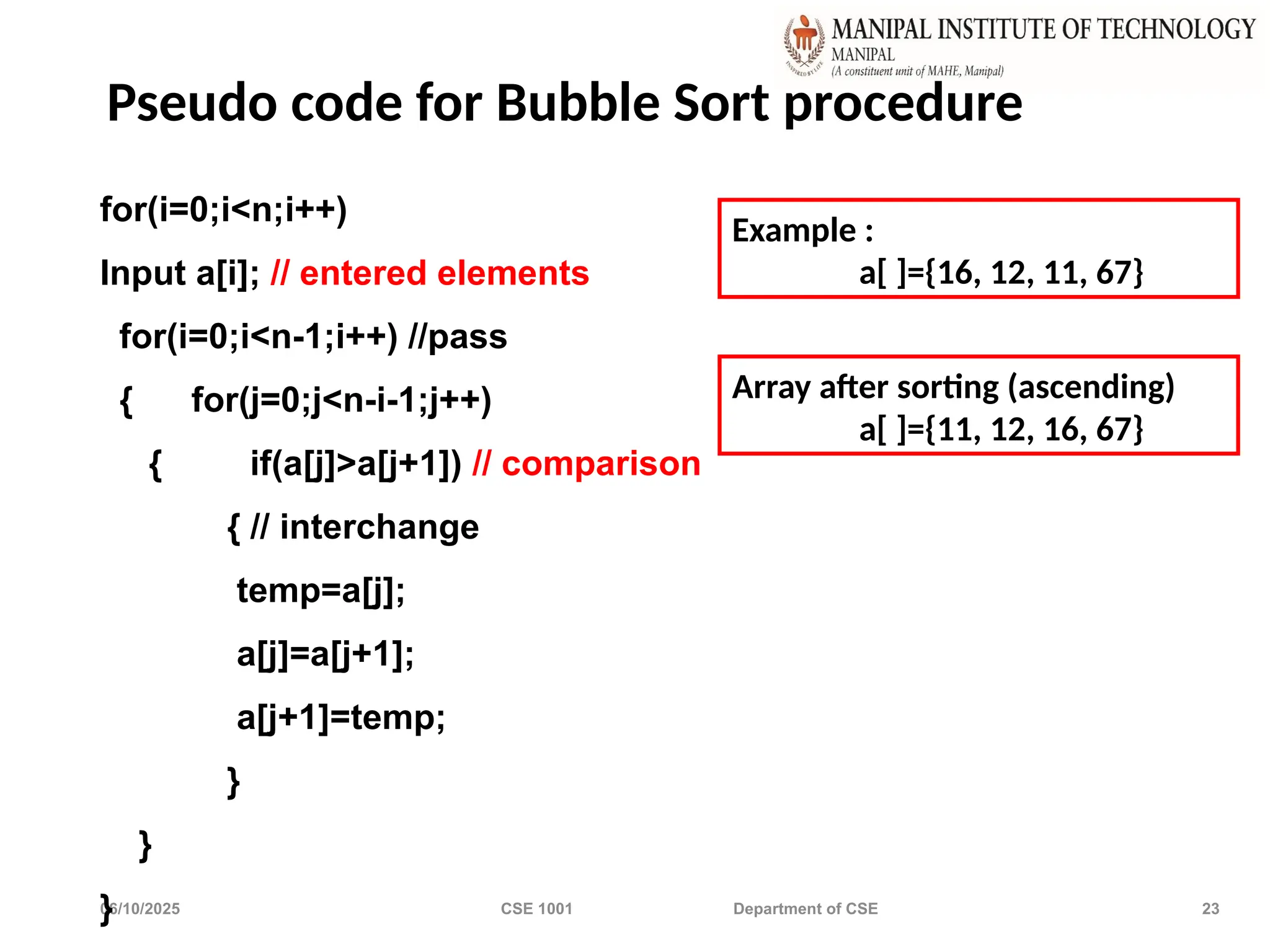

Pseudo code for Bubble Sort procedure
Example :
a[ ]={16, 12, 11, 67}
Array after sorting (ascending)
a[ ]={11, 12, 16, 67}

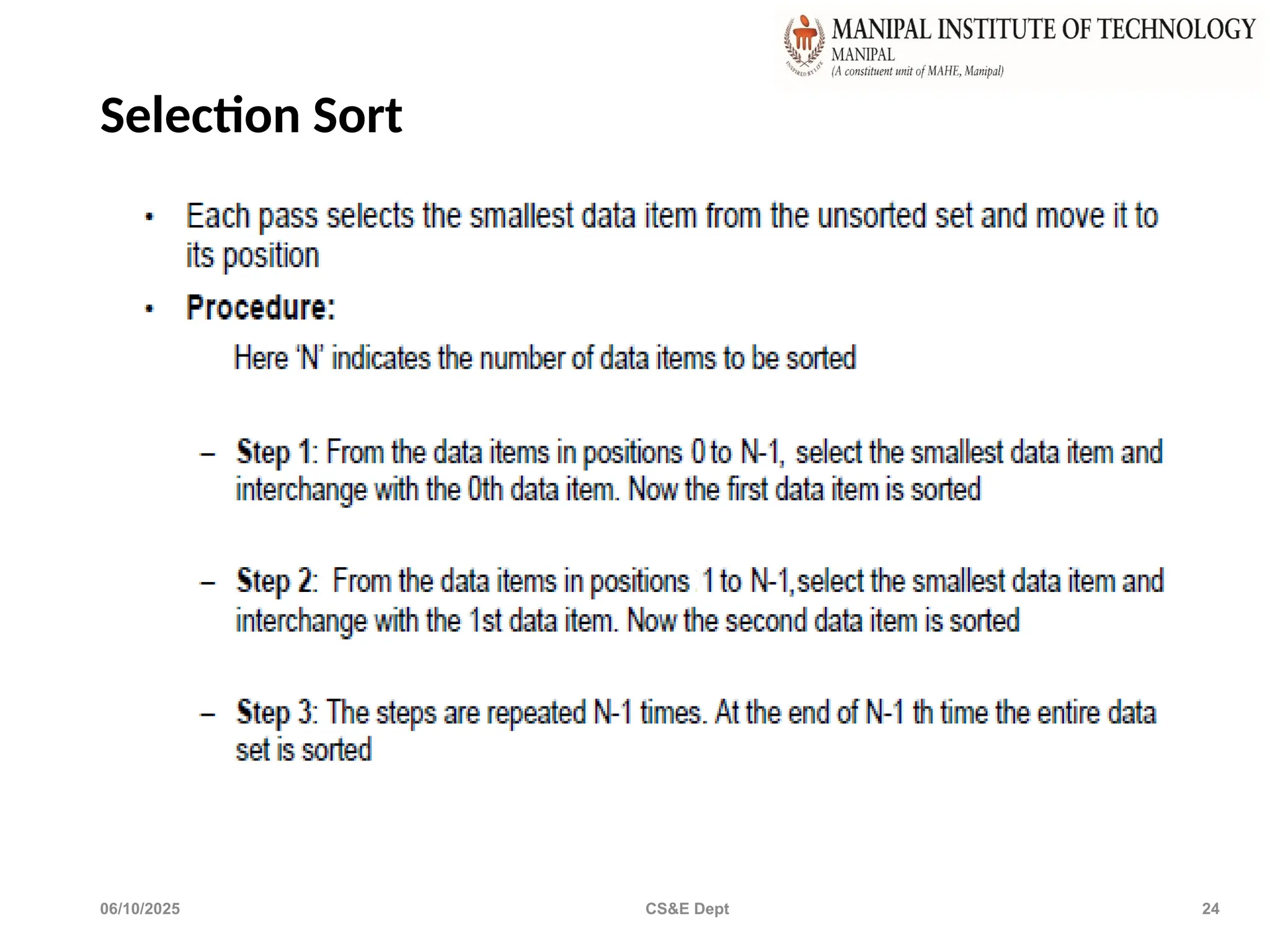

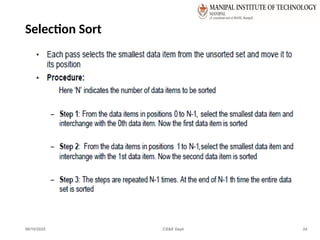

Selection Sort
06/10/2025 CS&E Dept 24

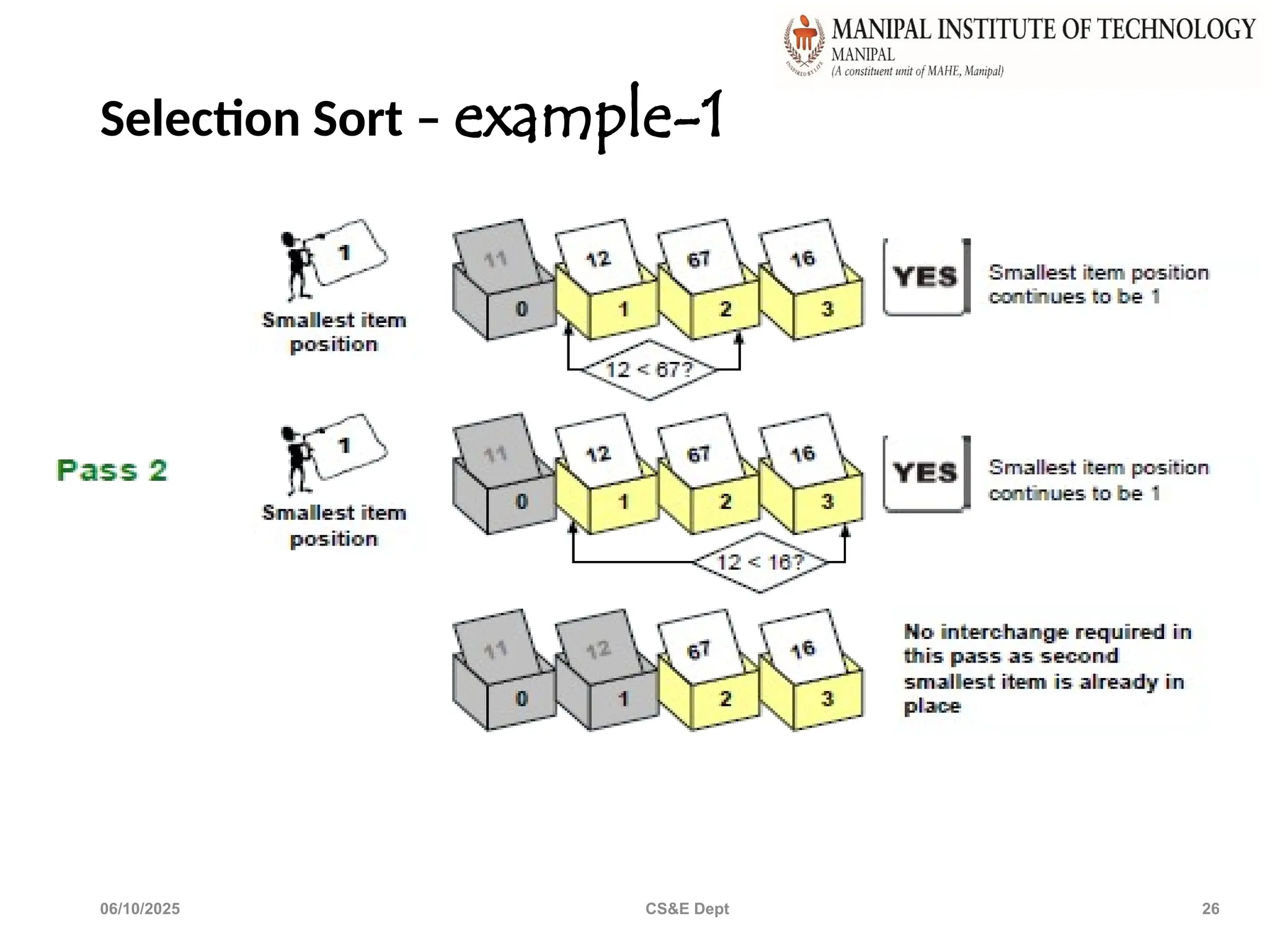

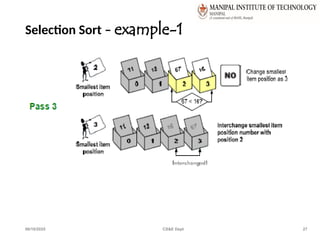

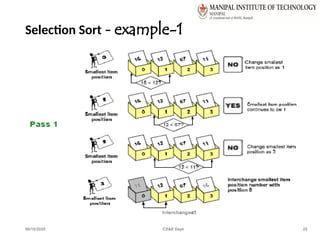

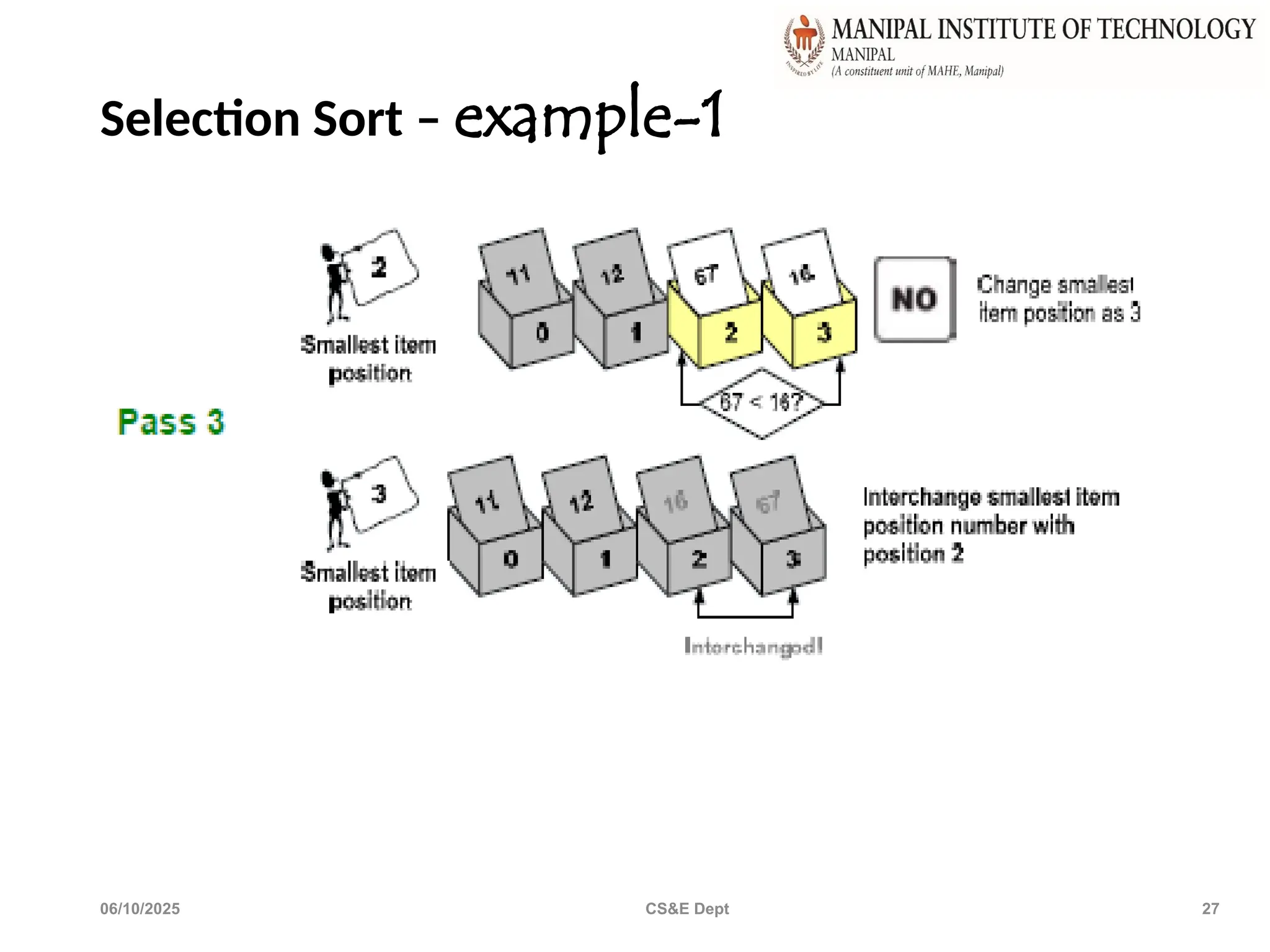

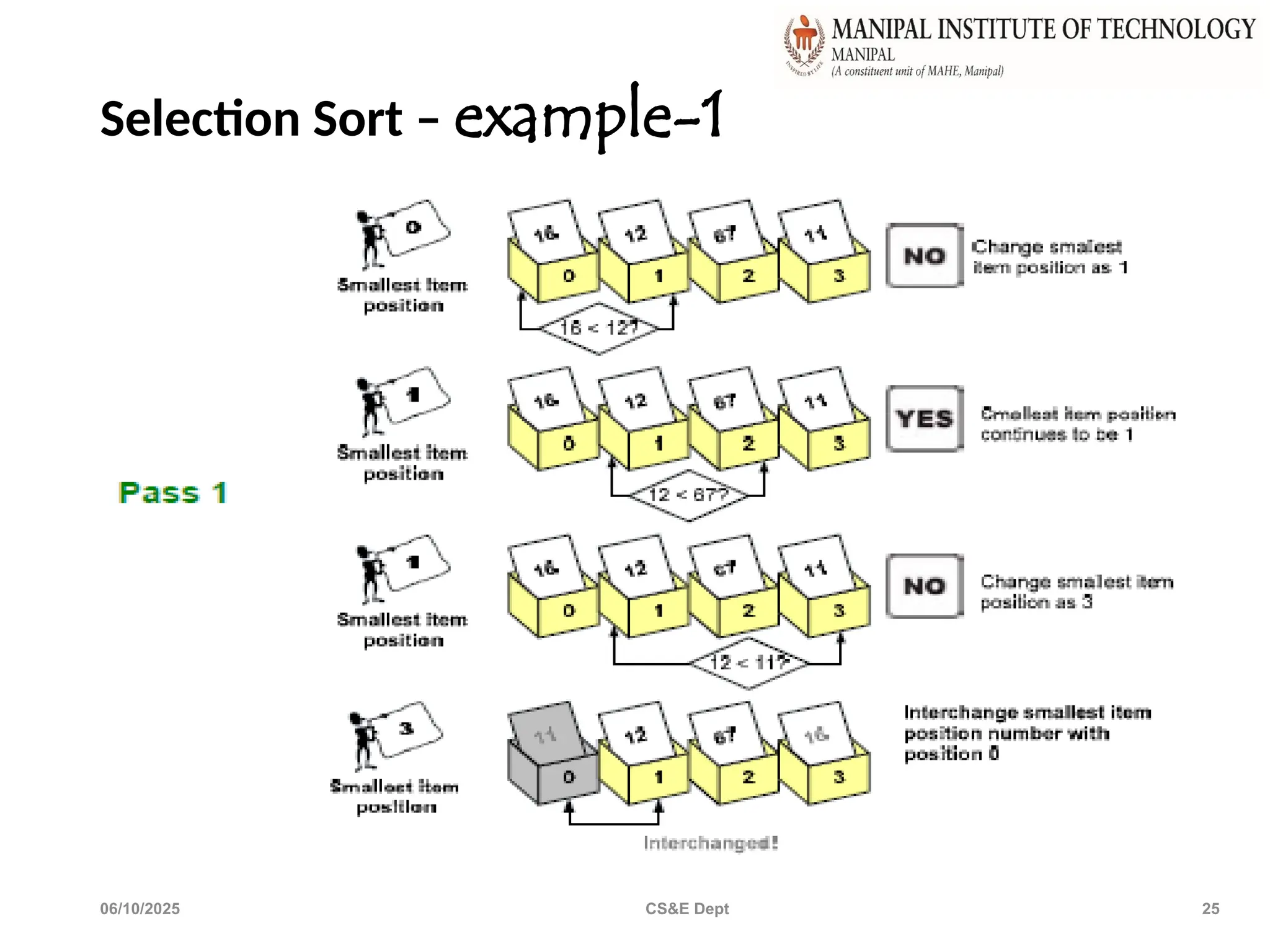

Selection Sort – example-1
06/10/2025 CS&E Dept 25

06/10/2025 CS&E Dept 26

06/10/2025 CS&E Dept 27

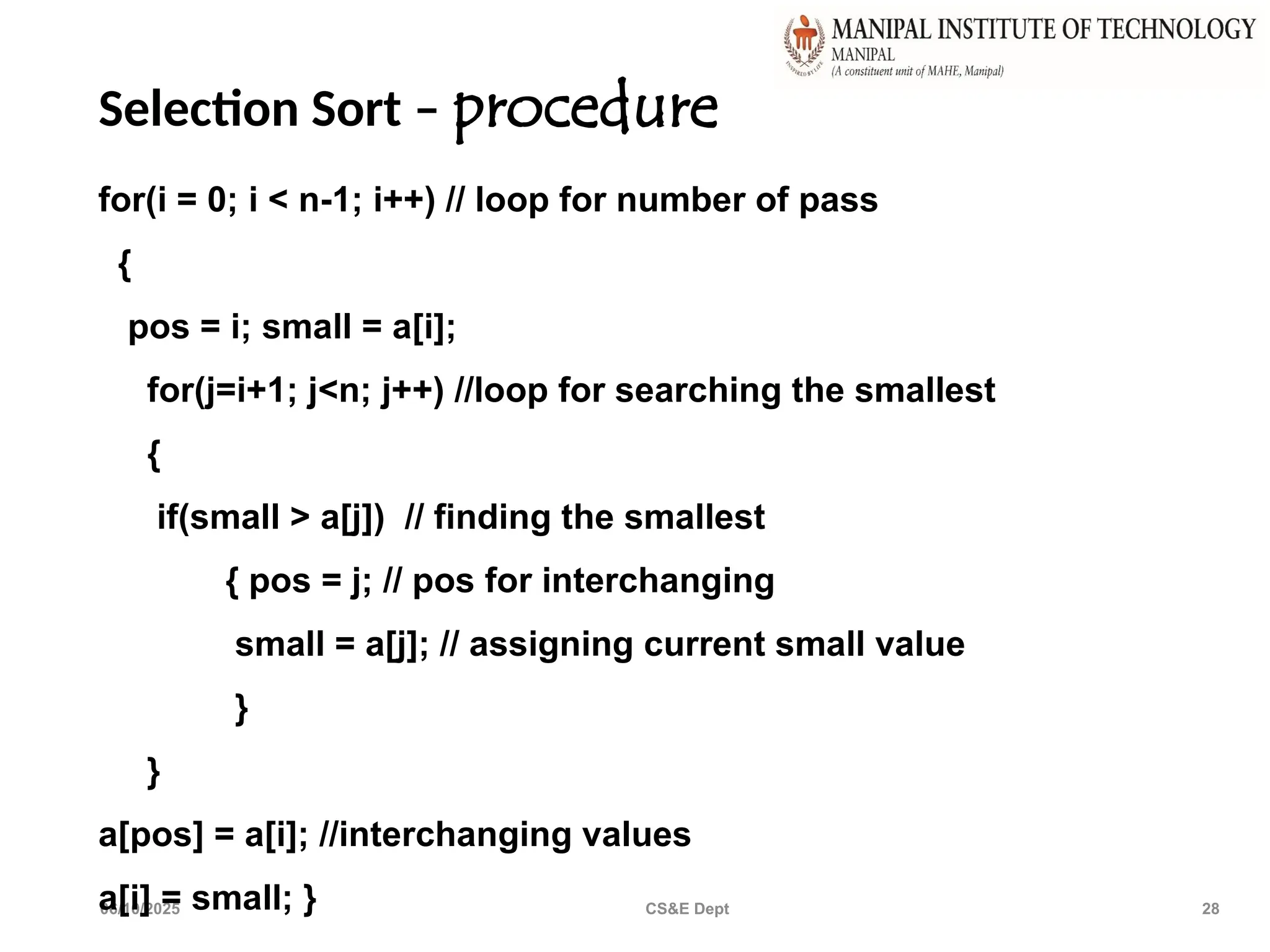

Selection Sort – procedure
06/10/2025 CS&E Dept 28
for(i = 0; i < n-1; i++) // loop for number of pass
{
pos = i; small = a[i];
for(j=i+1; j<n; j++) //loop for searching the smallest
{
if(small > a[j]) // finding the smallest
{ pos = j; // pos for interchanging
small = a[j]; // assigning current small value
}
}
a[pos] = a[i]; //interchanging values
a[i] = small; }

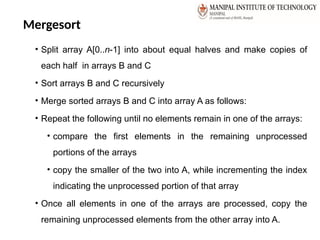

Mergesort
• Split array A[0..n-1] into about equal halves and make copies of
each half in arrays B and C
• Sort arrays B and C recursively
• Merge sorted arrays B and C into array A as follows:
• Repeat the following until no elements remain in one of the arrays:
• compare the first elements in the remaining unprocessed
portions of the arrays
• copy the smaller of the two into A, while incrementing the index
indicating the unprocessed portion of that array
• Once all elements in one of the arrays are processed, copy the
remaining unprocessed elements from the other array into A.

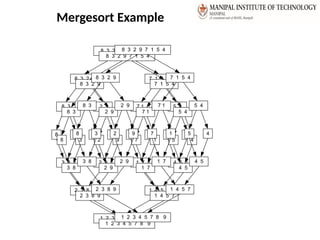

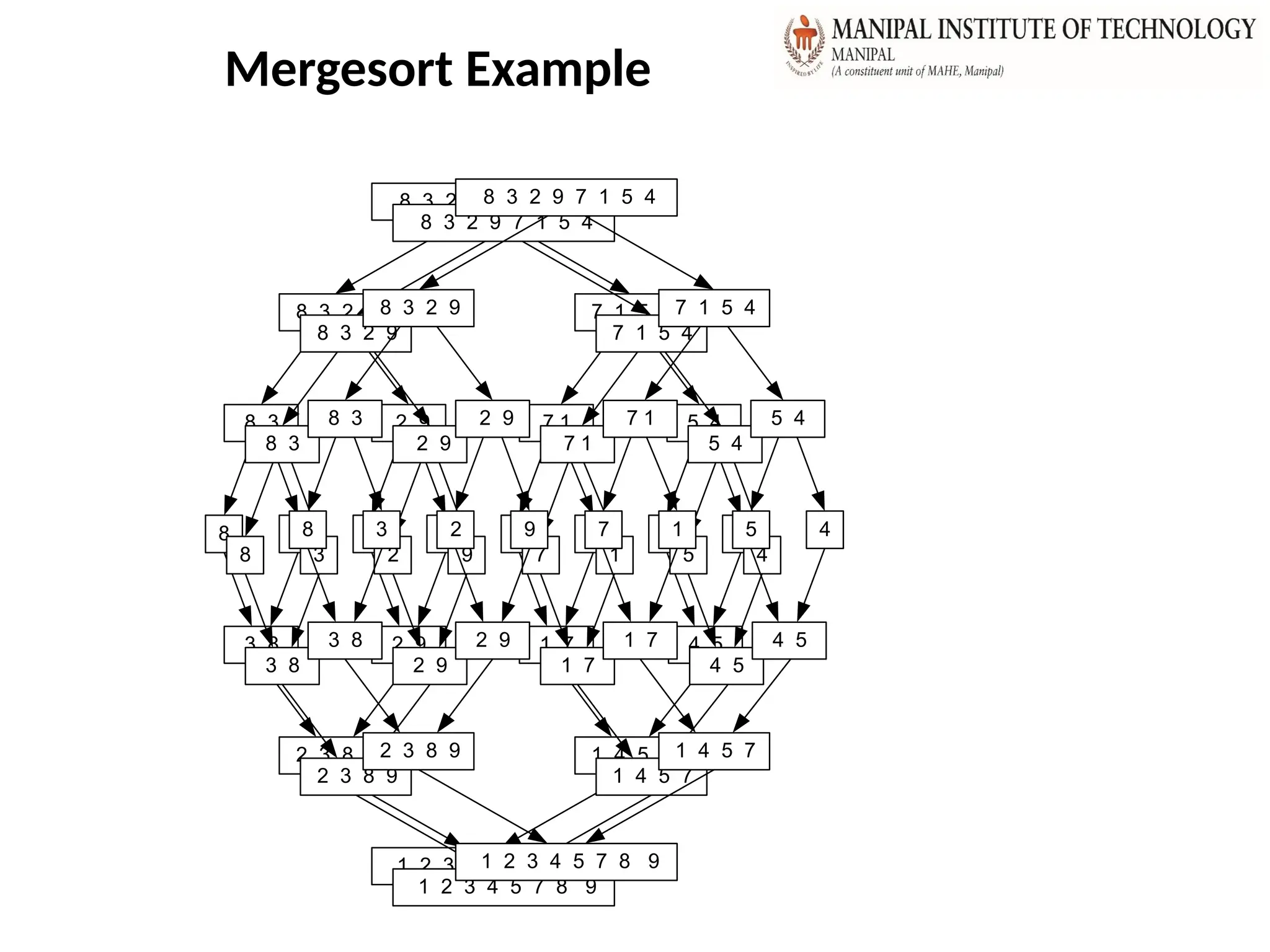

Mergesort Example
8 3 2 9 7 1 5 4
8 3 2 9 7 1 5 4
8 3 2 9 7 1 5 4
8 3 2 9 7 1 5 4
3 8 2 9 1 7 4 5
2 3 8 9 1 4 5 7
1 2 3 4 5 7 8 9
8 3 2 9 7 1 5 4
8 3 2 9 7 1 5 4
8 3 2 9 7 1 5 4
8 3 2 9 7 1 5 4
3 8 2 9 1 7 4 5
2 3 8 9 1 4 5 7
1 2 3 4 5 7 8 9
8 3 2 9 7 1 5 4
8 3 2 9 7 1 5 4
8 3 2 9 7 1 5 4
8 3 2 9 7 1 5 4
3 8 2 9 1 7 4 5
2 3 8 9 1 4 5 7
1 2 3 4 5 7 8 9

31

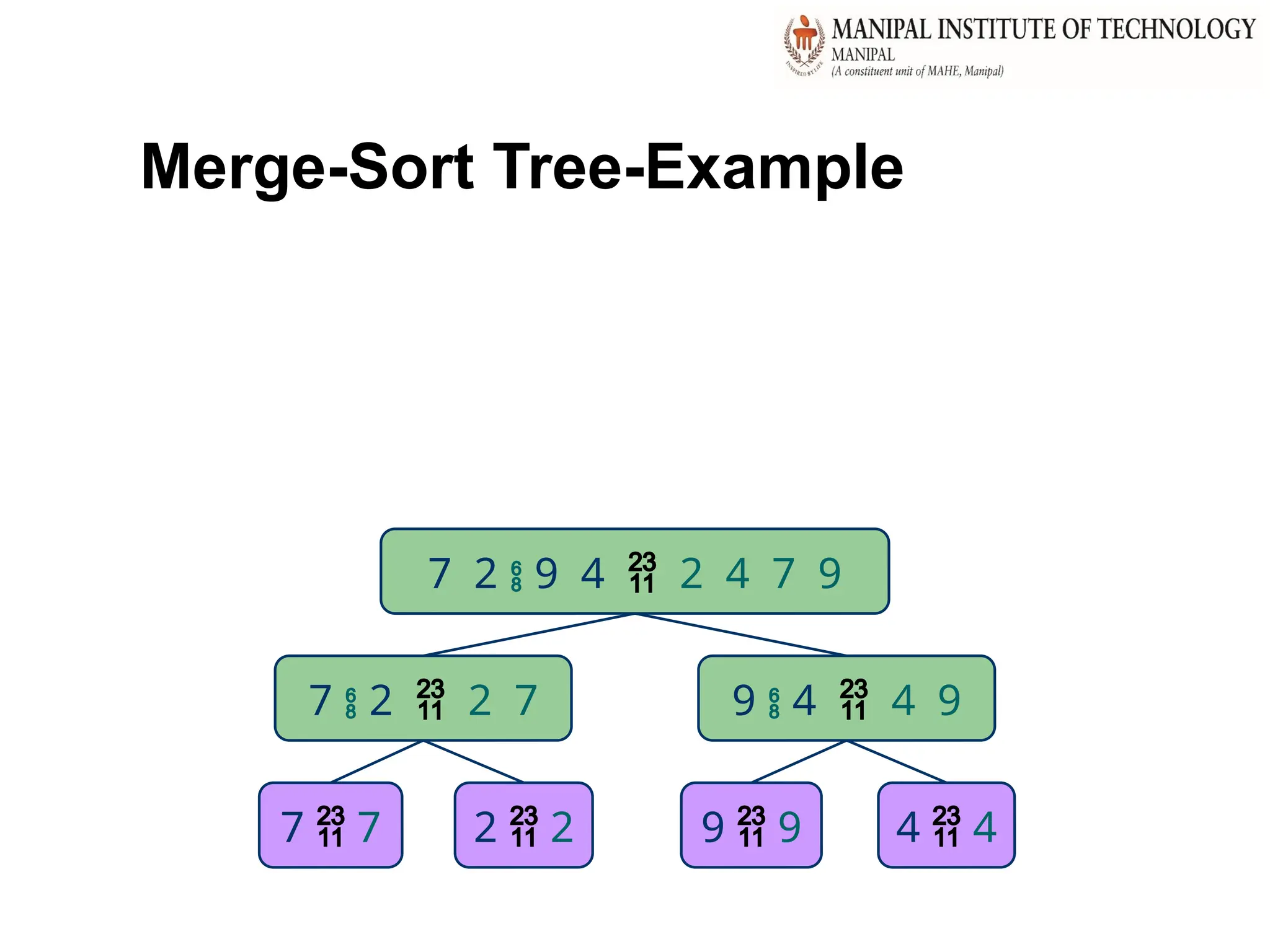

Merge-Sort Tree-Example
7 2  9 4  2 4 7 9
7  2  2 7 9  4  4 9
7  7 2  2 9  9 4  4

32

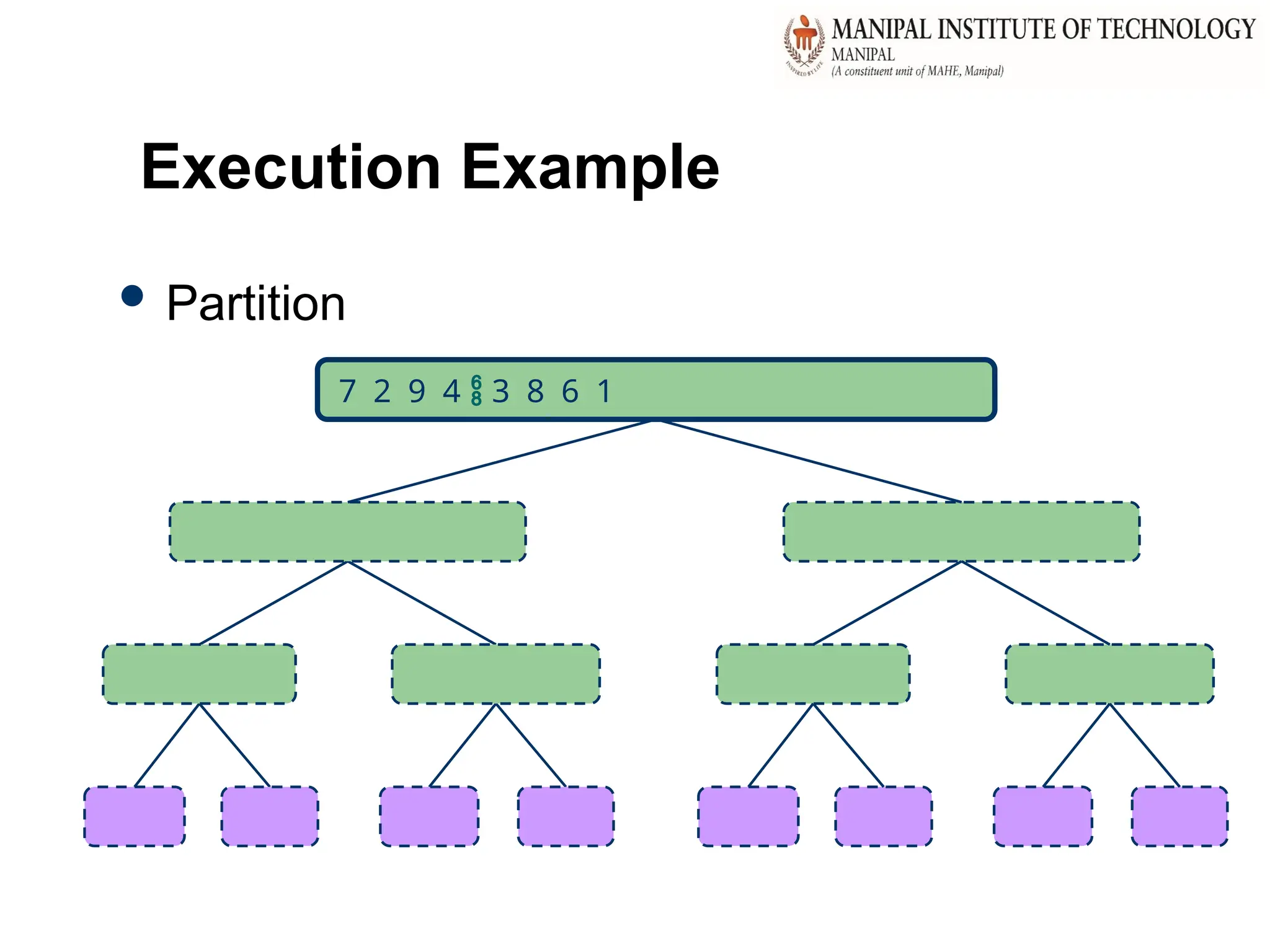

Execution Example
 Partition
7 2 9 4  3 8 6 1

33

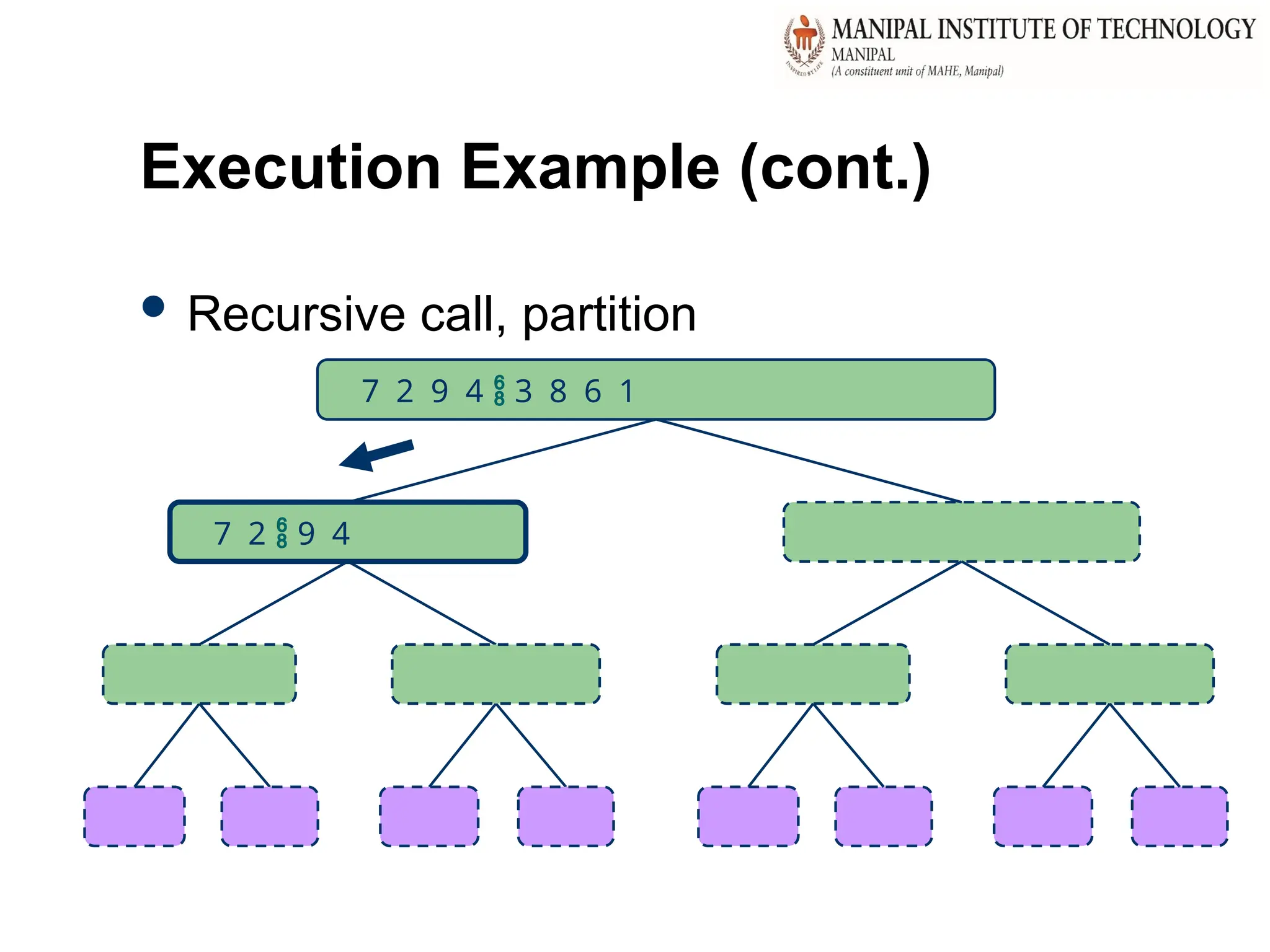

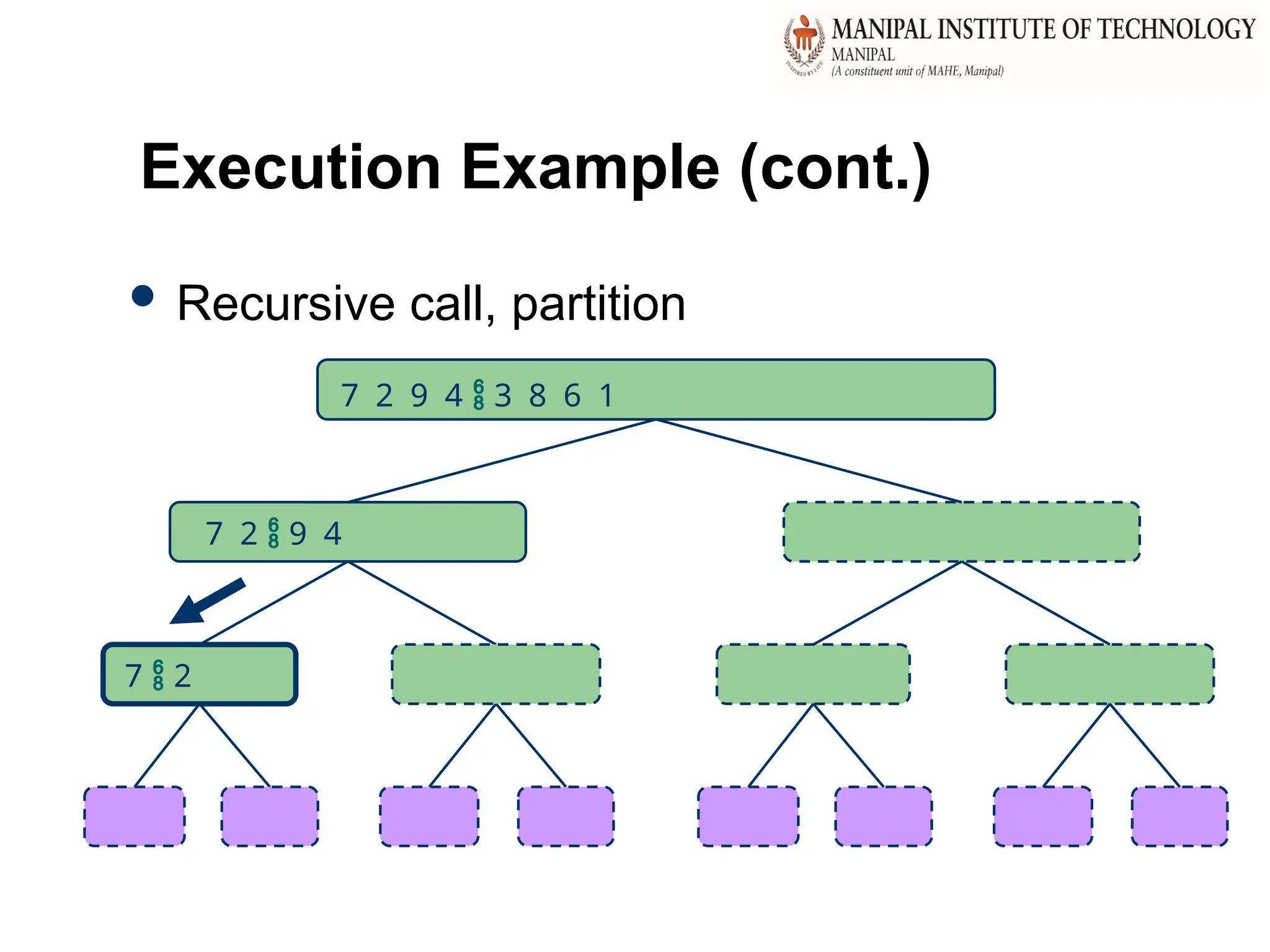

Execution Example (cont.)
 Recursive call, partition
7 2  9 4
7 2 9 4  3 8 6 1

34
 Recursive call, partition
7 2  9 4
7  2
7 2 9 4  3 8 6 1

35

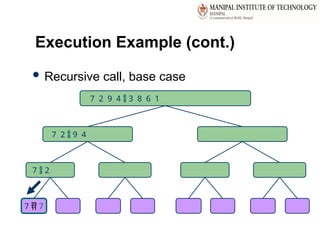

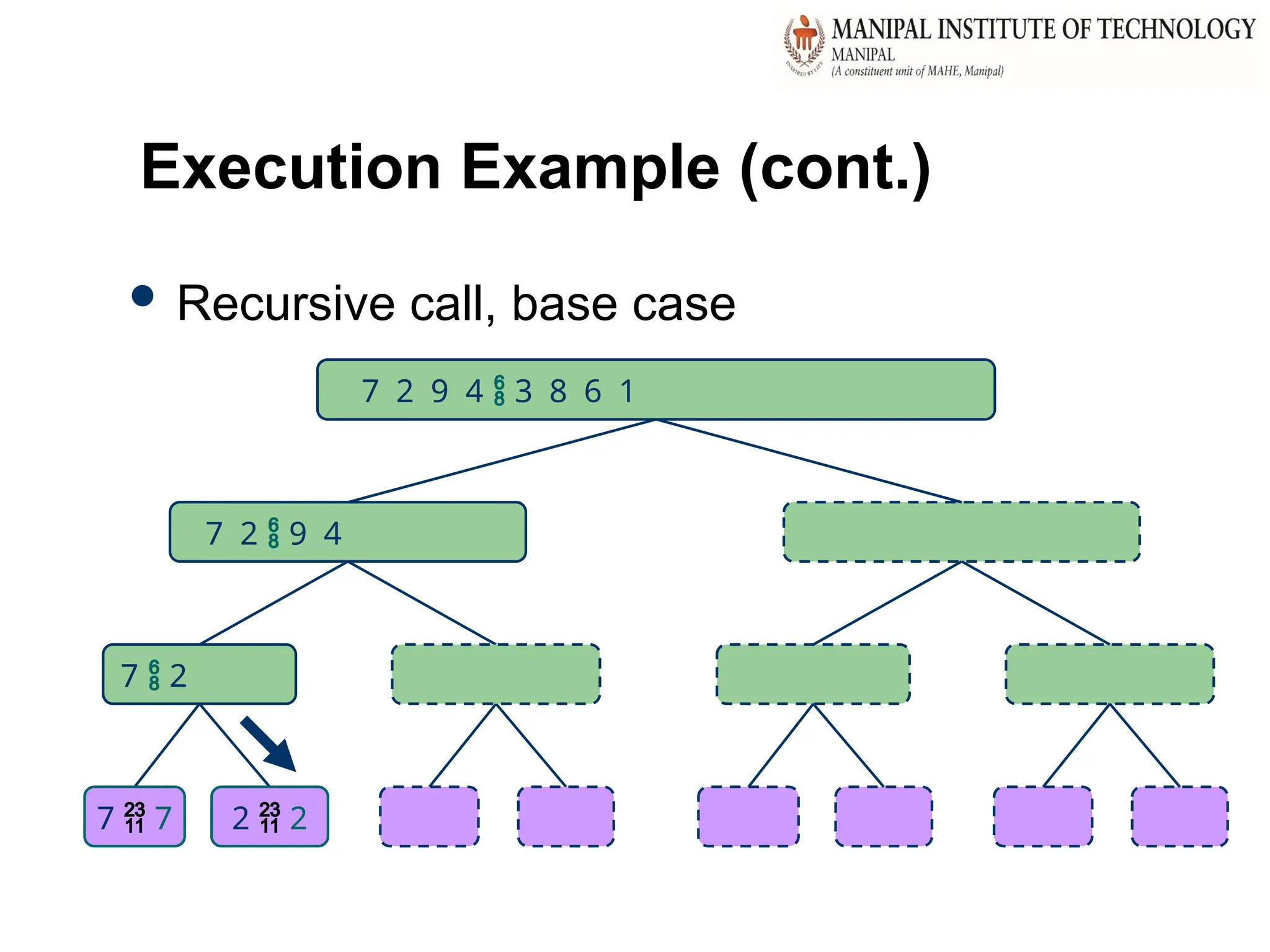

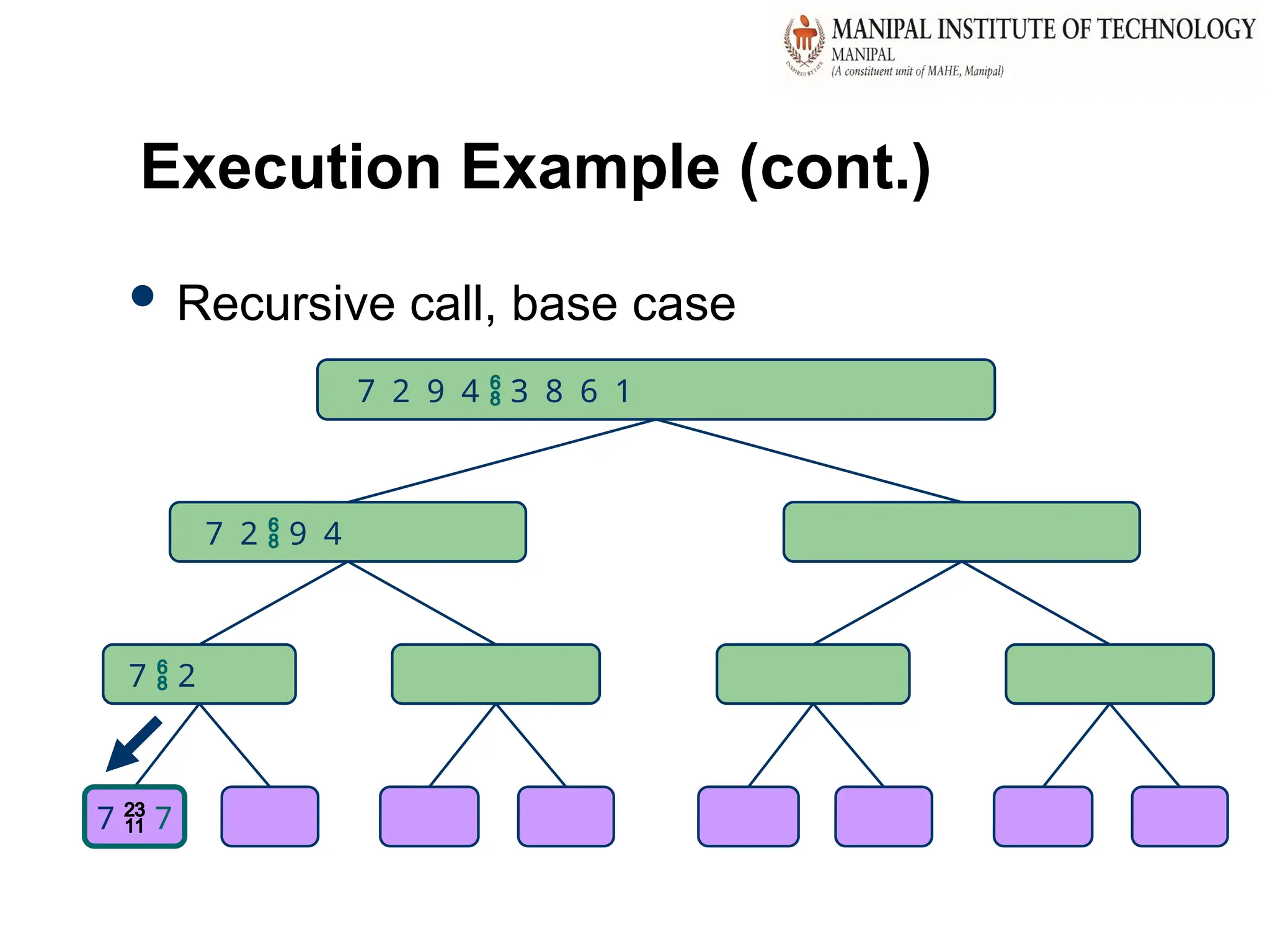

 Recursive call, base case
7 2  9 4
7  2
7  7
7 2 9 4  3 8 6 1

36
 Recursive call, base case
7 2  9 4
7  2
7  7 2  2
7 2 9 4  3 8 6 1

37

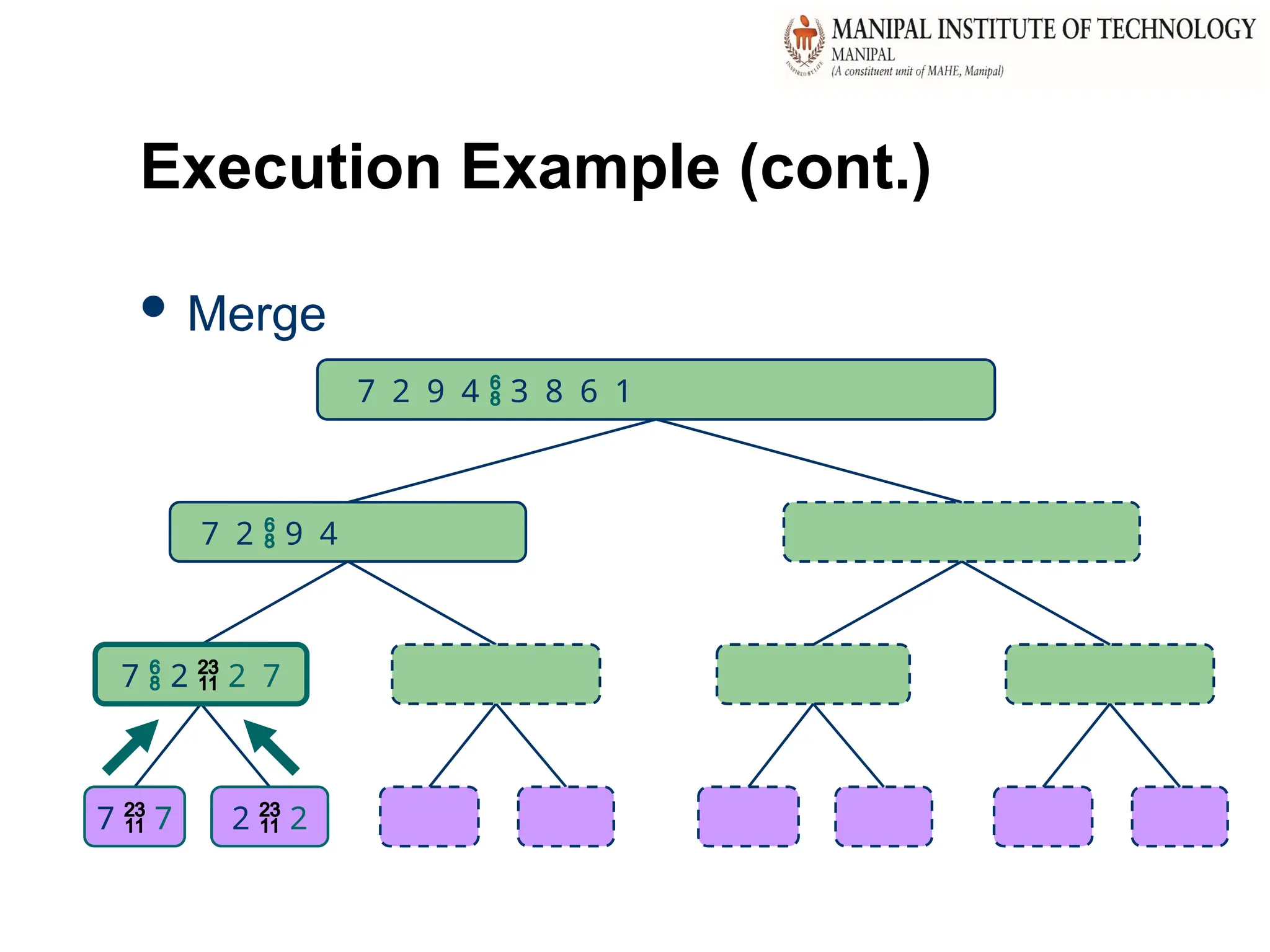

 Merge
7 2  9 4
7  2  2 7
7  7 2  2
7 2 9 4  3 8 6 1

38

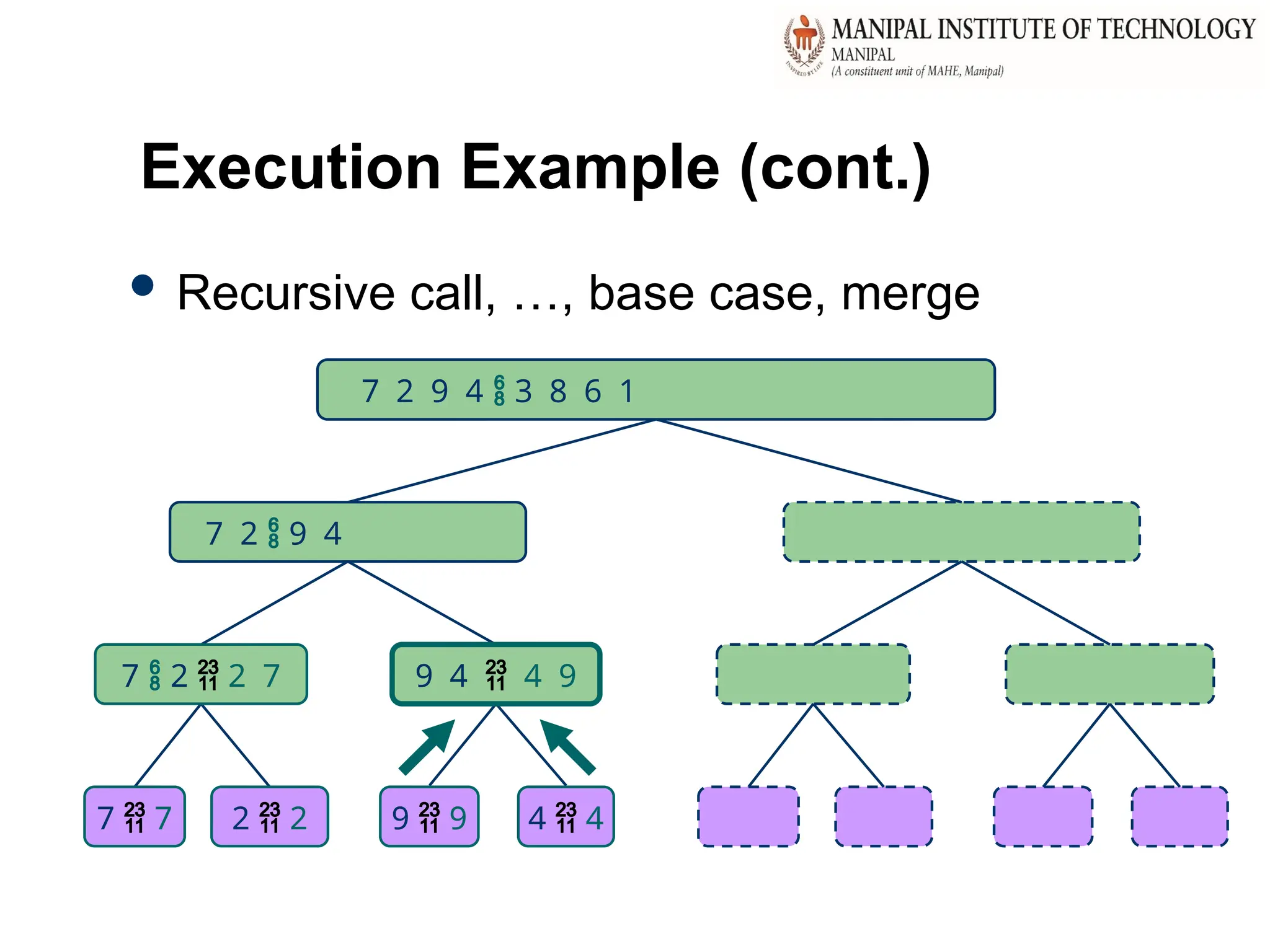

 Recursive call, …, base case, merge
7 2  9 4
7  2  2 7 9 4  4 9
7  7 2  2
7 2 9 4  3 8 6 1
9  9 4  4

39

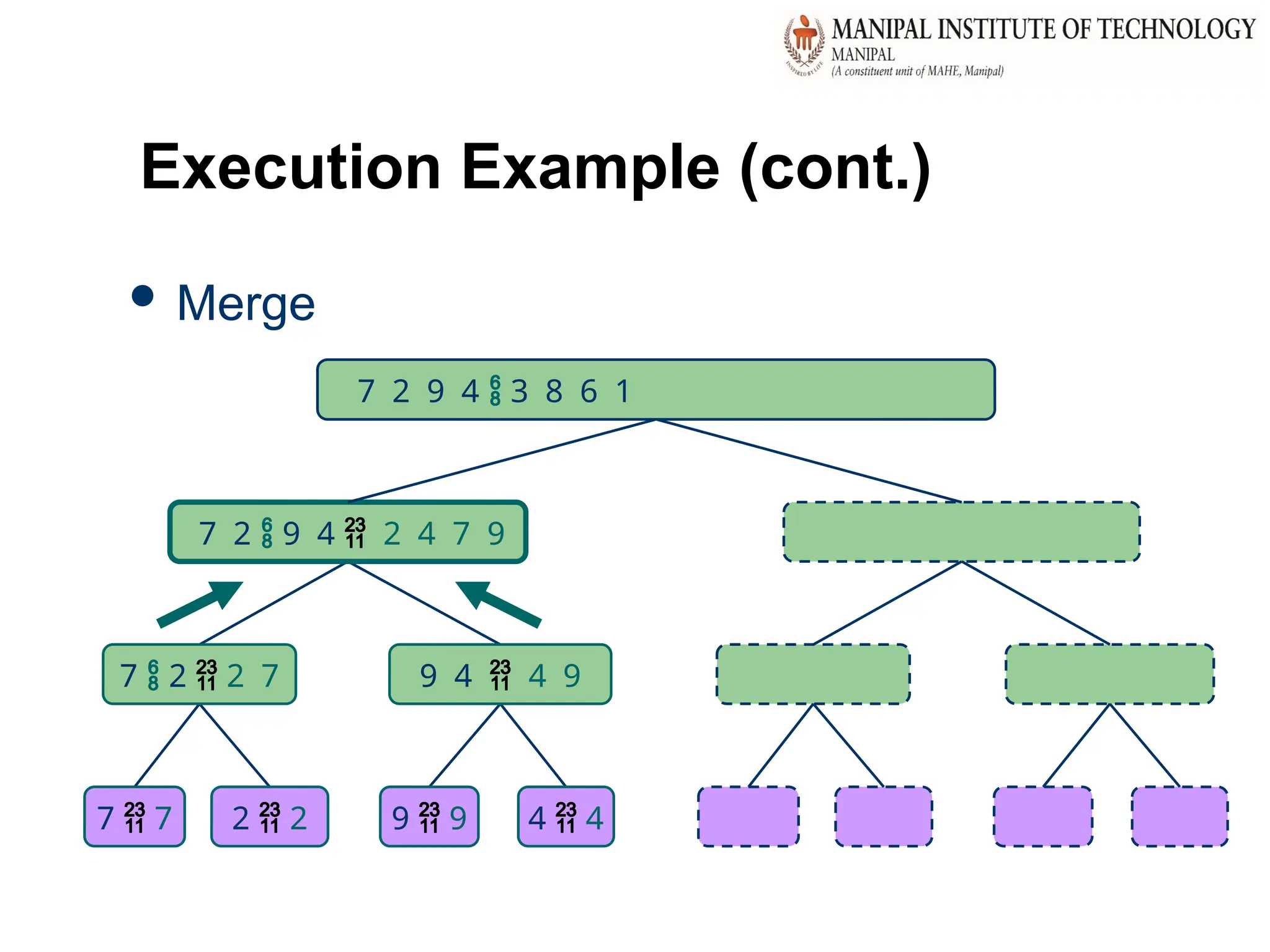

 Merge
7 2  9 4  2 4 7 9
7  2  2 7 9 4  4 9
7  7 2  2 9  9 4  4
7 2 9 4  3 8 6 1

40

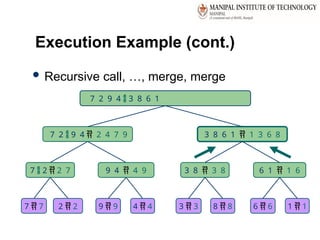

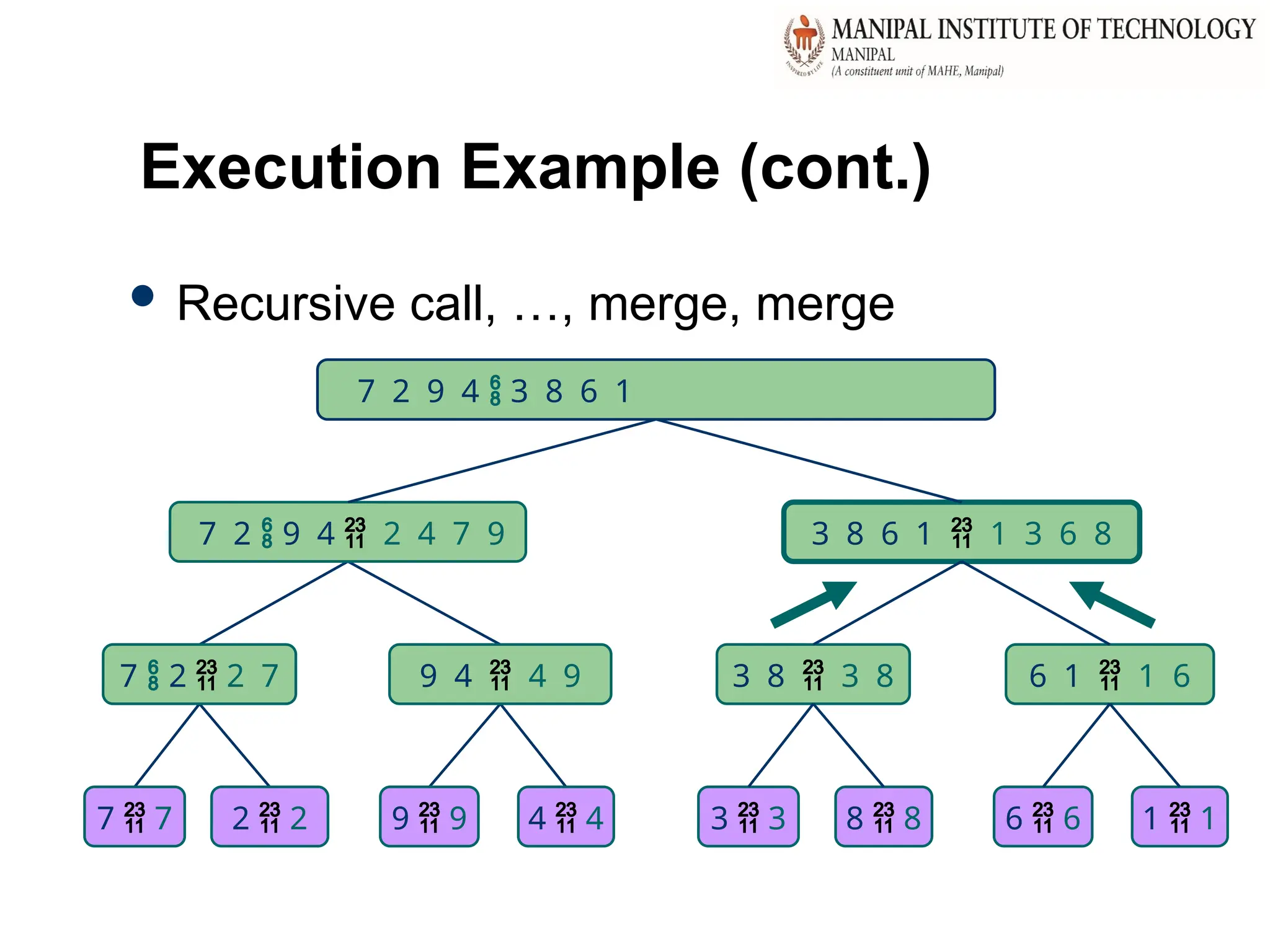

 Recursive call, …, merge, merge
7 2  9 4  2 4 7 9 3 8 6 1  1 3 6 8
7  2  2 7 9 4  4 9 3 8  3 8 6 1  1 6
7  7 2  2 9  9 4  4 3  3 8  8 6  6 1  1
7 2 9 4  3 8 6 1

41

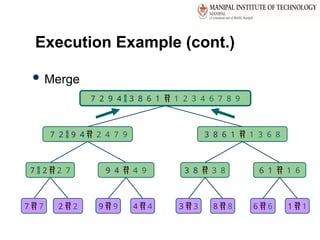

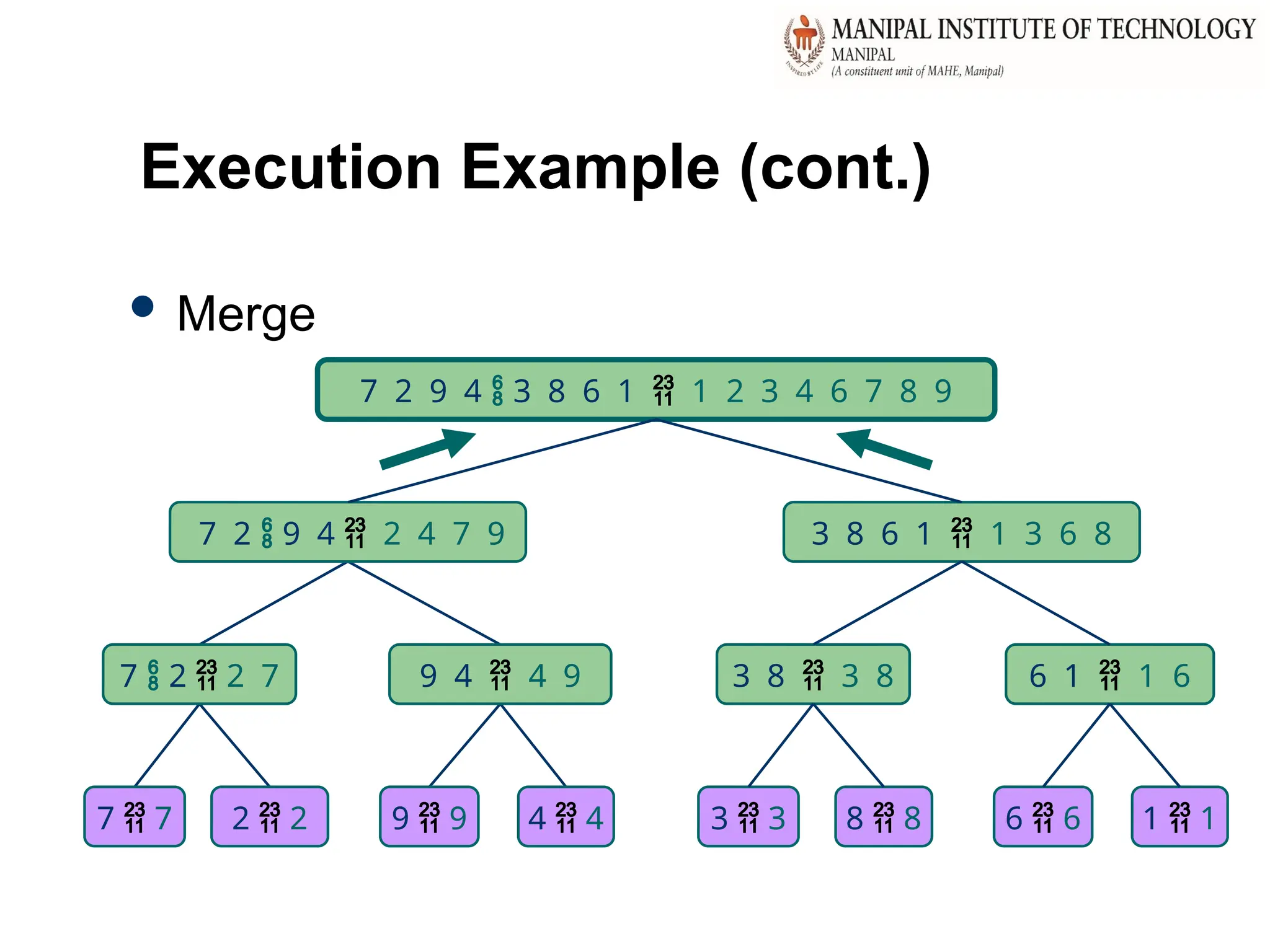

 Merge
7 2  9 4  2 4 7 9 3 8 6 1  1 3 6 8
7  2  2 7 9 4  4 9 3 8  3 8 6 1  1 6
7  7 2  2 9  9 4  4 3  3 8  8 6  6 1  1
7 2 9 4  3 8 6 1  1 2 3 4 6 7 8 9

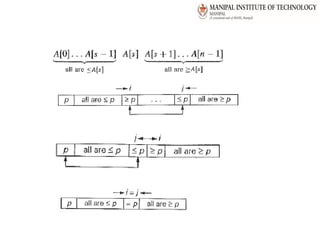

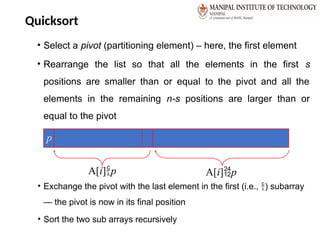

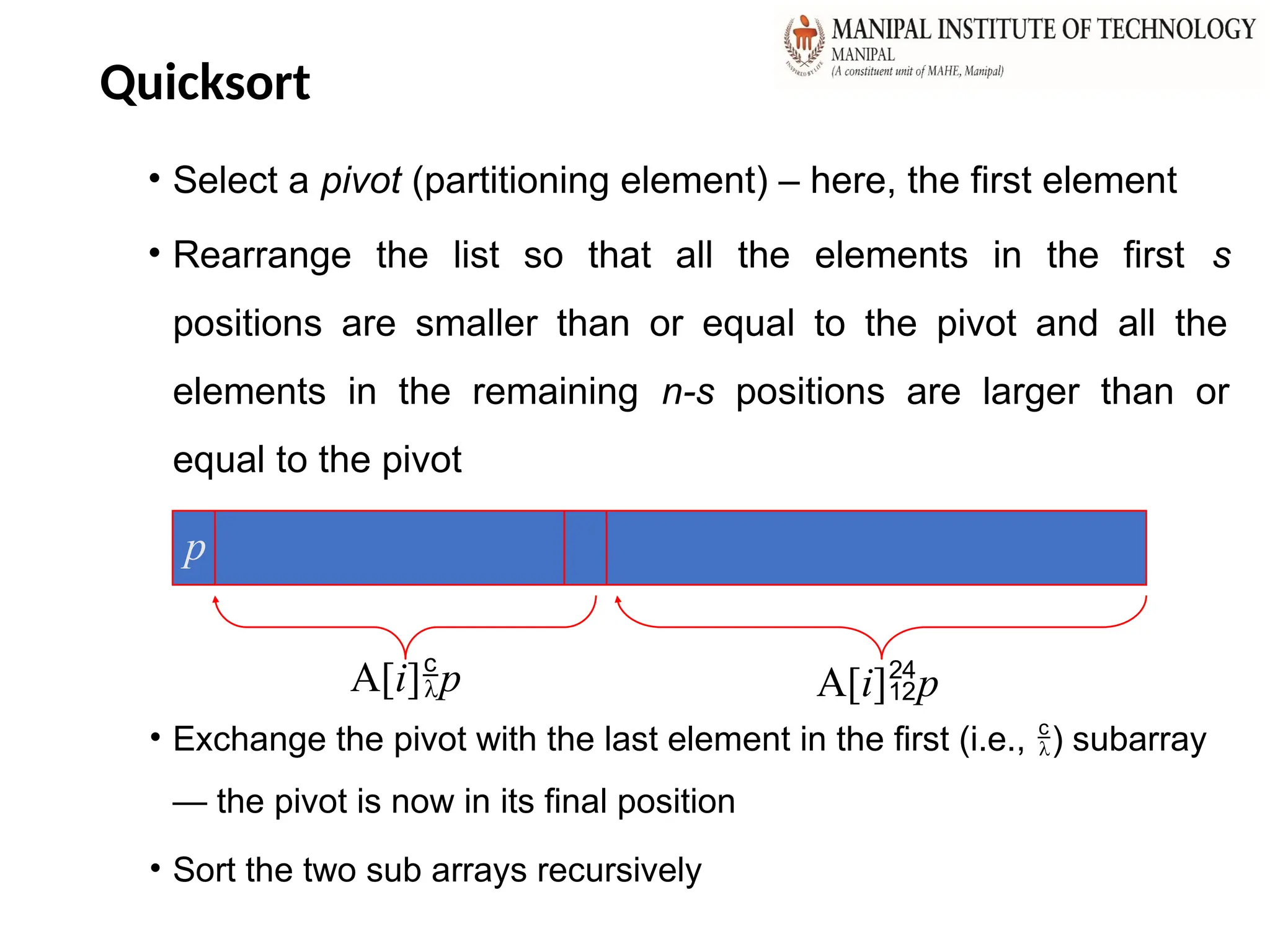

Quicksort
• Select a pivot (partitioning element) – here, the first element
• Rearrange the list so that all the elements in the first s
positions are smaller than or equal to the pivot and all the
elements in the remaining n-s positions are larger than or
equal to the pivot
• Exchange the pivot with the last element in the first (i.e., ) subarray
— the pivot is now in its final position
• Sort the two sub arrays recursively
p
A[i]p A[i]p

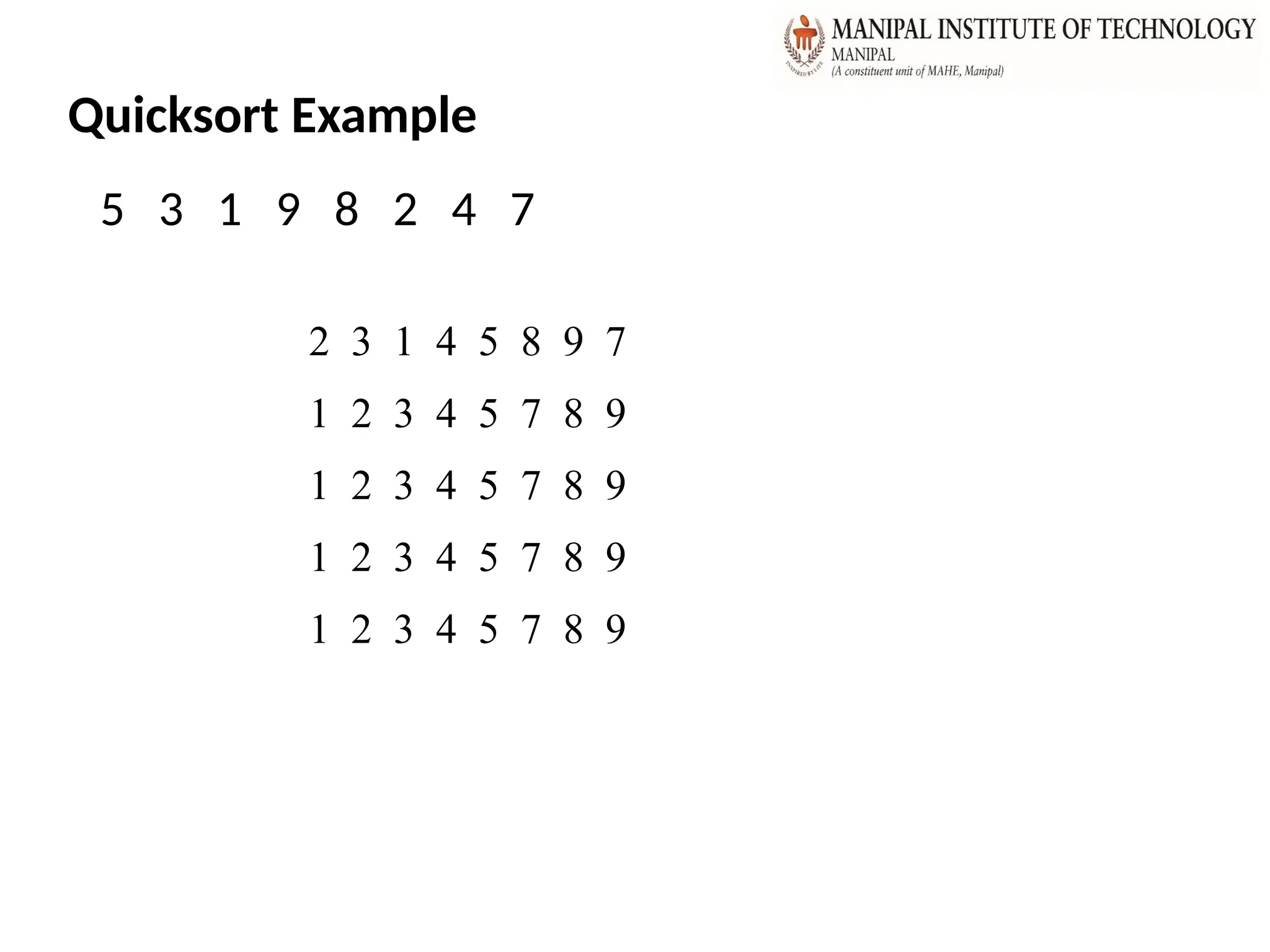

Quicksort Example
5 3 1 9 8 2 4 7
2 3 1 4 5 8 9 7
1 2 3 4 5 7 8 9
1 2 3 4 5 7 8 9
1 2 3 4 5 7 8 9
1 2 3 4 5 7 8 9

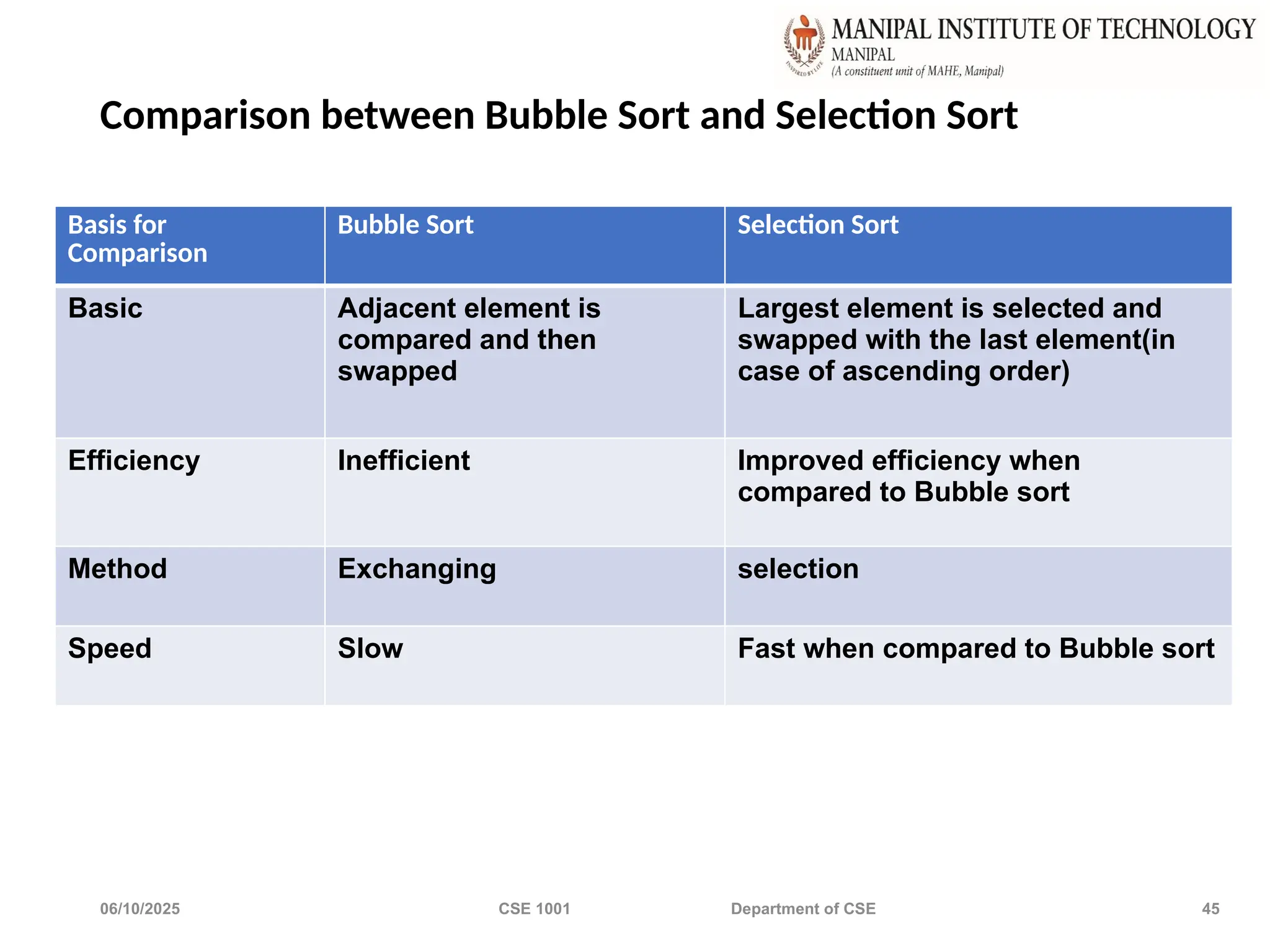

Comparison between Bubble Sort and Selection Sort
Basis for
Comparison
Bubble Sort Selection Sort
Basic Adjacent element is
compared and then
swapped
Largest element is selected and
swapped with the last element(in
case of ascending order)
Efficiency Inefficient Improved efficiency when
compared to Bubble sort
Method Exchanging selection
Speed Slow Fast when compared to Bubble sort

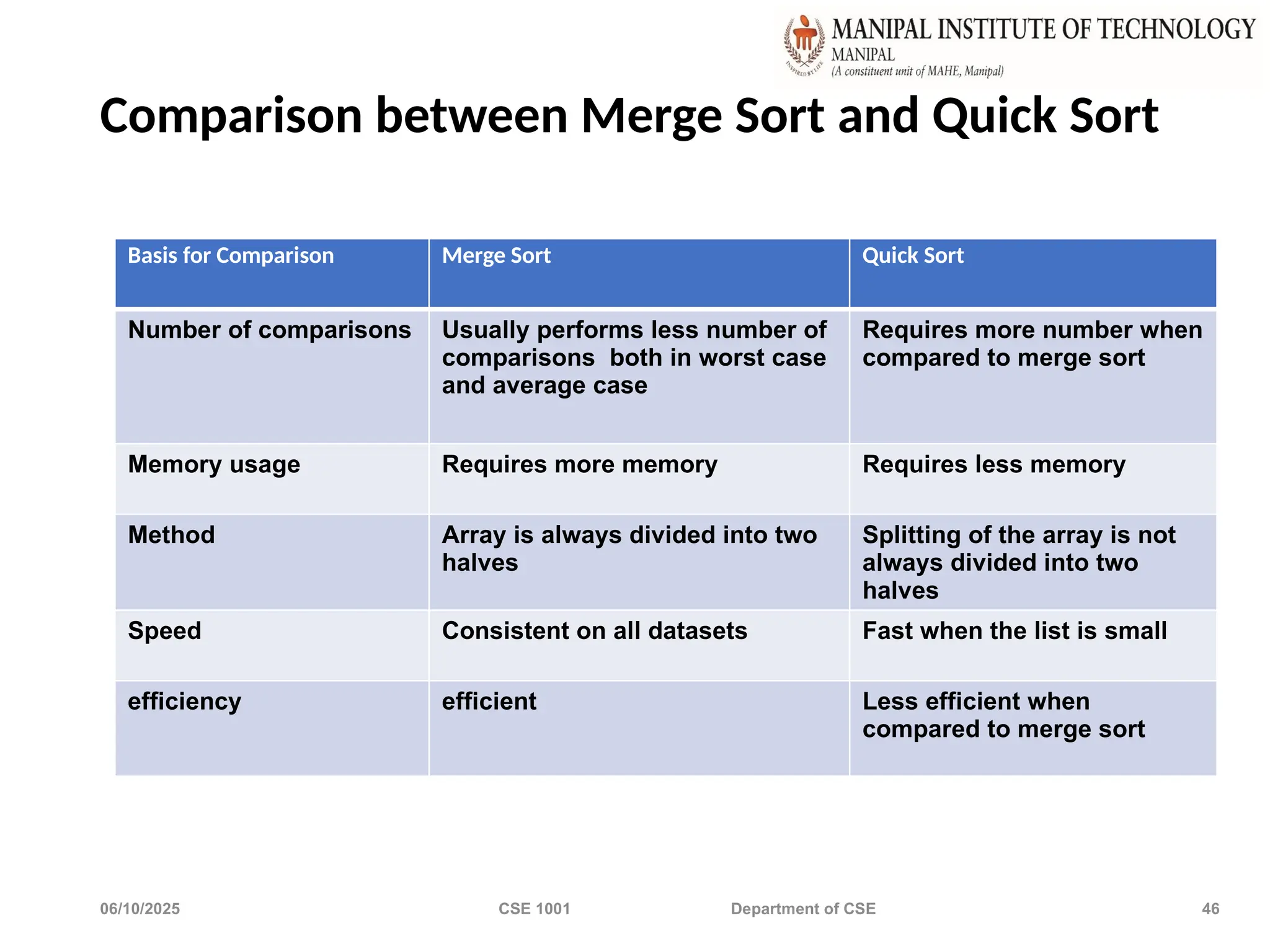

Comparison between Merge Sort and Quick Sort
Basis for Comparison Merge Sort Quick Sort
Number of comparisons Usually performs less number of
comparisons both in worst case
and average case
Requires more number when
compared to merge sort
Memory usage Requires more memory Requires less memory
Method Array is always divided into two
halves
Splitting of the array is not
always divided into two
halves
Speed Consistent on all datasets Fast when the list is small
efficiency efficient Less efficient when
compared to merge sort

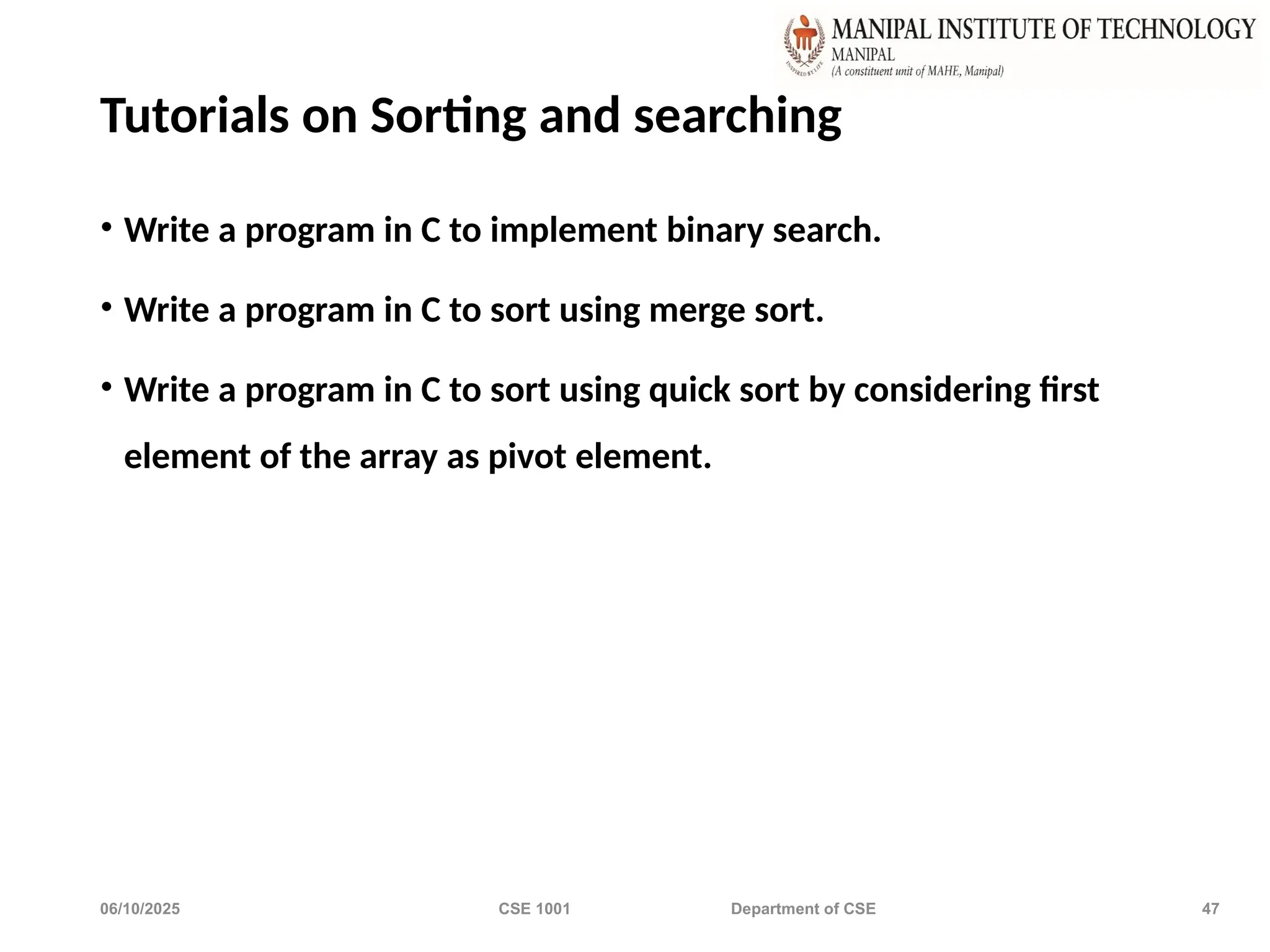

Tutorials on Sorting and searching
• Write a program in C to implement binary search.
• Write a program in C to sort using merge sort.
• Write a program in C to sort using quick sort by considering first
element of the array as pivot element.

C H A R A C T E R A R R A Y S
S T R I N G S

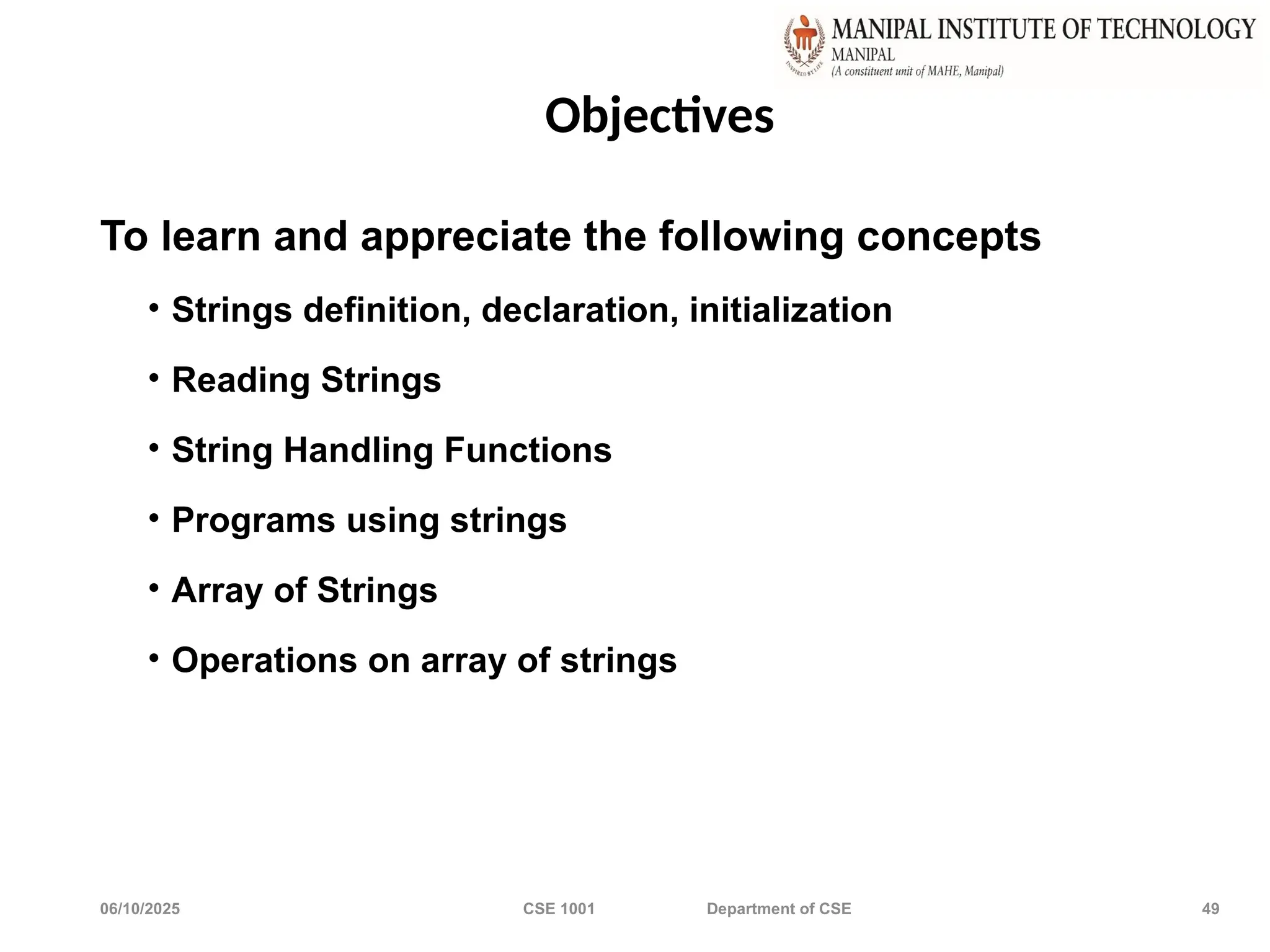

Objectives
• Strings definition, declaration, initialization
• Reading Strings
• String Handling Functions
• Programs using strings
• Array of Strings
• Operations on array of strings

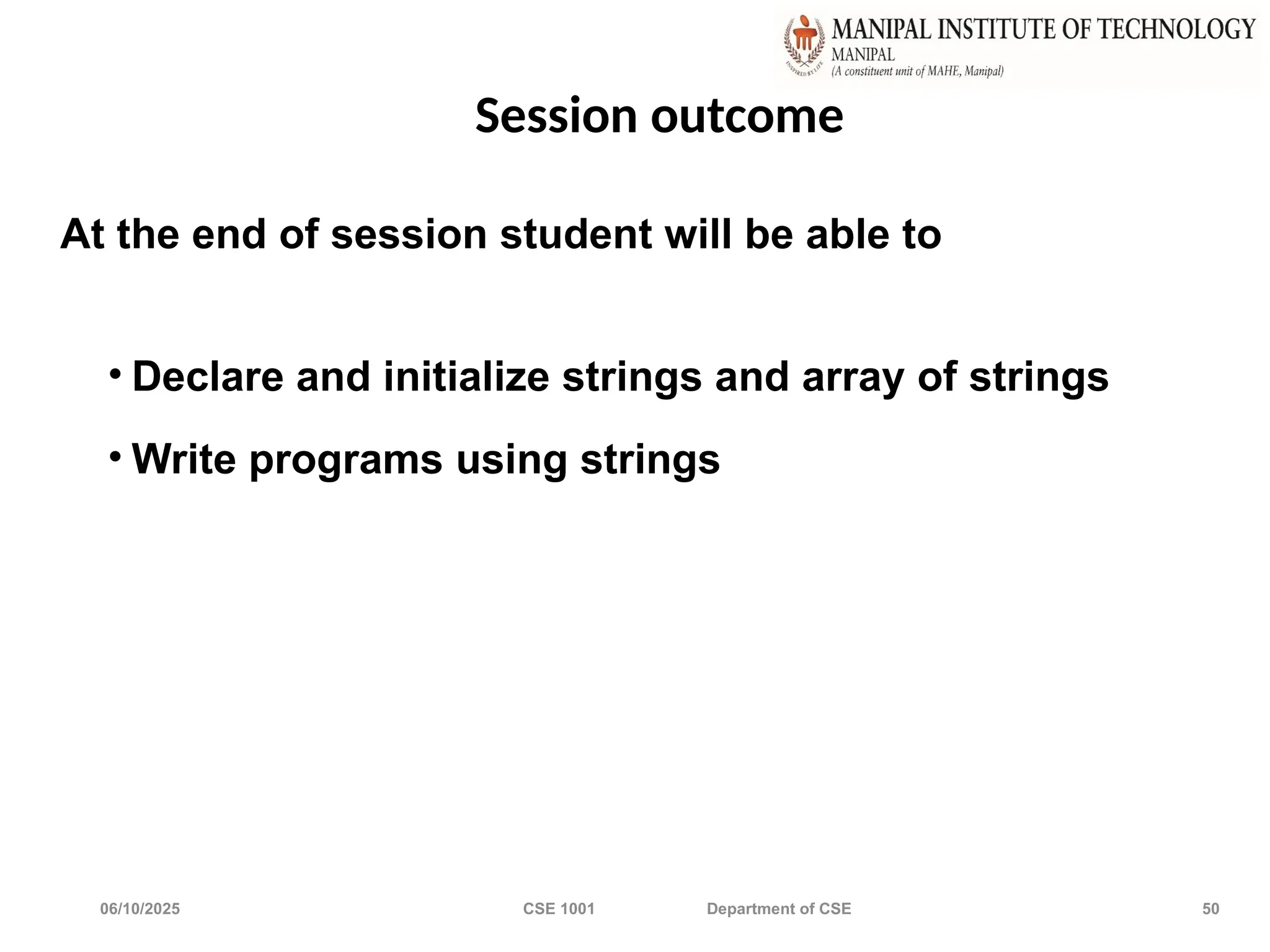

Session outcome
At the end of session student will be able to
• Declare and initialize strings and array of strings
• Write programs using strings

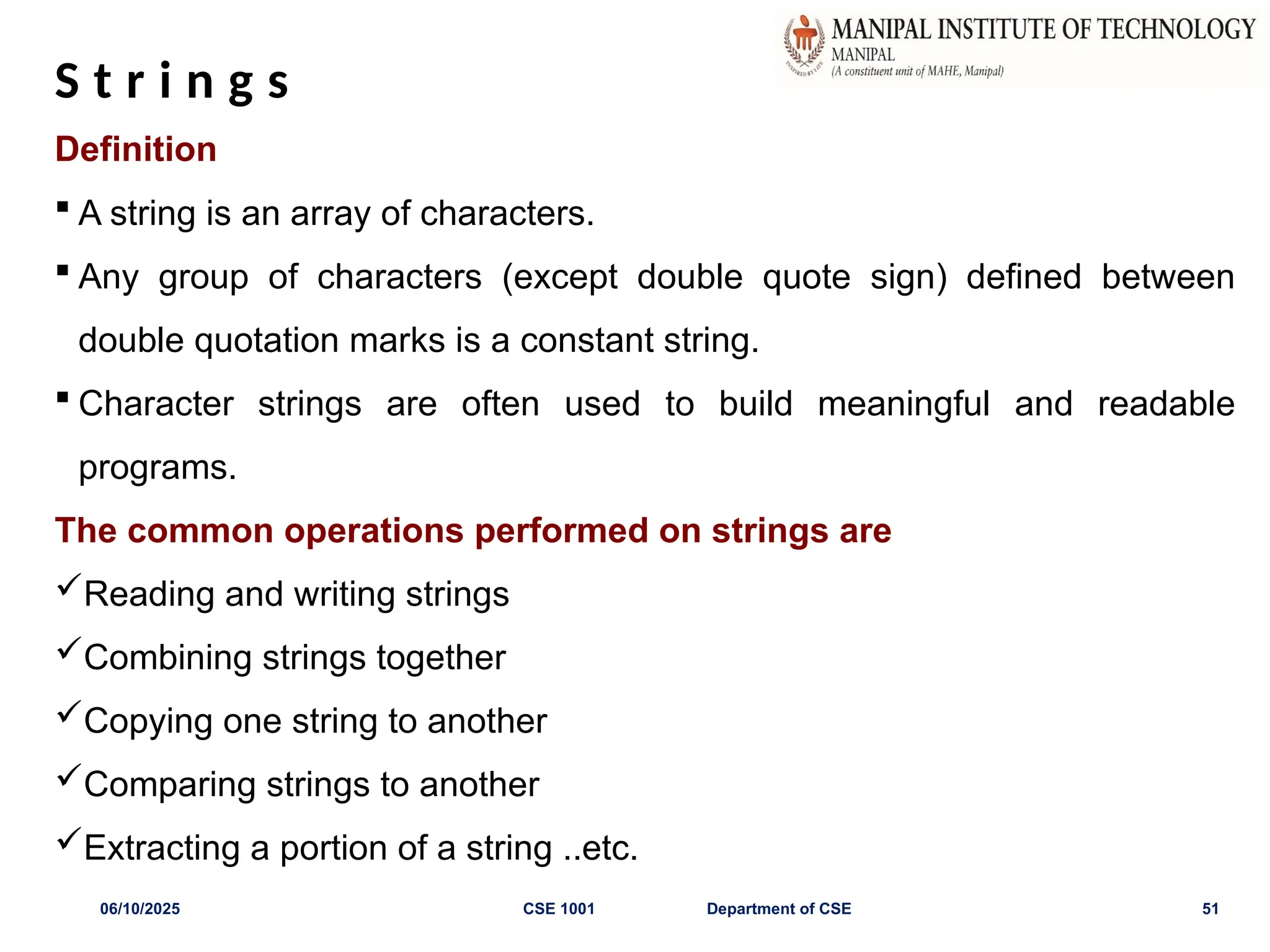

S t r i n g s
Definition
 A string is an array of characters.
 Any group of characters (except double quote sign) defined between
double quotation marks is a constant string.
 Character strings are often used to build meaningful and readable
programs.
The common operations performed on strings are
Reading and writing strings
Combining strings together
Copying one string to another
Comparing strings to another
Extracting a portion of a string ..etc.

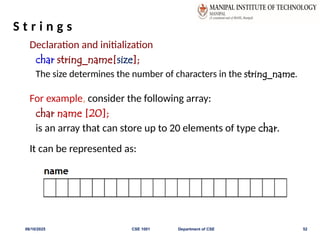

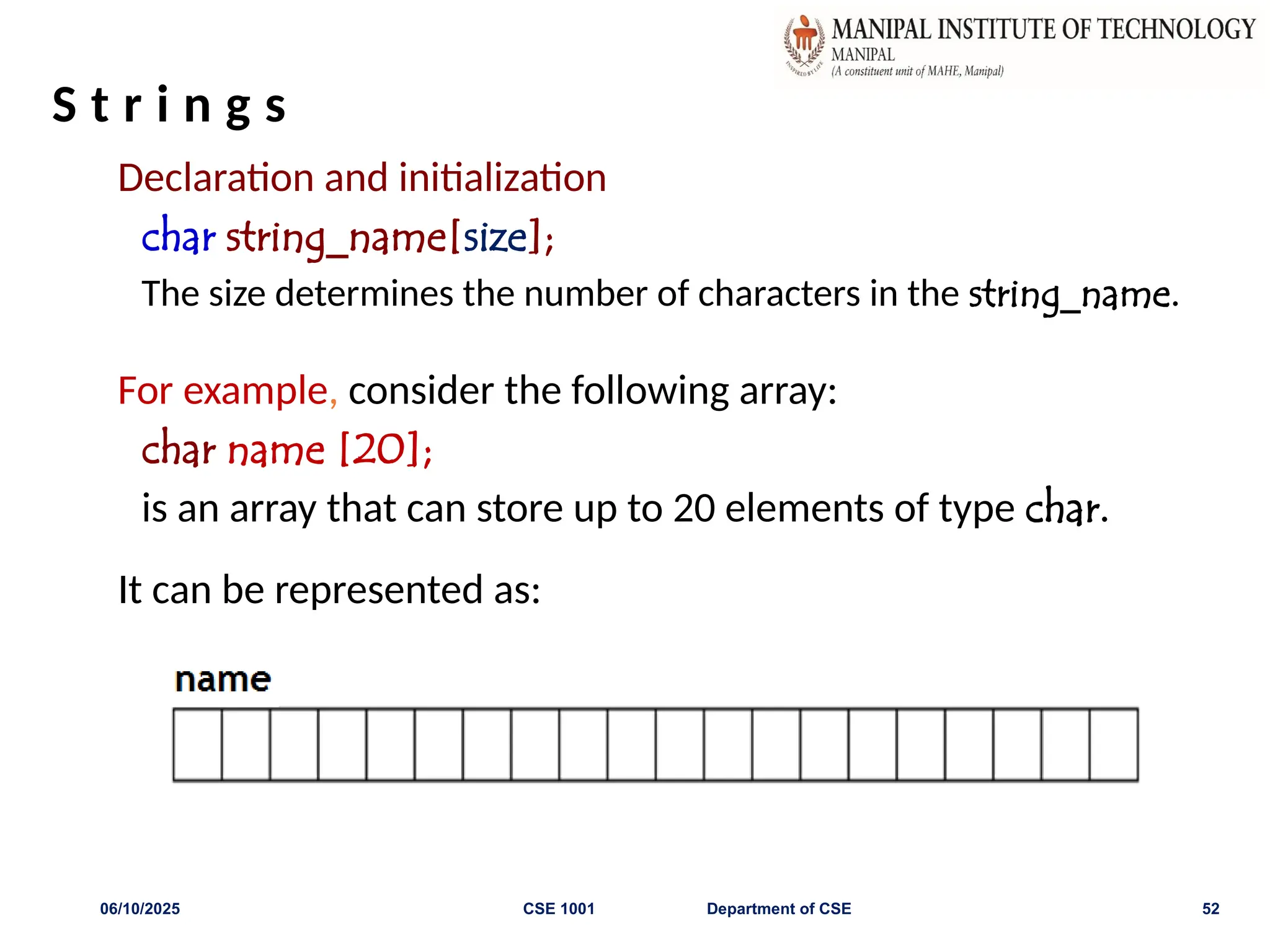

S t r i n g s
Declaration and initialization
char string_name[size];
The size determines the number of characters in the string_name.
For example, consider the following array:
char name [20];
is an array that can store up to 20 elements of type char.
It can be represented as:

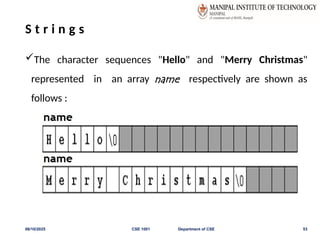

S t r i n g s

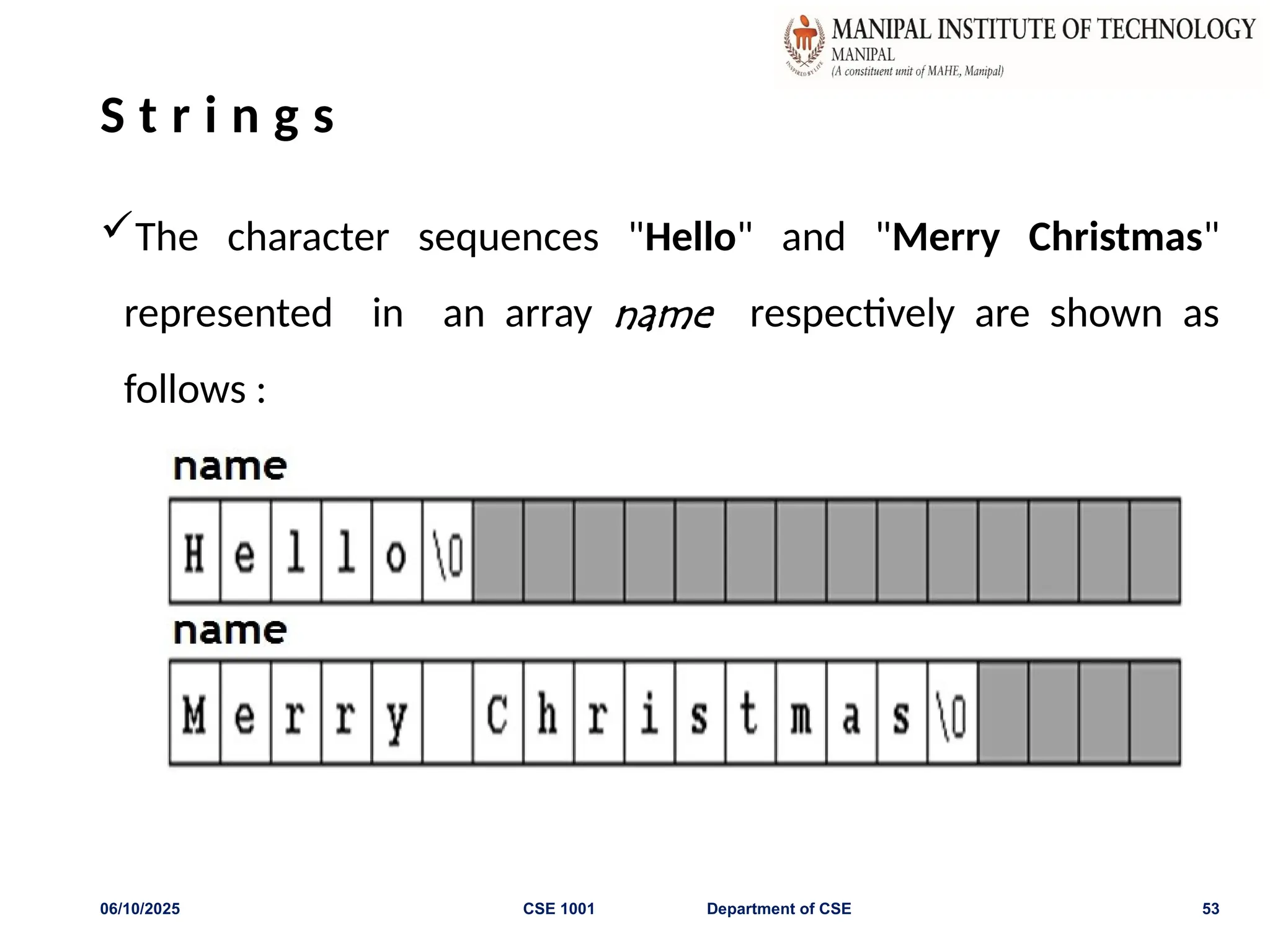

The character sequences "Hello" and "Merry Christmas"
represented in an array name respectively are shown as
follows :

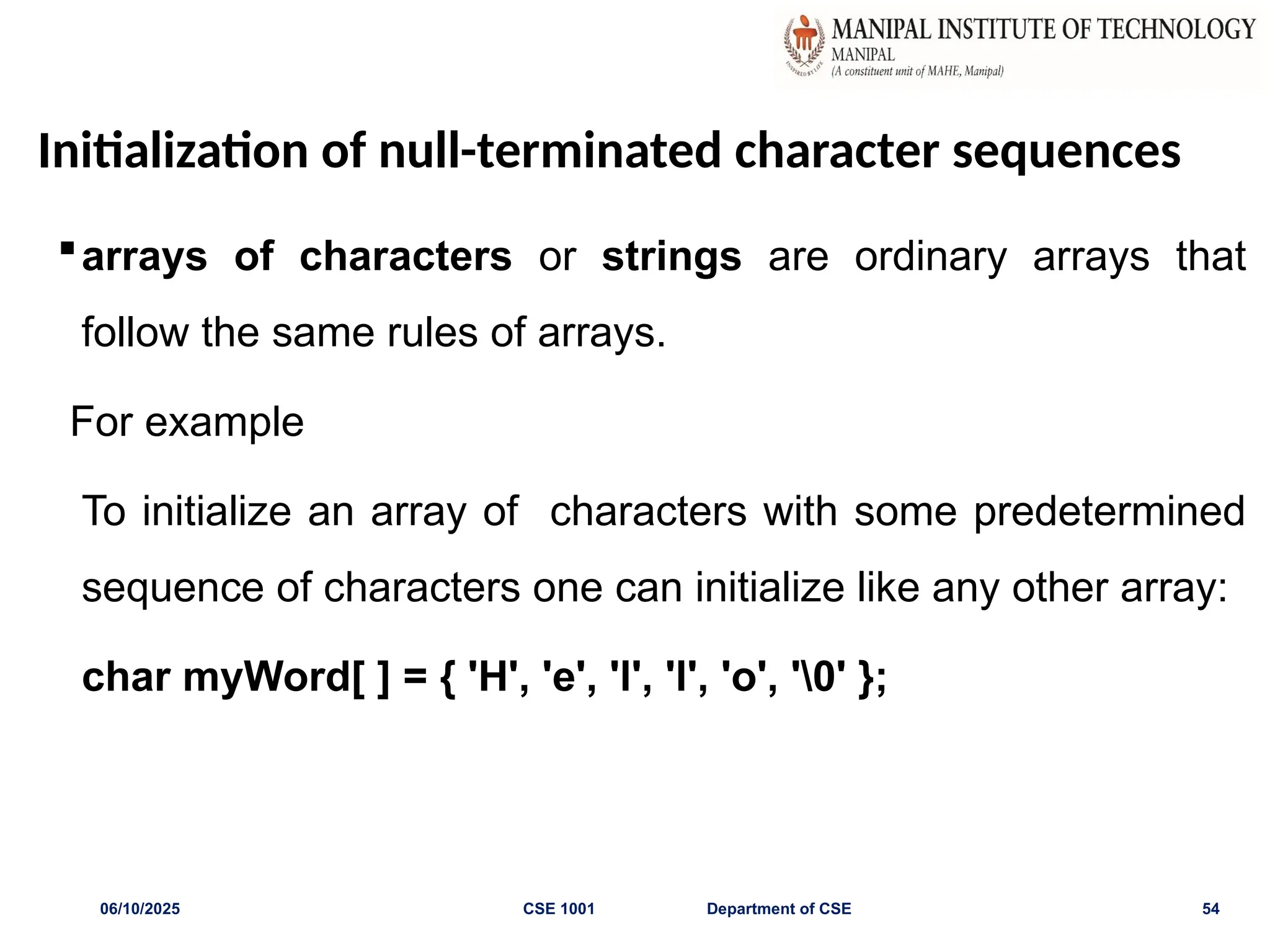

Initialization of null-terminated character sequences
arrays of characters or strings are ordinary arrays that
follow the same rules of arrays.
For example
To initialize an array of characters with some predetermined
sequence of characters one can initialize like any other array:
char myWord[ ] = { 'H', 'e', 'l', 'l', 'o', '0' };

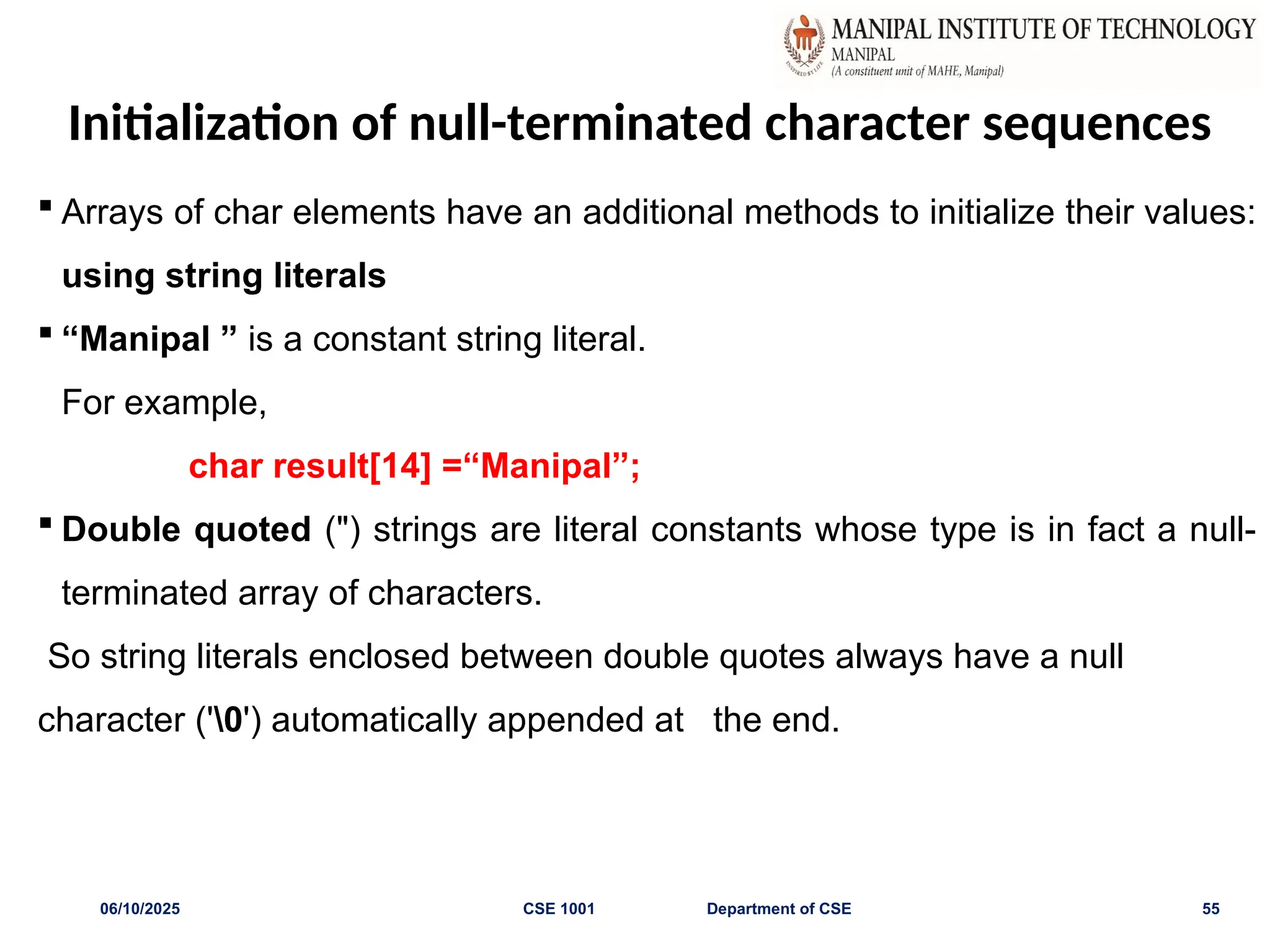

Initialization of null-terminated character sequences
 Arrays of char elements have an additional methods to initialize their values:
using string literals
 “Manipal ” is a constant string literal.
For example,
char result[14] =“Manipal”;
 Double quoted (") strings are literal constants whose type is in fact a null-
terminated array of characters.
So string literals enclosed between double quotes always have a null
character ('0') automatically appended at the end.

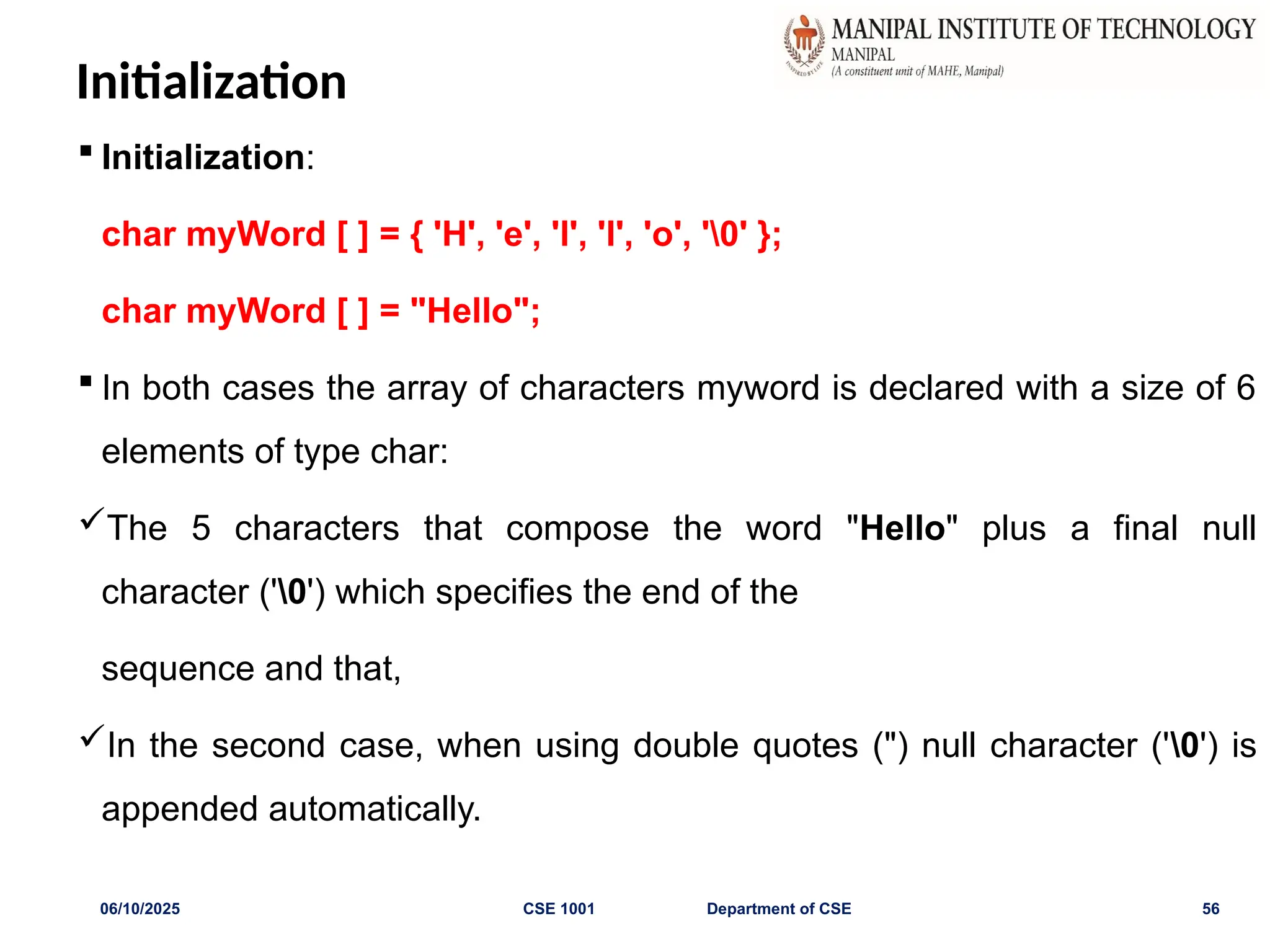

Initialization
 Initialization:
char myWord [ ] = { 'H', 'e', 'l', 'l', 'o', '0' };
char myWord [ ] = "Hello";
 In both cases the array of characters myword is declared with a size of 6
elements of type char:
The 5 characters that compose the word "Hello" plus a final null
character ('0') which specifies the end of the
sequence and that,
In the second case, when using double quotes (") null character ('0') is
appended automatically.

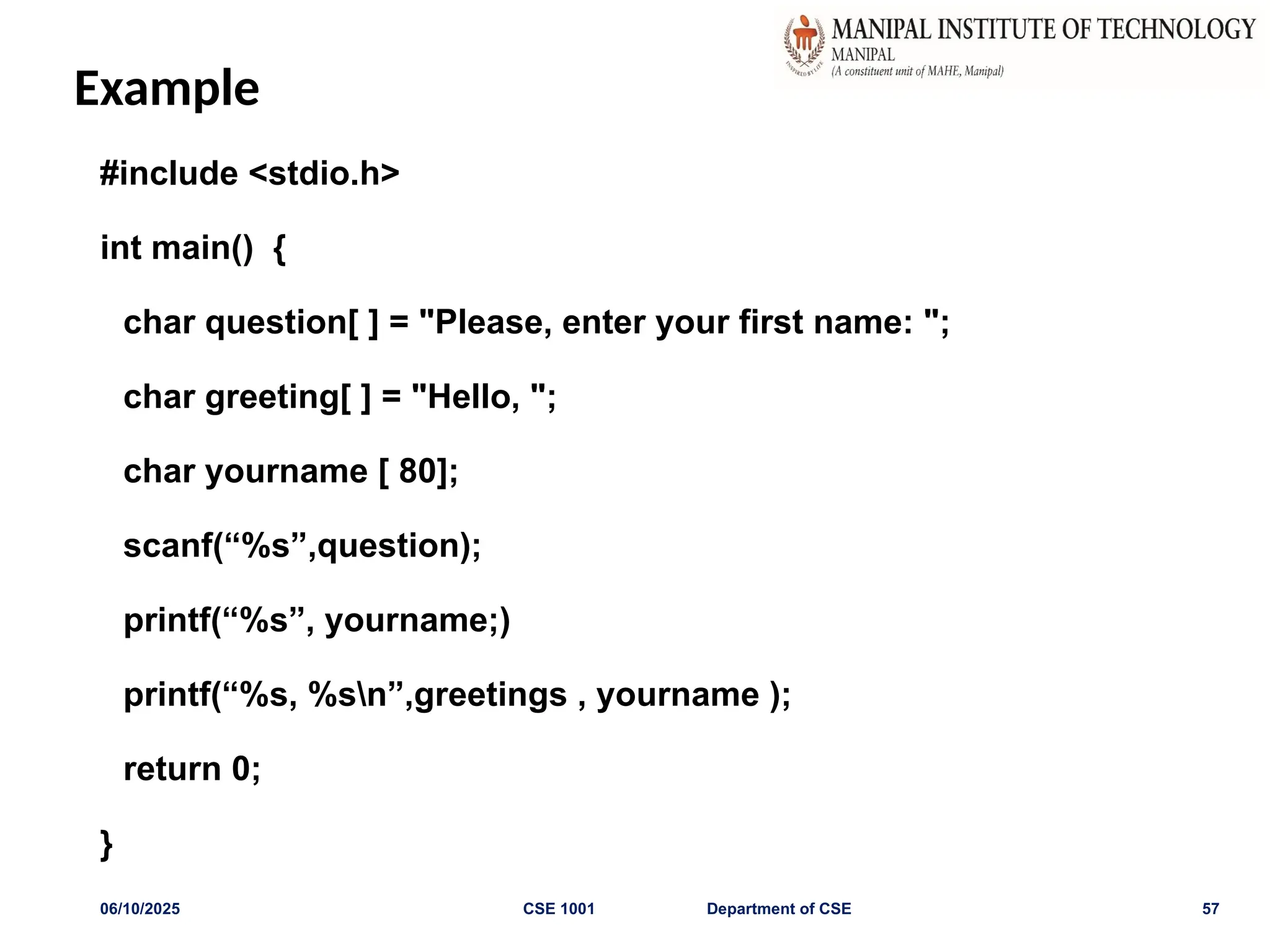

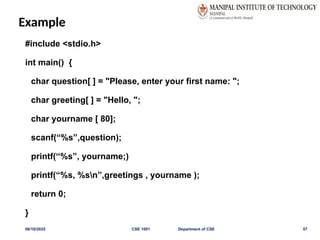

Example
#include <stdio.h>
int main() {
char question[ ] = "Please, enter your first name: ";
char greeting[ ] = "Hello, ";
char yourname [ 80];
scanf(“%s”,question);
printf(“%s”, yourname;)
printf(“%s, %sn”,greetings , yourname );
return 0;
}

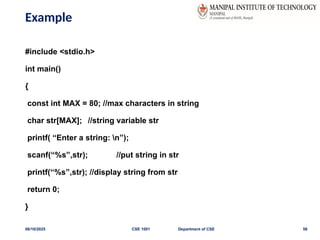

Example
#include <stdio.h>
int main()
{
const int MAX = 80; //max characters in string
char str[MAX]; //string variable str
printf( “Enter a string: n”);
scanf(“%s”,str); //put string in str
printf(“%s”,str); //display string from str
return 0;
}

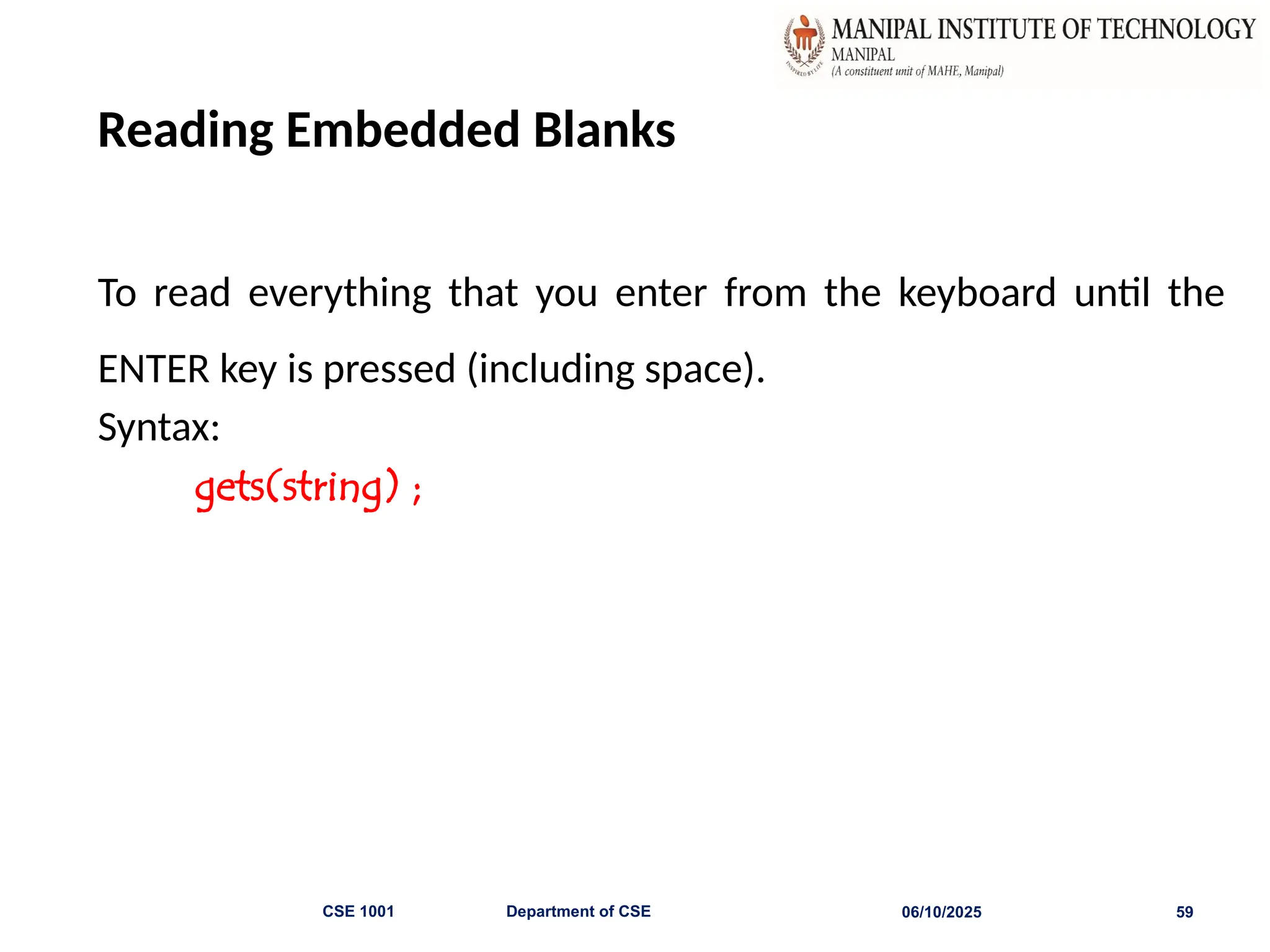

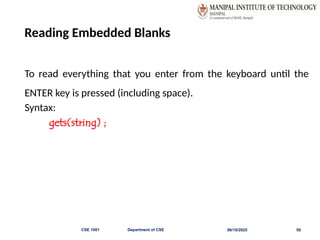

Reading Embedded Blanks
To read everything that you enter from the keyboard until the
ENTER key is pressed (including space).
Syntax:
gets(string) ;
06/10/2025
CSE 1001 Department of CSE 59

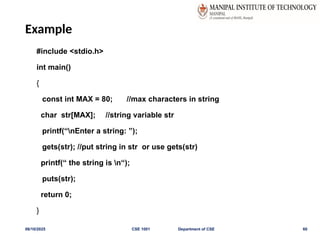

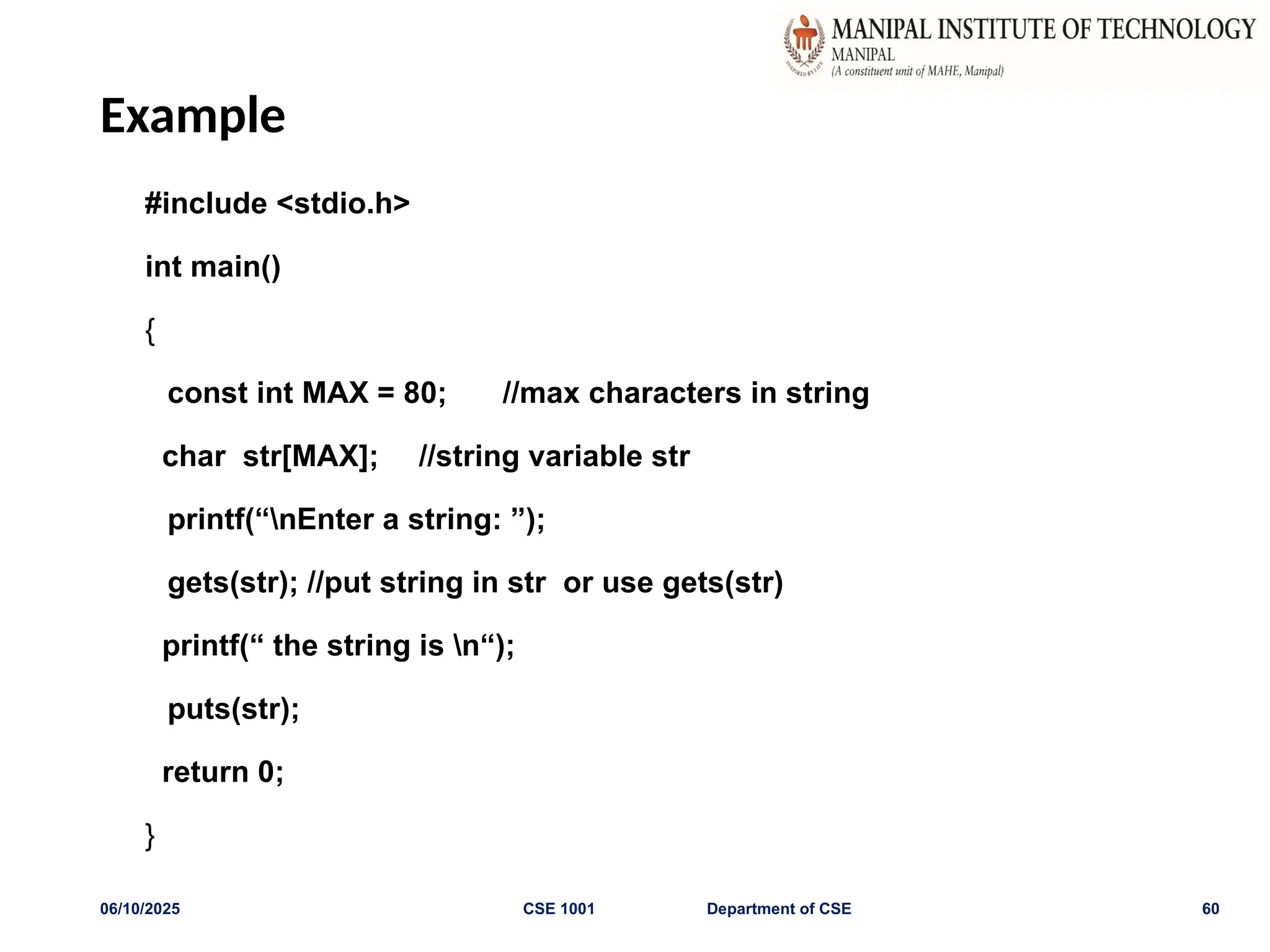

Example
#include <stdio.h>
int main()
{
const int MAX = 80; //max characters in string
char str[MAX]; //string variable str
printf(“nEnter a string: ”);
gets(str); //put string in str or use gets(str)
printf(“ the string is n“);
puts(str);
return 0;
}

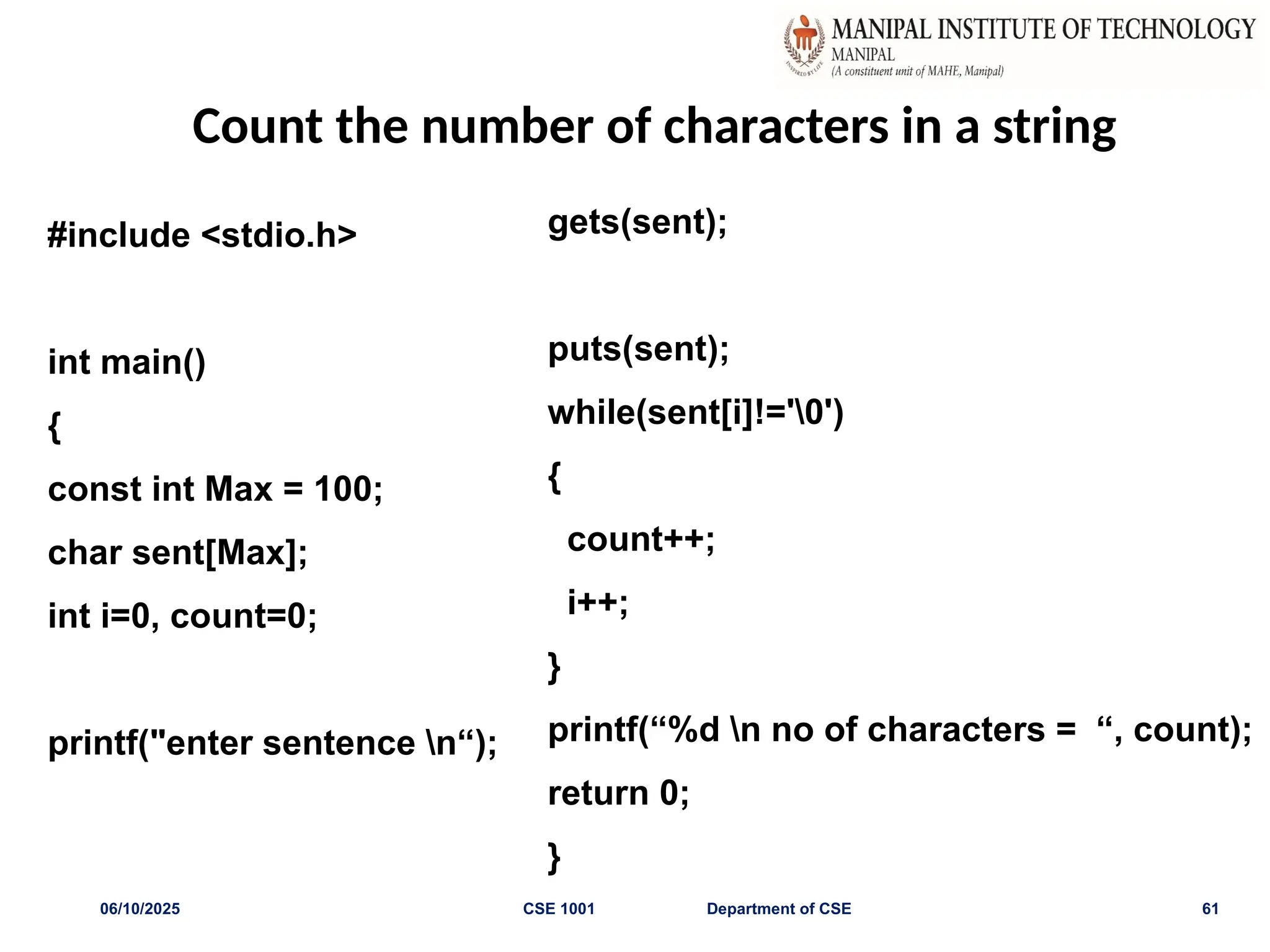

Count the number of characters in a string
#include <stdio.h>
int main()
{
const int Max = 100;
char sent[Max];
int i=0, count=0;
printf("enter sentence n“);
gets(sent);
puts(sent);
while(sent[i]!='0')
{
count++;
i++;
}
printf(“%d n no of characters = “, count);
return 0;
}

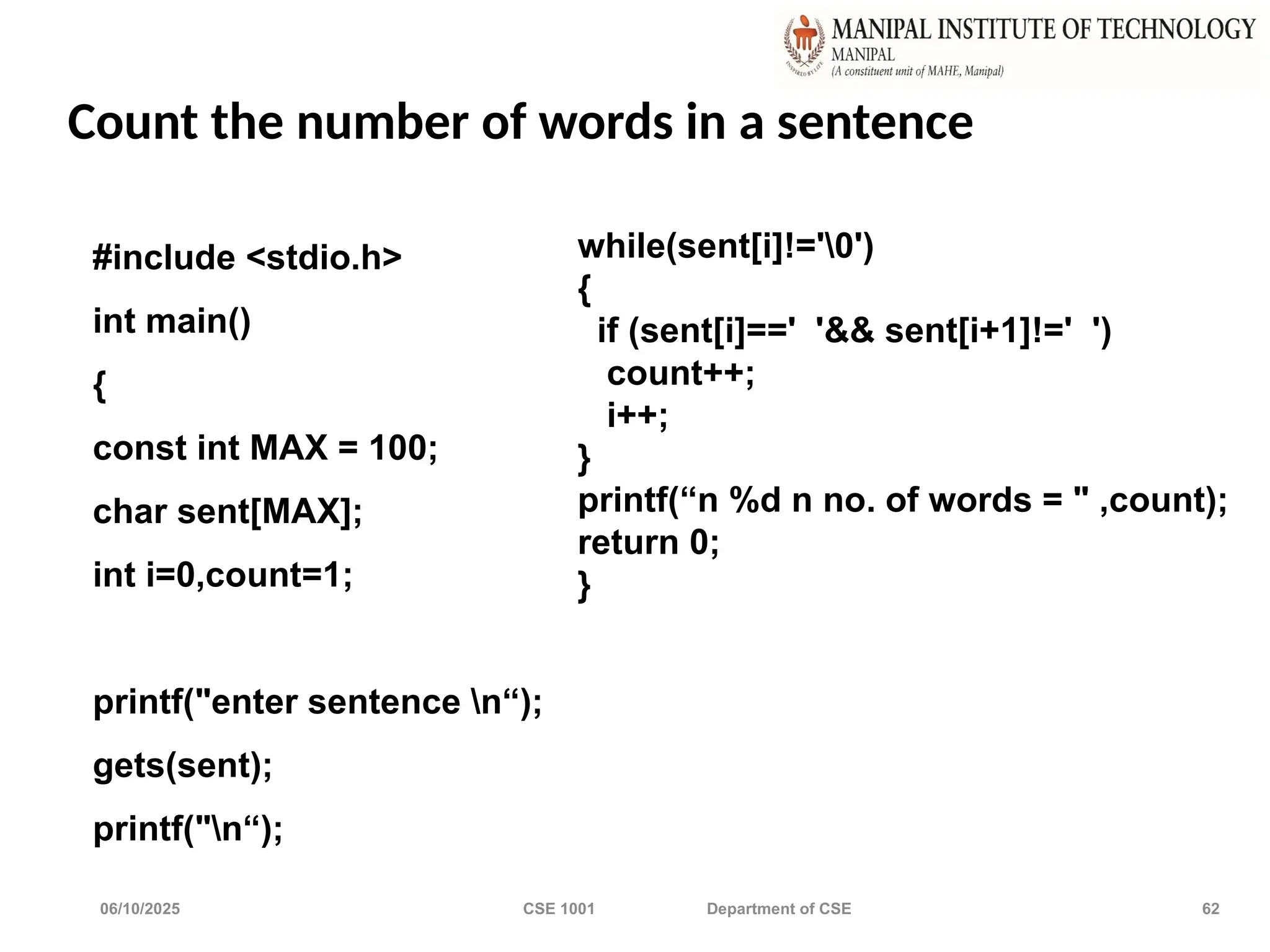

Count the number of words in a sentence
#include <stdio.h>
int main()
{
const int MAX = 100;
char sent[MAX];
int i=0,count=1;
gets(sent);
printf("n“);
while(sent[i]!='0')
{
if (sent[i]==' '&& sent[i+1]!=' ')
count++;
i++;
}
printf(“n %d n no. of words = " ,count);
return 0;
}

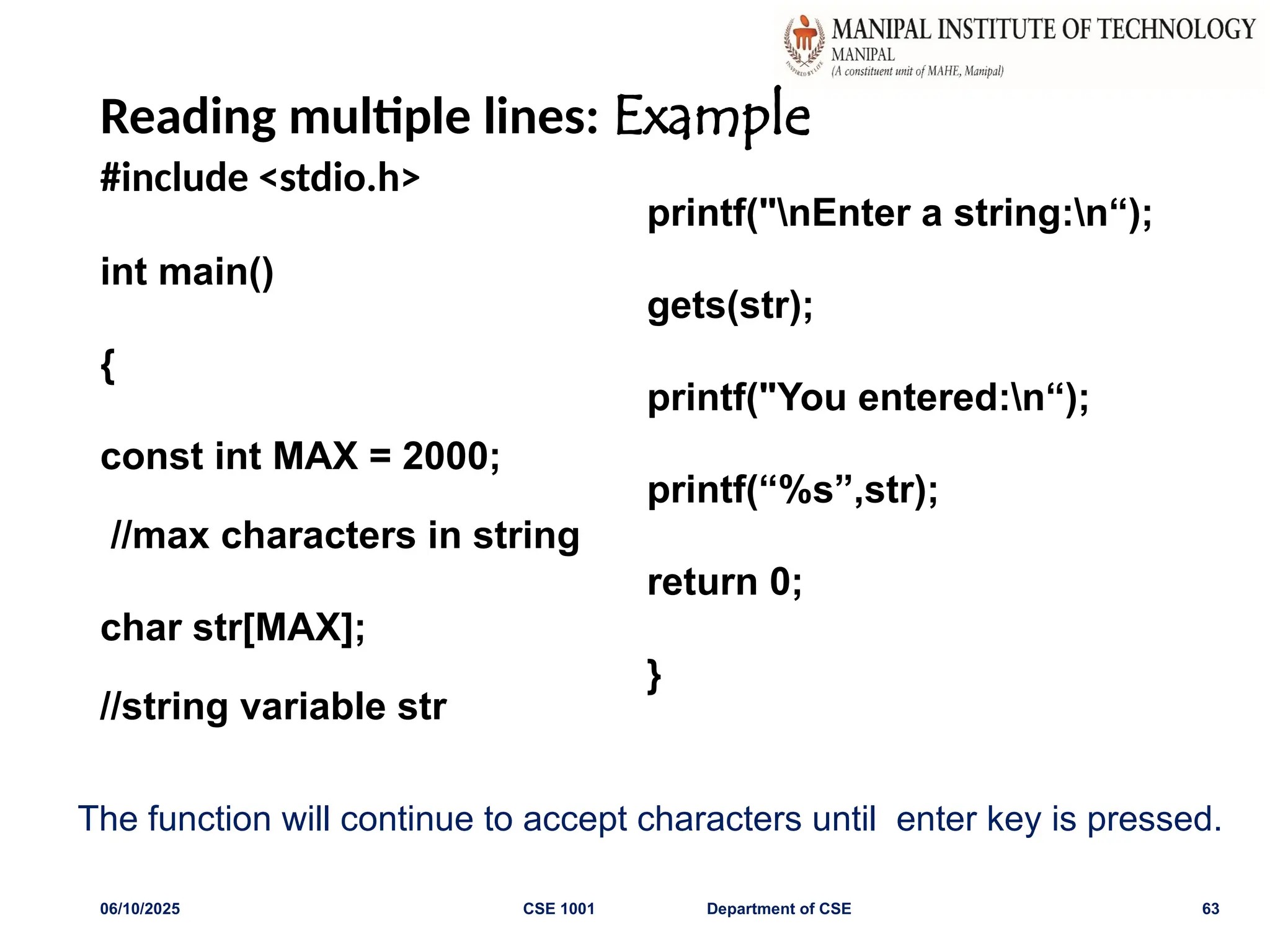

Reading multiple lines: Example
#include <stdio.h>
int main()
{
//max characters in string
char str[MAX];
//string variable str
printf("nEnter a string:n“);
gets(str);
printf("You entered:n“);
printf(“%s”,str);
return 0;
}
The function will continue to accept characters until enter key is pressed.

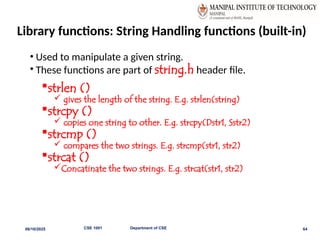

Library functions: String Handling functions (built-in)
• Used to manipulate a given string.
• These functions are part of string.h header file.
strlen ()
 gives the length of the string. E.g. strlen(string)
strcpy ()
 copies one string to other. E.g. strcpy(Dstr1, Sstr2)
strcmp ()
 compares the two strings. E.g. strcmp(str1, str2)
strcat ()
Concatinate the two strings. E.g. strcat(str1, str2)

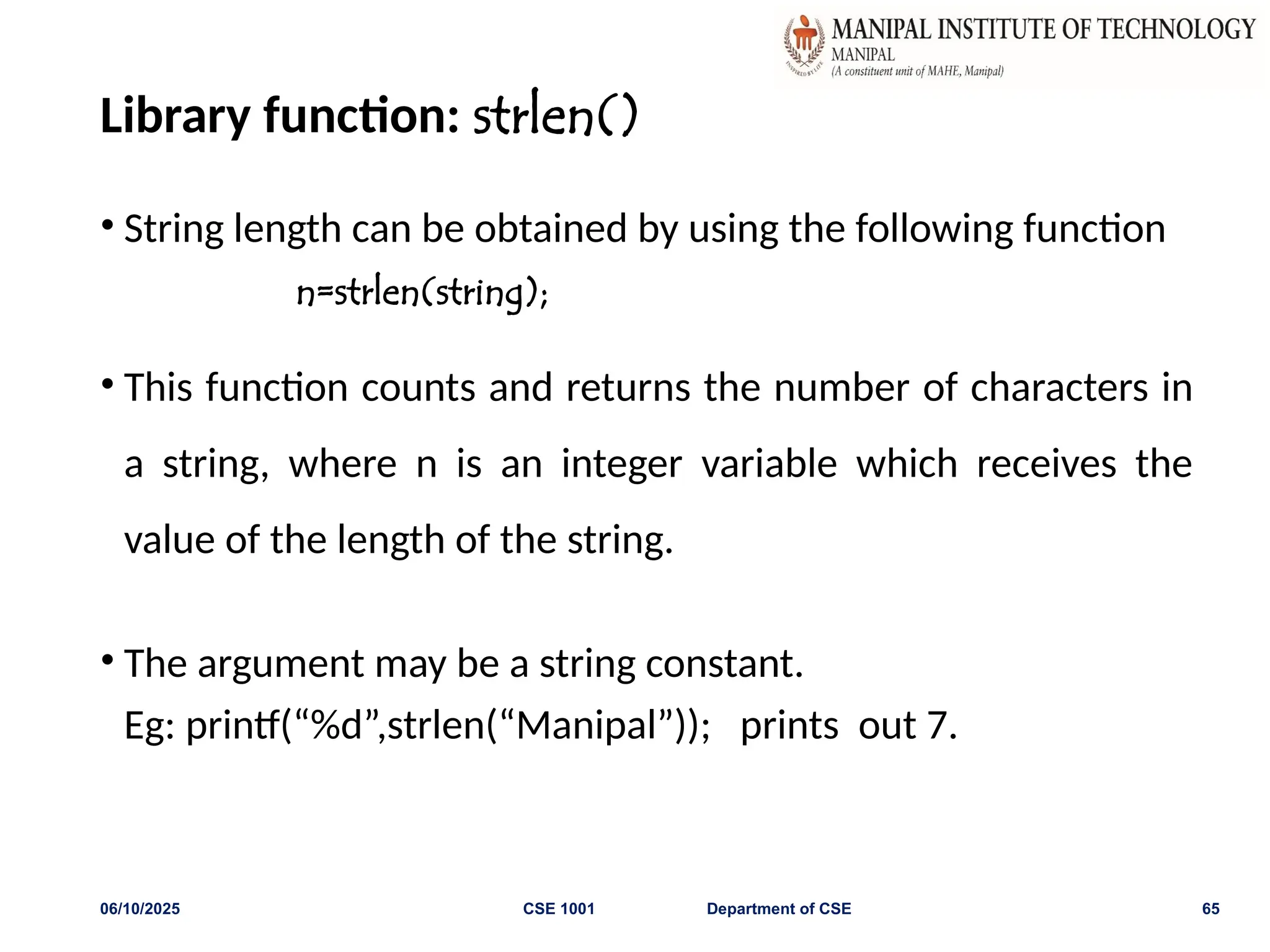

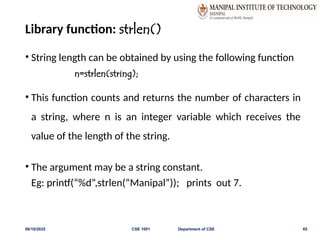

Library function: strlen()
• String length can be obtained by using the following function
n=strlen(string);
• This function counts and returns the number of characters in
a string, where n is an integer variable which receives the
value of the length of the string.
• The argument may be a string constant.
Eg: printf(“%d”,strlen(“Manipal”)); prints out 7.

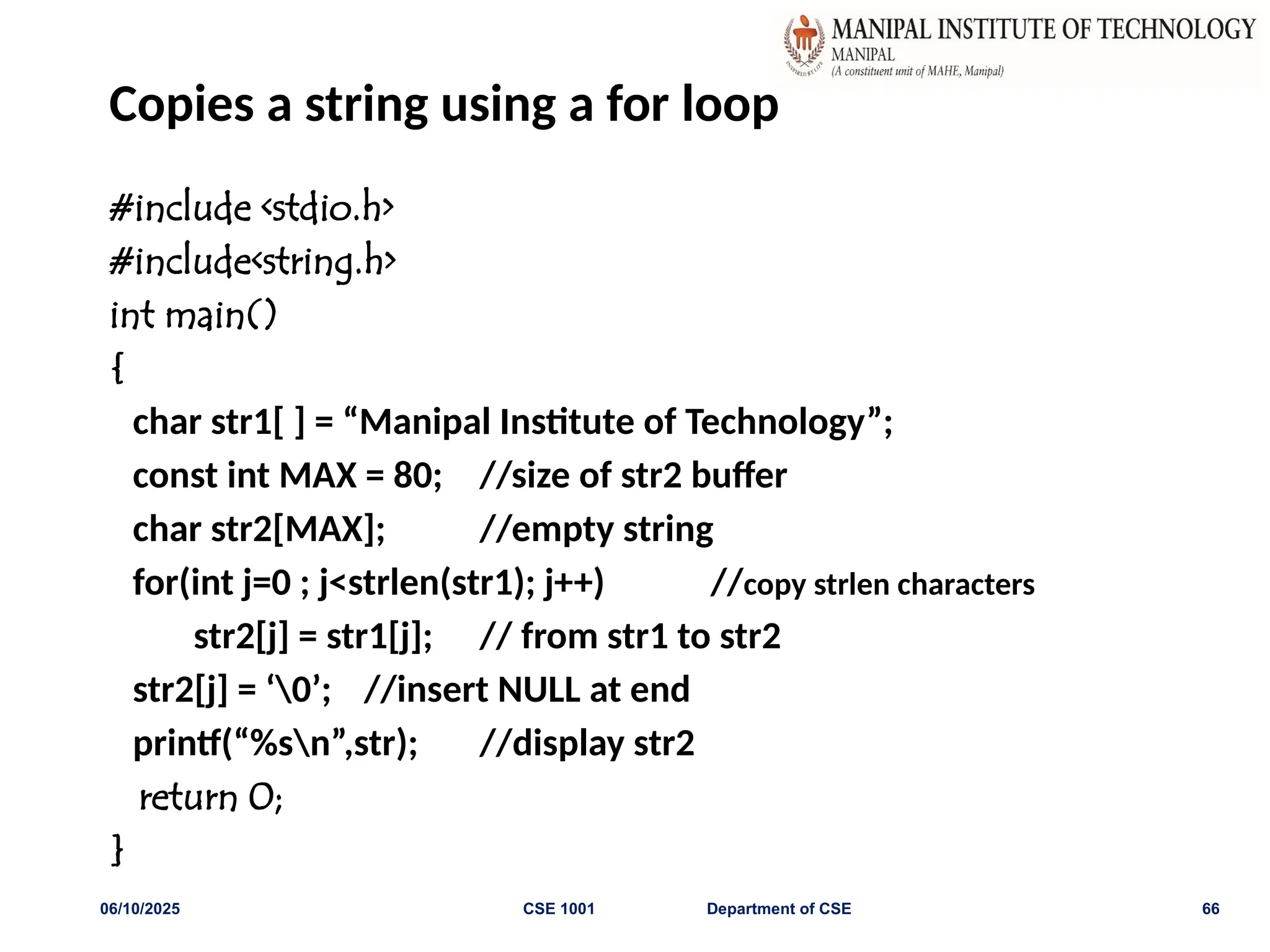

Copies a string using a for loop
#include <stdio.h>
#include<string.h>
int main()
{
char str1[ ] = “Manipal Institute of Technology”;
const int MAX = 80; //size of str2 buffer
char str2[MAX]; //empty string
for(int j=0 ; j<strlen(str1); j++) //copy strlen characters
str2[j] = str1[j]; // from str1 to str2
str2[j] = ‘0’; //insert NULL at end
printf(“%sn”,str); //display str2
return 0;
}

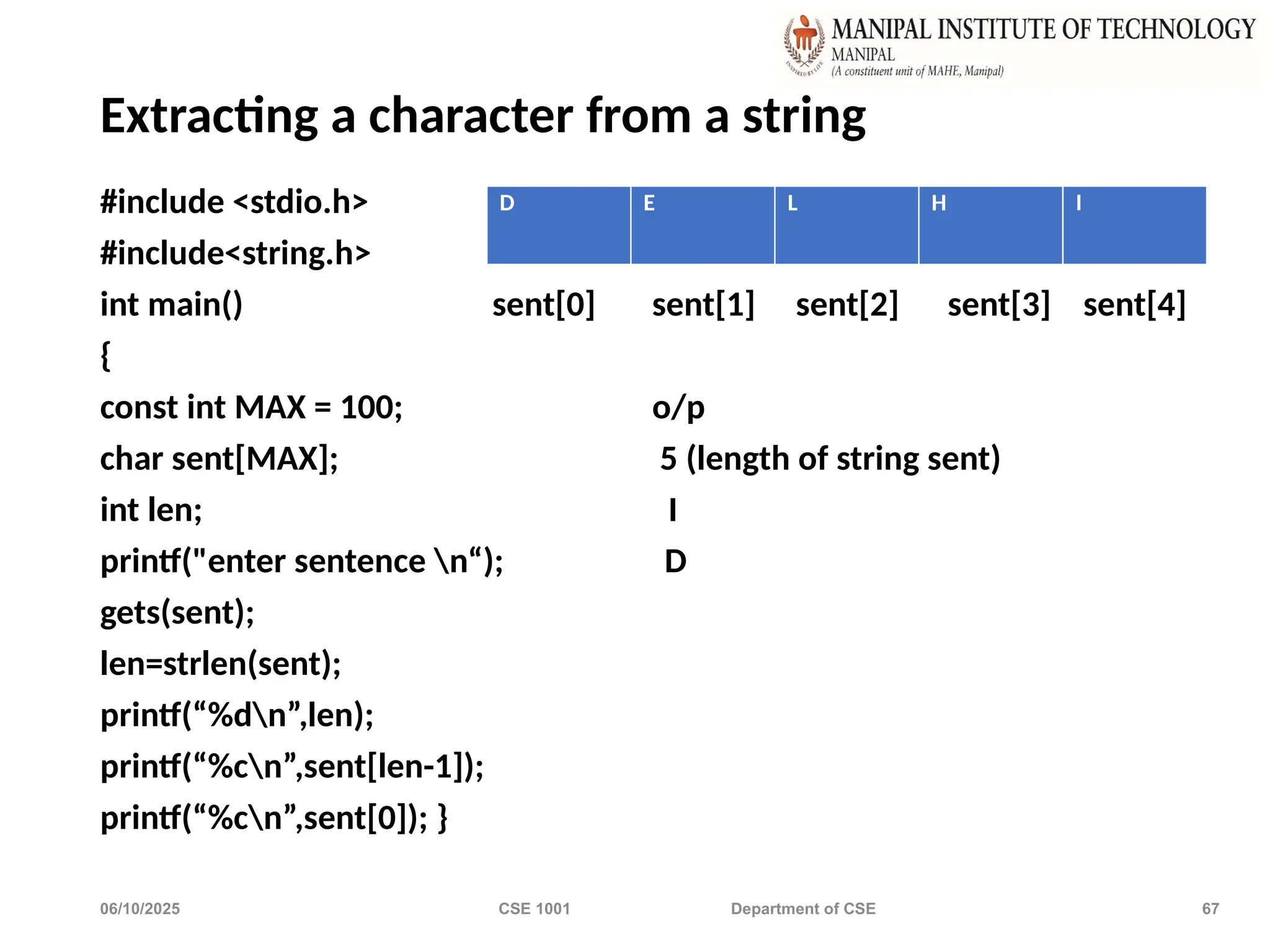

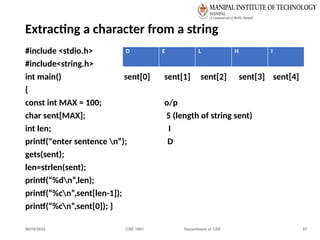

Extracting a character from a string
#include <stdio.h>
#include<string.h>
int main() sent[0] sent[1] sent[2] sent[3] sent[4]
{
const int MAX = 100; o/p
char sent[MAX]; 5 (length of string sent)
int len; I
printf("enter sentence n“); D
gets(sent);
len=strlen(sent);
printf(“%dn”,len);
printf(“%cn”,sent[len-1]);
printf(“%cn”,sent[0]); }
D E L H I

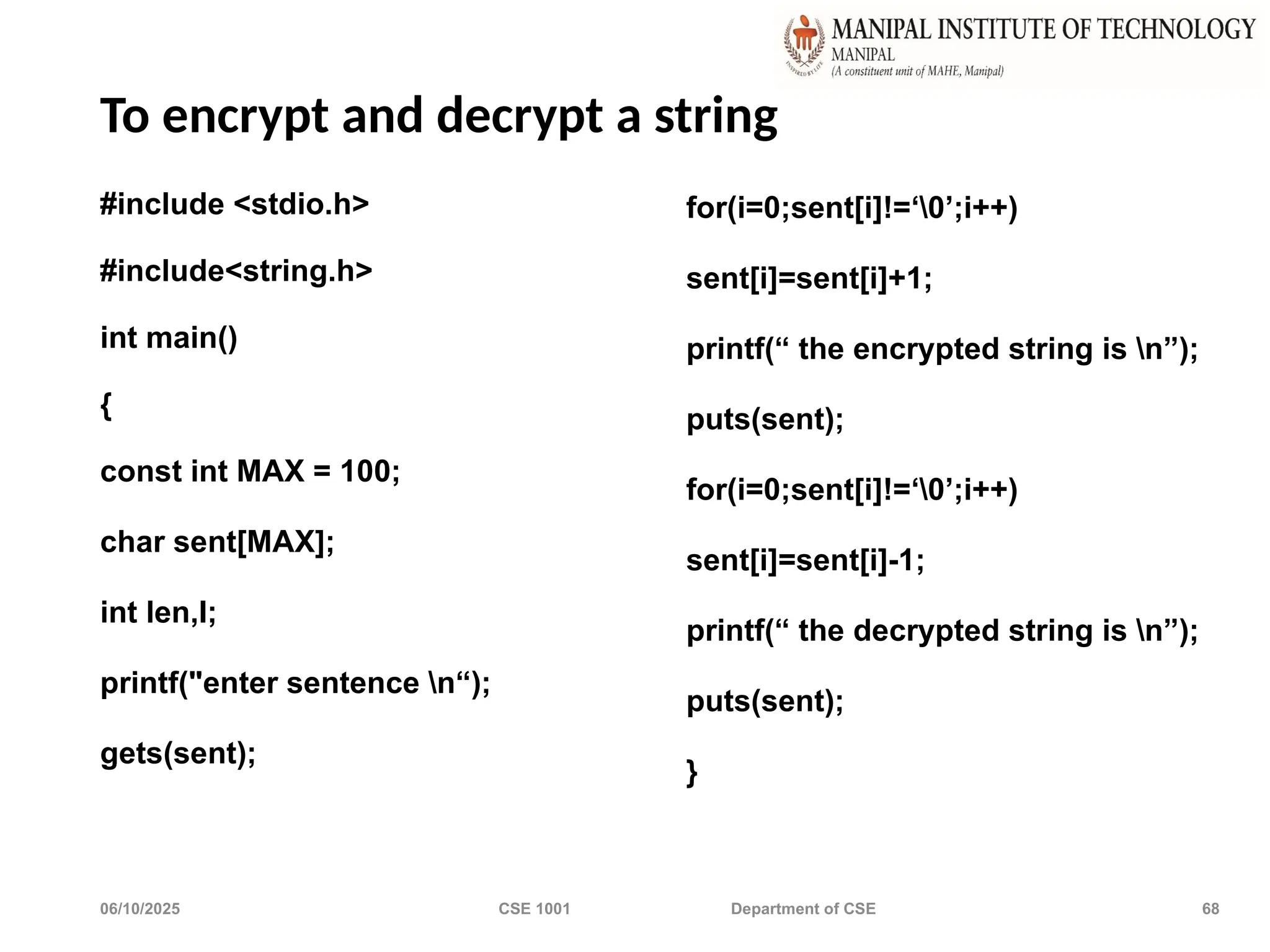

To encrypt and decrypt a string
#include <stdio.h>
#include<string.h>
int main()
{
char sent[MAX];
int len,I;
gets(sent);
for(i=0;sent[i]!=‘0’;i++)
sent[i]=sent[i]+1;
printf(“ the encrypted string is n”);
puts(sent);
for(i=0;sent[i]!=‘0’;i++)
sent[i]=sent[i]-1;
printf(“ the decrypted string is n”);
puts(sent);
}

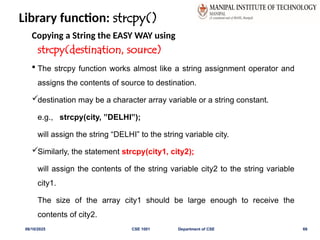

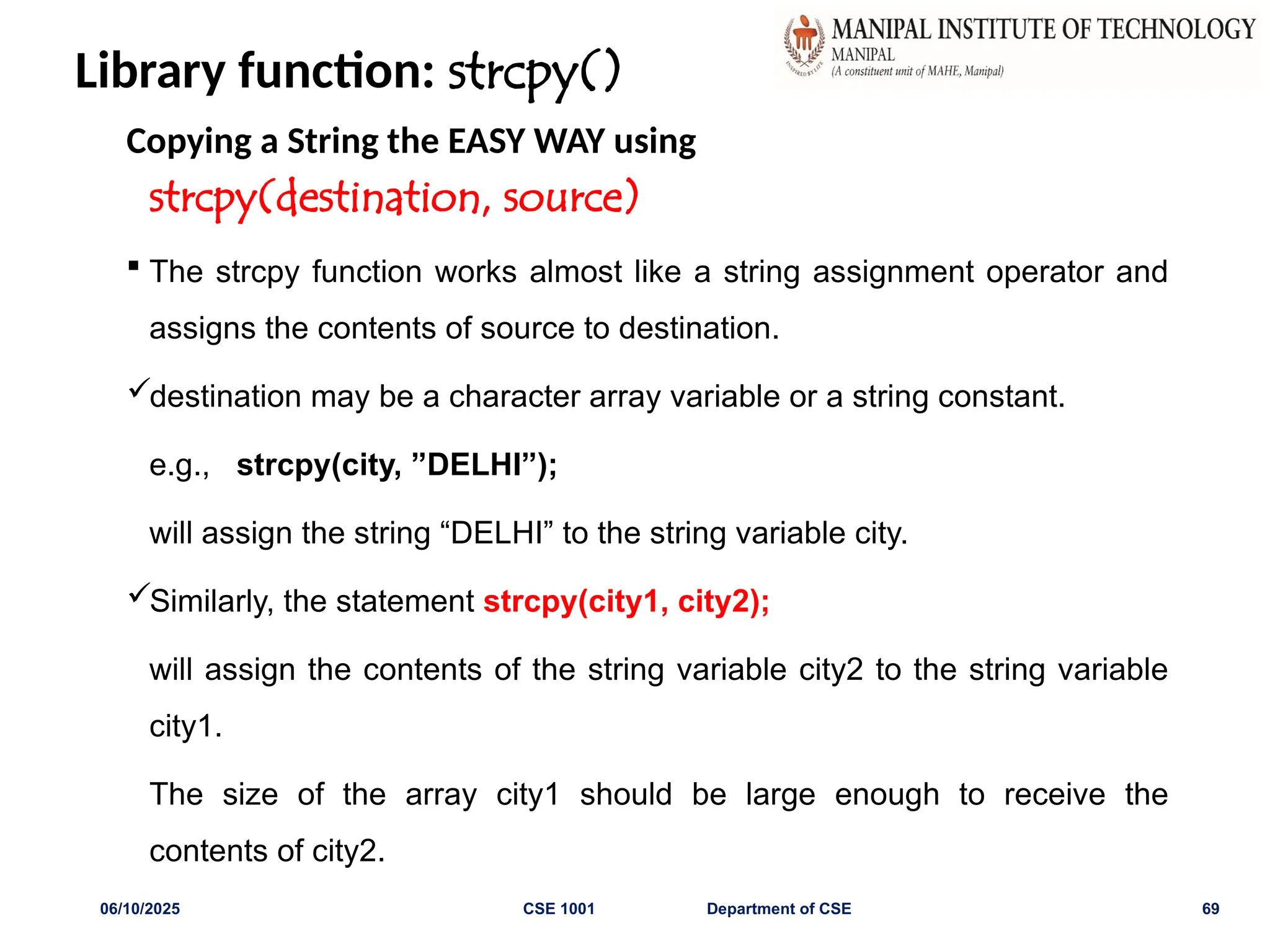

Library function: strcpy()
Copying a String the EASY WAY using
strcpy(destination, source)
 The strcpy function works almost like a string assignment operator and
assigns the contents of source to destination.
destination may be a character array variable or a string constant.
e.g., strcpy(city, ”DELHI”);
will assign the string “DELHI” to the string variable city.
Similarly, the statement strcpy(city1, city2);
will assign the contents of the string variable city2 to the string variable
city1.
The size of the array city1 should be large enough to receive the
contents of city2.

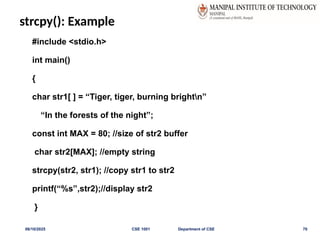

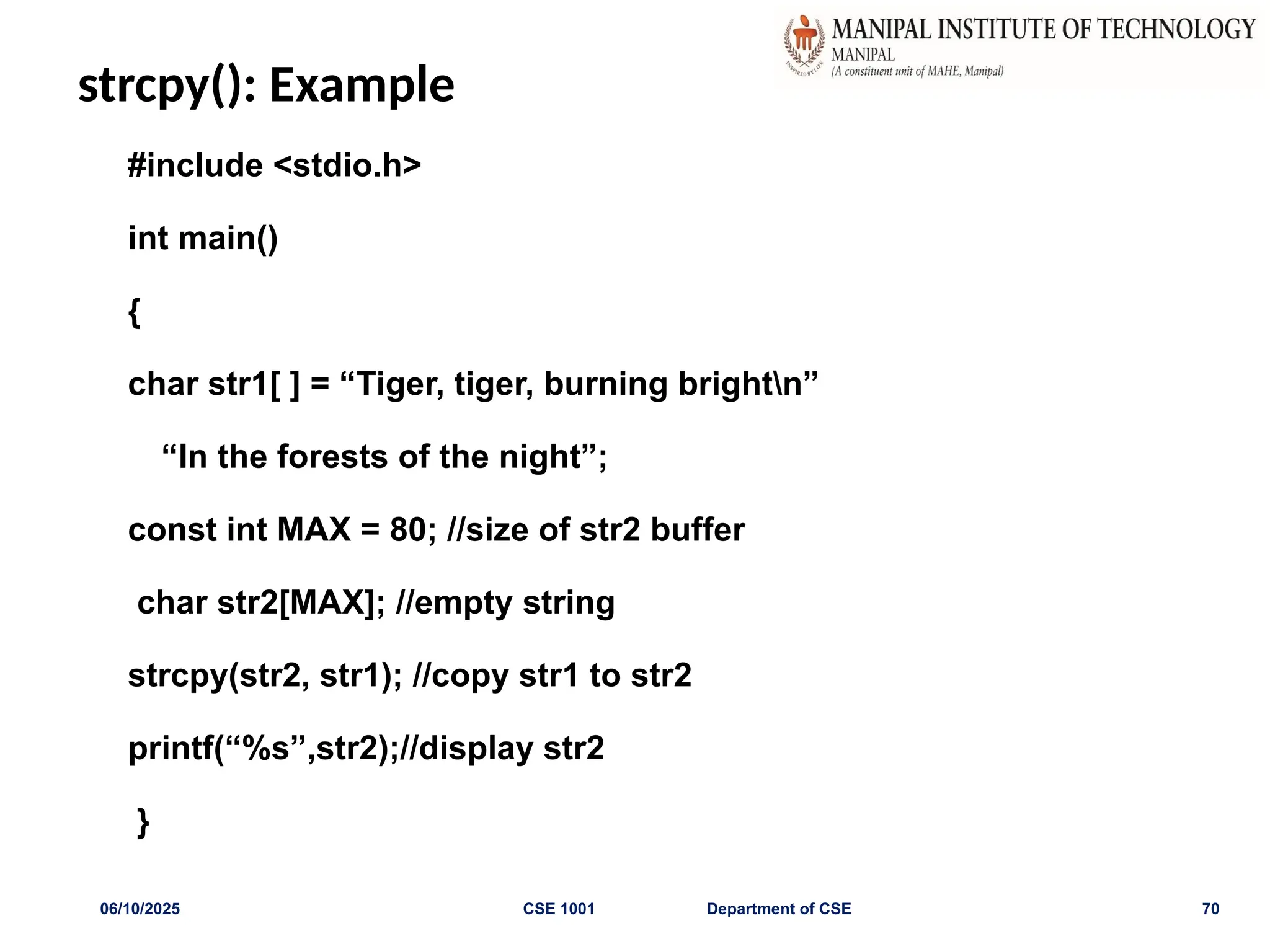

strcpy(): Example
#include <stdio.h>
int main()
{
char str1[ ] = “Tiger, tiger, burning brightn”
“In the forests of the night”;
const int MAX = 80; //size of str2 buffer
char str2[MAX]; //empty string
strcpy(str2, str1); //copy str1 to str2
printf(“%s”,str2);//display str2
}

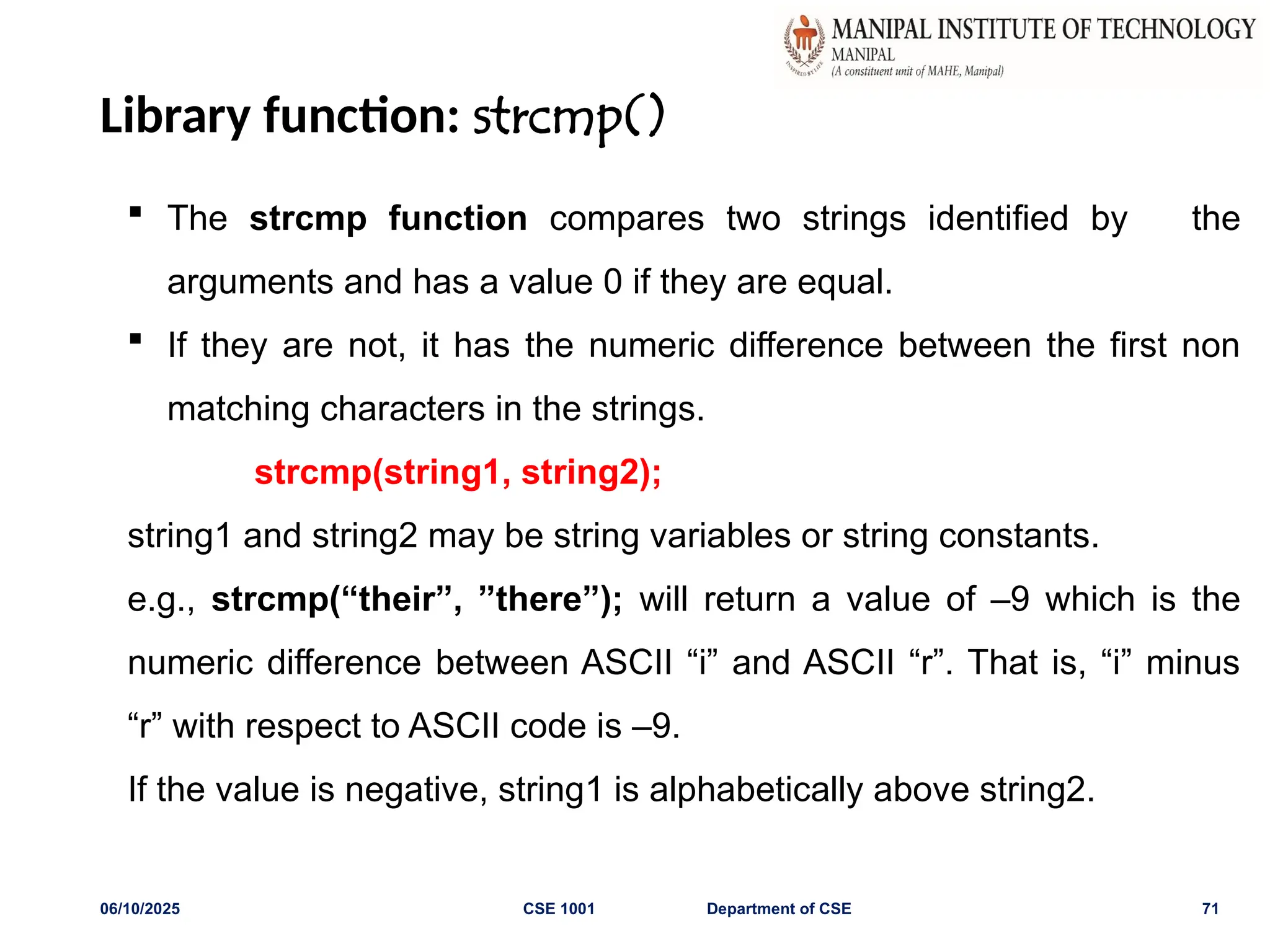

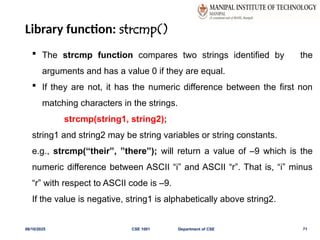

Library function: strcmp()
 The strcmp function compares two strings identified by the
arguments and has a value 0 if they are equal.
 If they are not, it has the numeric difference between the first non
matching characters in the strings.
strcmp(string1, string2);
string1 and string2 may be string variables or string constants.
e.g., strcmp(“their”, ”there”); will return a value of –9 which is the
numeric difference between ASCII “i” and ASCII “r”. That is, “i” minus
“r” with respect to ASCII code is –9.
If the value is negative, string1 is alphabetically above string2.

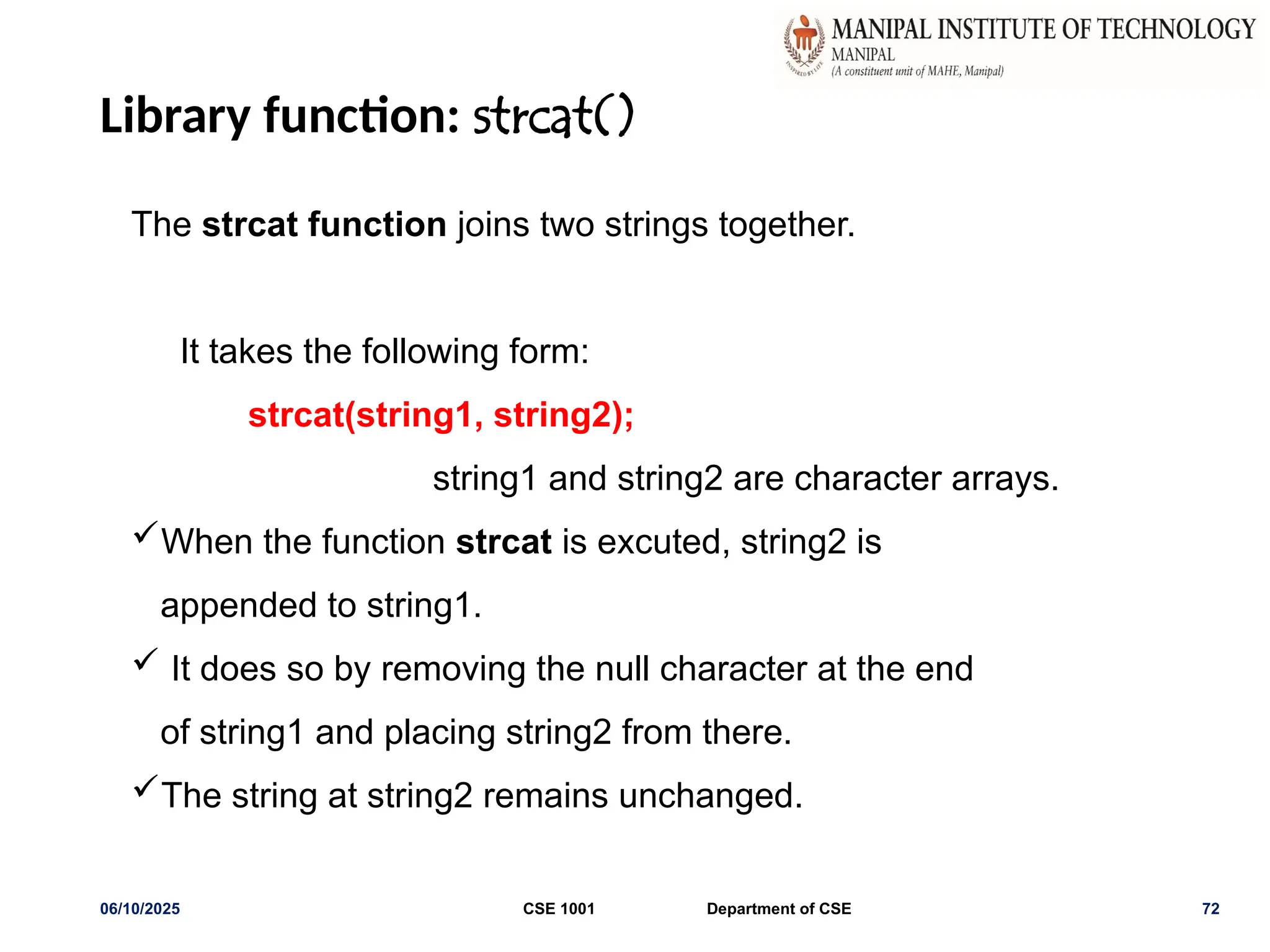

Library function: strcat()
The strcat function joins two strings together.
It takes the following form:
strcat(string1, string2);
string1 and string2 are character arrays.
When the function strcat is excuted, string2 is
appended to string1.
 It does so by removing the null character at the end
of string1 and placing string2 from there.
The string at string2 remains unchanged.

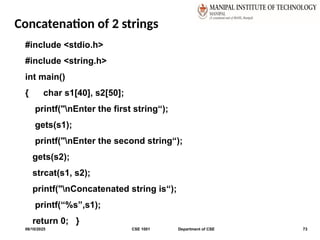

Concatenation of 2 strings
#include <stdio.h>
#include <string.h>
int main()
{ char s1[40], s2[50];
printf("nEnter the first string“);
gets(s1);
printf("nEnter the second string“);
gets(s2);
strcat(s1, s2);
printf("nConcatenated string is“);
printf(“%s”,s1);
return 0; }

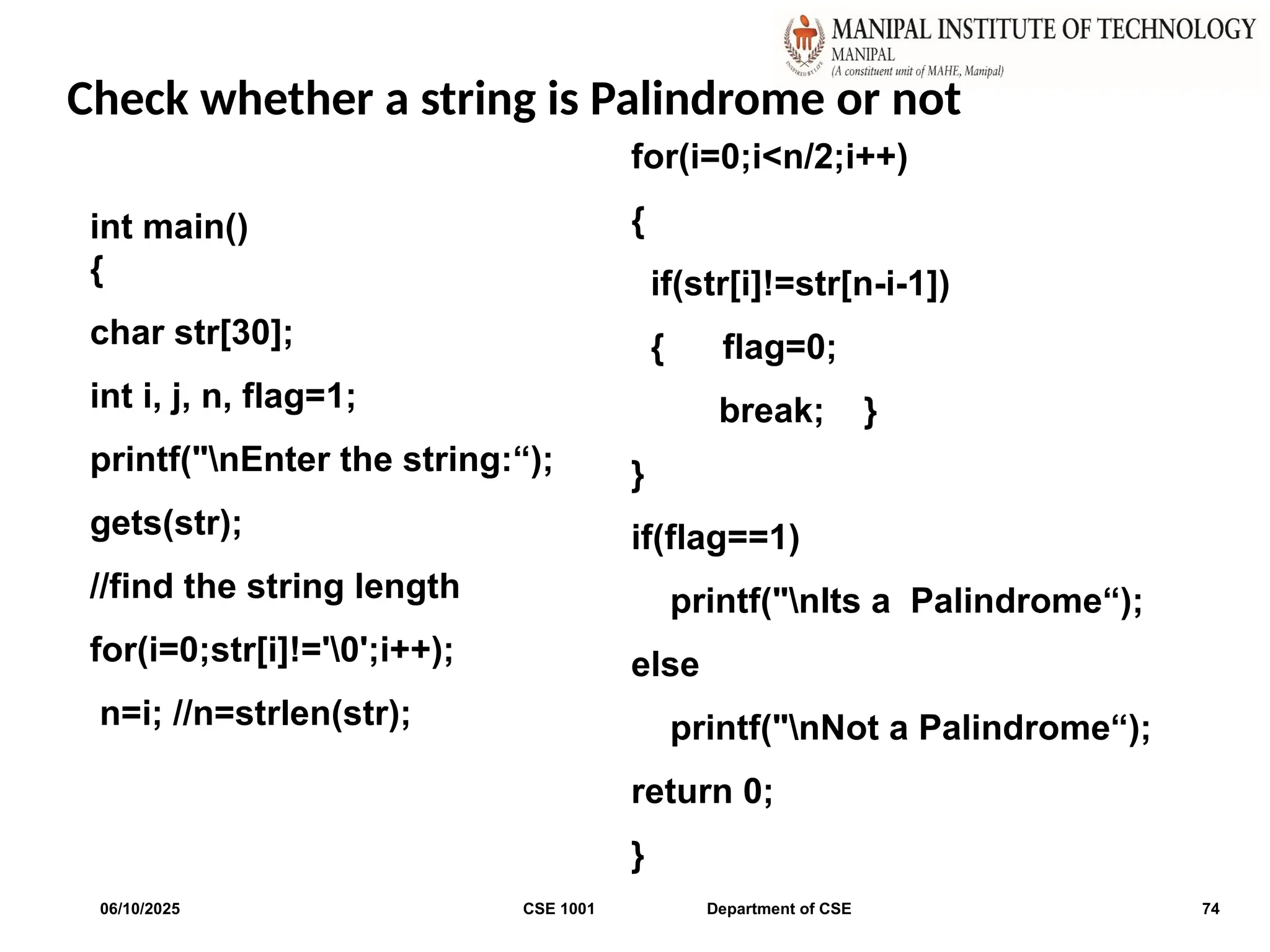

Check whether a string is Palindrome or not
int main()
{
char str[30];
int i, j, n, flag=1;
printf("nEnter the string:“);
gets(str);
//find the string length
for(i=0;str[i]!='0';i++);
n=i; //n=strlen(str);
for(i=0;i<n/2;i++)
{
if(str[i]!=str[n-i-1])
{ flag=0;
break; }
}
if(flag==1)
printf("nIts a Palindrome“);
else
printf("nNot a Palindrome“);
return 0;
}

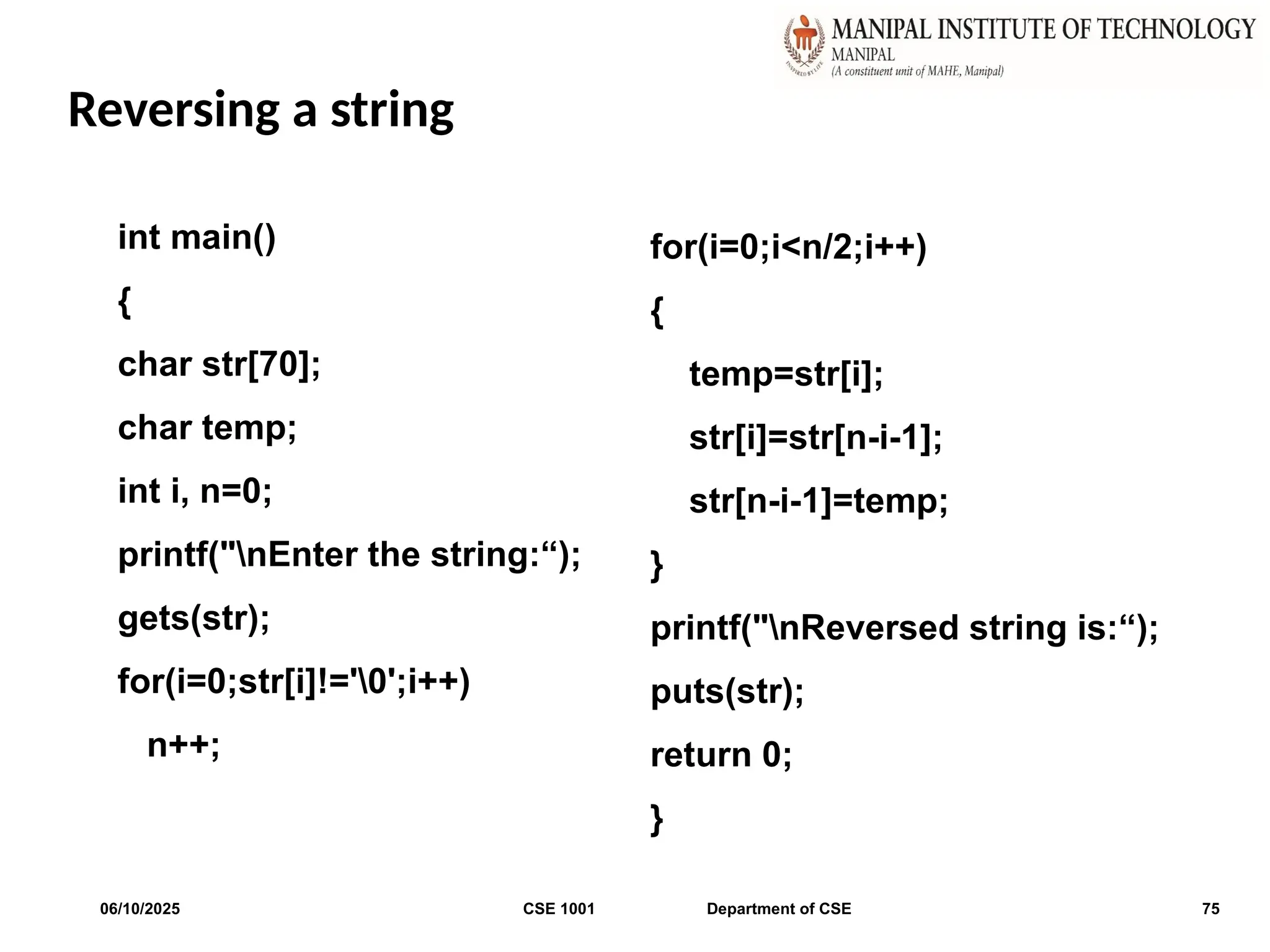

Reversing a string
int main()
{
char str[70];
char temp;
int i, n=0;
printf("nEnter the string:“);
gets(str);
for(i=0;str[i]!='0';i++)
n++;
for(i=0;i<n/2;i++)
{
temp=str[i];
str[i]=str[n-i-1];
str[n-i-1]=temp;
}
printf("nReversed string is:“);
puts(str);
return 0;
}

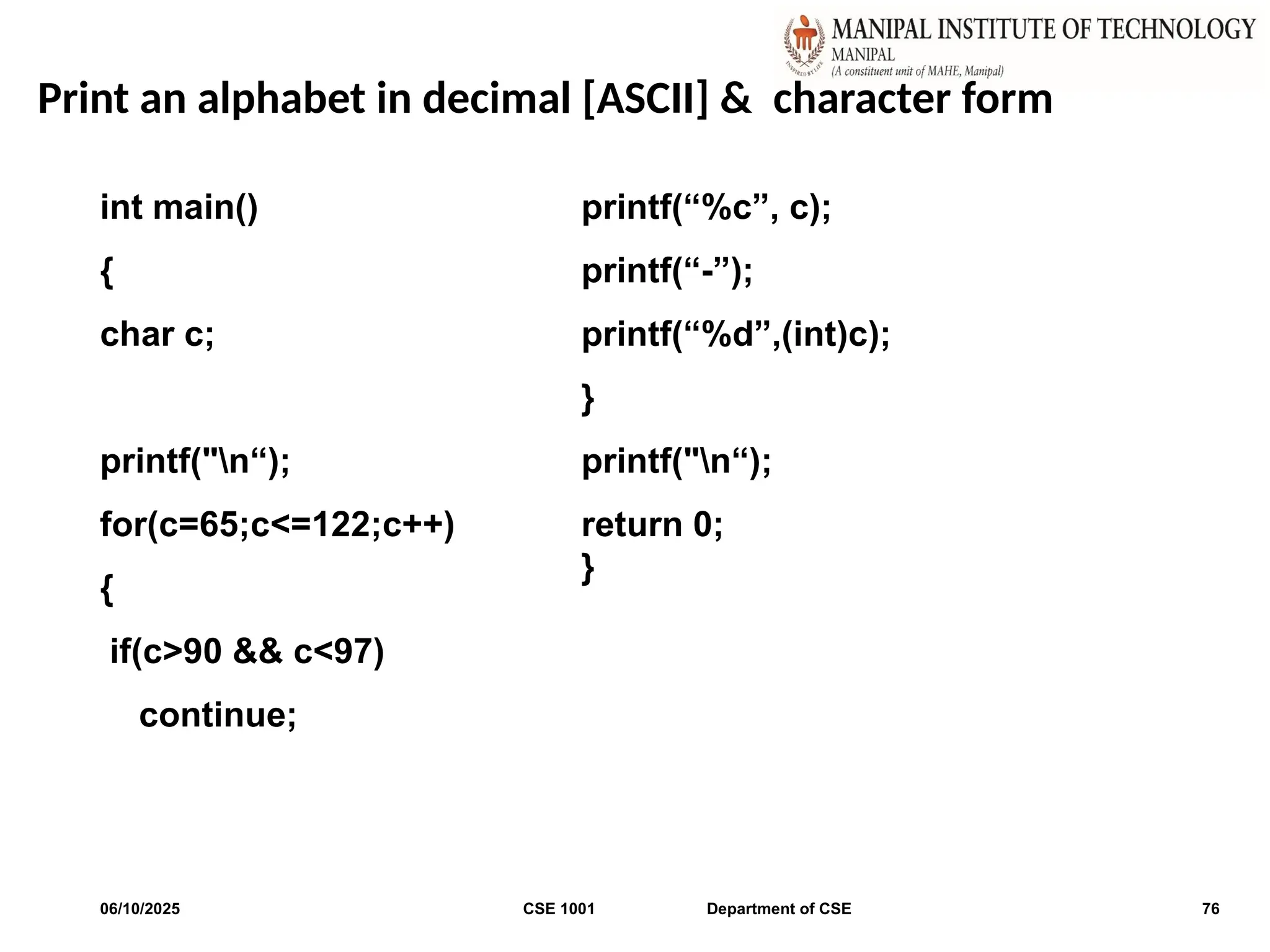

Print an alphabet in decimal [ASCII] & character form
int main()
{
char c;
printf("n“);
for(c=65;c<=122;c++)
{
if(c>90 && c<97)
continue;
printf(“%c”, c);
printf(“-”);
printf(“%d”,(int)c);
}
printf("n“);
return 0;
}

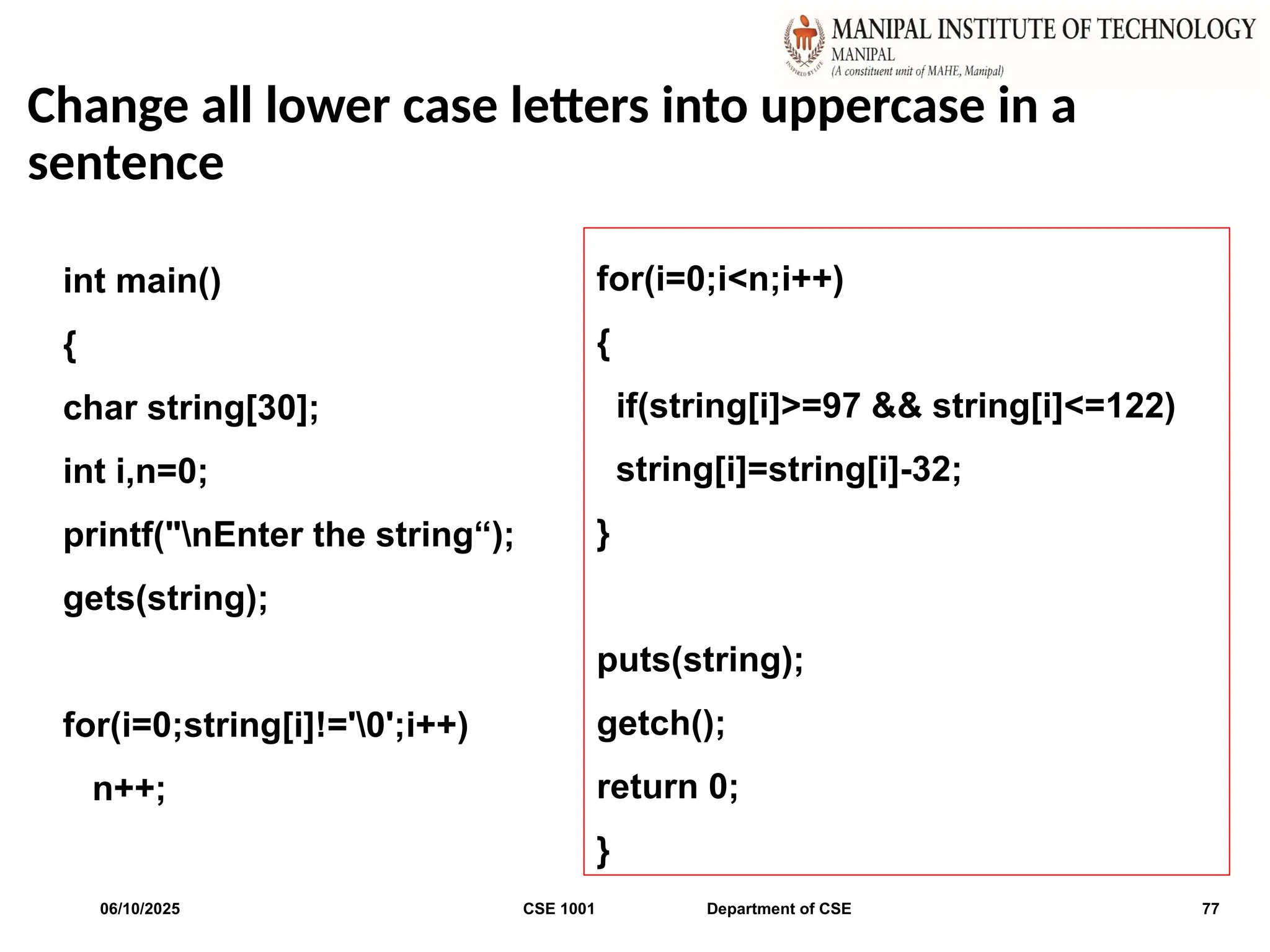

Change all lower case letters into uppercase in a
sentence
int main()
{
char string[30];
int i,n=0;
printf("nEnter the string“);
gets(string);
for(i=0;string[i]!='0';i++)
n++;
for(i=0;i<n;i++)
{
if(string[i]>=97 && string[i]<=122)
string[i]=string[i]-32;
}
puts(string);
getch();
return 0;
}

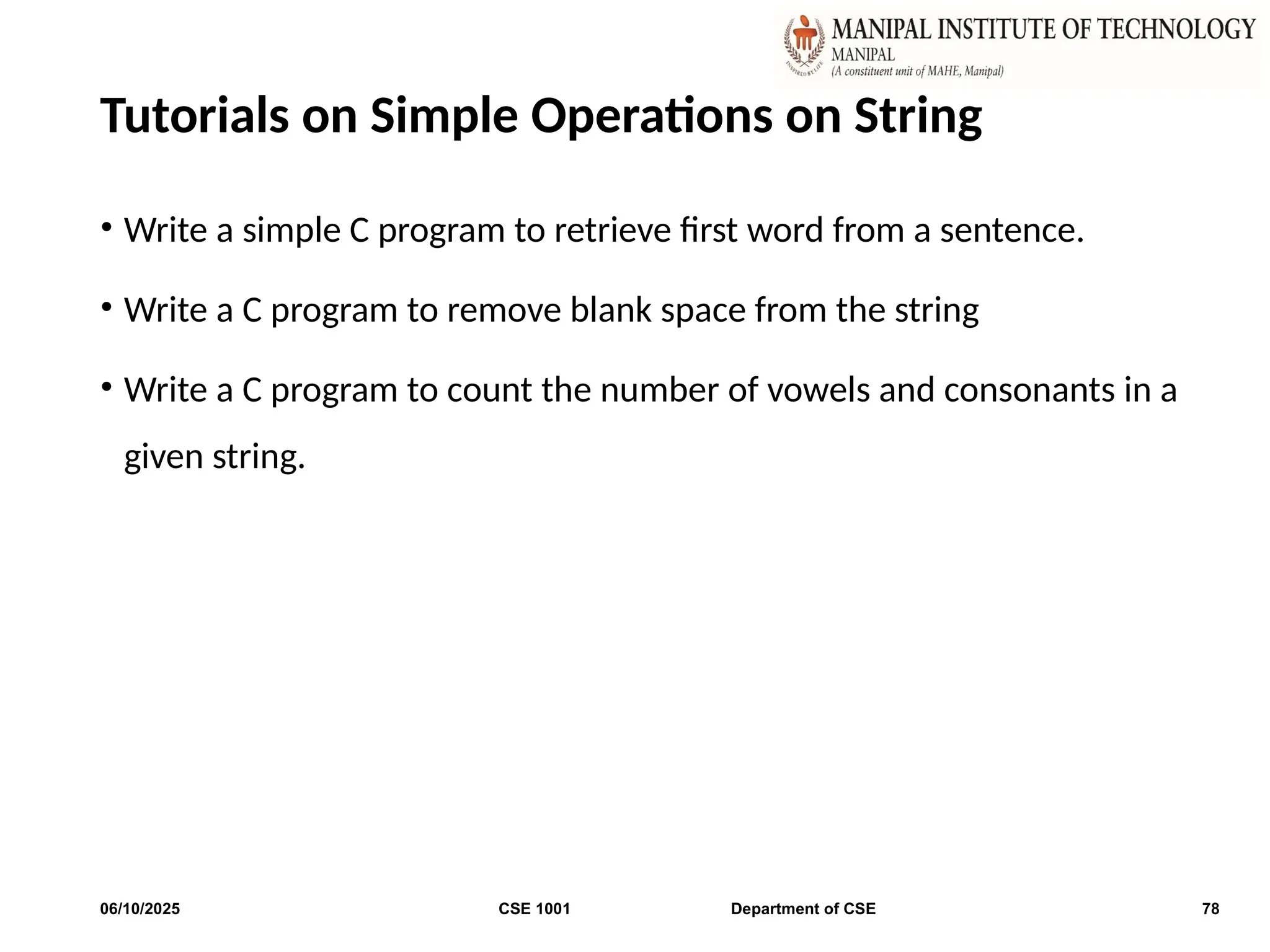

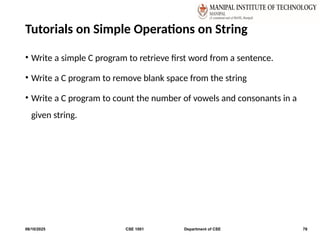

Tutorials on Simple Operations on String
• Write a simple C program to retrieve first word from a sentence.
• Write a C program to remove blank space from the string
• Write a C program to count the number of vowels and consonants in a
given string.

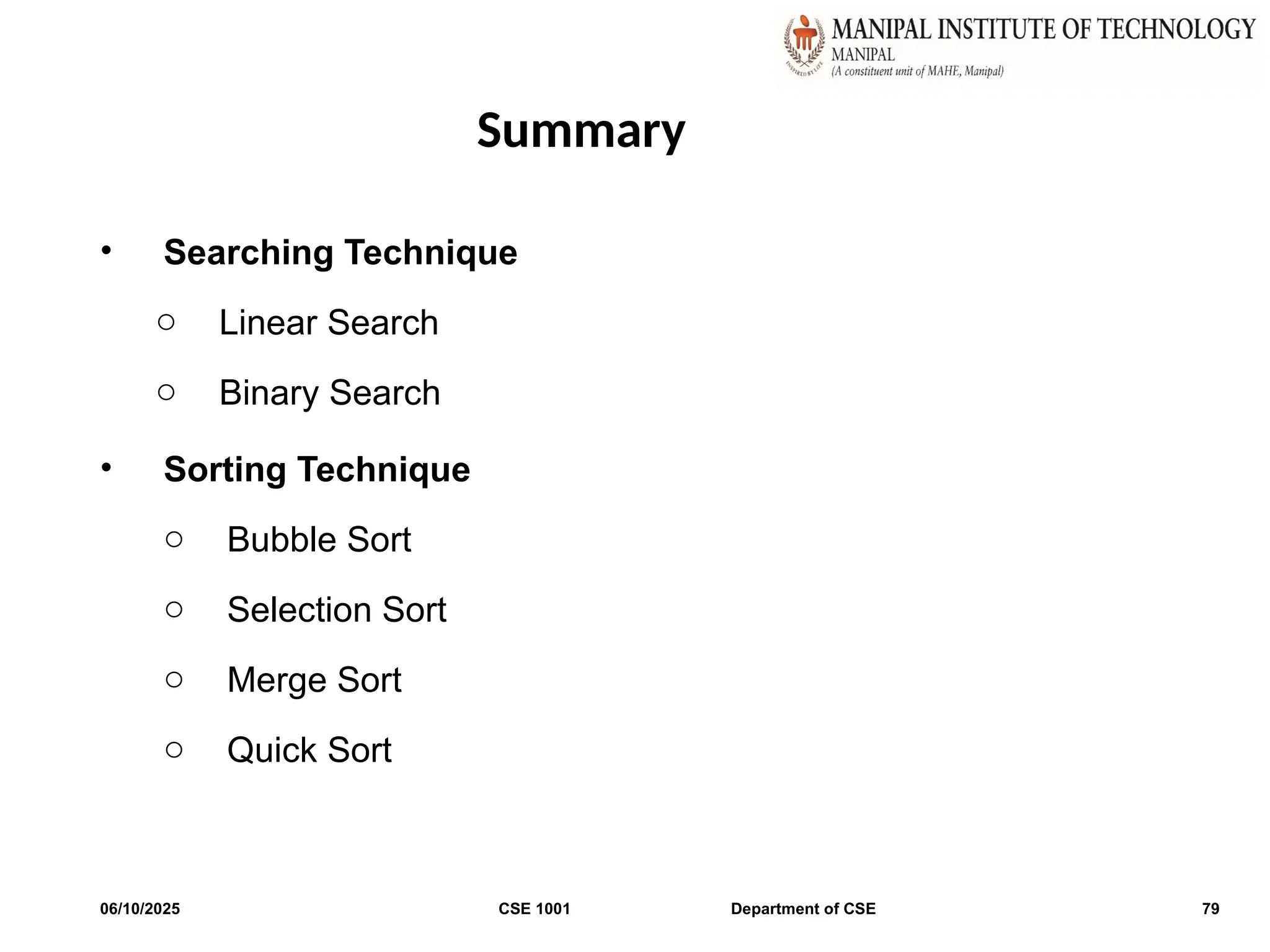

Summary
• Searching Technique
o Linear Search
o Binary Search
• Sorting Technique
o Bubble Sort
o Selection Sort
o Merge Sort
o Quick Sort

L16-L19-Searching&Sorting&string123.pptx

More Related Content

Similar to L16-L19-Searching&Sorting&string123.pptx

Recently uploaded

L16-L19-Searching&Sorting&string123.pptx

Editor's Notes
