L16 Object Relational Mapping and NoSQL

Lecture 16
Object-Relational Mapping and
NoSQL

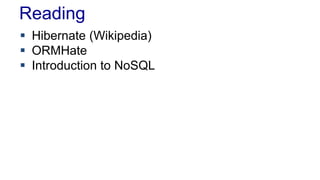

Reading
 Hibernate (Wikipedia)
 ORMHate
 Introduction to NoSQL

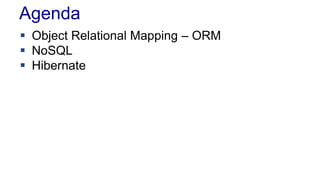

Agenda
 Object Relational Mapping – ORM
 NoSQL
 Hibernate

Object Relational Mapping
Copyright © 2008 Ólafur Andri Ragnarsson

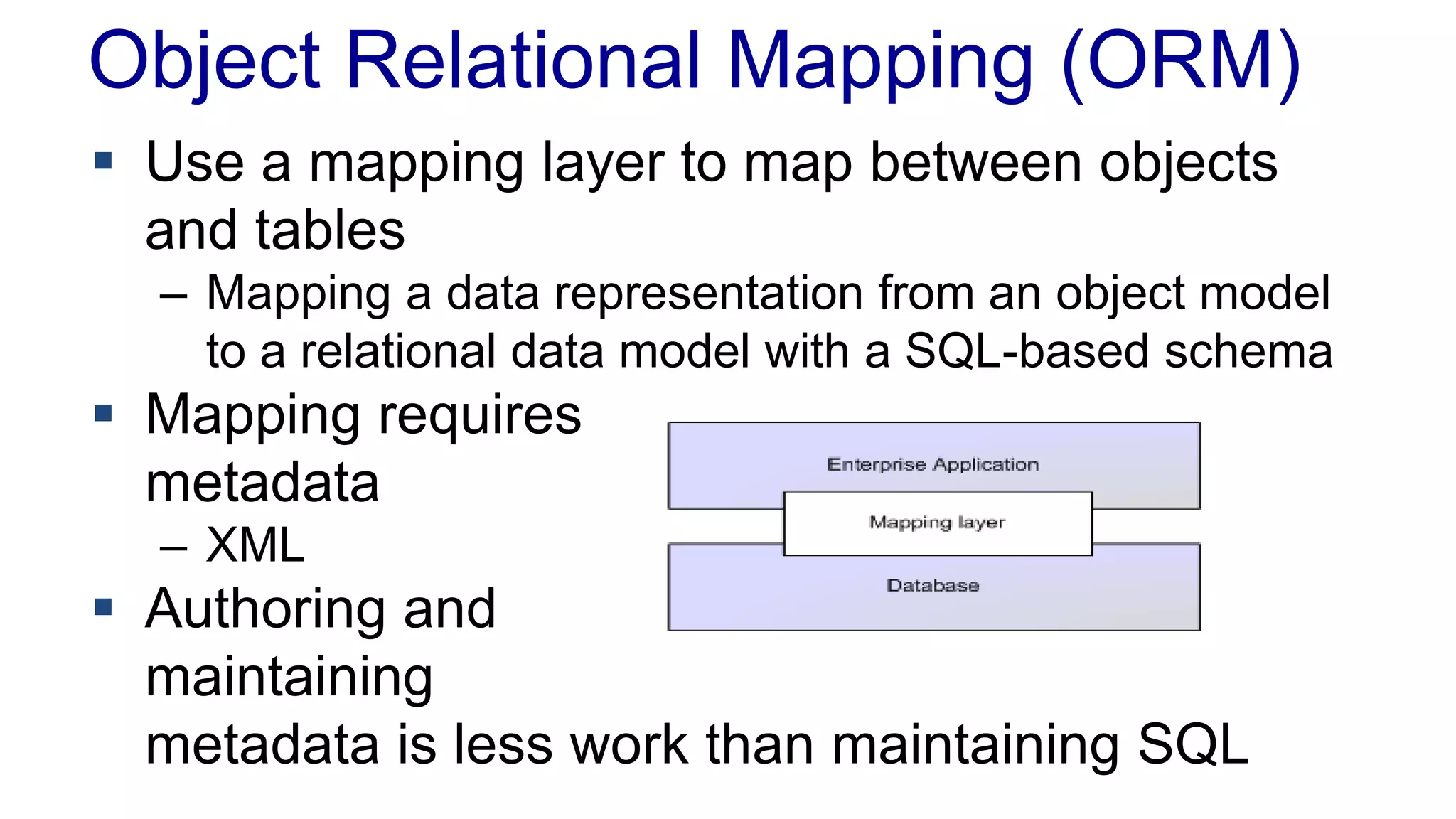

Object Relational Mapping (ORM)
 Use a mapping layer to map between objects
and tables
– Mapping a data representation from an object model
to a relational data model with a SQL-based schema
 Mapping requires
metadata
– XML
 Authoring and
maintaining
metadata is less work than maintaining SQL

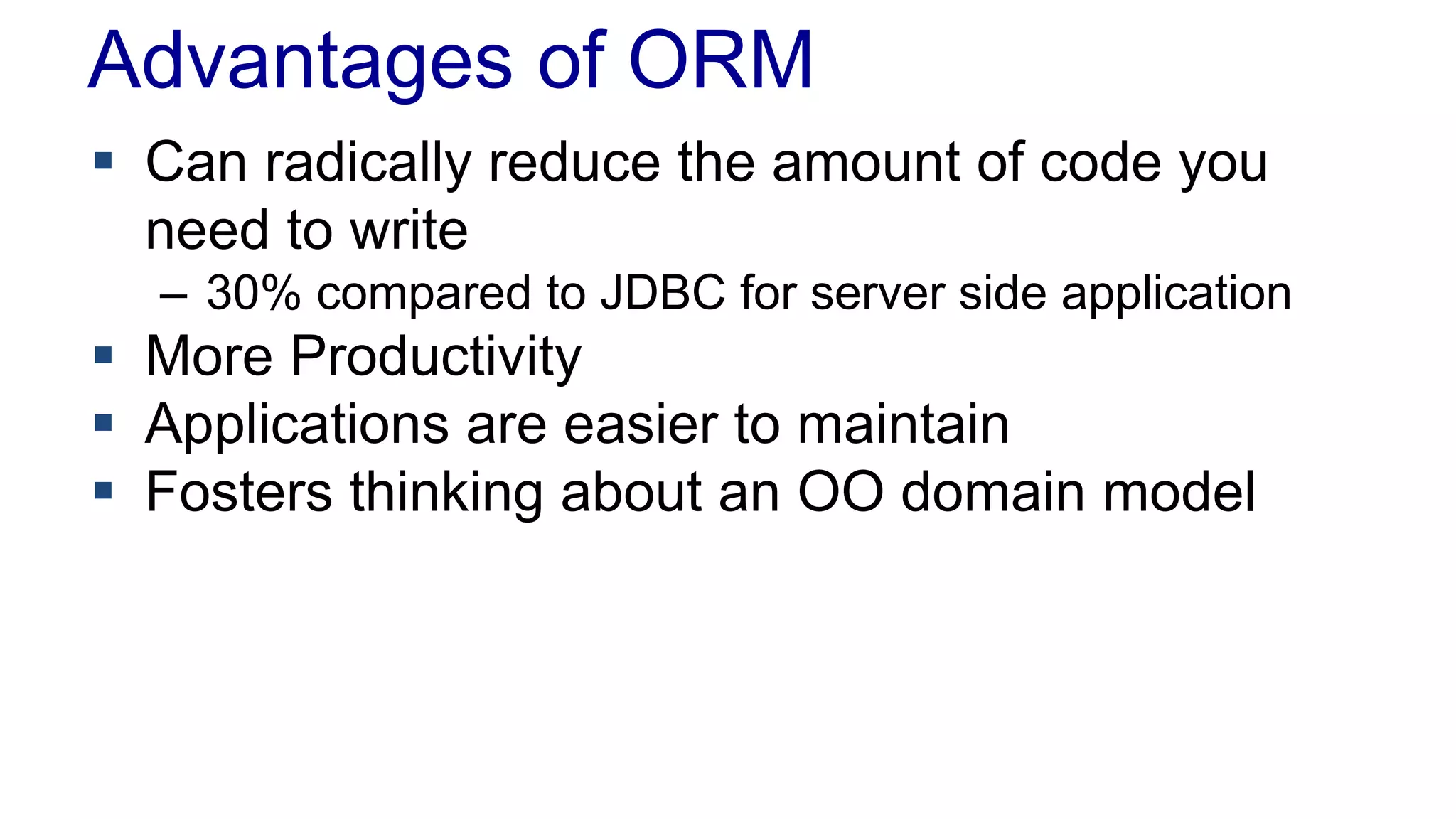

Advantages of ORM
 Can radically reduce the amount of code you
need to write
– 30% compared to JDBC for server side application
 More Productivity
 Applications are easier to maintain
 Fosters thinking about an OO domain model

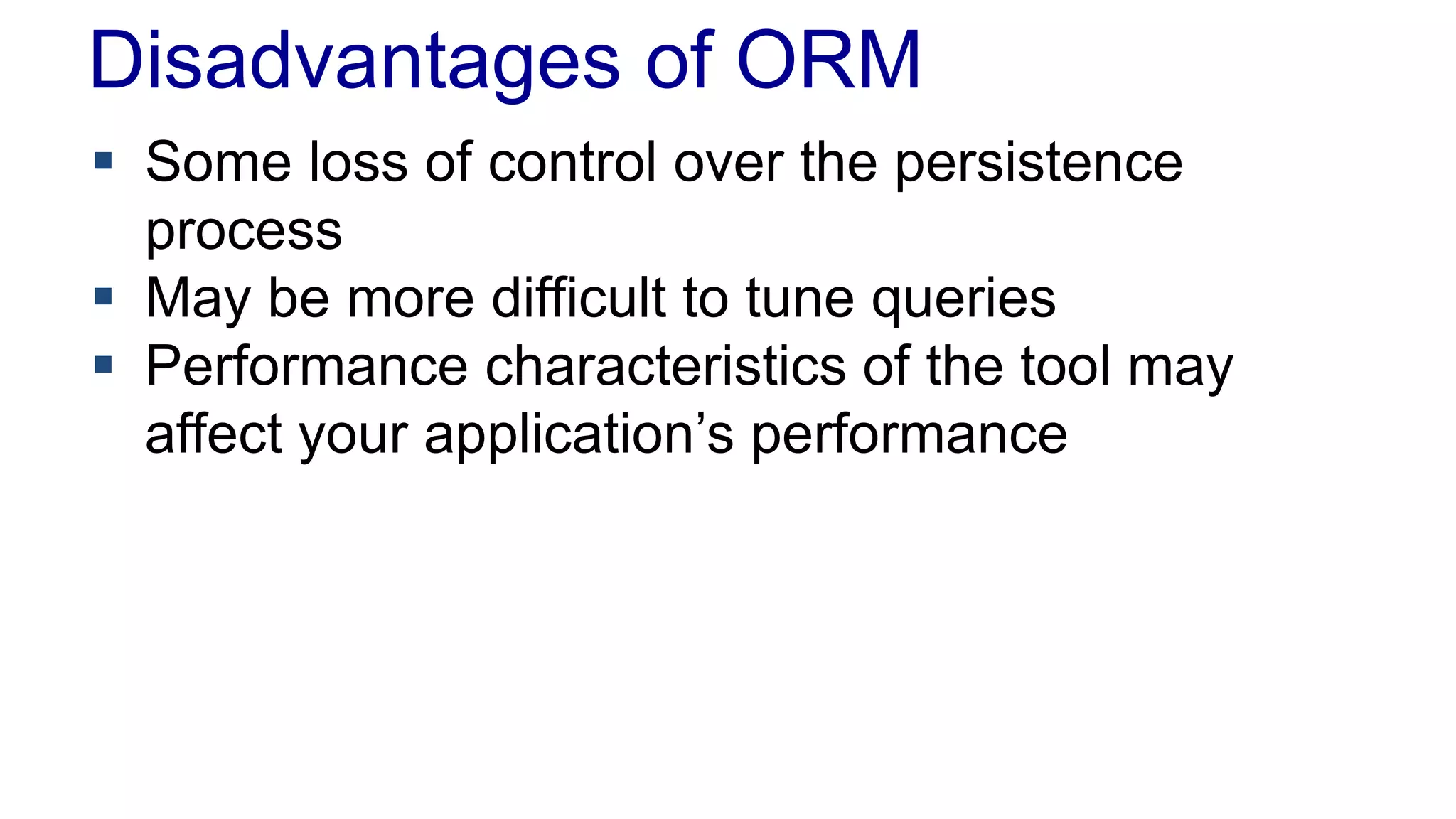

Disadvantages of ORM
 Some loss of control over the persistence
process
 May be more difficult to tune queries
 Performance characteristics of the tool may
affect your application’s performance

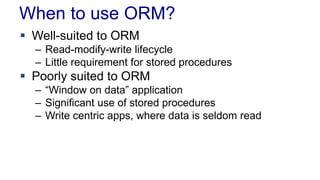

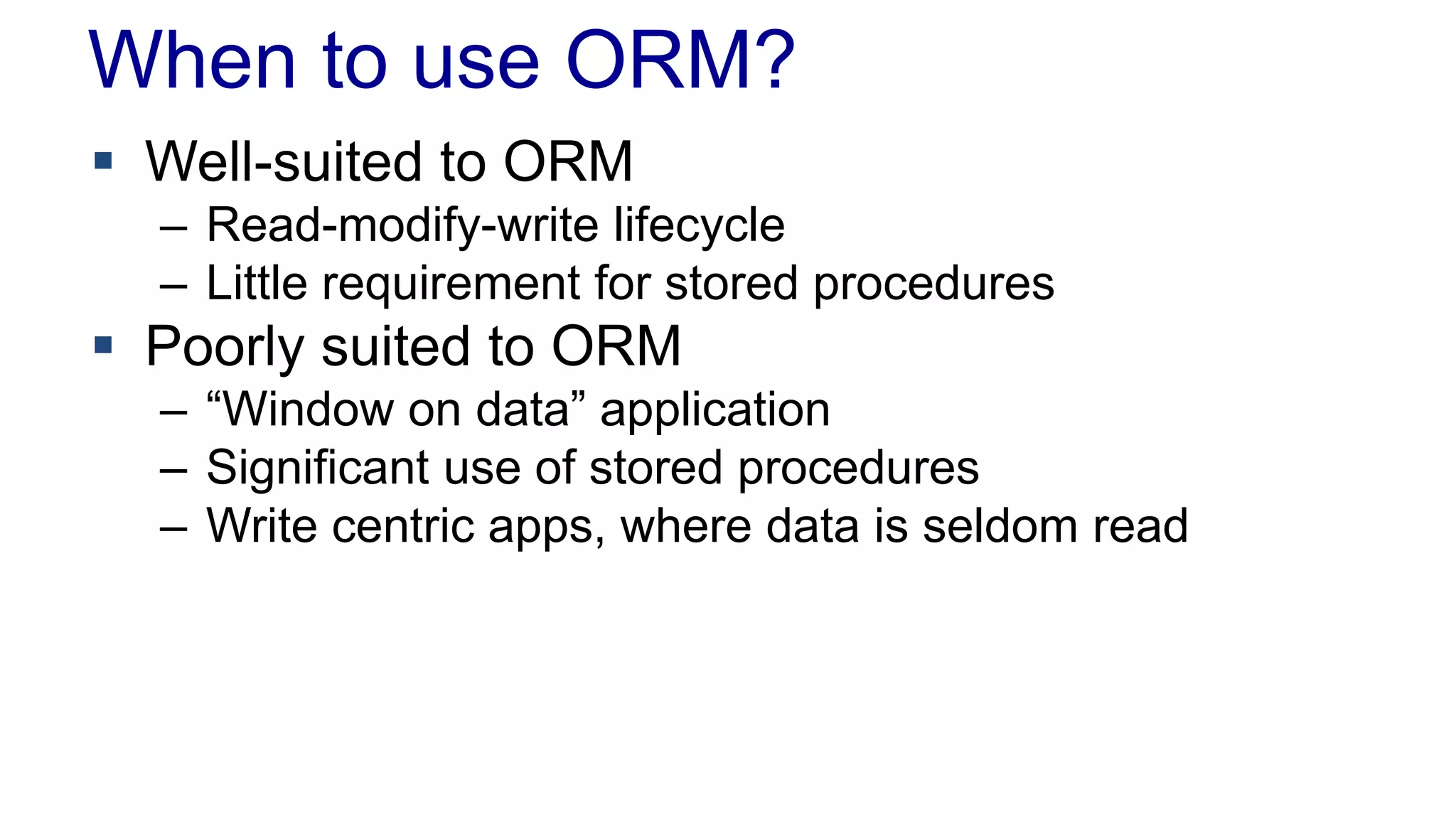

When to use ORM?
 Well-suited to ORM
– Read-modify-write lifecycle
– Little requirement for stored procedures
 Poorly suited to ORM
– “Window on data” application
– Significant use of stored procedures
– Write centric apps, where data is seldom read

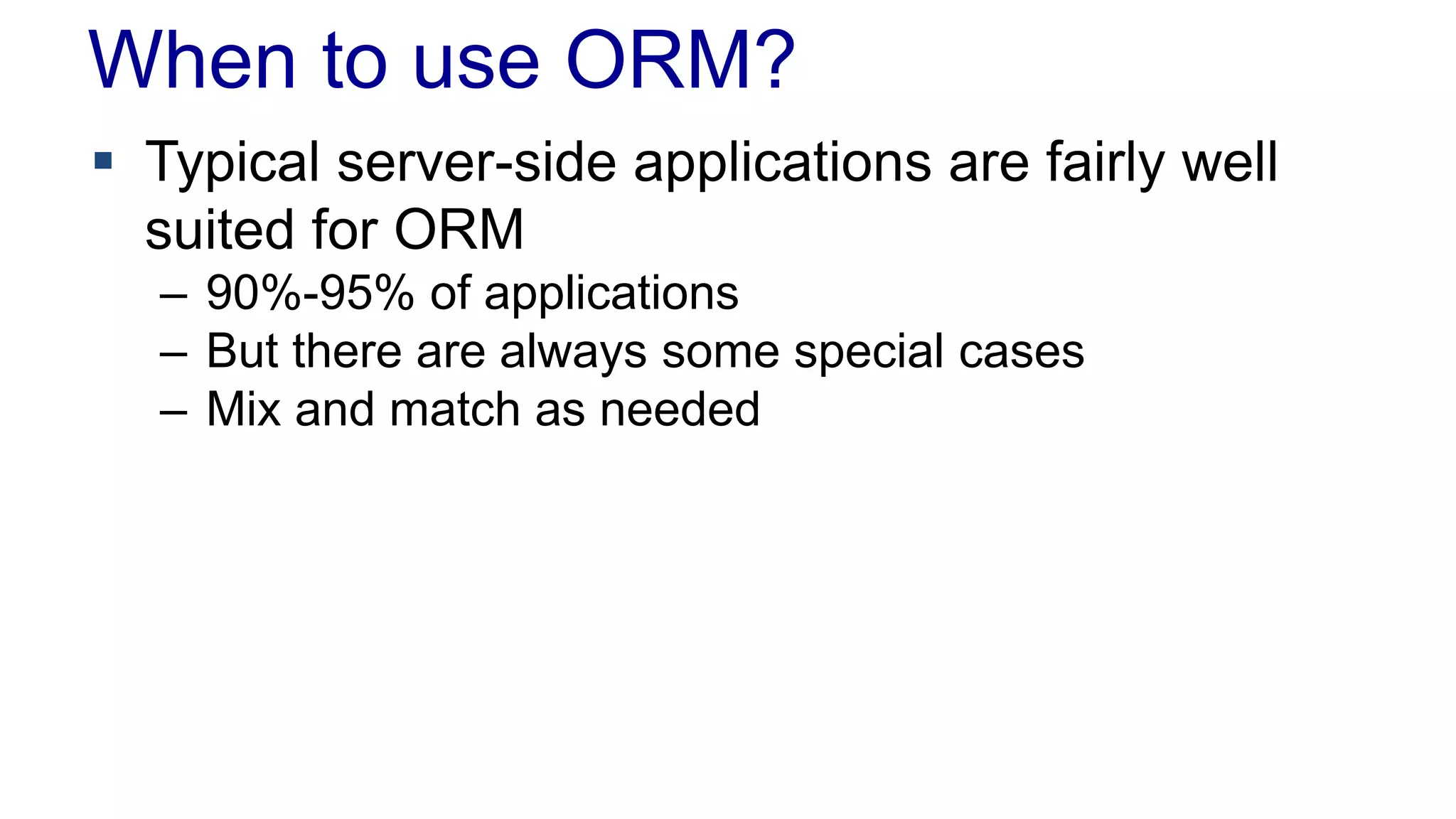

When to use ORM?
 Typical server-side applications are fairly well
suited for ORM
– 90%-95% of applications
– But there are always some special cases
– Mix and match as needed

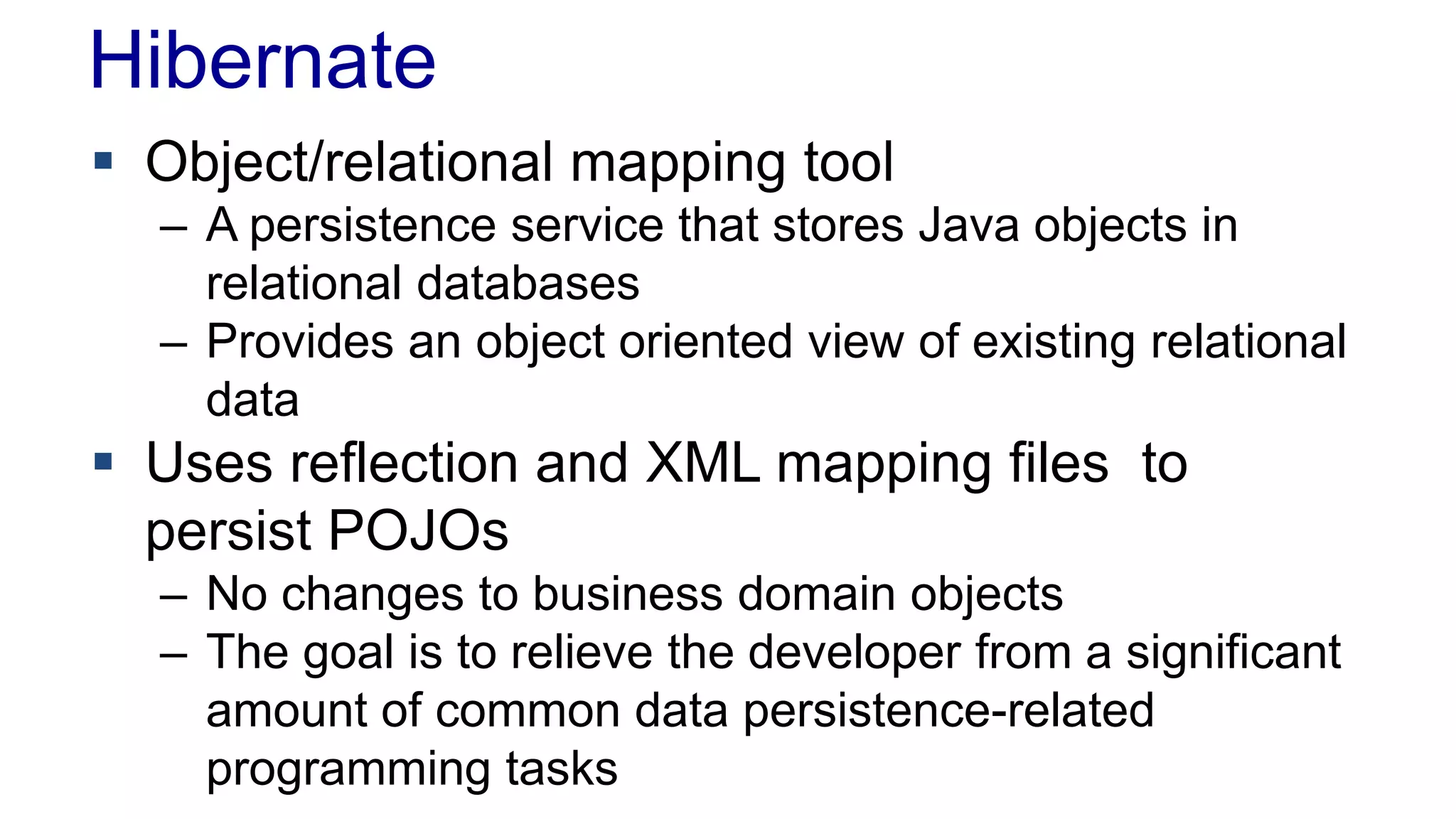

Hibernate
 Object/relational mapping tool
– A persistence service that stores Java objects in
relational databases
– Provides an object oriented view of existing relational
data
 Uses reflection and XML mapping files to
persist POJOs
– No changes to business domain objects
– The goal is to relieve the developer from a significant
amount of common data persistence-related
programming tasks

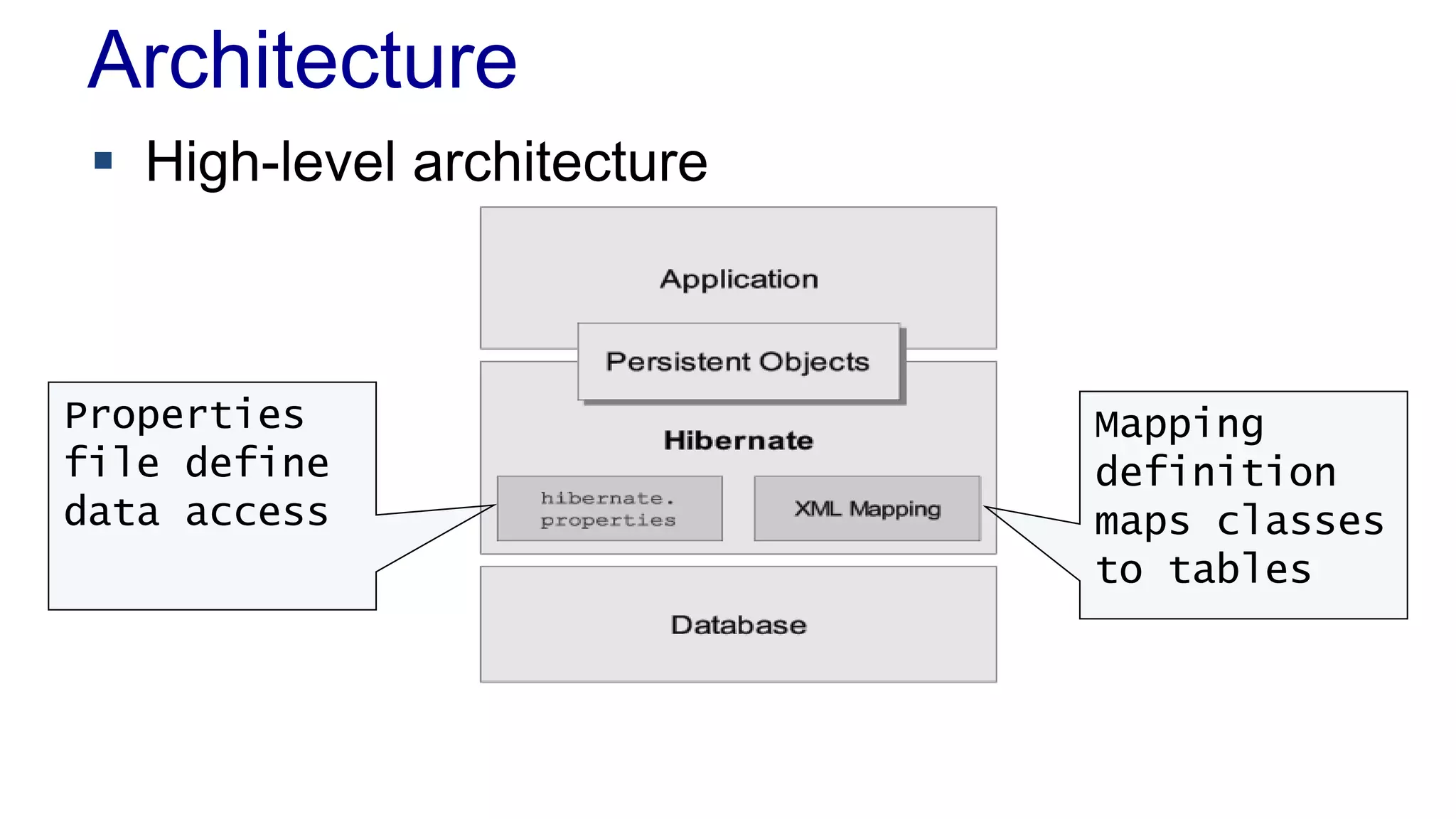

Architecture
 High-level architecture
Properties
file define
data access
Mapping
definition
maps classes
to tables

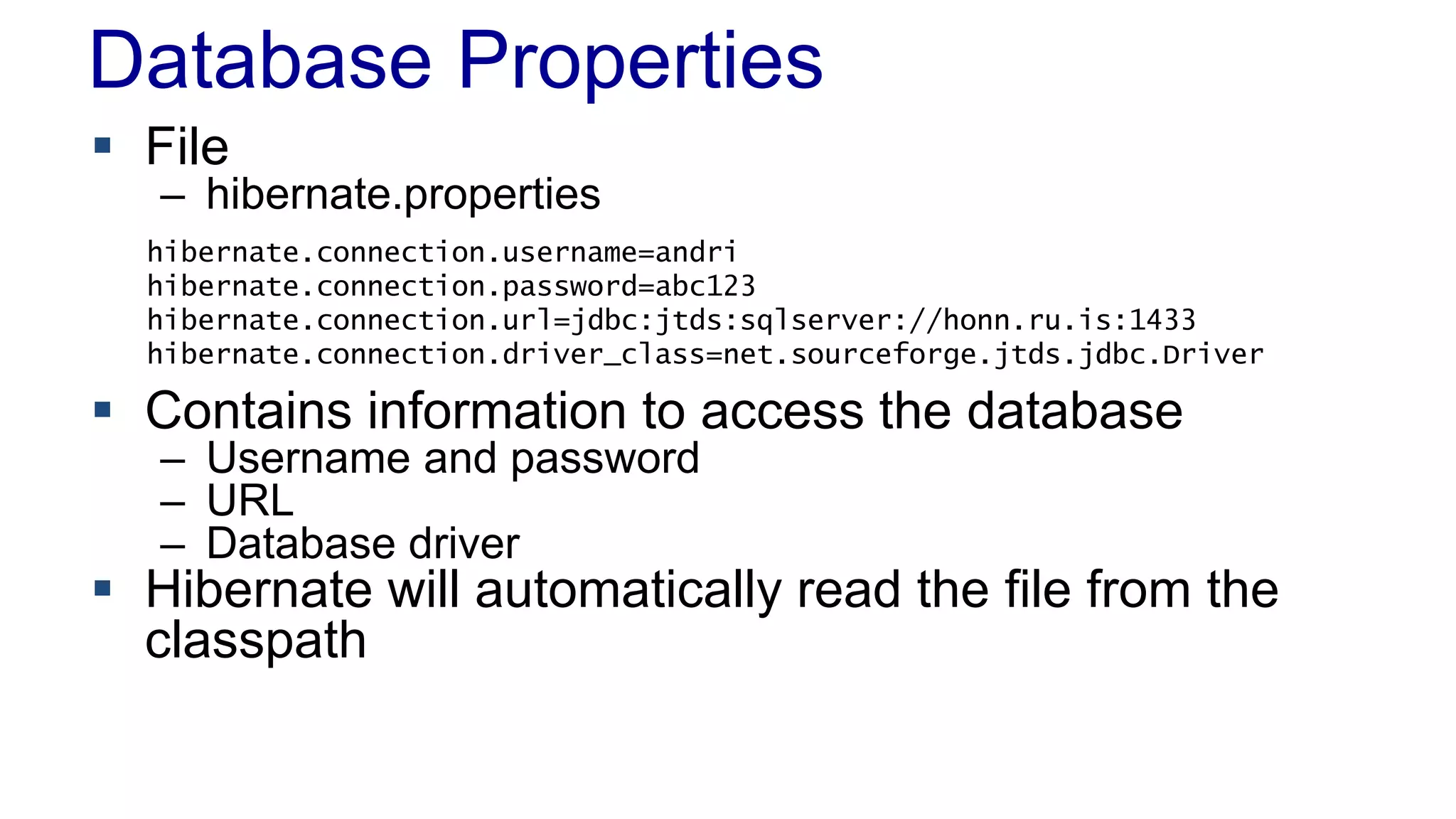

Database Properties
 File
– hibernate.properties
 Contains information to access the database
– Username and password
– URL
– Database driver
 Hibernate will automatically read the file from the
classpath
hibernate.connection.username=andri
hibernate.connection.password=abc123
hibernate.connection.url=jdbc:jtds:sqlserver://honn.ru.is:1433
hibernate.connection.driver_class=net.sourceforge.jtds.jdbc.Driver

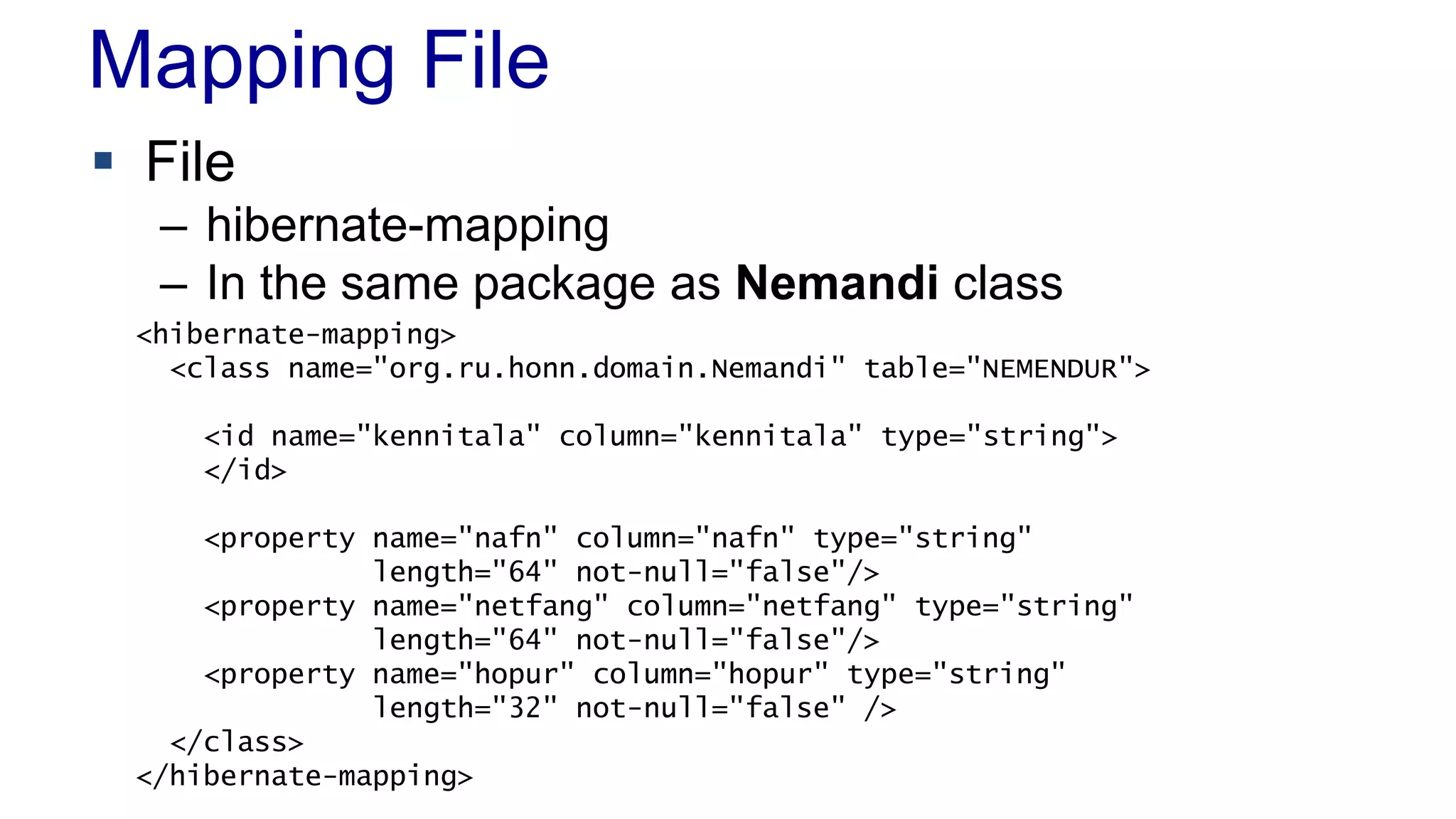

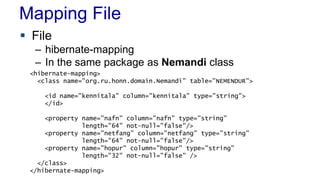

Mapping File
 File
– hibernate-mapping
– In the same package as Nemandi class
<hibernate-mapping>
<class name="org.ru.honn.domain.Nemandi" table="NEMENDUR">
<id name="kennitala" column="kennitala" type="string">
</id>
<property name="nafn" column="nafn" type="string"
length="64" not-null="false"/>
<property name="netfang" column="netfang" type="string"
length="64" not-null="false"/>
<property name="hopur" column="hopur" type="string"
length="32" not-null="false" />
</class>
</hibernate-mapping>

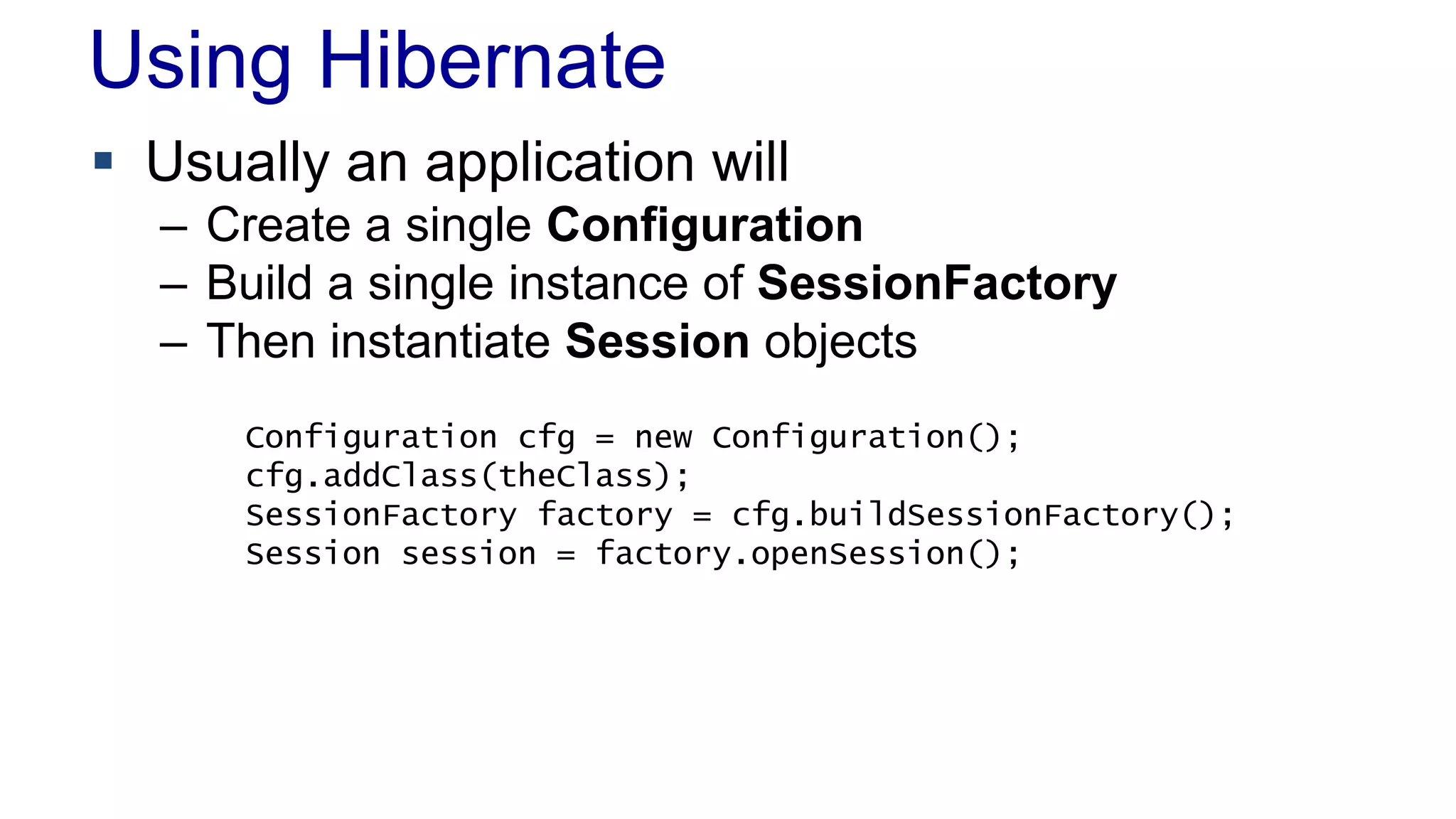

Using Hibernate
 Usually an application will
– Create a single Configuration
– Build a single instance of SessionFactory
– Then instantiate Session objects
Configuration cfg = new Configuration();
cfg.addClass(theClass);
SessionFactory factory = cfg.buildSessionFactory();
Session session = factory.openSession();

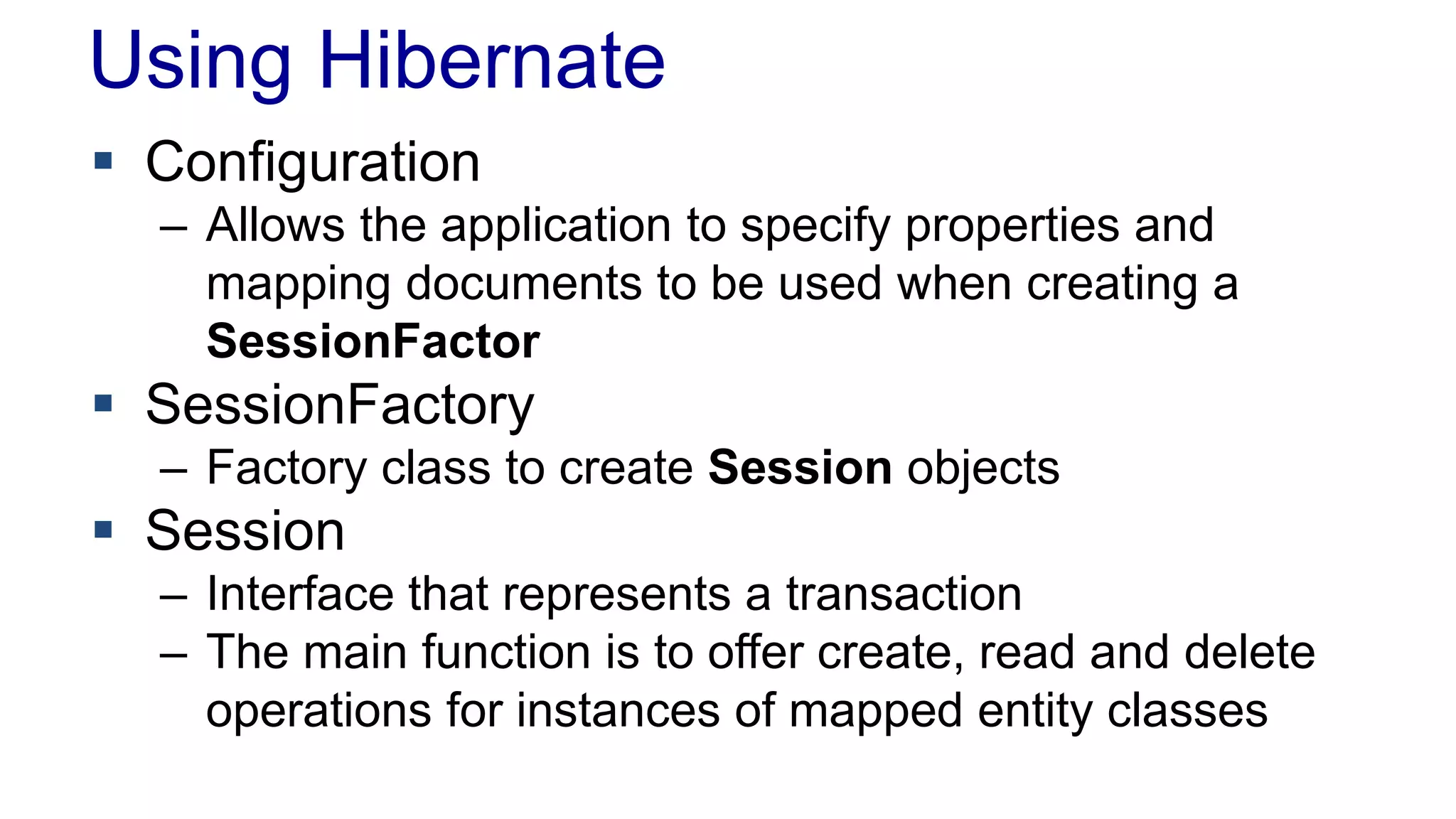

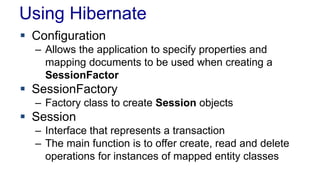

Using Hibernate
 Configuration
– Allows the application to specify properties and
mapping documents to be used when creating a
SessionFactor
 SessionFactory
– Factory class to create Session objects
 Session
– Interface that represents a transaction
– The main function is to offer create, read and delete
operations for instances of mapped entity classes

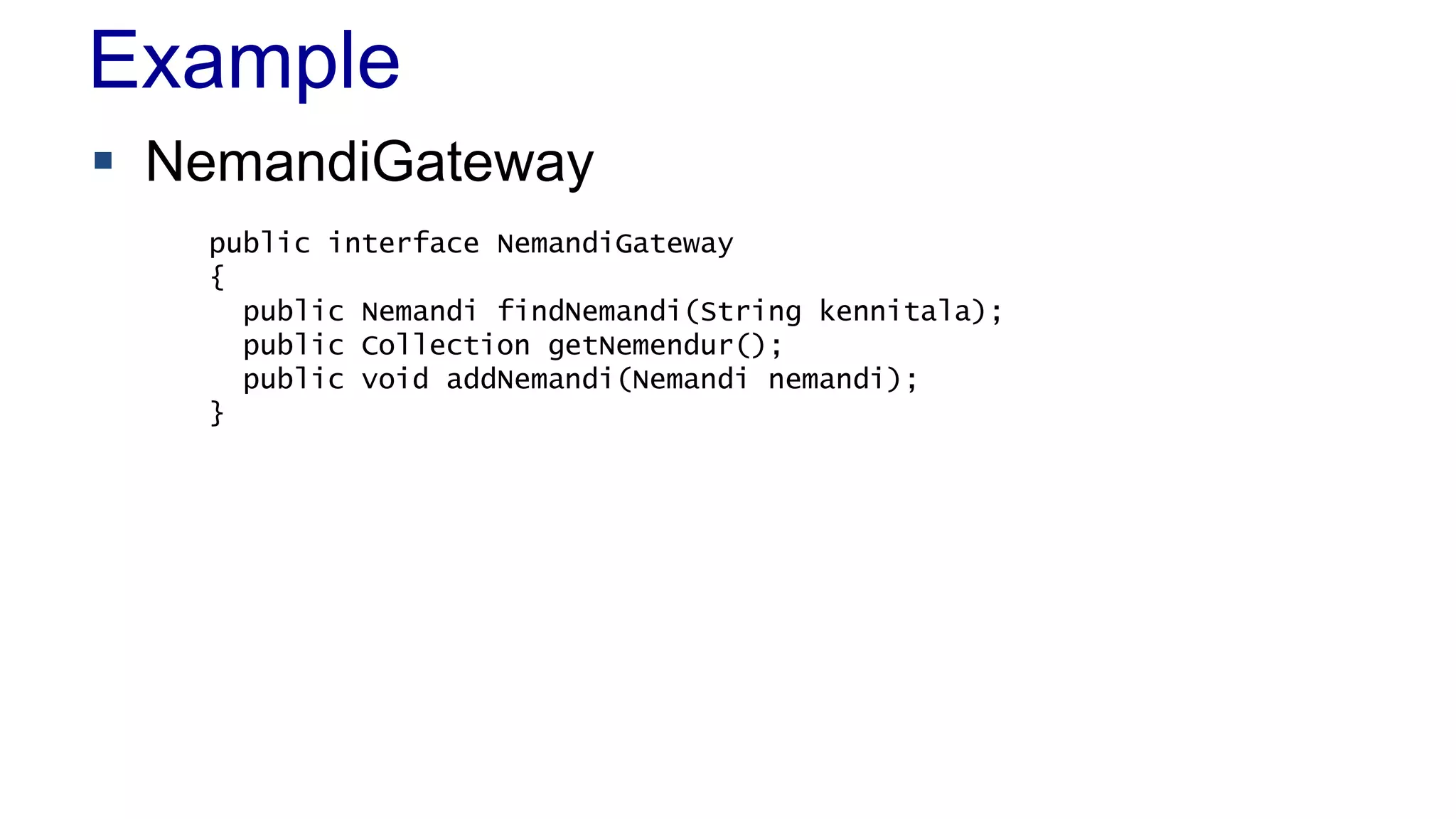

Example
 NemandiGateway
public interface NemandiGateway
{
public Nemandi findNemandi(String kennitala);
public Collection getNemendur();
public void addNemandi(Nemandi nemandi);
}

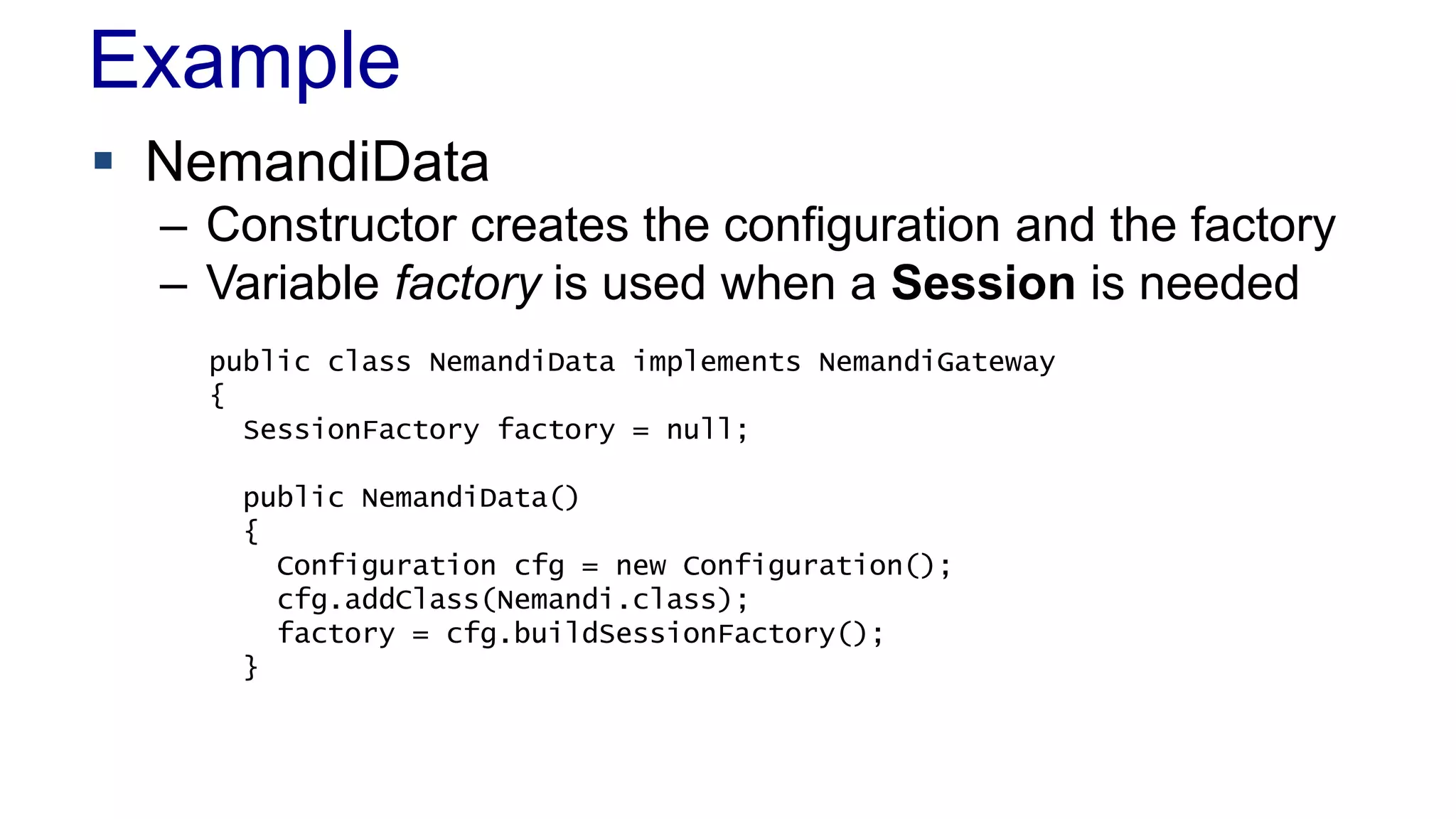

Example
 NemandiData
– Constructor creates the configuration and the factory
– Variable factory is used when a Session is needed
public class NemandiData implements NemandiGateway
{
SessionFactory factory = null;
public NemandiData()
{
Configuration cfg = new Configuration();
cfg.addClass(Nemandi.class);
factory = cfg.buildSessionFactory();
}

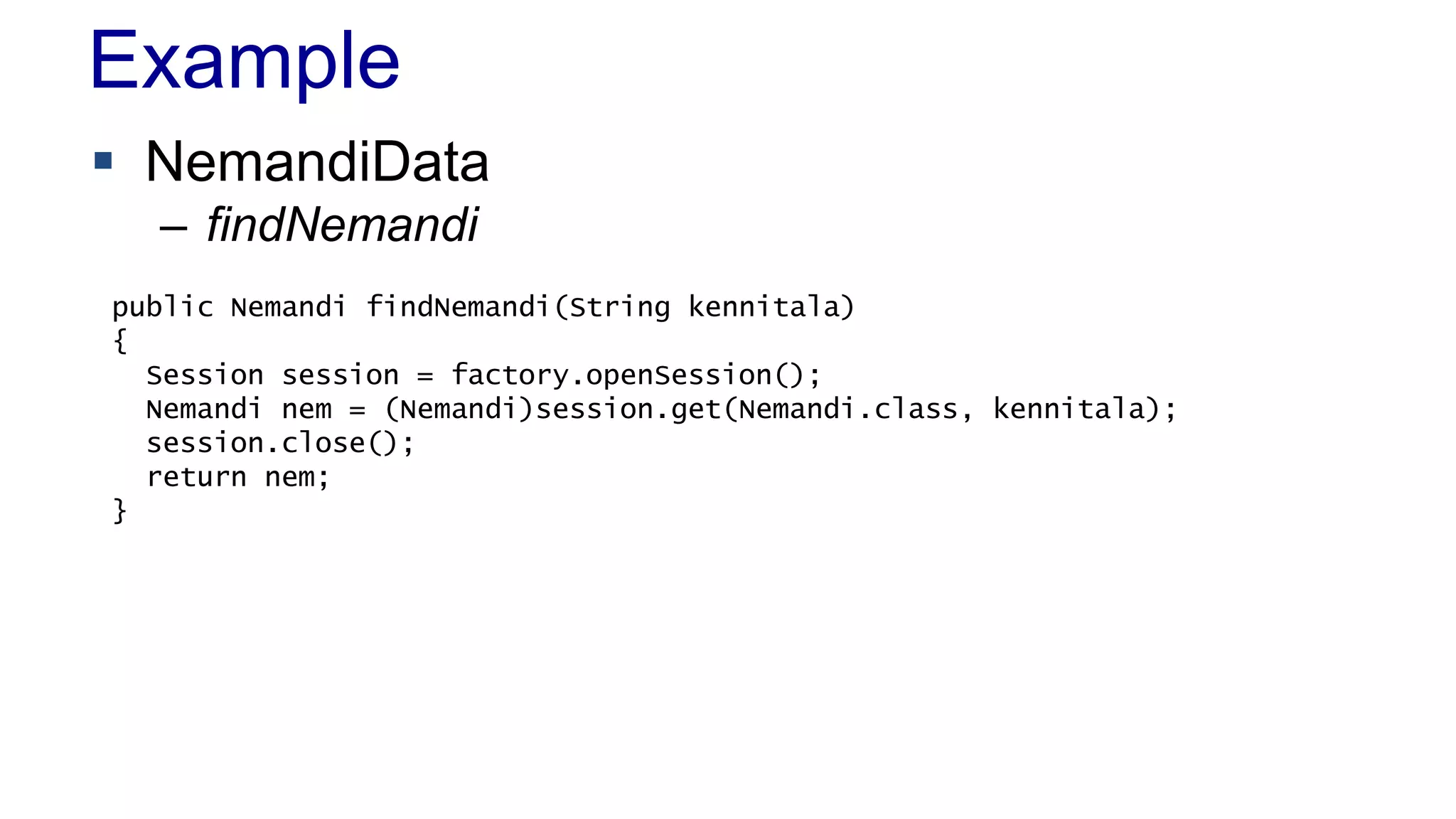

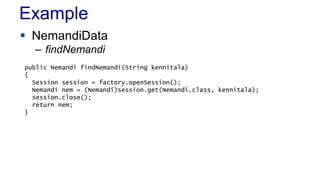

Example
 NemandiData
– findNemandi
public Nemandi findNemandi(String kennitala)
{
Nemandi nem = (Nemandi)session.get(Nemandi.class, kennitala);
session.close();
return nem;
}

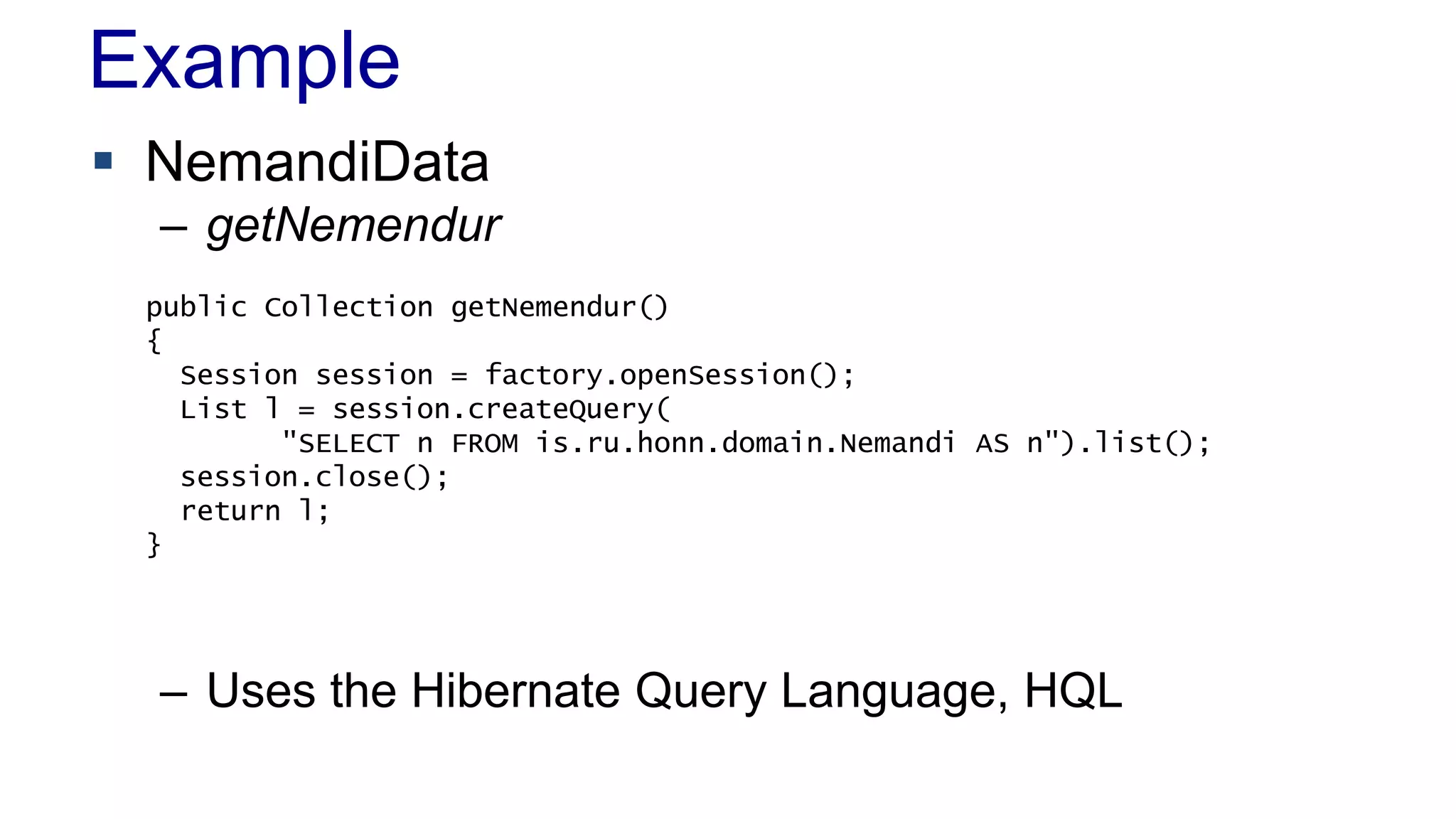

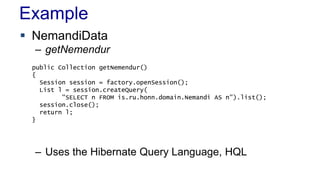

Example
 NemandiData
– getNemendur
– Uses the Hibernate Query Language, HQL
public Collection getNemendur()
{
List l = session.createQuery(
"SELECT n FROM is.ru.honn.domain.Nemandi AS n").list();
session.close();
return l;
}

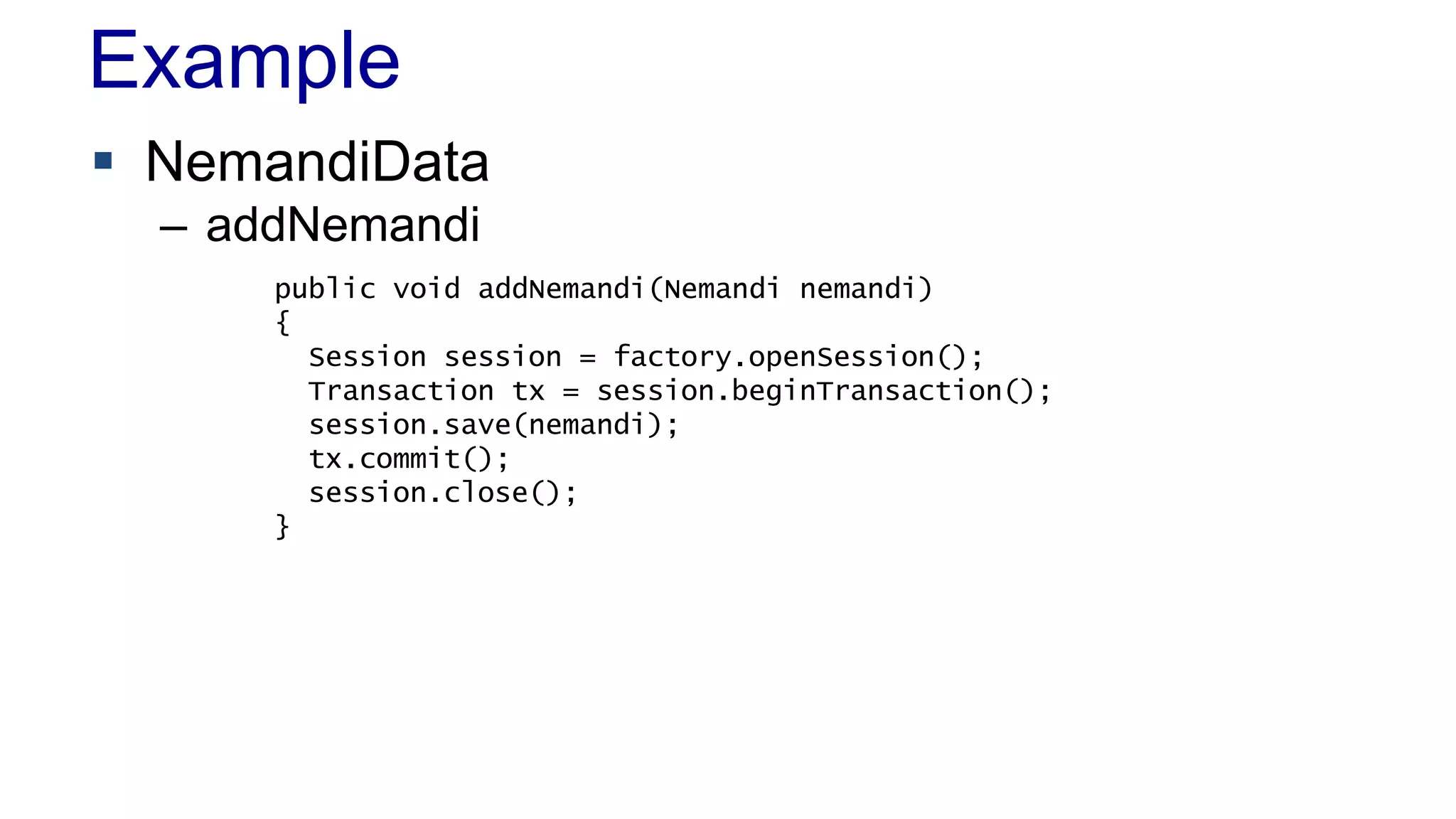

Example
 NemandiData
– addNemandi
public void addNemandi(Nemandi nemandi)
{
Transaction tx = session.beginTransaction();
session.save(nemandi);
tx.commit();
session.close();
}

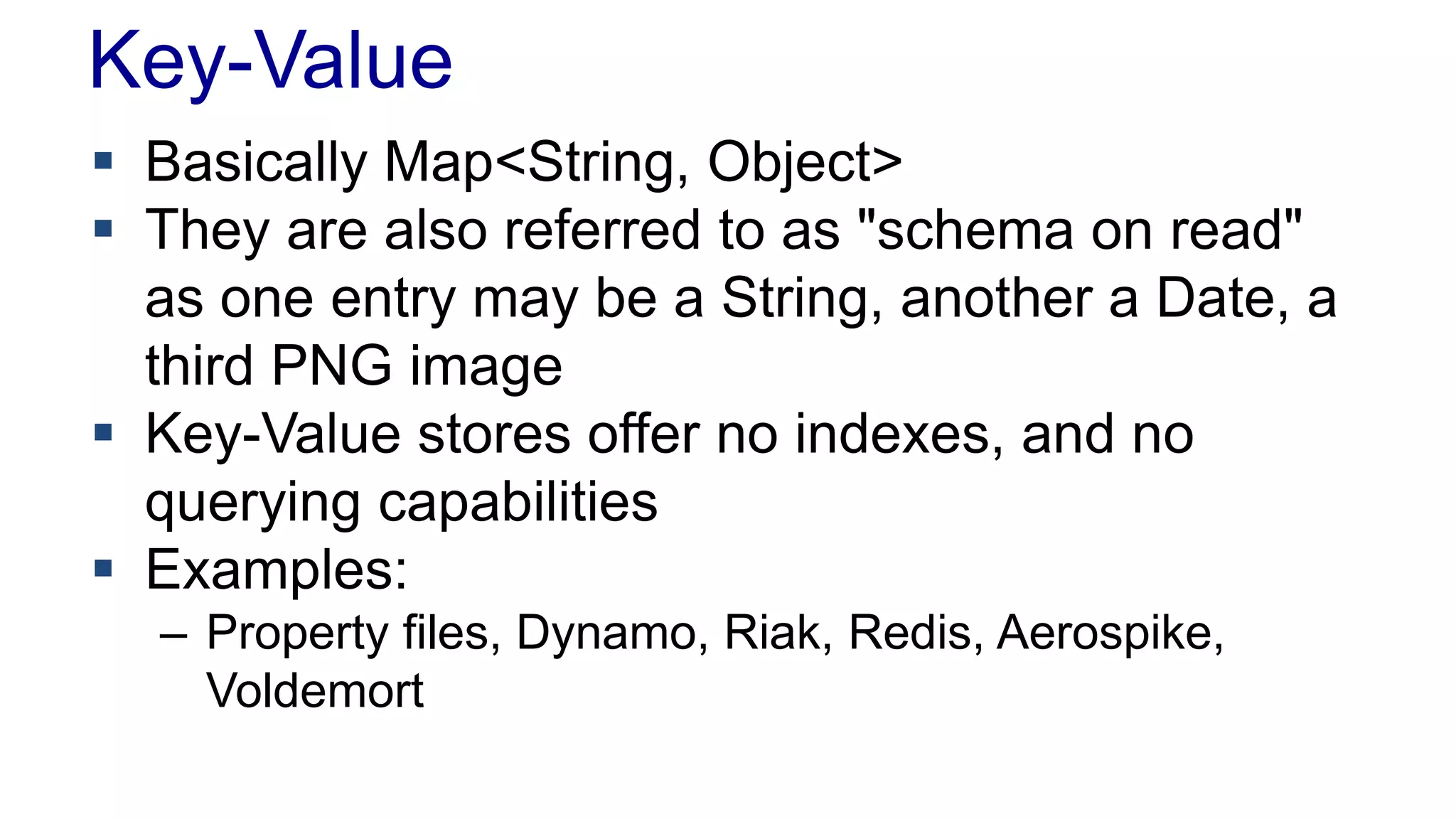

Key-Value
 Basically Map<String, Object>
 They are also referred to as "schema on read"
as one entry may be a String, another a Date, a
third PNG image
 Key-Value stores offer no indexes, and no
querying capabilities
 Examples:
– Property files, Dynamo, Riak, Redis, Aerospike,
Voldemort

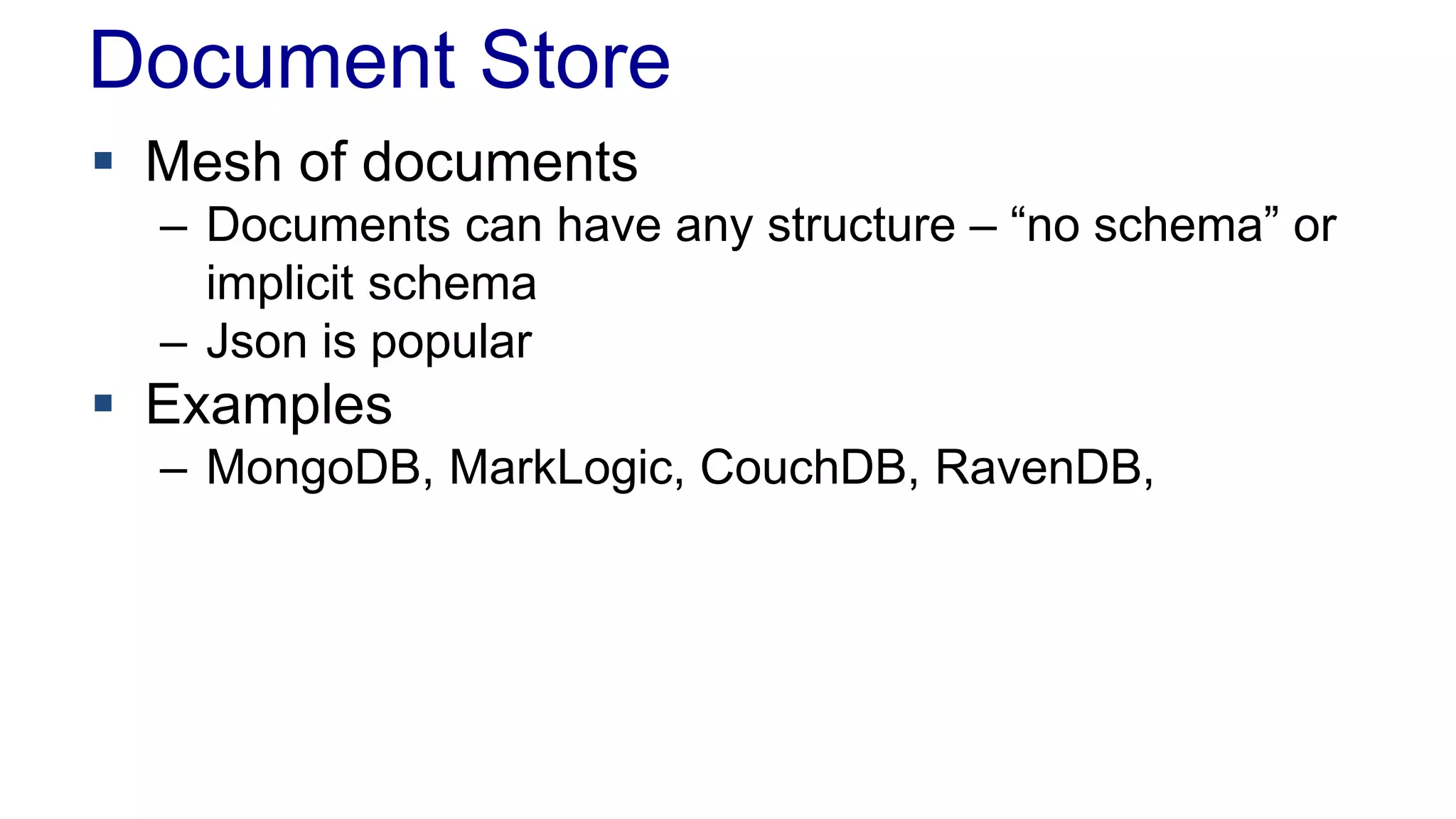

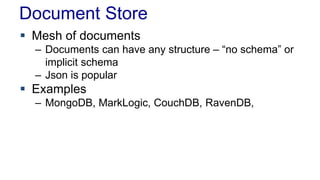

Document Store
 Mesh of documents
– Documents can have any structure – “no schema” or
implicit schema
– Json is popular
 Examples
– MongoDB, MarkLogic, CouchDB, RavenDB,

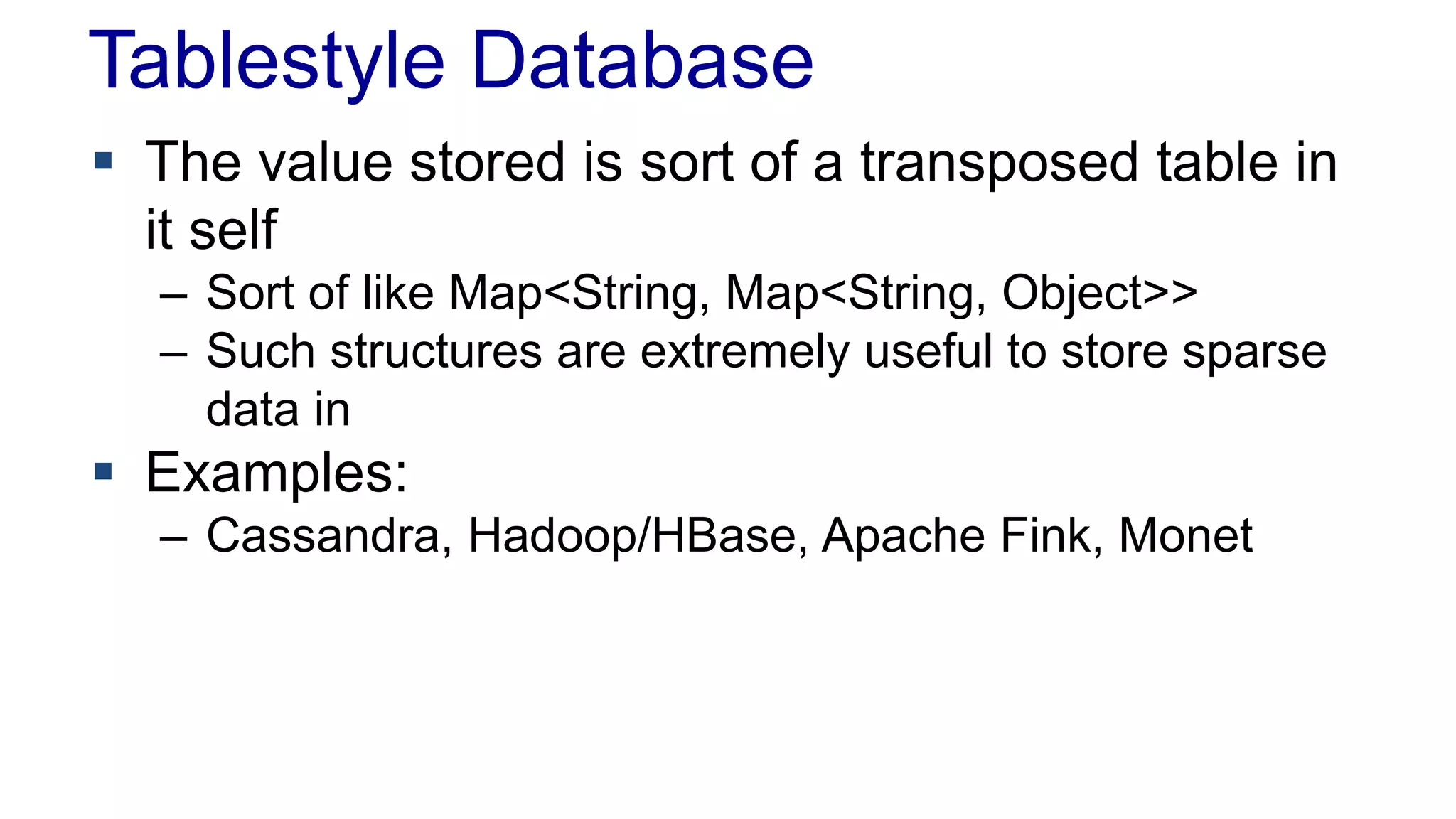

Tablestyle Database
 The value stored is sort of a transposed table in
it self
– Sort of like Map<String, Map<String, Object>>
– Such structures are extremely useful to store sparse
data in
 Examples:
– Cassandra, Hadoop/HBase, Apache Fink, Monet

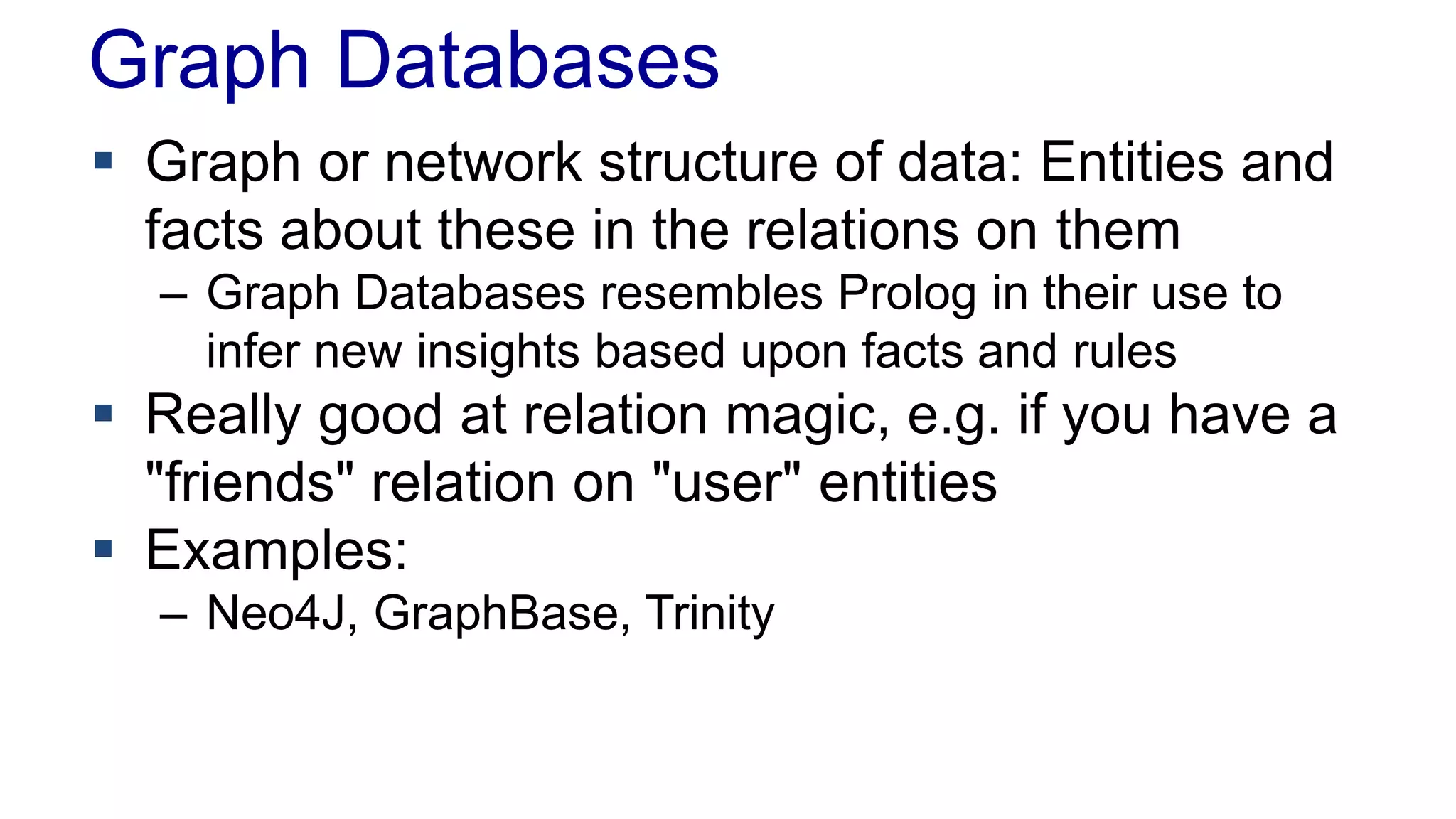

Graph Databases
 Graph or network structure of data: Entities and
facts about these in the relations on them
– Graph Databases resembles Prolog in their use to
infer new insights based upon facts and rules
 Really good at relation magic, e.g. if you have a
"friends" relation on "user" entities
 Examples:
– Neo4J, GraphBase, Trinity

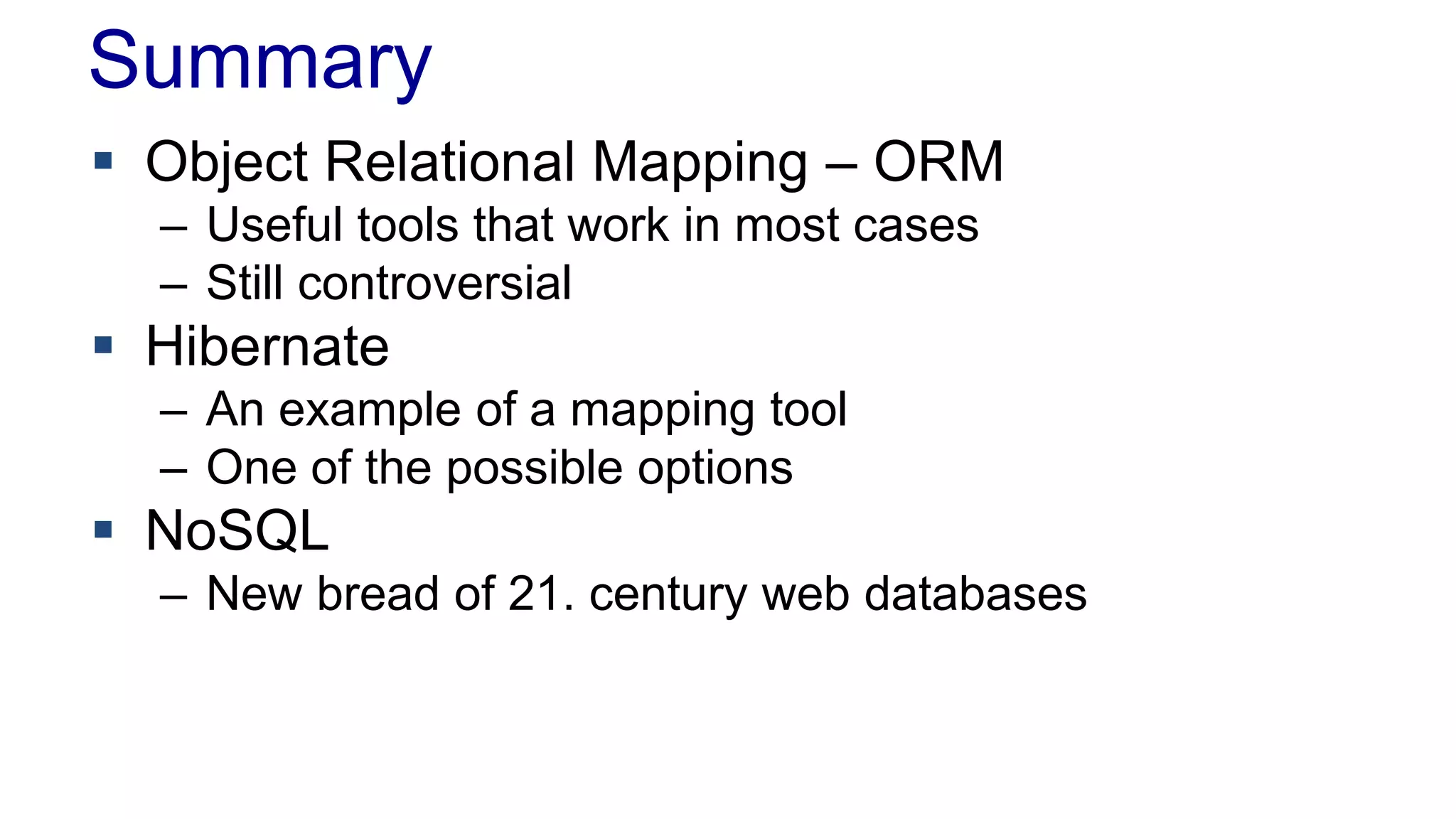

Summary
 Object Relational Mapping – ORM
– Useful tools that work in most cases
– Still controversial
 Hibernate
– An example of a mapping tool
– One of the possible options
 NoSQL
– New bread of 21. century web databases
