Persistence with Ada Database Objects (ADO)

Persistence with
Ada Database Objects (ADO)
Stéphane Carrez FOSDEM 2019

https://github.com/stcarrez/ada-ado 2

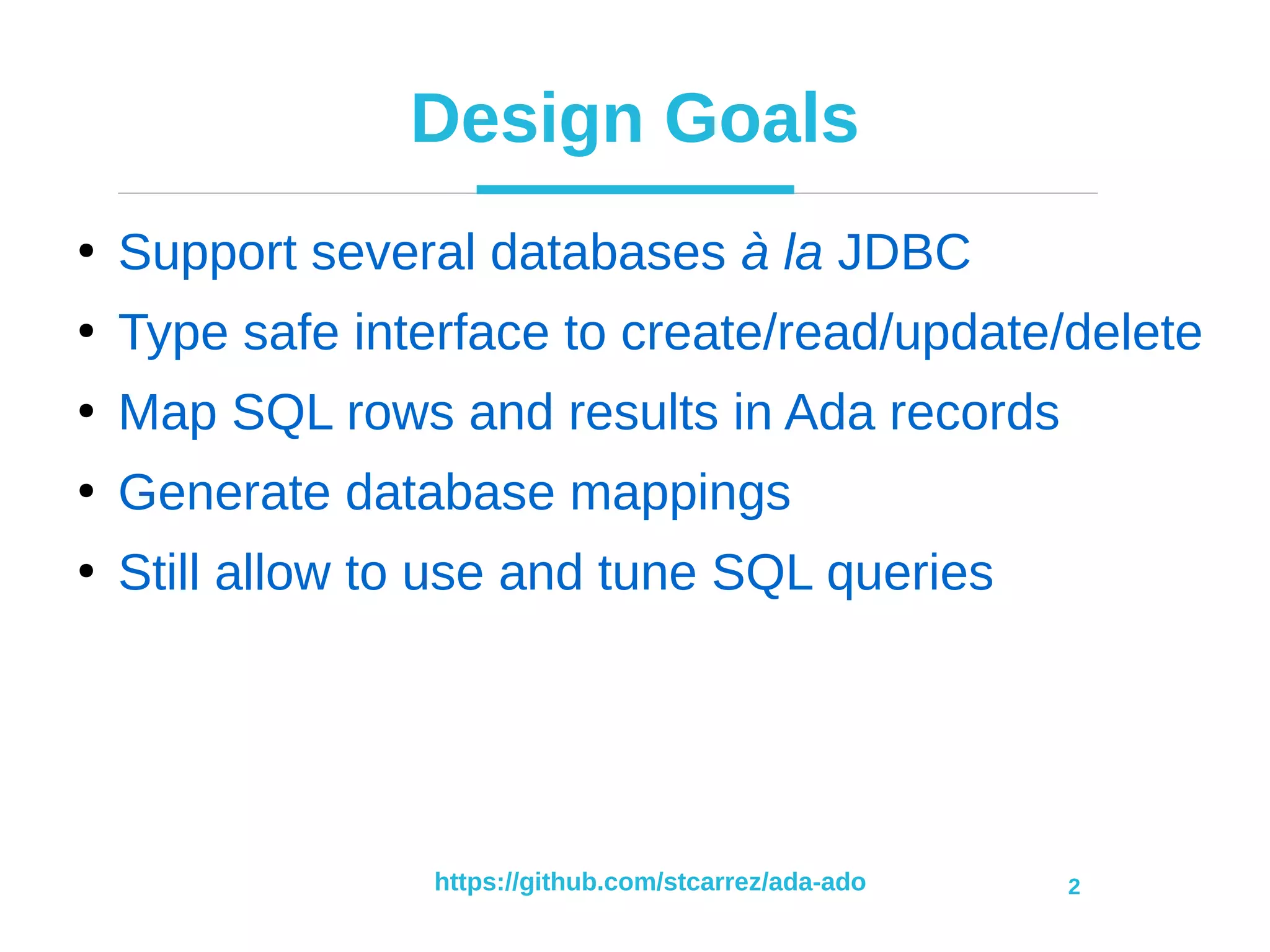

Design Goals
●
Support several databases à la JDBC
●
Type safe interface to create/read/update/delete
●
Map SQL rows and results in Ada records
●
Generate database mappings
●
Still allow to use and tune SQL queries

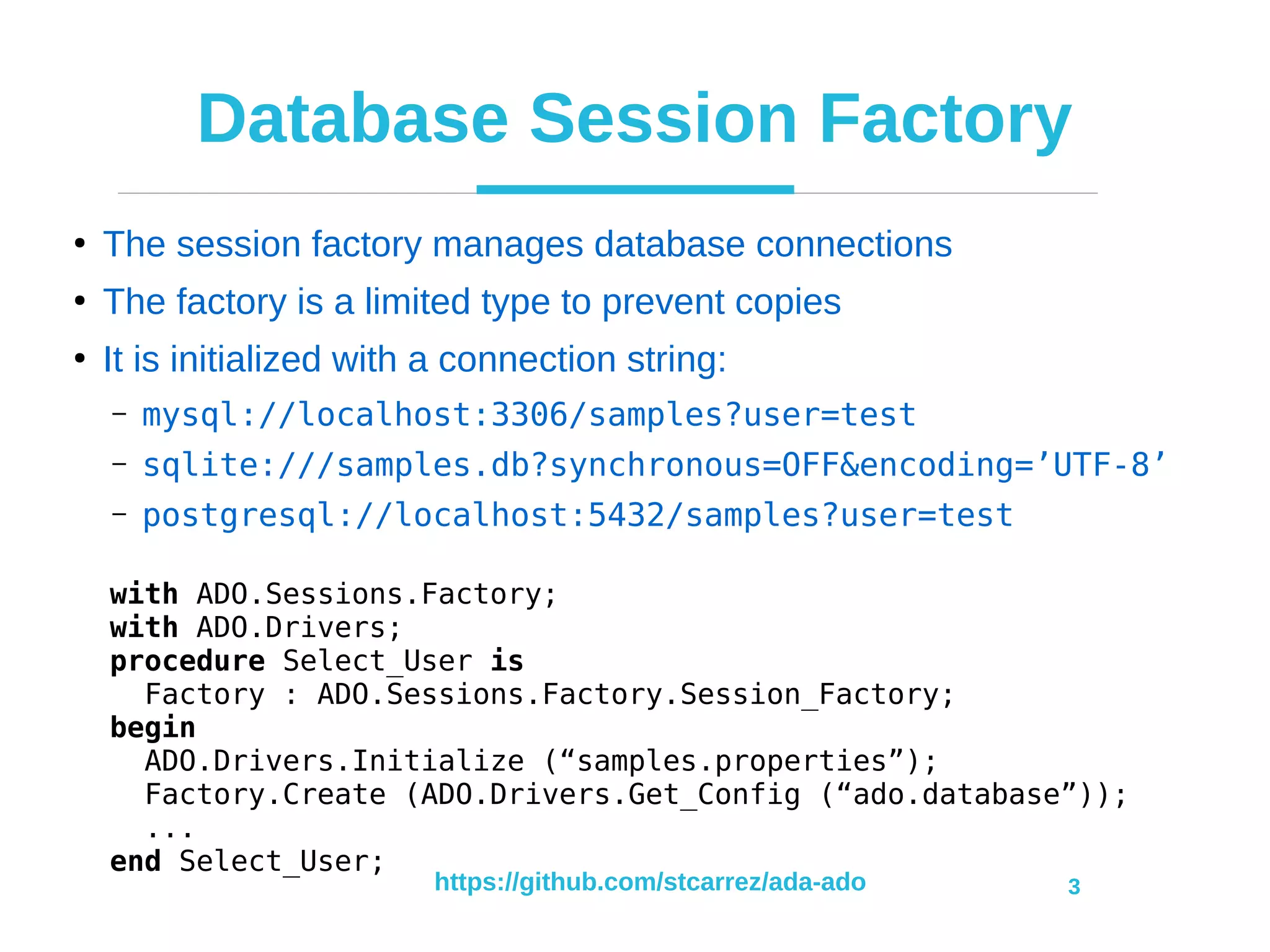

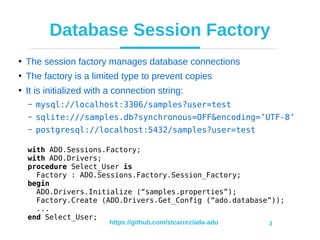

Database Session Factory
●
The session factory manages database connections
●
The factory is a limited type to prevent copies
●
It is initialized with a connection string:
– mysql://localhost:3306/samples?user=test
– sqlite:///samples.db?synchronous=OFF&encoding=’UTF-8’
– postgresql://localhost:5432/samples?user=test
with ADO.Sessions.Factory;
with ADO.Drivers;
procedure Select_User is
Factory : ADO.Sessions.Factory.Session_Factory;
begin
ADO.Drivers.Initialize (“samples.properties”);
Factory.Create (ADO.Drivers.Get_Config (“ado.database”));
...
end Select_User;

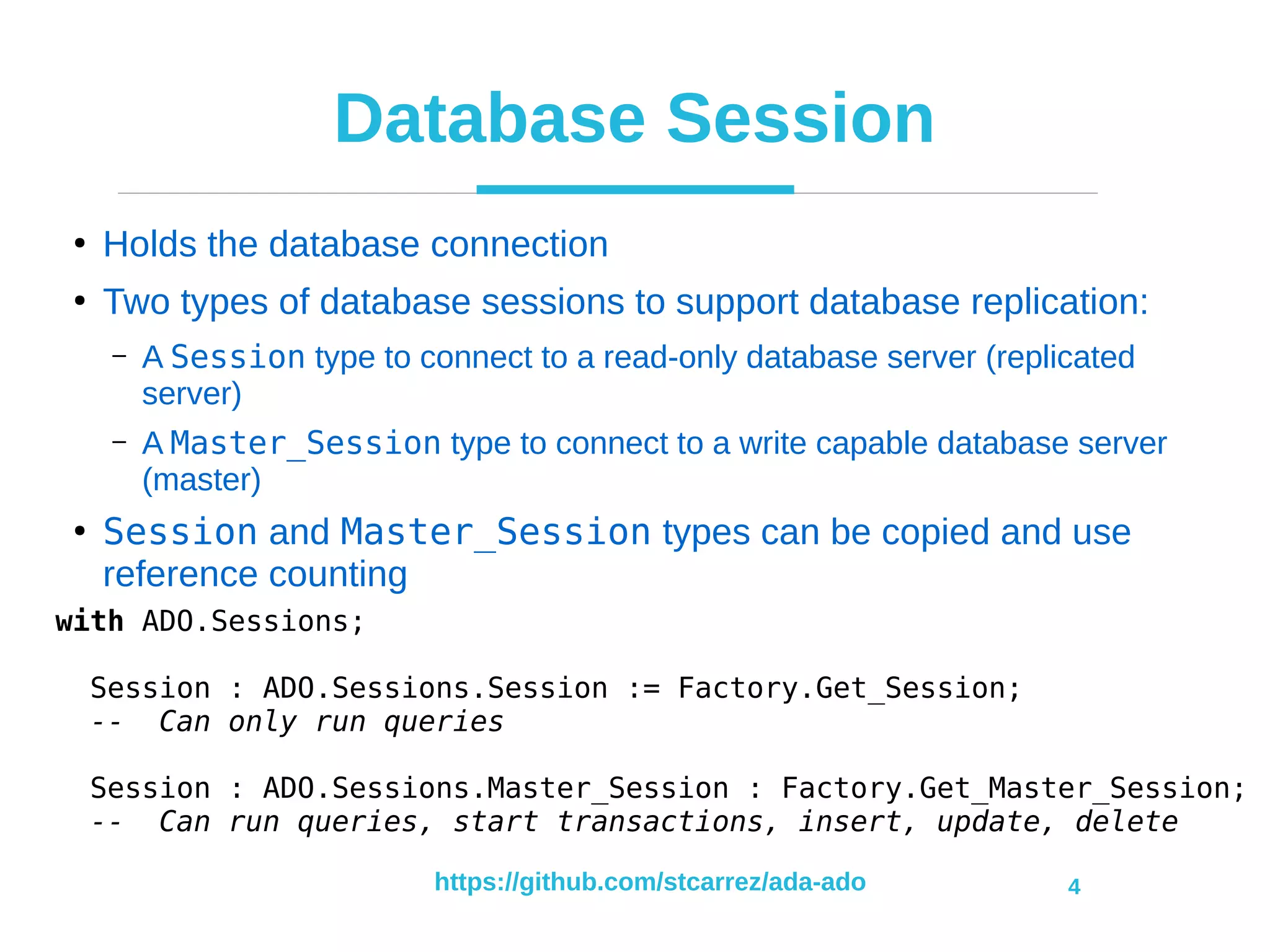

Database Session
●
Holds the database connection
●
Two types of database sessions to support database replication:
– A Session type to connect to a read-only database server (replicated
server)
– A Master_Session type to connect to a write capable database server
(master)
●
Session and Master_Session types can be copied and use
reference counting
with ADO.Sessions;
Session : ADO.Sessions.Session := Factory.Get_Session;
-- Can only run queries
Session : ADO.Sessions.Master_Session : Factory.Get_Master_Session;
-- Can run queries, start transactions, insert, update, delete

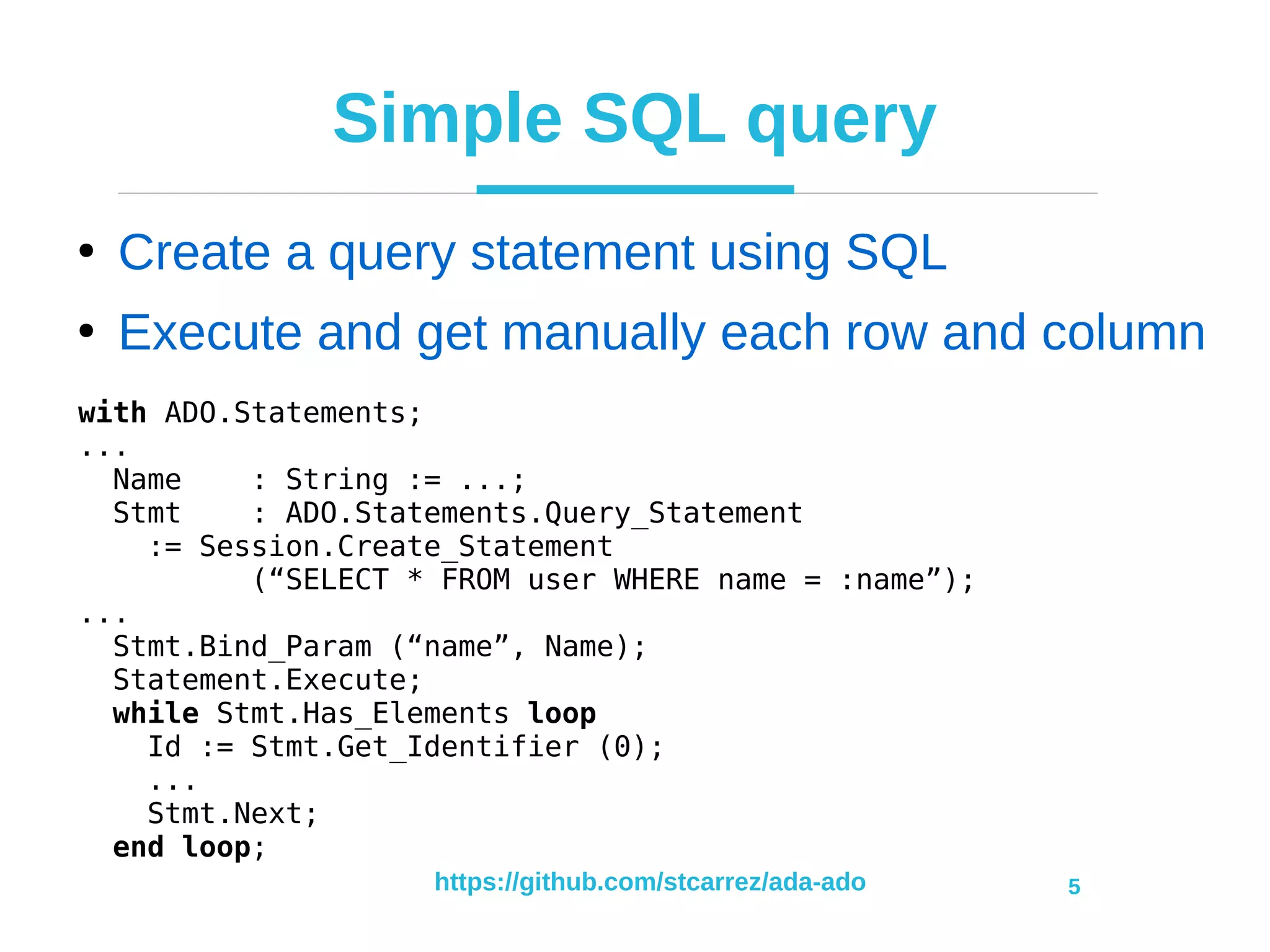

Simple SQL query
●
Create a query statement using SQL
●
Execute and get manually each row and column
with ADO.Statements;
...
Name : String := ...;
Stmt : ADO.Statements.Query_Statement
:= Session.Create_Statement
(“SELECT * FROM user WHERE name = :name”);
...
Stmt.Bind_Param (“name”, Name);
Statement.Execute;
while Stmt.Has_Elements loop
Id := Stmt.Get_Identifier (0);
...
Stmt.Next;
end loop;

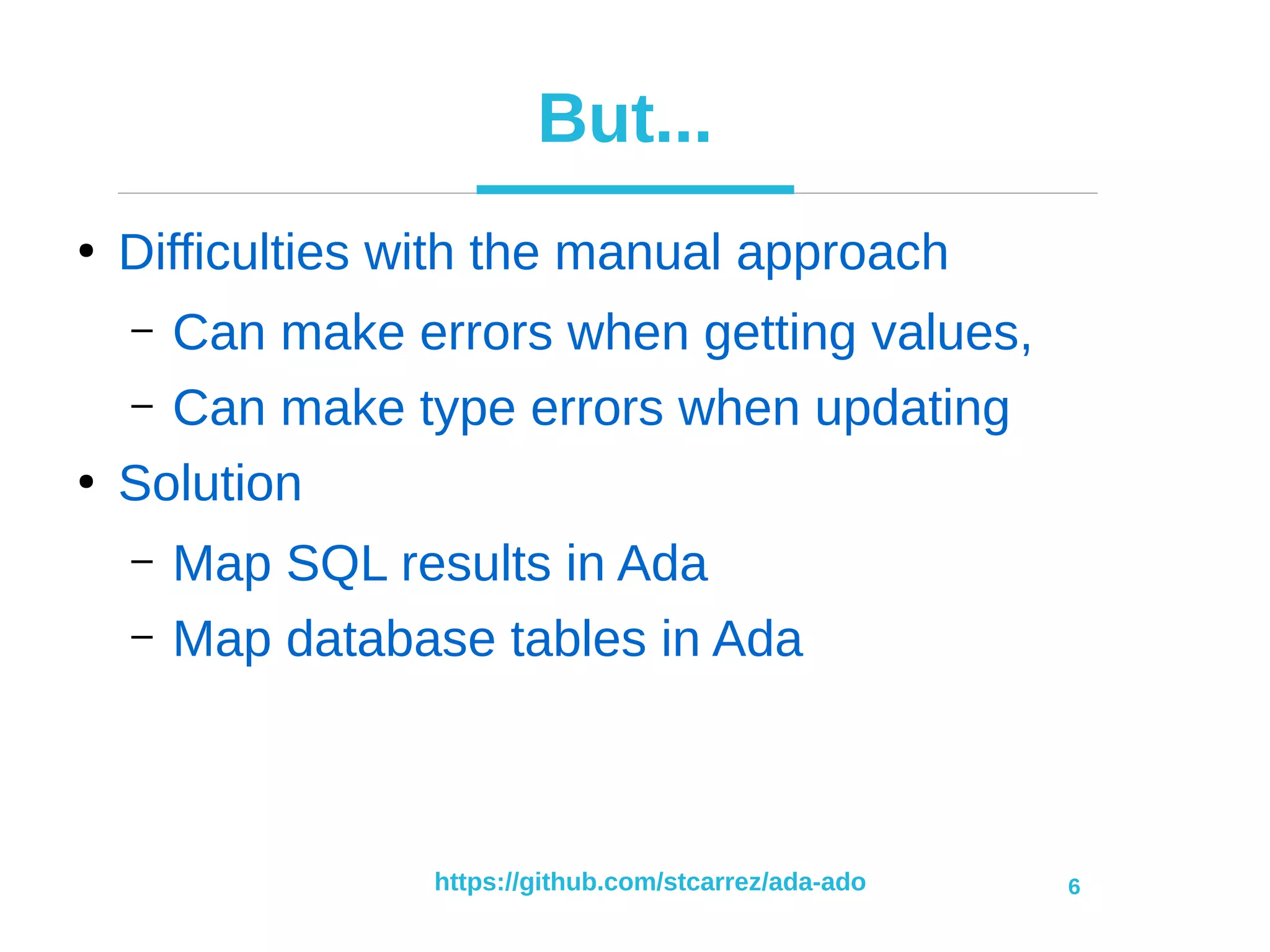

But...
●
Difficulties with the manual approach
– Can make errors when getting values,
– Can make type errors when updating
●
Solution
– Map SQL results in Ada
– Map database tables in Ada

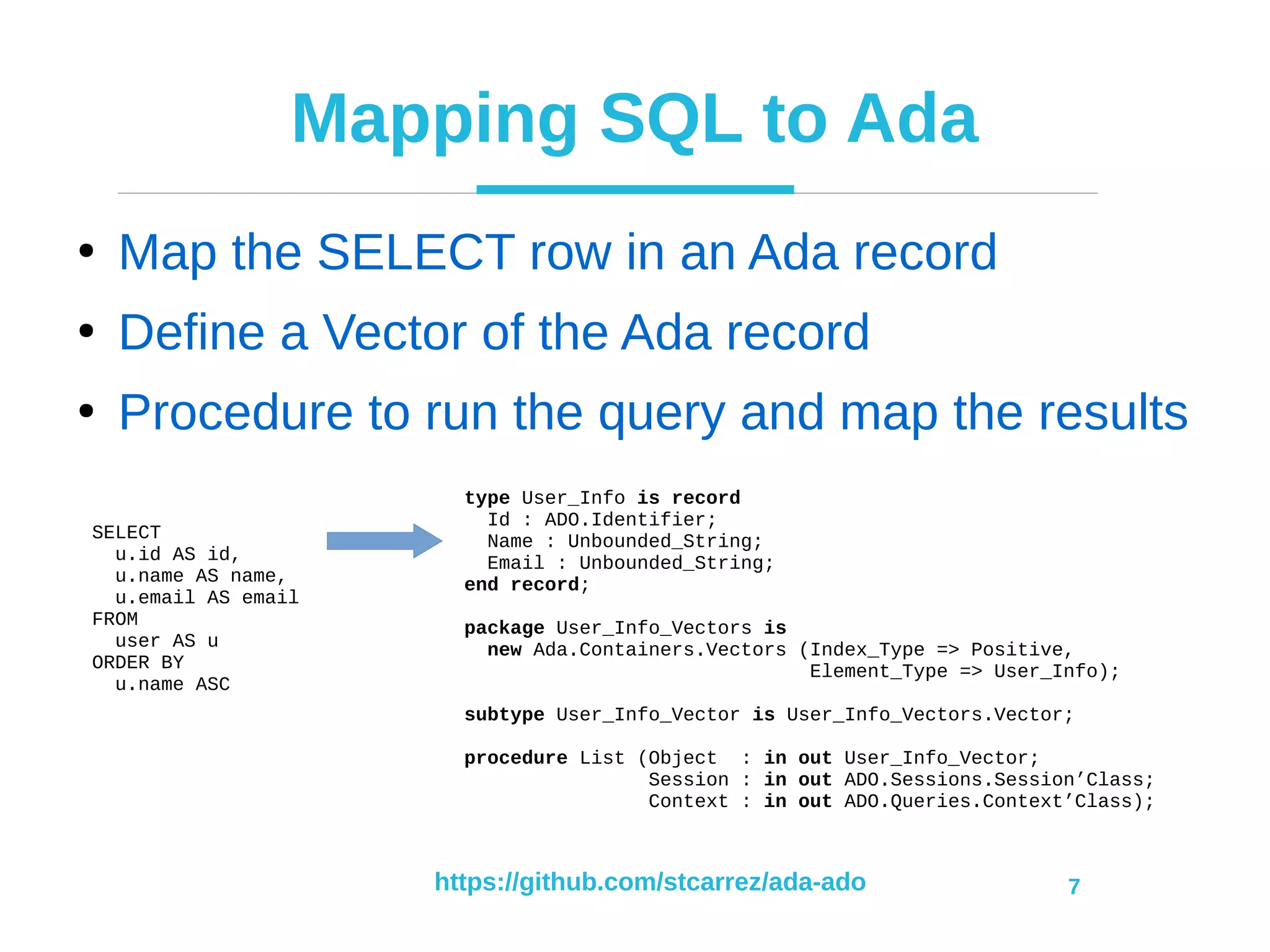

Mapping SQL to Ada
●
Map the SELECT row in an Ada record
●
Define a Vector of the Ada record
●
Procedure to run the query and map the results
type User_Info is record
Id : ADO.Identifier;
Name : Unbounded_String;
Email : Unbounded_String;
end record;
package User_Info_Vectors is
new Ada.Containers.Vectors (Index_Type => Positive,
Element_Type => User_Info);
subtype User_Info_Vector is User_Info_Vectors.Vector;
procedure List (Object : in out User_Info_Vector;
Session : in out ADO.Sessions.Session’Class;
Context : in out ADO.Queries.Context’Class);
SELECT
u.id AS id,
u.name AS name,
u.email AS email
FROM
user AS u
ORDER BY
u.name ASC

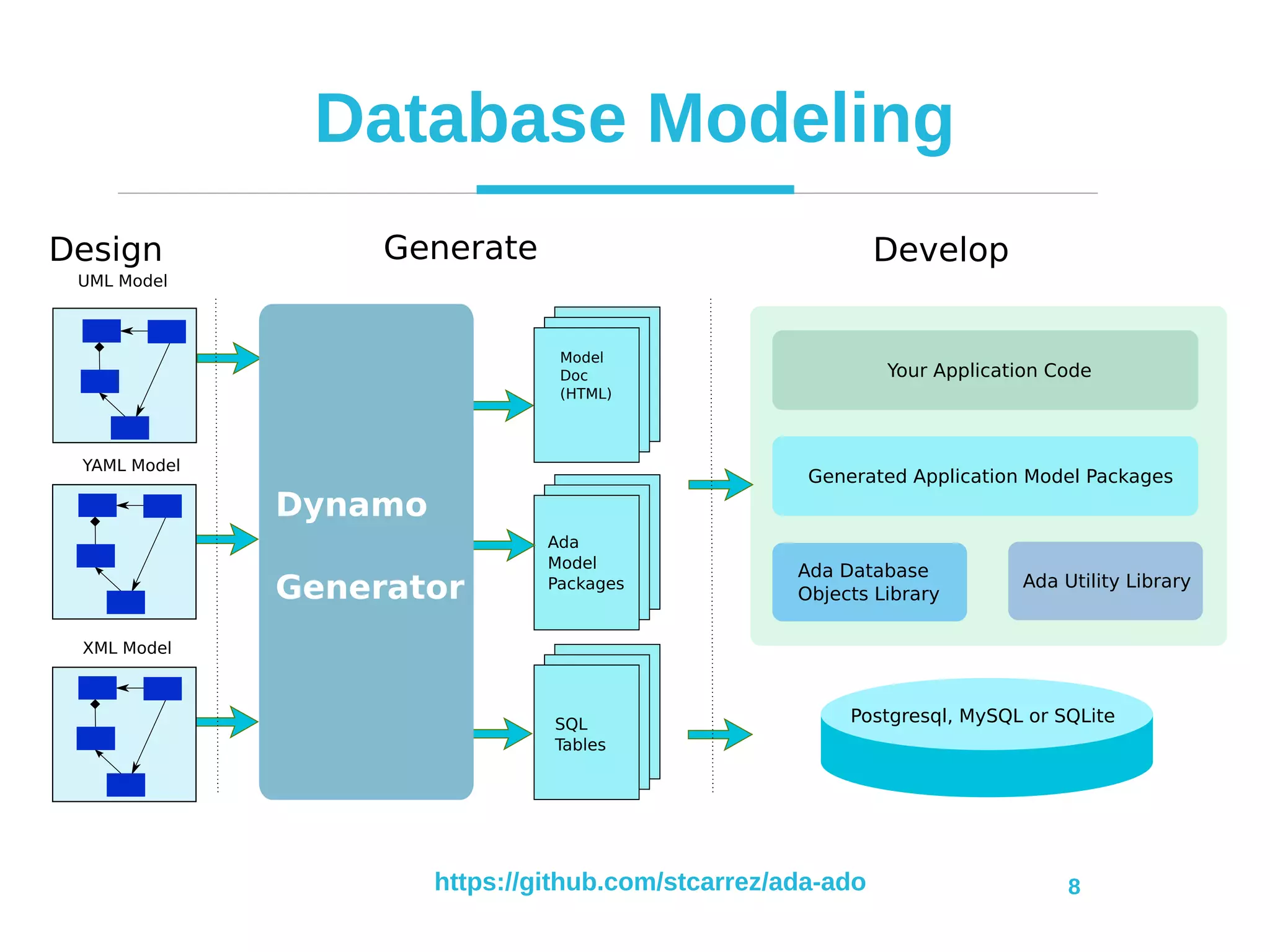

Database Modeling
XML Model
Dynamo
Generator
Model
Doc
(HTML)
SQL
Tables
Ada
Model
Packages
UML Model
Ada Database
Objects Library
Generated Application Model Packages
Your Application Code
Ada Utility Library
Postgresql, MySQL or SQLite
Generate Develop
YAML Model
Design

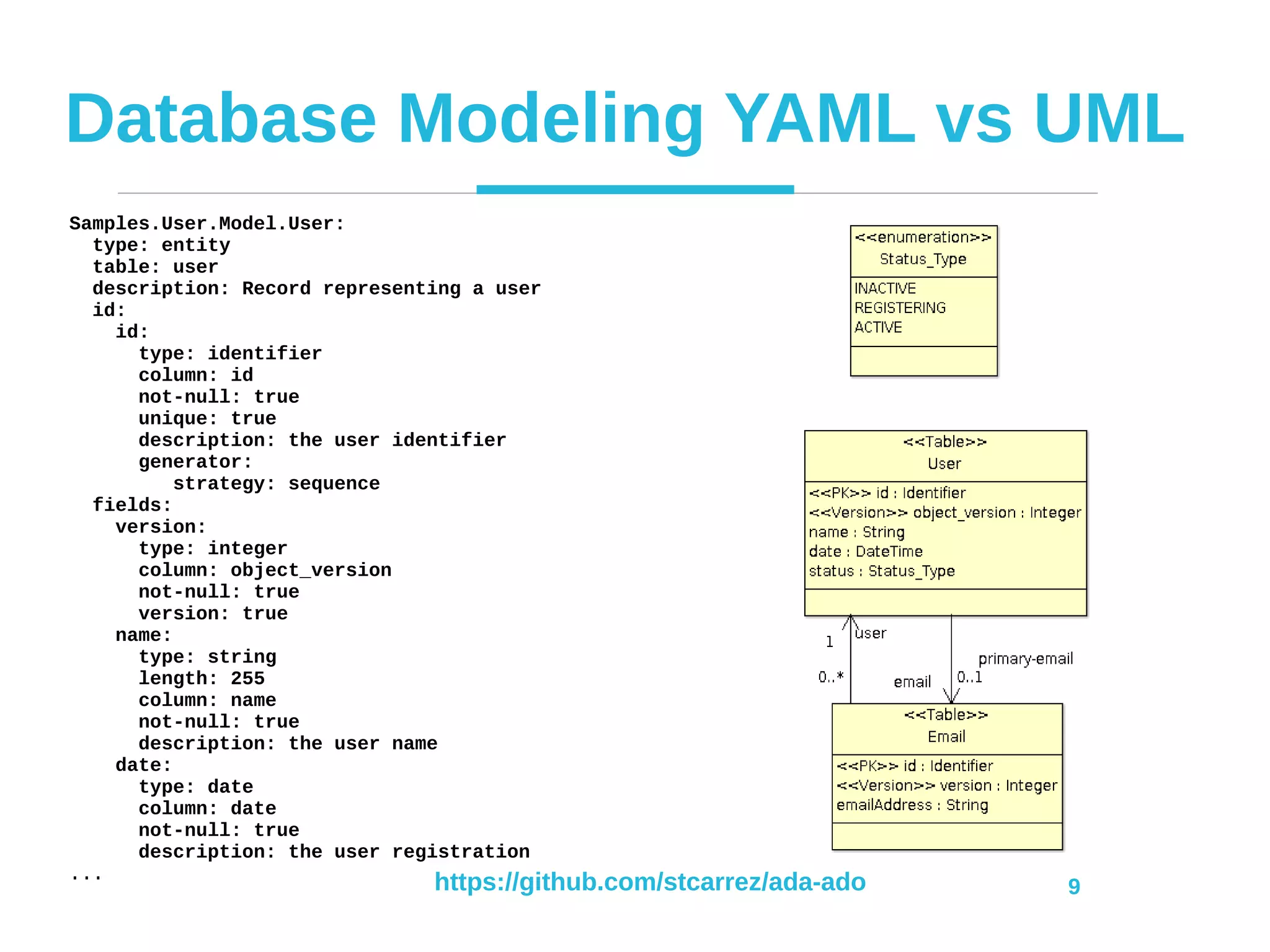

Database Modeling YAML vs UML
Samples.User.Model.User:
type: entity
table: user
description: Record representing a user
id:
id:
type: identifier
column: id
not-null: true
unique: true
description: the user identifier
generator:
strategy: sequence
fields:
version:
type: integer
column: object_version
not-null: true
version: true
name:
type: string
length: 255
column: name
not-null: true
description: the user name
date:
type: date
column: date
not-null: true
description: the user registration
...

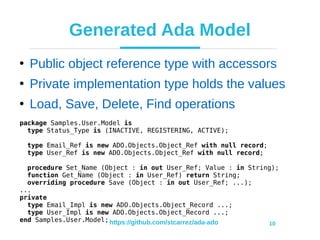

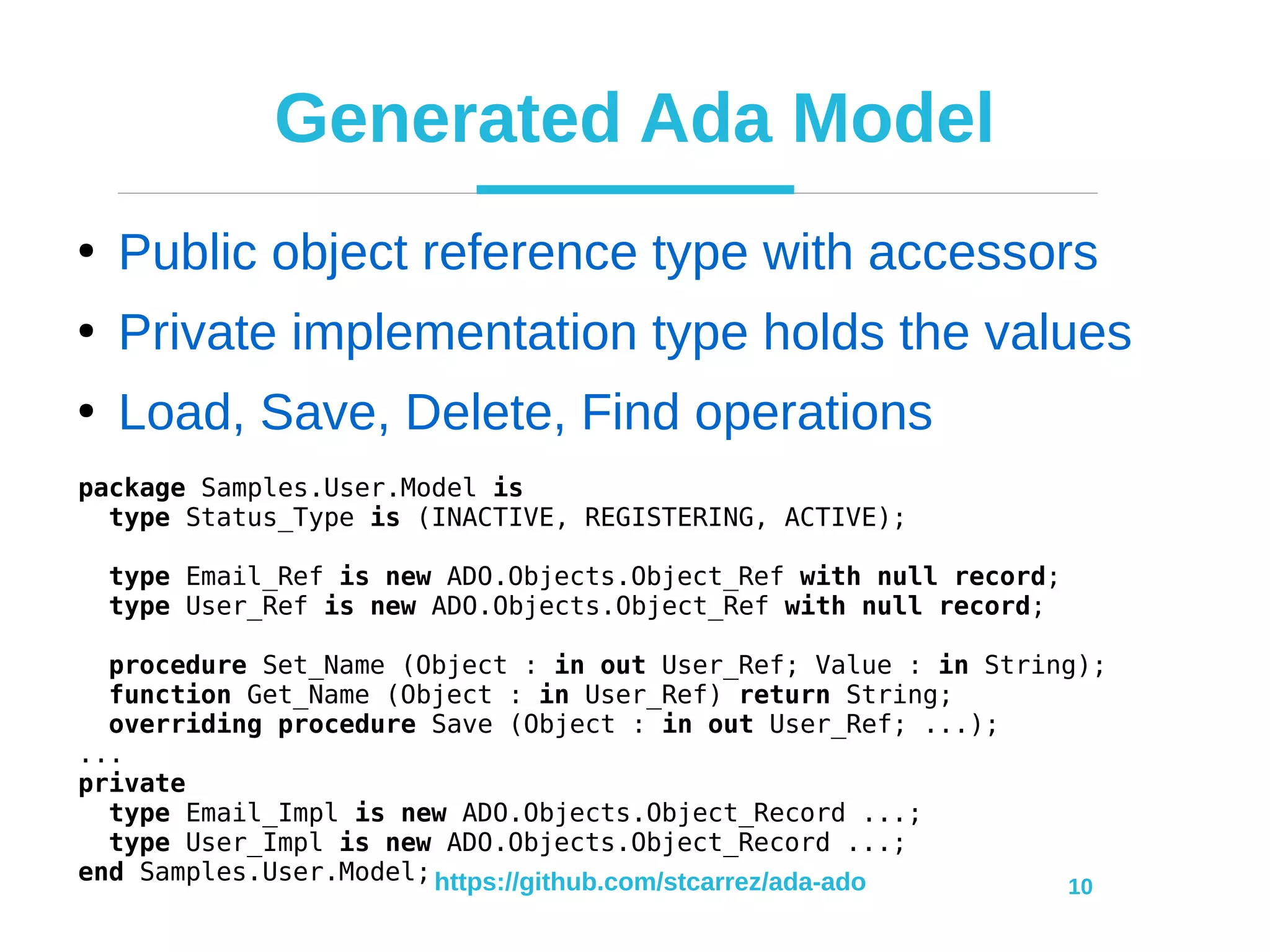

Generated Ada Model
●
Public object reference type with accessors
●
Private implementation type holds the values
●
Load, Save, Delete, Find operations
package Samples.User.Model is
type Status_Type is (INACTIVE, REGISTERING, ACTIVE);
type Email_Ref is new ADO.Objects.Object_Ref with null record;
type User_Ref is new ADO.Objects.Object_Ref with null record;
procedure Set_Name (Object : in out User_Ref; Value : in String);
function Get_Name (Object : in User_Ref) return String;
overriding procedure Save (Object : in out User_Ref; ...);
...
private
type Email_Impl is new ADO.Objects.Object_Record ...;
type User_Impl is new ADO.Objects.Object_Record ...;
end Samples.User.Model;

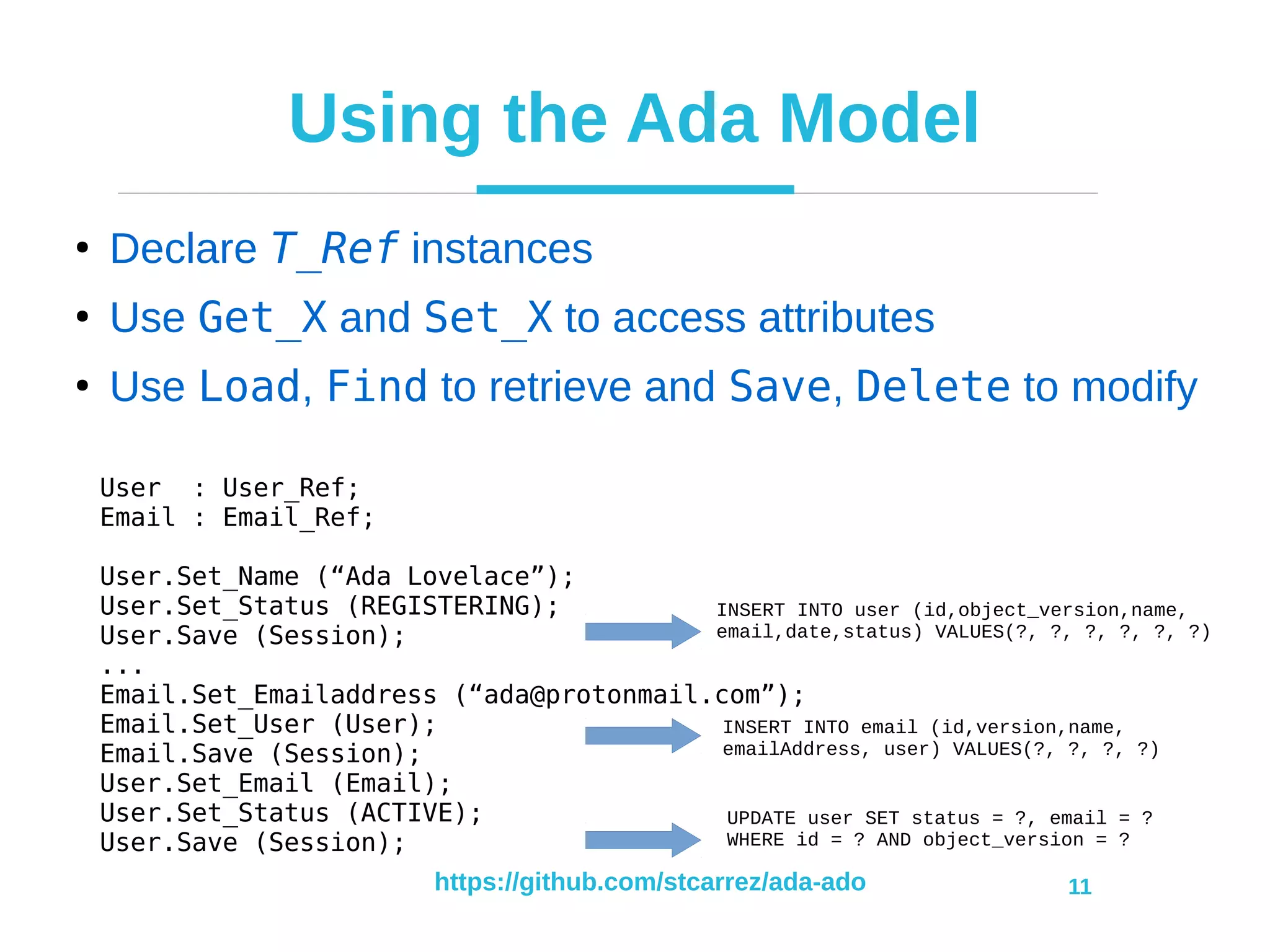

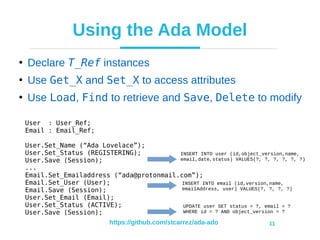

Using the Ada Model
●
Declare T_Ref instances
●
Use Get_X and Set_X to access attributes
●
Use Load, Find to retrieve and Save, Delete to modify
User : User_Ref;
Email : Email_Ref;
User.Set_Name (“Ada Lovelace”);
User.Set_Status (REGISTERING);
User.Save (Session);
...
Email.Set_Emailaddress (“ada@protonmail.com”);
Email.Set_User (User);
Email.Save (Session);
User.Set_Email (Email);
User.Set_Status (ACTIVE);
User.Save (Session);
INSERT INTO user (id,object_version,name,
email,date,status) VALUES(?, ?, ?, ?, ?, ?)
INSERT INTO email (id,version,name,
emailAddress, user) VALUES(?, ?, ?, ?)
UPDATE user SET status = ?, email = ?
WHERE id = ? AND object_version = ?

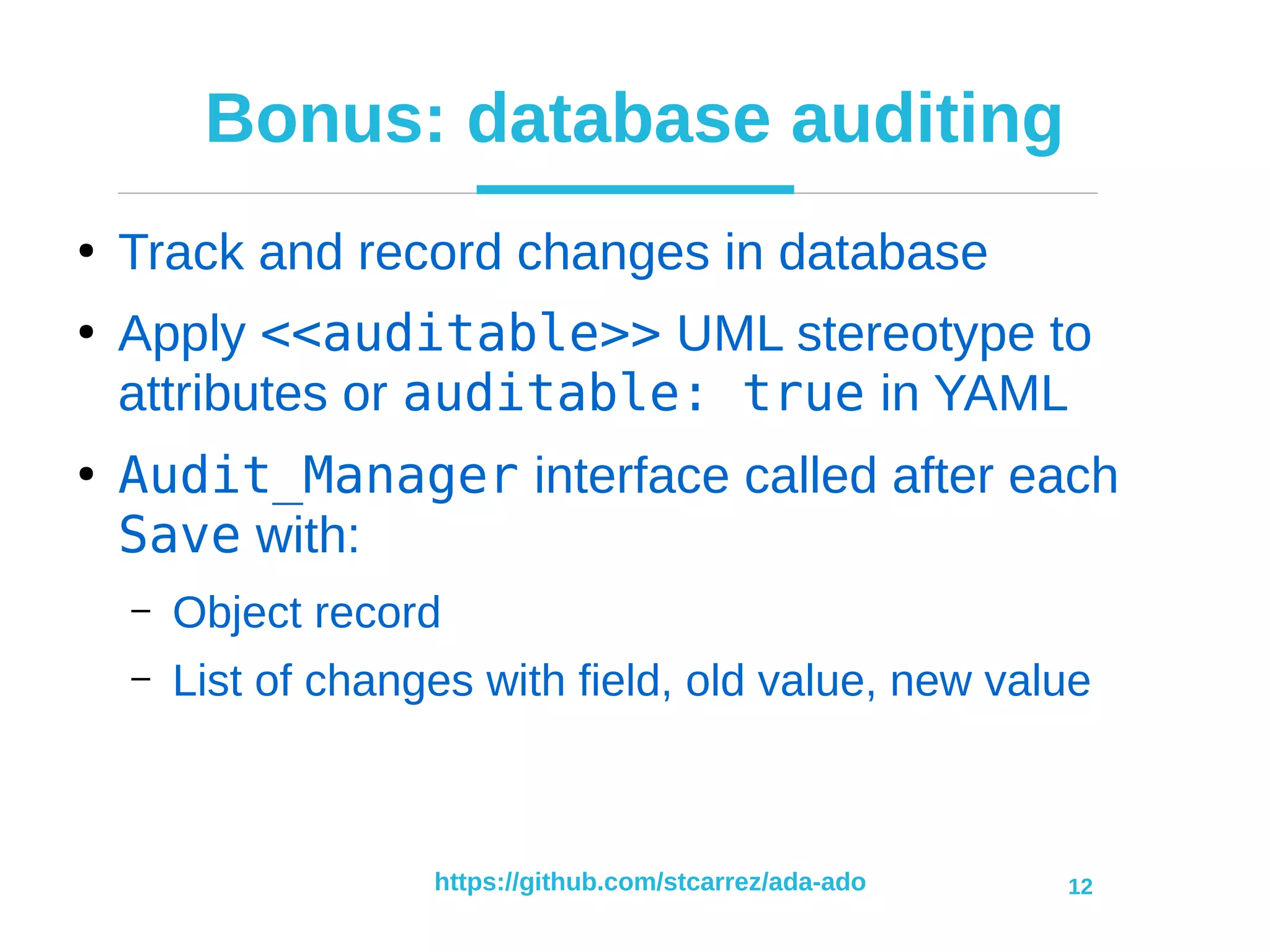

Bonus: database auditing
●
Track and record changes in database
●
Apply <<auditable>> UML stereotype to
attributes or auditable: true in YAML
●
Audit_Manager interface called after each
Save with:
– Object record
– List of changes with field, old value, new value

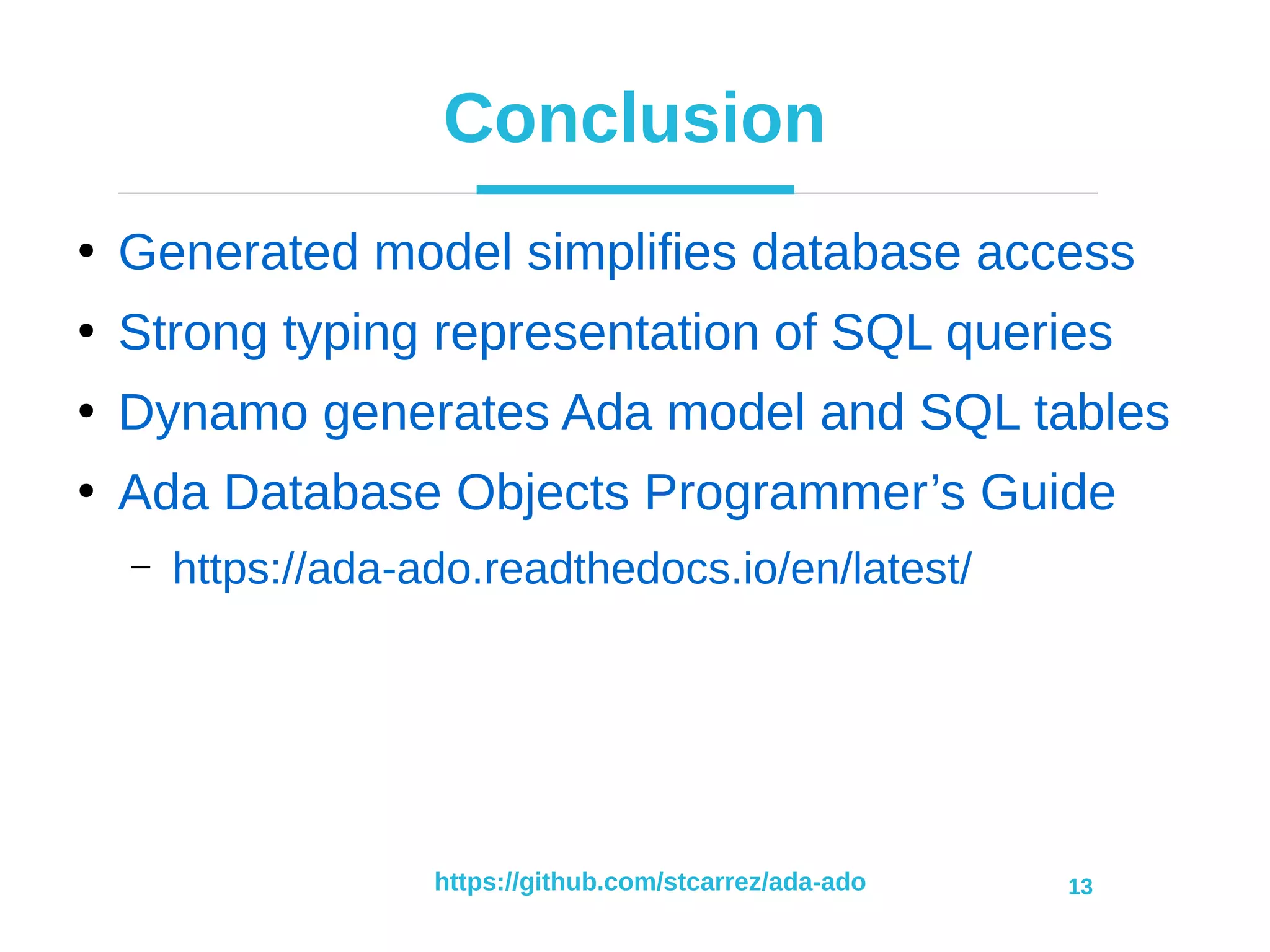

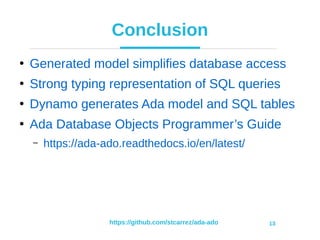

Conclusion
●
Generated model simplifies database access
●
Strong typing representation of SQL queries
●
Dynamo generates Ada model and SQL tables
●
Ada Database Objects Programmer’s Guide
– https://ada-ado.readthedocs.io/en/latest/
