WEB ENGINEERING
1
Source: Web Engineering: A Practitioner’s Approach
by Roger S. Pressman and David Lowe

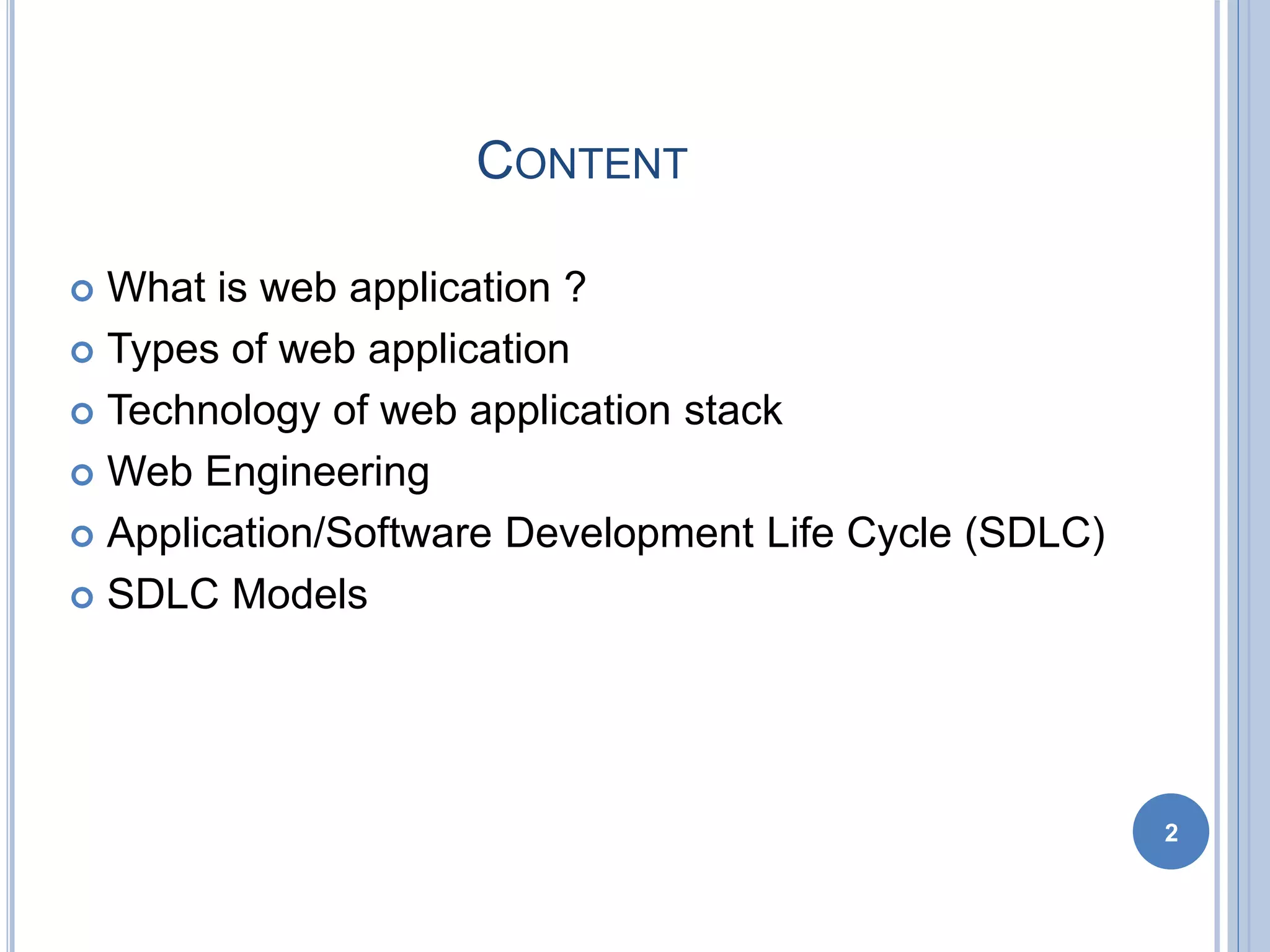

CONTENT
 What is web application ?
 Types of web application
 Technology of web application stack
 Web Engineering
 Application/Software Development Life Cycle (SDLC)
 SDLC Models
2

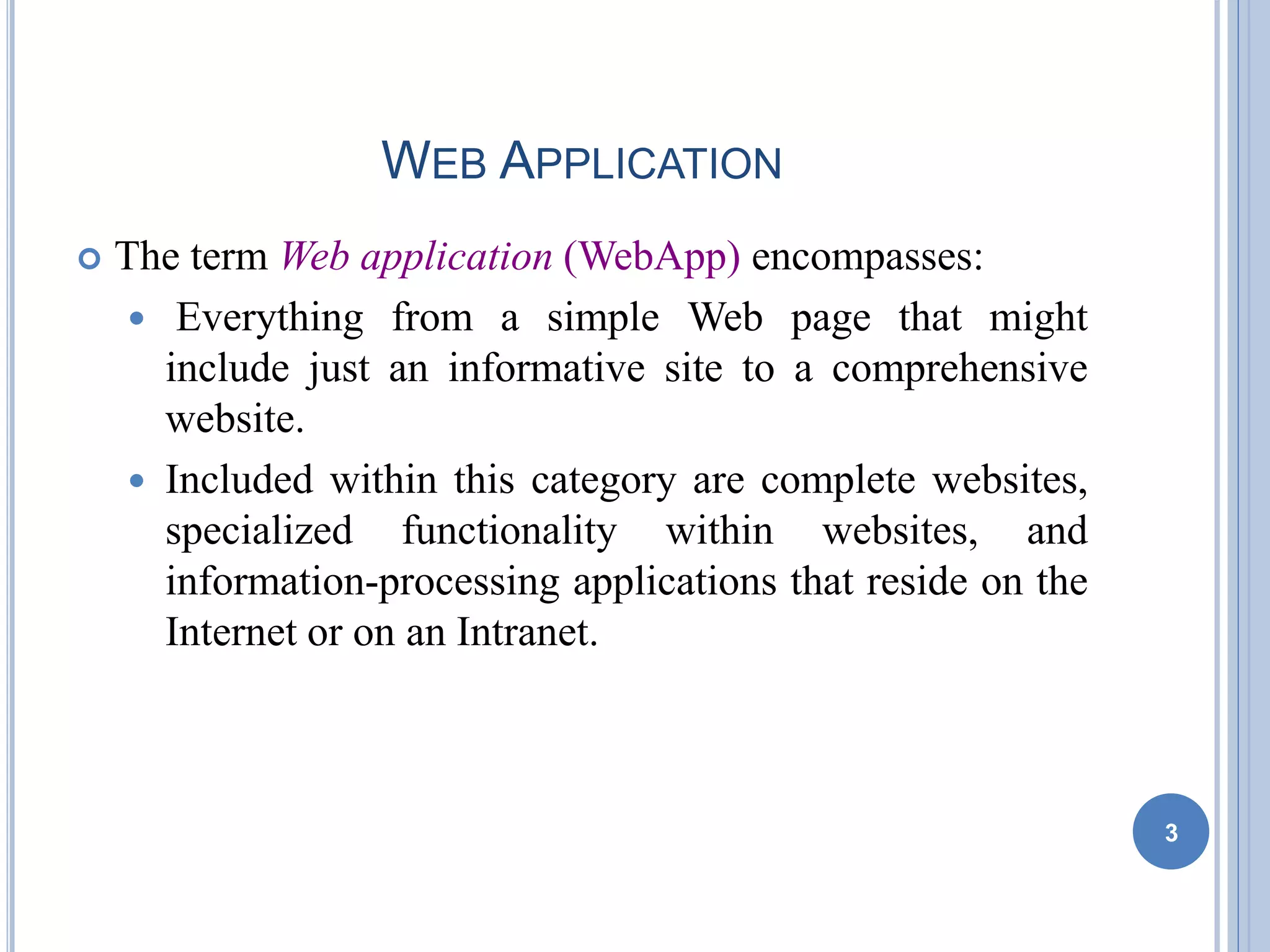

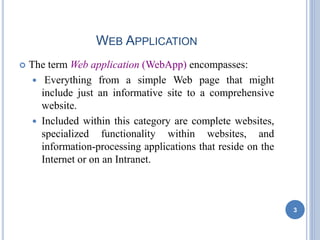

WEB APPLICATION
 The term Web application (WebApp) encompasses:
 Everything from a simple Web page that might
include just an informative site to a comprehensive
website.
 Included within this category are complete websites,
specialized functionality within websites, and
information-processing applications that reside on the
Internet or on an Intranet.
3

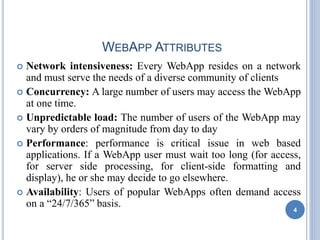

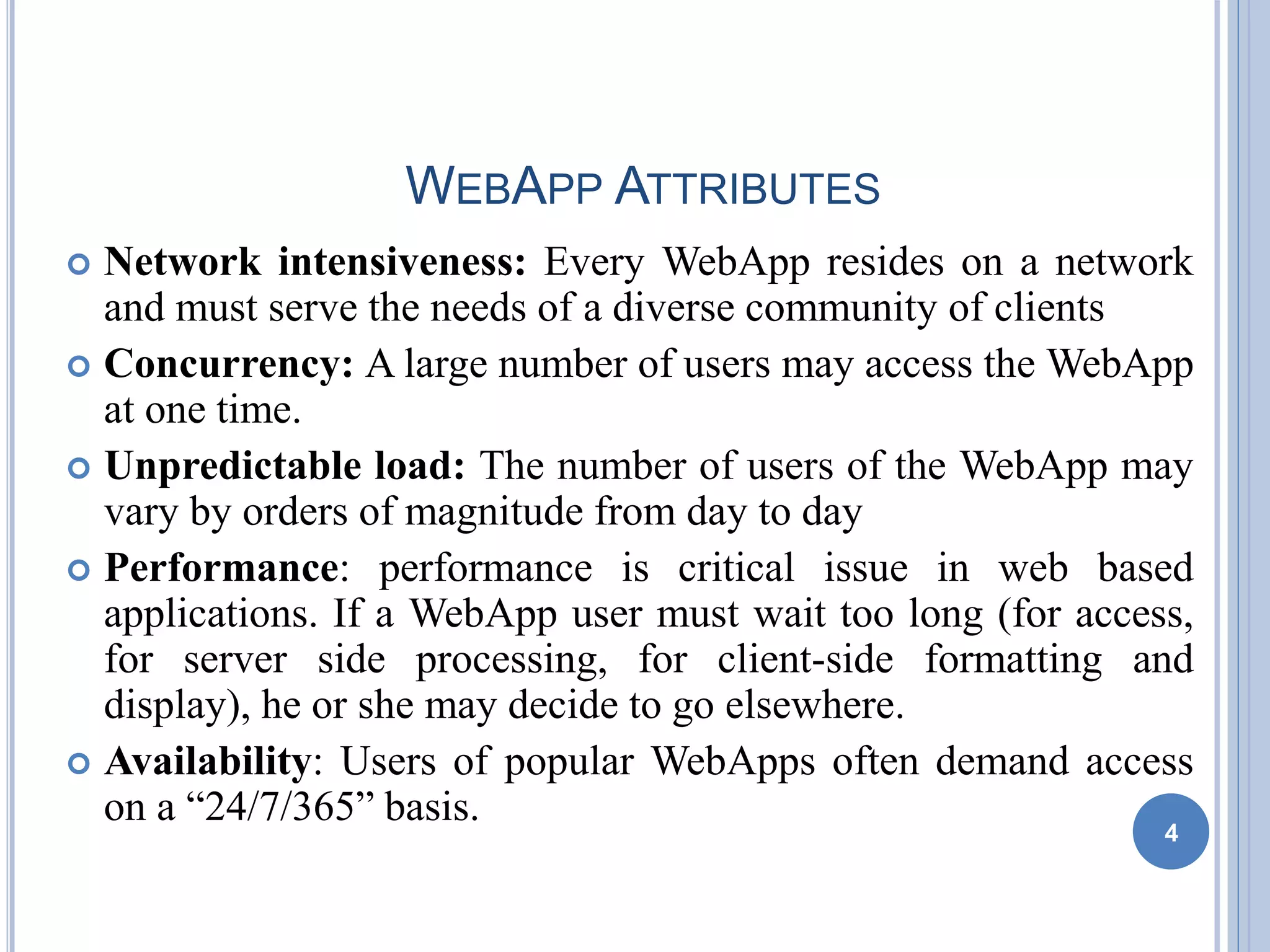

WEBAPP ATTRIBUTES
 Network intensiveness: Every WebApp resides on a network
and must serve the needs of a diverse community of clients
 Concurrency: A large number of users may access the WebApp
at one time.
 Unpredictable load: The number of users of the WebApp may
vary by orders of magnitude from day to day
 Performance: performance is critical issue in web based
applications. If a WebApp user must wait too long (for access,
for server side processing, for client-side formatting and
display), he or she may decide to go elsewhere.
 Availability: Users of popular WebApps often demand access
on a “24/7/365” basis.
4

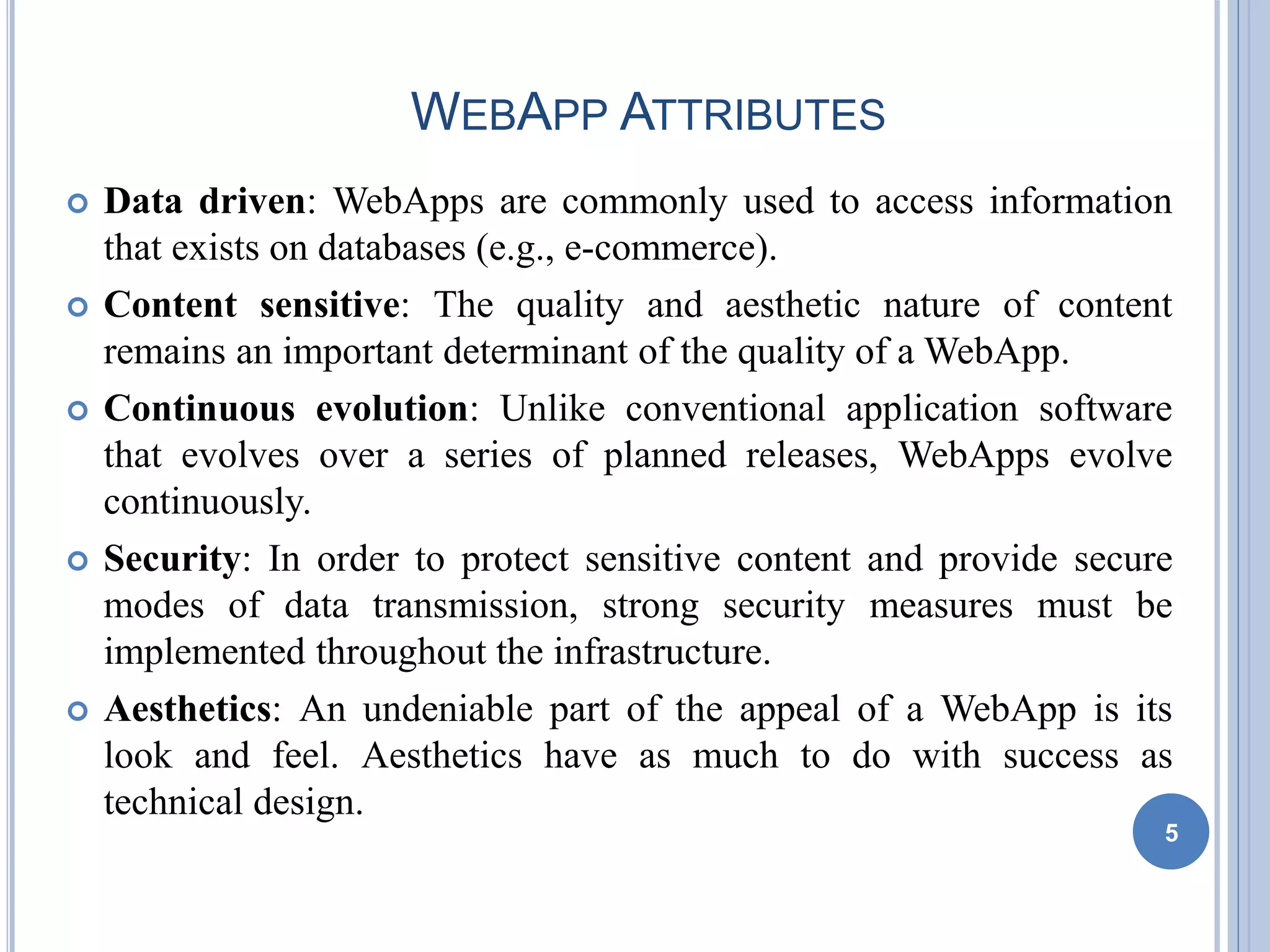

WEBAPP ATTRIBUTES
 Data driven: WebApps are commonly used to access information
that exists on databases (e.g., e-commerce).
 Content sensitive: The quality and aesthetic nature of content
remains an important determinant of the quality of a WebApp.
 Continuous evolution: Unlike conventional application software
that evolves over a series of planned releases, WebApps evolve
continuously.
 Security: In order to protect sensitive content and provide secure
modes of data transmission, strong security measures must be
implemented throughout the infrastructure.
 Aesthetics: An undeniable part of the appeal of a WebApp is its
look and feel. Aesthetics have as much to do with success as
technical design.
5

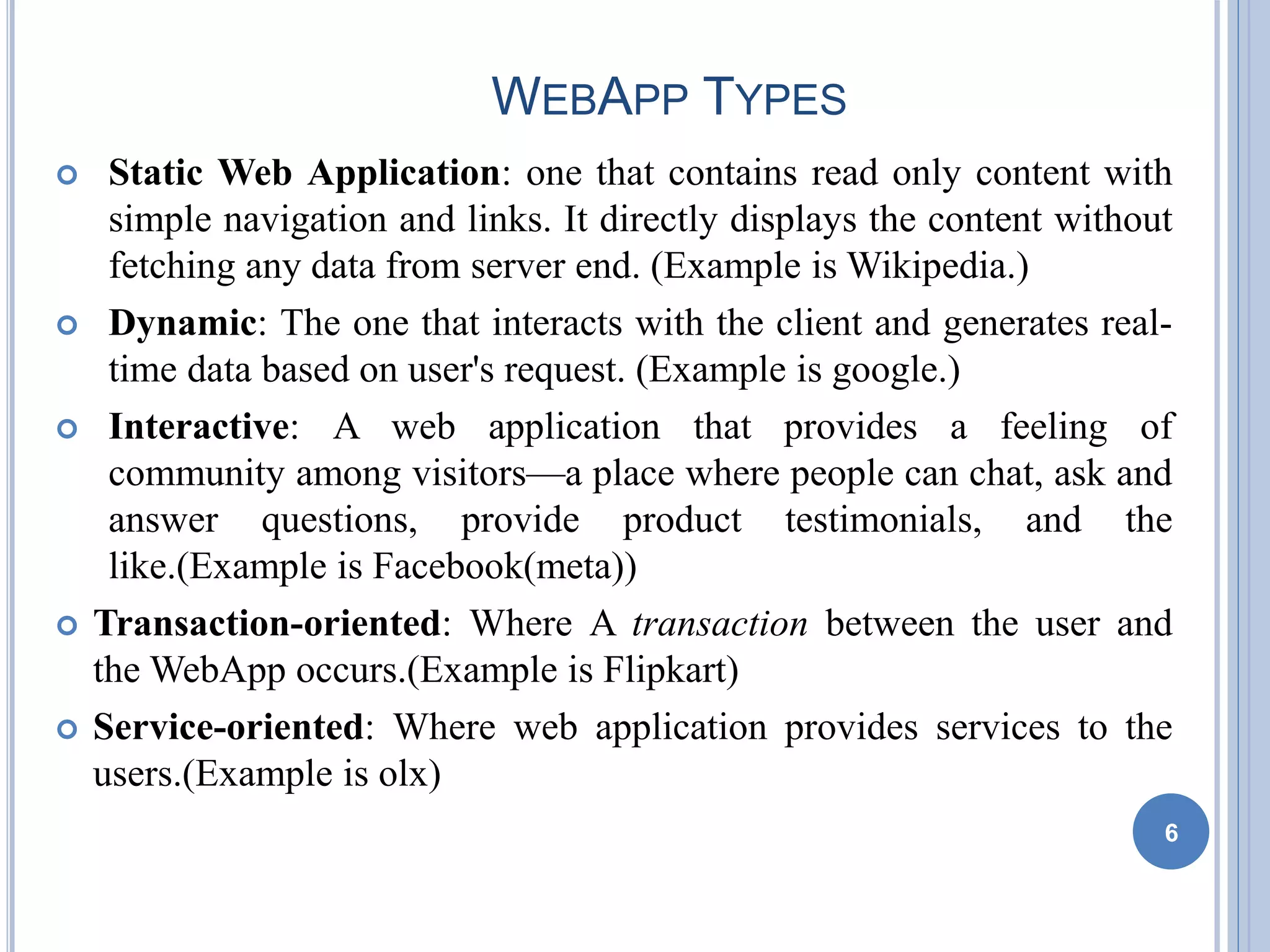

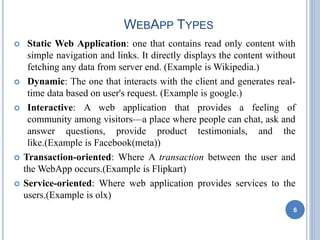

WEBAPP TYPES
 Static Web Application: one that contains read only content with
simple navigation and links. It directly displays the content without
fetching any data from server end. (Example is Wikipedia.)
 Dynamic: The one that interacts with the client and generates real-
time data based on user's request. (Example is google.)
 Interactive: A web application that provides a feeling of
community among visitors—a place where people can chat, ask and
answer questions, provide product testimonials, and the
like.(Example is Facebook(meta))
 Transaction-oriented: Where A transaction between the user and
the WebApp occurs.(Example is Flipkart)
 Service-oriented: Where web application provides services to the
users.(Example is olx)
6

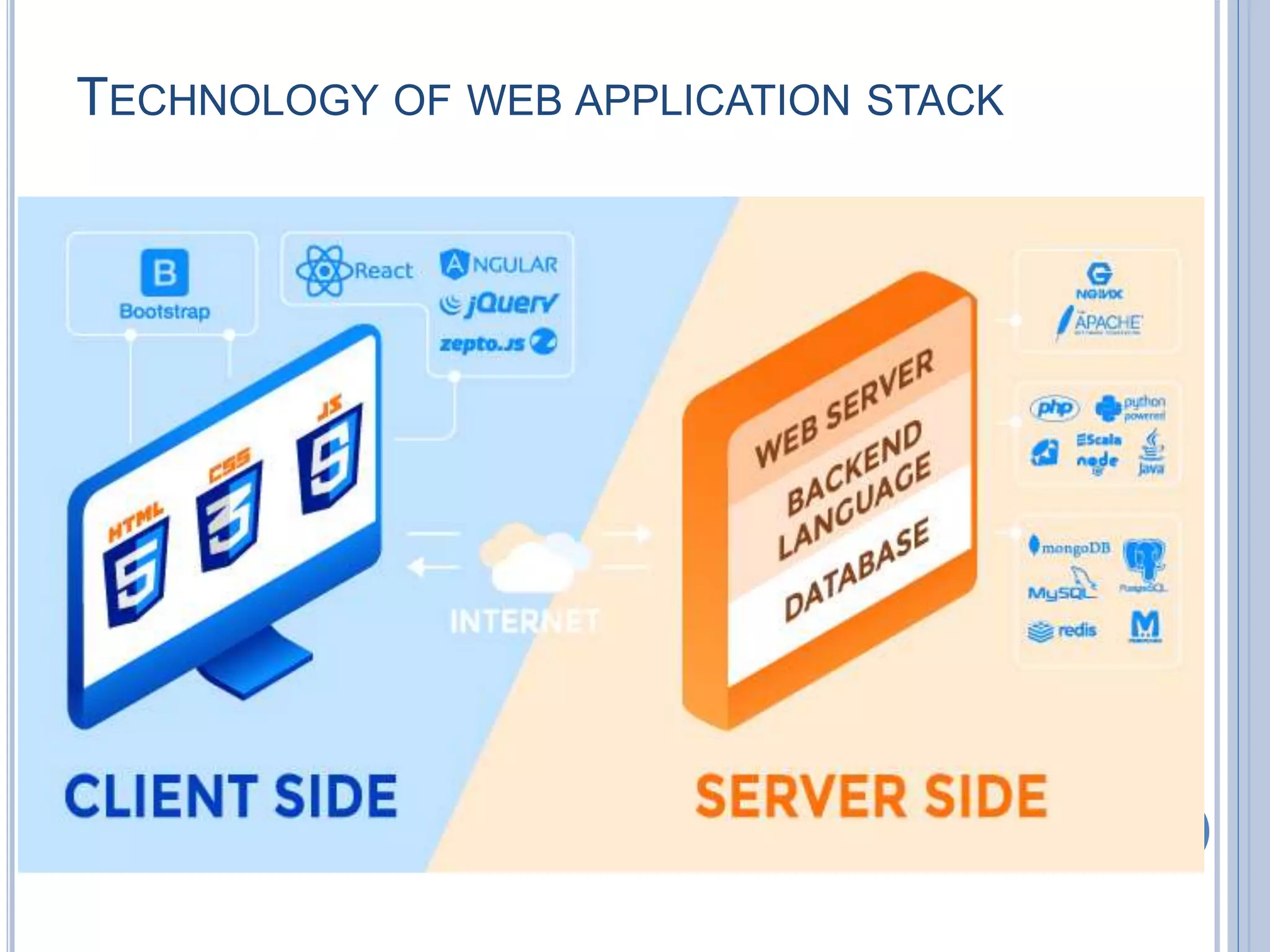

TECHNOLOGY OF WEB APPLICATION STACK
7

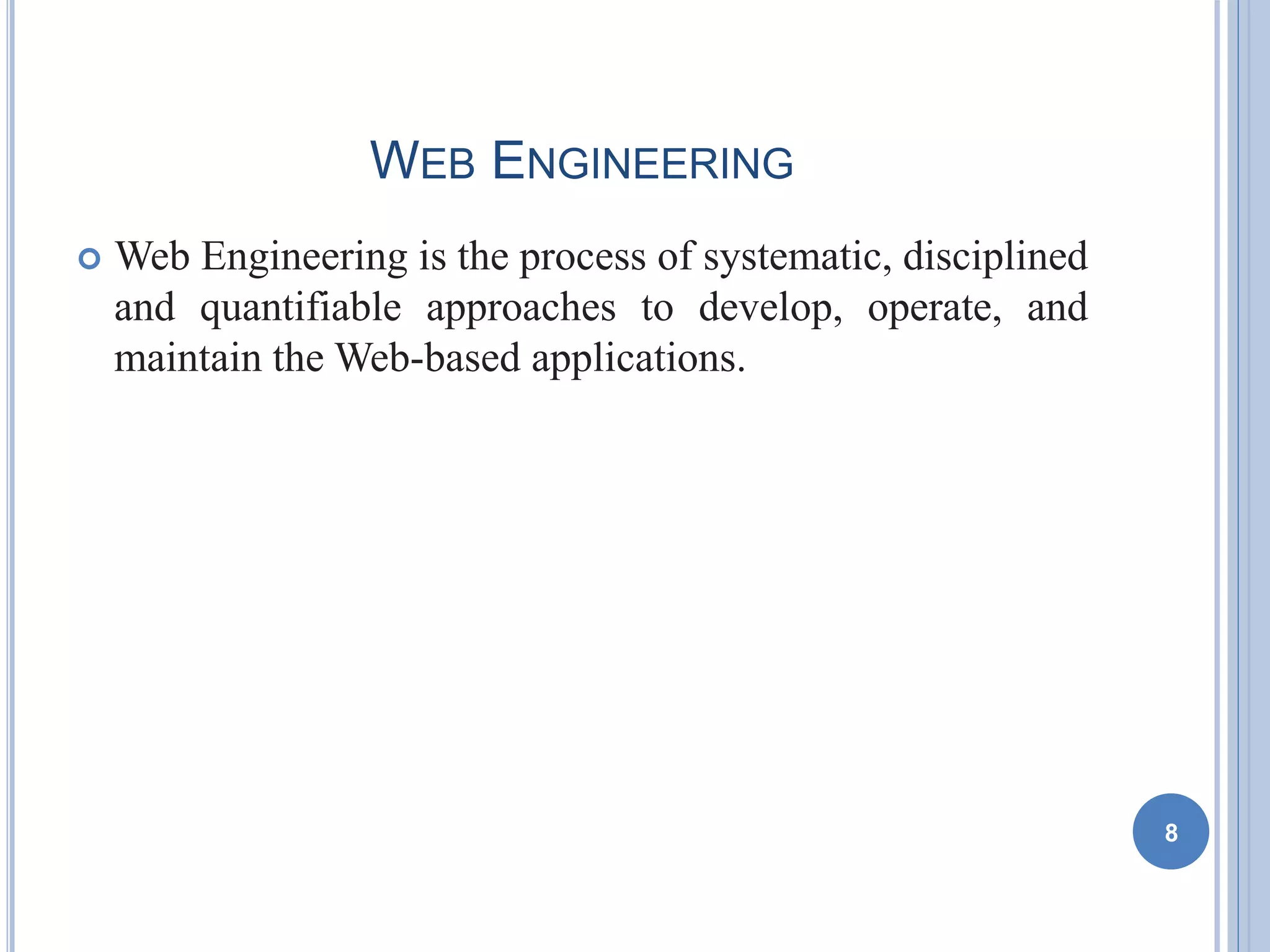

WEB ENGINEERING
 Web Engineering is the process of systematic, disciplined
and quantifiable approaches to develop, operate, and
maintain the Web-based applications.
8

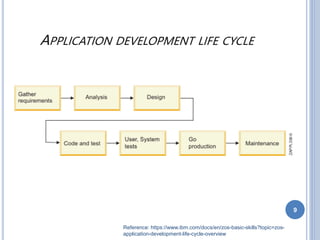

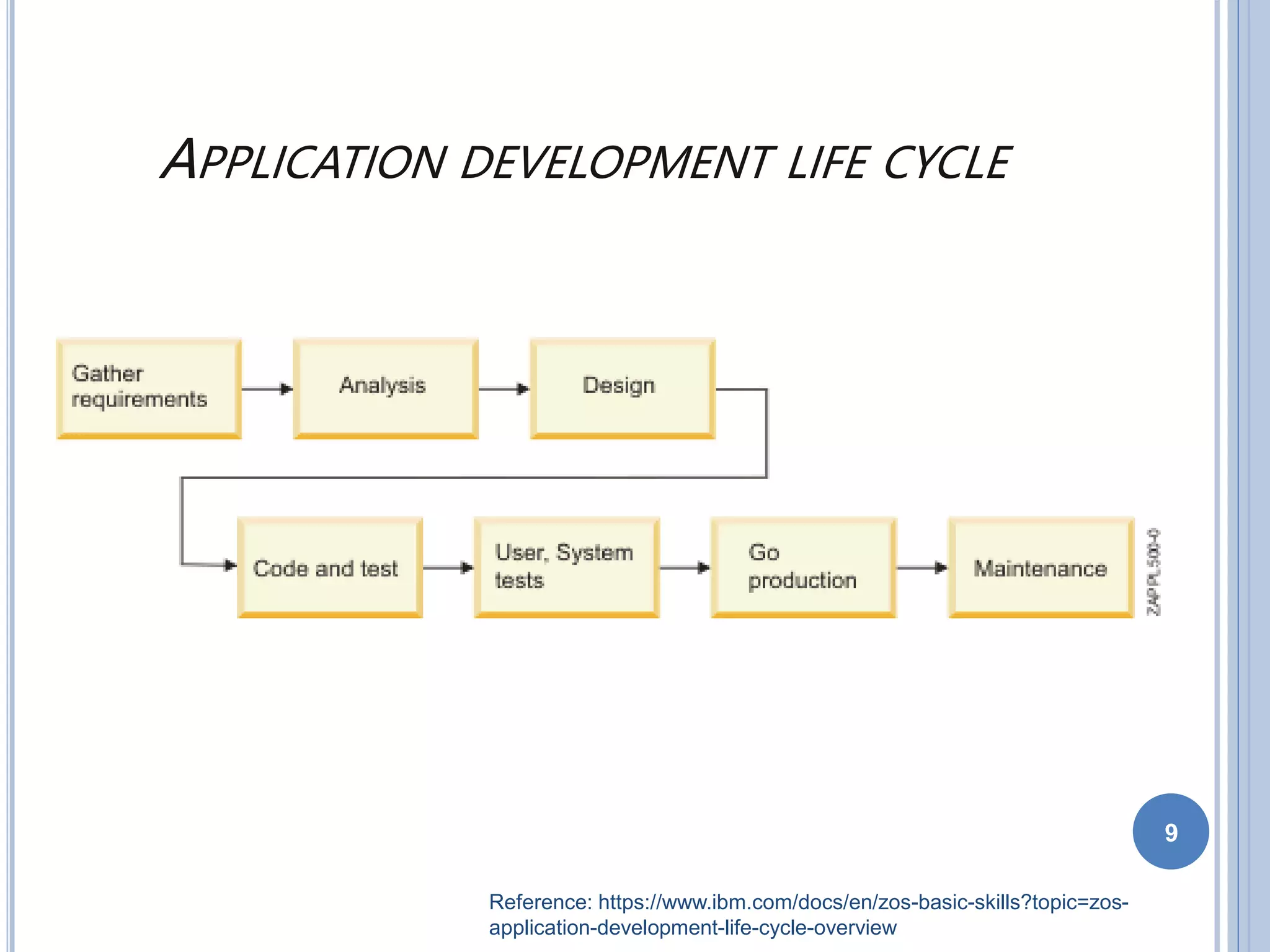

APPLICATION DEVELOPMENT LIFE CYCLE
9
Reference: https://www.ibm.com/docs/en/zos-basic-skills?topic=zos-
application-development-life-cycle-overview

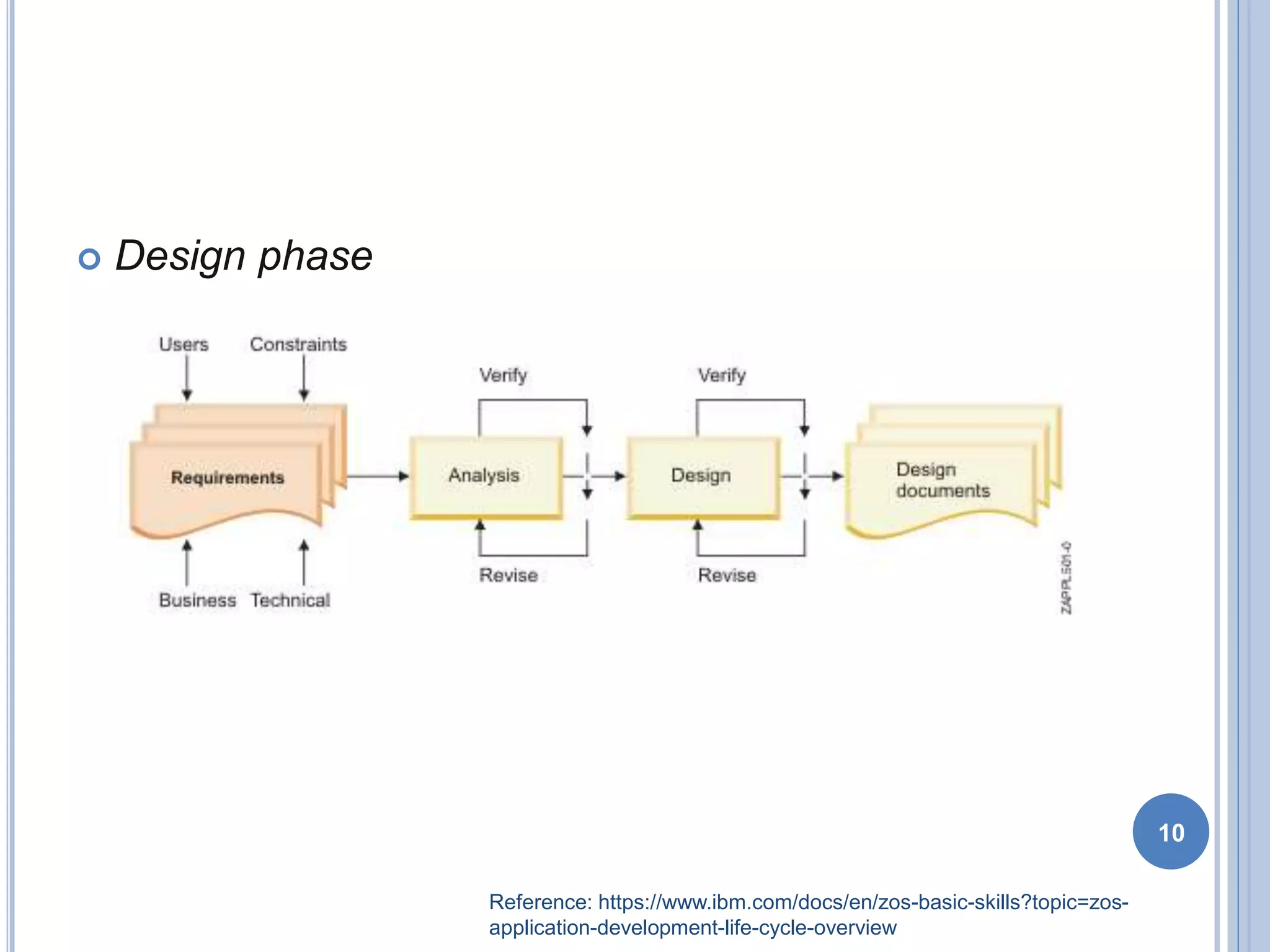

 Design phase
10

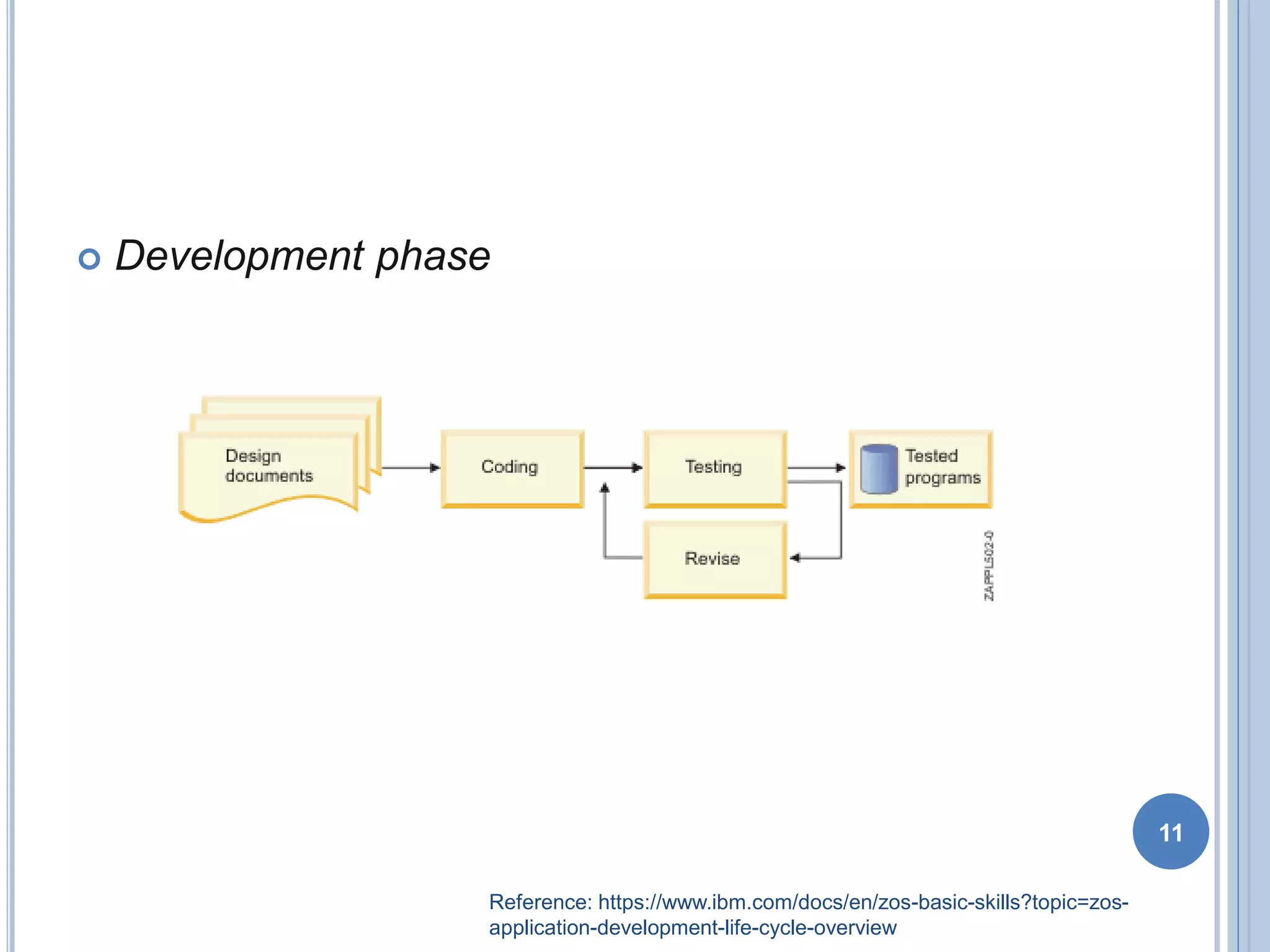

 Development phase
11

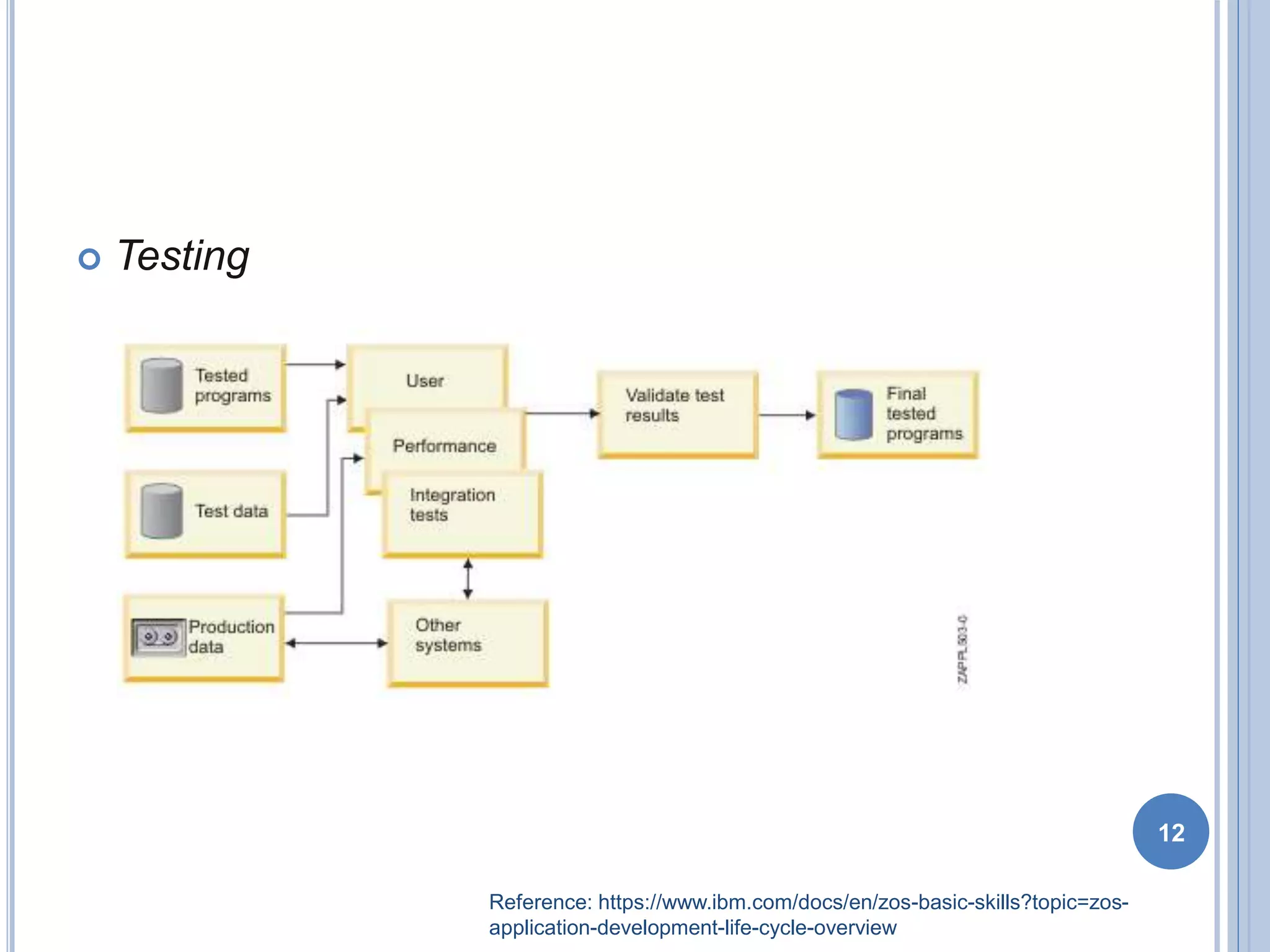

 Testing
12

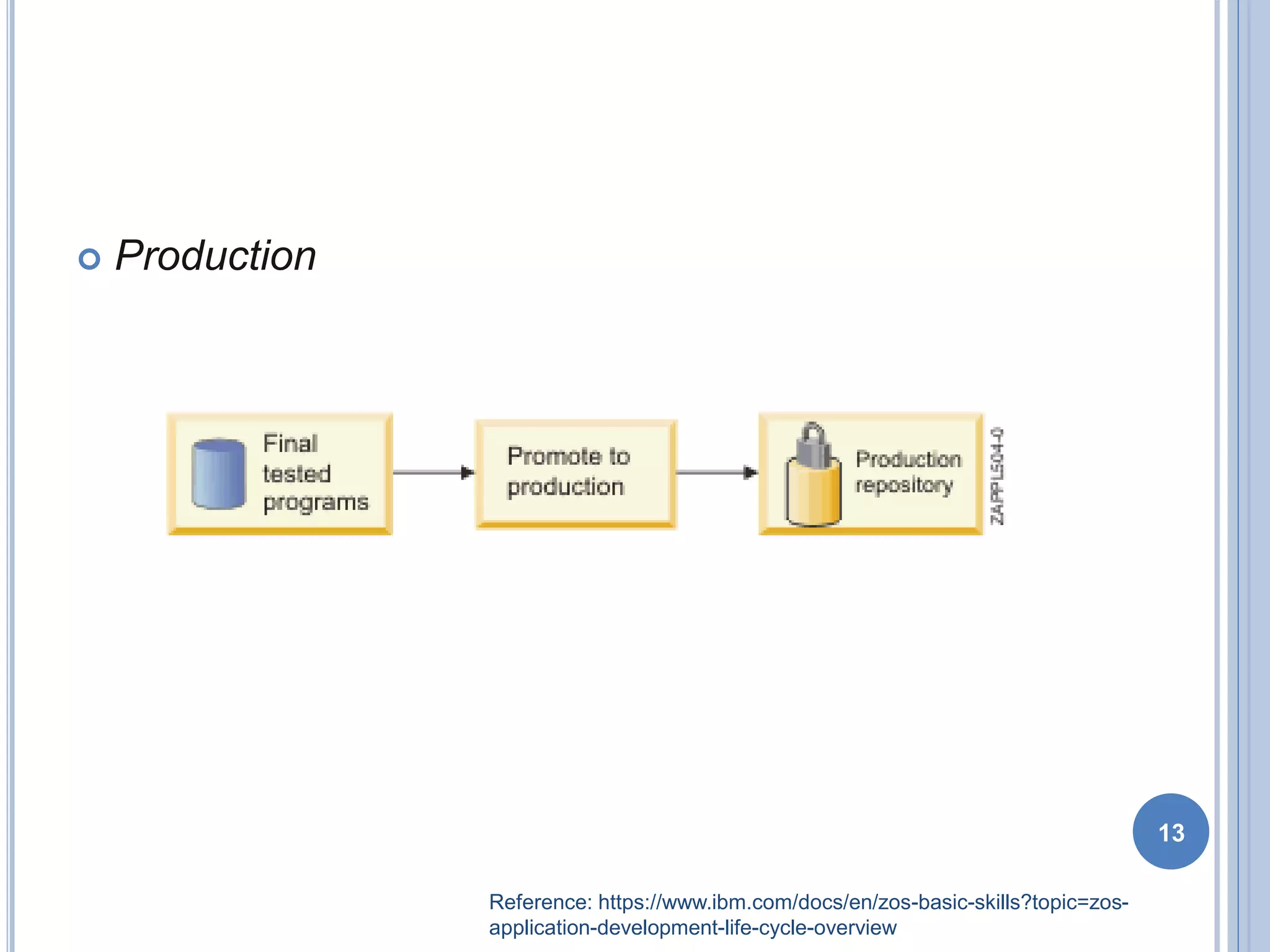

 Production
13

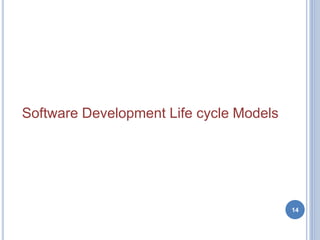

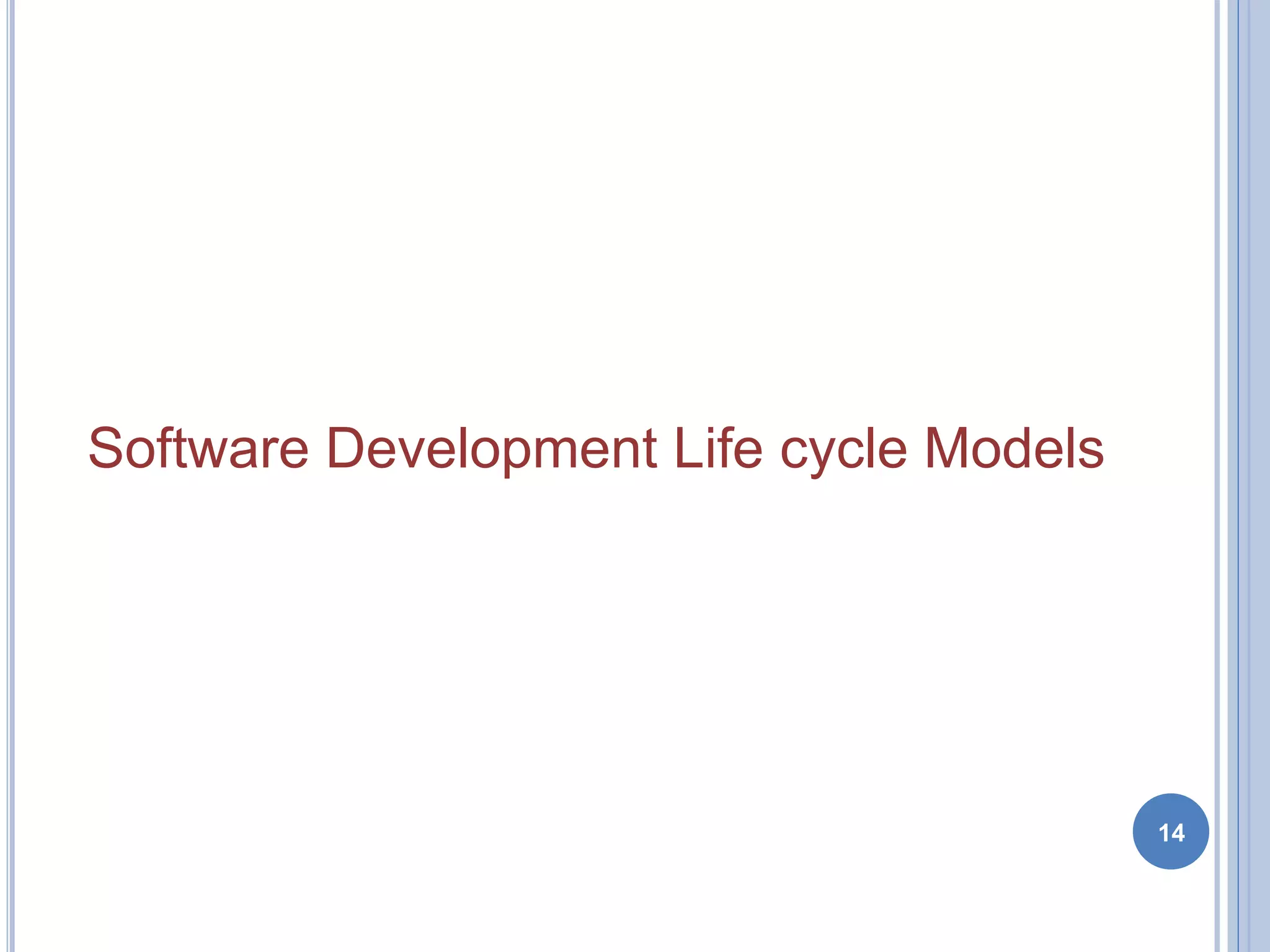

Software Development Life cycle Models
14

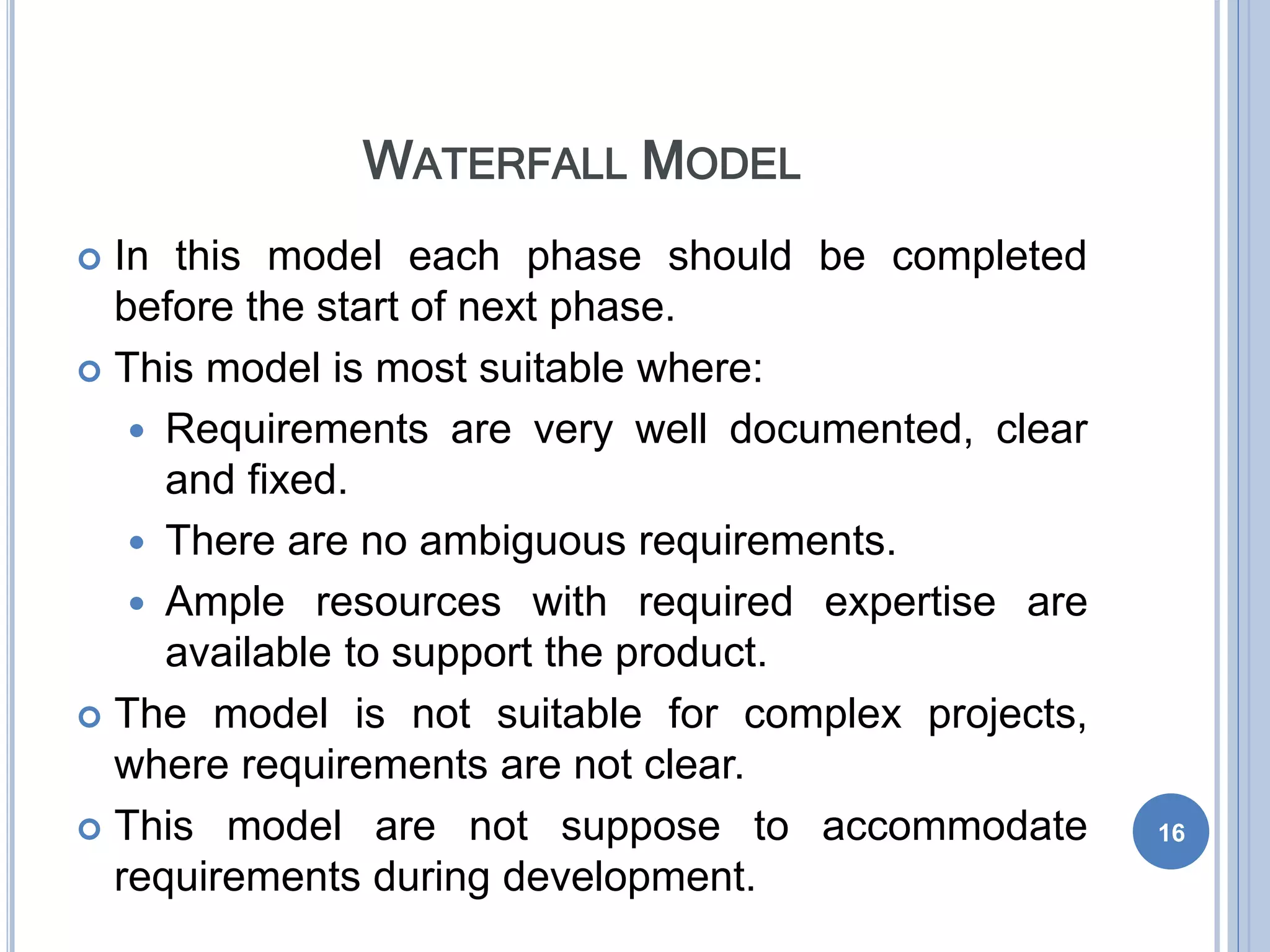

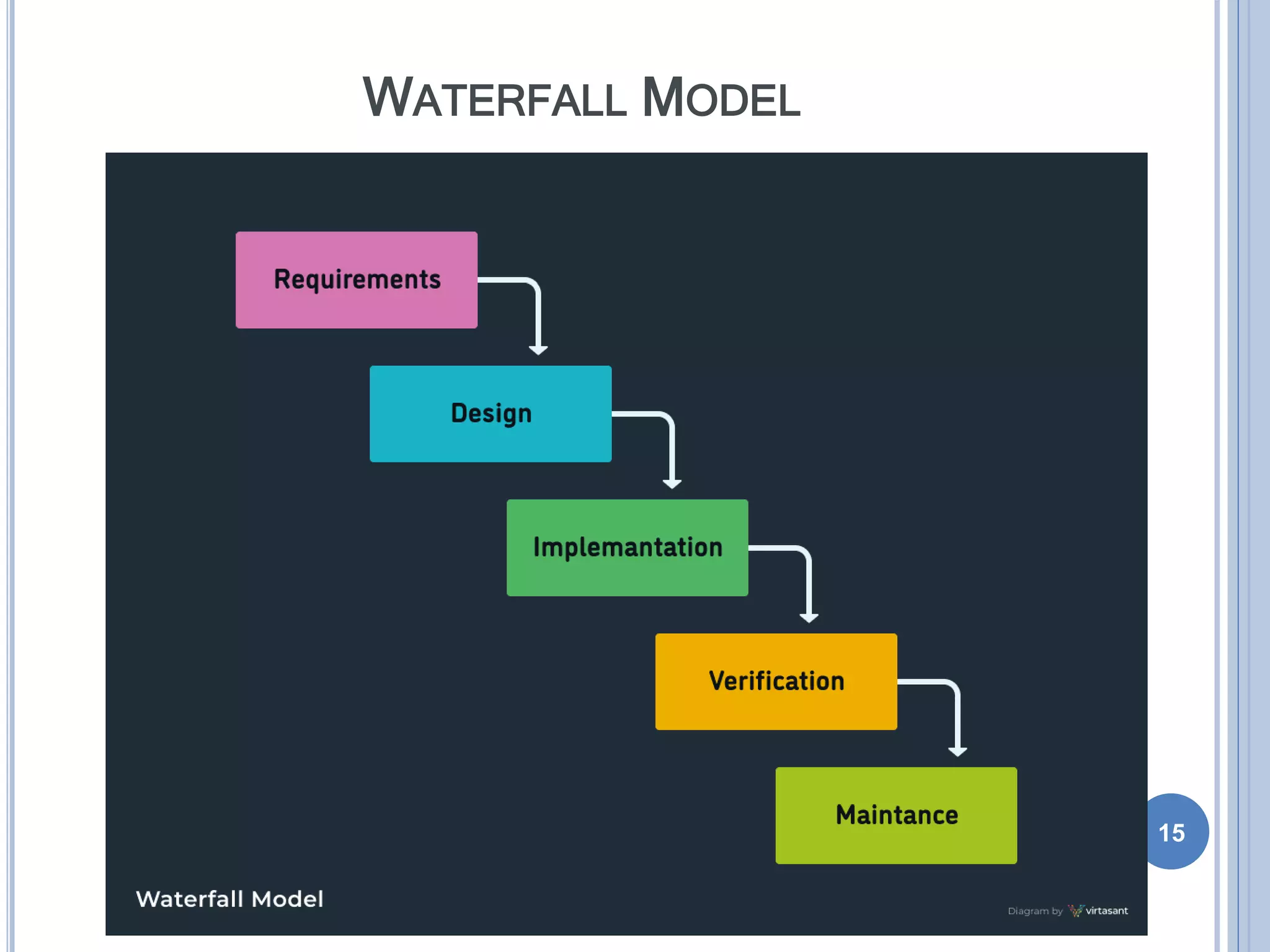

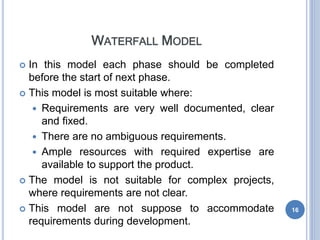

WATERFALL MODEL
 In this model each phase should be completed
before the start of next phase.
 This model is most suitable where:
 Requirements are very well documented, clear
and fixed.
 There are no ambiguous requirements.
 Ample resources with required expertise are
available to support the product.
 The model is not suitable for complex projects,
where requirements are not clear.
 This model are not suppose to accommodate
requirements during development.
16

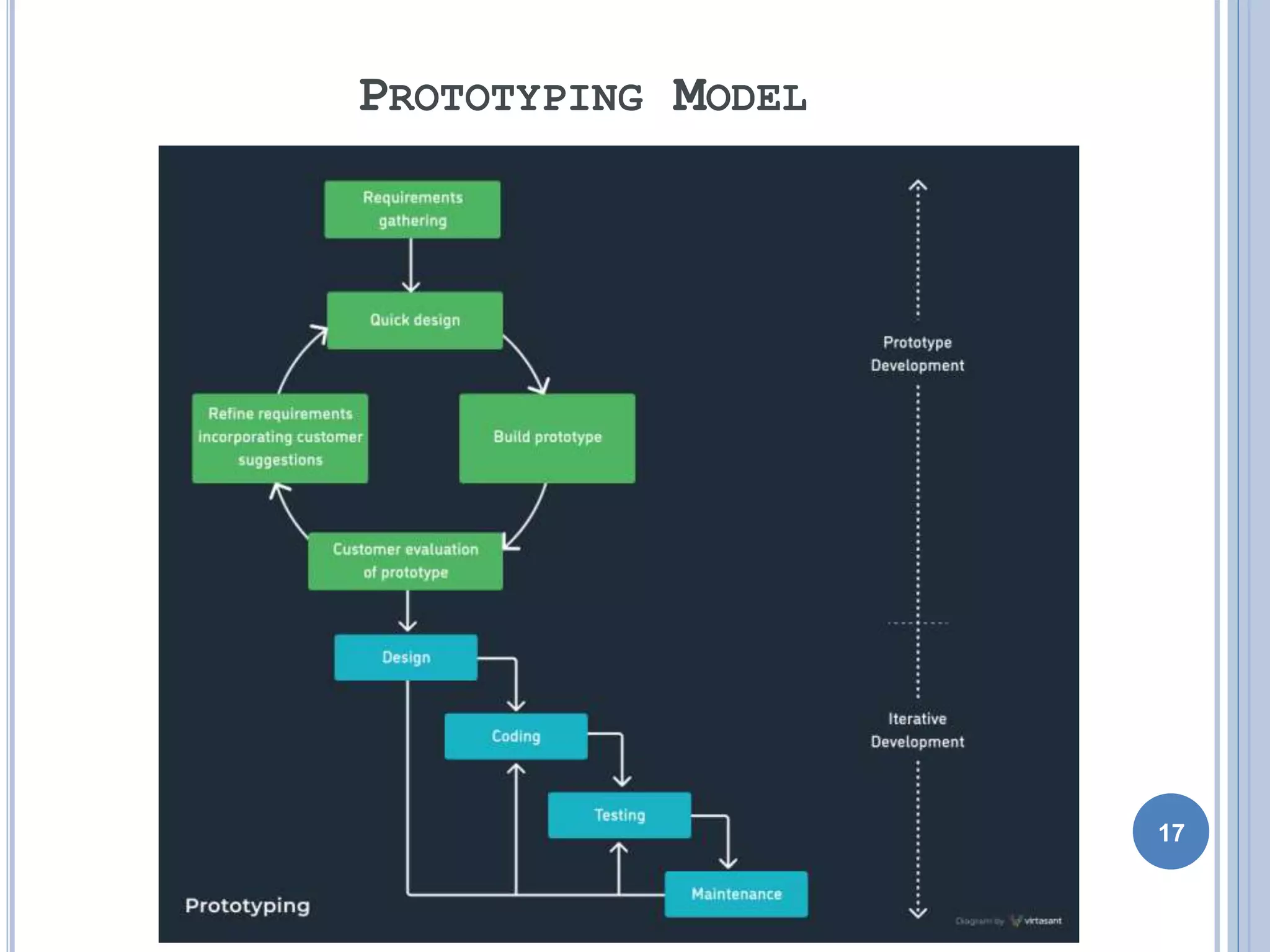

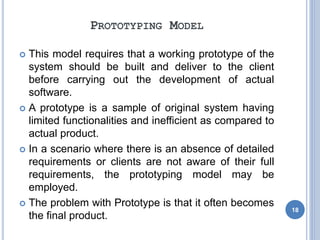

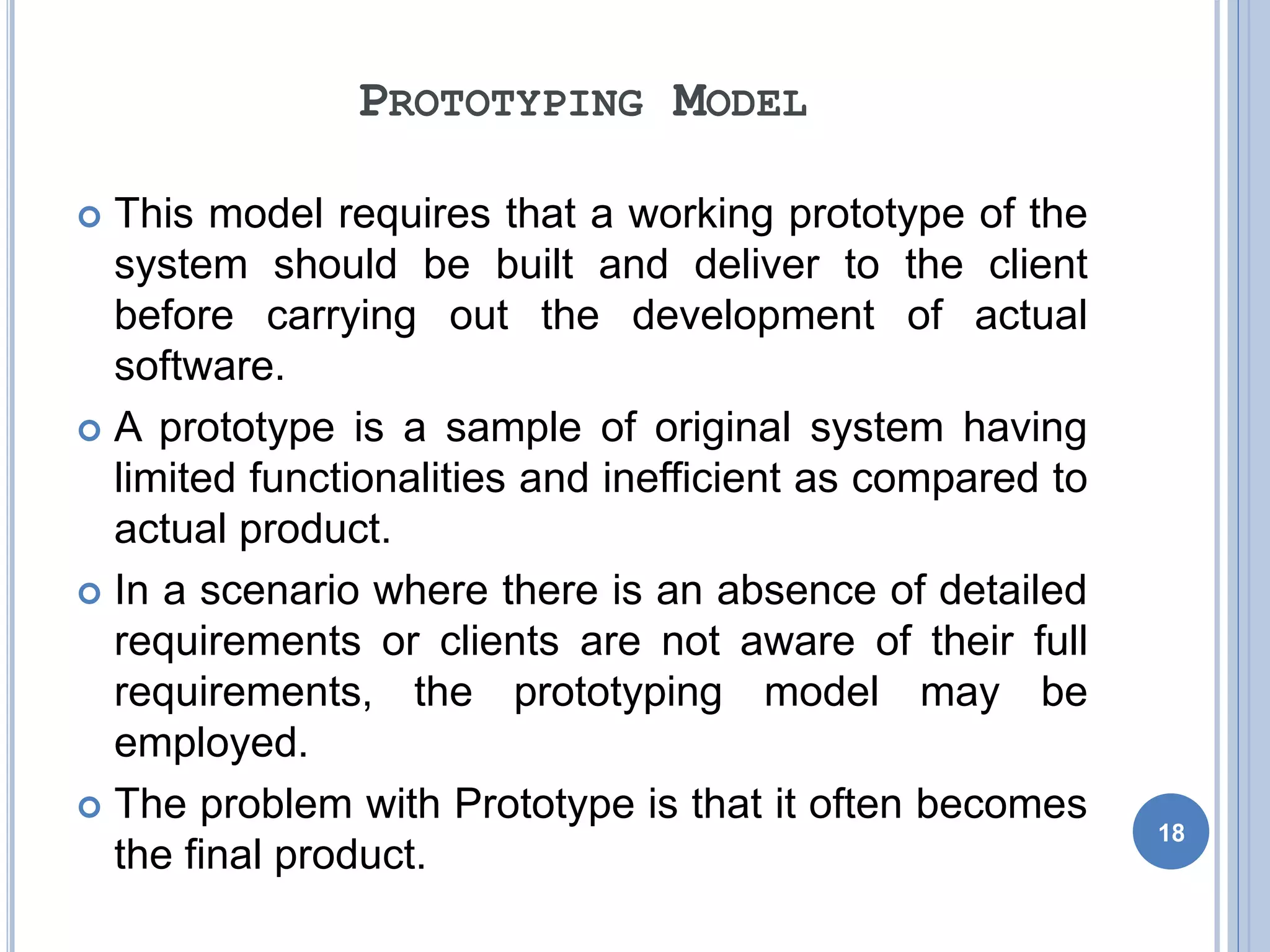

PROTOTYPING MODEL
 This model requires that a working prototype of the
system should be built and deliver to the client
before carrying out the development of actual
software.
 A prototype is a sample of original system having
limited functionalities and inefficient as compared to
actual product.
 In a scenario where there is an absence of detailed
requirements or clients are not aware of their full
requirements, the prototyping model may be
employed.
 The problem with Prototype is that it often becomes
the final product.
18

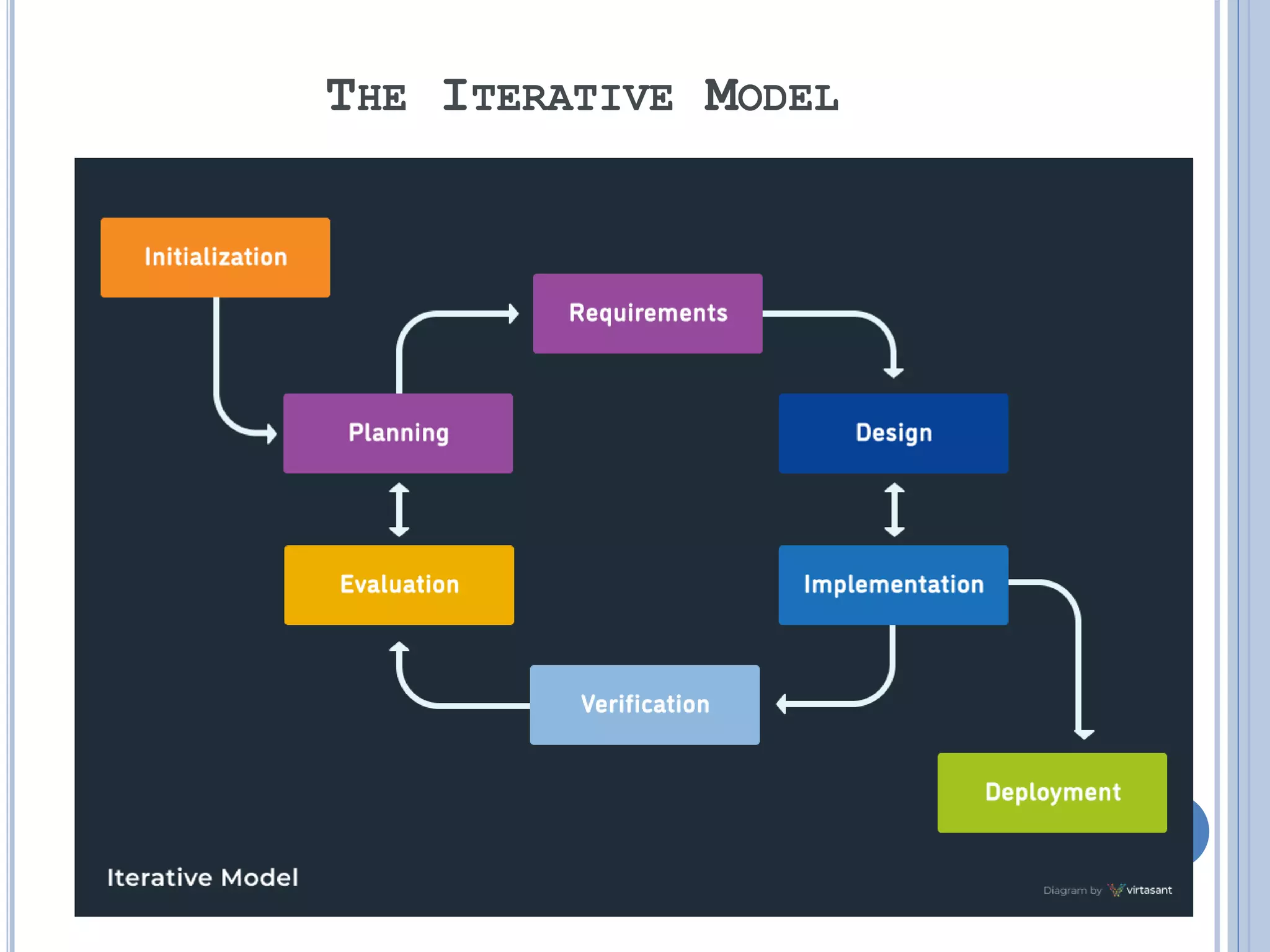

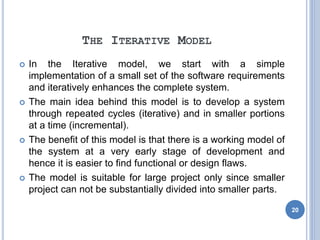

THE ITERATIVE MODEL
 In the Iterative model, we start with a simple
implementation of a small set of the software requirements
and iteratively enhances the complete system.
 The main idea behind this model is to develop a system
through repeated cycles (iterative) and in smaller portions
at a time (incremental).
 The benefit of this model is that there is a working model of
the system at a very early stage of development and
hence it is easier to find functional or design flaws.
 The model is suitable for large project only since smaller
project can not be substantially divided into smaller parts.
20

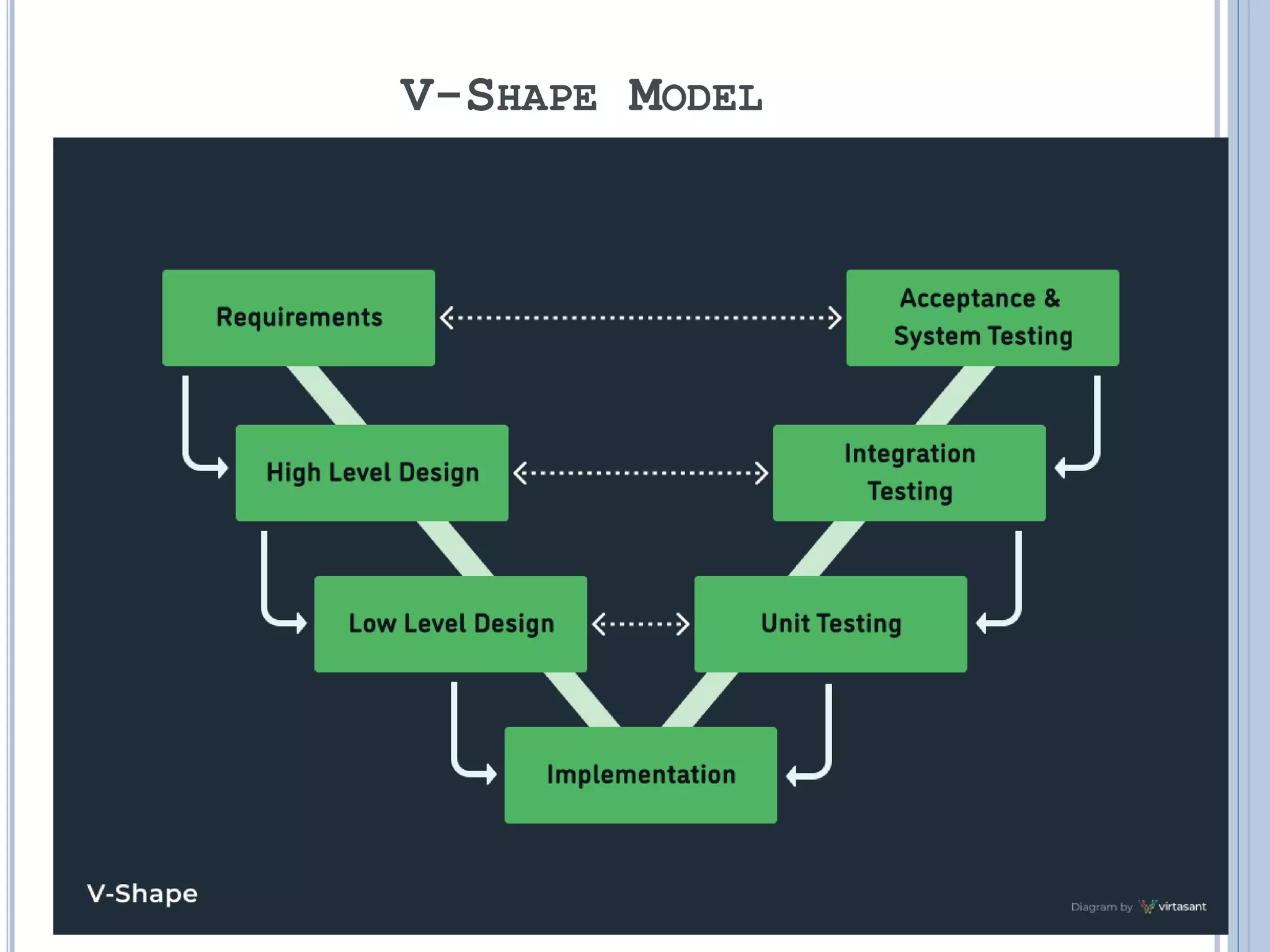

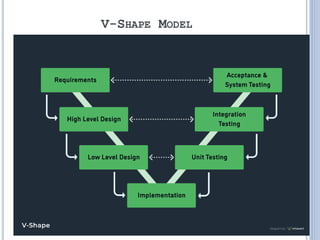

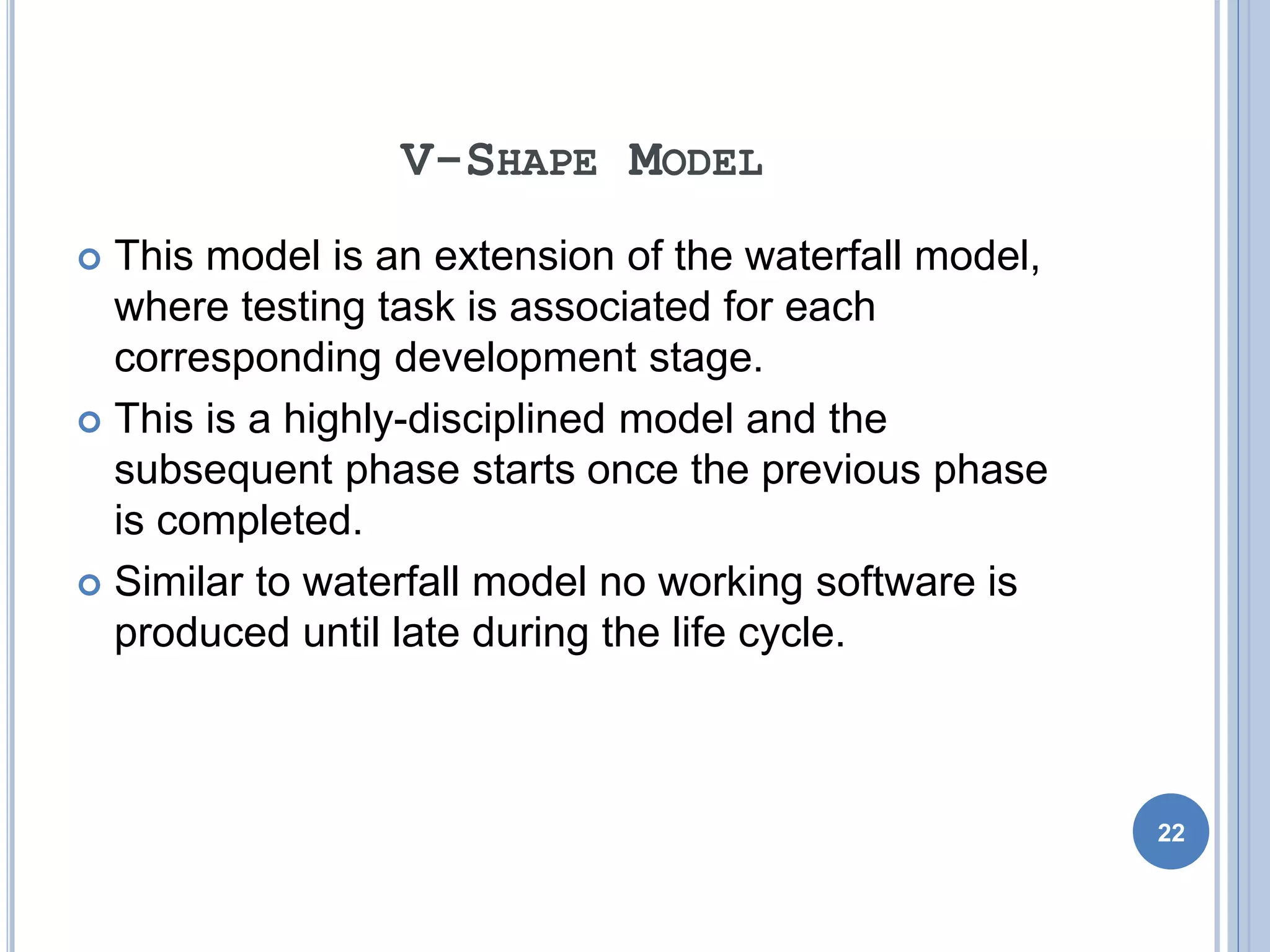

V-SHAPE MODEL
 This model is an extension of the waterfall model,
where testing task is associated for each
corresponding development stage.
 This is a highly-disciplined model and the
subsequent phase starts once the previous phase
is completed.
 Similar to waterfall model no working software is
produced until late during the life cycle.
22

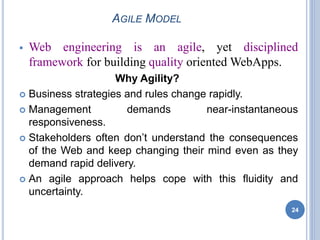

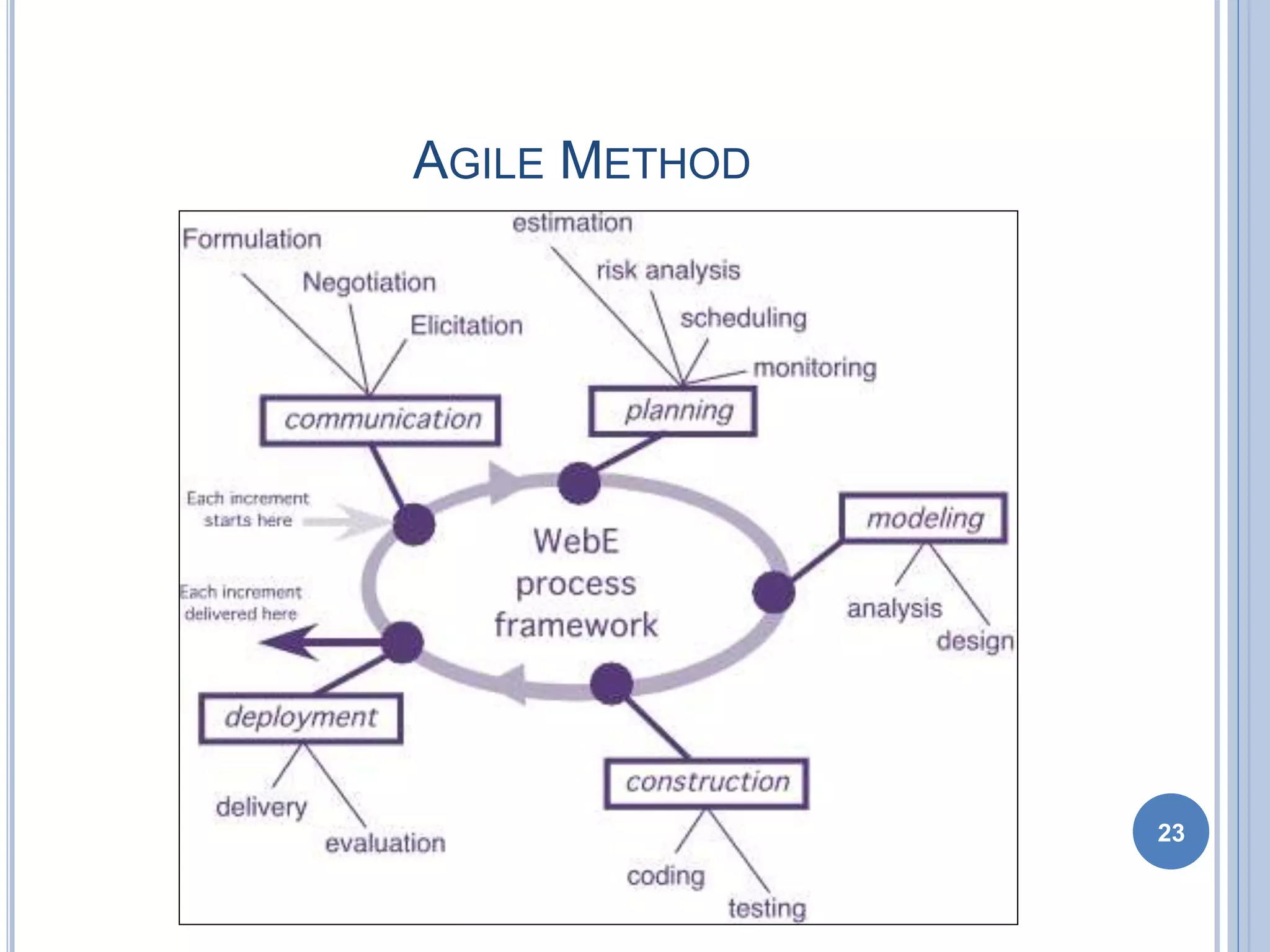

AGILE MODEL
 Web engineering is an agile, yet disciplined
framework for building quality oriented WebApps.
Why Agility?
 Business strategies and rules change rapidly.
 Management demands near-instantaneous
responsiveness.
 Stakeholders often don’t understand the consequences
of the Web and keep changing their mind even as they
demand rapid delivery.
 An agile approach helps cope with this fluidity and
uncertainty.
24
