The TCP/IP Stack in the Linux Kernel

Divye Kapoor
PracheerAgarwal
Swagat Konchada

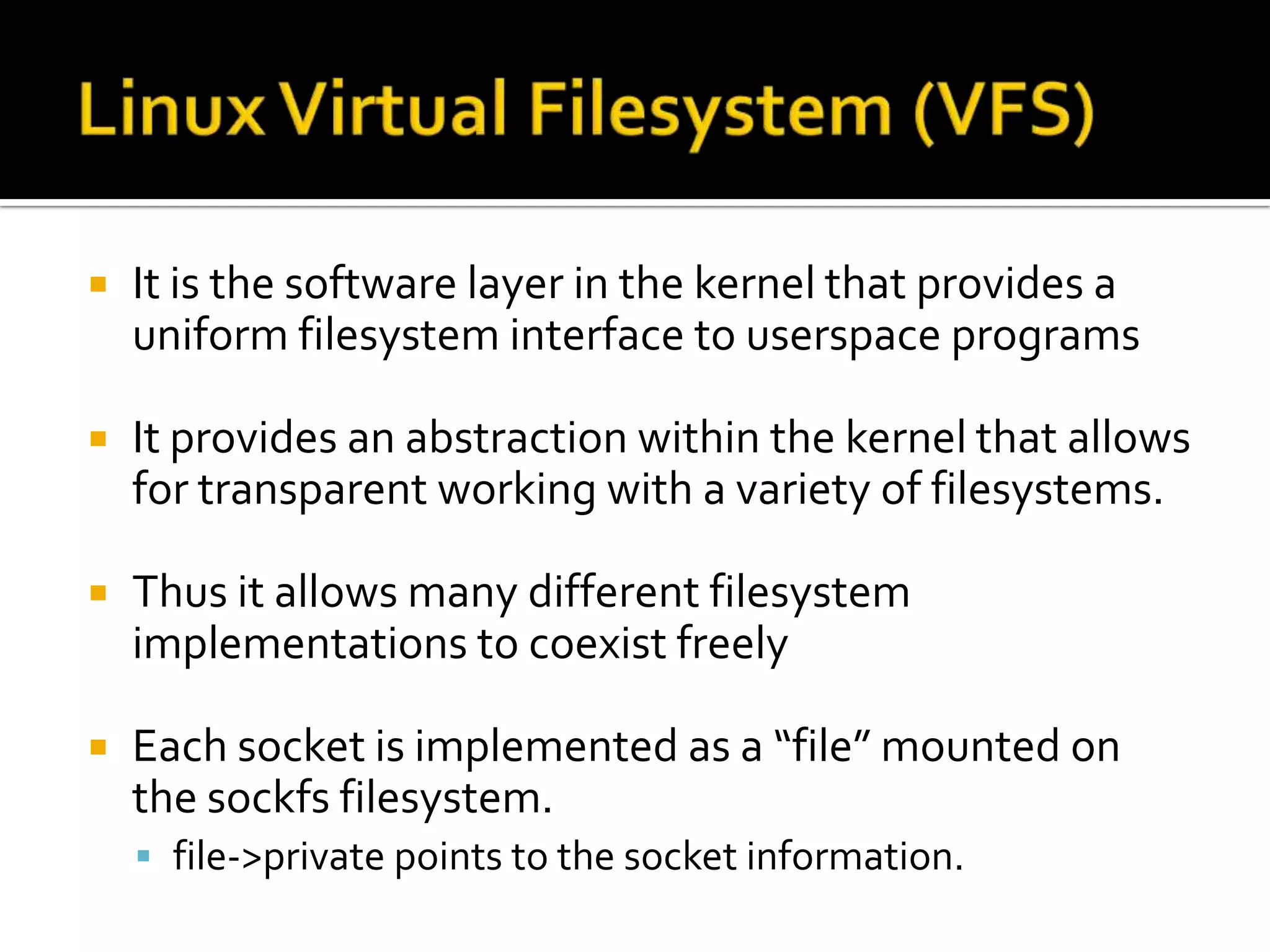

 It is the software layer in the kernel that provides a
uniform filesystem interface to userspace programs
 It provides an abstraction within the kernel that allows
for transparent working with a variety of filesystems.
 Thus it allows many different filesystem
implementations to coexist freely
 Each socket is implemented as a “file” mounted on
the sockfs filesystem.
 file->private points to the socket information.

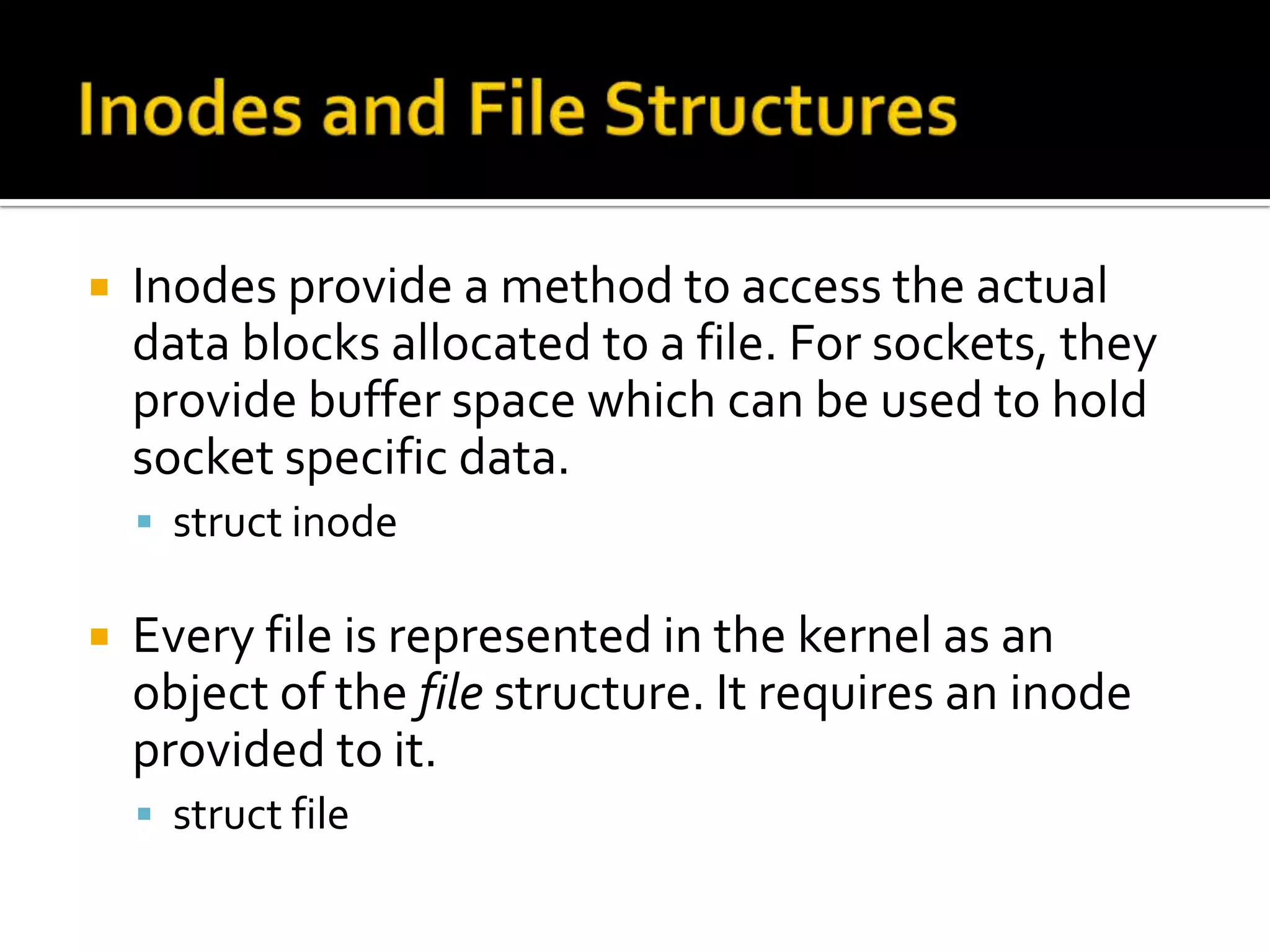

 Inodes provide a method to access the actual
data blocks allocated to a file. For sockets, they
provide buffer space which can be used to hold
socket specific data.
 struct inode
 Every file is represented in the kernel as an
object of the file structure. It requires an inode
provided to it.
 struct file

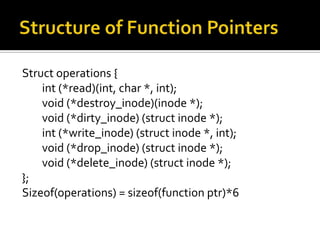

Struct operations {
int (*read)(int, char *, int);
void (*destroy_inode)(inode *);
void (*dirty_inode) (struct inode *);
int (*write_inode) (struct inode *, int);
void (*drop_inode) (struct inode *);
void (*delete_inode) (struct inode *);
};
Sizeof(operations) = sizeof(function ptr)*6

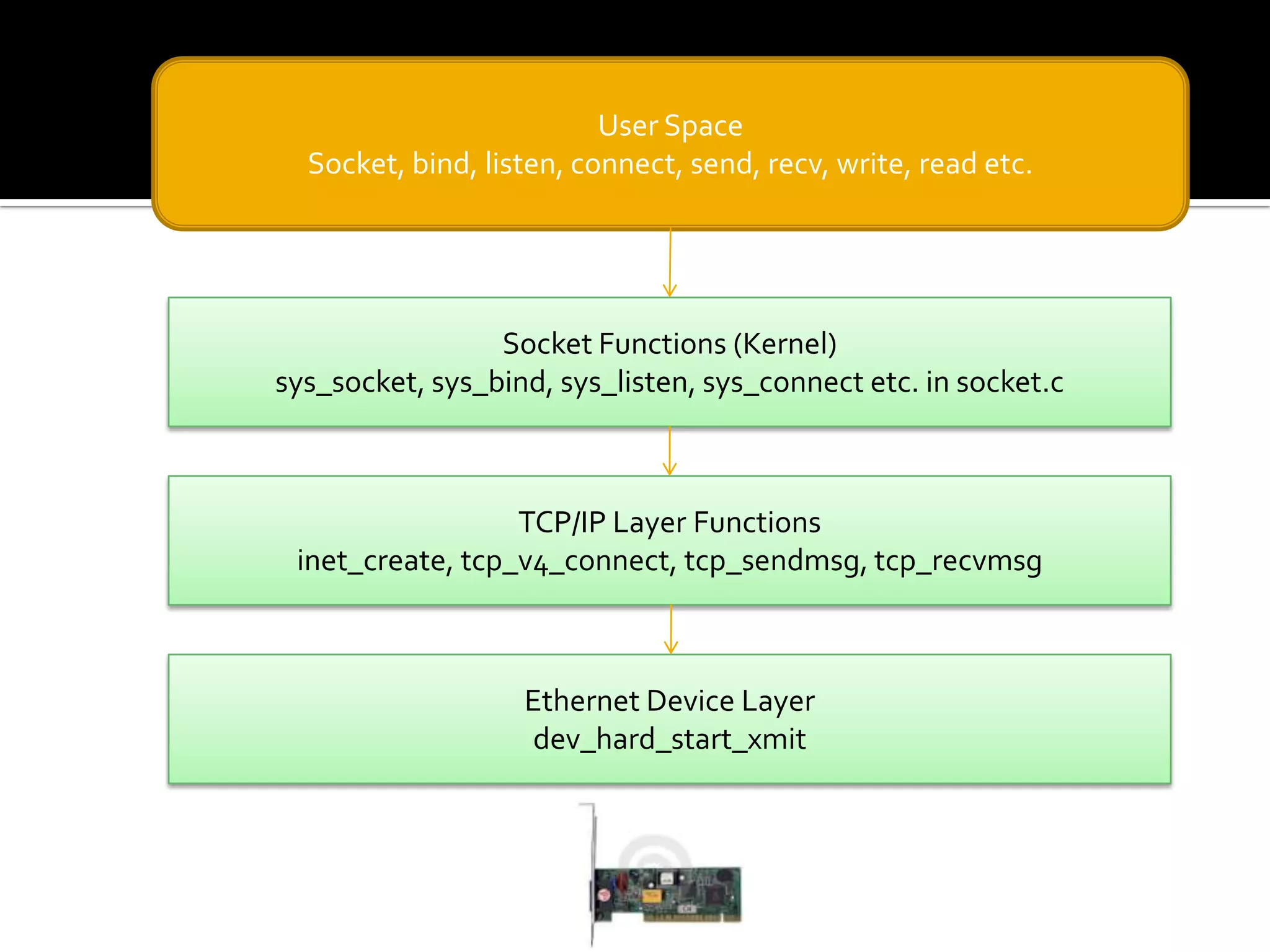

User Space
Socket, bind, listen, connect, send, recv, write, read etc.
Socket Functions (Kernel)
sys_socket, sys_bind, sys_listen, sys_connect etc. in socket.c
TCP/IP Layer Functions
inet_create, tcp_v4_connect, tcp_sendmsg, tcp_recvmsg
Ethernet Device Layer
dev_hard_start_xmit

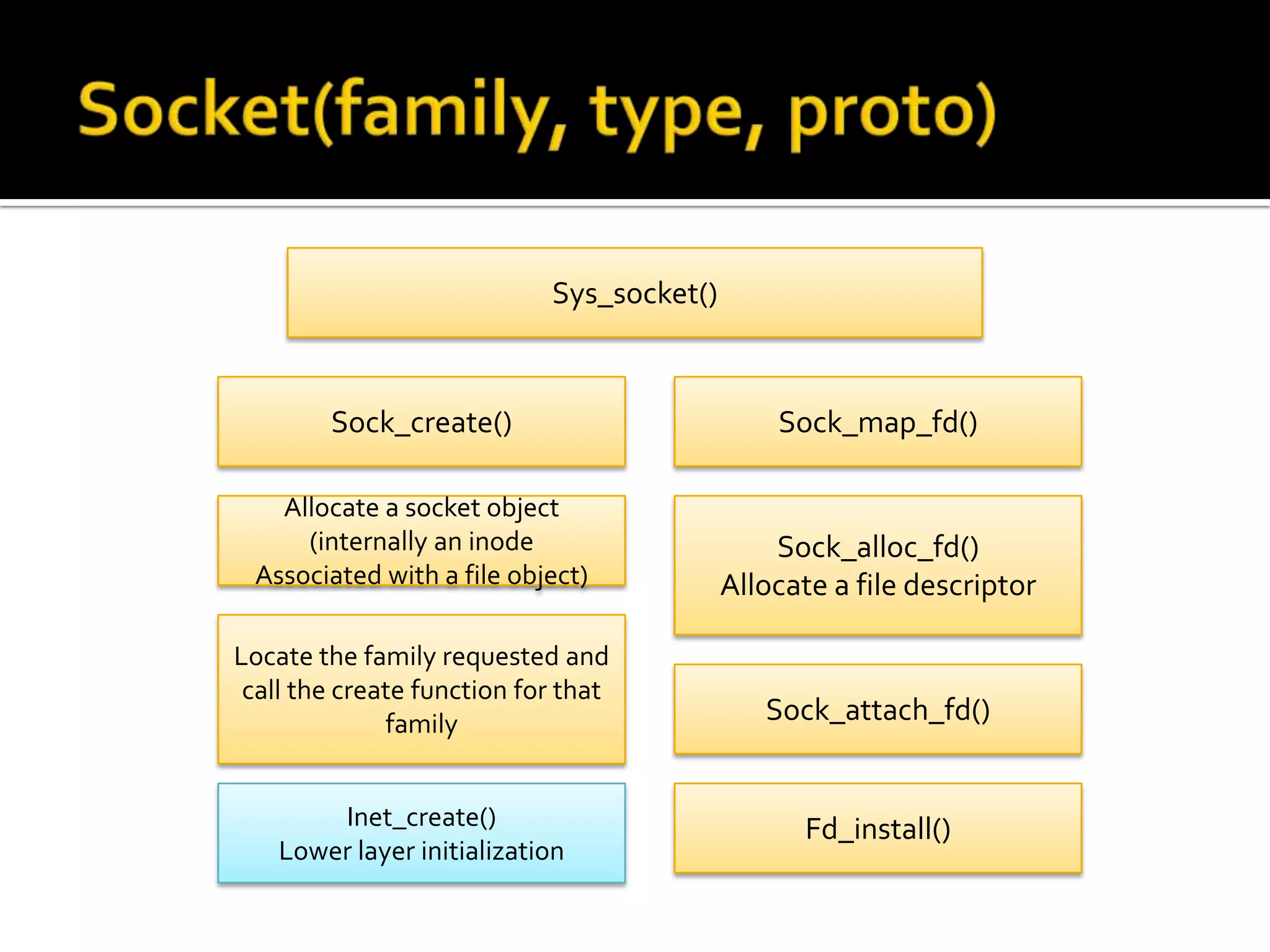

Sys_socket()
Sock_create() Sock_map_fd()
Allocate a socket object
(internally an inode
Associated with a file object)
Locate the family requested and
call the create function for that
family
Inet_create()
Lower layer initialization
Sock_alloc_fd()
Allocate a file descriptor
Sock_attach_fd()
Fd_install()

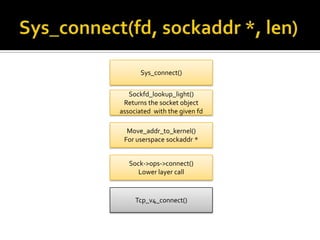

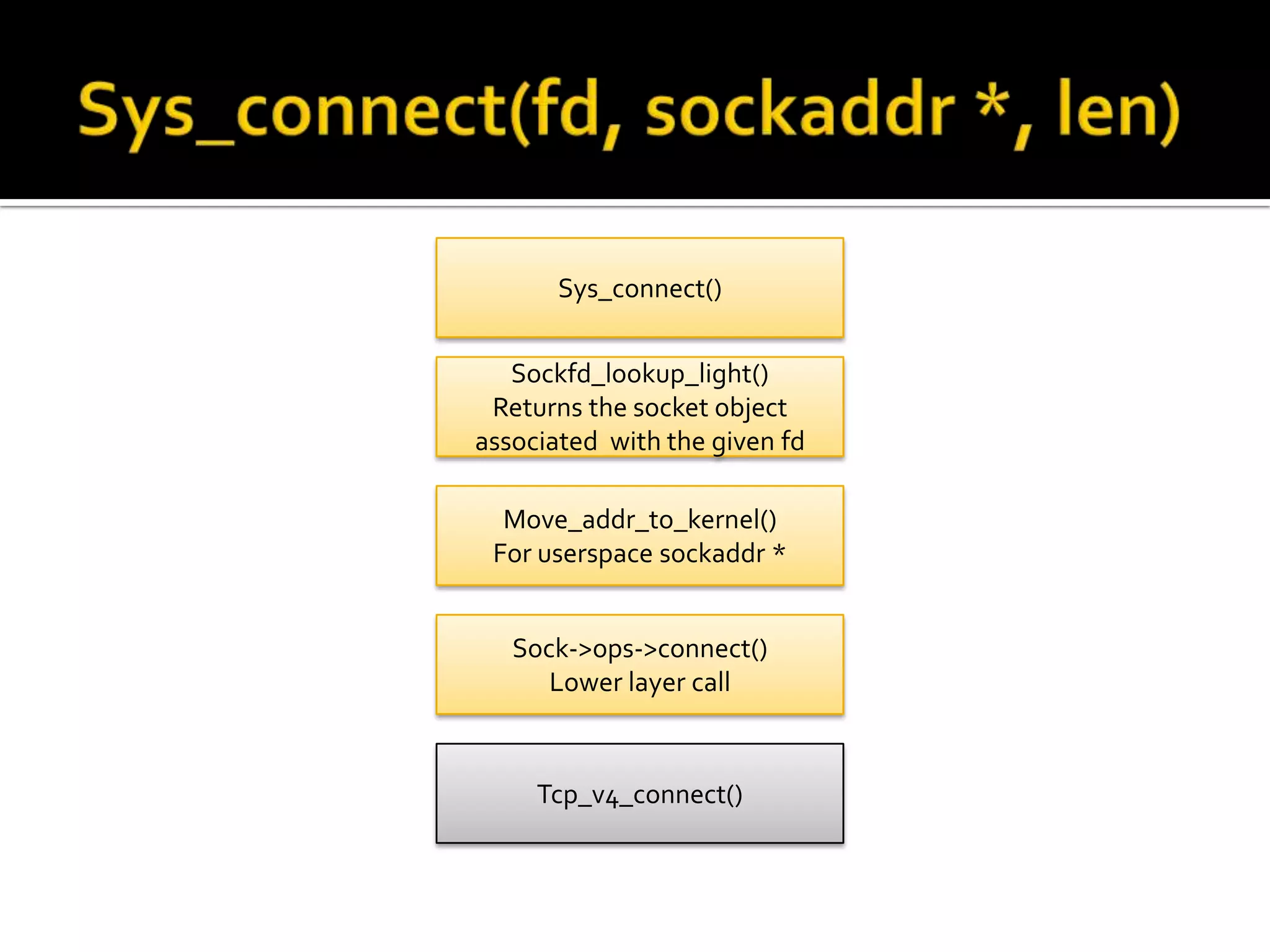

Sys_connect()
Sockfd_lookup_light()
Returns the socket object
associated with the given fd
Move_addr_to_kernel()
For userspace sockaddr *
Sock->ops->connect()
Lower layer call

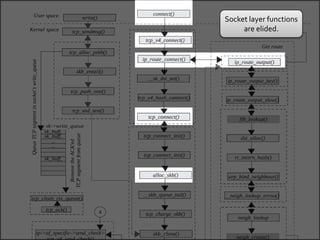

Tcp_v4_connect()

Socket layer functions
are elided.

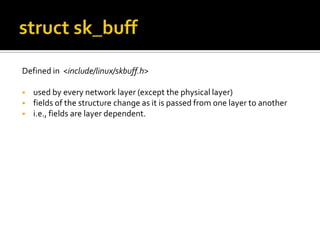

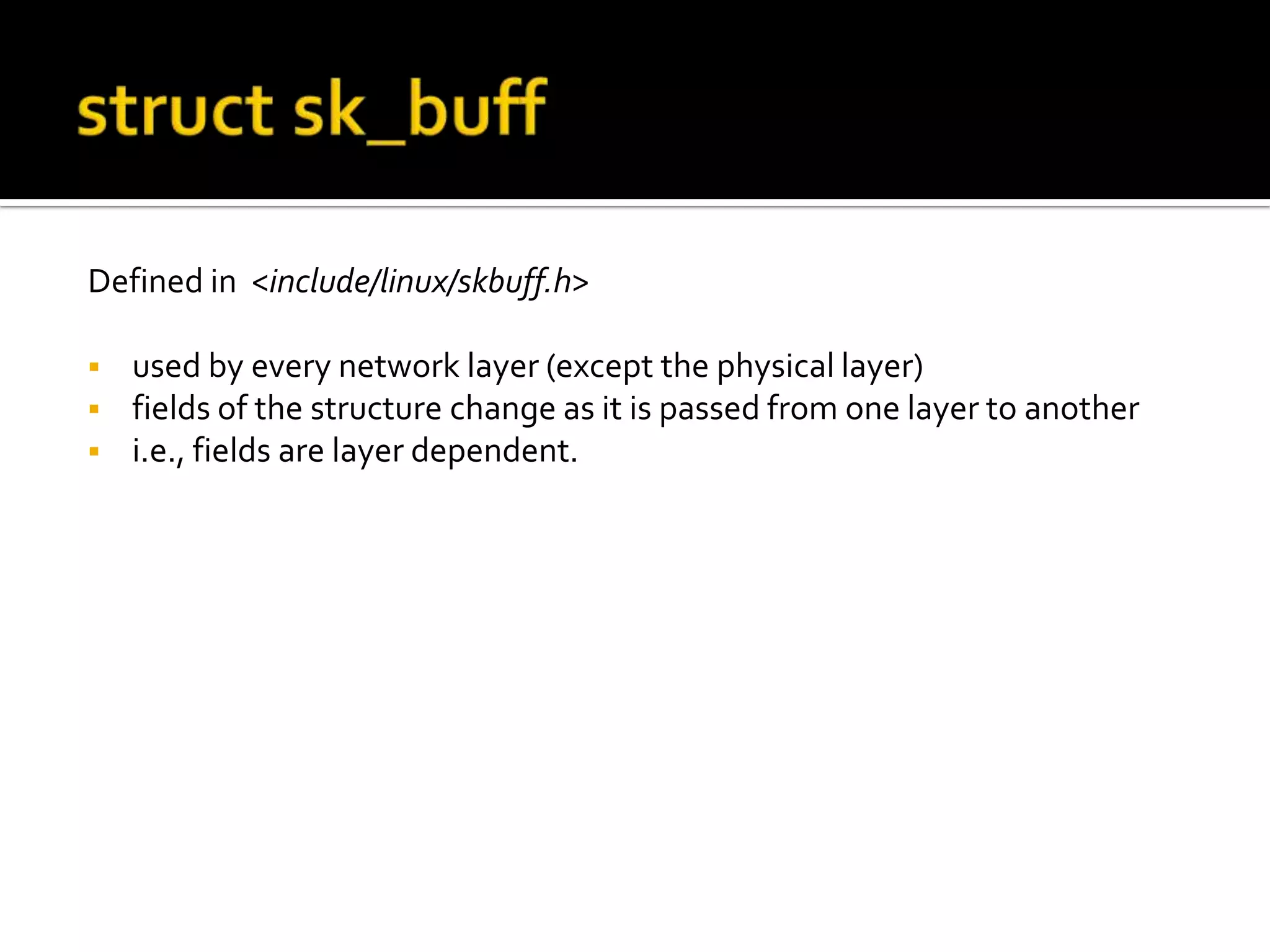

Defined in <include/linux/skbuff.h>
 used by every network layer (except the physical layer)
 fields of the structure change as it is passed from one layer to another
 i.e., fields are layer dependent.

struct sk_buff {
... ... ...
#ifdef CONFIG_NET_SCHED
_ _u32 tc_index;
#ifdef CONFIG_NET_CLS_ACT
_ _u32 tc_verd;
_ _u32 tc_classid;
#endif
#endif
}

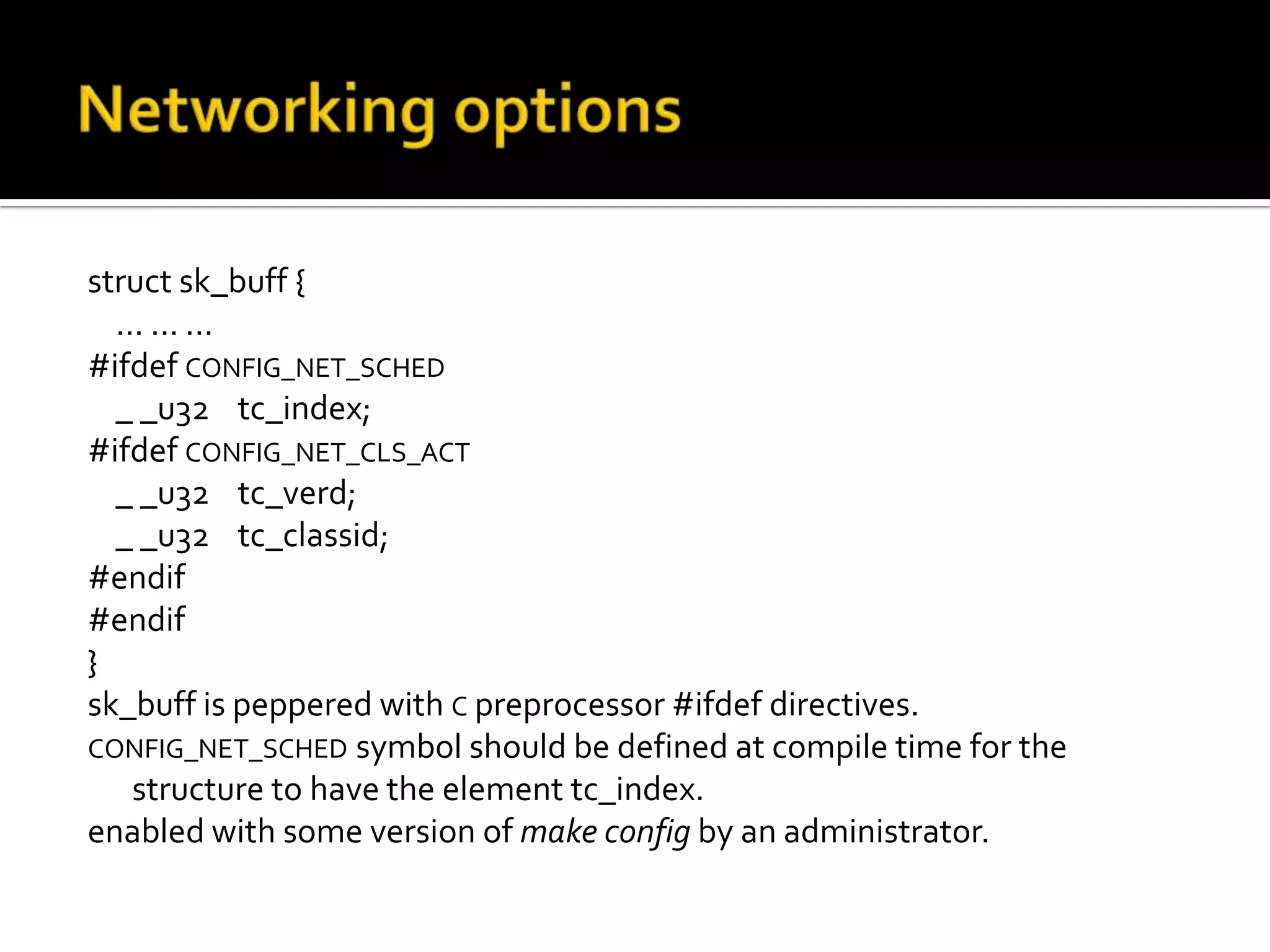

sk_buff is peppered with C preprocessor #ifdef directives.
CONFIG_NET_SCHED symbol should be defined at compile time for the
structure to have the element tc_index.
enabled with some version of make config by an administrator.

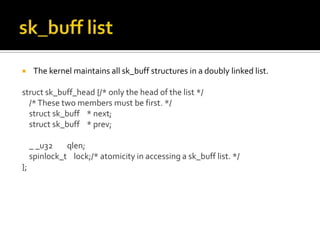

 The kernel maintains all sk_buff structures in a doubly linked list.
struct sk_buff_head {/* only the head of the list */
/*These two members must be first. */
struct sk_buff * next;
struct sk_buff * prev;
_ _u32 qlen;
spinlock_t lock;/* atomicity in accessing a sk_buff list. */
};

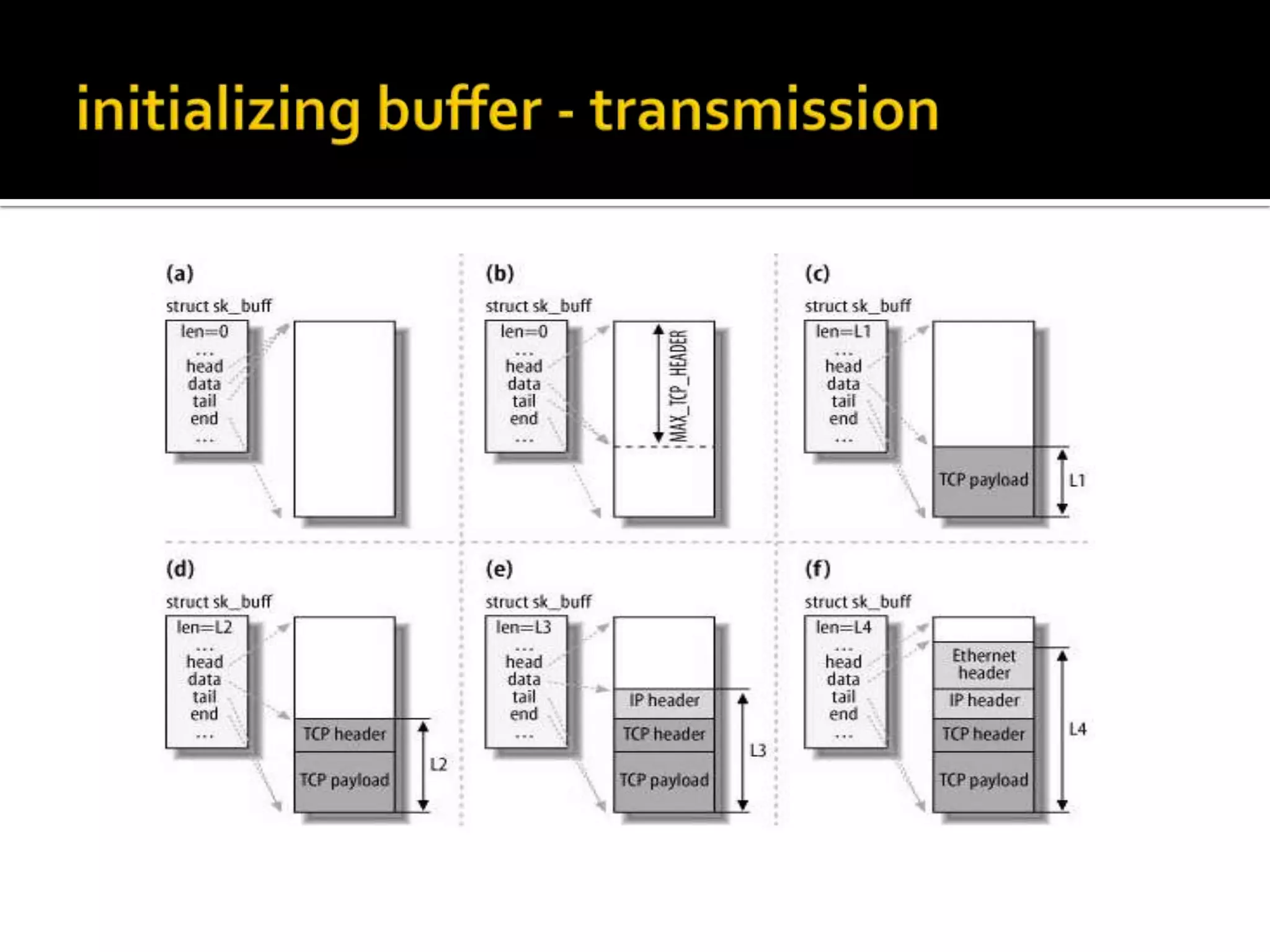

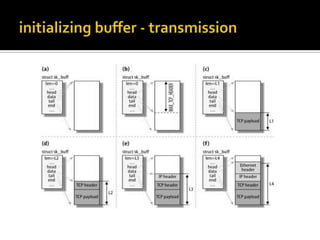

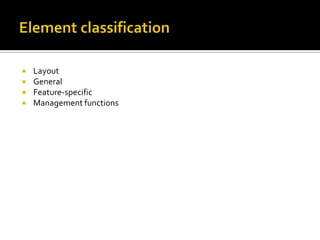

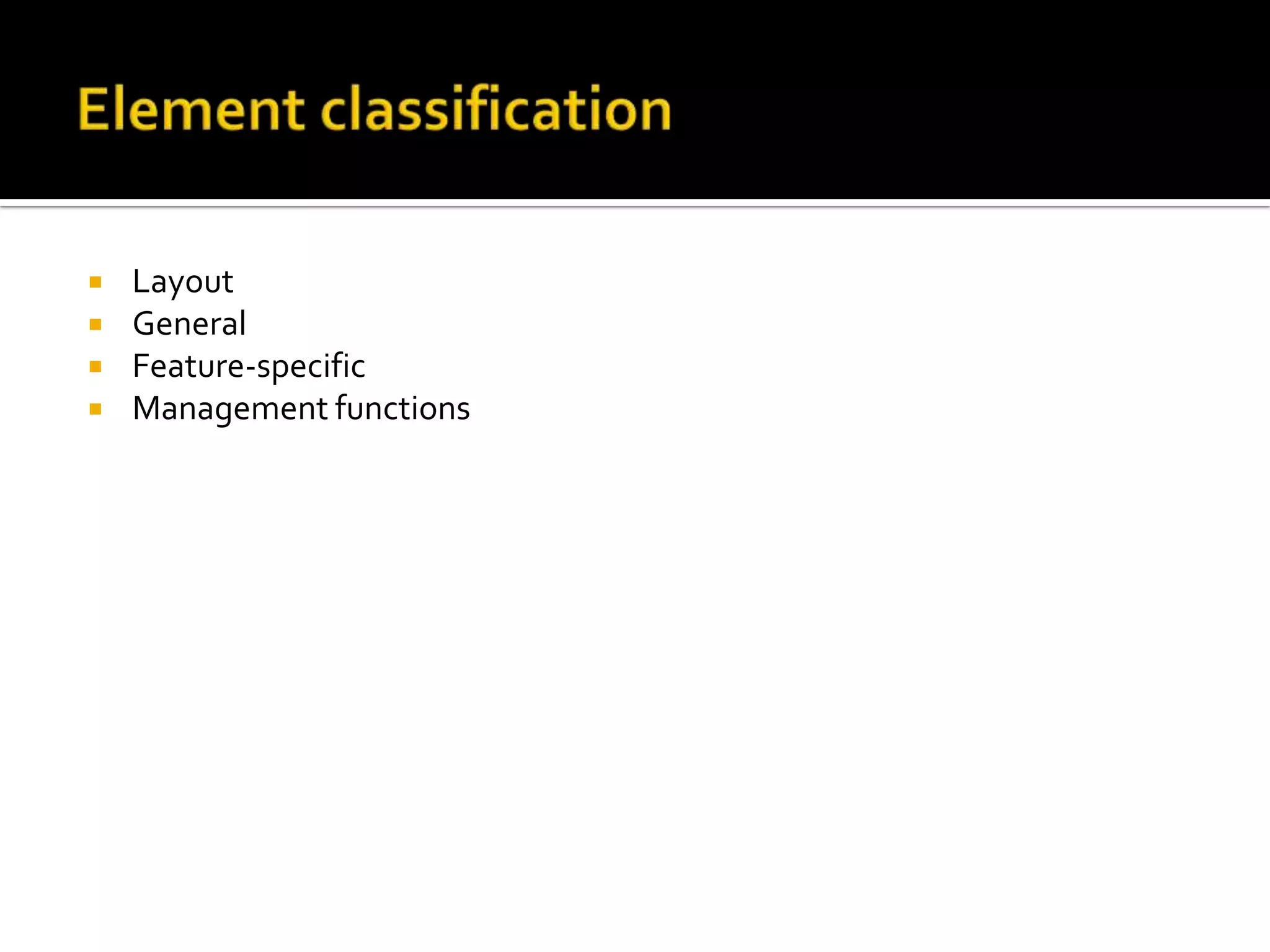

 Layout
 General
 Feature-specific
 Management functions

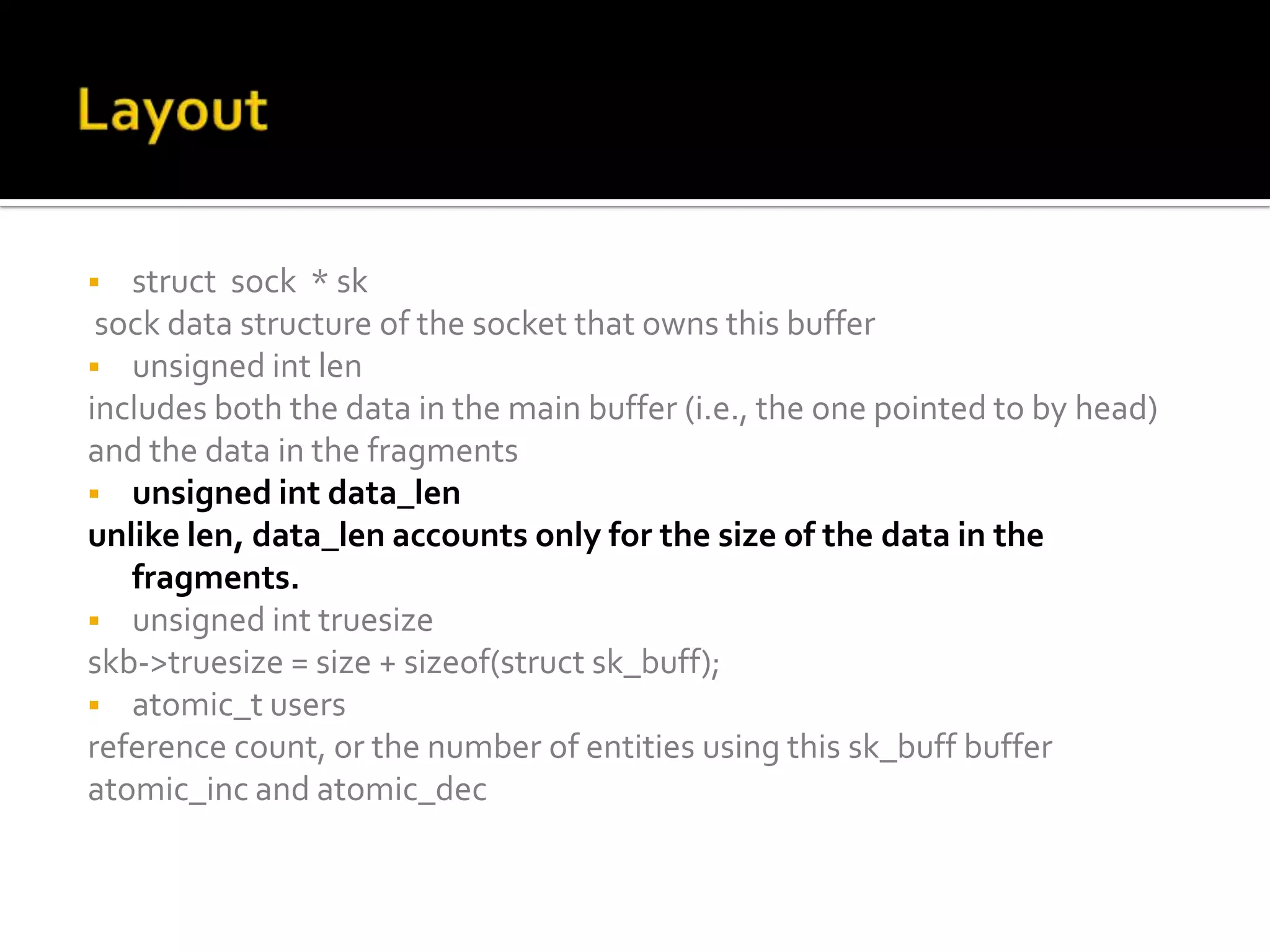

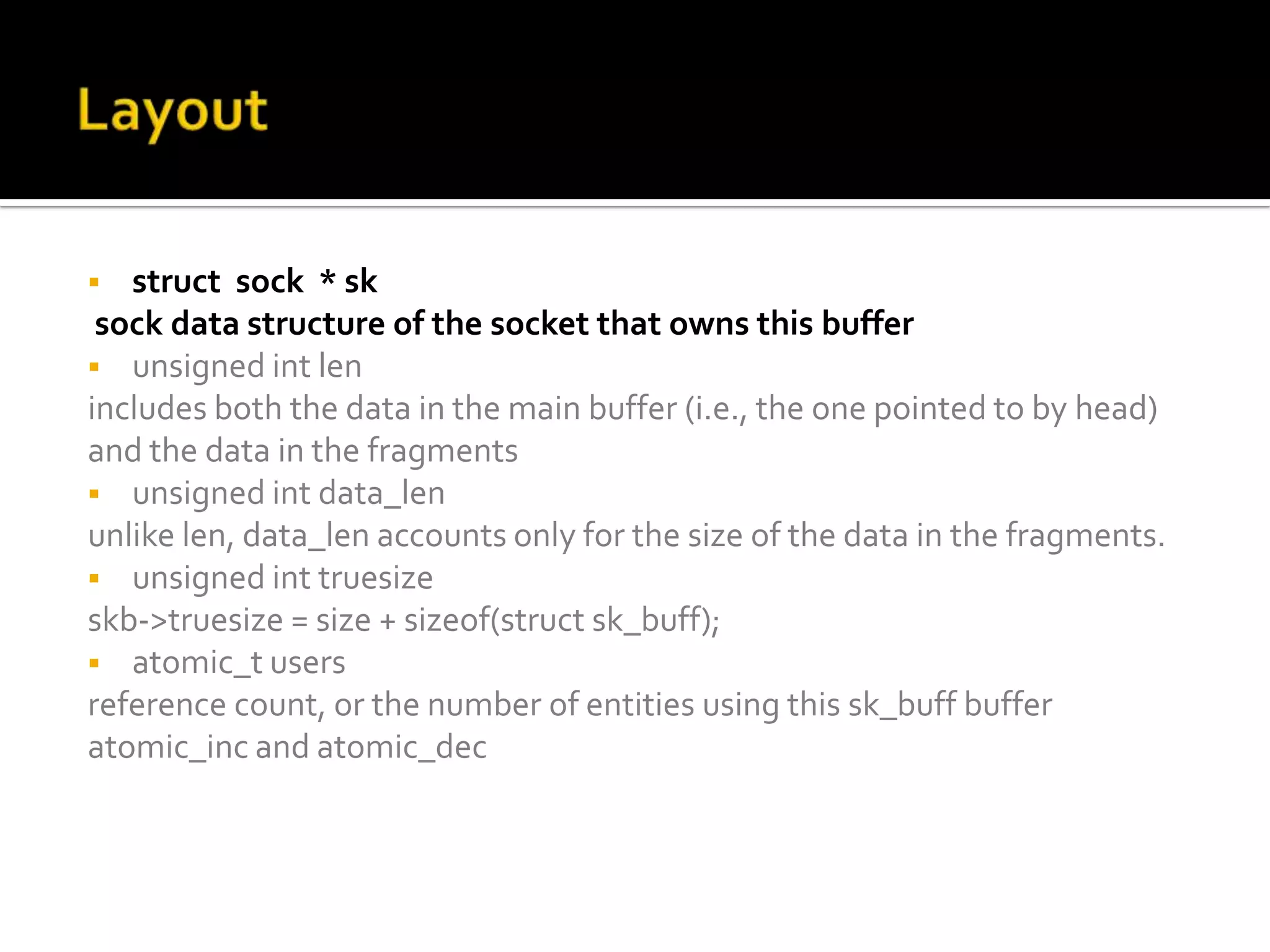

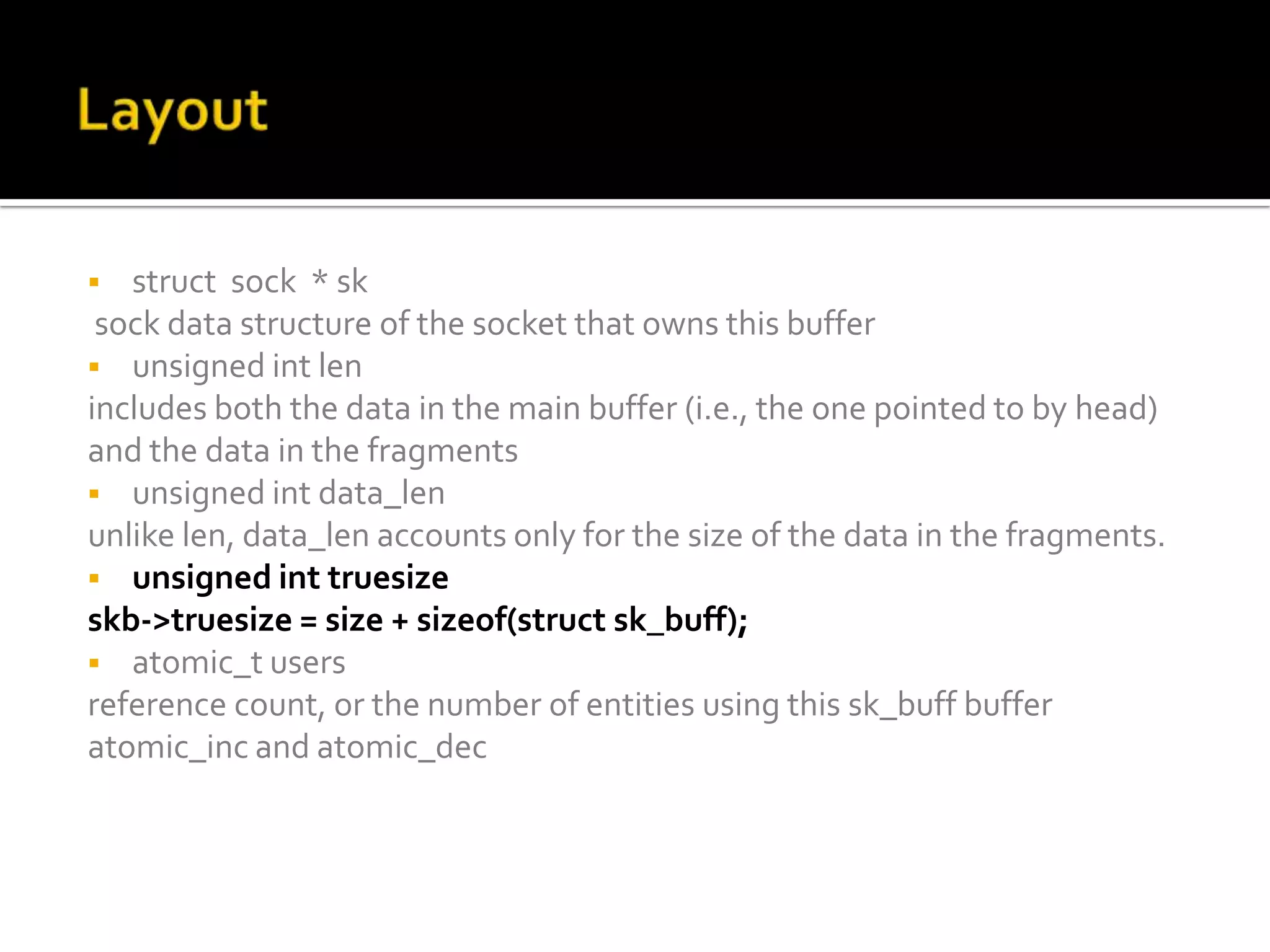

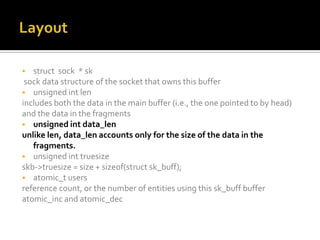

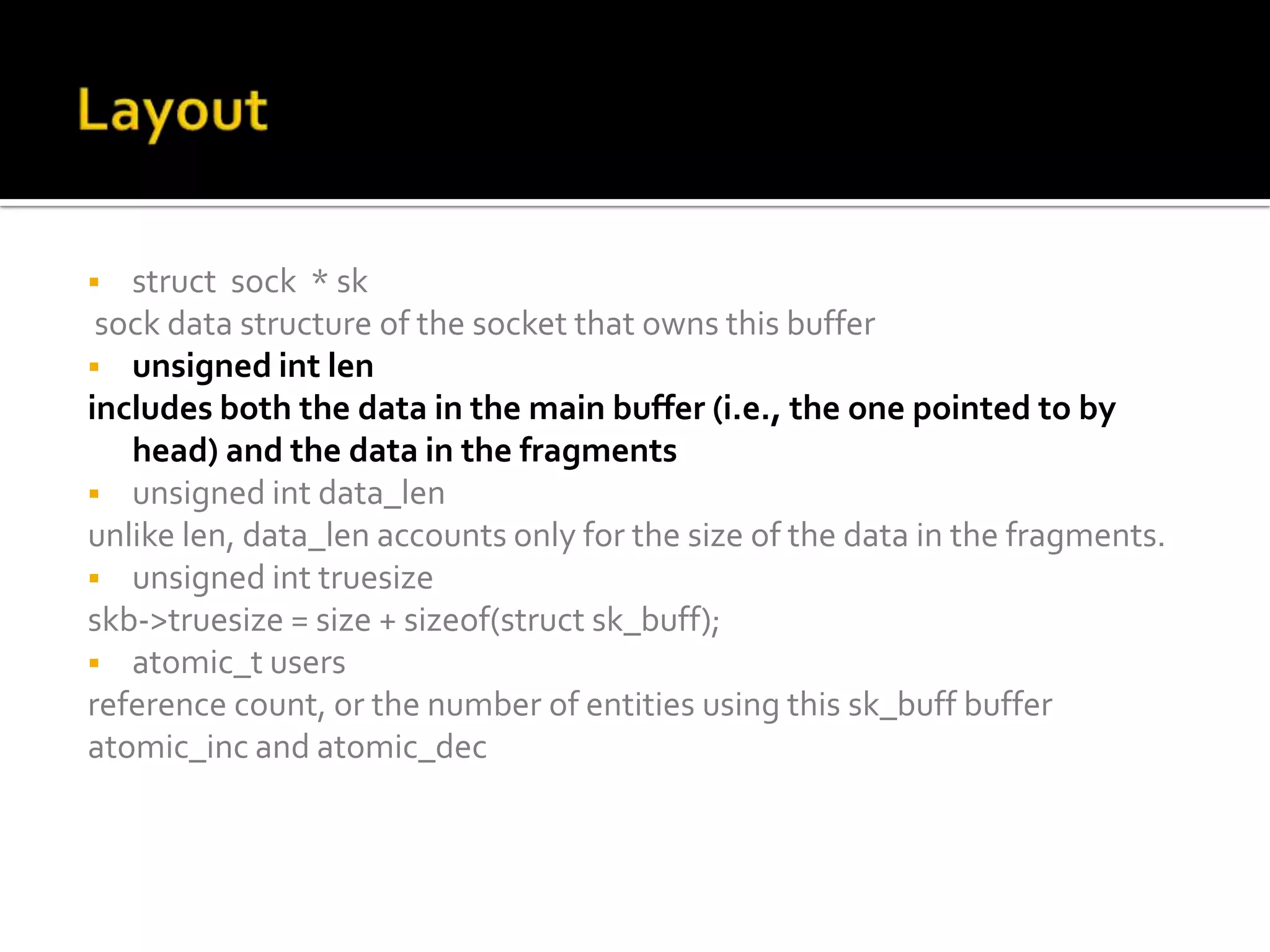

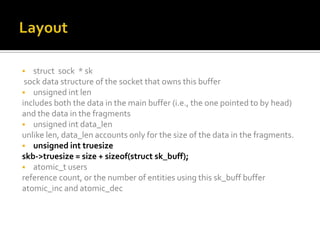

 struct sock * sk
sock data structure of the socket that owns this buffer
 unsigned int len
includes both the data in the main buffer (i.e., the one pointed to by head)
and the data in the fragments
 unsigned int data_len
unlike len, data_len accounts only for the size of the data in the fragments.
 unsigned int truesize
skb->truesize = size + sizeof(struct sk_buff);

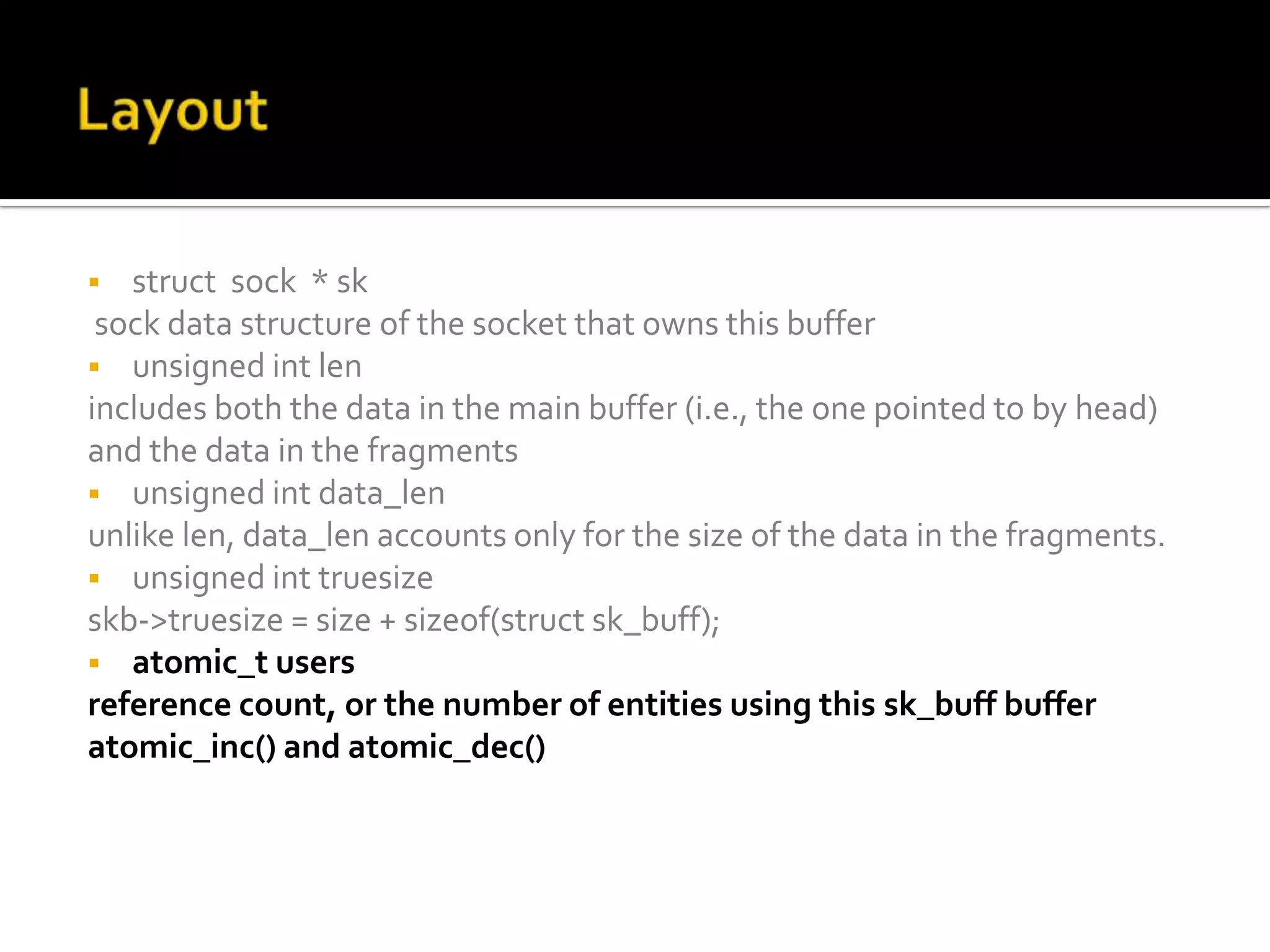

 atomic_t users
reference count, or the number of entities using this sk_buff buffer
atomic_inc and atomic_dec

includes both the data in the main buffer (i.e., the one pointed to by
head) and the data in the fragments
 atomic_t users

unlike len, data_len accounts only for the size of the data in the
fragments.
 atomic_t users

 atomic_t users
atomic_inc() and atomic_dec()

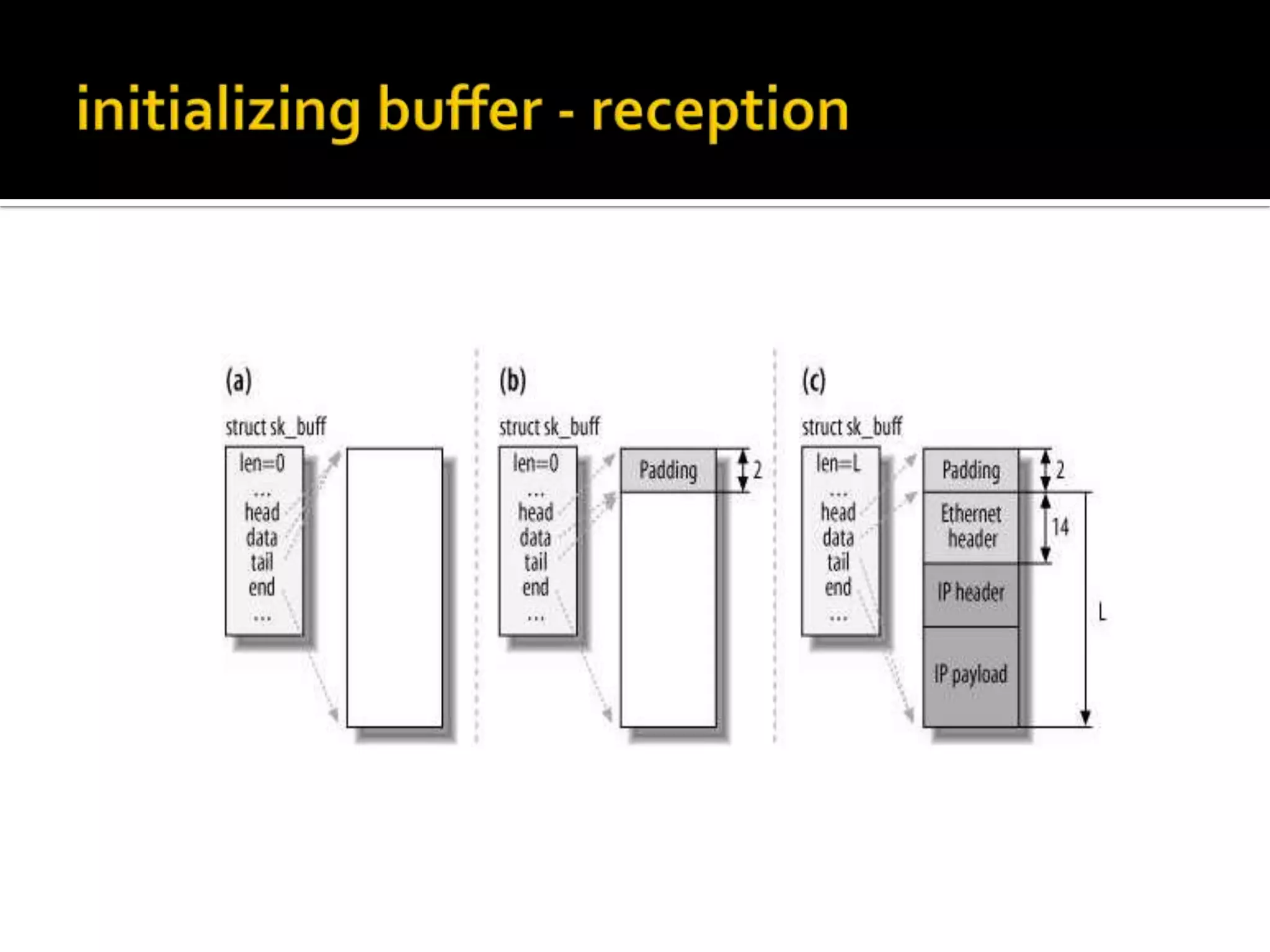

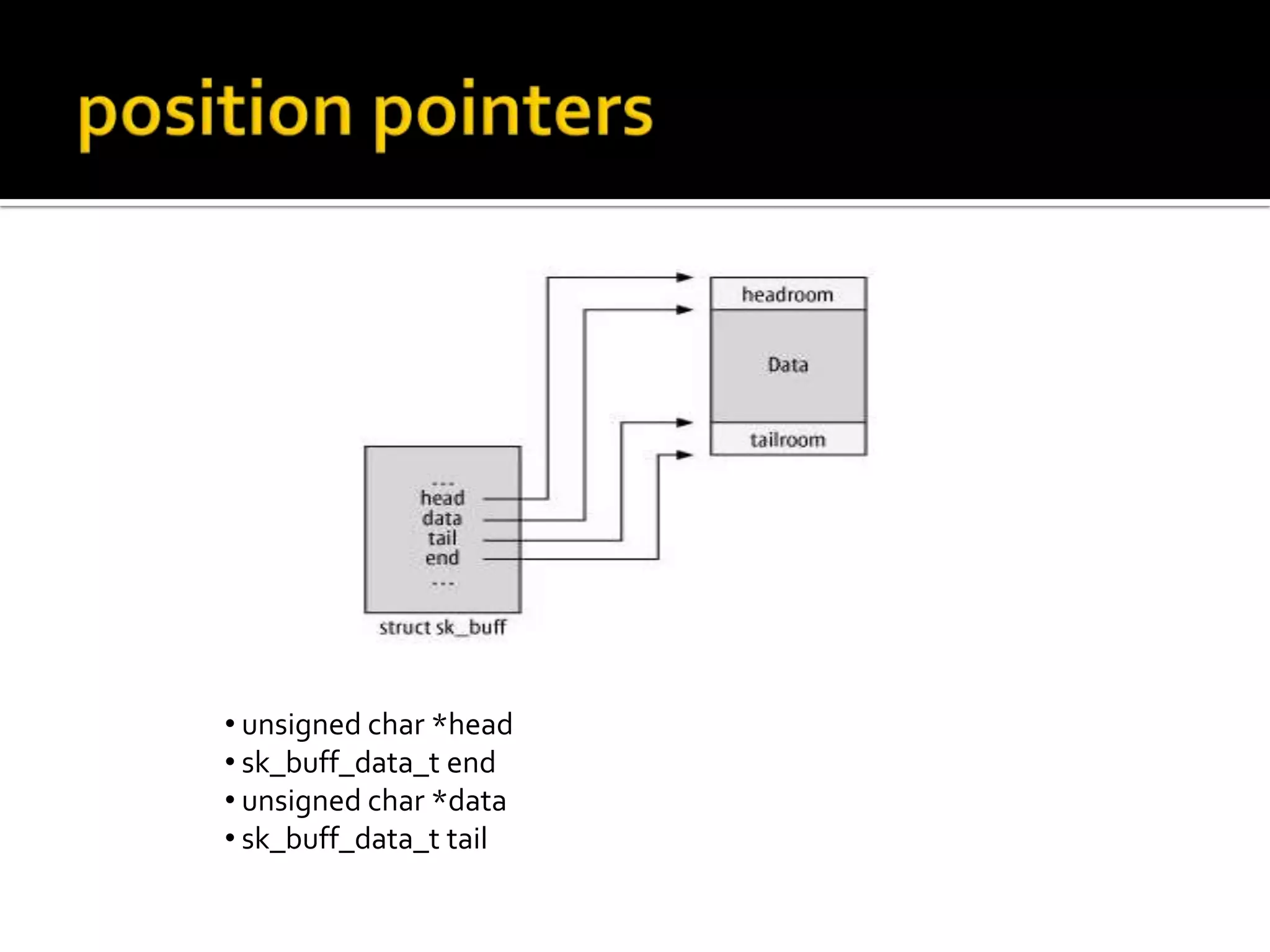

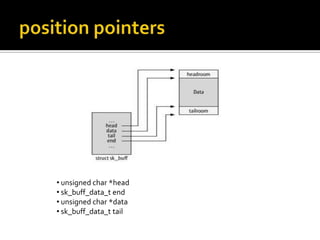

• unsigned char *head
• sk_buff_data_t end
• unsigned char *data
• sk_buff_data_t tail

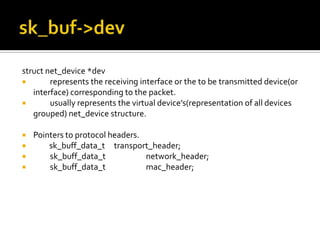

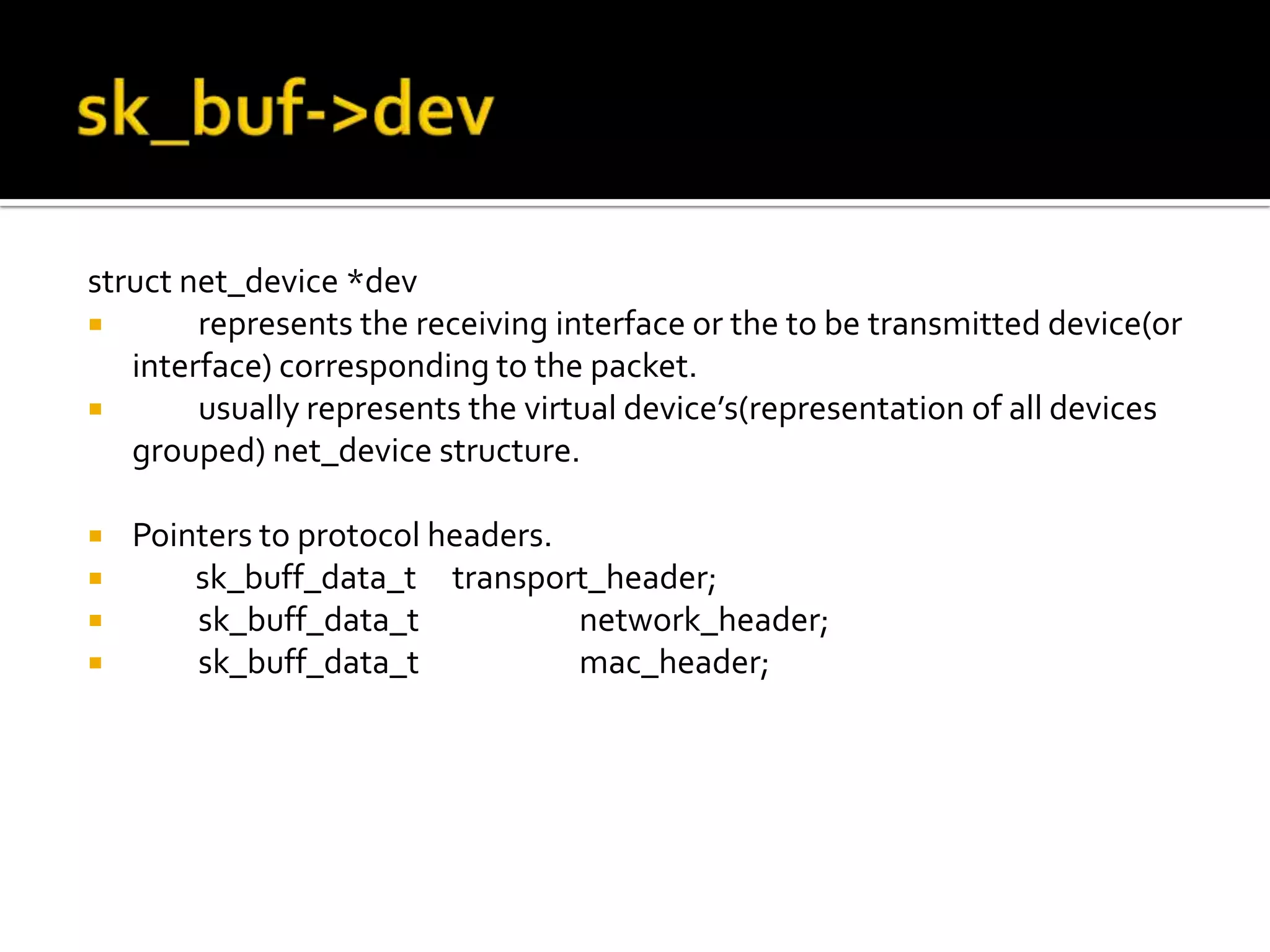

struct net_device *dev
 represents the receiving interface or the to be transmitted device(or
interface) corresponding to the packet.
 usually represents the virtual device’s(representation of all devices
grouped) net_device structure.
 Pointers to protocol headers.
 sk_buff_data_t transport_header;
 sk_buff_data_t network_header;
 sk_buff_data_t mac_header;

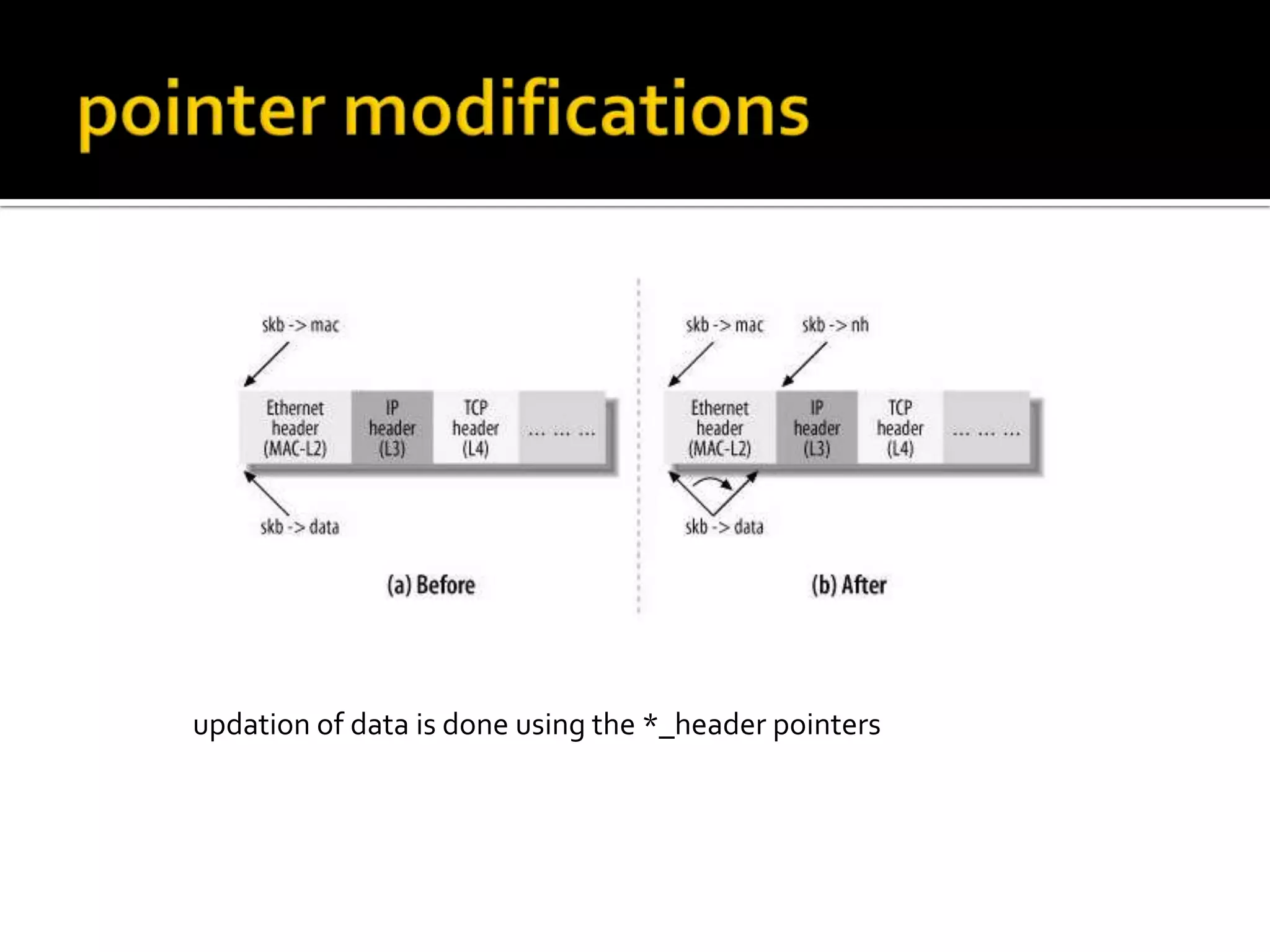

updation of data is done using the *_header pointers

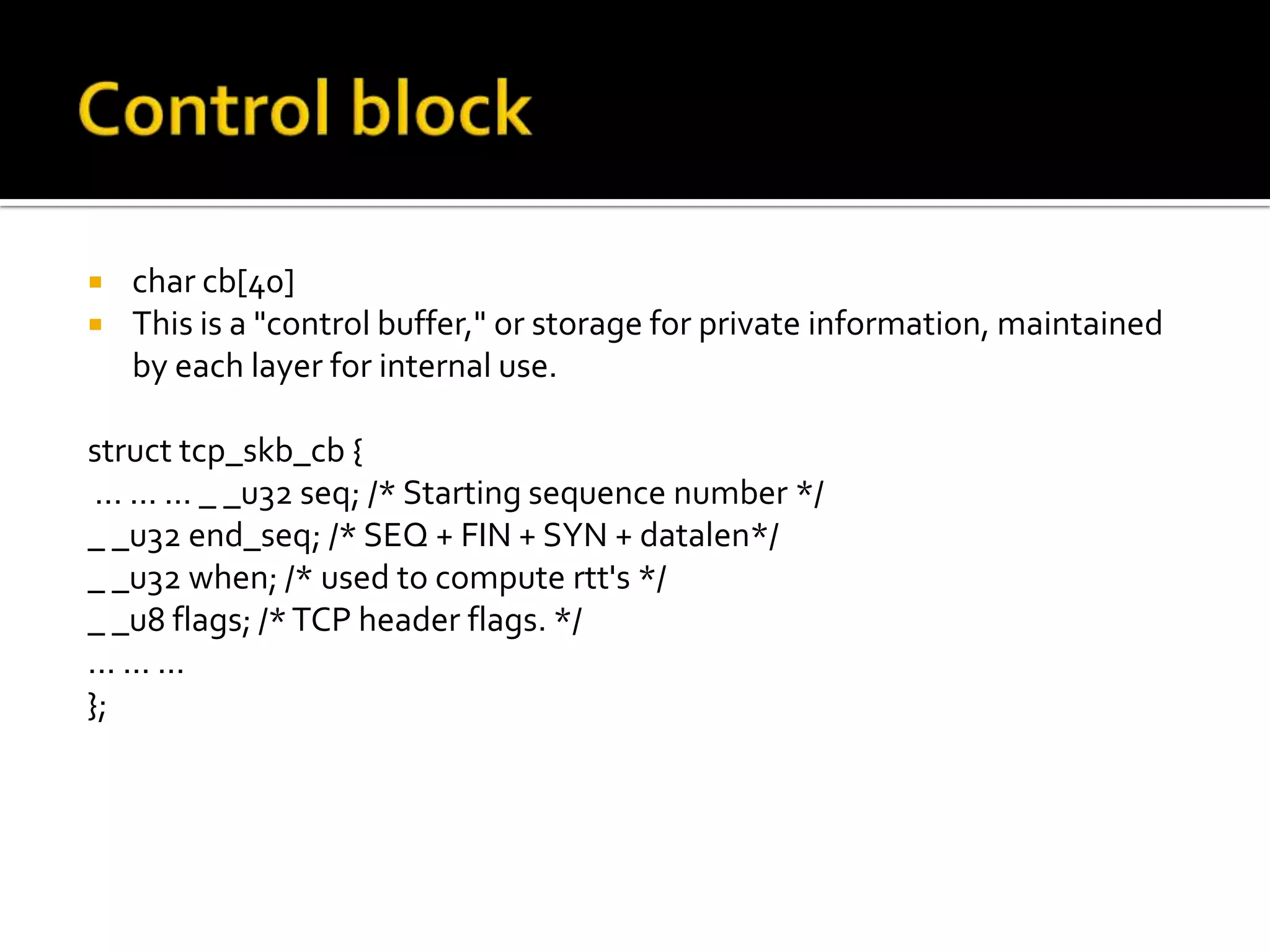

 char cb[40]
 This is a "control buffer," or storage for private information, maintained
by each layer for internal use.
struct tcp_skb_cb {
... ... ... _ _u32 seq; /* Starting sequence number */
_ _u32 end_seq; /* SEQ + FIN + SYN + datalen*/
_ _u32 when; /* used to compute rtt's */
_ _u8 flags; /*TCP header flags. */
... ... ...
};

Defined in <include/linux/skbuff.h> & <net/core/skbuff.c>

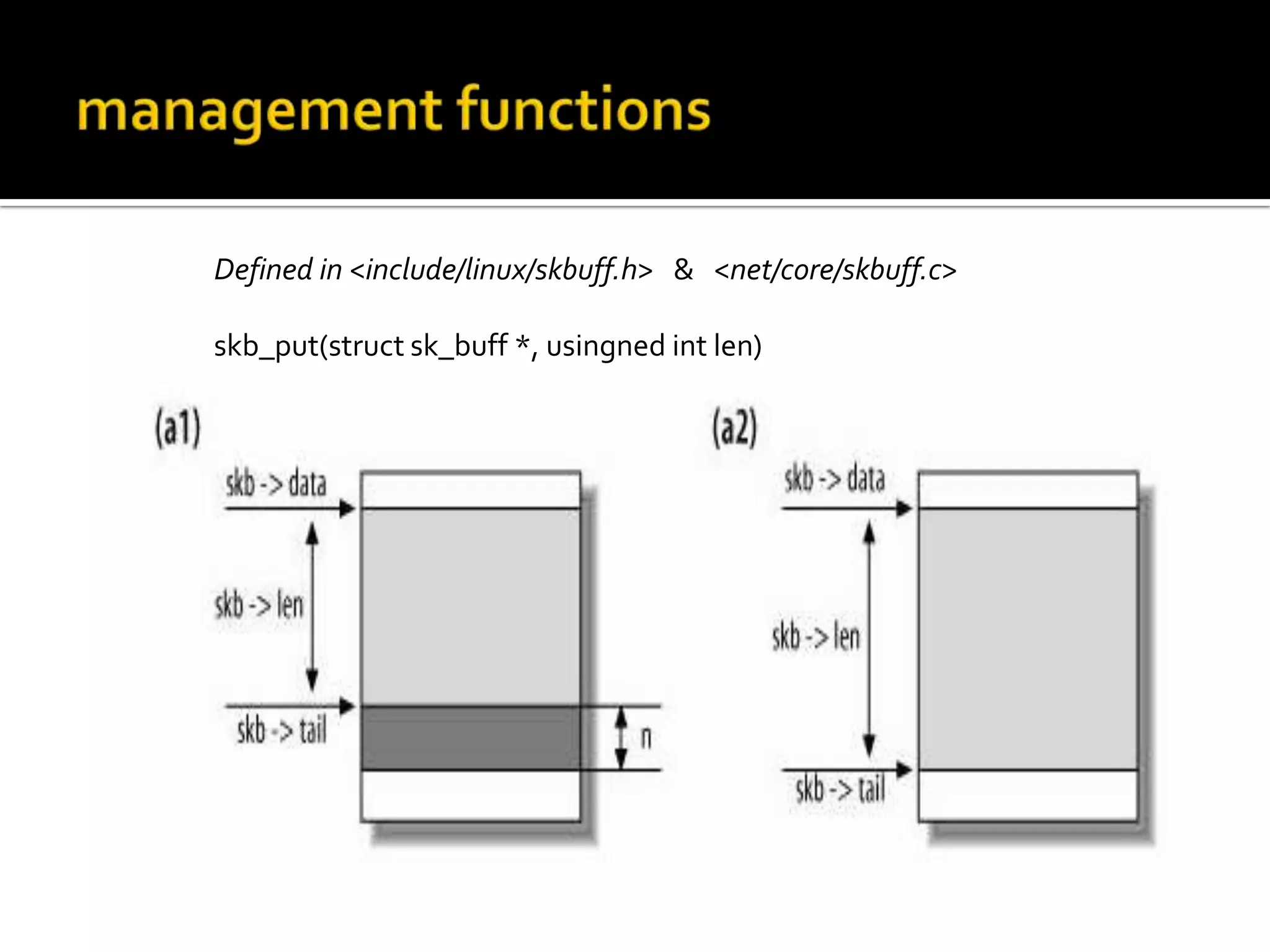

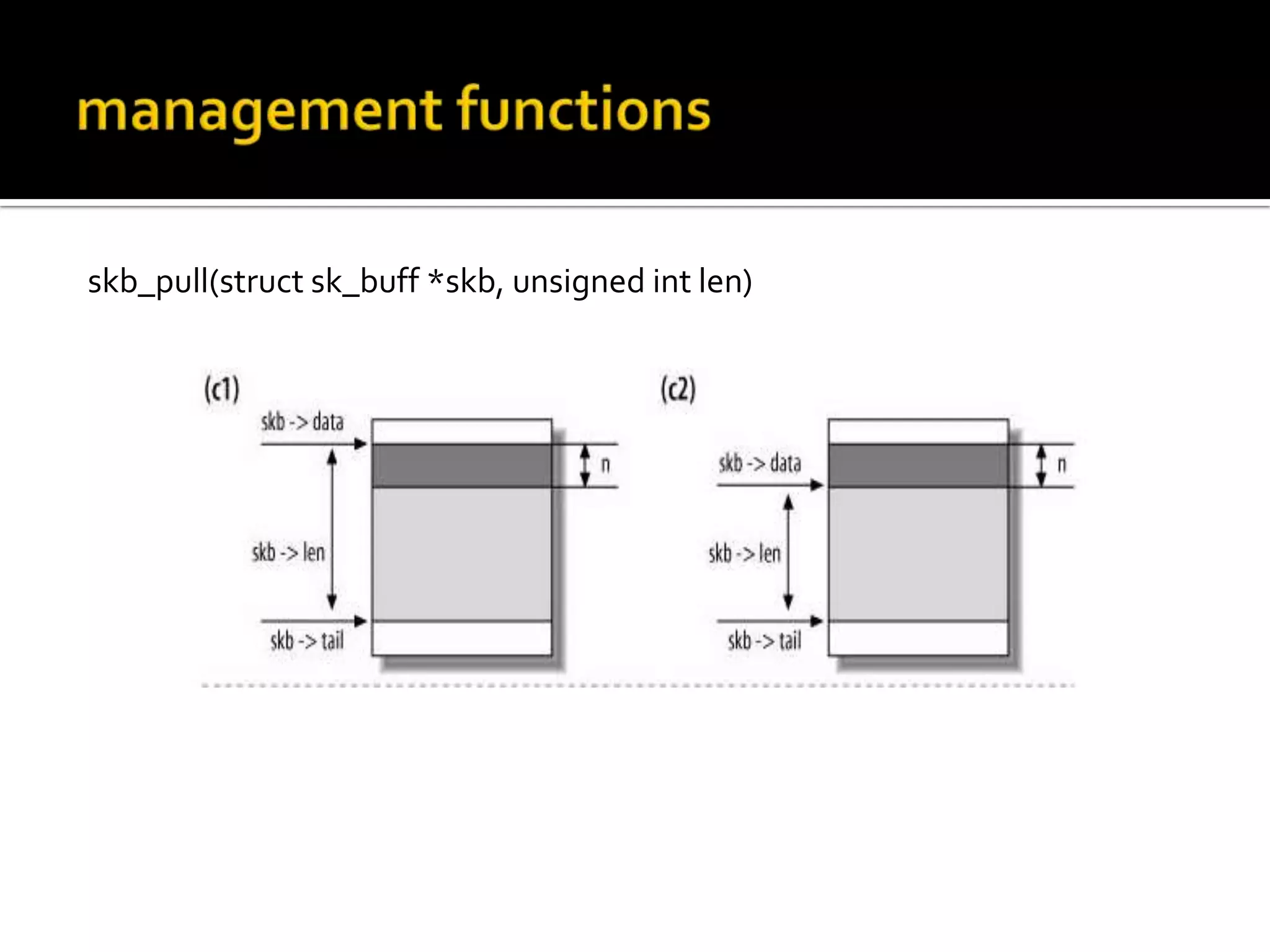

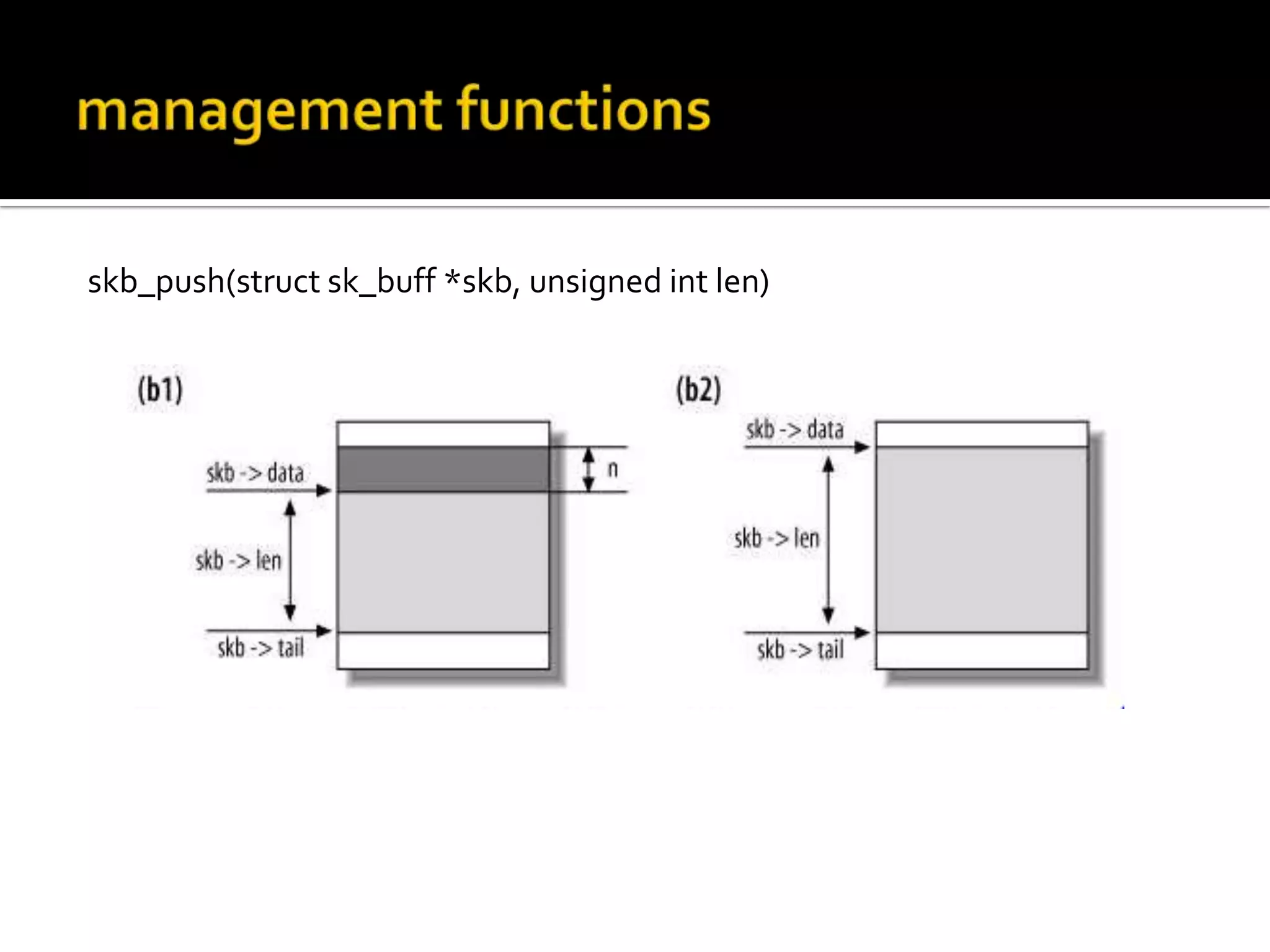

skb_put(struct sk_buff *, usingned int len)

skb_push(struct sk_buff *skb, unsigned int len)

skb_pull(struct sk_buff *skb, unsigned int len)

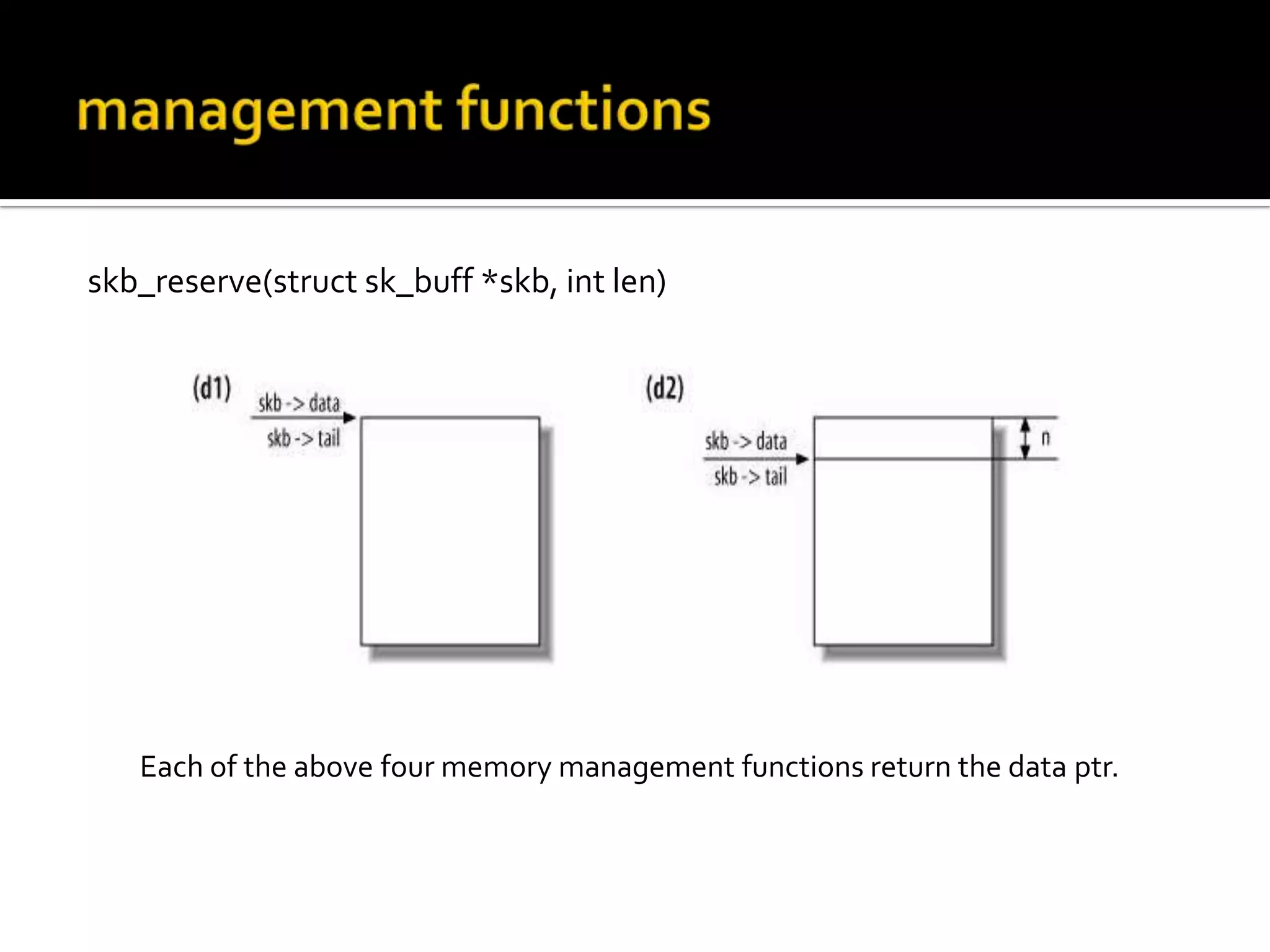

skb_reserve(struct sk_buff *skb, int len)
Each of the above four memory management functions return the data ptr.

defined in <net/core/skbuff.c>

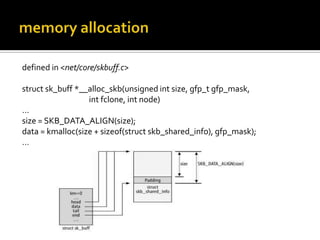

struct sk_buff *__alloc_skb(unsigned int size, gfp_t gfp_mask,
int fclone, int node)
…
size = SKB_DATA_ALIGN(size);
data = kmalloc(size + sizeof(struct skb_shared_info), gfp_mask);
…

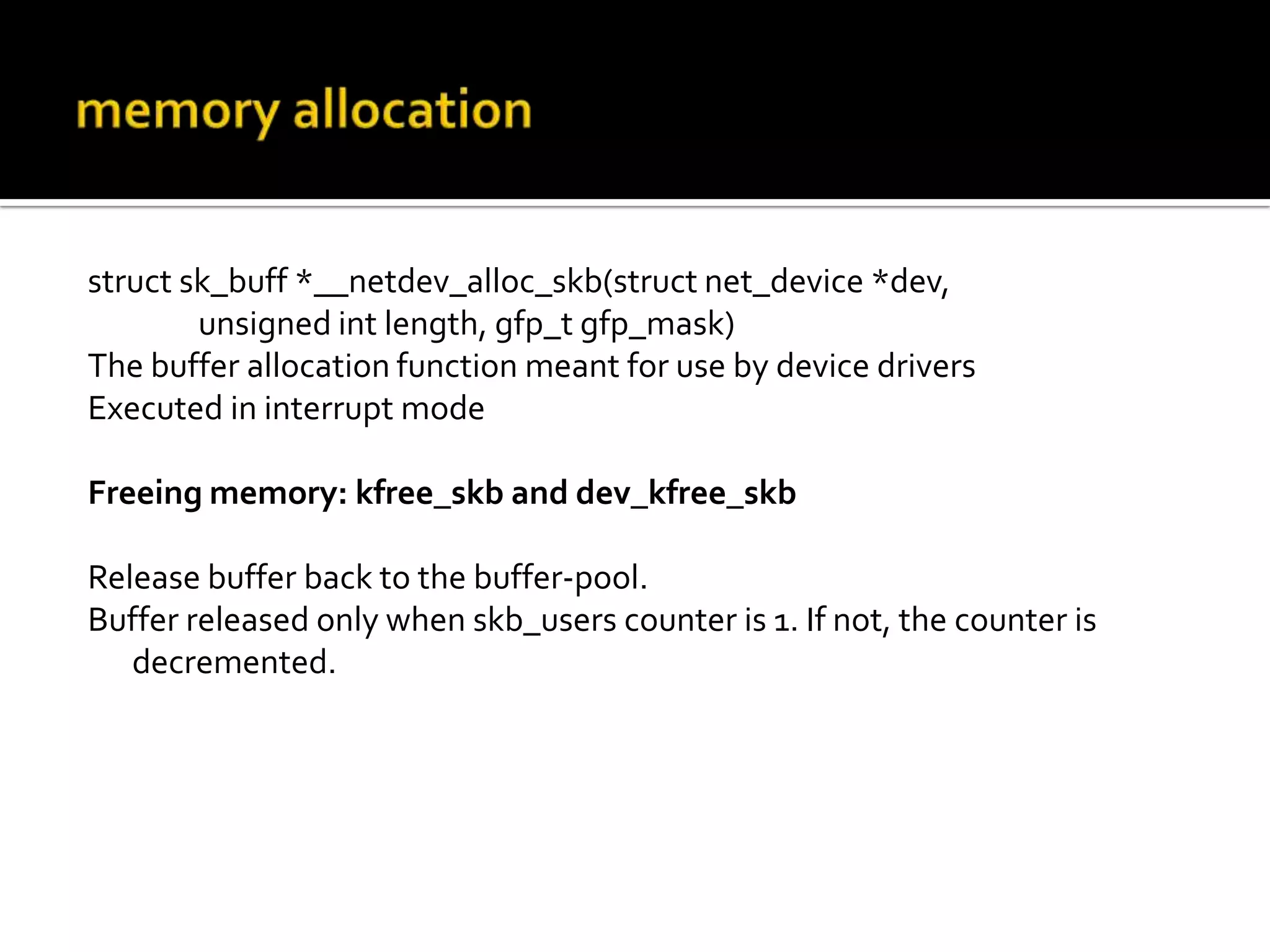

struct sk_buff *__netdev_alloc_skb(struct net_device *dev,
unsigned int length, gfp_t gfp_mask)
The buffer allocation function meant for use by device drivers
Executed in interrupt mode
Freeing memory: kfree_skb and dev_kfree_skb
Release buffer back to the buffer-pool.
Buffer released only when skb_users counter is 1. If not, the counter is
decremented.

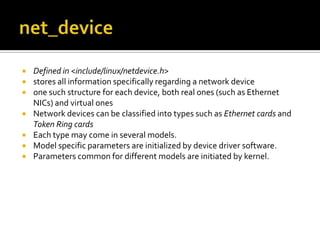

 Defined in <include/linux/netdevice.h>
 stores all information specifically regarding a network device
 one such structure for each device, both real ones (such as Ethernet
NICs) and virtual ones
 Network devices can be classified into types such as Ethernet cards and
Token Ring cards
 Each type may come in several models.
 Model specific parameters are initialized by device driver software.
 Parameters common for different models are initiated by kernel.

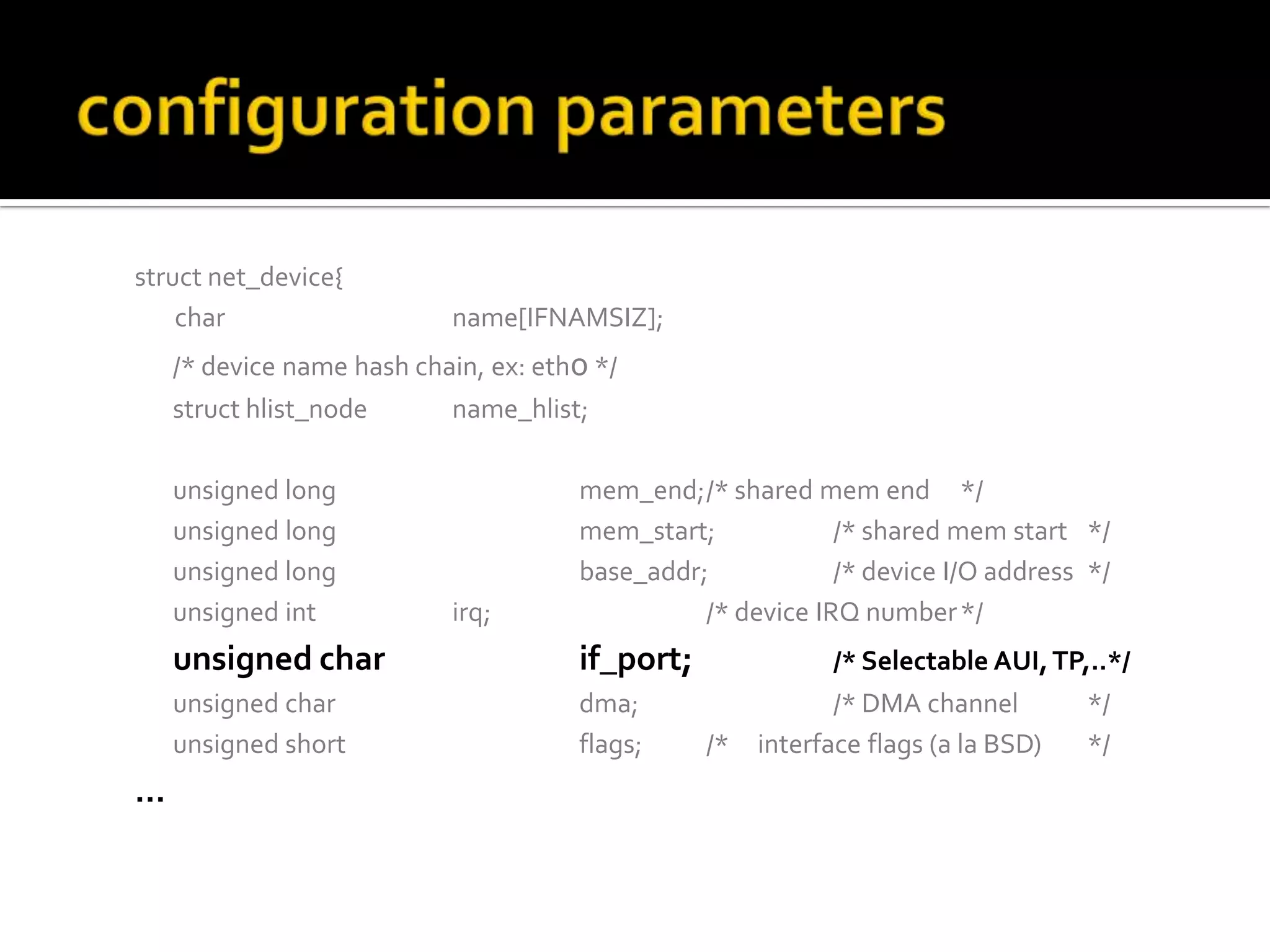

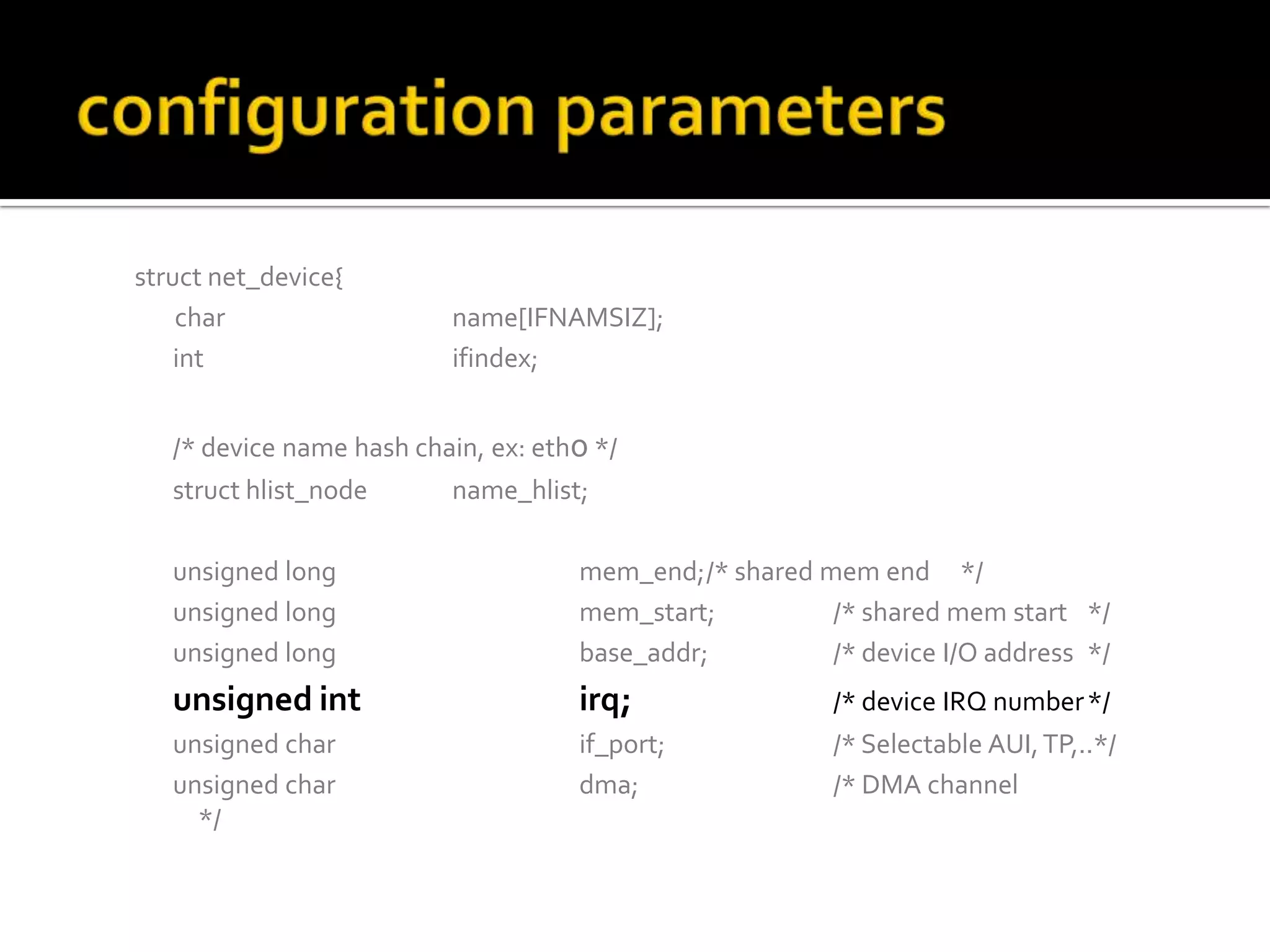

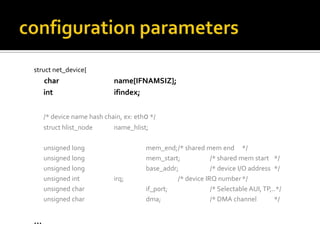

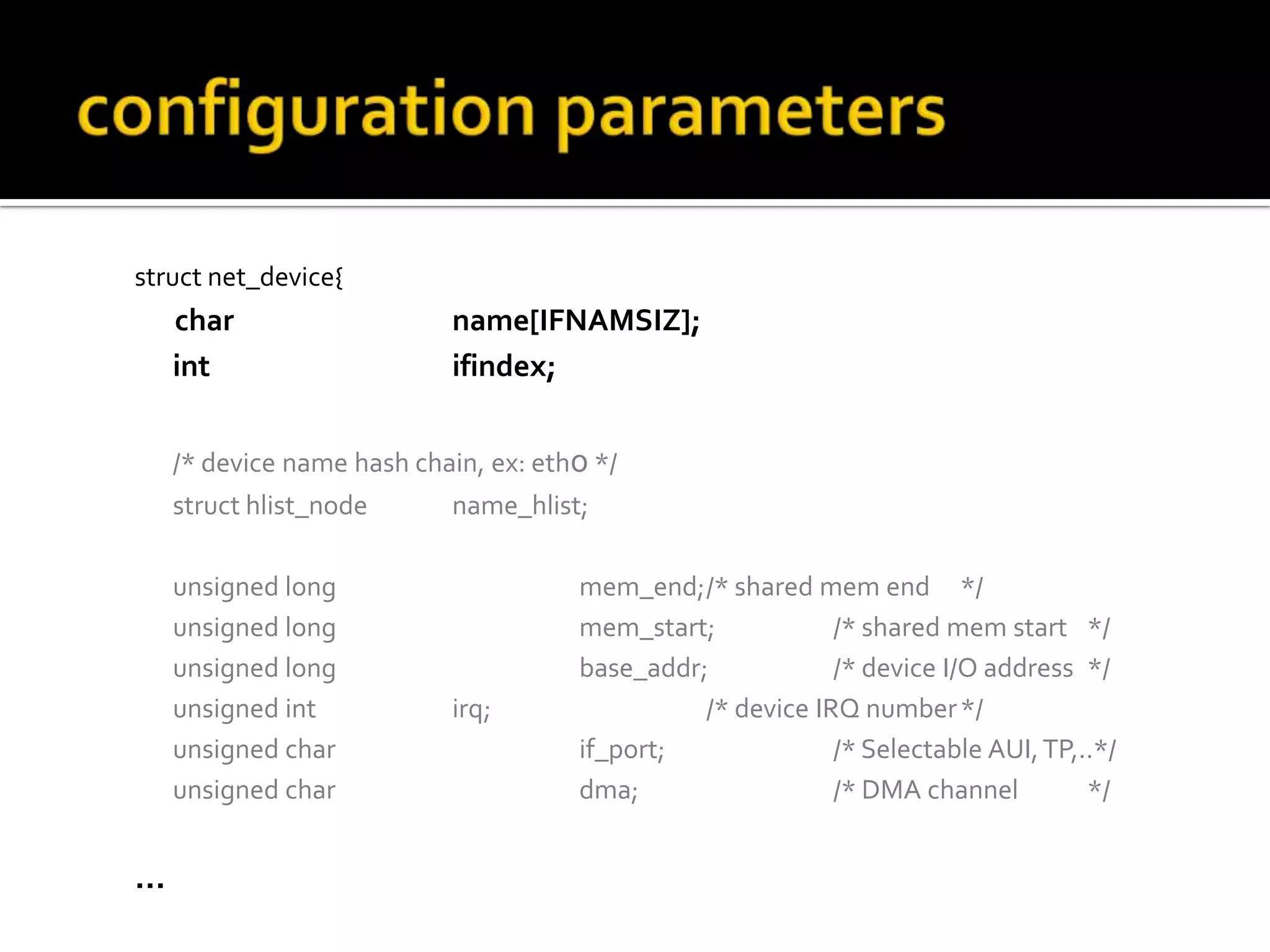

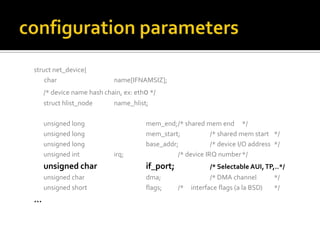

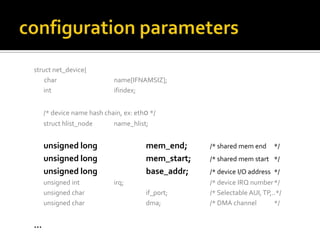

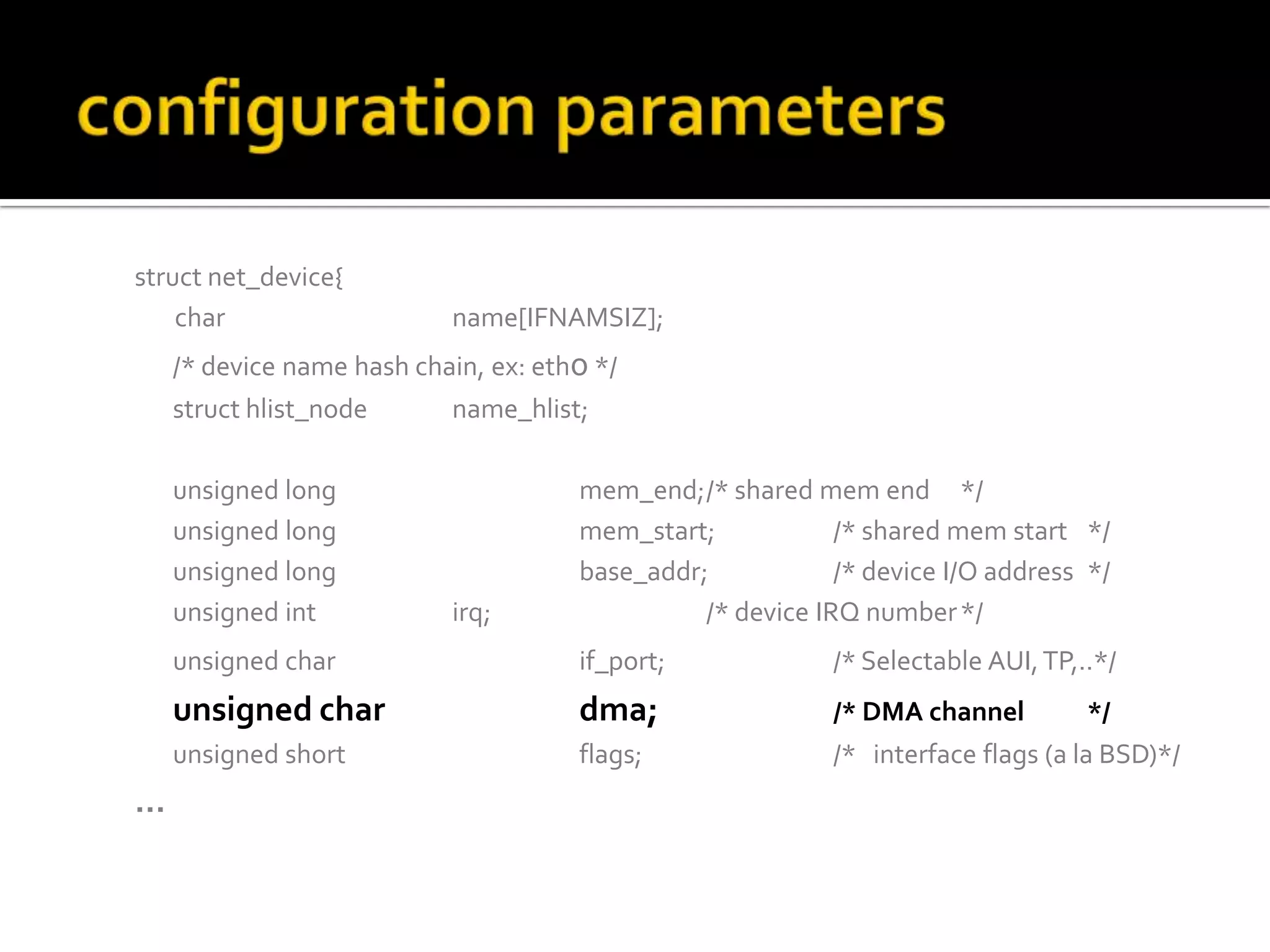

struct net_device{
char name[IFNAMSIZ];
int ifindex;
/* device name hash chain, ex: eth0 */
struct hlist_node name_hlist;
unsigned long mem_end;/* shared mem end */
unsigned long mem_start; /* shared mem start */
unsigned long base_addr; /* device I/O address */
unsigned int irq; /* device IRQ number*/
unsigned char if_port; /* Selectable AUI,TP,..*/
unsigned char dma; /* DMA channel */
…

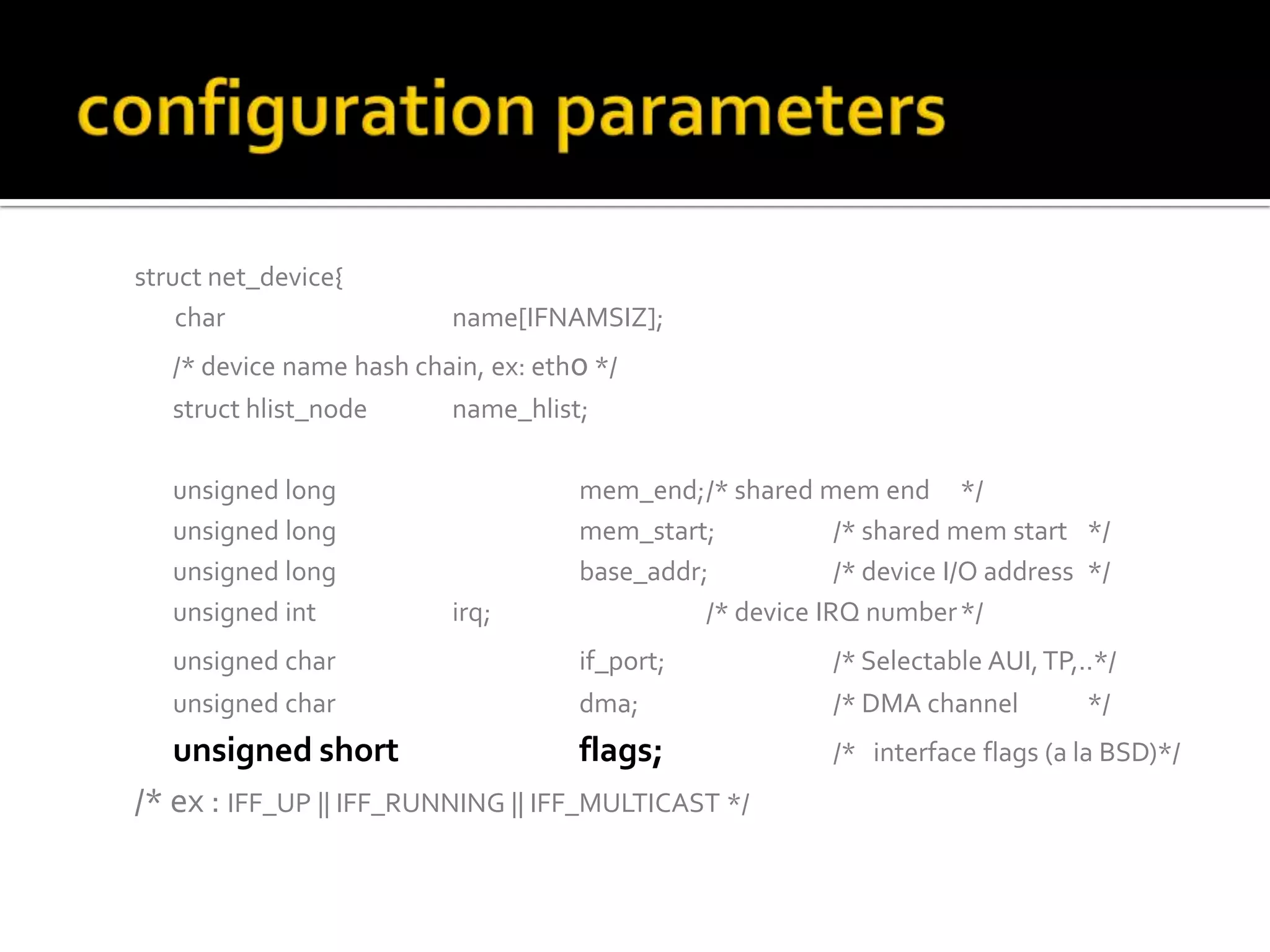

struct net_device{
int ifindex;
unsigned long mem_end; /* shared mem end */
…

struct net_device{
int ifindex;
unsigned char dma; /* DMA channel
*/

struct net_device{
unsigned short flags; /* interface flags (a la BSD) */
…

struct net_device{
unsigned short flags; /* interface flags (a la BSD)*/
…

struct net_device{
unsigned short flags; /* interface flags (a la BSD)*/
/* ex : IFF_UP || IFF_RUNNING || IFF_MULTICAST */

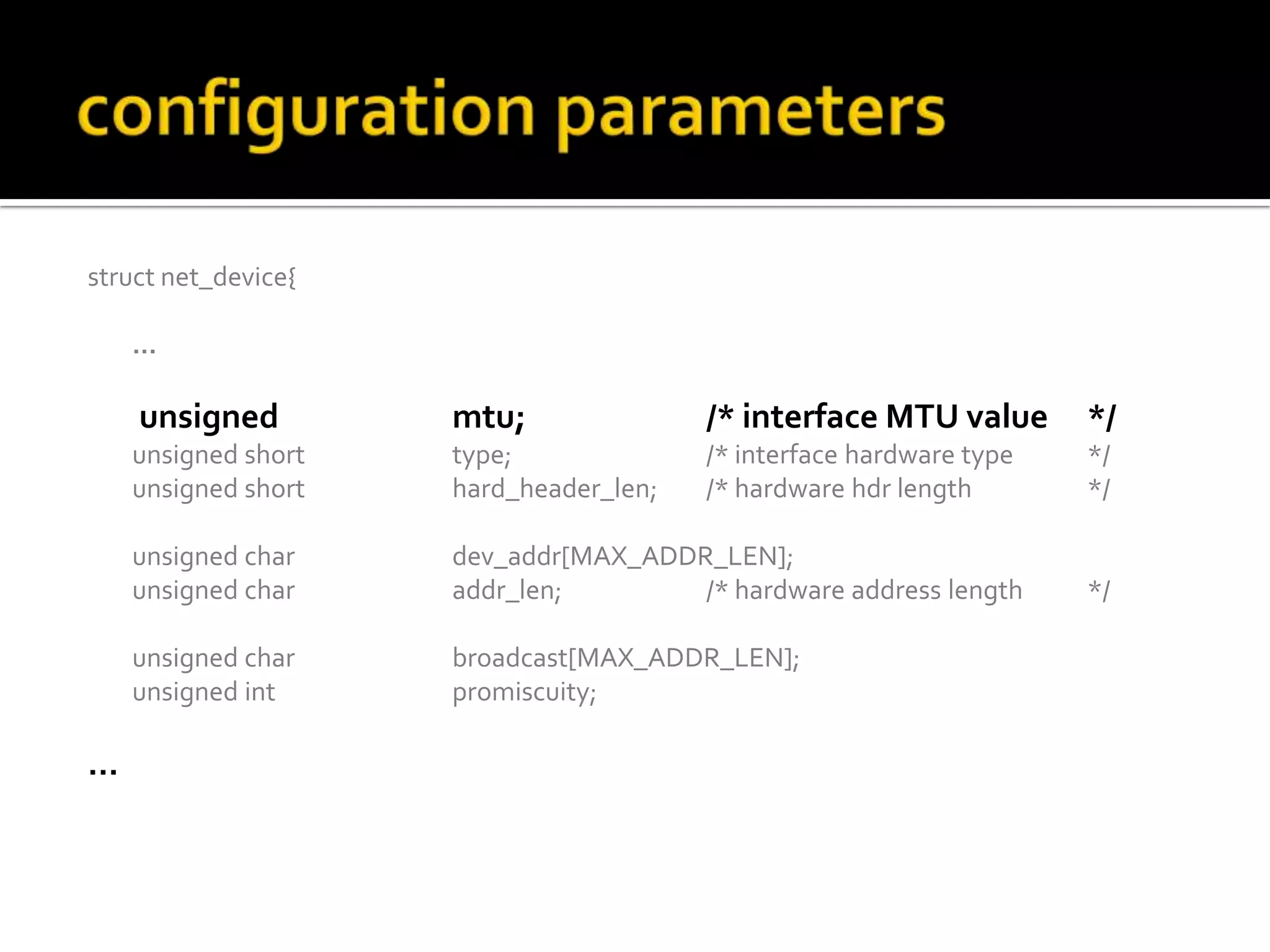

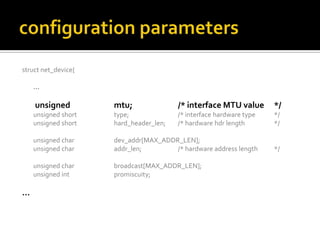

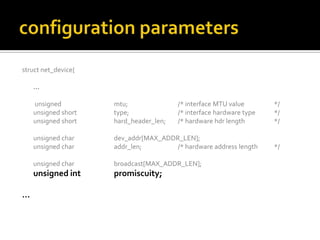

struct net_device{
…

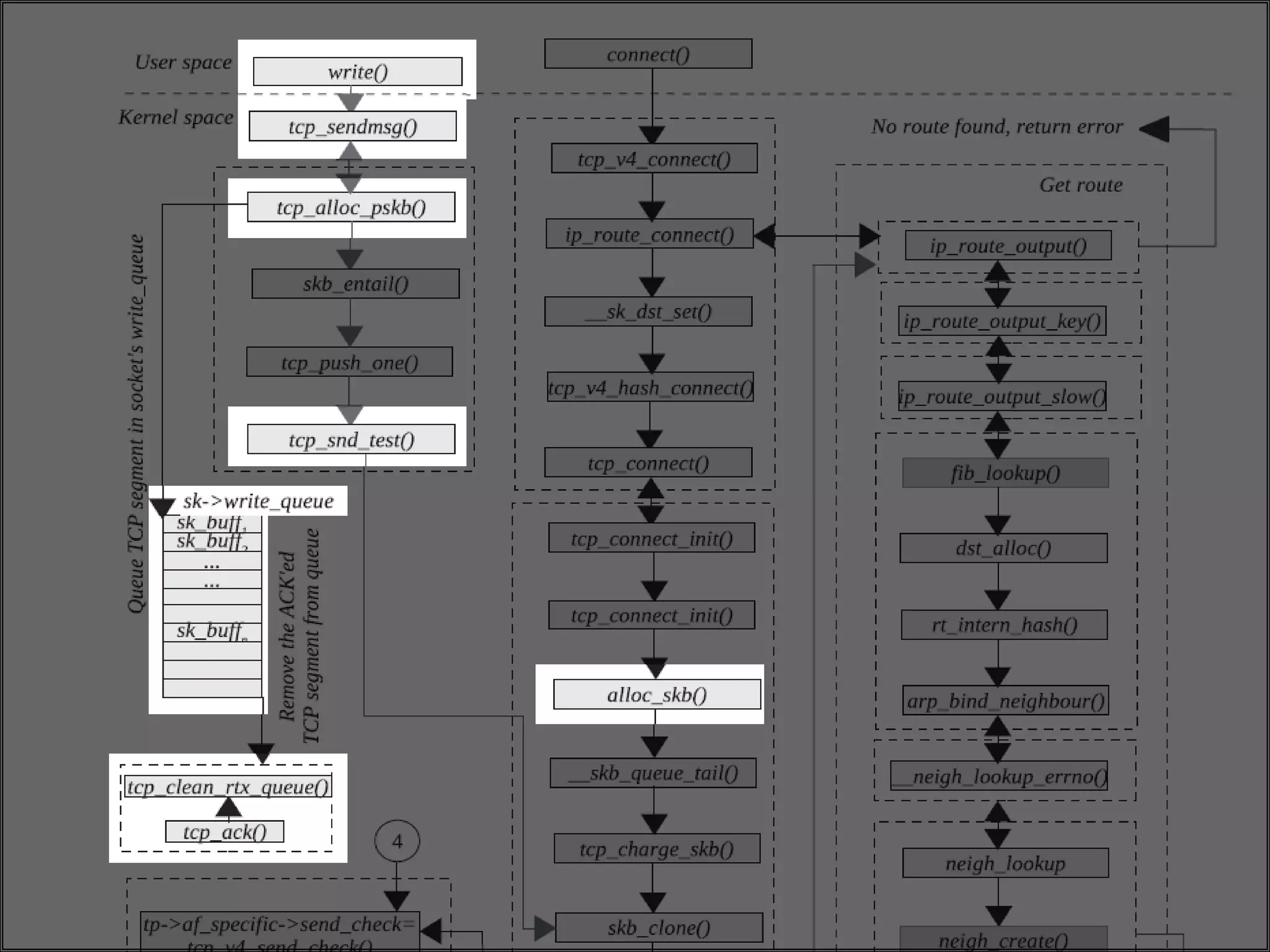

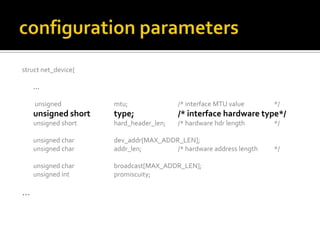

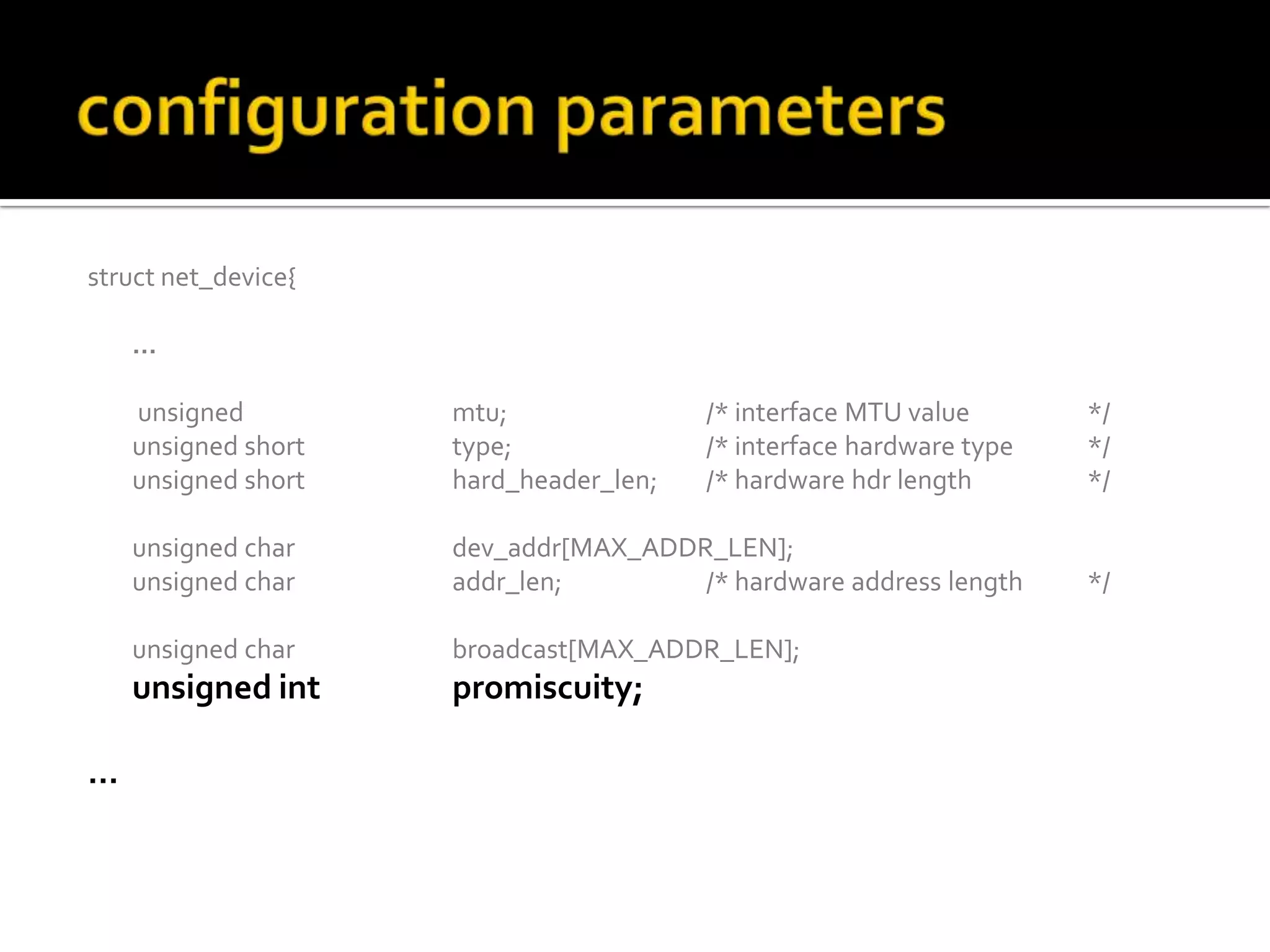

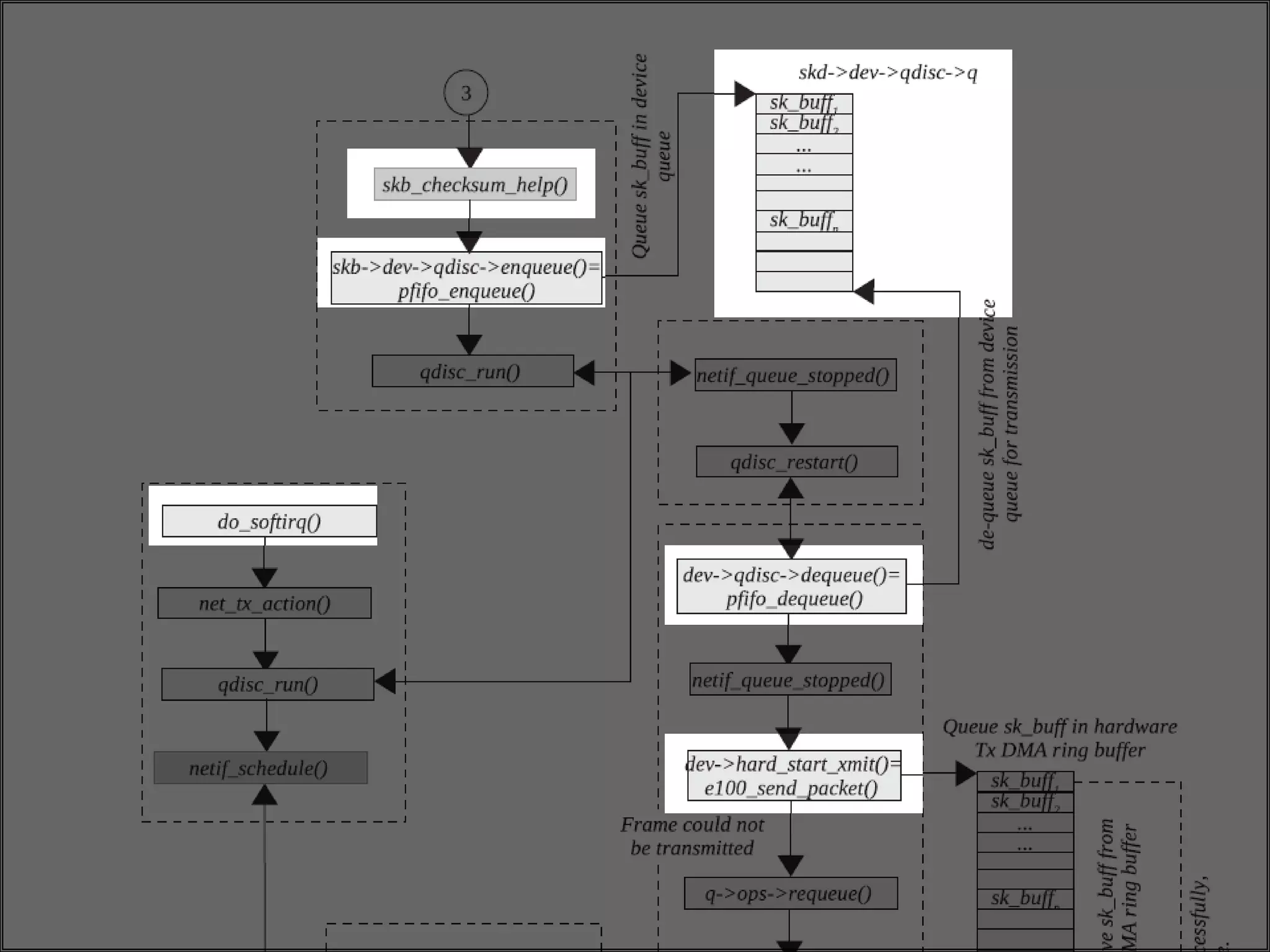

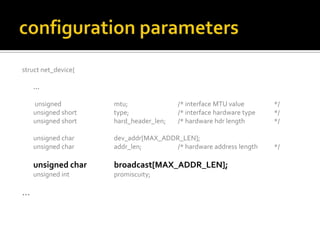

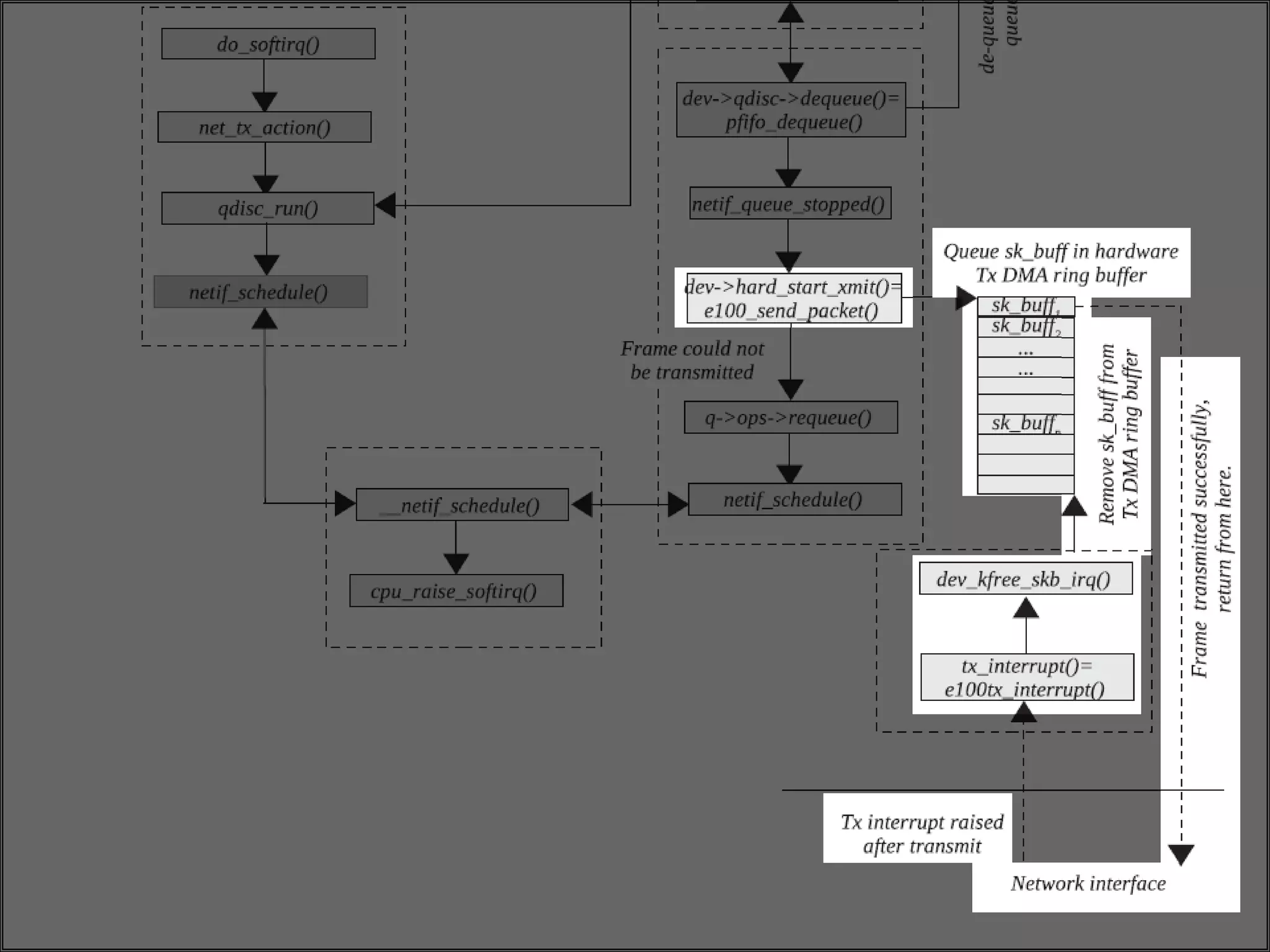

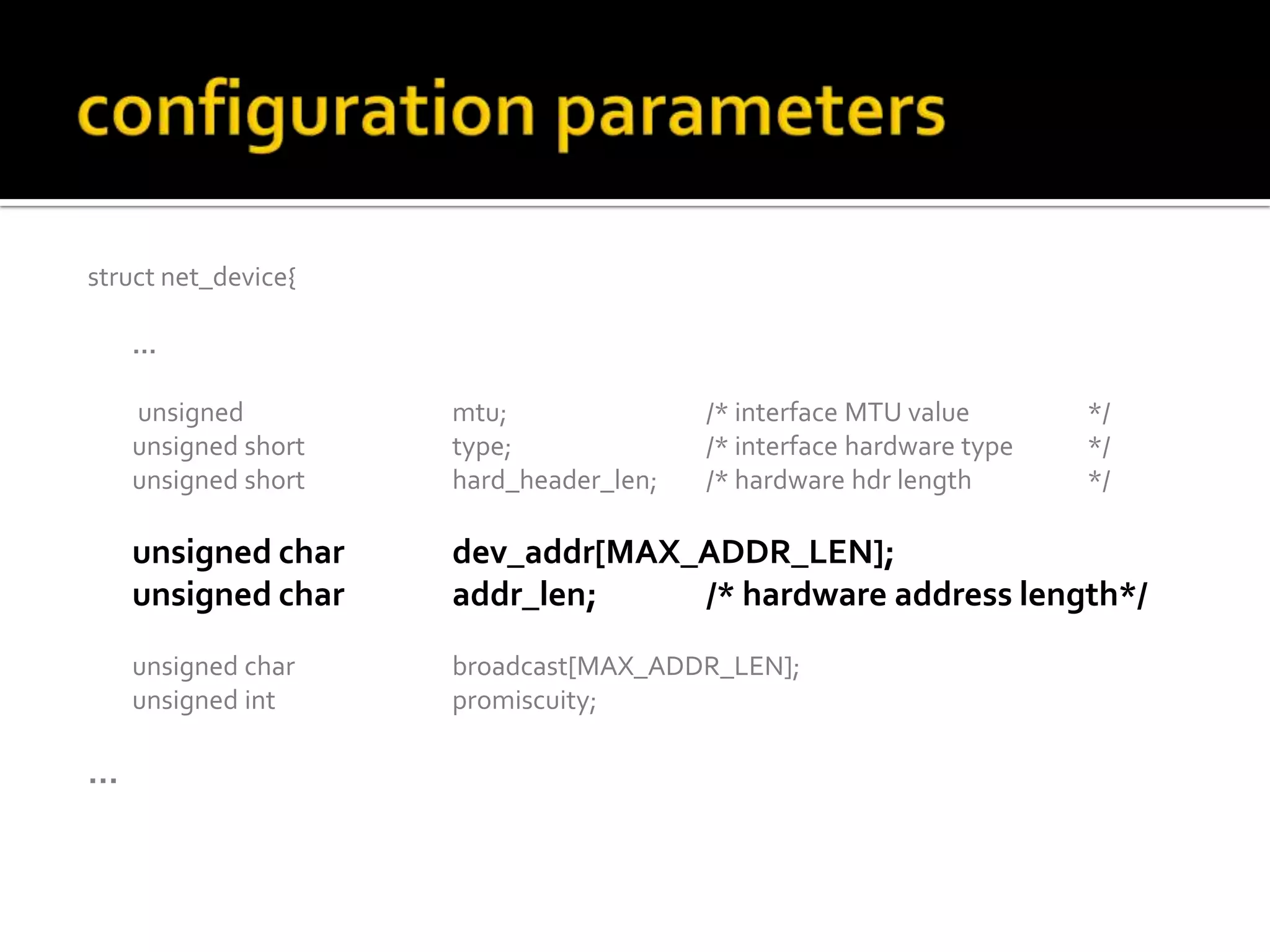

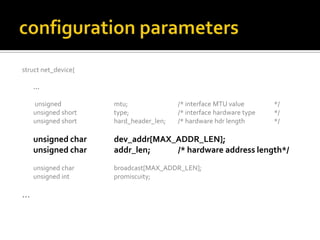

unsigned mtu; /* interface MTU value */
unsigned short type; /* interface hardware type */

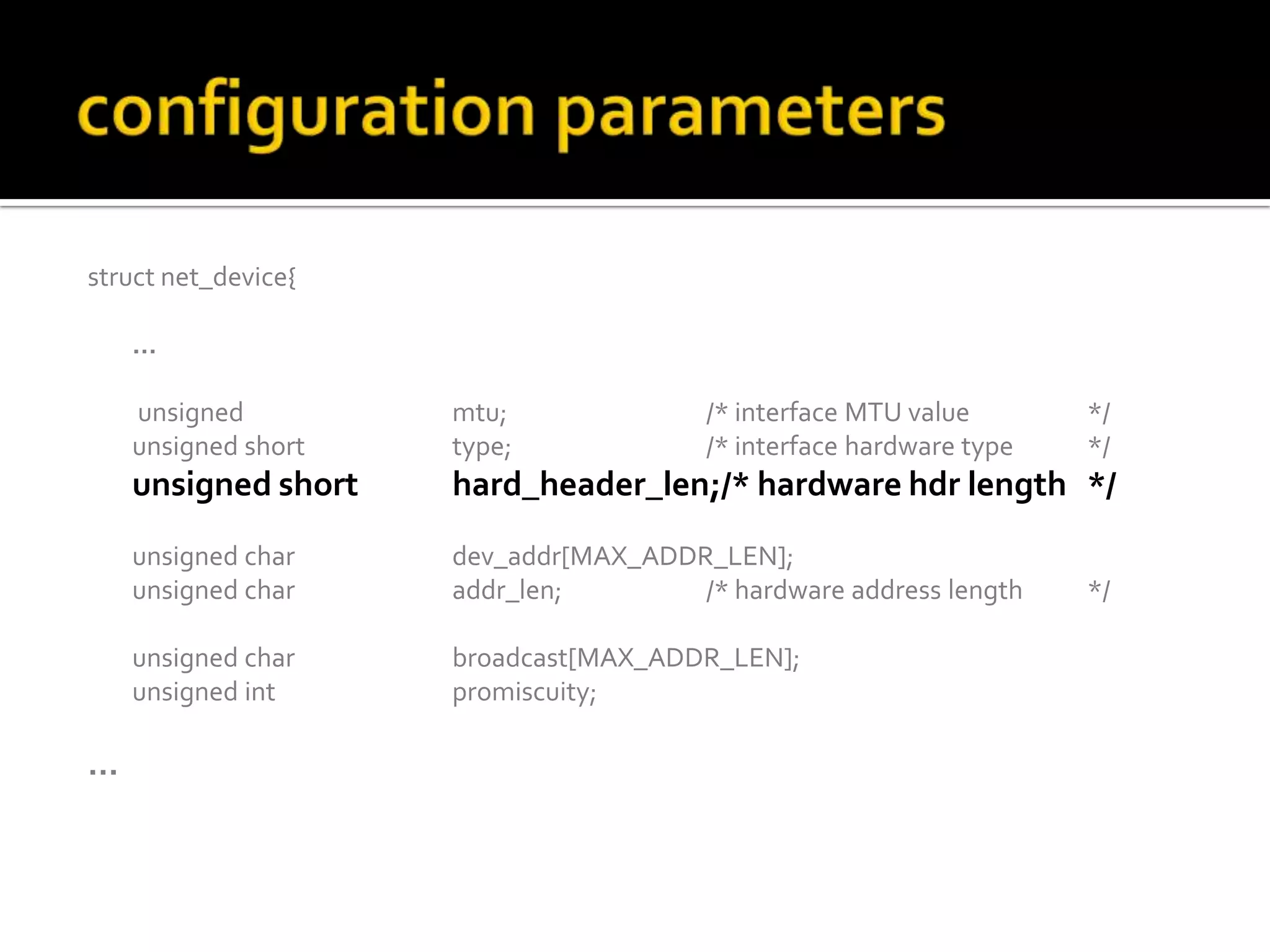

unsigned short hard_header_len; /* hardware hdr length */
unsigned char dev_addr[MAX_ADDR_LEN];
unsigned char addr_len; /* hardware address length */

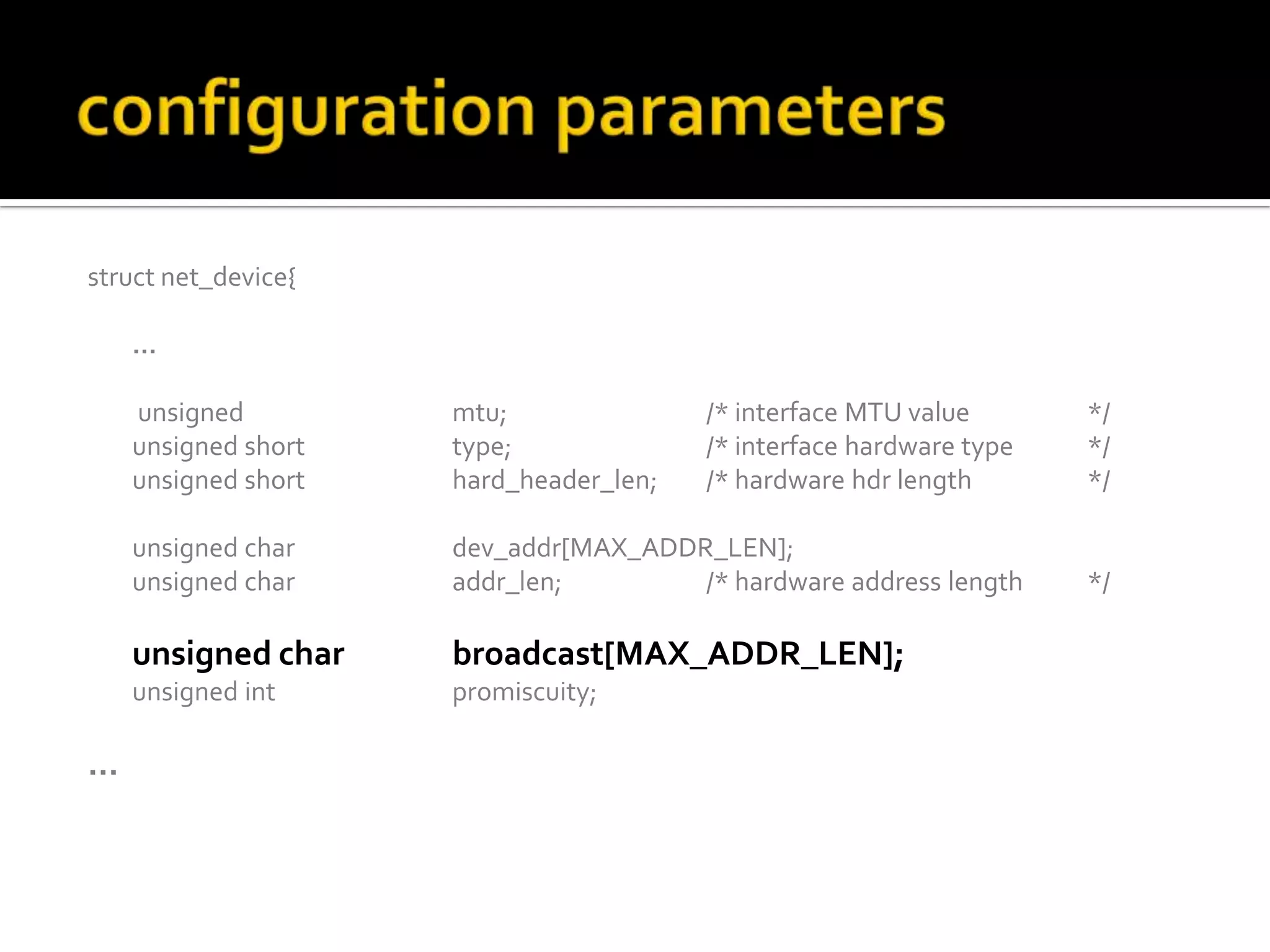

unsigned char broadcast[MAX_ADDR_LEN];
unsigned int promiscuity;
…

struct net_device{
…
unsigned short type; /* interface hardware type*/
…

struct net_device{
…
unsigned short hard_header_len;/* hardware hdr length */
…

struct net_device{
…
unsigned char addr_len; /* hardware address length*/
…

struct net_device{
…

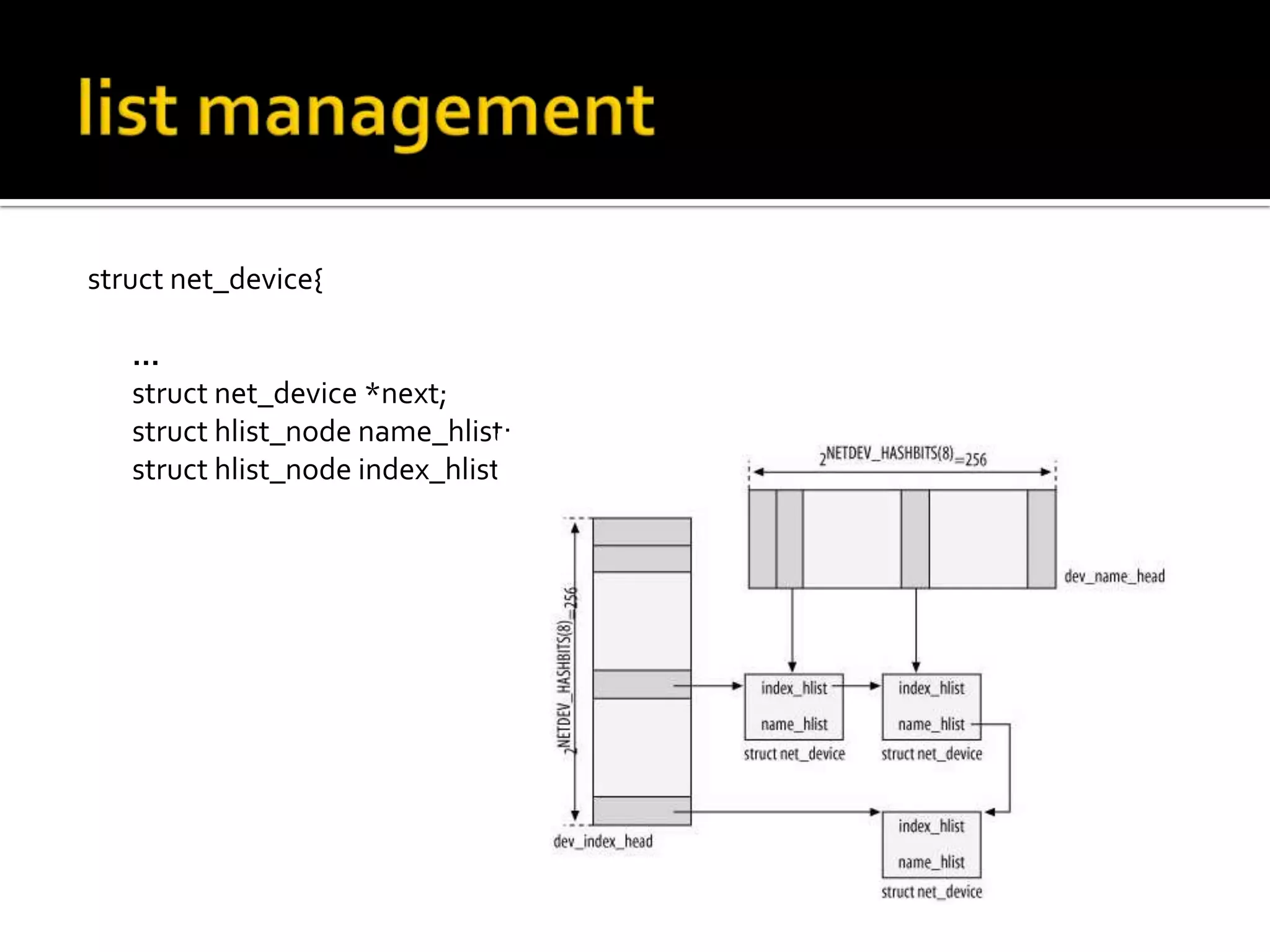

struct net_device *next;
struct hlist_node index_hlist;

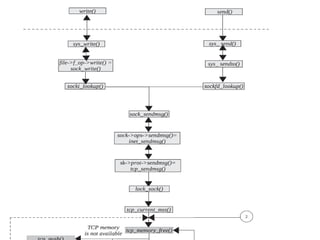

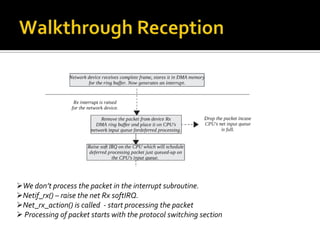

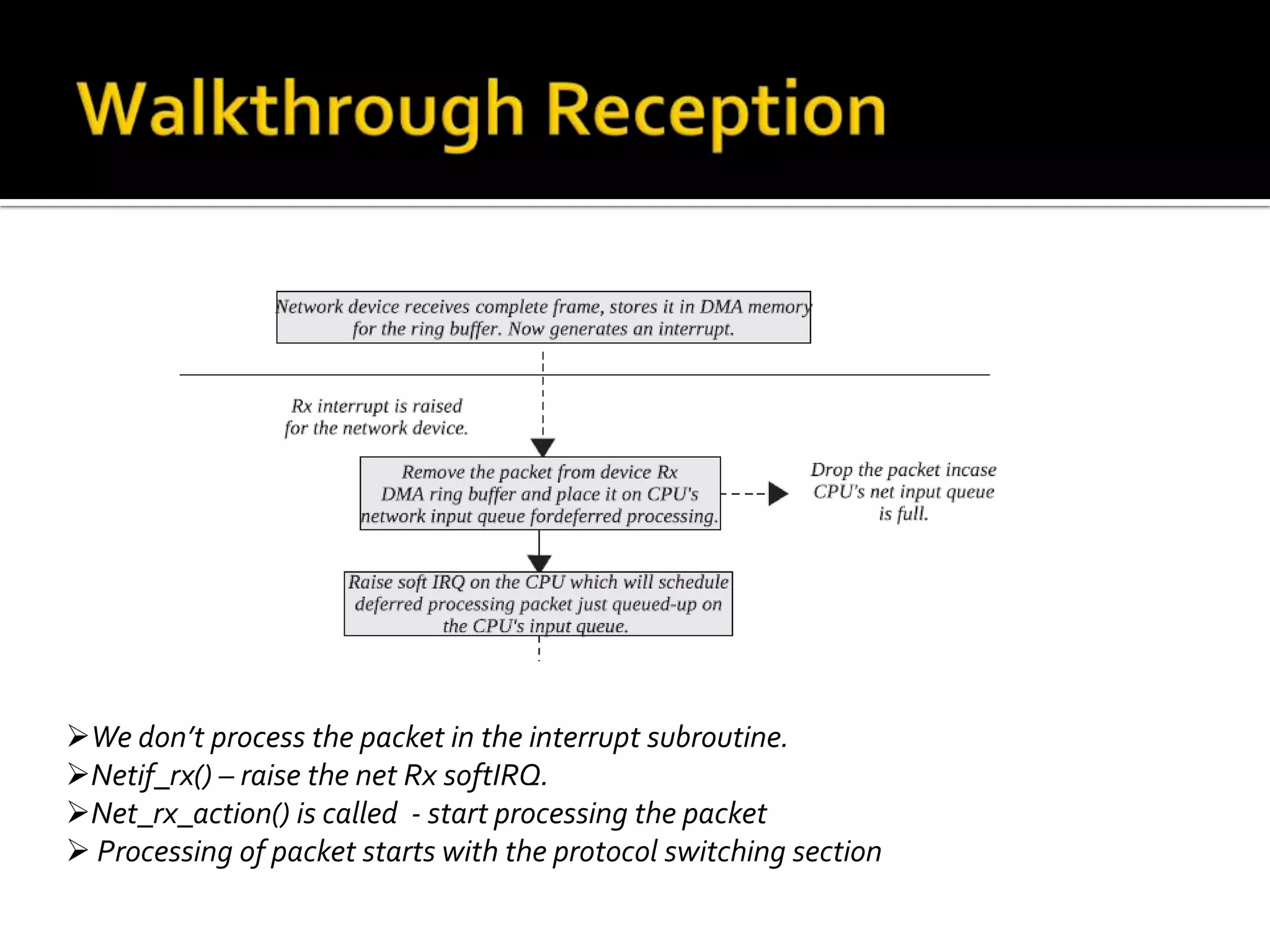

We don’t process the packet in the interrupt subroutine.
Netif_rx() – raise the net Rx softIRQ.
Net_rx_action() is called - start processing the packet
 Processing of packet starts with the protocol switching section

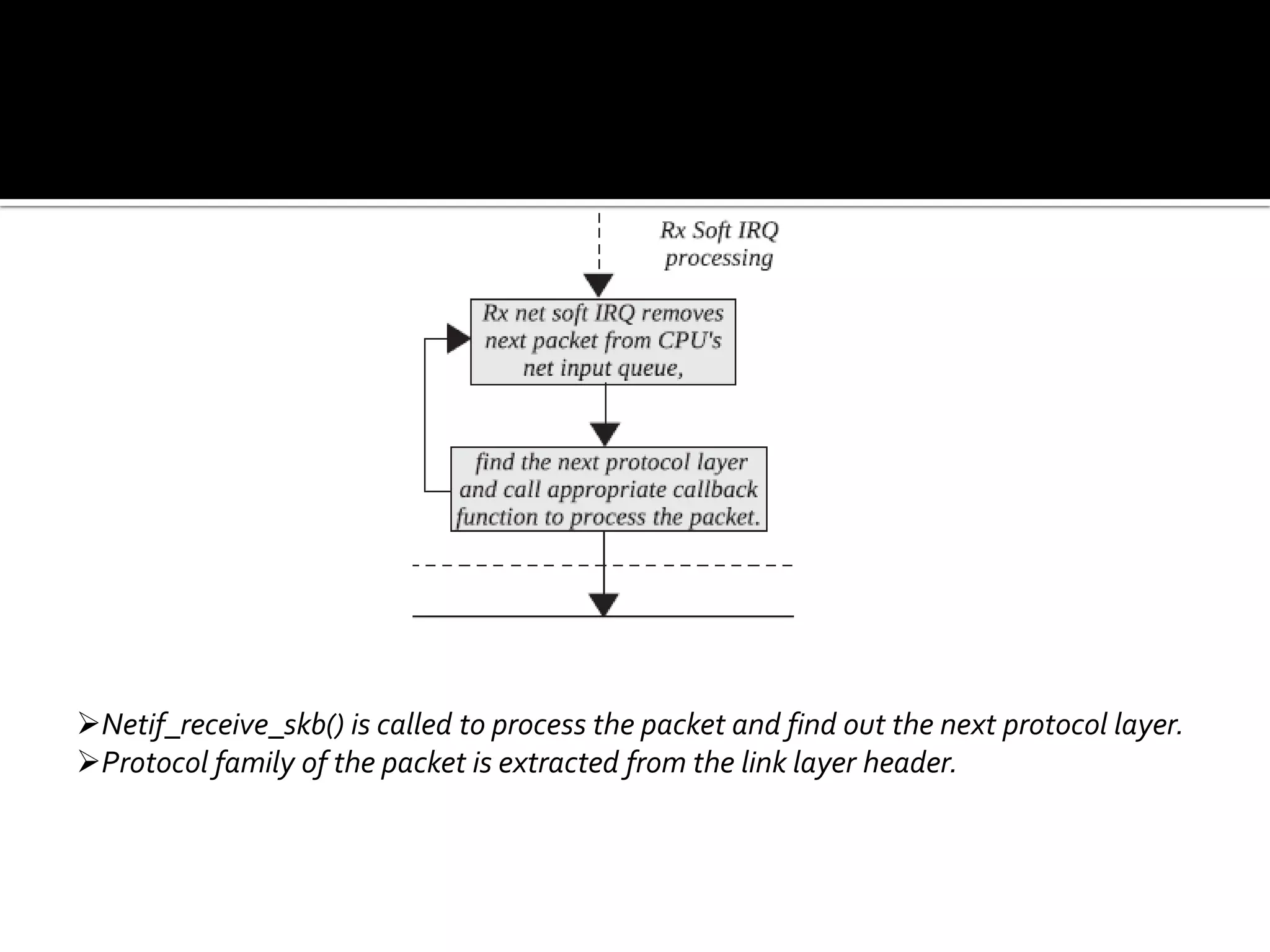

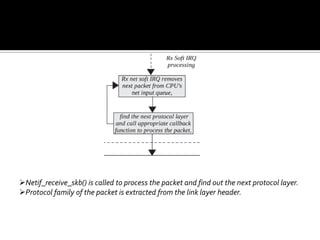

Netif_receive_skb() is called to process the packet and find out the next protocol layer.
Protocol family of the packet is extracted from the link layer header.

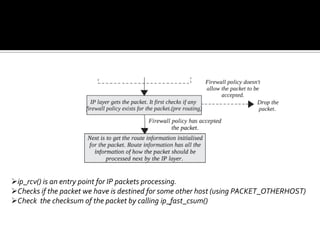

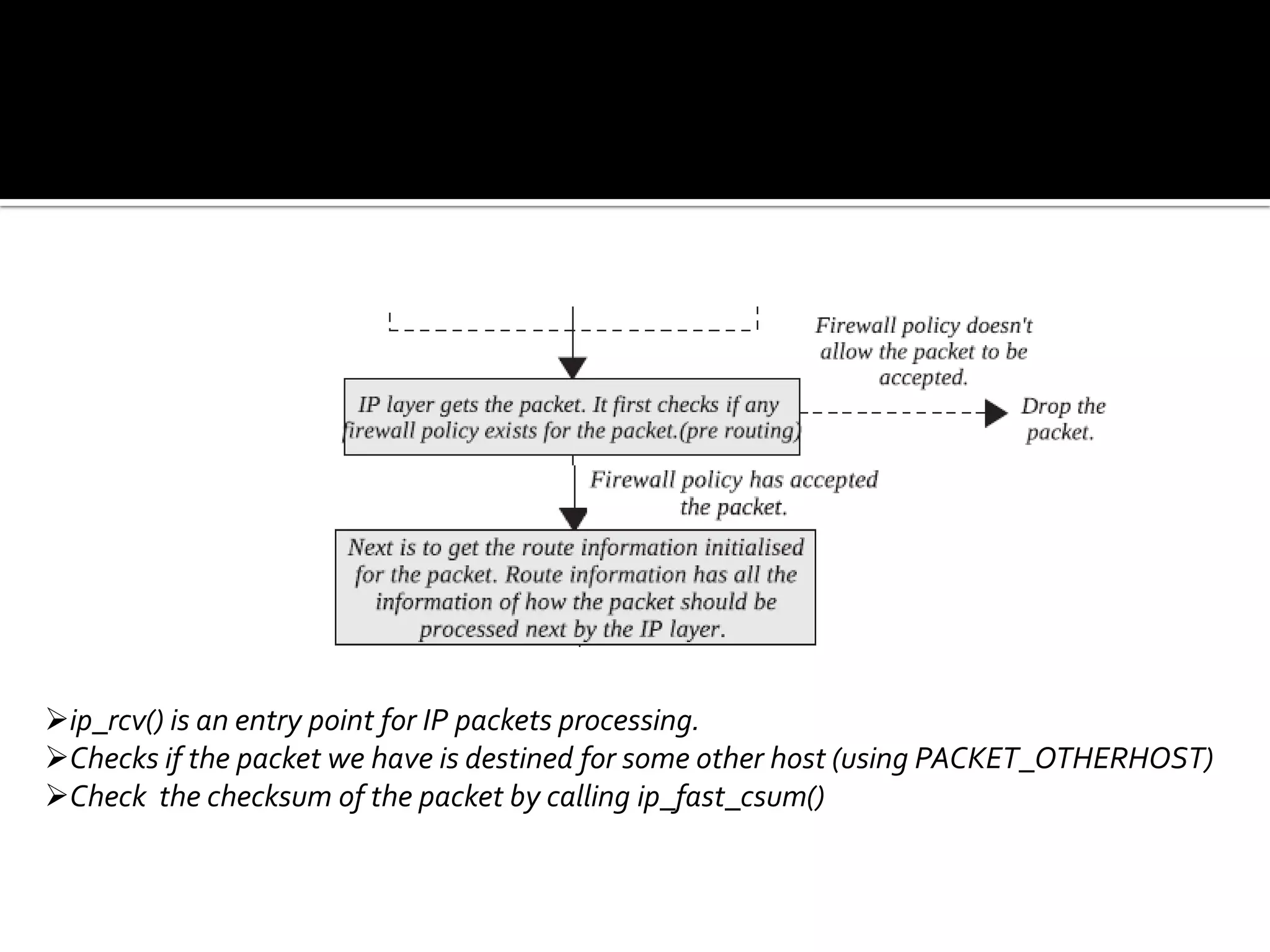

ip_rcv() is an entry point for IP packets processing.
Checks if the packet we have is destined for some other host (using PACKET_OTHERHOST)
Check the checksum of the packet by calling ip_fast_csum()

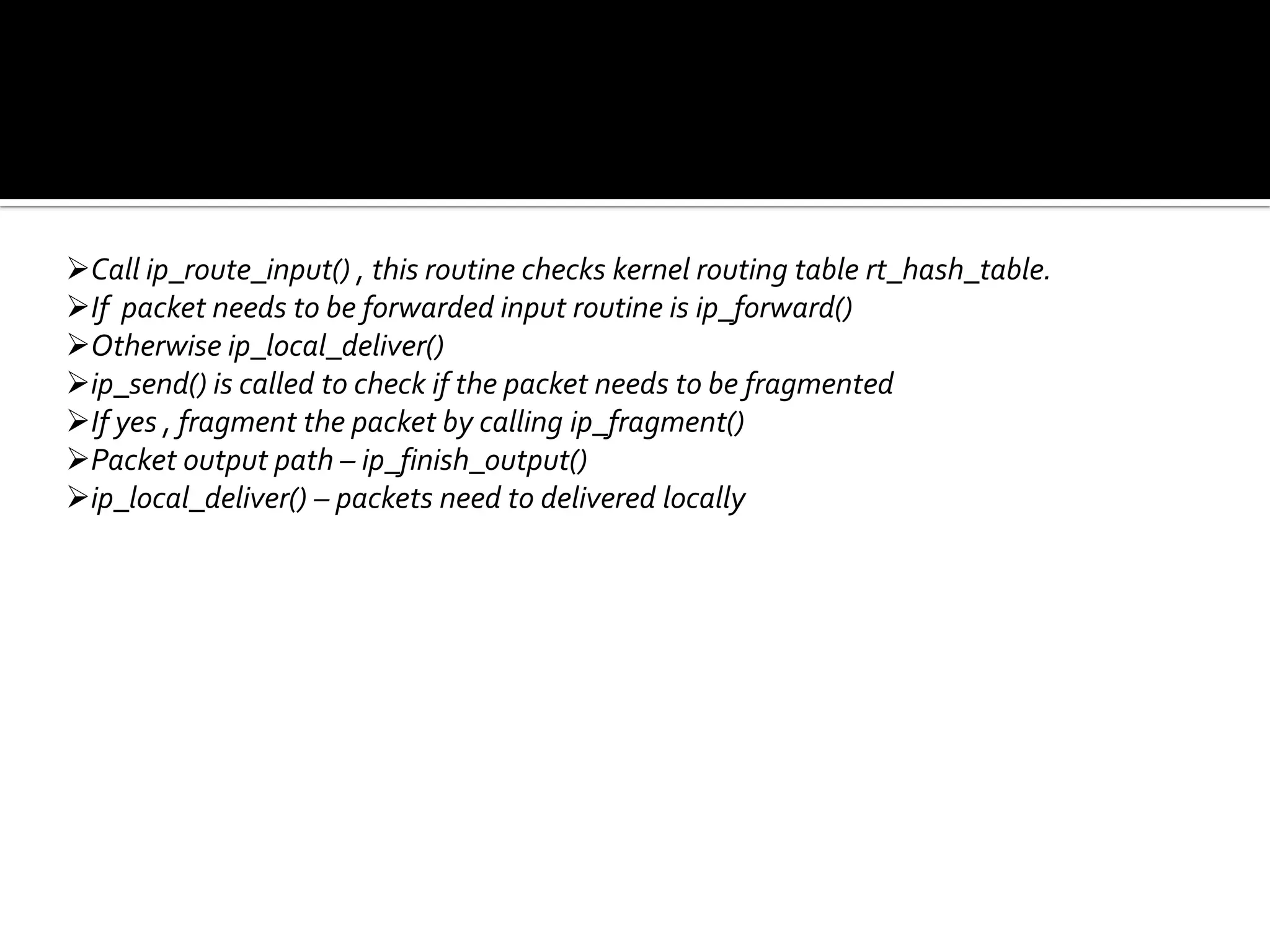

Call ip_route_input() , this routine checks kernel routing table rt_hash_table.
If packet needs to be forwarded input routine is ip_forward()
Otherwise ip_local_deliver()

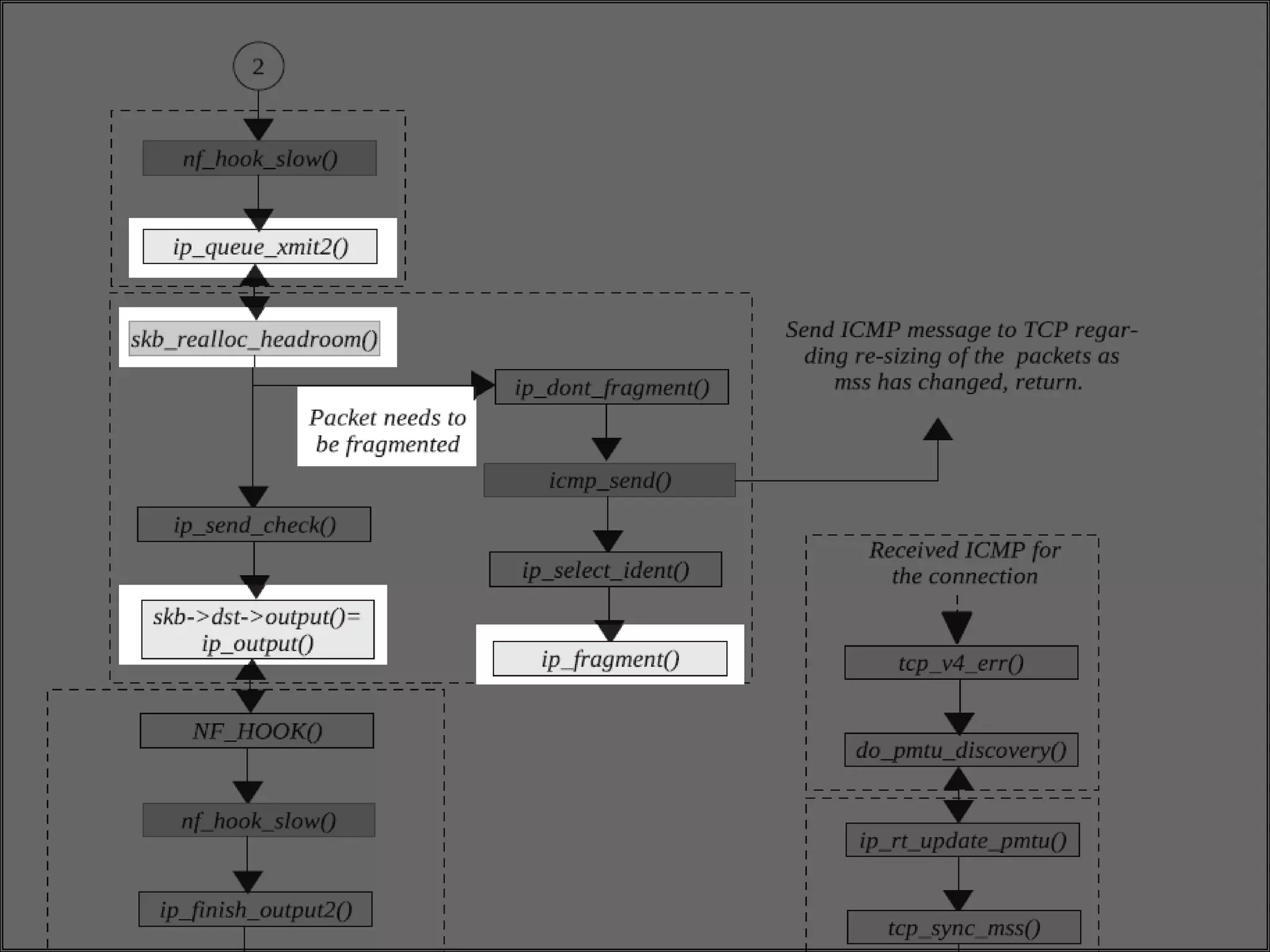

ip_send() is called to check if the packet needs to be fragmented
If yes , fragment the packet by calling ip_fragment()

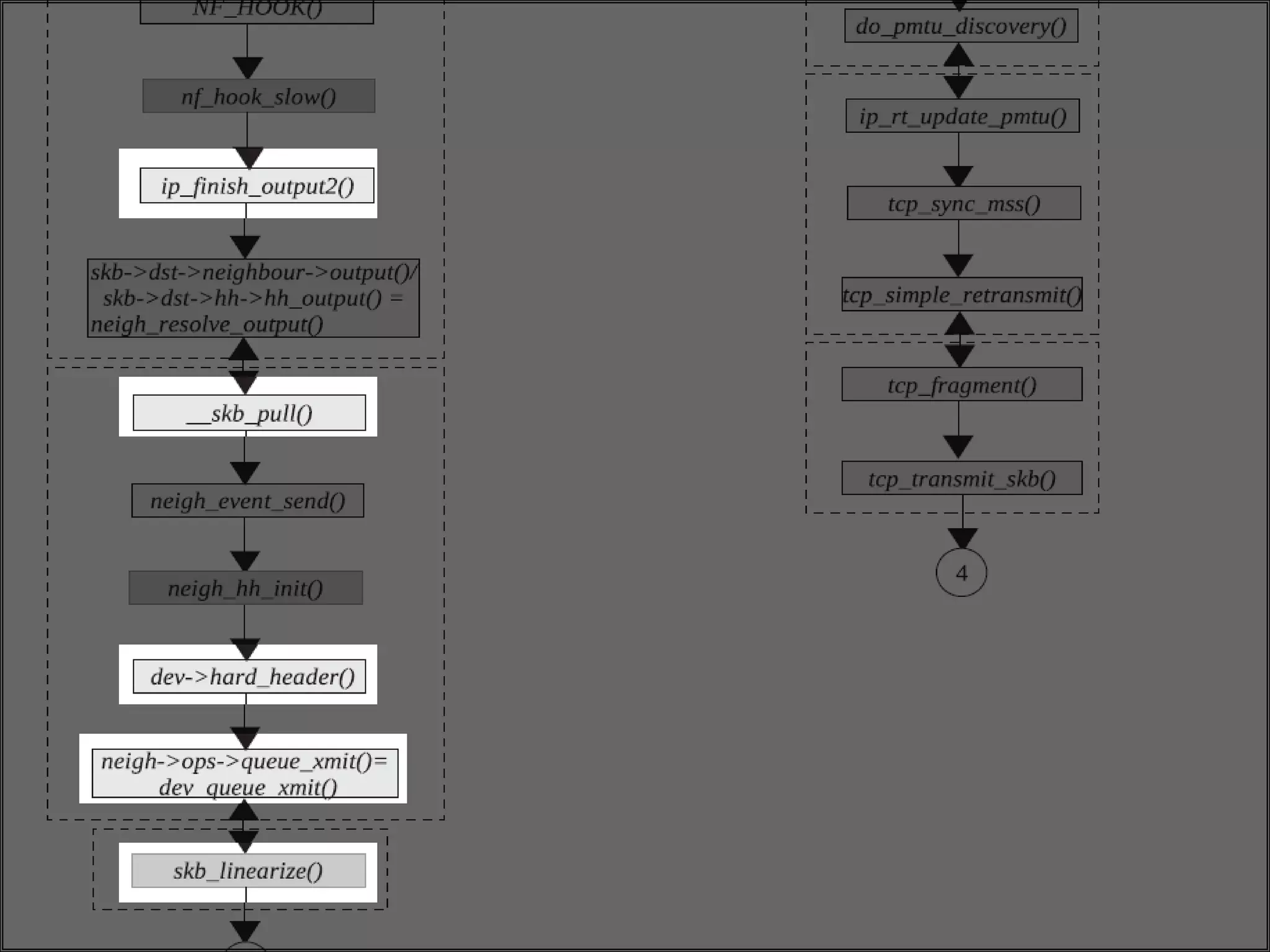

Packet output path – ip_finish_output()

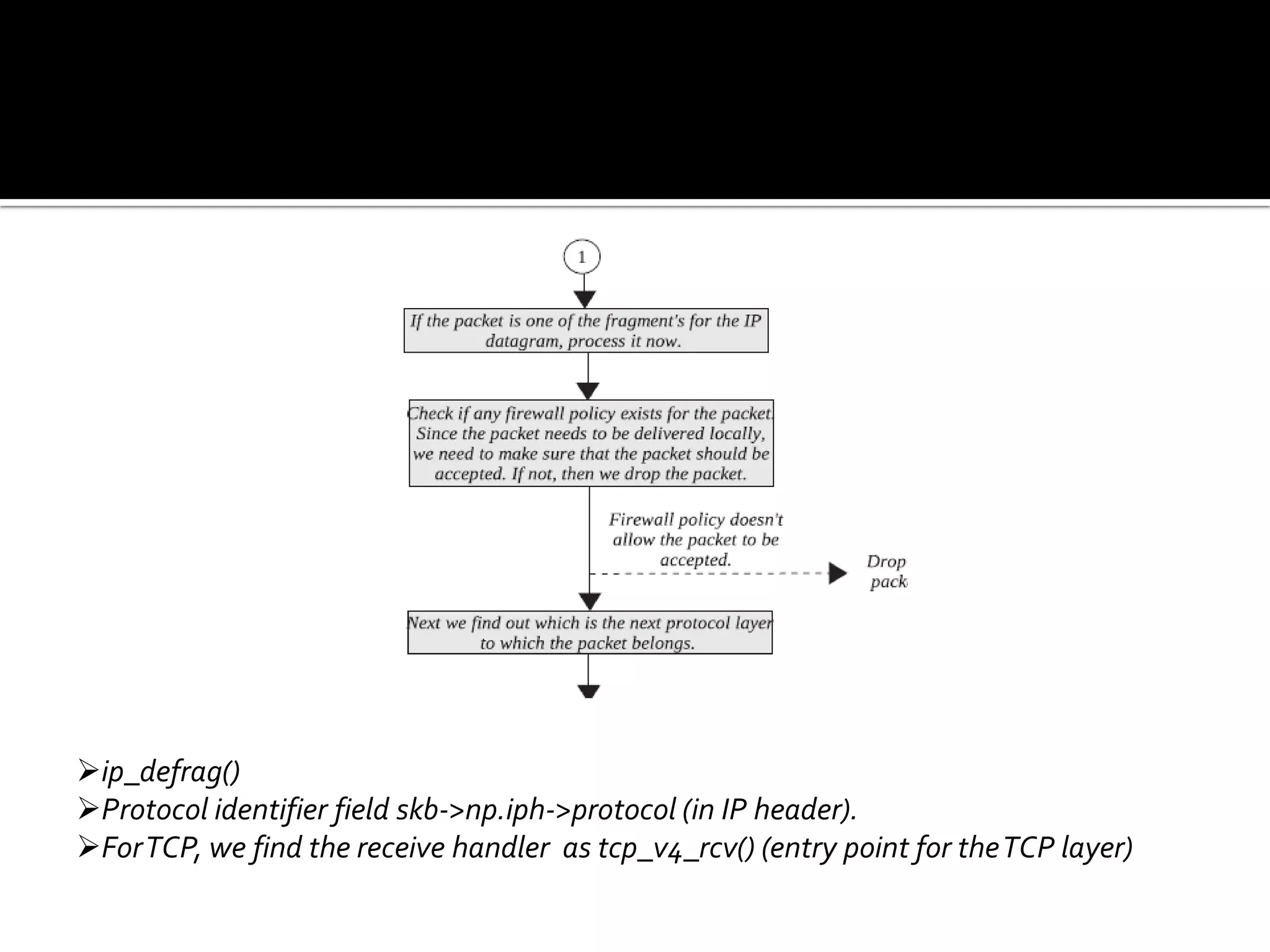

ip_local_deliver() – packets need to delivered locally

ip_defrag()
Protocol identifier field skb->np.iph->protocol (in IP header).
ForTCP, we find the receive handler as tcp_v4_rcv() (entry point for theTCP layer)

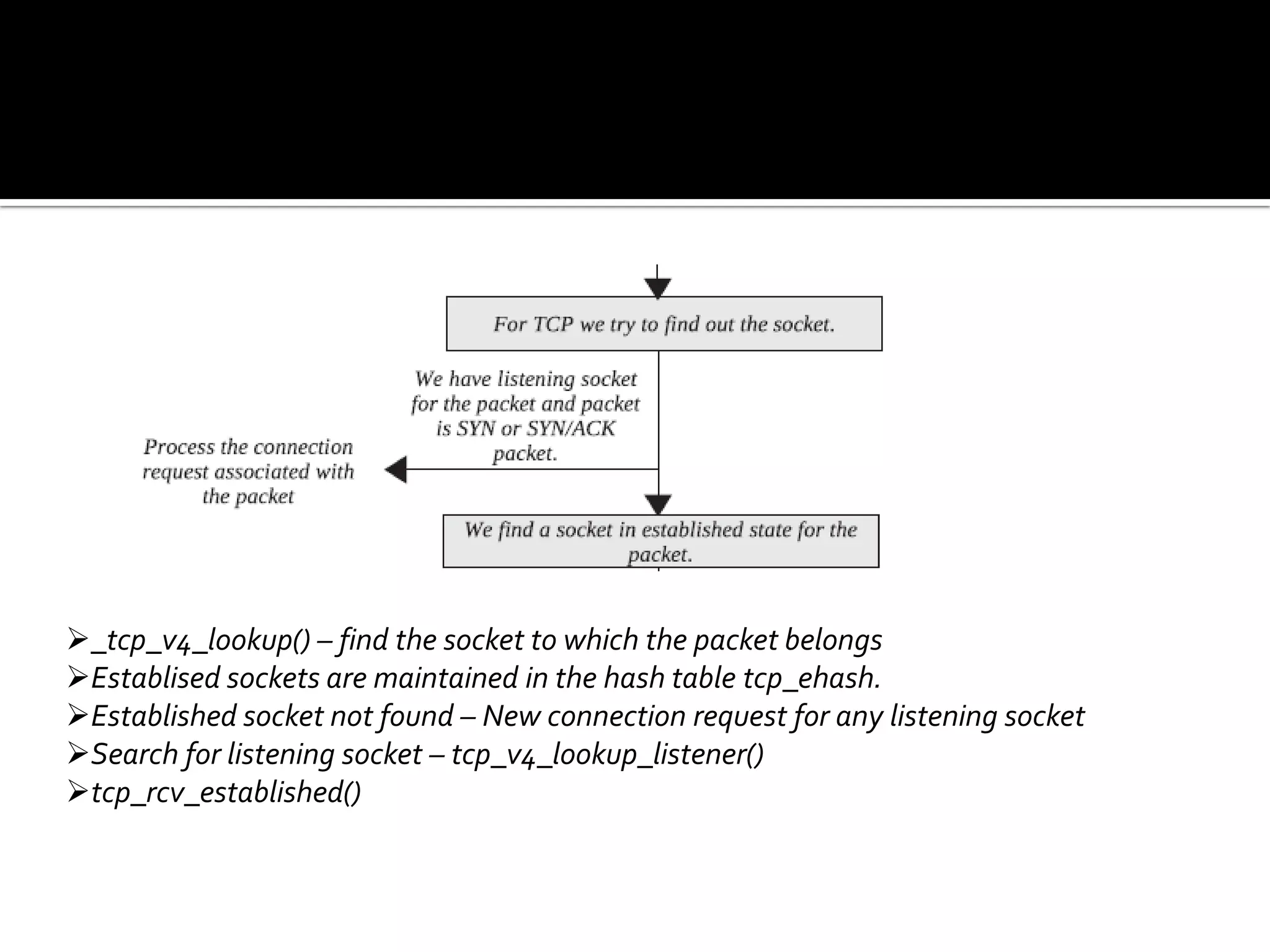

_tcp_v4_lookup() – find the socket to which the packet belongs
Establised sockets are maintained in the hash table tcp_ehash.
Established socket not found – New connection request for any listening socket
Search for listening socket – tcp_v4_lookup_listener()
tcp_rcv_established()

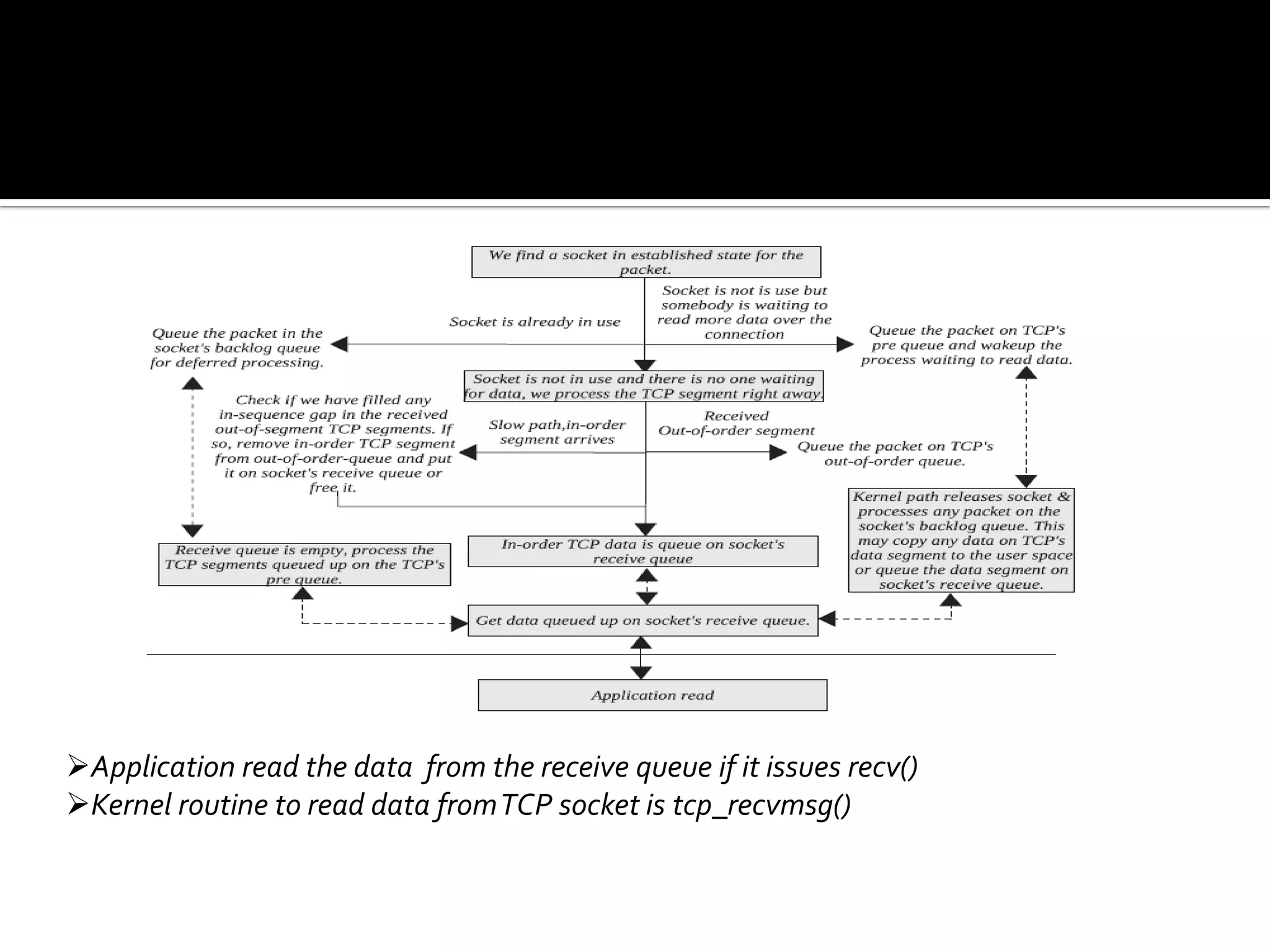

Application read the data from the receive queue if it issues recv()
Kernel routine to read data fromTCP socket is tcp_recvmsg()
