Mastering java bytecode with ASM - GeeCON 2012

Mastering Java Bytecode with ASM
Learn some bytecode to yourself!

whoami
Anton Arhipov
Java Dev / Product Lead
ZeroTurnaround, JRebel
Messing with bytecode since 2010

anton@zeroturnaround.com
@antonarhipov @javarebel

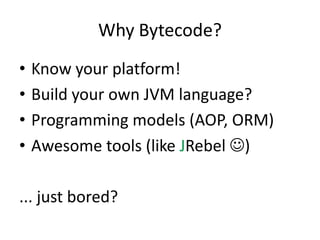

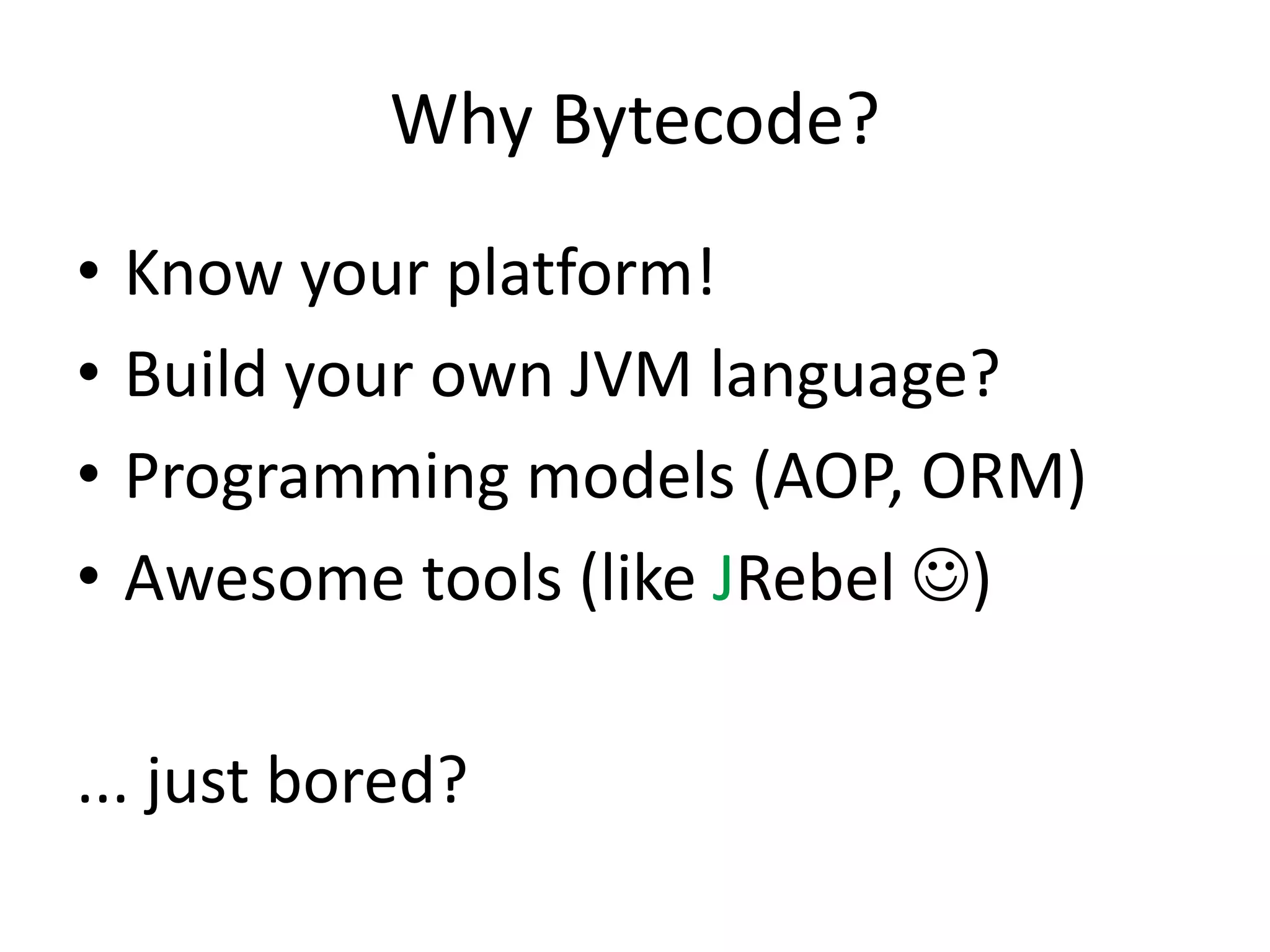

Why Bytecode?
• Know your platform!
• Build your own JVM language?
• Programming models (AOP, ORM)
• Awesome tools (like JRebel )

... just bored?

Bytecode 101 Instrumentation API

javap ObjectWeb ASM

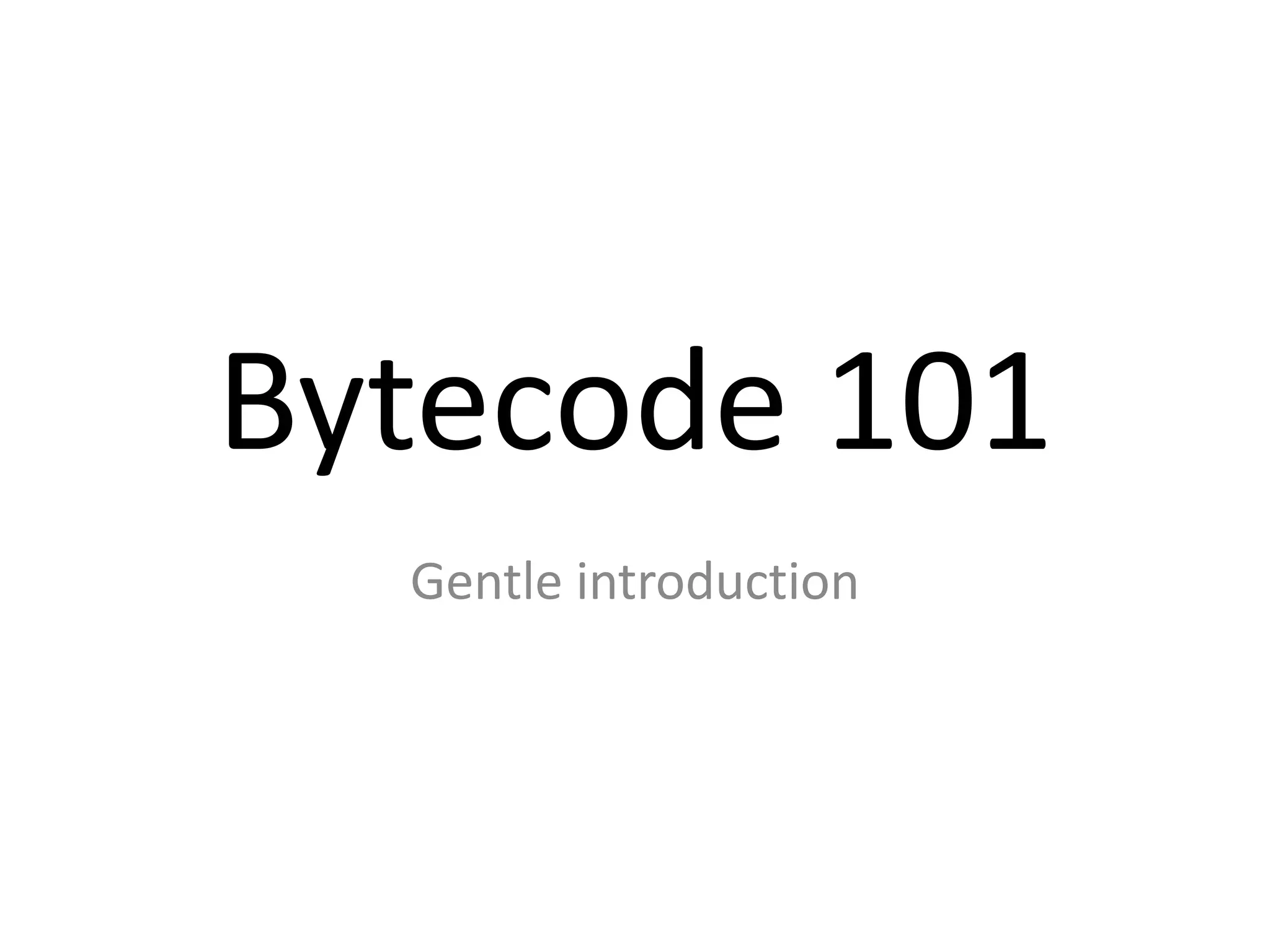

Bytecode 101
Gentle introduction

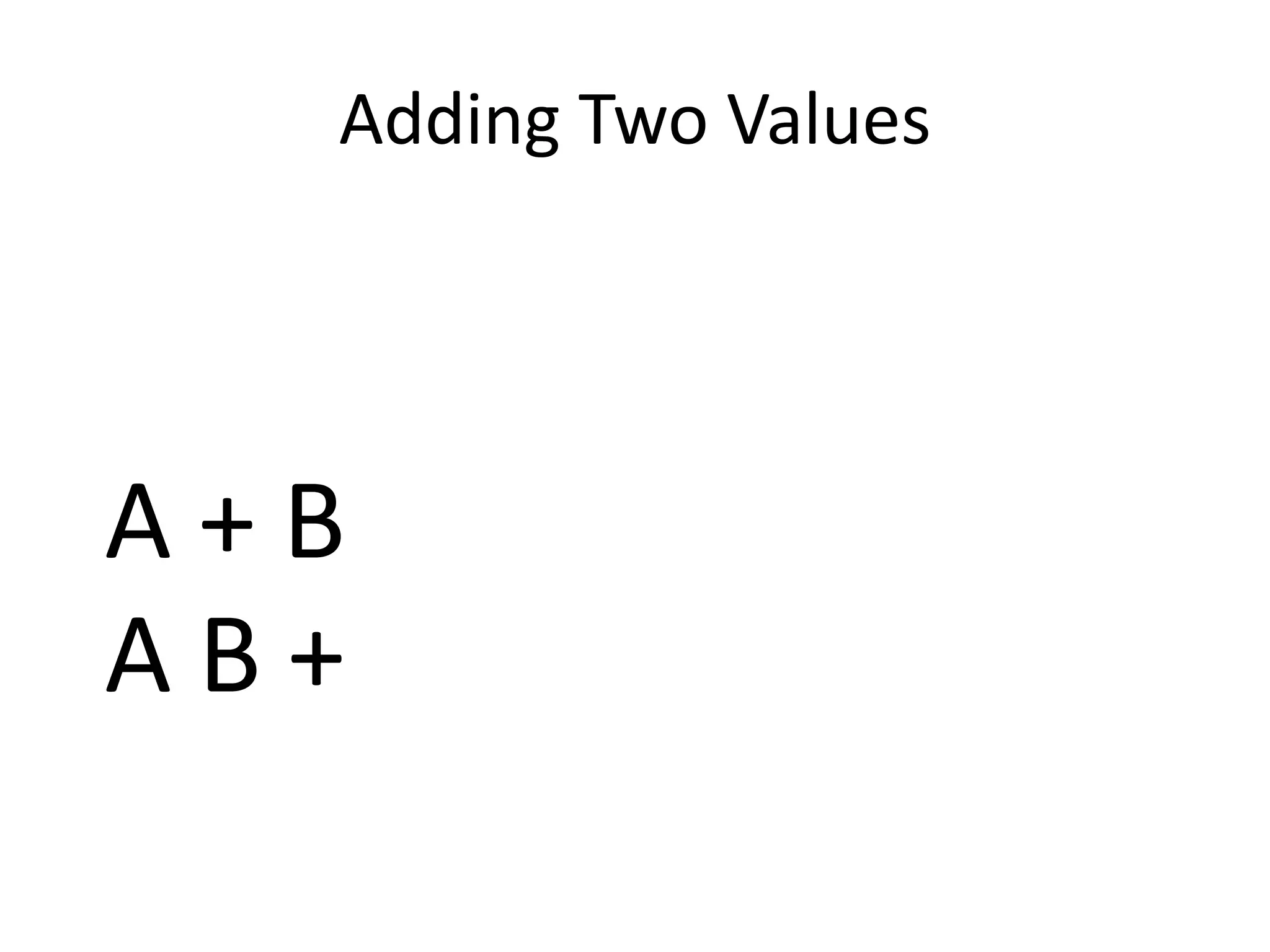

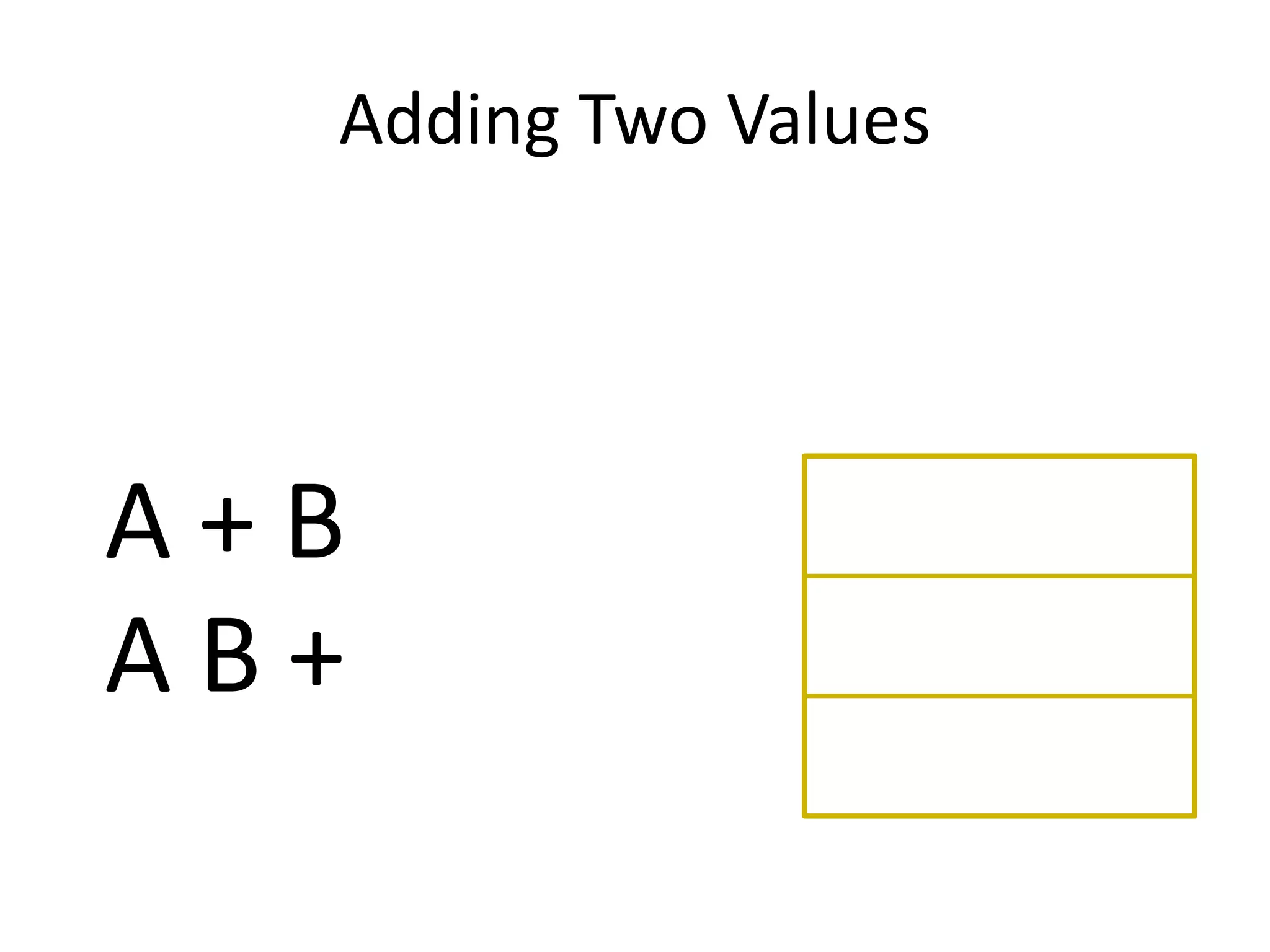

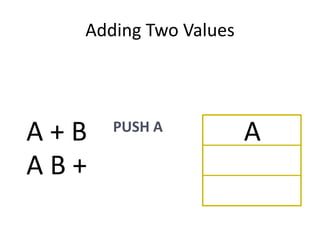

Adding Two Values

A+B PUSH A
A
AB+

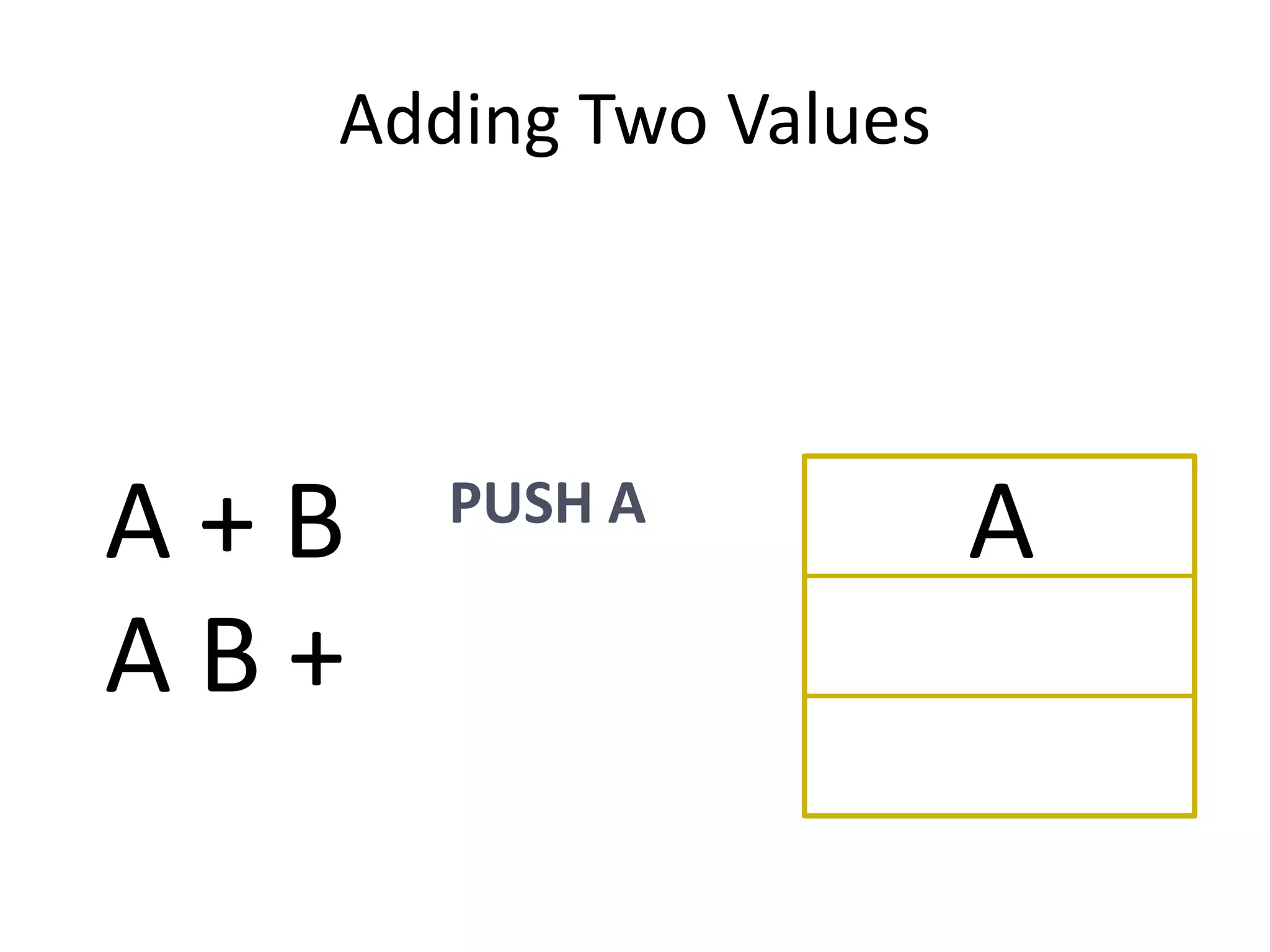

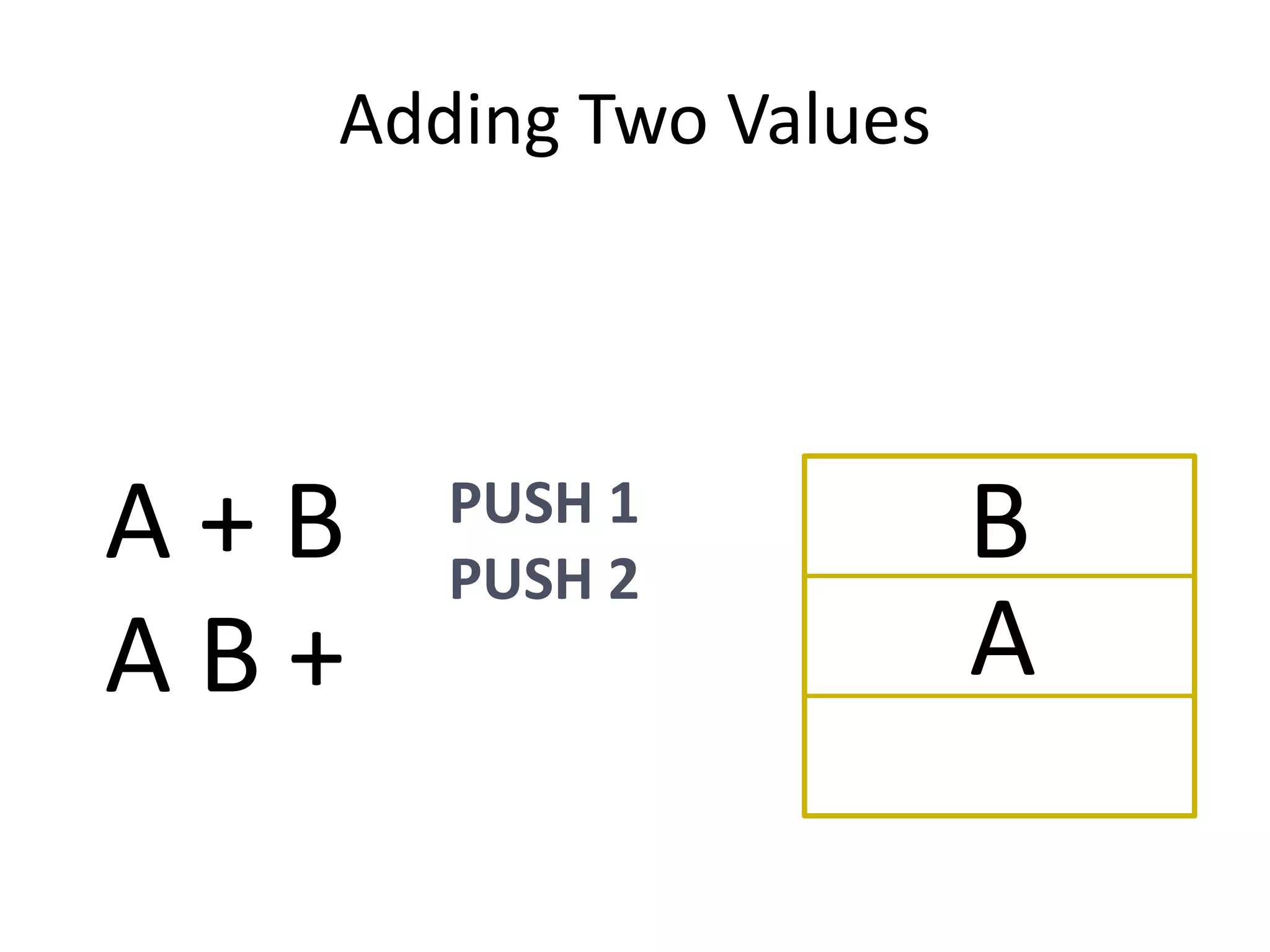

Adding Two Values

A+B PUSH 1
PUSH 2
B
AB+ A

Adding Two Values

A+B PUSH 1
PUSH 2
15
AB+ ADD

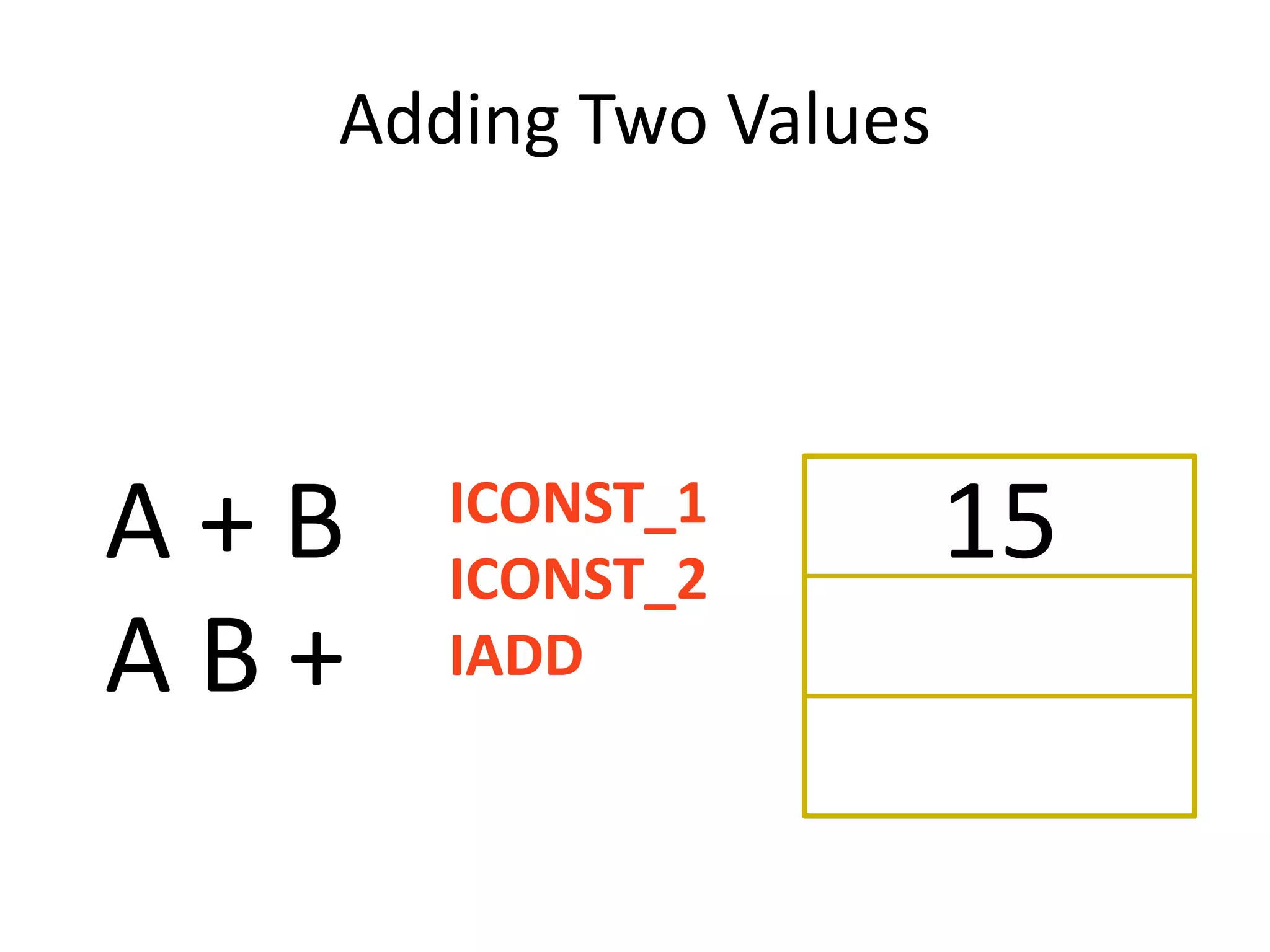

Adding Two Values

A+B ICONST_1
ICONST_2
15
AB+ IADD

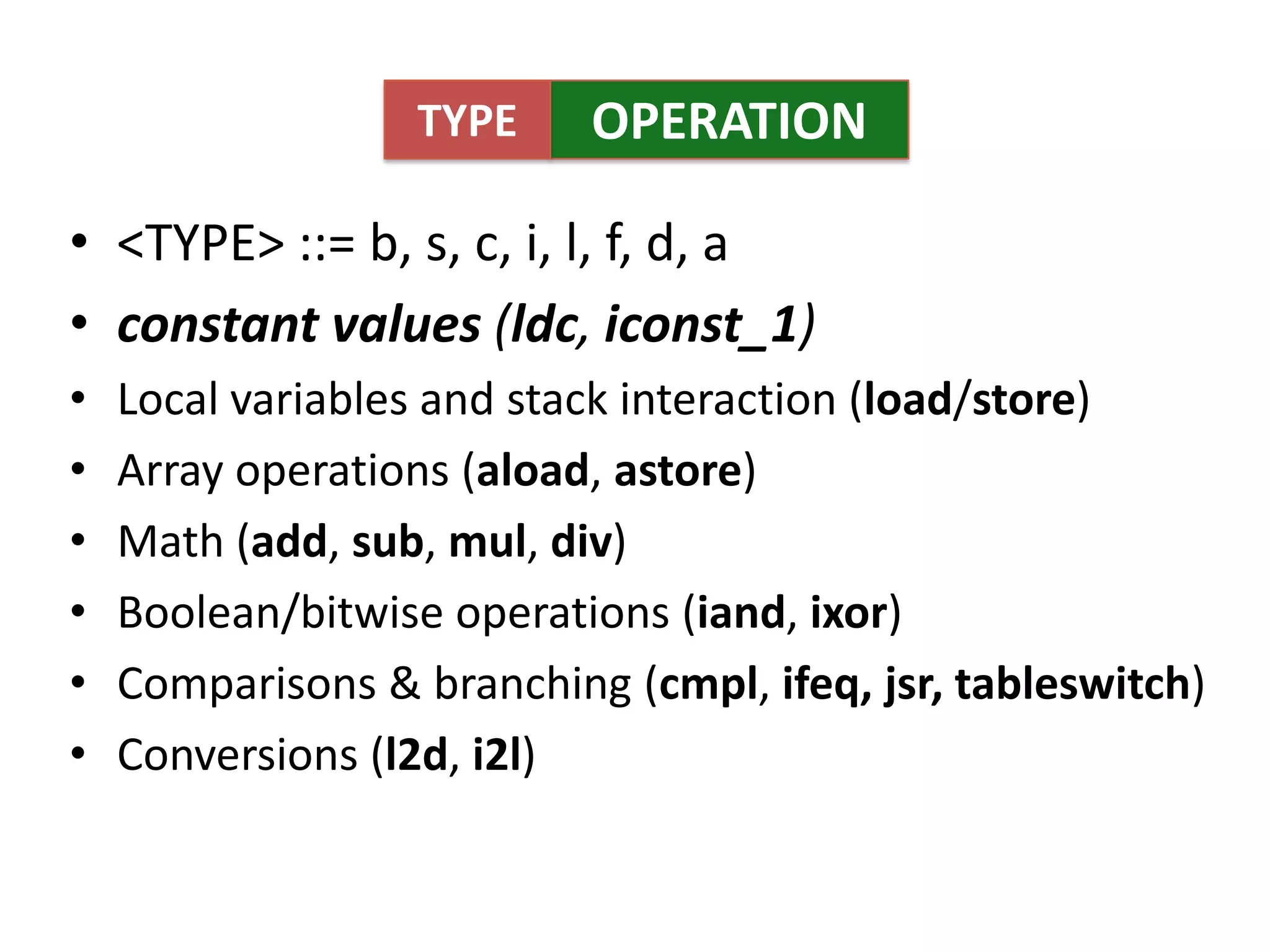

TYPE OPERATION

• <TYPE> ::= b, s, c, i, l, f, d, a
• constant values (ldc, iconst_1)
• Local variables and stack interaction (load/store)
• Array operations (aload, astore)
• Math (add, sub, mul, div)
• Boolean/bitwise operations (iand, ixor)
• Comparisons & branching (cmpl, ifeq, jsr, tableswitch)
• Conversions (l2d, i2l)

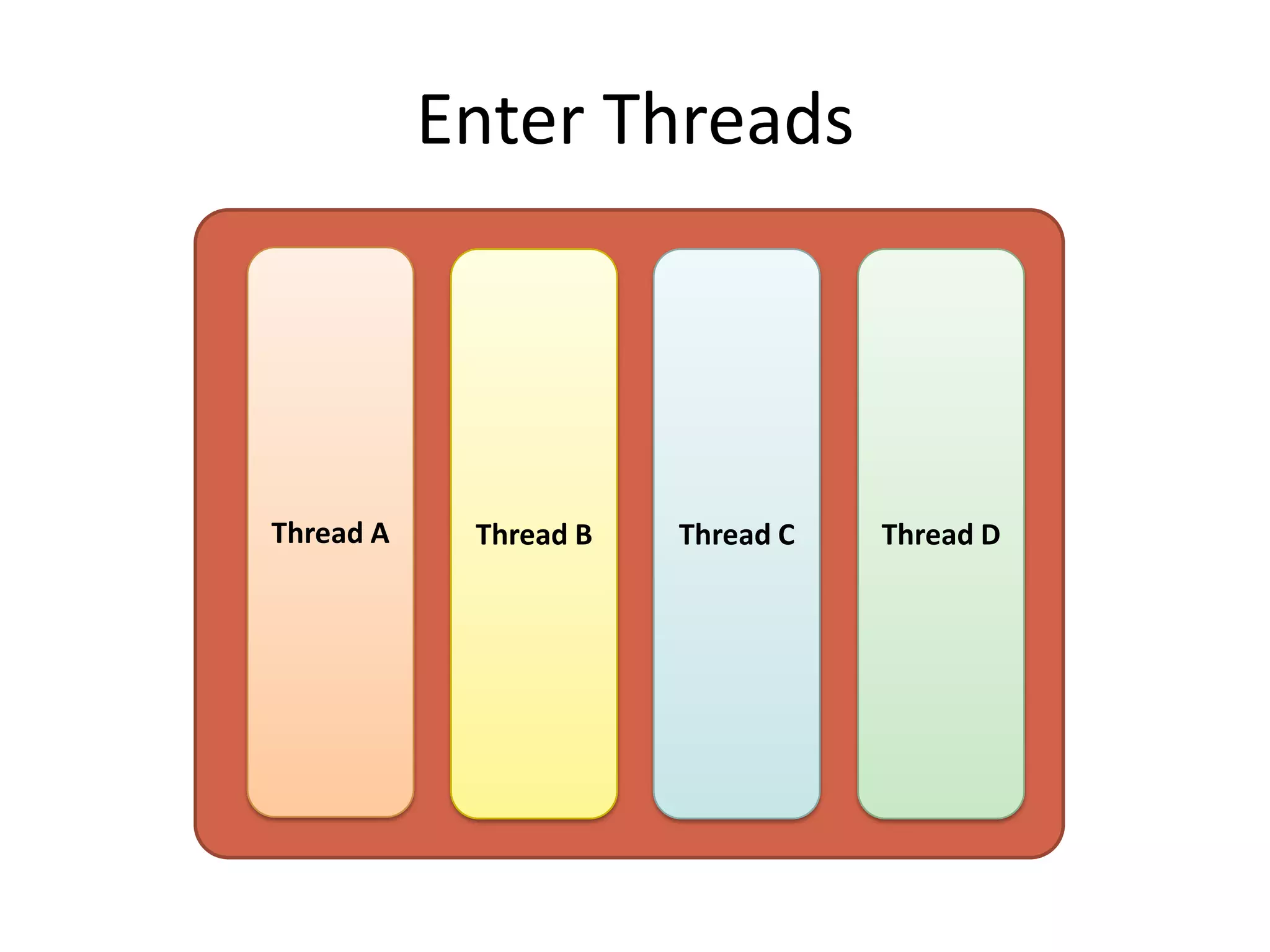

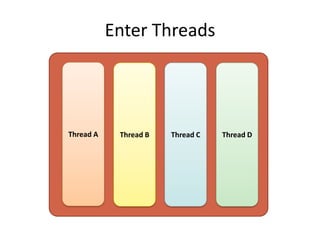

Enter Threads

Thread A Thread B Thread C Thread D

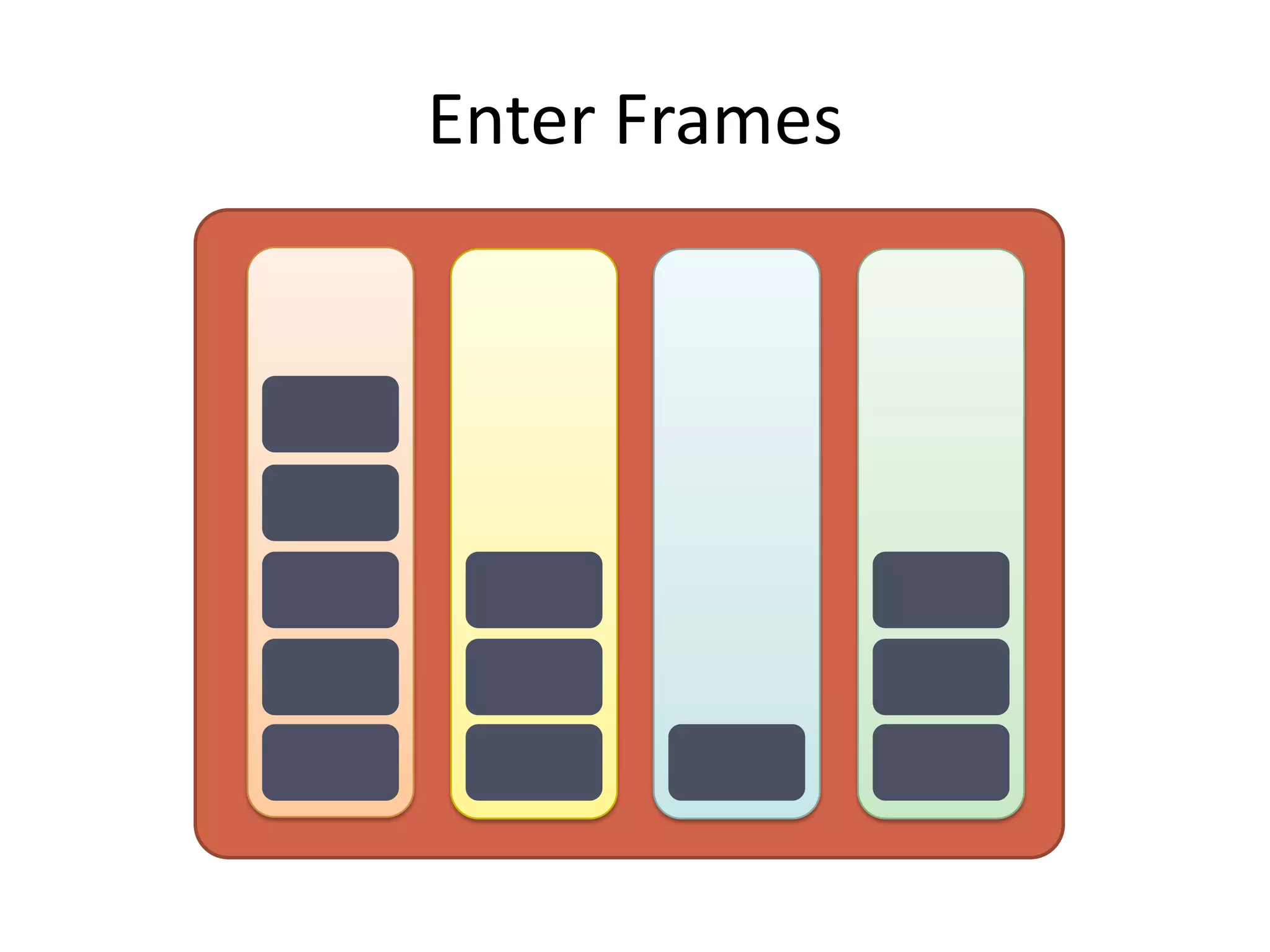

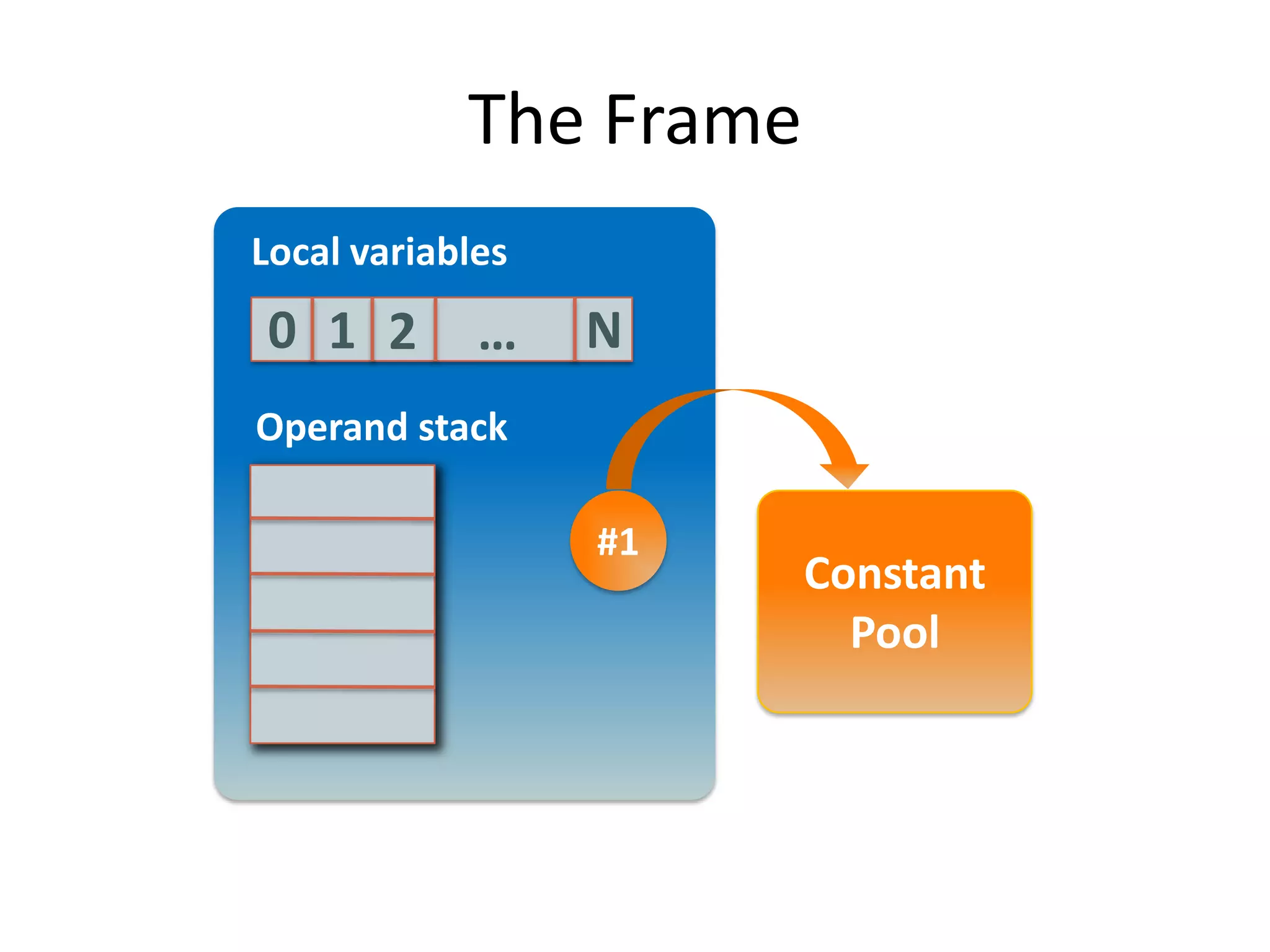

The Frame
Local variables
0 1 2 … N
Operand stack

#1
Constant
Pool

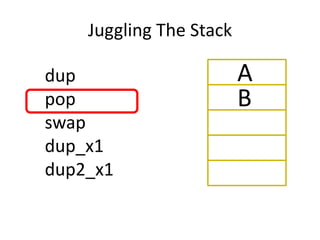

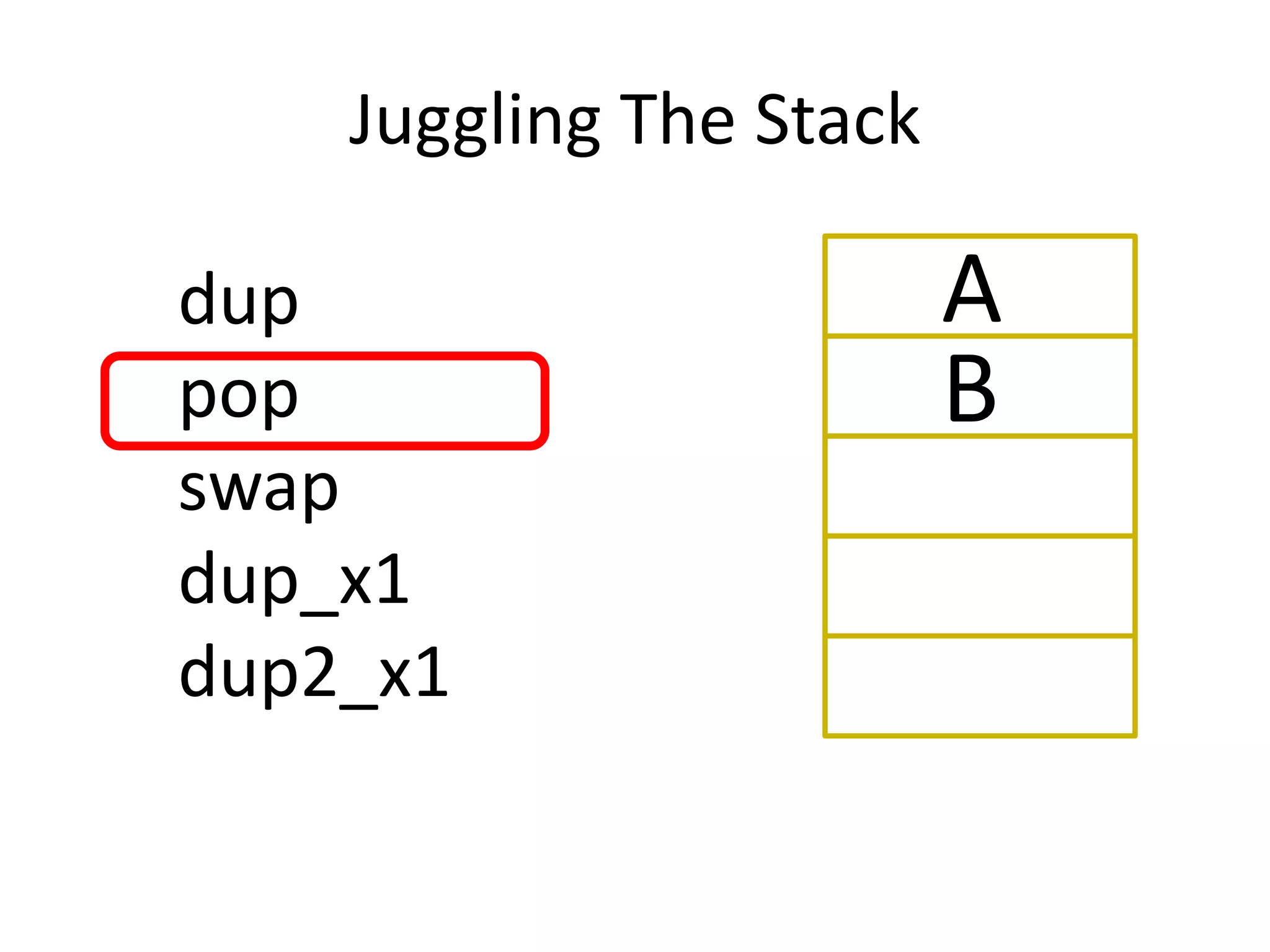

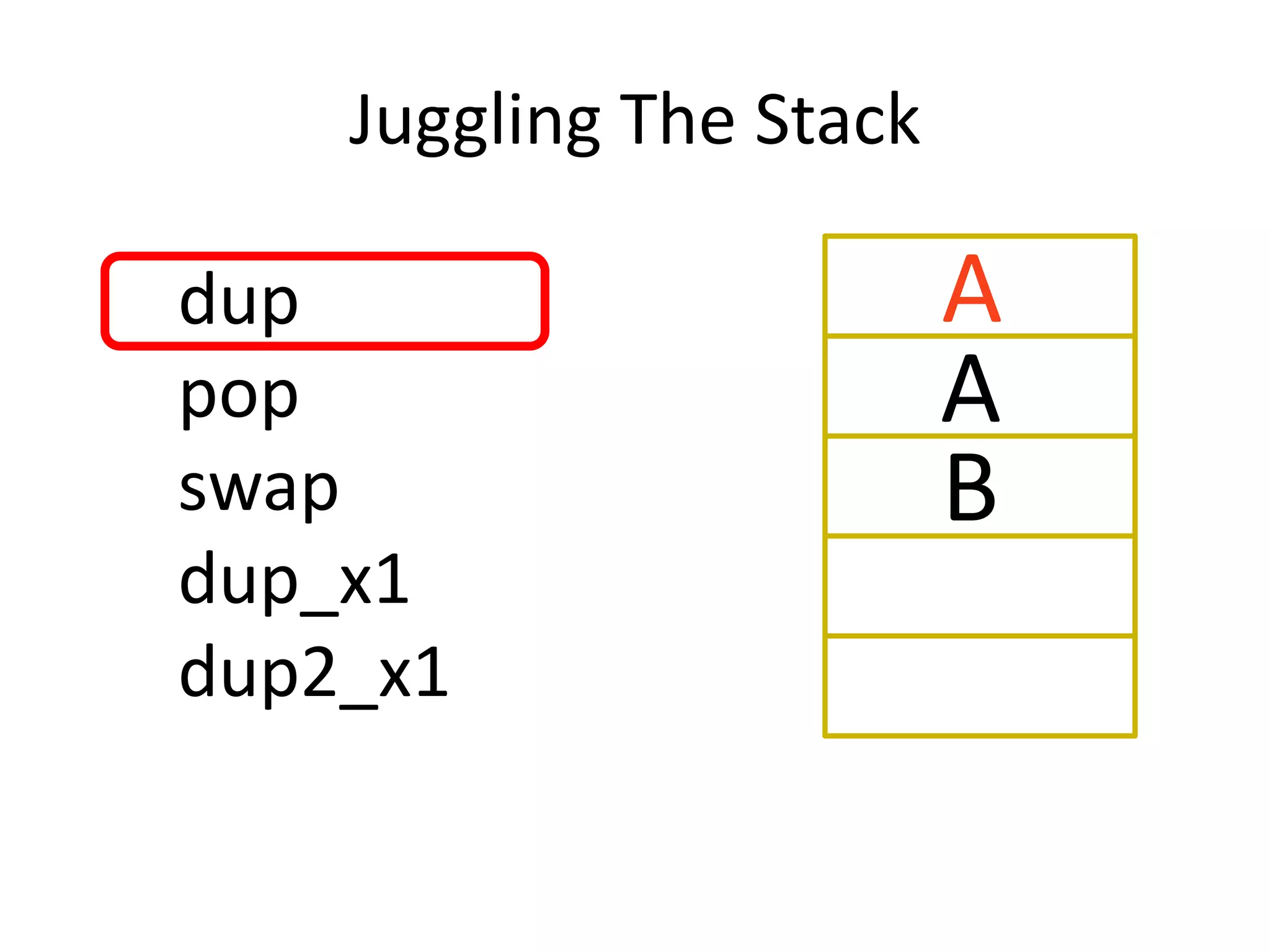

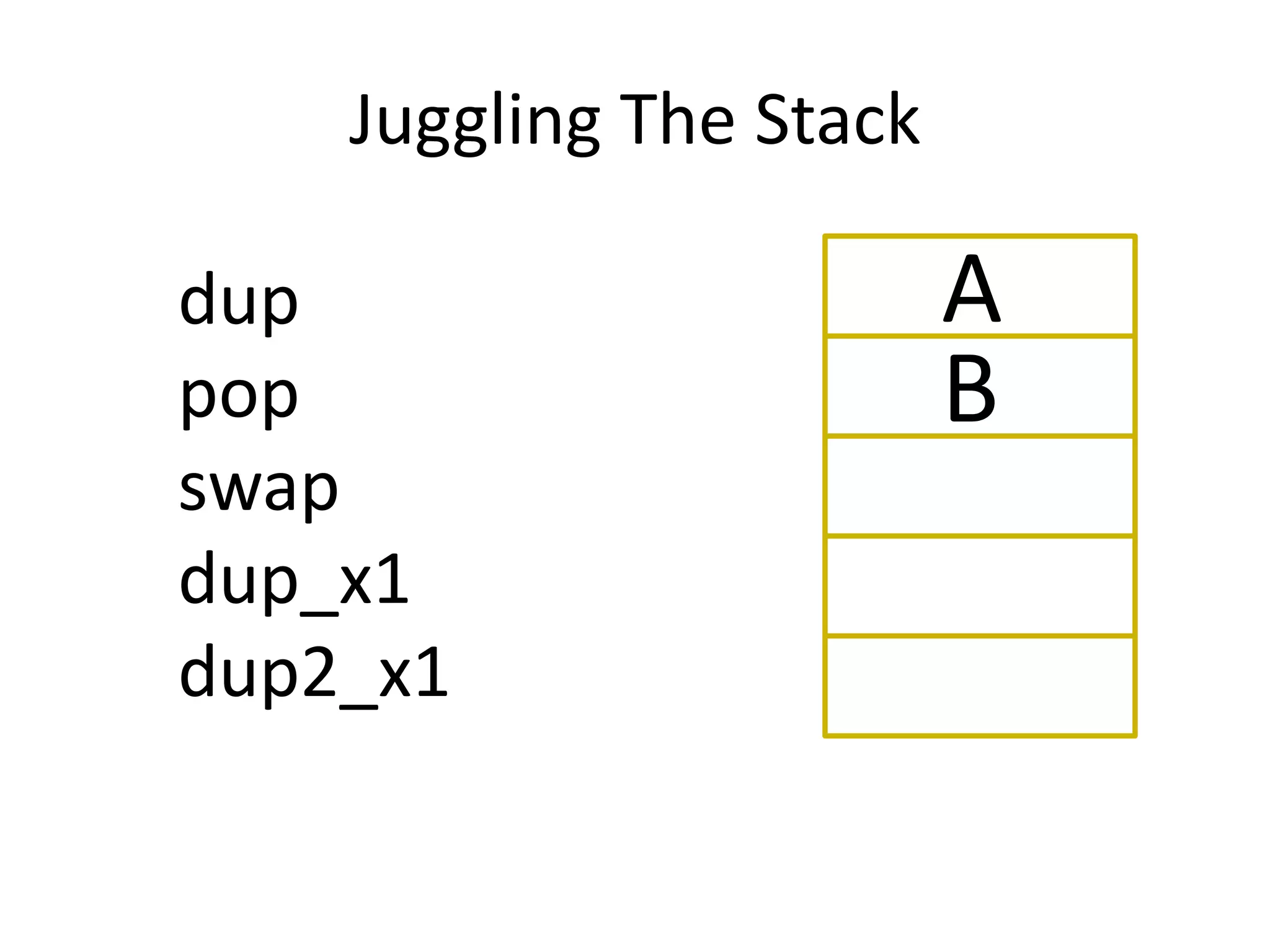

Juggling The Stack

dup A
pop B
swap
dup_x1
dup2_x1

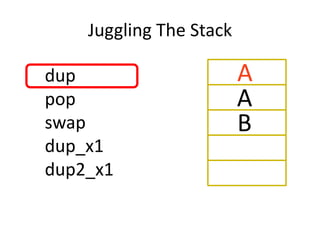

Juggling The Stack

dup A
pop A
swap B
dup_x1
dup2_x1

Juggling The Stack

dup B
pop A
swap
dup_x1
dup2_x1

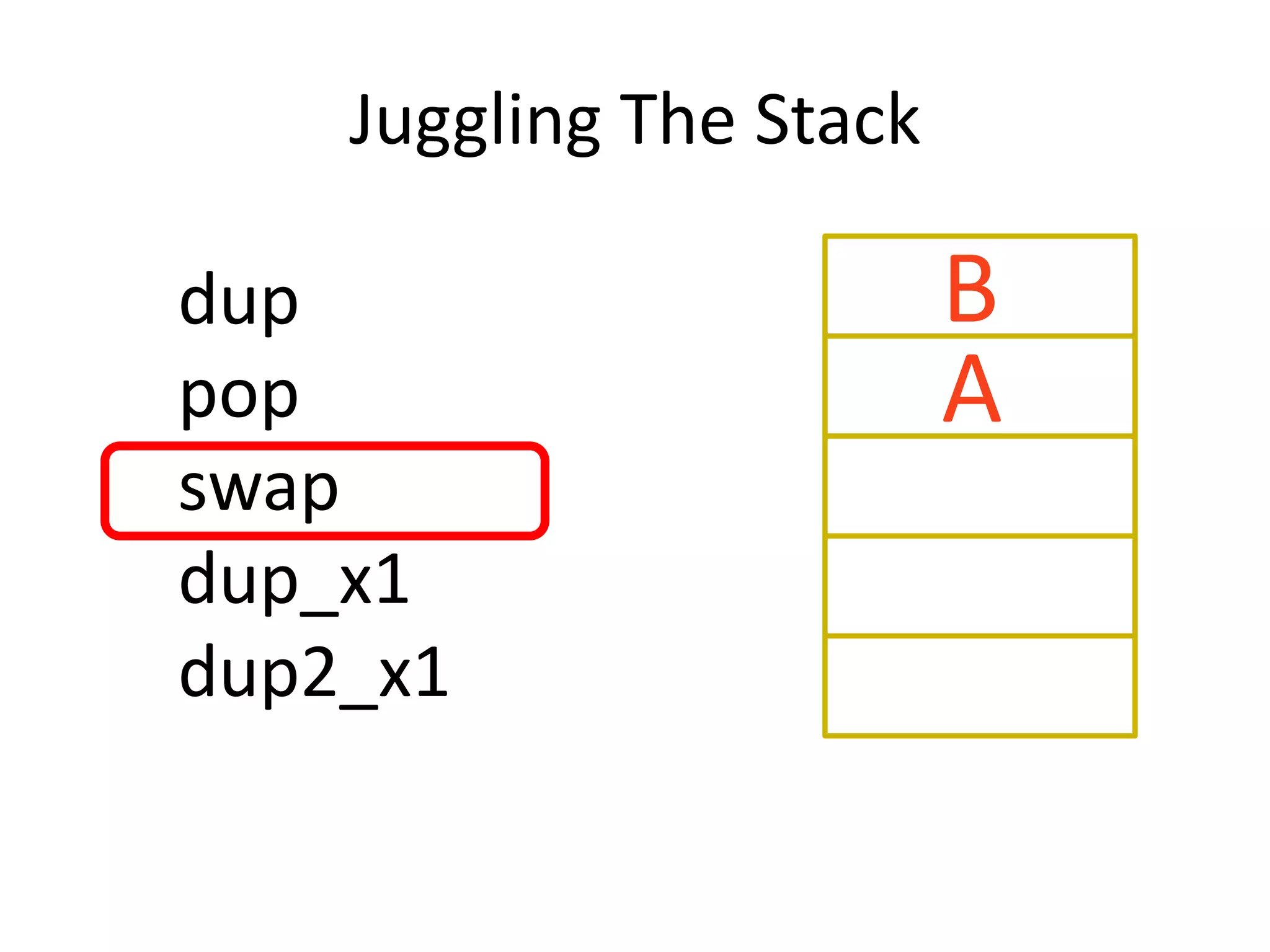

Juggling The Stack

dup B
pop A
swap B
dup_x1
dup2_x1

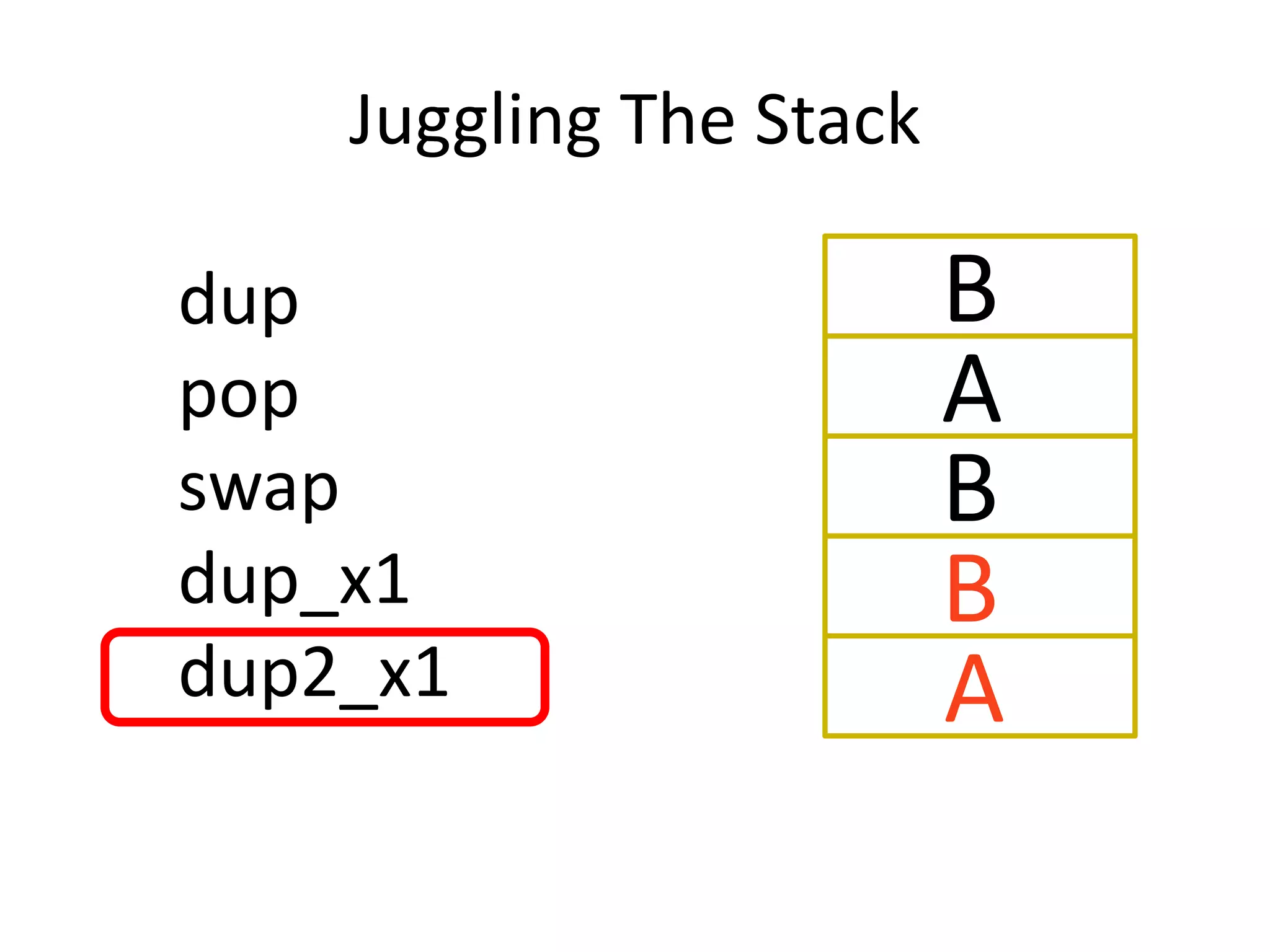

Juggling The Stack

dup B
pop A
swap B

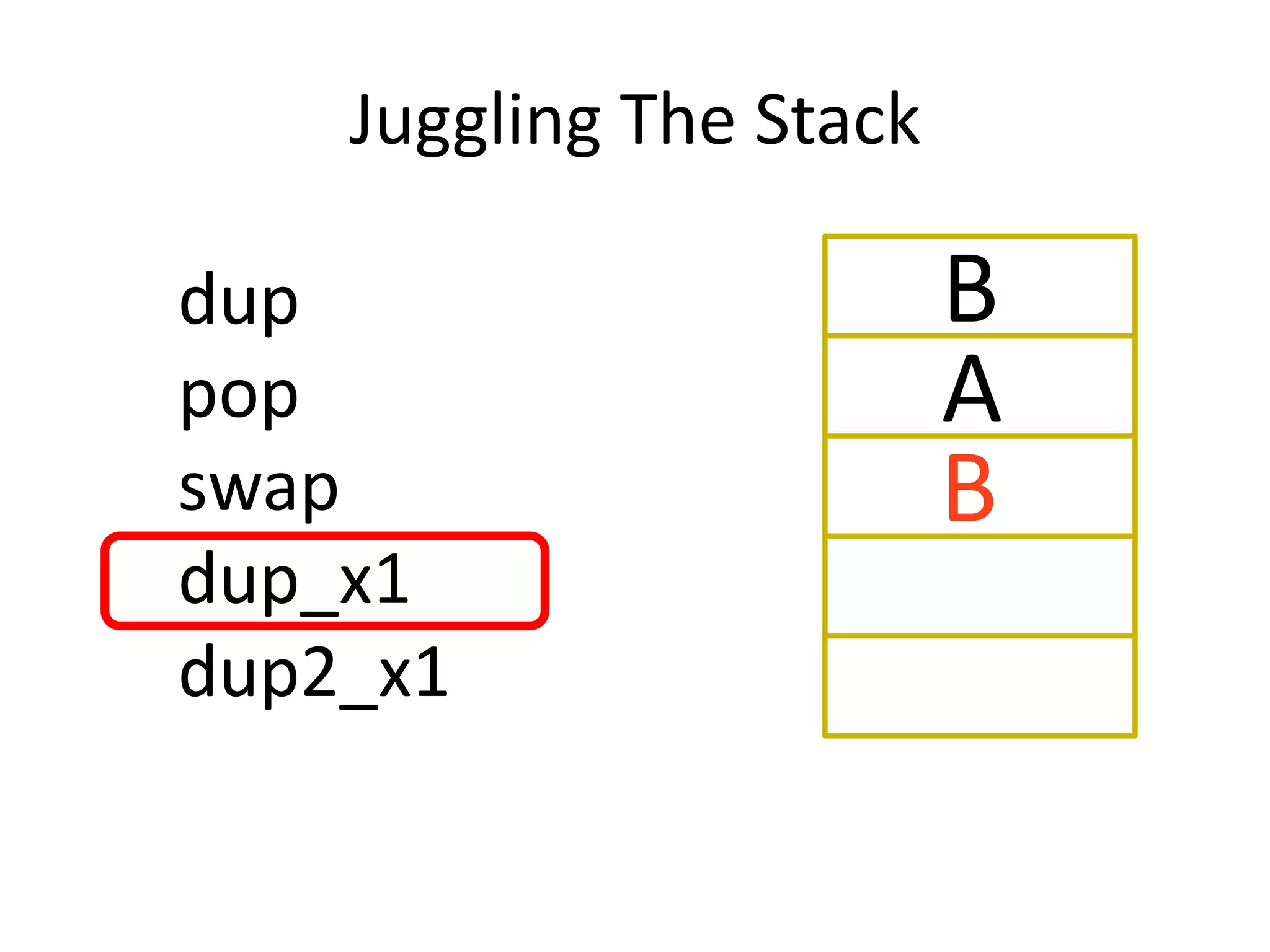

dup_x1 B
dup2_x1 A

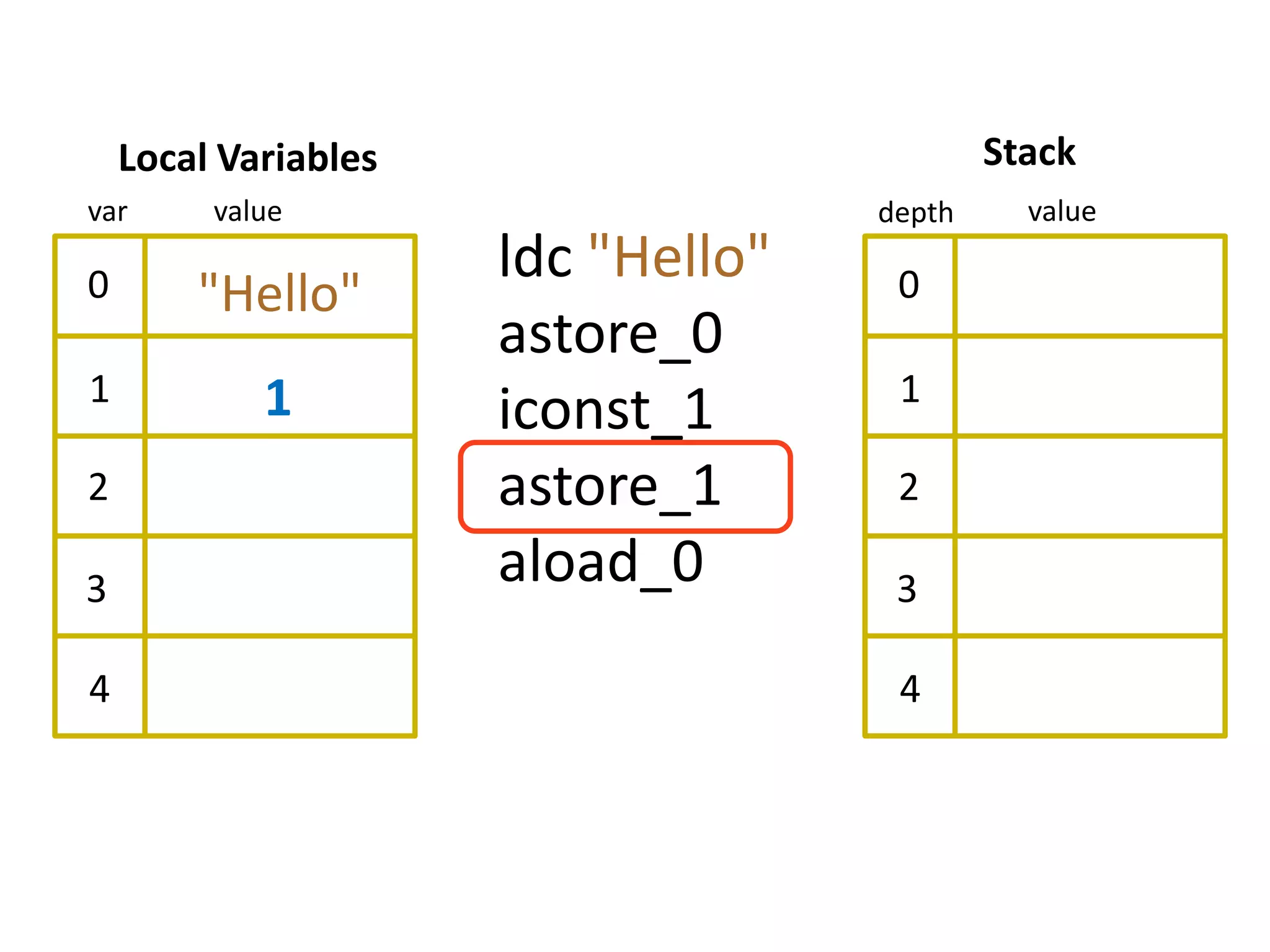

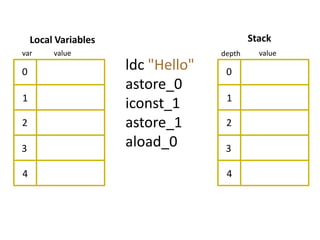

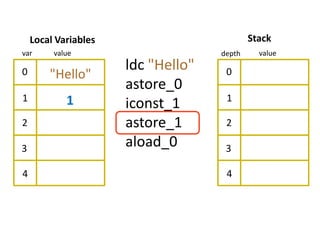

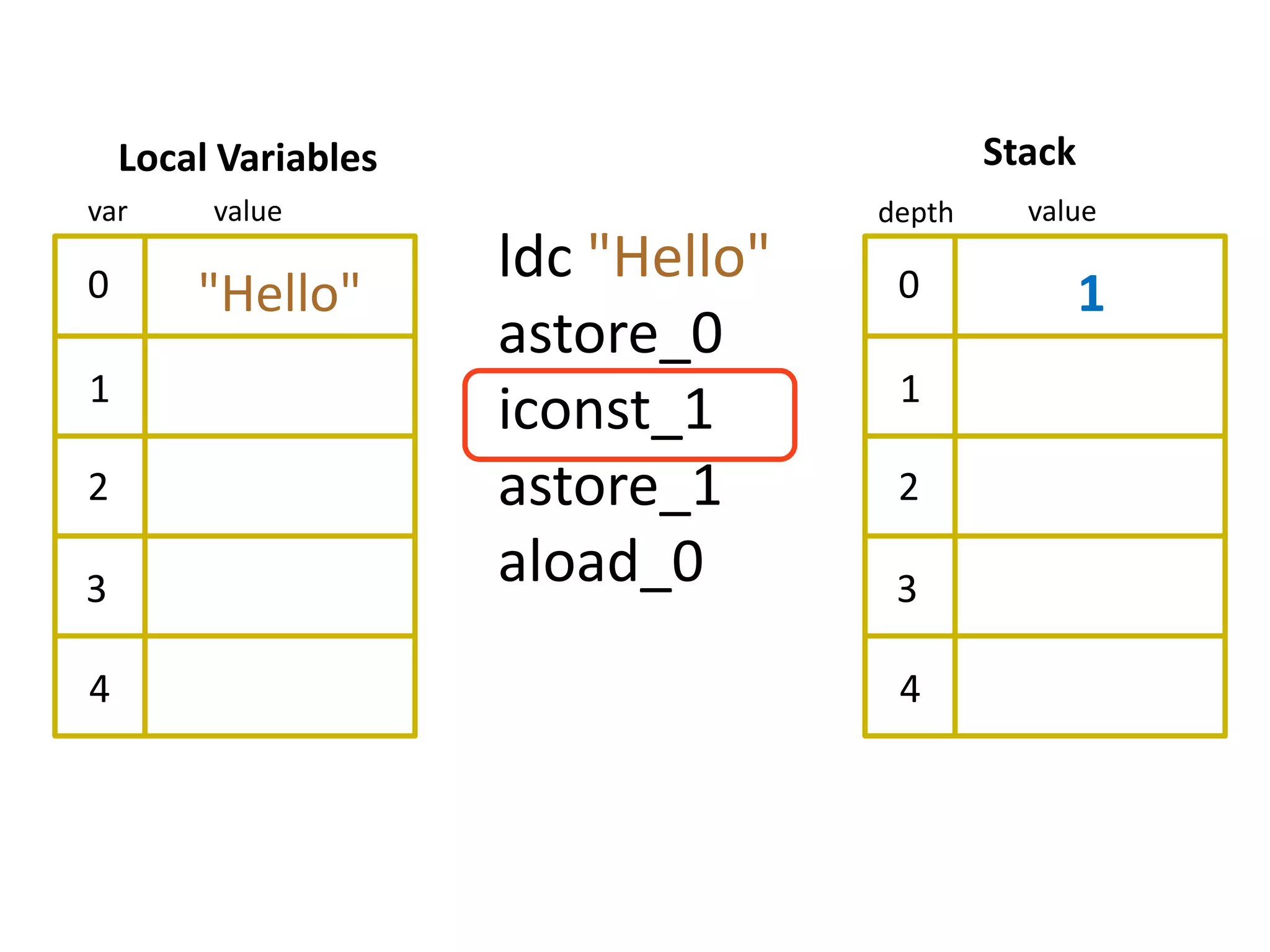

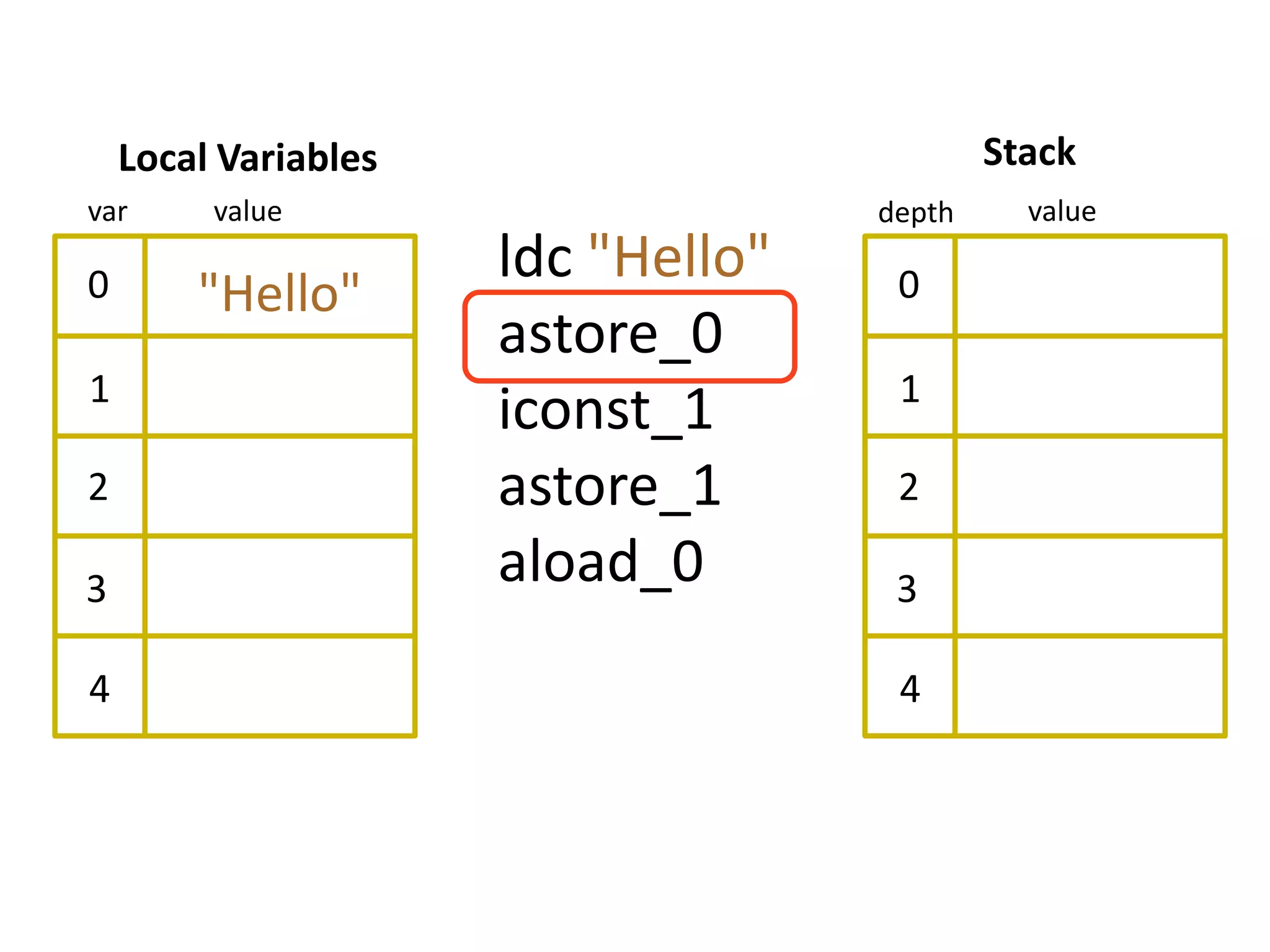

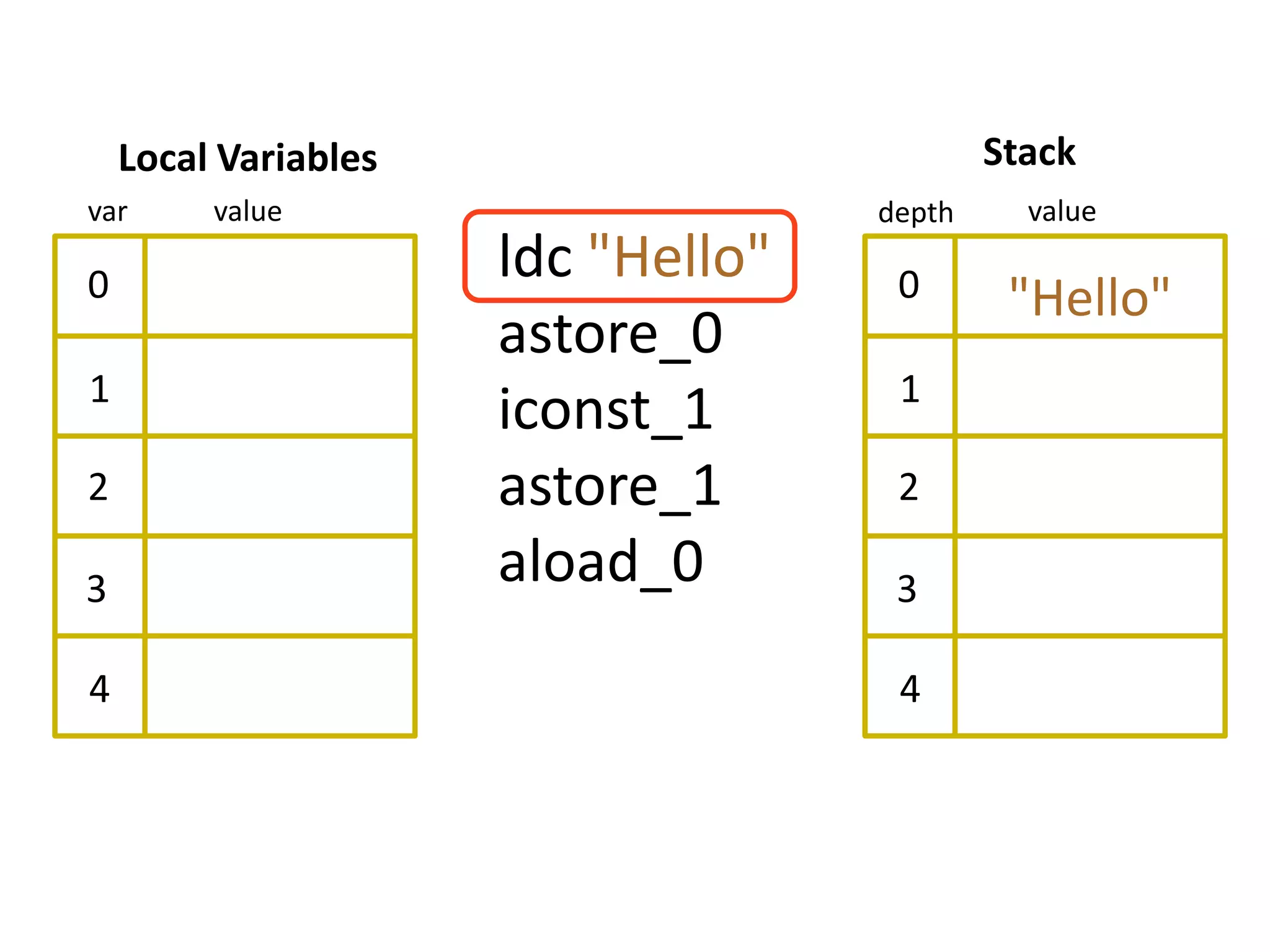

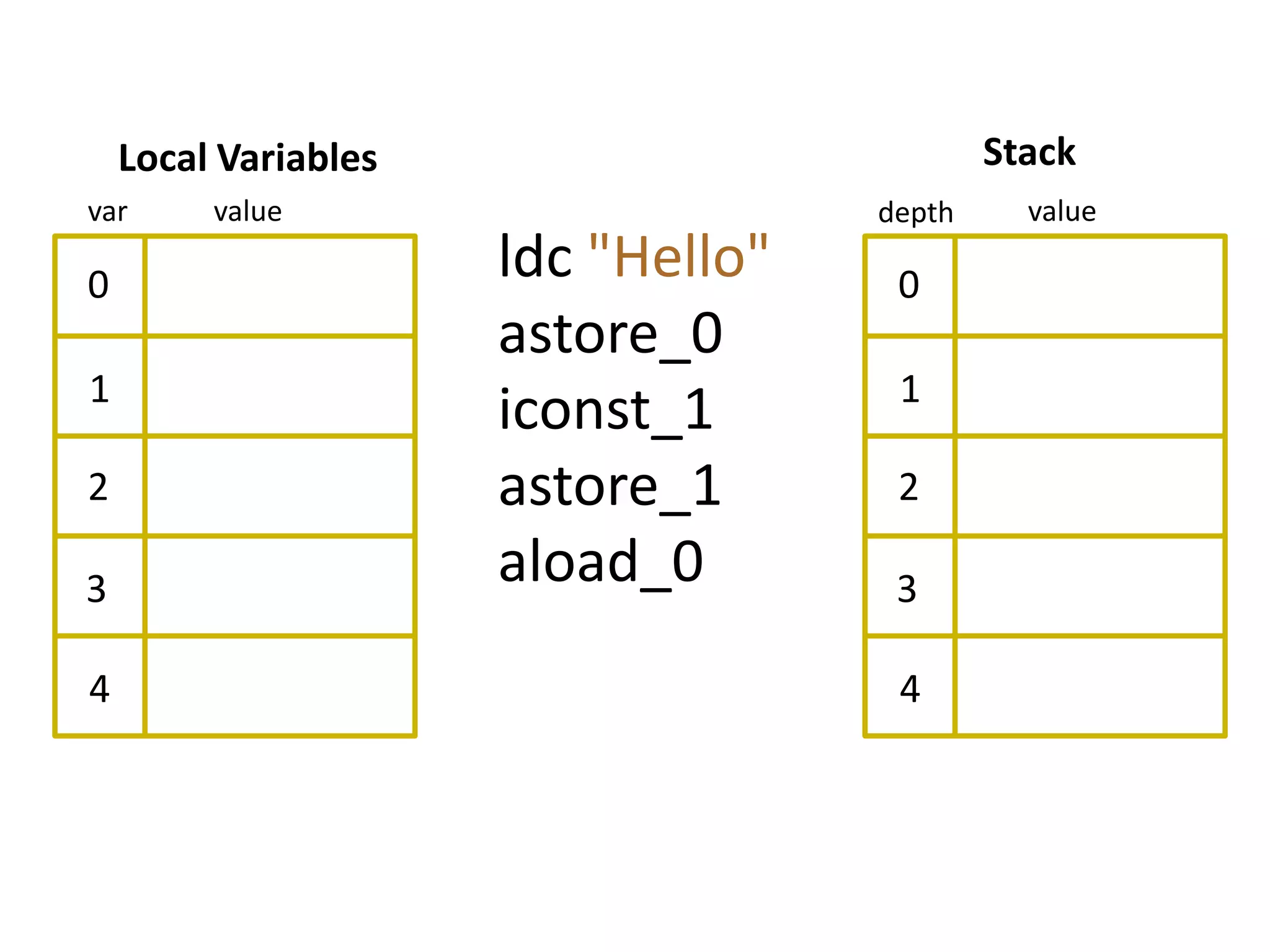

Local Variables Stack
var value depth value

0
ldc "Hello" 0
astore_0
1 1
iconst_1
2 astore_1 2

3 aload_0 3

4 4


0
ldc "Hello" 0 "Hello"
astore_0
1 1
iconst_1
2 astore_1 2

3 aload_0 3

4 4


0
ldc "Hello" 0
"Hello"
astore_0
1 1
iconst_1
2 astore_1 2

3 aload_0 3

4 4


0
ldc "Hello" 0
"Hello" 1
astore_0
1 1
iconst_1
2 astore_1 2

3 aload_0 3

4 4


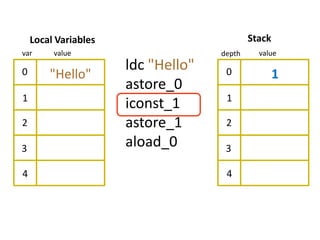

0
ldc "Hello" 0
"Hello"
astore_0
1 1 1
iconst_1
2 astore_1 2

3 aload_0 3

4 4


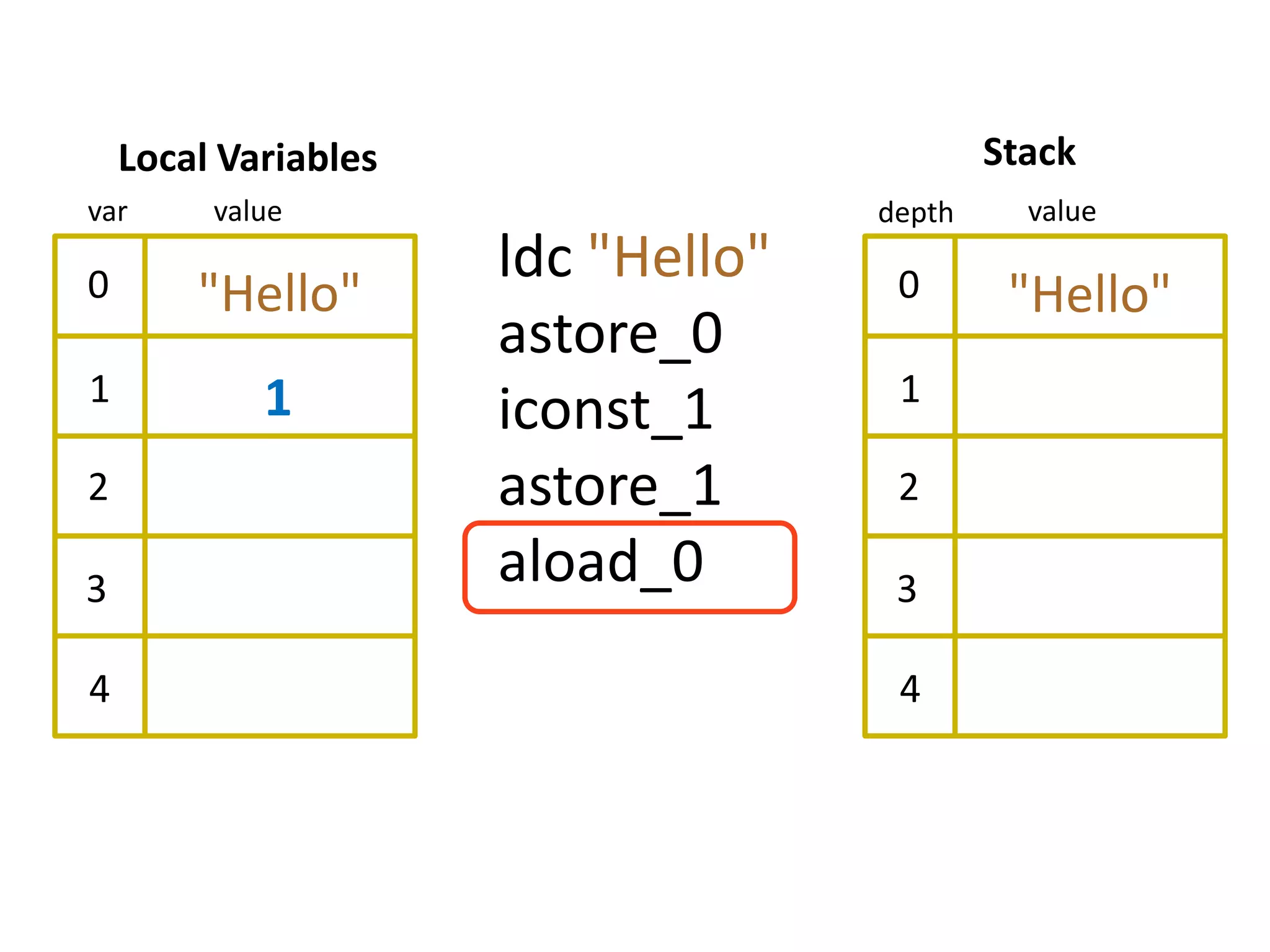

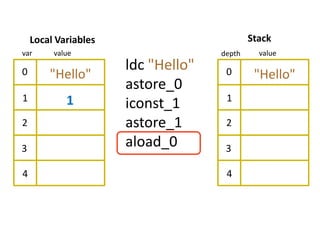

0
ldc "Hello" 0
"Hello" "Hello"
astore_0
1 1 1
iconst_1
2 astore_1 2

3 aload_0 3

4 4

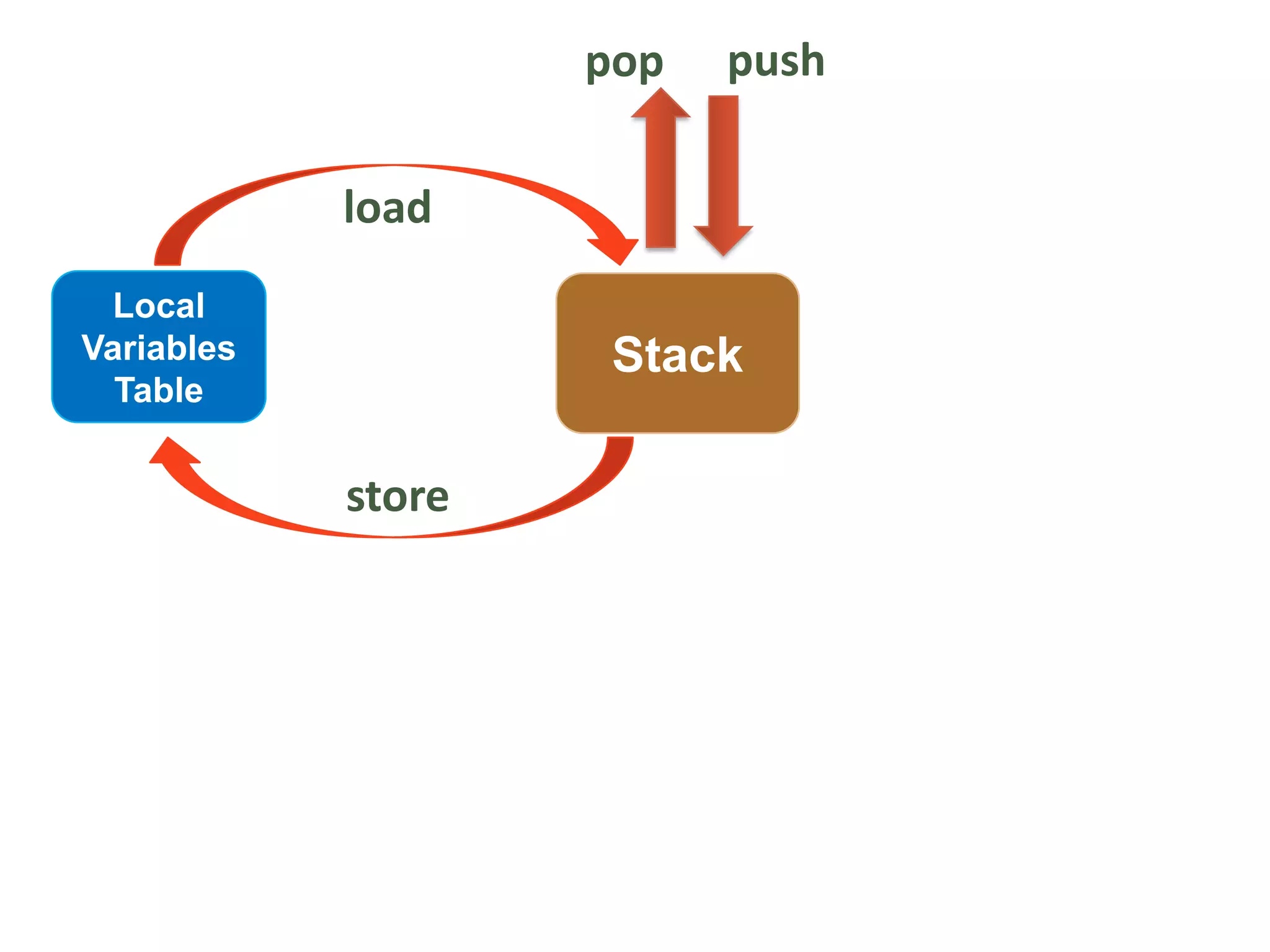

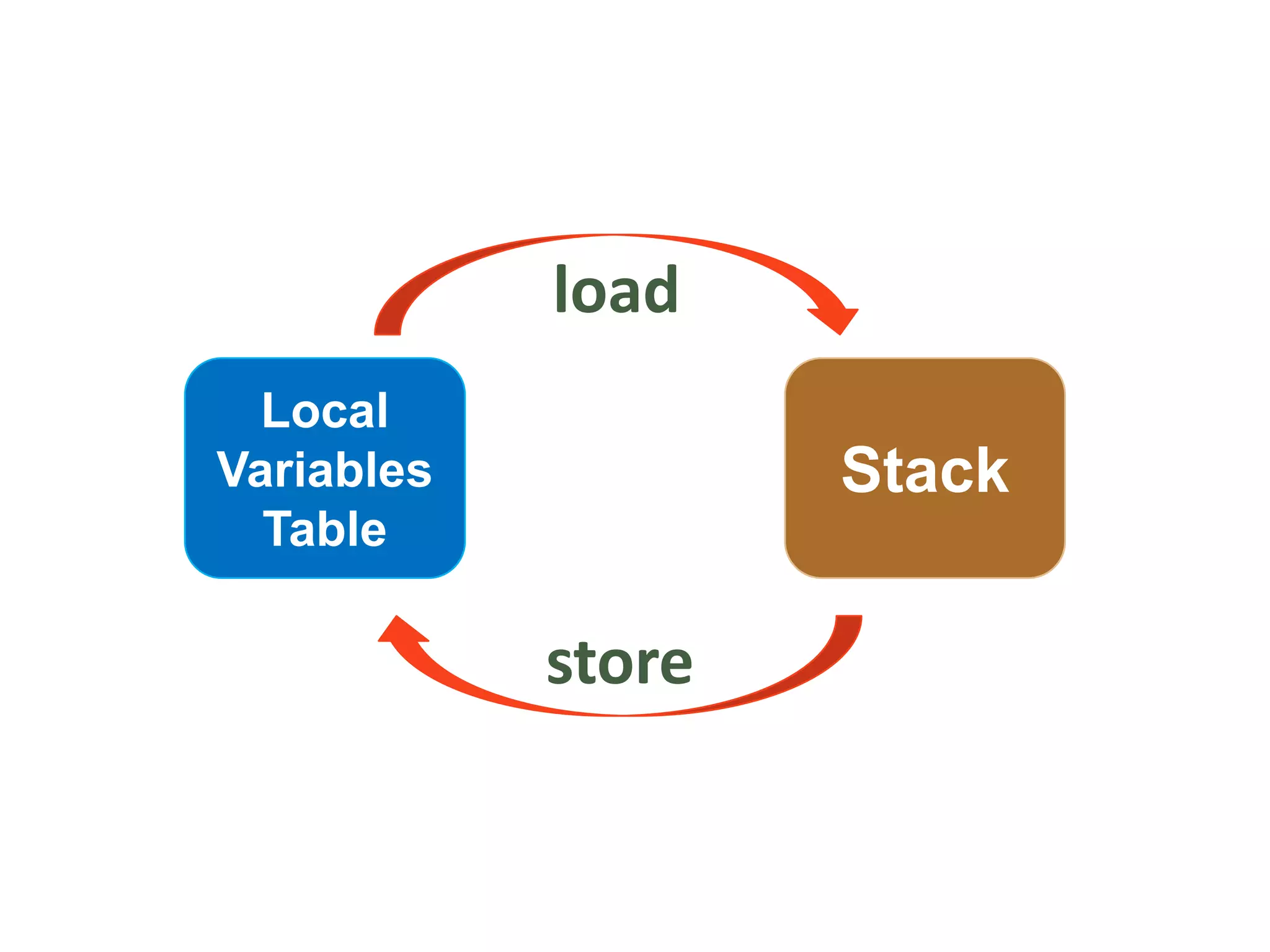

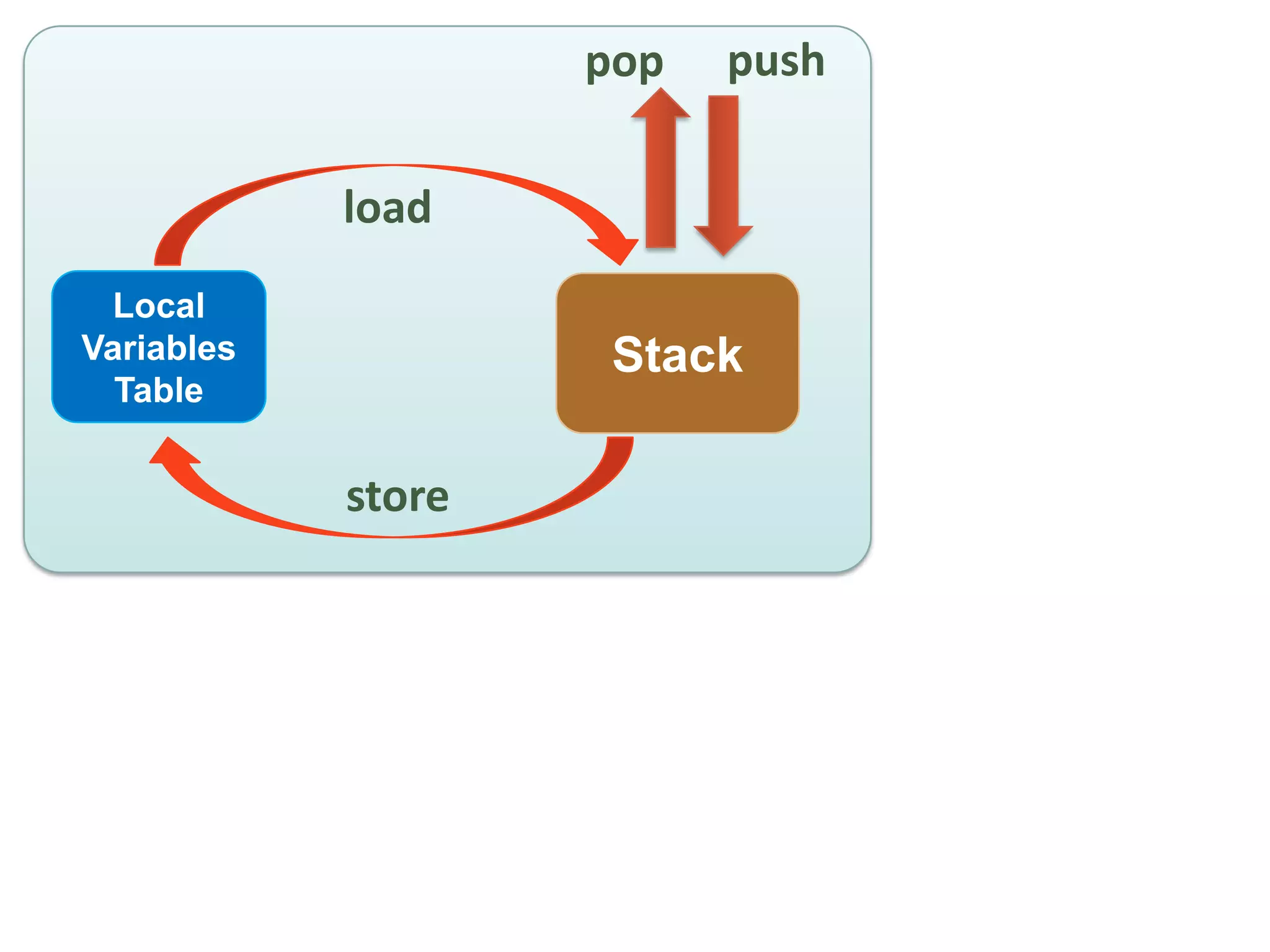

load
Local
Variables Stack
Table

store

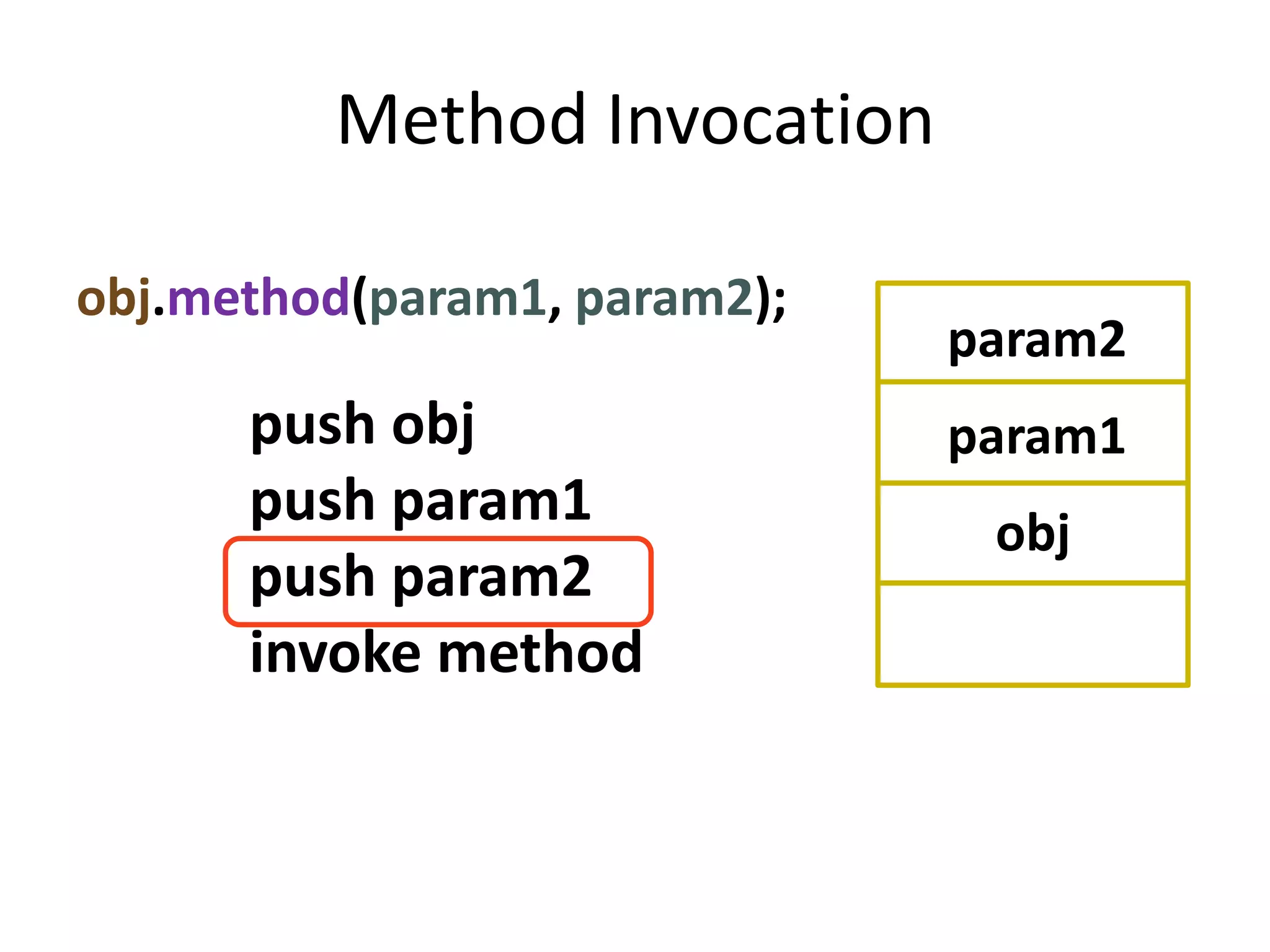

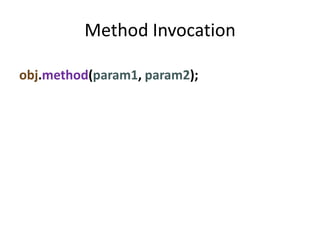

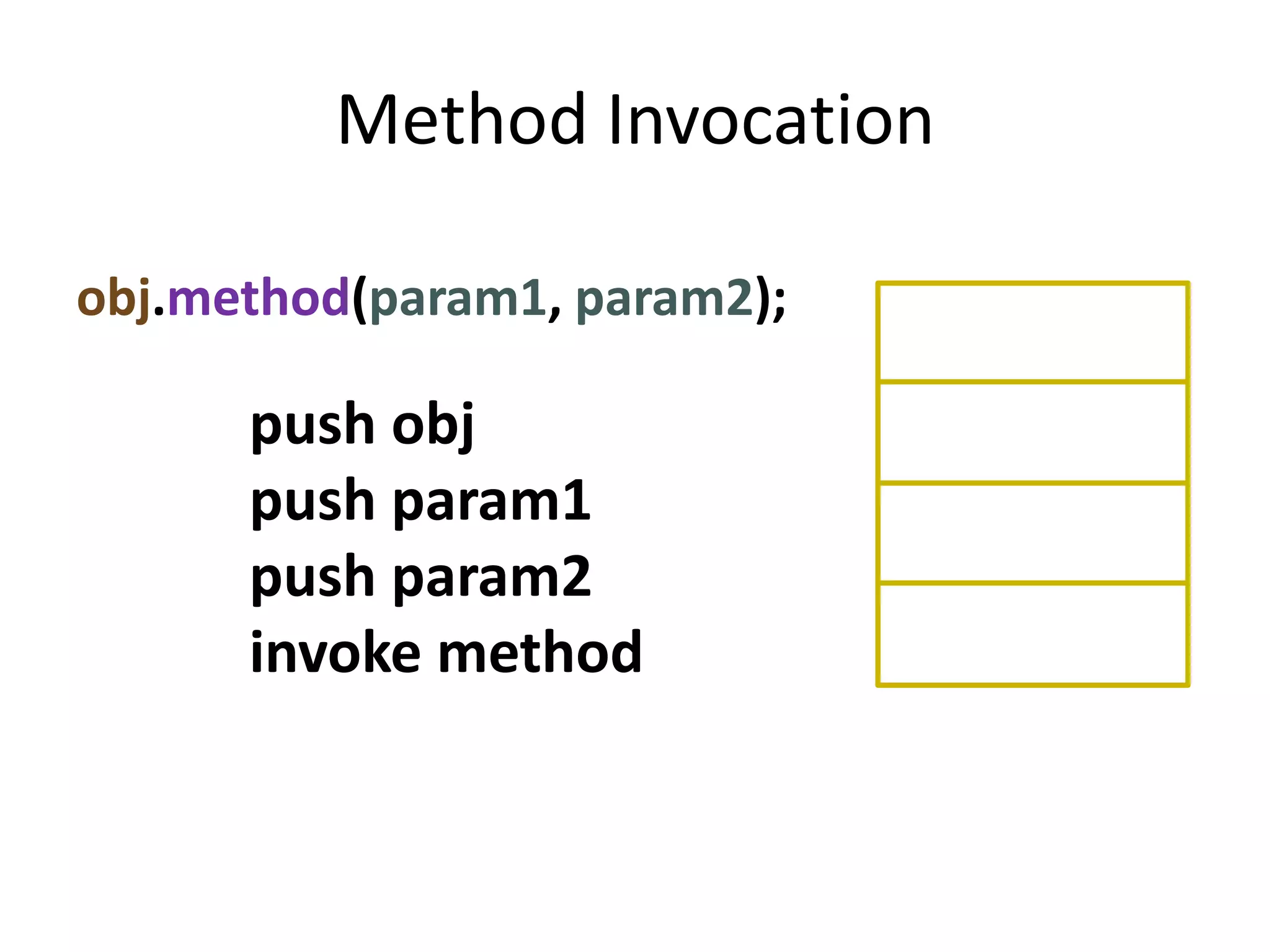

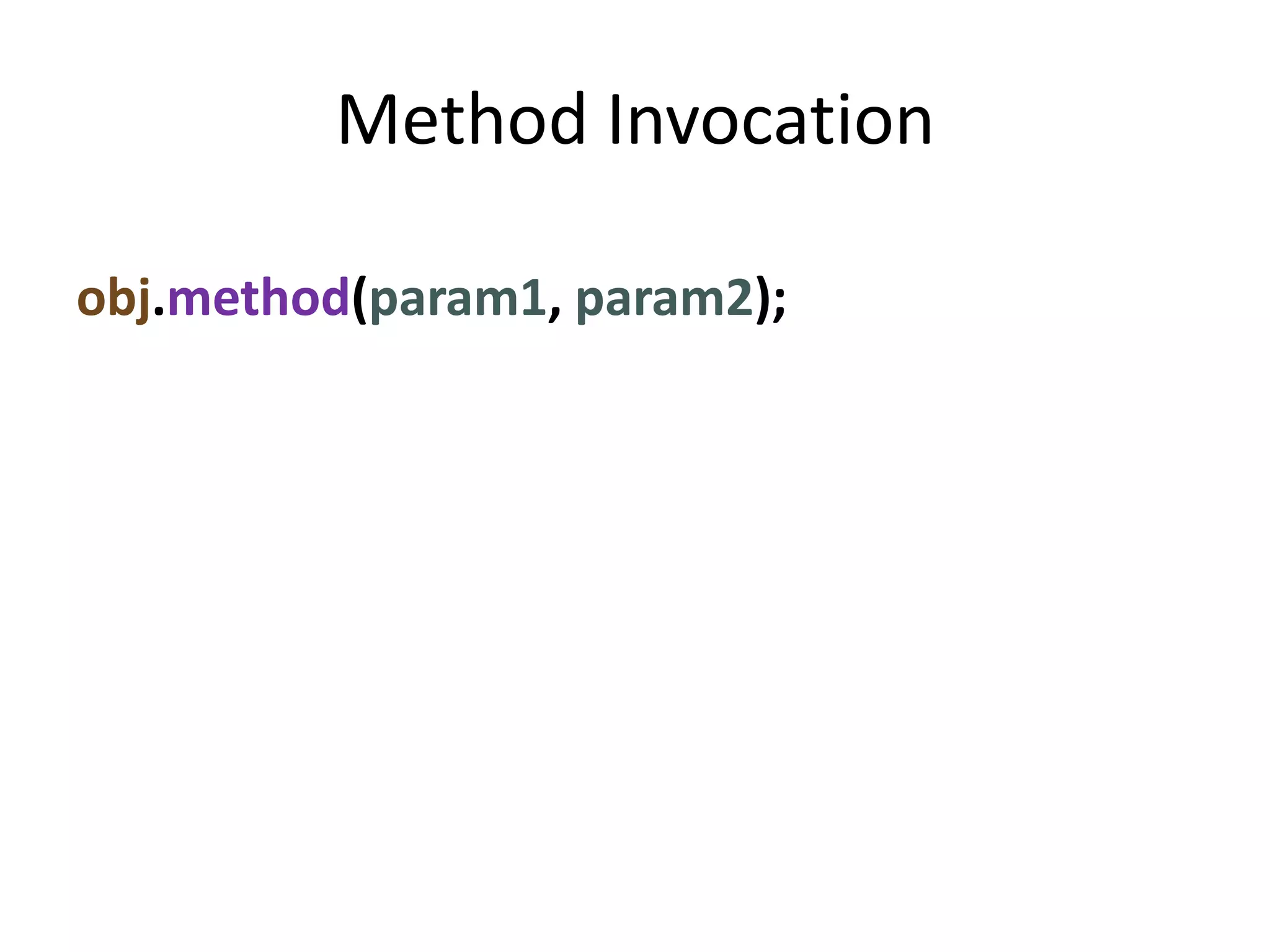

Method Invocation

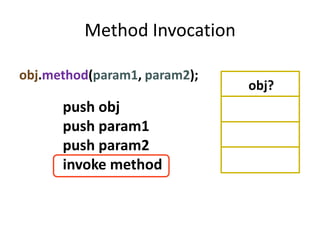

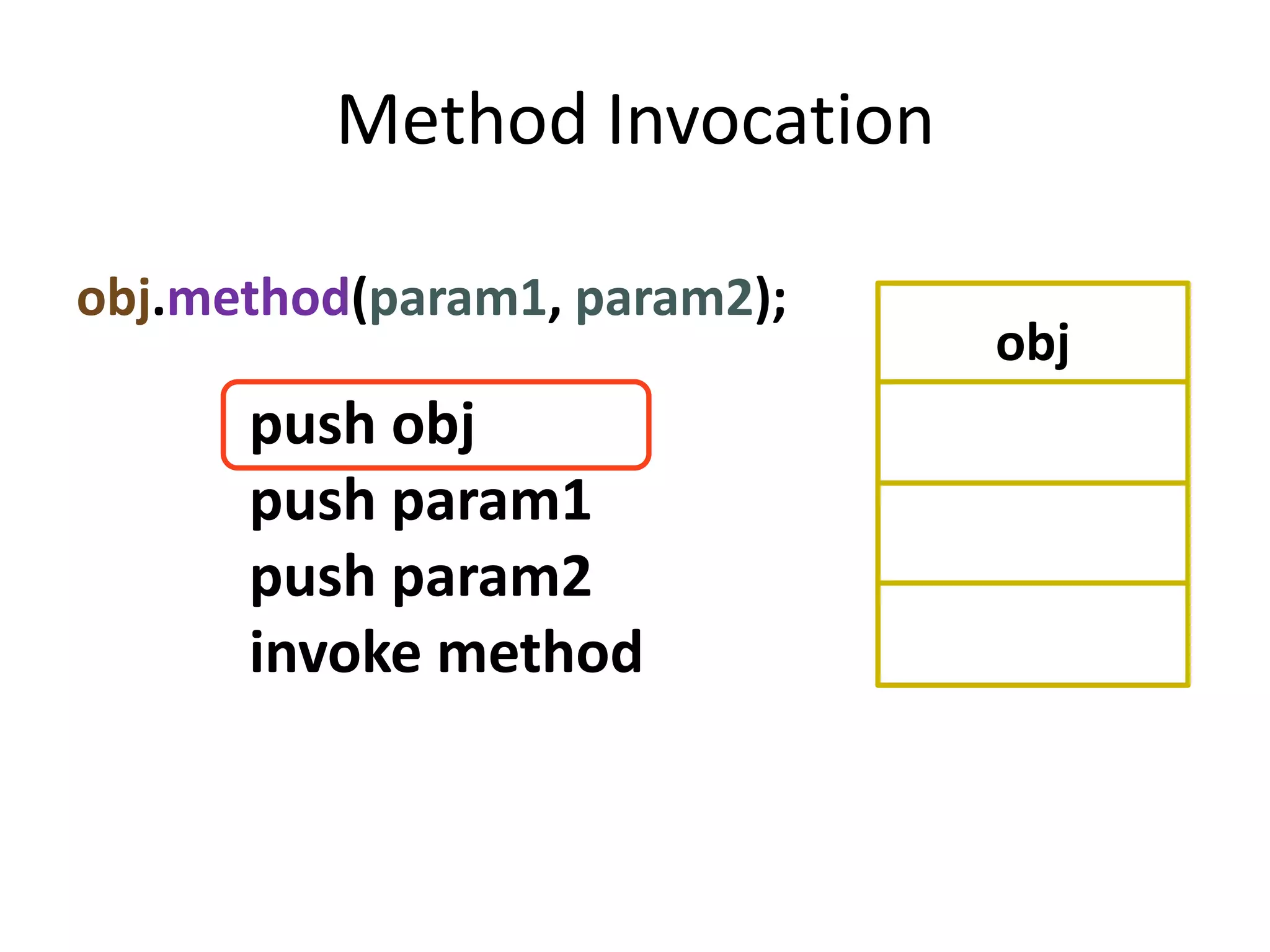

obj.method(param1, param2);

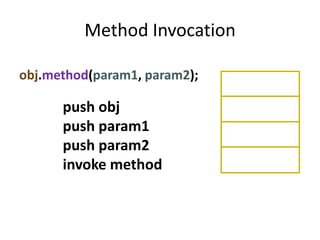

Method Invocation


push obj
push param1
push param2
invoke method

Method Invocation

obj
push obj
push param1
push param2
invoke method

Method Invocation

param1
push obj obj
push param1
push param2
invoke method

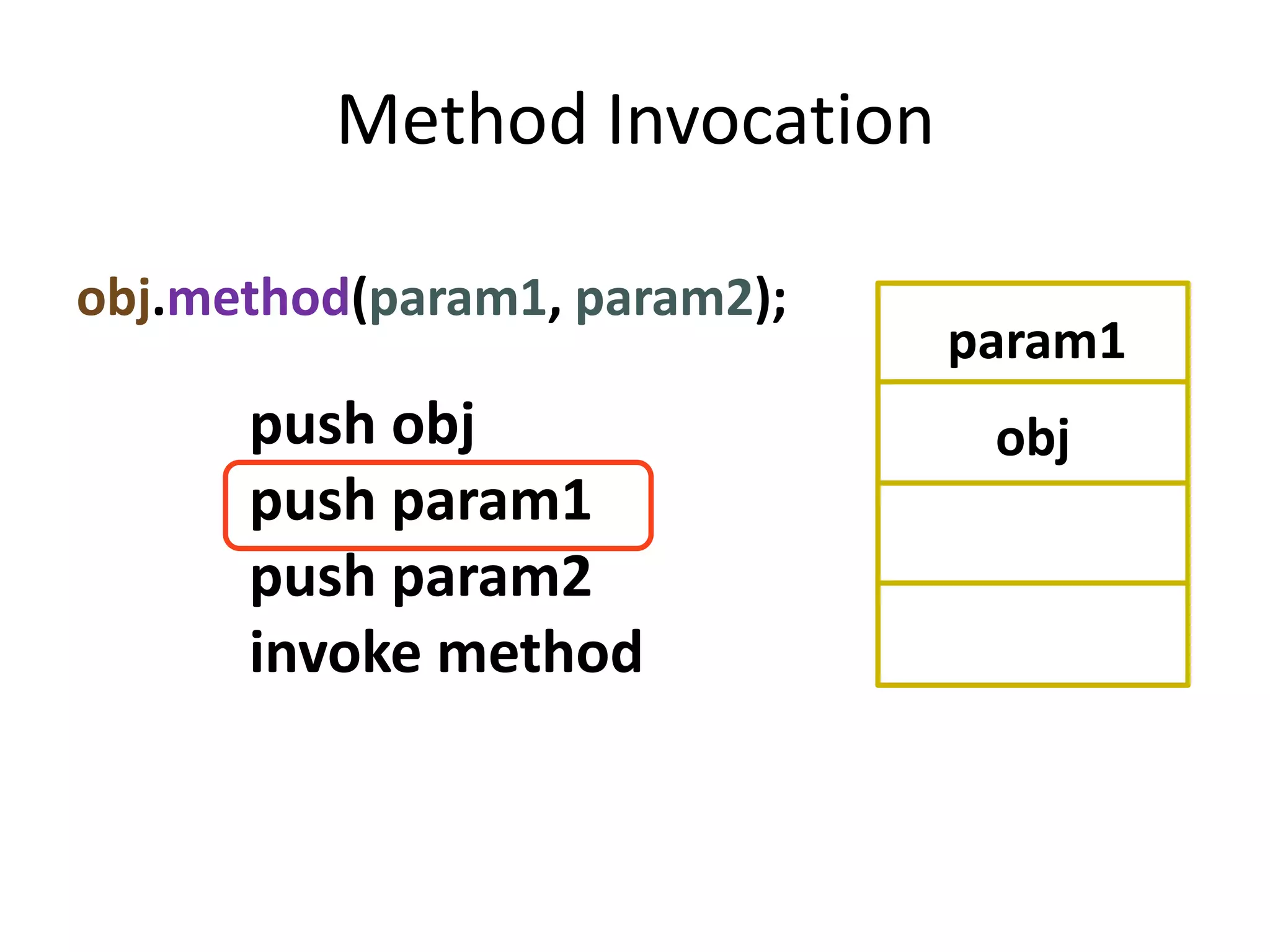

Method Invocation

param2
push obj param1
push param1 obj
push param2
invoke method

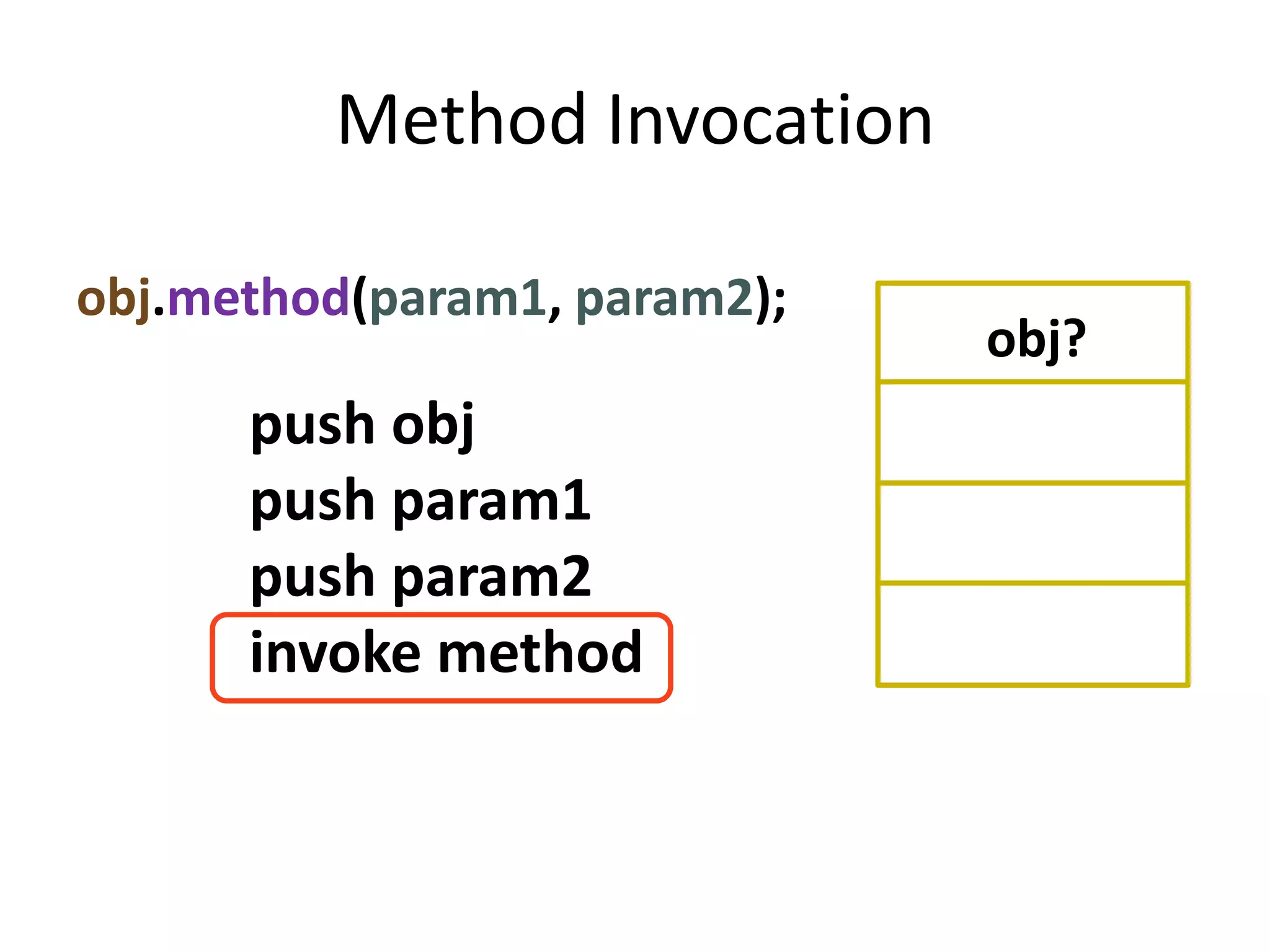

Method Invocation

obj?
push obj
push param1
push param2
invoke method

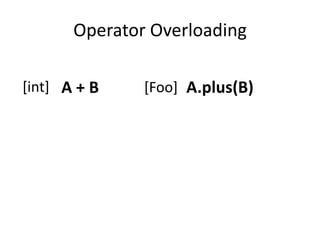

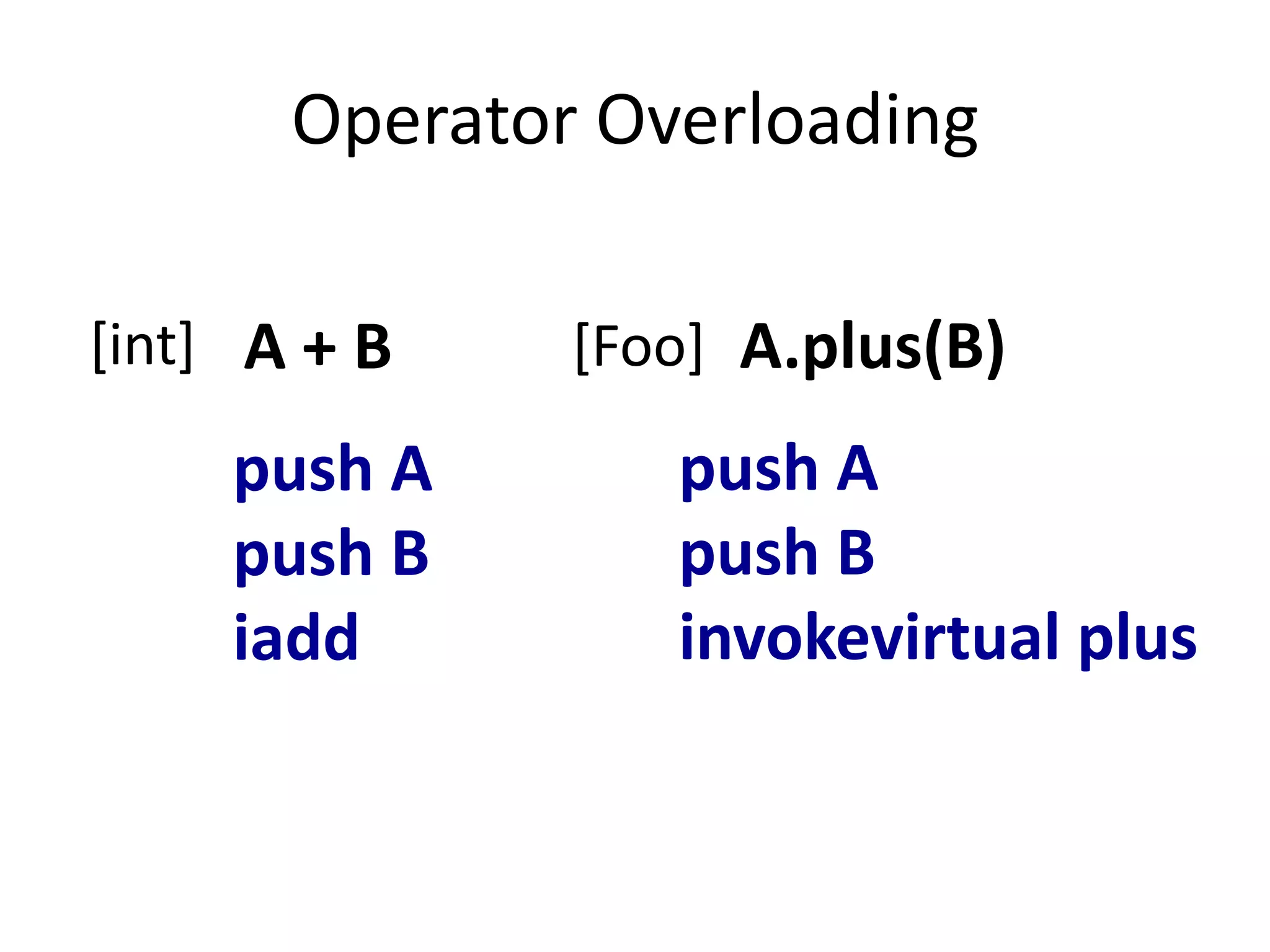

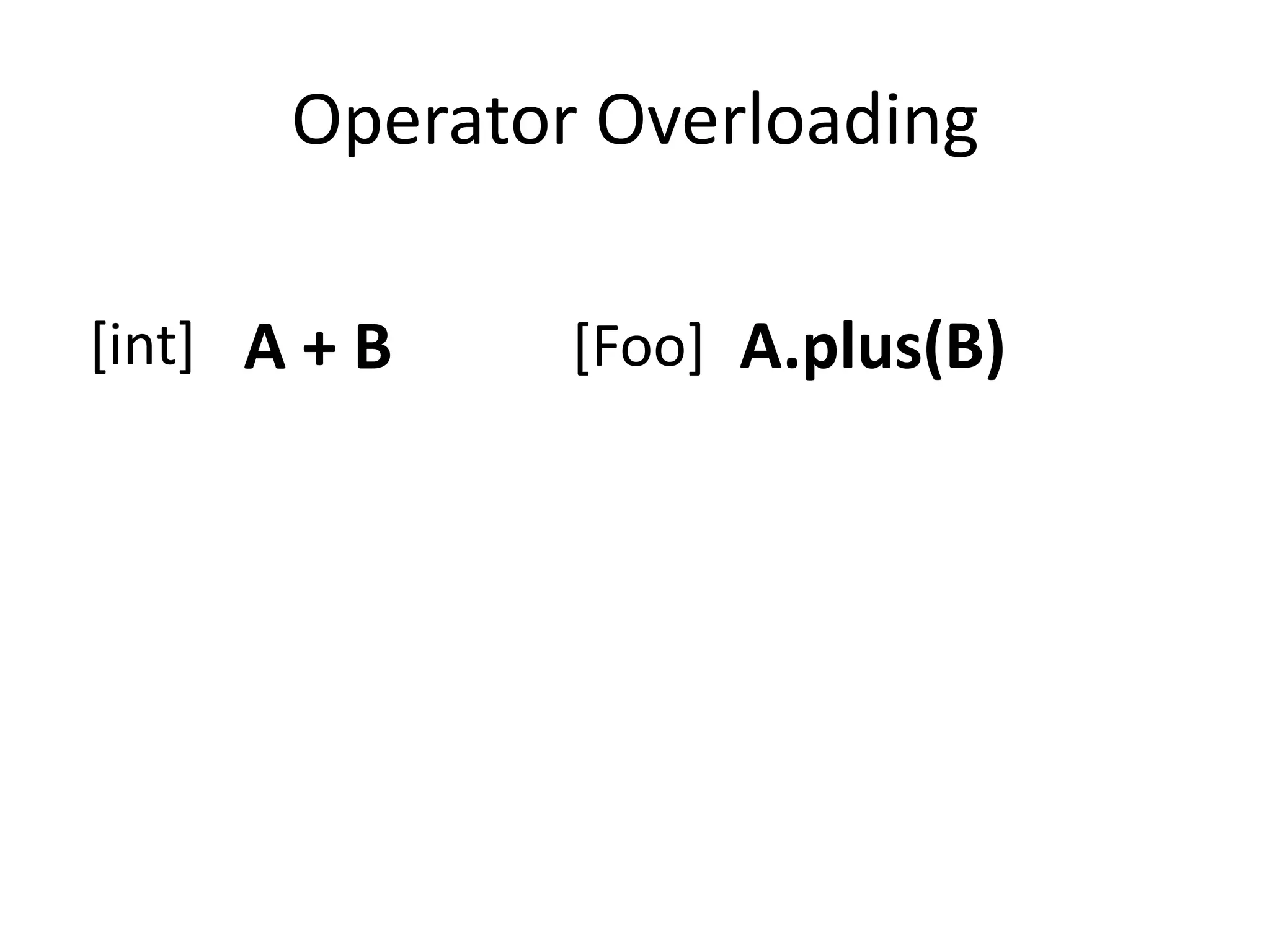

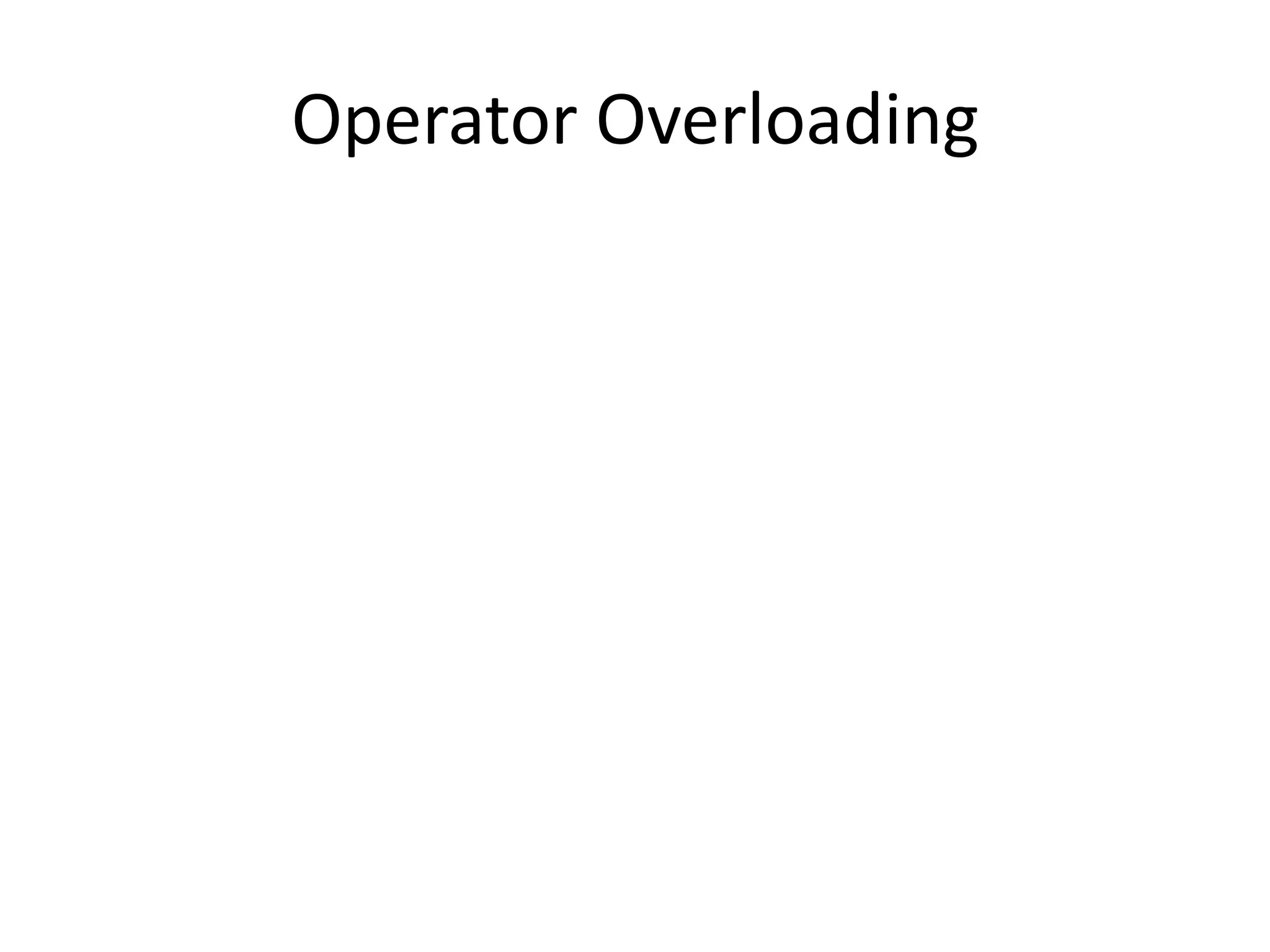

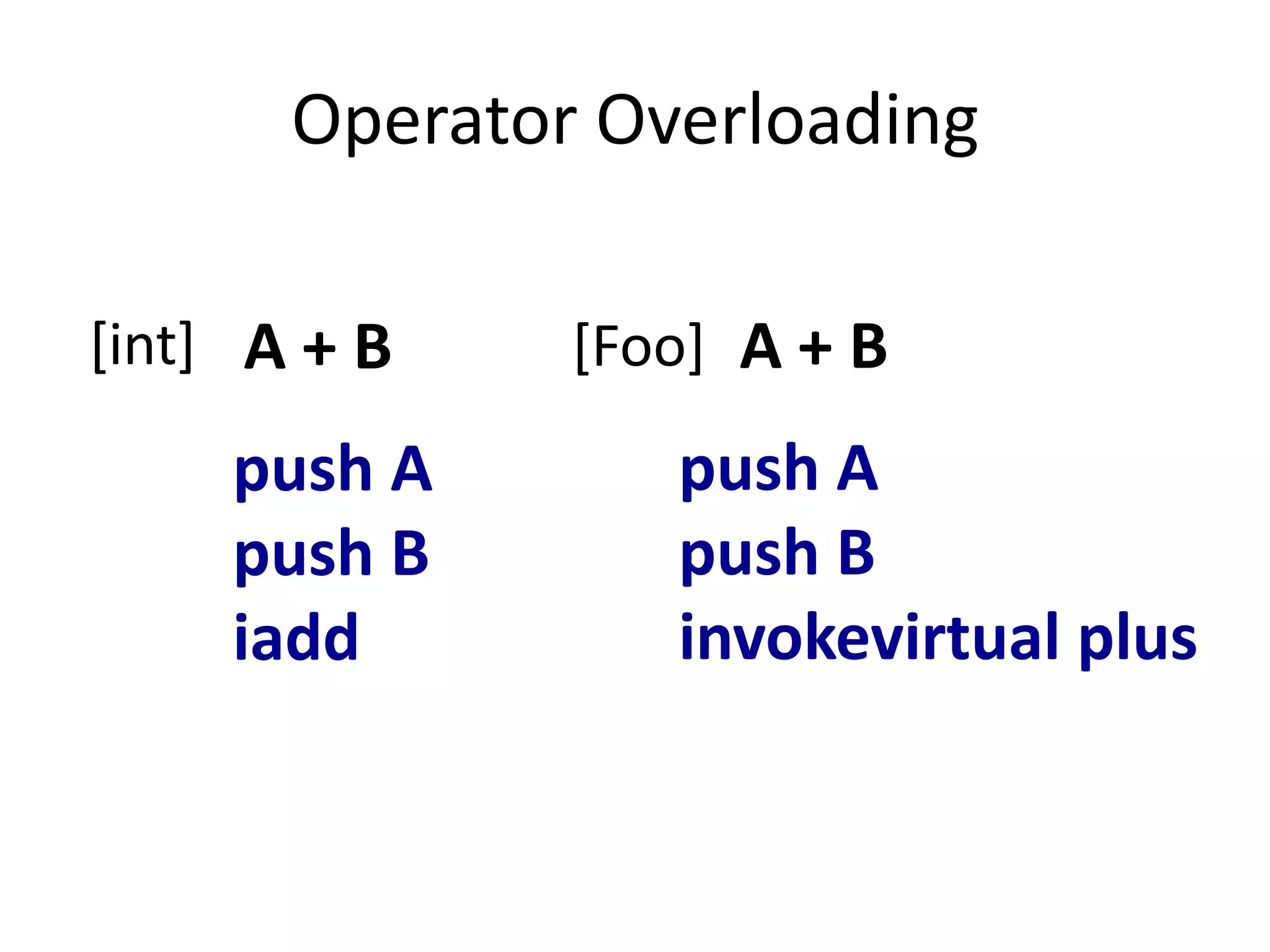

Operator Overloading

[int] A + B [Foo] A.plus(B)


[int] A + B [Foo] A.plus(B)
push A push A
push B push B
iadd invokevirtual plus


[int] A + B [Foo] A + B
push A push A
push B push B
iadd invokevirtual plus

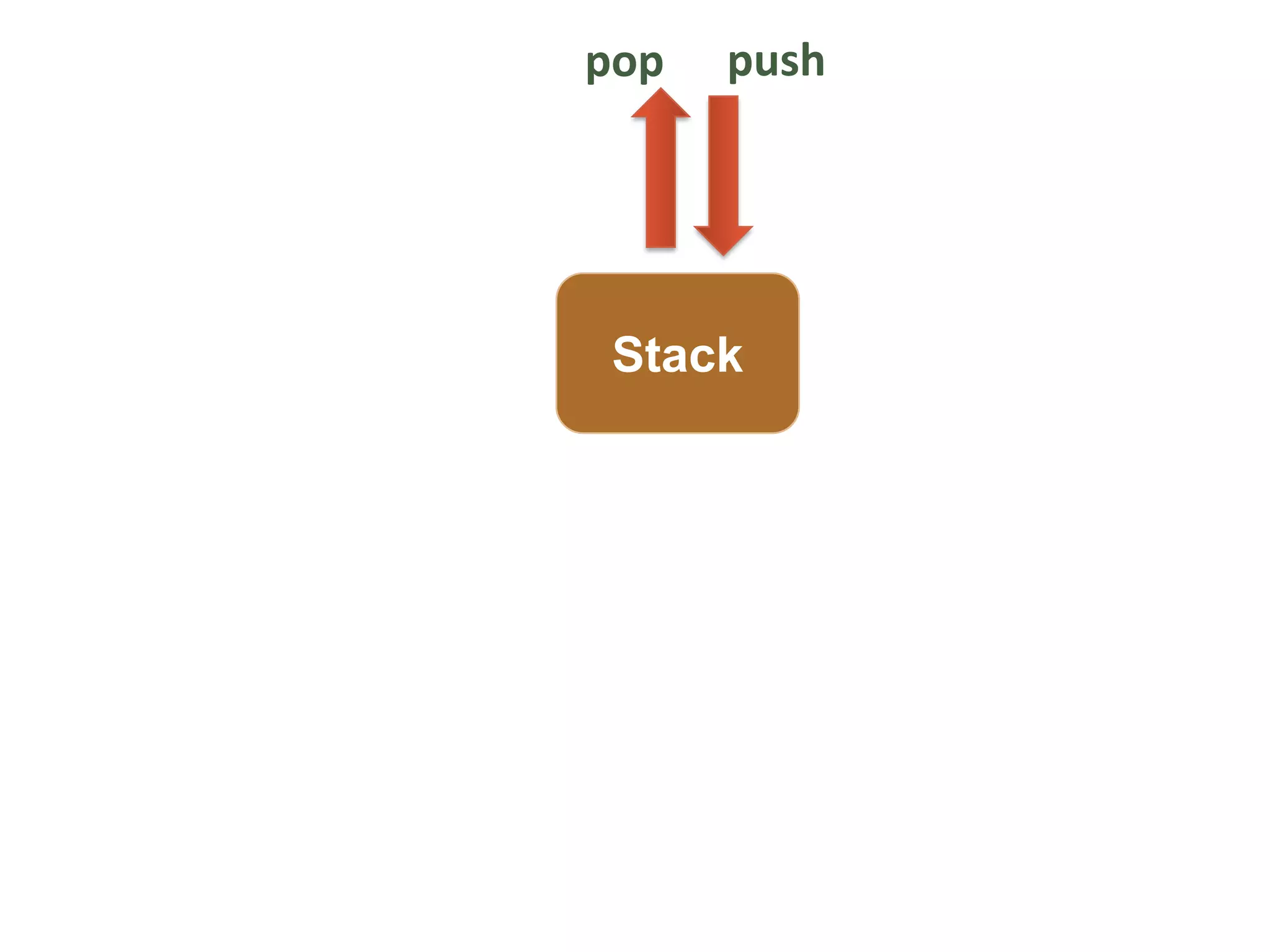

pop push

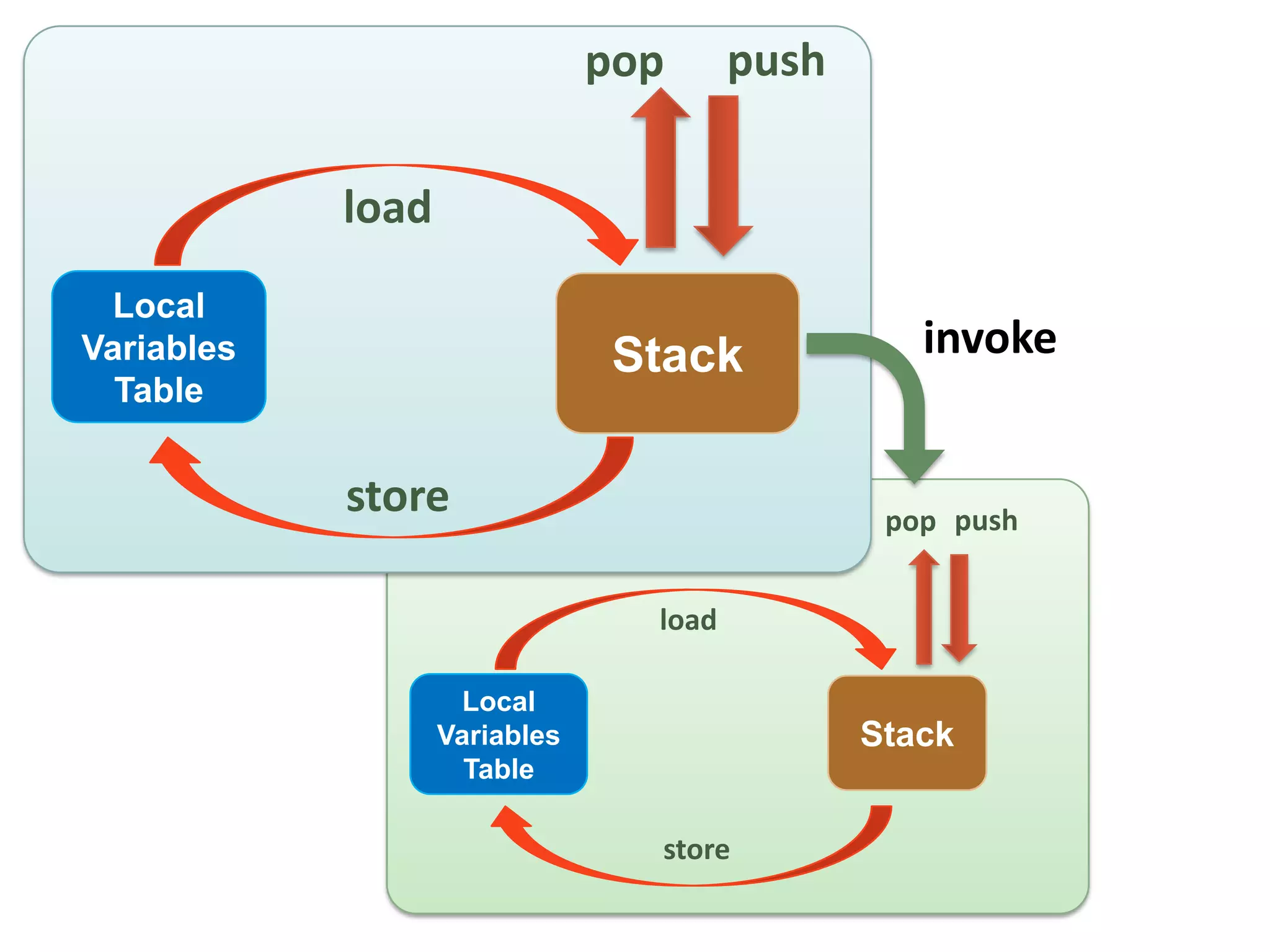

load
Local
Variables Stack
Table

store

pop push

load
Local
Variables Stack invoke
Table

store pop push

load

Local
Variables Stack
Table

store

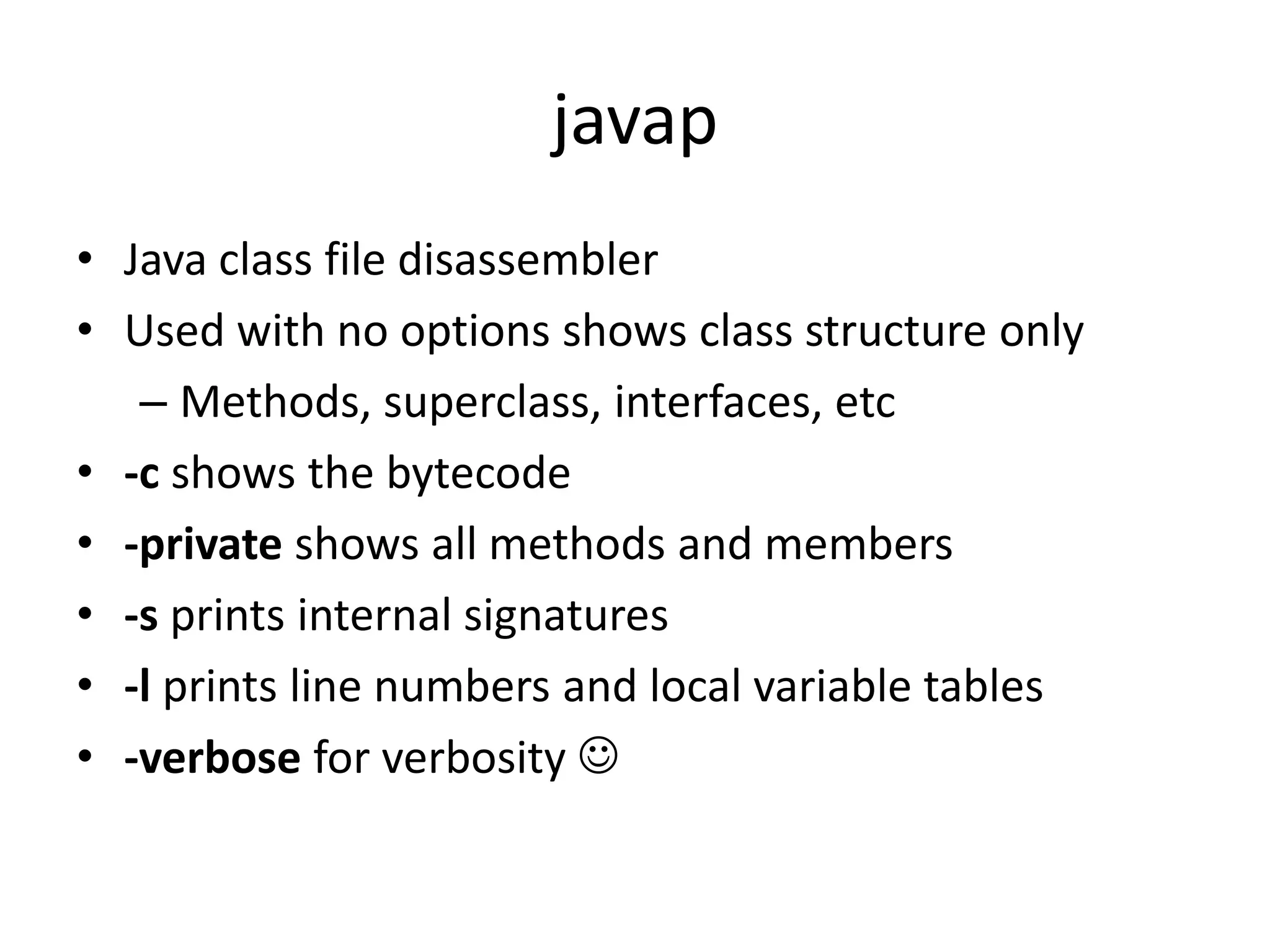

javap
• Java class file disassembler
• Used with no options shows class structure only
– Methods, superclass, interfaces, etc
• -c shows the bytecode
• -private shows all methods and members
• -s prints internal signatures
• -l prints line numbers and local variable tables
• -verbose for verbosity 

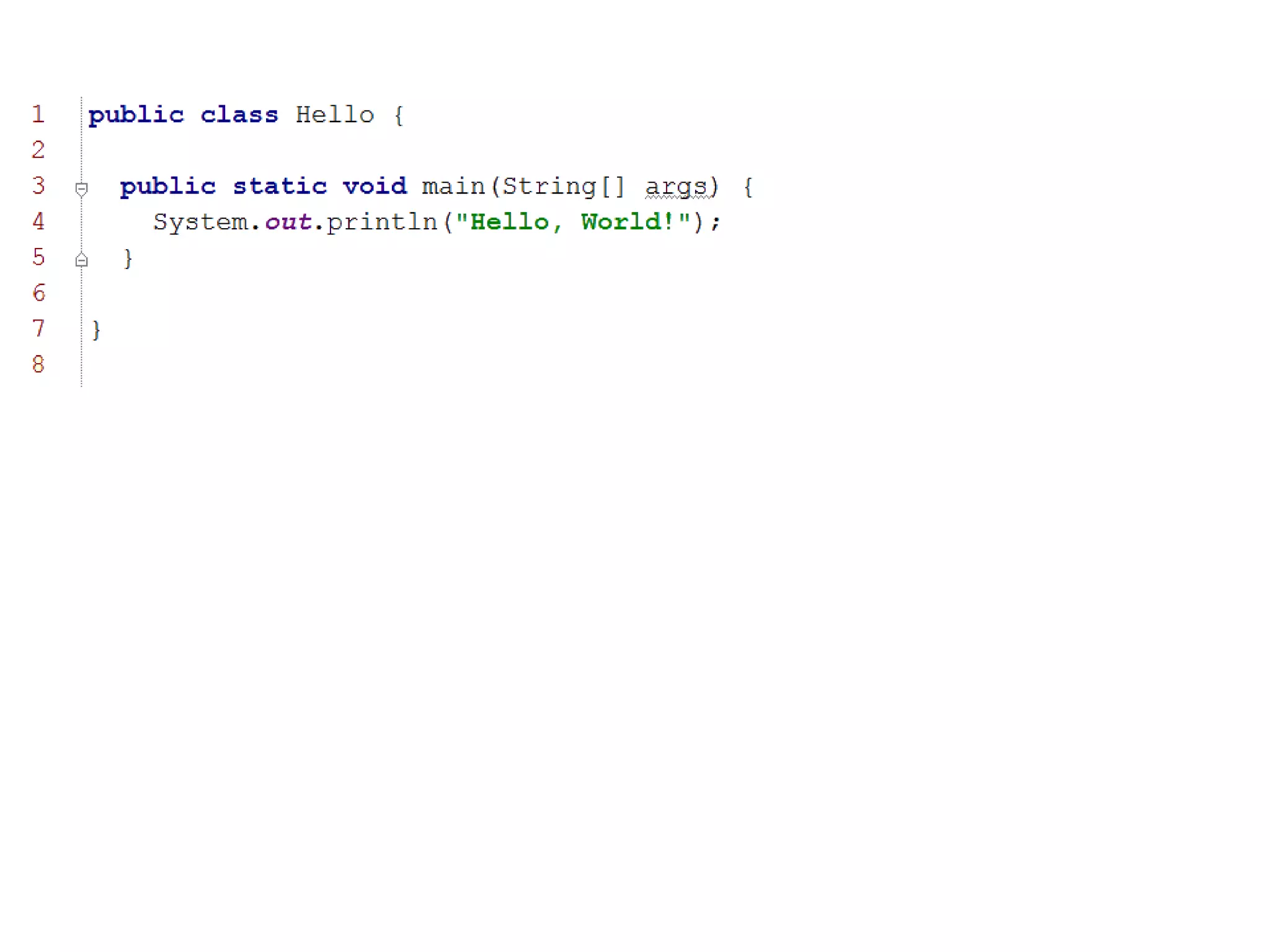

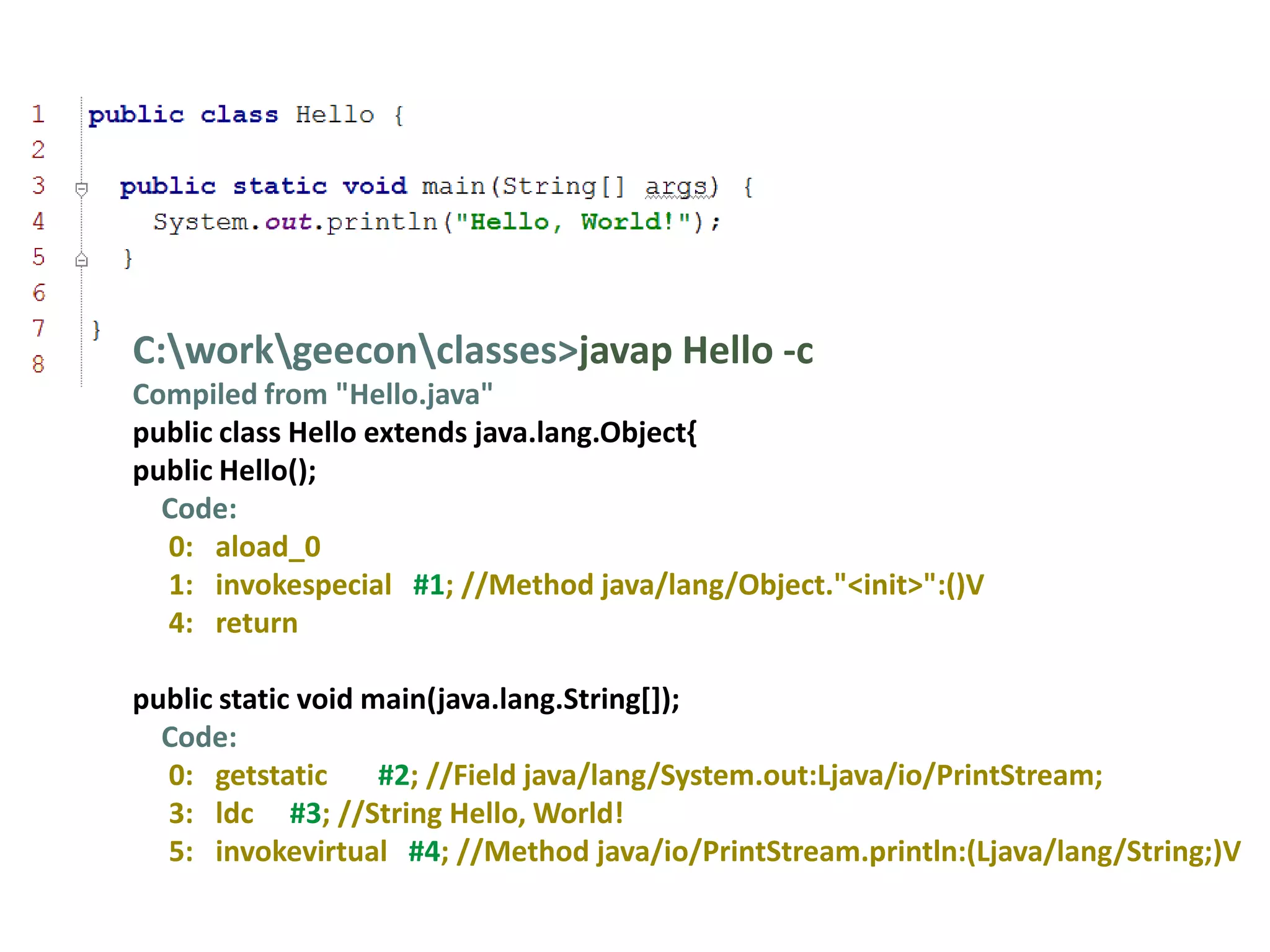

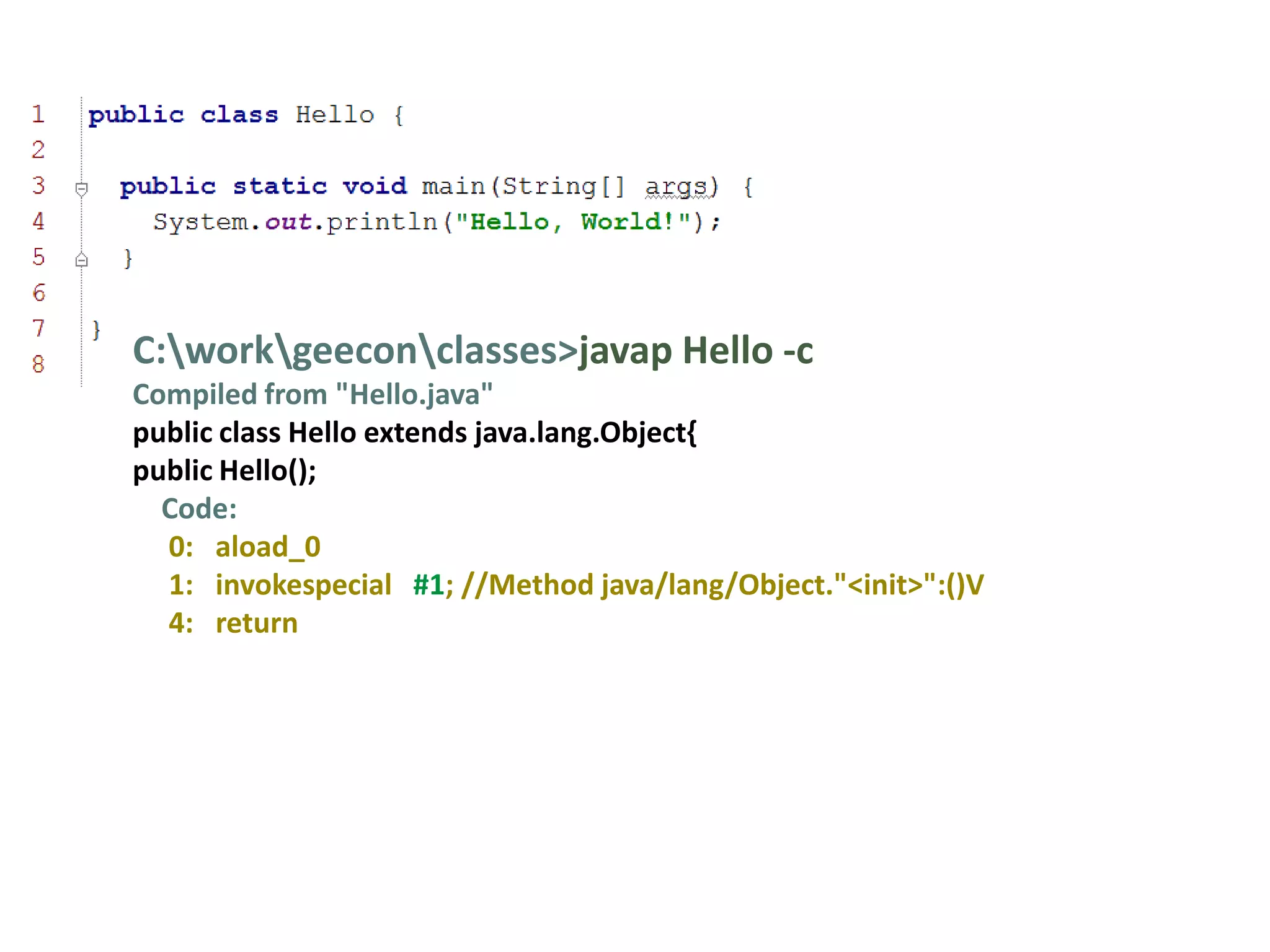

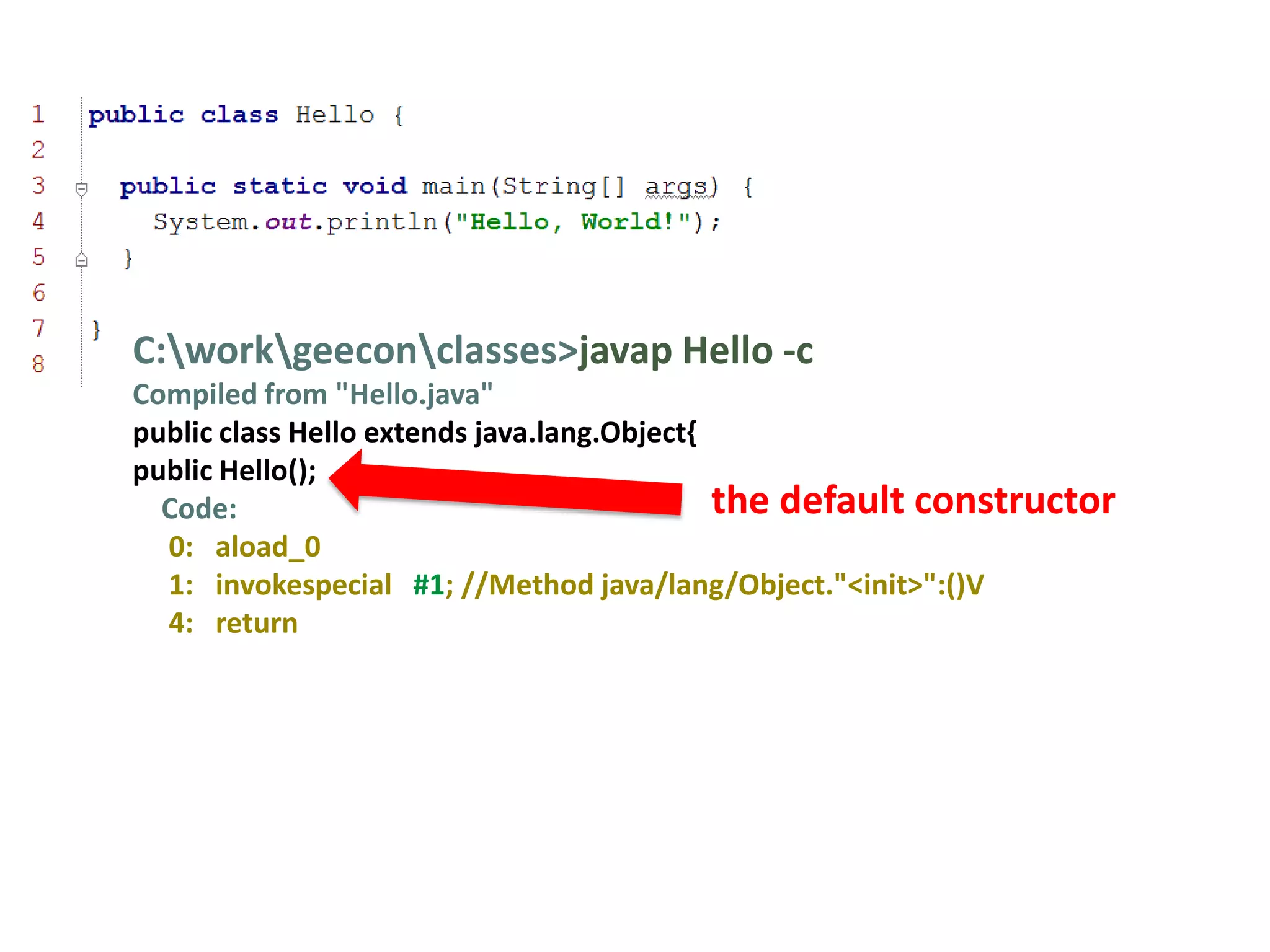

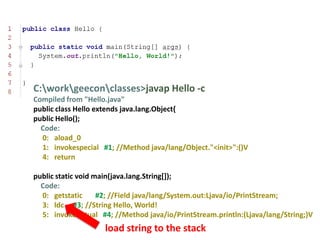

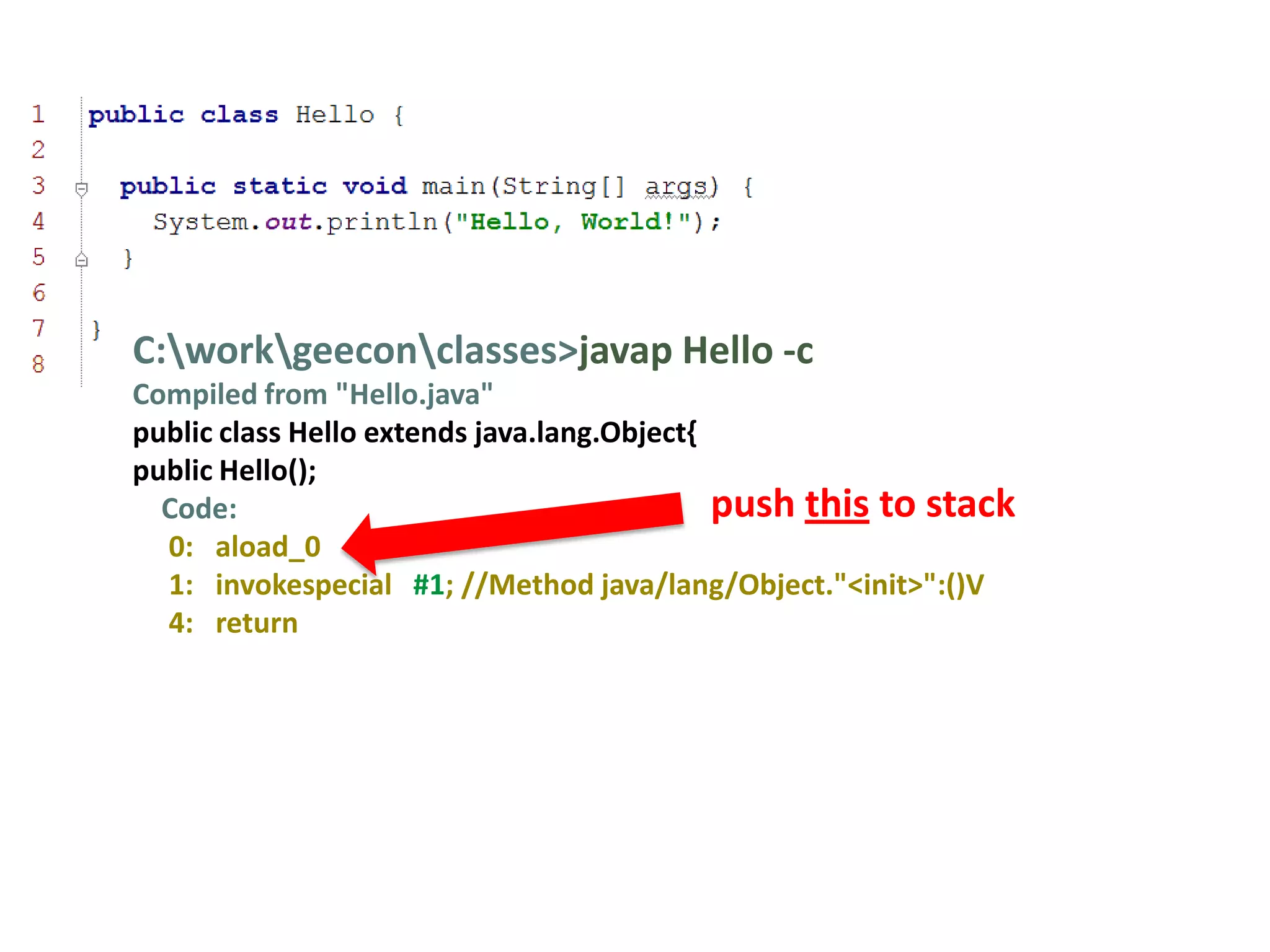

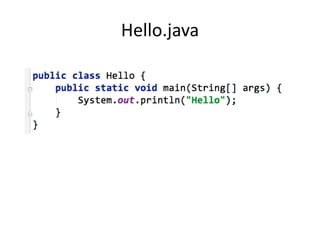

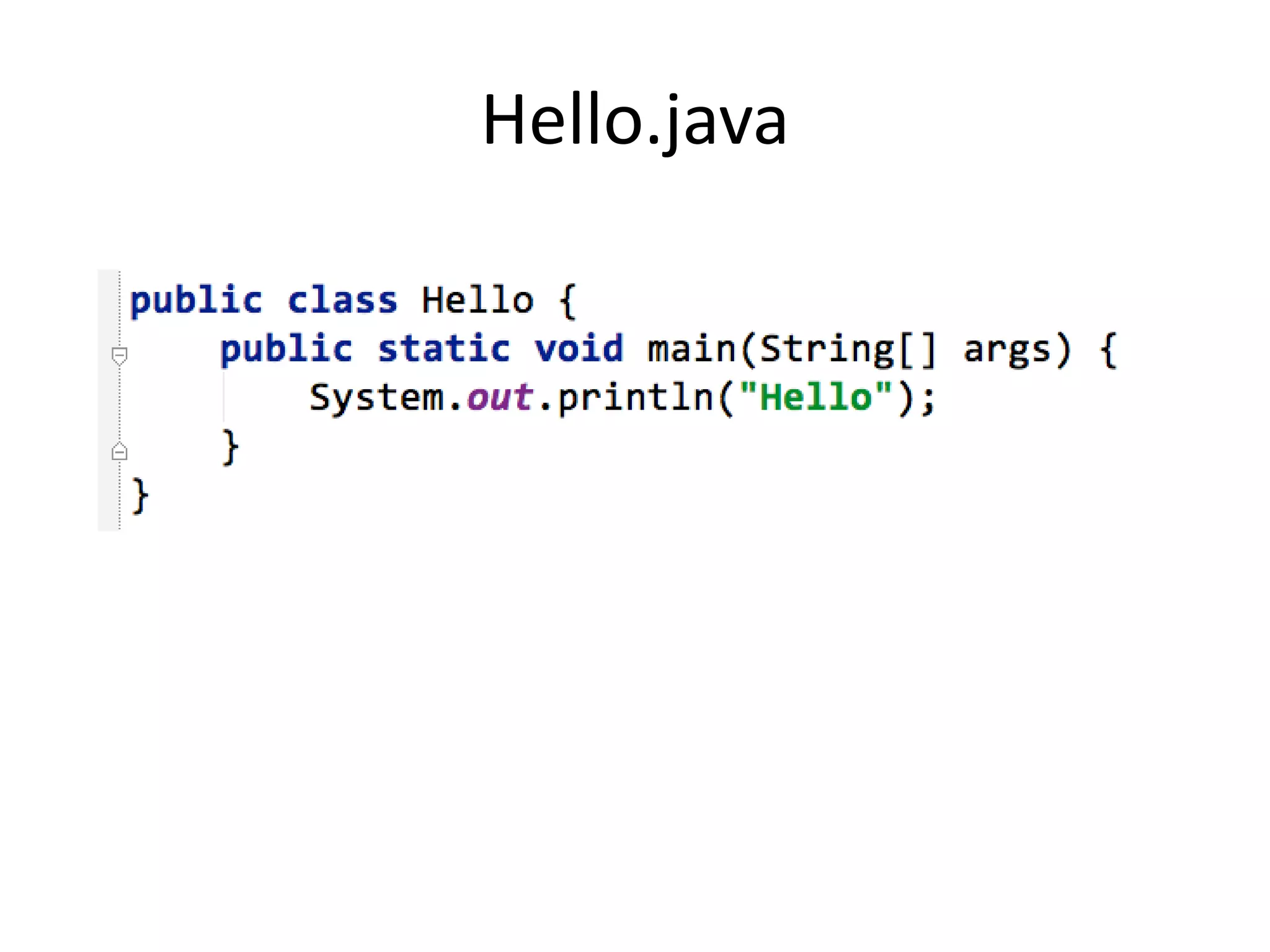

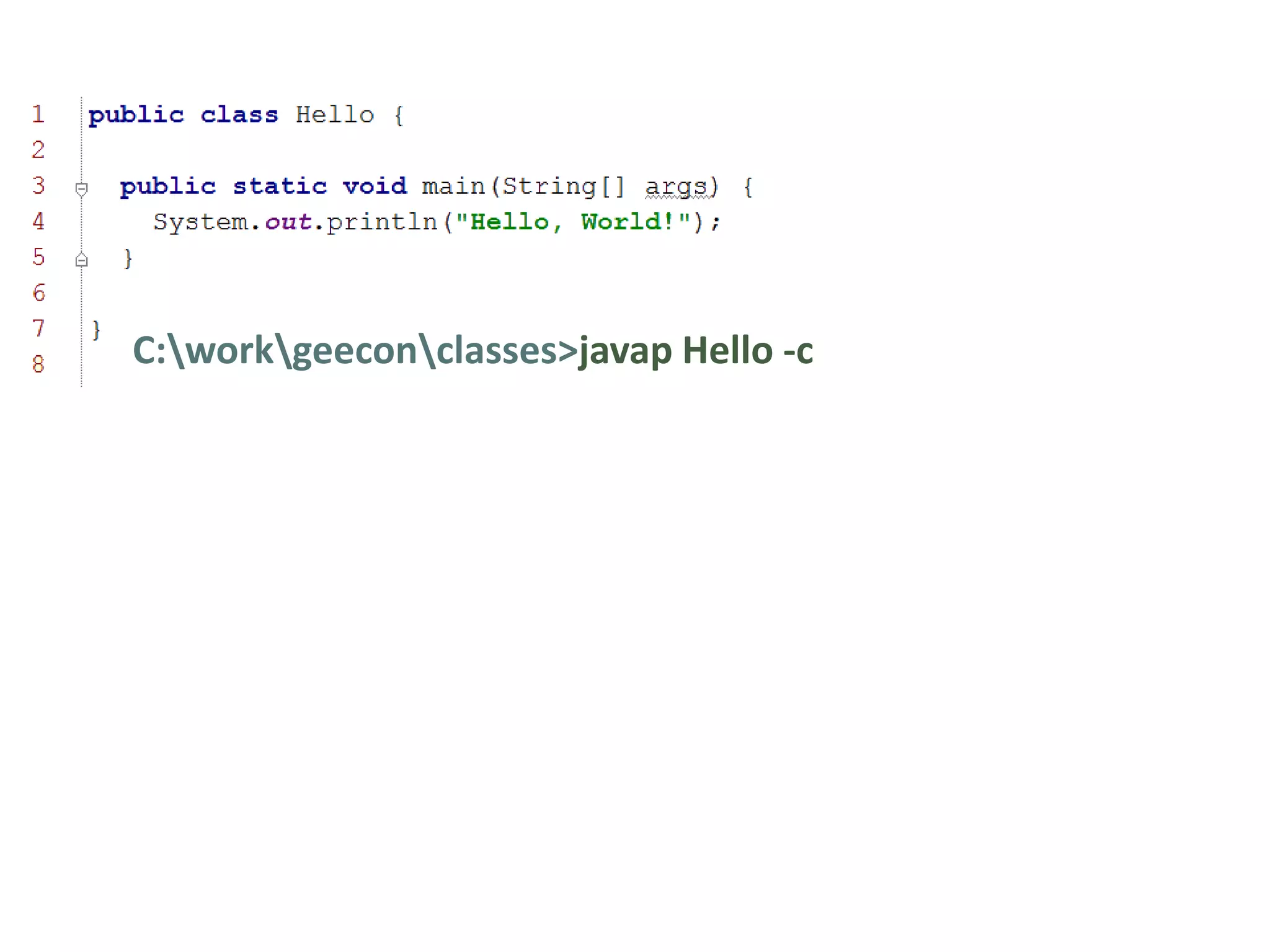

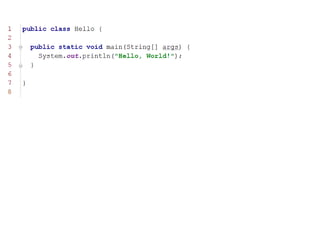

C:workgeeconclasses>javap Hello -c

Compiled from "Hello.java"
public class Hello extends java.lang.Object{

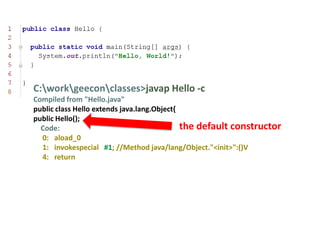

public Hello();
Code: the default constructor
0: aload_0

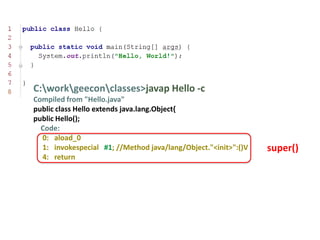

1: invokespecial #1; //Method java/lang/Object."<init>":()V
4: return

public Hello();
Code: push this to stack
0: aload_0
4: return

public Hello();
Code:
0: aload_0
4: return

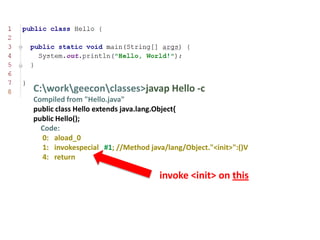

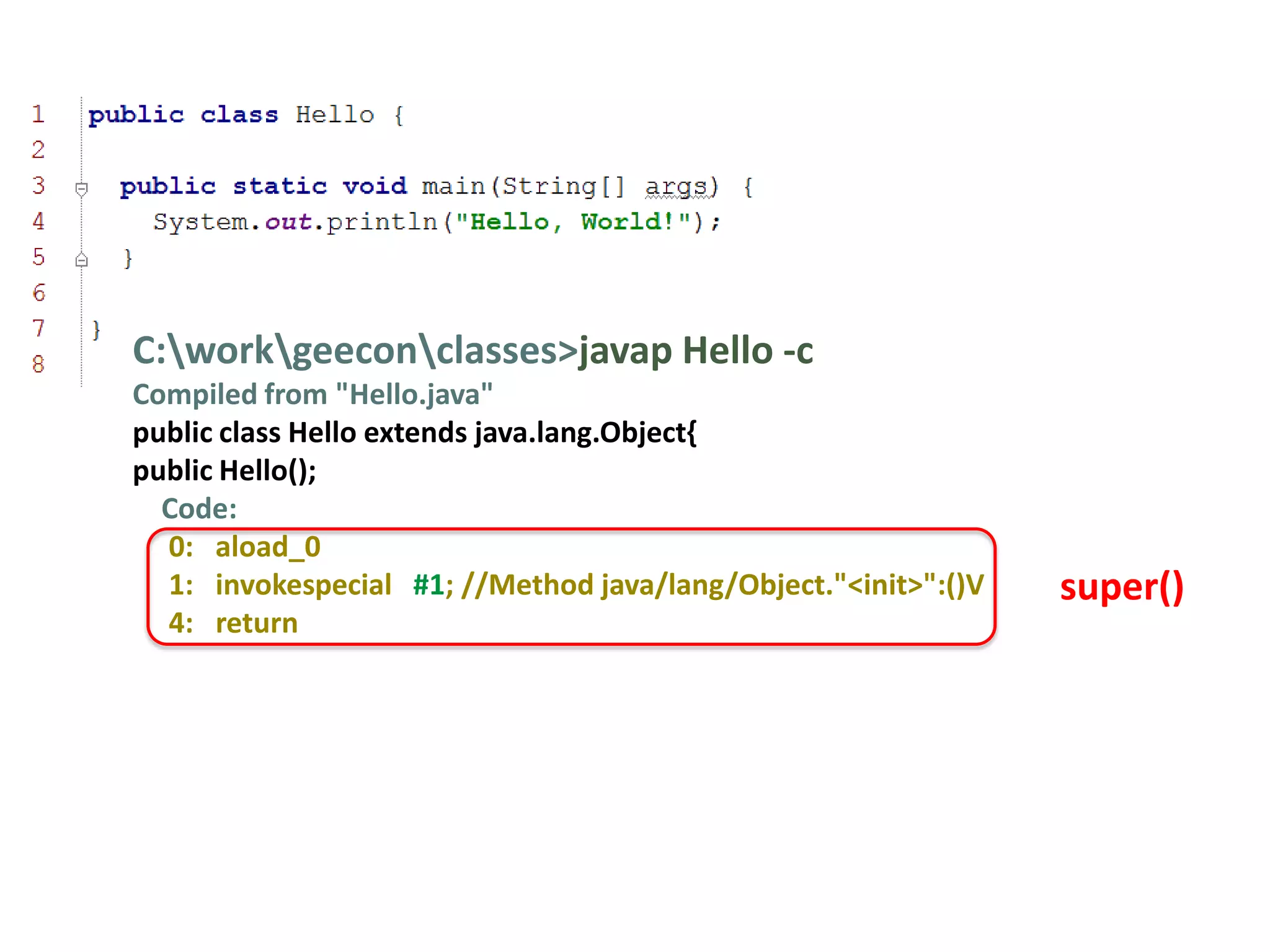

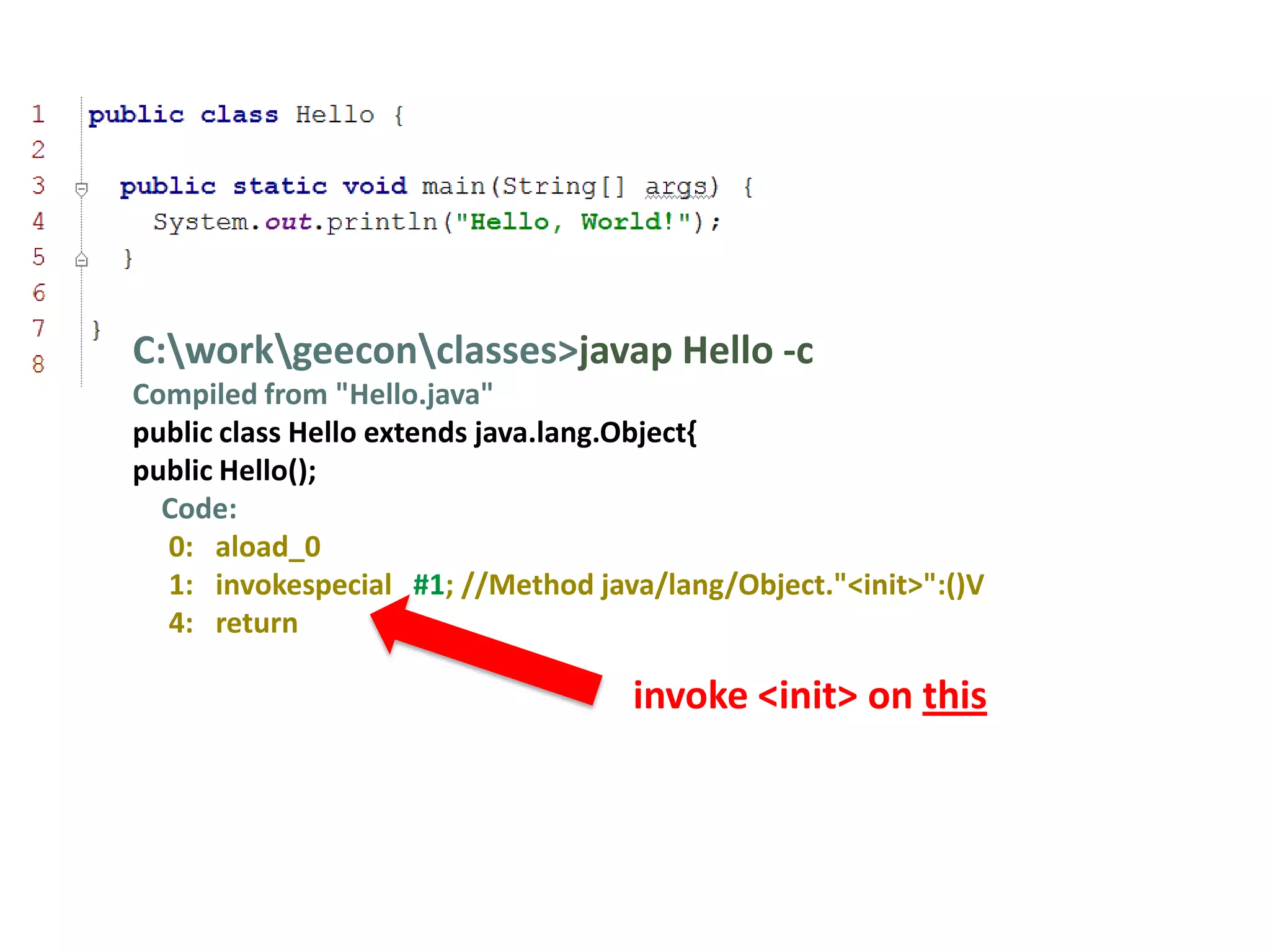

invoke <init> on this

public Hello();
Code:
0: aload_0
1: invokespecial #1; //Method java/lang/Object."<init>":()V super()
4: return

public Hello();
Code:
0: aload_0
4: return

public Hello();
Code:
0: aload_0
4: return

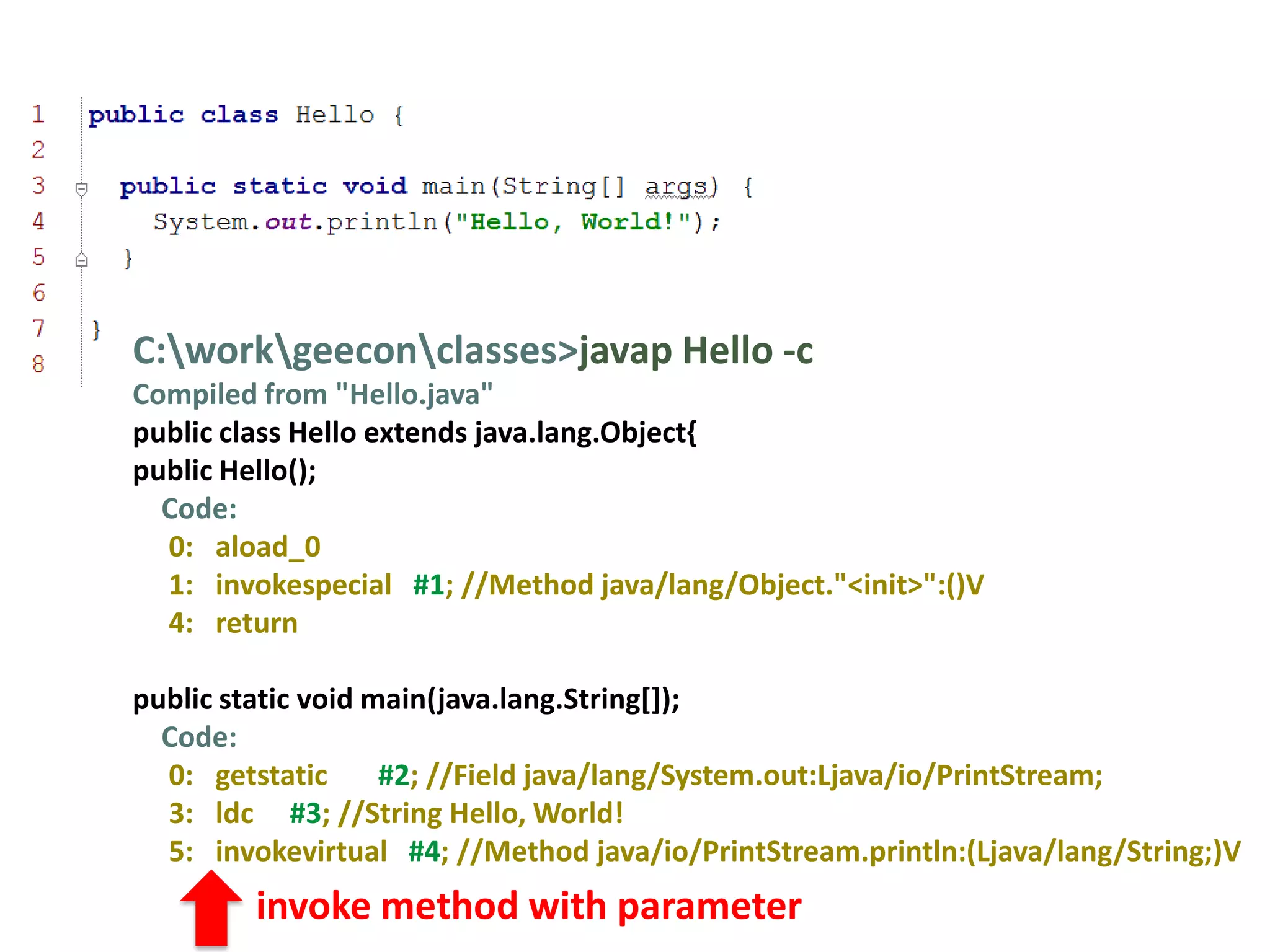

public static void main(java.lang.String[]);
Code:
0: getstatic #2; //Field java/lang/System.out:Ljava/io/PrintStream;

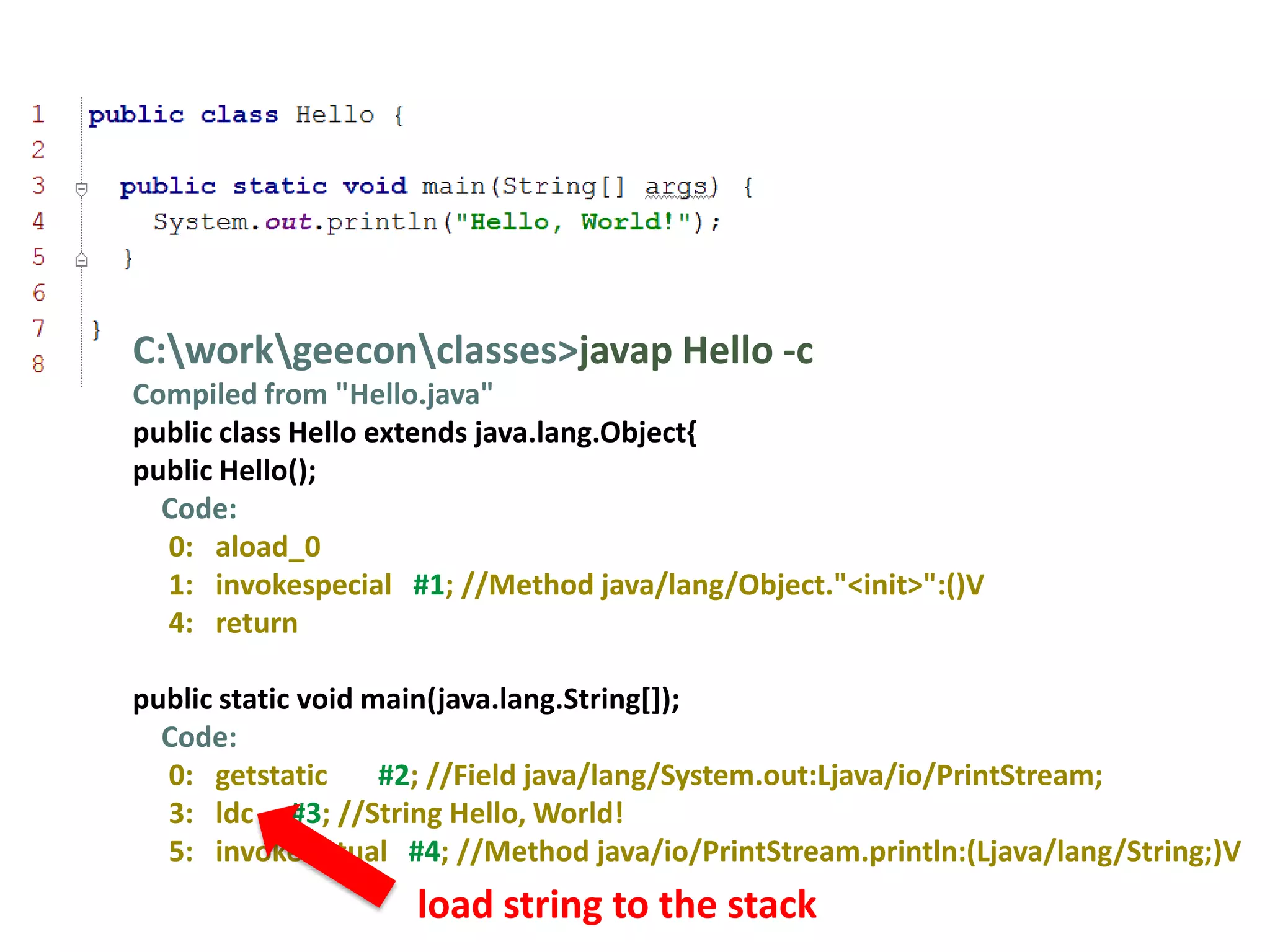

3: ldc #3; //String Hello, World!
5: invokevirtual #4; //Method java/io/PrintStream.println:(Ljava/lang/String;)V

public Hello();
Code:
0: aload_0
4: return

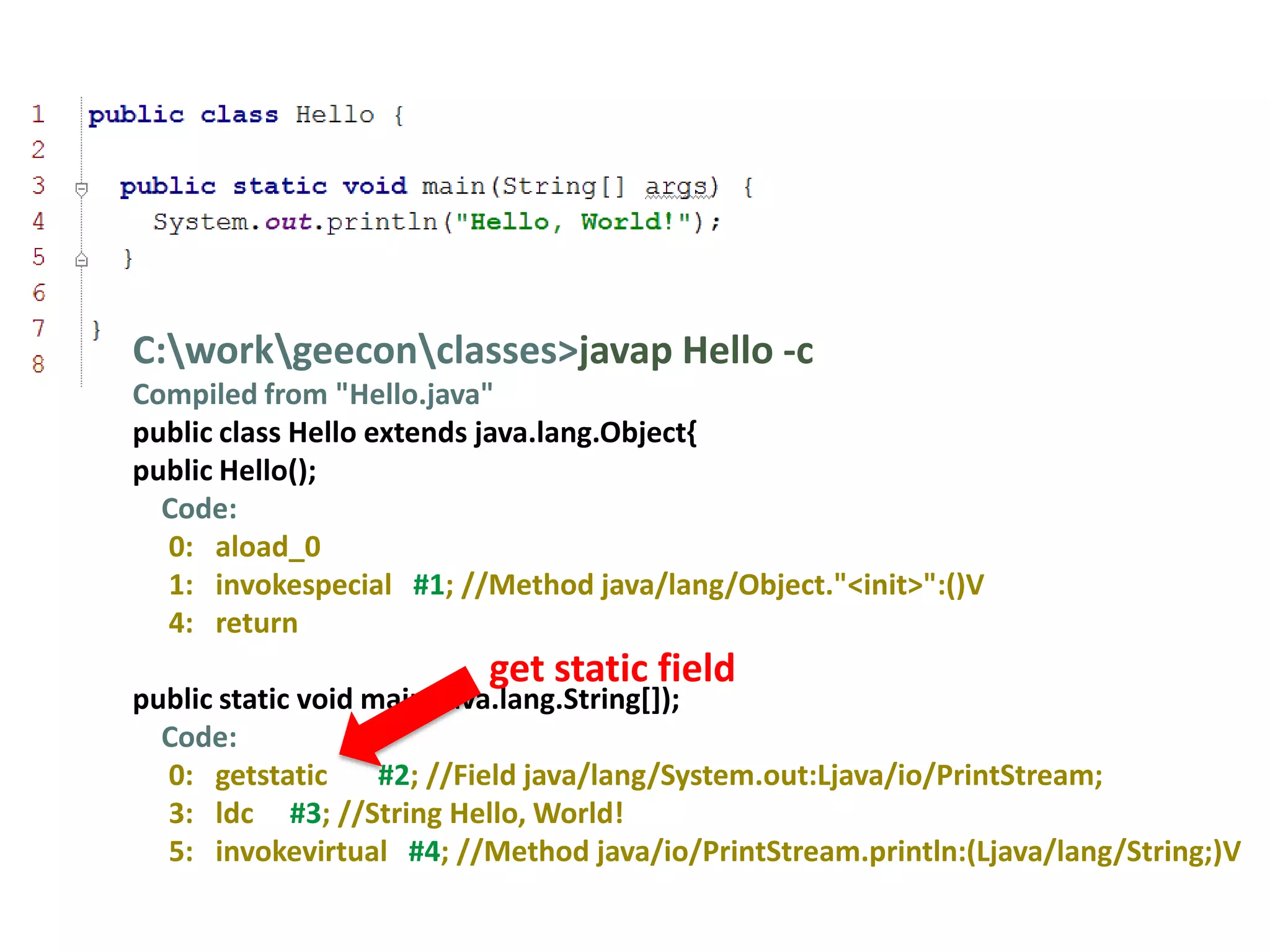

get static field
Code:

public Hello();
Code:
0: aload_0
4: return

Code:
load string to the stack

public Hello();
Code:
0: aload_0
4: return

Code:
invoke method with parameter

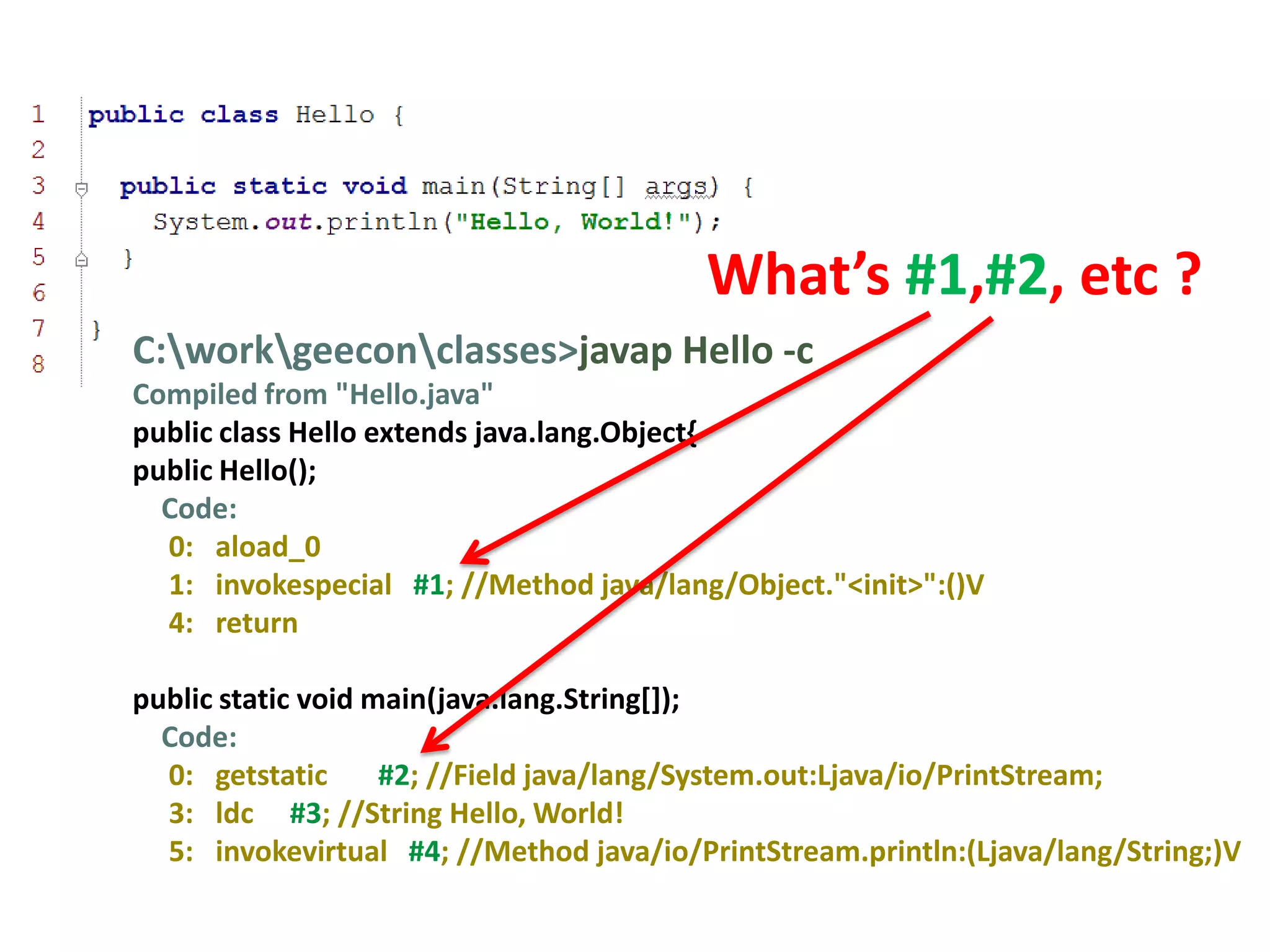

What’s #1,#2, etc ?
public Hello();
Code:
0: aload_0
4: return

Code:

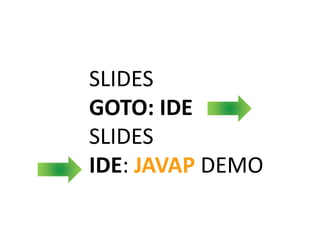

SLIDES
GOTO: IDE
SLIDES
IDE: JAVAP DEMO

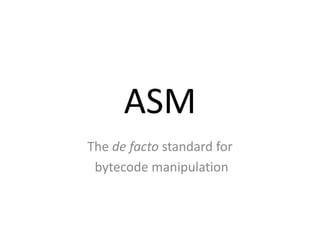

ASM
The de facto standard for
bytecode manipulation

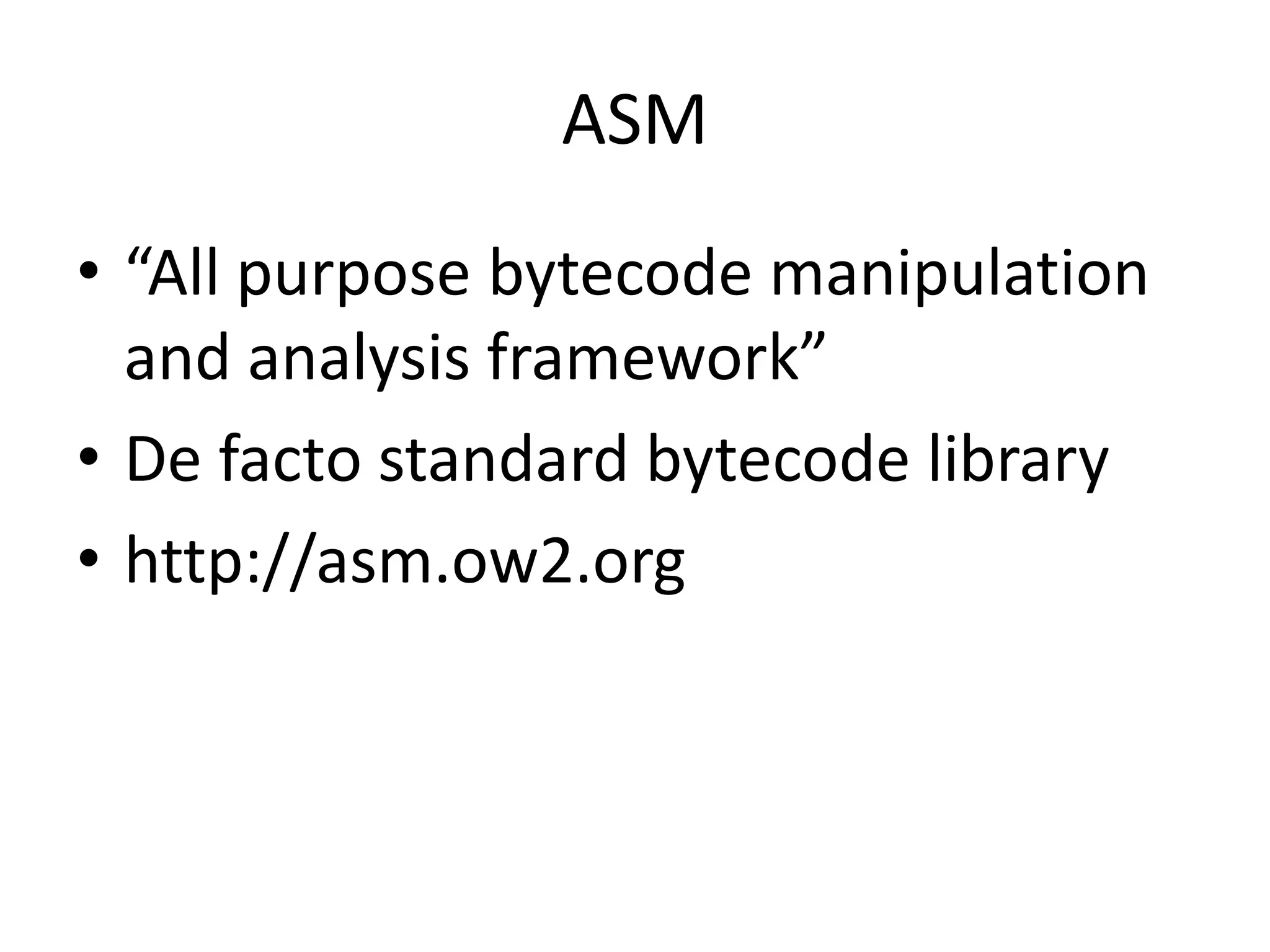

ASM
• “All purpose bytecode manipulation
and analysis framework”
• De facto standard bytecode library
• http://asm.ow2.org

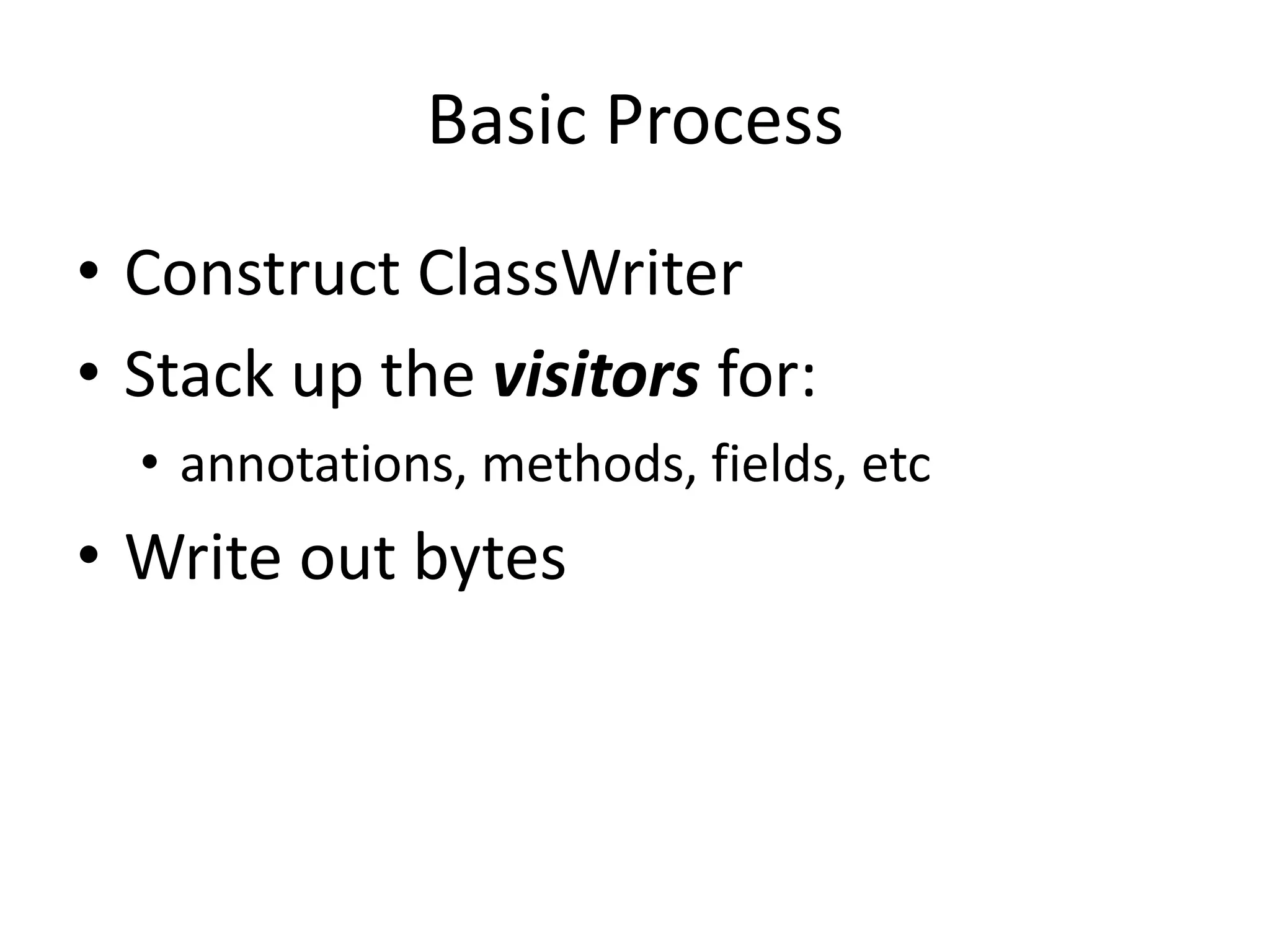

Basic Process
• Construct ClassWriter
• Stack up the visitors for:
• annotations, methods, fields, etc
• Write out bytes

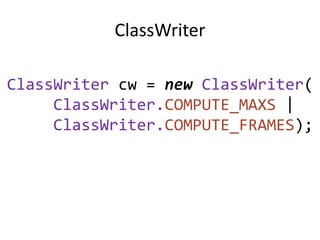

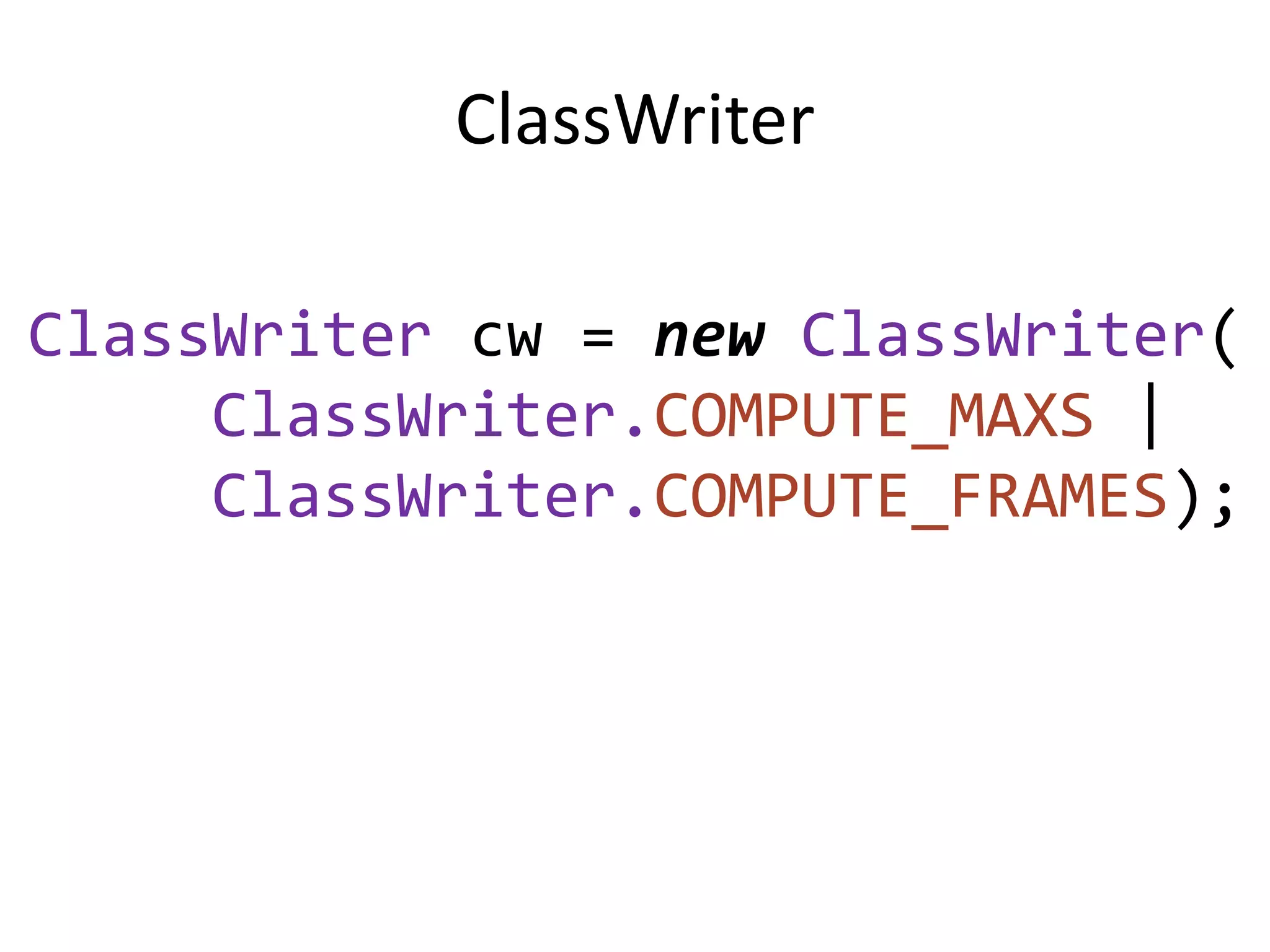

ClassWriter

ClassWriter cw = new ClassWriter(
ClassWriter.COMPUTE_MAXS |
ClassWriter.COMPUTE_FRAMES);

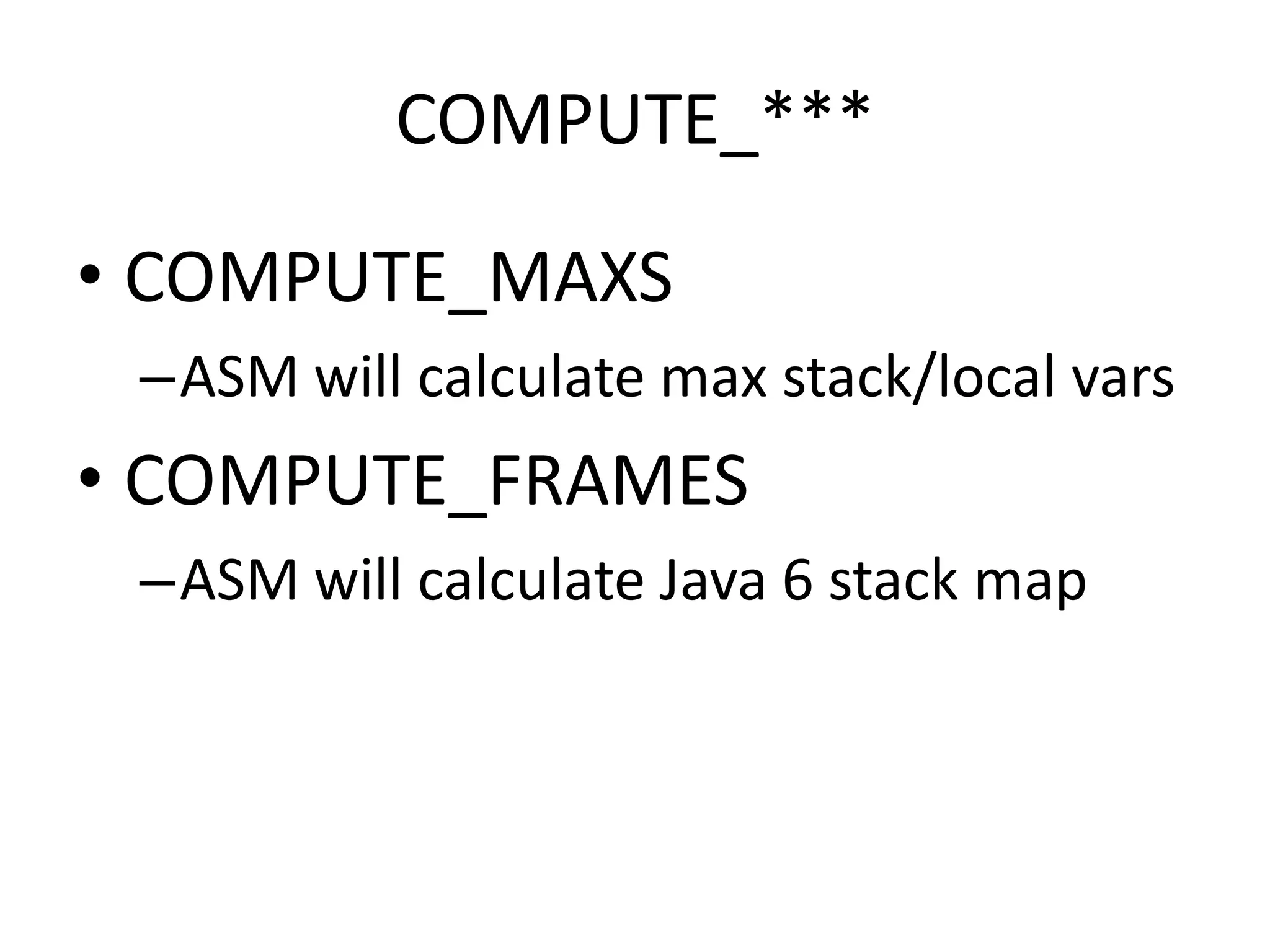

COMPUTE_***

• COMPUTE_MAXS
–ASM will calculate max stack/local vars
• COMPUTE_FRAMES
–ASM will calculate Java 6 stack map

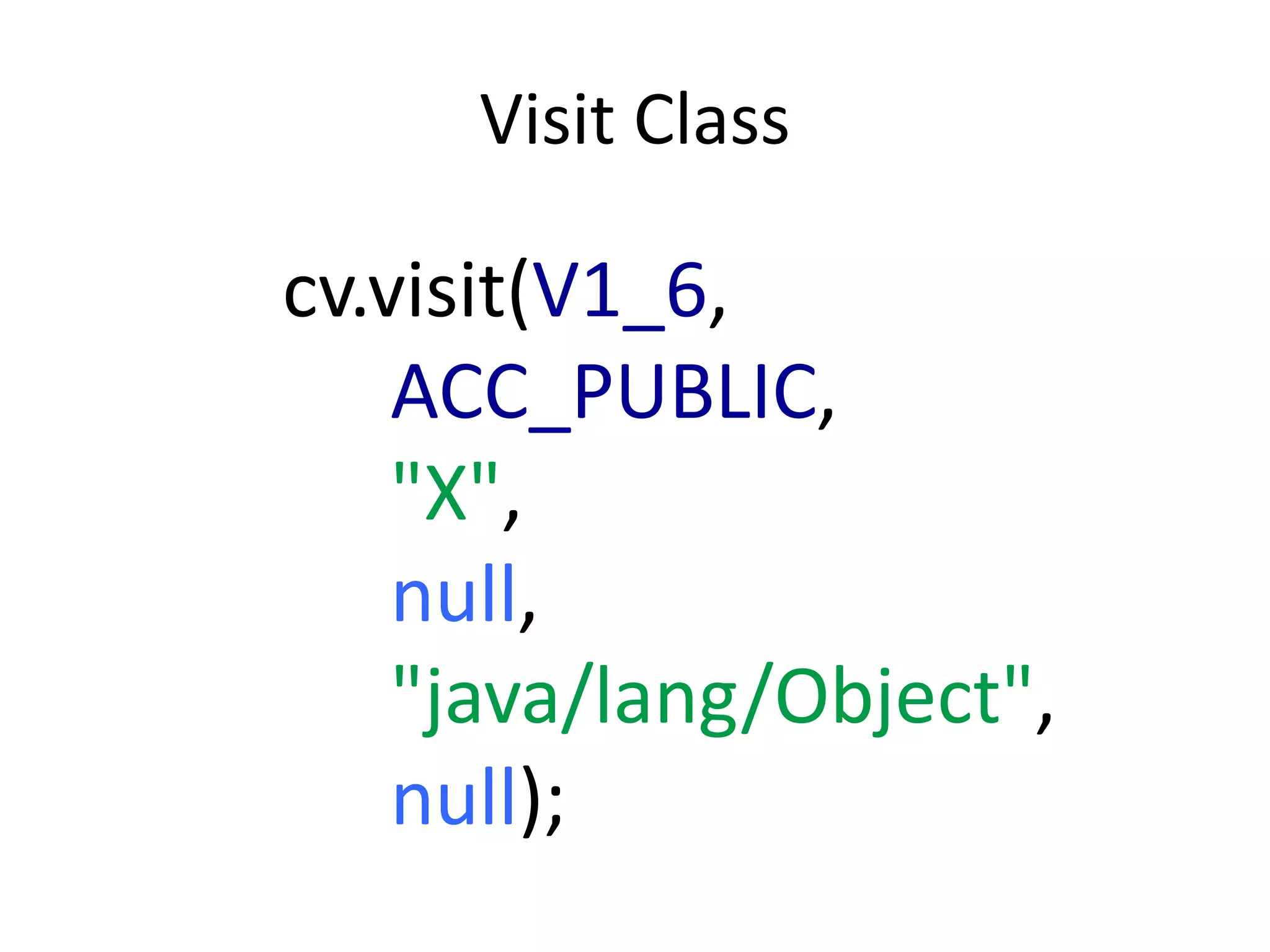

Visit Class

cv.visit(V1_6,
ACC_PUBLIC,
"X",
null,
"java/lang/Object",
null);

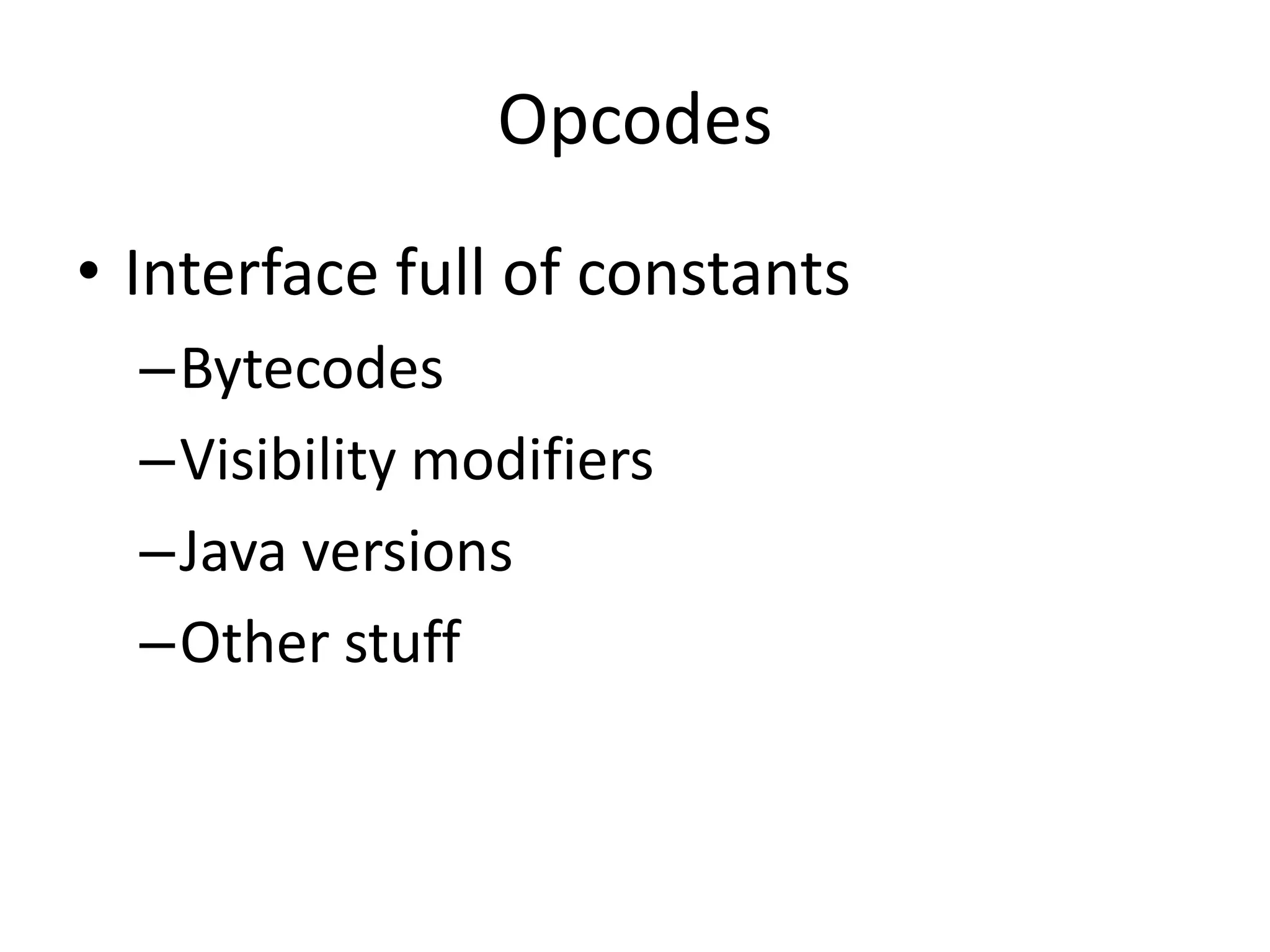

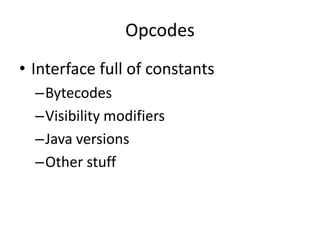

Opcodes
• Interface full of constants
–Bytecodes
–Visibility modifiers
–Java versions
–Other stuff

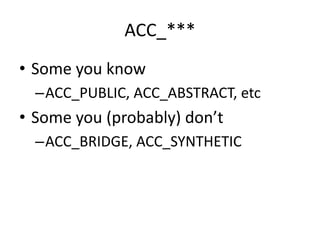

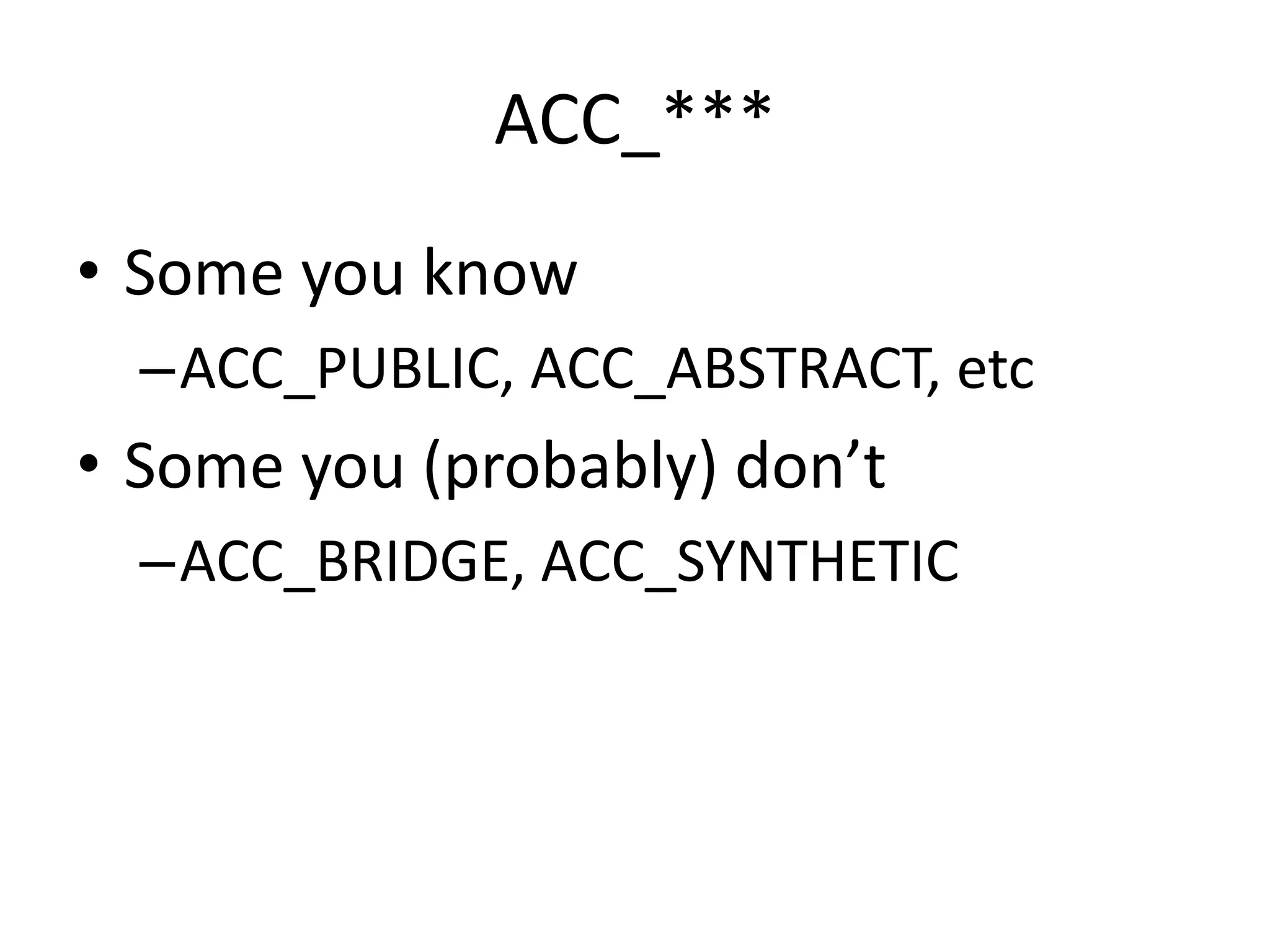

ACC_***
• Some you know
–ACC_PUBLIC, ACC_ABSTRACT, etc
• Some you (probably) don’t
–ACC_BRIDGE, ACC_SYNTHETIC

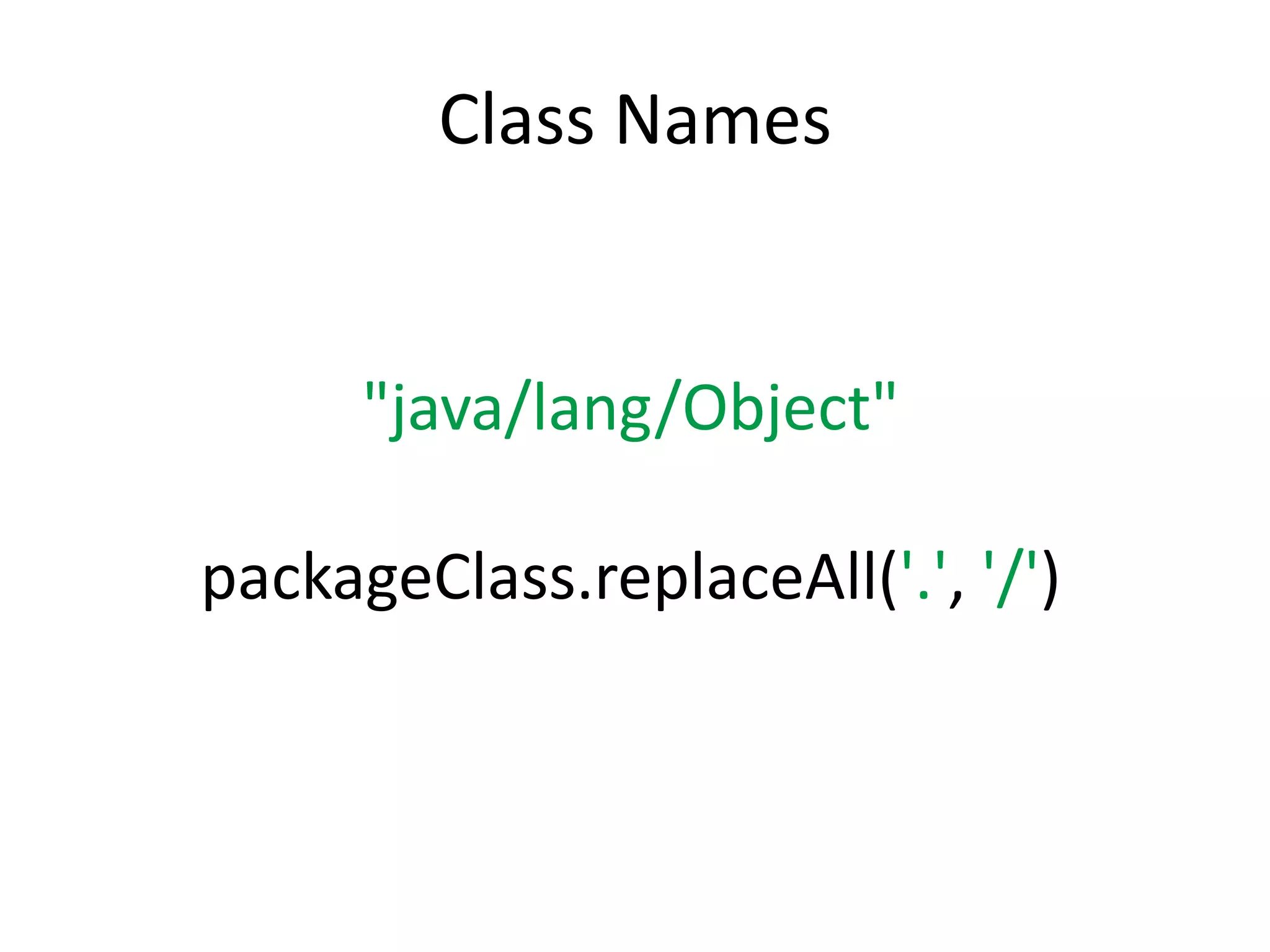

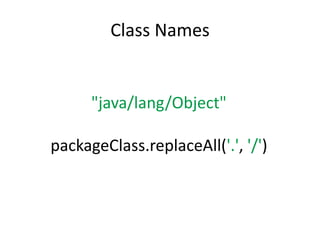

Class Names

"java/lang/Object"

packageClass.replaceAll('.', '/')

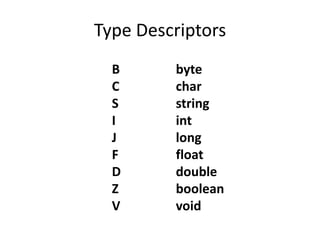

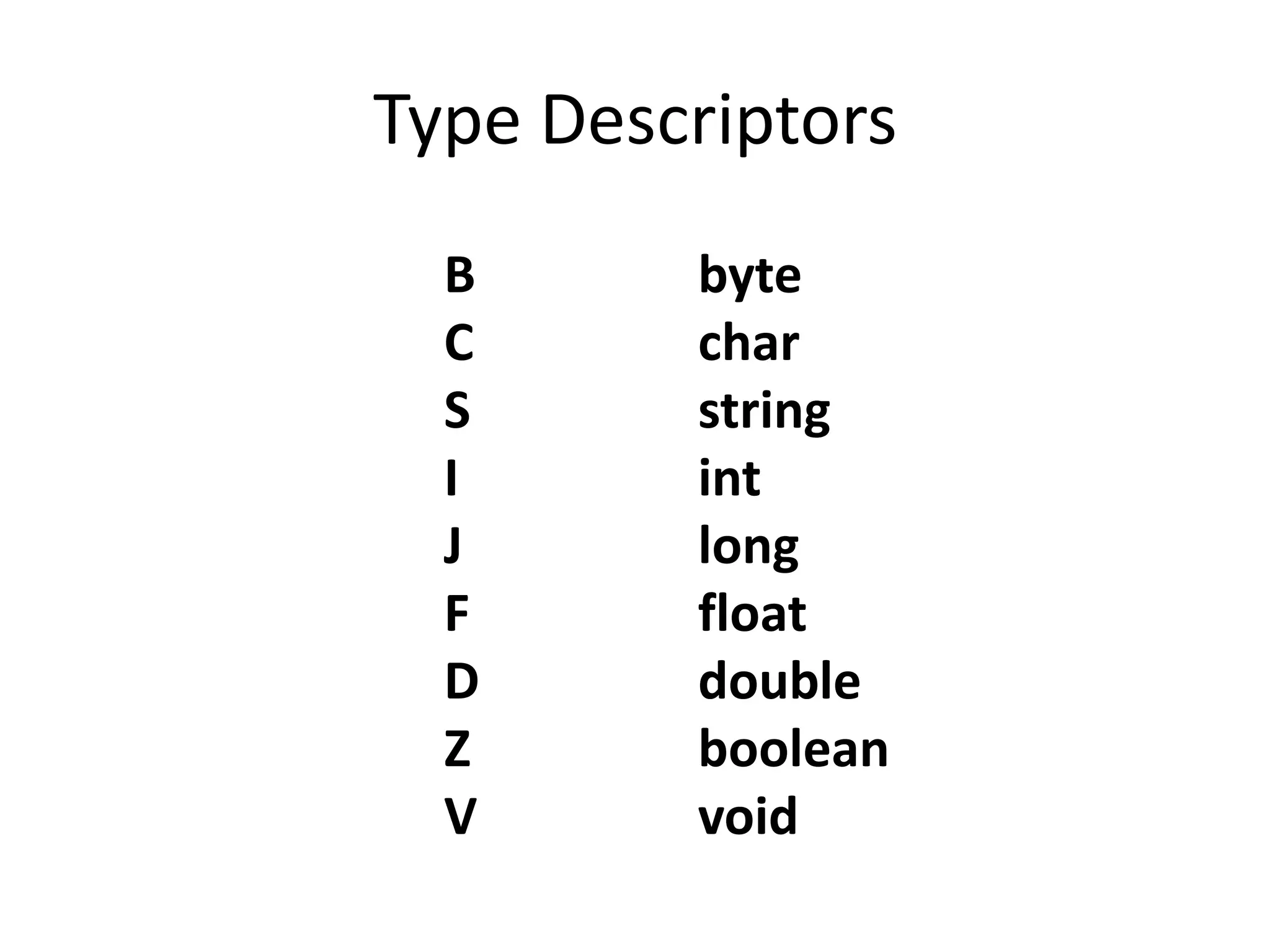

Type Descriptors
B byte
C char
S string
I int
J long
F float
D double
Z boolean
V void

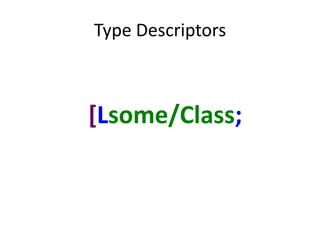

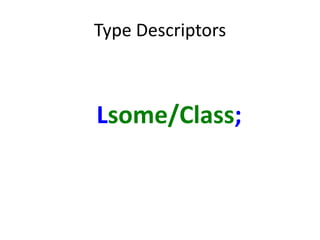

Type Descriptors

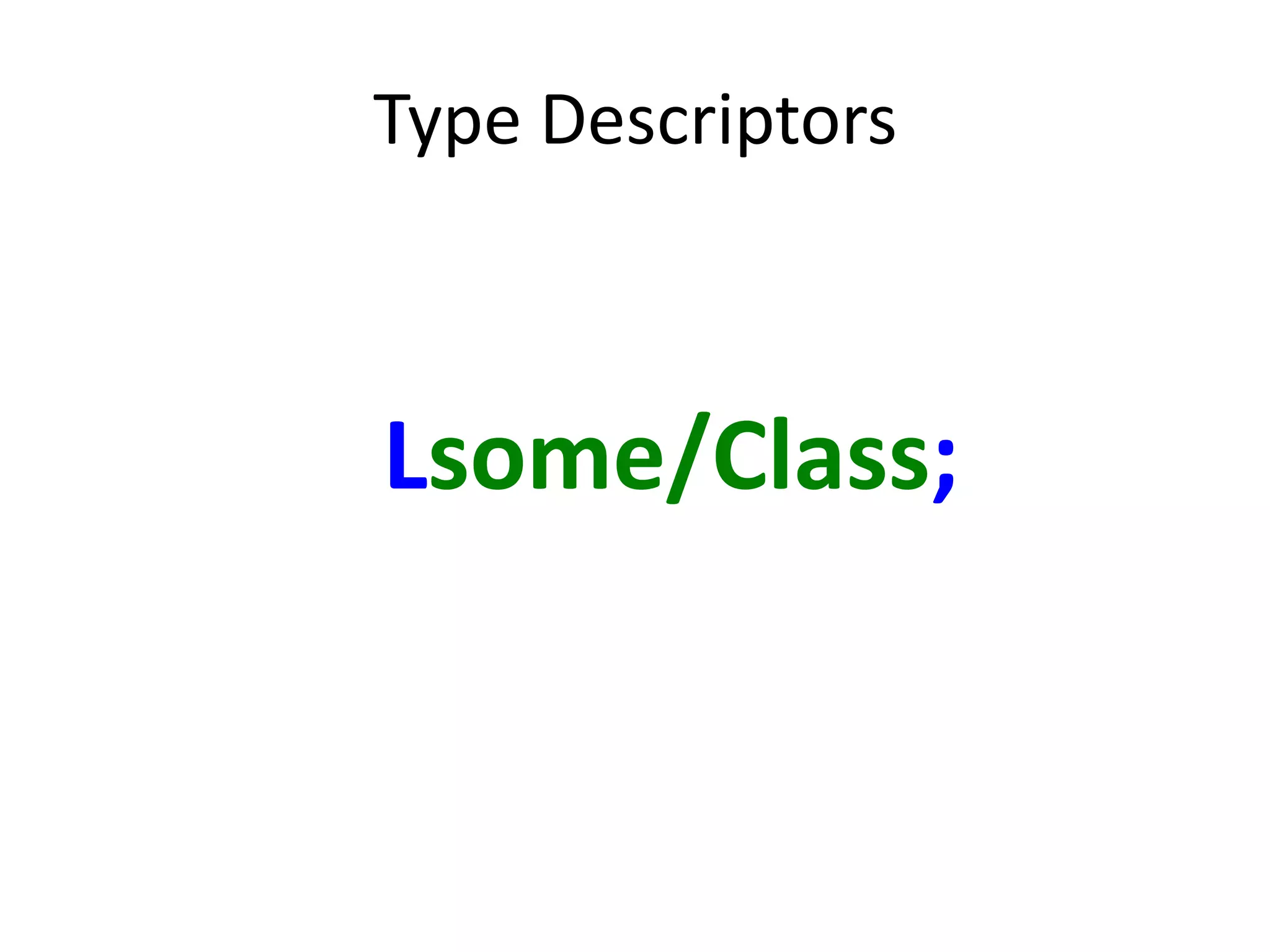

Lsome/Class;

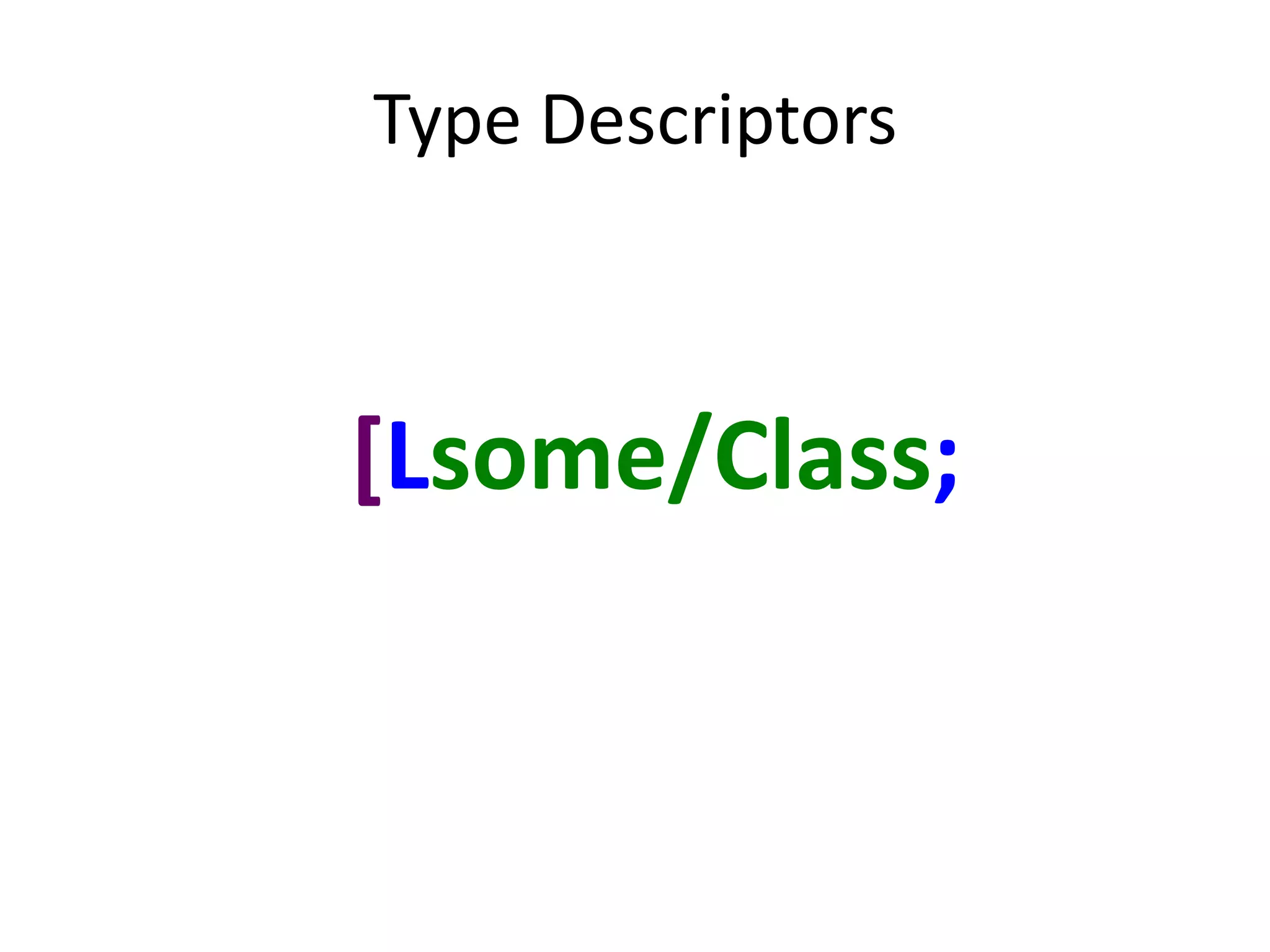

Type Descriptors

[Lsome/Class;

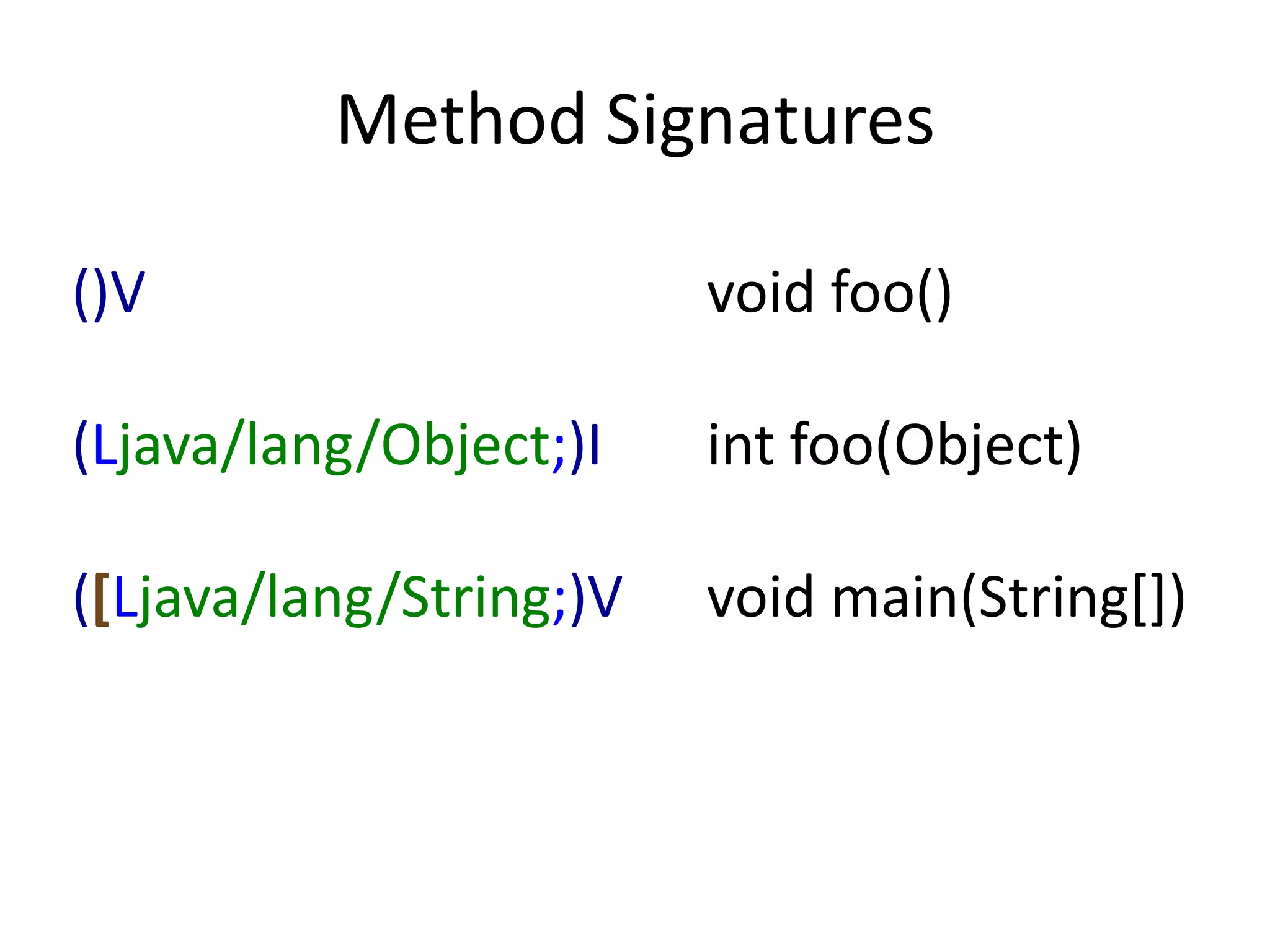

Method Signatures

()V void foo()

(Ljava/lang/Object;)I int foo(Object)

([Ljava/lang/String;)V void main(String[])

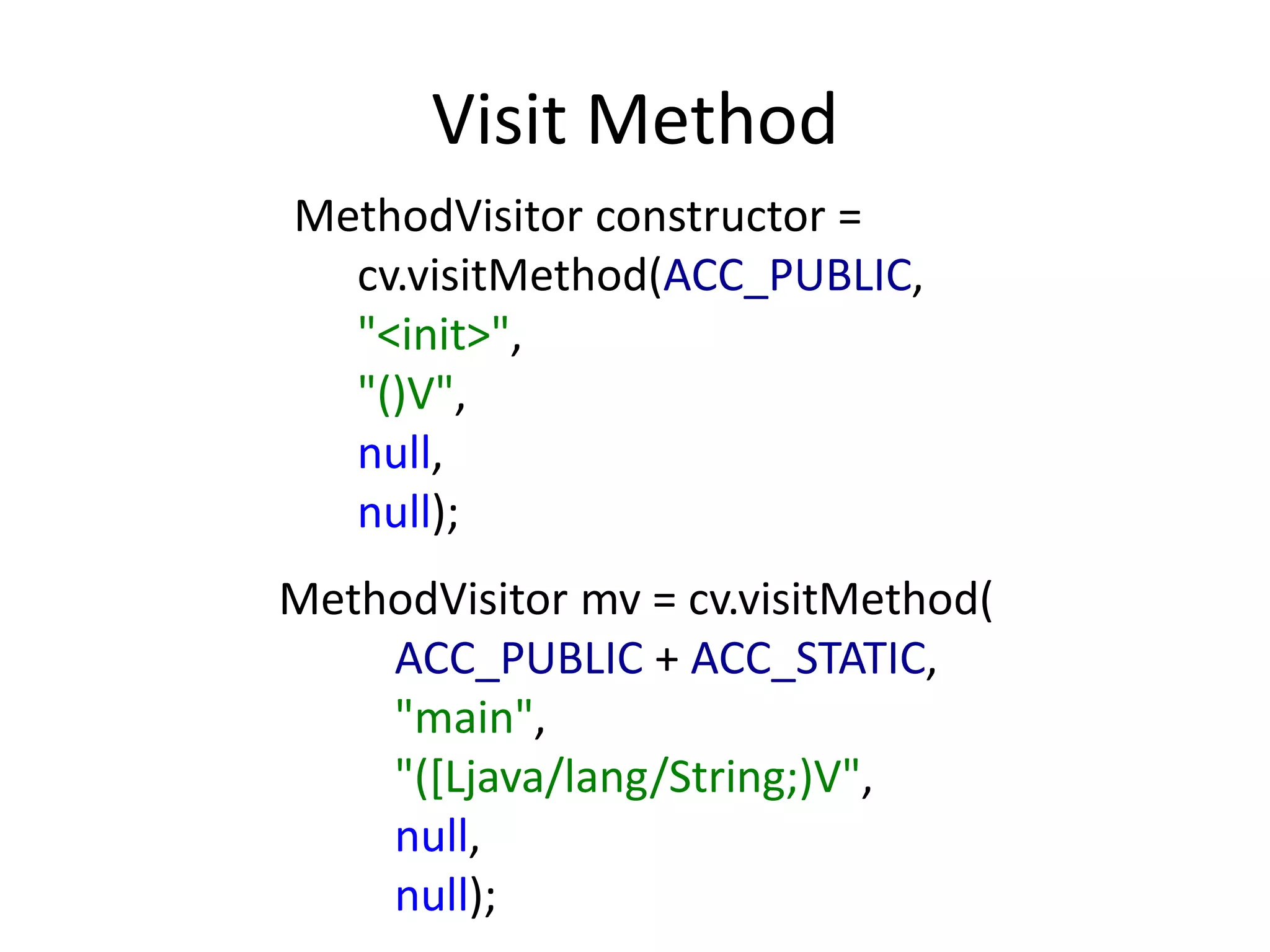

Visit Method
MethodVisitor constructor =
cv.visitMethod(ACC_PUBLIC,
"<init>",
"()V",
null,
null);
MethodVisitor mv = cv.visitMethod(
ACC_PUBLIC + ACC_STATIC,
"main",
"([Ljava/lang/String;)V",
null,
null);

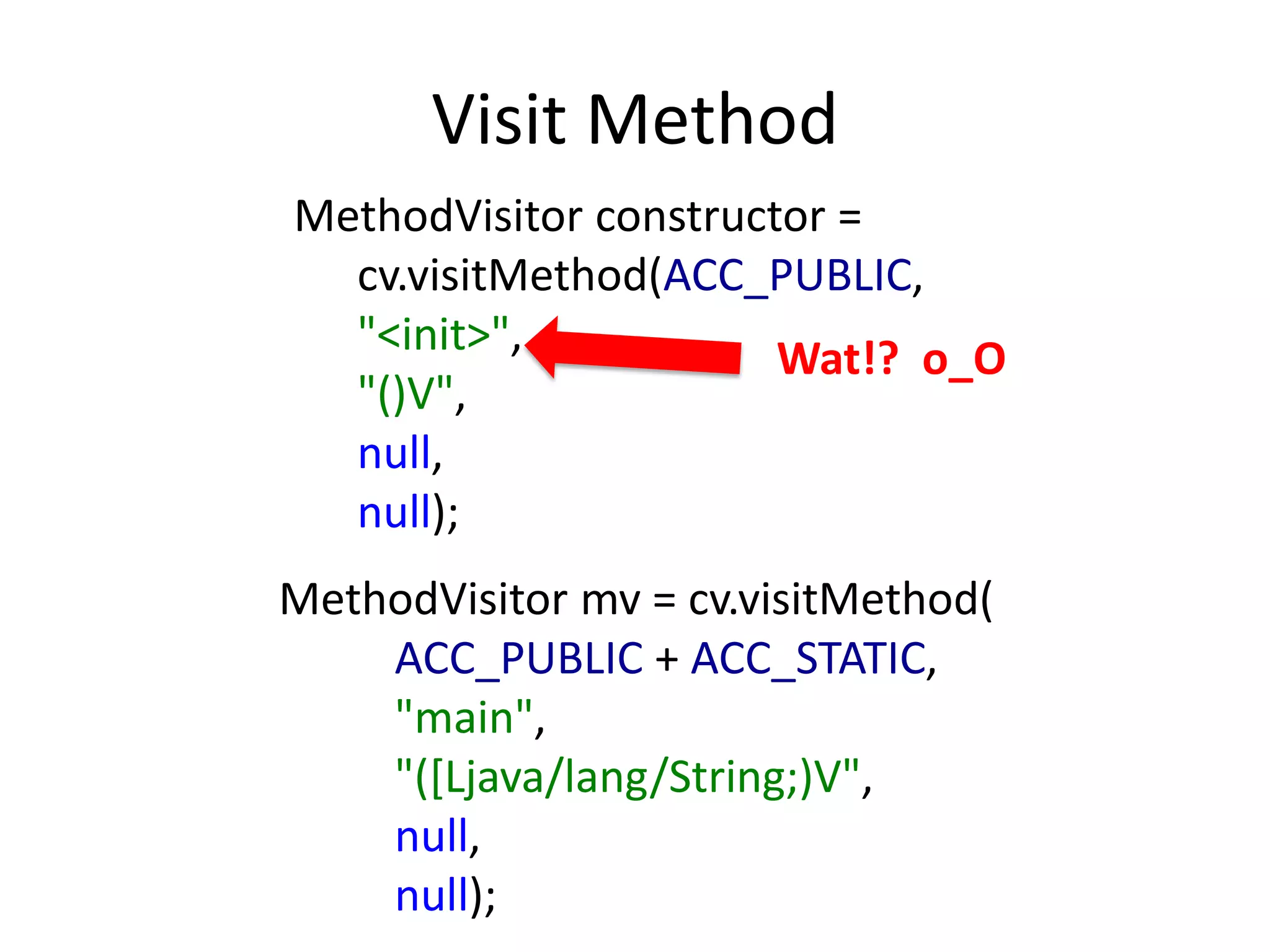

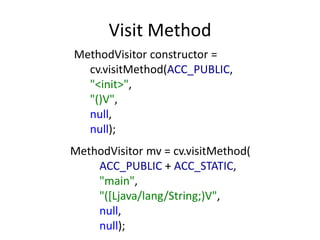

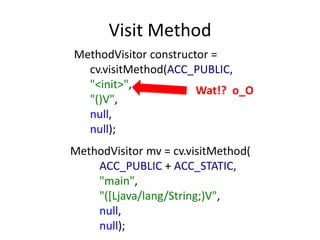

Visit Method
MethodVisitor constructor =
cv.visitMethod(ACC_PUBLIC,
"<init>", Wat!? o_O
"()V",
null,
null);
MethodVisitor mv = cv.visitMethod(
ACC_PUBLIC + ACC_STATIC,
"main",
"([Ljava/lang/String;)V",
null,
null);

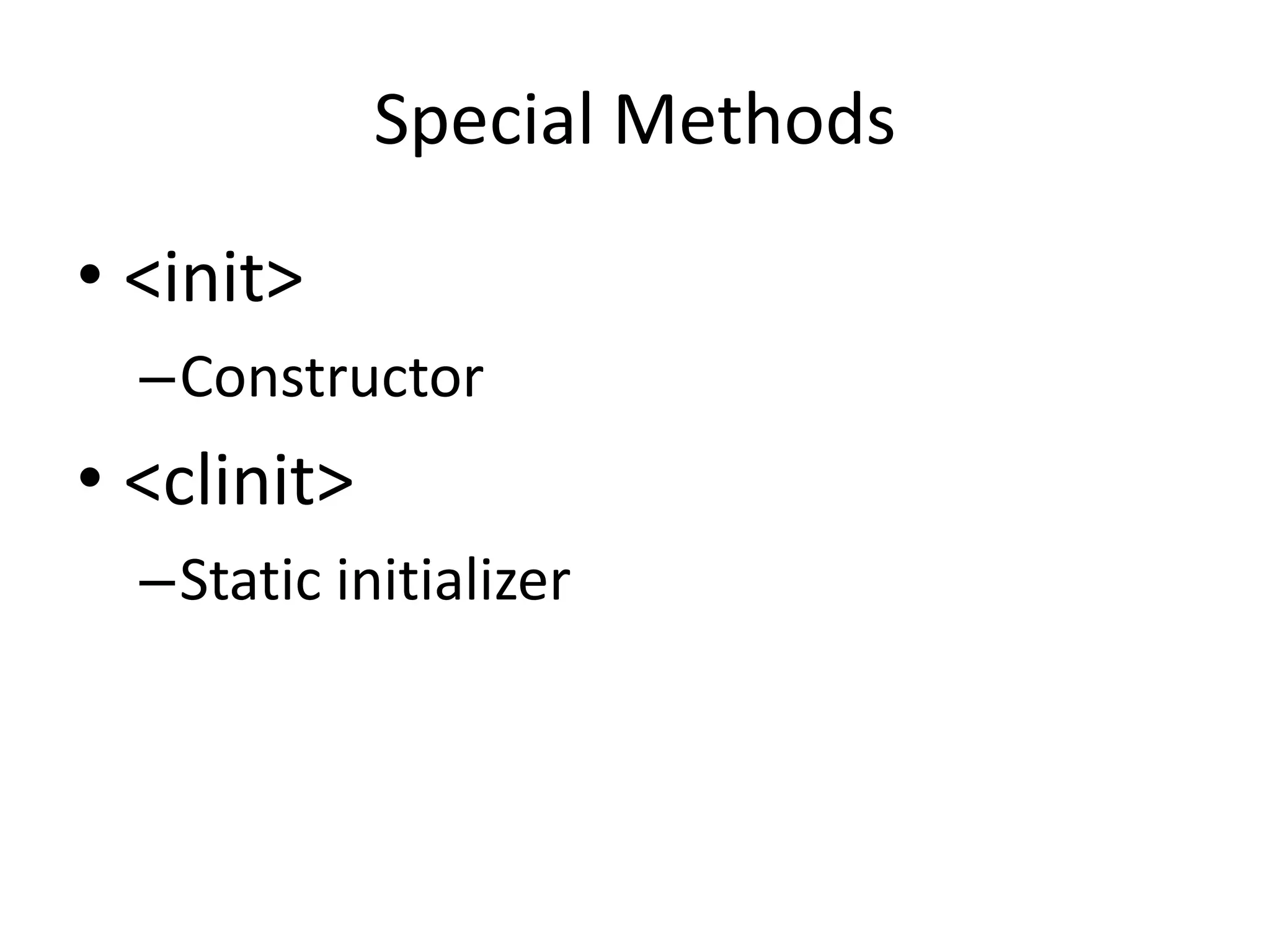

Special Methods

• <init>
–Constructor
• <clinit>
–Static initializer

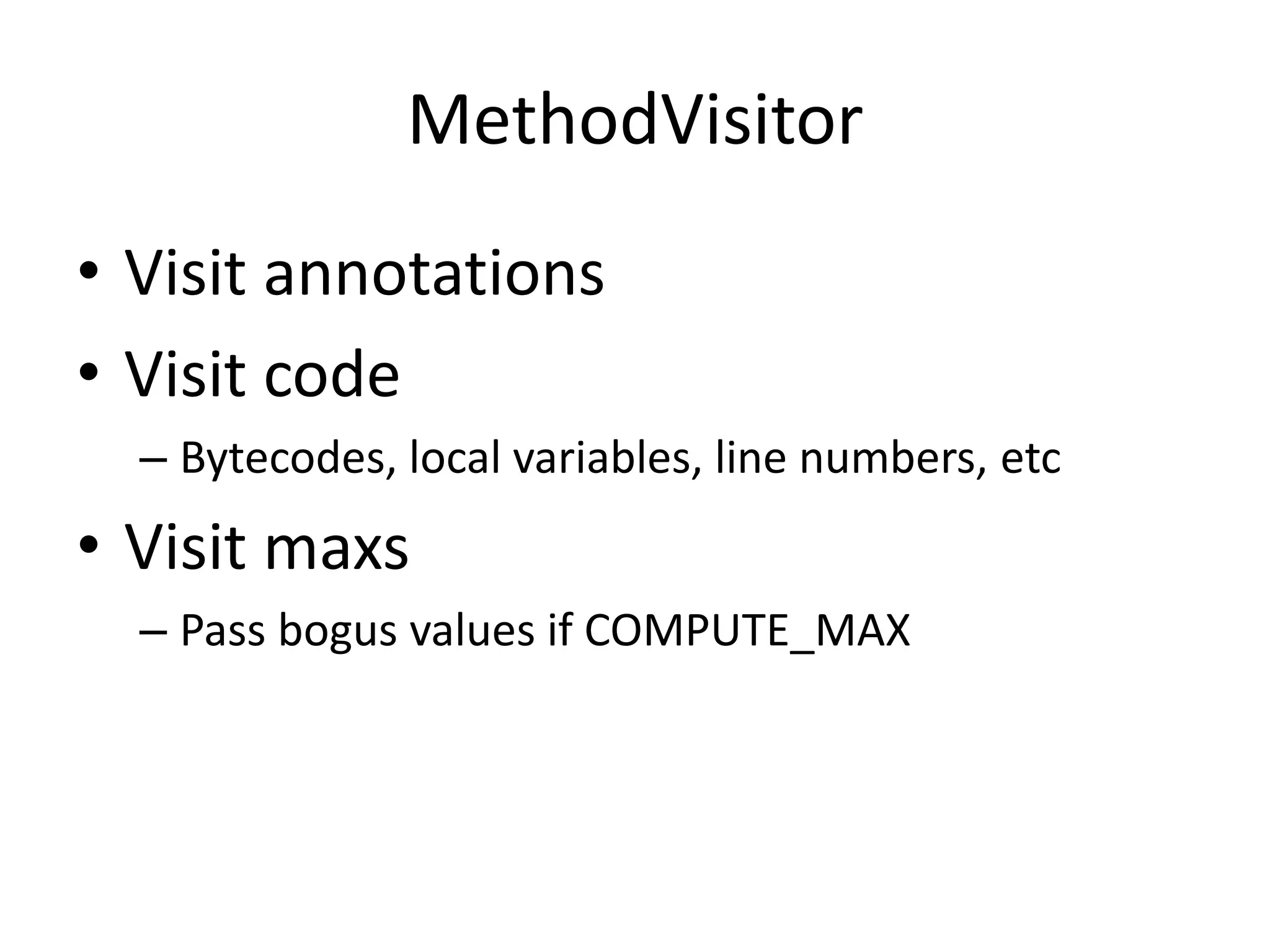

MethodVisitor
• Visit annotations
• Visit code
– Bytecodes, local variables, line numbers, etc
• Visit maxs
– Pass bogus values if COMPUTE_MAX

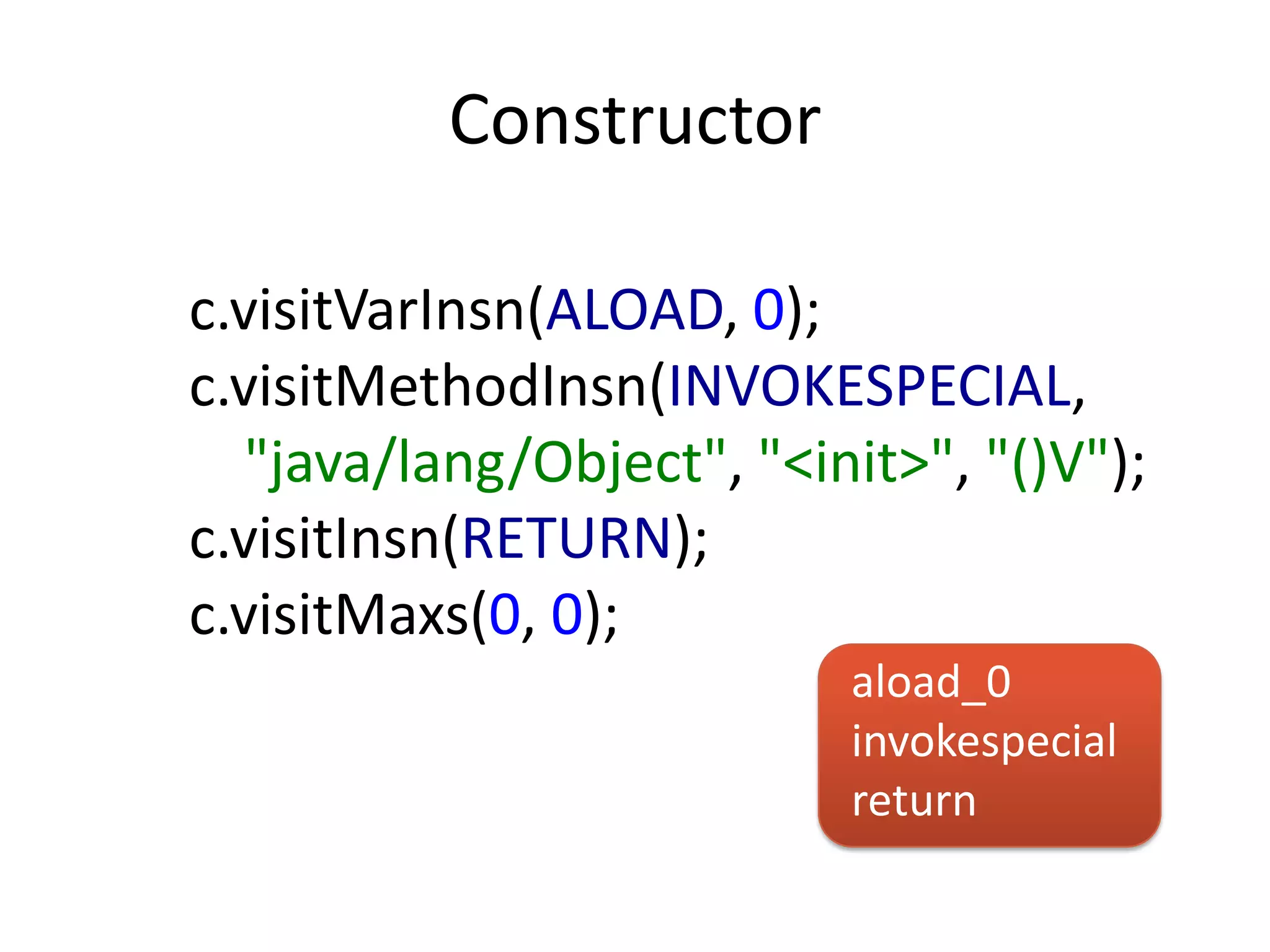

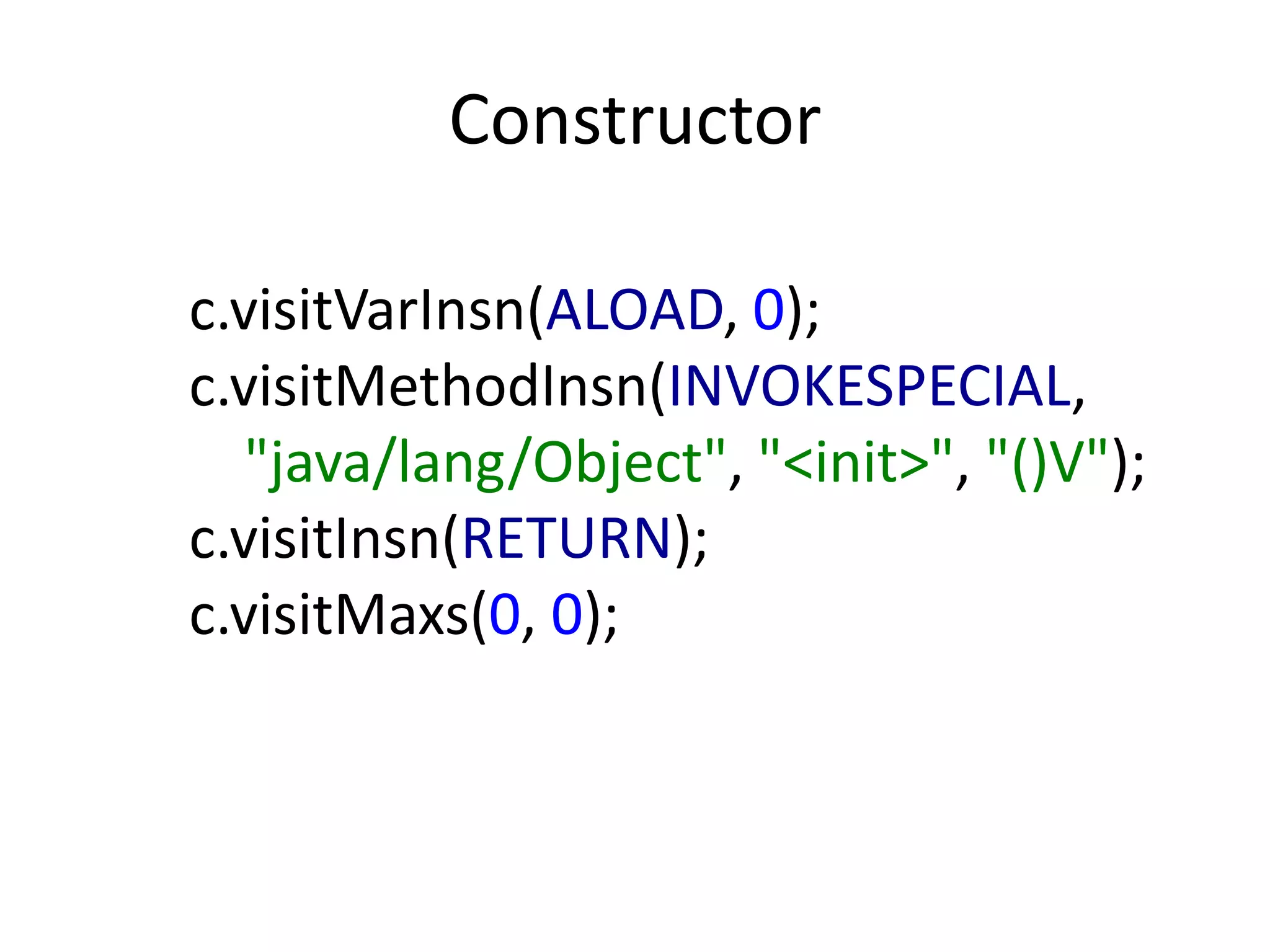

Constructor

c.visitVarInsn(ALOAD, 0);
c.visitMethodInsn(INVOKESPECIAL,
"java/lang/Object", "<init>", "()V");
c.visitInsn(RETURN);
c.visitMaxs(0, 0);

Constructor

c.visitVarInsn(ALOAD, 0);
c.visitMethodInsn(INVOKESPECIAL,
"java/lang/Object", "<init>", "()V");
c.visitInsn(RETURN);
c.visitMaxs(0, 0);
aload_0
invokespecial
return

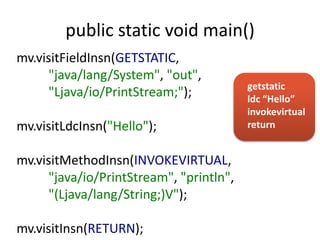

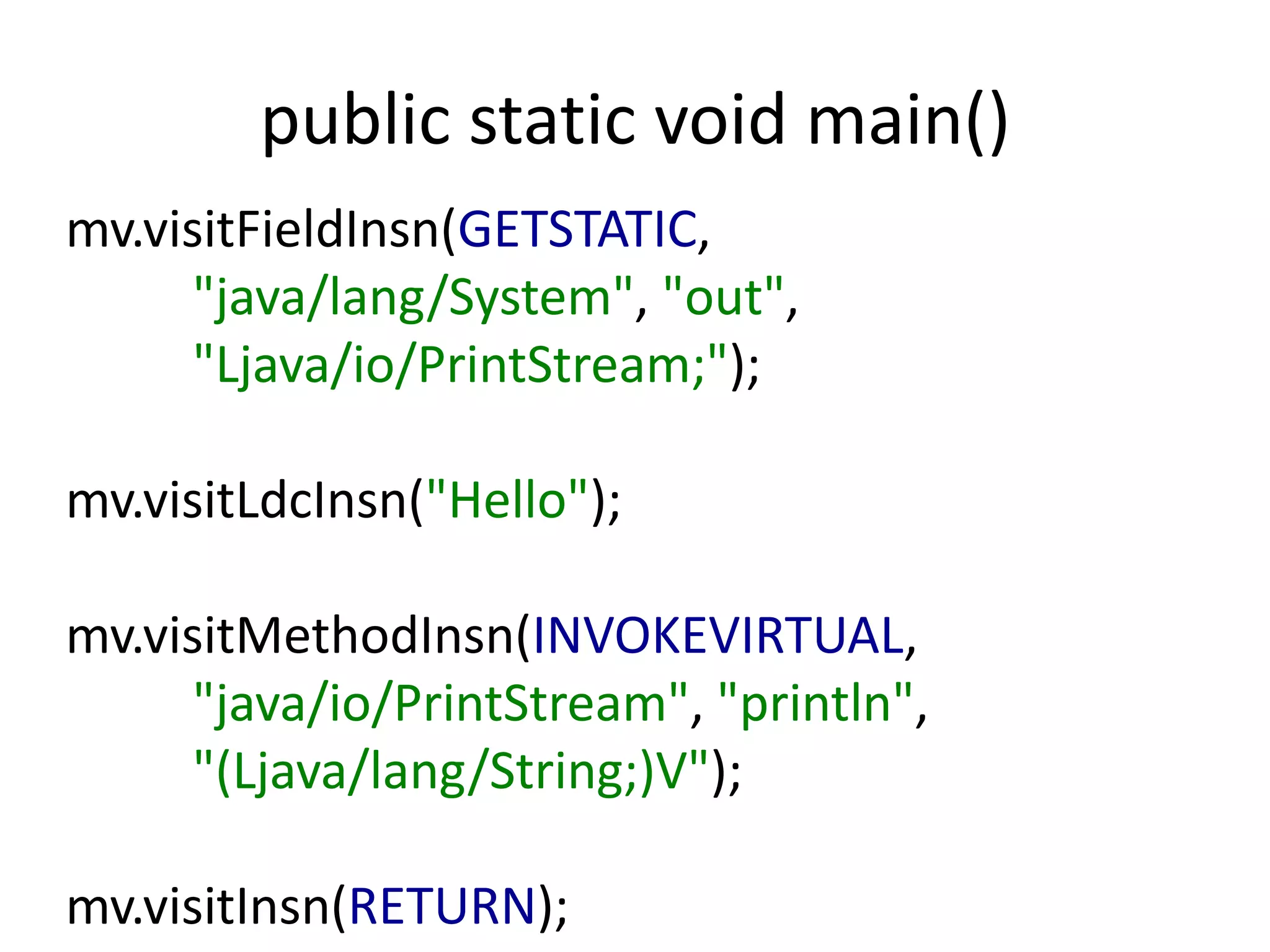

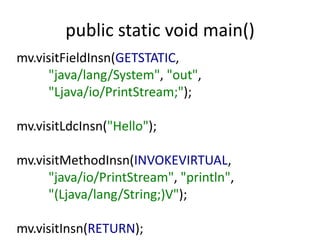

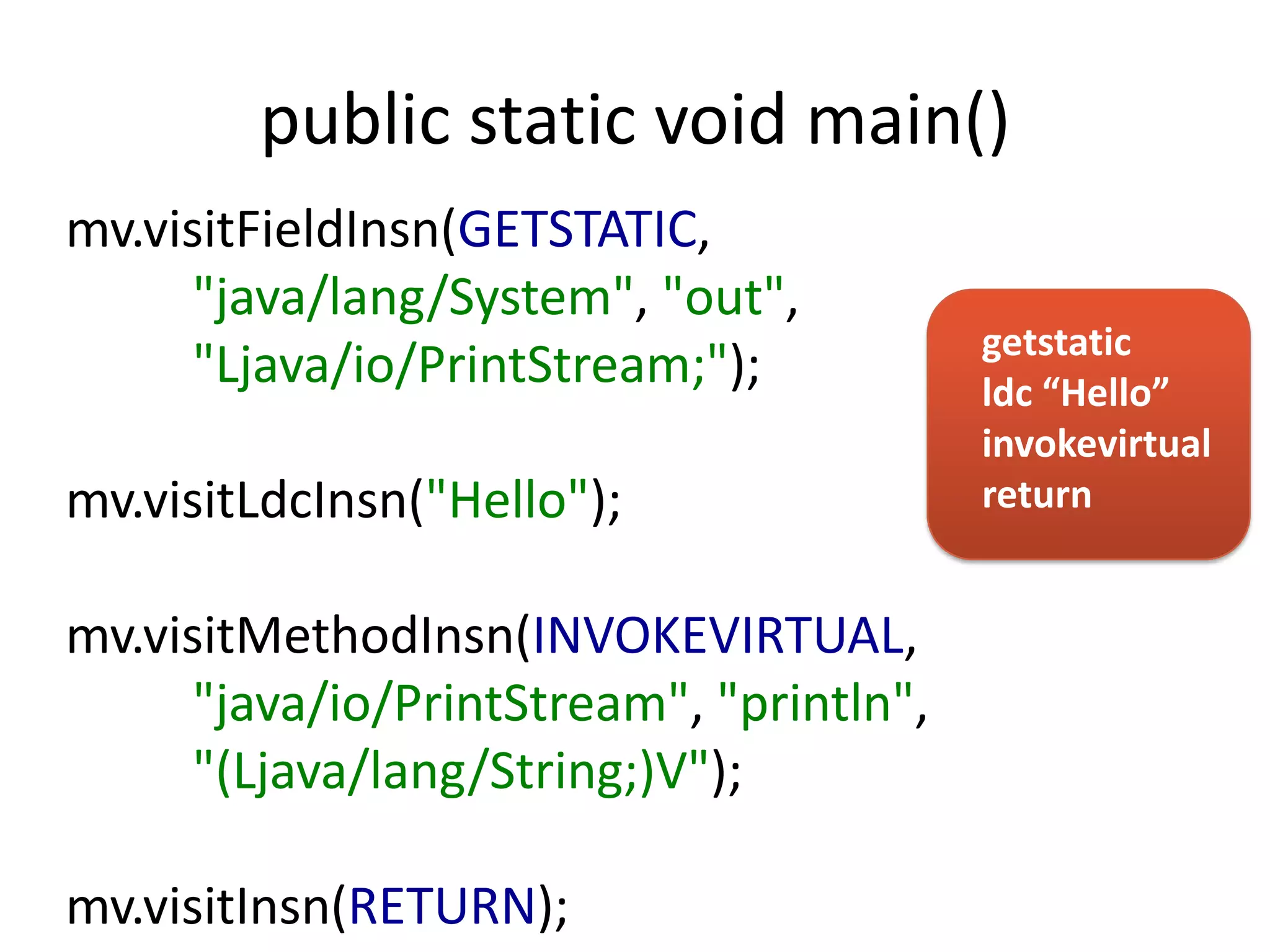

public static void main()
mv.visitFieldInsn(GETSTATIC,
"java/lang/System", "out",
"Ljava/io/PrintStream;");

mv.visitLdcInsn("Hello");

mv.visitMethodInsn(INVOKEVIRTUAL,
"java/io/PrintStream", "println",
"(Ljava/lang/String;)V");

mv.visitInsn(RETURN);

public static void main()
mv.visitFieldInsn(GETSTATIC,
"java/lang/System", "out",
getstatic
"Ljava/io/PrintStream;"); ldc “Hello”
invokevirtual
mv.visitLdcInsn("Hello"); return

mv.visitMethodInsn(INVOKEVIRTUAL,
"java/io/PrintStream", "println",
"(Ljava/lang/String;)V");

mv.visitInsn(RETURN);

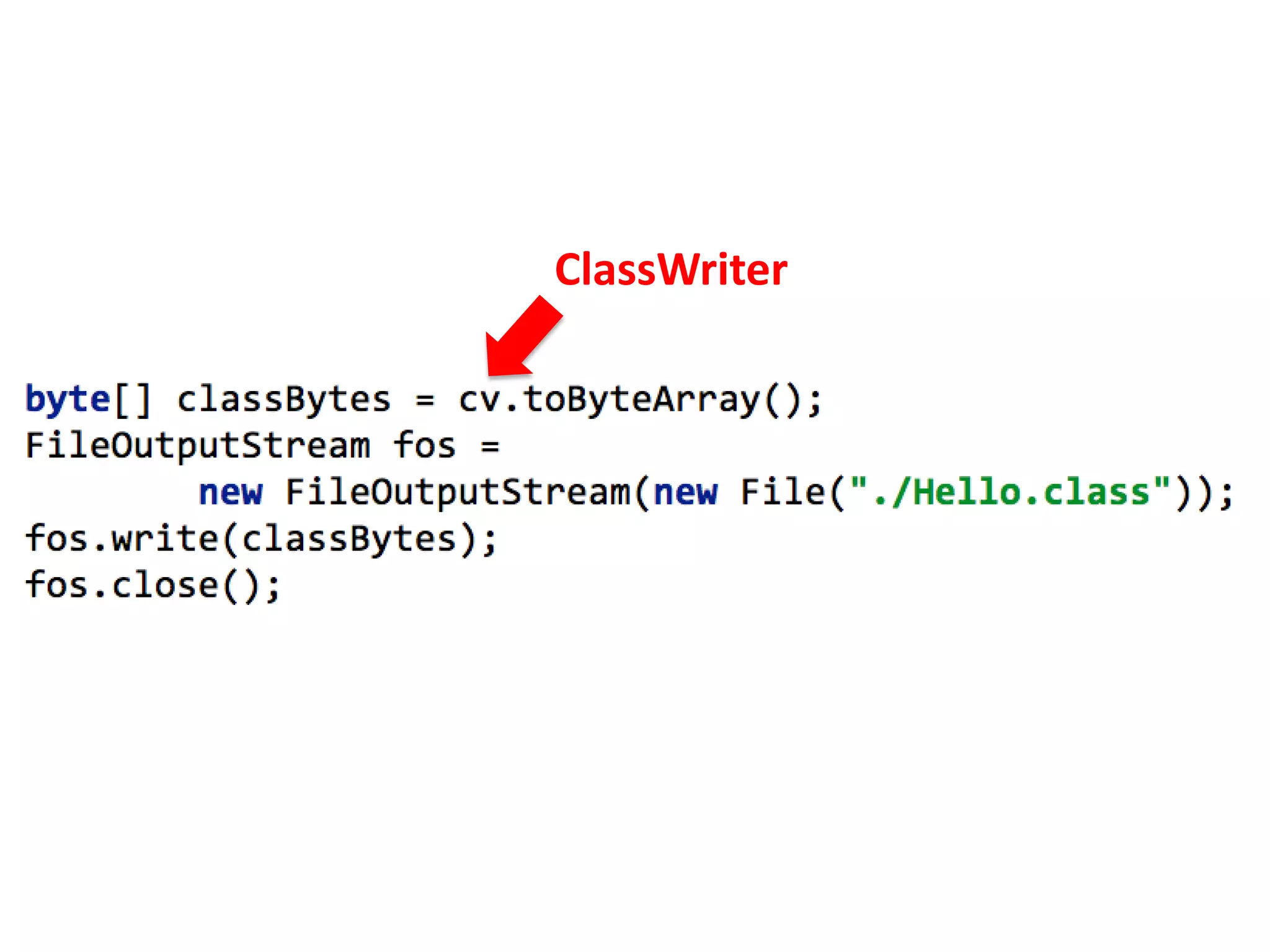

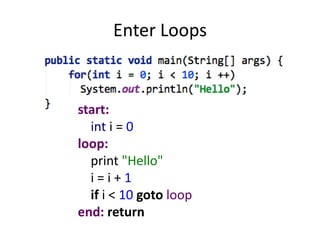

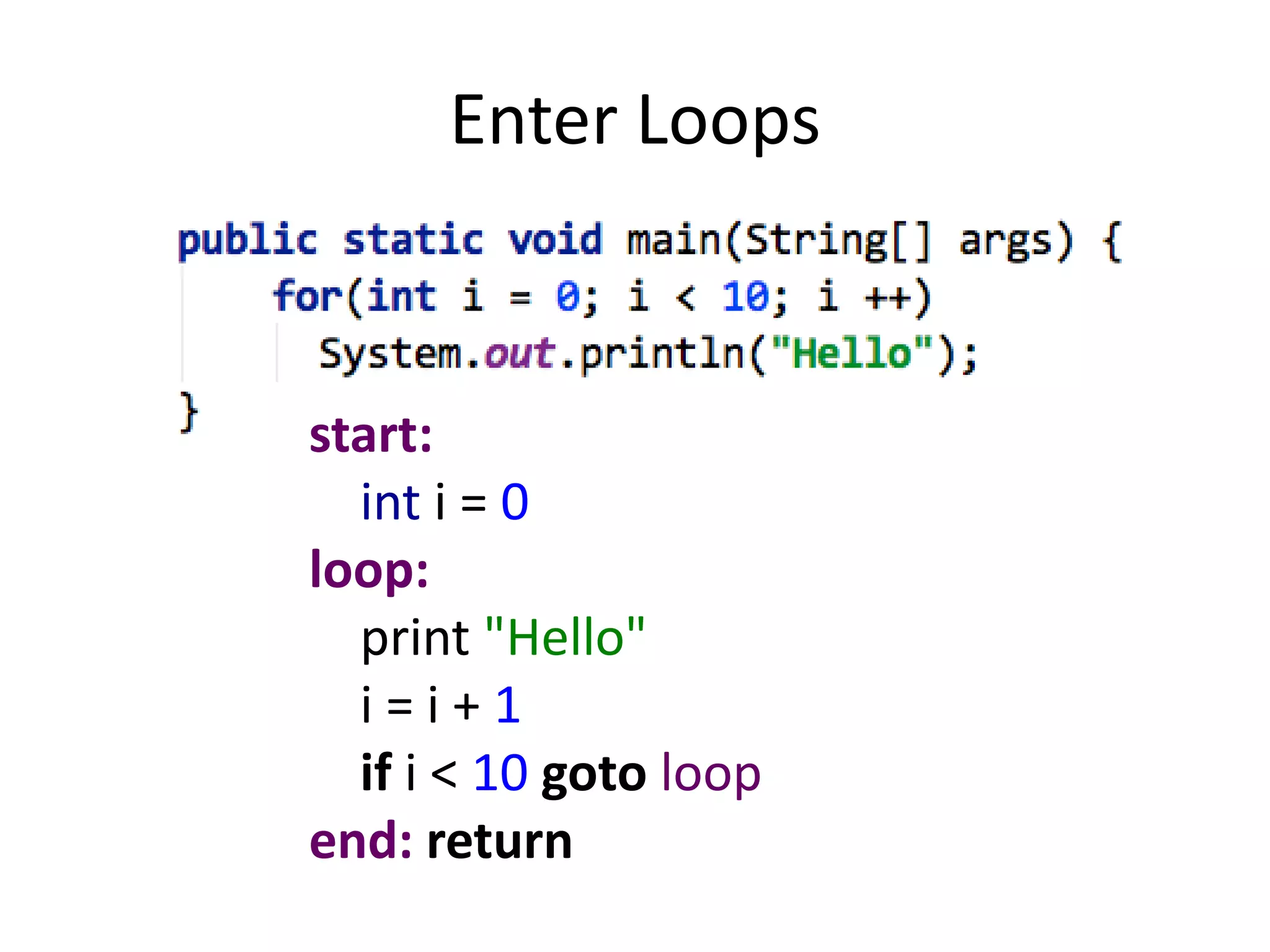

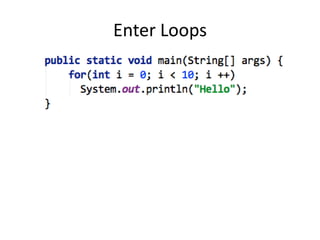

Enter Loops

start:
int i = 0
loop:
print "Hello"
i=i+1
if i < 10 goto loop
end: return

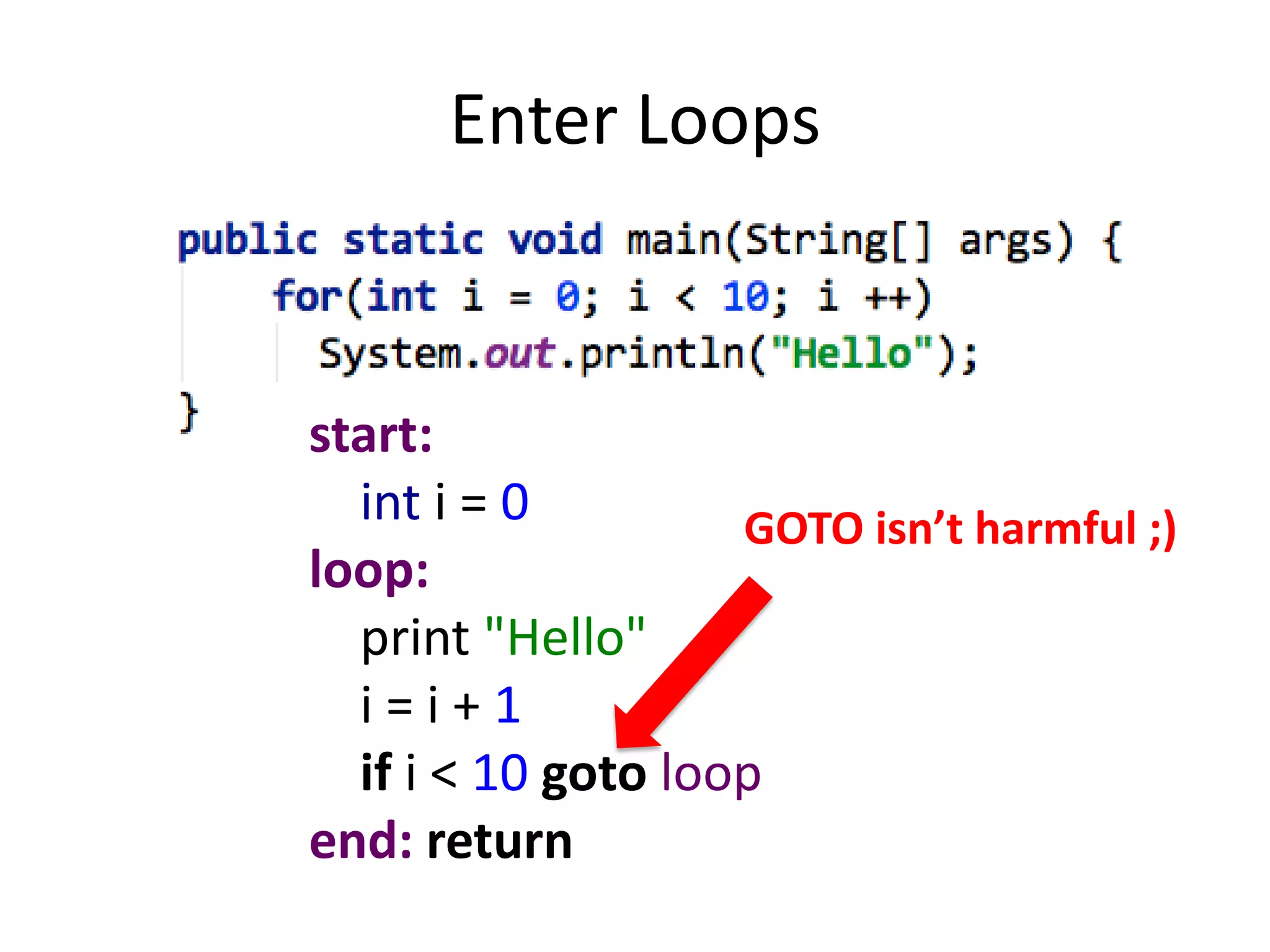

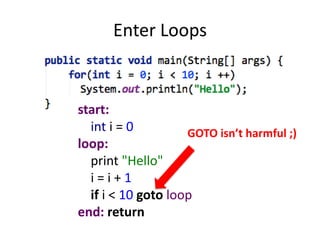

Enter Loops

start:
int i = 0 GOTO isn’t harmful ;)
loop:
print "Hello"
i=i+1
if i < 10 goto loop
end: return

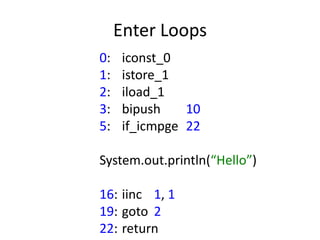

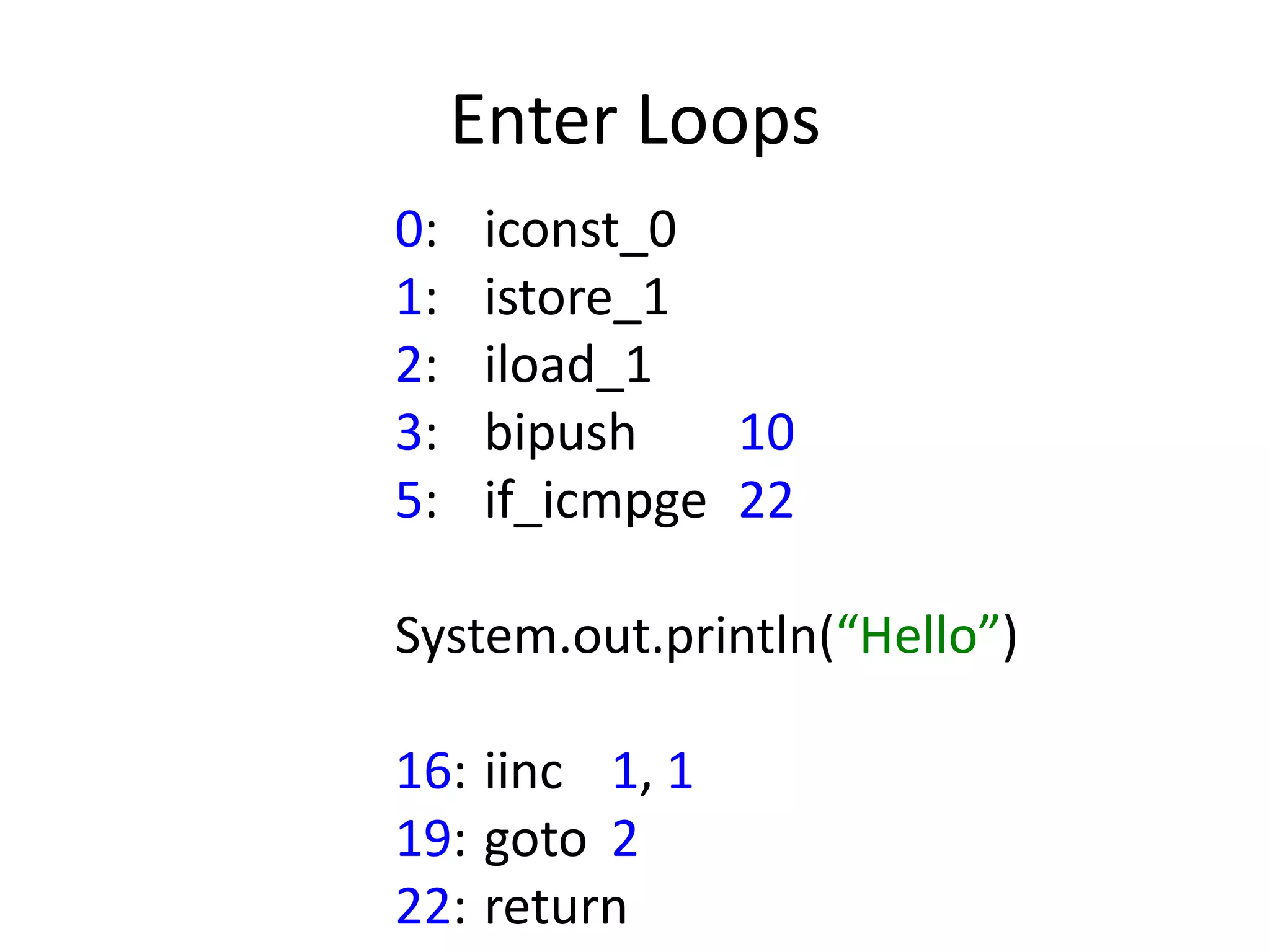

Enter Loops
0: iconst_0
1: istore_1
2: iload_1
3: bipush 10
5: if_icmpge 22

System.out.println(“Hello”)

16: iinc 1, 1
19: goto 2
22: return

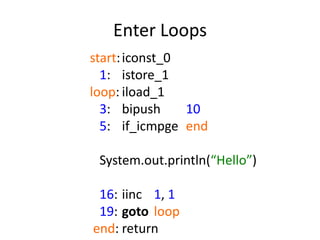

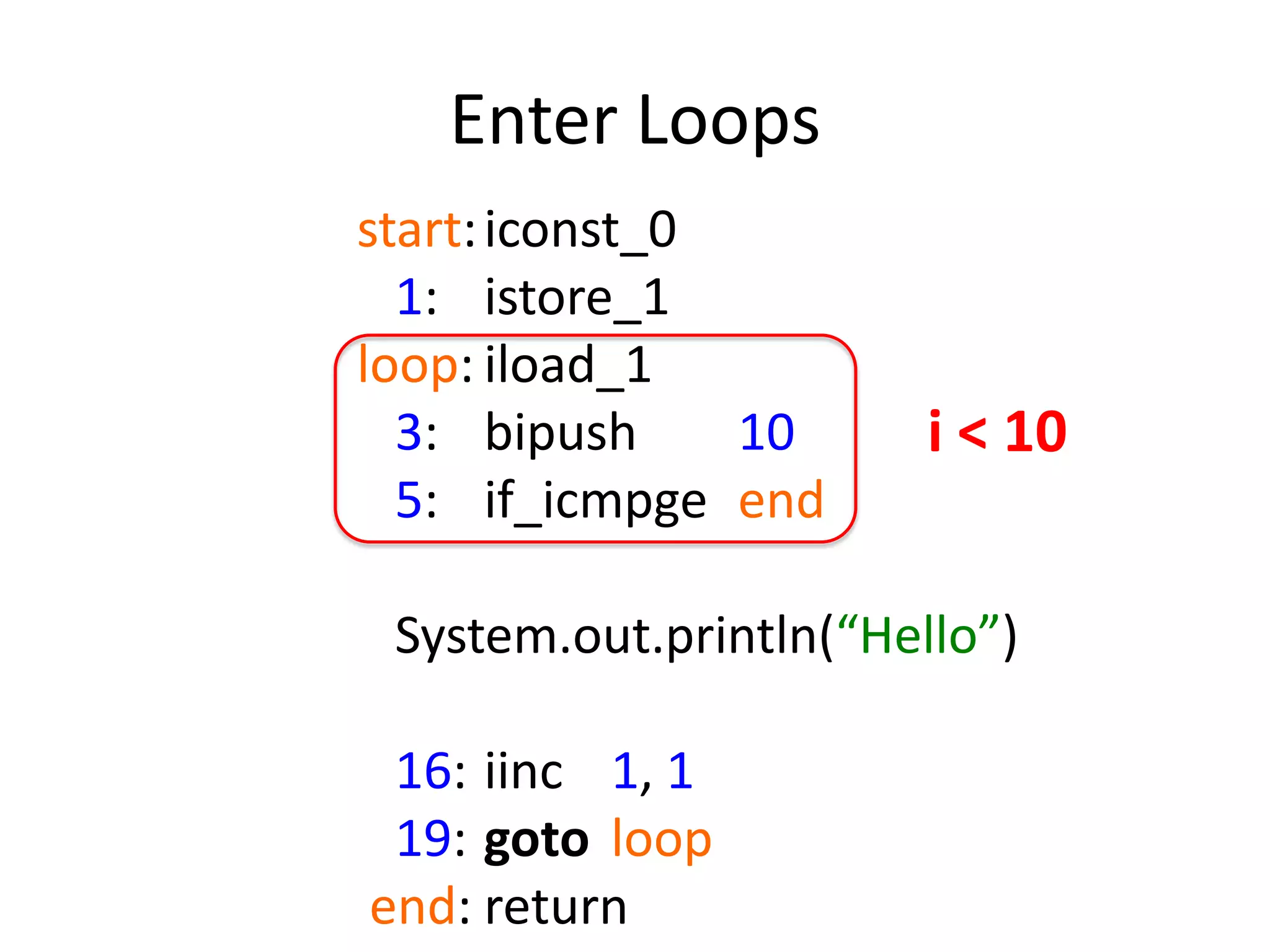

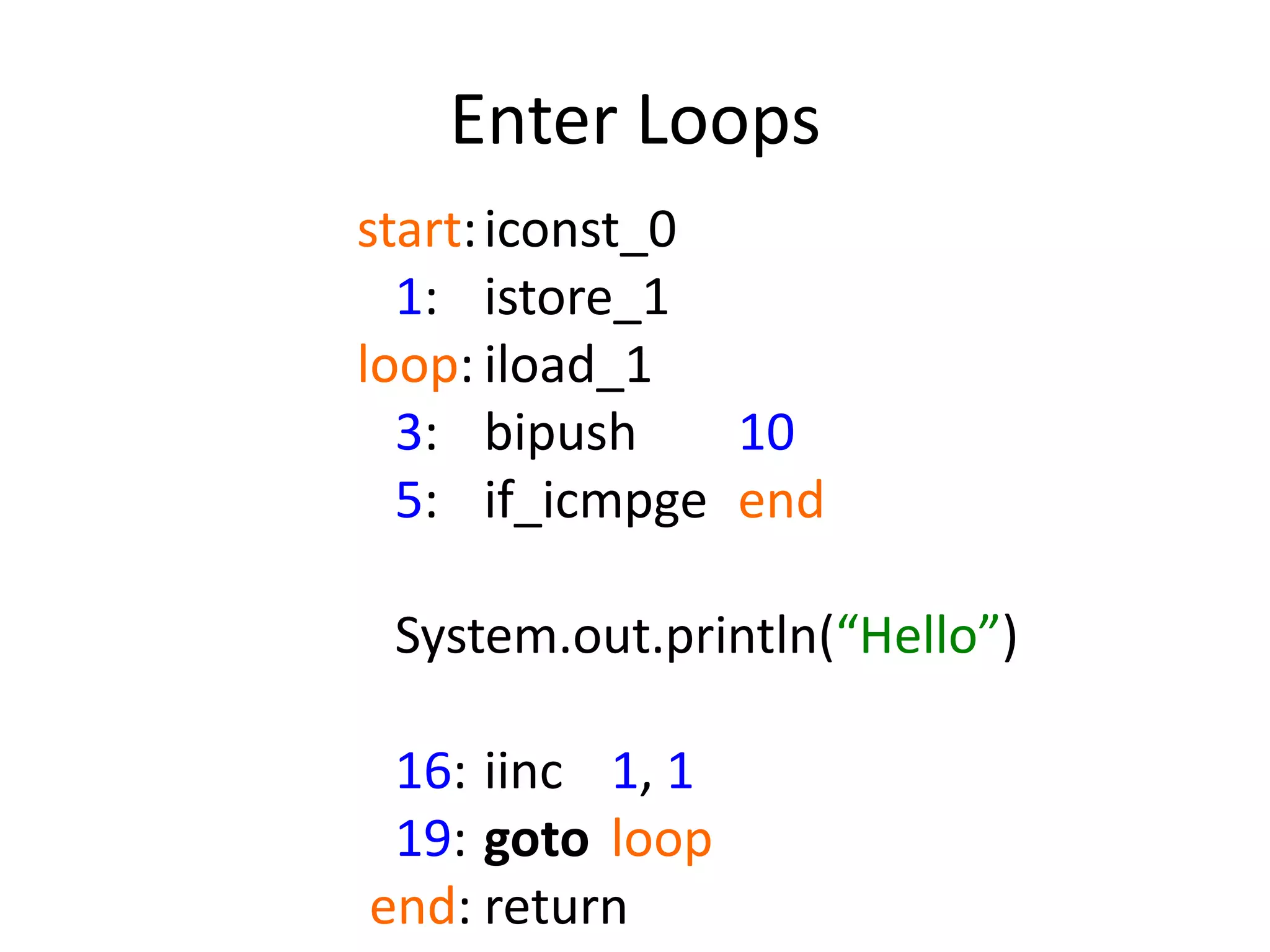

Enter Loops
start: iconst_0
1: istore_1
loop: iload_1
3: bipush 10
5: if_icmpge end


16: iinc 1, 1
19: goto loop
end: return

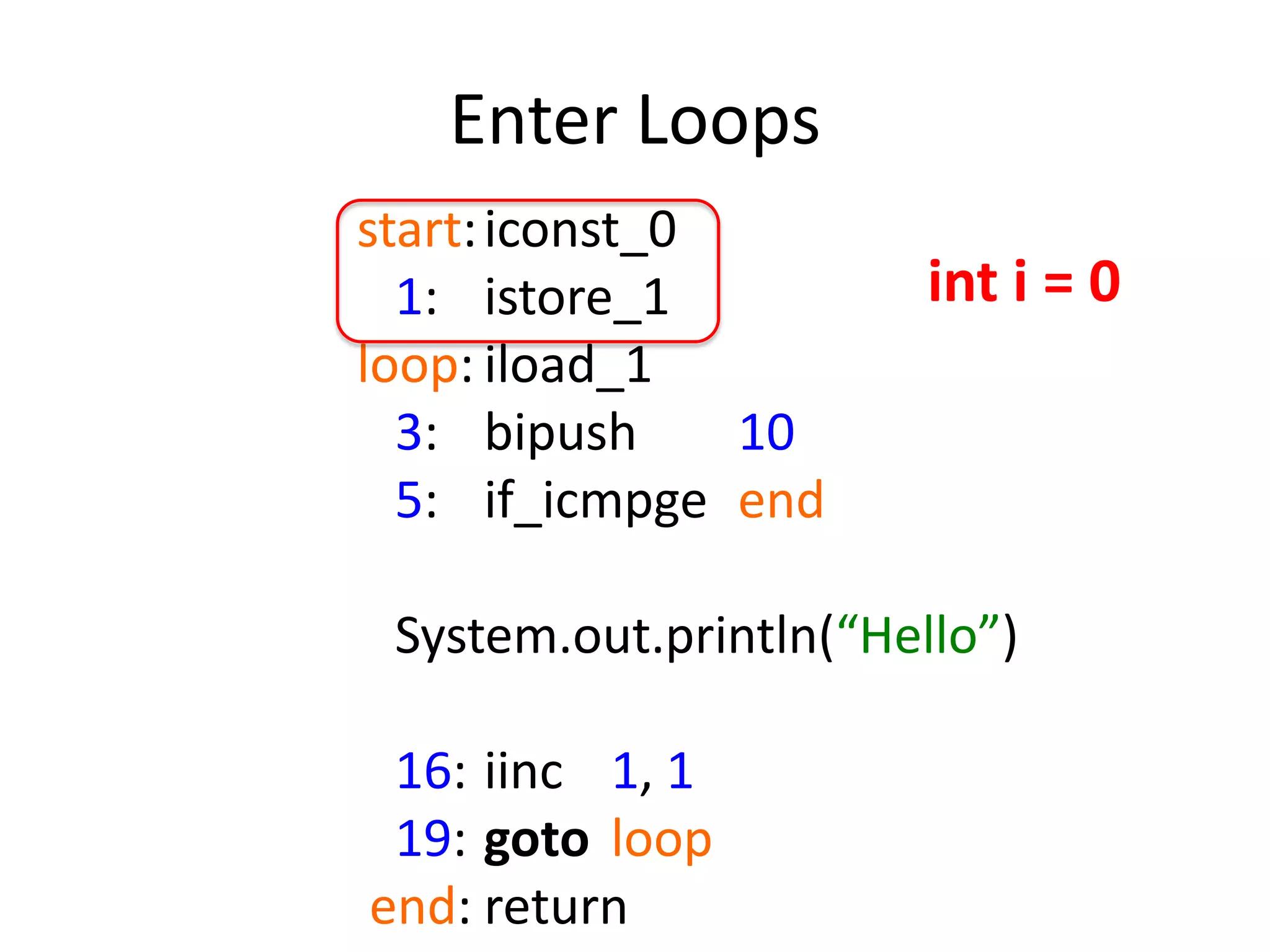

Enter Loops
start: iconst_0
1: istore_1 int i = 0
loop: iload_1
3: bipush 10
5: if_icmpge end


16: iinc 1, 1
19: goto loop
end: return

Enter Loops
start: iconst_0
1: istore_1
loop: iload_1
3: bipush 10 i < 10
5: if_icmpge end


16: iinc 1, 1
19: goto loop
end: return

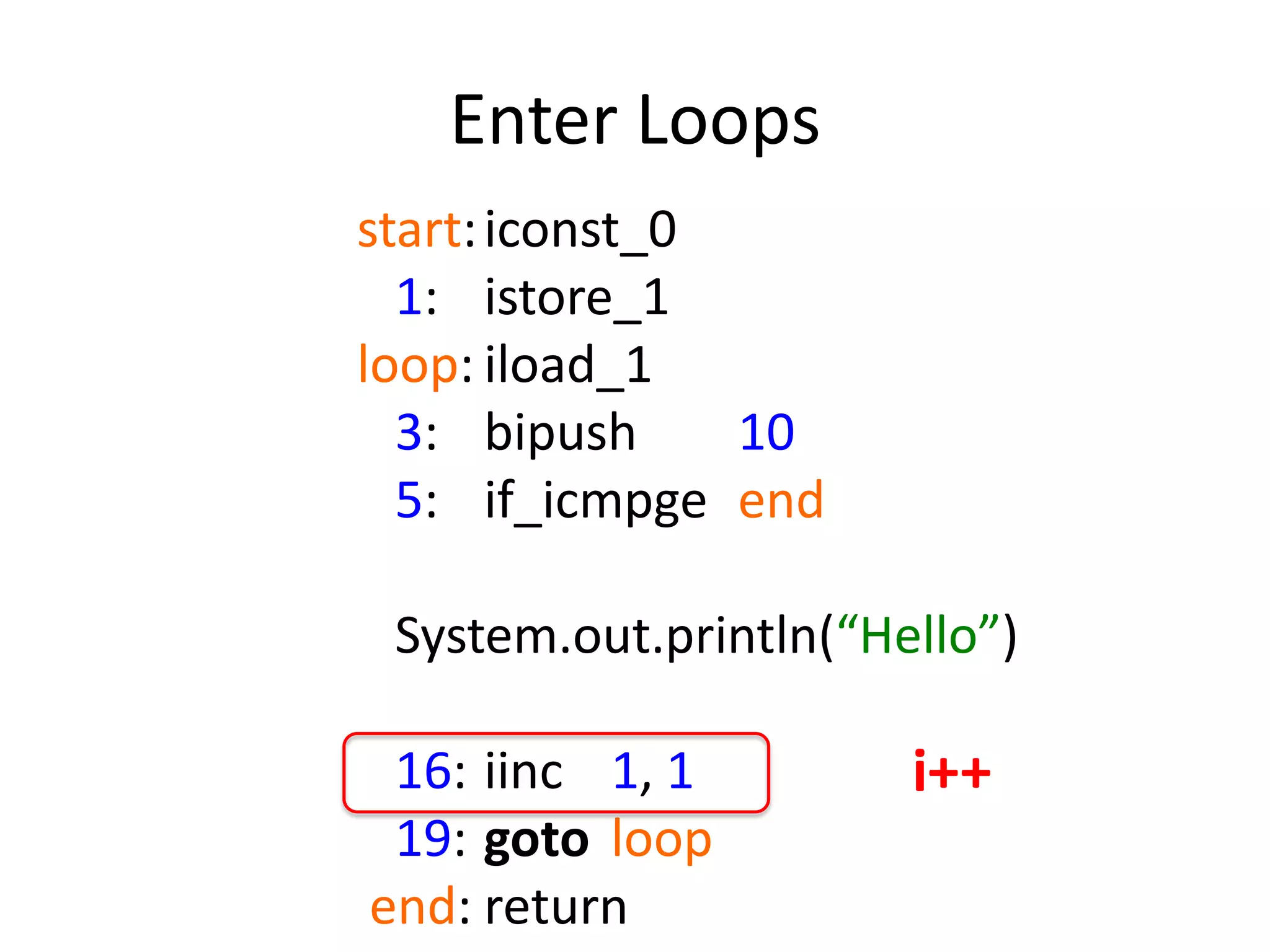

Enter Loops
start: iconst_0
1: istore_1
loop: iload_1
3: bipush 10
5: if_icmpge end


16: iinc 1, 1 i++
19: goto loop
end: return

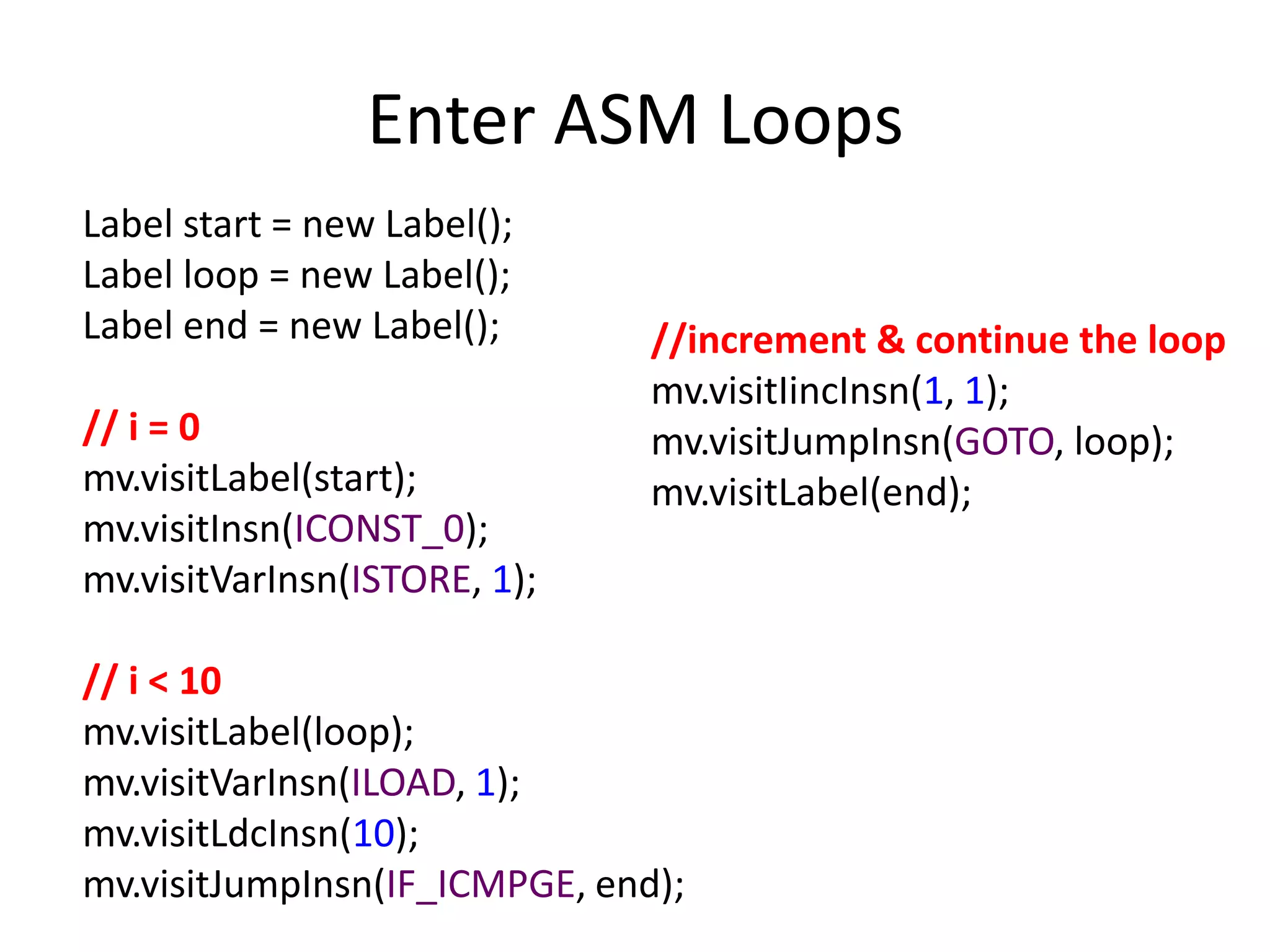

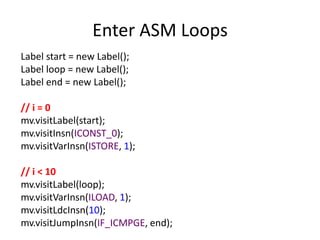

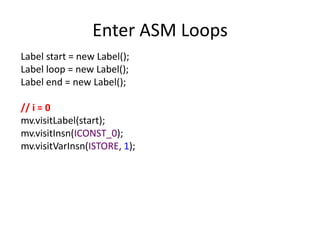

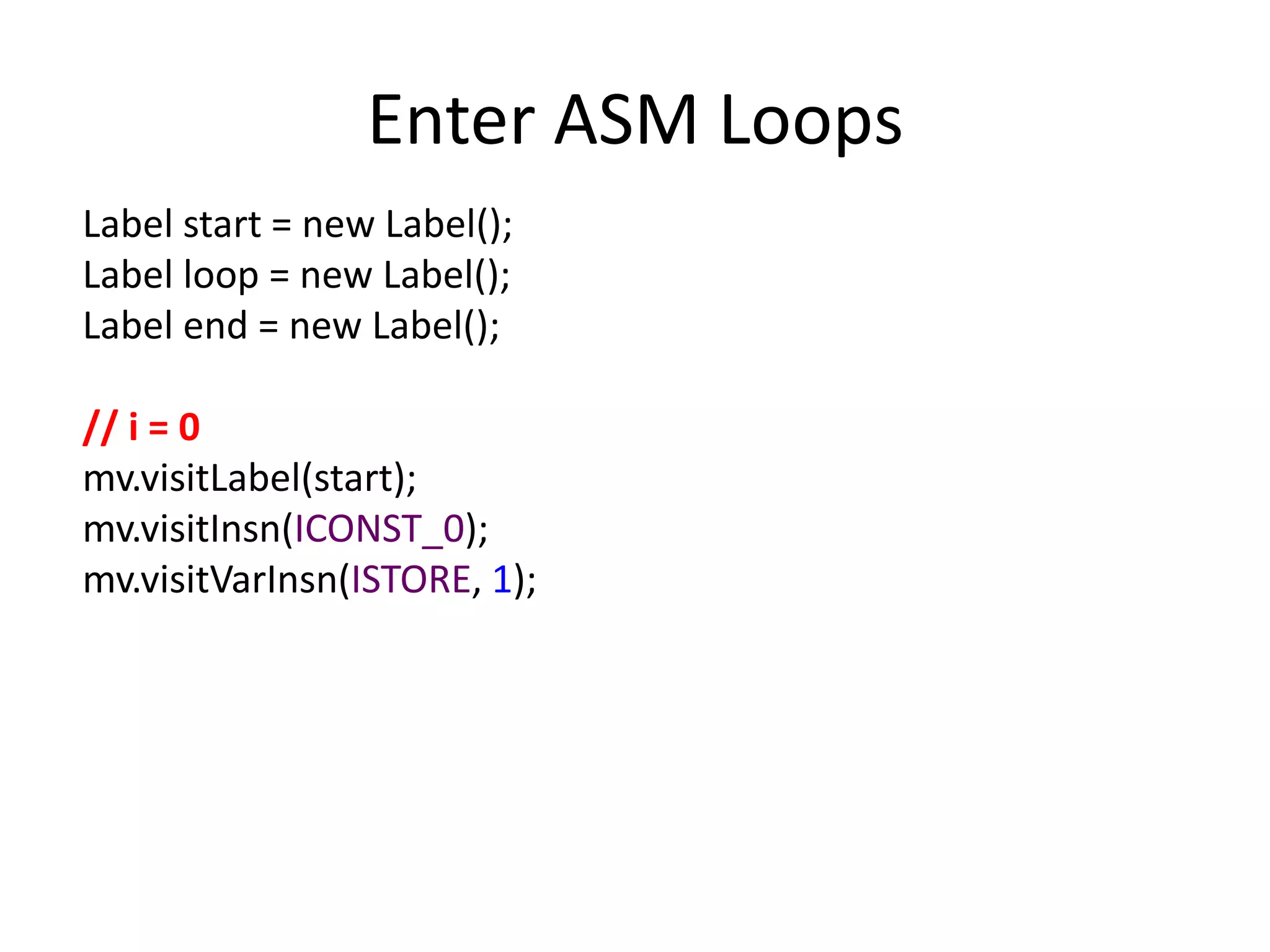

Enter ASM Loops
Label start = new Label();
Label loop = new Label();
Label end = new Label();

// i = 0
mv.visitLabel(start);
mv.visitInsn(ICONST_0);
mv.visitVarInsn(ISTORE, 1);

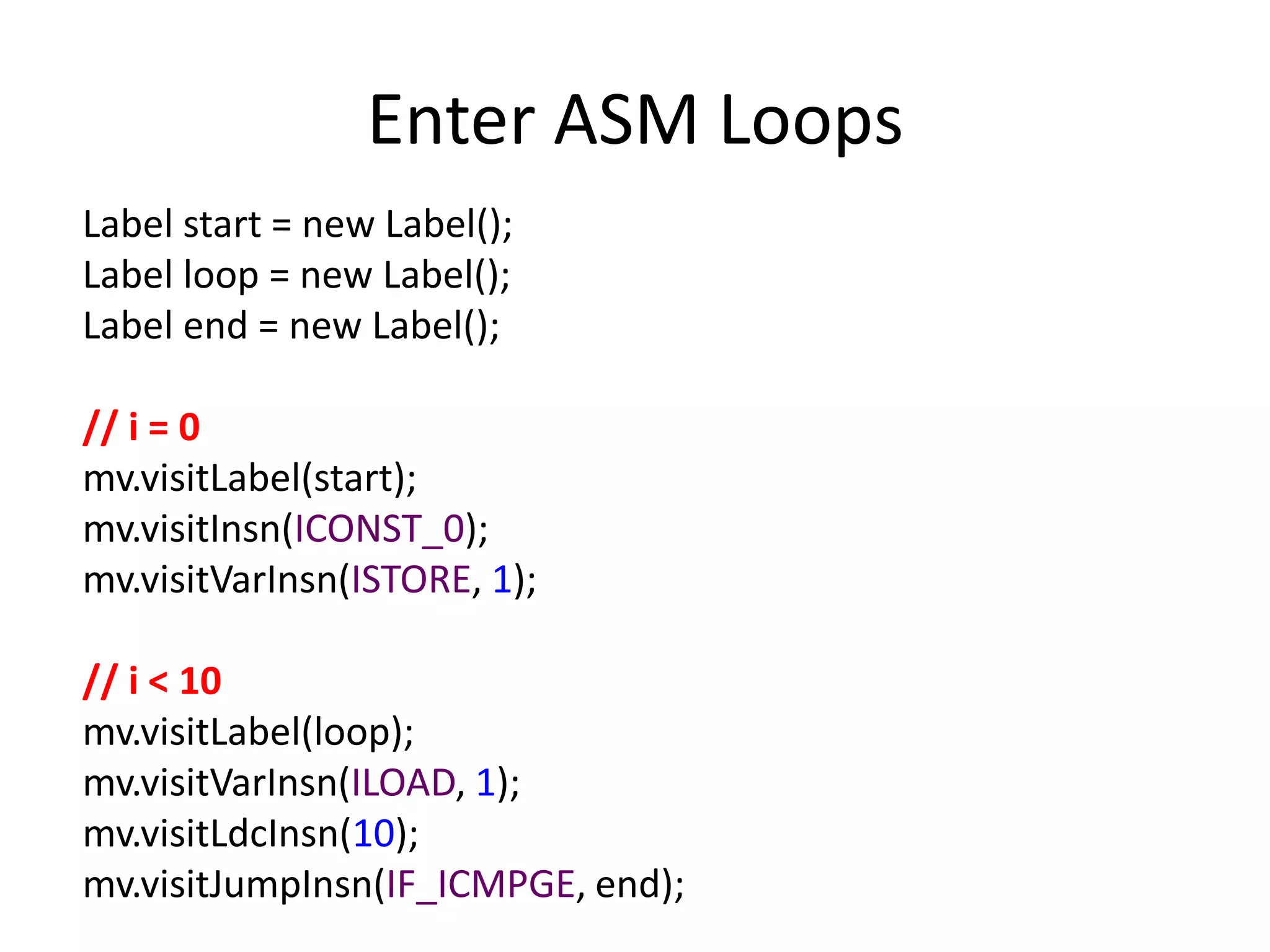

Enter ASM Loops
Label end = new Label();

// i = 0
mv.visitLabel(start);

// i < 10
mv.visitLabel(loop);
mv.visitVarInsn(ILOAD, 1);
mv.visitLdcInsn(10);
mv.visitJumpInsn(IF_ICMPGE, end);

Enter ASM Loops
Label end = new Label(); //increment & continue the loop
mv.visitIincInsn(1, 1);
// i = 0 mv.visitJumpInsn(GOTO, loop);
mv.visitLabel(start); mv.visitLabel(end);

// i < 10
mv.visitLabel(loop);
mv.visitLdcInsn(10);
mv.visitJumpInsn(IF_ICMPGE, end);

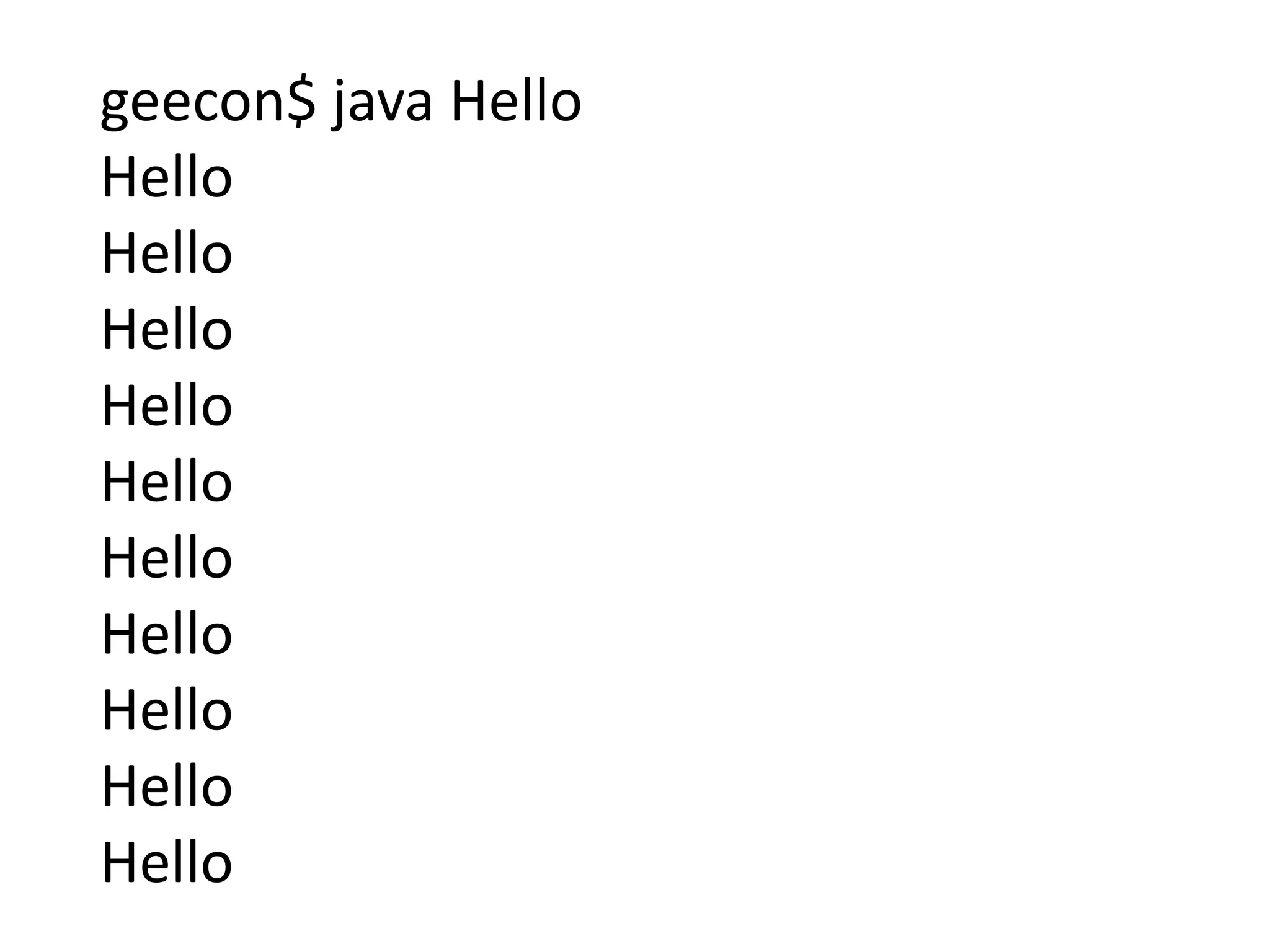

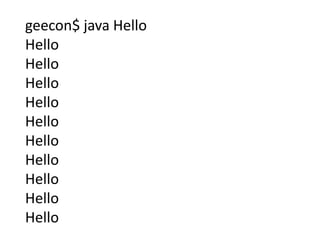

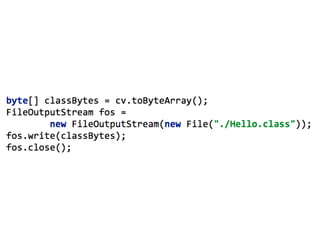

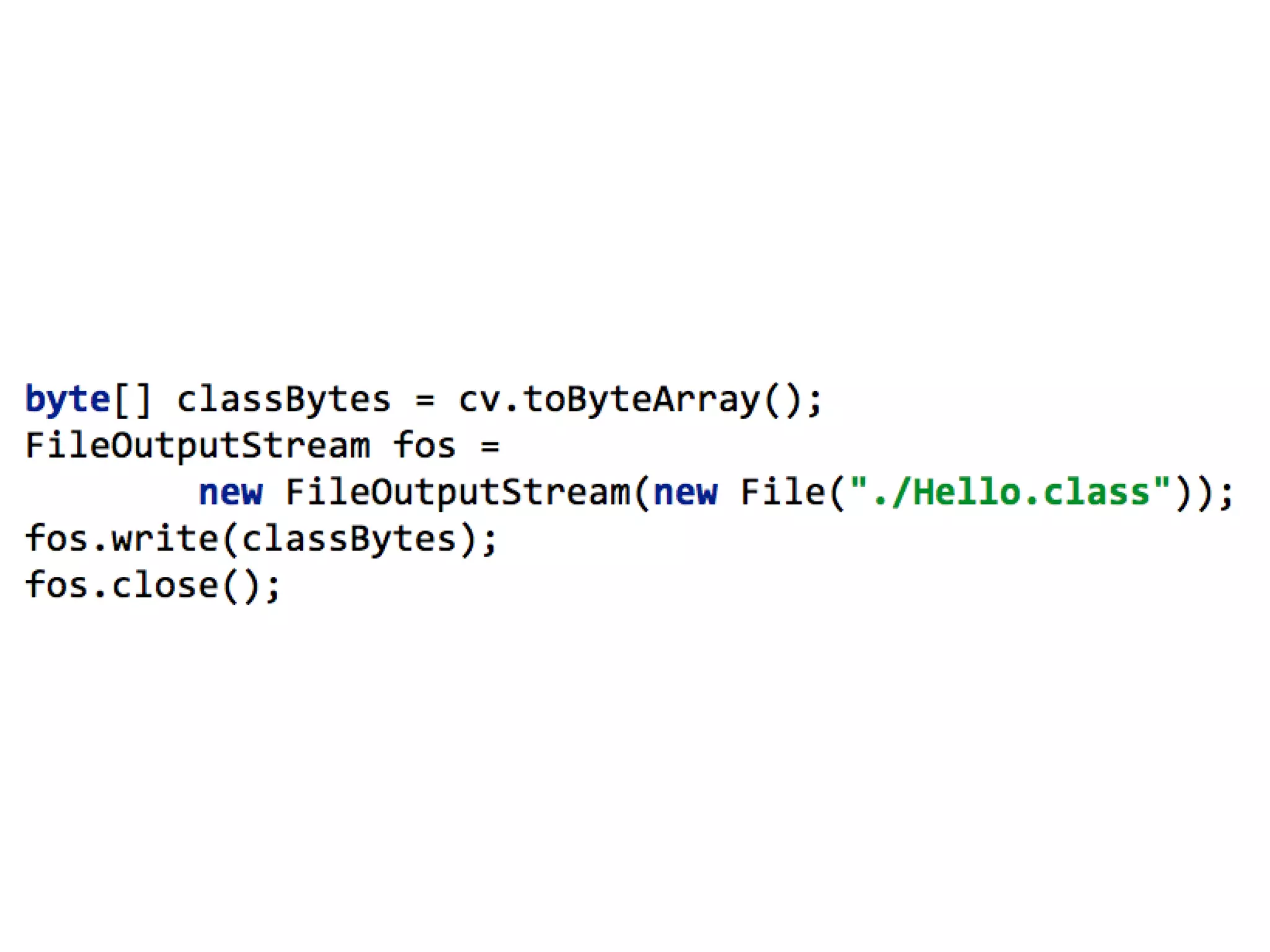

geecon$ java Hello
Hello
Hello
Hello
Hello
Hello
Hello
Hello
Hello
Hello
Hello

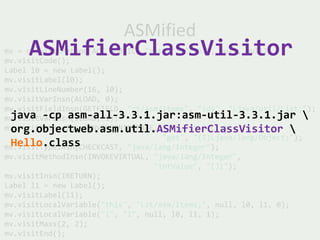

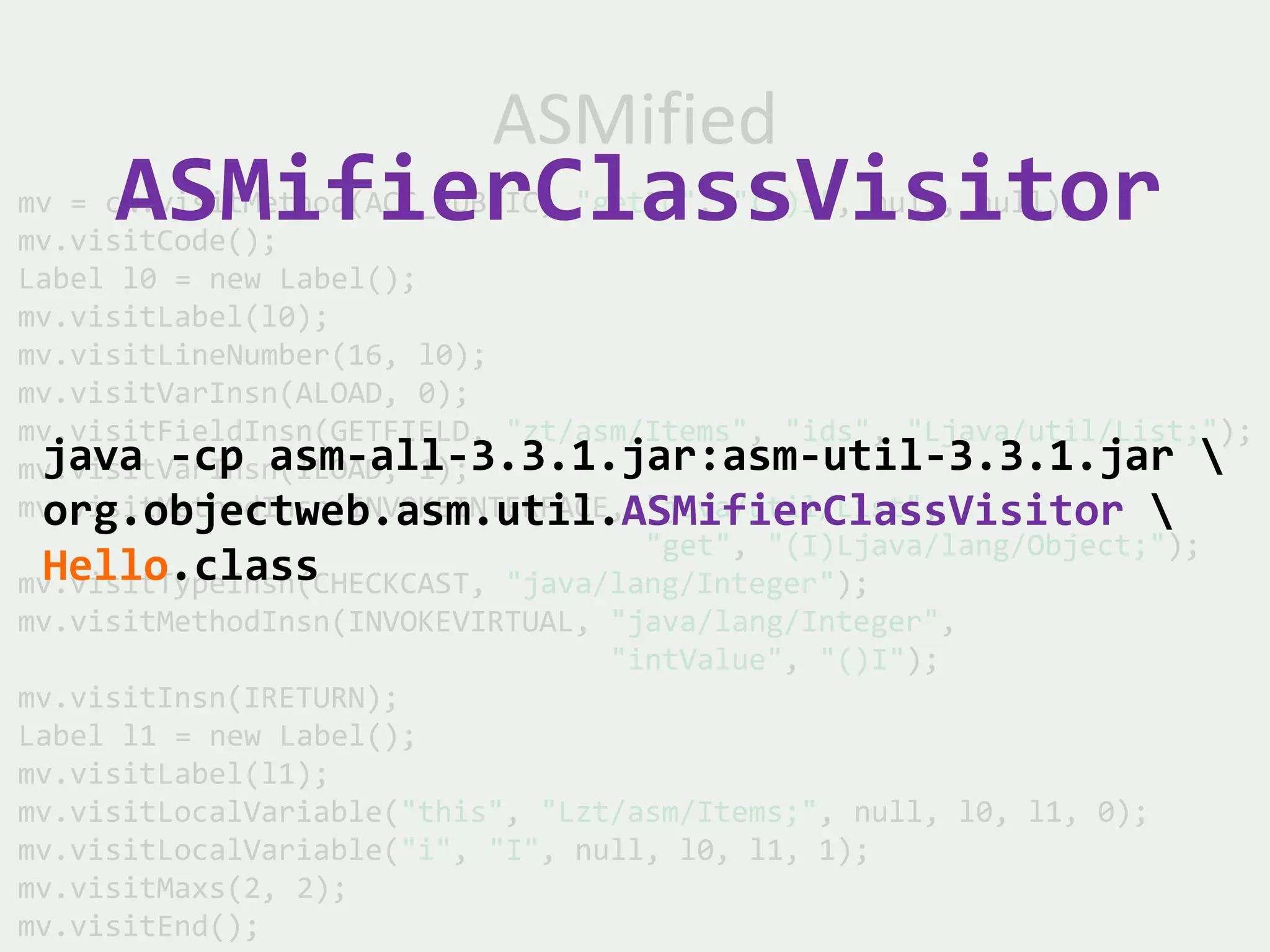

ASMified
ASMifierClassVisitor
mv = cw.visitMethod(ACC_PUBLIC, "getId", "(I)I", null, null);
mv.visitCode();
Label l0 = new Label();
mv.visitLabel(l0);
mv.visitLineNumber(16, l0);
mv.visitVarInsn(ALOAD, 0);
mv.visitFieldInsn(GETFIELD, "zt/asm/Items", "ids", "Ljava/util/List;");
java -cp asm-all-3.3.1.jar:asm-util-3.3.1.jar
org.objectweb.asm.util.ASMifierClassVisitor
mv.visitMethodInsn(INVOKEINTERFACE, "java/util/List",
"get", "(I)Ljava/lang/Object;");
Hello.class
mv.visitTypeInsn(CHECKCAST, "java/lang/Integer");
mv.visitMethodInsn(INVOKEVIRTUAL, "java/lang/Integer",
"intValue", "()I");
mv.visitInsn(IRETURN);
Label l1 = new Label();
mv.visitLabel(l1);
mv.visitLocalVariable("this", "Lzt/asm/Items;", null, l0, l1, 0);
mv.visitLocalVariable("i", "I", null, l0, l1, 1);
mv.visitMaxs(2, 2);
mv.visitEnd();

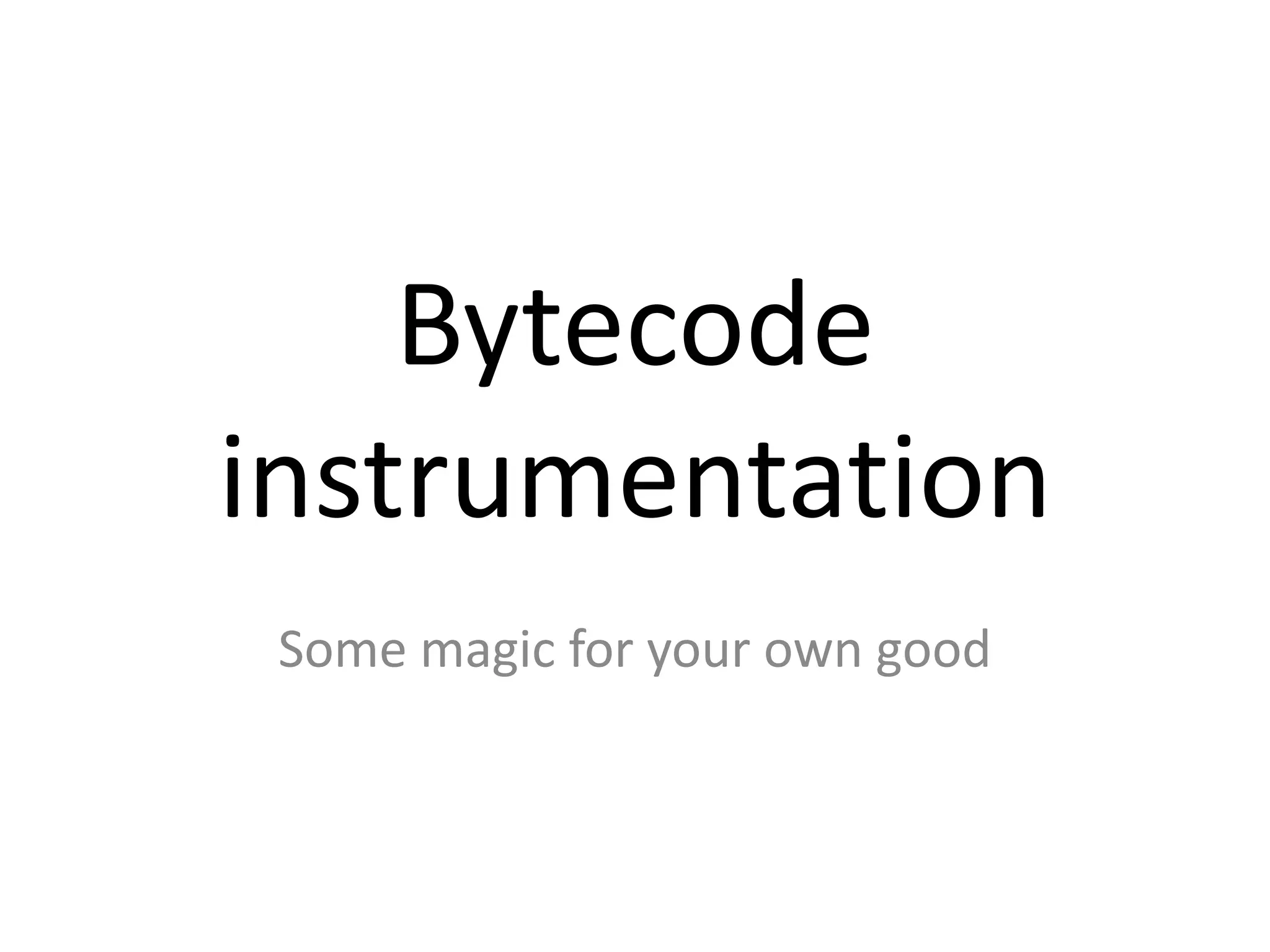

Bytecode
instrumentation
Some magic for your own good

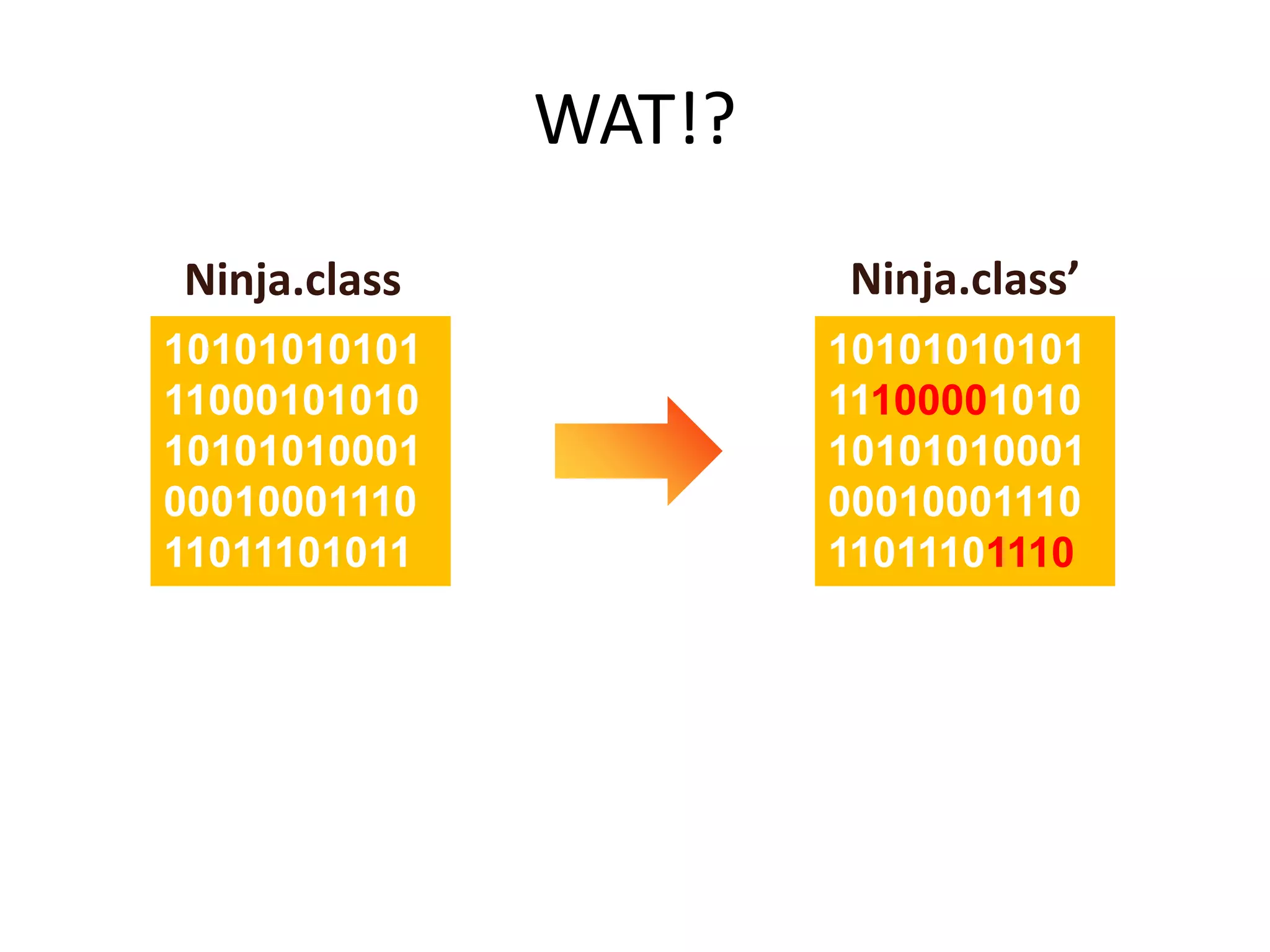

WAT!?
Ninja.class Ninja.class’
10101010101 10101010101
11000101010 11100001010
10101010001 10101010001
00010001110 00010001110
11011101011 11011101110

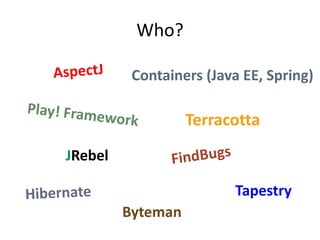

Who?

Containers (Java EE, Spring)

Terracotta
JRebel

Tapestry
Byteman

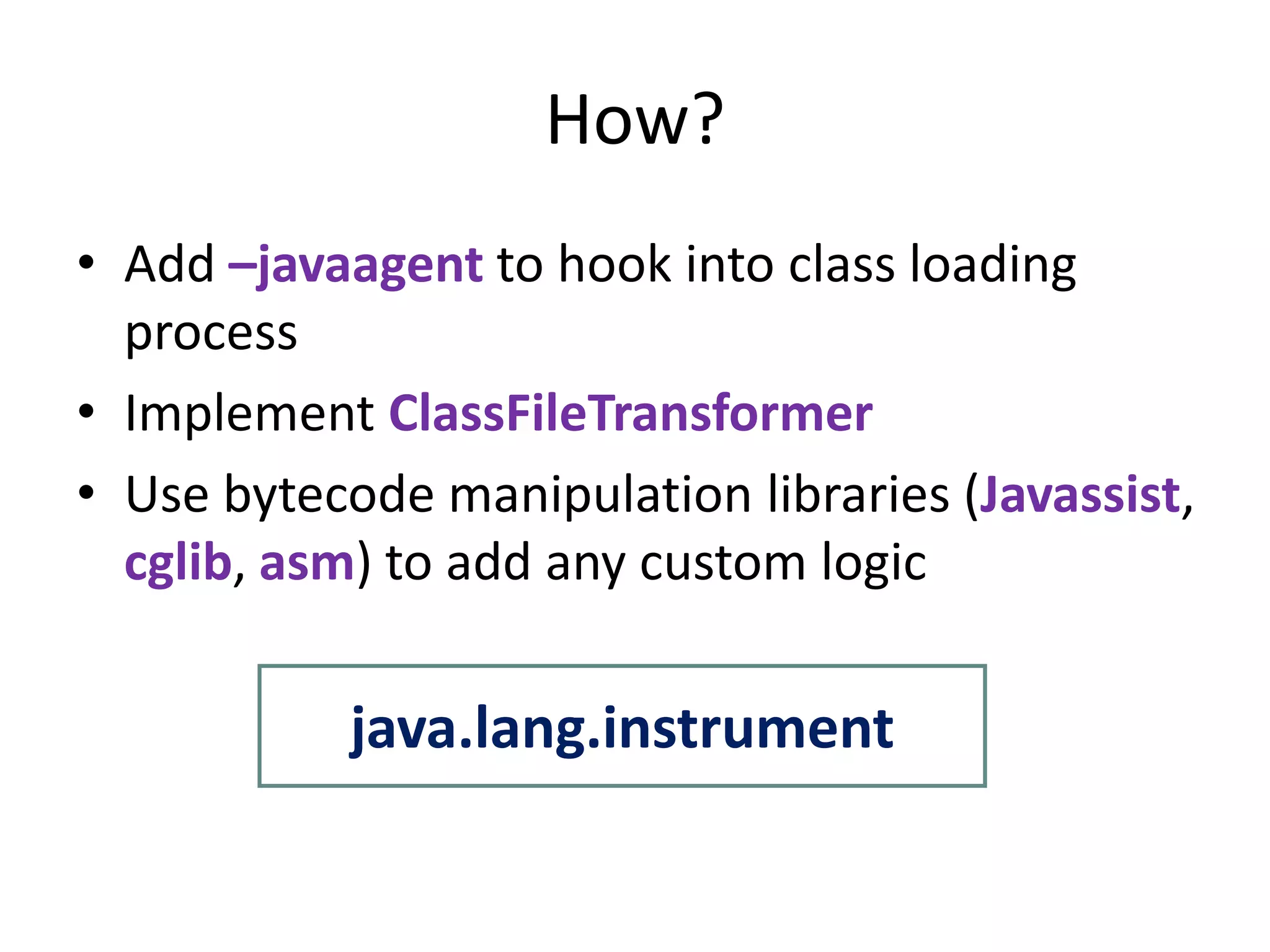

How?

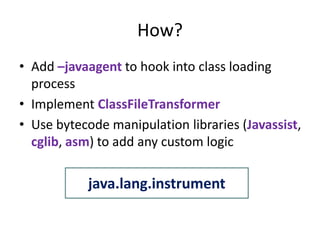

• Add –javaagent to hook into class loading
process
• Implement ClassFileTransformer
• Use bytecode manipulation libraries (Javassist,
cglib, asm) to add any custom logic

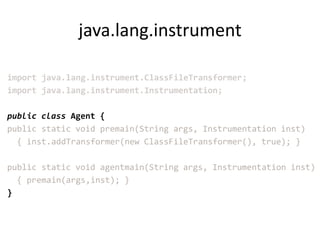

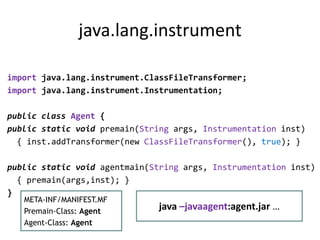

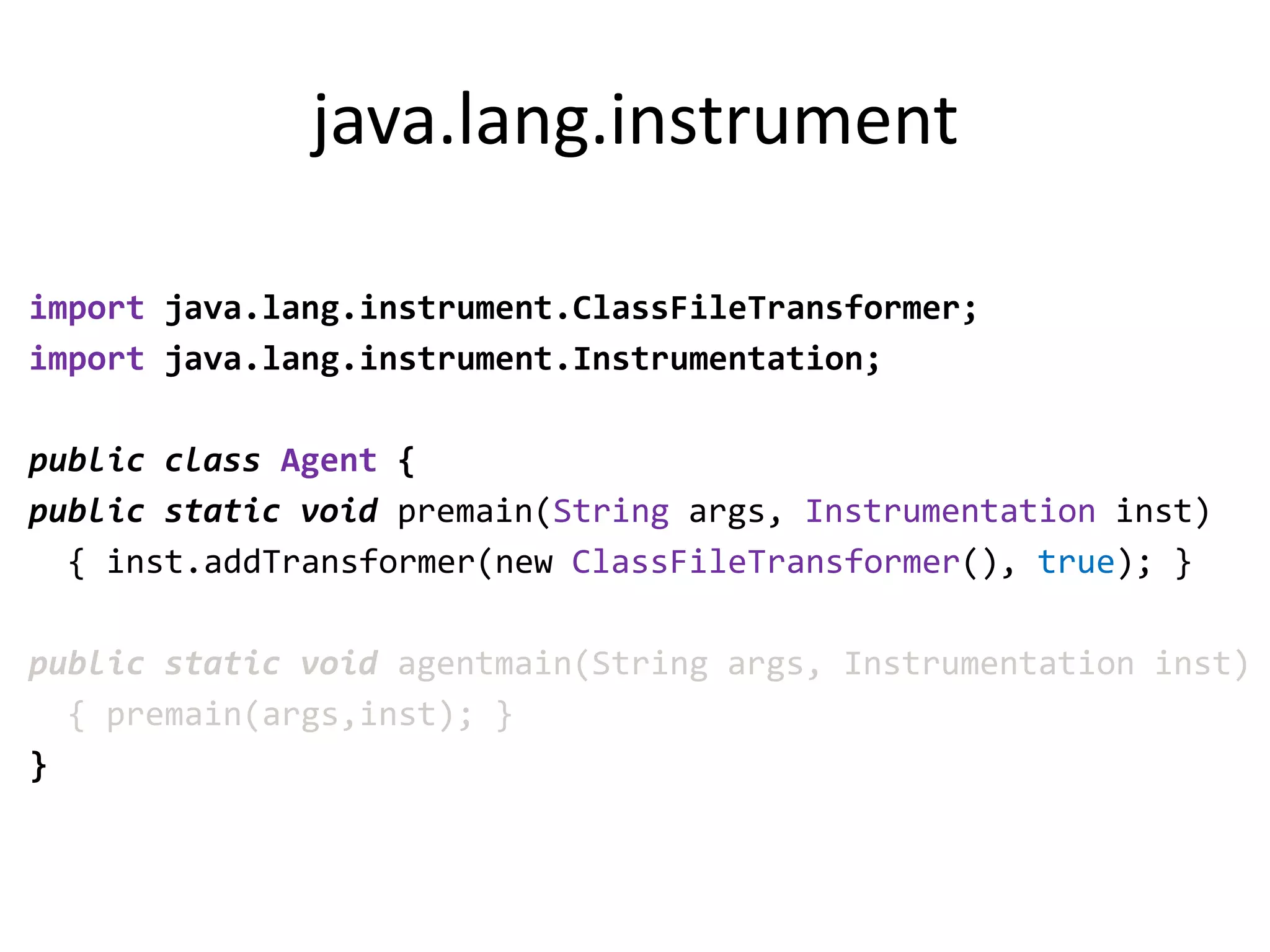

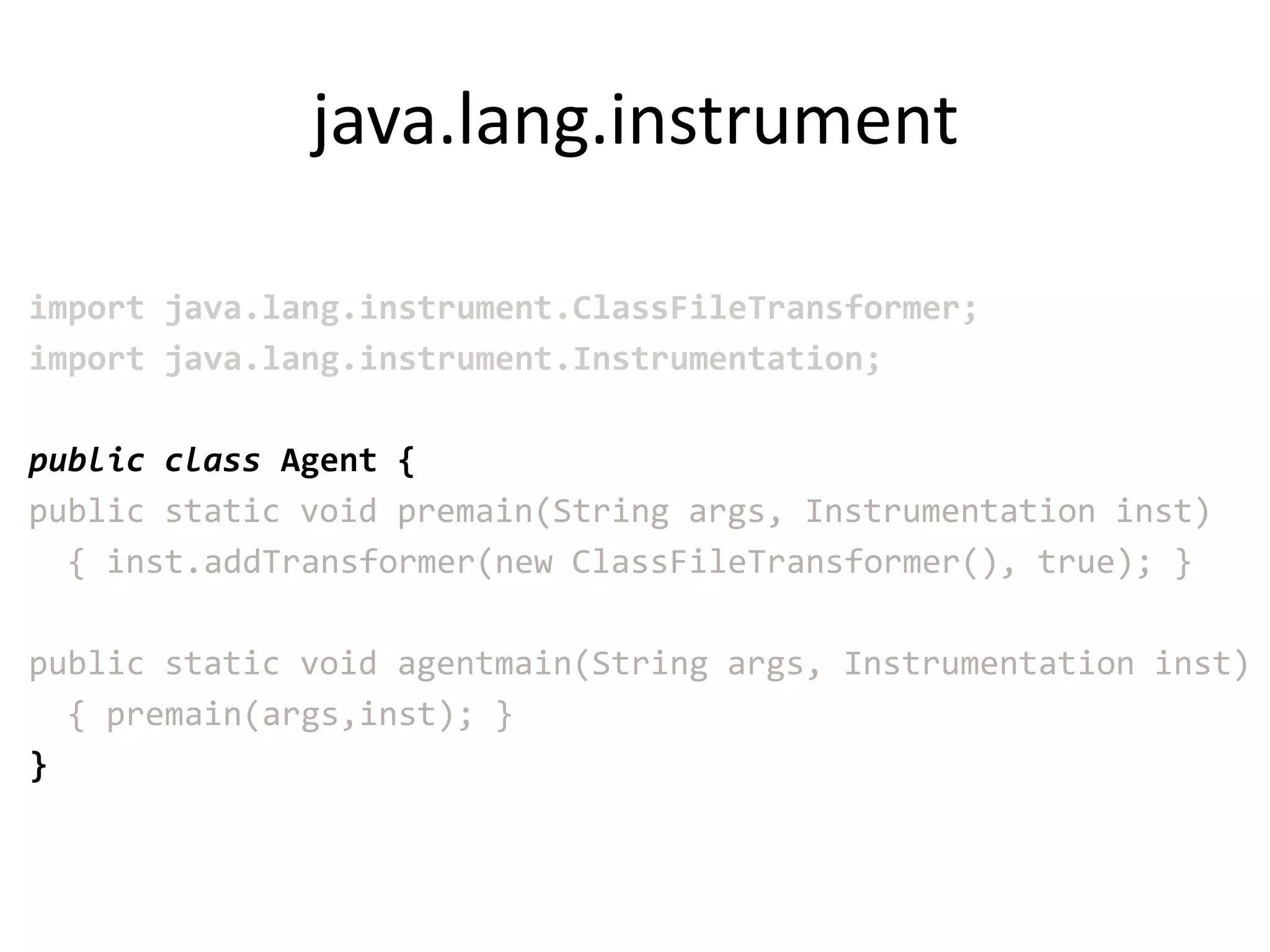

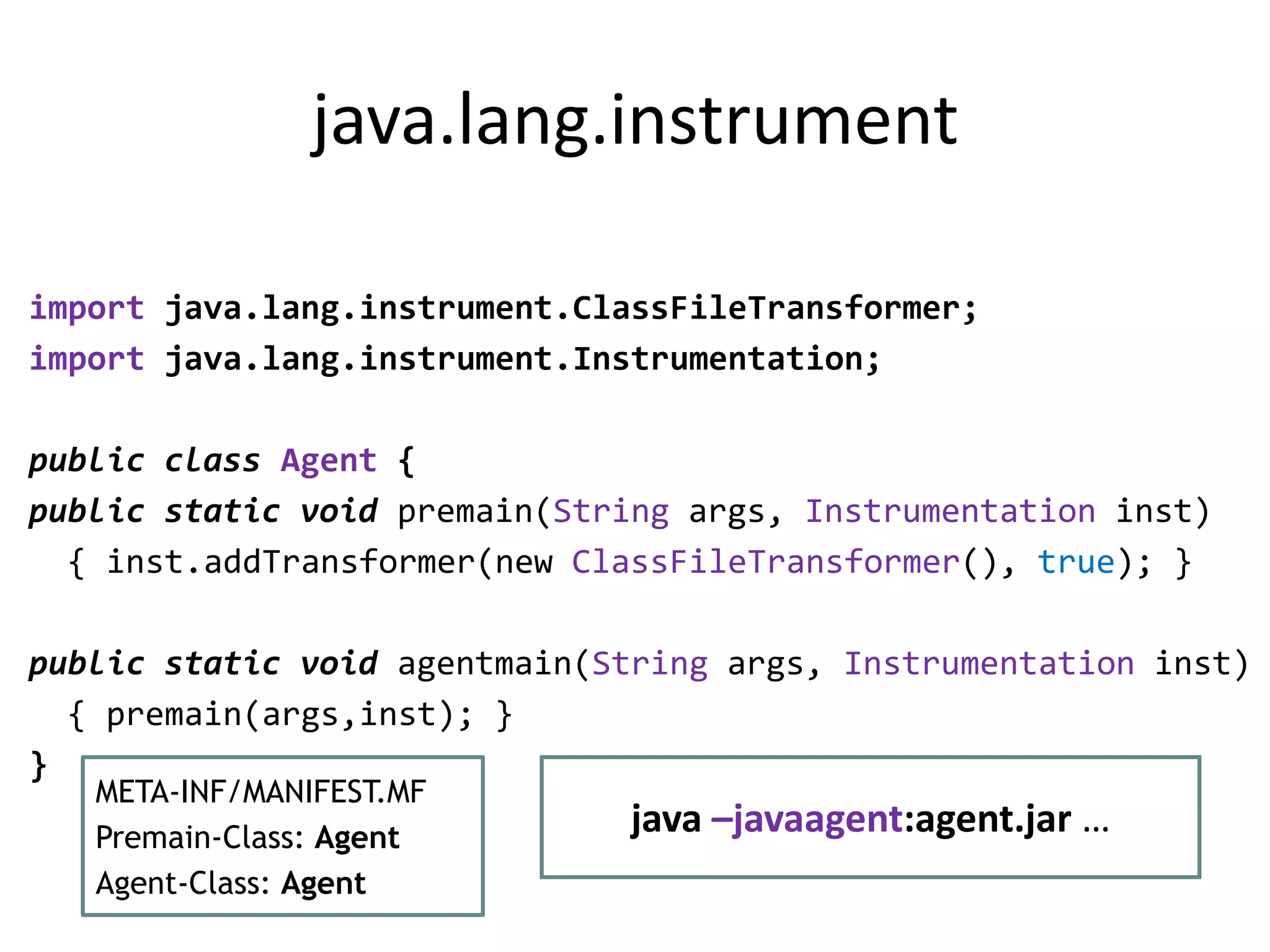

java.lang.instrument

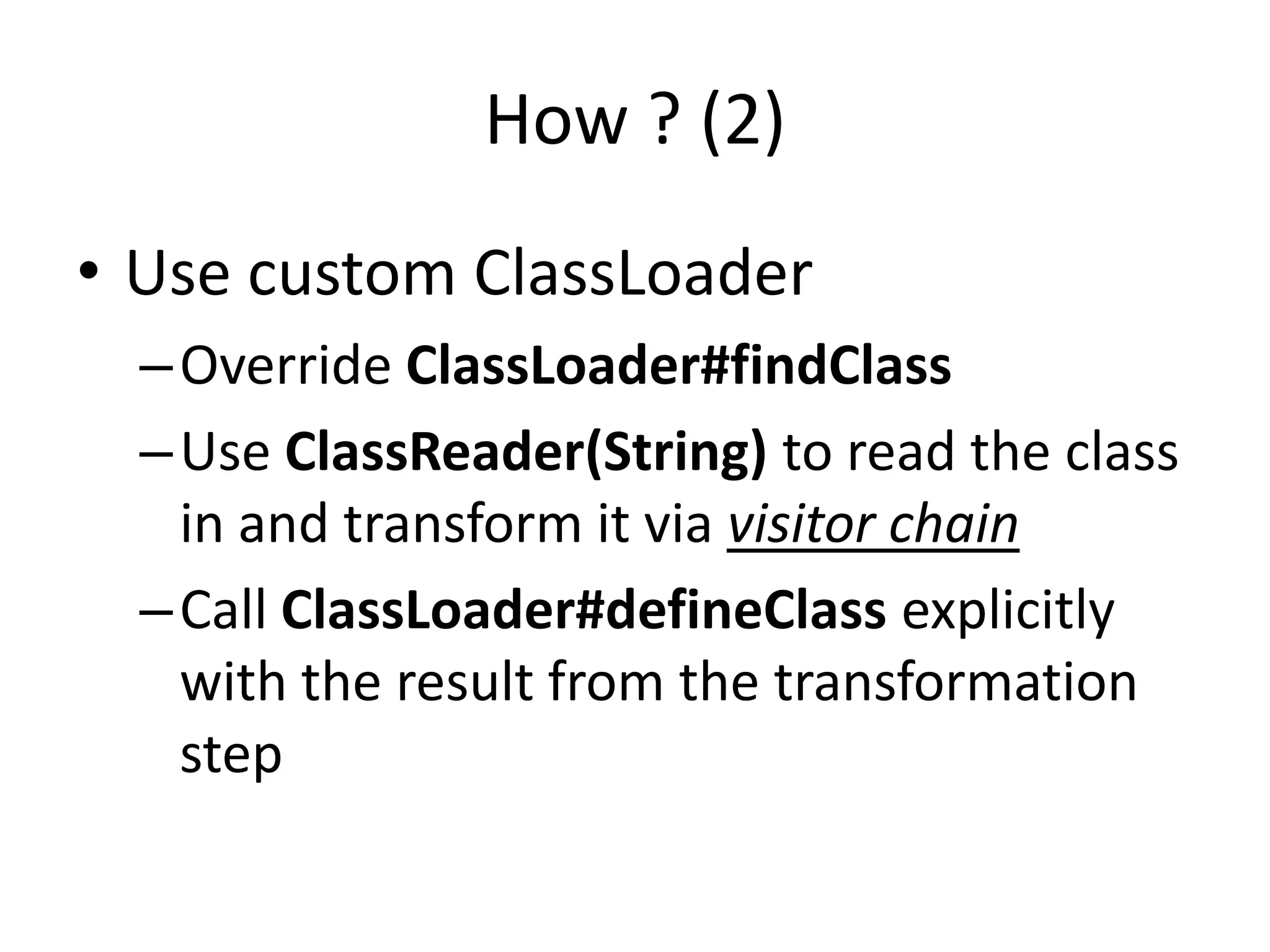

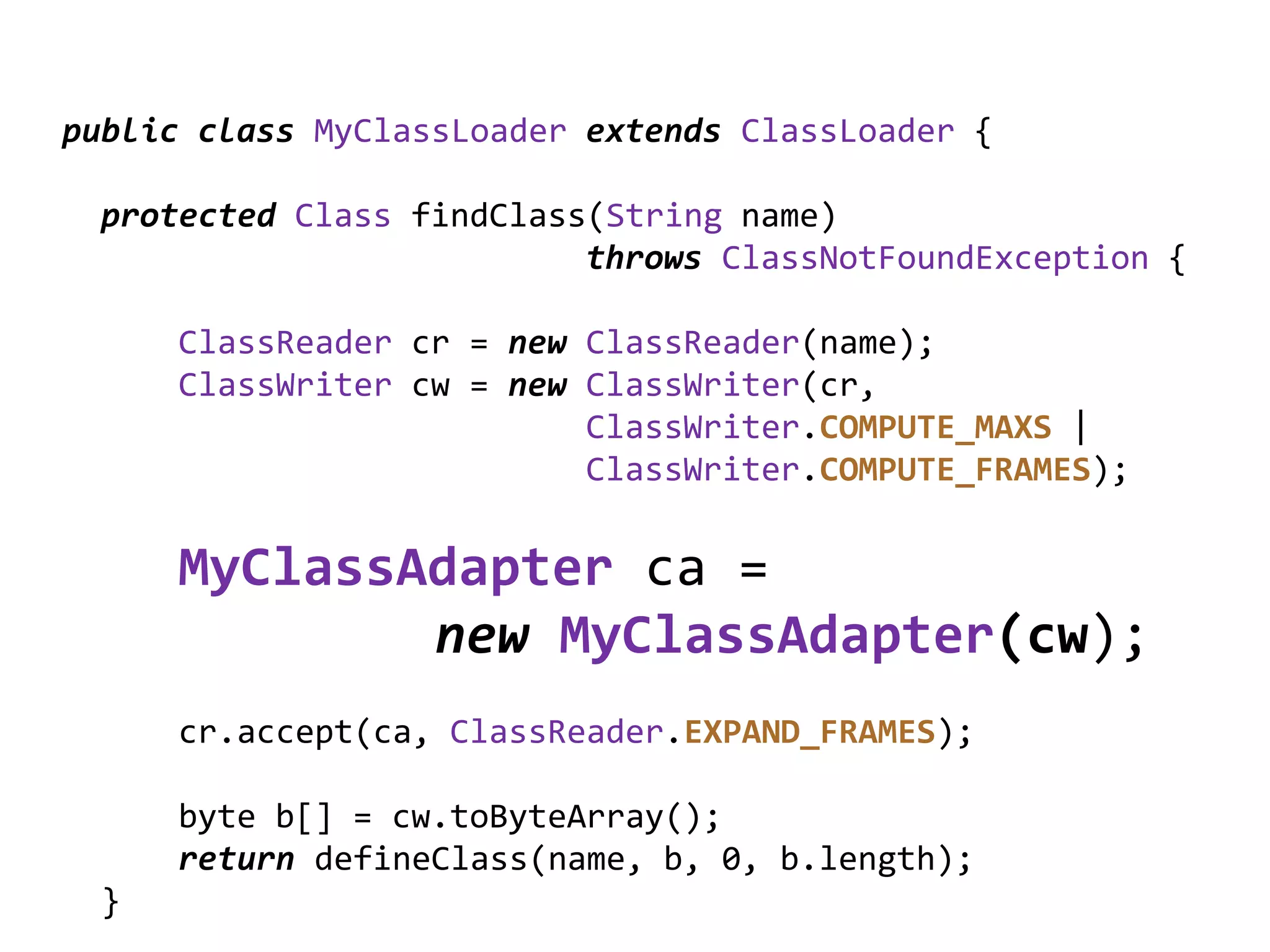

How ? (2)
• Use custom ClassLoader
– Override ClassLoader#findClass
– Use ClassReader(String) to read the class
in and transform it via visitor chain
– Call ClassLoader#defineClass explicitly
with the result from the transformation
step

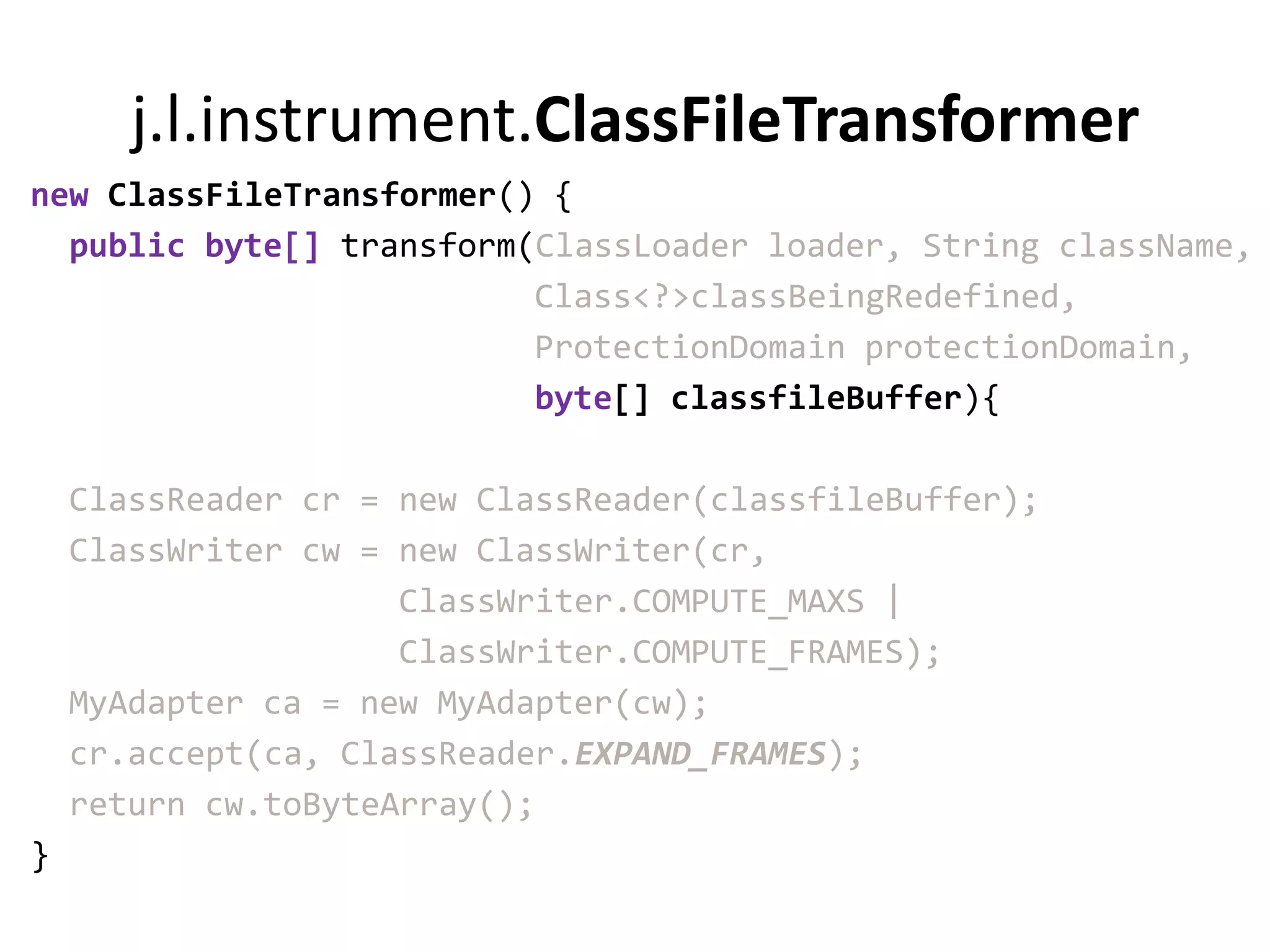

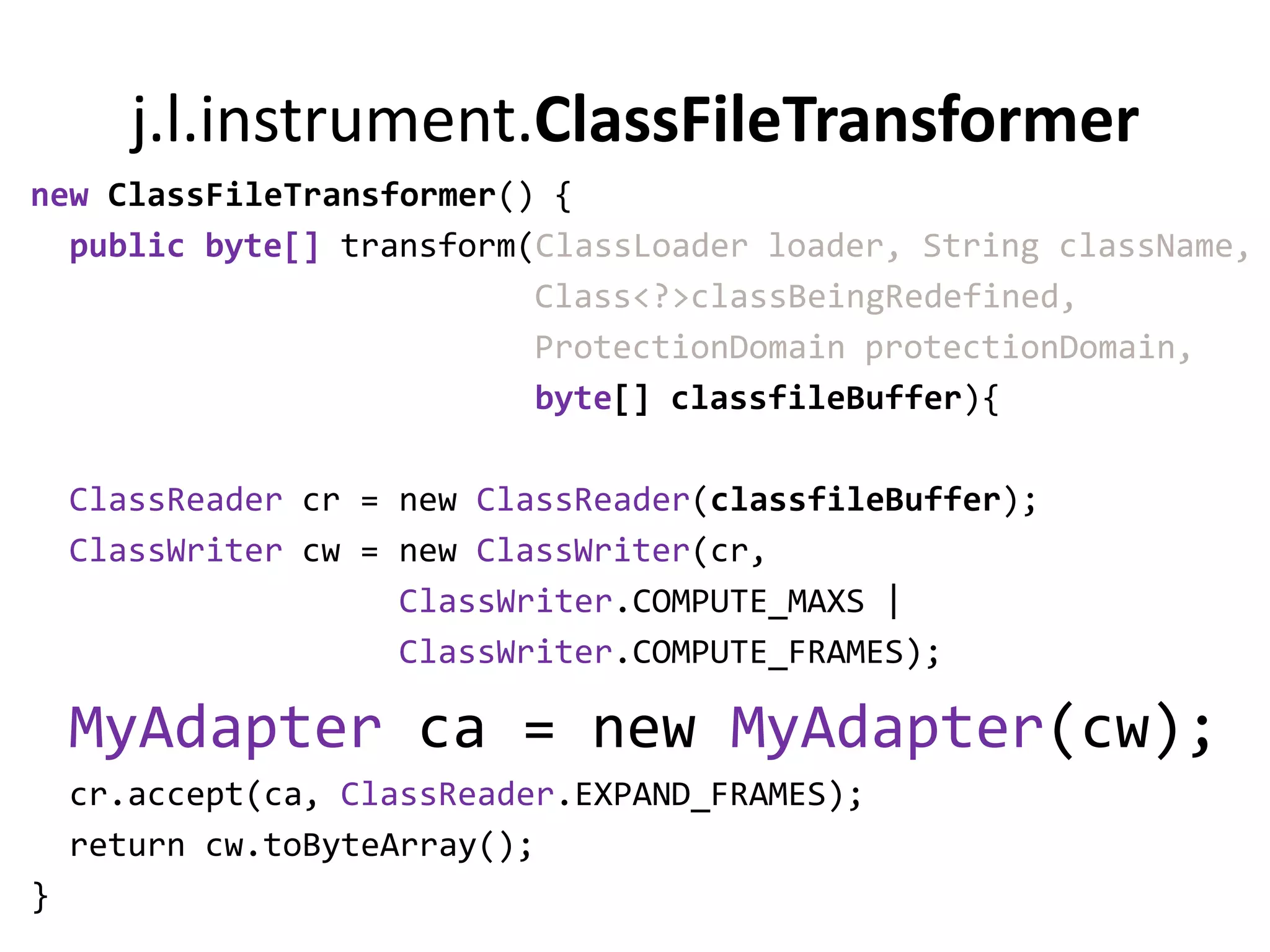

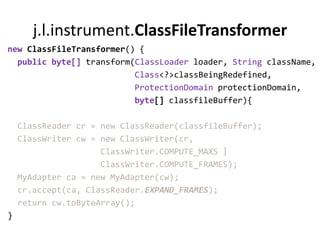

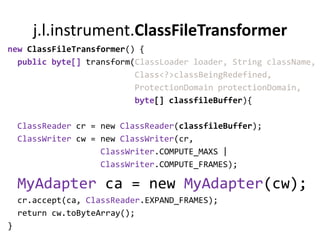

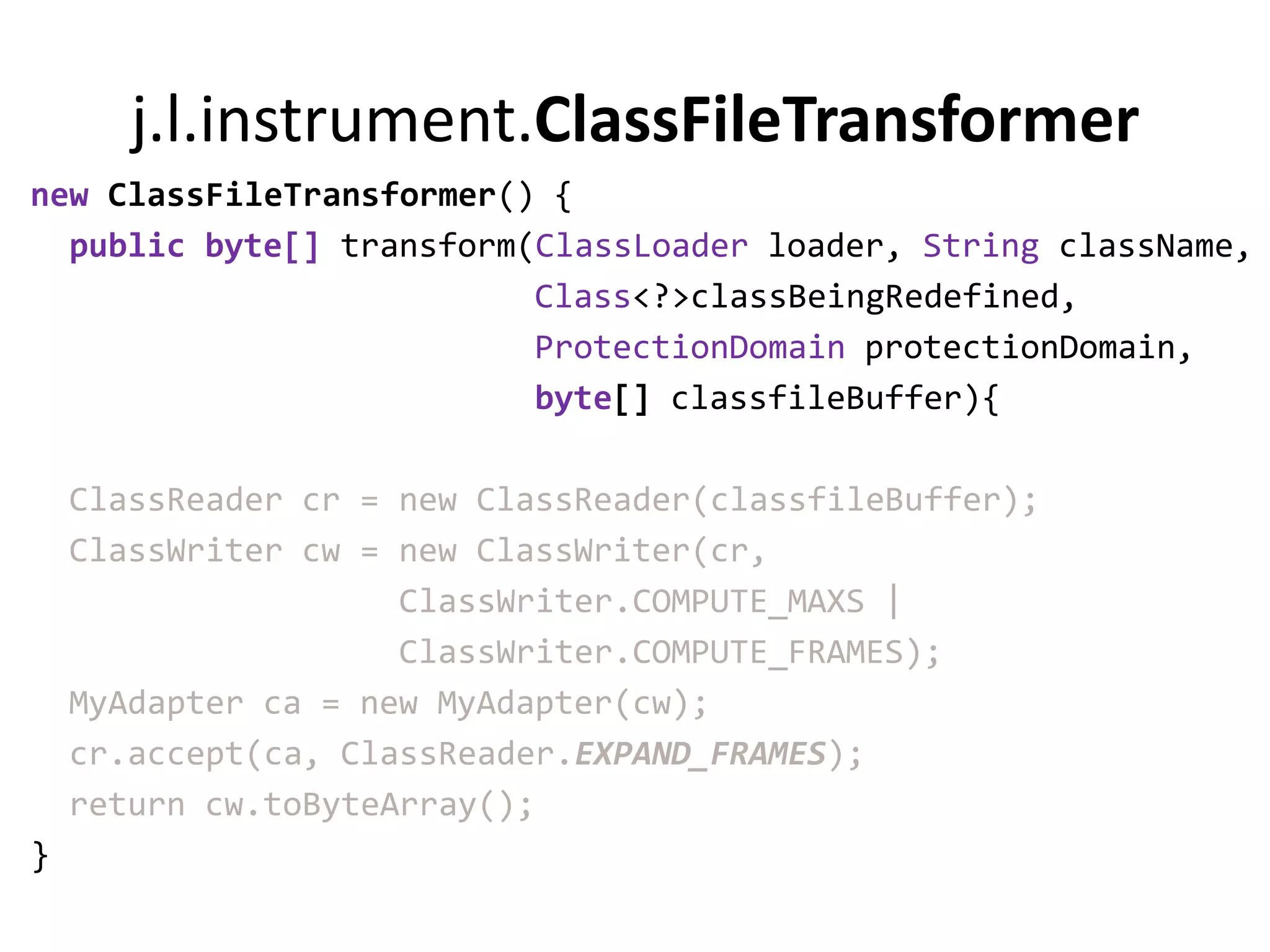

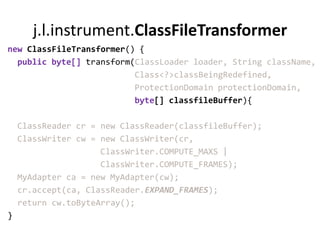

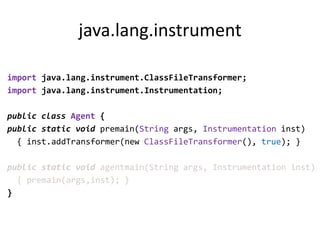

import java.lang.instrument.ClassFileTransformer;
import java.lang.instrument.Instrumentation;

public class Agent {
public static void premain(String args, Instrumentation inst)
{ inst.addTransformer(new ClassFileTransformer(), true); }

public static void agentmain(String args, Instrumentation inst)
{ premain(args,inst); }
}


import java.lang.instrument.ClassFileTransformer;
import java.lang.instrument.Instrumentation;

public class Agent {
public static void premain(String args, Instrumentation inst)
{ inst.addTransformer(new ClassFileTransformer(), true); }

public static void agentmain(String args, Instrumentation inst)
{ premain(args,inst); }
}
META-INF/MANIFEST.MF
Premain-Class: Agent
java –javaagent:agent.jar …
Agent-Class: Agent

j.l.instrument.ClassFileTransformer
new ClassFileTransformer() {
public byte[] transform(ClassLoader loader, String className,
Class<?>classBeingRedefined,
ProtectionDomain protectionDomain,
byte[] classfileBuffer){

ClassReader cr = new ClassReader(classfileBuffer);
ClassWriter cw = new ClassWriter(cr,
MyAdapter ca = new MyAdapter(cw);
cr.accept(ca, ClassReader.EXPAND_FRAMES);
return cw.toByteArray();
}

j.l.instrument.ClassFileTransformer
new ClassFileTransformer() {
public byte[] transform(ClassLoader loader, String className,
Class<?>classBeingRedefined,
ProtectionDomain protectionDomain,
byte[] classfileBuffer){

ClassReader cr = new ClassReader(classfileBuffer);

MyAdapter ca = new MyAdapter(cw);
return cw.toByteArray();
}

public class MyClassLoader extends ClassLoader {

protected Class findClass(String name)
throws ClassNotFoundException {

ClassReader cr = new ClassReader(name);

MyClassAdapter ca =
new MyClassAdapter(cw);

byte b[] = cw.toByteArray();
return defineClass(name, b, 0, b.length);
}

SLIDES
GOTO: IDE
SLIDES
IDE: ASM DEMO

@antonarhipov
anton@zeroturnaround.com
https://github.com/antonarhipov/asmdemo

Mastering java bytecode with ASM - GeeCON 2012

In this document
