Developing WP7 Appswith SilverlightJosé Luis LatorreMicrosoft MVP, UX Specialist & Brainsiders CEOhttp://silverlightguy.com

Generalni sponzori:Organizatori:Glavni sponzori:Generalni medijski sponzor:Sponzori:Medijski sponzori:Strateški partneri:Službena PR agencija:

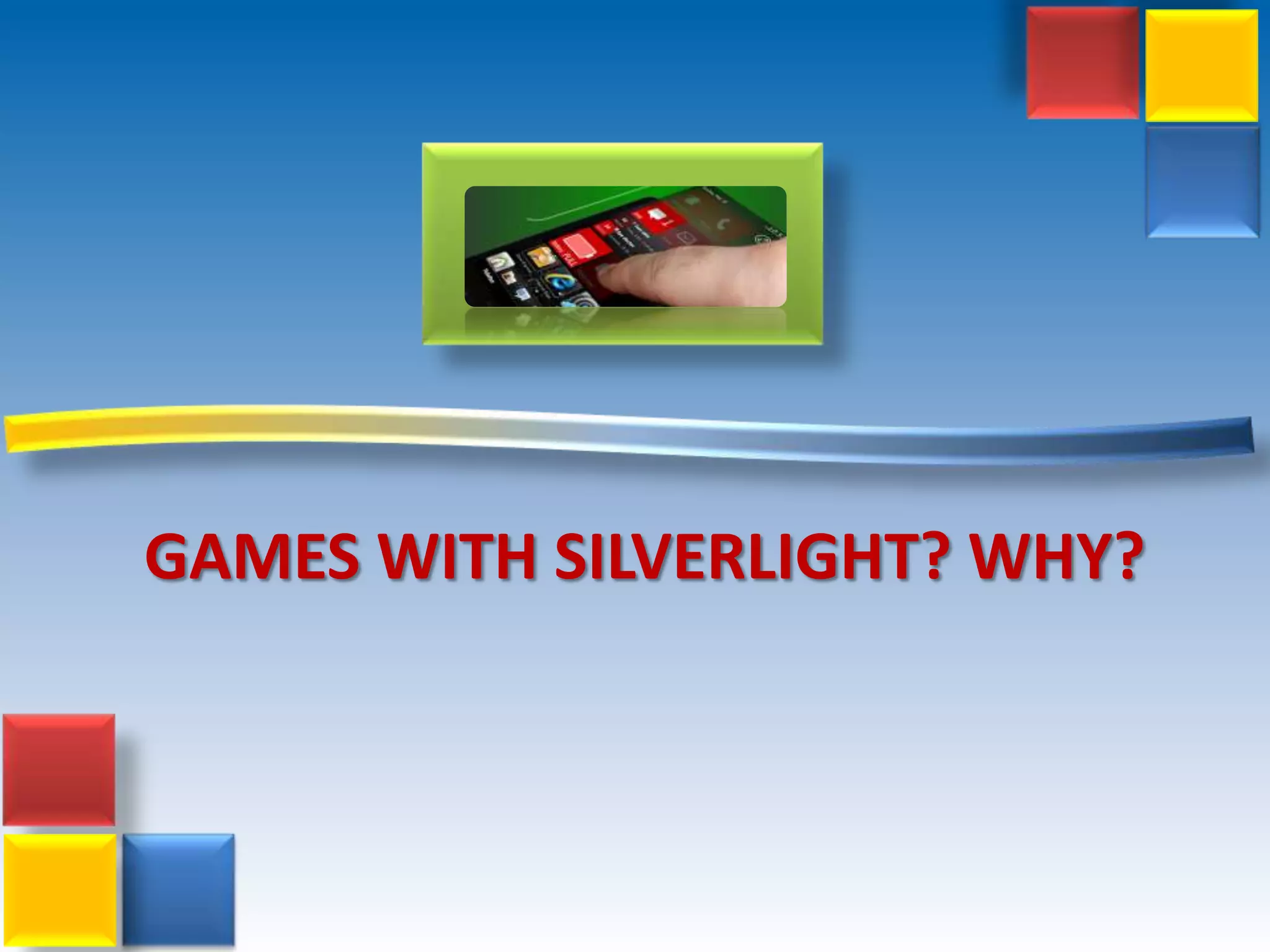

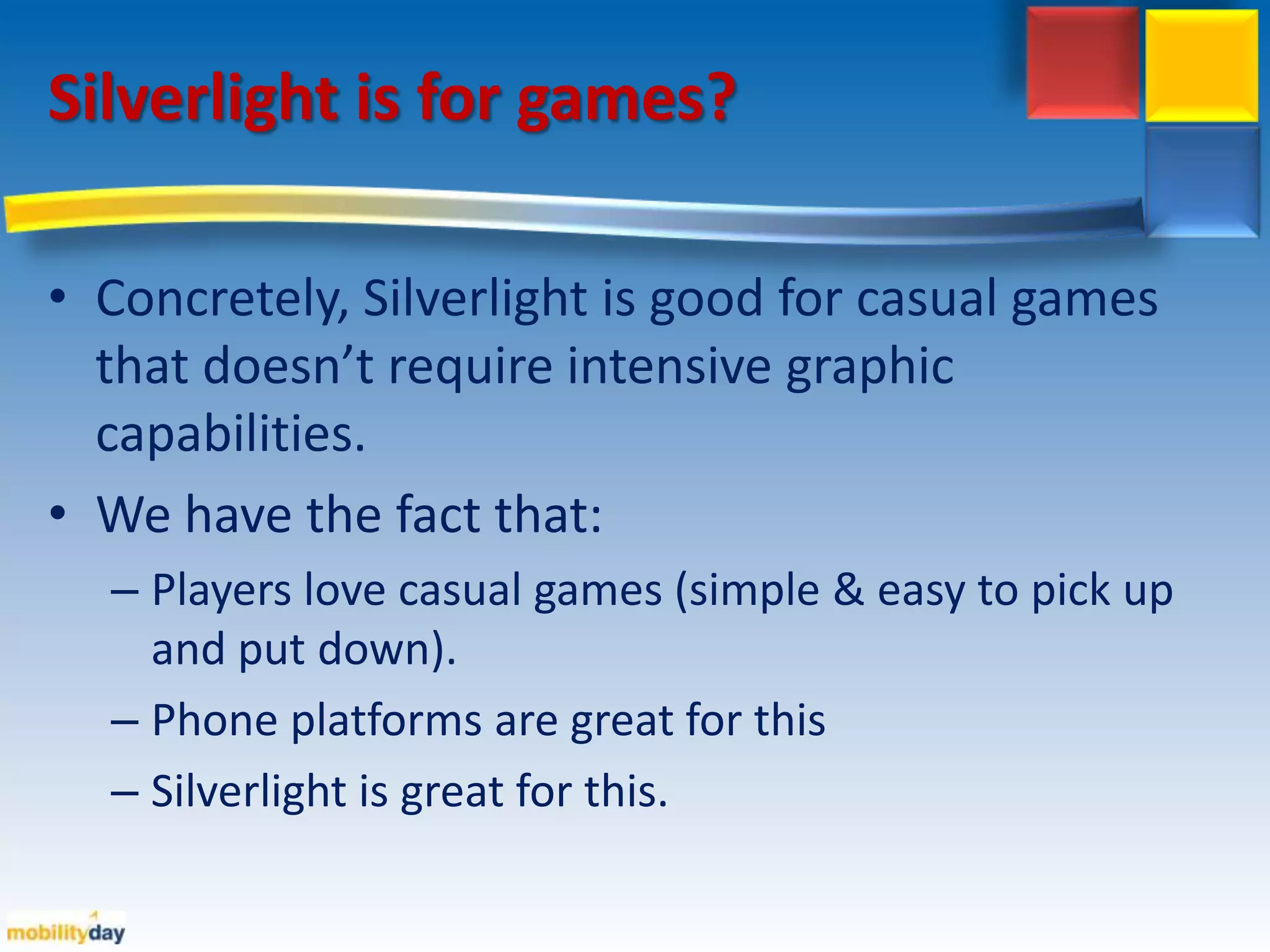

Silverlight is for games?Concretely, Silverlight isgood for casual gamesthatdoesn’trequireintensivegraphiccapabilities. Wehavethefactthat:Playerslove casual games (simple & easyto pick up and putdown).Phone platforms are great for thisSilverlight isgreat for this.

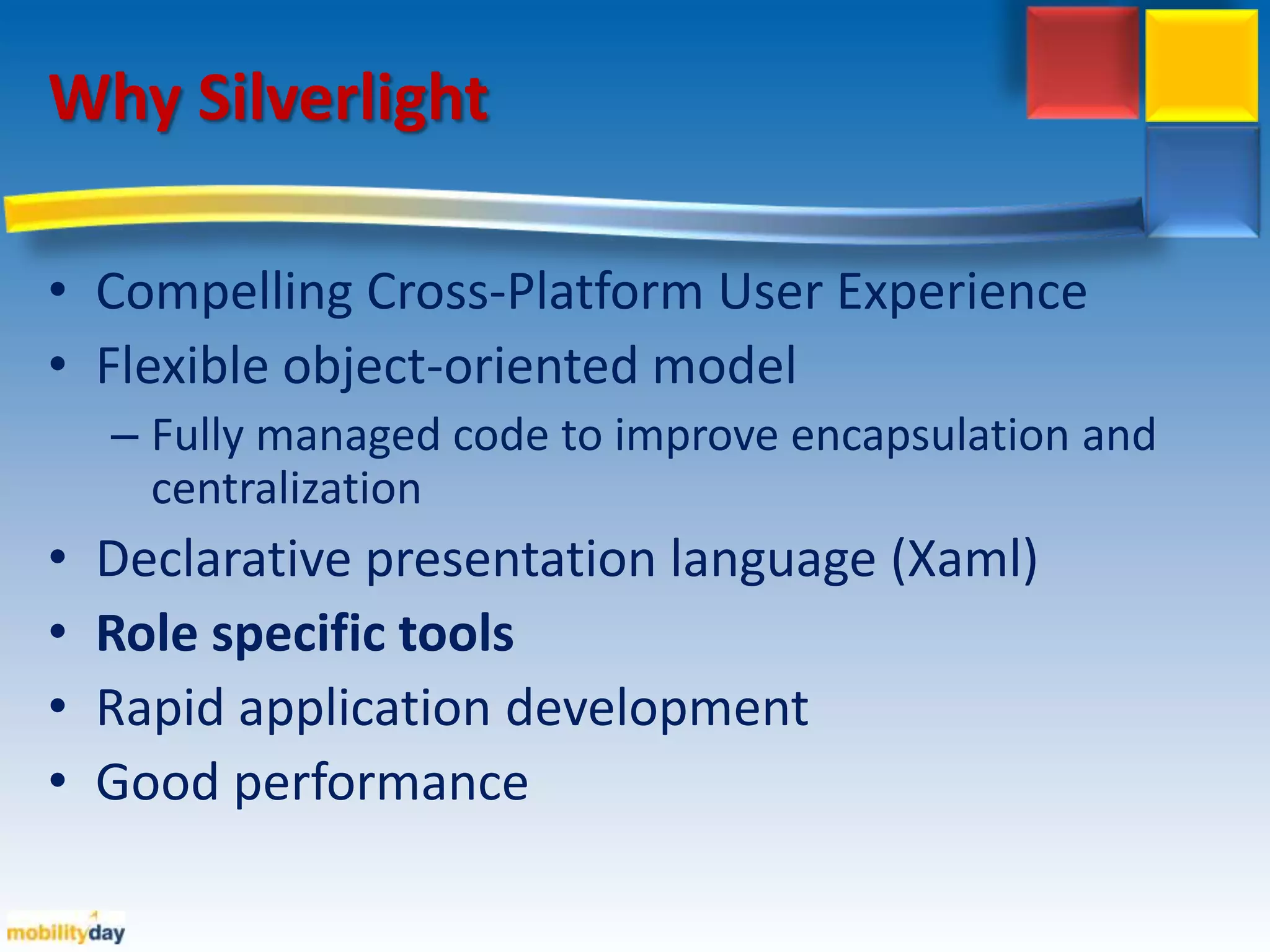

Why Silverlight Compelling Cross-Platform User ExperienceFlexible object-oriented modelFully managed code to improve encapsulation and centralizationDeclarative presentation language (Xaml)Role specific toolsRapid application development Good performance

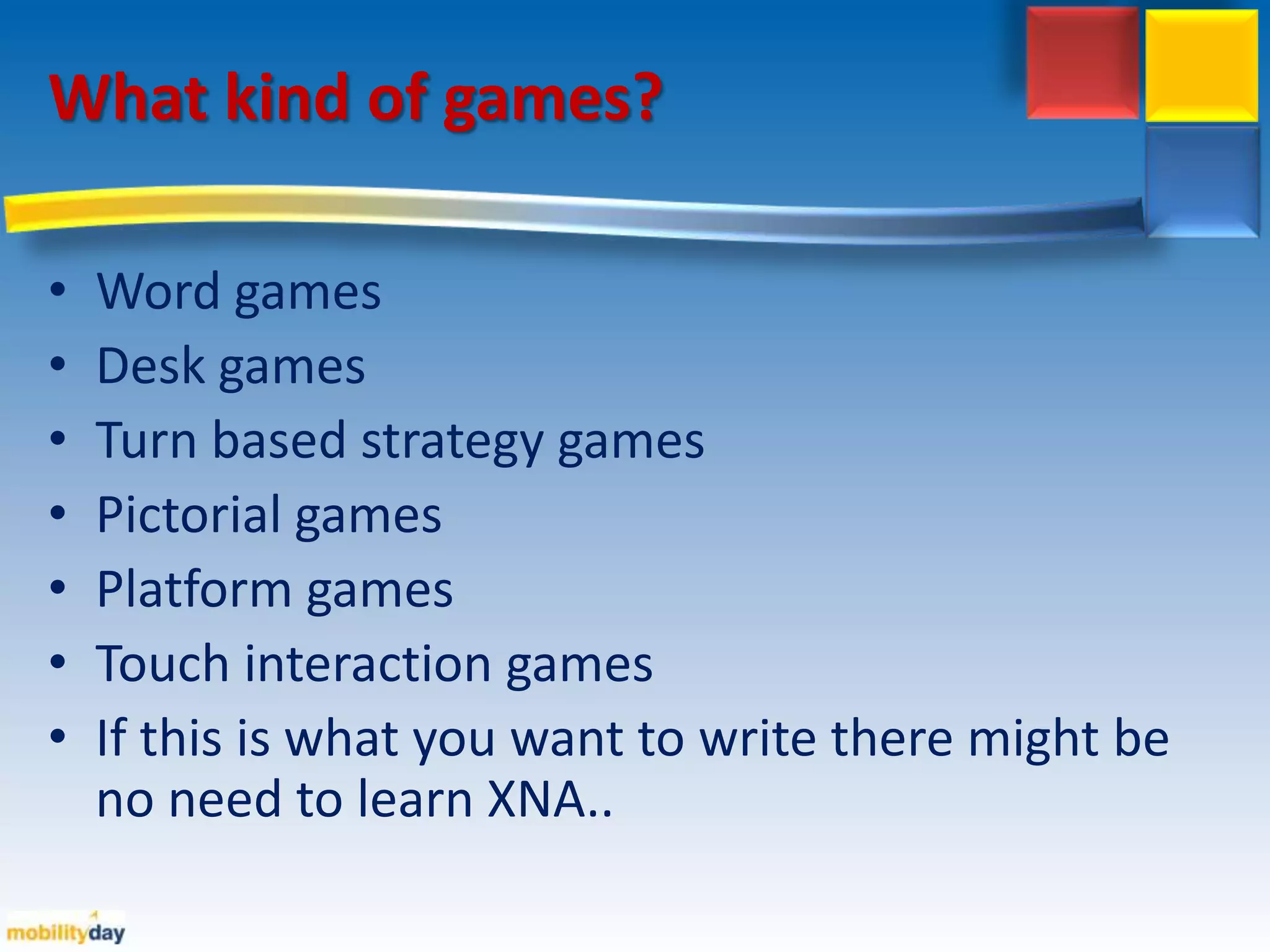

Whatkind of games?Word gamesDesk gamesTurn based strategy gamesPictorial gamesPlatform gamesTouch interaction gamesIf this is what you want to write there might be no need to learn XNA..

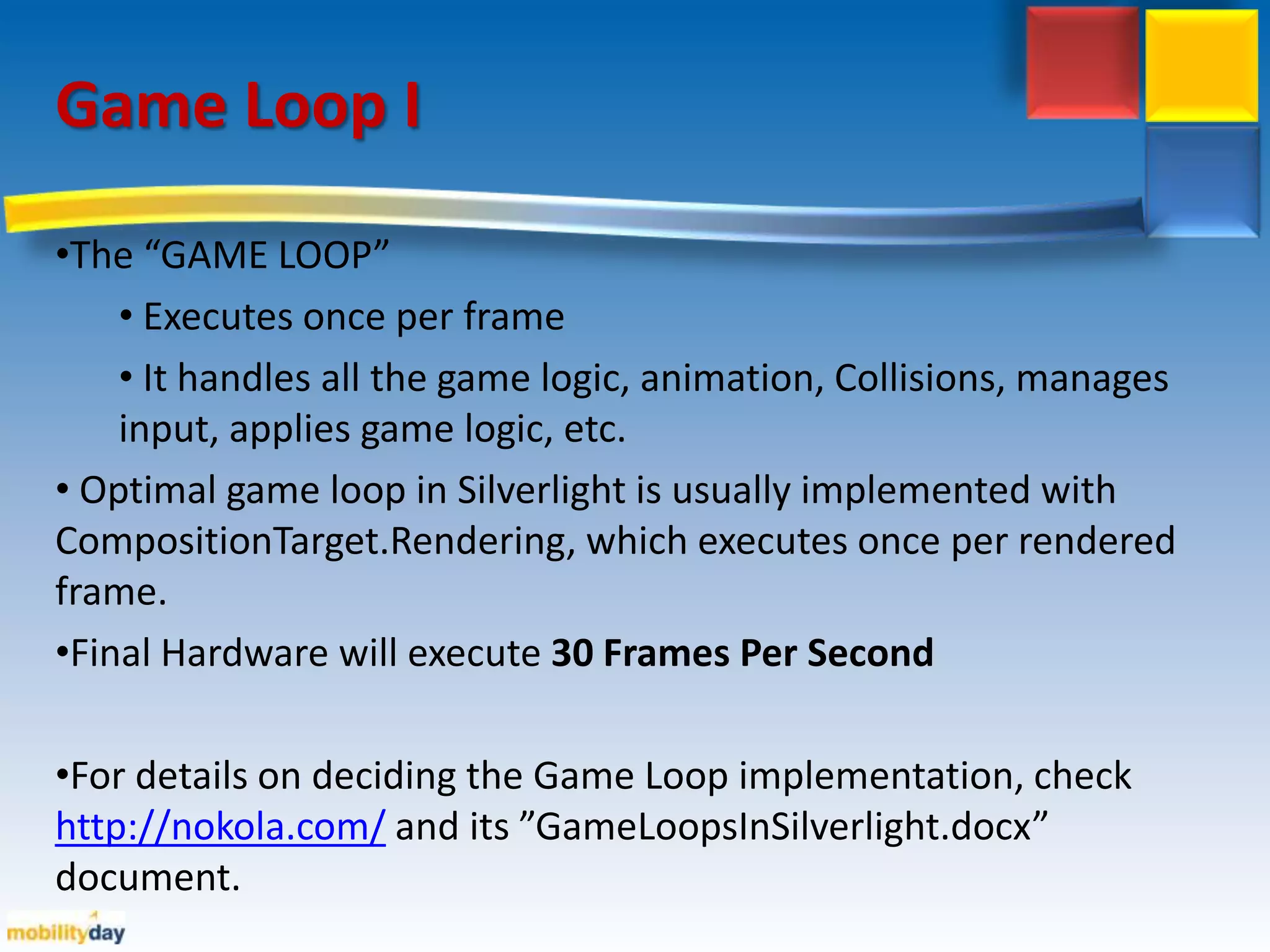

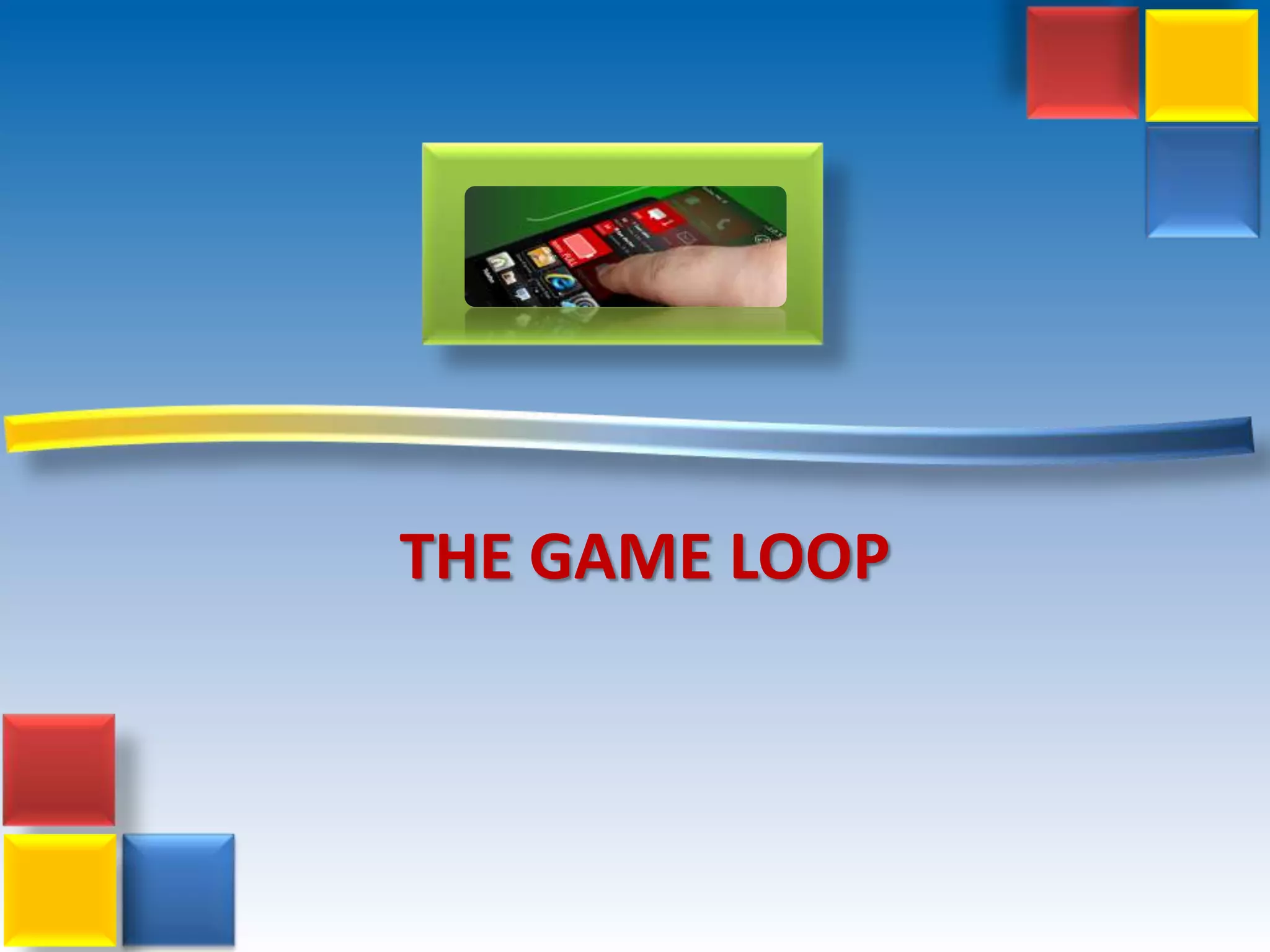

Game Loop IThe “GAME LOOP”

It handles all the game logic, animation, Collisions, manages input, applies game logic, etc.

Optimal game loop in Silverlight is usually implemented with CompositionTarget.Rendering, which executes once per rendered frame.

Final Hardware will execute 30 Frames Per Second

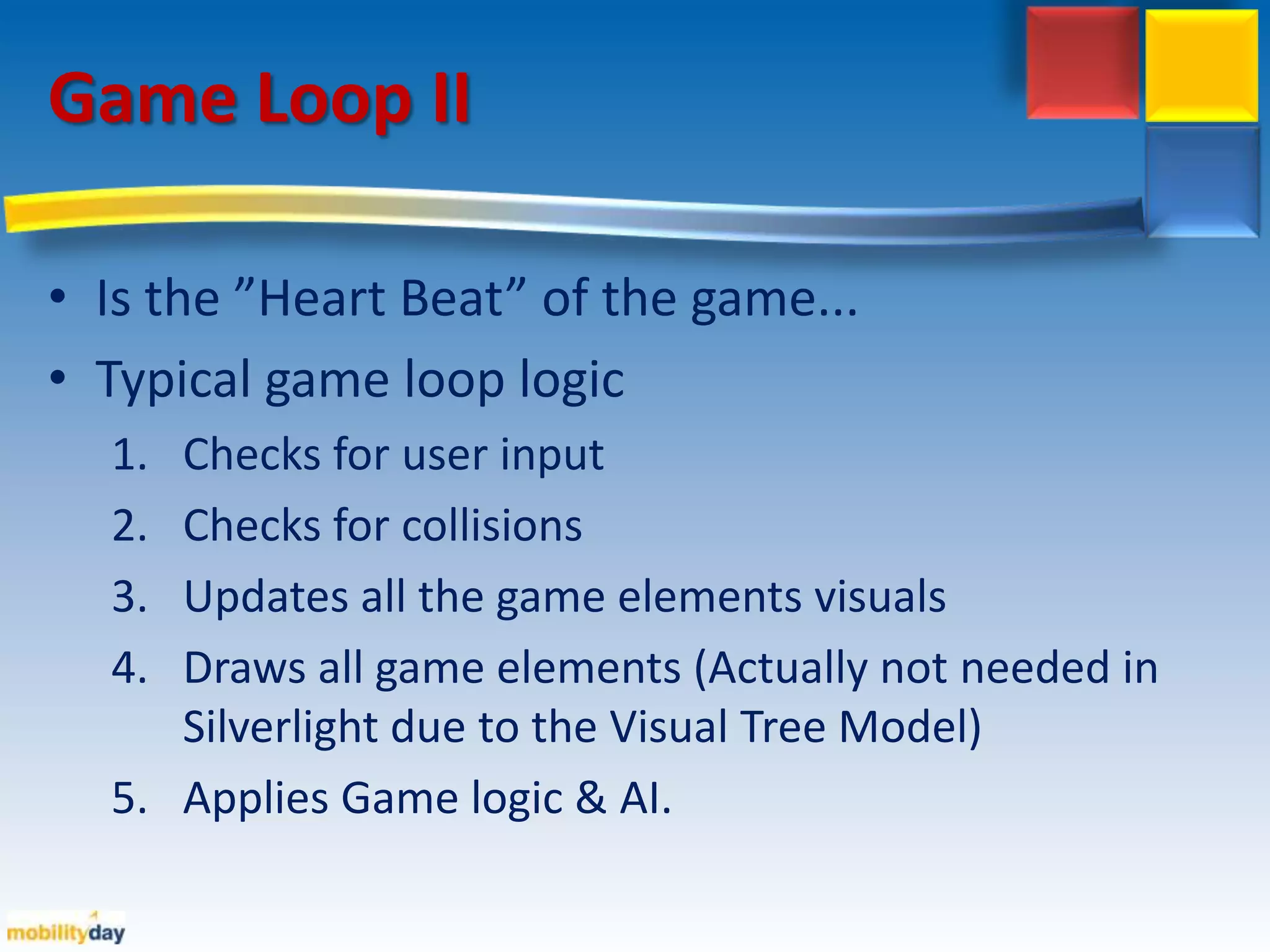

For details on deciding the Game Loop implementation, check http://nokola.com/ and its ”GameLoopsInSilverlight.docx” document. Game Loop IIIs the ”Heart Beat” of the game...Typical game loop logicChecks for user inputChecks for collisionsUpdates all the game elements visualsDraws all game elements (Actually not needed in Silverlight due to the Visual Tree Model)Applies Game logic & AI.

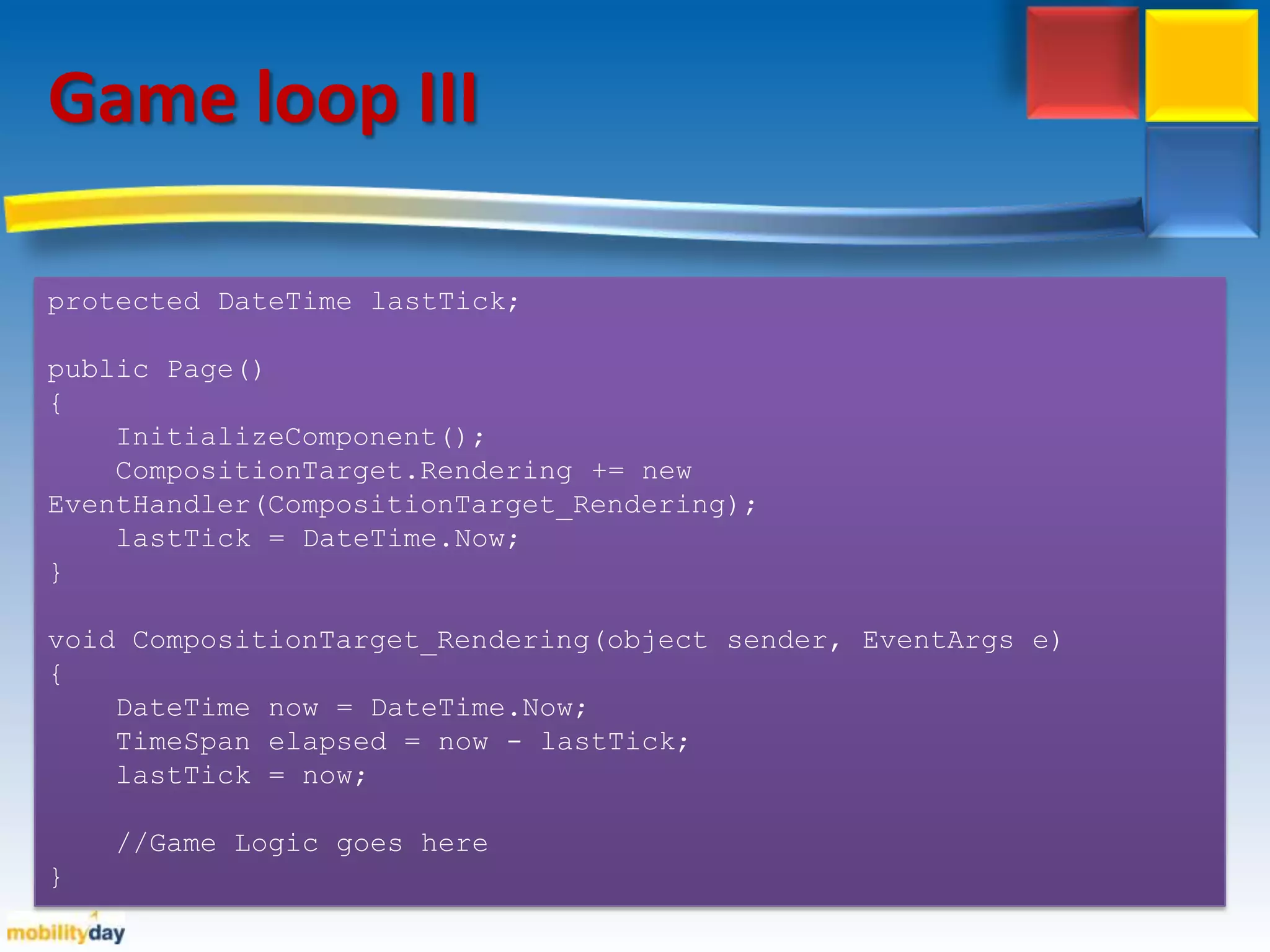

Game loop IIIprotectedDateTimelastTick; public Page(){InitializeComponent();CompositionTarget.Rendering += new EventHandler(CompositionTarget_Rendering);lastTick = DateTime.Now;}void CompositionTarget_Rendering(object sender, EventArgs e){DateTimenow = DateTime.Now;TimeSpanelapsed = now - lastTick;lastTick = now; //Game Logicgoeshere}

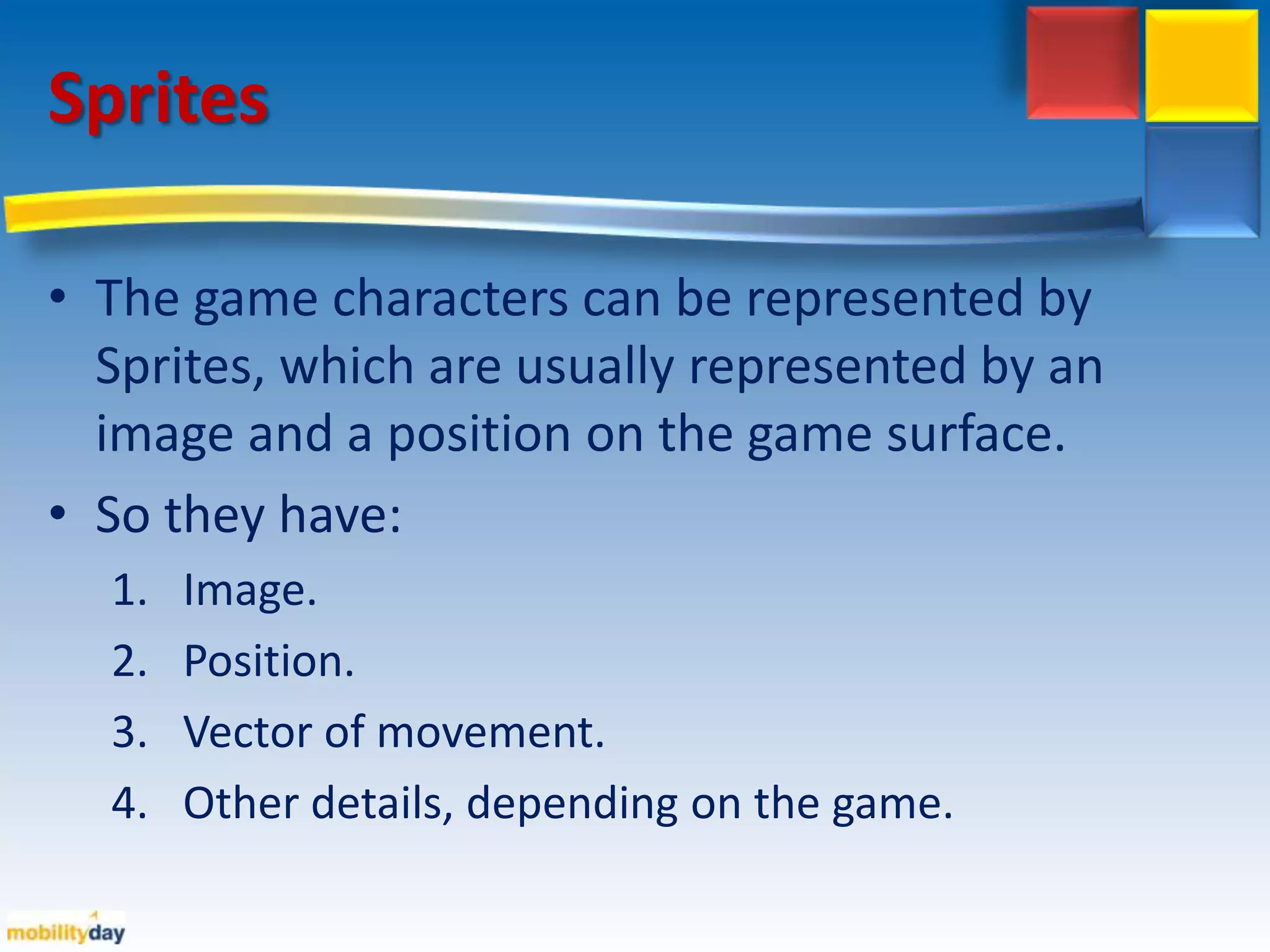

SpritesThe game characters can be represented by Sprites, which are usually represented by an image and a position on the game surface.So they have:Image.Position.Vector of movement.Other details, depending on the game.

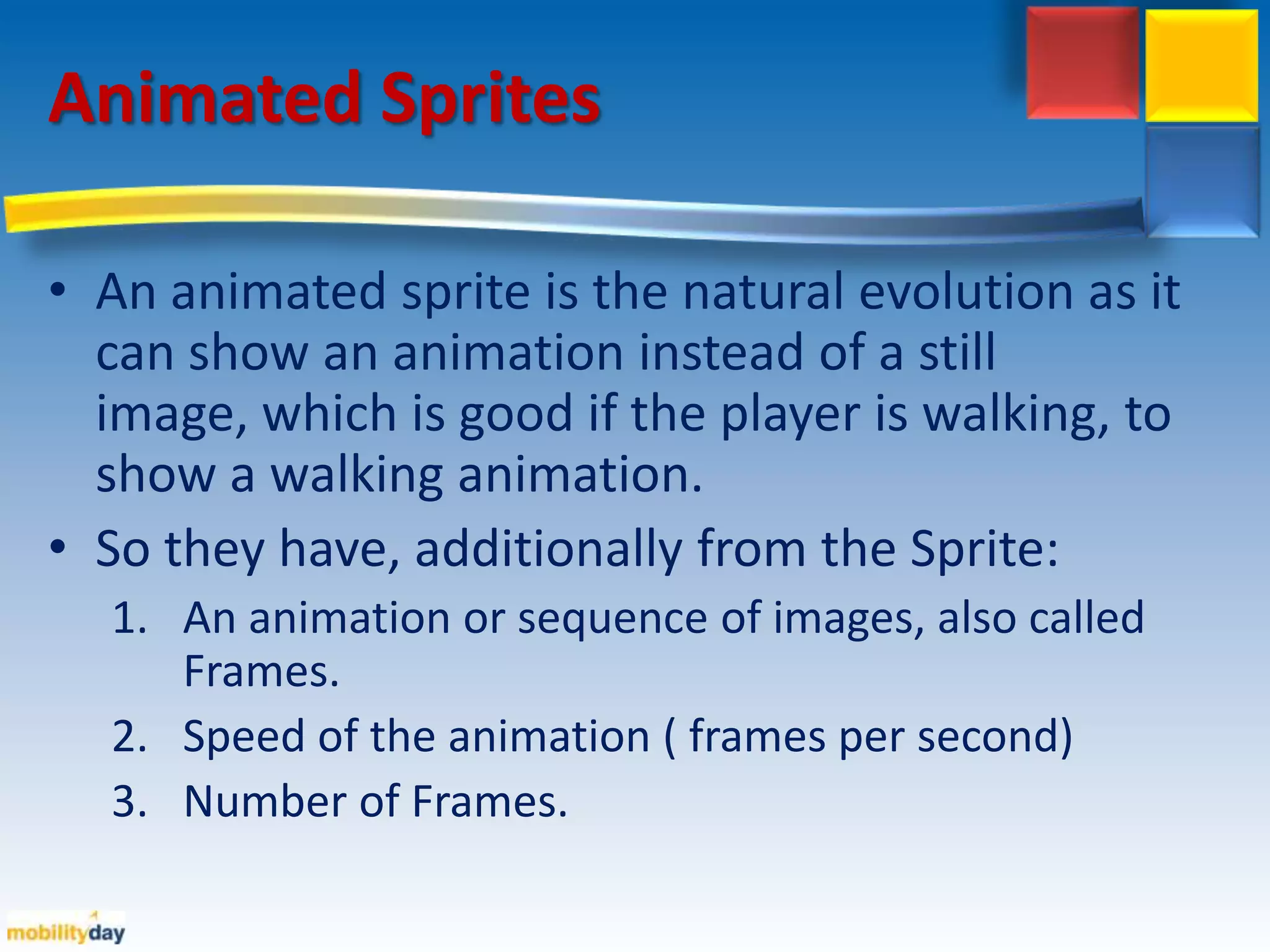

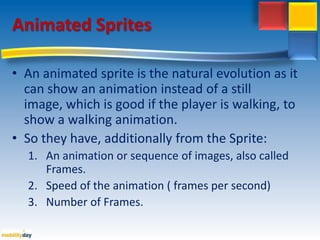

Animated SpritesAn animated sprite is the natural evolution as it can show an animation instead of a still image, which is good if the player is walking, to show a walking animation. So they have, additionally from the Sprite:An animation or sequence of images, also called Frames.Speed of the animation ( frames per second)Number of Frames.

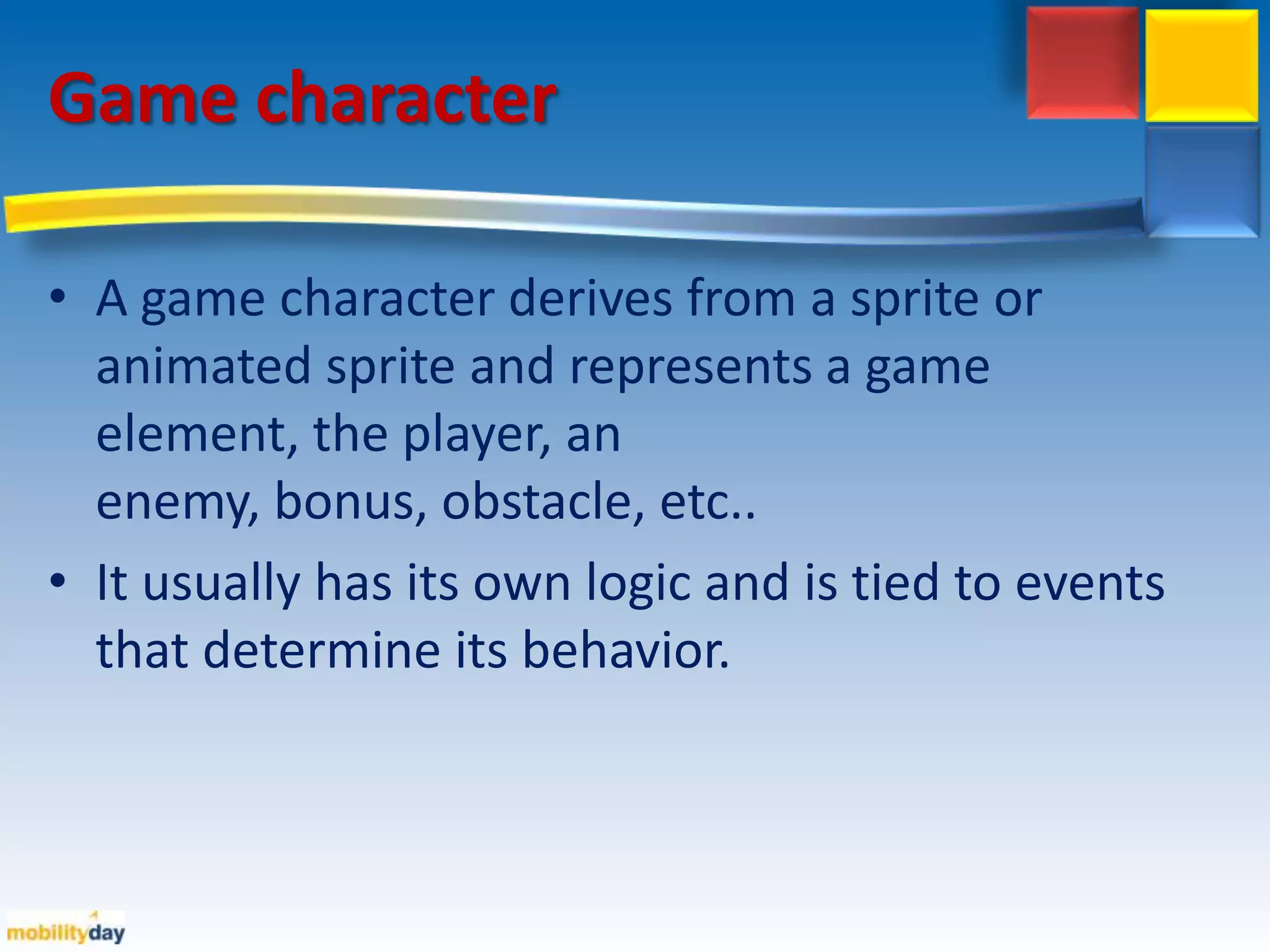

Game characterA game character derives from a sprite or animated sprite and represents a game element, the player, an enemy, bonus, obstacle, etc..It usually has its own logic and is tied to events that determine its behavior.

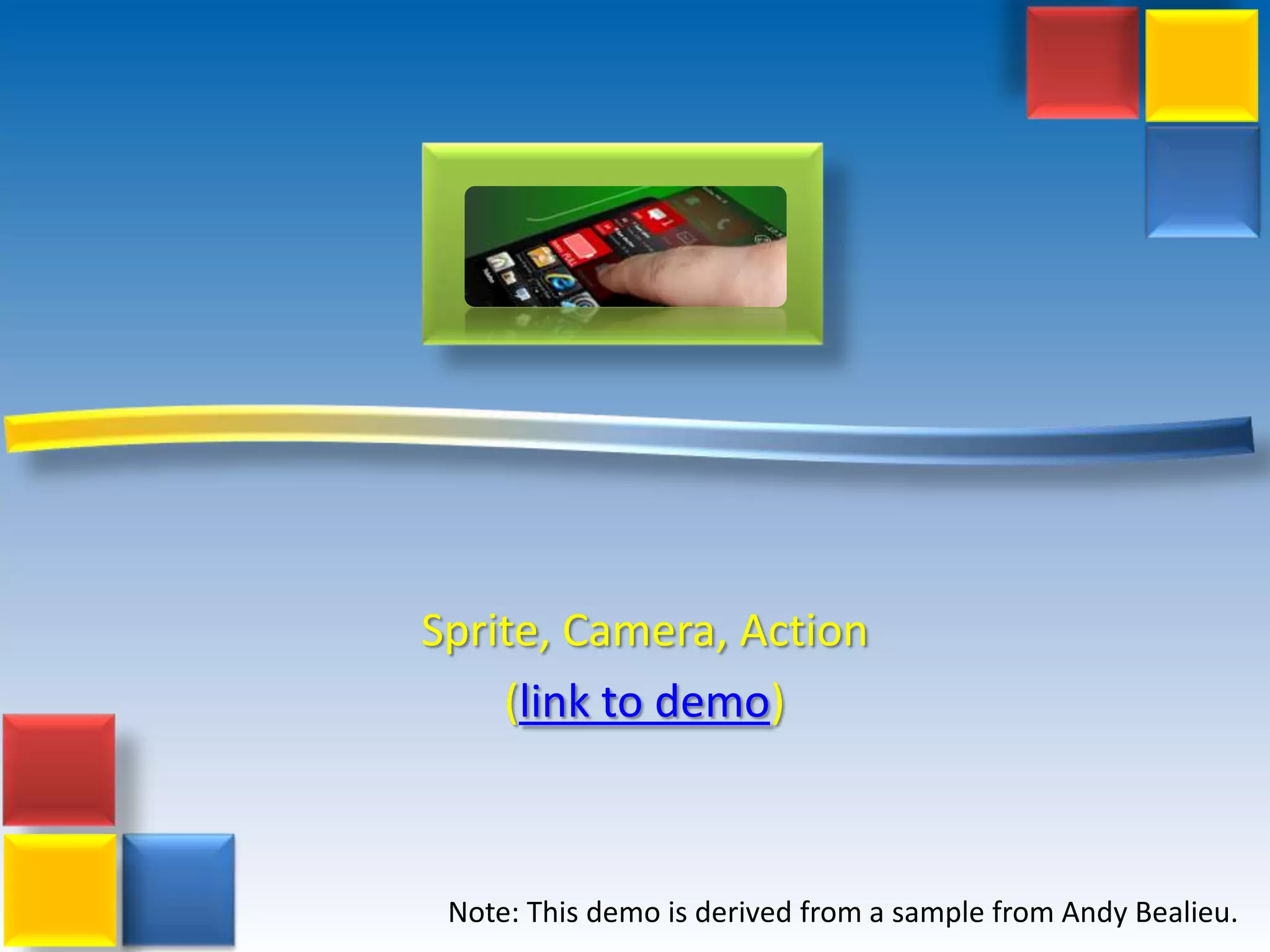

Sprite, Camera, Action(link to demo)Note: This demo isderivedfrom a samplefrom Andy Bealieu.

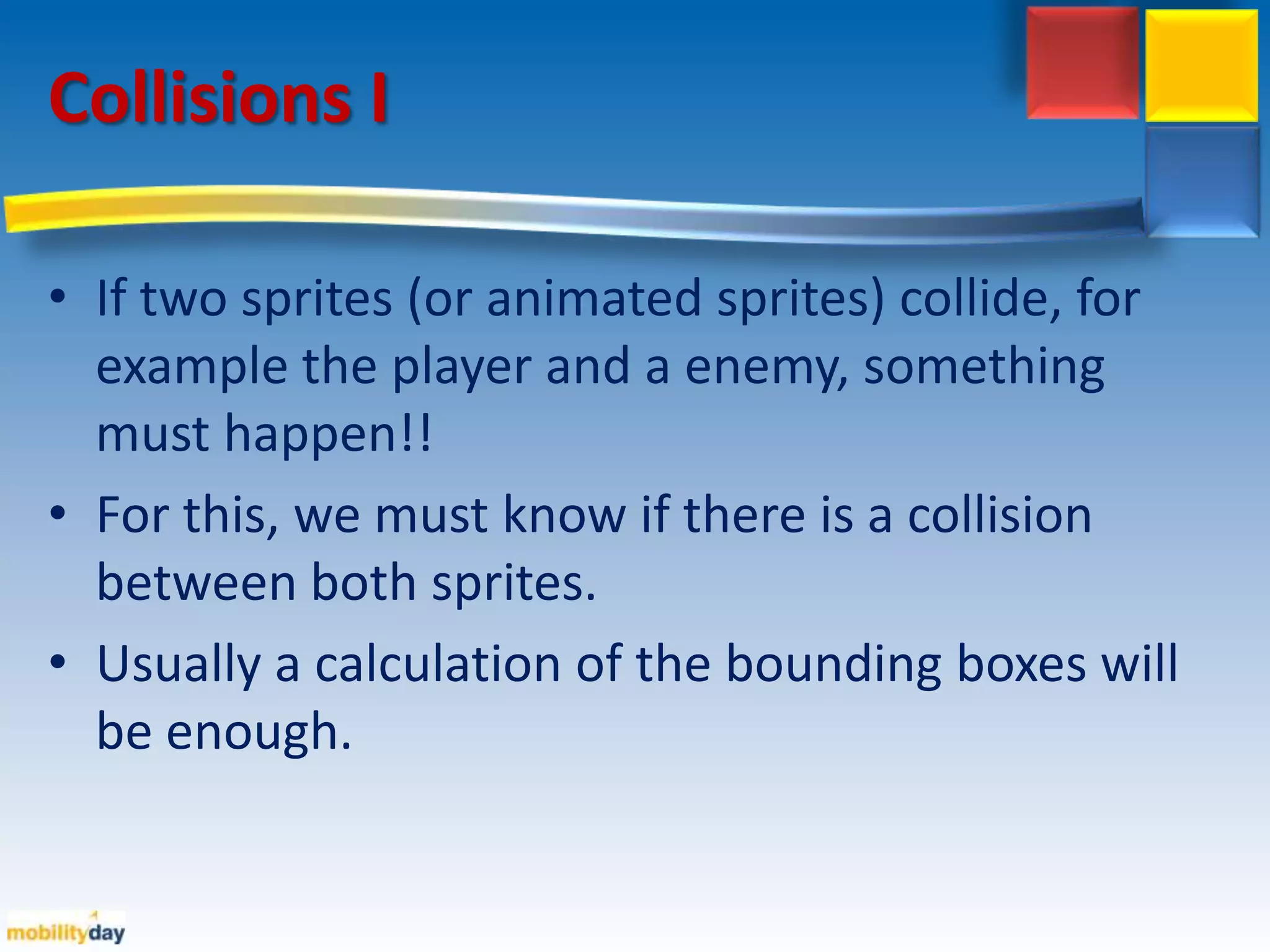

Collisions IIf two sprites (or animated sprites) collide, for example the player and a enemy, something must happen!!For this, we must know if there is a collision between both sprites.Usually a calculation of the bounding boxes will be enough.

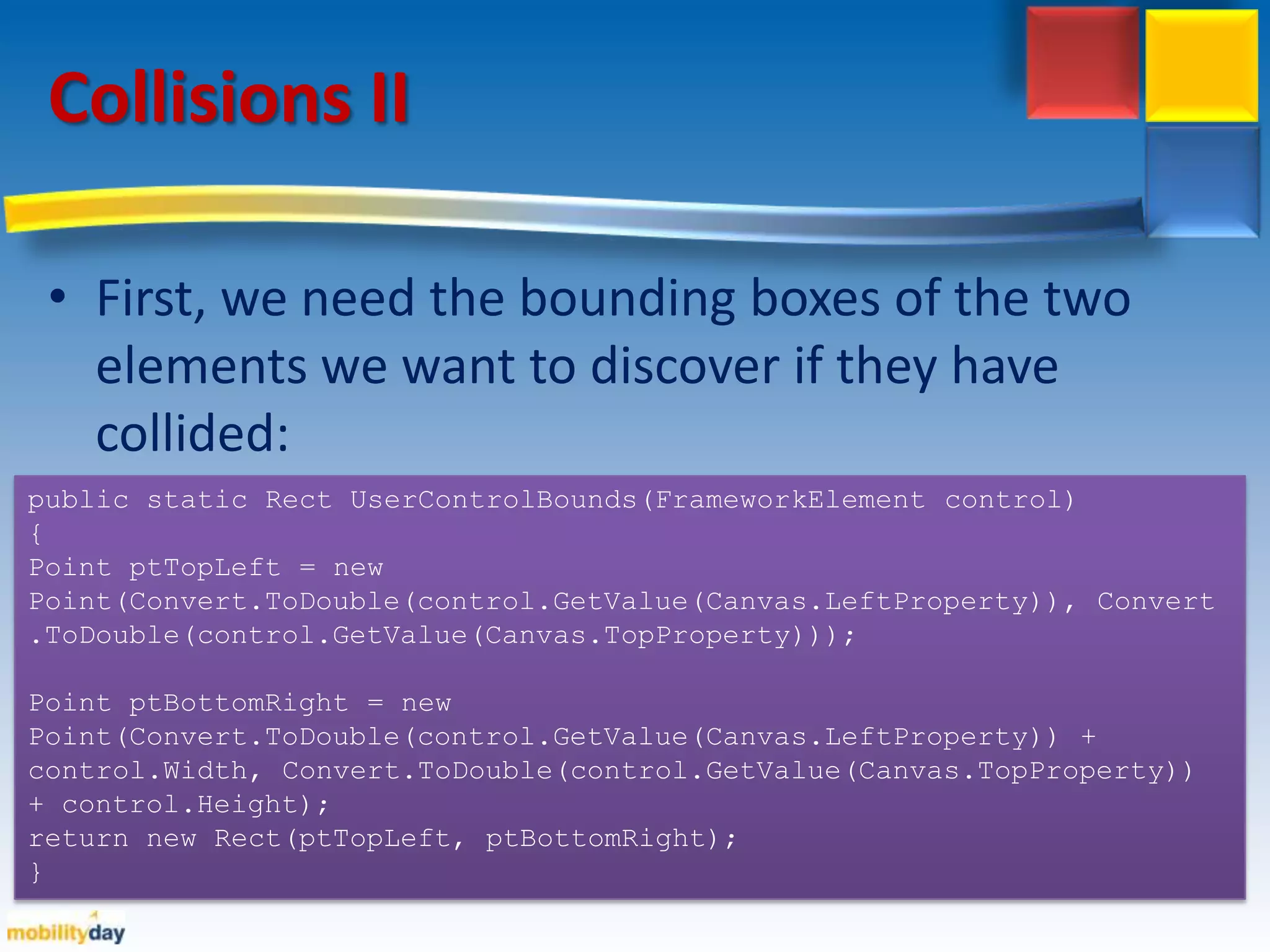

Collisions IIFirst, we need the bounding boxes of the two elements we want to discover if they have collided:public static RectUserControlBounds(FrameworkElement control){Point ptTopLeft = new Point(Convert.ToDouble(control.GetValue(Canvas.LeftProperty)), Convert.ToDouble(control.GetValue(Canvas.TopProperty)));Point ptBottomRight = new Point(Convert.ToDouble(control.GetValue(Canvas.LeftProperty)) + control.Width, Convert.ToDouble(control.GetValue(Canvas.TopProperty)) + control.Height);returnnew Rect(ptTopLeft, ptBottomRight);}

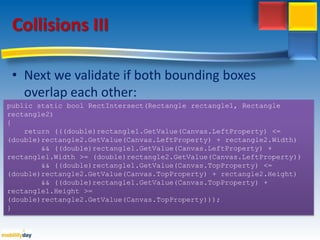

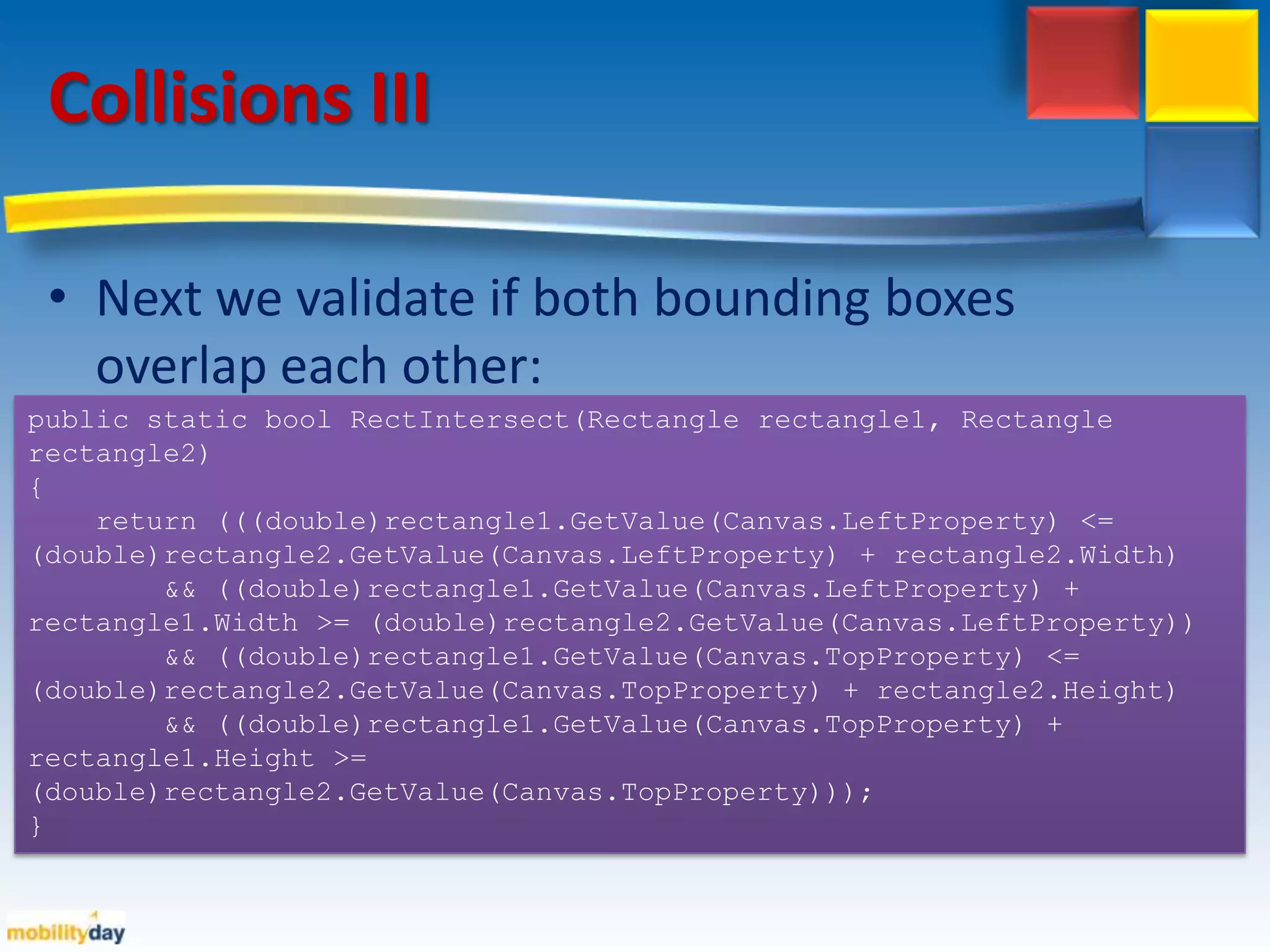

Collisions IIINext we validate if both bounding boxes overlap each other:public static boolRectIntersect(Rectangle rectangle1, Rectangle rectangle2){return (((double)rectangle1.GetValue(Canvas.LeftProperty) <= (double)rectangle2.GetValue(Canvas.LeftProperty) + rectangle2.Width) && ((double)rectangle1.GetValue(Canvas.LeftProperty) + rectangle1.Width >= (double)rectangle2.GetValue(Canvas.LeftProperty)) && ((double)rectangle1.GetValue(Canvas.TopProperty) <= (double)rectangle2.GetValue(Canvas.TopProperty) + rectangle2.Height) && ((double)rectangle1.GetValue(Canvas.TopProperty) + rectangle1.Height >= (double)rectangle2.GetValue(Canvas.TopProperty)));}

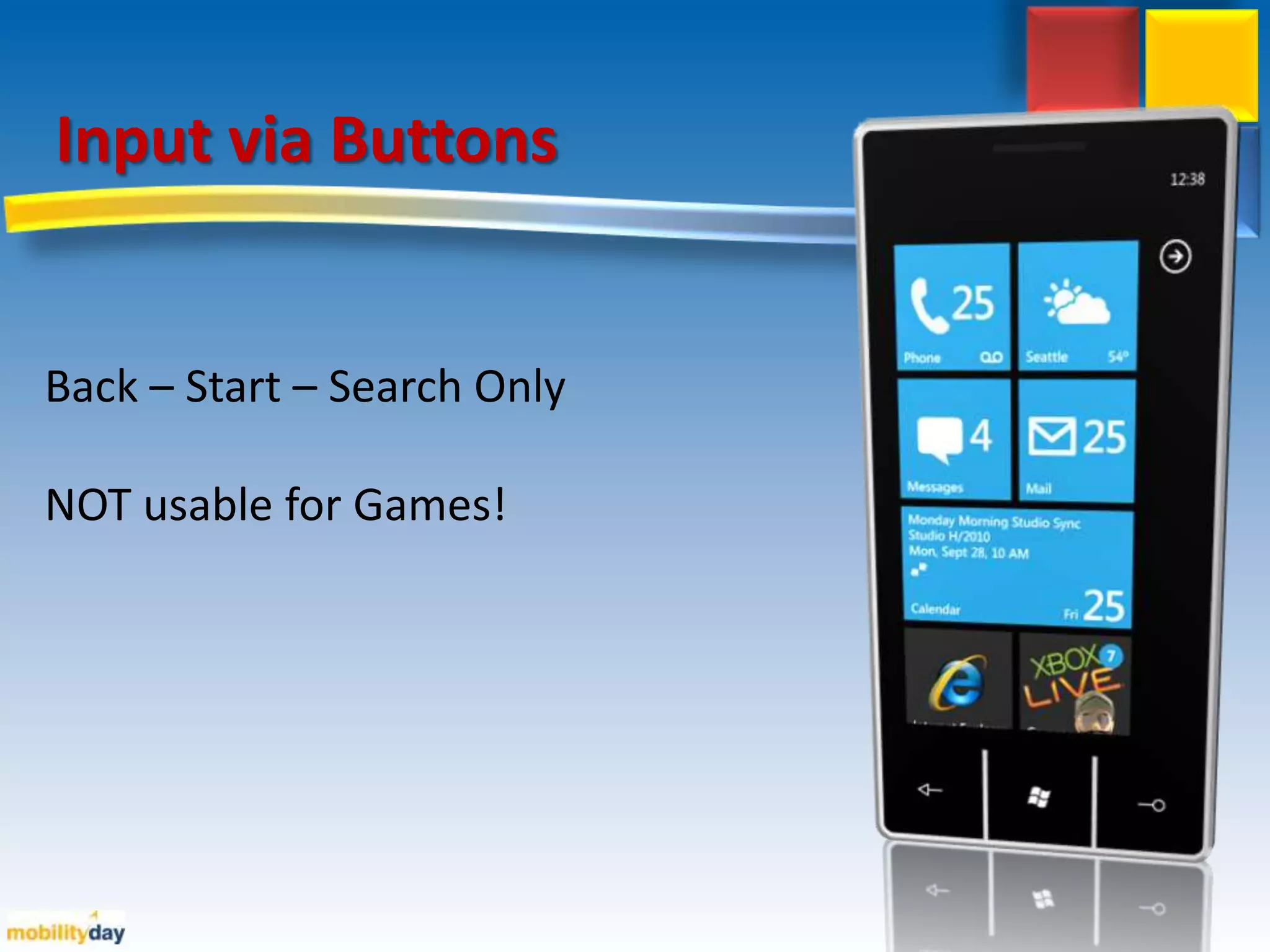

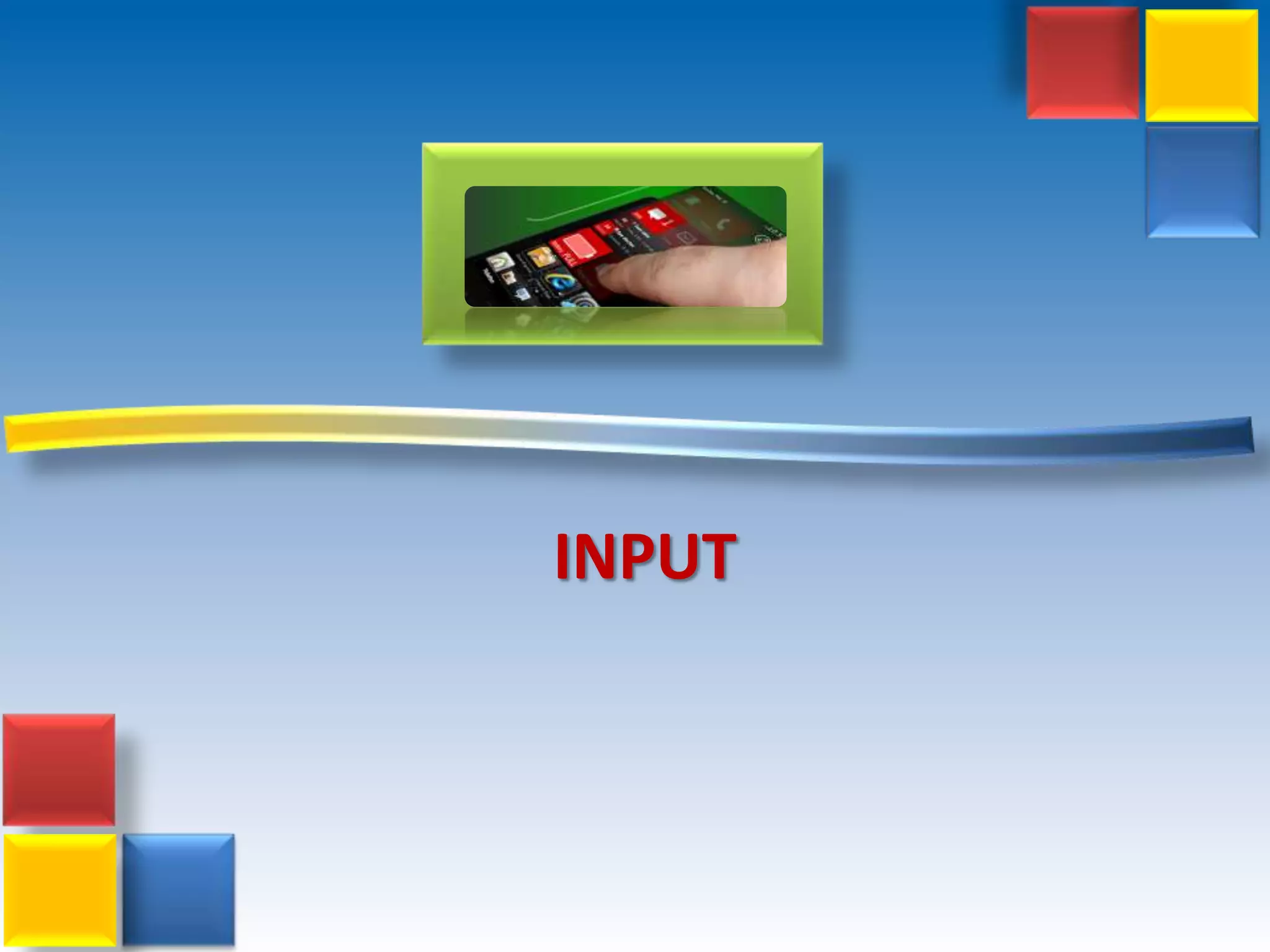

Input via ButtonsBack – Start – Search OnlyNOT usable for Games!

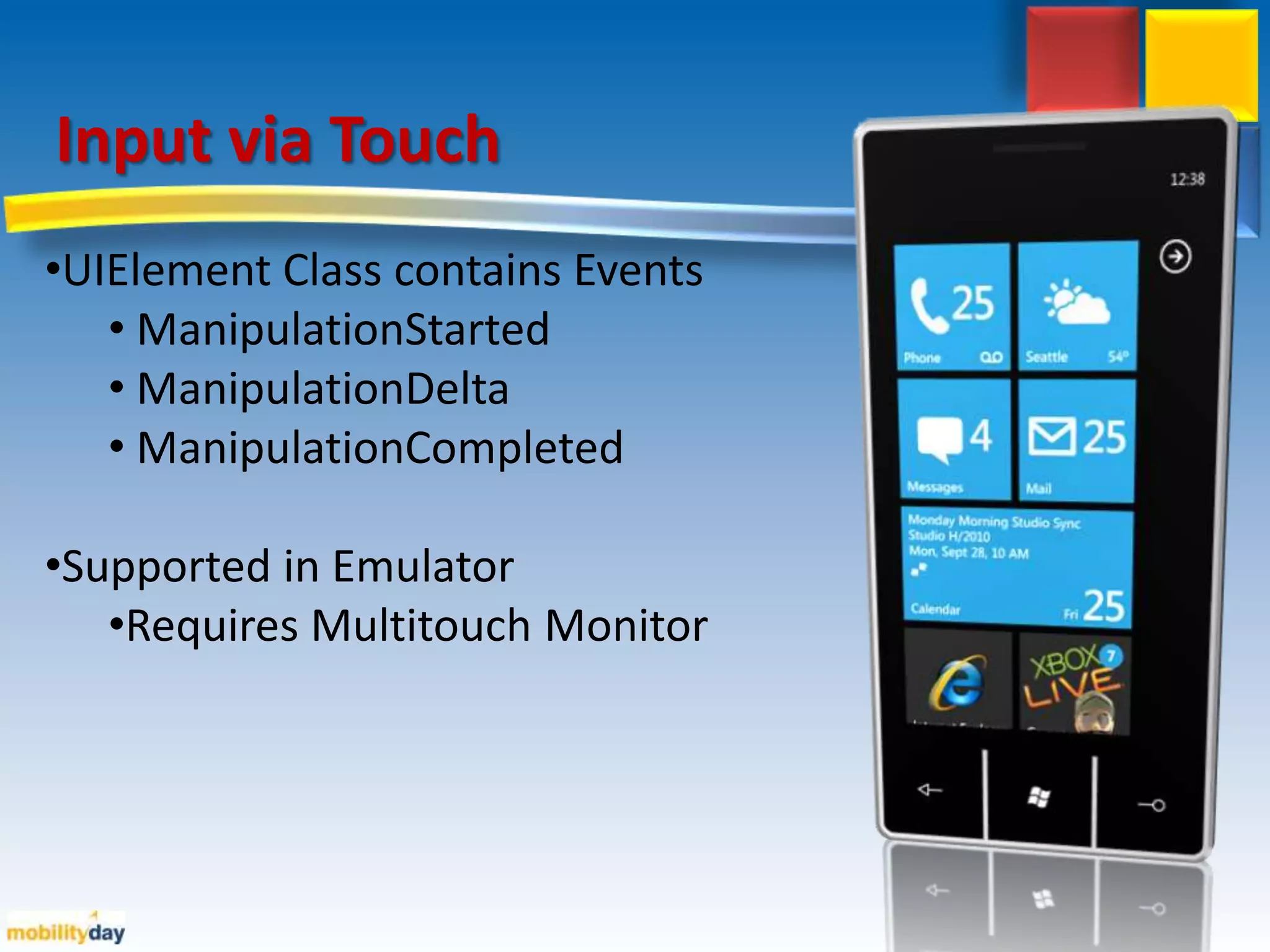

Input via TouchUIElement Class contains Events

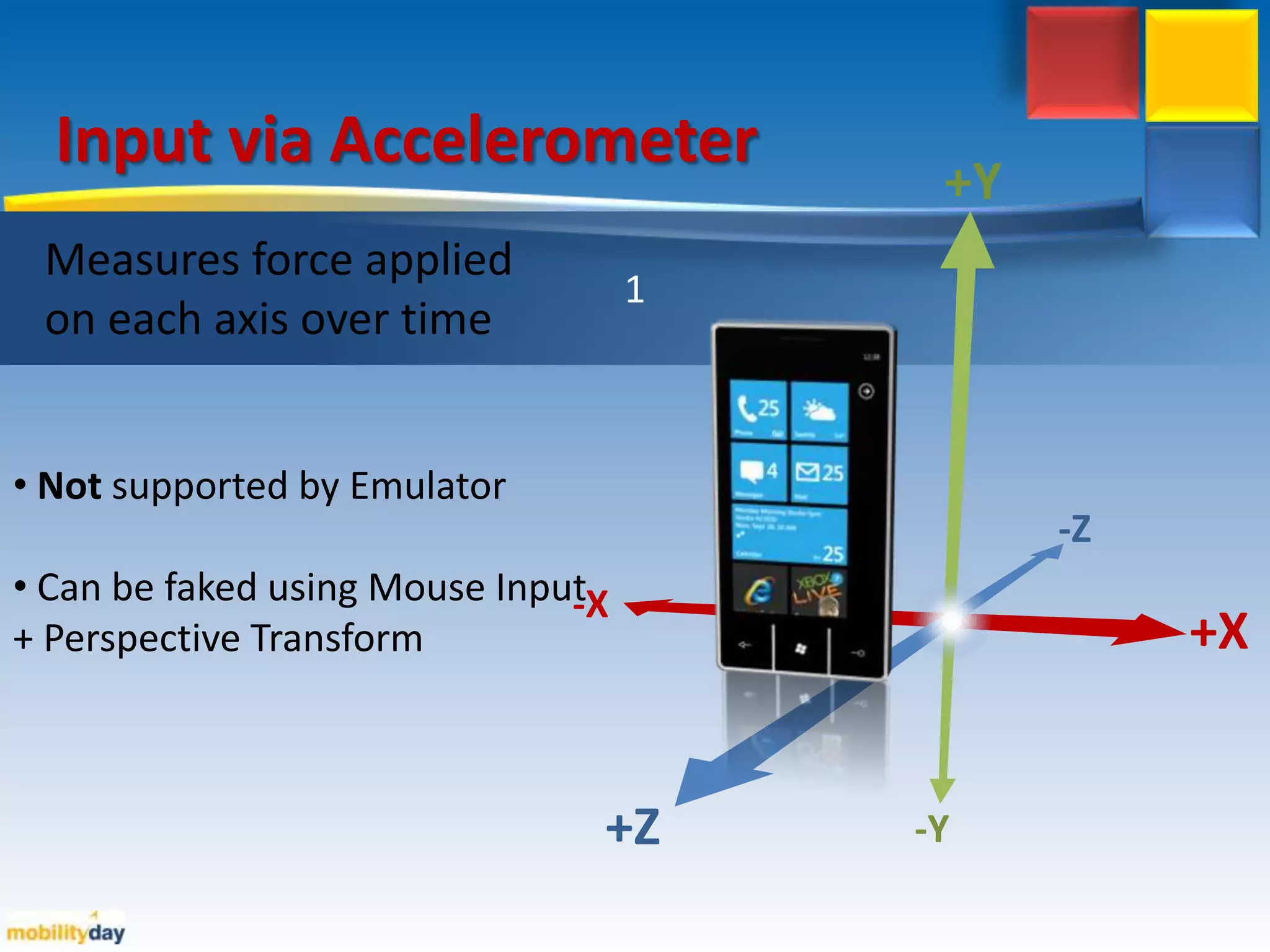

Requires Multitouch MonitorInput via Accelerometer+Y1Measures force applied on each axis over timeNot supported by Emulator

Can be faked using Mouse Input + Perspective Transform-Z-X+X+Z-Y

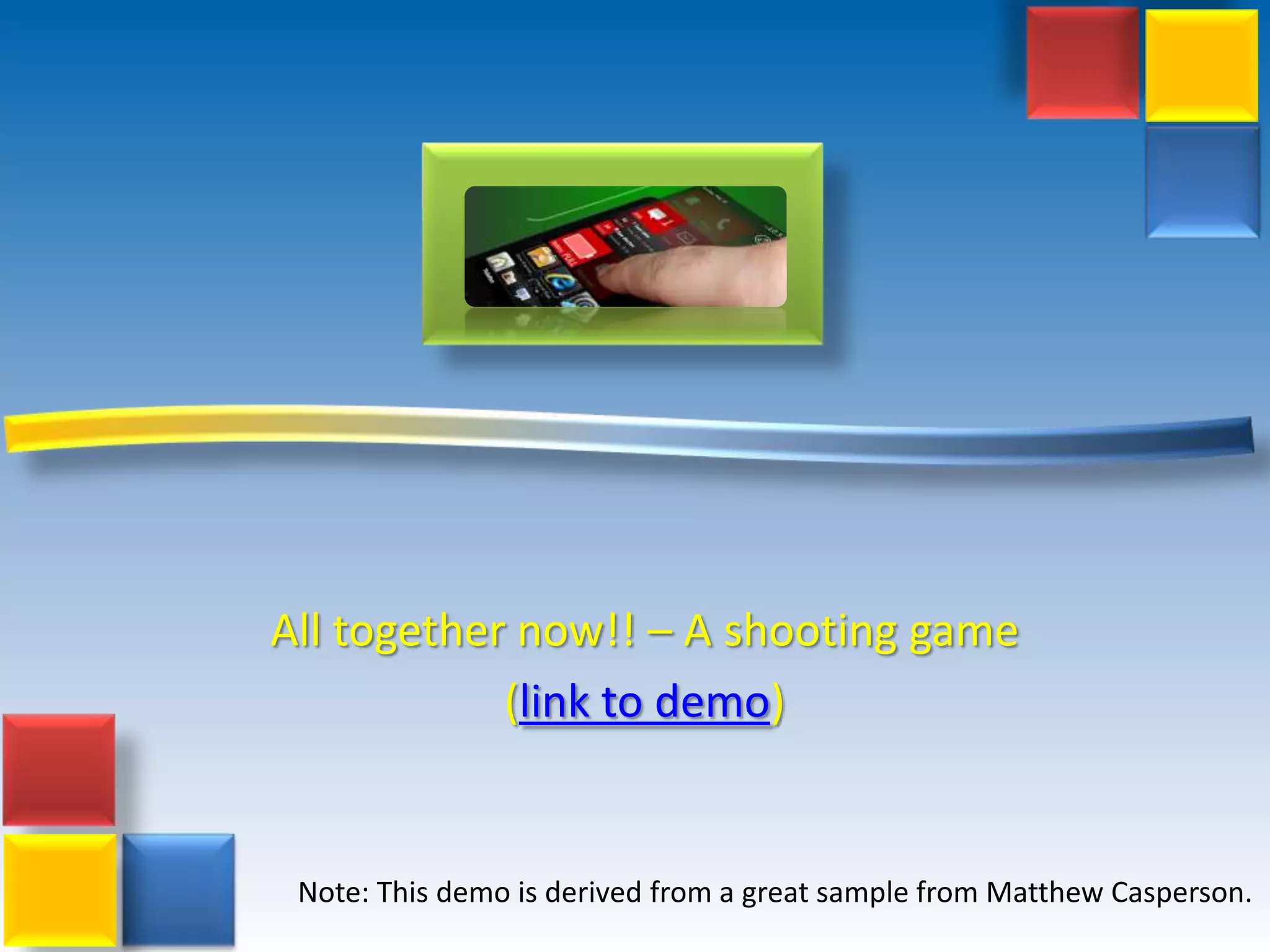

Alltogethernow!! – A shootinggame(link to demo)Note: This demo isderivedfroma greatsamplefromMatthew Casperson.

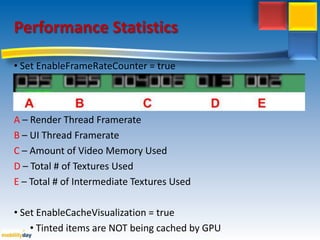

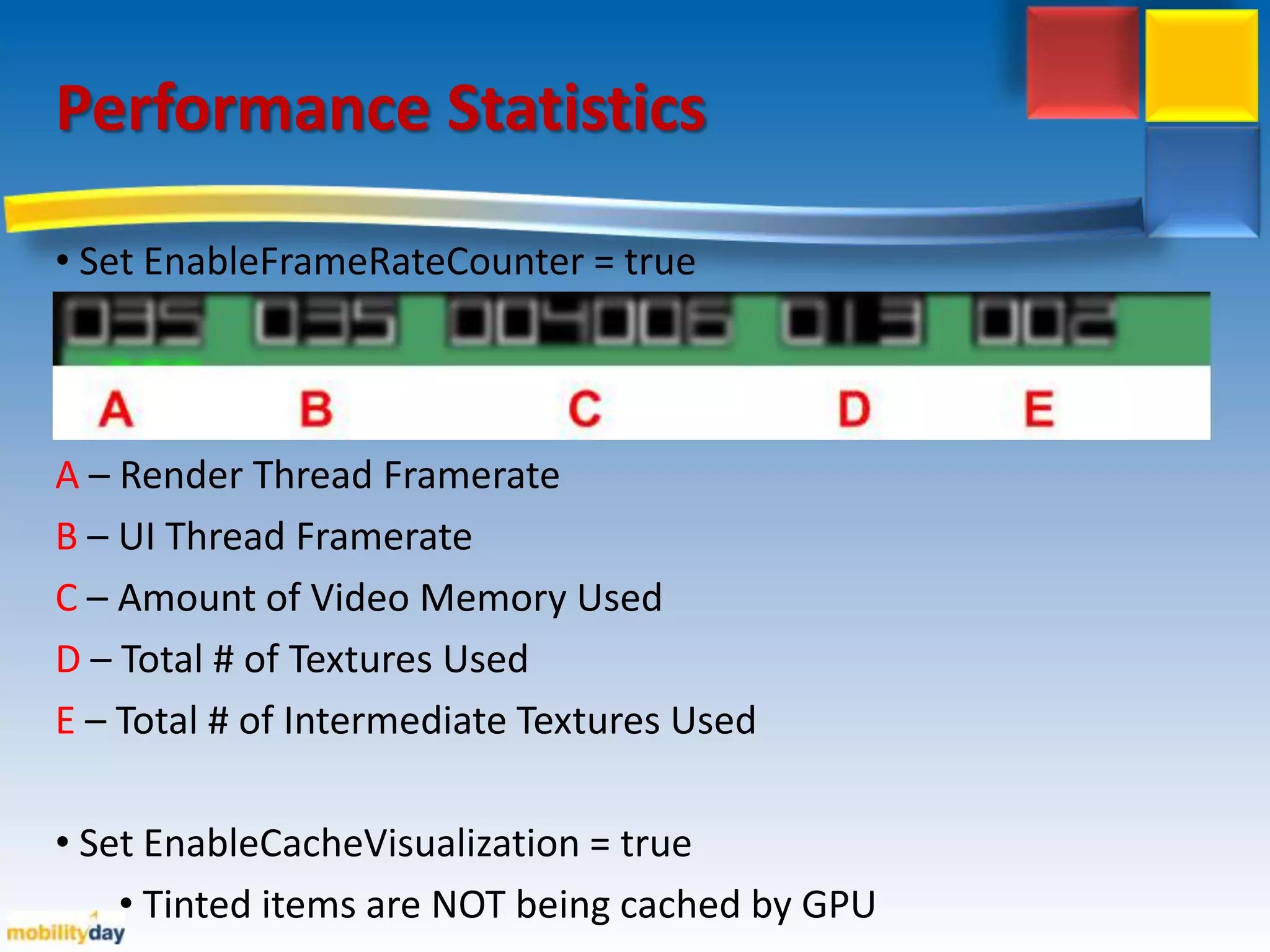

Performance Statistics Set EnableFrameRateCounter = trueA – Render Thread FramerateB – UI Thread FramerateC – Amount of Video Memory UsedD – Total # of Textures UsedE – Total # of Intermediate Textures UsedSet EnableCacheVisualization = true

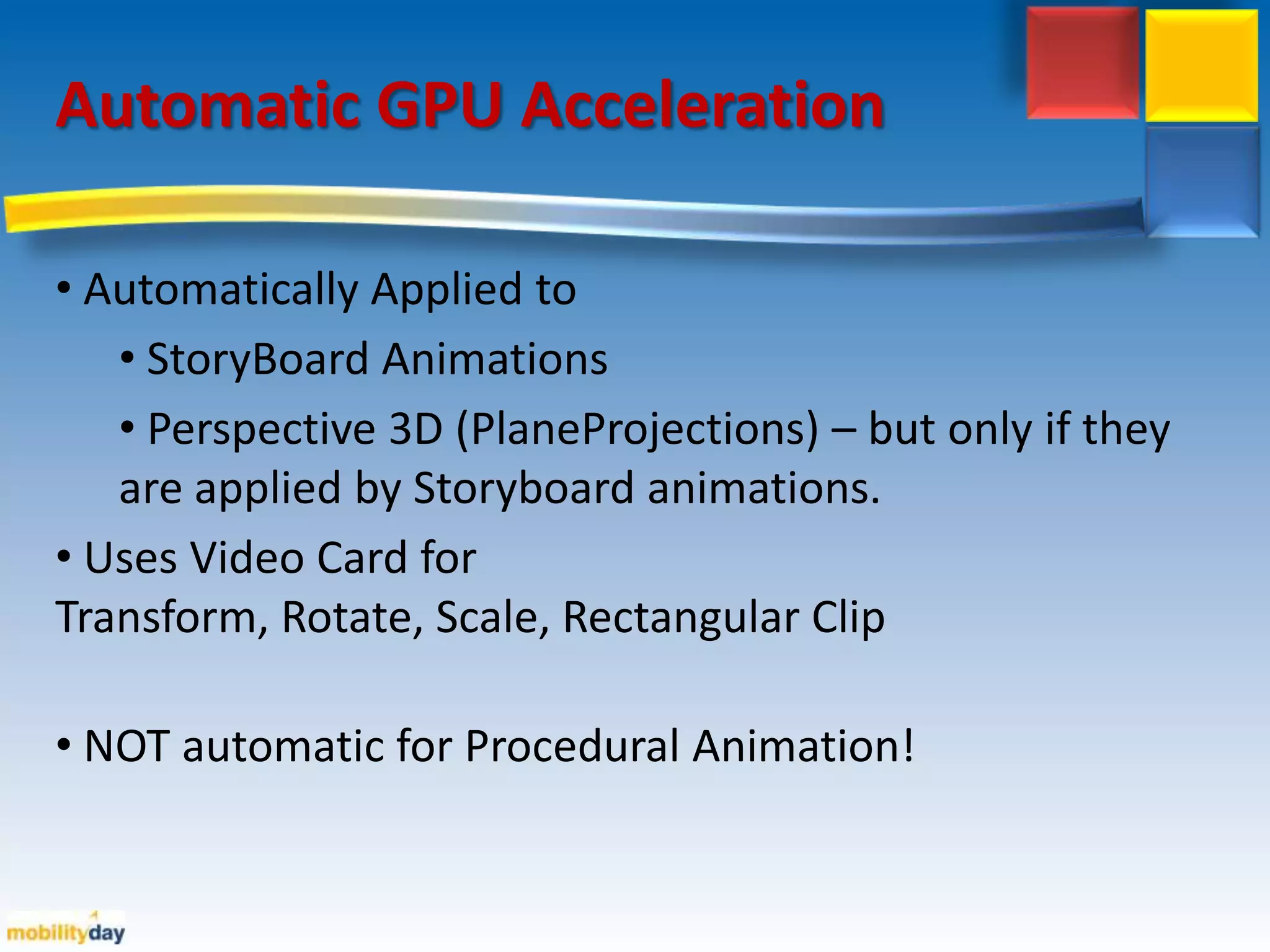

Tinted items are NOT being cached by GPUAutomatic GPU Acceleration Automatically Applied to
