- 1. Microsoft System CenterVirtual Machine Manager 2012Sainath K.E.VAvanade Asia Pte Ltd.Microsoft MVP –Directory ServicesMicrosoft Author – TechNet Magazine , MOF Microsoft Speaker – SWUGCommunity Technology Update

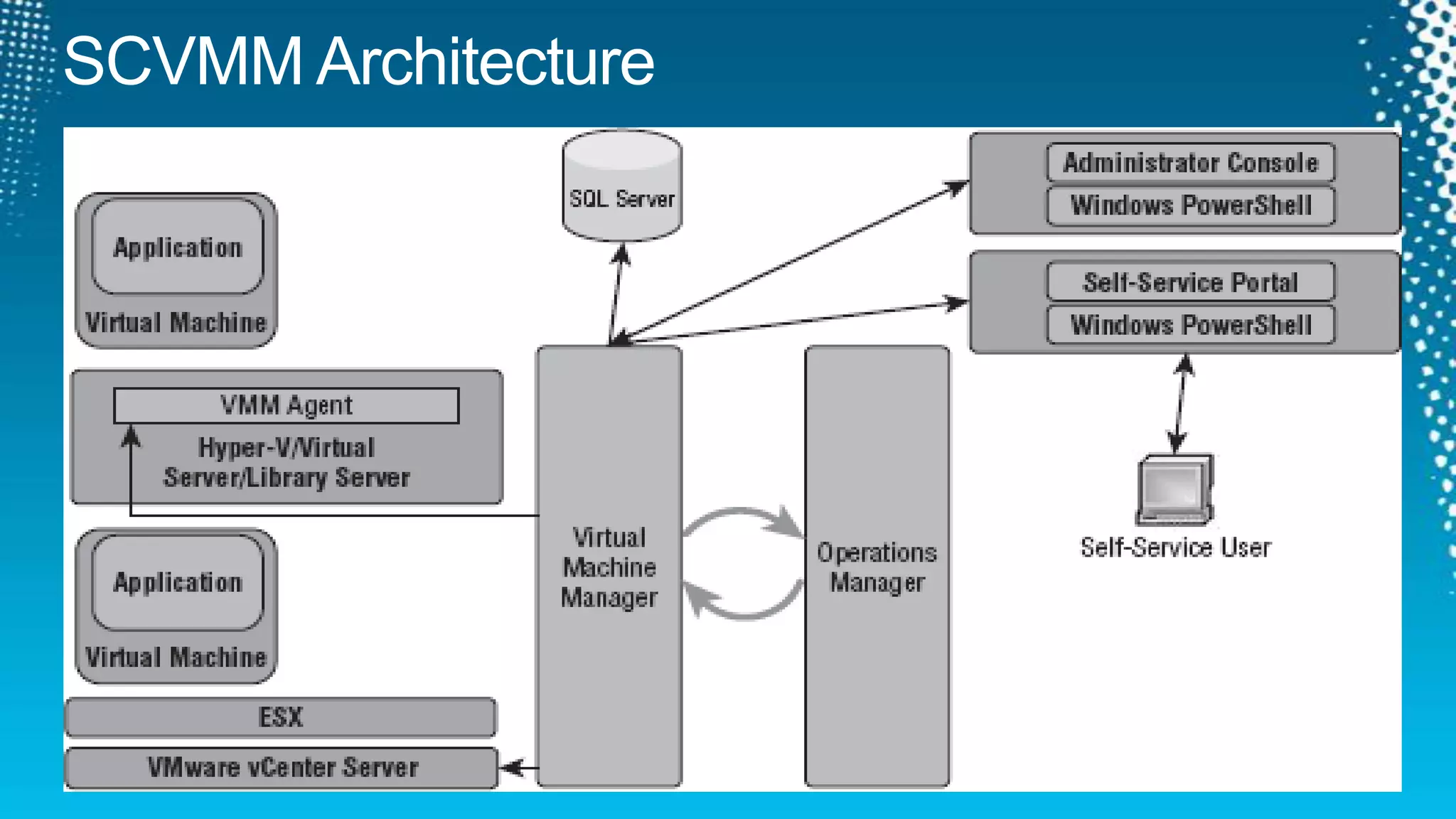

- 2.

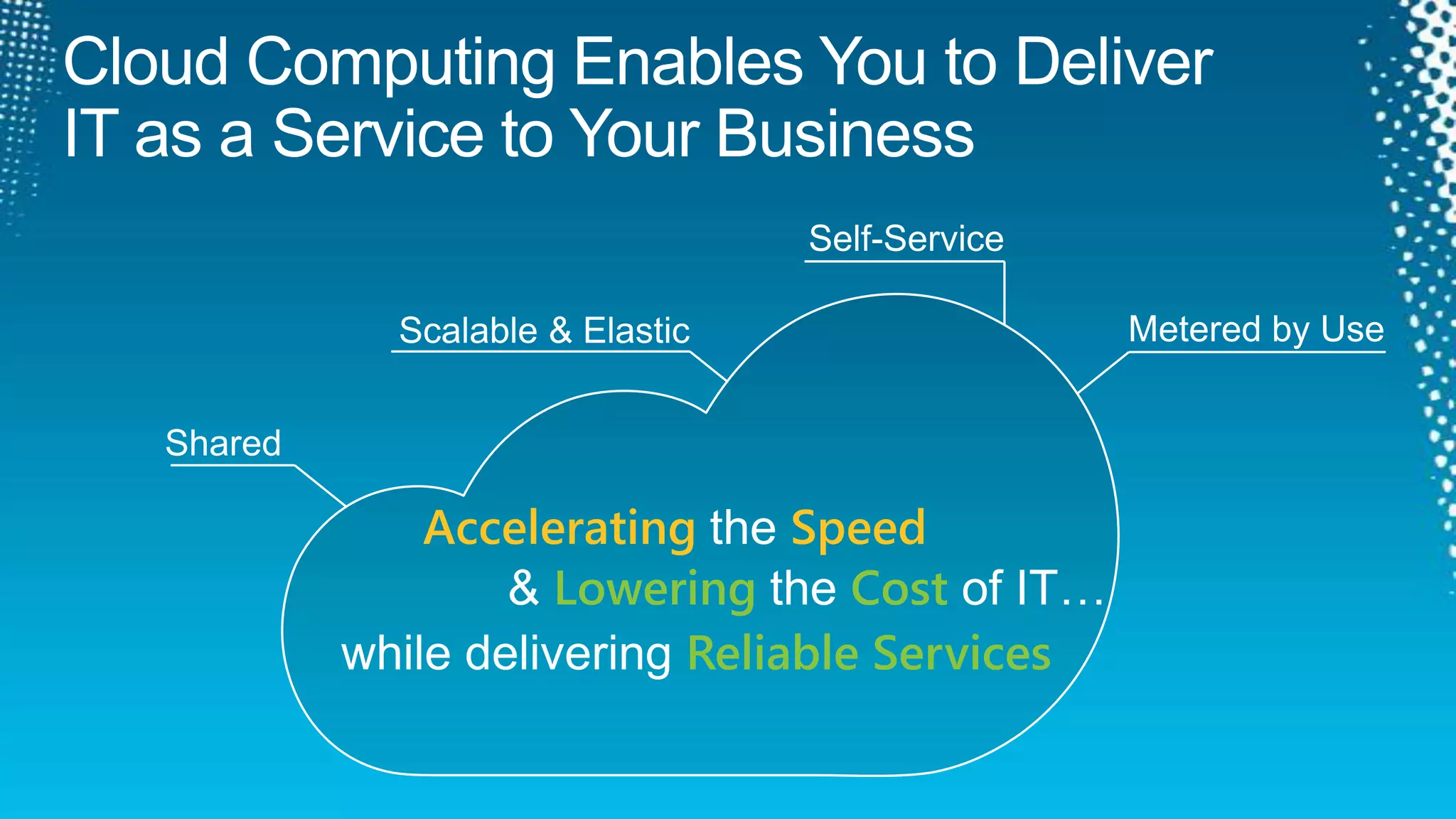

- 3. Cloud Computing EnablesYou to DeliverIT as a Service to Your Business Self-ServiceMetered by UseScalable & ElasticSharedAcceleratingthe Speed& Loweringthe Costof IT…while delivering Reliable Services

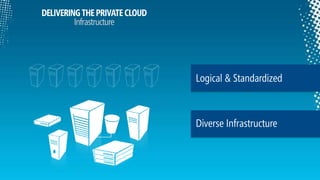

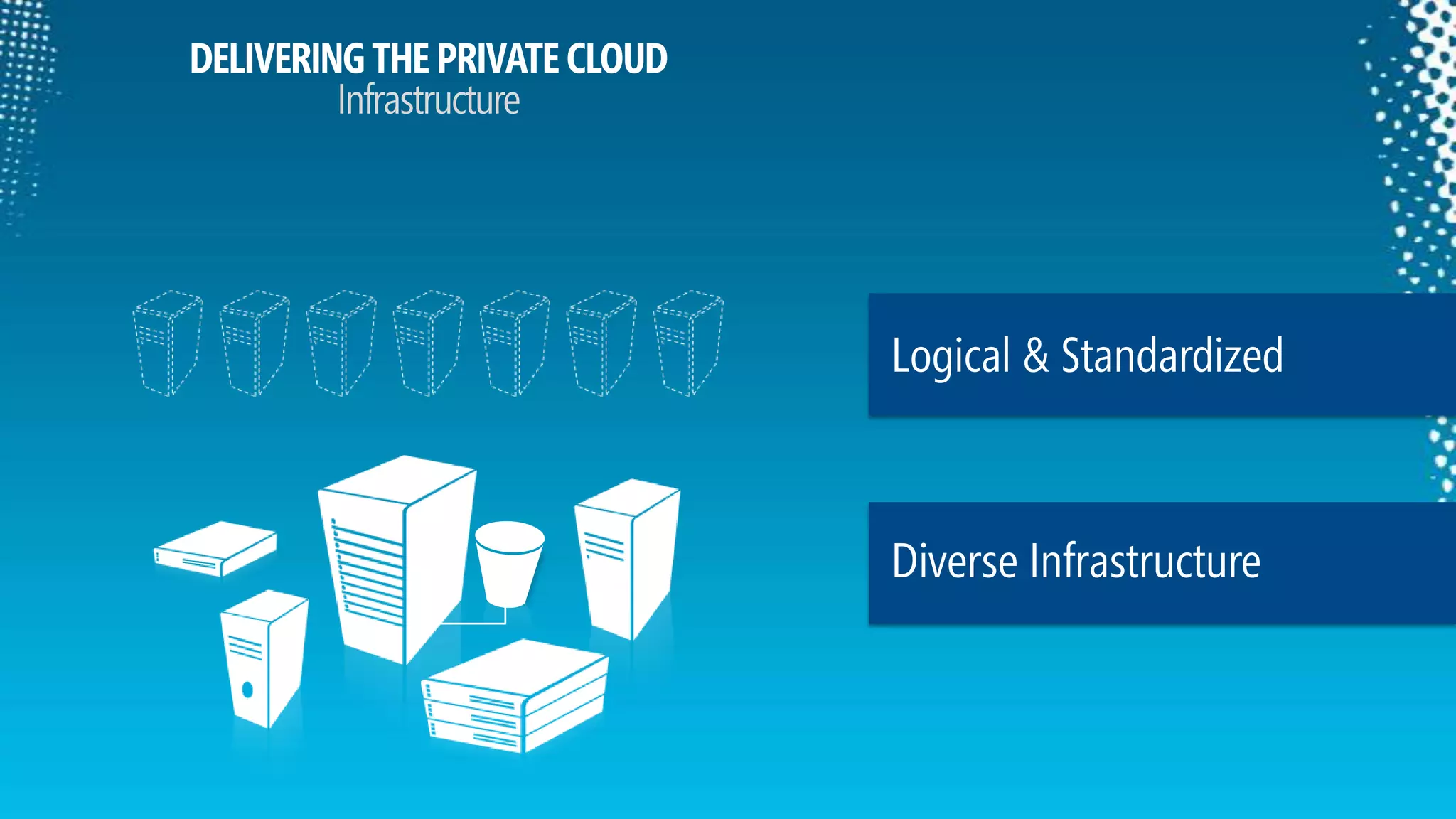

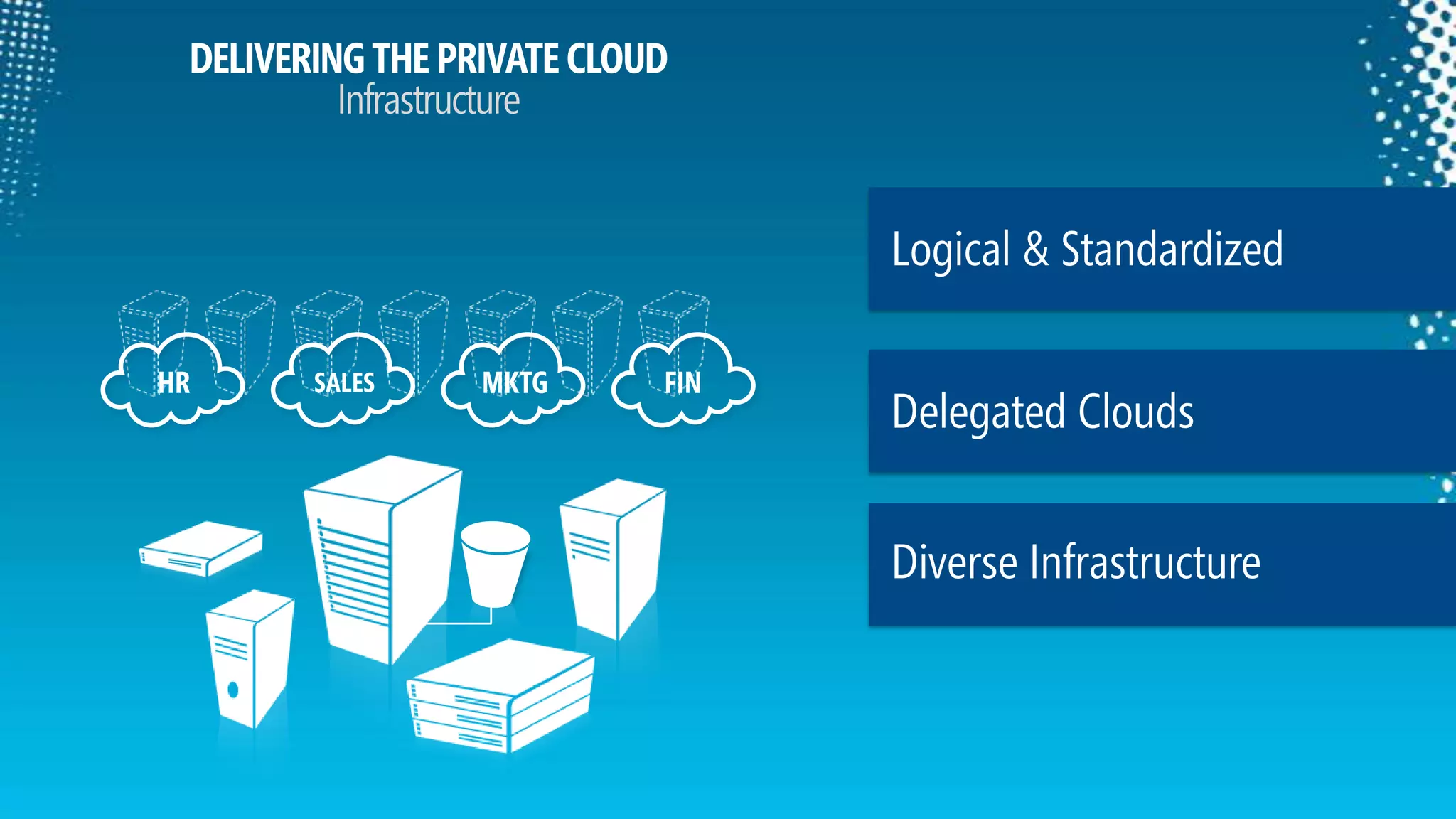

- 4. DELIVERING THE PRIVATECLOUDInfrastructureLogical & StandardizedDiverse Infrastructure

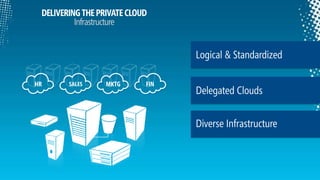

- 5. DELIVERING THE PRIVATECLOUDInfrastructureLogical & StandardizedFINMKTGHRSALESDelegated CloudsDiverse Infrastructure

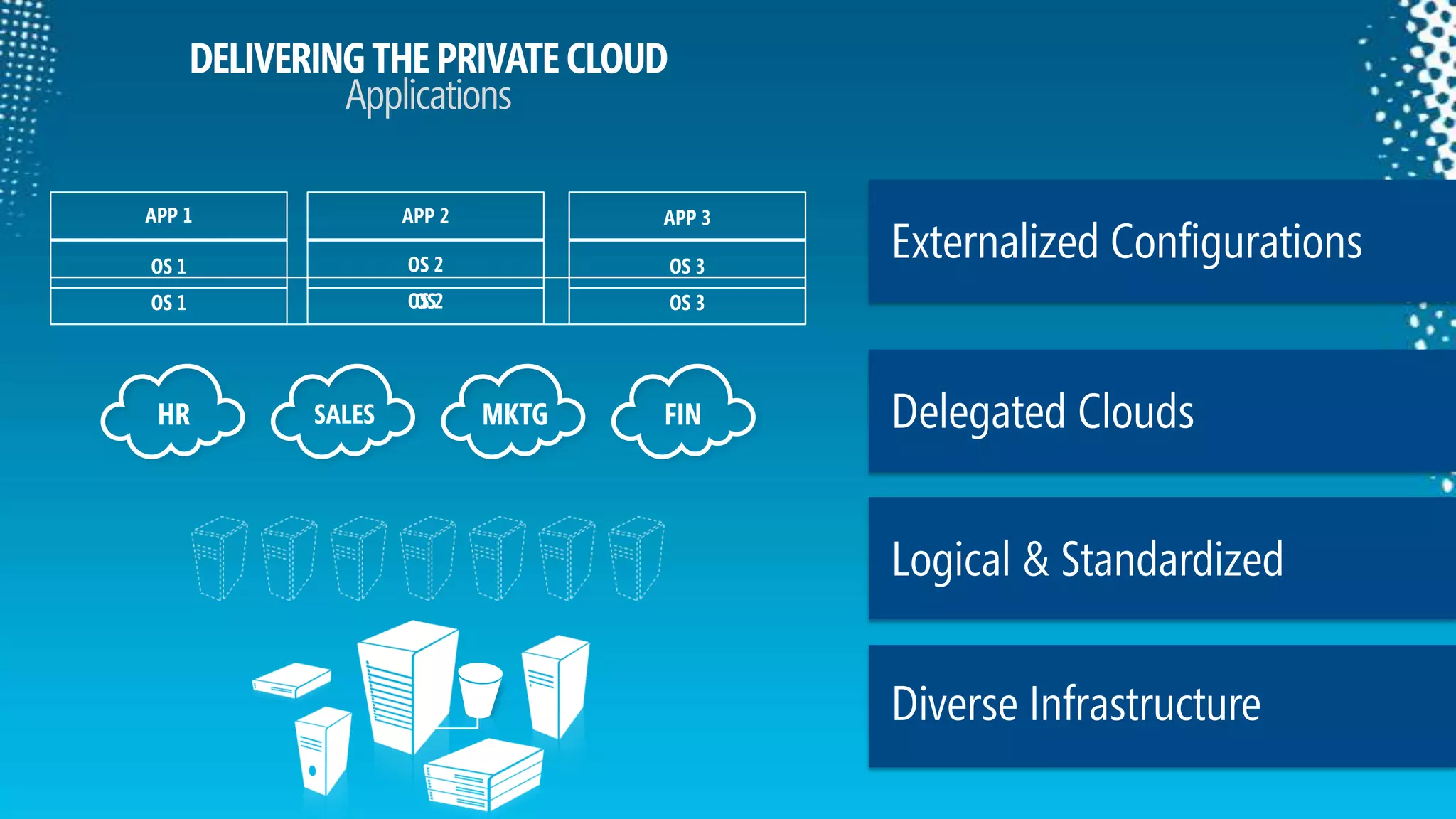

- 6. DELIVERING THE PRIVATECLOUDApplicationsAPP 1OS 1OS 1APP 2OS 2OS 2OS APP 3OS 3OS 3Externalized ConfigurationsFINMKTGHRSALESDelegated CloudsLogical & StandardizedDiverse Infrastructure

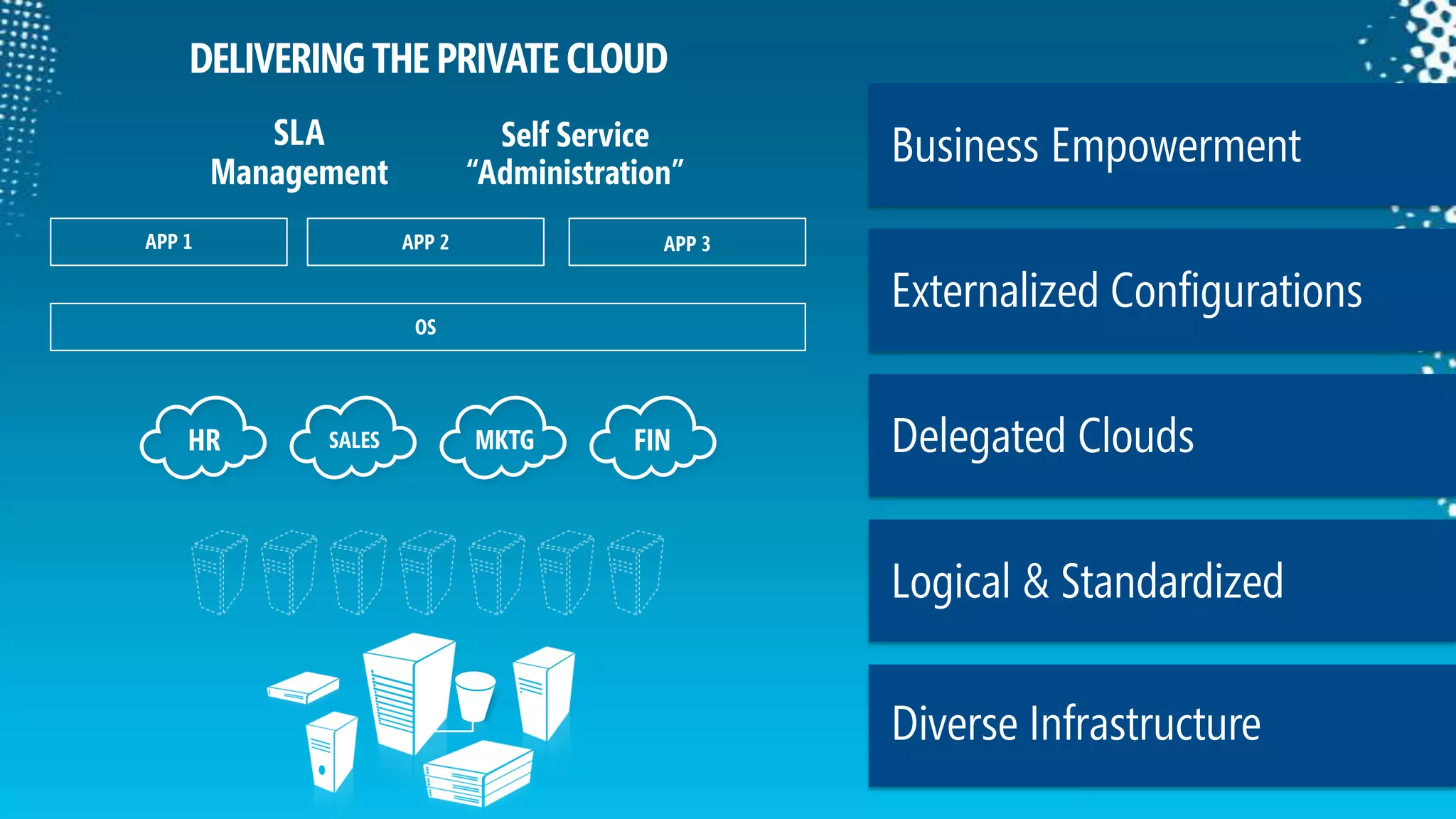

- 7. APPLICATIONSCustomer opportunity inprivate cloudDELIVERING THE PRIVATE CLOUDBusiness EmpowermentSelf Service“Administration”SLA ManagementAPP 1APP 2OSAPP 3Externalized ConfigurationsFINMKTGHRSALESDelegated CloudsLogical & StandardizedDiverse Infrastructure

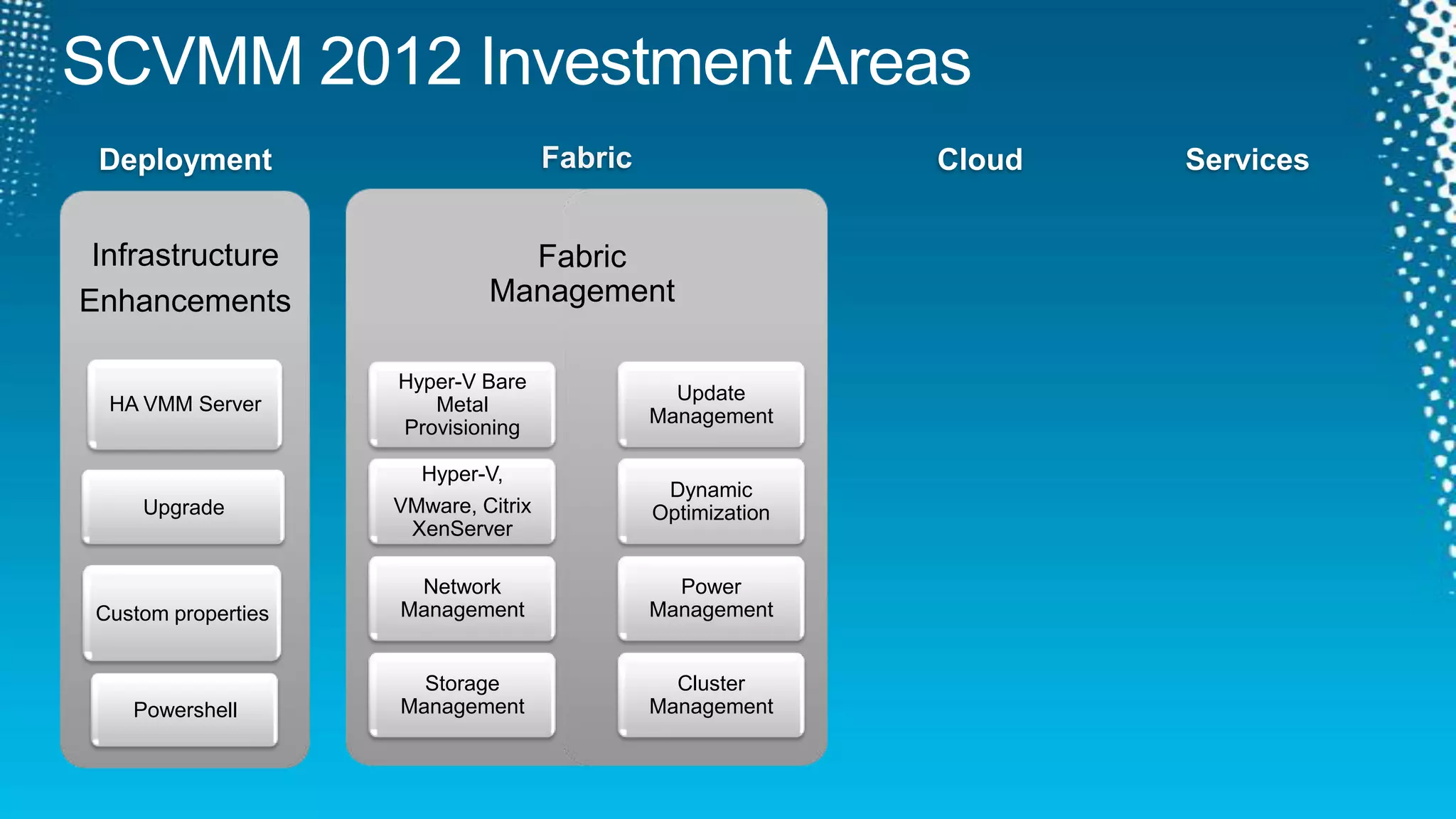

- 8. SCVMM 2012 InvestmentAreasFabricServicesCloudDeploymentFabric ManagementHyper-V Bare Metal ProvisioningUpdate ManagementHyper-V, VMware, Citrix XenServerDynamic OptimizationNetwork ManagementPower ManagementStorage ManagementCluster Management
- 9. Deployment and UpgradeHighlyAvailable VMM ServerAddresses key customer ask VMM server is now cluster aware so there’s no single point of failureUpgradeFrom VMM 2008 R2 to VMM 2012 RCFrom VMM 2012 RC to VMM 2012 RTMCustom PropertiesName/Value pairsNo need to use Custom1…Custom10PowershellFully powershell scriptablePowershell 2.0 – standard verbs, noun naming conventionBackward compatible with VMM 2008 R2 scripting interface

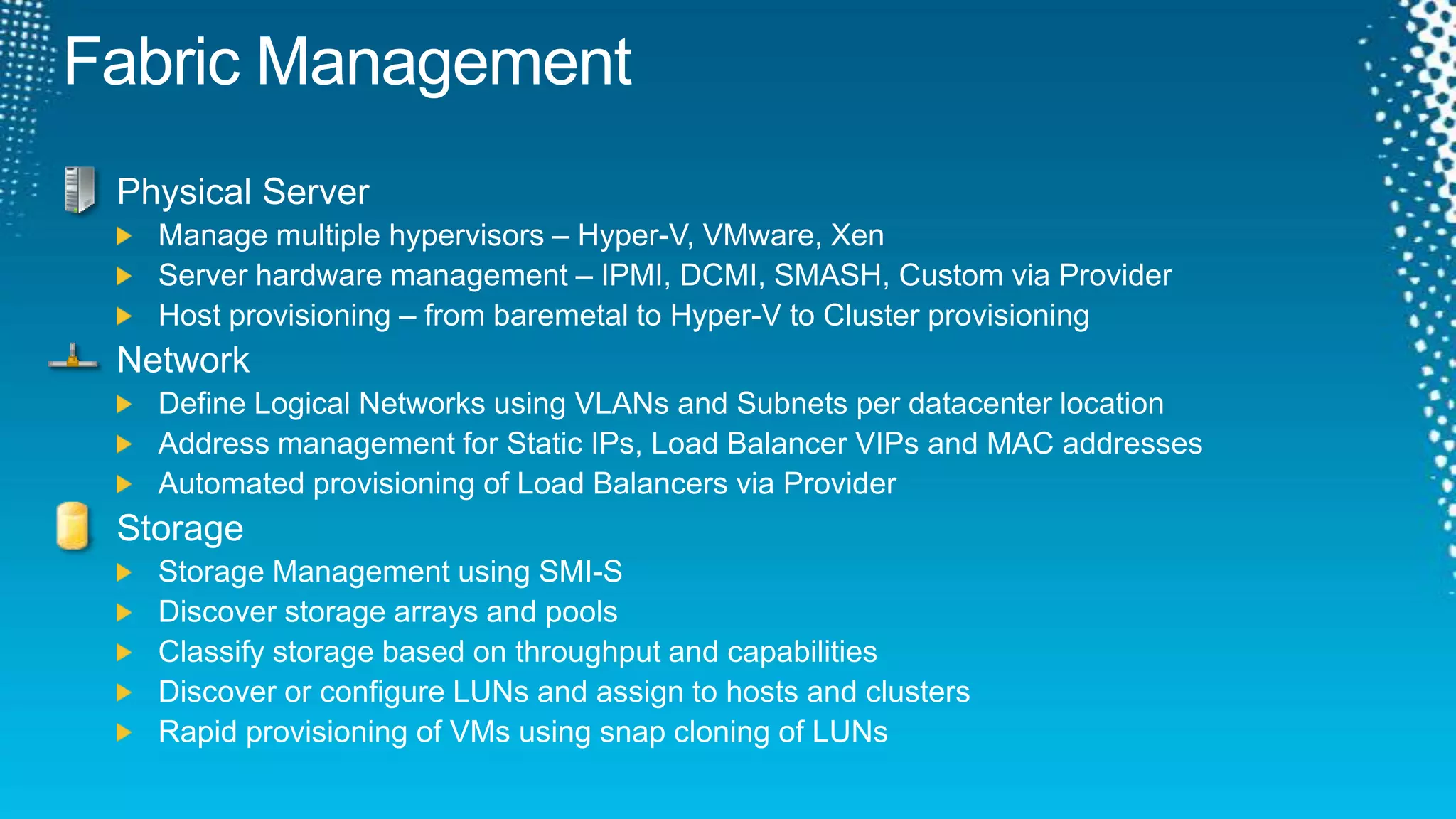

- 10. Fabric ManagementPhysical ServerManagemultiple hypervisors – Hyper-V, VMware, XenServer hardware management – IPMI, DCMI, SMASH, Custom via ProviderHost provisioning – from baremetal to Hyper-V to Cluster provisioningNetworkDefine Logical Networks using VLANs and Subnets per datacenter locationAddress management for Static IPs, Load Balancer VIPs and MAC addressesAutomated provisioning of Load Balancers via ProviderStorageStorage Management using SMI-SDiscover storage arrays and poolsClassify storage based on throughput and capabilitiesDiscover or configure LUNs and assign to hosts and clustersRapid provisioning of VMs using snap cloning of LUNs

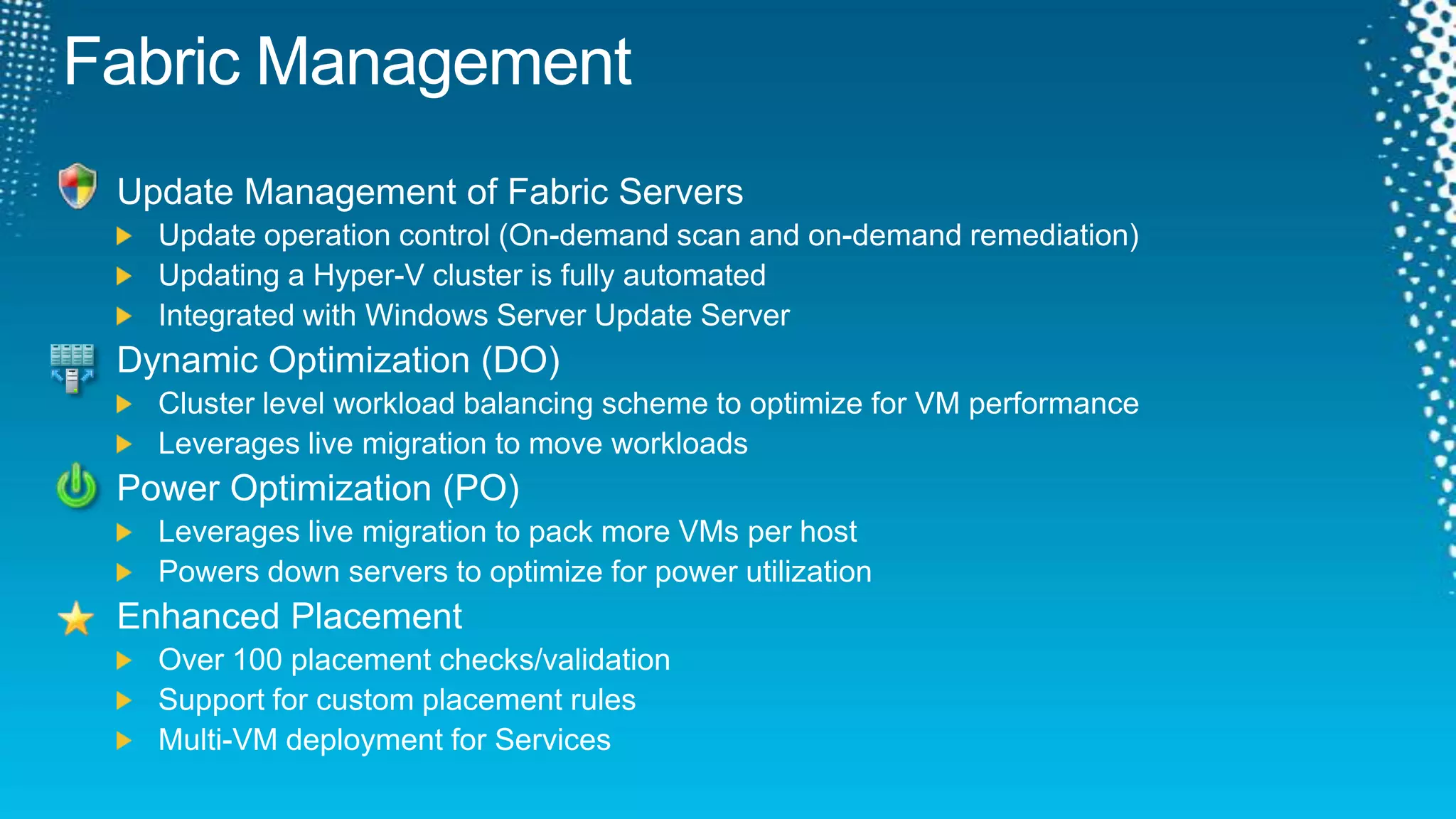

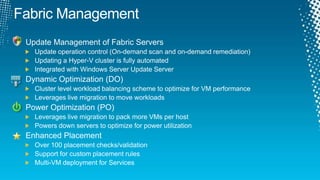

- 11. Fabric ManagementUpdate Managementof Fabric ServersUpdate operation control (On-demand scan and on-demand remediation)Updating a Hyper-V cluster is fully automatedIntegrated with Windows Server Update ServerDynamic Optimization (DO)Cluster level workload balancing scheme to optimize for VM performanceLeverages live migration to move workloadsPower Optimization (PO)Leverages live migration to pack more VMs per hostPowers down servers to optimize for power utilizationEnhanced PlacementOver 100 placement checks/validationSupport for custom placement rulesMulti-VM deployment for Services

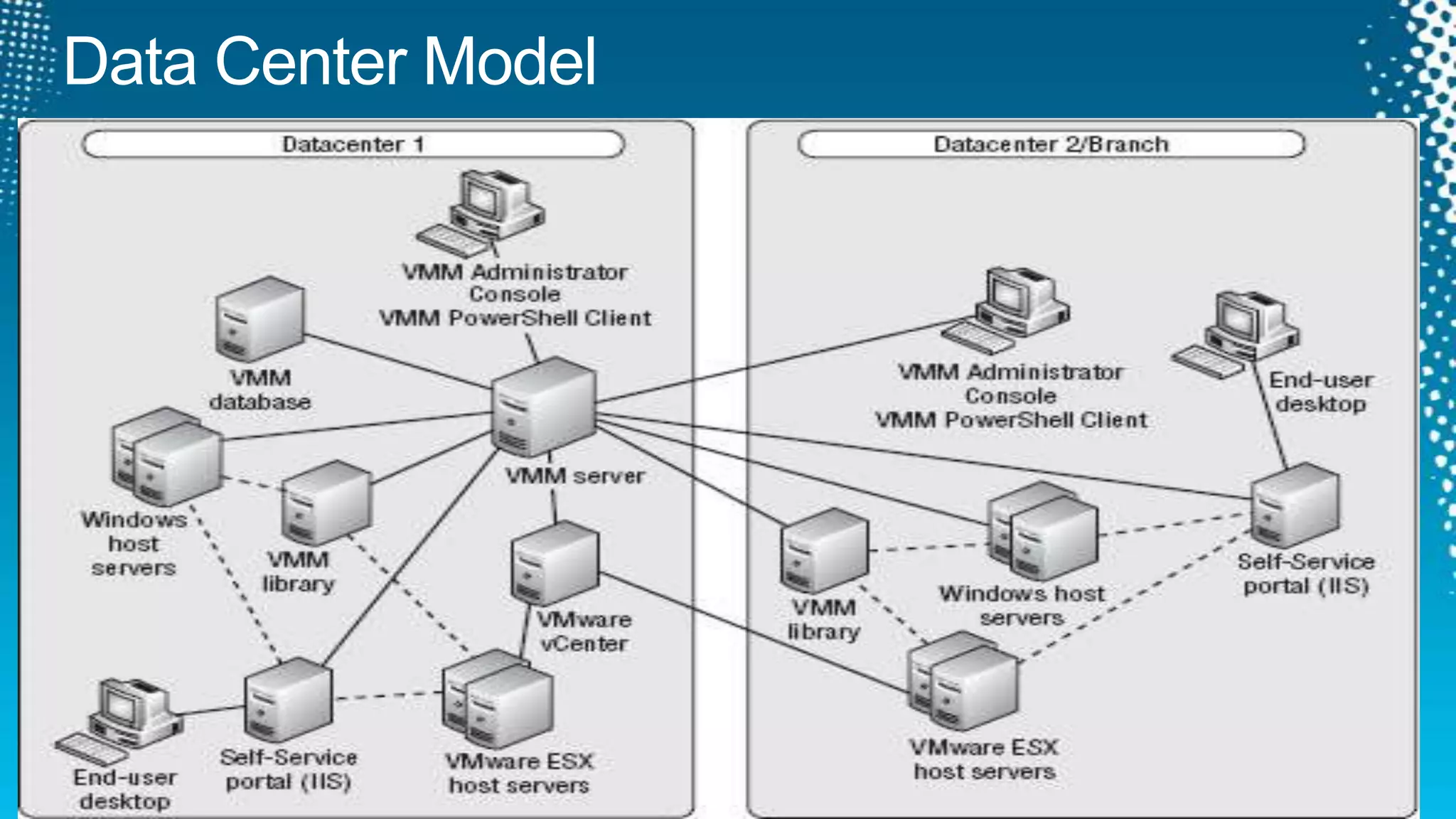

- 12.
- 13.

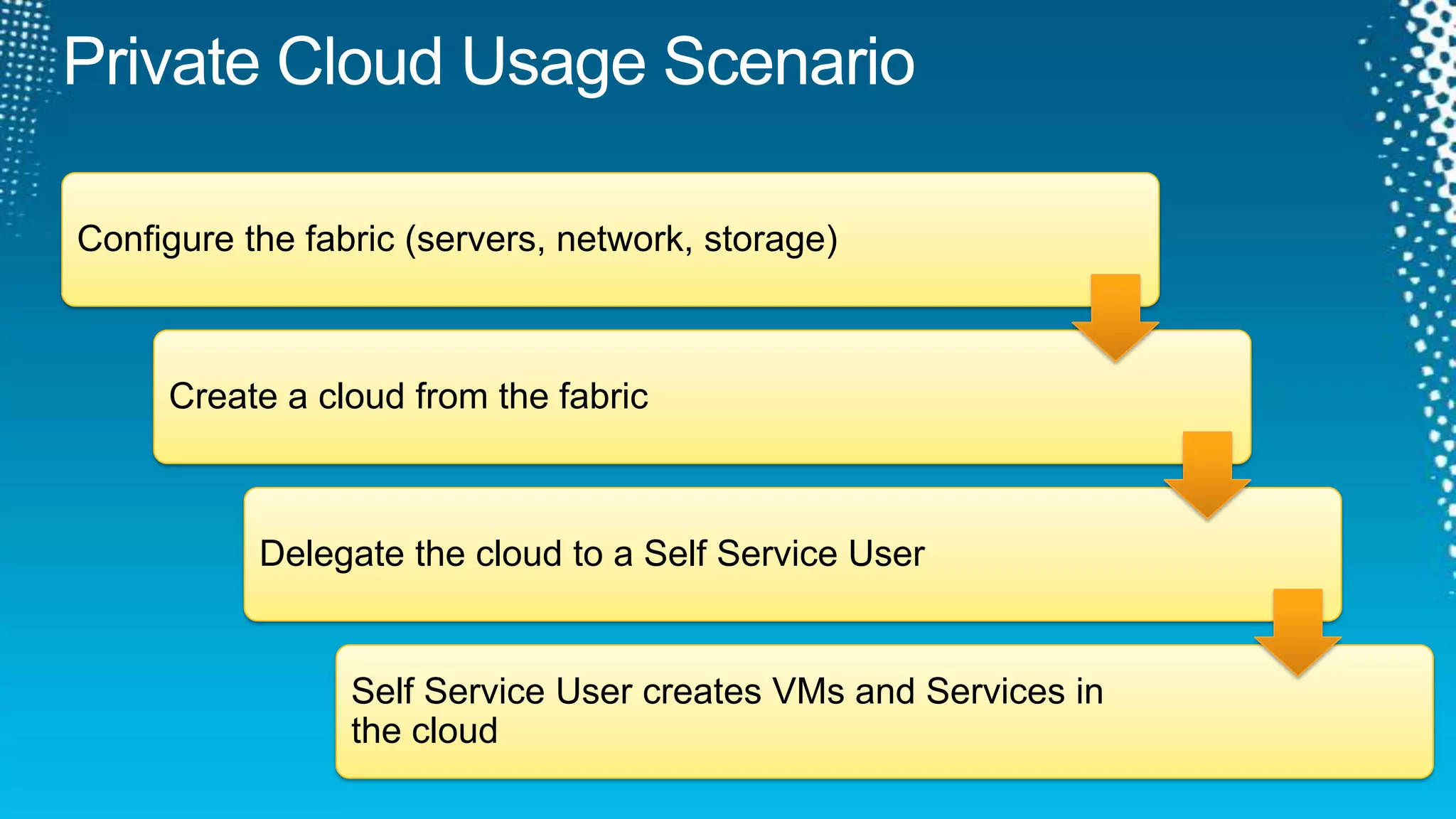

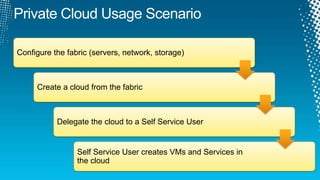

- 14. Private Cloud UsageScenarioConfigure the fabric (servers, network, storage)Create a cloud from the fabricDelegate the cloud to a Self Service UserSelf Service User creates VMs and Services in the cloud

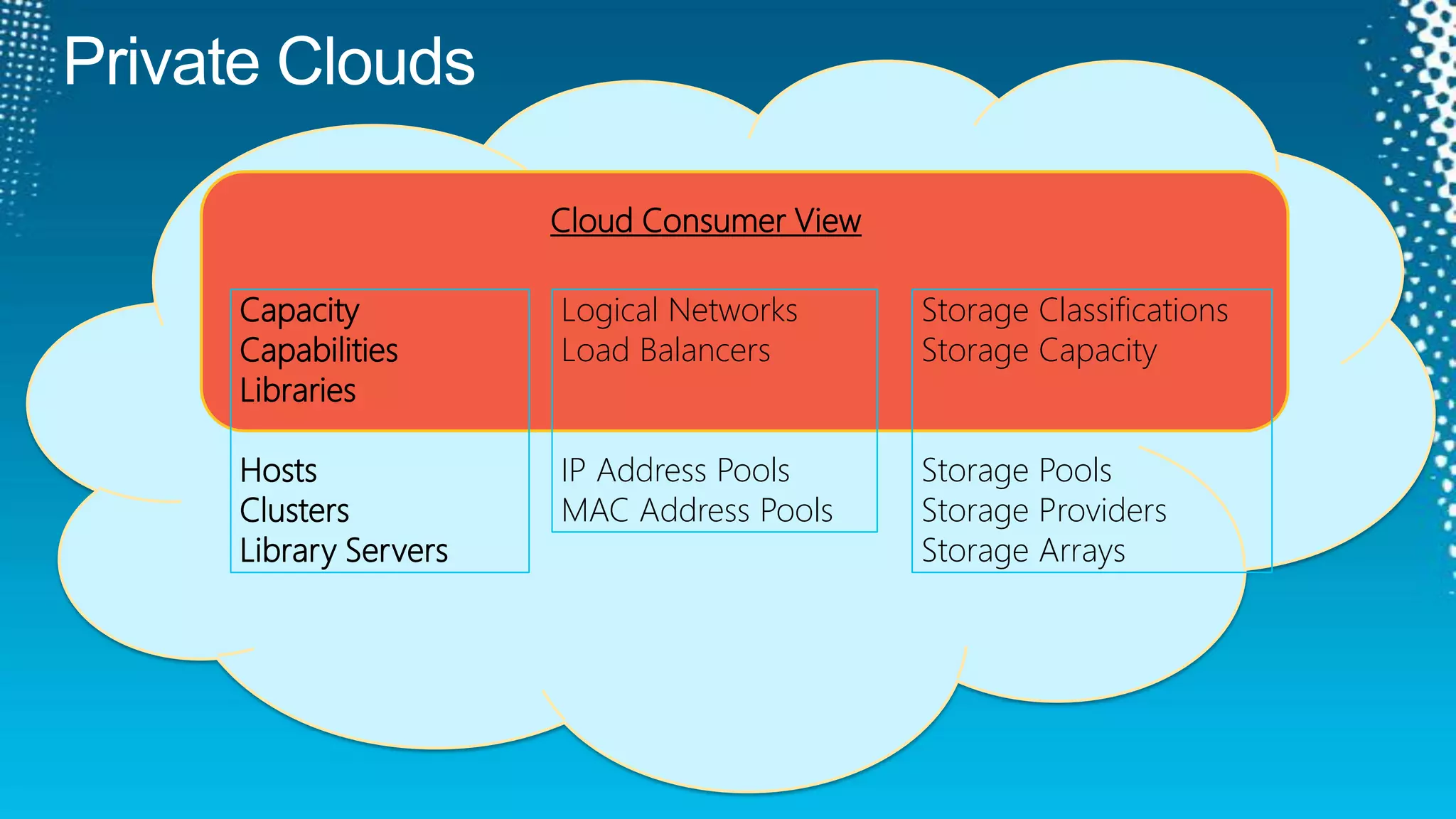

- 15. Private CloudsCloud ConsumerView Capacity Capabilities Libraries Hosts Clusters Library Servers Logical Networks Load Balancers IP Address Pools MAC Address Pools Storage Classifications Storage Capacity Storage Pools Storage Providers Storage Arrays

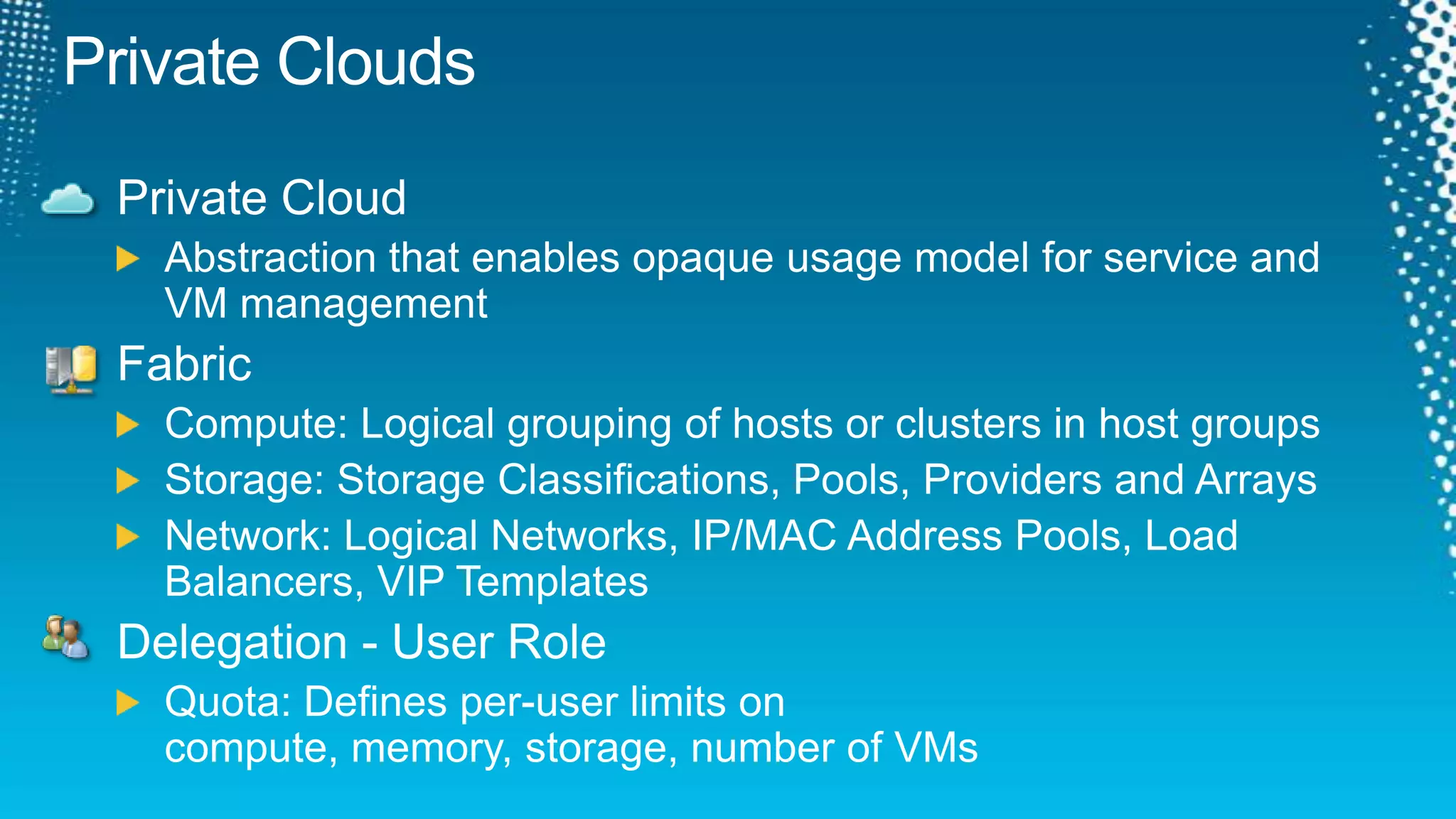

- 16. Private CloudsPrivate CloudAbstractionthat enables opaque usage model for service and VM managementFabricCompute: Logical grouping of hosts or clusters in host groupsStorage: Storage Classifications, Pools, Providers and ArraysNetwork: Logical Networks, IP/MAC Address Pools, Load Balancers, VIP TemplatesDelegation - User RoleQuota: Defines per-user limits on compute, memory, storage, number of VMs

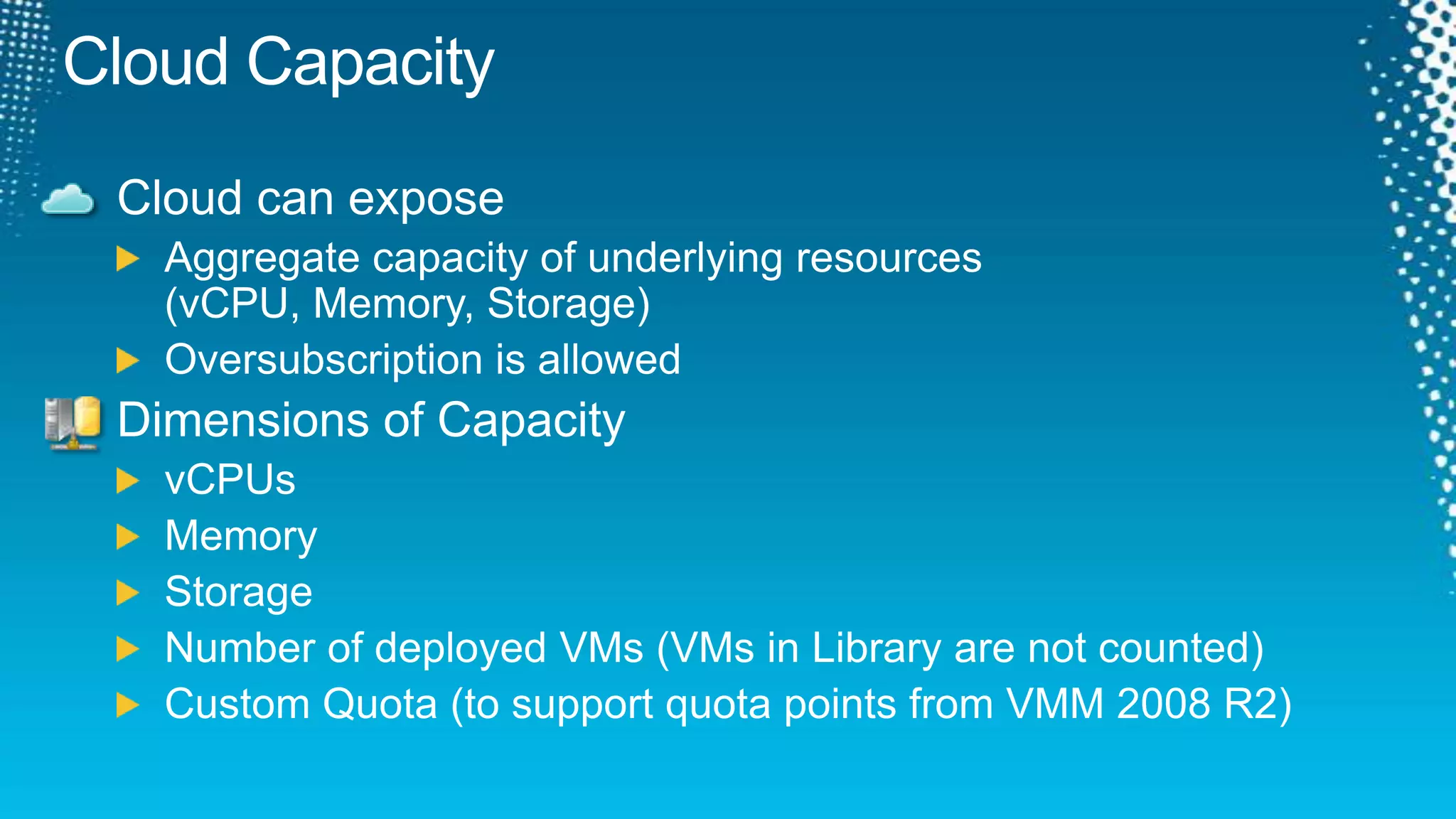

- 17. Cloud CapacityCloud canexposeAggregate capacity of underlying resources (vCPU, Memory, Storage)Oversubscription is allowedDimensions of CapacityvCPUsMemoryStorageNumber of deployed VMs (VMs in Library are not counted)Custom Quota (to support quota points from VMM 2008 R2)
- 18. Cloud CapabilitiesCloud canHosthighly available VMsAllow VMs to use dynamic disks or differencing disksEnable network optimizationsVM “shape” limitsProcessor Range (i.e. 1 - 4)Memory Range (i.e. 16MB – 32 GB)Number of disks (0 – 7)Number of NICs (0 – 7)Built-in set representing underlying limits for Hyper-V, Xen, VMware

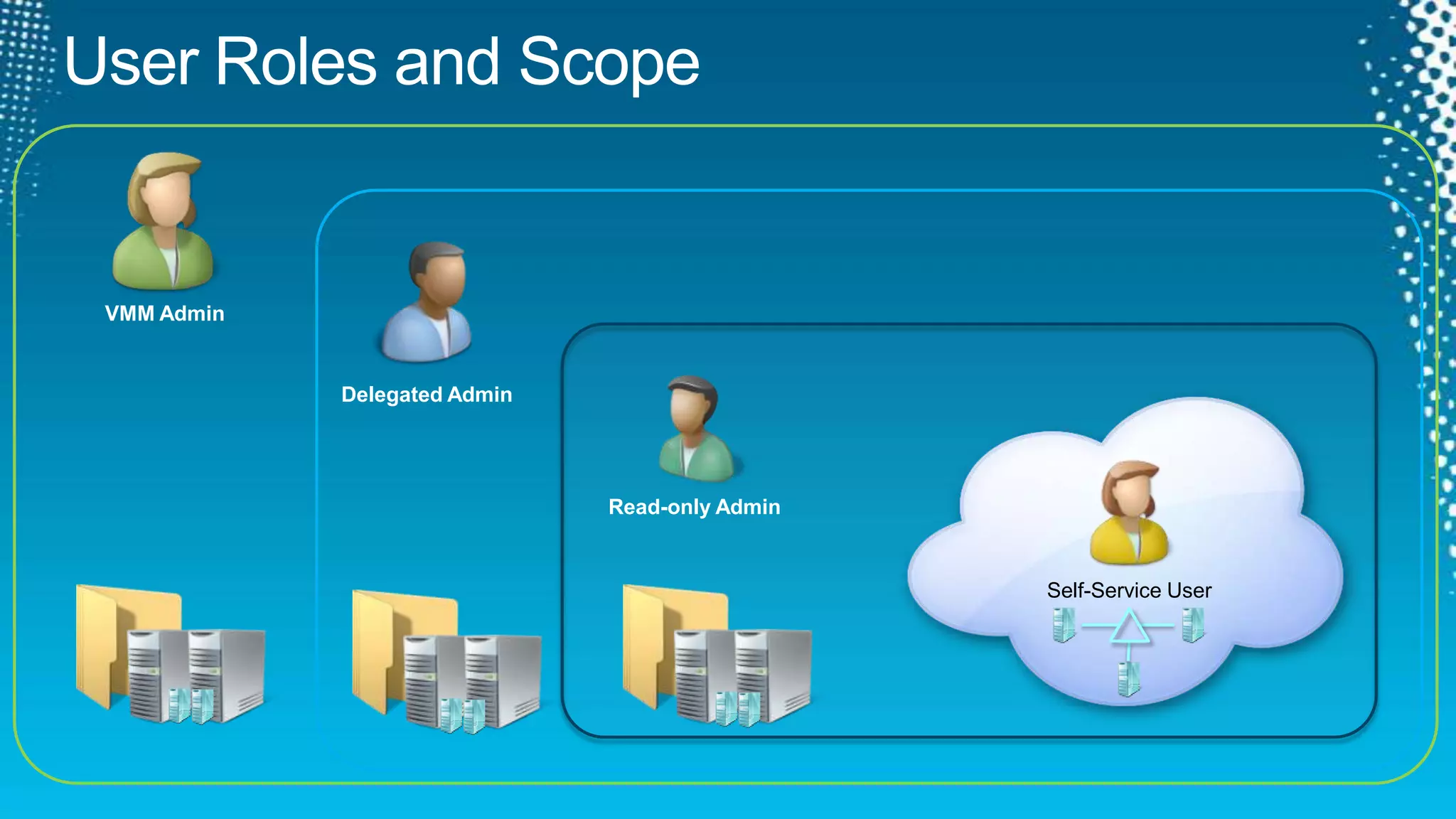

- 19. User Roles andScopeVMMAdminDelegated AdminSelf-Service UserRead-only Admin

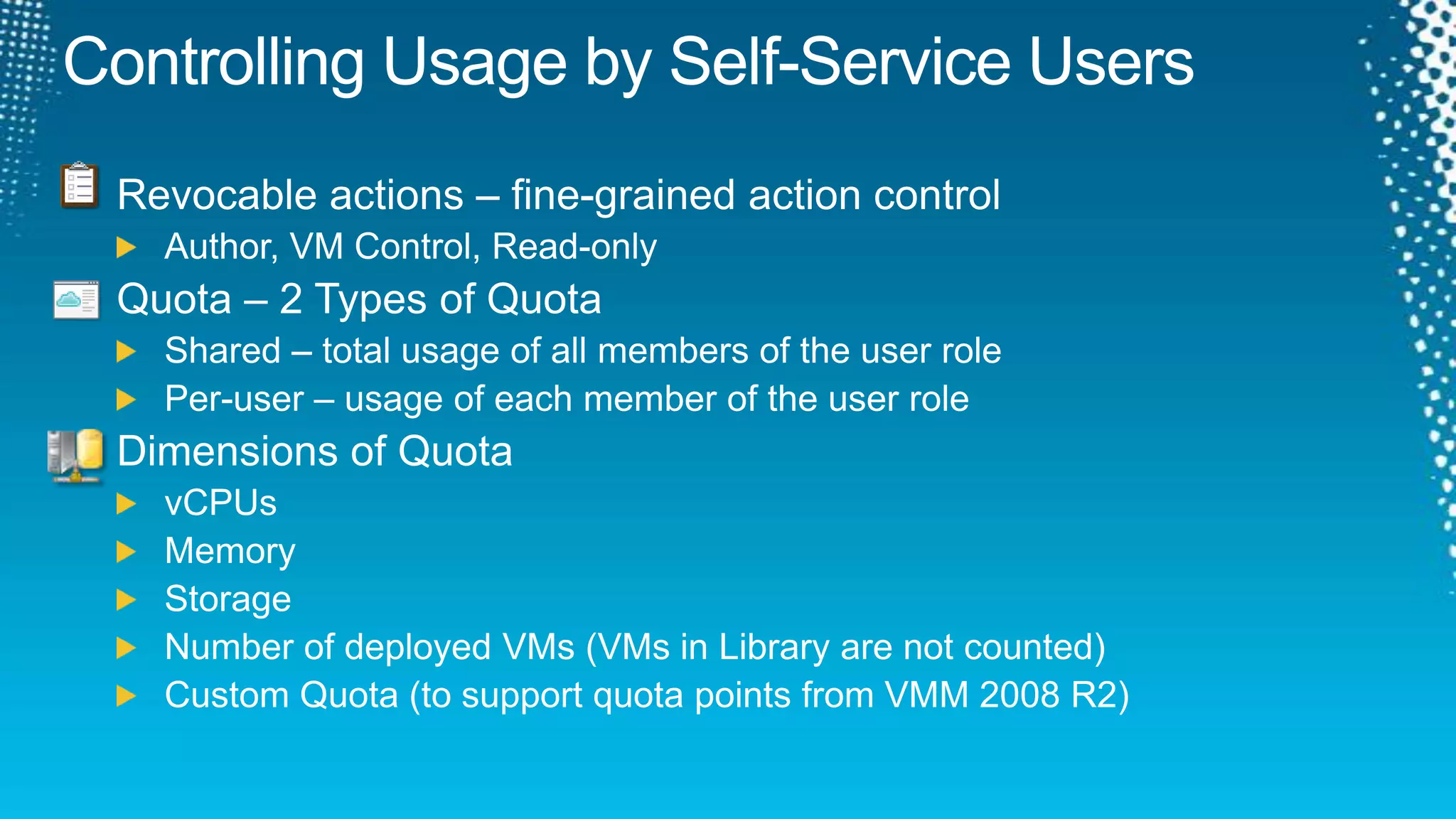

- 20. Controlling Usage bySelf-Service UsersRevocable actions – fine-grained action controlAuthor, VM Control, Read-onlyQuota – 2 Types of QuotaShared – total usage of all members of the user rolePer-user – usage of each member of the user roleDimensions of QuotavCPUsMemoryStorageNumber of deployed VMs (VMs in Library are not counted)Custom Quota (to support quota points from VMM 2008 R2)

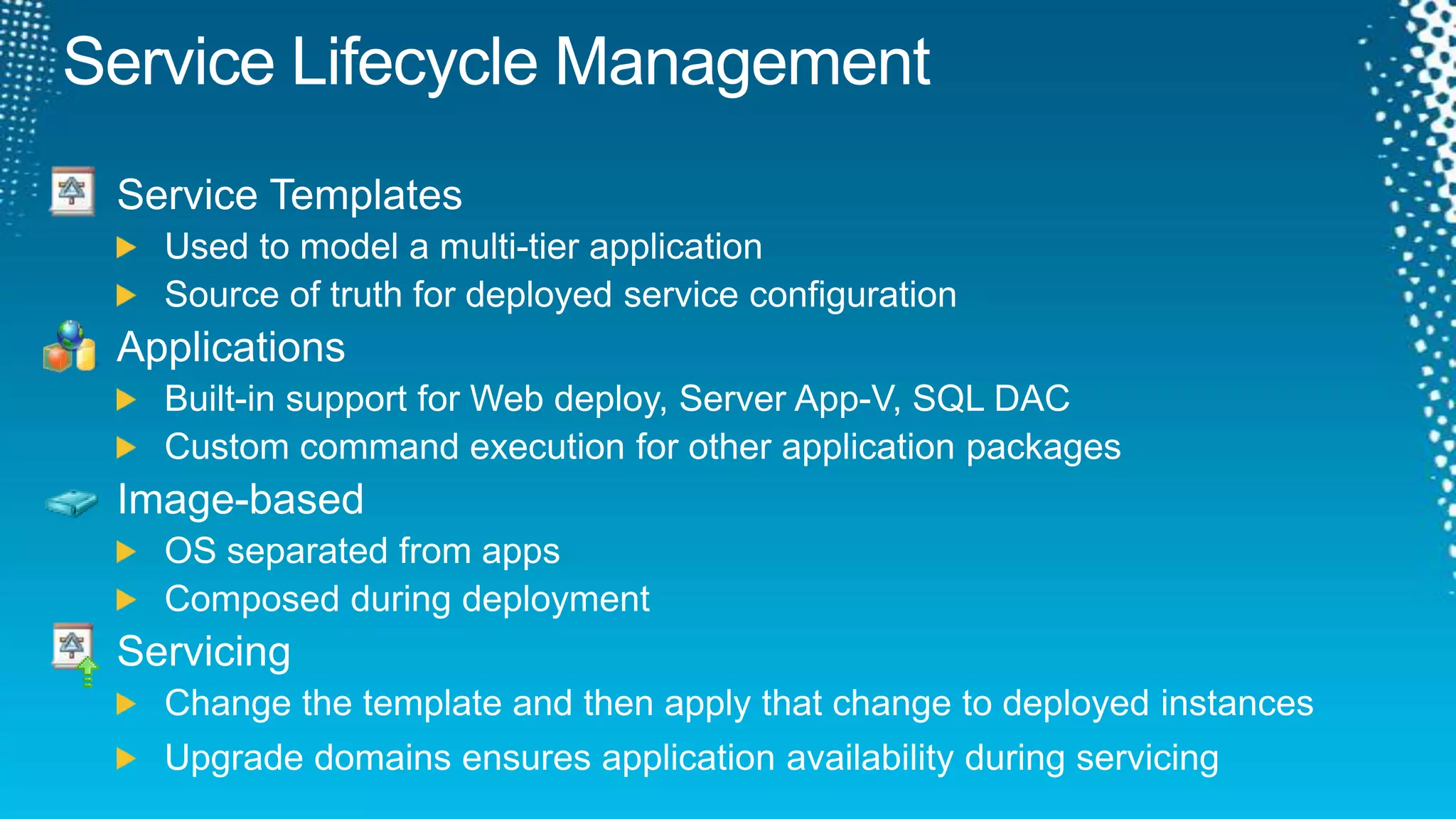

- 21. Service Lifecycle ManagementServiceTemplatesUsed to model a multi-tier applicationSource of truth for deployed service configurationApplicationsBuilt-in support for Web deploy, Server App-V, SQL DACCustom command execution for other application packagesImage-basedOS separated from appsComposed during deploymentServicingChange the template and then apply that change to deployed instancesUpgrade domains ensures application availability during servicing

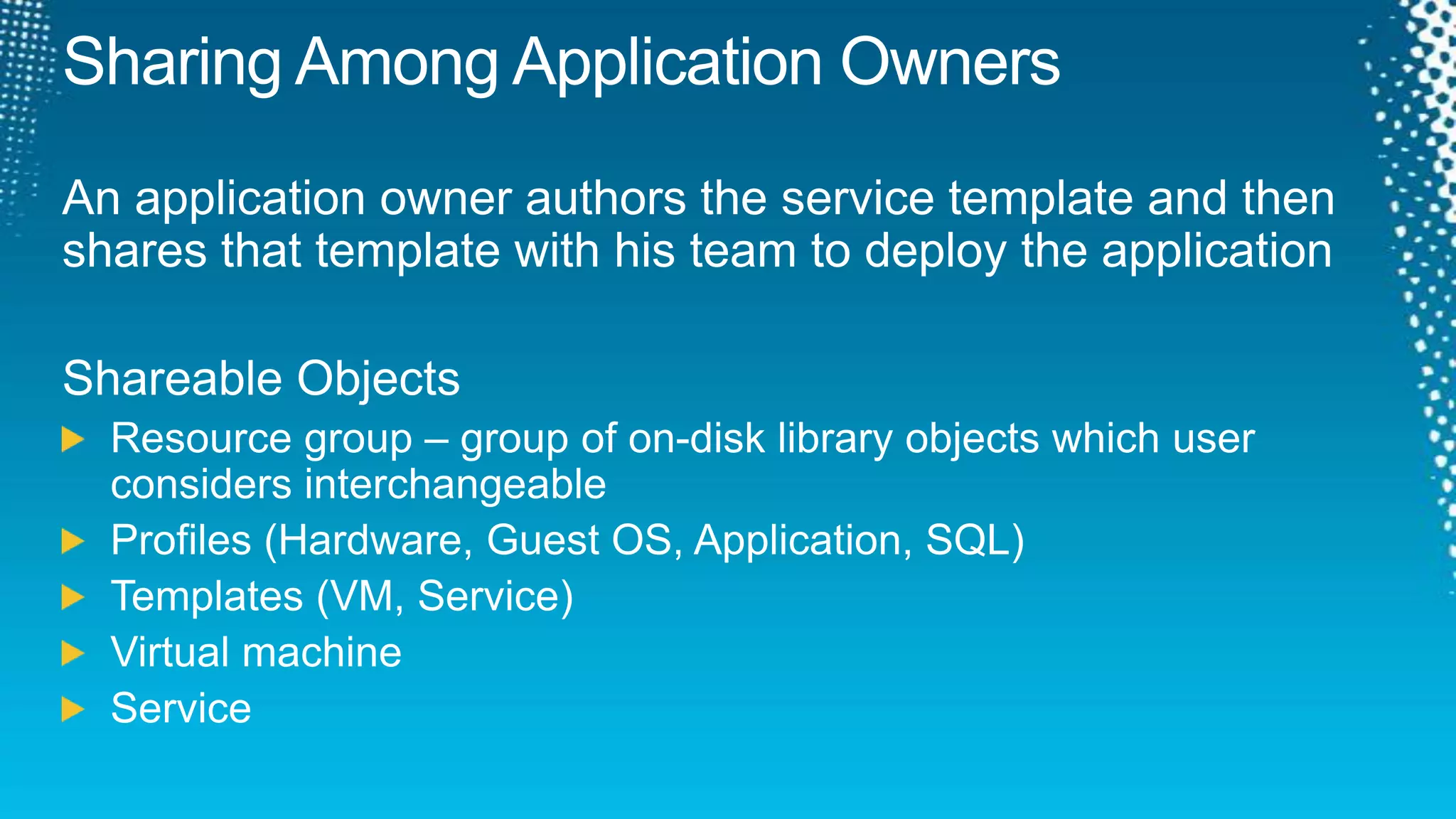

- 22. Sharing Among ApplicationOwnersAn application owner authors the service template and then shares that template with his team to deploy the applicationShareable ObjectsResource group – group of on-disk library objects which user considers interchangeableProfiles (Hardware, Guest OS, Application, SQL)Templates (VM, Service)Virtual machine Service
- 23. Building and DelegatingCloudsdemo

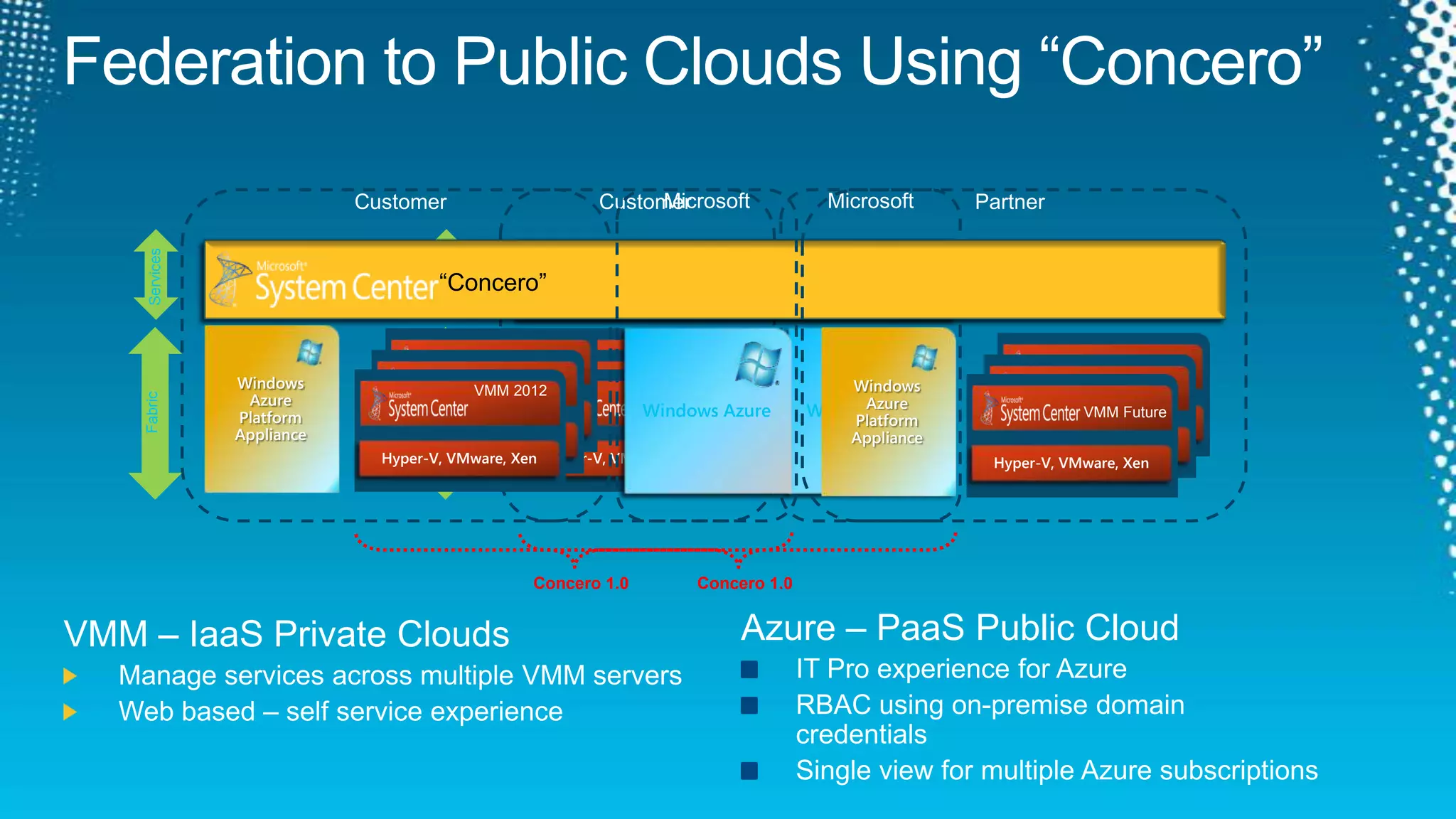

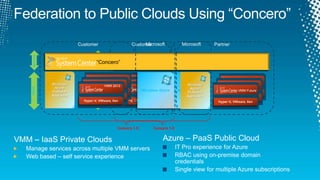

- 24. Federation to PublicClouds Using “Concero”CustomerPartnerCustomerServices“Concero”“Concero”ServicesWindows Azure Platform ApplianceWindows Azure Platform ApplianceMicrosoftMicrosoftVMM 2012VMM 2012VMM FutureVMM 2012VMM 2012VMM 2012VMM 2012VMM 2012VMM 2012Windows AzureWindows AzureHyper-V, VMware, XenHyper-V, VMware, XenHyper-V, VMware, XenHyper-V, VMware, XenHyper-V, VMware, XenHyper-V, VMware, XenHyper-V, VMware, XenHyper-V, VMware, XenHyper-V, VMware, XenFabricFabricConcero 1.0Concero 1.0Azure – PaaS Public CloudIT Pro experience for AzureRBAC using on-premise domain credentialsSingle view for multiple Azure subscriptionsVMM – IaaS Private CloudsManage services across multiple VMM serversWeb based – self service experience

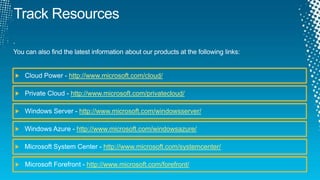

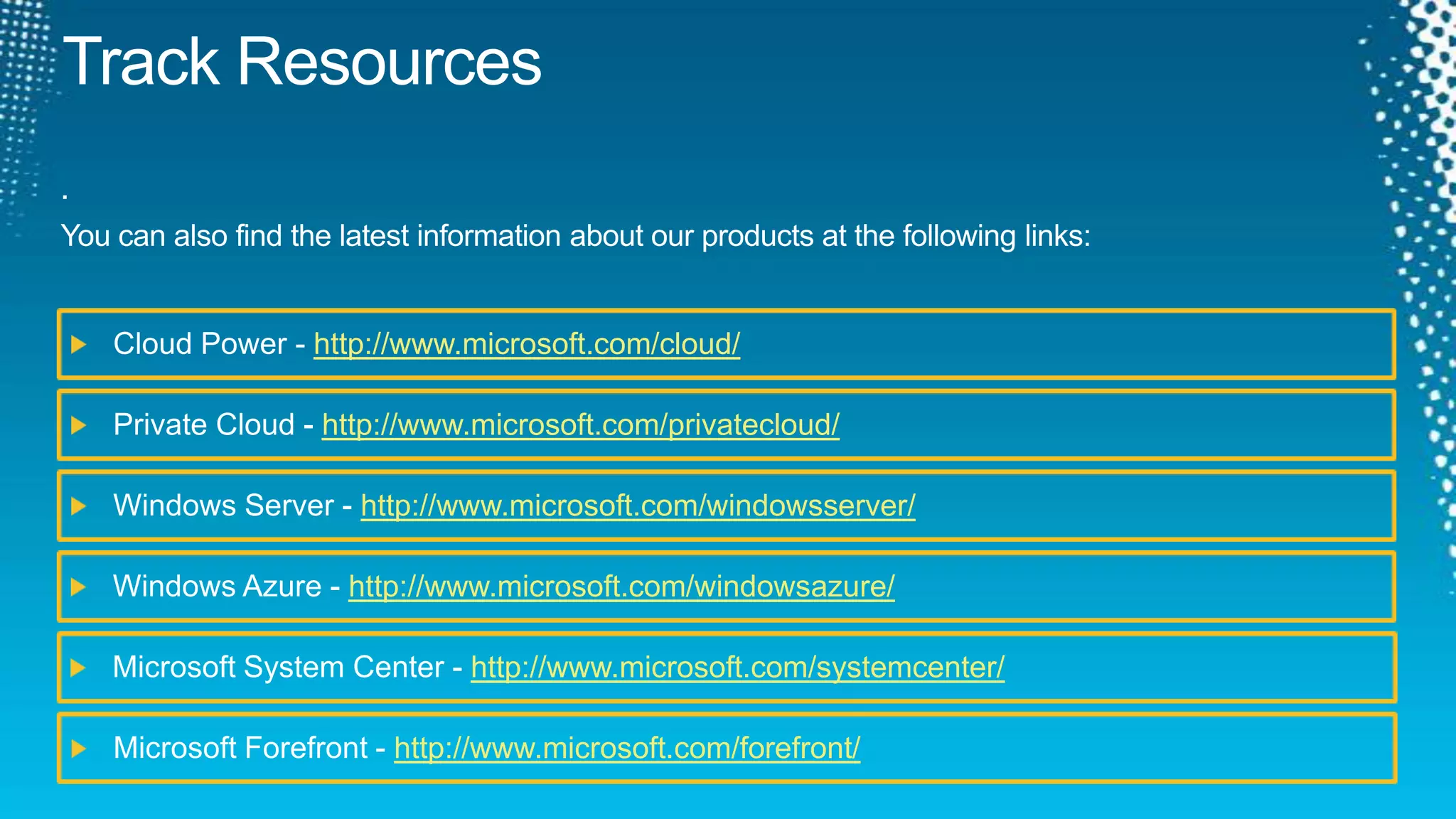

- 25. Track Resources.You canalso find the latest information about our products at the following links:Cloud Power - http://www.microsoft.com/cloud/Private Cloud - http://www.microsoft.com/privatecloud/Windows Server - http://www.microsoft.com/windowsserver/Windows Azure - http://www.microsoft.com/windowsazure/Microsoft System Center - http://www.microsoft.com/systemcenter/Microsoft Forefront - http://www.microsoft.com/forefront/

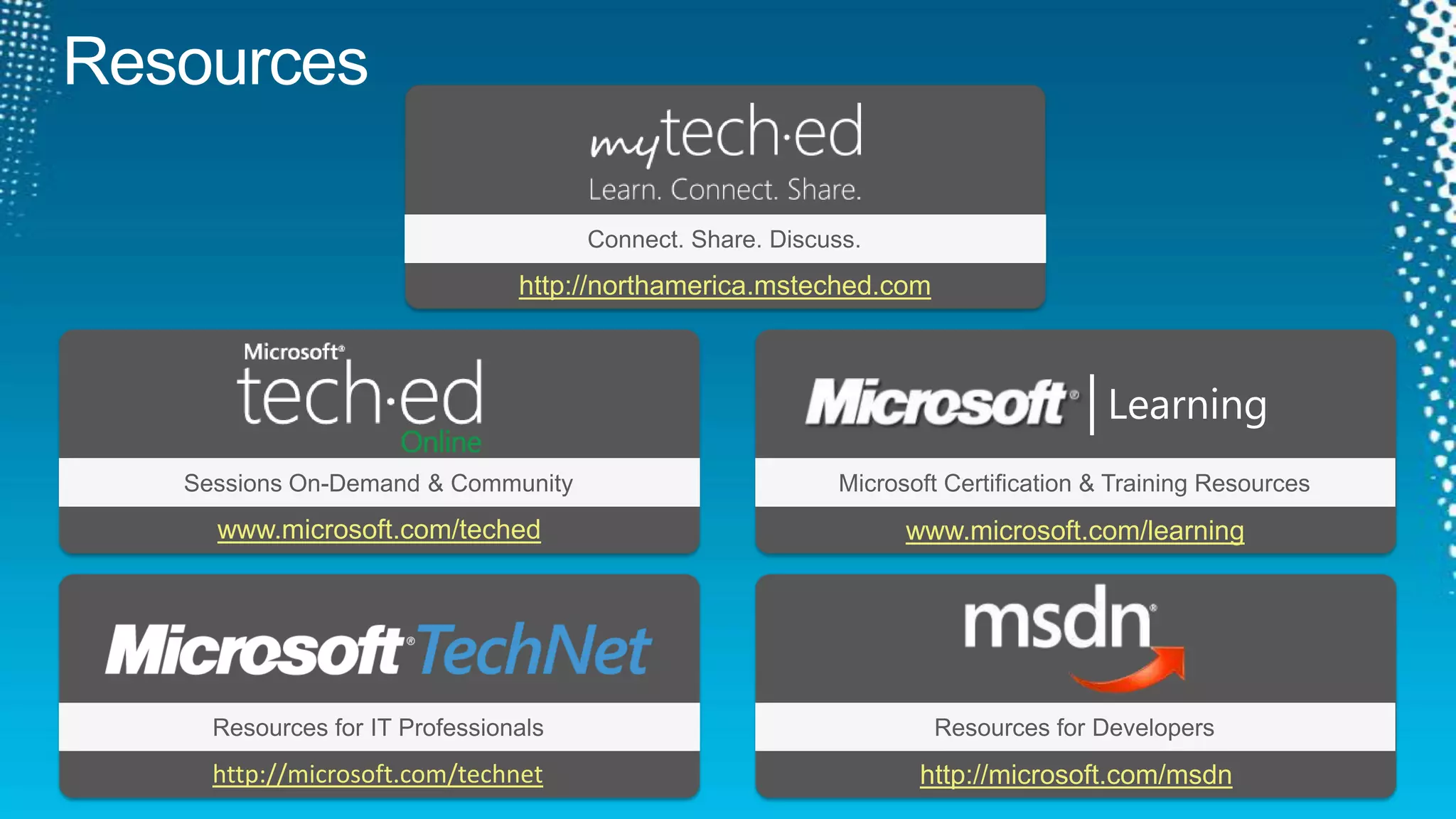

- 26. ResourcesConnect. Share. Discuss.http://northamerica.msteched.comLearningSessionsOn-Demand & CommunityMicrosoft Certification & Training Resourceswww.microsoft.com/techedwww.microsoft.com/learningResources for IT ProfessionalsResources for Developershttp://microsoft.com/technethttp://microsoft.com/msdn
- 27. © 2011 MicrosoftCorporation. All rights reserved. Microsoft, Windows, Windows Vista and other product names are or may be registered trademarks and/or trademarks in the U.S. and/or other countries.The information herein is for informational purposes only and represents the current view of Microsoft Corporation as of the date of this presentation. Because Microsoft must respond to changing market conditions, it should not be interpreted to be a commitment on the part of Microsoft, and Microsoft cannot guarantee the accuracy of any information provided after the date of this presentation. MICROSOFT MAKES NO WARRANTIES, EXPRESS, IMPLIED OR STATUTORY, AS TO THE INFORMATION IN THIS PRESENTATION.
Editor's Notes
