Uploaded byKazuaki Tanaka
mruby/c and data-flow programming for small devices
In my presentation, I will show how data-flow programming can be used for software development of small devices. The effectiveness of the proposed method is demonstrated with a microcontroller implementation in mruby/c. In IoT programming, we want to focus on the flow of data generation and processing. This is data flow programming, also known as the Node-RED development environment. Data flow is processed asynchronously. I will explain how to implement this asynchronous processing in a reasonable manner using mruby/c and demonstrate its operation on a real microcontroller.
mruby/c and data-flow programming for small devices
- 1. mruby/c and data-flow programmingfor small devices Kazuaki Tanaka

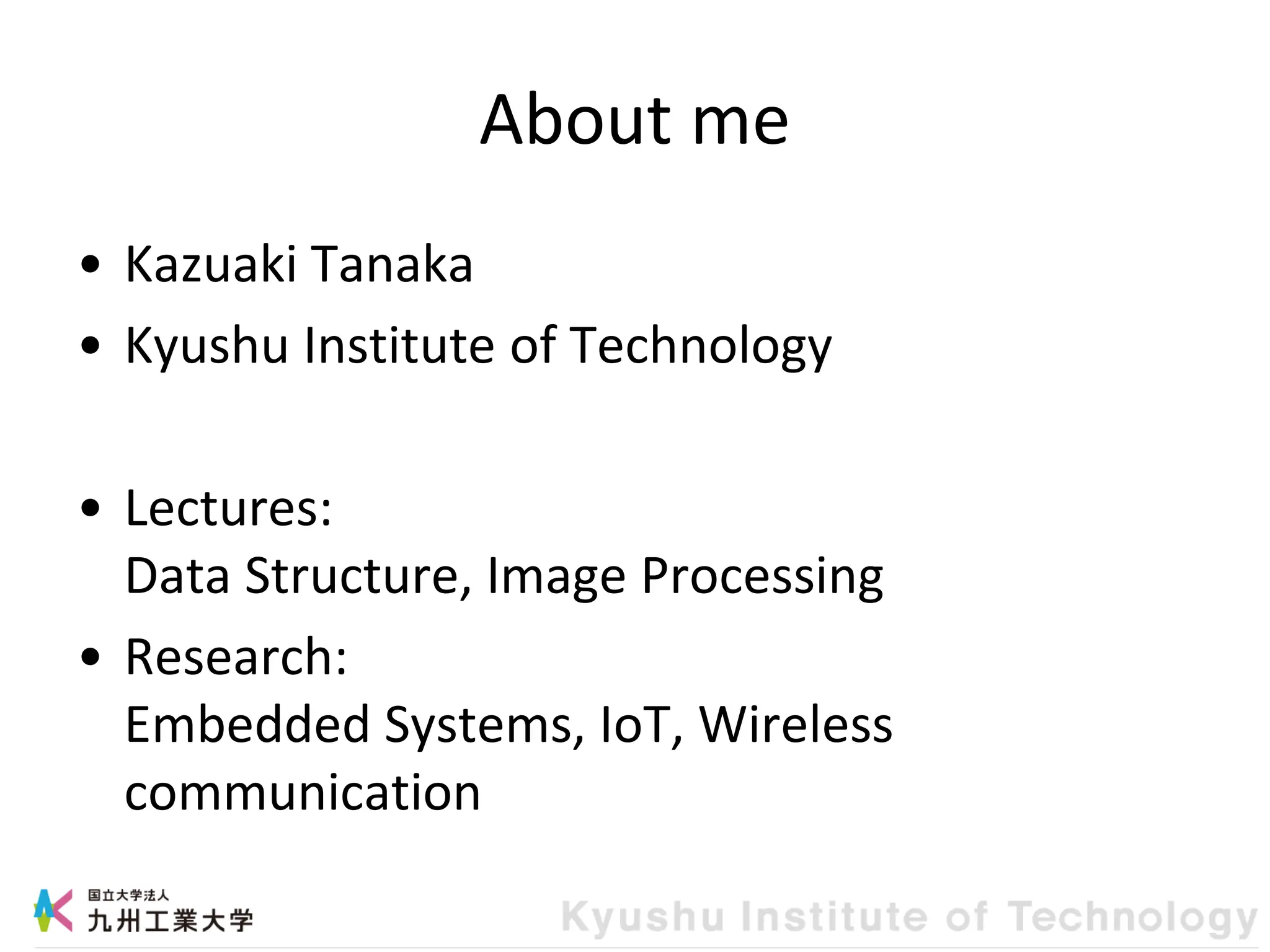

- 3. About me • KazuakiTanaka • Kyushu Institute of Technology • Lectures: Data Structure, Image Processing • Research: Embedded Systems, IoT, Wireless communication

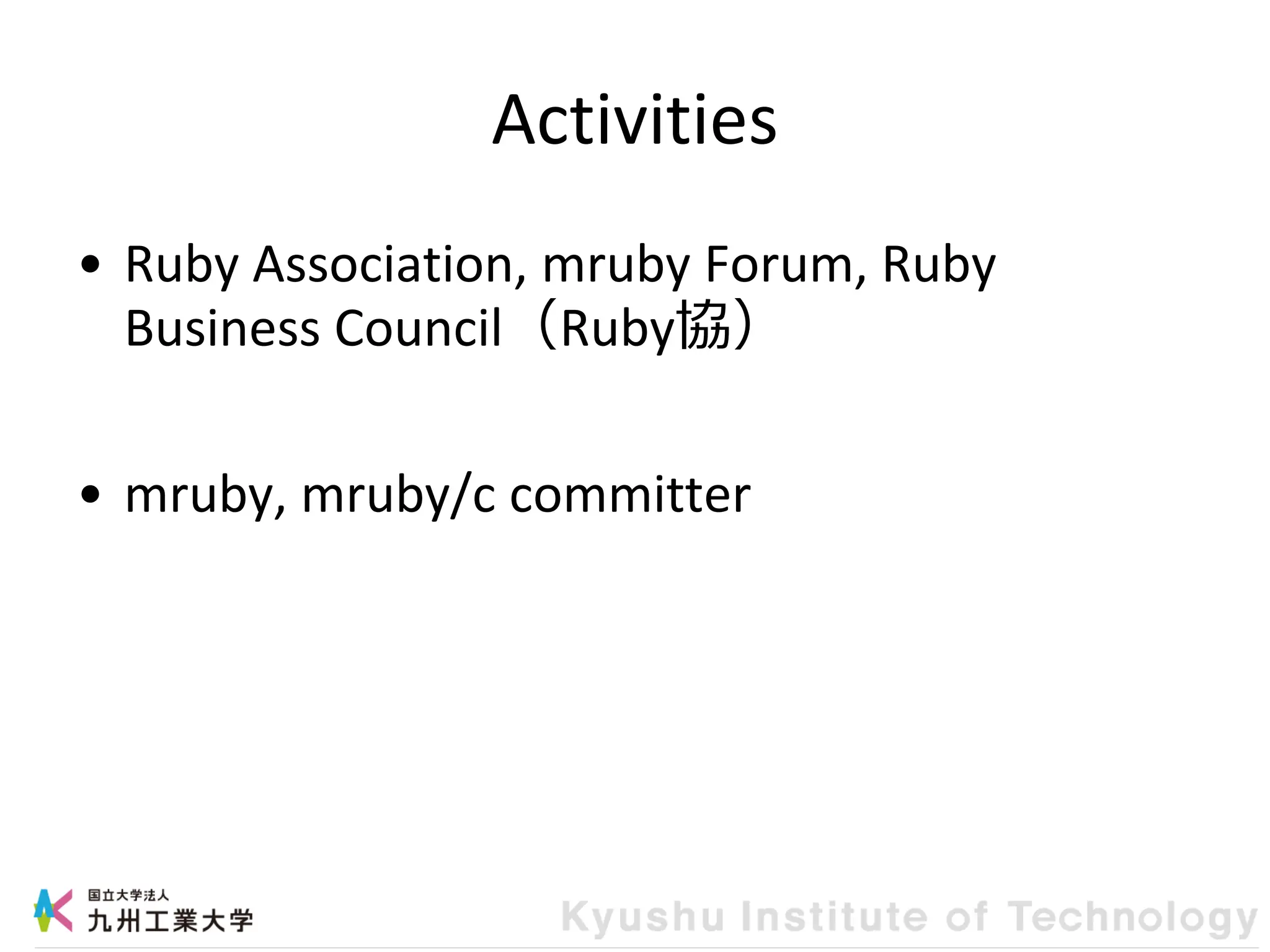

- 4. Activities • Ruby Association,mruby Forum, Ruby Business Council（Ruby協） • mruby, mruby/c committer

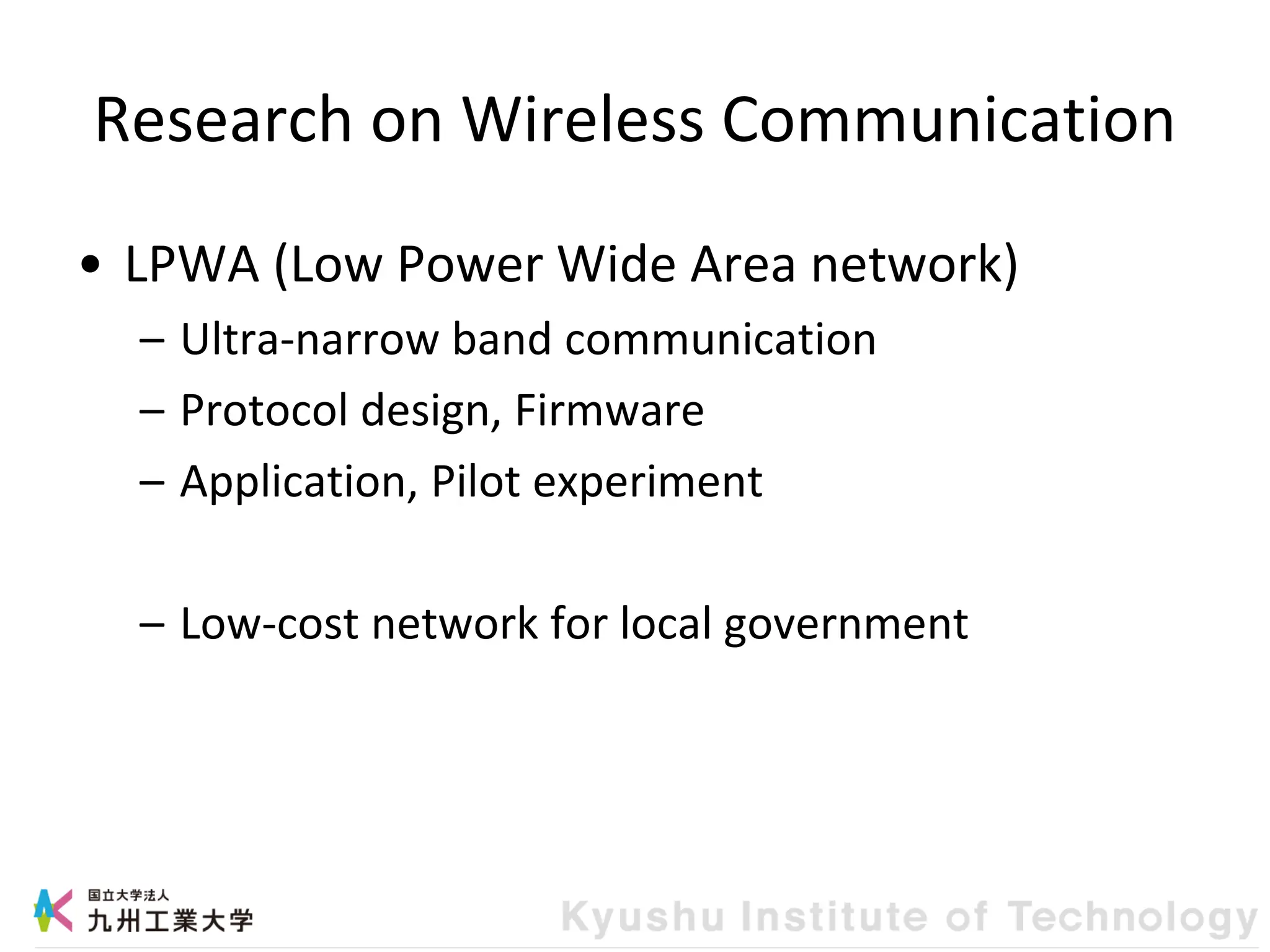

- 5. Research on WirelessCommunication • LPWA (Low Power Wide Area network) – Ultra-narrow band communication – Protocol design, Firmware – Application, Pilot experiment – Low-cost network for local government

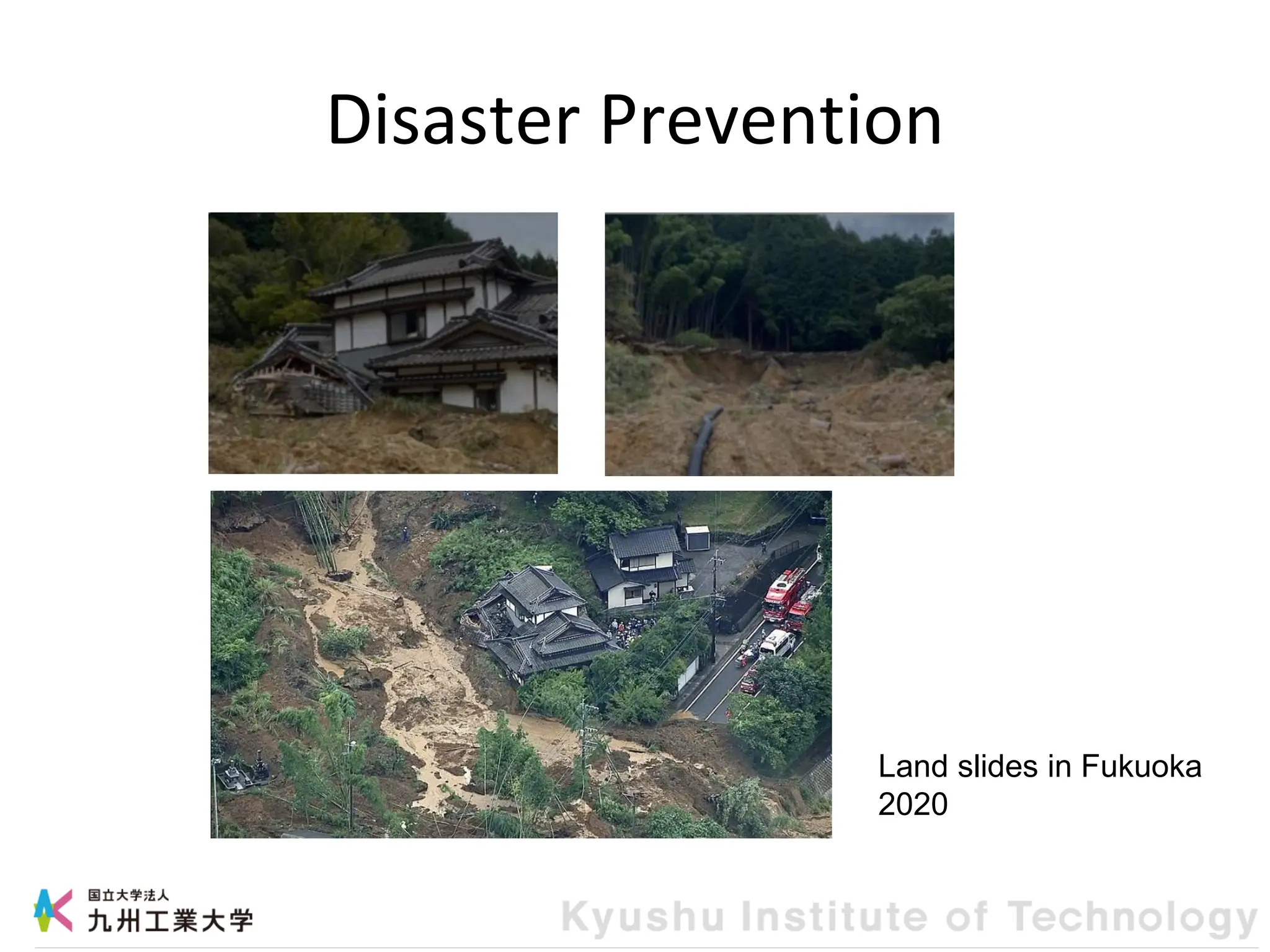

- 6. Disaster Prevention Land slidesin Fukuoka 2020

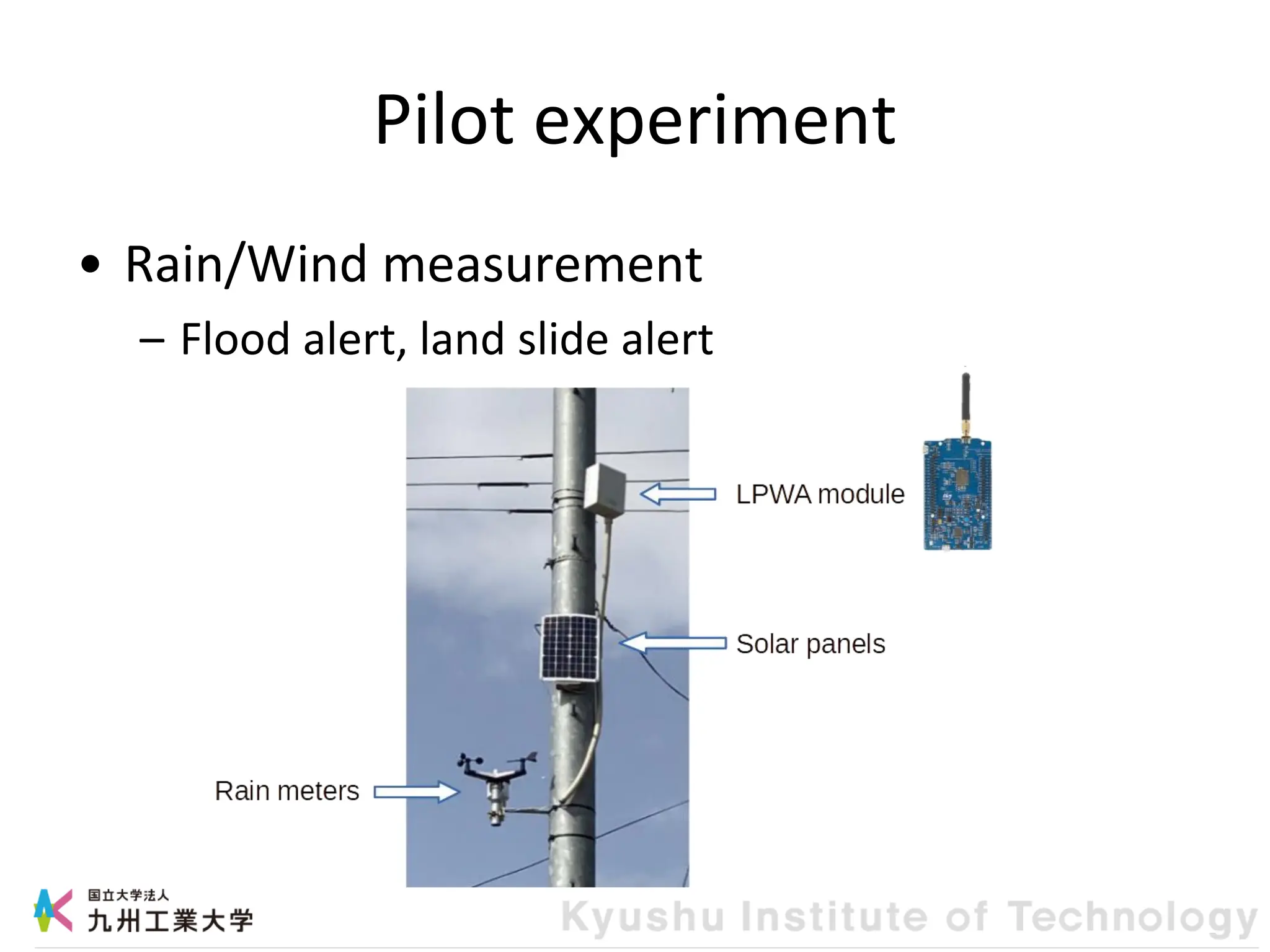

- 7. Pilot experiment • Rain/Windmeasurement – Flood alert, land slide alert

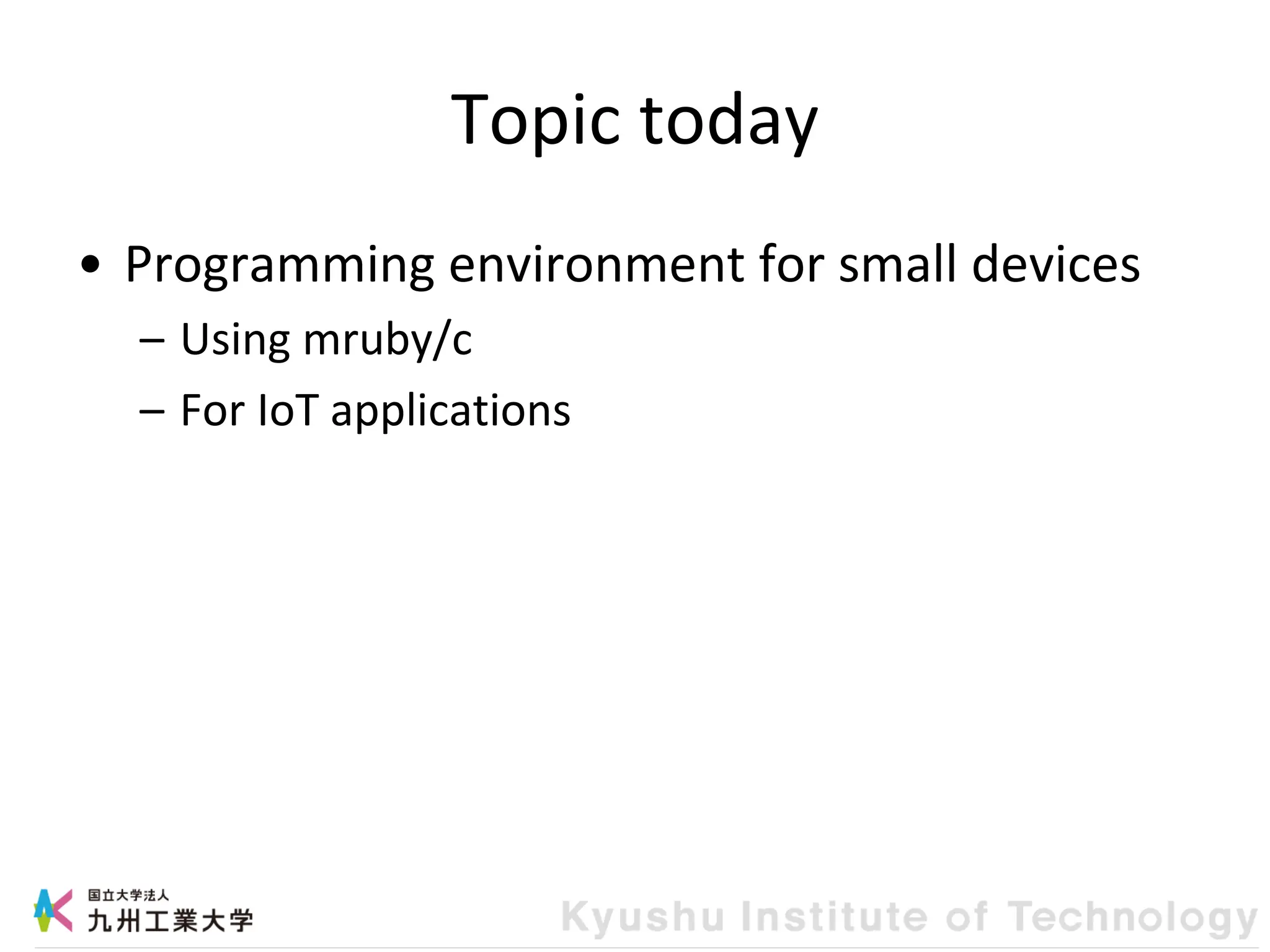

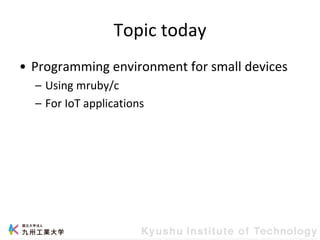

- 8. Topic today • Programmingenvironment for small devices – Using mruby/c – For IoT applications
- 9.

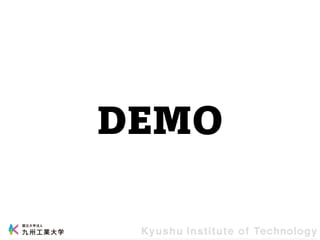

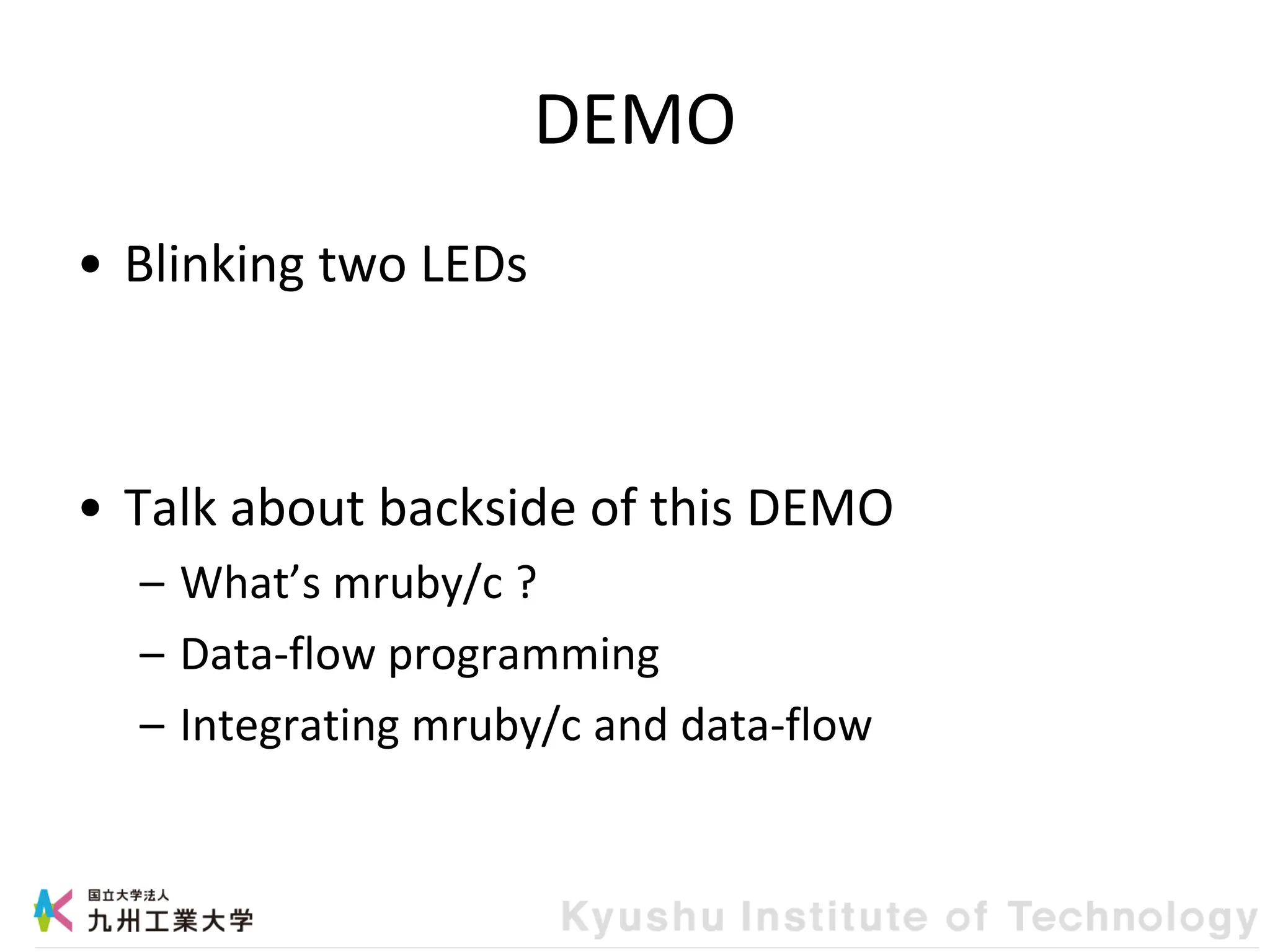

- 10. DEMO • Blinking twoLEDs • Talk about backside of this DEMO – What’s mruby/c ? – Data-flow programming – Integrating mruby/c and data-flow
- 11.

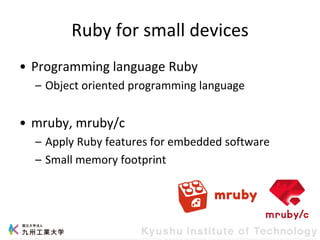

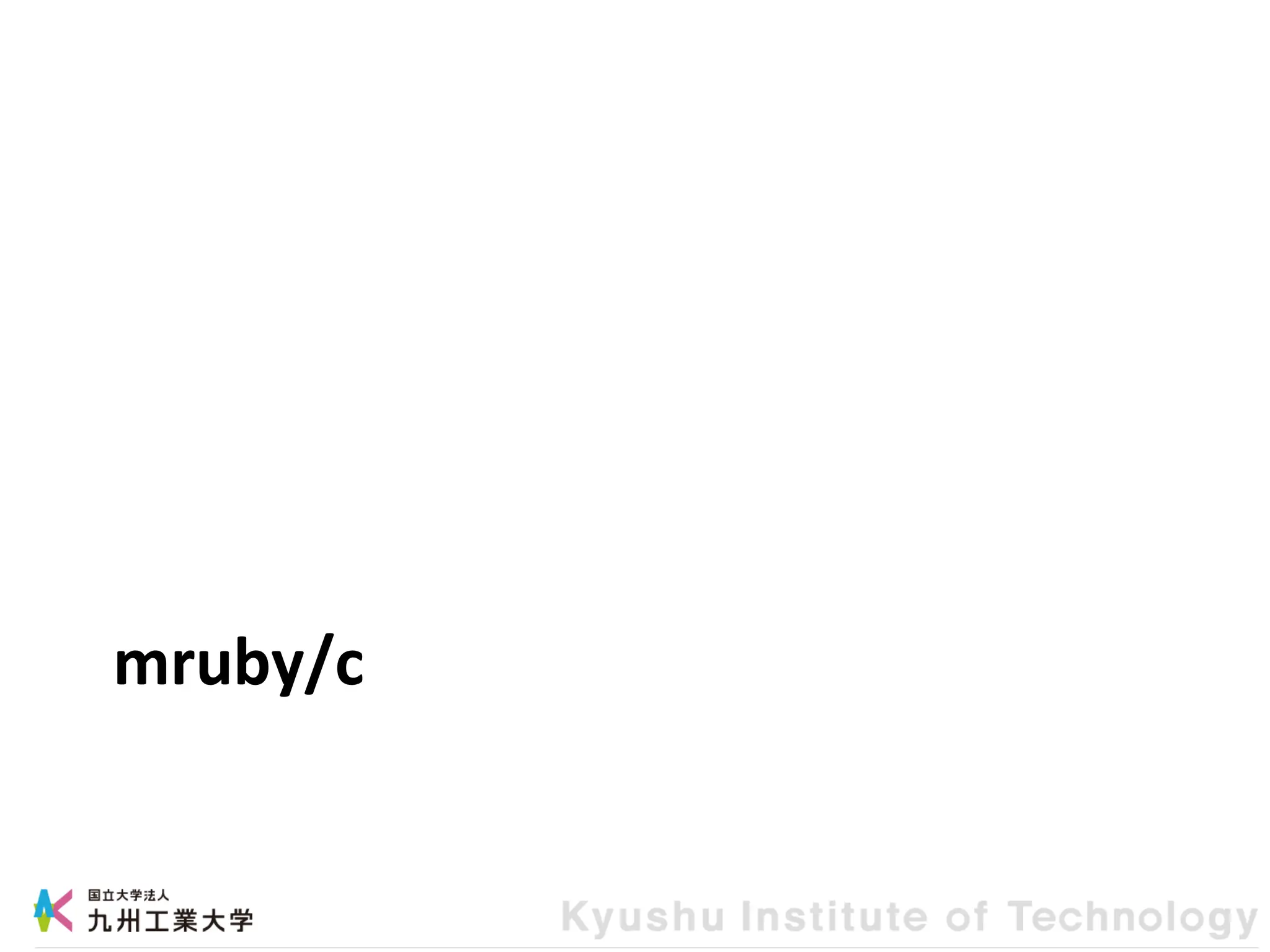

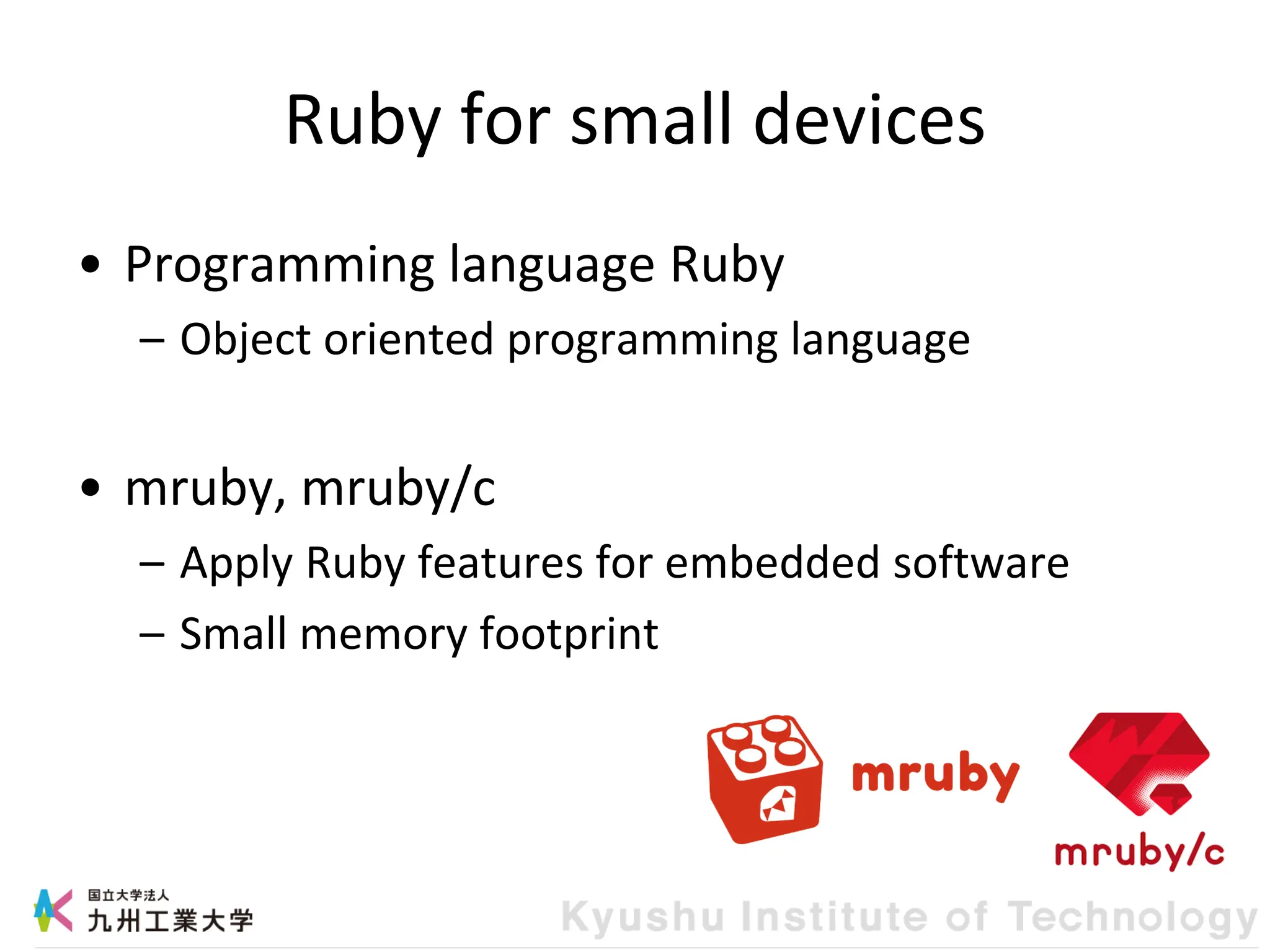

- 12. Ruby for smalldevices • Programming language Ruby – Object oriented programming language • mruby, mruby/c – Apply Ruby features for embedded software – Small memory footprint

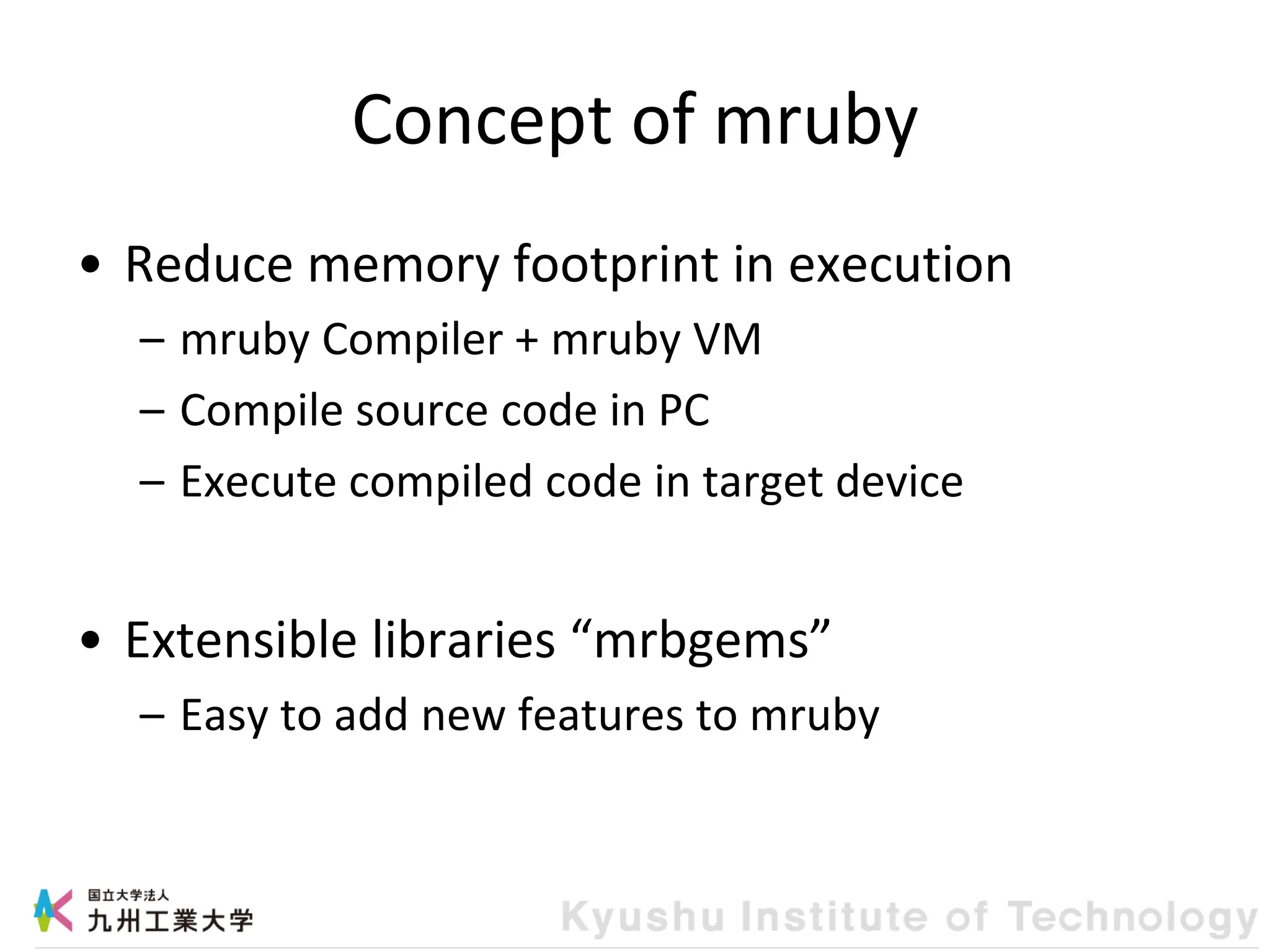

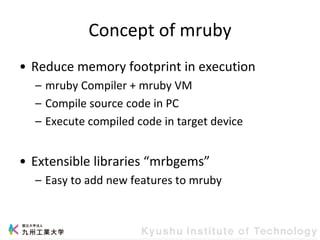

- 13. Concept of mruby •Reduce memory footprint in execution – mruby Compiler + mruby VM – Compile source code in PC – Execute compiled code in target device • Extensible libraries “mrbgems” – Easy to add new features to mruby

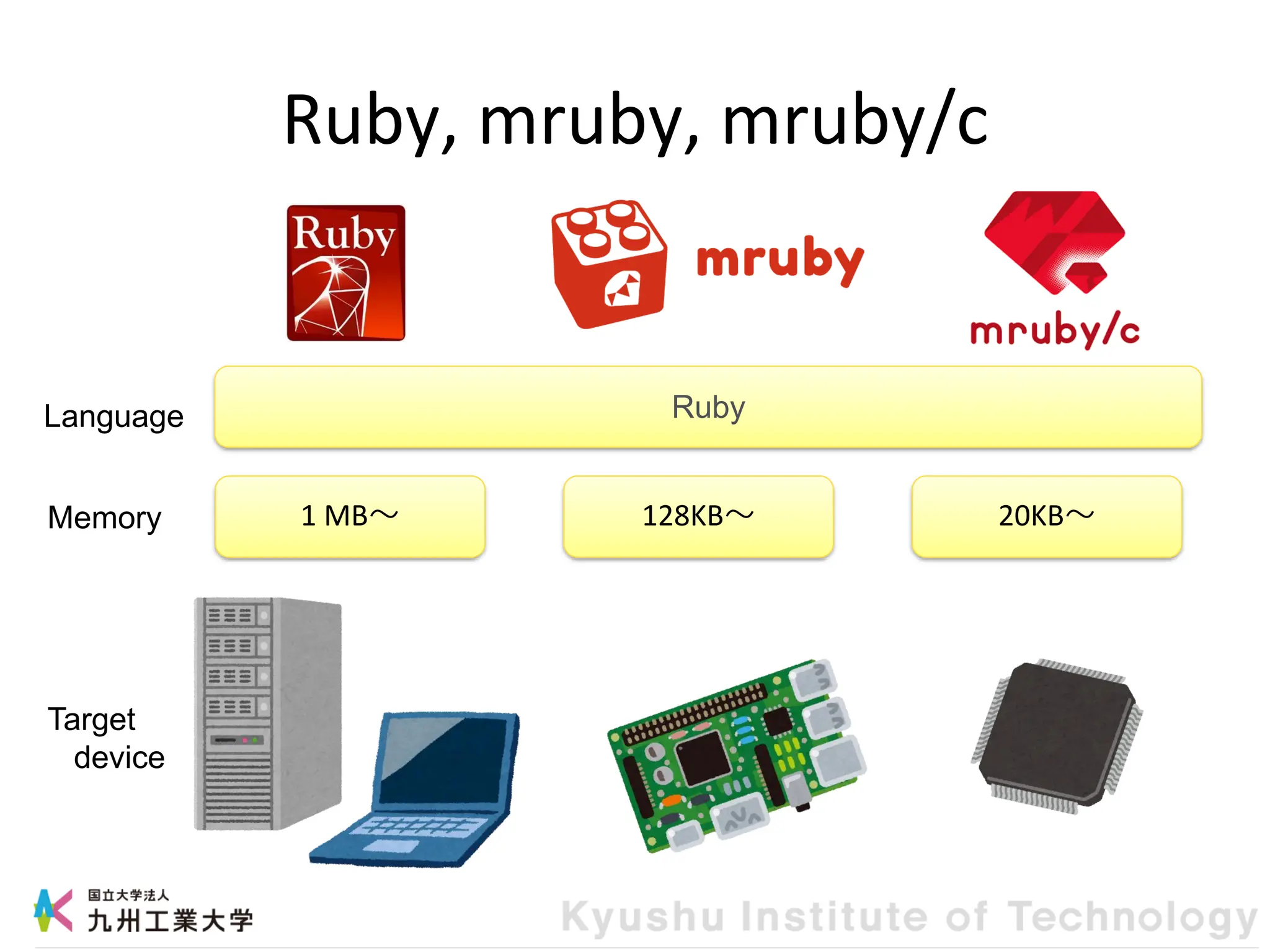

- 14. Ruby, mruby, mruby/c Ruby 1MB～ 128KB～ 20KB～ Memory Language Target device

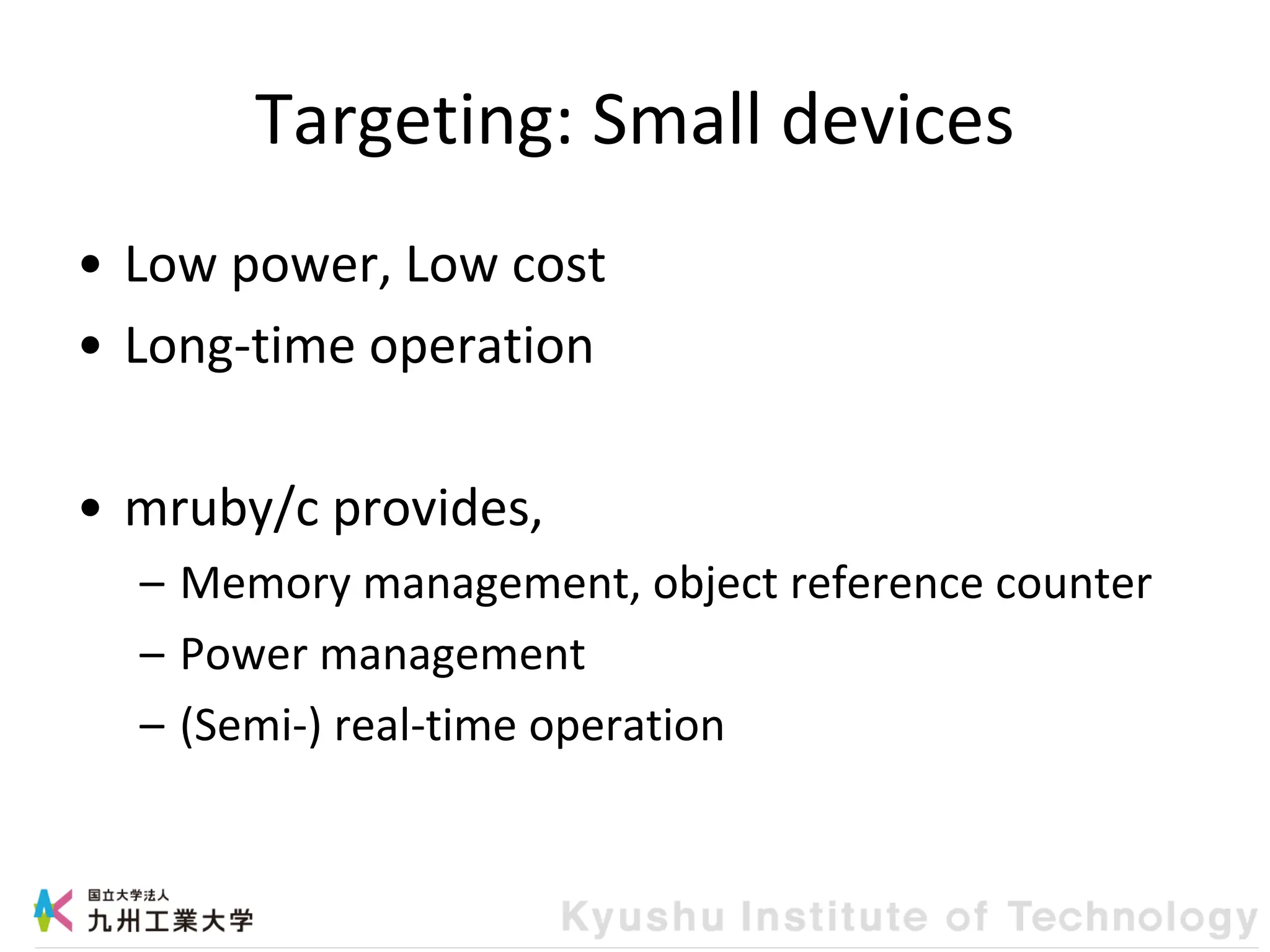

- 15. Targeting: Small devices •Low power, Low cost • Long-time operation • mruby/c provides, – Memory management, object reference counter – Power management – (Semi-) real-time operation

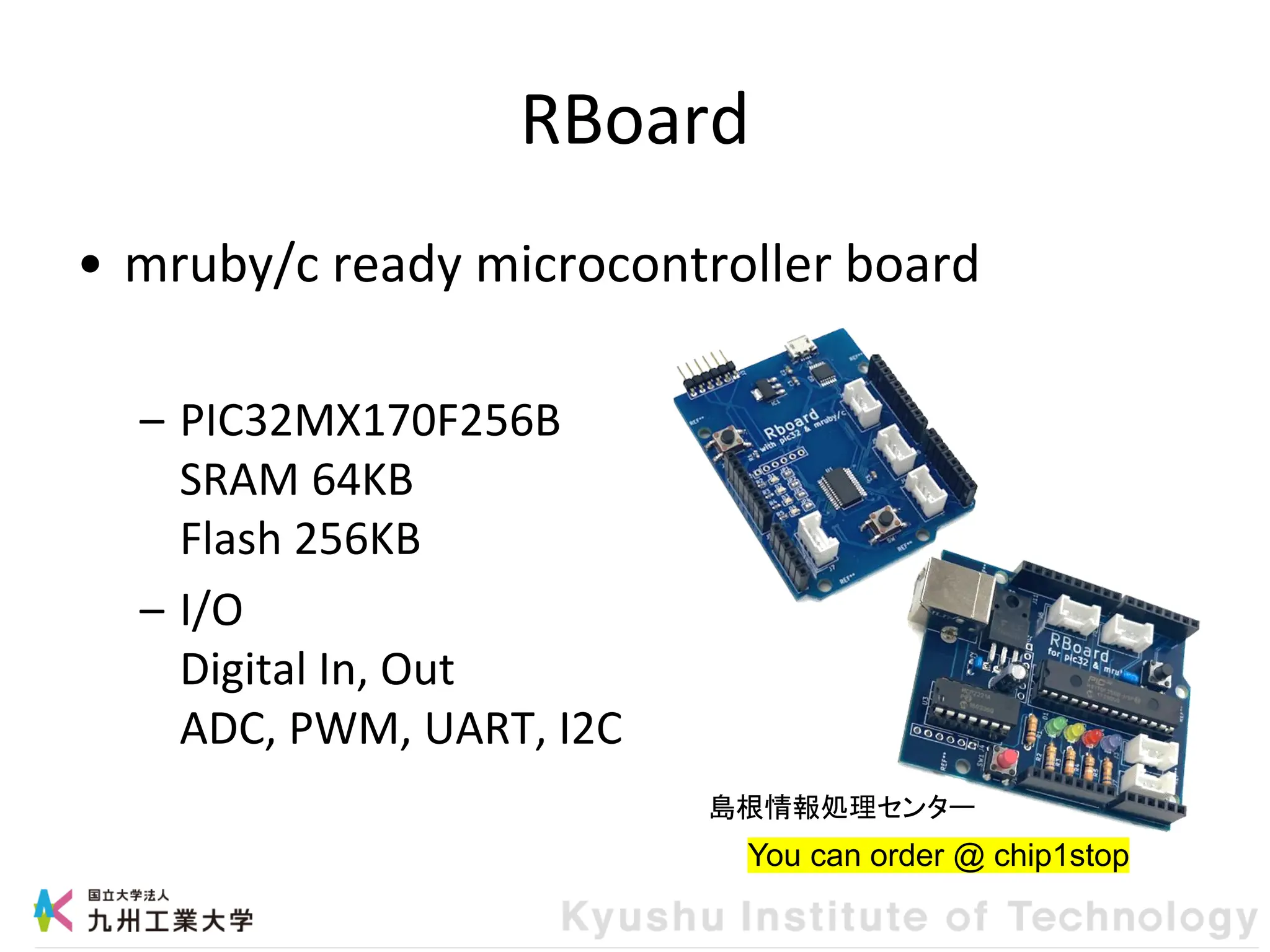

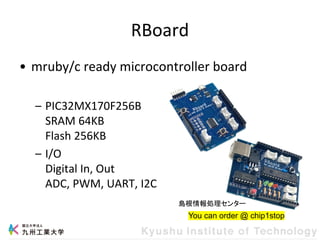

- 16. RBoard • mruby/c readymicrocontroller board – PIC32MX170F256B SRAM 64KB Flash 256KB – I/O Digital In, Out ADC, PWM, UART, I2C You can order @ chip1stop 島根情報処理センター

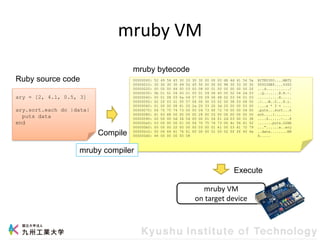

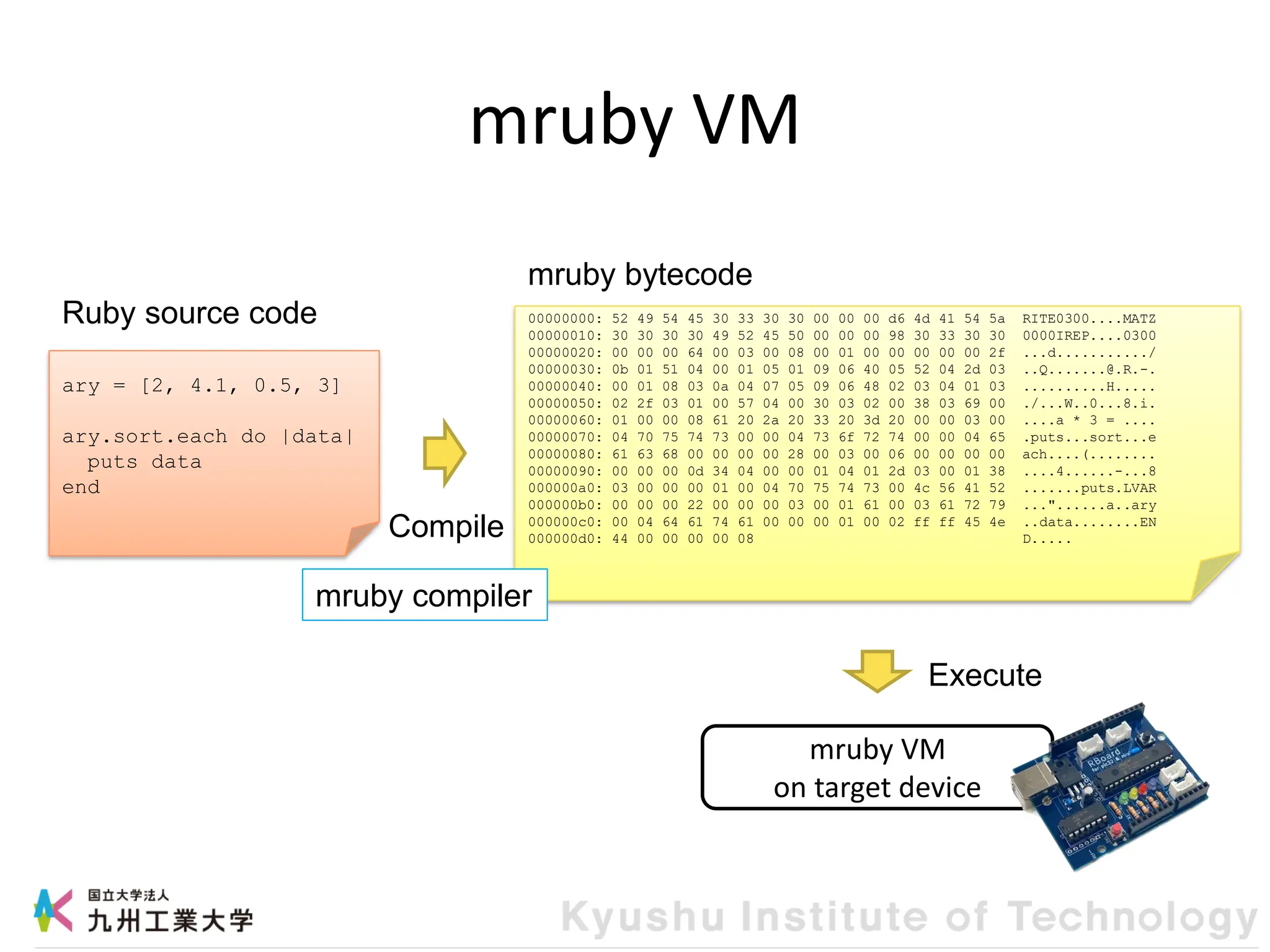

- 17. mruby VM ary =[2, 4.1, 0.5, 3] ary.sort.each do |data| puts data end 00000000: 52 49 54 45 30 33 30 30 00 00 00 d6 4d 41 54 5a RITE0300....MATZ 00000010: 30 30 30 30 49 52 45 50 00 00 00 98 30 33 30 30 0000IREP....0300 00000020: 00 00 00 64 00 03 00 08 00 01 00 00 00 00 00 2f ...d.........../ 00000030: 0b 01 51 04 00 01 05 01 09 06 40 05 52 04 2d 03 ..Q.......@.R.-. 00000040: 00 01 08 03 0a 04 07 05 09 06 48 02 03 04 01 03 ..........H..... 00000050: 02 2f 03 01 00 57 04 00 30 03 02 00 38 03 69 00 ./...W..0...8.i. 00000060: 01 00 00 08 61 20 2a 20 33 20 3d 20 00 00 03 00 ....a * 3 = .... 00000070: 04 70 75 74 73 00 00 04 73 6f 72 74 00 00 04 65 .puts...sort...e 00000080: 61 63 68 00 00 00 00 28 00 03 00 06 00 00 00 00 ach....(........ 00000090: 00 00 00 0d 34 04 00 00 01 04 01 2d 03 00 01 38 ....4......-...8 000000a0: 03 00 00 00 01 00 04 70 75 74 73 00 4c 56 41 52 .......puts.LVAR 000000b0: 00 00 00 22 00 00 00 03 00 01 61 00 03 61 72 79 ..."......a..ary 000000c0: 00 04 64 61 74 61 00 00 00 01 00 02 ff ff 45 4e ..data........EN 000000d0: 44 00 00 00 00 08 D..... Ruby source code Compile mruby bytecode mruby VM on target device Execute mruby compiler

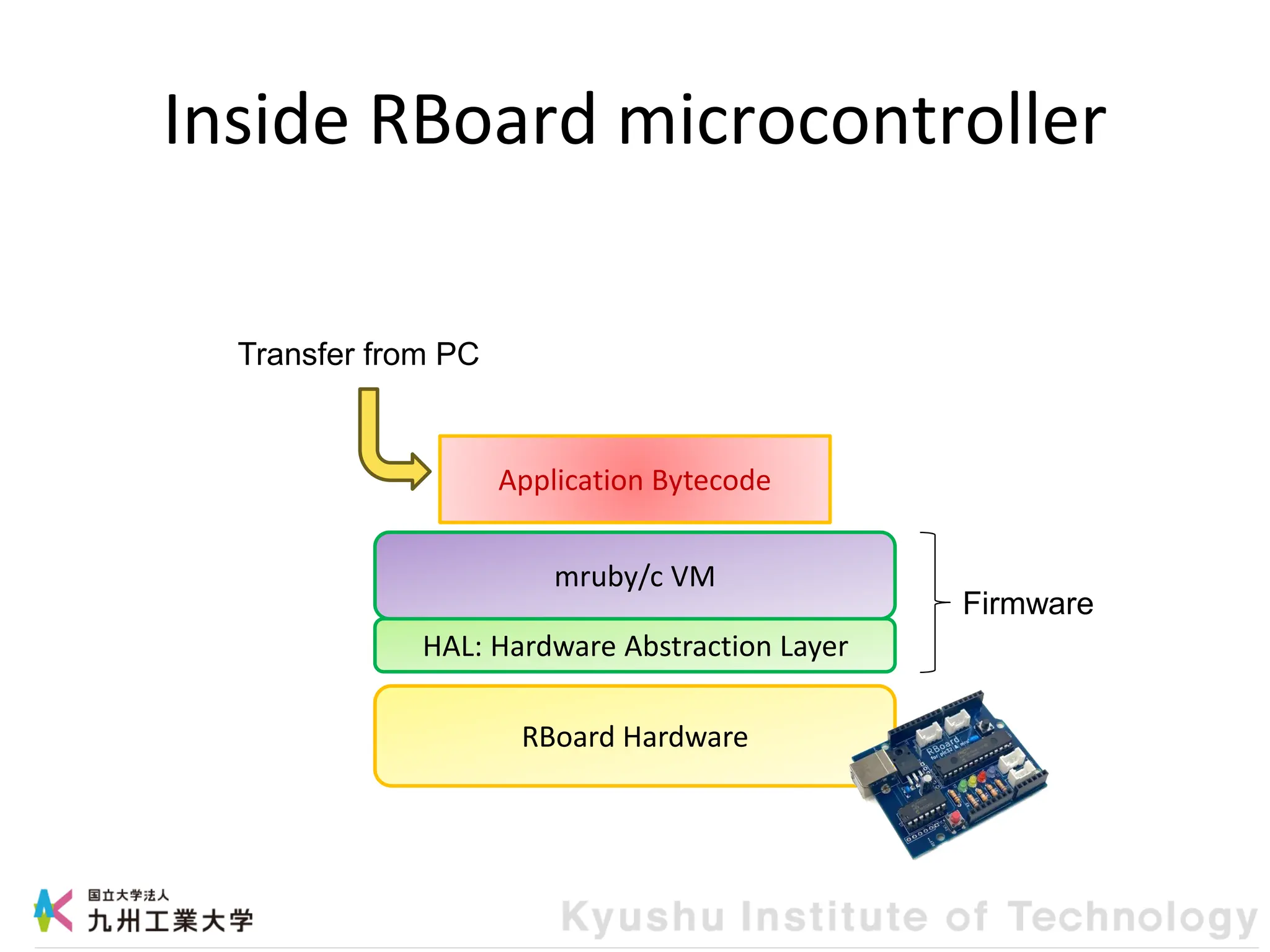

- 18. Inside RBoard microcontroller RBoardHardware HAL: Hardware Abstraction Layer mruby/c VM Application Bytecode Transfer from PC Firmware

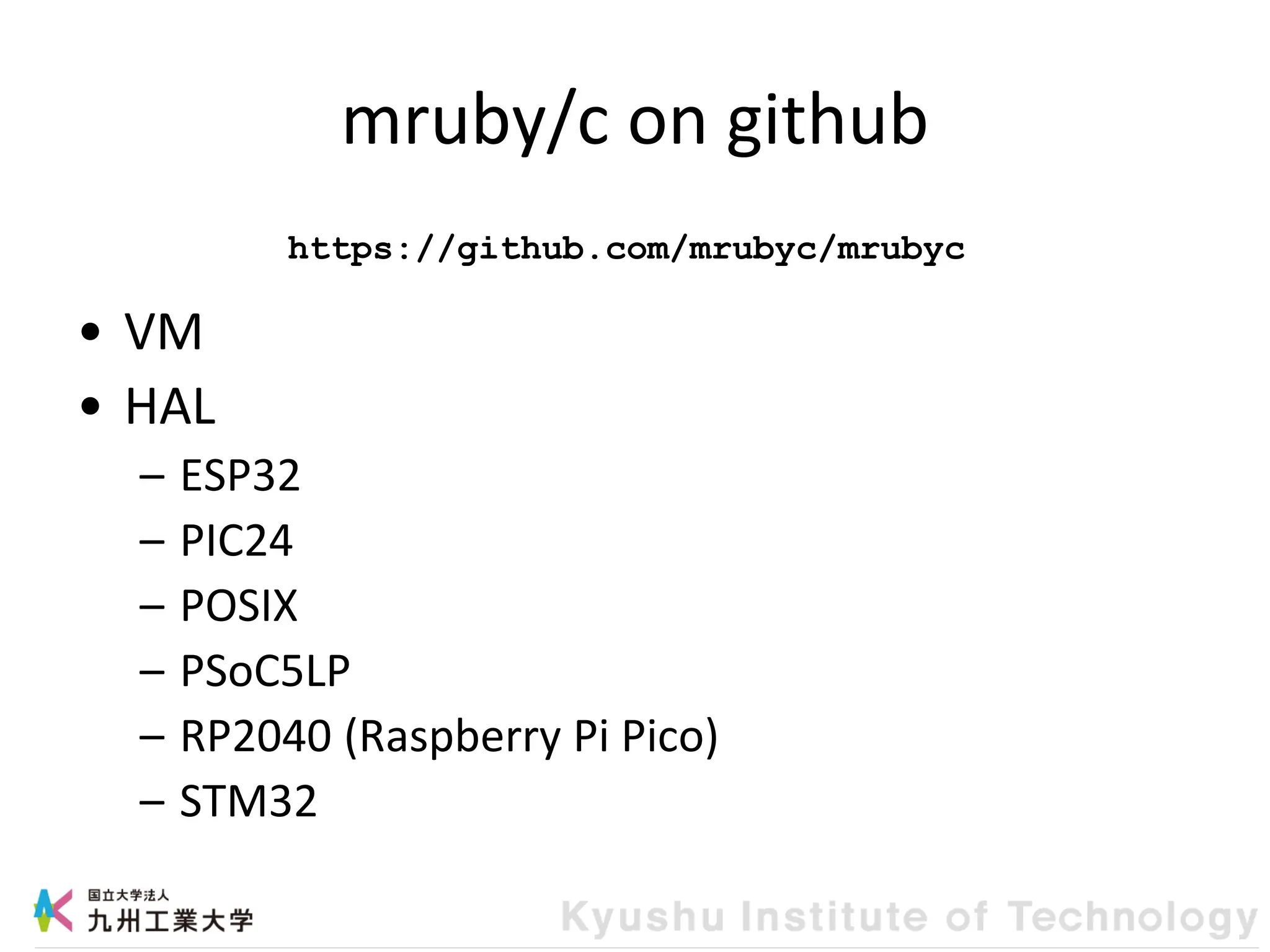

- 19. mruby/c on github •VM • HAL – ESP32 – PIC24 – POSIX – PSoC5LP – RP2040 (Raspberry Pi Pico) – STM32 https://github.com/mrubyc/mrubyc
- 20.

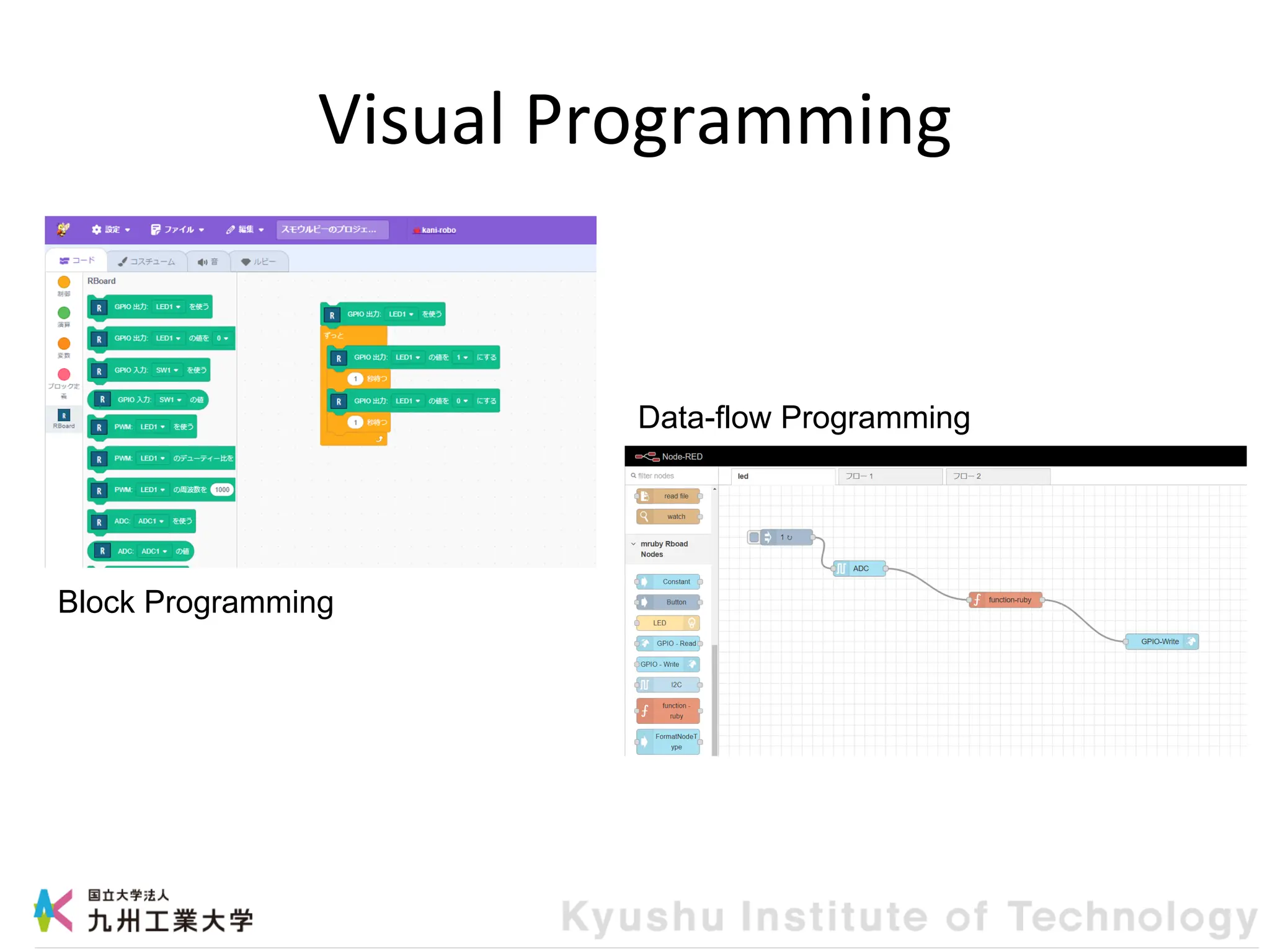

- 21.

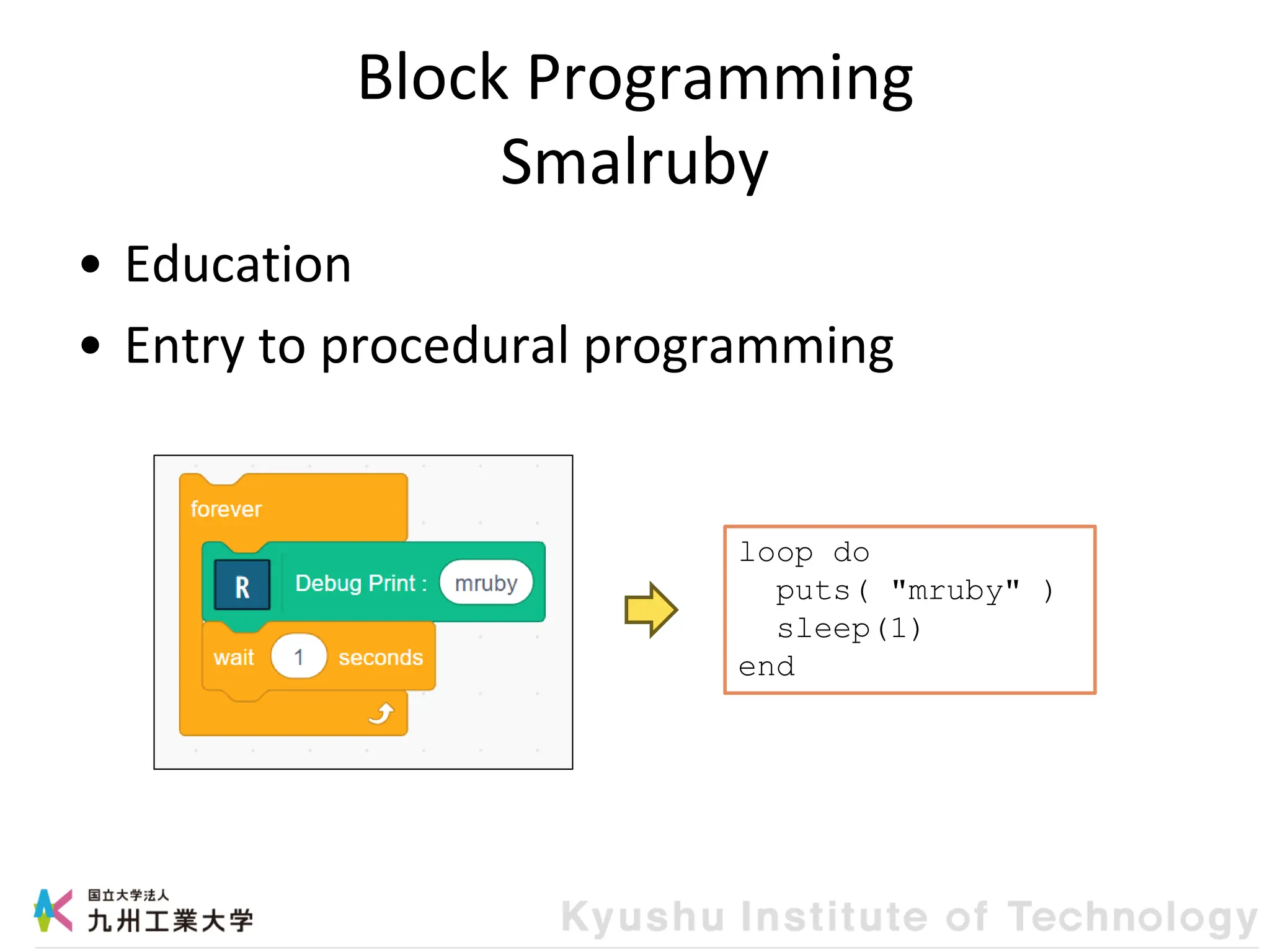

- 22. Block Programming Smalruby • Education •Entry to procedural programming loop do puts( "mruby" ) sleep(1) end

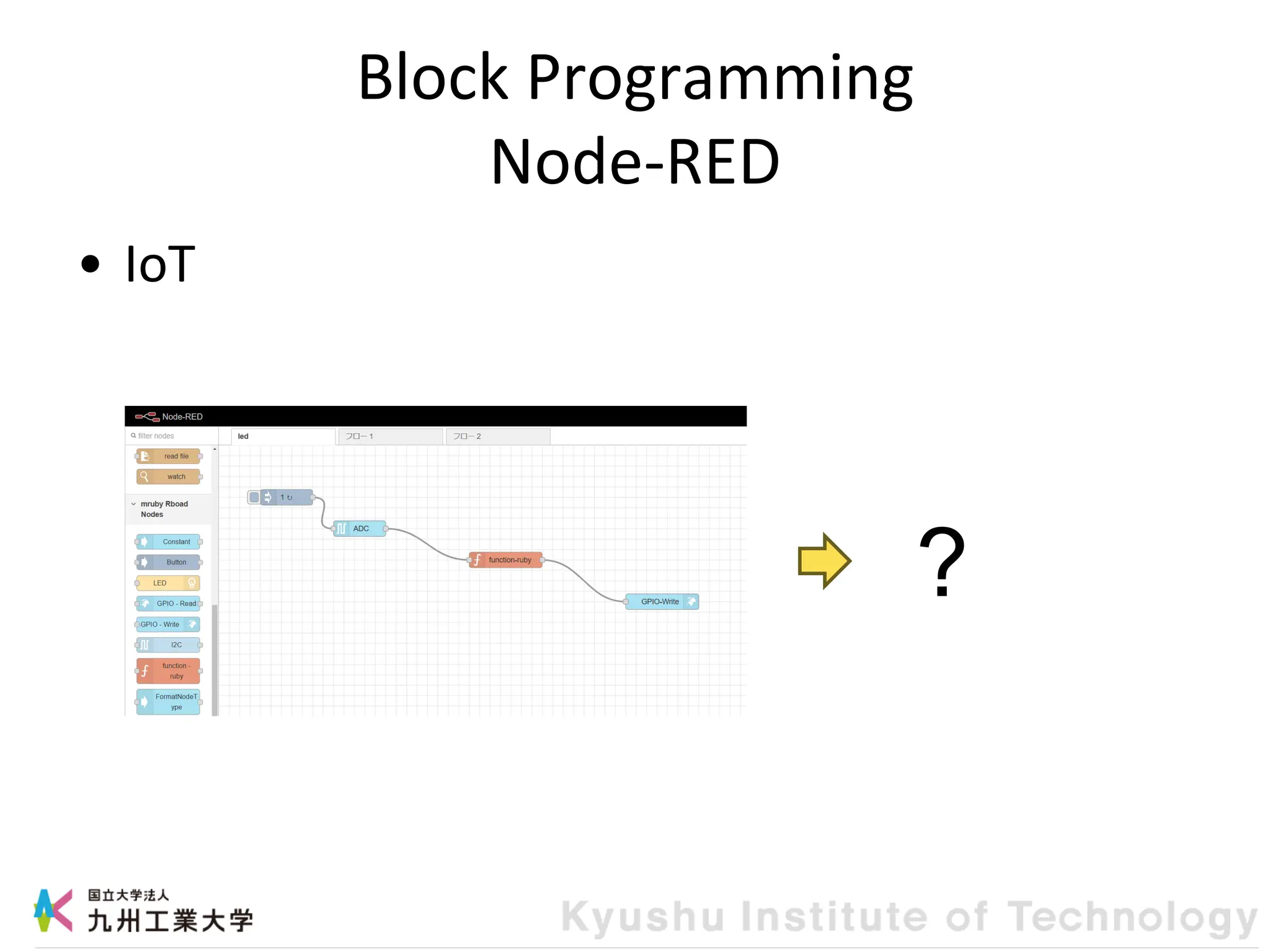

- 23.

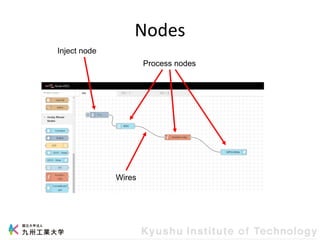

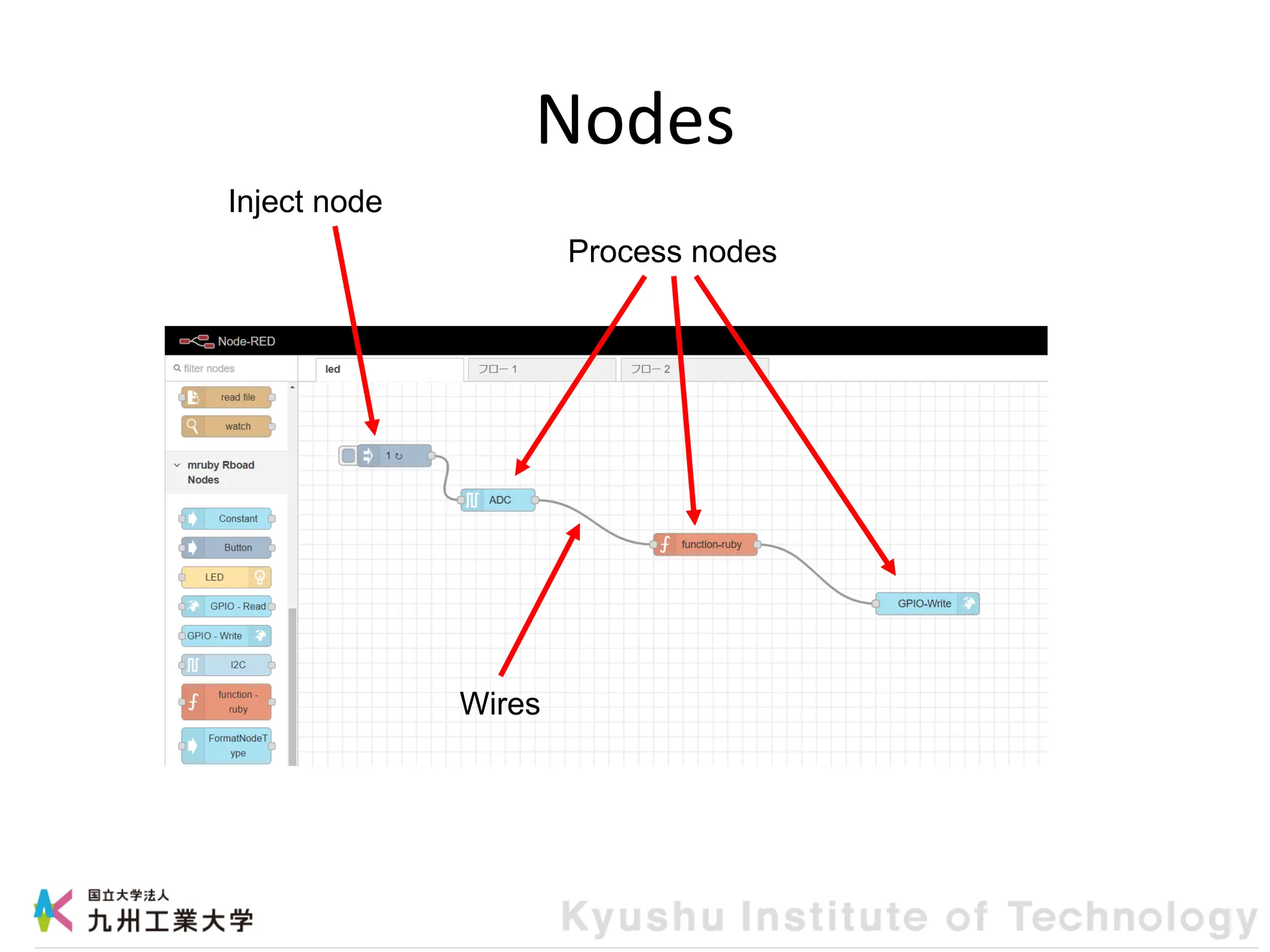

- 24.

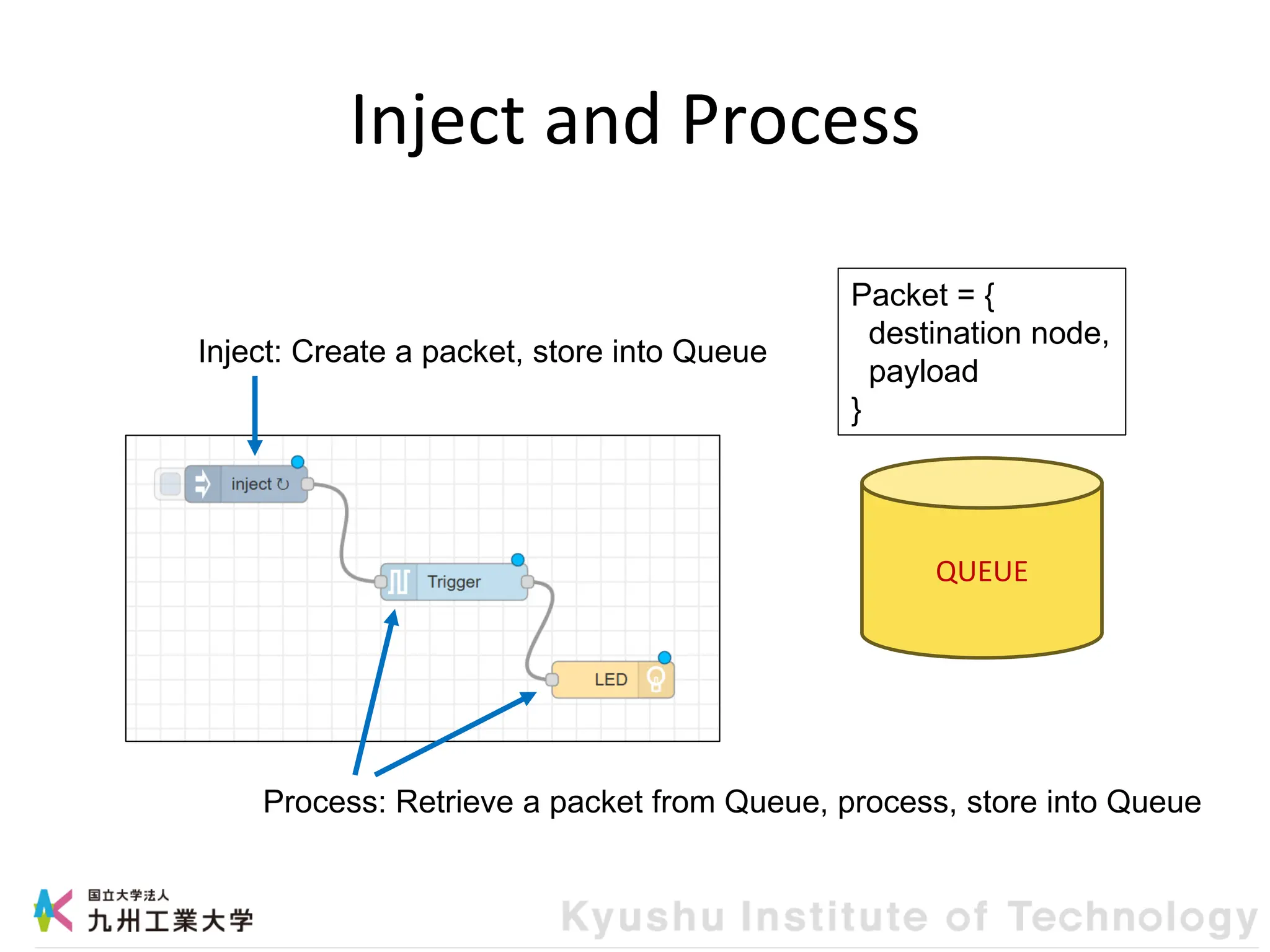

- 25. Inject and Process QUEUE Inject:Create a packet, store into Queue Process: Retrieve a packet from Queue, process, store into Queue Packet = { destination node, payload }
- 26. Integrating mruby/c anddata-flow
- 27.

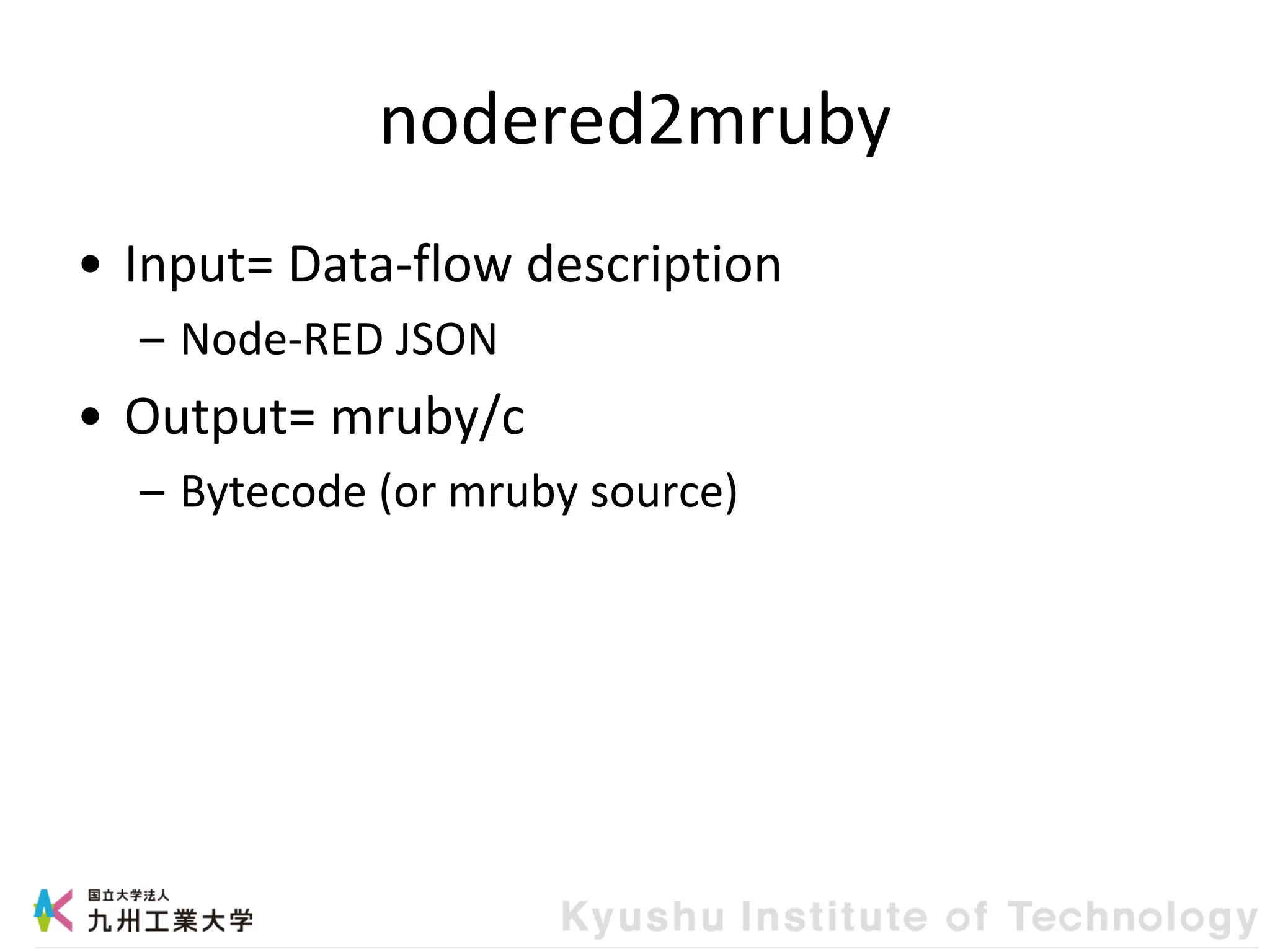

- 28. nodered2mruby • Input= Data-flowdescription – Node-RED JSON • Output= mruby/c – Bytecode (or mruby source)

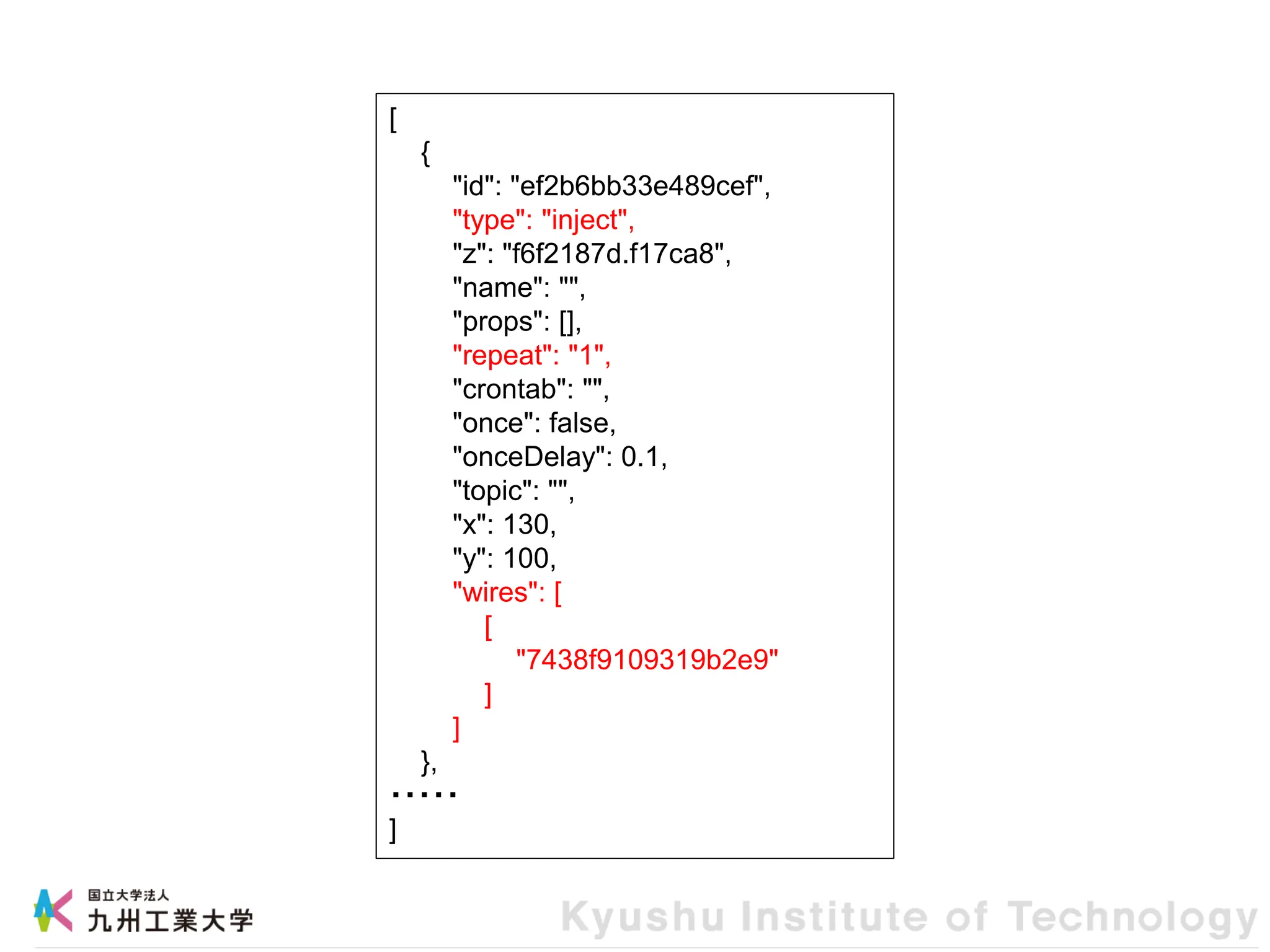

- 29. [ { "id": "ef2b6bb33e489cef", "type": "inject", "z":"f6f2187d.f17ca8", "name": "", "props": [], "repeat": "1", "crontab": "", "once": false, "onceDelay": 0.1, "topic": "", "x": 130, "y": 100, "wires": [ [ "7438f9109319b2e9" ] ] }, ・・・・・ ]

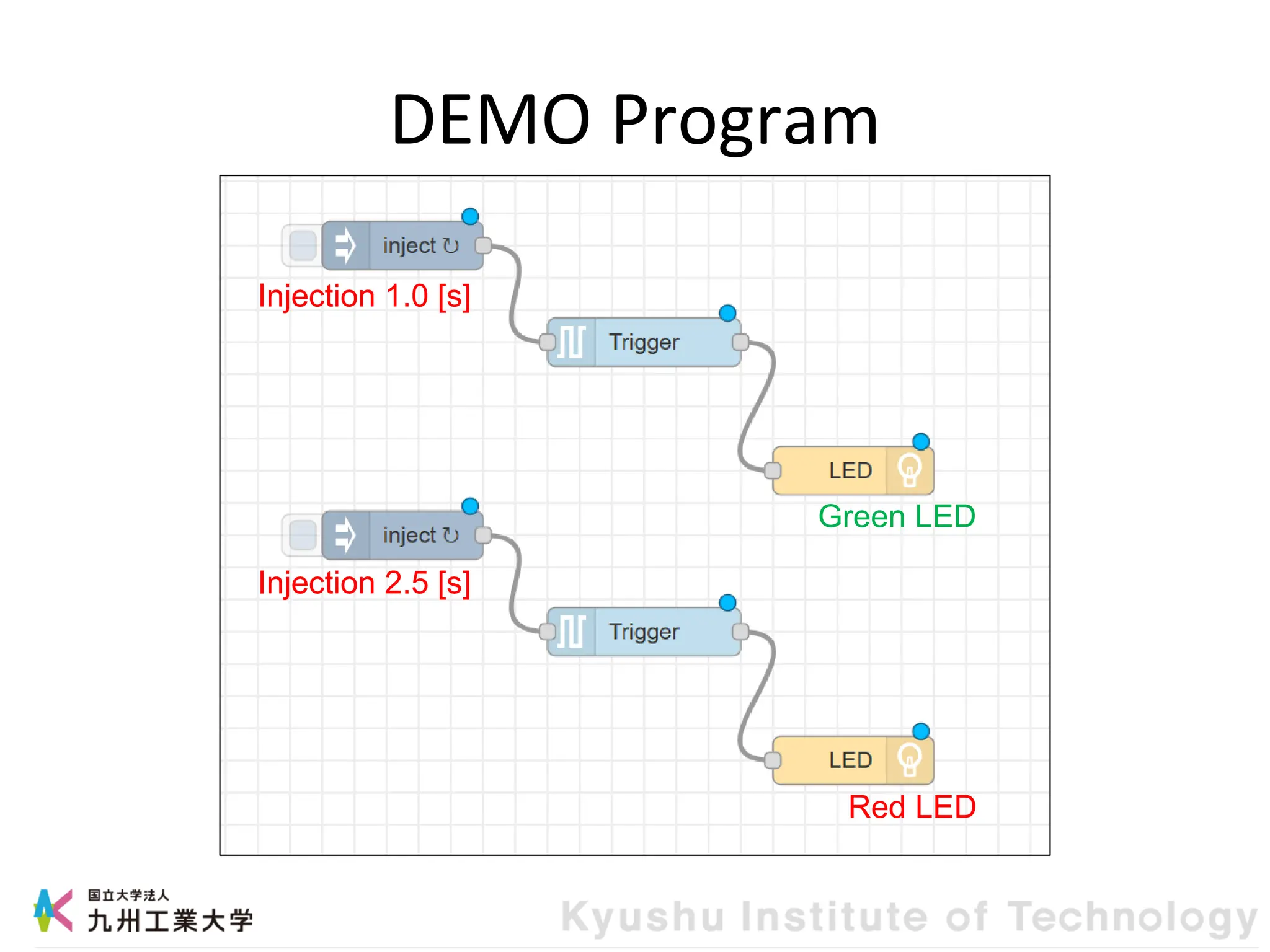

- 30. DEMO Program Injection 1.0[s] Injection 2.5 [s] Green LED Red LED

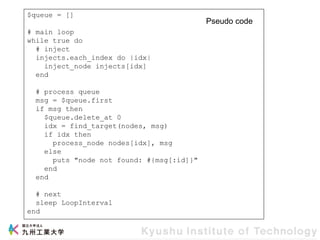

- 31. $queue = [] #main loop while true do # inject injects.each_index do |idx| inject_node injects[idx] end # process queue msg = $queue.first if msg then $queue.delete_at 0 idx = find_target(nodes, msg) if idx then process_node nodes[idx], msg else puts "node not found: #{msg[:id]}" end end # next sleep LoopInterval end Pseudo code

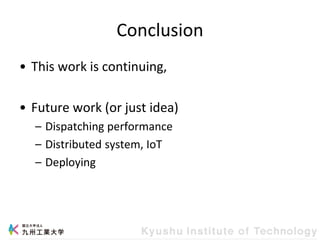

- 32. Conclusion • This workis continuing, • Future work (or just idea) – Dispatching performance – Distributed system, IoT – Deploying

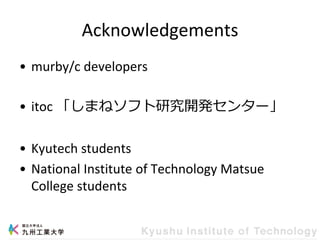

- 33. Acknowledgements • murby/c developers •itoc 「しまねソフト研究開発センター」 • Kyutech students • National Institute of Technology Matsue College students

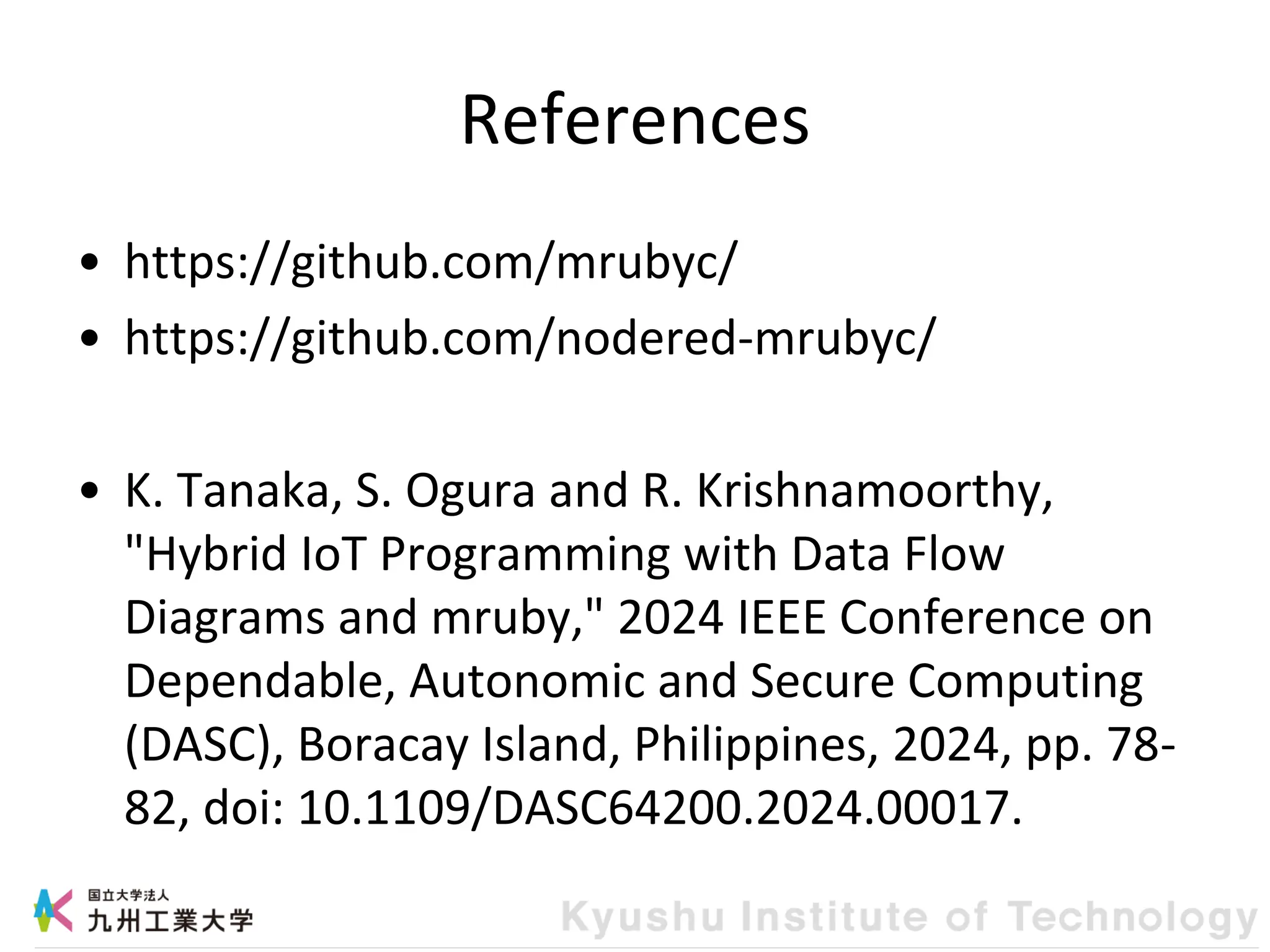

- 34. References • https://github.com/mrubyc/ • https://github.com/nodered-mrubyc/ •K. Tanaka, S. Ogura and R. Krishnamoorthy, "Hybrid IoT Programming with Data Flow Diagrams and mruby," 2024 IEEE Conference on Dependable, Autonomic and Secure Computing (DASC), Boracay Island, Philippines, 2024, pp. 78- 82, doi: 10.1109/DASC64200.2024.00017.
