Multiprocessor Architecture
Types and Limitations
12/09/14 Arpan Baishya 14MCA0015

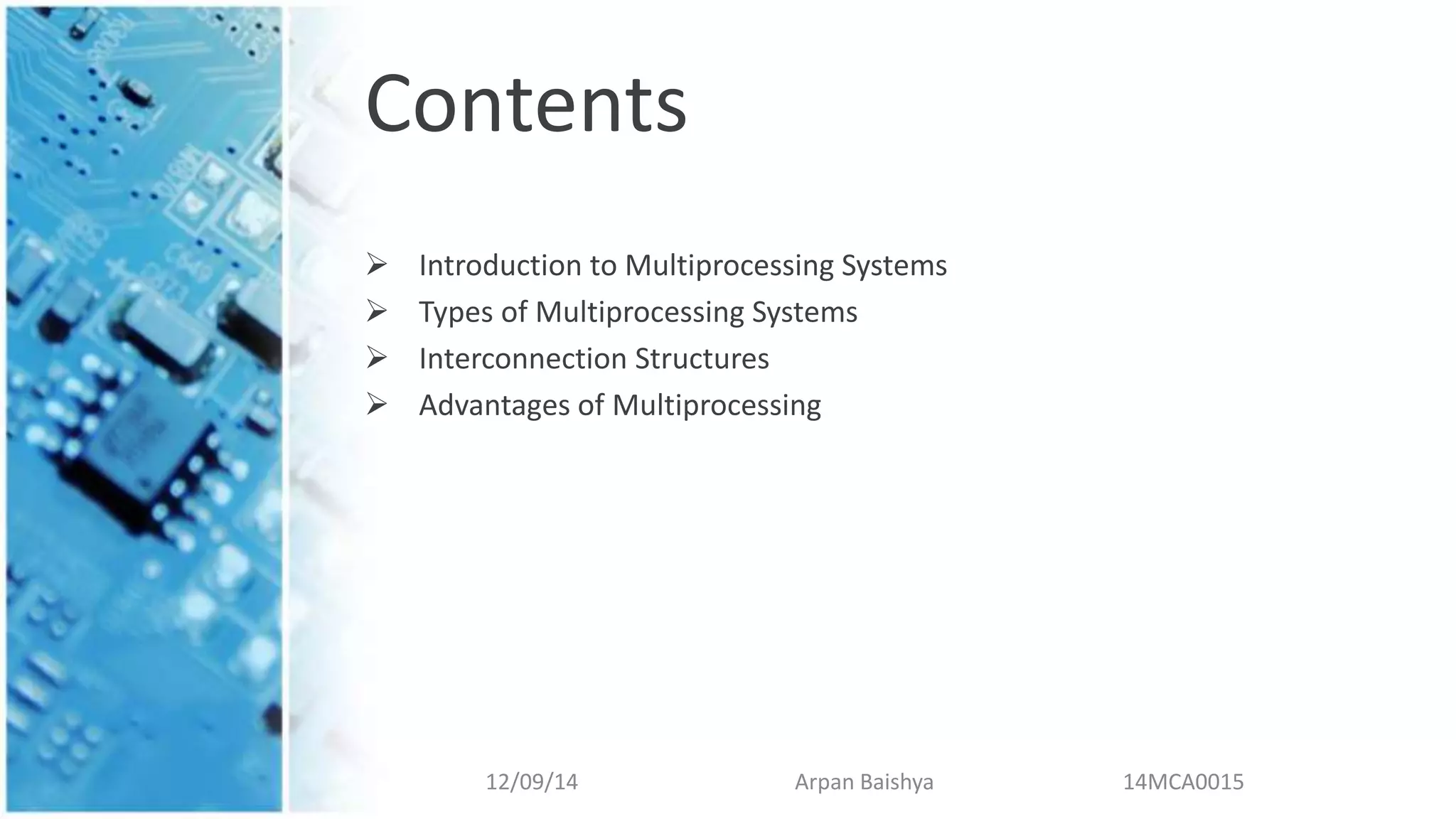

Contents
 Introduction to Multiprocessing Systems
 Types of Multiprocessing Systems
 Interconnection Structures
 Advantages of Multiprocessing

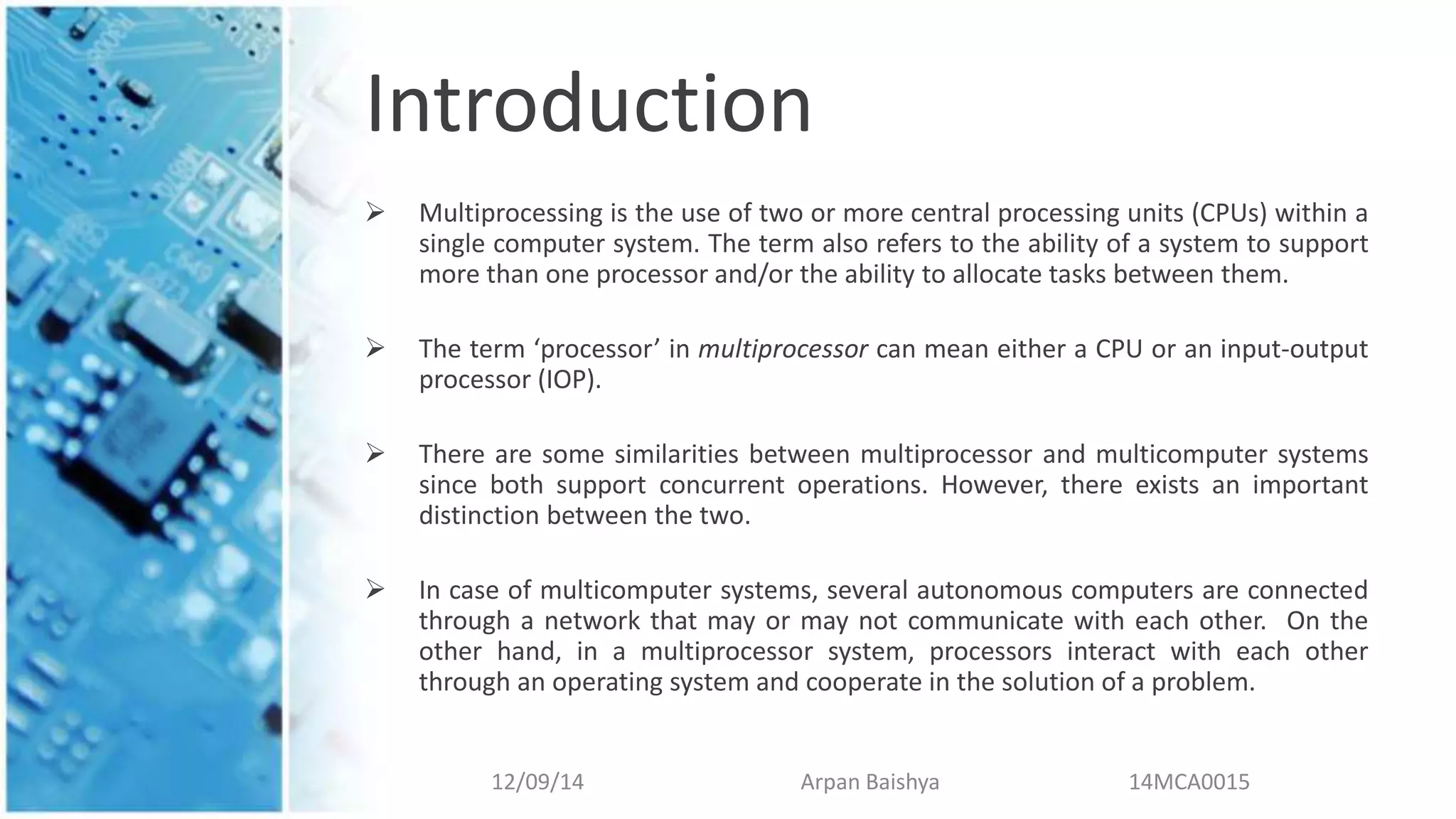

Introduction
 Multiprocessing is the use of two or more central processing units (CPUs) within a
single computer system. The term also refers to the ability of a system to support
more than one processor and/or the ability to allocate tasks between them.
 The term ‘processor’ in multiprocessor can mean either a CPU or an input-output
processor (IOP).
 There are some similarities between multiprocessor and multicomputer systems
since both support concurrent operations. However, there exists an important
distinction between the two.
 In case of multicomputer systems, several autonomous computers are connected
through a network that may or may not communicate with each other. On the
other hand, in a multiprocessor system, processors interact with each other
through an operating system and cooperate in the solution of a problem.

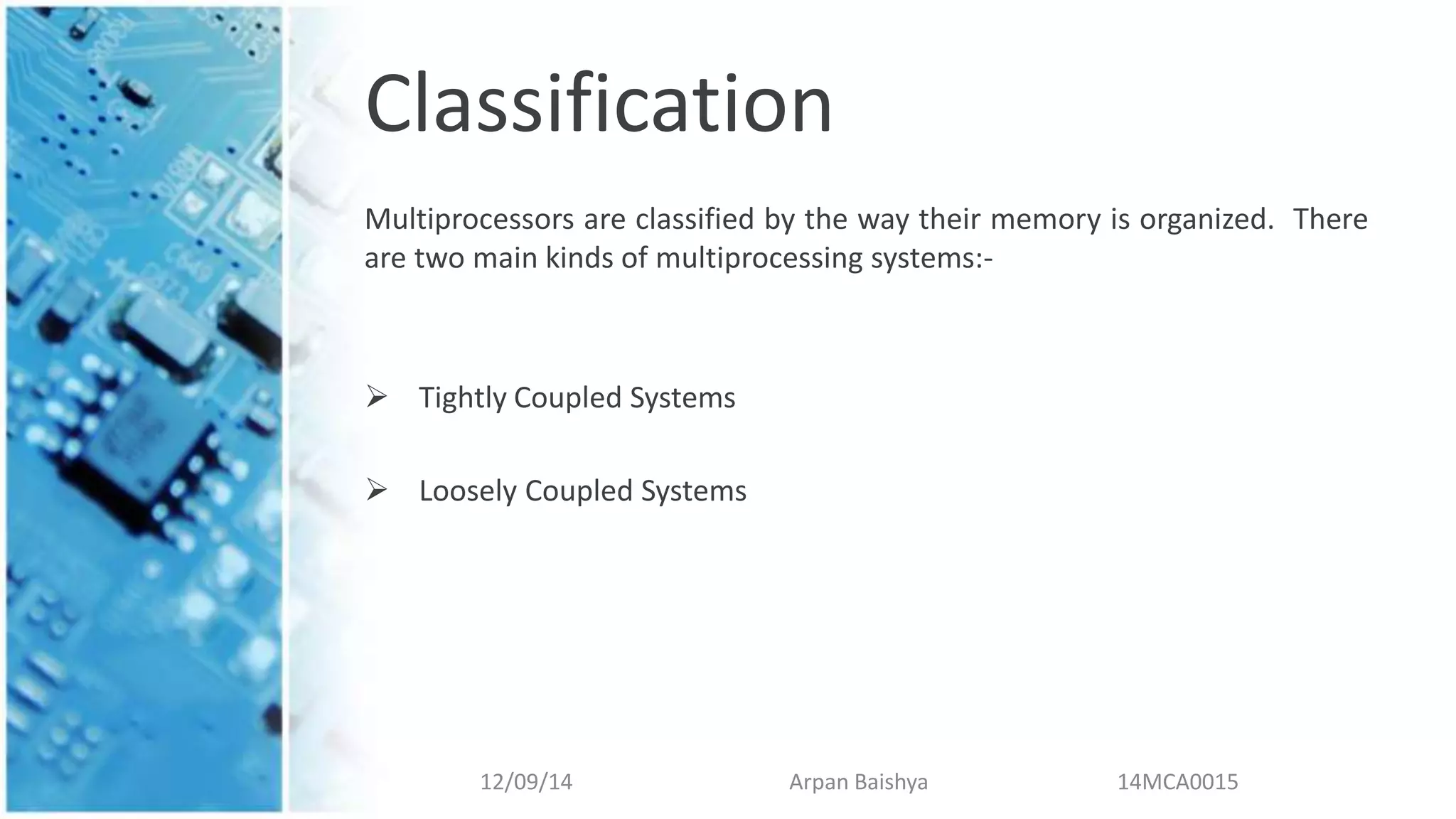

Classification
Multiprocessors are classified by the way their memory is organized. There
are two main kinds of multiprocessing systems:-
 Tightly Coupled Systems
 Loosely Coupled Systems

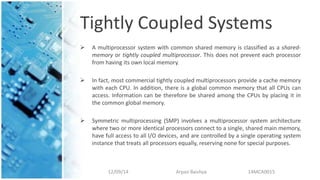

Tightly Coupled Systems
 A multiprocessor system with common shared memory is classified as a shared-
memory or tightly coupled multiprocessor. This does not prevent each processor
from having its own local memory.
 In fact, most commercial tightly coupled multiprocessors provide a cache memory
with each CPU. In addition, there is a global common memory that all CPUs can
access. Information can be therefore be shared among the CPUs by placing it in
the common global memory.
 Symmetric multiprocessing (SMP) involves a multiprocessor system architecture
where two or more identical processors connect to a single, shared main memory,
have full access to all I/O devices, and are controlled by a single operating system
instance that treats all processors equally, reserving none for special purposes.

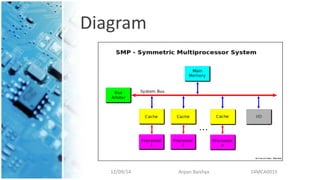

Diagram

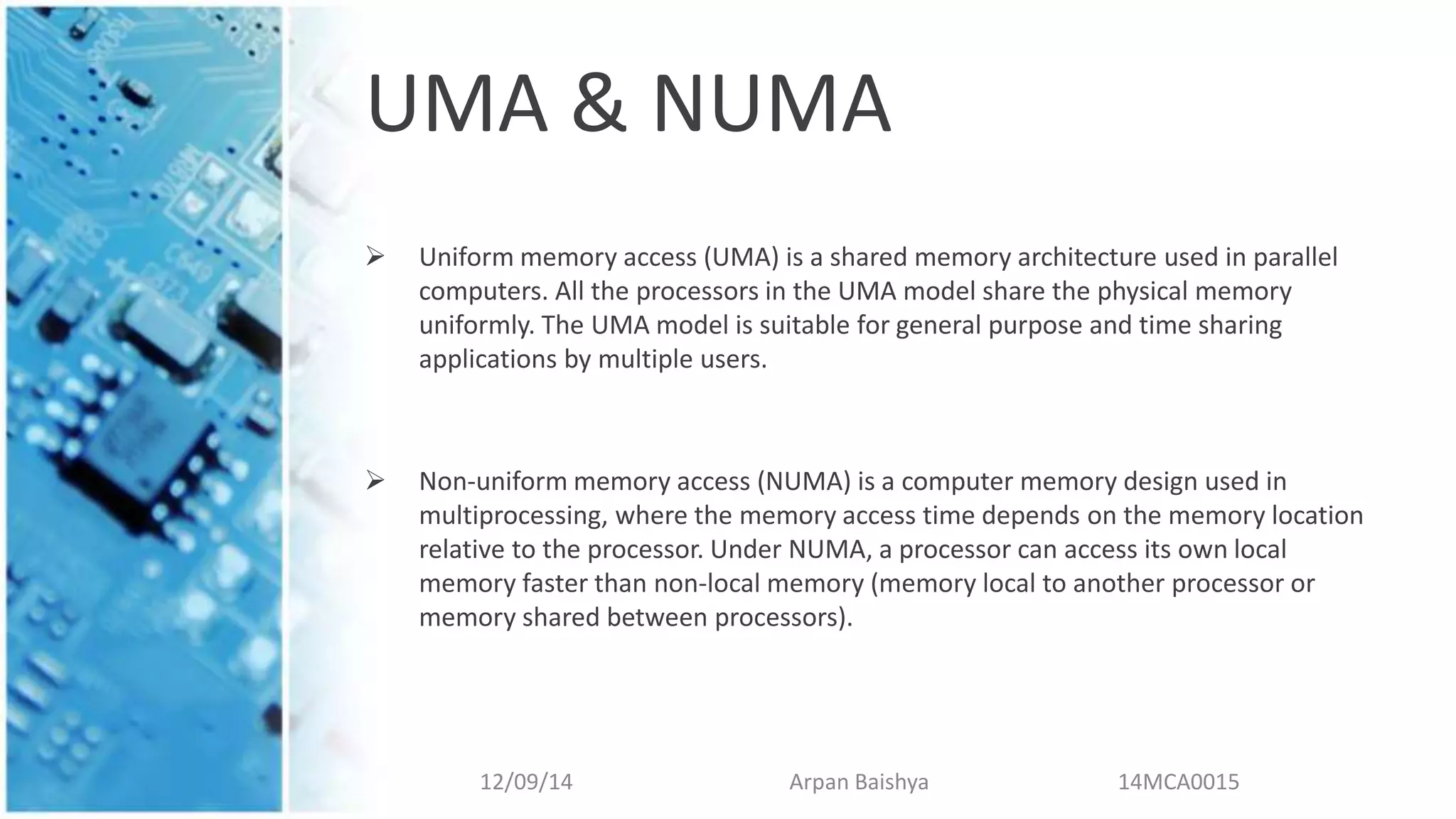

UMA & NUMA
 Uniform memory access (UMA) is a shared memory architecture used in parallel
computers. All the processors in the UMA model share the physical memory
uniformly. The UMA model is suitable for general purpose and time sharing
applications by multiple users.
 Non-uniform memory access (NUMA) is a computer memory design used in
multiprocessing, where the memory access time depends on the memory location
relative to the processor. Under NUMA, a processor can access its own local
memory faster than non-local memory (memory local to another processor or
memory shared between processors).

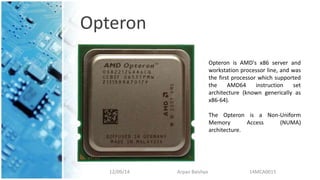

Opteron
Opteron is AMD's x86 server and
workstation processor line, and was
the first processor which supported
the AMD64 instruction set
architecture (known generically as
x86-64).
The Opteron is a Non-Uniform
Memory Access (NUMA)
architecture.

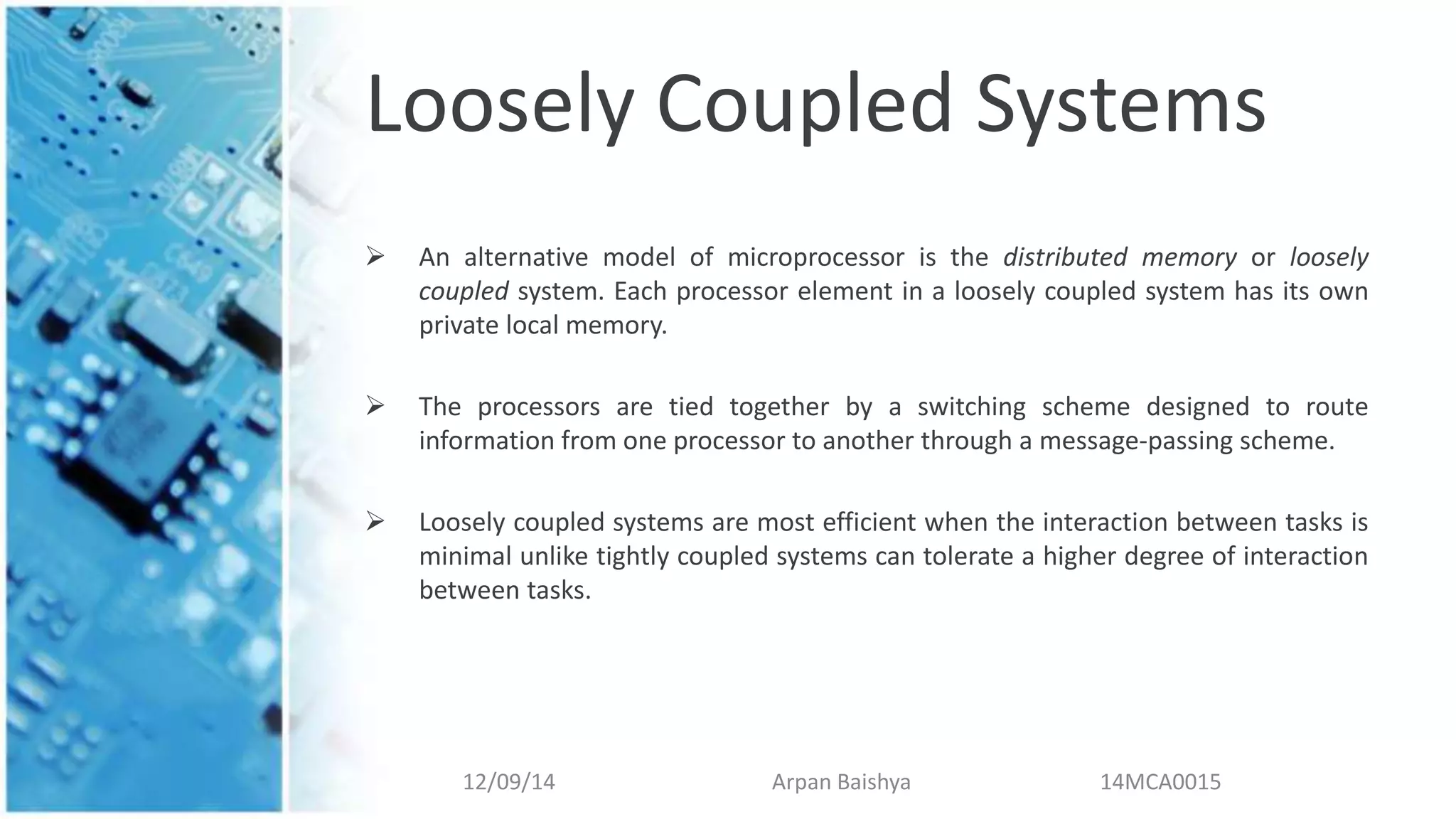

Loosely Coupled Systems
 An alternative model of microprocessor is the distributed memory or loosely
coupled system. Each processor element in a loosely coupled system has its own
private local memory.
 The processors are tied together by a switching scheme designed to route
information from one processor to another through a message-passing scheme.
 Loosely coupled systems are most efficient when the interaction between tasks is
minimal unlike tightly coupled systems can tolerate a higher degree of interaction
between tasks.

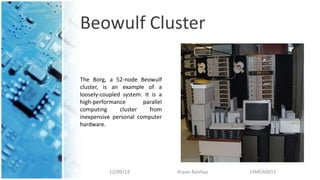

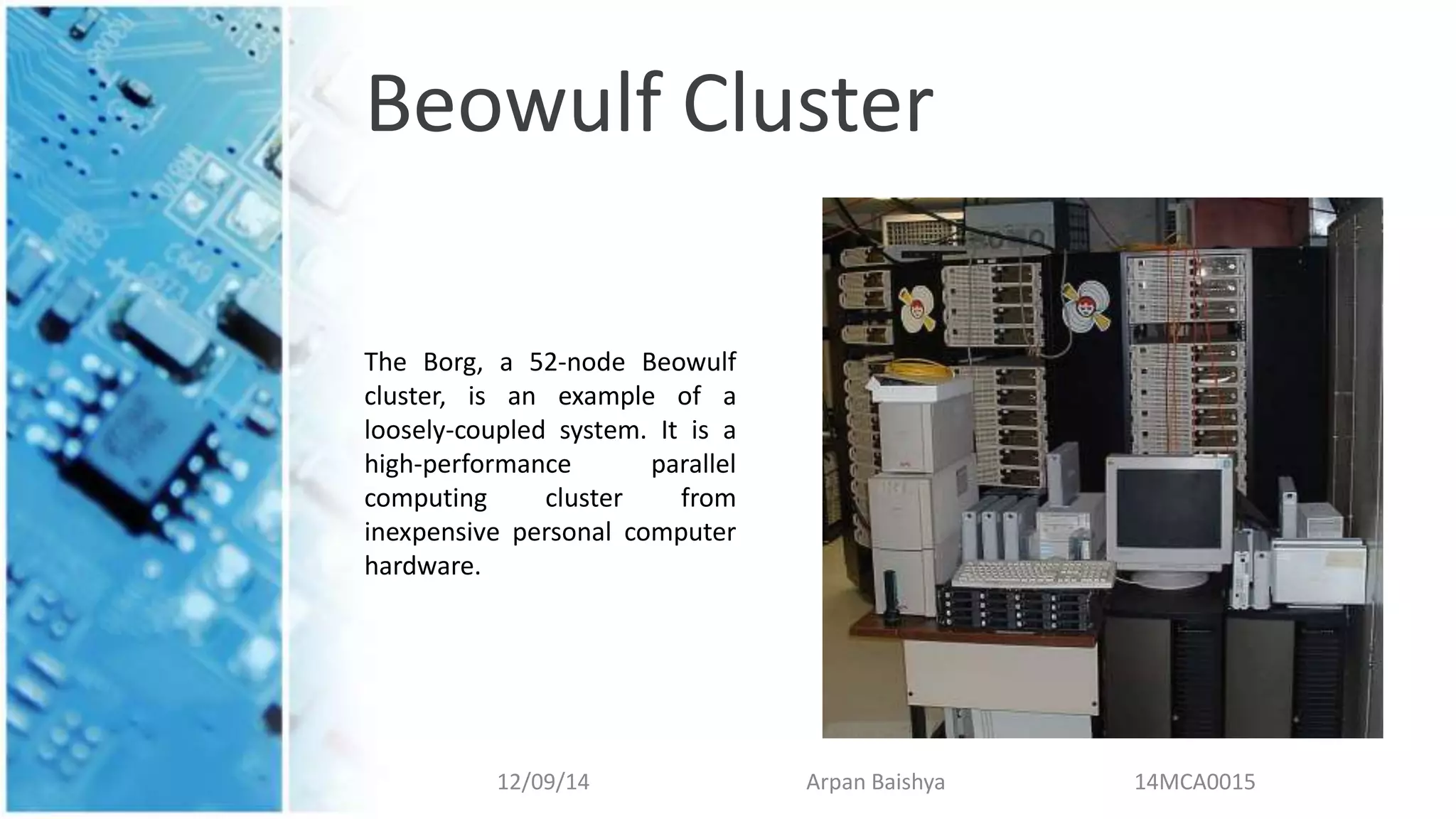

Beowulf Cluster
The Borg, a 52-node Beowulf
cluster, is an example of a
loosely-coupled system. It is a
high-performance parallel
computing cluster from
inexpensive personal computer
hardware.

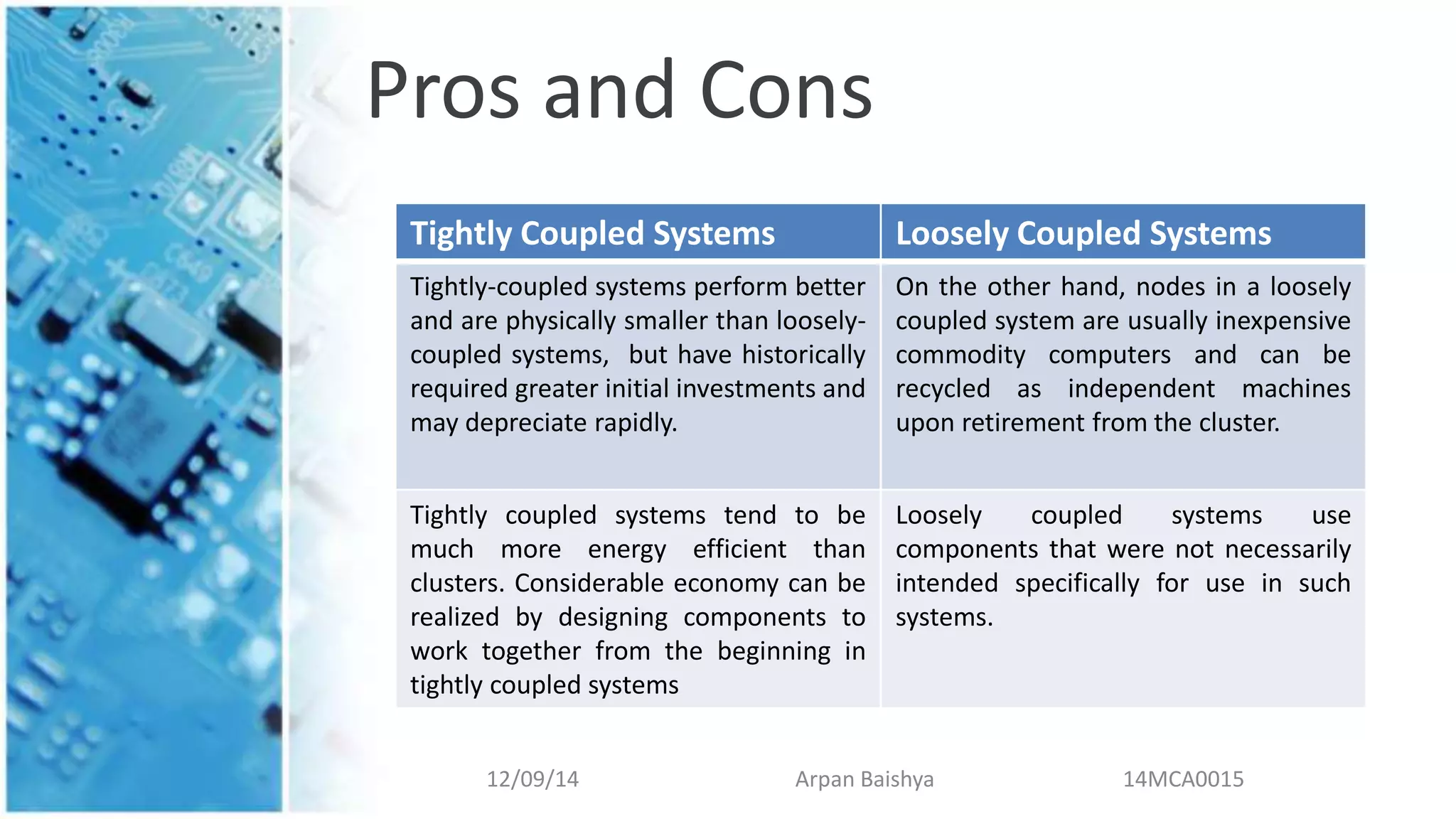

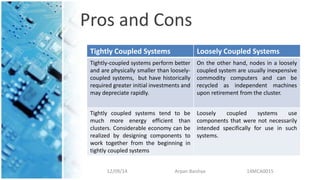

Pros and Cons
Tightly Coupled Systems Loosely Coupled Systems
Tightly-coupled systems perform better
and are physically smaller than loosely-
coupled systems, but have historically
required greater initial investments and
may depreciate rapidly.
On the other hand, nodes in a loosely
coupled system are usually inexpensive
commodity computers and can be
recycled as independent machines
upon retirement from the cluster.
Tightly coupled systems tend to be
much more energy efficient than
clusters. Considerable economy can be
realized by designing components to
work together from the beginning in
tightly coupled systems
Loosely coupled systems use
components that were not necessarily
intended specifically for use in such
systems.

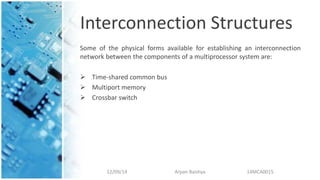

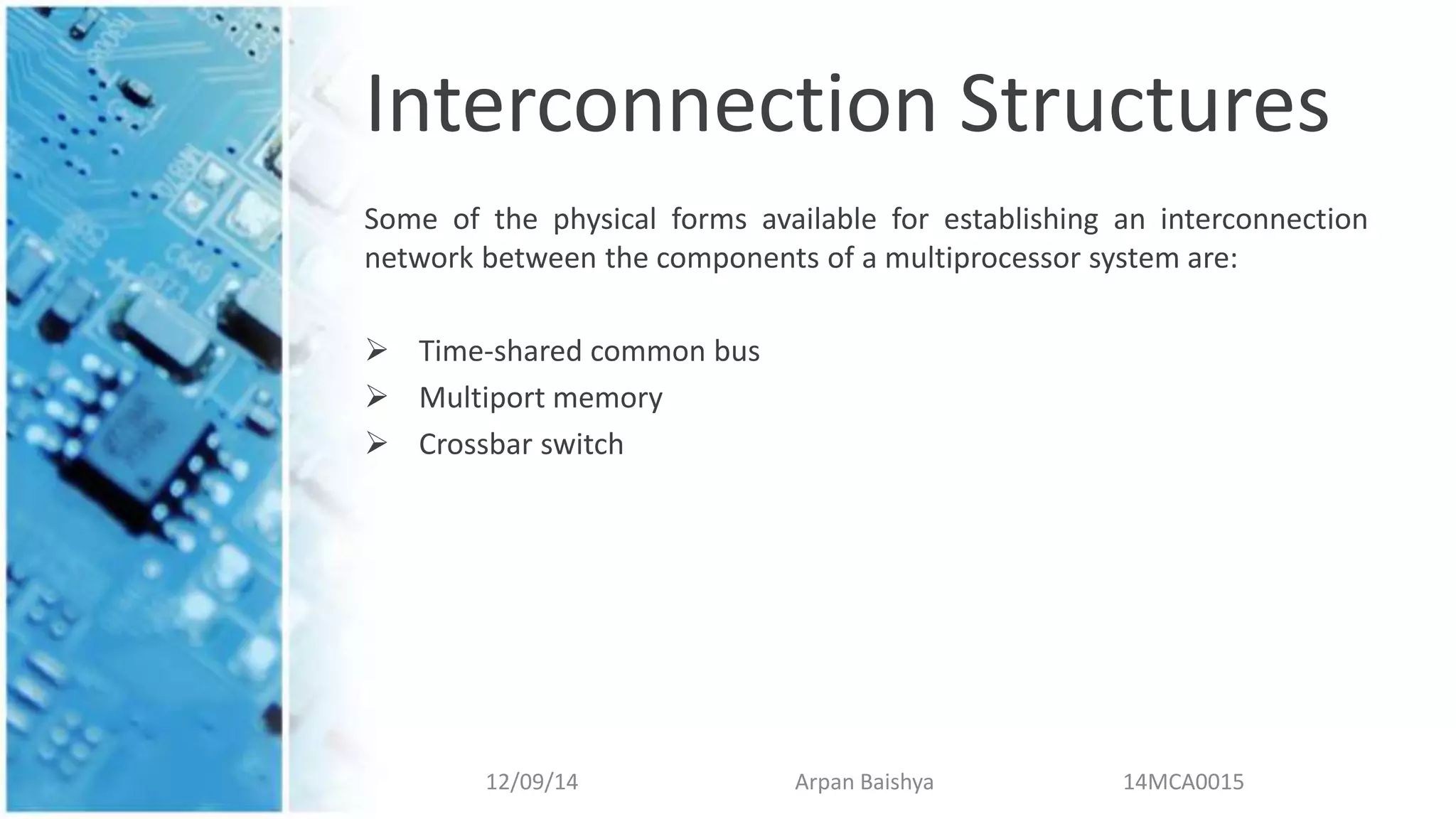

Interconnection Structures
Some of the physical forms available for establishing an interconnection
network between the components of a multiprocessor system are:
 Time-shared common bus
 Multiport memory
 Crossbar switch

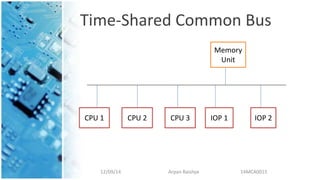

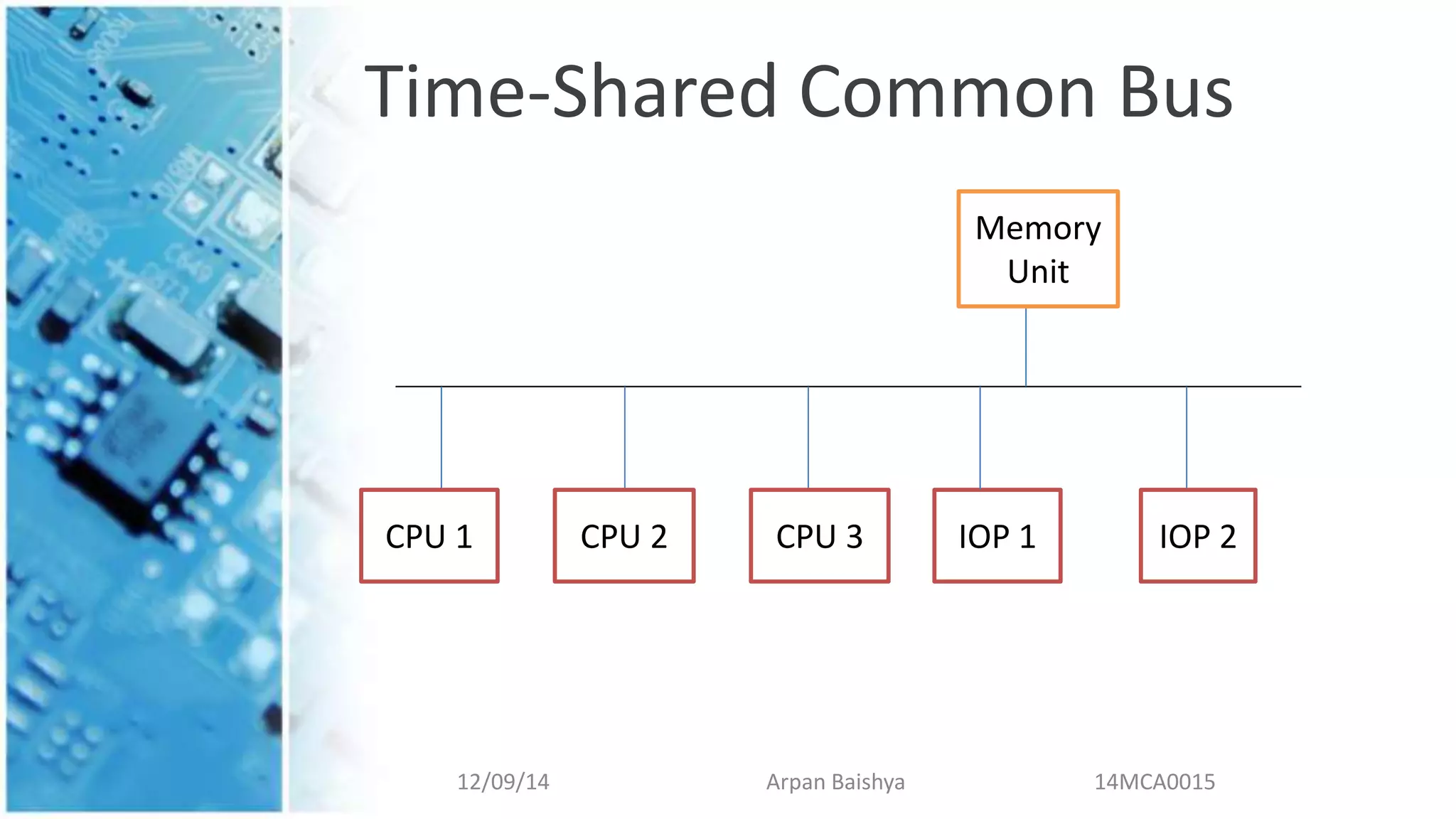

Time-Shared Common Bus
Memory
Unit
CPU 1 CPU 2 CPU 3 IOP 1 IOP 2

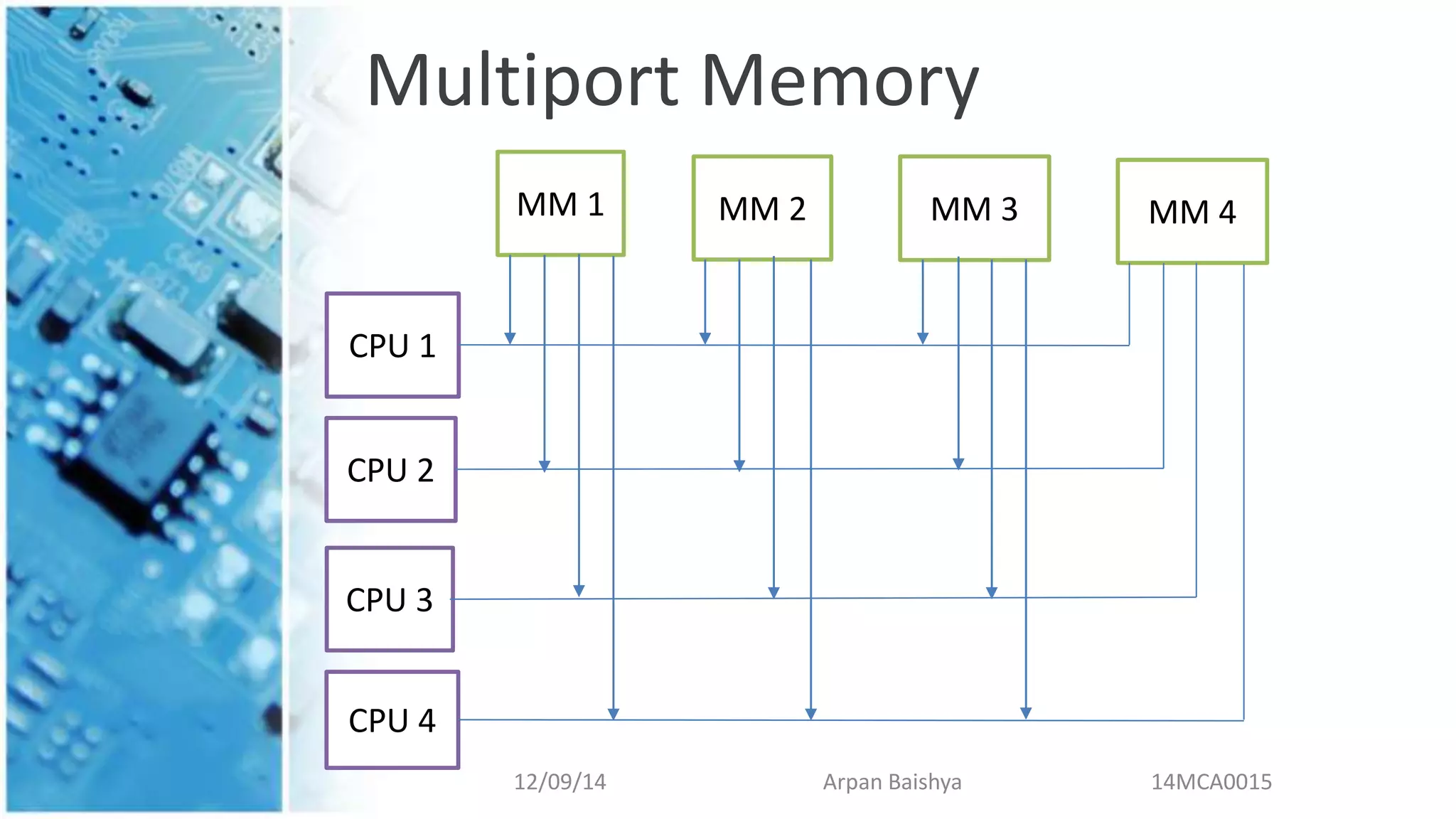

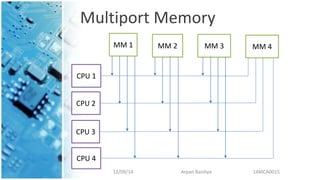

Multiport Memory
MM 1 MM 2 MM 3 MM 4
CPU 1
CPU 2
CPU 3
CPU 4

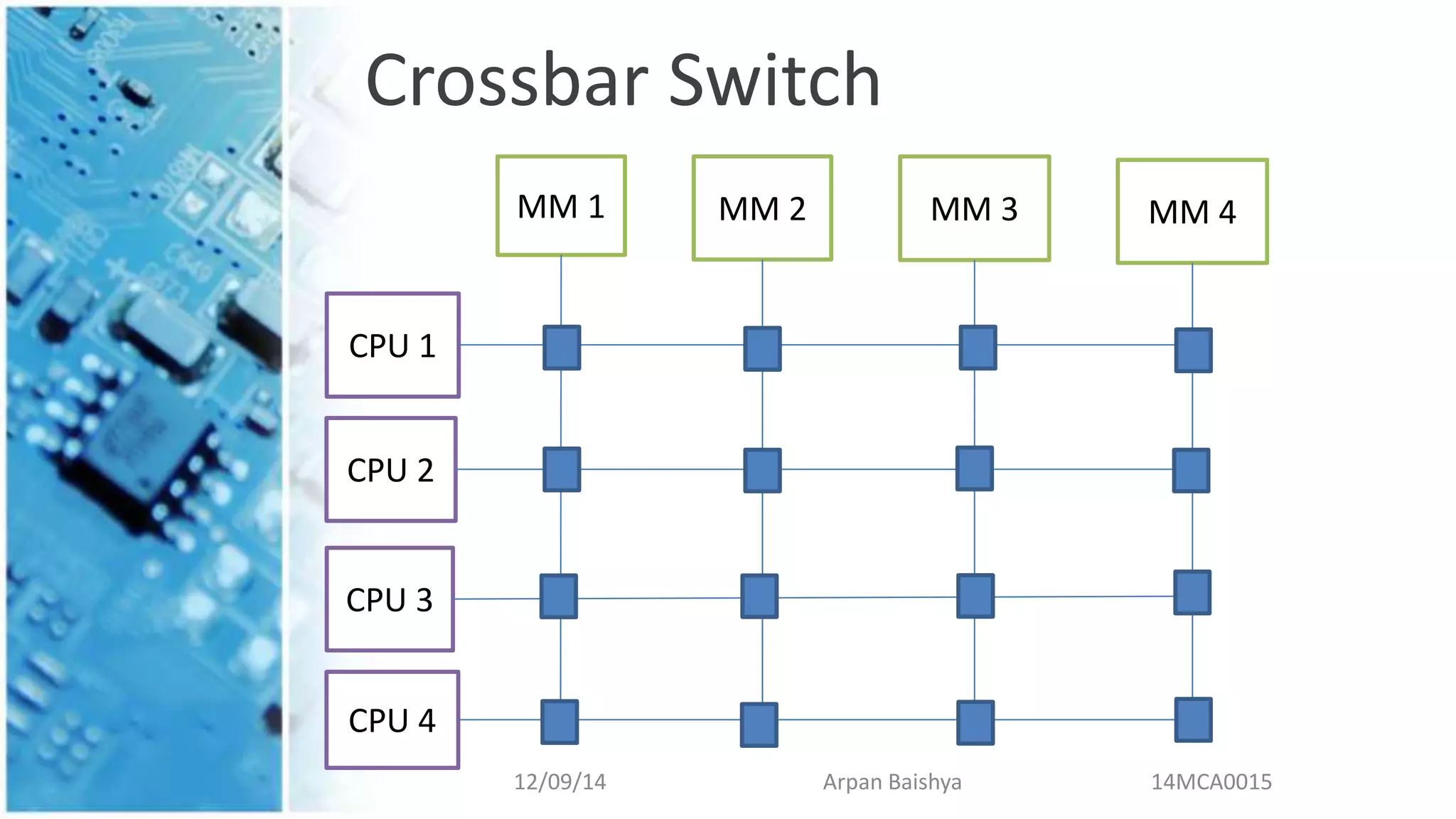

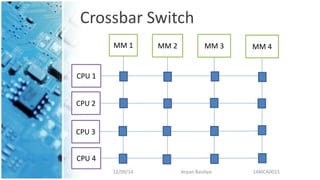

Crossbar Switch
MM 1 MM 2 MM 3 MM 4
CPU 1
CPU 2
CPU 3
CPU 4

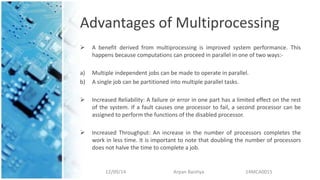

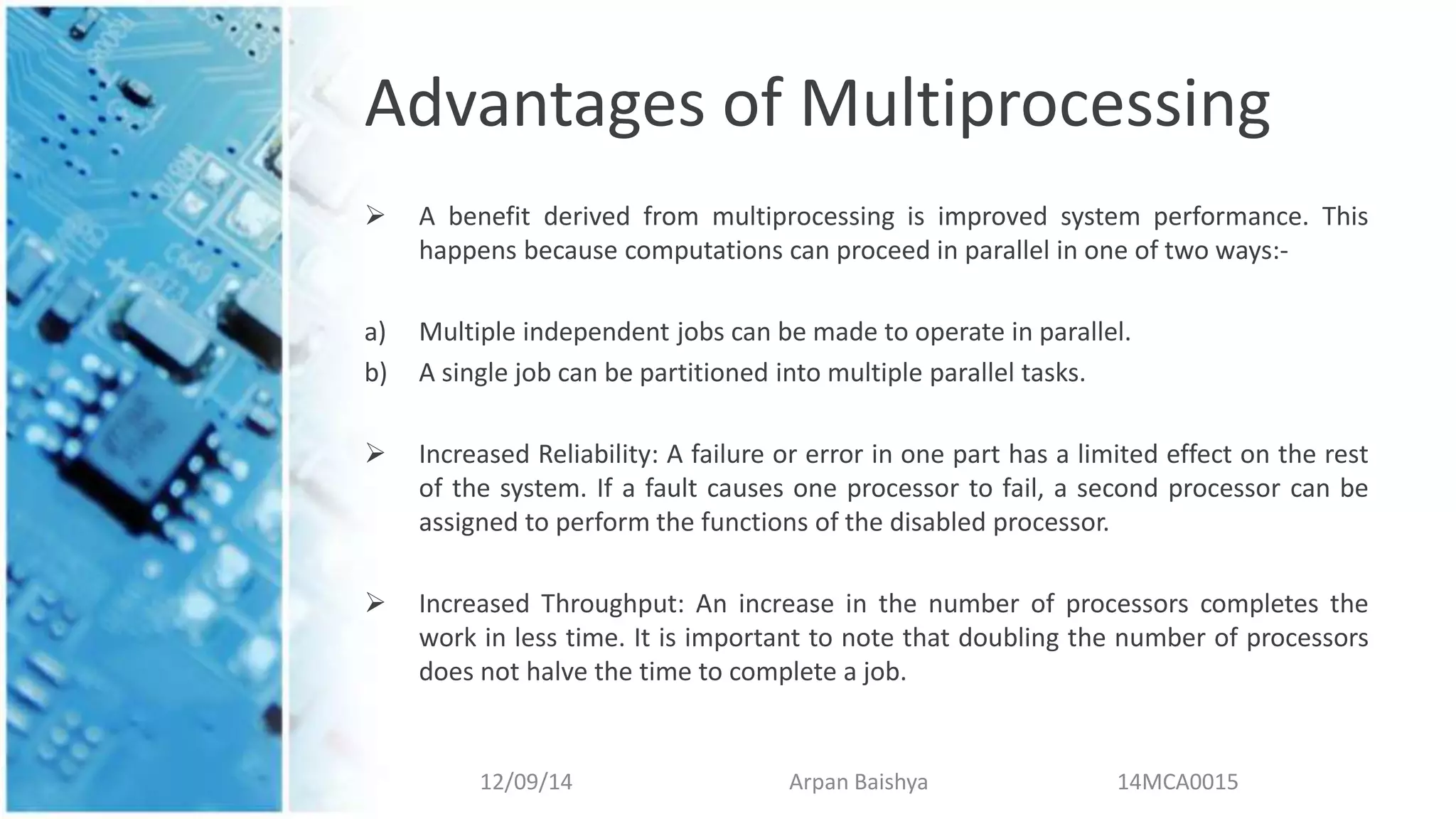

Advantages of Multiprocessing
 A benefit derived from multiprocessing is improved system performance. This
happens because computations can proceed in parallel in one of two ways:-
a) Multiple independent jobs can be made to operate in parallel.
b) A single job can be partitioned into multiple parallel tasks.
 Increased Reliability: A failure or error in one part has a limited effect on the rest
of the system. If a fault causes one processor to fail, a second processor can be
assigned to perform the functions of the disabled processor.
 Increased Throughput: An increase in the number of processors completes the
work in less time. It is important to note that doubling the number of processors
does not halve the time to complete a job.

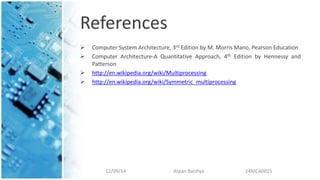

References
 Computer System Architecture, 3rd Edition by M. Morris Mano, Pearson Education
 Computer Architecture-A Quantitative Approach, 4th Edition by Hennessy and
Patterson
 http://en.wikipedia.org/wiki/Multiprocessing
 http://en.wikipedia.org/wiki/Symmetric_multiprocessing

Thank You! 
