Nesting of if else statement & Else If Ladder

Gandhinagar Institute
of Technology(012)
Subject : CPU (2110003)
Active Learning Assignment
Branch : Computer
DIV. : A-2
Prepared by : - Vishvesh jasani (160120107042)
Guided By: Prof. Nirav Pandya
topic:Nesting of if else statement & Else If Ladder

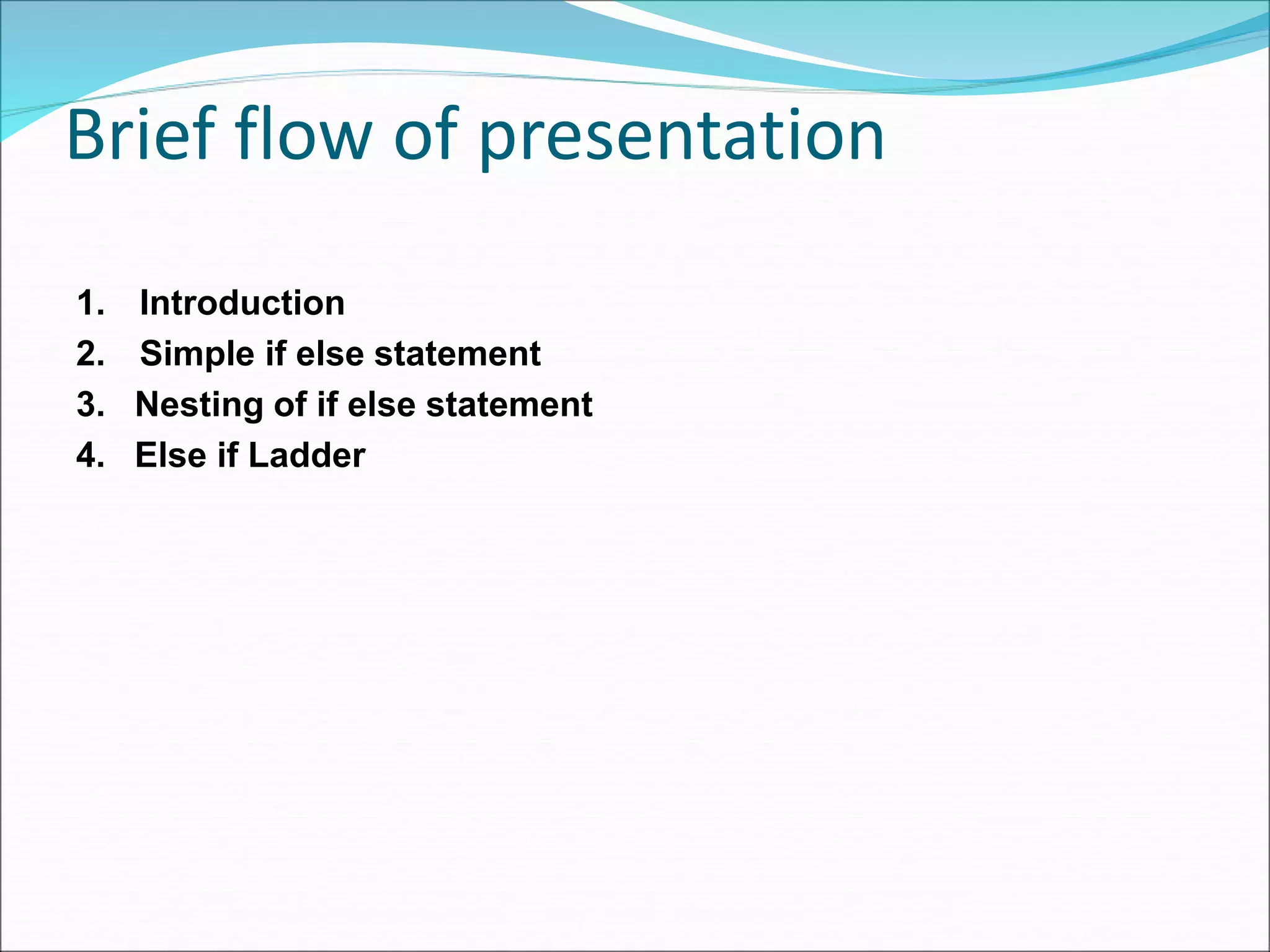

Brief flow of presentation
1. Introduction
2. Simple if else statement
3. Nesting of if else statement
4. Else if Ladder

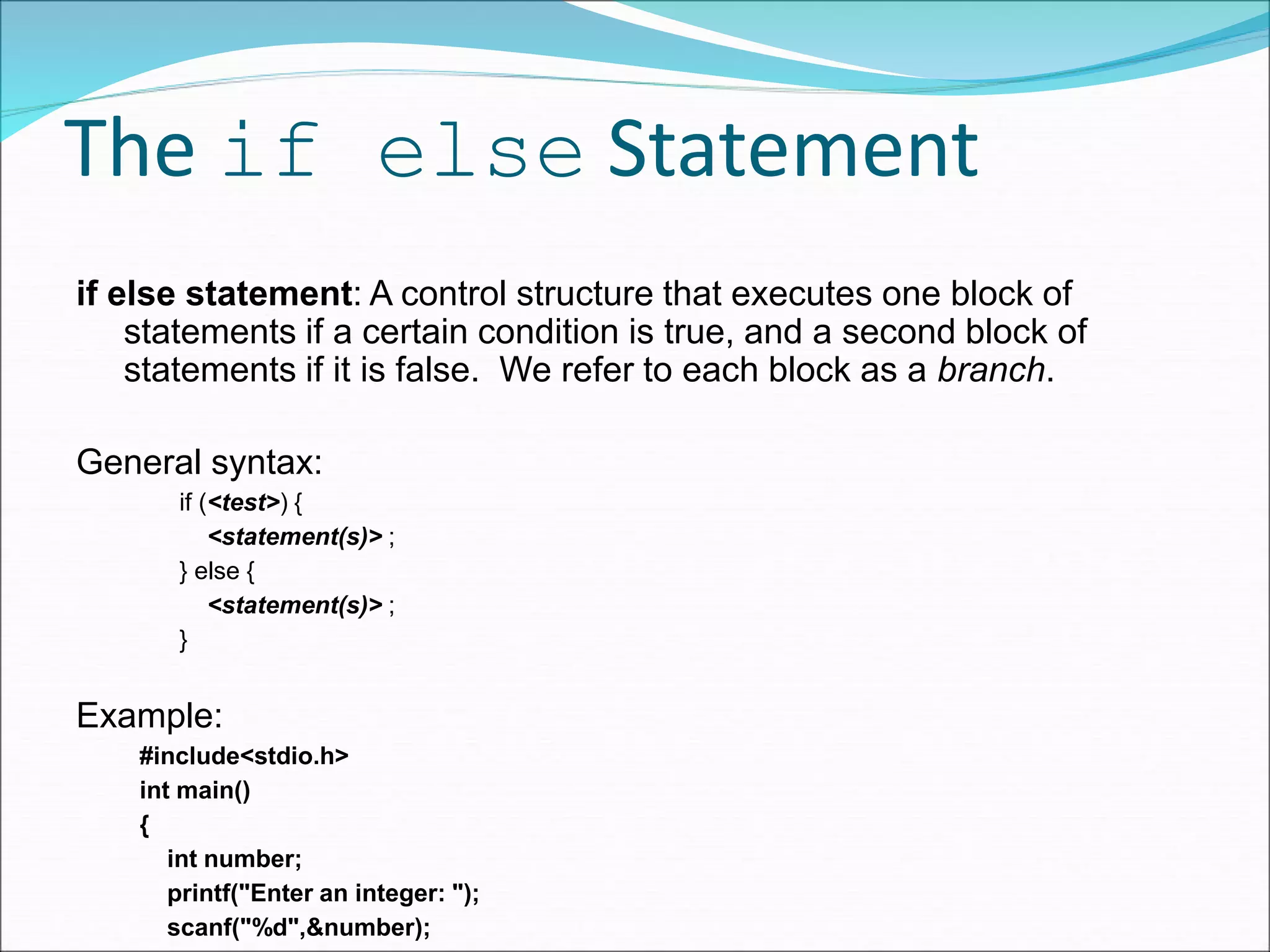

The if else Statement
if else statement: A control structure that executes one block of
statements if a certain condition is true, and a second block of
statements if it is false. We refer to each block as a branch.
General syntax:
if (<test>) {
<statement(s)> ;
} else {
<statement(s)> ;
}
Example:
#include<stdio.h>
int main()
{
int number;
printf("Enter an integer: ");
scanf("%d",&number);

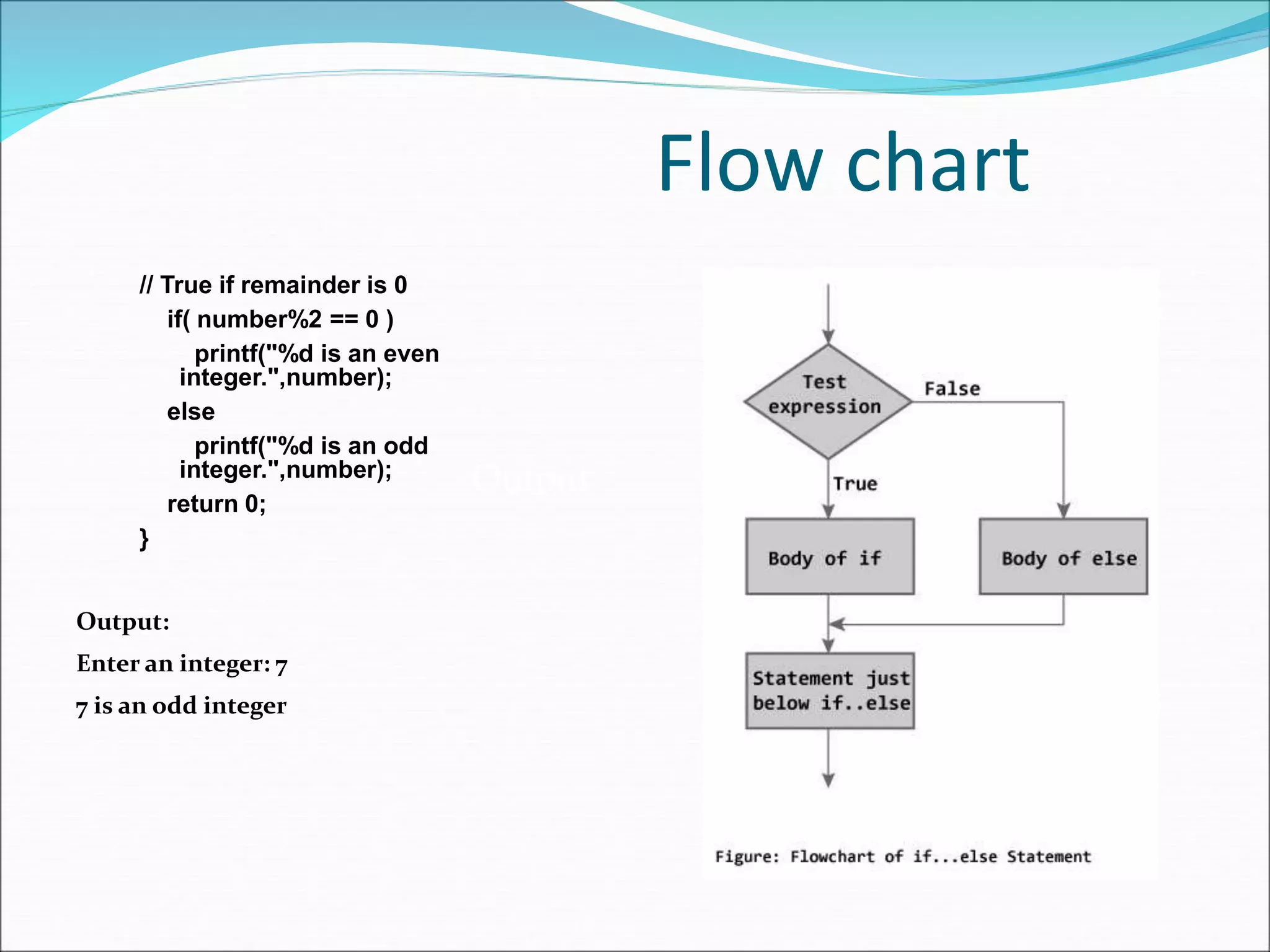

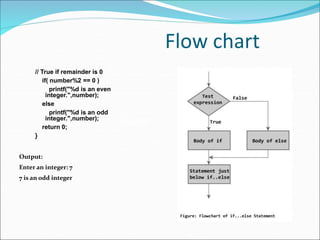

Flow chart
// True if remainder is 0
if( number%2 == 0 )
printf("%d is an even
integer.",number);
else
printf("%d is an odd
integer.",number);
return 0;
}
Output:
Enter an integer: 7
7 is an odd integer
Output

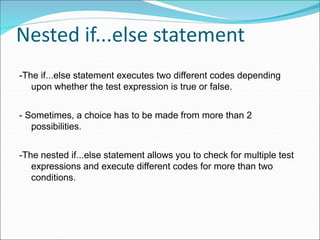

Nested if...else statement
-The if...else statement executes two different codes depending
upon whether the test expression is true or false.
- Sometimes, a choice has to be made from more than 2
possibilities.
-The nested if...else statement allows you to check for multiple test
expressions and execute different codes for more than two
conditions.

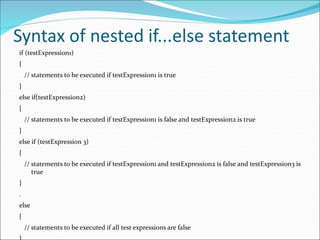

Syntax of nested if...else statement
if (testExpression1)
{
// statements to be executed if testExpression1 is true
}
else if(testExpression2)
{
// statements to be executed if testExpression1 is false and testExpression2 is true
}
else if (testExpression 3)
{
// statements to be executed if testExpression1 and testExpression2 is false and testExpression3 is
true
}
.
else
{
// statements to be executed if all test expressions are false

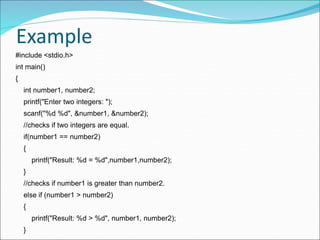

Example
#include <stdio.h>
int main()
{
int number1, number2;
printf("Enter two integers: ");
scanf("%d %d", &number1, &number2);
//checks if two integers are equal.
if(number1 == number2)
{
printf("Result: %d = %d",number1,number2);
}
//checks if number1 is greater than number2.
else if (number1 > number2)
{
printf("Result: %d > %d", number1, number2);
}

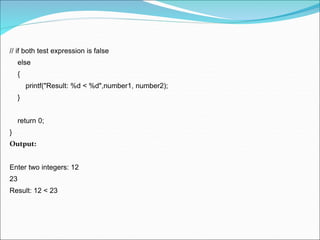

// if both test expression is false
else
{
printf("Result: %d < %d",number1, number2);
}
return 0;
}
Output:
Enter two integers: 12
23
Result: 12 < 23

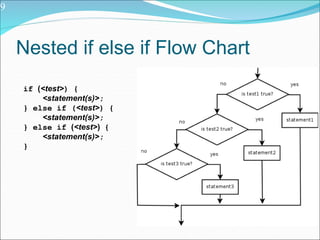

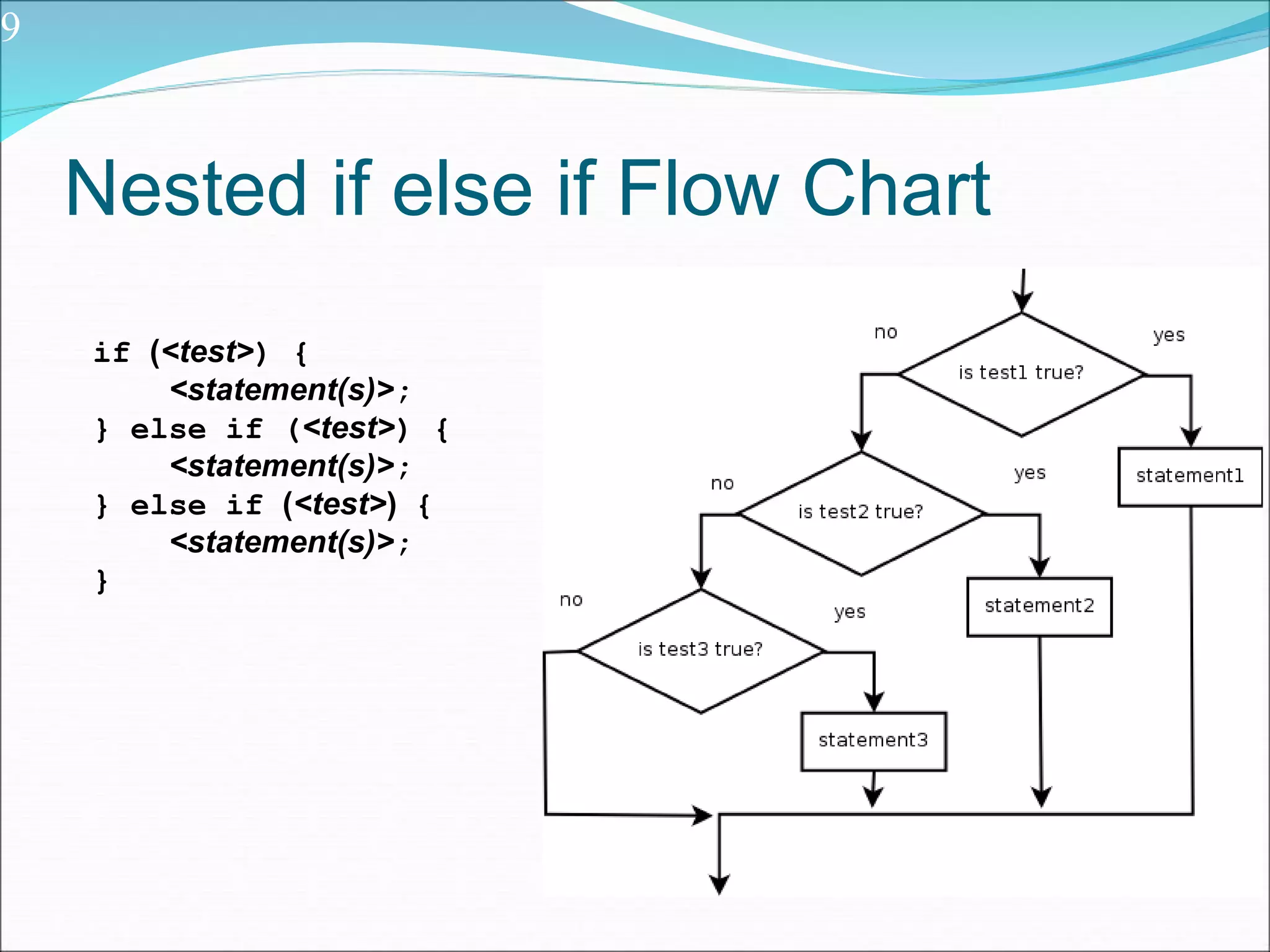

Nested if else if Flow Chart
if (<test>) {
<statement(s)>;
} else if (<test>) {
<statement(s)>;
} else if (<test>) {
<statement(s)>;
}
9

The else if ladder
if ( test condition-1 )
statement-1
else if ( test condition-2 )
statement-2;
else if (condition-3)
statement-3;
else if ( condition-n)
statement-n;
else
default-statement;
statement-x;
10

The else if ladder
falsetrue
true false
false
false
test
condition1
statement-nn default
statement
statement-1
statement-2
true
true
Entry
statement-3
statement-x
test
condition1
test
condition3
test
condition-n
11

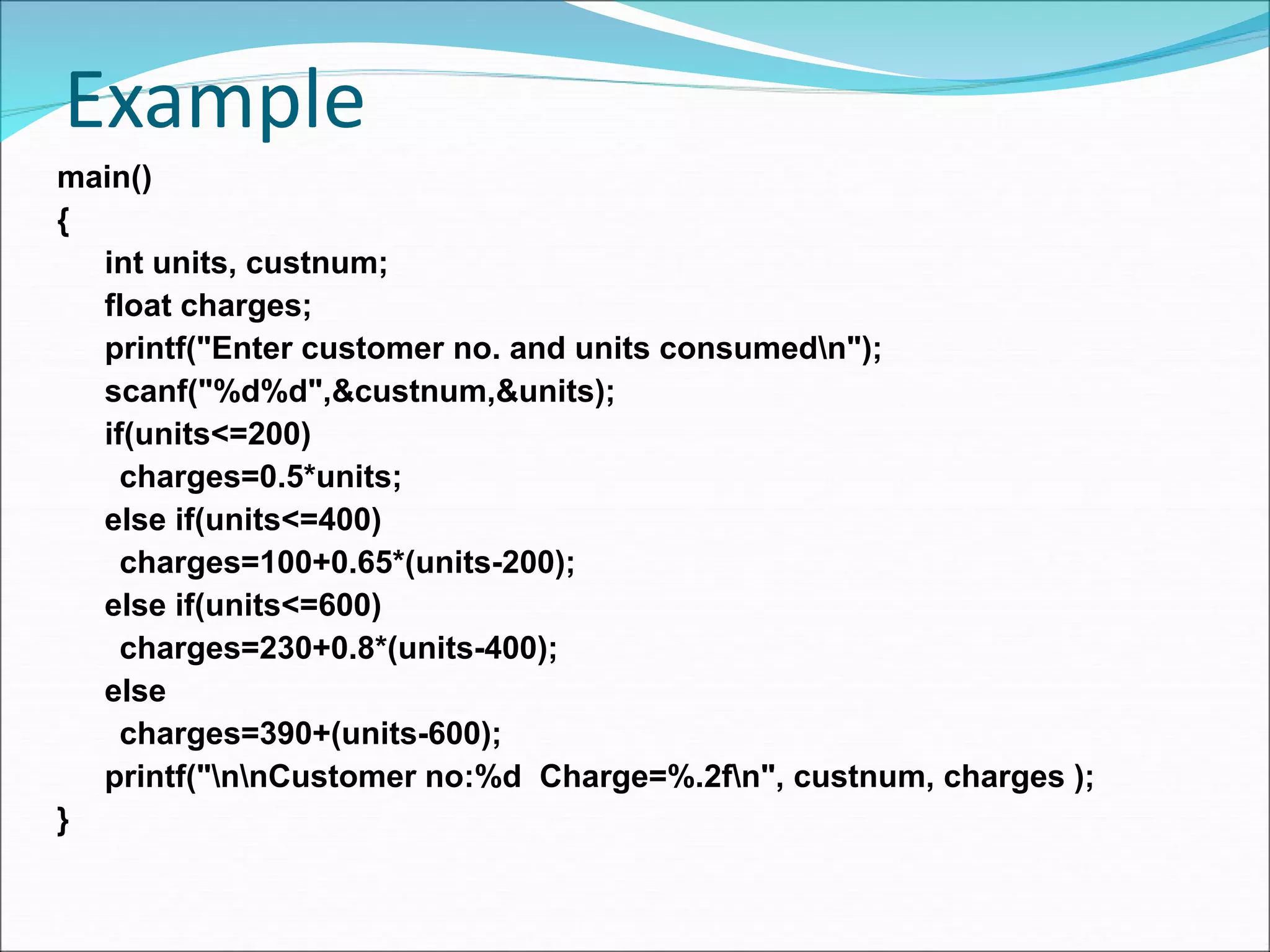

Example
main()
{
int units, custnum;
float charges;
printf("Enter customer no. and units consumedn");
scanf("%d%d",&custnum,&units);
if(units<=200)
charges=0.5*units;
else if(units<=400)
charges=100+0.65*(units-200);
else if(units<=600)
charges=230+0.8*(units-400);
else
charges=390+(units-600);
printf("nnCustomer no:%d Charge=%.2fn", custnum, charges );
}
