• 1.
  Network Analytics : IntrusionDetection using Machine Learning
• 2.

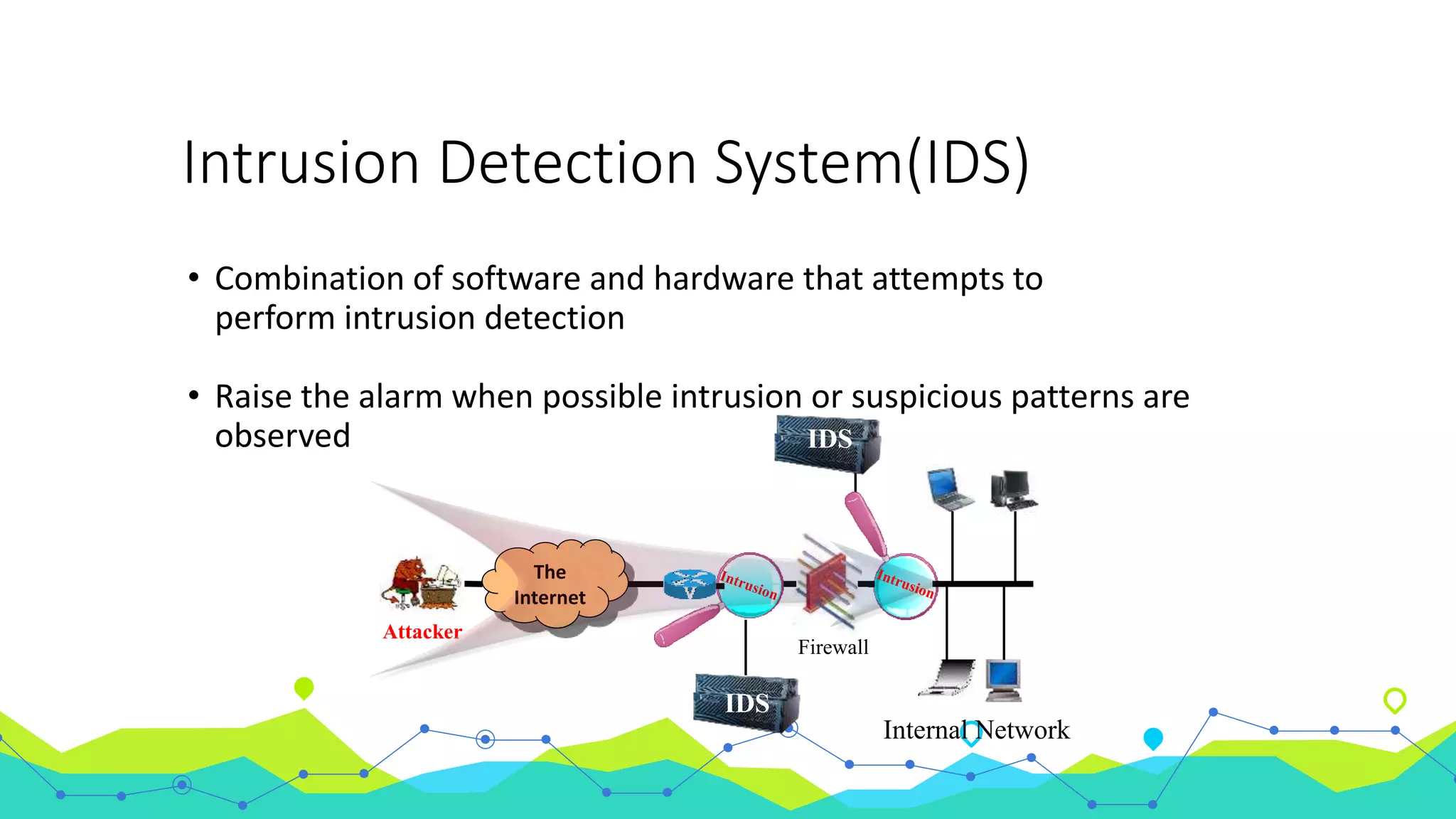

  Intrusion Detection System(IDS) •Combination of software and hardware that attempts to perform intrusion detection • Raise the alarm when possible intrusion or suspicious patterns are observed The Internet Attacker Internal Network Firewall IDS IDS
• 3.

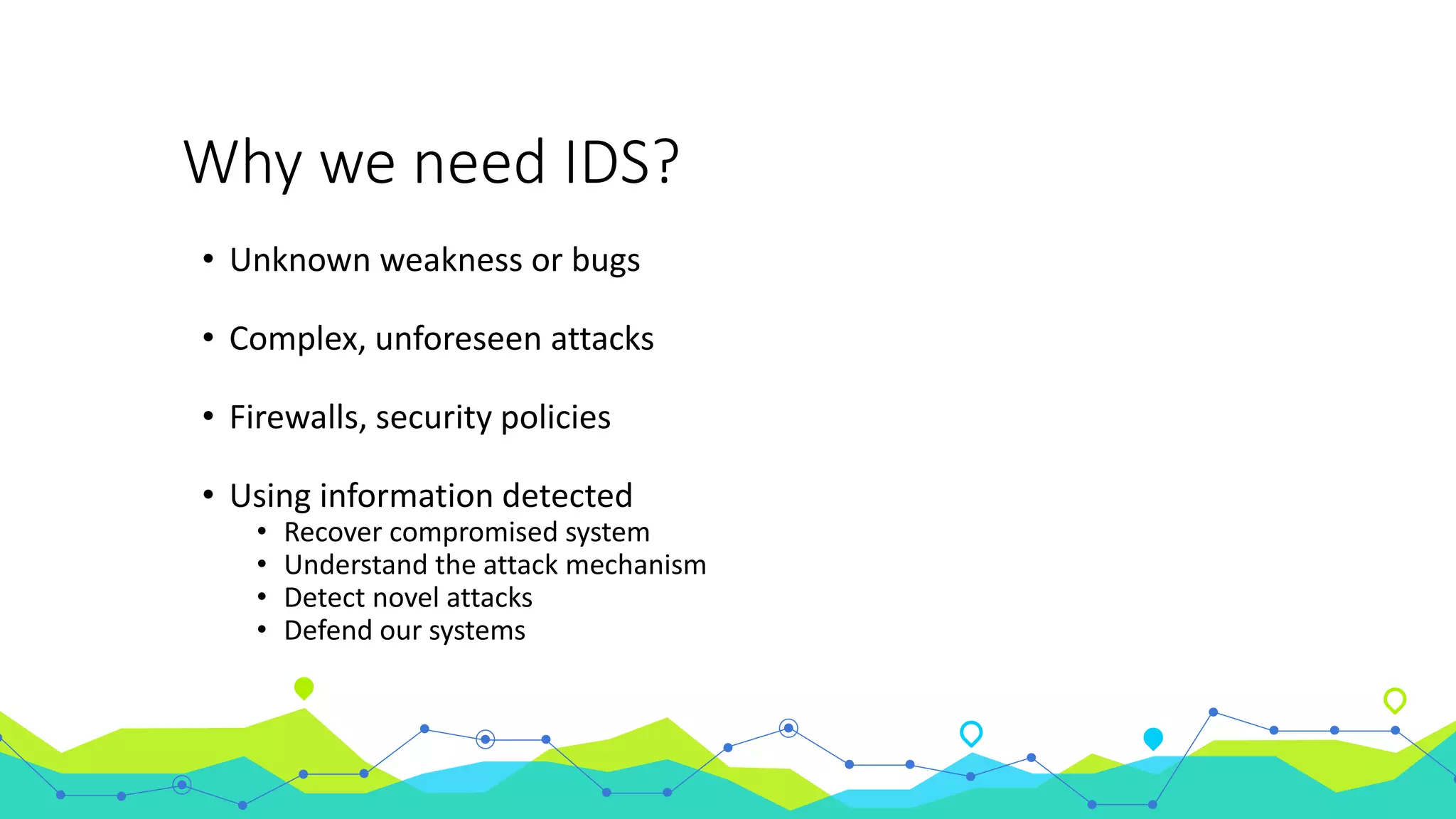

  Why we needIDS? • Unknown weakness or bugs • Complex, unforeseen attacks • Firewalls, security policies • Using information detected • Recover compromised system • Understand the attack mechanism • Detect novel attacks • Defend our systems
• 4.

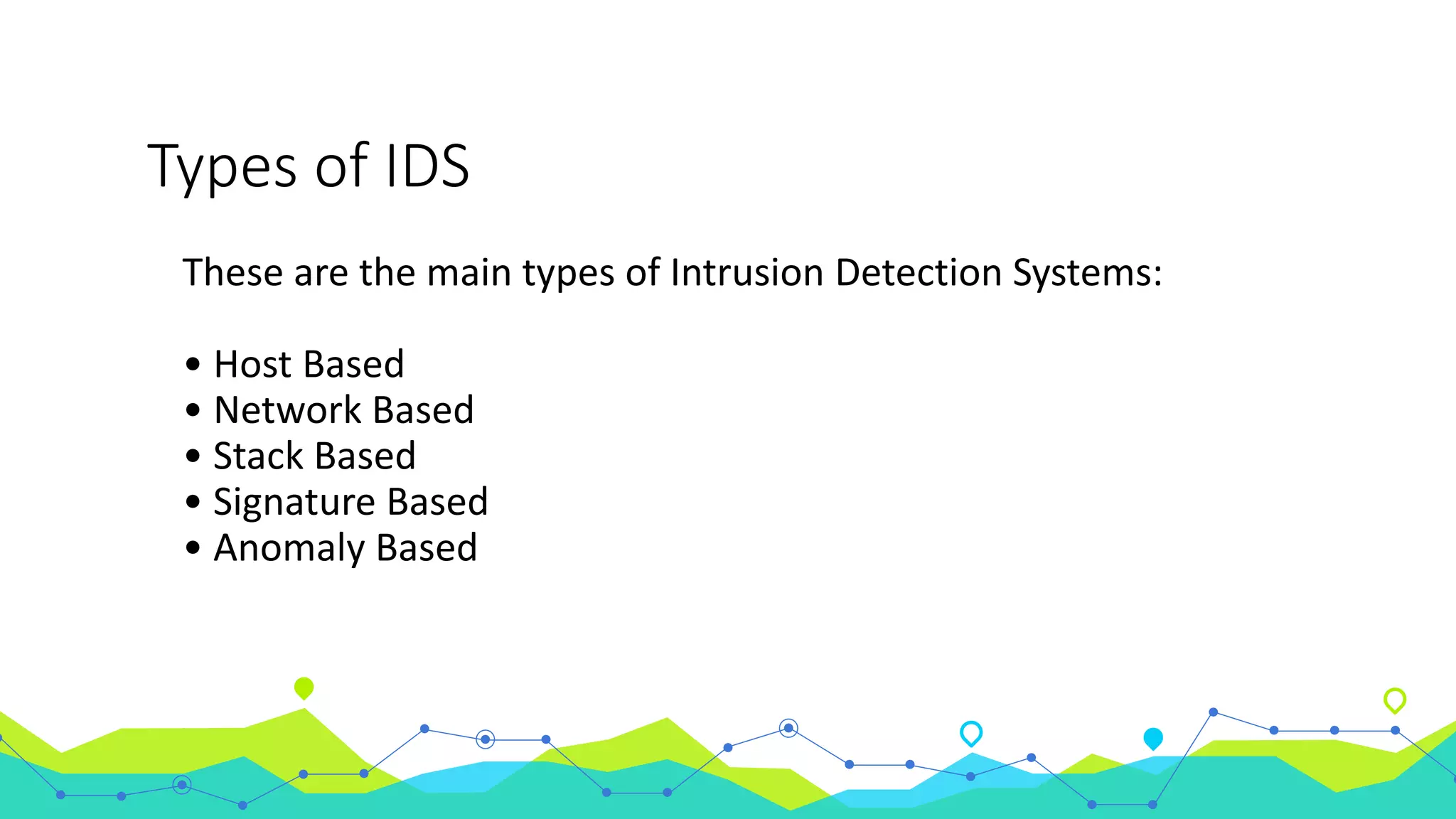

  Types of IDS Theseare the main types of Intrusion Detection Systems: • Host Based • Network Based • Stack Based • Signature Based • Anomaly Based
• 5.

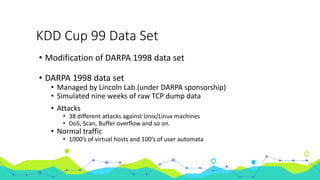

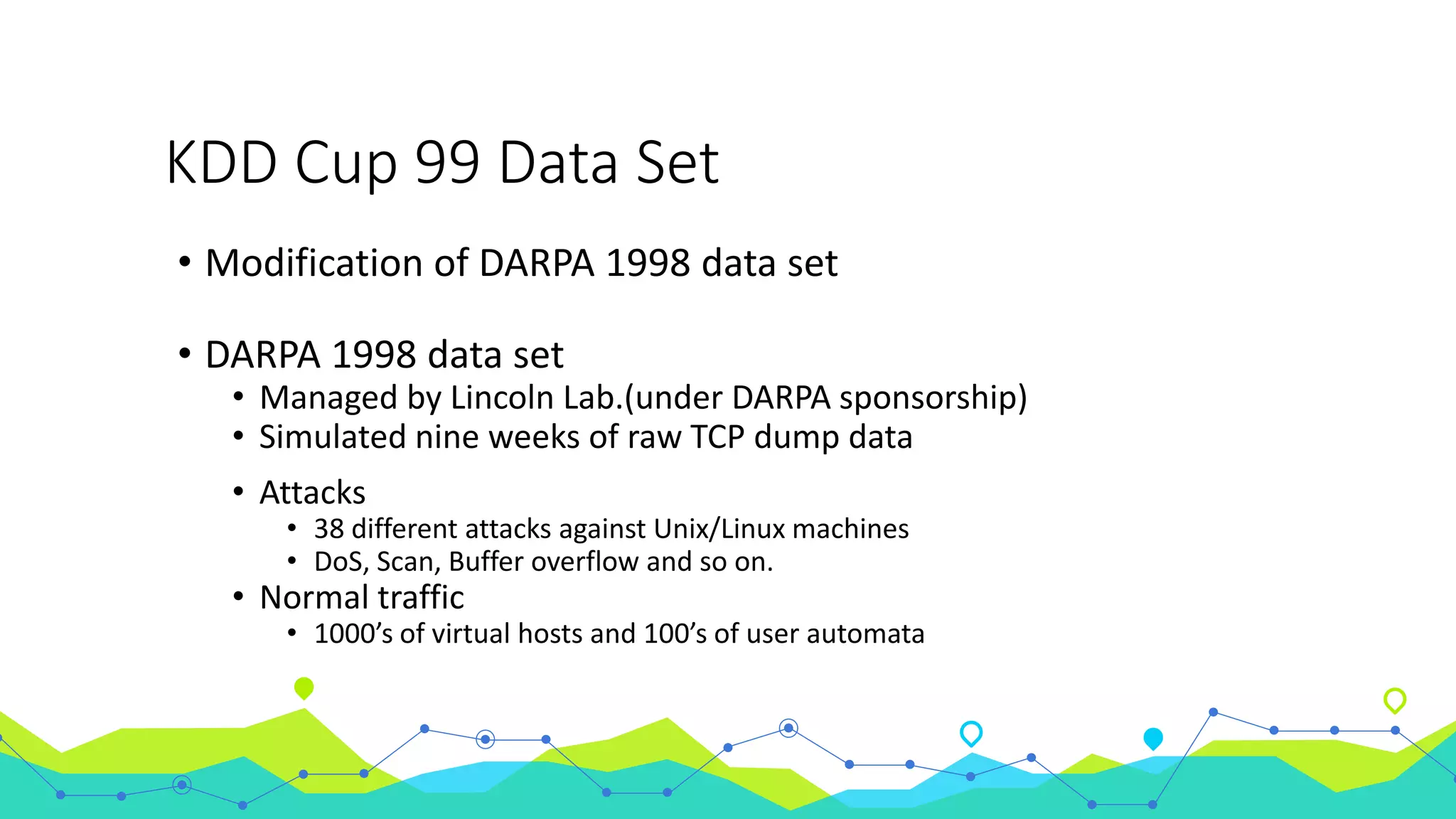

  KDD Cup 99Data Set • Modification of DARPA 1998 data set • DARPA 1998 data set • Managed by Lincoln Lab.(under DARPA sponsorship) • Simulated nine weeks of raw TCP dump data • Attacks • 38 different attacks against Unix/Linux machines • DoS, Scan, Buffer overflow and so on. • Normal traffic • 1000’s of virtual hosts and 100’s of user automata

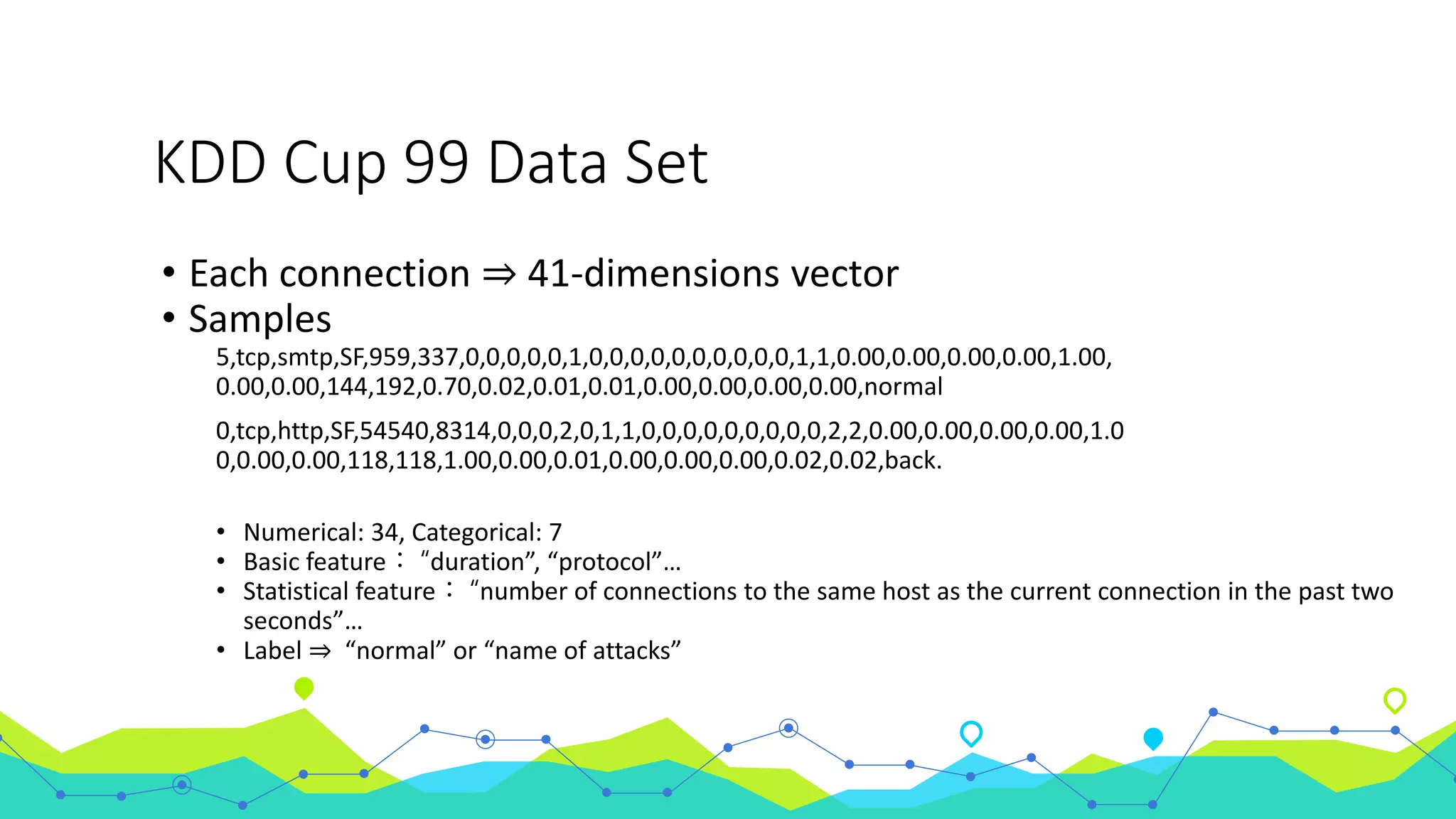

• 6.

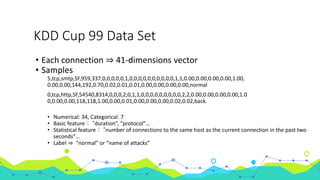

  KDD Cup 99Data Set • Each connection ⇒ 41-dimensions vector • Samples 5,tcp,smtp,SF,959,337,0,0,0,0,0,1,0,0,0,0,0,0,0,0,0,0,1,1,0.00,0.00,0.00,0.00,1.00, 0.00,0.00,144,192,0.70,0.02,0.01,0.01,0.00,0.00,0.00,0.00,normal 0,tcp,http,SF,54540,8314,0,0,0,2,0,1,1,0,0,0,0,0,0,0,0,0,2,2,0.00,0.00,0.00,0.00,1.0 0,0.00,0.00,118,118,1.00,0.00,0.01,0.00,0.00,0.00,0.02,0.02,back. • Numerical: 34, Categorical: 7 • Basic feature： “duration”, “protocol”… • Statistical feature： “number of connections to the same host as the current connection in the past two seconds”… • Label ⇒ “normal” or “name of attacks”
• 7.

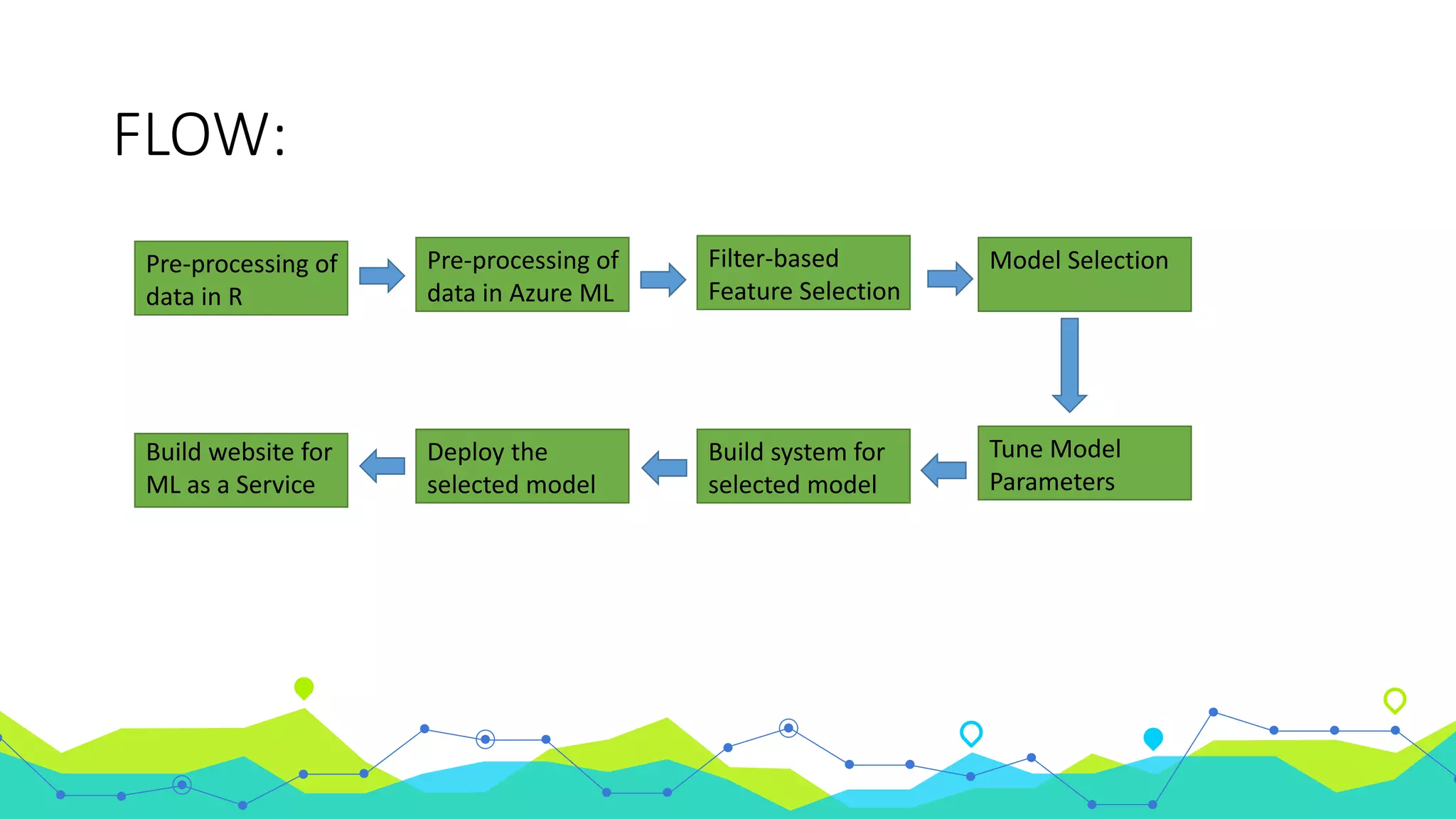

  FLOW: Pre-processing of data inR Pre-processing of data in Azure ML Filter-based Feature Selection Model Selection Tune Model Parameters Build system for selected model Deploy the selected model Build website for ML as a Service

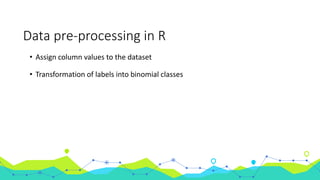

• 8.

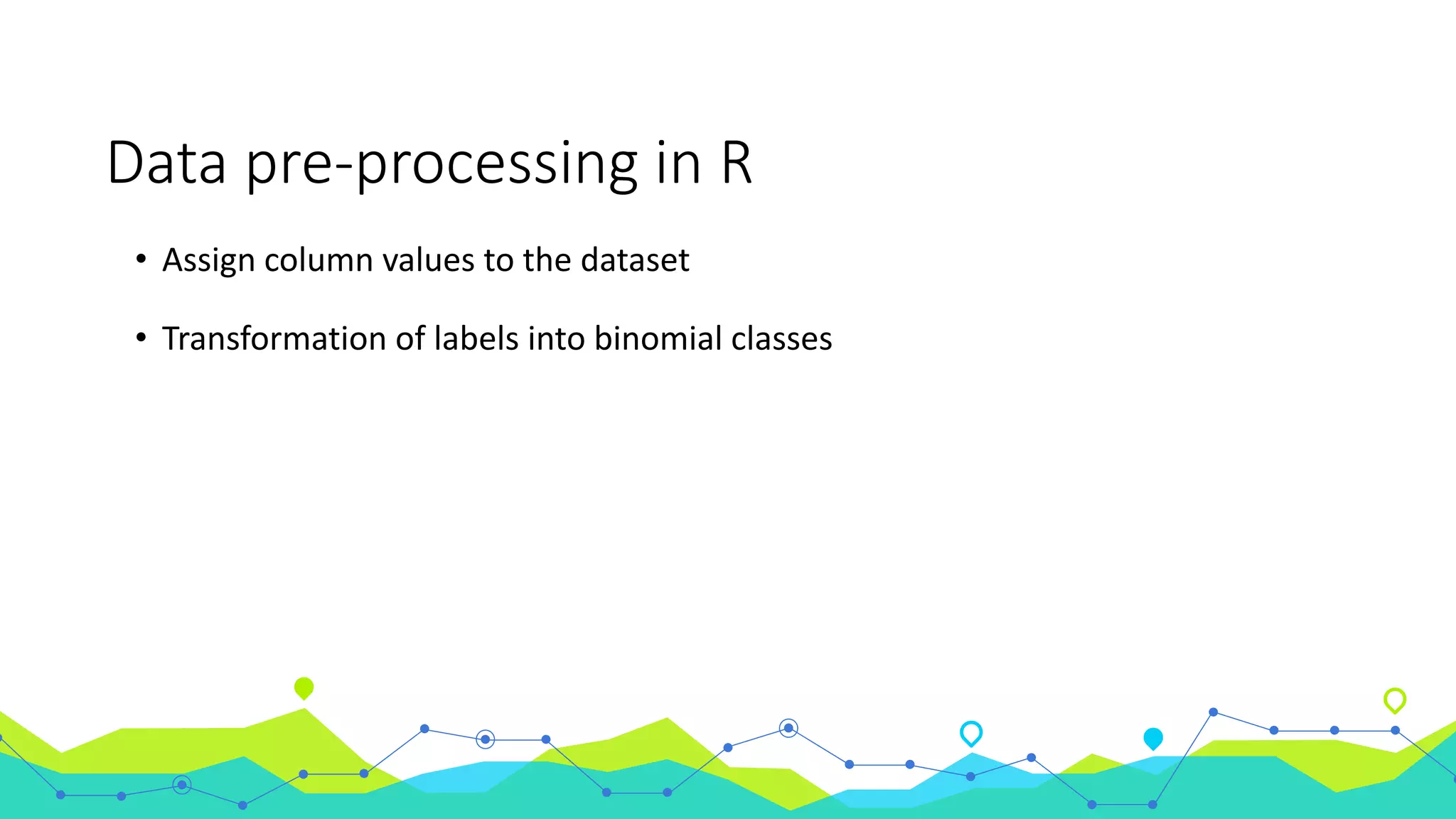

  Data pre-processing inR • Assign column values to the dataset • Transformation of labels into binomial classes
• 9.

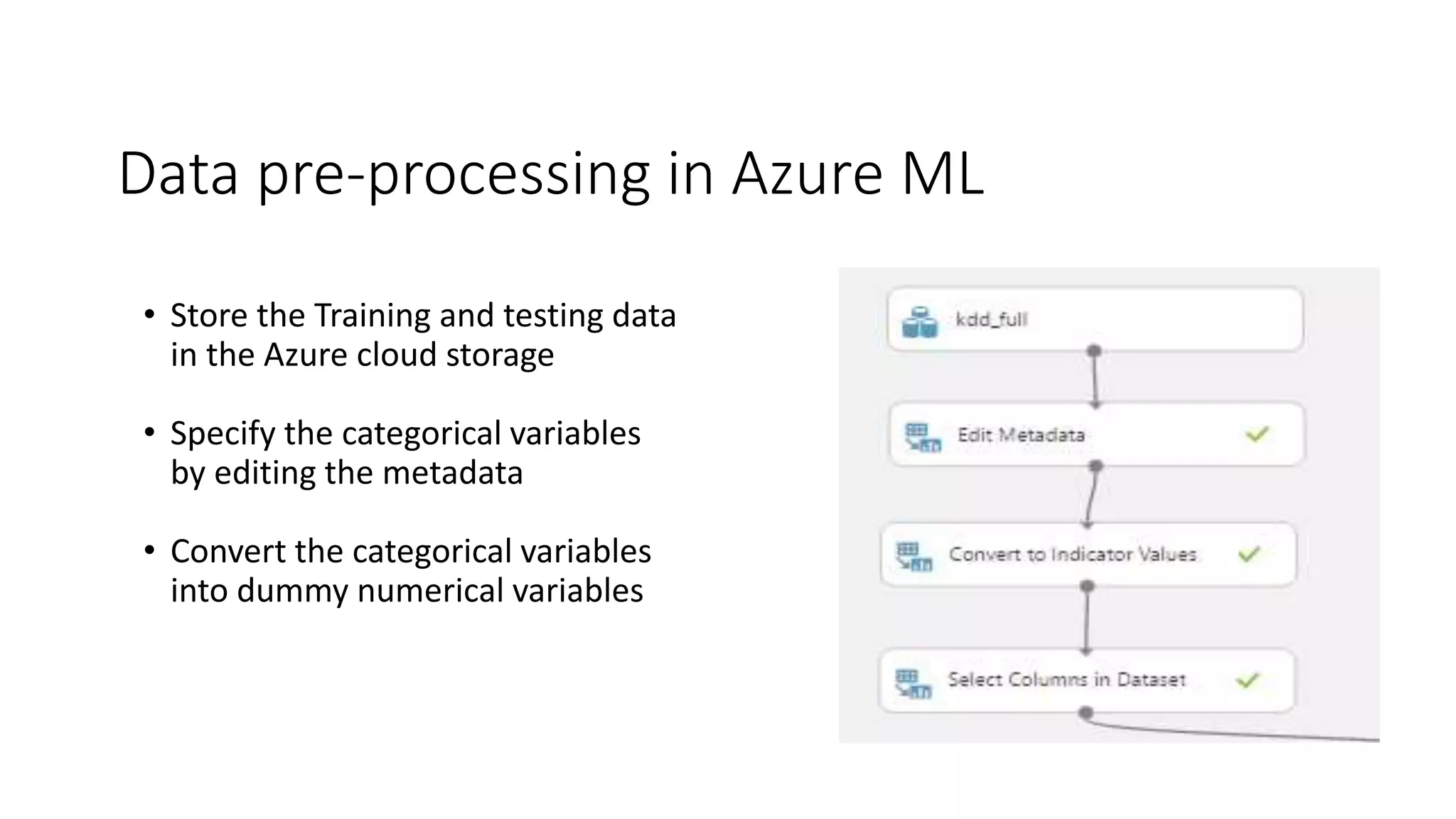

  • Store theTraining and testing data in the Azure cloud storage • Specify the categorical variables by editing the metadata • Convert the categorical variables into dummy numerical variables Data pre-processing in Azure ML
• 10.

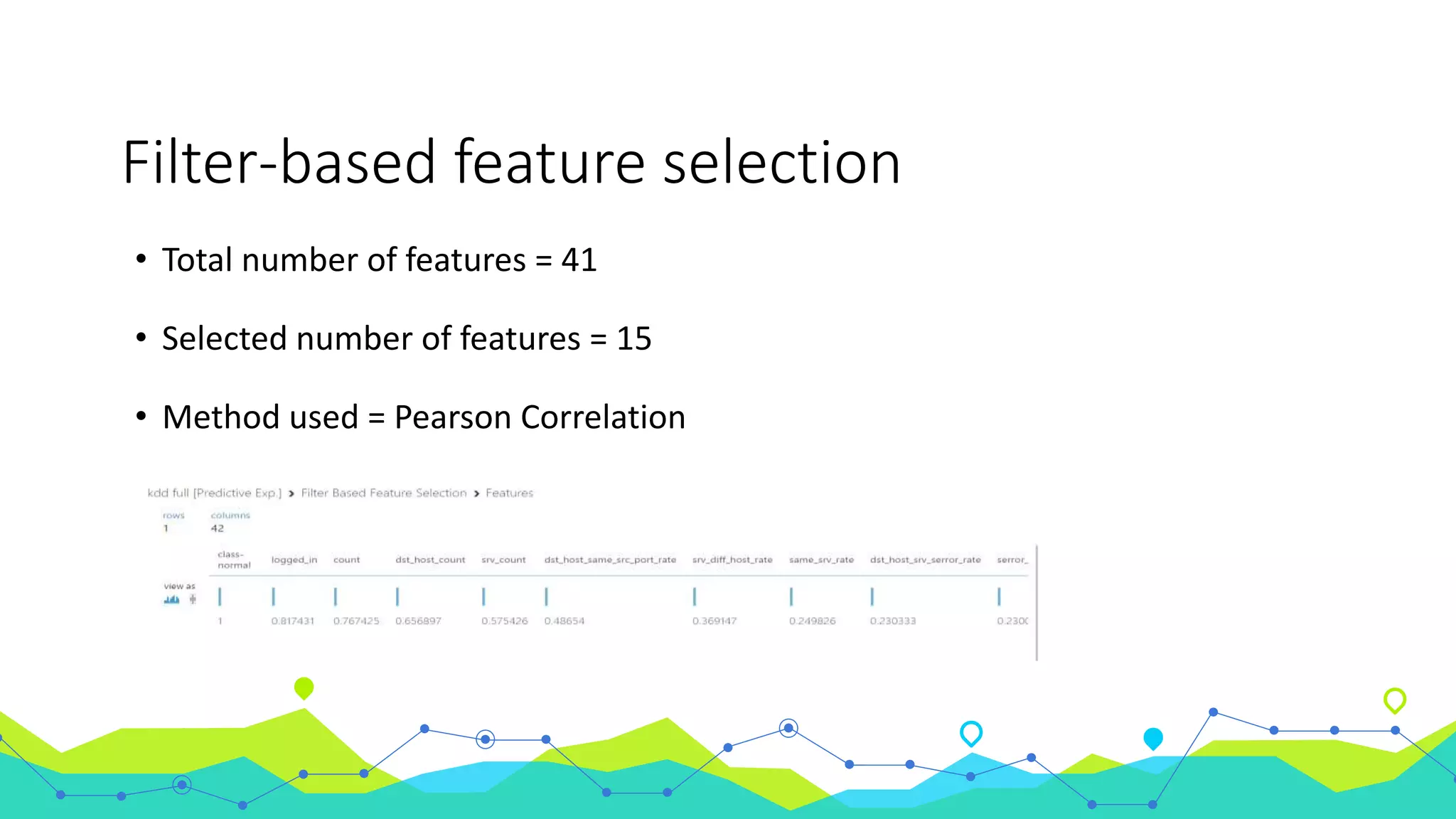

  Filter-based feature selection •Total number of features = 41 • Selected number of features = 15 • Method used = Pearson Correlation
• 11.

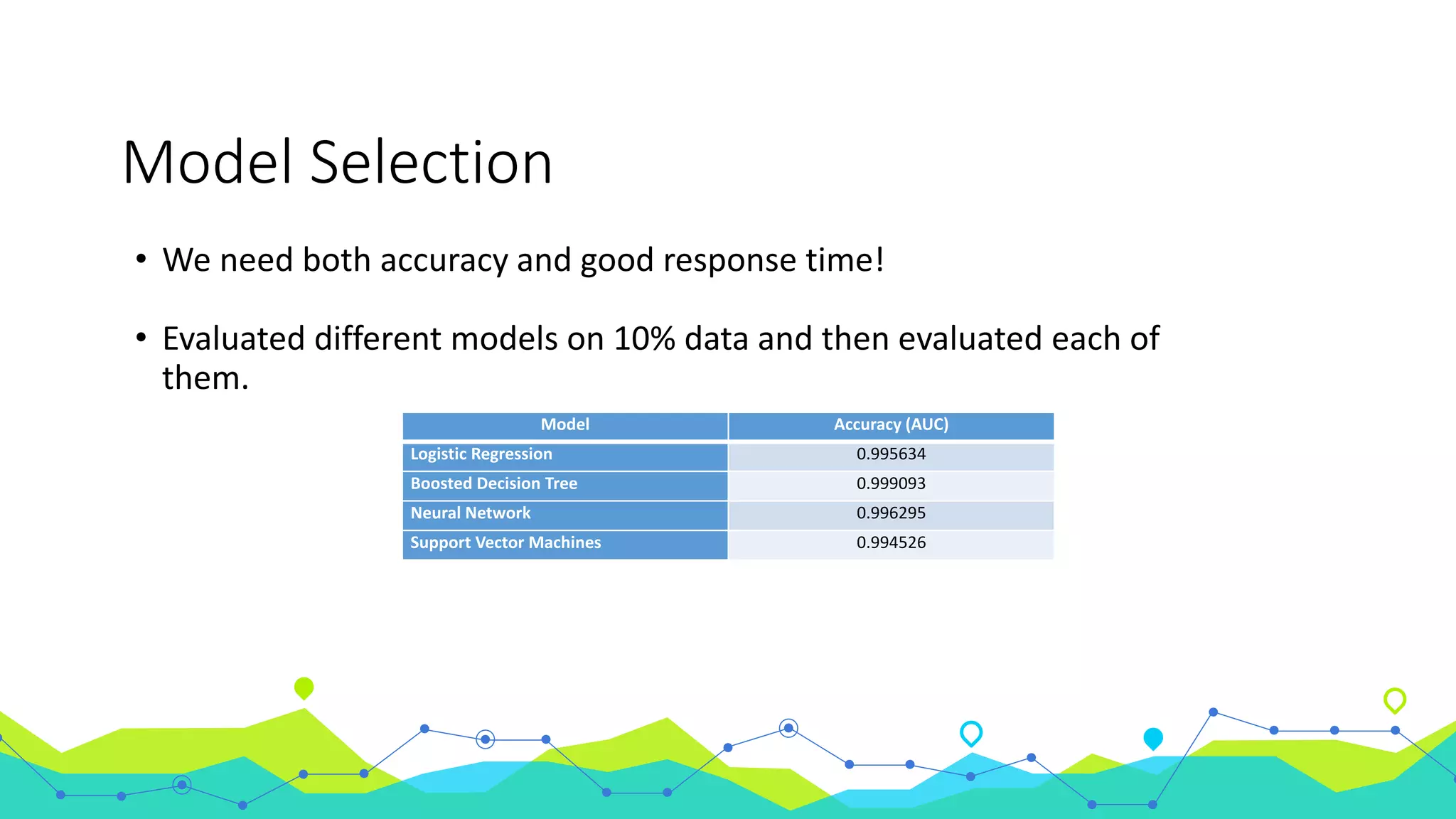

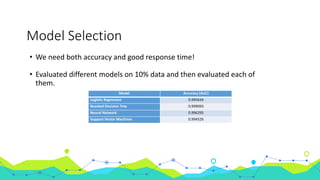

  Model Selection • Weneed both accuracy and good response time! • Evaluated different models on 10% data and then evaluated each of them. Model Accuracy (AUC) Logistic Regression 0.995634 Boosted Decision Tree 0.999093 Neural Network 0.996295 Support Vector Machines 0.994526
• 12.

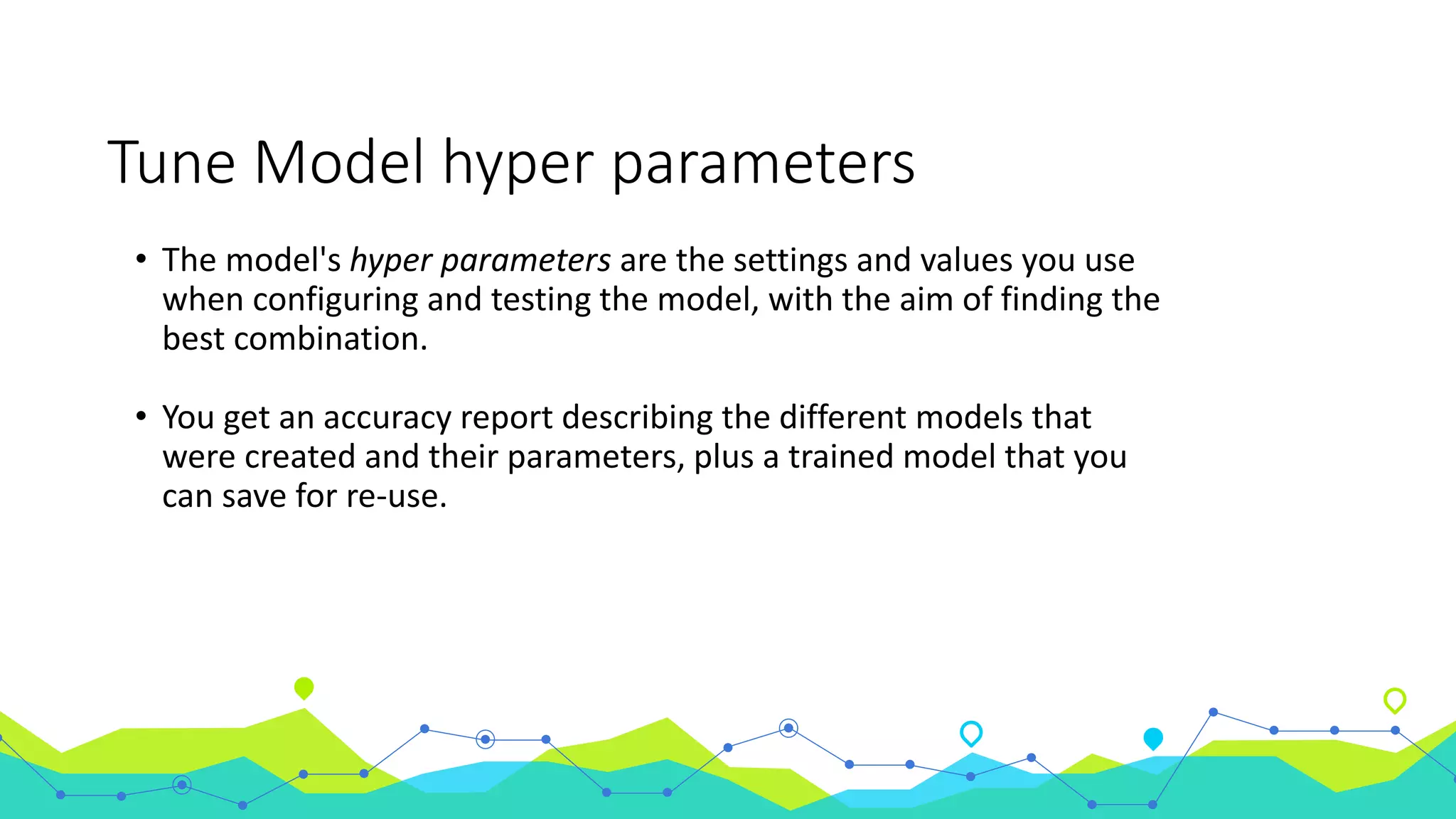

  Tune Model hyperparameters • The model's hyper parameters are the settings and values you use when configuring and testing the model, with the aim of finding the best combination. • You get an accuracy report describing the different models that were created and their parameters, plus a trained model that you can save for re-use.

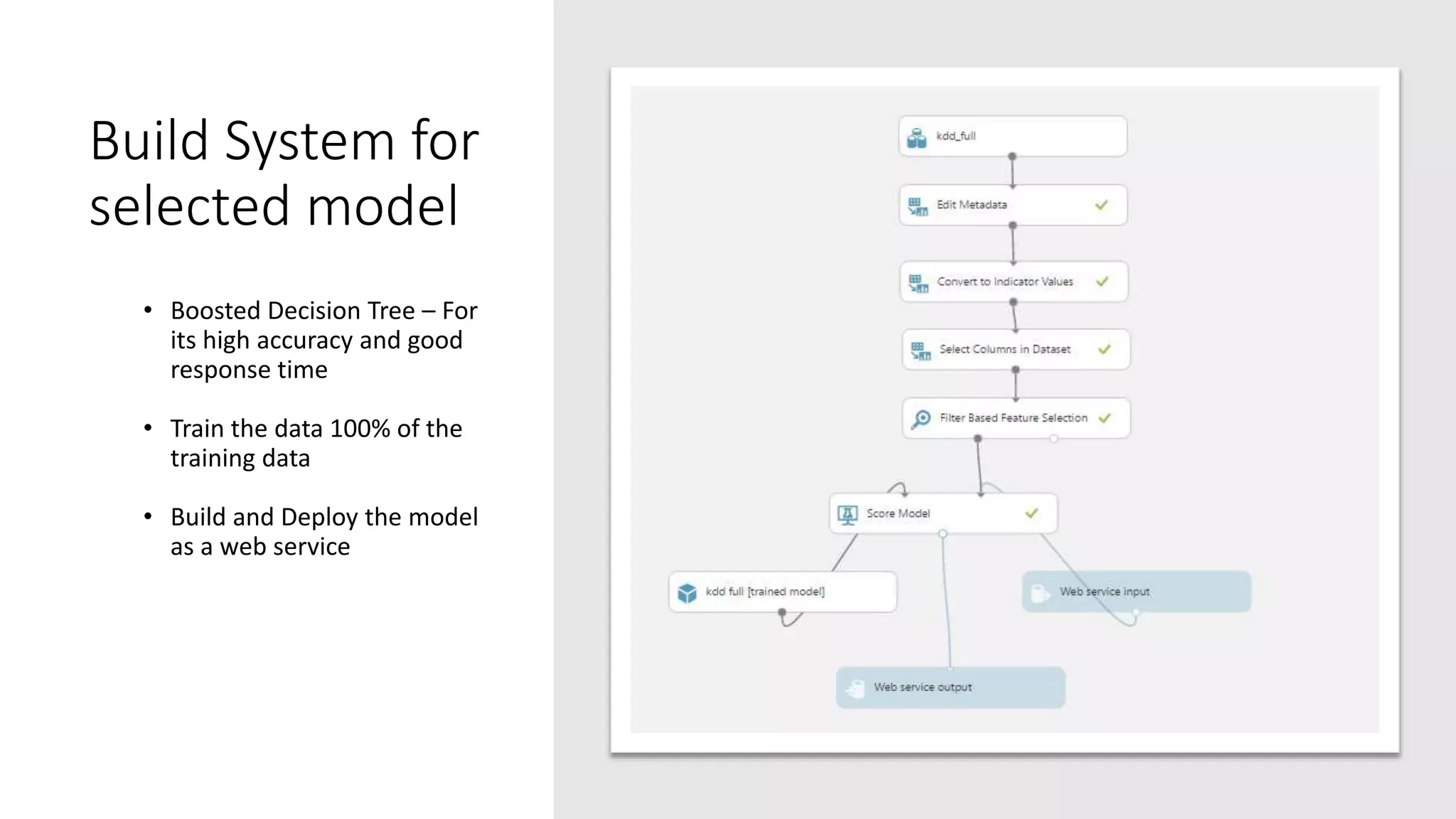

• 13.
  Build System for selectedmodel • Boosted Decision Tree – For its high accuracy and good response time • Train the data 100% of the training data • Build and Deploy the model as a web service
• 14.

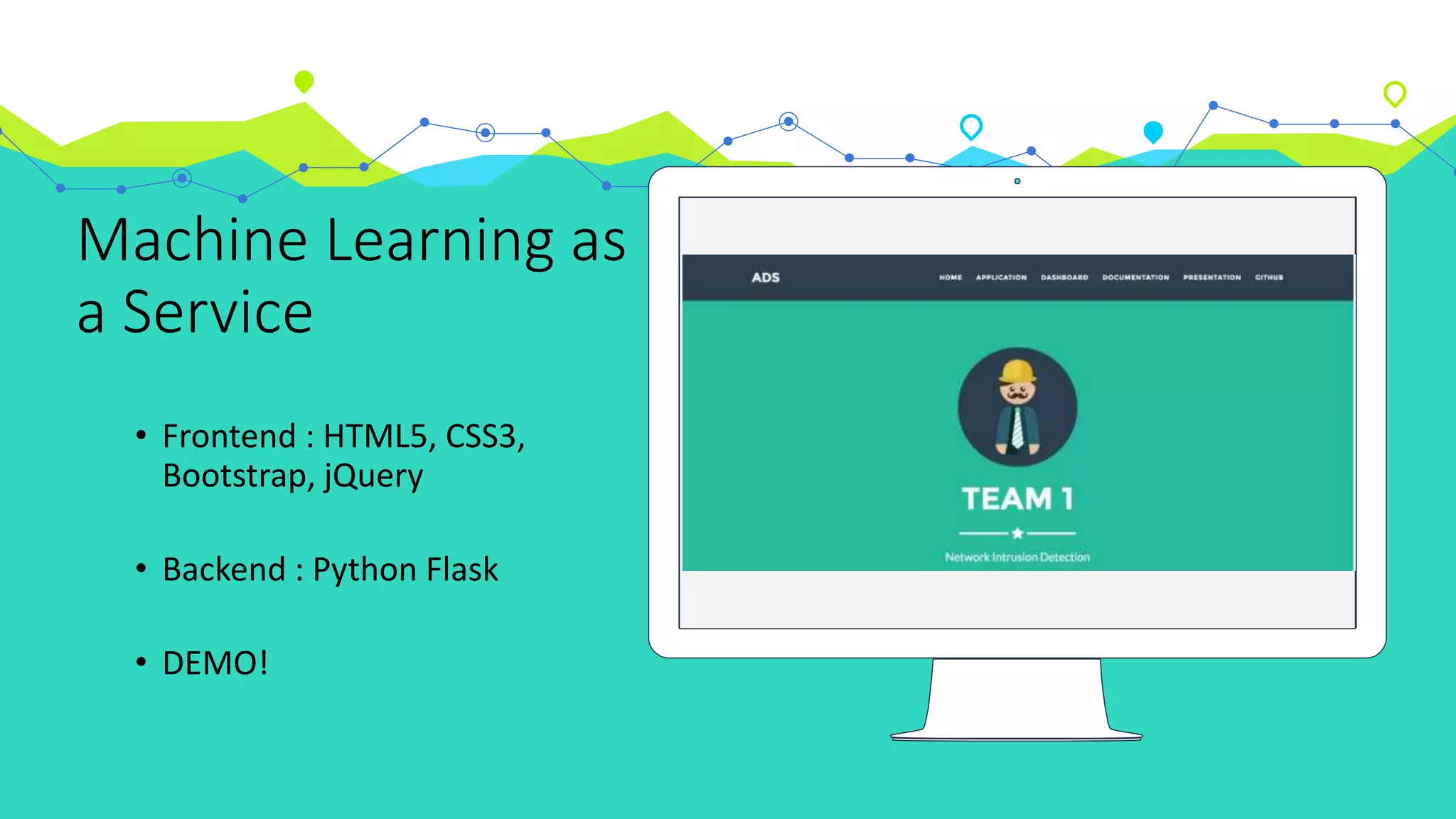

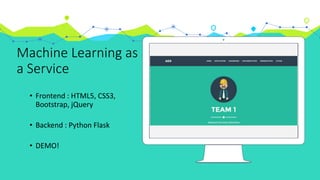

  Place your screenshothere Machine Learning as a Service • Frontend : HTML5, CSS3, Bootstrap, jQuery • Backend : Python Flask • DEMO!
• 15.
  Thank you!!
